18924 - Kettle Lakeland - Free user manual and instructions

USER MANUAL 18924 Lakeland

Modern stainless steel kettle with black handle and spout (no text or symbols visible)

Model: 18924

LAKELAND STAINLESS STEEL DOME KETTLE

Thank you for choosing the Stainless Steel Dome Kettle.

Please take a little time to read this booklet before you use your kettle, and keep it in a safe place for future reference.

The kettle has a easy view window which allows you to see the water level inside, and illuminates to show you it's heating your water.

An award winning family-owned business, here at Lakeland we still have the same values of excellent quality, value for money and exceptional customer care as we did when we first set up the company in the 1960s.

Our products are carefully selected and rigorously tested to meet our high standards, so you can be assured that any product you purchase will be easy-to-use and highly durable.

CONTENTS

Product features 3

Safety cautions....4-5

Before using the kettle for the first time....6

Instructions for use 7

Hints and tips....7

Troubleshooting 8

Care and cleaning 9-10

Recycling your electricals 11

Electrical connections....12

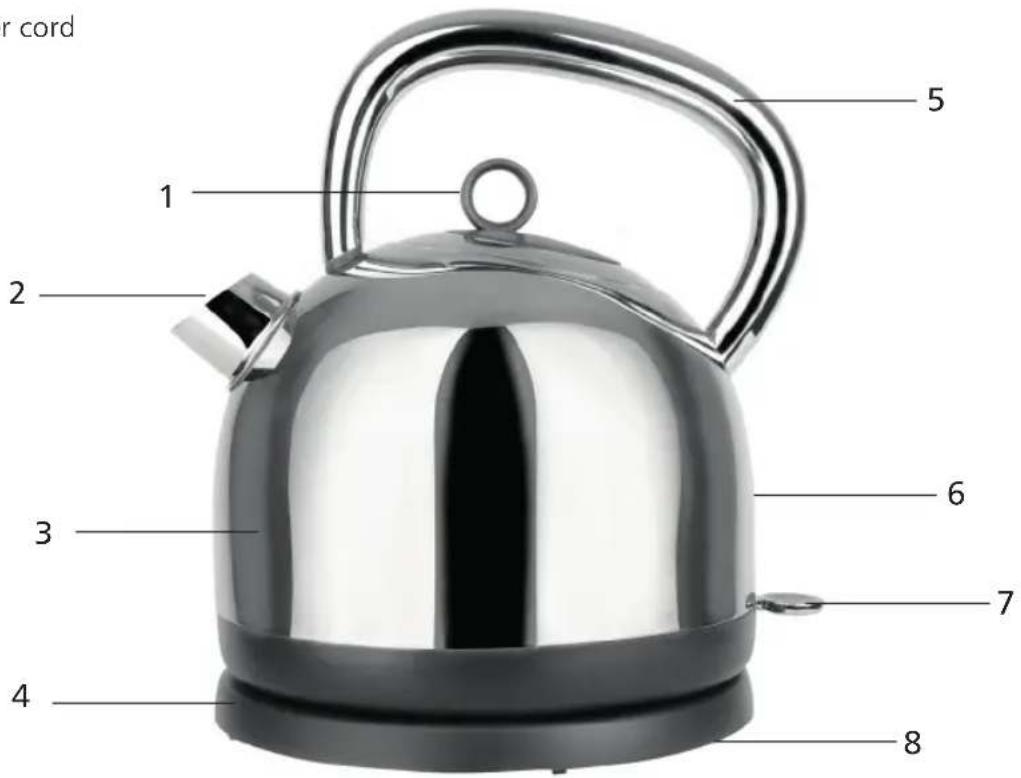

PRODUCT FEATURES

1. Lid pull
2. Spout
3. Kettle body (1.7 litre capacity)
4. Base
5. Handle
6. Water level indicator
7. ON/OFF switch
8. Power cord

r cord 1 2 3 4 5 6 7 8

SAFETY CAUTIONS

Carefully read all the instructions before using the appliance and keep in a safe place for future reference. Always follow these safety cautions when using the appliance to avoid personal injury or damage to the appliance. This appliance should be used only as described in this instruction book.

• Make sure your electricity supply matches the voltage shown on the appliance.
• Ensure all packaging materials and any promotional labels or stickers are removed from the appliance before the first use.
• Always inspect the appliance before use for noticeable signs of damage. Do not use if damaged or has been dropped. In the event of damage, or if the appliance develops a fault contact the Lakeland customer care team on 015394 88100.
• Do not use this appliance if the lead is damaged. If the lead is damaged it must be replaced with a special lead. Contact the Lakeland customer care team on 015394 88100.
• Always use the appliance on a dry, level, heat resistant surface. Do not use kettle in a bathroom, near water or outdoors. Do not place any part near a source of heat.
• Unplug from the mains when not in use and before cleaning. Allow to cool before cleaning the appliance. To disconnect, turn the socket to "off" and remove the plug from the mains socket.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should always be supervised to ensure they do not play with this product. This kettle must only be used by or under the supervision of a responsible adult. Use and store the kettle out of reach of children.
• To protect against fire, electric shock or personal injury, do not immerse cord, plug or base unit in water or other liquids.
• Do not leave the lead hanging over the edge of a kitchen table or worktop. Avoid contact between the lead and hot surfaces. Wind excess lead underneath the base.
• Do not use any accessories or attachments with this appliance other than those recommended by Lakeland.
• For indoor use only.
• For domestic use only.

• This appliance should be used for heating water as described within the instructions for use that accompany it.

• Always ensure that your hands are dry before removing the plug from the mains socket. Never pull the plug out of the mains socket by its lead.

• To avoid injury or possible fire, do not cover the appliance when in use.
• Do not connect this appliance to an external timer or remote control system.
• An earthed extension cable may be used with care. The electrical rating of the cable should be at least as great as the appliance. Do not allow the cable to hang over the edge of the worktop or touch any hot surfaces.
• This appliance complies with the basic requirements of Directives 04/108/EC (Electromagnetic Compatibility) and 06/95/EC (Safety of Domestic Electrical Appliances).
• WARNING: A cut off plug inserted into a 13amp socket is a serious safety (shock) hazard. Ensure the cut off plug is disposed of safely.
• CAUTION: The plastic bags used to wrap this appliance or the packaging may be dangerous. To avoid risk of suffocation, keep these bags out of reach of babies and children. These bags are not toys.
• The kettle surface may be hot when in use or just used. Use the lid pull and handle to remove the lid.
• Water will remain hot for a considerable time after boiling and is a scalding hazard.
• Ensure the lid is fully closed before switching on, otherwise the kettle may not switch off. Don't open the lid when water is heating. Scalding may occur if the lid is lifted.
• Ensure kettle is securely on base before switching on.
• Keep hands away from the spout when water is heating, steam is hot.
• The kettle must be only used with the base supplied by the manufacturer. Do not use the base with any other appliances.
• The kettle must have at least 2 cups of water in it before it is switched on.
• Do not fill beyond the MAX level, or the kettle may spit boiling water.
• Do not move the kettle while it is switched on.
• Remove the kettle from the stand to fill or pour water.
• Pour slowly and do not over-tilt the kettle.

BEFORE USING THE KETTLE FOR THE FIRST TIME

Remove all the packaging from the kettle and its power base.

Before first use, fill the kettle to MAX, boil, discard the water, and then rinse the inside of the kettle. Do this three times, to clean thoroughly.

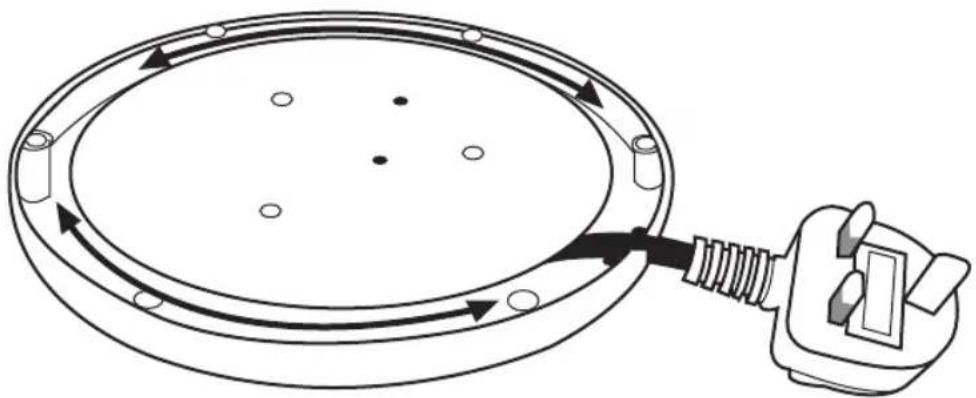

Position the kettle as close to the wall socket as possible. Wind any excess cord around the cord storage area underneath the power base. Guide the cord length you require through the gap in the base.

Diagram of a mechanical device with rotating components and directional arrows, no text or symbols present

INSTRUCTIONS FOR USE

1. Plug the base into the socket and switch on. Take the kettle off the base, open the lid and fill the kettle through the lid opening, not the spout.
2. Do not fill the kettle beyond the maximum level. Do not use the kettle without at least 2 cups of water in it.
3. Press the ON/OFF switch down, the indicator light will show your water is heating.
4. When the kettle has boiled, the switch will click up and the light will switch off.
5. If the kettle is lifted from the base while operating, it will automatically switch off.

SAFETY CUT-OUT: The heating element in your kettle is protected against damage by a safety cut-out device which will automatically switch the kettle off if it is accidentally switched on and allowed to boil without any water. If this occurs, disconnect the kettle from the mains supply and allow the kettle to cool before filling with cold water. The kettle may then be operated normally.

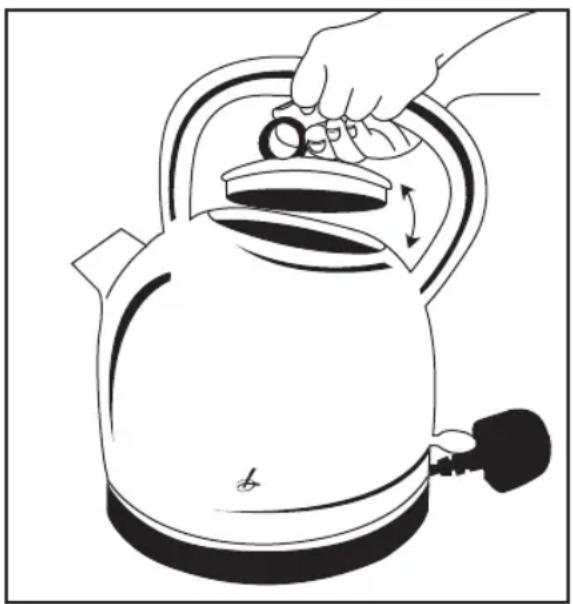

OPENING THE LID

• Remove the kettle from the power base.
• Holding the handle of the kettle firmly with one hand, hold the pull on the lid with the other, pull up and towards the handle to open.

WARNING: The kettle will be hot to touch when it is heating and for some time after it is has boiled. Avoid touching it and use the handle and lid pull to open. Steam will escape as soon as the lid is opened.

Line drawing of a hand holding a kettle with a handle, showing a rotating knob (no text or symbols)

HINTS AND TIPS

• Only use this kettle to heat water.
• Only heat the amount of water you need to use.
• Clean and descale regularly even in soft water areas.

TROUBLESHOOTING

Following are some common problems that can occur when using the kettle. Please review the problems, their possible cause and any corrective action that should be taken.

Problem Possible cause Solution
The kettle won’t light up when switched on.	Not switched on at plug or not securely on the base.	Check the power is switched on and that kettle is on the base properly.
The kettle does not switch off. The lid	is not securely closed. Ensure the lid is	properly closed.
The water is cloudy. Some drinking water has limescale which goes cloudy when being boiled.	This is perfectly normal.
Drinks made with water from the kettle leave a scum in the cups.	The kettle may need descaling. Follow the descaling instructions in this manual.
The kettle spits water when it boils. The kettle has been overfilled. Make sure you only fill with water up to the MAX level.

CARE AND CLEANING

• Unplug the kettle, take it off the base and allow it to cool completely before cleaning and storing.
  • Periodically check all parts before use.
• Never immerse the kettle, base or cable in water or any other liquid.
• Wipe the kettle, inside and out, with a damp soft cloth. You may use a little mild detergent, but if you do, rinse well with clean water to avoid tainting when kettle next used.
• Don't use harsh or abrasive, or alkaline cleaning agents or solvents.
• Ensure that connectors and sockets are kept dry.

WATER FILTER

The internal filter inside the spout can be pulled out to allow it to be cleaned.

WARNING: Do not operate the kettle without the water filter.

• Make sure hands are clean.
- Remove the kettle from the power base and ensure it is cold.
- Open the lid. Hold the top of the filter, pull up and out of the kettle. Rinse under running water while brushing it with a soft brush. Rinse the kettle out with fresh water.
- Insert the filter into the slots inside the spout and push it back into place.

Line drawing of a hand opening a kettlebell with a handle (no text or symbols)

DESCALING

• Limescale may be white, coloured, even rusty-looking, but it's normally visible on the walls and floor of the kettle. Phosphate scale isn't generally visible, but it's there, even in soft water areas.
• All scale causes overheating, and reduces the kettle's life.
• Even with soft water, descale regularly, to help keep your kettle in working order. Use a descaler suitable for plastic products (all kettles have plastic parts).
• When descaling has finished, rinse and boil the kettle several times, discard the water.
• Store the kettle with the power cable loosely coiled or stored in the base. Never wrap it tightly around the base or kettle.

MINIMISING SCALE

• Empty the kettle after each use; do not allow water to stand in the kettle overnight.
• Use filtered water instead of tap water.
• Descale the kettle regularly, at least once a month. In areas of very hard water descaling you may need to do this more often.

RECYCLING YOUR ELECTRICALS

Along with many other high street retailers, Lakeland has joined a scheme whereby customers can take their unwanted electricals to recycling points set up around the country.

Visit www.recycle-more.co.uk to find your nearest recycling point.

ELECTRICAL CONNECTIONS

THIS APPLIANCE MUST BE EARTHED

This appliance is fitted with a fused three-pin plug to BS1363 which is suitable for use in all homes fitted with sockets to current specifications. If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid an electric shock, do not insert the discarded plug into a socket.

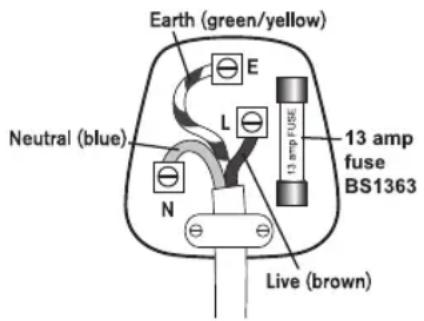

FITTING A NEW PLUG

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown here. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

Earth (green/yellow) Neutral (blue) N E L 13 amp FUSE 13 amp fuse BS1363 Live (brown)

Connect BLUE to Neutral (N)

Connect GREEN & YELLOW to Earth (E)

Connect BROWN to Live (L)

13 amp fuse to be used

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured green and yellow MUST be connected to the terminal which is marked with the letter E (Earth). The wire which is coloured blue MUST be connected to the terminal which is marked with the letter N (Neutral). The wire which is coloured brown MUST be connected to the terminal which is marked with the letter L (Live).

Before refitting the plug cover, check that there are no cut or stray strands of wire inside the plug. Use a 13 amp BS1363 fuse. Only BSI or ASTA approved fuses should be used. If you are at all unsure which plug or fuse to use, always refer to a qualified electrician.

Note: After replacing or changing a fuse on a moulded plug which has a fuse cover, the cover must be refitted to the plug; the appliance must not be used without a fuse cover. If lost, replacement fuse covers can be obtained from an electrical shop. This appliance complies with the following EU Directives: 2006/95/EC (Low Voltage Directive) and 2004/108/EC (EMC Directive).

GEBRAUCHSANWEISUNG

WASSERKOCHER AUS EDELSTAHL IN BAUCHIGER FORM

Modern stainless steel kettle with black handle and spout (no text or symbols visible)

Modell: 18924

LAKELAND WASSERKOCHER AUS EDELSTAHL IN BAUCHIGER FORM

Diagram of a mechanical device with rotating components and directional arrows, no text or symbols present

GEBRAUCHSANWEISUNG

Line drawing of a hand holding a kettle with a handle, showing a change in temperature (no text or symbols)

TIPPS UND TRICKS

Line drawing of a hand holding a small object through a curved container (no text or symbols)

ENTKALKEN
