User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Type	Model
Type I Camera	DS-2CE16D8T-(A)IT3Z(E)
Type II Camera	DS-2CE56D8T-IT3Z(E)

This manual may contain technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
  ● Make sure that the device is rmly xed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn of the power at once and unplug the power cord, and then contact the service center.
• Never aempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnec radiaon or extremely hot, cold, dusty or damp environment.
• To avoid heat accumulation, good venlaon is required for the operang environment.
• Keep the camera away from liquid while in use for non-water-proof device.
  ● While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

1.1 Product Features

The camera is applicable for both indoor and outdoor conditions, and the applicaon scenarios include road, warehouse, underground parking lot, bar, etc..

The main features are as follows:

● High performance CMOS sensor
● Low illuminaon, 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
- IR cut lter with auto switch
- OSD menu with congorable parameters
● Auto white balance
- Internal synchronizaon
- SMART IR mode
- PoC (with -E)
- 3-axis adjustment

1.2 Overview

Before you start:

The cables of device vary according to dierent models.

The cables of each type are shown in the gures below, refer to the actual sample.

You can debug the camera by connecng an auxiliary HD TVI cable to the auxiliary video output.

1.2.1 Overview of Type I Camera

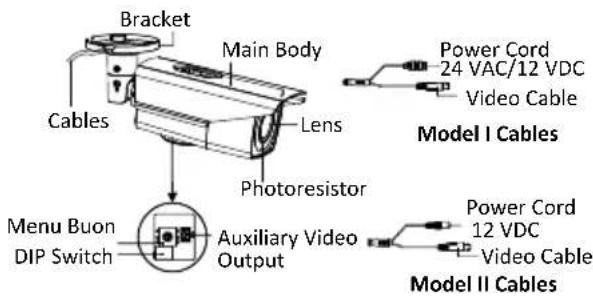

Bracket Main Body Cables Lens Photoresistor Menu Buon DIP Switch Auxiliary Video Output Power Cord 24 VAC/12 VDC Video Cable Model I Cables Power Cord 12 VDC Video Cable Model II Cables

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

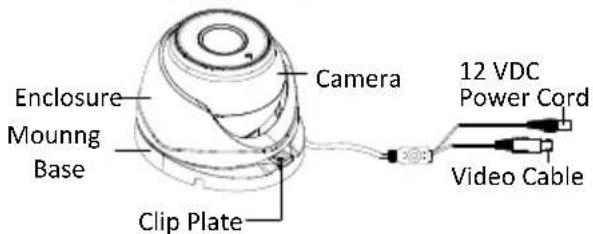

Enclosure Moung Base Camera Clip Plate 12 VDC Power Cord Video Cable

Figure 1-2 Overview of Type II Camera

Before you start:

- Make sure that the device in the package is in good condition and all the assembly parts are included. - Make sure that all the related equipment is power-o during the installaon.

- Check the specicaon of the products for the installaon environment.

- Check whether the power supply is matched with your power output to avoid the damage.

● Make sure the wall is strong enough to withstand three mes the weight of the camera and the bracket.

- If the wall is cement, insert expansion bolts before installing the camera. If the wall is wooden, use self-tapping screws to secure the camera.

- If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Installaon of Type I Camera

2.1.1 Ceiling/Wall Mounng without Juncon Box

Before you start:

Both wall moung and ceiling moung are suitable for the bullet camera. Ceiling moung will be taken as an example in this secon. And you can take steps of ceiling moung as a reference for wall moung.

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes and the cable hole (oponal) in the ceiling according to the drill template.

Drill Template A B 1 1 + + + Figure 3. For drillmen entered through the side columns. Figure A: For drillmen entered through the outer edge to be for withdrawing lines.

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopng ceiling outlet to route the cable.

1. Route the cables through the cable hole, or the side opening.

2. Fix the camera to the ceiling with supplied screws.

Technical line drawing of a mechanical device with mounting bracket and clamping mechanism (no text or symbols)

Figure 2-2 Fix the Camera to the Ceiling

Note:

- The supplied screw package contains self-tapping screws, and expansion bolts.

- For cement wall, expansion bolts are required to x the camera. For wooden wall, self-tapping screws are required.

1. Connect the corresponding power cord, and video cable.

2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the surveillance angle.

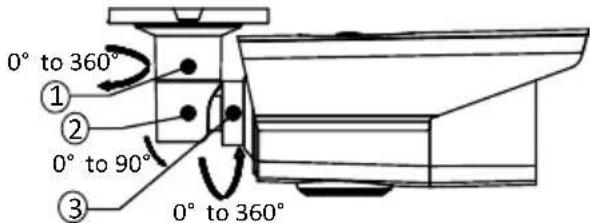

0° to 360° ① ② 0° to 90° ③ 0° to 360°

Figure 2-3 3-axis Adjustment

1) Loosen the No.1 adjusng screw to adjust the pan posion [0° to 360°]. Tighten the No.1 adjusng screw.

2) Loosen the No.2 adjusng screw to adjust the Ing posion [0° to 90°]. Tighten the No.2 adjusng screw.

3) Loosen the No.3 adjusng screw to adjust the rotaon posion [0° to 360°]. Tighten the No.3 adjusng screw.

2.1.2 Ceiling/Wall Mounng with Juncon Box

Before you start:

You need to purchase a juncon box separately.

Steps:

1. Paste the juncon box's drill template on the ceiling/wall.

2. Drill screw holes and the cable hole (oponal) in the ceiling/wall according to the holes of the drill template.

Note:

Drill the cable hole, when adopng ceiling outlet to route the cable.

1. Take apart the juncon box, and align the screw holes of the bullet camera with those on the juncon box's cover.

2. Fix the camera on the juncon box's cover.

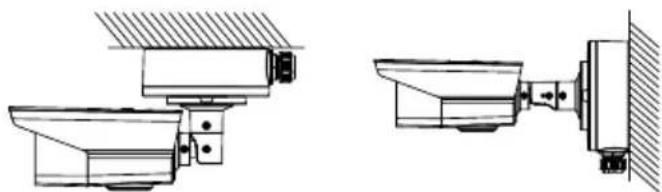

Technical line drawing of a mechanical device with no visible text or symbols

Figure 2-4 Fix the Camera with the Gang Box

1. Attach the juncon box's body to the ceiling/wall by aligning the screw holes of the juncon box.

2. Secure the juncon box's body with supplied screws on the ceiling/wall.

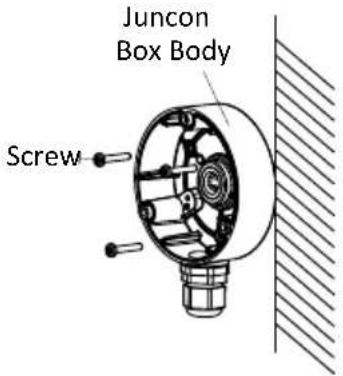

Juncon Box Body Screw

Figure 2-5 Fix the Camera to the Ceiling

1. Route the cables through the cable hole, or the side opening of the juncon box.

2. Combine the juncon box cover with its body.

Technical line drawing of two mechanical security camera components with mounting brackets (no text or symbols)

Figure 2-6 Fix the Juncon Box Cover back to its Body

1. Refer to step 6 of 2.1.1 Ceiling/Wall Mounng without Juncon Box to complete the installaon.

2.2 Installaon of Type II Camera

2.2.1 Ceiling/Wall Mounng without Juncon Box

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes according to the drill template and the cable hole (oponal) in the ceiling/wall.

Drill Templates Screw hole All : for Mounting Base

Figure 2-7 Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

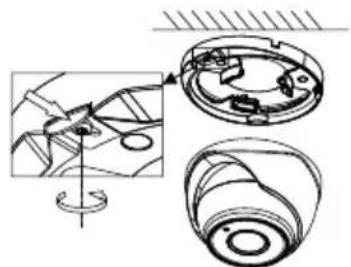

1. Loosen screws to remove the clip plate, and take out the main body.

Clip Plate

Figure 2-8 Remove the Clip Plate

1. Fix the moung base on the ceiling with supplied screws.

Technical diagram of a circular mechanical component with mounting holes and internal components (no text or labels)

Figure 2-9 Fix the Mounng Base on the Ceiling

Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.
• For cement wall, expansion bolts are required to x the camera. For wooden wall, self-tapping screws are required.
• Route the cables through the cable hole, or the side opening.
• Install the main body to the mounng base and insert the clip plate.

Technical line drawing of mechanical components with no visible text or symbols

Figure 2-10 Install the Turret Camera

1. Tighten the screws with the screw driver.
2. Connect the corresponding cables, such as power cord, and video cable.
3. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

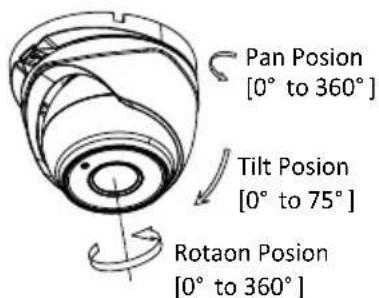

Pan Posion [0° to 360°] Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-11 3-axis Adjustment

1). Hold the camera body and rotate the enclosure to adjust the pan posion [0° to 360°].
2). Move the camera body up and down to adjust the lt posion [0° to 75°].
3). Rotate the camera body to adjust the rotaon posion [0° to 360°].

2.2.2 Ceiling/Wall Mounng with Juncon Box

Before you start:

You need to purchase a juncon box separately.

Steps:

1. Paste the juncon box's drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (oponal) in the ceiling/wall according to the holes of the drill template.

Drill Template A Drill is the entire model of Drill template and Basis tool & for building base

Figure 2-12 Drill Template of the Juncon Box

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

1. Refer to step 3 of 2.2.1 Ceiling/Wall Mounng without Juncon Box to take out the camera's main body.

2. Take apart the juncon box, and align the screw holes of the camera with those on the juncon box's cover.

3. Fix the camera's moung base on the juncon box's cover with three PM4 × 10 screws.

Technical line drawing of a mechanical component with no visible text or symbols

Figure 2-13 Secure Screws on Juncon Box's Cover

1. Secure the juncon box's body on the ceiling/wall with four PA4 × 25 screws.

Juncon Box Body

Figure 2-14 Secure the Juncon Box's Body on Wall /Ceiling

1. Combine the juncon box cover with its body by ghtening four screws on juncon box's cover.

Technical line drawing of a mechanical component with no visible text or symbols

Figure 2-15 Fix the Juncon Box

1. Repeat steps 5 to 9 of 2.2.1 Ceiling/Wall Mounng without Juncon Box to complete the installaon.

Purpose:

Call the menu by clicking button ☐ on the PTZ Control interface, or call preset No.95.

Steps:

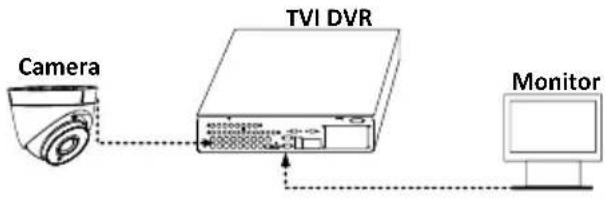

1. Connect the camera with the TVI DVR, and the monitor shown as the Figure 3-1.

Camera TVI DVR Monitor

Figure 3-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ buon, or call preset No. 95.


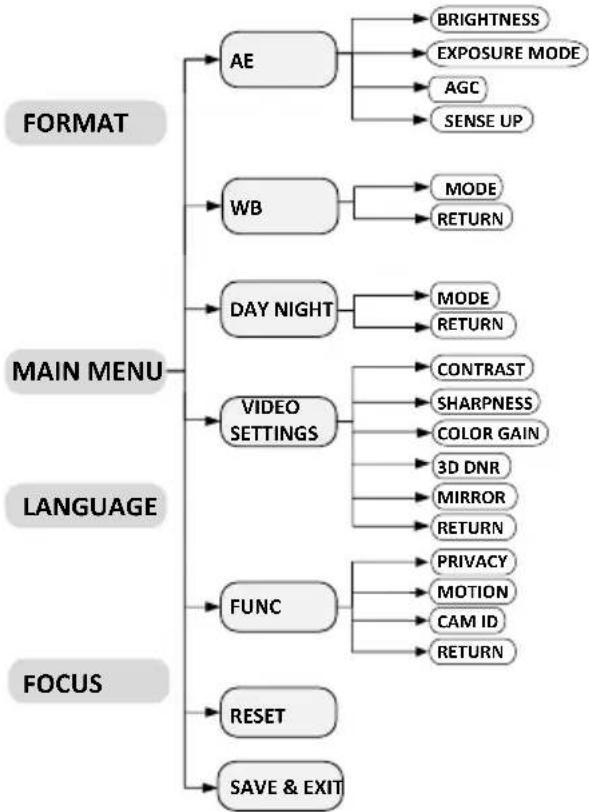

Figure 3-2 Main Menu Overview

1. Click the direcon arrow to control the camera.

1) Click up/down direcon buon to select the item.
2) Click Iris + to conrm the selecon.
3) Click le/right direcon buon to adjust the value of the selected item.

3.1 FORMAT

PAL (Phase Alternang Lines)

PAL is a color encoding system for analog television used in broadcast television systems in most countries.

NTSC: (Naonal Television System Commiee)

NTSC is the analog television system that is used in most of North America, parts of South America, Myanmar, South Korea, etc.

3.2 LANGUAGE

Supports English, and Chinese.

3.3 FOCUS

Move the cursor to FOCUS, and press the Iris+ to enter the submenu. Click FOCUS+, FOCUS-, ZOOM+, and ZOOM- to adjust the focus.

3.4 MAIN MENU

3.4.1 AE (AUTO EXPOSURE)

Auto Exposure describes the brightness-related parameters, which can be adjusted by BRIGHTNESS, EXPOSURE MODE, AGC, and SENSE UP.

EXPOSURE

BRIGHTNESS	5
EXPOSURE MODE	GLOBAL
AGC	MIDDLE
SENSE UP	0
RETURN

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value, the brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which adjusts lighng distribuon, variaons, and non-standard processing.

● BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light to the object in the front to make it clear, but this may cause the over-exposure of the background where the light is strong.

When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.

● WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear images even under backlight circumstances. WDR balances the brightness level of the whole image and provides clear images with details.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light conditions. The GAIN level can be set as HIGH, MIDDLE, or LOW. Select OFF to disable the GAIN funcon.

Note:

The noise will be amplified when the GAIN is on.

SENSE UP

Sense up increases the exposure on a signal frame, which makes a camera more sensitive to light so it can produce images even in low lux condions. You can set the SENS-UP as OFF or AUTO according to dierent light condions.

The SENS-UP funcon will atomically adjust itself to x2, x4, x6, x8, x10, x12, x14, and x16 according to the dierent light conditions.

3.4.2 WB (White Balance)

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to

the environment. It can remove unrealisc color casts in the image. You can set WB mode as ATW, or MWB.

ATW (Aoto Tracking White Balance)

Under ATW mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to adjust the shades of red/blue color of the image.

WB

MODE	MWB
R GAIN	5
B GAIN	5
RETURN

Figure 3-4 MWB MODE

3.4.3 DAY NIGHT

Color, BW (Black White), and AUTO are selectable for DAY and NIGHT switches.

COLOR

The image is colored in day mode all the me.

B/W

The image is black and white all the me, and the IR LED turns on in the low-light conditions.

AUTO

You can turn on/o the INFRARED and set the value of SMART IR in this menu.

DAY NIGHT

MODE	AUTO
INFRARED	ON
SMART IR	4
RETURN

Figure 3-5 DAY NIGHT

INFRARED

You can turn on/o the IR LED to meet the requirements of dierent circumstances.

SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 1 to 8. The higher the value the more obvious eects are.

3.4.4 VIDEO SETTING

Move the cursor to VIDEO SETTING and click Iris+ to enter the submenu. CONTRAST, SHARPNESS, COLOR GAIN, 3D DNR, and MIRROR are adjustable.

VIDEO SETTING

CONTRAST	5
SHARPNESS	5
COLOR GAIN	5
3D DNR	5
MIRROR	DEFAULT
RETURN

Figure 3-6 VIDEO SETTING

CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturaton of the color. The value ranges from 1 to 10.

3D DNR (Digital Noise Reducon)

The 3D DNR funcon can decrease the noise effect, especially when capturing moving images in low light conditions and delivering more accurate and sharp image quality. You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror funcon is disabled.

H: The image ips 180° horizontally.

V: The image ips 180° vercally.

HV: The image ips 180° both horizontally and vercally.

In the FUNC sub-menu, you can set the privacy mask, the moon detecon, and camera ID of the camera.

PRIVACY

The privacy mask allows you to cover certain areas which you don't want to be viewed or recorded. Up to 4 privacy areas are congorable.

PRIVACY
MODE	ON
AREA 0
AREA 1
AREA 2
AREA 3
COLOR	RED
TRANSPARENCY	OFF
RETURN

Figure 3-7 PRIVACY
Select a PRIVACY area. Set the DISPLAY status as ON. Click up/down/le/down buon to denote the posion and size of the area.

MOTION

In the user-dened moon detecon surveillance area, the moving object can be detected and the alarm will be triggered. Up to 4 moon detecon areas can be congured.

MOTION
MODE	OFF
AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY	50
COLOR	RED
TRANSPARENCY	OFF
RETURN

Figure 3-8 MOTION

Select a MOTION area. Set the DISPLAY status as ON. Click the up/down/le/right buon to denote the

posion and size of the area. Set the SENSITIVITY from 0 to 100.

CAMERA ID

Edit the camera ID on this secon.

CAM ID SETTING

MODE
CAM ID
X POSITION	ON
Y POSITION	75
RETURN	36
	16

Figure 3-9 CAM ID SETTING

Set the MODE as on. Click up/don le/right buon to choose the camera ID and the posion.

3.4.6 RESET

Reset all the sengs to the default.

3.4.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the seng and exit the menu.
