USER MANUAL C20230F Cello

L E dDigital colour TV

C20230F-LED

Line drawing of a flat-screen computer monitor with a blank screen and stand (no text or symbols)

User Guide

Contents

Unpacking the TV / Accessory's 3

Installing / Removing the Base Stand 4

Front / Right Side View and Controls 5

Rear View and Sockets....6

Remote Control 7-8

Installing Batteries in the Remote Control 9

Remote Control Operation Range....9

Making Video and Audio Connections....10

Connecting an AV Device with an HDMI Cable 10

Connecting a Computer with a VGA Cable 11

Connecting an AV Device with a Component (YPbPr) Cable 11

Connecting an AV Device with a SCART Cable 12

Connecting an AV Device with Composite Cable 12

Connecting a Digital Audio Receiver 13

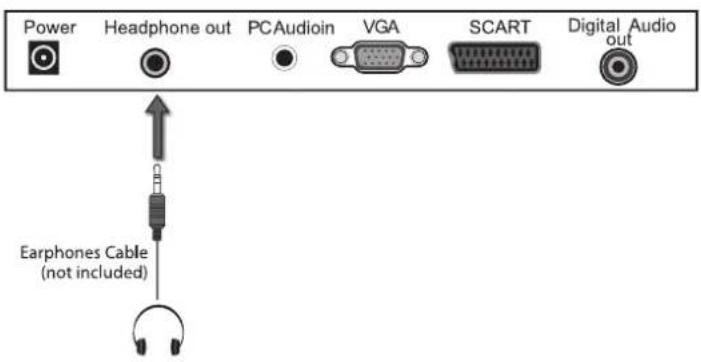

Connecting Headphones....13

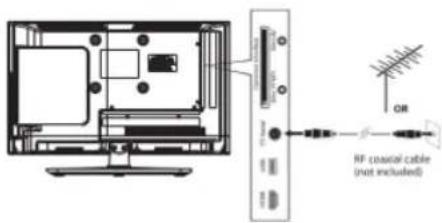

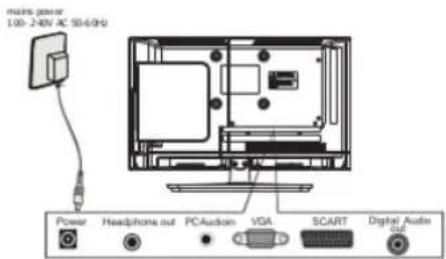

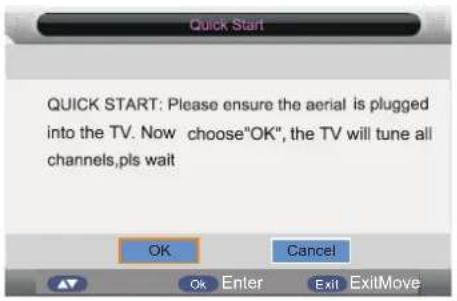

Turning the TV on for the First Time....14-15

- Selecting the Input Source....15

- Channel Selection 15

- Display Channel Information 15

- Volume Adjustment....15

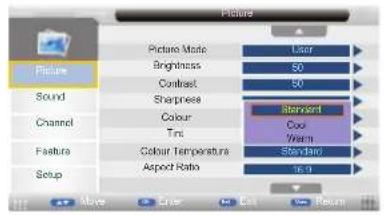

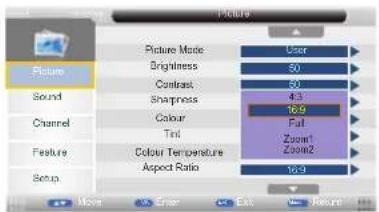

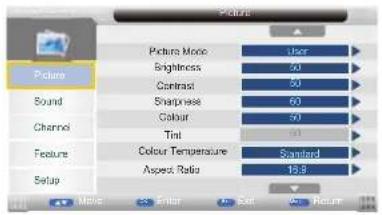

Picture Setting 16-17

Sound Setting 18

- Stereo / Dual Sound Reception (ATV Mode)....18

– Speaker Sound Output Selection (DTV Mode) 18

Channel Setting (TV, DTV or Radio Mode)....19

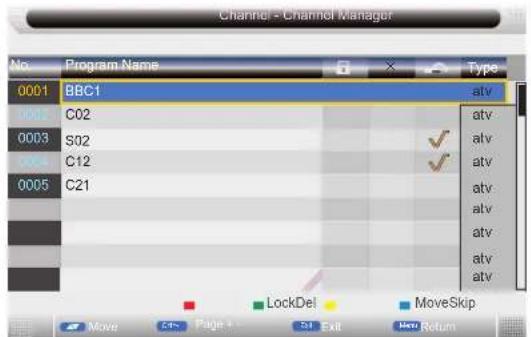

- Channel Management 19

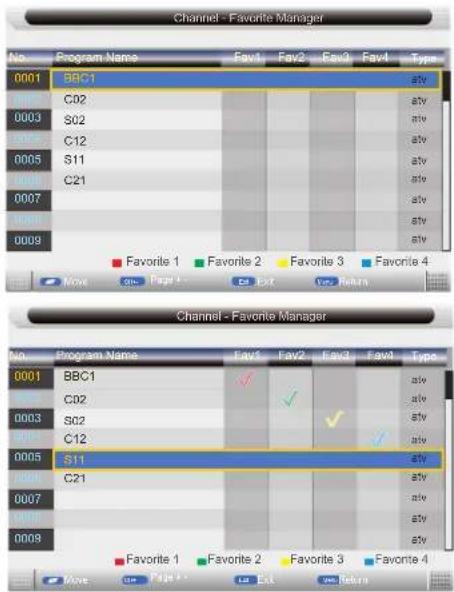

- Favorite Management 19

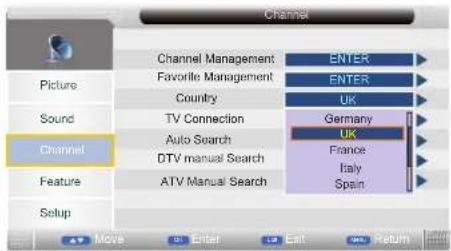

- Country 20

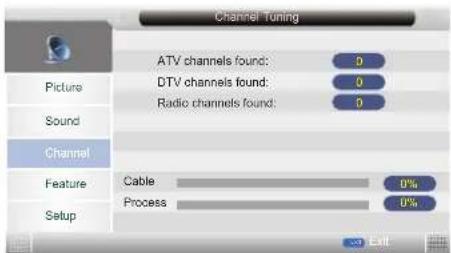

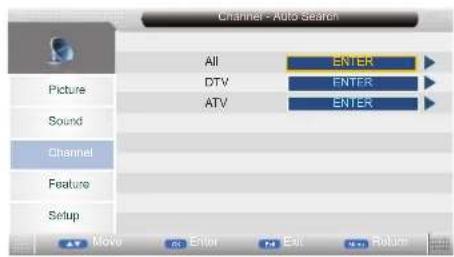

- Auto Search 20

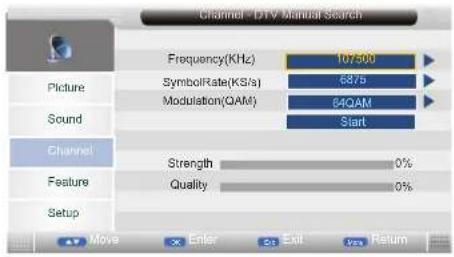

- DTV Manual Search 21

- ATV Manual Search 21

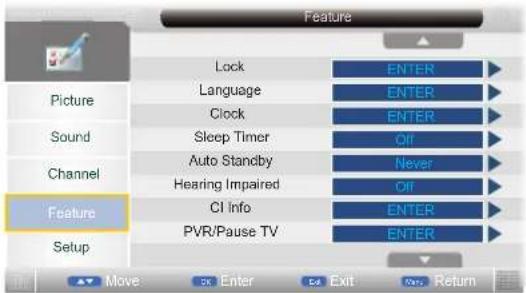

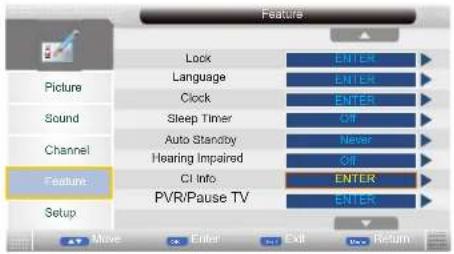

Feature Setting 22

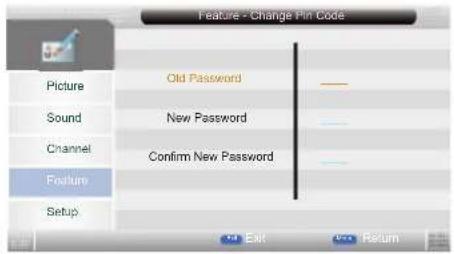

- Lock 22

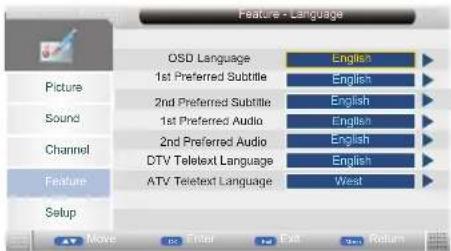

- Language 22

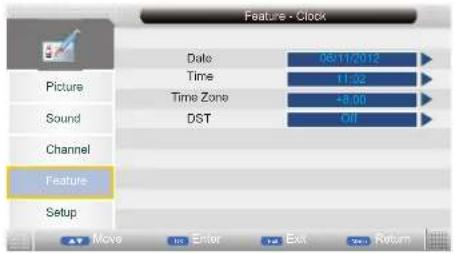

- Clock 23

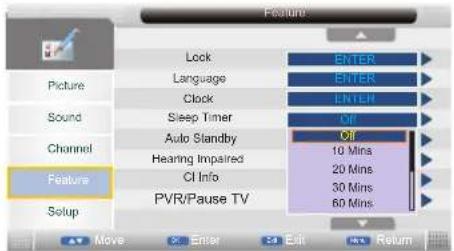

- Sleep Time 23

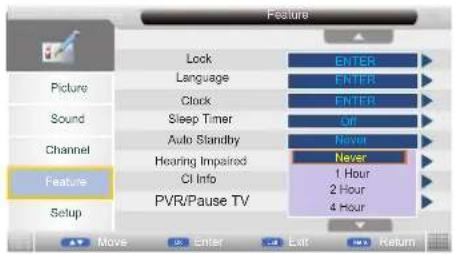

– Auto Standby 23

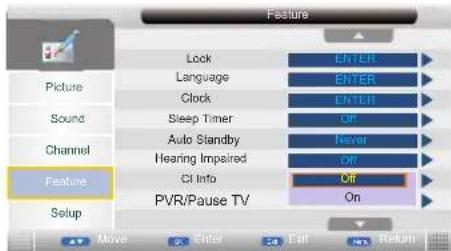

- Hearing Impaired 23

- CI Info 24

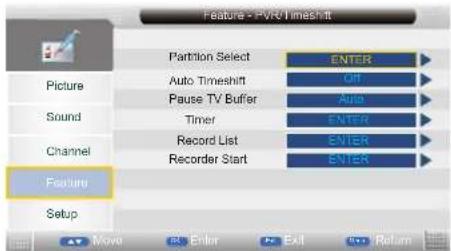

- PVR/Time Shift 25

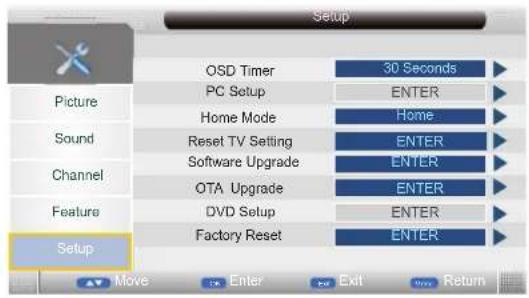

Setup Setting 26

- OSD Time 26

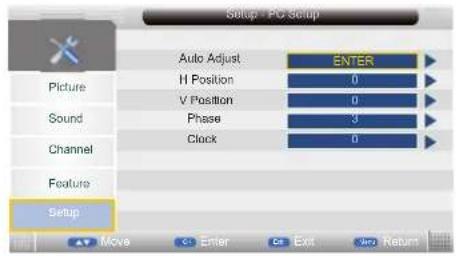

- PC Setup 26

- Blue Screen 26

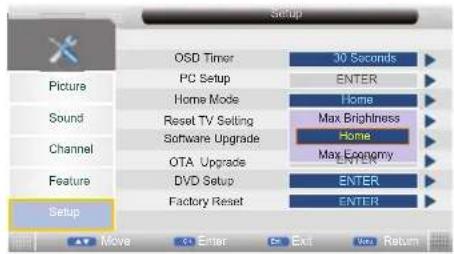

- Home Mode 26

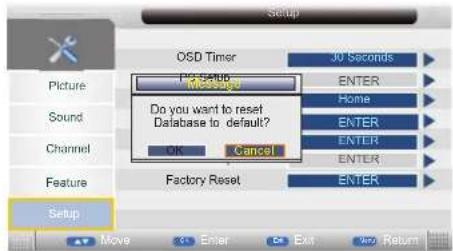

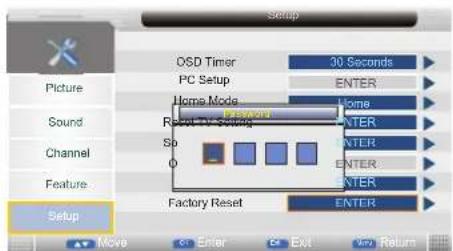

- Reset TV Setting 26

DVD Operation 27

-Basic Operation 27

-DVD Setup Menu 27

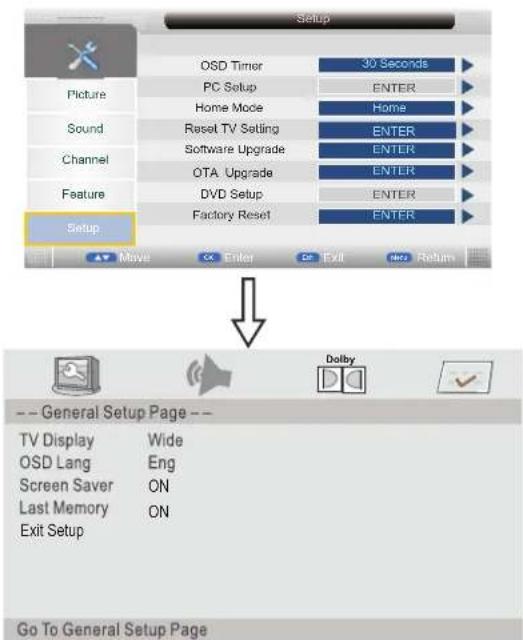

—Enter the DVD Setup Menu 27

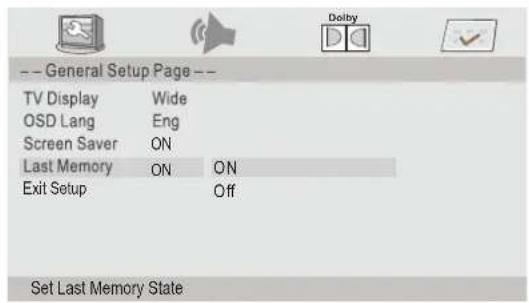

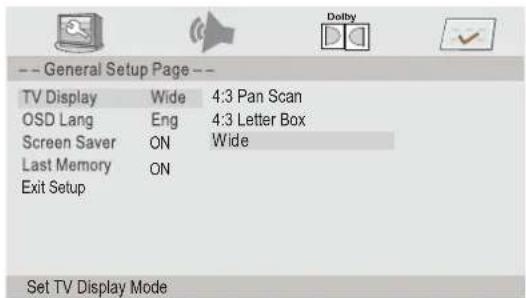

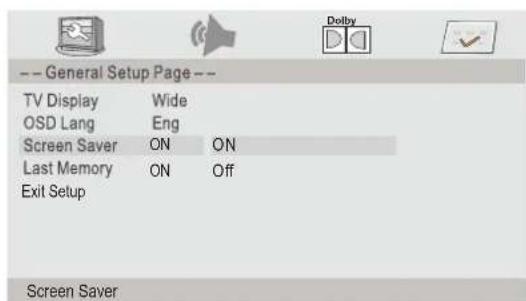

-General Setup 27-28

—Audio Setup 28

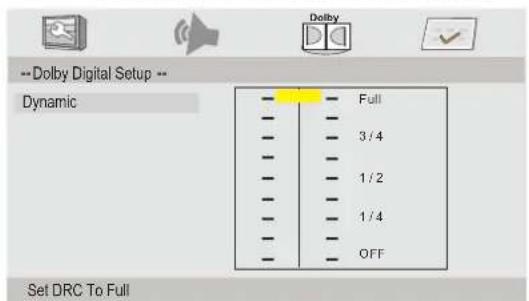

-Dolby Digital Setup 28

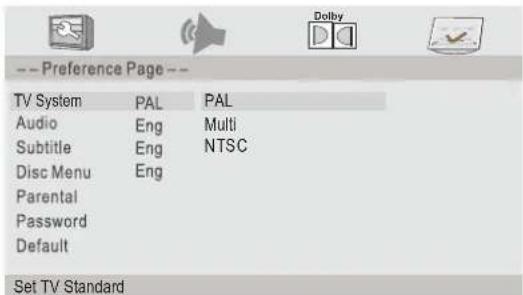

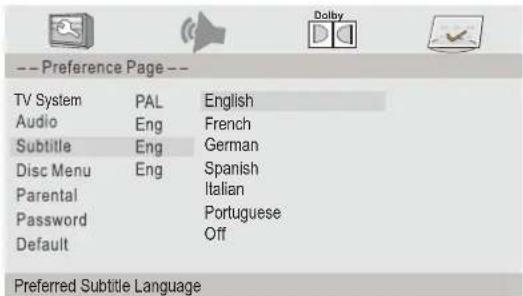

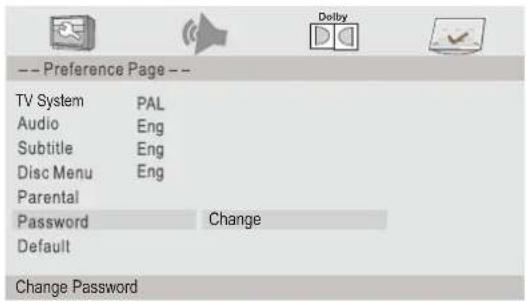

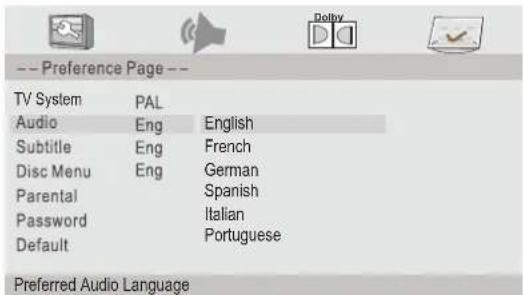

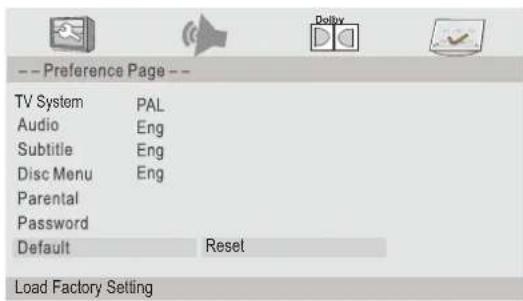

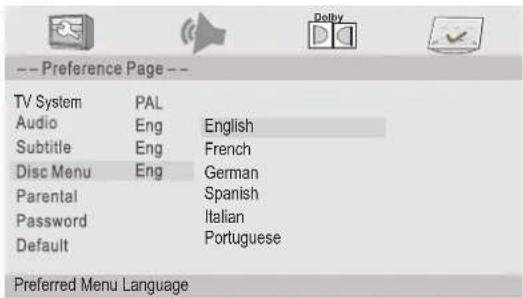

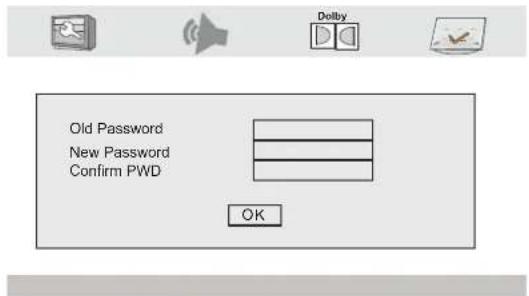

—Preference Setup 28-29

—Disc Care 29

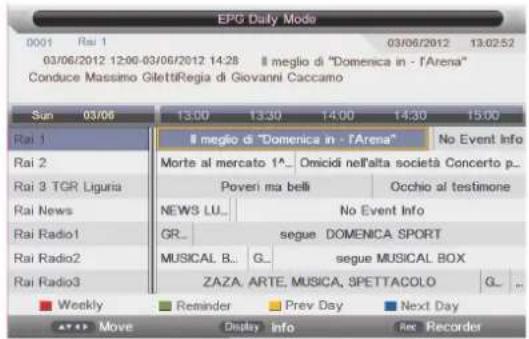

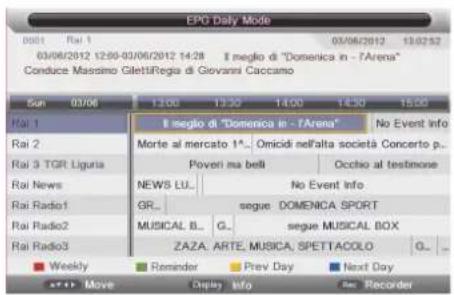

EPG (Electronic Programme Guide) (DTV Mode) 30

- Switch On / Off EPG 30

Teletext (ATV Mode)....31

To Turn on Teletext Function....31

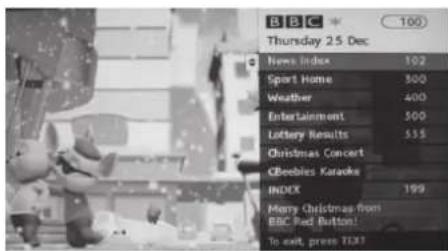

Digital Teletext (DTV Mode)....31

- Teletext within Digital Service....31

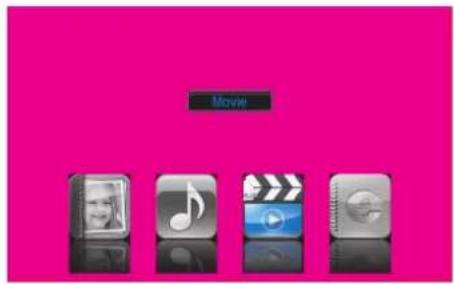

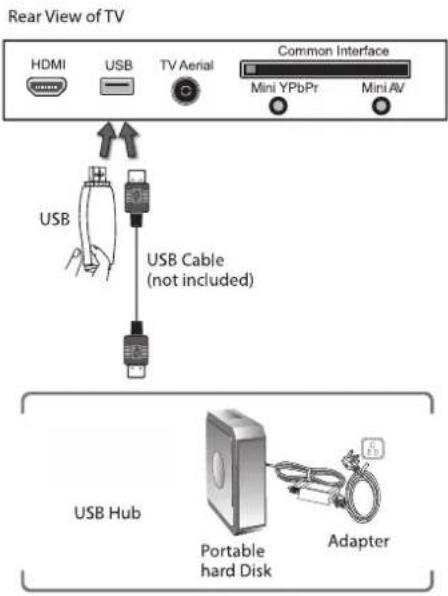

Connecting a USB Storage Device....32

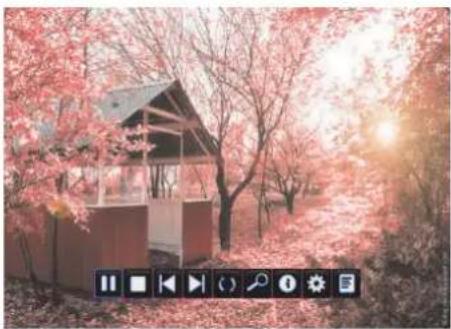

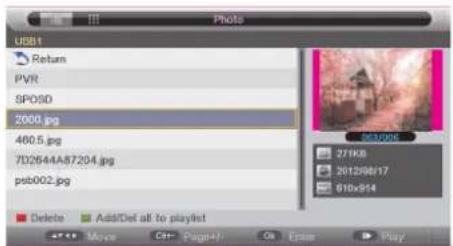

Viewing Photos....33

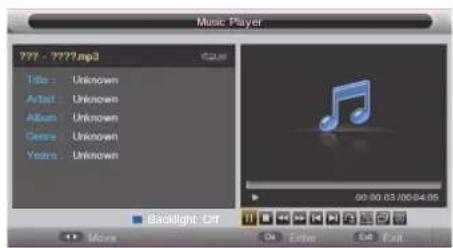

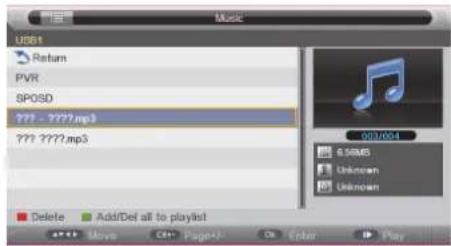

Listening to Music....33-34

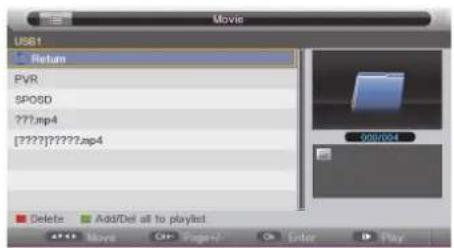

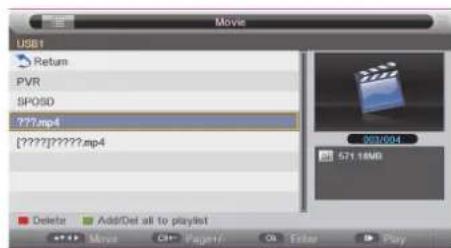

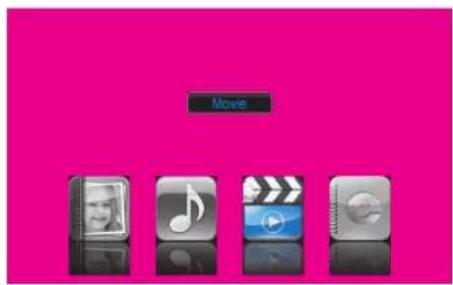

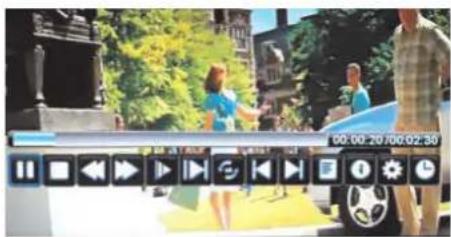

Watching Movies....34-35

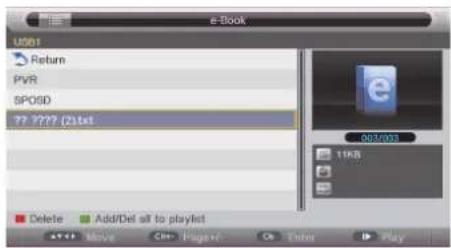

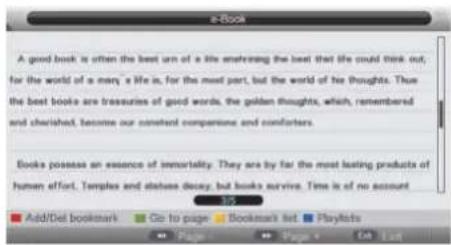

Viewing Texts 35

Time Shift Function (DTV Mode) 36

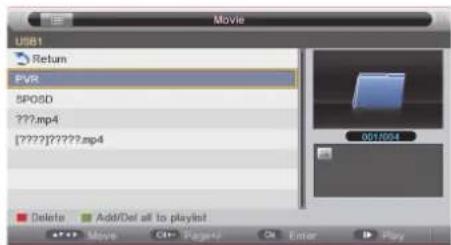

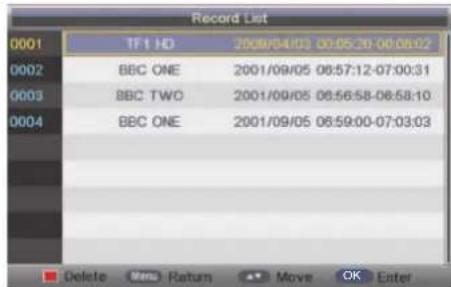

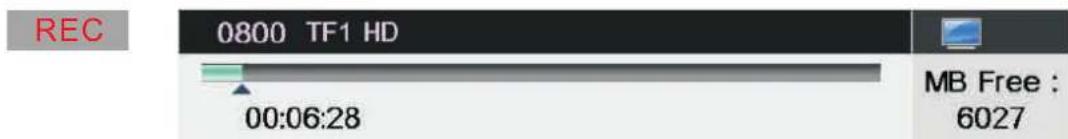

Recording DTV Programme onto a USB Storage Device 36

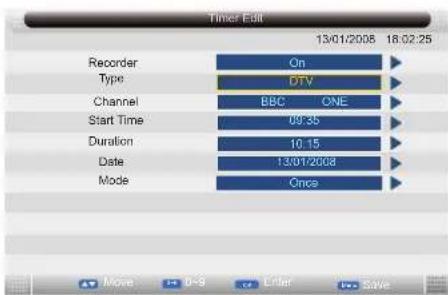

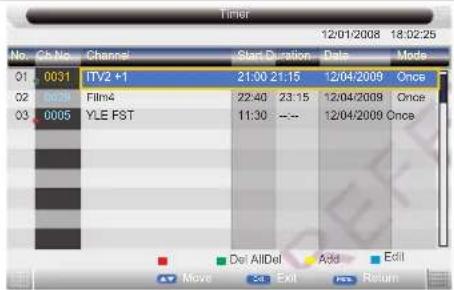

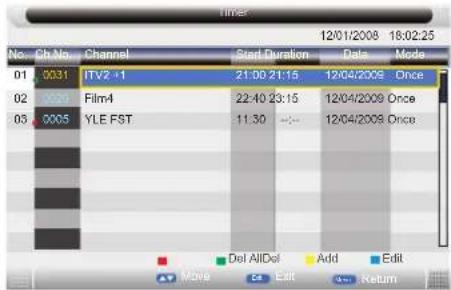

Timer Programming 37

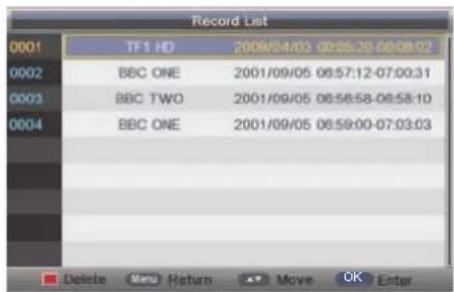

Play Recorded Programme 38

Maintenance....39

Hints and Tips 39-40

Display Modes....41

YPbPr Mode 41

PC Mode 41

HDMI Mode 41

Specifications 42

Safety Warnings 43-44

Waste Electrical Recycling 45

Thank you for purchasing your new 20" HD LED TV.

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV / Accessory's

Blank rectangular frame with no text, numbers, or symbols

TV set

Press OK Press Send Up to Down Up to Down Right Left Right Left

Remote Control

Line drawing of two cylindrical batteries with different internal structures (no text or symbols)

Batteries

Stand

Stand fixing screws

Adapter

QUICK START GUIDE

Quick Start Guide

WARRANTY CARD

Warranty Card

Gold Care

Cold Care

The LED display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LED display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen.

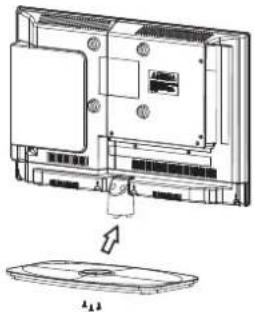

3. To install the base stand first make sure you position the front of the base stand facing towards the front of the TV and then use the 3 supplied screws to fix the base stand to the TV.

The screw holes will only align if the front of the base stand is facing towards the front of the TV

Diagram of a device rear panel with internal components and an arrow indicating a component (no text or symbols present)

Technical line drawing of a computer monitor rear panel with ventilation slots and a central display (no text or labels)

SCREW

Technical diagram showing a device rear panel with labeled components and an arrow indicating assembly or disassembly.

Remove the stand base before wall mounting the TV.

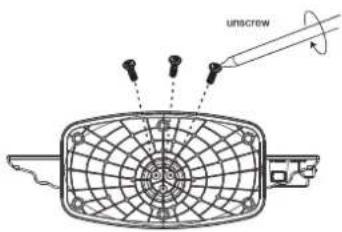

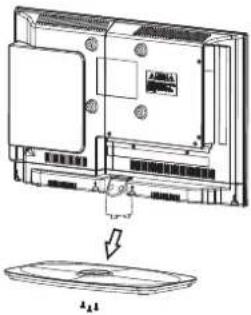

1. To remove the stand assembly, lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. Remove the 3 screws that secure the stand base to the TV. Remove the stand base by sliding it out.

Keep all the screws in a safe place, should you want to attach the stand base at a later date.

unscrew

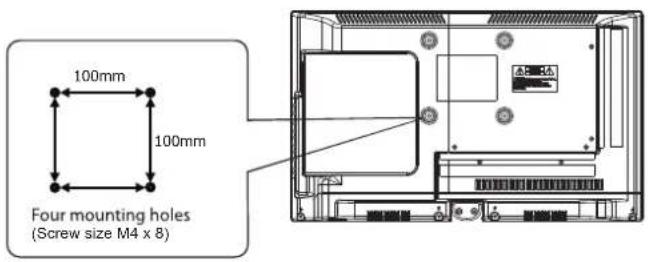

This unit is VESA-Compliant and designed to be wall mounted with a VESA-Compliant 100mmx100mm mounting kit. Mount this unit according to the instructions of the wall bracket (not supplied)

100mm 100mm Four mounting holes (Screw size M4 x 8)

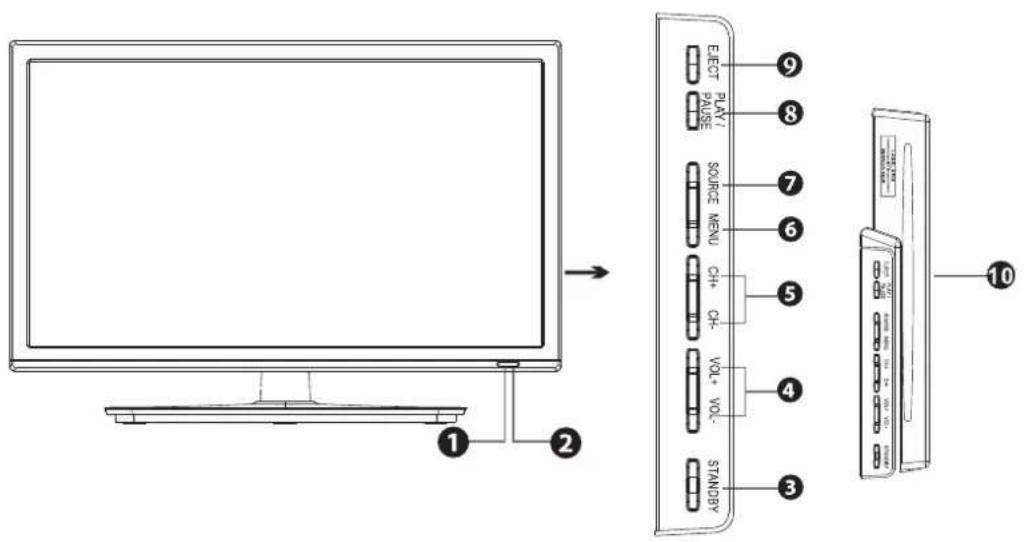

Diagram showing the front and side views of a computer monitor with labeled ports and indicators

Item		Description
1	IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
2	POWER LED	Illuminates green when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will alternate between red and green when the PVR timer programming has started in the standby mode.
3	STANDBY	Switches the TV on from standby mode.Switches the TV back to standby mode.
4	VOL + / -	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
5	CH + / -	Press to select a channel or select a sub-menu from the OSD menu.
6	MENU	Displays the OSD (on screen display) menu.
7	SOURCE	Press to select among different input signal sources:DTV / ATV / SCART / YPbPr / PC / HDMI / AV / Media / DVD.
8	PLAY / PA USE	Play or pause.
9	EJECT	Eject the disc.
10	DVD WINDOW	Insert the D VD disc.

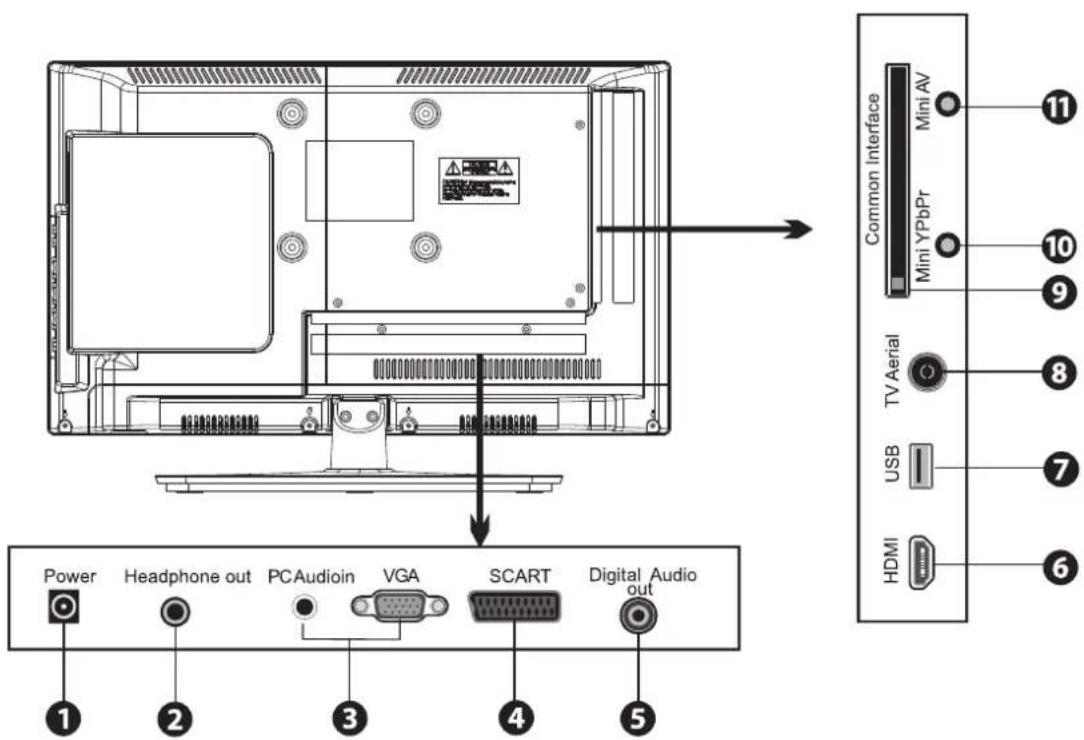

Power Headphone out PCAudioin VGA SCART Digital Audio out 1 2 3 4 5 Common Interface Mini AV Mini YPbPr TV Aerial USB HDMI 11 10 9 8 7 6

Socket		Description
1	Power	Connect to power supply.
2	Headphone out	To connect to the earphones.
3	VGA/PC AUDIO IN	To connect to a computer or other devices with a VGA interface.
4	SCART	To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
5	DIGITAL AUDIO OUT (COAXIAL)	To connect to the audio socket on the digital/standard 5.1 audio system.
6	HDMI IN	To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.
7	USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (Media mode) and record DTV programmes on to a USB storage device.
8	TV Aerial	To connect to the aerial socket on the wall with the RF coaxial cable.
9	CI (Common Interface) Slot	Allows the insertion of a Common Access Module.
10	Mini YPbPr	To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.
11	Mini AV	To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices.

Dependant on the Model of the TV some keys will have no function

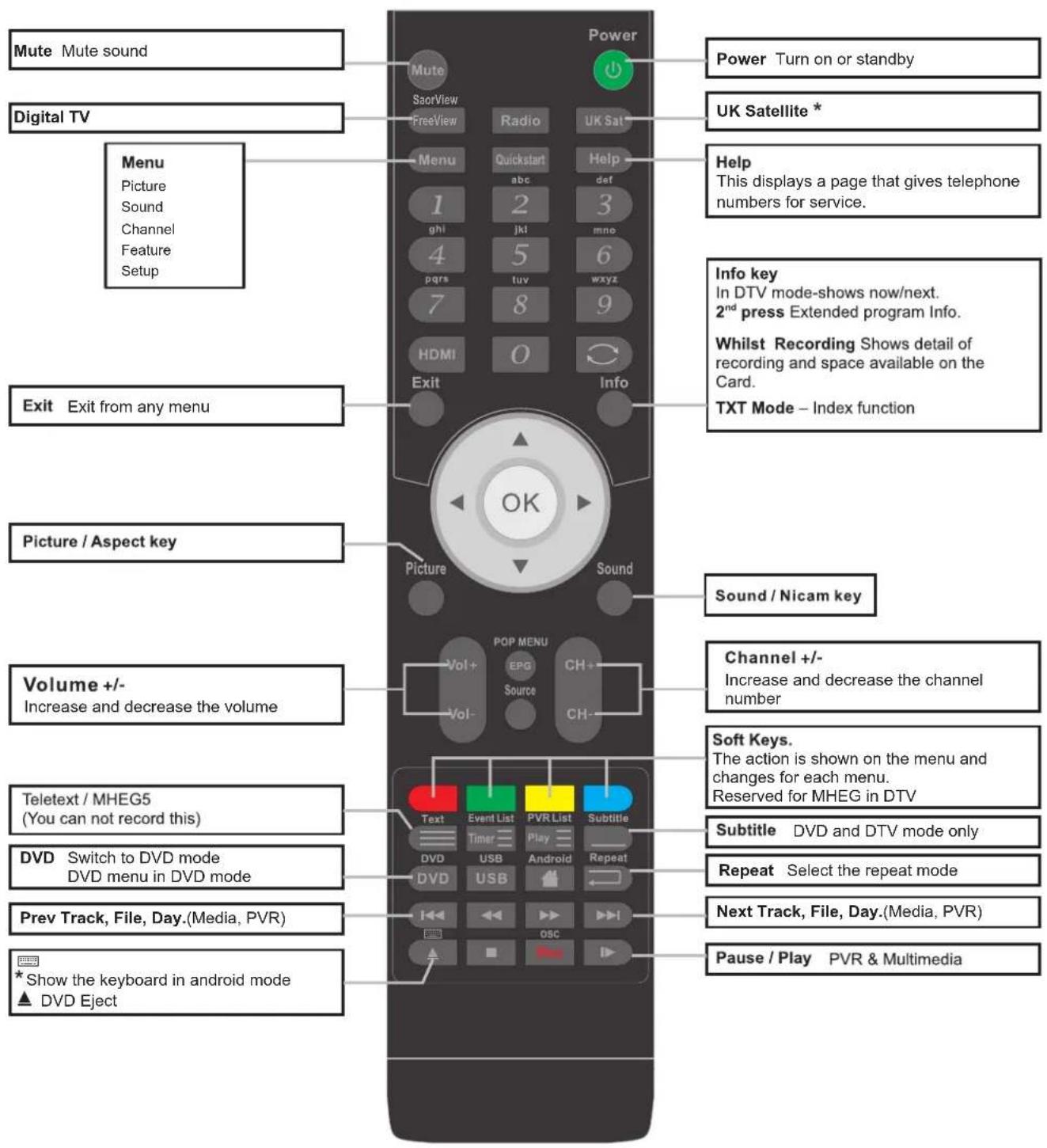

Mute Mute sound Digital TV Menu Picture Sound Channel Feature Setup Exit Exit from any menu Picture / Aspect key Volume +/- Increase and decrease the volume Teletext / MHEG5 (You can not record this) DVD Switch to DVD mode DVD menu in DVD mode Prev Track, File, Day.(Media, PVR) Show the keyboard in android mode DVD Eject Power Turn on or standby UK Satellite * Help This displays a page that gives telephone numbers for service. Info key In DTV mode-shows now/next. 2nd press Extended program Info. Whilst Recording Shows detail of recording and space available on the Card. TXT Mode – Index function Power SaorView Radio UK Sat Menu Quickstart abc def 1 2 3 ghi jki mno 4 5 6 pqrs tuv wxyz 7 8 9 HDMI 0 Exit Info OK Sound / Nicam key Vol+ EPG CH+ Source CH- POP MENU Channel +/- Increase and decrease the channel number Soft Keys. The action is shown on the menu and changes for each menu. Reserved for MHEG in DTV Text Event List PVR List Subtitle Timer Play DVD USB Android Repeat DVD USB I OSC Pause / Play PVR & Multimedia

*Dependant on Model

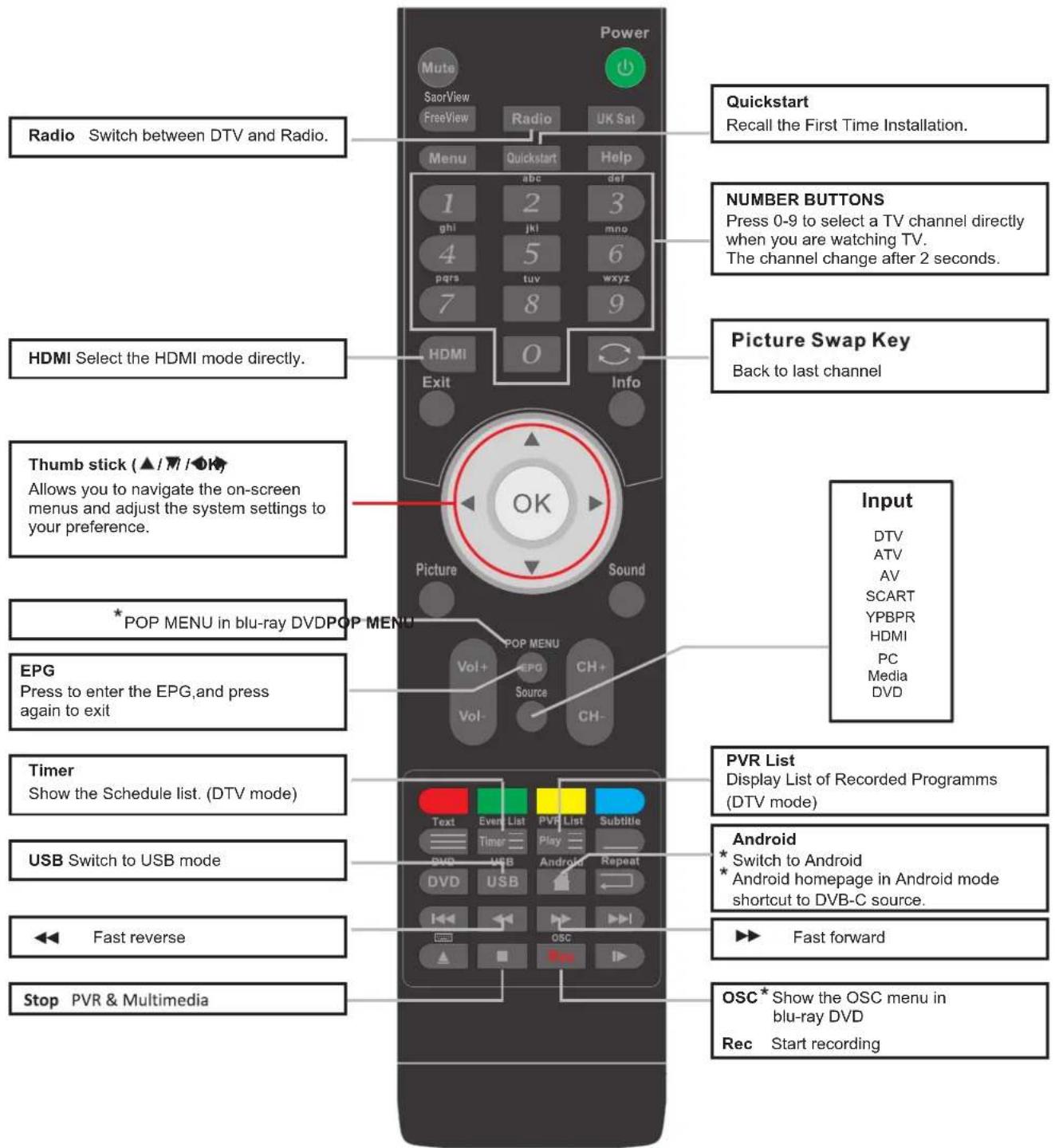

■ Functions of remote control buttons

Dependant on the model of the TV some keys will have no function

Radio Switch between DTV and Radio. Radio SaoView FreeView Radio UK Sat Menu Quickstart Help 1 2 3 ghi jkl mno 4 5 6 pqrs tuv wxyz 7 8 9 HDMI Exit 0 Info Picture Swap Key Back to last channel HDMI Select the HDMI mode directly. Thumb stick (▲/▼/●) Allows you to navigate the on-screen menus and adjust the system settings to your preference. *POP MENU in blu-ray DVDPOP MENU EPG Press to enter the EPG, and press again to exit Timer Show the Schedule list. (DTV mode) USB Switch to USB mode ◀ Fast reverse Stop PVR & Multimedia Power Quickstart Recall the First Time Installation. NUMBER BUTTONS Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds. Input DTV ATV AV SCART YPBPR HDMI PC Media DVD PVR List Display List of Recorded Programs (DTV mode) Android *Switch to Android *Android homepage in Android mode shortcut to DVB-C source. ▶ Fast forward OSC* Show the OSC menu in blu-ray DVD Rec Start recording

*Dependant on Model

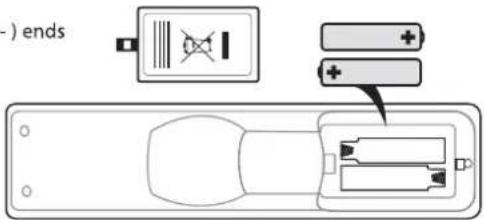

1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two 1.5V AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

-) ends

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

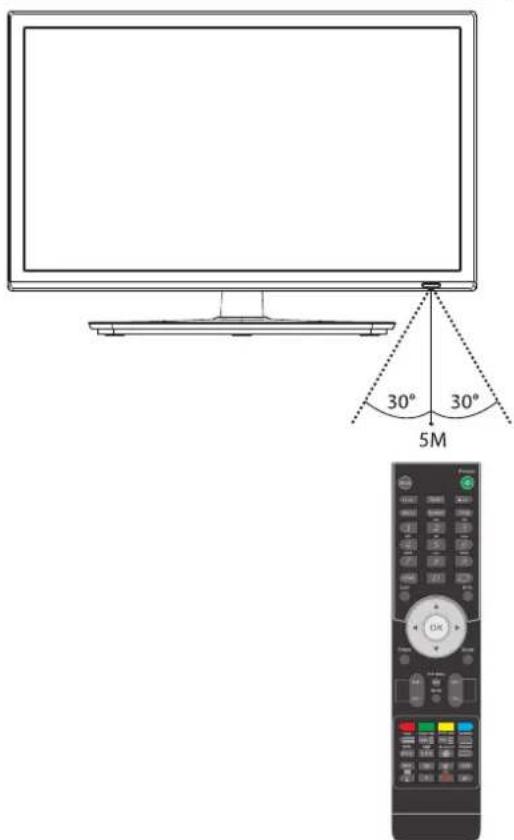

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

30° 30° 5M

Making Video and Audio Connections

Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and connection procedures.

When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

Best Video Performance		Signal Type	Separate Audio Connection Required
	HDMI	HDMI(480i/480p/576i/576p/720p/1080i/1080p)	No
	VGA	PC	YesPC AUDIO
	Mini YPbPr	Component Video(480i/480p/576i/576p/720p/1080i/1080p)	YesL R
	SCART	SCART (RGB Input)	No
	Mini AV	Composite Video	YesL R

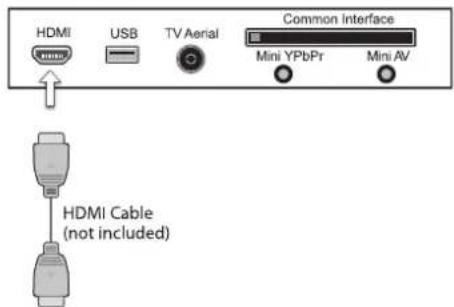

Connecting an AV Device with an HDMI Cable

• This TV can accept High-Definition Multimedia Interface (HDMI) and supports HDCP (High-Bandwidth Digital Content Protection) Protocol.
• The TV has a total of HDMI input sockets, please make sure the correct input source is selected corresponding to your connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.

• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p

• Use an HDMI cable to connect the TV's HDMI input socket to the external AV device's HDMI output socket.

• Plug the connected devices into the mains socket
• Press the ⏻ button on the TV or the ⏻ button on the remote control to turn on your TV.
• Press the SOURCE button on the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select HDMI and then press the OK button to confirm.

Although this TV is able to connect to an HDMI device, it is possible that some devices may not operate correctly.

Rear View of TV

HDMI USB TV Aerial Common Interface Mini YPbPr Mini AV HDMI Cable (not included)

Game Console

Set-top Box

Blu-ray Player / DVD Player / Recorder

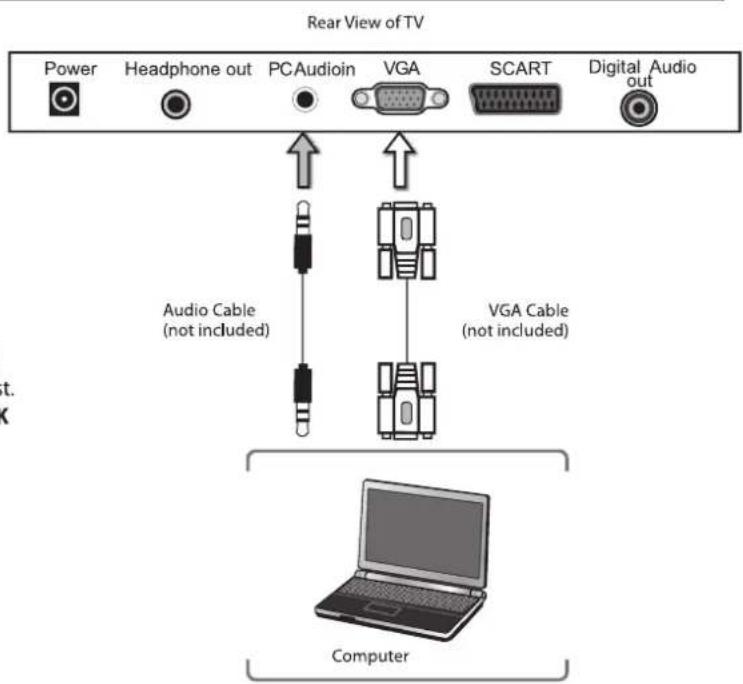

Connecting a Computer with a VGA Cable

1. Use a VGA cable to connect the TV's PC input socket to a computer's VGA output socket. Use an audio cable to connect the TV's PC AUDIO input socket to the computer's audio output socket.
2. Plug the connected devices into the mains socket
3. Press the ⏻ button on the TV or the ⏻ button on the remote control
4. Press the SOURCE button on the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select PC and then press the OK button to confirm.

• The best resolution is 1920 x 1080.
- If your computer is set to shut down after a few minutes of idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the ⏻ button of the TV when viewed from the front or the ⏻ button on the remote control to restart the TV.

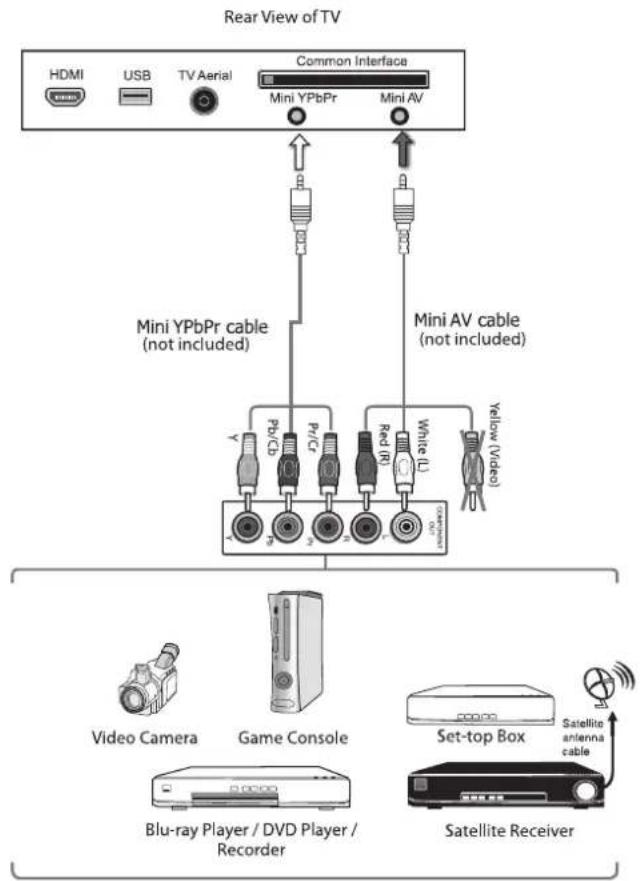

Connecting an AV Device with a Component (YPbPr) Cable

1. Use a component cable to connect the TV's Mini YPbPr input sockets to an external AV device's component output sockets.
2. Use an AV cable to connect the TV's Mini AV input sockets to the external AV device's component audio output sockets. (Audio Left = white, and Audio Right = red)

Component port on the TV

Mini YPbPr

Video output ports on DVD player	Y	Pb	Pr
	Y	Cb	Cr

1. Plug the connected devices into the mains socket
2. Press the ⏻ button on the TV or the ⏻ button on the remote control
3. Press the SOURCE button on the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select YPBPR and then Press the OK button to confirm.

Rear View of TV Power Headphone out PCAudioin VGA SCART Digital Audio out Audio Cable (not included) VGA Cable (not included) Computer


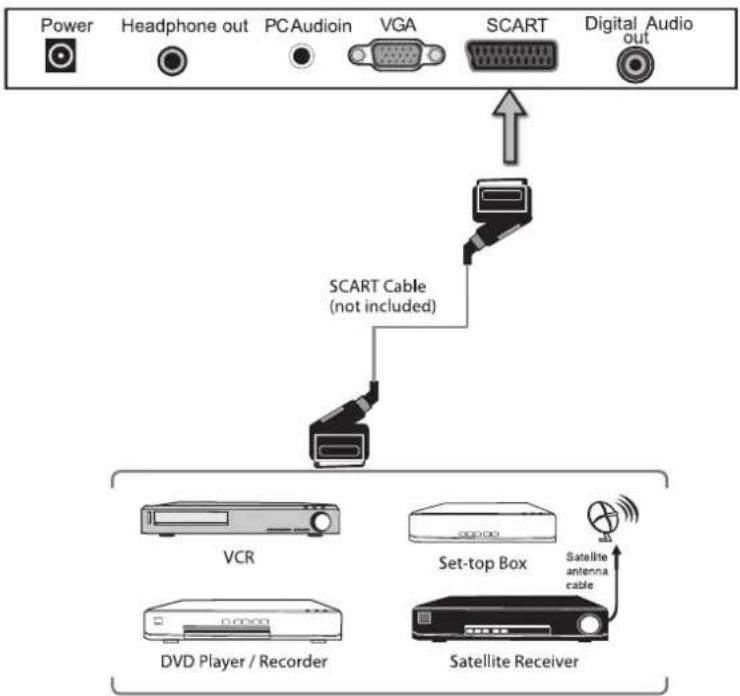

Connecting an AV Device with a SCART Cable

1. Use a SCART cable to connect the TV's SCART input socket to an external AV device's SCART output socket.
2. Plug the connected devices into the mains socket
3. Press the ⏻ button on the TV or the ⏻ button on the remote control
4. The TV will change the input source to SCART automatically once the AV device is switched on.

Rear View of TV


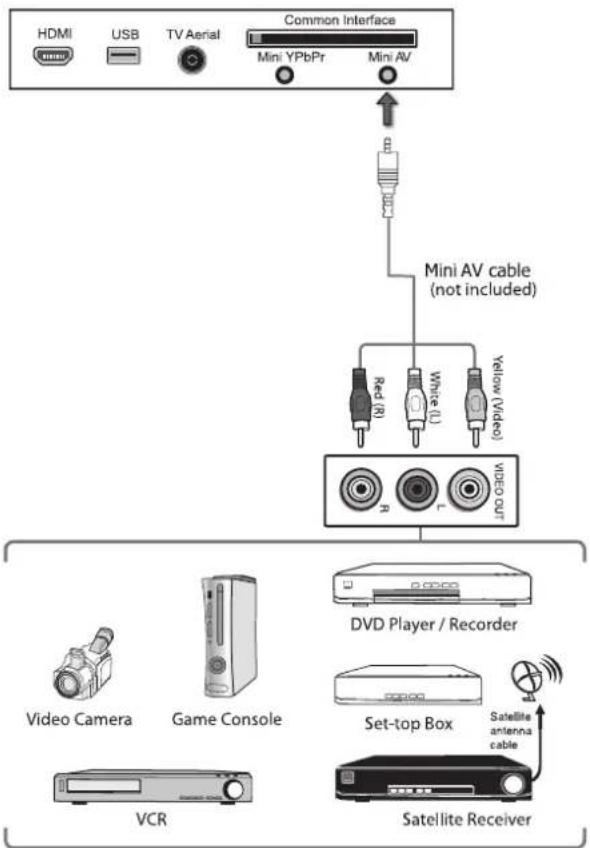

Connecting an AV Device with Composite Cable

1. Use an AV cable to connect the TV's Mini AV input sockets to an external AV device's composite audio/video sockets. (Video = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
3. Press the STANDBY button on the TV or the ⏻ button on the remote control
4. Press the SOURCE button on the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select AV and then press the OK button to confirm.

Rear View of TV


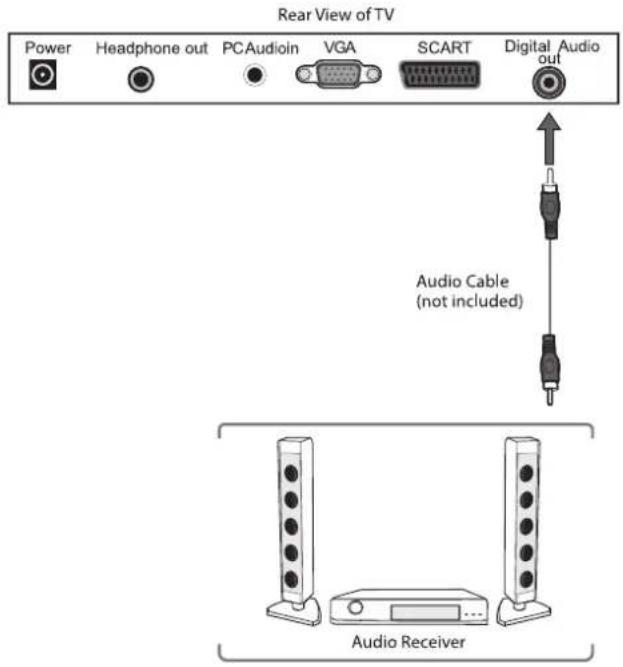

Connecting a Digital Audio Receiver

For better sound quality, you may want to play the audio through your multi-channel audio receiver.

1. Use an audio cable to connect the TV's Digital Audio out socket to an external audio receiver's audio coaxial input socket.
2. Plug the connected devices into the mains socket
3. Press the ⏻ button on the TV or the ⏻ button on the remote control
4. Press the SOURCE button on the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select any desired input source and then press the OK button to confirm.

The TV's volume control will have no effect. You may control the audio level via the Audio Receiver.

Rear View of TV Power Headphone out PCAudioin VGA SCART Digital Audio Audio Cable (not included) Audio Receiver

Connecting Headphones

Connect your headphones to the TV's Headphone out socket.

Before putting on headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Rear View of TV

Power Headphone out PC Audioin VGA SCART Digital Audio out Earphones Cable (not included)

Turning the TV on for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the Aerial socket at the rear bottom of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

OR RF coastal cable (not included)

1. Connect the mains cable to the mains socket after you have completed all the connections.
2. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
3. In standby mode, press the ⏻ button on the TV or the ⏻ button on the remote control to turn the TV on. The LED indicator will change from red to green.

The ⏻ button is located on the top of the TV.

main: power 100-240V AC 58-69Hz Power Headphone out PCAudioin VGA SCART Digital Audio Out

- Always disconnect the TV from the mains socket when not in use for a long period of time. - The ⏻ button on the top of the TV or the ⏻ button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains cable from the mains socket.

1. If this is the first time you are turning on the TV and there are no programs in the TV memory, the Quick Start menu

2. Ensure your aerial, cable or dish is plugged in to the TV and then press OK.

The TV will start to install the service you have selected. This could take some time depending on your selected service. You can tune an additional service at any time by pressing the Quick Start button.

QUICK START: Please ensure the aerial is plugged into the TV. Now choose"OK", the TV will tune all channels,pls wait OK Cancel Ok Enter Exit ExitMove

Selecting the Input Source

1. Press the Source button on the TV or the Source button on the remote control to display the Input source list.
2. Press the ▲▼ buttons to select the input source that you want: DTV, ATV, AV, SCART, YPBPR, HDMI, PC, Media, DVD.
3. Press the OK button to confirm your selection. If you do not press the OK button to confirm, the TV will automatically confirm the selected input source within 4 seconds.

In DTV mode, press the Radio button to switch to TV / digital radio channels directly.

Input

DTV

ATV

AV

SCART

YPBPR

HDMI

PC

Media

DVD

Channel Selection

- Press the CH+ / - buttons on the TV or on the remote control repeatedly or the 0-9 buttons on the remote control to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 22 for details on LOCK).
• Press the ⬇ button to return to the previously viewed channel.

Display Channel Information

- Press the Info button to view the current information.

Volume Adjustment

• Press the VOL+/- button on the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the Mute Muton. Press the button again or the VOL+ button to resume audio listening.

Allows you to set your preferred picture mode.

1. Press the Menu button and then press the ▲▼ buttons to select the Picture menu.
2. Press the OK or ▶ buttons and then press the ▲▼ buttons to select the following picture options and then press the OK button.

Picture Picture Mode User Brightness 50 Contrast 50 Sharpness 60 Colour 50 Tint 20 Colour Temperature Standard Aspect Ratio 19.8 Setup Movie Edit Print Edit Return

Picture Mode

Press the ▲▼ buttons to cycle among picture mode: Dynamic / Standard / Mild / User and then press the OK button to confirm.

Alternative

You may press the Picture button once and then press the ◀▶ buttons to select the picture mode directly.

Picture Picture Mode User Brightness Dynamic Contrast Standard Sharpness Mid Colour 30 Text 50 Colour Temperature Standard Aspect Ratio 16.8 Sound Channel Feature Setup Movie Error Edit Return

Brightness	Press the ◀▶ buttons to increase or decreases the amount of white in the picture.(for User mode)
Contrast	Press the ◀▶ buttons to adjust the difference between light and dark levels in the picture.(for User mode)
Sharpness	Press the ◀▶ buttons to adjust the level of crispness in the edges between light and dark areas of the picture.(for User mode)
Colour	Press the ◀▶ buttons to control the colour intensity.(for User mode)
Tint (For NTSC format)	Press the ◀▶ buttons to adjust the balance between red and green levels.(Tint is only available for NTSC signal input via the SCART or AV IN.)
Colour Temperature	Press the ▲▼ buttons to cycle among colour temperature: Standard / Cool / Warm and then press the OK button to confirm.Adjusts the colour components independently to achieve a warm or cool.StandardCool: Increases blue tintWarm: Increases red tint

Aspect Ratio

Press the ▲▼ buttons to cycle among aspect ratio: Auto / 4:3 / 16:9 Full /Zoom1 /Zoom2 /Cinema/Just scan and then press the OK button to confirm.

Alternative

You may press the Picture button twice and then press the ◀▶ buttons to select the aspect ratio directly.

Picture Sound Channel Feature Setup Picture Mode User Brightness 50 Contrast 50 Sharpness 43 Colour 169 Tilt Fall Zoom1 Zoom2 Colour Temperature Aspect Ratio 169 Move Error Exit Return

	Input Signal 4:3		Input Signal 16:9
4:3	This selection will allow you to view a picture with an original 4:3 aspect ratio. Black bars will appear on both the left and right of the screen.		This selection will allow you to adjust the picture horizontally, in linear proportion. Black bars will appear on both the left and right of the screen.
16:9	This selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen.		This selection will allow you to view a picture with an original 16:9 aspect ratio.
Zoom1	This selection will allow you to zoom in the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.		This selection will allow you to zoom in the picture without any alteration, while the 4 sides of the picture will be cropped.
Zoom2	This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.		This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.
Just scan (in HDMI mode only)	This selection will detect the resolution of the HDMI signal and display an image. with the same number of pixels		This selection will detect the resolution of the HDMI signal and display an image. with the same number of pixels

Noise Reduction

Press the ▲▼ buttons to select to reduce the noise level of the connected device: Off / Low / Middle / High and then press the OK button to confirm.

Noise Reduction Middle Off Low Middle High

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

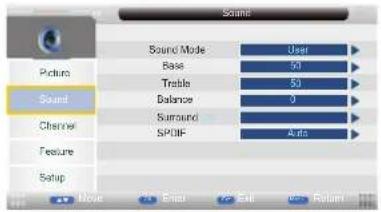

Allows you to select an audio-enhancement technique.

1. Press the Menu button and then press the ▲▼ buttons to select the Sound menu.
2. Press the OK or ▶ button and then press the ▲▼ buttons to select the following sound options and then press the OK button.

Sound Mode Sound Mode User Picture Base 50 Trabble 53 Balance 0 Surround SPOIF Assets Feature Setup Movie Edit Edit Return

Sound Mode

Press the ▲▼ buttons to select an audio-enhancement technique: Standard / Movie / Music / Speech / User and then press the OK button to confirm.

Alternative

You may press the Sound button once and then press the ◀▶ buttons to select the sound mode.

Sound Sound Mode Base Trails Balance Surround SPDIF User Standard Movie Music Spatch User Auto

Bass	Press the ◀▶ buttons to control the relative intensity of lower-pitched sounds. ( )for user mode
Treble	Press the ◀▶ buttons to control the relative intensity of higher pitched sounds. ( )for user mode
Balance	Press the ◀▶ buttons to adjust the relative volume of the speakers in a multiple speaker system.
Surround	Press the ▲▼ buttons to turn on / off the surround function by selecting "On" or "Off".
SPDIF	Press the ▲▼ buttons to select among Off, PCM, Auto and Multi .

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Stereo / Dual Sound Reception (ATV Mode)

When a programme is selected, press the Sound button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo for the selected station.

Broadcast	On Screen Display
Mono	MONO
Stereo	NICAM STEREO

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono by pressing the Sound button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo. In mono reception, the clarity of sound is improved. To switch back to stereo, press the Sound button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo again.

Dual Sound selection

When a bilingual programme is received, you can switch among DUALI, DUALII and DUAL I+II.

Speaker Sound Output Selection (DTV Mode)

While watching a DTV programme, you can press the Sound button to display the audio language list (only applicable when the TV programme has this feature).

Press the ▲▼ buttons to select an audio language or audio format if available and then press the ◀▶ buttons to select sound track between Left, Right and Stereo. Press the OK button to confirm and exit.

Multi-Audio Stereo Italian OTH Move

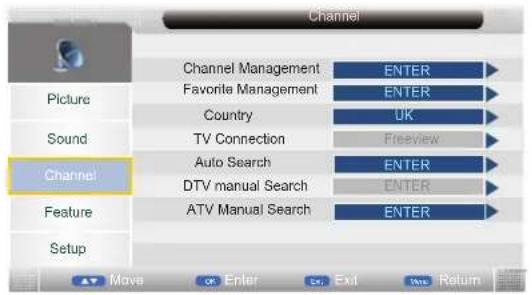

Allows you to set up a variety of channel options.

1. Press the Menu button and then press the ▲▼ buttons to select the Channel menu.

2. Press the OK or ▶ button and then press the to select the following sound options and then press the OK button.

Channel Picture Sound Channel Feature Setup Channel Management ENTER Favorite Management ENTER Country UK TV Connection Freeview Auto Search ENTER DTV manual Search ENTER ATV Manual Search ENTER

Channel Management

To manage (Delete / Rename / Lock / Skip) all channels.

1. Press the Buttons to Channel Management then press the OK button to confirm.
2. A channel management screen will pop up, press the ▲▼ buttons to select the channel you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Lock

Press the GREEN button to lock your selected channel

Channel - Channel Manager No. Program Name Syria 0001 BBC1 atv 0002 C02 atv 0003 S02 atv 0004 C12 atv 0005 C21 atv Move LockDel MoveSkip Move Ctrl Page Exit Next Return

c. Skip

Press the YELLOW button to select the channels that you want to skip when you are selecting channels. Press the YELLOW button again to undo it.

d. Move (this function for ATV mode only)

Press the BLUE button and then press the ▲▼ buttons to move to the selected position .Press the BLUE button to confirm.

1. Press the Menu button to return back to the main menu.
2. Press the Exit button to exit the menu.

Favorite Management

To manageDelete / ) favorite channels.

1. Press the ▲ buttons to favorite Management then press the OK button to confirm.
2. A channel management screen will pop up.

3. Press the ▲▼ buttons to select the channels to be added to your favorite lists, press the RED button to add to FAV list 1.GREEN button FAV list 2. YELLOW button FAV list 3 or BLUE button for FAV list 4.

4. Press the Menu button to return back to the main menu.

5. Press the Exit button to exit the menu.

Channel - Favorite Manager No. Program Name Fav1 Fav2 Fav3 Fav4 Type 0001 BBC1 C02 0003 S02 0005 C12 0005 S11 0006 C21 0007 0008 0009 Favorite 1 Favorite 2 Favorite 3 Favorite 4 Move Page Exit Over Return Channel - Favorite Manager No. Program Name Fav1 Fav2 Fav3 Fav4 Type 0001 BBC1 ✓ C02 ✓ 0003 S02 ✓ 0005 C12 ✓ 0005 S11 ✓ 0006 C21 ✓ 0007 0008 0009 Favorite 1 Favorite 2 Favorite 3 Favorite 4 Move Page Exit Over Return

Country

Press the ▲▼ buttons to select the country and then press the OK button to confirm.

Channel Picture Sound Channel Feature Setup Channel Management Favorite Management Country TV Connection Auto Search DTV manual Search ATV Manual Search ENTER ENTER UK Germany UK France Italy Spain Move Enter Exit Return

Auto Search

To select auto search mode (All / Digital / Analogue).

1. Press the ▲▼ buttons to Auto Search then press the OK button to confirm.
2. Select Auto Search item to enter auto search user operation interface as following.

All Mode: Select All to scan all available DTV and ATV channels and store them. To skip the ATV search press the Menu button. To exit the Tuning menu press Exit.

Channel - Auto Search All Picture Sound Channel Feature Setup Enter DTV ATV ENTER ENTER ENTER Move Enter Exit Return

DTV Mode: Select DTV to scan all available DTV (Freeview/Cable) channels and store them.

Channel Tuning ATV channels found: 0 DTV channels found: 0 Radio channels found: 0 Picture Sound Channel Feature Cable 0% Process 0% Setup Exit

ATV Mode: Select ATV to scan all available Analogue Channels and store them. To exit the tuning menu press Exit.

1. Press the Menu button to return back to the main menu.
2. Press the Exit button to exit the menu.

DTV Manual Search

How to search Digital channels manually.

1. Select DTV Manual Search, press the OK button to confirm.

2. Select a channel number by pressing the ▶ button or by using the number buttons on the remote control. The Strength and Quality of the signal indication bars are below.

3. Select Start to begin the search.

4. To exit the tuning menu press Exit.

Channel - DTV Manual Search Frequency(KHz) 107500 SymbolRate(KS/s) 6375 Modulation(QAM) 84QAM Start Picture Sound Channel Strength 0% Feature Quality 0% Setup Move Enter Exit Return

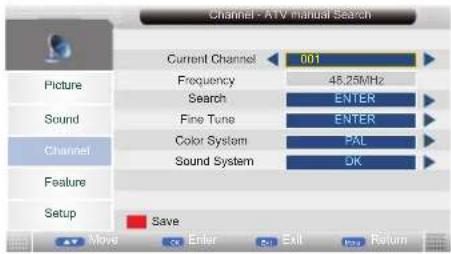

ATV Manual Search

To search analogue channel by entering parameters manually.

1. Press the ▲▼ buttons to ATV Manual Search then press the OK button to confirm.
2. Select ATV manual search item to enter air channel manual search in ATV source and the user operation interface as following.

Current Channe	Displays the current channel number.
Frequency	Select AFC On to lock the desired frequency.
Search	Press the ◀▶ buttons to start the manual tuning.
Fine-Tune	Press the ◀▶ buttons to make manual fine tuning adjustments.
Color System	Selects the color system: Auto / SECAM / PAL.
Sound System	Selects the sound system: BG / DK / I .

1. Press the Menu button to return back to the main menu.

2. Press the Exit button to exit the menu.

Channel - ATV manual Search Current Channel 001 Picture Frequency 48.25MHz Search ENTER Sound Fine Tune ENTER Channel Color System PAL Sound System OK Feature Setup Save Move Enter Exit Return

Allows you to set up a variety of feature options.

1. Press the Menu button and then press the ▲▼ buttons to select the Feature menu.
2. Press the OK or ▶ button button then press the to select the following feature options and then press the OK button.

Feature Lock ENTER Language ENTER Clock ENTER Sleep Timer Off Auto Standby Never Hearing Impaired Off CI Info ENTER PVR/Pause TV ENTER Picture Sound Channel Feature Setup Move Enter Exit Return

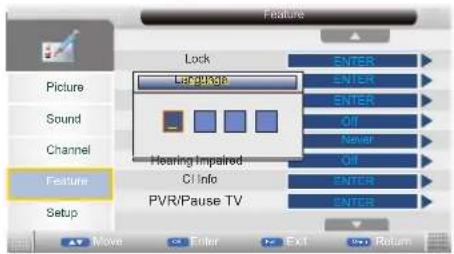

Lock

1. Press the ▲▼ buttons to Lock then press the OK button to confirm.
2. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On.

• The default password is "0000".
- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"8899".

Feature Lock Picture Sound Channel Feature Setup Large Hearing Impaired CI Info PVR/Pause TV ENTER ENTER ENTER OFF Never OFF ENTER ENTER ENTER ENTER Move Enter Exit Return

Lock Channel: ON: Turns on the Lock options. (This option must be set to ON for the channel management Lock option to function) Once the Lock option is activated (ON).

To view any locked channels you will need to give a password. For Auto, Manual tune and TV reset a password will also be needed.

OFF: Turn off the LOCK options. (All functions of the TV will be available)

Parental Guidance: Off: turn off Parental Lock 4-18: turn on Parental Lock and set the age level that are permitted to watch the program.

Change Pin Code: Press the OK or ▶ buttoner the pin code changing page.

Feature - Lock Lock Channel On Picture Parental Guidance Off Sound Change Pin Code ENTER Hotel Mode ENTER Channel Feature Setup Move Enter Exit Run Return

Feature - Change Pin Code Picture Sound Channel Feature Setup Old Password New Password Confirm New Password Exit Return

1. Press the Menu button to return back to the main menu.
2. Press the Exit button to exit the menu.

Language

System language setting, includes OSD Language, Preferred Subtitle, Preferred Audio, Digital Teletext Language, Anglog Teletext Language.

1. Press the ▲▼ buttons to Language then press the OK button to confirm.

OSD Language Press the ◀▶buttons to select the menu language.

Preferred Subtitle Press the ◀▶buttons to select the Preferred Subtitle.

Preferred Audio Press the ◀▶buttons to select the Preferred Audio.

DTV Teletext Language Press the ◀buttons to select the DTV Teletext Language.

ATV Teletext Language Press the ◀▶buttons to select the ATV Teletext Language.

Feature - Language OSD Language English 1st Preferred Subtitle English 2nd Preferred Subtitle English 1st Preferred Audio English 2nd Preferred Audio English DTV Teletext Language English ATV Teletext Language West Picture Sound Channel Feature Setup Move Enter Exit Return

1. Press the Menu button to return back to the main menu.
2. Press the Exit button to exit the menu.

Clock

Allows you to adjust timer zone, sleep timer, auto standby, OSD timer and summer time.

1. Press the ▲▼ buttons to Clock then press the OK button to confirm.

Date	Press the OK buttons to set date.
Time	Press the OK buttons to set time.(The Date and Time option are not available in UK. The Time and Date are automatically set by the Digital TV signal.)
Time Zone	When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.Press the▲▼▶buttons to select the desired time zone city and then press the OK button to confirm. (DTV mode)

Feature - Clock Date 08.11/2012 Time 11:32 Time Zone +8.00 DST Off Picture Sound Channel Feature Setup Move Enter Exit Return

DST

(daylight saving time)

[On, Off] if it's On, it'll be an hour earlier than the GMT. If Time Zone is set to Auto, it's not available.

Sleep Timer

The sleep timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function.

Press the ▲▼ buttons to select a period of time after which the TV automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 mins and then press the OK button to confirm. The timer begins to count down from the number of minutes selected.

If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased.

Feature Lock Picture Language Clock Sound Sleep Timer Auto Standby Hearing Impaired CI Info PVR/Pause TV Feature Look ENTER ENTER ENTER Off 10 Mins 20 Mins 30 Mins 60 Mins Move Enter Exit Return

Auto Standby

The unit will automatically switch to standby mode 1, 2 or 4 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode. If you want to operate the TV for a long period of time, turn off the auto standby function by selecting Never.

Feature Picture Sound Channel Feature Setup Lock Language Clock Sleep Timer Auto Standby Hearing Impaired CI Info PVR/Pause TV ENTER ENTER ENTER Off Never Never 1 Hour 2 Hour 4 Hour Move Enter Exit Return

Hearing Impaired

Allows you to show more information in subtitles for the hearing-impaired in some programmes (for DTV channels only if available).

1. Press the ▲▼buttons to select Hearing Impaired and then press the OK button to select On / Off and return to the previous menu.
2. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Feature Picture Sound Channel Feature Setup Lock Language Clock Sleep Timer Auto Standby Hearing Impaired CI Info PVR/Pause TV ENTER ENTER ENTLB Off Never Off Off On Move Enter Edit Return

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

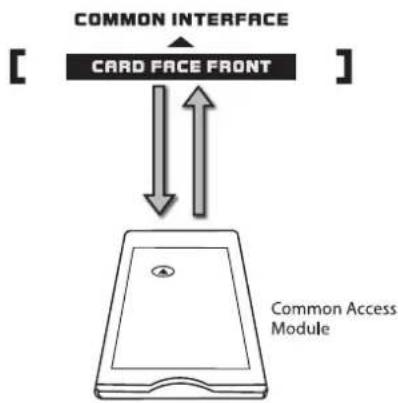

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

To view the module information

1. Press the ▲▼ buttons to CI Info then press the OK button to confirm.
2. A CI Information Main menu will pop up. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
3. After finishing the manual tuning adjustment of a channel, press the Menu button to save your channel before tuning the next channel.
4. Press the Exit button to exit the menu.

Rear View of TV HDMI USB TV Aerial Common Interface Mini YPbPr Mini AV

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

Feature Picture Sound Channel Feature Setup Lock Language Clock Sleep Timer Auto Standby Hearing Impaired CI Info: PVR/Pause TV ENTER ENTER ENTER OFF Never OFF ENTER ENTER ENTER Move Enter Exit Return

Common Interface No CI Module Inserted Move Enter Return Exit

This screen is for illustration only.

PVR/Time shift (DTV Mode)

Allows you to select your preferences in the PVR/Timeshift

1. Press the ▲▼ buttons to select PVR/Timeshift then press the OK button to confirm.

Feature - PVRO Timeshift Picture Sound Channel Feature Setup Partition Select Auto Timeshift Pause TV Buffer Timer Record List Recorder Start ENTER OFF Auto ENTER ENTER ENTER ENTER ENTER

Partition Select

Press the OK buttons to select the Partition Select menu. Display partition's infomation / Format partition function / Set default partition function.

Partitions

The list in the menu shows the partitions connected to system.

Partitions' property

Total size and Free size.

Format Partition

Press RED button to format the displayed partition.

Set default partition

If more partitions are displayed press the GREEN button to select the default partition.

Partition List Total Size: 0006.9 G Free Size: 0006.6 G 01 /udska1 02 /udska2 Format Set Default Partition Move OK Enter

Auto Time shift

Press the◀▶buttons to select the Auto Time shift. choose from Auto / Off.

Pause TV Buffer

Press the ▲▼buttons to select the Timer shift buffer: Auto / 30Mins / 1hr / 2hr.

Timer

Press the OK button to select the Timer menu.

CH NO. Channel number.

Channel Channel name.

Start Start recording time.

Duration The total recording time.

Date The date the recording started.

Mode Record Mod.e

On the left top of menu is current date and time.

Timer 12/01/2008 18:02:25 No. Ch No. Channel Start Duration Data Mode 01 0031 ITV2-1 21:00 21:15 12/04/2009 Once 02 0000 Film4 22:40 23:15 12/04/2009 Once 03 0005 YLE FST 11:30 -- 12/04/2009 Once Del AllDel Add Edit More Edit Return

Record List

The Record list shows all previous recordings on the inserted USB storage device.

Record List 0001 TF1 HD 2009/04/03 00:05:20-00:08:02 0002 BBC ONE 2001/09/05 06:57:12-07:00:31 0003 BBC TWO 2001/09/05 06:58:58-06:58:10 0004 BBC ONE 2001/09/05 06:59:00-07:03:03 Delete Move Return Move OK Enter

Recorder Start

Start an instant record by selecting OK

Allows you to set up a variety of setup options.

1. Press the Menu button and then press the ▲▼ buttons to select the Setup menu.

2. Press the OK or ▶ button button then press the to select the following setup options and then press the OK button.

Setup OSD Timer 30 Seconds PC Setup ENTER Home Mode Home Reset TV Setting ENTER Software Upgrade ENTER OTA Upgrade ENTER DVD Setup ENTER Factory Reset ENTER Move Enter Exit Return Picture Sound Channel Feature Setup

OSD Time

Press the ▲▼ buttons to select the display time of the on-screen menu: 5s / 10s / 15s / 20s / 25s / 30s / Never and then press the OK button to confirm.

PC Setup (PC mode only)

Press the OK button to enter the submenu to adjust the Horizontal/Vertical position or Size and Phase of the picture.

Setup - PG Setup Auto Adjust Picture H Position Sound Phase Clock ENTER 0 0 3 0 Feature Setup MOV C Enter C Ext and Return

Home Mode

Press the ▲▼ buttons to select the Home Mode: Max Brightness / Home / Max Economy and then press the OK button.

Setup OSD Timer 30 Seconds Picture PC Setup ENTER Home Sound Reset TV Setting Max Brightness Software Upgrade Home Channel OTA Upgrade Max Economy Feature DVD Setup ENTER Setup Factory Reset ENTER

Reset TV Setting

Restores all settings to the factory defaults.

1. Press the Menu button then press the ▲▼ buttons to select the Setup menu.

2. Press the OK or ▶ buttons and then press the ▲▼ buttons to select Reset TV Setting and then press the OK button.

3. When activated the factory default settings will be applied to all user settings. (No Channels will be lost)

Setup OSD Timer JG Seconds Picture DO Setup Message Sound Do you want to reset Database to default? Channel OK Cancel Feature Factory Reset Setup Move Enter Exit Info Return

Factory Reset

press the ▲▼ button to Factory Reset then press the OK button to confirm.

- the default password is "0000"

- If you change the password, be sure to remember the new password! If you forget the new password, press the master password "8899"

Setup O2D Timer 30 Seconds PC Setup ENTER Home Mode Home Reset By Setting ENTER So O ENTER Factory Reset ENTER Enter Move Enter Exit Any Return

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Basic Operation

Press the Power button on the TV or the remote control, and select "DVD" source by the TV/AV(SOURCE). If there is no disc in the DVD player the screen will show "NO DISC". Insert Disc according to picture next to disc slot. Do not touch the playing surface.

Hold the disc around the outside with your fingers and place the disc into the slot The player will automatically draw the disc into the player

To "Eject" the disc, press the EJECT button on the TV or the "▲" button on the remote control.

DVD Setup MENU

- DVD Setup is a menu to enable the user to configure the DVD settings.

Enter the DVD Setup menu

Press the Menu button on the remote control and select the Setup menu. Scroll down and select DVD Setup. When in the DVD setup menu use the ◀ button to navigate along the top of the menu and the ▲▼ to scroll up and down the menus.

Setup OSD Timor 30 Seconds PC Setup ENTER Home Mode Home Sound Reset TV Setting ENTER Software Upgrade ENTER OTA Upgrade ENTER Feature DVD Setup ENTER Factory Reset ENTER Setup Move Enter Exit Return -- General Setup Page -- TV Display Wide OSD Lang Eng Screen Saver ON Last Memory ON Exit Setup Go To General Setup Page

Exit the DVD Setup menu

In the General setup page options scroll down to Exit setup and press OK.

General Setup

TV Display

4:3 Pan Scan

This is selected when the DVD player is connected to a normal TV. Wide-screen images are shown on the screen, but with some parts cut automatically.

4:3 Letter Box

This is selected when the player is connected to a normal TV. Wide-screen images are shown on the screen, with black belt on the top and bottom.

Wide

This is selected when the player is connected to a wide-screen TV.

-- General Setup Page -- TV Display Wide 4:3 Pan Scan OSD Lang Eng 4:3 Letter Box Screen Saver ON Wide Last Memory ON Exit Setup Set TV Display Mode

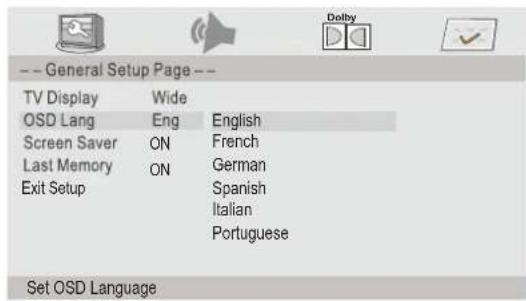

OSD Language

This is used to select the OSD language

-- General Setup Page -- TV Display Wide OSD Lang Eng English Screen Saver ON French Last Memory ON German Exit Setup Spanish Italian Portuguese Set OSD Language

Screen Saver

Start the screen saver, the screen saver image will appear when the player stops or the picture is paused for a few minutes. This saver can keep the screen from being damaged.

• On(Start the screen saver)
- Off (Turn off the screen saver)

-- General Setup Page -- TV Display Wide OSD Lang Eng Screen Saver ON ON Last Memory ON Off Exit Setup Screen Saver

Last Memory

This is setting enables you to watch the DVD from the last point it was turned off, [for example changing the source to watch TV]

• ON(Activate the last memory function)
- OFF(Deactivate the last memory function)

-- General Setup Page -- TV Display Wide OSD Lang Eng Screen Saver ON Last Memory ON ON Exit Setup Off Set Last Memory State

AUDIO Setup

- Speaker Setup

Enter the Audio setup page using ▼ button, press ok see the options.

--Audio Setup Page-- Speaker Setup Go To Speaker Setup Page

Downmix

- LT/RT

A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.

Stereo

A disc recorded multi channel soundtack, The output signal will be incorporated to stereo.

-- Speaker Setup Page -- Downmix STR LT/RT Stereo Set Downmix Mode

Dolby Digital Setup

Dynamic

This option is used to set the compression ration in order to control the sound (Volume) contrast.

--Dolby Digital Setup -- Dynamic Set DRC To Full

Preference Setup

-- Preference Page -- TV System PAL PAL Audio Eng Multi Subtitle Eng NTSC Disc Menu Eng Parental Password Default Set TV Standard

This menu is only available when in DVD mode and no DVD is playing or the DVD has been stopped.

TV Type

PAL

This is selected when the player is connected to a PAL system TV.

Multi

The player will set the TV system according to the disc in the tray.

NTSC

This is selected when the player is connected to a NTSC system TV.

Audio

Choose the language you want to watch your DVD in. Only if the language is recorded to the DVD will this option be functional.

-- Preference Page -- TV System PAL Audio Eng English Subtitle Eng French Disc Menu Eng German Parental Spanish Password Italian Default Portuguese Preferred Audio Language

Subtitle

Choose the subtitle language you want to watch. Only if subtitles have been recorded to the DVD will this option be functional.

-- Preference Page -- TV System PAL English Audio Eng French Subtitle Eng German Disc Menu Eng Spanish Parental Italian Password Portuguese Default Off Preferred Subtitle Language

Disc Menu

Choose the language you want to see the Disc menu in. Only if the language is recorded to the DVD will this option be functional.

-- Preference Page -- TV System PAL Audio Eng English Subtitle Eng French Disc Menu Eng German Parental Spanish Password Italian Default Portuguese Preferred Menu Language

Parental

Parental lock gives you the option of selecting an age control grade. For example if PG is selected any disc inserted rated higher will not be played.

The password is a tool to lock and unlock the parental Lock setting.

Note: (Default password is 123456)

-- Preference Page -- TV System PAL Audio Eng Subtitle Eng Disc Menu Eng Parental Password Change Default Change Password

Old Password New Password Confirm PWD OK

Default

To set the DVD settings back to factory default, choose reset and press the OK button.

-- Preference Page -- TV System PAL Audio Eng Subtitle Eng Disc Menu Eng Parental Password Default Reset Load Factory Setting

Disc Care

About Disc Terms

Title

Generally, pictures or music compressed on a DVD are divided into several sections, "title".

Chapter

The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching, but some discs may not have a recording chapter.

Track

A segment of picture or music on a CD, Each track is numbered for searching.

Care of Disc

Video disc contains high-density compressed data that needs proper handling.

1. Hold the disc with fingers by outer edge and/or the center spindle hole. Do not touch the discs surface.
2. Do not bend or press the disc.

1. Do not expose the disc to direct sunlight or heating sources, Stere discs in cabinet vertically, and in dry condition.

Prevent exposure to:

Direct sunlight

Heat or exhaust from a heating device

Extreme humidity

Clean the disc surface with a soft, dry cleaning cloth, Wipe the disc surface gently and radically from center toward the outer edge.

Do not apply thinner, alcohol, chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently damage the disc surface.

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the EPG button to switch on EPG.

2. Press the EPG button or the Exit button again to switch off EPG and return to normal TV viewing.

There are 3 modes of EPG menu :

Daily mode: shows the information of the programs to be broadcasted in daily mode.

RED (Weekly) Change to weekly mode.

GREEN (Reminder)

YELLOW (Prev Day) Update the program information of the current 7 channels in the channel list to the previous day and the start time keeps the same.

BLUE (Next Day) Update the program information of the current 7 channels in the channel list to the next day and the start time keeps the same.

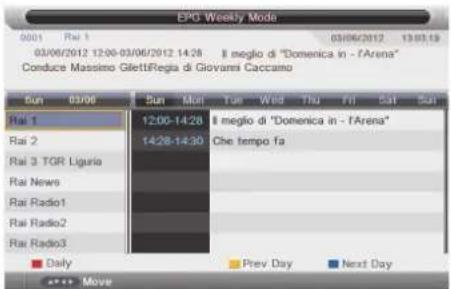

Weekly mode: shows the information of the programs to be broadcasted in weekly mode.

RED (Daily) Change to Daily mode.

YELLOW (Prev Day) If the cursor lies on the right event list, update the right event list to display the event information of the previous day and move the cursor to the same place in the updated page.

BLUE (Next Day) If the cursor lies on the right event list, update the right event list to display the event information of the next day and move the cursor to the same place in the updated page.

Extended mode: shows the detailed information of each program Extended detailed programme information can be displayed by pressing the info button on the remote control.

Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

To Turn on Teletext Function

Make sure the TV channel you are watching transmits teletext.

"No Teletext" sign will show on the screen if teletext is not available.

In ATV mode, press the Text button to enter Teletext mode.

Press the Text button three times to exit and the TV will return to the channel you were watching.

To select a page of text

Find the number of the page in the index and enter it using the 0-9 buttons. The number of the page will appear on the top left corner of the screen.

The page counter will search for your page. When it finds it, the page will be displayed.

To move to the next page of text, press the ▲ button.

To move to the previous page, press the ▼ button.

Mix

To view a page of text while watching a TV programme, press the Text button twice. The text will be superimposed over the TV programme.

Fasttext

At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.

The remote control has a row of colour buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the colour buttons will take you directly to the page corresponding to the subject heading.

Digital Teletext (DTV Mode)

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext.

Teletext within Digital Service

1. Press the TEXT button to display the teletext page. If no Teletext service is available, a "No Teletext" message will be displayed.
2. Press the 0-9 buttons to select a page number.
3. Follow the instructions on digital teletext and move onto the next step by pressing OK, ▲◀▶▼, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.
4. To change digital teletext service, select a different service by pressing the 0-9 buttons or the ▲▼ buttons.

BBC Thursday 25 Dec 100 News Index 102 Sport Home 300 Weather 400 Entertainment 500 Lottery Results 535 Christmas Concert Cbeebles Karaoke INDEX 199 Merry Christmas from BBC Pad Button! To exit, press TEXT

Alternative

You may press the RED button or the Text button to display the teletext information when you see a ● red logo displayed on the screen (e.g. BBC).

1. Press the TEXT button to exit.

2. Switch off the TV before connecting any USB storage device.

3. Connect your USB storage device to the USB port of your TV.
4. Plug the connected devices into the mains socket

5. Press the ⏻ button on of the TV or the ⏻ button on the remote control to turn on your TV.

6. Press the SOURCE button on the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select Media and then press the OK button to confirm.

Rear View of TV HDMI USB TV Aerial Common Interface Mini YPbPr Mini AV USB USB Cable (not included) USB Hub Portable hard Disk Adapter

• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
  • The maximum supported storage space of the hard disk is 1 TB.
• The file system only supports HiSpeed FS, FAT16, FAT32, NTFS formats (NTFS Compressed files are not supported).
• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.

• Disconnect the USB storage device if it is not in use.
  • USB output: DC 5V = 500mA

• Press the SOURCE button on the TV or the SOURCE button on the remote control then press the ▲▼ buttons to select the Media mode and then press the OK button to display the root menu.

• Press the ◀▶ buttons to select PHOTO and then press the OK button.
• Press the ◀▶ buttons to select your storage device and then press the OK button.

File format supported: JPG / JPEG / BMP / PNG / GIF / TIFF.

1. Press the ▲▼ buttons to navigate in the picture folder and then press the OK button. Select the picture file and then press the ▶ button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.
2. Press the OK button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Play / Pause / Stop / Prev. / Next / Rotate / Zoom / Info / Photo Setup / Play list.

If this folder also contains music files. You can select a music track to play at the same time while viewing your photo.

1. Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

Listening to Music

1. Press the SOURCE button on the TV or the SOURCE button on the remote control then press the ▲▼ buttons to select the Media mode and then press the OK button to display the functions bar.
2. Press the ◀▶ buttons to select MUSIC and then press the OK button.


USB1 Return PVR SPO5D 2000.jpg 460.5.jpg 7D2644A87204.jpg psb002.jpg Delete Add/Def all to playlist 271KB 201208/17 610x914

Autumn scene with a small house nestled among blooming pink cherry trees under a bright sun (no text or symbols visible)

Music

1. Press the ◀▶ buttons to select your storage device and then press the OK button.

2. Press the ▲▼ buttons to navigate in the music folder and then press the OK button. Select the music you want to play and then press the ▶ button to play it. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

• Some audio file formats will not be supported.
  • Supported file formats: WAVE / WMA / AAC / AC3 / MPEG.

• Select the music you want to play, it will show the music information (Title / Artist / Album / Genre / Year).

• Press the ◀▶ buttons and then press the OK button to select the function: Play / Pause / Stop / FB / FF / Prev. / Next / Goto Time / Repeat All / Play list / Music.
• Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

Music USB1 Return PVR SPOSD ??? - ????mp3 ??? ????mp3 Delete Add/Del all to playlist 023/004 0.50MB Unknown Unknown

Music Player 777 - 7777.mp3 Title: Unknown Artist: Unknown Album: Unknown Owns: Unknown Years: Unknown Backlight Off 90.00 03:20:04:05 Move OK Cancel Edit Next

Watching Movies

1. Press the SOURCE button on the TV or the Source button on the remote control then press the ▲▼ buttons to select the Media mode and then Press the OK button to display the root menu.

2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

3. Press the ▲▼ buttons to select your storage device and then press the OK button.

4. Press the ▲▼ buttons to select your storage device and then press the OK button.

5. Press the ▲▼ buttons to navigate in the movie folder. Select the movie file and then press the ▶ button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

• Some audio file formats will not be supported.
  • Supported file formats: AVI / MPEG1/2 / MPEG4 / WMV / H.264.

Move

Movie USB1 Return PVR SPO5D ????mp4 [????]????mp4 Delete Add/Del all to playlist Move Edit Page+/- Enter Play

1. Press the Info button or the OK button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Play / Pause / Stop / FB / FF / Slow mode / Step mode / Repeat A-B / Prev. / Next / Play list / Info / Movie Setup / Goto Time.
2. Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

00:00:20:00:02:30

Viewing Texts

1. Press the SOURCE button on the TV or the Source button on the remote control then press the ▲▼ buttons to select the Media mode and then press the OK button to display the root menu.
2. Press the ◀▶ buttons to select e-Book and then press the OK button.
3. Press the ◀▶ buttons to select your storage device and then press the OK button.
4. Press the ▲▼ buttons to navigate in the text folder. Select the text file and then press the ▶ button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.
5. Press the Info button or the OK button to display the function bar. Press the◀▶ buttons and then press the OK button to select the
6. Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

e-Book

e-Book L001 Return PVR SPOSD ?? ????? (2)txt Delete Add/Del all to playlist Move Cn Pages+ Ch Enter Play

If this folder also contains music files. You can select a music track to play at the same time while viewing your text.

e-Book A good book is often the best arm of a life entriving the best that life could think out, for the world of a many's life is, for the most part, but the world of his thoughts. Thus the best books are treasuries of good words, the golden thoughts, which, remembered and cherished, become our constant comparisons and comforters. Books possess an essence of immortality. They are by far the most lasting products of human effort, Temple and statues decay, but books survive. Time is of no account Add/Del bookmark Go to page Bookmark list Playlists Page Page Go Last

This function allows the TV to virtually record the live viewing broadcast programme.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.
- Stop the time-shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.

During normal TV viewing, you may press the ▶ button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). "II" will show on the screen.

There may be a few seconds delay in video and sound when the unit starts to playback the missed broadcast programme. It will return to normal.

Time shift input info menu:

Information Time shift input info menu displays as a flag of Time shift. After Time shift start this menu displays all the time until. Time shift stop (except there is some other menu exist).

Enter method After Time shift start, it will display automatically.

Time shift info banner menu:

Information Time shit info banner shows some current Time shift information.

Enter method After Time shift start, press Info to show the menu.

Function explain :

a Time is equal to current play time minus current recording time.
b Progress bar is for current recording length compared with the disk free space when REC start. The black triangular icon is for current play length compared with current recording length.
c MB Free is the disk instantaneous free space.
d The right red time menu has the same function with the time in info banner menu(only when info banner menu closed it showed).

0801 France 2 HD -00:00:46 MB Free : 5619

Time shift info menu

Time shift time menu

Recording DTV Programme onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save them for future viewing.

Make sure that your connected USB storage device has enough available memory space.

1. Press the Rec button to record the programme that you are currently watching.

REC 0800 TF1 HD 00:06:28 MB Free : 6027

REC info menu

The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the OK button or the Rec button.

1. Press the ■ Stop button to stop recording.

Recording will stop automatically when the disk is full.

This function is used to perform scheduled recording.

1. Press the Timer button on the remote control. The Timer menu will appear.

2. Press the YELLOW button enter the Time Edit menu for the channel.

Recorder	Press the ▲▼ buttons to select the Recorder On or Off.
Type	Press the ▲▼ buttons to select the Type
Channel	Press the ▲▼ buttons to select the
Start time	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀▶ buttons to adjust the start time.
Duration	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀▶ buttons to adjust the end time.
Date	Press the ▲▼ buttons to select the date of starting recording, Format is day / month / year.
Mode	Press the ◀▶ buttons to select the Once / Daily / Monthly ./ Weekly

1. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display.
2. The Schedule List will then be displayed with your preset reminders shown.
3. Press the YELLOW button to return to the EPG.
4. Press the Exit button to exit EPG.

• When the preset time is reached, the TV will start recording automatically.
• If a programme recording starts when the TV is in standby mode, the LED indicator will alternately flash red and green.

Timer 12/01/2008 18:02:25 No. Ch No. Channel Start Duration Date Mode 01. 0031 ITV2 +1 21:00 21:15 12/04/2009 Once 02. 0079 Film4 22:40 23:15 12/04/2009 Once 03. 0005 YLE FST 11:30 -- 12/04/2009 Once Del AllDel Add Edit Move Exit Pass Return

Timer Edit 13/01/2008 16:02:25 Recorder On Type DTV Channel BBC ONE Start Time 09:35 Duration 10:15 Date 13/01/2008 Mode Once

Timer 12/01/2008 18:02:25 No. Ch No. Channels Start Duration Date Mode Q1 0031 ITV2 +1 21:00 21:15 12/04/2009 Once Q2 0005 Film4 22:40 23:15 12/04/2009 Once Q3 0005 YLE FST 11:30 12/04/2009 Once De AllDel Add Edit Move Exit Return

Time to start recorder 22 s

Record List 0001 TF1 HD 2009/04/03 00:05:20 00:08:02 0002 BBC ONE 2001/09/05 06:57:12-07:00:31 0003 BBC TWO 2001/09/05 06:56:58-06:58:10 0004 BBC ONE 2001/09/05 06:59:00-07:03:03 Delete Move Return Move OK Enter

You can play a recorded programme from the recorded programme list or from a USB Storage Device.

1. Press the SOURCE button on the TV or the SOURCE button on the remote control then press the ▲▼ buttons to select the Media mode and then press the OK button.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.
3. Press the ◀▶ buttons to select your storage device and then press the OK button.
4. Press the ▲▼ buttons to select the "PVR" folder and then press the OK button. Press the ▲▼ buttons to navigate in the "PVR" folder. Select your recorded programme and then press the OK button to view.

Movie

Movie USB1 Return PVR SPO8D ????mp4 [????]????mp4 Delete Add/Def all to playlist Add/Def all to playlist Move Copy Page+/- Print Play

Movie USB1 Return PVR SP05D ????mp4 [????]????mp4 Delete Add/Del all to playlist 061504 Movie Click Pages Enter Play

Careful and regular cleaning can prolong the life of your TV.

Be sure to Disconnect the mains cable from the mains socket before any cleaning.

1. Use a soft dry cloth to wipe away the dust from the screen and surfaces.

2. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. Wring the cloth until it is almost dry, then use it to wipe the TV.

3. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on.

Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.

Illustration of a hand cleaning a computer monitor (no text or symbols visible)

Hints and Tips

The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0871 2887345.

The TV does not operate properly.
The TV does not respond when pressing any buttons	· The TV may freeze up during use. Disconnect the mains cable from the mains socket for a few minutes. Reconnect the mains cable and try to operate it again as usual.
TV cannot be switched on	· Check that the TV is connected to the mains supply· Make sure all connected AV devices are switched off before switching on your TV.
The remote control does not work	· Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.· Ensure that the batteries are installed with the correct polarity (+ to +, - to -).· Install new batteries.
Power is suddenly turned off	· Check the power of the TV. The mains supply maybe interrupted.· Check if the sleep timer is set.· Check whether the Auto Standby is activated.
The video function does not work.
No Picture & No Sound	· Check whether the TV is switched on.· Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after switching on	· This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	· Adjust the settings in the PICTURE menu.· Try another channel. The problem may be caused by the broadcaster.· Check if the video cables are connected properly.
Horizontal / Vertical bar or picture shaking	· Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	· Station or cable channel may be experiencing problems, tune to another station.· Station signal is weak, reposition the aerial for better reception.· Check for sources of possible interference.
Lines or streaks in pictures	· Check aerial (Change the position of the aerial.)
No pictures when connecting HDMI	· Check if the input source is HDMI.
Picture appears in wrong ratio	· Adjust the Aspect Ratio settings in the PICTURE menu.

The audio function does not work.

Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the Mute button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from Inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI.
Audio noise	Keep the RF coaxial cable away from the other connected cables.
Password
Lost Password	Select the Change Pin Code setting in the FEATURE menu, then enter the following master password "8899". The master password clears your previous password and allows you to enter a new password.
There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or single colour	Check the signal cable.Reinstall the PC video card.
FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?	It happens sometimes, if you have a weak signal. Usually it just means you'll need to rescan your digital box or TV. Don't worry, it easy to do. And once you've done it, you should get all the Freeview channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
Why do I get 'blocking' on my digital picture?	In most cases, blocking is caused by a reception problem – either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer.Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal is strong, consult your local aerial installer for advice.
Can I watch Freeview using a portable set-top aerial?	Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial.If you do not have access to a rooftop aerial – for example, if you rent a flat and the aerial is the responsibility of your landlord, or if you're using a second TV in the bedroom and don't want the hassle and expense of using extension cables, a set – top aerial may be your only option.
What type of aerial do I need?	If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical devices in the home. We suggest you have an aerial survey done before getting an aerial upgrade.Talk to your retailer or contact your local aerial installer.

The screen resolution has been optimised during production for the display modes listed below.

YPbPr Mode

Resolution	Vertical Frequency (Hz)	Aspect Ratio
480i: 720 x 480	60	4:3 / 16:9 / Full / Zoom1 / Zoom2
480P: 720 x 480
576i: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080i : 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

PC Mode

Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video.

Resolution	Vertical Frequency (Hz)	Aspect Ratio
640 x 480	60	4:3 / 16:9 / Full
	72
	75
800 x 600	60
	72
	75
1024 x 768	60
	70
	75
1600 x 900	60

HDMI Mode

Resolution	Vertical Frequency (Hz)	Aspect Ratio
480i: 720 x 480	60	4:3 / 16:9 / Full / Zoom1 / Zoom2 / Just Scan
480P: 720 x 480
576i: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080i : 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

Model	C20230F-LED
Panel System	20 inch LED Panel
Display Resolution	1600 (H) x 900 (V) pixels
Television System	PAL I / BG / DKSECAM BG / DK
Brightness	200 cd/m2
Contrast Ratio	1000:1
Power Source	12V --- 3A
Energy Efficiency Class	A
Screen Size (measured diagonally)	Approx. 49.5 (10.5 inch)
Operating Power consumption	16 W
Average Annual Energy Consumption	24 kWh
Standby Power Consumption	< 0.5 W
Operating Temperature	0°C - 40°C
Vesa Wall mounting size / S crew size	100 x 100 mm / M4x 8
Speaker Power	2.5 W + 2.5W
Dimension (W x D x H) without base	466 x 54 x 279 mm
Dimension (W x D x H) with base	466 x 175 x 322 mm
Weight (Net)	2.8 kg
Inputs / Output
SCART	1
HDMI	1
PC	1
PC AUDIO	1
YPbPr	1
Common Interface (AUDIO IN)	1
AV	1
USB	1
DIGITAL (Coaxial)	1
RF (75 Ω)	1
Earphone (3.5mm)	1

Features and specifications are subject to change without prior notice.

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.
• Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

20 cm 10 cm 10 cm 10 cm

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum viewing

• View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LED screen

- The LED screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LED screen. These points are generated in the manufacturing process and are normal.

Screen Burn

- A characteristic of Plasma and LED TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen. - Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

1. Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.

2. TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

1. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

1. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

- To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Headphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Standby

- The ⏻ button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

- To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

- Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.
• For MAINS powered apparatus and for apparatus producing internal voltages greater than 35 V(peak) a.c. or d.c., having no protection against splashing water, the apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • To ensure correct and safe installation and interconnection of the apparatus in multimedia systems
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable;

Important Note

This TV is fitted with the latest ECO friendly power saving technology. If whilst viewing the TV remote control is not used for a period of 4 hours, the Auto Standby feature will operate and power down the TV. A warning message will be displayed to inform you that the TV is about to power down.

Packaging materials are not toys. Please keep away from children. Plastic bags can cause suffocation when pulled over the head.

Waste Electrical Recycling

Correct disposal of Product

This sign indicates that this product may not be disposed of with your regular household waste. The recycling and separate collection of such products is your responsibility. Please drop off the above mentioned waste at a designated place for recycling waste electrical and electronic equipment. If you do not know where to drop off your waste equipment for recycling, please contact your local city office or household waste collection service.

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemicals symbols for lead(Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased this product.

This appliance complies with European Safety and Electrical directives.

It fulffils the following EU regulations

EN 55022:2006+A1:2007
EN 55013:2001+A1:2003+A2:2006
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 55024:1998+A1:2001+A2:2003
EN 55020:2007
