USER MANUAL CS-9070 Euroline
Screwdriver Tabs Dashboard Sleevetext_image
Diagram illustrating a mechanical process with a tool and a block, showing directional arrows indicating movement or force.text_image
Side View showing Screw Holes marked T, N Screw Factory Radio Mounting Bracket Screw Hook Dashboard or Consoletext_image
Rch RED Lch WHITE LINE OUT CABLE GREY Part B Part A FUSE (15A) Antenna Socket 8 (GREEN/BLACK) ⊕ 7 (GREEN) ⊕ 6 (WHITE/BLACK) ⊕ 5 (WHITE) ⊕ 4 (GRAY/BLACK) ⊕ 3 (GRAY) ⊕ 2 (VIOLET/BLACK) ⊕ 1 (VIOLET) ⊕ Ground Wire (Black) 7 +12V Accessory/Switch (Red) 5 Power Antenna/Amplifier Turn On (Blue/Red) 4 +12V Constant Power Supply (Yellow) 4-SPEAKER SYSTEM Rear Left Speaker Front Left Speaker Front Right Speaker Rear Right Speaker


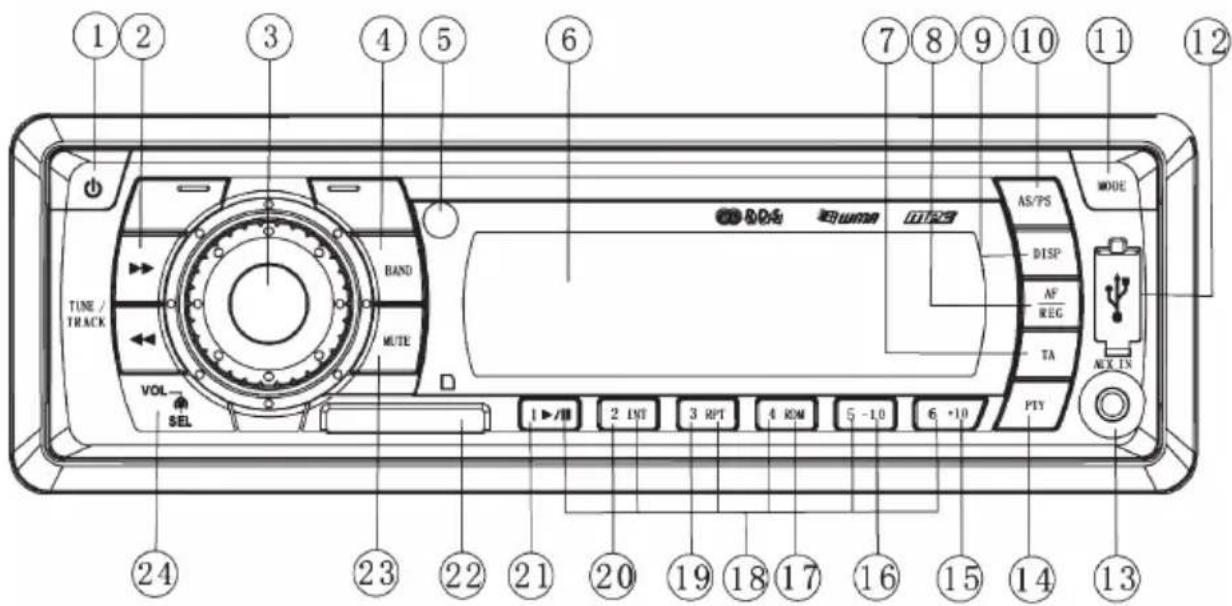

1 2 3 4 5 6 7 8 9 10 11 12 TUNE / TRACK VOL SEL BAND MUTE AS/PS DISP AF REG TA MODE NX IN 1 > / INT 2 INT 3 RPT 4 ROM 5 -10 6 +10 PTY 24 23 22 21 20 19 18 17 16 15 14 13S → PI SOUND / MUTE → ON/OFF
