USER MANUAL HM4002 Home Electric

Silver electric mixer with a hand mixer, no visible text or symbols on the device itself.

Bedienungsanleitung

User Manual

INHALTSVERZEICHNIS

Pure electrical circuit lines without any symbols

Two identical laboratory flasks with vertical tubes and a labeled component (no text or symbols on the flasks themselves)

TABLE OF CONTENTS....9

IMPORTANT SAFETY INSTRUCTIONS....10

CONTROL ELEMENTS....11

OPERATING INSTRUCTIONS....12

CLEANING AND CARE, TECHNICAL DATA....13

WARRANTY 14-15

Correct disposal of this product.

This label indicates that, in the EU, electronic devices cannot be disposed of with regular household waste.

Please use the return or collections systems of your municipality or contact the seller where you purchased this product.

IMPORTANT SAFETY INSTRUCTIONS

• Before using the appliance read this user manual carefully. It contains important information for your safety as well operating and maintenance advice. Keep the manual for future reference and pass it on together with the appliance.
  • Use the appliance for the intended uses only. Misuse can lead to danger.
  • This appliance is only suitable for household use. It is not suitable for commercial use.
  The appliance is only suitable for indoor use; do not use it outdoors.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The mains supply voltage shall match the rating of your appliance.
• Pull the plug if you do not use the appliance, if there is a malfunction, before changing accessories or approaching parts that move in use and before cleaning.
• The power plug is used as the disconnect device. Ensure that the power plug is in operable condition.
• Only removing the power plug completely disconnects the appliance from the mains supply.
  • Never let the appliance run unattended.
• Keep the power cord and plug away from hot surfaces. Do not place this appliance on or near heat sources, e.g. a hot gas cooker or a heated oven.
• Do not immerse any electrical parts of this appliance in water. Do not operate the appliance near objects filled with water. Please see chapter "Cleaning and Care".
• Pull the power plug out of the wall outlet by using the plug. Do not pull the cord.
• Do not cover a heated appliance. Pull the plug and let it cool down before storing the appliance.
• During operation keep hands, hair, clothing as well as utensils away from the moving beaters or dough hooks to avoid injuries and damage of the appliance.
• Do not use the appliance during cooking processes, with boiling liquids or hot fat. Danger of burns!
• The appliance shall not be used if it has been dropped or if there are visible signs of damage.
• A damaged power cord has to be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• When you do not use the appliance according to these instructions we reject any liability.
• Never use any accessories or parts from other manufacturers or which have not been specifically advised by the manufacturer. Your guarantee will become invalid if such accessories or parts have been used.

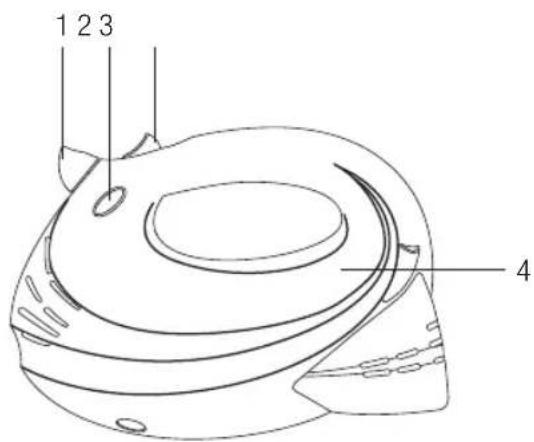

CONTROL ELEMENTS

1 2 3 4

Pure mechanical diagram showing two U-shaped components with no text or symbols

Two identical laboratory glassware with vertical connectors and a labeled scale (6), no text or symbols present.

1 Eject button
2 TURBO button
3 Speed switch (0, 1, 2, 3, 4, 5)
4 Motor unit
5 Dough hooks
6 Beaters

OPERATING INSTRUCTIONS

Unpacking and checking

• Remove all packaging and check the appliance for damage.
• Do not use the appliance if it is damaged in any way. Bring it back to the dealer immediately.
• Clean the hand mixer, beaters and dough hooks before first use with a damp cloth and wipe it off ("Cleaning and care").

Blending

• Attach the beaters or dough hooks to the hand mixer. Slightly turn the beaters or dough hooks and adjust them, until they click and lock into place. Dough hooks are only used for mixing dough and beaters are only used for blending eggs or similar food.
• Ensure that the speed switch is set to position 0. Connect the power plug to a suitable wall outlet.
• Lower the hand mixer into a mixing bowl with ingredients and put the speed switch to position 1 to switch on the appliance. There are five speed positions.
• If you press the TURBO button the speed will increase 15%. The left and right buttons are the same but can not be pressed at the same time.
• Caution: While blending do not put knives, metal spoons, forks or similar items into the mixing bowl.
• Put the speed switch to position 0 to switch off the appliance and pull the power plug out of the wall outlet.
• Remove the beaters and dough hooks in position 0 only. Press the Eject button to release the beaters or dough hooks and remove them from the mixer.

Short time operation

• The appliance is designed for processing food quantities commonly used in the average household.
• If the appliance is subjected to extreme load, the motor might be overloaded. In this case it is required to let the motor cool down to room temperature.
• This appliance must never be operated for over 5 minutes one time. Before operating it again allow the appliance to cool down to room temperature.
  • If the appliance will heat up, turn it off immediately and pull the power plug.
• Let the appliance cool down completely before operating it again.

Advices

• Always start blending at slow speeds. Gradually increase the speed to the recommended speed as stated in the recipe.
• Blend the ingredients only as long as it is recommended in the recipe. Fold dry ingredients into mixture only until just combined. Always use the low speed.
• Refrigerated ingredients, e.g. butter and eggs can easier be blended if they are at room temperature.
• Climatic conditions, seasonal temperature changes, temperature of ingredients and their texture variation from area to area have an influence on the required mixing time and the achieved results.

CLEANING AND CARE, TECHNICAL DATA

• Disconnect the power plug and allow the device to cool off prior to cleaning.
• Clean the beakers and the dough hooks after use with warm water and a mild detergent and wipe them off. The beaters and dough hooks may be washed in the dishwasher.
• Do never immerse the hand mixer in water or other liquids during cleaning. Never hold it under running water.
• Clean the exterior surfaces of the device with a slightly damp cloth and then rub dry.
• Never use solvents or abrasive cleaning agents, brushes, metal, or pointy objects for cleaning. Solvents are hazardous to your health and harm plastic components. Abrasive cleaning agents and aids will scratch the surface. Food residue may accumulate in scratches and offer a medium for the growth of mold or bacteria.

Technical Data

Power supply AC 230V, 50Hz

Rated Input 250W

Operation mode Short time operation: 5 minutes operation

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Customer Service E2 Servicecenter GmbH

Max-Planck-Strasse 13

50858 Köln-Marsdorf

Telephone

01805-22 17 84

Monday - Friday 10:00 – 18:00

(Euro 0.14/min from German landline; other charges may apply from mobile phone)

Please enter the serial number of your device here:

Customer Info Manufacturer's Warranty

HOME ELECTRIC

WThank you for your purchase of one of our products. We hope you will enjoy using our high-quality product. Our strict production control ensures the high quality of our devices. However, in the event that you wish to submit a qualified claim, we grant a

3 years

warranty as of the date of purchase, subject to the following conditions:

This warranty does not affect your statutory warranty claims as consumer toward the seller of the device. These rights are not affected by our manufacturer's warranty. The warranty granted by us is valid only for domestic use of the device and is limited to the area of the Federal Republic of Germany.

The warranty term is 3 years as of the date of purchase.

It is within HOME ELECTRIC's discretion to fulfil the warranty by repair or replacement of the device or defect component. Other claims are excluded. In case of questions regarding HOME ELECTRIC products you no longer need to take the time to go to the seller but may call our service hotline or service center directly. A team of highly qualified product consultants and technicians is available from Monday through Friday from 10:00 a.m. to 6:00 p.m.

Service Hotline: 01805 / 22 17 84 (€ 0,14 per min)

When mailing your device, please also include a short description of the problem as this will facilitate handling. Please mail your device, without exception, only to our authorised service partner and use only the enclosed return coupon. If the return coupon is missing please contact the above service hotline.

ATTENTION: Mailings that are not pre-paid will not be accepted!

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Our service partner requires proof of purchase, either as original receipt or cash receipt printed by the seller to perform warranty repairs. The serial number on the device must also be readable. We are unable to perform warranty services free of charge without proof of purchase. We recommend keeping the original packaging in order to ensure safe transport of the device in case of a warranty claim.

Warranty repairs may be performed exclusively by E2 Servicecenter GmbH or contractual partners authorised by it. Repairs performed by the customer or other shops void the warranty; a claim for cost reimbursement does not exist.

The warranty is void or does not cover:

⇒ in case of improper use
→ in case of mechanical damages to the device from outside forces
⇒ in case of transportation damages
⇒ for wear parts
⇒ in case of operating errors and misuse
⇒ when placing the device in wet rooms or outdoors
in case of damages resulting from force, war, water, lightning, excess voltage, and other reasons not within the scope of HOME ELECTRIC's responsibility.
in case of excessive use, in particular in case of non-domestic use
⇒ in case of disregard of the user instructions and installation errors
⇒ if the device does not have a technical defect
⇒ for transport and travel costs as well as costs incurred by installing and uninstalling the device

The warranty does not include any subsequent liability on our part, in particular no liability for damages to the device itself or incurred by the loss of the device until the time of repair (e.g. travel costs, handling costs, etc.). However, this does not limit or exclude our statutory warranty, in particular pursuant to the Product Liability Act.

Any warranty services provided by us do not extend the warranty term of 3 years as of the date of purchase, also not in terms of possibly exchanged components.

We wish you much joy with your new device and hope that your next one will be another HOME ELECTRIC product.
