USER MANUAL Touch-HWN Heatmiser

WED 18:20 OFF Hill On ROOM TEMP 20.0°C PROG HOLD HOLIDAY SCREEN

heatmiser

Model: Touch-HWN

Model: Touch-HWN

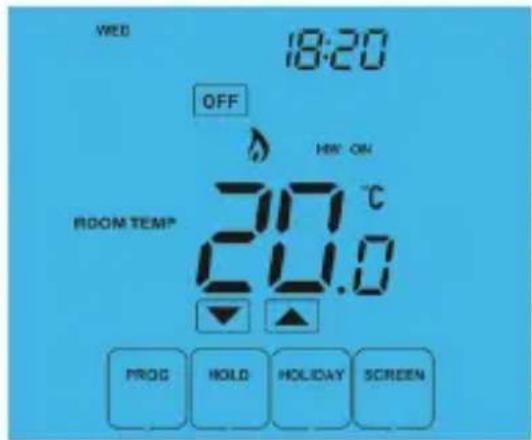

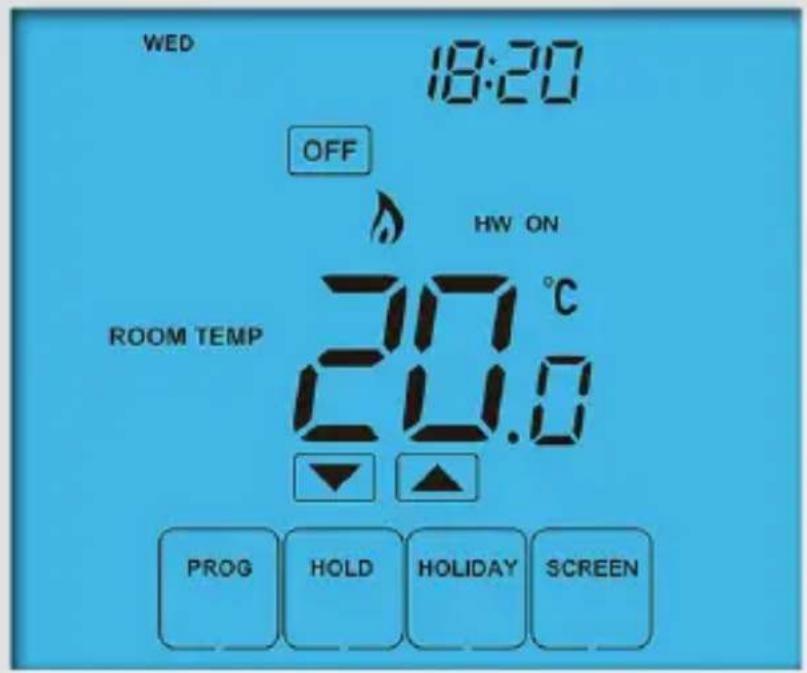

WED 18:20 OFF HW ON ROOM TEMP 20.0°C PROG HOLD HOLIDAY SCREEN

heatmiser

Table of Contents

Product Image	1	Temperature Control	16
Table of Contents	2	Hot Water Control	16
What is a Programmable Room Thermostat?	3-4	Temperature Hold	17
		Holiday Programming	18
Installation Procedure	5-6	Frost Protection	19
LCD Display	7-8	Heating ON/OFF	20
Setting the Clock	9	Optional Features Explained	21-22
Temperature Display	10	Adjusting the Optional Settings	23
Comfort Levels Explained	11-12	Optional Settings - Features Table	24
Hot Water Timings Explained	13-14	Re-calibrating the Thermostat	25
Clean Screen	15	Factory Reset	26
Locking the Keypad	15	Wiring Diagrams	27-28

? What is a Programmable Room Thermostat?

A programmable room thermostat is both a programmer and a room thermostat.

The programmer allows you to set "On" and "Off" periods to suit your own lifestyle. The room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

So a programmable room thermostat lets you choose what times you want the heating to be on, and what temperature it should reach while it is on. It will allow you to select different temperatures in your home at different times of the day (and days of the week) to meet your particular needs and preferences.

Setting a room thermostat to a higher temperature will not make the room heat up any faster. How quickly the room heats up depends on the design & size of the heating system.

Similarly reducing the temperature setting does not affect how quickly the room cools down. Setting a programmable room thermostat to a lower temperature will result in the room being controlled at a lower temperature, and saves energy.

The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have chosen, and then leave it alone to do its job.

The best way to do this is to set the room thermostat to a low temperature – say 18°C, and then turn it up by 1°C each day until you are comfortable with the temperature. You won't have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.

If your heating system is a boiler with radiators, there will usually be only one programmable room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators.

If you don't have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.

You are able to temporarily adjust the heating program by overriding or using the temperature hold feature. These features are explained further on pages 16 and 17 of this manual.

Programmable room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may also prevent the thermostat from working properly.

Installation Procedure

Do

Mount the thermostat at eye level.

Read the instructions fully so you get the best from our product.

Don't

Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage.

This Touchscreen Series thermostat is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.

Step 1

Carefully separate the front half of the thermostat from the back plate by placing a small flat head terminal driver into the slots on the bottom face of the thermostat.

Step 2

Place the thermostat front somewhere safe.

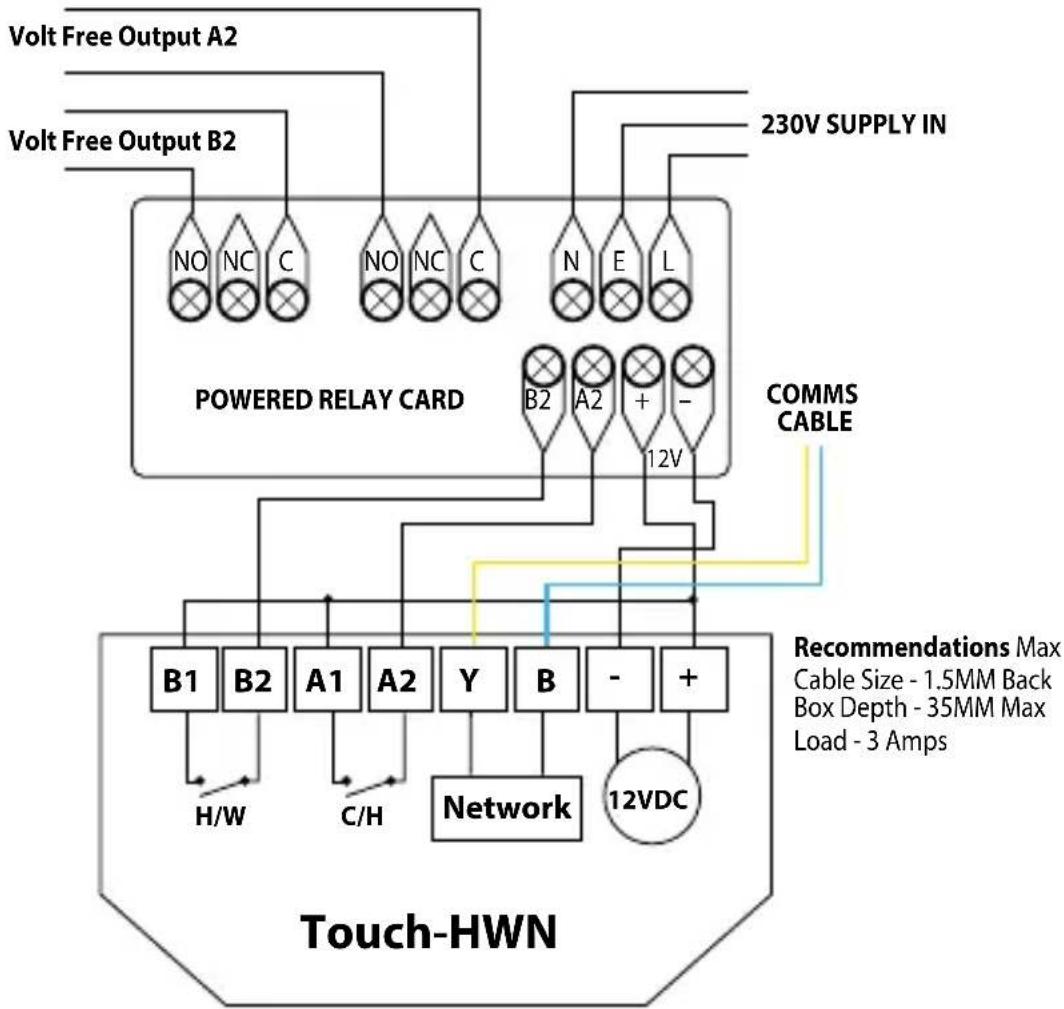

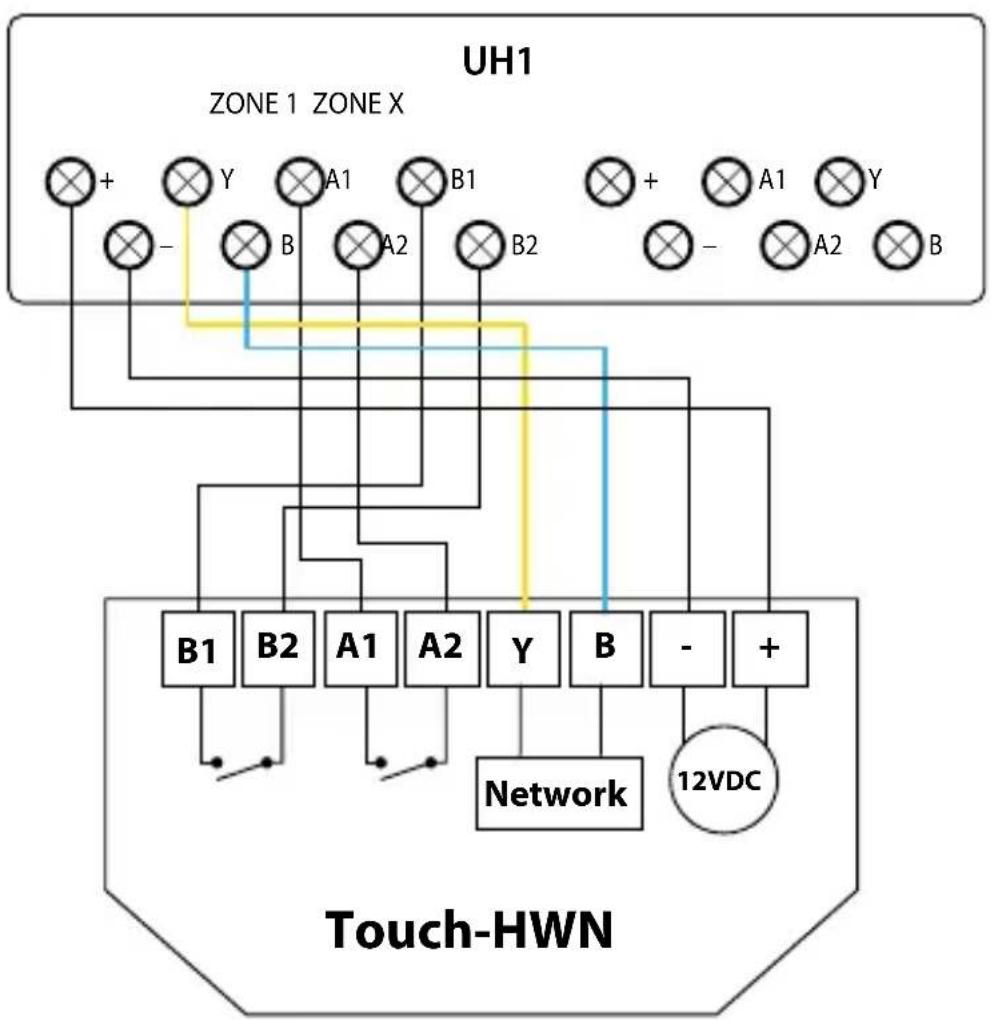

Terminate the thermostat as shown in the diagrams on pages 27-28 of this booklet.

Step 3

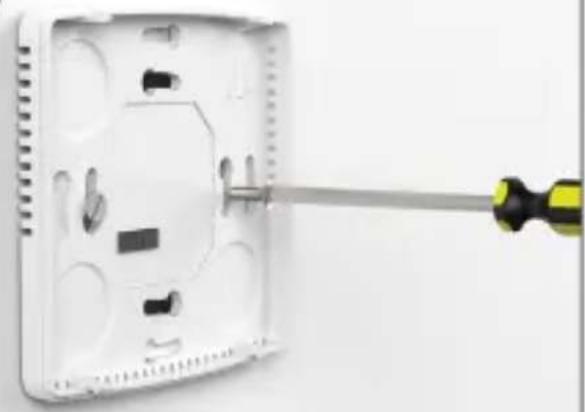

Screw the thermostat back plate securely into the back box.

Step 4

Clip the front of the thermostat back onto the thermostat back plate.

1

White electronic device with a screen and cable, no visible text or symbols

2

Interior view of a white plastic device showing internal structure with colored wires and a red indicator light (no text or symbols visible)

3

Close-up of a white electrical socket with screwdriver inserted, showing internal components and wiring (no text or symbols visible)

4

White portable electronic device with a black screen and 'Heateriser' branding (no visible text on device body)

MON TUE WED THU FRI SAT SUN HOLIDAY LEFT 88:00 HRS DAYS OFF HW ON HW OFF ROOM TEMP 81.0 °C F SET CLEAN SCREEN CANCEL PROG DAY HOLD CLOCK HOLIDAY SETUP SCREEN TIMER DONE 1 432 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 LEAVE TIME 2 WAKE TIME 1 RETURN TIME 3 SLEEP TIME 4

LCD Display

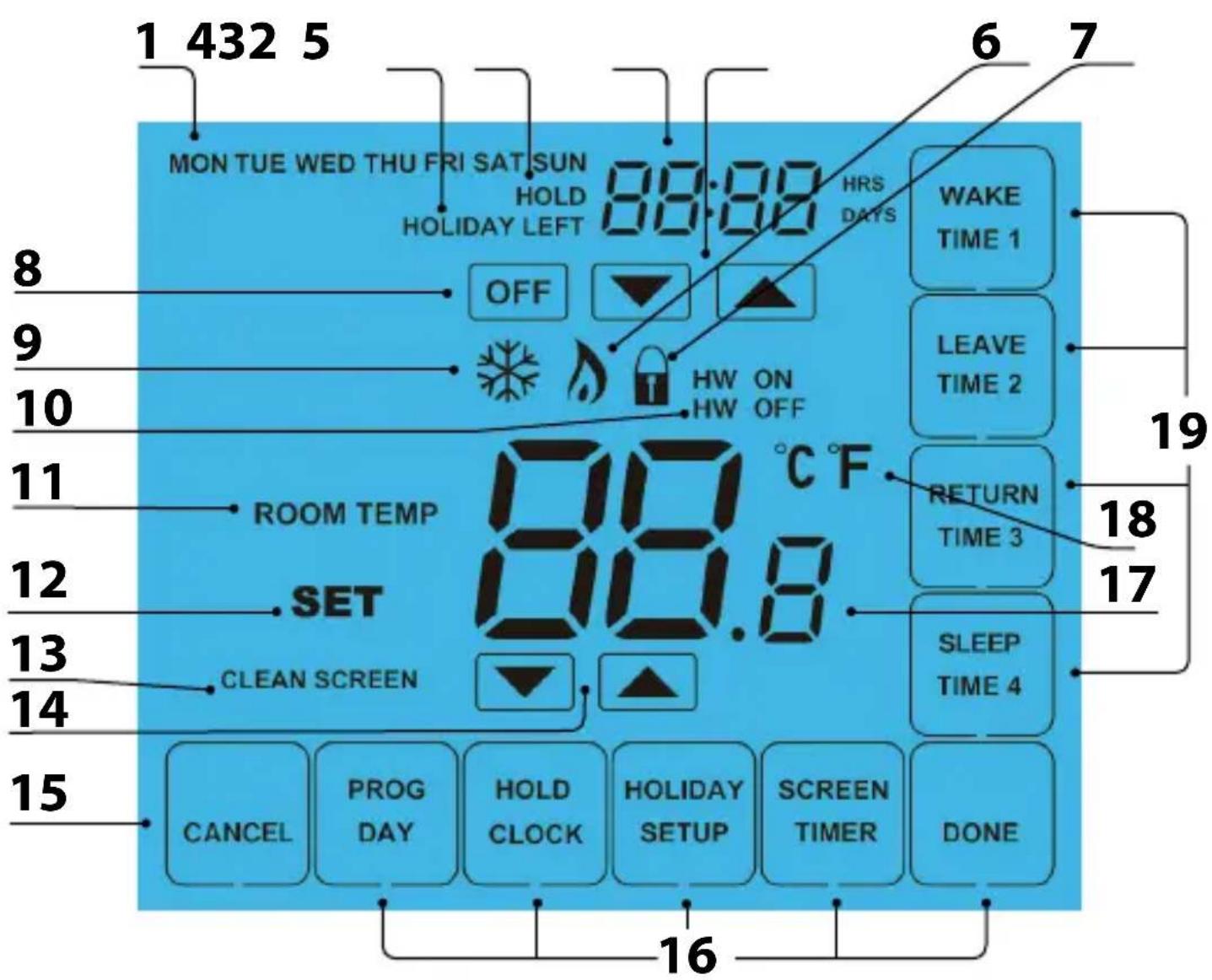

1. Day Indicator - Displays the day of the week.
2. Holiday Indicator - Displayed when the thermostat is in Holiday mode.
3. Temperature Hold - Displayed when the thermostat is in Hold mode.
4. Clock - Displays time in normal operation, time left in hold or days left in holiday mode.
5. Up/Down Keys - Increase or decrease values shown on top digit group.
6. Flame Icon - Displayed when the thermostat is calling for heat, the flame icon will
7. Keypad Lock Icon - Displayed when the keypad is locked.
8. OFF Key - Single press to enable/disable frost protection or press and hold to turn off display.
9. Frost Icon - Displayed when the thermostat is in frost protection mode.
10. Hot Water ON / OFF - Indicates the hot water status.
11. Room Temp - Indicates the current temperature sensor mode.
12. Set - Indicates when changes are being made to programs or temperature set points.
13. Clean Screen - Freezes screen temporarily to enable cleaning.
14. Up/Down Keys - Increase of decrease values shown on bottom digit group.
15. Cancel Key - Used to exit setup/program operations.
16. Setup/Programming Keys - Used to navigate setup options.
17. Current Temp - Indicates the current sensor temperature.
18. Units of Temperature - Degrees Celsius or Fahrenheit.
19. Comfort Level Selection Keys - Used in comfort level setup (see page 11).

Setting the Clock

To set the clock, follow these steps.

• Press PROG
• Press CLOCK ....
  • Use the Down key to set the hours ....
  • Use the Up key to set the minutes ....
  • Use the Day key to set the day of the week ....
• Press DONE to confirm and exit ....

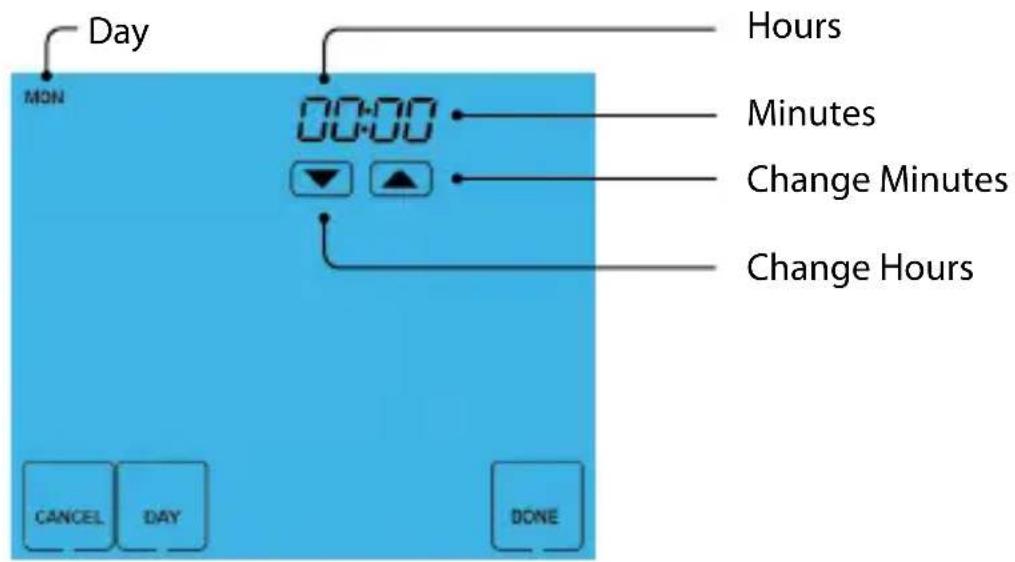

Day MON 00:00 Hours Minutes Change Minutes Change Hours CANCEL DAY DONE

Temperature Display

The temperature display information is driven by two different inputs; the sensor measurement and the target temperature you have set.

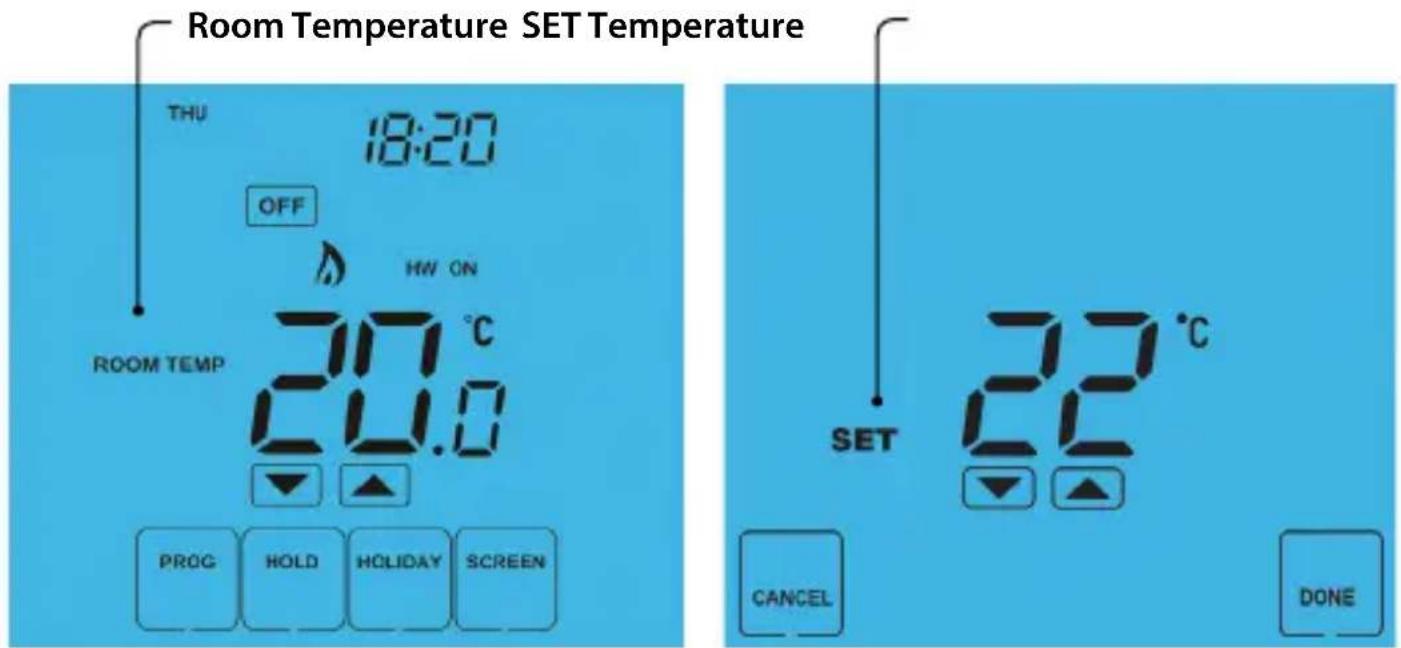

Room Temperature SET Temperature THU 18:20 OFF HW ON ROOM TEMP 20.0 °C PROG HOLD HOLIDAY SCREEN SET 22 °C CANCEL DONE

This is the current room temperature. This is the temperature you are trying to achieve in your home.

Comfort Levels Explained

Comfort levels allow you to set different temperatures throughout the day. For example, you may want the home warm in the morning when you are getting ready for work, cooler during the day when the house is unoccupied and then warmer in the evening when you are home relaxing.

The thermostat offers 2 programming options:

5/2 Day Programming - 4 levels for the weekdays and 4 different levels for the weekend.

7 Day Programming - 4 levels for each day.

See page 23 for details on how to switch between these modes.

Tip! If you don't want to use all of the comfort levels, just set the time to --.

Default comfort levels are pre-programmed but you can change them easily.

Weekday Level Time Temp

Wake	08:00 21°C
Leave	09:30 16°C
Return 16:30 22°C
Sleep	23:00 17°C
Weekend Level Time Temp
Wake	09:00 21°C
Leave	22:00 16°C
Return	--,-- --°C
Sleep	--,-- --°C

• Press PROG ....
• Select WAKE ....
  • Use the Up/Down keys to set the time for WAKE period ....
• Use the Up/Down keys to set the temperature ....
• Repeat these steps for the LEAVE, RETURN & SLEEP periods ......
• Press DAY to select the next day to program and repeat ....


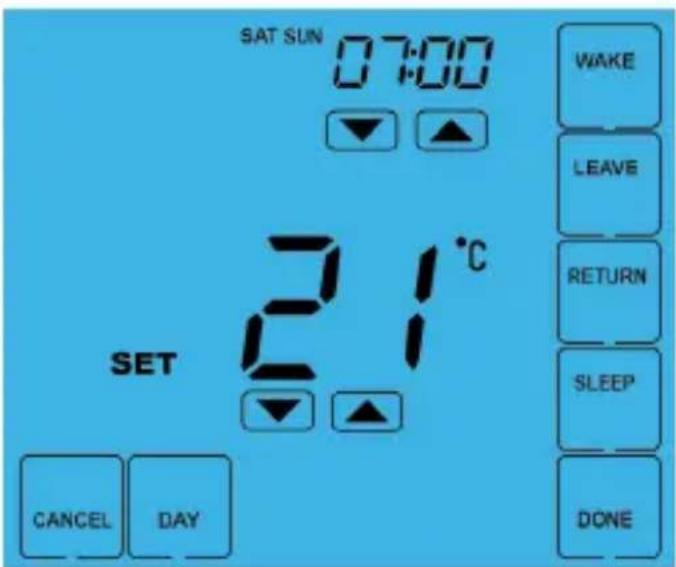

SAT SUN 07:00 21°C SET WAKE LEAVE RETURN SLEEP DONE CANCEL DAY

In 5/2 Day mode the thermostat will display "Sat Sun" prompting you to program the temperature levels for the weekend.

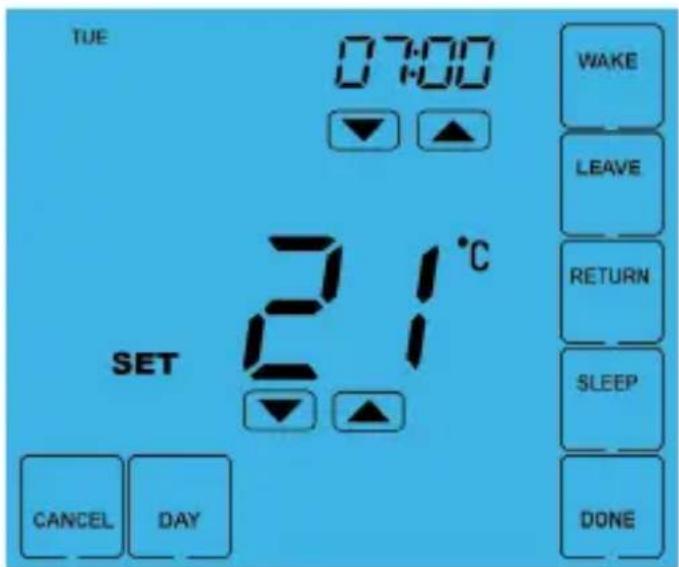

TUE 07:00 WAKE LEAVE RETURN SLEEP DONE SET 21°C CANCEL DAY

In 7 Day mode, the thermostat will display Tue.

- When complete, press DONE to confirm settings and exit ......

Hot Water Timings Explained

The PRTHW-TS offers an additional timed output for the hot water cylinder.

The thermostat offers 2 programming options:

5/2 Day Programming - 4 levels for the weekdays and 4 different levels for the weekend.

7 Day Programming - 4 levels for each day.

See page 23 for details on how to switch between these modes.

Tip! If you don't want to use all of the comfort levels, just set the time to --.

Default switching times are pre-programmed but you can change them easily.

Weekday Level On Time Off Time

• Press PROG ....
• Press TIMER, (Time 1 ON will flash) ....
• Use the Up/Down keys to set the ON time for period 1 ....
• Press OFF ....
• Use the Up/Down keys to set the OFF time for period 1 ....
• Repeat these steps for periods 2, 3 and 4 ....
• Press DAY to select the next day to program and repeat ....


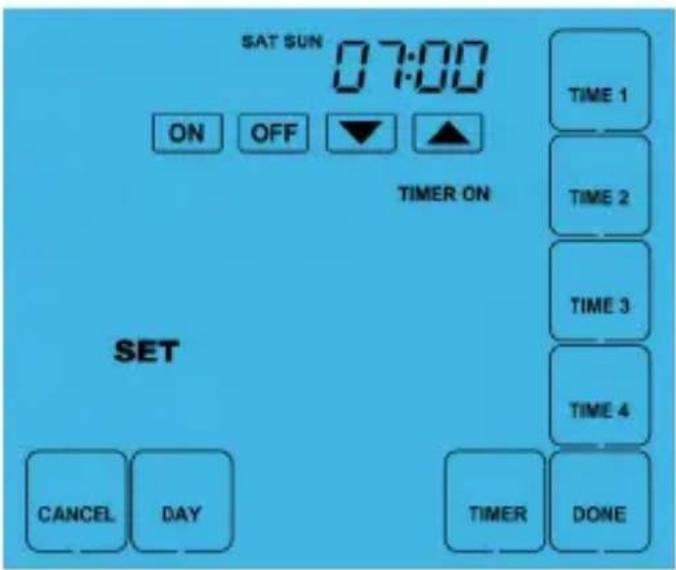

SAT SUN 07:00 ON OFF ▼ TIMER ON TIME 1 TIME 2 TIME 3 TIME 4 SET CANCEL DAY TIMER DONE

In 5/2 Day mode the thermostat will display "Sat Sun" prompting you to program the temperature levels for the weekend.

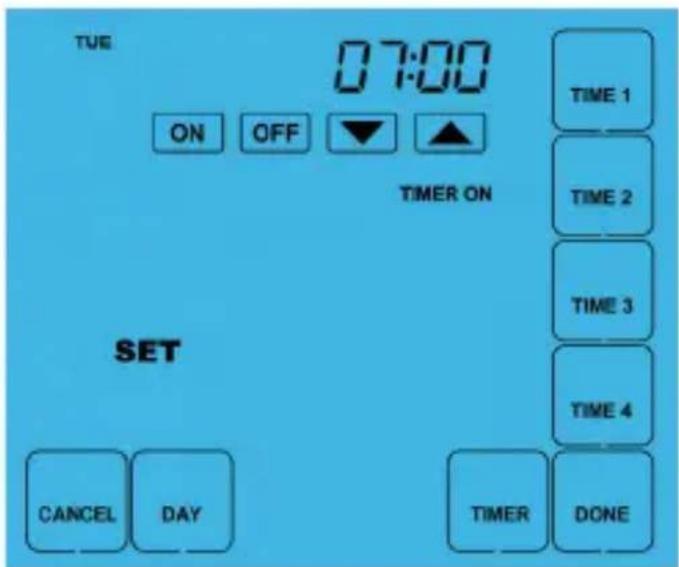

TUE 07:00 ON OFF ▼ TIMER ON TIME 1 TIME 2 TIME 3 TIME 4 SET CANCEL DAY TIMER DONE

In 7 Day mode, the thermostat will display Tue.

- When complete, press DONE to confirm settings and exit ......

Clean Screen

Pressing SCREEN will disable all keys, providing you 15 seconds to wipe the screen clean before the keys are re-activated.

Locking the Keypad

The thermostat has a keypad lock facility.

• To activate the lock press the bottom right corner of the display and hold for 10 secs.

- When activated, you will see the Keypad Lock symbol.

• To cancel, press the bottom right corner of the display again for 10 secs.

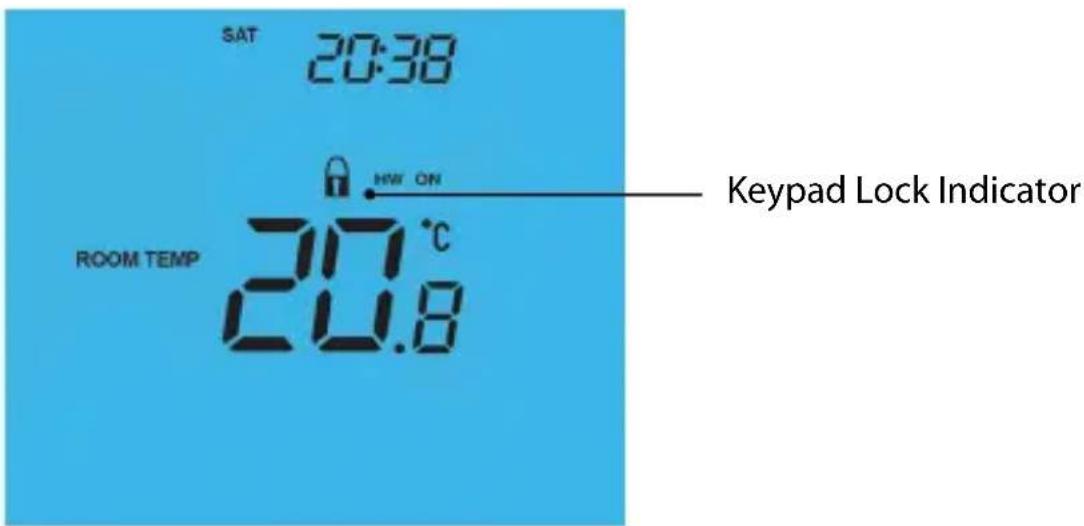

SAT 20:38 ROOM TEMP 20.8 HW ON Keypad Lock Indicator

Temperature Control

The ▼▲ keys under the temperature display allow you to adjust the set temperature.

When you press either of these keys, you will see the temperature and the word SET appear on screen.

Select the desired temperature and press DONE to confirm and exit.

Note: This new temperature is maintained only until the next programmed comfort level. At this time, the thermostat will revert back to the programmed levels.

Hot Water Override

To override the hot water setting follow these steps.

• Press HOLD ....
• Press TIMER
  • If the hot water is already ON – press OFF ....
  • If the hot water is already OFF – press ON ....

You will then see the hot water status change and the hot water output indication will flash to show it has been overridden from the programmed setting.

The hot water will remain in the override state until the next programmed time.

To cancel, repeat the steps above.

Temperature Hold

The temperature Hold function allows you to manually override the current operating program and set a different temperature for a desired period.

• Press HOLD ....
• Use the top set of Up/Down keys to set the hold period ....
• Use the center set of Up/Down keys to set the hold temperature ....
• Press DONE to confirm and exit ....

HOLD DONE

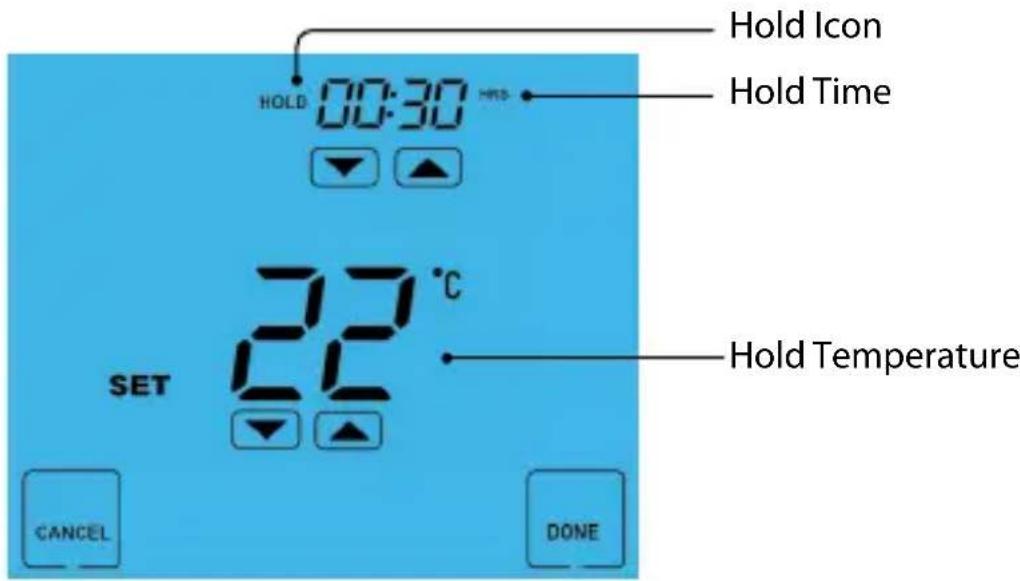

HOLD 00:30 HRS Hold Icon Hold Time SET 22 °C Hold Temperature CANCEL DONE

To cancel a Temperature Hold, follow the same steps but reduce the time to 00:00.

Holiday

The Holiday function reduces the set temperature in your home to the frost protection temperature setting (see page 21) and disables the hot water output.

The thermostat will maintain this temperature for the duration of the holiday and will then automatically return to the program mode on your return.

• Press HOLIDAY ......
• Enter the desired duration in days ....
• Press DONE to confirm and exit ....

Note: A holiday period does not start until 00:00 the next day. For example, if you set a holiday period on Friday for 2 days, Saturday will be counted as the first day and the thermostat will revert back to the programmed schedule at 00:00 on Monday.

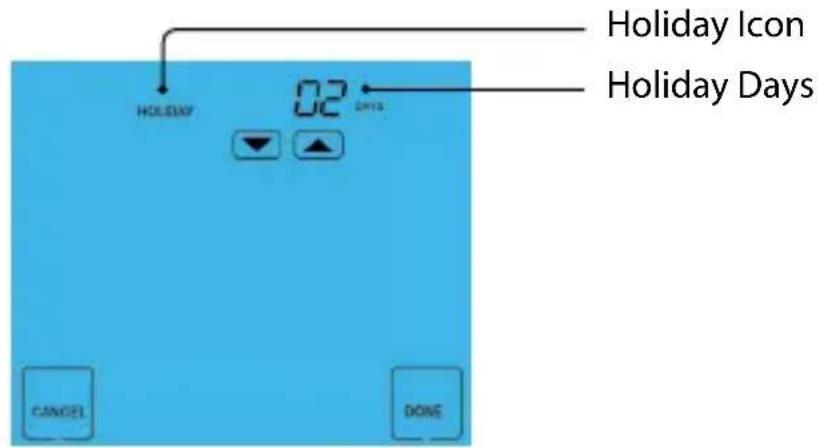

Holiday Icon Holiday Days HOLIDAY 02 DAYS CANCEL DONE

To cancel a Holiday setting, reduce the Holiday time to 00 days.

Frost Mode

Pressing the OFF key once will place the thermostat in frost protect mode.

In this mode, the thermostat will display the frost icon and will only turn the heating on should the room temperature drop below the set frost temperature (see page 21).

Should the heating be turned on whilst in frost mode, the flame symbol will be displayed.

To cancel the frost protect mode, press the OFF key once.

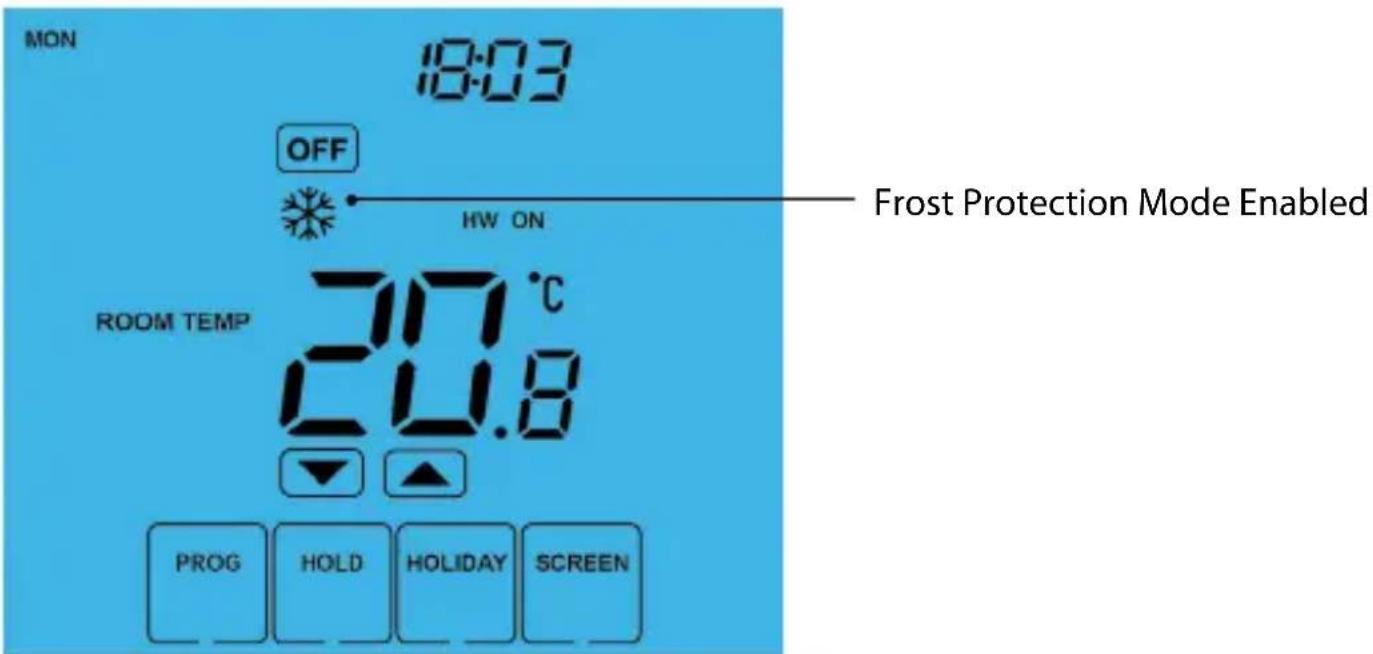

MON 18:03 OFF HW ON Frost Protection Mode Enabled ROOM TEMP 20.8°C PROG HOLD HOLIDAY SCREEN

Heating On/Off

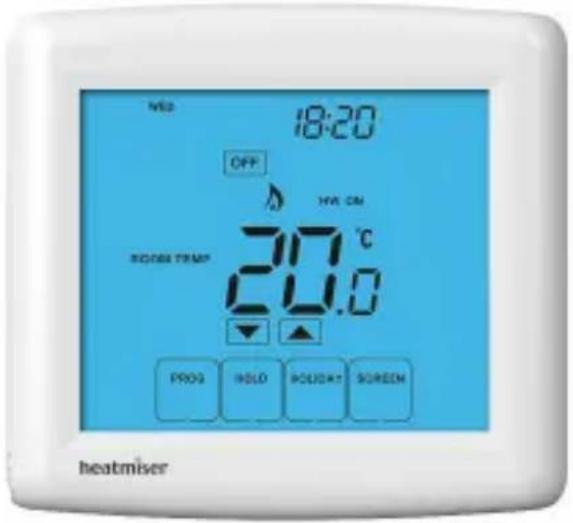

The heating is indicated ON when the flame icon is displayed.

When the flame icon is absent, there is no requirement for heating to achieve the set temperature but the thermostat remains active.

To turn the thermostat OFF completely, press and hold the OFF key ...... OFF

The display and heating output will be turned off completely.*

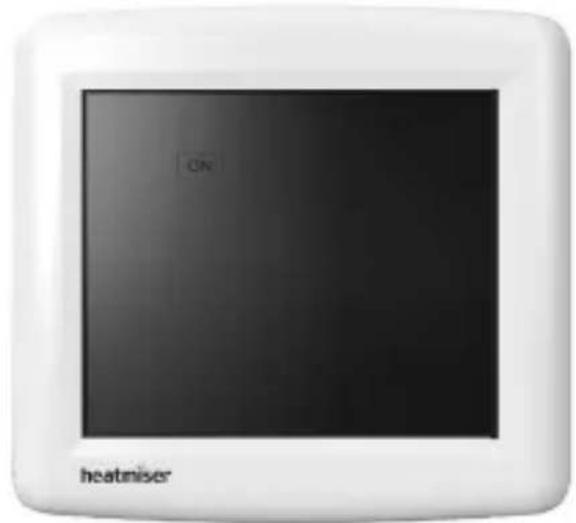

To turn the thermostat back ON, press the ON key once ...... ON

Thermostat completely OFF Thermostat powered ON

ON heatniser

NED 18:20 OFF HV. ON 30.0 °C 20.0 PROG HOLD POLD/INT SCREEN heatmiser

*See Feature 3 on page 21

Optional Features Explained

THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES NEED NOT BE ADJUSTED

Feature 01 – Temperature Format: This function allows you to select between °C or °F. Feature 02 – Switching Differential: This function allows you to increase the switching differential of the thermostat. The default is 1^ C which means the thermostat will switch the heating on 1^ C below the set temperature and will turn it off when the set temperature is achieved. With a 2^ C differential, the heating will switch on 2^ C below the set temperature and will switch off when the set temperature is achieved.

Feature 03 – Frost Protect: You can set whether the thermostat will maintain the frost temperature when the thermostat display is turned off. As a default, this is enabled.

Feature 04 – Frost Protect Temperature: This is the temperature maintained when the thermostat is in frost mode. The range is 07-17°C. The default is 12°C and is suitable for most applications.

Feature 05 – Output Delay: To prevent rapid switching, an output delay can be entered. This can be set from 00 -15 minutes. The default is 00 which means there is no delay.

Feature 06 – Communication Address: This setting is used when you have connected your thermostat to a network system. Each thermostat on the network must have a unique communication address. This can be set from 01-32.

Feature 07 – Temperature Up/Down Limit: This function allows you to limit the use of the up and down keys. This limit is also applicable when the thermostat is locked and so allows you to give others limited control over the heating system.

Feature 08 – Air Sensor Selection: This model only uses the built in sensor.

Feature 09 – Floor Limit Sensor: This function is not adjustable on this model.

Feature 10 – Optimum Start: Optimum start will delay the start up of the heating system to the latest possible moment to avoid unnecessary heating and ensure the building is warm at the programmed time. The thermostat uses the rate of change information to calculate how long the heating needs to raise the building temperature 1^ C (with a rate of change of 20, the thermostat has calculated the heating needs 20 minutes to raise the building temperature 1^ C) and starts the heating accordingly.

Feature 11 – Rate Of Change: This is the number of minutes the thermostat has calculated it takes to raise your building temperature 1^ C. The thermostat will continue to monitor and learn the heat up time of your home to optimise heating efficiency.

Feature 12 – Programming Mode: The thermostat offers 2 programming methods. Weekday/Weekend allows you to program 4 comfort levels for the weekdays and 4 different comfort levels for the weekend. In 7 Day program mode, each day has 4 comfort levels that can be programmed independently.

Adjusting the Optional Settings

To adjust the optional settings, follow these steps.

• Press PROG ....
• Press SETUP ....

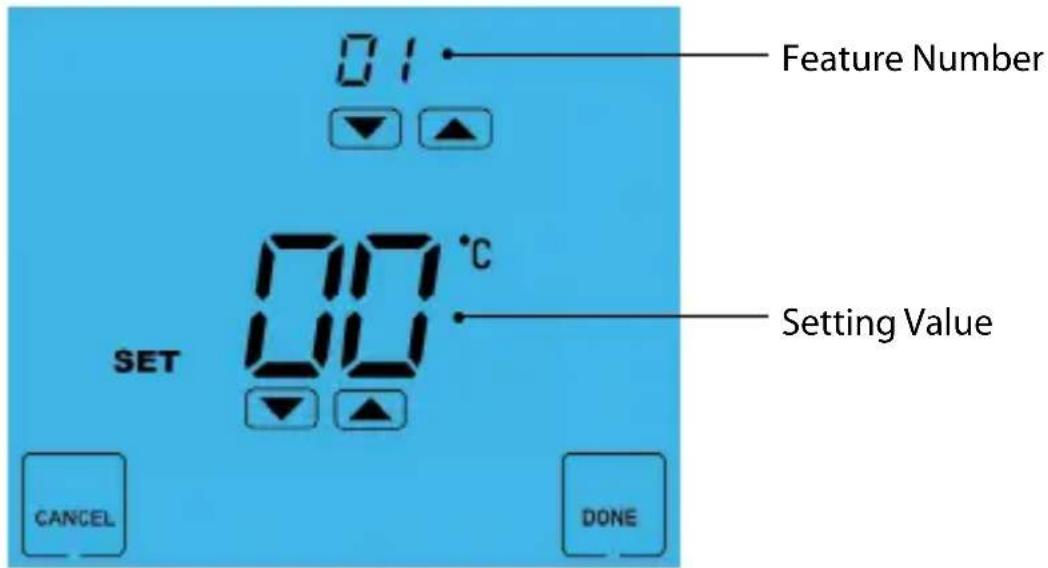

01 Feature Number SET 00°C Setting Value CANCEL DONE

- Use the Up/Down keys at the top of the screen to select the feature number (shown on page 24) and then use the Up/Down keys in the center to adjust the setting ....

- Press DONE to confirm settings and exit ....

Optional Settings - Feature Table

FEATURE	DESCRIPTION	SETTING
01	Temperature Format	00 = °C, 01 = °F (°C = Default)
02	Switching Differential	0.5° - 3.0°C (1°C = Default)
03	Frost Protect	00 = Disabled, 01 = Enabled (01 = Default)
04	Frost Protection	07° - 17°C (12°C = Default)
05	Temperature Output Delay	Enter Value: 00 - 15 Minutes (00 = Default)
06	Communications ID No. Up/	Enter number 01-32
07	Down Temperature Limit	00° - 10°C (00 = Default)
08	Sensor Selection	Fixed on Internal Sensor
09	Floor Temperature Limit	Not available on this model
10	Optimum Start	00 = Disabled (Default)
		01 = 01hr, 02 = 02hr, 03 = 03hr
1	Rate of Change	For Information Only
12	Program Mode	00 = Weekday/Weekend (Default)
		01 = 7 Day Programming

Re-calibrating the Thermostat

If you need to re-calibrate the thermostat, follow these steps.

• Press and hold the OFF key to turn the thermostat OFF......
• Press and hold the ON key until the temperature appears on the screen ....
• Use the Up/Down keys to configure the new temperature ....
• Press DONE to confirm the new temperature ....
• Press the ON key once to turn the thermostat back ON ....

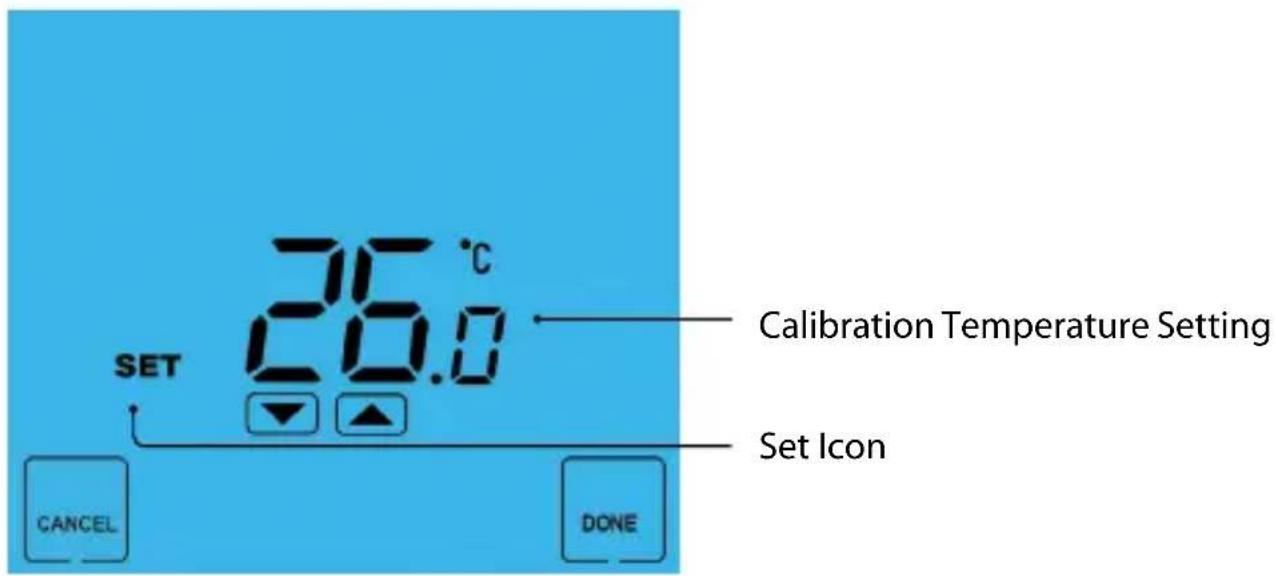

26.0°C SET CANCEL DONE Calibration Temperature Setting Set Icon

Factory Reset

The thermostat has a reset function to restore all settings to their factory defaults.

To perform a factory reset, follow these steps.

• Press & hold the OFF key to turn the thermostat display OFF ....
• Press and hold the bottom left corner of the LCD for 10 seconds.
• All of the screen icons will appear for 2 seconds and then disappear.
• Press the ON key once to turn the thermostat display back ON ....

OFF

ON

All icons displayed simultaneously. Factory reset is complete.

WED 18:20 OFF HIV ON ROOM TEMP 20.0 PROG HOLD HOLIDAY SCREEN

ON

Wiring Diagram - Touch-HWN to UH1

Wiring Diagram - Touch-HWN to PRC
    AH["Recommendations Max Cable Size - 1.5MM Back Box Depth - 35MM Max Load - 3 Amps"]

For 230V switched live output, link mains L to C

Notes

Notes

heatmiser®

Want More Information?

Call our support team on: [phone]

Or view technical specifications directly on our website: www.heatmiser.com

Abstract orange line drawing on white background (no text or symbols)

Orange question mark icon inside a rounded square (no text or symbols)

PDF FAQ

Follow us on: twitter

Find us on: facebook®

Twitter: @heatmiseruk Facebook: facebook.com/thermostats
