Product Type	Fan Heater (Heating Appliance)
Brand	Fakir
Model	2003 CT
Power Supply	230-250 V AC, 50 Hz
Maximum Power Output	2000 W (3 settings: 750 W, 1250 W, 2000 W)
Protection Class	Class I
Dimensions (H x W x D)	44.5 x 68.0 x 20.0 cm
Weight	6 kg
Recommended Room Volume	Up to approx. 60 m³
Heating Elements	2 heating elements (750 W and 1250 W) combined for 2000 W
Thermostat	Adjustable thermostat with frost guard setting
Fan	Built-in fan with separate On/Off switch
Safety Features	Overheating protection (auto shut-off), tip-over switch (not explicitly mentioned but implied by safety system), thermal cut-out
Frost Guard Function	Yes, maintains room temperature above freezing
Controls	Rotary thermostat, 3 rocker switches for power and fan
Air Outlet	Front grille, adjustable
Housing Material	Plastic (presumed, as typical for fan heaters)
Stand	Detachable stand (assembly required)
Power Cord Length	Approx. 1.5 m (not specified, typical estimate)
Cleaning Instructions	Wipe with damp cloth; do not use chemicals or immerse in water
Warranty	48 months for private use, 5 years on motor
Certifications	CE, complies with EU Directives 2004/108/EC and 2006/95/EC
Included Accessories	Stand, screws, user manual

Frequently Asked Questions - 2003 CT FAKIR

How do I set the desired room temperature?

Turn the thermostat knob clockwise to the maximum position when switching on. Once the room reaches the desired temperature, slowly turn it back anticlockwise until you hear a click. The heater will then automatically maintain that temperature.

What should I do if the heater suddenly stops working?

It may have activated the overheat safety function. Unplug the appliance, let it cool down for about 15 minutes, then plug it back in and try again. If the issue persists, contact an authorized service point.

Can I use this heater in a bathroom?

No, the manual explicitly forbids use in damp rooms such as bathrooms, showers, or near swimming pools due to risk of electric shock. Use only in dry indoor areas.

How do I set the frost guard function?

Rotate the thermostat knob so that the mark on the knob aligns with the frost guard symbol (an asterisk *). This will maintain the room temperature above freezing (0°C) to prevent frost damage.

What are the power output settings?

The heater has three power settings: 750 W (switch 3 only), 1250 W (switch 2 only), and 2000 W (both switches 2 and 3 pressed). The fan can be turned on/off independently via switch 4.

How should I clean the heater?

Always unplug and let the heater cool down before cleaning. Wipe the housing with a slightly damp cloth. Never use abrasive cleaners, chemicals like alcohol or benzine, and never immerse the appliance in water.

The heater does not turn on. What could be the problem?

Check if the plug is fully inserted, the power switch is on, and the socket is working. If the power cord is damaged, unplug immediately and contact service. Also ensure the thermostat is not set too low.

What is the minimum distance from furniture or curtains?

Maintain a minimum clearance of 50 cm above, 15 cm to the sides, and 10 cm below. Keep at least 50 cm from the front and rear. This ensures proper air circulation and prevents fire risk.

Can I use an extension cord?

Yes, but only use extension cords rated for the power input (2000 W). Ensure the cord is fully unwound and not bent or damaged.

What is the warranty period and what does it cover?

For private use, Fakir offers a 48-month warranty covering material and assembly errors. The motor has a 5-year warranty. Normal wear parts (e.g., filters) are excluded. Repairs must be done by authorized service centers using original spare parts.

USER MANUAL 2003 CT FAKIR

Exterior view of a white electric shaver with gray ventilation slots and control panel (no visible text or symbols)

GB Instructions for use Heating appliances

Inhalt

Inhalt 2

Allgemeines....3

Abstract circular diagram with curved lines and a small dot, no text or symbols present

Sicherheitssystem

Symbol of a waste bin with crossed x-bracing and a circular weight, no text or labels present

General information ....19

Information to the instructions for use....19

Liability....19

Notes in the instructions for use ....19

CE Declaration of Conformity 19

Safety 20

Directions for correct use....20

Improper use ....20

Children 21

Electric current....21

Dispatch....21

In case of danger....22

In case of defect 22

Survey......23

Parts and functions....23

Technical data....23

Assembly....24

Unpacking....24

Assembling 24

Minimum clearance distance from objects......25

Installation of the appliance ....25

Connection to the mains supply....25

Operation....26

How to operate the appliance....26

Frost guard function....27

Safety system....27

Cleaning and maintenance....28

Cleaning 28

In case you need assistance....29

Service points....29

Disposal....30

Guarantee 31

General information

Information to the instructions for use

This booklet is to enable you to use the heating appliance in a safe and best possible way

Before using the appliance the first time, please read this booklet carefully

Do not throw this booklet away and keep it in a safe place. In case you pass this appliance on to another person, then please also hand this booklet on together with the appliance

Liability

We will not accept any liability for damage which has been caused by disregarding the instructions given in this booklet

Notes in the instructions for use

WARNING!

When disregarding notes marked this way there is danger of injury or death

CAUTION!

This mark draws your attention to notes on danger which might lead to damage of the appliance

NOTE!

Draws your attention to hints and any other helpful information in this booklet

CE Declaration of Conformity

This appliance fulfils the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate

Safety

Directions for correct use

WARNING!

To avoid overheating of the appliance, it must not be covered

For household use only

The appliance is suitable for additional heating during the in-between season, it is not constructed for continuous heating operation

Any use other than mentioned above does not comply with the directions for correct use and is strictly forbidden

Improper use

Improper use as mentioned below is strictly forbidden and might lead to malfunction, damage of the appliance or injury:

• Damage of the appliance by rain or dirt Never use or store the appliance outdoors
• Danger of overheating Always keep the air inlets and outlets of the appliance open, they must not be covered by towels or any other items
• The appliance must not be installed into vehicles and operated there, because concerning safety regulations for vehicles special components are required to fit such appliances (for example protected heating elements, more powerful motors, reinforced fixing of the components to withstand vibrations etc.)
• The use of this appliance in all kinds of vehicles (for example site trailers, lifts, caravans, cars, cabins) and similar, closed or blocked rooms is forbidden
• Caution: Do not use the appliance in damp rooms where bathtub, shower, washbasin or swimming pool area
• When installing the appliance please pay attention to the minimum clearance distance from objects (see table of contents)

Safety

Children

- During use of the appliance the power supply cord must be completely unwound

- The power supply cord must not lie on the appliance when in use

- The appliance must not be placed right under a wall socket

- This appliance should not be used by persons (children included) with reduced physical, sensorial or mental power or due to lack of experience and/or knowledge unless a person being responsible for their safety looks after or instructed them how to use the appliance

- Keep an eye on children to make sure that they do not play with the appliance

- T he packaging foils must not be used for playing due to danger of suffocation

Electric current

- A wrong voltage may destroy the appliance. The appliance should only be connected provided the voltage indicated on the rating label is identical with the mains voltage of your household

- The power supply socket must be protected by a 16 A automatic circuit breaker

- Never dip the appliance into water or other liquids and keep it away from rain and wetness.

- Never touch the plug with wet hands

- When pulling out the plug from the power supply socket, please do no pull on the power supply cord but only on the plug

- The power supply cord must not be bent, squeezed or overran and must not come into contact with sources of heat

- In case the power supply cord is damaged, it has to be replaced by the manufacturer or an authorized after-sales service or a person with a similar qualification in order to avoid hazards

- Only use extension cords which are constructed for the power input of the appliance

Dispatch

- In order to avoid damage during transportation, please dispatch the appliance in the original packaging or a similar well padded packaging

Safety

In case of danger

In case of defect

- In case of danger or accident pull out the plug from the power supply socket immediately

WARNING!

Never use a defective appliance or an appliance with a defective cable. There is risk of electric shock

- Before contacting our after-sales service (see table of contents: „Service points“), please check whether you are able to eliminate the defect yourself

→ See table of contents “In case you need assistance..”

- Repairs should only be carried out by authorized service centres. In case of service only original Fakir spare parts should be used. Appliances repaired incorrectly expose the user to danger

Survey

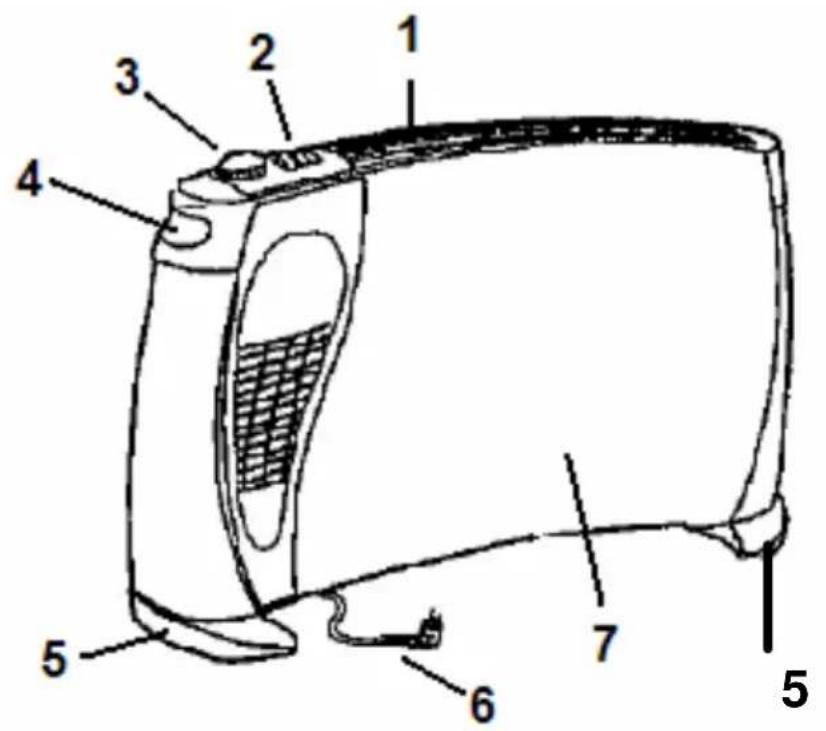

Parts and functions

1 Air outlet grille
2 Switch „On/Off“
3 Thermostat control
4 Handle
5 Stand
6 Power supply cord
7 Front cover

Technical data

Description Specification

Nominal voltage 230-250V AC / 50 Hz

Output max. 2000 W

Protection class 1

Size [cm] H x W x D: 44,5 x 68 x 20

Weight 6 kg

The appliance is suitable for rooms up to approximately 60 m ^3

Assembly

Unpacking

Unpack the appliance and check whether the package contains all parts specified under “survey / parts and functions”

Sort the packaging material and dispose each kind of packaging material in the appropriate waste container In case of transport damage, please contact your dealer immediately

Assembling

WARNING!

Never use a defective appliance

WARNING!

Before assembling the appliance please check whether the power supply cord is pulled out from the power supply socket. In case the mains plug is put in, the appliance might be switched on by an oversight and cause injury

WARNING!

Use the appliance only after the stands have been assembled

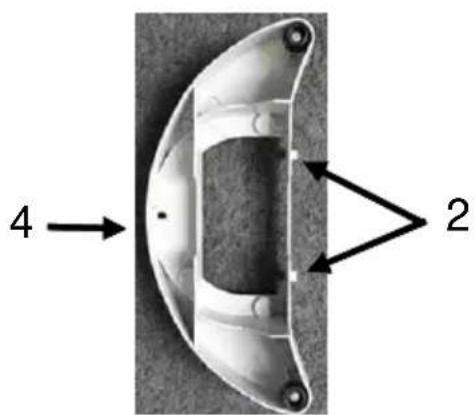

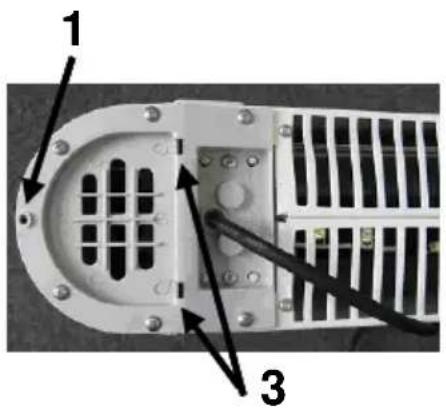

1. To assemble the stands delivered separately first unscrew the screw (1) on the right and left at the bottom of the appliance

2. The stand (4) is to be clicked into the recesses at the bottom of the appliance by using the fastening pins (2)

3. Now fasten both stands with the screws removed from the bottom

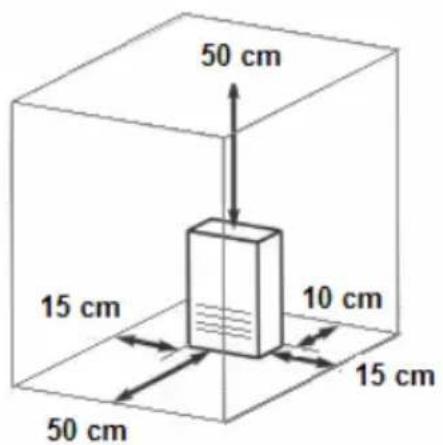

Minimum clearance distance from objects

Installation of the appliance

Connection to the mains supply

WARNING!

Make sure that the appliance is not operated near to furniture, curtains or any other inflammable items.

Pay attention to a minimum clearance distance from nearby objects, walls and ceilings according to the opposite sketch

This clearance distance is necessary to provide for a free air circulation

! CAUTION!

Make sure that the appliance is placed on an even, firm and dry surface

Connect the appliance to the mains supply

The appliance is now ready for operation

Operation

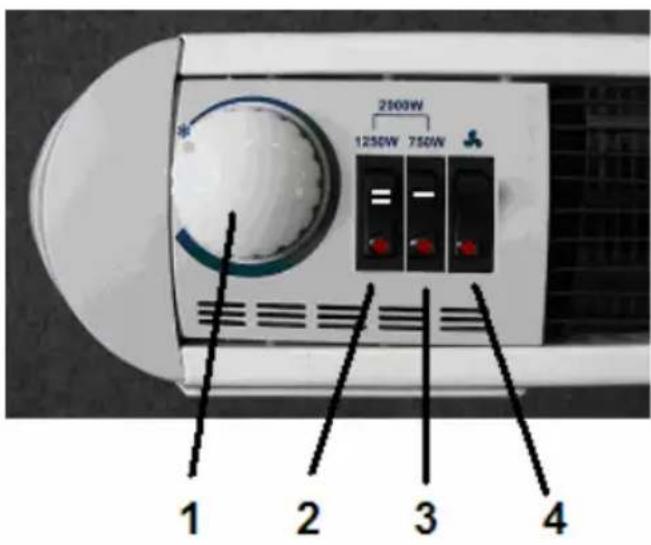

How to operate the appliance

1. Thermostat control (1)

With the thermostat control you can set the required room temperature

When switching on the appliance, first turn the thermostat control (1) clockwise to the maximum position

When the required room temperature is reached, then turn the control slowly back in an anticlockwise direction until you note a click

The required room temperature is now set and the heating appliance is switched off (pilot lamp(s) are off)

Should the room temperature drop below the required level, then the appliance is switched on again automatically

2. To set the heating output

To set the heating output there are three setting stages:

Switch (3) to set 750 watt operation

Switch (2) to set 1250 watt

Switch (2) and (3) to set 2000 watt

When the individual switching position is set, then the pilot lamp on the switch is on

3. Fan

The heating appliance is equipped with an installed fan

The on/off switching of the fan is done by a switch (4)

When the fan is switched on, then the pilot lamp on the switch (4) is on

4. Switching off the appliance

To switch off the appliance turn all switches (2), (3), (4) to the position „Off“ (all pilot lamps are off)

Frost guard function

Abstract circular diagram with curved lines and a small circle, no text or symbols present

Safety system

5. Frost guard setting

The heating appliance is equipped with a frost guard function keeping the temperature in a room with standard insulation automatically above the freezing point (0° Celsius)

Set the turning knob that way, that the position sign of the turning knob is face to face with the frost guard setting symbol (*)

! CAUTION!

The frost guard setting does not work in rooms for heating of which this appliance is not constructed

The heating appliances has a safety function, switching off the appliance automatically in case of overheating

After the appliance has cooled down, it is switched on again automatically

! CAUTION!

In case the above mentioned defect (overheating) happens repeatedly pull out the plug from the power supply socket and contact the service point of your country (see table of contents).

Cleaning and maintenance

WARNING!

Before cleaning switch off the appliance and pull out the mains plug from the power supply socket. Then let the appliance cool down

Cleaning

Only the surface of the housing should be cleaned regularly

Use a slightly moistened cloth for cleaning, however, never use scouring agent

WARNING!

Never clean the housing with cleansing chemicals (for example alcohol, benzine etc.). There is fire risk

CAUTION!

Heating appliances, which have not been used for a long period of time, need to be checked by a qualified technician before being used again or before each new heating period. This especially applies if the appliance is soiled inside

In case you need assistance..

Before contacting our after-sales service, please check whether you are able to eliminate the defect yourself

WARNING!

In case you are not able to eliminate one of the possible causes of defect mentioned below, switch off the appliance and pull out the mains plug from the power supply socket. Thus you avoid that the appliance is switched on by an oversight

Defect Possible cause of defect Elimination of defect
Appliance does not heat.	Plug is not put in Put the plug in
	Appliance is not switched on	Switch on the appliance
	Socket does not conduct current	Use another socket
	Power supply cord is damaged	Switch off the appliance, pull out the mains plug from the power supply socket and report the failure to the responsible service point
The set temperature is exceeded/dropping below.	Faulty thermostat	Switch off the appliance, pull out the mains plug from the power supply socket and report the failure to the responsible service point
Overheating Faulty appliance		Switch off the appliance, pull out the mains plug from the power supply socket and report the failure to the responsible service point

Service points

In case you are not able to eliminate the defect yourself, please contact the service point of your country (see table of contents)

NOTE!

Before calling the service point please have the reference number and the appliance/model designation ready. This information is given on the rating label of the appliance

Disposal

Symbol of a waste bin with no text or labels

If the appliance cannot be used any more and has to be disposed, especially in case of malfunction, please render it unserviceable by cutting the power supply cord

Dispose the appliance according to the environmental standards valid for your country

Electric waste must not be disposed together with rubbish. Take the appliance to be disposed to the authorized place of disposal

For advice of recycling please contact your local authorities or dealer

Valid in the Federal Republic of Germany.

We provide a warranty for the appliance subject to the following conditions:

1. The Customer's main place of residence is in Germany and the appliance was bought from a dealer located in Germany.
2. We undertake to repair the appliance free-of-charge, including free shipping) if it becomes defective due to a material or assembly error within 48 months (if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period.
   We grant a 5-year warranty on the motor of the appliance (subject to the regulations in section 3) for purchases for private use.
   A pre-condition of our warranty is that the appliance is always treated properly. The warranty terms start on the date of purchase.
3. Parts subject to natural wear (e.g. drive belts, chargeable batteries, brushes, filters), do not fall under the terms of the warranty.
4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also, no third party spare parts or accessories may be used.
5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances.
   When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.
6. If a repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the device and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.
7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.
8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Valid from 1st April 2008
