USER MANUAL Denali HUNTER

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance in your home or office for many years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan please visit: www.HunterFan.com/register

What to Expect with
Your Installation Ceiling B####eeded

Mounting Options

Preparation

Downrod

Wiring Canopy

Blades Troubleshoot switch Housing Light Kit

M0039-01 · 02/20/13 · @ Hunter Fan Company

What to Expect with Your Installation

www.HunterFan.com

1.888.830.13261.888.830

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Must be able to

secure the fan to

building structure or

Tan-rated outlet box

If you are unfamiliar with wiring, use a qualified electrician.

Know your wiring

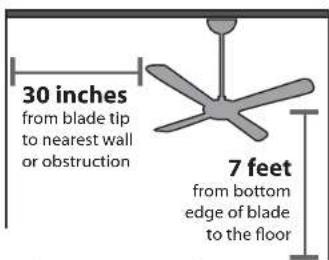

30 inches from blade tip to nearest wall or obstruction 7 feet from bottom edge of blade to the floor

Assess location

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of fire, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of fire, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.
w.4- To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.
c.2 - Use only Hunter replacement parts.

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

M0039-01 · 02/20/13 · @ Hunter Fan Company

Tools Needed

www.HunterFan.com

1.888.830.1326

Simple line drawing of a ladder with a checkmark label (no text or symbols on the ladder itself)

Illustration of pliers wire strippers (no text or symbols on the tool itself)

Illustration of a pair of pliers with black handles and a white checkmark (no text or symbols on the pliers themselves)

Two screwdrivers with selection handles and a checkmark icon, no text or symbols present

Power Drill (optional)

9/64" Drill Bit (optional)

If mounting to a support structure, you will also need these tools.

M0039-01 · 02/20/13 · @ Hunter Fan Company

CEILING

If you have a flat ceiling:

Hang your fan by a standard downrod (included).

OPTION1

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34^ , you will also need an Angled Mounting Kit (sold separately).

OPTION 2

Use the three steps below to determine if your ceiling angle is greater than 34^

FOLD on dotted line

PLACE against wall

3 SLIDE toward ceiling

SITUATION 1 Guide Touches BOTH Ceiling & Wall You need ONLY a Longer Downrod *most common

SITUATION 2 Guide Touches Wall but NOT Ceiling You need BOTH a Longer Downrod & an Angled Mounting Kit

Mounting Options

www.HunterFan.com

1.866.268.1936

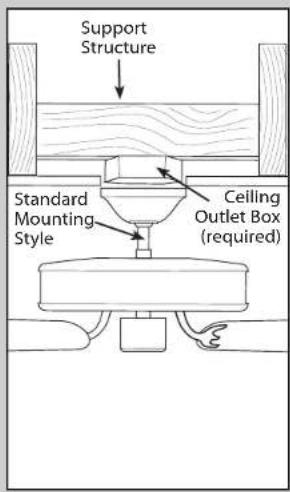

Support Structure Standard Mounting Style Ceiling Outlet Box (required)

Use Standard Mounting or Low-Profile Mounting to hang the fan from a flat ceiling.

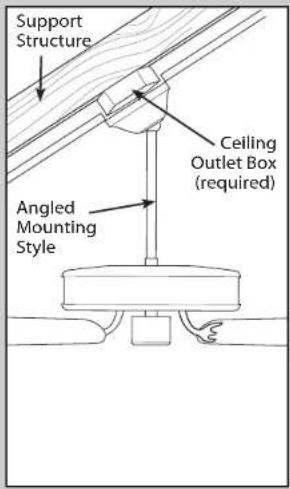

Support Structure Ceiling Outlet Box (required) Angled Mounting Style

Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Turn Power OFF

Diagram showing a mechanical assembly with two views of a device (no text or labels)

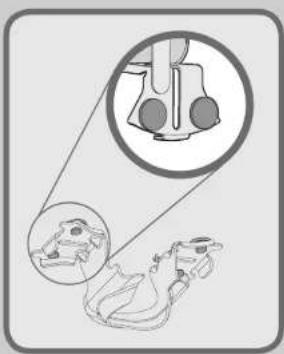

Make sure all four (4) bumpers are still attached.

Technical line drawing of a screw and nut assembly (no text or symbols)

Technical diagram of a mechanical assembly with bolts and a central component (no text or labels)

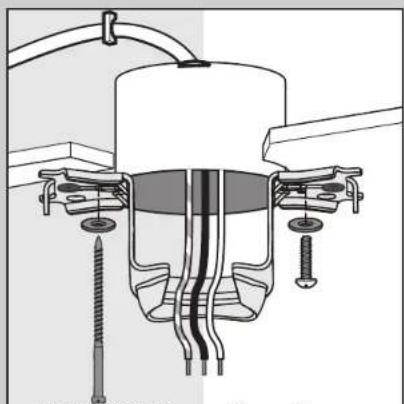

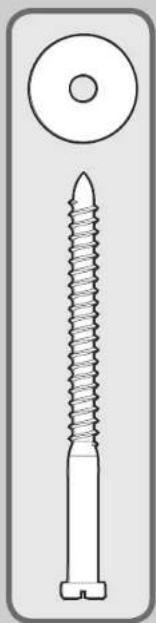

Use wood screws

(included) when securing to support structure with approved electrical outlet box. Drill 9/64" pilot holes in support structure to aid in securing ceiling bracket with hardware found in the ★hardware bag.

Use machine screws

(provided with outlet box) when securing to existing ceiling fan-rated outlet box. Make sure it is securely installed and is acceptable for fan support of 31.8 kg (70 lbs) or less.

For angled ceilings, point opening toward peak.

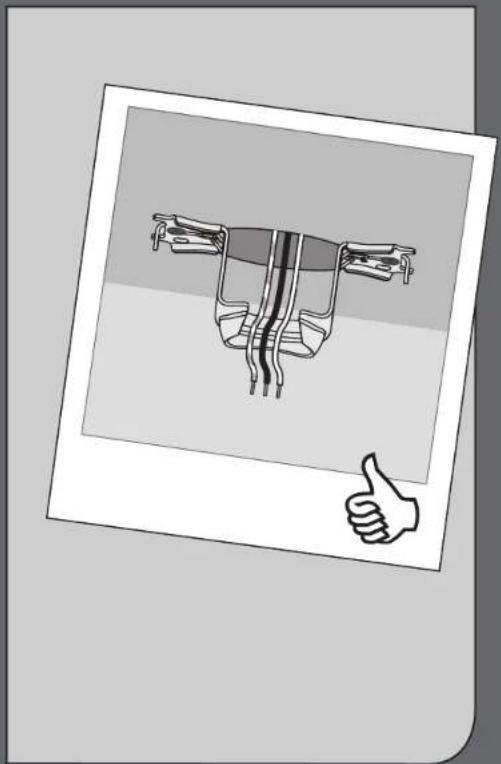

Diagram of a mechanical assembly with an upward arrow and bracket (no text or symbols)

If you are unable to do this, call Technical Support at 1-888-830-1326.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location

M0039-01 · 02/20/13 · @ Hunter Fan Company

Refer to warning w.1 on pg. 2

Ceiling Bracket (continued)

Diagram of a mechanical device with internal components and a thumbs-up gesture (no text or labels)

Preparation

Remove the shipping blocks from the motor. Save the screws. They will be needed for blade iron installation. KEEP! DISCARD Time Saver Tip: Get a helper to insert grommets, found in the ■ hardware bag, into the blades while you're doing the next couple of steps.

M0039-01 · 02/20/13 · © Hunter Fan Company

www.HunterFan.com

1.888.830.1326

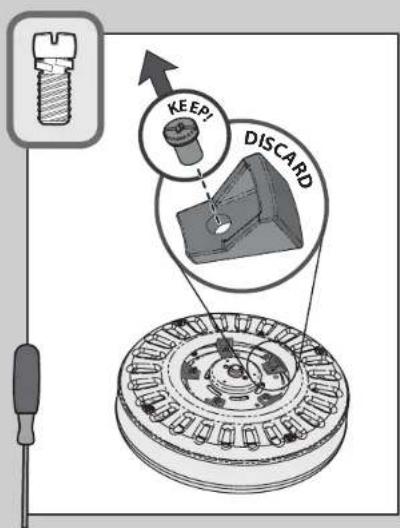

KEEP! DISCARD

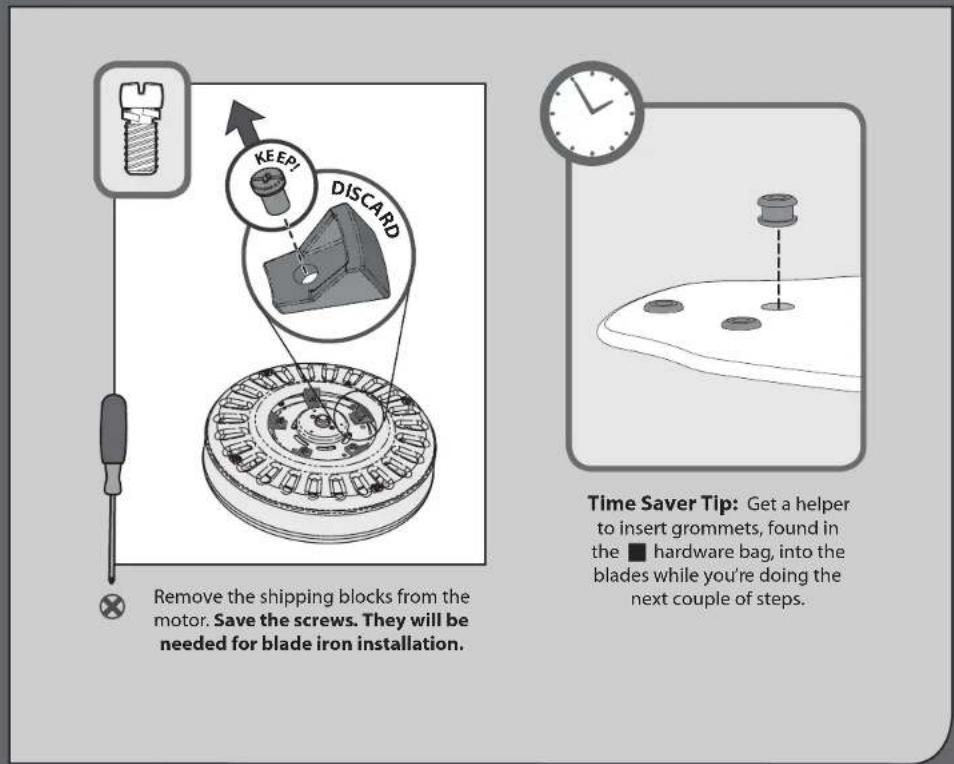

Remove the shipping blocks from the motor. Save the screws. They will be needed for blade iron installation.

Simple line drawing of a clock with three circular objects on a curved surface (no text or symbols)

Time Saver Tip: Get a helper to insert grommets, found in the ■ hardware bag, into the blades while you're doing the next couple of steps.

M0039-01 · 02/20/13 · @ Hunter Fan Company

www.HunterFan.com

1.888.830.1326

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

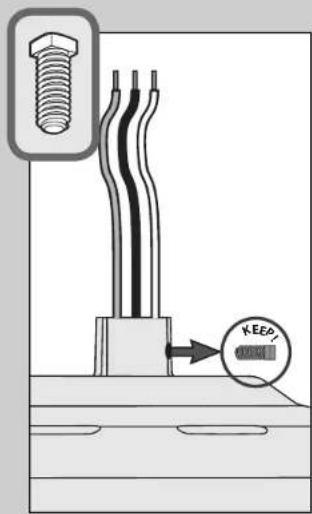

Remove the pre-installed setscrew so that the downrod can be inserted.

Diagram of a mechanical or electrical component with multiple curved wires and a base, no visible text or symbols.

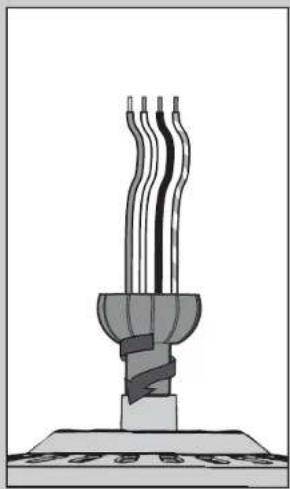

Hand tighten the downrod (at least 4-5 full turns) until it stops.

3/8" 8" (not to scale) CUT & STRIP

The wires can be cut, but leave at least 8" extending from the top of the downrod.

Diagram showing a hand using pliers to adjust a bolt, with an inset close-up highlighting the tool's cross-section.

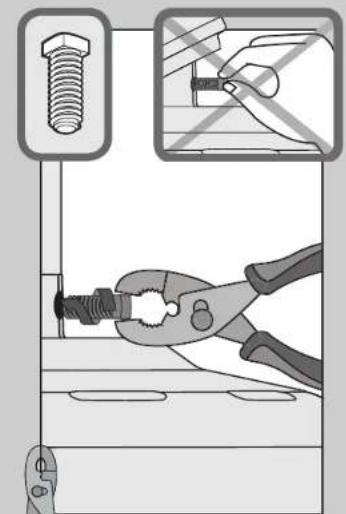

Tighten the setscrew with pliers. DO NOT HAND TIGHTEN.

8"

3/8"

M0039-01 · 02/20/13 · @ Hunter Fan Company

If the setscrew is not tightened securely, the fan may fall.

Downrod (continued)

www.HunterFan.com

1.888.830.1326

Diagram of a steaming bowl with three sticks, mounted on a stand (no text or symbols)

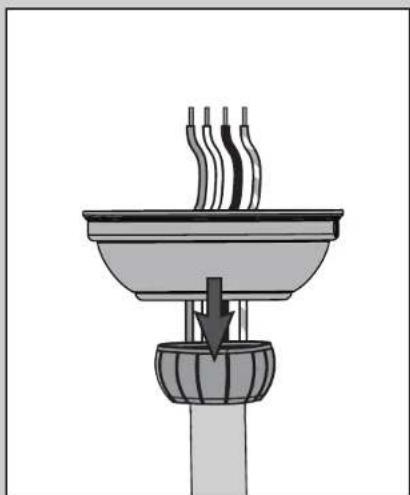

Put the wires and downrod through the canopy. Let the canopy sit loosely on top of the fan.

Line drawing of a ceiling fan with a handle and fan base (no text or symbols)

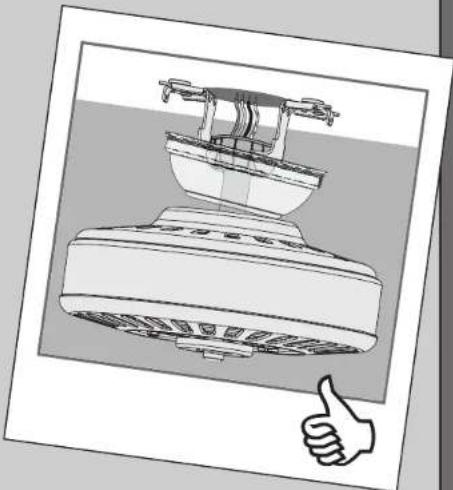

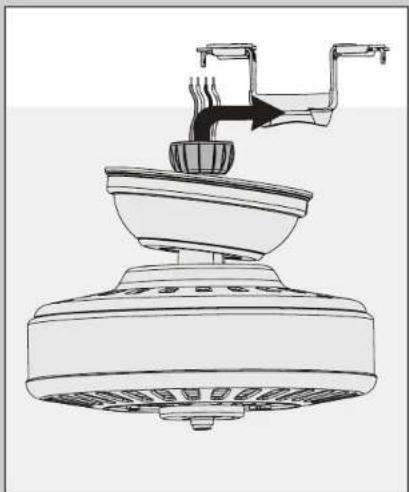

DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket.

Illustration of a kitchen fan with a thumbs-up gesture (no text or symbols)

M0039-01 · 02/20/13 · @ Hunter Fan Company

Wiring

www.HunterFan.com

1.888.830.1326

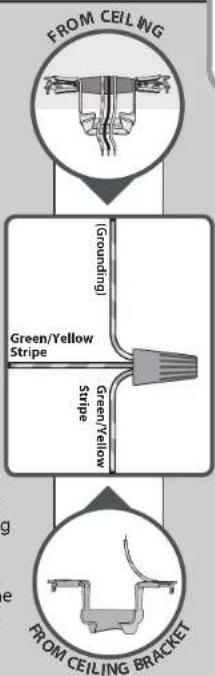

Using an orange wire connector from the ★ hardware bag, connect the 3 grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.

Note: To connect the wires, hold the bare metal leads together and place a wire connector over them, then twist clockwise until tight.

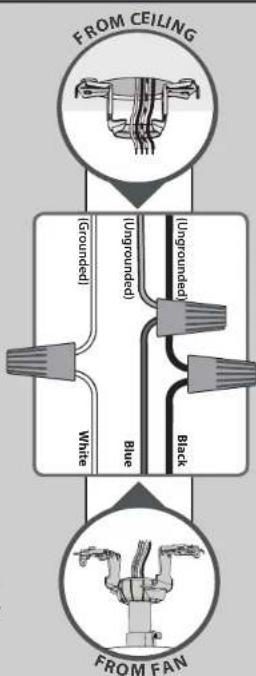

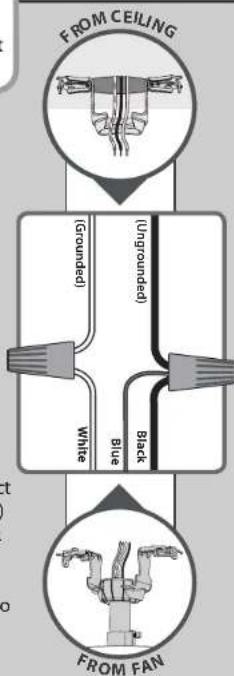

For a Single Switch

Using the orange wire connectors from the ★ hardware bag, connect the black wire (ungrounded) from the ceiling to the black and the blue wires from the fan. Connect the white wire (grounded) from the ceiling to the white wire from the fan.

For Dual Switches

Using orange wire connectors from the ★ hardware bag, connect the white wire (grounded) from the ceiling to the white wire from the fan. Connect the black wire (ungrounded) from the ceiling to the black wire from the fan. Connect the second (ungrounded) wire from the ceiling to the blue wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Canopy

www.HunterFan.com

1.888.830.1326

Technical line drawing of a mechanical component with concentric circular layers and central shaft (no text or symbols)

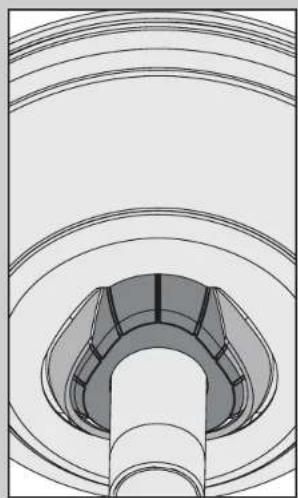

Position the canopy so that, when lifted into place, the canopy fits into the hanging bracket as shown.

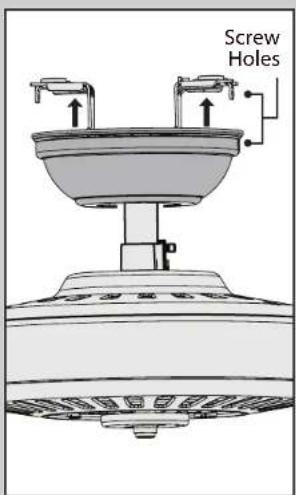

Screw Holes

Lift the canopy into place so that the screw holes are aligned.

Technical line drawing of a mechanical component with a screw and threaded shaft (no text or symbols)

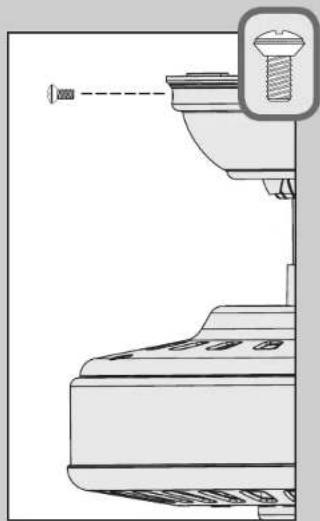

Insert the two canopy screws found in the ● hardware bag.

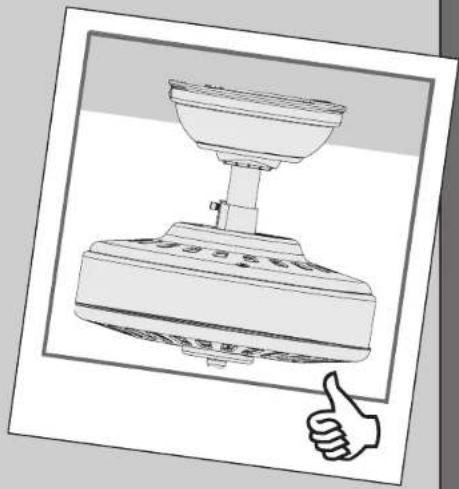

Line drawing of a kitchen appliance with a hand giving a thumbs-up gesture (no text or symbols)

Note: Fan style may vary.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Blades

www.HunterFan.com

1.888.830.1326

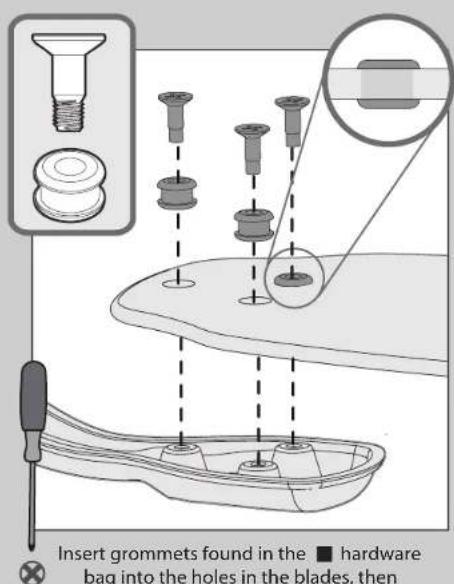

Insert grommets found in the hardware bag into the holes in the blades, then

Insert grommets found in the ■ hardware bag into the holes in the blades, then secure each blade to a blade iron with screws found in the ▲ hardware bag.

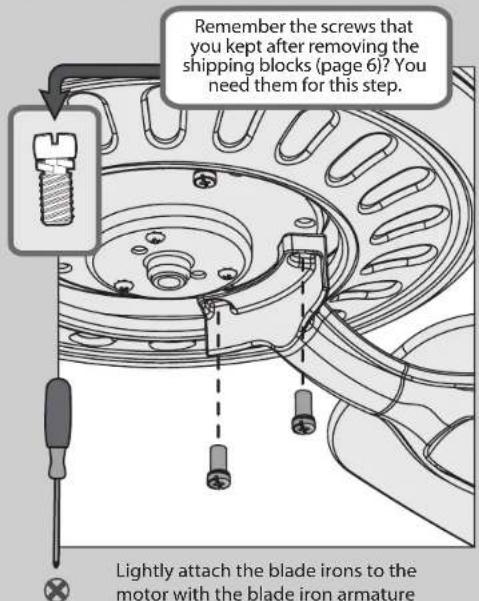

Remember the screws that you kept after removing the shipping blocks (page 6)? You need them for this step. Lightly attach the blade irons to the motor with the blade iron armature

Lightly attach the blade irons to the motor with the blade iron armature screws, then securely tighten after both screws are attached.

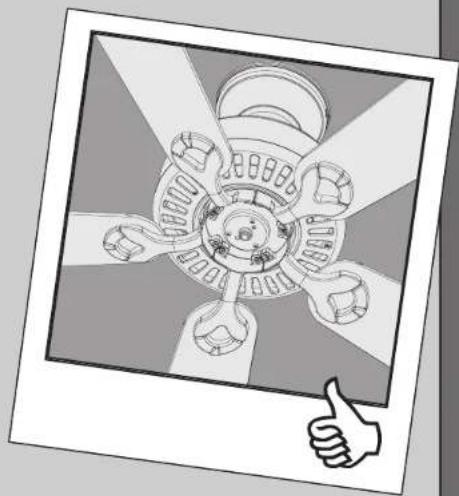

Illustration of a stylized fan or mechanical device with a thumbs-up gesture, no text or symbols present.

Your blades are shielded with Dust Armor® which is a nanotechnology coating that repels dust. For cleaning the fan, use soft brushes or cloths to prevent cratching. Cleaning agents may damage the finishes.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Switch Housing

www.HunterFan.com

1.888.830.1326

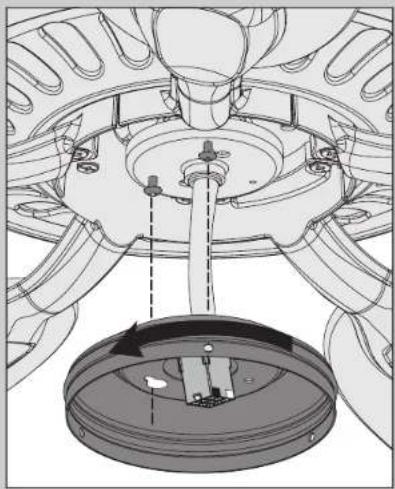

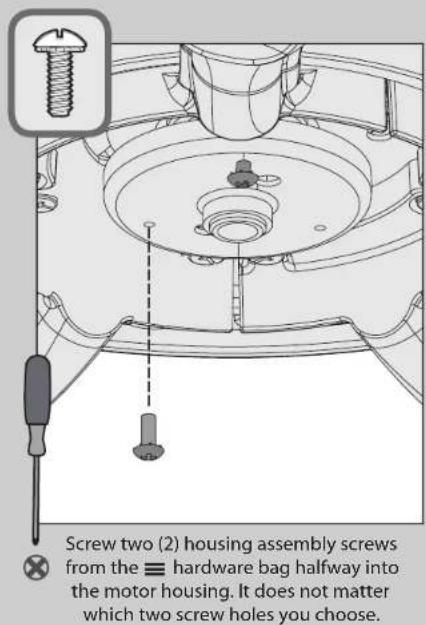

Screw two (2) housing assembly screws from the ≡ hardware bag halfway into the motor housing. It does not matter which two screw holes you choose.

Technical diagram of a vehicle wheel assembly with mounting brackets and a central hub (no text or labels)

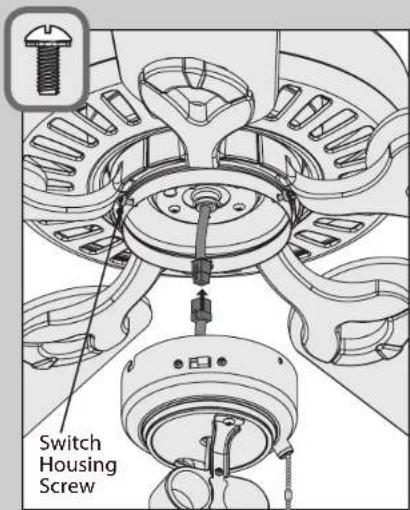

Feed the wire plug through the center hole of the upper switch housing, then wrap keyhole slots around the screws and twist counterclockwise.

Insert the thickness of work in

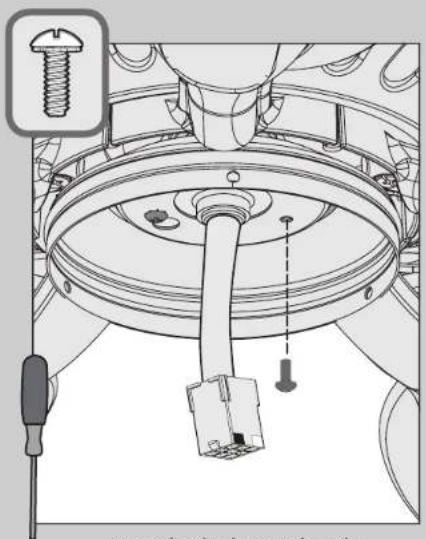

Insert the third screw, found in the ≡ hardware bag, into place and then tighten all three (3) screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Switch Housing Screw

Partially install two of the switch housing screws found in the ≡ bag. Connect the plugs from the upper and lower switch housings. Make sure to line up the colored markings on the connectors.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click "How do I install my fan without the light kit?"

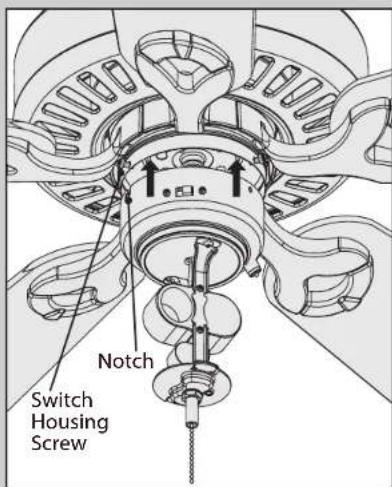

Switch Housing Screw Notch

Align the notches in the sides of the lower switch housing with the upper switch housing screws. Lift the lower switch housing. Twist the lower switch housing clockwise to lock into place. Then thread the fan pull chain through the hole in the light kit.

Technical line drawing of a mechanical fan assembly with screw and hub components (no text or symbols)

Install the third switch housing screw. Tighten all three screws securely.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three switch housing screws could result in the light fixture falling.

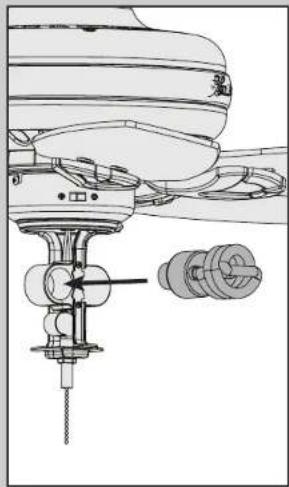

Light Kit (continued)

www.HunterFan.com

1.888.830.1326

Technical line drawing of a mechanical assembly with no visible text or symbols

Install a light bulb in each socket.

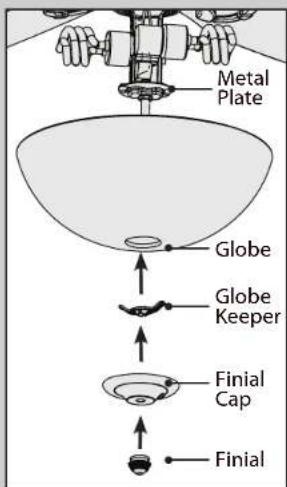

Metal Plate Globe Globe Keeper Finial Cap Finial

Press the globe and globe keeper flush against the metal plate. Thread the light pull chain through the hole in the center of the finial cap and thread the fan pull chain through the hole in the side of the cap. Finally, thread only the light pull chain through the hole in the finial and screw the finial onto the threaded rod.

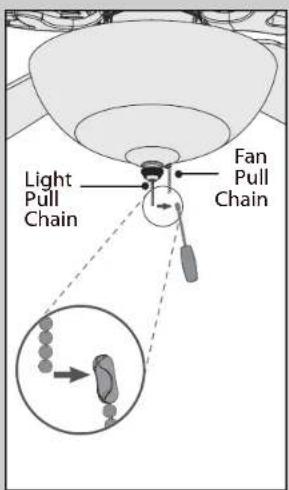

Light Pull Chain Fan Pull Chain

Connect the appropriate pull chain pendant to each of the short chains coming from the finial and finial cap. The fan pull chain controls the speed: from high to off. The light pull chain controls the light fixture: on and off.

CONGRATULATIONS! YOU'RE DONE!

See next page for fan operation instructions.

M0039-01 · 02/20/13 · @ Hunter Fan Company

Maintenance & Cleaning

www.HunterFan.com

1.888.830.1326

Metal Plate Globe Globe Keeper Finial Cap Finial

Changing the bulbs - unscrew the finial and remove it from the threaded rod. Remove the finial cap and unscrew the globe keeper while supporting the globe with your other hand. Carefully remove the globe. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly.

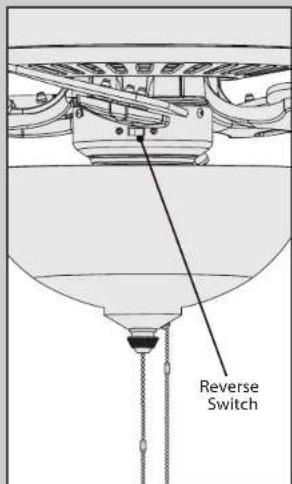

Reverse Switch

M0039-01 · 02/20/13 · @ Hunter Fan Company

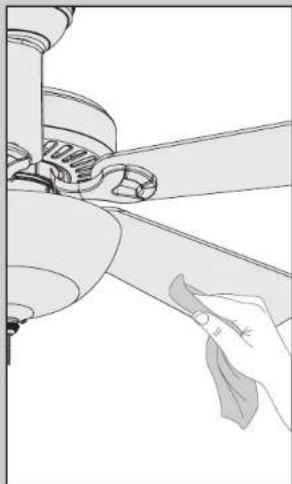

Line drawing of a hand cleaning a ceiling fan with a cloth (no text or symbols)

Cleaning the fan - use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes.

For questions regarding removing a light kit, call customer service 1-888-830-1326.

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn't work

• Make sure power switch is on.
- Pull the pull chain to make sure it is on.
- Push the motor reversing switch firmly left or right to ensure that it is engaged.
- Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
- Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10.
- Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.
• Check to see if any of the blades are cracked. If so, replace all of the blades.
