USER MANUAL Granville HUNTER

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance in your home or office for many years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit: www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with Your Installation

Tools Needed

Mounting Options

Ceiling Bracket

DownrodPreparation

Wiring Canopy

Blades Switch Housing Light Kit

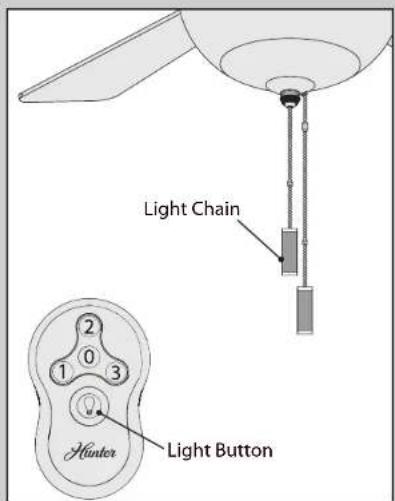

Remote Control

Operation,

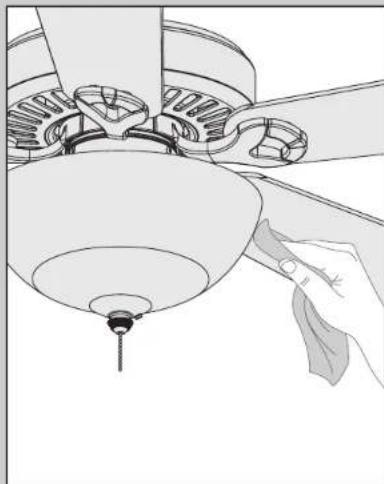

Maintenance & Cleaning

Troubleshooting

M3543-01 · 10/08/14 · © Hunter Fan Company

What to Expect with Your Installation

www.HunterFan.com

1.888.830.1326

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Must be able to

secure the fan to

building structure or

fan-rated outlet box

If you are unfamiliar with wiring, use a qualified electrician.

Know your wiring

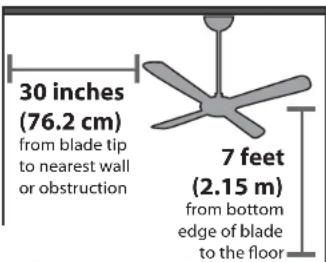

30 inches (76.2 cm) from blade tip to nearest wall or obstruction 7 feet (2.15 m) from bottom edge of blade to the floor

Assess location

You may need a friend to help you.

Check box to see

fan weight

Ceiling angles greater than 34^ will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

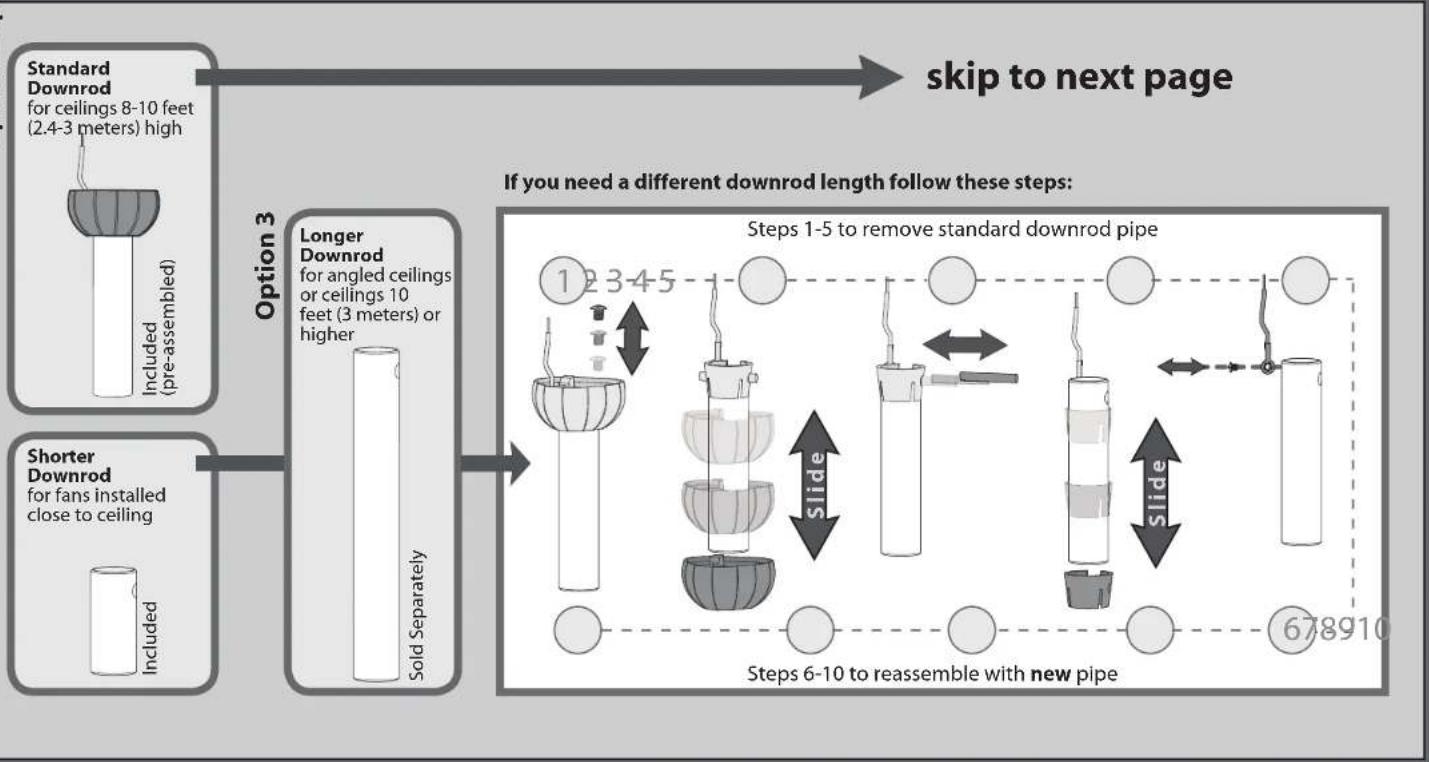

Standard Downrod

for ceilings 8-10 feet

(2.4-3 meters) high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet (3 meters) or higher

Select a downrod length

Read and Save These Instructions

This product conforms to UL Standard 507.

⚠️ WARNINGS

w.1 - To reduce the risk of fire, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box. w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of fire, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment, ships at sea, or other critical navigation or communications equipment operating between 0.45-30 MHz.

This device complies with Part 18 of the FCC Rules.

M3543-01 · 10/08/14 · © Hunter Fan Company

Tools Needed (not included)

www.HunterFan.com

1.888.830.1326

Simple line drawing of a ladder with a checkmark label (no text or symbols on the ladder itself)

Illustration of pliers wire strippers (no text or symbols on the tool itself)

Illustration of a pair of pliers with black handles and a white checkmark (no text or symbols on the pliers themselves)

Two screwdrivers with selection handles and a checkmark icon, no text or symbols present

Power Drill (optional)

9/64 in. (.36 cm) Drill Bit (optional)

If mounting to a support structure, you will also need these tools.

M3543-01 · 10/08/14 · © Hunter Fan Company

CEILING

If you have a flat ceiling:

Hang your fan by a standard downrod (included).

OPTION 1

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34^ , you will also need an Angled Mounting Kit (sold separately).

OPTION 2

Use the three steps below to determine if your ceiling angle is greater than 34°

1 34° FOLD on dotted line

PLACE against wall

3 SLIDE toward ceiling

SITUATION 7 Guide Touches BOTH CEILING & WALL You need ONLY a Longer Downrod *most common

SITUATION 2 Guide Touches Wall but NOT Ceiling You need BOTH a Longer Downrod & an Angled Mounting Kit

Mounting Options

www.HunterFan.com

1.888.830.1326

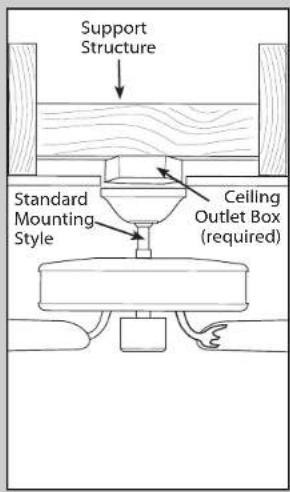

Support Structure Standard Mounting Style Ceiling Outlet Box (required)

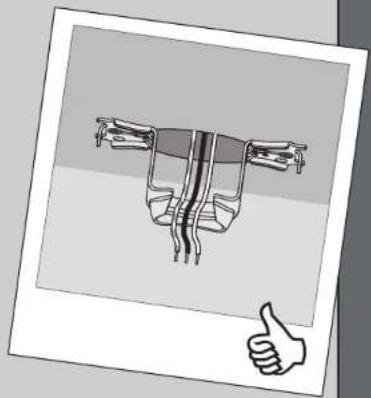

Use Standard Mounting or Low-Profile Mounting to hang the fan from a flat ceiling.

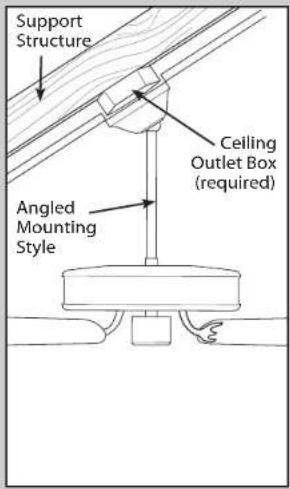

Support Structure Ceiling Outlet Box (required) Angled Mounting Style

Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.

M3543-01 · 10/08/14 · Ⓞ Hunter Fan Company

Ceiling Bracket

www.HunterFan.com

1.888.830.1326

Turn Power OFF

Technical illustration of a screw and a washer (no text or symbols)

Illustration of a dog holding a small animal, with two circular insets showing mechanical components (no text or symbols)

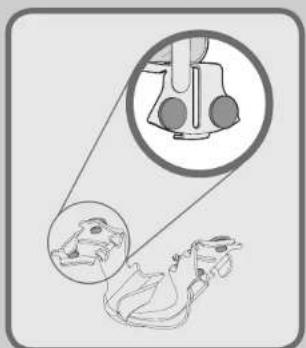

Make sure all four bumpers are still attached.

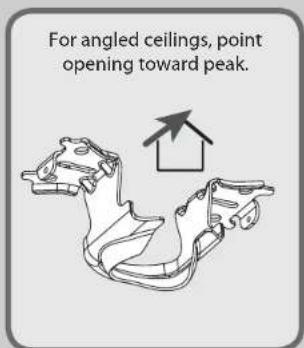

For angled ceilings, point opening toward peak.

If you are unable to do this, call Technical Support at 1-888-830-1326.

Technical diagram of a mechanical assembly with screws, screwdriver, and housing (no text or labels)

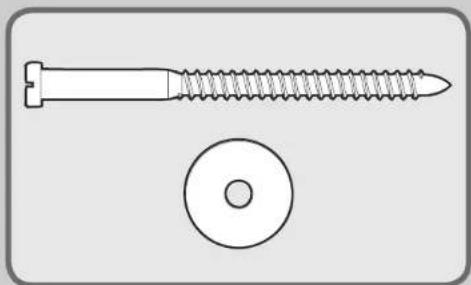

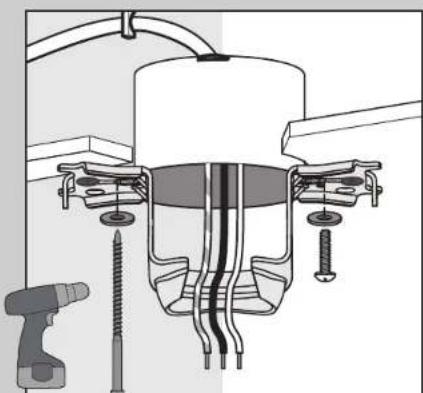

Use wood screws

(included) when securing to support structure with approved electrical outlet box. Drill .36 cm (9/64 in.) pilot holes in support structure to aid in securing ceiling bracket with hardware found in the ★ hardware bag.

Use machine screws

(provided with outlet box) when securing to existing ceiling fan-rated outlet box. Make sure it is securely installed and is acceptable for fan support of 31.8 kg (70 lbs) or less.

Diagram of a mechanical device with a thumbs-up gesture, no visible text or symbols

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.

Refer to warning w.1 on pg. 2

M3543-01 · 10/08/14 · @ Hunter Fan Company

Preparation

www.HunterFan.com

1.888.830

Simple diagram showing a clock and three circular objects on a surface, no text or symbols present.

Time Saver Tip: Get a helper to insert grommets, found in the ■ hardware bag, into the blades while you're doing the next couple of steps.

KEEP! DISCARD

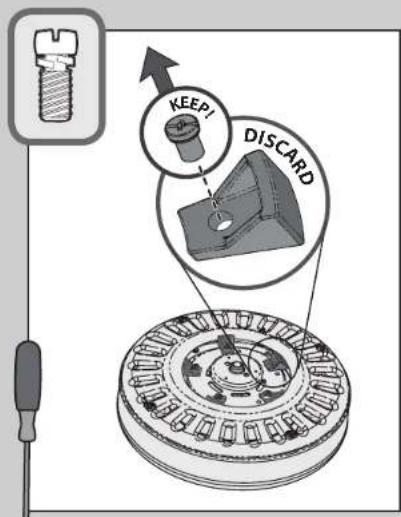

Remove the shipping blocks from the motor. Save the screws. They will be needed for blade iron installation.
Note: Some fans will have a shipping ring instead of shipping blocks. Please remove the ring and save the screws.

M3543-01 · 10/08/14 · © Hunter Fan Company

M3543-01 · 10/08/14 · © Hunter Fan Company

www.HunterFan.com

1.888.830.1326

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

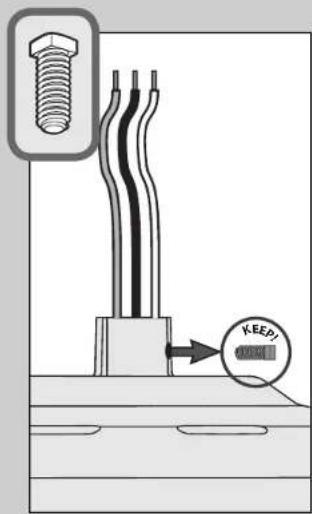

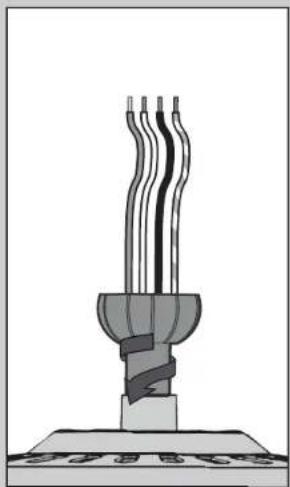

Remove the pre-installed setscrew so that the downrod can be inserted.

Diagram of a mechanical component with multiple curved wires and a base, no visible text or symbols

Hand tighten the downrod (at least 4-5 full turns) until it stops.

3/8 in. ,95 cm 8 in. 20 cm (not to scale) CUT & STRIP

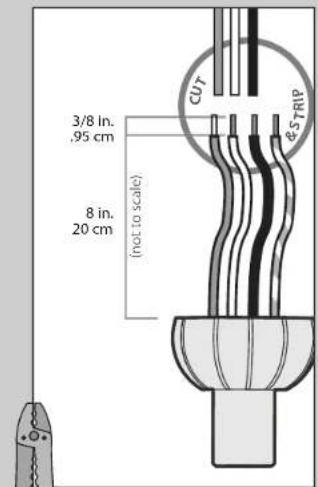

The wires can be cut, but leave at least 8 inches (20 centimeters) extending from the top of the downrod.

Illustration of a hand using a pliers to adjust a bolt, with an inset showing the same tool (no text or symbols present)

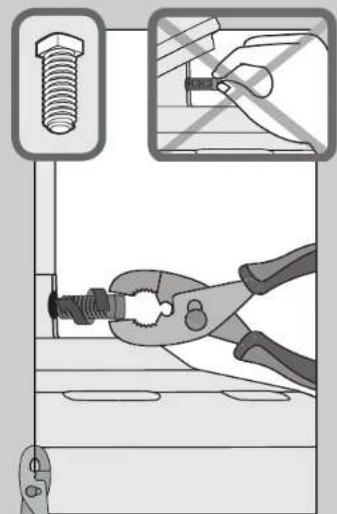

Tighten the setscrew with pliers. DO NOT HAND TIGHTEN.

8 inches (20 centimeters)

3/8 in.

.95 cm

M3543-01 · 10/08/14 · @ Hunter Fan Company

If the setscrew is not tightened securely, the fan may fall.

Downrod (continued)

www.HunterFan.com

1.888.830.1326

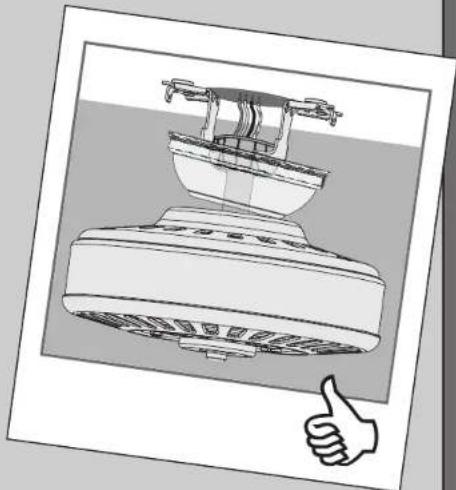

Diagram of a steaming bowl with three handles, emitting vapor or steam from the top (no text or symbols)

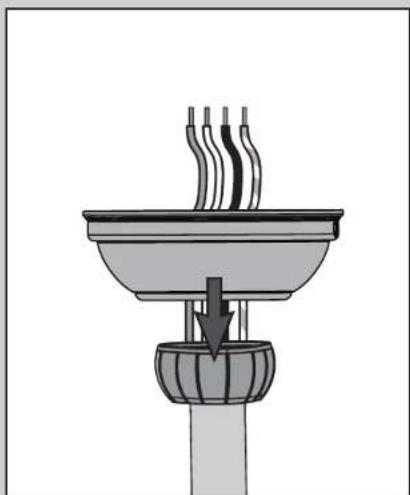

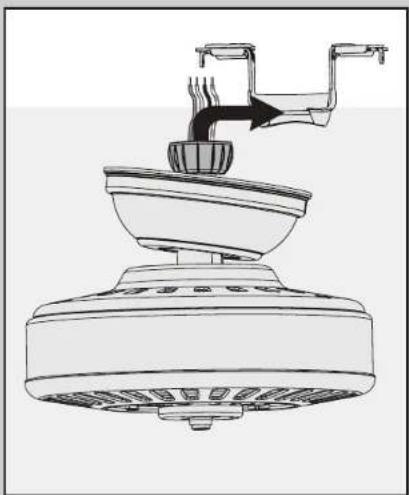

Put the wires and downrod through the canopy. Let the canopy sit loosely on top of the fan.

Line drawing of a ceiling fan with a handle and ventilation slots (no text or symbols)

DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket.

Illustration of a kitchen fan with a thumbs-up gesture (no text or symbols)

M3543-01 · 10/08/14 · Ⓞ Hunter Fan Company

Wiring

www.HunterFan.com

1.888.830.1326

Receiver

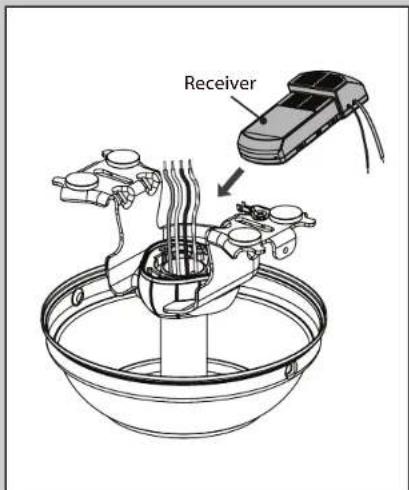

Place the receiver on top of the downrod assembly as shown.

Note: To connect the wires, hold the bare metal leads together and place a wire connector over them, then twist clockwise until tight.

Using an orange wire connector from the ★ hardware bag:

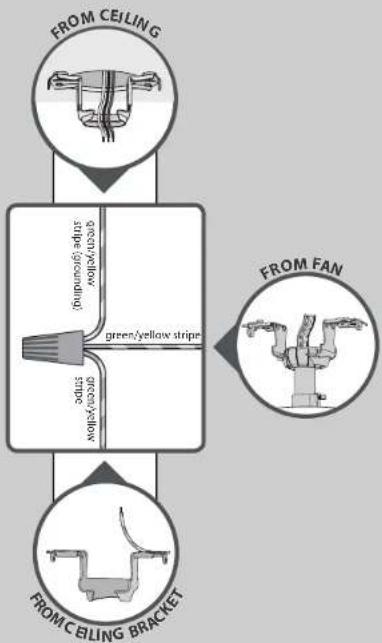

Connect the 3 grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and ceiling bracket.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

M3543-01 · 10/08/14 · @ Hunter Fan Company

Wiring (continued)

www.HunterFan.com

1.888.830.1326

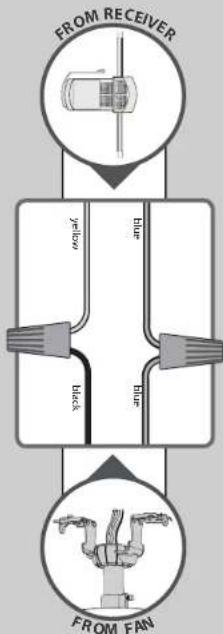

Using the orange wire connectors from the remote control hardware bag:

• Connect the yellow wire from the receiver to the black wire from the fan.
• Connect the blue wire from the receiver to the blue wire (or possibly black with white stripe wire) from the fan.

Using the orange wire connectors from the ★ hardware bag:

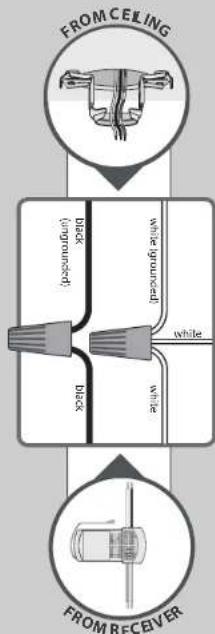

• Connect the black (ungrounded) wire from the ceiling to the black wire from the receiver.
• Connect the white (grounded) wire from the ceiling to both the white wire from the receiver and the white wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box.

M3543-01 · 10/08/14 · @ Hunter Fan Company

Canopy

www.HunterFan.com

1.888.830.1326

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

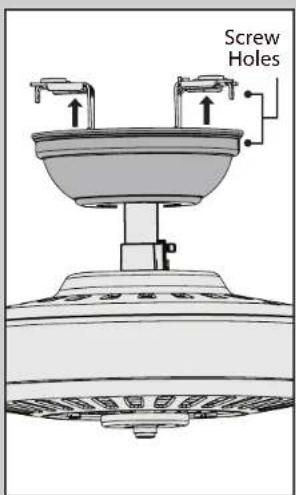

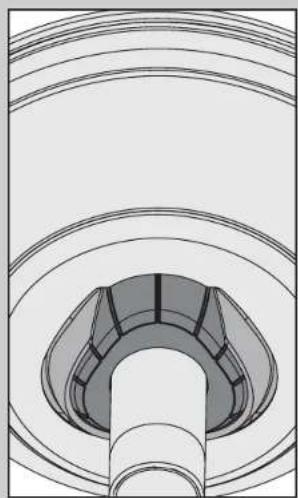

Position the canopy so that, when lifted into place, the canopy fits into the hanging bracket as shown.

Screw Holes

Lift the canopy into place so that the screw holes are aligned.

Technical line drawing of a mechanical assembly with a screw and base, no visible text or symbols

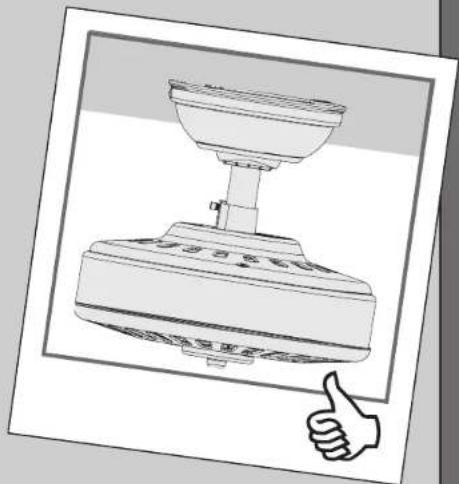

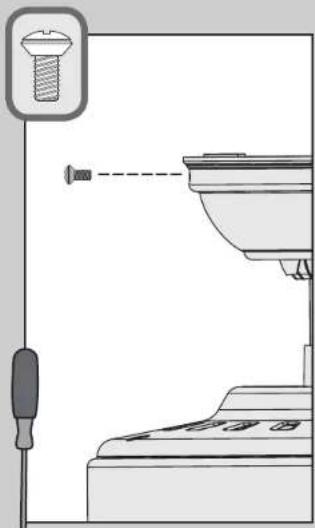

Insert the two canopy screws found in the hardware bag.

Line drawing of a kitchen appliance with a hand giving a thumbs-up gesture (no text or symbols)

Note: Fan style may vary.

M3543-01 · 10/08/14 · @ Hunter Fan Company

Blades

www.HunterFan.com

1.888.830.1326

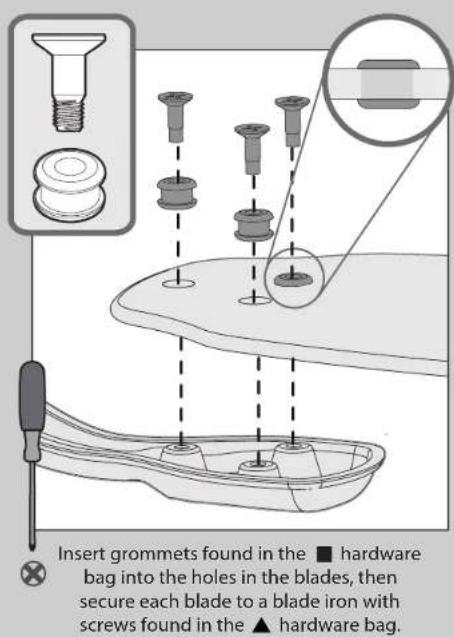

Insert grommets found in the ▲ hardware bag ▲ hardware bag into the holes in the blades, then secure each blade to a blade iron with screws found in the ▲ hardware bag.

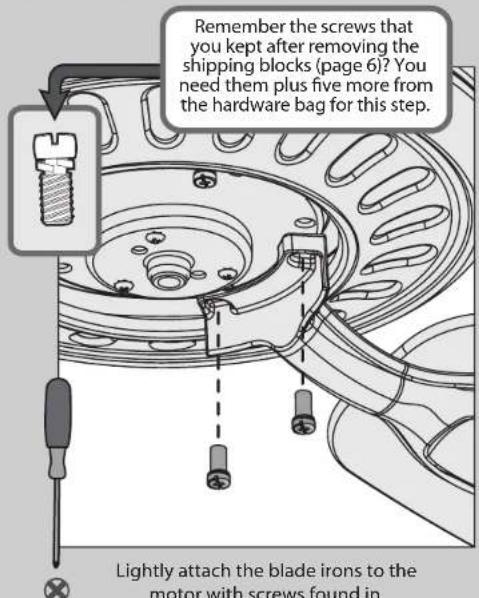

Remember the screws that you kept after removing the shipping blocks (page 6)? You need them plus five more from the hardware bag for this step. Lightly attach the blade irons to the motor with screws found in

the ✘ hardware bag, then securely tighten after both screws are attached.

Illustration of a ceiling fan with decorative blades and a thumbs-up gesture (no text or symbols)

Your blades are shielded with Dust Armor® which is a nanotechnology coating that repels dust. For cleaning the fan, use soft brushes or cloths to prevent cratching. Cleaning agents may damage the finishes.

M3543-01 · 10/08/14 · @ Hunter Fan Company

Switch Housing

www.HunterFan.com

1.888.830.1326

Screw top housing assembly arrow

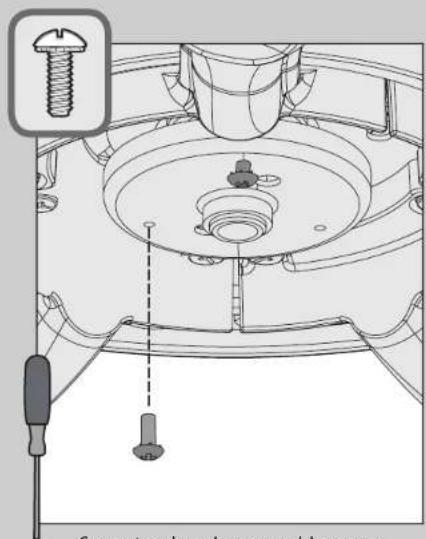

Screw two housing assembly screws from the ≡ hardware bag halfway into the motor housing. It does not matter which two screw holes you choose.

Technical diagram of a vehicle wheel assembly with a central hub and circular base (no text or labels)

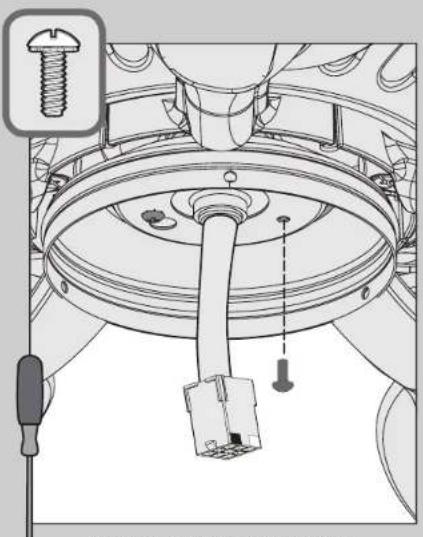

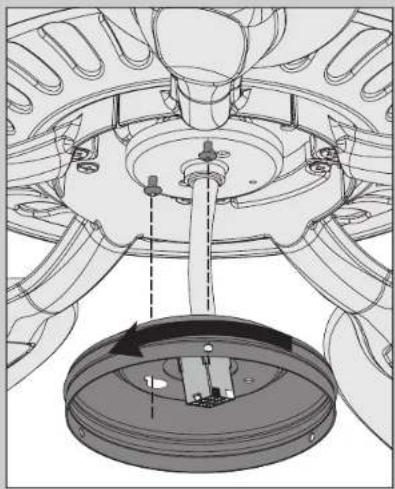

Feed the wire plug through the center hole of the upper switch housing, then wrap keyhole slots around the screws and twist counterclockwise.

Technical line drawing of a mechanical assembly with screw and housing components (no text or symbols)

Insert the third screw, found in the ≡ hardware bag, into place and then tighten all three screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling.

M3543-01 · 10/08/14 · © Hunter Fan Company

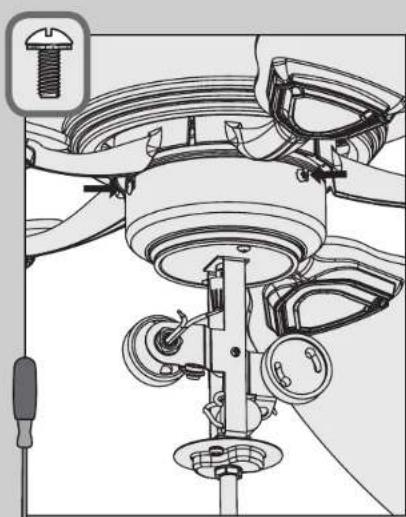

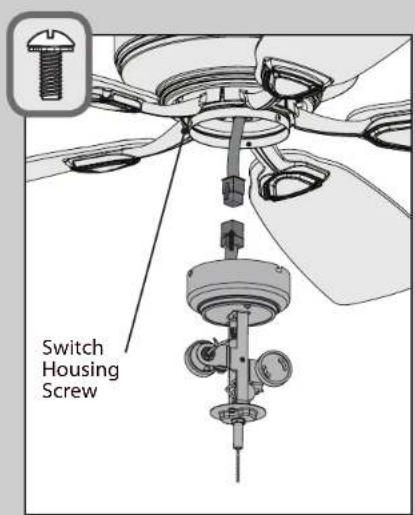

Switch Housing Screw

Partially install two of the switch housing screws found in the ≡ bag. Connect the plugs from the upper and lower switch housings. Make sure to line up the colored markings on the connectors.

Switch Housing Screw Notch

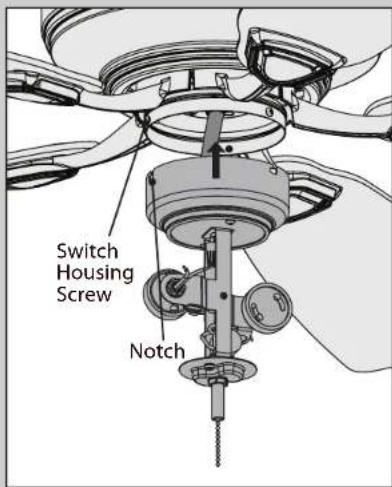

Align the notches in the sides of the lower switch housing with the upper switch housing screws. Lift the lower switch housing. Twist the lower switch housing clockwise to lock into place. Then thread the fan pull chain through the hole in the light kit.

Technical diagram of a mechanical assembly with gears and levers (no text or labels)

Install the third switch housing screw. Tighten all three screws securely.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click "How do I install my fan without the light kit?"

M3543-01 · 10/08/14 · © Hunter Fan Company

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three assembly screws could result in the light fixture falling.

Light Kit (continued)

www.HunterFan.com

1.888.830.1326

Mechanical assembly diagram showing a gear assembly and a disassembly process (no text or labels)

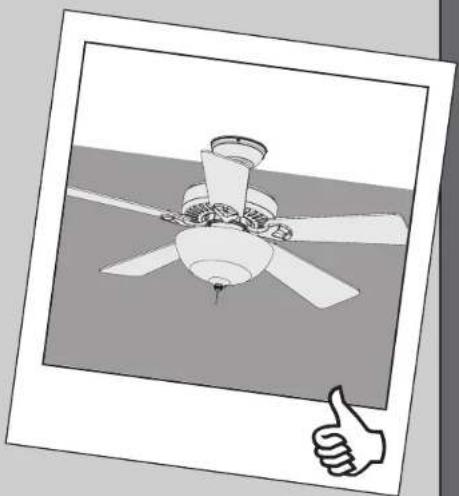

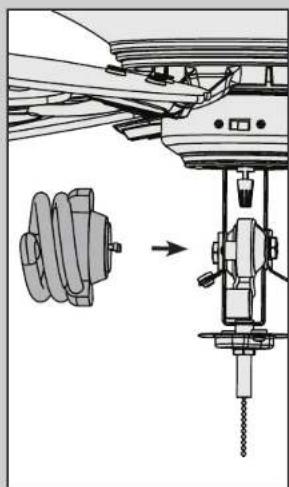

Install a light bulb in each socket.
Note: The included bulbs are not dimmable. If you wish to utilize the dimming feature, you may install dimmable GU24 CFL bulbs (sold separately).
Note: Globe style and number of lights may vary.

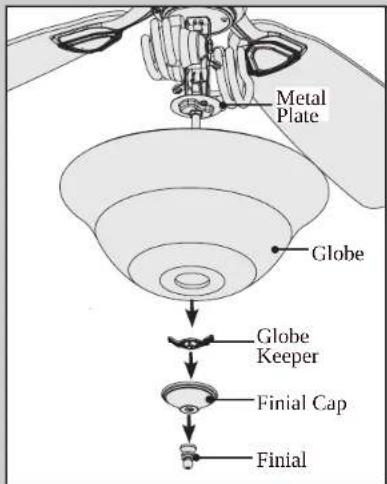

Metal Plate Globe Globe Keeper Finial Cap Finial

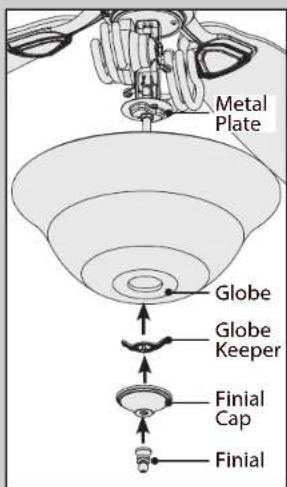

Press the globe and globe keeper flush against the metal plate. Thread the light pull chain through the hole in the center of the finial cap and thread the fan pull chain through the hole in the side of the cap. Finally, thread only the light pull chain through the hole in the finial and screw the finial onto the threaded rod.

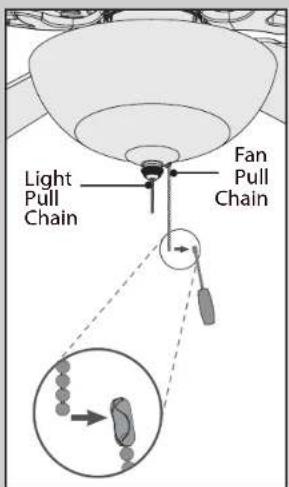

Light Pull Chain Fan Pull Chain

Connect the appropriate pull chain pendant to each of the short chains coming from the finial and finial cap. The fan pull chain controls the speed: from high to off. The light pull chain controls the light fixture: on and off.

Illustration of a five-blade ceiling fan with a thumbs-up gesture (no text or symbols)

M3543-01 · 10/08/14 · © Hunter Fan Company

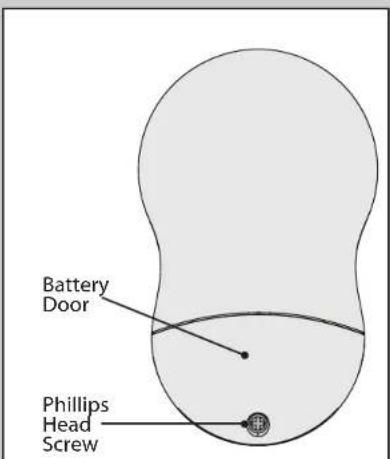

Battery Door Phillips Head Screw

To access the battery compartment, remove the small Phillips head screw that secures the battery door to the transmitter assembly. Install one (1) 3-Volt, CR2032 battery (included) into the transmitter. Clean the battery contacts and also those of the device prior to battery installation. The battery should be installed with the positive (+) side up. Please contact your local battery recycling center for proper battery disposal information.

CAUTION:

• Always purchase the correct size and grade of battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period of time.
• Remove used batteries promptly.

Turn Power ON

Diagram of a ceiling fan with labeled parts and a control panel showing three numbered components.

The remote transmitter should already be paired to the receiver and ready to use.

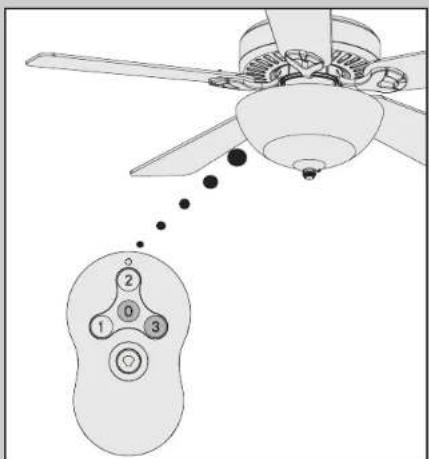

Note: If your need to pair your remote, turn fan power off and back on at the wall switch. Within 3 minutes, press and hold both the Fan Off button and the High button for 4 seconds to pair the remote. To prevent faulty operation, please ensure all other ceiling fans within range are turned off at the wall switch while pairing.

This product contains a button battery. If swallowed, it could cause severe injury or death in just two hours. Seek medical attention immediately.

M3543-01 · 10/08/14 · @ Hunter Fan Company

Remote Control (continued)

www.HunterFan.com

1.888.830.1326

Light Chain 2 1 0 3 Hunter Light Button

Push the light button on the remote transmitter. Pull the light chain once. If the light does not turn on, repeat step.

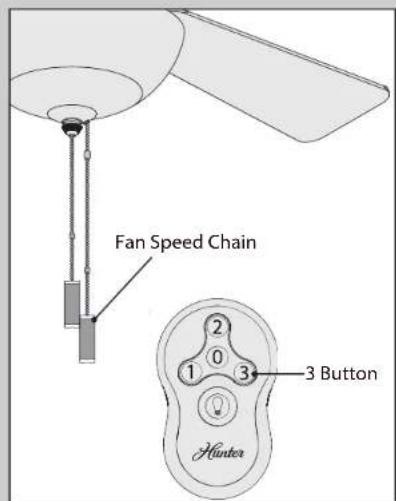

Fan Speed Chain 2 1 0 3 3 Button Hunter

Push the 3 button on the remote transmitter for high fan speed. Pull the fan speed chain until the fan is on the highest speed.

Helen CONGRATULATIONS! YOU'RE DONE!

See next page for fan operation instructions.

M3543-01 · 10/08/14 · Hunter Fan Company

Operation, Maintenance, & Cleaning

www.HunterFan.com

1.888.830.1326

Fan Off Low Speed Medium Speed 2 0 3 High Speed Light Hunter

To turn on fan, press a fan speed button. Speeds range from off (0) to high (3).
Quickly press the Light button to turn the lights off and on.

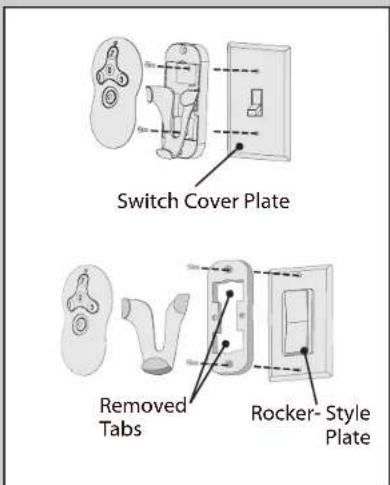

Switch Cover Plate Removed Tabs Rocker- Style Plate

To install the transmitter cradle, remove the two screws holding the switch cover plate. Do not remove the cover plate. Orient the cradle by lining up the two mounting holes with those on the cover plate. Insert and tighten the screws. Do not over tighten.
Note: For rocker-style cover plates, break off the tabs by pushing outward.

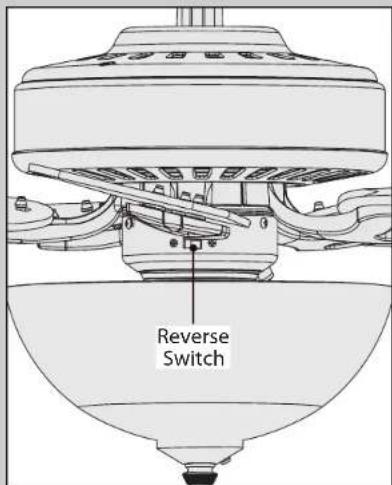

Reverse Switch

To switch the direction of air flow, move the reverse switch to the opposite position.

M3543-01 · 10/08/14 · © Hunter Fan Company

Operation, Maintenance, & Cleaning (continued)

www.HunterFan.com

1.888.830.1326

Metal Plate Globe Globe Keeper Finial Cap Finial

Changing the bulbs - unscrew the finial and remove it from the threaded rod. Remove the finial cap and unscrew the globe keeper while supporting the globe with your other hand. Carefully remove the globe. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly.

Line drawing of a hand cleaning a ceiling fan with a handle (no text or symbols)

When cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes.

Safe-Exit

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.
  • The lights will flash for visual confirmation.
• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

Note: For CFL lighting, the lights will stay on 100% brightness for 30 seconds. After a total of 30 seconds, the lights will be completely off.

For questions regarding removing a light kit, call customer service 1-888-830-1326.

M3543-01 · 10/08/14 · Ⓞ Hunter Fan Company

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn't work

• Make sure power switch is on.
- Pull the pull chain to make sure it is on.
- Push the motor reversing switch firmly left or right to ensure that it is engaged.
- Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
- Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on pages 10-11.
- Check the plug connection in the switch housing.

Fan wobbling

• Tighten all of the blade and blade iron screws until they are snug.
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.

Remote control of fan is erratic

• Make sure the battery is installed correctly.
• Install a fresh battery.

Transmitter only works when held at close range

- Change battery.

Noisy operation

• Tighten the blade and blade iron screws until they are snug.
• Check to see if any of the blades are cracked. If so, replace all of the blades.

Fan Runs Slowly

- Turn the power to the fan off at the wall switch. Then, turn it on again. Push the 3 button on the remote transmitter for high fan speed. Then, pull the fan speed chain until the fan is on the highest speed.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit

breaker and you are experiencing interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click "How do I properly install multiple remote-controlled fans?" for information on how to correct this issue.

Hunter fans have the power to cut your cooling costs up to 40%.

Beat the High Cost of Cooling

The air movement created by a Hunter ceiling fan lets you set your thermostat higher and still stay comfortable. Every degree you raise the thermostat saves up to 7% on energy costs. So, you can cut back on expensive air conditioning ... and save up to 40%* on cooling. In winter, your Hunter fan recirculates warm air and saves up to 10%* on heating bills.

* On average at low speed settings. Your savings may vary based on climate, building type and thermostat setting.

Save Energy and Money While Protecting the Environment

Congratulations! You're saving energy and money while protecting the environment by purchasing this ENERGY STAR qualified Hunter ceiling fan! With this purchase, you are doing your part to protect the environment. Your new ceiling fan has earned the ENERGY STAR label because it meets high energy efficiency specifications set by the Environmental Protection Agency (EPA). ENERGY STAR labeled ceiling fans save energy because they have more efficient fan motors and air delivery due to more aerodynamic blade configurations. Ceiling fan models bearing the ENERGY STAR label move air 14-20% more efficiently than typical ceiling fan models. For more information on ENERGY STAR visit www.energystar.gov.

2-Year Energy Star Light Kit Warranty

The Hunter Fan Company, Inc. makes the following warranty to the original user or consumer purchaser of each Hunter Energy Efficient Light Kit:

If your Hunter Energy Efficient Light Kit fails at any time within two years after the date of sale due to a defect in material or workmanship, labor to repair the defect will be provided free of charge at our nearest service center or our service department in Memphis, TN. You will be responsible for all labor costs after this two-year period.

This warranty is voided if this product is not purchased in the U.S.A. or Canada.

This warranty excludes and does not cover defects, malfunctions or failures of any product which were caused by repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation, modifications or damage to the light fixture while in your possession, or unreasonable use, including failure to provide reasonable and necessary maintenance. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES.

SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

M3543-01 · 10/08/14 · © Hunter Fan Company
