USER MANUAL Nova 430 Calix
INSTALLATION AND SAFETY INSTRUCTIONS
INSTRUCTIONS POUR L'INSTALLATION ET LA SÉCURITÉ EINbAU-UND SIChERhEITShINwEISE
MONTERING- OCh SÄKERhETSINSTRUKTIONER
CALIX 280
CALIX NOVA 340, 370, 380, 430, 600
CALIX ZAFE


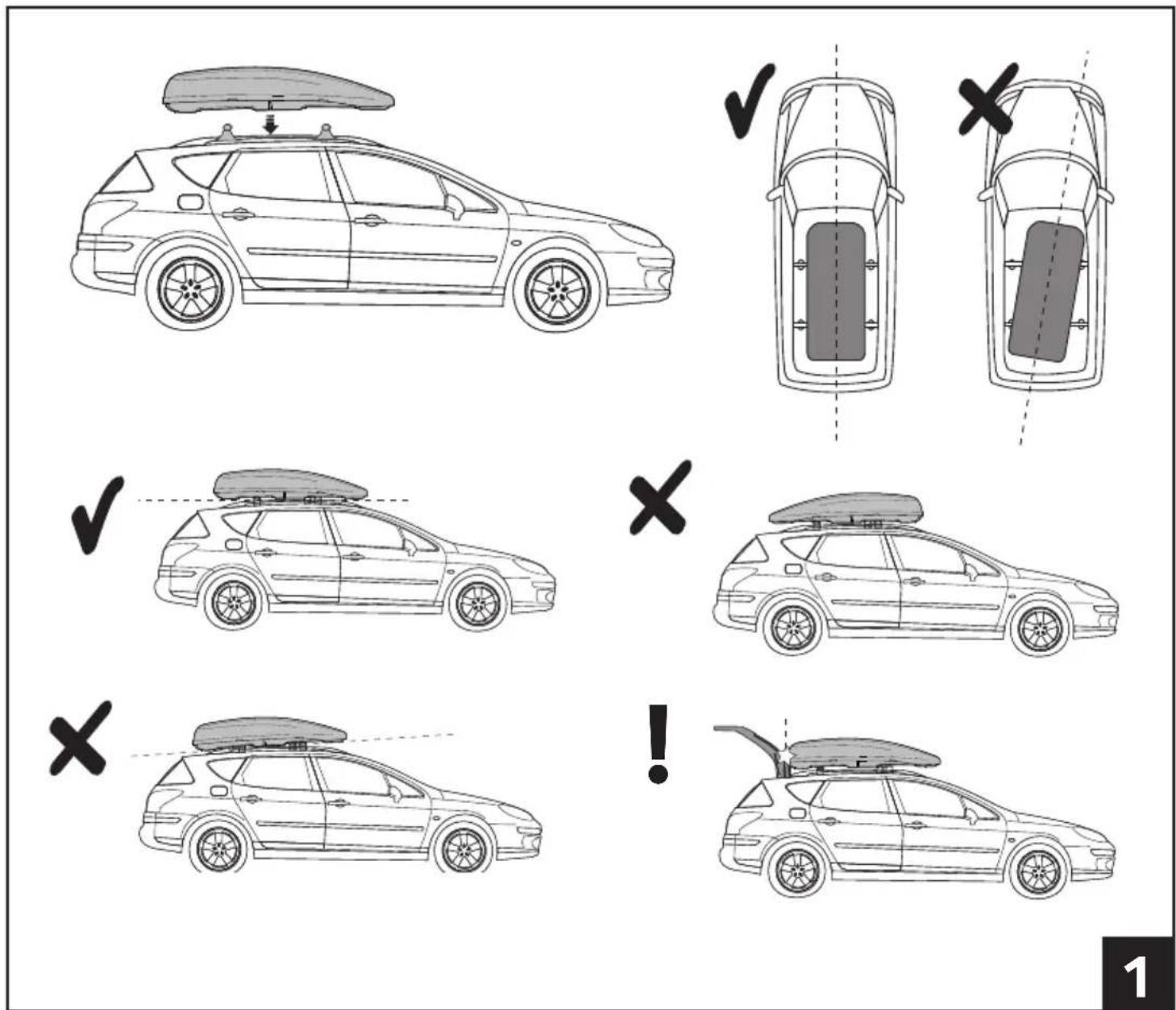

Diagram illustrating car roof support scenarios with check and incorrect actions, showing front and rear views of a vehicle.
F

X4

X8

X8
L

X4
M

X4

X8

X8
See instructions no 10 See instructions no 11
K

X4

X4
I

X4
J

X4
K

X4
M

X4

X4

X4
See instructions no12
INSTALLING
| Model | X_min (mm) | X_max (mm) |
| 370 | 665 | 955 |
| 380 | 565 | 1055 |
| 430/Zafe | 555 | 995 |
| 600 | 545 | 1015 |


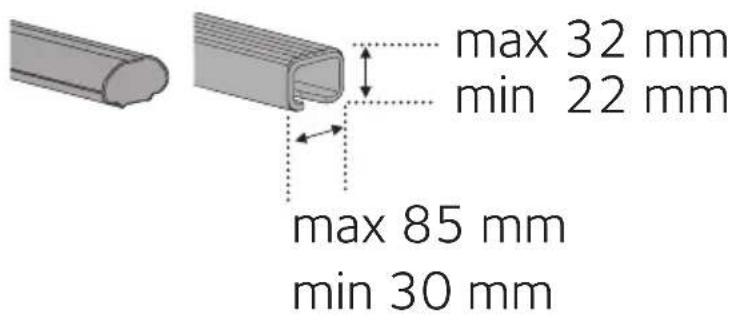

max 32 mm min 22 mm max 85 mm min 30 mm


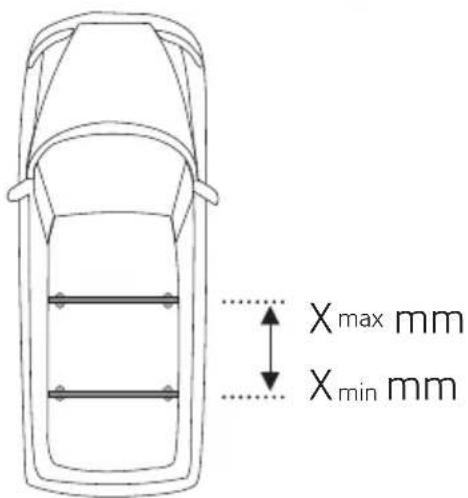

Xmax mm Xmin mmCheck!
Use


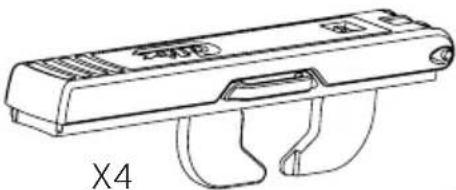

3D rendering of a metallic elongated object with a U-shaped groove, labeled 'E' and 'X4' (no other text or symbols)


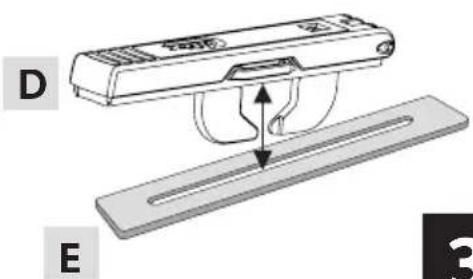

D E1


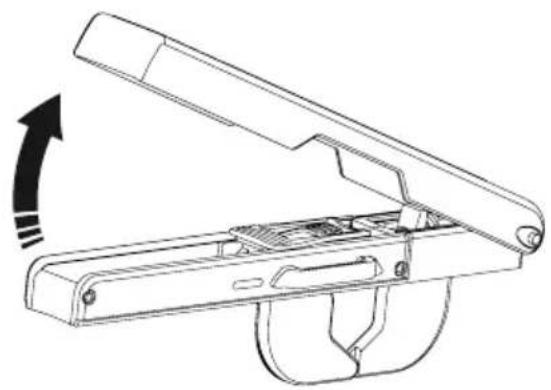

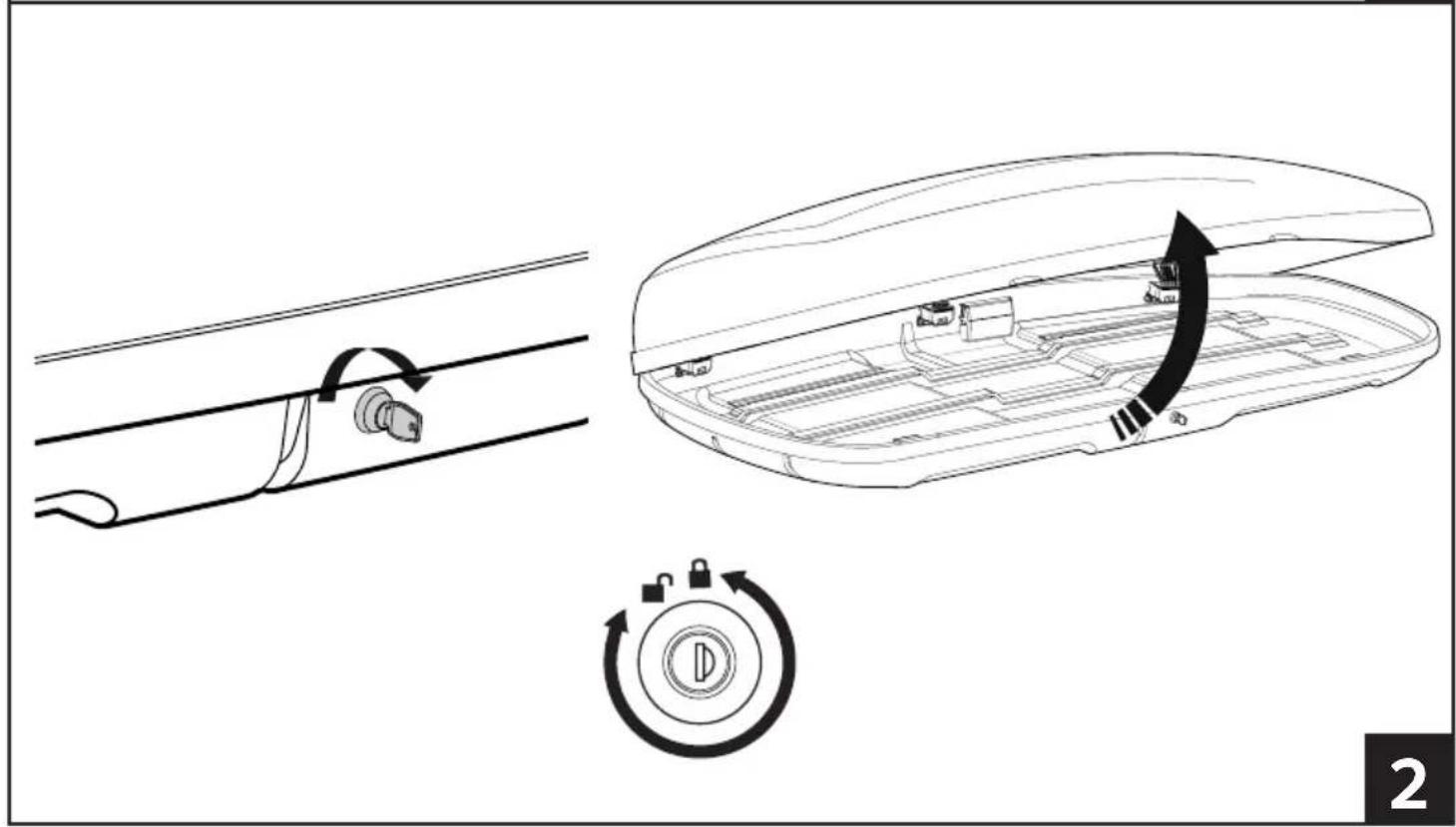

Technical line drawing of a mechanical device with an open lid and internal components, showing a rotational arrow (no text or symbols)2


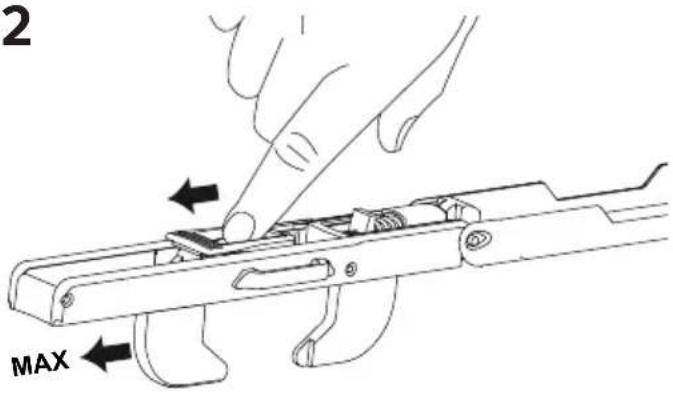

2 MAX3


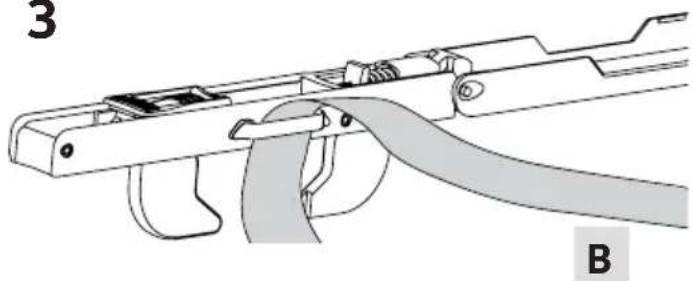

Technical line drawing of a firearm with labeled parts (B and 3), showing internal components without any text or symbols.
5

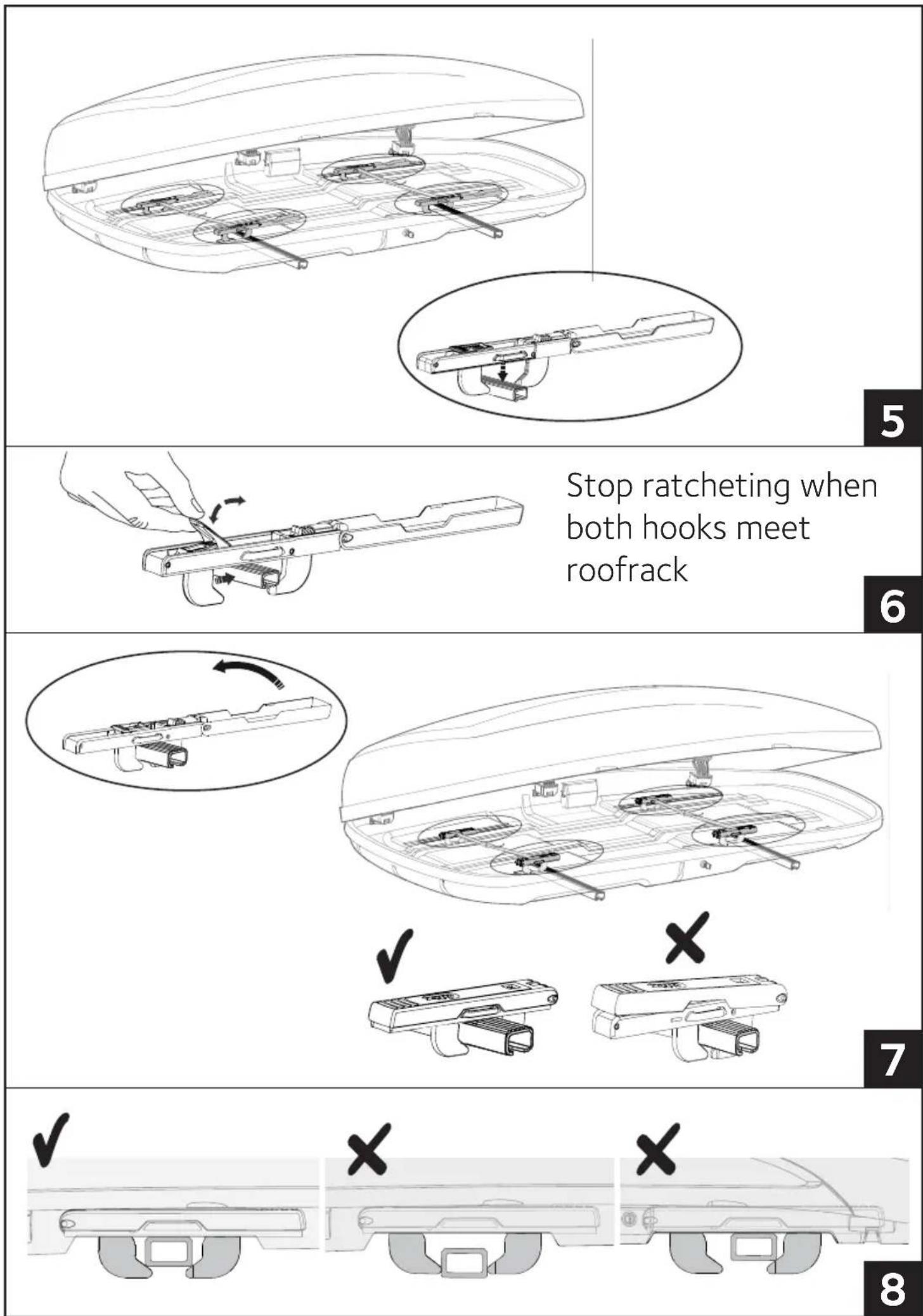

Stop ratcheting when both hooks meet roofrack
6
7
8
max 70 mm

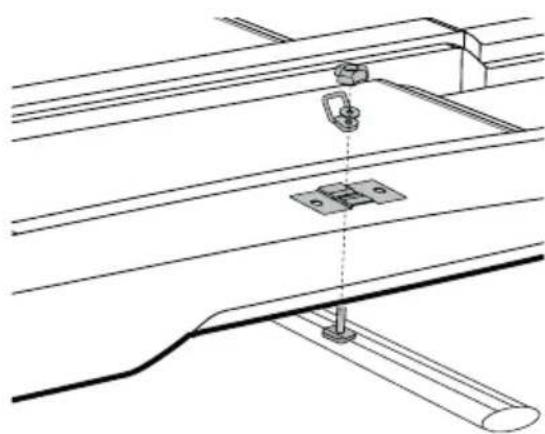

Attach the box to the roof racks on all four attachment points
| 280 | 360 | 760 |
| 340 | 570 | 810 |
| 370 | 570 | 1050 |
| 380 | 470 | 1150 |
| 430/Zafe | 460 | 1090 |
| 600 | 450 | 1110 |
X_min mm
X_max mm
J
H
|
G
F


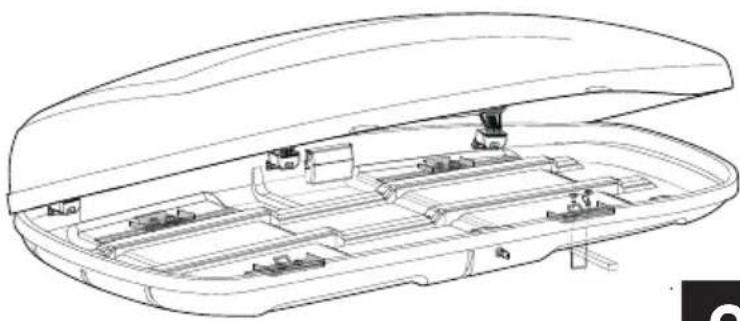

Technical line drawing of a closed automotive trunk box with internal compartments and mounting hardware (no text or symbols)9


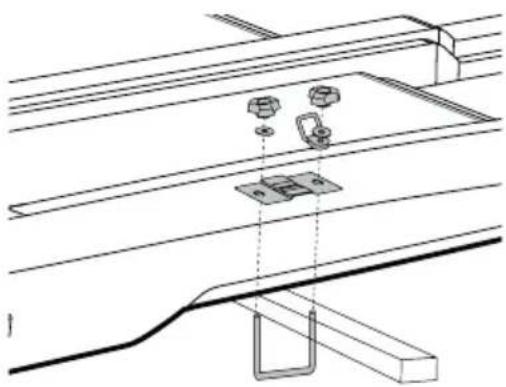

Diagram of a 3D mechanical component with dashed arrows indicating direction (no text or symbols)max 28 mm
max 62 mm
Attach the box to the roof racks on all four attachment points
| 280 | 360 | 760 |
| 340 | 570 | 810 |
| 370 | 570 | 1050 |
| 380 | 470 | 1150 |
| 430/Zafe | 460 | 1090 |
| 600 | 450 | 1110 |
X_min mm
X_max mm
J
|
H
M
L


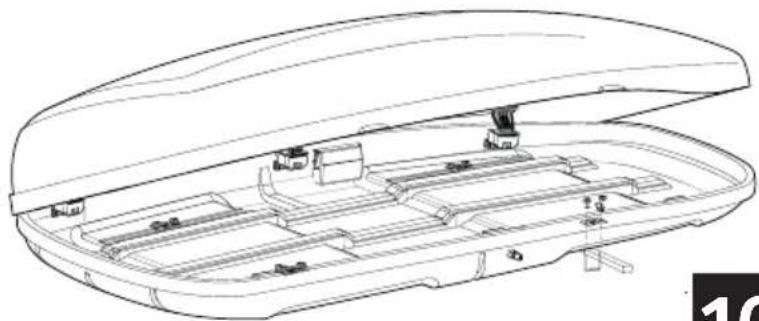

Line drawing of a closed automotive tricycle with internal compartments and mounting feet (no text or symbols)10

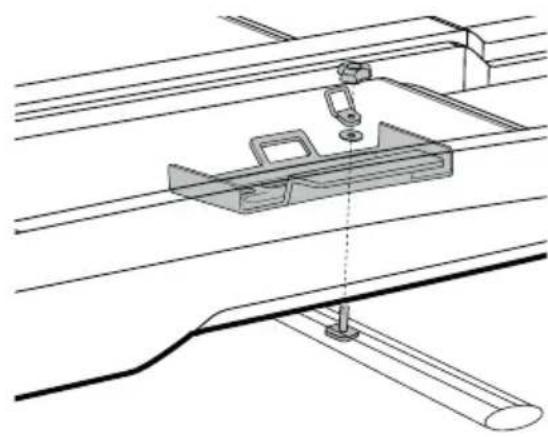

Attach the box to the roof racks on all four attachment points
| Model | X_min (mm) | X_max (mm) |
| 280 | 355 | 765 |
| 340 | 565 | 815 |
| 370 | 565 | 1055 |
| 380 | 465 | 1155 |
| 430/Zafe | 455 | 1095 |
| 600 | 445 | 1115 |
J
H
I
G
K


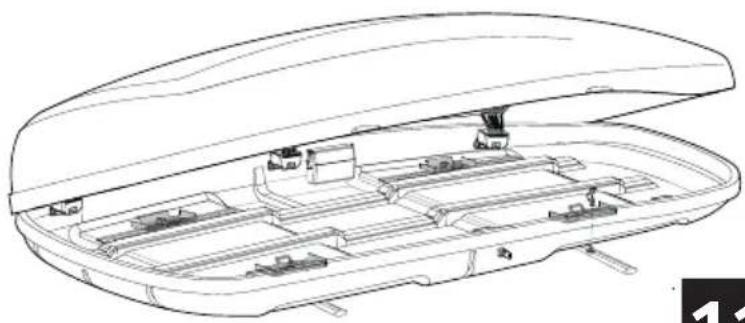

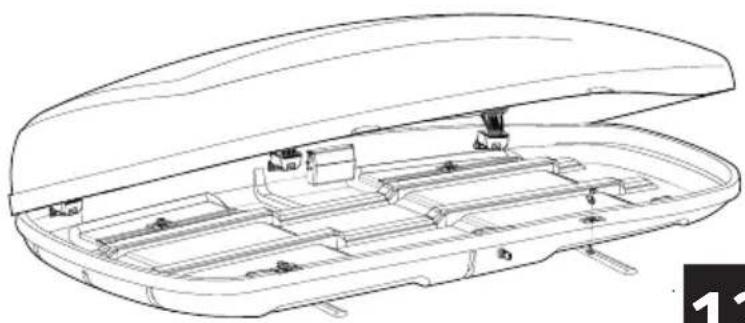

Line drawing of a car front bumper with internal compartments and mounting fixtures (no text or symbols)11

Attach the box to the roof racks on all four attachment points
| Model | X_min (mm) | X_max (mm) |
| 280 | 355 | 765 |
| 340 | 565 | 815 |
| 370 | 565 | 1055 |
| 380 | 465 | 1155 |
| 430/Zafe | 455 | 1095 |
| 600 | 445 | 1115 |
J
I
H
M
K


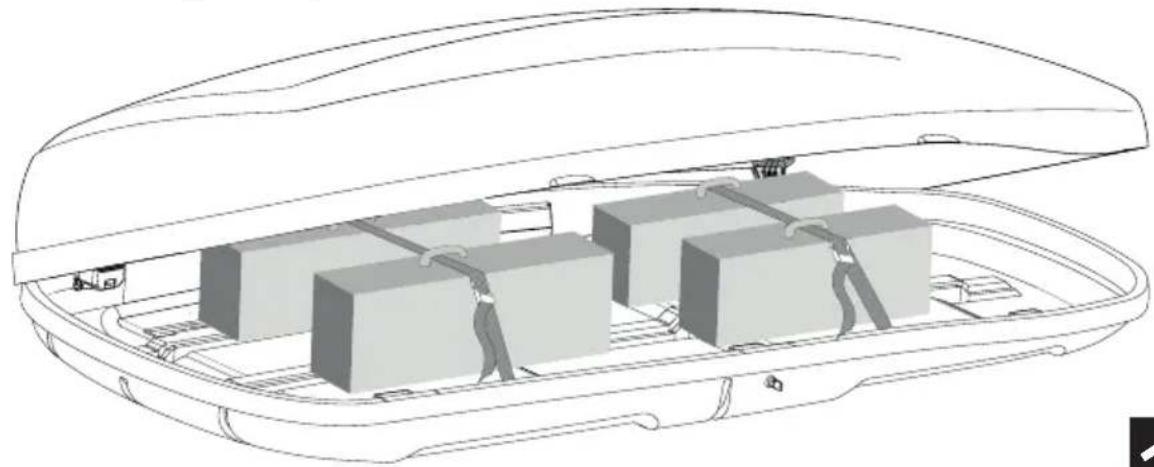

LOADING
All items are to be fastened with the loading straps.


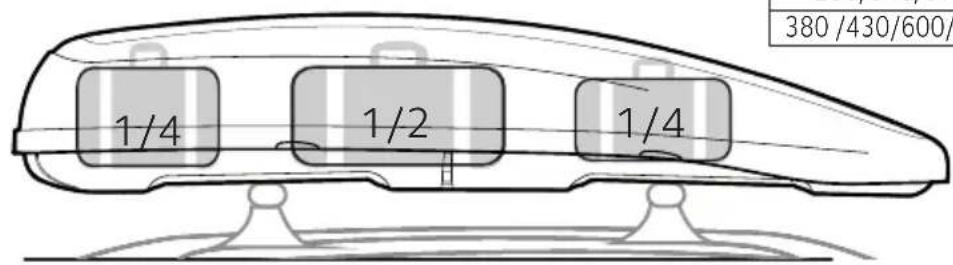

380 /430/600/ 1/4 1/2 1/4X_maxload
| Model | X_maxload |
| 280/340/370 | 50kg |
| 380 /430/600/Zafe | 75kg |
14
Check drivers manual for maximum permitted roof load of your car.
X_maxweight + X_maxload < max
| 280 | 11kg |
| 340 | 13kg |
| 370 | 18kg |
| 380 | 18kg |
| 430 | 23kg |
| 600 | 29kg |
| Zafe | 27kg |
15


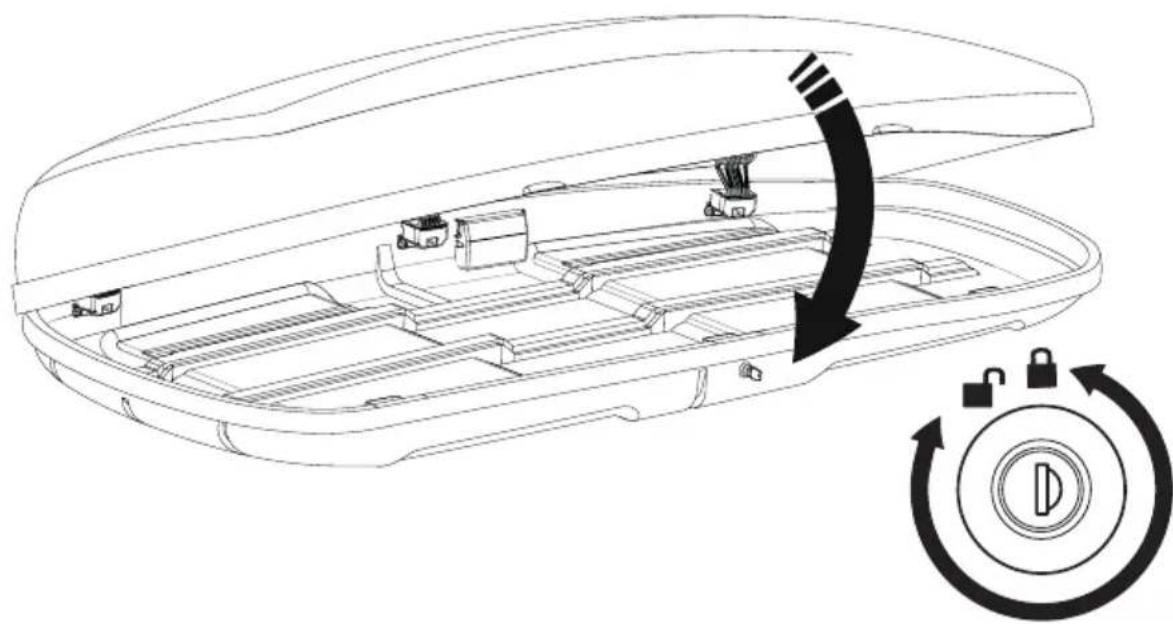

Make sure that the top is locked.
The box is properly closed when top covers bottom and you are unable to push top upwards.


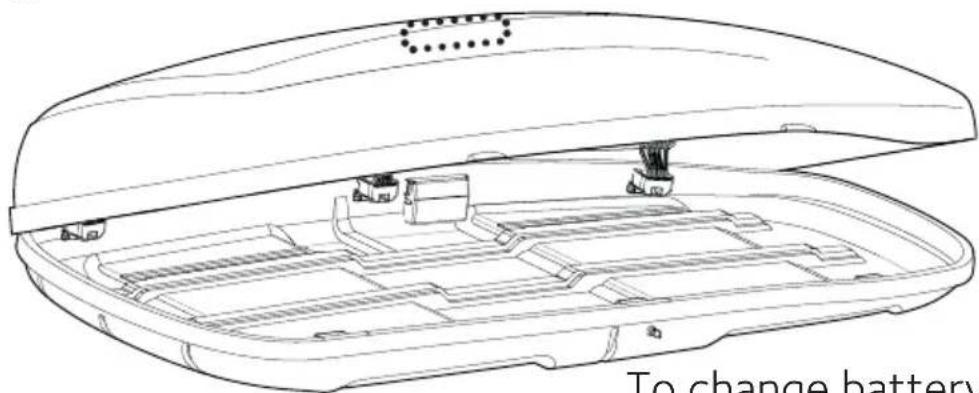

Turn on/off light by placing finger on the sensor buttons.
To change battery, release the lamp by moving it sideways.

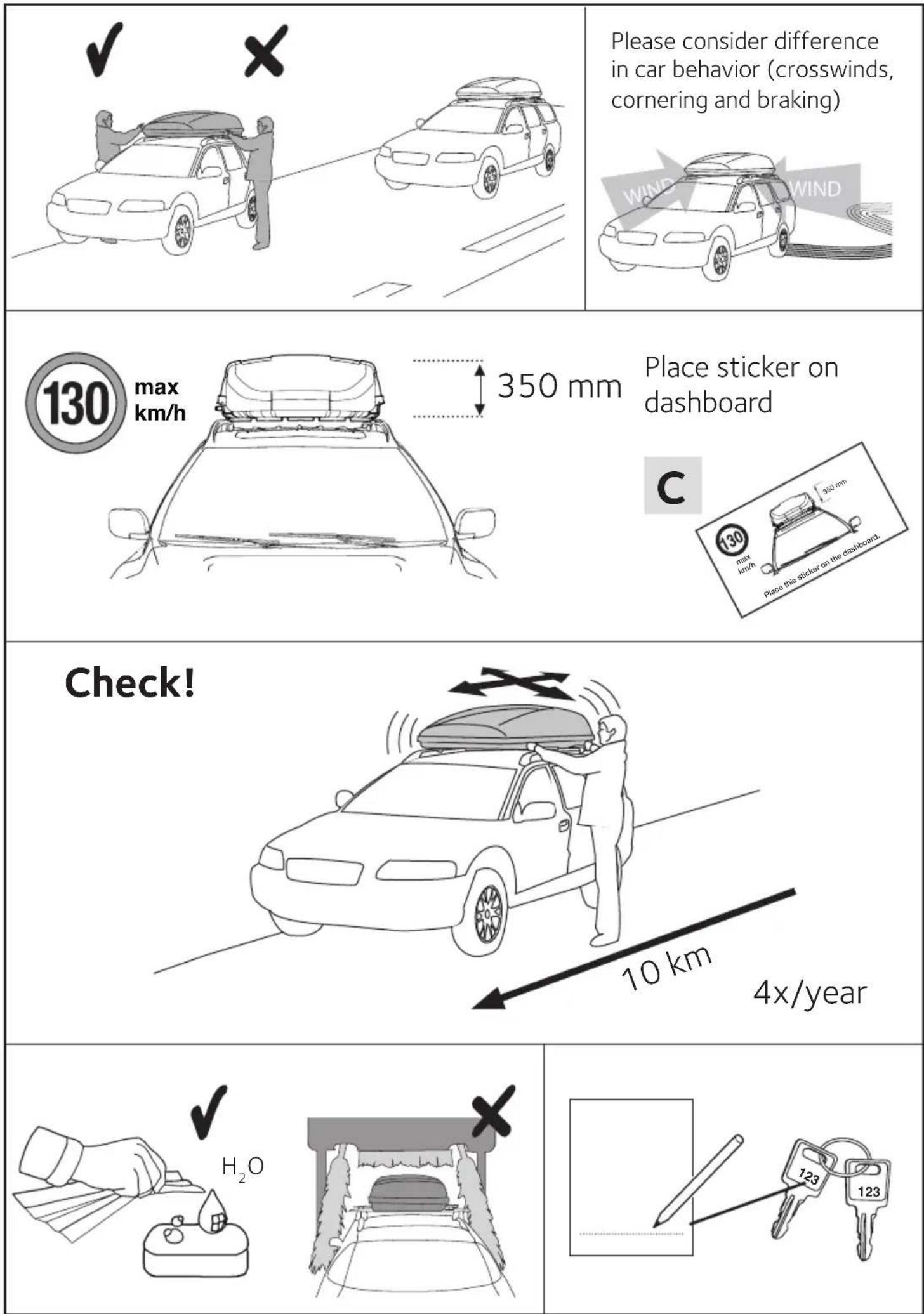

Please consider difference in car behavior (crosswinds, cornering and braking)
350 mm
Place sticker on dashboard
C
Check!
