USER MANUAL BKE 6800 D LG-Beko

Room Air Conditioner

OWNER'S MANUAL

Models :

LG-BKE 6450 D - LG-BKE 6500 D - LG-BKE 6600 D

LG-BKE 6700 D - LG-BKE 6800 D

Prior to installation, this air-conditioning unit must be submitted for approval by the utility service which provides electricity (EN 6055-3 Norm).

IMP OR TANT

€ P leas e read this owner's manual carefully and thoroughly before ins talling and operating your room air c conditioner.
€ P leas e retain this owner's manual for future reference e after reading it thoroughly.

TABLE OF CONTENTS

Safety Precautions......3

Prior to Operation ......6

Operating Instructions......7

Remote Controller ....7

Remote Control Operation.8

Additional features.....17

Maintenance and Service ....20

Indoor unit......20

Outdoor unit......21

Operation Tips ......22

Troubleshooting .....23

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.
• Installation work must be performed in accordance with the National Electric Code by qualified and authorized personnel only.

horized personnel only.

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties only.

■ Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

WARNING

■ Installation

Plug in the power plug properly.

- Otherwise, it will cause electric shock or fire due to heat generation or electric shock.

Do not modify power cord length or share the outlet with other appliances.

- It will cause electric shock or fire due to heat generation.

Always install air leakage breaker and a dedicated switching board.

- No installation may cause fire and electric shock accident.

Keep firearms away.

- It may cause fire.

Do not damage or use an unspecified power cord.

- It will cause electric shock or fire. - In the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. (Y Attachment)

Always perform grounding work.

- No grounding may cause electric shock.

Do not use the socket if it is loose or damaged.

- It may cause fire and electric shock.

Operation

Do not operate or stop the unit by inserting or pulling out the power plug.

- It will cause electric shock or fire due to heat generation.

Do not operate with wet hands or in damp environment.

- It may cause electric shock.

Unplug the unit if strange sounds, smell, or smoke comes from it.

- It may cause fire and electric shock accident.

Do not use the power cord close to the heating tools.

- It may cause fire and electric shock.

Ventilate before operating air conditioner when gas goes out.

- It may cause explosion, fire and, burn.

Do not allow water to run into electric parts.

- It may cause failure of machine or electric shock.

Do not direct airflow at room occupants only.

• This could damage your health.

Do not open the entrance during operation.

- It may cause electric shock.

Do not use the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.

- It may cause an explosion or fire.

Do not disassemble or modify products randomly.

- It may cause failure and electric shock.

CAUTION

■ Installation

Ensure that an installation console of the outdoor appliance is not damaged due to the use for a long time.

- If leaving appliance damaged, there is concern of damage due to the falling of product.

Use caution when unpacking and installing. Sharp edges could cause injury.

Operation

Never touch the metal parts of the unit when removing the filter.

• They are sharp and may cause injury.

Ventilate well when used together with a stove, etc.

- An oxygen shortage may occur.

Do not put a pet or house plant where it will be exposed to direct air flow.

• This could injure the pet or plant.

Stop operation and close the window in storm or hurricane.

- Operation with windows opened may cause wetting of indoor and soaking of household furniture.

Turn off the main power switch when not using it for a long time.

- It may cause failure of product or fire.

Always insert the filters securely. Clean it once every two weeks.

• Operation without filters may cause failure.

Do not place heavy object on the power cord and take care so that the cord should not be pressed.

- There is danger of fire or electric shock.

If water enters the product, turn the power switch of the main body of appliance off. After taking the power-plug out from the socket, contact with the service center.

Do not clean the air conditioner with water.

- Water may enter the unit and degrade the insulation. It may cause an electric shock.

When cleaning the unit, first make sure the power and breaker are turned off.

- Since the fan rotates at high speed during operation, it may cause injury.

Do not use appliance for special purpose such as animals or vegetables, precision machine, or conservation of art articles.

- It may cause damage of animals or vegetables or loss of property.

Hold the plug by the head of the power plug when taking it out.

- It may cause electric shock and damage.

Do not place obstacles around the absorption inlet or instead of blowing-out inlet.

- It may cause failure of appliance or accident.

Do not use strong detergent such as wax or thinner but use a soft cloth.

- Appearance may be deteriorated due to change of product color or scratching of its surface.

Do not drink water drained from air conditioner.

- It contains contaminants and will make you sick.

Prior to operation

Preparing for operation

1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.

Usage

1. Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices, food, pets, plants, and art objects). Such usage could damage the items.

Cleaning and maintenance

1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation. There is a possibility of injury if the unit's power is accidentally triggered on while cleaning inner parts of the unit.

Service

For repair and maintenance, contact your authorized service dealer.

Symbols Used in this Manual

NOTICE

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to the air conditioner.

This symbol indicates special notes.

OperatingInstructions

Remote Controller

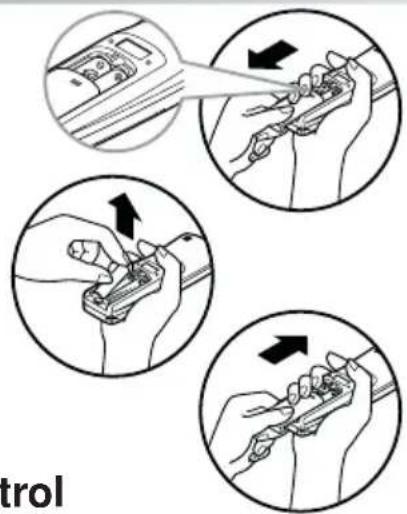

Remove the battery cover by pulling it according to the arrow direction.
2 Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3 Reattach the cover by sliding it back into position.

NOTICE : Use 2 AAA(1.5volt) batteries.

Do not use rechargeable batteries.

Control

StorageandTipsForUsingtheRemoteControl

- The remote control may be stored by mounting it on a wall.

• To operate the room air conditioner, aim the remote control at the signal receptor.

Line drawing of a wall-mounted air conditioner with a handheld probe inserted (no text or symbols)

Signal Receptor

Receives the signals from the remote control.(Signal receiving sound: two short beeps or one long beep.)

Operation Indication Lamps

OUT DOOR	OUTDOOR UNIT : Lights up during outdoor unit operation.
	OPERATION	(Coolingmodelonly)
ON	INDOOR UNIT :Lights up during indoor unit operation.(Optional) OPERATION
88		: Indicatesthesettingtemperature(Plasma model only)
PLASMA	Plasma : Lights up during plasma operation (Plasma model only)

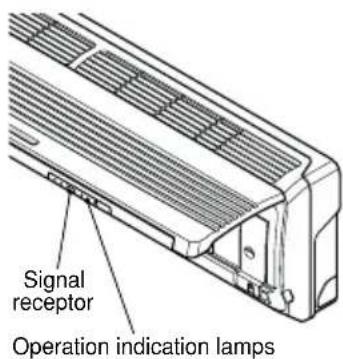

Signal receptor Operation indication lamps

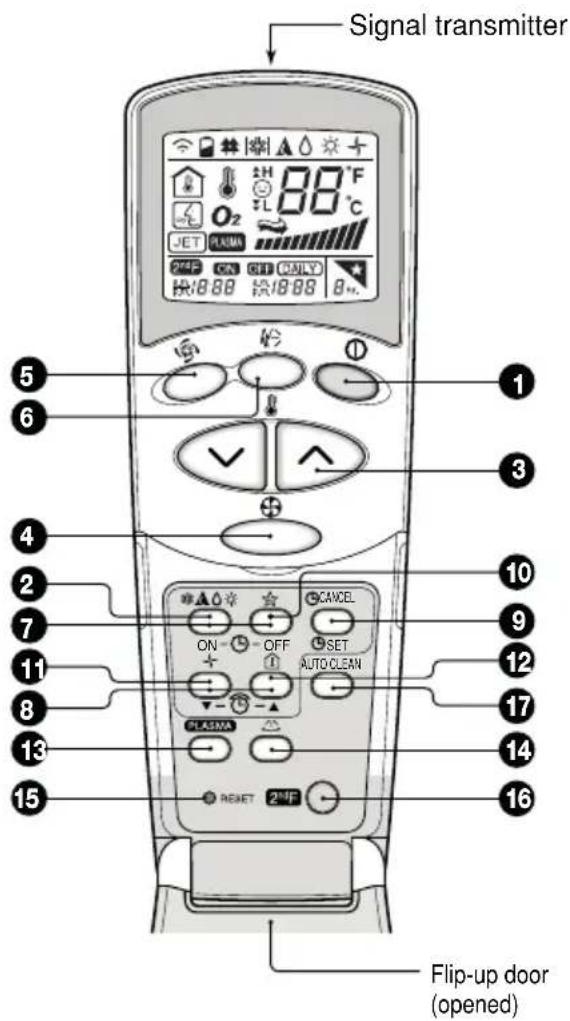

Remote Control Operation

The remote control transmits the signals to the system.

Signal transmitter 5 6 1 3 4 2 7 11 8 13 15 10 9 12 17 14 16 ON - OFF - SET AUTO CLEAN RESET 2ndF Flip-up door (opened)

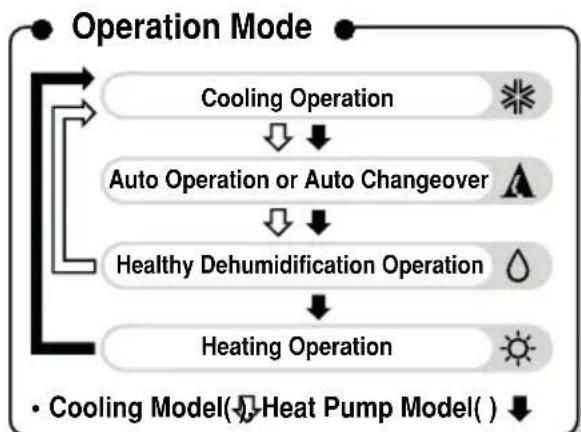


1 START/STOP BUTTON Operation starts when this button is pressed and stops when the button is pressed again.
2 OPERATION MODE SELECTION BUTTON Used to select the operation mode.
3 ROOM TEMPERATURE SETTING BUTTONS Used to select the room temperature.
4 INDOOR FAN SPEED SELECTOR Used to select fan speed in four steps low, medium, high and CHAOS.

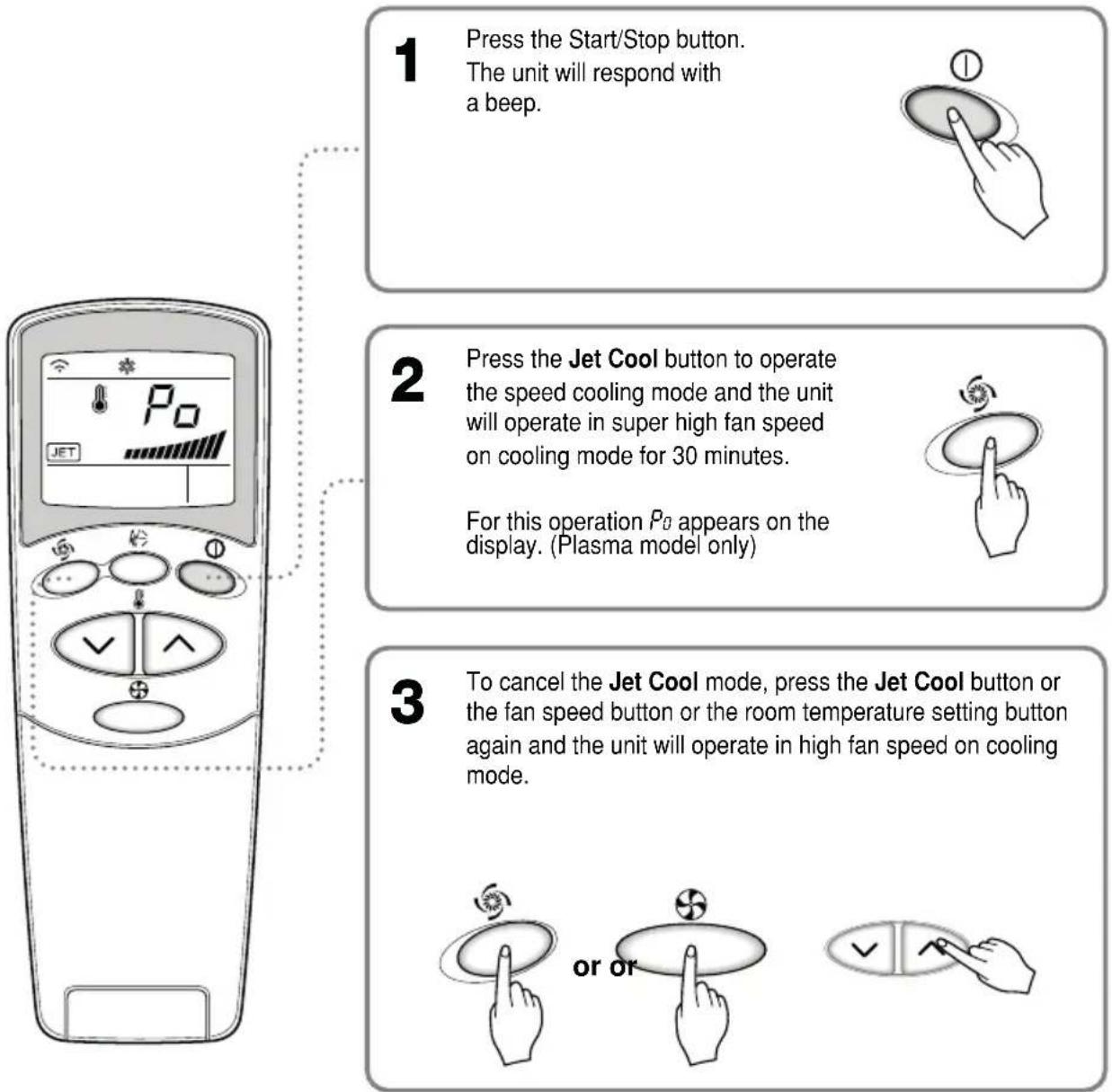

5 JET COOL Used to start or stop the speed cooling. (Speed cooling operates super high fan speed in cooling mode.)
CHAOS SWING BUTTON Used to stop or start louver movement and set the desired up/down airflow direction.
7 ON/OFFTIMERBUTTONS (OPTIONAL) Used to set the time of starting and stopping operation. (See page 17)
8 TIME SETTING BUTTONS Used to adjust the time. (See page 17)
9 TIMERSET/CANCELBUTTON Used to set the timer when the desired time is obtained and to cancel the Timer operation. (See page 17)
10 SLEEP MODE AUTO BUTTON Used to set Sleep Mode Auto operation. (See page 17)

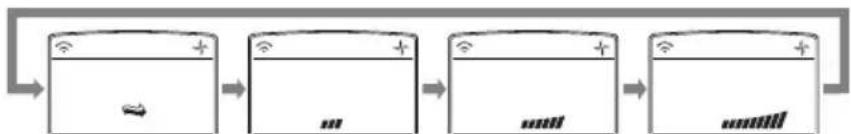

AIR CIRCULATION BUTTON Used to circulate the room air without cooling or heating. (See page 19)
12 ROOM TEMPERATURE CHECKING BUTTON Used to check the room temperature.

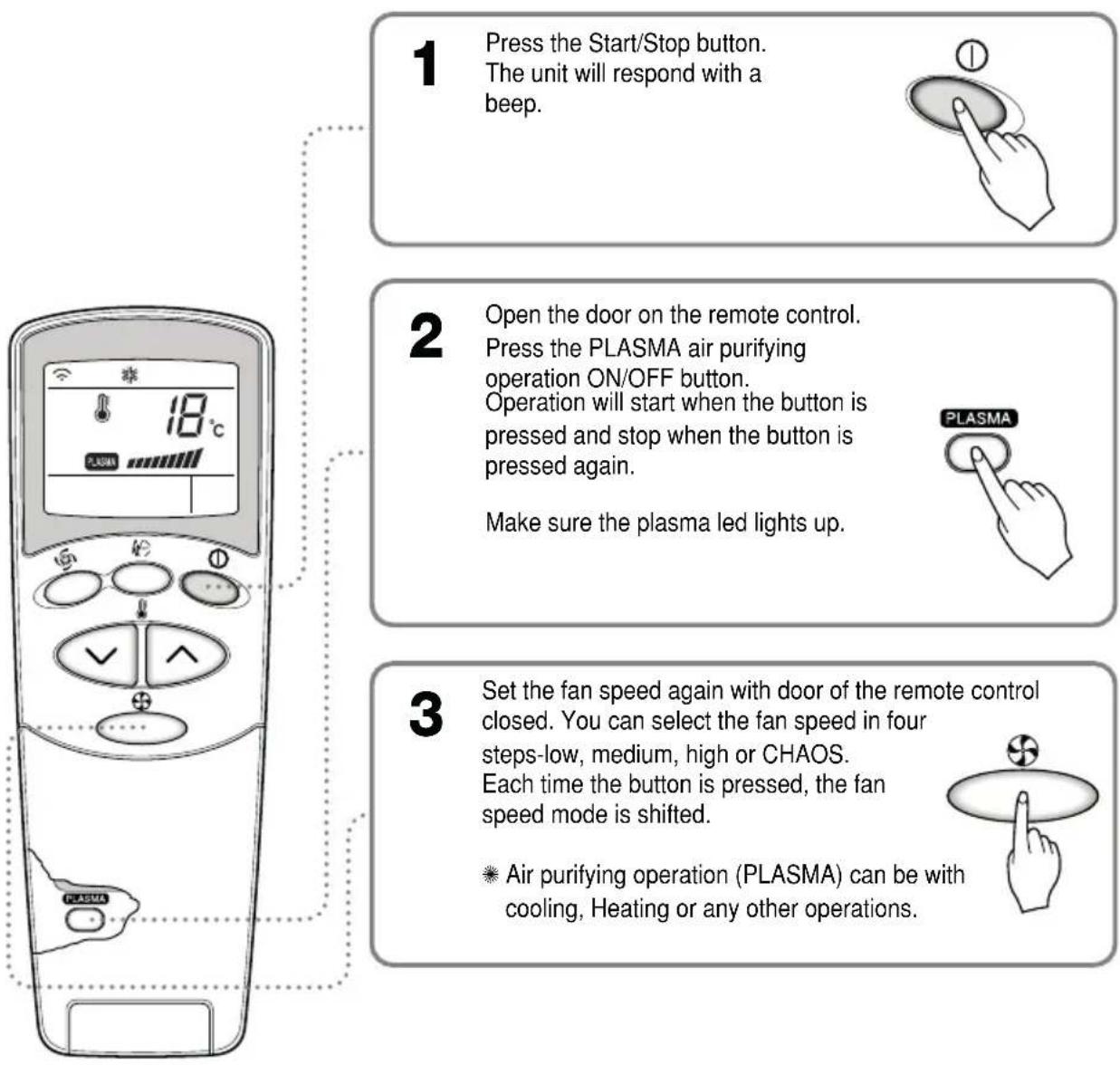

13 PLASMA(OPTIONAL) Used to start or stop the plasma-purification function. (See page 15)
14 HORIZONTAL AIRFLOW DIRECTION CONTROL BUTTON (NOT ON ALL MODELS)
Used to set the desired horizontal airflow direction. (See page 18)
15 RESET BUTTON Used prior to resetting time or after replacing batteries.

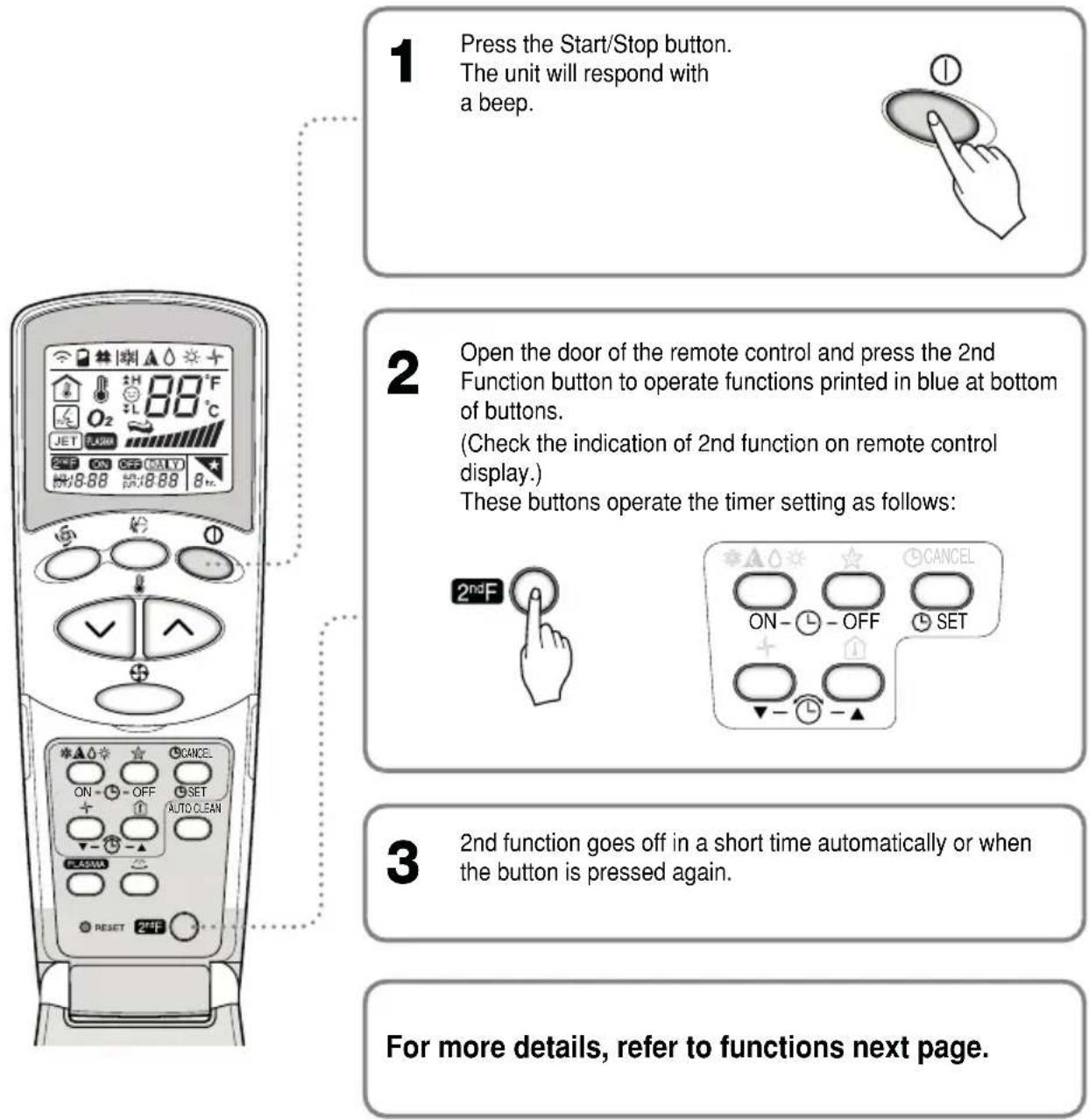

16 2nd F Button Used prior to using modes printed in blue at the bottom of buttons. (See page 16)
17 AUTO CLEAN(OPTIONAL) Used to set Auto Clean mode.

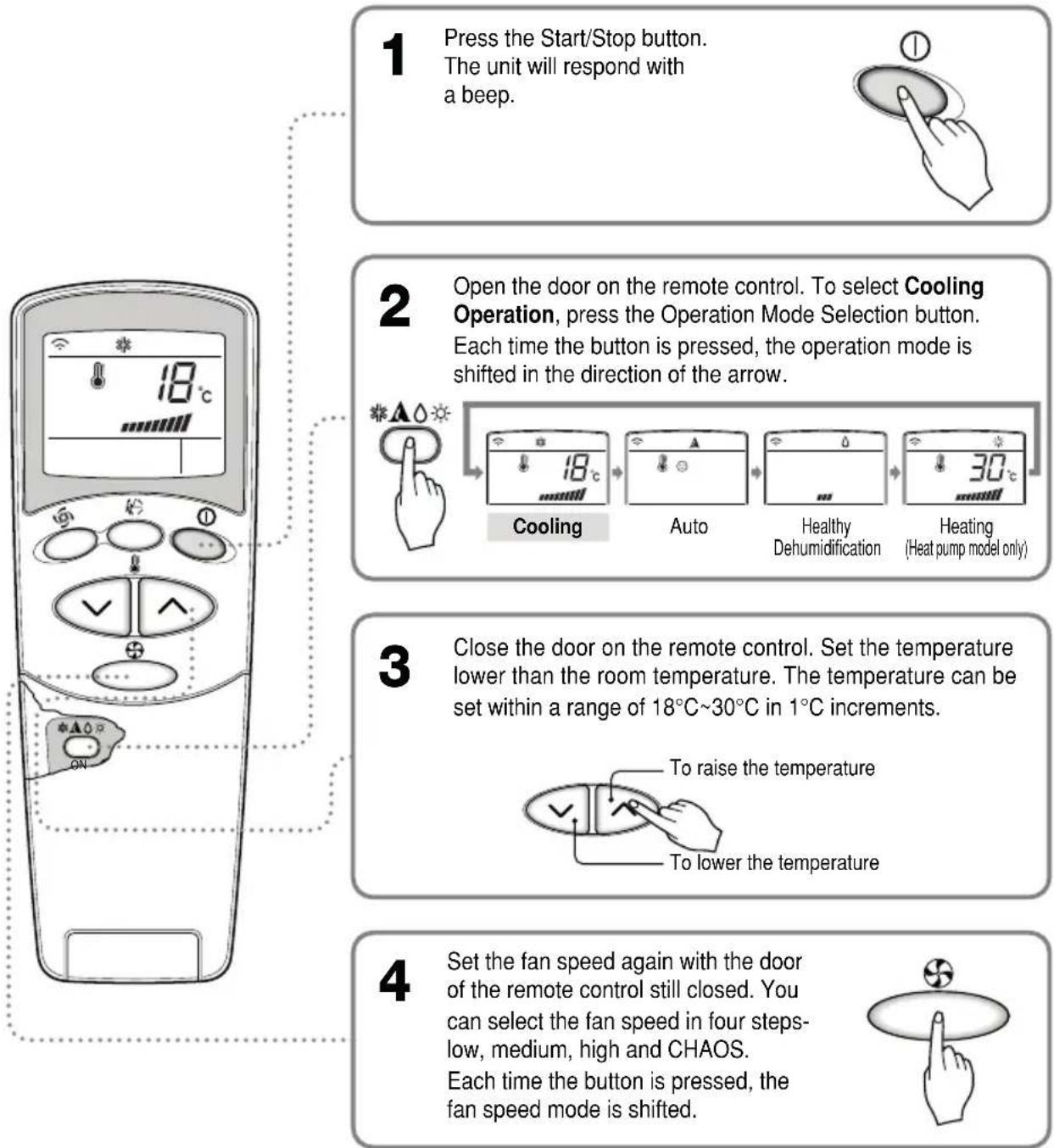

Cooling Operation

Natural wind by the CHAOS logic

☐ For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.

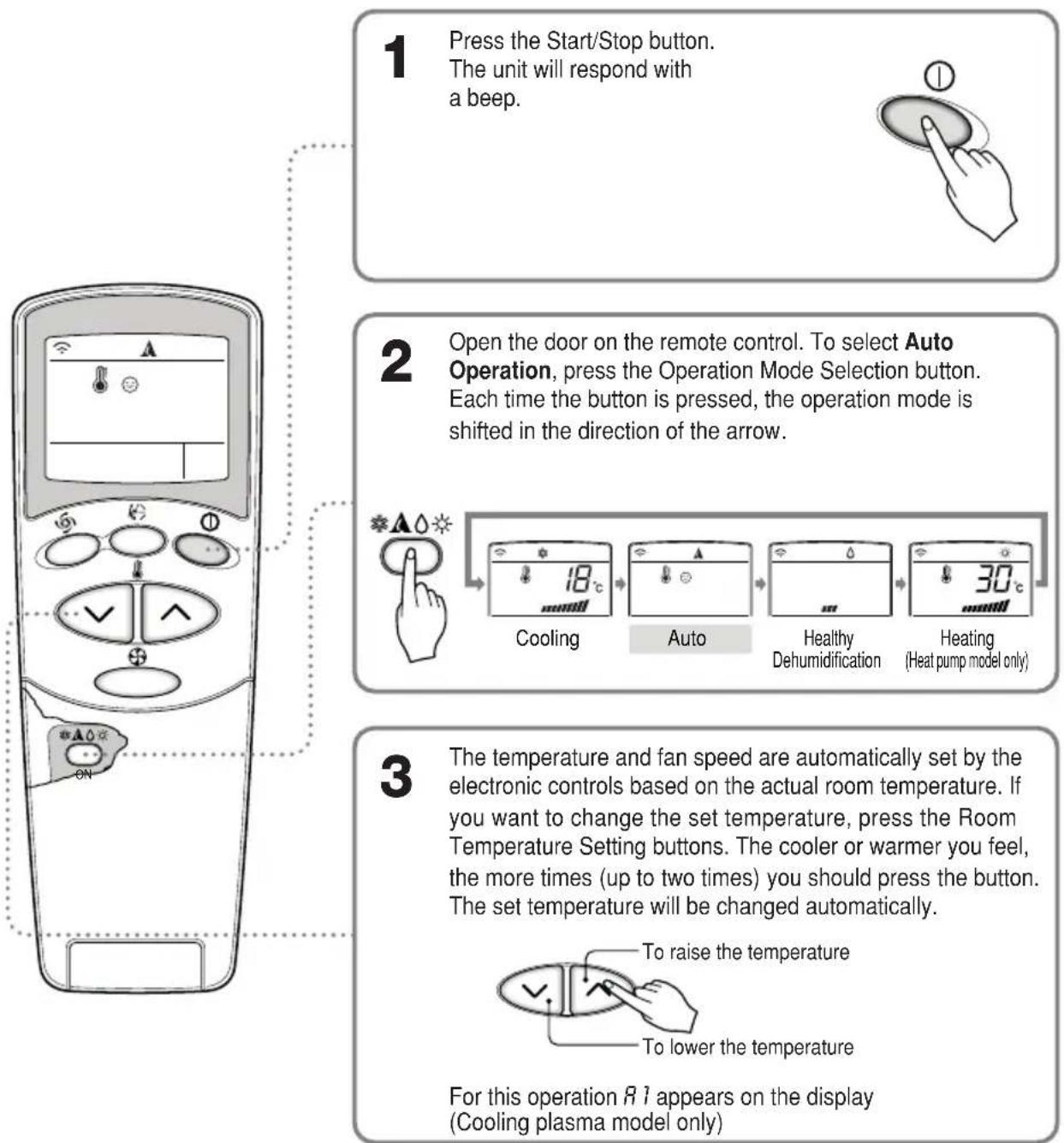

Auto Operation (Optional)

During Auto Operation:

☐ You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule.
☐ If the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating mode to cooling mode, it must be done by manually resetting.
☐During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down automatically. If you want to stop auto-swing, press the chaos swing button again.

Hand pressing a button on an oval object with a small circle above (no text or symbols)

1 Press the Start/Stop button. The unit will respond with a beep.

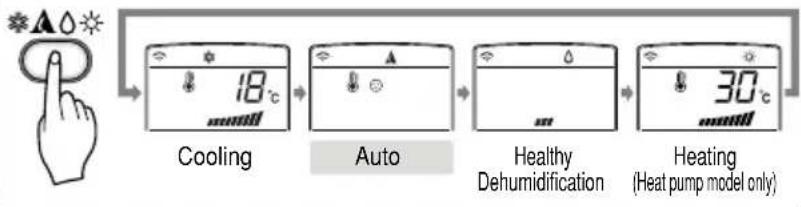

2 Open the door on the remote control. To select Auto Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.

3 The temperature and fan speed are automatically set by the electronic controls based on the actual room temperature. If you want to change the set temperature, press the Room Temperature Setting buttons. The cooler or warmer you feel, the more times (up to two times) you should press the button. The set temperature will be changed automatically.

To raise the temperature To lower the temperature

For this operation R1 appears on the display (Cooling plasma model only)

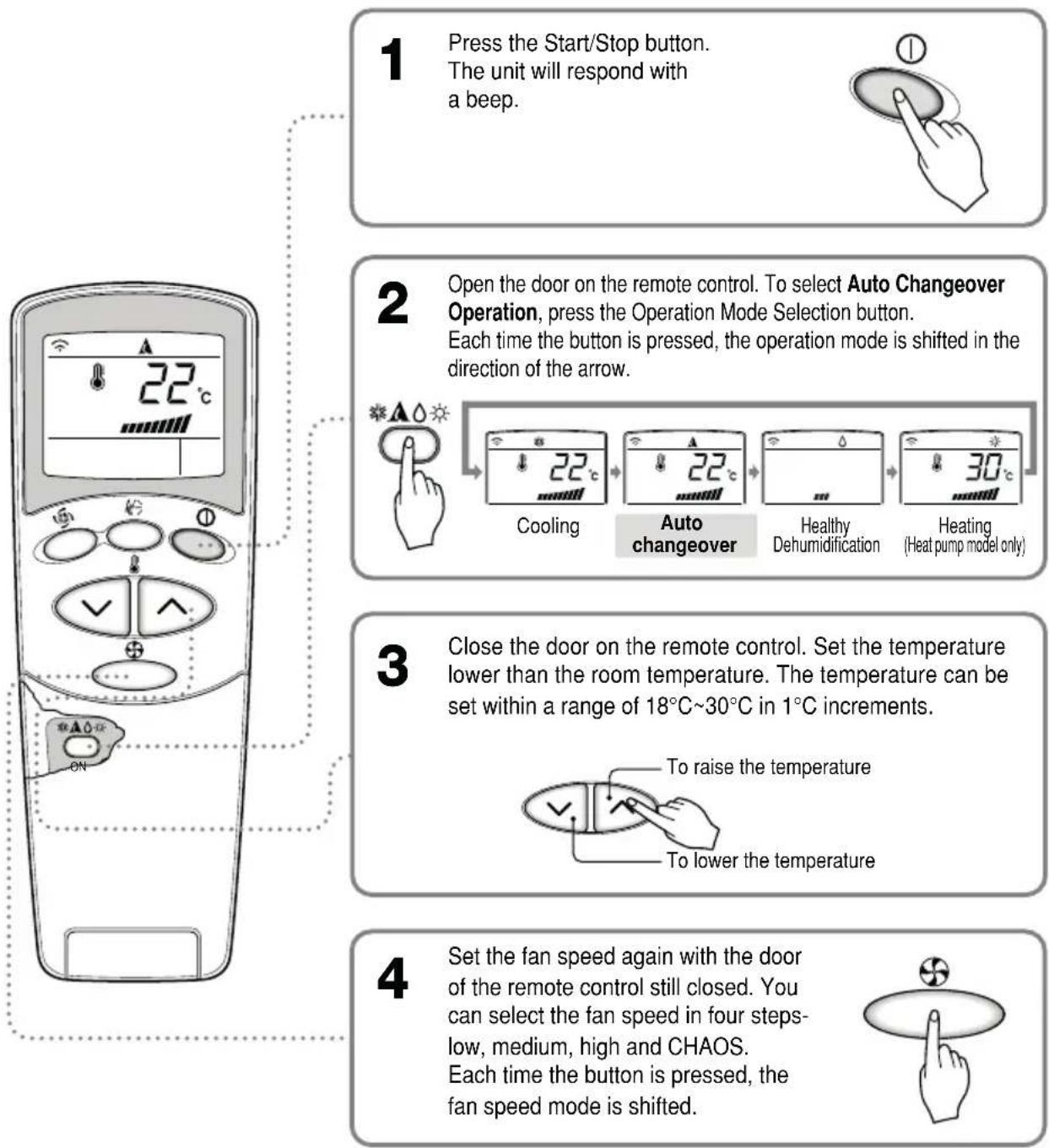

Auto Changeover Operation(Optional)

During Auto changeover Operation:

The air conditioner changes the operation mode automatically to keep indoor temperature. When room temperature vary over ±2^ with respect to setting temperature, air conditioner keeps the room temperature in ±2^ with respect to setting temperature by auto changeover mode.

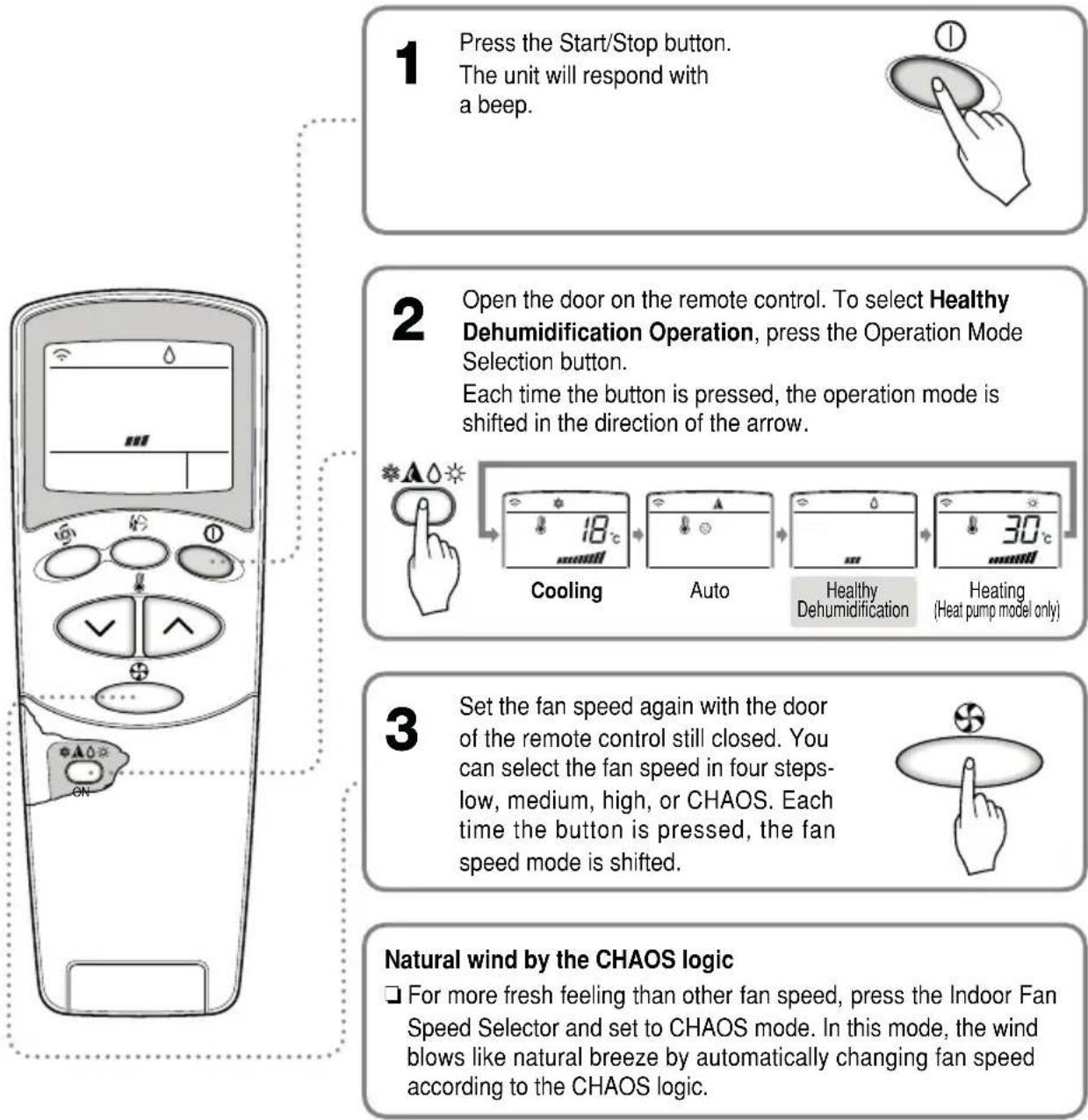

Healthy Dehumidification Operation

During Healthy Dehumidification Operation:

☐ If you select the dehumidification mode on the operation selection button, the A/C starts to run the dehumidification function. It automatically sets the room temp. and airflow volume to the best condition for dehumidification, based on the sensed current room temp.
In this case, however, the setting temp. is not displayed in the remote control and you are not able to control the room temp. either.
During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status which makes the room condition healthy and comfortable even in the high humidity season.

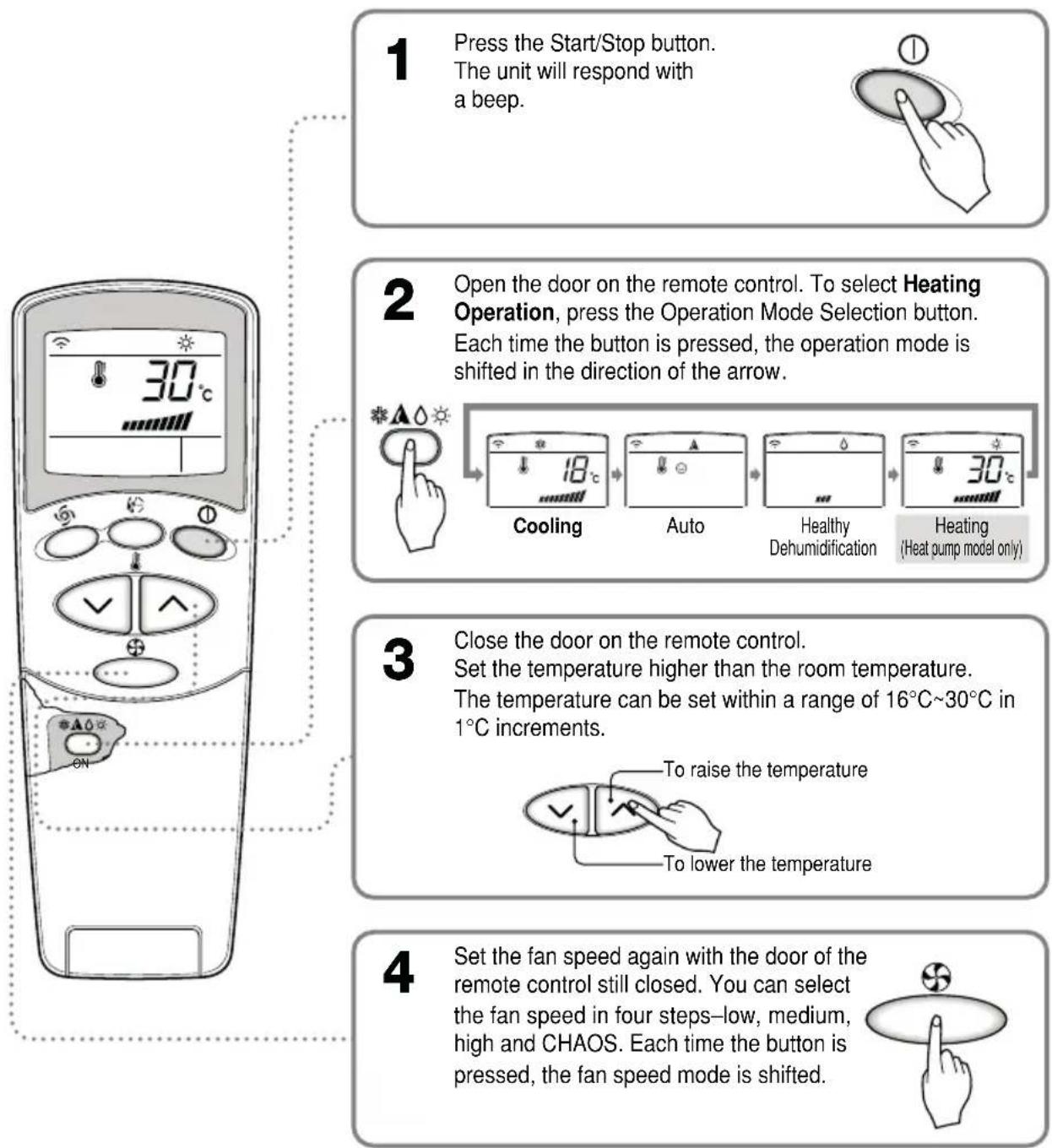

Heating Operation(Heat pump model only)

Natural wind by the CHAOS logic

☐ For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.

Jet Cool Operation

NOTICE

DuringtheJETCOOLfunctionatanymoment,theA/Cstartstoblowthecoolairatextremely highspeedfor30minutessettingtheroomtemp.automaticallyto18°C.Itisespeciallyused tocooltheroomtemp.intheshortesttimeinahotsummer.

Inheatpumpmodeorneurofuzzymode, however, theJETCOOLfunctionisnotavailable.

☐ InordertoreturntothenormalcoolingmodefromtheJETCOOLmode,youjustpress eithertheoperationmodeselectionbutton,airflowvolumeselectionortemp.settingbutton ortheJETCOOLbuttonagain.

PLASMA Purification Operation(Optional)

1 Press the Start/Stop button. The unit will respond with a beep. 2 Open the door on the remote control. Press the PLASMA air purifying operation ON/OFF button. Operation will start when the button is pressed and stop when the button is pressed again. Make sure the plasma led lights up. 3 Set the fan speed again with door of the remote control closed. You can select the fan speed in four steps-low, medium, high or CHAOS. Each time the button is pressed, the fan speed mode is shifted. * Air purifying operation (PLASMA) can be with cooling, Heating or any other operations.

PLASMA Air Purifying Operation only

PLASMA

If you press the only PLASMA button, only PLASMA air purifying operates.

Then, fan speed is low. You can select the fan speed in four steps-low, medium, high or CHAOS.

Each time the button (⊕) is pressed, the fan speed mode is shifted.

2nd F Operation

1 Press the Start/Stop button. The unit will respond with a beep. 2 Open the door of the remote control and press the 2nd Function button to operate functions printed in blue at bottom of buttons. (Check the indication of 2nd function on remote control display.) These buttons operate the timer setting as follows: 2ndF ON - OFF SET 3 2nd function goes off in a short time automatically or when the button is pressed again. For more details, refer to functions next page.

Additional features

SleepMode

1 PresstheSleepModeAutobuttontosetthe timeyouwanttheunittoturnoffautomatically.
2 The T imerisprogrammedinone-hour incrementsbypassingtheSleepModeAuto button 1 to7times. Thesleepmodeisavailablefor 1 to 7 times. To alterthetimeperiodinstepsof 1 hour, press theSleepModeButtonwhileaimingatair conditioner.
3 MakesuretheSleepModeAutoLEDlightsup.

TocanceltheSleepMode, pressthesleep ModeAutobuttonseveraltimesuntilthestar (☆) disappearsfromthe operation display.

SettingtheTime

1 Timecanbesetonlywhenyouhavepressed theResetbutton. If you have just replaced the batteries, the Resetbutton should bepressed to reset the time.

PresstheStart/Stopbutton.

Press2nd F button andcheckif2nd F iconison.

3 PresstheTimeSettingbuttonsuntilthe desiredtimeisset.

4 PresstheTimerSETbutton.

NOTICE ChecktheindicatorforA.M. and P.M.

Vertical Airflow Direction Control

The up/down airflow (Vertical Airflow) can be adjusted by using the remote control.

1 Press the Start/Stop button to start the unit.

2 Press Chaos Swing button and the louvers will swing up and down. Press the Chaos Swing button again to set the horizontal louver at the desired airflow direction.

NOTICE

☐ If you press the CHAOS swing button, at first 5 cycles, the horizontal louver will swing up and down at maximum angle. Then, the vertical airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze.

□ Always use the remote control to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.

☐ When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

To adjust left/right(Horizontal Airflow) direction

Caution : Ensure that the unit is turned off before adjusting the horizontal airflow direction control. Carefully open vertical louver to allow access to the horizontal airflow direction.

Adjust the left/right airflow direction by hand.

Auto-Clean

AUTO CLEAN

1 Whenever you press the Auto Clean button, Auto Clean Function will be reserved and cancelled.

2 Auto Clean function works before and after cooling or dehumidification mode. For details, refer to the below points.

3 When the unit is started after the reservation of Auto Clean, the Cool Start function operates and indoor Fan is started after 20 seconds.

4 When you press Start/Stop button to turn off the unit after the you have reserved Auto Clean function, the air-conditioner circulates the indoor air in the Auto Clean mode with no more Cooling or Dehumidification operation.

For Cooling only model, it lasts for 30 minutes for Heat pump model, for 16 minutes.

5 If you press the auto clean button again during the product operation. Auto Clean function will be cancelled.

For this operation _0 appears on the display. (Plasma model only)

NOTICE

Thisfunctionistoremoveunpleasantsmellsfrommoldandotherbacteriaintheair-conditioner,and toremovehumidityautomaticallyduringhumidlysummer,whichsuppliestheindoorwithpurifiedair.

Horizontal Airflow Direction Control (Optional)

The left/right(Horizontal Airflow) can be adjusted by using the remote control. Press the Start/Stop button to start the unit.

Open the door on the remote control. Press the Airflow Direction Start/Stop button and the louvers will swing left and right. Press the Horizontal Airflow Direction Control Button again to set the vertical louver at the desired airflow direction.

Illustration of a hand pressing a button on a wall-mounted air conditioner (no text or symbols)

Air Circulation Mode

Circulates the room air without cooling or heating.

1 Press the Start/Stop button. the unit will respond with a beep.
2 Open the door on the remote control. Press the Air Circulation button. Close the door on the remote control. Now each time that you press the Indoor Fan Speed Selector, the fan speed is shifted from low to CHAOS and back to low again.

Fan speed is on low. Fan speed is on medium. Fan speed is on high. CHAOS Air

NOTICE

☐ CHAOS Air economizes power consumption and prevents overcooling. The fan speed is automatically changed from high to low or vice versa, depending on the ambient temperature.

Forced Operation

Operation procedures when the remote control can't be used. The operation will be started if the power button is pressed. If you want to stop operation, re-press the button.

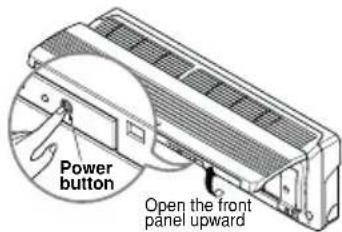

Power button Open the front panel upward

	Cooling Model	Heat pump Model
		Room Temp. ≥ 24°C	21°C" Room Temp. < 24°C	Room Temp. < 21°C
Operating mode	Cooling	Cooling	Healthy Dehumidification	Heating
Indoor FAN Speed	High	High	High	High
Setting Temperature	22°C	22°C	23°C	24°C

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes.

During test operation, if remote controller signal is received, the unit operates as remote controller sets.

If you want to use this operation, open the front panel upward and Press the power button let it be pressed for about 3 seconds.

If you want to stop the operation, re-press the button.

For this operation L_0 appears on the display. (Plasma model only)

Autorestart(Optional)

In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate procedures automatically to the previous operating conditions.

So there is no need of activating this function by pressing any key or button.

In the initial mode, the fan operates at a low speed and the compressor starts 2.5\~3 minutes later.

As the compressor starts, the fan speed also resumes its previous setting mode.

Additionally, in order to cancel auto restart operation press power button let it be pressed for about 6 seconds. To operate auto restart operation again, press power button for about 6 seconds as well.

Helpful information

Fan speed and cooling capacity.

The cooling capacity indicated in the specification is the value when the fan speed is set to high, and the capacity will be lower at low or medium fan speed. High fan speed is recommended when you wish to cool the room quickly.

High Speed

Maintenance and Service

CAUTION: Before performing any maintenance, turn off the main power to the system.

Indoor Unit

Grille, Case, and Remote Control

☐ Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

NOTICE Supplypowermustbedisconnected beforecleaningtheindoorunit.

Air outlet vent Vertical louver Horizontal louver Air filter behind front panel

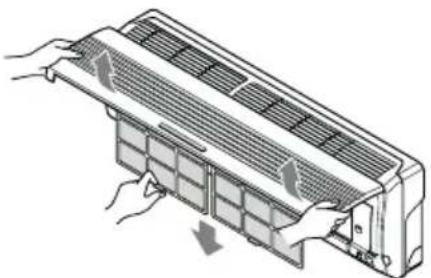

AIR FILTERS

The air filters behind the front grille should be checked and cleaned once in every 2 weeks or more often if necessary.

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

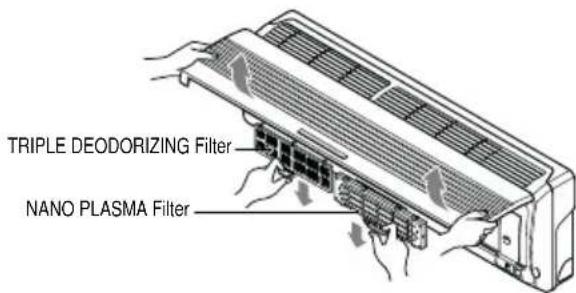

NANO PLASMA FILTER, TRIPLE DEODORIZING FILTER(OPTIONAL)

The PLASMA filter behind the air filters should be checked and cleaned once in every 3 months or more often if necessary.

TRIPLE DEODORIZING Filter NANO PLASMA Filter

Don't touch this PLASMA Filter within 10 seconds after opening the inlet grille, it may cause an electric shock.

□ Never use any of the followings:

• Water hotter than 40^ C Could cause deformation and/or discoloration.

- Volatile substances Could damage the surfaces of the air conditioner.

Gasoline Benzene

1 Lift the front access panel and pull the filter tab slightly forward to remove the filter.

2 Clean the filter with a vacuum cleaner or warm, soapy water.

- If dirt is conspicuous, wash with a solution of detergent in lukewarm water. - If hot water (40°C or more) is used, it may be deformed.

③ After washing with water, dry well in the shade.

4 Re-install the air filter.

1 After removing the air filters, pull slightly forward to remove the NANO PLASMA filter.

2 Remove dust with vacuum cleaner or air. (You should not try to wash with water).

3 Note the cuts of electric discharge lines.

4 Re-install the NANO PLASMA filter to the original position.

1 After removing the air filters, pull slightly forward to remove the TRIPLE DEODORIZING filter.

2 Dry in the sunlight for two hours.

3 Re-install the TRIPLE DEODORIZING filter to the original position.

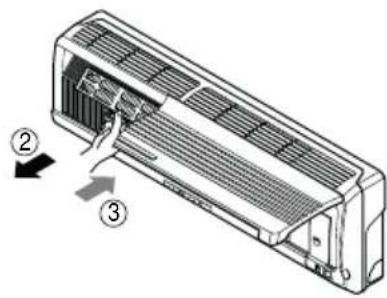

Replacement of Purifying Filter(Optional)

• Recommended use period : About 2 years

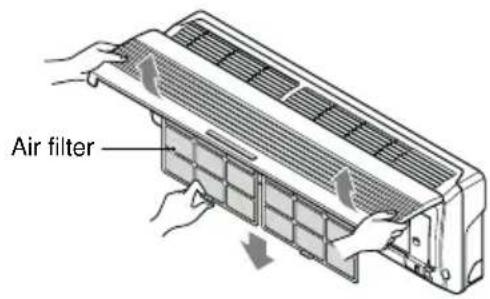

1 Open front panel and remove air filters.

Air filter

2 Remove Triple deodorizing Filters.
3 Insert new Triple deodorizing Filters.

Diagram of an air conditioner unit with labeled parts and directional arrows indicating airflow or cooling zones.

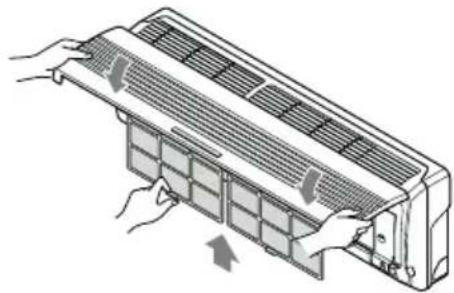

4 Reinsert air filters and close front panel.

Illustration of hands installing or adjusting a wall-mounted air conditioner panel (no text or symbols visible)

Isometric line drawing of a rectangular panel with internal compartments and mounting feet (no text or symbols)

Triple Deodorizing Filter

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned.

NOTICE

Dirtyorcloggedcoilswillreducethe operatingefficiencyofthesystemandcausehigher operatingcosts.

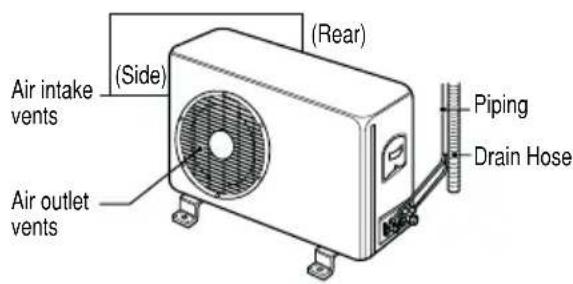

Air intake vents (Side) (Air outlet vents) (Rear) (Piping Drain Hose)

When the air conditioner is not going to be used for a long time.

When air conditioner is not going to be used for a long time.

Operate the air conditioner on mode for 2 to 3 hours.

• This will dry out the internal mechanisms.

Turn off the circuit breaker, and disconnect the plug.

CAUTION

Turn off the circuit breaker when the air conditioner is not going to be used for a long time.

Dirt may collect and may cause a fire.

Remove the batteries from the remote control.

When the air conditioner is to be used again.

Clean the air filter and install it in the indoor unit.

(Refer to page 20 for cleaning filters.)

Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.

Operation Tips

Do not overcool the room.

This is not good for the health and wastes electricity.

Make sure that the doors and windows are shut tight.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

Keep blinds or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Clean the air filter regularly.

Blockages in the air filter reduces the airflow and lowers the cooling and dehumidifying effects. Clean at least once in every two weeks.

Keep the room temperature uniform.

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.

Ventilate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Troubleshooting

Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer or service center.

Case Explanation See page
The air conditioner does not operate.	·Have you made a mistake in timer operation?	17
	·Has the fuse blown or has the circuit breaker been tripped?	-
The room has a peculiar odor.	·Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.	-
It seems that condensation is leaking from the air conditioner.	·Condensation occurs when the airflow from the air conditioner cools the warm room air.	-
Air conditioner does not operate for about 3 minutes when restarted.	·This is the protector of the mechanism.·Wait about three minutes and operation will begin.	-
Does not cool or heat effectively.	·Is the air filter dirty? See air filter cleaning instructions.	20
	·Has the temperature been set incorrectly?	9, 13
	·Are the indoor unit's air inlet or outlet vents obstructed?	-
The air conditioner operation is noisy.	·For a noise that sounds like water flowing.-This is the sound of freon flowing inside the air conditioner unit.·For a noise that sounds like the compressed air releasing into atmosphere.-This is the sound of the dehumidifying water being processed inside the air conditioning unit.	-
Remote control display is faint, or no display at all.	·Are the batteries depleted?·Are the batteries inserted in the opposite (+) and (-) directions?	7
Crack sound is heard.	·This sound is generated by the expansion/constriction of the front panel, etc. due to changes of temperature.	-
