Product Type	Portable Air Conditioner
Model	A008A-14C
Brand	Stirling
Cooling Capacity	4.1 kW / 14,000 BTU
Rated Voltage	220-240 V AC
Rated Frequency	50 Hz
Rated Current	7.0 A
Rated Input	1550 W
Weight	29 kg
Dimensions (H x D x W)	794 x 364 x 320 mm
Cooling Area	22–30 m²
Timer	24-hour programmable
Fan Speeds	2 (Low / High)
Operation Modes	Cooling, Dehumidifying, Fan
Refrigerant	R410A / 560 g
Temperature Range (Cooling)	16–31 °C
Window Kit	Flexible exhaust hose, rectangular and oval connectors, adjustable window slider (67.5–123 cm)
Remote Control	Yes (CR2025 battery)
Warranty	3 years
Safety Features	Automatic shut-off on full water tank; thermal protection; recommended RCD (30 mA)
Filter Cleaning Interval	Every 2 weeks
Spare Parts Available	Compressor capacitor, fan wheels, sensors, control panel, exhaust duct, remote control, and more
Compliance	AS/NZS 60335.1 and AS/NZS 60335.2.40

Frequently Asked Questions - A008A-14C Stirling

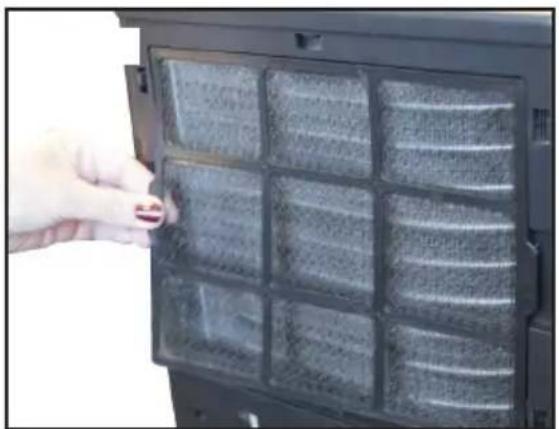

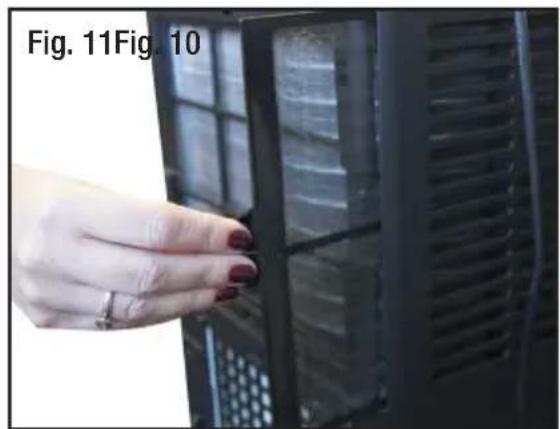

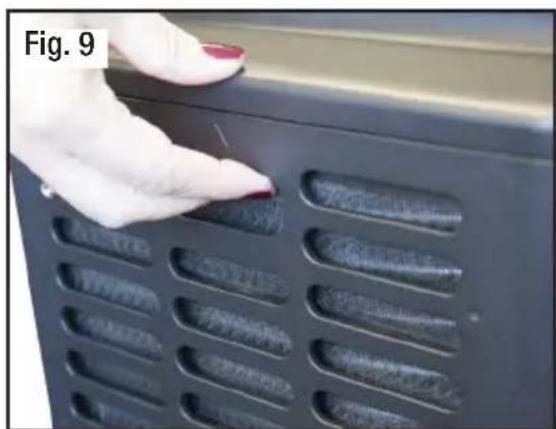

How do I clean the air filters?

Remove the inlet grilles at the back and side of the unit. Pull out the filters, wash them in mild detergent and warm water (max 40°C), rinse, and let them dry completely in the shade before reinstalling. Clean every two weeks.

What does the E0 or E2 error code mean?

E0 indicates a room temperature sensor failure; contact service for replacement. E2 means the water tank is full; drain the condensation water manually via the rear drain outlet.

Can I use an extension cord or power adaptor?

No. Do not use this air conditioner with an extension cord or power adaptor. Plug it directly into a properly earthed 220-240V AC 50Hz socket.

How do I set the timer?

With the unit off, press the TIMER button to set an auto-on time (01-24 hours). With the unit on, press TIMER to set auto-off. Use the TEMP+/- buttons to adjust hours. Press TIMER again to confirm.

What should I do if the water full (WF) indicator is blinking?

The drip tray is full. Drain the water manually by removing the stopper at the rear drain outlet, placing a pan underneath, and letting the water flow out. Then replace the stopper.

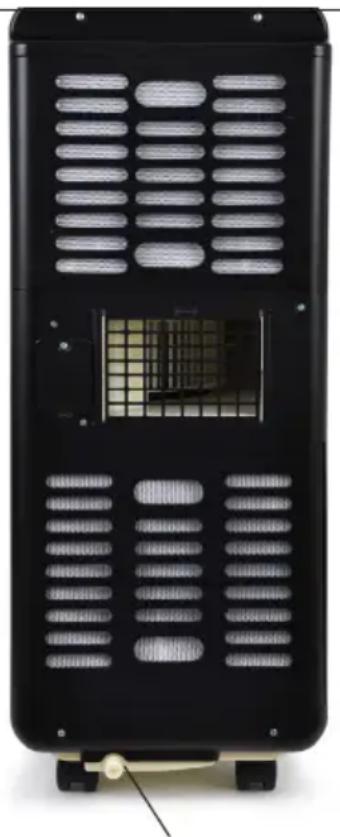

How should I store the air conditioner after summer?

Drain any condensation water, run the unit in fan mode for a few hours to dry the interior, switch off and unplug, coil the cord, and store in a dry, cool place in its original carton or a plastic bag.

Can I use the air conditioner outdoors?

No. This unit is designed for indoor domestic use only. Do not use it outdoors or in environments with flammable gases, oil, or sulphur.

How long does it take for cool air to start?

After pressing POWER, allow up to 30 seconds for the compressor to start and for cool air to flow from the louvres. Avoid turning the unit off and on quickly; wait at least 5 minutes between cycles.

What is the warranty period?

The Stirling A008A-14C comes with a comprehensive 3-year warranty covering defects in workmanship and parts. For warranty claims, contact After Sales Support at 1300 886 649.

How do I obtain spare parts?

Spare parts are available from the after sales support centre. Call 1300 886 649 or email [e-mail]. Parts include fan wheels, capacitors, sensors, remote control, exhaust duct, and more.

USER MANUAL A008A-14C Stirling

Exterior view of a black industrial air conditioner unit with control panel and fan (no visible text or symbols)

Portable Air Conditioner

Model Number A008A-14C

INSTRUCTION MANUAL

Welcome

Congratulations on choosing to buy a STIRLING ^® product.

All products brought to you by STIRLING® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. We hope you will enjoy using your purchase for many years to come.

Contents

02 Welcome
04 Warranty Details
05 General Safety Instructions
08 Product Overview
10 Installation
13 Getting Started
15 Instructions
17 FAQs & Troubleshooting Guide
18 Other Useful Information
23 Repair and Refurbished Goods or Parts Notice

ALDI

STIRLING®

Portable Air Conditioner

Warranty Details

The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

General Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. If you sell or transfer ownership of this product, pass on these instructions to the new owner.

Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

Electrical safety and cord handling

• Voltage: Before turning on the air conditioner, ensure the electrical voltage and circuit frequency correspond to those indicated on the appliance.
• Socket: Ensure your electrical outlet is properly installed and earthed.
• Moisture: To reduce the risk of electrocution, never operate the appliance with wet hands; never submerge it in water or spill liquids into it. Do not use it in a bathroom or laundry, or where it can be splashed with water.
• Power supply cord: Do not kink or damage the cord. Do not pull the cord or place it near a heat source. Always unwind the cord completely to avoid overheating. Run the cord in such a way so that no one will trip over it.
• Extension cord/adaptor: Do not use this appliance with an extension cord or power adaptor.
• Damage: If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• On/off switch: Do not use the mains plug to start and stop the unit; always use the on/off switch on the control panel to start and stop the unit.
• When not in use: Switch the air conditioner off and unplug it when it is not in use, but do not unplug it when it is in operation, as this could create a spark and cause a fire.
• Disconnect: Turn off the unit first and then unplug it when it is not in use and before maintenance or cleaning. Grip by the plug, do not pull by the cord when disconnecting.
• RCD: The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.

General Safety Instructions (Cont.)

Installation

• Proper installation: Install the appliance according to the instructions in this manual. Improper installation may result in the risk of fire, electric shock and/or injury. We assume no responsibility for any eventual damages caused by improper installation or faulty use.
• Upright position: Place the unit on a flat surface to reduce the risk of it tipping over. Do not tilt the unit, always keep it upright. If the unit has not been kept upright (such as during storage), wait for at least 24 hours before operation.
• Obstructions: Do not locate the air conditioner where furniture or other objects can obstruct the airflow.
• Do not cover: Do not cover the air conditioner or obstruct any air inlet or outlet grilles. Obstructing these openings causes a fire hazard, reduces the operating efficiency and may lead to malfunction or damage.
• Chemicals: Do not install the air conditioner in environments where the air could contain gas, oil or sulphur. Do not let chemical substances come into contact with the unit. Do not use the unit in the presence of flammable substances or vapour such as alcohol, insecticides, petrol etc.
• Heat: Do not install the air conditioner near sources of heat, or exposed to direct sunlight.
• Room size: The unit is designed for use in a room of 22–30m ^2 size.
• Clearances: Always keep a clearance of at least 30cm from walls, furniture and curtains.

Usage conditions and restrictions

• Intended use: This appliance is intended for air conditioning domestic environments. It is not suitable for commercial or industrial use. Do not use it for any other purpose (such as drying clothes, cooling food etc.), and only use it as described in this manual.
• Common sense: These instructions are not intended to cover every possible condition and situation. As with any electrical appliance, common sense and caution are therefore always recommended when installing, operating and maintaining the unit.
• No outdoor use: Do not use the unit outdoors.
• Usage restriction: The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

General Safety Instructions (Cont.)

• Children: Young children should be supervised to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children.
• No external timer: This appliance is not intended to be used with an external timer or a separate remote control system.
• Startup settings: Set the unit to maximum cooling and high speed ventilation for the initial startup, then adjust the unit down to a more comfortable setting as required.
• Cold air exposure: Never remain directly exposed to the flow of cold air for a long time, as direct and prolonged exposure to cold air from the air conditioner could be dangerous for your health. Take particular care in rooms where there are children, old, or sick people.
• Air outlets: Do not insert any objects, or your fingers, into the air outlet, and make sure to warn children of the dangers.
• Airflow direction: Do not direct the airflow onto plants or animals, as long and direct exposure to cold air from the air conditioner could adversely affect them.
• Cooling efficiency: To help cooling efficiency, keep blinds and curtains closed during the sunniest part of the day. Close off any fireplace damper, floor and/or wall register so cool air does not escape through the chimney or duct work.
• Moving the appliance: When moving the air conditioner, always turn off and disconnect the power supply, and move it slowly.

Cleaning and maintenance

• Disconnect: Make sure the appliance is disconnected from the power supply when it will not be used for a long time and before carrying out any cleaning or maintenance.
• Air filter: Keep the air filter clean. Do not use the unit without the air filters fitted. Using it without air filters could cause an excessive accumulation of dust or waste on the inner parts of the device with possible subsequent failures.
• Service and repair: The air conditioner has no user-serviceable parts contained inside. Do not attempt to disassemble, modify or conduct repairs on this unit. It has been built in accordance with relevant safety and performance standards. An electrical specialist must carry out all repairs. Contact our after sales support line for advice on service.

Product Overview

Scope of delivery

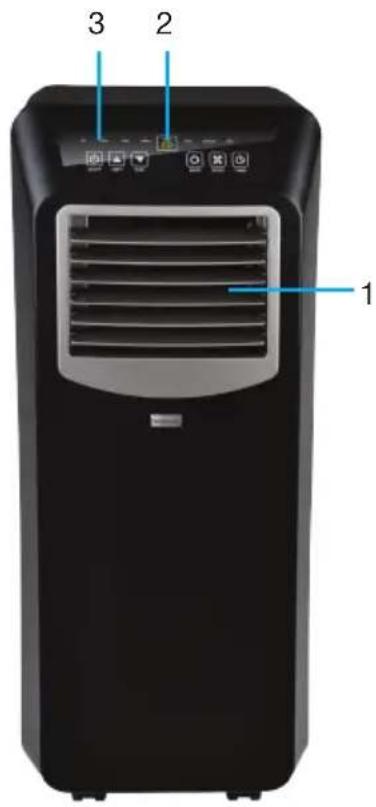

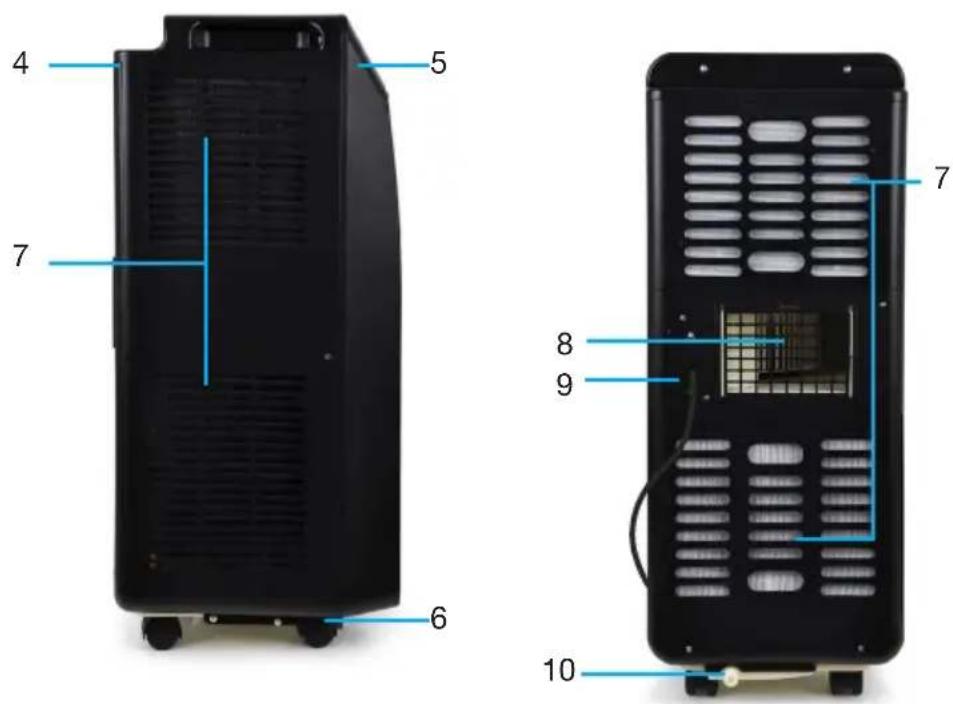

A Parts list

1 Cold air outlet
2 LED screen
3 Control panel (see page 13 for details)
4 Rear cover
5 Front cover
6 Castor wheels
7 Air inlet grilles
8 Exhaust outlet grille
9 Power cord and plug
10 Condensation water drainage outlet with stopper

Front view

1 2 3

Side view Rear view

4 5 7 6 7 8 9 10

Product Overview (Cont.)

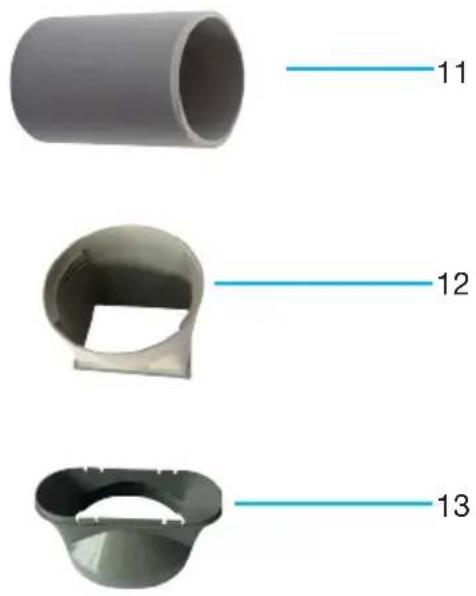

B Window installation kit

11 Flexible exhaust hose
12 Rectangular hose connector
13 Oval hose connector
14 Adjustable window slider (67.5cm to 123cm)

C Accessories

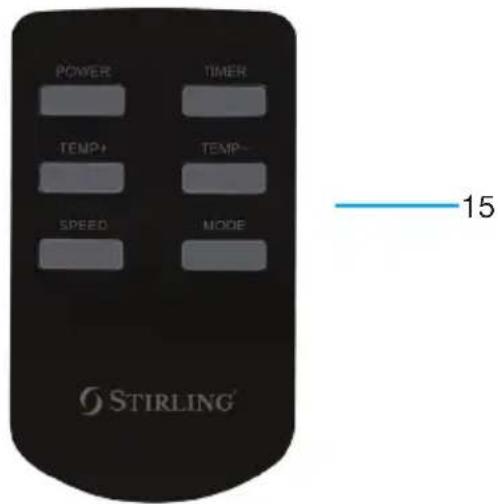

15 Remote control with a 3V Lithium button cell (CR2025) (see page 14 for details)

D Documentation

Instruction manual (not shown) Quick start guide (not shown) Warranty certificate (not shown)

Window installation kit

11 12 13

Simple diagram of a rectangular object with a cutout and a labeled dimension line (14), no text or symbols present.

WARNING!

0-5

DANGER if swallowed

Keep batteries out of reach of children. Swallowing may lead to serious injury or death in as little as 2 hours due to internal burns.

If swallowed, go straight to a hospital emergency room.

Dispose of used batteries immediately.

Remote control

POWER TIMER TEMP+ TEMP- SPEED MODE 15 STIRLING

Installation

Unpacking

• This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. In the event the carton is to be disposed of, please recycle all packaging materials where possible.
• Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are kept out of their reach and disposed of safely.
• Unwind the cord fully and inspect it for damage. Do not use if any part is damaged. In case of damage, contact our after sales support line for advice.
• Read the manual to familiarise yourself with all parts and operating principles. Pay particular attention to the safety instructions on the previous pages.

Electric shock hazard!

Before installation or servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury.

Installation: the location

When deciding on an installation place, keep the following points in mind:

• The area must be flat and the air outlets must not be covered up.
• There must be a properly earthed AC 220\~240V 50Hz power point nearby.

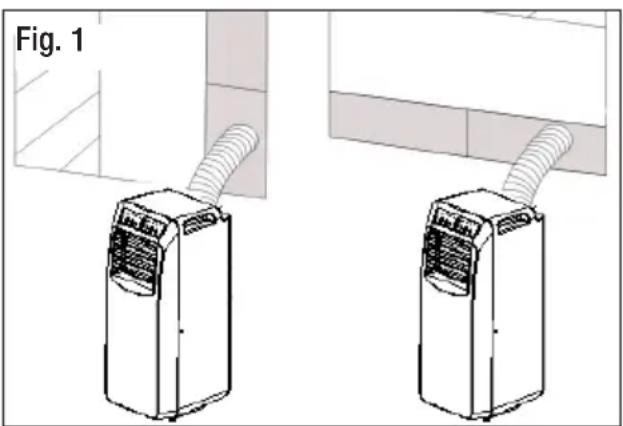

• The air exhaust can be installed in a vertical or horizontal sliding window (Fig. 1). Window installation instructions follow on the next pages.

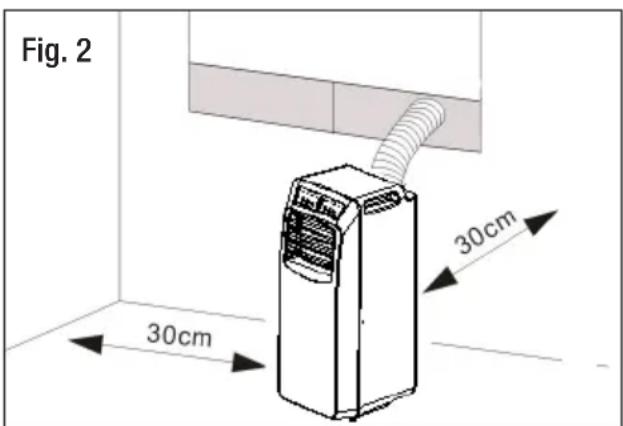

• There must be a clearance of at least 30cm between the appliance and the wall or any other obstacles (Fig. 2). Maintaining this 30cm clearance is essential; failure to keep that distance can result in the unit malfunctioning or causing injury.

NOTE: Do not install this appliance at a dry cleaner's premises.

Diagram showing two identical air conditioner units connected by coiled tubing, labeled Fig. 1 (no text or symbols on devices)

Fig. 2 30cm 30cm

Installation (Cont.)

Installing the air exhaust duct

The portable air conditioner window kit comes with the following parts:

Flexible exhaust hose

Rectangular hose connector

Oval hose connector

Gray rectangular object with a white oval cutout on the right side (no text or symbols visible)

Adjustable window slider 67.5cm to 123cm

Installing the exhaust hose

• Fit the rectangular exhaust hose connector to the exhaust outlet grille at the back of the air conditioner (Fig. 3). Slide it into the grooves from the top.
• Insert one end of the flexible exhaust hose into the opening and twist to fix it in place (Fig. 4).
• Extend the flexible hose. Then insert the other end of the hose into the round opening of the oval hose connector and twist to fix in place (Fig. 5).

Temporary installation

- For temporary operation (in fan mode only), lead the oval (discharge) end of the hose connector out of an open window. NOTE: Ambient air will still be able to enter the room this way. To cool the room effectively, the window kit must be properly installed.

Installing the window kit

Your window kit has been designed to fit most standard ‘horizontal’ and ‘vertical’ window applications, but for certain types of windows it may be necessary for you to improvise/modify some aspects of the installation procedure.

IMPORTANT!

Keep the length of the air exhaust hose to the minimum length necessary during operation.

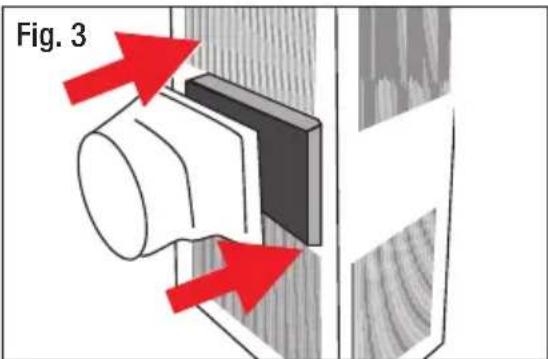

Fig. 3

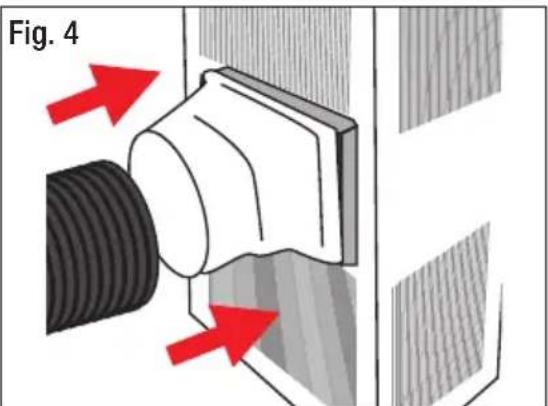

Fig. 4

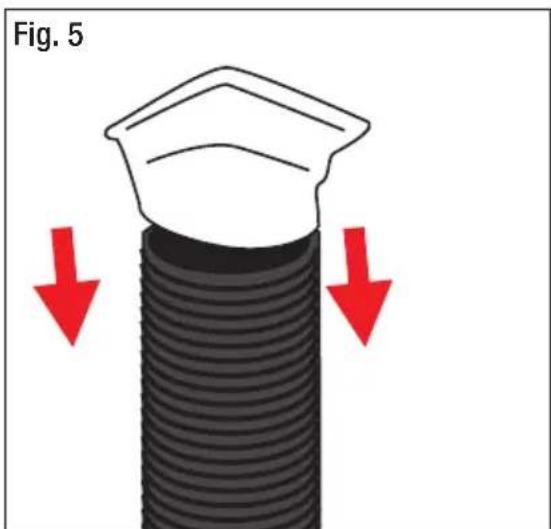

Fig. 5

Installation (Cont.)

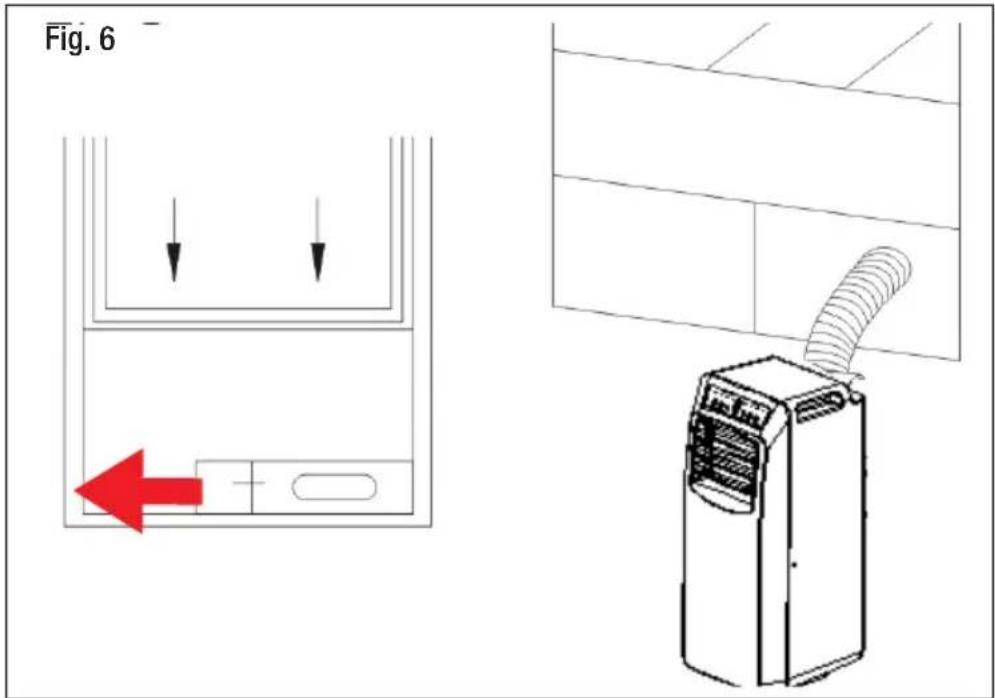

Horizontally opening window (Fig. 6)

• Adjust the window slider to the length of a horizontally opening window.
• Fit the slider to the bottom of the window sill, then close the window.
• Fit the oval exhaust hose connector through the opening to the outside.

Fig. 6 3D Panel Air Condition Air Condition

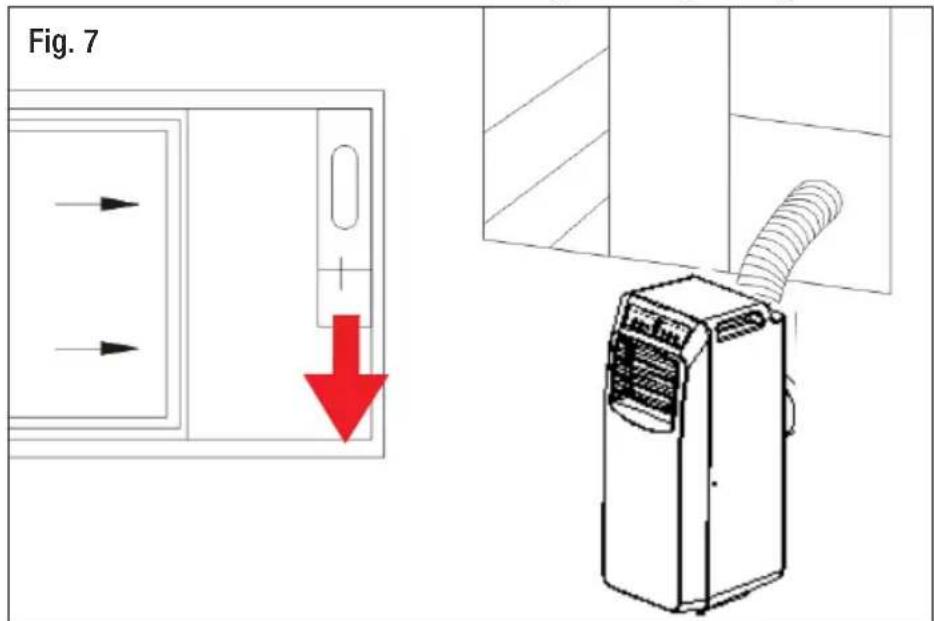

Vertically opening window (Fig. 7)

• Adjust the window slider to the height of a vertically opening window.
• Fit the slider to the side of the window, then close the window.
• Fit the oval exhaust hose connector through the opening to the outside.

Fig. 7

Getting Started

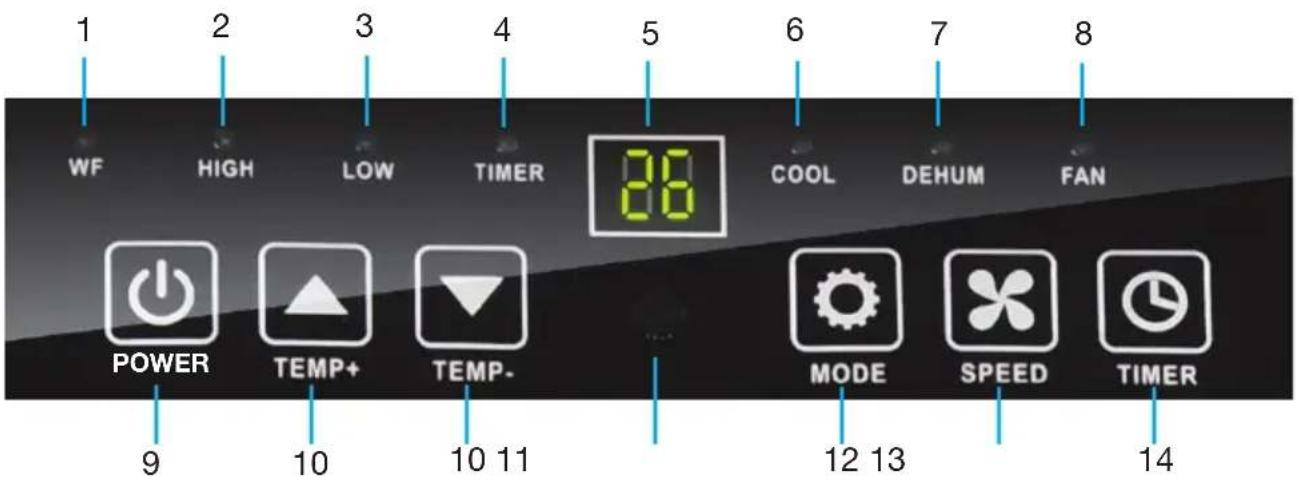

Control panel

1 WF HIGH LOW TIMER 5 COOL DEHUM FAN POWER TEMP+ TEMP- MODE SPEED TIMER 9 10 10 11 12 13 14

1 WF: Water full indicator
2 HIGH: High fan speed indicator
3 LOW: Low fan speed indicator
4 TIMER: Timer indicator
5 Display screen
6 COOL: Cooling mode indicator
7 DEHUM: Dehumidifying mode indicator
8 FAN: Fan mode indicator

9 POWER: Press the power button to turn the unit on or off.

10 TEMP + ▲ / - ▼: Press to set the desired room temperature. With each press, the temperature setting will be increased or decreased by 1^ C. These buttons can also be used to set the timer, in hours.

11 Signal receiver: Aim the remote control at this sensor.

12 MODE: Press repeatedly to select the desired mode of operation (cooling, dehumidifying or fan).

13 SPEED: Press to choose high or low fan speed.

14 TIMER: Press to set the time period (in hours) for automatic switch-on/switch-off, or to delete the timer setting.

Getting Started (Cont.)

POWER TIMER 1 2 TEMP+ TEMP- 2 3 SPEED MODE 5 6 STIRLING® Pull tab t

WARNING!

0-5

DANGER if swallowed

Keep batteries out of reach of children. Swallowing may lead to serious injury or death in as little as 2 hours due to internal burns.

If swallowed, go straight to a hospital emergency room.

Dispose of used batteries immediately.

Pull tab to remove plastic film before use.

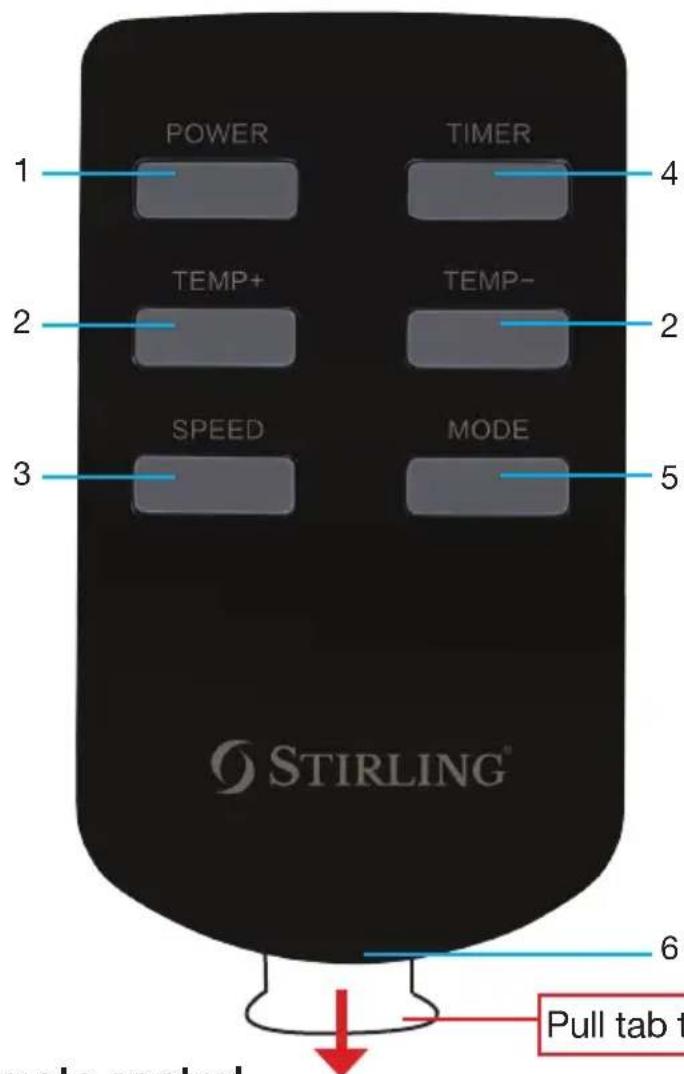

Remote control

1 POWER: Press the power button to turn the unit on or off.
2 TEMP + ▲ / - ▼: Press to set the desired room temperature. With each press, the temperature setting will be increased or decreased by 1°C. When used to set the timer, each press will increase/decrease the time by one hour (up to a maximum of 24).
3 SPEED: Press to choose high or low fan speed.
4 TIMER: Press to set the time period (in hours) for automatic switch-on/switch-off, or to delete the timer setting.
5 MODE: Press repeatedly to select the desired mode of operation (cooling, dehumidifying or fan).
6 Battery holder: The remote control is powered by a CR2025 3V lithium button cell. To activate it, pull the plastic film out of the unit before use. To insert a new battery (when required), push in the tab and pull out the battery holder. Insert the battery with the (+) marking facing upwards, then push the holder with the battery securely back into the unit.

Instructions

• Before switching the unit on for the first time, make sure you have properly installed the exhaust hose (see pages 11–12) and inserted the battery into the remote control (see page 14).
• Plug the portable air conditioner into a properly earthed 220\~240V AC 50Hz mains socket and switch on power to the outlet.
  NOTE: Do not connect it to a multiple socket outlet that is also being used for other electrical appliances. Do not connect it to an extension cord.
• Upon connection, the unit will emit one short beep. Press the POWER button and the unit will start operation.

IMPORTANT!

• Allow 30 seconds for cool airflow through the louvres. When turned on, the cooling compressor requires up to 30 seconds to complete its startup procedure, after which cool air will be produced (check for cool air by placing your hand near the louvres).
• Avoid starting the air conditioner soon after switching off, and avoid switching it off immediately after switching on. Allow at least five minutes in between switching the unit on and then off, or vice versa. This allows the compressor time to prepare for the next cycle. If the air conditioner is turned off and then back on soon after (not recommended), the compressor will require a few extra minutes before producing cool air.
• When using functions in Cooling and Dehumidifying mode, keep an interval of at least three minutes between each ON and OFF.

Cooling mode

IMPORTANT: When using the portable air conditioner in cooling mode, the flexible exhaust hose must be vented through an open window to exhaust warm air from the room.

• Press the MODE button until the cooling mode indicator illuminates.
• Press the TEMP- (▼ or TEMP+ ( ) ▲utton repeatedly to set the desired room temperature between 16°C and 31°C.
• Press the SPEED button to select the fan speed: high or low.

NOTE: For best cooling efficiency, make sure that:

* Curtains/blinds are closed if your room is directly exposed to the sun.
* The air conditioner is located away from any heat source.

Instructions (Cont.)

Dehumidifying mode

IMPORTANT: For best efficiency in dehumidifying mode, make sure that windows and doors are kept closed.

- Press the MODE button until the dehumidifying mode indicator illuminates. The unit will automatically maintain the room temperature at 2°C lower than the current room temperature (within the 16°C to 31°C range).

Fan mode

• Press the MODE button until the dehumidifying mode indicator illuminates.
• Press the SPEED button to select the fan speed.

Timer operation

The air conditioner has a 24 hour timer, which you can set to start the unit at a later time, or to switch off the unit automatically.

On-Timer setting

• With the unit switched off (but power supplied), press the TIMER button once to activate the timer: the timer indicator will illuminate and "01" will be flashing on the display screen.
• Press the ( ) or ( ) button repeatedly to set the number of hours after which you want the unit to start operation. For example, to start the unit in three hours, select ( 3 ).
• Press the TIMER button again to confirm the set time.
• To cancel the set time, press the TIMER button a third time.

Off-Timer setting

Use the same procedure as above, but while the unit is switched on, to set an auto-off time.

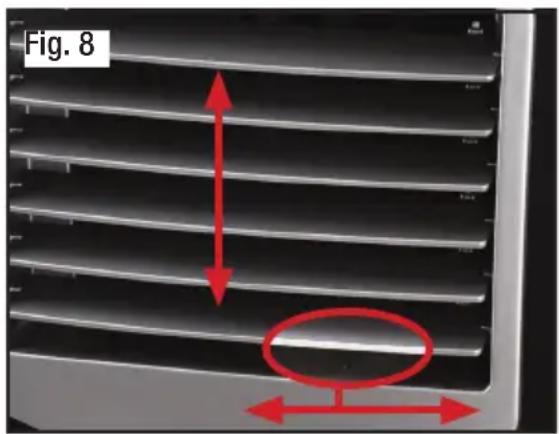

Airflow adjustment

• Move the louvres at the cold air outlet manually up or down to adjust the airflow in these directions (Fig. 8).
• Move the lever underneath the louvres to the right or left to direct the airflow to either side (Fig. 8).

Fig. 8

FAQs & Troubleshooting Guide

If you experience problems with your portable air conditioner, or it appears not to be operating correctly, check the information below for solutions to common problems. If none of the solutions offered help you solve your problem, please contact our after sales support centre for advice.

Do not attempt to repair the appliance yourself!

Problem Possible Causes Solution
Unit does not start when pressing the POWER button.	The water full (WF) indicator blinks, indicating that the drip tray is full.	Drain the condensation water manually.
	The room temperature is lower than the set temperature.	Reset the temperature.
Low cooling performance	Doors or windows to the room are open.	Make sure all windows and doors to the room are closed.
	There are heat sources inside the room.	Remove the heat sources, if possible.
	The exhaust air hose is not connected, or blocked.	Connect or clean the exhaust air hose.
	The temperature setting is too high.	Reset the temperature.
	The air inlet is blocked. Clean the air inlet.
Noisy	The ground is not level or not flat enough.	Make sure to place the unit on a flat, level ground.
	The sound comes from the refrigerant flowing inside the air conditioner.	This is normal and no cause for concern.
E0 Code	The room temperature sensor failed.	Call for service to replace the room temperature sensor (the unit can also work without replacement).
E2 Code Water	full. Drain the water manually.

Other Useful Information Other Useful Information

Care and cleaning

Electric shock hazard!

Before cleaning and servicing, ensure the unit is switched off and disconnected from the power outlet to prevent possible injury.

If the housing surface needs cleaning, wipe it with a damp cloth, then dry with a soft, dry cloth.

CAUTION: Do not wash the unit directly. Do not use any solvent or alcohol-based cleaning agent on any surface. Using such harsh cleansers will scratch or damage the surface, or can even lead to deformation of the housing.

Cleaning the air filters

This unit has four air intake filters: two at the back of the unit and two at the side. If the air filters clog up with dust, the airflow volume will be reduced. We recommend cleaning the filters once every two weeks. Each of the four air filters consist of two parts: the air inlet grille and the air filters underneath.

- First remove the filters at the back of the air conditioner. Place your fingers in the larger grille openings and pull to remove: first the grille (Fig. 9) and then the air filters (Fig. 10).

- With the back grilles removed, you can now grasp the small handle of the air filters at the side and slide them out for cleaning (Fig. 11).

- Clean all parts with a mild detergent in warm water (max. 40°C). Rinse thoroughly and let all parts dry completely in the shade before reinstallation.

Close-up of a hand pressing a button on a black perforated surface (no text or symbols visible)

Hand holding a grid of air filter panels inside a device (no visible text or symbols)

Hand placing a black ventilation grille into a black panel (no text or symbols visible)

Other Useful Information (Cont.)

Before storage

At the end of the summer season, follow the simple steps below before disconnecting and storing the portable air conditioner. The ambient temperature should be below 23^ C.

• Place a pan under the water drainage outlet at the back and remove the stopper (Fig. 12). Any condensation water that has accumulated will drain into the pan.
• Operate the unit in fan mode for a few hours to let the drainage pipe dry.
• Switch off the unit and disconnect the plug from the power supply.
• Tie the cable with a string.
• Store the appliance in its original carton, or wrap it with a plastic bag, and keep it in a dry, cool place.

Fig. 12

Black industrial fan with ventilation grilles and a grid-patterned interior (no text or symbols visible)

Condensation water drainage outlet with stopper

Condensation water drainage methods

• Condensation water that forms during cooling will drop into an in-built drip tray and will be evaporated automatically.
• If too much condensation water accumulates that cannot be evaporated automatically, or if the water pump is damaged, the Water Full (WF) indicator will illuminate and you will have to drain the water manually via the drain outlet at the rear of the unit in order for the air conditioner to continue cooling. See “Before storage”, above, for manual drainage instructions.

Other Useful Information (Cont.)

Service and repair

If you look after your portable air conditioner it should give you years of good service. Should you experience problems with the appliance that you cannot solve yourself using the advice given on page 17, please contact our after sales support centre for advice.

Do not attempt to repair the appliance yourself!

Spare parts

Our after sales support centre stocks the following spare parts for the A008A-14C STIRLING Portable Air Conditioner. To purchase a part, call the centre on 1300 886 649 or email us at [e-mail]

• Compressor capacitor
• Condensor fan wheel
• Condensor temperature sensor
• Control panel
• Evaporator fan wheel
• Exhaust adaptor
• Exhaust duct
• Fan motor capacitor
• Flexible exhaust hose connector
• Machinery blades
• Magnetic ring switch
• Main control board
• Motor
• Power panel
• Pump wheel
• Remote control
  • Room temperature sensor
• Shaded pole motor
  • Transverse connecting rod
• Vertical blades
• Wheel

Other Useful Information (Cont.)

Technical specifications

Cooling capacity: 4.1kW / 14000 BTU

Rated voltage: 220-240VAC

Rated frequency: 50Hz

Rated current: 7.0A

Rated input: 1550W

Design pressure: 1.2(Lo) / 3.8(Hi)MPa

Max. operating

pressure for exchanger: 1.5(Lo) / 5.0(Hi)MPa

Weight: 29kg

Dimensions: 794(H) x 364(D) x 320(W) mm

Cooling area: 22–30m ^2

Timer: 24 hour timer

Mode of operation: Control panel with LED screen and remote control

Fan speeds: 2 (low or high)

Operation modes: 3 (cooling/dehumidifying/fan)

Refrigerant: R410A / 560g

Temperature range: 16–31°C (cooling mode only)

Ingress Protection: IP20

Window kit inclusions: Flexible exhaust hose

Rectangular hose connector

Oval hose connector

Window slider for horizontally or vertically opening

windows (adjustable from 67.5cm to 123cm)

Compliance

This appliance has been fully tested and meets all requirements as set out by standards AS/NZS 60335.1 and AS/NZS 60335.2.40.

Other Useful Information (Cont.)

Responsible disposal

At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant. Contact your local authorities for advice on recycling facilities in your area.

ALDI

STIRLING®

Portable Air Conditioner

Repair and Refurbished Goods or Parts Notice

Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they meet ALDI's stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 886 649 or write to us at:

Tempo (Aust) Pty Ltd ABN 70 106 100 252

PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086

Telephone: [phone] (Aust) - Fax: [phone]

Tempo Help Desk: 1300 886 649 (Aust)

(Operating Hours: Mon-Fri 08:30am to 06:00pm EST)

Email: [e-mail]

3

YEAR WARRANTY

STOP BEFORE RETURNING TO STORE Read the manual. It will help you get the best out of your product. Still have questions? Call After Sales Support 1300 886 649 Or visit www.tempo.org

Warranty returns

Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.

Product does not work?

If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.

For an electronic copy of this manual, go to www.stirlingappliances.com.au and download a copy.

Instruction Manual Revision Index

Version No Issue Date Description

V1.0 14 April 2015 Original release

V1.1 24 June 2015 Minor revisions

V1.2 10 July 2015 Compliance updates (page 21)

V1.3 31 July 2015 Product photo updates (pages 1, 8, 13)

V1.4 31 August 2015 Battery detail updates (pages 9, 14)

V2.0 05 July 2016 Second release

V2.1 02 August 2016 Compliance updates (page 21)

V2.2 04 August 2016 Compliance updates (page 21)
