USER MANUAL NAV3500BT Bullit

©2008 Rho-Delta Automotive & Consumer Products BV. All rights reserved. This document may not in whole or in part be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, or reduced to any electronic medium or machine-readable form without prior consent, in writing, from Rho-Delta Automotive & Consumer Products BV.

NAV3500BT and Bullit are registered trademarks of Rho-Delta Automotive & Consumer Products BV. The logo's, standards, software, and/or product names mentioned herein are manufacturer and publisher trademarks and are used only for the purpose of identification.

Disclaimer

The publishers and author assume no responsibility whatsoever for the uses made of this material or for decisions based on its use. Further, Rho-Delta Automotive & Consumer Products BV makes no warranties, either expressed or implied, regarding the contents of this product, its completeness, accuracy, merchantability, or fitness for any particular purpose. Neither the publisher nor anyone else who has been involved with the creating, production, or delivery of the material shall be liable for any reason. Rho-Delta Automotive & Consumer Products BV may make improvements and/or changes in the products and/or options described in this document at any time and without notice.

All brand and product names used throughout this document are trademarks or registered trademarks of their respective companies. The brand and product names are used in editorial fashion only and for the benefit of such companies. No such use, or the use of any trade name, is intended to convey endorsement or other affiliation with the document.

Product specifications are subject to change without prior notice

www.rhodelta.nl

Symbol of a trash bin crossed with no visible text or labels

WEEE (Waste Electrical and Electronic Equipment Directive)

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Disposing of the battery / batteries

Please check local regulations for disposal of batteries or call your local city office or your household waste disposal service or the shop where you purchased the product.

The battery / batteries should never be placed in municipal waste. Use a battery disposal facility in your neighborhood or community, if available.

Dear Customer,

Thank you for selecting our unit. In order for you to utilize this device and all its options, we recommend that you read the corresponding instructions in this manual before the initial use of the device, even if you're familiar with handling electronic devices. Please pay particular attention to the chapter "Important safety instructions". Store this manual in a safe location for future reference. The descriptions and features in this manual only serve as general information and do not represent a guarantee. In order to offer you a product of the highest quality, we reserve the right to make possible improvements or changes without prior notification.

Important safety instructions

Please read and strictly observe the following instructions!

The supplier waves any and all liability when these warnings are not followed:

• Never open the case of the car radio; it does not contain any serviceable parts! If the case is open, there is a risk of fatality due to electric shock.
• Do not give your car radio and especially the accessories to children. Never let your children use electrical devices without supervision. Children are not always able to recognize potential hazards. Also keep the packaging films away from children. There is a danger of suffocation.
• The car radio and the accompanying components may not be exposed to dripping or sprayed water. Make sure that no containers filled with liquid, such as e.g. cups or bottles, are placed in the vicinity of the device.
• Please familiarize yourself with the different functions of your device before you begin driving. Excessively high volumes can pose a risk for you and other people in traffic. Therefore always select the volume at such a level that environmental sounds (horns, sirens, etc.) can still be perceived.
• Don't use the car radio at an excessive volume. This poses a risk to your hearing.
• Please only perform lengthy changes of the device settings while the vehicle is parked. Your concentration might be affected by the changes.
• To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage. To avoid the risk of damage and injury and the potential violation of applicable laws, this unit is not for use with a video screen that is visible to the driver.
• Only install the device in such a manner that safe driving is assured. To avoid the risk of accident and the potential violation of applicable laws, the front Video image feature should never be used while the vehicle is being driven. Also, other video displays should not be in a location where it is a visible distraction to the driver. In some countries or states the viewing of images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply, they must be obeyed and this unit's DVD features should not be used.
• Install the device in such a manner that it doesn't impede the driver and can't injure any of the vehicle's occupants in the event of emergency braking.
• Don't flip the monitor mechanism by hand. This could damage the mechanics.
• The TFT color monitor consists of glass and liquid crystals. Don't put any excessive pressure on the monitor, since otherwise it might scratch, break, or sustain other damages. In addition, the image quality might be impaired.
• Don't touch the monitor surface with hard objects and only clean it with a soft, dry cloth and special TFT cleaner.
• Don't use the device for a longer period while the vehicle's engine isn't running. This could drain the vehicle battery to the degree that the car can no longer be started. In addition, this might reduce the lifespan of the battery.
• Don't park your vehicle in direct sunlight for extended periods, otherwise the temperature in the car's interior could rise to the point that the device overheats and causes malfunctions. If possible, cool the interior of the vehicle in order to ensure that the device will operate properly.
• Only let the device be installed by qualified vehicle technicians.

- Before the final installation of the device into a DIN insertion compartment in the dashboard, connect the cables and test the connections.

- Only use the accessories included in the delivery. Usage of unauthorized components can cause damages.

- If you need to drill holes or make other changes for the installation, consult a specialized workshop in your area.

- This device is designed for a vehicle power supply of 12 V with the ground on the car body (negative pole). Check the battery voltage before installing it into a camping vehicle, bus, or truck.

- To avoid short circuits, the battery has to be disconnected before the installation.

- Read the guidelines in this handbook for the connection of the power supply and other options.

- Secure the installed cables with insulating tape, cable ties, or cable clamps. To protect the cables from damage, use insulating tape when guiding them past metal components. Place and secure all cables in such a manner that they are not in the vicinity of movable parts, such as e.g. the parking brake, gas/brake/coupling pedals, handle bars and seat tracks.

- Don't place any cables in the vicinity of heat sources (e.g. near the heater ventilation), since the insulation of the cables might get damaged and result in short circuits.

- Don't short circuit any cables. This can result in damages to the vehicle and device.

- Never establish a power supply to other devices by removing the insulation of the device's power supply and connecting an additional cable. Otherwise, the maximum power rating of the cable will be exceeded and there will be a danger of overheating.

- If you have to replace the fuse, only use an identical one with the same rating.

- The connected speakers have to be high-performance speakers with a minimum output of 40 W and an impedance ranging from 4 to 8 ohm. If you connect speakers with other output or impedance ratings, the speakers may burn, smoke, or sustain other kinds of damage.

- When the device is turned on, a control signal adjoins the blue cable of the connection A5 (ISO plug A). You can connect this to the relay of the extendable vehicle antenna (max. 100 mA, 12 V=). If your vehicle has a wire antenna inside the windshield, connect the blue cable A5 (ISO plug A) to the pre-amplifier of the antenna.

- If an external audio amplifier is connected to the device, the blue cable of connection A5 (ISO plug A) may not be connected to the power supply of the amplifier. Likewise, you may not connect it to the power supply of an active car antenna. This poses a risk of short circuits and malfunctions.

- Insulate unused connection cables with insulating tape. The same applies to unused speaker cables. Otherwise there is a risk of short circuits.

- Dirt or condensed moisture on the lens of the CD/DVD drive may impede and even prevent the playback of data carriers.

- In general, the playback of self-burned data carriers is possible, but it depends on the used software and the settings made with it, so that there may be problems during playback in individual cases. You can receive further information from the manufacturer of your software.

- Additional CD data carriers can be played back just like audio CDs. It's possible that CD-R/CD-RW data carriers can't be played back correctly if they were recorded by a device other than an audio CD recorder.

- In addition, it may be the case that a data carrier (CD-R/CD-RW) recorded with an audio CD recorder can't be played back due to the conditional features, irregular formats, or soiling of the data carriers.

- The information recorded on the data carrier (ID3TAG) is displayed by this device.

- After inserting a CD-RW data carrier, it takes a little longer for the playback to begin than with regular CD or CD-R data carriers. Also read the guidelines on the sleeves of the CD-R/CD-RW data carriers before you insert them.

- Do not turn on or off the product in short intervals. When turning the unit off, wait for at least 10 seconds prior to turning the unit on again. Do not operate the player with scratched, bended or broken discs and when a disc is not loaded properly, do not force it into the player.

NOTE

- Please dispose empty batteries according the regulations in your country

- All On Screen Displays (OSD) and Pictures will be based on the English version.

- Design and Specifications may vary in the manual from the actual product in use.

TABLE OF CONTENTS

Important safety instructions 2

PREPARATION BEFORE USING THE CAR RADIO NAV3500BT 3

Unpacking and checking the contents 3

INSTALLATION / CONNECTION 4

DETACHABLE CONTROL PANEL 5

Detaching the control panel 5

Attaching the control panel....5

ELECTRICAL CONNECTION 6

Front panel 7

1. EJECT Button 7

2, 3. ◀◀ / ▶▶ Buttons....7

1. MAP Button....7

2. MENU Button....7

3. BND / 📄 Button....7

4. POWER / MUTE Button 8

5. MODE Button....8

6. ▶/AMS / Button....8

7. TA / AF Button 8

8. VOL Knob / SEL Button 8

9. OPEN Button 8

10. IR Sensor 8

11. AV-in Jack....8

12. USB Jack 8

13. Built-in Microphone 8

14. Stylus Slot 8

15. SD Card (with map) Slot 8

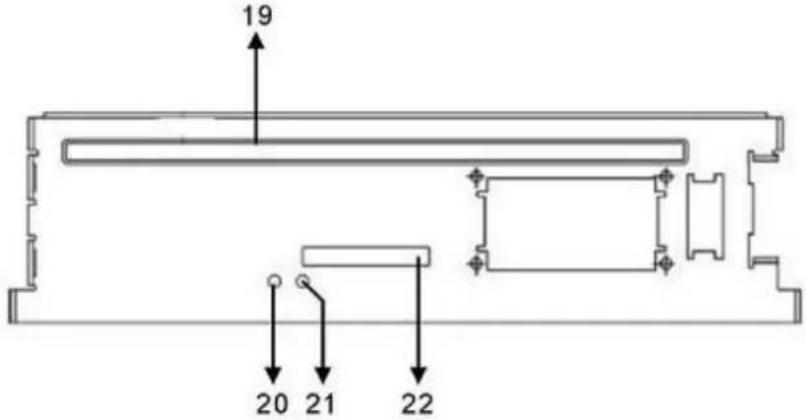

Inner panel....9

1. DISC Slot 9

2. RESET Button....9

3. LED Indicator 9

4. Main SD/MMC Card Slot 9

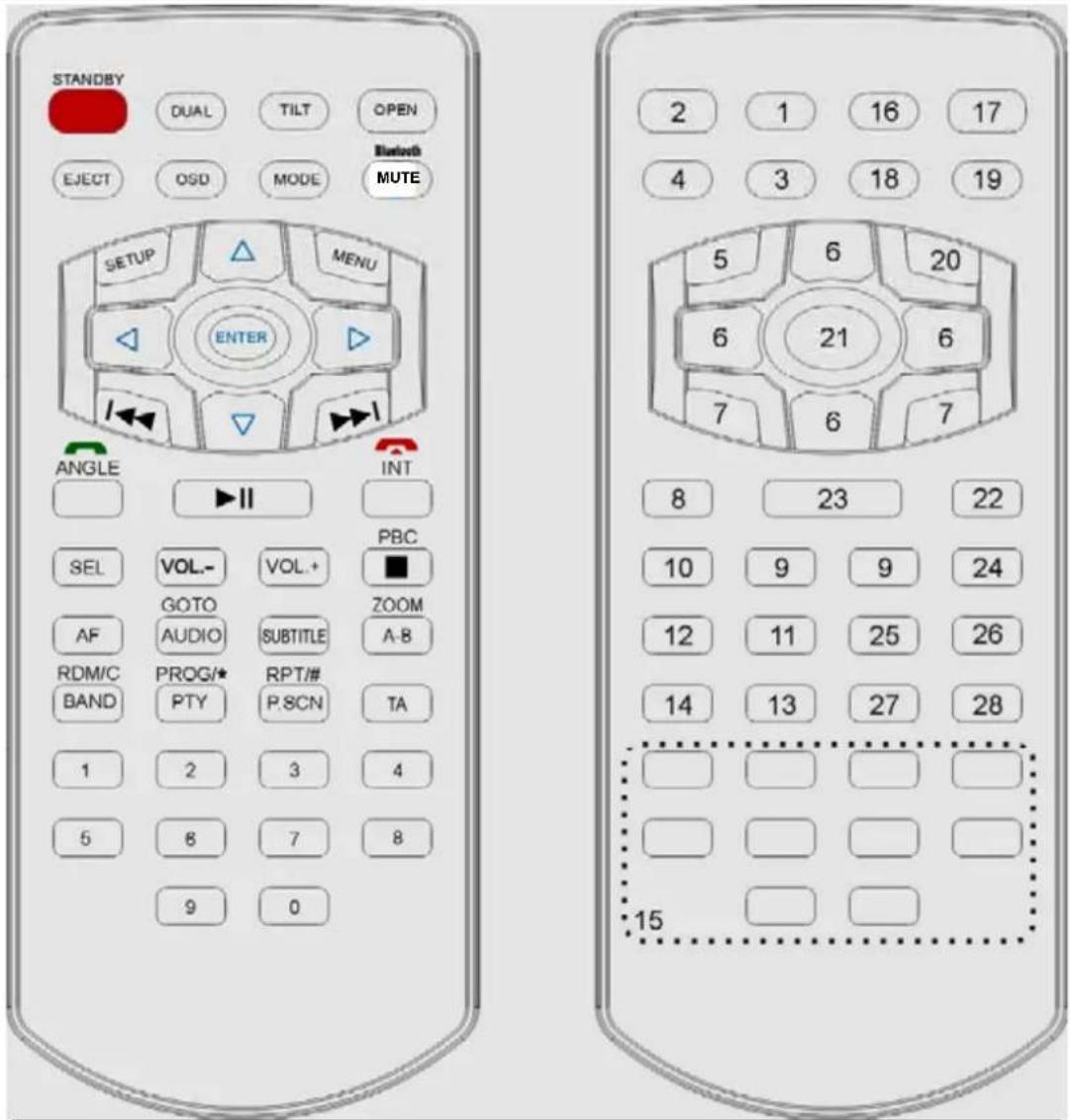

REMOTE CONTROL....10

1. DUAL Button 11

2. STANDBY / MUTE Button 11

3. OSD Button....11

4. EJECT Button 11

5. SETUP Button.... 11

6. Cursor ▲ / ▼ / ◀ / ▶ Buttons 11

7. |◀◀ /▶▶ Buttons ...... 11

8. ANGLE / 📄 Button.... 11

9. VOL +/- Buttons 11

10. SEL Button.... 11

11. AUDIO/GOTO Button 11

12. AF Button.... 11

13. PROG/PTY/*/+ Button 11

14. BAND/RDM/C Button 12

15. Digit 0-9 Keys.... 12

16. TILT Button 12

17. OPEN Button 12

18. MODE Button.... 12

19. MUTE/ BLUETOOTH Button 12

20. MENU Button 12

21. ENTER Button 12

22. INT / Button.... 12

23. ▶Button....13

24. ■ / PBC Button 13

25. SUBTITLE Button 13

26. A-B/ ZOOM Button.... 13

27. RPT/P.SCN/# Button 13

28. TA Button....13

MAIN MENU 14

BUTTON DISCRIPTION 14
NAVIGATION 14
DVD PLAYER....14

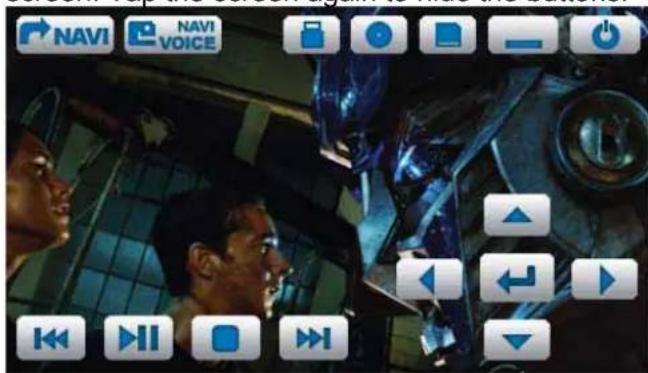

TOUCH SCREEN MENU 14
BUTTON DISCRIPTION IN DVD/SD/USB MODE 15
File Management 15
COLOR CONFIGURATION 16
No Disk Warning 16
Drive Warning....16

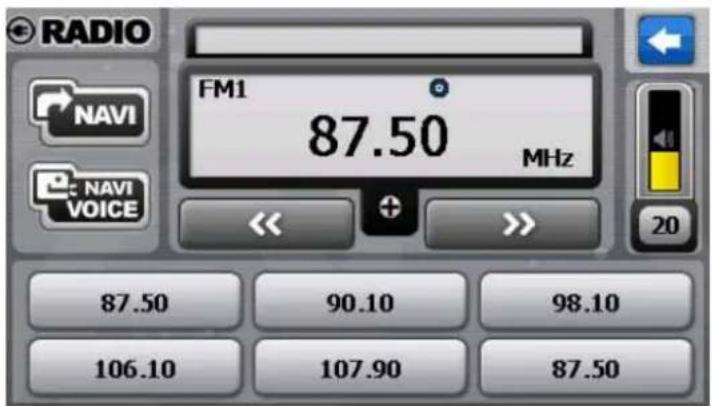

RADIO PLAYER....17

RADIO BUTTON DISCRIPTION....17

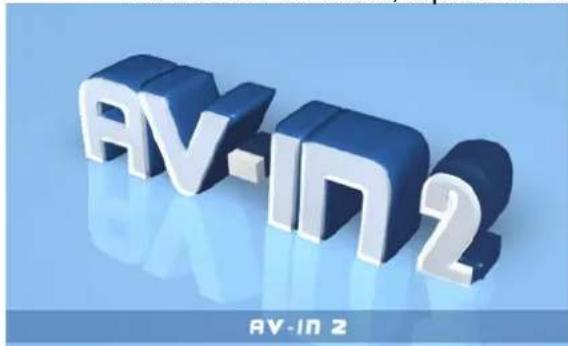

AV-IN Mode 17

Function description....17

BLUETOOTH SECTION....18

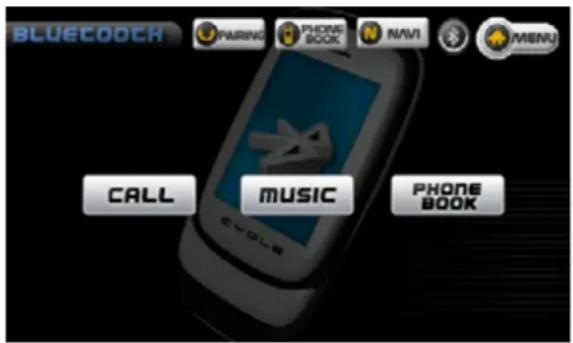

BT Main Menu 18

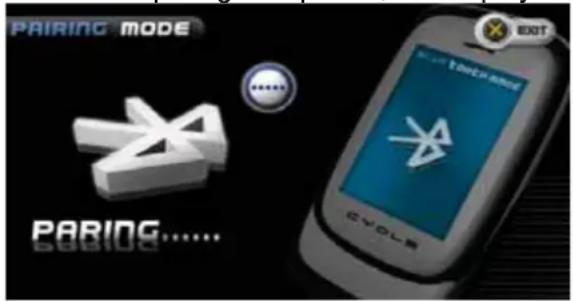

Pairing Mode 18
Auto-connect - Disconnect....19

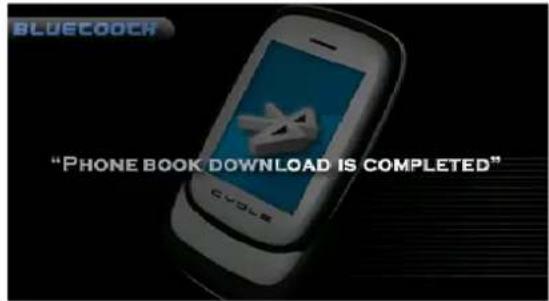

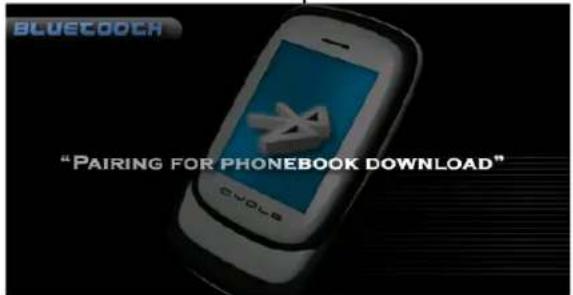

BT PHONE BOOK 20

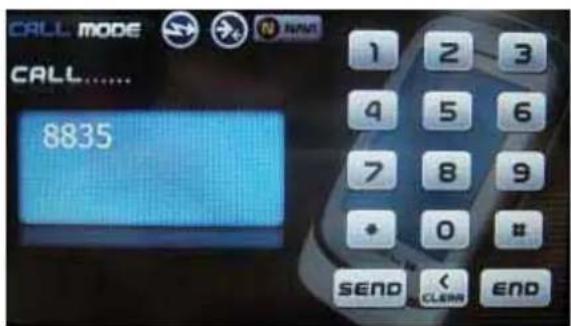

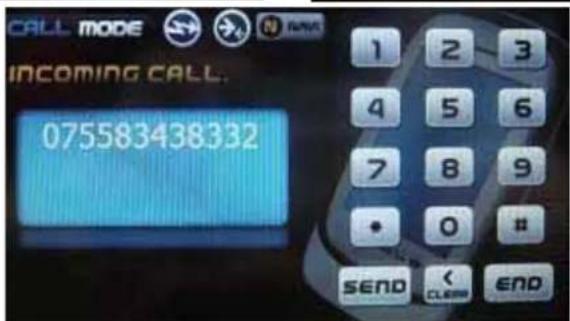

Call mode 21
Voice Transfer....22

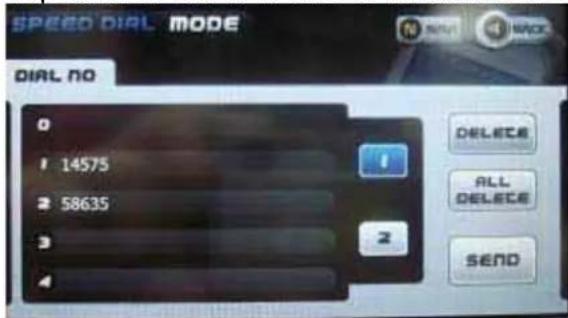

Speed Dial Mode....22

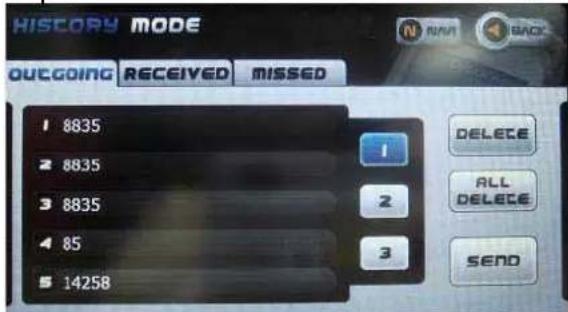

Call history mode 22

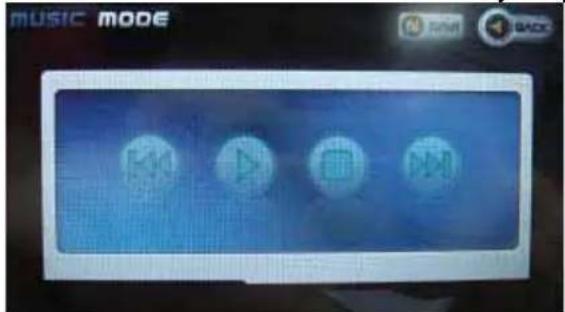

(A2DP) Music Mode 23
UTILITY 23

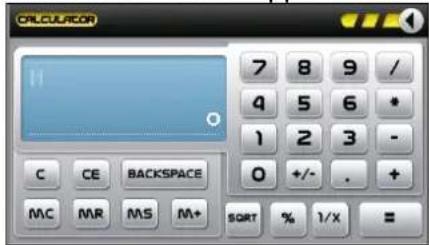

CALCULATOR 23

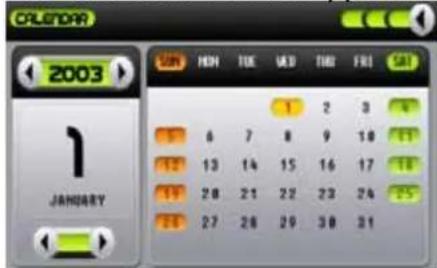

CALENDAR 24

SETTING CONTROL 24

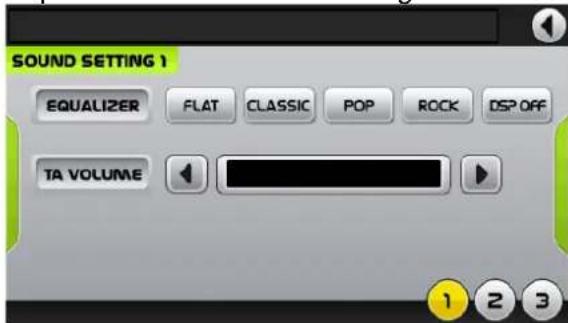

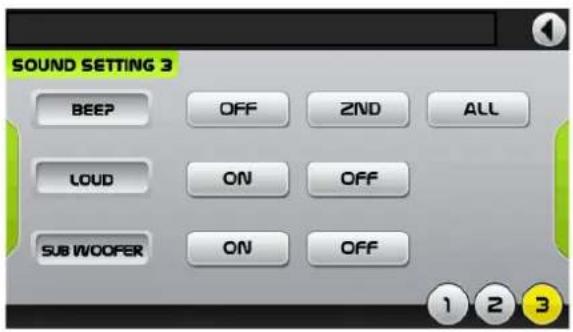

SOUND CONTROL....24

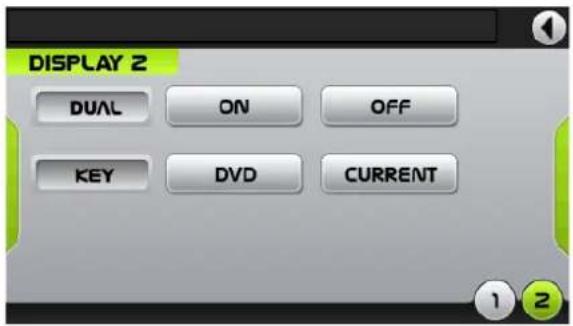

DISPLAY CONTROL 25

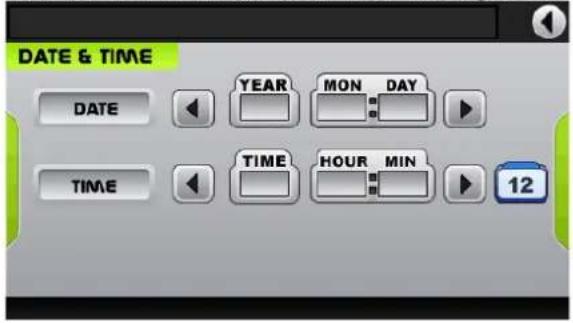

DATE&TIME CONTROL 26

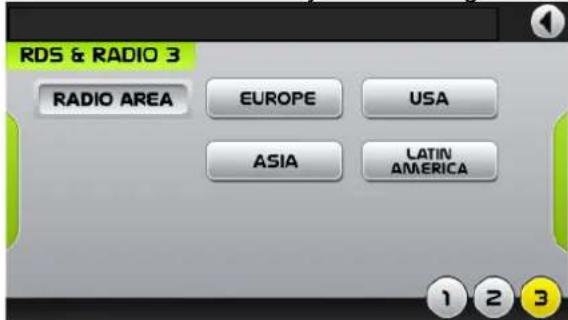

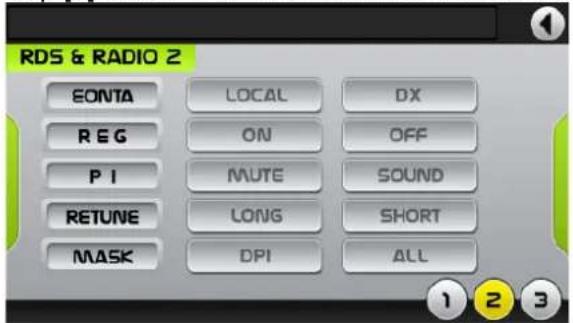

RDS & RADIO CONTROL 26
TA....27
EONTA 27
REG 27
PI 27

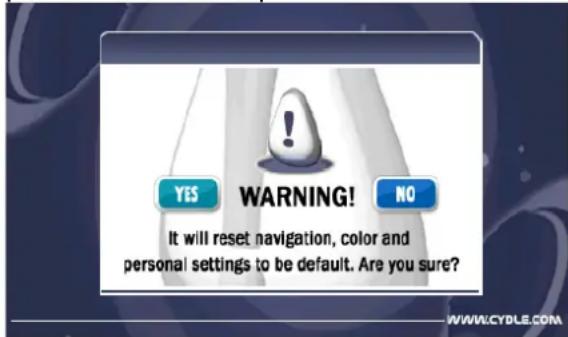

SYSTEM INFORMATION 28
CALIBRATION 28

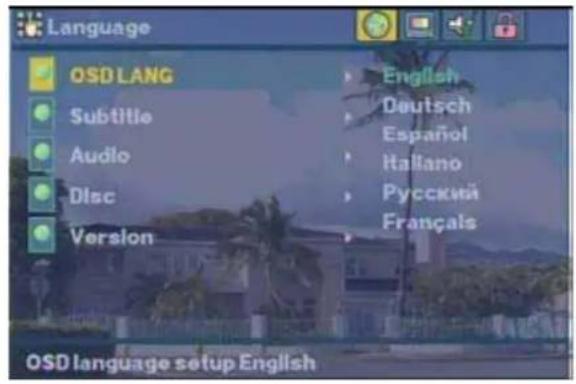

DVD SET UP MENU 29

Language setup 29

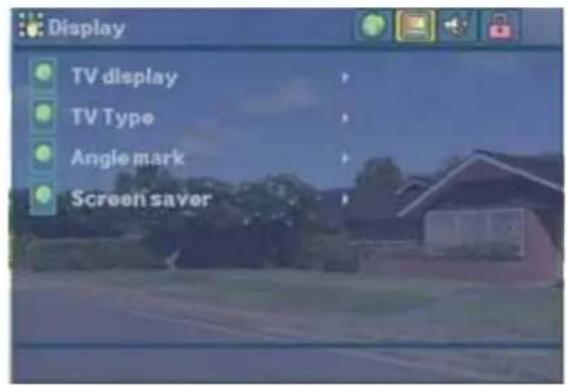

Display setup 30

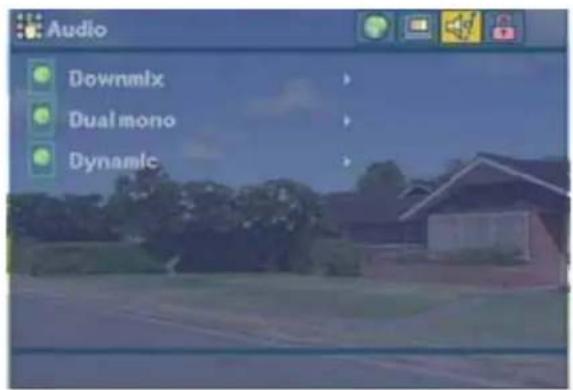

Audio setup 30

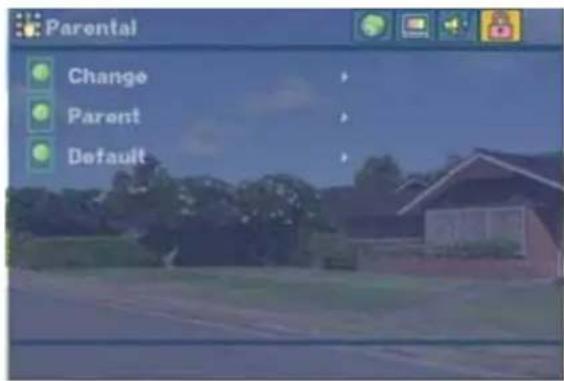

Parental setup 30

Anti-theft system....31

Remove the panel 31

Handling discs 31

Cleaning....31

Troubleshooting....32

SERVICE AND WARRANTY....32

TECHNICAL SPECIFICATIONS 33

PREPARATION BEFORE USING THE CAR RADIO NAV3500BT

Unpacking and checking the contents

Please check if the following items and accessories are included in the received package:

EJ MENU MODE BND AMS 45m 1250 0:01.48 0:00.08 TILT TA/AF Northumberland Avenue (A306) Air Gate dome Air In Northumberland Avenue

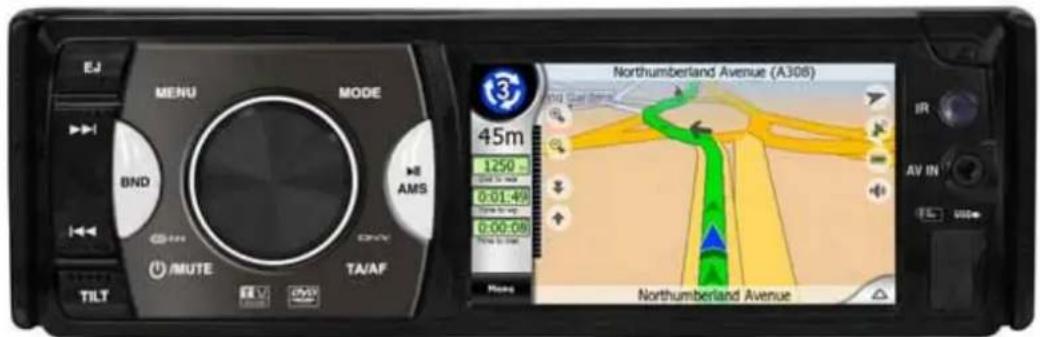

Car Radio NAV3500BT

Black rectangular electronic device casing with a handle, isolated on white background (no text or symbols visible)

1x Protective Carrying

Case for detachable front panel.

Front view of a gray remote control with black keypad and buttons (no visible text or symbols)

1x Mounting Bracket
1x Assemble Bar
1x Screw B15x16
4x Bolt M5
1x Nut M5
1x Flat washer
1x Spring washer
2x Unit ejection bars

Metallic rectangular electronic component with mounting holes and a base plate (no visible text or symbols)

Illustration of mechanical components including a rod, two parallel bars with circular ends, and small holes (no text or symbols)

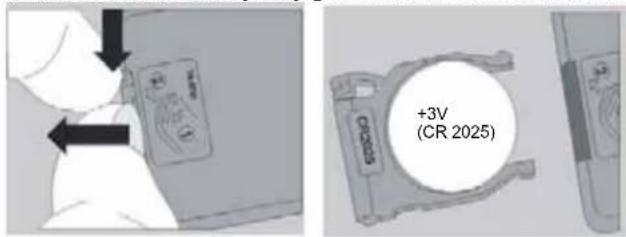

1x UNIT IR-Remote

Control with one

CR2025 3Volt cell

battery.

1x SD card with Navigation

3D diagram of a rectangular electronic component with a small triangular symbol on the top surface (no text or labels)

Coiled electronic circuit components with black, white, and red connectors (no text or symbols visible)

1x ISO Wire Cable

Illustration of a handheld electronic device with a black handle and a display screen (no visible text or symbols)

1x GPS Antenna

Silhouette of a hand pointing at an open book with visible text lines (no legible content)

This User Manual.

INSTALLATION / CONNECTION

First complete the electrical connections, and then check them for correctness.

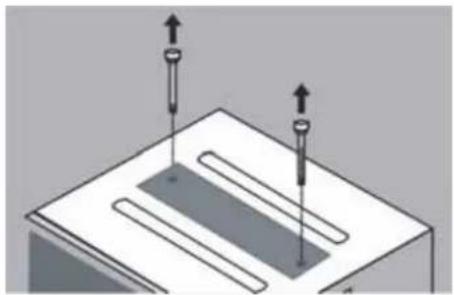

Before start operation, take out the protection screws.

Diagram of a microfluidic device with two electrodes and a central substrate (no text or symbols)

Installation opening

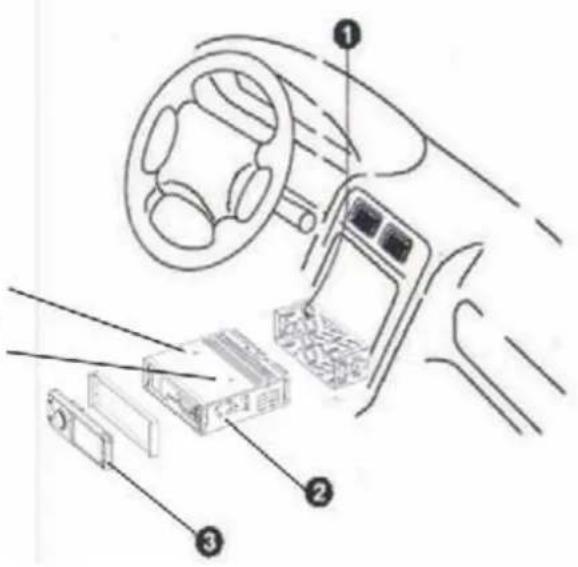

This unit can be installed in any dashboard having an opening as shown in the picture. The dashboard should be 4.75 – 5.56 mm thick in order to be able to support the unit.

1) Insert mounting collar into the dashboard, and bend the mounting tabs out with a screwdriver. Make sure that lock lever is flush with the mounting collar (not projecting outward).
2) Secure the rear of the unit. After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber cushion.
3) Insert trim plate. When you prepare to insert trim plate, please check its direction. Once it is installed upside down, it cannot be removed and fixed.

IMPORTANT:

Remove these two screws before installation.

Otherwise, the DVD Player will not work.

Diagram of a car interior showing steering wheel, dashboard, battery pack, and three labeled parts with arrows indicating motion or assembly.

Lock lever

Pure technical line drawing of a mechanical component inside a 3D coordinate system (no text or symbols)

DETACHABLE CONTROL PANEL

Detaching the control panel

• Turn the Power off.
• Press OPEN button release the panel.
• Pull the panel out.

Attaching the control panel

• Insert the left side of the control panel into the main unit.
• Press the control panel right side until the "click" sound is heard.

Caution:

DO NOT insert the control panel from the right side. It can damage the control panel.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

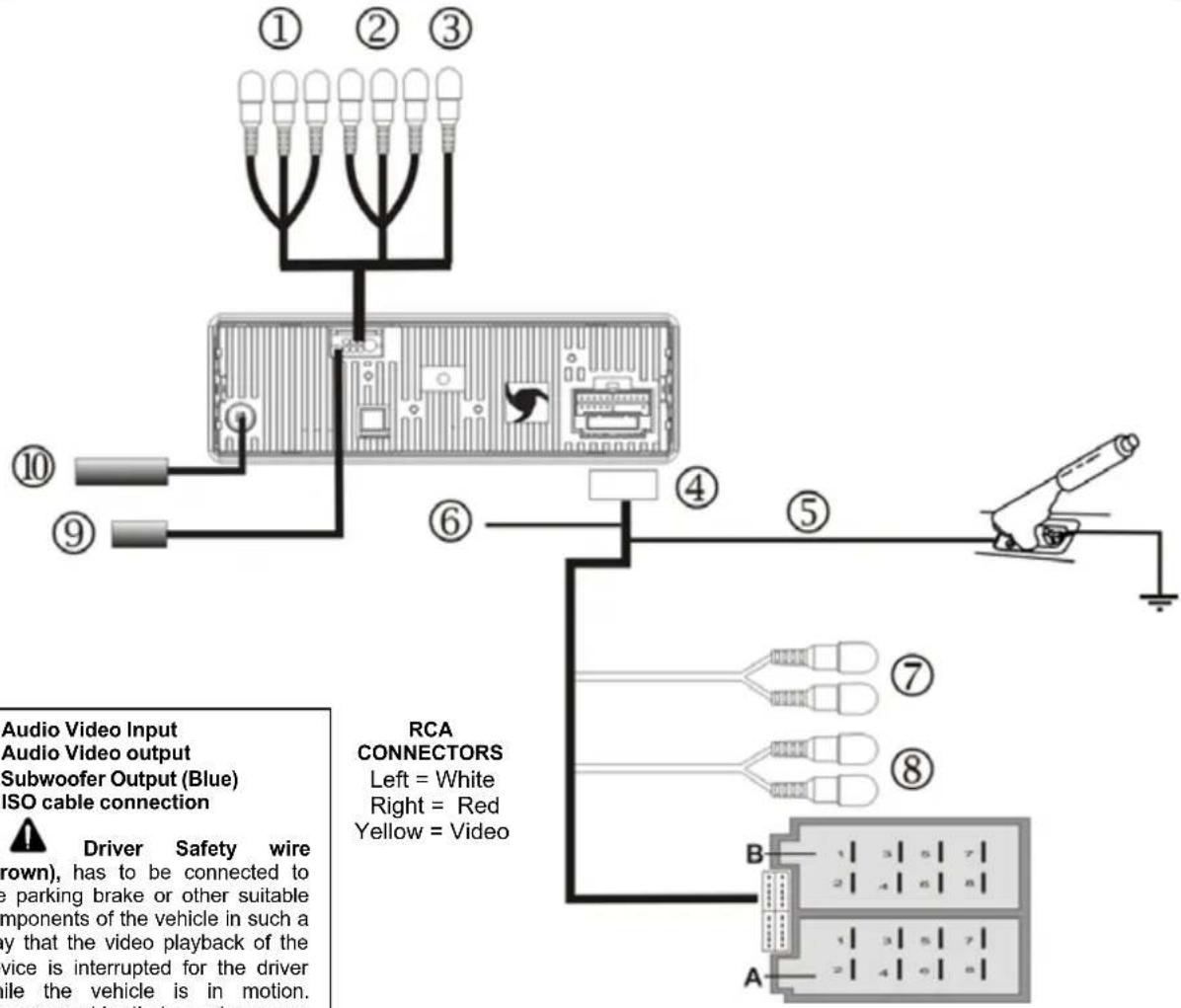

ELECTRICAL CONNECTION

Audio Video Input Audio Video output Subwoofer Output (Blue) ISO cable connection Driver Safety wire Brown), has to be connected to e parking brake or other suitable components of the vehicle in such a my that the video playback of the device is interrupted for the driver ile the vehicle is in motion. RCA CONNECTORS Left = White Right = Red Yellow = Video

ISO CONNECTOR

ISO-A

A4

YELLOW (B+). Connection for +12V operational voltage (diameter at least 2.5 mm²) to permanent plus of the vehicle.

Note on ISO-A Connector: Depending on the manufacturer, the contacts on your vehicle connection may be assigned differently. This is not a defect of the device but caused by a deviating connector pin assignment by the manufacturer of your vehicle. To provide a connection that conforms to this device, please purchase an appropriate adapter cable from a specialized dealer if required. Please consult a specialist in your area if you have any questions about the connections..

A5 BLUE To system control terminal of an external amplifier or Automatic Antenna (max. 100mA / 12Vdc).

A7 RED ACC (+).Connection for +12V trigger voltage. Connect to ignition key of the vehicle. If contacts A4 and A7 are switched, the device will "forget" the stored stations after the ignition is turned off.

A8 GND. (- / Ground) Attach the connection for the ground (diameter at least 2.5 mm) to the ground of the vehicle.

ISO-B

FRONT SPEAKER

B3

Right

+

(Gray)

B4

Right

-

(Gray/Black)

B5

Left

m = 311

B6

Left

(White)

(White/Black)

REAR SPEAKER

B1

Right

+

(Violet)

B2

Right

-

(Violet/Black)

B7

Left

,

B8

Left

(Green)

(Green/Black)

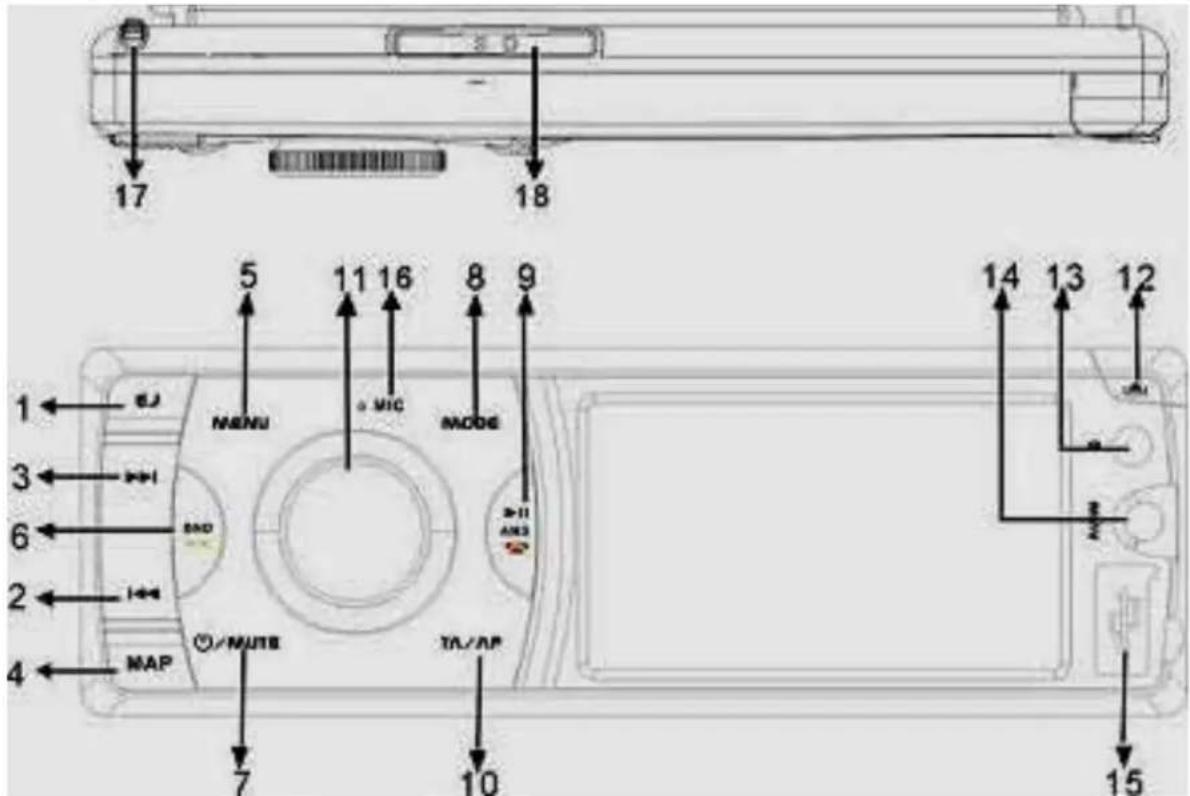

Front panel

17 18 5 11 16 8 9 MENU MIC MODE 3 END >11 AM3 14 13 12 7 10 MAP TA/AP 15 1 3 6 2 4

1. EJECT Button

Press to flip the front panel down and eject the disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted automatically.

*When disc in/ out, put front panel at 0 degree to avoid distortion of disc.

2, 3. / Buttons

In Radio mode, press to search a previous / next station. Press and hold for two seconds to start search a station manually, then press them to tune each frequency step upward or downward.

In DVD / SD-MMC / USB mode, press◀◀ button to restart a track, press it twice to skip to the previous track; press ▶▶ button to skip to the next track.

Press ◀◀ /▶buttons and hold for two seconds to activate fast forward (FF) or fast reverse (REW) search in a track.

4. MAP Button

Press to enter NAVIGATION mode.

Press and hold to tilt the front panel of position 1 or position 0.

5. MENU Button

Press to enter main menu.

Press and hold to activate/disable DUAL ZONE function. Press and Hold again to choose the next Dual Zone mode.

6. BND / Button

In Radio mode, press to change radio band in sequence of FM1 → FM2 → FM3 → AM1 → AM2.

In Bluetooth mode, press to make a call after inputted a phone number or accept a coming call.

7. POWER / MUTE Button

Press to turn on the unit, press and hold to turn it off.

(* Press any button except OPEN&EJECT buttons to turn on the unit.)

Press to cut down the volume output, press it again to resume volume when the power is on.

8. MODE Button

Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), AV IN, and BLUETOOTH (if the connection is ok).

9. ▶ / AMS / Button

In Radio mode: Short press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. Long press it to save the stations with good reception automatically and scan each station for about 5 seconds

In DVD mode, press to pause / play. Press and hold to r. stop / stop, press again to play.

In BLUETOOTH mode, press to reject a coming call or hang up while calling.

10. TA / AF Button

Short press it to enable or disable TA mode.

Press and hold it for 2 seconds to enable or disable AF mode.

11. VOL Knob / SEL Button

VOL Knob: Adjust the volume level by turning the knob clockwise to increase or counterclockwise to decrease.

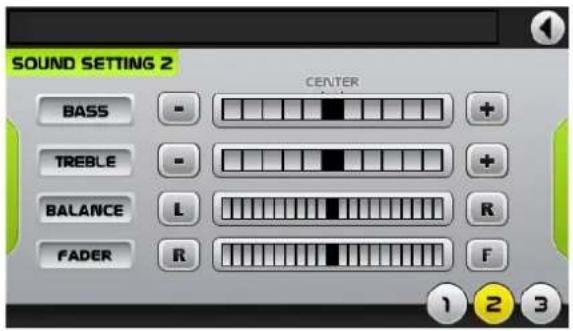

SEL Button: Press and hold the knob for 2 seconds to enter SOUND SETTING menu.

Press ◄◀/▶buttons to choose a setting page, Rotate the VOL knob to browse or adjust, press to enter and confirm."

12. OPEN Button

Press to detach the front panel.

13. IR Sensor

IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.

14. AV-in Jack

Receive signals by connecting to outside input device.

15. USB Jack

Insert a USB Flash Storage Device and music starts to play automatically. If there is no music file, "NO FILES" is shown on LCD display.

* Support Music File Format: MP3, WMA Files

16. Built-in Microphone

Transfers your voice via Bluetooth during phone call.

17. Stylus Slot

Preserve a stylus in it. To insert or remove the stylus, press and hold MAP button to tilt the front panel first.

You can use either fingertips or the stylus to tap on the touch screen.

18. SD Card (with map) Slot

To insert the NAVIGATION SD card (with map), press and hold MAP button to tilt the front panel first.

Inner panel

Press EJECT button on the front panel first to show the inner panel, and there are SD/MMC card slot, LED indicator and RESET button.

19 20 21 22

19. DISC Slot

20. RESET Button

In case the unit is malfunctioned or need to reset to factory default setting, press the RESET button with clip or pin to restore the unit to the original factory settings.

21. LED Indicator

Red LED light will flicker if the front panel is detached.

22. Main SD/MMC Card Slot

To insert a SD card, press OPEN button to detach the front panel first.

REMOTE CONTROL

STANDBY DUAL TILT OPEN EJECT OSD MODE MUTE SETUP MENU ENTER ANGLE INT SEL VOL.- VOL.+ GOTO ZOOM AF AUDIO SUBTITLE A-B RDM/C PROG/* RPT/# BAND PTY P SCN TA 1 2 3 4 5 6 7 8 9 0 2 1 16 17 4 3 18 19 5 6 20 6 21 6 7 6 7 8 23 22 10 9 9 24 12 11 25 26 14 13 27 28 15

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

Warning:

Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately. Do not recharge, short, disassemble or heat the battery or dispose it in fire. Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire. When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

+3V (CR 2025)

1. DUAL Button

Press to enable/disable Dual Zone function. Press again to choose the next Dual Zone mode.

2. STANDBY / MUTE Button

Press to turn on the unit, press and hold to turn it off.

(* Press any button except OPEN&EJECT buttons to turn on the unit.)

3. OSD Button

Press it to show the current mode information on the display.

4. EJECT Button

Press to flip the front panel down and eject the disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted automatically.

*When disc in/ out, put front panel at 0 degree to avoid distortion of disc.

5. SETUP Button

In DVD mode, press to enter the DVD setup menu.

6. Cursor ▲ / ▼ / Buttons

Press to browse and adjust.

7. |◀/▶Buttons

In RADIO mode, press to search a previous or next station automatically, press and hold for two seconds to start search a station manually, then press them to tune each frequency step upward or downward.

In DVD mode, press ◀◀ button to restart a track, press it twice to skip to the previous track, and press ▶▶ button to skip to the next track. Press ◀◀ or ▶▶ button and hold to activate fast forward (FF) or fast reverse (REW) search.

8. ANGLE / Button

In DVD mode, press repeatedly to change the viewing angle.

In Bluetooth mode, press to make a call after inputted a phone number or accept an incoming call.

9. VOL +/- Buttons

Press to adjust volume level.

10. SEL Button

Press to enter the SOUND SETTING menu.

11. AUDIO/GOTO Button

In DVD mode, press repeatedly to select the audio language with DVD disc, press repeatedly to select sound track: L-Mono => R-Mono => Mix Mono => Stereo with VCD disc, press and hold to go to the set chapter/track/time directly.

12. AF Button

In Radio mode, press to enable / disable AF function.

13. PROG/PTY/\*/+ Button

Press this button to enter the program search menu and use the up/down/left/right cursor buttons to select a position. Press a digit buttons to enter the number (To enter a number larger than 9, e.g. 123: long press digit buttons 1, and long press 2, then short press 3.). For

DVD and File disc, select title and chapter number. For VCD and CD, select track number. For a disc with mixed files, select folder and file number. Press the PLAY/ PAUSE button to play, or move the cursor to select PLAY and press ENTER to play. If you want to delete the list, move the cursor to CLEAR ALL, press ENTER to delete the entire list set before. Press PROG/PTY again to exit program play.

PTY: In Radio mode press to activate the PTY function, press it repeatedly to show PTY MUSIC group → PTY SPEECH group → PTY off, choose your intended PTY type by pressing the icon in the touch screen or pressing the corresponding preset digit keys on the remote control. When PTY search is on and the selected type matches, PTY information is displayed. If the PTY code is different or not available, PTY NONE icon will blink. PTY engaging is automatically exit to normal mode.

In BLUETOOTH mode, press and hold to make a */+ symbol in BLUETOOTH NUMBER DIAL mode.

14. BAND/RDM/C Button

In Radio mode, press to change radio band.

In DVD mode, press to play randomly.

In BLUETOOTH mode, press to clear an inputted number or a saved number.

15. Digit 0-9 Keys

Digit 0-6- in radio mode, select the desired band; digit 0-9 in DVD mode, select track.

16. TILT Button

Press it to enter the monitor tilt angle adjustment mode.

Press it repeatedly to select the position: 0 => 1 => 2 => 3 => 4 => 5 => 6.

The monitor will flip down accordingly.

17. OPEN Button

Press it to open the monitor.

18. MODE Button

Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), AV IN, BLUETOOTH (if the connection is ok)

19. MUTE/ BLUETOOTH Button

MUTE: Short press this button to mute the volume output, press it again to resume volume. Bluetooth mode: When Bluetooth is connected with a mobile phone, long press this button to enter into the Bluetooth mode. When Bluetooth is in standby mode (disconnected), long press it to start searching and connecting the last paired phone automatically."

20. MENU Button

Press it to show main menu, in DVD mode, long press it to enter TITLE MENU (Enabled only if the DVD disc is with title menu).

21. ENTER Button

Press it to confirm setting.

22. INT / Button

Press it to activate the intro function.

Press to reject a call or hang up while calling only if the BLUETOOTH is connected.

23. ▶Button

In DVD mode press it to start playback.

Press during playback to pause it. Press again to resume.

24. ■ / PBC Button

Press to R.STOP, press it again to final stop playback. In VCD mode, press it and hold for 2 seconds to set PBC on/ off.

25. SUBTITLE Button

Press it to select the subtitle language.

26. A-B/ ZOOM Button

Press it to start repeating of the A-B fragment.

Press it and hold for 2 seconds to zoom the image in or out.

27. RPT/P.SCN/# Button

In CD mode, press to repeat track/disc; In DVD mode, press to start repeat file/repeat all playing, press and hold for two seconds to start repeat folder playing; In VCD mode when PBC is off, press to repeat track/off, long press it to repeat disc.

In Radio mode:

PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.

AS (Auto Save): Long press to save the stations with good reception automatically and scan each station for about 5 seconds.

In Bluetooth mode: Press to make a # symbol.

28. TA Button

Press it to activate the TA function, press and hold for two seconds to choose EON LOCAL/EON DX.

MAIN MENU

The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour.

Unit starts by displaying the Main menu.

This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

Tap ◀ / ▶ buttons on touch screen to change pages, then tap the icons to enter a desired mode.

BUTTON DISCRIPTION

BUTTON	FEATURE	BUTTON		FE ATURE
	Start GPS Navigation St		D Player
	Start RADIO Player AV-		play Mode
	Enter BLUETOOTH Mode			Enter Setting
	Enter Utility Control Enter Setting

NAVIGATION

To start GPS Navigation, tap on NAVI button from main menu screen.

Note: Insert SD card with map into the SD card slot of the front panel before tapping NAVI button. The device will warn you if SD card with map is not properly inserted into the SD card slot of the front panel.

NOTE: Navigation is explain in the Digital Manual, which is located on the SD card. You can read the extensive manual with a PDF viewer on your PC

DVD PLAYER

To start DVD Player, tap on DVD button from main menu screen.

TOUCH SCREEN MENU

You will not see any buttons while DVD is played. Buttons will appear when you tap on LCD screen. Tap the screen again to hide the buttons.

NAVI NAVI VOICE

BUTTON DISCRIPTION IN DVD/SD/USB MODE

BUTTON		FUNCTION
		Start Navigation
		Start Voice guide only while DVD mode
		Color Setting
		Read/Play files in USB memory
		Play files from Disc
		Read/Play files in main SD card**
		Press ◀ button to restart a track,to skip to the previous track. Press ➤button toskip to the next track.Press ◀or ➤button and hold for two secondsto activate fast forward (FF) or fast reverse(REW) search in a track.
		Pause/Play
		Stop
		Navigate by using arrows and press ➔button to enter or start selected.

press it twice

NOTE

1. DVD Player will automatically start playing when you insert any DVD disc, SD card or USB device.
2. Warning displays if the vehicle is moving for driver's safety.
3. DVD Player will not only play video, but also picture and music files as well.

File Management

DVD mode plays files in a) Disc b) USB c) SD card (in main SD card slot on inner panel).

\*\*IMPORTANT\*\*

SD card inserted into front panel will not be played by DVD player.

Front panel SD slot only supports SD card for NAVIGATION.

Only SD card in main SD slots will be accessed by DVD player, and the picture or music files will be also played by DVD player.

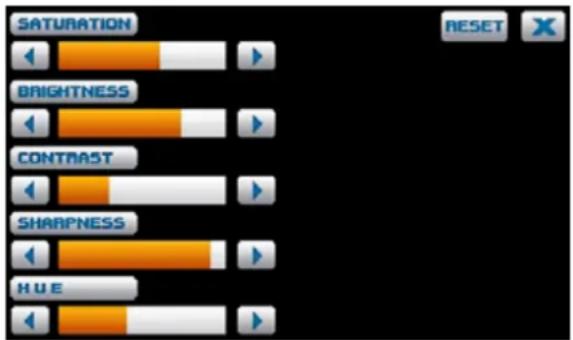

COLOR CONFIGURATION

You can set color preference by tapping button.

SATURATION BRIGHTNESS CONTRAST SHARPNESS HUE

BUTTON DISCRIPTION

SATURATION: Adjust level of screen saturation

BRIGHTNESS: Adjust level of screen Brightness

CONTRAST: Adjust level of screen Contrast

SHARPNESS: Adjust level of screen Sharpness

HUE: Adjust level of screen Hue

Reset to default setting

it Color configuration menu

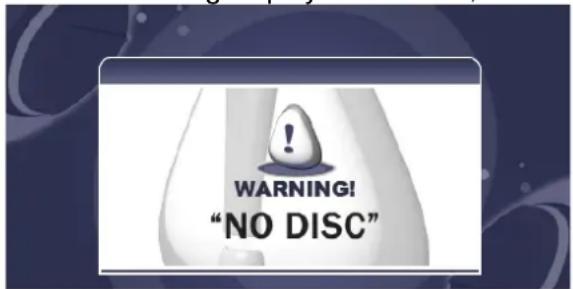

No Disk Warning

No Disc Warning displays when disc, SD card, or USB is not detected.

WARNING! "NO DISC"

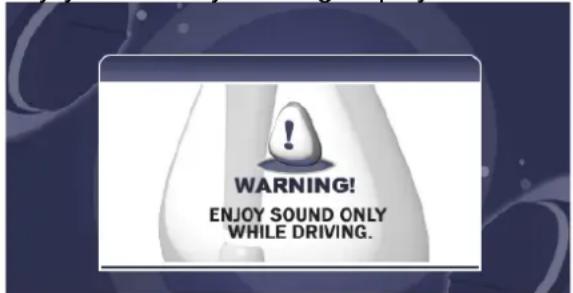

Drive Warning

Enjoy sound only warning displays while vehicle is moving for driver's safety.

WARNING! ENJOY SOUND ONLY WHILE DRIVING.

RADIO PLAYER

To start Radio, tap RADIO button on main menu screen.

RADIO FM1 87.50 MHz NAVI NAVI VOICE 87.50 90.10 98.10 106.10 107.90 87.50

RADIO BUTTON DISCRIPTION

		Quit Radio
		Start Navigation
		Voice guide over radio sound
		Press to search a previous or next station automaticallyPress and hold to search manually, then press them to tune each frequency step upward or downward.
		Press to select the radio station memorized in each buttons, press and hold for two seconds to memorize the current station to each preset button. (Manual Station Store).
		Main Radio Screen provides information regarding Channel, RDS, mode, and band

AV-IN Mode

To start AV-IN Mode, tap on AV-IN button from main menu screen.

AV-IN 2 AV-IN 2

Function description

Start Navigation

Navigation Voice

Color Setting

Exit AV-IN

EV-ID RESET X

Color Setting adjustments

WARNING! "NO VIDEO SIGNAL" guide

No signal WARNING

NO VIDEO SIGNAL will be displayed when there is no Video source signal detected.

BLUETOOTH SECTION

Driving and having a Telephone conversation at the same time is dangerous, please park your car before having a telephone conversation. The supplier waves any and all liability when this warning is not followed.

To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press the Bluetooth button on the Remote Control

BT Main Menu

A user can make own choice by tap the buttons.

Tap CALL button to use phone functions.

Tap MUSIC button to start BLUETOOTH music player.

Tap PHONEBOOK button to use phone book functions.

BLUECOOCH PAIRING PHONE BOOK N/VI MENU CALL MUSIC PHONE BOOK

Pairing Mode

At the 1 ^st time when using BLUETOOTH, you need to pair the mobile phone first.

If a phone have been paired with BT before, the BT icon automatically changes its color from

gray to blue when the unit is turned on

A new pairing with another phone can be made by pressing the PAIRING button

Tap PAIRING button to start pairing. According to mobile manual pairing device, after searching new device (CAR AUDIO), select it, put in pass code "0000" and confirm ok, device pairing is finished.

The text ‘CONNECTING OK’ shows after the pairing is completed. It means device is connected and ready for BLUETOOTH communication. Select connect to device on your mobile phone and the BLUETOOTH connection will be finished. The BLUETOOTH icon will display on the screen.

suggestion

1. Set 'My phone's visibility' as 'shown to all'
2. Select 'Yes' in 'Set as authorized'.

When start paring with phone, the display below is shown.

PAIRING MODE PARING...... CYOL® EXIT

When start connecting with phone, When connecting is ok, the display below is shown. the display below is shown.

PAIRING MODE CONNECTING...... CYOLS EXIT

PAIRING MODE CONNECTING OK! DAIRING MODE DAIRING MODE DAIRING MODE

Quit the pairing by tapping on the EXIT button if you don't want to link with BLUETOOTH anytime.

The Disconnect Pairing Screen may be showed when pressing the CALL, MUSIC or PHONEBOOK buttons before the pairing is completed.

WARNING MESSAGE CANNOT BE USED UNLESS BLUETOCH IS CONNECTED.

In Bluetooth main menu, Bluetooth Disconnect Profile screen will show when a profile is linked in Hands free profile or A2DP profile.

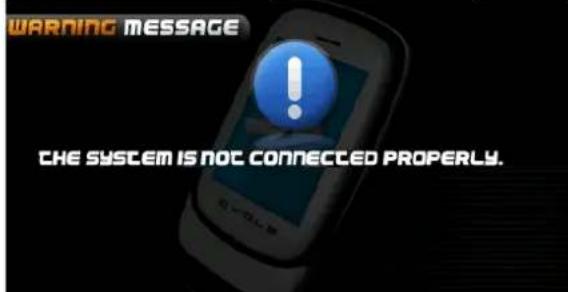

WARNING MESSAGE THE SYSTEM IS NOT CONNECTED PROPERLY.

Auto-connect - Disconnect

When power on the unit, the last paired phone will be connected to the device via Bluetooth automatically, after searching about one minute, if the device cannot find the paired phone, it will stop searching. When in standby mode (unconnected), long press Bluetooth button on remote control to active auto-connect function and the device will search the last paired phone.

If you want to disconnect the Bluetooth connection, tap the Pairing icon 📄 on Bluetooth main menu

BT PHONE BOOK

Tap BOOK button to use PHONE BOOK Connection functions.

The phone will be disconnected from the unit right after you tap button, text 'PAIRING FOR PHONE BOOK DOWNLOAD' shows on the screen. Send business cards via BLUETOOTH from the phone.

BLUECOOCH "PAIRING FOR PHONEBOOK DOWNLOAD"

BLUECOOK "PHONE BOOK DOWNLOAD IS COMPLETED"

NOTE: Before downloading the data from phone, the pairing between a phone and the unit must be completed. The Screen goes back to the main menu of BLUETOOTH, after downloading the data of PHONE BOOK has been completed.

After completing downloading PHONE BOOK data, due to different mobile phones in the market, some phones may auto connect with the unit, but some phones will not. In any case, you need to reconnect to Bluetooth between your mobile phone and the unit. (pairing is not needed again, only connect)

Tap PHONEBOOK button 📄 to use Phone Book functions from BLUETOOTH Main Menu.

BLUECOCK PUNING PHONE BOOK NRAI MENU CALL MUSIC PHONE BOOK

The unit displays the data which have been received from a phone. Select the phone number and pressing SEND button to make a call to the number existing in Phone Book.

Tap on DELETE button to delete a selected phone number.

Simply tap on ALL DELETE button to delete all list numbers in the Phone Book.

List UP Button .

Down Button.

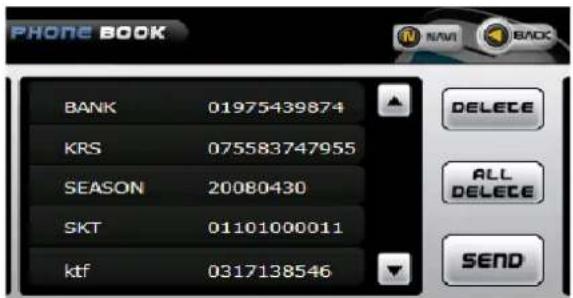

PHONE BOOK BANK 01975439874 KRS 075583747955 SEASON 20080430 SKT 01101000011 ktf 0317138546 N/VI BACK DELETE ALL DELETE SEND

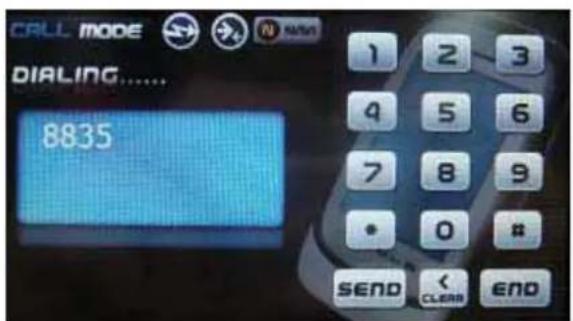

Call mode

Tap on CALL button to enter call mode.

BLUECOOCH P reling PHONE BOOK N/AI MENU CALL MUSIC PHONE BOOK

In Call mode, the unit can be used as your phone. Making and receiving calls are possible with BLUETOOTH. Simply tap phone number and tap SEND button to make a call, and tap END button to hang up.

1.) Press CLEAR button shortly to delete a wrong digit, press the CLEAR button for 3-4 seconds to delete all the numbers at once. (RDM/C button on remote)
2.) Press a number (no. from 0 to 9) for 3-4 seconds to make and store a Speed dial number. If a number already exist a message will be shown.
3.) Press the SEND button for 3-4 seconds, the device automatically makes a call to the latest call in its call log.

The numbers inputted are shown in the blue rectangle as shown below and when the device try to make an Outgoing call, you will see DIALING. When having a call with someone, the display below shows CALL.... When receiving an incoming call from someone, the display below shows, INCOMING CALL....

CALL MODE DIALING...... 8835 1 2 3 4 5 6 7 8 9 • 0 # SEND < CLEAR END

CALL MODE CALL...... 8835 1 2 3 4 5 6 7 8 9 * 0 # SEND < CLEAR END

CALL MODE INCOMING CALL. 075583438332 1 2 3 4 5 6 7 8 9 • 0 # SEND < END

Voice Transfer

During a call, you can change a call from Bluetooth mode to phone by tapping 📄 button. To have a call in Bluetooth mode again, tap 📄 button .

Speed Dial Mode

An inputted number can be saved as a speed dial (abbreviated number) by pressing a number (any number from 0 to 9) for 3-4 seconds. The device informs with the screen as shown below that a dial number already saved as speed dial.

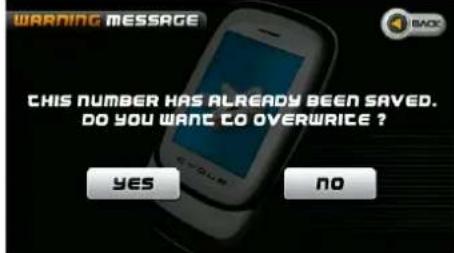

WARNING MESSAGE THIS NUMBER HAS ALREADY BEEN SAVED. DO YOU WANT TO OVERWRITE ? YES NO

In Call mode, tap button to see Speed dial numbers.

10 dial numbers can be saved up as speed dial numbers in number 0 to 9. The unit shows 5 speed dials in one page.

Tap on SEND button after selected a speed dial to make a call.

Tap on DELETE or ALL DELETE button to delete saved speed dial numbers.

SPEED DIAL MODE DIAL NO 0 1 14575 2 58635 3 4 DELETE ALL DELETE SEND

Call history mode

Tap SEND button to see history mode.

Outgoing/Received/Missed calls are saved in History mode.

15 calls are saved on the list in each history, and 5 calls displayed in one page.

The calls in each category are orderly saved from the latest one.

Tap on DELETE or ALL DELETE button to delete saved dial numbers.

HISTORY MODE OUTGOING RECEIVED MISSED 1 8835 2 8835 3 8835 4 85 5 14258 1 2 3 DELETE ALL DELETE SEND

(A2DP) Music Mode

Tap MUSIC button to listen music in Bluetooth mode.

Tap the button for 'music' in Bluetooth main menu.

You can select the function with the key for play, stop, pause, prev and next.

MUSIC MODE ON BACK

Tap the BACK button to quit the music mode.

A2DP (Advanced Audio Distribution Profile) Music Player

A2DP is a function which can receive the audio frequency signal from the mobile phone, amplified by the car audio and played out by the car speakers.

Notice: your mobile phone need to support A2DP.

UTILITY

Utility contains various features for user comfort and convenience. Tap on button from main menu screen to enter Utility menu screen.

CTRL CALCULATOR CALENDAR

Press BACK button to back to Main Menu Screen

CALCULATOR

Execute calculator Application.

CALCULCOR 7 8 9 / 4 5 6 * 1 2 3 - 0 +/- . + SORT % 1/X =

Function description

MC Memory numeric clear
MR Memory numeric restore (display)
MS Numeric save memory
M+ Add edit numeric to memory numeric
Back space Back space
CE Clear Error
C
+, -, *,
0\~9
=
Current calculative numeric clear
/ The four arithmetical operations
Numeric display
Dot display
Enter
Program exit

CALENDAR

Execute CALENDAR Application.

CALENDAR 2003 JANUARY SUN HON TUE MUD TIED FRI SAT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

The calendar application screen described below. Verify the present date by application screen. The initial setting of date is 1 ^st Jan 2003 and using RED box to indicate present date.

Note: Set up the present date by SETTING function in MAIN MENU screen.

Function description

	Decrease / Increase Year
	Decrease / Increase Month
	Exit Calendar and back to previous screen

SETTING CONTROL

Your device has default system settings. You can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again.

To start SETTING, tap on button from main menu screen.

SETTING UPDATE BACK SOUND DISPLAY DATE & TIME RDS & RADIO SYSTEM CALIBRATION

SOUND CONTROL

10 different setting is possible through sound control menu.

Tap SOUND button from setting menu screen to enter sound setting menu.

SOUND SETTING 1 EQUALIZER FLAT CLASSIC POP ROCK DSP OFF TA VOLUME

EQUALIZER	Select EQ mode
TA VOLUME	TA Volume Control (Radio)

SOUND SETTING 2 BASS TREBLE BALANCE FADER CENTER + + R F 1 2 3

BASS	Bass up/down
TREBLE	Treble up/down
BALANCE	Left/Right Balance Control
FADER	Front/Back Fader Control

SOUND SETTING 3 BEEP OFF ZND ALL LOUD ON OFF SUB WOOFER ON OFF 1 2 3

BEEP Keypad sound setting

LOUD Set LOUD ON/OFF

SUB WOOFER Sub Woofer Base support setting

DISPLAY CONTROL

Tap DISPLAY button from setting menu screen.

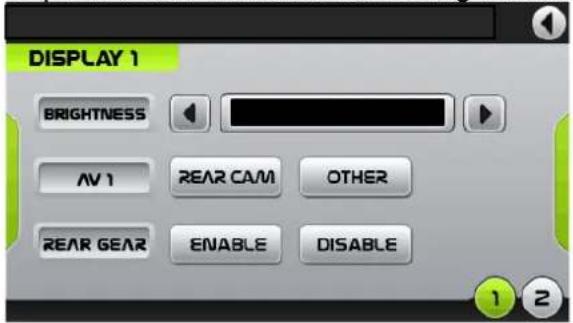

DISPLAY 1 BRIGHTNESS AV 1 REAR CAM OTHER REAR GEAR ENABLE DISABLE

Brightness	TFT Panel brightness control
AV1 Rear CAM	Other
Rear Gear Enable	Disable

Remark: Rear CAM: set AV1 as rear cam, Other: set AV1 as AV IN.

When entering the AV-IN mode, AV-IN 1 mode is defaulted after you enable the rear camera, or you should make a choice between AV-IN 1 and AV-IN 2 when OTHER is selected, or AV-IN 2 mode is defaulted after you disable the rear camera.

AV-IN AV-IN 1 AV-IN 2 BACK

DISPLAY 2 DUAL ON OFF KEY DVD CURRENT

DUAL Dual Mode Control
KEY	Key	Control

DATE&TIME CONTROL

Tap [DATE&TIME] button from setting menu screen.

DATE & TIME YEAR MON DAY TIME HOUR MIN 12

12 hour mode/24 Hour Mode

Tap button to change time mode to 24 hours, tap it again to 12 hours.

RDS & RADIO CONTROL

Tap RDS&RADIO button from setting menu screen.

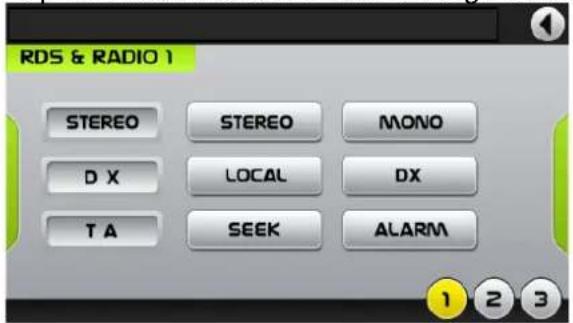

RDS & RADIO 1 STEREO STEREO MONO D X LOCAL DX T A SEEK ALARM 1 2 3

Tap [2] button from RDS & RADIO menu 1 screen. Various Radio options can be set.

RDS & RADIO 2 EONTA LOCAL DX REG ON OFF PI MUTE SOUND RETUNE LONG SHORT MASK DPI ALL 1 2 3

Choose location where you are using Radio to set frequency configuration.

RDS & RADIO 3 RADIO AREA EUROPE USA ASIA LATIN AMERICA

TA

TA SEEK mode:

When newly tuned station does not receive TP information for 5 sec, the radio retunes to next station which has not the same station (PI) as the last station, but has the TP information.

When TP information gets lost at the current station for retune time which is set by RETUNE SHORT(30 sec) or RETUNE LONG (90 sec), the radio start to retune to next same PI station. When same PI station does not catch in 1 cyclic search, the radio retunes to next station with TP information.

TA ALARM mode.

When this mode is selected, any automatic retune mode is not activated. Only double beep sound (ALARM) is shown. So, in this mode, the unit keeps the current station. (The higher priority is PI rather than TP.)

EONTA

EONTA LOCAL mode

When the field strength level of EON linked is less than the threshold level, the radio does not switch the station.

EONTA DISTANCE mode

EON TA switching is try to implemented by the information of current station. When EONTA DISTANCE mode is selected, “EONTA DX” on numeric display is indicated for a few seconds.

REG

Regional mode ON

AF switching or PI SEEK is implemented to the station which have all PI codes the same as current station. REG of individual segment is turned on also together with displaying “REG ON” on numeric display for a few seconds.

* In double displaying mode, the individual segment may be deleted in case of not enough-space in display.

Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented. REG of individual seg. is turned off together with displaying “REG OFF” on numeric display for a few seconds.

PI

When different PI sound (DIP) is heard once in a while, the DIP's sound will be heard for less than 1 second.

PI MUTE mode

Under the same situation, a mute sound will be heard for less than 1 sec.

RETUNE

The initial time of automatic TA search or PI SEARCH mode is selected. When PI information is not caught for return time, the radio start to return to next same PI station. When same PI station does not catch 1 cyclic search, the radio goes to last station and waits for 4 -5 minute until PI code is received.

• RETUNE L mode: Selected as 90 seconds.
• RETUNE S mode: Selected as 30 seconds.

MASK

MASK DPI mode: masked only the AF which has Different PI.

MASK ALL mode: masked the AF which has Different PI and NO RDS signal with high field strength.

SYSTEM INFORMATION

Press SYSTEM button to show the information of the system. Press 🏠 button to back to previous screen. Tap RESET button to restore GPS to the factory default settings.

YES WARNING! NO It will reset navigation, color and personal settings to be default. Are you sure?

You can view detail system information including serial number of the software.

CALIBRATION

CALIBRATION of the touch screen. CALIBRATION screen is described as below.

Carefully press and briefly hold stylus on the center of the target. Repeat as the target moves around the screen.

When the target moves to another position, tap and hold at the center of the new target. Repeat each time to complete the calibration process. When completed, tap anywhere in screen to go back to menu screen.

DVD SET UP MENU

Press the SETUP button on the remote control to enter the DVD player setup menu to setup the DVD player operation setting. Press SETUP button to enter into the system settings main menu; press the left or right arrow buttons to move to the highlighted menu item and select one of the Setup Pages:

Language OSD LANG Subtitle Audio Disc Version English Deutsch Español Hallano Русский Français OSD language setup English

Display TV display TV Type Angle mark Screen saver

Audio Downmix Dual mono Dynamic

Parental Change Parent Default

Language setup

Press SETUP and then ENTER to enter into LANGUAGE setup menu.

[1]. OSD language setting:

With this option you can select the language for your On Screen Display (OSD). This menu item has 6 languages available.

[2]. Subtitle setting:

With this option you can select the preferred language for the subtitles. When the selected language is recorded on the disc then this language will automatically be shown. If not, the first language recorded on the disc is displayed.

[3].Audio setting:

With this option you can select the preferred language for the audio output. When the selected language is recorded on the disc (not all discs have multiple languages recorded) then this language will automatically be played. If not, the first language recorded on the disc is played.

[4]. DISC Menu setting:

With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed.

[5].Version display:

With this option you can know the version about the unit.

Display setup

[1] TV Display setup:

Set TFT screen mode to the correct ratio:

Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used.

[2] TV Type setup:

Select this menu item to set up your preferred video output format. PAL is commonly used in Europe, NTSC is commonly used in the USA and Japan. Auto is commonly used.

[3] Angle mark setup:

When playing a DVD disc and you have selected ON, and then the screen will show the angle mark. This will give you the possibility to view multi angle DVD's.

[4] Screen Saver setup:

When playing a DVD disc and you have selected ON, the screen will enter Screen Saver function if you stop played about 3 minutes.

Audio setup

[1] Down Mix setup:

Press the DOWN arrow to enter the sub-menu. If you want analog stereo signals, set the sound mode to 'STEREO'. If you want to have Dolby Pro Logic stereo (the decoded signal will create a 2ch reality simulating effect), select 'LT/RT'.

[2] Dual Mono setup:

Select the type of output of the Left and Right audio output connectors. Stereo is normal Stereo, L-Mono is all sound on the Left Audio output, R-Mono is all sound on the Right channel. The 'Mix-Mono' function only works when a DVD is being played in DTS 5.1 mode.

[3] Dynamic setup:

This function is to adjust the linear compression rate to obtain the different compression results of the signals. Standard set to OFF.

Parental setup

[1]Change setup:

With this option you can change your password protection.

[2] Parental setup:

For DVD discs with a rating system programmed parents can prohibit watching content that might be inadvisable for children. The default enter password is 0000.

[3] Default setup:

With this option you can clear all your setup and resume default setup.

Code	Description
1	Kid safe
2.G	General - ALL ages admitted
3.PG	PARENTAL GUIDANCE SUGGESTED-Some material may not be suitable for children
4.PG-13	PARENTS STRONGLY CAUTIONED-Some material may be inappropriate for children under 13
5.PG-R	Restricted, under 17 requires accompanying parent or adult guardian.
6.R	RESTRICTED-Under 17 requires accompanying parent or adult guardian
7.NC-17	NO ONE 17 AND UNDER ADMITTED
8.Adult	Above 17 Admitted

Anti-theft system

Remove the panel

1. Press the POWER button to turn the power off.
2. Press OPEN button to detach the panel.
3. Pull the panel out.
4. Place the panel into the case and take it with you when you leave the car.

Handling discs

● Dirty, scratched or warped discs may cause skip ping or noise.
● Handle the disc only by the edges. To keep clean do not touch its surface.
● Discs should be stored in their cases after use to avoid scratches.
- Do not expose discs to direct sunlight, high humidity, high temperature or dust.
- Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
- Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
- DO NOT touch the unlabeled side. DO NOT attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge. Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Two hand-drawn diagrams showing a hand holding a piece of paper or paper, with arrows indicating movement or force direction (no text or symbols present)

Troubleshooting

SYMPTOM CAUSE	SOLUTION
NO POWER	THE CAR IGNITION IS NOT ON.	IF THE POWER SUPPLY IS PROPERLY CONNECTED TO THE CAR ACCESSORY SWITCH THE IGNITION KEY TO “ACC”.
	THE FUSE IS BLOWN. REPLACE	CE THE FUSE.
DISC CANNOT BE LOADED.	PRESENCE OF DISC INSIDE THE PLAYER	REMOVE THE DISC IN THE PLAYER THEN PUT A NEW UPWARD.
DISC CANNOT BE READ.	INSERTING THE DISC IN UPSIDE DOWN.	INSERT THE COMPACT DISC WITH THE LABEL FACING UPWARD.
	COMPACT DISC IS EXTREMELY DIRTY OR DEFECTIVE.	CLEAN THE DISC OR TRY TO PLAY A NEW ONE.
	TEMPERATURE INSIDE THE CAR IS TOO HIGH.	COOL OFF UNTIL THE AMBIENT TEMPERATURE RETURNS TO NORMAL.
NO SOUND	VOLUME IS IN MINIMUM. ADJUST VOLUME TO A DESIRED LEVEL.
	WIRING IS NOT PROPERLY CONNECTED.	CHECK WIRING CONNECTION.
THE OPERATION KEYS DO NOT WORK.	THE BUILT-IN MICROCOMPUTER IS NOT OPERATING PROPERLY DUE TO NOISE.	PRESS THE POWER BUTTON FOR ABOUT 10 SECONDS TO RESET THE UNIT.
	FRONT PANEL IS NOT PROPERLY FIX INTO ITS PLACE.
SOUND SKIPS.	THE INSTALLATION ANGLE IS MORE THAN 30 DEGREES.	ADJUST THE INSTALLATION ANGLE TO LESS THAN 30 DEGREES.
	THE DISC IS EXTREMELY DIRTY OR DEFECTIVE.	CLEAN THE COMPACT DISC/TRY TO PLAY A NEW ONE.
THE RADIO DOES NOT WORK, THE RADIO STATION AUTOMATIC SELECTION DOES NOT WORK.	THE ANTENNA CABLE IS NOT CONNECTED THE SIGNALS ARE TOO WEAK.	INSERT THE ANTENNA CABLE FIRMLY SELECT A STATION MANUALLY.

SERVICE AND WARRANTY

In case of technical problems with your product, contact the sales outlet where you have purchased this product

Rho-Delta Automotive & Consumer Products BV grants you a 1-year warranty from the invoice date. In case of defects, the buyer only has a right to subsequent performance. This subsequent performance will include either repair or the delivery of a replacement product. Exchanged units or parts will be the property of Rho-Delta Automotive & Consumer Products BV. Evidence of the warranty must be provided in the form of proper proof of purchase (sales receipt or invoice).

Damage caused by improper handling, operation storage or by force majeure or other external influences is not covered by the warranty. The same applies to wearing parts, e.g. rechargeable batteries (6 months).

TECHNICAL SPECIFICATIONS

General
Power supply: 12 V DC
Current consumption: max. 10 A
Maximum power output: 40W x 4 channels
Compatible formats: DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG/CD-R/-RW/DVD±R/±RW playback
Dimensions (L x W x H) / weight:	207 x 197 x 59 mm / 1.8 kg
Working temperature range:	-10°C - +60°C
ESP function: 10 sec. for Audio CD, 120 sec. for MP3
TFT display
Screen size: 3.5 inch
Resolution:	320x234 dot
Aspect ratio: 4:3/16:9
Contrast ratio: 350:1
Brightness:	400 cd/m2
FM Stereo Radio
Frequency range: 87.5 – 108.0 MHz
Usable sensitivity: ≤12dBu
Preset memory stations: 18
AM section
Frequency range: 522 kHz - 1620 kHz
Preset memory stations: 6
Audio specification
Frequency response: 30 Hz - 18 KHz
S/N ratio(A-vtd):	68 dB
DSP sound effect:	Classic, Rock, Pop, Flat
TV Color System	Color system PAL/SECAMSensitivity 65 dB
Line outs:	4 channel RCA line-out (2V)1 channel Subwoofer pre-out

Specifications are subject to change without notice. Mass and dimension are approximate.

CE

EU DECLARATION OF CONFORMITY/ EU KONFORMITÄTSERKLÄRUNG/ EU DECLARATION DE CONFORMITÉ/ EU DECLARATION DE CONFORMIDAD

Is in accordance with the Radio and Telecommunications Terminal Equipment Act (FTEG) and Directive 1999/5/EC (R&TTE Directive) as for radio equipment. The product is in compliance with the accentual requirements of § 3 and the other relevant Provisions of the FTEG (Article 3 of the R&TTE Directive).

This according to standard 1999/5/EG

This Declaration is in responsibility of the Importer

Date of Issue : 29.08.2008

Rho-Delta Automotive & Consumer Products BV

Villa California Building

Escudostraat 2

2991 XV Barendrecht-Rotterdam

The Netherlands

NOTES
