USER MANUAL I2473PWM AOC

LCD Monitor User Manual

I2473PWY/I2473PWM

LED Backlight

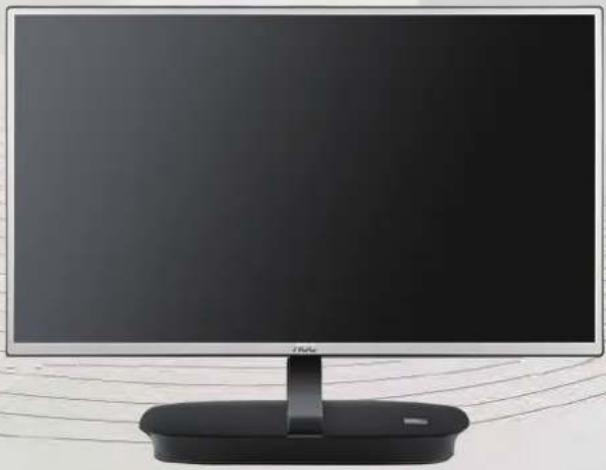

Front view of a modern computer monitor with a black stand and base (no visible text or symbols)

Safety....4

National Conventions....4

Power 5

Installation....6

Cleaning 7

Other 8

Setup 9

Contents in Box 9

Adjusting Viewing Angle....10

Connecting the Monitor....11

Speaker Mode 12

Miracast Operation 12

Miracast Update 12

Miracast Language Select....12

Adjusting 14

Setting Optimal Resolution 14

Windows 8....14

Windows Vista 16

Windows XP 18

Windows ME/2000....19

Hotkeys....20

OSD Setting....23

Luminance 24

Image Setup 25

Color Setup....26

Picture Boost 27

OSD Setup 28

Extra 29

Exit 30

LED Indicator 30

Driver 31

Monitor Driver 31

Windows 8....31

Windows 7....35

Windows Vista 39

Windows XP 41

Windows 2000....44

Windows ME....44

i-Menu....45

e-Saver 46

Screen+ 47

Troubleshoot 48

Specification 50

General Specification 50

Preset Display Modes....51

Pin Assignments ....53

Plug and Play....55

Regulation....56

FCC Notice 56

WEEE Declaration 57

EPA Energy Star 58

TCO DOCUMENT 59

Service....60

Warranty Statement for North & South America (excluding Brazil)....62

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

⚠️ Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V \~, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter which have CE,UL,CSA listed license (Only for monitors with power adapter).

Factory:

TPV ELECTRONICS(FUJIAN) CO., LTD Model : ADPC1965

SHENZHEN HONOR ELECTRONIC CO.,LTD. Model: ADS-65LSI-19-1 19065G

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

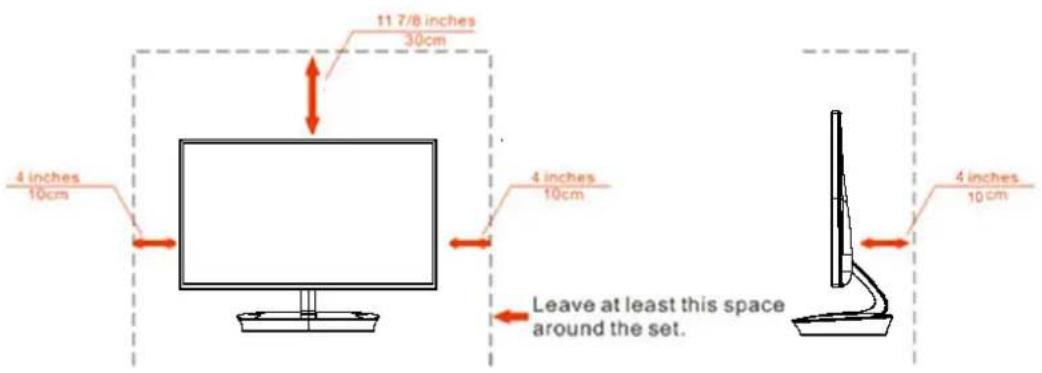

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the stand:

Installed with stand

11.7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

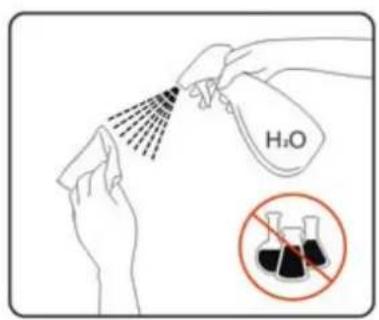

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

! Please disconnect the power cord before cleaning the product.

H₂O No. 100%

Simple line drawing of a computer monitor with a cable and a power outlet, no text or symbols present.

Illustration of a hand interacting with a computer monitor displaying a curved line graph (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

For display with glossy bezel the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Setup

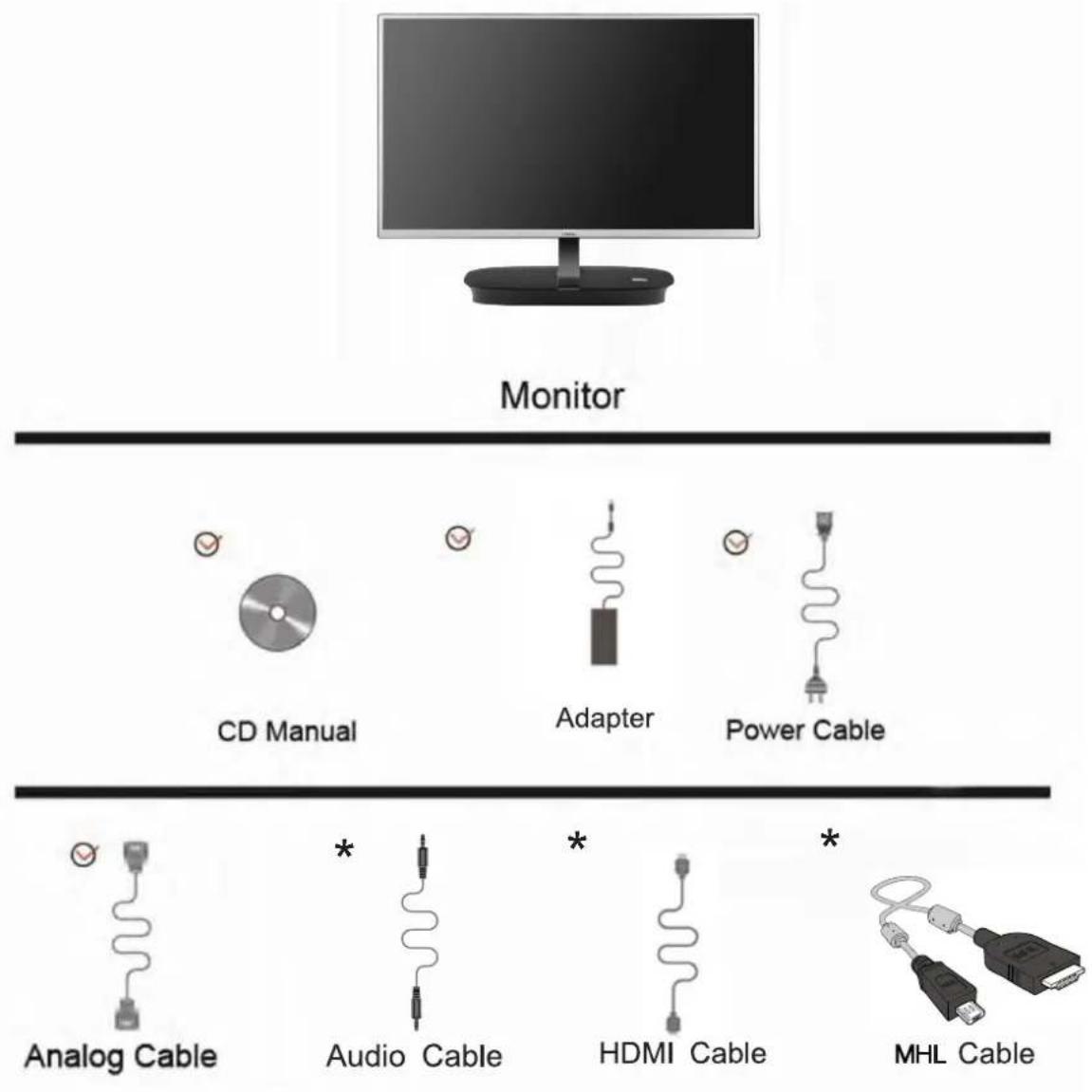

Contents in Box

Monitor CD Manual Adapter Power Cable Analog Cable Audio Cable HDMI Cable MHL Cable

* Not all signal cables (Audio,HDMI,MHL) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Adjusting Viewing Angle

For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle as below.

- 3° 20°

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

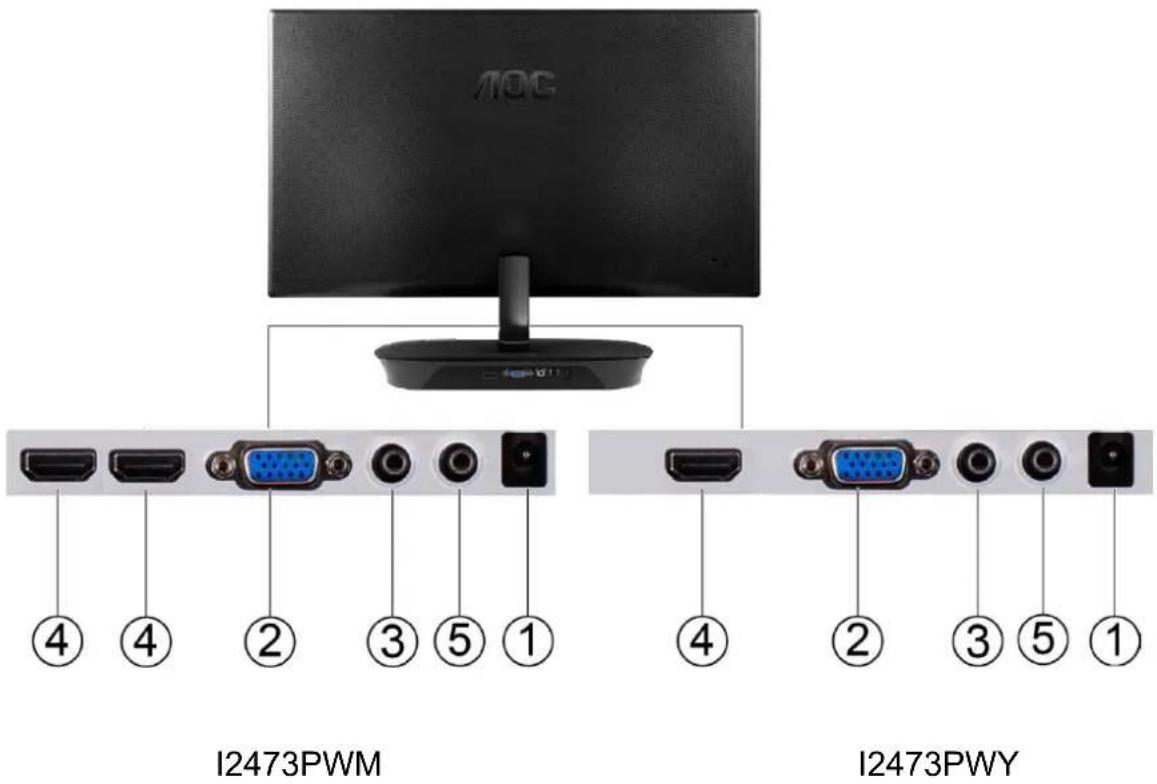

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

I2473PWM I2473PWY

1. DC port
2. Analog (DB-15 VGA cable)
3. Audio
4. HDMI/MHL
5. Earphone

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the DC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3. Optional –( Requires a video card with audio port) - Connect one end of the audio cable to the back of the monitor and connect the other end to the computer's audio port.
4. Optional –(Requires a video card with HDMI/MHL port) - Connect one end of the HDMI/MHL cable to the back of the monitor and connect the other end to the computer's HDMI/MHL port.
5. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Speaker Mode:

Turn "Speaker mode" on, you can play music via line-in without video signal (D-SUB/HDMI/MHL) input.

When "Speaker mode" is on, the indicating led will always show "Blue color"

Operation: Main menu → OSD Setup → Speaker Mode → On

Miracast Operation:

1. Power on I2473PWY, and select OSD Menu→"Extra"→"Input select"→"Miracast"; or turn on "Miracast" from hot key "Auto"
2. Turn on the Wi-Fi CERTIFIED(Miracast) device (Cell phone/Tablet/NB) and run the Miracast function (Screen Mirroring) to scan device. Select the "AOC-I2473PWY-xxxx" on the list and the Miracast connecting will be proceeded automatically.

Note:

a. The Miracast device must be Android 4.2.2 or greater to support Miracast function
b. If the screen mirroring output of Miracast device is not smooth, please check the Wi-Fi setting of device, the Wi-Fi connection uses 5GHz as first priority is recommended.

Miracast Update:

1. Turn on Miracast then open "OSD Setup" of OSD menu and turn "Miracast Update" to "On"; Miracast will enter the "Miracast Firmware Update" page.
2. Go to AOC official website and download the new firmware to NB or PC.
3. Open the Wi-Fi of NB/PC then scan the "AOC-I2473PWY-xxxx" and make connection.
4. After connection, open your browser and point your browser to http://192.168.16.1
5. Click the "Update" from the web page. Click "select file" and find the new firmware then click "Upload new Firmware" to upload the file to I2473PWY. After upload, the I2473PWY will start the update automatically. During the procedure of update, I2473PWY will auto re-start twice.

Note.

a. On "Update" web page, you can have a check that the firmware of I2473PWY is the latest or not?
b. During the procedure of update, it should always under Miracast mode and do not turn off the I2473PWY or switch to D-SUB/HDMI/MHL mode.
c. If update fails and Miracast mode can't turn on, please feedback the problem to service center.

Miracast Language Select:

1. Turn on Miracast then open "OSD Setup" of OSD menu and turn "Miracast Update" to "On"; Miracast will enter the "Miracast Firmware Update" page.
2. Open the Wi-Fi of NB/PC then scan the "AOC-I2473PWY-xxxx" and make connection.
3. After connection, open your browser and point your browser to http://192.168.16.1
4. Click the" Setup" from the web page and select the language you need from item "Language", then click the "Reboot". After click "Reboot", I2473PWY will auto re-start and change to the selected language.

Brand	Model	Name
HTC	New One Butterfly
Sony	Xperia Z
	Xperia ZL
	Xperia V
Samsung	Galaxy S IV
	Galaxy S III
	Galaxy Note II
	Galaxy Note 8.0
	Galaxy Tab 10.1
Google Inc.	Nexus 4
LG Electronics	Optimus G
ZTE	967S

Android OS needs to update to the latest version.

Adjusting

Setting Optimal Resolution

Windows 8

For Windows 8:

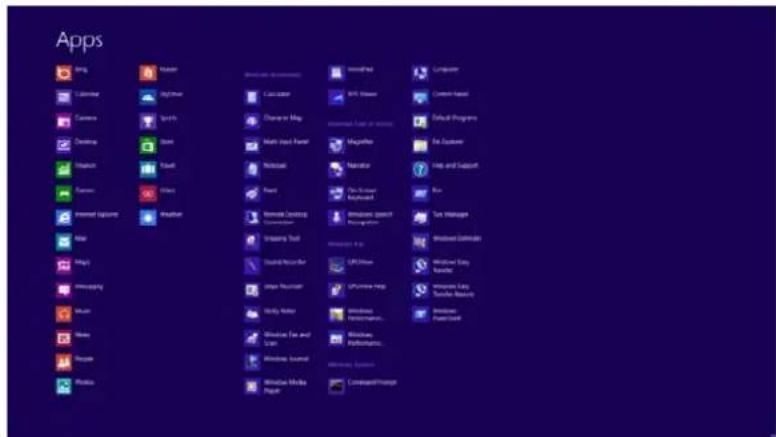

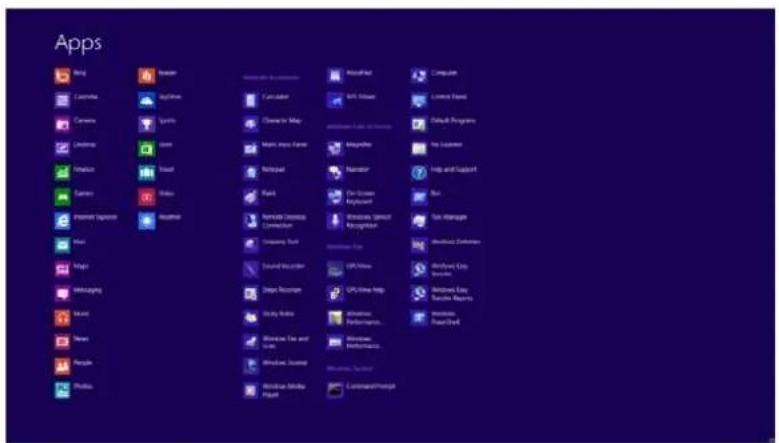

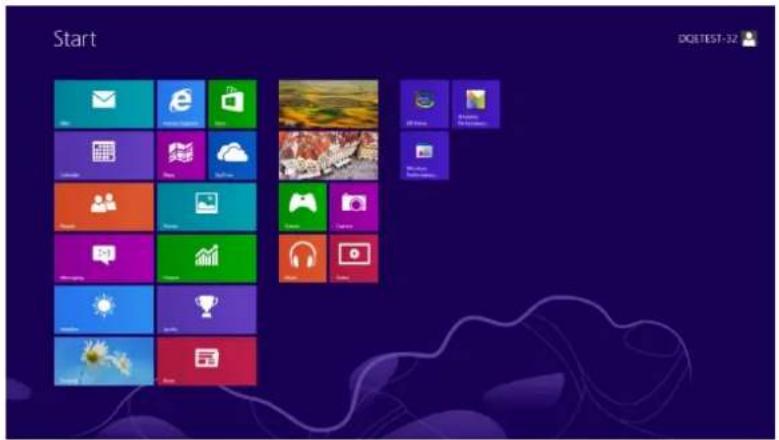

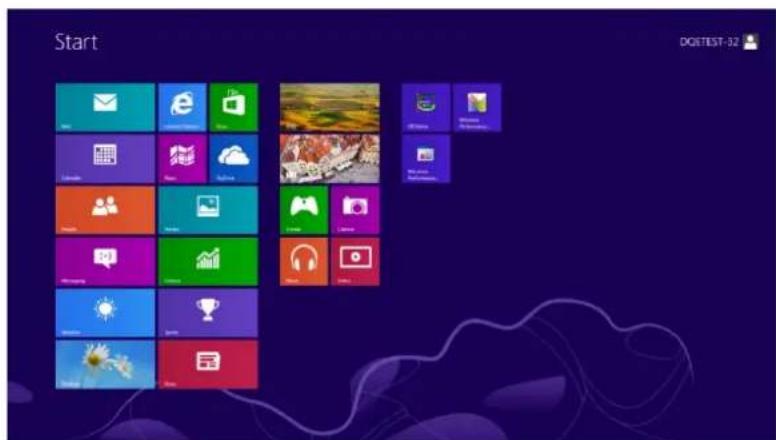

1. Right click and click All apps at the bottom-right of the screen.

Start DOETEST-32

Apps Blog Camilla Camera Climsup Flash Gamma Gamma Premiere Vlog Vlog Vlog Modging Music Music New People Photos Internet Explorer Web Internet Explorer Windows Internet Explorer Microsoft Internet Explorer Google Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI MSI

1. Set the "View by" to "Category".
2. Click Appearance and Personalization.

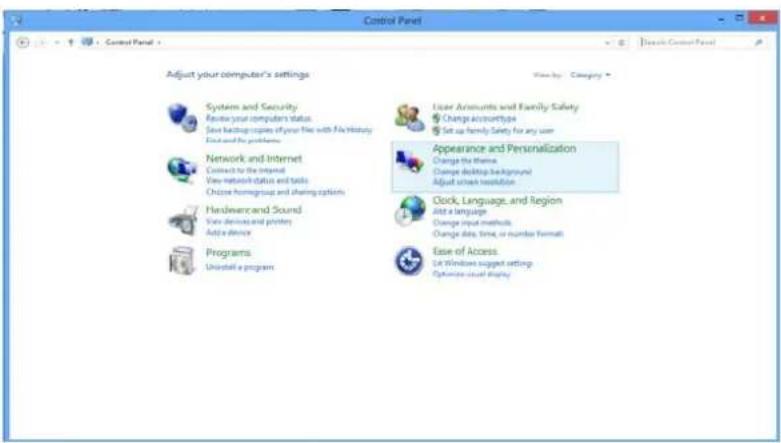

Control Panel Adjust your computer's settings Systems and Security Review your computers status Set backup copies of your file with My History Find and the problems Network and Internet Connect to the Internet View network status and tools Choose homegroup and sharing options Hardware and Sound View devices and printers Add a device Programs Unrealise a program User Accounts and Family Safety Change accounttype Set up family safety for any user Appearance and Personalization Change the theme Change desktop background Adjust screen resolution Clock, Language, and Region Edit a language Change input methods Change data, time, or number format Ease of Access Let Windows suggest setting Options visual display

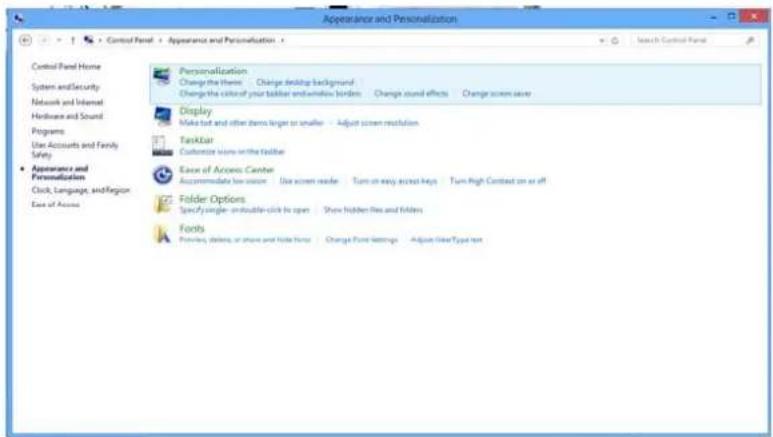

4. Click DISPLAY.

Appearance and Personalization Control Panel Home System and Security Network and Internet Hardware and Sound Programs Use Accounts and Family Safety Appearance and Personalization Click, Language, and Region Ease of Access Personalization Change the theme: Change desktop background Change the color of your backbar and window borders Change sound effects Change screen saver Display Make bit and other items longer or smaller Adjust screen resolution Faskbar Customize screen on the toolbar Ease of Access Center Accummodable low season Use screen reader Turn on easy access keys Turn High Contrast on an off Folder Options Specify single - undouble-click for open Show Hidden files and folders Fonts Preview, displaying, or show and hide font Change Point Settings Adjust Image Type text

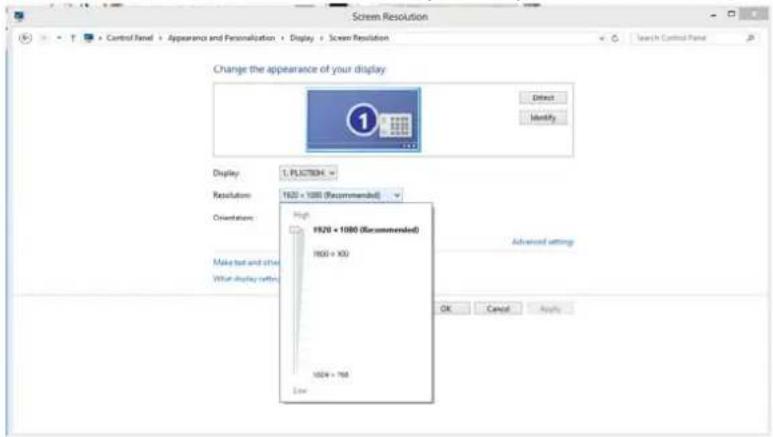

5. Set the resolution SLIDE-BAR to Optimal preset resolution

Screen Resolution Change the appearance of your display: Display: 1, PLOTBDN4 Resolution: 1600 x 1000 (Recommended) Orientation: High F8/20 x 1000 (Recommended) 1600 x 100 Make text and other What display retina: Low Advanced settings OK Cancel Apply

Windows Vista

For Windows Vista:

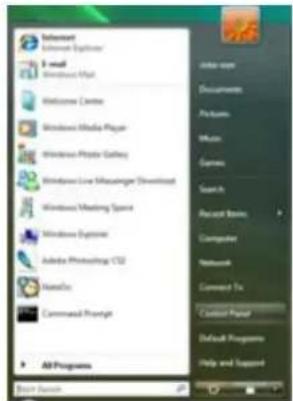

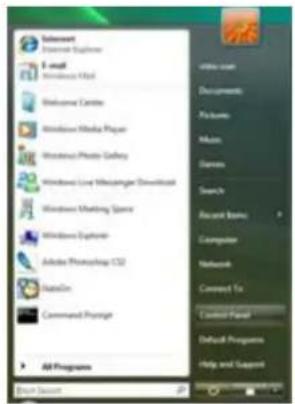

1 Click START.
2 Click CONTROL PANEL.

Internet Internet Explorer I-mail Windows Help Welcome Centre Windows Media Player Windows Player Gallery Windows Live Myanmar Shirubird Windows Meeting Space1 Windows Express Adobe Photoshop CS2 NameTo Command Prompt All Programs Data from Documents Pictures Music Games Search Recent Items Computer Network Complaint To Default Report Default Programs Help and Support

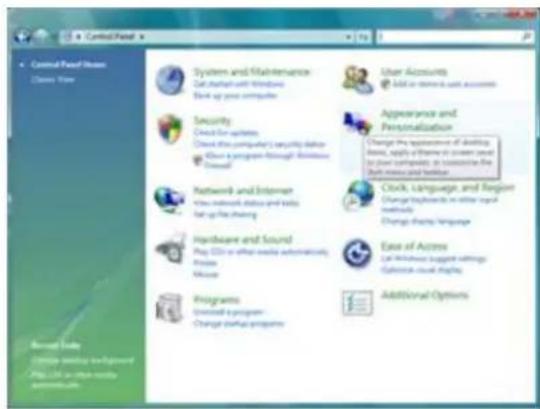

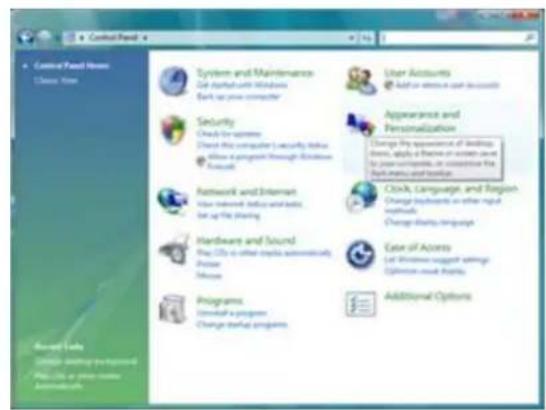

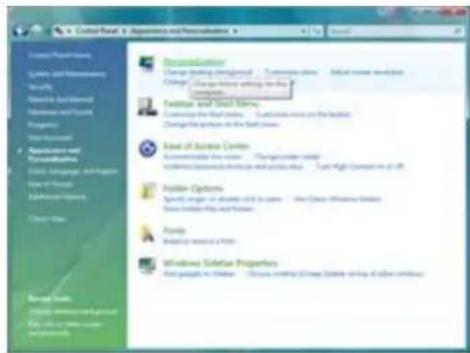

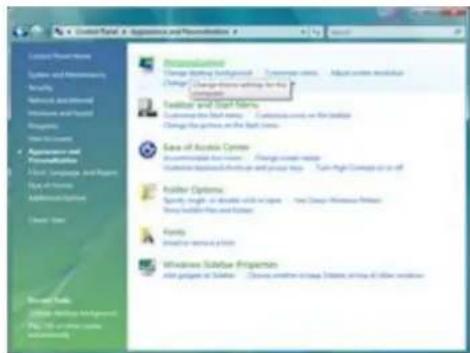

3 Click Appearance and Personalization.

Control Panel Options Class View System and Maintenance Get Home and Windows Get up your computer Security Check for updates Check the computer's security data Show a program through Windows Download Network and Internet View network data and links Set up for sharing Hardware and Sound Play CD to other media automatically Update Mouse Programs Discount to program Change referral programs User Accounts Add or remove a unit account Appearance and Personalization Change the appearance of desktop Windows, apply a theme in power cloud to your components in connection to the Bath mode and folder. Clock, language, and Region Change hierarchies in other signal methods Change empty language Ease of Access Let Hubble suggest settings Options cloud rights Additional Options

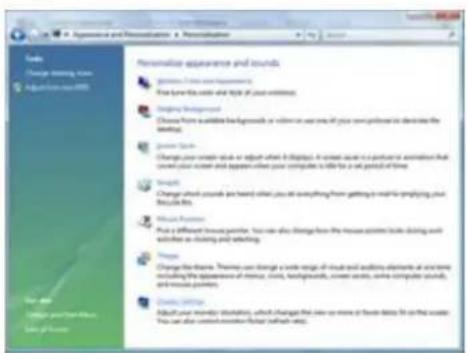

4 Click Personalization

Database/Real Name System and Maintenance Security Network (all Internal) Internet and System Properties Data (Local) Application and Preparation Data, Language, and Rerms Data of Home Address/Options Clear: 0.01 Database Settings Database & Database Properties Add database to Database Browse database from the Database Options Create a Database Options for the Database Database and Start Options Create the Start name: Create the Start name on the Start name: Create the Start name on the Start name: Case of Database Options Create database from the Database Options Create database from the database and your type: Turn High Coordinate to off Database Options Specify: Insight in a database with an open New Database Options New Database Files and Rerms Forts Create a software file Windows Subtable Properties Add database to Database Browse database from the database, adding a file or server

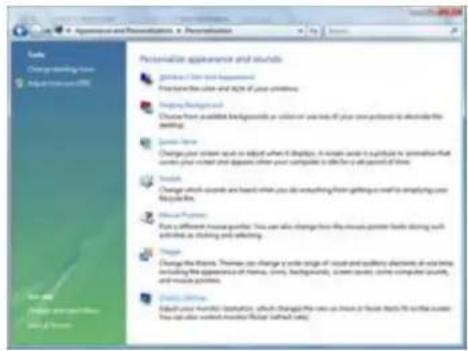

5 Click Display Settings.

Appearance and Recommendation & Presentation Language Change viewing time Adjust from user profile Performance appearance and structure General View and Environment Create the color and highlights of your currently Background Choose from available backgrounds as colors or versions of your current platform to allocate this meeting. Visual Change your screen view on subject when it displays, in terms of use in a project to animation that cover your screen view and appraise other computer objects to file up and pass of this English. Change which appears are heard when you do everything getting out with to simplify your background. Visual Properties Make a different image profile. You can also change how the image points have matching with activities as clicking and selecting. Preview Change the shares. These can change a wide range of issues and questions elements at site being including the appearance of memory, cloud, background, screen survey, mini computer security, and inside guidelines. Details: All rights Adjust your monthly applications, which change the views as book or folder files for the current You can also review monitor filter (email) ways.

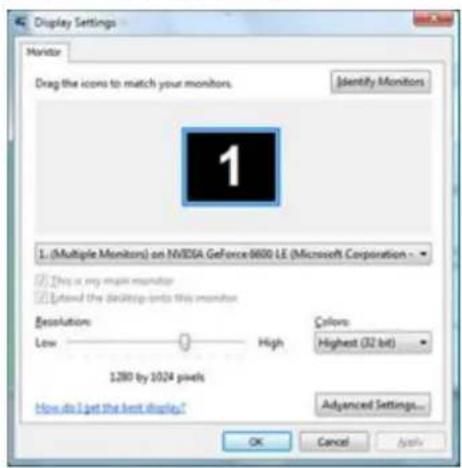

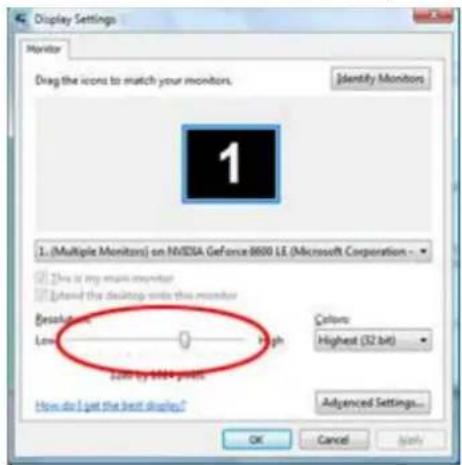

6 Set the resolution SLIDE-BAR to Optimal preset resolution

Display Settings Monitor Drag the icons to match your monitors. Identity Monitors 1 (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation) Show it my main monitor Show the desktop with this monitor Resolution: Low High Color: Highest (32 bit) How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

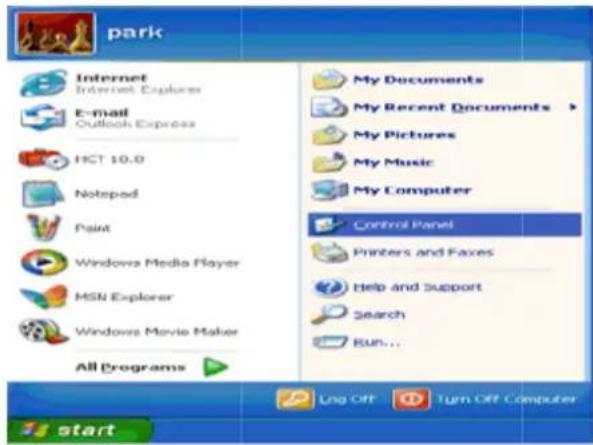

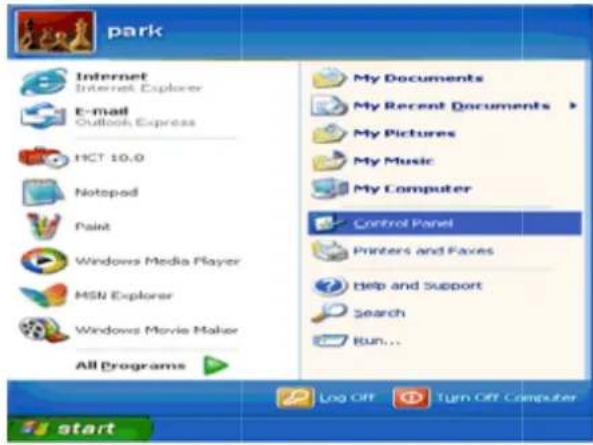

For Windows XP:

1 Click START.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.
3 Click CONTROL PANEL.

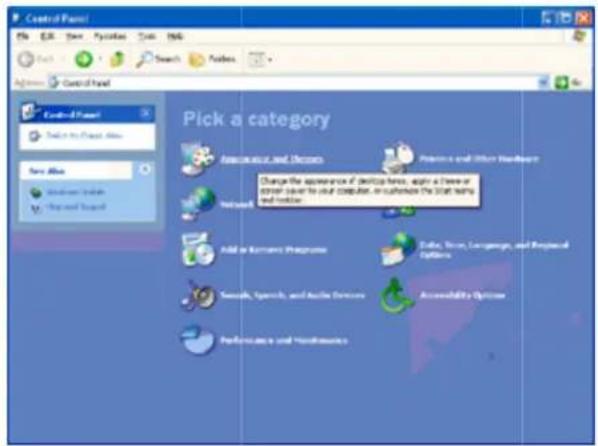

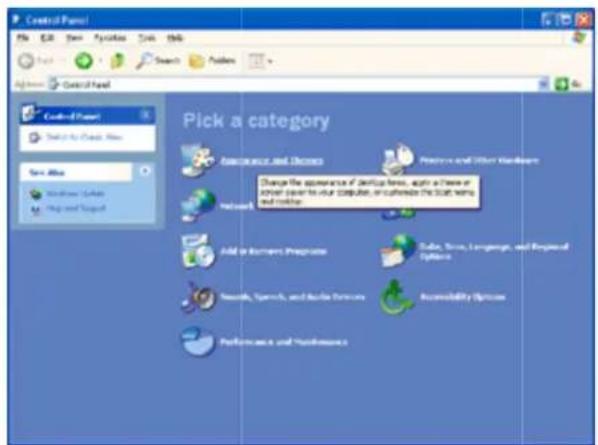

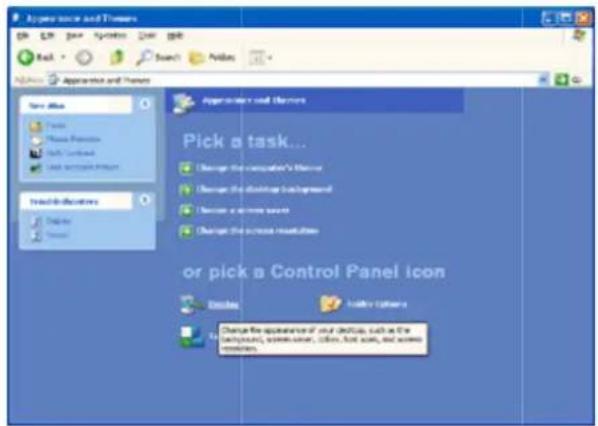

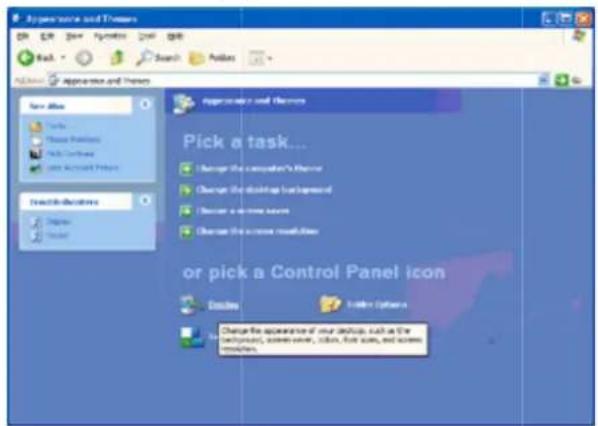

4 Click Appearance and Themes.

Control Panel File Edit View Favorites Tools Help Search Favorites Control Panel Check out Power Select to Create New Save Asks Windows Update Help and Support Pick a category Computer and Devices Networks and Other Hardware Change the applications of virtual fees, again a Term or School Paper for your computer, or software the Start wing and linker. Add in Business Programs Cable, Drive, Language, and Dimension Options Newels, Speech, and Audio Dimensions Accessibility Options Performance and Maintenance

5 Double click DISPLAY.

Approve Stock and Trainers Save Asks Trains Please Previous Sells Continue Start Microsoft Project Trade & Conditions Enable Cancel Approve Stock and Trainers Pick a task... Change the computer's menu Change the dividing background Change the other items Change the second resolution or pick a Control Panel icon Delete Finish Colors Change the appearance of your profile, such as the attributes, system user, info, list size, and screen dimensions

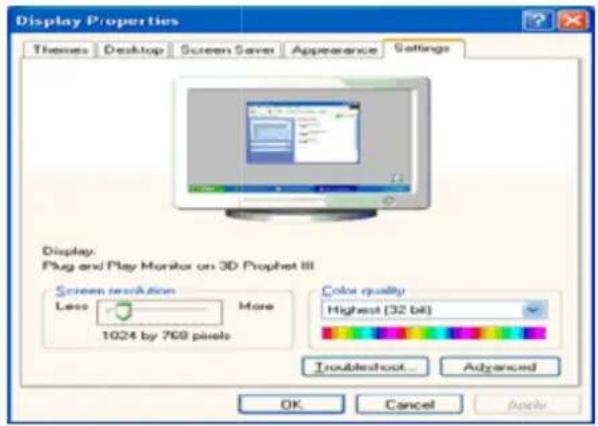

6 Click SETTINGS.

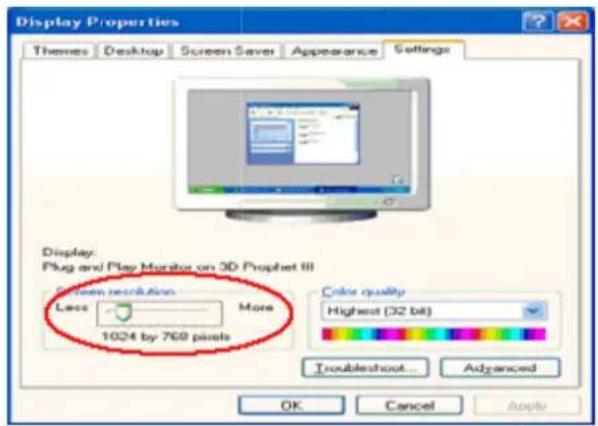

7 Set the resolution SLIDE-BAR to Optimal preset resolution

Display Properties Themes Desktop Screen Saver Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

Windows ME/2000

6 Set the resolution SLIDE-BAR to Optimal preset resolution

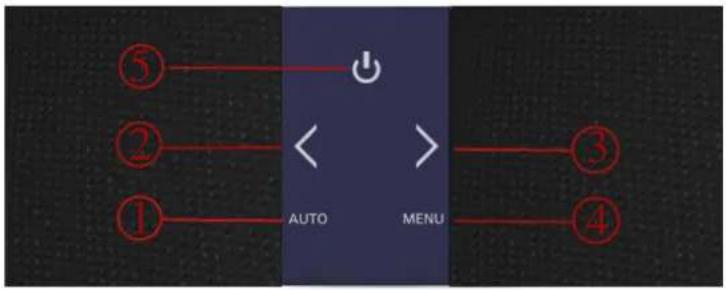

Hotkeys

⑤ ② ① AUTO MENU ③ ④

I2473PWY I2473PWM

1	Source/ Auto/ Exit
2	Clear Vision /<
3	Volume / >
4	Menu/Enter
5	Power

Power

Press the Power button to turn on/off the monitor.

Volume / >

When there is no OSD, press Volume adjust volume.

Auto / Exit

When there is no OSD, press Auto / Exit button continuously about 3 second to do auto configure.

Source hot key

When the OSD is closed, press Source button will be Source hot key function. Press Source button to select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

Clear Vision

1. When there is no OSD, Press the "<" button to activate Clear Vision.
2. Use the "<" or "> " buttons to select between weak, medium, strong, or off settings. Default setting is always "off".

Clear Vision < Off >

1. Press and hold "<" button for 5 seconds to activate the Clear Vision Demo, and a message of "Clear Vision Demo: on" will be displayed on the screen for a duration of 5 seconds. Press Menu or Exit button, the message will disappear. Press and hold "<" button for 5 seconds again, Clear Vision Demo will be off.

Clear Vision Demo: On

Clear Vision function provides the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

Using "MHL(Mobile High-Definition Link)"

1. "MHL" (Mobile High-Definition Link)

This feature allows you to enjoy videos and photos(imported from a connected mobile device that supports MHL) on the screen of the product.

- To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official MHL website(http://www.mhlconsortium.org).

● To use the MHL function, the latest version of software must be installed on the mobile device.

- On some mobile devices, the MHL function may not be available depending on the device's performance or functionality.

● Since the display size of the product is larger than those of mobile devices, the picture quality may degrade.

●This product is officially MHL-certified. If you encounter any problem when using the MHL function, please contact the manufacturer of the mobile device.

●the picture quality may degrade when content(Imported from the mobile device) with a low Resolution is played on the product.

Using "MHL"

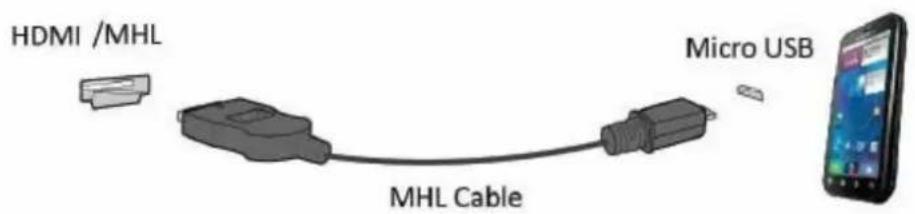

1. Connect the micro USB port on the mobile device to the [HDMI/MHL] port on the product using the MHL cable.

HDMI /MHL Micro USB MHL Cable

• When the MHL cable is used, [HDMI/MHL] is the only port on this monitor that supports the MHL function.

• Mobile device must be purchased separately.

• Press the source button and switch to HDMI/MHL to activate MHL mode.

• After about 3 seconds, the MHL screen will be displayed if MHL mode is active.

Remark: The indicated time "3 sec later" may vary depending on the mobile device.

When the mobile device is not connected or does not support MHL

- If MHL mode is not activated, check the connection of the mobile device.

- If MHL mode is not activated, check if the mobile device supports MHL.

- If MHL mode is not activated even though the mobile device supports MHL, update the firmware of the mobile device to the latest version.

- If MHL mode is not activated even though the mobile device supports MHL, check if mobile device MHL port is MHL standard port otherwise an additional MHL-enabled adapter is required.

OSD Setting

Basic and simple instruction on the control keys.

Image Setup Color Setup Picture Reset O2O Setup Extra Exit Brightness 50 Gamma Gamma 1 DPS On Brightness DCR Off Eco mode Standard Overdrive Median NOC

1. Press the MENU-button to activate the OSD window.
2. Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press < or > to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate.
3. Press < or > to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then press power-button to turn the monitor on. To un-lock the OSD, press and hold the MENU-button while the monitor is off and then press power-button to turn the monitor on.

Notes:

1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are turned off accordingly.

Luminance

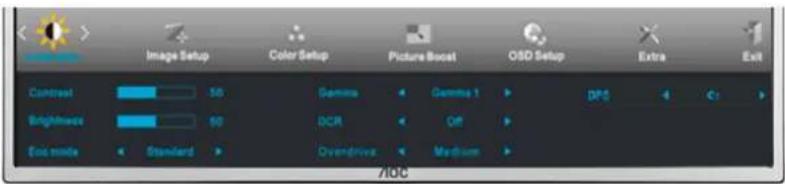

Image Setup Color Setup Picture Boost OSD Setup Extra Exit Contrast 50 Gamma Gamma 1 DFS Brightness 60 ISR Off Eos mode Standard Overdrive Medium 7/DC

1 Press (Menu) to display menu.
2 Press < or > to select (Dominance), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press AUTO . to exit

	Brightness 0-100 Backlight Adjustment.
	Contrast 0-100 Contrast from Digital-register.
	Eco mode	Standard		Standard Mode.
		Text		Text Mode.
		Internet		Internet Mode.
		Game		Game Mode.
		Movie		Movie Mode.
		Sports		Sports Mode.
	Gamma	Gamma1		Adjust to Gamma 1. to Gamma 2. to Gamma 3.
		Gamma2		Adjust
		Gamma3		Adjust
	DCR	Off		Disable dynamic contrast ratio.
		On		Enable dynamic contrast ratio.
	Overdrive	Weak		Adjust the response time
		Medium
		Strong
		Off

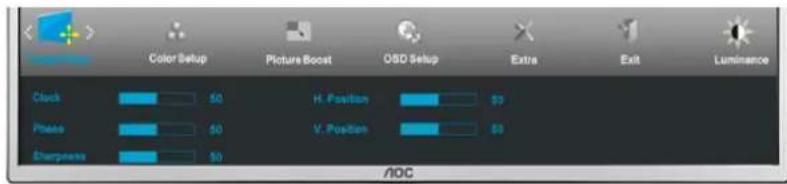

Image Setup

Color Setup Picture Boost OSO Setup Extra Exit Luminance Clock 50 H. Position 53 Phase 50 V. Position 53 Sharpness 50 AOC

1 Press (Menu) to display menu.

2 Press < or > to select (Image Setup), and press to enter!
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press AUTO

	Clock 0-100	Adjust picture Clock to reduce Vertical-Line noise.
	Phase	0-100	Adjust Picture Phase
	Sharpness 0-100	Adjust picture sharpness.
	H.Position	0-100	Adjust the horizontal position of the picture.
	V.Position	0-100 Adjust the vertical position of the picture.

to reduce Hc

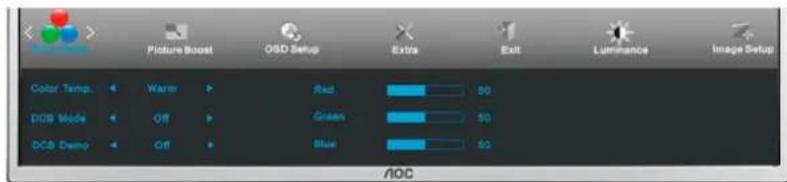

Color Setup

Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Temp. Warm Red 00 DCB Mode Off Green $0 DCB Demo Off Blue $2 AOC

1 Press (Menu) to display menu.

2 Press < or > to select (Color Setup), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit

	Color setup.	Warm		Recall Warm Color Temperature from EEPROM.
		Normal		Recall Normal Color Temperature from EEPROM.
		Cool		Recall Cool Color Temperature from EEPROM.
		sRGB		Recall SRGB Color Temperature from EEPROM.
		User	Red Red Gain from Digital-register.
			Green Green Gain Digital-register.
			Blue Blue Gain from Digital-register.
	DCB Mode	Full Enhance on or off Disable or Enable Full Enhance Mode.
		Nature Skin on or off Disable or Enable Nature Skin Mode.
		Green Field on or off Disable or Enable Green Field Mode.
		Sky-blue on or off Disable or Enable Sky-blue Mode.
		AutoDetect on or off Disable or Enable AutoDetect Mode.
	DCB Demo		on or off Disable or Enable Demo.

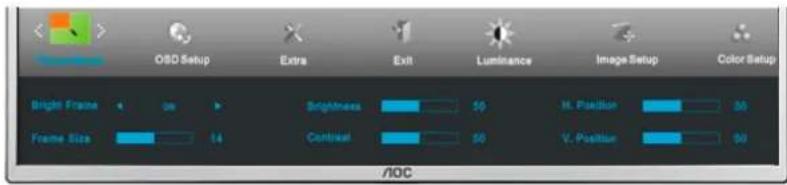

Picture Boost

OBD Setup Extra Exit Luminance Image Setup Color Setup Bright Frame 0x Brightness 50 H. Position 30 Frame Size 14 Contrast 50 V. Position 90 /IOC

1 Press (Menu) to display menu.
2 Press < or > to select (Picture Boost), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	Frame Size	14-100 Adjust Frame Size.
	Brightness 0-100 Adjust Frame Brightness.
	Contrast 0-100 Adjust Frame Contrast.
	H. position 0-100 Adjust Frame horizontal position.
	V. position 0-100 Adjust Frame vertical position.
	Bright Frame	on or off	Disable or Enable Bright Frame.

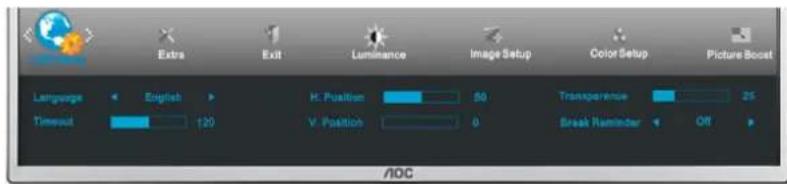

OSD Setup

Extra Exit Luminance Image Setup Color Setup Picture Boost Language English H. Position 50 Transpersion 25 Timeout 120 Y. Position 0 Break Reminder Off ADC

1 Press (Menu) to display menu.

2 Press < or > to select (OSD Setup), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit

	H. Position 0-100	Adjust the horizontal position of OSD.
	V. Position 0-100	Adjust the vertical position of OSD.
	Timeout 5-120 Adjust the OSD Timeout.
	Transparence	0-100 Adjust the transparence of OSD.
	Language		Select the OSD language.
	Break Reminder	on or off	Disable or Enable(1 hour of work, break ?) /(2 hours of work, break ?)

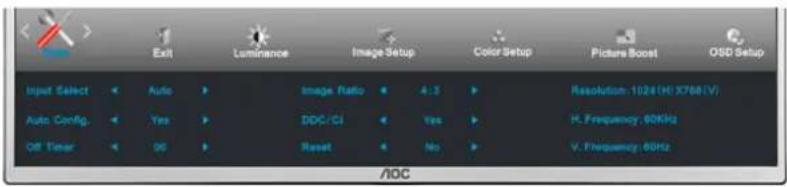

Extra

Exit Luminance Image Setup Color Setup Picture Boost OSD Setup Input Select Auto Image Ratio 4:3 Resolution: 1024(H) X768 (V) Auto Config. Yes DDC/GI Yes H. Frequency: 60KHz Off Timer DC Reset No V. Frequency: 60Hz /OC

1 Press (Menu) to display menu.
2 Press < or > to select (Extra), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	Input Select Auto / D-SUB / Miracast/HDMI/MHL		Select input signal source.(I2473PWY)
	Input Select Auto / D-SUB/ HDMI1/MHL1/HDMI2/MHL2		Select input signal source.(I2473PWM)
	Auto Config yes or no Auto adjust the picture to default.
	Off timer 0-24hrs Select DC off time.
	Image Ratio wide or 4:3 Select wide or 4:3 format for display.
	DDC-CI	yes or no	Turn ON/OFF DDC-CI Support.
	Reset	yes or no	Reset the menu to default.
	Information		Show the information of the main image and sub-image source.

Exit

Luminance Image Setup Color Setup Picture Boost OSO Setup Extra ADC

1 Press (Menu) to display menu.
2 Press < or > to select (Exit), and press to enter.

Exit Exit the main OSD.

MENU

LED Indicator

Status	LED	Color
Full Power Mode	Blue
Active-off Mode	Red

Driver

Monitor Driver

Windows 8

1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.

Start D:\TEST-32\My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My My

Apps Ring Calendar Camera Desktop Healthcare Partner Internet Explorer Map Mapy Imaging Music Home Remote Photo

1. Click on the "Control panel" icon
2. Set the "View by" to "Large icons" or "Small icons".

Control Panel Items Adjust your computer's settings Action Center Credential Manager Display Folder Options Keyboard Notification Area Items Power Options Sound TextBar Windows Firewall Administration Tools Data and Time Ease of Access Center Fonts Language MISDo Control Panel Programs and Features Speech Recognition Troubleshooting Windows Update AutoPlay Default Programs Family Safety HomeGroup Location Settings Performance Information and Tools Recovery Storage Spaces User Accounts Stroke Drive Encryption Device Manager File History Indexing Options Mouse Personalization Region Sync Center Windows 7 File Recovery Color Management Devices and Printers Hash Player (32-bit) Internet Options Network and Sharing Center Phone and Window Remotepp and Desktop Connections System Windows Defender

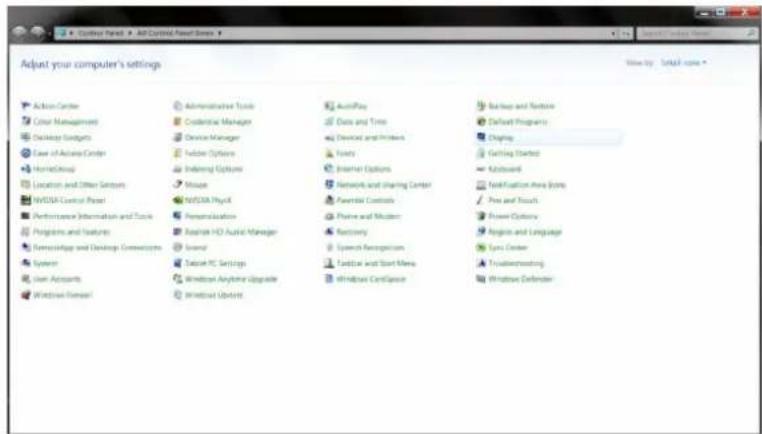

5. Click on the "Display" icon.

Adjust your computer's settings Active Center Color Management Desktop Budgets Case of Active Center HomeGroup Location and Other Settings NVDA Control Panel Performance Information and Tools Programs and Features Technology and Desktop Connections System User Accounts Windows Fineset Administrative Tools Customized Manager Device Manager Software Options Indexing Options Mouse NVDA Play Personalization AutoCAD Audio Manager Sound Select PC Settings Windows Anywhere Upgrade Windows Update AutoPlay Data and Time Device and Printers Tools Internet Options Networks and Sharing Center Automatic Controls Plains and Modems Security Speech Recognition Localize and Start Menu Windows Certificate BackUp and Restore Default Programs Chrome Getting Started Keyboard Notification Area Store Press and Touch Power Options Logic and Language Sync Center Troubleshooting Windows Defender

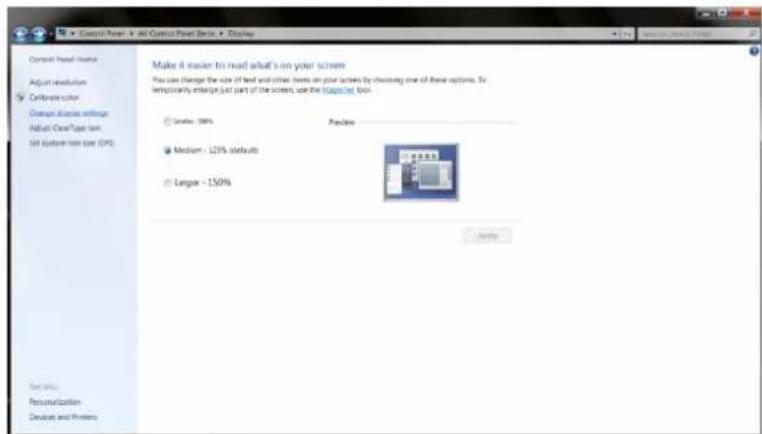

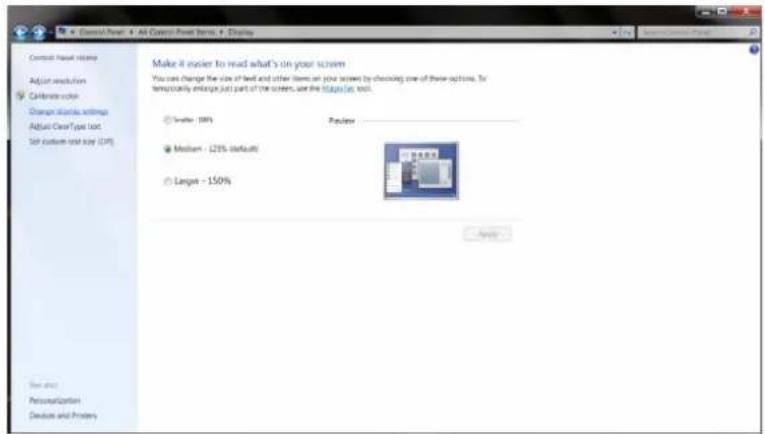

6. Click on the "Change display settings" button.

Control Panel Name Adjust resolution Cellware color Interrupt Active settings Adjust ClearType text Set system test size (DPS) Make it easier to read what's on your screen You can change the size of text and other items on your screen by checking one of these options. To temporarily enlarge just part of the screen, use the "computer" box. Speed: 100% Speed: 125% default Length: 150% Audio

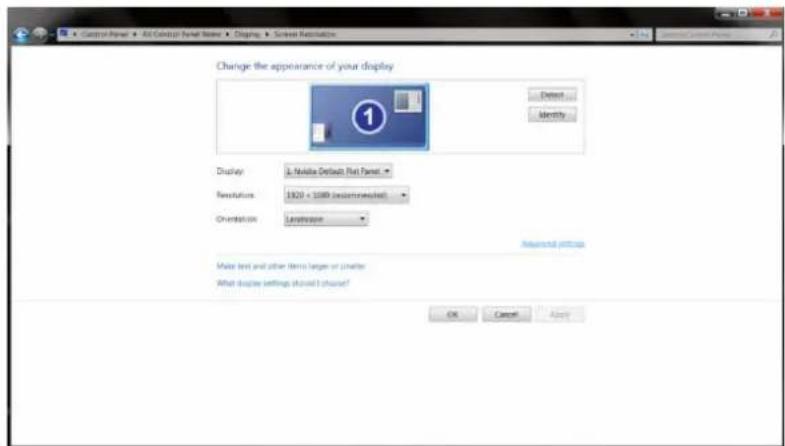

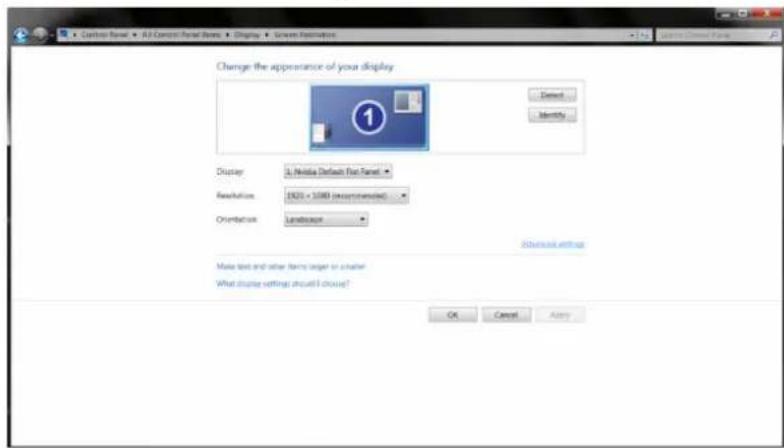

7. Click the "Advanced Settings" button.

Change the appearance of your display Display: L. Navistar Default Flat Panel Resolution: 1920 x 1089 (second corrected) Orientation: Landscape Advanced settings Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

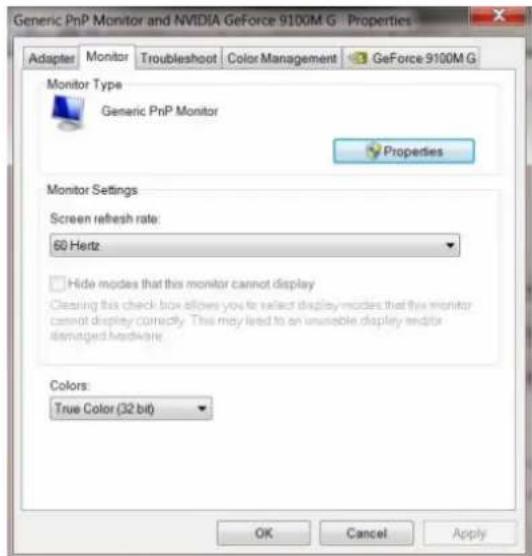

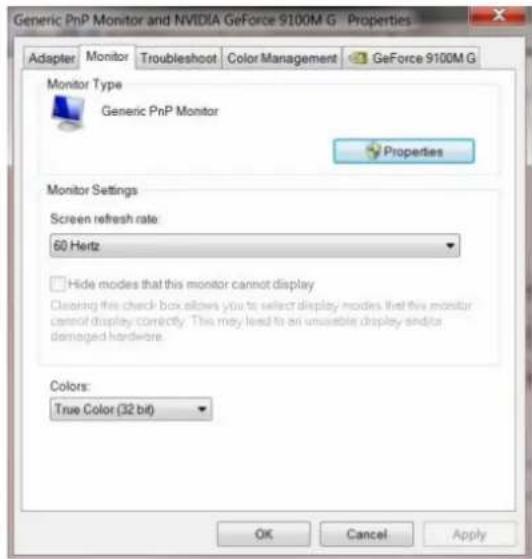

8. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate 60 Hertz Hide modes that this monitor cannot display Cleaning this check box allows you to select display modes that this monitor control display correctly. This may lead to an unusable display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

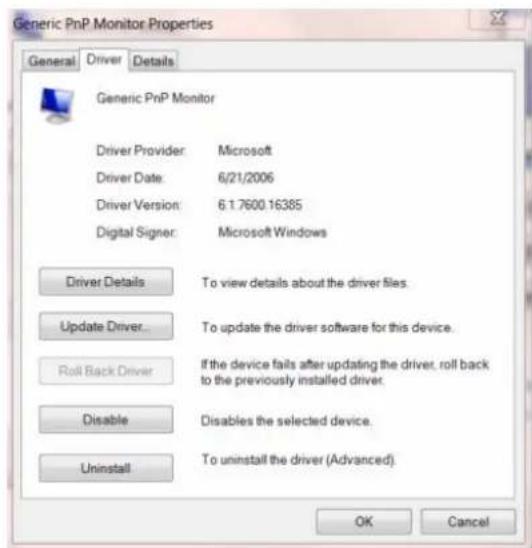

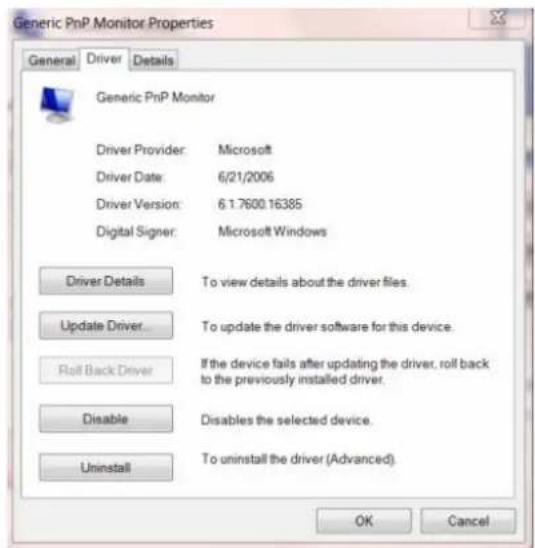

1. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver: To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced) OK Cancel

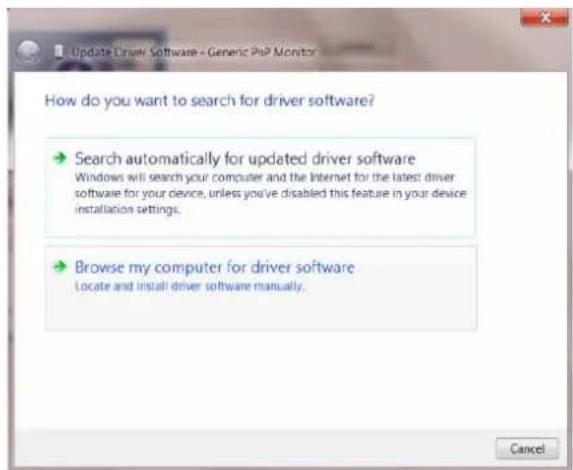

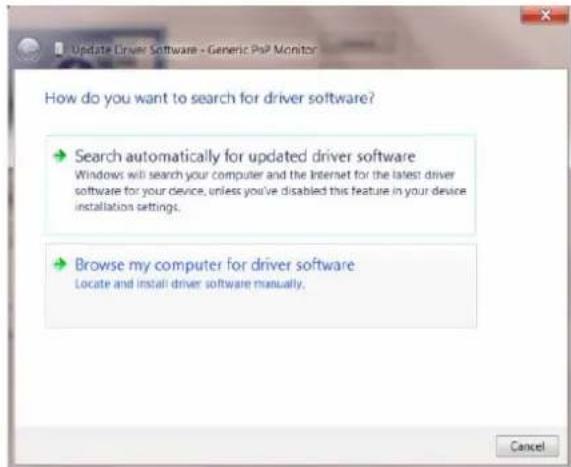

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PoP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

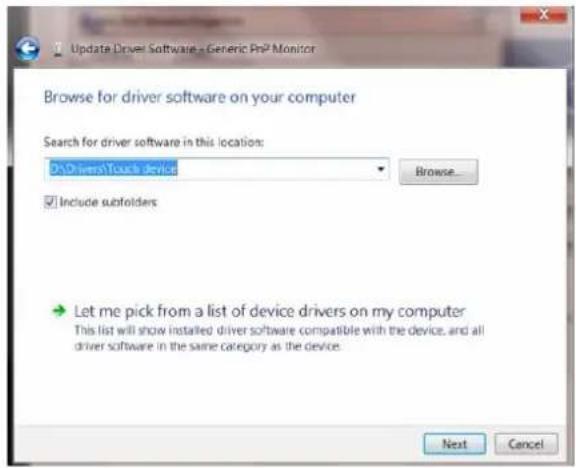

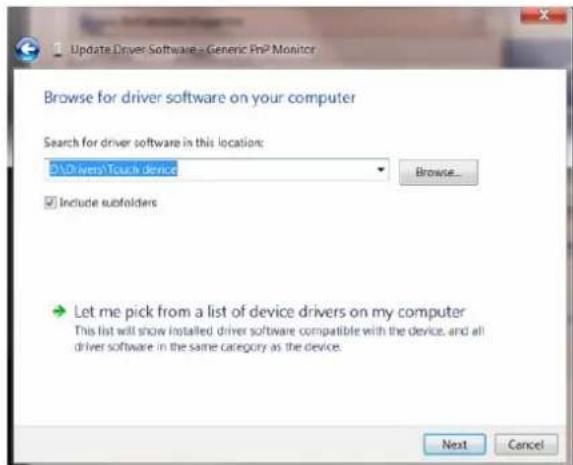

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic PnP Monitor Browse for driver software on your computer Search for driver software in this location: D:\Drivers\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

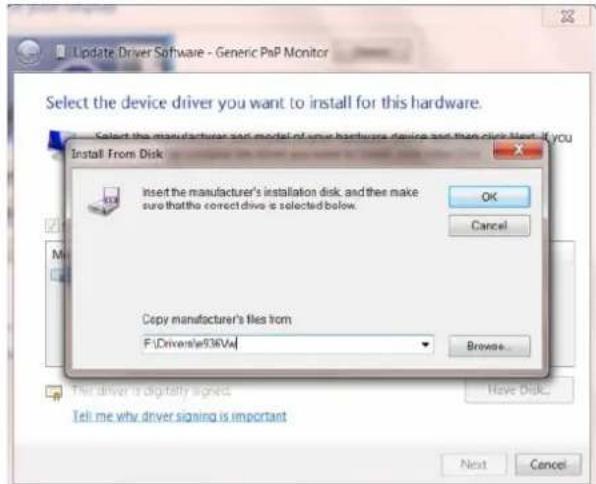

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PaP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from F:\Drivers\e536V4\ Browse... The driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 7

1. Start Windows® 7

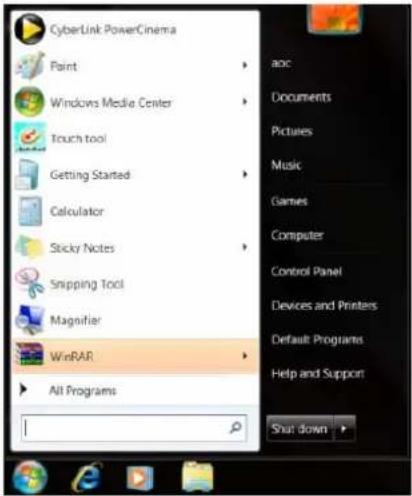

2. Click on the 'Start' button and then click on 'Control Panel'.

CyberLink PowerCinema Paint Windows Media Center Touch tool Getting Started Calculator Sticky Notes Snipping Tool Magnifier WinRAR All Programs aoc Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

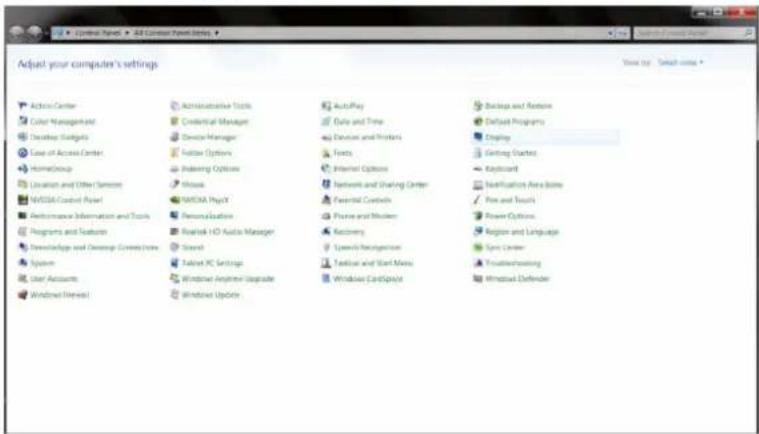

1. Click on the 'Display' icon.

ACR Computer's Settings Active Center Color Management Desktop Groups Use of Access Center HomeGroup Location and Other Services NVDA Control Panel Performance Information and Tools Programs and Features Technology and Desktop Connections System User Accounts Windows Start Administrative Tools Credential Manager Device Manager Solution Options Preparing Options Mouse NVDA PlayX Personalization Readtek HD Audio Manager Sound Alert PC Settings Windows Anytime Upgrade Windows Update AutoPlay Data and Time Devices and Providers Fonts Internet Options Networks and Sharing Center Parental Controls Planes and Modems Recovery Speech Recognition Language and Start Menu Windows CardSpace Backup and Remote Default Programs Display Getting Started Keyboard Identification Area Lines Fire and Touch Power Options Region and Language Sync Center Troubleshooting Windows Defender

4. Click on the "Change display settings" button.

Control Panel Help Adjust resolution Cablebox color Change display settings Adjust Clear Type tool Set custom test copy (USB) Make it easier to read what's on your screen You can change the size of bed and other items on your screen by checking one of these options. To temporarily enlarge just part of the screens, we see the https://on.tool. Scale: 100% Medium: 125% default Larger: 150% Apply... See also Personalization Deutsche and Printers

5. Click the "Advanced Settings" button.

Change the appearance of your display Display: L. Nokia Default Post Panel Refreshline: ISO 2010 (Recommended) Orientation: Landscape Showout settings Make text and other items longer in chapter What display settings should I choose? OK Cancel Apply

6. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Cleaning this check box allows you to reflect display modes that this monitor cannot display correctly. This may feed to an unusable display end-to-damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

7. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PhP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic Fm2 Monitor Browse for driver software on your computer Search for driver software in this location: D:\Drivers\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

2. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.

3. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
4. Close all open windows and remove the CD.
5. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Microsoft Access Explorer E-mail Windows Notepad Welcome Colors Windows Media Player Windows Photo Gallery Windows Live Wireless Download Windows Meeting Space Windows Exploration Adobe Photoshop CS2 Status Command Prompt All Programs Open Start Edit View Documents Pictures Main Games Search Recent Status Computer Network Connect To: Control Panel Default Programs Help and Support

Control Panel Home Close Time System and Maintenance Get started with Windows Get up your computer Security Check for updates Check this computer's security details Allow a program through Windows Microsoft Network and Internet User network: Linux and Linux for up the sharing Hardware and Sound Play CDs to other static automatically Update Windows Programs Develop a program Change referral programs User Accounts Help or effect on desktops Appearance and Personalization Change the appearance of desktops lets, apply a theme or server card to your complete, or continue the Software and Network Clock, Language, and Region Change laptops or other regular methods Change channels, language Use of Access Let Windows support settings Options read Access Additional Options

1. Click "Personalization" and then "Display Settings".

Control Panel 1: Applications and Personalization Create Project assets Systems and Maintenance Security Hardware and Internal Windows and Linux Projects Create a new project Applications and Personalization Create a new project Database and Studio Systems Create the next software - Software and other software Create the projects on the Studio Systems Create a Software Center Accummodate the next software - Change user needs Application and Software and other software - Start to Connect us to off File Edit Options Specific uses or settings that are open - Use Computer Intelligence Services Use File Help, and Web... Fonts Build a new file in Web Windows Solution Properties Add groups as follows - Choose existing Web Solution or help for all functions

Code Change learning, View Adjustments: 2005 Personal appearance and sounds Change the words and expressions Find how the words and phrases of your examples. Display background Choose from available backgrounds or colors on your own phone to deliver the viewing. Power Track Change your content view or adjust what it displays. In contrast, it is a particular animation that covers your screen and appears when your computer is able to use a key format of time. Style Change how sounds are heard what you are everything from getting in mind to projecting your resources. Visual Features Make a different visual picture. You can also change from the image points to displaying and browsing as clothing and browsing. Motion Change the theme. They can change a scale range of visual and audio elements at each time including the appearance of motion, cloud, backgrounds, screen security, some computer sounds, and video speakers. Creative Writing Adjust your member characteristics, which change the size up more of these details for the sound. You can also create more feature search steps.

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 (Multiple Monitors) on NVIDIA GeForce-9600 LE (Microsoft Corporation - □ Yes is my main monitor □ Stained the desktop units this monitor Resolution: Low High 1280 by 1024 pixels Colors: Highest (32 bit) How do I get the best display? Advanced Settings... OK Cancel Apply

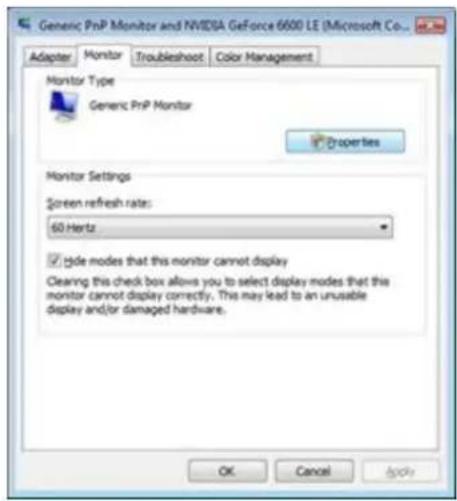

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

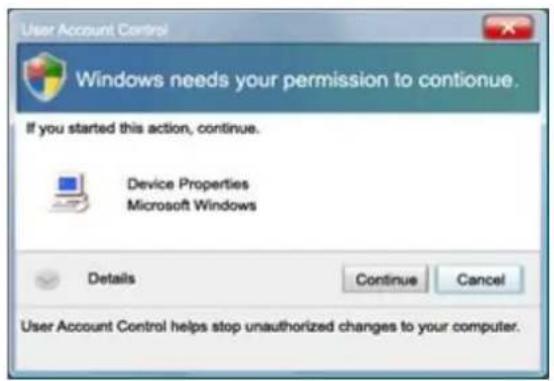

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrNP Monitor and NVIDIA GeForce 6600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrNP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

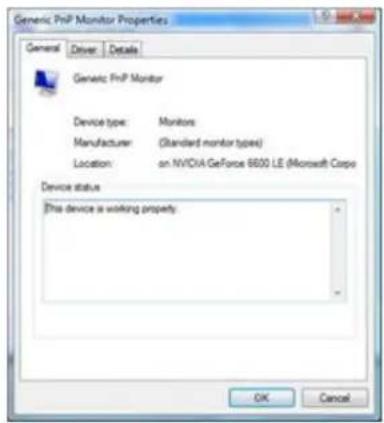

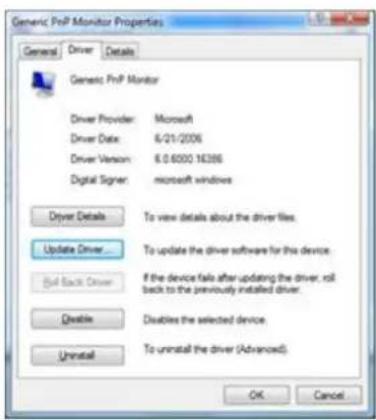

1. Click "Update Driver..." in the "Driver" tab.

Generic PrNP Monitor Properties General Driver Details Generic PrNP Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic PrGP Monitor Properties General Driver Details Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0.6000 16386 Digital Signer: microsoft windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Build Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device Uninstall To uninstall the driver (Advanced). OK Cancel

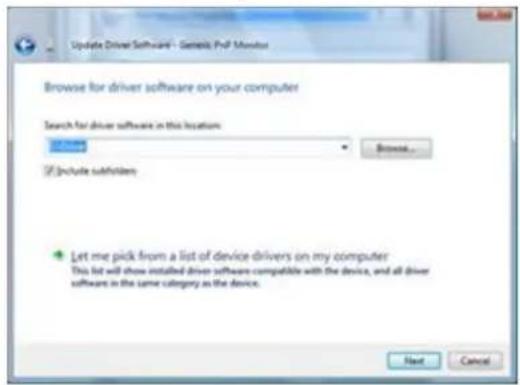

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Driver Software - Origin PnP Monitor Browse for driver software on your computer Search for driver software in this location Browse... ✓ Include subHidden Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel File Edit View Favorites Tools Help Search Patterns Add to Control Panel Control Panel Select to Control Panel Save All Remove Subs Change and Change Pick a category Applications and Designs Parameters and Other Hardware Change the appearance of device types, upgrade a free or clean server to your computer, or enhance the Start testing and update. Add to Services Programs Sales, Sales, Languages, and Personal Options Services, Speechs, and Audio Services Accessibility Options Performance and Maintenance

1. Click on the 'Display' Item.

Approve and Features Save Asks Tools Choose Problems Help Tools Get Active Policy Show In Details Options Search Approve and Features Pick a task... Change the computer's features Change the desktop background Change the other tasks Change the access requirement or pick a Control Panel icon Delete To help others Change the appearance of your profile, such as the thickness, screen size, sizes, font size, and screen dimensions.

5. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

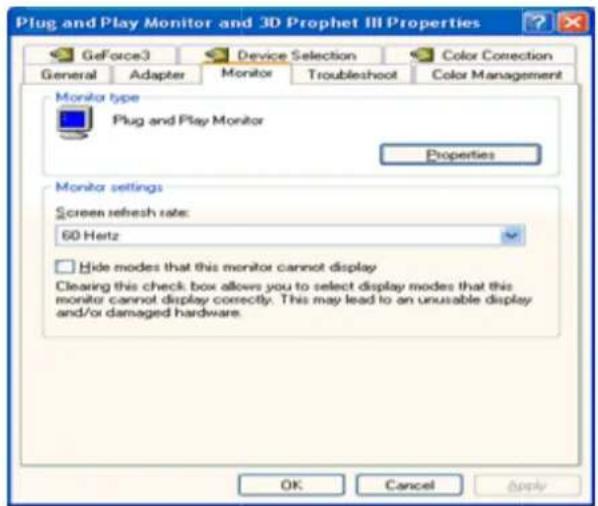

6. Select 'Monitor' tab

• If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
• If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

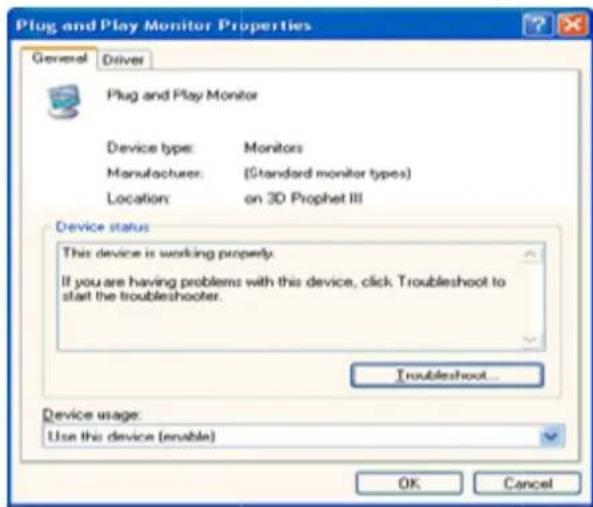

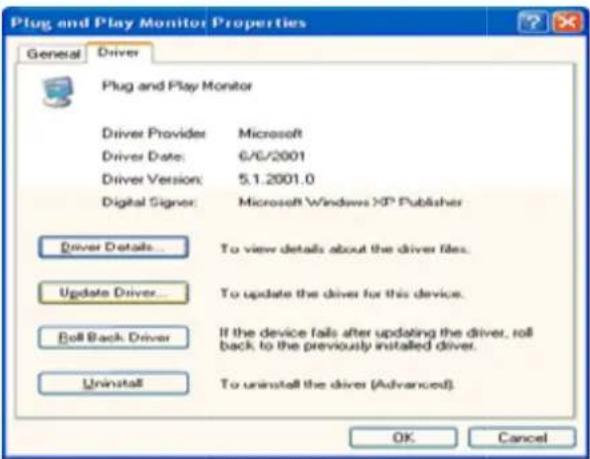

7. Click on the 'Driver' tab and then click on 'Update Driver...' button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location: on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signor: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). OK Cancel

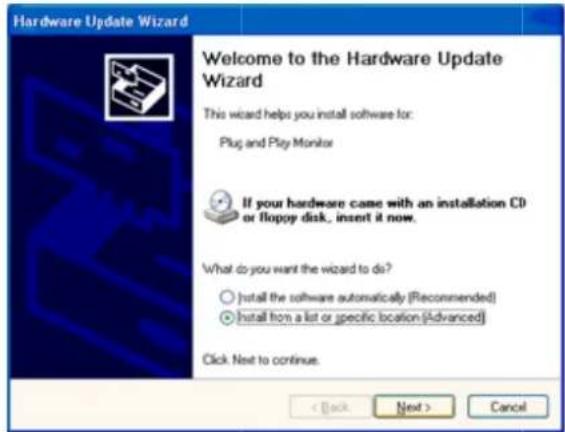

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

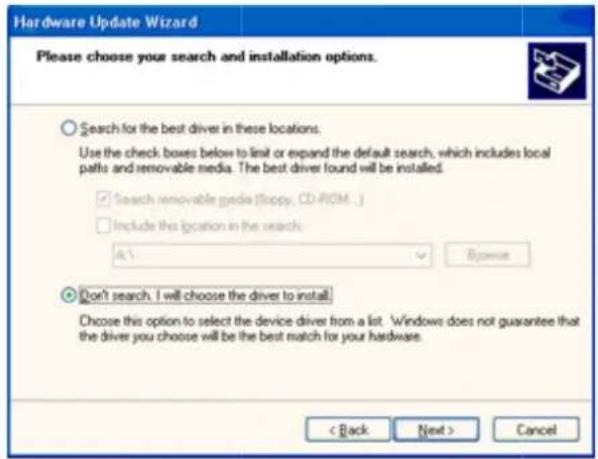

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

Hardware Update Wizard Please choose your search and installation options. ○ Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Copy, CD-ROM, ...) ☐ Include this location in the search A:\ Browse ● Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

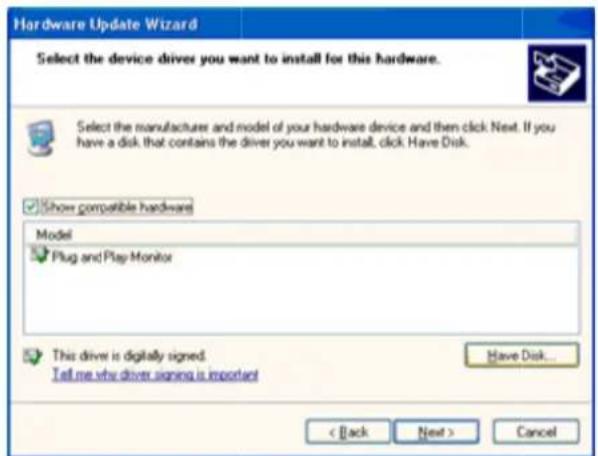

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufactures and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me who driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.

1. Click on the 'Finish' button then the 'Close' button.
2. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

1. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
2. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
3. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
4. Click on the 'Open' button, then click on the 'OK' button.
5. Select your monitor model and click on the 'Next' button.
6. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

i-Menu

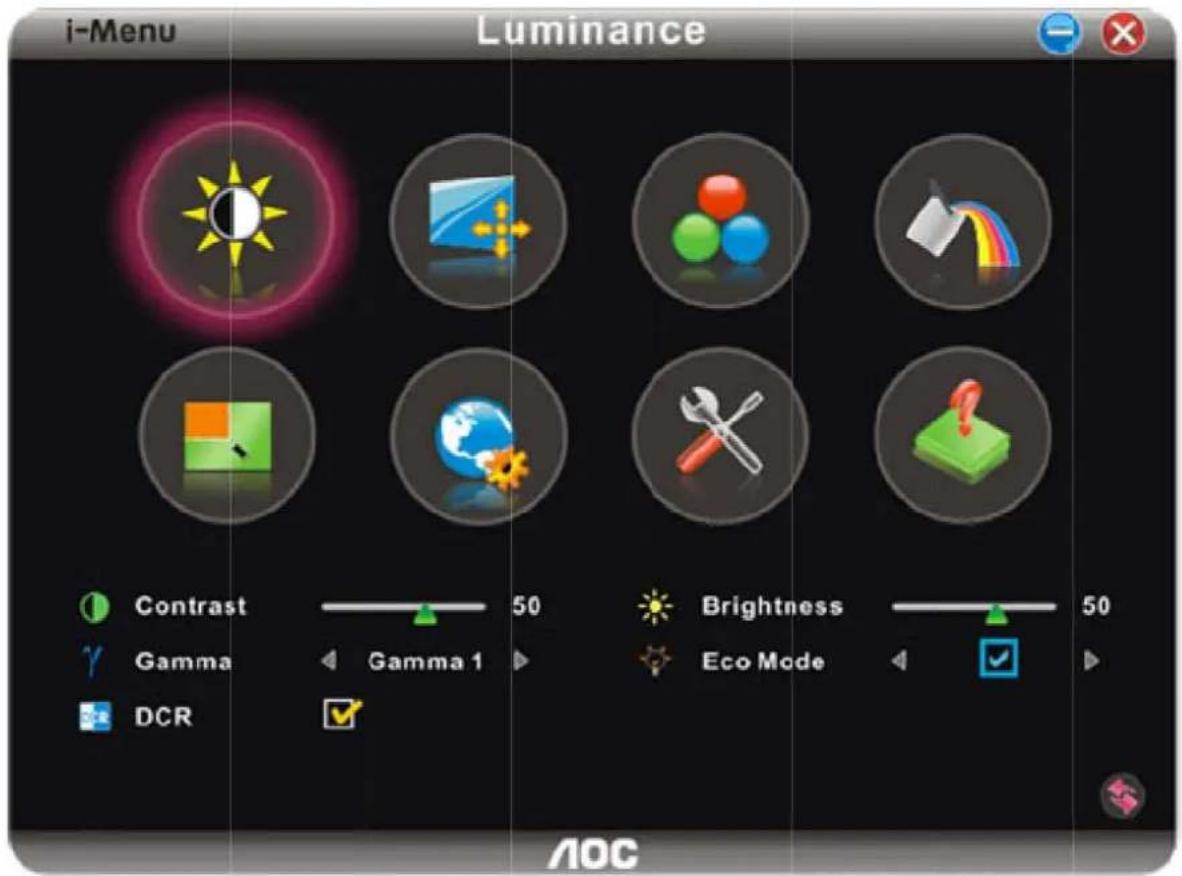

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR AOC

e-Saver

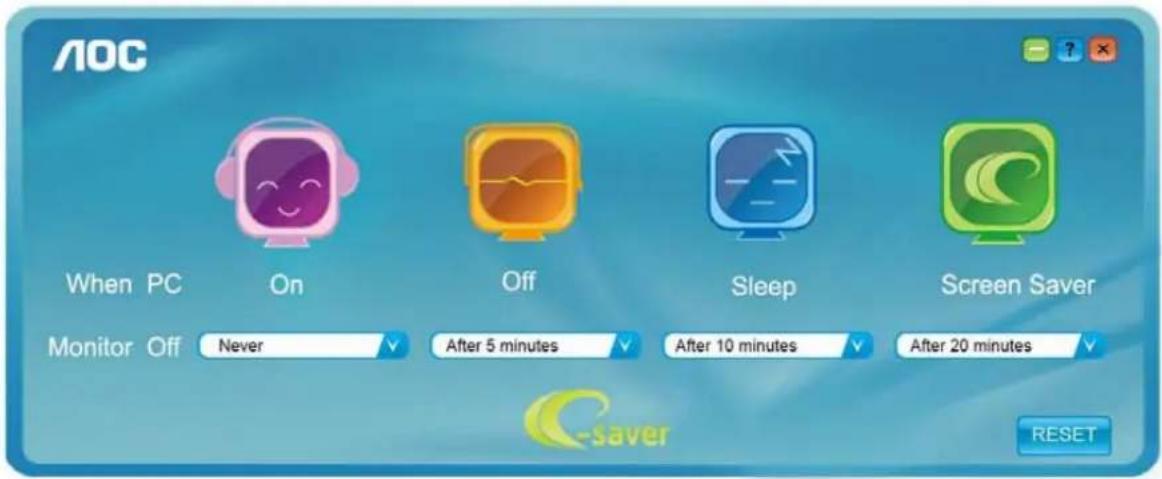

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes)you're your monitor to automatically shutdown. The example above illustrated:

1. The monitor will never shutdown when the PC is powered on.
2. The monitor will automatically shutdown 5 minutes after the PC is powered off.
3. The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4. The monitor will automatically shutdown 20 minutes after the screen saver appears.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

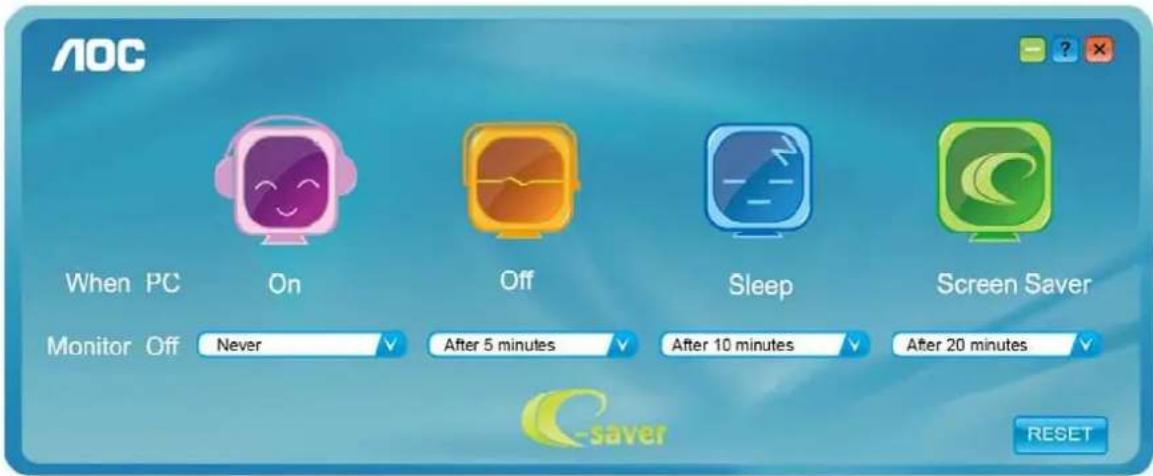

You can click "RESET" to set the e-Saver to its default settings like below.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

Screen+

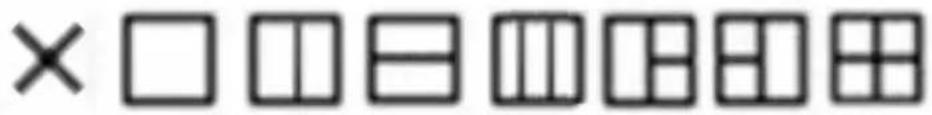

Welcome to "Screen+" software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

×□□日□□□□

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	• Is the power cord connected properly?Check the power cord connection and power supply.• Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.(Connected using the DVI cable)Check the DVI cable connection.* DVI input is not available on every model.(Connected using the HDMI cable)Check the HDMI cable connection.* HDMI input is not available on every model.• If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.• Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.• Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press for auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution you are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification

Panel	Model name I2473PWY
	Driving system TFT Color LCD
	Viewable Image Size 604.70mm diagonal
	Pixel pitch 0.2745 mm x 0.2745 mm
	Video	R, G, B Analog Interface &HDMI(MHL) Interface
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Dot Clock 170MHz
Resolution	Horizontal scan range 30kHz to 83kHz
	Horizontal scan Size(Maximum) 527.04 mm
	Vertical scan range 50Hz to 76 Hz
	Vertical scan Size(Maximum) 296.46 mm
	Optimal preset resolution 1920x1080@60Hz
	Plug & Play	VESA DDC2B
	Input Connector	VGA /HDMI(MHL)
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, Positive
	Power Source	100-240V~, 50/60Hz
	Power Consumption	25W (typical)
		Standby < 0.5 W
	Off timer	0-24 hrs
Physical Characteristics	Connector Type	VGA /HDMI(MHL)
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating 0°	C to 40°C
	Non-Operating	-20°C to 60°C
	Humidity:
	Operating	15% to 90% (non-condensing)
	Non-Operating	15% to 90% (non-condensing)
	Altitude:
	Operating	0~5000m (0~16404 ft)
	Non-Operating	0~12192m (0~40000 ft)

General Specification

Panel	Model name I2473PWM
	Driving system TFT Color LCD
	Viewable Image Size 604.70mm diagonal
	Pixel pitch 0.2745 mm x 0.2745 mm
	Video R, G, B Analog Interface & HDMI(MHL) Interface
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Dot Clock 170MHz
Resolution	Horizontal scan range 30kHz to 83kHz
	Horizontal scan Size(Maximum) 527.04 mm
	Vertical scan range 50Hz to 76 Hz
	Vertical scan Size(Maximum) 296.46 mm
	Optimal preset resolution 1920x1080@60Hz
	Plug & Play	VESA DDC2B
	Input Connector	VGA /2*HDMI(MHL)
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, Positive
	Power Source	100-240V~, 50/60Hz
	Power Consumption	25W (typical)
		Standby < 0.5 W
	Off timer	0-24 hrs
Physical Characteristics	Connector Type	VGA /HDMI(MHL)
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating	0°C to 40°C
	Non-Operating	-20°C - 60°C
	Humidity:
	Operating	15% to 90% (non-condensing)
	Non-Operating	15% to 90% (non-condensing)
	Altitude:
	Operating	0~5000m (0~16404 ft)
	Non-Operating	0~12192m (0~40000 ft)

Preset Display Modes

STANDARD RESOLUTION				HORIZONTAL FREQUENCY(kHZ)	VERTICAL FREQUENCY(Hz)
VGA 640×480@60Hz 31.469 59.940
VGA 640×480@72Hz 37.861 72.809
VGA 640×480@75Hz 37.500 75.000
SVGA 800×600@56Hz 35.156 56.250
SVGA 800×600@60Hz 37.879 60.317
SVGA 800×600@72Hz 48.077 72.188
SVGA 800×600@75Hz 46.875 75.000
XGA 1024×768@60Hz 48.363 60.004
XGA 1024×768@75Hz 60.023 75.029
SXGA 1280×1024@60Hz 63.981 60.020
SXGA 1280×1024@75Hz 79.976 75.025
WXGA 1440×900@60Hz 55.935 59.876
WSXGA 1680×1050@60Hz 65.290 59.950
WSXGA 1920×1080@60Hz 67.500 60.000
IBM-MODE DOS 720×400@70Hz 31.469 70.087
MAC MODE VGA	640×480@67Hz			35.000	66.667
MAC MODE SVGA	832×624@75Hz			49.725	74.551

HDMI timing

Format	Resolution	Vertical frequency
480p	640x480
480p	720x480
576p	720x576	50Hz,
720p	1280x720	50Hz,60Hz
1080p	1920x1080	50Hz,60Hz

MHL timing

Format	Resolution	Type	Vertical frequency
480p	640x480	SD	60Hz
480p	720x480	SD	60Hz
576p	720x576	SD	50Hz,
720p	1280x720	HD	50Hz,60Hz
1080p	1920x1080	HD	30Hz

Pin Assignments

Pin Number	15-Pin Side of the Signal Cable	Pin Number	15-Pin Side of the Signal Cable
1	Video-Red	9	+5V
2	Video-Green	10	Ground
3	Video-Blue	11	N.C.
4	N.C.	12
5	Detect Cable	13
6	GND-R	14
7	GND-G	15
8	GND-B

DDC-Serial H-sync V-sync DDC-Serial

19 17 1 18 2

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	TMDS Data 2+	9	^TMDS Data 0	17	DDC/CEC Ground
2	TMDS Data 2 Shield	10	^TMDS Clock -	18	+5V Power
3	TMDS Data 2	11	^TMDS Clock Shield	19	Hot Plug Detect
4	TMDS Data 1+	12	^TMDS Clock
5	TMDS Data 1Shield	13	^CEC
6	TMDS Data 1	14	Reserved (N. C. on device
7	TMDS Data 0+	15	^SCL
8	TMDS Data 0 Shield	16	^SDA

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WEEE Declaration IRU□,QGLD□□

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.

www.aocindia.com/ewaste.php.

EPA Energy Star

ENERGY ENERGY STAR

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

(FOR EPA CERTIFIED MODELS)

This product is compliant with requirements of Circular No. 30/2011/TT-BCT Regulations "STIPULATING TEMPORARILY THE PERMISSIBLE CONTENT LIMITATION OF SOMEXIC CHEMICALS IN THE ELECTRONIC, ELECTRICAL PRODUCTS"

Waste Electrical and Electronic Equipment-WEEE

This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may be disposed of with normal household waste. You are responsible for disposal of equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product. Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials. Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative.

Congratulations!

This product is designed for both you and the planet!

TCO CERTIFIED

TCO Development works for sustainable IT - manufacture, use and recycling of IT products reflecting environmental, social and economic responsibility.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO

Certified represents one of the toughest certifications for ICT products worldwide.

Some of the Usability features of TCO Certified Displays:

• Visual Ergonomics for image quality is tested to ensure top performance and reduce sight and strain problems. Important parameters are Resolution, Luminance, Contrast, Reflection and Colour characteristics
  • Products are tested according to rigorous safety standards at impartial laboratories
  • Electric and magnetic fields emissions as low as normal household background levels
  • Workload ergonomics to ensure a good physical environment

Some of the Environmental features of TCO Certified Displays:

• Production facilities have an Environmental Management System (EMAS or ISO 14001)
• Low energy consumption to minimize climate impact
- Restrictions on Chlorinated and Brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury and lead (RoHS compliance)
• Both product and product packaging is prepared for recycling
• The brand owner offers take-back options

Corporate Social Responsibility

- The brand owner demonstrates the product is manufactured under working practices that promote good labour relations and working conditions.

The Criteria Document can be downloaded from our web site. The criteria included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user and environmentally friendly direction. Our ICT product labeling system began in 1992 and is now requested by users and ICT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

TCO Certified Document for Displays version. 3.1

Technology for you and the planet.

(FOR TCO CERTIFIED MODELS)

Service

EU WARRANTY FOR AOC MONITORS

LIMITED THREE-YEAR WARRANTY\*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc-europe.com/eu for warranty instructions. Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

AOC International (Europe) B.V. is not responsible for any damaged during transport due to improper packing. AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Improper installation or maintenance
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
• Improper environments like humidity and dusts
  • Damaged by violence
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1pixel policy standards.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statement.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
  • Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center
• Improper environment
• Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/warranty

ARGENTINA: http://ar.aoc.com/support/warranty

BOLIVIA: http://bo.aoc.com/support/warranty

CHILE: http://cl.aoc.com/support/warranty

COLOMBIA: http://co.aoc.com/warranty

COSTA RICA: http://cr.aoc.com/support/warranty

DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty

ECUADOR: http://ec.aoc.com/support/warranty

EL SALVADOR: http://sv.aoc.com/support/warranty

GUATEMALA: http://gt.aoc.com/support/warranty

HONDURAS: http://hn.aoc.com/support/warranty

NICARAGUA: http://ni.aoc.com/support/warranty

PANAMA: http://pa.aoc.com/support/warranty

PARAGUAY: http://py.aoc.com/support/warranty

PERU: http://pe.aoc.com/support/warranty

URUGUAY: http://pe.aoc.com/warranty

VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance Could void

the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5GHz products are restricted to indoor usage only.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

- EN60950-1

Safety of Information Technology Equipment

- EN 62311

Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz)

- EN 300 328 ( For 802.11b/g/n )

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

- EN 301 893 ( For 802.11a )

Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

- EN 301 489-17

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

- EN 301 489-1

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

CE Declaration of Conformity

This product is in conformity with the following standards

• EN60950-1:2006+A11:2009+A1:20 10+A12:2011 (Safety requirement of Information Technology Equipment).
• EN55022:2010 (Radio Disturbance requirement of Information Technology Equipment).
• EN55024:2010 (Immunity requirement of Information Technology Equipment).
• EN61000-3-2:2006 +A1:2009+A2:2009 (Limits for Harmonic Current Emission).
• EN61000-3-3:2008 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable.
- EN 50581:2012 (Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances)
• 2006/95/EC (Low Voltage Directive).
• 2004/108/EC (EMC Directive).
- 2009/125/EC (ErP Directive, EC No. 1275/2008 Implementing Directive for Standby and Off mode power consumption) and is produced by a manufacturing organization on ISO9000 level.
• 2011/65/EU (RoHS Directive) and is produced by a manufacturing organization on ISO9000 level.

Only for AOC branded monitors sold within the continental United States.

All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at any time during the first three months, AOC will provide a replacement monitor within 72 hours after you are approved for our program. If your monitor qualifies for the EASE program, AOC will pay for freight both ways.

Step 1: Phone our TECH Department at 888.662.9888

Step 2: Fill out and return EASE registration forms by mail or fax.

Step 3: We will issue a Return Authorization Number upon verification into the program.

Step 4: A monitor will be advance shipped to your location.

Step 5: We will issue a UPS Call Tag to pick up the defective unit.

Step 6: Please review the following chart to see your EASE program qualifications.

WARRANTY PERIOD	COVERAGE AT NO CHARGE	CUSTOMER CHARGES
Within the first three months of purchase: Covered by EASE	- New AOC monitor- Call tag dispatched and return freight charges via UPS	- None*
Between 4 months – 1 Year - All Parts & Labor Including CRT Tube & LCD Panel		- UPS Return Freight to AOC
Between 1 Year - 3 Years: Covered by standard limited warranty	- Parts & Labor (excluding CRT Tube & LCD Panel)	- UPS Return Freight to AOC

*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC's service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
