USER MANUAL I2757FM AOC

LCD Monitor User Manual

I2757FM LED Backlight

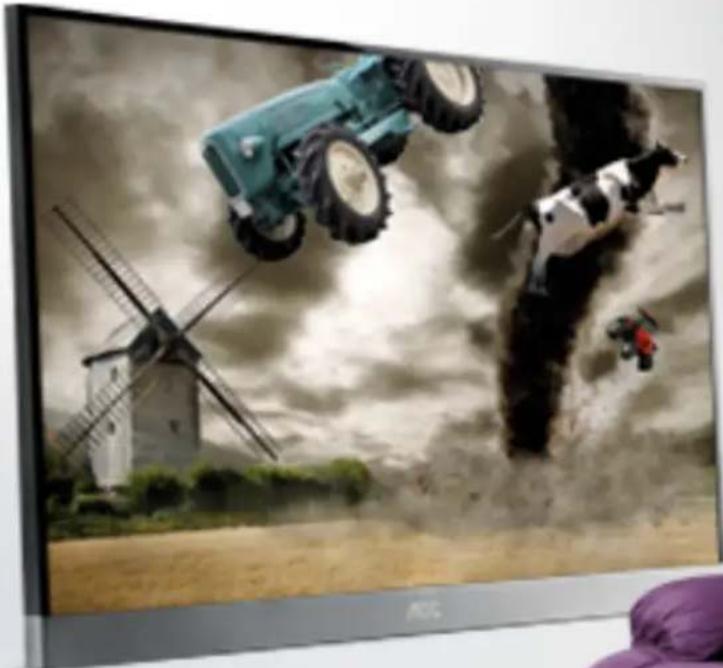

Computer monitor displaying a vintage image of a farm scene with windmills, tractors, and cows under a cloudy sky (no text or symbols visible)

A man crouching beside a purple armchair, one lying on their back (no text or symbols visible)

Safety 3

National Conventions....3

Power 4

Installation....5

Cleaning....6

Other....7

Setup 8

Contents in Box 8

Setup Stand & Base 9

Adjusting Viewing Angle....11

Connecting the Monitor....12

Adjusting 13

Setting Optimal Resolution 13

Windows 8 13

Windows Vista....15

Windows XP 17

Windows ME/2000....18

Hotkeys....19

Using"Mobile High-Definition Link" 20

OSD Setting....23

Luminance....24

Image Setup 26

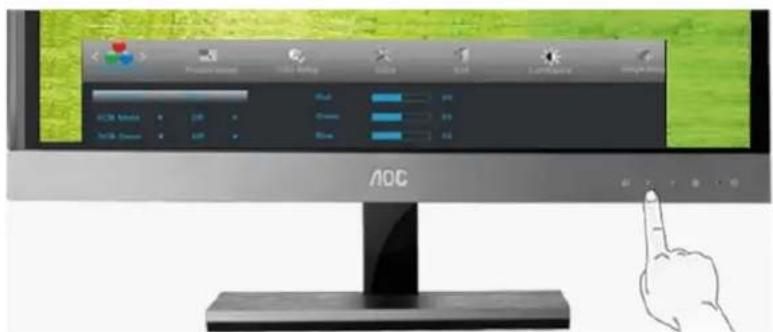

Color Setup....28

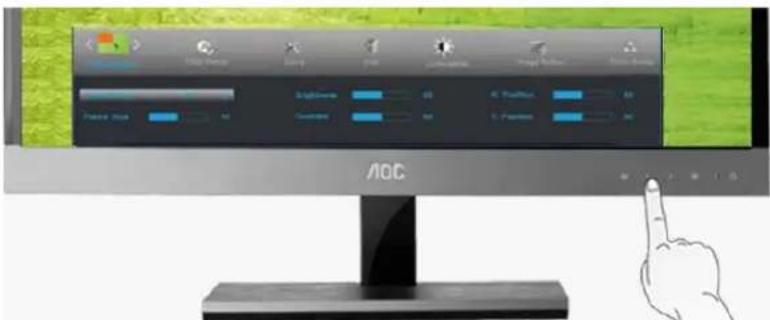

Picture Boost 30

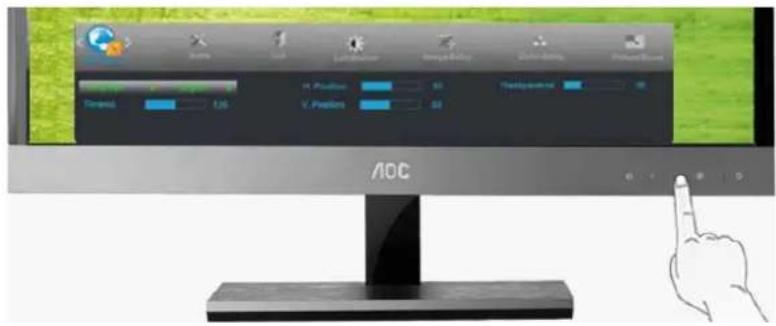

OSD Setup 32

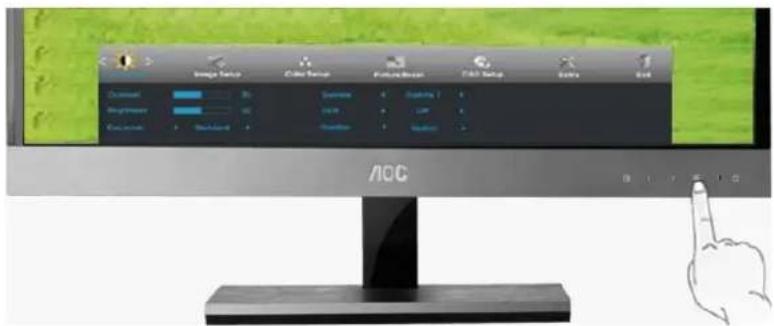

Extra 34

Exit 36

LED Indicator 37

Driver 38

Monitor Driver 38

Windows 8....38

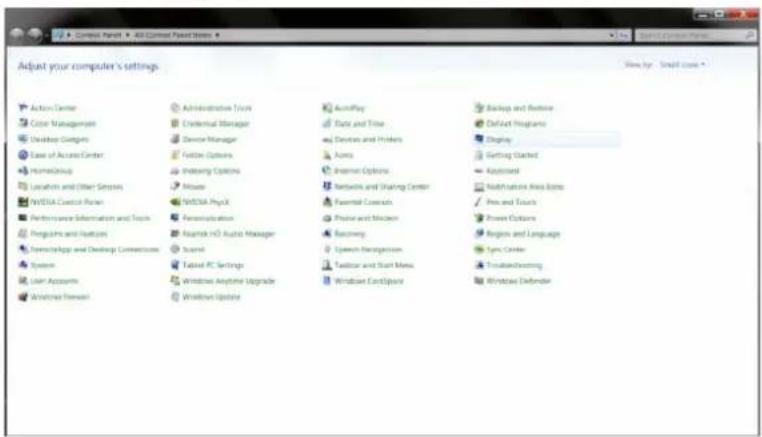

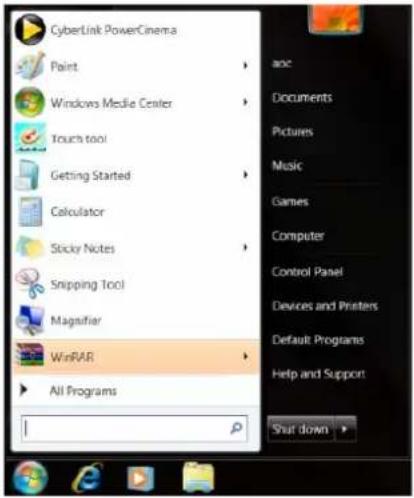

Windows 7....42

Windows Vista 46

Windows XP 48

Windows 2000 51

Windows ME....51

i-Menu....52

e-Saver 53

Screen+ 54

Troubleshoot....55

Specification....56

General Specification....56

Preset Display Modes....57

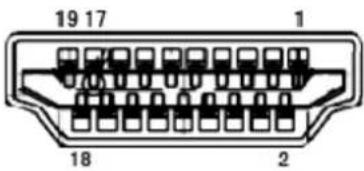

Pin Assignments....58

Plug and Play....59

Regulation....60

FCC Notice 60

CE Declaration of Conformity....60

WEEE Declaration 61

Service....63

Warranty Statement for Europe 63

Warranty Statement for North & South America (excluding Brazil)....63

Safety

National Conventions

The following subsections describe notational conventions used in this document Using"Mobile High-Definition Link"

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

⚠️ Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V \~, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for monitors with power adapter).

Manufacturers:

1) TPV ELECTRONICS(FUJIAN) CO., LTD model : ADPC1245

2) HONOR ELECTRONIC CO.,LTD model: ADS-65LSI-12-1 12045G

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

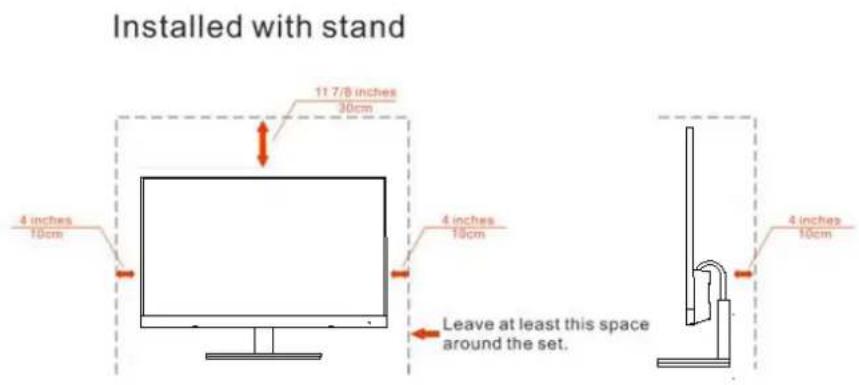

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the stand:

Installed with stand 11.7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

⚠️Please disconnect the power cord before cleaning the product.

H₂O

Simple line drawing of a monitor with two curved lines and a power plug attached to the left (no text or symbols)

Diagram showing a hand interacting with a computer monitor, with arrows indicating motion direction (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.

Setup

Contents of the Box

Front view of a black-and-white desktop computer monitor with a stand (no visible text or symbols)

Monitor

Circular metallic disc with a central hole, showing radial gradient texture (no text or symbols)

CD Manual

Base

Adapter

Coiled black and white A522 connector with USB cable (no text or symbols visible)

MHL Cable

Power Cable

Analog Cable

Audio Cable

HDMI Cable

Not all signal cables (VGA, and HDMI cables) will be provided for all countries and regions. Please ck with the local dealer or AOC branch office for confirmation.

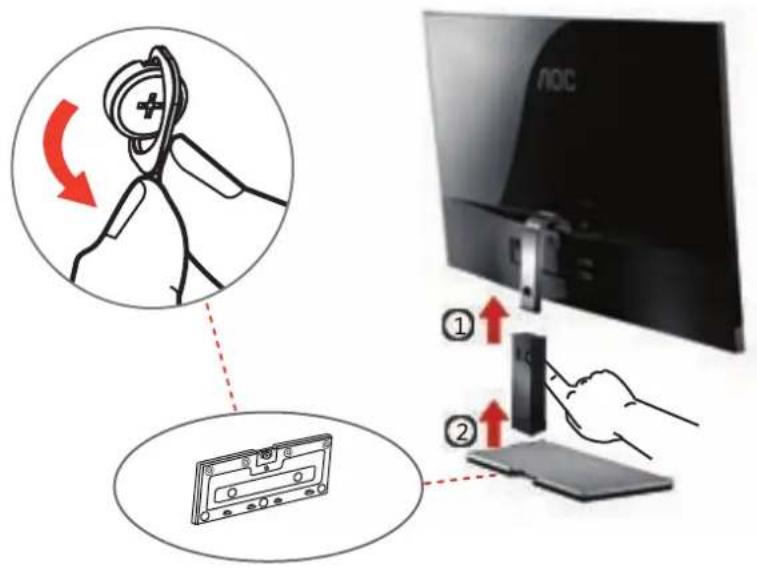

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Diagram illustrating a device operation with labeled steps: adding a cable to a person using a magnifying glass, and adding a CD to a monitor.

Remove:

Diagram illustrating a device installation process with labeled steps and directional arrows indicating rotation or movement.

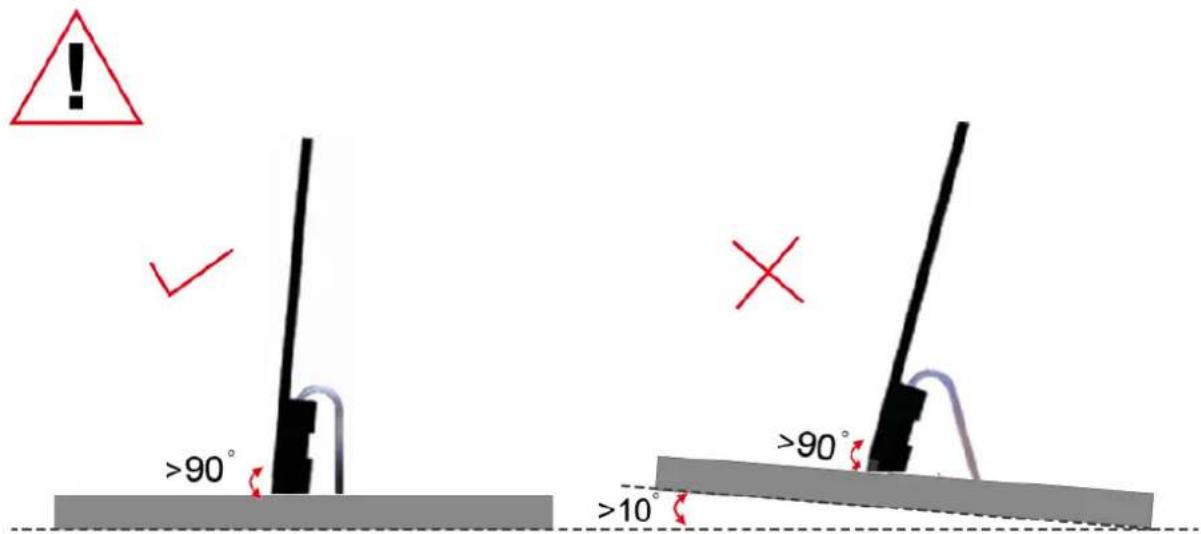

Unit standing without base is available. (Caution: must put unit in flat surface. Any uneven or sloped surface may result unit damaged or injury to user.)

! >90° >90° >10°

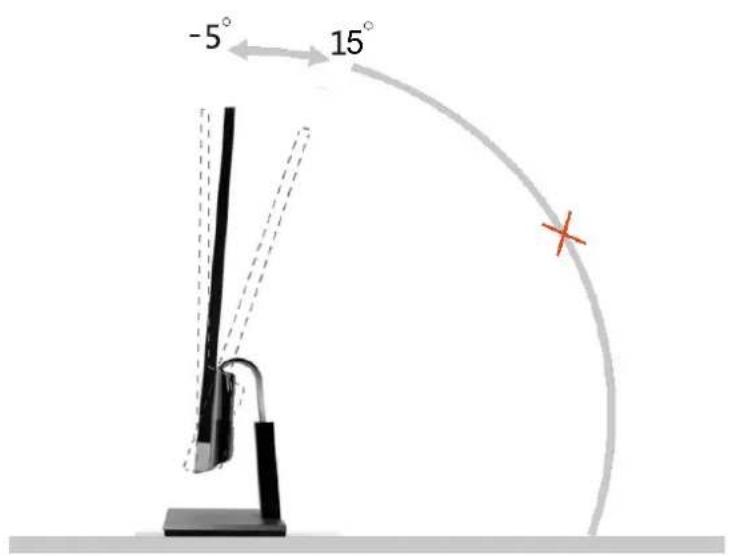

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5^ to 15^ .

-5° 15°

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

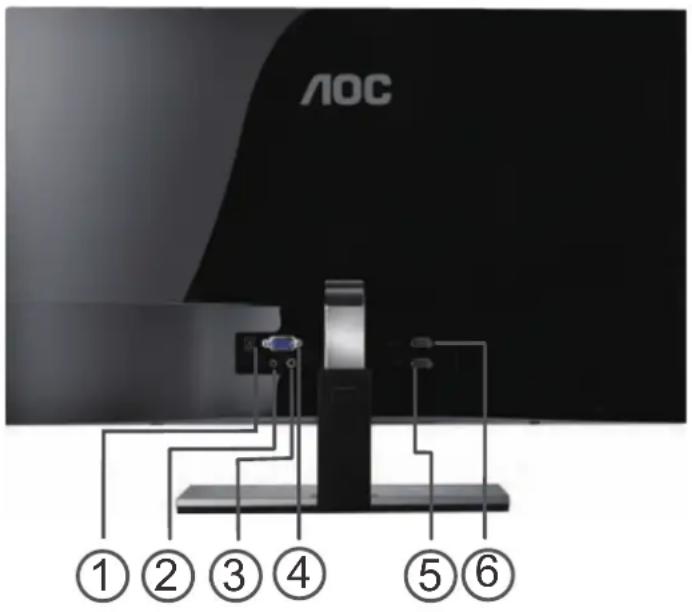

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

AOC ① ② ③ ④ ⑤ ⑥

1. Power
2. Earphone
3. Audio port
4. D-Sub port
5. HDMI1/MHL port
6. HDMI2 port

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub/HDMI port to the back of the monitor and connect the other end to the computer's D-Sub/HDMI or mobile MHL port.
3 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Adjusting

Setting Optimal Resolution

Windows 8

For Windows 8:

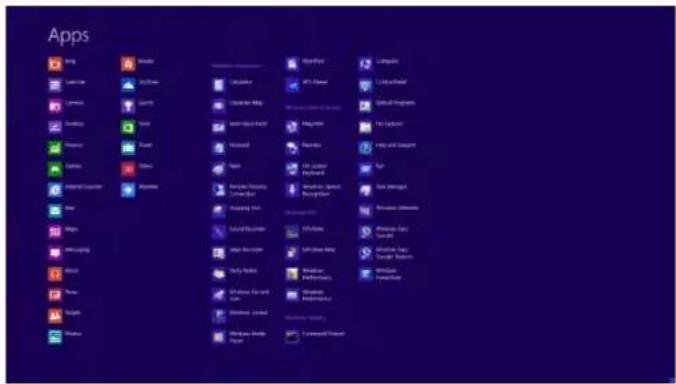

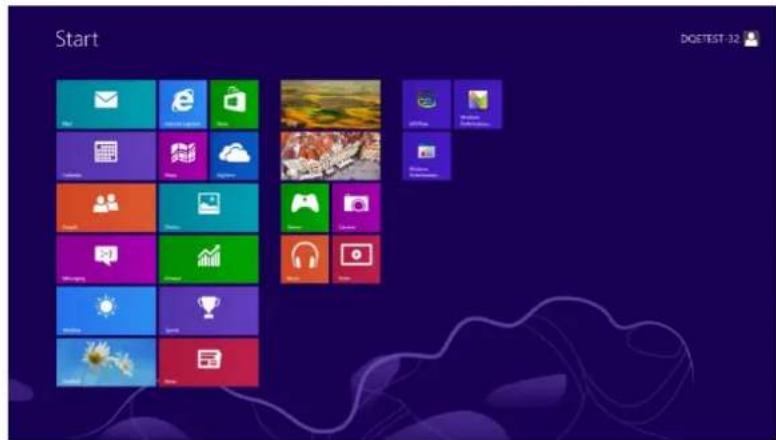

1. Right click and click All apps at the bottom-right of the screen.

Start DORTESS-32

Apps File Edit View Insert Tools Help Cycllical Character Map Smart Excel Microsoft Teams QQ Server Windows Internet Explorer Google My Web My Computer My Watch My Music My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Player My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Leader My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Lead My Music Endo My Music Endo My Music Endo My Music Endo My Music Endo My Music Endo My Music Endo

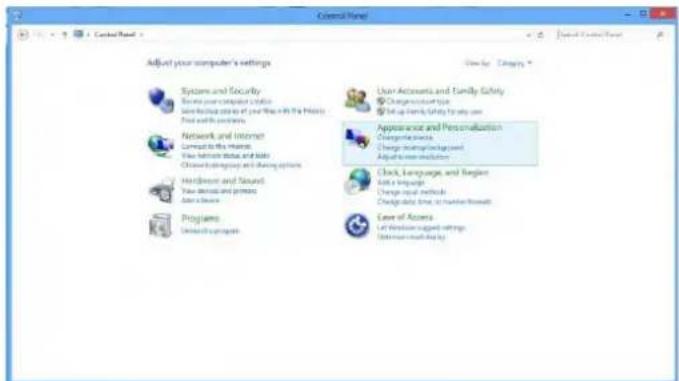

1. Click "Control Panel".

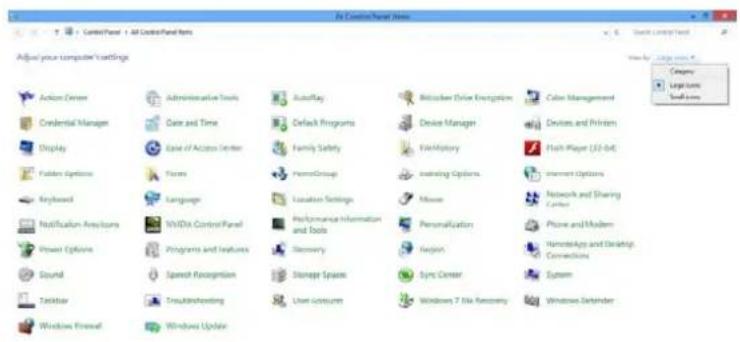

2. Set the "view by" to "Category".
3. Click Appearance and Personalization.

Control Panel Adjust your computer's settings Systems and Security Remove your computer status New desktop sites of your file with the History Find all this platform Network and Internet Connect to the website View the website status and links Choose database group and sharing options Web Internet and Sound Your desktop and primary Add a device Programs Develop a program User Accounts and Family Safety Change account type Set up daily safety data on my Appraencer and Personalization Change accounts Change shopping accounts Adjust user recommendations Clock, Language, and Region Edit a language Change social media Change daily time, or master software Case of Access Left Windows support settings Internet usage by

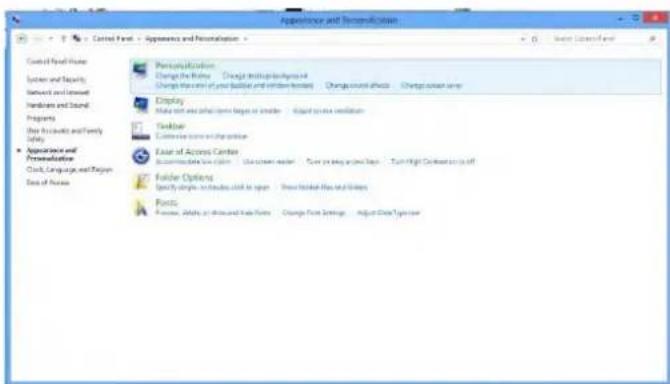

5. Click DISPLAY.

Appearance and Transformation Control Panel - Approves and Personalization Control Panel Form System and Security Network and Internet Hardware and Sound Properties User (Access) and Family Details Appearance and Personalization Clock, Language, and Options End of News Personnel Allocation Change the Rides Change Inclusion Analysis of Change the risk of your (button) and (button) settings Change account shots Change action temp Display Make new and what items range or similar - Equal static ventilation Folder Customize some organization Ease of Access Center Accummodate low risk - Use short time - Save to stay around steps - Turn High Clearance to off Folder Options Specify single to include click in steps - Show holiday files and resumes Posts Focus, Active, or Advanced and Free Forms Change from Settings Adjust Sheet Options

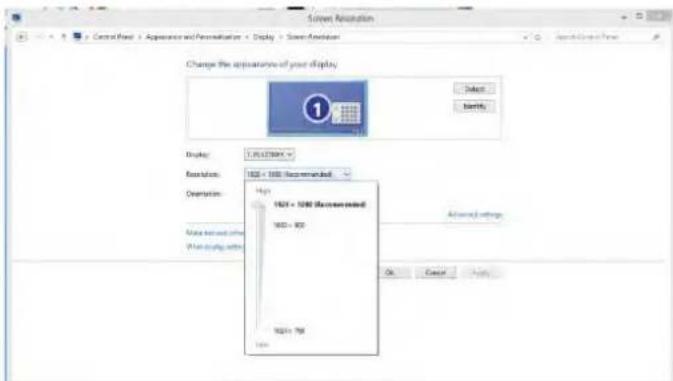

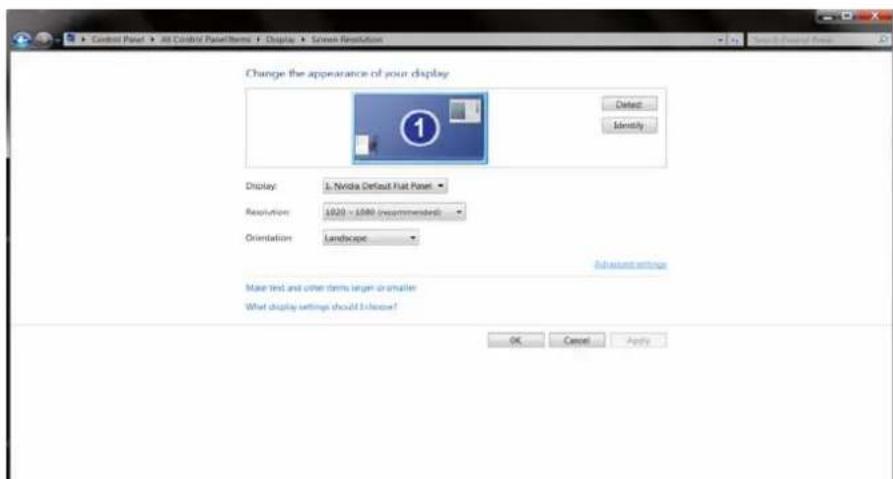

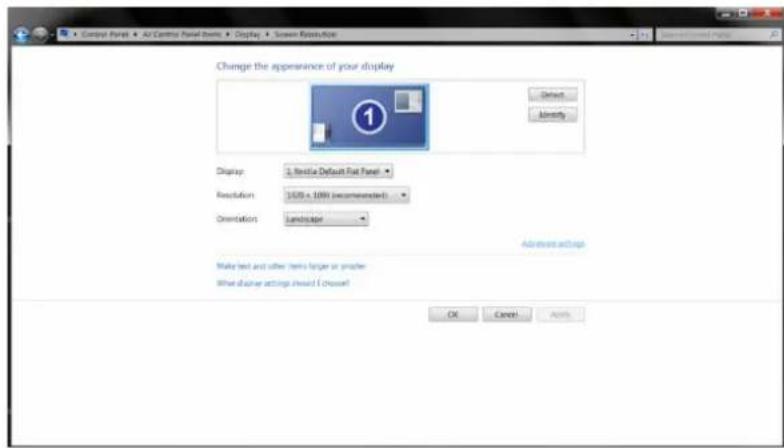

6. Set the resolution SLIDE-BAR to 1920x1080.

Select Annotation Change the appearance of your display Display: 1.5 x 100 Resolution: 100 x 100 Recommended Duration: High 100 x 100 Recommended 100 x 100 Advanced settings Main features: Main display status: No: 764 OK Cancel Help

Windows Vista

For Windows Vista:

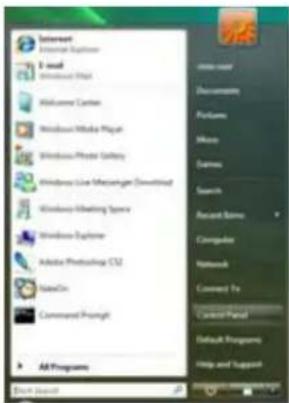

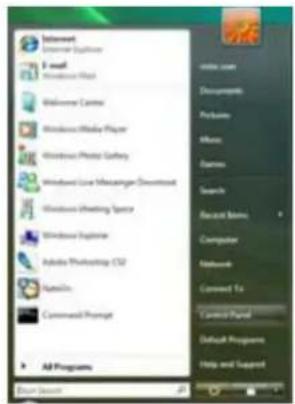

1 Click START.

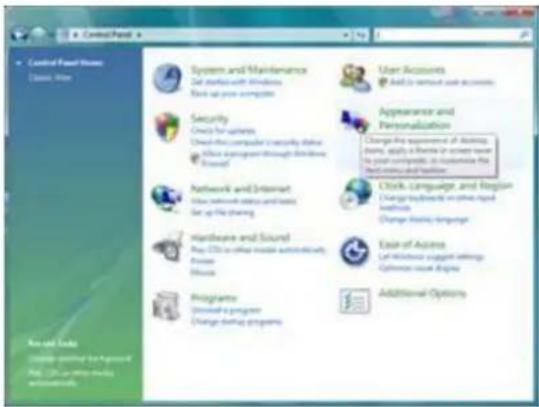

2 Click CONTROL PANEL.

Internet Internet Explorer I-mail Internet Explorer Macromedia Center Windows\\Apache\Mycat Windows\\Physical Gallery Windows\\Live Mezzanine Desinylated Windows\\Bluetooth Space Windows\\Explore Adobe Photoshop CS2 SanaOn Command Prompt All Programs Short Start Home screen Discovery Features Mass Drama Search Recent Bits Computer Network Command To Control Panel Default Programs Help and Support

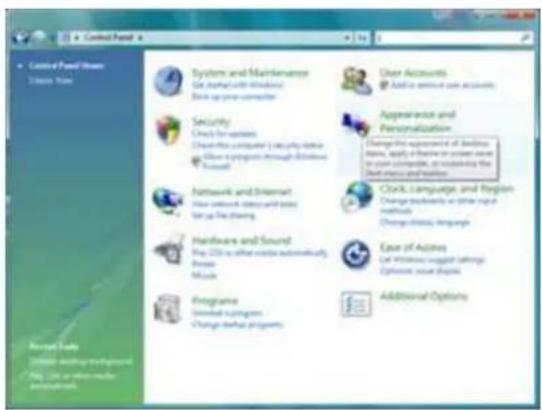

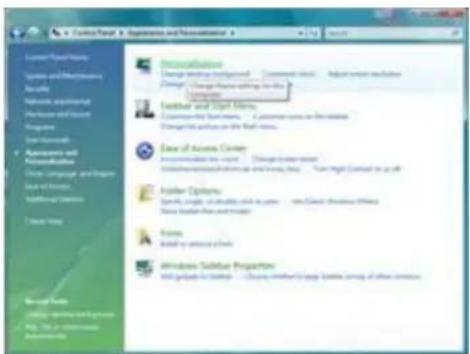

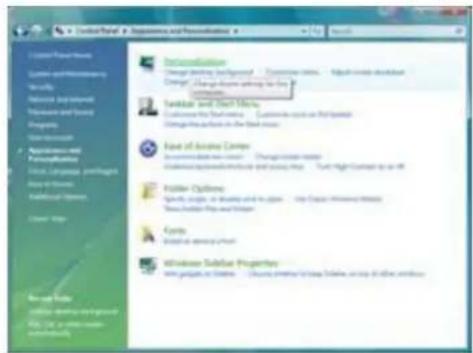

3 Click Appearance and Personalization.

Control Panel Options System and Maintenance Get desktop with Windows Book up your computer Security Check for updates Check the Computer's security data Office productivity through Windows Network and Internet Use network data and tools Set up file sharing Hardware and Sound Play CDS to other mobile audio/video Power Hours Programs Show a program Change during programs User Accounts Add to virtual and accounts Appearance and Personalization Change the experience of Action forms, apply in terms of user users to your platform to maximize the Red screen and folder. Click Language and Region Change it hardware or other audio methods Change Action language Ease of Action Let additional support settings Optimize user engine Additional Options

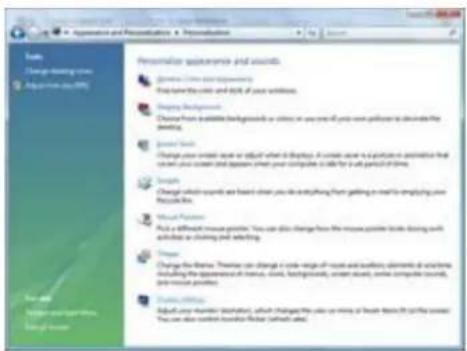

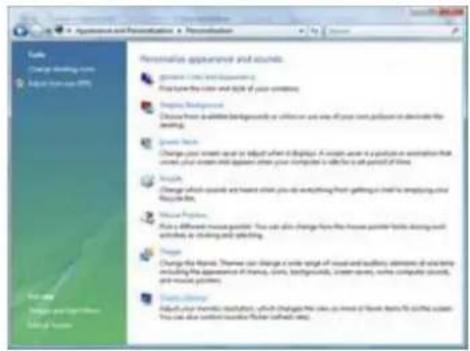

4 Click Personalization

Access Consider Access Consider False Substrate Properties All rights reserved to access Access Consider False Substrate Properties All rights reserved to access Access Consider False Substrate Properties All rights reserved to access

5 Click Display Settings.

Appearance and Personalization & Personalization Details Change viewing time Impact from user access (0%) Personalization approumment and sounds. General: C-15 and Questioning Primary the color and style of your voice. Display background Close from available backgrounds or settings on any one of your text patches or details for the viewing. Speed Tech Change your views are to adjust when it displays. A review can be a picture or description that covers your views and image within your computer is able to add a portion of time. Sequence Change which sounds and frames show you as something from getting in hand to applying out resources. Visual Properties Make a different music picture. You can also change from the house picture blocks sharing and sharing, or clicking and posting. Theme Change the links. Themes can change a wide range of visual and audio elements of watching, including the appearance of home, camera, background, screen, audio, computer, and audio formats. Frequency Adjust your music format, which changes the video space in book format file to the audio. You can also contain more filter-based text.

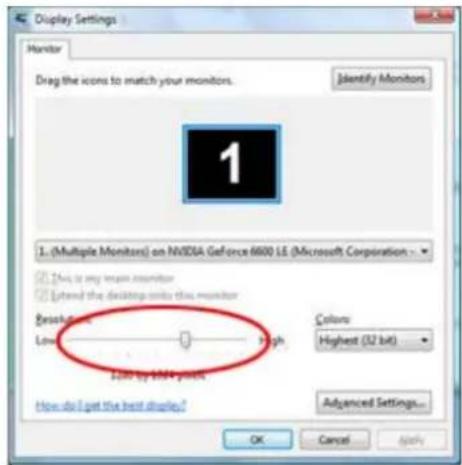

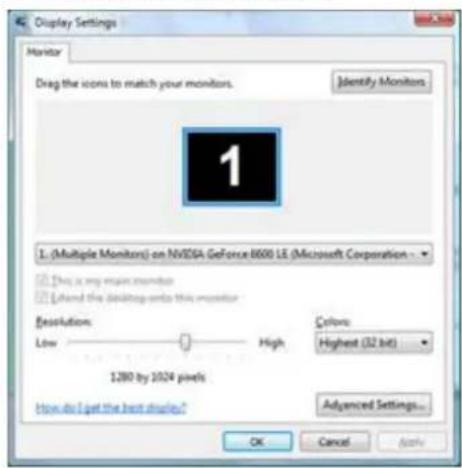

6 Set the resolution SLIDE-BAR to 1920 by 1080.

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 (Multiple Monitors) on NVIDIA GeForce 6600 LE (Microsoft Corporation) This is any longer monitor Extend the desktop-only this monitor Resolution: Low High Color: Highest (32 bit) Show by 6600 points How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

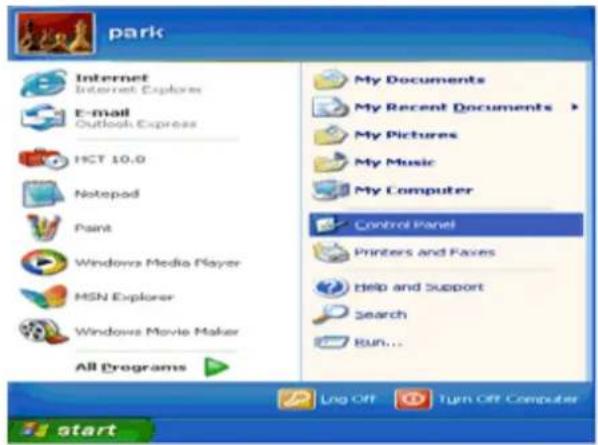

For Windows XP:

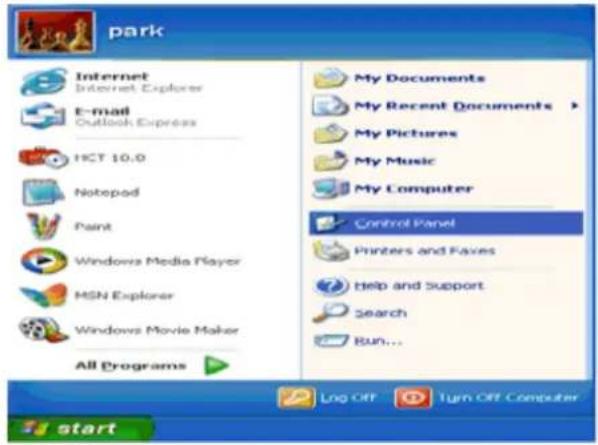

1 Click START.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.
3 Click CONTROL PANEL.

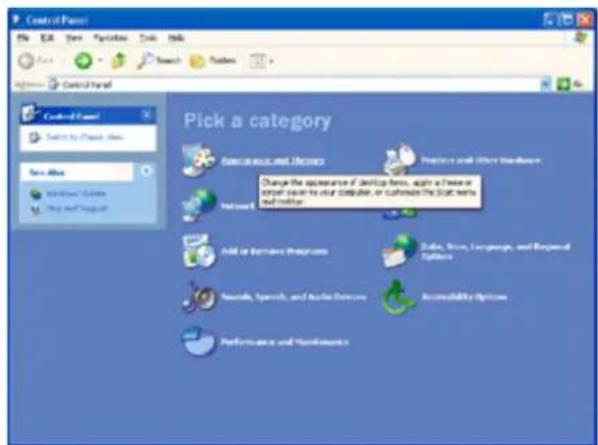

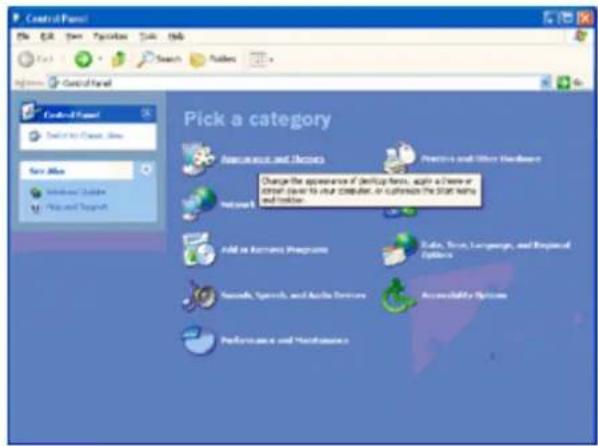

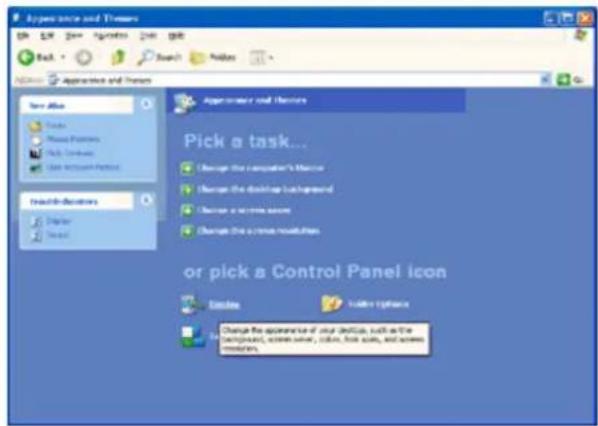

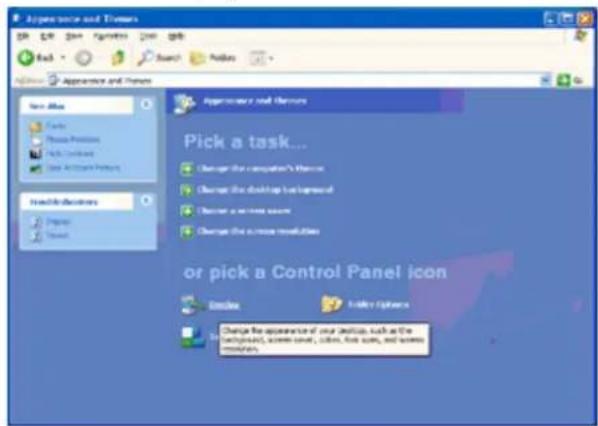

4 Click Appearance and Themes.

Control Panel File Edit View Favorites Tools Help Control Panel Control Panel Select to Create New... Save Asks Internet Options Img and Support Pick a category Create your own library Prepare and Other Handburs Choose the appearance of desktop items, click a text or other reader to your computer, or customize the Start Text and matter. Network Add or Remove Programs Delete, Save, Language, and Rejected Options Smooth, Speech, and Audio Exercises Accessible Options Performance and Maintenance

5 Double click DISPLAY.

Approve and Timers OK Apply Save Apply Edit Help Back Search New Update Paste Approve and Timers Save All Tools Mouse Performers Help Timers Use Microsoft Teams Search & Settings Display Search Approve and Timers Pick a task... Change the computer's monitor Change the desktop background Change the screen security Change the video resolutions or pick a Control Panel icon Update Update Options Change the appearance of your interface, such as the background, screen view, zoom, hot size, and screen modifiers.

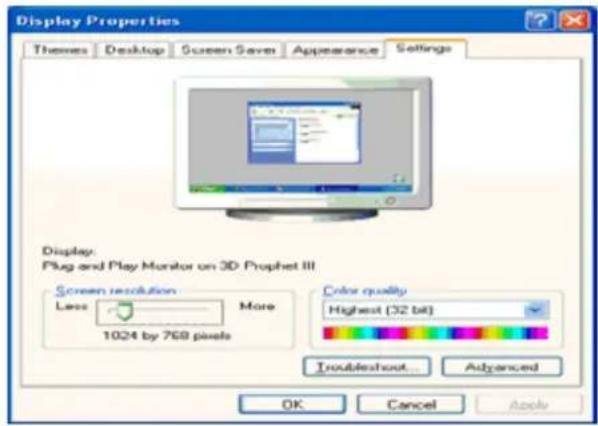

6 Click SETTINGS.

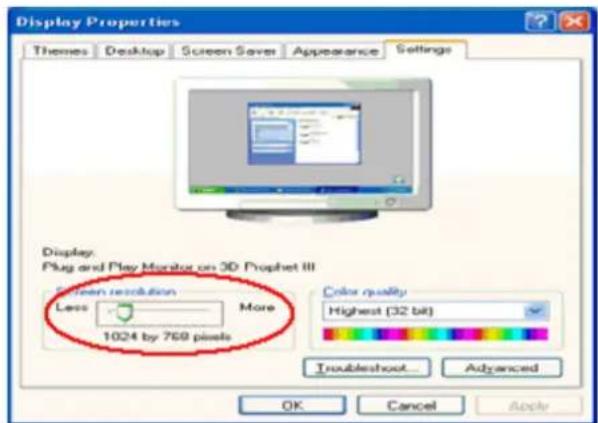

7 Set the resolution SLIDE-BAR to 1920 by 1080.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR to 1920 by 1080.

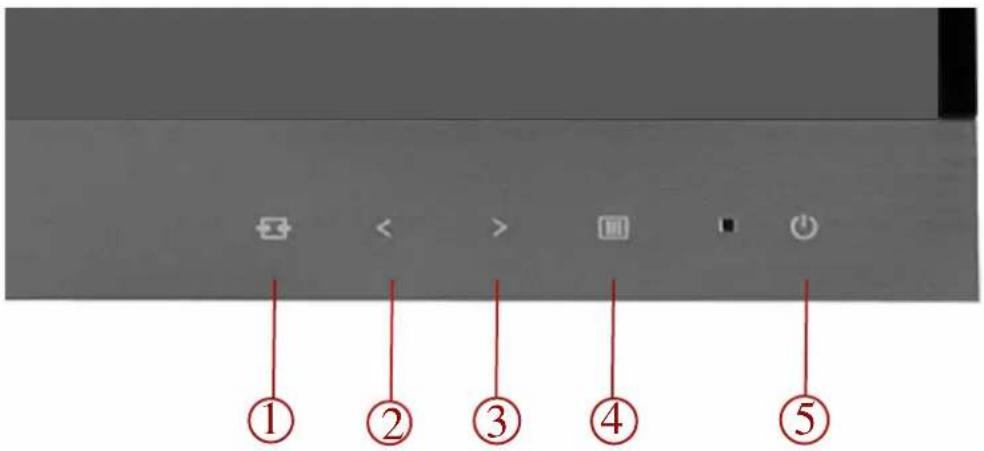

Hotkeys

① ② ③ ④ ⑤

1	Source/Auto/Exit
2	Clear Vision/<
3	Volume/>
4	Menu/Enter
5	Power

Power

Press the Power button to turn on/off the monitor.

Volume ▷

When there is no OSD, press Volume adjust volume.

Auto / Exit / Source hot key

When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure.

When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

Using "MHL(Mobile High-Definition Link)"

1. "MHL" (Mobile High-Definition Link)

This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screen of the product.

• To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official MHL website (http://www.mhlconsortium.org).
  ● To use the MHL function, the latest version of software must be installed on the mobile device.
• On some mobile devices, the MHL function may not be available depending on the device's performance or functionality.
  ● Since the display size of the product is larger than those of mobile devices, the picture quality may degrade.
• This product is officially MHL-certified. If you encounter any problem when using the MHL function, please contact the manufacturer of the mobile device.
• The picture quality may degrade when content (imported from the mobile device) with a low Resolution is played on the product.

Using "MHL"

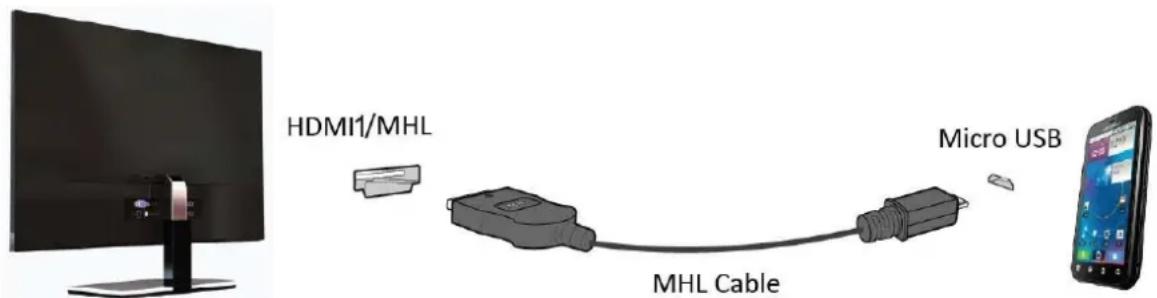

1. Connect the micro USB port on the mobile device to the [HDMI 1 / MHL] port on the product using the MHL cable.

HDMI1/MHL Micro USB MHL Cable

• When the MHL cable is used, [HDMI 1/ MHL] is the only port on this monitor that supports the MHL function.

• Mobile device must be purchased separately.

• Connect the DC power adapter to the product and a power outlet.

• Press the source button

and switch to HDMI 1/MHL to activate MHL mode.

1. After about 3 seconds, the MHL screen will be displayed if MHL mode is active.

Remark: The indicated time "3 sec later" may vary depending on the mobile device.

When the mobile device is not connected or does not support MHL

- If MHL mode is not activated, check the connection of the mobile device.

• If MHL mode is not activated, check if the mobile device supports MHL.
• If MHL mode is not activated even though the mobile device supports MHL, update the firmware of the mobile device to the latest version.

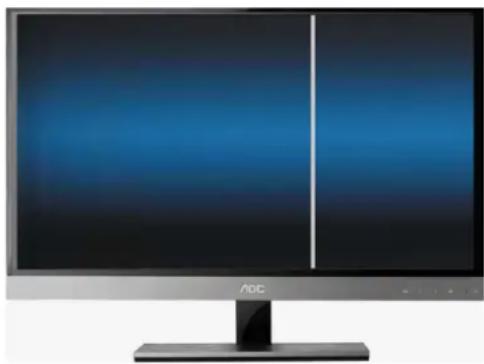

Clear Vision/<

1. When there is no OSD, Press the "<" button to activate Clear Vision
2. Use the “>” or “<” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”
3. Press and hold "<" button for 5 seconds, the vertical line will display while no vertical line screen; Press and hold "<" button for 5 seconds, the vertical line will disappear while the vertical line is moving in screen; Press the "<" Button to turn the monitor clear vision Off / Strong / Medium / Weak, the left of vertical line will be the effect demo and right of vertical line will be clear vision off; When display picture in screen will be more obviously.

Clear Vision function will provide the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

Clear Vision AC

Clear Vision Demo: On ADC

Front view of a modern AOC monitor with dual blue screen (no visible text or symbols on the screen)

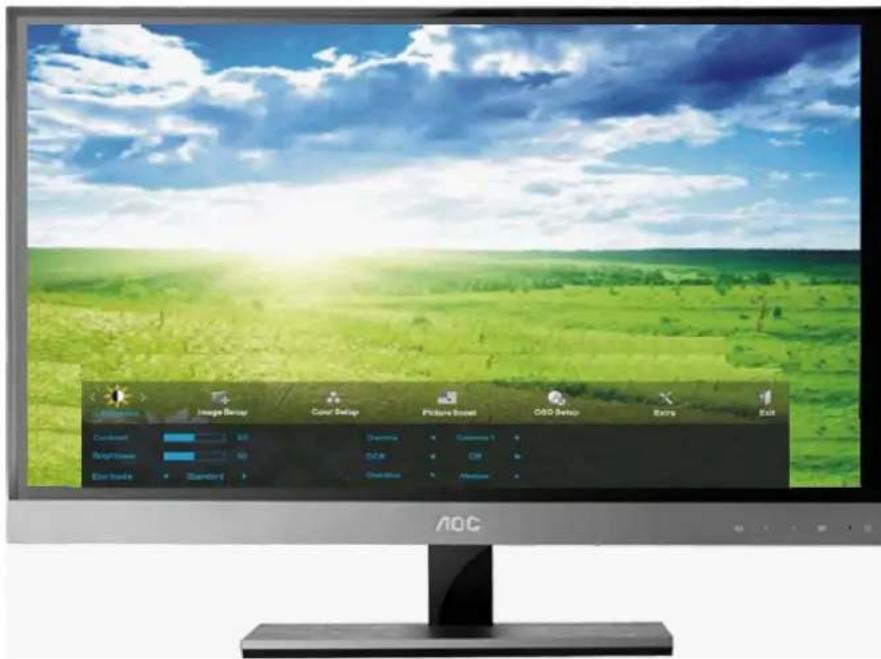

OSD Setting

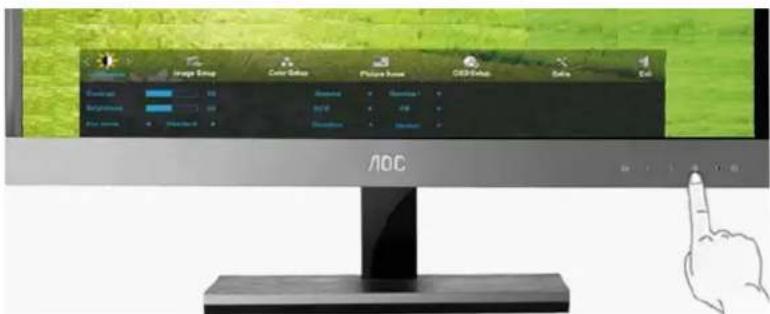

Basic and simple instruction on the control keys.

AOC Image Setup Cover Setup Picture Secret GOD Setup Extra Exit Condens RGB Brightness RGB Eco tracks Standard Gamma Customize 1 Ctrl Clearbox Clearbox Maximum

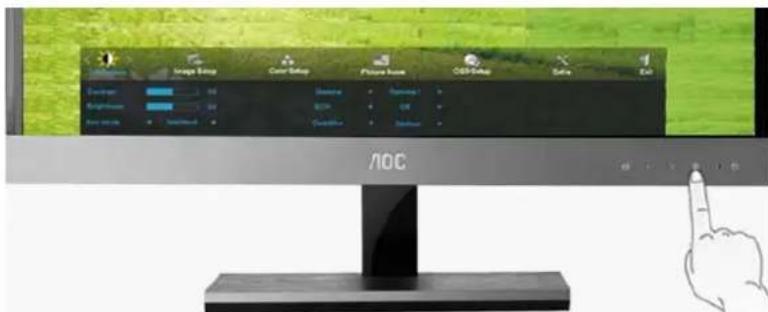

1) Press the MENU-button to activate the OSD window.
2) Press to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it . press to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
3) Press to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to adjust.
3) One of non-standard ECO, DCR, DCB, Picture Boost is activated, the other three of functions are turned off accordingly.

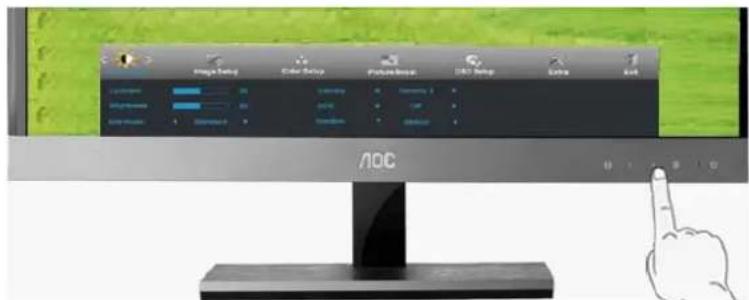

Luminance

AOC Image Rating Color Filter Picture Room CCTG/Regio Sales Turnover 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80

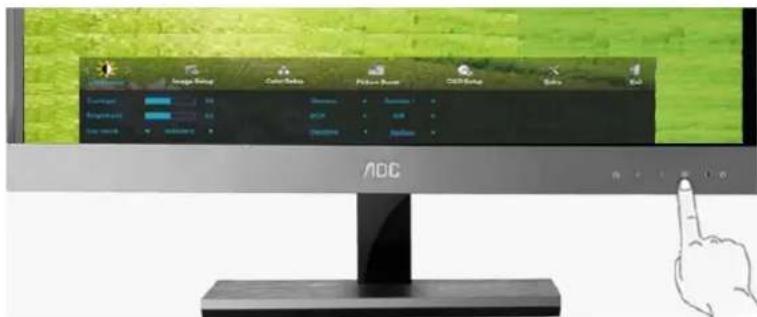

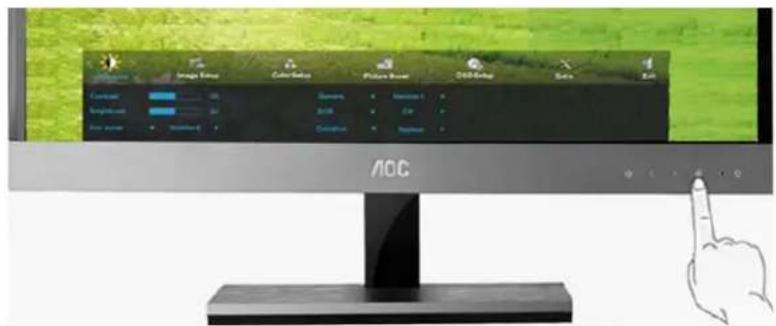

1. Press MENU (Menu) to display menu.

Image Setup Color Setup English Reset 400 Setup Enable OK OK Mode Standard OK Mode OK Mode NOC

1. Press <> or to select (Luminance), and press MENU to enter.

noc

1. Press < or > to select submenu, and press MENU to enter.

Computer monitor displaying a green screen with icons and status bar, showing system status and navigation buttons.

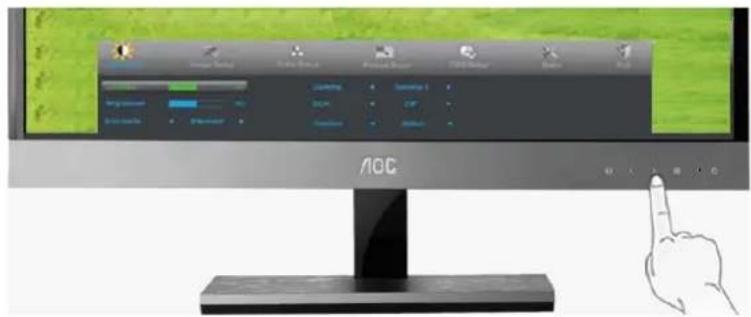

1. Press < or > to adjust.

Image Setup Color Setup Photo Mode USB Setup Extra Exit Audio Background Noise Standard OEC

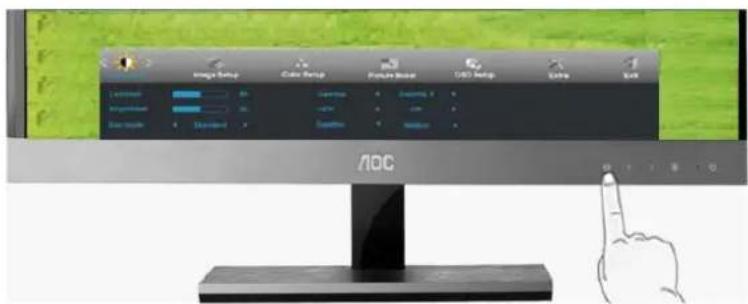

1. Press AUTO to exit.

	Brightness	0-100		Backlight Adjustment
	Contrast	0-100		Contrast from Digital-register.
	Eco mode	Standard		Standard Mode
		Text		Text Mode
		Internet		Internet Mode
		Game		Game Mode
		Movie		Movie Mode
		Sports		Sports Mode
	Gamma	Gamma1 Adjust to Gamma1
		Gamma2 Adjust to Gamma 2
		Gamma3 Adjust to Gamma 3
	DCR	Off		Disable dynamic contrast ratio
		On		Enable dynamic contrast ratio
	Overdrive	Weak		Adjust the response time
		Medium
		Strong
		Off

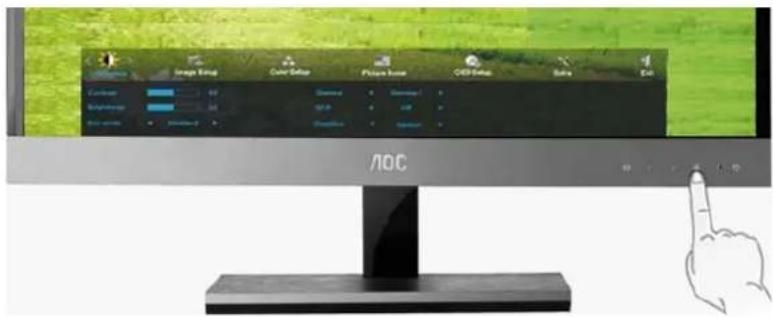

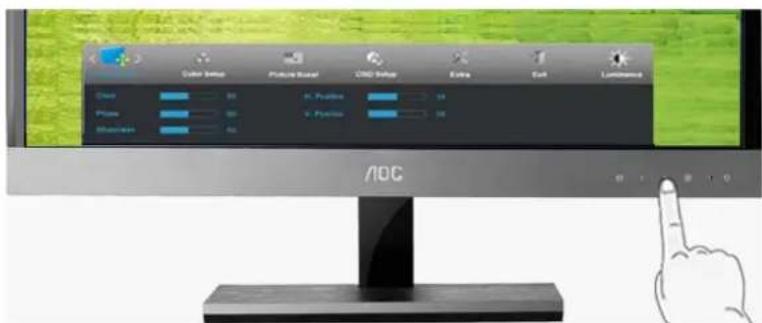

Image Setup

AOC

1. Press MENU (Menu) to display menu.

Color Mode Picture Skew Light Mode Extra Exit Luminance Clear + Position + Position + Position None Properties AOC

1. Press <> or to select (Image Setup), and press MENU to enter.

AOC

1. Press < or > to select submenu, and press MENU to enter.

AOC

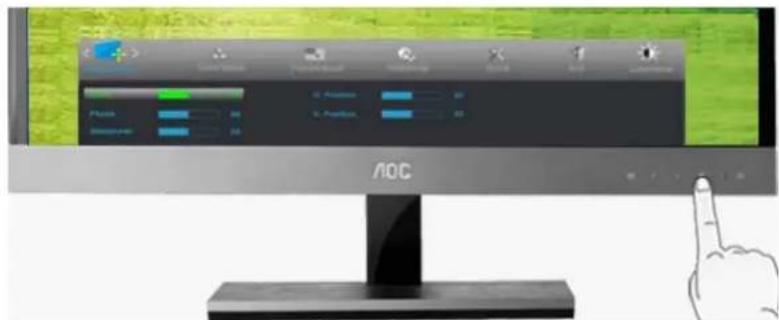

1. Press < or > to adjust.

Color Offset Product Seal CMYK Offset Extra Cut Luminance Clear H. Positive 10 Photo V. Positive 10 Shannon No. AOC

1. Press AUTO to exit.

	Clock	0-100	Adjust picture Clock to reduce Vertical-Line noise.
	Phase	0-100	Adjust Picture Phase to reduce Horizontal-Line noise
	Sharpness	0-100	Adjust picture sharpness
	H.Position	0-100	Adjust the horizontal position of the picture.
	V.Position	0-100	Adjust the vertical position of the picture.

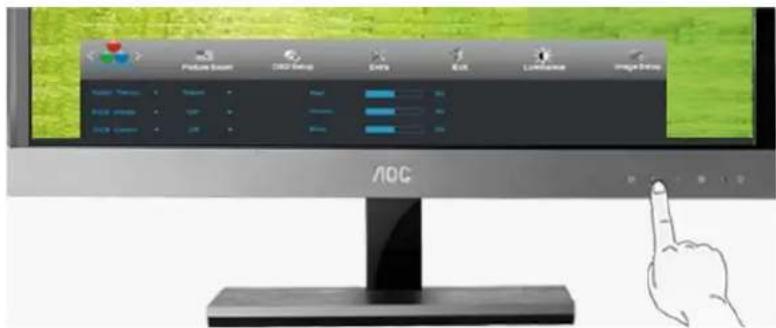

Color Setup

Image Setup Color Setup Picture Room OBS Setup Guide View AOC

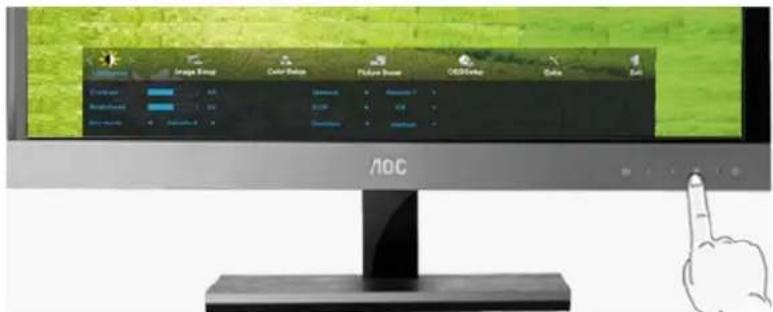

1. Press MENU (Menu) to display menu.

Product Export CROP Export Entry BOX Lock/Lock/Lock Image Entry AOC

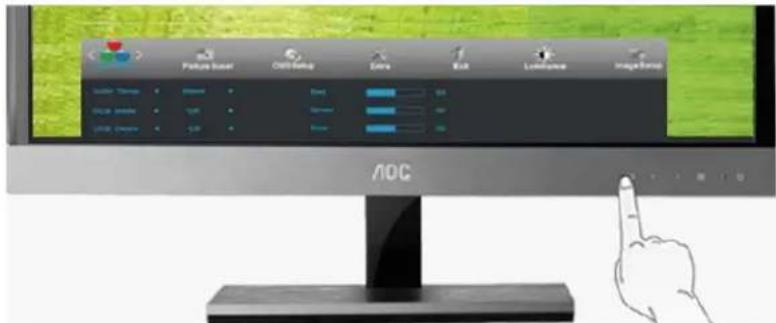

1. Press < or > to select (Color Setup), and press MENU to enter.

AOC

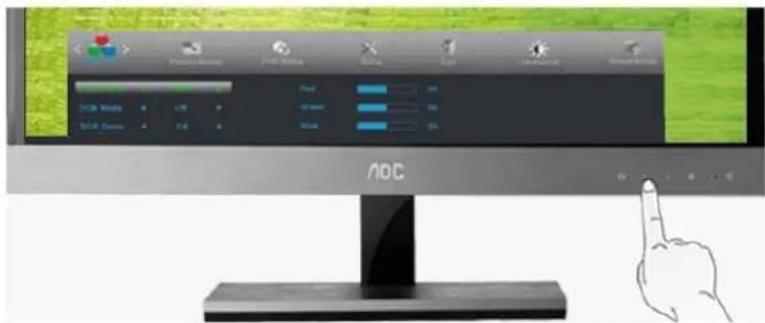

1. Press < or > to select submenu, and press MENU to enter.

AOC

1. Press to adjust.

Picture based Oriental Extra Edit Lightance Image based Color: Chlorine RGB: Red Blue: Green Orange: Blue Red: Green AOC

1. Press AUTO to exit.

	Color setup.	Warm		Recall Warm Color Temperature from EEPROM.
		Normal		Recall Normal Color Temperature from EEPROM.
		Cool		Recall Cool Color Temperature from EEPROM.
		sRGB		Recall SRGB Color Temperature from EEPROM.
		User	Red	Red Gain from Digital-register
			Green	Green Gain Digital-register.
			Blue	Blue Gain from Digital-register
	DCB Mode	Full Enhance	on or off	Disable or Enable Full Enhance Mode
		Nature Skin	on or off	Disable or Enable Nature Skin Mode
		Green Field	on or off	Disable or Enable Green Field Mode
		Sky-blue	on or off	Disable or Enable Sky-blue Mode
		AutoDetect	on or off	Disable or Enable AutoDetect Mode
	DCB Demo		On or off	Disable or Enable Demo

Picture Boost

AOC Image Help Color Colors Picture Names GSD Labels Sales Edit Clear up Background Play screen Balance 0 Balance 1 Balance 2 Balance 3 Balance 4 Balance 5 Balance 6 Balance 7 Balance 8 Balance 9 Balance 10

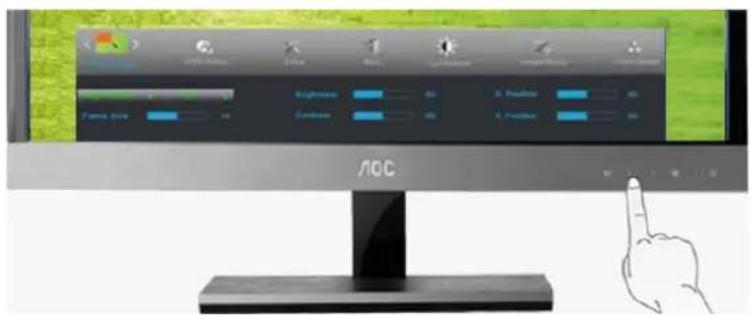

1. Press MENU (Menu) to display menu.

GBO Setup Extra Exit Luminance Image Setup Color Setup Brightness 400 Hypertension 80 X: Position 80 Pixel Size 1.2 Customs 80 X: Position 80 AOC

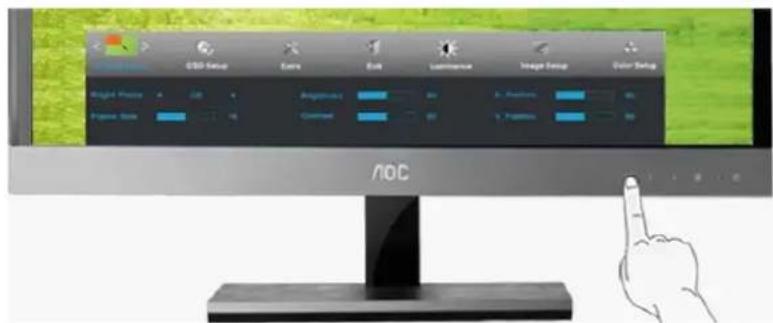

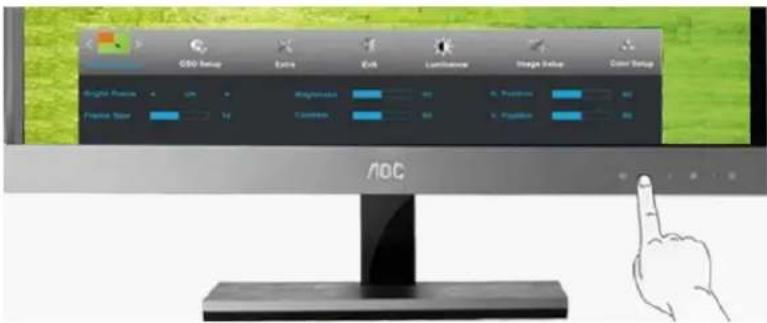

1. Press to select (Picture Boost), and press MENU to enter.

AOC

1. Press <or to select submenu, and press MENU to enter.

RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB RGB

1. Press <>or to adjust.

ODI Setup Extra Exit Latimance Image Setup Color Setup Weight Picture A A - Platform A - Platform Figure Size 14 Continuous 80 7 - Platform 80 noc

1. Press AUTO to exit.

	Frame Size	14-100	Adjust Frame Size
	Brightness	0-100	Adjust Frame Brightness
	Contrast	0-100	Adjust Frame Contrast
	H. position	0-100	Adjust Frame horizontal Position
	V.position	0-100	Adjust Frame vertical Position
	Bright Frame	on or off	Disable or Enable Bright Frame

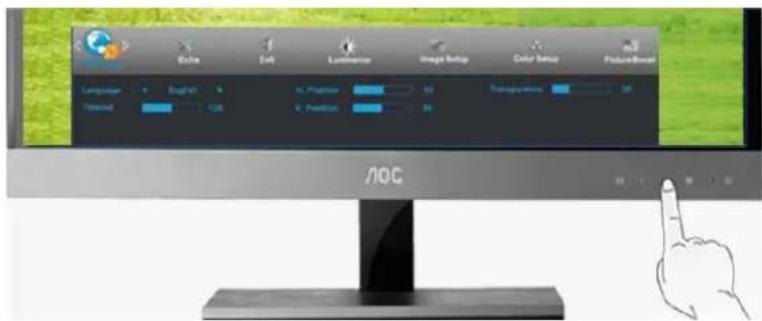

OSD Setup

Image Setup Color/Temp Picture Base RGB/Temp Balance OK Back Mode Audio/Temp Audio/Temp AOC

1. Press MENU (Menu) to display menu.

Light Soft Luminance Image Setup Color Setup Picture/Wave Language English In: Position Transparency Textual 128 Textual 90 NOC

1. Press <> or to select (OSD Setup), and press MENU to enter.

AOC AOC Color LightBlue LightBlue Cyan Gray Green Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black AOC

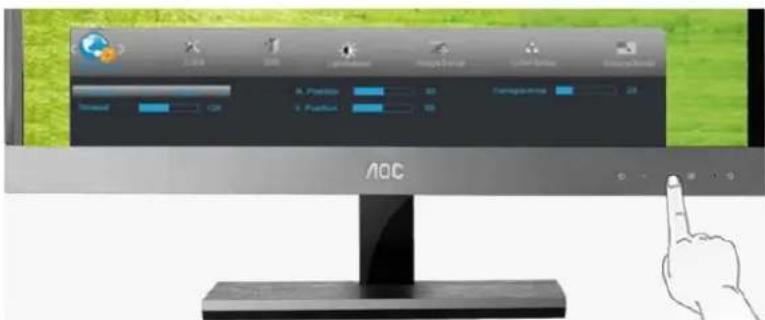

1. Press < or > to select submenu, and press MENU to enter.

AOC 1.26 A. Position V. Position 90 40 Transpensional 70 AOC

1. Press < or > to adjust.

AOC Extra Exit Lockiness Image Setup Color Setup Picture Book1 Language English Position Position Transpersion 24 Vertical 100 Vertical No AOC

1. Press AUTO to exit.

	H.Position	0-100	Adjust the horizontal position of OSD
	V.Position	0-100	Adjust the vertical position of OSD
	Timeout	5-120	Adjust the OSD Timeout
	Transparence	0-100	Adjust the transparence of OSD
	Language		Select the OSD language

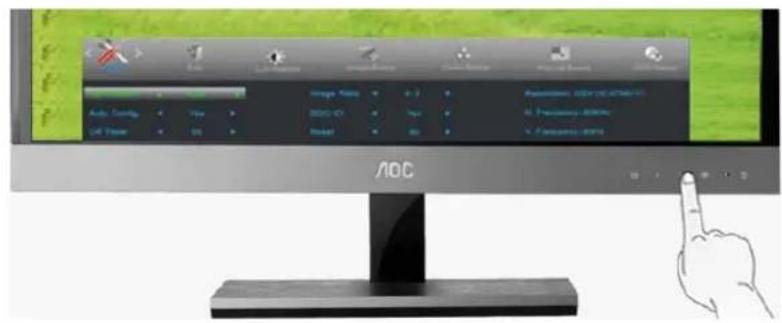

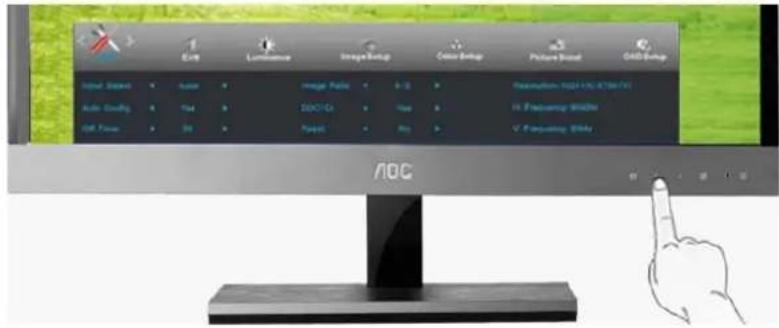

Extra

Image Setup Color Setup Default Brightness Accuracy ACC F-50 Setup Sigma End Standard 3x 2x 1x 0x Standard Standard ACC

1. Press MENU (Menu) to display menu.

EVR Lumbrance Image Setup Color Setup Picture Based RGB Setup Input Screen Auto Coding Soft Press Image Filter Auto ESC-CI New New Pre Slovenia: ISO/150, RGB/150 Frequency Width Frequency Width AOC

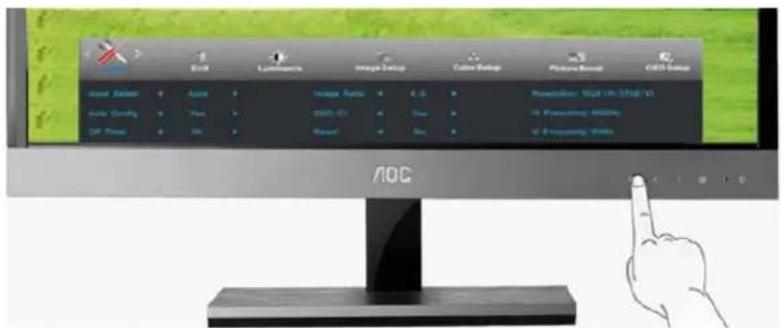

1. Press to select (Extra), and press MENU to enter.

Auto (OK) OK Image Status SICO (OK) Event Presentation: 100% or 20% A Proportant: 60% B Proportant: 50% A OOC G S C

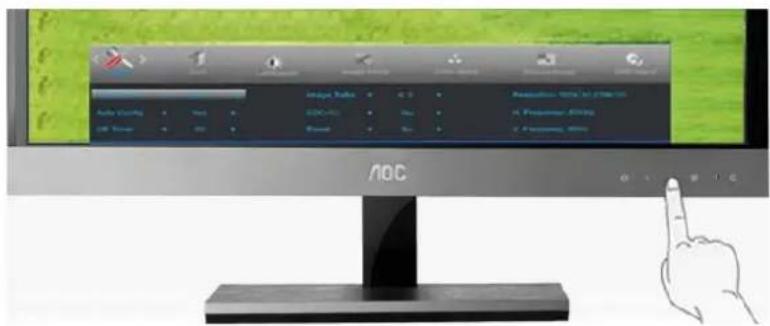

1. Press <> or to select submenu, and press MENU to enter.

AOC Image Help Auto Tools View Get Home OK +2 BDO-10 Yes Reset No Pre Slovenia: USB 15.0 GB/15.0 Hi: Precision 800% V: Precision 80%

1. Press <>or to adjust.

ACB Luminants Image Setup Color Setup Picture Board CNC Setup Audio Setup Audio Control View Image: Audio 6000.0V View A: Preprocessing 4000Hz A: Preprocessing White AOC

1. Press AUTO to exit.

	Input Select	Auto Select to Auto Detect input signal
		D-SUB	Select Signal Source as Input
		HDMI1/MHL	Select HDMI1/MHLSource as Input
		HDMI2	Select HDMI2 Source as Input
	Auto Config yes or no Auto adjust the picture to default
	Image Ratio wide or 4:3 Select wide or 4:3 format for display
	DDC-CI yes or no Turn ON/OFF DDC-CI Support
	Reset	yes or no	Reset the menu to default
	Off Timer	0~24hours	Select timing to turn off the monitor.
	Information		Show the information of the main image and sub-image source

Exit

AOC Image Edit Color/Sattn Picture Screen OOS/Setup Sigma Edit Camera Brightness Noise Current Sensitivity ACC

1. Press MENU (Menu) to display menu.

2. Press < or > to select (Exit), and press MENU or AUTO to

1. Press < or > to select (Exit), and press MENU or AUTO to exit.

Exit Exit the main OSD

LED Indicator

Status LED Color
Full Power Mode Blue
Active-off Mode	orange

Driver

Monitor Driver

Windows 8

1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.

1. Click on "Control Panel".
2. Set the "View by" to "Large icons" or "Small icons".

Control Panel Start + Control Panel + All Control Panel Tools Adjust your computer 'Settings' Action Center Credential Manager Display Folder Options Keyboard Notification Annals Power Options Sound Tabletter Windows Firewall Administration Tools Case and Time Ease of Access Center Forms Language NVIDIA Control Panel Programs and Features Speech Recognition Troubleshooting Windows Update AutoPlay Default Programs Family Safety PersonalGroup Location Settings Performance Information and Tools History Storage Spaces User Resources Bitischer Drive Recognition Device Manager File Mystery Accounting Options Mouse Personalization Region Sync Center Windows 7 File Recovery Color Management Devices and Printers Flash Player (32-bit) Internet Options Network and Sharing Center Phone and Modem Homology and Desktop Connections System Windows Defender

5. Click on the "Display" icon.

Adjust your computer's settings View by: Small screen * Action Center Color Management Desktop Gadgets Face of Access Center HomeGroup Location and Other Sensors NVISTA Centers Panel Performance Information and Tools Program and Features RemoteApp and Desktop Connections System User Accounts Windows Printout Administrative Tools Centennial Manager Device Manager Auto Play Data and Time Drugs and Problems Tools Internet Options Networks and Sharing Center Parental Controls Phone and Modem Recovery Speech Recognition Taskbox and Start Menu Windows CardSource Backup and Restore Default Programs Display Getting Started Keyboard Nettofacor Area Icons Fire and Touch Power Options Region and Language Sync Center Troubleshooting Windows Orleans

6. Click on the "Change display settings" button.

Control Panel Books Adjust resolution Corporate color Change display settings Adjust Class/Type text Set custom text size (DIP) Make it easier to read what's on your screen You can change the size of text and other items on your screen by checking one of these options. To temporarily enlarge just part of the screens, use the "All-Panel" tool. Smaller: 100% Premise: Medium: 125% (default) Larger: 150% Apply Test info Personalization Devices and Printers

7. Click the "Advanced Settings" button.

Change the appearance of your display Display: L. Nvidia Default Flat Panel Resolution: 1000 x 1000 (recommended) Orientation: Landscape Advantage settings Make test and other norms larger as smaller What display settings should be allowed? OK Cancel Apply

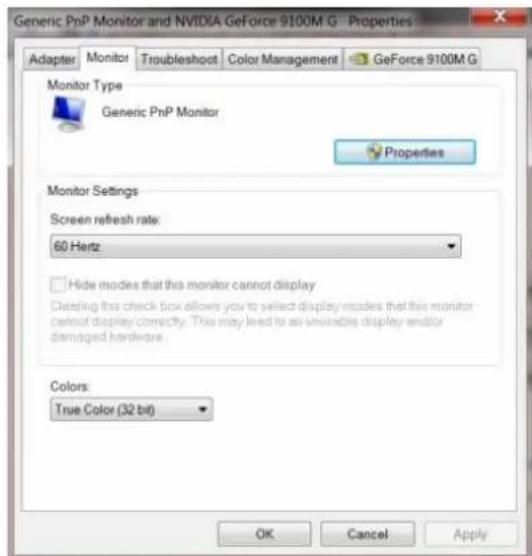

8. Click the "Monitor" tab and then click the "Properties" button.

Generic PrP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PrP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Dealing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged kerware Colors: True Color (32 bit) OK Cancel Apply

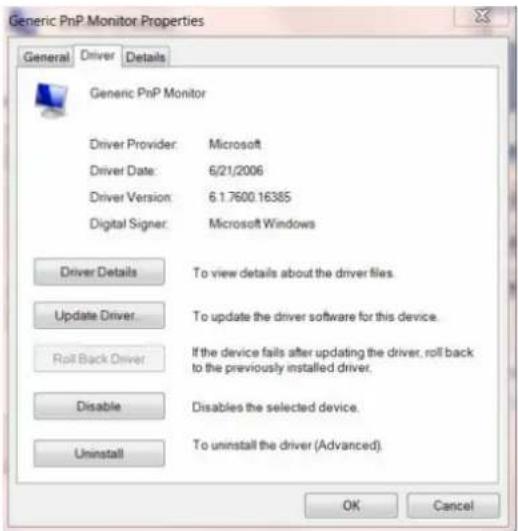

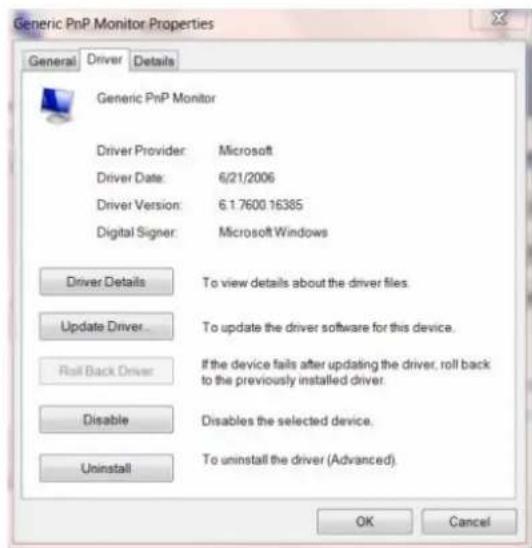

1. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

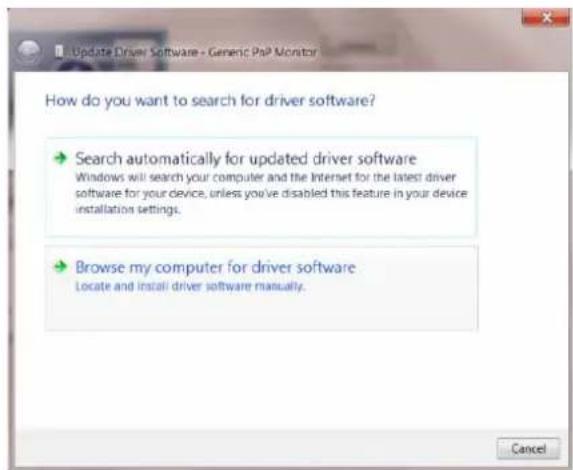

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... " and then click the "Browse my computer for driver software" button.


Update Driver Software - Generic PnP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

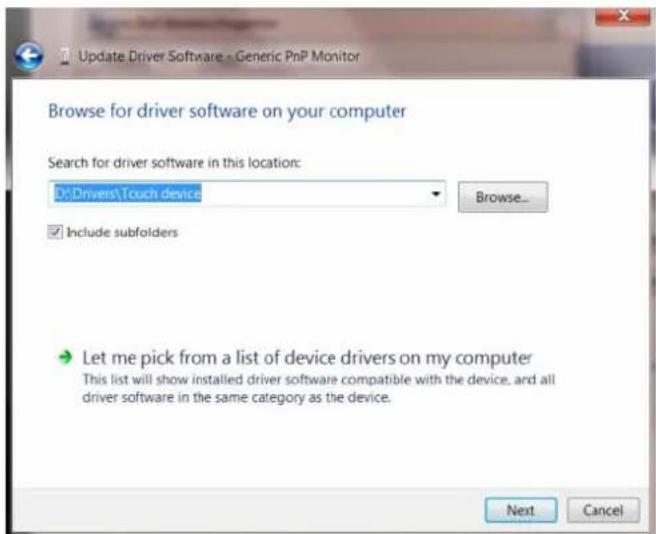

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic PnP Monitor Browse for driver software on your computer Search for driver software in this location: D:\Drivers\Touch device Browse... Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

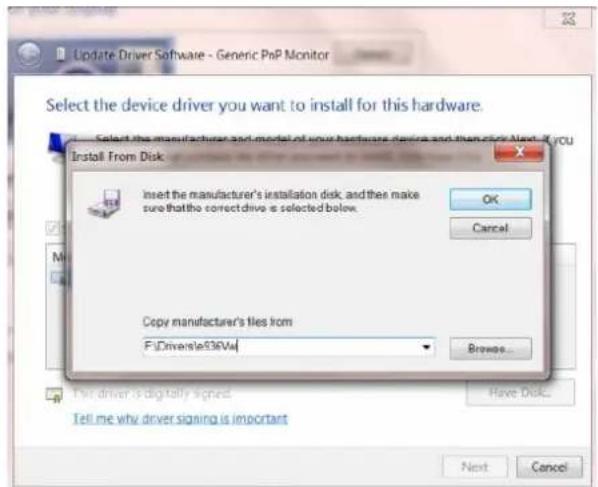

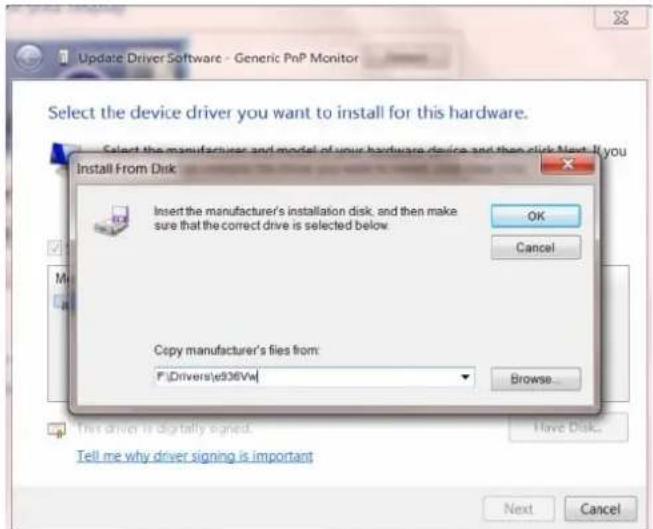

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you Install From Disk: Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: F:\Drivers\ed36Vw\ Browse... This driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 7

1.Start Windows® 7

1. Click on the 'Start' button and then click on 'Control Panel'.

CyberLink PowerCinema Paint Windows Media Center Touch tool Getting Started Calculator Sticky Notes Snipping Tool Magnifier WinRAR All Programs aoc Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

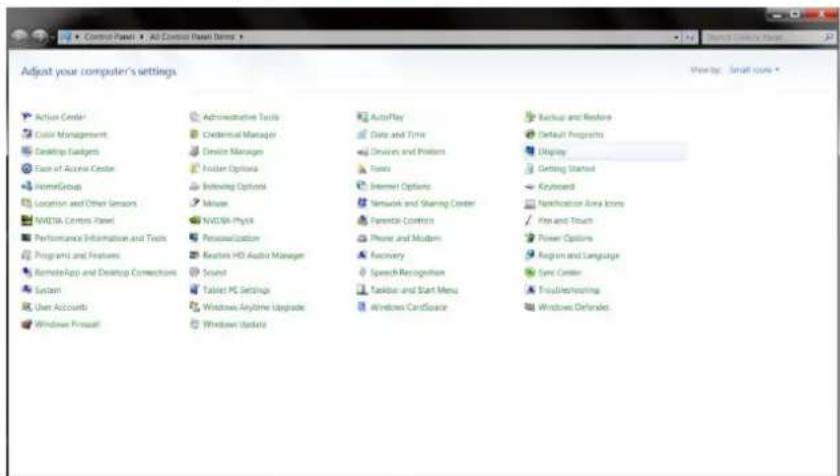

1. Click on the 'Display' icon.

Adjust your computer's settings View by: Small wins Action Center Code Management Desktop Groups Ease of Active Center HomeGroup Location and Other Settings NVISTA Control Plan Performance Information and Tools Programs and Features Demotry Apps and Desktop Connections System User Accounts Windows Remote Administrative Tools Credential Manager Device Manager Default Options Debug Options Mouse NVISTA PhysX Personalization Rispeak iOS Audio Manager Scand Tablet PC Settings Windows Anytime Upgrade Windows Update AutoPlay Data and Time Devices and Providers Actions Environment Options Networks and Testing Center Parental Contacts Private and Microcam Accessing Speech Recognition Textiles and Start Menu Windows CardSpace Backup and Restore Default Programs Display Getting Started Keyboard Mathematics Area Items Press and Touch Power Colors Regms and Language Syns Center Treadtechening Windows Defender

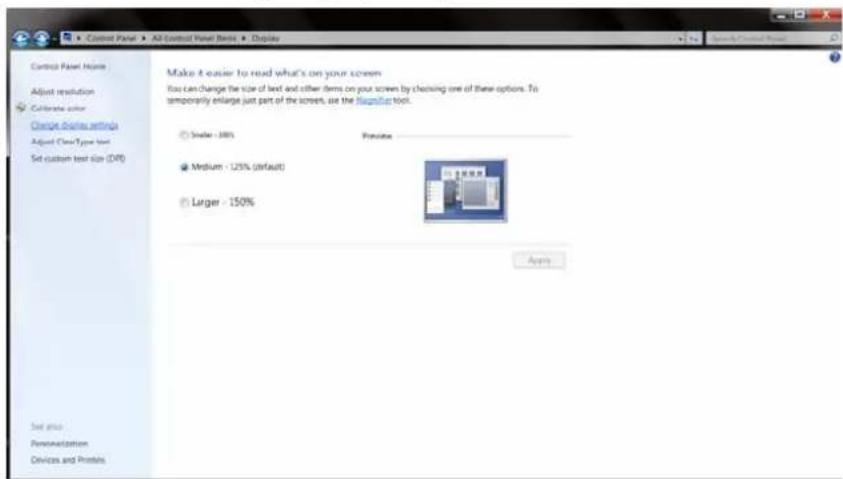

4. Ckick on the "Change display settings" button.

Control Panel - All-Cross Panel Name - Display Make it easier to read what's on your screen You can change the size of bed and other items on your screen by checking one of these options. To temporarily enlarge just part of the screen, see the "stopLine" tool. Scale: 100% Medium: 125% (default) Large: 150% Name: End Site Personalization Devices and Frames

5. Click the "Advanced Settings" button.

Change the appearance of your display Display: 2. Verita Default Flat Panel Resolution: 1400 x 1000 (recommended) Orientation: Landscape Advert settings Make text and other items longer or shorter What disaster settings should I choose? OK Cancel Apply

6. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an invalid display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

7. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

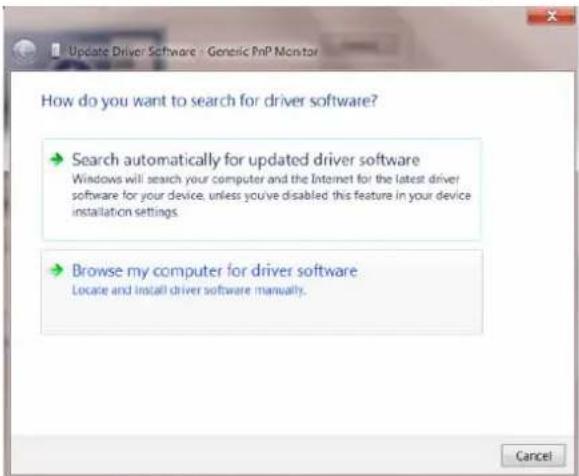

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... "and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PaP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software - Generic PoP Monitor Browse for driver software on your computer Search for driver software in this location: D:\Driver\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's tiles from F:\Driver\e536V4\ Browse... For driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Microsoft Internet Explorer T- web Windows Watch Welcome Control Windows Window Player Windows Phone Gallery Windows Live Messages Download Windows Wheeling Space Windows Explorer Adobe Photoshop CS2 SpinCo Command Prompt AD Programs Start Menu Edit user Disaspeople Playbox Music Games Search Recent Bits Computer Network Connect To Control Panel Default Programs Help and Support

Control Panel Share History View System and Maintenance Get further with Windows Save up your computer. Security Check for options Check this computer's security details Close up your computer through Windows Network and Internet Use network icons and tools Set up the sharing. Hardware and Sound Play iOS to effect music automatically Focus Music Programs Download programs Change desktop programs. User Accounts Add to ensure user accounts. Appearance and Personalization Change the appearance of building tools, apply, or create a server unit to your computer, as maintaining the dark music and radio. Clock, Language and Religion Change techniques or other key methods Change closing language. Case of Actions Get Windows shortcut settings Options: user interface. Additional Options

1. Click "Personalization" and then "Display Settings".

C:\Users\Panel 3 - Engineering and Personalization Recommendation Change the value by background Change the value by background Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value Market Value and Market Value MarketValue Subvalue Properties With people or friends, there are no other Subvalue Properties in this category.

Appetition and Personalization Personalization appertensive and accurate General Online Appetitions Find that the code and key of your activities. Display Background Choose from available backgrounds or sites in your own file you have been to deliver the meeting. Green Text Change your content use or adjust what it displays. It currently uses a package to monetize that covers your content and appairs your computer to guide the link between the time. Scripts Change which sounds are heard when you are anything from getting an email to implying your resources. Visual Function Make a different mouse picture. You can also change from the mouse picture table drawing off each article as clicking and editing. Theme Change the theme. Theme can change in color range of image and brightness elements of text/notes, including the appearance of theme, color, background, color, and other computer images. Video effects Adjust your audience's attention, which changed the color size of fresh items (if the content. You can also control the location file which is)

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation) Dry is my main monitor Lshed the desktop-only this monitor Resolution: Low High 1280 by 1024 pixels Colors: Highest (32 bit) How do I get the best display? Advanced Settings... OK Cancel Apply

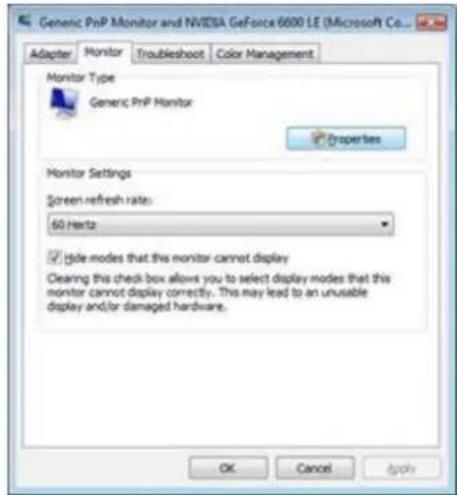

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

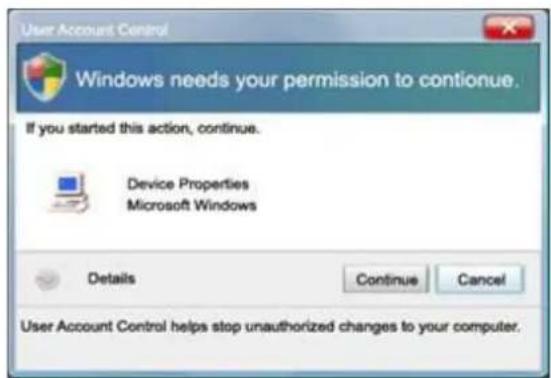

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrnP Monitor and NVIDIA GeForce 6000 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz ✓ Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

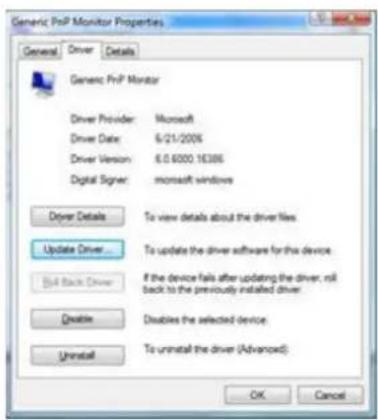

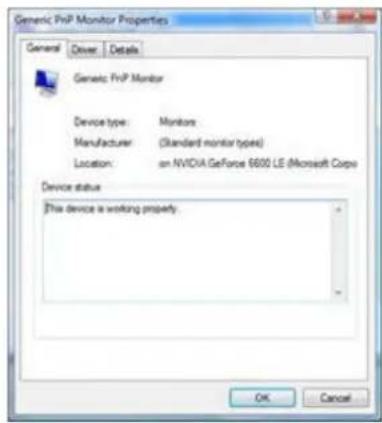

1. Click "Update Driver..." in the "Driver" tab.

Generic PrGP Monitor Properties General Driver Details Generic PrGP Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location: on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic PrnP Monitor Properties General Driver Details Generic PrnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0 6000 16386 Digital Signer: microsoft windows Driver Details To view details about the driver files Update Driver... To update the driver software for this device Build Back Driver If the device fails after updating the driver, will back to the previously installed driver Enable Disables the selected device Uninstall To uninstall the driver (Advanced) OK Cancel

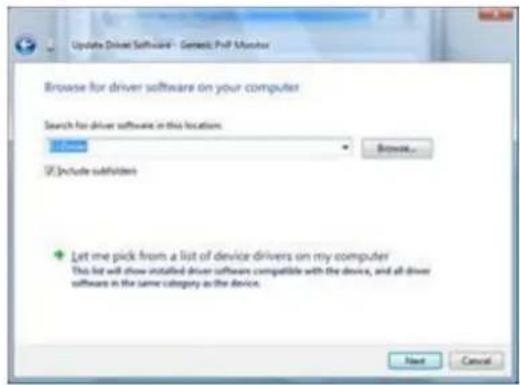

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Driver Software - Semest. Polf Monitor Browse for driver software on your computer Search for driver software in this location Browse... If Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel Find it in Open, Save Save Active Internet Options Find and Assign Pick a category Resource and Devices Practice and Other Hardware Change the appearance of desktop tools, again a time or clock prior to your computer, or refresh the Start Wang and more. Networks Add or Remove Programs Sales, Text, Languages, and Optional Options Smooth, Speech, and Audio Timms Accessibility Options Performance and Maintenance

1. Click on the 'Display' Item.

Applications and Patterns New Office Tools Physics Properties MAC Structures Data Architecture Properties New Office Patterns Preview Preview Applications and Patterns Pick a task... Change the computer's features Change the desktop background Change the other items Change the more resolution or pick a Control Panel icon Actions Make Options Change the appearance of your items, such as the background, screen color, colors, font colors, and screen colors.

5. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot... Advanced OK Cancel Apply

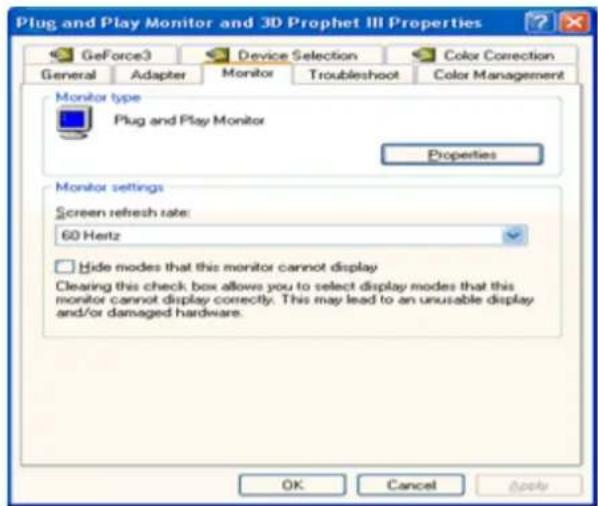

6. Select 'Monitor' tab

• If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
• If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

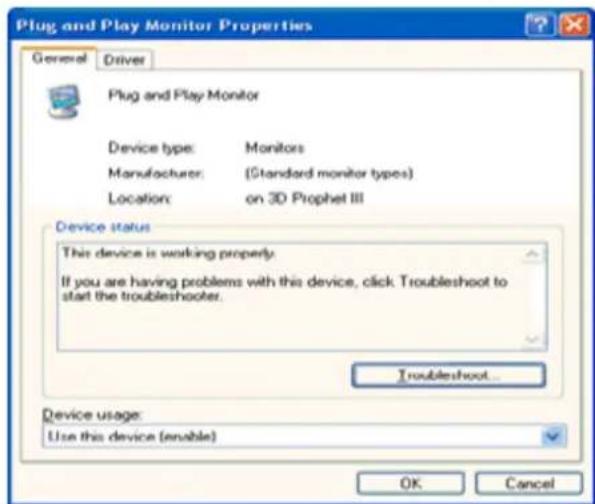

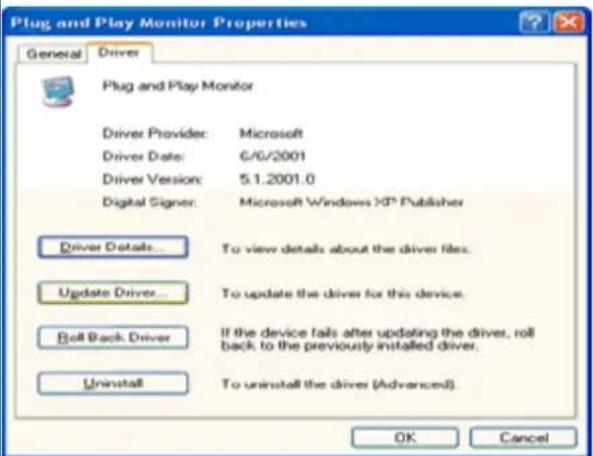

7. Click on the 'Driver' tab and then click on 'Update Driver...' button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signer: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). OK Cancel

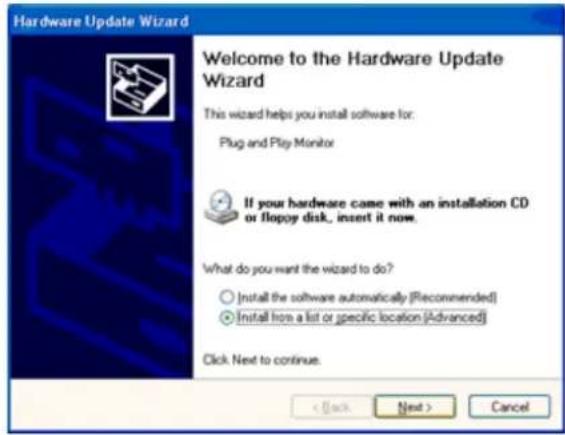

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

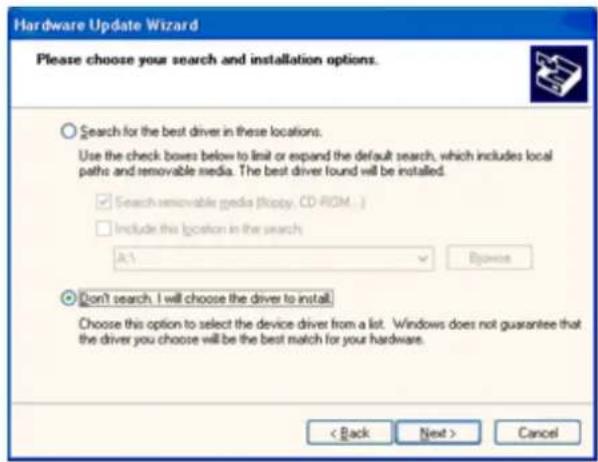

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Hopy, CD-ROM...) ☐ Include this location in the search A:\ Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

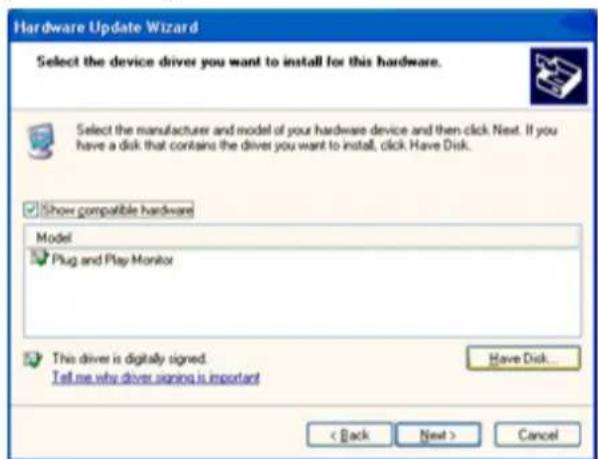

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.

1. Click on the 'Finish' button then the 'Close' button.
2. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
6. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
7. If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
8. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
9. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
10. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click on the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
13. Click on the 'Finish' button then the 'Close' button.
    If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

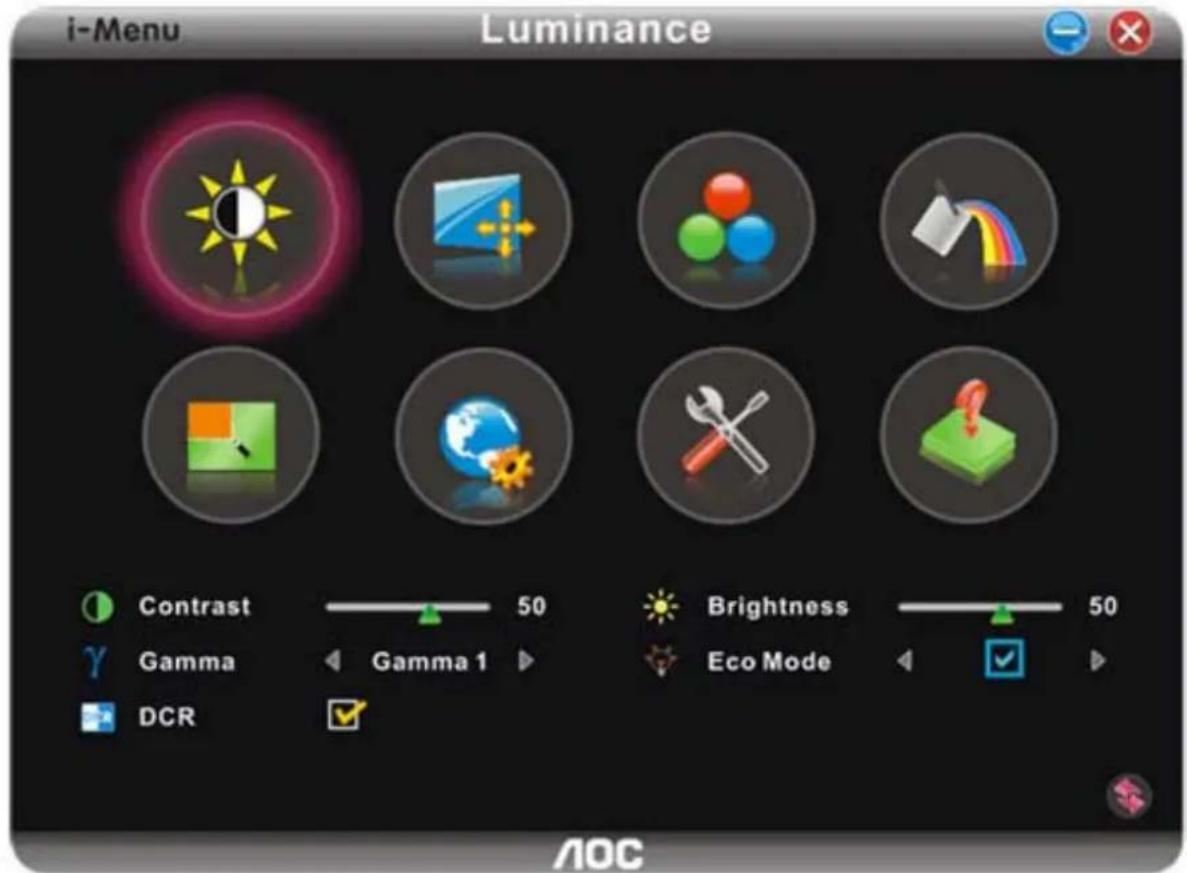

i-Menu

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR AOC

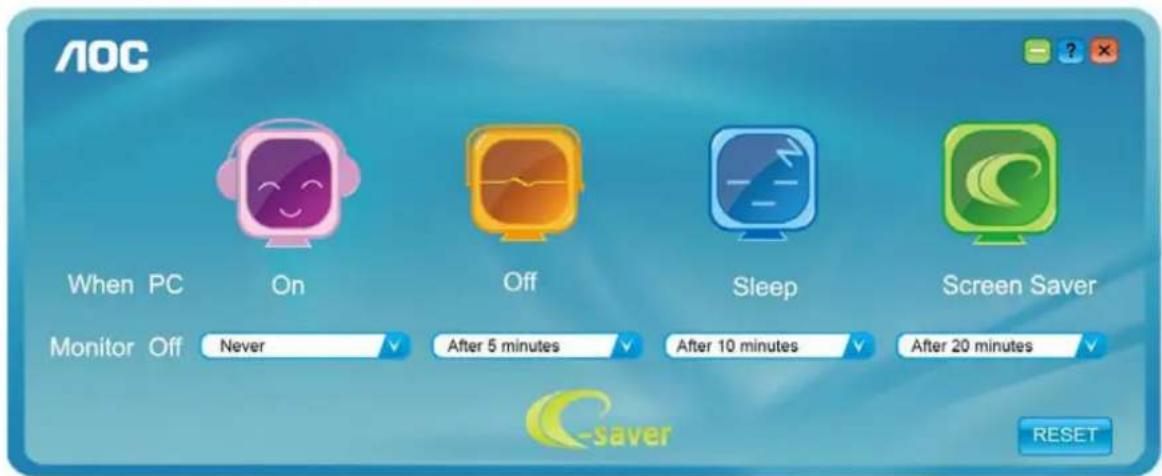

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

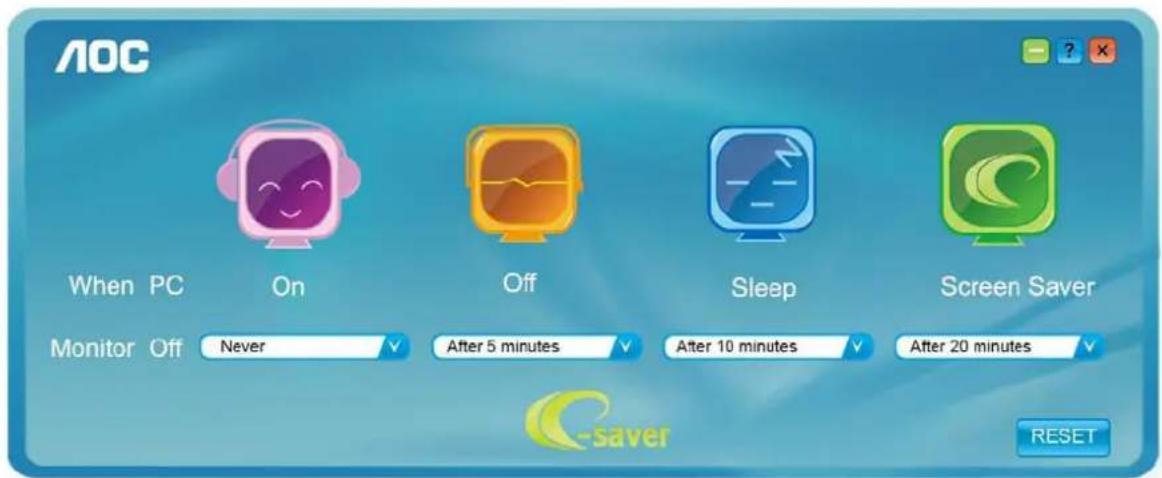

You can click "RESET" to set the e-Saver to its default settings like below.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

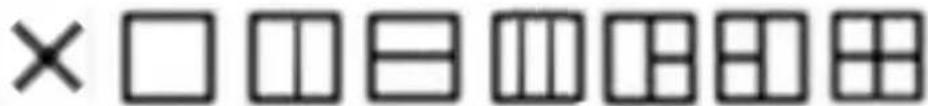

Screen+

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

×□□日□□□□

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	Is the power cord connected properly?Check the power cord connection and power supply.Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.(Connected using the DVI cable)Check the DVI cable connection.* DVI input is not available on every model.If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution your are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification

Panel	Model name	I2757FM
	Driving system TFT Color LCD
	Viewable Image Size	686.00mm Diagonal
	Pixel pitch	0.1038*RGBmm x 0.3114(V)mm
	Video R, G, B Analog Interface ,HDMI
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Dot Clock 170MHz
Resolution	Horizontal scan range 30kHz to 83kHz
	Horizontal scan Size(Maximum)	597.8mm
	Vertical scan range 50Hz to 76Hz
	Vertical scan Size(Maximum)	336.3mm
	Optimal preset resolution 1920×1080@60Hz
	Plug & Play	VESA DDC2B/C1
	Input Connector	VGA,HDMI1/MHL,HDMI2
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, Positive,HDMI,MHL
	Power Source	100-240V~, 50/60Hz
	Power Consumption	Active<36W(Typical)
		Standby < 0.5 W
	Off timer	0-24 hrs
Physical Characteristics	Connector Type	VGA、HDMI×2
	Signal Cable Type	Detachable
	Dimensions & Weight:
	Height (with base)	449mm
	Width	622mm
	Depth	130mm
	Weight (monitor only)	5.7kg
	Weight (with packaging)	7.95kg
Environmental	Temperature:Operating 0° to 40°
	Non-Operating -25° to 55°
	Humidity:
	Operating 10% to 85% (non-condensing)
	Non-Operating 5% to 93% (non-condensing)
	Altitude:
	Operating 0~2000m (0~6562 ft)
	Non-Operating 0~12192m (0~40000 ft)

Preset Display Modes

STAND	Resolution	HORIZONTAL FREQUENCY(kHZ)	VERTICAL FREQUENCY(Hz)
VGA	640x480@60Hz	31.469	59.940
	640x480@72Hz	37.861	72.809
	640x480@75Hz	37.500	75.00
SVGA	800x600@56Hz	35.156	56.250
	800x600@60Hz	37.879	60.317
	800x600@72Hz	48.077	72.188
	800x600@75Hz	46.875	75.000
XGA	1024x768@60Hz	48.363	60.004
	1024x768@70Hz	56.476	70.069
	1024x768@75Hz	60.023	75.029
SXGA	1280x1024@60Hz	63.981	60.020
	1280x1024@75Hz	79.976	75.025
WXGA+	1440x900@60Hz	55.935	59.887
WSXGA	1680x1050@60Hz	65.290	59.954
HD	1920x1080@60Hz	67.500
***	1280x960@60HZ	60.000	60.000
IBM MODE DOS	640x350@70Hz	31.469	70.087
	720x400@70Hz	31.469	70.087
MAC MODE VGA	640x480@67Hz	35.000	66.667

60.000

MAC MODE SVGA	832x624@75Hz	49.725	74.551
MAC MODE XGA	1024x768@75Hz	60.241	74.927

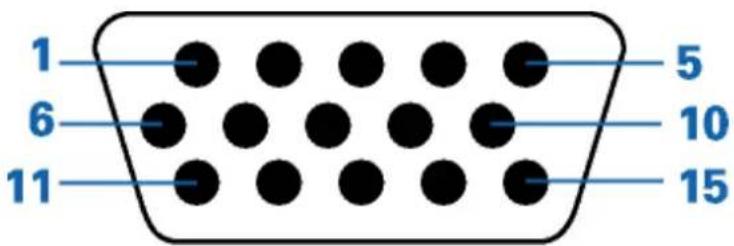

Pin Assignments

1 6 11 5 10 15

Pin Number 15-Pin Side of the Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
9 +5V
10 Ground
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock

19 17 1 18 2

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1 TM	DS Data 2+ 9 TMDS Data 0 17				DDC/CEC Ground
2	TMDS Data 2 Shield	10	TMDS Clock +	18	+5V Power
3	TMDS Data 2	11 TM	MDS Clock Shield 19	Hot Plug	Detect
4 TM	DS Data 1+ 12		TMDS Clock
5 TM	DS Data 1Shield	13 CEC
6	TMDS Data 1	14	Reserved (N.C. on device
7 TM	DS Data 0+ 15 SCL
8 TM	DS Data 0 Shield 16 SDA

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

CE Declaration of Conformity

i ro ct i in conformity it t e follo in tan ar

• EN60950-1:2006 and A11+A1 (Safety requirement of Information Technology Equipment).
• EN 55022:2006+A1: 2007 (Radio Disturbance requirement of Information Technology Equipment).
• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment).
• EN 61000-3-2:2006+A1: 2009+A2: 2009 (Harmonic current emissions).
- EN 61000-3-3:2008 (Voltage fluctuations & flicker) following provisions of directives applicable.
• 2006/95/EC (Low Voltage Directive).
• 2004/108/EC (EMC Directive).
- 2005/32/EC (EuP Directive, EC No. 1275/2008 implementing Directive for Standby and Off mode power consumption) and is produced by a manufacturing organization on ISO9000 level.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WEEE/E-Waste declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling in India, please visit the below web link.

www.aocindia.com/ewaste.php

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc-europe.com for warranty instructions. Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
- Put the RMA number on the address label
- Put the RMA number on the shipping carton

AOC International (Europe) B.V. is not responsible for any damaged during transport due to improper packing. AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
  • Adjustment by non-authorized source
  • Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
  • Improper environments like humidity and dusts
  • Damaged by violence
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED

WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the dated proof of purchase to the EPI Authorized Service Center.

If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
  • Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center
• Improper environment
• Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/warranty

ARGENTINA: http://ar.aoc.com/support/warranty

BOLIVIA: http://bo.aoc.com/support/warranty

CHILE: http://cl.aoc.com/support/warranty

COLOMBIA: http://co.aoc.com/warranty

COSTA RICA: http://cr.aoc.com/support/warranty

DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty

ECUADOR: http://ec.aoc.com/support/warranty

EL SALVADOR: http://sv.aoc.com/support/warranty

GUATEMALA: http://gt.aoc.com/support/warranty

HONDURAS: http://hn.aoc.com/support/warranty

NICARAGUA: http://ni.aoc.com/support/warranty

PANAMA: http://pa.aoc.com/support/warranty

PARAGUAY: http://py.aoc.com/support/warranty

PERU: http://pe.aoc.com/support/warranty

URUGUAY: http://pe.aoc.com/warranty

VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty

Only for AOC branded monitors sold within the continental United States.

All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at any time during the first three months, AOC will provide a replacement monitor within 72 hours after you are approved for our program. If your monitor qualifies for the EASE program, AOC will pay for freight both ways.

Step 1: Phone our TECH Department at 888.662.9888

Step 2: Fill out and return EASE registration forms by mail or fax.

Step 3: We will issue a Return Authorization Number upon verification into the program.

Step 4: A monitor will be advance shipped to your location.

Step 5: We will issue a UPS Call Tag to pick up the defective unit.

Step 6: Please review the following chart to see your EASE program qualifications.

WARRANTY PERIOD	COVERAGE AT NO CHARGE	CUSTOMER CHARGES
Within the first three months of purchase: Covered by EASE	- New AOC monitor- Call tag dispatched and return freight charges via UPS	- None*
Between 4 months – 1 Year - All Parts & Labor Including CRT Tube & LCD Panel		- UPS Return Freight to AOC
Between 1 Year - 3 Years: Covered by standard limited warranty	- Parts & Labor (excluding CRT Tube & LCD Panel)	- UPS Return Freight to AOC

*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC's service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.

us.aoc.com
