Product Type	Kitchen Scale with Measuring Jug
Brand	Clas Ohlson
Model	34-2161
Category	Digital Kitchen Scale
Display	LCD
Power Source	Battery
Battery Type	1 x CR2032 (3 V)
Maximum Weight Capacity	3 kg / 6.6 lb
Graduation	1 g / 1 ml / 1/8 oz
Measuring Jug Capacity	1 liter
Weighing Modes	Weight (g, lb:oz) and Volume (ml, fl oz, cups) for Water, Milk, Oil, Flour
Tare Function	Yes
Auto-Off	After 30 seconds of inactivity
Units of Weight	grams (g), pounds/ounces (lb:oz)
Units of Volume	milliliters (ml), fluid ounces (fl oz), cups
Flour Mode	Measures in cups only (1 cup = 241 ml)
Care Instructions	Wipe with damp cloth; never immerse in water
Safety Warnings	Do not immerse in water; avoid shocks and impacts
Spare Parts	Battery (CR2032)
Reparability	Not user-serviceable beyond battery replacement
General Information	Precision instrument; handle with care

Frequently Asked Questions - 34-2161 Clas Ohlson

How do I change the battery?

Slide the battery cover downwards to open. Carefully push the old battery out, insert a new CR2032 battery with the negative terminal facing down, then slide the cover back.

How do I use the tare function?

Place your first ingredient on the scale and note its weight. Press ON/OFF, ZERO to reset to zero, then add the next ingredient. The display will show only the weight of the new ingredient.

How do I measure milk volume?

Place the jug on the scale, turn on, wait for '0', press MODE until 'MILK' is selected, then press UNIT to choose ml or fl oz. Pour milk into the jug and read the volume.

What does 'Lo' on the display mean?

'Lo' indicates a low battery. Replace the battery with a new CR2032 as soon as possible.

Can I wash the scale under running water?

No, never immerse the scale in water. Clean it with a lightly moistened cloth and mild detergent only. The measuring jug can be washed separately.

What is the maximum weight I can measure?

The scale has a maximum capacity of 3 kg (6.6 lb). Exceeding this will show 'Err' and may damage the scale.

How do I switch between grams and pounds?

While in weighing mode, press the UNIT button to toggle between g (grams) and lb:oz (pounds/ounces).

How does the flour mode work?

Flour is only measured in cups. Select 'Flour' mode using MODE, then press UNIT to choose cups. 1 cup = 241 ml. Pour flour into the jug and read the volume in cups.

How long does it take to auto-off?

The scale will automatically switch off if the display shows '0' or the same weight/volume for 30 seconds to save battery.

What does 'Err' mean?

'Err' indicates overload — you have exceeded the maximum weight capacity of 3 kg. Remove the load immediately to prevent damage.

USER MANUAL 34-2161 Clas Ohlson

Measuring Jug Kitchen Scale

Measuring Jug Kitchen Scale

Art.no 34-2161

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Note:

Line drawing of a hand holding a curved object with a handle, no text or symbols present

Line drawing of a hand holding a spray gun, with a 'X' symbol below (no text or labels)

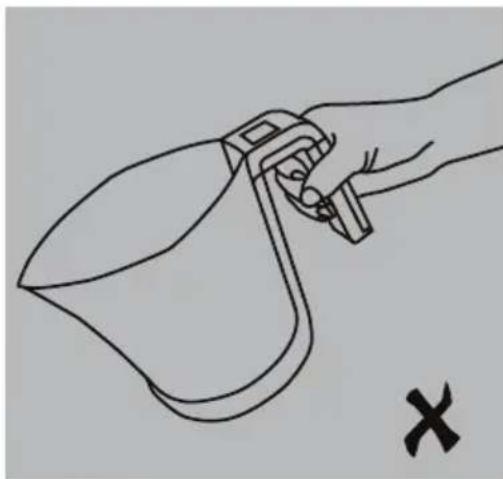

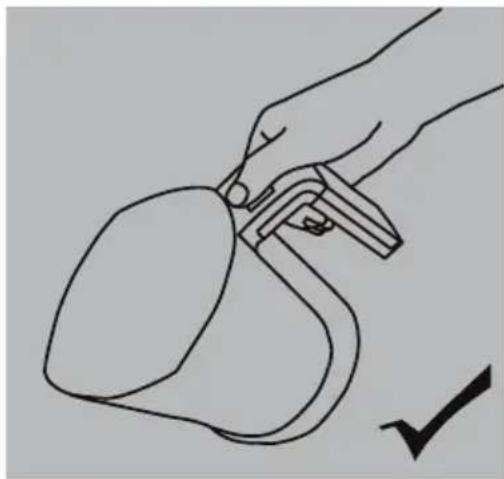

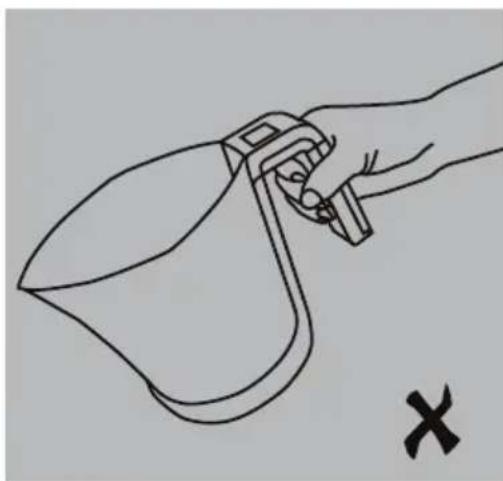

- Remove the jug from the kitchen scale before emptying out the contents. If you hold the kitchen scale by the handle and empty out the contents whilst the jug is still in place, hold the jug as shown in the picture to prevent it from coming off.

- It might be necessary to remove a piece of insulating film from the battery before the kitchen scale can be used. The insulation film preserves battery capacity of the kitchen scale during transportation and storage (refer to the Battery section below).

- Never immerse the kitchen scale in water. The measuring jug should be thoroughly washed after contact with foodstuffs.

Buttons and functions

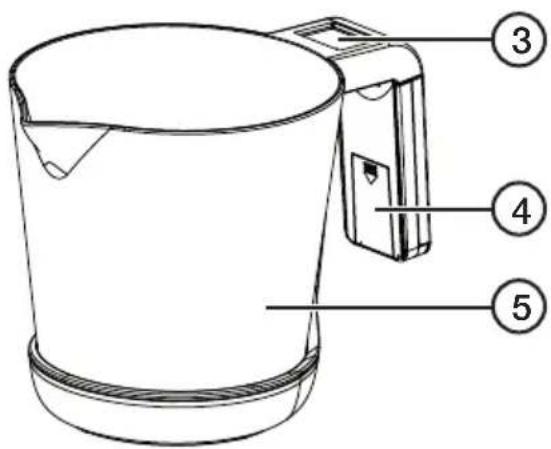

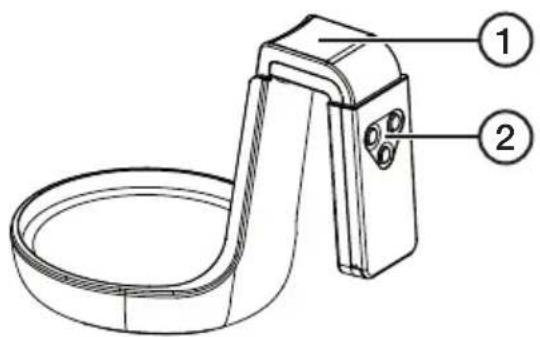

Scale and jug

1. Scale
2. Control panel
3. LCD display
4. Battery cover
5. Measuring Jug

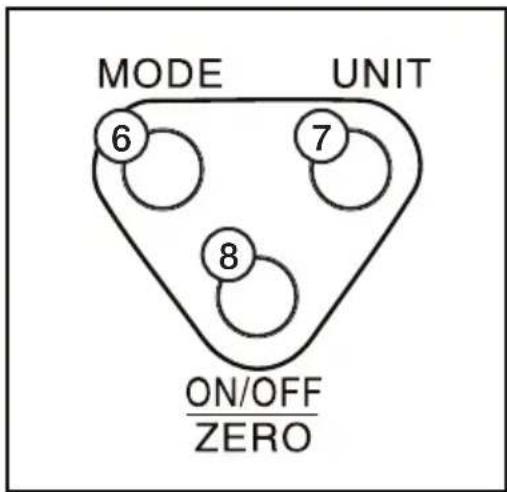

Control panel

1. [MODE] Selects the function: Weighing mode, Water mode (volume), Milk mode (volume), Oil mode (volume) or Flour mode (volume).
2. [UNIT] Selects the units for weighing: g (grams) or lb:oz (pounds/ounces). Volume: ml (millilitres) or cups.
3. [ON/OFF, ZERO] Turns scale on/off, resets it to zero.

LCD display

1. Volume measure ml
2. Volume measure fl oz
3. ▲▼ Arrow symbol, mode indicator
4. Tare function
5. Weight measure lb:oz
6. Weight measure g

Battery

1. Open the battery cover by sliding it downwards in the direction of the arrow.
2. If there is any insulation film around the battery, remove it.
3. Slide the battery cover back into place.

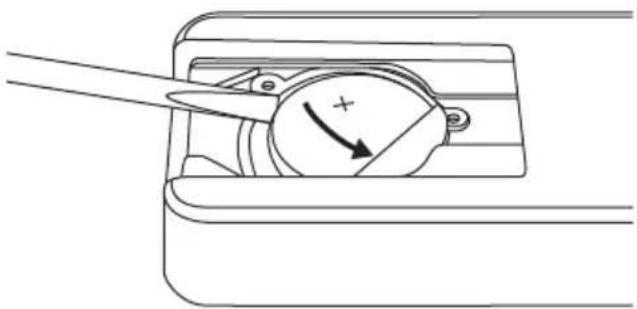

Changing batteries

1. Open the battery cover by sliding it downwards in the direction of the arrow.
2. Carefully push the battery into the holder so that it is free of the plastic lugs holding it in place.
3. Lift and remove the battery.
4. Insert a new battery by sliding it into the holder and then making sure that it is held in place by the lugs.

Technical line drawing of a mechanical component with a dial and directional arrow (no text or symbols)

Note: Follow the polarity marking on the battery holder, the negative terminal should face downwards.

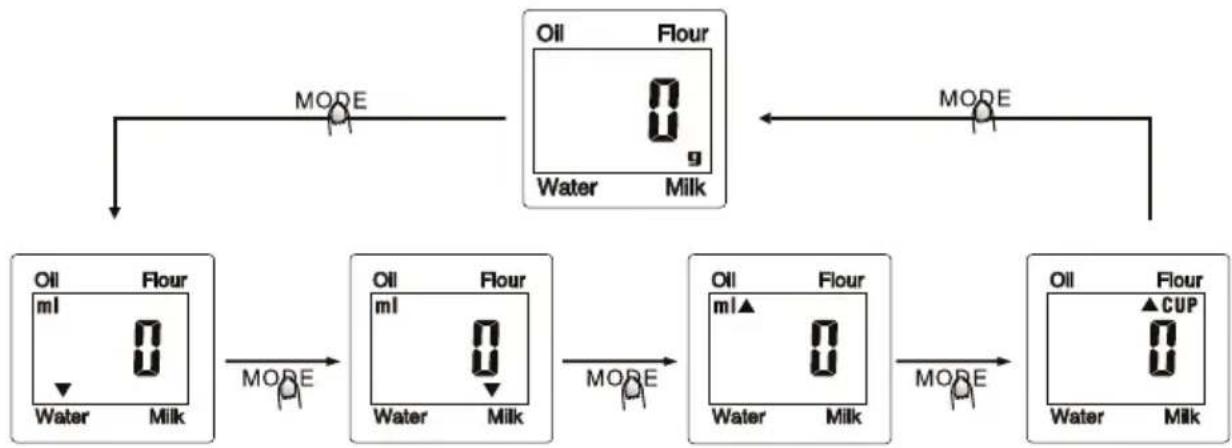

Operating instructions

1. Switch the kitchen scale on by pressing [ ON/OFF, ZERO ], the scale will start in weighing mode.
2. Press [MODE] repeatedly to change modes.
3. Switch the kitchen scale off by holding in [ON/OFF, ZERO] for at least 3 seconds.
4. The kitchen scale will automatically switch off if the display shows "0" or shows the same weight/volume reading for 30 seconds.

Weighing

Note: Flour is only measured in cups. 1 cup = 241 ml.

1. Placed the kitchen scale on a firm, flat surface.
2. If the measuring jug is to be used, place the jug onto the scale.
3. Press [ON/OFF, ZERO] to switch the kitchen scale on, the scale will start in weighing mode.
4. Wait until "0" is displayed. Place the object to be weighed onto the scale or in the jug and read the weight reading.

Measuring the volume of milk (in ml)

1. Place the kitchen scale on a firm, flat surface.
2. Place the measuring jug onto the scale.
3. Press [ON/OFF, ZERO] to switch the kitchen scale on, the scale will start in weighing mode.
4. Wait until "0" is displayed. Press [MODE] until the arrow symbol indicates that "MILK" is selected.
5. Press [UNIT] to select ml as the unit of measurement.
6. Pour milk into the measuring jug.
7. Read the volume on the display.

Tare function

The tare function enables you to measure several ingredients together in the measuring jug at the same time without having to empty the jug between measurements.

1. Add the first ingredient until the correct amount is shown on the display.
2. Leave the first ingredient in the jug and press [ ON/OFF, ZERO ]. The scale will be reset to zero.
3. Add the next ingredient until the correct amount is shown on the display. Press [ON/OFF,ZERO]. The scale will once again be set to zero.
4. Add the next ingredient and so on, until all the ingredients have been weighed.

Changing the unit of weight

Press [UNIT] to toggle the unit between g (grams) and lb:oz (pounds/ounces).

Changing the unit of volume

Press [UNIT] to toggle between ml, fl oz and cups.

Error/Warning messages

1. Replace the battery.
2. Overload - the scale's weight capacity (3 kg) has been exceeded. Remove the load from the scale to prevent damage.

Care and maintenance

• Clean the kitchen scale using a lightly moistened cloth. Only use mild cleaning agents, never solvents or corrosive chemicals.
• Never immerse the kitchen scale in water.
• The measuring jug should be thoroughly washed after contact with foodstuffs.
• This kitchen scale is a precision instrument and should not be subjected to vibrations, impacts or blows.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Measuring jug 1 l

Max weight 3 kg/6.6 lb

Graduations 1 g/ml resp. 1/8 oz/lb

Battery 1 x CR2032 (3 V)

Line drawing of a hand holding a curved object with a handle, no text or symbols present

Line drawing of a hand holding a spray gun, with a 'X' symbol below (no text or labels)

Technical line drawing of a mechanical component with a tool and directional arrow (no text or symbols)

Vägning

Obs! Flour (mjöl) anges endast i enheten cup. 1 cup = 2,41 dl.

Line drawing of a hand holding a curved object with a checkmark indicator (no text or symbols)

Line drawing of a hand holding a spray gun, with a 'X' symbol below (no text or labels)

1. Vekt
2. Manøvreringspanel
3. LCD-display
4. Batterilokk
5. Målebeger

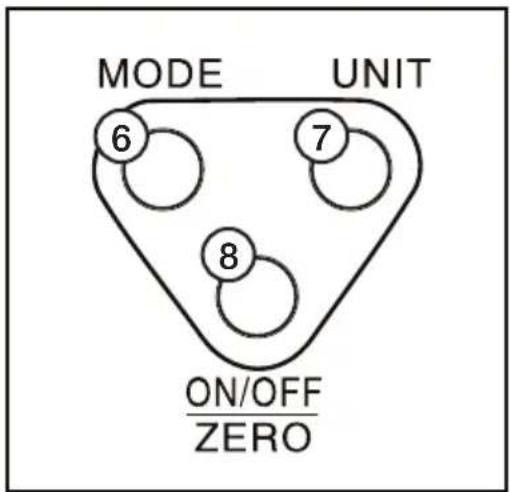

Manøvreringspanel

1. [MODE] Velg funksjon: veiing, Water (vannvolum), Milk (melkevolum), Oil (oljevolum) eller Flour (melmengde).
2. [UNIT] Velg enhet til veiingen: g (gram) eller lb:oz (pounds/ounces). Volum: ml (milliliter) eller cup.
3. [ON/OFF, ZERO] På/av, nullstill.

LCD-display

Technical line drawing of a mechanical component with a dial and force arrow (no text or symbols)

Veiing

Obs! Flour (mel) angis kun i enheten cup. 1 cup = 2,41 dl.

Line drawing of a hand holding a curved object with a handle, no text or symbols present

Line drawing of a hand holding a spray gun, with a cross mark symbol below (no text or labels)

Technical line drawing of a mechanical component with a dial and directional arrow (no text or symbols)

Punnitseminen

Line drawing of a hand holding a curved object with a handle, no text or symbols present

Line drawing of a hand holding a spray gun, with a 'X' symbol below (no text or labels)

Technical line drawing of a mechanical component with a dial and force arrow (no text or symbols)

Wiegen

Postal 10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutsch
