Network Speed Dome

User Manual

UD.6L0201D1599A01

Thank you for purchasing our product. If there are any quesons, or requests, please do not hesitate to contact the dealer.

This manual applies to Network Speed Dome.

This manual may contain several technical or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

"Underwriters Laboratories Inc. ("UL") has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for re, shock or casualty hazards as outlined in UL's Standard(s) for Safety, UL60950-1. UL Cercaon does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT."

Regulatory Informaon

FCC Informaon

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Direcve 2006/95/EC, the EMC Direcve 2004/108/EC, the RoHS Direcve 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at

designated collecon points. For more informaon see: www.recyclethis.info.

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product document on for specific baery informaon. The baery is marked with this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Safety Instrucon

These instrucons are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into 'Warnings' and 'Cauons':

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cauons: Injury or equipment damage may be caused if any of these cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings:

- Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. The power consumption cannot be less than the required value.

- Do not connect several devices to one power adapter as an adapter overload may cause over-heang and can be a re hazard.

- When the product is installed on a wall or ceiling, the device should be rmly xed.

● To reduce the risk of re or electrical shock, do not expose the indoor used product to rain or moisture.

- This installaon should be made by a qualified service person and should conform to all the local codes.

- Please install blackouts equipment into the power supply circuit for convenient supply interrupon.

- If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the product yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cauons:

● Make sure the power supply voltage is correct before using the product.
- Do not drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.
- Do not expose it to high electromagnec radiang environment.
- Do not aim the lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the product.
- The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor not be exposed to the laser beam.
- For working temperature, please refer to the specicaon manual for details.
- To avoid heat accumulaon, good venlaon is required for a proper operang environment.
● While shipping, the product should be packed in its original packing.
- Please use the provided glove when open up the product cover. Do not touch the product cover with ngers directly, because the acidic sweat of the ngers may erode the surface coang of the product cover.
- Please use a so and dry cloth when clean inside and outside surfaces of the product cover. Do not use alkaline detergents.
- Improper use or replacement of the baery may result in hazard of explosion. Please use the manufacturer recommended baery type.

Table of Contents

Chapter 1 Overview....8

1.1 System Requirement....8
1.2 Funcons....8

Chapter 2 Network Connecon ...... 11

2.1 Seng the Network Speed Dome over the LAN....11

2.1.1 Wiring over the LAN 11
2.1.2 Detecng and Changing the IP Address....12

2.2 Seng the Network Speed Dome over the WAN....13

2.2.1 Stac IP Connecon....13
2.2.2 Dynamic IP Connecon....14

Chapter 3 Access to the Network Speed Dome....17

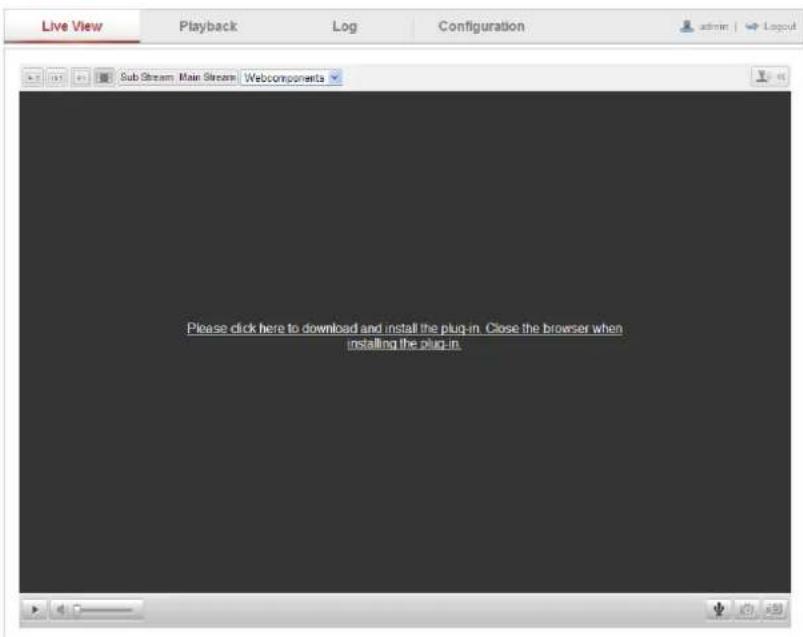

3.1 Accessing by Web Browsers....17

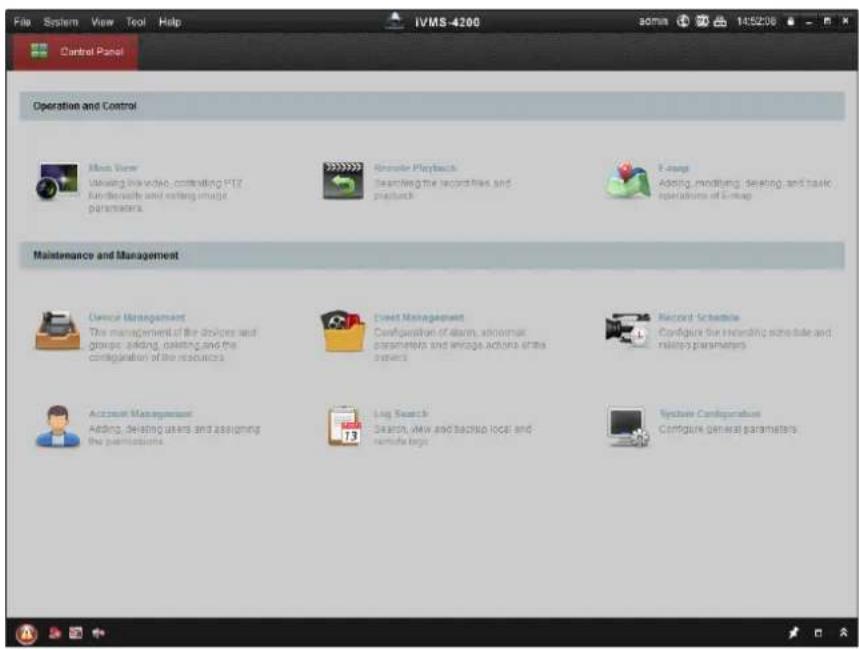

3.2 Accessing by Client Soware 19

Chapter 4 Live View....21

4.1 Power-up Acon 21
4.2 Live View Page 21
4.3 Starng Live View....22
4.4 Recording and Capturing Pictures Manually....25
4.5 Operang PTZ Control....25

4.5.1 PTZ Control Panel....25
4.5.2 Seng / Calling a Preset....26
4.5.3 Seng / Calling a Patrol....28
4.5.4 Seng / Calling a Paern ....30

4.6 Conguring Live View Parameters 31

Chapter 5 PTZ Conguraon....32

5.1 Conguring Inial Posion....32
5.2 Conguring Basic PTZ Parameters 32
5.3 Conguring PTZ Limit Stops 34
5.4 Conguring Scheduled Tasks....35
5.5 Conguring Park Acons....37
5.6 Conguring Privacy Mask....38

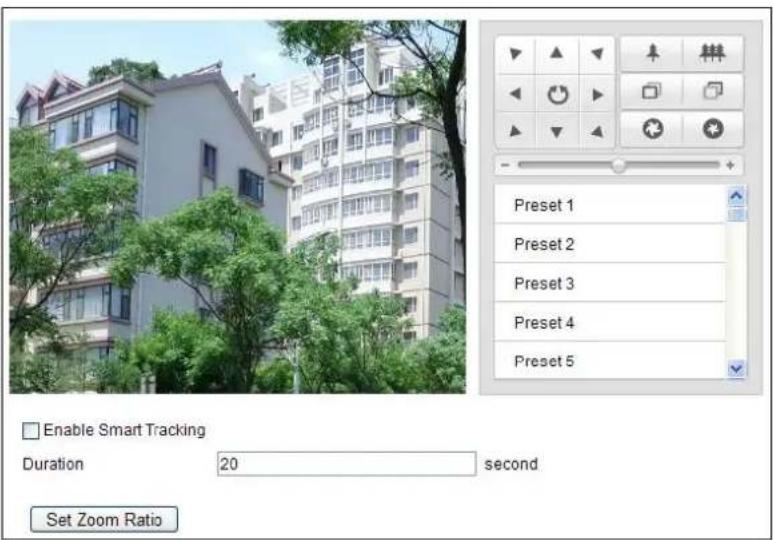

5.7 Conguring Smart Tracking 39
5.8 Conguring PTZ Control Priority 40
5.9 Clearing PTZ Conguraons....40

Chapter 6 Speed Dome Conguraon 42

6.1 Conguring Local Parameters 42

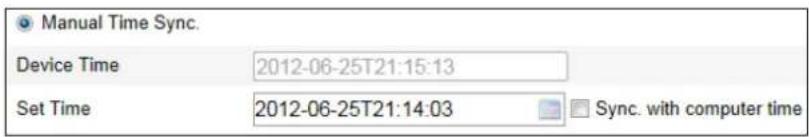

6.2 Conguring Time Sengs....43
6.3 Conguring Network Sengs 46

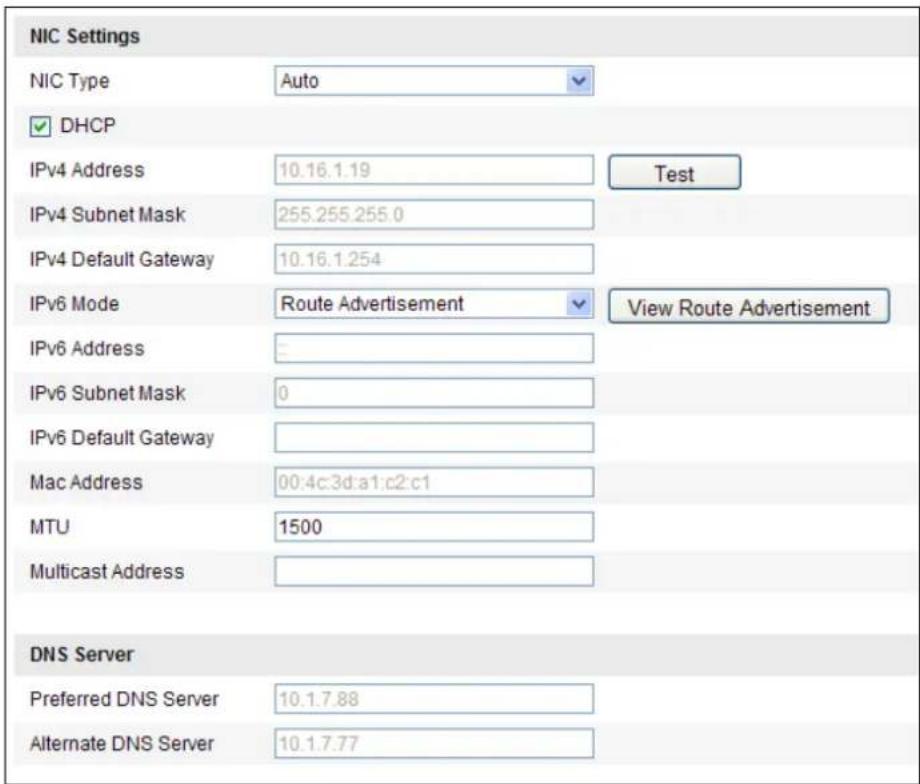

6.3.1 Conguring TCP/IP Sengs 46

6.3.2 Conguring Port Sengs....48

6.3.3 Conguring PPPoE Sengs....48

6.3.4 Conguring DDNS Sengs....49

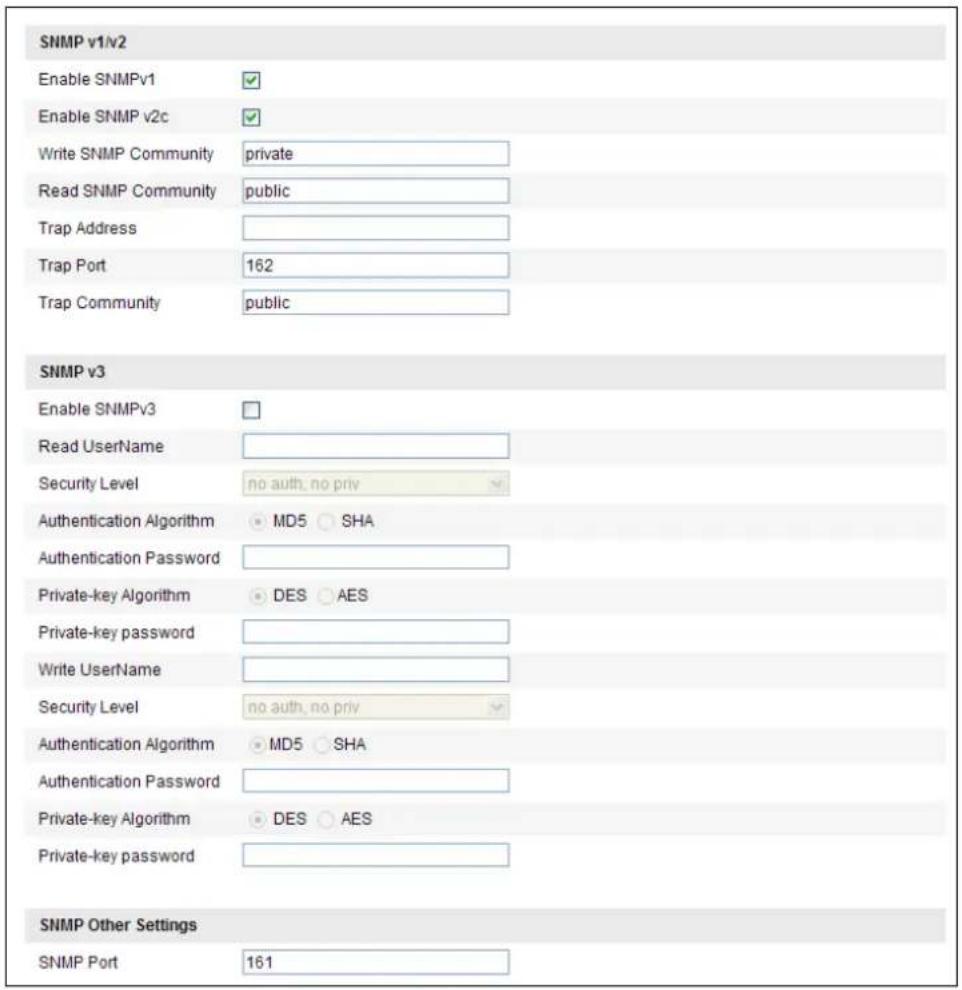

6.3.5 Conguring SNMP Sengs....51

6.3.6 Conguring 802.1X Sengs....52

6.3.7 Conguring QoS Sengs 54

6.3.8 Conguring FTP Sengs....55

6.3.9 Conguring UPnP™ Sengs 56

6.3.10 Conguring NAT (Network Address Translaon) Sengs....56

6.3.11 Conguring Email Sengs....57

6.3.12 Conguring HTTPS Sengs 59

6.4 Conguring Video and Audio Sengs 61

6.4.1 Conguring Video Sengs 61

6.4.2 Conguring Audio Sengs 62

6.4.3 Conguring ROI Sengs....63

6.5 Conguring Image Sengs 65

6.5.1 Conguring Display Sengs 65

6.5.2 Conguring OSD Sengs....72

6.5.3 Conguring Text Overlay Setngs 74

6.6 Conguring and Handling Alarms 74

6.6.1 Conguring Moon Detecon....75

6.6.2 Conguring Video Loss Alarm....79

6.6.3 Conguring Video Tampering Alarm....79

6.6.4 Conguring External Alarm Input 80

6.6.5 Conguring Alarm Output 82

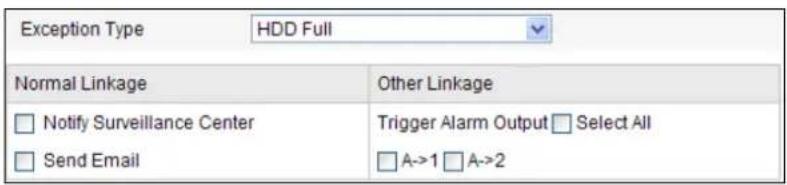

6.6.6 Handling Excepon 83

6.6.7 Detecng Audio Excepon 84

6.6.8 Conguring Dual-VCA 85

6.6.9 Conguring Intrusion Detecon 85

6.6.10 Conguring Line Crossing Detecon....87

6.6.11 Conguring Face Detecon 89

6.6.12 Region Entrance Detecon 89

6.6.13 Region Exing Detecon 91

6.6.14 Unaended Baggage Detecon....92

6.6.15 Object Removal Detecon....93

Chapter 7 Record Setngs 94

7.1 Conguring NAS Sengs 94

7.2 Inializing and Conguring Storage 95

7.3 Conguring Recording Schedule 96

7.4 Conguring Snapshot Sengs....99

Chapter 8 Playback....102

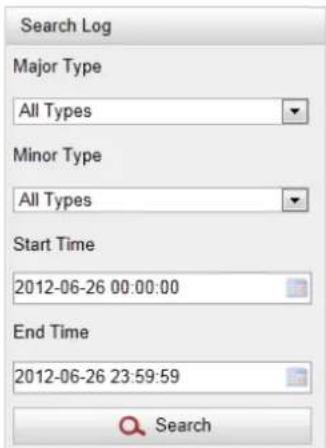

Chapter 9 Log Searching....106

Chapter 10 Others....107

10.1 Managing User Accounts .... 107
10.2 Conguring RTSP Authencaon....108
10.3 Conguring Anonymous Visit....109

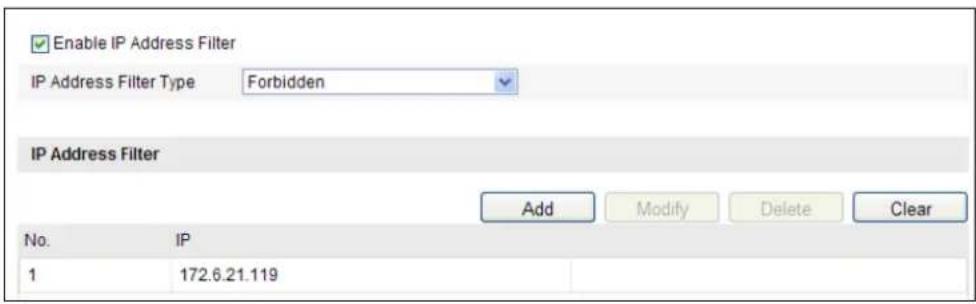

10.4 Conguring IP Address Filter....109
10.5 Conguring Security Service Sengs....110
10.6 Viewing Device Informaon....110
10.7 Maintenance....111

10.7.1 Reboong the Speed Dome....111
10.7.2 Restoring Default Sengs 111

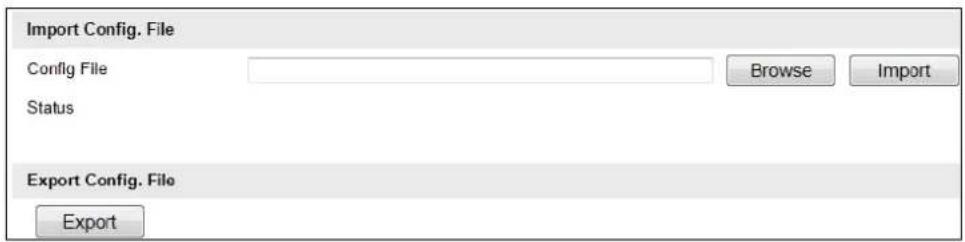

10.7.3 Imporng/Exporng Conguraon File 112
10.7.4 Upgrading the System....112

10.8 Conguring RS-485 113
10.9 Conguring IR Light....114
10.10 Conguring Remote Connecon....114

Appendix 115

Appendix 1 SADP Soware Introducon....115
Appendix 2 Port Mapping....117

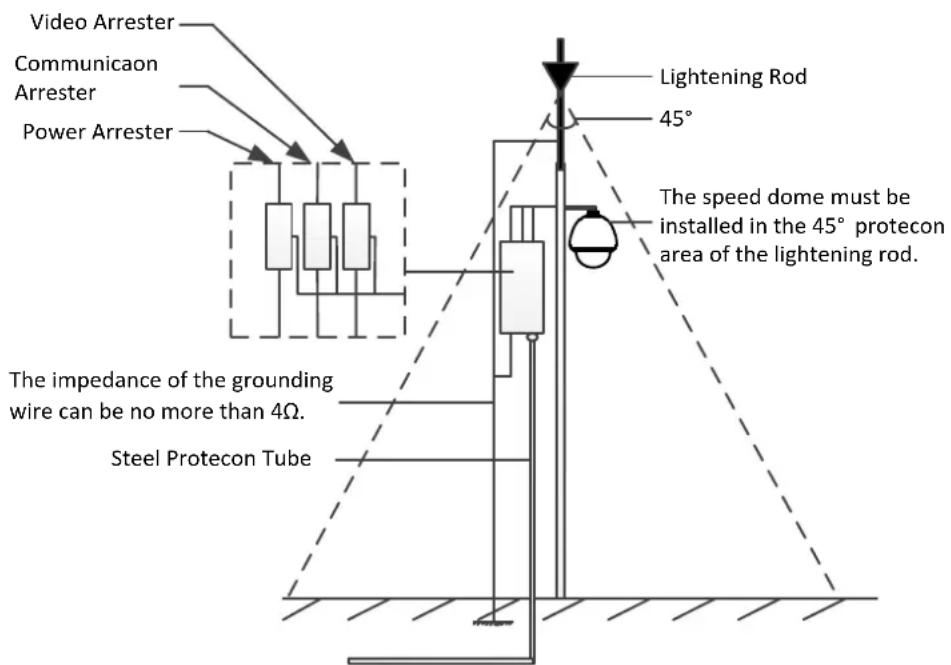

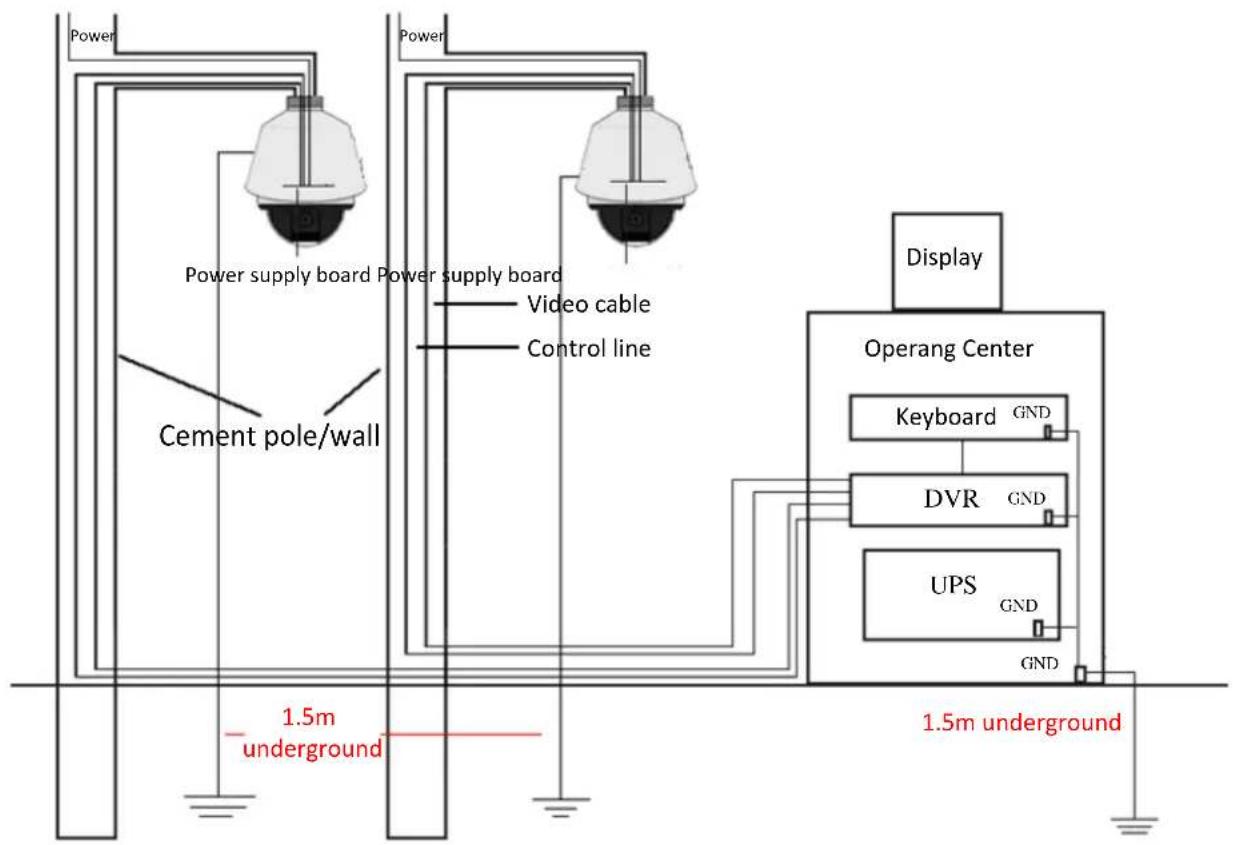

Appendix 3 Stacs, Interference Lightning and Surge Protecon ....119
Appendix 4 Waterproof....123
Appendix 5 Bubble Maintenance ....124
Appendix 6 RS485 Bus Connecon....125
Appendix 7 24VAC Wire Gauge & Transmission Distance ....128
Appendix 6 Table of Wire Gauge Standards....129
Appendix 7 Alarm In/Out Connecons ....130

Chapter 1 Overview

1.1 System Requirement

System requirement of web browser accessing is as follows:

Operang System: Microso Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits

CPU: Intel Penum IV 3.0 GHz or higher

RAM: 1G or higher

Display: 1024×768 resoluon or higher

Web Browser: Internet Explorer 7.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 5 and above version and Google Chrome8 and above versions.

1.2 Funcons

The funcons vary depending on the models of speed dome.

- Limit Stops

The dome can be programmed to move within the limit stops (le/right, up/down).

- Scan Modes

The dome provides 5 scan modes: auto scan, lt scan, frame scan, random scan and panorama scan.

- Preset Freezing

This feature freezes the scene on the monitor when the dome is moving to a preset.

This allows for smooth transition from one preset scene to another. It also guarantees that masked area will not be revealed when the dome is moving to a preset.

- Presets

A preset is a predened image posion. When the preset is called, the dome will automatically move to the dened posion. The presets can be added, modified, deleted and called.

- Label Display

The on-screen label of the preset tle, azimuth/elevaon, zoom, me and dome name can be displayed on the monitor. The displays of me and speed dome name can be programmed.

- Auto Flips

In manual tracking mode, when a target object goes directly beneath the dome, the video will automatically ips 180 degrees in horizontal direcon to maintain

connuity of tracking. This funcon can also be realized by auto mirror image depending on dierent camera models.

- Privacy Mask

This funcon allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and It funcons and automacally adjust in size as the lens zooms telephoto and wide.

- 3D Posioning

In the client soware, use the le key of mouse to click on the desired posion in the video image and drag a rectangle area in the lower right direcon, then the dome system will move the posion to the center and allow the rectangle area to zoom in. Use the le key of mouse to drag a rectangle area in the upper le direcon to move the posion to the center and allow the rectangle area to zoom out.

● Proporonal Pan/Tilt

Proporonal pan/It automacally reduces or increases the pan and It speeds according to the amount of zoom. At telephoto zoom sengs, the pan and It speeds will be slower than at wide zoom sengs. This keeps the image from moving too fast on the live view image when there is a large amount of zoom.

- Auto Focus

The auto focus enables the camera to focus automacally to maintain clear video images.

● Day/Night Auto Switch

The speed domes deliver color images during the day. And as light diminishes at night, the speed domes switch to night mode and deliver black and white images with high quality.

- Slow Shuer

In slow shuer mode, the shuer speed will automatically slow down in low illuminaon conditions to maintain clear video images by extending the exposure me. The feature can be enabled or disabled.

● Backlight Compensaon (BLC)

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. The BLC (Backlight Compensaon) funcon can compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

● Wide Dynamic Range (WDR)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

This feature varies depending on speed dome models.

● White Balance (WB)

White balance can remove the unrealisc color casts. White balance is the white

rendion funcon of the camera to adjust the color temperature according to the environment automacally.

- Patrol

A patrol is a memorized series of pre-dened preset funcon. The scanning speed between two presets and the dwell me at the preset are programmable.

● Paern

A paern is a memorized series of pan, lt, zoom, and preset funcons. By default the focus and iris are in auto status during the paern is being memorized.

● Power O Memory

The dome supports the power o memory capability with the predened resume me. It allows the dome to resume its previous posion aer power is restored.

- Time Task

A me task is a precongured acon that can be performed automacally at a speci date and me. The programmable acons include: auto scan, random scan, patrol 1-8 ,paern 1-4, preset 1-8,frame scan, panorama scan, lt scan, day, night, reboot, PT adjust, Aux Output, etc.

- Park Acon

This feature allows the dome to start a predened acon automacally aer a period of inacvity.

- User Management

The dome allows you to edit users with dierent levels of permission, in the admin login status. Mulple users are allowed to access and control the same network speed dome via network simultaneously.

● 3D Digital Noise Reducon

Comparing with the general 2D digital noise reducon, the 3D digital noise reducon funcon processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

- Dual-VCA

Combine the detected VCA informaon into the video stream, which can be used for the second-me analysis on the back-end device.

Chapter 2 Network Connecon

Before you start:

• If you want to set the network speed dome via a LAN (Local Area Network), please refer to Secon 2.1 Seng the Network Speed Dome over the LAN.
• If you want to set the network speed dome via a WAN (Wide Area Network), please refer to Secon 2.2 Seng the Network Speed Dome over the WAN.

2.1 Seng the Network Speed Dome over the LAN

Purpose:

To view and congregate the speed dome via a LAN, you need to connect the network speed dome in the same subnet with your computer, and install the SADP or client soware to search and change the IP of the network speed dome.

For the detailed introducon of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following gures show the two ways of cable conncon of a network speed dome and a computer:

Purpose:

• To test the network speed dome, you can directly connect the network speed dome to the computer with a network cable as shown in Figure 2-1.
• Refer to the Figure 2-2 to set the network speed dome over the LAN via a switch or a router.

Network Cable

Figure 2-1 Connecng Directly


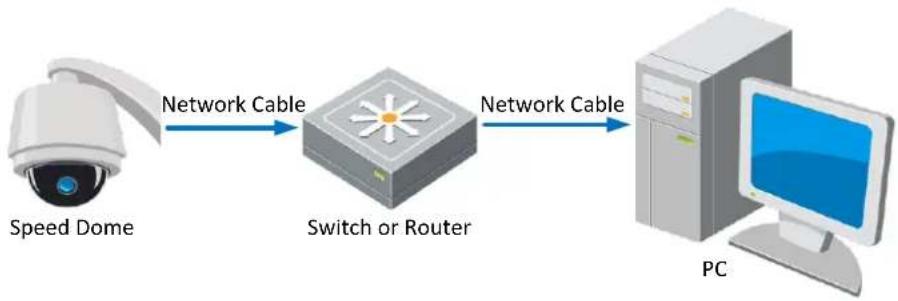

Figure 2-2 Connecng via a Switch or a Router

2.1.2 Detecng and Changing the IP Address

You need the IP address to visit the network speed dome.

Steps:

1. To get the IP address, you can choose either of the following methods:

Use SADP, a soware tool which can automatically detect the online network speed domes in the LAN and list the device informaon including IP address, subnet mask, port number, device serial number, device version, etc., shown in Figure 2-3. Use the client soware to list the online devices. Please refer to the user manual of client soware for detailed informaon.

1. Change the IP address and subnet mask to the same subnet as that of your computer.

2. Enter the IP address of network speed dome in the address eld of the web browser to view the live video.

• The default IP address is 192.0.0.64. The default user name is admin, and password is 12345.
• For accessing the network speed dome from dierent subnets, please set the gateway for the network speed dome aer you logged in. For detailed informaon, please refer to Secon 6.3.1 Conguring TCP/IP Setngs.

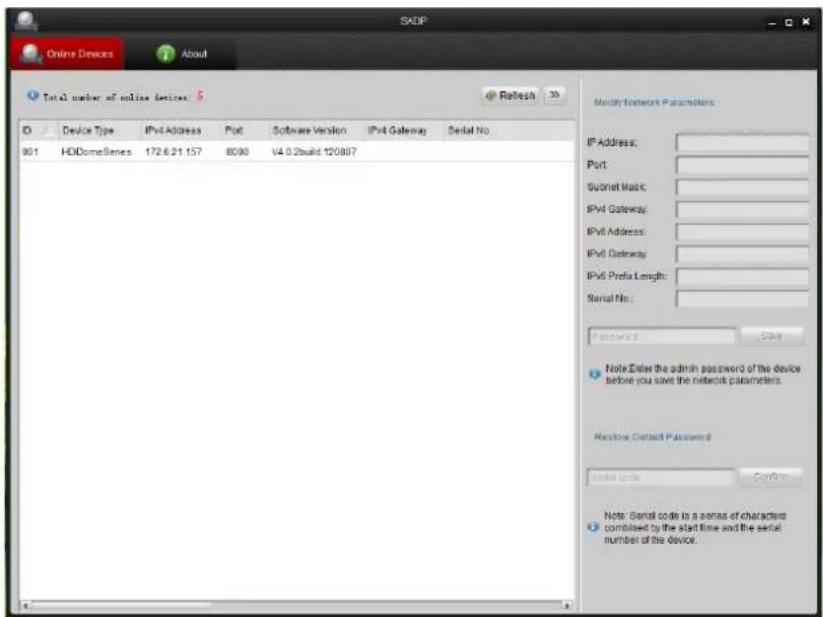

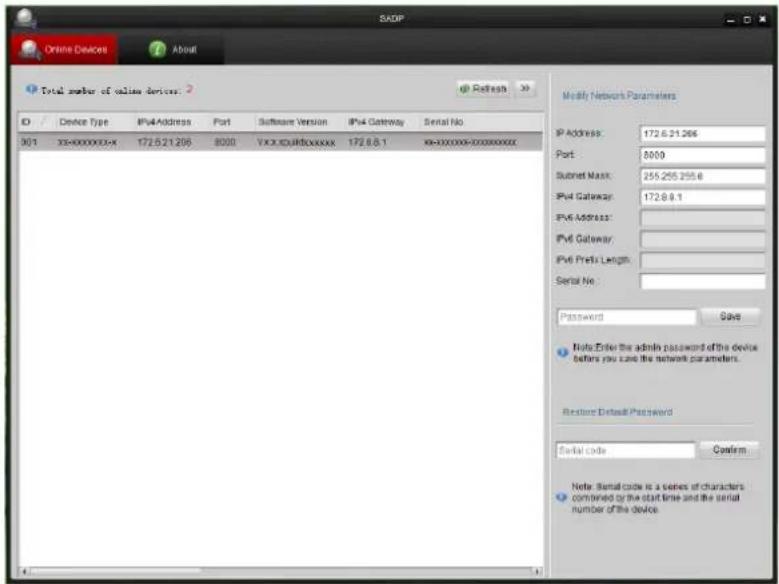

SADIF Online Devices About Total number of online devices 5 Device Type IPv4 Address Port Software Version IPv4 Gateway Serial No 801 HDDomeSeries 172.6.21.157 8098 V4.0.2build 120887 Modify Network Parameters IP Address: Port: Submit Mask: IPv4 Gateway: IPv4 Address: IPv4 Gateway: IPv4 Prefix Length: Serial No : Send to: Note:Enter the admin password of the device before you save the network parameters. Remove Default Password: Serial Code: Send to: Note: Serial code in a series of characters combined by the start time and the serial number of the device.

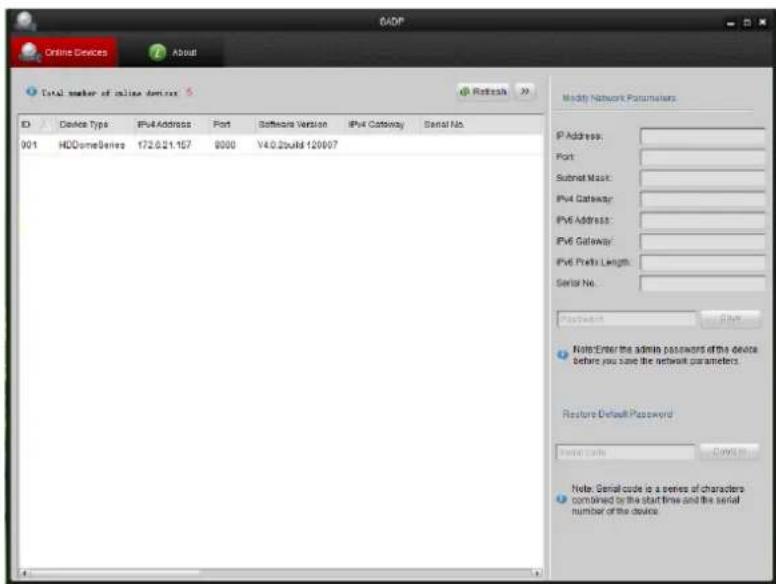

Figure 2-3 SADP Interface

2.2 Seng the Network Speed Dome over the WAN

Purpose:

This secon explains how to connect the network speed dome to the WAN with a stac IP or a dynamic IP.

2.2.1 Stac IP Connecon

Before you start:

Please apply a stac IP from an ISP (Internet Service Provider). With the stac IP address, you can connect the network speed dome via a router or connect it to the WAN directly.

- Connecng the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 2.1.2 Detecng and Changing the IP Address for detailed IP address conguraon of the speed dome.
3. Save the stac IP in the router.

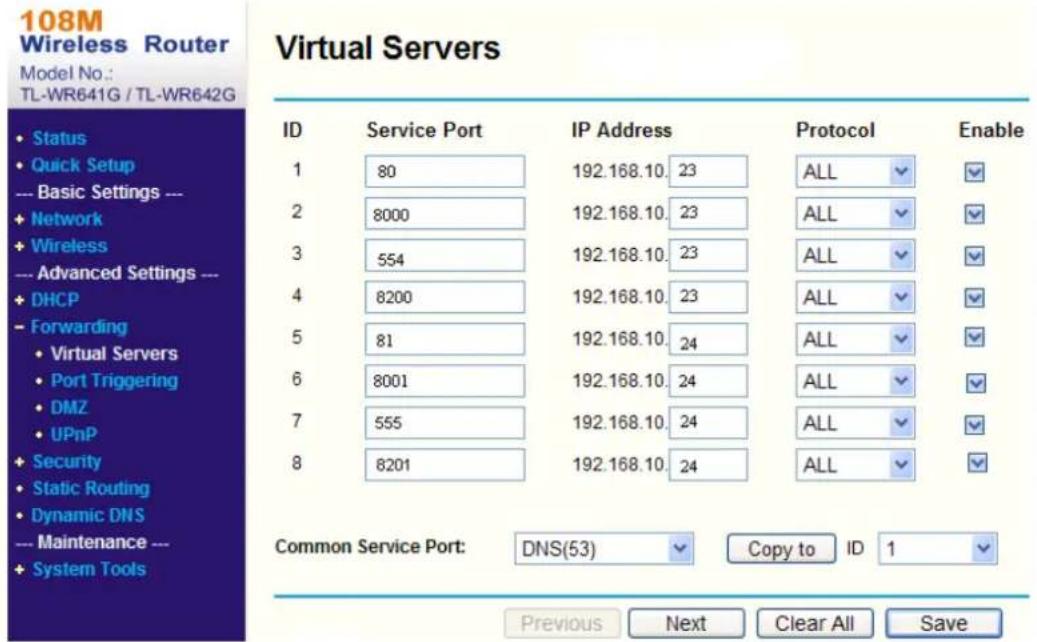

4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Please call the router manufacturer for assistance with port mapping.

Refer to Appendix 2 for detailed informaon about port mapping.

1. Visit the network speed dome through a web browser or the client soware over the internet.


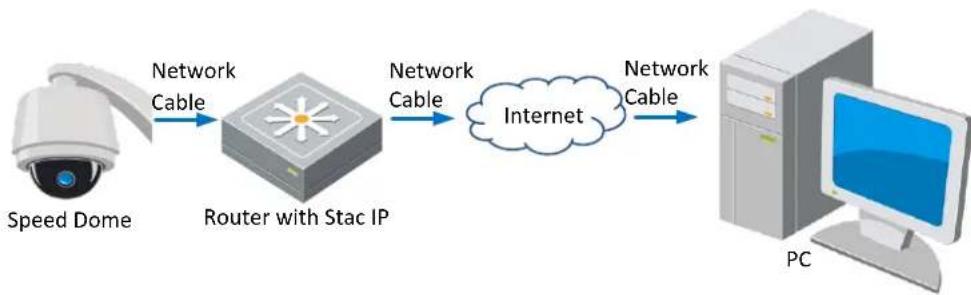

Figure 2-4 Accessing the Speed Dome through Router with Stac IP

- Connecng the network speed dome with stac IP directly

You can also save the stac IP in the speed dome and directly connect it to the internet without using a router. Refer to Secon 2.1.2 Detecng and Changing the IP Address for detailed IP address conguraon of the speed dome.


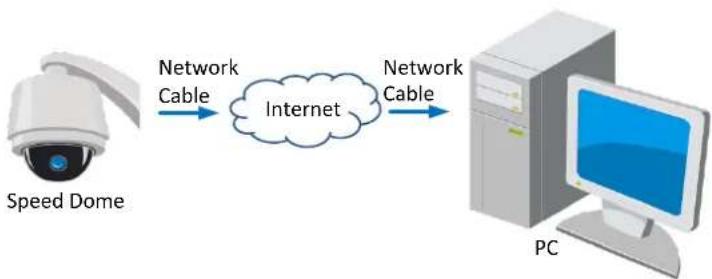

Figure 2-5 Accessing the Speed Dome with Stac IP Directly

2.2.2 Dynamic IP Connecon

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network speed dome to a modem or a router.

- Connecng the network speed dome via a router

Steps:

1. Connect the network speed dome to the router.
2. In the speed dome, assign a LAN IP address, the subnet mask and the gateway. Refer to Secon 2.1.2 Detecng and Changing the IP Address for detailed LAN conguraon.

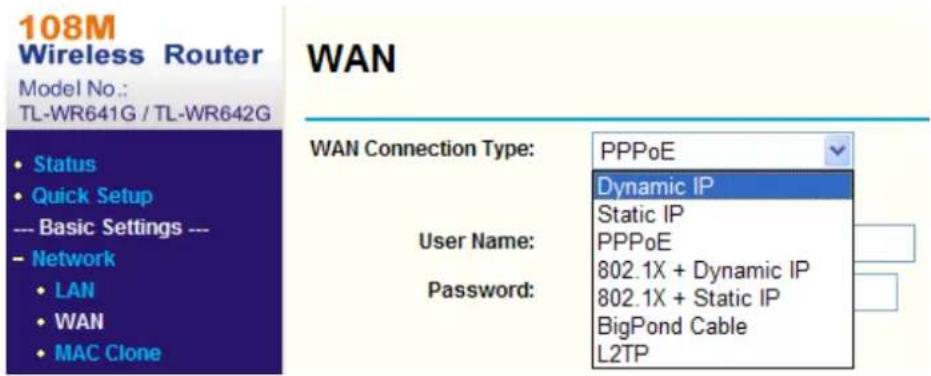

3. In the router, set the PPPoE user name, password and conrm the password.
4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on dierent routers. Please call the router manufacturer for assistance

with port mapping.

Refer to Appendix 2 for detailed informaon about port mapping.

1. Apply a domain name from a domain name provider.
2. Congure the DDNS sengs in the seng interface of the router.
3. Visit the speed dome via the applied domain name.

- Connecng the network speed dome via a modem

Purpose:

This speed dome supports the PPPoE auto dial-up funcon. The speed dome gets a public IP address by ADSL dial-up aer the speed dome is connected to a modem. You need to congregate the PPPoE parameters of the network speed dome. Refer to

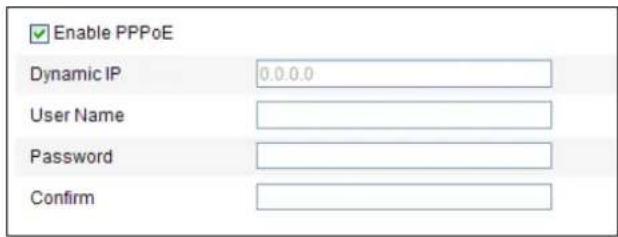

Secon 6.3.3 Conguring PPPoE Sengs for detailed conguraon.


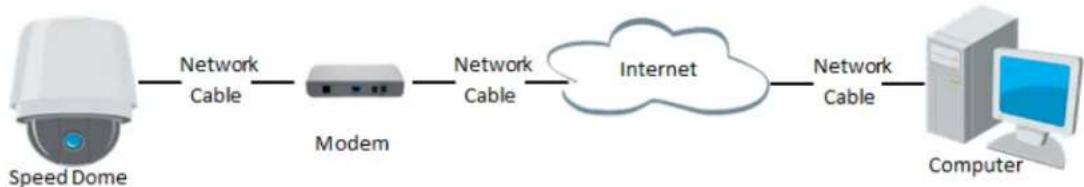

Figure 2-6 Accessing the Speed Dome with Dynamic IP

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes aer reboong the speed dome. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow below steps for normal domain name resoluon and private domain name resoluon to solve the problem.

♦ Normal Domain Name Resoluon

Figure 2-7 Normal Domain Name Resoluon

Steps:

1. Apply a domain name from a domain name provider.

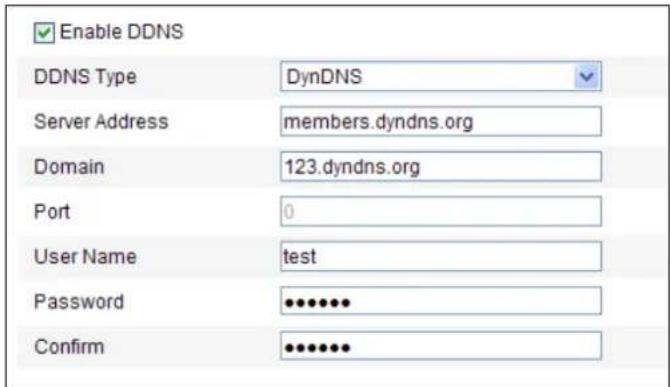

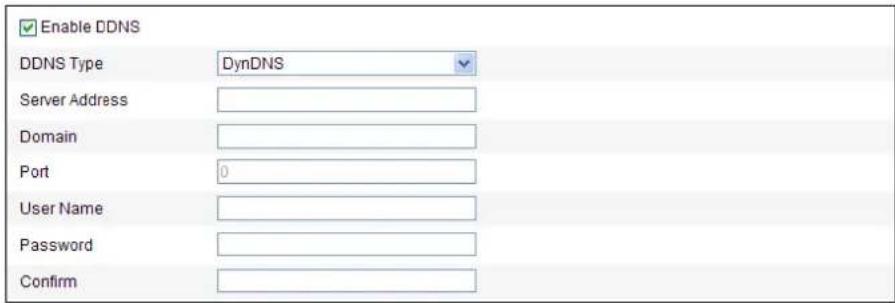

1. Congure the DDNS settings in the DDNS Sengs interface of the network speed dome. Refer to Secon 6.3.4 Conguring DDNS Sengs for detailed conguraon.
2. Visit the speed dome via the applied domain name.

◆ Private Domain Name Resoluon

Figure 2-8 Private Domain Name Resoluon

Steps:

1. Install and run the IP Server soware in a computer with a stac IP.
2. Access the network speed dome through the LAN with a web browser or the client soware.
3. Enable DDNS and select IP Server as the protocol type. Refer to Secon 6.3.4 Conguring DDNS Sengs for detailed conguraon.

Chapter 3 Access to the Network Speed Dome

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.
2. In the address eld, input the IP address of the network speed dome, e.g., 192.0.0.64 and press the Enter key to enter the login interface.

3. Select English as the interface language on the top-right of login interface.

4. Input the user name and password and click . Login

● The default user name is admin, password is 12345.
- You are highly recommended to change the initial password right aer the rst login to avoid safety problem.

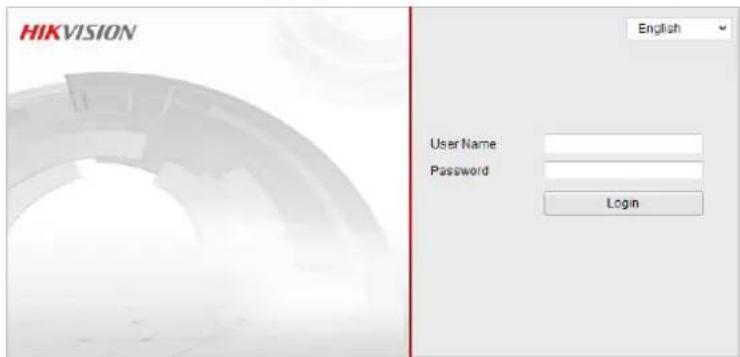

HIKVISION English User Name Password Login

Figure 3-1 Login Interface

1. Install the plug-in before viewing the live video and operang the speed dome. Please follow the installaon prompts to install the plug-in.

Live View Playback Log Configuration admin Sub Stream Main Stream Webcomponents Please click here to download and install the plugin. Close the browser when installing the plugin.

Figure 3-2 Download and Install Plug-in

A.10.12.2016

-

Figure 3-3 Install Plug-in (1)

Figure 3-4 Install Plug-in (2)

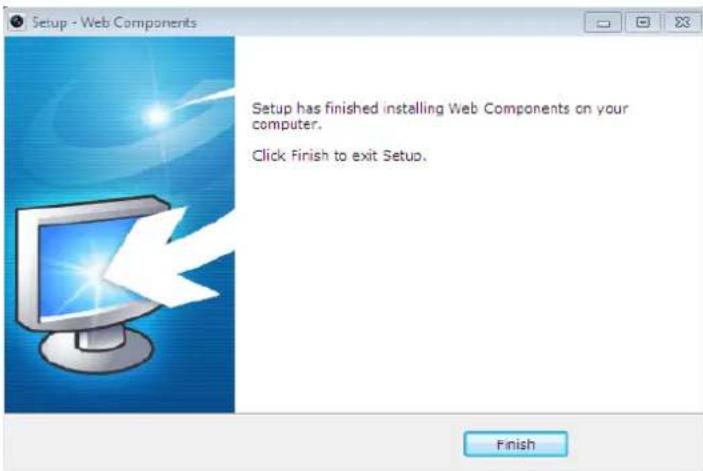

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Figure 3-5 Install Plug-in (3)

You may have to close the web browser to install the plug-in. Please reopen the web browser and log in again aer installing the plug-in.

3.2 Accessing by Client Soware

The product CD contains the client soware. You can view the live video and manage the speed dome with the client soware.

Follow the installaon prompts to install the client soware and WinPcap. The conguraon interface and live view interface of client soware are shown below.

File System View Tool Help IVMS-4200 Control Panel Operation and Control Miss View Visualing the video, controlling PTT Functionally and writing image parameters Remote Playback Searching the recordings and playback F-Image Adding, modifying, deleting and basic operations of F-Image Maintenance and Management Clinical Management The management of the devices and groups, aiding, cleaning, and the configuration of the resources Forest Management Configuration of alarm, abnormal parameters and engage actions in the resources Record Schedule Configure the recording schedule and matching parameters Account Management Adding, deleting users and assigning the permissions Log Search Search, view and backup local and remote logs System Configuration Configure general parameters

Figure 3-6 iVMS-4200 Control Panel

File System View Tool Help Control Panel Main View View Search... Default View 1-Screen 4-Screen 9-Screen 18-Screen Custom View Camera Search... PTZ Control

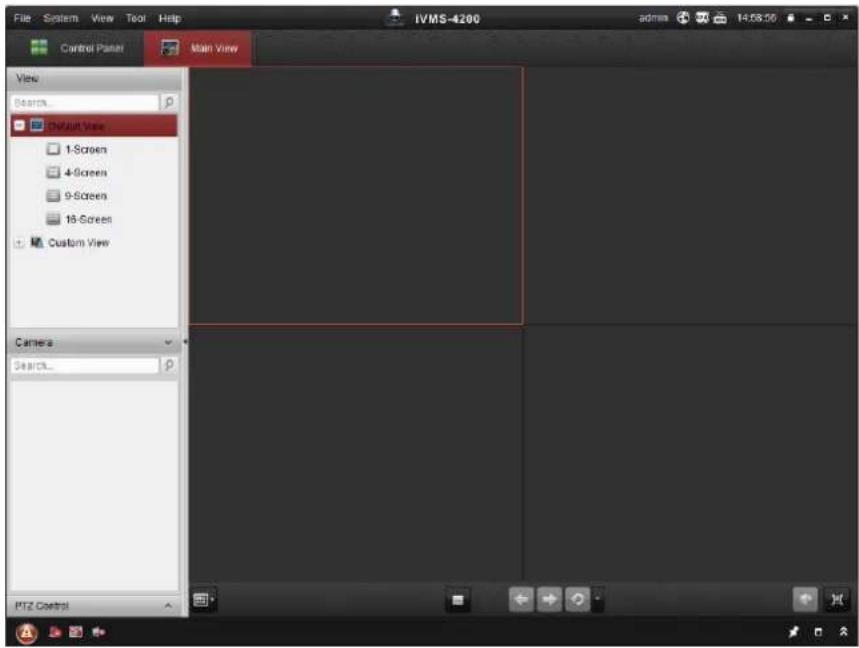

Figure 3-7 iVMS-4200 Live View Interface

NOTE

• If you use third party VMS soware, please contact technical support of our branch for camera rmware.
• For detailed information about client soware of our company, please refer to the user manual of the soware. This manual mainly introduces accessing to the network speed dome by web browser.

Chapter 4 Live View

In this and the following chapters, operaon of the speed dome by the web browser R will be taken as an example.

4.1 Power-up Acon

Aer the power is applied, the speed dome will perform self-test acons. It begins with lens acons and then pan and lt movement. After the power-up self-test acons, the informaon as shown in Figure 4-1 will be displayed on screen for 40 seconds.

The System Informaon displayed on the screen includes the dome model, address, protocol, version and other informaon. The COMMUNICATION refers to the baud rate, parity, data bit and stop bit of the dome. e.g., “2400, N, 8, 1” indicates the dome is congured with the baud rate of 2400, no parity, 8 data bits and 1 stop bit.

Model	XX-XXXXXX-X
Address	0
Communication	0000,0,0,0
Software Version	Vx.x.x
Camera Version	Vx.xx
Language	English

Figure 4-1 Power-up Informaon

4.2 Live View Page

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and congure video parameters.

Log in the network speed dome to enter the live view page, or you can click

on the menu bar of the main page to enter the live view page.

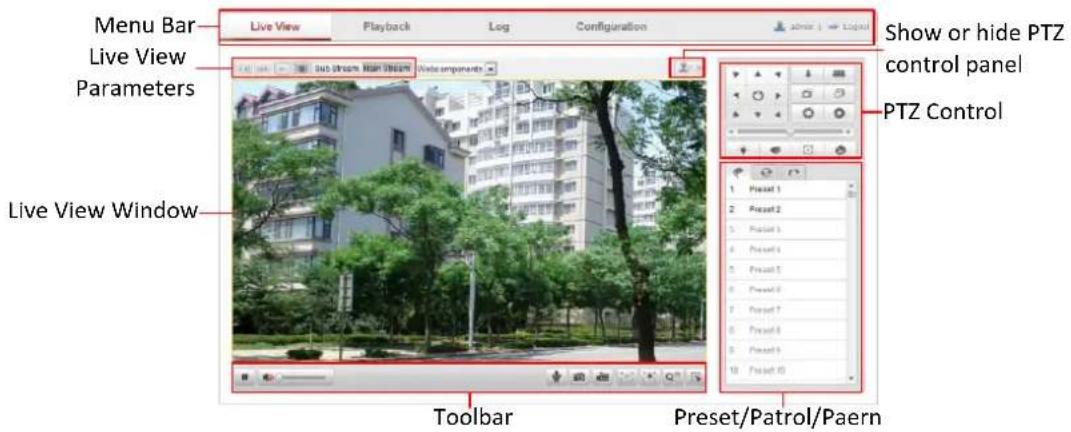

Descripons of the live view page:

Menu Bar Live View Playback Log Configuration Show or hide PTZ control panel PTZ Control Live View Parameters Live View Window Toolbar Preset/Patrol/Paern

Figure 4-2 Live View Page

Menu Bar:

Click each tab to enter Live View, Playback, Log and Conguraon page respectively.

Live View Window:

Display the live video.

Toolbar:

Operaons on the live view page, e.g., live view, capture, record, audio on/o, two-way audio, etc.

PTZ Control:

Panning, Ing, focusing and zooming acons of the speed dome. The lighter, wiper, one-touch focus and lens inializaon control.

Preset/patrol/paern:

Set and call the preset/patrol/paern for the speed dome.

Live View Parameters:

Congure the image size and stream type of the live video.

4.3 Starng Live View

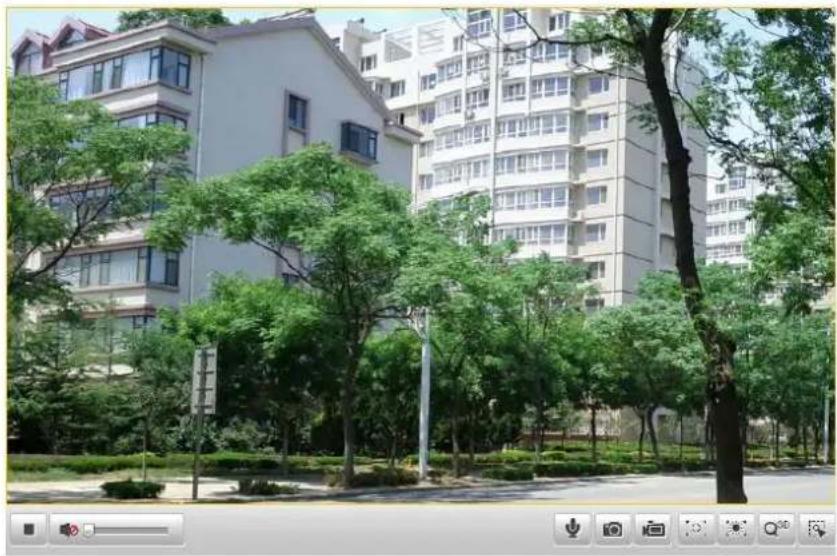

In the live view window as shown in Figure 4-3, click on the toolbar to start the live view of the speed dome.

Exterior view of a modern residential building with green trees and a paved path (no signage or text visible)

Figure 4-3 Start Live View

Table 4-1 Descripons of the Toolbar

Icon	Descripon	Icon	Descripon
	Start/Stop Live view		Manually capture the pictures
	Manual recording o/on		Mute / Audio on and adjust volume
	Two-way audio o/on/		Enable / Disable Regional Focus
	Enable / Disable Regional Exposure		3D zoom
	Manual tracking

- Not all the speed dome models support the above funcons. Please take the browser interface of the actual product as standard.

- Before enabling the two-way audio or recording with audio funcons, please set the Stream Type to Video & Audio referring to Secon 6.4.1 Conguring Video Sengs.

Full-screen Mode:

You can double-click on the live video to switch the current live view into full-screen or return to normal mode from the full-screen.

Regional Focus:

Steps:

1. Click the 📧 on the toolbar to enter the regional focus operaon mode.
2. Click-and-drag the mouse to draw a rectangle on the image as the desired focus region.
3. Click the to exit the regional focus operaon mode.

Regional Exposure:

Steps:

1. Click the 📄 on the toolbar to enter the regional exposure operaon mode.
2. Click-and-drag the mouse to draw a rectangle on the image as the desired exposure region.
3. Click the to exit the regional exposure operaon mode.

3D Posioning:

Steps:

1. Click on the toolbar of live view interface.

2. Operate the 3D positioning function:

3. Le click a posion of the live video. The corresponding posion will be moved to the center of the live video.

4. Hold down the le mouse buon and drag the mouse to the lower right on the live video. The corresponding posion will be moved to the center of the live video and zoomed in.
5. Hold down the le mouse buon and drag the mouse to the upper le on the live video. The corresponding posion will be moved to the center of the live video and zoomed out.

Manual Tracking:

Before you start:

Please enter the Smart Tracking sengs interface and enable smart tracking rst.

Conguraon > Advanced Conguraon> PTZ > Smart Tracking

Steps:

1. Click on the toolbar of live view interface.
2. Click a moving object in the live video. The speed dome will track the object automatically.

Please refer to the following seconds for more informaon:

● Conguring remote recording in Secon 7.3 Conguring Recording Schedule.
- Seng the image quality of the live video in Secon 6.1 Conguring Local Parameters and Secon 6.4.1 Conguring Video Sengs.

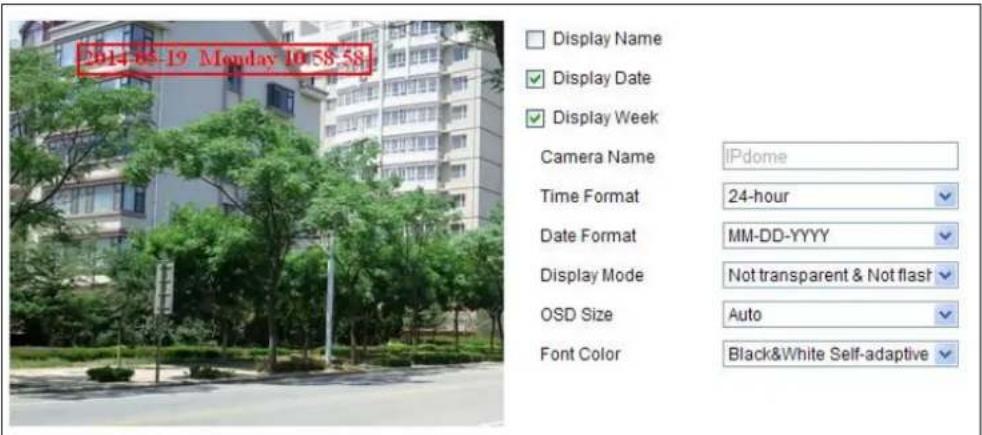

● Seng the OSD text on live video in Secon 6.5.2 Conguring OSD Sengs.

4.4 Recording and Capturing Pictures Manually

In the live view interface, click on the toolbar to capture the live pictures and the captured image will be saved as a JPEG le in your computer by default.

You can click to record the live video.

The local saving paths of the captured pictures and clips can be set in the Conguraon > Local Conguraon interface and the image format can also be edited in that interface.

To congure remote automat recording, please refer to Secon 7.3 Conguring Recording Schedule.

4.5 Operang PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buons to control panning, lng and zooming.

4.5.1 PTZ Control Panel

On the live view page, click 📋 to show the PTZ control panel or click 📋 to hide it.

Click the direcon buons to control the pan/lt movements.

Click the zoom/iris/focus buons to realize lens control.

Screenshot of a software toolbar with icons for navigation, editing, and display functions

Figure 4-4 PTZ Control Panel

Table 4-2 Descripons of PTZ Control Panel

Buon	Descripon
	Zoom in/out
	Focus near/far
	Iris +/-
	Adjust speed of pan/lt movements

4.5.2 Seng / Calling a Preset

Purpose:

A preset is a predened image posion. For the dened preset, you can click the calling buon to quickly view the desired image posion.

- Seng a Preset:

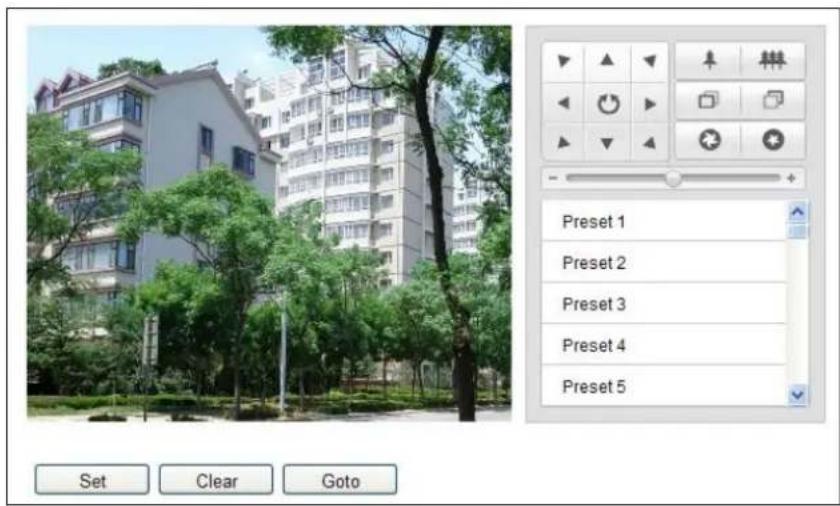

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

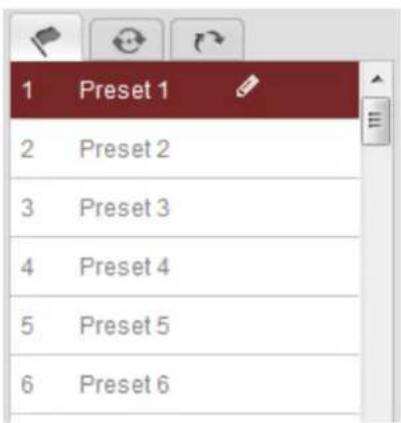

1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6

Figure 4-5 Seng a Preset

1. Use the PTZ control buons to move the lens to the desired posion.

2. Pan the speed dome to the right or le.

3. Tilt the speed dome up or down.
4. Zoom in or out.

5. Refocus the lens.

6. Click to nish the seng of the current preset.

7. You can click to delete the preset.

You can congure up to 300 presets.

- Calling a Preset:

In the PTZ control panel, select a dened preset from the list and click to call the preset.

1 Preset 1 2 Preset 2 3 Preset 3 4 Preset 4 5 Preset 5 6 Preset 6

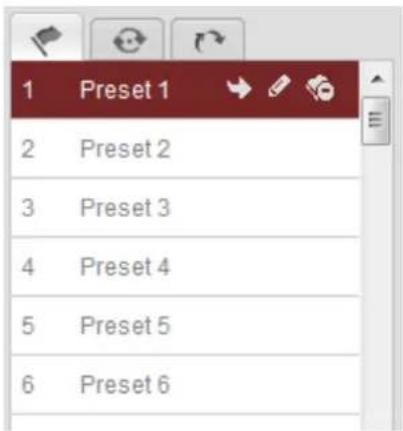

Figure 4-6 Calling a Preset

For convenient preset selecon, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.

2. Click the preset number you need on the keyboard.

The following presets are predened with special commands. You can only call them but not conjure them. For instance, preset 99 is the "Start auto scan". If you call the preset 99, the speed dome starts auto scan funcon.

Table 4-3 Special Presets

Special Preset	Funcon	Special Preset	Funcon
33	Auto ip	93	Set limit stops manually
34	Back to initial posion	94	Remote reboot
35	Call patrol 1	95	Call OSD menu
36	Call patrol 2	96	Stop a scan
37	Call patrol 3	97	Start random scan
38	Call patrol 4	98	Start frame scan
39	IR cut Iter in	99	Start auto scan
40	IR cut Iter out	100	Start lt scan
41	Call paern 1	101	Start panorama scan
42	Call paern 2	102	Call patrol 5
43	Call paern 3	103	Call patrol 6
44	Call paern 4	104	Call patrol 7
45	Automacally Create Patrol	105	Call patrol 8
92	Start to set limit stops

33 Auto-flip 34 Back to in... 35 Call patrol 1 36 Call patrol 2

Figure 4-7 Special Preset

You may need to use the OSD (On Screen Display) menu when controlling the speed dome remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.5.3 Seng / Calling a Patrol

Purpose:

A patrol is a memorized series of preset funcon. It can be congured and called on the patrol sengs interface. There are up to 8 patrols for customizing. A patrol can be congured with 32 presets.

Before you start:

Please make sure that the presets you want to add into a patrol have been denied.

- Seng a Patrol:

Steps:

1. In the PTZ control panel, click
   to enter the patrol sengs interface.
2. Select a patrol number from
3. Click to enter the adding interface of preset, as shown in Figure 4-8.

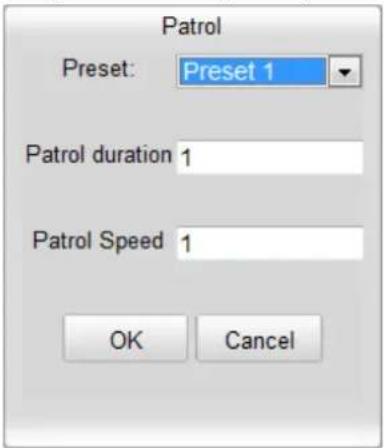

Patrol Preset: Preset 1 Patrol duration 1 Patrol Speed 1 OK Cancel

Figure 4-8 Adding Presets

1. Congure the preset number, patrol me and patrol speed.

Name	Descripon
Patrol Time	It is the duraon staying on one patrol point. The speed dome moves to another patrol point aer the patrol me.
Patrol Speed	It is the speed of moving from one preset to another.

1. Click to save a preset into the patrol.

2. Repeat the steps from 3 to 5 to add more presets.

3. Click to save all the patrol sengs.

- Calling a Patrol:

In the PTZ control panel, select a dened patrol from call the patrol, as shown in Figure 4-9.

Path 01 1 Preset1 1s 1 2 Preset2 1s 1

Figure 4-9 Calling a Patrol

● Buons on the Patrols interface:

Buons	Descripon
	Save a patrol
	Call a patrol
	Stop a patrol
	Enter the adding interface of preset
	Modify a preset
	Delete a preset
	Delete all the presets in the selected patrol

4.5.4 Seng / Calling a Paern

Purpose:

A paern is a memorized series of pan, lt, zoom, and preset funcons. It can be called on the paern sengs interface. There are up to 4 paerns for customizing.

- Seng a Paern:

Steps:

1. In the PTZ control panel, click 📋 to enter the paern sengs interface.
2. Select a paern number from the list as shown in Figure 4-10.

Pattern 1 Pattern 2 Pattern 3 Pattern 4

Figure 4-10 Paerns Sengs Interface

1. Click 📋 to enable recording the panning, lng and zooming acons.

2. Use the PTZ control buons to move the lens to the desired posion aer the informaon of Program Paern Remaining Memory (%) is displayed on the screen.

3. Pan the speed dome to the right or le.

4. Tilt the speed dome up or down.
5. Zoom in or out.

6. Refocus the lens.

7. Click to save all the paern sengs.

● Buons on the Paerns interface:

Buons	Descripon
	Start to record a paern.
	Stop recording a paern.
	Call the current paern.
	Stop the current paern.
	Delete the current paern.

- These 4 patterns can be operated separately and with no priority level.

- When conguring and calling the paern, proporcional pan is valid; the limit stops and auto ip will be invalid; and the 3D posioning operaon is not supported.

4.6 Conguring Live View Parameters

● Main stream/Sub-stream:

You can select , or as the stream type of live viewing.

The main stream is with a relatively high resolution and needs much bandwidth. The sub-stream is with a low resolution and needs less bandwidth. The resolution of third stream is between that of main stream and sub stream. The default seng of stream

type is Main Stream

Please refer to Secon 6.4.1 Conguring Video Sengs for more detailed parameter sengs of the main stream and sub-stream respectively.

- Image Size:

You can scale up/down the live view image by clicking , , , . The image size can be 4:3, 16:9, original or auto.

Chapter 5 PTZ Conguraon

5.1 Conguring Inial Posion

Purpose:

The initial posion is the origin of PTZ coordinates. It can be the factory default initial posion. You can also customize the initial posion according to your own demand.

- Customize an Inial Posion:

Steps:

1. Enter the Inial Posion Conguraon interface:

Conguraon > Advanced Conguration > PTZ > Inial Position

Set Clear Goto Preset 1 Preset 2 Preset 3 Preset 4 Preset 5

Figure 5-1 PTZ Conguraon

1. Click the PTZ control buons to nd a posion as the initial posion of the dome; you can also call a dened preset and set it as the initial posion of the dome.

2. Click Set to save the posion.

- Call/delete an Inial Posion:

You can click to call the initial posion. You can click to delete the initial posion and restore the factory default initial posion.

5.2 Conguring Basic PTZ Parameters

Purpose:

You can congregate the basic PTZ parameters, including proporcional pan, preset freezing, preset speed, etc.

1. Enter the Basic PTZ Parameter Conguraon interface:

Conguraon > Advanced Conguration > PTZ > Basic

Basic Parameter Enable Proportional Pan Enable Preset Freezing Preset Speed 4 Keyboard Control Speed Normal Auto Scan Speed 28 Zooming Speed 3 PTZ OSD Zoom Status 2s PT Status 2s Preset Status 2s Power Off Memory Set Resume Time Point 30s

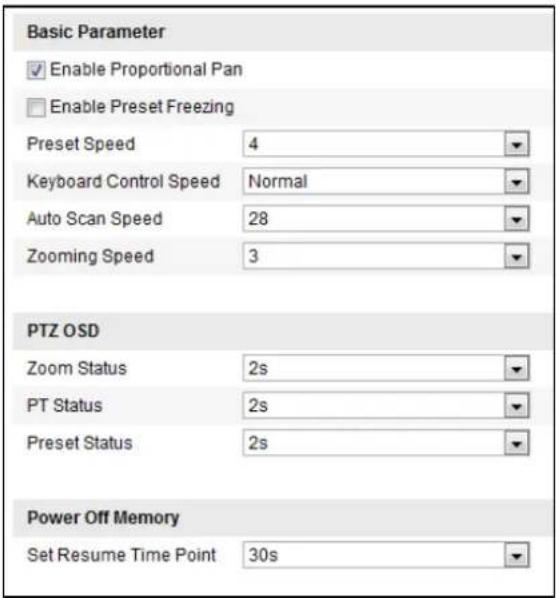

Figure 5-2 Basic PTZ Conguraon Interface

1. Congure the following sengs:

- Basic Parameters: Enable/disable proporcional pan and preset freezing, set the preset speed, keyboard control speed, and auto scan speed.

◆ Proporonal Pan: If you enable this funcon, the pan/lt speeds change according to the amount of zoom. When there is a large amount of zoom, the pan/lt speed will be slower for keeping the image from moving too fast on the live view image.
◆ Preset Freezing: This funcon enables the live view to switch directly from one scene dened by a preset to another, without showing the middle areas between these two, to ensure the surveillance eciency. It can also reduce the use of bandwidth in a digital network system.

Preset freezing funcon is invalid when you calling a paern.

◆ Preset Speed: You can set the speed of a dened preset from 1 to 8.
◆ Keyboard Control Speed: Dene the speed of PTZ control by a keyboard as Low, Normal or High.
◆ Auto Scan Speed: The dome provides 5 scan modes: auto scan, It scan, frame scan, random scan and panorama scan. The scan speed can be set from level 1 to 40.
◆ Zooming Speed: The zoom speed is adjustable from level 1 to 3.

- PTZ OSD: Set the on-screen display duraon of the PTZ status.

◆ Zoom Status: Set the OSD duraon of zooming status as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

◆ PT Status: Set the azimuth angle display duraon while panning and Ing as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

◆ Preset Status: Set the preset name display duraon while calling the preset as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

- Power-o Memory: The dome can resume its previous PTZ status or acons aer it restarted from a power-o. You can set the me point of which the dome resumes its PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before power-o.

1. Click to save the sengs.

5.3 Conguring PTZ Limit Stops

Purpose:

The dome can be programmed to move within the congorable limit stops (le/right, up/down).

Steps:

1. Enter the Limit Conguraon interface:

Conguraon > Advanced Conguraon > PTZ > Limit

Enable Limit Limit Type Manual Stops Type Status No limited Set Clear Preset 1 Preset 2 Preset 3 Preset 4 Preset 5

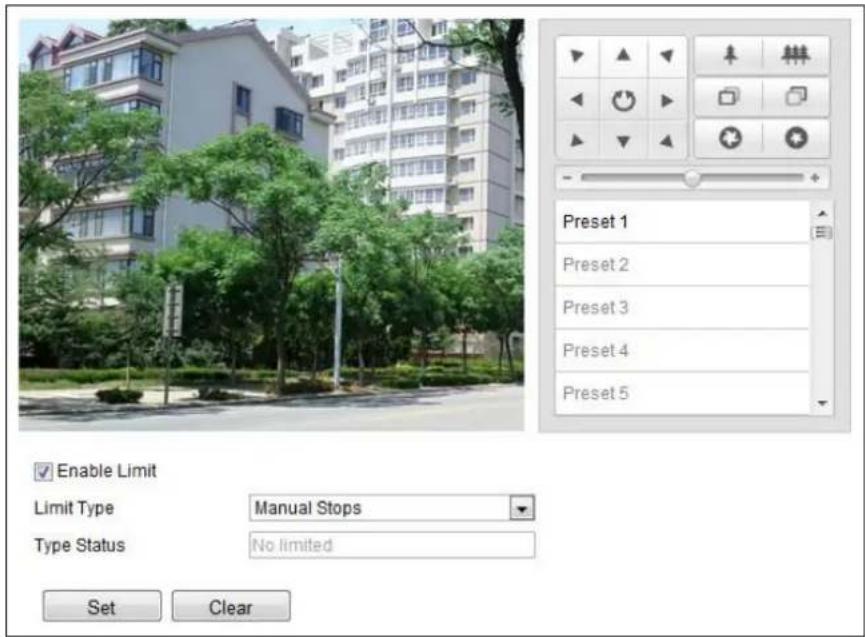

Figure 5-3 Congure the PTZ Limit

1. Click the checkbox of Enable Limit and choose the limit type as manual stops or scan stops.

- Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel

manually only in the limited surveillance area.

- Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, lt scan, panorama scan is performed only in the limited surveillance area.

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the same me, Manual Stops is valid and Scan Stops is invalid.

1. Click the PTZ control buons to nd the le/right/up/down limit stops; you can also call the dened presets and set them as the limits of the dome.
2. Click Set to save the limits or click Clear to clear the limits.

5.4 Conguring Scheduled Tasks

Purpose:

You can congregate the network dome to perform a certain acon automacally in a user-dened me period.

Steps:

1. Enter the Scheduled Task Sengs interface:

Conguraon> Advanced Conguraon> PTZ > Scheduled Tasks

Enable Scheduled Task Park Time 5 second Timing Tasks Edit Tasks Mon Tue Wed Thu Fri Sat Sun Note: Red and green colors are used to distinguish the neighboring scheduled tasks.

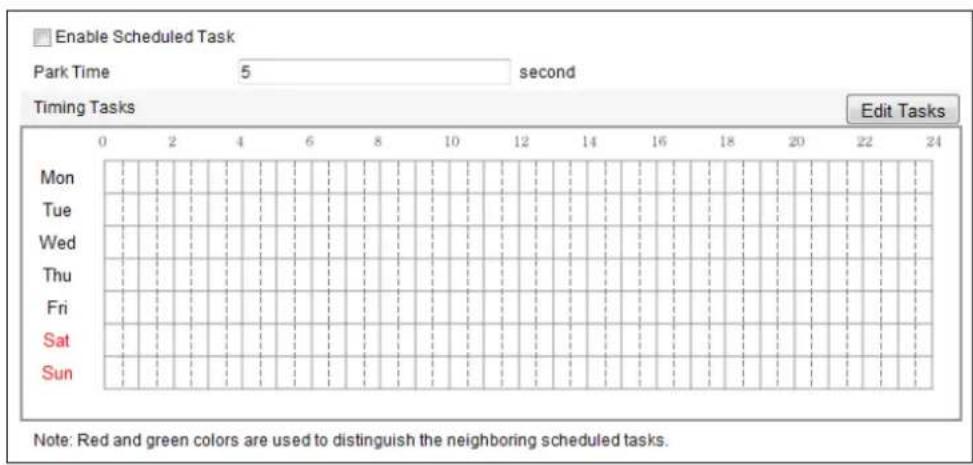

Figure 5-4 Congure Scheduled Tasks

1. Check the checkbox of Enable Scheduled Task.
2. Set the Park Time. You can set the park me (a period of inactivity) before the dome starts the scheduled tasks.
3. Set the schedule and task details.

Steps:

(1) Click to edit the task schedule.

Timing Tasks Mon Tue Wed Thu Fri Sat Sun All Day Close Customize Period Start Time End Time Task Type Task Type ID 1 00:00 00:00 Close 2 10 :30 Close 3 00:00 00:00 Close 4 00:00 00:00 Close 5 00:00 00:00 Close 6 00:00 00:00 Close 7 00:00 00:00 Close 8 00:00 00:00 Close 9 00:00 00:00 Close 10 00:00 00:00 Close Copy to Work Select All Mon Tue Wed Thu Fri Sat Sun Copy OK Cancel

Figure 5-5 Edit the Schedule and Task Type

(2) Choose the day you want to set the task schedule.
(3) Click All Day to set the schedule as all day; or click Customize and input the Start Time and End Time for each task, and click Enter on your keyboard to enter the me.
(4) Choose the task type from the drop-down list. You can choose scan, preset, paern and etc.

Close Close Auto Scan Frame Scan Random Scan Patrol Pattern Preset Panorama Scan Tilt Scan Dome Reboot Dome Adjust Aux Output

Figure 5-6 Task Types

(5) Aer you set the scheduled task, you can copy the task to other days (Oponal).
(6) Click to save the sengs.

The me of each task cannot be overlapped. Up to 10 tasks can be congured for each day.

1. Click to save the sengs.

5.5 Conguring Park Acons

Purpose:

This feature allows the dome to start a predened park acon (scan, preset, paern and etc.) automacally aer a period of inacvity (park me).

Scheduled Tasks funcon is prior to Park Acon funcon. When these two funcons are set at the same me, only the Scheduled Tasks funcon takes eect.

Steps:

1. Enter the Park Acon Sengs interface:

Conguraon > Advanced Conguraon> PTZ > Park Acon

Enable Park Action Park Time 5 second Action Type Auto Scan

Figure 5-7 Set the Park Acon

1. Check the checkbox of Enable Park Acon.
2. Set the Park Time as the inactivity me of the dome before it starts the park acons.
3. Choose Acon Type the from the drop-down list.

Auto Scan Auto Scan Frame Scan Random Scan Patrol Pattern Preset Panorama Scan Tilt Scan

Figure 5-8 Acon Types

1. Click to save the sengs.

5.6 Conguring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask Sengs interface:

Conguraon > Advanced Conguraon> PTZ > Privacy Mask

Enable Privacy Masks Stop Drawing Clear All Privacy Mask List Add Delete No. Name Type Enable Active Zoom Ratio 1 Privacy Mask 1 green Yes 1 2 Privacy Mask 2 blue Yes 1

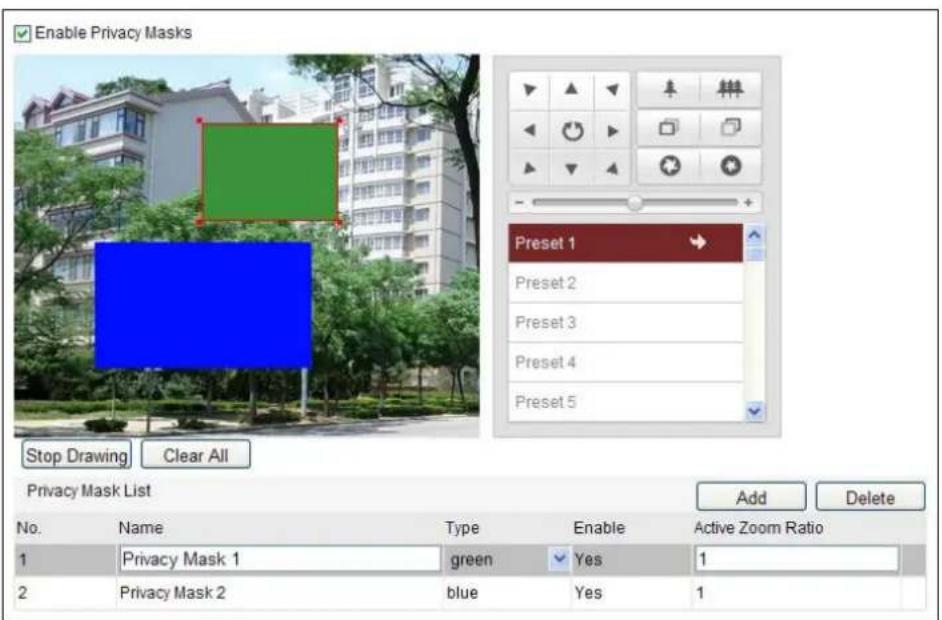

Figure 5-9 Draw the Privacy Mask

1. Click the PTZ control buons to nd the area you want to set the privacy mask.
2. Click Draw Area; click and drag the mouse in the live video window to draw the area.

You can drag the corners of the red rectangle area to draw a polygon mask.

1. Click Stop Drawing to nish drawing or click Clear All to clear all of the areas you set without saving them.
2. Click Add to save the privacy mask, and it will be listed in the Privacy Mask List area; set the value of Acve Zoom Rao on your demand, and then the mask will only appear when the zoom rao is greater than the predened value.

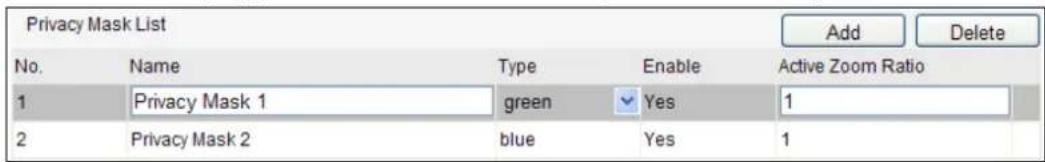

Privacy Mask List No. Name Type Enable Active Zoom Ratio 1 Privacy Mask 1 green Yes 1 2 Privacy Mask 2 blue Yes 1

Figure 5-10 Privacy Mask List

1. you can also denote the color of the masks.

gray gray red green blue orange yellow mosaic

Figure 5-11 Dene Mask Color

1. You can select a mask and click Delete to delete it from the list.
2. Check the checkbox of Enable Privacy Mask to enable this funcon.

You are allowed to draw up to 24 areas on the same image.

5.7 Conguring Smart Tracking

Purpose:

The speed dome tracks the moving objects automatically aer you conjure this funcon.

Steps:

1. Enter the Smart Tracking Sengs interface:

Conguraon > Advanced Conguraon> PTZ > Smart Tracking

Enable Smart Tracking Duration 20 second Set Zoom Ratio

Figure 5-12 Congure Smart Tracking

1. Check the check box to enable smart tracking funcon.

2. Click the PTZ buons to select an object.

3. Click Set Zoom Ratio to set the current zoom rao as the tracking zoom rao.

4. Set the tracking duraon. The speed dome stops tracking when the duraon me is up. The duraon ranges from 0 to 300 seconds.

• Setng the duraon to 0 means that there's no duraon when speed dome tracks.
• Not all the speed dome models support this funcon. Please take the browser interface of the actual product as standard.

5.8 Conguring PTZ Control Priority

Steps:

1. Get to the conguraon interface:

Conguraon > Advanced Conguraon> PTZ > Priorize PTZ.

• The speed dome can be controlled by network and RS-485 signals. You can set the control priority of these two signals.
• The operaon of Operator is prior to that of User. When the Operator is controlling the speed dome, the User cannot control it. When the Operator nishes, the User can control the speed dome aer the Delay me. The Delay me can be set in Priority PTZ interface as shown follows.

Prioritize PTZ Network Delay 10 second

Figure 5-13 PTZ Priority

1. Click to advate the sengs.

5.9 Clearing PTZ Conguraons

Purpose:

You can clear PTZ conguraons in this interface, including all presets, patrols, paerns, privacy masks, PTZ limits and scheduled tasks.

Steps:

1. Enter the Clearing Conguraon interface:
   Conguraon > Advanced Conguraon> PTZ > Clear Cong

2. Check the checkbox of the items you want to clear.

3. Click to clear the sengs.

Chapter 6 Speed Dome Conguraon

6.1 Conguring Local Parameters

The local conguraon refers to the parameters of the live view and other operaons using the web browser.

Steps:

1. Enter the Local Conguraon interface:

Conguraon > Local Conguraon

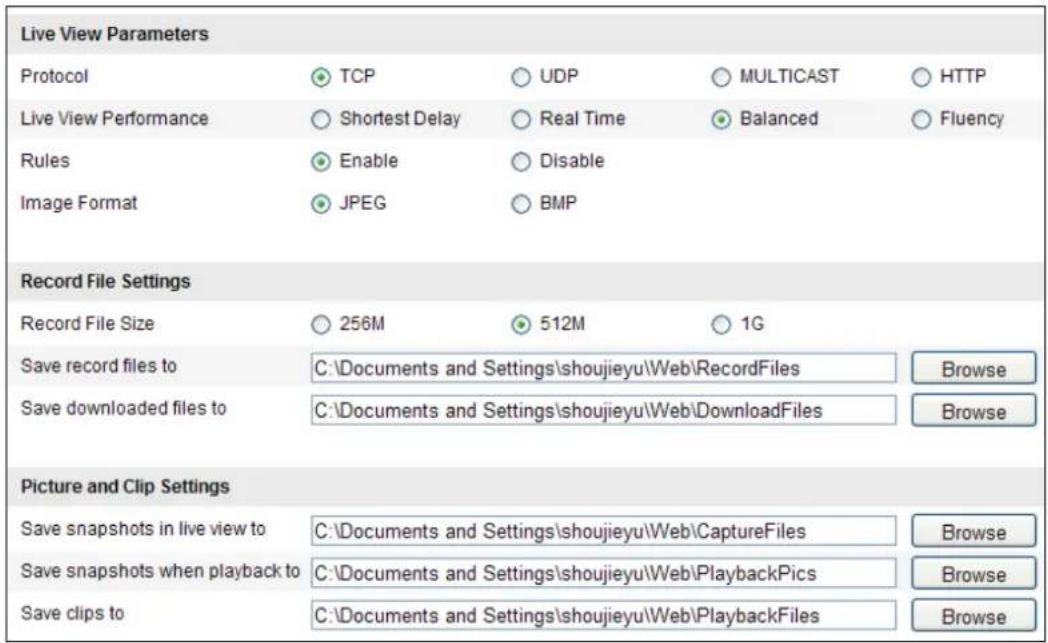

Live View Parameters Protocol TCP UDP MULTICAST HTTP Live View Performance Shortest Delay Real Time Balanced Fluency Rules Enable Disable Image Format JPEG BMP Record File Settings Record File Size 256M 512M 1G Save record files to C:\Documents and Settings\shoujieyu\Web\RecordFiles Browse Save downloaded files to C:\Documents and Settings\shoujieyu\Web\DownloadFiles Browse Picture and Clip Settings Save snapshots in live view to C:\Documents and Settings\shoujieyu\Web\CaptureFiles Browse Save snapshots when playback to C:\Documents and Settings\shoujieyu\Web\PlaybackPics Browse Save clips to C:\Documents and Settings\shoujieyu\Web\PlaybackFiles Browse

Figure 6-1 Local Conguraon Interface

1. Congure the following sengs:

- Live View Parameters: Set the protocol type, stream type, image size and live view performance.

◆ Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and beer video quality, yet the real-me transmission will be aected.

UDP: Provides real-me audio and video streams.

HTTP: Allows the same quality as of TCP without seng specic ports for streaming under some network environments.

MULTICAST: It's recommended to select the protocol type to MULTICAST

when using the Mulcast funcon. For other informaon about Mulcast, refer to Secon 6.3.1 Conguring TCP/IP Sengs.

Live View Performance: Set the live view performance to Least Delay, Balanced or Best Fluency.

Please set Live View Performance as Best Fluency for the high frame rate speed dome.

Rules: You can enable or disable the rules of dynamic analysis for events here.
◆ Image Format: The captured pictures can be saved as dierent format. JPEG and BMP are available.

- Record File Sengs: Set the saving path of the video les.

Record File Size: Select the packed size of manually recorded and downloaded video les. The size can be set to 256M, 512M or 1G.
◆ Save record les to: Set the saving path for the manually recorded video les.
◆ Save downloaded les to: Set the saving path for the downloaded video les

in

Playback interface.

- Picture and Clip Seings: Set the saving paths of the captured pictures and clipped video les.

Save snapshots in live view to: Set the saving path of the manually captured pictures in Live View interface.
◆ Save snapshots when playback to: Set the saving path of the captured pictures in _Playback_ interface.
Save clips to: Set the saving path of the clipped video les in Playback interface.

You can click to change the directory for saving videos, clips and pictures.

1. Click to save the sengs.

6.2 Conguring Time Sengs

Purpose:

You can follow the instrucons in this secon to conjure the me which can be displayed on the video. There are Time Zone, Time Synchronizaon, Daylight Saving Time (DST) funcons for setng the me. Time Synchronizaon consists of auto mode by Network Time Protocol (NTP) server and manual mode.

To enter the Time Sengs interface:

Conguraon > Basic Conguraon > System > Time Sengs

Or Conguraon > Advanced Conguraon > System > Time Sengs

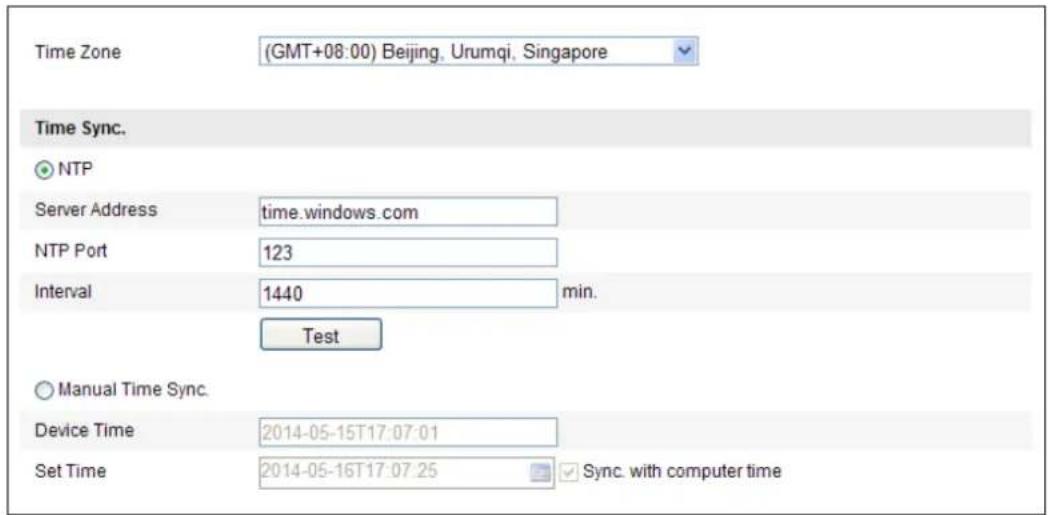

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore Time Sync. NTP Server Address time.windows.com NTP Port 123 Interval 1440 min. Test Manual Time Sync. Device Time 2014-05-15T17:07:01 Set Time 2014-05-16T17:07:25 Sync. with computer time

Figure 6-2 Time Sengs

● Conguring Time Synchronizaon by NTP Server

Steps:

(1) Check the radio buon to enable the NTP funcon.
(2) Congure the following sengs:

Server Address: IP address of NTP server.

NTP Port: Port of NTP server.

Interval: The me interval between the two synchronizing acons by NTP server.

It can be set from 1 to 10080 minutes.

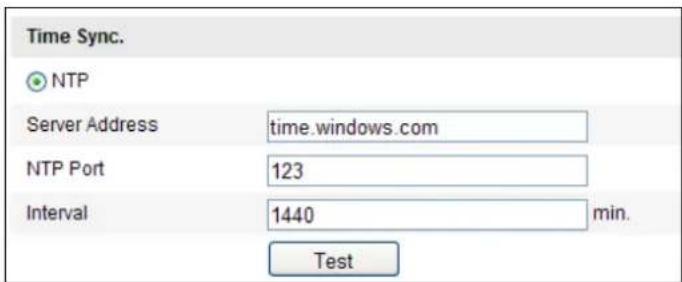

Time Sync. NTP Server Address time.windows.com NTP Port 123 Interval 1440 min. Test

Figure 6-3 Time Sync by NTP Server

(3) You can click the buon to check whether the configuraon is succeeded.

If the speed dome is connected to a public network, you should use a NTP server that has a me synchronizaon funcon, such as the server at the Naonal Time Center (IP Address: 210.72.145.44). If the speed dome is set in a customized network, NTP soware can be used to establish a NTP

server for me synchronizaon.

● Conguring Time Synchronizaon Manually

Steps:

(1) Check the Manual Time Sync radio buon.
(2) Click to set the system me from the pop-up calendar.
(3) Click to save the sengs.

You can also check the Sync. with computer me checkbox to synchronize the me of the speed dome with the me of your computer.

Sun Mon Tue Wed Thu Fri Sat 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Time 14 : 24 : 10 Today OK

Manual Time Sync. Device Time 2012-06-25T21:15:13 Set Time 2012-06-25T21:14:03 Sync. with computer time

Figure 6-4 Time Sync Manually

- Select the Time Zone

Purpose:

When the speed dome is taken to another me zone, you can use the Time Zone funcon to adjust the me. The me will be adjusted according to the original me and the me dience between the two me zones.

From the Time Zone drop-down menu as shown in Figure 6-5, select the Time Zone in which the speed dome locates.

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore

Figure 6-5 Time Zone Sengs

● Conguring Daylight Saving Time (summer me)

Purpose:

If there is the habit of adjusng clocks forward in your country in certain me period of a year, you can turn this funcon on. The me will be adjusted automacally when the Daylight Saving Time(DST) comes.

Steps:

(1) Enter the DST interface by Conguraon > Advanced Conguraon > System > DST
(2) Check to enable the DST funcon.
(3) Set the date of the DST period.
(4) Click to save the sengs.

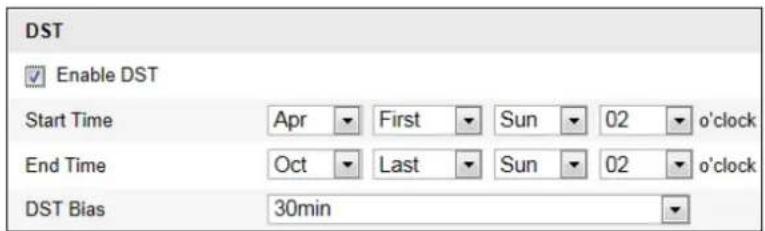

DST Enable DST Start Time Apr First Sun 02{o'clock} End Time Oct Last Sun 02{o'clock} DST Bias 30min

Figure 6-6 DST Sengs

6.3 Conguring Network Sengs

6.3.1 Conguring TCP/IP Sengs

Purpose:

TCP/IP sengs must be properly congured before you operate the speed dome over network. IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP Sengs interface:

Conguraon > Basic Conguraon > Network > TCP/IP

Or Conguraon > Advanced Conguraon > Network > TCP/IP

NIC Settings NIC Type Auto ✓ DHCP IPv4 Address 10.16.1.19 Test IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 10.16.1.254 IPv6 Mode Route Advertisement View Route Advertisement IPv6 Address = IPv6 Subnet Mask 0 IPv6 Default Gateway Mac Address 00:4c:3d:a1:c2:c1 MTU 1500 Multicast Address DNS Server Preferred DNS Server 10.1.7.88 Alternate DNS Server 10.1.7.77

Figure 6-7 TCP/IP Sengs

1. Congure the NIC sengs, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway.
2. Click to save the above sengs.

NOTE

• If the DHCP server is available, you can check ☐ DHCP to automatically obtain an IP address and other network sengs from that server.
• If the IP address is set manually, you can click Test to check whether the IP address is already used to prevent the IP address conicon.
• The valid value range of Maximum Transmission Unit (MTU) is 500 \~ 9676. The default value is 1500.
• The Mulcast sends a stream to the mulcast group address and allows mulple clients to acquire the stream at the same me by requesng a copy from the mulcast group address.

Before utilizing this funcon, you have to enable the Mulcast funcon of your router and congregate the gateway of the network speed dome.

- If the DNS server sengs are required for some applicaons (e.g., sending email), you should properly conjure the Preferred DNS Server and Alternate DNS server.

- Check the checkbox of Enable Mulcast Discovery, and then the speed dome can be detected by client sware in the LAN.

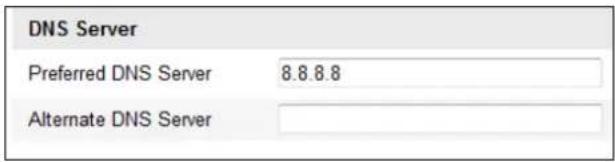

DNS Server Preferred DNS Server 8.8.8.8 Alternate DNS Server

Figure 6-8 DNS Server Sengs

The router must support the route adversement funcon if you select Route Adversement as the IPv6 mode.

6.3.2 Conguring Port Sengs

Purpose:

If there is a router and you want to access the speed dome through Wide Area Network (WAN), you need to forward the 3 ports for the speed dome.

Steps:

1. Enter the Port Sengs interface:

Conguraon > Basic Conguraon > Network > Port Or Conguraon > Advanced Conguration > Network > Port

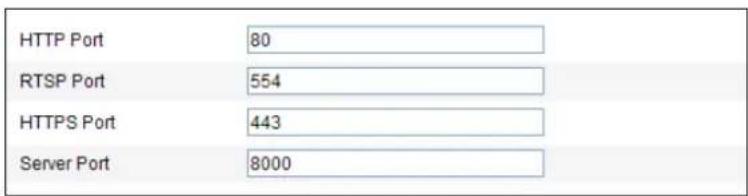

HTTP Port 80 RTSP Port 554 HTTPS Port 443 Server Port 8000

Figure 6-9 Port Sengs

1. Set the HTTP port, RTSP port, HTTPS port and port of the speed dome.

HTTP Port: The default port number is 80.

RTSP Port: The default port number is 554.

HTTPS Port: The default port number is 443.

Server Port: The default port number is 8000.

1. Click to save the sengs.

6.3.3 Conguring PPPoE Sengs

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) funcon.

Steps:

1. Enter the PPPoE Sengs interface:

Conguraon >Advanced Conguraon > Network > PPPoE

Enable PPPoE Dynamic IP 0.0.0.0 User Name Password Confirm

Figure 6-10 PPPoE Sengs

1. Check the Enable PPPoE checkbox to enable this feature.
2. Enter User Name, Password, and Conrm password for PPPoE access.

The User Name and Password should be assigned by your ISP.

1. Click to save and exit the interface.

6.3.4 Conguring DDNS Sengs

Purpose:

If your speed dome is set to use PPPoE as its default network conncon, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registraon on the DDNS server is required before conguring the DDNS sengs of the speed dome.

Steps:

1. Enter the DDNS Sengs interface:

Conguraon > Advanced Conguraon > Network > DDNS

Enable DDNS DDNS Type DynDNS Server Address Domain Port 0 User Name Password Confirm

Figure 6-11 DDNS Sengs

1. Check the Enable DDNS checkbox to enable this feature.
2. Select DDNS Type. Three DDNS types are selectable: IPServer, HiDDNS, NO-IP and DynDNS.

• DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org).
(2) In the Domain text eld, enter the domain name obtained from the DynDNS website.
(3) Enter the Port of DynDNS server.
(4) Enter the User Name and Password registered on the DynDNS website.
(5) Click to save the sengs.

Enable DDNS DDNS Type DynDNS Server Address members.dyndns.org Domain 123.dyndns.org Port 0 User Name test Password •••••••• Confirm •••••••••

Figure 6-12 DynDNS Sengs

- IP Server:

Steps:

(1) Enter the Server Address of the IP Server.
(2) Click to save the sengs.

The Server Address should be entered with the stac IP address of the computer that runs the IP Server soware. For the IP Server, you have to apply a stac IP, subnet mask, gateway and preferred DNS from the ISP.

Enable DDNS DDNS Type IPServer Server Address 202.23.10.117

Figure 6-13 IPServer Sengs

• HiDDNS:

Steps:

(1) Enter the Server Address: www.hik-online.com.
(2) Enter the Domain name of the camera. The domain is the same with the device alias in the HiDDNS server.
(3) Click to save the sengs.

Enable DDNS DDNS Type HiDDNS Server Address www.hik-online.com Domain 460518811 Port 0 User Name Password Confirm

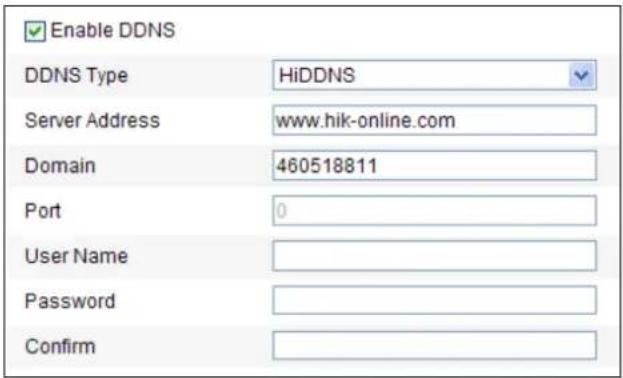

Figure 6-14 HiDDNS Sengs

- NO-IP:

Steps:

(1) Enter Server Address of NO-IP.
(2) In the Domain text eld, enter the domain name obtained from the NO-IP website.
(3) Enter the Port of NO-IP server.
(4) Enter the User Name and Password registered on the NO-IP website.
(5) Click to save the sengs.

6.3.5 Conguring SNMP Sengs

Purpose:

You can use SNMP to get speed dome status and parameters related informaon.

Before you start:

Before seng the SNMP, please use the SNMP soware and manage to receive the speed dome informaon via SNMP port. By seng the Trap Address, the speed dome can send the alarm event and excepon messages to the surveillance center.

The SNMP version you select should be the same as that of the SNMP soware.

Steps:

1. Enter the SNMP Sengs interface:

Conguraon > Advanced Conguration > Network > SNMP

SNMP v1/v2 Enable SNMPv1 ✓ Enable SNMP v2c ✓ Write SNMP Community private Read SNMP Community public Trap Address Trap Port 162 Trap Community public SNMP v3 Enable SNMPv3 □ Read UserName Security Level no auth, no priv ✓ Authentication Algorithm MD5 SHA Authentication Password Private-key Algorithm DES AES Private-key password Write UserName Security Level no auth, no priv ✓ Authentication Algorithm MD5 SHA Authentication Password Private-key Algorithm DES AES Private-key password SNMP Other Settings SNMP Port 161

Figure 6-15 SNMP Sengs

1. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to enable the feature.
2. Congure the SNMP sengs.

The conguraon of the SNMP soware should be the same as the sengs you congure here.

1. Click to save and nish the sengs.

6.3.6 Conguring 802.1X Sengs

Purpose:

The speed dome supports IEEE 802.1X standard.

IEEE 802.1X is a port-based network access control. It enhances the security level of

the LAN. When devices connect to this network with IEEE 802.1X standard, the authencaon is needed. If the authencaon fails, the devices don't connect to the network.

The protected LAN with 802.1X standard is shown as follows:


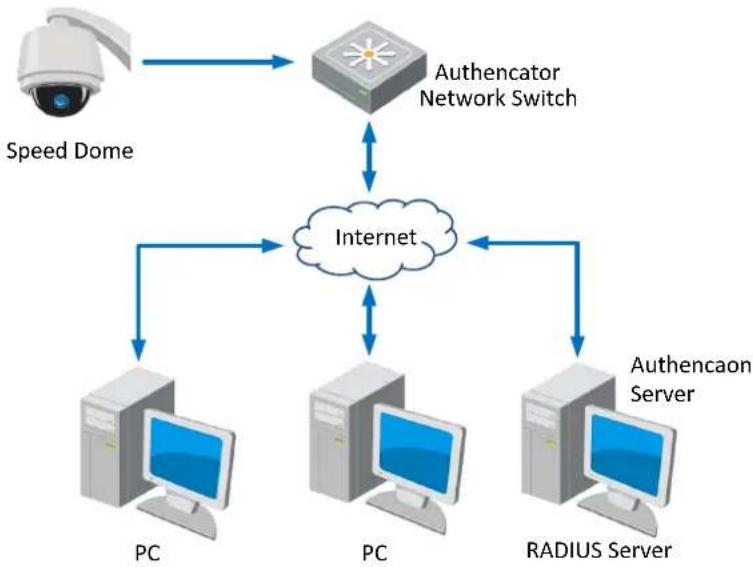

Figure 6-16 Protected LAN

• Before connecng the Network Camera to the protected LAN, please apply a digital cercate from a Cercate Authority.
• The network camera requests access to the protected LAN via the authenticator (a switch).
• The switch forwards the identity and password to the authentication server (RADIUS server).
• The switch forwards the cercate of authencaon server to the network camera.
• If all the informaon is validated, the switch allows the network access to the protected network.

Steps:

1. Connect the network camera to your PC directly with a network cable.
2. Enter the 802.1X Sengs interface:

Conguraon > Advanced Conguration > Network > 802.1X

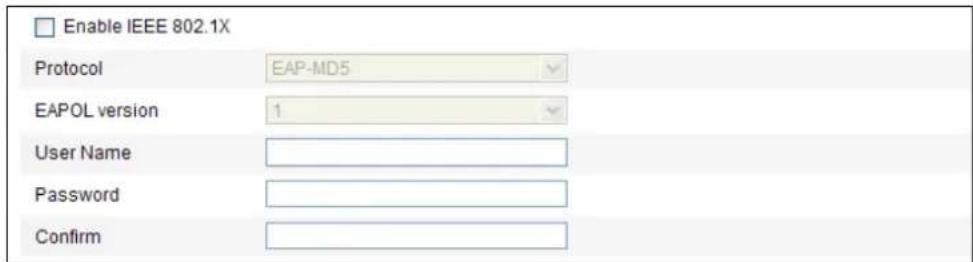

Enable IEEE 802.1X Protocol EAP-MD5 EAPOL version 1 User Name Password Confirm

Figure 6-17 802.1X Sengs

1. Check the Enable IEEE 802.1X checkbox to enable it.
2. Congure the 802.1X setngs, including user name and password.

The EAP-MD5 version must be identical with that of the router or the switch.

1. Enter the user name and password (issued by the CA) to access the server.
2. Click to nish the sengs.

The camera reboots when you save the sengs.

1. Aer the conguraon, connect the camera to the protected network.

6.3.7 Conguring QoS Sengs

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by conguring the priority of data sending.

Steps:

1. Enter the QoS Sengs interface:

Conguraon >Advanced Conguraon > Network > QoS

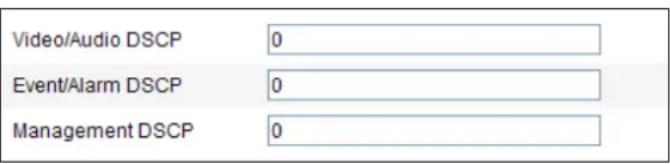

Video/Audio DSCP 0 Event/Alarm DSCP 0 Management DSCP 0

Figure 6-18 QoS Sengs

1. Congure the QoS settings, including video / audio DSCP, event / alarm DSCP and Management DSCP.

The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

1. Click to save the sengs.

• Make sure that you enable the QoS funcon of your network device (such as a router).
• It will ask for a reboot for the sengs to take eect.

6.3.8 Conguring FTP Sengs

Purpose:

You can set a FTP server and conjure the following parameters for uploading captured pictures.

Steps:

1. Enter the FTP Sengs interface:

Conguraon >Advanced Conguraon > Network > FTP

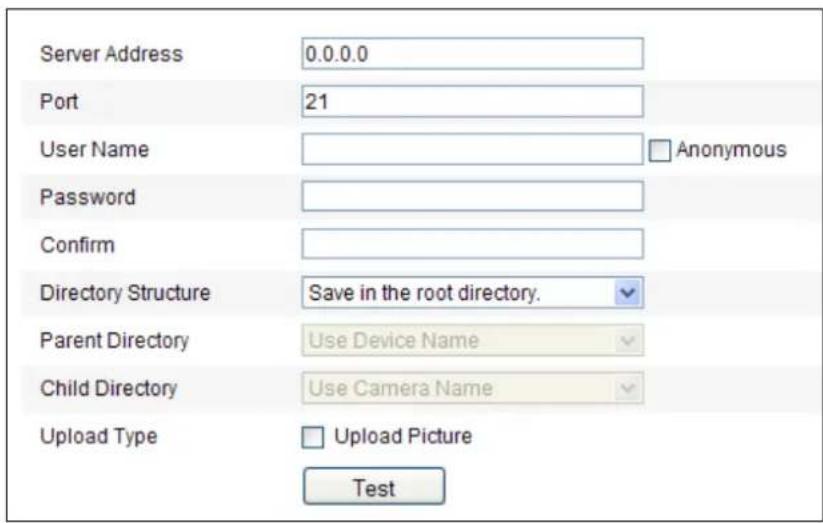

Server Address 0.0.0.0 Port 21 User Name Anonymous Password Confirm Directory Structure Save in the root directory. Parent Directory Use Device Name Child Directory Use Camera Name Upload Type Upload Picture Test

Figure 6-19 FTP Sengs

1. Congure the FTP settings, including server address, port, user name, password, directory and upload type.

- Setng the directory in FTP server for saving les:

In the Directory Structure eld, you can select the root directory, parent directory and child directory.

◆ Root directory: The les will be saved in the root of FTP server.
◆ Parent directory: The les will be saved in a folder in FTP server. The name of folder can be dened as shown in following Figure 6-20.

Use Device Name Use Device Name Use Device Number Use Device IP address

Figure 6-20 Parent Directory

◆ Child directory: It is a sub-folder which can be created in the parent directory. The les will be saved in a sub-folder in FTP server. The name of folder can be dened as shown in following Figure 6-21.

Use Camera Name Use Camera Name Use Camera Number

Figure 6-21 Child Directory

- Upload type: To enable uploading the captured picture to the FTP server.

1. Click to save the sengs.

If you want to upload the captured pictures to FTP server, you also have to enable the connuous snapshot or event-triggered snapshot in Snapshot interface. For detailed informaon, please refer to the Secon 7.4 Conguring Snapshot Sengs.

6.3.9 Conguring UPnP™ Sengs

Purpose:

Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, soware and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the house and corporate environments.

With the funcon enabled, you don't need to conjure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnP ^TM sengs interface.

Conguraon >Advanced Conguraon > Network > UPnP™

1. Check the checkbox to enable the UPnP™ funcon.

You can edit the Friendly Name of the speed dome. This name can be detected by corresponding device, such as a router.

Enable UPnP™ Friendly Name Camera

Figure 6-22 Congure UPnP Sengs

6.3.10 Conguring NAT (Network Address Translaon) Setngs

Steps:

1. Set the port mapping mode:

To port mapping with the default port numbers:

Choose

Port Mapping Mode

Auto

▼

To port mapping with the customized port numbers:

© Hikvision

Choose

And you can customize the value of the port No. by yourself.

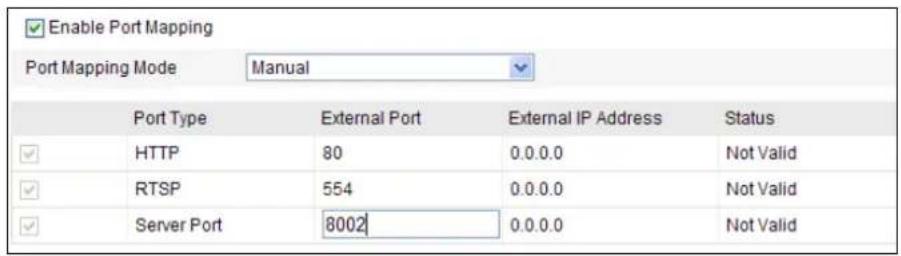

Enable Port Mapping Port Mapping Mode Manual Port Type External Port External IP Address Status HTTP 80 0.0.0.0 Not Valid RTSP 554 0.0.0.0 Not Valid Server Port 8002 0.0.0.0 Not Valid

Figure 6-23 Congure the Port No.

1. Click to save the sengs.

6.3.11 Conguring Email Sengs

Purpose:

The system can be congured to send an Email nocaon to all designated receivers if an alarm event is detected, e.g., moon detecon event, video loss, tamper-proof, etc.

Before you start:

Please congregate the DNS Server sengs under Basic Conguraon > Network > TCP/IP or Advanced Conguraon > Network > TCP/IP before using the Email funcon.

Steps:

1. Enter the Email Sengs interface:

Conguraon > Advanced Conguraon > Network > Email

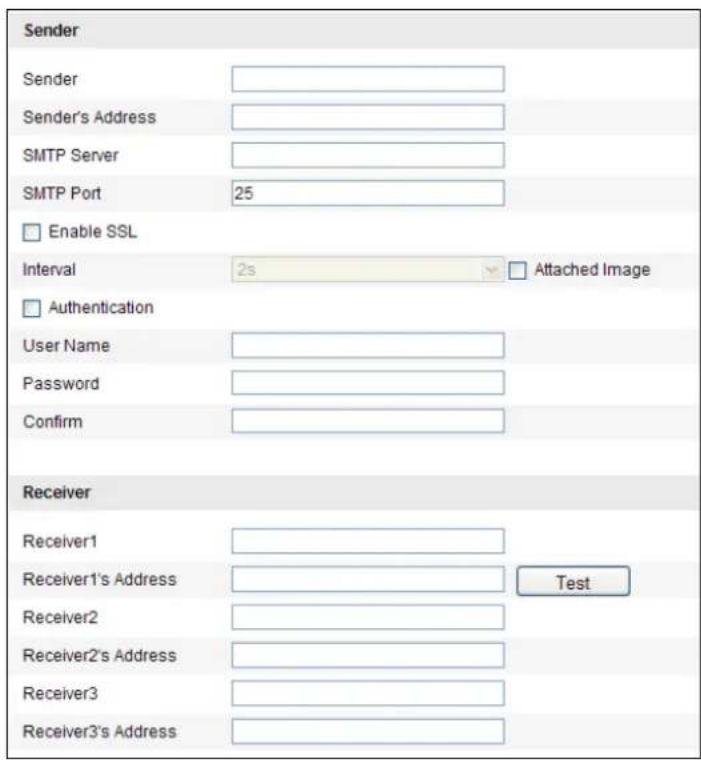

Sender Sender Sender's Address SMTP Server SMTP Port 25 Enable SSL Interval 2s Attached Image Authentication User Name Password Confirm Receiver Receiver1 Receiver1's Address Test Receiver2 Receiver2's Address Receiver3 Receiver3's Address

Figure 6-24 Email Sengs

1. Congure the following sengs:

Sender: The name of the email sender.

Sender's Address: The email address of the sender.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.

Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP server.

Aached Image: Check the checkbox of Aached Image if you want to send emails with aached alarm images.

Interval: The interval refers to the me between two acons of sending aached pictures.

Authencaon (oponal): If your email server requires authencaon, check this checkbox to use authencaon to log in to this server and enter the login user name and password.

Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be congured.

Receiver: The name of the user to be noed.

Receiver's Address: The email address of user to be need.

You can click to check whether the seng is invalid aer the required parameters are congured.

1. Click to save the sengs.

6.3.12 Conguring HTTPS Sengs

Purpose:

HTTPS provides authencaon of the web site and associated web server that one is communicang with, which protects against Man-in-the-middle aacks. Perform the following steps to set the port number of hps.

Example:

If you set the port number as 443 and the IP address is 192.0.0.64, you may access the device by inpung hps://192.0.0.64:443 via the web browser.

Steps:

1. Enter the HTTPS sengs interface.

Conguraon > Advanced Conguraon > Network > HTTPS

1. Create the self-signed cercate or authorized cercate.

Create Create Self-signed Certificate Create Certificate Request Install Signed Certificate Certificate Path Browse Upload Created Request Created Request Delete Download Installed Certificate Installed Certificate Delete

Figure 6-25 HTTPS Sengs

OPTION 1: Create the self-signed cercate

1) Click the Create buon to create the following dialog box.

Country CN * example CN Hostname/IP 10.16.1.15 * Password ••••••• State or province Locality Organization Organizational Unit Email OK Cancel

Figure 6-26 Create Self-signed Cercate

2) Enter the country, host name/IP, validity and other informaon.
3) Click OK to save the sengs.

OPTION 2: Create the authorized cercate

1) Click the Create button to create the cercate request, and fulfill the required informaon.
2) Download the cercate request and submit it to the trusted cercate authority for signature.
3) Aer receiving the signed valid cercate, import the cercate to the device.

1. There will be the cercate informaon aer you successfully create and install the cercate.

Installed Certificate Installed Certificate C=CN, ST=ZJ, L=HZ, OU=embeddedsoftware, H/IP=192 Delete Property Subject: C=CN, ST=ZJ, L=HZ, OU=embeddedsoftware, H/IP=192.0.0.64, EM=com.cn Issuer: C=CN, ST=ZJ, L=HZ, OU=embeddedsoftware, H/IP=192.0.0.64, EM=com.cn Validity: 2011-01-01 00:00:08 ~ 2013-12-31 00:00:08

Figure 6-27 Installed Cercate Property

You can click congure the HTTPS port No. on your demand; refer to Secon 6.3.2 Conguring Port Sengs for details.

6.4 Conguring Video and Audio Sengs

6.4.1 Conguring Video Sengs

Steps:

1. Enter the Video Sengs interface:

Conguraon >Basic Conguraon >Video / Audio >Video Or Conguraon >Advanced Conguraon >Video / Audio >Video

Stream Type Main Stream(Normal) Video Type Video&Audio Resolution 1920*1080P Bitrate Type Variable Video Quality Medium Frame Rate 25 fps Max. Bitrate 2048 Kbps Video Encoding H.264 Profile High Profile I Frame Interval 50 SVC OFF Smoothing 50 [Clear<->Smooth]

Figure 6-28 Congure Video Sengs

1. Select the Stream Type of the speed dome to main stream (normal) or sub-stream.

The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited.

Refer to the Secon 6.1 Conguring Local Parameters for switching the main stream and sub-stream for live viewing.

1. You can customize the following parameters for the selected main stream or sub-stream:

Video Type:

Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video&Audio.

Resoluon:

Select the resolution of the video output.

Bitrate Type:

Select the bitrate type to constant or variable.

Video Quality:

When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated

and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

Max. Bitrate:

Set the max. bitrate to 32\~16384 Kbps. The higher value corresponds to the higher video quality, and the higher bandwidth is required as well.

Video Encoding:

The Video Encoding standard can be set to H.264 or MJPEG.

Prole:

You can set the prole level to High Prole, Main Prole or Basic Prole.

I Frame Interval:

Set the I-Frame interval from 1 to 400.

SVC:

SVC is a video encoding technology. It extracts frames from the original video and sends these frames to a video recorder which also supports SVC funcon when the network bandwidth is insucient.

Smoothing:

Drag the to adjust the value of video smoothing on your demand.

1. Click to save the sengs.

6.4.2 Conguring Audio Sengs

Steps:

1. Enter the Audio Sengs interface

Conguraon > Basic Conguraon > Video / Audio > Audio Or Conguraon > Advanced Conguraon > Video / Audio > Audio

Audio Encoding AAC Audio Stream Bitrate 8kbps Sampling Rate 16kHz Audio Input MicIn Input Volume 50 Environmental Noise Filter OFF

Figure 6-29 Audio Sengs

1. Congure the following sengs.

Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726 and AAC selectable.

Audio Stream Bitrate: When the Audio Encoding is selected as AAC, you can conjure the Audio Stream Bitrate in the dropdown list: 8kbps, 16kbps, 32kbps, and 64kbps are selectable. The greater the value is, the beer the audio quality

will be.

Sampling Rate: When the Audio Encoding is selected as AAC, you can congregate the Sampling Rate in the dropdown list: 16kHz and 32kHz are selectable. The greater the value is, the beer the audio quality will be.

Audio Input: When an intercom is connected to the speed dome, you need to set this opon to LineIn. When a microphone is connected to the speed dome, you need to set this opon to MicIn.

Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100.

Environmental Noise Filter: When the monitoring environment is very noisy, you can enable this function to reduce part of the noise.

1. Click to save the sengs.

6.4.3 Conguring ROI Sengs

Before you start:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance.

Enter the RIO Sengs interface:

Conguraon > Advanced Conguraon > Video / Audio > ROI

Stream Type Stream Type Main Stream(Normal) Fixed Region Enable Region No. 1 ROI Level 3 Region Name Dynamic Region Enable Target Tracking ROI Level 6 Enable Face Tracking ROI Level 3 Draw Area Clear Preset 1 Preset 2 Preset 3 Preset 4 Preset 5

Figure 6-30 Region of Interest

Stream Type:

You can set the ROI funcon for main stream or substream. Select a stream type and then congure the ROI sengs.

- Fixed Region: The xed region encoding is the ROI encoding for the manually congured area. And you can choose the Image Quality Enhancing level for ROI encoding, and you can also name the ROI area.

Steps:

1. Select a Region No..
2. Check the checkbox of Enable under Fixed Region.

3. Select the region from the dropdown list for ROI sengs. There are four xed regions selectable.

4. Click the Draw Area buon, and then click-and-drag the mouse to draw the region of interest on the live video.

5. Adjust the ROI level from 1 to 6. The higher the value, the better image quality in the red frame.
6. Enter a Region Name and click Save to save the sengs.

- Dynamic Region: The device can automatically calculate the region with moon. Set the Image Quality Enhancing level for ROI encoding.

Steps:

1. Check the checkboxes of desired functions, including Target Tracking, Face Tracking and License Plate Tracking.

◆ Target Tracking: When a smart event is detected, e.g. line crossing detecon, the object which trigger the pre-dened rule will be automacally tracked, and the image quality of the tracking target will be increased.
Face Tracking: When the face detecon is triggered, the image quality of the face will be increased.

• To enable target tracking funcon, at least one smart event should be enabled.

• To enable face tracking funcon, the face detecon funcon should be supported and enabled.

• Respectively set the ROI level. The higher the value, the beer image quality in the red frame.

• Click Save to save the sengs.

6.5 Conguring Image Sengs

6.5.1 Conguring Display Sengs

Purpose:

You can set the image quality of the speed dome, including brightness, contrast, saturaon, sharpness, etc.

• The parameters in Display Sengs interface vary depending on the models of speed dome.
• You can double click the live view to enter full screen mode and double click it again to exit.

Steps:

1. Enter the Display Sengs interface:

Conguraon > Basic Conguraon> Image> Display Sengs

Or Conguraon > Advanced Conguraon> Image> Display Sengs

1. You can select the Mounng Scenario in the dropdown list with dierent predened image parameters.
2. Set the image parameters of the speed dome.

Mounting Scenario Outdoor Image Adjustment Brightness 50 Contrast 60 Saturation 80 Sharpness 50 ✓ Exposure Settings ✓ Focus Settings ✓ Day/Night Switch ✓ Backlight Settings ✓ White Balance ✓ Image Enhancement ✓ Video Adjustment ✓ Other Default

Figure 6-31 Display Sengs

Image Adjustment

- Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to 100.

- Contrast

This feature enhances the dience in color and light between parts of an image. The value ranges from 0 to 100.

- Saturaon

This feature is used to adjust color saturation of the image. The value ranges from 0 to 100.

- Sharpness

Sharpness funcon enhances the detail of the image by sharpening the edges in the image. The value ranges from 0 to 100.

This funcon varies depending on the models of speed dome.

Exposure Sengs

- Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shuer Priority, Manual.

Auto:

The iris, shuer and gain values will be adjusted automatically according to the brightness of the environment.

◆ Iris Priority:

The value of iris needs to be adjusted manually. The shuer and gain values will be adjusted automatically according to the brightness of the environment.

Exposure Mode Iris Priority Iris f2.4

Figure 6-32 Manual Iris

◆ Shuer Priority:

The value of shuer needs to be adjusted manually. The iris and gain values will be adjusted automacally according to the brightness of the environment.

Exposure Mode Shutter Priority Shutter 1/50

Figure 6-33 Manual Shuer

◆ Gain Priority:

The value of gain needs to be adjusted manually. The shuer and iris values will be adjusted automacally according to the brightness of the environment.

Gain 49

Figure 6-34 Manual Gain

◆ Manual:

In Manual mode, you can adjust the values of Gain, Shuer, Iris manually.

This funcon varies depending on the models of speed dome.

- Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

- Slow Shuer

This funcon can be used in underexposure condion. It lengthens the shuer me to ensure full exposure. The slow shuer value can be set to Slow Shuer*2, *4, *6, *12, *16, *24 and *32.

Slow Shutter ON Slow Shutter Level Slow Shutter*12

Figure 6-35 Slow Shuer

Focus Sengs

- Focus Mode

The Focus Mode can be set to Auto, Manual, Semi-auto.

Auto:

The speed dome focuses automatically at any me according to objects in the scene.

◆ Semi-auto:

The speed dome focuses automacally only once aer panning, Ing and zooming.

◆ Manual:

In Manual mode, you need to use on the control panel to focus manually.

● Min. Focus Distance

This funcon is used to limit the minimum focus distance.

The minimum focus value varies depending on the models of speed dome.

Day/Night Switch

The IR light related funcon introduced below is supported by IR speed domes only.

● Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day and Night.

Auto:

In Auto mode, the day mode and night mode can switch automacally according to the light condition of environment. The switching sensitivity can be set to Low, Normal, High.

Day/Night Switch Auto Sensitivity Normal

Figure 6-36 Auto Mode Sensitivity

Day:

In Day mode, the speed dome displays color image. It is used for normal lighng conditions.

◆ Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions.

◆ Schedule

In Schedule mode, you can set the me schedule for day mode as shown in Figure 6-37. The rest me out of the schedule is for night mode.

This funcon varies depending on the models of speed dome.

Day/Night Switch Schedule Start Time 07:00:00 End Time 18:00:00

Figure 6-37 Day Night Schedule

Smart IR

If the IR light is on and the image center is overexposure, you can enable this funcon.

- IR Light Mode

IR light mode can be set to Auto and Manual.

◆ Auto: The brightness of the infrared light will be adjusted automacally. IR Light Sensitivity value ranges from 0 to 100. Trigger Mode can be set to Camera or Photosensitive.
◆ Manual: you need to adjust the brightness value of infrared light manually. Brightness Limit value ranges from 0 to 100.

● The IR related funcons are supported by the IR speed dome only.
- For detailed parameters conguraon of IR light, you can enter the OSD menu by calling the special preset 95.

• When the IR Light Mode is auto, the day/night mode is adjusted automacally according to the IR Light Mode. Manually seng the day/night mode is invalid.
• When the IR Light Mode is manual and the Brightness Limit is 0, you can set the day/night mode manually.
• When the IR Light Mode is manual and the Brightness Limit is not 0, the night mode is set as the default mode. Manually seng the day/night mode is invalid.

Backlight Sengs

BLC

If there's a bright backlight, the subject in front of the backlight appears silhoueed or dark. Enabling BLC(back light compensaon) funcon can correct the exposure of the subject. But the backlight environment is washed out to white.

● WDR (Wide Dynamic Range)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.

You can enable or disable the WDR funcon as shown in Figure 6-38. The wide

dynamic level ranges from 0 to 100.

WDR Enable Wide Dynamic Level 1 34

Figure 6-38 WDR

This funcon varies depending on the models of speed dome.

HLC

HLC (High Light Compensaon) makes the camera identify and suppress the strong light sources that usually are across a scene. This makes it possible to see the detail of the image that would normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp and Auto-Track.

Auto:

In Auto mode, the camera retains color balance automacally according to the current color temperature.

◆ MWB:

In MWB (Manual White Balance) mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 6-39.

WB Gain Circuit R WB Gain Circuit B

Figure 6-39 Manual White Balance

◆ Outdoor

You can select this mode when the speed dome is installed in outdoor environment.

Indoor

You can select this mode when the speed dome is installed in indoor environment.

Fluorescent Lamp

You can select this mode when there are uorescent lamps installed near the speed dome.

♦ Sodium Lamp

You can select this mode when there are sodium lamps installed near the speed dome.

Auto-Track

In Auto-Track mode, white balance is connuously being adjusted in real-time according to the color temperature of the scene illuminaon.

This funcon varies depending on the models of speed dome.

Image Enhancement

● Digital Noise Reducon

The digital noise reduce funcon processes the noise in the video signal.

You can set Digital Noise Reducon funcon to ON and adjust the Noise Reducon Level as shown in Figure 6-40. The level ranges from 0 to 100.

Digital Noise Reduction ON Noise Reduction Level 50

Figure 6-40 Digital Noise Reducon

This funcon varies depending on the models of speed dome.

- Defog Mode

When there is fog in the image, you can enable this funcon to get clear image.

EIS

The live view image would be trembled and dim when the camera is shocked slightly in some monitoring conditions. And the electronic image stabilizaon (EIS) funcon is used to overcome this problem to ensure a steady and clear image.

- Chroma Suppress

The Chroma Suppress level ranges from 0 to 100 as shown in Figure 6-41.

Chroma Suppress 61

Figure 6-41 Chroma Suppress

This funcon varies depending on the models of speed dome.

Video Adjustment

- Mirror

If you turn the MIRROR funcon on, the image will be ipped. It is like the image in the mirror. The ip direcon can be set to OFF, LEFT/RIGHT, UP/DOWN or CENTER.

This funcon varies depending on the models of speed dome.

- Video Standard

You can set the Video Standard to 50hz(PAL) or 60hz(NTSC) according to the video system in your country.

This funcon varies depending on the models of speed dome.

Capture Mode:

You can set the Capture Mode to OFF, 1280*720@25fps, and 1280*960@25fps.

Other

- Lens Inializaon

The lens operates the movements for inializaon when you check the check box of Lens Inializaon.

- Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be set to 20, 40, 80, 160 and 320.

This funcon varies depending on the models of speed dome.

- Local Output

You can enable or disable the video output through the CVBS interface on your demand.

6.5.2 Conguring OSD Sengs

Purpose:

The speed dome supports following on screen displays:

Zoom: Idenes the amount of magnicaon.

Direcon: Displays panning and Ing direcon, with the format of PXXX TXXX. The

XXX following P indicates the degrees in pan direcon, while the XXX following T indicates the degrees in lt posion.

Time: Supports for me display.

Preset Title: Idenes preset being called.

Camera Name: Idenes the name of speed dome.

You can customize the on screen display of me.

Steps:

1. Enter the OSD Sengs interface:

Conguraon > Advanced Conguration > Image > OSD Sengs

2014-88-19 Monday 10:58:58 Display Name Display Date Display Week Camera Name IPdome Time Format 24-hour Date Format MM-DD-YYYY Display Mode Not transparent & Not flash OSD Size Auto Font Color Black&White Self-adaptive

Figure 6-42 OSD Sengs

1. Check the corresponding checkbox to select the display of speed dome name, date or week if required.
2. Edit the speed dome name in the text eld of Camera Name.
3. Select from the drop-down list to set the me format, date format and display mode.
4. You can use the mouse to click and drag the text frame if Dome2 in the live view window to adjust the OSD posion.

2013-06-15 Thursday 20:24:31 IP Date

Figure 6-43 Adjust OSD Locaon

1. The font color can also be customized, select the Custom in the drop down list and select the font color on your demand.
2. Click to acvate above sengs.

6.5.3 Conguring Text Overlay Sengs

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay Sengs interface:
   Conguraon > Advanced Conguraon > Image > Text Overlay
2. Check the checkbox in front of textbox to enable the on-screen display.
3. Input the characters in the textbox.

4. Use the mouse to click and drag the red text frame Text in the live view window to adjust the text overlay posion.

5. Click

There are up to 8 text overlays congorable.

1 Text 1 2 Text 2 3 4 5 6 7 8

Figure 6-44 Text Overlay Sengs

6.6 Conguring and Handling Alarms

Purpose:

This secon explains how to congregate the network speed dome to respond to alarm events, including moon detecon, external alarm input, video loss, tamper-proof and excepon. These events can trigger the alarm acons, such as Nofy Surveillance Center, Send Email, Trigger Alarm Output, etc.

For example, when an external alarm is triggered, the network speed dome sends a nocaon to an e-mail address.

6.6.1 Conguring Moon Detecon

Purpose:

Moon detecon is a feature which can trigger alarm acons and acons of recording videos when the moon occurred in the surveillance scene.

Steps:

1. Enter the moon detecon seng interface:

Conguraon > Advanced Conguraon> Basic Event > Moon Detecon

1. Check the checkbox of the Enable Moon Detecon to enable this funcon.

You can check the Enable Dynamic Analysis for Moon checkbox if you want the detected object get marked with rectangle in the live view.

1. Select the conguraon mode as Normal or Expert and set the corresponding moon detecon parameters.

Normal

Enable Motion Detection Enable Dynamic Analysis for Motion Configuration Normal Draw Area Clear All Sensitivity 40

Figure 6-45 Moon Detecon Sengs-Normal

Steps:

(1) Draw Area. Click and drag the mouse on the live video image to draw a moon detecon area.
(2) Click to nish drawing.

• You can draw up to 8 moon detecon areas on the same image.
  • You can click to clear all of the areas.

(3) Move the slider to set the sensitivity of the detecon.

- Expert

Enable Motion Detection Enable Dynamic Analysis for Motion Configuration Expert Switch Day and Night ... OFF Area 1 Sensitivity 50 Proportion of ... 22 Stop Drawing Clear All

Figure 6-46 Moon Detecon Sengs-Expert

Steps:

(1) Set the Day&Night switch mode, there are OFF, Auto-Switch and Scheduled-Switch selectable. If the Day&Night switch mode is enabled, you can congregate the detector rule for the day and night separately.

OFF: Disable the day and night switch.

Auto-Switch: Switch the day and night mode according to the illuminaon automacally.

Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode at 18:00 p.m..

(2) Select Area No. to congregate in the dropdown list.

(3) Set the values of sensitivity and proportion of object on area.

Sensitivity: The greater the value is, the easier the alarm will be triggered.

Proporon of Object on Area: When the size proporon of the moving object exceeds the predened value, the alarm will be triggered. The less the value is, the easier the alarm will be triggered.

1. Set the Arming Schedule for Moon Detecon.

(1) Click in Figure 6-47.

Figure 6-47 Arming Schedule

(2) Choose the day you want to set the arming schedule as shown in Figure 6-48.

Edit Schedule Time Mon Tue Wed Thu Fri Sat Sun Period Start Time End Time 1 00:00 24.00 2 00:00 00:00 3 00:00 00:00 4 00:00 00:00 5 00:00 00:00 6 00:00 00:00 7 00:00 00:00 8 00:00 00:00 Copy to Week □ Select All □ Mon □ Tue □ Wed □ Thu □ Fri □ Sat □ Sun Copy OK Cancel

Figure 6-48 Arming Time Schedule

(3) Click to set the me period for the arming schedule.
(4) (Oponal) Aer you set the arming schedule, you can click to copy the schedule to other days.
(5) Click to save the sengs.

The me of each period cannot be overlapped. Up to 8 periods can be congured for each day.

1. Set the Alarm Acons for Moon Detecon.

You can specify the linkage method when an event occurs. The following contents are about how to congregate the different types of linkage method.

Linkage Method Normal Linkage Other Linkage □ Notify Surveillance Center Trigger Alarm Output □ Select All □ Send Email □ A->1 □ A->2 □ Upload to FTP □ Trigger Channel

Figure 6-49 Linkage Method

Check the checkbox to select the linkage method. Nofy surveillance center, send email, upload to FTP, trigger channel and trigger alarm output are selectable.

● Nofy Surveillance Center

Send an excepon or alarm signal to remote management soware when an event occurs.

- Send Email

Send an email with alarm informaon to a user or users when an event occurs.

To send the Email when an event occurs, you need to refer to Secon 6.3.11 Conguring Email Sengs to set the Email parameters.

- Upload to FTP

Capture the image when an alarm is triggered and upload the picture to a FTP server.

You need a FTP server and set FTP parameters rst. Refer to Secon 6.3.8 Conguring FTP Sengs for seng FTP parameters.

- Trigger Channel

Record a video when an event occurs.

You have to set the recording schedule to realize this funcon. Please refer to Secon 7.3 Conguring Recording Schedule for sengs the recording schedule.

● Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

To trigger an alarm output when an event occurs, please refer to Secon 6.6.5 Conguring Alarm Output to set the alarm output parameters.

6.6.2 Conguring Video Loss Alarm

Steps:

1. Enter the Video Loss Seng interface:

Conguraon > Advanced Conguraon> Basic Event > Video Loss

Enable Video Loss Detection Arming Schedule Edit Mon Tue Wed Thu Fri Sat Sun Linkage Method Normal Linkage Other Linkage Notify Surveillance Center Trigger Alarm Output Select All Send Email A->1 A->2

Figure 6-50 Video Loss

1. Check the Enable Video Loss Detecon checkbox to enable the video loss detecon.
2. Click Edit to edit the arming schedule for video loss detecon. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Step 2 in Section 6.6.1 Conguring Moon Detecon.
3. Check the checkbox to select the linkage method taken for the video loss alarm, nofy surveillance center, send email and trigger alarm output are selectable. Please Step 3 in Secon 6.6.1 Conguring Moon Detecon.
4. Click to save the sengs.

6.6.3 Conguring Video Tampering Alarm

Purpose:

You can congregate the speed dome to trigger the alarm acons when the lens is covered.

Steps:

1. Enter the video tampering Sengs interface:

Conguraon > Advanced Conguraon > Basic Event > Video Tampering

Enable Video Tampering Area Settings Draw Area Clear All Sensitivity

Figure 6-51 Tampering Alarm

1. Check Enable Video Tampering checkbox to enable the tampering detecon.

2. Set the tampering area. Refer to Step 1 in Secon 6.6.1 Conguring Moon Detecon.

3. Click Edit to edit the arming schedule for tampering. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon.

Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.

1. Check the checkbox to select the linkage method taken for the tampering. Nofy surveillance center, send email, trigger channel and trigger alarm output are selectable. Please refer to Step 3 in Section 6.6.1 Conguring Moon Detecon.

2. Click to save the sengs.

6.6.4 Conguring External Alarm Input

Steps:

1. Enter the Alarm Input Sengs interface:

Conguraon > Advanced Conguraon> Events > Alarm Input:

1. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed).

2. Edit the name in to set a Alarm Name

name for the alarm input (oponal).

Alarm Input No. A<-1 Alarm Name alarm1 (cannot copy) Alarm Type NO Arming Schedule Edit Mon Tue Wed Thu Fri Sat Sun 0 2 4 6 8 10 12 14 16 18 20 22 24

Figure 6-52 Alarm Input Sengs

1. Click Edit to set the arming schedule for the alarm input. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.
2. Check the checkbox to select the linkage method taken for the alarm input. Refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.
3. You can also choose the PTZ linking for the alarm input. Check the relave checkbox and select the No. to enable Preset Calling, Patrol Calling or Paern Calling.
4. You can copy your sengs to other alarm inputs.
5. Click to save the sengs.

Linkage Method Normal Linkage Other Linkage □ Notify Surveillance Center □ Send Email □ Upload to FTP □ Trigger Channel Trigger Alarm Output □ Select All □ A->1 □ A->2 PTZ Linking □ Preset No. 1 □ Patrol No. 1 □ Pattern 1 Copy to Alarm □ Select All ✓A<-1 □A<-2 □A<-3 □A<-4 □A<-5 □A<-6 □A<-7

Figure 6-53 Linkage Method

6.6.5 Conguring Alarm Output

Steps:

1. Enter the Alarm Output Sengs interface:

Conguraon>Advanced Conguraon> Events > Alarm Output

1. Select one alarm output channel in the Alarm Output drop-down list.

2. Set a name in for the Alarm Name

alarm output (oponal).

1. The Delay me can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The delay me refers to the me duraon that the alarm output remains in eect aer alarm occurs.

2. Click Edit to enter the Edit Schedule Time interface. The me schedule conguraon is the same as the sengs of the arming schedule for moon detecon. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.

Alarm Output A->1 Alarm Name (cannot copy) Delay 5s Arming Schedule Edit Mon Tue Wed Thu Fri Sat Sun

Figure 6-54 Alarm Output Sengs

1. You can copy the sengs to other alarm outputs.
2. Click to save the sengs.

6.6.6 Handling Excepon

The exception type can be HDD full, HDD error, network disconnected, IP address conicted and illegal login to the speed domes.

Steps:

1. Enter the Excepon Sengs interface:

Conguraon > Advanced Conguraon> Events > Excepon

1. Check the checkbox to set the acons taken for the Excepon alarm. Refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.

Exception Type HDD Full Normal Linkage Other Linkage Notify Surveillance Center Trigger Alarm Output Select All Send Email A->1 A->2

Figure 6-55 Excepon Sengs

1. Click to save the sengs.

6.6.7 Detecng Audio Excepon

Purpose:

When you enable this funcon and audio excepon occurs, the alarm acons will be triggered.

Steps:

1. Enter the video audio excepon detecon interface:

Conguraon > Advanced Conguraon > Smart Event > Audio Exception Detecon

Exception Detection Audio Loss Detection Sudden Increase of Sound Intensity Detection Sensitivity 50 Sound Intensity Threshold 50 Sudden Decrease of Sound Intensity Detection Sensitivity 50 Real-time Volume

Figure 6-56 Audio Excepon Detecon

1. Check the checkbox of Audio Loss Detecon to enable the audio input excepon detecon.
2. Check the checkbox of Sudden Increase of Sound Intensity Detecon checkbox to enable the sudden rise detecon.

● Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detecon.
● Sound Intensity Threshold: Range [1-100], it can iter the sound in the environment, the louder the environment sound, the higher the value should be. You can adjust it according to the actual environment.

1. Check the checkbox of Sudden Decrease of Sound Intensity Detecon checkbox to enable the sudden drop detecon.

Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detecon.

1. Click Edit to edit the arming schedule. The arming schedule conguraon

is the same as the seng of the arming schedule for moon detecon. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.

1. Check the checkbox to select the linkage method taken for audio excepon.

Nofy surveillance center, send email, trigger alarm output, etc. are selectable. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.

1. Click to save the sengs.

6.6.8 Conguring Dual-VCA

Purpose:

Enabling the Dual-VCA funcon will send the VCA event informaon (e.g. intrusion detecon, line crossing detecon, face detecon, etc.) to the connected back-end device for the second-me analysis.

Steps:

1. Enter the Dual-VCA funcon conguraon interface.

Conguraon> Advanced Conguraon> Video/Audio> Display Info. on Stream

1. Check the Enable Dual-VCA checkbox.

2. Click to save the sengs.

6.6.9 Conguring Intrusion Detecon

Intrusion detecon can set an area in the surveillance scene and once the area is entered, a set of alarm acon is triggered.

Steps:

1. Enter the intrusion detecon interface:

Conguraon > Advanced Conguraon > Events > Intrusion Detecon

1. Check the Enable Intrusion Detecon checkbox.

Enable Intrusion Detection Area Settings Unlock(157S) Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Draw Area Clear Region 1 Threshold 5 Sensitivity 50

Figure 6-57 Conguring Intrusion Area

1. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the intrusion detecon interface. Oponally, you can click the buon to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

2. Draw area.

(1) Select the Region No.in dropdown list.
(2) Click to draw a rectangle on the image as a defense region.
(3) Click on the image to specify a corner of the rectangle, and right-click the mouse aer four corners are congured.

Up to four areas are supported.

You can click to clear the areas you drawn.

1. Congure the parameters for each defense region separately.

2. Threshold: Range [0-10s], the threshold for the me of the object loitering in the region. If you set the value as 0, alarm is triggered immediately aer the object entering the region.

3. Sensitivity: Range [1-100]. The value of the sensitivity denotes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

4. Click Edit to edit the arming schedule for tampering. The arming schedule

conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.

1. Check the checkbox to select the linkage method taken for the intrusion detecon. Nofy surveillance center, send email, trigger channel, smart tracking and trigger alarm output are selectable. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.
2. Click to save the sengs.

6.6.10 Conguring Line Crossing Detecon

The virtual plane detecon can be adopted for the intrusion detecon. Once the virtual plane is detected being traversed according to the congured direcon, a set of alarm acon is triggered.

Steps:

1. Enter the Line Crossing Detecon interface:
   Conguraon > Advanced Conguraon > Events > Line Crossing Detecon
2. Check the Line Crossing Detecon checkbox.
3. Select the Line in dropdown list to congure.
4. The event triggered and park acon related PTZ movement will be locked for 180 seconds aer you enter the line crossing detecon interface. Oponally, you can click the buon to manually acvate the movement, or lock the movement when the buon turns to by clicking it.

Enable Line Crossing Detection Line 1 Unlock(115s) Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Draw Area Clear Direction A<>B Sensitivity 50

Figure 6-58 Conguring Line

5. Draw area.

(1) Click to draw a line on the image.
(2) Click the line to switch to the eding mode.

Click and drag an end to the desired place to adjust the length and angle of the line. And click and drag the line to adjust the locaon.

Up to four lines are supported.

6. Congure the parameters for each defense region separately.

- Direcon: Select the detecon direcon in the dropdown list, there are A<->B, A->B and B->A selectable. - Sensitivity: Range [1-100]. The value of the sensitivity denes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Edit to edit the arming schedule for line crossing detecon. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Step 2 in Secon 6.6.1 Conguring Moon

Detecon.

1. Check the checkbox to select the linkage method taken for the line crossing detecon. Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.

2. Click to save the sengs.

6.6.11 Conguring Face Detecon

Purpose:

Aer the face detecon is enabled, a face appears in the surveillance area, it will be detected and certain acons may be triggered by the detecon.

Steps:

1. Check the Enable Face Detecon checkbox.
2. (Oponal) You can check the Enable Dynamic Analysis for Face Detecon checkbox if you want the detected face get marked with rectangle in the live view.

Enable Face Detection Enable Dynamic Analysis for Face Detection Sensitivity 3

Figure 6-59 Conguring Face Detecon

1. Congure the sensitivity for face detecon.

Sensitivity: Range [1-5]. The value of the sensitivity denes the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm.

1. Click Edit to edit the arming schedule for face detecon. The arming schedule conguraon is the same as the seng of the arming schedule for moon detecon. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.

2. Check the checkbox to select the linkage method taken for the face detecon. Nofy surveillance center, send email, upload to FTP, trigger channel, smart tracking and trigger alarm output are selectable. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.

3. Click to save the sengs.

6.6.12 Region Entrance Detecon

Purpose:

Region entrance detecon funcon detects people, vehicle or other objects which enter a pre-dened virtual region from the outside place, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Entrance Detecon sengs interface:

Conguraon> Advanced Conguraon> Smart Event> Region Entrance Detecon

1. Check the checkbox of Enable Region Entrance Detecon to enable the funcon.

Enable Region Entrance Detection Region 1 Lock Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Draw Area Clear

Figure 6-60 Conguring Region Entrance Detecon

1. Select the region from the dropdown list for detecon sengs.
2. Click the buon to start the region drawing.
3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to conjure other regions. Up to 4 regions can be set. You can click the button to clear all pre-dened regions.

1. Click the Edit buon to set the arming schedule. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.
2. Select the linkage methods for region entrance detecon, including Nofy Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.
3. Click buon to save the sengs.

6.6.13 Region Exing Detecon

Purpose:

Region exing detecon funcon detects people, vehicle or other objects which exit from a pre-dened virtual region, and some certain acons can be taken when the alarm is triggered.

Steps:

1. Enter the Region Exing Detecon sengs interface:

Conguraon> Advanced Conguraon> Smart Event> Region Exing Detecon

1. Check the checkbox of Enable Region Exing Detecon to enable the funcon.

Enable Region Exiting Detection Region 1 Lock Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Stop Drawing Clear

Figure 6-61 Conguring Region Exing Detecon

1. Select the region from the dropdown list for detecon sengs.
2. Click the buon to start the region drawing.
3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.

Repeat the step to conjure other regions. Up to 4 regions can be set. You can click the button to clear all pre-dened regions.

1. Click the Edit buon to set the arming schedule. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.
2. Select the linkage methods for region exing detecon, including Nofy Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.
3. Click buon to save the sengs.

6.6.14 Unaended Baggage Detecon

Purpose:

Unaended baggage detecon funcon detects the objects le over in the pre-dened region such as the baggage, purse, dangerous materials, etc., and a series of acons can be taken when the alarm is triggered.

Steps:

1. Enter the Unaended Baggage Detecon sengs interface:

Conguraon> Advanced Conguraon> Smart Event> Unaended Baggage Detecon

1. Check the checkbox of Enable Unaended Baggage Detecon to enable the funcon.

Enable Unattended Baggage Detection Region 1 Lock Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Draw Area Clear Threshold 31 s Sensitivity 50

Figure 6-62 Conguring Unaended Baggage Detecon

1. Select the region from the drop-down list for detecon sengs.
2. Click the buon to start the region drawing.
3. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.
4. Set the me threshold and detecon sensitivity for unaended baggage detecon.

Threshold: Range [1-100]s, the threshold for the me of the objects le over in the region. If you set the value as 10, alarm is triggered aer the object is le and stay in the region for 10s.

Sensitivity: Range [1-100]. The value of the sensitivity denes the similarity degree of the background image. Usually, when the sensitivity is high, a very small object le in the region can trigger the alarm.

1. Repeat the above steps to conjure other regions. Up to 4 regions can be set.

You can click the buon to clear all pre-dened regions.

1. Click the Edit buon to set the arming schedule. Refer to Step 2 in Secon 6.6.1 Conguring Moon Detecon.

2. Select the linkage methods for unaended baggage detecon, including Nofy Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.

3. Click to save the sengs.

6.6.15 Object Removal Detecon

Purpose:

Object removal detecon funcon detects the objects removed from the pre-dened region, such as the exhibits on display, and a series of acons can be taken when the alarm is triggered.

Steps:

1. Enter the Object Removal Detecon sengs interface:

Conguraon> Advanced Conguraon> Smart Event> Object Removal Detecon

1. Check the checkbox of Enable Object Removal Detecon to enable the funcon.
2. Select the region from the drop-down list for detecon sengs.
3. Click the buon to start the region drawing.
4. Click on the live video to specify the four vertexes of the detecon region, and right click to complete drawing.
5. Set the me threshold and detecon sensitivity for object removal detecon.

Threshold: Range [5-100]s, the threshold for the me of the objects removed from the region. If you set the value as 10, alarm is triggered aer the object disappears from the region for 10s.

Sensitivity: Range [1-100]. The value of the sensitivity denotes the similarity degree of the background image. Usually, when the sensitivity is high, a very small object taken from the region can trigger the alarm.

1. Repeat the above steps to conjure other regions. Up to 4 regions can be set. You can click the button to clear all pre-dened regions.
2. Click the buon to set the arming schedule.
3. Select the linkage methods for object removal detecon, including Notify Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output.
4. Click to save the sengs.

Chapter 7 Record Sengs

Before you start:

To congure record setngs, please make sure that you have the network storage device within the network or the storage card has been inserted in the corresponding card slot. Refer to the installaon guide for the locaon of the storage card slot.

7.1 Conguring NAS Sengs

Before you start:

The network disk should be available within the network and properly congured to store the recorded les, log les, etc.

Steps:

1. Enter the NAS (Network-Aached Storage) Sengs interface:

Conguraon > Advanced Conguraon > Storage > NAS

1. Select the NAS type as NFS or SMB/CIFS. If you select SMB/CIFS, you need to enter the User Name and Password.

HDD No. Type Server Address File Path 1 NAS Mounting Type NFS User Name Password NFS 2 NA SMB/CIFS

Figure 7-1 Select NAS Type

1. Enter the IP address of the network disk. The default NFS storage format of le path is /dvr/test as shown in Figure 7-2. And the default SMB/CIFS storage format of le path is /test.

HDD No.	Type	Server Address	File Path
1	NAS	10.99.105.249	/dvr/test
2	NAS
3	NAS
4	NAS

Figure 7-2 Add Network Disk

1. Click to add the network disk.

Up to 8 NAS disks can be connected to the speed dome.

7.2 Inializing and Conguring Storage

Steps:

1. Inialize the local disk or added network disk.

(1) Enter the HDD Setngs interface (Advanced Conguraon > Storage > Storage Management), in which you can view the capacity, free space, status, type and property of the disk.
(2) If the status of the disk is Uninialized as shown in Figure 7-3, check the corresponding checkbox to select the disk and click to start initializing the disk.

HDD Device List Format ✓ HDD No. Capacity Free space Status Type Property Progress ✓ 9 0.96GB 0.00GB Uninitialized NAS R/W

Figure 7-3 Initialize Disk

HDD Device List Format ✓ HDD No. Capacity Free space Status Type Property Progress ✓ 9 39.06GB 0.00GB Uninitialized NAS R/W 7%

Figure 7-4 Inializing

When the inializaon completed, the status of disk will become Normal as shown in Figure 7-5.

HDD Device List Format □ HDD No. Capacity Free space Status Type Property Progress □ 9 39.06GB 38.75GB Normal NAS R/W

Figure 7-5 View Disk Status

1. Congure the quota for saving the video and picture.

Enter the percentage for picture and record in the text led, and the total percentage must be 100%.

Quota Max.Picture Capacity 49.50GB Free Size for Picture 49.50GB Max. Record Capacity 149.25GB Free Size for Record 149.25GB Percentage of Picture 25 % Percentage of Record 75 %

Figure 7-6 Seng Quota

7.3 Conguring Recording Schedule

Before you start:

Please make sure a local storage card is inserted in the speed dome or the network storage is added to the speed dome, and the

Purpose:

There are two kinds of recording for the speed domes: manual recording and scheduled recording. For the manual recording, refer to Secon 4.4 Recording and Capturing Pictures Manually. In this secon, you can follow the instructions to conjure the scheduled recording. By default, the record les of scheduled recording are stored in the SD card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule Sengs interface:

Conguraon > Advanced Conguraon> Storage > Record Schedule

Pre-record 5s Post-record 5s Overwrite Yes Recording Stream Main Stream Enable Record Schedule Edit Mon Tue Wed Thu Fri Sat Sun Continuous Motion Detection Alarm Motion | Alarm Motion & Alarm Other

Figure 7-7 Recording Schedule Interface

1. Check the checkbox of Enable Record Schedule to enable scheduled recording.
2. Set the record parameters of the speed dome.

Pre-record 5s Post-record 5s Overwrite Yes Recording Stream Main Stream

Figure 7-8 Record Parameters

● Pre-record: The me you set to start recording before the scheduled me or

the event. For example, if an alarm triggers recording at 10:00, and the pre-record me is set as 5 seconds, the speed dome starts to record at 9:59:55.

The Pre-record me can be congured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

The pre-record me changes according to the video bitrate.

- Post-record: The me you set to stop recording aer the scheduled me or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record me is set as 5 seconds, the speed dome records until 11:00:05. The Post-record me can be congured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

The Pre-record and Post-record parameters vary depending on the speed dome model.

- Overwrite: If you enable this funcon and the HDD is full, the new record les overwrite the oldest record les automacally.

● Recording Stream: You can select the stream type for recording; Main stream and Sub Stream are selectable. If you select the sub stream, you can record for a longer me with the same storage capacity.

1. Click to edit the record schedule.

Edit Schedule Mon Tue Wed Thu Fri Sat Sun All Day Continuous Customize Period Start Time End Time Record Type 1 00:00 00:00 Continuous 2 00:00 00:00 Continuous 3 00:00 00:00 Continuous 4 00:00 00:00 Continuous 5 00:00 00:00 Continuous 6 00:00 00:00 Continuous 7 00:00 00:00 Continuous 8 00:00 00:00 Continuous Copy to Week Select All Mon Tue Wed Thu Fri Sat Sun Copy OK Cancel

Figure 7-9 Record Schedule

1. Choose the day to set the record schedule.

(1) Set all-day record or segment record:

◆ If you want to congregate the all-day recording, please check the All Day checkbox.
◆ If you want to record in different me seconds, check the Customize checkbox. Set the Start Time and End Time.

The me of each segment cannot be overlapped. Up to 8 segments can be congured for each day.

(2) Select a Record Type. The record type can be Connuous, Moon Detecon, Alarm, Moon | Alarm, Moon & Alarm, Face Detecon, Intrusion Detecon, Line Crossing Detecon, Audio Excepon Detecon and All events.

◆ Connuous

If you select Connuous, the video will be recorded automatically according to the me of the schedule.

◆ Record Triggered by Moon Detecon

If you select Moon Detecon, the video will be recorded when the moon is detected.

Besides conging the recording schedule, you have to set the moon detecon area and check the checkbox of Trigger Channel in the Linkage Method of Moon Detecon Sengs interface. For detailed informaon, please refer to the Step 1 in the Secon 6.6.1 Conguring Moon Detecon.

◆ Record Triggered by Alarm

If you select Alarm, the video will be recorded when the alarm is triggered via the external alarm input channels.

Besides conguring the recording schedule, you have to set the Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm Input Sengs interface. For detailed informaon, please refer to Secon 6.6.4 Conguring External Alarm Input.

◆ Record Triggered by Moon & Alarm

If you select Moon & Alarm, the video will be recorded when the moon and alarm are triggered at the same me.

Besides conguring the recording schedule, you have to congure the sengs on the Moon Detecon and Alarm Input Sengs interfaces. Please refer to Section 6.6.1 and Secon 6.6.4 for detailed informaon.

◆ Record Triggered by Moon | Alarm

If you select Moon | Alarm, the video will be recorded when the external alarm is triggered or the moon is detected.

Besides conguring the recording schedule, you have to congure the sengs on the Moon Detecon and Alarm Input Sengs interfaces. Please refer to Secon 6.6.1 and Secon 6.6.4 for detailed informaon.

◆ Record Triggered by Audio Excepon Detecon

If you select Audio Excepon Detecon, the video will be recorded when the audio excepon is detected.

Besides conguring the recording schedule, you have to congure the

sengs on the Audio Excepon Detecon interface. Please refer to Secon 6.6.7 for detailed informaon.

◆ Record Triggered by All Events

If you select All Events, the video will be recorded when any event is detected.

(3) Check the checkbox and click all to copy sengs of this
day to the whole week. You can also check any of the checkboxes before the date and click Copy

(4) Click to save the sengs and exit the Edit Record Schedule

interface.

1. Click to save the sengs.

7.4 Conguring Snapshot Sengs

Purpose:

You can congregate the scheduled snapshot and event-triggered snapshot. You can upload the captured pictures to a FTP server.

Basic Sengs

Steps:

1. Enter the Snapshot Setngs interface:

Conguraon > Advanced Conguraon > Storage > Snapshot

Timing Enable Timing Snapshot Format JPEG Resolution 1920*1080 Quality High Interval 0 millisecond Edit Mon Tue Wed Thu Fri Sat Sun Event-Triggered Enable Event-Triggered Snapshot Format JPEG Resolution 1920*1080 Quality High Interval 0 millisecond Capture Number 4

Figure 7-10 Snapshot Sengs

1. Check the Enable Timing Snapshot checkbox to enable connuous snapshot, and congregate the schedule of ming snapshot. Check the Enable Event-triggered Snapshot checkbox to enable event-triggered snapshot.
2. Select the quality of the snapshot.
3. Set the me interval between two snapshots.
4. Click to save the sengs.

- Uploading to FTP

Please make sure that the FTP server is online.

You can follow below conguraon instrucons to upload the snapshots to FTP.

◆ Upload connuous snapshots to FTP

Steps:

1) Check the Enable Timing Snapshot checkbox.

2) Congure the FTP settings and check ☑ Upload Picture checkbox in FTP Sengs interface. Please refer to Secon 6.3.8 Conguring FTP Sengs for more details to congure FTP parameters.

◆ Upload event-triggered snapshots to FTP

Steps:

1) Check the Enable Event-triggered Snapshot checkbox.
2) Congure the FTP settings and check ✅ Upload Picture checkbox in FTP Sengs interface. Please refer to Secon 6.3.8 Conguring FTP Sengs for more details to congure FTP parameters.
3) Check ☑ Upload to FTP checkbox in Moon Detecon Sengs or Alarm Input interface. Please refer to Step 3 in Secon 6.6.1 Conguring Moon Detecon.

Chapter 8 Playback

Purpose:

This secon explains how to view the remotely recorded video les stored in the network disks.

Task 1: To play back the video les

Steps:

1. Click Playback on the menu bar to enter playback interface.

Live View Playback Log Configuration admin | Logout Status 1 Speed Sun Mon Tue Wed Thu Fri Sat 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Search 2012-08-02 12:31:26 Command Schedule Alarm Manual Set playback time 00 00 00

Figure 8-1 Playback Interface

1. Select the date and click .

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 Search

Figure 8-2 Search Video

1. Click to play the video les found on this date.

The toolbar on the boom of Playback interface can be used to control playing process.

Screenshot of a media player control bar with playback, play, audio, and other media icons

Figure 8-3 Playback Toolbar

Table 8-1 Descripon of the buons

Buon	Operaon	Buon	Operaon
	Play/Pause	[5ZK2]	Stop
	Speed down		Speed up
	Playback by frame	/	Audio on and adjust volume/Mute
	Capture a picture		Start/Stop clipping video les
[2BHW]	Download video les		Download captured pictures
	Display playback status

You can choose the le paths locally for downloaded playback video les and pictures in Local Conguraon interface. Please refer to Secon 6.1

Conguring Local Parameters for details.

Drag the progress bar with the mouse to locate the exact playback point. You can

also input the me and click to locate the playback point in the Set playback

me eld. You can also click to zoom out/in the progress bar.

Set playback time 00 00 00

Figure 8-4 Set Playback Time

2012-04-23 09:57:54 Command Schedule Alarm Manual

Figure 8-5 Progress Bar

The dierent colors of the video on the progress bar stand for the dierent video

types as shown in Figure 8-6.

Figure 8-6 Video Types

Task 2: To download the video les

Steps:

1. Click 📄 on the playback interface. The pop-up menu is shown in Figure 8-7.
2. Set the start me and end me. Click Search. The corresponding video les are listed on the le.

No. File Name File Date File Size Progress All Type Start Time 2013-08-15 00:00:00 End Time 2013-08-15 23:59:59 Search Download

Total 23 Items First Page Prev Page 1/1 Next Page Last Page
Figure 8-7 Video Downloading interface

1. Check the checkbox in front of the video les that you need to download.
2. Click to download the video les.

● The progress rao 6% displays the downloading rao of the video le.
- You can click to stop downloading.
● The total number displays the amount of the video les.

Task 3: To download the captured pictures

Steps:

1. Click 📄 on the playback interface. The pop-up menu is shown in Figure 8-8.
2. Set the linkage type of capturing the pictures as ming, alarm, moon, etc..
3. Set the start me and end me. Click Search. The corresponding picture files are listed on the le.
4. Check the checkbox in front of the les that you need to download.

5. Click to download the les.

No. File Name File Date File Size Progress Timing Start Time 2013-07-8 00:00:00 End Time 2013-07-8 23:59:59 Search Download

Figure 8-8 Picture Downloading interface

Chapter 9 Log Searching

Purpose:

The operaon, alarm, excepon and informaon of the speed dome can be stored in log les. You can also export the log les on your demand.

Before you start:

Please conjure network storage for the speed dome or insert a SD card in the speed dome.

Steps:

1. Click on the menu bar to enter log searching interface.

Live View Playback Log Configuration admin | Logout Time Major Type Minor Type Channel No. Local/Remots User Remote Host IP Search Log Major Type All Types Minor Type All Types Start Time 2012-06-26 00:00:00 End Time 2012-06-26 23:59:59 Search Save Log

Figure 9-1 Log Searching Interface

1. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time as shown in Figure 9-2.

2. Click Search to search log les. The matched log files will be displayed on the Log interface.

Search Log Major Type All Types Minor Type All Types Start Time 2012-06-26 00:00:00 End Time 2012-06-26 23:59:59 Search

Figure 9-2 Log Searching

1. To export the log les, click Save Log to save the log les in your computer.

Chapter 10 Others

10.1 Managing User Accounts

Enter the User Management interface:

Conguraon >Basic Conguraon> Security >User

Or Conguraon > Advanced Conguraon> Security > User

The admin user has access to create, edit or delete other accounts. Up to 32 user accounts can be created.

Add Modify Delete No. User Name Level 1 admin Administrator

Figure 10-1 User Informaon

- Add a User

Steps:

1. Click to add a user.

2. Input the new User Name, select Level and input Password.

The level indicates the permissions you give to the user. You can denote the user as Operator or User.

1. In the Basic Permission field and Camera Conguraon eld, you can check or uncheck the permissions for the new user.

2. Click OK to nish the user addition.

Add user User Name user1 Level Operator Password ••••••••• Password Strength Low Normal High Confirm •••••••••• Basic Permission Remote: Parameters Settings Remote: Log Search / Interrogate Working Status Remote: Upgrade / Format Remote: Two-way Audio Remote: Shutdown / Reboot Remote: Notify Surveillance Center / Trigger Alarm Output Remote: Video Output Control Remote: Serial Port Control Camera Configuration Remote: Live View Remote: PTZ Control Remote: Manual Record Remote: Playback OK Cancel

Figure 10-2 Add a User

- Modify a User

Steps:

1. Click to select the user from the list and click
   Modify
2. Modify the User Name, Level or Password.
3. In the Basic Permission eld and Camera Conguraon eld, you can check or uncheck the permissions.
4. Click to nish the user modicaon.

Modify user User Name user1 Level Operator Password ••••••• Password Strength Low Normal High Confirm ••••••• Basic Permission Remote: Parameters Settings Remote: Log Search / Interrogate Working Status Remote: Upgrade / Format Remote: Two-way Audio Remote: Shutdown / Reboot Remote: Notify Surveillance Center / Trigger Alarm Output Remote: Video Output Control Remote: Serial Port Control Camera Configuration Remote: Live View Remote: FTZ Control Remote: Manual Record Remote: Playback OK Cancel

Figure 10-3 Modify a User

- Delete a User

Steps:

1. Click the user name you want to delete and click
   Delete
2. Click on the pop-up conrmaon box to delete the user.

10.2 Conguring RTSP Authencaon

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the RTSP Authencaon interface:

Conguraon> Advanced Conguraon> Security > Authencaon

RTSP Authentication basic WEB Authentication digest

Figure 10-4 RTSP Authencaon

1. Set the authencaon mode for each authencaon type.

2. RTSP Authencaon: Select the authencaon mode as basic or disable in the dropdown list to enable or disable the RTSP authencaon.

3. WEB Authencaon: Select the authencaon mode as basic or digest in the dropdown list.

4. Click to save the sengs.

10.3 Conguring Anonymous Visit

When you enable this funcon, you can log into the camera without a username and password.

In login interface, check the Anonymous checkbox and click Login to enter the camera as shown in Figure 10-6.

Anonymous Visit Enable

Figure 10-5 Anonymous Login

English Username Password Login Anonymous

Figure 10-6 Login Interface

10.4 Conguring IP Address Filter

With this funcon on, the camera allows certain IP addresses whether to log in or not.

Filter Type	Descripon
Forbidden	Forbid the IP addresses added in the IP Address Filter interface to log in.
Allowed	Allow only the IP addresses added in the IP Address Filter interface to log in.

Enable IP Address Filter IP Address Filter Type Forbidden IP Address Filter Add Modify Delete Clear No. IP 1 172.6.21.119

Figure 10-7 IP Address Filter

10.5 Conguring Security Service Sengs

Steps:

1. Enter the Security Service interface:

Conguraon> Advanced Conguraon> Security > Security Service

Figure 10-8 Security Service

1. Check the checkbox to enable the corresponding funcon.

Enable Telnet: Telnet is a network protocol used on the Internet or local area networks to provide a bidirectional interactive text-oriented communicaon facility using a virtual terminal conncon.

Enable SSH: Enabling SSH (Secure Shell) funcon is to encrypt and compress the data and to reduce the transmission me.

10.6 Viewing Device Informaon

Enter the Device Informaon interface:

Conguraon > Basic Conguraon> System > Device Informaon

Or Conguraon > Advanced Conguraon> System > Device Informaon

In the Device Informaon interface, you can edit the Device Name.

Other informaon of the network speed dome, such as Model, Device No., Serial No., Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The informaon cannot be changed in this menu. It is the reference for maintenance or modicaon in

future.

Basic Information Device Name IP DOME Device No. 88 Model XX-XXXXXXXXXX Serial No. XX-XXXXXXXXXXXXXXXXXXXXX Firmware Version Vx.x.x build xxxxxx Encoding Version Vx.x build xxxxxx Number of Channels 1 Number of HDDs 0 Number of Alarm Input 1 Number of Alarm Output 1

Figure 10-9 Device Informaon

10.7 Maintenance

10.7.1 Reboong the Speed Dome

Steps:

1. Enter the Maintenance interface:

Conguraon > Basic Conguraon> System > Maintenance

Or Conguraon > Advanced Conguraon> System > Maintenance:

1. Click Reboot to reboot the network speed dome.

Reboot Reboot the device.

Figure 10-10 Reboot the Device

10.7.2 Restoring Default Sengs

Steps:

1. Enter the Maintenance interface:

Conguraon > Basic Conguraon> System > Maintenance

Or Conguraon > Advanced Conguraon> System > Maintenance

1. Click Restore or Default to restore the default sengs.

Clicking restores all the parameters to default sengs including the IP address and user informaon. Please use this buon with cauon.

Default Restore Reset all the parameters, except the IP parameters and user information, to the default settings. Default Restore all parameters to default settings.

Figure 10-11 Restore Default Sengs

10.7.3 Imporng/Exporng Conguraon File

Steps:

1. Enter the Maintenance interface:

Conguraon > Basic Conguraon> System > Maintenance Or Conguraon > Advanced Conguraon> System > Maintenance

1. Click Browse to select the local conguraon file and then click Import to start imporng conguraon le.

You need to reboot the speed dome aer imporng conguraon le.

1. Click Export and set the saving path to save the conguraon le in local storage.

Import Config. File Config File Browse Import Status Export Config. File Export

Figure 10-12 Import/Export Conguraon File

10.7.4 Upgrading the System

Steps:

1. Enter the Maintenance interface:

Conguraon > Basic Conguration > System > Maintenance

Or Conguraon > Advanced Conguraon> System > Maintenance

1. Select Firmware or Firmware Directory.

● Firmware: when you select Firmware, you need to nd the firmware in your computer to upgrade the device.
● Firmware Directory: You need to nd the directory where the rmware locates. The device can nd the rmware in the directory automacally.

1. Click Browse to select the local upgrade le and then click Upgrade to start remote upgrade.

The upgrading process will take 1 to 10 minutes. Please don't disconnect power of the speed dome during the process. The speed dome reboots automacally aer upgrading.

Remote Upgrade Firmware Browse Upgrade Status Note : The upgrading process will be 1 to 10 minutes, please don't disconnect power to the device during the process. The device reboots automatically after upgrading.

Figure 10-13 Remote Upgrade

10.8 Conguring RS-485

Purpose:

The RS-485 serial port is used to control the PTZ of the camera. The conguring of the PTZ parameters should be done before you control the PTZ unit.

Steps:

1. Enter RS-485 Port Seng interface:

Conguraon> Advanced Conguraon> System > RS485

Baud Rate 9600 bps Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol PELCO_P PTZ Address 1

Figure 10-14 RS-485 Sengs

1. Set the RS-485 parameters and click to save the sengs.

The Baud Rate, PTZ Protocol and PTZ Address parameters of the speed dome should be exactly the same as those of the control device.

10.9 Conguring IR Light

This funcon is only applicable to the IR speed domes.

Steps:

1. Enter IR Light Seng interface:

Conguraon> Advanced Conguraon> System > Service

1. Check the checkbox to enable the IR light when the illuminaon is not enough for the video monitoring.

Hardware ✓ Enable IR Light

Figure 10-15 Seng IR Light

1. Click the buon to acvate the sengs.

10.10 Conguring Remote Connecon

Steps:

1. Enter the interface of conging the remote conncon:

Conguraon> Advanced Conguraon> System > Service

1. Input a number in text eld as the upper limit of the remote conncon number. E.g. when you specify the remote conncon number as 10, then the 11th remote conncon cannot be established.

Software Live View Connection 10

1. Click the buon to acvate the sengs.

Appendix

Appendix 1 SADP Soware Introducon

- Descripon of SADP

SADP (Search Acve Devices Protocol) is a kind of user-friendly and installaon-free online device search tool. It searches the acve online devices within your subnet and displays the informaon of the devices. You can also modify the basic network informaon of the devices using this soware.

- Search acve devices online

◆ Search online devices automacally

Aer launch the SADP soware, it automacally searches the online devices every 15 seconds from the subnet where your computer locates. It displays the total number and informaon of the searched devices in the Online Devices interface. Device informaon including the device type, IP address and port number, etc. will be displayed.

BADP Online Devices About Total number of online devices ID Device Type IPv4 Address Port Software Version IPv4 Gateway Serial No. 001 HDDomeSeries 172.0.21.157 8000 Y4.0.2build 120007 Modify Network Parameters IP Address: Port: Submit Mask: IPv4 Gateway: IPv6 Address: IPv6 Gateway: IPv6 Prefix Length: Serial No. Password Note:Enter the admin passwords of the device before you save the network parameters. Restore Default Password Serial No. Cancel Note: Serial code is a series of characters combined by the start time and the serial number of the devices.

Figure A.1.1 Searching Online Devices

Device can be searched and displayed in the list in 15 seconds aer it went online; it will be removed from the list in 45 seconds aer it went oine.

◆ Search online devices manually

You can also click to refresh the online device list manually. The newly searched devices will be added to the list.

NOTE You can click or on each column heading to order the informaon; you can click to expand the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.

- Modify network parameters

Steps:

1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.
2. Edit the modiable network parameters, e.g. IP address and port number.
3. Enter the password of the admin account of the device in the Password eld and click to save the changes.

SADP Online Devices About Total number of online devices. ID Device Type IPv4 Address Port Software Version IPv4 Gateway Serial No 301 30-6000000-x 172.6.21.206 8000 Vxx.xcullfxxxxxxx 172.6.8.1 xx-600000-600000000 Modify Network Parameters IP Address: 172.6.21.206 Port: 8000 Submit Mask: 255.255.255.6 IPv4 Gateway: 172.6.8.1 IPv6 Address: IPv6 Gateway: IPv6 Prefix Length: Serial No: Password Save Note: Enter the admin password of the device before you save the network parameters. Restore Default Password Serial code Confirm Note: Serial code is a series of characters combined by the start time and the serial number of the device.

Figure A.1.2 Modify Network Parameters

1. Contact our technical engineers to get the serial code.

Serial code is a series of characters combined by the start me and the serial number of the device.

1. Input the code in the Serial code field and click Confirm to restore the default password.

Appendix 2 Port Mapping

The following setngs are for TP-LINK router (TL-R410). The setngs vary depending on dierent models of routers.

Steps:

1. Select the WAN Connecon Type, as shown below:

108M Wireless Router Model No.: TL-WR641G / TL-WR642G WAN Status Quick Setup --- Basic Settings --- Network LAN WAN MAC Clone WAN Connection Type: PPPoE Dynamic IP Static IP PPPoE 802.1X + Dynamic IP 802.1X + Static IP BigPond Cable L2TP User Name: Password:

Figure A.2.1 Select the WAN Connecon Type

1. Set the LAN parameters of the router as in the following gure, including IP address and subnet mask sengs.

108M Wireless Router Model No.: TL-WR641G / TL-WR642G • Status • Quick Setup --- Basic Settings --- - Network • LAN • WAN • MAC Clone LAN MAC Address: 00-14-78-6A-DB-0C IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Save

Figure A.2.2 Set the LAN parameters

1. Set the port mapping in the virtual severs of Forwarding. You need to forward ports 80, 8000, 8200\~8210 and 554 for a speed dome.

● You can change 80, 8000 and 554 ports value in the speed dome with web browser or client soware.
- In the speed dome, the 8200\~8210 ports change with the 8000 port with a constant value of 200. E.g. if the 8000 port is changed to 8005, then the 8200\~8210 ports should be changed to 8205\~8215.

Example:

When the speed domes are connected to the same router, you can forward the ports of a speed dome as 80, 8000, 8200\~8210 and 554 with IP address 192.168.1.23, and the ports of another speed dome as 81, 8001, 8201\~8211 and 555 with IP 192.168.1.24. Refer to the steps as below:

Steps:

1. As the settings menoned above, forward the port 80, 8000, 8200\~8210 and 554 for the network speed dome at 192.168.1.23
2. Forward the port 81, 8001, 8201\~8211 and 555 for the network speed dome at 192.168.1.24.
3. Enable ALL or TCP protocols.
4. Check the Enable checkbox and click . Save

108M Wireless Router Model No.: TL-WR641G / TL-WR642G Virtual Servers ID Service Port IP Address Protocol Enable 1 80 192.168.10. 23 ALL ✓ ✓ 2 8000 192.168.10. 23 ALL ✓ ✓ 3 554 192.168.10. 23 ALL ✓ ✓ 4 8200 192.168.10. 23 ALL ✓ ✓ 5 81 192.168.10. 24 ALL ✓ ✓ 6 8001 192.168.10. 24 ALL ✓ ✓ 7 555 192.168.10. 24 ALL ✓ ✓ 8 8201 192.168.10. 24 ALL ✓ ✓ Common Service Port: DNS(53) Copy to ID 1 ✓ Previous Next Clear All Save

Figure A.2.3 Port Mapping

The port of the network speed dome cannot conict with other ports. For example, some web management port of the router is 80. Change the speed dome port if it is the same as the management port.

Appendix 3 Stacs, Interference Lightning and Surge Protecon

This product adopts TVS plate lightning protecon technology to avoid damage caused by pulse signal that is below 3000V, like instantaneous lighng stroke, surging, etc. According to the actual outdoor situation, necessary protecon measures must be taken, besides ensuring the electrical safety.

• The distance between signal transmission wires and High-voltage equipment or high-voltage cable is at least 50m.
  ● Outdoor wiring should beer be routed under eaves as much as possible.
• In the open eld, wiring should be buried underground in sealed steel pipe, and the steel-pipe should be one-point grounding. Overhead round method is forbidden.
• In strong thunderstorm area or high inducon voltage areas (such as high-voltage transformer substaon), high power lightning protecon apparatus and lightning conductor are necessary to be added.
• The design of lightning protecon and grounding of the outdoor devices and cables should be considered together with the lightning protecon demand of buildings. It also must conform to the related naonal standards and industrial standards.
• The system should be equipotenal grounded. The grounding equipment must conform to the demands of system an-jamming and electrical safety both and it must not appear short circuit or mixed circuit with the zero conductor of strong grid. When the system is grounded alone, the resistance should be no more than 4Ω. The seconal area of the grounding cable should be no less than 25mm2. For grounding instrucons, please refer to the Installaon Manual of Speed Dome.

Video Arrester Communicaon Arrester Power Arrester Lightening Rod 45° The speed dome must be installed in the 45° protecon area of the lightening rod. The impedance of the grounding wire can be no more than 4Ω. Steel Protecon Tube

Figure A-1 Lightning & Surge Protecon

Grounding for Cement Pole/Wall Installaon:

When the speed dome is installed in environment where is relatively insulang to the earth, e.g., cement pole or cement wall, then only the control center requires proper grounded locally. Refer to

the following gure.

Figure A-2 Grounding in Cement Pole/Wall Installaon

● Because the signal transmission media of ber opcal speed dome and network speed dome are isolated from the control center, they must be grounded locally to protect dome against damages.

- If the dome is installed in strong thunderstorm area, it must be grounded locally to release lightening or suchlike high energy to protect dome against damages. Refer to the following gure.

Power Power supply board Power supply board Video cable Control line Cement pole/wall Display Operang Center Keyboard GND DVR GND UPS GND 1.5m underground 1.5m underground

Figure A-3 Lightening-protecon Grounding in Cement Pole/Wall Installation

Grounding for Metal Pole Installaon:

When the speed dome is installed in environment where is conducive to the earth, e.g., metal pole, then the grounding of dome can be achieved by the properly grounded metal pole, meanwhile, the control center must be grounded locally as well. Refer to the following gure.

Figure A-4 Grounding in Metal Pole Installaon

Note: If the ber opcs, lightening protector or other device are applied during the transmission of speed dome, such devices as well as the video cables round through must be proper grounded.

Appendix 4 Waterproof

● The long-arm wall mount is recommended for the outdoor applicaon of speed dome.
- You cannot use the short-arm wall mount or pendant mount for outdoor applicaon, because it is not water-proof.
- It is recommended to use the mount with inner threaded interface and good waterproof performance.
- If you use a mount with outer threaded interface, please adopt waterproof measures to the adapter applied between the mount and the dome.
- Do not install indoor speed dome to the outdoor environment.

L-shape Pole Mount

Make sure that the L-shape pole mount is designed with a certain inclinaon angle as shown in following gure. Water won't ow from the pole into the speed dome with the inclinaon angle.

Simple line drawing of a mechanical setup with a hanging component and angle θ, no text or symbols present.

Figure A-5 Customized Mount

Appendix 5 Bubble Maintenance

The bubble is a transparent plasc. The dust, oil and nger print, etc. will cause scratch or image blur. Please refer to the following method to clean the bubble.

- Handling dust

Use oil free so brush or blowing dust ball to clean the dust.

- Handling oil

Steps:

1. Wipe o the water-drop or oil by so cloth and dry the bubble.
2. Use oil free coon cloth to wipe the bubble with alcohol or detergent.
3. Change the cloth to wipe the bubble unl the bubble is clean.

Appendix 6 RS485 Bus Connecon

● General Property of RS485 Bus

According to RS485 industry bus standard, RS485 is a half-duplex communicaon bus which has 120Ω characterisc impedance, the maximum load ability is 32 payloads (including controller device and controlled device).

● RS485 Bus Transmission Distance

When using 0.56mm (24AWG) twisted-pair line, according to dierent baudrate, the maximum transmission distance theory table is shown as below:

Max. Distance of RS485 Transmission
Baudrate	Max Distance
2400BPS	1800m
4800BPS	1200m
9600BPS	800m

The transmission distance will be decreased if we use the thinner cable, or use this product under the strong electromagnec interference situation, or there are lots of devices are added to the bus; on the contrary, the transmission distance will be increased.

- Connecon Methods

RS485 industry bus standard require daisy-chain conncon method between any devices, both sides have to connect a 120Ω terminal resistance (show as Diagram 1), the simplified conncon method is shown as diagram 2, but the distance of “D” should not be too long.

Figure A-7 RS485 Connecon 1
    note1["0"] below A
    note2["1#"] above B
    note3["2#"] above C

Figure A-8 RS485 Connecon 2

● Problems in the Praccal Applicaon

Normally, users adopt star-shape conncon method in construcon, under this situaon, the terminal resistors must be connected between two farthest devices (as Figure A-9, 1# and 15#), but this conncon method is not sasy the requirement of the RS485 industry standard so that it will lead to some problems such as signal reecon, an-jamming ability decline when the devices are faraway. At this me, the dome will be uncontrollable, or self-running, etc.

Figure A-9 Star Shape Connecon

For such case, the best way is adding a RS485 distributor. This product can eecvely change the star-shape conncon to which sases the requirement of RS485 industry standard, in order to avoid those problems and improve the communicaon reliability. Refer to the following gure.

RS485 Distributor A+ B- 120Ω 1# 120Ω 2# 120Ω 16#

Figure A-10 RS485 Distributor

● Troubleshoong of RS485 communicaon

Problem	Possible Reasons	To Solve the Problem
The speed dome does the self-test acon but cannot be controlled remotely.	1. The address or baudrate of the speed dome does not match with those of remote control device.	1. Adjust the address and baudrate of the remote control device to match with those of the speed dome.
	2. The wire RS485+ connects to the interface RS485- and wire RS485- connects to the interface RS485+.	2. Connect the wire RS485+ to the interface RS485+ and wire RS485- to the interface RS485-.
	3. The RS485 wire is disconnected.	3. Reconnect the RS485 wire ghtly.
	4. RS485 wire is broken.	4. Change a RS485 wire.
The speed dome can	1. The conncon is loose.	1. Reconnect the RS485 wire ghtly.
be controlled but not smoothly.	2. RS485+ or RS485-wire is broken.	2. Change a RS485 wire.
	3. The speed dome is too far away from the remote control device.	3. Add a terminal resistor.
	4. Too many speed domes are connected.	4. Add a RS485 distributor.

Appendix 7 24VAC Wire Gauge & Transmission Distance

The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable. For example, for a device with the rang powelr of 80VA which is installed at a distance of 35 feet (10m) away from the transformer, then 0.8000mm is required as the minimum wire gauge.

Distance (feet) / Wire Gauge (mm) Power (va)	0.8000	1.000	1.250	2.000
10	283(86)	451(137)	716(218)	1811(551)
20	141(42)	225(68)	358(109)	905(275)
30	94(28)	150(45)	238(72)	603(183)
40	70(21)	112(34)	179(54)	452(137)
50	56(17)	90(27)	143(43)	362(110)
60	47(14)	75(22)	119(36)	301(91)
70	40(12)	64(19)	102(31)	258(78)
80	35(10)	56(17)	89(27)	226(68)
90	31(9)	50(15)	79(24)	201(61)
100	28(8)	45(13)	71(21)	181(55)
110	25(7)	41(12)	65(19)	164(49)
120	23(7)	37(11)	59(17)	150(45)
130	21(6)	34(10)	55(16)	139(42)
140	20(6)	32(9)	51(15)	129(39)
150	18(5)	30(9)	47(14)	120(36)
160	17(5)	28(8)	44(13)	113(34)
170	16(4)	26(7)	42(12)	106(32)
180	15(4)	25(7)	39(11)	100(30)
190	14(4)	23(7)	37(11)	95(28)
200	14(4)	22(6)	35(10)	90(27)

Appendix 6 Table of Wire Gauge Standards

Bare Wire Gauge(mm)	American Wire Gauge AWG	Brish Wire Gauge SWG	Cross-secondal Area of Bare Wire( mm^2 )
0.750	21		0.4417
0.800	20	21	0.5027
0.900	19	20	0.6362
1.000	18	19	0.7854
1.250	16	18	1.2266
1.500	15	17	1.7663
2.000	12	14	3.1420
2.500			4.9080
3.000			7.0683

Appendix 7 Alarm In/Out Connecons

This secon is only for the speed domes with alarm in/out funcons.

The speed dome can be connected with alarm inputs (0\~5VDC) and alarm outputs.

Refer to the following diagrams for alarm output:

Dome Relay Output DC Load OUT (n) DC OUT (n)

Diagram (left)

Dome Relay Output OUT (n) OUT (n) GND OUT 30VDC 1A JQG-3FG Relay (10 A 250VAC) ~220V AC L N

Diagram(right)
Figure A-11 Alarm Out Connecons

The alarm provides the relay output (no voltage), and the external power supply is required when it connects to the alarm device.

• For DC power supply (le diagram), the input voltage must be no more than 30VDC, 1A.
• For AC power supply, the external relay must be used (right diagram) to prevent damages to the speed dome and avoid risk of electric shock.

First

First Choice for Security Professionals
