USER MANUAL CFSESV12 Currys Essentials

White electric stove with four top ovens and a closed door, enclosed in a circular frame (no text or symbols visible)

Contents

Unpacking....4

Product Overview....5

Front View ....5

Top View....5

Control Panel....6

Before Using Your Cooker 6

Using Your Hotplates....6

First Time Use of the Hotplates....6

Choosing the Right Cookware....6

Controlling Your Hotplates....7

Using the Oven 7

First Time Use of the Oven 7

Shelf Positions....8

Temperature (Thermostat) Control....8

Oven Function Selector Control....9

Using the Grill 9

Cleaning Instructions....10

Cleaning the Outside of the Cooker 10

Cleaning the Oven Door Glass....10

Cleaning the Inside of Your Oven 10

Removing the Oven Door 11

Replacing the Oven Lamp....12

Hints and Tips 12

Specifications....13

Installation....14

Adjusting the Feet 15

Moving the Cooker 15

Safety Warnings....17

Thank you for purchasing your new Currys Essentials Freestanding Electric Cooker.

You must read this manual in order to fully understand how to operate your appliance correctly.

This cooker must be installed by a competent engineer. Please allow the installer to view the installation section of this manual.

Read all the safety instructions carefully before use and keep this manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

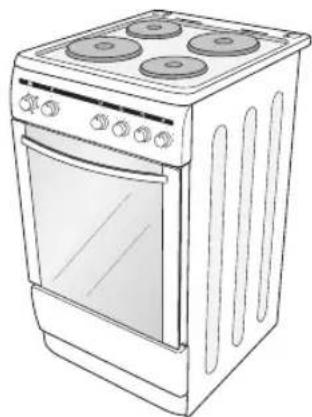

Line drawing of a simple electric stove with four burners and top cabin (no text or symbols)

The Main Unit

Oven Shelf x 1 P.N.: 37015284

Pure geometric diagram of a square frame with no text, numbers, or symbols

Oven Tray x 1 P.N.: 20613041

Grill Pan x 1 P.N.: 20643831

Grill Pan Rack x 1 P.N.: 37006132

Grill Pan Handle x 1 P.N.: 37004739

currys essentials FREE STANDING ELECTRIC COOKER METHUS-TRAVEL CHEESE & CHEESE MUSEUM STANDARD CHEESE

Instruction / Installation Manual P.N.: 52068341

If items are missing or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

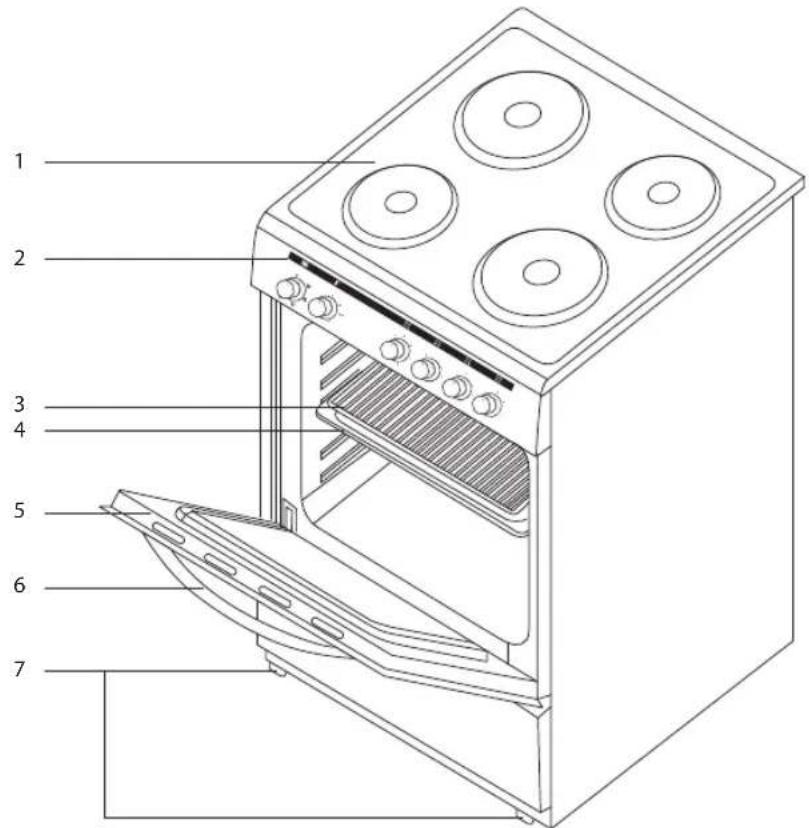

Front View

Labeled diagram of an oven with numbered parts for identification

1. Cooktop
2. Control Panel
3. Oven Shelf
4. Oven Tray
5. Oven Door
6. Oven Handle
7. Levelling Feet

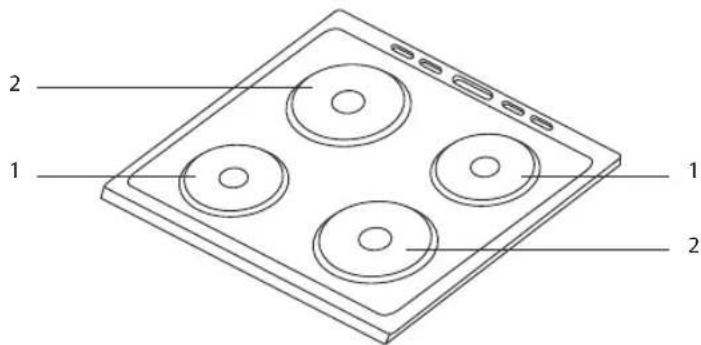

Top View

1 2 1 2

1. Large Hotplate
2. Small Hotplate

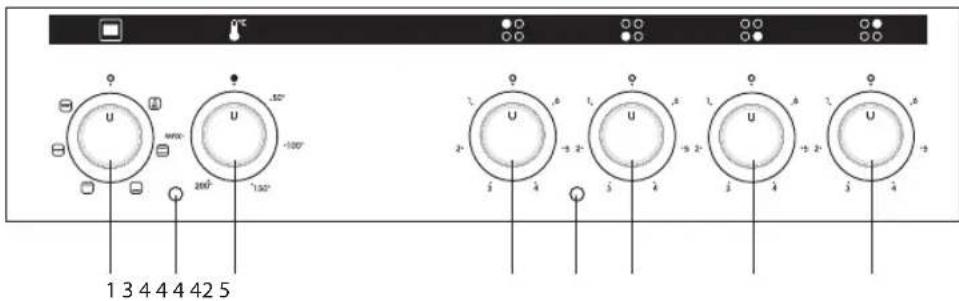

Control Panel

1 3 4 4 4 42 5 U U -50° +100° 200° '150° U U U U U U +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' +2' + 1 3 4 4 4 4 5

1. Oven Function Selector Control

2. Hotplate Controls

3. Thermostat lamp

4. Hotplate Warning Lamp

5. Temperature (Thermostat) Control

Before Using Your Cooker

Before using your new cooker, please:

• Make sure all the controls are turned off.
- Read this Instruction/Installation Manual, taking special note of the "Safety Warnings" section.
• Turn the mains power on.

This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Using Your Hotplates

First Time Use of the Hotplates

Operate your electric hotplates at level 3 for 5 minutes. This will remove any manufacturing residues.

The chrome rings may discolour, this is normal and not a fault with the cooker.

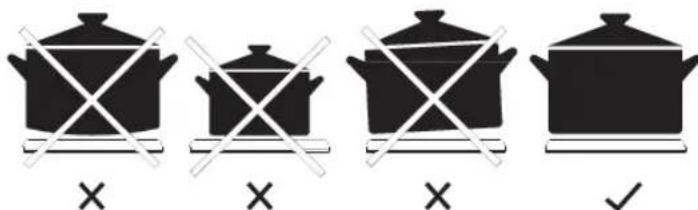

Choosing the Right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

* All images are for indication only; please refer to your individual unit for actual item.

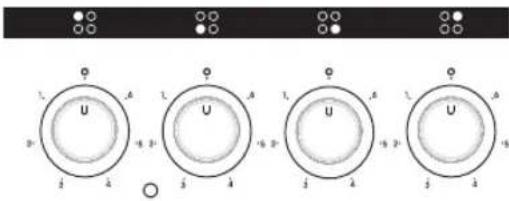

Controlling Your Hotplates

1. Rotate the control to the heat level you wish to use for the selected hotplate.

U A A U A A U A A U A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99. 100.

	LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6
145 mm 100 W	165 W 250 W 500 W 750 W 1000 W
180 mm 135 W	220 W 300 W 850 W 1150 W 1500 W

1. When the hotplate warning lamp illuminates, this means that one or more of the hotplates are switched on.
2. When you are finished cooking rotate the control back to the "0" position, the hotplate warning lamp will turn off.

The hotplates will remain hot for some time; do not touch until they have completely cooled down.

Using the Oven

First Time Use of the Oven

Ensure that nothing has been left in the oven. Remove any insert cards, packaging, labels or plastic bags and the grill pan handle.. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using.

Heat the oven on maximum for 45 minutes. There may be a little smoke and odour upon initial start up (for about 15 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory.

• Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
- Do not place dishes or baking trays directly onto the base of the oven as it becomes very hot and damage may occur.
- During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g., oven door, heating elements.
- Accessible parts may become hot when in use. Children should be kept away.

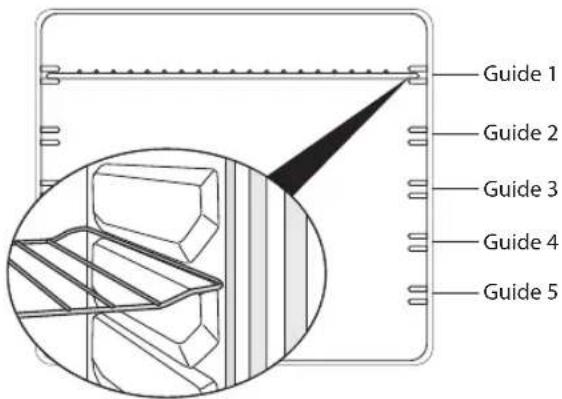

Shelf Positions

1. To get the best results, the smallest distance allowed between the food and the upper heating element is 30 mm.
2. On the wall of the inner cavity there are 5 different shelf guide slots. You can place the shelf at different heights to achieve the best cooking performance depending on the temperature set, size of food and the function of the oven selected. If only the upper heating element is on, we suggest that you place the shelf on guide 1 (make sure that there is a minimum distance of 30 mm between the food and the upper heating element).
3. Always monitor the food during cooking to ensure that you are not overcooking it.
4. For heavy food, use the oven tray rather than the wire shelf.
5. During cooking, do not open the door unnecessarily as you will lose heat and your cooking results may change.
6. Using cake tins when cooking cakes will give better results.

During use the appliance becomes hot. Care should be taken to avoid touching any elements, hotplates or the oven glass door. Children should be kept away.

Guide 1 Guide 2 Guide 3 Guide 4 Guide 5

Temperature (Thermostat) Control

The temperature can be set from 50^ C - 240^ C. Select the desired temperature, as follows:

To keep food warm 50 - 100°C position
For traditional oven cooking 50 - 240°C position
For all types of grilling 190°C position

Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting.

U .50° MAX- 100° 200° '150°

If accurate temperatures are required then this should be checked using an oven thermometer available at most cookware shops.

Oven Function Selector Control

This control is used to select the cooking functions available, which are:

	The oven's lamp will be switched on.
	The oven's thermostat, indicator lamp and the lower and upper heating elements will be switched on.
	The oven's thermostat, indicator lamp and the lower heating element will be switched on.
	The oven's thermostat, indicator lamp and the upper heating element will be switched on.
	The oven's indicator lamp and grill heating element will be switched on.
	Set the thermostat to a maximum of 190°C.
	The oven's thermostat, indicator lamp, grill and upper heating elements will be switched on.
	Set the thermostat to a maximum of 190°C.

U

Using the Grill

1. Turn the Oven Function Selector control to the Grill position ☑ and ensure the thermostat is set to 190°.
2. Preheat the grill element for approximately 5-10 minutes before placing the food on the grill pan grid in the grill pan.
3. The grill pan has a detachable handle. When using the grill pan handle, ensure that it is centralised and secure as shown below.
4. Using the handle, insert the grill pan into the oven onto the oven shelf placed in shelf guide position 1. The food to be cooked must be placed on the grill pan rack within the grill pan. Ensure there is at least 30 mm between the food and the elements, if necessary use a lower shelf guide slot.
5. Remove the grill pan handle and close the door.
6. Check the food regularly to ensure you do not overcook the food. If slower cooking is required use a lower shelf guide slot or a lower temperature.
7. The grill pan has a detachable handle. Ensure when using the grill pan handle that it is centralised and secure as shown below.

Technical line drawing of a grating or drain component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a rectangular grater with a handle and mounting holes (no text or symbols)

• Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting.
• Do not leave the handle in position when grilling. If the handle is left in position when grilling, it will get very hot.

Cleaning Instructions

Before you start cleaning your cooker, please:

• Read the cleaning instructions and the 'Safety Warnings' sections.
  • Turn the cooker off at the wall.
• Allow the cooker to cool fully before cleaning.
  • Do not use a steam cleaner.

• Wipe the oven clean after every use.
- Wipe up spills. Avoid leaving alkaline or acidic substances (such as lemon juice or vinegar) on the oven surfaces.
• Do not use cleaning products with a chlorine or acidic base.
- Never clean the interior, panel, lid, trays and all other parts of the oven by using tools like hard brush, cleaning mesh or knives. Do not use abrasive, scratching agents or detergents.
- After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth.
• Never use flammable agents like acid, thinner or petrol when cleaning your oven.
• Do not wash any part of your oven in a dishwasher.

Cleaning the Outside of the Cooker

Wipe the outside surfaces often, using warm water and a mild household detergent. Any stainless steel parts may also be cleaned with a suitable cleaner.

• If you choose to use a commercial stainless steel cleaner, please read the label to make sure it does not contain chlorine compounds as these are corrosive and may damage the appearance of your cooker
• Do not use abrasive cleaners, cloths or pads on the outside surfaces.
• Immediately wipe off any caustic cleaners if they are spilled onto the oven door handles.

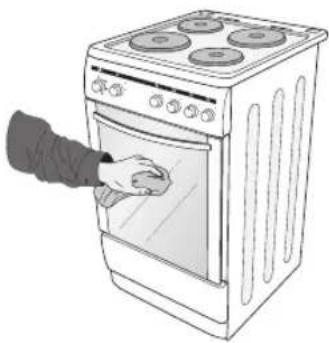

Cleaning the Oven Door Glass

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they may scratch the surface, which could result in the glass shattering.

Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter.

Line drawing of a hand opening a vintage oven with four stovels (no text or symbols)

Cleaning the Inside of Your Oven

• Do not use abrasive cleaners, cloths or pads to clean the enamel.
• Clean the enamel on the inside of the oven when it has cooled down, using household detergents or an ammonia-based cleaner. You may use 'off the shelf' oven cleaners, if you carefully follow the manufacturers' instructions.
• The oven door can be removed to allow easier access to the inside of your oven. (Please refer to the "Removing the Oven Door" section)

* All images are for indication only; please refer to your individual unit for actual item.

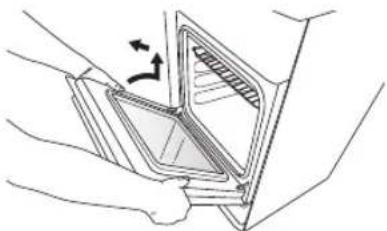

Removing the Oven Door

• Ensure the door has cooled down.
  • Take care when handling glass.

The oven door can easily be removed as follows:

1. Open the door completely.

2. The swivel retainers of the right hand and left hand hinges are hooked onto the metal bar above them. Lift the retainers as shown.

3. Close the oven door gently until it meets the open retainer.

4. Support the door by holding both sides at the same time. Continue to close the door further then lift to disengage the hinge from the bottom.

5. Pull the oven door towards you to remove the hinges from their slots.

6. To replace the door, repeat the above steps in reverse order ensuring the hinge slot engages over the edge of the door frame.

* All images are for indication only; please refer to your individual unit for actual item.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a tool near a vehicle (no text or symbols)

Diagram of a hand inserting a card into a device (no text or symbols present)

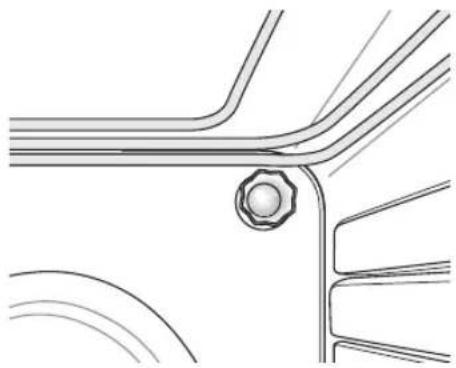

Replacing the Oven Lamp

Ensure that the cooker is switched off before replacing the lamp to avoid the possibility of electric shock.

Let the oven cavity and the heating elements cool down.

• Remove the glass lens by turning anti-clockwise.
• Unscrew and replace the bulb with a new one suitable for high temperatures (300°C).
  • Refit the glass lens by turning clockwise.

Bulb Specifications:

230-240V\~50 Hz, 25W, E14

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Hints and Tips

Problem Possible Causes What To Do
The cooker cannot be turned on.	No power. Make sure the cooker is	connected to the power and that the mains supply is switched on. Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call your service agent.
The glass has been scratched. Unsuitable, abrasive scourer or cleaning products being used.		Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals expanding/shrinking differently).	This is normal for cookware and does not indicate a fault.
The oven temperature is too high or too low.	Wrong temperature selected / or the wrong shelf position was used.	Check that the recommended temperatures and shelf position are being used. Be prepared to adjust the temperature up and down. If the temperature needed is critical use an oven thermometer.

Specifications

Model CFSEWH12 / CFSESV12
Overall Dimension (WxDxH) 500 x 600 (640 to handle) x 900 - 930 (foot adjustment) mm
Usable Volume 53 Litre
Oven Lamp 25 W, E14 (300 °C)
Thermostat 50-285 C
Bottom Heating Element 1000 W
Top Heating Element 1000 W
Grill Heating Element 1600 W
Supply Voltage 230 - 240 V ~ 50 Hz
Hotplate 145 mm 1000 W
Hotplate 180 mm 1500 W

Features and specifications are subject to change without prior notice.

Installation

• The cooker must be installed by a competent person, if in doubt consult a qualified technician, and in compliance with local electrical, safety and building regulation standards.
• If the cooker is installed adjacent to furniture which is higher than the hob, a gap of at least 100 mm must be left between the side of the cooker and the furniture unless non-combustible materials (ceramic tiles, metal splashback, etc.) are used which then allows this distance to be reduced to 20 mm.
• The furniture walls adjacent to the cooker must be made of heat resistant material (check with your furniture supplier). The veneered synthetic material and the glue used must be resistant to a temperature of 100^ C in order to avoid ungluing or deformations.
• The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.
• Flammable materials such as curtains, wood, wallpaper, etc. must not be fitted immediately behind the appliance or within 500 mm of the sides.
  • Do not place next to a refrigerator.
  • This cooker must NOT be placed on a pedestal or base.
• It is essential that the cooker is positioned as stated or freestanding taking into account the distances of any combustible materials detailed above.
• Any cooker hoods must be installed according to the requirements of the cooker hood instruction/installation manual but no less than 650 mm.

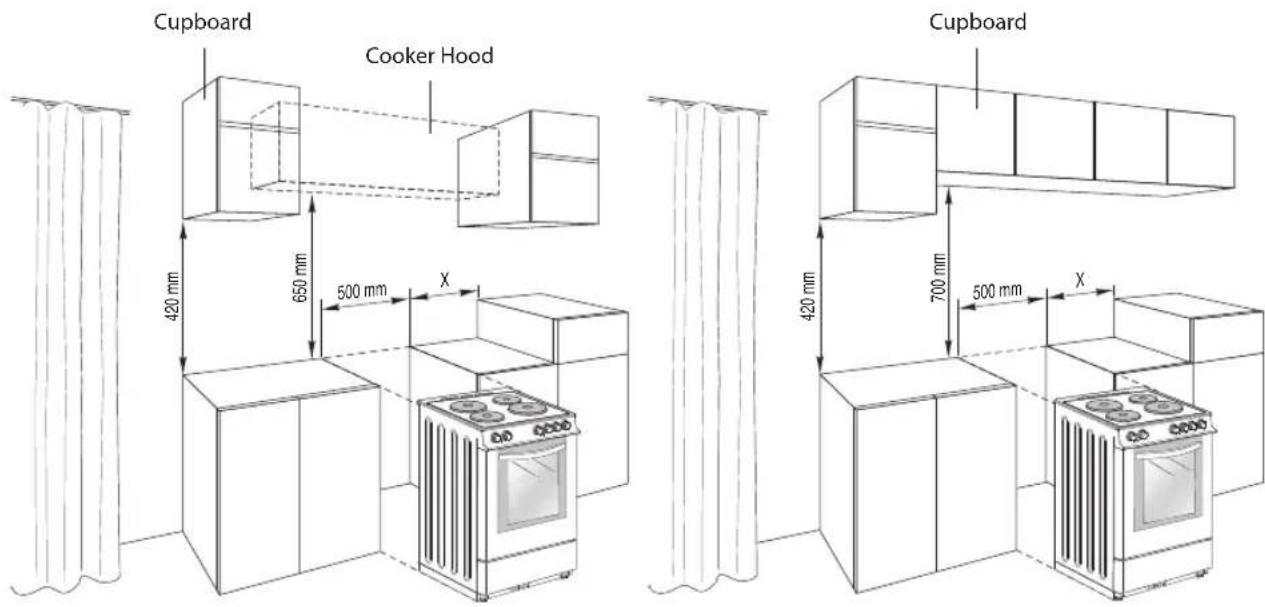

  • Any cupboards placed directly above the cooker must be no less than 700 mm.

Cupboard Cooker Hood 420 mm 650 mm 500 mm X Cupboard 420 mm 700 mm 500 mm X

For all dimensions marked "X", please refer to the information below:

X: 100mm for combustible materials
20mm for non-combustible materials.

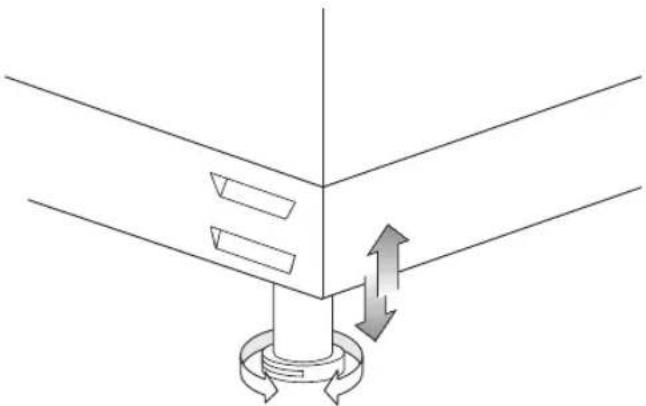

Adjusting the Feet

Your oven stands on 4 adjustable feet. When the oven is placed where it will be used, check if the oven is level. If it is not level, you can adjust by turning the feet clockwise if required. It is possible to raise the appliance a maximum of 30mm using the feet. DO NOT move the appliance by dragging; it should only be moved by lifting it up.

Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface.

Level the cooker by screwing the bottom of the feet in or out, as shown.

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Moving the Cooker

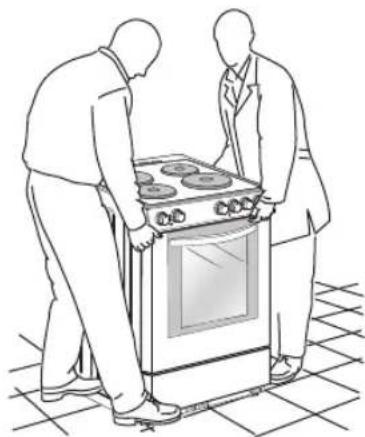

• Two people must always raise the cooker, as shown, to prevent damaging the adjustable feet.
  • Do not lift the cooker by the door handles.
  • DO NOT DRAG the cooker. Lift the feet clear of the floor.

Line drawing of two people assembling a stove on a tiled floor (no text or symbols)

Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after you complete the connections in the terminal box..

The following installation procedure must be carried out by a competent person. If in doubt consult a qualified electrician. The electrical installation must comply with the IEE Regulations, Building & local By Laws.

For the installation of the supply cable carry out the following operations:

- Release both clips then open the terminal box lid.

Colours of the wires in the mains lead should correspond with the markings (as detailed below and on the label next to the terminal box) identifying the terminals, proceed as follows:

Ensure all screws are adequately tightened. Do not over tighten as you may risk damaging the screw threads.

The Green & Yellow wire is connected to the terminal marked.

The Brown wire is connected to the terminal marked "L".

The Blue wire is connected to the terminal marked "N".

The wires in the mains lead are coloured in accordance with the following code:

• Green & Yellow — Earth
- Blue — Neutral
- Brown — Live

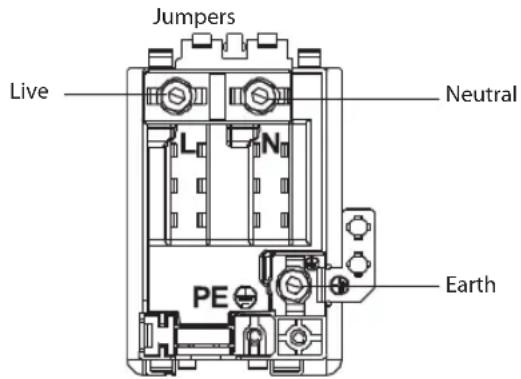

Jumpers Live Neutral L N PE Earth

- Fix the supply cable in the cable clamp, tighten the cable clamp screw and close the cover.

• The power supply cable must have these minimum requirements:
- Type: H05VV-F (PVC insulated and sheathed flexible cable)
- 3 cores x 4 mm ^2 minimum.
• This appliance must be earthed.
- The cooker must be connected to the mains supply with a switched (double pole) cooker outlet providing full disconnection correctly fused with a capacity appropriate to that shown on the cooker Rating Plate and incorporated in the fixed wiring in accordance with the latest wiring regulations. All electrical wiring from the consumer unit to the cooker, via the switched double pole cooker outlet, must be of the correct rating.

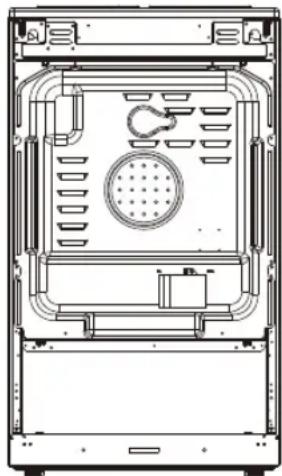

- The supply cable must be positioned away from any hot parts of the rear of the cooker. If this cannot be done then another method of protecting the supply cable from the hot parts must be used i.e. Heat resistant sleeving or high temperature cables.

Technical line drawing of a multi-chamber appliance with internal components and ventilation slots (no text or symbols)

Installation

• This appliance must be earthed.
- It is recommended that this appliance is installed by a qualified electrical engineer. The manufacturer is not responsible for any damage caused by incorrect installation.
- Check whether there is any damage to the appliance after you have unpacked it. If any damage is found, do not use the appliance and contact the retailer from whom you purchased the appliance.
- When placing your cooker in its location, ensure that it is at counter height. Adjust to the counter height by adjusting the feet as necessary. You must also ensure the appliance is level.
- When choosing a location, do not place it next to a refrigerator or flammable materials and ensure that the wall at the rear of the appliance is constructed from non-flammable, heat resistant material.
- Furniture close to the appliance must be manufactured to be heat resistant.
- Do not place this appliance on a raised platform or base.
- The connection must be close to the appliance. Do not use an extension cord.
- Your oven requires a 32 Amp supply. If necessary. Installation by a qualified electrician is recommended. If the current rate of the fuse in your installation is less than 32 Amp, a qualified electrician will need to install a 32 Amp supply.
- Ensure that the mains cable does not touch hot parts of the appliance.
- Your oven is for use with 230-240V AC, 50 Hz electric supply. If your supply is different from this specified value, contact your supplier or a qualified electrician. Ensure that the electricity supply voltage on the machine is correct.
- Electrical connection of the oven should only be made to connections with an earth system installed in compliance with the local regulations. If there are no connections with an earth system in place where the oven will be installed, immediately contact a qualified electrician to install one. The manufacturer is not responsible for damages that will arise because of the appliance not being connected to an earth system.
- For disconnection from the mains supply you must have a switch with a contact separation of at least 3.0 mm in all poles and rated 32 Amp that provides full disconnection, this must be incorporated in the fixed wiring in accordance with the local wiring rules.
- The cooker must be used in a well ventilated location and installed on flat / level ground.
• Only operate your appliance in a dry atmosphere.

Operation and Maintenance

• This appliance is for Domestic / Household Use only
- Keep the electrical cables of your other appliances away from hot areas; do not let them touch the appliance.
- If the mains cable is damaged in any way, turn off the mains supply. It must be replaced by a qualified electrician, manufacturer's service agent or similarly qualified persons in order to avoid a hazard.
- Ensure that the appliance is switched off at the mains supply switch and allowed to cool down before cleaning, replacing the oven lamp or performing any maintenance to avoid the possibility of an electric shock.
- Use of your appliance creates moisture in the room in which it is placed, make sure that your kitchen is well ventilated. Maintain the natural ventilation ducts properly.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
- Accessible parts may become hot during use. Young children should be kept away.
- During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven or the hotplates.
- When the cooker is hot never touch the oven glass door or any other parts that get hot. Allow the oven to cool before touching these parts.
- Do not use harsh abrasives cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in the glass shattering.
- Before starting to use your appliance, keep curtains, net curtains, paper or flammable materials away from your appliance.
- Do not keep combustible or flammable things in, on or near the appliance.
- Your oven is for cooking purposes only. Do not use for any other purposes (e.g., room heating).
- Do not use steam cleaners for cleaning the hotplates or oven cavity.
- Do not leave your appliance unattended when cooking with solid or liquid oils.
- Do not rest any items on or stand on the open door.
- Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
- Do not keep flammable substances in, on or near the cooker.
- Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting.

• Close supervision is necessary during grilling of food.
• Take care when handling parts with glass; knocks, chips, heavy handling and dropping could cause the glass to shatter.
• The glass oven door uses toughened glass and is designed to shatter into many 'nugget' sized pieces if it breaks. These pieces will still have sharp edges, so please handle broken glass with care.

If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Oven Shelf 37015284
Oven Tray 20613041
Grill Pan 20643831
Grill Pan Rack 37006132
Grill Pan Handle 37004739

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available

we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England
