Product Type	Front-loading washing machine
Brand	Currys Essentials
Model	C510WM12
Dimensions (W x D x H)	600 mm x 530 mm x 850 mm
Weight	65 kg
Rated Voltage / Frequency	220-240 V~, 50 Hz
Maximum Power Input	2000 W
Maximum Load Capacity	5 kg
Maximum Spin Speed	1000 rpm
Water Pressure Range	0.03 MPa - 1 MPa
Energy Efficiency Class	A+
Annual Energy Consumption	162 kWh/year
Annual Water Consumption	8140 L/year
Spin Drying Efficiency Class	C
Noise Level (Spin)	71 dB
Noise Level (Wash at 60°C)	60 dB
Programs	Cotton, Synthetics, Wool, Quick Wash, Spin
Additional Functions	Pre-wash, temperature selection, spin speed adjustment
Safety Features	Door lock, power-off memory, unbalanced load detection, foam detection
Included Accessories	Water supply hose, U-shape holder, noise protection board, cover caps, instruction manual
Spare Parts (Part Numbers)	Water supply hose (0020300158A), U-shape holder (00221123015002), Noise protection board (00213400001800A), Cover cap (00221153000008)
Maintenance Requirements	Clean drain filter monthly, clean detergent drawer, clean door seal after each wash

Frequently Asked Questions - C510WM12 Currys Essentials

Why must I remove the transit bolts before using the washing machine?

The transit bolts secure the drum during transport. If not removed, the washing machine will vibrate excessively and may be damaged. Use a spanner to remove the three bolts at the rear and insert the cover caps.

What should I do if the door does not open after a wash cycle?

The door lock remains engaged for approximately 1 minute after the programme ends. Wait one minute and try again. If it still does not open, check if water remains inside; select a spin programme to drain, then turn off and wait.

How do I interpret error codes like Err1, Err2, etc.?

Err1: Door not closed – shut it properly.
Err2: Drainage issue – clean the filter and check the drain hose.
Err3: Internal fault – contact maintenance.
Err4: Overload – reduce load and restart.
Err5: Drain hose submerged – ensure the hose end is not in water.
Err7/Err8: Electronic fault – contact maintenance.

Why is there excessive foam during the wash?

Excess foam may occur if too much detergent is used, especially with soft water. Use reduced-foam detergent and follow the dosage instructions. Some fabrics like bathrobes hold detergent, causing more foam – do not overload the drum.

The washing machine vibrates or moves during spin. What can I do?

First, ensure the transit bolts are removed. Then check that the machine is level and on a stable surface. Adjust the levelling feet using a spanner and a spirit level. Also make sure the load is balanced; if laundry clumps to one side, the machine will try to redistribute it.

How do I clean the drain filter?

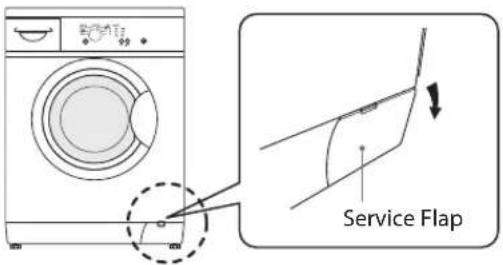

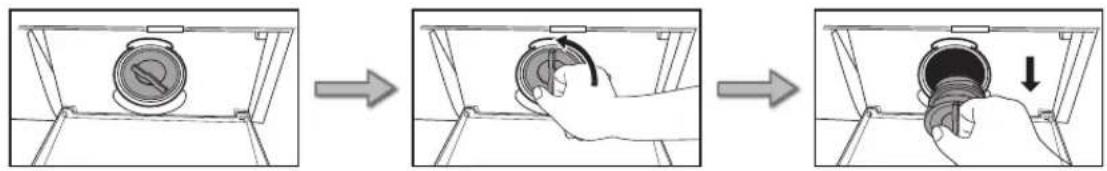

Unplug the machine and open the service flap. Carefully turn the filter counterclockwise to release water (collect it in a container). Remove the filter, clean off lint and debris, then replace it by turning clockwise. Do this monthly.

What does the 'power-off memory' function do?

If power is interrupted or you need to cut it off during a cycle, the washing machine saves the current settings. When power resumes, the programme will continue from where it stopped, not from the beginning.

Can I use extension cords or adapters with the washing machine?

No, do not use extension cords or adapters. They can overheat and cause a fire. The washing machine must be plugged directly into a dedicated household socket rated for 220-240 V~.

Why does water remain in the door seal after washing?

Some foam or water may remain in the door seal after a cycle. This is normal and does not affect performance. Wipe the seal and window with a cloth after each wash to prevent lint buildup and possible leaks.

What should I do if the water drain hose is too short?

Do not extend the drain hose yourself. If an extension is needed, consult a qualified technician. The hose end should be between 80 cm and 100 cm above the floor to prevent self-siphoning. Ensure the drain hose is not kinked or submerged.

USER MANUAL C510WM12 Currys Essentials

Front view of a white washing machine with a circular vent and control panel (no visible text or symbols)

Contents

Unpacking....4

Installing Your Washing Machine .... 5

Choosing the Right Location for Your Washing Machine ....5

Moving and Installing 6

Removing the Transit Bolts 6

Moving the Washing Machine from One Location to Another....7

Hose and Cable Lengths....7

Levelling the Washing Machine 8

Water Supply Hose....8

Water Drain Hose....9

Connecting to the Mains Supply 9

Product Overview....10

The unit....10

Control Panel 11

Preparation 12

Organising Laundry....12

Preparing Laundry 12

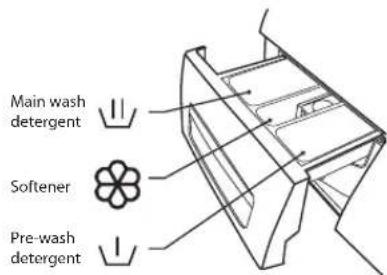

Adding Detergent and Softener 12

Selecting the Programme....14

Wash Setting 15

Standard Washing 15

Removing Washing (Once program is finished)....15

Important Information....16

Washing (Wool Programmes)....16

Tips for Hanging Delicate Items to Dry....16

If Clothing Shrinks in the Wash....16

How to Use Laundry Starch....16

Maintenance - Cleaning the Washing Machine 17

Cleaning the Exterior of your Washing Machine....17

Cleaning the Detergent Drawer....17

Cleaning the Door Seal and Window 17

Cleaning the Drain Filter....18

Preventing a Frozen Water Supply Hose....18

Cleaning the Filter Net of the Water Supply Hose....18

Hints and Tips 19

Troubleshooting 21

Specifications....22

Product Fiche 23

Safety Warnings....24

Thank you for purchasing your new Currys Essentials Washing Machine.

We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

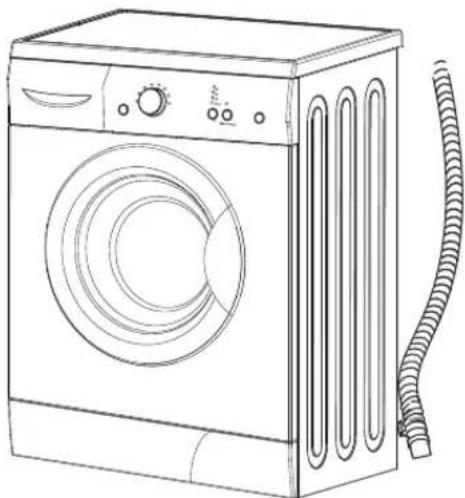

Line drawing of a front-loading washing machine with coiled cord (no text or symbols)

The Main Unit

Water Supply Hose x 1
P.N.: 0020300158A

U - shape Holder x 1
P.N.: 00221123015002
For fixing the water drain hose.

Simple geometric diagram of a square frame with corner markers (no text or symbols)

Noise Protection Board (includes
the feather felt)
P.N.: 00213400001800A

Cover Cap x 3
P.N.: 00221153000008

Instruction Manual
P.N.: C510WM12-001

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

INSTALLATION

Installing Your Washing Machine

Please read and follow the instructions carefully.

• In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g. washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of trapping or kinking.

Additional space (150mm) is required for the rear side of the washing machine. This is to allow enough space for the water hose and drain hose.

Choosing the Right Location for Your Washing Machine

• Make sure there's enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibration and noise.
- Don't install your washing machine in direct sunlight or in a place where temperatures reach freezing.

× Sloping surface

Unstable Bumpy S

surface

Two or more people are required to carry the washing machine.

• When moving, start by tilting the washing machine backwards.
  • One person should stand behind it, holding the rear of the top panel. The other person should grip the bottom feet at the front.
• Don't touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the washing machine to a qualified technician or service agent.

INSTALLATION

Moving and Installing

Two or more people are required to carry the washing machine and for any installation work.

Fix the Noise Protection Board onto the bottom of the machine BEFORE removing the transit bolts.

Installing the Noise Protection Board

To reduce the noise produced by the washing machine, install the noise protection board.

1. Lay down the machine. Unscrew the four feet.
2. Fit the board onto the bottom of the machine. The four holes in the board should correspond to the screw holes of the levelling feet.
3. Screw the four levelling feet back on to fix the noise protection board to the machine.
4. Stand the machine upright.

Technical line drawing of two mechanical components with mounting holes and mounting flanges (no text or symbols)

Removing the Transit Bolts

Three (3) transit bolts keep the interior of the washing machine in place while it is being moved.

They need to be removed before installation. Use a spanner (not included) and follow the instructions detailed below.

Do not run the washing machine without removing the bolts, as this can cause excessive vibrations.

INSTALLATION

To remove the transit bolts:

1. Ensure the unit is fully disconnected from the mains power by unplugging it from the mains.

2. Unscrew the three (3) transit bolts.

3. They are located at the rear side of the washing machine. Use a spanner (not included) to loosen the three (3) transit bolts, then pull out the bolts horizontally. Ensure the plastic bolt guides (if any) are also removed.

4. Snap in the plastic caps to cover the transit bolt holes.

Diagram showing electrical switch panel installation with three close-up insets illustrating component alignment and adjustment.

Keep the three (3) transit bolts in a safe place, in case you need to move the washing machine.

Moving the Washing Machine from One Location to Another

Ensure the transit bolts are fixed in place prior to moving the washing machine.

Before you move the washing machine:

- Shut off the tap and run the washing machine to drain the water. Drain any remaining water from the pump hose.

• Depressurise the water supply hose and remove it.

• Disconnect the unit from the mains.

- Replace the transit bolts (in the reverse order in which you removed them (please see the Moving and Installing section for details).

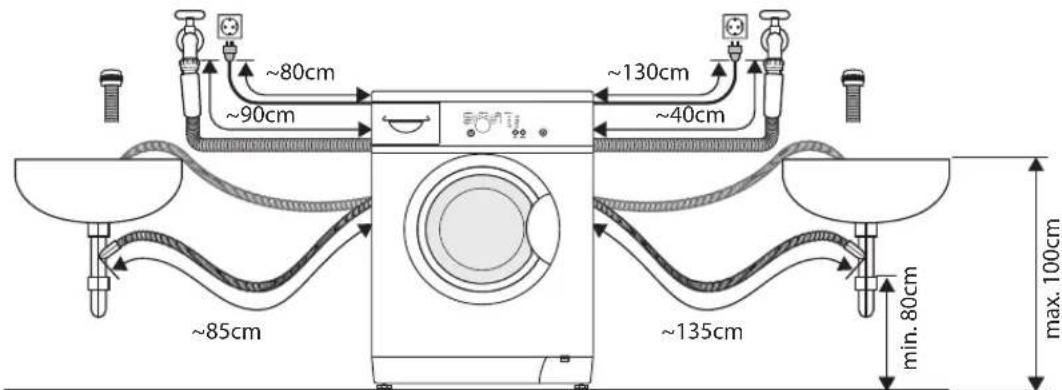

Hose and Cable Lengths

How to connect from the left side
How to connect from the right side

~80cm ~90cm ~130cm ~40cm ~85cm ~135cm min. 80cm max. 100cm

INSTALLATION

Levelling the Washing Machine

There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level.

1. On each stand, loosen the lock nut by turning it clockwise with a spanner.
2. Adjust all four feet in this way.
3. Use a spirit level to ensure the washing machine is level.
4. Tighten each lock nut by turning them anti-clockwise (towards the washing machine body), again using a spanner.

Lock nut

Ensure all four lock nuts are tightened securely. Check the feet are still bolted to the washing machine - if they're unbolted, the washing machine will move around.

Water Supply Hose

Points to remember

• Follow the instructions in this section to avoid water leaks.
• Don't connect the hose to a combination tap.
• Don't twist, squash, modify or cut the hose.

- Optimum water pressure in the main pipe is 0.03 MPa - 1.0 MPa. If the water pressure is set higher than this, you will need to install a depressurising valve. Ensure the water flow amount and speed from the tap is sufficient. If you're unsure, ask a qualified technician to connect the hose.

• This unit must only be connected to cold water mains using the new water inlet hose provided.

Connecting the Water Supply Hose

1. Connect the nut on the inlet hose to the connector on the water valve.
2. Apply inlet hose to a water tap with cold, fresh water.
3. Open the tap slowly and check that there are no leaks around the joint.

3/4" min. 10 mm

3/4" min. 10 mm Plastic joint

• The joint is subject to water pressure.
- Use the hose set supplied with the appliance. Old hose sets should not be reused.

INSTALLATION

Water Drain Hose

Points to remember:

• Don't twist, pull out or bend the drain hose.
• Your washing machine should be no more than 100cm from the drain outlet.

Draining to a sink or wash-basin

• Secure the drain hose in position, so it can't drop out of the basin.
• Don't block the basin's drain outlet, and make sure that the drainage through it is sufficient.
• Don't let the tip of the drain hose dip into the drained water, as this can cause the water to flow back into the washing machine.
• Use the drain hose bracket to keep the end of the drain hose retained and prevent the outflow of water. Don't extend the length of the drain hose; if an extended hose is required, please consult a serviceman.

The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning).

U-Shape Holder Draining to a wash-basin

Draining to a drain hose

Connecting to the Mains Supply

For your safety:

• Do not use a mains plug adapter or extension cable.
- If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance.

Installation Check List

By now, you should have installed the washing machine.

Let's go through the checklist to ensure that the installation has been done correctly!

Questions Checkbox
Anchor bolts - Have you removed them and attached the cover caps properly?
4 levelling feet	Are they bolted securely to the washing machine?
	Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC 220V to 240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?

Product Overview

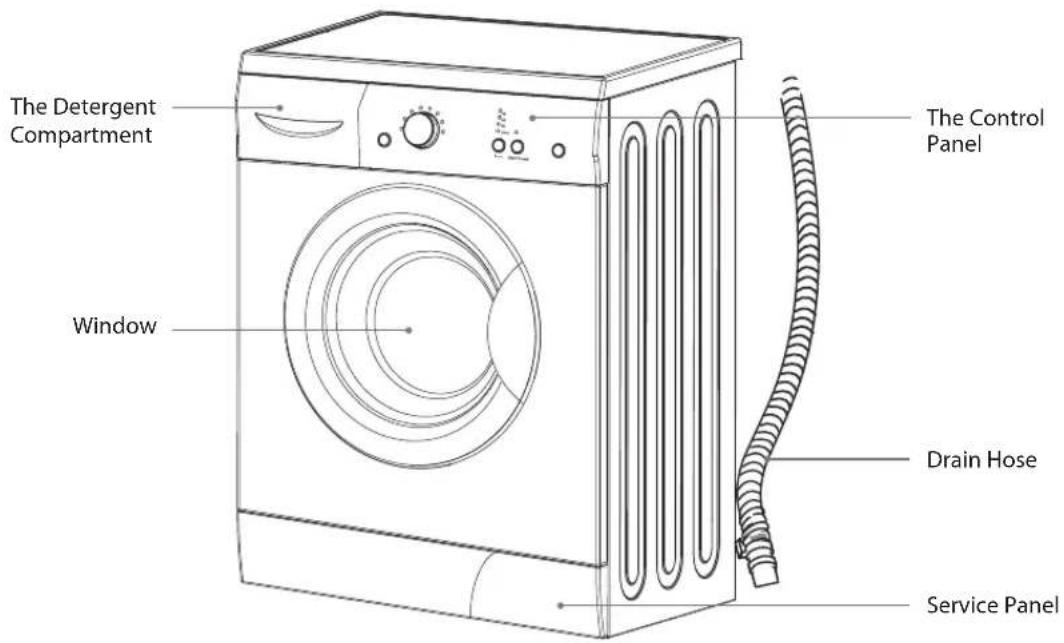

The unit

The Detergent Compartment Window The Control Panel Drain Hose Service Panel

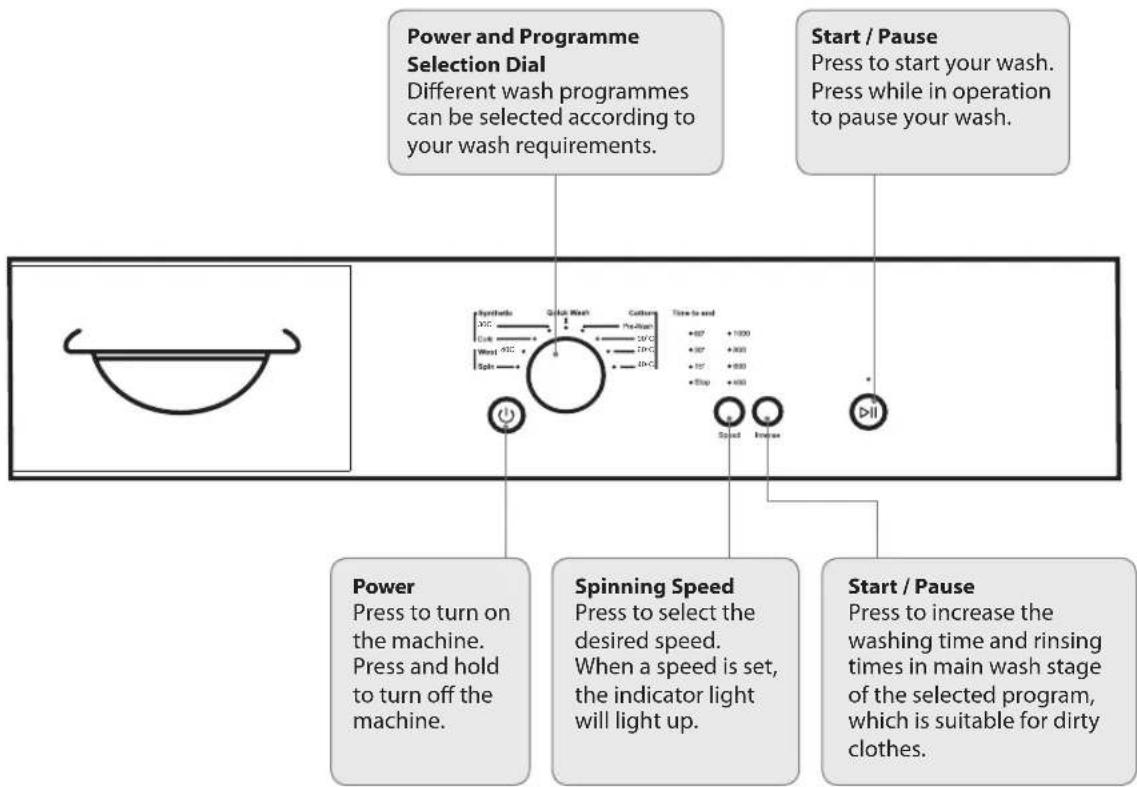

Control Panel

• If you need to change a setting, press Start / Pause button and then re-select the desired program.
• Water is poured into the washing machine to perform an inspection at the time of shipment from the factory, so there may be drops of water or condensation in the washing machine. This is not an indication of a malfunction.

Preparation

Read the following to understand how best to prepare your laundry for washing.

Organising Laundry

• Read the washing label on each garment to help you sort your washing into different loads.
• Sort the laundry by colour, type of fabric and by how soiled it is.

This will help you choose the correct programme and temperature for each wash.

• Do not exceed maximum load!
• Be careful not to trap any items of clothing.

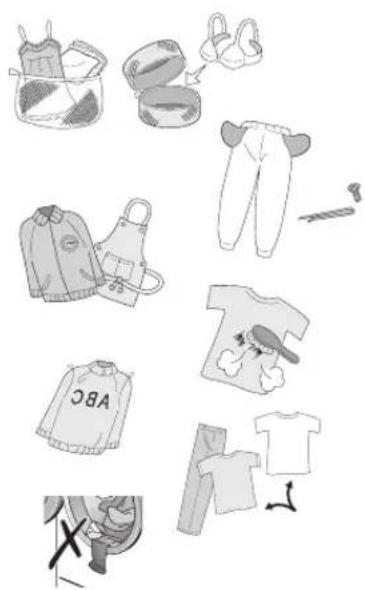

Preparing Laundry

• Treat stains before washing.
- Some items should to be put into a cleaning net before going into the washing machine. i.e. bras with metal wires, tights and lace clothing to prevent damage. Check that pockets do not contain any objects which may damage your clothes and the washing machine.
- Tie up any loose strings on laundry, close zippers and reverse clothing with zips inside out.
- Remove any surplus hair, animal fur, sand, and other materials with a brush before washing.
• If clothes have raised fabric turn them inside out.
• Clothes that are not colour fast should be washed separately.
- Insert your clothes into the washing machine. Close the washing machine door. Ensure not to trap any items of clothing between the loading door and rubber seal.
- When first using the washing machine, let it run unloaded for one program to prevent the laundry from being tainted by oil or dirty water from the washing machine. Before washing you should run the machine without laundry, but with detergent, with 60°C programme.

Illustration of various clothing and apparel items including bags, jeans, T-shirts, and accessories (no text or symbols)

Adding Detergent and Softener

- The washing efficiency and the performance is determined by the quality of detergent used. Special non-foaming detergent produces good washing results. Use specific detergents for synthetic and woollen goods. Do not use dry cleaning agents such as trichloroethylene and similar products.

Do not add more detergent than needed. Please follow the dosage recommendation on the detergent package.

Main wash detergent Softener Pre-wash detergent

• Slide out the detergent drawer and put the required detergent and softening agent into the corresponding compartments. Push back the drawer gently. (Refer to the instructions on the drawer)
• Apply softener before you start washing to prevent static.

- Apply detergent and softener according to the washing amount, the soiling level, the water hardness in your area and the manufacturer's instructions of these products.

• For pre-washing program, detergent should be added to both drawer and For other programs, do not add detergent to drawer.
• Use liquid detergent according to the instructions on its package. Do not use liquid detergent if the pre-wash mode.
• Do not overuse softener; otherwise, it will damage the artificial fibres.

• Dilute viscous fabric softener and fabric conditioner with water. Prevent blockage of the overflow. Maximum level is 70ml.

• Do not use washing machine when the detergent drawer is removed. It may cause a water leak or it may not work normally.

• If you forget to add detergent, you can drain the washing machine by running a spin only programme. Then you can add detergent and start the programme again. Detergent only reaches the drum when water flushes through the detergent drawer.
• To prevent powered detergent staying in the drawer, dry the inside of the drawer with a cloth. Make sure the powder isn't lumpy when you add it into the drawer.
• If the rinse cycle isn't removing all the detergent from your wash, use less detergent.
• Softener should not exceed the MAX level in the compartment.
• Wash out unused softener with a splash of water or a damp cloth after the programme has finished.

Selecting the Programme

Here are the available programmes, additional functions and option settings.

Temperature can be selected separately for certain programmes.

Programme Description		Description				Max Temperature	Max Load (kg)	Preset Setting
								Default Spin (rpm)	Approximate Time (Min)
Cotton	Prewash	0 1000 180For average soiled cottons, household linens and work / play clothes6 1000 900 1000 70	√		√	60°C 5.0 1000 160
	90°C 90°C 5
	*60°C 60°C 5
	60°C 60°C 5
	40°C 40°C 5
Synthetics	Cold	For average or lightly soiled garments for mixed cotton, linen and man made fabrics.	√			-3.0 1000 60
	30°C 30°C 3
Wool		For machine washable woolens and other items marked with hand wash care label.	√			40°C 600 50
Quick Wash		For lightly soiled cottons, household linens and work / play clothes.	√			40°C 2.5 1000 70
Spin Sperate spin		procedure	√			-1000 12

*EN 60456 test program / Energy label program with Cotton 60°C, max. spin speed and intense function

• Washing times depend on programme and temperature settings selected.
• Washing times may be longer if the laundry in the drum needs to be balanced.

Wash Setting

Standard Washing

1. Press the Power button.
2. Pull the door handle and put the laundry in the drum. Make sure no washing gets caught in the door.

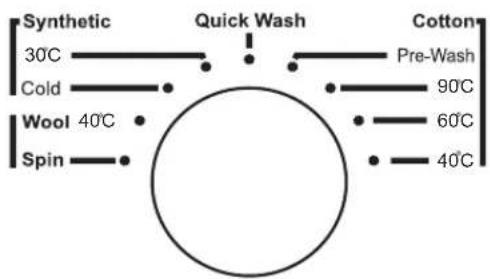

3. Close the door and turn the Power & Programme Selection Dial to select your wash programme.
4. Add detergent and softener as required (refer to "Adding Detergent and Softener" section).
5. Select the required options (refer to "Control Panel" section).
6. The washing machine beeps when the programme is complete.

Illustration of household items including a refrigerator, a box, a plastic bottle, and a clear water bottle (no text or symbols present)

If the door is locked and you switched the washing machine off - or if there's a power cut - it will stay locked for 1 minute.

When you start the washing machine, the Start / Pause indicator change from flashing to on.

Removing Washing (Once program is finished)

Door remains locked for 1 minute appro. after wash stopped.

1. Open the washing machine door and remove your washing.
2. Remove any foreign objects to avoid risk of rusting.
3. Leave the door and detergent drawer open so that residual water can evaporate.

Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash.

Important Information

Washing (Wool Programmes)

These programmes rock the drum gently for best results on delicate laundry.

• Delicate laundry loads: 1.5kg or less

• Tips for Wool programme:

Approximate Weights:

• Wool sweater (400g)
• Silk blouse / under garment (200g)
• Trousers (400g)

- For wool items, use a mild liquid detergent.

Other detergents may damage your clothes.

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

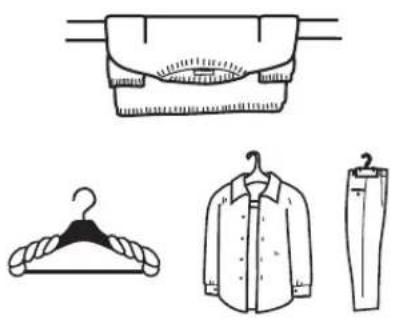

Tips for Hanging Delicate Items to Dry

• Hang white or light colour clothes, wool and nylon away from direct heat or sunlight.
• After washing, smooth creases and folds out of wool and nylon clothes and return them to their normal shape before hanging in the shade.
• Use a hanger for shirts, blouses and trousers. You can wrap a towel around the hanger to fit the shoulder width of your clothes, so they retain their shape as they dry.
• Spread woollen items such as sweaters out to dry.

If Clothing Shrinks in the Wash...

- You can spread the item out to its original size on an ironing board, and use dress pins to hold the size and shape. Then use an iron to steam the item and leave it to dry.

Illustration of four different clothing items: a pleated garment, a hanger, a collared shirt, and a jacket (no text or symbols present)

Illustration of three different household appliances: a microwave oven, a patterned shirt, and a small appliance (no text or symbols)

How to Use Laundry Starch

Laundry starch makes your clothes crisp in texture.

Synthetic laundry starch is a stiffening agent.

• To use laundry starch, simply add it to the softener compartment, next to where you add detergent. It will automatically be applied to your clothes as part of the final rinsing cycle.
• If it's hard to pour, you can dilute the starch slightly with water before adding it to the softener compartment. Make sure you don't fill the compartment over the MAX level.

After using starch, clean the detergent drawer, especially the softener cover. Then remove any excess starch in the drum, run a "Quick Wash" programme without detergent.

Maintenance - Cleaning the Washing Machine

Cleaning the Exterior of your Washing Machine

• Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen detergent.
• Don't splash water over the washing machine.
  • Do not use corrosive solvents or cream cleansers, thinners or products containing alcohol or kerosene.

Cleaning the Detergent Drawer

1. Remove the detergent drawer by pulling and pressing the softener cover at the same time.
2. Wash out old detergent from the drawer with water. (Use a cloth to clean the washing machine.)
   Residue detergent soon builds up if you don't clean the drawer regularly, and can develop mould.

Press Pull out at the same time

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Cleaning the Door Seal and Window

• Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks
• Remove any coins, buttons and other objects from the door seal after each wash.

Cleaning the Drain Filter

Clean the filter once a month.

Before cleaning the drain filter, first start the spin programme, then switch off and unplug the washing machine.

1. Open the bottom cover.

Service Flap

1. Carefully loosen the drain filter. Turn anti clockwise until the water gentle begins to run, this is normal.

2. Remove the filter once the water has stopped.

3. Remove any lint and debris before carefully replacing the filter.

Three-step diagram showing a hand holding a circular component in a container, with no text or symbols present.

1. Turn it clockwise and close the bottom cover.

• The filter must be in place, or it may lead to leakage.
- Place a container under the drain pump filter, to collect any excess water that may come out of the drain pump when the filter is removed.

Preventing a Frozen Water Supply Hose

If your washing machine is delivered in freezing weather conditions, leave it at room temperature for 24 hours after you've set it up before using it. This ensures there's no ice blocking the water supply hose. If a programme is in progress, stop the programme and turn off the unit. Turn on the unit again, select SPIN and wait for the water to drain. Turn off the unit and wait 1 min for the door lock to release. Remove laundry.

about 50°C

Cleaning the Filter Net of the Water Supply Hose

If water isn't draining properly...

1. Turn the water supply off at the tap.
2. Close the washing machine door and select "Spin" programme and press the Start / Pause button.
3. When finished, turn the power off. Loosen the water supply hose and remove it from the tap.
4. Use a small brush, e.g. a toothbrush to clean the filter and water inlet valve.
5. Re-connect the water supply hose to the tap and turn the tap back on, checking for leaks.

Hints and Tips

Problems Solutions
Buttons don't work • The washing machine is operating a programme.• The Programme Dial was turned to a different programme.
Door doesn't open • Door lock may be active.
If you start a wrong programme accidentally.	• First press Start/Pause button when the indicator light starts blinking, press the power button. Next, turn the Programme Dial to the correct programme, and select any required options. Press the Start/Pause button to start the new programme. (Note: We suggest that you do not change the programme after the machine has been running for 3 minutes.)
Unusual odour • Rubber parts may give off a smell when you first start using the washing machine, but this goes away over time.• You should wash the drum once a month.
You can't see any water This is normal: The water level is below the window.
There's no water going into the washing machine	• The water tap might be turned off.• The water hose or water-supply hose may be frozen.• Your water supply may be disrupted.• The water-supply valve filter may be clogged.
There's only a small amount of water	• If you have paused the programme and you restart, the washing machine may drain some water.• Don't pour water in through the door.
Water adds up during washing	This is normal: water is supplied automatically as the level lowers, and with heavy loads the water may fill up repeatedly.
Water drains away during washing	This is normal: water often drains and refills to wash off excess foam. (This is called foam detection.)
There's no water going into the washing machine during rinse operation	Before rinsing, the washing machine spins to drain water remaining from the wash. The water will fill up after that.
Rinsing begins before the spinning finishes	• If your laundry has collected to one side of the drum, rinsing will start automatically to correct the imbalance.• If there's excess foam after washing, water may drain and refill to wash it off. (This is called foam detection.)
During the spin-dry, the drum stops and rotates several times	This is normal. The washing machine has detected an unbalanced load and is trying to correct it.
Foam and water remain in the door or door seal	Although foam and water may remain, it does not have any influence on the performance of a rinse.
Spin starting is repeated This is normal. Although spin starting may be repeated, it is a function made to spin quietly.
Wash time too long During washing, if the laundry is unbalanced, the machine will try to correct by slowly rotating the drum. This may take several attempts. This is normal.There's not much foam • This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.The amount of foam can vary, depending on the temperature, level and softness of your water.You may not be using enough detergent.You may be using a reduced-foam type of detergent.Heavily soiled laundry can reduce the amount of foam.Larger loads of laundry can also reduce the amount of foam.
There's a lot of foam • The amount of foam can vary depending on the temperature, level and softness of your water.You may have used too much detergent.The type of detergent you use could cause excess foam.Some laundry types (Bathrobe, Bath towel), hold the detergent and becomes agitated during washing cycle. This is normal. Do not over fill the drum.
Fabric softener overflows • You may have exceeded the MAX level in the softener drawer.You may have spilt the liquid by closing the softener drawer too sharply.
There's a residue of powder detergent at the end of the wash	This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.
There's an unusual noise or vibration	Check there's nothing metal in the drum.Make sure the transit bolts used in transportation have been removed.Check the washing machine is on a flat, stable surface.Machine load is over 5 kg.
There's a noise when the water drains away	This is normal, it's the pump starting and stopping.
The electricity supply cuts out while the washing machine's on	Power-off memory function: In case of abrupt power failure or the need to cut off the power during a program cycle, the present settings will be saved and the preset operation will resume when the power is on again.

Troubleshooting

Troubles Reason Solution
Washing machine cannot start up		Check that the door is closed tightly.Check that the power is on.Check that the water supply tap is open.Check that theStart/Pausebutton is pressed.
Water leakage or water is overflows from the bottom of the machine	The inlet hose and/or drain hose has a leak.The inlet hose connections or drain hose connections are not tight.Drain pipe in the room is blocked.	Check and fasten hose connections.Clean up drain hose and ask a qualified technician to repair it if necessary.Fix the inlet hose.Replace the drain hose.Replace the inlet hose.
Indicator or display does not light	Power is disconnected or the unit is turned off.	Check that the power is shut off and the power plug is connected correctly.Check the mains plug and fuse.Check that the washing machine is turned on.
Washing effects are not good	The clothes are too dirty.Insufficient detergent quantity.	Select a proper wash programme.Add the proper detergent quantity according to the instructions on your detergent packaging.
Machine is draining while being filled	The height of the drain hose is below 80 cm.The drain hose is in water.	Install drain hose within 80-100 cm of height.Make sure the drain hose is not in water.
Drainage failure	Drain hose is blocked.Drain hose end is higher than 100 cm above the floor level.The filter is blocked.	Unblock the drain hose.Make sure the drain hose end is lower than 100 cm above floor level.Unblock the filter.
Operation stops for a period of time	Washing machine gives an error message.	Check display codes.
Err1	The start/pause lamp off and the buzzer beeping.	Shut the door properly.
Err2	The start/pause lamp twinkles twice in 4 seconds.	Clean the filter and check the drain hose for blockage. If error still exists, please contact the maintenance personnel.
Err3	The start/pause lamp twinkles 3 times in 4 seconds.	Contact the maintenance personnel.
Err4	The start/pause lamp twinkles 4 times in 4 seconds.	Reduce load and then start washing again.If problem still exists, please contact the maintenance personnel.
Err5	The start/pause lamp twinkles 5 times in 4 seconds.	Make sure the drain hose is not in water.
Err7	The start/pause lamp twinkles 7 times in 4 seconds.	Contact the maintenance personnel.
Err8	The start/pause lamp twinkles 8 times in 4 seconds.	Contact the maintenance personnel.

Specifications

Model	C510WM12
Rated Voltage	220 - 240V~
Rated Frequency	50 Hz
Maximum Energy Rated Power Input	2000 W
Dimensions of the Product	600mm (W) x 530mm (D) x 850mm (H)
Weight of the Product	65 kg
Maximum Mass of Dry Cloth	5 kg
Pressure of Tap Water	0.03 MPa - 1 MPa
Energy Rated Programme According To Regulation EN60456	Program Cotton 60°C

Features and specifications are subject to change without prior notice.

Product Fiche

Brand: Currys Essentials

Model: C510WM12

Rated capacity: 5 kg

Energy efficiency class: A+

EU Ecolabel: N/A

Energy consumption is 162 kwh per year based on 220 standard washing cycles for cotton programmes set at 60^ C and 40^ C, with full and partial loads, and set at low-power modes.

Actual energy consumption will depend on how the appliance is used.

Energy consumption of:

• Standard Cotton programme, 60°C, with a full load: 0.763 kwh
• Standard Cotton programme, 60°C, with a partial load: 0.796 kwh
• Standard Cotton programme, 40°C, with a partial load: 0.556 kwh

Power consumption when appliance is:

• Turned off: 0.8 W
• Left on: 0.8 W

Water consumption is 8140 litres per year based on 220 standard washing cycles for cotton programmes set at 60°C and 40°C, with full and partial loads, and set at low-power modes.

Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class is "C", on a scale of A (most efficient) to G (least efficient).

Maximum spin speed: 1000 rpm

Standard washing cycle programmes are the Standard 60° C Cotton Programme and the Standard 40° C Cotton Programme. These cycles are suitable for cleaning naturally-soiled laundry and are the most efficient washing cycles in terms of combined energy and water consumption.

Time required:

• Standard Cotton programme, 60°C, with a full load: 180 mins
• Standard Cotton programme, 60°C, with a partial load: 180 mins
• Standard Cotton programme, 40°C, with a partial load: 160 mins

Airborne acoustical noise (spinning): 71 dB

Airborne acoustical noise (standard 60°C): 60 dB

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

WARNING!

- If you will not be using the washing machine for a while such as when you go on holiday, turn off the water supply to the washing machine. This is particularly important if there is no drainage around the washing machine.

If the water supply is left on, water pressure may build up and cause a leak.

General Use

• Do not install your washing machine anywhere that is damp or exposed to the weather. If you do, it may cause an electric shock, fire, failure or deterioration.
• Do not pour water directly onto any part of the washing machine. It may cause a short circuit or electric shock.
• Keep burning objects such as candles or cigarettes, away from the washing machine. They may cause a fire or damage.
• Keep flammable substances well away from the washing machine – for example kerosene, gasoline, benzene, paint thinner and alcohol, or clothing soaked with these. They may cause an explosion or a fire.
  • This washing machine is only suitable for washing textiles labelled washing machine washable.
• Anchor bolts are used to transport the washing machine. You should remove these using a spanner or similar tool before you install the washing machine. If you do not, it will cause strong vibrations when the washing machine is spinning.
• Do not connect the washing machine to hot water. The washing machine works with cold water.
• Before you start using the washing machine, turn the tap on to check that the hose is properly connected. If it's not, there may be a water leak.
• Do not apply pesticide, hair spray or deodorant to the washing machine.
• Do not put any electrical equipment near the washing machine – for example a TV, radio or battery charger.
• Do not put too much laundry or detergent into the washing machine. It may cause washing machine troubles.
• Be careful not to get your laundry caught in the door when you close it. This could cause a water leak or damage your laundry.

Power Source and Cable

• Use an independent household dedicated mains socket, fully rated at AC 220V to 240V. If the washing machine is plugged in with other appliances, it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly in the socket. A loose connection may overheat and cause electrical shock or a fire.
• Check the mains lead and mains plug for any damage. If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Unplug the mains lead when cleaning the washing machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause an electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains plug, it could cause a fire. To prevent this, unplug the cable and clean the mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the cable. Pulling the cable may cause an electric shock or a fire.
• Do not use a mains plug adaptor or extension cable. It may overheat and cause a fire.
• Make sure your home voltage matches the voltage displayed on the washing machine. If you are not sure, contact an electrician.

To Prevent Injury

• Do not climb on the washing machine. You may hurt yourself or damage the washing machine.
• When opening and closing the door ensure you keep fingers away from the door hinge, or this could lead to injury.
• Check your washing for objects such as nails, pins, coins, clips etc. They could damage your laundry or the washing machine.
• Do not wash, rinse or spin water-proof sheets or clothing. These may cause vibration or washing machine failure during spin-drying, which could lead to injury, damage to the washing machine or damage due to water leaking.
• Be careful when draining hot water or any detergent from the drum. To prevent an injury.
• Do not dismantle, repair or modify the washing machine. The washing machine could malfunction and cause a fire or injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Do not touch the laundry inside the washing machine, until the drum has completely stopped. Even if the drum is spinning at low speed it can cause an injury. Take particular care of children in this respect.
• The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused.
  • The ventilation openings in the base of washing machine must not be obstructed by a carpet.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Water Supply Hose 0020300158A
U-shape holder 00221123015002
Noise Protection Board 00213400001800A
Cover Cap 00221153000008

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England

(P.N.: C510WM12-001)
