RET340R - Refrigerator NORDMENDE - Free user manual and instructions

Product Type	Refrigerator with freezer compartment
Brand	Nordmende
Model	RET340R
Power Supply	220-240 V ~ 50 Hz, 16 A grounded socket
Fuse Rating (Plug)	13 A (BS1362)
Refrigerant	R600a (isobutane, flammable)
Climate Class	SN, N, ST, T (10-43 °C ambient)
Thermostat Control	Rotary knob, positions 0-5
Super Switch (Winter Mode)	Available on some models; activates when ambient < 16 °C
Door Open Indicator	Red = open, white = closed
Ice Tray	Twist-type ice cube tray
Turbo Fan (Optional)	For even temperature distribution
Freezer Defrost	Manual; use plastic scraper provided
Refrigerator Defrost	Automatic (auto-defrost)
Light Bulb	Max 15 W, replaceable
Condenser Cleaning	With broom at least twice a year
Interior Cleaning	Bicarbonate of soda and lukewarm water
Minimum Clearance	Top: 15 cm, Rear: 5 cm from electrical stoves, 50 cm from heat sources
Door Reversal	Possible on handleless models; contact authorized service
Compressor Restart Delay	5 minutes after switching off

Frequently Asked Questions - RET340R NORDMENDE

What should I do if my refrigerator does not cool?

First, check that the power cord is plugged in and the thermostat is not set to 0. Ensure the socket is working by testing another appliance. Also verify that the general switch in your home is on.

Why is my refrigerator making a bubbling sound?

A slight bubbling noise is normal as the refrigerant circulates. If the noise is different, check that the appliance is level, nothing is touching the rear, and objects on top are not vibrating.

How can I prevent water from collecting at the bottom of the refrigerator?

Clean the defrost water drain hole periodically using the defrost drain plug to prevent clogging. You can pour a glass of water down the drain hole to flush it.

Why does frost build up in the freezer compartment?

Frost accumulation is normal and should be removed at least twice a year. Set the thermostat to 5 the day before, then unplug and leave the door open. Use the plastic scraper provided.

What does the door open indicator mean?

The indicator shows red if the door is not closed properly, and white when the door is fully closed. Always keep the freezer door closed to prevent defrosting and save energy.

When should I use the super switch?

Use the super switch when the ambient temperature is below 16°C (e.g., in winter) or when you need extra freezer cooling. Turn it off once the desired temperature is reached to save electricity.

How do I defrost the refrigerator compartment?

The refrigerator defrosts automatically. Water is collected in the evaporating tray and evaporates. Clean the tray and drain hole periodically to prevent water buildup.

How do I replace the light bulb?

Unplug the unit. Press the hooks on the sides of the light cover to remove it. Replace with a bulb of max 15 W. Reattach the cover, wait 5 minutes, then plug in.

Can I change the door opening direction?

If your fridge has handles on the front, the door direction cannot be changed. For handleless models, contact an authorized service center to reverse the door.

How should I prepare the refrigerator for long-term storage?

Defrost and clean the appliance thoroughly. Leave the doors open to prevent mold and odor. Unplug from the mains socket.

USER MANUAL RET340R NORDMENDE

Safety Instructions 2

Recommendations 3

Installation and Switching On The Appliance 4

Before Switching On 4

THE VARIOUS FUNCTION AND POSSIBILITIES....5

Thermostat Setting 5

Super switch 6

Accessories 6

"Door Open" Indicator 6

Ice tray 6

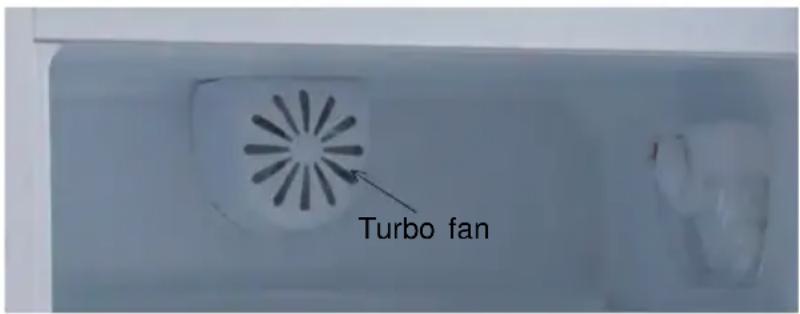

If turbo fan is available on your product 7

ARRANGING FOOD IN THE APPLIANCE....7

Refrigerator Compartment 7

Freezer Compartment 7

CLEANING AND MAINTENANCE 8

Defrosting 9

Refrigerator Compartment 9

Freezer Compartment 9

Replacing The Light Bulb 10

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION .... 10

Repositioning the Door 10

BEFORE CALLING YOUR AFTER SALES SERVICE 11

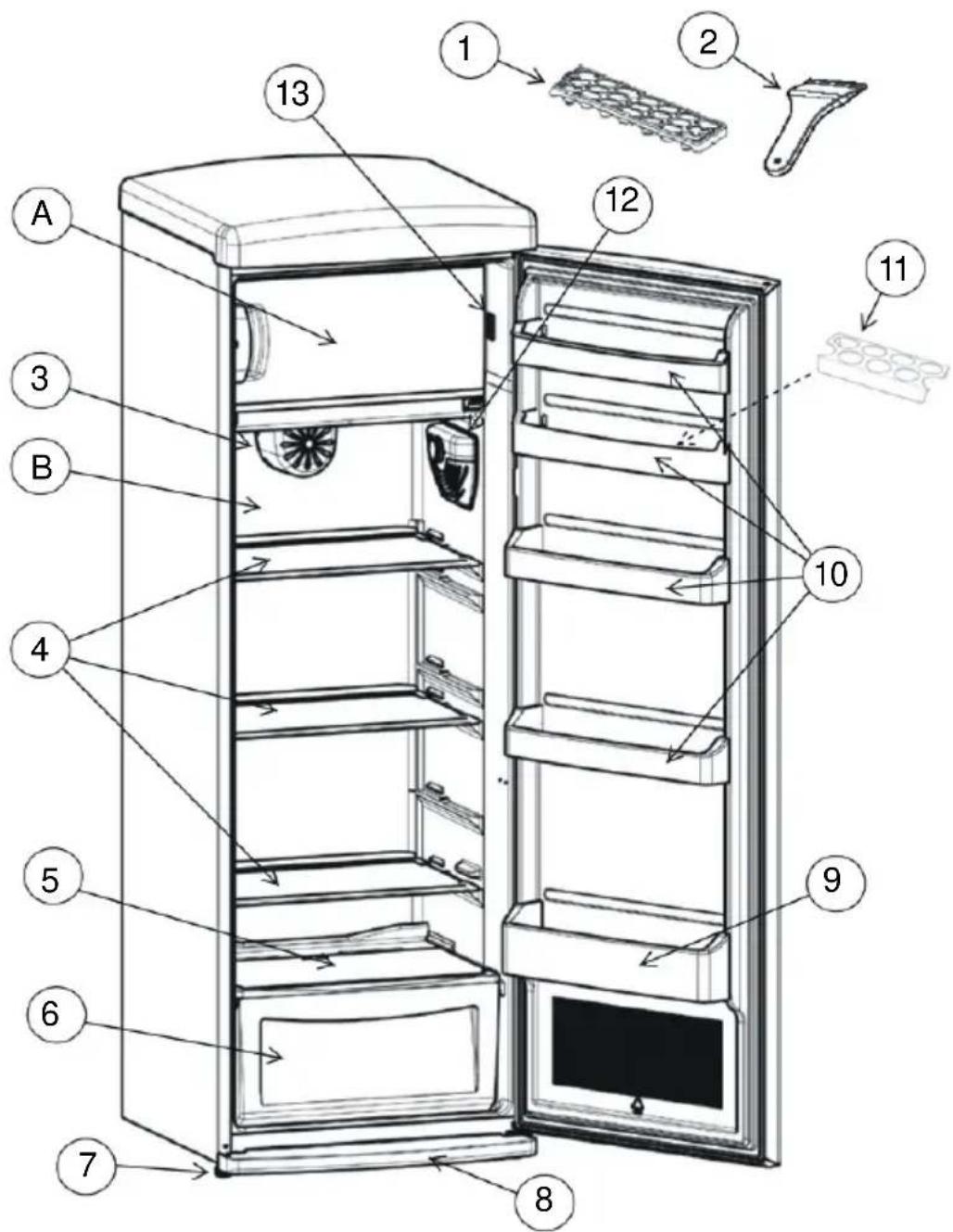

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS.... 13

PART-1. BEFORE USING THE APPLIANCE

Safety Instructions

• The model, which contains R600a-see name plate under refrigerant (the coolant isobutene), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.
• Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.
• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

- This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments;
• catering and similar non-retail applications

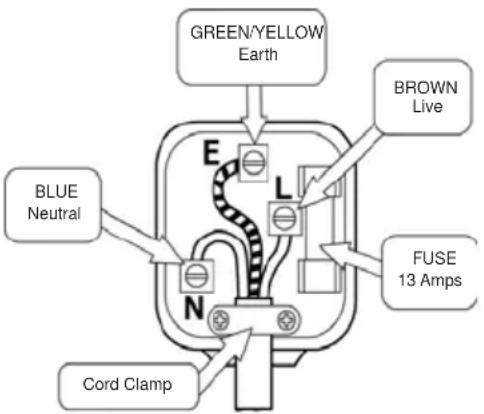

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

- Appliance can not be used by children aged from 8 years, without supervision or instruction concerning the use of appliance.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Recommendations

• Do not use adapters or shunts which could cause overheating or burning.
• Do not plug old, warped power supply cables.
• Do not twist and bend the cables.

Illustration of three hands holding ropes and connecting wires, showing different cable configurations (no text or symbols)

• Do not allow children to play with the appliance. Children must NEVER sit on drawers or hang from the door.
• Do not use sharp metal objects for removing ice on the freezer compartment; they could puncture the refrigerator circuit and cause unrepairable damage to the unit. Use the plastic scraper provided.
• Do not plug the power supply with wet hands.
• Do not place containers (glass bottles or tin containers) of liquids into the freezer especially gassy liquids as they could cause the container to burst during freezing.
• Bottles that contain a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.

Cartoon illustration of a character peeking from behind a door (no text or symbols)

- Do not touch the cooling surfaces, especially with wet hands as you could be burnt or hurt.

- Do not eat ice, which have just been removed from the freezer.

- This application is optional for easy opening door. With this application, a little condensation may occur around this area and you may take it out.

Diagram of a microwave oven with open door and side panel (no text or symbols)

Installation and Switching On The Appliance

• This appliance is connecting to 220-240V and 50 Hz.

- You can offer help from the service to install and switching on the appliance.

- Before making the connection to the power supply, ensure that the voltage on the name plate corresponds to the voltage of electrical system in your home.

- If the socket does not match the refrigerator plug, replace the plug with a suitable one (at least 16 A)

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact, we suggest you call an electrician for assistance.

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- Do not place the appliance in direct sunlight.

- Do not use in open air and shall not be exposed to the rain.

- Place the refrigerator far from heat sources and in a well-ventilated position. The refrigerator should be at least 50 cm from radiators, gas or coal stoves and 5 cm far from electrical stoves.

- Keep the top free for at least 15 cm.

- Do not place heavy and lots of things on the appliance.

- If the appliance is installed next to another refrigerator or freezer, observe a minimum distance of 2 cm to prevent condensation.

- Fit the plastic wall spacers to the condenser at the back of the refrigerator in order to prevent leaning to the wall for good performance.

- The appliance must be stand firmly and level on the floor Use the two front levelling-feet to compensate for an even floor.

- The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying replace all the accessories.

Cartoon illustration showing a sad container, broken sheets of paper, and a smiling refrigerator with thumbs-up (no text or symbols)

Before Switching On

- Wait after 3 hours before plugging the appliance in to the main power to ensure proper performance.

- There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.

PART-2. THE VARIOUS FUNCTION AND POSSIBILITIES

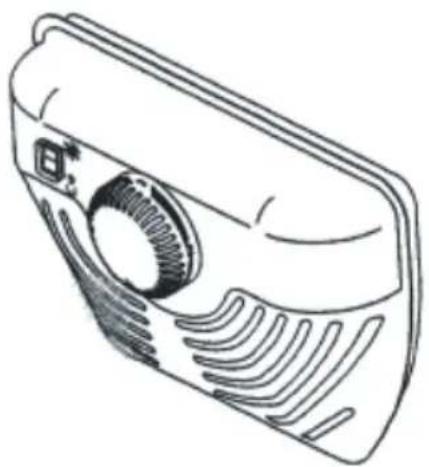

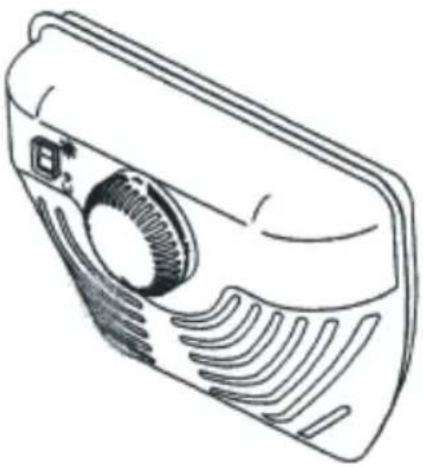

Thermostat Setting

Line drawing of a projector with visible internal components and ventilation slots (no text or symbols)

• Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. «0» position shows thermostat is closed and no cooling will be available.
• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set knop 4-5 position.

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

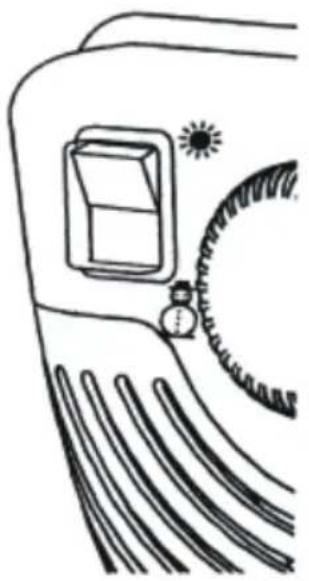

Super switch (If super switch is available)

Simple line drawing of a door with a window and decorative elements (no text or symbols)

- Normally set this switch to ‘*’ position. Except when the ambient temperature is low like in winter. (ie.below 16°C) or when the freezer temperature needs to be maintained lower. In that case, turn the switch to ‘☐’ position ON.

- To set super switch ON that is on the thermostat box, press the switch down to 🔊'position. The switch will lit.

- When the freezer compartment is cooled down to sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.

Accessories

"Door Open" Indicator

Diagram of a device with a green indicator light and black arrows pointing to a component (no text or symbols)

- The « Door Open » indicator on the handle shows whether the door has closed properly or whether rit is still open.

- If the indicator is red, the door is still open.

- If the indicator is white, the door is properly closed.

- Observe that the freezer's door should always be kept closed. This will prevent food products from defrosting, it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

Ice tray

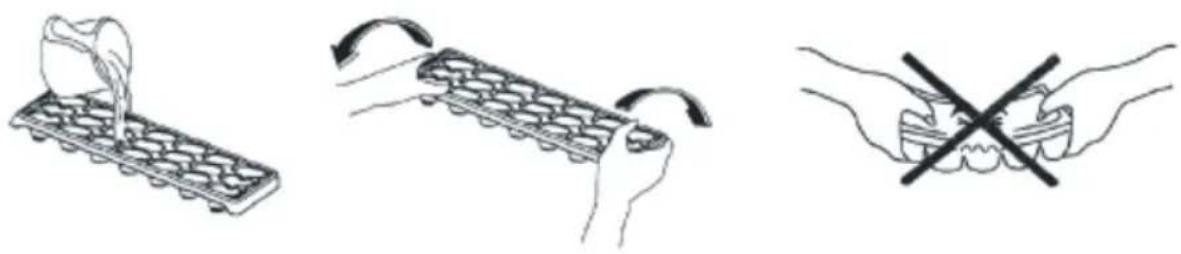

- Fill the ice tray with water and place in freezer compartment.

• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a hand holding an abacus, with one hand crossed out and another holding the other (no text or symbols present)

- Do not block air inlet and outlet openings when storing food, otherwise air circulation that provided by turbo fan will be impaired.

PART-3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator Compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Freezer Compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.

• For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

PART-4. CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

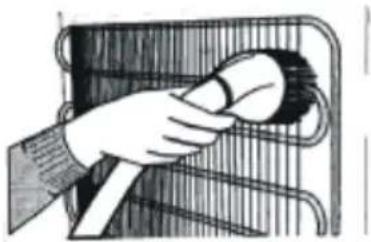

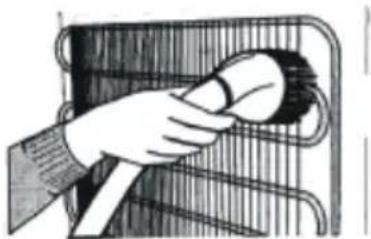

• You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food nearby (no text or symbols)

Cartoon illustration of a smiling rectangular character waving, with two smaller bottles nearby (no text or symbols)

Illustration of a hand holding a small object over a rack (no text or symbols visible)

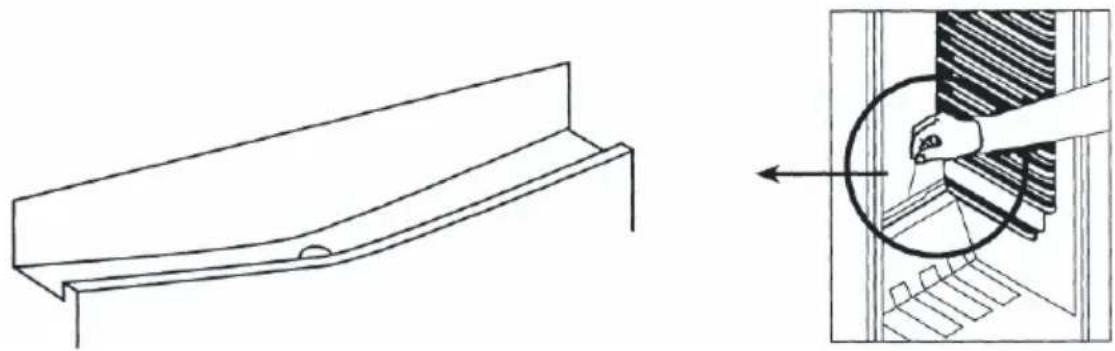

Defrosting Refrigerator Compartment

Technical line drawing of a mechanical component with an inset showing a magnified view of a textured surface (no text or symbols)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

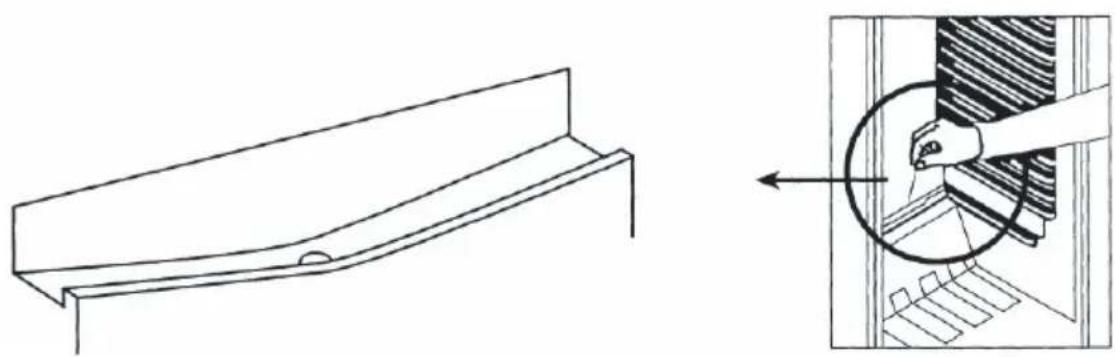

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour glass of the water to drain hole to clean inside.

Freezer Compartment

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

- The day before you defrost, set the thermostat dial to 5. position to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Set thermostat knob to position « 0 » or unplug the unit; leave the door open until completely defrosted.

- To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

- Dry the inside of the unit carefully and set the thermostat knob to MAX position.

Replacing The Light Bulb

When replacing the light of the refrigerator compartment;

Line drawing of a medical device with surgical tools and a mesh cap (no text or symbols)

1. Unplug the unit from the power supply,

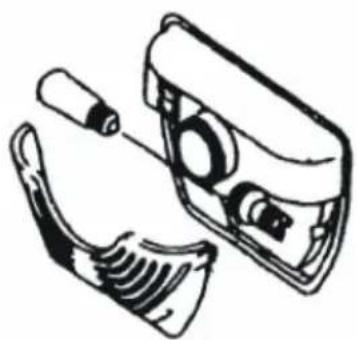

2. Press the hooks on the sides of the light cover top, and remove the light cover.
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

PART-5.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent the shake.

Simple line drawing of two children playing a board game (no text or symbols)

Repositioning the Door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.

PART-6.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on« 0 »position ,

- The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well levelled.
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of this appliance is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to weather the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays)Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.
• To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open)

Conformity Information

• Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Freezer compartment
B) Cooler compartment

1) Ice tray
2) Plastic ice scraper

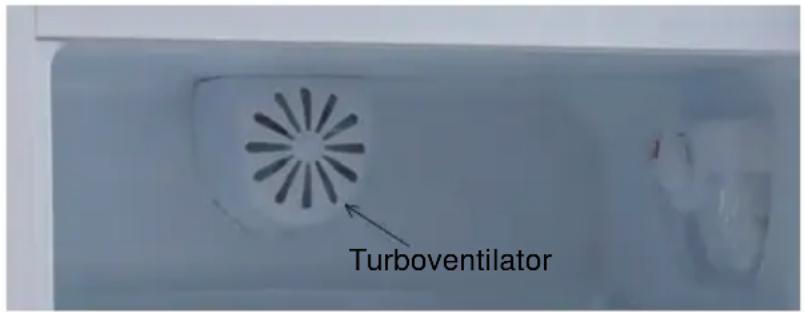

3) Turbo fan
4) Refrigerator shelf
5) Crisper cover
6) Crisper

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Inhalt

AUFSTELLUNG 16

Sicherheits Information 16

Hinweise 16

Illustration of three hands performing rope knotting techniques (no text or symbols)

Diagram of a microwave oven with open lid and side panel (no text or symbols)

Cartoon illustration showing a refrigerator with a sad face, its side profile, and a refrigerator with a smiling face (no text or symbols)

Vor Inbetriebnahme

Simple line drawing of a hand holding a smiling face icon next to a square (no text or symbols)

TEIL 2. FUNKTIONEN

Temperaturregelung

Line drawing of a projector casing with internal blades and a central lens (no text or symbols)

Illustration of a car's front window with tassels and a sun symbol (no text or labels)

Diagram of a device with a green indicator light and black arrow pointing to it (no text or symbols present)

Illustration showing three steps of a hand holding an abacus, with one being twisted and the other crossed out (no text or symbols present)

Simple line drawing of a hand reaching toward a box with a bird, no text or symbols present

Illustration of four cartoon kitchen appliances: a smiling refrigerator, a smiling refrigerator with eyes, a closed refrigerator with hands, and a distressed refrigerator (no text or symbols)

Illustration of a hand holding a cylindrical object inside a rack (no text or symbols)

Abtauen

Kühlteil;

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

Line drawing of a medical or surgical device with a bulb and attached tubing (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)
