USER MANUAL WA 1000/E Rommelsbacher

Abstract geometric pattern with vertical lines inside a circle (no text or symbols)

ROMMELSBACHER

D Bedienungsanleitung
GB Instruction manual
I Istruzioni per l'uso

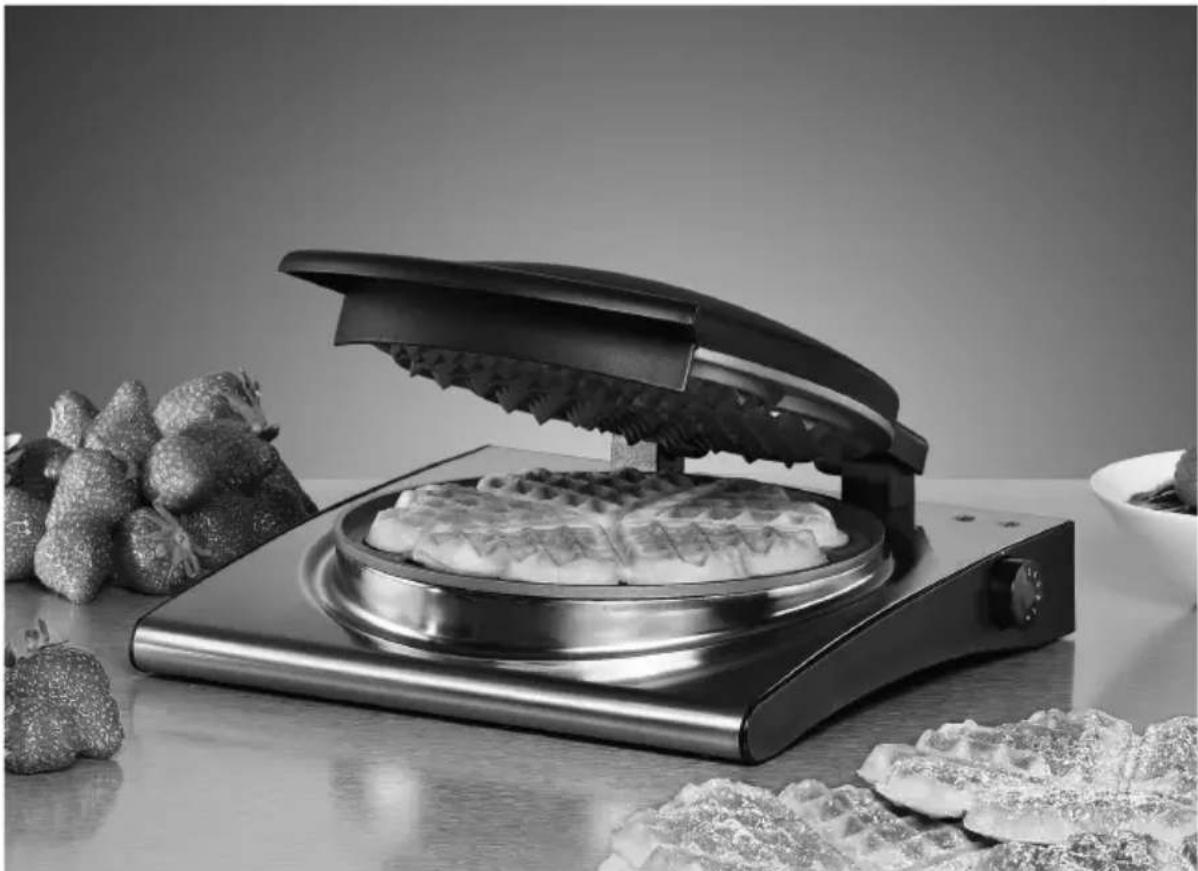

Black-and-white photo of a waffle grater with open lid, surrounded by fresh strawberries and dried fruit on a table (no text or symbols visible)

WA 1000/E WA 1005/R

Waffel Automat

Inhaltsverzeichnis

Seite

For your safety ....11

Introduction ......12

Intended use 13

Technical data ....13

Packing material 13

Prior to initial use 13

How to operate your appliance ....13

Cleaning and maintenance ....14

For your safety

WARNING: Read all safety advices and instructions. Non-observance of the instructions and safety advices may cause electric shock, fire and/or bad injuries!

General safety advices:

- Always keep children under 8 away from the product and the power cord.

- Children must not clean or maintain the appliance, unless they are older than 8 years and supervised.

- This appliance can be operated by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised or got proper instructions regarding the safe handling of the appliance. It must be ensured they understood the dangers which arise from using the appliance.

- Never leave the appliance unattended during operation.

- Children must not play with the appliance.

- Packing material like e. g. foil bags should be kept away from children.

- Do not operate this unit with an external timer or a separate telecontrol system.

- Prior to each use, check the appliance and the attachments for soundness, it must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by a specialist.

- When laying the power cord, make sure that no one can get entangled or stumble over it in order to avoid that the appliance is pulled down accidentally.

- Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.

- Do not misuse the power cord for unplugging the appliance!

- Never immerse the appliance, power cord and power plug in water for cleaning.

- Do not store or operate the appliance outside or in wet rooms.

- This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be effected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.

- Improper use and disregard of the instruction manual void all warranty claims.

Safety advices for using the appliance

WARNING: Hazard of injury and burns!

Casing, baking plates and other components are getting hot during use and firstly stay hot after switch-off!

Thus, act with caution:

• We recommend using pot cloths and appropriate cooking cutlery made from wood or plastic!
• Do not use the appliance's upper side as depositing rack or working top as it will get hot when operating the appliance! As protection against fire, do generally not put objects made of paper, plastic, fabric or other inflammable material on hot surfaces!
• Do not cover the baking plates with aluminium foil during use!
• Do not transport the appliance when hot. Appliance and accessories must have cooled completely before cleaning or moving them!

- Observe the following when setting up the appliance:

o Place the appliance on a heat-resistant, stable and even surface (no varnished surfaces, no table cloths etc.).
o Place it beyond children's reach.
o The space above the appliance should be free. Leave a ventilation distance of at least 4 cm to all sides to avoid damage by heat or vapour and to grant an unobstructed work area. Unhindered air supply has to be ensured.
Do not operate the appliance in the vicinity of sources of heat (oven, gas flame etc.) or in explosive environments, where inflammable liquids or gases are located.
- Pull the power plug after each use for safe switch-off.
- Do not use the appliance as space heater.

Introduction

We are happy that you have decided in favour of a Rommelsbacher appliance and thank you very much for your confidence. The simple handling, the super easy cleaning and the tasty baking results will certainly also fascinate you. To make sure you can enjoy using this appliance for a long time, please read through the following notes carefully and observe them. Keep this instruction manual safely. Hand out all documents to third persons when passing on the appliance. Thank you very much.

Intended use

The appliance is designed for preparing food. Other uses or modifications of the appliance are not intended and harbour considerable risks. For damage arising from not intended use, the manufacturer does not assume liability. The appliance is not designed for non-stop operation or commercial use.

Technical data:

Only connect the appliance to an isolated ground receptacle installed according to regulations. The rated voltage must comply with the details on the rating label. Only connect to alternating current.

Nominal voltage: 220-240 V \~ 50/60 Hz

Nominal power: 1000 W

Standby consumption: o W

Diameter baking surface: 18 cm

Dimensions appliance: 24 x 25 x 9 cm

Weight: 1.7 kg

Packing material

Do not simply throw the packing material away but recycle it.

Deliver paper, cardboard and corrugated cardboard packing to collecting facilities.

Also put plastic packing material and foils into the intended collecting basins.

02 PE-HD 04 PE-LD 05 PP 06 PS

In the examples for the plastic marking PE stands for polyethylene, the code figure o2 for PE-HD, o4 for PE-LD, PP for polypropylene, PS for polystyrene.

Prior to initial use

We recommend wiping the two non-stick baking plates with a damp cloth. Prior to the initial baking process, grease both baking plates slightly (oil or butter). For the protection of the coating, do not use any sharp objects.

Please do not be bothered by the slight formation of harmless smoke for a short time.

Important!

The coated baking plates are susceptible to scratches. Therefore, do not handle with pointed objects on the baking plate. Also observe the cleaning advices in this respect.

How to operate your appliance

1. Heating up

Connect the appliance to an outlet with alternating current. The appliance is now turned on. The red pilot lamp of the baking lights glows.

Open the appliance and grease both baking surfaces slightly with a brush. As the baking surfaces are non-stick coated they must only be greased at every first baking process, it is normally not necessary for further applications. Close the appliance.

Turn the temperature regulator clockwise to the middle position. When the specified temperature is reached, the baking light changes from red to green. The appliance is ready for baking.

2. Pouring in the dough

Now, pour the dough in the middle of the lower baking plate. Make sure to take the right dough quantity. If too much dough is poured in, it will run over and soil the appliance.

Close the appliance by slight pressure on the handle. Keep the cover closed and wait until most of the vapour has escaped. Thus, the waffle becomes evenly browned.

3. Baking

A few seconds after you poured in the dough, the baking light will change to red. The baking process starts. By means of the infinitely variable temperature regulator you can choose the

level of browning. At a lower setting you get lighter waffles and at a higher setting you get darker ones. In between there are stepless all desired levels of browning. When the baking process is finished, the baking light changes to green again. Simultaneously, the heating is interrupted. The baking process is finished.

As soon as you have taken out the waffle, the appliance can be filled with dough again immediately.

Pull the mains plug after baking. Only now the appliance is switched off.

Attention! Hazard of burns! Avoid touching hot appliance parts.

Cleaning and maintenance

ATTENTION: Hazard of injury and burns! Before cleaning, always unplug the appliance and let all parts cool down.

Never immerse the appliance in water and make sure no steam or water may infiltrate the underside! Never clean the appliance with or under water. Clean the still warm baking surfaces with a soft brush or a damp cloth the best. Never use pointed objects. They would scratch the non-stick coating.

On no account must you use steel wool, scrubbing pads, abrasives, solvents or oven cleaners! Never use a steam jet appliance for cleaning!

After the appliance has cooled down, wipe the casing with a damp, soft cloth. Rub it with a dry cloth afterwards.

Have a lot of fun when baking and enjoying!
