Product Type	Freestanding Electric Cooker
Brand	Nordmende
Model	CSE50WH
Dimensions (W x D x H)	50 x 60 x 90 cm
Net Weight (approx.)	55 kg
Power Supply	220-240V ~ 50/60Hz or 380-415V 3N ~
Total Power Consumption	Approx. 10-12 kW (depending on usage)
Number of Hotplates	4 (radiant)
Hotplate Control	7-position rotary switches (0-6)
Oven Type	Electric multifunction
Oven Functions	Static (lower+upper), grill, upper+grill, lower only, upper only
Oven Thermostat Range	Adjustable (max 190°C for grill)
Timer	Mechanical, 0-100 minutes with alarm
Oven Interior Light	25W, E14 socket, T300
Oven Capacity (approx.)	72 liters
Number of Oven Shelves	5 levels (including 1 wire grid)
Accessories Included	Oven tray, wire grid, grill, chicken turning spit (if applicable)
Cleaning	Enamel interior; wipe with soapy water; no abrasive cleaners
Safety Features	Thermal cut-out, child lock (supervision required), anti-tilt pan guard
Installation Type	Freestanding, floor-mounted
Supply Cord Connection	Fixed (hardwired); requires 3x2.5mm² for 220-240V or 5x1.5mm² for 380-415V 3N
Warranty	Manufacturer warranty (details in manual)
Energy Efficiency Class	Not specified

Frequently Asked Questions - CSE50WH NORDMENDE

How do I install the cooker?

Installation must be done by an authorized technician. Ensure at least 2 cm clearance behind the appliance for air circulation, and keep flammable materials away. The cooker must be placed on the floor, not on a base. Electrical connection must follow the wiring rules (e.g., 3x2.5mm² for 220-240V).

How do I clean the ceramic hob?

Wait until the hob cools completely. Use a cream or liquid detergent with a soft cloth or the supplied razor scraper for stubborn residues. Do not use abrasive powders or steel wool. Clean sweet spills immediately to prevent sticking.

How do I replace the oven lamp?

The oven lamp must be replaced by an authorized technician. The bulb is 230V, 25W, type E14, high temperature (T300). Disconnect the appliance from the power before replacement.

Why doesn't my oven heat up?

Check if the oven function switch and thermostat are set correctly. Ensure the timer is not set to '0' or 'M' position. For models with a timer, the clock must be set. If still not heating, contact authorized service.

Can I use aluminum foil in the oven?

It is not recommended to cover the oven bottom or heating elements with foil, as it may cause overheating and damage. You can use foil dishes on the shelf, but avoid contact with the oven walls.

How do I use the mechanical timer?

Turn the timer knob clockwise to set cooking time from 0 to 100 minutes. At the end, the oven turns off and a warning sound is heard. For continuous operation, set the knob to 'M' position.

What do the oven function symbols mean?

Common symbols: lamp (oven light only), lower+upper heaters (static cooking), grill (top heat only), upper heater+grill, lower heater only, upper heater only. Refer to the function table in the manual for precise symbols.

How do I prevent the glass lid from cracking?

Do not close the glass lid while the cooker is still hot. Wait until the hob and oven have cooled completely. Also, avoid spilling cold liquids on the hot glass surface.

What should I do if the hob surface is cracked?

Switch off the appliance immediately to avoid electric shock. Disconnect from power and contact authorized service for replacement.

Can children use the cooker?

This appliance is not intended for use by children or persons with reduced capabilities unless supervised. Keep young children away from the cooker during and after use as surfaces remain hot.

USER MANUAL CSE50WH NORDMENDE

We take offering quality products more than your expectation as a goal, offers you the products produced in modern facilities carefully and particularly tested for quality.

This manual is prepared in order to help you to use your appliance that is manufactured by the most recent technology, with confidence and maximum efficiency.

Before using your appliance, carefully read this guide that includes the basic information for right and safe installation, maintenance and use and contact to the nearest Authorized Service for mounting of your product.

CONTENTS :

1. PRESENTATION AND SIZES OF PRODUCT
2. WARNINGS
3. INSTALLATION AND PREPARATIONS FOR USE
4. USE OF YOUR OVEN
5. CLEANING AND MAINTENANCE
6. SERVICE AND TRANSPORT

PART 1 : PRESENTATION AND SIZES OF PRODUCT

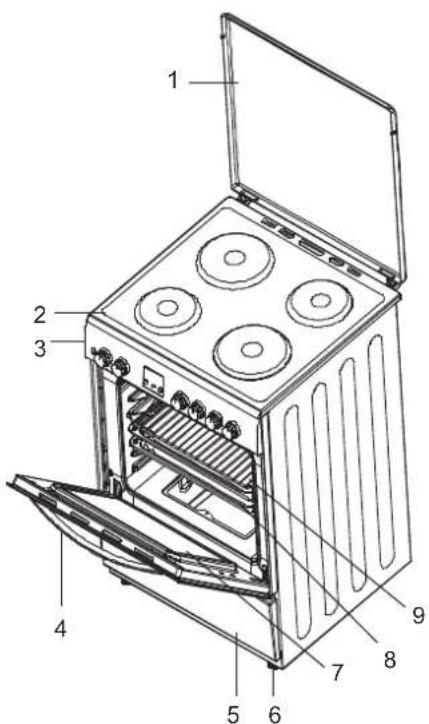

Line drawing of a four-circular kitchen appliance with a labeled component (13), no text or symbols present.

Part of List :

1- Cooktop Cover
2- Cooktop
3- Control Panel
4- Oven Door Handle
5- Drawer Cover
6- Supply Leg
7- Oven Door
8- Oven Tray
9- Wire Grid

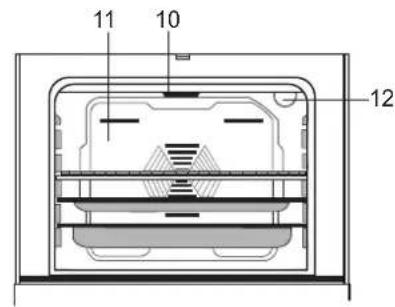

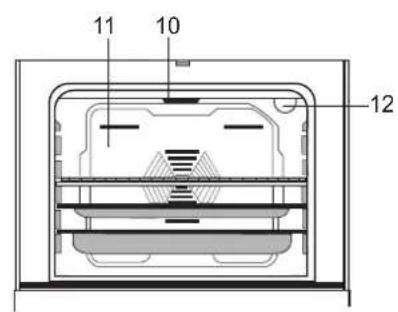

10- Front Resistance
11- Fan Store
12- Oven Lamp

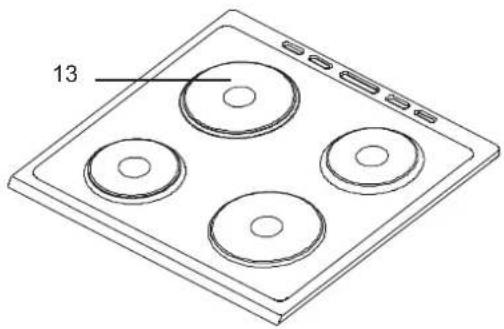

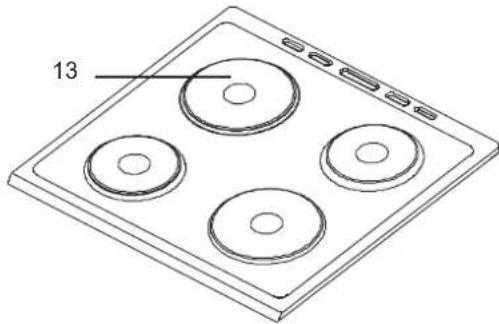

13- Hotplate

MODEL	SIZE(cm)
CSE50WH	50*60*90

PART 2: WARNINGS

TAKE ALL IMPORTANT SECURITY MEASURES AND READ THE MANUAL COMPLETELY BEFORE USING THE APPLIANCE

This appliance has been designed for non-professionel, domestic use only.
Surely control whether there is any damage after you unpacked the appliance. If there is any defect; do not use the appliance and immediately contact to the authorized maintenance service. As the materials used for package (nylon, stapler, strafoam, etc.) may cause harmful effects to children, they should be collected and removed immediately.
The appliance must be set up by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement.
Before connecting your appliance to the electric, carefully control whether it is appropriate for the features determined on the package and/or data plate on the appliance.
Compare the features of the electricity organization with the technical information on the presentation label before plugging the appliance in.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Before changing the oven's lamp, disconnect the appliance from supply.

Turn the appliance off before the operations such as cleaning or maintenance. You can do it after plugging it off or turning the main switches off

Some parts of appliance may hold its heat for a long time, it is required to wait for it to cool before touching onto the points that are exposed to the heat directly.

This appliance is not intended for use by persons(including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not keep flammable materials close while the appliance is operating.

Pay attention to the cables of the other electrical devices operating near the appliance, so as not to touch to hot points.

Pay attention the switches to be off position "0", when the appliance does not operate.

The glass lid that some models have may crack when they are exposed to extreme heat. Do not close the glass lid without being sure that the cooker is off and cooled completely.

This manual is prepared for more than one model in common. Your appliance may not have some of the features that is explained in manual. Pay attention to the expressions that have figures, while you are reading the operating manual.
In case of the visible cracks on the ceramic surface of the oven, switch off the oven.
During the use the appliance gets hot. Take special care to prevent touching of heating elements inside oven cavity.
During grilling mode the oven door should be closed.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
Before opening the lid covering the hotplates, take care that no liquids are on the top of the lid. The lid is to closed not earlier than hobs have been cooled down.
Take care that the lid is in correct position under operation.
In case that highlight-halogen heaters are installed as hob elements do not stare into the light.
In case that the oven will be placed on a socket steps must be resorted to prevent falling down of the oven from the socket.
A steam cleaner shall not be used.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

FOR EFFICIENCY AND SECURITY OF APPLIANCE, WE RECOMMEND YOU ALWAYS TO USE THE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED SERVICES WHEN IN CASE OF A NEED.

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

PART3 : INSTALLATION AND PREPARATION FOR USE

This modern, functional and practical oven, that was manufactured with the most quality parts and materials, will meet your needs in every respect. You must surely read this manual in order not to have any problem in future and to be able to have successful results. The following information are the required rules for right installation and service processes. It must be read especially by the technician who will install the appliance.

Contact to Authorized Service for mounting of your oven.

3.1 INSTALLATION OF OVEN

There are some factors that must be paid attention to while installing your oven. Surely pay attention to our below suggestions in order to be able to prevent any problems and/or dangerous situations that may occur later.
It can be placed close to other furniture on condition that in the area where the oven is set up, the furniture's height must not exceed the height of the cooker panel.
Pay attention not to place it near the refrigerator, there must be no flammable or in flammable materials such as curtain, waterproof cloth etc. that will begin to burn quickly, while selecting place for oven.
It is required there must be at least 2 cm blank space between the back cover of oven and wall for air circulation.
The furniture close to oven must be manufactured resistant to heat more than 50 C° of the room temperature.
If the kitchen furniture are higher than the pan which the oven's cookers are on, it must be at least 11 cm away from the oven's side.
The minimum heights from the oven's pan and wall cupboards and paddle boxes with fan over the oven, are shown as below. Thus, the paddle box must be at minimum 650 mm height from the cooker pan. If there is no paddle box, this height must not be less than 700 mm.
This appliance must only be installed directly on the floor and not on a base.

3.2 ELECTRIC CONNECTION AND SECURITY

During the electric connection, surely follow the instructions below.

The earthing cable must be connected to the terminal. You have to ensure the cable with insulation to be connected to the power source during the connection of cable. If there is not any appropriate earthed electric outlet in accordance with regulations in the place where the appliance will be installed, immediately contact to our authorized service.
The earthed electric outlet must be close to the appliance. Surely do not use the extension cord.
The supply cable must not touch to the hot surface of the product.
In case the supply cable is damaged, surely contact to Qualified Service. The cable must be changed by the authorized service.
The wrong electric connection may damage your appliance. Such damage is not in guarantee extent.
The appliance is adjusted as appropriate for 220-240 Volts and 380-415V 3N Volts of electricity. If the network electricity is different than this informed value, immediately contact to our authorized service.
The electric cable must not touch to the hot parts of appliance. The electric cable must not touch the back part of the appliance. Otherwise the electric cable of appliance may be damaged. And this situation may cause short circuit.
The producer firm declares that it has no responsibility against any kind of damages and losses that emanate from the following security norms.
Provide a means of disconnection from the supply having an air gap contact separation of at least 3mm in all active (phase) conductors. Such means of disconnection shall be incorporated in the fixed wiring according to the wiring rules.
The appliance is provided for fixed connection to the power supply. The connection of the appliance to an electrical source must be done by authorized technician.
For fixed connection, use the H05VV, H05V2V2 or H05RR type supply cord.
For fixed connection, use 3x2,5mm2 or 3x4mm2 sized cable according to appliances power and terminal box label.
Some appliances can be equipped with special plug (Perilex or Norplug). If it is necessary, change it with the same specified spare part.
Use 16A/400V 5 pin for perilex plug and 25A/250V for Norplug.
These plugs can be used only in some countries.

3.3 GENERAL WARNINGS AND MEASURES

Your appliance is produced in accordance with the related security instructions connected with electrical appliance. The maintenance and repair works must be made just by the authorized service technician who is trained by the producer firm. The installation and repair works whitout following rules may endanger you.
Its outside surfaces heat while your appliance operates. The interior surfaces of oven, components that ensures the heat and steam that goes out are quite hot. Even if the appliance is turned off, these parts hold its heat for a specific time. Do not touch onto the hot surfaces. Keep children away.
Do not leave the cooker while cooking with solid or liquid oils. There may be flaming up on condition of extreme heating. Never pour water to the flames occurring from oil. Cover the saucepan or frypan with its cover in order to choke the flame that was occurred in this case and turn the cooker off.
The oven and heat adjustment switches must be adjusted and oven's clock must be programmed for cooking in your oven. Otherwise the oven does not operate.
Do not leave anything on it when the door or drawer of oven is open. You may unbalance your appliance or break the cover.
Do not put heavy things or flammable, burnable goods (nylon, plastic bag, paper, cloth etc.) into the lower drawer.
Plug it off when you do not use the appliance.
- Protect your appliance against atmospheric effects. Do not leave it to effects such as sun, rain, snow, powder etc.

3 x 2.5 mm² 220 V\~
3 x 2.5 mm² 230 V\~
3 x 2.5 mm² 240 V\~

5x1.5 mm² 380 V 3N\~
5x1.5 mm² 400 V 3N\~
5x1.5 mm² 415 V 3N\~

Empty rectangular frame with no text, numbers, or symbols inside

4.1 GENERAL APPEARENCE AND TECHNICAL FEATURES OF YOUR OVEN

YE 56
LOWER HEATER	1000 WATT
UPPER HEATER	1000 WATT
GRILL	1600 WATT
TURBO HEATER	2000 WATT

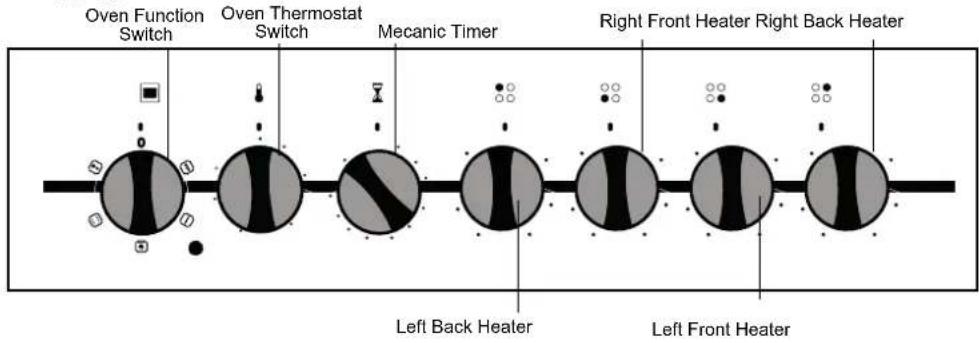

4.2 PRESENTATION AND FEATURES OF THE CONTROL PANELS

YE 56

4.3 USE OF HOTPLATES COOKERS

The electrical cooker is commanded by 7 graded switches. "0" of the grades is off location. The use fields in response to other 6 grades are below.

1..... Keeping hot location
2-3.....Heating locations at low heat
4-5-6..Cooking - roasting and boiling locations

The upper part of hotplates is covered by a protective material resistant to heat. Turn the switch of the electrical cooker to "3" and then operate the cooker for 5 minutes in order to burn and so to toughen the protective layer at first use. During use of electrical cookers, it is required to pay attention to the used saucepans to have smooth bases. If appropriate sized and smooth based saucepans are used, you can get the most efficiency from your cooker. It is not suggested to use the little size saucepans on the big size cooker, because this will cause heat loss and so energy will be wasted.

Surely control that your cooker is off, the control switch is at "0" location after cooking. Also never touch it as the cooker will be hot for a specific time after it was turned off. Do not let children to come close to it.

Clean the electrical cooker with a wet cloth after using the electrical cooker. If there is excessively getting dirty situation, you can clean it with water with detergent rather well.

Heat for a few minutes for the upper part to dry after cleaning. If you will not use its upper part for a while, ensure to occur a thin oil layer as oiling with machine oil.

4.4 Use of Mechanical Timer

L

Manual Operation

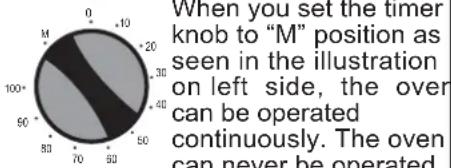

When you set the timer knob to "M" position as seen in the illustration on left side, the over can be operated continuously. The oven can never be operated, when the timer knob is in "0" position.

Operation with time set

Turn the timer knob in clockwise direction in order to set time between 0-100 minutes as seen in figure on right side. When the adjusted time ends, oven is turned off and a single warning sound is heard.

L

4.4.1 Use of Oven Function Switches

This switch allows you to select the oven functions. The functions and their grades are shown at the following table. Also, the detailed instructions and their uses will also be explained in details in the next pages.

Your oven's lamp starts to operating.

Your oven's thermostat and warning lamps and lower and upper heaters start operating.

Your oven's thermostat and warning lamps and grill heater and chicken turning function start operating.

Your oven's thermostat and warning lamps and upper heater, grill heater and chicken turning functions start operating.

Your oven's thermostat and lamps, lower heater operate

Your oven's thermostat and lamps, upper heater operate

Lower - Upper Heater Function (Static Cooking)

At this cooking that is defined as the traditional method, the heat that is spreaded from the lower and upper heating elements into your oven equally, ensures the food's bottom and top to be cooked equally.

It is recommended to make pre heating for 10 minutes. Leave the food that was put into the available cooking dish to be cooked in recommended period case. The Lower-Upper Heater location is the function that is preferred to cook cake, sponge cake, flan, spaghetti in oven, lasagna, pizza.

At the end of cooking process, turn the oven's switch and heat set up switch off and cancel the time program. Take the cooked food from the oven, put onto a safe place and open the oven's door and ensure the oven is cool completely. As the oven will be hot at that moment, stay away from the oven and keep your children away from the oven.

Grill Function

This function is used to grill. To grill, place the food onto the grill, also the grill onto the shelf at toppest level. You can start to grill after placing the oven tray onto the 3rd Shelf. The tray that is placed onto the 3rd Shelf will ensure the collection of oils that drop from food.

Turn your oven's heat set up switch as it will show the sign of this function. Place your food into the oven after pre heating of 5 minutes.

At the end of cooking, as in all other cooking processes; turn off the oven's switch and heat set up switch. Cancel the oven's time program and take the cooked food from oven and leave onto a safe place. Do not come close to the oven until it will cool and keep children away.

Warning: Max. set of thermostat 190°C

Upper heater and Grill Function

This function is used to grill. To grill, place the food onto the grill, also the grill onto the shelf at toppest level. You can start to grill after placing the oven tray onto the 3rd Shelf. The tray that is placed onto the 3rd Shelf will ensure collection of oils that drop from food.

Turn your oven's heat set up switch as it will show the sign of this function. Place your food into the oven after pre heating of 5 minutes.

At the end of cooking process, as in all other cooking processes; turn off the oven's switch and heat set up switch. Cancel the oven's time program and take the cooked food from oven and leave onto a safe place. Do not come close to the oven until it cools and keep children away.

Warning: Max. set of thermostat 190°C

Lower Heater Function

At this cooking the best is spreaded from the lower heating element. Lower heating function is appropriate for heating the food instead of cooking.

Upper Heater Function

At this cooking the best is spreaded from the lower heating element. Upper heating function is appropriate for heating the food instead of cooking.

Energy Saving

• During use of electrical cookers, it is required to use saucepans having flat bases.
• Choose a cookware of proper size.
• Using a lid will reduce cooking times.
• Minimise the amount of liquid or fat to reduce cooking times.
• When liquid starts boling, reduce the temperature setting.
• Oven door should not be opened often during cooking period.

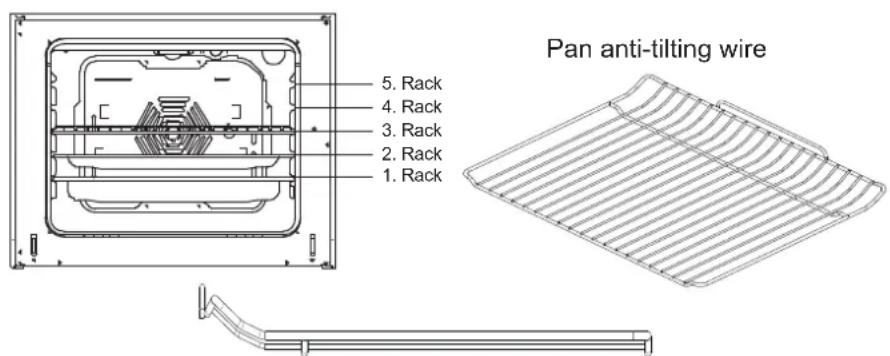

4.4.2 Accessories Used in Oven

You can use glass dishes, cake molds, special oven trays that are appropriate for use in oven, that you are able to assure in market, apart from the oven trays and grill wire chicken roasting skewer that are given together with your oven. Pay attention to the information related to the subject that were given by the manufacturer firm. In case small size dishes are used, place the dish onto the grill wire, as it will completely be on the middle part of the wire. The following information must also be followed for the enameled dishes.

If the food that will be cooked does not cover the oven tray completely, if the food is taken from the deep freezer or the tray is being used for collection of food's juices that flow during grilling, the form changes can be observed in tray because of the high heat that occur during cooking or roasting.

The tray will return to its old form only when the tray cooled after cooking. This is a normal physical event that occurs during heat transfer.

Do not leave this tray or dish in cold environment right away after cooking in glass tray or dish. Do not put onto the cold and wet grounds. Place on a dry kitchen cloth or dish cross, ensure it to cools slowly. Otherwise the glass tray or dish may be broken.

If you will grill in your oven; we recommend you to use the grill that was given in tray together with product. ( If your product includes this material ) So, the oils that spatter and flow, will not dirty the inside of oven. If you will use the big wire grill; put a tray onto one of the lower shelves for oils not to be collected. Also put some water into it for cleaning easiness.

Use 3th and 4th shelves while grilling and oil the grill for the ingredients that you will grill not to stick to the grill.

• To locate grid correctly in the cavity,

put it to any rack and push the grid up to the end.

- The pan anti-tilting wire must be placed inside of the cavity.

PART 5 : CLEANING AND MAINTENANCE OF YOUR OVEN

5.1 CLEANING

Be sure that all control switches are off and your appliance cooled before cleaning your oven. Plug off the appliance.

Control whether they are appropriate and recommended by the manufacturer before using the cleaning materials on your oven. As they may damage the surfaces, do not use caustic creams, abrasive cleaning powders, thick wire wool or hard tools. In case the liquids that overflows around your oven burn, the enameled place may be damaged. Immediately clean the overflow liquids.

Cleaning of Inside of Your Oven

Surely plug off the oven before starting cleaning.

The inside of enameled oven is cleaned in the best way when the oven is warm.

Wipe the oven with a soft cloth that had been hemmed in soapy water after each use.

Later wipe it with a wet cloth once more and then dry it. It may be required to use a liquid cleaning material from time to time and make a complete cleaning. Do not clean with dry and powder cleansers.

Cleaning of Your Oven's Cover

In order to be able to clean the cover of your oven from inside and outside, use a glass cleaner. Then rinse, dry it with a dry cloth. The cover can be pulled out for cleaning as shown in the following figure.

* Open the cover completely.
* Pass the metal pin through the holes as shown on picture
* Do this process for both hinges.
* Lift up the cover slightly, pull towards the outside smoothly. The cover will completely come out.
* Again place it into hinge holes while pinning the cover to its place.

Do not clean the oven's cover while the glass panels are hot. In case this measurement is not taken, the glass panel may brake down. Contact to Authorized Service when any problem occurred.

Cleaning Vitroceramic Cooker

Before starting cleaning wait for Vitroceramic cooker completely cool down. Be sure that cleaning material does not contain any particles which may cause to scratch glass. Use cream or liquid detergent. Vitroceramic surface must be cleaned with cold water and dried with soft cloth in a way that no cleaning material may be left. Use pallet provided with your product for cleaning food or residues. Sweet type food must be cleaned right after they are spilled before glass cools down. Steel cleaning material may damage Vitroceramic glass. Dust on the surface must be cleaned with wet cloth. Color change on ceramic surfaces does not effect functional structure and durability of Vitroceramic.

Color change is caused by not cleaning the residues, erosion due to casseroles and using not appropriate cleaning materials and is not due to material change. Cleaning pallet must always be used before applying chemicals. With this pallet you can clean even the smallest dirt on the surface. Materials that are hard to clean like liquified plastic, oil and sweety materials can be cleaned with pallet easily. Your pallet is dangerous because it is equipped with razor therefore it must be kept away from children. Be careful not to scratch silicon adhesive placed on the edges of the glass while using pallet.

5.2 MAINTENENCE

Change of Oven Lamp

The change of oven lamp must be done by authorized technician. The rating the ampoule should be 230V, 25Watt, Type E14, T300 before changing the lamp, the oven should be plugged off and it should be cool.

PART 6 : SERVICE AND TRANSPORT

6.1 Requirements Before Contacting to Service

If the oven does not operate;

The oven may be plugged off, there has been a blow-out. On models fitted with a timer, time may not be regulated.

If the oven does not heat;

The heat may be not adjusted with oven's heater control switch.

If the interior lighting lamp does not light;

The electricity must be controlled.

It must be controlled whether the lamps are defective. If they are defective, you can change them as following the guide.

Cooking ( if lower-upper part does not cook equally ) ;

Control the shelf locations, cooking period and heat values according to the manual.

Except these, if you still have any problem with your product, please call to the "Authorized Service".

6.2 Information Related to Transport

If you need any transport;

Keep the original case of product and carry it with its original case when needed to be carried. Follow the transport signs on case.

Tape the cooker on upper parts, hats and heads and saucepan carriers to the cooking panels.

Place a paper between the upper cover and cooking panel, cover the upper cover, then tape it to the side surfaces of oven.

Tape cardboard or paper onto the front cover on interior glass of oven as it will be suitable to the trays, for the wire grill and trays in your oven not to damage to the oven's cover during transport.

Also tape the oven's covers to the side walls.

If it does not have the original case;

Take measure for the external surfaces (glass and painted surfaces) of oven against possible blows.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NORDMENDE™

CSE50WH

Line drawing of a four-cylinder appliance with labeled component '13' (no text or symbols on the appliance itself)

Teileliste:
