Product Type	Freezer
Brand	Nordmende
Model	RTF245WHA
Voltage	220-240 V / 50 Hz
Climate Class	T, ST, N, SN (ambient temperature between 10°C and 43°C)
Thermostat Settings	0 (off), 1-2 (short-term storage), 3-4 (long-term storage), 5 (super freezing)
Display Panel	Green (power), Red (insufficient cooling), Orange (super freezing active)
Super Freezing Function	Yes (thermostat position 5)
Fast Freezing Shelves	Yes (middle drawers)
Defrosting Method	Manual; use plastic scraper, do not use sharp or mechanical devices
Door Reversal	Possible (consult after-sales service)
Condenser Cleaning	Yearly with broom to ensure energy saving

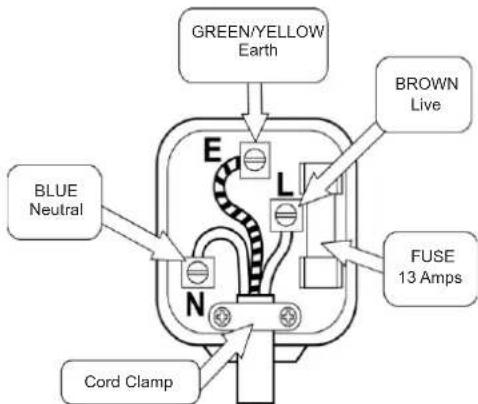

Power Plug	13A 3-pin plug, fused (UK style)
Refrigerant	R600a (isobutane) – combustible, handle with care
Storage Duration	Up to 3 months for frozen food from purchase date
Fresh Food Freezing Capacity	Refer to appliance label (maximum kg per 24h)
Accessories Included	Ice tray, plastic scraper
Cleaning Instructions	Disconnect power, use bicarbonate solution, do not use abrasive products
Installation Clearances	At least 50 cm from heat sources, 15 cm top, 2 cm side distance from other freezers
Warranty	Refer to purchase documentation

Frequently Asked Questions - RTF245WHA NORDMENDE

How do I set the thermostat for optimal freezing?

Rotate the knob from 1 to 5. For long-term storage, use positions 3-4. For fast freezing fresh food, set to 5 (Super Freeze) for 24 hours, then return to a lower setting.

What do the indicator lights mean?

The green lamp indicates power is on. The red lamp indicates the freezer is not cold enough. The orange lamp lights when Super Freeze is active.

How to defrost the freezer?

Disconnect the appliance. Remove food and wrap in blankets. Use a plastic scraper to remove ice. Do not use metal or sharp tools. Place bowls of warm water to speed up. Clean and dry thoroughly before restarting.

Can I reverse the door opening direction?

Yes, but it is recommended to consult the domestic after-sales service for assistance.

How often should I clean the condenser?

Clean the condenser (back of the appliance) with a broom once a year to improve energy efficiency.

What should I do if the red lamp stays on?

Set the thermostat to position 5 (Super Freeze) until the red lamp turns off. Then return to a normal setting. Check if food has thawed and consume soon if needed.

Is it safe to store bottled drinks in the freezer?

No, do not place glass bottles or tin cans with gassy liquids in the freezer as they may burst. Bottles with high alcohol content must be sealed well and placed vertically.

How to clean the interior?

Disconnect power. Clean with a solution of warm water and bicarbonate of soda. Rinse with clean water and dry thoroughly. Do not use abrasive products.

What to do if the appliance doesn't start?

Check that the green lamp is off, the main switch is on, thermostat is not set to 0, and the socket works by testing another device. If still not working, call service.

How to prepare for a long period of non-use?

Unplug the appliance or set thermostat to 0. Clean the interior, leave the door open to prevent mold and odor.

USER MANUAL RTF245WHA NORDMENDE

Safety Instructions 2

Recommendations 3

Installation and Switching On The Appliance 4

Before Switching On 4

THE VARIOUS FUNCTIONS AND POSSIBILITIES .... 5

Thermostat Setting 5

Display Panel 6

ARRANGING FOOD IN THE APPLIANCE ....7

CLEANING AND MAINTENANCE ....8

Defrosting the Freezer compartment 9

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION .... 10

Changing of Door Opening Direction 10

BEFORE CALLING YOUR AFTER SALES SERVICE .... 10

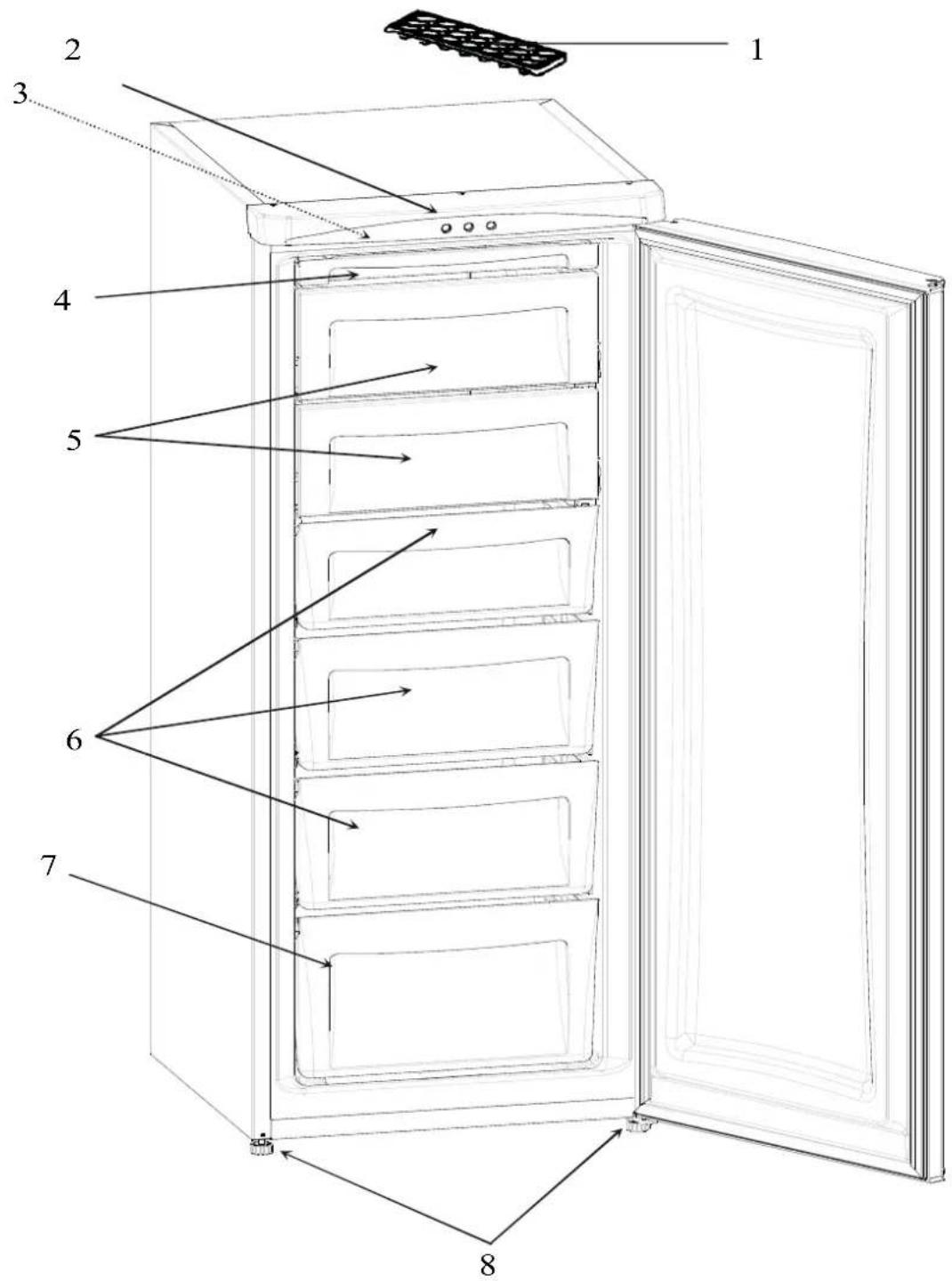

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 12

PART 1. BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clearofobstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the freezer.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Symbolic illustration of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use adapters or shunts which could cause overheating or burning.
• Do not plug old, warped power supply cables.
• Do not twist and bend the cables.

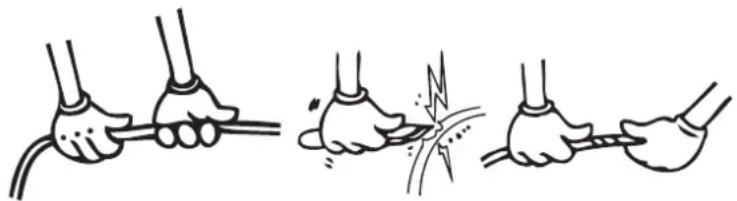

Illustration showing three different techniques for using a tool to prevent a fracture (no text or symbols present)

• Do not allow children to play with the appliance. Children must NEVER sit on drawers/shelves or hang from the door.
• Do not use sharp metal objects for removing ice on the freezer compartment; they could puncture the freezer circuit and cause unrepairable damage to the unit. Use the plastic scraper provided.
• Do not plug the power supply with wet hands.
• Do not place containers (glass bottles or tin containers) of liquids into the freezer especially gassy liquids as they could cause the container to burst during freezing.
• Bottles that contain a high percentage of alcohol must be sealed well and placed vertically in the freezer.
• Do not touch the cooling surfaces, especially with wet hands as you could be burnt or hurt.
• Do not eat ice, which have just been removed from the freezer.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Cartoon illustration of an electric plug with a sad face and lightning bolt (no text or symbols)

Cartoon illustration of a character peeking out of a door, with arms and legs open (no text or symbols)

Simple line drawing of two bottles and a glass with explosion effects (no text or symbols)

Installation and Switching On The Appliance

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system at your home.

- This appliance is connecting to 220-240V and 50 Hz.

- You can offer help from the service to install and switching on the appliance.

- If the socket does not match the freezer plug, replace the socket with a suitable one (at least 16 A). Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorised electrician for assistance.

- The plug should be accessible after the appliance is positioned.

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- Do not place the appliance in direct sunlight. Do not use the appliance in open air and shall not be exposed to the rain.

- Place the freezer far from heat sources and in a well-ventilated position. The freezer should be at least 50 cm from radiators, gas or coal stoves and 5 cm far from electrical stoves. Keep the top free for at least 15 cm.

- Fit the plastic wall spacers to the condenser at the back of the freezer in order to prevent leaning to the wall for good performance.

- Do not place heavy and lots of things on the appliance.

- If the appliance is installed next to another freezer, observe a minimum distance of 2 cm to prevent condensation.

- The appliance must be stand firmly and level on the floor use the two front levelling-feet to compensate for an even floor.

- The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying replace all the accessories.

- The appliance is not intended for use by people (including children) with reduced physical, sensor yor mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a preson responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed person.

Before Switching On

- Wait 3 hours before plugging the appliance in to the main power to ensure proper performance.

- There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.

Simple line drawing of a smiling face on a square object held by a hand (no text or symbols)

PART 2. THE VARIOUS FUNCTIONS AND POSSIBILITIES

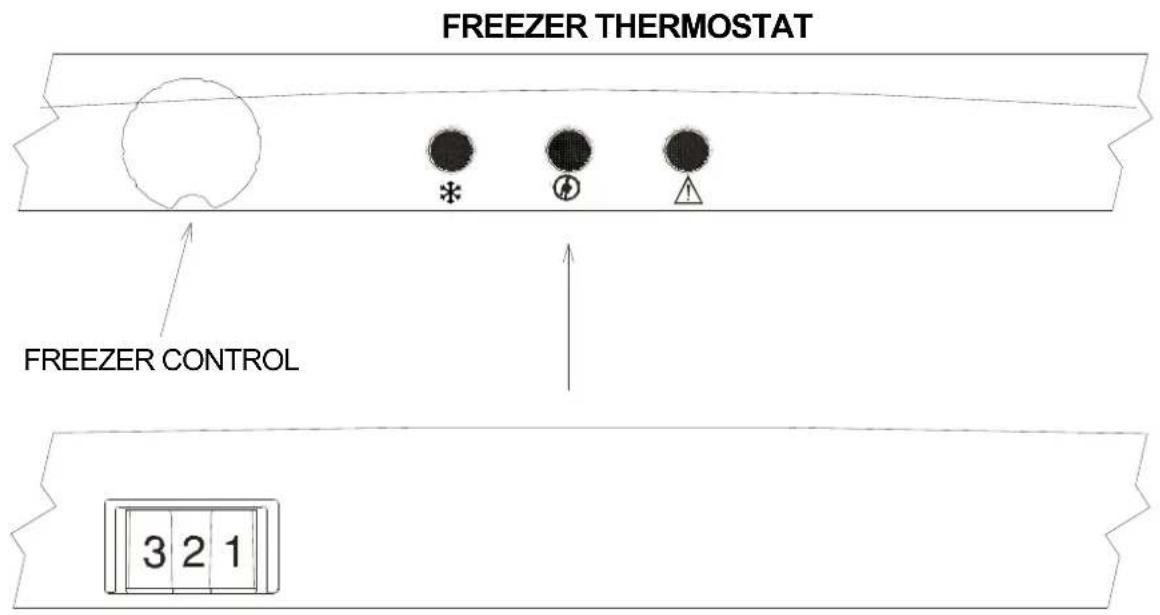

Thermostat Setting

Freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position "1" to "5", colder temperatures can be obtained.

Freezer Thermostat Setting;

0 : This position shows thermostat is closed and no cooling is available.

1-2: For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.
3-4: For long-term storage of food in the freezer compartment, you can set knob medium position.
5 : "SUPER FREEZING" For freezing the fresh food. The appliance will work longer. So after you get the cold condition you must position to previous position.

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the freezer compartment. If required, change the temperature setting.

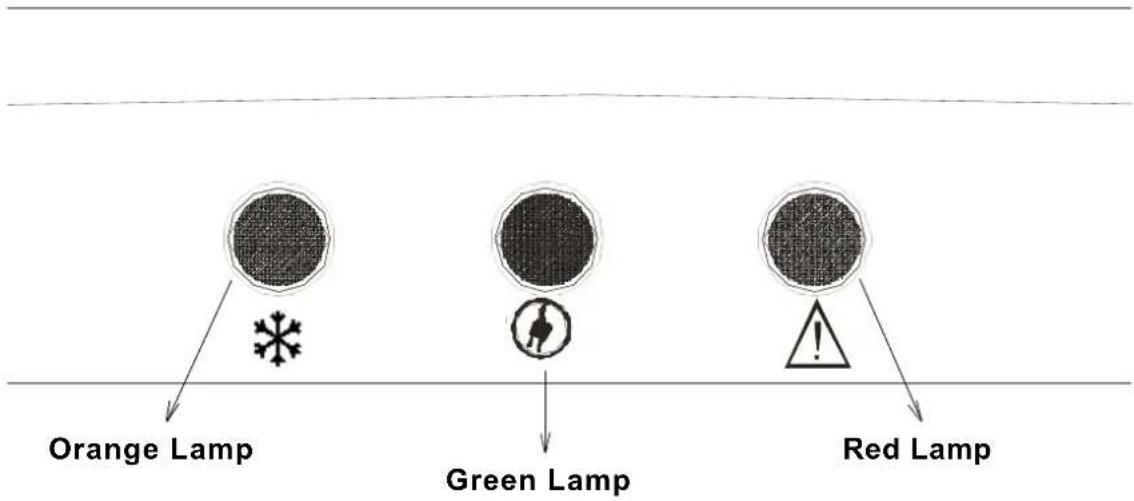

Display Panel

ORANGE LAMP: When the “Super Freezing” operation is on (thermostat dial is in 5 position), the orange lamp will turn on.

GREEN LAMP: When the appliance is connected to the power supply, the green lamp on the display panel will turn on automatically.

RED LAMP: When the freezer compartment is not cold enough, the red lamp will turn on. Set the thermostat dial to 5 position("Super Freeze") until the red lamp is off. After you get the cold condition you must position to previous position. Check the frozen foods. And if the foods gets thaw, remember to consume them in a short period of time.

Turning On The Appliance

Once the appliance has been connected to the power supply make sure that the RED lamp is on. Then turn the freezer thermostat dial to position 5 “SUPER FREEZING” until the red lamp is off (Note that; for best internal temperature the indicator in the freezer thermostat should be positioned between 2 and 4.)

• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
  • In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

PART 3. ARRANGING FOOD IN THE APPLIANCE

• The use of freezer is, storing of deep-frozen or frozen food for long periods of time and making ice cubes.
• Use the fast freezing shelf to freeze home cooking (and the food which is wanted to freeze) more quickly because of the freezing room's greater freezing power. Fast freezing shelves are the middle drawers of the freezer compartment (see in page 12)
• Do not put fresh and warm food to the freezer door shelves to be frozen. Only use for storage of frozen food.
• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.
• While freezing fresh food (i.e. meat, fish and mincemeat) divide them in parts in order to use in one time.
• For storing the frozen food; the instructions shown on frozen food packages should always be followed carefully and if no information is provided, food should not be stored for more than 3 months from the purchased date.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.
• While freezing food; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, turn the thermostat knob to position Super Freeze 24 hours before placing fresh food in the freezer
• After placing fresh food in the freezer, 24 hours on Super Freeze function is generally sufficient, After 24 hours, deactivate the Super Freeze function.

Attention; In order to save energy, When freezing small amounts of food, the Super Freeze function can be deactivated.

PART 4. CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The freezer compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

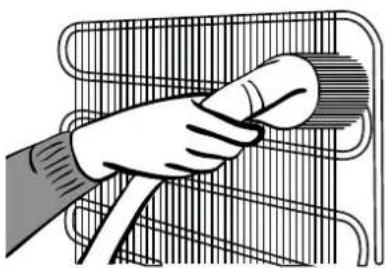

• You should clean the condenser (back of the appliance) with broom ones a year in order to provide energy saving and increase the productivity.

Cartoon illustration of a smiling refrigerator with hands, accompanied by a small bottle and a mug (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands giving thumbs up and a bowl of food (no text or symbols)

Illustration of a hand cleaning a mesh structure (no text or symbols)

THEPOWERSUPPLYMUSTBEDISCONNECTED.

Defrosting the Freezer compartment

Freezerdefrostprocess

• Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal. This might allow air to penetrate the cabinet, thus encouraging continuous running of the compressor. Thin frost formation is quite soft and can be removed with a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. Remove all dislodged frost from the cabinet floor .For the removal of thin frost it is not necessary to switch off the appliance.
• For the removal of heavy ice deposits disconnect the appliance from the mains supply and empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep them cold. Defrosting will be most effective if carried out when the freezer is nearly empty, and it should be carried out as quickly as possible to prevent undue increase in temperature of the contents.
• Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. An increase in temperature of frozen food packages during defrosting will shorten the storage life. Provided that the contents are well wrapped and placed in a cool area they should keep for several hours.

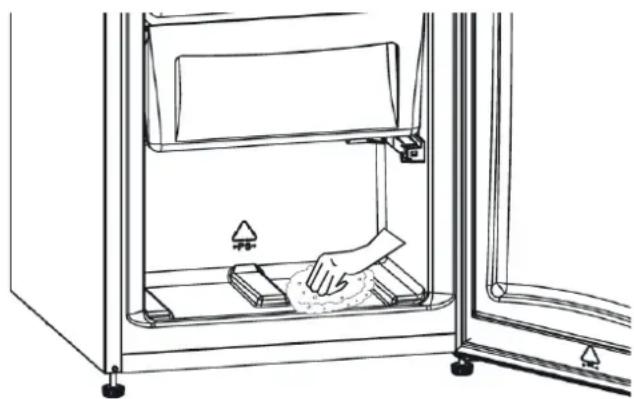

Line drawing of a door with a hand cleaning a slotted object inside, no text or symbols present

• Dry the inside of the compartment with a sponge or a clean cloth.
• To accelerate the defrosting process place one or more basins of warm water in the freezer compartment.
• Examine the contents when replacing them in the freezer and if some of the packages have thawed out it should be eaten within 24 hours or be cooked and re-frozen.
• After defrosting has finished clean the inside with a solution of warm water with a little bicarbonate of soda and then dry thoroughly. Wash all removable parts in the same way and reassemble. Reconnect the appliance to the mains supply and leave for 2 to 3 hours on setting number 5 before introducing the food back into the freezer.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.

- Before transporting or changing old installation position, all the moving objects (i.e. shelves, crisper...) should be taken out or fixed with bands in order to prevent the shake.

Simple line drawing of two children playing a large block together (no text or symbols)

Changing of Door Opening Direction (For some models)

In case you need to change door-opening direction, please consult the domestic after sales service.

PART 6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your freezer is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your appliance does not operate;

Check that;

• There is no power, (GREEN lamp is off)
• The general switch in your home is disconnected,
• The thermostat setting is on « 0 » position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your appliance performs poorly; (Red lamp is on)

Check that;

• You have not overloaded the appliance,
• The freezer thermostat settings is "1" position (if so set the thermostat dial suitable value)
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If your freezer is not cooling enough;

Your freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your freezer out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Recommendations

• If the appliance is not used for long time (for example during the summer holidays) unplug or set the thermostat dial to "0" position and clean the appliance and leave the door open to prevent the formation of mildew and smell.
• To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open)

Conformity Information

• Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1. ICE TRAY
2. DISPLAY PANEL

3. FREEZER THERMOSTAT DIAL
   4.ICETRAYCOMPARTMENTSHELF

4. FREEZER ROOM COVER

5. FREEZER COMP. DRAWER
6. FREEZER COMP. BOTTOM DRAWER
7. LEVELLING FOOT

PART - 8.

ELECTRICAL CONNECTION (UK ONLY)

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Inhalt

BEVOR SIE DAS GERÄT BENUTZEN 15

Illustration of three hands performing a cable-cutting operation (no text or symbols present)

Cartoon character holding a large open book (no text or symbols visible)

Two identical diagrams showing a container with a bag and a handle, placed on coiled surfaces (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a mortar (no text or symbols)

Vor dem Einschalten

Simple line drawing of a hand holding a smiling face emoji next to a square (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands, accompanied by a paint bucket and a bag (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

Illustration of a hand holding a cylindrical object inside a container (no text or symbols visible)

ZIEHEN SIE DEN NETZSTECKER AUS DER STECKDOSE.

Line drawing of a hand cleaning a clean material inside a 3D printer (no text or symbols)

Simple line drawing of two children playing a game with a board (no text or symbols)

Symbol of a trash bin crossed with no text or labels
