Product Type	Range Hood (Designer Hood)
Brand	Elba
Model	Covo 669/90GP
Color	Black with Glass Panel
Width	890 mm
Depth	480 mm
Height (Adjustable)	570 - 970 mm (with chimney)
Rated Voltage	220-240 V / 50 Hz
Motor Power	250 W (optional 200 W)
Suction Power	Up to 1,400 m³/h
LED Lighting	2 x 2 W (replaceable)
Speed Levels	6 (touch control with slider)
Control Type	Touch Sensor with Slider and Buttons
Timer Function	Yes (delay off up to 9 minutes, timer up to 60 minutes)
Filter Type	Metal Grease Filter (aluminum) + Charcoal Filter (optional)
Installation Type	Ducted or Recirculation (with charcoal filter)
Minimum Distance from Hob	300 mm (electric) or 650 mm (gas)
Safety Features	Auto shut-off after 60 seconds in standby; delay off; overheat protection
Cleaning	Metal filter washable in hot soapy water; hood body with damp cloth and mild detergent
Warranty	Refer to warranty certificate

Frequently Asked Questions - Covo 669/90GP Elba

How do I install the Elba Covo 669/90GP range hood?

Installation must be carried out by a qualified technician. The recommended height above the hob is 300-350 mm for electric hobs or 650-700 mm for gas hobs. Drill holes at 250 mm and 350 mm spacing, use expanding tubes and screws to fix the hood, then connect the exhaust pipe and duct covers. Ensure the hood is level and the ducting is airtight.

How do I clean the metal grease filter?

Remove the filter by pushing the clip and pulling it out. Wash it in hot soapy water, dry thoroughly, and reinstall. Do not operate the hood without the filter. The filter can also be cleaned in a dishwasher if desired.

How do I replace the LED lamp?

Turn off the hood and unplug it. Use a flat-head screwdriver to pop out the lamp subassembly. Disconnect the wires, remove the lamp cover screws, and replace the 2W LED bulb. Reassemble in reverse order. Ensure the lamp is cool before handling.

What is the suction power of this hood?

The suction power is up to 1,400 m³/h, with motor power of 250 W (or 200 W for some variants). The actual performance depends on ducting length and bends.

How do I use the timer function?

When the motor is running, touch the timer button (D on some models) to set the operating time. Each touch increases by 1 minute up to 60 minutes. The hood will automatically turn off after the set time. For delay off, touch C when motor is running to enter delay mode, then keep touching C to add 3 minutes each (max 9 minutes).

Can I use the hood in recirculation mode?

Yes, you can use the hood without ducting by installing the charcoal filter (supplied). This reduces suction performance slightly. The air outlet must not be connected to flues or ventilation ducts for combustion appliances.

What are the safety features of the Elba Covo 669/90GP?

The hood has an auto shut-off function: if you touch the standby button once when the motor is running, it will turn off after 60 seconds. Touching it twice stops immediately. It also has overheat protection and requires the metal grease filter to be installed at all times.

Why is my hood not working after installation?

First, check if the power cord is plugged in and the mains voltage matches (220-240 V). Ensure the hood is properly connected to the electrical supply. If the control panel is unresponsive, try resetting the unit by disconnecting power for 1 minute. If the issue persists, contact a qualified technician.

What is the noise level of this range hood?

The manual does not specify exact noise levels. However, range hoods of this type typically operate around 50-65 dB depending on speed. For precise information, refer to the product specification sheet or contact Elba support.

How do I clean the exterior of the hood?

Use a damp cloth with hot water and a mild detergent. Do not use abrasive cleaners, steel wool, or harsh chemicals. For the glass panel, use a soft cloth to avoid scratches. Clean the oil cups when half-filled to prevent spills.

USER MANUAL Covo 669/90GP Elba

Line drawing of a kitchen air conditioner unit with a chimney and ventilation duct (no text or symbols)

ELBA

DESIGNER HOOD

MODEL: COVO 669/90GP

COVO 668/90

CASA 679/90

COVO 779/90

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

*Product image is for illustration purpose only. Actual product may vary depending on the model.

ELBA

Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.

SAFETY PRECAUTIONS

1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision.
2. To protect against the risk of electrical shock, do not immerse the product, cord or plug into water or any other liquid.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced physical, sensory or mental capabilities unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. If the power cord or plug has damaged, it must be replaced by the service centre or a qualified service technician to avoid hazard.
6. Before installation, check if the mains supply voltage is matched with the voltage stated on the rating plate of the hood.
7. There must be adequate air ventilation of the room when the cooker hood is used with the cooking appliances with burning gas or other fuels.
8. Ensure that the installation of ducting complies with the standard of local building, gas and electrical authorities.
9. Do not ignite flames in the pans.
10. There is a risk of fire if cleaning is not carried out in accordance with this instruction.

NOTICE

This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help to save natural resources and make sure the product is disposed in an environmental friendly and healthy way.

CLEANING AND MAINTENANCE

• The hood must always be disconnected from the electricity supply before carrying out the maintenance.
- Clean the hood with damp cloth, hot water and mild detergent. Do not use chemical, steel, wooden or abrasive cleaners to clean the hood.
- Clean the oil cups when they are more than half filled to avoid the oil from spilling.
- Remove the filter, wash in hot soapy water, dry and fit back into the hood. Do not use the hood without the filter installed.

MAIN SPECIFICATION

Rated Voltage : 220-240V/50Hz

LED Light : 2 x 2W

Suction Power : 1,000m³/hr □

1,400m³/hr □

Motor Power : 250W □

200W □

Product Dimension:

Covo 668/90 & Covo 669/90GP

Covo 779/90

Casa 679/90 VETRINO EH-D9160SL(BK)

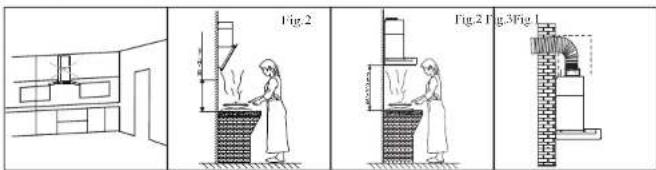

1. Do not install the cooker hood where there are many doors or windows in order to avoid affecting the exhaust efficiency of the cooker hood caused by air convection. (Fig. 1)
2. Install the cooker hood right above the hob. The recommended distance between the hob and the lower edge of the cooker hood is minimum 300mm and maximum 350mm (Or minimum 650mm and maximum 700mm). (Fig 2)
3. In order to get the optimum performance, do not elongate the exhaust pipe too long, and try to make the bend of the exhaust pipe less and biggest, ensure the connection is airproof. (Fig. 3)

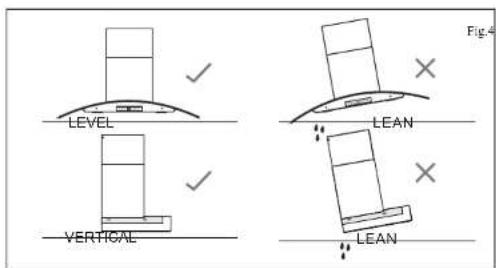

4. After hanging the unit on the wall, ensure the hood is level and vertical (Fig. 4).
5. The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be connected to ventilation ducts for room in which fuel-burning appliances are installed.
6. The installation of the exhaust duct is optional when the charcoal filter is installed for recirculation purpose. Installation of the charcoal filter will gradually reduce the suction power and reduced the suction performance of the unit.

2

ASSEMBLY INSTRUCTIONS

Please check the following before installation:

• Installation of hood must be carried out by an authorized or qualified technician.
- The inside of the hood may have sharp edges. Before installing, removing or cleaning, please wear protective gloves to avoid injury.

1) Fix the position of the cooker hood in accordance with the recommended height between 650mm to 700mm from the hob and the lower edge of the hood.
2) According to the space between the holes A and B, drill 2 holes in level on the wall with 8mm diameter and 60-70mm depth. Press the two expanding tubes provided into the holes.
3) Tighten the two metal screws of 5x60mm provided to the expanding tube and make sure it is fixed and cannot be moved.
4) Hang the cooker hood on the 2 metal screws and make sure it is in level and stable.

5) Take out the exhaust pipe and connect to the air outlet which has installed on the cooker hood. Make sure it is connected to the air outlet tightly.

REPLACING THE LED LAMP

Caution: Lamp unit might be hot after cooking. Wait until it is cool before carrying out repair and replacement. Always use the same type of light bulb.

Make sure all control switches are turned off and the cooker hood is unplugged from the electrical mains. Follow below instruction to carry out replacement:

1. Use a flat head screwdriver to pop out the lamp subassembly.
2. Disconnect the lamp from the internal wires.
3. Remove the screws using cross head screwdriver.
4. Remove the lamp cover and take out the lamp bulb.
5. Replace with a new 2W lamp bulb and make sure the bulb is connected into the light socket.
6. Replace the lamp cover and fix it gently with screws.
7. Connect the lamp subassembly with internal wires and push the lamp into the hood.

A: Touch "A" once then enter in standby mode, you can start operation. If touch

“A” when the motor is running, then machine will be Automatic off after 60 seconds. Or you can touch “A” twice, to stop all operations immediately.

B: In standby mode, touch "B" and the cooker hood will starting at the High speed, press again to change the speed level, form high speed to low speed, total have 6 different speed level. If you touch it for the sixth time, the fan function will be turned off.

Display screen: In standby mode, finger slide the display screen can also adjusting the speed(from left to right are low speed to high speed, total it has 6 different speed).

C: Only when the motor is running, touch "C" once, to enter in time delay mode.

Under time delay mode, keep touching "C" to request delay, your every touch can add 3 mins (MAX 9mins delay).

Note: Please make sure operation in 1 min after enter in time delay mode or the machine will exit the delay status.

D: Touch "D" to turn on or off the LED lamp.

Pure architectural floor plan lines without any text, numbers, or symbols

6) Take out the inner and outer duct cover from the carton box and insert the inner duct cover into the outer duct cover.
7) Make sure the inner duct cover is fixed into the orientation slot (K) on the outer duct cover.
8) Place the inner and outer duct cover on the cooker hood body and use two M4x10 screws to fix the outer duct cover to the unit body.
9) Take out the ducting bracket from the carton box. Position the inner duct cover to a suitable height and mark the wall with a pen.
10) Put down the inner duct cover gently. Drill the keyholes in 60-70mm depth in level using 8mm drill. Using the expanding tube, install the bracket with the wood screws provided.
11) Fix the inner duct cover to the ducting bracket using M4 screws.
12) Extend the air outlet of the exhaust pipe out of the kitchen. Try to make the bend of the exhaust pipe more than 120^ .

METAL GREASE FILTER INSTALLATION

1. Match the fix pin to the fix hole and push the metal grease filter gently as the direction A shown.

2. To remove the metal grease filter for cleaning purpose, gently push the clip to eject and use both hand to remove the filter carefully.

CHARCOAL FILTER INSTALLATION

FOR COVO 668/90, COVO 669/90GP, COVO 779/90, CASA 679/90 & VETRINO EH-D9160SL(BK)

1. The charcoal filters are supplied together with the unit. Follow the direction of B and fix on the designer hood motor assembly.

2. To remove the charcoal filter, follow the direction A and remove accordingly.

OPERATING INSTRUCTIONS

FOR COVO 668/90, COVO 669/90GP, CASA 679/90

A: Low Speed – Press once to operate at low speed. Press again to turn off.
B: Medium Speed – Press once to operate at medium speed. Press again to turn off.
C: High Speed – Press once to operate at high speed. Press again to turn off.
D: Timer – When the hood is operating, press D to control the working time of the hood. Each interval is equal to one minute and the maximum time is one hour.
E: LED Lamp – Press once to illuminate the LED lamp. Press again to turn off.
F: ON/OFF Button – Press to turn on/off the unit.

To set the time – When the hood is not operating and power is connected, press and hold D for 3 seconds. Press C and E to adjust the hours and minutes respectively. The display G will show the time set.

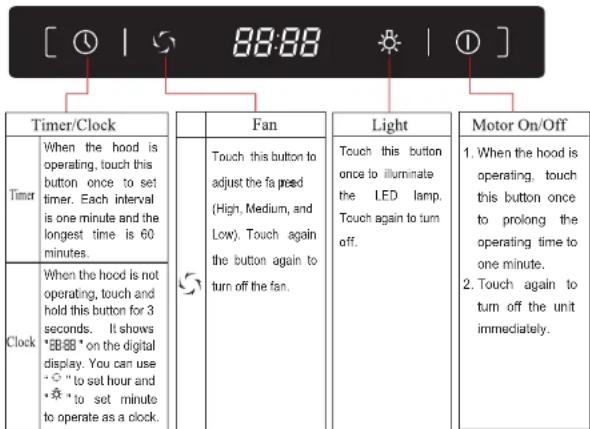

FOR COVO 779/90

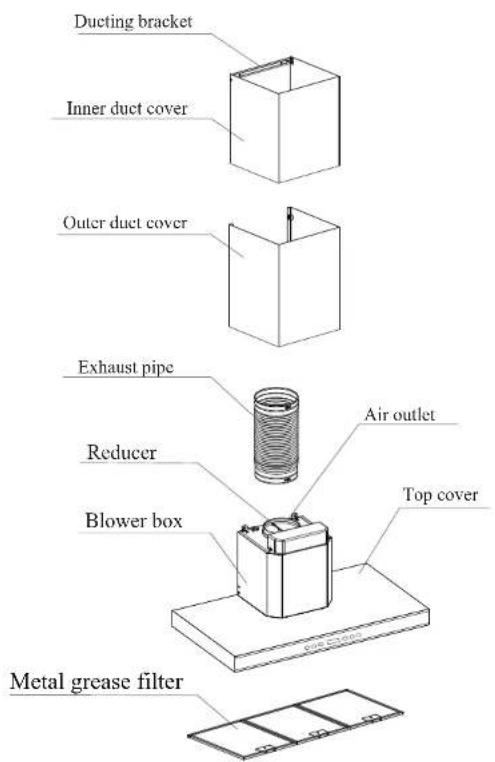

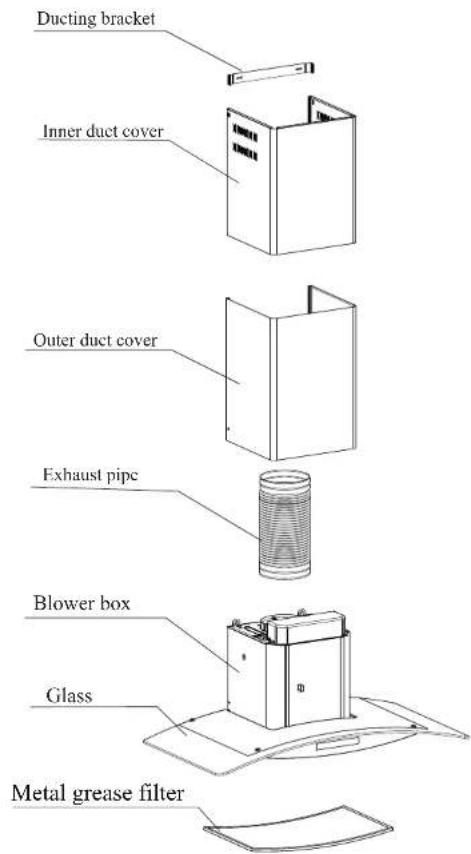

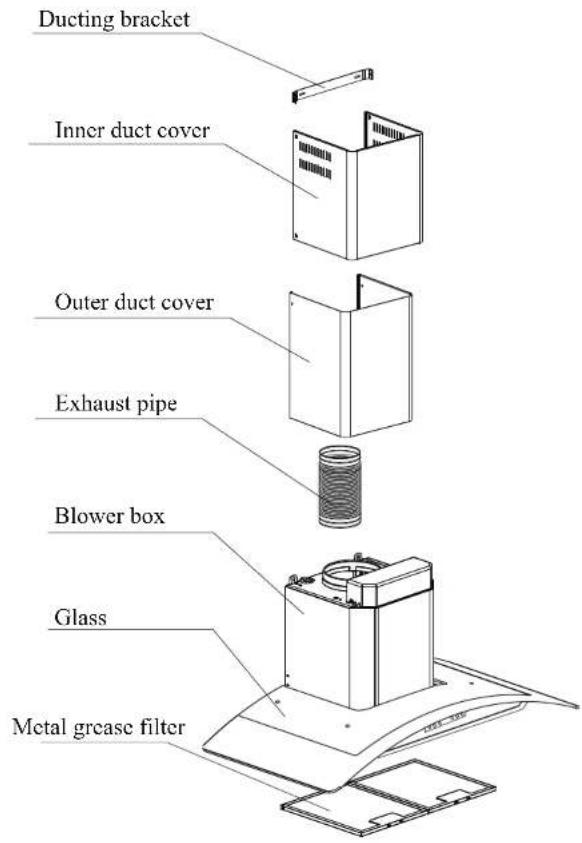

PRODUCT DESCRIPTION
Covo 668/90 & Covo 669/90GP

Casa 679/90
VETRINO EH-D9160SL(BK)

Remarks: Screws are provided (4×expanding tubes, 4×wood screws, 4×M4 screws, 2×M4×10 screws)

Covo 779/90
