Product Type	LED LCD TV with 3D support
Model	50FLHK985BH
Display Size (Diagonal)	55 inches
Dimensions with Stand (D x W x H)	252 x 1234 x 762 mm
Dimensions without Stand (D x W x H)	42 x 1234 x 713 mm
Power Consumption	140 W
Standby Power Consumption	< 0.5 W (typical)
Operating Voltage	220-240 V AC, 50 Hz
Audio Output Power (RMS)	2 x 10 W (10% THD)
TV System	PAL B/G D/K K, SECAM, NTSC playback
Digital Tuner	DVB-T/C/S-S2 (MPEG4 H.264)
Number of Preset Channels	10,000
RF Aerial Input	75 Ohm (unbalanced)
HDMI Inputs	4 (HDMI 1,2,3,4)
USB Inputs	2 (rear/side), supports up to 500 mA
Other Connections	SCART (2), VGA, YPbPr, LAN, S/PDIF optical out, headphone, CI slot, subwoofer out
Wireless Connectivity	802.11 a/b/g/n via optional USB dongle (Veezy 200)
DLNA Support	Yes (Media Browser, Nero MediaHome required on PC)
HbbTV Support	Yes (enable/disable in Settings)
Recording Features	PVR (USB HDD), timeshift, instant recording, timer recording
3D Technology	Active shutter 3D, includes 4 pairs of 3D glasses
Teletext	Yes (analog and digital)
Parental Control	PIN (default 0000), menu lock, maturity lock, child lock
Energy Saving Modes	Power Save Mode (Eco, Picture Off), automatic standby after 5 min no signal
Accessories Included	Remote control, 4 x AAA batteries, instruction book, side AV cable, 3D glasses (4 pcs), Nero MediaHome CD

Frequently Asked Questions - 50FLHK985BH Finlux

How do I connect my TV to a wireless network?

You need the Veezy 200 USB WiFi dongle (sold separately). Plug it into a USB port on the TV. Go to Settings > Network Settings, set Network Type to Wireless Device, then press YELLOW button to scan for networks. Select your network and enter the password using the virtual keyboard.

Can I record TV programmes?

Yes, you need a USB hard disk drive (at least 1 GB, FAT32 formatted) connected to the TV. First, turn off the TV, connect the USB drive, then turn on the TV. Go to Recording Configuration in Settings to format the disk. Press RECORD on the remote during a programme to start instant recording, or use the EPG to schedule recording.

How do I use the 3D feature?

Wear the supplied 3D glasses (active shutter). Press 3D Settings button on remote or go to Picture > 3D Settings. Select Auto to automatically detect 3D content, or choose Side by Side or Top Bottom depending on the source. Ensure the 3D content is playing via HDMI, USB, or broadcast.

How do I access the Media Browser?

Press MEDIA BROWSER button on the remote. Select the type of media (Photo, Music, Video) and choose the source (USB or network). For network, ensure DLNA is enabled and the Nero MediaHome software is installed on your PC.

What should I do if the remote control stops working?

First, check the batteries. Replace with two new AAA batteries, ensuring correct polarity. Point the remote directly at the TV sensor (range ~7m). If still not working, try resetting the TV by unplugging for 2 minutes.

Can I connect my smartphone to the TV?

Yes, via WiFi Direct or through your home network. Install a sharing app on your phone (like UPnP/DLNA). Ensure your phone and TV are on the same network. Then in Media Browser, select your phone from the device list to view shared photos, music, or videos.

How do I enable HbbTV?

Go to Settings > Other Settings and set HbbTV to On. When watching a channel that supports HbbTV, a red button icon will appear. Press the red button on the remote to launch interactive features.

What is the default parental control PIN?

The default PIN is 0000. To change it, go to Settings > Parental, enter the current PIN, select Set PIN, and enter a new four-digit code.

How do I perform a software update?

Go to Settings > Other Settings > Software Upgrade and press OK. The TV will check for updates via the internet (must be connected) or over the air. If an update is found, follow on-screen instructions. The TV will restart after installation.

Why is there no sound coming from the TV?

Check if the TV is muted (press MUTE button). Ensure the volume is turned up. If using an external audio system, check connections. Go to Sound > AVL and set to off, or reset audio settings. Try connecting headphones to test if sound is present.

USER MANUAL 50FLHK985BH Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting, with no visible text or symbols.

bedienungsanleitung

owner's manual

Inhalt

Diagram showing a vacuum cleaner emitting signals to a display panel with labeled pins ① through ④

O G A V +

Top-down schematic of a flat-screen TV or display unit with internal compartments and connectors (no text or labels)

Close-up of a cylindrical battery with two batteries and a transparent tube, no visible text or symbols

Diagram of a remote control panel with numbered function keys and function buttons

Diagram illustrating three stages of a person's perspective projection, showing how to observe and view the image through a mirror.

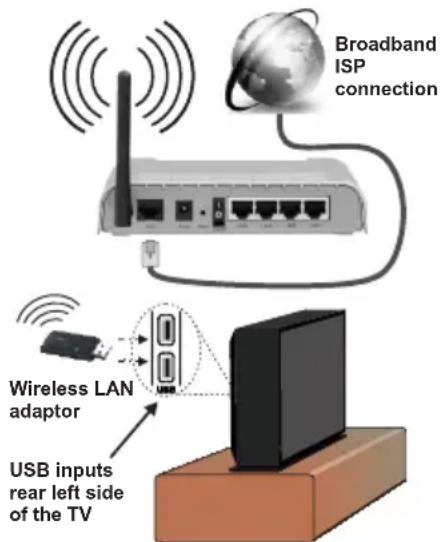

Diagram showing connection between a device with a router and a TV, connected to a wall-mounted device (no text or symbols present)

Broadband ISP connection Wireless LAN adaptor USB inputs rear left side of the TV

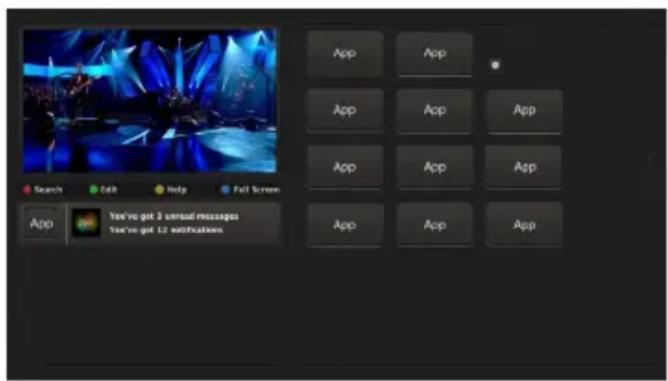

App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App

plugged into Skype™ UU

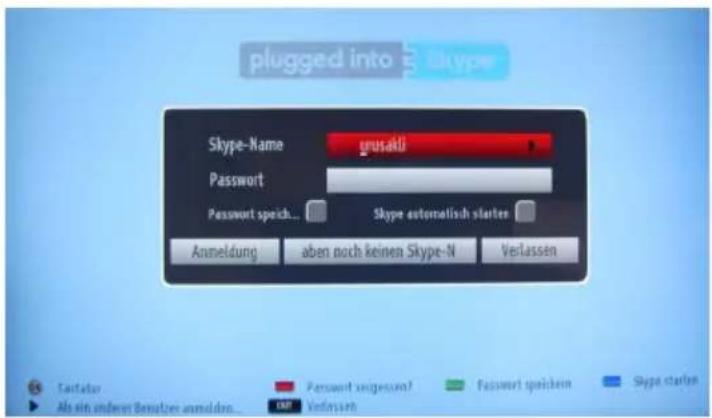

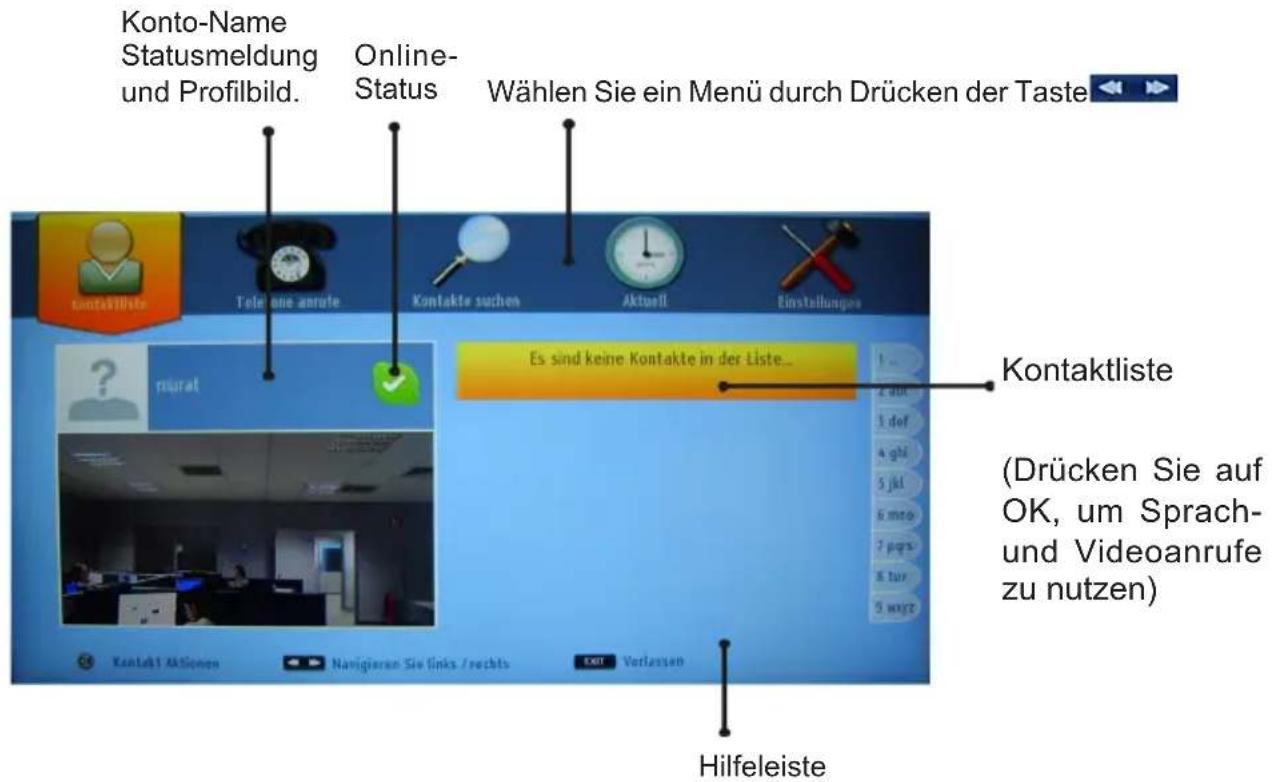

ACHTUNG

Abstract graphic with a red diagonal stripe crossing two gray rounded shapes (no text or symbols)

plugged into Skype™ UU

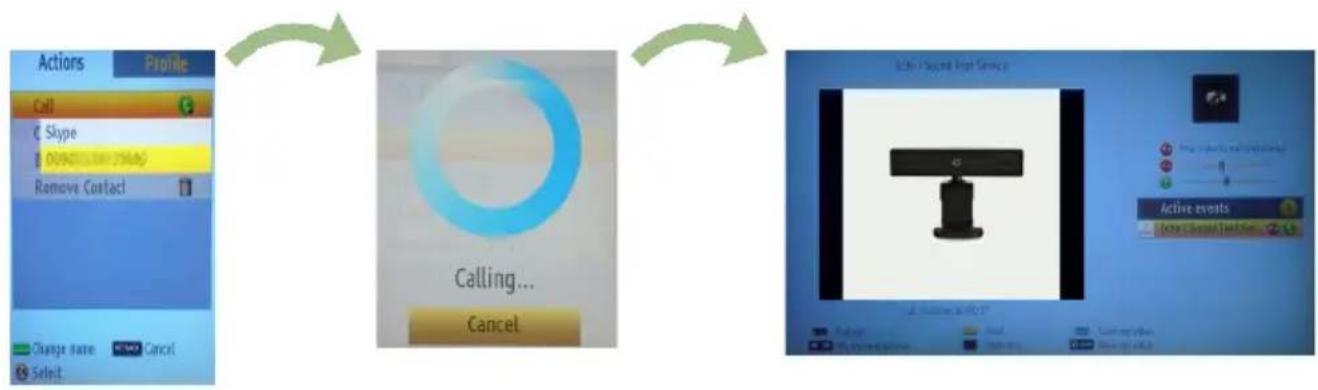

Green curved arrow pointing downward (no text or symbols)

Green curved arrow pointing left, no text or symbols present

plugged into Skype™ UU

Anhang A: Nero MediaHome Installation

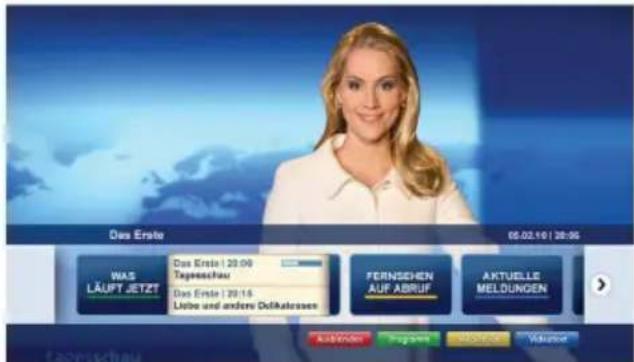

Anhang B: HBBTV System

HBBTV

Safety Information....34

Getting Started 35

Notifications & Features & Accessories......35

Remote Control - 1 ...... 38

Connections.... 39

First Time Installation - USB Connections......40

TV Menu Features and Functions 44

General TV Operation 47

Using DLNA Network Service....52

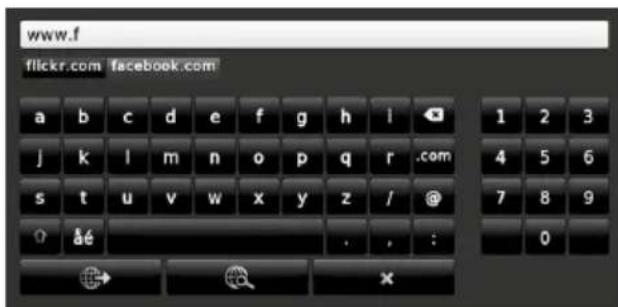

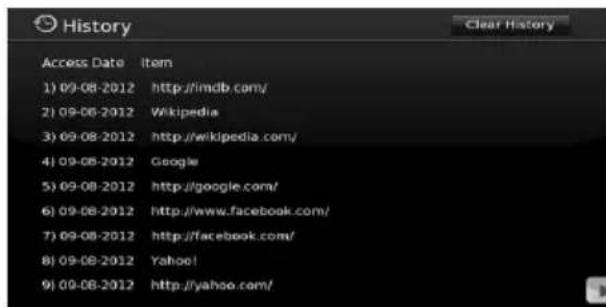

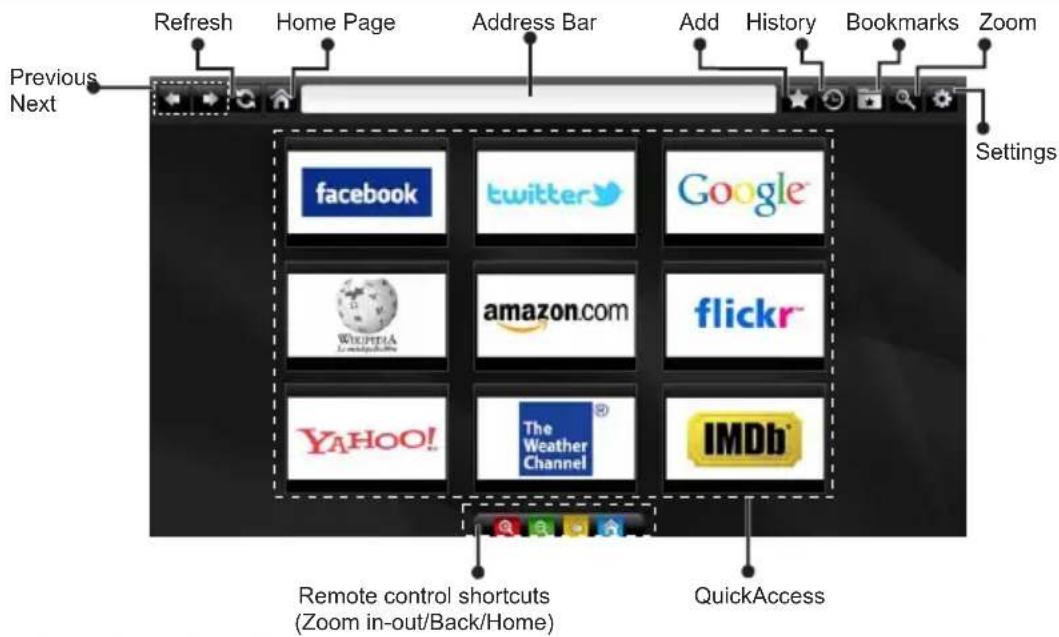

Internet Browser 54

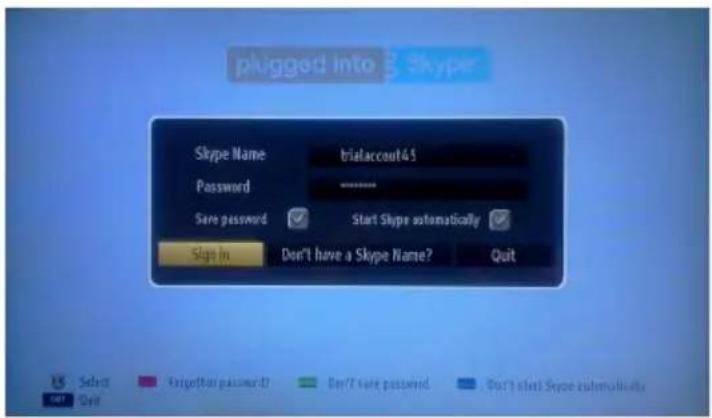

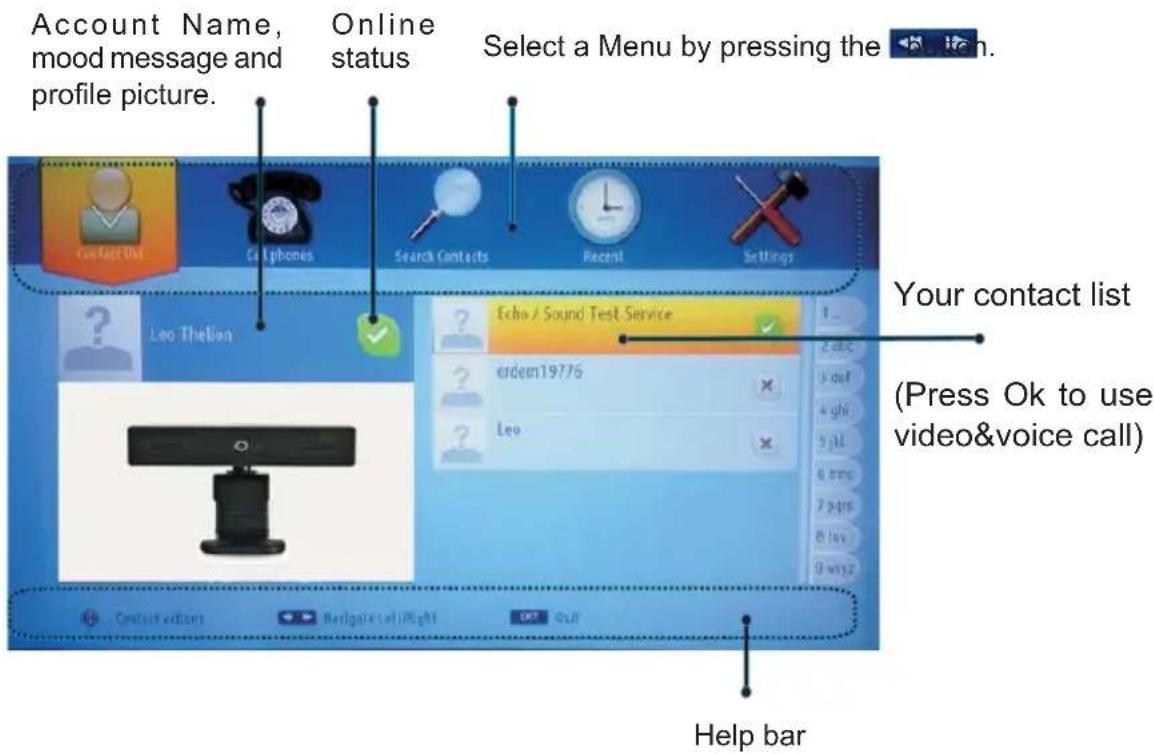

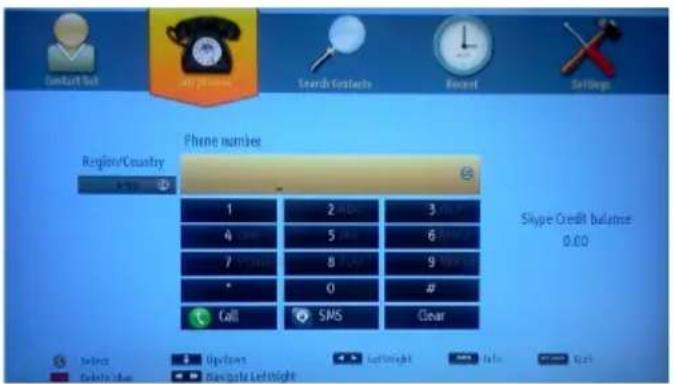

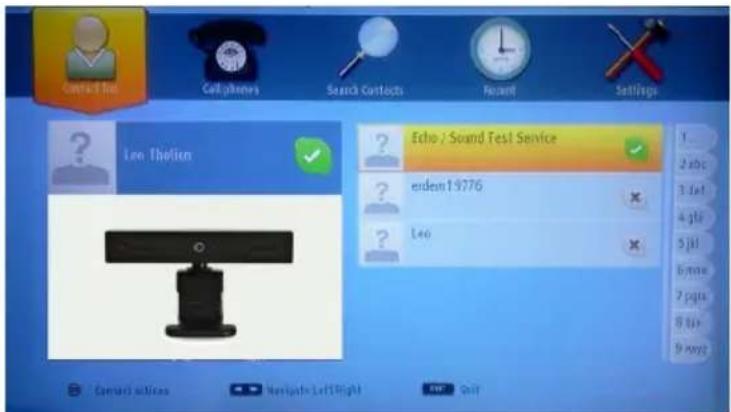

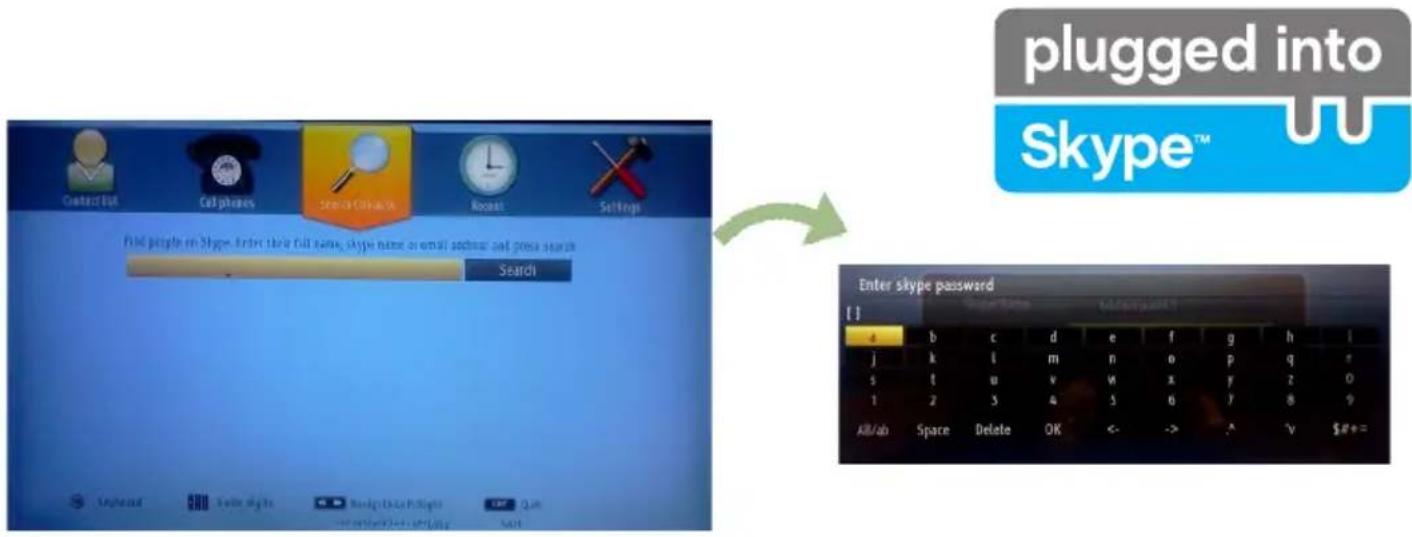

Getting Started with Skype 55

Software Upgrade.... 60

Troubleshooting & Tips....60

Appendix A: Nero MediaHome Installation......60

Appendix B: HBBTV System 61

PC Input Typical Display Modes 63

AV and HDMI Signal Compatibility 63

Supported File Formats for USB Mode 64

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To operate your TV in extreme ambient conditions may cause damage of the device.

If there is lightning or storms, or if the TV is not going to be used for a while (e.g. if going away on holiday), disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Note : Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including dren) with reduced physical, sensory or tal capabilities or lack of experience and / or vledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.
• Do not block ventilation holes.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• Use this device in moderate climates.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not use this TV in a humid or damp place. Do not expose the TV to liquids. If any liquid falls into the cabinet unplug the TV and have it checked by qualified personnel before operating it any further.
• Do not expose the TV to direct sunlight or other heat sources.

• The TV should not be placed near to open flames or sources of intense heat such as an electric heater.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Ensure that no open flame sources, such as lit candles, are placed on top of the TV.
• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).
• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects.
• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
Notice	Additional notes marked

Getting Started

Notifications & Features & Accessories

Environmental Information

This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps:

You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If Picture Off is selected, "Screen will be off in 15 seconds." message will be displayed. Select PROCEED and press OK to continue. The screen will be off immediately.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications

1) If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on, the following message will be displayed: "Standby Cause No Signal". Press OK to continue.

2) If the TV has been left on and not been operated for a while, the TV will go into standby. When you next switch-on, the following message will be displayed. "Standby Cause No Operation" Press OK to continue.

Features

• 3D Viewing: This product supports the viewing of 3D content from devices such as a High Definition Satellite Receiver or Blu-ray Player via HDMI, PC,YPBPR, USB inputs or via an available broadcast.
• Remote controlled colour LCD TV.
• Fully integrated digital/cable/satellite TV (DVB-T/C/S-S2).
• HDMI inputs are for connecting a device that has a HDMI socket.
• USB input.
  • Programme recording.
• Programme timeshifting.
• OSD menu system.
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system.
• Teletext.

• Headphone connection.
• Automatic programming system.
- Manual tuning.
• Automatic power down after up to six hours.
- Sleep timer.
- Child lock.
• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting).
- PLL (Frequency Search).
- PC input.
- Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
• Game Mode (Optional).

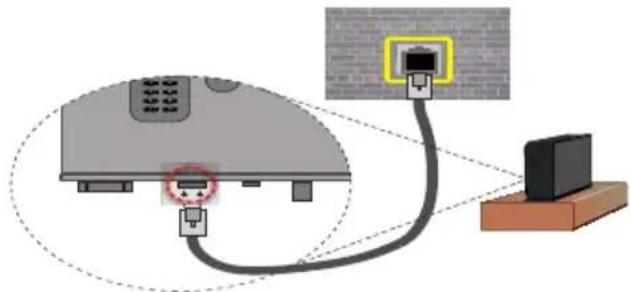

- Ethernet (LAN) for Internet connectivity and service
• 802.11n WIFI Support via USB dongle
• DLNA
• HbbTV

Accessories Included

Remote Control

Batteries: 4 x AAA

Instruction Book

Side AV Connection Cable

3D Glasses x4

Nero Media Home CD

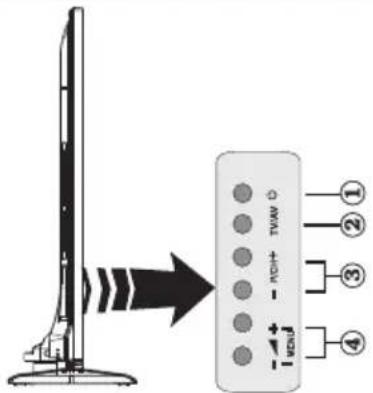

TV Control Buttons & Operation

Diagram showing a device with an arrow pointing to a display panel labeled with Chinese characters and symbols.

1. Standby On/Off button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons

Operation with the Buttons on the TV

Press button to decrease the volume or

button to increase the volume, so a volume level scale (slider) will be displayed on the screen. Press P/CH + button to select the next programme or P/CH - button to select the previous programme.

Press the -or button at the same time

to view the main menu. In the Main menu select a sub-menu using TV/AV button and set the sub-menu using or buttons. To see what options are available via the menu, refer to the menu system section of this manual. Press the TV/AV button in the control panel on the TV to switch between AV modes.

Note: Function indications of the buttons will be displayed on the screen when pressed.

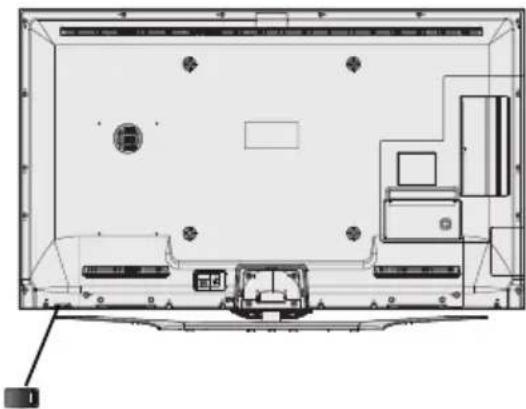

Top-down schematic of a TV or smart TV setup with display, control panel, and wall-mounted devices (no text or labels)

“ , switch is used for turning the TV on or off.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote upward gently. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover.

Close-up of two cylindrical batteries with positive and negative charge indicators (no text or symbols visible)

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna/Cable/Satellite Connection

Connect the aerial or cable TV plug to AERIAL INPUT (ANT-TV) or satellite lead to LNB INPUT(ANT SAT) socket located on the rear bottom side of the TV.

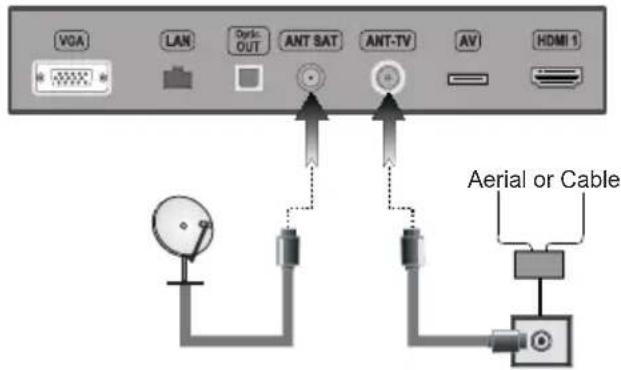

Rear bottom side of the TV:

VGA LAN Omic OUT ANT SAT ANT-TV AV HDMI 1 Aerial or Cable

Notification

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY.

DIGITAL PLUS

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

HIGH-DEFINITION MULTIMEDIA INTERFACE

"DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance."

dlna

CERTIFIED

"YouTube and the YouTube logo are trademarks of Google Inc."

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

Specification

TV Broadcasting PAL B/G D/K K
Receiving Channels VHF (BAND I/III) - UHF(BAND U) - HYPERBAND
Number of Preset Channels	10.000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2x10W
Power Consumption 140 W
TV Dimensions DxLxH (with foot)	252 x 1234 x 762
TV Dimensions DxLxH (without foot)	42 x 1234 x 713
Display 55"
Operation temperature and operation humidity:	0°C up to 40°C, 85% humidity max

Teletext

Press TXT button to enter. Press again to activate mix mode. Press once more to exit. Follow the instructions displayed on digital teletext screen.

Digital Teletext (for UK only)

Press TXT button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the TXT button is pressed again, the TV returns to television broadcast.

Remote Control - 1

Diagram of a mobile phone control panel with labeled buttons, function keys, and status indicators

NOTE: The Remote Control range is approximately 7m

/23ft.

Using My button 1 (\*)

This button's main function is to run Youtube link. However, if you want to change this function, you can press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function. Note that if you perform first time installation, MY BUTTON 1 will return to its default function.

Using My Button 2 (\*\*)

This button's main function is to switch between DVB-T, DVB-C and DVB-S broadcasts. However, if you press MY BUTTON 2 for five seconds, you can set a function to it as described in My Button 1.

Note that if you perform first time installation, MY BUTTON 2 will return to its default function.

1. Standby
2. Numeric buttons
3. TV Source/ Channel list / Switch among broadcast types
4. Volume up/ down
5. Mute
6. Navigation buttons
7. Menu on/off
8. OK/ hold (in TXT mode)
9. Return/ Back/ Index page (in TXT mode)
10. Internet portal
11. Media Browser
12. Youtube/ My button 1(*)
13. Coloured buttons
14. Mono- Stereo Dual I-II/ Audio-Subtitle Language
15. Subtitle on-off (where available)
16. Rewind (in media browser mode)
17. Programme recording
18. Play (in Media Browser mode)
19. Stop (in Media Browser mode)
20. Pause (in Media Browser mode)/ Timeshift recording
21. Fast Forward (in Media Browser mode)
22. Image size
23. Teletext/ Mix
24. My button 2 (**)
25. Electronic Programme Guide
26. Exit
27. Quick Menu
28. Info / Reveal (in TXT mode)
29. Programme up/down
30. Previous programme
31. AV/ Source selection
32. 3D Settings

Getting Started

Connections

Connector Type Cables Device
	Scart Connection (back)
	Mini Scart Connection (rear bottom)	Mini Scart adapter cable (supplied)
	VGA Connection (back)
	PC/YPbPr Audio Connection (back)	Side Audio YPbPr or PC Connection Cable (not supplied)
	HDMI Connection (bottom&side)
	S/PDIF (Optical Out) Connection (bottom)
	Side AV (Audio/Video) Connection (side)	Side AV Connection Cable (supplied)
	Headphone Connection (side)
	YPbPr Video Connection (side)	YPbPr Connection Cable(not supplied)
	USB Connection (side)
	CI Connection (side)
	Subwoofer Connection (back)

YPbPr Connection Cable(not supplied)

NOTE: When connecting a device via the YPbPr or Side AV input, you must use a connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV.

First Time Installation - USB Connections

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

Switch the "button" on the rear left hand side to position "|” so the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

Press the “button, P+ / P- or a numeric button on the remote control.

Press the control switch located on the left side of the TV. The TV will then switch on.

To Switch the TV Off

Press the "button" on the remote control or press and hold the control switch on the TV, so the TV will switch to standby mode.

Switch the "button to position 2 as illustrated,"

so the TV will switch OFF.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when finished, press OK to continue.

You can activate Store mode option to be available in "Other settings" menu and your TV's settings will be optimized for best display quality. A confirmation screen will be displayed. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel List will be displayed on the screen. If you like how the channels are sorted according to the LCN (*), please select "Yes" and then press OK.

Press MENU button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).

Cable Installation

If you select CABLE option and press OK button on the remote control a confirmation message will be displayed. To continue, select YES and press OK. To cancel operation, select NO and press OK. You can select frequency ranges from this screen.

Enter the frequency range manually by using the numeric buttons.

Note: Searching duration will change depending on the selected search step.

Satellite Installation

If you select Satellite option from the Search Type screen, you can set a satellite and watch satellite channels. When you select Satellite installation, Antenna Type menu will be displayed.

There are three types of antenna selection. You can select Antenna type as Direct, Unicable or DiSEqC switch by using “◀ or ” buttons.

Direct: If you have a single receiver and a direct satellite dish, select this antenna type. After selecting Direct, another menu screen will be displayed. Select an available satellite and press OK to scan for services.

Unicable: If you have multiple receivers and a unicable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the screen. Press OK to scan for services.

DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (if available). Press GREEN button to scan all satellites or press YELLOW button to scan only the highlighted satellite. To save and exit press OK button.

Using SatcoDX Feature

SatcoDX (optional): You can perform SatcoDX operations using the Satellite Settings menu. In the SatcoDX menu, there are two options regarding to the SatcoDx.

You can download or upload SatcoDX data. In order to perform these functions a USB device must be connected to the TV.

You can upload current services and related satellites & transponders in TV, to a USB device.

Additionally you can download one of the SatcoDx files stored in USB device, to the TV.

When you select one of these files, all services and related satellites and transponders in the selected file will be stored in the TV. If there are any installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed.

Afterwards, check your antenna settings and make changes if necessary. An error message stating "No Signal" may be displayed if the antenna settings are not configured properly.

Media Playback via USB Input

You can connect a 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up your files before make any connections to the TV. The Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.

While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can exper problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. This may cause physical damage to the USB player and the USB device itself. Do not pull out the USB module while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

Note: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

To use the recording function, you need to connect a USB disk or an external hard disk drive to the TV and the connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.

It is recommended to use USB hard disk drive to recording HD programmes.

Do not plug out the USB/HDD during a recording. This may harm the connected USB/HDD.

Multipartition support is available. A maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used rfgr the PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes the video may freeze during playback.

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If a recording starts from the timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift Recording

Press 🖱️ (PAUSE) button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press ▶ (PLAY) button again to resume the paused programme from where you stopped. Press the STOP button to stop timeshift recording and return to the live broadcast.

Note: Timeshift cannot be used while in radio mode.

Note: You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, an OSD will be displayed, indicating the programmed events for recording. Press (STOP) button to cancel instant recording.

Note: You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

Watching Recorded Programmes

Select the Recordings Library from the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be available during the playback.

Press the ■STOP) button to stop a playback and return to the Recordings Library.

Slow Forward

If you press the ▪(PAUSE) button while watching recorded programmes, the slow forward feature will be available. You can use the ▶button to slow forward. Pressing the ▶button consecutively will change slow forwarding speed.

Recording Configuration

Select the Recording Configuration item in Settings menu to configure the recording settings.

Format Disk: You can use the Format Disk feature for formatting the connected USB disk. Your pin is required to use the Format Disk feature (default pin is 0000).

IMPORTANT: Note that ALL the data stored on the USB disk will be lost and the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Media Browser Menu

You can play photo, music, and movie files on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffle Mode Operation
Start playback with ▶ and activate	TV plays next file and loop the list.
Start playback with OK and activate	The same file will be played in a loop (repeat).
Start playback with OK/▶ and activate	The file will be played in a shuffle.

Quick Menu

The Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, 3D Mode, Virtual 3D, Picture Mode, Equalizer Settings, Favourites, Sleep Timer, FollowMe TV, CEC RC Passthrough and Information booklet options. Press Q.MENU button on the remote control to view the quick menu. See the following chapters for details of the listed features.

FollowMe TV

With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application. For further information on using this feature refer to the instructions of the application you use.

Note: This application is not compatible with all mobile device.

FollowMe TV to DMR

This feature allows video streaming from your TV to another TV or mobile devices, using proper applications (e.g. UPnP - Universal Plug and Play applications like BubbleUPnP). Activate FollowMe TV to DMR and timeshifting starts. Press the red button and device selection menu will be displayed. Choose your device and press OK.

Note: FollowMe TV and FollowMe TV to DMR features work correlated with the PVR feature and requires a connected USB storage device with FAT32 format and enough space in it. HD channels are not supported and both of the devices must be connected to the same network.

E-Manual

You can find instructions for your TV's features the E-Manual.

To use E-Manual, press to the Info button while main menu is displayed on the screen.

By using the navigation buttons select a desired category. Every category includes a different topics. Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit button. Note: The contents of the E-Manual may vary according to the model.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the Other Settings menu under Settings menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Source List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press and hold the "0-Zero" button on the remote control for 3 seconds. Or press Q.Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the Settings/Other Settings menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system). When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

TV Menu Features and Functions
Picture Menu Contents
3D Settings	Press to view 3D settings.
Mode	You can change the picture mode to suit your preference or requirements. The Picture mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural.
Contrast Sets the	lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set the Power Save Mode as Eco, Picture Off and Disabled.(When the Mode is Dynamic, Power Save mode is automatically set as disabled.)
Backlight (Optional)	This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Advanced Settings
Dynamic Contrast	You can change the Dynamic Contrast ratio to desired value.
Colour Temp Sets the desired colour tone.
Picture Zoom	Sets the desired picture size from picture zoom menu.Note: Auto option is only available in Scart mode with SCART PIN8 high voltage/low voltage switching.
HDMI True Black	While watching from a HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain	You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the	picture settings to factory default settings.(Except Game Mode)
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in user mode.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode You can select a sound mode (if the selected channel supports).
AVL (Automatic Volume Limiting)	This function sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables or disables the Dynamic Bass.
Digital Out Sets digital out audio type.
Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language	Configures language settings (may change depending on the country selected) Preferred and current settings will be available. Current settings can be changed only if the broadcaster supports.
Parental	Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock (depending on the country selected) and child lock in this menu. You can also set a new pin number.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes (USB Record).
Recording Configuration	Displays the recording configuration menu (Usb connection required).
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Satellite Settings Displays satellite settings.
Network Settings Displays network settings.
Other Settings: Displays other setting options of the TV set
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted Channels	When this setting is on, the search process will locate the encrypted channels as well.
HbbTV	You can enable or disable this feature by setting it as On or Off.
Blue Background	Activates or deactivates the blue background system when the signal is weak or absent.
Software Upgrade To ensure that your TV always has the most up to date firmware.
Application Version Displays application version.
Hard of Hearing Enables any special feature sent from the broadcaster.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.Note: Audio description sound feature cannot be available in recording or time shifting mode.
Auto TV Off	You can set the timeout value of the auto off feature. When the timeout value is reached and the TV has not been operated for a selected time, the TV will go into standby mode.
Standby Search (Optional)	If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. The Channel list will be updated and changed after this process.
Store Mode	If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available.
DLNA Renderer	DLNA renderer feature allows you to share files stored on your smartphone or tablet pc. If you have a DLNA compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. DLNA renderer mode will not be available with internet portal feature.
Power Up Mode This setting configures the power up mode preference.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Virtual Remote (optional)	Enable or disable the virtual remote feature.
CEC:	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
Install and Retune Menu Contents
Automatic Channel Scan (Retune) (If available)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations. Satellite: Searches and stores satellite channels.
Manual Channel Scan This feature can be used for direct broadcast entry.
Network Channel Scan Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.
Clear Service List	(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

Configuring Parental Settings

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed.

Menu Lock: Menu lock setting enables or disables the menu access.

Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.

Set PIN: Defines a new PIN number.

Note: If the Country option is set to France, you can use 4725 as the default code.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG button to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO: Displays, in detailed, information on the programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: Displays filtering options.

(RECORD): The TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Record option and press the OK button. After this operation, a recording will be scheduled for the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record two channels at the same time.

Using the 3D Mode

Precautions

For your safety ; Read these safety precautions carefully before using the 3D function.

- You may experience discomfort, headaches or dizziness while watching 3D images. If you experience such symptoms, you should remove 3D glasses and stop watching 3D mode.

- Do not watch in 3D mode for long periods of time. Allow yourself occasional rests. During viewing, if you experience any discomforts such as eye-strain, headache or nausea; take off the 3D glasses and stop watching in 3D mode. Consult a doctor if the discomforts persist.

- It is recommended that an adult should check on children, including teenagers because they may be more sensitive to the effects of watching 3D. If they experience similar discomforts mentioned above, have them stop watching in 3D immediately.

- Do not use the 3D Glasses as sunglasses or general eyeglasses.

- Do not move around while watching in 3D and wearing the glasses as your vision is modified and you may run into objects which may result in injuries.

- Use only the supplied 3D glasses.

- If you experience screen flickering when watching 3D images in poor light conditions, you should turn the lamp off or dim the light.

- While wearing headphones do not adjust the volume to excessive levels as this may result in temporary or permanent hearing loss.

CAUTION - 3D Images

• Read these safety instructions carefully to prevent damage.and ensure your personal safety.
• Consult an optometrist if you experience any difficulties while watching in 3D with your 3D glasses.
• You may experience headaches or fatigue when viewing 3D images with your 3D glasses for too long.
• If you experience headaches, fatigue, or dizziness, stop watching immediately.

The following people should not use the 3D Mode:

• Pregnant women, seniors, people with heart conditions, as well as people who can get easily nauseous
• When watching in 3D be aware of your surroundings. Do not watch in an environment with breakable objects nearby.
• Use 3D Glasses for watching 3D video only. Do not use them as sunglasses or reading glasses.
• Do not apply spray cleaners directly onto the surface of the 3D Glasses. This may result in discoloration and cracks and may cause the screen display to peel off.
• Make sure the cleaning cloth is soft and does not contain any foreign material or dust. Using a dirty cloth will damage your 3D glasses.
• Do not drop or bend the 3D glasses.
• If the receiving range is out of the specified range, the screen may not be viewable as 3D video.

Health Warning! - 3D Images

• When watching 3D images, you should leave a distance of at least twice the screen width between you and the screen, and you should keep the screen at eye level.
• Do not watch 3D images too closely or for long periods of time. This may cause drowsiness, fatigue and / or eye damage. If you experience these problems stop watching in 3D immediately. Pregnant women, seniors, people with heart problems or people who experience frequent drowsiness should refrain from watching 3D. Some content in 3D may cause the viewer to perform sudden reflex movements such as ducking or dodging; therefore it is important to not place any fragile objects near the television. Please prevent children under the age of 5 from watching 3D. It may affect their vision development.

Photosensitive Seizure Warning

- If you or a member of your family has a history of epilepsy or seizure, please consult with your doctor before watching 3D TV. It is possible that some viewers may experience a seizure or epilepsy when exposed to certain conditions, including flashlights or images in TV or video games.

• Sometimes certain symptoms can occur in unspecified conditions even if you do not have any previous history. In such a case, if you experience any of the following symptoms, immediately stop watching the 3D TV and consult a doctor: altered vision, visual or facial instability, such as eye or muscle twitching, dizziness or light-headedness, visual transition or unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense, cramps, or nausea.
• When watching 3D TV, monitor your children, including teenagers because they may be more sensitive to the effects of watching 3D such as these symptoms.
• You can reduce the risk of photosensitization seizure by taking the following actions:
• While watching the 3D TV, do take frequent breaks. If you have vision that is different in each eye, you should watch the TV after taking vision correction measures.
• Do not watch the TV too closely and try always keep the television at eye level. Do not watch the 3D TV when you are tired or sick. Avoid watching the 3D TV for a long period of time.
• Do not use the 3D glasses for other purposes.
• Some viewers may feel disoriented after watching 3D. Therefore, after you watch 3D, take a moment to regain awareness of your surrounding before moving.
• You must look straight ahead and the TV must be at eye level while wearing the 3D glasses. The picture may not be visible or may look dark if you do not stay within the viewing angle.

Operating the 3D Mode

• The 3D picture may not be visible or become distorted when watching under intense light conditions.
• You can enjoy viewing 3D images on your TV by wearing the supplied 3D Glasses. Note that this TV's 3D feature works only with its specific 3D glasses.
• Connect a 3D compatible player via a HDMI cable and play the 3D content. Refer to the players manual for settings.
• Press the SOURCE button and select the connected input.
• You should select suitable 3D Mode before viewing.
• To view 3D contents or programmes in 3D mode you must wear the supplied 3D Glasses.

3D Mode

Press the MENU button and select the Picture icon using the “” or “” buttons and press OK. Use “^” or “” to select 3D settings and press OK to view.

• 3D feature enables you to view 3D content using the supplied 3D glasses.
• To enable and customize 3D mode on the TV, perform the following:
- Press MENU button on the remote control and select Picture by using “<” or “>” button. Press OK button to view Picture Settings. Select 3D Settings option by using “” or “” button and press OK.

3D Settings

Mode

You can customize the 3D mode settings to provide the best viewing experience.

Select one of these modes to experience 3D image viewing:

Auto: Automatically switches to 3D mode if 3D information is detected from a digital broadcast or a HDMI source.

Side by Side: Displays 3D content which is originally in a form of side by side.

Top bottom: Displays 3D content which is originally in a form of top and bottom.

Off: 3D function mode is turned off.

2D Only

If content is 3D but you want to watch it in 2D, you can switch to 2D only mode. There are 2 options (LEFT and RIGHT) to select which side of the content you want to watch in 2D.

Virtual 3D

Conversion from 2D to 3D. You can adjust the field of depth to various settings or turn it off.

Left/Right Swap

You can use this setting to shift the phase of the 3D left/right broadcast.

3D Depth Sense (optional)

This setting enables the control of 3D depth.

3D Viewing Information

Refer to the size / distance guidelines below to experience 3D in the best possible way.

Viewing Distance

Size (inch)	22 26	32 37 40
Viewing distance (m)	1,30 1,50	1,90 2,20	2,40

Size (inch)	42 46	47 55
Viewing distance (m)	2,50 2,	75 2,80	3,25

Horizontal Viewing Angle

45 45

Vertical Viewing Angle

It is strongly recommended that the TV is placed at a height as same as the eye level of the viewer. In case that is not possible, tilt the TV accordingly in its stand or wall mount.

Diagram showing a person giving a shadowy effect from a projector screen, with no text or symbols present.

Diagram showing a person viewing a screen with a light beam, no text or symbols present

Diagram showing a person sitting on the floor facing a mirror with a height labeled 'H', and a group of people observing from the mirror (no text or symbols present)

3D Viewing Information - continued

	HDMI MBV MBP
1080p@24 FP	Supported No	Supported Not Supported
720p@50 FP	Supported No	Supported Not Supported
720p@60 FP	Supported No	Supported Not Supported
1080p FC	SBS, TB SBS, TB SBS, TB
720p FC	SBS, TB SBS, TB SBS, TB
1080i FC	SBS SBS $BS
OTHER	Not Supported	Not Supported (*)

	DTV ATV OTHER
1080p@24 FP	Not Supported	Not Supported Not Supported
720p@50 FP	Not Supported	Not Supported Not Supported
720p@60 FP	Not Supported	Not Supported Not Supported
1080p FC	SBS, TB Not	Supported SBS, TB
720p FC	SBS, TB Not	Supported SBS, TB
1080i FC	SBS Not	Supported SBS
OTHER	(*)	Not Supported Not Supported

Please note that if you apply 720p FC TB input; the picture will be scaled smaller than the original size in the middle of the screen.

SBS: Side By Side

TB: Top Bottom

MBP: Media Browser Picture

MBV: Media Browser Video

FC: Frame Compatible

FP: Frame Pack

in MBP: Supported only when, the image's height is multiples of 2 and the image's width is multiples of 16 and if the image width is equal to the panel width or wider.

in DTV: Supported only when, the image's height is between 1700 and 1900 and the image's width is equal to 1280 or 720.

(*): Not supported if the image provides 1080i resolution.

CONNECTIVITY FUNCTIONS

Wired Connectivity

To Connect to a Wired Network

- You must have a modem/router connected to an active broadband connection.

- Ensure that Nero Media Home software is installed to your PC.(for DLNA function). See Nero Media Home Installation" section.

- Connect your PC to your modem/router. This can be a wired or wireless connection.

- Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

Broadband ISP connection LAN (ethernet) cable Rear side of the TV

- To access and play shared files, you must select the Media Browser. Press the Menu button and select Media Browser. Press OK to continue. Select the desired file type and press OK. You must always use the Media Browser screen to access and play shared network files.

- PC/HDD/Media Player or any other devices that are DLNA 1.5 compatible should be used with a wired connection for higher playback quality.

To configure wired settings please refer to the Network Settings section in the Settings menu.

- You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

Diagram showing connections between a device, a network switch, and a monitor (no text or symbols present)

Configuring Wired Device Settings

Network Type

The Network type can be selected as Wired or Wireless, in accordance with the active connection to the TV set. Select this as "Wired" if you are connecting via an ethernet.

Configuration Status

This section displays the status of the connection.

IP Address

If an active connection is available, the IP address will be displayed on this section. If you want to configure an IP address preferences, press the GREEN button and switch to the advanced mode.

Configuring Wired Network Settings in Advanced Mode

After pressing the GREEN button, the "Advanced mode" will be available. While in Advanced Mode, press the RED button to edit settings. When finished, press OK to save, Press RETURN/BACK to cancel.

Wireless Connectivity

To Connect to a Wireless Network

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network features.

- To make your modem's SSID visible, you should change your SSID settings via the modem's software. The TV cannot connect to the networks with a hidden SSID.

To Connect to a wireless LAN, you should perform the following steps:

1. Ensure that Nero Media Home software is installed to your PC (for DLNA function).
2. Then connect the wireless adaptor to one of the USB inputs of the TV.
3. To configure your wireless settings please refer to the Network settings section in this manual.

Broadband ISP connection Wireless LAN adaptor USB inputs rear left side of the TV

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.
• Use a LAN connection for quicker file sharing between other devices like computers.
• The frequency and channel differ depending on the area.
• The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of

the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

• The location where the transmission is most effective differs depending on the usage environment.
• The Wireless LAN adaptor should be connected directly to the TV's USB port. USB hubs are not supported. You can plug your wifi dongle into the supplied dock In cases where network quality is poor and the w dongle needs to be placed to a location with better signal quality.
• The Wireless LAN adaptor supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.
• Use the other USB input, if you experience problems with audio/video performance.
• You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

Configuring Wireless Device Settings

To enable Wi-Fi features, plug in the Wi-Fi dongle to one of the USB ports. Open the Network Settings menu and select Network Type as Wireless Device to start connection process.

Press the YELLOW button to scan the wireless networks. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should set N mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the navigation buttons and the OK button on the remote control.

Wait until the IP address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network press OK.

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows features that you may use. Press the BLUE button to check your internet connection speed. Press the GREEN button to switch to advanced mode and then press the OK button to edit settings.

You can check the signal strength by using the network settings menu for the wireless device mode.

Other Information

Configuration Status: Displays Wi-Fi status as connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks' name will be displayed.

Delete Saved Wi-Fi Profiles

Saved profiles will be deleted if you press the RED button while the wireless device selection OSD is on the screen.

Connecting to your mobile Phone via WiFi

• If your mobile phone has WiFi feature, you can connect your mobile phone to your TV by using a WiFi connection via a router, in order to play content from your phone. For this, your mobile phone must have an appropriate sharing software.
• Connect to your router following the steps stated above in the Wireless Connection section.
• Afterwards, engage your mobile phone with the router and then activate the sharing software on your mobile phone. Then, select files that you would like to share with your TV.
• If the connection is established correctly, you should now be able to access the shared files from your mobile phone via the Media Browser of your TV.
• Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile phone and press the OK button to continue.
• A virtual remote controller application could be available for download in your smartphone application providers server. Not all smartphones are supported by this application.

Note: This feature may not be supported on all mobile phones.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any firewalls of your network allow the TV wireless connection.
• Ensure the "Veezy 200" USB WiFi dongle is plugged in fully.
• Try searching for wireless networks again, using the Network Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org.

The DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

el. Nero Media Home Installation

The DLNA function cannot be used if the server program is not installed onto your PC. Please prepare your PC with the provided Nero Media Home programme. For more information about the installation, please refer to the “Nero Media Home Installation” section.

2. Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed configuration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the Left or Right buttons from the main menu and press OK. The Media browser will then be displayed.

DLNA

DLNA support is only available in the Media Browser folder mode. To enable folder mode, go to the Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using the Left or Right buttons. Select the desired media type and press OK.

If sharing configurations are set properly, an OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press the GREEN button. You can press MENU to exit.

If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the “√” or “” buttons and press OK.

If you select the media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen.

Select Videos from this screen to list all the available video files from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select the

media type as desired and then perform the network selection again. Refer to the Media Browser USB Playback section for further information on file playback. Subtitle files do not work if you watch videos from your network through DLNA.

You can connect only one television with DLNA to the same network. If a problem occurs with the DLNA network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the DLNA function.

Note: There may be some PC's which may not be able to utilize the DLNA function due to administrator and security settings (such as business PC's).

For best home network streaming with this TV, the supplied Nero software should be installed.

Internet Portal

Ensure the TV is connected to a Wired/Wireless Internet connection. After the connection is established, you can select or view portal options.

Note: A Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the First Time Installation for the proper operation of the internet portal.

Press "button on your remote control and the portal application options will be displayed in a manner similar to the template below.

Search Edit Help Fall Screen App App App App App App App App App App You've got 3 unread messages You've got 12 notifications

Note on PIP Window

If you switch to portal mode while watching TV channels, current programme will be displayed on the PIP window. You can change channels using P+/P- buttons.

Current HDMI content will be displayed on the PIP window, if you switch to portal mode while watching HDMI source.

Use the “◀ or “”, “” or “” to navigate between the items on Portal screen. Press the OK button to confirm your selection. Press the BACK button to go to the previous screen.

Press the EXIT button to quit the Internet portal mode.

Note: Possible application dependent problems may be caused by the content service provider.

Internet Browser

Previous Next Refresh Home Page Address Bar Add History Bookmarks Zoom Settings facebook twitter Google WIKUPELA amazon.com flickr YAHOO! The Weather Channel IMDb Remote control shortcuts (Zoom in-out/Back/Home) QuickAccess

To use the internet browser, please select the internet browser logo from the portal section.

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.
• After First time installation, predefined web sites and logos will be displayed on the browser's access page (see image above). To add a desired web page to the quick access page, whilst on the website you wish to add, select the "Add" menu and select "Quick Access" button.
• If you want to add bookmarks, select this item while the desired web page is on the screen.

Add Bookmarks Quick Access

- You can navigate the web browser in three ways. First, enter any URL in the address bar.

www.f flickr.com facebook.com a b c d e f g h i 1 2 3 j k l m n o p q r .com 4 5 6 s t u v w x y z / @ 7 8 9 ? âé . , : 0

- You can search keywords by clicking the search button in the address dialog box or another way to navigate to pages is by clicking on links on web

pages and these will take you to the appropriate pages.

• When you scroll the pointer down to the middle of the screen, the remote control's shortcuts will be shown.
• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.
• You can clear cookies or clear all browser data from the settings menu.
• You can use a USB mouse to navigate the internet web browser. This is supported via the USB input.
• To view your browsing history, click the history button. You can also clear your browsing history from here.

History Access Date Item 1) 09-08-2012 http://imdb.com/ 2) 09-08-2012 Wikipedia 3) 09-08-2012 http://wikipedia.com/ 4) 09-08-2012 Google 5) 09-08-2012 http://google.com/ 6) 09-08-2012 http://www.facebook.com/ 7) 09-08-2012 http://facebook.com/ 8) 09-08-2012 Yahoo! 9) 09-08-2012 http://yahoo.com/

• The browser does not support multiple tabs.
- Some internet pages include flash content. These are not supported by the browser.
- Your TV does not support any download processes from the web browser.

Getting Started with Skype

Make voice calls and video calls with Skype on your TV. Select the Skype app from the portal section to start a conversation.

Follow the on screen instructions to see how to operate related features.

plugged into Skype™ UU

NOTE

• Connect your supported webcam directly to the USB port on your TV.
• If the camera is not working properly, switch off and unplug the TV. Connect your camera again.
  • As soon as the TV is turned off, Skype disconnects.
  • Voice level and sound quality are affected by environmental noise.
• Call quality can change with accordance to your internet connection of wireless signal if connected over WiFi.
• Please visit www.skype.com to learn more information and to see the Terms of Use about Skype.
• If Skype is deleted, all related saved information (History and Options) is deleted.
• The TV must be connected to a network for Skype connection.
• The Skype app will alert you when someone calls whilst you are watching your TV or operating the Skype application.
• Only Skype version 4.2 or greater is supported on Windows-based PCs.
• Only Skype version 5.0 or greater is supported on Mac OS X computers.
  • Not supported on Linux-based PCs.
• A warning message will be displayed if a new software version is found while Skype is starting.
• A Skype camera (can be sold separately) is required to get the full benefit of Skype's features. If you do not already have one, you will need to purchase a compatible camera to get the full benefits of Skype.

Skype started ? No default user plugged into Skype

Licence Notification

Skype is a trade mark of Skype or its related companies. This product/application has not been approved or endorsed by Skype, Skype Communications S.a.r.l. or any of their related companies.

Abstract graphic with a red diagonal stripe crossing two gray shapes (no text or symbols)

No emergency calls with Skype

Skype is not a replacement for your ordinary telephone and can't be used for emergency calling.

Sign In & Sign Up Now

plugged into Skype™ UU

plugged into a Skype Skype Name trialaccout45 Password ******** Save password ✓ Start Skype automatically ✓ Sign In Don't have a Skype Name? Quit Select Password ID Don't save password Don't start Skype automatically Exit Quit

Green curved arrow pointing downward (no text or symbols)

Create an account if you don't have a Skype account with this menu. If you already have a Skype account, enter your name and password correctly. Select Sign in and press OK.

If you have a Skype account and you forgot your password, press the Red button to view the "reset password" screen.

After successfully logging in to your account, the contact list will be displayed on screen.

Connecting... Cancel

Echo / Sound Test Service endem19376 Leo

Green curved arrow pointing left, no text or symbols present

You can review your contact list on the right side of the screen. Your Skype name, mood message and your camera preview (if connected) will be displayed on the left hand side of screen.

Adding a contact

plugged into Skype™ Search Enter skype password [1] a b c d e f g h i j k l m n o p q r s t u v w x y z o 1 2 3 4 5 6 7 8 9 A/B/ab Space Delete OK <- -> ^ v $#+=

By pressing the 📄 can select the "Search Contacts" option. Enter the full name, skype name or email address of the contact you want to find and add.

Use the remote control or virtual keyboard to enter a keyword.

Recent history

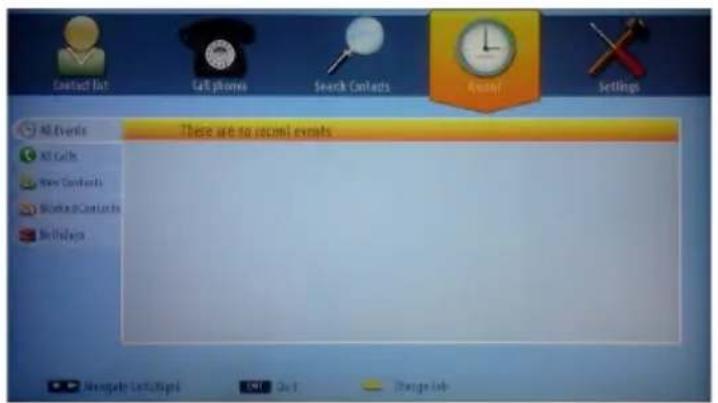

Contact Dot Get phone Search Contacts About/ Settings All Events There are to recall events. All Calls New Contacts Block-and-Contact Withlogs Newgate Left/Right OK Out Change Info

Incoming call Outgoing call Missed call

Icon meaning

Your Skype history can be seen in this section. To view recent history options, use the p+ and p- buttons. To delete a conversation, press the Red button. When you press the OK button, the contact review will be displayed. Also Profile information can be displayed in this section.

plugged into Skype™ UU

Account Name, mood message and profile picture. Online status Select a Menu by pressing the Your contact list (Press Ok to use video&voice call) Help bar

Select a person from the contact list screen and press OK. Choose an action from the list and then press OK to start the selected process. Voice and video call is ready for your use.

If available you will see the thumbnail view of yours and the other person's camera feed.

When a conversation is active, you can mute the microphone or put the other person on the line on hold. Press the Red button to end a call.

plugged into Skype™ UU

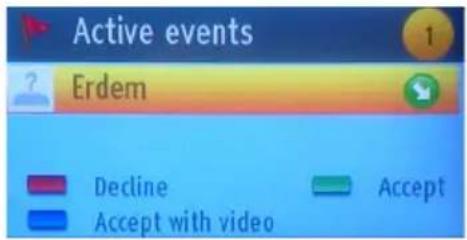

Active events Erdem Decline Accept with video Accept

The incoming call dialog is shown when you are logged into Skype and when other users initiate a Skype call.

A small dialog box will appear in the lower right corner of the TV screen whether the user watches TV or is browsing through Skype. Use the remote control button and choose your action.

Dialing Phones

Contact/Call Air phones Search Contacts Record Settings Region/Country Phone number 1 2 3 4 5 6 7 8 9 * 0 # Call SMS Clear Skype Credit balance 0:00 Select Options Refresh Help Cancel

The option to call phones is available if you have Skype Credit. Please buy credit first. Afterwards, select a country then enter a phone number which you want to call.

Press the Yellow button to save an entered telephone number. Press the Green button to start a conversation.

Settings

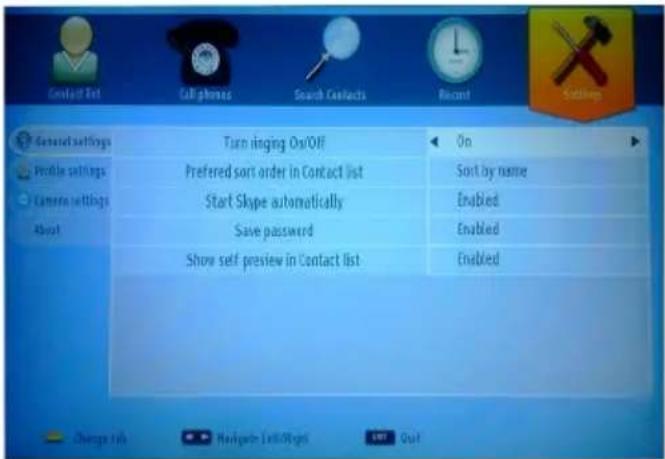

Contact Set Call phones Search Contacts Recent Settings General settings Turn ringing On/Off Preferred sort order in Contact list Start Skype automatically Save password Show self-preview in Contact list On Sort by name Enabled Enabled Enabled

All your Skype settings can be changed by using the Settings menu. Please use P+ and P- buttons on the remote control to move up or down. Select an option, then change the selected option by using the navigation buttons. In the about section, please find the Skype terms and conditions.

Please read this notice carefully.

Software Upgrade

Your TV is capable of finding and updating automatically via the Aerial/Cable/Satellite signal or over the Internet.

Software upgrade search via user interface

Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade.

Note : Internet connection is needed. If an internet connection is not available, try to upgrade via broadcast. If a new upgrade is found, it starts to download the upgrade. Press OK to continue with the reboot operation.

3 AM search and upgrade mode

While the TV is connected to an aerial signal. If Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up, it will have the new software version.

Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV.

Poor picture

• Have you selected the correct TV system?
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
• Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Has the TV been set to mute? To cancel mute, press the "button", or increase the volume level.
• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

• The batteries may be exhausted. Replace the batteries.
• If you cannot select an input source, it is possible that no device is connected. if not
• Check the AV cables and connections if you have tried to connect a device.

Input sources - can not be selected

Recording unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slow

If a “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Appendix A: Nero MediaHome Installation

To install Nero MediaHome, please proceed as follows:

Note: To use DLNA function, this software should be installed to your PC.

1. Insert the Nero Media Home installation disc in your optical disc drive.
2. The Nero Multi Installer screen with a button to start the installation process will open automatically.

3. If below window is not displayed automatically, double-click on the file SetupX located on the Nero MediaHome installation disc.

4. Click on the button labeled Nero MediaHome Essentials to start the installation process.

5. The Nero MediaHome installation wizard is displayed.

6. If necessary change installation language from the language selection menu before continuing.

7. Click the Next button.

- The integrated serial is displayed.

- Please do not change displayed serial.

1. Click the Next button.

- The License Conditions (EULA) screen is displayed.

1. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

2. Click the Next button.

- The Select Installation Type screen is displayed.

It is possible to choose between Typical, meaning standard installation, or Custom installation. User defined installation allows you to determine languages to be installed and to choose the installation path.

1. Use Typical installation and click the Next button.

- The Prerequisites screen is displayed.

The Nero MediaHome installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

1. Click the Install button.

- As soon as all prerequisites are installed, the Install button will change to a Next button.

1. Click the Next button.

- The Ready to Start Installation Process screen is displayed, installation begins and finishes automatically. A progress bar informs you of the progress of the installation process.

1. Installation finishes.

The Help us to Enhance Nero Software screen is displayed. In order to offer a better service, Nero is collecting anonymous data to determine which features are used and what problems, if any, occur.

1. If you would like to help by participating in the anonymous collection of usage data, select the check box and click the Next button.

- The final screen of the installation wizard is displayed.

1. Click the Exit button.

2. A shortcut called Nero MediaHome 4 is now placed on your desktop

Congratulations! You successfully installed Nero MediaHome 4 on your PC.

1. Run Nero MediaHome by pressing shortcut icon.

- Click ADD icon from LOCAL FOLDERS to add the folder you want to share with the network. Select the folder that you want to share and click START SERVER.

1. You can display all media types from the library. Click Refresh icon to refresh. Click STOP SERVER icon to stop server.

Appendix B: HBBTV System

HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising, personalisation, voting, games, social networking and other multimedia applications.

HbbTV applications are available on channels where they are signalled by the broadcaster (currently various channels on Astra broadcast HbbTV applications). The broadcaster marks one application as "autostart" and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently.

If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.

- The application can continue running.

• The application can be terminated.

- The application can be terminated and another autostart red button application can be launched.

HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast.

The autostart red button applications generally provide links to other applications. An example of this is shown below. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually button 0 is used for this.

Figure b: ARD EPG application, broadcast video is shown on the left bottom, can be terminated by pressing 0.

HbbTV applications use keys on the remote control to interact with the user. When an HbbTV applications is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletect application where the numbers indicate teletext pages.

HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content.

Note: You can enable or disable this feature from the Other Settings menu in Settings menu.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1200.

Index	Resolution	Frequency
1	640x400	70Hz
2	640x350	85Hz
3	640x400	85Hz
4	640x480	60Hz
5	640x480	66Hz
6	640x480	72Hz
7	640x480	75Hz
8	640x480	85Hz
9	800x600	56Hz
10	800x600	60Hz
11	800x600	70Hz
12	800x600	72Hz
13	800x600	75Hz
14	800x600	85Hz
15	832x624	75Hz
16	1024x768	60Hz
17	1024x768	66Hz
18	1024x768	70Hz
19	1024x768	72Hz
20	1024x768	75Hz
21	1024x768	85Hz
22	1152x864	60Hz
23	1152x864	70Hz
24	1152x864	75Hz
25	1152x864	85Hz
26	1152x870	75Hz
27	1280x768	60Hz
28	1360x768	60Hz
29	1280x768	75Hz
30	1280x768	85Hz
31	1280x960	60Hz
32	1280x960	75Hz
33	1280x960	85Hz
34	1280x1024	60Hz
35	1280x1024	75Hz
36	1280x1024	85Hz
37	1400x1050	60Hz
38	1400x1050	75Hz
39	1400x1050	85Hz
40	1440x900	60Hz
41	1440x900	75Hz
42	1600x1200	60Hz
43	1680x1050	60Hz
44	1920x1080	60Hz
45	1920x1200	60Hz

AV and HDMI Signal Compatibility

Source	Supported Signals		Available
	PAL O
EXT(SCART1)	NTSC 60 O
	RGB 50/60 O
	SECAM O
	PAL O
EXT(SCART2)	NTSC 60 O
	RGB 50/60 O
	SECAM O
	PAL 50/60 O
Side AV	NTSC 60 O
	SECAM
YPbPr	480I, 480P 60Hz O
	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	480I 60Hz O
	480P 60Hz O
HDMI 1HDMI 2HDMI 3HDMI 4	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	1080P	24Hz,25Hz30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media Extension Format Notes
Movie	mpg,mpeg	Mpeg1,2 MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM/ADPCM		1080P@ 30fps 50Mbit/sec
	dat, mpg,mpeg	MPEG2 ,H.264, VC1, AVS,MVC	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM/ADPCM	H.264:1080Px2@25fps1080P@ 50fps MVC:1080P@ 24fps Other:1080P@ 30fps" 50Mbit/sec
	.vob MPEG2	MPEG1/2 Layer 1/2/3, AC3,	LPCM 1080P@ 30fps 50Mbit/sec
	.mkv MPEG	1,2,4, XviD,H.264,VC1,WMV3,Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM	H.264:1080Px2@25fps1080P@ 50fpsOther:1080P@ 30fps 50Mbit/sec
	.mp4 .mov	MPEG1/2 Layer 3, AAC/HEAAC,	AC3/EAC3, LPCM/ADPCM	H.264: 1080Px2@25fps1080P@ 50fps Other:1080P@ 30fps 50Mbit/sec
	.avi MPEG1	2,4XvidH.264,VC1,WMV3,Sorenson H.263Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM/ADPCM, WMA	H.264: 1080Px2@25fps1080P@ 50fps Other:1080P@ 30fps" 50Mbit/sec
	flv H.264,	Sorenson H.263	MPEG1/2 Layer 3, AAC/HEAAC,LPCM/ADPCM	H.264: 1080Px2@25fps1080P@ 50fps Other:1080P@ 30fps" 50Mbit/sec
	3gp,3g2 MPEG4, H.264 1920x1080 @ 30P			20Mbit/sec
	asf, wmv	MPEG2,4, XviD, H.264,VC1,WMV3	MPEG1/2 Layer 1/2/3, AAC/HEAAC,AC3/EAC3, LPCM, WMA	1080P@ 30fps 50Mbit/sec
Music	3	WMA, WMA Pro-AC, HEAAC	MPEG1 Layer 1/2/3 (MP3)
	.wav		LPCM
	WMA/ASF W
	.m4a/.aac A
Photo	.jpg .jpeg	Baseline JPEG		MAX WxH =14592x12288Up to 8 MegaByte
	.png	Progressive JPEG
	.bmp	non-interlace
	.png	interlace
Subtitle	sub	-	-
	srt	-	-

Herstellergarantie

CH

Portrait of a woman wearing a headset, smiling (no visible text or symbols)

SERVICE-HOTLINE

0800 563 679

Portrait of a woman wearing a headset, smiling (no visible text or symbols)

HOTLINE

0800 563 679

Portrait of a smiling woman wearing a headset (no text or symbols visible)

HOTLINE

0800 563 679
