Product Type	Refrigerator with freezer compartment
Brand	Nordmende
Model	RET345BL
Power Supply	220-240V, 50Hz, 13A fuse
Refrigerant	R600a (flammable, environmentally friendly)
Climate Class	T (16-43°C), ST (16-38°C), N (16-32°C), SN (10-32°C)
Thermostat	Rotary knob, positions 0 (off) to 5 (coldest)
Super Switch	Optional; used for low ambient temperatures or lower freezer temperature
Turbo Fan	Optional; ensures even cooling, do not block air vents
Ice Tray	Included; twist to release ice cubes
Magic Shelf	Adjustable shelf on crisper cover for tall containers
Bottle Holder	Optional; prevents bottles from tipping or rattling
Defrosting (Fridge)	Automatic; defrost water drains to evaporator tray
Defrosting (Freezer)	Manual; use plastic scraper, defrost at least twice a year
Light Bulb	Max 15W; replaceable after unplugging and removing cover
Condenser Cleaning	Recommended annually with a broom
Door Reversibility	Yes; contact authorized service for repositioning
Safety Features	Grounded plug, child safety warnings, flammable refrigerant precautions
Energy Saving Tips	Keep away from heat sources, cover liquids, minimize door openings

Frequently Asked Questions - RET345BL NORDMENDE

How long should I wait before plugging in the fridge after installation?

Keep the fridge upright for 3 hours before plugging in to allow the compressor oil to settle. This prevents damage.

What do the thermostat settings mean?

The thermostat knob ranges from 0 to 5. Position 0 turns off cooling. For short-term freezer storage, use 1-3; for long-term, use 3-4. Adjust based on ambient temperature and usage.

How do I defrost the freezer compartment?

Set thermostat to 5 the day before to freeze food solid. Unplug or set to 0, leave door open. Use basins of warm water to speed up. Remove frost with the plastic scraper provided. Dry thoroughly and reset to max.

Why is there water at the bottom of the fridge?

This usually means the defrost drain hole is clogged. Clean it using the defrost drain plug or pour 1/2 glass of water to flush it.

The fridge makes bubbling noises – is this normal?

Yes, bubbling sounds from the cooling gas are normal even when the compressor is off. If sounds change, check that the fridge is level and nothing touches the rear.

Can I change the door opening direction?

Yes, the door is reversible. Contact an authorized service to reposition it safely.

How do I make ice cubes?

Fill the ice tray with water and place it in the freezer. Once frozen, twist the tray to release the cubes. Do not touch ice with wet hands to avoid burns.

How can I save energy with this fridge?

Place the fridge away from heat sources and direct sunlight. Cover drinks and food, allow hot food to cool before storing, and open the door briefly. Thaw frozen food in the fridge to help cool it.

How do I replace the interior light bulb?

Unplug the fridge. Remove the bulb cover using a screwdriver. Replace with a max 15W bulb (same type). Reattach cover, wait 5 minutes, then plug in.

What should I do if the fridge is not cooling enough?

Check that the thermostat is set correctly, doors close properly, condenser is dust-free, and there is space around the fridge. Ensure ambient temperature is within the climate class range (e.g., T: 16-43°C).

USER MANUAL RET345BL NORDMENDE

Old and out-of-order fridges 4

Safety warnings 4

Installing and operating your fridge 5

Before Using your Fridge 5

THE VARIOUS FUNCTION AND POSSIBILITIES ......6

Thermostat setting 6

Super switch 6

Accessories 7

Ice tray 7

Magic shelf 7

If turbo fan is available on your product ; 7

Bottle holder 7

ARRANGING FOOD IN THE APPLIANCE 8

Refrigerator compartment 8

Freezer compartment 8

CLEANING AND MAINTENANCE 9

Defrosting 10

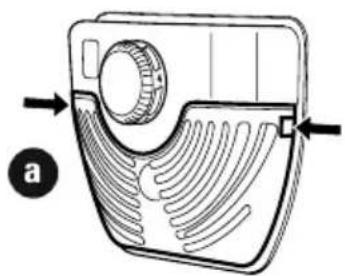

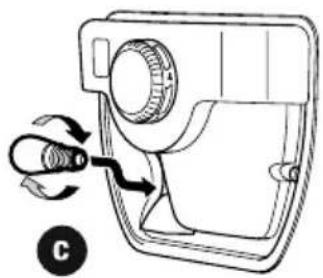

Replacing the light bulb 11

SHIPMENT AND REPOSITIONING 11

Repositioning the door 11

BEFORE CALLING YOUR AFTER SALES SERVICE 12

Tips for saving energy 13

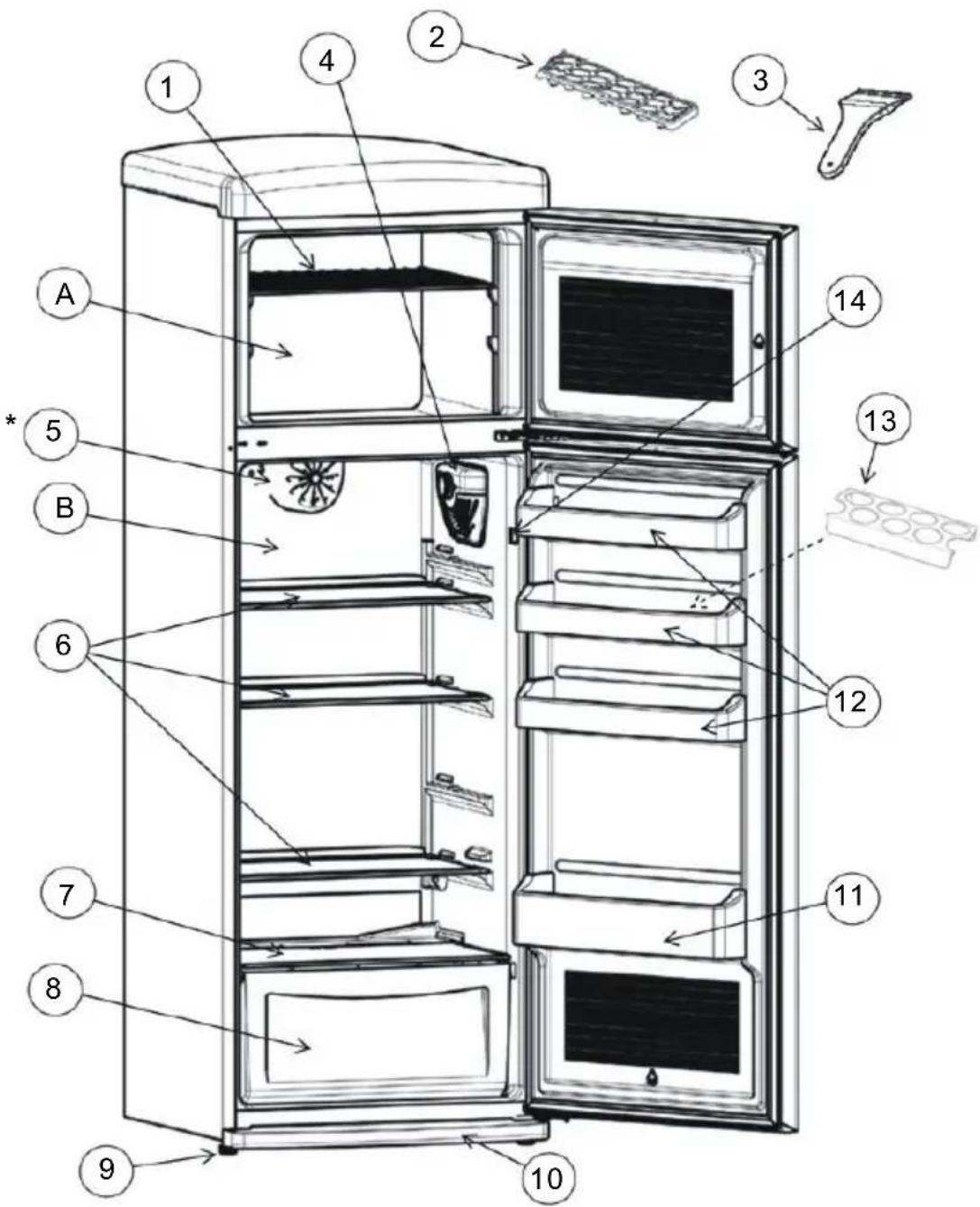

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ..... 14

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600 as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance’s cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not give damage to the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residenti type environments
• bed and breakfast type environments;
• catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualify persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

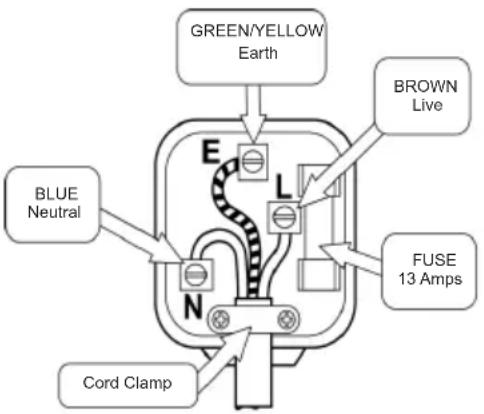

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a manual tool manipulation (no text or symbols present)

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.

- Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

Illustration of three safety symbols: a person opening a door, a crossed-out no-smoking sign, and a bottle with broken legs (no text or labels)

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.
• Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 ampere fuse minimum. If you don't have a receptacle confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.
• The adjustable front legs should stabilize in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

Cartoon illustration of a distressed refrigerator with arms and legs, no text or symbols present

Two identical diagrams of a coiled tube with internal structures, no text or symbols present

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

Simple line drawing of a hand holding a smiling face next to a square with a smile (no text or symbols)

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART - 2.

THE VARIOUS FUNCTION AND POSSIBILITIES

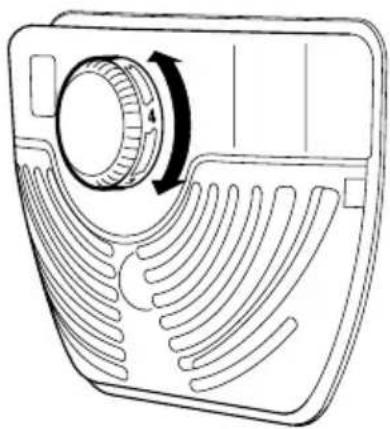

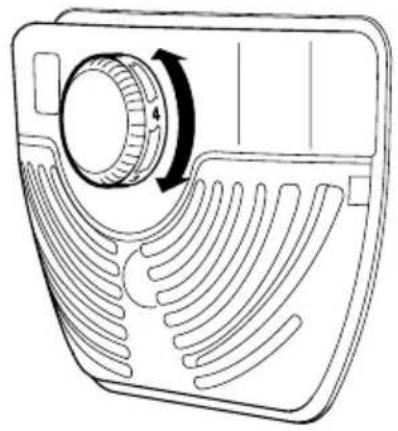

Thermostat setting

Line drawing of a portable air conditioner unit with a rotary knob and ventilation slots (no text or symbols)

• Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. «0» position shows thermostat is closed and no cooling will be available.
• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set knop 3-4 position.

Note that ; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

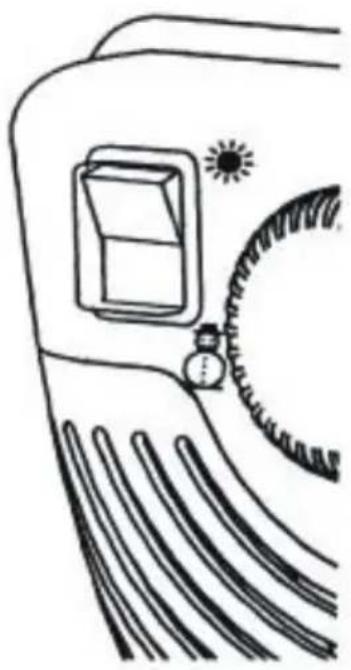

Super switch (If super switch is available)

Simple line drawing of a door with tassels and a window, no text or symbols present

• Normally set this switch to ‘’ position. Except when the ambient temperature is low like in winter.(ie.below 16°C) or when the freezer temperature needs to be maintained lower. In that case, turn the switch to ‘’ position ON.
  • To set super switch ON that is on the thermostat box, press the switch down to 'position. The switch will lit.
• When the freezer compartment is cooled down to sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.
• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.

If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Accessories

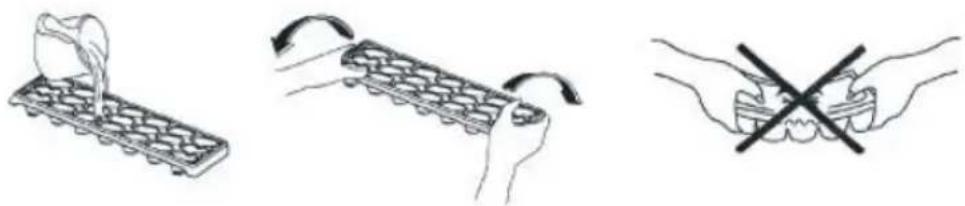

Ice tray (In some models)

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a hand holding an abacus, with one hand crossed out (no text or symbols present)

Magic shelf (In some models)

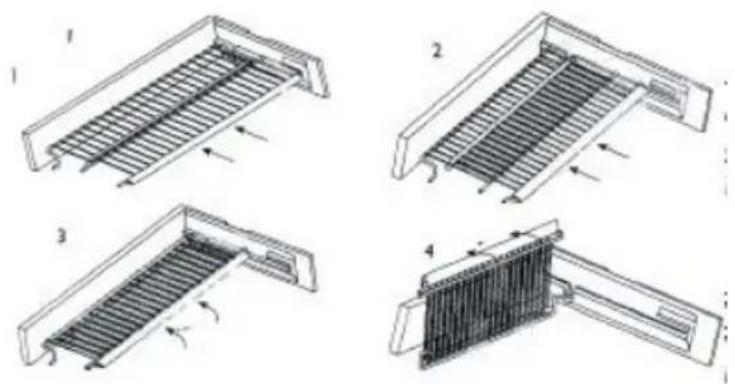

Magic shelf which is on the Crisper Cover(safety glass) (see part 7-page 14) was designed to give you more place and comfort placing the things in the appliance. This shelf is mobile so you can arrange long or big containers on the crisper cover.

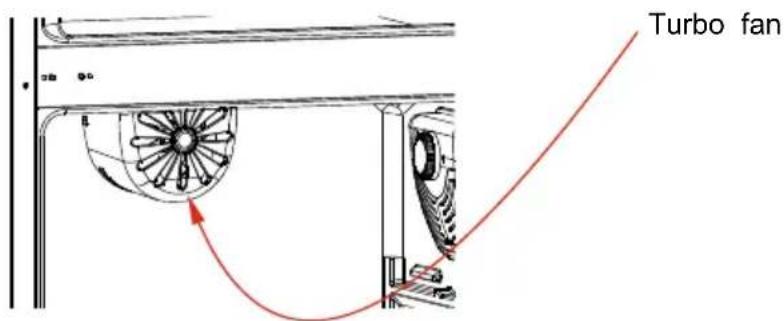

If turbo fan is available on your product ; (In some models)

- Do not block air inlet and outlet openings when storing food, otherwise air circulation that provided by turbo fan will be impaired.

Bottle holder (In some models)

In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment (that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Freezer compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.
• For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

PART - 4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
- Do not wash your fridge by pouring water.
- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
- Remove the parts individually and clean with soapy water. Do not wash in washing machine.
- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with a spoon and two smaller objects nearby (no text or symbols)

Cartoon illustration of a refrigerator with two smaller bottles nearby (no text or symbols)

Illustration of a hand holding a tool inside a rack (no text or symbols visible)

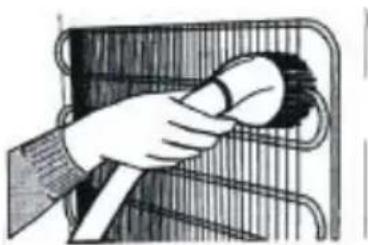

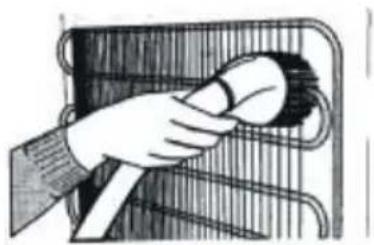

- You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Make sure that your fridge is unplugged while cleaning.

Defrosting

Refrigerator compartment;

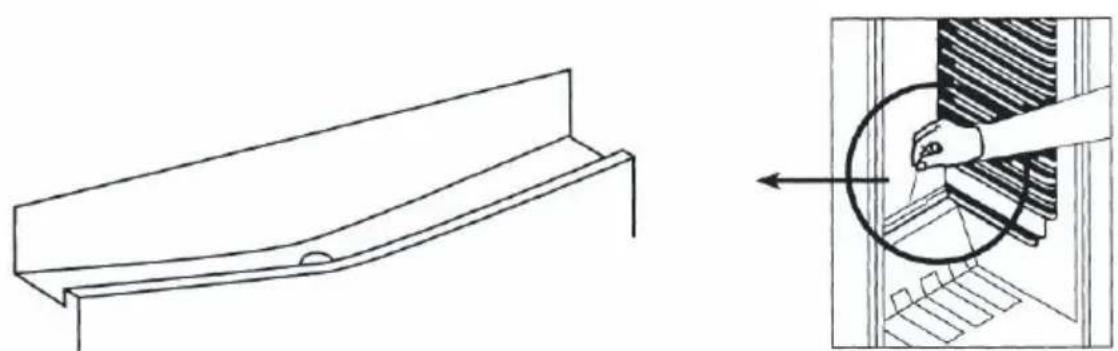

Technical line drawing of a mechanical component and its magnified view showing a hand holding a circular component (no text or symbols)

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 1/2 glass of the water to drain hole to clean inside.

Freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

• The day before you defrost, set the thermostat dial to "5" position to freeze the foods completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Set thermostat knob to position « • » or unplug the unit; leave the door open until completely defrosted.
• To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.
• Dry the inside of the unit carefully and set the thermostat knob to MAX position.

Replacing the light bulb

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.
2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Diagram of a device with internal channels and a labeled component (a), no readable text or symbols present.

b

Technical line drawing of a mechanical component with internal channels and a circular feature (no text or symbols)

Diagram of a device with a sensor and connector, showing no text or symbols

PART - 5. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
• Carry your fridge in the upright position.

Simple line drawing of two children playing a board game (no text or symbols)

Repositioning the door (In some models)

You can reposition the doors of your fridge. Contact nearest Authorized service for this.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on« • »position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled.
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of this appliance is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to weather the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays)Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.
• To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open)

Conformity Information

• Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

PART - 7.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Freezer compartment
B) Cooler compartment
1) Freezer shelf
2) Ice tray
3) Plastic Ice scraper
4) Thermostat box
5) Turbo fan (if available on your product*)
6) Refrigerator shelf

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Inhalt

AUFSTELLUNG 17

Illustration of three hands performing a manual cable manipulation technique (no text or symbols present)

Cartoon illustration of a character climbing a door (no text or symbols)

Simple line drawing of a hand holding a smiling face emoji next to a square character (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs (no text or symbols)

TEIL 2. FUNKTIONEN

Temperaturregelung

Line drawing of a portable radio device with a circular dial and curved ventilation slots (no text or symbols)

Simple line drawing of a door with a window and sun symbol (no text or labels)

Illustration showing three steps of a dental tool: using an abacus, moving a tooth, and removing teeth (no text or symbols present)

Simple line drawing of a hand holding a knife near a refrigerator (no text or symbols)

Illustration of various household appliances including a refrigerator, washing machine, and hand gestures (no text or symbols)

Illustration of a hand holding a circular object inside a container (no text or symbols visible)

Abtauen

Kühlteil;

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Simple line drawing of two children playing a board game (no text or symbols)
