Type	Dishwasher
Brand & Model	Nordmende DSSN60BL
Capacity	12 place settings
Dimensions (H x W x D)	815-870 mm x 596 mm x 570 mm
Net Weight	42 kg
Electrical Supply	220-240 V ~ 50 Hz, 10 A
Total Power	2200 W
Heating Power	2000 W
Pump Power	100 W (wash), 30 W (drain)
Water Supply Pressure	0.03 - 1 MPa (0.3 - 10 bar)
Programs	Prewash, Quick 40°C, Delicate 40°C, Eco 50°C, Super 50°C-65°C, Intensive 65°C, Extra Intensive (Prewash + Intensive 65°C)
Delay Timer	3, 6, 9, or 12 hours
Half Load Function	Upper basket, lower basket, or both
Child Lock	Yes (press Start/Pause + Delay for 4 seconds)
Water Softener	Adjustable hardness level (1-6)
Rinse Aid Dosage	Adjustable (1-6, factory setting 3)
Active Drying	Yes (active drying unit)
Filters	Micro, coarse, metal/plastic (self-cleaning recommended weekly)
Spray Arms	Upper and lower, removable for cleaning
Salt Container Capacity	Approx. 2 kg
Detergent Compartment	Max 40 cm³ (25 cm³ main + 5 cm³ prewash)
Energy Consumption (Eco 50°C)	0.95 kWh
Water Consumption (Eco 50°C)	9.0 L
Noise Level	Not specified (standard for class)
Safety Features	Door safety stop, child lock, aquastop (on some models), overfill protection
Maintenance	Clean filters and spray arms weekly; descale as needed
Spare Parts Availability	10 years (manufacturer commitment)

Frequently Asked Questions - DSSN60BL NORDMENDE

How do I install the dishwasher?

Position the dishwasher on a level surface near a water tap and drain. Connect the water inlet hose directly to the tap (minimum pressure 0.03 MPa, maximum 1 MPa). Connect the drain hose to a drain pipe or sink outlet at a height between 50 cm and 110 cm. Plug the machine into an earthed outlet (220-240 V, 10 A). Adjust the feet for stability. For detailed steps, refer to the installation section of the manual.

What type of detergent should I use?

Use only detergents specifically designed for household dishwashers (powder, gel, or tablets). Avoid using hand dishwashing liquids. For combined detergents like 2-in-1 or 3-in-1, follow the manufacturer's instructions. If using tablets, place them in the detergent compartment, not loose in the basket. Adjust the amount based on water hardness and soiling level.

How do I adjust the water softener setting?

First, determine your water hardness using the test strip provided (or contact your water supplier). Then, with the machine off, turn the program knob to Reset (0). Press and hold the Start/Pause button, then press the Power On/Off button. Continue holding Start/Pause until the program monitor lights flash, then release. Press Start/Pause repeatedly to cycle through levels (1-6) as shown in the water hardness table. Finally, press Power On/Off to save. The factory setting is level 3.

Why are there white spots on my dishes?

White spots are usually due to hard water or insufficient rinse aid. Check the salt level in the softener – refill if the salt warning lamp is on. Adjust the rinse aid dosage to a higher setting (e.g., 4-6). Also, ensure the salt compartment cap is tightly closed. If using combined detergents, add extra salt and rinse aid as needed. In very hard water, consider using a phosphate-based detergent.

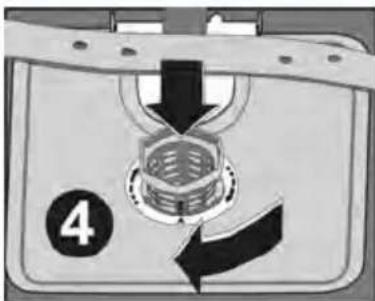

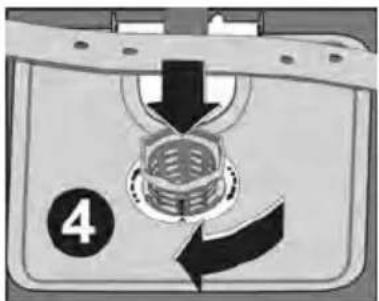

How do I clean the filters?

Turn off and unplug the dishwasher. Open the door and remove the lower basket. Turn the filter assembly counterclockwise and lift it out. Separate the metal/plastic filter from the micro and coarse filters. Rinse all parts under running water. Reassemble by aligning marks: place the coarse filter into the micro filter, then attach the metal/plastic filter and turn clockwise until locked. Clean filters at least once a week for optimal performance.

What does the error code 'insufficient water supply' mean?

This error indicates that the machine is not receiving enough water. Check that the water tap is fully open and the hose is not kinked. Turn off the tap, disconnect the inlet hose, and clean the filter at the hose connection end. If the problem persists, there may be a supply issue or a faulty solenoid valve. Contact an authorized service if the error continues.

Can I use regular salt instead of dishwasher salt?

No, only use specially formulated dishwasher salt (coarse or powder). Table salt is too fine and may damage the water softener. Dishwasher salt regenerates the softener resin, preventing limescale buildup. Always fill the salt compartment before starting a cycle to avoid corrosion from overflow.

How do I activate the child lock?

Press and hold the Start/Pause and Delay buttons simultaneously for 4 seconds. The 3h washing lamp will flash once to confirm activation. To deactivate, repeat the same process; the lamp will flash twice. The child lock prevents accidental button presses during operation.

What should I do if the door won't close properly?

Check if the dishwasher is level by adjusting the feet. Ensure no dishes are protruding or blocking the door. The door spring tension may need adjustment (refer to the assembly manual). If the door still doesn't close, inspect the hinges and latch for damage. Contact an authorized service if necessary.

How do I use the half load function?

Press the '12 Half Load' button to cycle through options: both baskets (both lamps on), upper basket only (upper lamp on), or lower basket only (lower lamp on). Ensure dishes are only in the selected basket. This saves water and energy when you have a small load. The feature remembers your last selection; press the button again to deselect.

USER MANUAL DSSN60BL NORDMENDE

Front view of a Nordmende kitchen appliance with control knobs and a digital display (no visible text or symbols on the device itself)

NORDMENDE

CONTENTS

Getting familiar with your machine 4

• Technical specifications .... 6
• Conformity with the standards and Test data 6

Safety information and Recommendations.... 6

• Recycling 6
• Safety information 6
• Recommendations 7
• Items not suitable for dishwashing 8

Installing the machine 8

• Positioning the machine 8

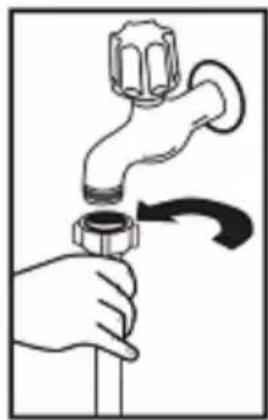

  • Water connections 8

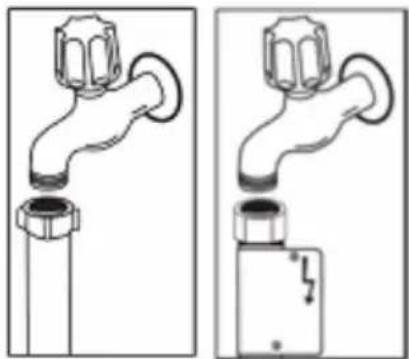

• Water inlet hose 9

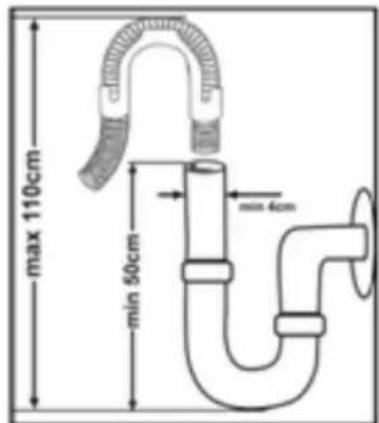

  • Water outlet hose 9
• Electrical connection.... 9

Preparing the machine for use 11

• The importance of water decalcification 11

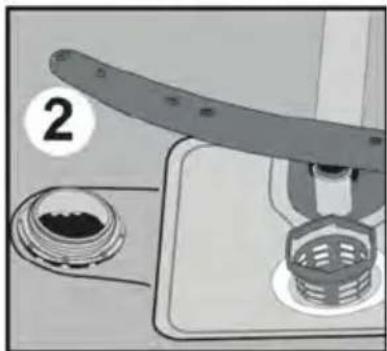

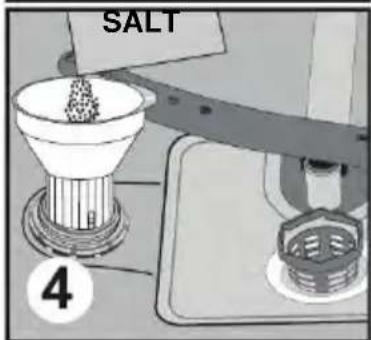

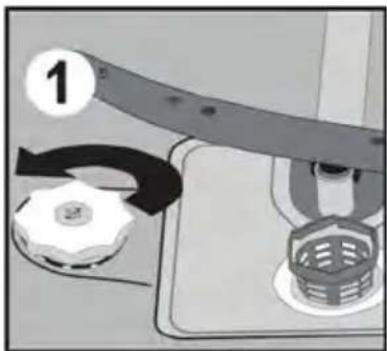

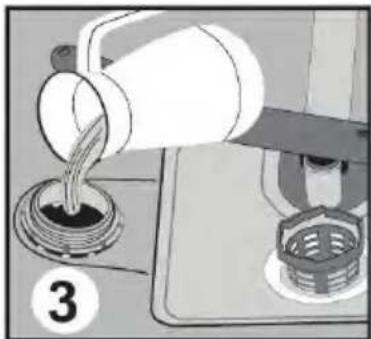

- Filling with salt 11

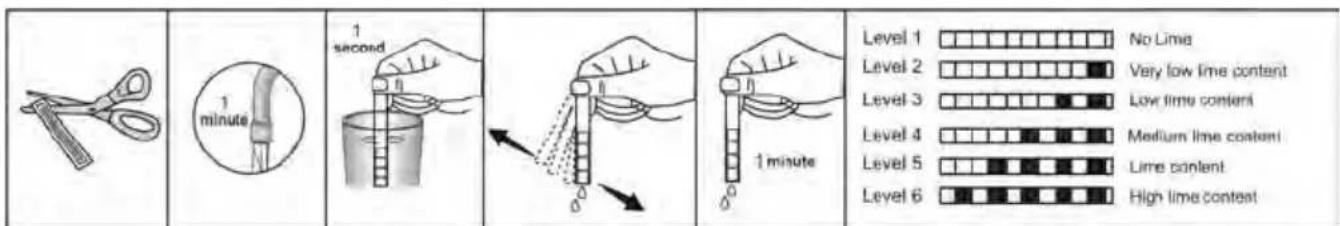

- Testing strip.... 12
- Adjusting salt consumption.... 12
- Detergent usage 14

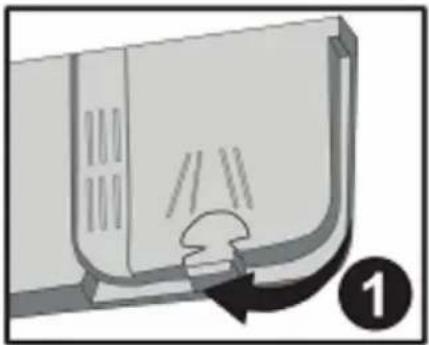

- Filling the detergent compartment.... 14
- Combined detergent.... 14

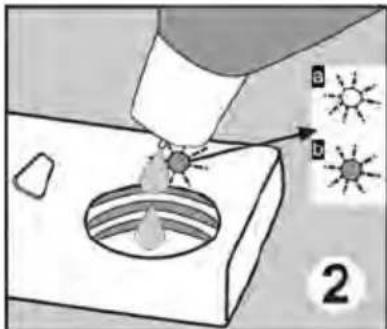

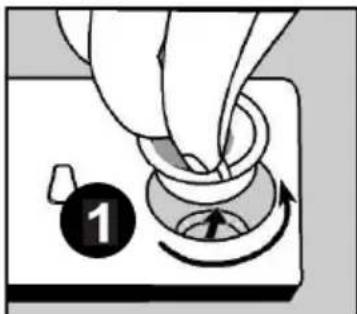

- Filling with rinse aid and making the setting.... 15

Loading your dishwasher 16

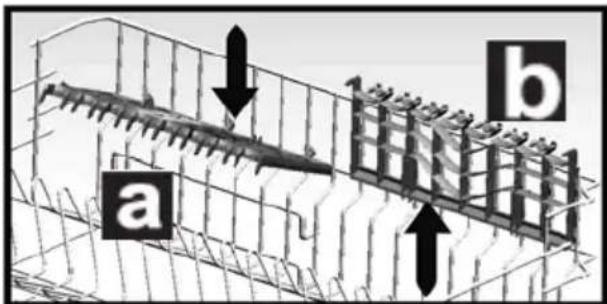

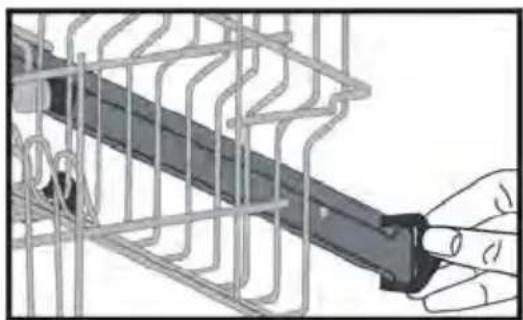

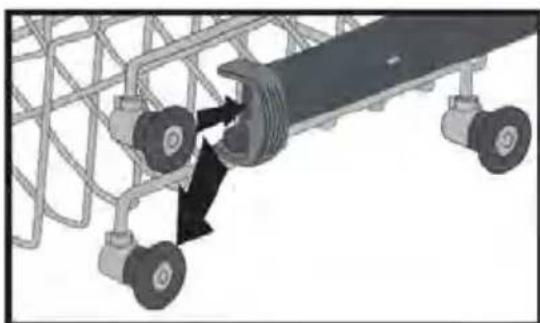

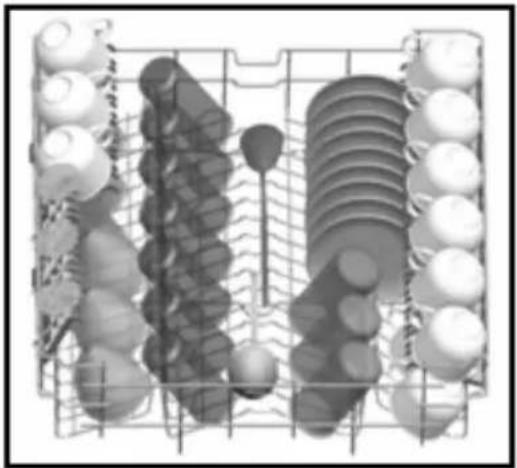

• Top basket.... 16

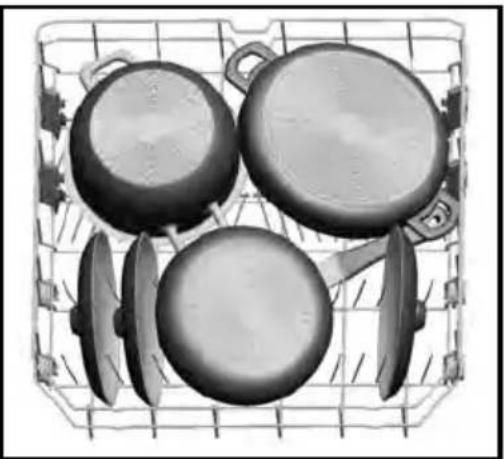

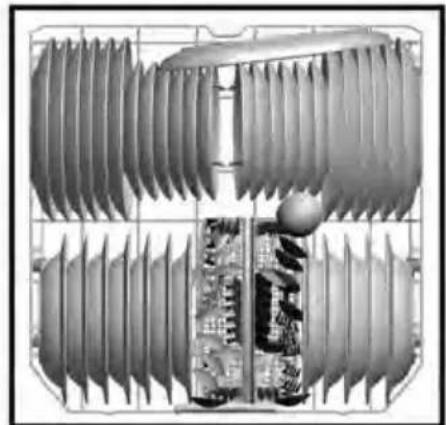

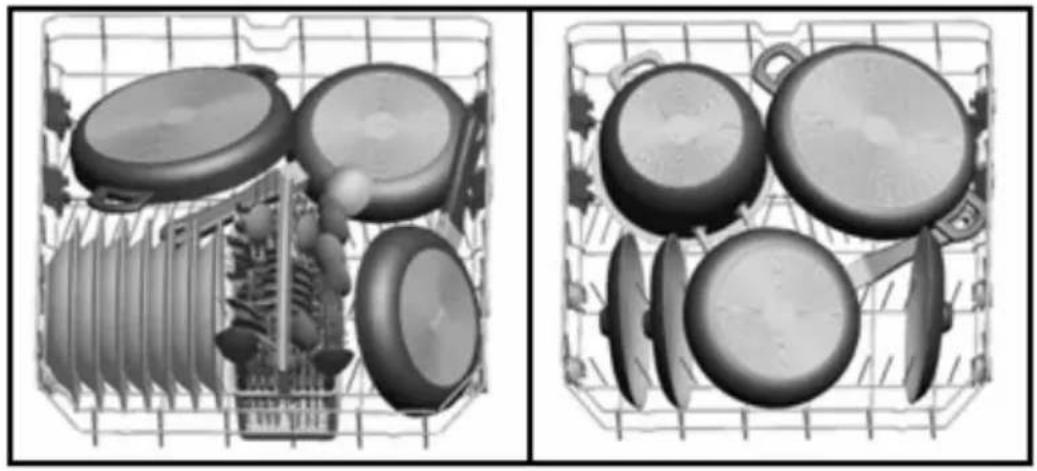

• Lower basket.... 17

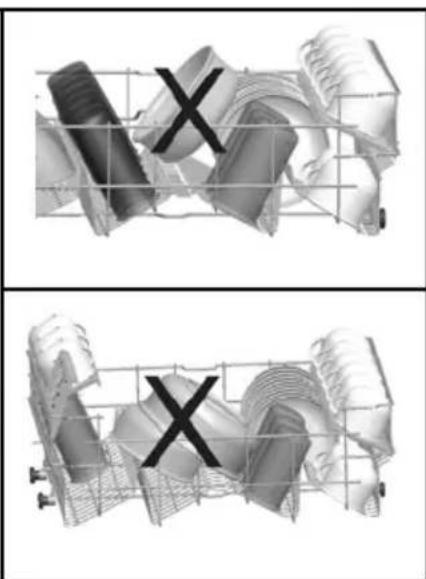

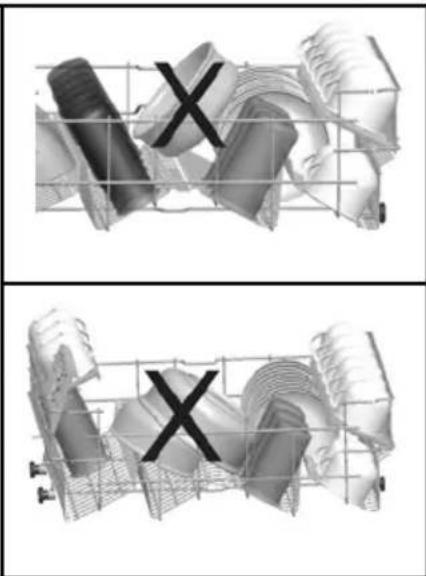

  • Alternative basket loads 18

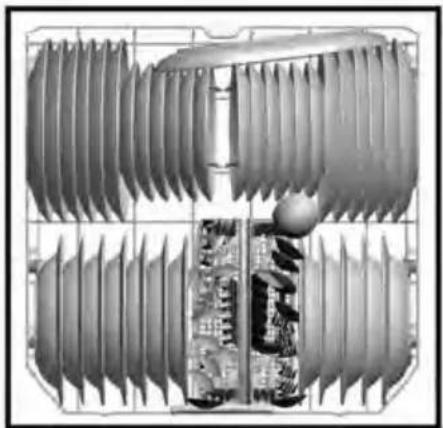

• Standard loading and Test data 19

Programme descriptions 20

- Programme items 20

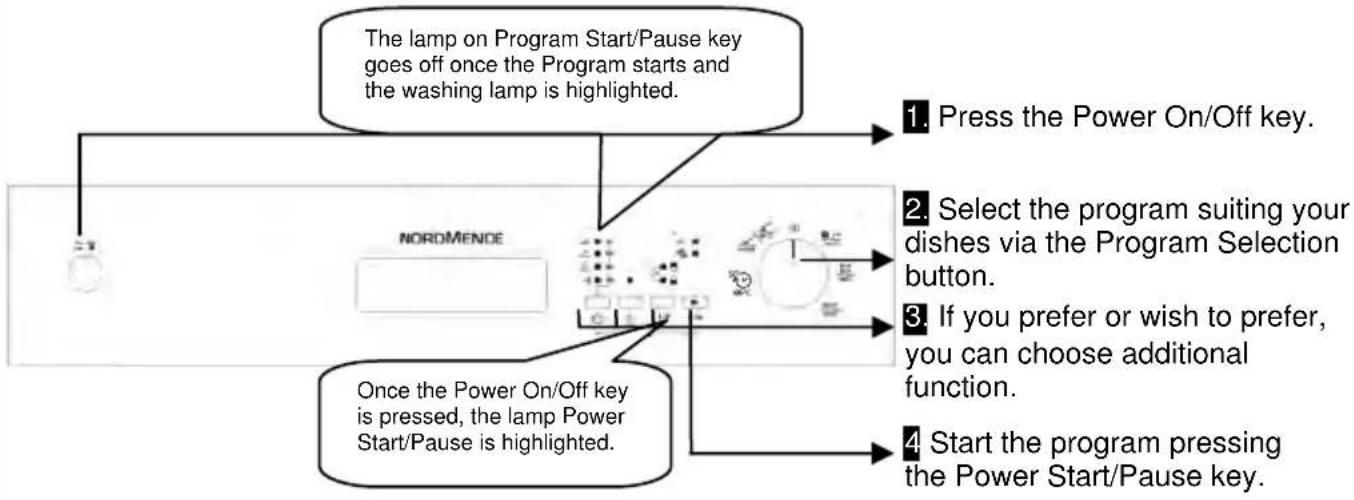

Switching on the machine and selecting a programme.... 21

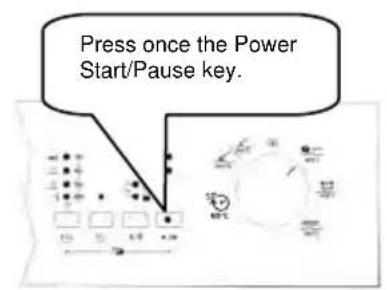

• Switching on the machine.... 21
• Programme follow-up 21

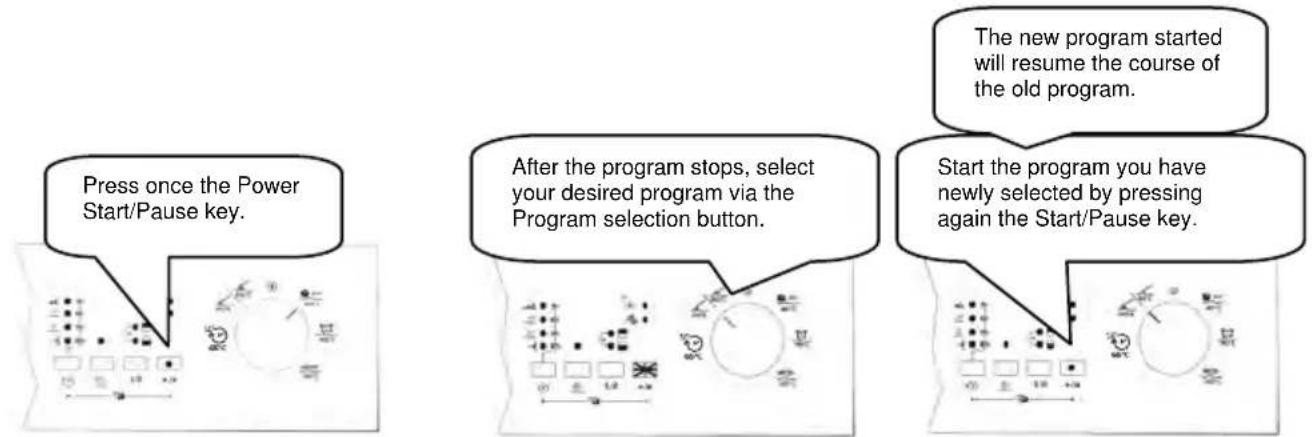

• Changing a programme 21

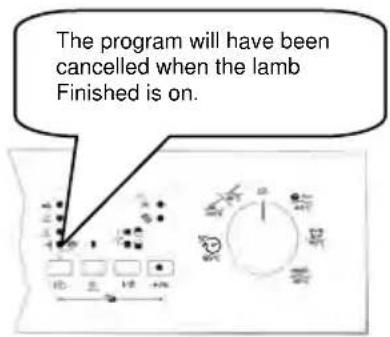

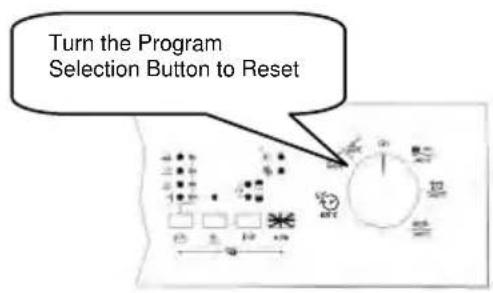

• Changing a programme with resetting 22

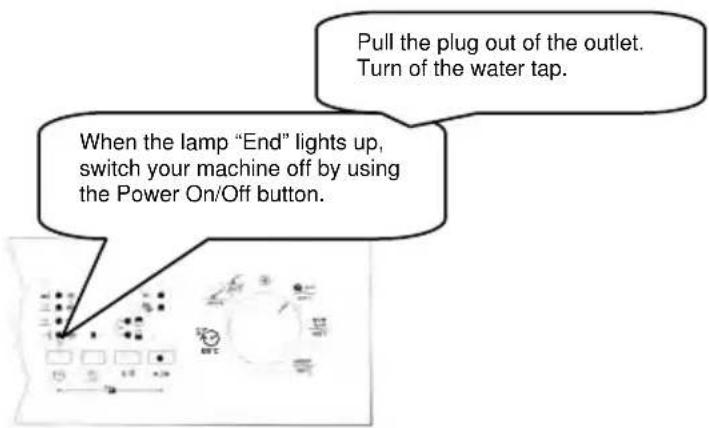

• Switching the machine off 22

Maintenance and Cleaning 23

• Filters 23

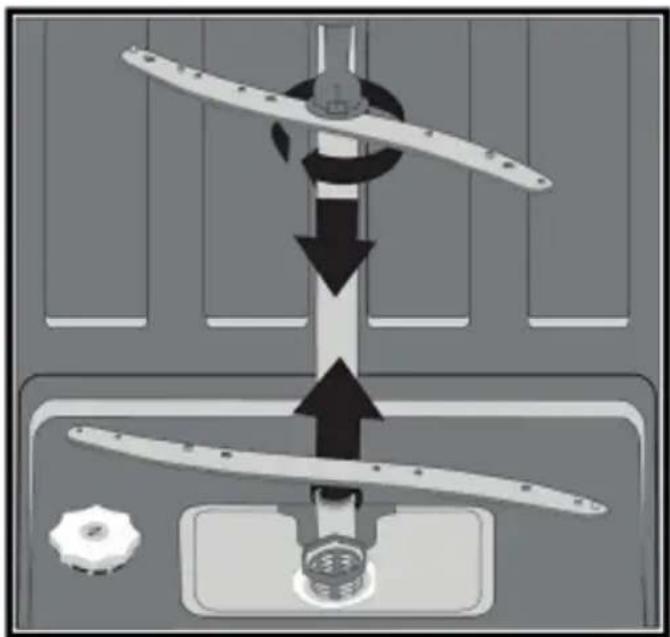

• Spray arms 24
• Hose filter 24

Failure codes and what to do in case of failure 25

Practical and useful information.... 27

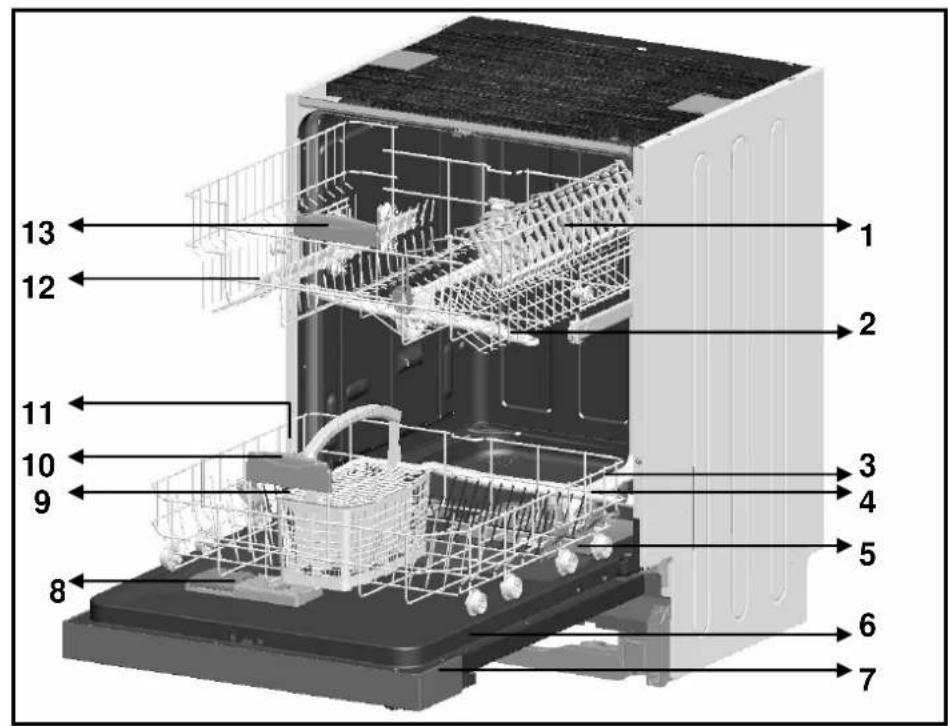

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control Panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Lower basket handle
11. Salt dispenser
12. Upper basket track latch
13. Upper basket handle

Close-up of a mechanical component with a numbered label pointing to a circular component (no readable text or symbols)

Active drying unit: This system provides better drying performance for your dishes.

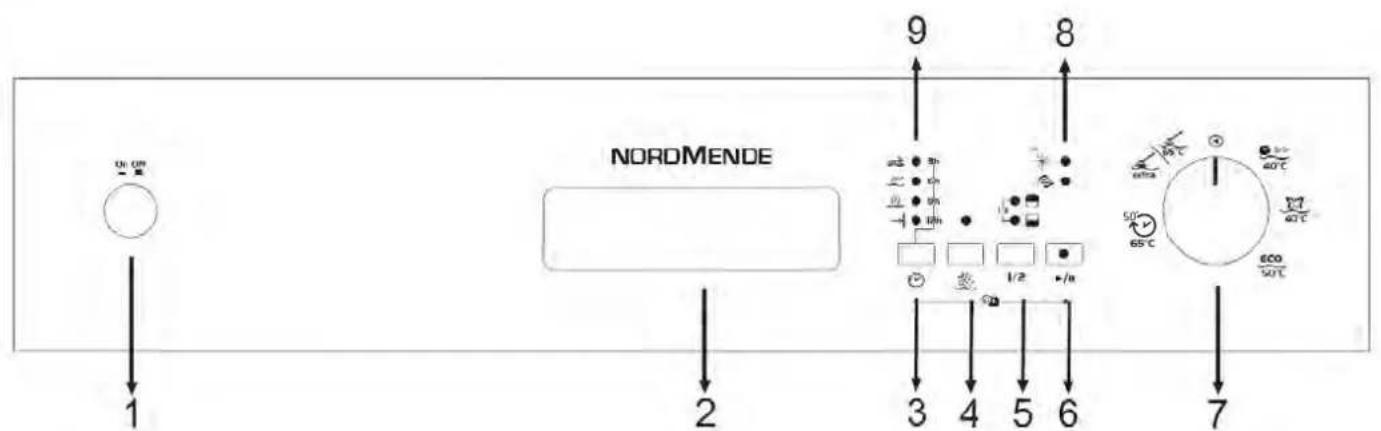

GETTING FAMILIAR WITH YOUR MACHINE

1.) Power On/Off Button

When the Power On/Off button is pressed, the lamp on the Start/Pause button starts lighting.

2.) Door Handle

The door handle is used to open/close the door of your machine.

3.) Delay Timer Button

Thanks to the delay feature of your machine, you can delay the start time of the program for 3-6-9-12 hours by pressing Delay button.

When you pres delay button, 3h washing lamp comes on. If you continue pressing Delay Button, 6h-9h-12h lamps will come on

respectively on each press. If you press delay button again after 12h lamp comes on, then you cancel delay time. If you select delay time and press Start/Pause button, then you activate delay time. If you want to change delay time, you can adjust the new time by pressing Start/Pause button and delay button. Press Start/Pause button again in order to activate.

From this moment, the countdown starts. When delay time is completed, delay lamp goes off, and the washing program you selected starts operating.

- If you press Delay button while 12h delay lamp is lightened, delay lamp will go off. When you press Start/Pause button with delay lamp off, the selected program starts without any delay.

- When you delay a program, you can check the remaining time through delay lamps. For example; when you select 12h delay time, 12h delay lamp comes on. When remaining time is down to 9h, then 9h lamp comes on. In this way, you can follow up the remaining time.

4.) Prewash Button

If you select an extra pre-washing program, you improve washing performance. When you select pre-washing, since it improves washing performance, it changes the temperature and washing time of some programs.

Note 1: If you will only make pre-washing, start the machine pressing the start/stop key after pressing the pre-wash key while the program is at the cancel position.

5.) 12 Half Load Button

Using the function 12 , three sorts of washing up can be done those being lower basket, upper basket and both baskets.

If you have little amount of dishes in your machine and if you have to wash them, you can also activate the semi-filling function additionally. If you have dishes in both baskets, press the key 12 and select the position in

which both lamps are highlighted.

If you have dishes only in the upper basket, pres the key 12 and select the position in which the upper lamp is illuminated. Thus, washing up shall be done only on the upper basket of your machine. No dishes should

certainly be available in the lower basket while using this feature. If you have dishes only in the lower basket, press the key 12 and

select the position in which the lower lamp is illuminated. Thus, washing up shall be done only on the lower basket of your machine. In using this feature, make sure that there are no dishes in the upper basket.

Note 2: If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program. If you do not want to use this feature on the newly

selected washing program, press the selected feature button again, and check that the lamp on the button goes off.

6.) Start/Pause Button

Once you press the Start/Pause button, the programme you selected with the programme selector button will start running and the status indicator lamp "wash" will light up. In the stop condition while wash led is On, Start/Pause led will blink.

7.) Programme selector knob

With the programme selector knob, you can select a suitable programme for your dishes.

8.) Salt Lack Warning Indicator

In order to see whether softening salt in your machine is sufficient or not, check salt lack warning lamp on the display. When salt lack warning lamp starts coming on, you need to fill in the salt chamber.

Rinse Aid Lack Warning Indicator

In order to check that there is sufficient rinse aid in your machine, check rinse aid lack warning lamp on the display. When rinse aid lack warning lamp starts coming on, fill in rinse aid chamber.

Note 3: During washing or when 3 in 1 detergent is used, salt and rinse aid lack warning indicator lamps will go off even if there is not sufficient salt and rinse aid in the machine.

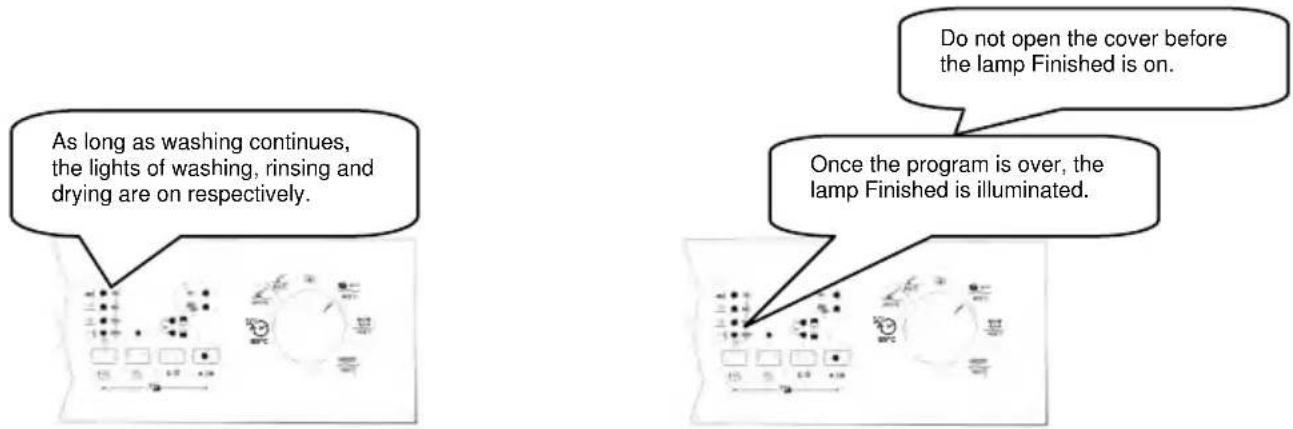

9.) Program Monitor Lights

Program flow can be monitored via program monitor lights on control panel.

- Wash

- Rinse

- Dry

• End

Child Lock Operation

In order to activate child lock, press Start/Pause and Delay buttons simultaneously for 4 seconds. When activated, 3h (washing) lamp flashes once.

The same operation is performed in order to cancel child lock. When child lock is cancelled, 3h (washing) lamp flashes twice.

Technical specifications

Capacity	12 place settings
Height	815-870 mm
Width	596 mm
Depth	570 mm
Net Weight	42 kg
Electricity input	220-240 V, 50 Hz
Total Power	2200 W
Heating Power	2000 W
Pump Power	100 W
Drain Pump Power	30 W
Water supply pressure	0.03 MPa (0,3 bar) - 1 MPa (10 bar)
Current	10 A

• Producer company has its right to amend design and technical specifications reserved.
• The machine's service life is 10 years (the duration required to keep spare parts for the machine to fulfil its usage functions).

Conformity with the standards and Test data / EC Declaration of Conformity

All stages related to the machine are executed in accordance with the safety rules provided in all relevant directives of the European Community.

2004/108/EC, 2006/95/EC, IEC 436/DIN 44990, EN 50242

SAFETY INFORMATION AND RECOMMENDATIONS

Recycling

• Certain components and the packaging of your machine have been produced from recyclable materials.
• Plastic parts are marked with international abbreviations:
• Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
• Such materials are not suitable for being disposed of into garbage bins. They should be delivered to recycling centres instead.
• Contact relevant centres in order to obtain information on methods and points of disposal.

$$ (> \mathrm{PE} < , > \mathrm{PS} < , > \mathrm{POM} < , > \mathrm{PP} < , \dots) $$

Safety Information

When you take delivery of your machine

• Check for any damage to your machine or to its packaging. Never start a machine damaged in any way, make sure to contact an authorised service.
  • Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

The points to pay attention during machine installation

• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the instructions.
• This machine should be installed and repaired by an authorised service only.
• Only original spare parts should be used with the machine.

• Before installing, be sure that the machine is unplugged.

• Check whether the indoor electrical fuse system is connected according to the regulations.

• All electrical connections must match the values indicated on the rating plate.
  • Pay special attention and be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.
• Please assemble the dishwasher, which is inserted under or in the kitchen platform, according to the instruction. Be sure that the product is fixed properly.
• After installing the machine to a suitable place, run it unloaded for the first time.

In daily use

• This machine is for household use, do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.
• Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.
• The water in the machine's washing section is no drinking water, do not drink it.
• Due to danger of explosion, do not put into the machine's washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing them in the machine.
• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety device ensures that the machine stops if the door is opened.
• Do not leave your dishwasher's door open. Failure to do so may lead to accidents.
• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

For your children's safety

• After removing the machine's packaging, make sure that the packaging material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep your children away from detergents and rinse aids.
• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to your children. Children are known to have gotten themselves locked in old machines. To forestall such a situation, break your machine's door lock and tear off the electrical cables.

In case of malfunctioning

• Any malfunction in the machine should be repaired definitely by qualified persons. Any repair work performed by anyone other than the authorised service personnel will cause your machine to be left outside the scope of warranty.
• Prior to any repair work on the machine, be sure that the machine is cut off from the mains. Switch off the fuse or unplug the machine. Do not pull by the cable when unplugging. Make sure to turn off the water tap.

Recommendations

• For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it
• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.
  • You are recommended not to load into your machine any dishes different or more than indicated.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
- Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals
- Plastic items that are not heat-resistant, copper or tin-coated containers;
- Aluminium and silver objects (they may discolour, become dull)
- Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
- Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0^ C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

If the door of your machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

Water connection

Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

Illustration of a hand holding a faucet with a valve, showing airflow direction (no text or symbols)

Water inlet hose

Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long-unused water inlet hose to your machine, run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted in between.

After the connections are made, the tap should be turned on fully and checked for water tightness.

For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

Two technical illustrations of a pipe fitting with a valve, shown from different angles (no text or symbols present)

NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

This connection should be at a minimum of 50 cm and and at a maximum of 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Simple line drawing of a crossed X-shaped object with a curved line extending from it, no text or symbols present.

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W in between. The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality.

The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Prior to using the machine for the first time

• Check wh ether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
• Set the water softener.
• Add 2 kg salt into the salt compartment and fill with water up to a level at which it will almost overflow.
• Fill the rinse aid compartment.

PREPARING THE MACHINE FOR USE

The importance of water decalcification

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Filling with salt

Use softener salt specifically produced for use in dishwashers. To put softener salt, first remove the

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

lower basket and then open the salt compartment cap by turning it counter clockwise.1 2 At first fill the compartment with 2kg salt and waters at overflowing level If available, using the funnel provided will make filling easier.; refit the cap and close it. If the salt warning lamp on the control panel becomes on fill the salt compartment with salt again.

Mechanical device with a lever and circular component, labeled with number 2 (no text or symbols on the device itself)

Fill the salt compartment with water at first use only.

If you put a tablet into the salt compartment, do not fill the compartment completely. We recommend that you use small-grained or powder softener salt. Do not put table salt into your machine. Otherwise, the function of the softener compartment may

Illustration of a coffee maker pouring liquid from a container into a machine (no text or symbols)

decrease over time. When you start your dishwasher, the salt

compartment gets filled with water. Therefore, put the softener salt prior to starting your machine. This way, overflowing salt gets immediately cleaned up through the wash operation. If you are not going to wash any dishes immediately after putting salt, then run a short washing program with an empty machine in order to avoid any damage (to prevent corrosion) to your machine due to the salt overflow while filling in the salt container.

Testing strip

The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).

Open the testing strip.

Run water through your tap for 1 min.

Keep the testing strip in water for 1 sec.

Shake the testing strip after taking it out of water.

Wait for 1 min.

Make your machine's water hardness setting according to the result obtained through the testing strip.

Adjusting salt consumption

Table of Water Hardness Level Settings

Water hardness level	German hardness dH	French hardness dF	British hardness dE	Hardness Level Indicator
1	0-5	0-9	0-6	Wash lamp is on.
2	6-11	10-20	7-14	Rinse lamp is on.
3	12-17	21-30	15-21	Dry lamp is on.
4	18-22	31-40	22-28	End lamp is on.
5	23-31	41-55	29-39	Wash and End lamps are on.
6	32-50	56-90	40-63	Rinse and End lamps are on.

If the hardness of the water you use is above 90 dF (French hardness) or if you are using well water; you are recommended to use filter and water refinement devices.

NOTE: Hardness level is adjusted to level 3 as a factory settin. Adjust the water softener according to how hard your tap water is.

Move the programme selector knob to the 0 (Reset) position while your machine is not in operation.1

After resetting your machine, press the Start/Pause button and keep it pressed down.2

Meanwhile, energise the machine by pressing the Power On/Off button. 4

Keep Start/Pause keys press until program monitor lights are on and off. 2

After the lamps "3h-6h-9h-12h" 3 have flashed, release the Start/Pause button. 2

Your machine displays the latest entered water hardness setting.

You can adjust the levels by pressing the Start/Pause button 2 according to Table of Water Hardness Level Settings.

After adjusting the water hardness level, press on/off button to save the settings in memory. 4

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Filling the detergent compartment

Diagram of a door handle with a curved panel and a circular arrow indicating rotation (no text or symbols)

Push the latch to open the detergent container as shown in the image. Detergent pod has level lines inside. It is possible to measure the right detergent amount using these lines. Detergent pod can take totally 40 cm ^3 detergent.

Open the dishwasher detergent and pour into the larger

compartment 25 cm ^3 if y our dishes are heavily soiled or 15 cm ^3 if they are less soiled. If your dishes have been kept dirty

for a very long time, if there are dried food wastes on them, and if you have overly loaded the dishwasher, pour a 5 cm ^3 detergent into the pre-wash compartment and start your machine.

You may have to add more detergent into your machine, depending on the degree of soil and on the water hardness level in your area.

Combined detergent

Detergent manufacturers also produce combined detergents called "2 in 1", "3 in 1" or "5 in 1" etc.

“2 in 1” detergents contain detergent + salt or rinse aid. When using “2 in 1” detergents make sure to check the specifications of the tablet.

Other tablet detergents contain detergent + rinse aid + salt + various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid and/or salt in preset amounts

Points to consider when using this type of products:

• Always make sure to check the specifications of the product you will use or whether or not it is a combined product.
• Check if the detergent used is appropriate for the hardness of mains water that machine is appertaining to.
• Observe the instructions on packagings when using such products.
• If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.

• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manufacturers and find out about the suitable conditions of use.

• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in salt and/or rinse aid consumption.

• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse aid into your machine and adjust the water hardness setting and the rinse aid setting to the (1) lowest position.

Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you give up using combined detergents

• Fill the salt and rinse aid compartments.
• Adjust the water hardness setting to the highest position (6) and run an empty-wash.
• Adjust the water hardness level.
  • Make the suitable rinse aid setting.

Filling with rinse aid and making the setting

Hand turning a knob on a device, showing rotational motion (no text or symbols)

Rinse aid is used to prevent the stay of white water drops, lime stains, white film strip-shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining sufficiently dried dishes. For this reason, care should be taken that there is adequate amount of rinse aid in the rinse aid compartment and only polishing material produced for use at dishwashers should be used.

If the rinse aid lamp on the control panel becomes on fill the rinse aid compartment with rinse.

To put rinse aid, remove the rinse aid compartment cap by turning it. Fill the rinse aid compartment with rinse aid until the rinse aid level indicator becomes dark; fit the e cap and close it by turning it in a way that the nails will correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator means that there is rinse aid in the compartment, while a

Illustration of a person using a tool to apply light bulbs to a sink, with no text or symbols present.

light indicator shows that you need to fill the compartment with rinse aid.

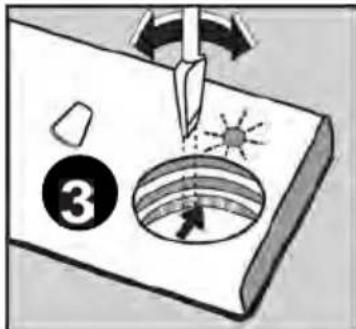

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3. You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain

is left when wiped by hand.

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result.

To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Top basket

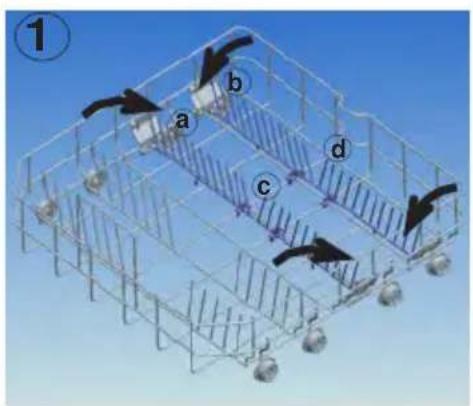

Dish rack

There are dish racks on the upper basket of your machine. a b You can use these dish racks in open or closed position. When they are in open position a you can place your cups on them; and when in closed position b you can place long glasses on the basket. Also, you can use these racks by placing long forks, knives and spoons on them laterally.

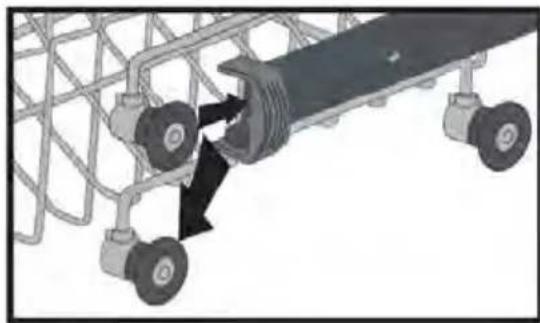

Top basket height adjustment

Top basket of your machine is in upper position. When it is in this position, you can place big items such as pans, etc. on lower basket. When you take top basket to lower position, you can place and wash big sized plates on the top basket.

Use wheels in order to change the basket height. Open the basket retaining parts at the end of top basket rails by turning them to the sides, and take the basket out. Change the position of the wheels; reinstall the basket to the rail, and close basket retainer parts. In this way, you take the top basket to lower position

Illustration of a hand holding a metal bracket with wire mesh (no text or symbols)

Diagram of a large aircraft carrier with visible wheels and directional arrows indicating movement (no text or symbols)

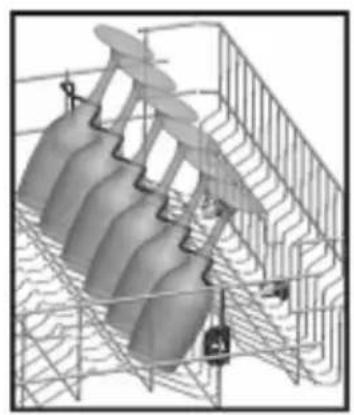

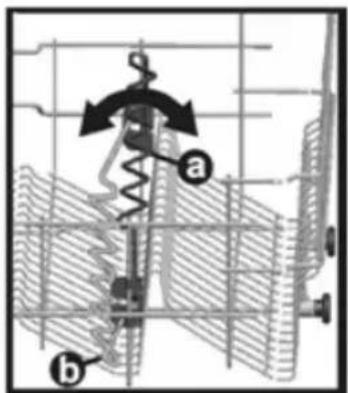

Goblet clamp

It enables safe wash of your goblets with long foot and glasses. Do not lean your long glasses on one another, this way they can not remain stable and can be damaged during washing.

To create wide spaces when you do not want to use goblet clamp, turn to position .

Technical illustration of a multi-tiered industrial structure with pipes and tanks (no text or symbols)

Lower Basket

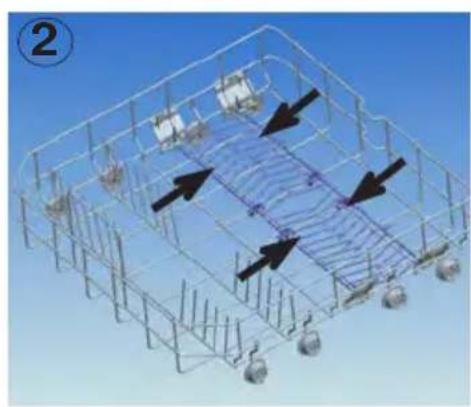

Folding Racks

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

3D wireframe diagram of a grid structure with directional arrows indicating movement or flow (no text or symbols)

Alternative basket loads

Lower Basket

Top basket

Diagram of a multi-layered storage or processing unit with circular components and mesh grids (no text or labels)

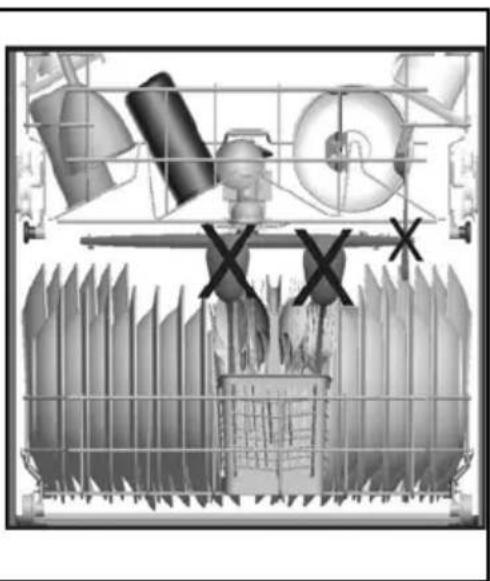

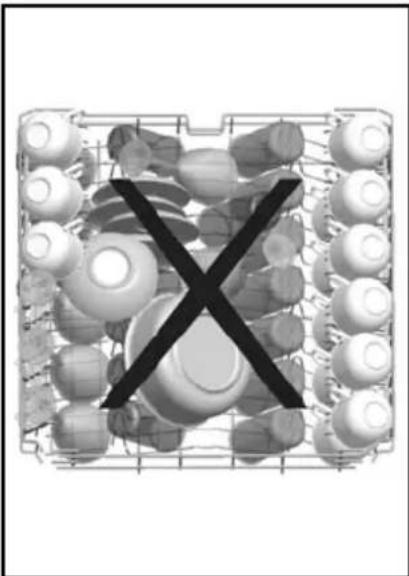

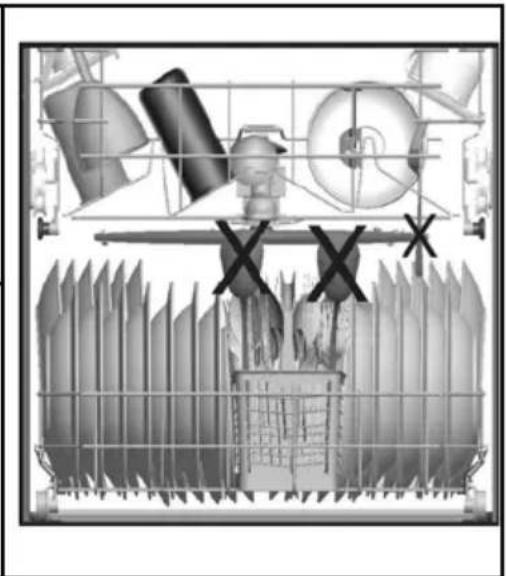

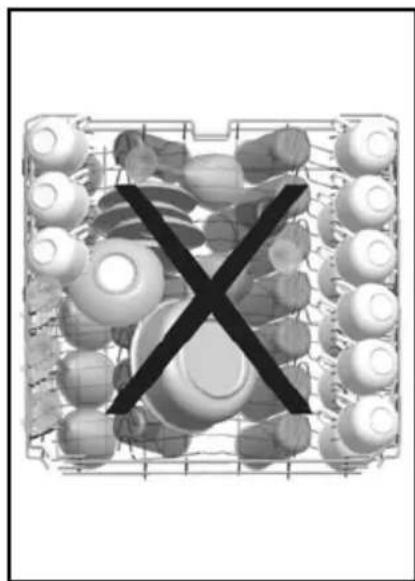

Faulty loads

Diagram of a grid with circular objects and a black 'X' symbol overlay (no text or labels)

3D rendered mechanical components with grid overlay, no visible text or symbols

Cross-sectional diagram of industrial equipment components including fans, pipes, and a tank (no text or labels visible)

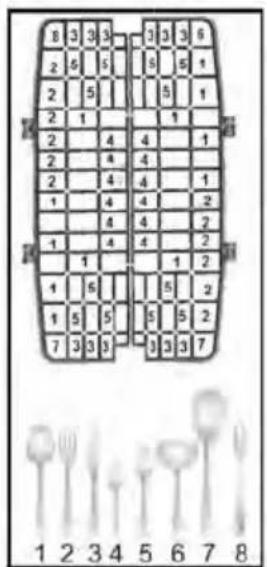

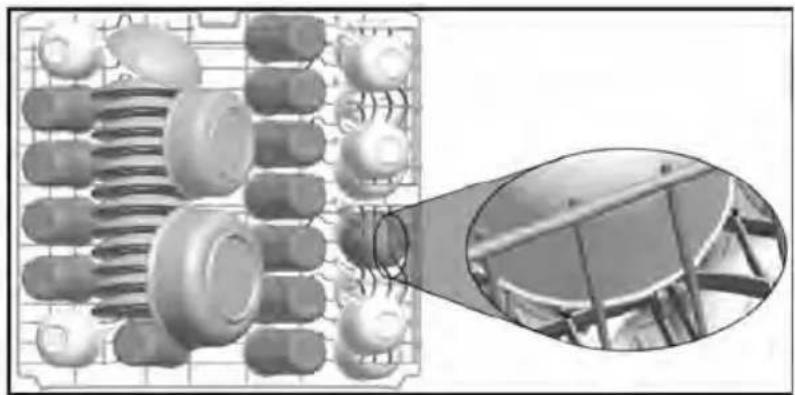

Standard loading and test data

Capacity:

Upper and lower baskets: 12 place settings. The upper basket should be adjusted to high position Cups should be placed on the dish rack pins.

Detergent / Rinse aid

5+25 cm ^3 , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4

Programme test

Eco 50°C, in accordance with EN 50242 (international norms)

Industrial machine component grid with mechanical parts and a magnified inset showing structural details (no text or symbols)

Cross-sectional diagram of a mechanical component with layered internal structure (no text or symbols)

3D rendered image of a wireframe basket with handle and compartments (no text or symbols)

PROGRAMME DESCRIPTIONS

Programme items

Programme No				Reference
Programme names and temperatures	PrewashNo Heat	Quick40°C	Delicate40°C	Eco50°C	Super 50°65°C	Intensive65°C	Extra Intensive(Prewash+Intensive 65°C)
Type of food waste	Pre-wash to rinse andloosen residue-awaitingfull load-then select aprogramme	coffee, milk, tea, coldmeats, vegetables, notkept for long	coffee, milk, tea,cold meats,vegetables, not keptfor long	coffee, milk, tea,cold meats,vegetables, not keptfor long	soups, sauces, pasta,eggs, pilaf, potato andoven dishes, friedfoods	soups, sauces, pasta,eggs, pilaf, potato andoven dishes, fried foods	soups, sauces, pasta,eggs, pilaf, potato andoven dishes, very friedfoods
Level of soil	-	small	small	medium	medium	high	high
Detergent amountA: 25 cm2/15 cm2B: 5 cm3	- A A A+B A+B A+B A+B
	Prewash	40 °C wash	Prewash	Prewash	65°C wash	Prewash	Prewash
	End	Cold rinse	40°C wash	50°C wash	Cold rinse	65°C wash	50°C Prewash
		Hot rinse	Cold rinse	Cold rinse	Hot rinse	Cold rinse	70°C wash
		End	Hot rinse	Hot rinse	End	Hot rinse	Cold rinse
			Dry	Dry		Dry	warmish rinse
			End	End		End	Hot rinse
							Dry
							End
Programme duration(min.)	15	30	70	162	50	110	150
Electricity consumption(kW hours)	0,02	0,88	0,95	0,95	1,35	1,55	1,8
Water consumption(liters)	4,2	10,9	13,9	9,0	11,6	15	20,1

Warning: Short programs do not include a drying step
The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).

SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME

Switching on the machine

Program follow-up

You can follow the program flow using the program follow-up lambs located on the control panel.

Changing a programme

If you would like to change programs while a washing program is continuing.


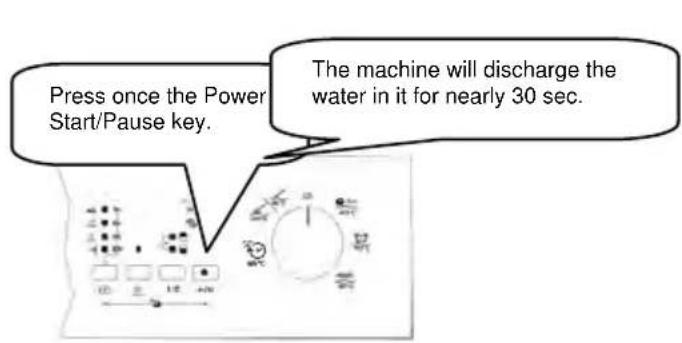

Changing a programme with resetting

If you would like to cancel a program while a washing program is resumed

Switching the machine off

Note: You can slightly open the door in order for the machine to perform a faster dry operation after the wash programme is finished.

Note: If the machine door opens during washing or the power is cut off, the machine will go on to the program in case the door is shut or the power is back.

Note : If energy is cut or machine door is opened during drying process, program isterminated. Your machine becomes ready for new program selection.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door,

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning the machine,

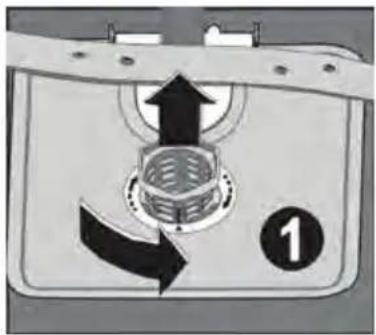

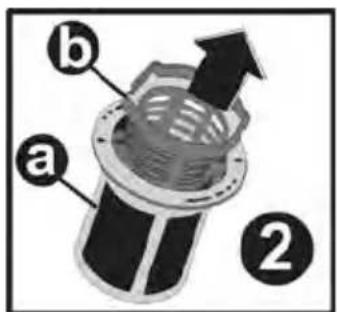

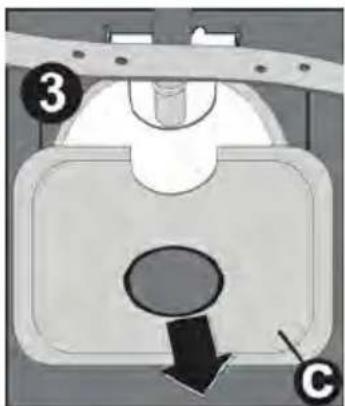

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards.1

Pull and remove the metal/plastic filter. 3 Then pull the coarse filter out of the micro filter.2 Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across.4

• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are very important in terms of the proper running of the machine.

Diagram of a mechanical device with propeller and fan components, showing directional flow (no text or symbols)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

	ERROR CODE ERROR DESCRIPTION CONTROL
	Wash Rinde Dry End Start/Pause
						Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service if the error resumes.
						Error of continuous water input	Close the tap.Contact the service.
						The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service.
						Heater error	Contact the service.
						Alarm is active against water overflow	Power off your machine and close the tap.Contact the service.
						Faulty electronic card	Contact the service.
						Overheating error (temperature in the machine is too high)	Contact the service.
						Divisor position error	Contact the service.
						Faulty heater sensor	Contact the service.

If one of program monitor lights is on and start/Pause light is on and off,

Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.

If the control lamps won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
  • Water inlet failure.
• Program can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.
• Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
  • Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
  • Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
• Rinse aid dosage setting at a very low level.
• No special salt is being used despite the high degree of water hardness.
  • Water softener system setting is at a very low level.
• Salt compartment cap not closed well.
• A detergent without phosphate used; try one that contains phosphate.

If the dishes won't dry up

• A programme without a dry operation selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.

If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.
• High rate of salt in the wash water.
- Salt compartment cap not closed well.
- Too much salt spilt into the sides and into the machine while filling it with salt.
- Unhealthy mains grounding.

Door is not opened / closed properly ;

• Not proper weight wooden part inserted on the door. (Follow the weight given in the Assembly manuel)
• The tensile of the door spring not adjusted properly. Adjust it according to the Assembly manuel.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine
2. Unplug the machine and then turn the water off.
3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.
4. Keep the machine interior clean.
5. Eliminating water droplets
6. Wash the dishes with the intensive programme.
   • Take all of the metal containers in the machine out.
7. Do not add detergent.
8. If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.
9. Clean all rough waste before you place dirty dishes to the machine.
10. Operate the machine after it is completely full.
11. Use pre-washing program only when necessary.
12. Observe program information and average consumption values table when selecting a program.
13. Since the machine will reach high temperatures, it should not be mounted near refrigerator.
14. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

INHALTSVERZEICHNIS

Close-up of mechanical components with a numbered label '14' pointing to a circular component (no readable text or symbols)

Illustration of a hand holding a faucet with a valve, no text or symbols present

Der Zufuhrschlauch

Simple line drawing of a faucet with a valve and handle (no text or symbols)

Line drawing of a faucet with a flanged handle and a flanged base (no text or symbols)

Der Stromanschluss

Diagram of a door handle with a curved panel and a switch, showing a circular arrow indicating direction (no text or symbols)

Hand turning a knob with a numbered dial (1) and rotational arrow, no text or symbols present

Illustration of a hand holding a metal bracket with internal wire mesh (no text or symbols)

Mechanical assembly diagram showing a conveyor belt system with wheels and a central shaft (no text or symbols)

Der Weinglashalter

Diagram of a mechanical or structural assembly with layered components and connecting lines (no visible text or symbols)

3D wireframe diagram of a grid structure with arrows indicating direction, no text or symbols present

Cross-sectional diagram of a washing machine showing internal components and fan blades (no text or labels)

Black-and-white photo of four cooking pots arranged in a wire basket (no text or symbols visible)

Oberer Geschirrkorb

Grid of food items including bell peppers, carrots, and tomatoes with no visible text or labels

Falsche Beladung

3D rendered image of a grid with a black 'X' symbol overlay, no text or symbols present

3D rendered mechanical components with grid lines, no visible text or symbols

Cross-sectional diagram of a mechanical assembly with no visible text or symbols

Diagram of a mechanical assembly with multiple rollers and a magnified inset showing internal components (no text or labels)

Cross-sectional view of a mechanical component with internal gear and housing (no visible text or symbols)

3D rendering of a woven basket with handle and side compartments (no text or symbols)

Diagram of a mechanical device with two blades and a central hub, showing directional flow (no text or symbols)

Die Sprüharme
