USER MANUAL M6601W SERVIS

90°C Cotton / Antibacterial.	Antibacterial wash is perfect to refresh you machine and to cleanse the rubber seal on the porthole. Use once every 3-4 months and run the machine without any fabrics.	●
75°C Cotton.	Sheets, shirts, tablecloths, towels that are resistant and heavily soiled.	●
60°C Towels.	Ideal towel wash and also for Colourfast cottons and linen or viscose without special nishes.	●
40°C Daily .	Lightly soiled fabrics made from cotton linen- non colourfast	●
30°C Mixed.	Lightly soiled mixed fabrics made from cotton ,synthetics or blended fabrics.	●

Famlicare

60°C Sportswash.	Normal soiled easy care fabrics including Sportswear, made from cotton,synthetics or blended fabrics.	●
40°C Jeans.	Normal soiled fabrics including Jeans made from cotton or linen.	●
30°C Daily.	Daily wash with fabrics lightly soiled made from cotton, synthetics or blended fabrics.	●

Famlicare

40°C Baby/toddler.	Easicare programme ideal for baby and toddler clothes - and cotton and viscose mixtures.	●
30°C Silks/delicates.	Can be used for most articles which can be washed on any programme BUT NOT articles labelled 'Hand wash'.	●

Wool

40°C Freshen Up .	Sensitive, easy care fabrics made from cotton or synthetics or blended fabrics	●
30°C Jumpers.	Washable wool and wool mixtures and machine wshable jumpers.	●
Cold Wool.	Silks and delicate fabrics.	●

Lifestyle

30°C Handwash/Lingerie.	Non colourfast fabrics that can be mixed together at a low temperature. Ideal for handwash items and lingerie.	●
Quickwash 35°C - 40 mins.	Ideal for washing delicate fabrics that are not labelled "handwash"	●
40°C Delicate.	Lightly soiled easy care fabrics - cotton and coloureds	●	●
Cold Wash.	Any fabrics that can be washed but are not labelled 'Do not spin'.	●	●
Shower/Rinse.	Any fabrics that can be hand washed but are not labelled "Do not spin".	●	●
Spin.	Spin only programme for 'Hand wash' articles that can be spin.	●	●

Fabric Guide

Wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

NOTE: You must always refer to the clothing care labels in all fabrics before selecting a wash.

C

ation Options

Maximum Extra Stain Eco Easy

Wash Rinse Action Wash Crease

Load

6,0 kg ●	●	●	●
6,0 kg ●	●	●	●
6,0 kg ●	●	●	●
6,0 kg ●	●	●	●
6,0 kg ●	●	●	●
3,0 kg ●	●	●	●
3,0 kg ●	●	●	●
3,0 kg ●	●	●	●
3,0 kg				●
3,0 kg				●
1,5 Kg
1,5 Kg
1,5 Kg
2,5 kg
3,0 kg
4,0 kg ●	●		●
6,0 kg ●			●
6,0 kg ●
6,0 kg				●

THE CONTROLS

The controls arranged on the front panel consist of (right to left):

1 Programme Selector

2 Start button

3 Option buttons Easy Iron, Extra Rinse, Eco Wash, Stain Action,

4 Spin Select

5 Time Delay

6 Washing powder and conditioner drawer

Note: For safety reasons the appliance will not allow a temperature higher than that defined in the wash programme.

Option buttons

The following option buttons are to be used in conjunction with wash programmes. They cannot be used on their own. Before selecting any wash programme or option you must always refer to the clothing care labels on your items of clothing.

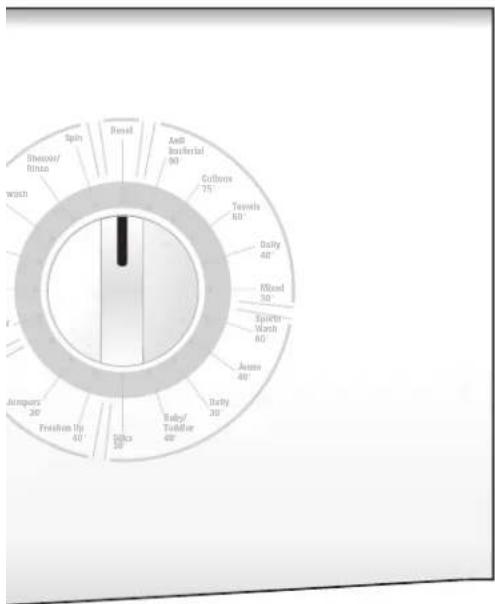

Programme selector dial

To select a programme, turn the selector dial until the required programme number on the front panel is opposite to the indicator mark on the selector dial. To start a programme, first ensure that the taps are fully turned on, the door is closed and the mains supply is switched on. Press the start button and then programme will start. The programme is complete when the END led will light-up. When selecting a wash programme on an electronic machine, once your selection has been made the control knob remains in this position and DOES NOT move as the programme progresses. To re-set the programme, or when the programme has finished its cycle turn the programme dial to the RE-SET position

which prepares(and leave for approx 5 seconds) the machine for you to select its next programme.

Options (Are in addition to the Programme Selector Dial, they cannot be selected on their own).

Start

Once a programme selection has been made and any options (if required) have been selected press this button to commence the wash programme.

Easy-Iron

When this button is pressed, at the end of the wash cycle, the items loaded in the washing machine will continue to rotate for a further thirty minutes to reduce creasing. With this function enabled, the spin speed is 800 rpm. The function does not work for the "wool" program

Extra Rinse

The washing machine has been designed to reduce water consumption to a minimum. In very soft water areas, or in the case where detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the program.

Eco Wash

When this button is pressed, the washing machine will run a wash cycle at the set temperature, though with a longer duration. The button is enabled for the "COTTON" and "SYNTHETIC" programs.

Stain Action

Press this button to obtain a short wash of maximum temperature 40^ C and approximately 10 minutes duration prior to the main wash.

This function can only be used, on the "COTTON" and "SYNTHETICS" programs. NOTE: when this option is used, detergent must also be added to the pre-wash detergent compartment.

Spin Select

The machine offers a wide selection of spin speeds that can be selected beforehand according to the wash program. To change the spin speed, simply press button to select the required speed. The corresponding speed led will light-up each time the button is pressed. To exclude the spin, select the led corresponding to symbol ☐.

Time Delay

The machine is fitted with a delayed start function. This allows the washing machine to be programmed to start the wash cycle up to 8 hours later. The delay in hours can be selected as follows: pressing button once will delay the wash for 1 hour, pressing twice will delay the wash for 2 hours, and so on for a maximum of 8 hours.

farm iron x 150 °C

Luke warm iron max 110°C Donnel iron

Dry Cleaning

Dry cleaning in all solvents

Dry cleaning in perchloroethylene.

Dry cleaning in petrol, pure alcohol and R113

Do not dry clean

Drying

Flat

On the line

On clothes hangar

Low temperature

Tumble Dry

Do not tumble dry

TECHNICAL INFORMATION

Dimensions: Height 850mm (33.5")

Width 595mm (23.4")

Depth 540mm (21.6")

Weight: M6601 65,0 kg (143lb) approx

Electricity supply: 230V/240V AC 50Hz

Power cable: Three core including earth lead

Fuse rating: 13 amp (BS1362) ASTA approved

Heater: 2.1kW

Motor: 130 Watt

Pump: 34 Watt

Water intake: Hot and cold fill or cold fill only

Drum capacity 54 litres (11,9 gallons)

Maximum load: 6KG (15.4lb)

Two spin speed: M6601 500/1000 rpm

Mobility: 4 adjustable feet

Serial number: Inside filter door

This appliance conforms to EEC Directive 89/336 EEC and BS800-1983 for radio interference. Our policy is one of continuous improvement. We reserve the right to change specifications (which are subject to manufacturer's tolerances) prices or models without notice. All claims result from manufacturer's tests.

19/04/2006 SM2052
