USER MANUAL EM-607T SANYO

INSTRUCTION MANUAL AND COOKING GUIDE

EM-607T

Microwave Oven

TABLE OF CONTENTS
Safety Instructions

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY. inside cover

Important Safety Instructions 1

Setting up & Getting to Know Your Oven

Earthing Instructions	2
Installation	2
Names of Oven Parts and Accessories	3
Control Panel and Features	4
Setting Clock	5
Child Lock-Out	5
Utensils	6

Operating Instructions

■ Automatic Popcorn	7
■ Quick-On Cooking	7
■ Automatic Defrost by Weight.	8
■ Direct Access Food Reheating	9
■ Time Cooking	10
■ Minute Timer	11
■ Multistage Cooking	11

Care of Your Microwave Oven

■ Questions and Answers	12
■ Cleaning	13
■ Before Calling for Service	13

Cooking Guide

■ Cooking Techniques	14
■ Appetizers	15
■ Soups and Sandwiches	16
■ Vegetables and Rice	17
■ Meats, Poultry and Fish	18
■ Eggs	20
■ Baked Goods and Desserts	21

Chart

■ Quick-On Cooking Chart	22
■ Automatic Defrost Chart	23

Quick Reference.... back cover

Read these instructions

carefully before use.

If you follow the instructions, your microwave oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

EM-607T

Power Consumption	1100W
Maximum Output	750W*
Oven Capacity	0.6 cu. ft.
Turntable Diameter	275 mm
Dimensions (w x h x d)	458 mm x 250 mm x 338 mm
Weight (Approx.)	14.2 kg

*According to IEC-705 test procedures. Specifications subject to change without notice.

PROPER AND SAFE USE OF YOUR OVEN

• The oven must be level.
- The turntable and turntable roller rest must be in the oven during cooking.
- Place the cookware gently on the turntable and handle it carefully to avoid possible breakage.
- The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches.
- Do not operate the microwave oven empty.
- Do not overcook food. A small quantity of food with low moisture content or high fat or sugar content can burn.
- Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause it to break.

• Avoid heating baby bottles or baby food jars. Transfer the food into a suitable container for the microwave oven. The food temperature should be tested before giving it to the baby.
• Do not heat narrow-necked containers, such as syrup bottles.
• Do not attempt to deep-fry in your microwave oven as the temperature of oil cannot be controlled.
• Do not heat cans. Transfer the contents into a microwave-safe dish before heating.
• Do not use this microwave oven for commercial purposes. This microwave oven is made for household use only.

NOTE

- It is quite normal for steam to be emitted around the door, for misting to occur on the door, or even for water droplets to appear below the door during the cooking cycle. This is merely condensation from the heat of the food.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Never interfere or tamper with safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on door sealing surfaces. Wipe the door sealing area frequently with a mild detergent, rinse and wipe dry. Never use abrasive powders or pads.
(c) When open, the door must not be subjected to strain; for example, a child hanging on the opened door or any load on it could cause the oven to fall forward, and the weight could also damage the door.
(d) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING -

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using.

2. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity.

If a fire should start:

• Keep the oven door closed
• Turn the oven off, and
• Disconnect the power cord or shut off power at the fuse or circuit breaker panel.

Keep in mind the following rules at all times:

a. Do not overcook food. Overcooked food can cause fires in the oven. Carefully attend to the oven's activities, especially if paper, plastic, or other combustibles are inside.
b. Do not store combustible items such as bread, cookies, paper products, etc. inside the oven. They may catch fire if turned on accidentally.
c. Do not use wire twist-ties in the oven. Be sure to inspect purchased items for wire twist-ties and remove before placing food in the oven.

1. Some products such as eggs in the shell, water with oil or fat, sealed containers and closed glass jars may explode and therefore should not be heated in this oven.
2. Use this oven only for its intended uses as described in the manual. It is not designed for industrial or laboratory use. Never use corrosive chemicals or vapours in this oven.
3. As with any appliance, children should use the oven only under adult supervision.
4. Do not store or use this appliance outdoors.
5. Keep the oven away from heat and water sources. Exposure to heat and water can lower efficiency and lead to malfunctioning.
6. When heating water or other liquids, use a wide necked container to allow air bubbles to escape freely. Using narrow-necked containers may cause the liquid to boil over. This may happen even after the cooking has stopped.
7. It is important to keep the door and the oven interior clean. (See "Cleaning" instructions on page 13.)

WARNING

(a) Do not adjust or repair microwave oven yourself. Do not operate the oven if it is damaged, until it has been repaired by a service engineer trained by the manufacturer.
(b) It is dangerous for anyone other than a properly qualified engineer trained by the manufacturer to carry out adjustments or repairs.
(c) If the power supply cord is damaged, it must be replaced by the manufacturer, as a specially prepared cord is required.
(d) On no account remove or interfere with any parts or screws. THIS COULD PROVE VERY DANGEROUS.

SAVE THESE INSTRUCTIONS

EARTHING INSTRUCTIONS

This appliance must be earthed. If there is an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord that has a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

The electrical power cord must be kept dry and must not be pinched or crushed in any way.

WARNING - Improper use of the earthing plug can result in electric shock.

INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install if oven is damaged.

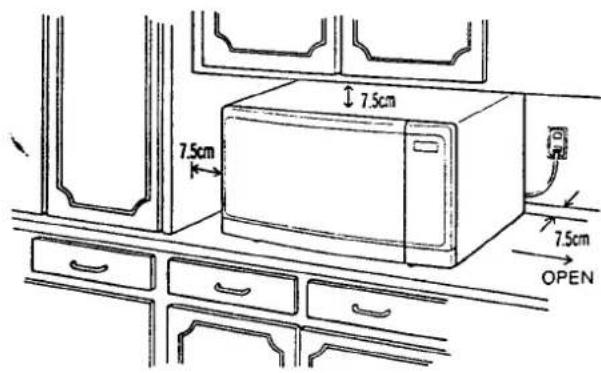

1. Select a level surface that provides enough open space (see illustration at right) for the inlet and/or outlet vents.
2. Leave a minimum clearance of 7.5 cm above the oven.
3. Do not remove the legs from the bottom of the oven.
4. Blocking the inlet and/or outlet openings can damage the oven.
5. Do not install oven over a range, cooktop or other heat-producing appliance.
6. Place the oven as far away from radios and T.V.'s as possible.
7. Cabinet is covered with a protective film which should be removed to fully show the intended colour and finish.
8. Plug your oven into a standard household outlet. Be sure that your microwave oven is the only appliance on the circuit.

7.5cm 7.5cm 7.5cm OPEN

A minimum clearance of 7.5 cm is required between the oven and any adjacent wall. One side must be open.

NOTE: This oven is designed for countertop installation only. Insertion into a cabinet or wall will damage the product and void the warranty.

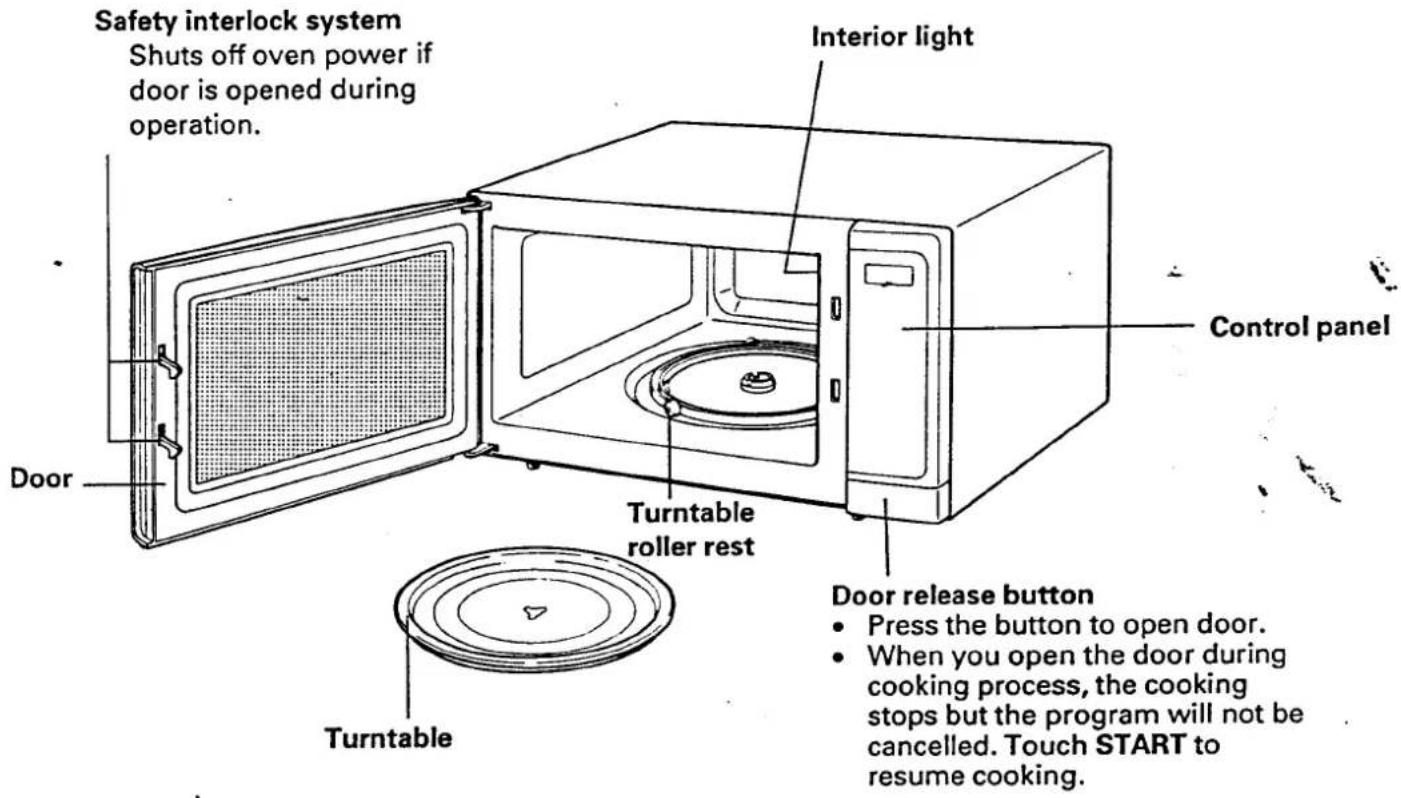

NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton.

Your oven comes with the following accessories:

Turntable 1

Turntable roller rest 1

Instruction Manual 1

Safety interlock system Shuts off oven power if door is opened during operation. Interior light Control panel Door Turntable roller rest Turntable Door release button Press the button to open door. When you open the door during cooking process, the cooking stops but the program will not be cancelled. Touch START to resume cooking.

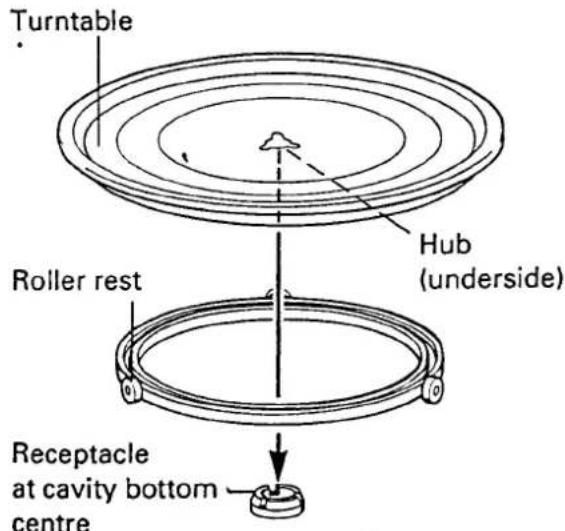

TURNTABLE INSTALLATION

Turntable Roller rest Hub (underside) Receptacle at cavity bottom centre

1. Place the roller rest on the cavity bottom.

2. Place the turntable on top of the roller rest as shown in the diagram. Make sure the turntable hub is securely locked in the receptacle. Never place the turntable upside down.

3. Both turntable and roller rest must always be used during cooking.

4. All food and containers of food are always placed on this turntable for cooking.
5. This turntable returns to its original starting position when cooking is finished.
6. This turntable rotates clockwise and counterclockwise; this is normal.

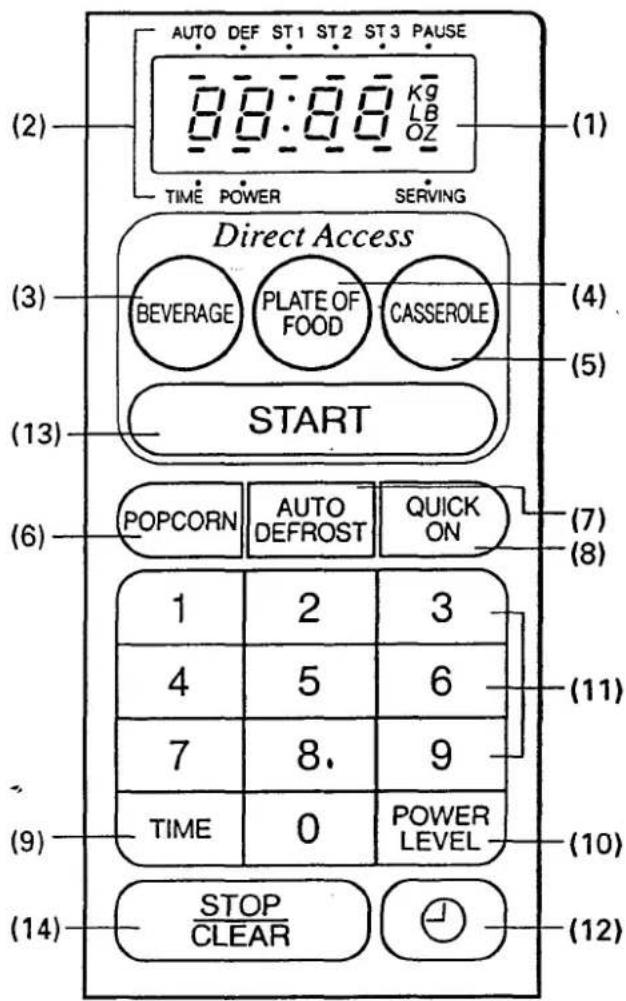

(2) AUTO DEF ST1 ST2 ST3 PAUSE 8:0:0:0 Kg TIME POWER SERVING (1) Direct Access BEVERAGE PLATE OF CASSEROLE START (3) (4) (5) (6) POPCORN AUTO QUICK ON 1 2 3 4 5 6 7 8. 9 TIME 0 POWER LEVEL (7) (8) (9) (10) (11) (12) STOP CLEAR (13)

MICROWAVING MADE EASY

Your new microwave oven has two sets of menu feature keypads for quick and easy operation.

• Auto Reheat menu keypads: Use these to reheat foods and drinks by the cup, plate or casserole. Just touch the desired keypad for the number of servings. (1 - 3 servings.)
• Program Cooking menu keypads: These keypads are preprogrammed for the optimum settings for specific functions — popcorn popping, Auto Defrost by weight and Quick-On cooking.

(1) Display Window

Counts down cooking time in seconds during cooking. Shows clock time when oven is not in use.

(2) Indicators

ST1/ ST2/ ST3 : Cooking stage indicators AUTO/ DEF/ PAUSE : Cooking mode indicators TIME/ POWER/ SERVING/ kg/g : A flashing indicator prompts you to enter desired cooking time, power setting, food weight or number of servings.

Automatic Reheating menu keypads

(3) BEVERAGE keypad (page 9)
(4) PLATE OF FOOD keypad (page 9)
(5) CASSEROLE keypad (page 9)

Program Cooking menu keypads

(6) POPCORN keypad (page 7)
(7) AUTO DEFROST keypad (page 8)
(8) QUICK ON keypad (page 7)

(9) TIME keypad (page 10)
(10) POWER LEVEL keypad (page 10)

(11) Number keypads
(12) Clock keypad (page 5)
(13) START keypad

(14) STOP/CLEAR keypad Clears all previous setting if pressed before cooking starts. During cooking: touch once to stop oven; twice to stop and clear all entries.

Beep Sound

A beep tone sounds when a keypad on the control panel is touched to indicate a setting has been entered.

SETTING CLOCK

When your oven is plugged in for the first time or when power resumes after a power interruption, the numbers in the display reset to 0:00. Set the clock.

Example: To set 3:15 :

1.

Touch

2.

Touch number keypads 3, 1 and 5.

3.

Touch

The clock starts counting.

Remember:

- If the clock (or display) shows any abnormality, unplug the oven from the AC outlet. Plug it in again and then reset the clock.

CHILD LOCK-OUT

Your oven has a safety feature to prevent a playful or accidental running of the oven by a child. Even if the oven is accidentally programmed to cook, no cooking takes place when this feature is set.

To set :

1. Touch ⏻ .
2. Touch 9 four times.
3. Touch START.

Indicator L lights and clock display reappears.

To cancel :

1. Touch ⏻ .
2. Touch 7 four times.
3. Touch START.

Indicator L disappears and clock display reappears.

UTENSILS

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils	Use	Remarks
Aluminium foil	Shielding	Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. Should be at least 2.5 cm away from oven walls.
Browning dish	Searing meats	Follow manufacturer's instructions. The bottom of browning dish must be at least 5 mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Reheating and short-term cooking	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Warming	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Cooking	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Cooking	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Short-term warming and cooking	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Reheating and short-term cooking	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Cooking	Use as a cover to prevent spattering or a wrap for steaming.
Plastic	Reheating and short-term cooking	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe." Some plastic containers soften as the food inside gets hot.
Plastic wrap	Cooking	Microwave-safe only. Use to cover food during cooking to retain moisture.
Thermometers	Cooking	Microwave-safe only (meat and candy thermometers).
Wax paper	Cooking	Use as a cover to prevent spattering and to retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils	Remarks
Aluminium tray	Aluminium tray may cause arcing. Transfer the frozen dinner into a microwave-safe dish before cooking.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	They may cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam cups	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

UTENSIL TEST:

Fill a microwave-safe container with 1 cup of cold water (250 mL) and place it in the oven along with the utensil in question. Cook on HI power for 1 minute. Carefully feel the utensil. If the empty utensil is warm, it should not be used for microwave cooking. Do not exceed 1 minute testing time. This test cannot be used for plastic containers.

CAUTION:

Make sure that closed containers are opened and plastic pouches pierced before cooking. Tightly-closed utensils could explode.

AUTOMATIC POPCORN

This feature lets you pop a 100 g prepackaged microwave popcorn quickly and easily.

Popcorn Popping Tips:

• Microwave popcorn bag should be at room temperature.
• Place only one bag in the oven at a time. Follow package instructions. Do not increase quantity.
• Popcorn popping devices are not recommended for use with this feature.

Example: To pop one bag of 100 g microwave popcorn:

1.

POPCORN

Touch POPCORN.

Display shows bag size.

2.

START

Touch START.

Popping begins, and the display shows the time counting down.

Remember:

• If popcorn bag size is not 100 g, follow instructions on the package and do not use this feature.
• Do not leave the oven unattended while the corn is being popped.
• Remember to supervise children closely.

CAUTION:

• After popping, open bag carefully. Popcorn and steam are extremely hot.
- Do not reheat unpopped kernels or reuse bag. Overcooking can result in an oven fire.
- Never use brown paper bag for popping corn.

A time-saving feature, this simplified control lets you quickly set and start microwave cooking without the need to touch START.

You can choose from nine preset cooking time selections (1 to 9 minutes) to cook at highest power level (HI). Quick-On cooking chart appears on page 22.

Example: To set Quick-On cooking 2 minutes:

1.

QUICK ON

Touch QUICK ON.

2.

2

Touch 2.

The oven begins cooking and display shows time counting down.

Remember:

- You may open the door to stop cooking before the selected time is over. To start again, close the door and touch START.

AUTOMATIC DEFROST BY WEIGHT

The Auto Defrost by Weight feature is an accurate defrosting method for frozen food up to 2.9 kg. The oven automatically selects 1 kg. To enter a different weight (other than 1 kg), use the number keypads.

Pause

This feature has a built-in pause mechanism to allow for checking and rearranging the food. The oven stops at the end of the first defrost period (about 1/4 of the total defrost time). If you do not open the door at the pause, the oven restarts after 5 minutes and commences the second defrost period.

Auto Defrosting chart appears on page 23.

For manual defrosting using Time Cooking, see page 10.

Defrosting Tips:

• Check the food during defrosting.
• Remove frozen food from its original paper or plastic package (wrapper). When it is difficult to remove the wrap, remove it at pause.
• Place foods in a flat microwave-safe baking dish or roasting rack to catch drippings.
• Food should still be somewhat icy in the centre when removed from the oven.
  • The Auto Defrost menu includes standing time.

Example: To defrost 1.2 kg of chicken pieces:

1.

Touch AUTO DEFROST.

2.

Enter the weight by touching 1 and then 2. DEF

3.

Touch START.

1. The oven stops automatically at pause. Separate, rearrange or turn food over.

5.

Touch START.

Remember:

• The menu automatically selects 1 kg if the weight is not entered.
- To enter a weight of less than 1 kg, always press 0 first. For example, to enter 0.2 kg, press 0 and then 2.
- Only one digit can be entered after a decimal point. If in doubt, convert to the lower number.

CONVERSION TABLE
lbs - oz	grams	kg	lbs - oz	grams	kg
4 oz	100	0.1	3 lb-9 oz	1600	1.6
7 oz	200	0.2	3 lb-12 oz	1700	1.7
10 oz	300	0.3	4 lb	1800	1.8
14 oz	400^t	0.4	4 lb-3 oz	1900	1.9
1 lb-2 oz	500	0.5	4 lb-7 oz	2000	2.0
1 lb-5 oz	600	0.6	4 lb-10 oz	2100	2.1
1 lb-9 oz	700	0.7	4 lb-14 oz	2200	2.2
1 lb-12 oz	800	0.8	5 lb-1 oz	2300	2.3
2 lb	900	0.9	5 lb-5 oz	2400	2.4
2 lb-4 oz	1000	1.0	5 lb-8 oz	2500	2.5
2 lb-7 oz	1100	1.1	5 lb-12 oz	2600	2.6
2 lb-11 oz	1200	1.2	5 lb-15 oz	2700	2.7
2 lb-14 oz	1300	1.3	6 lb-3 oz	2800	2.8
3 lb-2 oz	1400	1.4	6 lb-6 oz	2900	2.9
3 lb-5 oz	1500	1.5

DIRECT ACCESS FOOD REHEATING

BEVERAGE, PLATE OF FOOD, CASSEROLE feature keypads are present on your oven control panel. These keypads allow you to reheat one to three servings of room temperature (or refrigerated, but not frozen) foods automatically. Simply touch the appropriate keypads, once for each serving and then touch START.

Food Reheating Tips:

• Foods must be room or refrigeration temperature.
• Follow the directions included in the chart.
• When reheating food, place larger and denser food near the outer edge of the plate.
  • Stir food after reheating.

Example: To reheat 2 cups of soup:

1.

Touch BEVERAGE twice*.

2.

Touch START. Reheating starts. The time counts down in the display.

* Enter the number of servings/quantity by touching a desired menu keypad 1 to 3 times until the correct serving number appears in the display.

BEVERAGE — coffee/tea, soup, hot chocolate
Cover soup. No cover for coffee/tea and hot chocolate. Stir after reheating.

1 touch	1 cup	230 mL
2 touches	2 cups	460 mL
3 touches	3 cups	690 mL

PLATE OF FOOD

Cover with wax paper. To reheat 2 - 3 servings, place on a large plate.

1 touch	1 serving	230 g
2 touches	2 servings	460 g
3 touches	3 servings	690 g

CASSEROLE

Cover. Let stand 5 minutes.

1 touch	1 cup	170 g
2 touches	2 cups	340 g
3 touches	3 cups	510 g

NOTE: Use microwave-safe cup, plate or casserole only.

TIME COOKING

This basic microwave cooking method allows you to cook food for a desired time. In addition to the HI (maximum) power level, you can select different microwave power from 9 levels, 1 (10% of total power) to 9 (90% power) for the foods that require slower cooking. The oven also provides power level 0 (no power).

Foods with high moisture content should be cooked on maximum power, as this is the fastest cooking method and best maintains the natural flavour and texture of the foods.

To check the power level during cooking, touch POWER LEVEL. The power level appears in the display window.

Manual Defrosting

For manual defrosting (without using Auto Defrost features), use power level 3. To speed up the defrosting of dense foods over 450 g, you may start on HI for 3 minutes, then reduce to the level 3.

Example: To cook at power level 8 for 40 seconds:

1.

TIME

Touch TIME.

2.

4

0

Enter 40 seconds by touching 4 and then 0.

3.

POWER LEVEL

Touch POWER LEVEL.

4.

8

Touch 8 to select power level 8. The display shows 8.

5.

START

Touch START.

Remember:

• Cooking time can be set up to 99 minutes 99 seconds.
- When you cook on HI power, skip steps 3 and 4.

MULTIPOWER SETTING GUIDE

Power Level	Cooking Examples
1	Softening cream cheese.Keeping casseroles and main dishes warm.
2	Softening chocolate and clarifying butter.Heating breads, rolls, pancakes, tacos, tortillas and French toast.Taking the chill out of fruit. Heating small amounts of food.
3	Completing the cooking cycle of casseroles, stews and sauces.Manual defrosting.Thawing meat, poultry and seafood.
4	Cooking less tender cuts of meat in liquid or slow-cooking dishes.Completing the cooking cycle of less tender roasts.
5	Cooking stews and soups after bringing to a boil.Cooking custards and pasta.Cooking rump roast, ham, veal and lamb.
6	Cooking scrambled eggs. Baking cakes.
7	Cooking cheese dishes, eggs and milk.
8	Reheating precooked or prepared food quickly.
9	Cooking onions, celery and green peppers quickly.Reheating meat slices quickly.
HI	Cooking poultry, fish, vegetables and most casseroles.Preheating a browning dish. Boiling water.

MINUTE TIMER

You can use the timer function of your oven for purposes other than cooking.

Example: To set 3 minutes for a telephone call:

1.

Touch TIME.

2.

3

0

0

Touch 3,0 and 0.

3.

POWER LEVEL

Touch POWER LEVEL.

4.

0

Touch 0 (power level 0).

5.

START

Touch START.

MULTISTAGE COOKING

You can program up to 3 stages of cooking in sequence. Auto Defrost by Weight can be programmed before the first stage to defrost first and then cook.

• To program 2-stage or 3-stage cooking, repeat the Time Cooking steps 1 to 4 on the previous page and touch START.
• Using the Minute Timer feature for the first stage, you can delay cooking start time by up to 99 minutes and 99 seconds.

QUESTIONS AND ANSWERS

OPERATION

Q. What is wrong when the oven light does not glow?

A. There may be several reasons why the oven light does not glow. Perhaps:

• Door is not closed and locked. Push firmly to be sure that door is locked properly.
  • The light bulb has burned out.

Q. Why is steam coming out of the air exhaust vent?

A. Steam is normally produced during cooking. The microwave oven has been made to vent this steam.

Q. Can the microwave oven be damaged if it operates empty?

A. Yes. Never operate while empty or without the turntable positioned correctly on the roller rest.

Q. When the oven is plugged into a wall outlet for the first time, it might not work properly. What is wrong?

A. When the oven is plugged in for the first time or when power resumes after a power interruption, the microcomputer used in the oven control may temporarily become scrambled and fail to function as programmed. Unplug the oven from the wall outlet and then plug it back in. The microcomputer will then reset for proper functioning.

Q. Why do I see light reflection around the outer case?

A. This light is from the oven light located outside the oven cavity.

Q. Why is there noise coming from the turntable when the oven is turned on?

A. This noise occurs when the turntable roller rest and cavity bottom are dirty. Frequent cleaning of these parts should eliminate or reduce the noise.

Q. Instructions for aluminium foil use are confusing. When should I use foil?

A. It should be used to shield portions of food from becoming overcooked or overdefrosted. Use small flat pieces of foil for shielding.

FOODS

Q. What is wrong when baked foods have a hard, dry brown spot?

A. This is caused by overcooking. Shorten cooking or reheating time.

Q. Why do eggs sometimes pop?

A. The egg yolk may pop because of steam build-up inside the membrane. To prevent this, simply pierce the membrane with a toothpick before cooking it.

CAUTION: Never microwave eggs in the shell since they may explode.

Q. Why are scrambled eggs sometimes a little dry after cooking?

A. Eggs dry out if they are overcooked. You may need to vary the cooking time for one of these reasons:

• Eggs vary in size.
• Eggs are at room temperature one time and at refrigerator temperature another time.
• The shapes of utensils vary, which makes it necessary to vary cooking time.
• Eggs continue cooking during standing time.

Q. What is wrong when three potatoes bake thoroughly and the fourth one is still not cooked?

A. The fourth potato may be slightly heavier than the others and should be cooked 30 to 60 seconds longer. Remember to allow 2.5 cm around each potato when baking. For more even cooking, place potatoes in a circle.

Q. Why do baked apples sometimes burst during cooking?

A. The peel has not been removed from the top half of each apple to allow for expansion of the interior of the apple during cooking. As in regular cooking methods, the interior of the apple expands during the cooking process.

Q. How are boil-overs avoided?

A. Use a larger utensil than usual for cooking. If you open the oven door or touch STOP/CLEAR, the food will stop boiling.

Q. Why does the dish become hot when I microwave food in it?

A. As the food becomes hot it will conduct the heat into the dish. Use oven mitts to remove food after cooking.

CLEANING

Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and wipe dry. This should be done on a weekly basis — more often if needed. Never use cleaning powders or rough pads. Excessive oil splatters on the inside top will be difficult to remove if left for many days. Wipe spatters with a wet paper towel, especially after cooking chicken or bacon.

REMOVABLE PARTS

The following parts may be removed as described. They should be washed in warm (not hot) water with a mild detergent and a soft cloth. Once they are clean, rinse them well and dry with a soft cloth. Never use cleaning powders, steel wool or rough pads.

• The turntable may be cleaned at the sink. Be careful not to chip or scratch the edges as this may cause the turntable to break during use.
• The turntable roller rest should be cleaned regularly.

SPECIAL CARE

For best performance and safety, the inner door panel and the oven front frame should be free of food or grease buildup. Wipe them often with a mild detergent. Then rinse and wipe dry. Never use cleaning powders or rough pads.

After cleaning the control panel, touch STOP/CLEAR to clear any entries that might have been entered accidentally while cleaning the panel.

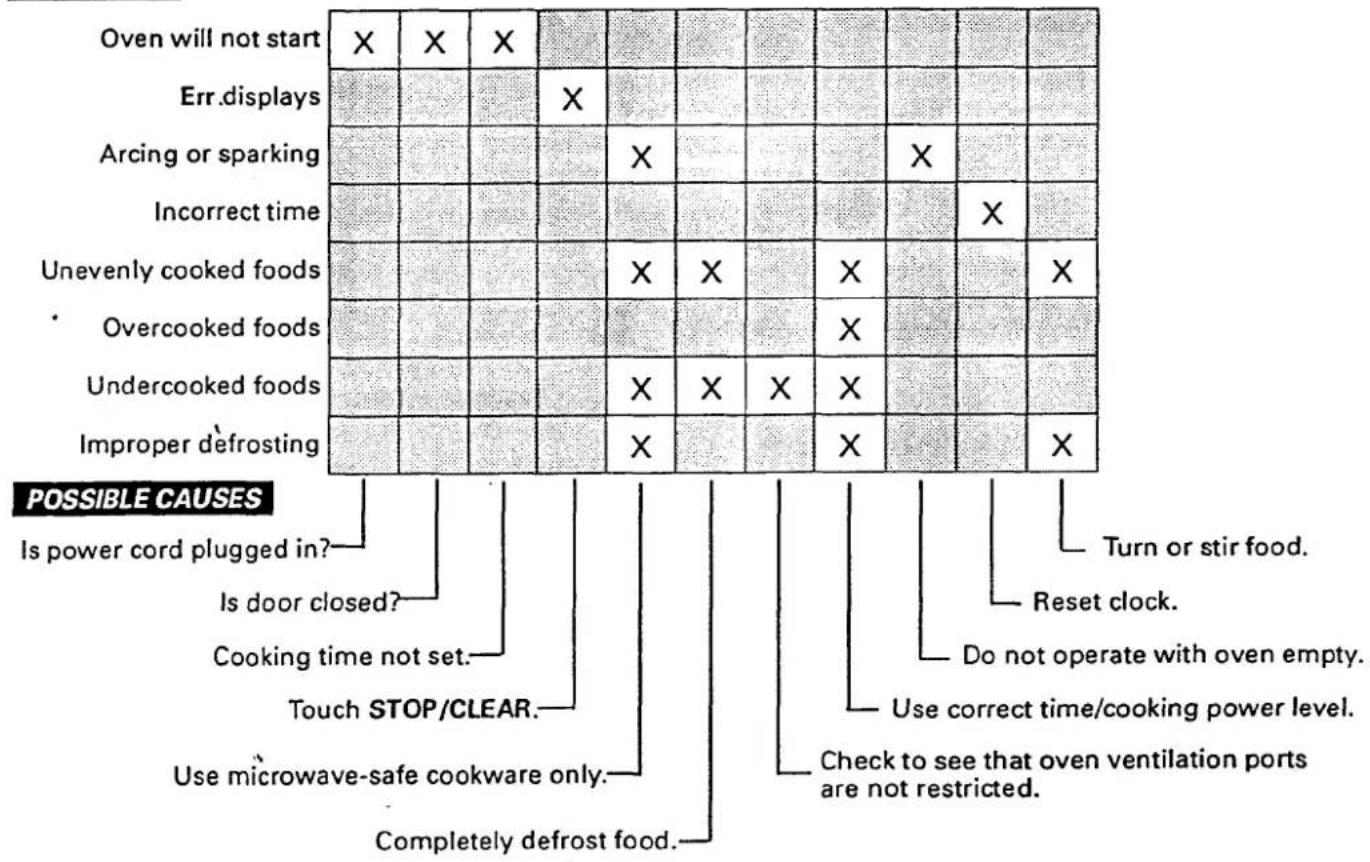

BEFORE CALLING FOR SERVICE

You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the chart below and try the solutions marked for each problem.

If the microwave oven still does not work properly, contact the nearest authorized service centre.

PROBLEMS

Oven will not start Err.displays Arcing or sparking Incorrect time Unevenly cooked foods Overcooked foods Undercooked foods Improper defrosting POSSIBLE CAUSES Is power cord plugged in? Is door closed? Cooking time not set. Touch STOP/CLEAR. Use microwave-safe cookware only. Completely defrost food. Turn or stir food. Reset clock. Do not operate with oven empty. Use correct time/cooking power level. Check to see that oven ventilation ports are not restricted.

COOKING TECHNIQUES

Advantages of microwave cooking are speed and efficiency. For warming, heating, and defrosting, nothing compares. There are a few tips that will make microwaving easier and more enjoyable.

Microwave Cooking Principles

Because microwave cooking requires only one-quarter to one-third the time of conventional cooking, the same cooking principles become even more important.

Quantity

The more food being cooked, the longer you will have to cook it. As a general rule, when doubling a recipe, increase the cooking time by about 50 percent. When cutting a recipe in half, reduce the time by about 40 percent.

Density

Dense foods, such as potatoes, roasts and carrots, absorb microwave energy less quickly than porous foods such as ground beef or mashed potatoes. Therefore, denser foods take longer to cook.

Shape and Size

Small pieces cook faster than large ones. For even cooking, it is important to have all the pieces the same size. Evenly shaped pieces, round or doughnut shaped, microwave best. When cooking items of varying thickness, arrange the thick portion near the outer edge of the dish.

Moisture, Sugar and Fat

Food high in moisture, sugar or fat cook faster than foods that are low in these substances. Add a minimum of liquid to moist foods. An excess amount of water slows cooking.

Starting Temperature

Frozen or refrigerated foods take longer to microwave than food at room temperature.

Delicate Ingredients

Some foods require special attention when cooked in the microwave oven. Delicate foods such as eggs, cheese, mayonnaise, etc. cook so quickly, they should be watched carefully.

Microwave Cooking Techniques

Arranging: Arrange foods in a circular pattern, when possible.

Piercing: Pierce the membrane of foods such as eggs, oysters, snails, sausages, livers, clams and whole vegetables, so they do not burst.

Covering: Covering speeds heating and prevents spattering.

Stirring: To help food cook more quickly and evenly.

Turning Over: To help larger foods such as roasts or whole chickens cook more evenly.

Reheating: Place food that is denser/larger/thicker to the outer edge and the smaller/thinner or more porous food to the centre.

Shielding: To prevent overcooking, thin or bony areas can be protected with small strips of aluminium foil.

Standing Time: Foods continue cooking even after removal from the oven. Standing time is necessary to allow foods to complete cooking.

Defrosting

The microwave's ability to defrost is one of its most appreciated features. Many of the same principles and techniques that apply to microwave cooking also apply to microwave defrosting.

Converting Recipes

Microwave recipes will likely call for less liquid and cooking time.

Microwave Thermometers

For best results, a microwave-safe thermometer can be carefully and properly inserted into the food. The guide to internal temperatures gives suggested thermometer readings for meat and poultry. Keep in mind that standing time is essential for most food to reach its proper serving temperature.

Guide to Internal Temperatures

130°F (54°C). Rare beef

140°F (60°C). Medium beef

150°F (66°C). Vegetables, hot drinks, soups, casseroles

155°F (68°C). Veal

160°F (71°C). Fish steaks and fillets

165°F (74°C). Well done lamb, pork

170°F (77°C). Poultry parts, whole fish, Well done beef

APPETIZERS

CONVERTING RECIPES

Most hot appetizers adapt well to microwave cooking, the exception being those wrapped in pastry. Pastry requires the hot environment of the conventional oven to become crisp.

- Toppings for canapés can be made ahead and then placed on bread or crackers just before heating. This guarantees a crispness.

- Cover appetizers or dips only when called for by a recipe. Use casserole lids, wax paper, plastic wrap, or paper towel.

- Appetizers and dips that contain cheese, mayonnaise and other delicate ingredients are usually heated on power level 1 or 2. A higher setting might cause separation or drying.

Reheating Guide - Convenience Appetizers

Item	Amount	Power	Approx. Cooking Time	Special Notes
Meat spread	100 g	8	112 - 2 min.	Transfer to small microwave-safe bowl.
Cocktail franks	4 servings	7	1 - 2 min.	Place on paper towel.Cover with wax paper.
Cooked pizza, 25 cm, cut into 8 portions	1.wedge4 wedgesWhole	888	12 - 1 min. 112 - 212 min. 312 - 412 min.	Place on paper towel or paper plate or leave in uncovered cardboard box, points toward center.
Dips, cream	12 cup (125 mL)	2	2 - 3 min.	Cover with wax paper.
Egg rolls	12 (170 g)	7	1 - 112 min.	Place on paper towel or paper plate.
Mini Tacos	4 - 6 (170 g)	5	1 - 2 min.	Place on paper towel or paper plate.

Cooking Guide – Hot Drinks

Item	Amount	Power	Approx. Cooking Time	Special Notes
Water	170 mL cup, 1170 mL cup, 2230 mL cup, 1230 mL cup, 2	HIHIHIHI	112 - 2 min.3 - 4 min. 2 - 212 min.4 - 5 min.	For instant coffee, soup, tea, etc.
Milk	170 mL cup, 1170 mL cup, 2230 mL cup, 1230 mL cup, 2	7777	112 - 212 min.3 - 412 min. 212 - 312 min.5 - 612 min.	For hot chocolate, etc.

SOUPS AND SANDWICHES

A large variety of sandwich combinations can be made in your microwave oven. Because sandwiches heat quickly, be careful not to overcook them — the bread can become tough and chewy. Heat breads until warm, not hot, and cheese until it just begins to melt. Let the following tips guide you when adapting or creating your own sandwiches.

CONVERTING SANDWICH RECIPES

- Heat sandwiches on white paper towels or paper plates. To prevent splattering, as well as to absorb steam and prevent sogginess, you can wrap each sandwich in a paper towel. Remove wrapping immediately after warming. It takes less than 1 minute to heat most sandwiches. Heat on power level 8.

- Thinly sliced meat heats better than thickly sliced meat. The slower-cooking thick slices often cause the bread to overcook before the meat is hot.

- When cooking canned soups, remove from can. Use microwave-safe dish. Add milk or water as directed on can. Cover dish.

- Stir cream-style soup halfway through cooking time. Let stand, covered, 3 minutes before serving.

Cooking Guide – Canned Soups

Item	Amount	Power	Approx. Cooking Time
Broth	290 g	8	4 - 5 min.
Cream-style	290 g	8	5 - 6 min.
Tomato	300 g	8	6 - 9 min.
Bean, pea, or mushroom	300 g	7	6 - 8 min.
Undiluted chunk-style vegetable	300 g	8	3 - 5 min.
	540 g	8	5 - 7 min.

Cooking Guide - Quick Soups

Item	Amount(number of envelopes)	Power	Approx. Cooking Time
Cup of Instant soup35 g envelope	1	HI	112 - 2 min.
	2	HI	3 - 4 min.
	4	HI	6 - 8 min.

VEGETABLES AND RICE

Fresh Vegetables

Spread out cut vegetables in a shallow microwave-safe dish. Add water as recommended in chart. Add salt to water or salt after cooking. Whole vegetables such as potatoes, squash or eggplant should be pierced and arranged in a circular pattern with heavier ends pointing towards the outer edge of dish. Cook covered. Halfway through

cooking, stir, rearrange and/or turn vegetables over. Let stand, covered. Whole vegetables should stand 10 minutes and cut vegetables 5 minutes.

Simple line drawing of five oval-shaped objects with internal dots, no text or symbols present

Frozen Vegetables

Remove frozen vegetables from package (280 g) and place them in a microwave-safe casserole.

Cook covered on HIGH 4 - 6 minutes. Stir once during cooking. Let stand covered a few minutes.

Add 2 tablespoons (30 mL) of water to frozen artichokes, brussels sprouts, okra and peas and 12 cup (125 mL) water plus 1 tablespoon (15 mL) butter or margarine to frozen lima beans.

Frozen Vegetables in a Pouch

Remove pouch from package, and place on a microwave-safe plate. Pierce one hole in pouch.

Fresh Vegetables Cooking Chart

Cook on HIGH power. (All weights in the chart are the purchase weights before peeling and trimming.)

Vegetable	Amount	Water	Approx. Cooking Time
Asparagus, spears	450 g	2 tbsp (30 mL)	4 - 6 min.
Beans, green or wax, cut in pieces	450 g	14 cup (50 mL)	5 - 7 min.
Broccoli, cut in pieces	450 g	14 cup (50 mL)	5 - 7 min.
Brussels sprouts	280 g	14 cup (50 mL)	4 - 6 min.
Cabbage, shredded	450 g	14 cup (50 mL)	6 - 8 min.
Carrots, sliced or diced	450 g	2 tbsp (30 mL)	5 - 7 min.
Cauliflower, chopped	1 medium	14 cup (50 mL)	5 - 7 min.
Corn, on the cob	1 ear	none	4 - 6 min.
	2 ears	none	7 - 9 min.
	4 ears	none	12 - 15 min.
Mushrooms, sliced	230 g	2 tbsp (30 mL)	4 - 6 min.
Peas, green, shelled	450 g	14 cup (50 mL)	6 - 8 min.
Potatoes, white, baking,170 - 230 g each.Pierce skin.	1	none	5 - 8 min.
	2	none	8 - 12 min.
	4	none	12 - 16 min.
Potatoes, red, boiling	3	14 cup (50 mL)	8 - 10 min.
Spinach, leaf	450 g	none	5 - 7 min.
Squash, pierce with fork	680 g	none	7 - 9 min.
Zucchini, sliced	450 g	14 cup (50 mL)	6 - 8 min.

Cooking Guide - Rice

Item	Water	Power	Approx. Cooking Time	Special Notes
Long grain, 1 cup (250 mL)	2 cups (500 mL)	4	22 - 27 min.	Use 3-litre microwave-safe casserole. Heat water 7 to 10 min. to boil. Add rice, salt and butter or margarine. Cover tightly. Let stand 5 minutes.
Short grain, 1 cup (250 mL)*	112 cups (375 mL)	4	22 - 27 min.
Wild rice, brown rice, 1 cup (250 mL)	2 cups (500 mL)	4	45 - 60 min.

MEATS, POULTRY AND FISH

PREPARATION

Use a microwave-safe baking dish, casserole, etc. to cook meat, poultry and fish.

Frozen meat, poultry and fish should be completely thawed.

Wash poultry and fish in cool water.

Arrange small items in a single layer in dish and avoid overlapping edges of food.

Place thick sections toward edge of the dish.

Use a rack in the dish to elevate meat out of the juices.

Use spices and seasonings as desired.

Add salt after cooking if necessary.

Kitchen bouquet with butter may be used to obtain "cooked" colour of meats and poultry.

Aluminium foils can be used to cover thin parts of meat or poultry wings and legs to prevent overcooking. Foils should be applied toward the end of cooking time. Place meat fat side down.

COOKING

Use wax paper or plastic wrap to stop splattering.

Turn over or rearrange meat, poultry and fish halfway through cooking time.

CHECKING DONENESS

Beef: The colour inside meat indicates doneness. Rare roast should be red inside.

Medium is pink and grey indicates well done.

Pork: Cooked pork meat should be grey with clear juice.

Poultry: Juices should be clear yellow when cooked. Legs should move freely.

Fish and Seafood: Should be opaque in colour and flake easily.

To check internal temperature of various meats and poultry, use a microwave or conventional meat thermometer after removing meat from the oven. Insert the thermometer avoiding bone or fat. Lower temperatures are found in the centre of the roast or in the muscle close to a large bone.

Never use a conventional meat thermometer in the microwave oven.

Return undercooked food to oven for a short period of time at the recommended power level. Let stand as recommended in chart.

Cover roasts and whole poultry during stand time.

Food	Power	Approx. Cooking Time	Stand Time	Special Notes
Beef
Hamburgers, refrigerated 100 g each				Cook in a shallow dish. Cover loosely with wax paper. Turn over halfway through cooking.
1	HI	1 - 2 min.	2 min.
2	HI	2 - 4 min.	2 min.
4	HI	5 - 8 min.	2 min.
Hamburgers, frozen 100 g
1	HI	2 - 3 12 min.	2 min.	Turn over and separate halfway through cooking.
2	HI	5 - 7 min.	3 min.
4	HI	9 - 11 min.	3 min.
Meat loaf 680 g	5	18 - 23 min.	5 min.	Arrange in loaf dish. Cover with wax paper.
Roasts, tender 450 g
Rare	5	8 - 10 min.	10 to 15 min.	Cover with wax paper. Shield halfway through cooking and turn roast over if necessary. Stand tented with foil. *Approx. temp. after stand Rare 130°F (54°C) Medium 140°F (60°C) Well done 170°F (77°C)
Medium	5	10 - 12 min.	10 to 15 min.
Well done	5	12 - 15 min.	10 to 15 min.
PorkChops, loin 1 cm thick,200 g each124	HIHIHI	3 - 4 min.4 - 6 min.7 - 10 min.	2 min.3 min.3 min.	Place in a shallow dish. Coverloosely with wax paper. Turnover at halfway throughcooking time.
Pork roast, 450 g	5	15 - 20 min.	10 to 15 min.	Cover with wax paper. Shieldhalfway through cooking andturn roast over if necessary.*Approx. temp. after stand170°F to 175°F (77°C to 79°C)
Ham, precookedcanned 1.4 kg	5	14 - 18 min.	10 min.	Shield edge of ham with stripof foil. Place on roasting rack.Cover with wax paper. Turnover halfway through cooking.*Approx. temp. after stand120°F to 130°F (50°C to 55°C)
Ham, slice 2.5 cm thick,450 g	HI	7 - 9 min.	5 min.	Cover with wax paper. Turnover halfway through cooking.
Sausage links,fresh 30 - 55 g each24	HIHI	1 - 2 12 min.2 12 - 4 12 min.	1 min.1 min.	Pierce before cooking.Cover with wax paper.Turn over once.
Sausage links, frozen,precooked brown and serve20 g each24	HIHI	12 - 1 14 min.1 12 - 2 12 min.	1 min.1 min.
Wieners, 55 g each124	HIHIHI	12 - 1 min.1 - 1 12 min.1 12 - 2 12 min.	1 min.1 min.1 min.	Score before cooking.
Bacon, slices124	HIHIHI	1 - 2 min.1 12 - 3 min.4 - 6 min.	1 min.1 min.1 min.	Cook on bacon rack or linebottom of dish. Place baconon paper towel. Cover looselywith another paper towel. Donot turn over bacon.
LambChops, shoulder1 cm thick12	HIHI	2 - 3 min.4 - 6 min.	2 min.3 min.	Cover loosely with wax paper.
PoultryChickens, whole, up to 1.8 kg450 gCornish hens450 g	HIHI	8 - 10 min.6 - 9 min.	10 min.10 min.	Place breast-side down on a roasting rack in a dish. Cover with plastic wrap or wax paper. Turn over halfway through cooking. Stand tented with foil. When cooked, internal temperature should be 180°F (82°C) and juices should run clear.
Chicken pieces, up to 900 g450 g	HI	7 - 9 min.	5 min.	Arrange skin-side up in a baking dish halfway through cooking, meatier portions toward edge of dish. Cover with plastic wrap or lid.
Fish and SeafoodFish fillets, 340 gFish steaks 2, 170 g eachScallops 450 gShrimp, medium size, shelled and cleaned, 450 gWhole fish, stuffed or unstuffed 680 - 800 g	HI777HI	4 - 6 min.6 - 8 min.5 - 7 min.5 - 7 min.7 - 10 min.	3 min.5 min.3 min.3 min.5 min.	Arrange in a single layer in dish.Cover with wax paper.Rearrange or stir shrimp or scallops halfway through cooking.

EGGS

SCRAMBLED EGGS

Break eggs into a microwave-safe glass measure.

Add 1 tablespoon milk and 1 teaspoon butter for each egg. Beat with a fork.

Cook at Power Level 6 according to time in the chart. Stir at least once during cooking time. Let stand 1 minute.

POACHED EGGS

Use 170 mL microwave-safe custard cup with ¼ cup (50 mL) water for 1 to 3 eggs.

Use 1 litre microwave-safe dish with 1 cup (250 mL) water for 4 eggs.

Heat at HI POWER to bring water to a boil with 18 teaspoon salt and up to 14 teaspoon vinegar. Break egg carefully into hot water.

Pierce egg several times lightly with toothpick. Cover with wax paper.

Cook at Power Level 5 according to time in the chart. Let stand, covered, 1 minute before serving.

Eggs	Time
1	1 - 2 min.
2	2 12 - 4 min.
3	3 12 - 5 12 min.
4	5 - 7 min.

When adapting quick bread recipes, you will find it necessary to reduce the amount of leavening (baking powder or soda) by about one-quarter the normal amount. A bitter aftertaste is apparent if too much leavening is used in biscuits or muffins. Since food rises higher in the microwave oven, you will not see a loss in volume from the reduction of soda or baking powder.

If a recipe contains buttermilk or sour cream, do not change the amount of soda, since it serves to counteract the sour taste and does not act only as a leavening agent.

When using a mix where leavening cannot be reduced, allow the dough to stand about 10 minutes before cooking in order for some of the gas to be lost.

Breads and rolls should be reheated only until they are warm to the touch. Overheating or overcooking makes bread tough and rubbery.

Cooking/Reheating Guide

Item	Power	Approx. Cooking or Reheating Time	Special Notes
Hamburger buns, hot dog rolls,frozen: 230 gRoom temp.: 124	3888	312 - 412 min.10 - 15 sec.20 - 30 sec.35 - 50 sec.	Place on paper plate or wrap in papertowel.
Doughnuts, sweet rolls, muffins124	888	10 - 20 sec.15 - 30 sec.40 - 60 sec.	Place on paper plate or towel.Add 15 seconds if frozen.
Whole coffee cake,Frozen: 280 - 370 gRoom temp.: 280 - 370 g	88	112 - 212 min. 12 - 112 min.	Place on paper plate or towel. Letstand 5 - 10 minutes before serving.
French bread,Frozen: 450 gRoom temp.: 450 g	88	2 - 4 min. 12 - 1 min.	Place on paper plate or towel.
Butter cake 214 cups (550 mL) batter 1st stage2nd stage	5HI	8 min.2 - 3 min.	Place on inverted pie plate.
Brownies2 cups (500 mL) batter	5	12 - 16 min.	Cover with wax paper. Place oninverted pie plate.
Bar cookies 112 cups (375 mL) batter	5	8 - 11 min.	Cover with wax paper.
Muffins, 14 cup (50 mL) batter each126	777	12 - 1 min.1 - 2 min.2 - 4 min.

QUICK-ON COOKING CHART

Item	Amount	Time	Special Notes
Beverage
Water-based	1 cup (250 mL)	1 - 2 min.	Heat uncovered.
	2 cups (500 mL)	3 - 4 min.	Stir after heating.
Milk-based	1 cup (250 mL)	1 - 2 min.
	2 cups (500 mL)	3 - 4 min.
Soups
Broth-based	300 mL can	3 - 4 min.	Use microwave-safe casserole. Cover.
Cream-based	300 mL can	3 - 5 min.	Stir after heating.
Cooked pizza
25 cm cut in 8 portions	2 wedges	1 - 2 min.	Place on paper towels or paper plate or leave in uncovered cardboard box.
	4 wedges	2 - 3 min.	Points toward centre.
	whole	3 - 4 min.
Meat
Sliced thin	85 -140 g	1 - 2 min.	Heat on microwave-safe plate, covered with wax paper or plastic wrap.
Sliced thick, 2.5 cm	85 -140 g	2 - 3 min.
Chili, stews	2 cups (500 g)	3 - 5 min.	Place in microwave-safe dish. Cover. Stir halfway through cooking time.
Hamburgers, meat loaf slices, sausage patties	1 serving	1 - 2 min.	Place on microwave-safe plate. Cover with paper towel. Turn over once.
	2 servings	2 - 3 min.
	4 servings	3 - 5 min.
Poultry	1	1 - 2 min.	Heat on microwave-safe plate. Cover with wax paper or plastic wrap.
Chicken pieces	2	2 - 3 min.	If fried, cover with paper towel.
	4	3 - 5 min.
	6	4 - 6 min.
Chicken, turkey, sliced	85 -140 g	1 - 3 min.	Heat on microwave-safe plate. Cover with wax paper or plastic wrap.
Seafood
Prawns, crab, or scallops in sauce, frozen	185 g	4 - 6 min.	Slit pouch and place on microwave-safe plate. Flex pouch to mix halfway through cooking time.
Seafood or fish casserole, frozen	450 g	5 - 7 min.	Remove from package to a microwave-safe casserole. Cover. Stir once during cooking.
Cooked rice, pasta	3/4 cup (175 mL)	1 - 2 min.	Heat in microwave-safe casserole, covered with plastic wrap.
	1 - 2 cups (250 - 500 mL)	2 - 4 min.
Vegetable, frozen in pouch	280 - 340 g	4 - 6 min.	Slit pouch. Place on microwave-safe plate. Flex pouch to mix halfway through cooking time.
Mashed potatoes, instant	4 servings	4 - 6 min.	Follow package directions. Reduce liquid by 1 tbsp (15 mL).
Canned vegetable	230 g	1 - 2 min.	Use microwave-safe casserole, covered. Stir once.
	425 g	2 - 4 min.
	500 g	3 - 5 min.
Pudding and pie filling mix	90 g	5 - 7 min.	Follow package directions. Stir once.
Porridge
(Rolled oats)	1/4 cup (50 mL)	1 - 3 min.	Add 3/4 cup (175 mL) of water. Cook uncovered. Stir once. Let stand 1 minute. Add 11⁄2 cup (375 mL) of water. Cook uncovered. Stir once. Let stand 1 minute.
	1⁄2 cup (125 mL)	3 - 5 min.
Wheat-bran cereal	1/4 cup (50 mL)	1 - 3 min.	Add 3/4 cup (175 mL) of water. Cook uncovered. Stir once. Let stand 1 minute. Add 11⁄2 cup (375 mL) of water. Cook uncovered. Stir once. Let stand 1 minute.
	1⁄2 cup (125 mL)	3 - 5 min.

AUTOMATIC DEFROST CHART

• Set Auto Defrost by Weight according to instructions on page 8.

• Remove food from wrapper and place in a microwave-safe dish.
  • Cover thin parts with aluminium foil.

• Use a microwave-safe roasting rack to hold small items, such as chicken pieces, fish, prawns and scallops.

• Large roasts should be still icy in centre. Allow to stand.
• Fish and seafood should also be slightly icy. Allow to stand.

Item	Special Notes
Beef
Ground beef	Turn over and remove defrosted portion at pause.
Liver	Drain liquid as it defrosts. Separate pieces.
Roasts	Turn over at pause. Cover ends with foil.
Sirloin steak	Turn over at pause.
Rib or T-bone	Turn over at pause.
Flank steak	Turn over at pause.
Stewing meat	Break apart at pause.
Pork
Bacon	Defrost in original wrapper. Turn over at pause. Centre should be slightly icy.
Chops	Separate and turn over at pause.
Ribs	Turn over at pause.
Roasts	Turn over at pause. Cover ends with foil.
Lamb
Chops	Separate and turn over at pause.
Ribs	Turn over at pause.
Roasts	Turn over at pause. Cover ends with foil.
Poultry
Chicken, whole, up to 1.4 kg	Turn over at pause. Cover ends with foil. Rinse under cold water.
Pieces	Separate halfway through defrost time.
Cornish hens	Turn over at pause. Rinse under cold water.
Fish and Seafood
Crabmeat, prawns	Break apart at pause.
Fish fillets	Turn over and rearrange at pause. Rinse under cold water to separate.
Fish whole, steaks	Turn over at pause. Cover head and tail with foil.
Scallops	Break apart at pause. Remove defrosted scallops.

QUICK REFERENCE

REHEAT BY DIRECT ACCESS

1. Touch

BEVERAGE,

PLATE OF FOOD or

CASSEROLE

1 - 3 times until desired serving number appears.

1. Touch START.

QUICK-ON COOKING

(HI-power only)

1. Touch QUICK ON.
2. Touch number (1-9) for cooking time (minutes).

TIME COOKING

1. Touch TIME.
2. Touch numbers for cooking time (in minutes and seconds).
3. Touch POWER LEVEL.
4. Touch numbers (1 - 9) for power level.
5. Touch START.

NOTE: To set HI POWER cooking, skip steps 3 and 4.

MINUTE TIMER

1. Touch TIME.
2. Touch numbers for time.
3. Touch POWER LEVEL.
4. Touch 0 (power level 0).
5. Touch START.

POPCORN POPPING

1. Touch POPCORN.
   (100 g bag size only)
2. Touch START.

AUTOMATIC DEFROST

1. Touch AUTO DEFROST.
2. Enter the weight of food in kg.
3. Touch START.
4. At pause, rearrange food.
5. Touch START to restart.

CLOCK

1. Touch ⏻.
2. Touch numbers for time of day.
3. Touch ⏻ .

For your protection in the event of theft or loss of this product, please fill in the information below:

Model No.

(Located on the front of the oven)

Serial No.

(Located on the front of the oven)

Date of Purchase

Purchased Price

Where Purchased

SANYO

SANYO Electric Co., Ltd.

8/94 Printed in Singapore

Code No. 432-6-413S-79400
