USER MANUAL E20005 Elgento

Frozen Reheat Cancel 3 2 1 7 5 6 Eigento

TECHNICAL SPECIFICATION

AC: 220V-240V\~50Hz 700W

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following.

• Do not touch hot surfaces.
• Do not immerse cord plug or appliance in water or other liquid.
• Close supervision of children is necessary when the appliance is being used or cooling.
• Allow to cool before adding or removing accessories.
• Always switch off at the wall socket and then unplug from wall socket when not in use and before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance has malfunctions or has been damaged. If in doubt consult the authorised dealer or a qualified electrician.
• Do not use outdoors or in damp/wet environments.
• This appliance is for household use only.

• Do not let cord hang over edge of table or counter, touch hot surfaces or sharp edges.

• Do not place on or near a heat source.

• Toasting Lever must be in the "Up" position before attaching or disconnecting the plug from wall outlet.
• Utensils must not be inserted in a toaster as they may increase the risk of electric shock or fire.

- Do not attempt to dislodge food when toaster is plugged in always disconnect from the power supply.

- Use this product in a space where there are no combustible or flammable materials.

- The temperature of accessible surfaces may be high when the appliance is operating. Use extreme care when using this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified electrician.

- The product is not intended to be used by children or infirm persons unless adequate supervision and/or training is given.

- Ensure that the voltage of the appliance matches the mains voltage of the location where it is to be used.

ELECTRICAL SAFETY

Class 1 Configuration

The wires in the mains lead are coloured in accordance with the following code:

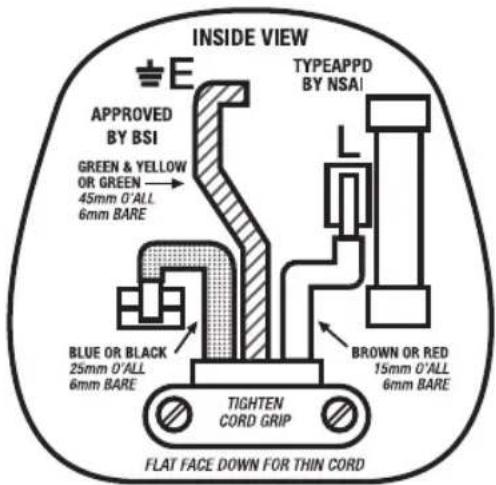

INSIDE VIEW E APPROVED BY BSI GREEN & YELLOW OR GREEN 45mm O'ALL 6mm BARE TYPEAPPD BY NSAI BLUE OR BLACK 25mm O'ALL 6mm BARE BROWN OR RED 15mm O'ALL 6mm BARE TIGHTEN CORD GRIP FLAT FACE DOWN FOR THIN CORD

Green / Yellow: Earth (E)
Blue: Neutral (N)
Brown: Live (L)

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured Green & Yellow (or coloured Green) must be connected to the terminal in the plug which is marked with the letter "E" or by the earth symbol: ≡E

- The wire which is coloured Blue (or coloured Black) must be connected to the Neutral terminal which is marked with the letter "N".

- The wire which is coloured Brown (or coloured Red) must be connected to the Live terminal which is marked with the letter "L".

Always ensure that the Mains Cord is fixed into the plug through the Cord Guard or Cable Clamp, (plug wiring diagram opposite), and that the Cord Guard screws are tightened to clamp the cord (outer sheath and inner coloured wires) into position in the plug. Make sure that the plug top is also fitted securely.

This appliance must be protected by a 13 Amp fuse in a 13 Amp type (BS1363) plug. Should you need to replace the fuse, use only a 13Amp ASTA approved BS1362 fuse (13A).

It is important to ensure the correct Plug Adaptor is used when operating in a country not using the UK 13 Amp socket system. If in doubt, consult a qualified electrician.

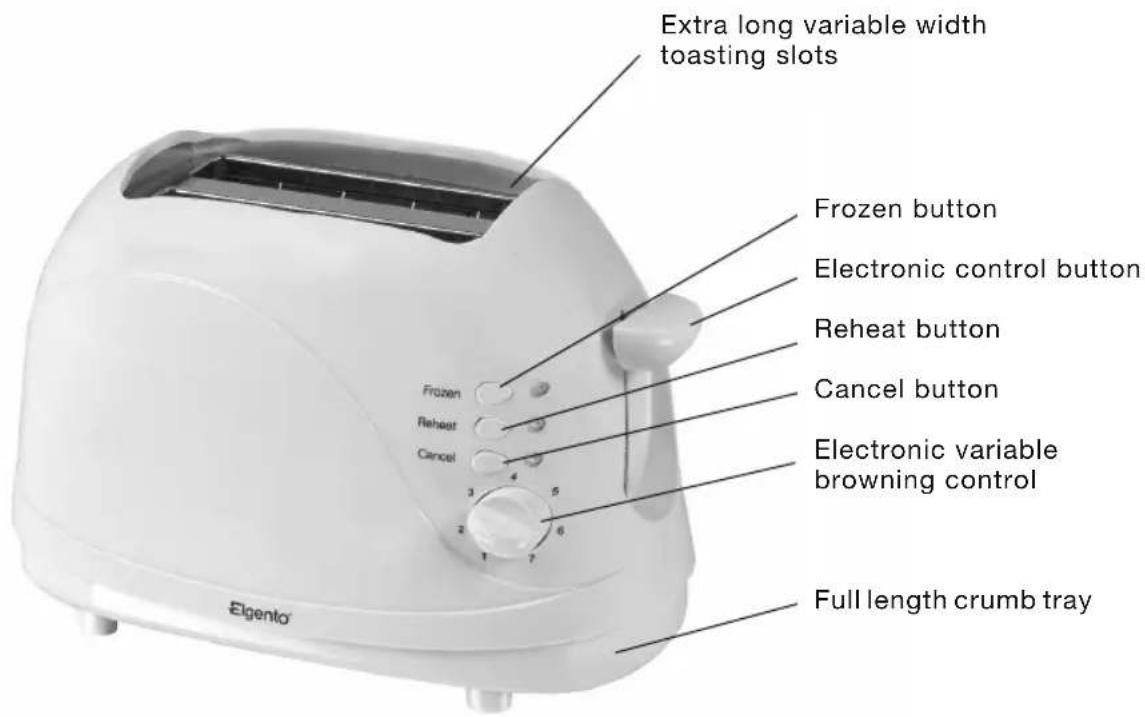

PARTS IDENTIFICATION

Extra long variable width toasting slots Frozen button Electronic control button Reheat button Cancel button Electronic variable browning control Full length crumb tray Frozen Reheat Cancel Elgento

HOW TO USE YOUR TOASTER

• Insert the plug into a suitable mains supply socket and turn the power on.
• Place up to two slices of bread, muffins or bagels into bread slots.
• Select the desired browning setting from No. 1 to No.7 on the browning control knob. (No. 1- lightest, no.7 - darkest) When using the toaster for the first time we suggest you toast on number 3. Varying types of bread and personal preference may require a different browning setting. (High lift: to remove smaller items such as crumpets and muffins, lift carriage

control lever approximately 20mm above the starting position.)

• Press the carriage control level down until it clicks into place. Toasting cycle will automatically commence. Please note if the toaster is not plugged in the switched on the power point the carriage control lever will not click into place.

• The toaster turns off when the desired toast color is achieved and automatically raises the toast. The toasting process can be stopped at any time by pressing the cancel button.

• Toasting frozen bread: to toast frozen bread, place the bread into the bread slots and select the desired browning setting. Press the carriage control level down until it clicks into place then press the frozen button.

• Reheating toast: the toaster allows you to reheat toast without additional toasting. To reheat, place toast into bread slots, lower the carriage control lever until it clicks into place and press the reheat button.

CLEANING AND MAINTENANCE

• Always turn the power off, remove the plug and allow the toaster to cool before cleaning.
• To remove any crumbs from the toaster, slide out the crumb tray from under the toaster, empty and replace in the toaster before using it again.
• The crumb tray should be cleaned regularly. Do not allow breadcrumbs to accumulate in the bottom of the toaster.
• Wipe the outside of the toaster with a slightly dampened cloth and polish with a soft dry cloth. Do not immerse the unit in water.
• To clean the interior, turn the toaster upside down over the sink and shake crumbs free.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

DISPOSAL OF UNIT

Disposal instructions for Elgento items in accordance with the WEEE directive.

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately.

Please visit www.recyclemore.co.uk, or www.recylcenow.co.uk

For access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill.

Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

GUARANTEE

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty products must be returned to the place of purchase.

Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• PFD has no responsibility for incidental or consequential loss or damage.
• Valid in the UK and Eire only.

WITHIN WARRANTY...

For the most efficient after sales service please complete the enclosed guarantee card and return to:

Customer Services Department

Elgento

Link House

Bute Street

Fenton

Stoke On Trent

Staffordshire

ST4 3PR

Alternatively return the product to place of purchase to discuss exchange, credit or refund options

This does not affect your statutory rights

OUTSIDE OF WARRANTY...

Please contact Elgento at the above address for advice on spare parts or repair, or visit our website at:

www.elgento-products.co.uk

Please do not return this product to any other address.

Stylized tree with circular arrows forming a tree shape, no text or symbols present

growngreen MADE WITH 100% GREEN RESPECT

MADE WITH 100%

GREEN RESPECT

Paperless Design:

We started thinking about how to make this packaging "Green" from the very beginning, and thought that using as little paper as possible would be a good idea. So the whole design process was carried out online. We didn't post anything, kept printouts to a minimum and let technology take the strain.

Sustainable Packaging:

The trees used to make the card board for this box all come from sensitively managed forests. Since 2006, the people that made the cardboard for this box have planted over 700,000 acres of trees. On top of that, the whole manufacturing process is ISO14001 approved.

Responsible Transport:

This product was made in China. Most things are. But when we brought it over here, we shipped it on a container ship, along with 10,000 containers of other things. It may not be fast, it takes about 4 weeks, but it's the greenest way of doing it.

100% Recyclable:

All the cardboard in this packaging is 100% recyclable. If you can't think of a good use for the box as it is, please fold it flat and put it out with your other recycling. If you don't have regular collections, it can be taken to any cardboard recycling area or even used in your composter. Now you can play your part!

Like to find out more? Visit www.GrownGreen.info

Elgento®
