USER MANUAL Pita King B3.001 BEEM
Information on this instruction manual 2
Copyright 29
Warnings 30
Intended use 31
Liability disclaimer 31
Safety 32
Fundamental safety precautions 32
Electric shock hazard 33
Danger of burns 33
Risk of fires 33
Commissioning 34
Safety precautions 34
Unpacking 34
Scope of supply and transport inspection 34
Disposal of the packaging 35
Demands on the installation location 35
Electrical connection 36
Appliance elements 37
Operating element 37
Prior to first use 38
Operation and function 3
Safety precautions 39
Using the appliance ....39
Switch off appliance 41
Cleaning and care 42
Safety precautions 42
Cleaning 42
Troubleshooting 4
Safety precautions 43
Faults - causes and remedies 43
Table of Contents
EN
Information on storage/disposal 45
Storage 45
Disposal 45
Annex 45
Technical data 45
Certifications 46
Guarantee, service and repairs 46
EC Declaration of Conformity 49
Index 50
Foreword
Dear Customer,
With the purchase of the Pita King, you have chosen a quality product from BEEM. The Pita and Crêpe Maker has a triple non-stick coating and is ideally suited for making pita bread, crêpes and pancakes or for fat-free grilling of meat.
Read the information contained in this booklet to familiarise yourself quickly with the appliance and to be able to make full use of its functions.
The appliance will serve you for many years to come if you handle and treat it properly.
We wish you a lot of pleasure with the appliance.
Information on this instruction manual
This instruction manual forms an integral part of the Pita King (hereinafter referred to as "appliance") and contains important information for the commissioning, safety, intended use and care of the appliance.
The instruction manual has to be kept near the appliance at all times. It must be read and observed by every person entrusted with operation, troubleshooting and/or cleaning of the appliance. The instruction manual has to be kept near the appliance at all times. It must be read and observed by every person entrusted with operation, troubleshooting and/or cleaning of the appliance.
Keep this instruction manual in a safe place and pass it on with the appliance to any future owners.
Copyright
This document is protected by copyright.
Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.
Warnings
The following warnings are used in the present instruction manual:
EN
DANGER
A warning of this category draws attention to an impending dangerous situation.
If the dangerous situation is not avoided, it may lead to serious injury or even death.
▶ Follow the instructions in this warning to avoid the danger of serious injury or even death.
WARNING
A warning of this category draws attention to a possibly dangerous situation.
If the dangerous situation is not avoided, it may lead to injuries.
▶ Follow the instructions in this warning to avoid the risk of injury.
CAUTION
A warning of this category draws attention to potential material damage.
If the situation is not avoided, it may lead to material damage.
▶ Follow the instructions in this warning to avoid material damage.
NOTE
▶ A note draws attention to additional information that simplifies the use of the appliance.
Intended use
This appliance is intended for predominantly non-commercial use in closed rooms for making pita bread, pancakes and crêpes or for fat-free grilling of meat.
Use in any other or further way is not considered an intended use.
WARNING
Danger from use for other than the intended purpose!
If not used for its intended purpose or used in any other way, the appliance may be or become a source of danger.
Use the appliance only for its intended purpose.
Observe the procedures described in this instruction manual.
No claims of any kind will be accepted for damage or injury resulting from use of the appliance for other than its intended purpose.
The risk has to be borne solely by the appliance owner.
If used commercially, please pay attention to the modified warranty period.
Liability disclaimer
All technical information, data and instructions for installation, operation and care of the appliance contained in this instruction manual represent the latest status at the time of printing.
No claims can be derived from the information, illustrations and descriptions in this instruction manual.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the instruction manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
Safety
EN
This appliance complies with the prescribed safety regulations. Improper use can, however, result in personal injury and/or appliance damage. This appliance complies with the prescribed safety regulations. Improper use can, however, result in personal injury and/or appliance damage.
For safe use of the appliance, observe the following fundamental safety precautions and the precautions described separately in the individual chapters:
Fundamental safety precautions
- Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance. Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.
Never leave the appliance unsupervised during operation.
■ Always pull the mains plug out of the plug socket at the plug, never at the mains lead.
■ Always pull the heating appliance plug out of the jack at the appliance plug, never at the lead.
Persons who due to their physical, mental or motor response abilities are unable to operate the appliance may only use the appliance under supervision or instruction by a responsible person.
■ Have repairs to the appliance carried out only by authorised dealers or by the works after-sales service. Unqualified repairs can pose considerable dangers for the user. They will also void the warranty.
■ Repairs to the appliance during the warranty period may only be carried out by service centres authorised by the manufacturer as the warranty will otherwise be voided in the event of damage or subsequent damage.
■ Defective parts may only be replaced with original spare parts. Only these parts guarantee that the safety requirements are satisfied.
Electric shock hazard
DANGER
Electric shock hazard!
Contact with live leads or components poses a risk of serious injury or even death!
Observe the following safety precautions to avoid any electric shock hazard:
Do not use the appliance if the connecting lead, mains plug or heating appliance plug are damaged.
On no account should the housing of the appliance be ▶ opened. Electric shock hazard if live connections are touched and/or the electrical and mechanical configuration is changed.
Never immerse the appliance or the connecting lead in water or other liquids.
EN
Danger of burns
WARNING
All parts of the appliance are very hot during operation!
Observe the following safety precautions to avoid burning or scalding yourself and/or others:
Do not touch the appliance during operation.
Always allow the appliance to cool down before cleaning.
Transport the appliance only when it has cooled down.
Risk of fires
WARNING
Risk of fire if the appliance is not connected correctly to the power supply!
▶ Use only the connecting lead supplied to connect the appliance to the power supply.
Commissioning
EN
Safety precautions
WARNING
Persons may be injured or material damage may be caused during commissioning of the appliance!
Observe the following safety precautions to avoid any danger:
▶ Packaging materials must not be used as toys. Risk of suffocation.
Observe the information on the demands on the installation location and on the electrical connection of the appliance to avoid personal injury and material damage.
Unpacking
◆ Remove the appliance, all accessory parts and the instruction manual from the box.
- Remove all packaging materials and protective foils from the appliance and the accessories before using them for the first time.
NOTE
Do not remove the rating plate or any warning signs on the appliance.
Scope of supply and transport inspection
As a standard feature, the appliance is supplied with the following components:
Pita and Crêpe Maker •
Connecting lead •
Instruction Manual •
NOTE
Inspect the delivery for completeness and obvious signs of damage. Report an incomplete or damaged delivery to your supplier/dealer immediately.
EN
Disposal of the packaging
The packaging protects the appliance from transport damage. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.
The return of the packaging to the material cycle helps conserve raw materials and reduces the production of waste. When no longer required, dispose of the packaging materials in accordance with the local regulations in force.
NOTE
▶ Keep the original packaging, if possible, during the warranty period in order to be able to pack the appliance properly in the event of a warranty claim. Transport damage will void all warranty claims.
Demands on the installation location
For safe and trouble-free operation of the appliance, the installation location has to satisfy the following requirements:
- Place the appliance on a dry, level, sturdy heat resistant surface where it is protected from splashing water.
■ Do not install the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.
■ Select the installation location in such a way that children cannot touch the hot surfaces of the appliance.
The socket to be used has to be easily accessible in order to be able to disconnect the appliance from the electric circuit fast in case of an emergency.
Electrical connection
For safe and trouble-free operation of the appliance, the following instructions have to be observed for the electrical connection:
EN
Before connecting the appliance, check the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in any doubt, ask your electrical appliance dealer.
The appliance may be connected to the mains power supply by an unwound extension lead not more than 3 metres long and with a cross-section of 1.5 mm2 . The use of multiway adapters or multiple socket outlets is forbidden due to the associated fire hazard.
■ Ensure that the connecting lead is undamaged and is not laid over hot surfaces or sharp edges.
The connecting lead must not be strained or kinked. ■
■ Lay the connecting lead in such a way that it does not pose a tripping hazard.
■ The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a plug socket without PE conductor is forbidden. If in doubt, have the house installation checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

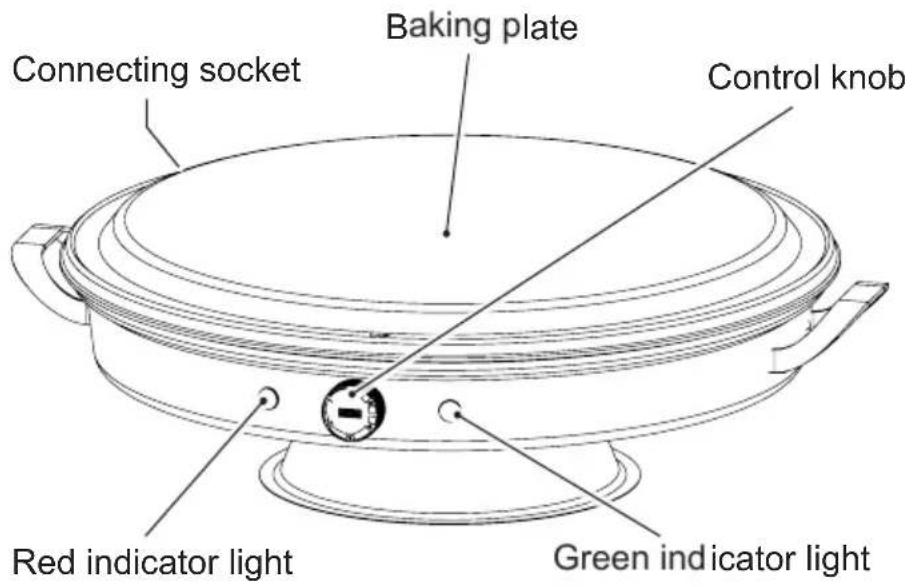

Appliance elements
EN
Operating element
The thermostat permits a stepless setting of the temperature.
Proceed as follows to set the temperature:
- Turn the control knob until the desired temperature level is aligned with the notch on the edge of the upper part.
| Scale Food | ||
 | Level 1-2 Keeping food warm | |
| Level 3 Poultry, fish | ||
| Level 4 Crêpes, meat | ||
| Level 5 | Pita bread, roasting of meat | |
Prior to first use
EN
Heat up the appliance before using for the first time to remove any residues from the assembly process (greases). Proceed as follows:
Wipe the appliance with a moist cloth. ◆
- Turn the control knob in anti-clockwise direction as far as it will go (OFF).
Connect up the appliance by inserting the heating appliance plug into the jack on the appliance and the mains plug into a plug socket.
Turn the control knob to level 5 and wait until the green indicator light goes out.
Turn the control knob to the 2nd red mark (maximum level).
NOTE
▶ Slight smoke development is completely normal. Ensure sufficient ventilation.
- After 2 minutes, switch off the appliance by turning the control knob in anti-clockwise direction as far as it will go and pull the mains plug out of the plug socket.
Allow the appliance to cool down for around 15 minutes.
Wipe the appliance with a moist cloth. ◆
The appliance is now ready for use.
Operation and function
This chapter contains important information on the operation of the appliance.
Safety precautions
WARNING
Danger of burns!
All parts of the appliance become very hot during operation!
Do not touch the appliance during operation.
CAUTION
Damage to the non-stick coating by scratching!
Do not use sharp cutlery on the baking plate; use a wooden spatula.
Using the appliance
- Turn the control knob in anti-clockwise direction as far as it will go (OFF).
Connect up the appliance by inserting the heating appliance plug into the jack on the appliance and the mains plug into a plug socket.
The red indicator light signals that the appliance is ready for use.
Turn the control knob to the desired temperature level; see table in chapter Operating elements.
The green indicator light comes on and signals that the appliance is heating up. When the set temperature is reached, the green indicator light goes out automatically.
NOTE
If you have set the 2nd red mark (highest temperature level) it is possible that the green indicator light does not go out because the appliance is heating constantly.
Starting baking. ◆
EN
NOTE
If the temperature drops, the thermostat and hence also the green indicator light switches on again automatically and brings the temperature up to the set level again.
Making pita bread
Turn the control knob to level 5. ◆
Wait until the green indicator light goes out. ◆
◆ Roll out the dough to not more than the diameter of the baking plate.
Place the dough onto the baking plate to bake.
Turn over the bread to see how well done it already is. ◆
As a rule the bread needs to be baked for roughly 1 minute on each side.
Making crêpes
Turn the control knob to level 4. ◆
Wait until the green indicator light goes out. ◆
Pour the crêpe mixture into the middle of the baking plate and spread it uniformly over the plate.
The size of the crêpe depends on the amount of mixture you use.
Turn over the crêpe as quickly as possible.
As a rule the crêpe only needs to be baked for a few seconds on each side.
Grilling of meat and sausages
Different temperatures are preferred for grilling.
Turn the control knob to the desired temperature level; see table in chapter Operating elements.
Wait until the green indicator light goes out. ◆
Place the food to be grilled onto the baking plate. ◆
NOTE
During grilling of meat or sausage, the fat runs into the recess provided around the edge of the baking plate. Remove the fat after grilling using a soft absorbent cloth after the appliance has cooled down.
Switch off appliance
After use, turn the control knob in anti-clockwise direction as far as it will go (OFF) and pull the mains plug out of the plug socket.
Cleaning and care
EN
This chapter contains important information on cleaning and care of the appliance.
Safety precautions
WARNING
Observe the following safety precautions before starting to clean the appliance:
Swith off the appliance and remove the connecting lead before cleaning.
▶ Wait until the appliance has cooled down before you start to clean it.
Never immerse the appliance or the connecting lead in water or other liquids.
Cleaning
CAUTION
Damage to the non-stick coating by scratching!
Never use sharp objects or abrasive cleaning agents to
clean the baking plate in order to avoid damaging the non-stick coating.
Clean the appliance after every use. ■
Wipe down all parts of the appliance with a damp cloth. ■
NOTE
For regular care and also for removal of stubborn stains, we recommend the use of INOX METAL POLISH from Beem. This polish returns the original gloss to your appliances. It is available in tubes and is suitable not only for cooking utensils, but also for all other objects of stainless steel, chrome, brass, copper, aluminium, silver and even rigid plastics.
You can order INOX METAL POLISH from your dealer, by telephone from use or via our website www.beem.de
Troubleshooting
Safety precautions
DANGER
Electric shock hazard!
Pull the mains plug out of the plug socket before starting ▶ troubleshooting.
WARNING
Danger caused by unqualified repairs!
Unqualified repairs can pose considerable dangers for the user and serious damage to the appliance.
Repairs to electrical appliances may only be carried out by the works after-sales service or by specialists trained by the manufacturer.
Faults - causes and remedies
| Fault Possible cause Remedy | ||
| Mains plug not plugged in | Plug the mains plug in. | |
| The red indicator light does not come on when the appliance is switched on | Heating appliance plug not inserted correctly | Insert the heating appliance plug correctly into the jack on the appliance |
| No mains power. | Check the fuse / socket. | |
| Indicator light defective | Contact After-Sales Service. |
EN
| Fault Possible cause Remedy | ||
| The green indicator light does not come on when the appliance is switched on | The control knob is turned in anti-clockwise direction as far as it will go | Set a higher temperature level |
| Indicator light defective | Contact After-Sales Service. | |
| The green indicator light does not go out | Highest temperature level set | Set a lower temperature level |
| The automatic circuit breaker in the fuse box trips. | Too many appliances connected to the same power circuit. | Reduce the number of appliances on the power circuit. |
| Appliance defective. | Contact After-Sales Service. |
NOTE
If you cannot resolve the problem with the steps described above, please contact After-Sales Service.
Information on storage/disposal
Storage
EN
Should you not require the appliance for a prolonged period, remove the connecting lead and clean it as described in chapter Cleaning and care. Store the appliance in a dry, clean and frost-free place.
Disposal
Within the European Community, this product must not be disposed of in the domestic refuse.
Dispose of the appliance in accordance with the EC Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment). Should you have any questions, please contact your local authority responsible for waste disposal.
Annex
Technical data
| Model | Pita and Crêpe MakerPita King |
| Type number B3.001 | |
| Operating voltage 230 VAC | |
| Mains frequency 50-60 Hz | |
| Power consumption 2000 W | |
| Dimensions | 17 x 61 x 52 cm(H x W x D) |
| Baking plate dia. 520 mm | |
| Weight approx. 4.6 kg |
Certifications
| Symbol Meaning | |
 | The appliance conforms to the relevant EU Directives (see Declaration of Conformity). |
 | This appliance conforms to the Directives on the Restriction of Hazardous Substance in Electrical and Electronic Appliances (RoHS). |
 | This appliance conforms to the provisions of the Waste Electrical and Electronic Equipment Directive (WEEE). |
Guarantee, service and repairs
This is a quality product from BEEM and was produced using the latest manufacturing methods.
We guarantee the perfect condition of this quality product. Within the warranty period, we will remedy any faults due to material flaws or manufacturing faults free of charge.
The warranty period for this appliance is two years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, warranty period is 6 months. This does not infringe the warranty disclaimer.
Warranty disclaimer: The warranty does not cover faults caused in particular by improper use, failure to observe the instruction manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Also excluded are faults caused by normal wear.
If we are obliged by law to provide a warranty we will – to the exclusion of the right to cancellation or price reduction – meet this obligation – at our discretion – by repairing or replacing the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled – at his/her discretion – to reduce the purchase price or to cancel the contract. Claims under warranty do not prolong the warranty period. For exchange or return of the appliance (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the dealer from whom you purchased the product. This applies in particular to the return of the appliance or claims for reductions in the purchase price as these have to be settled in the light of the purchase price. The refund of the purchase price or a credit in the event of a reduction in the purchase price can only be handled by the dealer from whom you purchased the appliance.
Should - contrary to expectations - faults occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed appliance to your dealer or to the After-sales Service address shown below. Please indicate your complete address, type and model number and the serial number of the appliance. This information can be found on the rating plate of the appliance. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or invoice. Without a printed receipt of purchase or invoice, no services under warranty can be provided, whether for repairs, spare parts or other claims.
EN
Outside Germany and in particular in non-EC countries, you should send the article to your dealer or the local distributor. Information can be obtained – preferably by e-mail – from the After-sales Service address indicated below.
Repairs not covered by the warranty can also be performed against individual payment by the After-Aales Service - outside Germany by the dealer from whom you purchased the appliance or by a service centre, if available.
Wear parts and consumables can be ordered from your dealer or the After-sales Service address indicated. Outside Germany please contact first your dealer or the local responsible distributor.
For product information, accessory orders or questions on service handling, please contact your dealer or the After-sales Service address indicated. Outside Germany and in particular in non-EC countries, please contact first your dealer or the local distributor.
You can also use the Internet. On our website www.beem.de you will find accessories and spare parts, as well as instruction manuals in various languages. In addition you will find further product information.
EC Declaration of Conformity
| Name/address of manufacturer: | BEEM Blitz-Elektro-ErzeugnisseManufaktur Handels-GmbHDieselstrasse 19-21D-61191 Rosbach v.d.H. |
| We hereby declare that the products | |
| Model: Pita King | Pita and Crêpe Maker |
| Type: B3.001 | |
| conforms to the following relevant regulations:EU Directive 2006/95/EU Electrical devices for use within certain voltage limits,EU Directive 2004/108/EU Electromagnetic compatibility. | |
| Rosbach, 1 September 2009 |  Bijan Mehshat(Legally binding signature of the issuer) |
Index
EN
A
Appliance elements 37
C
Certifications 46
Cleaning 42
D
Damaged appliance .... 3 2
Danger of burns 33
Disposal 45
Disposal of the packaging.....3 5
E
EC Declaration of Conformity ..... 4 9
Electrical connection....36
Electrical safety....36
Electric shock hazard 33
F
Fundamental safety precautions. . 3 2
G
Grilling....41
Guarantee. 46
/
Installation location 35
Intended use 31
L
Liability disclaimer....3 1
M
Making pita bread ..... 4 0
N
New owner 29
Non-stick coating 39
O
Operating element 37
P
Packaging 35
Prior to first use. 38
R
Repairs 46
Risk of fires 33
S
Safety 32
Scope of supply 34
Service 46
Storage 45
Switch off appliance 41
T
Table of contents. 27
Transport inspection ..... 3 4
Troubleshooting 43
U
Unpacking....34
Using the appliance 39
W
Warnings. 30
İçindekiler
Önsöz 53
Elements of Lifestyle
BEEM GmbH
- INFORMATION ON THIS INSTRUCTION MANUAL 2
- SAFETY 32
- COMMISSIONING 34
- OPERATION AND FUNCTION 3
- CLEANING AND CARE 42
- TROUBLESHOOTING 4
- TABLE OF CONTENTS
- EN
- INFORMATION ON STORAGE/DISPOSAL 45
- ANNEX 45
- INDEX 50
- FOREWORD
- INFORMATION ON THIS INSTRUCTION MANUAL
- COPYRIGHT
- WARNINGS
- DANGER
- WARNING
- CAUTION
- NOTE
- INTENDED USE
- DANGER FROM USE FOR OTHER THAN THE INTENDED PURPOSE
- LIABILITY DISCLAIMER
- SAFETY
- FUNDAMENTAL SAFETY PRECAUTIONS
- ELECTRIC SHOCK HAZARD
- CONTACT WITH LIVE LEADS OR COMPONENTS POSES A RISK OF SERIOUS INJURY OR EVEN DEATH
- DANGER OF BURNS
- ALL PARTS OF THE APPLIANCE ARE VERY HOT DURING OPERATION
- RISK OF FIRES
- RISK OF FIRE IF THE APPLIANCE IS NOT CONNECTED CORRECTLY TO THE POWER SUPPLY
- COMMISSIONING
- SAFETY PRECAUTIONS
- PERSONS MAY BE INJURED OR MATERIAL DAMAGE MAY BE CAUSED DURING COMMISSIONING OF THE APPLIANCE
- UNPACKING
- SCOPE OF SUPPLY AND TRANSPORT INSPECTION
- DISPOSAL OF THE PACKAGING
- DEMANDS ON THE INSTALLATION LOCATION
- ELECTRICAL CONNECTION
- APPLIANCE ELEMENTS
- OPERATING ELEMENT
- PRIOR TO FIRST USE
- OPERATION AND FUNCTION
- USING THE APPLIANCE
- MAKING PITA BREAD
- MAKING CRÊPES
- GRILLING OF MEAT AND SAUSAGES
- SWITCH OFF APPLIANCE
- CLEANING AND CARE
- CLEANING
- DAMAGE TO THE NON-STICK COATING BY SCRATCHING
- TROUBLESHOOTING
- FAULTS - CAUSES AND REMEDIES
- INFORMATION ON STORAGE/DISPOSAL
- STORAGE
- DISPOSAL
- ANNEX
- CERTIFICATIONS
- GUARANTEE, SERVICE AND REPAIRS
- INDEX
- A
- C
- D
- E
- F
- G
- L
- M
- N
- O
- P
- R
- S
- T
- U
- W
- İÇINDEKILER
- ÖNSÖZ 53
Brand : BEEM
Model : Pita King B3.001
Category : Fondue/Gourmet/Wok
