Thank you for buying this British-built appliance from us.

This user guide book is designed to help you through each step of owning your new product.

Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can.

General information, spares and service information is available from our website.

If you should find something missing from your product or have any questions that are not covered in this user guide, please contact us (see contact information inside the front cover).

European Directives

As a producer and a supplier of cooking appliances we are committed to the protection of the environment and are in the compliance with the WEEE directive. All our electric products are labelled accordingly with the crossed out wheeled bin symbol. This indicates, for disposal purposes at end of life, that these products must be taken to a recognized collection points, such as local authority sites/local recycling centres.

This appliance Complies with European Community Directives (CE) for household and similar electrical appliances and Gas appliances where applicable.

This appliance conforms to European Directive regarding Eco design requirements for energy-related products. Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all of our illustrations and specifications - changes may have been made subsequent to publishing.

Disposal of Packaging Material

The packaging materials used with this appliance can be recycled. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities.

WARNING

• If the hob surface is cracked, broken or shattered, switch off the appliance to avoid the possibility of electric shock and call for a service engineer's visit.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements.
• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hobs and oven appliances.
• If your appliance is fitted with a lid, any spillage should be removed from the lid before opening. The hob surface should be allowed to cool before closing the lid.
• Ensure that the appliance is switched off before replacing the lamp to avoid electric shock.
• Never put items directly on the base of the oven or cover the oven with foil, as this can cause the base element to overheat.
• The appliance is not intended to be operated by means of an external timer or separate control system.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flame with a lid or damp cloth.
• Danger of fire: Do not store items on the cooking surfaces.

- Only use hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate hob guards can cause accidents.

CAUTION

- This appliance must not be installed behind a decorative door in order to avoid overheating.

- The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- Fire Safety Advice

If you do have a fire in the kitchen, don't take any risks - get everyone out of your home and call the Fire Brigade.

If you have an electrical fire in the kitchen:

- Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the fire immediately

- Smother the fire with a fire blanket, or use a dry powder or carbon dioxide extinguisher

- Remember: never use water on an electrical or cooking oil fire.

• Other Safety Advice

- Servicing should be carried out only by authorised personnel.

- Do not operate the appliance without the glass panel correctly fitted.

- There is a risk of electric shock, so always make sure you have turned off and unplugged your appliance before starting. Always allow the product to cool down before you change a bulb.

- Do not modify the outer panels of this appliance in any way.

• This appliance must be earthed.

- The appliance must never be disconnected from the mains supply during use, as this will seriously affect the safety and performance, particularly in relation to surface temperatures becoming hot and gas operated parts not working efficiently. The cooling fan (if fitted) is designed to run on after the control knob has been switched off.

- GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical switch. Contact your local gas supplier immediately.

Getting to know your product

Note: Your appliance layout may differ depending on the model.

Hob

Warming zone (100/110 only) Left hand rear Left hand front Centre Right hand rear Right hand front Hot hob warning display

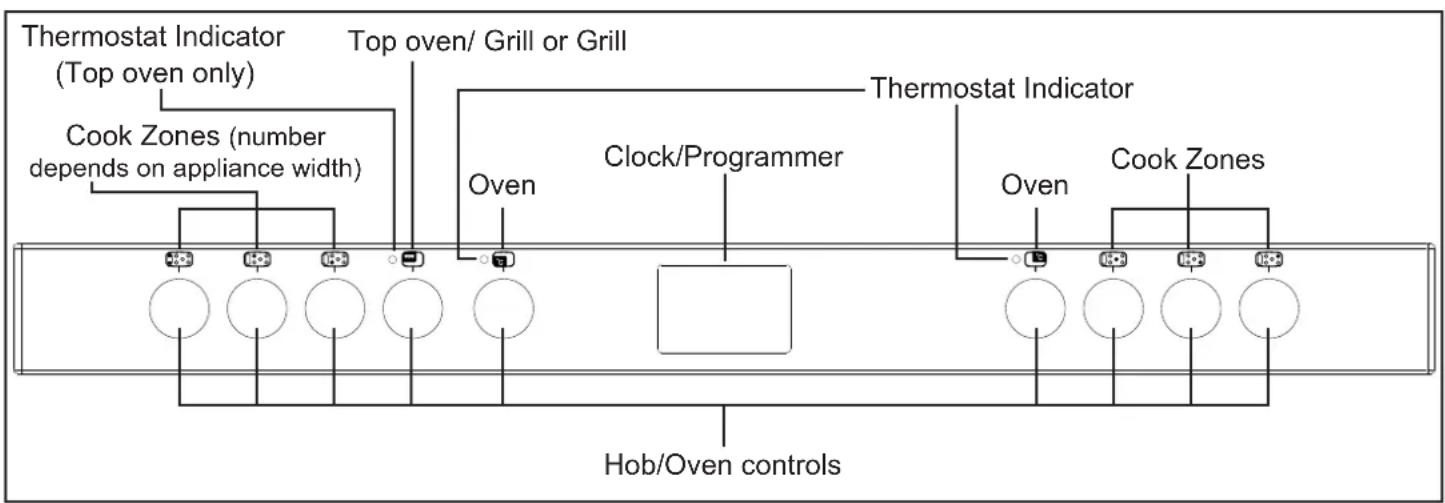

Control Panel

Thermostat Indicator (Top oven only) Cook Zones (number depends on appliance width) Top oven/ Grill or Grill Oven Clock/Programmer Thermostat Indicator Oven Cook Zones Hob/Oven controls

Appliance functions

Note: Your oven may not have all of the functions shown here. We recommend for best cooking results, please preheat your oven for 15 minutes and 3-5 minutes for grilling.

Do not try to slow cook using any of the other oven functions.

Intense Baking

Base Heat with fan

Slow Cook

Fanned Grill

Oven Selector Control

Conventional Grill

Top Heat

Lights only

Defrost

Conventional Oven

Fanned Oven

Low Grill

Single Grill

Dual Grill

Base Heat

Single grill

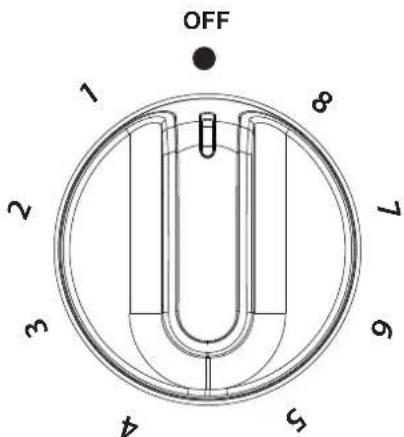

OFF 1 2 3 4 5 6 7 8

Dual Grill

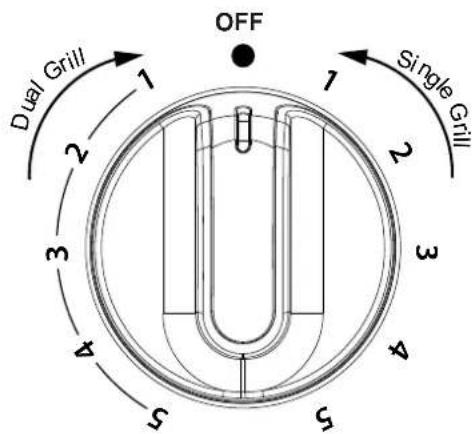

OFF Dual Grill 1 2 3 4 5 Single Grill 1 2 3 4 5

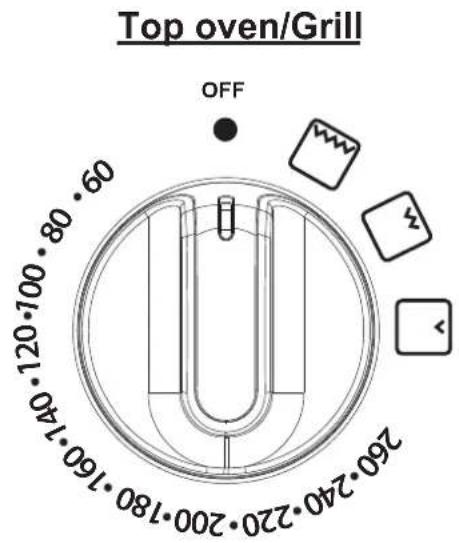

Top oven/Grill OFF 120-100 80 60 100 90 140 120 200 180 220 240 260 160 180 200 240 220 240

Oven

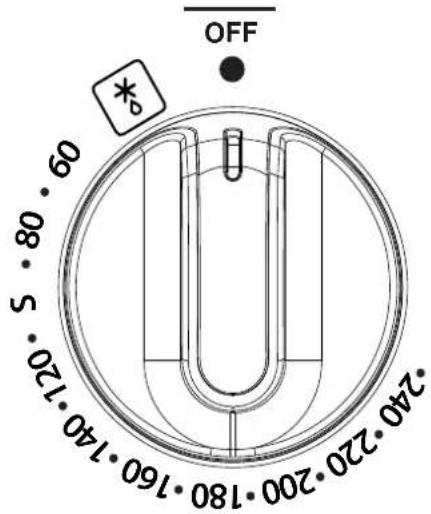

OFF 240 220 200 180 160 140 5 90 80 70 120 100 90

Ovens and Grill

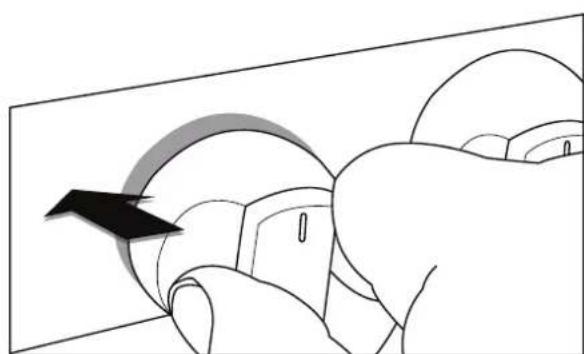

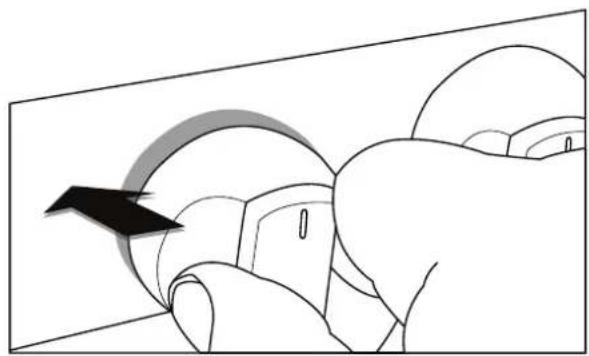

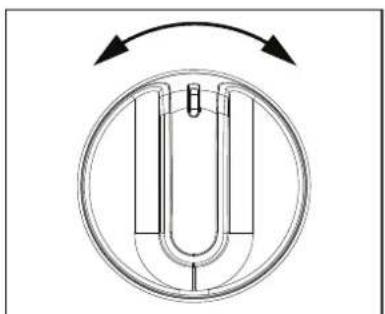

Illustration of a hand pressing a button with a black arrow indicating motion (no text or symbols)

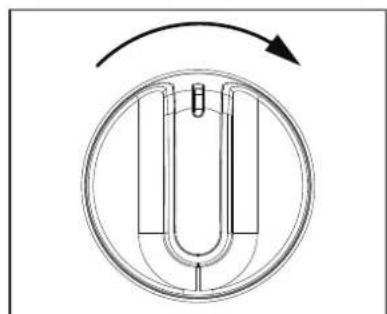

Pure diagram of a U-shaped tube inside a circular ring with an arrow indicating rotation (no text or symbols)

Main ovens and Top oven/Grill Grill

Pure diagram of a U-shaped tube inside a circular frame with bidirectional arrows, no text or symbols present.

only

When using the top oven or main oven, the red thermostat indicator will come on until the selected temperature is reached.

When the Top oven/grill or grill is switched on, the cooling fans comes on to keep the fascia and control knobs cool during cooking/grilling. The cooking fans may operate when the main ovens are in use, depending on the temperature setting. The fans may continue to operate for a period after the oven/grill has been switched off. During use the fan may cycle on and off, this is normal.

Important: Never put items directly on the base of the oven, or cover the oven base with foil, as this may cause the element to overheat. Always position items on the shelf.

The 90cm left hand main oven and the 100/110cm right hand oven will not operate if the programmer is set to Auto, see clock/programmer section.

Grill

THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.

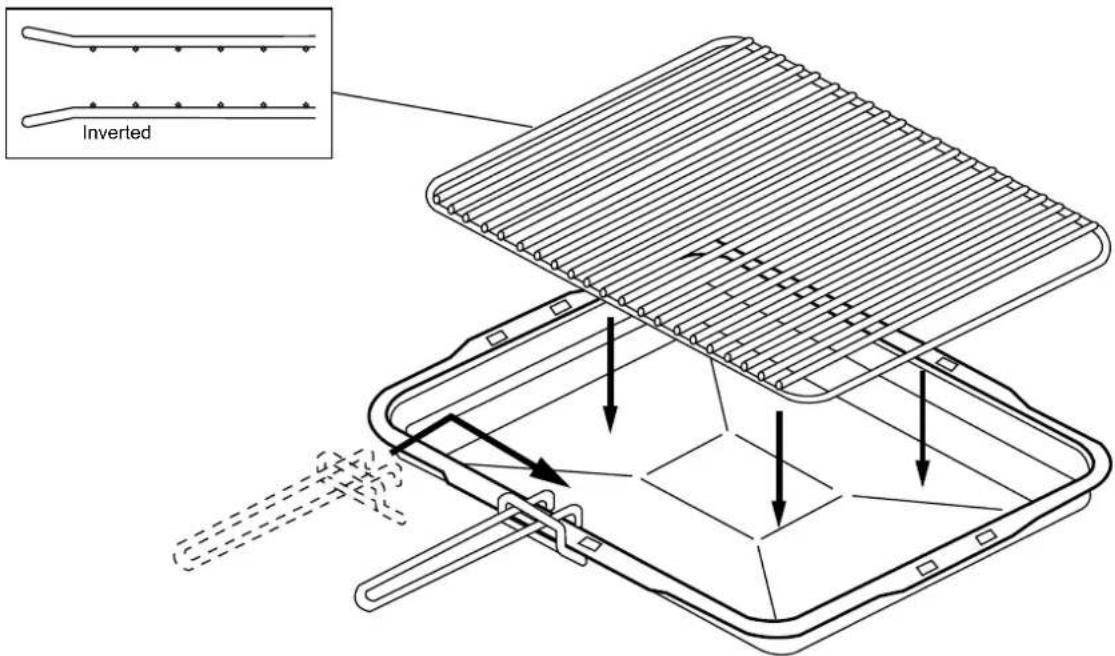

Grill pan, trivet and detachable grill pan handle

The grill trivet, inside the grill pan, can be inverted to give a high or low position, or it may be removed. The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill setting.

Inverted

Hob

Illustration of a hand pressing a button with a black arrow indicating the motion (no text or symbols present)

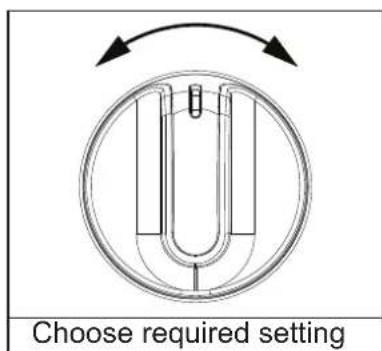

Choose required setting

Hot Hob warning (if fitted)

A light appears on the hob display when the surface becomes hot. This light will illuminate when any cook zone is in use and will remain lit until the surface has cooled down.

Please be aware that only the main oven is controlled by the programmer.

Clock / Programmer

Note: Your clock / programmer may not have all these functions

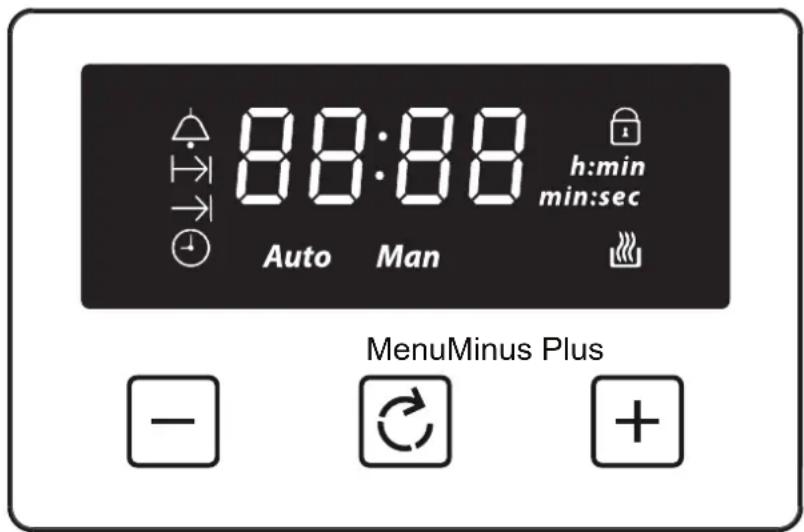

88:88 h:min min:sec Auto Man MenuMinus Plus -

	Minute minder	Man	Manual mode
→	Cooking time / Duration	L 1,L2,L3	Volume level
→	End of cooking time	23:59	7-segment display
	Time of day	99:00	Max. adjustable minute minder
	Keylock	23:59	Max. adjustable cooking time
	Auto cooking	h:min	Display hours:minutes
Auto	Automatic mode	min:sec	Display minutes:seconds

Using the touch controls

Menu - Scroll through to select a function

Plus - Increase time or volume

Minus - Decrease time or volume

When a function is selected and the time or volume is set, the chosen function will automatically start seven seconds after setting.

Manual Mode

If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually. The manual icon is also on the display.

Setting the time of day

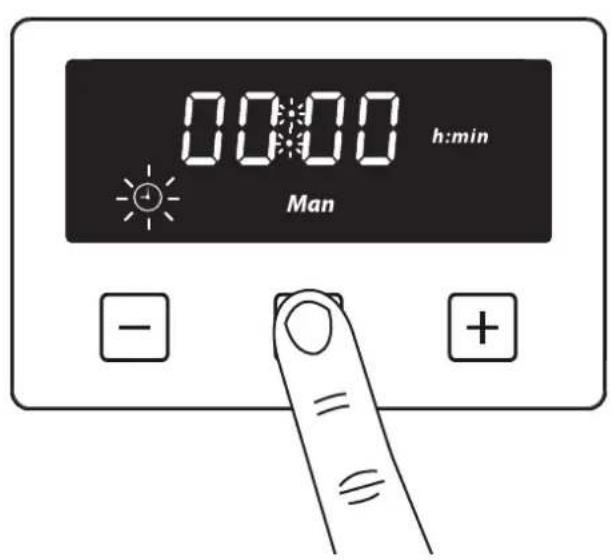

By pressing menu, scroll through the functions until you reach 'time of day'.

1

00:00 h:min Man - +

2

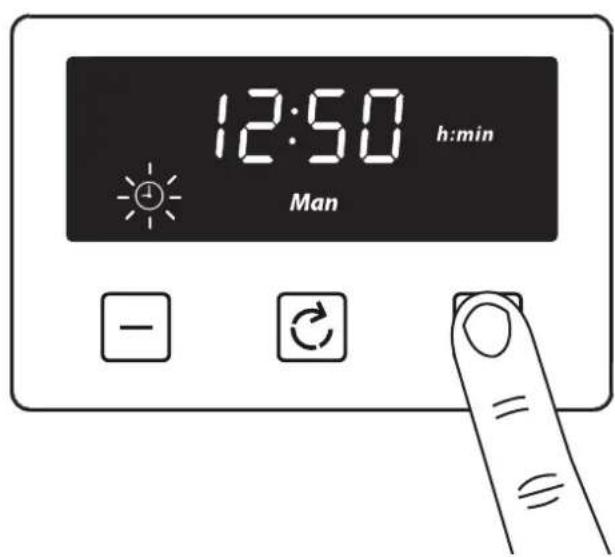

Press the plus or minus buttons to set a time

12:50 h:min Man - + = ≡

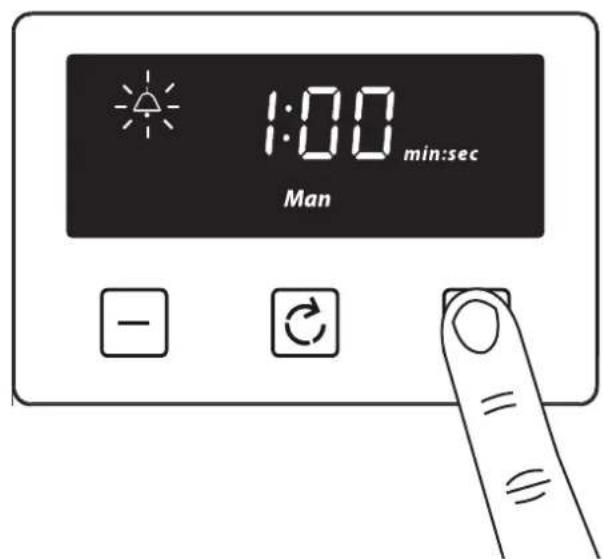

Setting the minute minder

The maximum cooking time that can be set is 99 minutes.

1

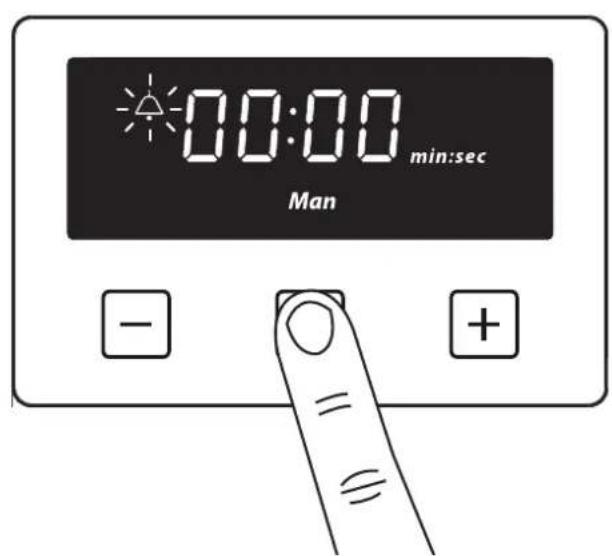

00:00 min:sec Man - +

2
Press the plus or minus buttons to set a time

1:00 min:sec Man - C =

Once set, the minute minder will start to countdown in steps of seconds. The display will show the minute minder symbol and the remaining time. The countdown will continue in the background, if other functions are being set.

When the set time for the minute minder has completed, an alarm is heard and the minute minder symbol will flash on the display. Press any button to stop the alarm and the time of day is displayed.

To modify or cancel the minute minder

Return to the minute minder function and use either the plus or minus buttons to adjust the time. By setting the time to '0.00', this will cancel the countdown.

Setting the cooking time (the duration of time the oven will operate for)

The maximum cooking time that can be set is 23 hours and 59 minutes.

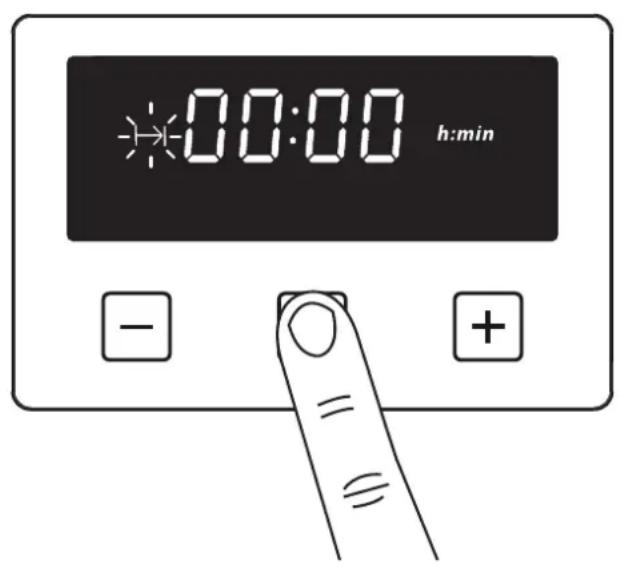

1

00:00 h:min - +

2
Press the plus or minus buttons to set a time

2:53 h:min - C =

Once set, the automatic mode, auto cooking symbol and the time of day is displayed.

When cooking is completed, an alarm is heard and the manual mode symbol flashes on the display. Press the Menu button to stop the alarm and then the 'time of day' will then be displayed. Pressing the Menu button again will return to manual mode.

To modify or cancel the cooking time

Return to the ‘cooking time’ function and use either the plus or minus buttons to set the time. By setting the time to ‘0.00’, this will cancel the countdown.

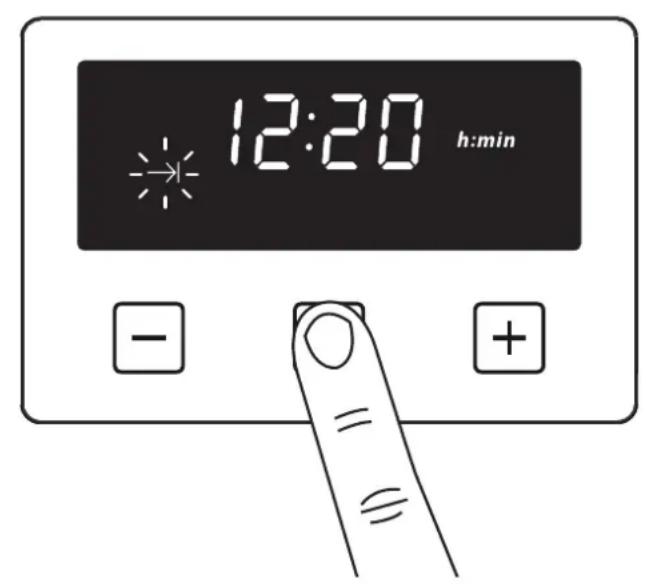

Setting the end of cooking time (to set a time for the oven to turn off)

The display shows the current ‘time of day’ plus the ‘end of cooking time’ symbol. The latest ‘end of cooking time’ is limited to the current ‘time of day’ plus the maximum time that can be set (23 hours and 59 minutes).

1

12:20 h:min - +

2

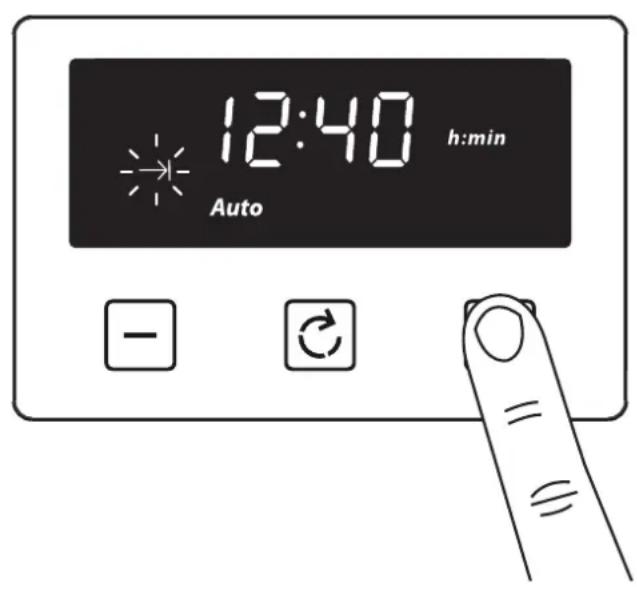

Press the plus or minus buttons to set a time

12:40 Auto h:min - C =

The auto cooking symbol disappears from the display once the time, the required cooking settings and temperature have been set. The appliance will not be switched on until the set cooking start time, that is the difference between the cooking end time and the cooking duration.

When cooking is completed, an alarm is heard and manual mode symbol flashes on the display. Press the menu button to stop the alarm. Pressing the Menu button again will return to manual mode.

To modify or cancel the end of cooking time

Return to the ‘end of cooking time’ function and use either the plus or minus buttons to set the time. The ‘end of cooking time’ can be deleted by counting back using the minus button until it equals the current time of day.

Setting the volume

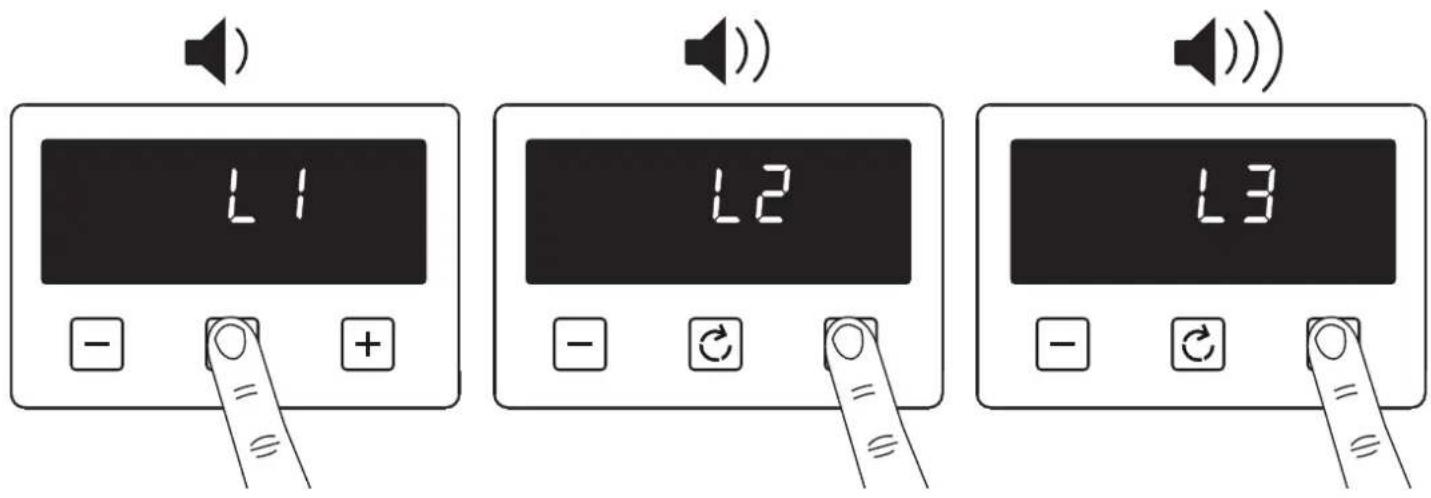

Press the menu button until "LX" (X = 1, 2 or 3) flashes on the display. Use the plus or minus buttons to select a tone.

L1 L2 L3

Note: Default tone is L3

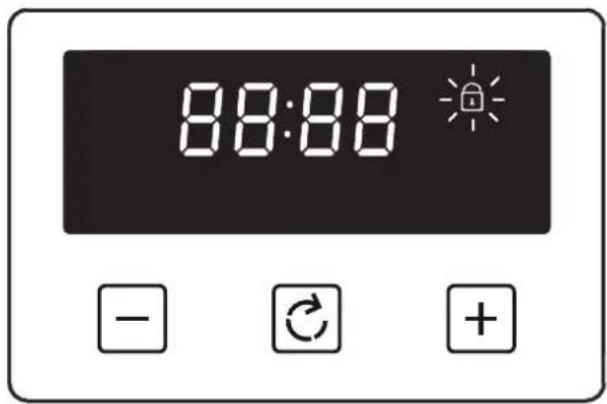

Activating / deactivating Key lock

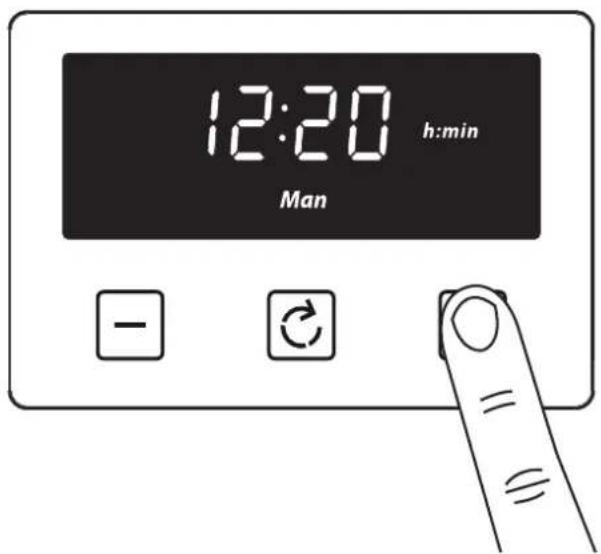

Press and hold the plus button for 3-5 seconds

12:20 h:min Man - [ ] [ ] = =

88:88

Once the Key lock is active, the buttons will be inactive. A two beep signal will be heard if the buttons are pressed.

To deactivate the Key lock

Press and hold the plus button for 3-5 seconds. The Key lock symbol will disappear and the appliance can continue to be used.

Note: In case of main power loss for a short time (about 1.5 minutes), timer maintains its status. Key lock status and buzzer tone are memorized independent of the power loss duration.

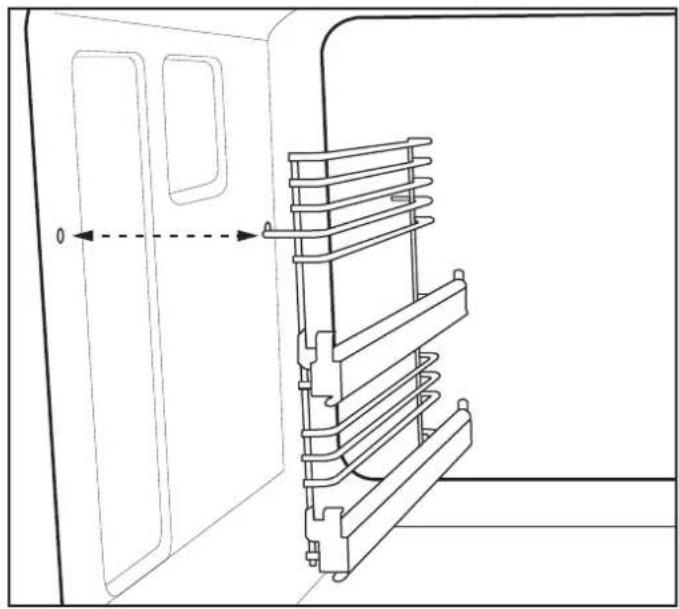

Removing Shelf Runners

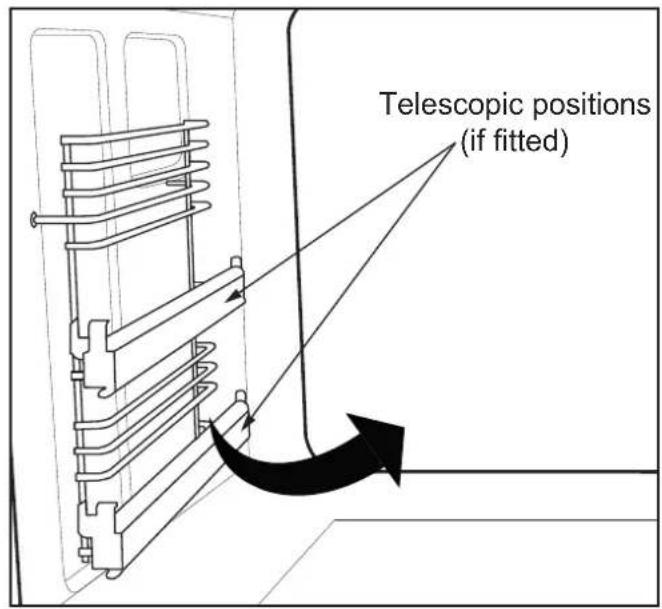

Telescopic positions (if fitted)

Technical line drawing of a door with a ladder structure and an arrow indicating direction (no text or symbols)

Standard shelves

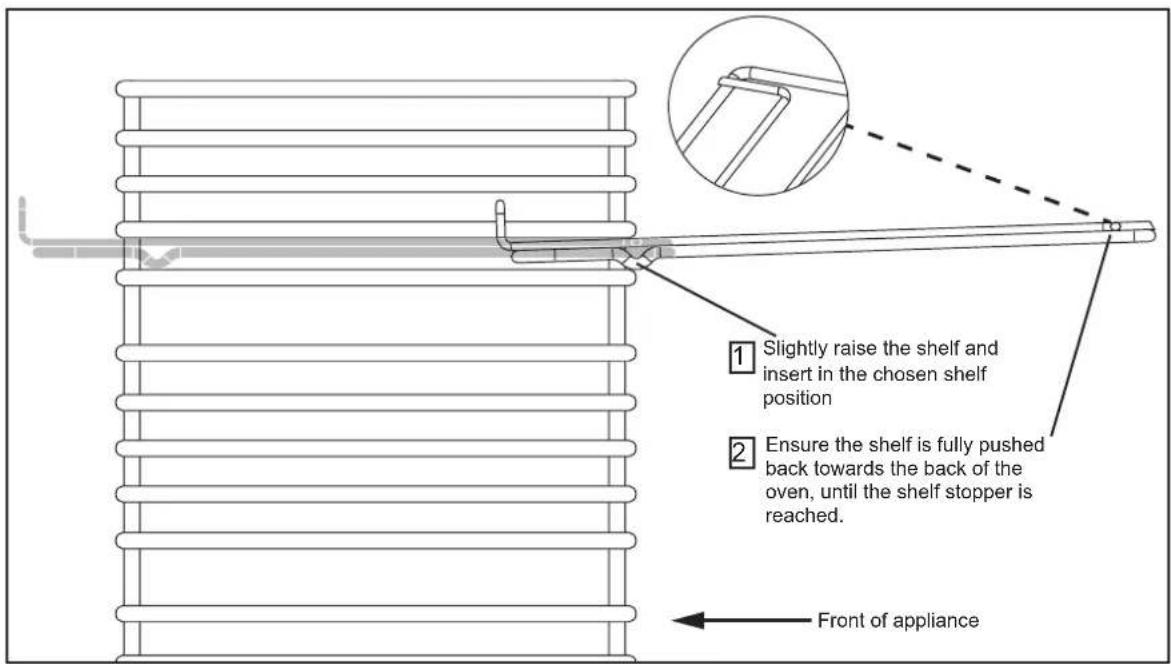

Slightly raise the shelf and insert in the chosen shelf position Ensure the shelf is fully pushed back towards the back of the oven, until the shelf stopper is reached. Front of appliance

Removing Telescopic shelves (if fitted)

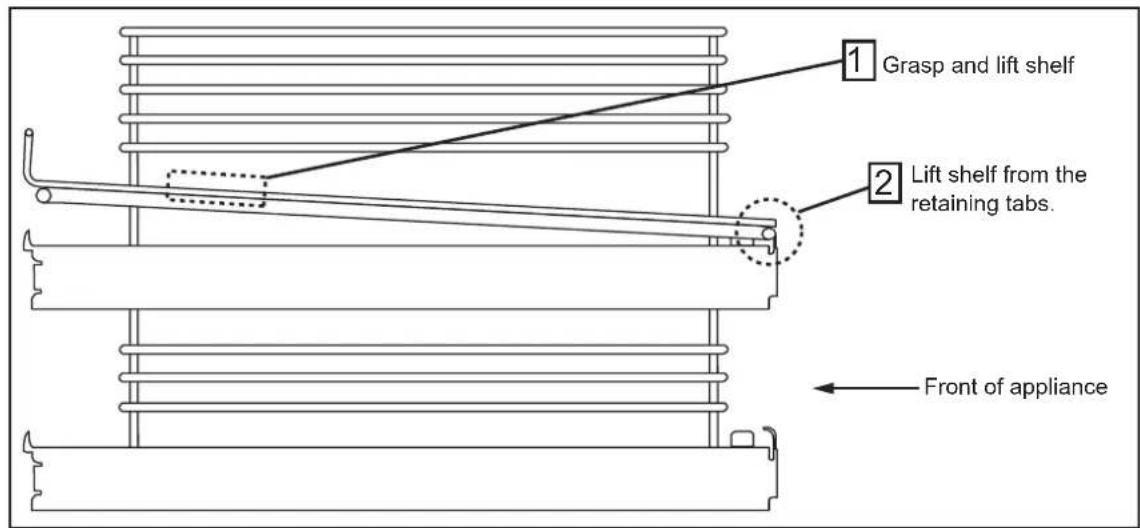

1 Grasp and lift shelf 2 Lift shelf from the retaining tabs. Front of appliance

Before removing the shelves completely, please make sure that the shelf is unclipped from the retaining tabs.

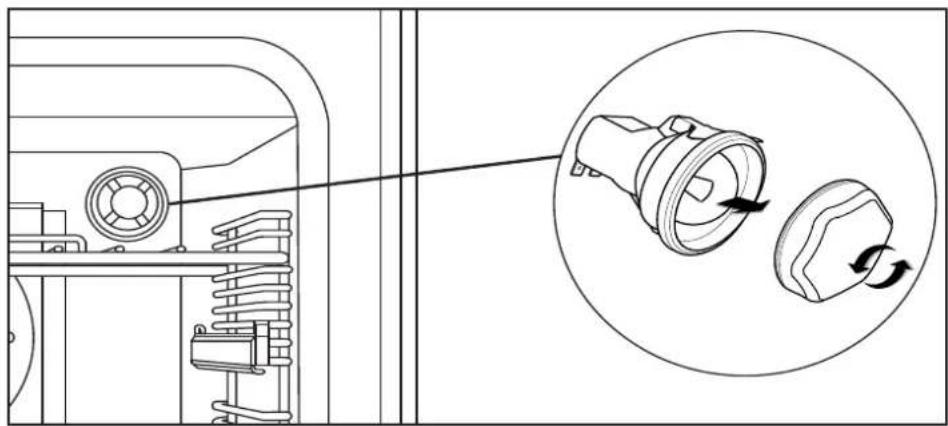

Changing the light bulb

Technical line drawing of a mechanical assembly with a magnified inset showing a component being turned into a housing (no text or symbols present)

Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see what type you have. Please remember that bulbs are not covered by your warranty.

Additional features

Plate rack (if supplied)

1. Pull the shelf out of the cavity.
2. Tilt the plate warmer towards you and make sure that it hooks underneath the shelf bars at the front.
3. Drop the plate warmer carefully into position.

The plate warmer is now secure and you can place your plates into it.

Always make sure that you use oven gloves if you are putting the plate warmer into a hot, or recently used oven to prevent burns.

Always make sure that your plates are suitable for warming - some plates may shatter or crack when exposed to heat.

We recommend that you heat the oven to 70^ C, or below, if you are warming plates.

Do's

Note: Always switch off your appliance and allow it to cool down before you clean any part of it.

Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading.

Simple line drawing of a faucet pouring liquid into a bowl filled with eggs (no text or symbols)

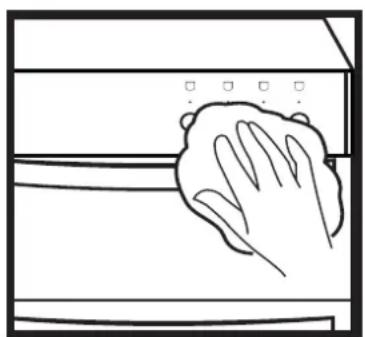

• Warm, soapy water • Wipe with damp cloth, wrung out cloth

Line drawing of two hands performing a gentle manual manipulation or cleaning operation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

• Dry with a soft cloth

Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt. Always clean food spillages as soon as possible.

Dont's

Simple line drawing of a bottle with a handle crossed out by two diagonal lines (no text or symbols)

• Undiluted bleaches
• Chloride products

Simple line drawing of a hand holding a small object, crossed out by two diagonal lines (no text or symbols)

• Wire Wool
• Abrasive cleaners
• Nylon pads
• Steam cleaners

Pure electrical circuit lines without any symbols

Do not place in the dishwasher:
- Cast iron griddle
- Pan supports

IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN AFFECT IT'S PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.

IN ADDITION TO THE ABOVE, DO NOT USE METAL SCRAPERS TO CLEAN THE OVEN DOOR GLASS.

Electric Range

Hob top

Electrical supply / load
Electrical supply	Hotplate Zone	Appliance Size (cm) / Load kW
240v Ceramic			90 / 100 / 110
		Small 1.20
		Large 1.70
		Warming zone (100/110 only) 0.12
		Dual zone 0.75 / 2.20

Ovens

Electrical supply / load
Electrical supply	Oven Appliance	Size (cm) / Load kW
		90 100 110
240v	Conventional N/A 2.07	2.07
	Fanned	2.00 2.00	2.00
	Fanned (90cm tall oven)	2.50	N/A	N/A
	Dual variable grill (if fitted)	1.7 / 2.7	1.7 / 2.7	1.7 / 2.7
	Single variable grill (if fitted)	1.85	1.85	1.85
	Conventional top (if fitted)	1.39	1.39	1.39

Oven Lamps / Fans
Lamps	25W each
Cooling fans	10W each
Oven stir fan	30W each

Appliance

Electrical supply / load
	Appliance Size (cm)	Electrical supply	Max. load (kW)
Single grill models	90	240v	14.48
	100 / 110		14.13
Dual grill models	90		15.33
	100/110		14.98
