USER MANUAL Fi-7260 FUJITSU SIEMENS

Thank you for purchasing our image scanner.

This manual explains about the basic operations and handling of the scanner.

For information on scanner installation, connection and software installation, refer to "Getting Started".

Illustration of a large white 'S' symbol, two gray printer machines, and a flat blue striped background (no text or symbols)

P3PC-4292-01ENZ0

	TOP
	Contents
	Index
	Introduction
Explains the names and functions of parts and basic scanner operation.	Scanner Overview
Explains how to load documents on the scanner.	How to Load Documents
Explains about the setting items in the scanner drivers.	Configuring the Scan Settings
Explains how to use the Operator Panel.	How to Use the Operator Panel
Explains about various ways of scanning.	Various Ways to Scan
Explains how to clean the scanner.	Daily Care
Explains how to replace the consumables.	Replacing the Consumables
Explains about troubleshooting.	Troubleshooting

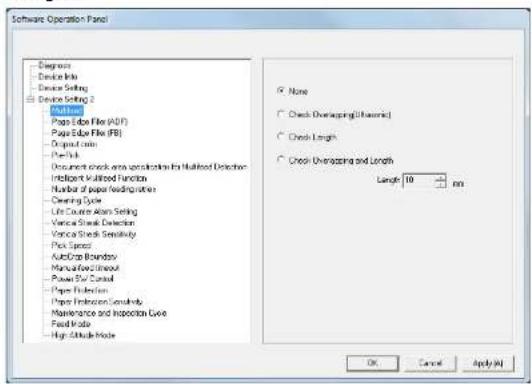

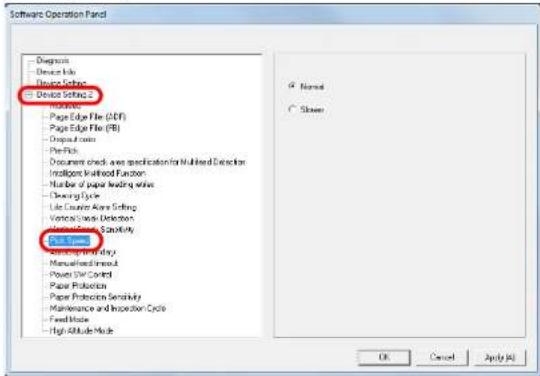

Explains how to configure settings in the Software Operation Panel.	Operational Settings
	Appendix
	Glossary

How to Use This Manual

How to Use This Manual

The following shows the tips for using this manual.

• To display or print this manual, either Adobe® Acrobat® (7.0 or later) or Adobe® Reader® (7.0 or later) is required.
• In this manual, you can use the Search tool of Adobe ^ Acrobat ^ or Adobe ^ Reader ^ .
  For details, refer to the Adobe ^® Acrobat ^® or Adobe ^® Reader ^® Help.

- Use the [Page Up] key to return to the previous page, and the [Page Down] key to go to the next page.

- Click a blue character string, tab or contents/index title (where the mouse cursor changes into a shape such as 9 to jump to the link.

- Common for all pages

Jumps to the first page of each chapter. This tab is on every page.

FJUITSU f1-7160/f1-7260/f1-7180/f1-7200 Image Scanner Operator's Guide Please you be purchasing the image scanner. This manual operation is the back console and heading of the scene and information in a library booklet. Consider all other information. with / having helped. Improve the memory function of your image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the image scanner. Improve the image function of the

TOP: Jumps to the cover page. Contents: Jumps to the contents page. Index: Jumps to the index page.
Jumps to this page. Click on a blue character string to jump to the link.

• Contents page


Contents How to Use The Manual For example: Contribution Engine: C. D. S. A. B. C. D. E. 1.1.1.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.

Click on a title to jump to the link.

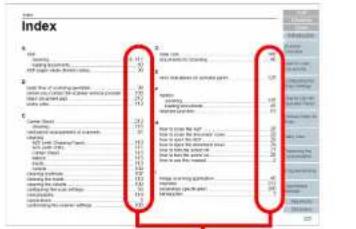

• Index page


Index A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Click on a page number to jump to the link.

Introduction

Thank you for purchasing our Color Image Scanner fi Series.

About This Product

"This product" refers to four scanner models, which are fi-7160, fi-7260, fi-7180, and fi-7280.

Each scanner is equipped with an Automatic Document Feeder (ADF) that allows duplex (double-sided) scanning, and supports USB interface.

The following table shows the differences between each model.

Model	Scanner type		Interface	Scanning speed (*2)
	ADF	Flatbed (*1) USB
fi-7160	Yes - Yes	60 ppm/120 ipm
fi-7260	Yes Yes	Yes 60 ppm/120 ipm
fi-7180	Yes - Yes	80 ppm/160 ipm
fi-7280	Yes Yes	Yes 80 ppm/160 ipm

Yes: Available

• : Not available
  *1 : Flatbed allows you to scan thin paper and thick documents such as a book.
  *2: When scanning A4 size documents at 200/300 dpi with JPEG compression.

Manuals

The following manuals are included for this product. Read them as needed.

Manual Description
Safety Precautions (paper, PDF)	Contains important information about the safe use of this product.Make sure to read this manual before using the scanner.The PDF version is included in the Setup DVD-ROM.
Getting Started (PDF)	Outlines the procedures from installation to operation of the scanner.The PDF version is included in the Setup DVD-ROM.
Operator's Guide (this manual) (PDF)	Provides detailed information on how to operate and maintain the scanner daily, how to replace the consumables, and how to troubleshoot problems. Included in the Setup DVD-ROM.
fi-718PR Imprinter Operator's Guide (PDF)	Provides detailed information on how to operate and maintain the option fi-718PR imprinter daily, how to replace the consumables, and how to troubleshoot problems. Included in the Setup DVD-ROM.
Scanner Central Admin User's Guide (PDF)	Explains about the overview, installation, operation and maintenance of Scanner Central Admin. Included in the Setup DVD-ROM.

Introduction

Manual Description
Error Recovery Guide (HTML Help)	Details the status of the scanner and explains how to resolve problems encountered.Contains movie segments that explain operation procedures such as cleaning this product and replacing the consumables. Included in the Setup DVD-ROM.
Help (scanner driver) Explains how to use and configure the settings for the scanner drivers.Can be referenced from each scanner driver.
Help (application) Explains how to use and configure the settings for the application software. Can be referenced from each application.

Trademarks

Microsoft, Windows, Windows Server, Windows Vista, and SharePoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ISIS is a registered trademark of EMC Corporation in the United States.

Adobe, the Adobe logo, Acrobat, and Reader are either registered trademarks or trade names of Adobe Systems Incorporated in the United States and/or other countries.

ABBYY™ FineReader™ Engine © ABBYY. OCR by ABBYY ABBYY and FineReader are trademarks of ABBYY.

ScanSnap, ScanSnap Manager, and PaperStream are registered trademarks of PFU LIMITED in Japan.

Other company names and product names are the registered trademarks or trademarks of the respective companies.

Manufacturer

PFU LIMITED

Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki, Kanagawa 212-8563, JAPAN.

Phone: [phone]

© PFU LIMITED 2013

Conventions

Safety Information

The attached "Safety Precautions" manual contains important information about the safe and correct use of this product. Make sure that you read and understand it before using the scanner.

Symbols Used in This Manual

The following indications are used in this manual to obviate any chance of accident or damage to you, people near you, and your property. Warning labels consist of a symbol indicating the severity and a warning statement. The symbols and their meanings are as follows.

This indication alerts operators to an operation that, if not strictly observed, may result in severe injury or death.

This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to the product.

Abbreviations Used in This Manual

The operating systems and products in this manual are indicated as follows.

Name Indication
Windows^® XP Home Edition	Windows XP (*1)
Windows^® XP Professional
Windows^® XP Professional x64 Edition
Windows Vista^® Home Basic (32-bit/64-bit)	Windows Vista (*1)
Windows Vista^® Home Premium (32-bit/64-bit)
Windows Vista^® Business (32-bit/64-bit)
Windows Vista^® Enterprise (32-bit/64-bit)
Windows Vista^® Ultimate (32-bit/64-bit)
Windows Server^® 2008 Standard (32-bit/64-bit)	Windows Server 2008 (*1)
Windows Server^® 2008 R2 Standard (64-bit)
Windows ^® 7 Home Premium (32-bit/64-bit)	Windows 7 (*1)
Windows ^® 7 Professional (32-bit/64-bit)
Windows ^® 7 Enterprise (32-bit/64-bit)
Windows ^® 7 Ultimate (32-bit/64-bit)

Conventions

Name Indication
Windows Server® 2012 Standard (64-bit)	Windows Server 2012 (*1)
Windows® 8 (32-bit/64-bit)	Windows 8 (*1)
Windows® 8 Pro (32-bit/64-bit)
Windows® 8 Enterprise (32-bit/64-bit)
ScanSnap Carrier Sheet Carrier Sheet

*1: Where there is no distinction between the different versions of the above operating system, the general term "Windows" is used.

Arrow Symbols in This Manual

Right-arrow symbols ( ) are used to separate icons or menu options you should select in succession.

Example: Click [Start] menu → [Control Panel].

Screen Examples in This Manual

Microsoft product screenshots are reprinted with permission from Microsoft Corporation.

The screen examples in this manual are subject to change without notice in the interest of product development.

If the actual displayed screen differs from the screen examples in this manual, operate by following the actual displayed screen while referring to the user's manual of the scanner application that you are using.

The screen examples used in this manual are of the PaperStream IP (TWAIN) driver, the PaperStream IP (TWAIN x64) driver, and the PaperStream IP (ISIS) driver.

The screenshots used in this manual are of Windows 7. The actual windows and operations may differ depending on the operating system. Also note that with some scanner models, the screens and operations may differ from this manual when you update the PaperStream IP (TWAIN) driver, the

PaperStream IP (TWAIN x64) driver, or the PaperStream IP (ISIS) driver. In that case, refer to the manual provided upon updating the driver.

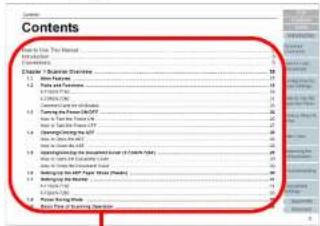

Contents

Contents

How to Use This Manual 2

Introduction 3

Conventions 5

Chapter 1 Scanner Overview ...... 15

1.1 Main Features 16

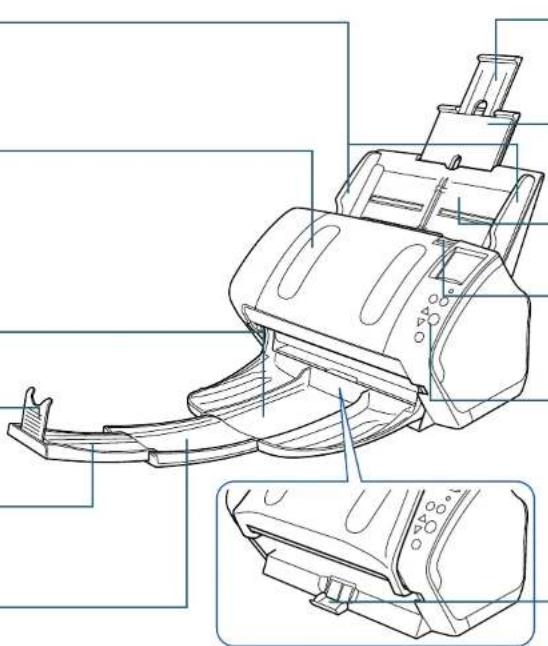

1.2 Parts and Functions 17

fi-7160/fi-7180 17

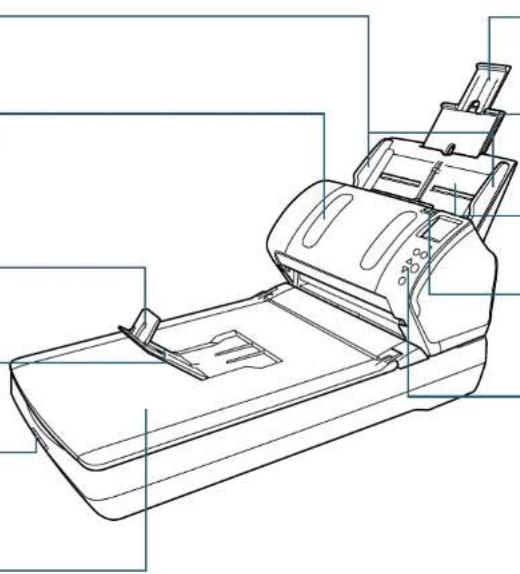

fi-7260/fi-7280 20

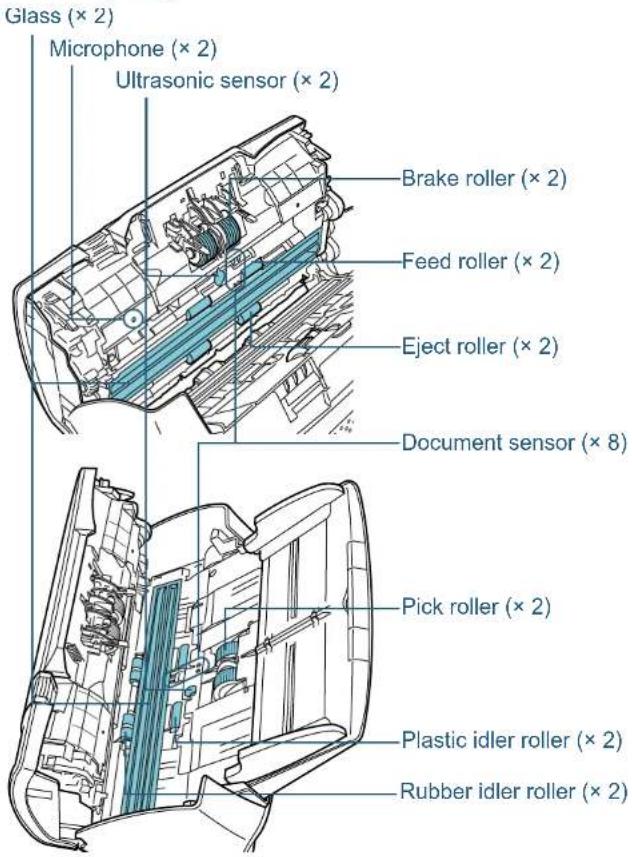

Common Parts for All Models....24

1.3 Turning the Power ON/OFF 25

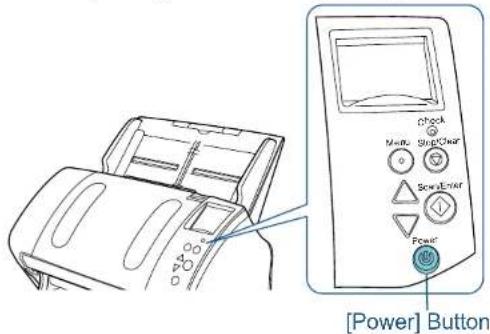

How to Turn the Power ON 25

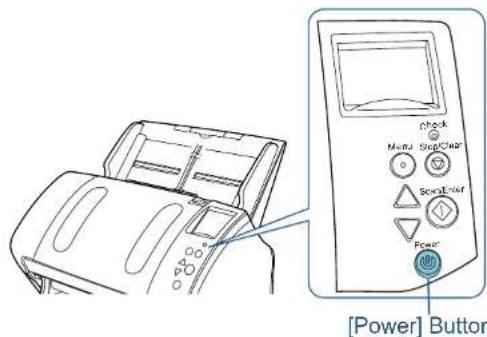

How to Turn the Power OFF 26

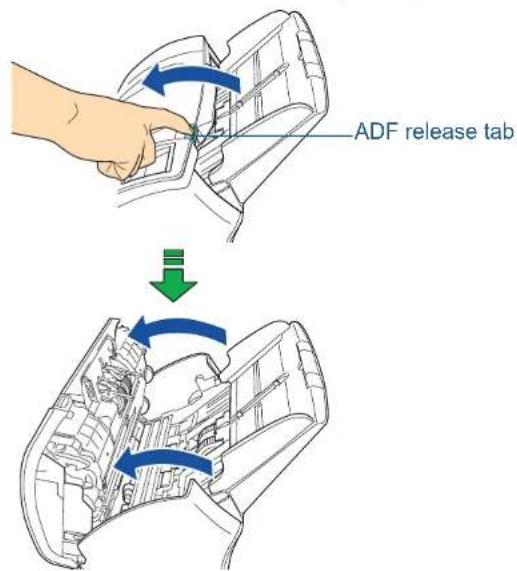

1.4 Opening/Closing the ADF 27

How to Open the ADF 27

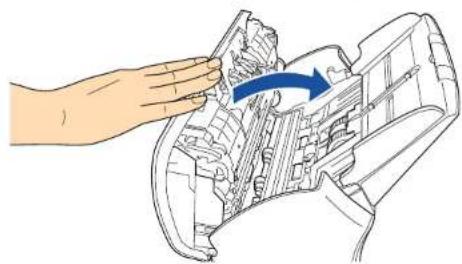

How to Close the ADF 27

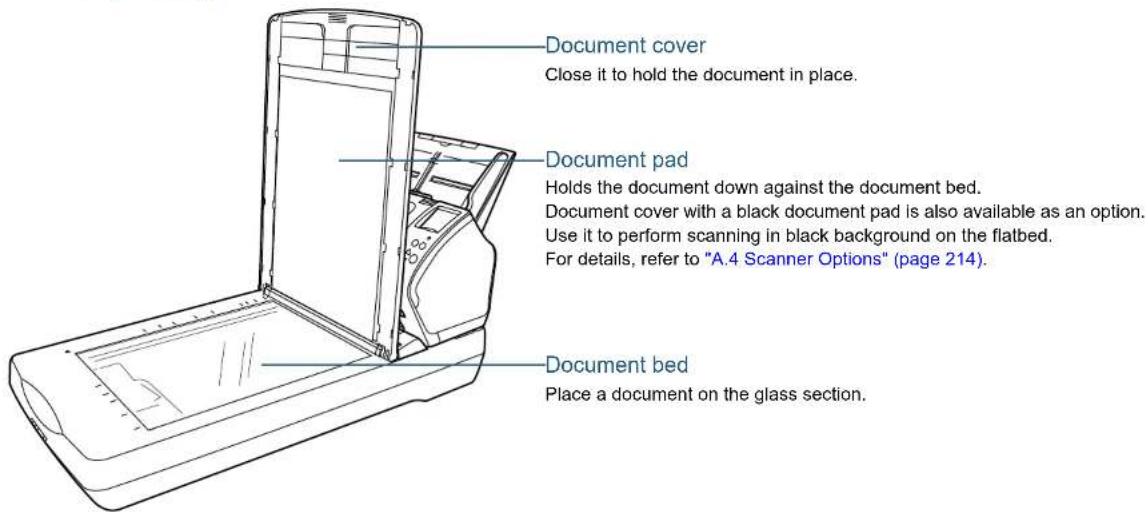

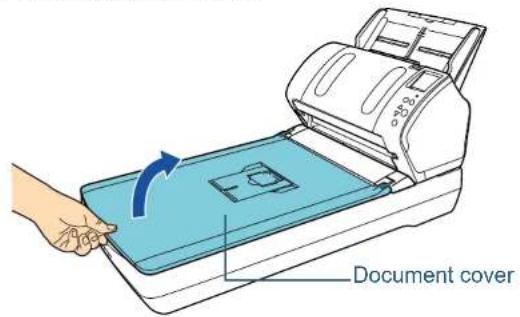

1.5 Opening/Closing the Document Cover (fi-7260/fi-7280) 28

How to Open the Document Cover 28

How to Close the Document Cover 28

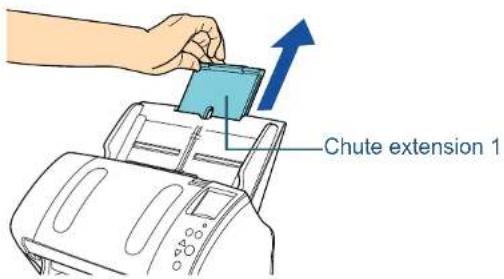

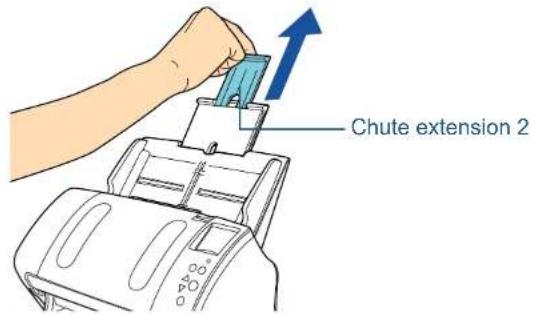

1.6 Setting Up the ADF Paper Chute (Feeder) 29

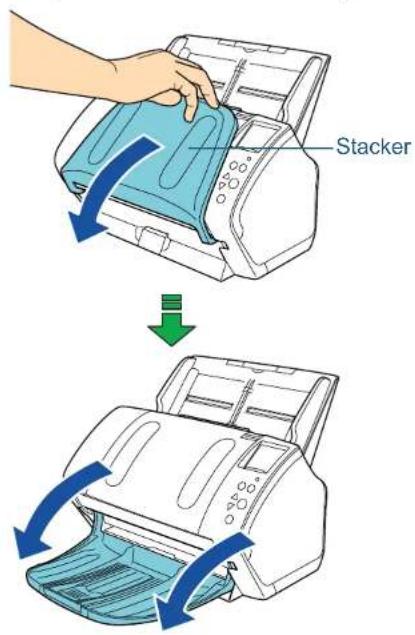

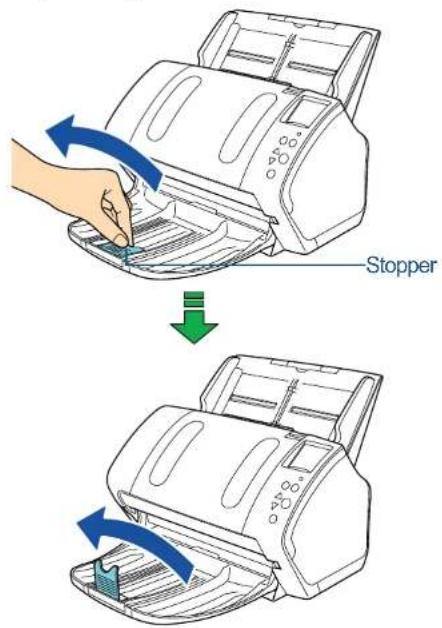

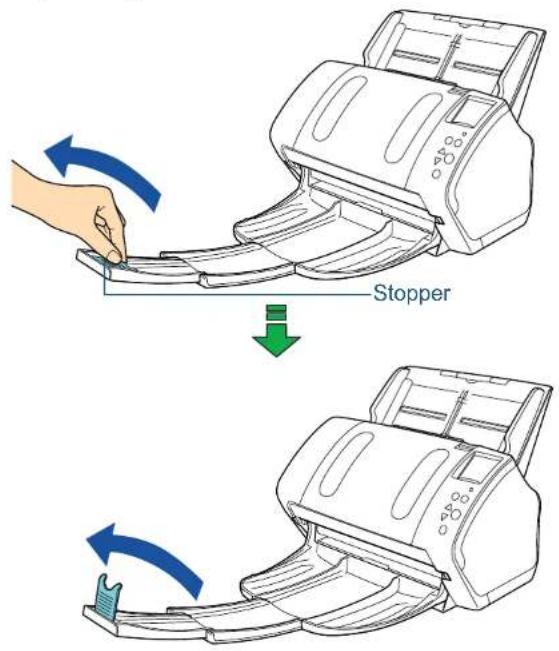

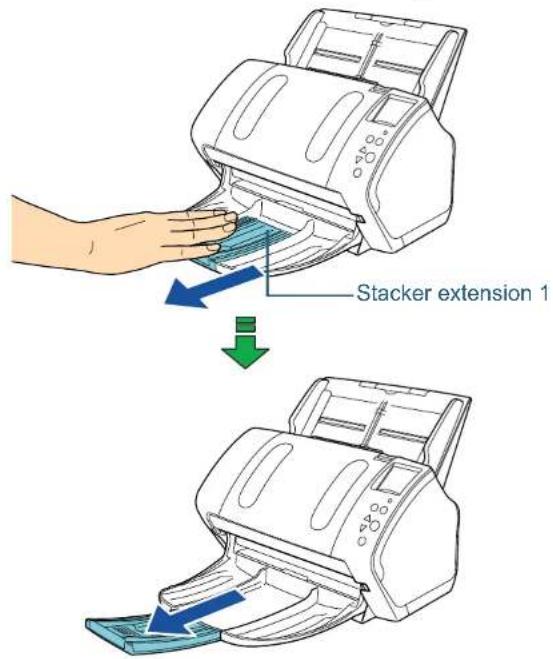

1.7 Setting Up the Stacker 30

fi-7160/fi-7180 30

fi-7260/fi-7280 34

1.8 Power Saving Mode 36

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Contents

1.9 Basic Flow of Scanning Operation 37
1.10 Image Scanning Application 39

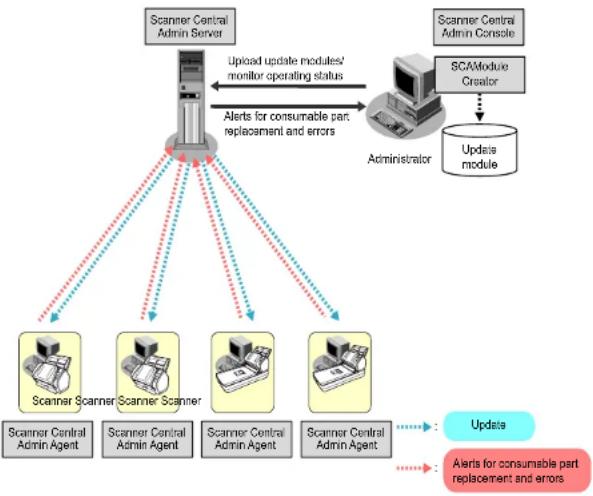

1.11 Centralized Management of Scanners 40

Chapter 2 How to Load Documents .... 41

2.1 Loading Documents in the ADF 42

Preparation 42

How to Load Documents....43

2.2 Loading Documents on the Flatbed (fi-7260/fi-7280) 44

2.3 Documents for Scanning (ADF) 45

Paper Size 45

Conditions 45

Loading Capacity 48

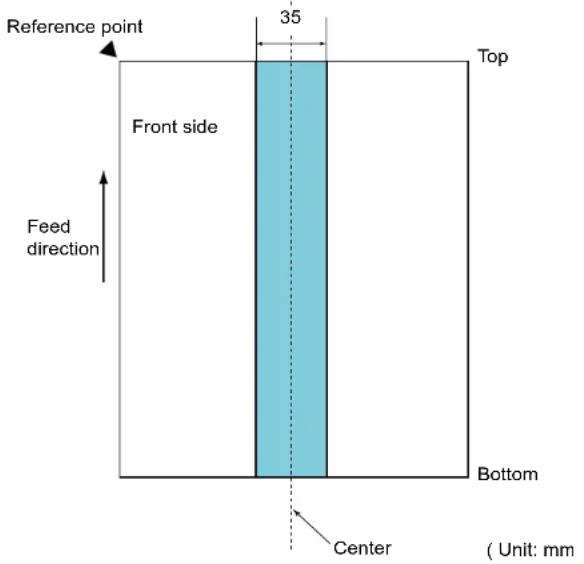

Area Not to be Perforated 49

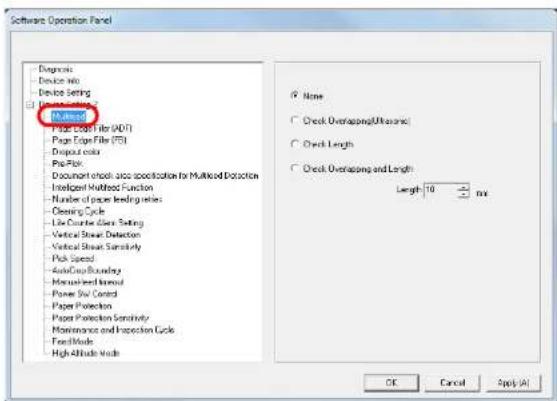

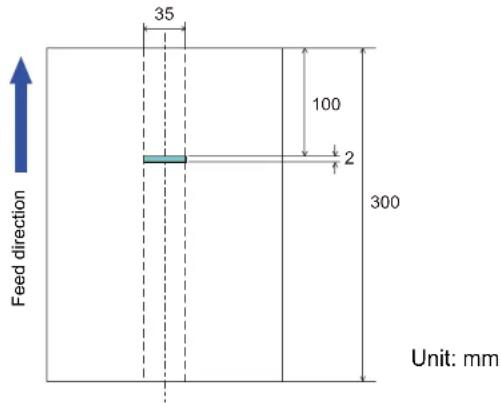

Conditions for Multifeed Detection 49

Conditions for Mixed Batch Scanning 51

Conditions for Automatic Page Size Detection....53

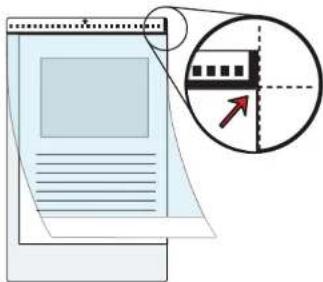

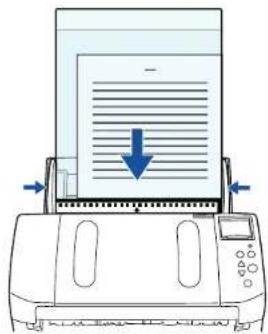

Conditions for Using the Carrier Sheet....54

Chapter 3 Configuring the Scan Settings .... 55

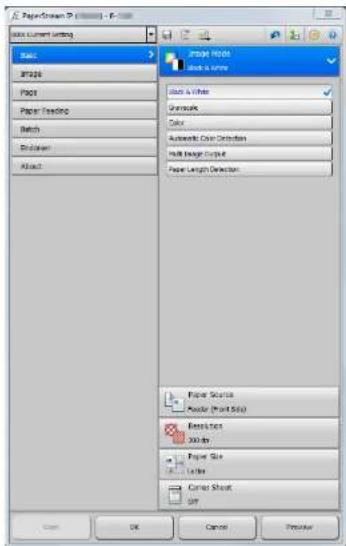

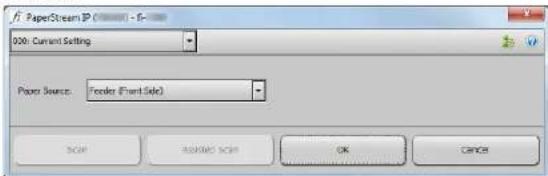

3.1 Setup Dialog Box for PaperStream IP Driver 56
3.2 Setting Items for PaperStream IP Driver 58

[Profile] list 58

[Save] button 58
[Delete Profile] button....58
[Option] button 58
[Initialize] button 59
[Switch Dialog] button....59

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Contents

[Configuration] button 59

[Help] button 59

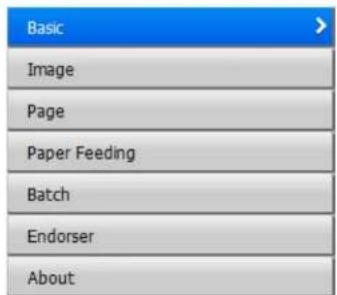

Settings menu buttons....59

Buttons at the bottom of the dialog box....59

[Scan] button 60

[Close] button 60

[OK] button 60

[Reset] button 60

[Cancel] button 60

[Preview] button....60

Chapter 4 How to Use the Operator Panel ....61

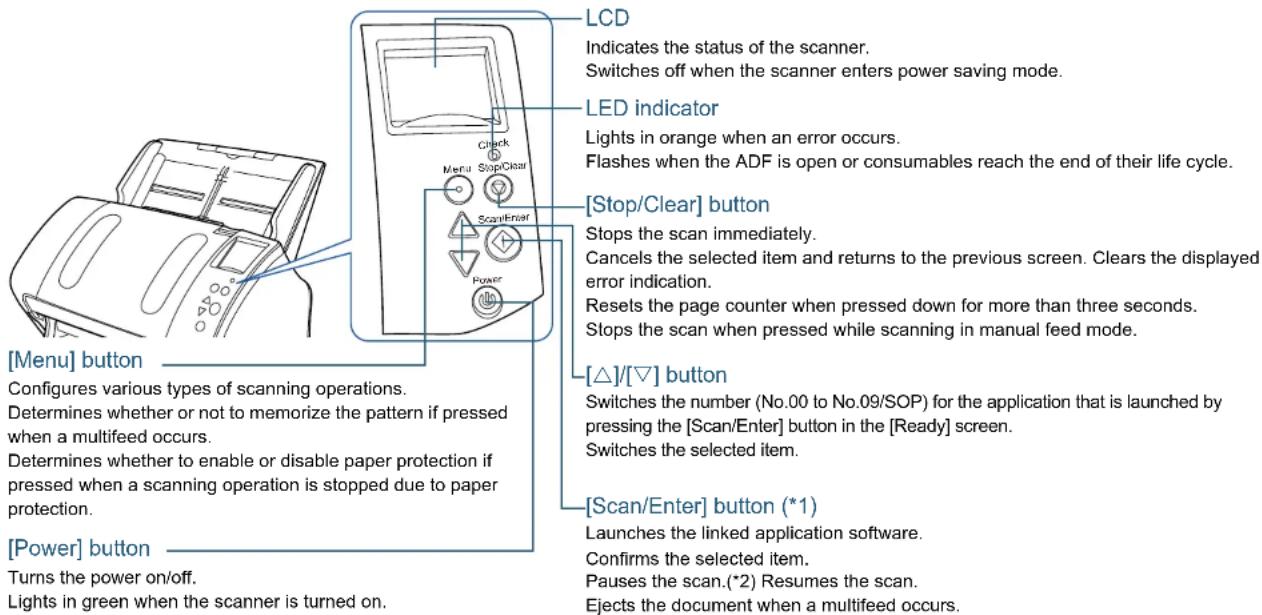

4.1 Operator Panel 62

Indications on LCD 63

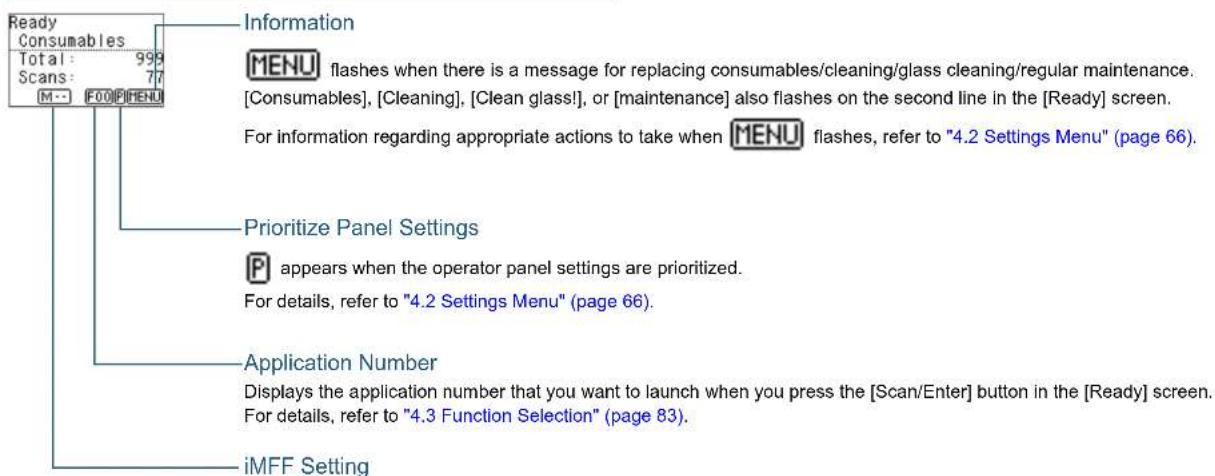

Indicator....65

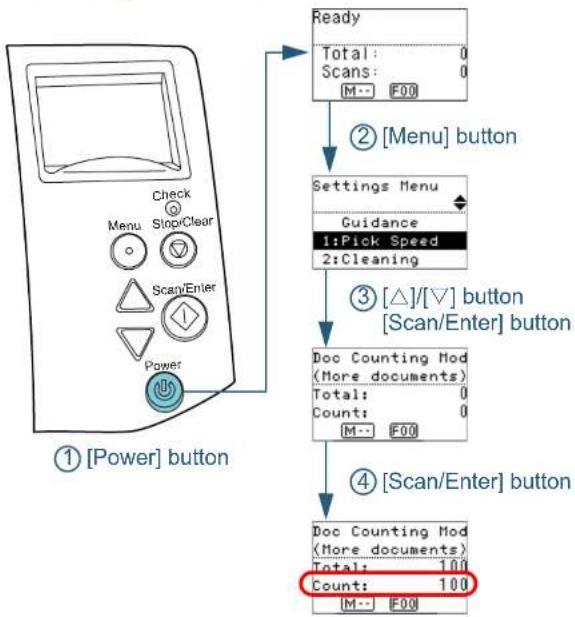

4.2 Settings Menu 66

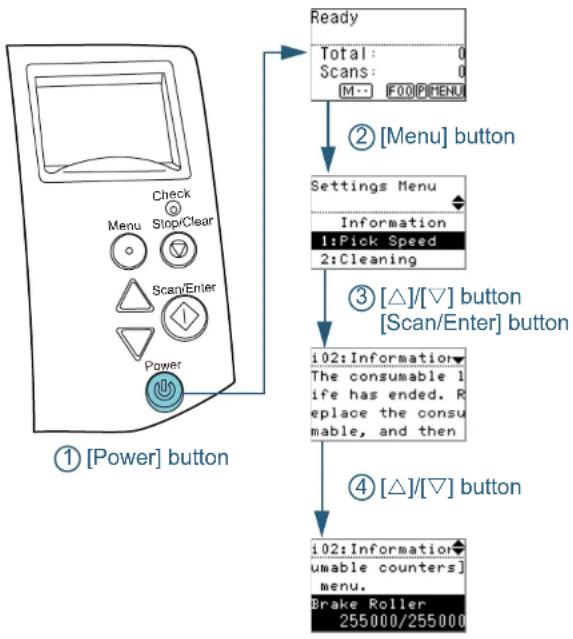

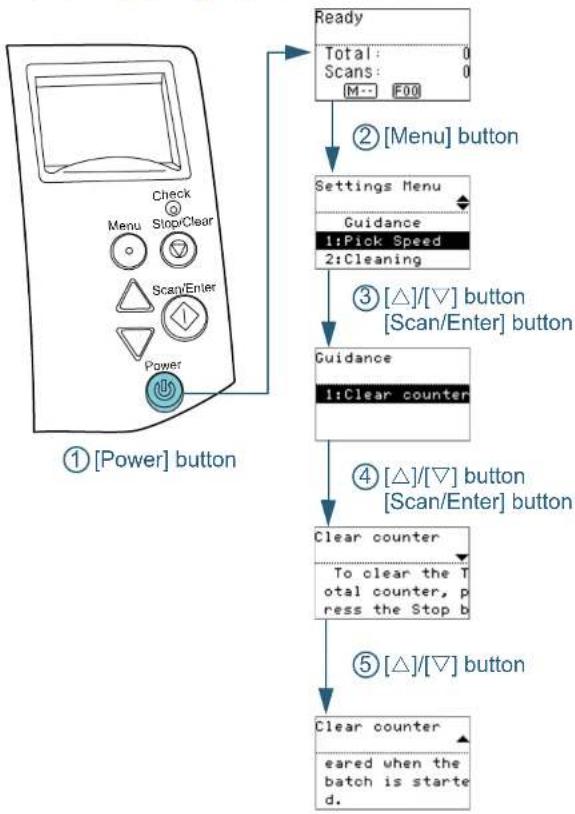

How to Use Settings Menu....67

Items Configurable in the Settings Menu 76

4.3 Function Selection 83

How to Use Function Selection 83

Item Configurable in Function Selection....84

Chapter 5 Various Ways to Scan 85

5.1 Summary 86

5.2 Scanning Documents of Different Types and Sizes 87

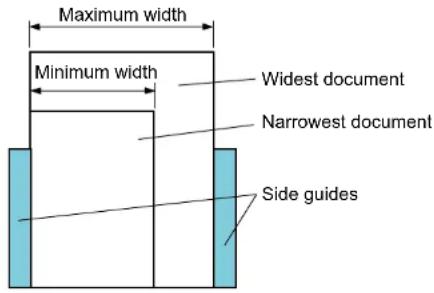

Documents with Different Widths 87

Documents Larger than A4/Letter Size 89

Scanning Photographs and Clippings 91

Long Page Scanning 93

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

Contents

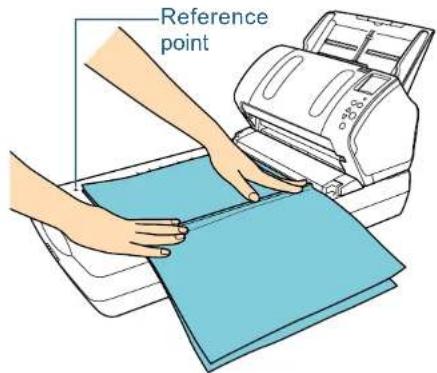

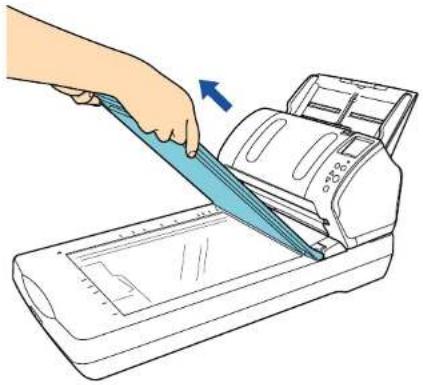

Scanning a Book (fi-7260/fi-7280) 95

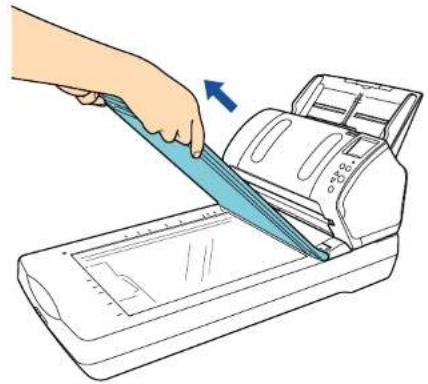

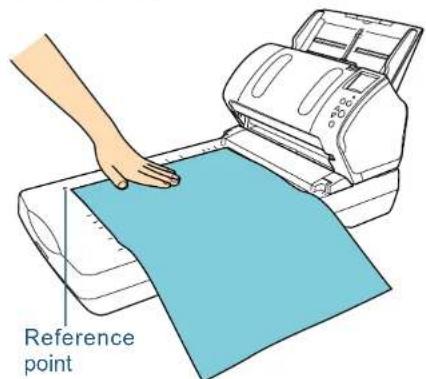

Scanning a Large Document on the Flatbed (fi-7260/fi-7280) 97

5.3 Advanced Scanning 99

Feeding Documents Manually in the ADF 99

5.4 Customizing the Scanner Settings 100

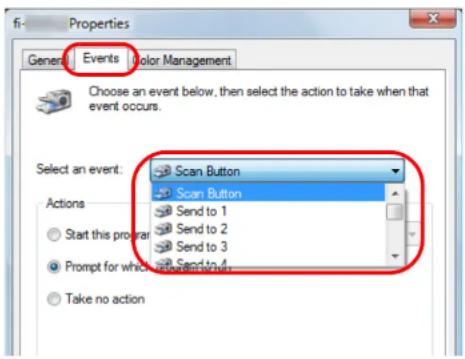

Using a Button on the Scanner to Start Scanning.... 100

Ignoring Multifeed for a Set Pattern.... 103

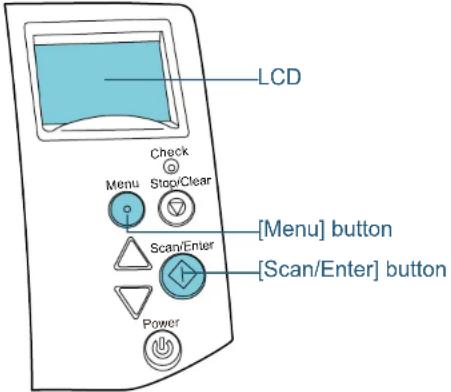

Disabling Paper Protection for a Single Scan After Paper Protection Is Set Off 106

Chapter 6 Daily Care .... 108

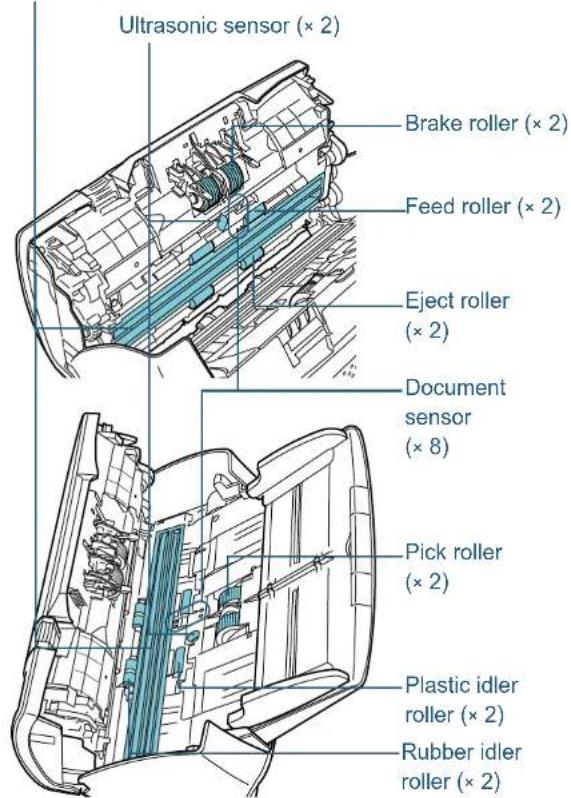

6.1 Cleaning Materials and Locations that Require Cleaning 109

Cleaning Materials....109

Location and Frequency 110

6.2 Cleaning the Outside 111

fi-7160/fi-7180 111

fi-7260/fi-7280 111

6.3 Cleaning the Inside 112

Cleaning the ADF (with Cleaning Paper) 112

Cleaning the ADF (with cloth).... 113

Cleaning the Flatbed (fi-7260/fi-7280).... 117

6.4 Cleaning the Carrier Sheet 118

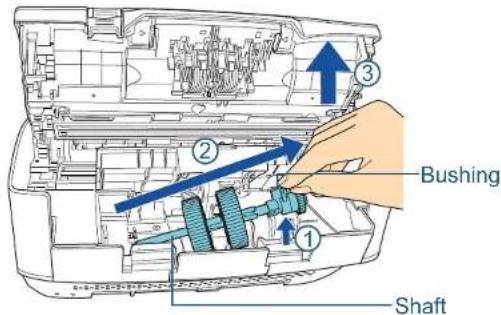

Chapter 7 Replacing the Consumables ...... 119

7.1 Consumables and Replacement Cycles 120

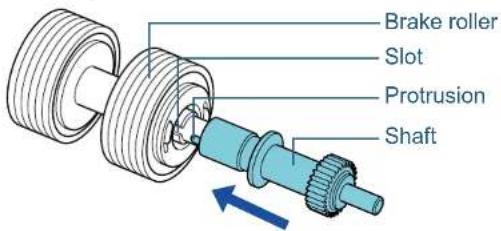

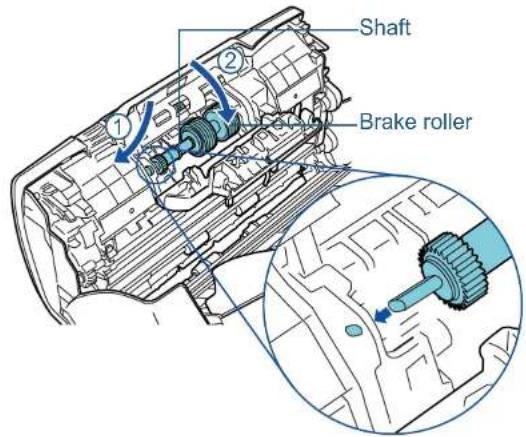

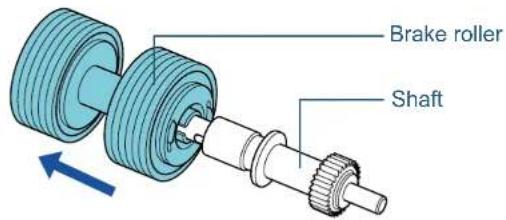

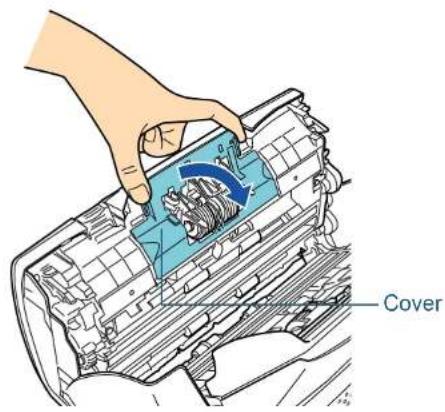

7.2 Replacing the Brake Roller 121

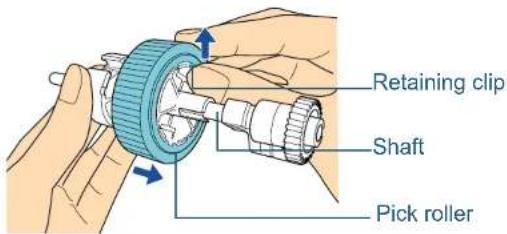

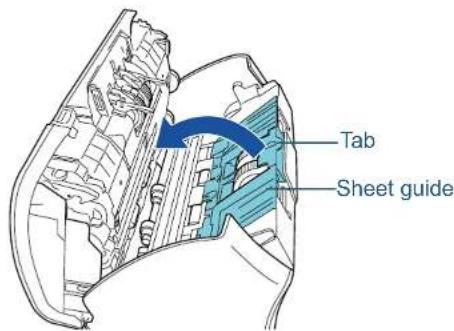

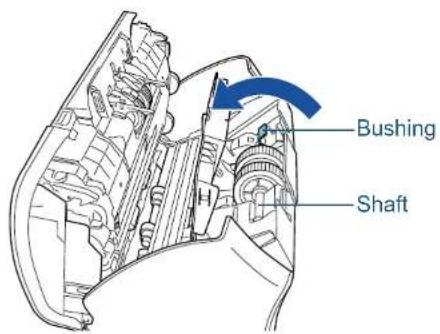

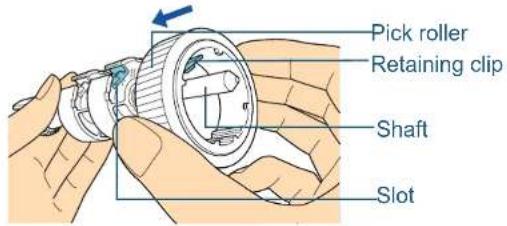

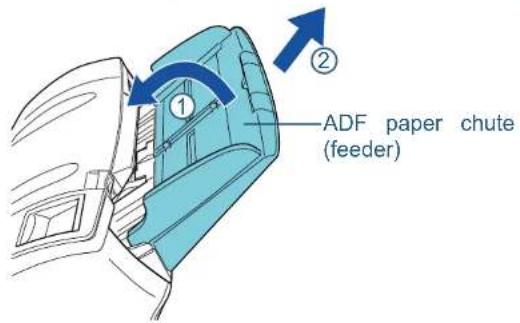

7.3 Replacing the Pick Roller 123

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Contents

Chapter 8 Troubleshooting .... 127

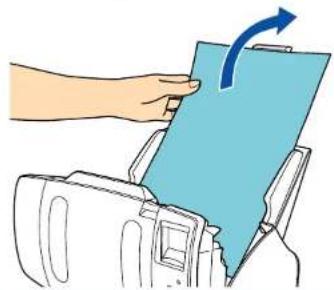

8.1 Paper Jam 128

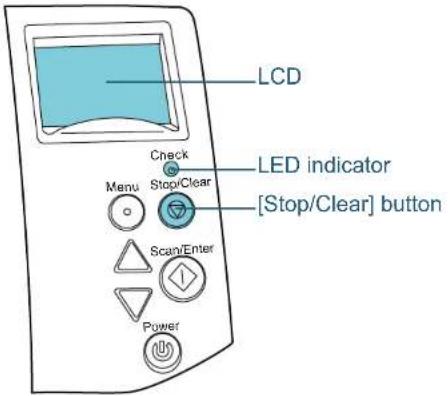

8.2 Error Indications on Operator Panel 130

Temporary Errors 131

Device Errors....133

8.3 Troubleshooting 137

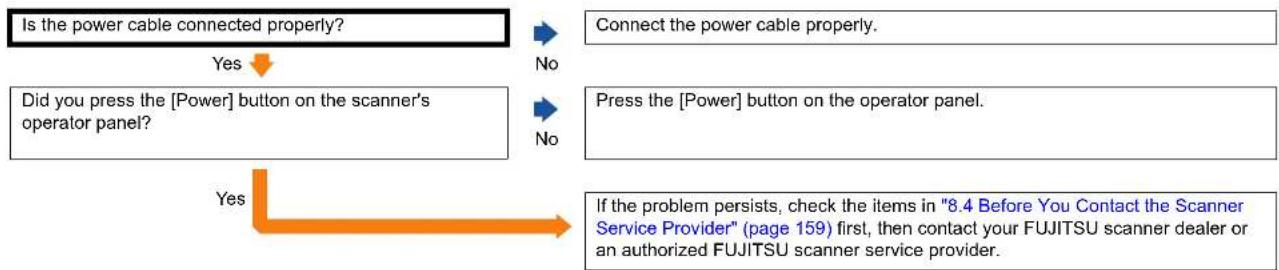

Scanner cannot be powered ON....138

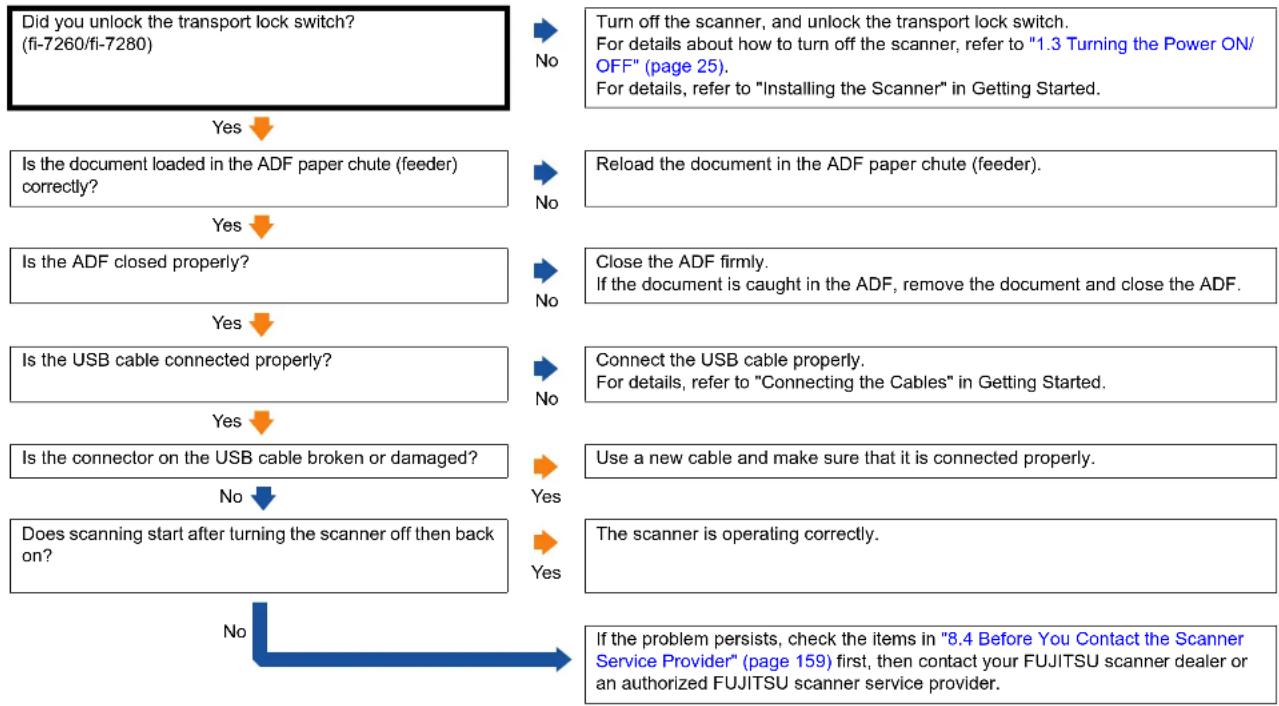

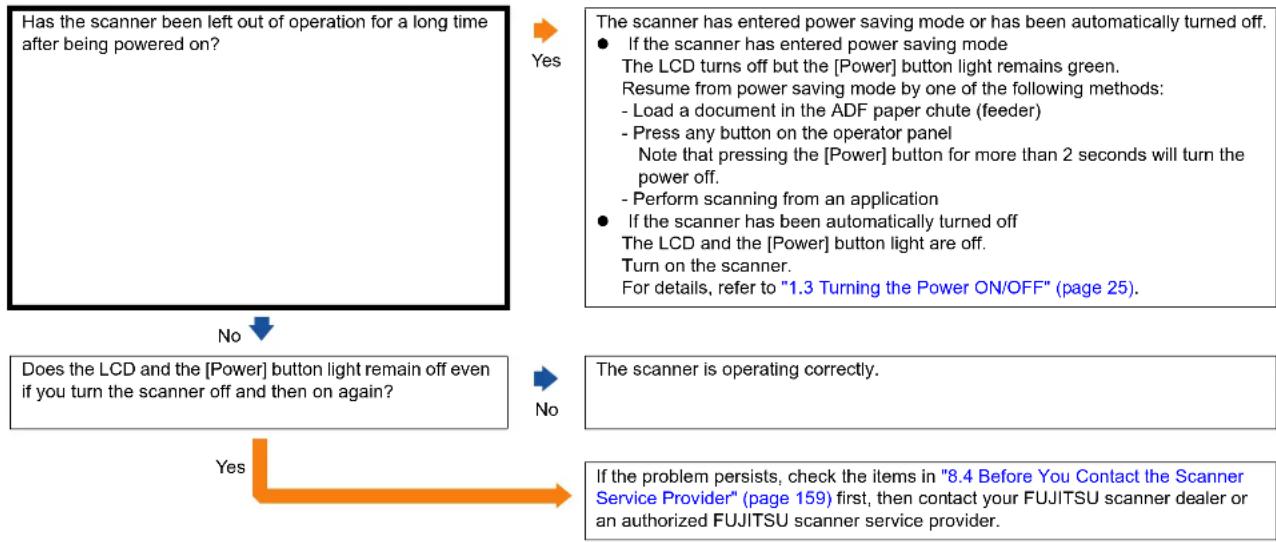

The LCD and the [Power] button light switch OFF....139

Scanning does not start....140

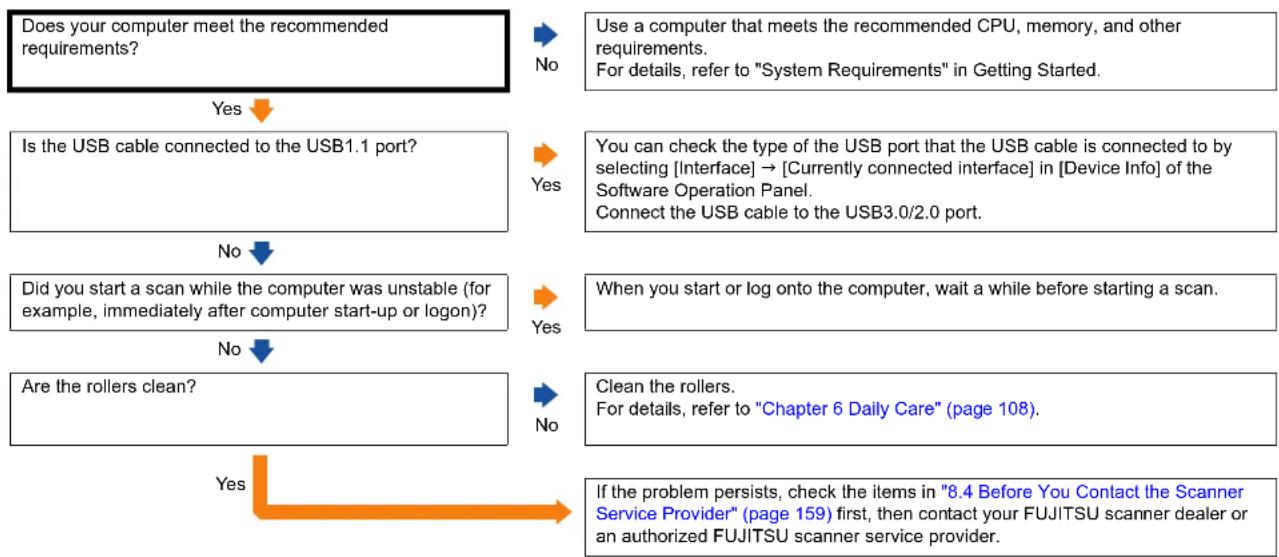

Scanning takes a long time. 141

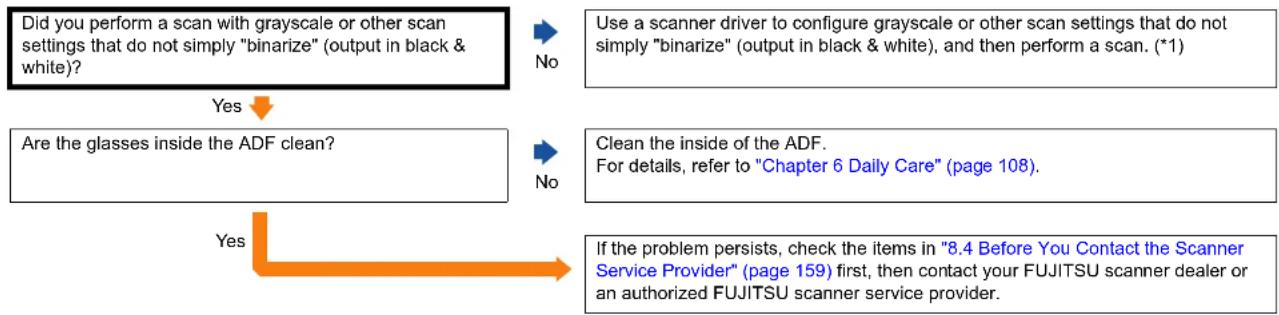

Image quality is poor when scanning pictures/photos in black & white. 142

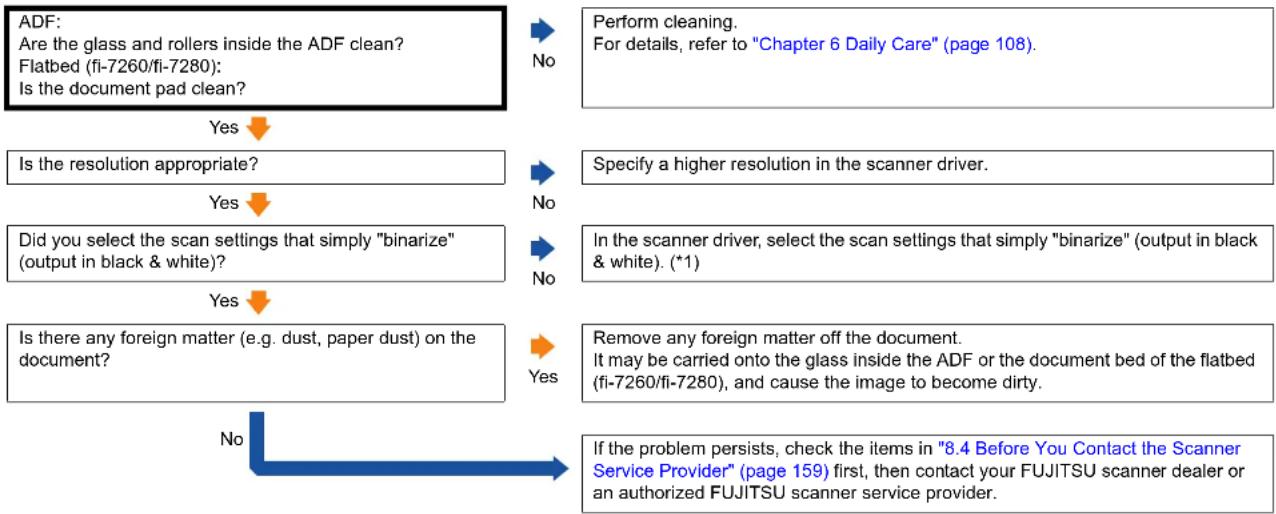

Quality of scanned text or lines is unsatisfactory. 143

Images are distorted or not clear....144

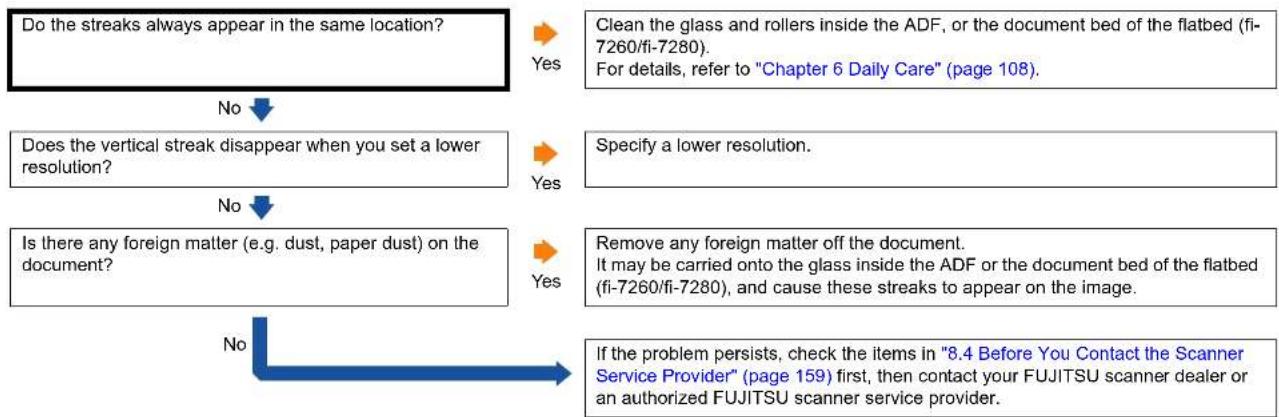

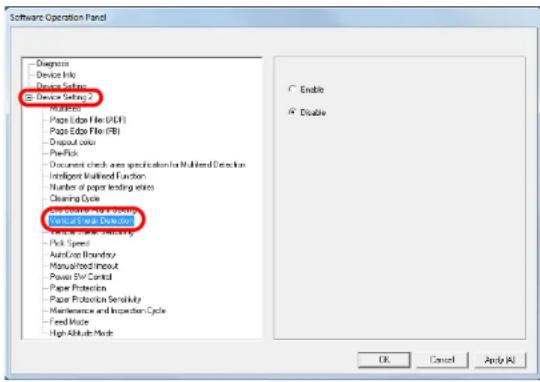

Vertical streaks appear on the scanned image....145

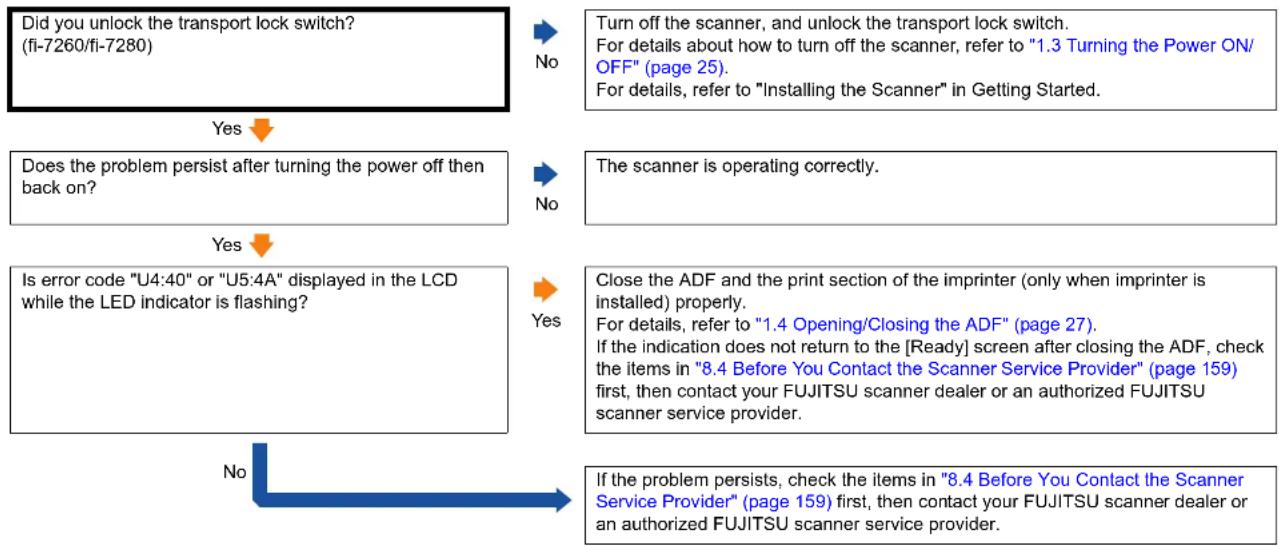

An error (error code "U0:10", "U4:40" or "U5:4A") is already displayed in the LCD after power-on..... 146

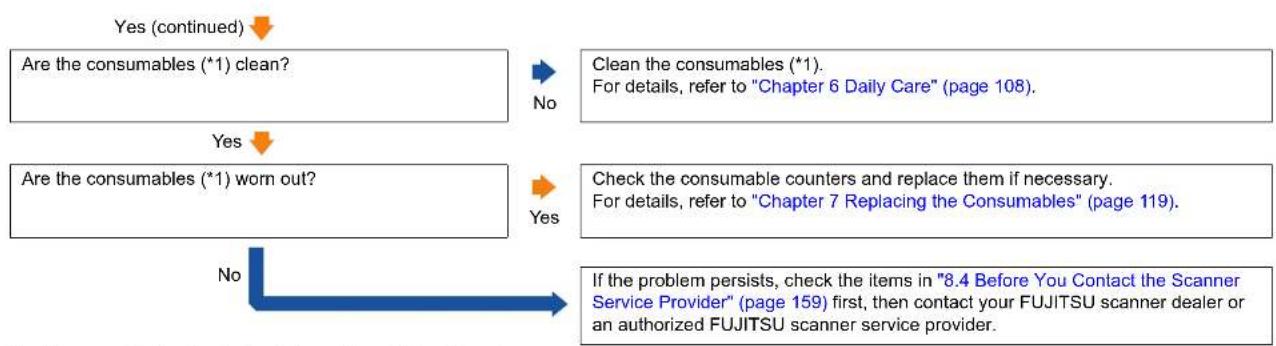

Multifeed error occurs frequently....147

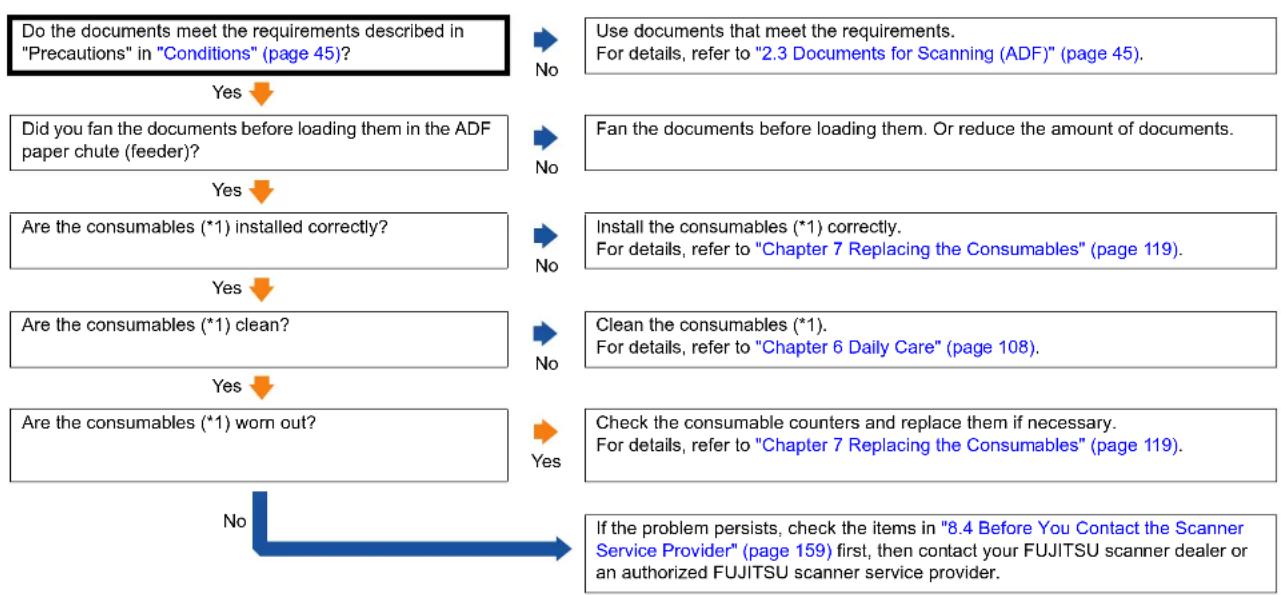

Situation in which the document is not fed into the ADF occurs frequently.... 149

Paper protection is set off frequently....150

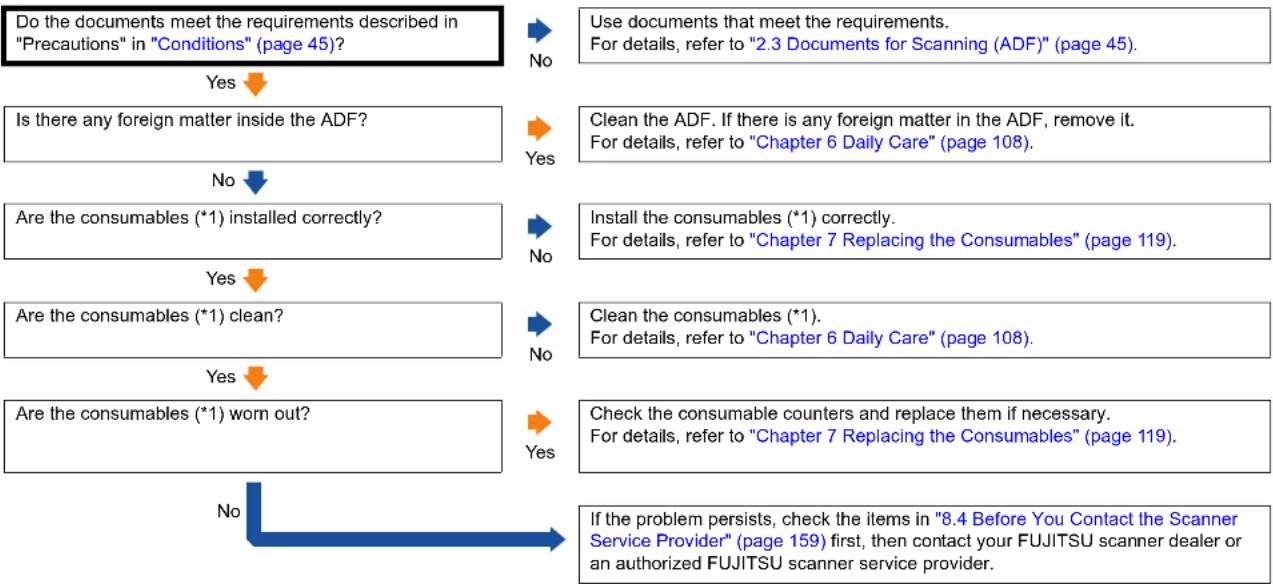

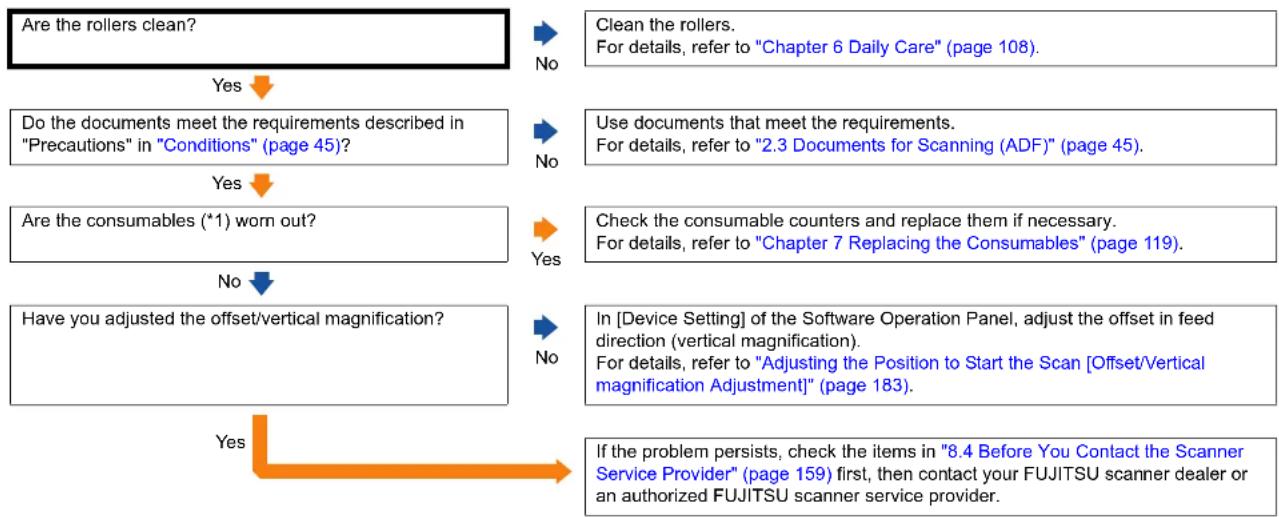

Paper jams/pick errors occur frequently....152

Scanned images turn out elongated....153

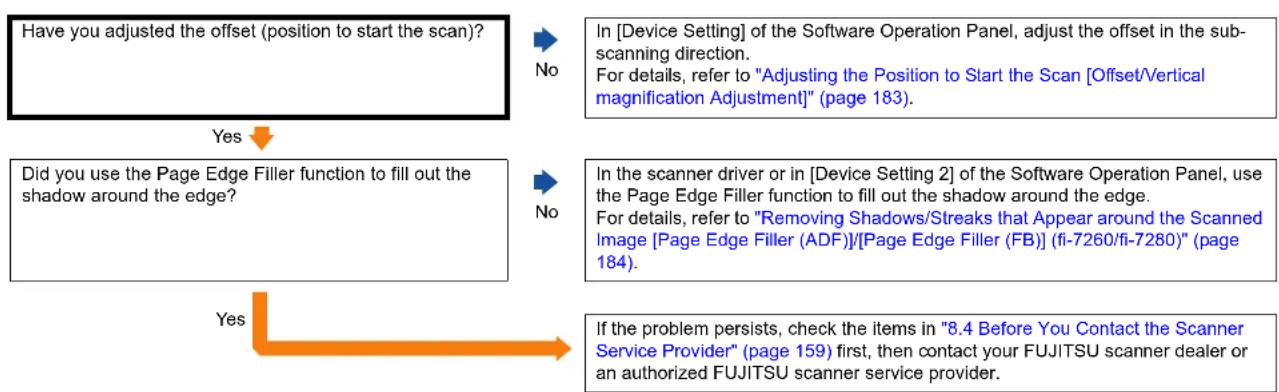

A shadow appears at the top or the bottom of the scanned image. 154

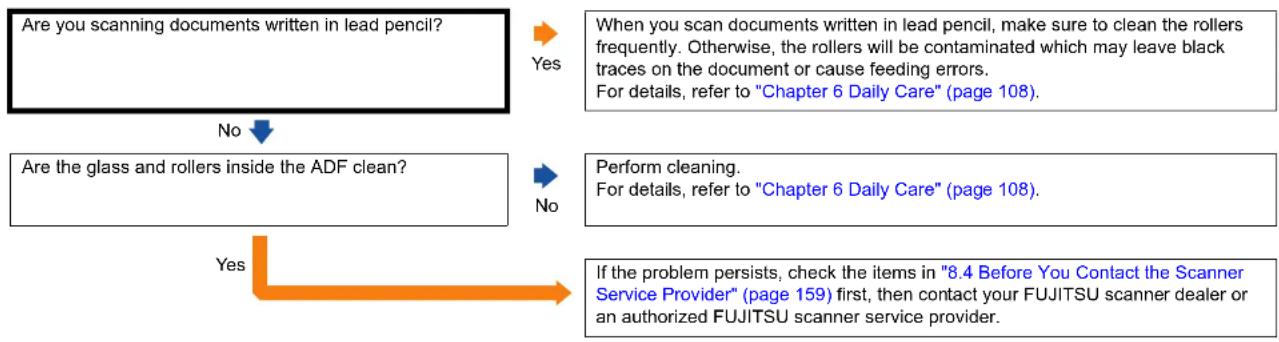

There are black traces on the document....155

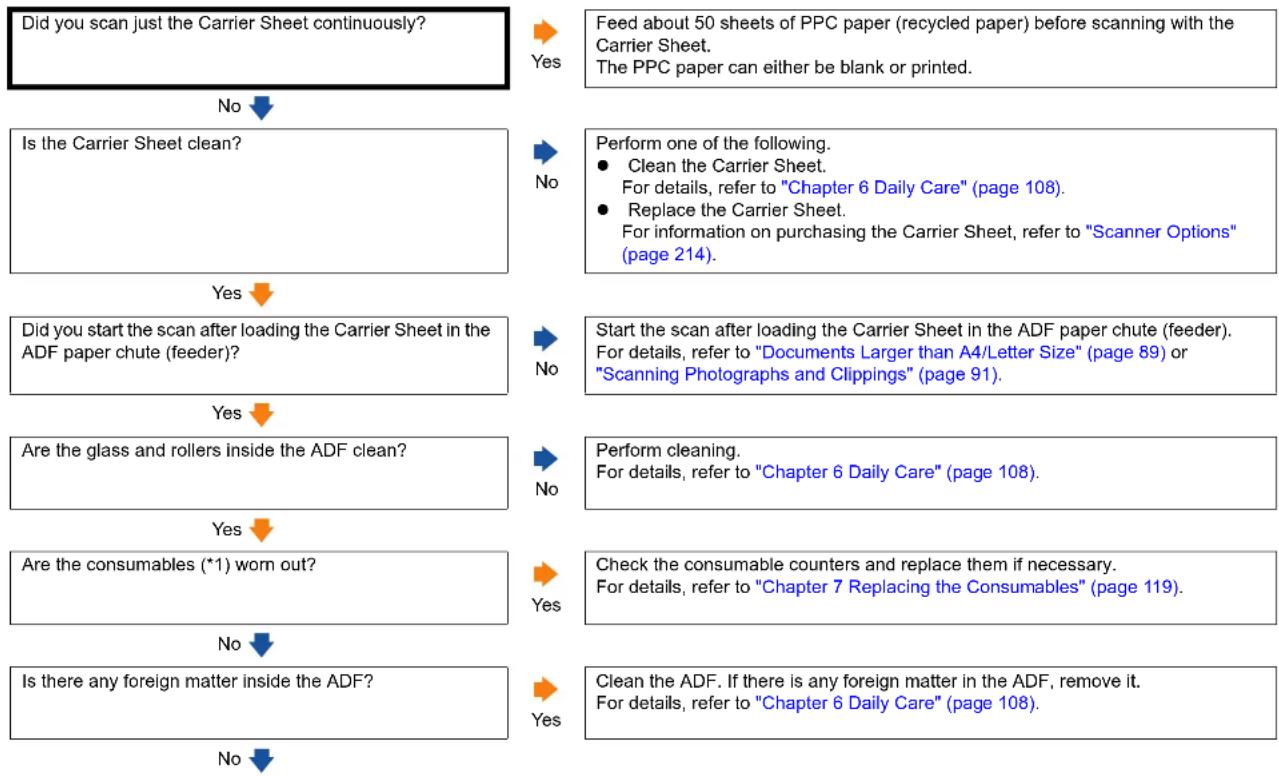

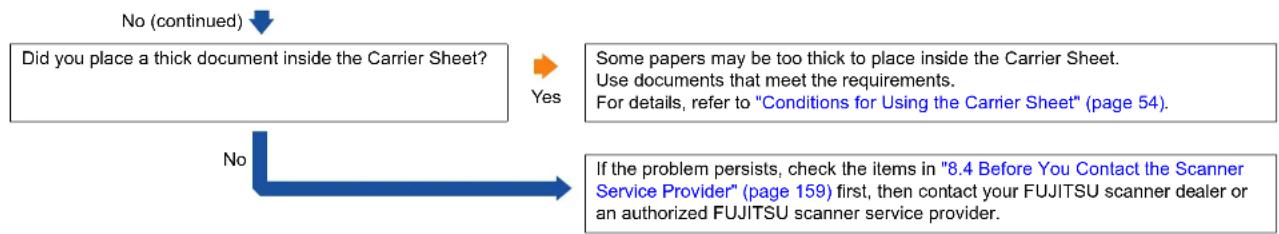

The Carrier Sheet is not fed smoothly. / Paper jams occur.... 156

Part of the image appears missing when using the Carrier Sheet. 158

8.4 Before You Contact the Scanner Service Provider 159

General....159

Error Status 159

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Contents

8.5 Checking the Product Labels 161

Location....161

Chapter 9 Operational Settings .... 162

9.1 Starting Up the Software Operation Panel 163

9.2 Password Setting 164

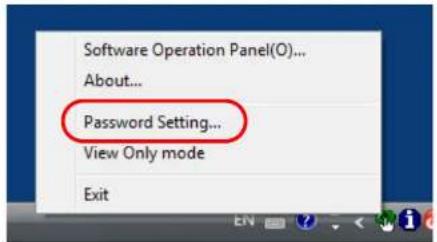

Setting a Password 164

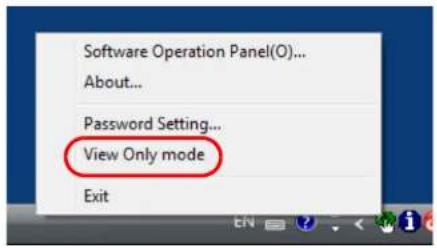

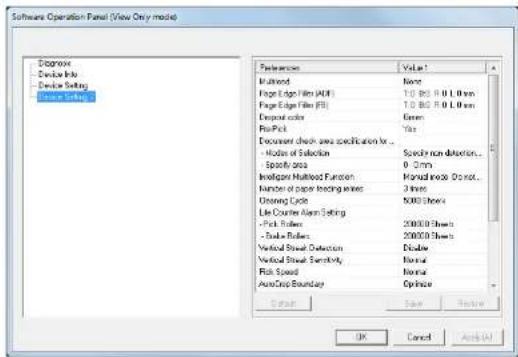

Setting [View Only mode]....165

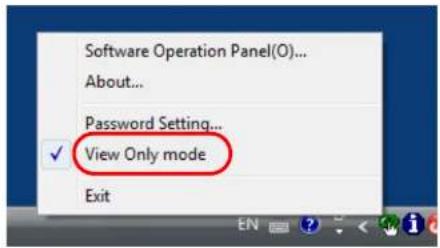

Clearing [View Only mode]....166

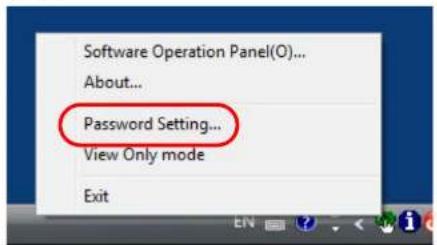

Changing the Password 167

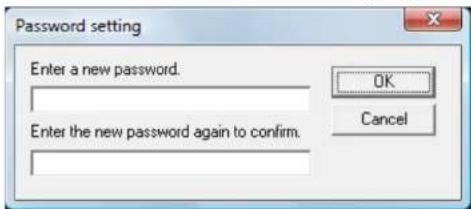

Clearing the Password 168

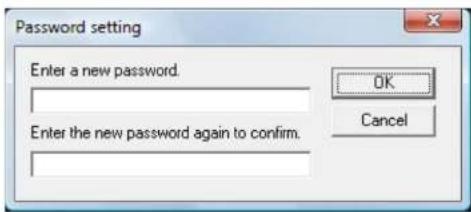

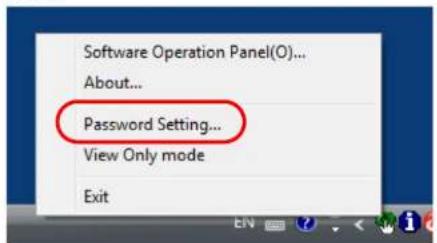

Resetting the Password 169

9.3 Configuration Items 170

Device Setting 170

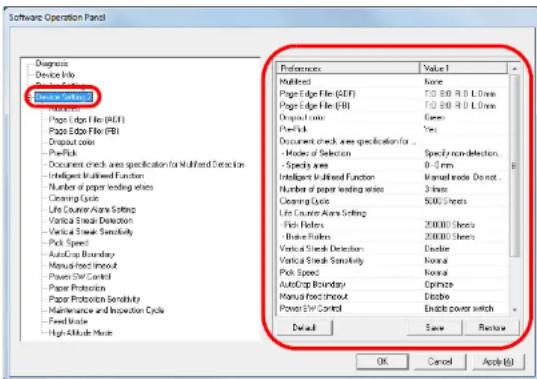

Device Setting 2....172

9.4 Settings Related to Sheet Counters 178

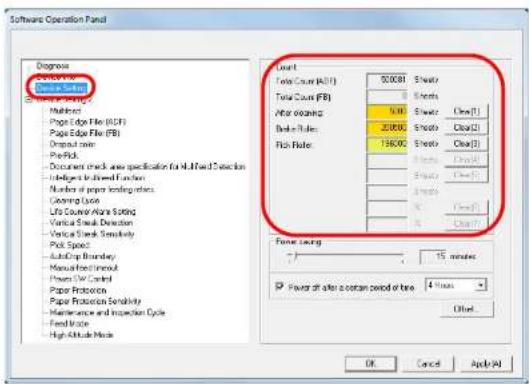

Checking and Resetting the Sheet Counters 178

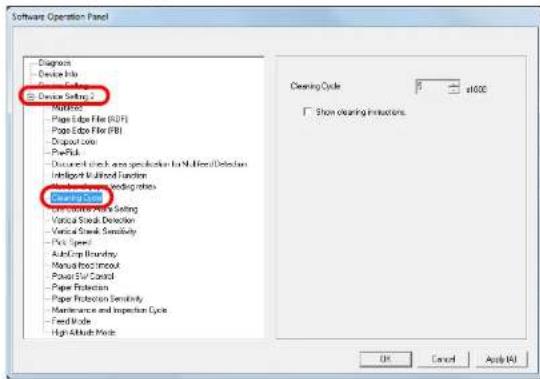

Scanner Cleaning Cycle [Cleaning Cycle].... 181

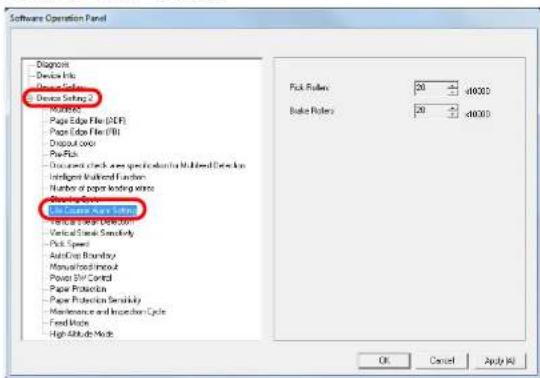

Replacement Cycle of Consumables [Life Counter Alarm Setting] 181

9.5 Settings Related to Scanning 183

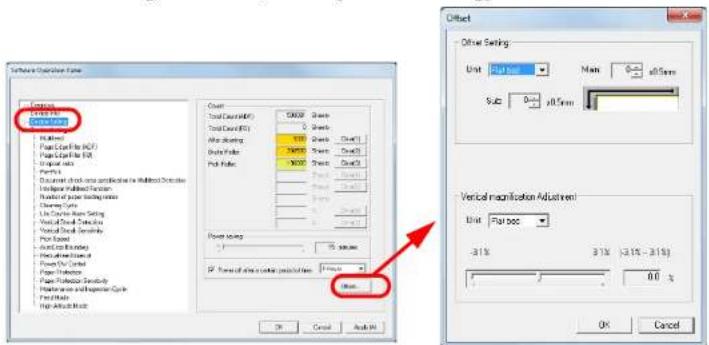

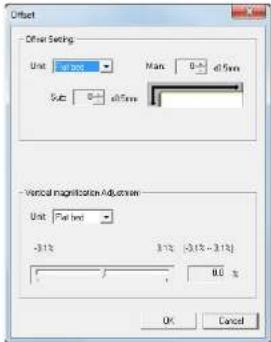

Adjusting the Position to Start the Scan [Offset/Vertical magnification Adjustment] 183

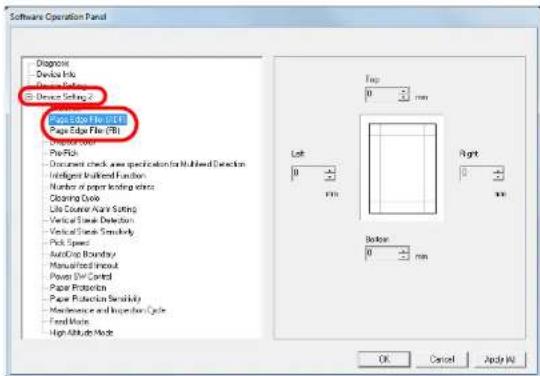

Removing Shadows/Streaks that Appear around the Scanned Image [Page Edge Filler (ADF)]/ [Page Edge Filler (FB)] (fi-7260/fi-7280)....184

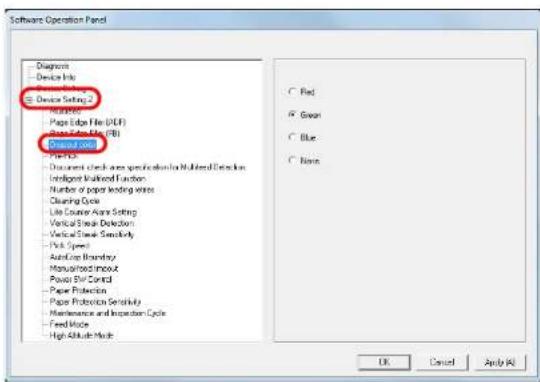

Removing a Color from the Scanned Image [Dropout color].... 186

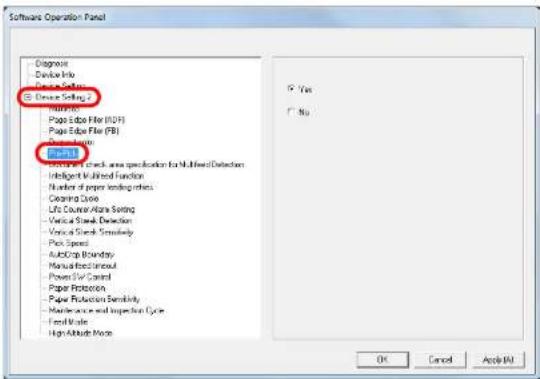

Shortening the Scanning Intervals [Pre-Pick].... 187

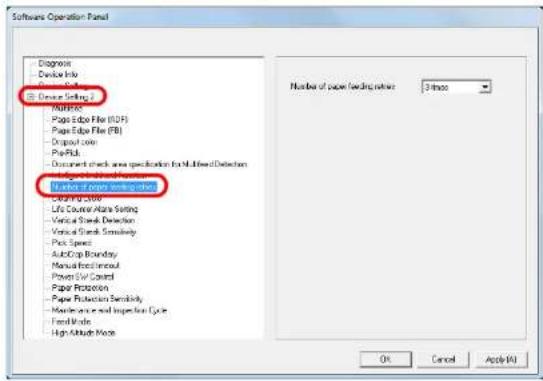

Number of Paper Feeding Retries....188

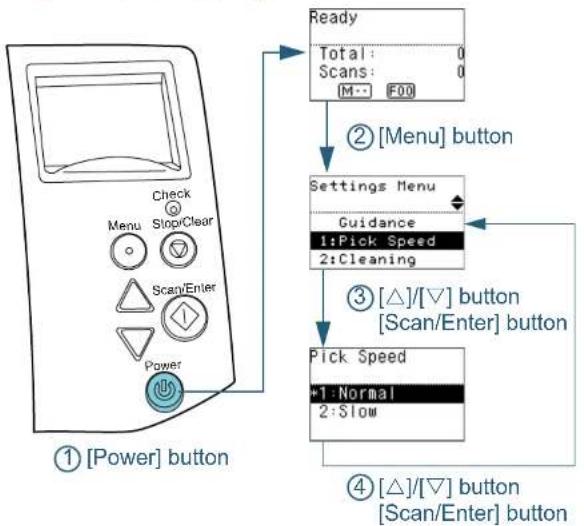

Document Feed Speed [Pick Speed] 188

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Contents

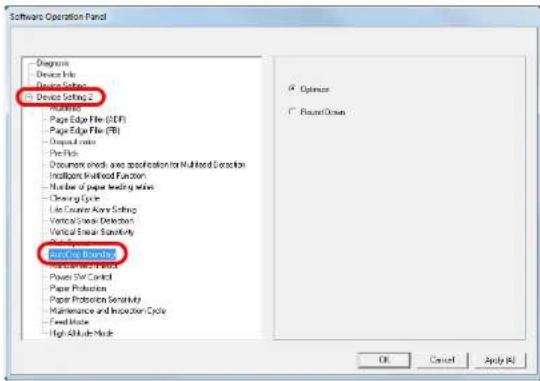

Cropping the Image Boundary [AutoCrop Boundary].... 189

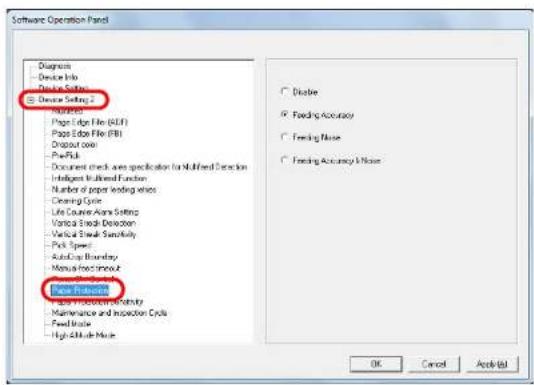

Protecting the Documents from Being Damaged [Paper Protection] 190

Specifying the Sensitivity Level for Paper Protection [Paper Protection Sensitivity] 192

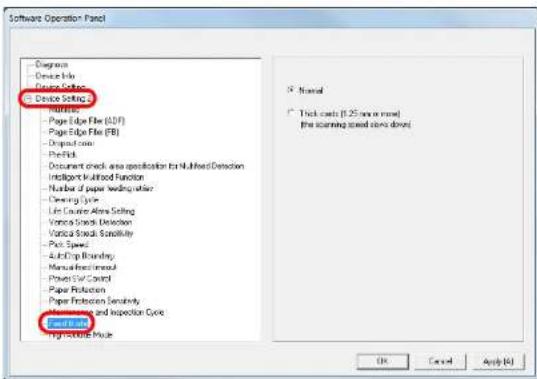

Scanning Thick Plastic Cards [Feed Mode] (fi-7180/fi-7280) 194

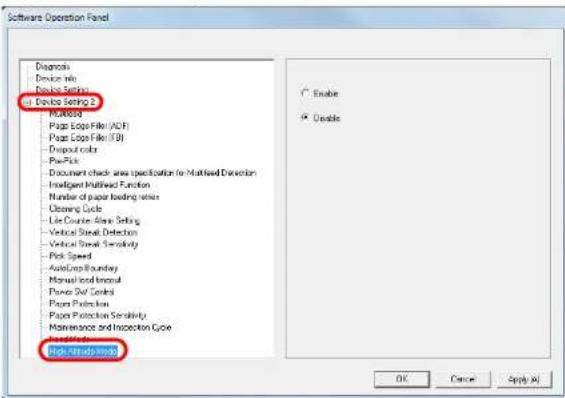

Scanning at High Altitude [High Altitude Mode].... 194

9.6 Settings Related to Multifeed Detection 195

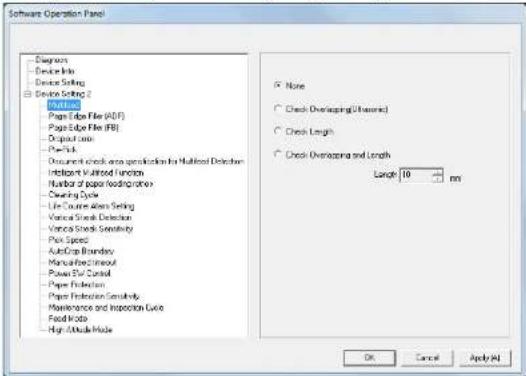

Specifying a Multifeed Detection Method [Multifeed] 195

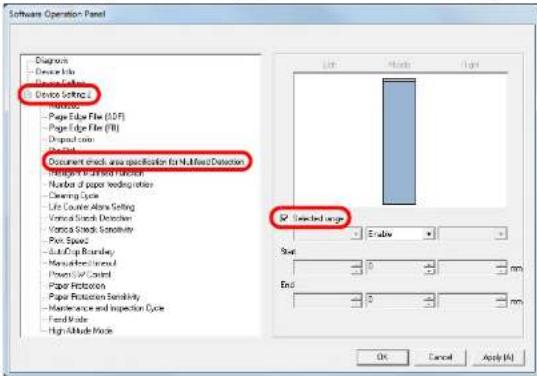

Specifying the Area to Detect Multifeed [Document check area specification for Multifeed Detection].... 197

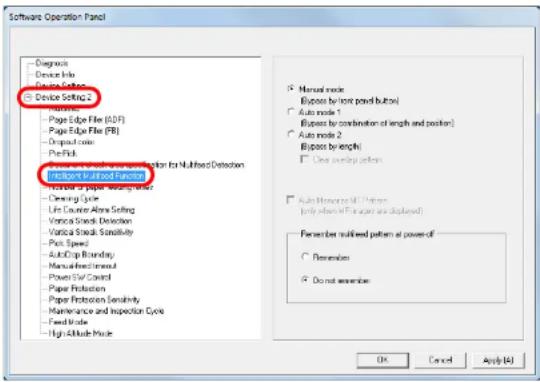

Specifying an Area Not to Detect Multifeed [Intelligent Multifeed Function]....200

9.7 Settings Related to Waiting Time 201

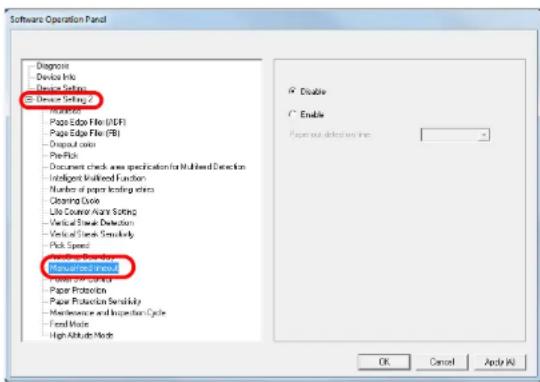

Waiting Time in Manual Feed Mode [Manual-feed timeout]....201

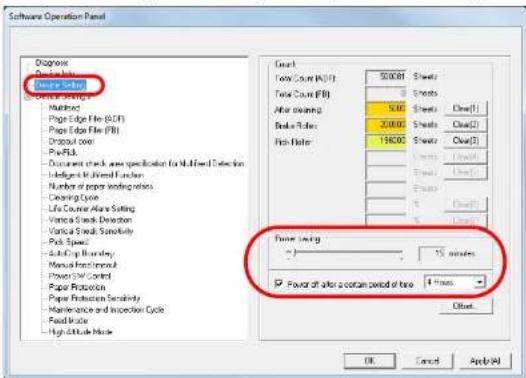

Waiting Time to Enter Power Saving Mode [Power saving] 202

9.8 Settings Related to Power ON/OFF 203

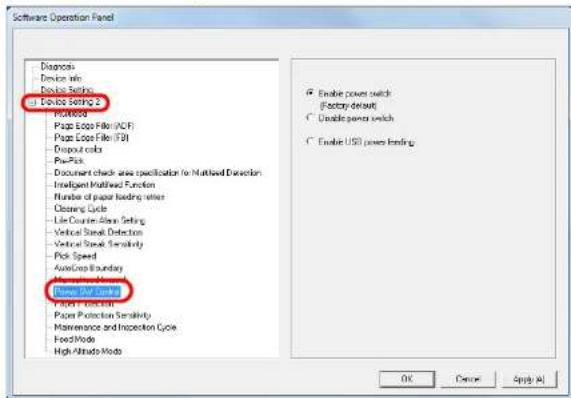

Method of Turning the Scanner ON/OFF [Power SW Control]....203

9.9 Settings Related to Scanner Maintenance 204

Detecting Vertical Streaks [Vertical Streak Detection] 204

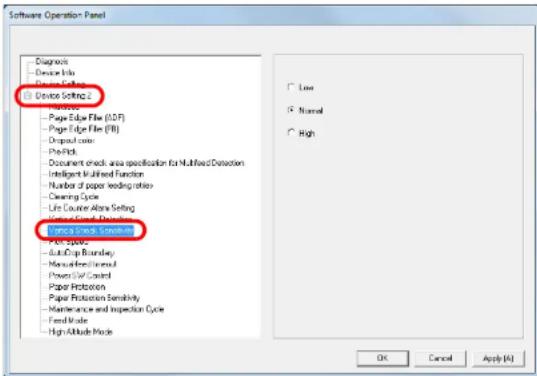

Specifying the Sensitivity Level for Vertical Streak Detection [Vertical Streak Sensitivity]....205

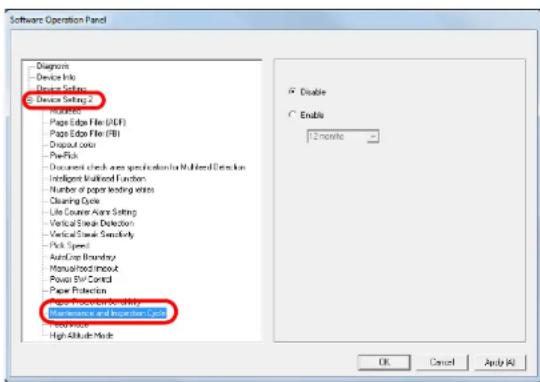

Scanner Maintenance and Inspection Cycle [Maintenance and Inspection Cycle]....206

Appendix 207

A.1 Basic Specification 208

A.2 Installation Specification 210

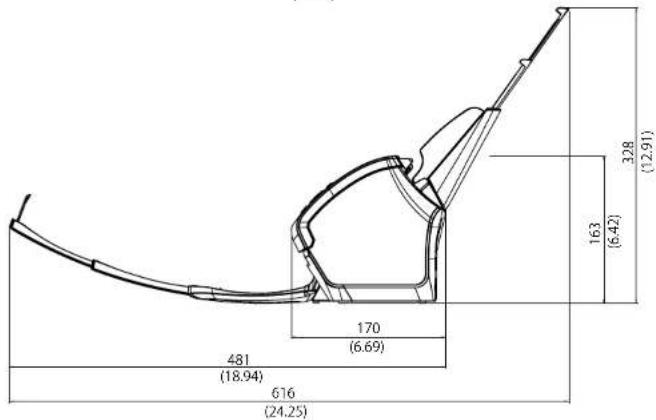

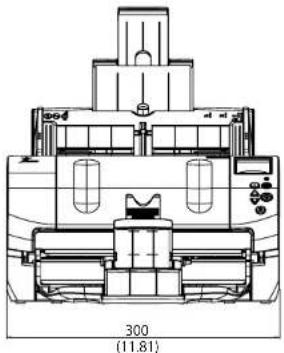

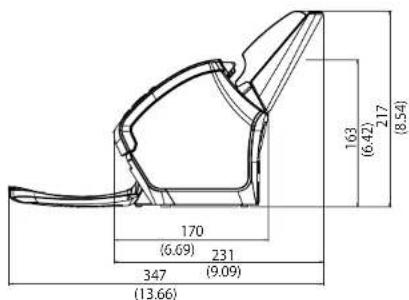

A.3 Outer Dimensions 212

fi-7160/fi-7180 212

fi-7260/fi-7280 213

A.4 Scanner Options 214

A.5 Uninstalling the Software 215

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Contents

Glossary 216

Index 227

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

Chapter 1 Scanner Overview

This chapter explains about the names and functions of the scanner components, as well as the methods for basic operations.

1.1 Main Features....16
1.2 Parts and Functions....17
1.3 Turning the Power ON/OFF....25
1.4 Opening/Closing the ADF....27
1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)....28
1.6 Setting Up the ADF Paper Chute (Feeder)....29
1.7 Setting Up the Stacker....30
1.8 Power Saving Mode ....36
1.9 Basic Flow of Scanning Operation ....37
1.10 Image Scanning Application....39
1.11 Centralized Management of Scanners ......40

1.1 Main Features

This section explains about the main features of this product.

The scanner is equipped with the following features:

High speed scanning

Realizes a scanning speed of 60 ppm/120 ipm (fi-7160/fi-7260) (*1), or 80 ppm/160 ipm (fi-7180/fi-7280) (*1). Furthermore, you can load up to 80 sheets of documents for continuous scanning which allows you to quickly digitize a large volume of documents.

LCD

The scanner mounts the LCD that displays the operational settings for scanning documents, the number of sheets scanned, and error status. It is used to easily check the status of the scanner.

Improved efficiency for pre-scan work

The scanner can perform "batch scanning" which allows you to scan documents with different paper weights and sizes at once, simplifying the process of sorting the documents before scanning.

Reduced work loss caused by multifeeds

The scanner mounts an ultrasonic multifeed sensor that accurately detects "multifeed" errors where two or more sheets are fed through the scanner at once. This multifeed detection is reliable even when scanning a mixed batch of documents with different paper weights and sizes, avoiding potential work loss.

Intelligent Multifeed function

When there is paper of the same size attached to a designated location on the page, the Intelligent Multifeed function enables the scanner to recognize the location of the attachment. This allows you to continue scanning instead of pausing the scan by detecting every paper attachment as multifeed. Furthermore, the "paper protection" function will reduce the risk of damaging your valuable documents.

Paper protection function by detecting paper jam noise

This function reduces the risk of having the documents damaged by stopping the scan when the scanner detects paper jam noise.

Advanced image processing function

The scanner's automatic detection function outputs images in color or monochrome by the document content.

Imprinter option

Imprinter is available as an option, which is often demanded for managing/verifying documents. Having the capability to print on the scanned documents could drastically improve usability. The imprinter can be installed on fi-7160/fi-7180.

Scanning on black background

Black document pad is available as an option, which allows you to perform scanning on black background when using the flatbed. It can be used to automatically correct skewed images or accurately detect the size of the scanned document.

The black document pad can be used on fi-7260/fi-7280.

Capable of scanning photographs, clippings, and documents larger than A4/Letter size

The Carrier Sheet, which is available as an option, allows you to scan documents that are larger than A4/Letter size, as well as non-standard size documents such as photographs and clippings. You can load multiple Carrier Sheets or mix it with regular documents in the same batch.

Centralized management of multiple scanners

The bundled "Scanner Central Admin Agent" application allows you to manage multiple scanners together. For example, you can update the scanner settings and drivers, as well as monitor the operating status of each scanner.

*1: When scanning A4 size documents at 200/300 dpi with JPEG compression.

1.2 Parts and Functions

This section shows the names of the scanner parts.

fi-7160/fi-7180

Front

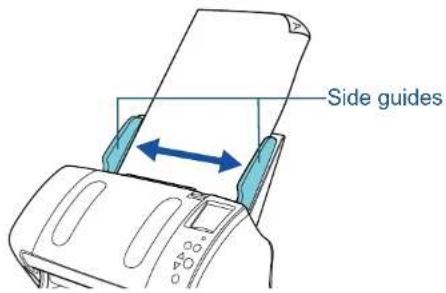

Side guides

Guides the documents in width direction as they are fed into the scanner.

ADF (Automatic Document

Feeder)

Pulls and feeds the documents one sheet at a time from the ADF paper chute (feeder).

Open to replace consumables or clean the inside of the scanner.

Stacker

Stacks up the ejected documents.

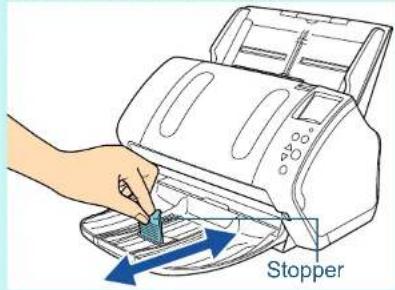

Stopper

Lift up to adjust to the document length.

Stacker extension 2

Slide out to adjust to the document length.

Stacker extension 1

Slide out to adjust to the document length.

Technical line drawing of a mechanical device with exploded and assembled views (no text or symbols)

Chute extension 2

Pull out to adjust to the document length.

Chute extension 1

Pull out to adjust to the document length.

ADF paper chute (feeder)

Holds the documents to be scanned.

ADF release tab

Pull this tab to open the ADF.

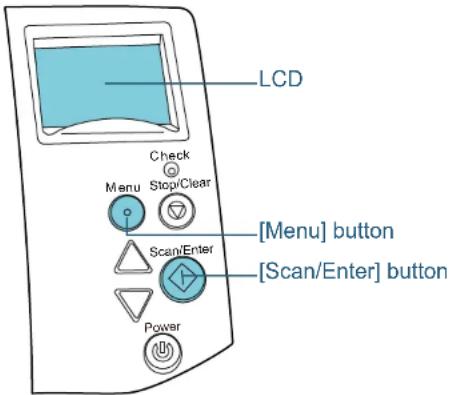

Operator panel

Consists of an LCD, buttons, and LED indicator.

Can be used to operate the scanner or check the status.

For details, refer to "Chapter 4 How to Use the Operator Panel" (page 61).

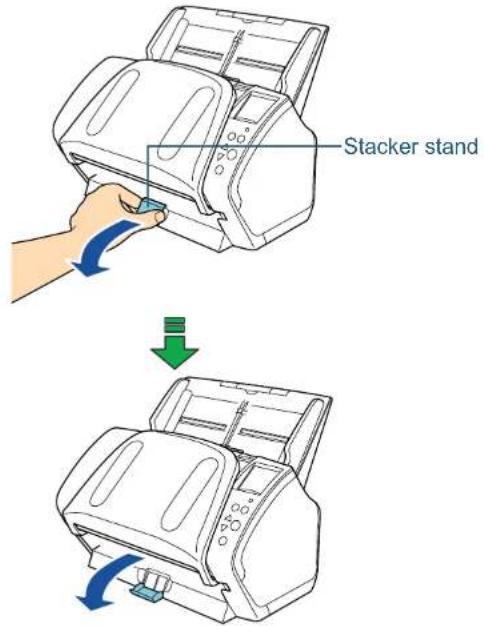

Stacker stand

Used to adjust the tilt of the stacker.

Chapter 1 Scanner Overview

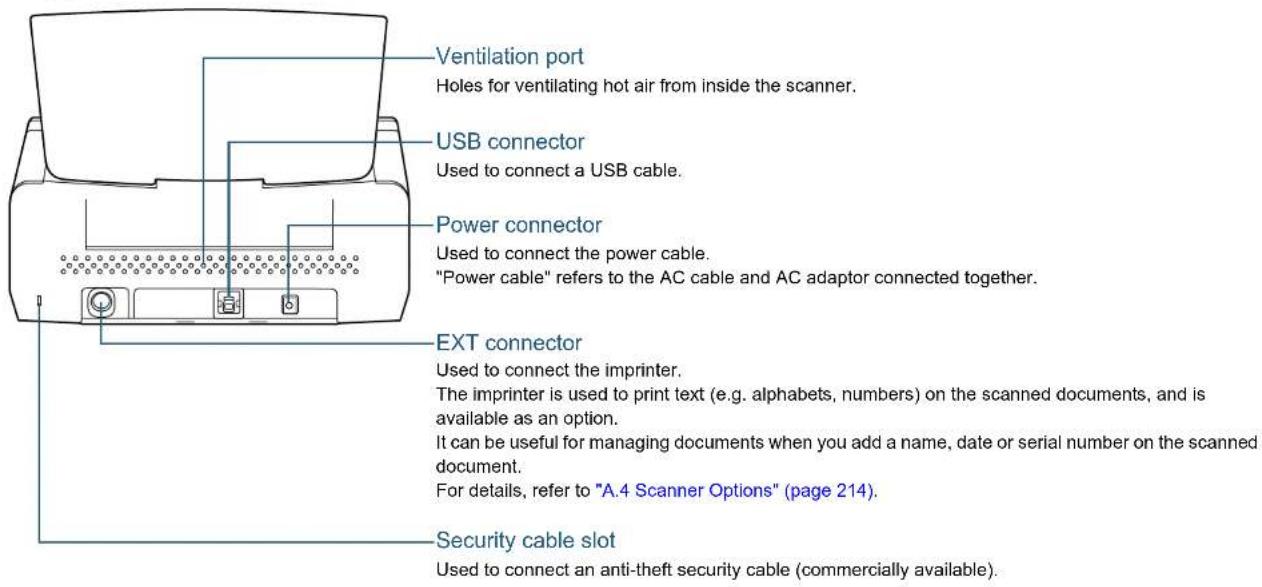

Back

Ventilation port Holes for ventilating hot air from inside the scanner. USB connector Used to connect a USB cable. Power connector Used to connect the power cable. "Power cable" refers to the AC cable and AC adaptor connected together. EXT connector Used to connect the imprinter. The imprinter is used to print text (e.g. alphabets, numbers) on the scanned documents, and is available as an option. It can be useful for managing documents when you add a name, date or serial number on the scanned document. For details, refer to "A.4 Scanner Options" (page 214). Security cable slot Used to connect an anti-theft security cable (commercially available).

Chapter 1 Scanner Overview
Removable Parts

Pick roller ADF paper chute (feeder) Brake roller

fi-7260/fi-7280

Front

Side guides

Guides the documents in width direction as they are fed into the scanner.

ADF (Automatic Document Feeder)

Pulls and feeds the documents one sheet at a time from the ADF paper chute (feeder).

Open to replace consumables or clean the inside of the scanner.

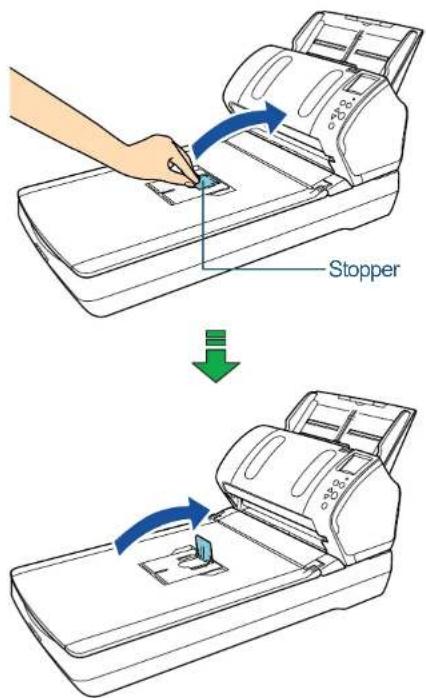

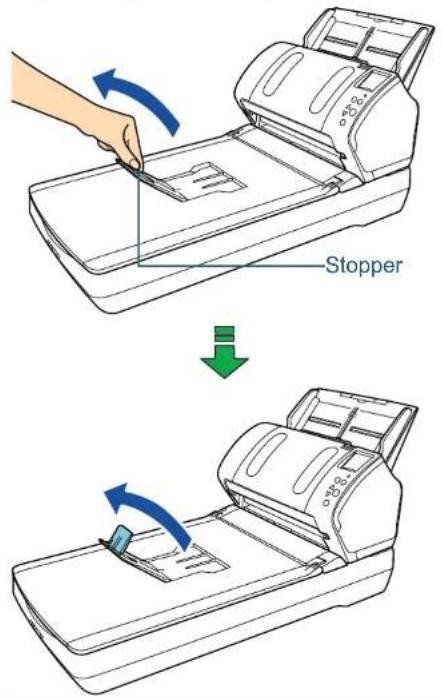

Stopper

Lift up to adjust to the document length.

Stacker

Stacks up the ejected documents.

Transport lock switch

Locks the carrier unit (which is inside the flatbed) to prevent damage during transportation.

Flatbed

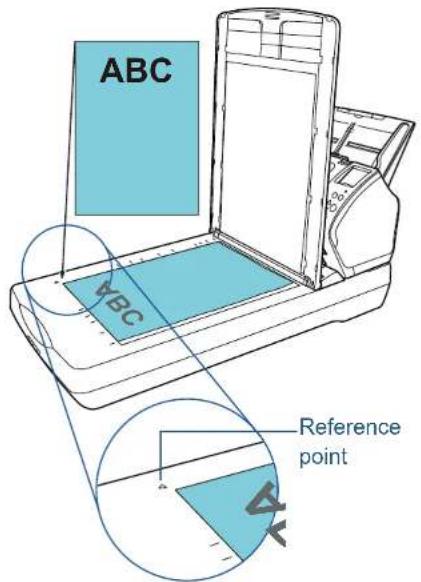

For scanning documents (e.g. thin paper, books) that cannot be scanned with the ADF.

Technical line drawing of a scanner device with handle and tray (no text or symbols)

Chute extension 2

Pull out to adjust to the document length.

Chute extension 1

Pull out to adjust to the document length.

ADF paper chute (feeder)

Holds the documents to be scanned.

ADF release tab

Pull this tab to open the ADF.

Operator panel

Consists of an LCD, buttons, and LED indicator.

Can be used to operate the scanner or check the status.

For details, refer to "Chapter 4 How to Use the Operator Panel" (page 61).

Chapter 1 Scanner Overview
Inside (flatbed)

Document cover Close it to hold the document in place. Document pad Holds the document down against the document bed. Document cover with a black document pad is also available as an option. Use it to perform scanning in black background on the flatbed. For details, refer to "A.4 Scanner Options" (page 214). Document bed Place a document on the glass section.

Chapter 1 Scanner Overview

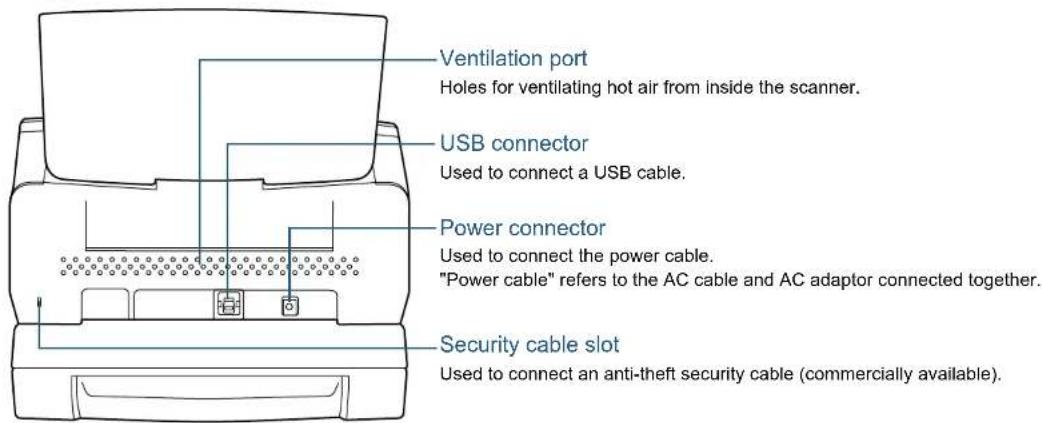

Back

Ventilation port Holes for ventilating hot air from inside the scanner. USB connector Used to connect a USB cable. Power connector Used to connect the power cable. "Power cable" refers to the AC cable and AC adaptor connected together. Security cable slot Used to connect an anti-theft security cable (commercially available).

Chapter 1 Scanner Overview

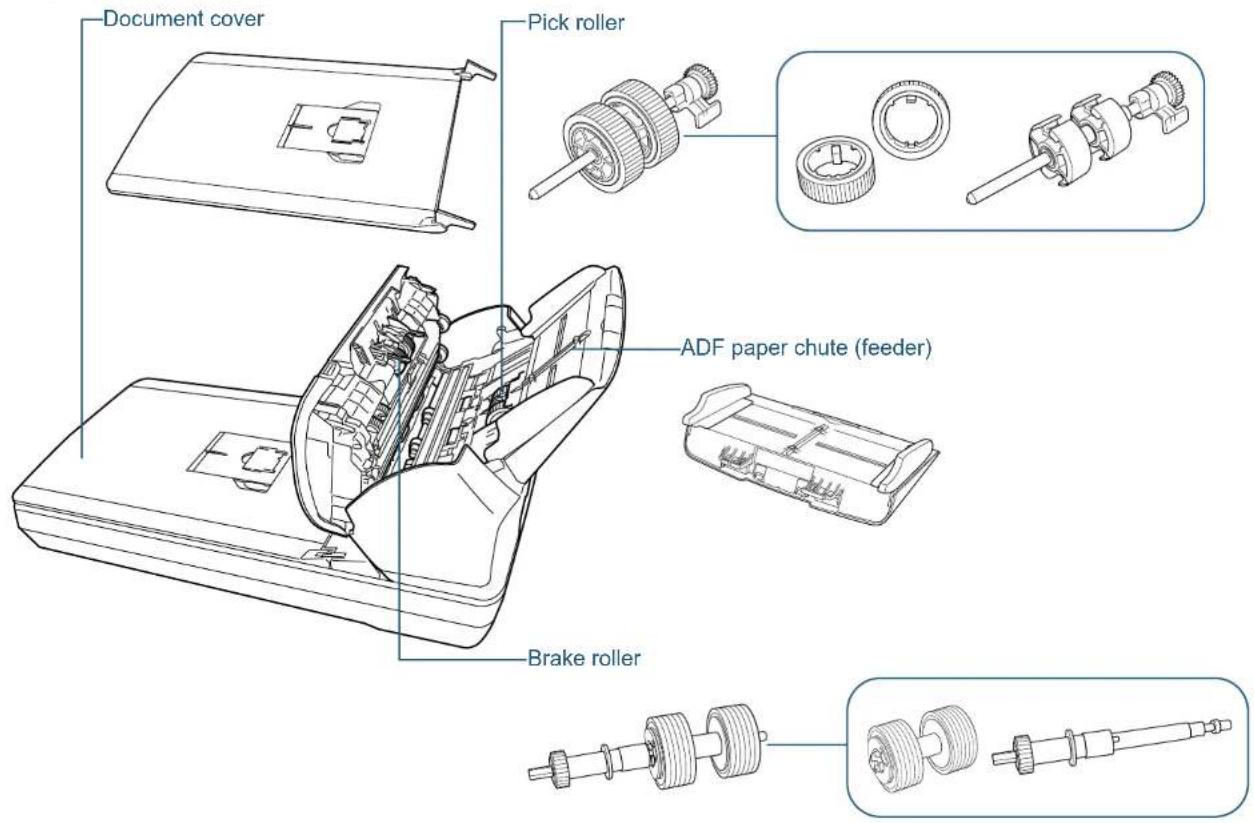

■Removable Parts

Document cover Pick roller ADF paper chute (feeder) Brake roller

Common Parts for All Models

Inside (ADF)

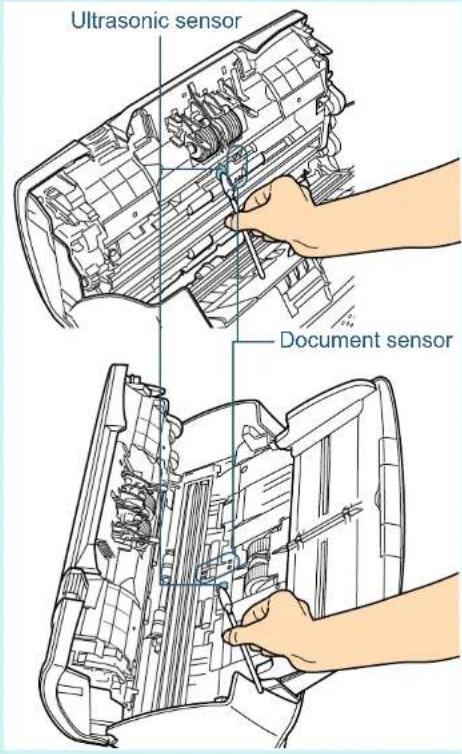

Glass (× 2) Microphone (× 2) Ultrasonic sensor (× 2) Brake roller (× 2) Feed roller (× 2) Eject roller (× 2) Document sensor (× 8) Pick roller (× 2) Plastic idler roller (× 2) Rubber idler roller (× 2)

1.3 Turning the Power ON/OFF

This section explains how to power on/off the scanner.

HINT

The method by which the scanner is powered on/off can be specified from one of the following:

• Press the [Power] button on the operator panel
  ● Unplug the power cable then plug it back in
• Have the scanner turn on/off in sync with the computer's power For details, refer to "Method of Turning the Scanner ON/OFF [Power SW Control]" (page 203).

How to Turn the Power ON

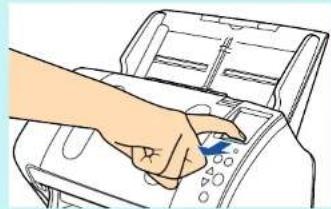

1 Press the [Power] button on the operator panel.

[Power] Button

The scanner is turned on, and the [Power] button lights in green. During initialization, the following image is displayed on the LCD of the operator panel.

The scanner is ready to scan when [Ready] is displayed.

How to Turn the Power OFF

1 Press the [Power] button on the operator panel for more than 2 seconds.

[Power] Button

The scanner is turned off, and the [Power] button switches off.

1.4 Opening/Closing the ADF

This section describes how to open and close the ADF. How to Open the ADF

1 Remove all documents from the ADF paper chute (feeder).
2 Pull the ADF release tab towards you to open the ADF.

ADF release tab

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

How to Close the ADF

1 Close the ADF.

Push the center of the ADF until it locks in place.

Illustration of a hand interacting with a mechanical component, showing internal structure and motion direction (no text or symbols)

Be careful not to have your fingers caught when closing the ADF.

ATTENTION

Make sure that there is no foreign matter caught inside the ADF.

1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)

This section describes how to open and close the document cover.

How to Open the Document Cover

1 Open the document cover.

Document cover

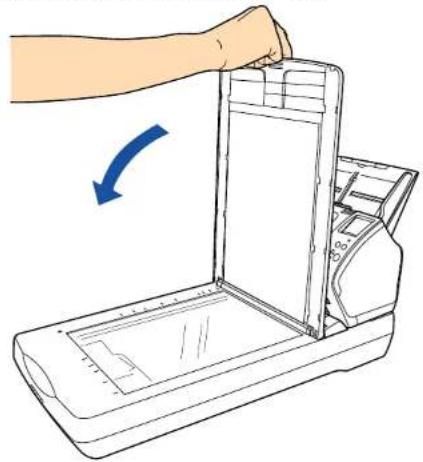

How to Close the Document Cover

1 Gently close the document cover.

Line drawing of a hand opening a device with an arrow indicating rotation (no text or symbols)

1.6 Setting Up the ADF Paper Chute (Feeder)

Documents loaded in the ADF paper chute (feeder) are fed into the ADF one by one.

Using the chute extensions will keep the documents straight and feed them smoothly.

1 Pull out chute extension 1.

Chute extension 1

HINT
Make sure to hold the scanner while you pull out the chute extension.

2 Pull out chute extension 2.

Chute extension 2

HINT
Make sure to hold the scanner while you pull out the chute extension.

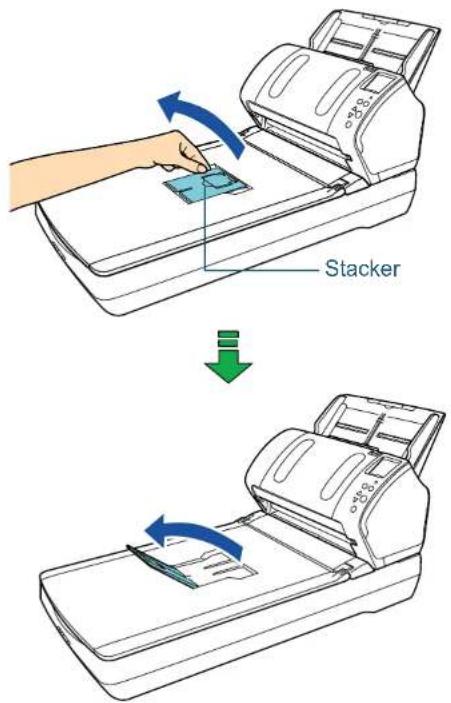

1.7 Setting Up the Stacker

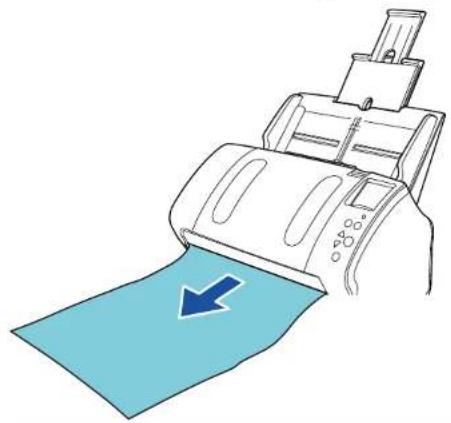

Documents loaded in the ADF paper chute (feeder) are ejected onto the stacker one by one.

Using the stacker, stacker extension 1, stacker extension 2, and stopper will keep the documents straight and stack them neatly.

fi-7160/fi-7180

■A6 (landscape) or larger

1 Bring down the stacker from the top towards you.

Stacker

Chapter 1 Scanner Overview

2 Slide out the stacker extension 1 towards you.

Stacker extension 1

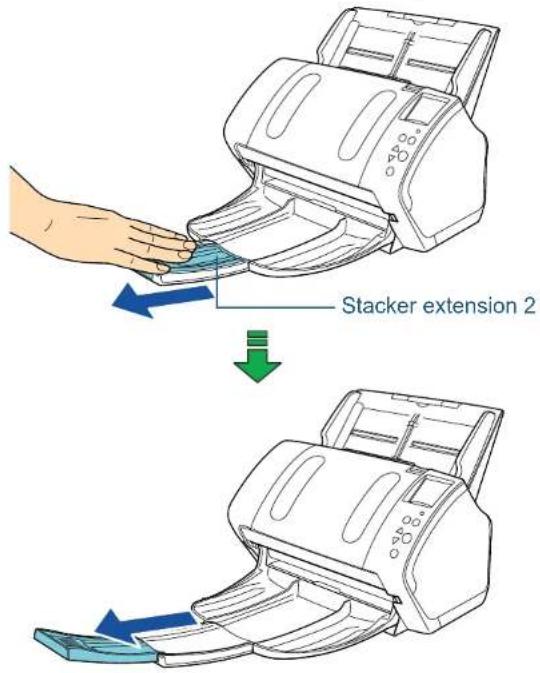

3 Slide out the stacker extension 2 towards you.

Stacker extension 2

HINT
For A4 size documents, slide out the stacker extension 2 towards you to click in place.
For legal size documents, slide out the stacker extension 2 towards you all the way.

Chapter 1 Scanner Overview
4 Lift up the stopper.

Stopper

ATTENTION
Do not lift up the stopper more than 90 degrees, because it may break.

■A7 (landscape) or smaller
1 Bring down the stacker from the top towards you.

Stacker

Chapter 1 Scanner Overview

2 Lift up the stopper.

Stopper

ATTENTION

Do not lift up the stopper more than 90 degrees, because it may break.

HINT

The stopper can be slid to adjust to the length of the document. If the ejected documents are not stacked neatly, adjust the position of the stopper so that the space for the ejected documents can be longer than the document length.

Stopper

■Documents with Different Sizes

1 Hold both sides of the stacker stand and bring it down from the top towards you.

Stacker stand

2 Adjust the stacker to fit the longest document.

• If the longest document is A6 (landscape) or larger, refer to "A6 (landscape) or larger" (page 30).
• If the longest document is A7 (landscape) or smaller, refer to "A7 (landscape) or smaller" (page 32).

fi-7260/fi-7280

■A5 (portrait) or larger

1 Lift up the stacker towards you.

Stacker

Chapter 1 Scanner Overview

2 Lift up the stopper towards you.

Stopper

ATTENTION
Do not lift up the stopper more than 90 degrees, because it may break.

■A6 (portrait)/A5 (landscape) or smaller

1 Lift up the stopper.

Stopper

ATTENTION
Do not lift up the stopper more than 90 degrees, because it may break.

1.8 Power Saving Mode

Power saving mode keeps the power consumption low when the scanner has not been used for a certain period of time. If the scanner is left powered on for 15 minutes without being used, it automatically enters power saving mode.

When the scanner enters power saving mode, the LCD on the operator panel switches off. The [Power] button remains lit in green.

To resume from power saving mode, perform one of the following:

• Load a document in the ADF paper chute (feeder)
• Press any button on the operator panel Note that pressing the [Power] button for more than 2 seconds will turn the power off.
  ● Perform scanning from an application

The scanner is turned off automatically if it is left on for a certain period of time without being used, reducing the power consumption until the next scan.

To prevent the scanner from being turned off automatically, clear the [Power off after a certain period of time] check box in [Device Setting] on the Software Operation Panel. For details, refer to "Waiting Time to Enter Power Saving Mode [Power saving]" (page 202).

To turn the power back on after turning the power off automatically, press the [Power] button on the operator panel. For details, refer to "1.3 Turning the Power ON/OFF" (page 25).

ATTENTION

• The scanner may not enter power saving mode if there was a document remaining on the paper path. In that case, remove the document.
  For details, refer to "8.1 Paper Jam" (page 128).
• For some applications, the scanner may not be turned off even if the [Power off after a certain period of time] check box is selected.
• If the scanner is automatically turned off while you are using the image scanning application, exit the application before turning the power on.

HINT

By using one of the following, the waiting time for entering power saving mode can be changed.

• Use the Operation Panel ([17: Power saving] in the [Settings Menu] screen).
  For details, refer to "4.2 Settings Menu" (page 66)
• Use the Software Operation Panel. For details, refer to "Waiting Time to Enter Power Saving Mode [Power saving]" (page 202).

1.9 Basic Flow of Scanning Operation

This section explains about the basic flow of performing a scan.

In order to perform a scan, you need a scanner driver and an image scanning application that supports the scanner driver.

The following scanner drivers and image scanning applications are bundled with the scanner:

- Scanner driver

- PaperStream IP (TWAIN) driver Conforms to the TWAIN standard. Used when you operate the scanner using TWAIN-compliant 32-bit applications.

- PaperStream IP (TWAIN x64) driver Conforms to the TWAIN standard. Used when you operate the scanner using TWAIN-compliant 64-bit applications.

- PaperStream IP (ISIS) driver Conforms to the ISIS standard. Used when you operate the scanner using ISIS-compliant applications.

• Image Scanning Application

- PaperStream Capture Supports the PaperStream IP (TWAIN) driver and the PaperStream IP (ISIS) driver

- ScanSnap Manager for fi Series Supports the PaperStream IP (TWAIN) driver.

HINT

• For details about the scanner driver, refer to the following: - "Chapter 3 Configuring the Scan Settings" (page 55)
• PaperStream IP driver Help

- For details about the image scanning application, refer to the following:

- "1.10 Image Scanning Application" (page 39)

- PaperStream Capture Help

- ScanSnap Manager for fi Series Help

Scanning procedures and operations slightly vary depending on the image scanning application.

For details, refer to the image scanning application manual.

The following describes the normal procedure for scanning.

1 Turn on the scanner.

For details, refer to "1.3 Turning the Power ON/OFF" (page 25).

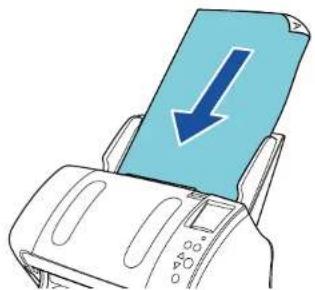

2 Load a document face-down in the ADF paper chute (feeder).

Illustration of a printer with a blue arrow pointing downward on the cover (no text or symbols)

For details, refer to "Chapter 2 How to Load Documents" (page 41).

Chapter 1 Scanner Overview

3 Start an image scanning application.
4 Select a scanner driver.

For some image scanning applications, selection of a scanner driver may not be needed.

5 Select a scanner.

Make sure to select the scanner model that is connected to the computer.

For some image scanning applications, selection of a scanner may not be needed.

6 In the scanner driver's setup dialog box, configure the scan settings.

For some image scanning applications, the scanner driver's setup dialog box may not appear.

7 Scan the document with the image scanning application.

Illustration of a printer printing a sheet of paper with a blue arrow indicating the page (no text or symbols present)

ATTENTION

When the scanner and the computer are communicating, for instance, during scanning, do not perform an operation that causes disconnection of their communication, such as unplugging the USB cable or logging off the user account.

1.10 Image Scanning Application

This section explains the image scanning applications.

The following applications are bundled with the scanner:

● PaperStream Capture

An image scanning application which supports both the PaperStream IP (TWAIN) and PaperStream IP (ISIS) drivers. By defining scan settings as document profiles, you can customize the settings according to your preference.

- ScanSnap Manager for fi Series

An image scanning application which uses the driver settings

dedicated to ScanSnap Manager for fi Series. PaperStream IP

(TWAIN) driver is required for this application. Using this application enables easy scanning with a single button.

For details about PaperStream Capture, refer to the

PaperStream Capture Help.

For details about ScanSnap Manager for fi Series, refer to the

ScanSnap Manager for fi Series Help.

"Chapter 5 Various Ways to Scan" (page 85) explains how to configure the scanner settings and scan different types of documents with the image scanning application.

1.11 Centralized Management of Scanners

This section explains about managing a large number of scanners in a unified manner by providing the following capabilities.

• Simultaneously update settings for multiple scanners and their drivers.
  Because there is no need to update each scanner one by one, a significant reduction is achieved in the time required to update a large number of scanners.
• Monitor scanners to keep track of consumable parts that need replacing, errors that have occurred, and maintenance that is needed. The operating status of scanners can be checked easily.

To enable the above functions, "Scanner Central Admin" is required which consists of four applications bundled with this product:

• Scanner Central Admin Server
  Install this application in the main computer that is used for the centralized management of scanners.
  By registering scanners on the Scanner Central Admin Server, you can build a system to run a unified management for all scanners.
• Scanner Central Admin Console
  Install this application in a computer to upload update modules and to monitor the operating status of the scanners. The administrators can perform these tasks from the Scanner Central Admin Console window, where they can also check the alerts for consumable replacement and errors sent from the scanners.
• Scanner Central Admin Agent
  Install this application in a computer connected to a scanner. It allows scanners to link with the Scanner Central Admin Server. Linking with the Scanner Central Admin Server will enable you to apply updates on scanner settings, and the scanner can also send alerts on consumable replacement and errors.

- SCAModuleCreator

Use this application to create update modules to upload onto the Scanner Central Admin Server. It is only required for creating update modules.

For more details about the centralized management of scanners, refer to the Scanner Central Admin User's Guide.

Chapter 2 How to Load Documents

This chapter explains how to load documents on the scanner.

2.1 Loading Documents in the ADF....42
2.2 Loading Documents on the Flatbed (fi-7260/fi-7280) 44
2.3 Documents for Scanning (ADF)....45

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

2.1 Loading Documents in the ADF

This section explains how to load documents in the ADF.

Preparation

HINT

For details about the paper size and quality required for normal operations, refer to "2.3 Documents for Scanning (ADF)" (page 45).

1 If you are loading multiple sheets, check the documents.

1 Check if the documents to be loaded are of the same width or different widths.
Ways to load documents differ depending on whether they are the same width or not.
If the document width varies, refer to "Conditions for Mixed Batch Scanning" (page 51) or "Documents with Different Widths" (page 87).
2 Check the number of sheets.

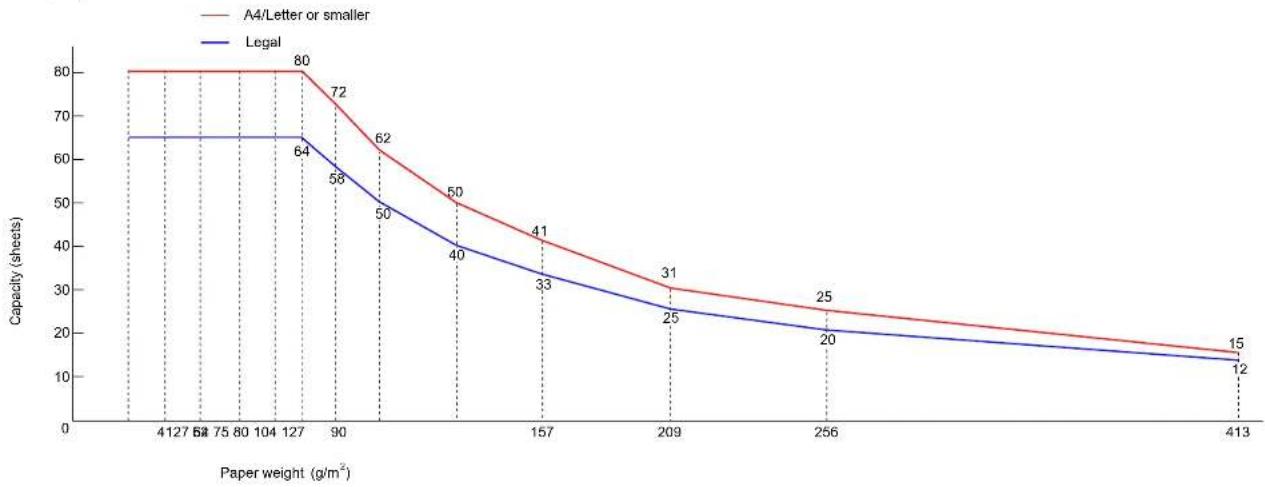

Up to 80 sheets can be loaded (with paper weight of 80g / m^2 [20 lb] and thickness of the document stack under 8mm ). For details, refer to "Loading Capacity" (page 48).

2 Fan the documents.

1 Grab a stack of documents, which should be 8 mm or less.

2 Hold both ends of the documents and fan them a few times.

Illustration of two hands folding paper sheets with a green arrow indicating transformation (no text or symbols)

3 Rotate the documents by 90 degrees and fan them in the same manner.
4 Perform steps 1 to 3 for all documents.
5 Align the edges of the documents.

HINT

For more details about how to fan documents, refer to the Error Recovery Guide.

The Error Recovery Guide is included in the Setup DVD-ROM. For details about installation, refer to "Installing the Software" in Getting Started.

How to Load Documents

1 Pull out the chute extensions according to the length of the document. For details, refer to "1.6 Setting Up the ADF Paper Chute (Feeder)" (page 29).
2 Bring down the stacker, slide out the stacker extension 1 and stacker extension 2 towards you, and lift up the stopper according to the length of the document. For details, refer to "1.7 Setting Up the Stacker" (page 30).
3 Load a document face-down in the ADF paper chute (feeder).

Illustration of a printer with a blue arrow pointing downward on the cover (no text or symbols)

ATTENTION

Remove all paper clips and staples. Reduce the number of sheets if a multifeed or pick error occurs.

4 Adjust the side guides to the width of the document. Do not leave space between the side guides and the document. Otherwise, the document may be fed skewed.

Side guides

5 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

2.2 Loading Documents on the Flatbed (fi-7260/fi-7280)

1 Open the document cover. For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).
2 Load a document on the document bed. Place the document face-down to align its top left-hand corner with the reference point.

ABC Reference point

3 Close the document cover. For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).
4 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

2.3 Documents for Scanning (ADF)

Paper Size

The following paper sizes can be scanned:

A ↑ Feed direction B

Portrait

C ↑ Feed direction D

Landscape

A: 50.8 to 216.0 mm (2.0 to 8.5 in.)
B: 54.0 to 355.6 mm (2.1 to 14.0 in.) (*1)
C: 54.0 to 216.0 mm (2.1 to 8.5 in.)
D: 50.8 to 355.6 mm (2.0 to 14.0 in.) (*1)

*1: Long page scanning supports documents with a length of up to 5,588 mm (220 in.) when the scanning resolution is set to 200 dpi or less.

Conditions

Paper type

The following paper types are recommended:

• Wood-free paper
  ● Wood-containing paper
• PPC paper (recycled)
• Plastic card

When using paper types other than the above, make sure to test with the same type of paper first to check if the document can be scanned.

Paper weight (thickness)

The following paper weights can be used:

• 27 to 413 g/m ^2 (7.2 to 110 lb)
  ● 127 to 209 g/m ^4 (34 to 56 lb) for A8 size
  ● 1.4 mm or less for plastic cards (*1)

*1: Up to 1.25 mm is supported for scanning at 300 dpi or less (80 ppm) in landscape when using the fi-7180/fi-7280.

This setting can be changed in the Software Operation Panel to scan plastic cards with a thickness up to 1.4 mm.

For details, refer to "Scanning Thick Plastic Cards [Feed Mode] (fi-7180/fi-7280)" (page 194).

Precautions

The following types of documents may not be scanned successfully:

• Documents of non-uniform thickness (e.g. envelopes, documents with attachments)
  ● Wrinkled or curled documents
• Folded or torn documents
• Tracing paper
• Coated paper
• Carbon paper
• Photosensitive paper
  ● Perforated documents
  ● Documents that are not square or rectangular
  ● Thin paper (less than 41 g/m²)
  ● Photographs (photographic paper)

The following types of documents must not be scanned:

● Paper-clipped or stapled documents
● Documents on which the ink is still wet
● Documents smaller than A8 size (portrait)
● Documents wider than 216 mm (8.5 in.)
- Documents other than paper/plastic card such as fabric, metal foil and OHP film
● Important documents that must not be damaged or smeared

ATTENTION

- Since carbonless papers contain chemical substances that may harm the rollers (e.g. pick roller), take note of the following.

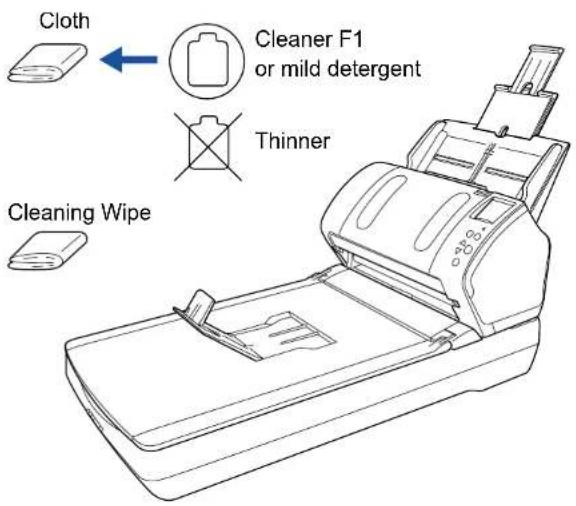

Cleaning : If paper jams occur frequently, clean the brake roller and pick roller. For details, refer to "Chapter 6 Daily Care" (page 108).

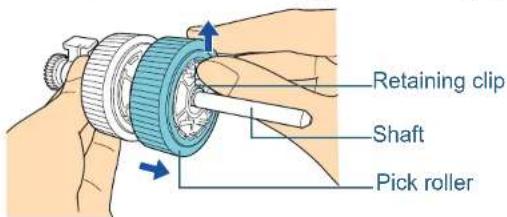

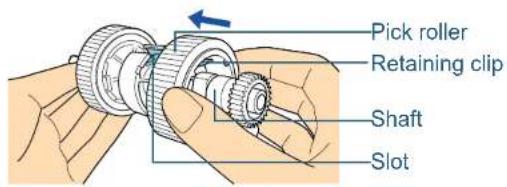

Consumable replacement : The life of the brake roller and pick roller may end sooner compared to scanning wood-containing papers.

• When scanning wood containing papers, the life of the brake roller and pick roller may end sooner compared to scanning wood-free papers.
• Brake roller and pick roller may be damaged when a photo/sticky note on the document contacts these parts during scanning.
• The surface of the document may be damaged when scanning gloss papers such as photographs.
  ● The light of the LED reflects brightly when scanning gloss papers.

ATTENTION

- When you scan plastic cards, take note of the following.

- Up to three plastic cards can be loaded in the ADF paper chute (feeder).

Note that you can only load one card at a time if the plastic card is embossed.

BACK

• It is recommended to place the card face-down in the ADF paper chute.
• Cards should be within the following specifications:

ISO7810 ID-1 type compliant

Size : 85.6 × 53.98 mm

Thickness : 1.4 mm or less (*1)

Material : PVC (polyvinyl chloride) or PVCA (polyvinyl chloride acetate)

Make sure to check if the card can be scanned first.

*1: Up to 1.25 mm is supported for scanning at 300 dpi or less (80 ppm) in landscape when using the fi-7180/fi-7280.

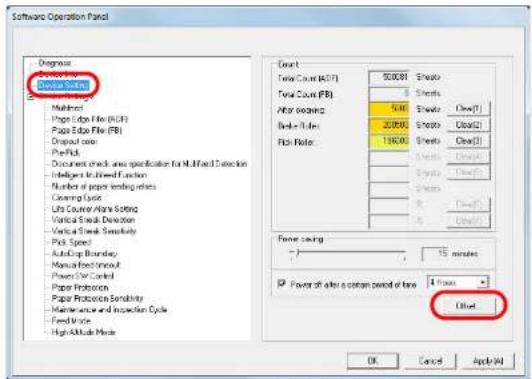

This setting can be changed in the Software Operation Panel to scan plastic cards with a thickness up to 1.4 mm.

For details, refer to "Scanning Thick Plastic Cards [Feed Mode] (fi-7180/fi-7280)" (page 194).

• Rigid cards may not be fed properly.
• If the surface of the card is dirty with grease marks (e.g. fingerprints) and such, perform scanning after wiping the dirt off.
• Plastic cards cannot be scanned when the imprinter is connected.
• Scanning thick documents such as plastic cards will be falsely detected as multifeed.

In that case, to scan documents successfully, use the multifeed window display function of the scanner driver, use the Intelligent Multifeed function, or disable the multifeed detection.

HINT

• When scanning semi-transparent documents, increase the brightness for scanning to avoid bleed-through.
• When you scan documents written in lead pencil, make sure to clean the rollers frequently. Otherwise, the rollers will be contaminated which may leave black traces on the document or cause feeding errors.

For details, refer to "Chapter 6 Daily Care" (page 108).

• If multifeeds, pick errors or paper jams occur frequently, refer to "8.3 Troubleshooting" (page 137).
• When you scan documents with the ADF, all documents must be flat on the leading edge. Make sure that curls on the leading edge of the documents are kept within the following range.

30 mm or more (1.18 in.) Feeding direction 3 mm or less (0.12 in.) Scanned side Scanned side 5 mm or less (0.29 in.) Feeding direction 30 mm or more (1.18 in.) Leading edge leading edge

Loading Capacity

The number of sheets that can be loaded in the ADF paper chute (feeder) is determined by the paper size and paper weight. See the graph below.

Unit Conversion
g/m^2	27 41 52	64 75 80 9	0 104 127	157 209 2	56 413
l b		7	.	2	1	1	1	4	1	7	2	0	2
kg	23	35	45	55	64.5	69	77.5	90	110	135	180	220	355

Area Not to be Perforated

An error may occur when there are punched holes in the area shaded in light blue in the following figure. Such documents can be scanned by using the flatbed (fi-7260/fi-7280).

Reference point 35 Top Front side Feed direction Bottom Center (Unit: mm)

ATTENTION

The above condition applies when the document is set to the center of the pick roller width.

HINT

If there are any holes in the 35 mm-wide central column, you can move the document to the left or right to avoid an error.

Conditions for Multifeed Detection

Multifeed is an error where two or more sheets are fed through the ADF at once. It is also called a multifeed when a different document length is detected.

Multifeed detection is performed by either checking the overlapping of documents, length of the documents, or the combination of both. The following conditions are required for an accurate detection.

Detection by overlapping

• Load documents of the same paper weight in the ADF paper chute (feeder).
  ● Paper weight: 27 to 413 g/m ^2 (7.2 to 110 lb)
• Do not punch holes within 35 mm (1.38 in.) over the center of the document. See Fig.1.
• Do not attach other documents within 35 mm (1.38 in.) over the center of the document. See Fig.1.

Detection by length

• Load documents of the same length in the ADF paper chute (feeder).
  ● Variance in document lengths: 1% or less
• Do not punch holes within 35 mm (1.38 in.) over the center of the document. See Fig.1.

Detection by overlapping and length

• Load documents of the same paper weight and length in the ADF paper chute (feeder).
  ● Paper weight: 27 to 413 g/m ^2 (7.2 to 110 lb)
  ● Variance in document lengths: 1% or less
• Do not punch holes within 35 mm (1.38 in.) over the center of the document. See Fig.1.
• Do not attach other documents within 35 mm (1.38 in.) over the center of the document. See Fig.1.

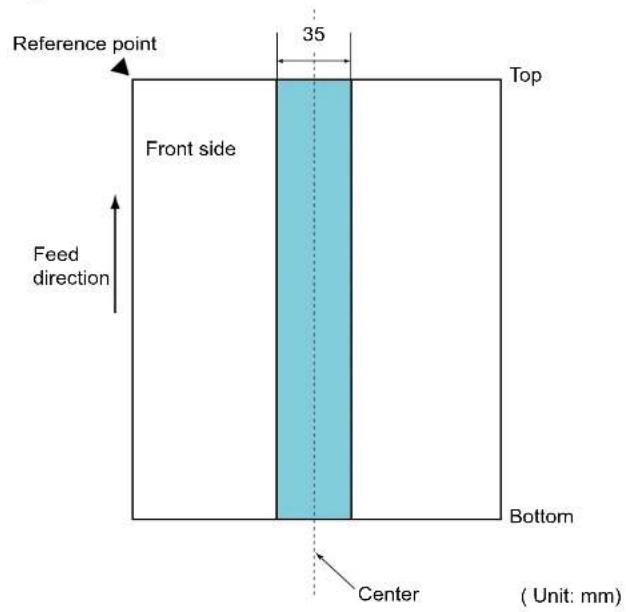

Fig. 1

Reference point 35 Top Front side Feed direction Bottom Center (Unit: mm)

ATTENTION

• The above condition applies when the document is set to the center of the pick roller width.
• When you use detection by overlapping, scanning thick documents such as plastic cards will be falsely detected as multifeed. In that case, to scan documents successfully, use the multifeed window display function of the scanner driver, use the Intelligent Multifeed function, or disable the multifeed detection.

HINT

• Accuracy of multifeed detection may drop with some documents. Multifeed cannot be detected for the top 30 mm of a document.

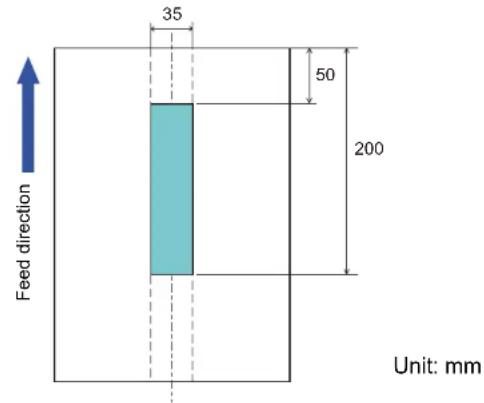

• For the shaded area in Fig. 1, you can also specify a length not to detect multifeeds in the Software Operation Panel. For details, refer to "9.6 Settings Related to Multifeed Detection" (page 195).

Conditions for Mixed Batch Scanning

The following conditions apply when scanning a mixed batch of documents with different paper weights/friction coefficients/sizes.

Make sure to test a few sheets first to check if the documents can be scanned.

For details, refer to "Documents with Different Widths" (page 87).

Paper direction

Align the direction of the paper fiber with the feed direction.

Paper weight

The following paper weights can be used:

27 to 413 g/m² (7.2 to 110 lb)

Friction coefficient

It is recommended to use the same type of paper from the same manufacturer.

When papers of different manufacturers/brands are mixed, it affects the feeding performance as the difference in the friction coefficient increases.

The following friction coefficients are recommended:

0.35 to 0.60 (reference value for paper friction coefficient)

Document position

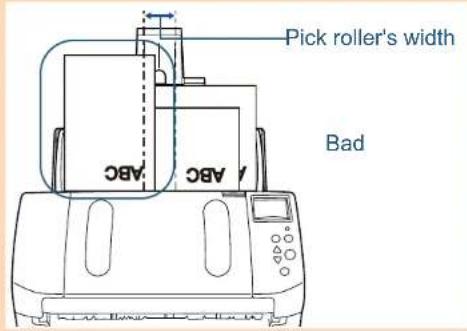

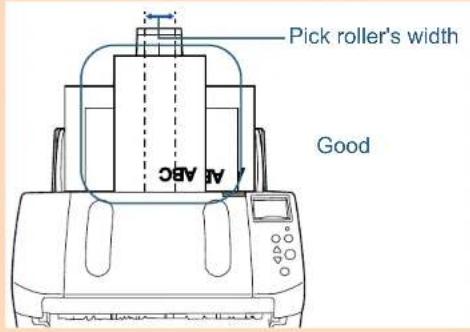

Use paper sizes that fit the 39 mm width of the pick roller in the center.

Pick roller 39 mm

Paper size

When you scan a mixed batch with different sizes, not feeding the documents straight may cause troubles such as paper jams or part of the image to appear missing.

It is recommended to check the documents thoroughly before scanning and also check the image if the document was skewed.

ATTENTION

• When scanning a mixed batch with different sizes, documents are more likely to skew because the side guides do not contact every sheet.
• Do not use [Check Length] or [Check Overlapping and Length] for multifeed detection.

Documents that cannot be scanned in a mixed batch

The following types of documents cannot be mixed in the same batch:

• Carbonless paper
• Bond paper
  ● Perforated documents
• Thermal paper
• Carbon-backed paper
• OHP film
• Tracing paper

Combinations of standard paper sizes in a mixed batch

Refer to the table below for a guideline of the range available for mixed batch scanning.

However, note that not feeding the documents straight may cause troubles such as paper jams or part of the image to appear missing.

It is recommended to check the documents thoroughly before scanning and also check the image if the document was skewed.

Maximum size LTR (P)			Carrier Sheet	A4 (P) A5 (L)	B5 (P) B6 (L)	A5 (P) A6 (L)	B6 (P) B7 (L)	A6 (P) A7 (L)	B7 (P) B8 (L)	A7 (P) A8 (L)	B8 (P) A8 (P)
	Width (mm) (*1)	216 2	10 182 149 129	105 91 74.3	64.3 52.5
Minimum size	LTR (P) Carrier Sheet	216
	A4 (P) A5 (L)	210
	B5 (P) B6 (L)	182	available range
	A5 (P) A6 (L)	149
	B6 (P) B7 (L)	129
	A6 (P) A7 (L)	105
	B7 (P) B8 (L)	91
	A7 (P) A8 (L)	74.3
	B8 (P) 64.3
	A8 (P) 52.5

LTR: Letter size
(P) : Portrait
(L) : Landscape

Chapter 2 How to Load Documents

*1: The following picture shows how to set the widest and the narrowest documents of the batch between the side guides.

Maximum width Minimum width Widest document Narrowest document Side guides

ATTENTION

B8 (portrait) and A8 (portrait) cannot be scanned with other paper sizes.

Conditions for Automatic Page Size Detection

[Automatic Page Size Detection] does not work with the following types of documents:

● Non-rectangular documents
● Documents with black background/edges

[Automatic Page Size Detection] may not work with the following types of documents:

● Thin paper (52 g/m ^2 [14 lb] or less)
- Documents with dark background/edges

Conditions for Using the Carrier Sheet

Paper size

The following paper sizes can be scanned:

● Carrier Sheet (216 × 297 mm)
● A3 (297 × 420 mm) (*1)
● A4 (210 × 297 mm)
● A5 (148 × 210 mm)
A6 (105 × 148 mm)
B4 (257 × 364 mm) (*1)
B5 (182 × 257 mm)
B6 (128 × 182 mm)
● Post card (100 × 148 mm) (*2)
● Business card (91 × 55 mm, 55 × 91 mm) (*2)
● Letter (8.5 × 11 in./216 × 279.4 mm)
● Double Letter (11 × 17 in./279.4 × 431.8 mm) (*1)
- Custom size

Width : 25.4 to 216 mm (1 to 8.5 in.)

Length : 25.4 to 297 mm (1 to 11.69 in.)

*1: Fold in half for scanning.
*2: You can scan with the PaperStream IP (TWAIN) driver or the PaperStream IP (TWAIN x64) driver.

Conditions

Paper type

The following paper type is recommended:

Standard office paper

Paper weight

The following paper weights can be used:

Up to 127 g/m ^4 (34 lb)

Up to 63.5 g/m ^2 (17 lb) when folded in half

Precautions

Take note of the following:

● Up to three Carrier Sheets can be loaded at once.

• Depending on the amount of memory used by running applications, there may be insufficient memory to scan a double-page spread document with the Carrier Sheet in high resolution. In that case, specify a lower resolution and try scanning again.
• Do not write on, color, stain, or cut the end with a black and white pattern on the Carrier Sheet.
• Do not place the Carrier Sheet upside down. Otherwise, a paper jam may occur and damage the Carrier Sheet and the document inside.
• Do not leave your document inside the Carrier Sheet for a long time. Otherwise, the ink on the document may be transferred onto the Carrier Sheet.
• To avoid deformation, do not use or leave the Carrier Sheet in high temperature places such as under direct sunlight or near a heating apparatus for a long time.
• Do not fold or pull the Carrier Sheet.
• Do not use a damaged Carrier Sheet because it may damage or cause the scanner to malfunction.
• To avoid deformation, keep the Carrier Sheet on a flat surface without any weight on it.
• Be careful not to cut your finger on the edge of the Carrier Sheet.
• If paper jams occur frequently, feed about 50 sheets of PPC paper (recycled paper) before scanning with the Carrier Sheet. The PPC paper can either be blank or printed.
• Paper jams may occur when you place several small documents (e.g. photos, postcards) in the Carrier Sheet for scanning. It is recommended to place only one document at a time in the Carrier Sheet.

Chapter 3 Configuring the Scan Settings

This chapter explains about the scan parameters of the scanner drivers.

3.1 Setup Dialog Box for PaperStream IP Driver....56
3.2 Setting Items for PaperStream IP Driver ....58

3.1 Setup Dialog Box for PaperStream IP Driver

The PaperStream IP driver is a scanner driver that conforms to the TWAIN/ISIS standard.

There are three types of PaperStream IP drivers.

● PaperStream IP (TWAIN) driver
Conforms to the TWAIN standard. Used when you operate the scanner using TWAIN-compliant 32-bit applications.
- PaperStream IP (TWAIN x64) driver Conforms to the TWAIN standard. Used when you operate the scanner using TWAIN-compliant 64-bit applications.
- PaperStream IP (ISIS) driver Conforms to the ISIS standard. Used when you operate the scanner using ISIS-compliant applications.

These drivers can be used with an image scanning application that supports TWAIN or ISIS to perform scanning.

Normally, the scanner driver is launched via an image scanning application, and then the scan settings are configured in the setup dialog box of the driver.

For some image scanning applications, the scanner driver's setup dialog box may not appear.

There are two display formats for the scanner driver's setup dialog box (main dialog box) for the PaperStream IP driver.

- Normal dialog

This is the standard setup dialog box for the PaperStream IP driver. You can configure the scan settings or perform a scan from this dialog box.

Paper Stream Basic Image Mode Basic & White Background Color Automatic Color Detection Multi Image Color Paper Length Detection Paper Source Audio (Print Size) Resistents 300 bp Paper Size Units Center Sheet Off OK Cancel Preview

Chapter 3 Configuring the Scan Settings

- Simple dialog

This is a simplified dialog box that only includes functions specifically for scanning.

Select a profile, and perform scanning according to the settings of the profile from this dialog box.

This dialog box is displayed when you select [Simple dialog] as [Default dialog] in the [Configuration] dialog box of the PaperStream IP driver.

PaperStream IP ( ) - 6 00: Current Setting Power Source: Feeder (Front Side) OK Cancel

HINT

Ways to launch the scanner driver differ depending on the image scanning application.

For details, refer to the image scanning application manual.

3.2 Setting Items for PaperStream IP Driver

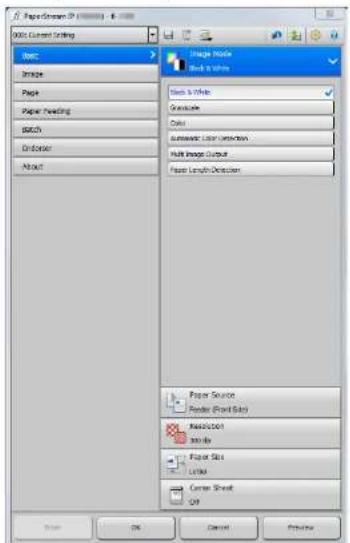

This section explains the main setting items in the normal dialog for the PaperStream IP driver.

PaperCAD File Edit Setting Basic Image Page Paper Drawing BATCH Editorial About Image Mode Book & Style Text & White Grayscale Color Automatic Color Correction Full Image Output Fillet Lasso Selection Paper Source Render (Brand Size) Residual Auto key Paper Size Label Center Sheet Off OK Cancel Preview

For details about setting items in the normal and simple dialogs, refer to the PaperStream IP driver Help.

[Profile] list

From the list that appears when you click [▼], select a profile for scanning.

When the profile name is selected in the [Profile] list, the corresponding scan settings are displayed. When you change a setting in the menu after selecting the profile, it switches to [000: Current Setting].

[Save] button

Displays the [Save Profile] dialog box to save the current settings as a profile.

[Delete Profile] button

Deletes the profile that is currently selected. Note that [000: Current Setting] cannot be deleted.

[Option] button

Specifies whether or not to apply separate scan settings for front and back sides.

Chapter 3 Configuring the Scan Settings

[Initialize] button

Restores the current settings to initial settings.

[Switch Dialog] button

Switches to the simple dialog.

[Configuration] button

Displays the [Configuration] dialog box where you switch the display of the main dialog box.

[Help] button

Displays the PaperStream IP driver Help.

Settings menu buttons

Basic Image Page Paper Feeding Batch Endorser About

Configure the scan settings or check the version information. When you select [Basic], [Image], [Page], [Paper Feeding], [Batch] or [Endorser], the details are displayed on the right side.

When you select [About], the version information of the PaperStream IP driver is displayed.

Buttons at the bottom of the dialog box

Different buttons are displayed at the bottom of the dialog box depending on the purpose of invoking the dialog box from the application.

- When performing a scan from a TWAIN application

- When changing the scan settings in a TWAIN application (performing a scan after closing this dialog box)

Chapter 3 Configuring the Scan Settings

- When changing the scan settings in an ISIS application (performing a scan after closing this dialog box)

[Scan] button

Performs a scan with the current scan settings.

[Close] button

Saves the current scan settings and closes the dialog box (scanning is cancelled).

[OK] button

Saves the current scan settings and closes the dialog box.

[Reset] button

Cancels the changes made on the dialog box and restores the original settings.

[Cancel] button

Discards the changes made on the dialog box and closes the dialog box.

[Preview] button

Performs a test-scan with the current settings and displays the result in Preview.

When scanning from ADF, the first document (only front side when document is double-sided) is scanned.

Chapter 4 How to Use the Operator Panel

This chapter explains how to use the operator panel.

4.1 Operator Panel 62
4.2 Settings Menu....66

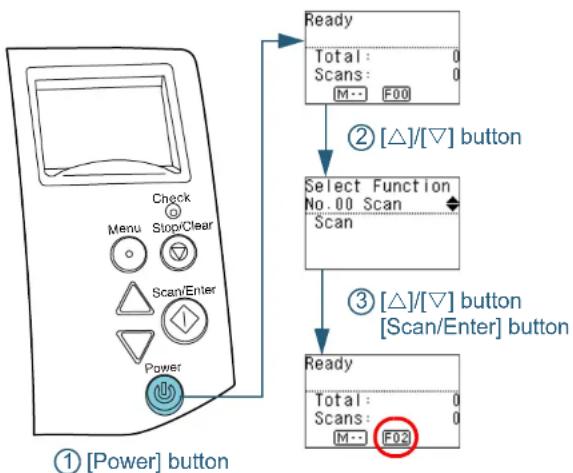

4.3 Function Selection....83

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

4.1 Operator Panel

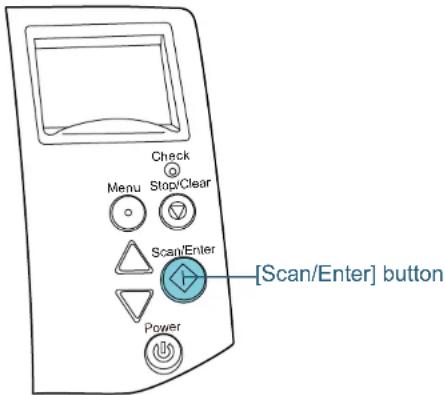

The operator panel consists of an LCD, buttons and LED.

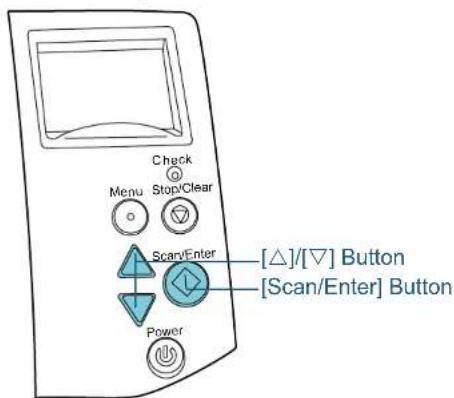

Names and Functions

[Menu] button Configures various types of scanning operations. Determines whether or not to memorize the pattern if pressed when a multifeed occurs. Determines whether to enable or disable paper protection if pressed when a scanning operation is stopped due to paper protection. [Power] button Turns the power on/off. Lights in green when the scanner is turned on. LCD Indicates the status of the scanner. Switches off when the scanner enters power saving mode. LED indicator Lights in orange when an error occurs. Flashes when the ADF is open or consumables reach the end of their life cycle. [Stop/Clear] button Stops the scan immediately. Cancels the selected item and returns to the previous screen. Clears the displayed error indication. Resets the page counter when pressed down for more than three seconds. Stops the scan when pressed while scanning in manual feed mode. [△]/[▽] button Switches the number (No.00 to No.09/SOP) for the application that is launched by pressing the [Scan/Enter] button in the [Ready] screen. Switches the selected item. [Scan/Enter] button (*1) Launches the linked application software. Confirms the selected item. Pauses the scan.(*2) Resumes the scan. Ejects the document when a multifeed occurs.

*1: For details about using the [Scan/Enter] button, refer to the scanner driver's Help or "Using a Button on the Scanner to Start Scanning" (page 100).

*2: When using the PaperStream IP (TWAIN) driver, pressing the [Scan/Enter] button during scanning will pause the scan after that document is scanned.

When using the PaperStream IP (ISIS) driver/ScanSnap Manager for fi Series, pressing the [Scan/Enter] button during scanning will cancel the scan after that document is scanned.

ATTENTION

Do not use the operator panel while the Software Operation Panel is running.

HINT

The LCD angle can be adjusted by lifting it up towards you to make the contents of the screen more visible.

Illustration of a hand pressing down on a printer's front panel (no text or symbols visible)

Indications on LCD

Display Description
	Processing initialization.
	Ready to start scanning.Indicates that the initialization was successfully completed.For more details about the indicators, refer to "Indicator" (page 65).
	An item from the menu can be selected.When you press the [Menu] button while the [Ready] screen is displayed, the [Settings Menu] screen is displayed.The Settings Menu can be used to configure various operational settings upon scanning.For details about the Settings Menu screen, refer to "4.2 Settings Menu" (page 66).

Chapter 4 How to Use the Operator Panel

Display Description
TitleItems	A function item can be selected.When you press the [△] or [▽] button in the [Ready] screen, [Function Selection] is displayed.By using Function Selection, you can configure the application you want to launch when you press the [Scan/Enter] button in the [Ready] screen.For details about the Function Selection screen, refer to "4.3 Function Selection" (page 83).
J1:31 ErrorPaper jamRemove and check the document, and try again.Error codeError Message	Indicates that a temporary error occurred during scanning.Error codes beginning with the letter "J" or "U" are displayed.For more details about the errors, refer to "Temporary Errors" (page 131).You can clear the error display by pressing the [Stop/Clear] button. Note that if the error is "Paper jam", the message disappears after a certain amount of time elapses with no documents ([Ready] status) in the scanner.

Display Description
Error codeErrorMessage	Indicates that a device error (alarm) occurred during initialization or scanning.Error codes beginning with the letter "E", "F", "C", "H", "A" or "L" are displayed. For more details about the errors, refer to "Device Errors" (page 133).When this alarm occurs, turn the power off then back on. If the problem still persists, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
	When the scanner has not been in operation for the set sleep interval, it enters power saving mode. Press any button on the operator panel to return to the previous screen.

Indicator

Ready Consumables Total: 998 Scans: 77 M- F00PIHENU Information MENU flashes when there is a message for replacing consumables/cleaning/glass cleaning/regular maintenance. [Consumables], [Cleaning], [Clean glass!], or [maintenance] also flashes on the second line in the [Ready] screen. For information regarding appropriate actions to take when MENU flashes, refer to "4.2 Settings Menu" (page 66). Prioritize Panel Settings appears when the operator panel settings are prioritized. For details, refer to "4.2 Settings Menu" (page 66). Application Number Displays the application number that you want to launch when you press the [Scan/Enter] button in the [Ready] screen. For details, refer to "4.3 Function Selection" (page 83). iMFF Setting

Displays the iMFF setting as follows:

Icon Mode M··· Manual mode A1-0 Auto mode 1 A2-0 Auto mode 2

In Manual mode, is displayed at all times.

In Auto mode 1 and Auto mode 2, it displays the number of multifeed patterns memorized (max. of 8 patterns). For details, refer to "4.2 Settings Menu" (page 66).

4.2 Settings Menu

This section explains about the Settings Menu.

When you press the [Menu] button while the [Ready] screen is displayed, the [Settings Menu] screen is displayed.

The Settings Menu can be used to configure various operational settings upon scanning.

There are two menus in the [Settings Menu] screen.

- User menu You can configure basic settings for operating the scanner and using the operator panel.

- Administrator menu

You can configure advanced settings for operating the scanner and using the operator panel.

To switch between the menus, press down both the [] and [] buttons at the same time for more than three seconds in the [Settings Menu] screen.

When the scanner is turned off, the user menu appears.

How to Use Settings Menu

This section explains how to use the Settings Menu of the operator panel by the following categories.

Operation Description Item User		menu	Administrator menu
		Yes: Available-: Not Available
Checking the guidance contents	You can check the way to reset the page counter. For more details, refer to "Checking the guidance contents" (page 70).	Guidance Yes Yes
Checking the information	IMENU flashes when there is a message for replacing consumables/cleaning/glass cleaning/ regular maintenance. Read the message and take measures accordingly. For more details, refer to "Checking the information" (page 71).	Information Yes Yes

Chapter 4 How to Use the Operator Panel

Operation	Description	Item	User menu	Administrator menu
			Yes: Available-: Not Available
Operational settings You can configure various settings for operating the scanner and using the operator panel. For more details, refer to "Operational settings" (page 73).		1: Pick Speed Yes Yes
		5: Language Yes Yes
		6: LCD Contrast Yes Yes
		7: Check LED Blink Speed Yes	Yes
		8: LCD Scroll Speed Yes Yes
		10: iMFF Setting - Yes
		11: No. of Paper Feed Retries -	Yes
		12: Manual Feed Timeout - Yes
		13: Paper Protection - Yes
		14: Vertical Streak Detection	- Yes
		15: Prioritize Panel Settings	- Yes
		16: Ope. Panel Initialization	- Yes
		17: Power saving	- Yes
		18: Power-off time	- Yes
		19: Pre-Pick	- Yes
Cleaning the scanner	You can clean the scanner by using Cleaning Paper, Cleaning Wipe, or cloth.For more details, refer to "Chapter 6 Daily Care" (page 108).	2: Cleaning	Yes Yes
Test print for Imprinter	You can run a test print when the imprinter is installed. For more details, refer to the fi-718PR Imprinter Operator's Guide.	3: Test Print	Yes Yes

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel

Operation Description Item User		menu	Administrator menu
		Yes: Available-: Not Available
Checking and resetting the sheet counter	You can check the replacement cycle of the consumables and the total page count.Also use it to reset the counter when you have replaced the consumables or performed cleaning.For more details, refer to "Checking and resetting the sheet counter" (page 74).	4: Consumable counters Yes Yes
Counting documents You can count the number of scanned documents in Doc Counting Mode.For more details, refer to "Counting documents" (page 75).	9: Doc Counting Mode Yes Yes

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel
■ Checking the guidance contents

1 Press the [Power] button on the operator panel. ⇒ The [Ready] screen is displayed on the LCD.
2 Press the [Menu] button. → The [Settings Menu] screen is displayed on the LCD.
3 Press the [△] or [▽] button and select [Guidance], then press the [Scan/Enter] button to confirm. ⇒ The [Guidance] screen is displayed on the LCD.
4 Press the [△] or [▽] button and select [1: Clear counter], then press the [Scan/Enter] button to confirm. ⇒ The [Clear counter] screen is displayed on the LCD.
5 Press the [△] or [▽] button to check the contents of the guidance. You can check the way to reset the page counter.

■Checking the information

1 Press the [Power] button on the operator panel.

→ The [Ready] screen is displayed on the LCD.

2 Press the [Menu] button.

→ The [Settings Menu] screen is displayed on the LCD.

3 Press the [] or [] button and select [Information], then press the [Scan/Enter] button to confirm.

→ The [Information] screen is displayed on the LCD.

ATTENTION

[Information] can be selected only when there is a message for replacing consumables/cleaning/glass cleaning/regular maintenance.

4 Press the [] or [] button to check the contents of the information.

You can check the messages for replacing consumables/cleaning/glass cleaning/regular maintenance.

When the message prompts replacing consumables/cleaning, the corresponding counter that requires consumable replacement/cleaning is highlighted. The counter will appear highlighted when:

• The page count after replacing the consumable reaches 95% of the value configured in "Replacement Cycle of Consumables [Life Counter Alarm Setting]" (page 181) in the Software Operation Panel. (For brake roller/pick roller counters)
• The page count after cleaning reaches 100% of the value configured in "Scanner Cleaning Cycle [Cleaning Cycle]" (page 181) in the Software Operation Panel. (Cleaning counter)
• The amount of remaining ink reaches below 33%. This is only displayed when the imprinter is installed. (For ink counter)

Chapter 4 How to Use the Operator Panel

5 Take measures according to the contents of [Information].

Follow the instructions in the message if it prompts consumable replacement/cleaning/glass cleaning.

For details about replacing consumables, refer to the following:

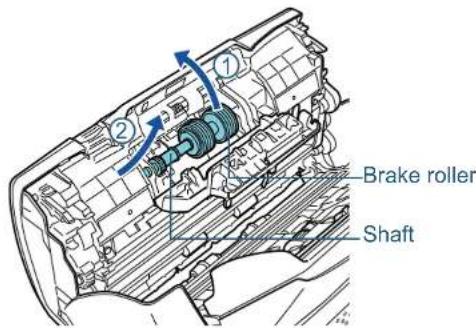

- Brake roller

"7.2 Replacing the Brake Roller" (page 121)

- Pick roller

"7.3 Replacing the Pick Roller" (page 123)

For details about cleaning, refer to "Chapter 6 Daily Care" (page 108).

If the message prompts regular maintenance, please have the scanner checked by a service engineer for regular maintenance/inspection.

For more information, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Chapter 4 How to Use the Operator Panel
■Operational settings

1 Press the [Power] button on the operator panel.

→ The [Ready] screen is displayed on the LCD.

2 Press the [Menu] button.

→ The [Settings Menu] screen is displayed on the LCD.

3 Press the [△] or [▽] button and select a setting item, then press the [Scan/Enter] button to confirm.

For more details about the setting items, refer to "Items Configurable in the Settings Menu" (page 76).

→ The selected item is displayed on the LCD.

4 Press the [△] or [▽] button and select a parameter, then press the [Scan/Enter] button to confirm.

For more details about the setting parameters, refer to "Items Configurable in the Settings Menu" (page 76).

HINT

• "*" is displayed for the factory default setting.
• When you select an item in the screen, the parameter currently selected is highlighted.

If the [Settings Menu] screen is displayed on the LCD, it indicates that the setup has been completed.

If the LCD displays a setting item, repeat step 4 until it shows the [Settings Menu] screen.

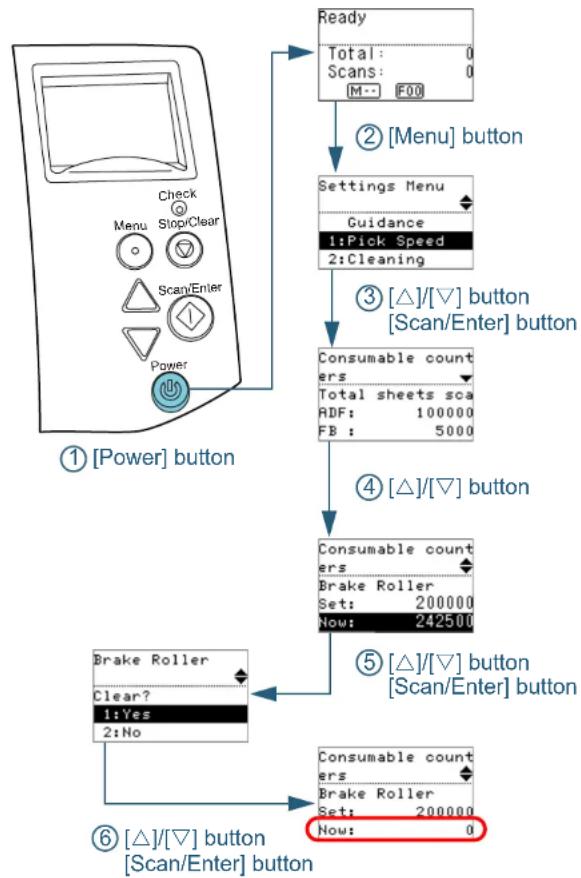

■ Checking and resetting the sheet counter

1 Press the [Power] button on the operator panel.

→ The [Ready] screen is displayed on the LCD.

2 Press the [Menu] button.

→ The [Settings Menu] screen is displayed on the LCD.

3 Press the [] or [] button and select [4: Consumable counters], then press the [Scan/Enter] button to confirm.

→ The [Consumable counters] screen is displayed on the LCD.

4 Press the [△] or [▽] button and check the counter.

Counters are highlighted when consumable replacement or cleaning is required. The counter will appear highlighted when:

• The page count after replacing the consumable reaches 95% of the value configured in "Replacement Cycle of Consumables [Life Counter Alarm Setting]" (page 181) in the Software Operation Panel. (For brake roller/pick roller counters)
• The page count after cleaning reaches 100% of the value configured in "Scanner Cleaning Cycle [Cleaning Cycle]" (page 181) in the Software Operation Panel. (Cleaning counter)
• The amount of remaining ink reaches below 33%. This is only displayed when the imprinter is installed. (For ink counter)

HINT

The total number of sheets that have been scanned after purchase is displayed in the total sheets scanned counter. The total sheets scanned counter cannot be cleared.

5 After replacing the consumables or cleaning, select the highlighted counter with the [] or [] button, and press the [Scan/Enter] button.

A message appears to confirm that you want to clear the counter.

6 Select [1: Yes] by the [] or [] button, and press the [Scan/Enter] button to confirm.

→ The counter is reset to 0. For ink counter, the value will be set to 100.

Chapter 4 How to Use the Operator Panel
Counting documents

1 Press the [Power] button on the operator panel.

→ The [Ready] screen is displayed on the LCD.

2 Press the [Menu] button.

→ The [Settings Menu] screen is displayed on the LCD.

3 Press the [△] or [▽] button and select [9: Doc Counting Mode], then press the [Scan/Enter] button to confirm.

The [Doc Counting Mode (More documents)] screen is displayed on the LCD.

4 Load a document in the ADF paper chute (feeder), and press the [Scan/Enter] button.

The number of sheets that are scanned is counted. The number of counted sheets is displayed in Count.

ATTENTION

Documents may not be counted correctly if a multifeed occurs during scanning.

HINT

• To reset Count, press the [Stop/Clear] button while the [Doc Counting Mode (More documents)] screen is displayed.
• To end Doc Counting Mode, press the [Stop/Clear] button for more than three seconds while the [Doc Counting Mode (More documents)] screen is displayed.

Items Configurable in the Settings Menu

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
Guidance Displays the way to reset the page counter. 1: Clear counter 1: Clear			counter
Information [Information] appears as an item in the [Settings Menu] screen only if [NEDding on the LCD.		Message for replacing consumables/cleaning/glass cleaning/regular maintenance	Only displayed when there is information
1: Pick Speed When you experience frequent multifeeds and paper jams, the symptom may be improved by slowing down the speed in which documents are picked (fed). This setting can also be configured from the Software Operation Panel.		1: Normal2: Slow	1: Normal
2: Cleaning Use this setting when you clean the scanner. For more details, refer to "Chapter 6 Daily Care" (page 108).		1: Cleaning Sheet2: Roller Wipe	-

Chapter 4 How to Use the Operator Panel

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
3: Test Print Use this option to run a test print when the Imprinter is installed.For more details, refer to the fi-718PR Imprinter Operator's Guide.		No. of sheets scanned:1: Single sheet only2: Multiple sheetsPrint Pattern:1:(L)ABCDEFGHIJKLMNOPQRSTUVWXYZ[¥]^_`000000002:(L)abcdefghijklmnopqrstuvwxyz{}~ 000000003:(L)!"#%&'()*+,-./0123456789;;<=>?@000000004:(P)ABCDEFGHIJKLMNOPQRSTUVWXYZ[¥]^_`000000005:(P)abcdefghijklmnopqrstuvwxyz~ 000000006:(P)!"#%&'()*+,-./0123456789;;<=>?@00000000Test Print:1: Yes2: No	(*3)
4: Consumable counters	Check the counters to determine when to replace the consumables and to perform cleaning.Also use it to reset the counter when you have replaced the consumables or performed cleaning.	Total sheets scanned/Brake Roller/Pick Roller/Cleaning 0
		Ink Level(only when imprinter is installed)	Onlydisplayedwhenimprinter isinstalled
5: Language Specify the language in which data is displayed. 1: Japanese		2: English3: French4: German5: Italian6: Spanish7: Russian8: Chinese	2: English

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
6: LCD Contrast Specify the contrast for the LCD on the operator panel.		Weak Strong■□□□□■■□□□■■■□□■■■■□■■■■■	■■■□□
7: Check LED Blink Speed	Specify the flash interval for indicator if [M]ing on the LCD.	0.5, 1.0, 1.5, 2.0, 2.5 (seconds) 2.0
8: LCD Scroll Speed	Specify the speed in which the display is horizontally scrolled.The displayed item is scrolled horizontally when the text does not fit in the LCD.	1: Fast2: Normal3: Slow4: OFF	2: Normal
9: Doc Counting Mode	You can count the number of scanned documents in Doc Counting Mode.	-	-
10: iMFF Setting When there is a paper of the same size attached to a designated location on the page, configure the scanner to memorize the location of the attachment and not detect multifeeds for that location.Note that you need to specify [Check Overlapping (Ultrasonic)] in either the scanner driver or the multifeed detection setting in "Specifying a Multifeed Detection Method [Multifeed]" (page 195) beforehand.By selecting [4: Clear pattern], you can clear the overlapping patterns (length, location) that were previously memorized in Auto mode.This setting can also be configured from the Software Operation Panel.	1: Manual mode2: Auto mode 13: Auto mode 24: Clear pattern	1: Manual mode	1: Manual mode

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
11: No. of Paper Feed Retries	Used to change the number of paper feeding retries (when the document is not picked properly). This setting can also be configured from the Software Operation Panel.	1 to 12 (times) 3
12: Manual Feed Timeout	Specify the waiting time to clear manual feed mode. This setting can also be configured from the Software Operation Panel.	Disable, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110 (seconds)	Disable

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
13: Paper Protection	Select a paper protection detection method.This function can be set to reduce the risk of having the documents damaged by detecting anomalies upon feeding the documents and stopping the scan when:The scanner detects a document that is unusually warped when a feeding error occurs.The scanner detects paper jam noiseThe scanner either detects a document that is usually warped when a feeding error occurs or detects paper jam noiseSpecify the sensitivity level to detect anomalies upon feeding the documents when paper protection is used.Documents are deformed (e.g. warped, bent, creased) or paper jam noise is made when documents are not being fed by the rollers properly.To detect such symptoms and stop the scan, select [1: Low] to only detect documents that are highly deformed or loud paper jam noise. To detect documents that are slightly deformed or small paper jam noise, select [3: High].You can also configure the paper protection detection method from the scanner driver or the Software Operation Panel. When the operation panel setting is prioritized, the operator panel setting is prioritized over the Software Operation Panel setting. Note that even if the operation panel setting is prioritized, the scanner driver setting has the highest priority.You can also configure the sensitivity level to detect warped documents and paper jam noise from the Software Operation Panel. When the operation panel setting is prioritized, the operator panel setting is prioritized over the Software Operation Panel setting.	1: Disable2: Feeding accuracy3: Feeding noise4: Feeding accuracy and noiseSensitivity for feeding accuracy1: Low2: Normal3: HighSensitivity for feeding noise1: Low2: Normal3: High	2: Feeding accuracySensitivity for feeding accuracy:2: NormalSensitivity for feeding noise:2: Normal

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
14: Vertical Streak Detection	Select whether to enable or disable vertical streak detection.After enabling this setting, [MCHS] on the LCD if a vertical streak may occur in images that are scanned through the ADF.[Clean glass!] also flashes on the second line in the [Ready] screen.Check the information, and then clean the glass. For details about checking the information, refer to "Checking the information" (page 71). For details about cleaning, refer to "Chapter 6 Daily Care" (page 108).Specify the level of sensitivity to detect dirt on the glass when vertical streak detection is enabled. Select [1: Low] to only detect large amounts of dirt on the glass. Select [3: High] to also detect small amounts of dirt on the glass.Enable/Disable can also be configured in the scanner driver or the Software Operation Panel. Sensitivity can also be specified in the Software Operation Panel.	1: Enable2: DisableSensitivity:1. Low2: Normal3: High	2: DisableSensitivity:2: Normal
15: Prioritize Panel Settings	For the paper protection setting, prioritize the operation panel setting over the Software Operation Panel setting. You cannot prioritize the operation panel setting over the scanner driver setting.When [1: Paper Protection] is selected, the Paper Protection setting of the operator panel is prioritized.When [2: Clear] is selected, the Paper Protection setting is no longer prioritized.	1: Paper Protection2: Clear	2: Clear
16: Ope. Panel Initialization	Initialize the settings of the operator panel. Note that the language setting and any items without a factory default setting are not initialized.	1: Yes2: No	(*4)

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 4 How to Use the Operator Panel

Item	Description	Parameter (*1)/Value	Factory Default (*2)
		-: No settings/values
17: Power saving Specify the waiting time before entering power saving mode.This setting can also be configured from the Software Operation Panel.		5 to 235 (in increments of 5) (minutes) 15
18: Power-off time Specify the period of time for the scanner to be automatically turned off.This setting can also be configured from the Software Operation Panel.		Disable, 1, 2, 4, 8 (hours) 4
19: Pre-Pick Select [1: Yes] to prioritize the processing speed and [2: No] for otherwise.This settings can also be configured from the scanner driver or the Software Operation Panel. Note that priority is given to the scanner driver setting.		1: Yes2: No	1: Yes

*1: When you select an item in the screen, the parameter currently selected is highlighted.
*2: "*" is displayed for the factory default setting in the screen.
*3: Although there is no factory default setting, the settings are configured as follows when you turn on the power: [2: Multiple sheets] for [No. of sheets scanned], [1:(L)ABCDEFGHIJKLMNOPQRSTUVWXYZ[¥]^_00000000] for [Print Pattern], and [1: Yes] for [Test Print]. The settings do not change even when you initialize the operator panel because there is no factory default setting.
*4: Although there is no factory default setting, it is set to [2: No] when you turn on the power. The setting does not change even when you initialize the operator panel because there is no factory default setting.

4.3 Function Selection

This section explains about the Function Selection.

When you press the [] or [] button in the [Ready] screen, [Function Selection] is displayed.

By using Function Selection, you can configure the application you want to launch when you press the [Scan/Enter] button in the [Ready] screen.

The configured applications are applied to the application numbers (F00 to F09/SOP) that are displayed in the indicator.

How to Use Function Selection

1 Press the [Power] button on the operator panel.

The [Ready] screen is displayed on the LCD. The indicator displays [F00] when the power has just been turned on.

2 Press the [] or [] button.

→ [Function Selection] is displayed on the LCD.

3 Press the [] or [] button and select a parameter, then press the [Scan/Enter] button to confirm.

For more details about the setting parameters, refer to "Item Configurable in Function Selection" (page 84).

The setup is completed when the LCD displays the [Ready] screen. The configured parameter is shown by the indicator. In this example, the indicator displays "F02" because "No.02" is selected.

HINT

• When "No.00" to "No.09" are selected, the indicator displays "F00" to "F09".
• When "SOP" is selected, "SOP" is displayed on the indicator. SOP indicates the Software Operation Panel.

Item Configurable in Function Selection

Item Description Setting Factory			Default
Function Selection	Configure the application you want to launch when you press the [Scan/Enter] button in the [Ready] screen.It displays the scanner button events configured in the computer ([Scan Button]/[Send to 1] to [Send to 9]).For "No.00", the event for [Scan Button] is displayed.For [No.01] to [No.09], the events for [Send to 1] to [Send to 9] are displayed.For information on how to configure scanner button events, refer to "Using a Button on the Scanner to Start Scanning" (page 100).	No.00 to No.09/SOP(SOP indicates the Software Operation Panel)	(*1)

*1: Although there is no factory default setting, it is set to [No.00] when you turn on the power. The setting does not change even when you initialize the operator panel because there is no factory default setting.

Chapter 5 Various Ways to Scan

This chapter explains how to configure scanner settings and scan different types of documents with the image scanning application.

5.1 Summary 86
5.2 Scanning Documents of Different Types and Sizes....87
5.3 Advanced Scanning....99
5.4 Customizing the Scanner Settings ....100

5.1 Summary

The following lists the main ways of scanning documents.

Scanning documents of different types and sizes

● "Documents with Different Widths" (page 87)
● "Documents Larger than A4/Letter Size" (page 89)
- "Scanning Photographs and Clippings" (page 91)
● "Long Page Scanning" (page 93)
- "Scanning a Book (fi-7260/fi-7280)" (page 95)
- "Scanning a Large Document on the Flatbed (fi-7260/fi-7280)" (page 97)

Advanced scanning

- "Feeding Documents Manually in the ADF" (page 99)

Customizing the scanner settings

• "Using a Button on the Scanner to Start Scanning" (page 100)
• "Ignoring Multifeed for a Set Pattern" (page 103)
  ● "Disabling Paper Protection for a Single Scan After Paper Protection Is Set Off" (page 106)

For information on other ways of scanning, refer to the scanner driver's Help.

5.2 Scanning Documents of Different Types and Sizes

Documents with Different Widths

ATTENTION

When you scan a mixed batch with different widths, some of the smaller documents may be skewed or not fed into the ADF. In that case, separate the documents by their widths, and scan them in different batches.

HINT

For more details about scanning a mixed batch of documents, refer to "Conditions for Mixed Batch Scanning" (page 51).

1 Align the top of the documents.

2 Place the documents at the center of the ADF paper chute (feeder), and adjust the side guides to the widest document in the batch.

For details, refer to "Chapter 2 How to Load Documents" (page 41).

ATTENTION

Make sure that all documents are placed underneath the pick roller. Otherwise, some documents may be skewed or not fed into the ADF.

Pick roller's width ABC Good

Pick roller's width ABC Bad

Chapter 5 Various Ways to Scan

3 Adjust the stacker to fit the longest document.

For details, refer to "Documents with Different Sizes" (page 34).

4 In the scanner driver, configure the scan settings to avoid skewed images and to detect the paper size automatically.

For details, refer to the scanner driver's Help.

5 Scan the document with the image scanning application.

For details, refer to the image scanning application manual.

Documents Larger than A4/Letter Size

The Carrier Sheet can be used to scan documents larger than A4/Letter size, such as A3 and B4. By folding the document in half and scanning in duplex mode, the two sides are merged into a single image.

ATTENTION

Part of the image around where the document is folded may appear missing. Using the Carrier Sheet is not recommended for obtaining high quality image.

HINT

You can also scan a double-sided document that is smaller than A4 size, and output the image as a double-page spread image. In this case, place the double-sided document that is smaller than A4 size inside the Carrier Sheet in step 2.

1 Place the document inside the Carrier Sheet.

1 Fold the document in half so that the sides to be scanned are facing out.
Fold it tightly and smooth out any creases.
Otherwise, it may cause the document to skew during feeding.

2 Place the document inside the Carrier Sheet.

Align the fold line with the right edge of the Carrier Sheet so that the document fits in the upper right-hand corner.

Diagram showing a document with a magnified inset highlighting a small object, likely representing a technical or engineering schematic.

HINT

The front side of the Carrier Sheet has a thick vertical line on the right side of the black & white pattern.

2 Load the Carrier Sheet face-down in the ADF paper chute (feeder).

Secure the Carrier Sheet with the side guides to avoid skewing.

Diagram showing a printer press with a document and directional arrows indicating flow or compression, including a blue arrow pointing downward.

Chapter 5 Various Ways to Scan

3 In the scanner driver, configure the scan settings for using the Carrier Sheet.

For details, refer to the scanner driver's Help.

4 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

The images on the front and back are merged into a single image.

Abstract diagram with two vertical panels, one gray and one striped, no text or symbols present

ATTENTION

- There may be a line or a gap appearing between the front and back side images.

Also when you scan thick papers, images on both left and right may skew towards each other from the top.

These symptoms may be improved when you perform the following:

- Fold the document tightly

- Align the edges of the document neatly with the edges of the Carrier Sheet

- Turn over the Carrier Sheet to the other (reverse) side

- When [Automatic detection] is specified for [Paper Size], the closest standard size (A3, B4 or Double Letter) is selected from the same drop-down list. Note that the size of the image may become smaller than the original document depending on the document scanned.

Example: When you scan an A3 size document whose content is printed to fit A4 size in the center

→The image is output in B4 size.

To output the scanned image in the actual size of the document, specify the document size for [Paper size].

- Part of the image around where the document is folded may appear missing. In that case, set the document so its edge is about 1 mm inside from the edge of the Carrier Sheet.

- When [Black & White] is specified for [Image Mode], the edges around the image may appear in black from the shadow of the document.

Scanning Photographs and Clippings

Using the Carrier Sheet allows you to scan documents that can be damaged quite easily such as photographs, or documents that are difficult to load directly such as newspaper clippings.

1 Place the document inside the Carrier Sheet. Place it against the top center of the Carrier Sheet.

Diagram illustrating a tree planting process with labeled arrows and dashed lines indicating paths or boundaries.

2 Load the Carrier Sheet face-down in the ADF paper chute (feeder), as shown below. Secure the Carrier Sheet with the side guides to avoid skewing.

3-pin

3 In the scanner driver, configure the scan settings for using the Carrier Sheet. For details, refer to the scanner driver's Help.

4 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

ATTENTION

• The image is output at the center of the page in the size specified in [Paper Size].
• When [Automatic detection] is specified for [Paper Size], the closest standard size is selected from the same drop-down list. Note that the size of the image may become smaller than the original document depending on the document scanned, or part of the image may appear missing.
  Example: When an A5 size image is printed in the center of an A4 size document
  →The image is output in A5 size.
  To output the scanned image in the actual size of the document, specify the document size for [Paper size].

HINT

In the following cases, place a blank (white) sheet of paper underneath the document when scanning.

• The scanned image is not output in the correct size when [Automatic detection] is selected in the [Paper size] drop-down list
  ● Shadows appear around the edges of the scanned image
• Black lines appear around the edges of a uniquely shaped cutting
  ● Colors outside the document appear on the scanned image

Blank sheet

Long Page Scanning

Documents with a length up to 5,588 mm (220 in.) can be scanned by long page scanning.

Depending on the resolution setting or the image scanning application, scannable document sizes may differ.

For details, refer to the manual of the image scanning application.

1 Load the documents in the ADF paper chute (feeder). For details, refer to "Chapter 2 How to Load Documents" (page 41).

ATTENTION

• Long page documents should be loaded one sheet at a time in the ADF paper chute (feeder).
• When you scan long pages, take note of the following.

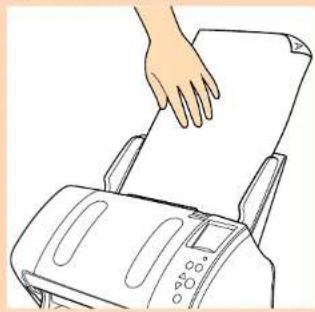

• Loading Hold the document with your hand so it does not fall out of the ADF paper chute (feeder).

Illustration of a hand pressing down on a paper sheet into a toaster (no text or symbols visible)

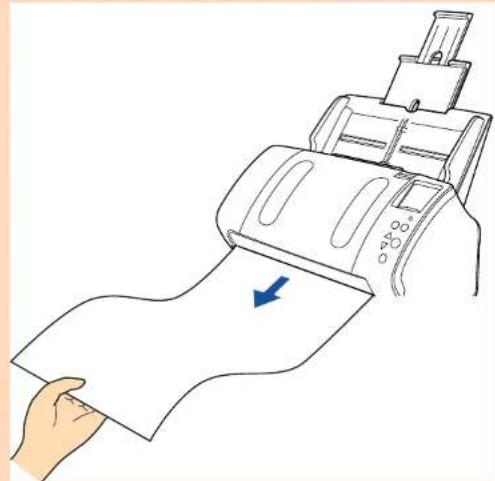

- R e m o v i n g Secure enough space around the stacker to prevent the ejected sheet from falling off the stacker.

Illustration of a hand pressing down on a sheet of paper with a blue arrow indicating motion (no text or symbols)

HINT

To scan documents longer than A4/Letter size, perform the following:

• Pull out the chute extensions all the way. For details, refer to "1.6 Setting Up the ADF Paper Chute (Feeder)" (page 29).
• Bring down the stacker, slide out stacker extension 1 and stacker extension 2 towards you, and lift up the stopper according to the length of the document. For details, refer to "1.7 Setting Up the Stacker" (page 30).

Chapter 5 Various Ways to Scan

2 In the scanner driver, configure the scan settings to scan the paper size of the long page. For details, refer to the scanner driver's Help.
3 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

ATTENTION

Depending on the application or scan settings (e.g. paper size), there may be insufficient memory to perform scanning.

Chapter 5 Various Ways to Scan

Scanning a Book (fi-7260/fi-7280)

1 Open the document cover.

For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).

2 Remove the document cover by pulling it out in the direction of the arrow.

Illustration of a hand using a blue tool to press or spread a printed document on a digital scanner (no text or symbols visible)

3 Load the document on the document bed.

Place the document face-down to align its top left-hand corner with the reference point.

Reference point

4 In the scanner driver, configure the scan settings for using the flatbed.

For details, refer to the scanner driver's Help.

Chapter 5 Various Ways to Scan

5 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

Do not look directly into the light source.

ATTENTION

Do not move the document during scanning.

6 Attach the document cover.
7 Close the document cover.

For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).

Chapter 5 Various Ways to Scan

Scanning a Large Document on the Flatbed (fi-7260/fi-7280)

1 Open the document cover.

For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).

2 Remove the document cover by pulling it out in the direction of the arrow.

Illustration of a hand using a blue tool to press or spread a printed document on a digital scanner (no text or symbols visible)

3 Load the document on the document bed.

Place the document face-down to align its top left-hand corner with the reference point.

Reference point

4 In the scanner driver, configure the scan settings for using the flatbed.

For details, refer to the scanner driver's Help.

Chapter 5 Various Ways to Scan

5 Scan the document with the image scanning application. For details, refer to the image scanning application manual.

Do not look directly into the light source.

ATTENTION

Do not move the document during scanning.

6 Attach the document cover.
7 Close the document cover.

For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).

5.3 Advanced Scanning

Feeding Documents Manually in the ADF

Documents can also be loaded manually one sheet at a time in the ADF.

Normally, in automatic feeding, the scanner stops scanning once all the documents loaded in the ADF paper chute (feeder) have been scanned. In manual feeding, the scanner waits for the next document to be loaded within a specified time. Scanning will continue as long as another document is loaded within the set time, and stops if no document is loaded. By using this method, you can perform scanning as you check the documents one by one.

Manual feeding is effective in the following cases.

● To scan as you check the contents of each sheet.
- To scan documents that cause multifeed or paper jam when loaded together in the same batch.
- To continue scanning documents such as magazine/newspaper clippings that cannot be loaded together.

1 Enable manual feeding.

To do this, perform one of the following:

• Enable manual feeding by selecting a value for [12: Manual Feed Timeout] in the [Settings Menu] screen of the operator panel. For details, refer to "4.2 Settings Menu" (page 66).
• Enable manual feeding in the Software Operation Panel. For details, refer to "Waiting Time in Manual Feed Mode [Manual-feed timeout]" (page 201).

2 Load a document in the ADF paper chute (feeder).

For details, refer to "Chapter 2 How to Load Documents" (page 41).

3 Scan the document with the image scanning application.

For details, refer to the image scanning application manual.

After the document is scanned, the rollers inside the ADF keep rotating, waiting for the next document to be loaded for the time specified in the operator panel or Software Operation Panel.

4 Load the next document in the ADF paper chute (feeder).

→ The document is scanned.

5 Repeat step 4 until all documents are scanned.

→ Scanning will stop if no document is loaded within the set time.

HINT

• Pressing the [Stop/Clear] button on the operator panel will stop the scan immediately.
• When [Manual-feed timeout] is enabled, the scanner will wait for the set time even if you start scanning with no document in the ADF paper chute (feeder).
• When you use manual feeding frequently, replacement cycle of the consumables may be shortened.

5.4 Customizing the Scanner Settings

Using a Button on the Scanner to Start Scanning

The [Scan/Enter] button on the operator panel can be configured to perform scanning by pressing the button.

To configure this setting, you first need to assign an application to be launched from the [Scan/Enter] button.

Computer setup

1 Confirm that the scanner is connected to the computer, then turn on the scanner.
For details about how to connect the scanner to the computer, refer to "Connecting the Cables" in Getting Started.
For details about how to turn on the scanner, refer to "1.3 Turning the Power ON/OFF" (page 25).

2 Select [Start] menu → [Control Panel] (for Windows Server 2012 or Windows 8, right-click the Start screen, and select [All apps] on the app bar → [Control Panel] under [Windows System]).

→ The [Control Panel] dialog box appears.

3 Click [View devices and printers].

→ The [Devices and Printers] dialog box appears.

4 Right-click on the scanner icon, and select [Scan properties] from the displayed menu.

→ The properties dialog box of the scanner appears.

5 Click the [Events] tab and select an event.

From the [Select an event] drop-down list, select an event from which you want to launch an application.

fi- Properties General Events Color Management Choose an event below, then select the action to take when that event occurs. Select an event: Scan Button Scan Button Send to 1 Send to 2 Send to 3 Send to 4 Actions Start this program Prompt for which Take no action

In this function, the following events can be specified:

• [Scan Button]
  Press the [Scan/Enter] button while the [Ready] screen displays [F00]
  ● [Send to 1] to [Send to 9]
  Press the [Scan/Enter] button while the [Ready] screen displays [F01] to [F09]

Chapter 5 Various Ways to Scan

6 Select an action and an application to be launched by the scanner button event. Click [Start this program] under [Actions], and select an application from the drop-down list on the right.

Properties General Events Color Management Choose an event below, then select the action to take when that event occurs. Select an event: Scan Button Actions Start this program: Prompt for which program Take no action OK Cancel

7 Click the [OK] button. The setup of the computer is completed. Proceed to configure the scanner settings.

HINT To configure multiple events, repeat steps 4 to 7.

Scanner setup

Check Menu Stop/Clear Scan/Enter Power [△]/[▽] Button [Scan/Enter] Button

1 Press the [△] or [▽] button in the [Ready] screen of the operator panel. ⇒ The [Function Selection] screen is displayed.
2 Press the [△] or [▽] button and select a parameter, then press the [Scan/Enter] button to confirm. Configure the application you want to launch when you press the [Scan/Enter] button in the [Ready] screen. Parameters in the [Function Selection] screen, application numbers in the indicator, and events configured on the computer correspond one another as follows.
1 Press the [△] or [▽] button in the [Ready] screen of the operator panel.
→ The [Function Selection] screen is displayed.
2 Press the [△] or [▽] button and select a parameter, then press the [Scan/Enter] button to confirm.
Configure the application you want to launch when you press the [Scan/Enter] button in the [Ready] screen. Parameters in the [Function Selection] screen, application numbers in the indicator, and events configured on the computer correspond one another as follows.

Chapter 5 Various Ways to Scan

Parameter In the [Function Selection] screen	Application number in the indicator	Event configured on the computer
No.00 F00 [Scan	Button]
No.01 to No.09 F01 to F09 [Send to 1] to [Send to 9]
SOP SOP N/A

As an example, the following indicator displays an application number "F02". This number is displayed by selecting [No.02] in the [Function Selection] screen and performs the [Send to 2] event configured on the computer.

3 Press the [Scan/Enter] button.

→ The specified application is launched.

Ignoring Multifeed for a Set Pattern

If you attempt to scan a document with an attachment such as sticky note, receipt, or photo while multifeed detection is enabled, the scanner may falsely recognize this as a multifeed error and stop the scan. To scan these types of documents, the "Intelligent Multifeed Function" is available.

There are two modes in this function. In one mode, you can suppress multifeeds forcibly by using the operator panel on the scanner. In the other mode, you can suppress multifeeds automatically by letting the scanner memorize the location and the length of the attachment.

Sticky note Receipt or photograph

Document

Intelligent Multifeed function

The following three modes are available:

Mode Description
Manual mode (Bypass by front panel button)	Checks for any paper attached every time a multifeed occurs, and continues scanning.
Auto mode 1 (Bypass by combination of length and position)	Used to scan documents with paper of the same size attached in the same location.
Auto mode 2 (Bypass by length)	Used to scan documents with paper of different sizes attached in different locations.

ATTENTION

Irregular images may be output when multifeeds occur.

Select the mode by performing one of the following:

• Select the mode in [10: IMFF Setting] on the [Settings Menu] screen of the operator panel.
  For details, refer to "4.2 Settings Menu" (page 66).
• Select the mode in the Software Operation Panel. For details, refer to "Specifying an Area Not to Detect Multifeed [Intelligent Multifeed Function]" (page 200).

Chapter 5 Various Ways to Scan

Preparation before using this function

Before using this function, configure [Check Overlapping (Ultrasonic)] or [Check Overlapping and length] for multifeed detection method by performing one of following:

• Configure the setting in the scanner driver. For details, refer to the scanner driver's Help.
• Configure the setting in the Software Operation Panel. For details, refer to "Specifying a Multifeed Detection Method [Multifeed]" (page 195).

Operational procedure

LCD Check Menu Stop/Clear [Menu] button Scan/Enter [Scan/Enter] button Power

1 After a multifeed error occurs, either press the [Scan/Enter] button to eject the document from the paper path or open the ADF to remove the document.

After the document is removed, indication on the LCD of the operator panel changes as follows.

When a multifeed occurs When a document is ejected
Multifeed detected (Overlap)Press the Scan button to eject the document.After ejecting the document, multifeed detection for the next document can be enabled/disabled from the Menu button.	Specify whether to detect multifeed for the next document.----Detect: Scan (Switch:Menu)
Multifeed detected (Overlap)Press the Scan button to eject the document.Press the Menu button to memorize the multifeed pattern.	Specify whether to memorize the pattern.----Do not remember: Scan (Switch:Menu)
Multifeed detected (Overlap)Press the Scan button to eject the document.	[Ready] screen
Multifeed detected (Length)Press the Scan button to eject the document.

CAUTION

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

Chapter 5 Various Ways to Scan

2 If you open the ADF to remove the document, close it. For details, refer to "1.4 Opening/Closing the ADF" (page 27).

Be careful not to have your fingers caught when closing the ADF.

ATTENTION

Confirm that the ADF is closed properly. Otherwise, the document may not be fed into the ADF.

3 Load the documents back in the ADF paper chute (feeder).

If a multifeed by difference in length is detected, either press the [Scan/Enter] button or perform a scan from the computer (do not press the [Menu] button).

If there is an attachment which is likely to be the cause of the multifeed error, then proceed to the next step.

4 Press the [Menu] button and confirm that the LCD displays [Do not detect] or [Remember], and then either press the [Scan/Enter] button or perform a scan from the computer.

From this point, note that the indication on the LCD switches between [Detect]↔[Do not detect] or [Remember]↔[Do not remember] every time you press the [Menu] button. When [Do not detect] or [Remember] is displayed, the scanner operates in each mode as follows:

• Manual mode (Bypass by front panel button) Scans the next sheet without multifeed detection, and from the second sheet, multifeeds are detected based on the setting configured in the scanner driver or the Software Operation Panel.
• Auto mode 1 (Bypass by combination of length and position) Memorizes the length and location of the paper attachment that was detected as multifeed, and continues scanning. When a paper attachment of a similar pattern is detected, multifeed detection is automatically suppressed.( ^ 1)( ^ 2)
  ● Auto mode 2 (Bypass by length)

Memorizes the length of the longest paper attachment that was detected as multifeed, and continues scanning. When a paper attachment of the same length or shorter is detected, multifeed detection is automatically suppressed. ^1 ^2

*1: 8 overlap patterns can be memorized in this mode. When it exceeds this limit, the first pattern that was memorized is erased from the memory.
*2: To erase the memorized overlap patterns and the longest overlap length, use [10: iMFF Setting] on the [Settings Menu] screen of the operator panel, or Software Operation Panel. After erasing is completed, the indication on the LCD changes

to Ar1-This allows you to erase multifeed

patterns and the longest overlap length that were not supposed to be memorized. Be careful with this operation because all memorized patterns will be erased.

Disabling Paper Protection for a Single Scan After Paper Protection Is Set Off

If you attempt to scan a wrinkled document while paper protection is on, the scanner may detect it as a paper jam, which causes paper protection to be set off and forces a scan to be stopped even though paper is fed normally. In this case, you can disable paper protection on the operator panel for a single scan after paper protection is set off.

Operational procedure

LCD Check Menu Stop/Clear [Menu] button Scan/Enter [Scan/Enter] button Power

1 After paper protection is set off, open the ADF and remove the document.

After the document is removed, indication on the LCD of the operator panel changes as follows.

When paper protection is set off W	When a document is ejected
Paper ProtectionRemove and check the document, and then try again carefully.	Disable paper protection.----Enable:Scan(Switch:Menu)

CAUTION

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

2 If you open the ADF to remove the document, close it. For details, refer to "1.4 Opening/Closing the ADF" (page 27).

CAUTION

Be careful not to have your fingers caught when closing the ADF.

ATTENTION Confirm that the ADF is closed properly. Otherwise, the document may not be fed into the ADF.

3 Load the documents back in the ADF paper chute (feeder).

Chapter 5 Various Ways to Scan

4 Press the [Menu] button and confirm that the LCD displays [Disable], and then either press the [Scan/Enter] button or perform a scan from the computer. From this point, note that the indication on the LCD switches between [Enable]↔[Disable] every time you press the [Menu] button. When [Disable] is displayed, the next document is scanned with paper protection disabled. After that, the subsequent documents are scanned according to the paper protection setting of either scanner driver, Software Operation Panel, or operator panel.

HINT

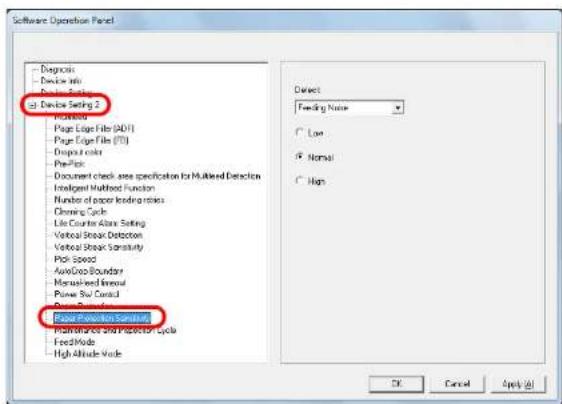

If paper protection is set off frequently, refer to "Paper protection is set off frequently." (page 150).

Chapter 6 Daily Care

This chapter describes how to clean the scanner.

Do not use aerosol spray or spray that contains alcohol. Paper dust blown up by strong air from the spray may enter inside the scanner which may cause the scanner to fail or malfunction. Also note that sparks generated by static electricity may cause a fire.

The glasses inside the ADF become very hot when the scanner is being used. Before you start cleaning the inside, make sure to turn off the power, unplug the power cable and wait at least 15 minutes for the ADF glass to cool down.

6.1 Cleaning Materials and Locations that Require Cleaning....109
6.2 Cleaning the Outside....111
6.3 Cleaning the Inside....112
6.4 Cleaning the Carrier Sheet....118

6.1 Cleaning Materials and Locations that Require Cleaning

Cleaning Materials

Name Part No.	Notes
Cleaner F1 PA03950-	0352	100 mlMoisten a cloth or Cleaning Paper with this liquid to wipe the scanner clean.It may take a long time to dry if an excessive amount is used. Use it in small quantity. Wipe off the cleaner completely to leave no residue on the cleaned parts.
Cleaning Paper CA99501-	0012	10 sheetsUse this non-woven sheet with Cleaner F1.
Cleaning Wipe PA03950-	0419	24 packetsPre-moistened with Cleaner F1.It can be used instead of moistening a cloth with Cleaner F1.
Cotton swab Commercially available
Dry cloth

ATTENTION

In order to use the cleaning materials safely and correctly, read the precautions on each product thoroughly.

For more information about the cleaning materials, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Location and Frequency

Location Frequency
ADF Brake roller	Every 5,000 sheets
	Pick roller
	Plastic idler roller
	Rubber idler roller
	Glass
	Ultrasonic sensor
	Document sensor
	Feed roller
	Eject roller
Flatbed (fi-7260/fi-7280)	Document pad
	Document bed
	Plastic frame

ATTENTION

Cleaning cycles may vary depending on the condition of the documents. Also, cleaning must be performed more frequently when the following types of documents are scanned:

● Smooth-faced documents such as coated paper
- Documents with printed text/graphics that almost cover the entire surface
● Chemically-treated documents such as carbonless paper
● Documents containing a large amount of calcium carbonate
- Documents written in lead pencil
● Documents on which the toner is not sufficiently fused

6.2 Cleaning the Outside

The outside of the scanner, including the ADF paper chute (feeder) and the stacker, should be cleaned with either a piece of dry cloth, a cloth moistened with Cleaner F1/mild detergent, or a sheet of Cleaning Wipe.

ATTENTION

• To avoid deformation and discoloration, never use paint thinner or any other organic solvents.
• Be careful not to let any moisture or water inside the scanner during cleaning.
• It may take a long time to dry if an excessive amount of Cleaner F1/mild detergent is used. Use it in small quantity. Wipe off the cleaner completely to leave no residue on the cleaned parts.

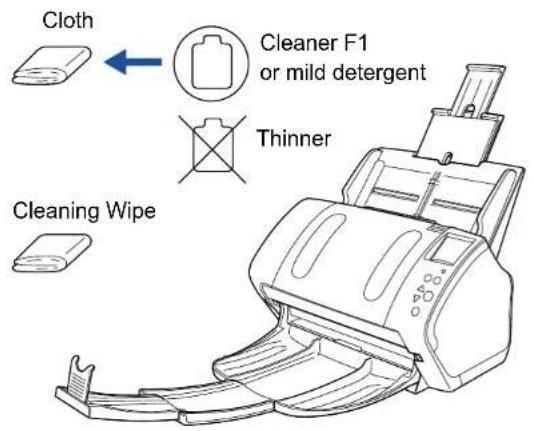

fi-7160/fi-7180

Cloth Cleaner F1 or mild detergent Thinner Cleaning Wipe

fi-7260/fi-7280

Cloth Cleaner F1 or mild detergent Thinner Cleaning Wipe

6.3 Cleaning the Inside

Cleaning the ADF (with Cleaning Paper)

The ADF can be cleaned with a sheet of Cleaning Paper moistened with Cleaner F1.

As the scanner continues to feed the documents, paper dust will accumulate inside the ADF and it may cause scanning errors.

Cleaning should be performed approximately every 5,000 sheets scanned. Note that this guideline varies depending on the types of documents you scan. For instance, it may be necessary to clean the scanner more frequently when you scan documents on which the toner is not sufficiently fused.

ATTENTION

- Do not use water or mild detergent to clean the ADF.

- It may take a long time to dry if an excessive amount of Cleaner F1 is used. Use it in small quantity.

1 Turn on the scanner.

For details, refer to "1.3 Turning the Power ON/OFF" (page 25).

→ The [Ready] screen is displayed on the LCD.

2 Press the [Menu] button.

→ The [Settings Menu] screen is displayed on the LCD.

3 Press the [△] or [▽] button and select [2: Cleaning], then press the [Scan/Enter] button to confirm.

→ The [Cleaning] screen is displayed on the LCD.

4 Select [1: Cleaning Sheet] by the [] or [] button, and press the [Scan/Enter] button to confirm.

A message is displayed on the LCD.

ATTENTION

Do not perform scanning from the scanner driver during cleaning.

5 Spray the Cleaning Paper with Cleaner F1.

6 Pull out the chute extensions according to the length of the Cleaning Paper.

For details, refer to "1.6 Setting Up the ADF Paper Chute (Feeder)" (page 29).

7 Bring down the stacker, slide out stacker extension 1 and stacker extension 2 towards you, and lift up the stopper according to the length of the document.

For details, refer to "1.7 Setting Up the Stacker" (page 30).

8 Load the Cleaning Paper in the ADF paper chute (feeder).

Illustration of a printer with a blue arrow pointing downward on the cover (no text or symbols)

Chapter 6 Daily Care

9 Adjust the side guides to the width of the Cleaning Paper. Do not leave space between the side guides and the Cleaning Paper. Otherwise, the Cleaning Paper may be fed skewed.

Side guides

10 Press the [Scan/Enter] button.

→ The Cleaning Paper is fed and ejected onto the stacker.

11 Reset the cleaning counter.

Reset the counter by performing one of the following actions:

• Reset the counter in [4: Consumable counters] on the [Settings Menu] screen of the operator panel.
  For details, refer to "4.2 Settings Menu" (page 66).

- Reset the counter in the Software Operation Panel. For details, refer to "Resetting the sheet counters" (page 179).

Cleaning the ADF (with cloth)

The ADF can be cleaned with a piece of cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.

As the scanner continues to feed the documents, paper dust will accumulate inside the ADF and it may cause scanning errors.

Cleaning should be performed approximately every 5,000 sheets scanned. Note that this guideline varies depending on the types of documents you scan. For instance, it may be necessary to clean the scanner more frequently when you scan documents on which the toner is not sufficiently fused.

The glasses inside the ADF become very hot when the scanner is being used.

Before you start cleaning the inside, make sure to turn off the power, unplug the power cable and wait at least 15 minutes for the ADF glass to cool down.

ATTENTION

• Do not use water or mild detergent to clean the ADF.
• It may take a long time to dry if an excessive amount of Cleaner F1 is used. Use it in small quantity. Wipe off the cleaner completely to leave no residue on the cleaned parts.

1 Turn off the scanner and wait for at least 15 minutes. For details, refer to "1.3 Turning the Power ON/OFF" (page 25).

2 Open the ADF. For details, refer to "1.4 Opening/Closing the ADF" (page 27).

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

Chapter 6 Daily Care

3 Clean the following locations with a cloth moistened with Cleaner F1 or a sheet of Cleaning Wipe. Glass (× 2)

Ultrasonic sensor (× 2) Brake roller (× 2) Feed roller (× 2) Eject roller (× 2) Document sensor (× 8) Pick roller (× 2) Plastic idler roller (× 2) Rubber idler roller (× 2)

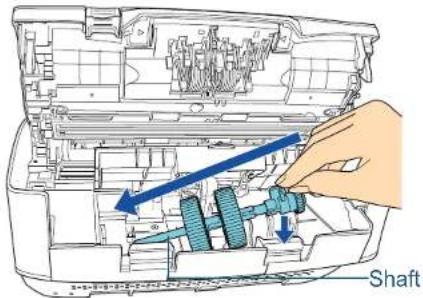

Brake roller (× 2)

Remove the roller from the scanner.

For details about removing the brake roller, refer to "7.2 Replacing the Brake Roller" (page 121).

Gently wipe off any dirt or dust along the grooves, taking care not to damage the roller surface.

Illustration of a hand holding a mechanical component with a blue arrow indicating rotation (no text or symbols)

Pick roller (× 2)

Gently wipe off any dirt or dust along the grooves as you rotate the roller manually, taking care not to damage the roller surface. Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

Plastic idler roller (× 2)

Gently wipe off any dirt or dust on the surface of the rollers. Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

Rubber idler roller (× 2)

Gently wipe off any dirt or dust on the surface of the rollers. Make sure that it is wiped properly because black residue on the roller will affect the feeding performance. When wiping, be careful not to damage the sponge that is attached to the middle of the rubber idler roller.

Glass (× 2)

Gently wipe the dirt and dust off the surface of the glass sections.

ATTENTION

Vertical streaks may appear on the scanned image when the glass is dirty.

Chapter 6 Daily Care

Ultrasonic sensor (× 2)/Document sensor (× 8)

Gently wipe the dirt and dust off the surface of the ultrasonic/document sensors.

HINT
If it is difficult to clean, use a cotton swab.

Ultrasonic sensor Document sensor

Feed roller (× 2)/Eject roller (× 2)

The power must be turned on to rotate the feed/eject rollers.

1 Turn on the scanner.
For details, refer to "1.3 Turning the Power ON/OFF" (page 25).
→ The [Ready] screen is displayed on the LCD.

2 Press the [Menu] button.

→ The [Settings Menu] screen is displayed on the LCD.

3 Press the [ △] or [▽] button and select [2: Cleaning], then press the [Scan/Enter] button to confirm.

→ The [Cleaning] screen is displayed on the LCD.

4 Press the [△] or [▽] button and select [2: Roller Wipe], then press the [Scan/Enter] button to confirm.

A message is displayed on the LCD.

ATTENTION

Do not perform scanning from the scanner driver during cleaning.

5 Open the ADF.

For details, refer to "1.4 Opening/Closing the ADF" (page 27).

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

Chapter 6 Daily Care

6 When you press the [Scan/Enter] button, the feed/eject rollers rotate a certain amount.

Check Menu Stop/Clear Scan/Enter [Scan/Enter] button Power

When you press the [Scan/Enter] button, the feed/eject rollers rotate at the same time. Be careful not to touch the rollers with your hand while they are rotating.

7 Put a piece of cloth moistened with Cleaner F1 or a sheet of Cleaning Wipe against the roller surface, and wipe horizontally. Wipe off any dirt or dust on the surface by pressing the [Scan/Enter] button to rotate the rollers.

Make sure that it is wiped properly because black residue on the roller will affect the feeding performance.

As a guideline, pressing the [Scan/Enter] button seven times will rotate the feed/eject rollers one revolution.

4 Close the ADF.

For details, refer to "1.4 Opening/Closing the ADF" (page 27).

Be careful not to have your fingers caught when closing the ADF.

ATTENTION

Confirm that the ADF is closed properly. Otherwise, the document may not be fed into the ADF.

5 Reset the cleaning counter.

Reset the counter by performing one of the following actions:

• Reset the counter in [4: Consumable counters] on the [Settings Menu] screen of the operator panel. For details, refer to "4.2 Settings Menu" (page 66).
• Reset the counter in the Software Operation Panel. For details, refer to "Resetting the sheet counters" (page 179).

Chapter 6 Daily Care

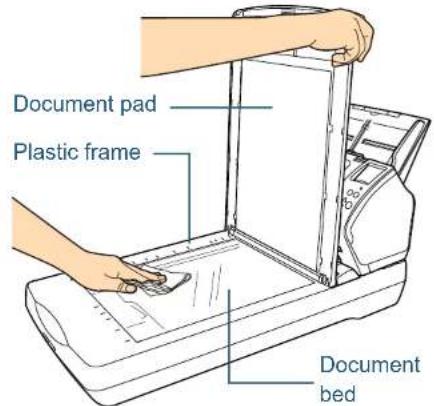

Cleaning the Flatbed (fi-7260/fi-7280)

The flatbed should be cleaned with a piece of cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.

1 Open the document cover.

For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).

2 Clean the following locations with a cloth moistened with Cleaner F1 or a sheet of Cleaning Wipe.

Document pad Plastic frame Document bed

ATTENTION

Be careful not to let the cleaner in between the document bed and the plastic frame.

3 Wait for the cleaned parts to dry.
4 Close the document cover.

For details, refer to "1.5 Opening/Closing the Document Cover (fi-7260/fi-7280)" (page 28).

6.4 Cleaning the Carrier Sheet

The Carrier Sheet should be cleaned with either a piece of dry cloth, a cloth moistened with Cleaner F1, or a sheet of Cleaning Wipe.

Gently wipe the dirt and dust off the surface and the inside of the Carrier Sheet.

As you keep using the Carrier Sheet, dirt and dust will accumulate on the surface and the inside.

Clean it regularly because it may result in scanning errors.

ATTENTION

● Make sure that the Carrier Sheet is not creased.
- To avoid deformation and discoloration, never use paint thinner or any other organic solvents.
- Do not use force to rub against the Carrier Sheet because it may be damaged or deformed.
- After cleaning the inside, do not close the Carrier Sheet until it is completely dry.
- The Carrier Sheet should be replaced approximately every 500 scans.
For information on purchasing the Carrier Sheet, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Chapter 7 Replacing the Consumables

This chapter describes how to replace the consumables for the scanner.

The glasses inside the ADF become very hot when the scanner is being used. Before you replace the consumables, make sure to turn off the power, unplug the power cable and wait at least 15 minutes for the ADF glass to cool down.

7.1 Consumables and Replacement Cycles....120
7.2 Replacing the Brake Roller 121
7.3 Replacing the Pick Roller 123

7.1 Consumables and Replacement Cycles

The following table shows the consumables used for the scanner.

Name Part No.	Suggested replacement cycle
BRAKE ROLLER PA03670-0001		200,000 sheets or one year
PICK ROLLER PA03670-0002		200,000 sheets or one year

Consumables need to be replaced periodically. It is recommended that you keep a stock of new consumables and replace them before it reaches the end of the consumable life.

The scanner records the number of sheets scanned after replacing the consumables (brake roller/pick roller), which allows you to check the status on each consumable.

For details, refer to "9.4 Settings Related to Sheet Counters" (page 178).

Note that the suggested replacement cycles are guidelines for using A4 (80 g/m ^2 [20 lb]) wood-free or wood-containing paper, as these cycles vary depending on the type of documents scanned and how often the scanner is used and cleaned.

Only use the specified consumables.

To purchase the consumables, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

7.2 Replacing the Brake Roller

Replace the brake roller in following procedure.

1 Remove all documents from the ADF paper chute (feeder).
2 Open the ADF. For details, refer to "1.4 Opening/Closing the ADF" (page 27).

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

3 Remove the brake roller.

1 Hold both ends of the cover, and open it in the direction of the arrow.

Cover

2 Lift the right side of the roller first, then pull out the shaft from the slot on the left.

① ② Brake roller Shaft

4 Remove the brake roller from its shaft.

Brake roller Shaft

Chapter 7 Replacing the Consumables

5 Attach a new brake roller on the shaft. Insert the protrusion on the shaft into the slot.

Brake roller Slot Protrusion Shaft

6 Attach the shaft.
1 Insert the left end of the shaft into the hole in accordance with the hole shape, and then attach the right side of the shaft.

Shaft Brake roller

2 Close the cover.

ATTENTION

Confirm that the brake roller is installed properly. Otherwise, it may cause feeding errors such as paper jams.

7 Close the ADF.

For details, refer to "1.4 Opening/Closing the ADF" (page 27).

Be careful not to have your fingers caught when closing the ADF.

8 Reset the brake roller counter.

Reset the counter by performing one of the following actions:

• Reset the counter in [4: Consumable counters] on the [Settings Menu] screen of the operator panel. For details, refer to "4.2 Settings Menu" (page 66).
• Reset the counter in the Software Operation Panel. For details, refer to "Resetting the sheet counters" (page 179).

7.3 Replacing the Pick Roller

Replace the pick roller in following procedure.

1 Remove all documents from the ADF paper chute (feeder).
2 Remove the ADF paper chute (feeder). Hold both ends of the ADF paper chute (feeder), then lift it in the direction of arrow and pull it out in the direction of arrow.

ADF paper chute (freeder)

3 Open the ADF. For details, refer to "1.4 Opening/Closing the ADF" (page 27).

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

4 Remove the pick roller.

1 Open the sheet guide by lifting the tab.

Tab Sheet guide

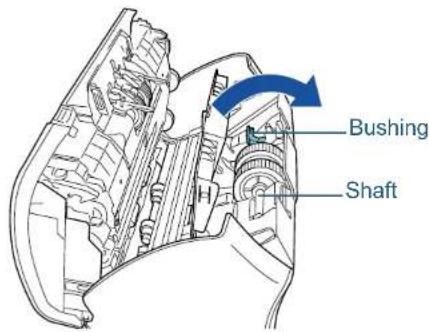

2 Rotate the bushing on the shaft.

Bushing Shaft

Chapter 7 Replacing the Consumables

3 Lift up the bushing in direction (about 5 mm), and slide the shaft in direction to pull out the leading end from the slot, then lift the shaft in direction to remove it.

Bushing Shaft

ATTENTION

Be careful not to touch the gear near the bushing on the shaft as it contains grease.

5 Remove the two pick rollers from the shaft one at a time. 1 Pull out the pick roller from the shaft as you lift the retaining clip.

Retaining clip Shaft Pick roller

2 Pull out the other pick roller from the shaft as you lift the retaining clip.

Retaining clip Shaft Pick roller

Chapter 7 Replacing the Consumables

6 Attach the two new pick rollers on the shaft on at a time. 1 Insert the retaining clip of the pick roller into the slot.

Pick roller Retaining clip Shaft Slot

2 Insert the retaining clip of the other pick roller into the slot.

Pick roller Retaining clip Shaft Slot

ATTENTION

Confirm that the pick roller is installed properly. Otherwise, it may cause feeding errors such as paper jams. Make sure to insert the pick roller until it locks in place.

7 Attach the shaft.

1 Insert the left end of the shaft into the slot, and lower the other end gradually.

Shaft

2 Rotate the bushing to lock the shaft.

Bushing Shaft

Chapter 7 Replacing the Consumables

3 Close the sheet guide. Make sure that both ends of the sheet guide are locked firmly.

ATTENTION

Confirm that the pick roller is installed properly. Otherwise, it may cause feeding errors such as paper jams.

8 Close the ADF.

For details, refer to "1.4 Opening/Closing the ADF" (page 27).

Be careful not to have your fingers caught when closing the ADF.

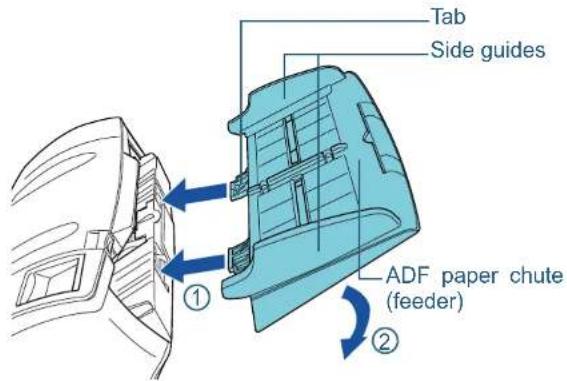

9 Attach the ADF paper chute (feeder).

Insert the tabs into the slots on the back of the scanner in the direction of arrow and tilt the ADF paper chute (feeder) downwards in the direction of arrow until it locks in place.

Tab Side guides ADF paper chute (freeder) ① ②

ATTENTION

Do not leave any space between the ADF paper chute (feeder) and the scanner.

10 Reset the pick roller counter.

Reset the counter by performing one of the following actions:

• Reset the counter in [4: Consumable counters] on the [Settings Menu] screen of the operator panel. For details, refer to "4.2 Settings Menu" (page 66).
• Reset the counter in the Software Operation Panel. For details, refer to "Resetting the sheet counters" (page 179).

Chapter 8 Troubleshooting

This chapter explains about the countermeasures against paper jams and other troubles, items to check before contacting your scanner service provider, and how to read the product labels on the scanner.

ATTENTION

For details about other errors/troubles that are not covered in this chapter, refer to the scanner driver's Help or the Error Recovery Guide.

8.1 Paper Jam 128
8.2 Error Indications on Operator Panel....130
8.3 Troubleshooting....137
8.4 Before You Contact the Scanner Service Provider....159
8.5 Checking the Product Labels....161

8.1 Paper Jam

When your document is jammed inside the scanner, remove the document in the following procedure.

• Do not use force to pull out the jammed document, and make sure to open the ADF first.
• Be careful not to touch any sharp parts upon removing jammed documents.
• Be careful not to get your accessories (e.g. ties, necklaces) or hair caught inside the scanner.
  ● The glass surface may become extremely hot during operation.

1 Remove all documents from the ADF paper chute (feeder).
2 Open the ADF. For details, refer to "1.4 Opening/Closing the ADF" (page 27).

When opening, the ADF might close accidentally. Be careful not to have your fingers caught when the ADF closes.

3 Remove the jammed document.

Illustration of a hand pressing down on a blue sheet with an arrow indicating rotation (no text or symbols)

ATTENTION

• Make sure to check the documents and the paper path thoroughly. Remove any metal objects such as staples and paper clips to prevent paper jams.
• Be careful not to damage the glass surface and the guides when removing documents with metal objects such as staples or paper clips.

4 Close the ADF.

For details, refer to "1.4 Opening/Closing the ADF" (page 27).

Be careful not to have your fingers caught when closing the ADF.

Chapter 8 Troubleshooting

ATTENTION

• Confirm that the ADF is closed properly. Otherwise, the document may not be fed into the ADF.
• Occasionally when scanning is complete or canceled, documents may remain in the ADF without any error message displayed. In that case, remove the documents by following the above steps 1 to 4.

8.2 Error Indications on Operator Panel

When an error occurs, the LED indicator lights in orange. For temporary errors, the LCD displays an error code beginning with the letter "J" or "U. For device errors, an error code beginning with the letter "E", "F", "C", "H", "A" or "L" is displayed. Temporary errors can be recovered by the operator, whereas device errors require a service engineer to perform recovery. You can clear the error display by pressing the [Stop/ Clear] button. Note that a paper jam message disappears after a certain period of time elapses if there are no documents ([Ready] status) in the scanner.

LCD Check LED indicator [Stop/Clear] button Menu Stop/Clear Scan/Enter Power

If the Error Recovery Guide is installed in the computer, the Error Recovery Guide window appears when the Windows operating system is started up. When an error or a malfunction occurs, the Error Recovery Guide window displays related information such as the name of the error and the error code (number).

Write down the information shown in the dialog box and click the [More Info] button to check for troubleshooting methods.

Error Recovery Guide The following information was transmitted by the scanner. fi- [038001, 31] Document jam Page count Error More Info...

HINT

The Error Recovery Guide is included in the Setup DVD-ROM. For details about installation, refer to "Installing the Software" in Getting Started.

Temporary Errors

The following are lists of temporary errors which can be recovered by operators.

Paper feeding errors

Error codes beginning with the letter "J" are displayed.

Error code	Error messages Resolution
J0:37 Paper ProtectionRemove and check the document, and then try again carefully.	1 Remove the jammed document. For details, refer to "8.1 Paper Jam" (page 128).2 Check if the document is suitable for scanning by ADF. For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).3 Press the [Menu] button on the operator panel, select whether to enable or disable the document protection function, and then press the [Scan/Enter] button or perform a scan from the computer.

Error code	Error messages Resolution
J0:51 P	Paper ProtectionRemove and check the document, and then try again carefully.	1 Remove the jammed document.For details, refer to "8.1 Paper Jam" (page 128).2 Make sure that there is no document that is folded and that the documents conform to the paper specifications (e.g. thin paper).For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).3 Press the [Menu] button on the operator panel, select whether to enable or disable the document protection function, and then press the [Scan/Enter] button or perform a scan from the computer.
J1:31 J1:5A	Paper jamRemove and check the document, and try again.	1 Remove the jammed document.For details, refer to "8.1 Paper Jam" (page 128).2 Check if the document is suitable for scanning by ADF.For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).3 Clean the rollers.For details, refer to "Chapter 6 Daily Care" (page 108).
J1:50 P	Pick errorRemove and check the document, and try again.

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 8 Troubleshooting

Error code	Error messages Resolution
J2:55	Multifeed detected (Overlap)Press the Scan button to eject the document. After ejecting the document, multifeed detection for the next document can be enabled/disabled from the Menu button.	1 Press the [Scan/Enter] button on the operator panel to eject the documents.2 Press the [Menu] button on the operator panel, select whether or not to detect multifeed, and then press the [Scan/Enter] button or perform a scan from the computer.
	Multifeed detected (Overlap)Press the Scan button to eject the document. Press the Menu button to memorize the multifeed pattern.	1 Press the [Scan/Enter] button on the operator panel to eject the documents.2 Press the [Menu] button on the operator panel, select whether or not to memorize the pattern, and then press the [Scan/Enter] button or perform a scan from the computer.
	Multifeed detected (Overlap)Press the Scan button to eject the document.	1 Press the [Scan/Enter] button on the operator panel to eject the documents.2 Press the [Scan/Enter] button on the operator panel or perform a scan from the computer.
J2:56	Multifeed detected (Length)Press the Scan button to eject the document.	1 Press the [Scan/Enter] button on the operator panel to eject the documents.2 Press the [Scan/Enter] button on the operator panel or perform a scan from the computer.

Error code	Error messages Resolution
J8:01	Sensor(s) dirtyClean the Pick Sensor.	Open the ADF and clean the eight document sensors.For details, refer to "Chapter 6 Daily Care" (page 108).
J8:04	Sensor(s) dirtyClean the READ-TOP Sensor.

■Transport lock, cover open, and print errors Error codes beginning with the letter "U" are displayed.

Error code	Error messages Resolution
U0:10 T	Transport lock errorUnlock the transport lock switch.(fi-7260/fi-7280)	Unlock the transport lock switch.For details, refer to "Installing the Scanner" in Getting Started.
U4:40 (*1)	ADF open Close the ADF and reload the documents.
U5:4A (*2)	Imprinter Cover Open(only when imprinter is installed)	Close the print section of the imprinter,and load the document again.
U6:B4 P	Print cartridge not installedCheck if the Print Cartridge is mounted correctly.(only when imprinter is installed)	This error is related to the imprinter.For details, refer to the fi-718PR Imprinter Operator's Guide.

Chapter 8 Troubleshooting

Error code	Error messages Resolution
U7:B9	Imprinting area error(only when imprinter is installed)	Adjust the imprinting start position and the imprinter strings to fit the imprinting area in the document.For details, refer to "fi-718PR Imprinter Operator's Guide".

*1: When you open the ADF while the scanner is in standby, only an error message will appear without an error code.

Also, note that buttons on the operator panel are disabled while the ADF is open.

*2: When you open the imprinter print section while the scanner is in standby, only an error message will appear without an error code. Also, note that buttons on the operator panel are disabled while the imprinter print section is open.

Device Errors

The following are lists of device errors which require troubleshooting by a service engineer.

■Internal and optical errors

Error codes beginning with the letter "E" are displayed.

Error code	Error messages Resolution
E0:87 FB	carrier errorUnlock the transport lock switch.(fi-7260/fi-7280)	Unlock the transport lock switch.For details, refer to "Installing the Scanner" in Getting Started.
E1:7E	Optical error (FB)If the problem persists after turning the power back on, please inform your service provider of the above error code.(fi-7260/fi-7280)	1 Confirm that the transport lock switch is not locked.For details, refer to "Installing the Scanner" in Getting Started.2 Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Chapter 8 Troubleshooting

Error code	Error messages Resolution
E2:74 C	Optical error(ADF Front)If the problem persists after turning the power back on, please inform your service provider of the above error code.	1 Clean the glass section.For details, refer to "Chapter 6 Daily Care" (page 108).2 Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
E3:75 C	Optical error(ADF Back)If the problem persists after turning the power back on, please inform your service provider of the above error code.
E6:D3 O	Operator Panel errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.	Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
E7:D2 E	EEPROM errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.

■Overrun error
Error codes beginning with the letter "F" are displayed.

Error code	Error messages Resolution
F4:C2	Background switching mechanism error (ADF Front)If the problem persists after turning the power back on, please inform your service provider of the above error code.	Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
F4:C3	Background switching mechanism error (ADF Back)If the problem persists after turning the power back on, please inform your service provider of the above error code.

Chip error

Error codes beginning with the letter "C" are displayed.

Error code	Error messages Resolution
C0:E5	Memory errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.	Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
C6:F9	USB errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.
C8:F2	Internal communication error of the scannerIf the problem persists after turning the power back on, please inform your service provider of the above error code.

Motor circuit error

Error codes beginning with the letter "H" are displayed.

Error code	Error messages Resolution
H0:83H2:81H8:88	Motor circuit errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.	Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
H6:B1	Imprinter system errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.
H7:84	Lamp circuit errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.

■Option error (when imprinter is installed)

Error codes beginning with the letter "A" are displayed.

Error code	Error messages Resolution
A0:B2	Imprinter error (RAM)If the problem persists after turning the power back on, please inform your service provider of the above error code.	1 Confirm that the EXT cable of the imprinter is connected properly to the EXT connector on the back of the scanner.For details about the EXT cable, refer to "Back" (page 18).For details about how to connect the EXT cable, refer to the fi-718PR Imprinter Operator's Guide.2 Confirm that the print cartridge is installed correctly.For details, refer to the fi-718PR Imprinter Operator's Guide.3 Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
A1:B3	Imprinter error (communication timeout)If the problem persists after turning the power back on, please inform your service provider of the above error code.
A2:B5	Imprinter error (print head)If the problem persists after turning the power back on, please inform your service provider of the above error code.
A3:B6	Imprinter error (EEPROM)If the problem persists after turning the power back on, please inform your service provider of the above error code.
A4:B8	Imprinter error (ROM)If the problem persists after turning the power back on, please inform your service provider of the above error code.

■Sensor error

Error codes beginning with the letter "L" are displayed.

Error code	Error messages Resolution
L0:11L2:13	Sensor errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.	1 Clear any paper dust around the document sensors.2 Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.
L6:1B	Sensor errorIf the problem persists after turning the power back on, please inform your service provider of the above error code.	1 Clear any paper dust around the ultrasonic sensors.2 Turn the scanner off then back on.If the problem persists, write down the displayed error code and contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

8.3 Troubleshooting

This section describes the resolutions for troubles that may occur while using the scanner. Please check the following items before you request a repair. If the problem persists, check each item in "8.4 Before You Contact the Scanner Service Provider" (page 159), and then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

The following are some examples of troubles that you may experience.

Symptoms

"Scanner cannot be powered ON." (page 138)

"The LCD and the [Power] button light switch OFF." (page 139)

"Scanning does not start." (page 140)

"Scanning takes a long time." (page 141)

"Image quality is poor when scanning pictures/photos in black & white." (page 142)

"Quality of scanned text or lines is unsatisfactory." (page 143)

"Images are distorted or not clear." (page 144)

"Vertical streaks appear on the scanned image." (page 145)

"An error (error code "U0:10", "U4:40" or "U5:4A") is already displayed in the LCD after power-on." (page 146)

"Multifeed error occurs frequently." (page 147)

"Situation in which the document is not fed into the ADF occurs frequently." (page 149)

Symptoms

"Paper protection is set off frequently." (page 150)

"Paper jams/pick errors occur frequently." (page 152)

"Scanned images turn out elongated." (page 153)

"A shadow appears at the top or the bottom of the scanned image." (page 154)

"There are black traces on the document." (page 155)

"The Carrier Sheet is not fed smoothly. / Paper jams occur." (page 156)

"Part of the image appears missing when using the Carrier Sheet." (page 158)

Chapter 8 Troubleshooting

Scanner cannot be powered ON.

The LCD and the [Power] button light switch OFF.

Has the scanner been left out of operation for a long time after being powered on?

Yes

The scanner has entered power saving mode or has been automatically turned off.

● If the scanner has entered power saving mode

The LCD turns off but the [Power] button light remains green.

Resume from power saving mode by one of the following methods:

- Load a document in the ADF paper chute (feeder)

- Press any button on the operator panel

Note that pressing the [Power] button for more than 2 seconds will turn the power off.

- Perform scanning from an application

- If the scanner has been automatically turned off

The LCD and the [Power] button light are off.

Turn on the scanner.

For details, refer to "1.3 Turning the Power ON/OFF" (page 25).

Does the LCD and the [Power] button light remain off even if you turn the scanner off and then on again?

No

The scanner is operating correctly.

If the problem persists, check the items in "8.4 Before You Contact the Scanner Service Provider" (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Chapter 8 Troubleshooting
Scanning does not start.

Scanning takes a long time.
Connect the USB cable to the USB3.0/2.0 port.]
    D -->|Yes| F["Are the rollers clean?"]
    D -->|No| G["When you start or log onto the computer, wait a while before starting a scan."]
    F -->|Yes| H["Clean the rollers.<br>For details, refer to &quot;Chapter 6 Daily Care&quot; (page 108)."]
    F -->|No| I["If the problem persists, check the items in &quot;8.4 Before You Contact the Scanner Service Provider&quot; (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider."]
    H --> J["Yes"]
    H --> K["No"]

Chapter 8 Troubleshooting

Image quality is poor when scanning pictures/photos in black & white.

*1: The scanned image may differ from the original image significantly if you simply "binarize" (output in black & white) a picture or a photo. If possible, use a scanner driver to configure grayscale or other scan settings that do not simply "binarize" (output in black & white), and then perform a scan.

Chapter 8 Troubleshooting

Quality of scanned text or lines is unsatisfactory.

*1: When scanning in grayscale or color, the scanned image may not become sharp and clear. If possible, use a scanner driver to configure the scan settings that simply "binarize" (output in black & white), and then perform a scan.

Chapter 8 Troubleshooting

Images are distorted or not clear.

ADF:

Are the glass and rollers inside the ADF clean?

Flatbed (fi-7260/fi-7280):

Is the document pad clean?

Is the ADF being pushed down during scanning? Is there a heavy object on top of the ADF?

Is a scan performed on a place that is unstable or vibrates?

Is the scanner placed on a flat, level surface? Are the rubber pads attached on the bottom of the scanner?

Are there any wrinkles or curls on the document?

No

Perform cleaning.

For details, refer to "Chapter 6 Daily Care" (page 108).

Yes

Yes

Do not push down the top the ADF, or place any heavy objects on the ADF during scanning.

Perform a scan on a place that is stable and does not vibrate.

No

Either place the scanner on a flat and level surface, or attach the rubber pads on the bottom of the scanner.

Yes

Smooth out the wrinkles or curls on the document.

If the problem persists, check the items in "8.4 Before You Contact the Scanner Service Provider" (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Chapter 8 Troubleshooting

Vertical streaks appear on the scanned image.

Chapter 8 Troubleshooting

An error (error code "U0:10", "U4:40" or "U5:4A") is already displayed in the LCD after power-on.

Chapter 8 Troubleshooting

Multifeed error occurs frequently.

Do the documents meet the requirements described in "Precautions" in "Conditions" (page 45)?

Are you using the Carrier Sheet?

If multifeed detection is enabled, is there any document in the batch that fulfills the conditions for an accurate detection?

Did you scan a plastic card or any other thick document?

Did you fan the documents before loading them?

Have the documents just been printed out from a copy machine or a laser printer?

Is the document stack thinner than 8 mm?

Are the consumables (*1) installed correctly?

No

Use documents that meet the requirements.

For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).

Yes

In the scanner driver, configure the scan settings for using the Carrier Sheet ("Documents Larger than A4/Letter Size" (page 89) or "Scanning Photographs and Clippings" (page 91)).

No

Fulfill the conditions for an accurate multifeed detection.

For details, refer to "Conditions for Multifeed Detection" (page 49). Also specify the multifeed detection area if necessary ("Specifying the Area to Detect Multifeed [Document check area specification for Multifeed Detection]" (page 197)).

Yes

To scan documents successfully, use the multifeed window display function of the scanner driver, use the Intelligent Multifeed function, or disable the multifeed detection.

No

Fan the documents.

Yes

Fan the documents a few times to remove static electricity.

No

Reduce the number of sheets.

No

Install the consumables (*1) correctly.

For details, refer to "Chapter 7 Replacing the Consumables" (page 119).

Chapter 8 Troubleshooting

*1: "Consumables" refers to the brake roller and the pick roller.

Chapter 8 Troubleshooting

Situation in which the document is not fed into the ADF occurs frequently.

Use documents that meet the requirements.

For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).

Fan the documents before loading them. Or reduce the amount of documents.

Install the consumables (*1) correctly.

For details, refer to "Chapter 7 Replacing the Consumables" (page 119).

Clean the consumables (*1).

For details, refer to "Chapter 6 Daily Care" (page 108).

Check the consumable counters and replace them if necessary.

For details, refer to "Chapter 7 Replacing the Consumables" (page 119).

If the problem persists, check the items in "8.4 Before You Contact the Scanner Service Provider" (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

*1: "Consumables" refers to the brake roller and the pick roller.

Chapter 8 Troubleshooting

Paper protection is set off frequently.

Do the documents meet the requirements described in "Precautions" in "Conditions" (page 45)?

Is there any foreign matter inside the ADF?

Are the consumables (*1) installed correctly?

Are the consumables (*1) clean?

Are the consumables (*1) worn out?

Is the high altitude mode enabled in the Software Operation Panel?

No

Yes

No

No

Yes

Yes

Use documents that meet the requirements.

For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).

Clean the ADF. If there is any foreign matter in the ADF, remove it. For details, refer to "Chapter 6 Daily Care" (page 108).

Install the consumables (*1) correctly.

For details, refer to "Chapter 7 Replacing the Consumables" (page 119).

Clean the consumables (*1).

For details, refer to "Chapter 6 Daily Care" (page 108).

Check the consumable counters and replace them if necessary.

For details, refer to "Chapter 7 Replacing the Consumables" (page 119).

Disable the high altitude mode in the Software Operation Panel when using the scanner in places lower than 2,000 m.

For details, refer to "Scanning at High Altitude [High Altitude Mode]" (page 194).

Chapter 8 Troubleshooting

No (continued)

Is the sensitivity level for paper protection set to high in the operator panel or the Software Operation Panel?

Yes

Set the sensitivity level for paper protection to low in either of the following ways:

- Select [13: Paper Protection] in the [Settings Menu] screen on the operator panel, and select [1: Low] for the sensitivity to detect either warped documents or paper jam noise.

For details, refer to "4.2 Settings Menu" (page 66).

- Select [Paper Protection Sensitivity] on the Software Operation Panel, and select [Low] for the sensitivity level to detect either warped documents or paper jam noise.

For details, refer to "Specifying the Sensitivity Level for Paper Protection [Paper Protection Sensitivity]" (page 192).

If the problem persists, check the items in "8.4 Before You Contact the Scanner Service Provider" (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

*1: "Consumables" refers to the brake roller and the pick roller.

Chapter 8 Troubleshooting

Paper jams/pick errors occur frequently.

*1: "Consumables" refers to the brake roller and the pick roller.

Chapter 8 Troubleshooting
Scanned images turn out elongated.

*1: "Consumables" refers to the brake roller and the pick roller.

Chapter 8 Troubleshooting

A shadow appears at the top or the bottom of the scanned image.

Have you adjusted the offset (position to start the scan)?

No

In [Device Setting] of the Software Operation Panel, adjust the offset in the sub-scanning direction.

For details, refer to "Adjusting the Position to Start the Scan [Offset/Vertical magnification Adjustment]" (page 183).

Did you use the Page Edge Filler function to fill out the shadow around the edge?

No

In the scanner driver or in [Device Setting 2] of the Software Operation Panel, use the Page Edge Filler function to fill out the shadow around the edge.

For details, refer to "Removing Shadows/Streaks that Appear around the Scanned Image [Page Edge Filler (ADF)]/[Page Edge Filler (FB)] (fi-7260/fi-7280)" (page 184).

If the problem persists, check the items in "8.4 Before You Contact the Scanner Service Provider" (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

Chapter 8 Troubleshooting

There are black traces on the document.

Chapter 8 Troubleshooting

The Carrier Sheet is not fed smoothly. / Paper jams occur.

Chapter 8 Troubleshooting

*1: "Consumables" refers to the brake roller and the pick roller.

Chapter 8 Troubleshooting

Part of the image appears missing when using the Carrier Sheet.

Did you place several small documents (e.g. photos, postcards) in the Carrier Sheet for scanning?

Yes

Place only one document at a time in the Carrier Sheet.

Does the fold line of the document hang off the Carrier Sheet?

Yes

Part of the image around where the document is folded may appear missing. Place the document so its fold line is set about 1 mm inside from the edge of the Carrier Sheet.

If the problem persists, check the items in "8.4 Before You Contact the Scanner Service Provider" (page 159) first, then contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

8.4 Before You Contact the Scanner Service Provider

Please check the following items before contacting your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

General

Item Findings
Scanner model name Example: fi-7280	For details, refer to "8.5 Checking the Product Labels" (page 161).
Serial No.	Example: XXXX000001For details, refer to "8.5 Checking the Product Labels" (page 161).
Date of manufacture	Example: 2013-07 (July 2013)For details, refer to "8.5 Checking the Product Labels" (page 161).
Date of purchase
Symptom
Frequency of trouble
Warranty
Options used	Example: fi-718PRFor details, refer to "A.4 Scanner Options" (page 214).

Error Status
■Computer connection issues

Item Findings
Operating system (Windows)
Error message
Interface	Example: USB interface
Interface controller

■Feeding issues

Item Findings
Paper type
Main purpose of use
Date of last cleaning
Date of consumable replacement
Operator panel status

Chapter 8 Troubleshooting

■Image quality issues

Item Findings
Scanner driver and version
Interface controller
Operating system (Windows)
Application	Example: PaperStream Capture
Scanning side(s)	Example: front, back, both
Resolution	Example: 600 dpi, 75 dpi
Image mode	Example: color, grayscale, black & white

Other

Item Findings
Can you send the output image and a photo that shows the paper condition by e-mail or fax?

8.5 Checking the Product Labels

This section explains about the product labels on the scanner.

Location

The location of the label is shown below.

Label

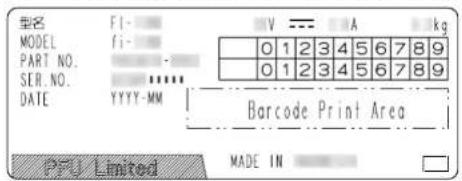

Label (example): Shows the scanner information.

型号 MODEL PART NO. SER.NO. DATE FI- fi- YYYY-MM V --- A kg 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 Barcode Print Area PFU Limited MADE IN

Chapter 9 Operational Settings

This chapter explains how to use the Software Operation Panel to configure the scanner settings.

9.1 Starting Up the Software Operation Panel....163
9.2 Password Setting....164
9.3 Configuration Items 170
9.4 Settings Related to Sheet Counters 178
9.5 Settings Related to Scanning 183
9.6 Settings Related to Multifeed Detection 195
9.7 Settings Related to Waiting Time ....201
9.8 Settings Related to Power ON/OFF 203
9.9 Settings Related to Scanner Maintenance 204

9.1 Starting Up the Software Operation Panel

The Software Operation Panel is installed together with the PaperStream IP (TWAIN) driver, the PaperStream IP (TWAIN x64) driver, or the PaperStream IP (ISIS) driver.

This application allows you to configure various settings such as the operation of the scanner and managing the consumables.

ATTENTION

• Do not use the operator panel while the Software Operation Panel is running.
• If you connect multiple scanners, the second scanner and so forth will not be recognized.

Connect only one scanner at a time.

1 Confirm that the scanner is connected to the computer, then turn on the scanner.
For details about how to connect the scanner to the computer, refer to "Connecting the Cables" in Getting Started.
For details about how to turn on the scanner, refer to "1.3 Turning the Power ON/OFF" (page 25).

2 Select [Start] menu → [All Programs] → [fi Series] → [Software Operation Panel] (for Windows Server 2012 or Windows 8, right-click the Start screen, and select [All apps] on the app bar → [Software Operation Panel] under [fi Series]).

→ The [Software Operation Panel] dialog box appears.

Software Operation Panel Diagnosis Device Info Device Setting Device Setting 2 SUPPORT Page 10x File (ADF) Page Edge File (RF) Original code Page Text Document which are generation for Multiscale Detection Infectious Multiscale Function Number of paper feed/minute Creating Cycle Line Course Paths Setting Voice Stream Detection Voice Stream Sensitivity Pick Speed AutoCAD Boundary Manual Free Channel Power Star Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Guide Field Module High-Mode Mode None Check Overlapping(Ultronic) Check Length Check Overlapping and Length Length: 10 mm OK Cancel Apply All

The Software Operation Panel icon is displayed in the menu that appears when you click in the notification area.

To have the Software Operation Panel icon always displayed in the notification area, drag the icon and drop it onto the notification area. The notification area is located at the far right of the taskbar.

Customize... 11:31 AM

Procedures from here will be explained under the assumption that the Software Operation Panel is always displayed in the notification area.

9.2 Password Setting

By setting a password, the Software Operation Panel can run in [View Only mode] which allows users to only view the scanner settings.

The scanner settings can be configured if no password is set. In order to prevent unnecessary changes to the settings, a password can be used to restrict user operations.

Setting a Password

Set a password in the following procedure.

1 Right-click the Software Operation Panel icon in the notification area, and select [Password Setting] from the menu.

Software Operation Panel(O)... About... Password Setting... View Only mode Exit

→ The [Password setting] dialog box appears.

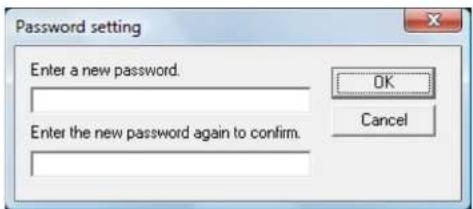

2 Enter a new password then again to confirm, and click the [OK] button.

Up to 32 characters can be used for the password.

Note that only alphanumeric characters (a to z, A to Z, 0 to 9) are allowed.

Password setting Enter a new password. OK Cancel Enter the new password again to confirm.

A confirmation message appears.

3 Click the [OK] button.

→ The password is set.

Chapter 9 Operational Settings

Setting [View Only mode]

Set the Software Operation Panel to [View Only mode] in the following procedure.

1 Set a password.

For details, refer to "Setting a Password" (page 164).

2 Right-click the Software Operation Panel icon in the notification area, and select [View Only mode] from the menu.

Software Operation Panel(O)... About... Password Setting... View Only mode Exit

→ The Software Operation Panel enters [View Only mode].

Software Operation Panel (View Only mode) Diagnose Device Info Device Setting Device Settings Preferences Value: Multicon None Page Edge Film (AIF) 1.0 (B) 5.0 L/min Page Edge Film (E) 1.0 (B) 5.0 L/min Exposure color Green Red/Pick Yds Document check area specification to... - Mode of selection Specific area Specific non-detection... 0 - Cm Infigerar Nutted Function Manual mode: Do not... Number of paper matching entries 3 lines Drawing Cycle 5000 Shows Lie Course Alert Setting Pick Paper 200000 Shows - Tools Paper 200000 Shows Vertical Street Detection Enable Vertical Street Security Enable Risk Speed Normal AutoGrid Boundary Optimize OK Cancel Apply All

HINT

In [View Only mode], a check mark appears next to [View Only mode] in the menu that is displayed by right-clicking the Software Operation Panel icon in the notification area.

Software Operation Panel(O)... About... Password Setting... ✓ View Only mode Exit

Chapter 9 Operational Settings

Clearing [View Only mode]

Clear [View Only mode] in the following procedure.

1 Right-click the Software Operation Panel icon in the notification area, and select [View Only mode] from the menu.

Software Operation Panel(O)... About... Password Setting... ✓ View Only mode Exit

→ The [Password setting] dialog box appears.

2 Enter the current password and click the [OK] button.

Password setting Enter your current password. OK Cancel

[View Only mode] is cleared, and the scanner settings can now be changed.

Software Operation Panel Diagnosis Device Info Device Setting Device Setting 2 Outline Page Edge File (ADF) Page Edge File (F8) Output Cuts Perfik Document check area specification for Multifood Detection Intelligent Multifood Function Number of paper feedignation Ceaving Cycle Life Course Alan Setting Vertical Slow Detection Vertical Slow Sensitivity Pick Spotted AutoCrip Boundary Manual Food Structure Power Star Control Paper Direction Paper Inclusion Sensitivity Maintenance and Inspection Guide Feed Mode High Altitude Mode None Check Overlapping(Uranomic) Check Length Check Overlapping and Length Length: 10 mm OK Cancel Apply All

HINT When you exit [View Only mode], the check mark next to [View Only mode] disappears from the menu that is displayed by right-clicking the Software Operation Panel icon in the notification area.

Software Operation Panel(O)... About... Password Setting... View Only mode Exit

Chapter 9 Operational Settings

Changing the Password

Change the password in the following procedure.

1 Right-click the Software Operation Panel icon in the notification area, and select [Password Setting] from the menu.

Software Operation Panel(O)... About... Password Setting... View Only mode Exit

→ The [Password setting] dialog box appears.

2 Enter the current password and click the [OK] button.

Password setting Enter your current password. OK Cancel

→ The [Password setting] dialog box appears.

3 Enter a new password then again to confirm, and click the [OK] button.

Up to 32 characters can be used for the password.

Note that only alphanumeric characters (a to z, A to Z, 0 to 9) are allowed.

Password setting Enter a new password. Enter the new password again to confirm.

A confirmation message appears.

4 Click the [OK] button.

→ The password is set.

Chapter 9 Operational Settings

Clearing the Password

Clear the password in the following procedure.

1 Right-click the Software Operation Panel icon in the notification area, and select [Password Setting] from the menu.

Software Operation Panel(O)... About... Password Setting... View Only mode Exit

→ The [Password setting] dialog box appears.

2 Enter the current password and click the [OK] button.

Password setting Enter your current password. OK Cancel

→ The [Password setting] dialog box appears.

3 Leave both fields blank and click the [OK] button.

Password setting Enter a new password. Enter the new password again to confirm. OK Cancel

A confirmation message appears.

4 Click the [OK] button.

→ The password is cleared.

Chapter 9 Operational Settings

Resetting the Password

In case you forgot your password, it can be reset in the following procedure.

1 Right-click the Software Operation Panel icon in the notification area, and select [Password Setting] from the menu.

Software Operation Panel(O)... About... Password Setting... View Only mode Exit

→ The [Password setting] dialog box appears.

2 Enter the default password which is "fi-scanner", and click the [OK] button.

Password setting Enter your current password. OK Cancel

→ The [Password setting] dialog box appears.

3 Enter a new password then again to confirm, and click the [OK] button.

Up to 32 characters can be used for the password.

Note that only alphanumeric characters (a to z, A to Z, 0 to 9) are allowed.

Password setting Enter a new password. Enter the new password again to confirm.

A confirmation message appears.

4 Click the [OK] button.

→ The password is set.

9.3 Configuration Items

The Software Operation Panel allows the configuration of the following settings for the scanner that is connected to the computer.

Device Setting

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting].

Software Options Time Offset Offset Offset Setting Unit: Full time Main: x0.5mm Sub: 0.5mm Vertical magnification Adjustment Unit: Flat sec 31% 31% (3.1% - 3.1%) 0.0 % OK Cancel Apply OK OK Cancel Apply OK Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to Add to

Items that can be configured in the above dialog box are shown in the next page.

Chapter 9 Operational Settings

Item	Description	Parameter/Value	Factory Default
Count (page 178)	Check the counters to determine when to replace the consumables and to perform cleaning. Also use it to reset the counter when you have replaced the consumables or performed cleaning.	Total Page Count(ADF) / Total Page Count(FB) (*1)/ After cleaning/Brake Roller/Pick Roller	0
		Remaining Ink (when the imprinter is installed) (	*2)
Power saving (page 202)	Specify the waiting time before entering power saving mode. This setting can also be configured in the operator panel.	Range: 5 to 235 min. (in increments of 5) 15 min.
	Power off after a certain period of time: Select to set the scanner to turn the power off automatically if the scanner is left on for a certain period of time without being used. Specify the timeout period for the scanner to be automatically turned off. This setting can also be configured in the operator panel.	[Power off after a certain period of time] check box Selected
		1 Hour/2 Hours/4 Hours/8 Hours (When the [Power off after a certain period of time] check box is selected)	4 Hours
Offset Setting (page 183)	Adjust the position to start the scan on the selected scanning side(s).	Unit: Flat bed (*1) / ADF(front) / ADF(back) Main/Sub: -2 to 2 mm (in increments of 0.5)	Main/Sub: 0 mm
Vertical magnification Adjustment (page 183)	Adjust the magnification level in feed direction for the selected scanning method.	Unit: Flat bed (*1) / ADF Range: -3.1 to 3.1% (in increments of 0.1)	0%

*1: Displayed when using the fi-7260 or fi-7280.

*2: Displayed when the imprinter is installed.

Device Setting 2

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2].

Software Operation Panel Preferences Value 1 Multifed None Page Edge File (RDF) F0: B0 R0 L0/low Page Edge File (FB) F0: B0 R0 L0/low Dropout color Green PrePick Yes Document check area specification for... - Mode of Selection Specify non-detection... - Specify area 0 - mm Intelligent Unfiltered Function Named trade Do not... Number of paper leading sites 3 times Cleaning Cycle 5000 sheets Life Course Area Setting Pick Filters 20000 Sheets - Brake Filters 20000 Sheets Vertical Shield Detection Enable Vertical Shield Stability Korsal Pick Speed Korsal AutoCrop Boundary Eptimize Manual feed inlet Enable Power SW Control Enable power switch Default Save Restore OK Cancel Apply (A)

The settings that are currently configured in [Device Setting 2] are listed on the right of the dialog box.

Items that can be configured in the above dialog box are shown in the next page.

HINT

• The Software Operation Panel settings can be restored to the factory default.
  To restore the settings to the factory default, click the [Default] button. After a message is displayed, click the [OK] button. Note that the settings you have configured will be cleared.
• The Software Operation Panel settings can be backed up. To back up the settings, click the [Save] button, then specify the file name and click the [Save] button in the displayed dialog box.
• You can use a backup file of the Software Operation Panel settings to restore the settings on other scanners only if the scanner type is the same.

To restore the settings, click the [Restore] button, then specify the backup file and click the [Open] button in the displayed dialog box. After a message is displayed, click the [OK] button.

Note that restoration cannot be performed for other types of scanners.

Chapter 9 Operational Settings

Item	Description	Parameter/Value	Factory Default
Multifeed(page 195)	Specify a method for multifeed detection. Detect multifeeds by monitoring the overlap, document length, or the combination of both.This setting can also be configured in the scanner driver. Note that priority is given to the scanner driver setting.	None / Check Overlapping (Ultrasonic) / Check Length / Check Overlapping and LengthLength (When [Check Length] is specified; select from 10/15/20 mm)	NoneLength: 10 mm
Page Edge Filler (ADF)Page Edge Filler (FB)(For fi-7260/fi-7280)(page 184)	Specify a width for the margin around the edge of the scanned image to fill in white or black, according to the background color.This setting can also be configured in the scanner driver. In that case, Page Edge Filler of the scanner driver is used on the output image.	ADF:Top / Left / Right: 0 to 15 mmBottom: -7 to 7 mm (in increments of 1)FB (For fi-7260/fi-7280):Top / Bottom / Left / Right: 0 to 15 mm(A: image, B: filled area, A+B: output)	Top/Bottom/Left/Right: 0 mm
Dropout color(page 186)	Select a color to be removed from the scanned image (only available in black & white or grayscale mode).This setting can also be configured in the scanner driver. Note that priority is given to the scanner driver setting.	Red / Green / Blue / None Green
Pre-Pick(page 187)	Select [Yes] to prioritize the processing speed and [No] for otherwise.This setting can also be configured in the scanner driver or the operator panel. Note that priority is given to the scanner driver setting.	Yes / No Yes

Chapter 9 Operational Settings

Item	Description	Parameter/Value	Factory Default
Document check area specification for Multifeed Detection (page 197)	Selected range: Select this item to restrict the area to run multifeed detection.	[Selected range] check box Not selected
	Enable / Disable (Middle): Specify whether to enable or disable multifeed detection in the selected area.	Enable / Disable(When [Selected range] is selected)	Disable
	Start (Middle): Specify the start position of the area in length (mm) from the leading edge of the document.	0 to 510 mm (in increments of 2) 0 mm
	End (Middle): Specify the end position of the area in length (mm) from the leading edge of the document.	0 to 510 mm (in increments of 2) 0 mm
Intelligent Multifeed Function (page 200)	When there is a paper of the same size attached to a designated location on the page, configure the scanner to memorize the location of the attachment and not detect multifeeds for that location.Note that you first need to select [Check Overlapping (Ultrasonic)] or [Check Overlapping and length] in either the scanner driver or the multifeed detection setting in "Specifying a Multifeed Detection Method [Multifeed]" (page 195).This setting can also be configured in the operator panel.	Manual mode / Auto mode 1 / Auto mode 2 Manual mode
	Select to clear the overlap pattern (length, location) memorized in Auto mode.This setting can also be configured in the operator panel.	[Clear overlap pattern] check box Not selected
	Select to record the multifeed pattern on the dialog box to check an image that is detected as multifeed.	[Auto-Memorize MF Pattern (only when MF images are displayed)] check box	Not selected
	Specify whether or not to memorize the multifeed pattern upon power-off.	Remember / Do not remember Do not remember

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 9 Operational Settings

Item	Description	Parameter/Value	Factory Default
Number of paper feeding retries (page 188)	Configure this setting to change the number of feeding retries when a pick error occurs. This setting can also be configured in the operator panel.	1 to 12 times 3 times
Cleaning Cycle (page 181)	Specify the scanner cleaning cycle. Select whether or not to display the cleaning instruction message from the scanner driver.	1,000 to 255,000 sheets (in increments of 1,000) Show cleaning instructions: Selected/Not selected	5,000 sheets Not selected
Life Counter Alarm Setting (page 181)	Specify the replacement cycle for the consumables.	Pick Rollers / Brake Rollers: 10,000 to 2,550,000 sheets (in increments of 10,000)	Pick Rollers: 200,000 sheets Brake Rollers: 200,000 sheets
Vertical Streak Detection (page 204)	Select whether to enable or disable vertical streak detection. Enable to detect vertical streaks (dirt on the glass) when you perform scanning with the ADF. This setting can also be configured in the operator panel.	Enable / Disable Disable
Vertical Streak Sensitivity (page 205)	Specify the sensitivity level to detect vertical streaks (dirt on the glass) when vertical streak detection is enabled. This setting can also be configured in the operator panel.	Low / Normal / High Normal
Pick Speed (page 188)	When you experience frequent multifeeds and paper jams, the symptom may be improved by slowing down the speed in which documents are picked (fed). This setting can also be configured in the operator panel.	Normal / Slow Normal
AutoCrop Boundary (page 189)	Specify whether or not to optimize (round up/down) the fractional part of the scanned image data.	Optimize / Round Down Optimize

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 9 Operational Settings

Item	Description	Parameter/Value	Factory Default
Manual-feed timeout (page 201)	Select whether to disable or enable manual feeding.	Disable / Enable Disable
	Paper-out detection time: Specify the waiting time to cancel manual feeding.This setting can also be configured in the operator panel.	5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110 (seconds)	10 seconds
Power SW Control (page 203)	Specify the method by which the scanner is powered on/off.	Enable power switch / Disable power switch / Enable USB power feeding	Enable power switch
Paper Protection (page 190)	Select a paper protection detection method.This function can be set to reduce the risk of having the documents damaged by detecting anomalies upon feeding the documents and stopping the scan when:The scanner detects a document that is unusually warped when a feeding error occurs.The scanner detects paper jam noiseThe scanner either detects a document that is usually warped when a feeding error occurs or detects paper jam noiseThis setting can also be configured in the scanner driver or the operator panel. When the operation panel setting is prioritized, the operator panel setting is prioritized over the Software Operation Panel setting. Note that even if the operation panel setting is prioritized, the scanner driver setting has the highest priority.	Disable/Feeding Accuracy/Feeding Noise/Feeding Accuracy & Noise	Feeding Accuracy
Paper Protection Sensitivity (page 192)	Specify the sensitivity level to detect anomalies upon feeding the documents when paper protection is used.This setting can also be configured in the operator panel. When the operation panel setting is prioritized, the operator panel setting is prioritized over the Software Operation Panel setting.	Detect: Feeding Accuracy/Feeding Noise Low/Normal/High	Normal

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Chapter 9 Operational Settings

Item	Description	Parameter/Value	Factory Default
Maintenance and Inspection Cycle(page 206)	Specify the period of time for regular maintenance and inspection of the scanner by a service engineer.	Disable / EnableMaintenance and Inspection Cycle: 1 to 12 months	Disable
Feed Mode (For fi-7180/fi-7280)(page 194)	Configure this setting to scan plastic cards with a thickness up to 1.4 mm when using fi-7180/fi-7280 (at 300 dpi or less (80 ppm) in landscape).	Normal / Thick cards (1.25 mm or more) Normal
High Altitude Mode(page 194)	Select whether to enable or disable high altitude mode.Enable to use the scanner at 2,000 m or higher altitudes.	Enable / Disable Disable

9.4 Settings Related to Sheet Counters

Checking and Resetting the Sheet Counters

■ Checking the sheet counters

The status of each consumable part can be viewed to determine when to replace or clean the consumables.

The color of the counter changes to prompt replacement or cleaning. The color of each counter changes when:

• The consumable counter turns light yellow when the page count after replacing the consumable reaches 95% of the value specified in "Replacement Cycle of Consumables [Life Counter Alarm Setting]" (page 181), and turns yellow when it reaches 100%.
• The cleaning counter turns yellow when the page count after cleaning reaches 100% of the value configured in "Scanner Cleaning Cycle [Cleaning Cycle]" (page 181) in the Software Operation Panel.
• Ink counter turns yellow when the amount of remaining ink reaches below 33% (only displayed when the imprinter is installed).

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting].

Software Operation Panel Done by Data Package Disinforcing MaxNet Page Edge File (DCT) Page Edge File (FB) Output noise PrePick Document check area specification for ML/Field Connection Unadjusted in fixed function Number of paper loading options Cleaning Case Life Course/Algae Setting Vertical Stream Detection Vertical Stream Stability Pick Speed Auto-Crip Boundary Manual Feed Inputout Power Net Control Paper Protection Paper Protection Bandability Maintenance and Inspection Cycle Feed Trade High Altitude Mode Insert Total Count (Count) 50.0081 S###y Total Count (FB) 0 S###y After cleaning 5.000 S###y Clear[1] Base Rate: 20.000 S###y Clear[2] Pick Rate: 196.000 S###y Clear[3] S###y Clear[4] S###y Clear[5] S###y Clear[6] S###y Clear[7] S###y Clear[8] S###y Clear[9] S###y Clear[10] Power Saving 15 minutes Power shift after a certain period of time 4 hours OK Cancel Apply All

In this dialog box, you can check the following items:

Item Description
Total Page Count (ADF)	Approximate total number of sheets scanned through the ADF
Total Page Count (FB) (fi-7260/fi-7280)	Approximate total number of sheets scanned on the flatbed (fi-7260/fi-7280)
After cleaning Approximate	total number of sheets scanned after cleaning
Brake Roller Number of	sheets scanned after replacing the brake roller
Pick Roller Number of sheets	scanned after replacing the pick roller

Chapter 9 Operational Settings

Item Description

Remaining Ink Amount of ink remaining in the print cartridge of the imprinter(Only displayed when imprinter is installed)

ATTENTION

If the scanner was turned off by unplugging the power cable, or [Disable power switch] is selected, the number of scanned sheets may not be counted in [Total Page Count].

For details about disabling the power switch, refer to "Method of Turning the Scanner ON/OFF [Power SW Control]" (page 203).

■ Resetting the sheet counters

When you have replaced or cleaned a consumable part, reset the corresponding counter by using the following procedure.

1 If you have replaced a consumable, click the [Clear] button of the consumable that you replaced. If you performed cleaning, click the [Clear] button of [After cleaning].

Software Operation Panel Doneout Device Info Device Setting 2 Multi-Object Page Edge File (RSF) Page Edge File (FB) Output rate PrePick Document check area specification for Multiford Connection Intelligent to Fixed Function Number of paper loading options Cleaning Cycle Life Course: Alarm Setting Vertical Stream Detection Vertical Stream Security Push Speed Auto-Cap Boundary Manual Feed Inputout Power SW Control Paper Protection Paper Protection Bandability Maintenance and Inspection Cycle Feed Mode High Altitude Mode Count Total Count (RTI) 50,000 B Shares Total Count (FB) 0.0000 Shares Clear[1] After opening 500 Shares Clear[2] Base Rate 20,000 Shares Clear[3] Push Rate 196,000 Shares Clear[4] Copy 100 Shares Clear[5] Paste 100 Shares Clear[6] Paste 100 Shares Clear[7] Paste 100 Shares Clear[8] Paste 100 Shares Clear[9] Paste 100 Shares Clear[10] Power Saving 15 minutes Power off after a certain period at line 4 Weeks Other OK Cancel Apply All

→ The counter is reset to 0.

For ink counter, the value will be set to 100.

2 Click the [OK] button in the Software Operation Panel.

A confirmation message appears.

3 Click the [OK] button.

→ The settings are saved.

■Messages for cleaning or replacing consumables

The following message may appear while using the scanner.

Message for replacing consumables

PaperStream IP If is about fine to replace the convertible if the trading performance has dropped, replace the pick, then made the ADF. (Code: DS 420DS) once Cancel Help

Message for cleaning

PaperStream IP Clean the inside of the scanner. After cleaning, start up Software Operation Panel. Under [Device Setting], reset the count for [After cleaning] by clicking the [Clear1] button. (Code: DSI2000) OK

Check the message, and replace the consumable or perform cleaning accordingly.

If you click the [Ignore] button, the message disappears and the scan can be continued. However, it is recommended that you replace the consumable as soon as possible.

To stop the scan and replace the consumable right away, click the [Cancel] button.

Also, while this message appears, Mashes on the LCD.

Depending on the message, one of the following indications appears on the second line in the [Ready] screen.

• Message for replacing consumables [Consumables] flashes.
  ● Message for cleaning [Cleaning] flashes.

Check the information, and replace the consumable or perform cleaning accordingly.

For details about checking the information, refer to "Checking the information" (page 71).

For details about replacing consumables, refer to the following:

● Brake roller "7.2 Replacing the Brake Roller" (page 121)
- Pick roller "7.3 Replacing the Pick Roller" (page 123)

For details about cleaning, refer to "Chapter 6 Daily Care" (page 108).

Scanner Cleaning Cycle [Cleaning Cycle]

The cleaning cycle for the scanner can be specified.

The background color of the cleaning counter (in [Device

Setting]) turns yellow when the page count after cleaning is performed reaches 100% of the specified value.

You can also display a cleaning instruction message (page 180).

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Cleaning Cycle].

Software Operation Panel Diagnosis Device Info Device Settings Device Settings 2 Multi-Box Page Edge File (RF) Page Edge File (RF) Dropout Line Pre-Risk Document with any specification for Multi-Box Detection Intelligent Use Method Function Instructed Using Method Cleaning Cycle Continuous Use Method Setting Vertical Stream Detection Vertical Stream Sensitivity Pick Speed Auto-Camp Boundary Manual Feed Dropout Power E/W Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High Altitude Mode Cleaning Cycle: 0.1600 Show cleaning instructions. OK Cancel Apply (A)

3 Specify a value for the cleaning cycle.

The value can range from 1,000 to 255,000 sheets (in increments of 1,000).

Specify whether or not to display the cleaning instruction message.

Replacement Cycle of Consumables [Life Counter Alarm Setting]

The replacement cycle for each consumable can be specified. The background color of the brake roller/pick roller counter (in [Device Setting]) changes to light yellow when the page count after replacing the consumable reaches 95% of the value specified here, and turns yellow when it reaches 100%.

A message that prompts consumable replacement (page 180) also appears.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Life Counter Alarm Setting].

Software Operation Panel Diagnosis - Device Info Device Setup - Device Setup 2 Material Page Edge File (SDF) Page Edge File (FIB) Discount cover Pay-Risk Document check-out specification in Multibed Data Link Intelligent Workload Function Number of paper leading words Building Software - 3.1 Current Users Setup Vertical Stream Strategy Vertical Stream Similarity Pick Speed Auto-Cap Boundary Manual/Read Inflow Power SR Control Paper Protection Paper Protection Sensitivity Maintenance and Brooding Cycle Feed Mode High Altitude Mode Pick Rollers 20 d40000 Wake Rollers 20 d40000 OK Cancel Apply OK

Chapter 9 Operational Settings

3 Specify a value as the replacement cycle.

The value can range from 10,000 to 2,550,000 sheets (in increments of 10,000).

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

9.5 Settings Related to Scanning

Adjusting the Position to Start the Scan [Offset/Vertical magnification Adjustment]

When the output position of the scanned image is not correct or the image appears shortened/elongated (vertically), adjust the offset and the vertical magnification in the following procedure.

ATTENTION

Normally, you should not have to make any adjustments as the factory default settings are configured at appropriate values.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting] and click the [Offset] button.

Software Operation Panel Progress Access to Microsoft Excel Defaulting Multifinal Page Edge File (RDF) Page Edge File (FBI) Dropout color PrePick Document check area specification for Multifinal Connection Institute Linked Function Number of paper lending links Cleaning Cycle Life Course/Main Setting Vertical Stream Detection Vertical Stream Sensitivity Pick Speed Auto-Cap Boundary Manual fixed input Power Star Control Paper Protocols Paper Protocols Sensitivity Maintenance and Inspection Cycle Feed Mode High Altitude Mode Count Total Count (RDF) 50,000 Total Count (FBI) $ 5.00 Pitch setting: 25,000 Pitch Rate: 136.00 Pitch Value: Close(1) Close(2) Close(3) Close(4) Close(5) Close(6) Close(7) Close(8) Close(9) Close(10) Power saving: 15 minutes Power of alter a certain period of here: 4 hours Other OK Cancel Apply(A)

3 Adjust the level of offset/vertical magnification as needed.

Offset Outer Setting Unit: 0.0 mm Sub: 0 mm Main: 0 mm d0.5mm Vertical magnification Adjusted: Unit: Far left -3.1% 3.1% (3.1% - 3.1%) 80 % OK Cancel

Offset Setting Description

Unit Select [Flat bed] (fi-7260/fi-7280), [ADF (front)]or [ADF (back)] as the target for offset adjustment.

Main Adjusts the horizontal (width) offset.The value can range from -2 to +2 mm (in increments of 0.5).

Sub Adjusts the vertical (length) offset.The value can range from -2 to +2 mm (in increments of 0.5).

Chapter 9 Operational Settings

Vertical magnification Adjustment	Description
Unit Select [Flat bed] (*1) or [ADF] as the target for vertical magnification adjustment.
Vertical magnification Adjustment (Sub: length)	Adjusts the vertical (length) magnification.The value can range from -3.1 to +3.1% (in increments of 0.1).

*1: Displayed when using fi-7260 or fi-7280.

Removing Shadows/Streaks that Appear around the Scanned Image [Page Edge Filler (ADF)]/[Page Edge Filler (FB)] (fi-7260/fi-7280)

Depending on the condition of the documents that you scan, the shadow of the document may appear as black streaks. In that case, you can improve the image quality around the edges of the document by using the "Page Edge Filler" function to fill in the edges.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Page Edge Filler (ADF)] or [Page Edge Filler (FB)].

Software Operation Panel Diagnosis Device Info Device Setting Device Setting 2 Properties Page Edge File (Ftl) Description Fire/Fish - Document check area specification for Multiseal Detection - Intelligent Backend Function Number of paper locking keys Cloning Cycle Life Course Analysis Setting Vertical Scale Detection Vertical Scale Connectivity Pick Speed AutoCrop Boundary Manualized Inputout Power Dir Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High Altitude Mode Top: 0 mm Left: 0 mm Right: 0 mm Bottom: 0 mm OK Cancel Apply OK

3 Specify the width of each margin to fill in: top/bottom/left/right.

Image L B R T

ADF

T: top = 0 to 15 mm

B: bottom = -7 to 7 mm

R: right = 0 to 15 mm

L: left = 0 to 15 mm

B: bottom = 0 to 15 mm

R: right = 0 to 15 mm

L: left = 0 to 15 mm

(in 1 mm increments)

The specified area is filled in white or black, according to the background color.

ATTENTION

Note that if the target range of Page Edge Filler is too wide, some characters near the edge may appear missing.

HINT

- The color of the background is normally white. You can change the background to black in the scanner driver. For details, refer to the scanner driver's Help.

- Depending on the value you specify, the bottom edge is filled in as follows:

- 1 to 7 mm

Fills the margin in white, from the detected page bottom.

--1 to -7 mm

Outputs the image without filling in the margin.

"Detected page bottom" refers to the bottom edge of the scanned document detected by the scanner.

- This setting can also be configured in the scanner driver. In that case, Page Edge Filler of the scanner driver is used on the output image.

Chapter 9 Operational Settings

Removing a Color from the Scanned Image [Dropout color]

With "Dropout color", you can select either green, red, or blue (primary colors) to remove the details of the selected color from a scanned image.

For example, when a document with black characters and a green background is scanned, only the black characters of the document can be scanned by selecting green for the dropout color.

ATTENTION

Dropout works the best with light (low intensity) colors, and dark colors may not drop out.

HINT

Dropout color is only available in black & white or grayscale mode.

1 Start up the Software Operation Panel.
For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).
2 From the listing on the left, select [Device Setting 2] → [Dropout color].

Software Operation Panel - Diagnostics - Device Info - Device Setup 2 (RGB) Page Edge File (DLP) Page Search File (RBI) Chronic Mode - Print - Document Check marks specification in Multifold Connection Intelligent Linked Function Number of paper leading words Clearing Cycle Life Counter Alarm Setting Vertical Stroke Detection Vertical Stroke Sensitivity Park Type1 AutoCap Boundary Manualized Impact Power BI Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High Altitude Mode Red Green Blue None OK Cancel Apply (A)

3 Select a color to drop out.

Red, Green, Blue: The selected color is dropped out.

None: No color is dropped out.

ATTENTION

The Software Operation Panel allows you to choose the color from red, green, and blue only. To drop out a color of your choice, configure the setting in the scanner driver. For details, refer to the scanner driver's Help.

HINT

This setting can also be configured in the scanner driver. Note that priority is given to the scanner driver setting.

Chapter 9 Operational Settings

Shortening the Scanning Intervals [Pre-Pick]

"Pre-pick" refers to feeding the document to the starting position for scanning before the next scan.

Enabling [Pre-Pick] shortens the interval between scanning each document.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Pre-Pick].

Software Operation Panel Diagnosis Device Info Device Settings Device Setting Name: Page Edge File (RF) Page Edge File (FB) Description Device Work area specification for Nutrified Detection Intelligent Nutrified Function Number of paper binding effects Cleaning Curve Life Course/Alarms Setting Vertical Stream Detection Vertical Stream Smoothly Spec Speed Autocopy Boundary Manual Feed Direction Power SW Control Paper Protection Paper Protection Sensitivity Market and Inspection Cycle Feed Rate High Altitude Mode P Yes P No OK Cancel Apply All

3 Select [Yes] or [No].

HINT

• If you cancel in the middle of scanning while pre-pick is enabled, you will have to remove the pre-picked document, then load the document again.
• This setting can also be configured in the scanner driver or the operator panel. Note that priority is given to the scanner driver setting.

Number of Paper Feeding Retries

Configure this setting to change the number of feeding retries when a pick error occurs.

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).
2 From the listing on the left, select [Device Setting 2] → [Number of paper feeding retries].

Software Operation Panel Diagnose Device Info Device Settings Device Setting: MultiBox Page Edge Filter (PDF) Page Edge Filter (PB) Output Level PlayPlus Document check area specification for N-LED Detection Input to Open Text or other Use of Open Text or other Cleaning Use Life Country Alpha Setting Vertical Stream Detection Vocus Stand Smoothbody Pick Speed AutoCap Boundary Manual Feed Input Power S/I Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Field Mode High Altitude Mode Number of paper feedings, other: 3 items OK Cancel Apply All

3 Specify the number of paper feeding retries.

The value can range from 1 to 12 times.

HINT

This setting can also be configured in the operator panel.

Document Feed Speed [Pick Speed]

When you experience frequent multifeeds and paper jams, the symptom may be improved by slowing down the speed in which documents are picked (fed). This setting is effective when you scan thin paper.

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).
2 From the listing on the left, select [Device Setting 2] → [Pick Speed].

Software Operation Panel Diagnosis Device Info Device Setting Device Setting 2 Description Page Edge File (ADF) Page Edge File (PB) Dropout Action Pre-Flick Document check area specification for Multid Control Intelligent to fixed Function Number of paper leading wire Clearing Cycle Live Source Active Setting Vertical Data Detection Vertical Data Sensitivity DO Box Duty and Day Manualized Inset Power Dir Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Fixed Motion High-Middle Mode Named Slower OK Cancel Apply All

Chapter 9 Operational Settings

3 Specify the document feed speed.

Normal: Normal document feed speed

Slow: The document feed speed is slower than normal

ATTENTION

The total time for scanning is longer because the document feed speed slows down.

HINT

This setting can also be configured in the operator panel.

Cropping the Image Boundary [AutoCrop Boundary]

Some fractional data may be generated in the images in the process of scanning. You can specify whether to include or exclude such fractional data by using the "AutoCrop Boundary" function.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [AutoCrop Boundary].

Software Operation Panel - Diagnosis Device Info Device Settings SanCite Boundary Page Edge File (ADF) Page Edge File (RB) Deepout color Pre-fish Document check areas specification for Multifed Detection Installpots Multifed Function Number of paper leading lines Clearing cycle Live Course Active Setting Vertical Stream Detection Vertical Stream Selectivity Fireline SanCite Boundary Protection Breaks Power Star Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High Altitude Mode Optimize Round/Close OK Cancel Apply (R)

Chapter 9 Operational Settings

3 Select whether to include or exclude the fractional data. Select [Optimize] to prevent any exclusion of fractional data from scanned images.

ATTENTION

• While selecting [Optimize] can prevent data loss, it may also generate black lines near the right edge.
• When you scan a document with text near the right edge while [Round Down] is selected, some pixel data there may be lost.
• For details about setting automatic page size detection, refer to the scanner driver's Help.

HINT

This setting is only applied in black & white mode.

Protecting the Documents from Being Damaged [Paper Protection]

Select a paper protection detection method.

Feeding errors during scanning could damage or tear valuable documents.

This function can be set to reduce the risk of having the documents damaged by detecting anomalies upon feeding the documents and stopping the scan when:

• The scanner detects a document that is unusually warped when a feeding error occurs.
  ● The scanner detects paper jam noise
  ● The scanner either detects a document that is usually warped when a feeding error occurs or detects paper jam noise

This function can be used to scan documents such as thin papers which are difficult to feed.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Paper Protection].

Chapter 9 Operational Settings

Software Operation Panel Diagnosis - Device Info Device Settings 2 New Edition Page Edge File (RFI) Page Edge File (RFI) Dropout Cover PurePick Document check areas specification for Multifed Connection Infelligent Multifed Function Number of paper leading vesics Clearing Cycle Life Counter Alarmi Setting Vertical Break Detection Vertical Break Suffixity Pick Speed AutoCap Boundary Manual Find Inplot New Edition New Production/Industry Maintenance and Inspection Cycle Feed Mode High-Make Mode Disable Feeding Accuracy Feeding Noise Feeding Accuracy / Noise OK Cancel Apply Out

3 Click the detection method.

Detection Method	Description
Disable Disables paper protection.
Feeding Accuracy	Stops the scan when the scanner detects a document that is unusually warped when a feeding error occurs.
Feeding Noise	Stops the scan when the scanner detects paper jam noise.
Feeding Accuracy & Noise	Stops the scan when the scanner detects a document that is unusually warped when a feeding error occurs, or when the scanner detects paper jam noise.

ATTENTION

• Note that paper protection is a function that suppresses the documents from being damaged, and does not guarantee all documents to be saved.
• When you use paper protection, make sure to load the documents with their top edges aligned (especially for a mixed batch with different lengths).

If the top edges are not aligned properly, the paper protection function may be activated and stop the scan even when the documents are being fed correctly.

HINT

• If you scan a wrinkled document, paper protection may be set off forcing a scan to be stopped even though paper is fed normally. In this case, you can disable paper protection on the operator panel for a single scan after paper protection is set off. For details, refer to "Disabling Paper Protection for a Single Scan After Paper Protection Is Set Off" (page 106).
• If paper protection is set off frequently, refer to "Paper protection is set off frequently." (page 150).
• This setting can also be configured in the scanner driver or the operator panel. When the operation panel setting is prioritized, the operator panel setting is prioritized over the Software Operation Panel setting. Note that even if the operation panel setting is prioritized, the scanner driver setting has the highest priority.

Specifying the Sensitivity Level for Paper Protection

[Paper Protection Sensitivity]

Specify the sensitivity level to detect anomalies upon feeding the documents when paper protection is on.

Documents are deformed (e.g. warped, bent, creased) or paper jam noise is made when documents are not being fed by the rollers properly. To detect such a symptom and stop the scan, select [Low] to only detect documents that are highly deformed or paper jam noise that are loud. Select [High] to also detect documents that are slightly deformed or small paper jam noise.

1 Start up the Software Operation Panel.
For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Paper Protection Sensitivity].

Chapter 9 Operational Settings

Software Operation Panel - Diagnosis - Device info - Device Info - Device Setting 2 - Package - Page Edge Filter (ADT) - Page Edge Filter (TS) - Output color - Printout - Document check area specification for Multisevel Detection - Intelligent Multisevel Function - Number of paper loading ratios - Cleaning Cycle - Life Counter Altair Setting - Vertical Break Detection - Vertical Break Sensitivity - Pick Speed - AutoDress Boundary - Nonstructured Inserout - Power S/O Control - Power Substrate - Load Position Control - Load Position and Protection Cycle - Feed Mode - High Altitude Mode Detect: Feeding Name Low Normal High OK Cancel Apply (A)

3 Select a paper protection detection method which you want to change the sensitivity level for.

Feeding Accuracy : Select this to detect a document that is unusually warped when a feeding error occurs. This is available when you have selected [Feeding Accuracy] or [Feeding Accuracy & Noise] for the paper protection detection method.

Feeding Noise : Select this to detect paper jam noise. This is available when you have selected [Feeding Noise] or [Feeding Accuracy & Noise] for the paper protection detection method.

4 Specify the sensitivity level.

Low: Decreases the sensitivity level to detect warped documents or paper jam noise.

Normal: Monitors warped documents or paper jam noise in normal sensitivity. Keep this setting for normal use.

High: Increases the sensitivity level to detect warped documents or paper jam noise.

HINT

• To detect paper warp or paper jam noise faster and stop the scan, select [High].
• To decrease the frequency of paper jam detection if paper jams occur frequently in the feeder, select [Low].
• This setting can also be configured in the operator panel. When the operation panel setting is prioritized, the operator panel setting is prioritized over the Software Operation Panel setting.

Chapter 9 Operational Settings

Scanning Thick Plastic Cards [Feed Mode] (fi-7180/fi-7280)

When you use fi-7180/fi-7280 to scan at 300 dpi or less (80 ppm) in landscape, plastic cards with a thickness up to 1.4 mm can be scanned.

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).
2 From the listing on the left, select [Device Setting 2] → [Feed Mode].

Software Operation Panel - Diagnosis - Device Info - Device Settings - Device Setting - Materials - Page Edge File (LDF) - Page Edge File (FB) - Dropout color - Print - Document check area specification for Nullified Detection - Intelligent Fullset Function - Number of paper working after - Drawing Cycle - Line Course Alone Setting - Vortex Stroke Detection - Vertical Stroke Extensibility - Pick Speed - Auto-Drip Boundary - Manual Real/Inset - Power Grid Control - Paper Protection - Paper Protection Sensitivity - Paper Protection and Inspection Cycle Control Panel OK Cancel Apply (OK)

3 Specify the feed mode.

To scan a plastic card up to 1.4 mm thick, select [Thick cards (1.25 mm or more)].

ATTENTION

Scanning speed slows down when you select [Thick cards (1.25 mm or more)].

Scanning at High Altitude [High Altitude Mode]

Select whether to enable or disable high altitude mode.

Enabling this setting allows you to use the scanner at 2,000 m or higher altitudes.

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).
2 From the listing on the left, select [Device Setting 2] → [High Altitude Mode].

Software Operation Panel Diagnosis Device mini Device Settings or Device Setting 2 M30000 Page Epofe Filio (AOF) Page Epofe Filio (FBI) Output color Page Pick Document check area specification for Multifed Direction Intelligent Multifed Function Number of paper feeding ratios Oscoring Cycle Line Counter-Aline Setting Vertical Strel Detection Vertical Strel Sensitivity Pick Speed Audio/Blue Boundary Manual load Inflow Power Nut Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle High-Grade Level Enable Delete OK Cancel Apply All

3 Select whether to enable or disable [High Altitude Mode]. When you select [Enable], you can use the scanner at 2,000 m or higher altitudes.

9.6 Settings Related to Multifeed Detection

Specifying a Multifeed Detection Method [Multifeed]

Multifeed is an error where two or more sheets are fed through the ADF at once. It is also called a multifeed when a different document length is detected.

Not noticing multifeed errors while scanning may put you in a situation where important data are missing from the scanned images.

Multifeed detection can be used to prevent such troubles.

When this function is enabled, an error message is displayed as soon as it detects a multifeed, and stops the scan. Note that multifeed cannot be detected within 30 mm from the leading edge of the document.

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Multifeed].

Software Operation Panel - Diagnostics - Device Info - Device Setting - Device Settings - Read - Page Controller (ADT) - Page Edge File (F5) - Dropout color - Pre-Pink - Document short size specification for Multidet Detection - Intelligent Multidet Function - Number of paper leading lines: - Cleaning Cycle - Use Counter Group Setting - Vertical Stream Detection - Vertical Stream Sensitivity - Pick Speed - Auto-Dress Boundary - Monotyped Inseud - Power Slow Control - Paper Protection - Paper Protection Sensitivity - Maintenance and Inspection Cycle - Feed Mode - High Altitude Words ○ None ○ Check Overlapping/Useason ○ Check Length ○ Check Overlapping and Length Length: 10 mm OK Cancel Apply All

3 Select a detection method.

Method Description
None Does not detect multifeed.
Check Overlapping (Ultrasonic)	Detects multifeed by the overlapping of documents.When this is selected, you can also specify the two following options:Specify the detection range by the length from the top of the document.Proceed to "Specifying the Area to Detect Multifeed [Document check area specification for Multifeed Detection]" (page 197) for more details.Ignore the multifeed when there is paper of the same size attached to a designated location on the page.Proceed to "Ignoring Multifeed for a Set Pattern" (page 103) for more details.
Check Length	Detects multifeed by the difference in length of the documents.Note that multifeeds cannot be detected accurately when scanning a mixed batch of different sizes.

Method Description
Check Overlapping and Length	Detects multifeed by the combination of [Check Overlapping (Ultrasonic)] and [Check Length].Note that multifeeds cannot be detected accurately when scanning a mixed batch of different sizes.When this is selected, you can also specify the two following options:Specify the detection range by the length from the top of the document.Proceed to "Specifying the Area to Detect Multifeed [Document check area specification for Multifeed Detection]" (page 197) for more details.Ignore the multifeed when there is paper of the same size attached to a designated location on the page.Proceed to "Ignoring Multifeed for a Set Pattern" (page 103) for more details.
Length Select a	length difference from 10/15/20 mm. Any length under the specified value will not be detected as multifeed.

ATTENTION

• To scan documents with different lengths, specify [Check Overlapping (Ultrasonic)].
• When an attachment such as a sticky note, receipt, or photo is attached on the document, the overlapping part of the document may be falsely detected as multifeed if [Check Overlapping (Ultrasonic)] is specified. In that case, specify [Check Length]. Note however that [Check Overlapping (Ultrasonic)] can still be used by restricting the detection range.
  ● Multifeed cannot be detected when using the Carrier Sheet.

HINT

This setting can also be configured in the scanner driver. Note that priority is given to the scanner driver setting.

Chapter 9 Operational Settings

Specifying the Area to Detect Multifeed [Document check area specification for Multifeed Detection]

The following setting is only available when you specified [Check Overlapping (Ultrasonic)] or [Check Overlapping and Length].

1 From the listing on the left, select [Device Setting 2] → [Document check area specification for Multifeed Detection]. Select the [Selected range] check box in the dialog box.

Software Operation Panel Diagnosis Device Info Device Settings Watercolor Page Data File (ASF) Page Edge File (RF) Dropout color Named Document checked area specification for NutMixed Detection Manage the fixed number Number of paper feedings Drawing Cycle Line Counter Alters Setting Vance Switch Detector Vance Switch Sensitivity Pick Spreads Auto Chip Boundary Manufactured Signal Power Oil Control Paper History Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High-Middle Mode Load Mode Height Standard size Enable Size 0 mm End 0 mm OK Cancel Apply (A)

2 Specify the detection range.

Range Description
Selected range Select	the check box to specify the detection range (colored in light blue) in the picture below.
	Select the check box to enable the setting in this dialog box. Clear the check box to disable the setting. Clearing this check box sets both start and end positions to "0", making the whole document to be detected for multifeeds.The above condition applies when the document is set to the center of the pick roller width.
Disable(Middle)	Does not detect multifeeds for the selected area.
Enable(Middle)	Detects multifeeds for the selected area.
Start(Middle)	Displays the start position of the detection by the length from the leading edge of the document.Range: 0 to 510 mm, in 2 mm increments, Start

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

Chapter 9 Operational Settings

Range Description
End(Middle)	Displays the end position of the detection by the length from the leading edge of the document.Range: 0 to 510 mm, in 2 mm increments, Start

HINT

• When both [Start] and [End] are set to "0", multifeed detection is performed for the whole area regardless of whether it is enabled or disabled.
• To disable multifeed detection for the whole document, select [Disable] and set the start position to "0" and the end position to equal the document length or longer.
• If you set a value larger than the document length for the start position, selecting [Disable] detects the whole length of the document and selecting [Enable] disables the multifeed detection.
• To detect multifeeds, the detection range must be at least 5 mm in length. Configure the setting so that the value of the end position minus the start position is 6 mm or more.
• You can also set the start and the end positions by the following methods:

- Draw an area with the mouse on the displayed image.

- Drag the handles for [Start] and [End] positions on the displayed image.

Example 1:

Position: Middle

Selected range = Enable, Start = 50 mm, End = 200 mm

35 50 200 Feed direction Unit: mm

Multifeeds are detected only within the area of light blue.

Chapter 9 Operational Settings

Example 2:

Position: Middle

Selected range = Enable, Start = 0 mm, End = 0 mm

35 300 Feed direction Unit: mm

Multifeeds are detected only within the area of light blue.

HINT

When you use detection by overlapping, accuracy of multifeed detection may drop if the documents are glued tightly or attached together by static electricity.

Example 3: (Bad example)

Position: Middle

Selected range = Enable, Start = 100 mm, End = 102 mm

Feed direction 35 100 2 300 Unit: mm

Since the detection range (length) is less than 5 mm, multifeeds cannot be detected accurately.

Specifying an Area Not to Detect Multifeed [Intelligent Multifeed Function]

When there is paper of the same size attached to a designated location on the page, the scanner memorizes the location of the attachment and can be configured not to detect multifeeds for that location. Note that you first need to select [Check Overlapping (Ultrasonic)] or [Check Overlapping and length] in either the scanner driver or the multifeed detection setting in "Specifying a Multifeed Detection Method [Multifeed]" (page 195).

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Intelligent Multifeed Function].

Software Operation Panel - Diagnosis - Device Info - Device Settings - Device Settings - Hardware - Page Edge File (ADF) - Page Edge File (PB) - Document mode - Prefill - Document mode selection for a software for Nutrised Detection - Incliptic Linked Function - Document or Paper Transparency - Drawing Cycle - Life Counter Alms Setting - Vertical Smooth Detection - Vertical Smooth Connectivity - Pick Speed - Auto-Crip Boundary - Manual Feed Channel - Power SV Control - Paper Protection - Paper Protection Sensitivity - Maintenance and Inspection Cycle - Feed Mode - High Altitude Mode ■ Manual mode - Export by front panel button - Auto mode 1 - Export by combination of length and position - Auto mode 2 - Export by length - Close assembly pattern ■ Auto Horizontal M/F Pattern (only when in the frame are displayed) ■ Remember nullified pattern at power-of- ○ Remember ○ Do not remember OK Cancel Apply (A)

3 Specify an operation mode.

Mode Description

Manual mode Does not memorize the size or location of the paper attachment when a multifeed is detected. Ignores the multifeed when you load the documents back in the ADF paper chute (feeder) and scan them again.

Auto mode 1 Memorizes the size and location of the paper attachment when a multifeed is detected. The memorized pattern is ignored from the next scan.

Auto mode 2 Memorizes the size of the paper attachment when a multifeed is detected. The memorized pattern (including any length less than the attachment) is ignored from the next scan.

HINT

• By selecting the [Clear overlap pattern] check box, you can erase the overlapping patterns (length, position) that were memorized in Auto mode.
• By selecting the [Auto-Memorize MF Pattern (only when MF images are displayed)] check box, you can record the multifeed pattern on the dialog box to check an image that was detected as multifeed.
• In [Remember multifeed pattern at power-off], you can select whether or not to keep the multifeed pattern upon turning the power off. When [Remember] is selected, you can use eight of the most recent patterns the next time the scanner is powered on.
  ● This setting can also be configured in the operator panel.

For details about the procedure after this step, refer to "Ignoring Multifeed for a Set Pattern" (page 103).

9.7 Settings Related to Waiting Time

Waiting Time in Manual Feed Mode [Manual-feed timeout]

When you scan by manually loading one sheet at a time, you can specify the waiting time (interval) for loading the next document in the ADF paper chute (feeder). This enables continuous scanning as long as you load a document within the set time.

If not, the scan is finished automatically and manual feeding will be canceled.

Note that you can also press the [Stop/Clear] button on the operator panel to cancel manual feeding.

1 Start up the Software Operation Panel. For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).
2 From the listing on the left, select [Device Setting 2] → [Manual-feed timeout].

Software Operation Panel Diagnosis Device Info Device Settings Device Setting 2 Package Page Edge File (DF) Page Edge File (FB) Output color PrePick Document check area specification for Multisland Detection Intelligent Multisland Function Number of paper loading keys Clearing Curve Lite Counter Analysis Setting Vertical Stream Detection Vertical Stream Similarity Pick Speed Material Use Method Manual/Unlabeled Inout Power-Off-Circuit Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Field Mode High Altitude Mode Double Enable Paper out detection line OK Cancel Apply All

3 Specify whether to enable or disable [Manual-feed timeout].

If you selected [Enable], then also specify the time in [Paper-out detection time].

HINT

• When [Manual-feed timeout] is enabled, the scanner will wait for the set time even if you start scanning with no document in the ADF paper chute (feeder).
  ● This setting can also be configured in the operator panel.

Waiting Time to Enter Power Saving Mode [Power saving]

The waiting time for the scanner to enter power saving mode can be specified.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting].

Software Operation Panel Process Set Method Page Edge File (GB) Page Edge File (PB) Dropout Over PinePick - Ductured check area specification for Multifed Selection - Indigent 9.1 Friend Facker Number of paper feeding ratios Cleaning Cycle -Life Counter Alone Setting Verica Screw Detection Vertical Screw Stability Pick Speed - Auto-Cap Batchley Manual Feed Movement Power Oil Control Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Struck - High Altitude Mode Event: Low Count (KJ) 500000 Sheets Low Count (FB) 0 Sheets After cleaning: 500 Sheets Close(1) Beta Rollers: 20000 Sheets Close(2) Fish Hole: 196000 Sheets Close(3) Volume: 1 Million Volume: 1 Million Volume: 1 Million Volume: 1 Million Power Saving: - 1% minutes ■ Power shift after a certain period of time: 4 Hours OK Cancel Apply(A)

3 Use the slider to specify the waiting time before entering power saving mode.

The value can range from 5 to 235 minutes (in increments of 5).

HINT

- Selecting the [Power off after a certain period of time] check box turns the power off automatically if the scanner is left on for a certain period of time without being used.

You can select the timeout period for the scanner to be automatically turned off by [1 Hour]/[2 Hours]/[4 Hours]/[8 Hours].

● This setting can also be configured in the operator panel.

9.8 Settings Related to Power ON/OFF

Method of Turning the Scanner ON/OFF [Power SW Control]

The method by which the scanner is powered on/off can be specified from one of the following:

• Press the [Power] button on the operator panel
  ● Unplug the power cable then plug it back in
  ● Have the scanner turn on/off in sync with the computer's power

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Power SW Control].

Software Operation Panel Disagnosis Device size Device Setup on PCB setting 2 Packing Page Etop File (PCF) Page Etop File (TBI) - Dropout color - Pack-Pick Document check areas specification in Multisector Direction Intelligent Multisector Function Number of paper loading sites Cleaning Cycle - Use Counter-Array Setting - Vertical Stand Detection - Vertical Stand Sensitivity Pick Speed AutoDrive Boundary Enable Power Switch Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High Altitude Mode Enable power switch (Factory default) Enable power switch Enable USB power limiting OK Cancel Apply All

3 Select one of the following:

[Enable power switch] : Press the [Power] button on the operator panel.

[Disable power switch]: Unplug the power cable then plug it back in.

[Enable USB power feeding]

: Have the scanner turn ON/OFF in sync with the computer's power.

ATTENTION

• When you select [Disable power switch], the scanner is not turned off even if the [Power off after a certain period of time] check box is selected in [Device Setting] on the Software Operation Panel.
• Some types of computers and USB hubs keep supplying power to the USB bus even after the computer is turned off. In that case, the [Enable USB power feeding] mode may not work properly.

9.9 Settings Related to Scanner Maintenance

Detecting Vertical Streaks [Vertical Streak Detection]

Select whether to enable or disable vertical streak detection.

After enabling this setting, ME and its on the LCD when a vertical streak may occur in the images that are scanned through the ADF.

[Clean glass!] also flashes on the second line in the [Ready] screen.

Check the information, and then clean the glass.

For details about checking the information, refer to "Checking the information" (page 71).

For details about cleaning, refer to "Chapter 6 Daily Care" (page 108).

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Vertical Streak Detection].

Software Operation Panel - Diagnosis - Device Info - Device Settings - Device Settings 2 - Platform - Page Editor File (I/O) - Page Editor File (FBI) - Dropout URL - PrefLink - Document check area specification for Multiford Detection - Intelligent Multiford Function - Number of paper leading entries - Cleaning Cycle - Cleaning Cycle - Max Control - Manual/Minimize Control - Pick Speed - Auto-Crop Boundary - Manual/Minimize Input - Power Shift Control - Paper Protection - Paper Protection Sensitivity - Maintenance and Inspection Cycle - Feed Mode - High Altitude Mode Enable Disable OK Cancel Apply All

3 Select whether to enable or disable [Vertical Streak Detection].

When you select [Enable], the scanner detects vertical streaks (dirt on the glass) during scanning with the ADF.

HINT

This setting can also be configured in the operator panel.

Chapter 9 Operational Settings

Specifying the Sensitivity Level for Vertical Streak Detection [Vertical Streak Sensitivity]

Specify the sensitivity level to detect dirt on the glass when vertical streak detection is enabled.

Select [Low] to only detect large amounts of dirt on the glass. Select [High] to also detect small amounts of dirt on the glass.

1 Start up the Software Operation Panel.

For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Vertical Streak Sensitivity].

Software Operation Panel Diagnosis Device Info Device Softed Device Softed 2 Description Page Split File (ADF) Page Edge File (RF) Output color Post-Link Document check area specification for NutMixed Detection Intelligent N-linked Function Number of paper feeding options Ceaving Cycle Life Counter Alters Setting Group Seed Control Close Shock Controls Face Study Auto Chip (Frontset) Manual feed-in-test Power Oil Control Paper Protection Paper Protection Sensitivity Maintenance and Inspection Cycle Feed Mode High-Middle Mode Low Name High OK Cancel Apply (A)

3 Specify the sensitivity level.

Low: Decreases the sensitivity level to detect dirt on the glass.

Normal: Monitors dirt on the glass in normal sensitivity. Keep this setting for normal use.

High: Increases the sensitivity level to detect dirt on the glass.

HINT

• If [Clean glass!] frequently flashes on the second line in the [Ready] screen, select [Low].
  ● This setting can also be configured in the operator panel.

Chapter 9 Operational Settings

Scanner Maintenance and Inspection Cycle [Maintenance and Inspection Cycle]

Specify the period of time for regular maintenance and inspection of the scanner by a service engineer.

When the specified period has passed after the last regular

maintenance and inspection date, Metals on the LCD.

In this case, [maintenance] flashes on the second line in the [Ready] screen.

Check the information and perform a regular maintenance and inspection on the scanner by a service engineer.

For details about checking the information, refer to "Checking the information" (page 71).

For regular maintenance and inspection on the scanner by a service engineer, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

1 Start up the Software Operation Panel.
For details, refer to "9.1 Starting Up the Software Operation Panel" (page 163).

2 From the listing on the left, select [Device Setting 2] → [Maintenance and Inspection Cycle].

Software Operation Panel - Diagnostics - Device Info - Device Settings - Device Setting 2 - Hardware - Page Edge File (DIF) - Page Editor File (EIB) - Dropout color - PrePick - Document check areas specification for Multidet Connection - Intelligent Linked Function - Number of paper leading lines - Clearing Cycle - Life Counter Alarm Setting - Vertical Signal Detection - Vertical Stroke Switching - Pick Speed - AutoCap Boundary - Manual/Control - Power BW Control - Paper Protection - Performance and Maintenance System - Food Network - High Altitude Mode - Disable - Enable - 12 months OK Cancel Apply All

3 Select whether to enable or disable [Maintenance and Inspection Cycle].

If you select [Enable], select the period of time for regular maintenance and inspection of the scanner by a service engineer.

Appendix

This appendix provides the following information.

A.1 Basic Specification....208
A.2 Installation Specification....210
A.3 Outer Dimensions 212
A.4 Scanner Options 214
A.5 Uninstalling the Software 215

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

A.1 Basic Specification

Item Specification Notes
			fi-7160 fi-7260	fi-7180 fi-7280
Scanner type ADF ADF + Flatbed ADF			ADF + Flatbed -
Image sensor Color CCD × 2			(front, back)	Color CCD × 3(front, back, flatbed)	Color CCD × 2(front, back)	Color CCD × 3(front, back, flatbed)	-
Light source White LED × 2			(front, back)	White LED × 3(front, back, flatbed)	White LED × 2(front, back)	White LED × 3(front, back, flatbed)	-
Scanning area	Minimum ADF 50.8 × 54 (mm) / 2 × 2.13 (in.) (landscape/portrait) (*1)
	Maximum ADF 216 × 355.6 (mm) / 8.5 × 14 (in.) (*2)
Paper weight (thickness)			27 to 413 g/m2(7.2 to 110 lb)127 to 209 g/m2(34 to 56 lb) for A8 size1.4 mm or less for plastic cards (*3)(*4)				(*5)
Scanning speed(A4 landscape)(*6)	Binary (black & white)		Simplex: 60 ppmDuplex: 120 ipm		Simplex: 80 ppmDuplex: 160 ipm		200/300dpi
	Grayscale
	Color
Loading capacity (*7)			80 sheets				Paper weight: 80 g/m2(20 lb)Total thickness: 8 mm or less
Optical resolution			600 dpi				-

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

Appendix

Item Specification Notes
		fi-7160 fi-7260	fi-7180 fi-7280
Output resolution	Binary (black & white)	50 to 600 dpi, 1200 dpi 50 to 600 dpi: configurable in				1 dpi increments1200 dpi: created by scanner driver
	Grayscale
	Color
Grayscale level 8-bit for each color 16-bit during internal						processing
Interface USB3.0/2.0/1.1 (*8) B Type
LCD Display: FSTN (black & white)		Displayed dots: 110 × 65Displayed lines: 5 × 16 (row × column)				-

*1: The minimum scanning area only applies to using the ADF. There is no limitation when using the flatbed.

*2: Long page scanning supports documents with a length of up to 5,588 mm (220 in.) when the scanning resolution is set to 200 dpi or less.

*3: When scanning plastic cards from the ADF, you can load up to 3 cards in the ADF paper chute (feeder).

*4: Up to 1.25 mm is supported for scanning at 300 dpi or less (80 ppm) in landscape when using the fi-7180/fi-7280. This setting can be changed in the Software Operation Panel to scan plastic cards with a thickness up to 1.4 mm.

For details, refer to "Scanning Thick Plastic Cards [Feed Mode] (fi-7180/fi-7280)" (page 194).

*5: The paper weight only applies to using the ADF. There is no limitation when using the flatbed.

*6: Note that this is the hardware limitation, and the software's processing time such as data transfer time is added to the actual time of scanning.

*7: The capacity varies depending on the paper weight.

For details, refer to "2.3 Documents for Scanning (ADF)" (page 45).

*8: Connection with USB 3.0/2.0 requires the USB port and the hub to support USB 3.0/2.0. Also note that the scanning speed slows down when using USB 1.1.

A.2 Installation Specification

Item Specification
		fi-7160 fi-7260 fi	-7180 fi-7280
Outer dimensions (W × D × H) (*1) 300 × 170 ×		163 (mm)/11.81 × 6.69 × 6.42 (in.)	300 × 577 × 234 (mm)/11.81 × 22.72 × 9.21(in.)	300 × 170 × 163 (mm)/11.81 × 6.69 × 6.42 (in.)	300 × 577 × 234 (mm)/11.81 × 22.72 × 9.21(in.)
Installation space (W × D × H) (*2) 400 × 700 ×		380 (mm) /15.75 × 27.56 × 14.96(in.)	400 × 800 × 450 (mm) /15.75 × 31.5 × 17.72(in.)	400 × 700 × 380 (mm) /15.75 × 27.56 × 14.96(in.)	400 × 800 × 450 (mm) /15.75 × 31.5 × 17.72(in.)
Weight 4.2 kg (9.26 lb) 8.8 kg (19.4 lb) 4.2 kg (9.26 lb) 8.8 kg (19.4 lb)
Input power Voltage range AC 100 to 240 ±10%
		Phase Single phase
		Frequency range 50/60 ±3 Hz
Power consumption	Operation	38 W or less	41 W or less	42 W or less	43 W or less
	Power saving	1.8 W or less
	Power OFF	0.35 W or less
Ambient condition	Temperature	Operating: 5 to 35°C (41 to 95°F), Not operating: -20 to 60°C (-4 to 140°F)
	Humidity	Operating: 20 to 80%, Not operating: 8 to 95%
Calorific value	Operation	32.7 kcal/Hr or less	35.2 kcal/Hr or less	36.1 kcal/Hr or less	37.0 kcal/Hr or less
	Power saving	1.55 kcal/Hr or less
	Power OFF	0.30 kcal/Hr or less
Shipping weight (*3)		6.5 kg (14.33 lb)	13.0 kg (28.66 lb)	6.5 kg (14.33 lb)	13.0 kg (28.67 lb)

*1: The depth excludes the ADF paper chute (feeder) and stacker.

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Appendix

*2: The required installation space is a reference for scanning A4 size documents.
*3: Includes the package weight.

TOP

Contents

Index

Introduction

Scanner Overview

How to Load Documents

Configuring the Scan Settings

How to Use the Operator Panel

Various Ways to Scan

Daily Care

Replacing the Consumables

Troubleshooting

Operational Settings

Appendix

Glossary

A.3 Outer Dimensions

The outer dimensions are as follows:

fi-7160/fi-7180

Technical line drawing of a mechanical device with no visible text or symbols

170 (6.69) 231 347 (9.09) (13.66) 163 (6.42) 217 (8.54)

Technical line drawing of a mechanical device with no visible text or symbols

170 (6.69) 481 (18.94) 616 (24.25) 328 (12.91) 163 (6.42)

Unit: mm (in.)

fi-7260/fi-7280

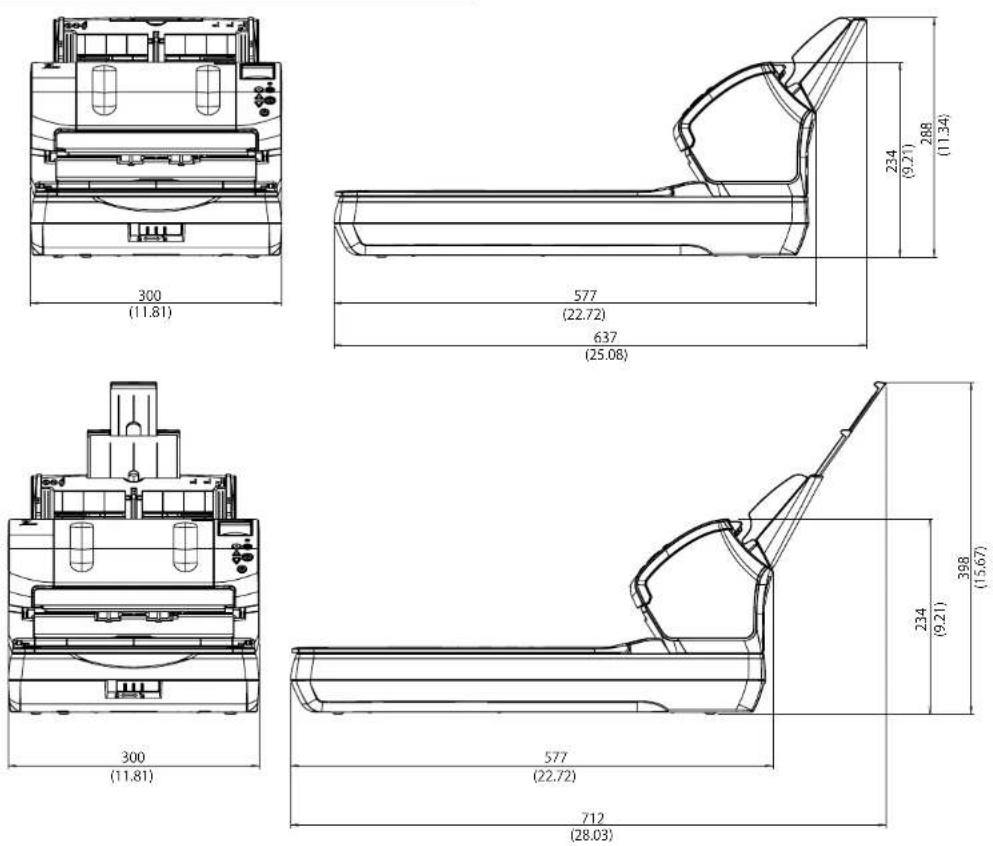

Unit: mm (in.)

A.4 Scanner Options

Name Model Supported		model	Description
Imprinter PA03670-	D201	fi-7160fi-7180	An option imprinter that can print text (e.g. alphabets, numbers) on the back of the document after scanning.It can be used to organize your documents by printing a name, date or serial number on the scanned document.For details, refer to the fi-718PR Imprinter Operator's Guide.
Black Document Pad PA03670-	D801	fi-7260fi-7280	An option that enables scanning in black background on the flatbed.It is available as a document cover with a black document pad, and can be replaced with the standard document cover that has a white document pad.It can be used to automatically correct skewed images or accurately detect the size of the scanned document when scanning with the flatbed.
ScanSnap Carrier Sheets PA03	360-0013	fi-7160fi-7260fi-7180fi-7280	Use this option to scan documents larger than A4/Letter size, as well as non-standard size documents such as photographs and clippings.Using the Carrier Sheet allows you to scan documents that are larger than A4/Letter size such as A3 and B4, scan documents that can be easily damaged such as photographs, and scan documents that are difficult to load directly such as newspaper clippings.When the Carrier Sheet is too damaged or worn out to be used for scanning, it can be purchased separately (5 sheets per set).The Carrier Sheet should be replaced approximately every 500 scans.However, replace it if damage or dirt is noticeable.

For details about purchasing the scanner options and more information, contact your FUJITSU scanner dealer or an authorized FUJITSU scanner service provider.

A.5 Uninstalling the Software

1 Turn on the computer and log onto Windows as a user with administrator privileges.

2 Exit all running software.

3 Select [Start] menu → [Control Panel] (for Windows Server 2012 or Windows 8, right-click the Start screen, and select [All apps] on the app bar → [Control Panel] under [Windows System]).

→ The [Control Panel] dialog box appears.

4 Select [Uninstall a Program].

The [Programs and Features] dialog box appears with a list of the currently installed software.

5 Select a software to uninstall.

● PaperStream IP (TWAIN) driver: [PaperStream IP (TWAIN)]

● PaperStream IP (TWAIN x64) driver: [PaperStream IP (TWAIN x64)]

● PaperStream IP (ISIS) driver: [PaperStream IP (ISIS) for fi-7160/7260/7180/7280]

- 2D Barcode for PaperStream (fi-7180/fi-7280): [2D Barcode for PaperStream]

- Software Operation Panel: [Software Operation Panel] (The Software Operation Panel is installed together with the PaperStream IP (TWAIN) driver, the PaperStream IP (TWAIN x64) driver, or the PaperStream IP (ISIS) driver.)

- Error Recovery Guide: [Error Recovery Guide for fi-7160/7260/7180/7280]

● PaperStream Capture: [PaperStream Capture]

- ScanSnap Manager for fi Series: [ScanSnap Manager for fi Series]

- Scan to Microsoft SharePoint: [Scan to Microsoft SharePoint]

- ABBYY FineReader for ScanSnap™: [ABBYY FineReader for ScanSnap(TM)]

● Manuals: [fi-Scanner manuals for fi-7160/7260/7180/7280]

- Scanner Central Admin Agent: [Scanner Central Admin Agent]

6 Click the [Uninstall] button or the [Uninstall/Change] button.

7 If a confirmation message appears, click [OK] or [Yes]. The software is uninstalled.

Glossary

A

A4 size

A5 size

A6 size

A7 size

A8 size

ADF (Automatic Document

Feeder)

Automatic size/skew detection

B

Blank Page Skip

Brake roller

Brightness

C

Canadian DOC

Carrier Sheet

CCD (Charge-Coupled Device)

Image Sensor

Color balance

D

Default setting

Density

Device Errors

Dither

Double Letter size

dpi (dots per inch)

Driver

Dropout color

Duplex scanning mode

E

Edge Extract

Edge Processing

Eject roller

Energy Star

Error diffusion

F

FCC

Feed roller

Filter

Flatbed

G

Gamma

Grayscale

H

Halftone

|

Image processing

Imprinter

Intelligent Multifeed Function

Interface

Inversion

ISIS

J

Job Separator

L

Landscape

Legal size

Letter size

M

Multi Image

Multifeed

Moiré patterns

N

Noise removal

0

OCR (Optical Character

Recognition)

Operating environment

Operator panel

Optical sensor

Overscan

P

Paper jam

Paper protection

Patch code

Pick roller

Pick start time

Pixel

Portrait

Pre-pick

R

Resolution

s

Simplex scanning mode

Smoothing

T

Temporary error

Threshold

TÜV

TWAIN

U

Ultrasonic sensor

USB

w

White reference sheet

Z

ZoneOCR

TOP

Contents

Index

Introduction

Scanner

Overview

How to Load

Documents

Configuring the

Scan Settings

How to Use the

Operator Panel

Various Ways to

Scan

Daily Care

Replacing the

Consumables

Troubleshooting

Operational

Settings

Appendix

Glossary

Glossary

A

A4 size

A standard paper size which is 210 × 297 mm ( 8.27 × 11.7 in.).

A5 size

A standard paper size which is 148 × 210 mm ( 5.83 × 8.27 in.).

A6 size

A standard paper size which is 105 × 148 mm ( 4.13 × 5.83 in.).

A7 size

A standard paper size which is 74 × 105 mm ( 2.91 × 4.13 in.).

A8 size

A standard paper size which is 52 × 74 mm ( 2.05 × 2.91 in.).

ADF (Automatic Document Feeder)

A paper feeding mechanism which allows multiple sheets of documents to be scanned one sheet at a time.

Automatic size/skew detection

End of Page Detection:

Detects the end of the page and scans the length of the document.

Automatic Page Size Detection:

Detects the paper size and outputs the image data in the same size.

Black Background:

Sets the background color to black for scanning.

B

Blank Page Skip

A function that detects and automatically deletes blank (white or black) pages in a batch of documents.

Glossary

Brake roller

A roller that prevents more than one sheet of documents to be fed into the ADF at once.

Brightness

Refers to the brightness of a scanned image.

C

Canadian DOC

A standard issued by Industry Canada, a department of the Canadian government, which sets out the technical requirements relative to the radiated and conducted radio noise emissions from digital apparatus.

Carrier Sheet

A transparent plastic sheet designed for scanning documents that are larger than A4/ Letter size.

CCD (Charge-Coupled Device) Image Sensor

A sensor which perceives the light reflected from the document and converts it into digital form. CCD technology is the basis of high quality image acquisition in scanners, cameras and other devices.

Color balance

The balance of colors in an image.

D

Default setting

(Hardware)

Preset values from the factory.

(Software)

Values set upon installation of software.

Density

Refers to the deepness of a color in an image.

Glossary

Device Errors

The following are lists of device errors which require troubleshooting by a service engineer.

Dither

The process by which a group of dots is arranged to reproduce the density of grayscale. Grayscale density is reproduced by configuring preset dot patterns. This method requires less memory compared to multilevel gray.

Double Letter size

A standard paper size used in the United States and other countries (11 × 17 in.).

dpi (dots per inch)

A measurement of resolution which is used for scanners and printers. Higher dpi indicates better resolution.

Driver

A program specifically designed for operating systems, which enables interaction with a hardware device.

Dropout color

A function which removes a specified color from a scanned image.

Duplex scanning mode

A mode for scanning both sides of the document at once. (⇔ simplex scanning mode)

E

Edge Extract

A function which traces the boundaries between black and white areas, and extracts them as outlines.

Edge Processing

A function which decreases the density of bright colors (except for white) around black areas. Increasing the value for this function removes dotted image noise and also produces “softened” images.

Eject roller

Rollers that feed documents from the ADF onto the stacker.

Glossary

Energy Star

ENERGY STAR is an international standard for energy-efficient electronic equipment which was established by the US Environmental Protection Agency (EPA) in 1992. The standard program has now been adopted by countries around the world.

Error diffusion

Method of halftone (pseudo-grayscale) image processing which is based on black & white pixel binarization. It sums the optical density of a pixel and its adjacent pixels, then relocates black pixels in the order of density to minimize the difference between scanned and output images. By diffusing the errors onto other pixels, the density data of adjacent pixels can be binarized. This function suppresses moire patterns of dotted halftone images such as newspapers, and reproduces its grayscale gradation.

F

FCC

Acronym for "The Federal Communications Commission", an independent United States government agency which is in charge of regulating interstate and international communications via radio, television, wire, satellite and cable. The Part 15 of the FCC regulations mentioned in this manual is designed to prevent harmful interferences on radio communication of radio receivers and other devices which radiate radio frequency energy, and provides for the certification of radio receivers. It also provides the certification of low power transmitters and the operation of certified transmitters without a license.

Feed roller

A roller that feeds the document through the ADF.

Filter

Refers to the following types of processing on a scanned image.

Digital Endorser:

Adds alphanumeric character strings on the scanned image data.

Page Edge Filler:

Fills in the margins of the scanned image in a specified color.

Flatbed

An input device of the scanner.

Used to scan documents that cannot be scanned in the ADF, such as books and magazines.

Glossary

G

Gamma

A unit which indicates the changes in the brightness of an image. It is expressed as a function of the electric input power to devices (e.g. scanner, display) and the brightness of the image. If the gamma rate is larger than 1, the brightness of an image increases and vice versa. Normally, the gamma rate is set to 1 when reproducing the same brightness as the original.

Grayscale

A method which expresses the gradation (density) from black to white in 256 levels. Suitable for scanning images such as photographs.

H

Halftone

Reproduces the color density in black & white by using dot patterns. This method is effective for scanning images such as photographs in black & white.

|

Image processing

Refers to processing and outputting the scanned image via specified scan parameters.

Imprinter

A printer that can print text (e.g. alphabets, numbers) on the back of the scanned document.

It can be use to manage the documents by adding a name, date or serial number on the scanned document.

Intelligent Multifeed Function

A function that excludes certain patterns of overlapping of documents that is detected as multifeed, by letting the scanner memorize the overlap pattern.

For instance, when there is paper of the same size attached to a designated location on the page, the scanner memorizes the location of the attachment and can be configured not to detect multifeeds for that location.

Interface

The connection that allows communication between the computer and the scanner.

Glossary

Inversion

A scanning method in which the black part and the white part of the image are inverted.

ISIS

ISIS (Image Scanner Interface Specification) is an API (Application Program Interface) standard for imaging devices (e.g. scanners, digital cameras) which was developed by Captiva, a division of EMC Corporation (the former Pixel Translations) in 1990. In order to use devices that comply with this standard, it is necessary to install a driver software that supports ISIS standard.

J

Job Separator

A sheet to insert between documents in a batch for separating different jobs. The following types of job separators are available:

Job separator with patch codes: A sheet with patch codes printed.

Job separator with barcodes: A sheet with barcode(s) printed.

L

Landscape

Orientation in which the short side of the document is set parallel to the feed direction.

Legal size

A standard paper size used in the United States and other countries (8.5 × 14 in.).

Letter size

A standard paper size used in the United States and other countries (8.5 × 11 in.).

Glossary

M

Multi Image

A function which outputs the image in both color/grayscale and black & white at once.

Multifeed

Multifeed is an error when two or more sheets are fed through the ADF at once. It is also called a multifeed when a different document length is detected.

Moiré patterns

Recurrent patterns on scanned images caused by incorrect settings of angles.

N

Noise removal

A function which improves the quality of an image by removing isolated noise that appear as black dots in a white area (or vice versa).

0

OCR (Optical Character Recognition)

A device or a technology that recognizes the text on documents and converts them into text data that can be edited. The shape of the characters are recognized by the differences in the light reflected off the documents.

Operating environment

Conditions (e.g. temperature, humidity) required to operate or store the scanner.

Operator panel

A panel that consists of a display and buttons. It is used for scanner operations such as selecting functions and changing settings.

Optical sensor

A sensor which detects the changes in the amount of light transmission. Paper feeding errors such as multifeed and paper jam are detected by monitoring the passing of documents.

Glossary

Overscan

A function that scans the document in a size larger than the specified paper size.

P

Paper jam

Refers to an error in which a document is jammed inside the paper path or feeding is interrupted by documents slipping.

Paper protection

A function that detects anomalies upon feeding the documents and stops the scan when:

• The scanner detects a document that is unusually warped when a feeding error occurs.
  ● The scanner detects paper jam noise
• The scanner either detects a document that is usually warped when a feeding error occurs or detects paper jam noise

Patch code

A special code to let the scanner recognize the start and the end of each job or image mode.

Pick roller

A set of rollers which separates one sheet off the documents loaded in the ADF paper chute (feeder), and feeds the document into the ADF.

Pick start time

The period of time between setting the document and until picking starts after the document passes the hopper empty sensor.

Pixel

The dots that make up a scanned image.

Portrait

Orientation in which the long side of the document is set parallel to the feed direction.

Documents/images are set/displayed vertically.

Pre-pick

Refers to feeding the document in advance to the position to start scanning.

It shortens the interval between setting the document and feeding the document to the starting position.

Glossary

R

Resolution

A measurement to indicate the quality (fineness) or an image. Resolution is displayed by the number of pixels within an inch. Since image data is a collection of small dots (pixels), if the same image contains different amount of pixels, the one with more pixels can express greater details. Therefore, the higher the resolution, the finer the image becomes.

s

Simplex scanning mode

A mode for scanning only one side (front or back) of the document. ( duplex scanning mode)

Smoothing

Refers to the removal of irregularities on diagonal lines and curves, which is a processing method commonly used in OCR applications.

T

Temporary error

An error that can be fixed by the operator.

Threshold

The value which is used to determine whether a certain color is black or white. Threshold value must be configured in order to scan images with grayscale gradation. Each pixel is converted into black or white according to the specified value.

TÜV

An institution that controls products for conformity with various standards related to security, usability and environmental issues.

TWAIN

TWAIN (Technology Without Any Interesting Name) is an API (Application Program Interface) standard for imaging devices (e.g. scanners, digital cameras) developed by TWAIN Working Group. In order to use devices that comply with this standard, it is necessary to install a driver software that supports TWAIN standard.

Glossary

U

Ultrasonic sensor

A sensor that detects multifeed errors by ultrasonic soundwave. It detects multifeeds by monitoring the difference in the amount of ultrasonic waves transmitted through the documents.

USB

USB (Universal Serial Bus) is a standard for interfaces used to connect devices such as keyboards and scanners. Up to 127 devices can be connected by this interface. It can be connected and disconnected without powering off the devices. For USB 3.0, the data transfer rate is a maximum of 480 Mbps in Hi-Speed and a maximum of 5 Gbps in Super-Speed mode.

For USB 2.0, the data transfer rate is 1.5 Mbps in Low-Speed, 12 Mbps in Full-Speed, and a maximum of 480 Mbps in Hi-Speed mode.

For USB 1.1, the data transfer rate is 1.5 Mbps in Low-Speed and 12 Mbps in Full Speed mode.

W

White reference sheet

The white part located inside the ADF which the scanner defines as white, in order to adjust the brightness of all other areas accordingly.

z

Zone OCR

A function which performs text recognition on the specified area of the scanned image.

Index

Index

A

ADF cleaning.... 112, 113
loading documents 42
ADF paper chute (feeder) setup 29

B

basic flow of scanning operation 37
before you contact the scanner service provider...... 159
black document pad 214
brake roller.... 121

C

Carrier Sheet 214
cleaning.... 118
centralized management of scanners.... 40
cleaning ADF (with Cleaning Paper) 112
ADF (with cloth).... 113
Carrier Sheet.... 118
flatbed 117
inside....112
outside....111
cleaning materials.... 109
cleaning the inside.... 112
cleaning the outside.... 111
configuring the scan settings.... 55
consumables 120
conventions 5
customizing the scanner settings 100

D

daily care 108
documents for scanning 45

E

error indications on operator panel.... 130

F

flatbed cleaning.... 117
loading documents 44
