USER MANUAL CMD420 BRK

Close-up of a black cylindrical device with a circular base and transparent glass components, no visible text or symbols.

First Alert®

Welcome

Thank you for choosing First Alert for your security needs!

For more than half a century, First Alert has made the home-safety and security products that make your job easier. Our products are built to the highest standard which has earned us a leadership role in the home-safety and security product categories. We are committed to serving our customers, from the professionals who install our products, to the families and businesses who count on them. First Alert has been helping families and businesses stay safe for over 50 years. By having a First Alert Security System, you're taking the first step in protecting your home or business from damage or theft. We're watching, even when you're not.

This manual is written for the CMD420, CMD480, CMD520, CMD560, CMD600 and CMD700 security camera. It was accurate at the time it was completed. However, because of our ongoing effort to constantly improve our products, additional features and functions may have been added since that time and on-screen displays may change. We encourage you to visit our website at www.firstalert.com to check for the latest manuals (English and Spanish), firmware updates, downloads, other security camera products and announcements. You'll find this product line under Home Security >> Security Cameras >> Wired Cameras.

© 2013 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc., Aurora, Illinois 60504. BRK Brands, Inc. is a subsidiary of Jarden Corporation (NYSE: JAH). First Alert® is a registered trademark of the First Alert Trust. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package. To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30 a.m. - 5 p.m., Central Standard Time. Made in China

Package Contents

• (1) Camera with mounting bracket & hardware
• (1) 12vDC Power Adapter

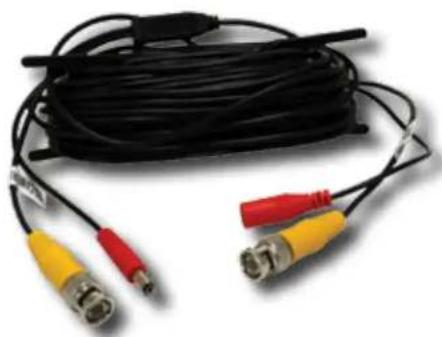

• (1) BNC Video & DC Power Cable

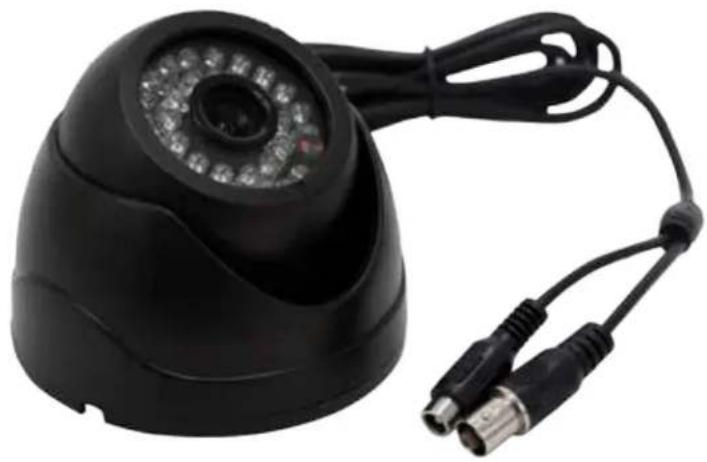

Black security camera with dual cables and a sensor array (no visible text or symbols)

CMD420 CMD480 CMD520 CMD560 CMD600 & CMD700

Coiled black cable with a U-shaped plug and power outlet, no visible text or symbols

Coiled black cable with three red and yellow connectors, no visible text or symbols

BNC Video & DC Power Cable12V DC Power Adaptor

SAFETY

CAUTION STATEMENTS

Safety Precautions

• Do not drop, puncture, or disassemble the cameras or DVR.
• Do not tug on the power adapter. Use the plug to remove it from the wall.
• Do not expose the cameras or DVR to high temperatures.
• For your own safety, avoid using the DVR when there is a storm or lightning in your area.
• Use the cameras and DVR with care. Avoid pressing hard on the cameras or DVR body.
• Do not use power cable if it is crushed or damaged

FCC Compliance

FCC Compliance Class B Digital Device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that of the receiver.
- Consult the dealer or an experienced radio or TV technician for help.

Notice: Only peripherals complying with FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by First Alert / BRK Brands, Inc. is likely to result in interference to radio and TV reception. Changes or modifications to the product, not expressly approved by First Alert / BRK Brands, Inc., could void the user's authority to operate the equipment.

We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Certification (if applicable)

This device contains a radio transmitter. Accordingly, it has been certified as compliant with 47 CFR Part 15 of the FCC Rules for intentional radiators. Products that contain a radio transmitter are labeled with an FCC ID.

Fire and Electric Shock Hazard Statement

CAUTION
RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. UNPLUG ALL POWER SOURCES, INCLUDING CAMERAS FROM THE DVR BEFORE REMOVING COVER. FAILURE TO DO SO CAN RESULT IN DAMAGE TO THE DVR OR ITS COMPONENTS AS WELL AS INJURY OR DEATH.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT

PRODUCT OVERVIEW

CAMERA AND POWER CONNECTIONS

Installing Cameras

Mounting Cameras and Running Cable

Select the position for the camera and secure the camera stand. Screw the camera onto the stand. Adjust camera to the proper view angle. Make sure the lens is upright relative to the subject. Tighten the thumb bolt. First Alert cameras can be either ceiling or wall mounted by simply reversing the camera stand mounting. See "Camera Orientation" Info box. Holes are provided on both the bottom and back of the camera housing to accommodate most mounting requirements. Run cable from camera to DVR location.

See Information box below on "Longer Cable Runs".

Close-up of a black circular security camera with visible lens and control buttons (no text or symbols)

Camera - Ceiling Mounted

Camera Orientation

It's important the camera is mounted correctly to ensure the image is not upside down as the camera lens can only be positioned one way.

Longer Cable Runs

Longer cable runs may require an upgrade to RG59 Coax cable. First Alert kits ship with economical AV cable that is designed to work well up to the length of cable provided, usually around 60 feet. If longer distances between

camera and DVR are required, you will need to upgrade to RG59 Coax cable. We provide several lengths up to 300 feet. In addition, if you need to run cable for in-wall installations, then you may require fire rated cable, FT-4/CMR UL approved for in-wall installations.

Connecting Cameras

Follow this diagram to connect camera to a DVR or other device using a BNC connection. Note: DVR Power Adaptor is for illustration purposes only. Your power adaptor may be different.

Option 1
Power from DVR (Not Supplied)

Power from 120V

Power to DVR DC 12V Input
Splitter from DVR Camera & Power

m DVR Power

Power to Camera

Option 2
Power from Supplied Adaptor

Supplied 12V DC Adaptor

AV Cable: BNC/DC Power

Video to Camera Power to Camera

APPENDIX

SPECIFICATIONS AND TROUBLESHOOTING

Technical Specifications

Item Specifications
Model CMD420 CMD480 CMD520 CMD560	CMD600 CMD700
Image Sensor	1/3.6" CMOS	1/3" CMOS	1/3.6" CMOS	1/3.6" CMOS	1/4" CMOS	1/4" CMOS
Effective Pixels	NTSC:(H)648xV)488	NTSC:(H)648x(V)488	NTSC: 656(H)x492(V)	NTSC: 656(H)x492(V)	NTSC: 656(H)x492(V)	NTSC: 720(H)x480(V)
Horizontal Resolution	420 TVL	480 TVL	520TVL	560TVL	600TVL	700TVL
IP Rating	N/A	N/A	N/A	N/A	N/A	N/A
Number of infrared LED's	32 IR LEDs	32 IR LEDs	32 IR LEDs	32 IR LEDs	32 IR LEDs	24 IR LEDs
Night-Vision Range	50 Ft.	50 Ft.	80 Ft.	80 Ft.	80 Ft.	80 Ft.
Indoor/Outdoor	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Lens	6mm	6mm	6mm	6mm	6mm	6mm
View angle	34°	34°	34°	34°	48°	34°
Frame Rate	NTSC: 60 fields/secPAL: 50 fields/sec;	NTSC: 60 fields/secPAL: 50 fields/sec;	NTSC: 60 fields/secPAL: 50 fields/sec;	NTSC: 60 fields/secPAL: 50 fields/sec;	NTSC: 60 fields/sec;PAL: 50 fields/sec	NTSC: 60 fields/sec;PAL: 50 fields/sec
Minimum Illumination	0 Lux (IR ON)	0 Lux (IR ON)	0 Lux (IR ON)	0 Lux (IR ON)	0 Lux (IR ON)	0 Lux (IR ON)
Audio	No	No	No	No	No	No
White Balance	Auto	Auto	Auto	Auto	Auto	Auto
S/N Ratio	>48dB	>48dB	>48dB	>48db	>48dB (AGC OFF)	>48dB (AGC OFF)
Gamma correction	>0.45	>0.45	>0.45	>0.45	>0.45	>0.45
Shutter Speed	1/50(1/60) 1/100000	1/50(1/60) 1/100000	1/50(1/60) 1/100000	1/50(1/60) 1/100000	1/50(1/60) 1/100000	1/50(1/60) 1/10000
Infrared Wave Length	850nm	850nm	850nm	850nm	850nm	850nm
Video Output	1.0Vp-p 75 Ohm	1.0Vp-p 75 Ohm	1.0Vp-p 75 Ohm	1.0Vp-p 75 Ohm	1.0Vp-p 75 Ohm	1.0Vp-p 75 Ohm
Power Supply	DC 12V 300mA	DC 12V 500mA	DC 12V 300mA	DC 12V 300mA	DC 12V 300mA	DC 12V 500mA
OperatingTemp	14 °F to 122 °F	14 °F to 122 °F	14 °F to 122 °F	14 °F to 122 °F	14 °F to 122 °F	14 °F to 122 °F

Troubleshooting

Error Possible Cause Solutions
No Picture Camera cables are loose or have become disconnected		Check the camera video cable and connectionsDisconnect and reconnect the cable at the system and at the cameraTry moving the camera to another channel or use another cable
Flickering image Bright light	shining directly into camera lens	Move the camera or move any source of bright light away from the camera
Image is too light or dark M	s-adjustment of contrast and brightness levels	Adjust the contrast and brightness on the DVR or TVMove the camera or move any source of bright light away from the camera
A white image appears at night	Camera is placed too close to a window	The camera's infrared LEDs shine invisible light that reflects off surfaces such as glass causing white lightPlace the camera on the other side of windows or place the lens flush against the surface to improve night vision
