USER MANUAL MS8391-EV Vivotek

Technical line drawing of a mechanical housing and enclosure assembly (no text or symbols)

Rev. 1.0

SUPREME

Table of Contents

Overview....3

Revision History ....3

Read Before Use....4

Package Contents 4

Symbols and Statements in this Document....5

Physical Description....5

Shooting Angle & Field of View 9

Hardware Installation....10

Network Deployment....18

Software Installation....21

Ready to Use....22

Accessing the Network Camera 23

Using Web Browsers....23

Using RTSP Players....26

Using 3GPP-compatible Mobile Devices....27

Using VIVOTEK Recording Software....28

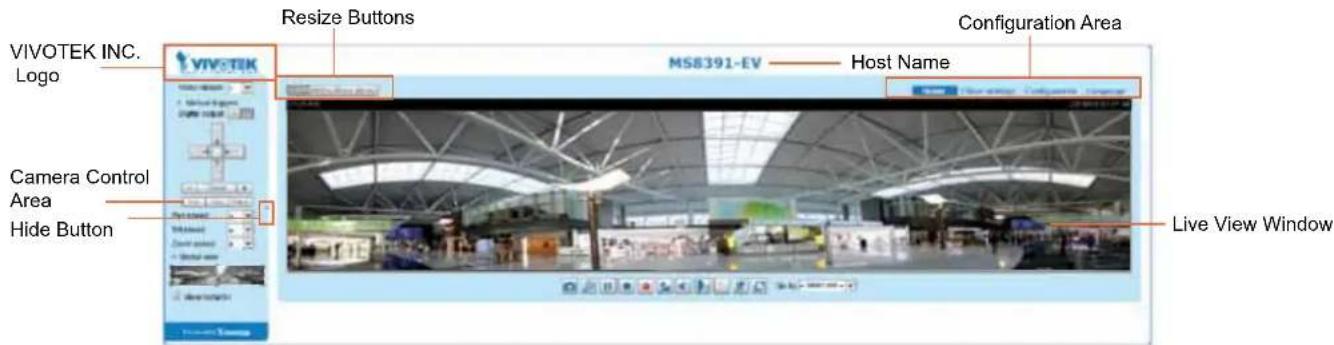

Main Page....29

Client Settings.... 34

Configuration 39

System > General settings ....40

System > Homepage layout ....42

System > Logs 45

System > Parameters ....47

System > Maintenance....48

Media > Image ....52

Media > Video 63

Media > Video 64

Media > Audio....70

Network > General settings....71

Network > Streaming protocols ....79

Network > SNMP (Simple Network Management Protocol)....88

Security > User accounts ....89

Security > HTTPS (Hypertext Transfer Protocol over SSL)....90

Security > Access List ....97

PTZ > PTZ settings 102

Event > Event settings....106

Applications > Motion detection....120

Applications > DI and DO 123

Applications > Tampering detection ....124

Applications > Audio detection 125

Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) .....127

Recording > Recording settings ....130

Local storage > SD card management....135

Local storage > Content management....136

Appendix 139

URL Commands for the Network Camera....139

Technical Specifications 312

Technology License Notice....313

Electromagnetic Compatibility (EMC)....314

Overview

The VIVOTEK MS8391-EV comes with multiple sensors to provide a high resolution 12MP panoramic field of view that reduces the total number of cameras required for covering a wide surveillance area. The multi-sensor network camera can monitor a 180^ horizontal view with adjustable views from individual sensors.

The camera provides the e-PTZ function allowing users to digitally zoom in or zoom out or move a filed of view to area of interest across the wide coverage. The Smart Stream function can be used to dynamically designate the video quality of the interested or the non-interested areas, and thus reducing the bandwidth required to transmit the video streams. With the Smart IR technology, overexposure on the adjacent objects at night can be prevented, and additional exposure exclusive windows can also be implemented to avoid such occurrence.

Featuring a robust IP66 and IK10-rated housing, the camera is designed to withstand vandalism or tampering.

Revision History

■ Rev. 1.0: Initial release.

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the Package Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ MS8391-EV
■ AM-714 junction box
■ Screws / desiccant bag / double-side tape
■ Alignment sticker

■ Quick Installation Guide
■ Software CD
■ T25 L-wrench

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient or problem situations.

NOTE: Notices provide guidance or advices that are related to the functional integrity of the machine.

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or process.

WARNING: or IMPORTANT:: These statements indicate situations that can be dangerous or hazardous to the machine or you.

Electrical Hazard: This statement appears when high voltage electrical hazards might occur to an operator.

Physical Description

Front Panel

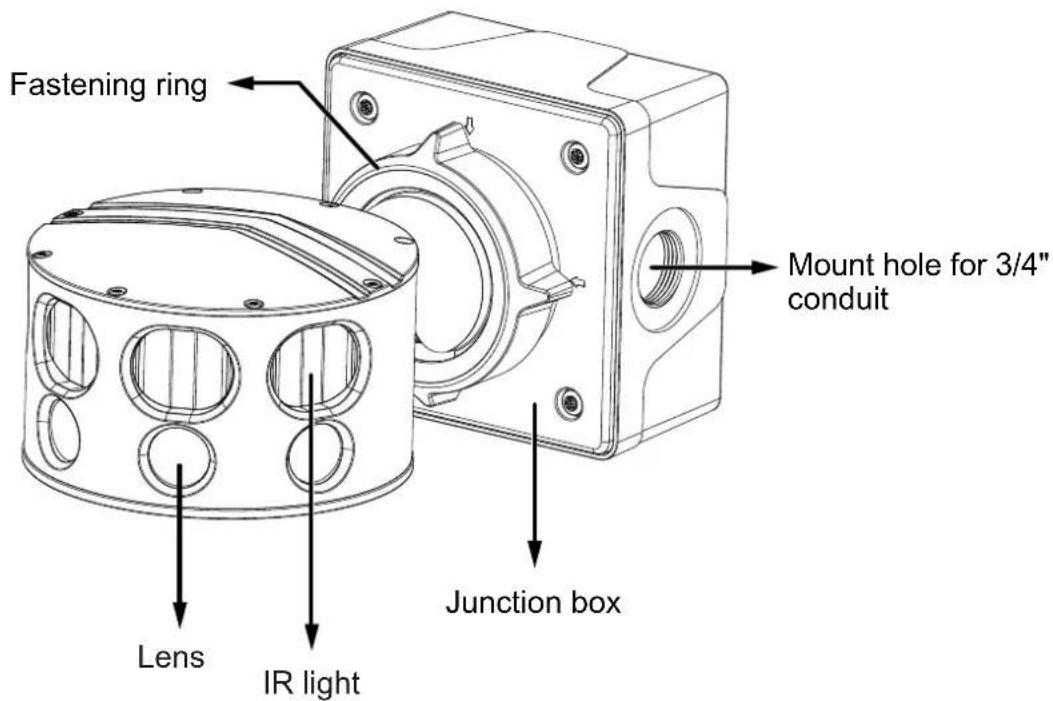

Fastening ring Mount hole for 3/4" conduit Junction box Lens IR light

NOTE:

Some of the suffix syntax used in model naming are listed below:

E w/ heater for extreme weather

Fx Focal length w/ number

T w/ Remote focus lens

R w/ PoE repeater

H w/ High Dynamic Range functionality

Interface View

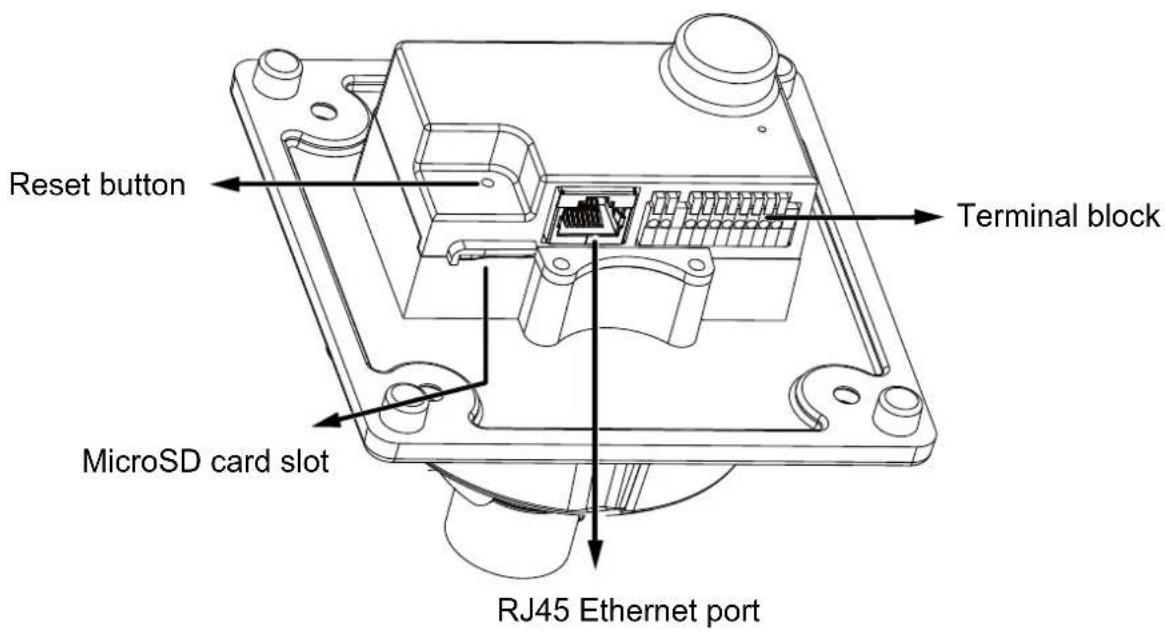

Reset button MicroSD card slot Terminal block RJ45 Ethernet port

Pinouts

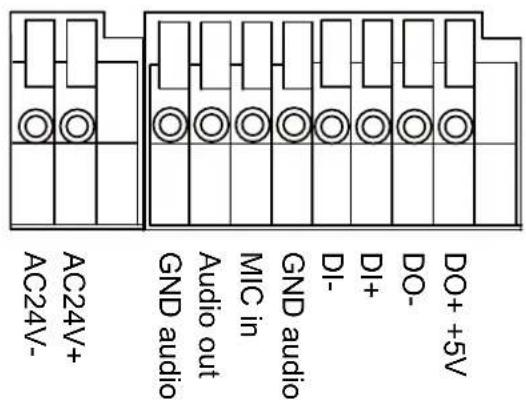

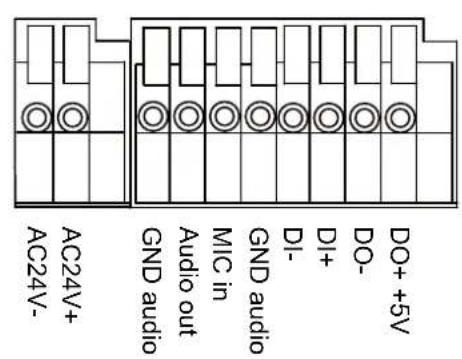

AC24V+ AC24V- GND audio Audio out MIC in GND audio DI- DI+ DO- DO+ +5V

Power Consumption

802.3at

24V 3.5A

Illustration of a gray rectangular electronic device with attached cables and connectors (no text or symbols)

PoE injector

Due to its IR lights and onboard heater for operation in low temperature environments, care should be taken when selecting the power source for the camera. Listed below are the requirements for powering the camera:

Use conditions Power consumption
Camera + IR on + Heater on 43.5W (24V); 23	5W (using 802.3at PoE)
Camera + Heater in day mode (w/o IR) 35.7W

In warmer areas that do not need a heater, a PoE+ switch can drive the camera. In areas where temperature can drop below -20^ , an AC 24V power adaptor is required.

IMPORTANT:

Many copper coated aluminum (CCA) and other non-standard conductors cabling products are masqueraded as CAT5E or CAT6 cables. Please avoid using these CCA products especially when cascading PoE cameras. It is a must to use Ethernet cables compliant with the 3P/ETL standard.

DI/DO Diagram


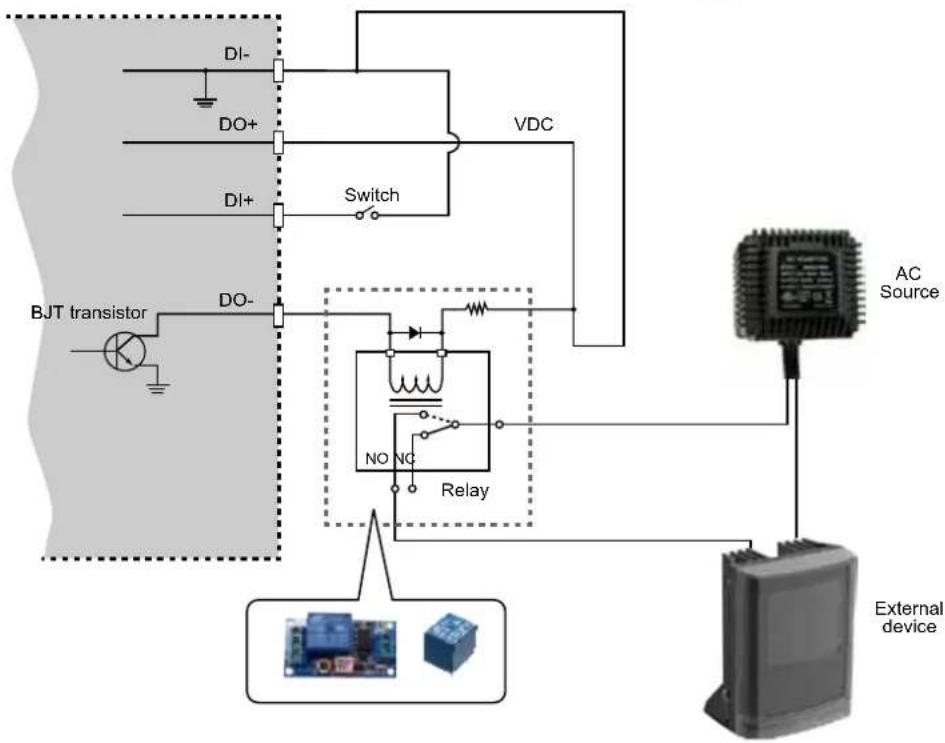

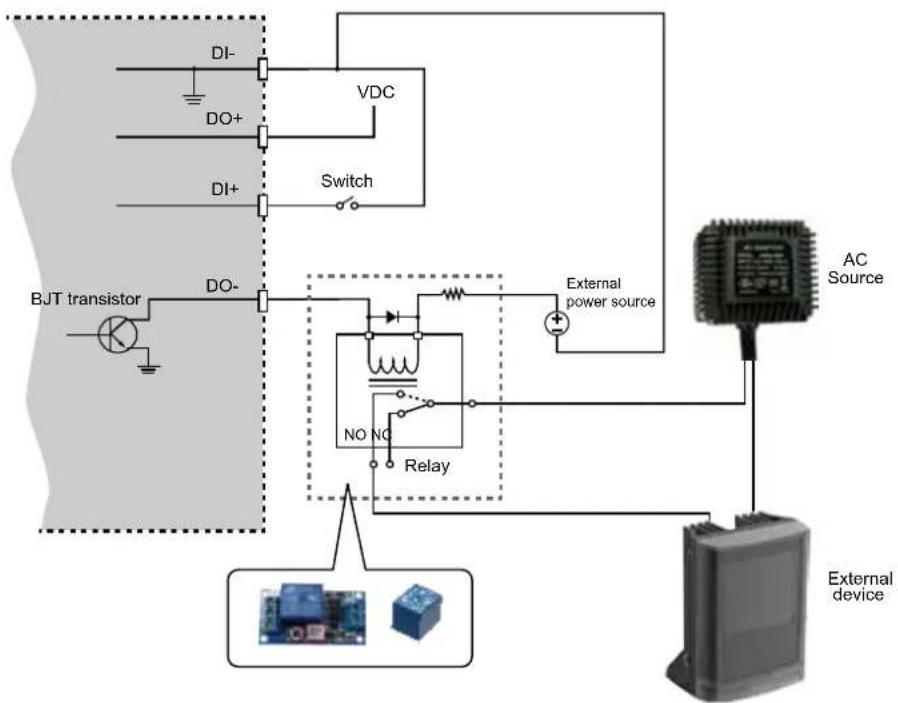

1. The DO+ pin provides a 5V output voltage, and the max. load is 50mA.
2. The max. voltage for DO- pins is 80VDC (External power).

In order to control AC devices, the above diagram can be taken in consideration. The diagram uses a relay to control the ON/OFF condition of the AC device.

1. An external relay can be triggered by using DO+ or by an external power source, depending on the type of relay you use.
2. In case of using an individual relay (instead of using a relay module), for protection against voltage or current spikes, a transient voltage suppression diode must be connected in parallel with the inductive load.

Shooting Angle & Field of View

33° 180°

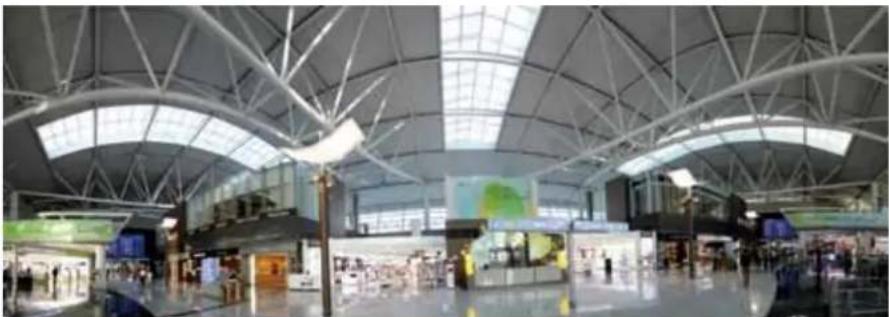

Interior view of a modern airport terminal with large glass roof trusses and illuminated walkways (no visible text or signage)

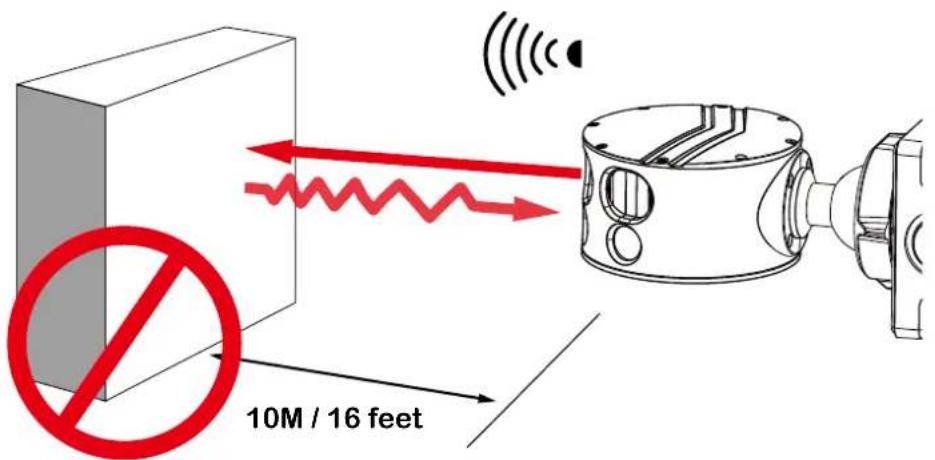

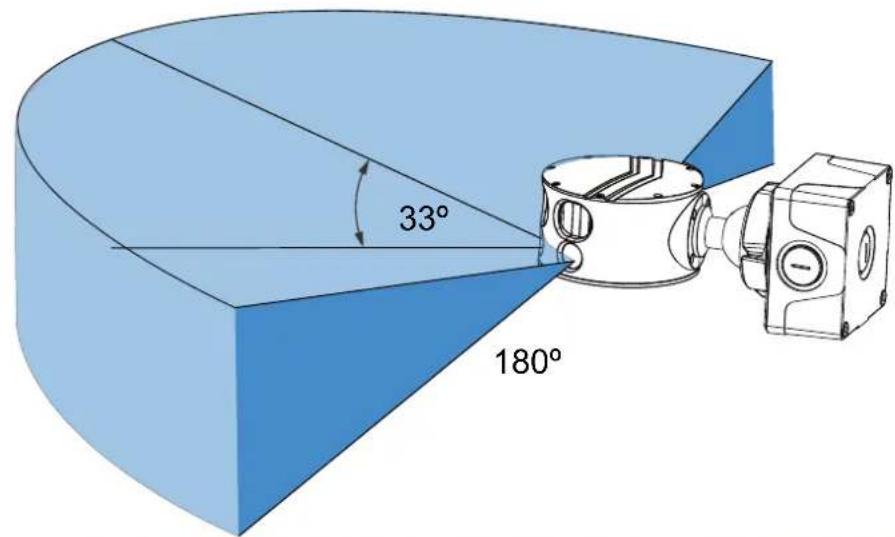

The field of view is illustrated above. Note that the higher the camera is installed, the larger is the blind spot area underneath the camera. The camera can be mounted at a height of 5 meters or higher to cover a panoramic view area with its center of view aiming at the horizon.

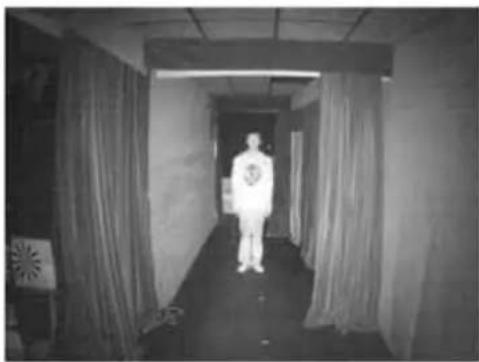

The camera comes with a wide coverage IR lights configuration of a range up to 25 meters. Please avoid large obstacles within 10 meters, so that there is no image blur reflected from the obstacles in the night mode. Note that the intensity of individual IR lights can be adjusted through the URL commands. Please contact technical support for the IR light commands.

10M / 16 feet

Hardware Installation

1. Jot down the camera's MAC address for later reference.

1

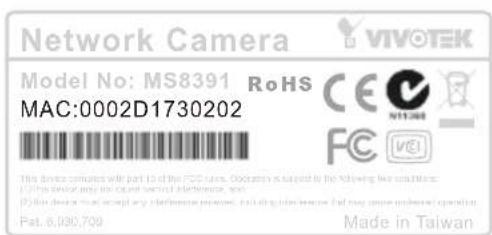

Network Camera VIVO TEK Model No: XXXXXX MAC: 0002D10766AD RoHS CE FC XXXX V©I Made in Taiwan Pat.6, 930, 709

Illustration of a hand holding a pen, writing on paper (no text or symbols present)

1. Attach the included alignment sticker to a preferred location.

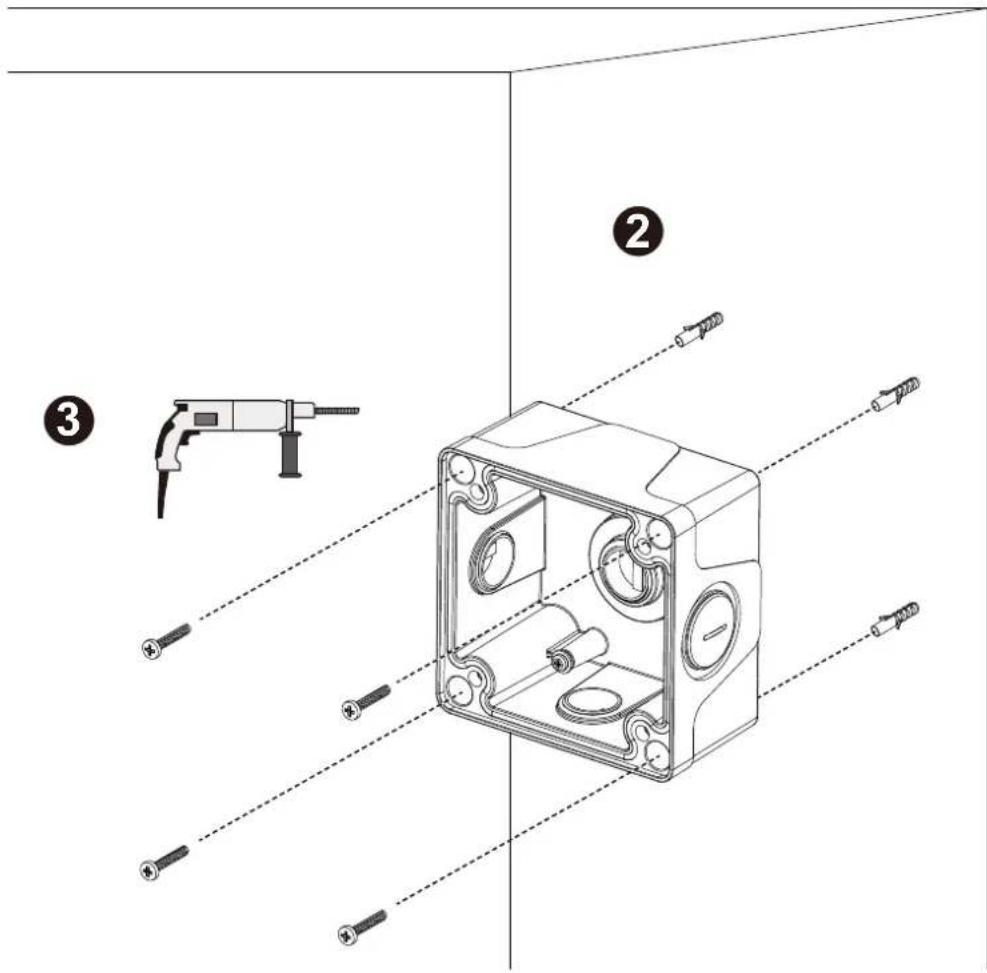

2. Drill holes for mounting screws and/or a cabling hole. You can also route cables from the side using 3/4" conduits.

Technical diagram showing exploded view of a mechanical assembly with labeled parts and numbered annotations

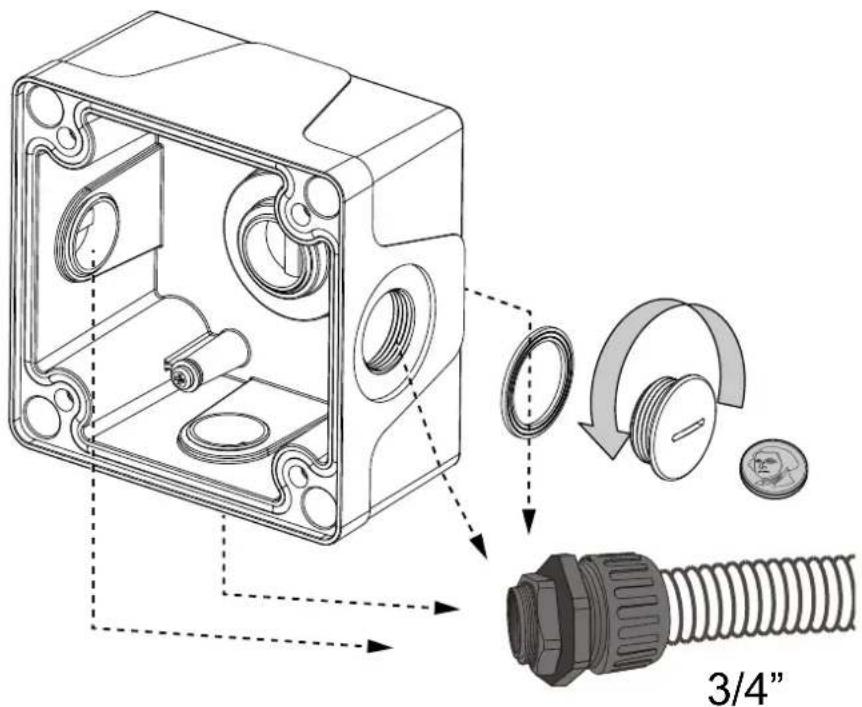

Use a coin to remove the plastic cover from a preferred routing hole.

3/4"

1. Route cables through the routing hole or the conduit.

Technical diagram of an electrical connector with cable and connectors, showing internal components and wiring (no text or symbols)

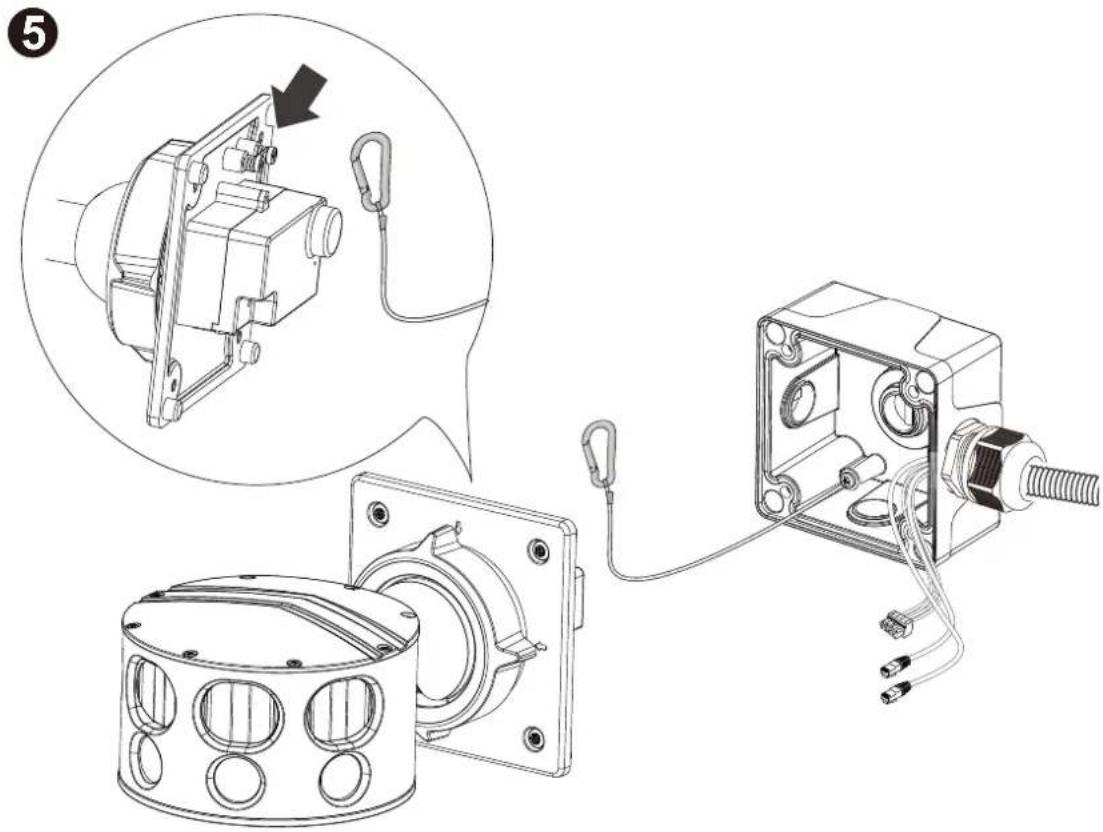

1. Hook up the safety wire.

Technical diagram showing assembly of a mechanical device with labeled components and a magnified inset view.

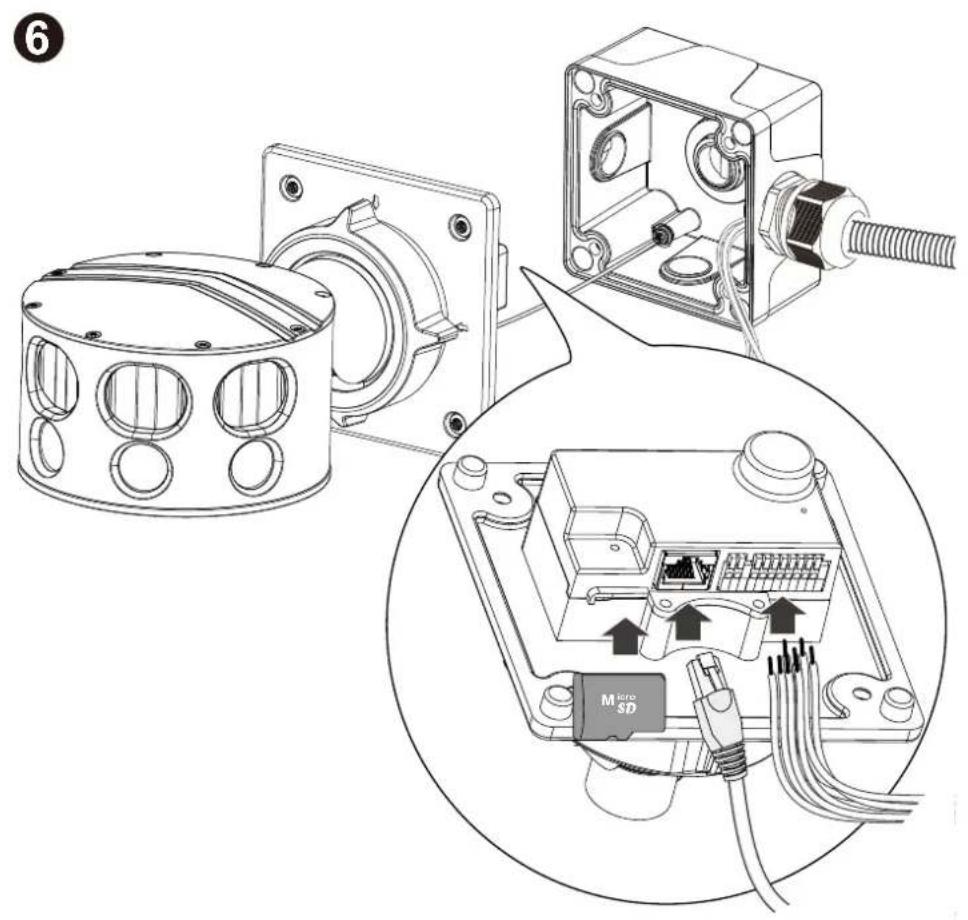

1. Install a MicroSD card. Connect the Ethernet cable and the DI/DO, audio input/output, and/or the AC 24V input (if preferred).

6 MicroSD

AC24V+ AC24V- GND audio Audio out MIC in GND audio DI- DI+ DO- DO+ +5V

802.3at

24V 3.5A

1. Replace the desiccant bag whenever you open the top cover. This ensures the components are free from the moisture.

7

Technical line drawing of a mechanical assembly with housing, mounting bracket, and internal components (no text or symbols)

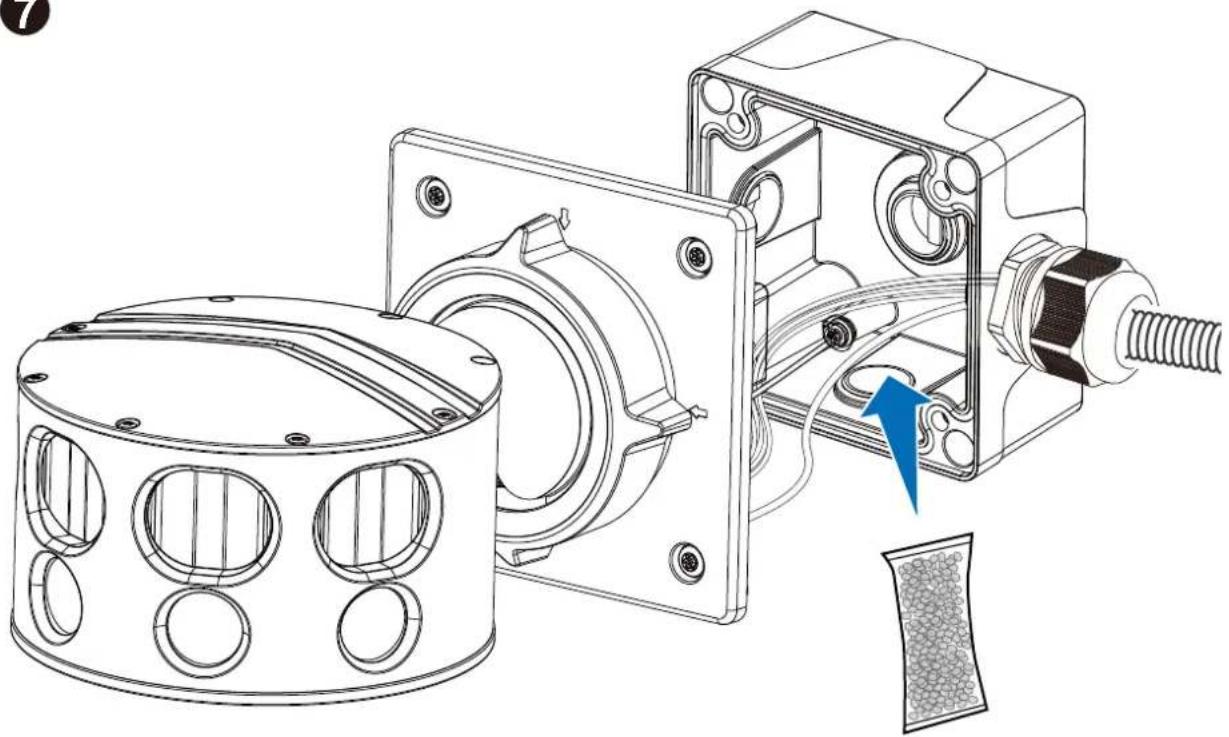

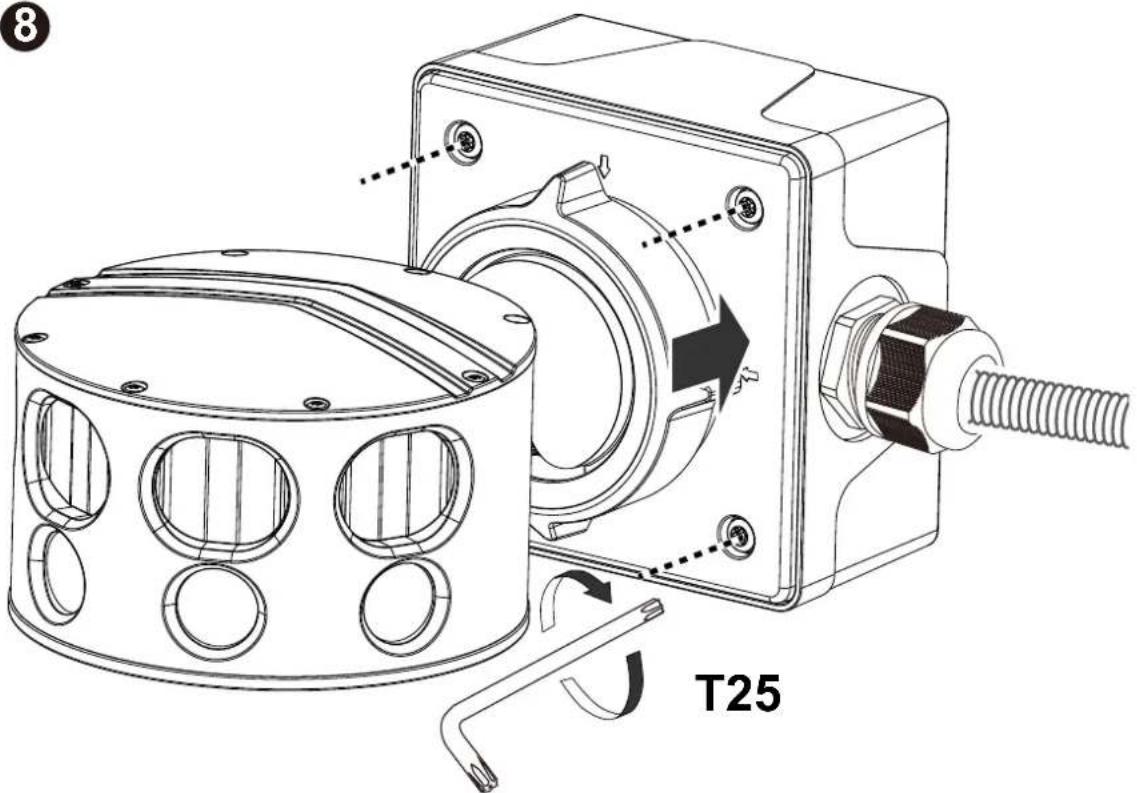

1. Secure the camera to the junction box using a T25 L-wrench. Tighten the screws.

8

T25

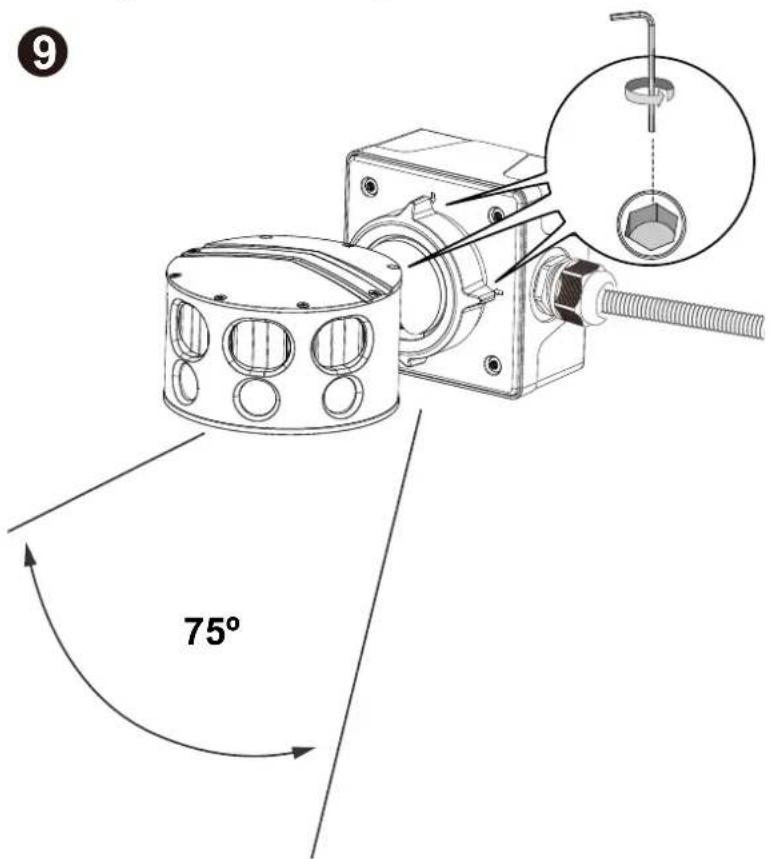

1. If necessary, loosen the 3 retention hex screws around the fastening ring to adjust the tilt angle. When done, tighten the retention screws.

9 75°

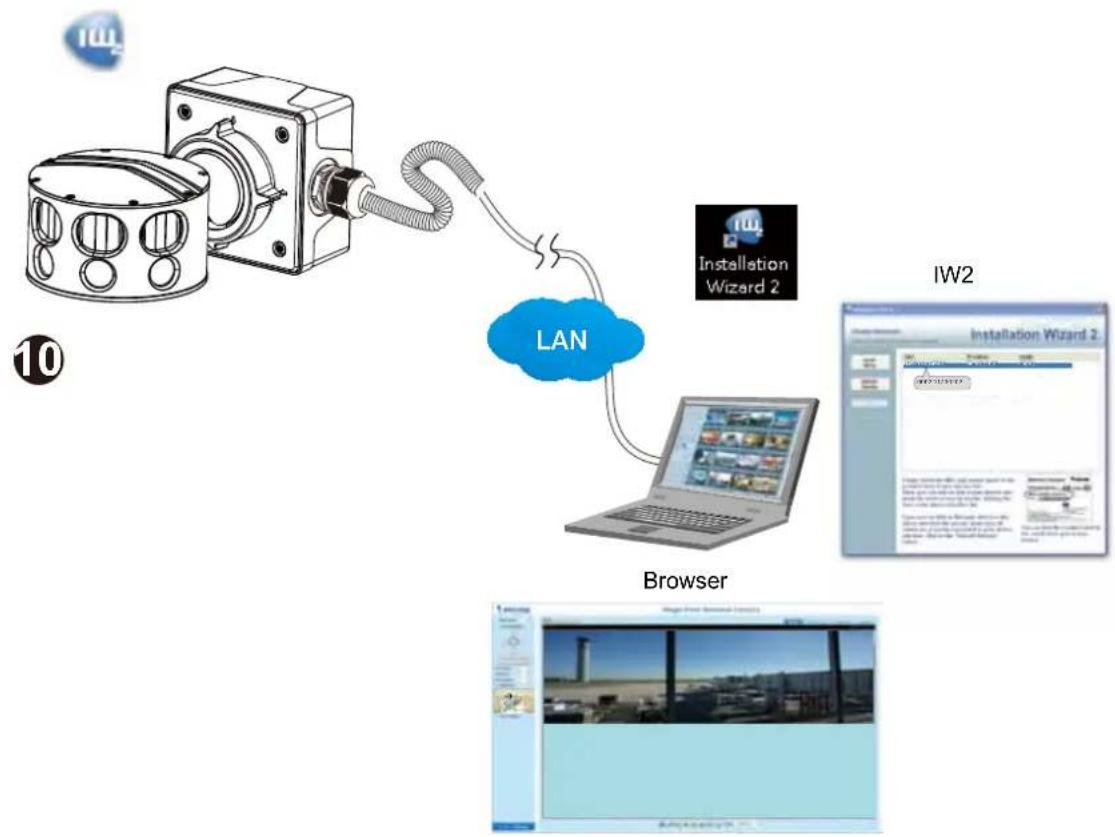

1. Install the "Installation Wizard 2" software utility on your software CD.

1. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN.
2. Double-click on the camera's MAC address to open a browser management session with the camera.

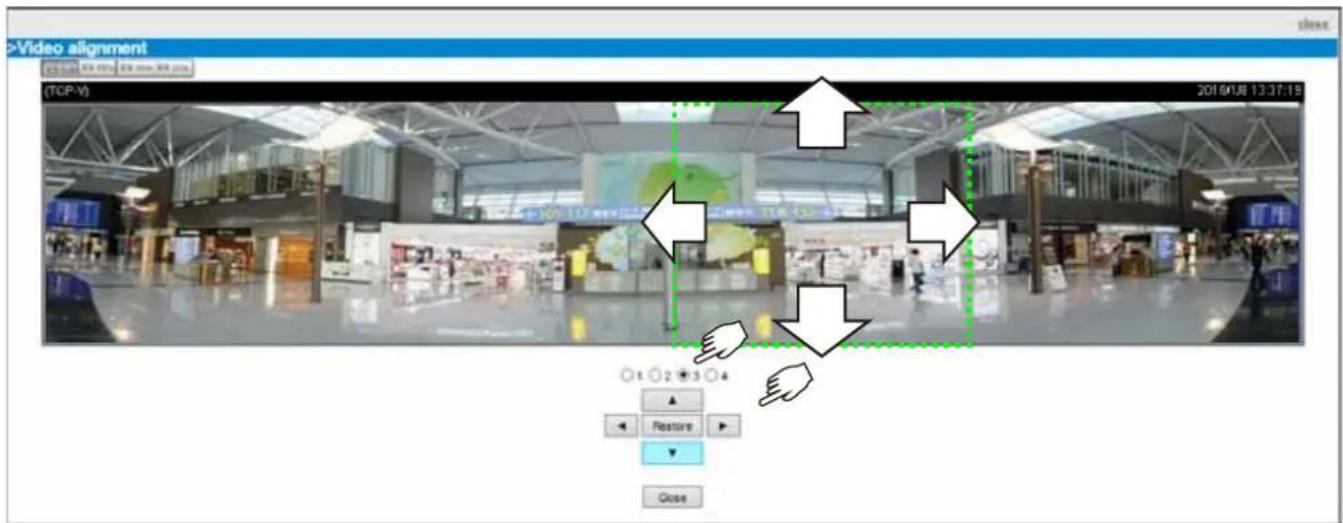

3. With a live view is displayed on your laptop, adjust the zoom and focus to obtain an optimal image. Check the live view to ensure the image is in focus.
4. Perform necessary adjustments such as the image alignments on the panoramic view from the 4 sensors. Go to Configuration > Image > General settings > Video alignment.

Video alignment TCP-V) 2016/06 13:37:19 0 1 2 3 4 ▲ ◄ Feature ▼ Close

Hardware Reset

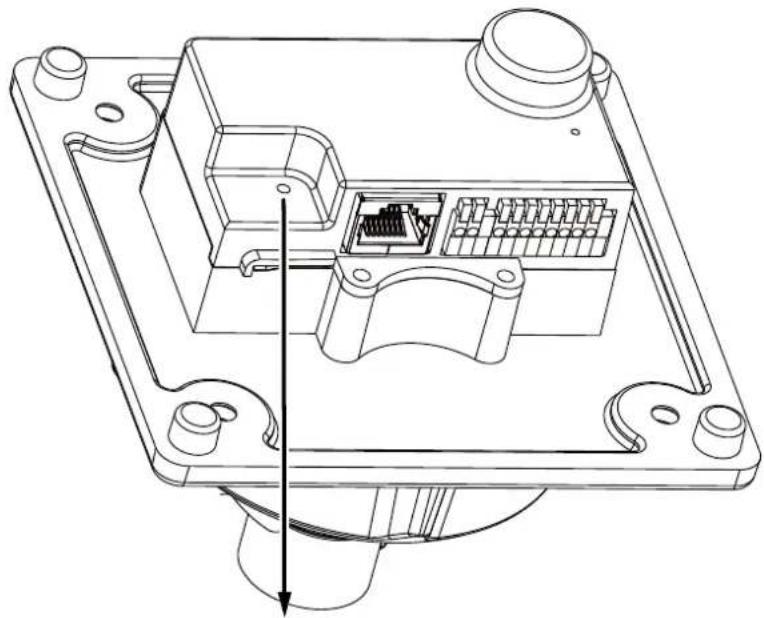

Technical line drawing of an electronic device housing with internal components and a central connector (no text or symbols)

Reset Button

The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

Reset: Press the recessed reset button. Wait for the Network Camera to reboot.

Restore: Press and hold the reset button until the status LED rapidly blinks. Note that all settings will be restored to factory default. Upon successful restore, the status LED will blink green and red during normal operation.

SD/SDHC/SDXC Card Capacity

This network camera is compliant with SD/SDHC/SDXC 16GB / 8GB / 32GB / 64GB and other preceding standard SD cards.

Network Deployment

General Connection (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable.

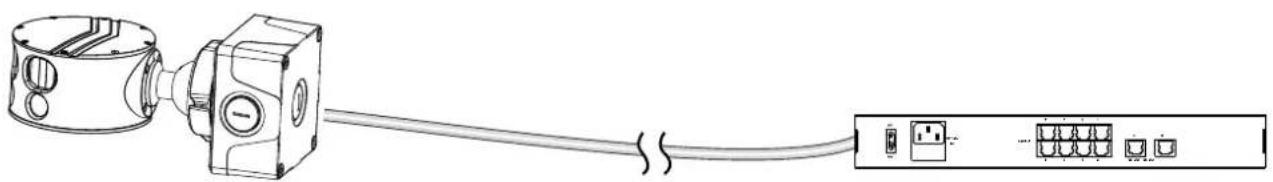

Diagram of a device connected via cable to a terminal block (no text or symbols)

802.3at

Depending on the requirements of your installation site, select an appropriate power source, such as an 802.3at PoE (30W) for operating temperature higher than -10°C. For extremely low temperature, you will need a power source higher than 35W, such as 24V AC.

PoE Switch

If using an 802.3at PoE as the power source, the lowest operating temperature is -20^ .

When using a non-PoE switch

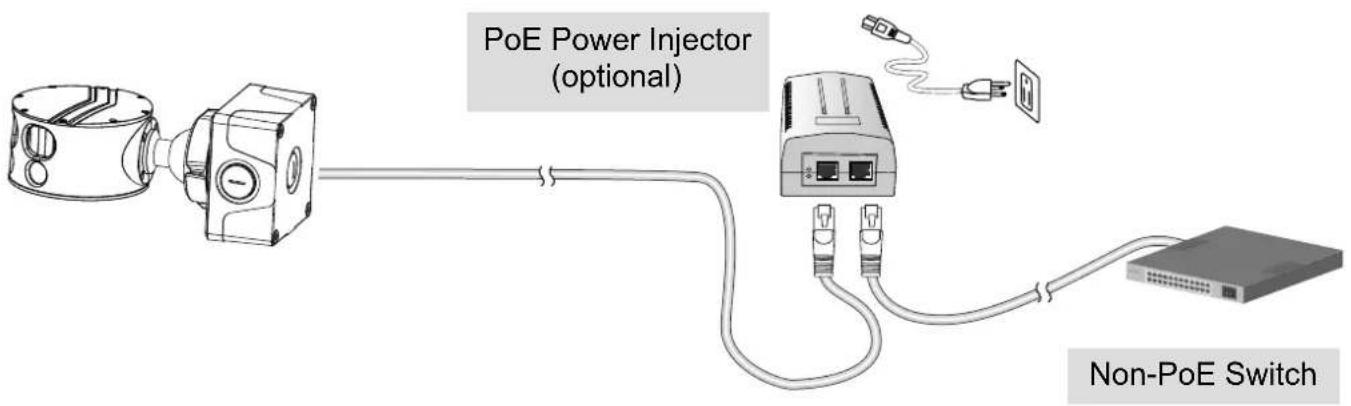

Use a 802.3at PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

NOTE:

1. The camera is only to be connected to PoE networks without routing to outside plants.
2. For PoE connection, use only UL listed I.T.E. with PoE output.

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.

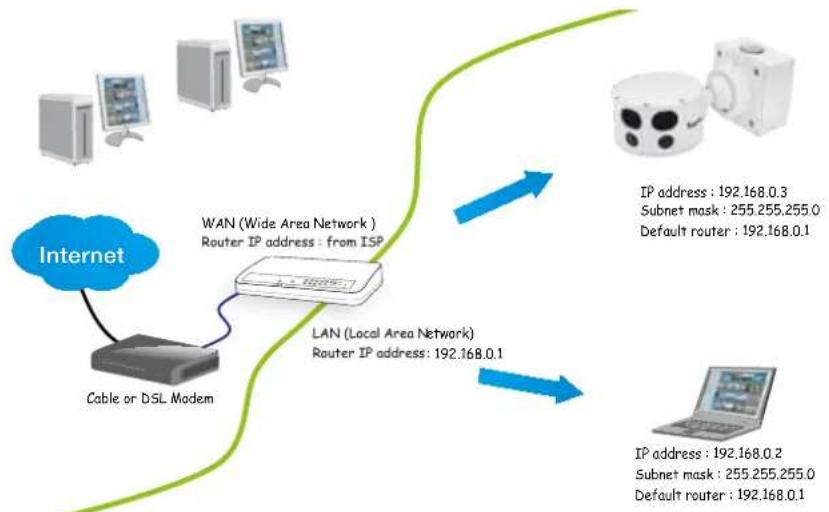

1. Connect your Network Camera behind a router, the Internet environment is illustrated below. Regarding how to obtain your IP address, please refer to Software Installation on page 21 for details.

1. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router.

■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router's user's manual.

1. Find out the public IP address of your router provided by your ISP (Internet Service Provider). Use the public IP and the secondary HTTP port to access the Network Camera from the Internet. Please refer to Network Type on page 72 for details.

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN setting on page 71 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

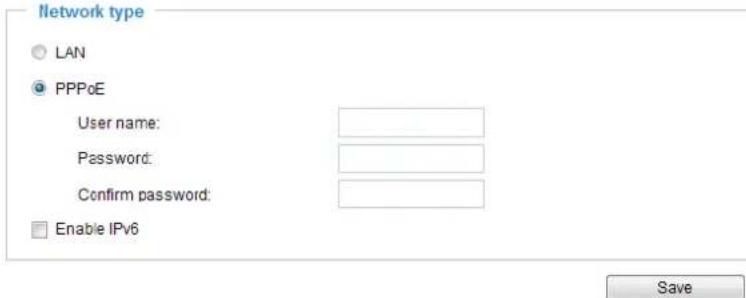

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 72 for details.

Configure the router, virtual server or firewall, so that the router can forward any data coming into a preconfigured port number to a network camera on the private network, and allow data from the camera to be transmitted to the outside of the network over the same path.

From Forward to
122.146.57.120:8000 19	2.168.2.10:80
122.146.57.120:8001 19	2.168.2.11:80
... ...

When properly configured, you can access a camera behind the router using the HTTP request such as follows: http://122.146.57.120:8000

If you change the port numbers on the Network configuration page, please open the ports accordingly on your router. For example, you can open a management session with your router to configure access through the router to the camera within your local network. Please consult your network administrator for router configuration if you have troubles with the configuration.

For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.

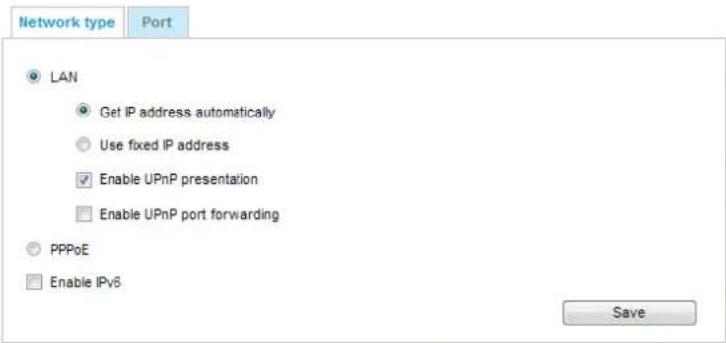

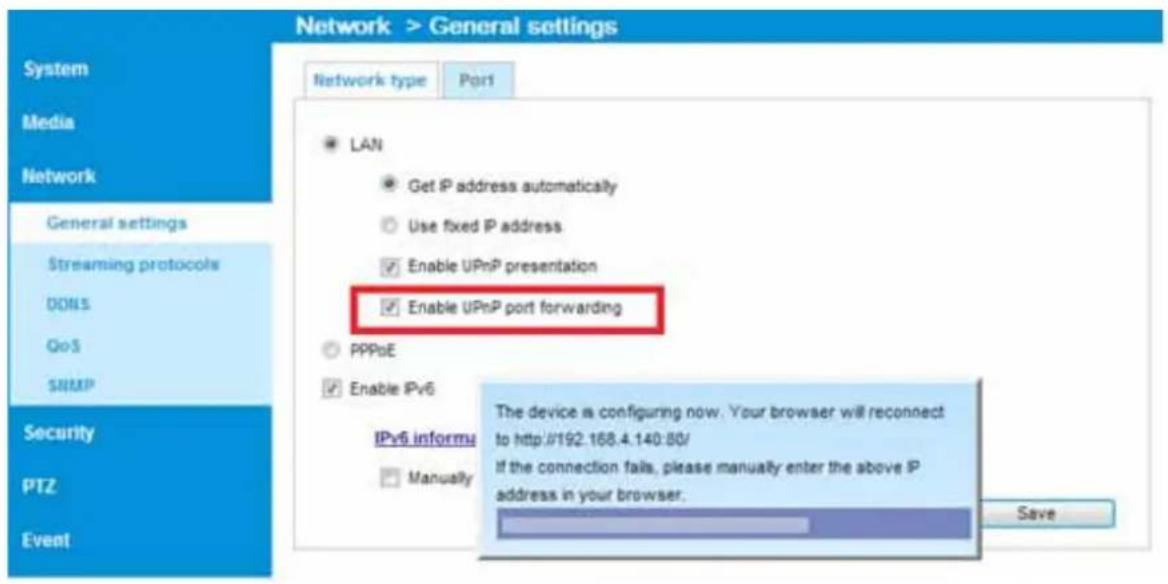

Network > General settings Network type Port LAN Get IP address automatically Use fixed IP address Enable UPnP presentation Enable UPnP port forwarding PPPoE Enable IPv6 IPv6 informu Manually The device is configuring now. Your browser will reconnect to http://192.168.4.140:80/ If the connection fails, please manually enter the above IP address in your browser. Save System Media Network General settings Streaming protocols DONS QoS SNMP Security PTZ Event

Software Installation

Installation Wizard 2 (IW2), a software included in the product CD, helps you set up your Network Camera on the LAN.

1. Install IW2 under the Software Utility directory from the software CD. Double-click the IW2 shortcut on your desktop to launch the program.

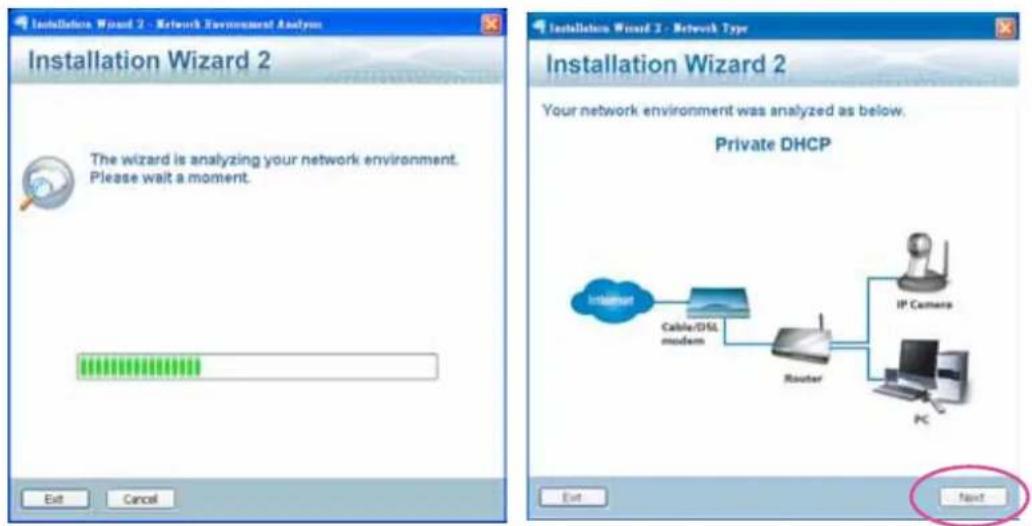

1. The program will conduct an analysis of your network environment. After your network environment is analyzed, please click Next to continue the program.

Installation Wizard 2 - Network Environment Analysis Installation Wizard 2 The wizard is analyzing your network environment. Please wait a moment. Exit Cancel Installation Wizard 2 - Network Type Installation Wizard 2 Your network environment was analyzed as below. Private DHCP Cable/DISL modem Router IP Camera PC Next

1. The program will search for all VIVOTEK network devices on the same LAN.

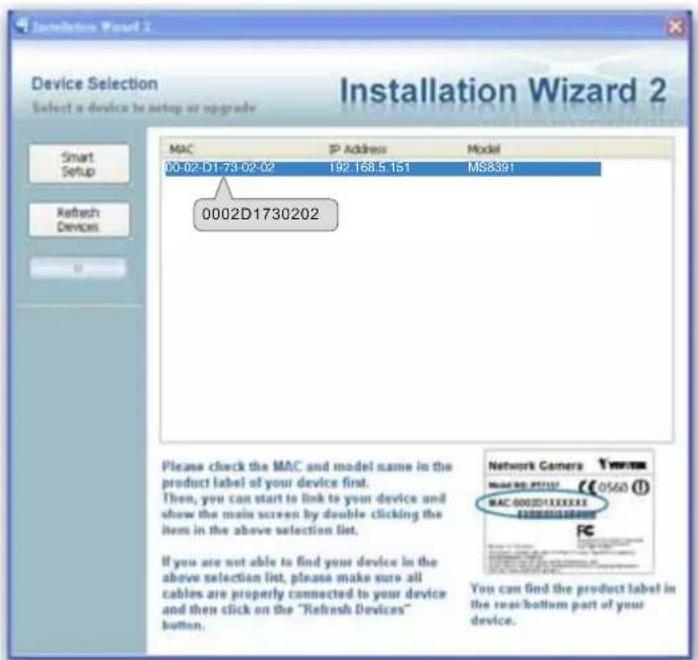

2. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label. You can then double-click on the address to open a management session with the Network Camera.

Network Camera VIVOTEK Model No: MS8391 RoHS MAC:0002D1730202 CE NC1-46 FC VCI This device consists with part 10 of the FCS video. Objectives are displayed by the following two conditions: (1) This device may not be used to test the information, so (2) This device may accept any features allowed, including interference if may cause interference's question. Pat. 6,930,700 Made in Taiwan

Device Selection Select a device to setup or upgrade MAC IP Address Model 00-02-D1-73-02-02 192.168.5.151 MS8391 0002D1730202 Please check the MAC and model name in the product label of your device first. Then, you can start to link to your device and show the main screen by double clicking the item in the above selection list. If you are not able to find your device in the above selection list, please make sure all cables are properly connected to your device and then click on the "Refresh Devices" button. Network Camera MAC NO: P57102 0560 MAC:0002D1XXXXXX You can find the product label in the rear/bottom part of your device.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

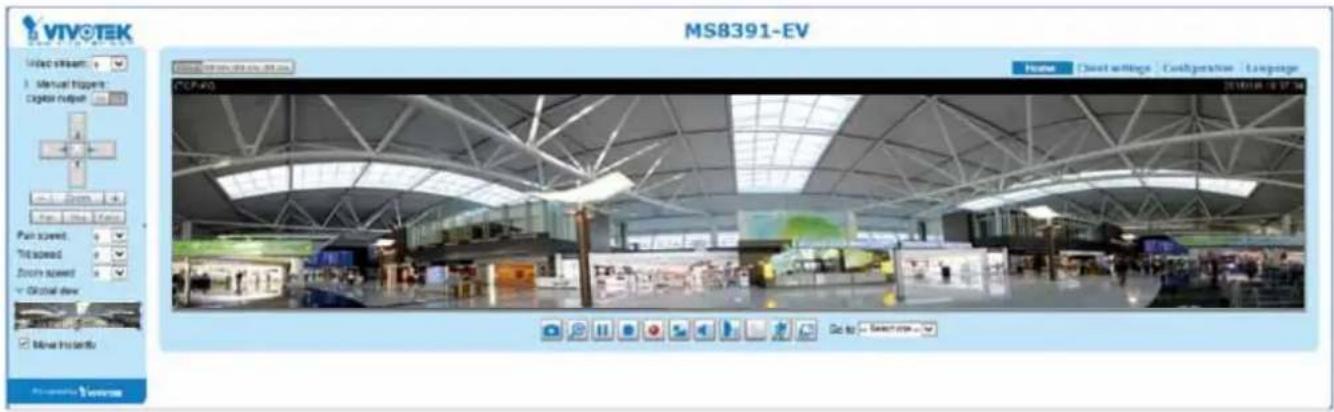

VTVOTEK MS8391-EV Virtual Stream Virtual Impact Digital Output PC-40 Income Direct settings Configuration Language 2018/06/18 10:37:30 Main Features Parameters Services

IMPORTANT:

- The camera is able to operate in low temperature environments. However, when starting these cameras in a very low temperature condition, e.g., -40^ , the embedded heater may take half an hour to warm up the camera. When the temperature within the canister reaches -10^ , the camera automatically starts.

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

Use Installation Wizard 2 (IW2) to access the Network Cameras on LAN.

If your network environment is not a LAN, follow these steps to access the Network Camera:

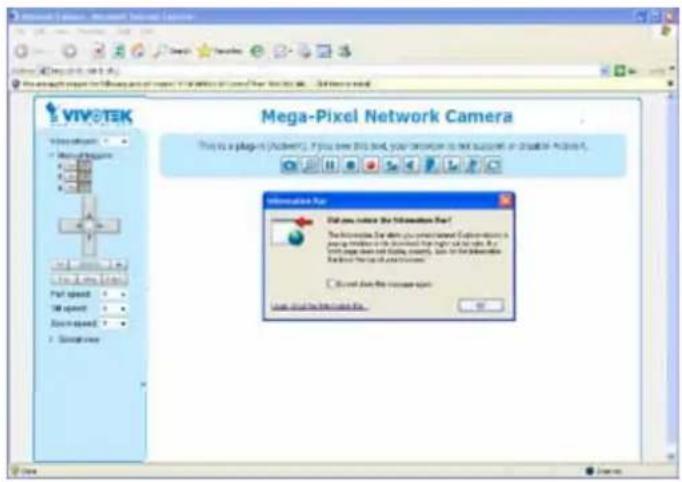

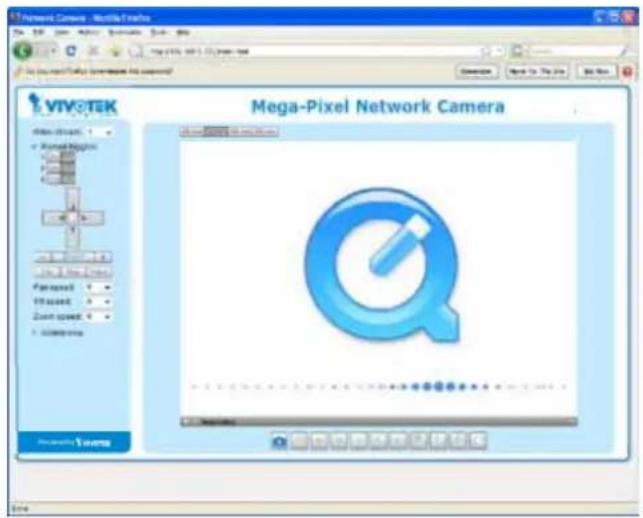

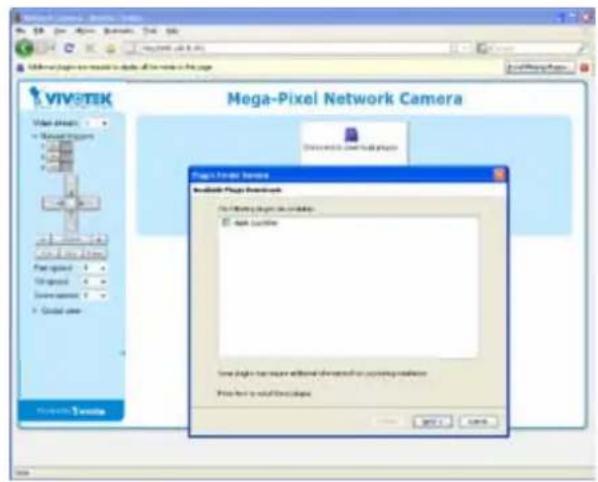

1. Launch your web browser (e.g., Microsoft® Internet Explorer or Mozilla Firefox).
2. Enter the IP address of the Network Camera in the address field. Press Enter.
3. Live video will be displayed in your web browser.
4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.

VIVO-TEK Mega-Pixel Network Camera This is a plugin (Author). If you have this book, your computer is not successful or disabled. Please click the user's instructions. Information Help Did you notice the Information Help? The information for whom you presented it is available to the website or the following web: http://www.vivo-tek.com/ You can access your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website or your own website You can access the information help...

VIVOTEK Mega-Pixel Network Camera Vivite Files • New Image • 120000000000 • 120000000000 • 120000000000 • 120000000000 • 120000000000 • 120000000000 • 120000000000 • 120000123456789 • 12000123456789 • 1200123456789 • 120123456789 • 1201323456789 • 1201423456789 • 1201523456789 • 1201623456789 • 1201723456789 • 1201823456789 • 1201923456789 • 1202023456789 • 1202123456789 • 1202223456789 • 1202323456789 • 1202423456789 • 1202523456789 • 1202623456789 • 1202723456789 • 1202823456789 • 1202923456789 • 1203023456789 • 1203123456789 • 1203223456789 • 1203323456789 • 1203423456789 • 1203523456789 • 1203623456789 • 1203723456789 • 1203823456789 • 1203923456789 • 1204023456789 • 1204123456789 • 1204223456789 • 1204323456789 • 1204423456789 • 1204523456789 • 1204623456789 • 1204723456789 • 1204823456789 • 1204923456789 • 1205023456789 • 1205123456789 • 1205223456789 • 1205323456789 • 1205423456789 • 1205523456789 • 1205623456789 • 1205723456789 • 1205823456789 • 1205923456789 • 1206023456789 • 1206123456789 • 1206223456789 • 1206323456789 • 1206423456789 • 1206523456789 • 1206623456789 • 1206723456789 • 1206823456789 • 1206923456789 • 1207023456789 • 1207123456789 • 1207223456789 • 1207323456789 • 1207423456789 • 1207523456789 • 1207623456789 • 1207723456789 • 1207823456789 • 1207923456789 • 1208023456789 • 1208123456789 • 1208223456789 • 1208323456789 • 1208423456789 • 1208523456789 • 1208623456789 • 1208723456789 • 1208823456789 • 1208923456789 • 1209023456789 • 1209123456789 • 1209223456789 • 1209323456789 • 1209423456789 • 1209523456789 • 1209623456789 • 1209723456789 • 1209823456789 • 1209923456789

NOTE:

For Mozilla Firefox or Chrome users, your browser will use Quick Time to stream the live video. If you don't have Quick Time on your computer, please download it first, then launch the web browser.

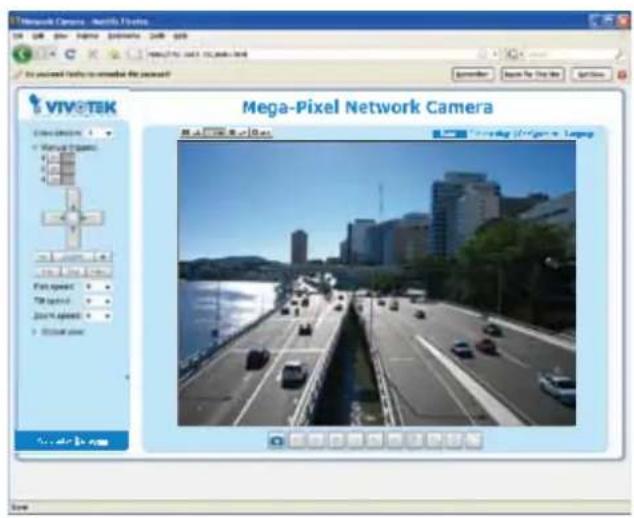

VIVOTEK Mega-Pixel Network Camera

Network Camera - Microsoft Teams VIVO-TEK Mega-Pixel Network Camera New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New N/A

▶ By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera.

For more information about how to enable password protection, please refer to Security on page 89.

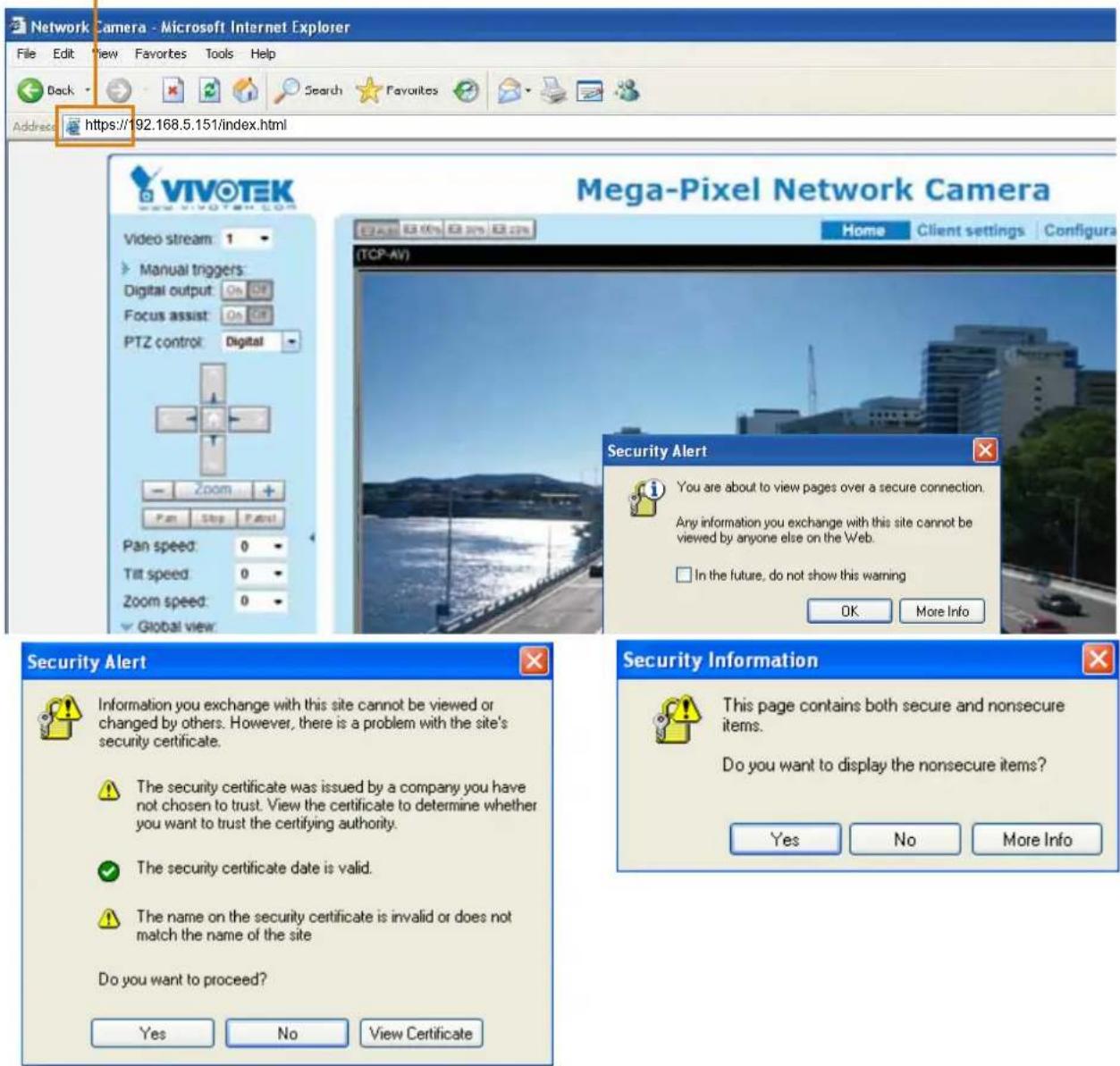

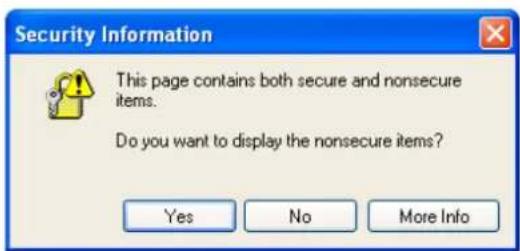

If you see a dialog box indicating that your security settings prohibit running ActiveX Controls, please enable the ActiveX ^ Controls for your browser.

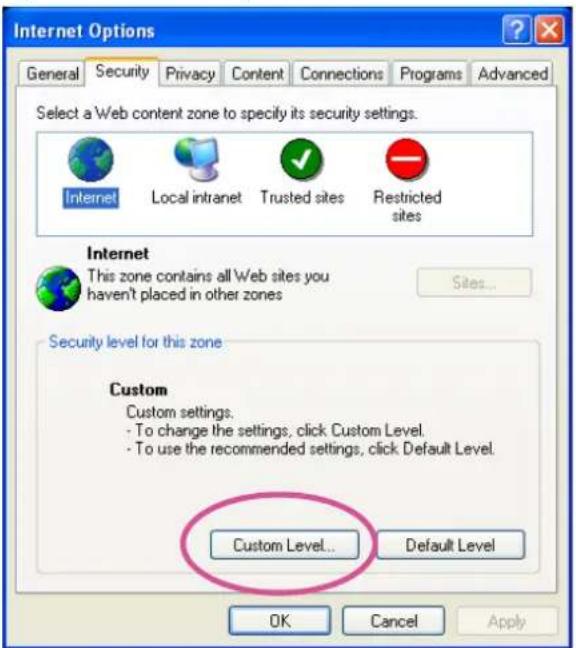

1. Choose Tools > Internet Options > Security > Custom Level.

Internet Options General Security Privacy Content Connections Programs Advanced Select a Web content zone to specify its security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone contains all Web sites you haven't placed in other zones Sites... Security level for this zone Custom Custom settings. - To change the settings, click Custom Level. - To use the recommended settings, click Default Level. Custom Level... Default Level OK Cancel Apply

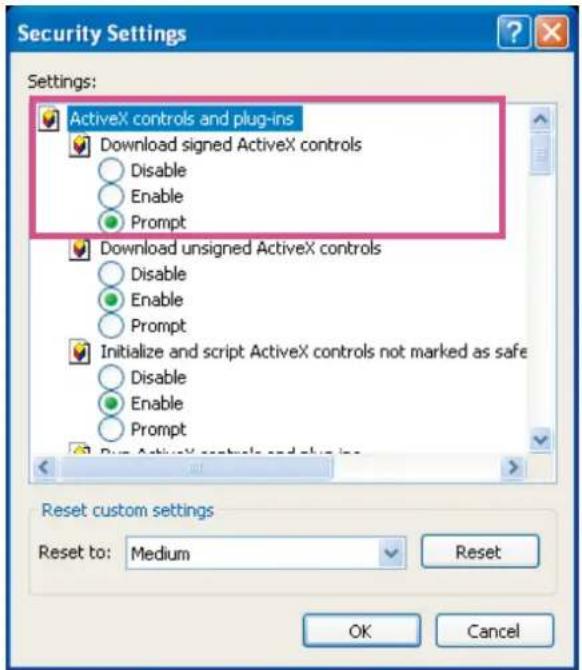

1. Look for Download signed ActiveX® controls; select Enable or Prompt. Click OK.

Security Settings Settings: ActiveX controls and plug-ins Download signed ActiveX controls Disable Enable Prompt Download unsigned ActiveX controls Disable Enable Prompt Initialize and script ActiveX controls not marked as safe Disable Enable Prompt Run ActiveX controls and plug-ins Reset custom settings Reset to: Medium Reset OK Cancel

1. Refresh your web browser, then install the ActiveXcontrol. Follow the instructions to complete installation.

IMPORTANT:

• Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser.
• If you encounter this problem, try execute the lexlore.exe program from C:\Windows\SysWOW64. A 32-bit version of IE browser will be installed.
• On Windows 7, the 32-bit explorer browser can be accessed from here:
  C:\Program Files (x86)\Internet Explorer\iexplore.exe
• If you open a web session from the IW2 utility, a 32-bit IE browser will be opened.

Tips:

1. The onscreen Java control can malfunction under the following situations: A PC connects to different cameras that are using the same IP address (or the same camera running different firmware versions). Removing your browser cookies will solve this problem.

2. If you encounter problems with displaying the configuration menus or UI items, try disable the Compatibility View on IE8 or IE9.

http://www.joinsmsn.com/

You may also press the F12 key to open the developer tools utility, and then change the Browser Mode to the genuine IE8 or IE9 mode.

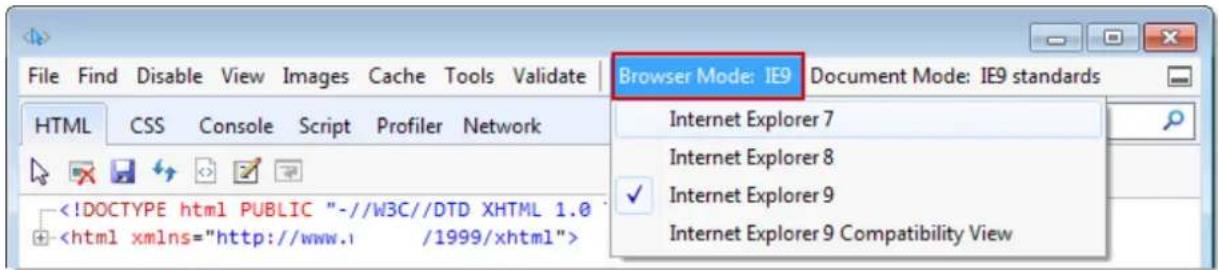

File Find Disable View Images Cache Tools Validate Browser Mode: IE9 Document Mode: IE9 standards HTML CSS Console Script Profiler Network Internet Explorer 7 Internet Explorer 8 ✓ Internet Explorer 9 Internet Explorer 9 Compatibility View

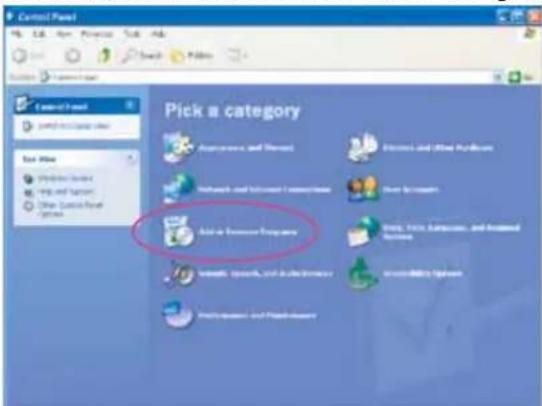

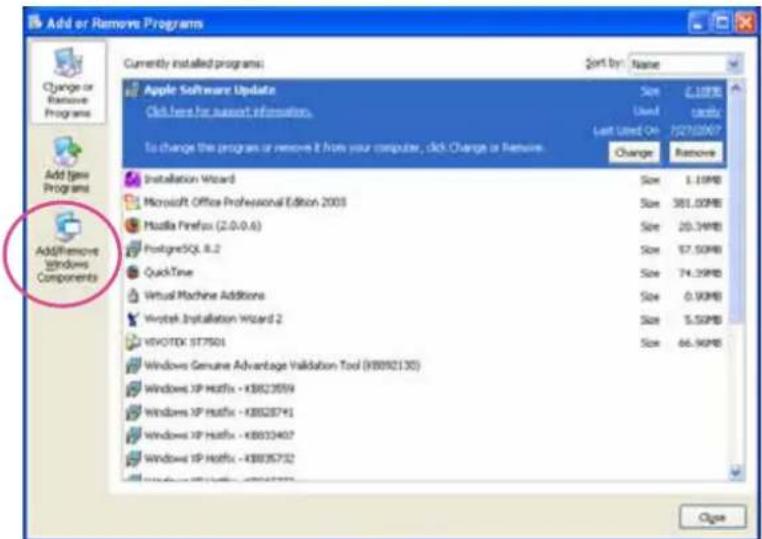

- In the event of plug-in compatibility issues, you may try to uninstall the plug-in that was previously installed.

Business Explorer Camera Stream Controller Uninstall Catalyst Control Center

Using RTSP Players

To view the streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

VLC media player

1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.

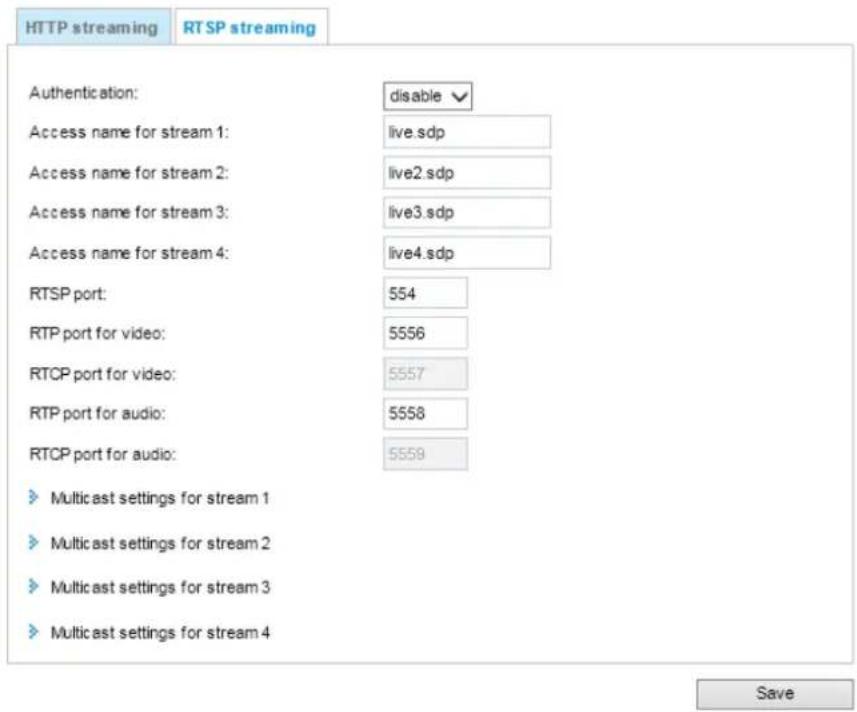

3. The address format is rtsp://:/

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 80.

For example:

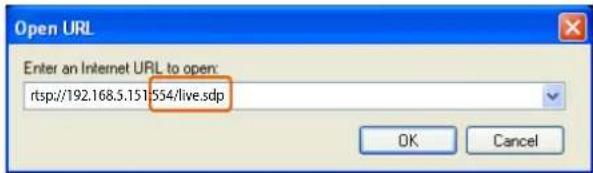

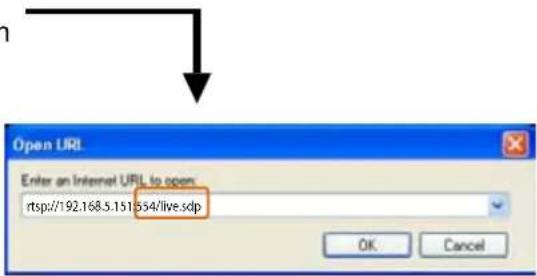

Open URL Enter an Internet URL to open: rtsp://192.168.5.151:554/live.sdp OK Cancel

1. The live video will be displayed in your player.

For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 80 for details.

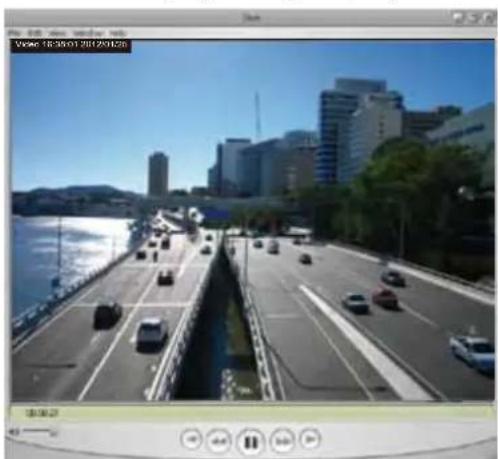

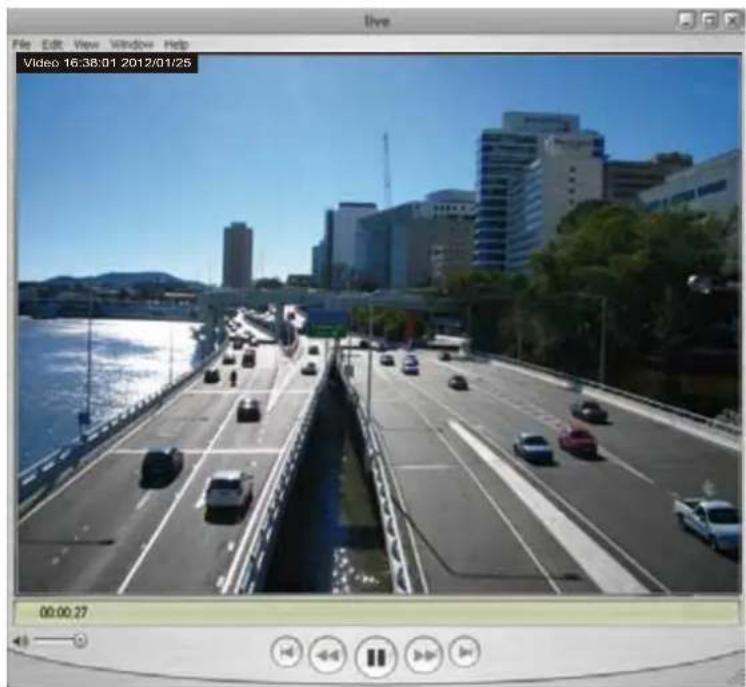

File Edit View Window Help Video 16:38:01 2012/01/25 00:00:27

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 18.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable.
   For more information, please refer to RTSP Streaming on page 80.

2. As the bandwidth on 3G networks is limited, you will not be able to use a large video size. Please set the video streaming parameters as listed below.

For more information, please refer to Stream settings on page 63.

Video Mode H.264
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps

1. As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 80.

2. Launch the player on the 3GPP-compatible mobile devices (e.g., QuickTime).

3. Type the following URL commands into the player.

The address format is rtsp://:/.

For example:

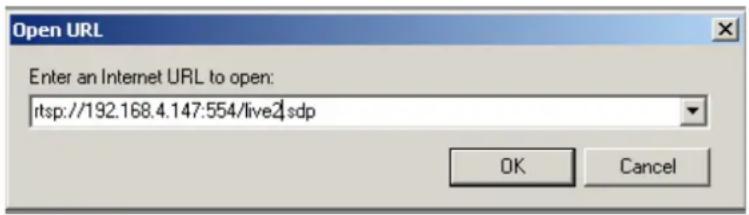

Open URL Enter an Internet URL to open: rtsp://192.168.4.147:554/live2.sdp OK Cancel

You can configure Stream #2 into the suggested stream settings as listed above for live viewing on a mobile device.

Using VIVOTEK Recording Software

The product software CD also contains a VAST recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user's manual of the software or download it from http://www.vivotek.com.

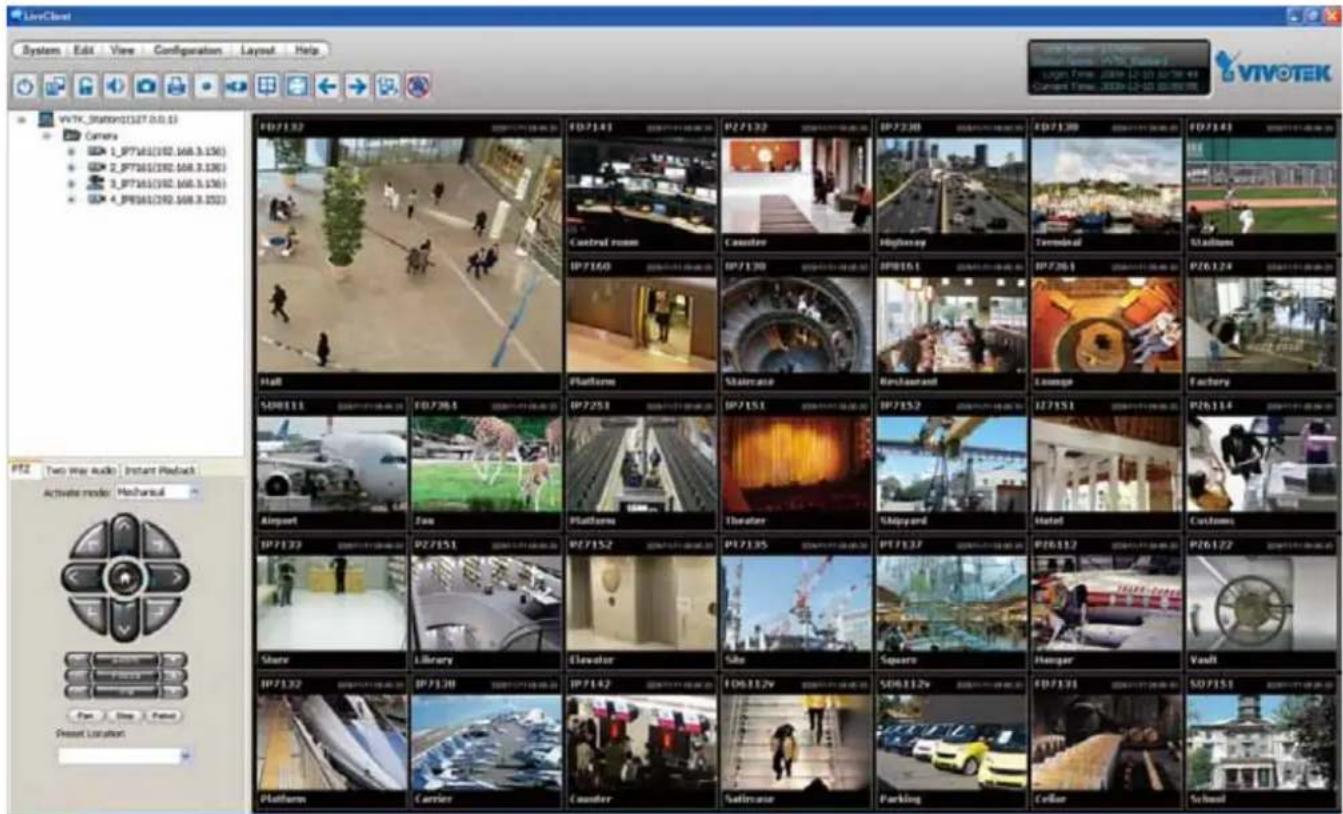

LiveCloud System Edit View Configuration Layout Help VIVOTEK WVTK_SM0091327 0.0.53 Camera 1_PPT61(192.168.3.156) 2_PPT61(192.168.3.156) 3_PPT61(192.168.3.156) 4_PPT61(192.508.3.203) FD7132 Control room IP716/0 Platform IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 IP773/1 PZ6124 Factory S300111 Airport Fax Platforma IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 IP773/2 PZ6114 Customs Store Library Elevator Tube Square Hampier Vault Platforma Carrier Counter Satellite Parking Celler School

Tips:

1. If you forget the root (administrator) password for the camera, you can restore the camera defaults by pressing the reset button for longer than 5 seconds.
2. If DHCP is enabled in your network, and the camera cannot be accessed, run the IW2 utility to search the network. If the camera has been configured with a fixed IP that does not comply with your local network, you may see its default IP 169.254.x.x. If you still cannot find the camera, you can restore the camera to its factory defaults. The factory default is DHCP client.
3. If you change your network parameters, e.g., added a camera via a connection to a LAN card, re-start the IW2 utility.

Main Page

This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window.

VIVOTEK INC. Logo Camera Control Area Hide Button Resize Buttons MSB391-EV — Host Name Configuration Area Live View Window

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website.

Host Name

The host name can be customized to fit your needs. The name can be changed especially there are many cameras in your surveillance deployment. For more information, please refer to System on page 40.

Camera Control Area

Video Stream: This Network Camera supports multiple streams (streams 1 and 2) simultaneously. You can select any of them for live viewing. For more information about multiple streams, please refer to page 63 for detailed information.

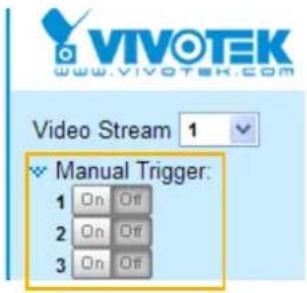

Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting on the Application page before you enable this function. A total of 3 event configuration can be configured. For more information about event setting, please refer to page 105. If you want to hide this item on the homepage, please go to Configuration> System > Homepage Layout > General settings > Customized button to deselect the "show manual trigger button" checkbox.

Configuration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 34.

Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera. For more information, please refer to Configuration on page 39.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体 ^ID , and 繁體 ^ID . Please note that you can also change a language on the Configuration page; please refer to page 39.

Hide Button

You can click the hide button to hide or display the control panel.

Resize Buttons

Click the Auto button, the video cell will resize automatically to fit the monitor. Click 100% is to display the original homepage size. Click 50% is to resize the homepage to 50% of its original size. Click 25% is to resize the homepage to 25% of its original size.

Live Video Window

■ The following window is displayed when the video mode is set to H.264:

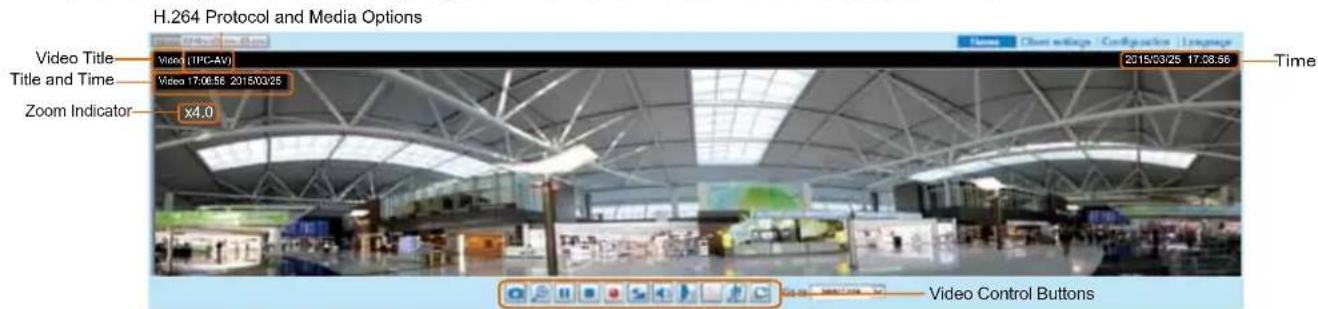

H.264 Protocol and Media Options Video Title Title and Time Zoom Indicator x4.0 Video (IPC-AV) Video 17:06:58 2015/03/25 Time 2015/03/25 17:38:56 Video Control Buttons

Video Title: The video title can be configured. For more information, please refer to Video Settings on page 52.

H.264 or H. 265 Protocol and Media Options: The transmission protocol and media options for H.264 video streaming. For further configuration, please refer to Client Settings on page 34.

Time: Display the current time. For further configuration, please refer to Media > Image > Genral settings on page 52.

Title and Time: The video title and time can be stamped on the streaming video. For further configuration, please refer to Media > Image > General settings on page 57.

PTZ Panel: This Network Camera supports "digital" (e-PTZ) pan/tilt/zoom control, which allows roaming a smaller view frame within a large view frame. Please refer to PTZ settiings on page 102 for detailed information.

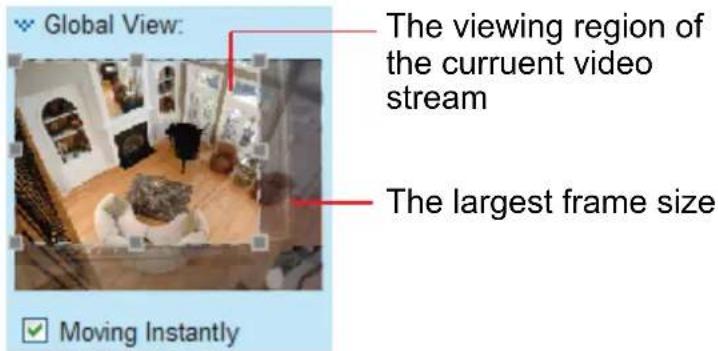

Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream). The floating frame allows users to control the e-PTZ function (Electronic Pan/Tilt/Zoom). For more information about e-PTZ operation, please refer to E-PTZ Operation on page 102. For more information about how to set up the viewing region of the current video stream, please refer to page 102.

Global View: The viewing region of the curruent video stream The largest frame size Moving Instantly

Note that the PTZ buttons on the panel are not operational unless you are showing only a portion of the full image. If the live view window is displaying the full view, the PTZ buttons are not functional.

Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP.mp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation been indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To ve to a different area you want to magnify, drag the navigation screen.

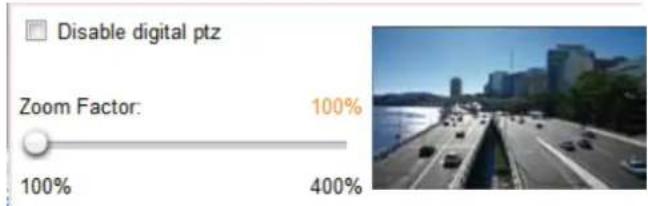

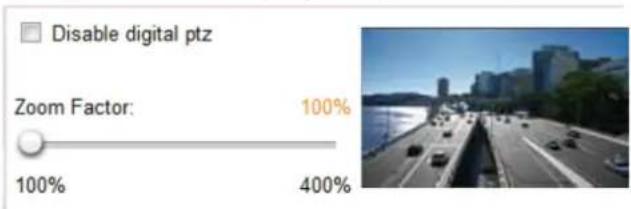

Disable digital ptz Zoom Factor: 100% 100% 400%

Pause: Pause the transmission of the streaming media. The button becomes the ▶ Resume button or clicking the Pause button.

Stop: Stop the transmission of the streaming media. Click the ▶ Resume button to continue smission.

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
ss the □ Stop MP4 Recording button to end recording. When you exit the web browser, video
ording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving
ions on page 35 for details.

Volume: When the 📷 Mute function is not activated, move the slider bar to adjust the volume on the real computer.

Mute: Turn off the volume on the local computer. The button becomes the 📄 Audio On button after king the Mute button.

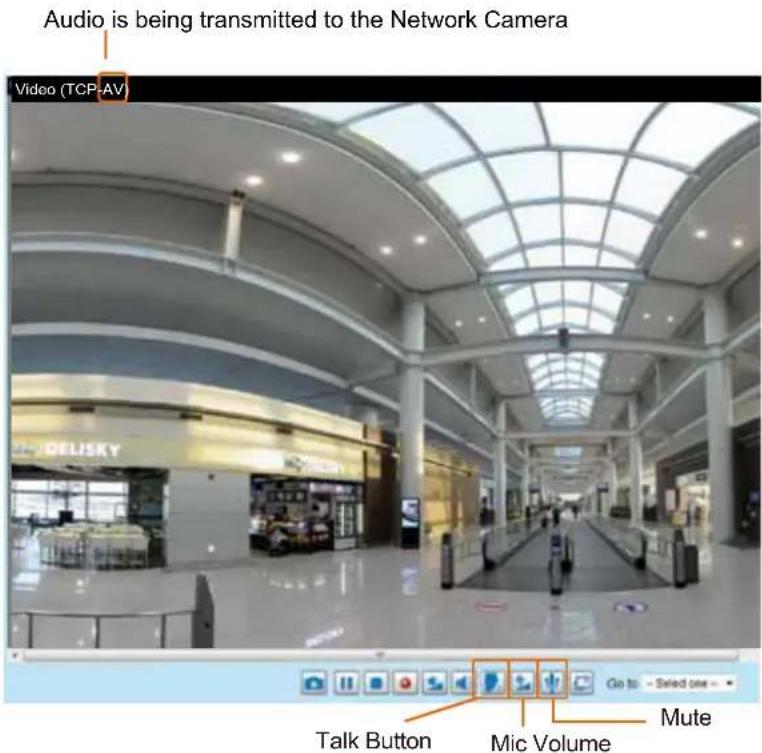

Talk: Click this button to talk to people around the Network Camera. Audio will project from external speaker connected to the Network Camera. Click this button 📋 again to end talking omission.

Mic Volume: When the ⬤ Mute function is not activated, move the slider bar to adjust the microphone volume on the local computer.

NOTE:

1. For a megapixel camera, it is recommended to use monitors of the 24" size or larger, and are capable of 1600x1200 or better resolutions.
2. Below are the defaults for Audio settings:

For cameras with built-in microphone: Not Muted.

For cameras without built-in microphone: Muted.

To receive audio input from an external microphone, you may need to enable the audio input from Media > Audio. Refer to page 70 for more information.

Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button after clicking the Mute button.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal mode.

■ The following window is displayed when the video mode is set to MJPEG:

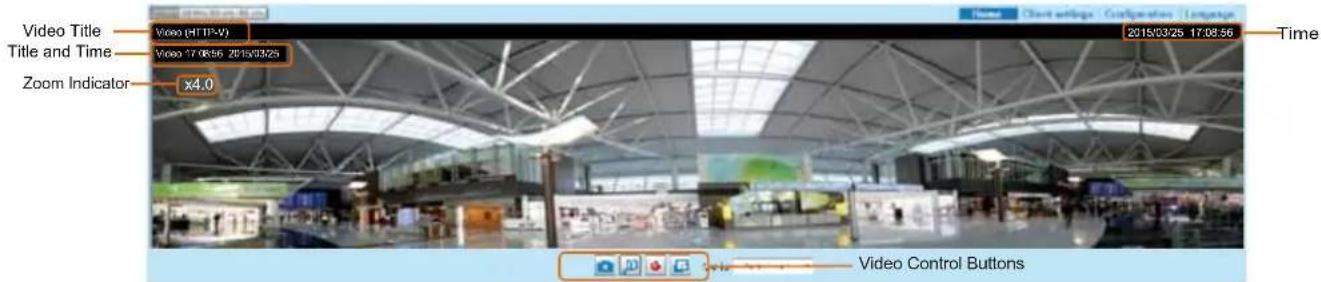

Video Title Title and Time Zoom Indicator x4.0 Video (HTTP-V) Video 17:08:56 2015/03/25 Time 2015/03/25 17:08:56 Video Control Buttons

Video Title: The video title can be configured. For more information, please refer to Media > Image on page 57.

Time: Display the current time. For more information, please refer to Media > Image on page 57.

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 57.

Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

Disable digital ptz Zoom Factor: 100% 100% 400%

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 35 for details.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal mode.

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings.

H.264 Media Options

H.264 media options

• Video and audio
  ○ Video only
  ○ Audio only

Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264.

H.264 Protocol Options

H.264 Protocol Options

○ UDP Unicast
○ UDP Multicast
TCP
HTTP

Depending on your network environment, there are four transmission modes of H.264 streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection when occasions require time-sensitive responses and the video quality is less important. Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses.

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media. This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must be configured to enable multicast streaming at the same time. For more information, please refer to RTSP Streaming on page 80.

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.

HTTP: This protocol allows the same quality as TCP protocol without needing to open specific ports for streaming under some network environments. Users inside a firewall can utilize this protocol to allow streaming data through.

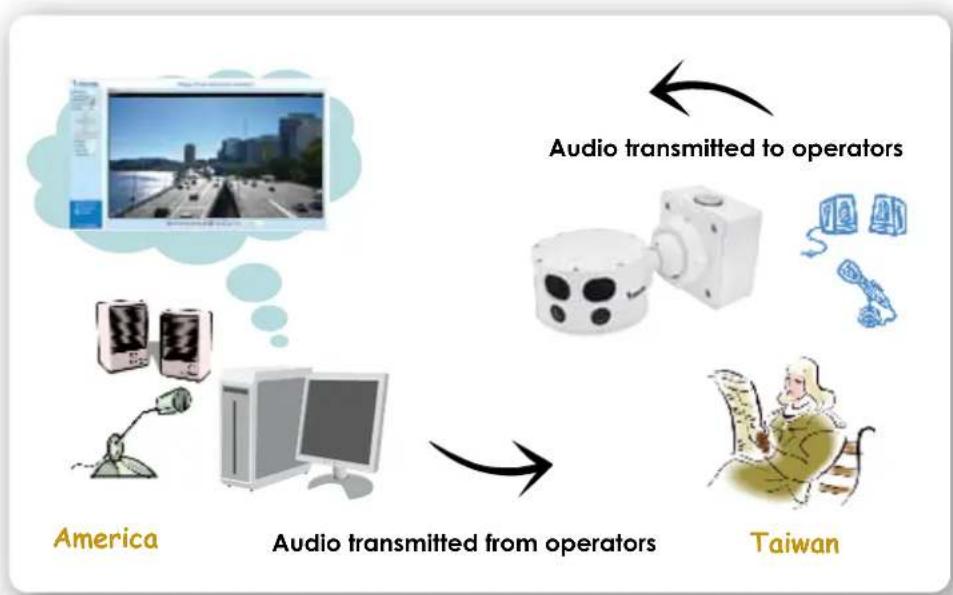

Two way audio

Two way audio

Half-duplex
Full-duplex

Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera.

Full duplex: Audio is transmitted in both directions simultaneously.

MP4 Saving Options

MP4 saving options

Folder:

C:\Record

Browse

File name prefix:

CLIP

Add date and time suffix to file name

Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name.

Folder: Specify a storage destination on your PC for the recorded video files. The location can be changed.

File name prefix: Enter the text that will be appended to the front of the video file name. A specified folder will be automatically created on your local hard disk.

Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name.

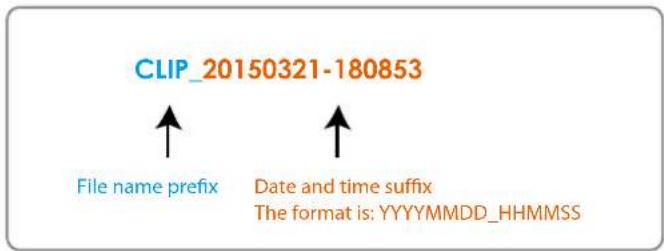

CLIP_20150321-180853 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Local Streaming Buffer Time

Local streaming buffer time

0

Millisecond

Save

In the case of encountering unsteady bandwidth, live streaming may lag and video streaming may not be very smoothly. If you enable this option, the live streaming will be stored temporarily on your PC's cache memory for a few milli seconds before being played on the live viewing window. This will help you see the streaming more smoothly. If you enter 3,000 Millisecond, the streaming will delay for 3 seconds.

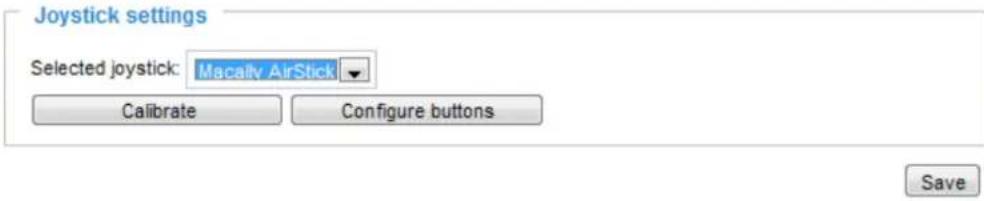

Joystick settings

Enable Joystick

Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft's DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software.

Then you can begin to configure the joystick settings of connected devices. Please follow the instructions below to enable joystick settings.

1. Select a detected joystick, if there are multiple, from the Selected joystick menu. If your joystick is not detected, if may be defective.

2. Click Calibrate or Configure buttons to configure the joystick-related settings.

Joystick settings Selected joystick: Macally AirStick Calibrate Configure buttons Save

NOTE:

- If you want to assign Preset actions to your joystick, the preset locations should be configured in advance in the Configuration > PTZ page. In Windows, use the search function on the Start menu to search for Game Controller.

- If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button to open the Game Controllers window located in Microsoft Windows control panel and follow the instructions for trouble shooting.

- The joystick will appear in the Game Controllers list in the Windows Control panel. If you want to check out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.

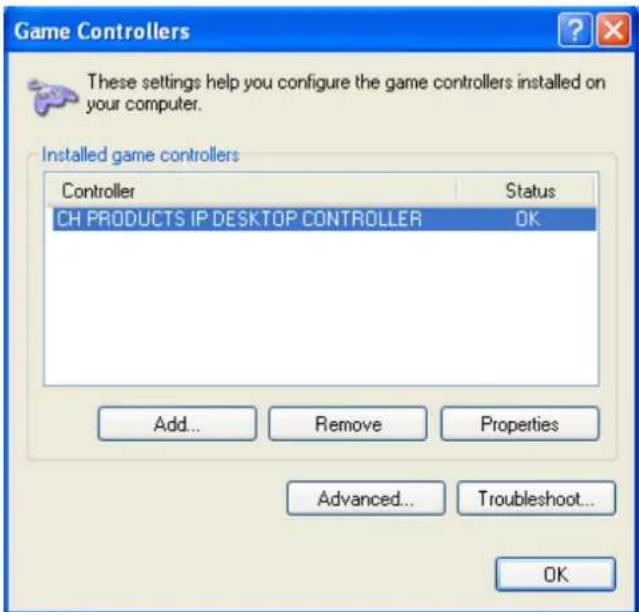

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status CH PRODUCTS IP DESKTOP CONTROLLER OK Add... Remove Properties Advanced... Troubleshoot... OK

Buttons Configuration

In the Button Configuration window, the left column shows the actions you can assign, and the right column shows the functional buttons and assigned actions. The number of buttons may differ from different joysticks.

Please follow the steps below to configure your joystick buttons:

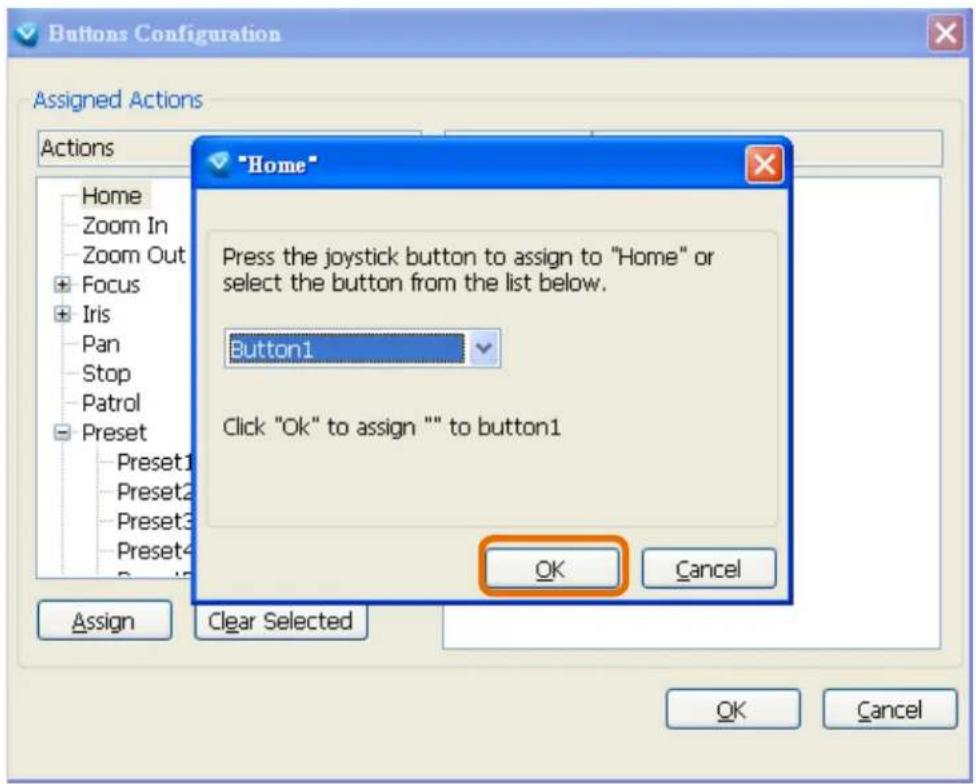

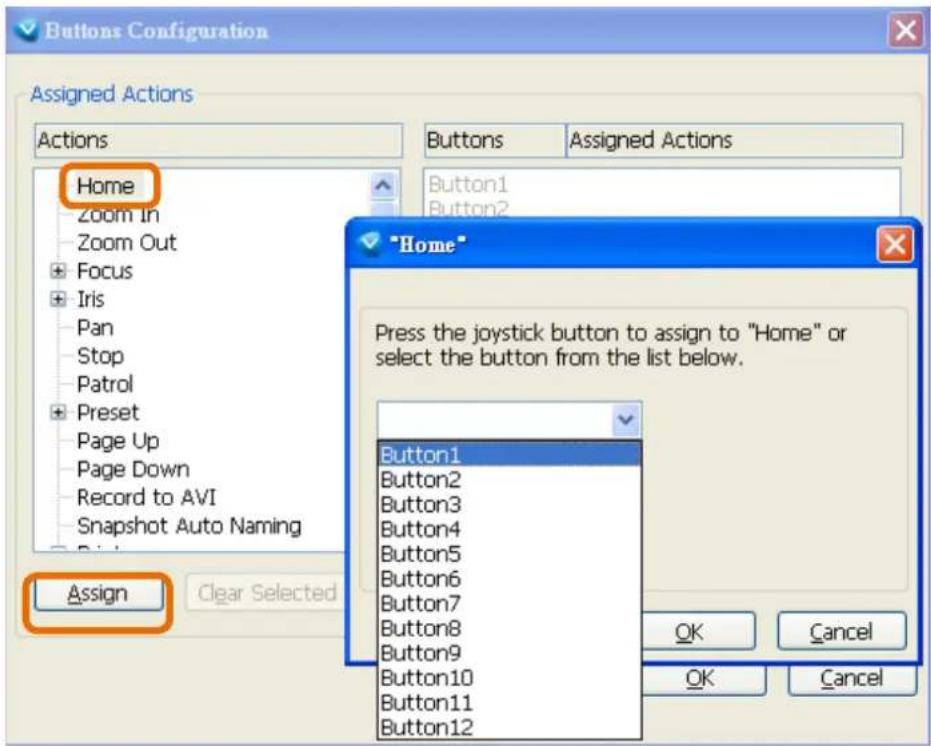

1. Choosing one of the actions and click Assign will pop up a dialog. Then you can assign this action to a button by pressing the joystick button or select it from the drop-down list.

For example: Assign Home (move to home position) to Button 1.

Buttons Configuration Assigned Actions Actions Home Zoom In Zoom Out Focus Iris Pan Stop Patrol Preset Page Up Page Down Record to AVI Snapshot Auto Naming Assign Clear Selected Buttons Assigned Actions Button1 Button2 Button3 Button4 Button5 Button6 Button7 Button8 Button9 Button10 Button11 Button12 "Home" Press the joystick button to assign to "Home" or select the button from the list below. Button1 Button2 Button3 Button4 Button5 Button6 Button7 Button8 Button9 Button10 Button11 Button12 OK Cancel OK Cancel

1. Click OK to confirm the configuration.

Buttons Configuration Assigned Actions Actions Home Zoom In Zoom Out Focus Iris Pan Stop Patrol Preset Preset1 Preset2 Preset3 Preset4 Preset5 "Home" Press the joystick button to assign to "Home" or select the button from the list below. Button1 Click "Ok" to assign "" to button1 OK Cancel Assign Clear Selected OK Cancel

Buttons Configuration

Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons:

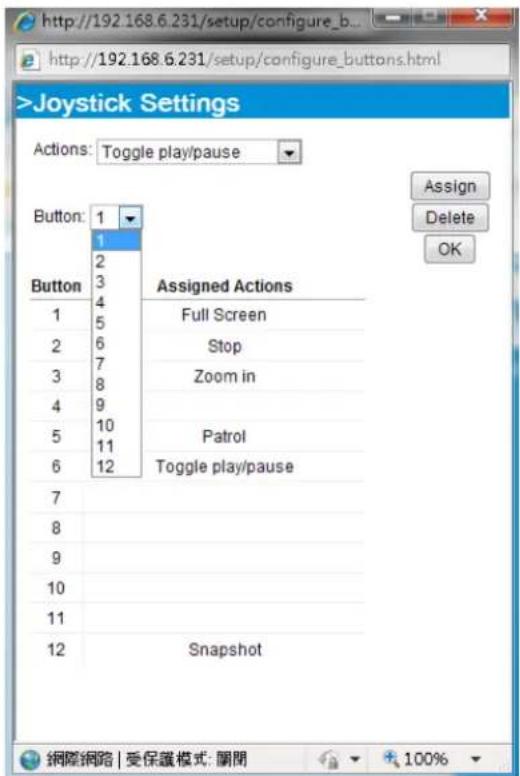

1. Select a button number from the Button # pull-down menu.

>Joystick Settings Actions: Toggle play/pause Button: 1 1 2 3 4 5 6 7 8 9 10 11 12 Assigned Actions Full Screen Stop Zoom in Patrol Toggle play/pause Snapshot Assign Delete OK 網際網路 | 受保護模式: 關閉 100%

Tips:

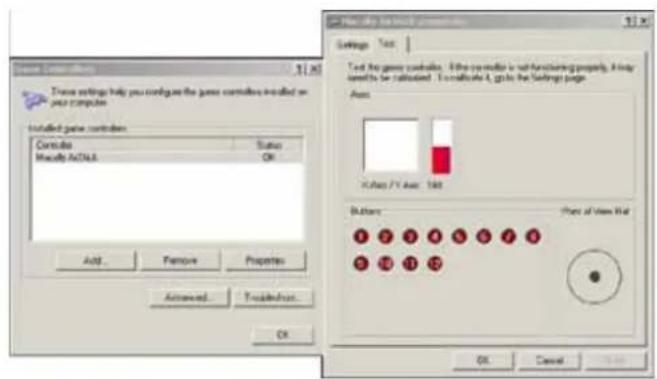

If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.

Windows 12.0.000 Settings Text Test for games consoles. If the controller is not functioning properly, I help benefit be calculated. To calculate it, give the Settings page. Actions: X:Auto /Y: Auto 148 Buttons: ● ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ● ⑨ ⑩ ⑪ ⑫ OK Cancel Help

1. Select a corresponding action, such as Patrol or Preset#.

2. Click the Assign button to assign an action to the button. You can delete an association by selecting a button number, and then click the Delete button.

Repeat the process until you are done with the configuration of all preferred actions.

The buttons you define should appear on the button list accordingly.

1. Please remember to click the Save button on the Client settings page to preserver your settings.

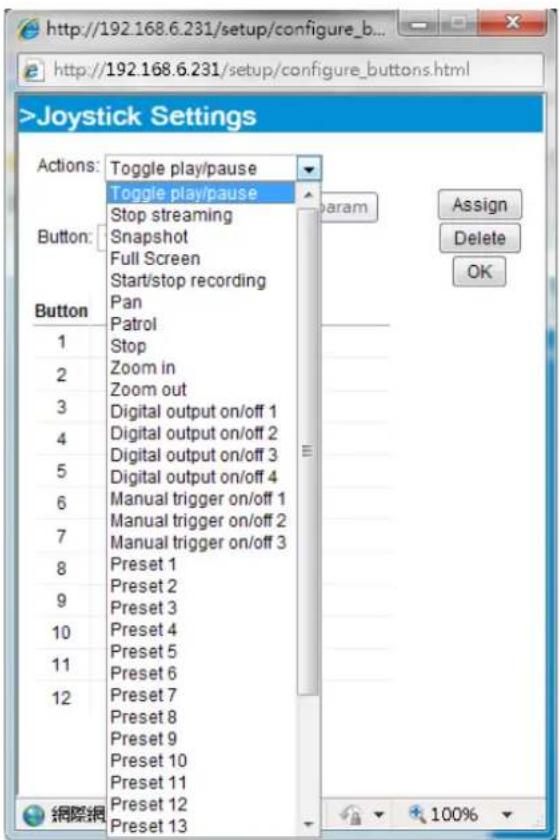

>Joystick Settings Actions: Toggle play/pause Toggle play/pause Stop streaming Snapshot Full Screen Start/stop recording Pan Patrol 1 Stop 2 Zoom in Zoom out 3 Digital output on/off 1 4 Digital output on/off 2 Digital output on/off 3 Digital output on/off 4 6 Manual trigger on/off 1 Manual trigger on/off 2 Manual trigger on/off 3 8 Preset 1 9 Preset 2 9 Preset 3 10 Preset 4 11 Preset 5 12 Preset 6 12 Preset 7 12 Preset 8 12 Preset 9 12 Preset 10 12 Preset 11 12 Preset 12 12 Preset 13 Param Assign Delete OK 網際網 100%

Configuration

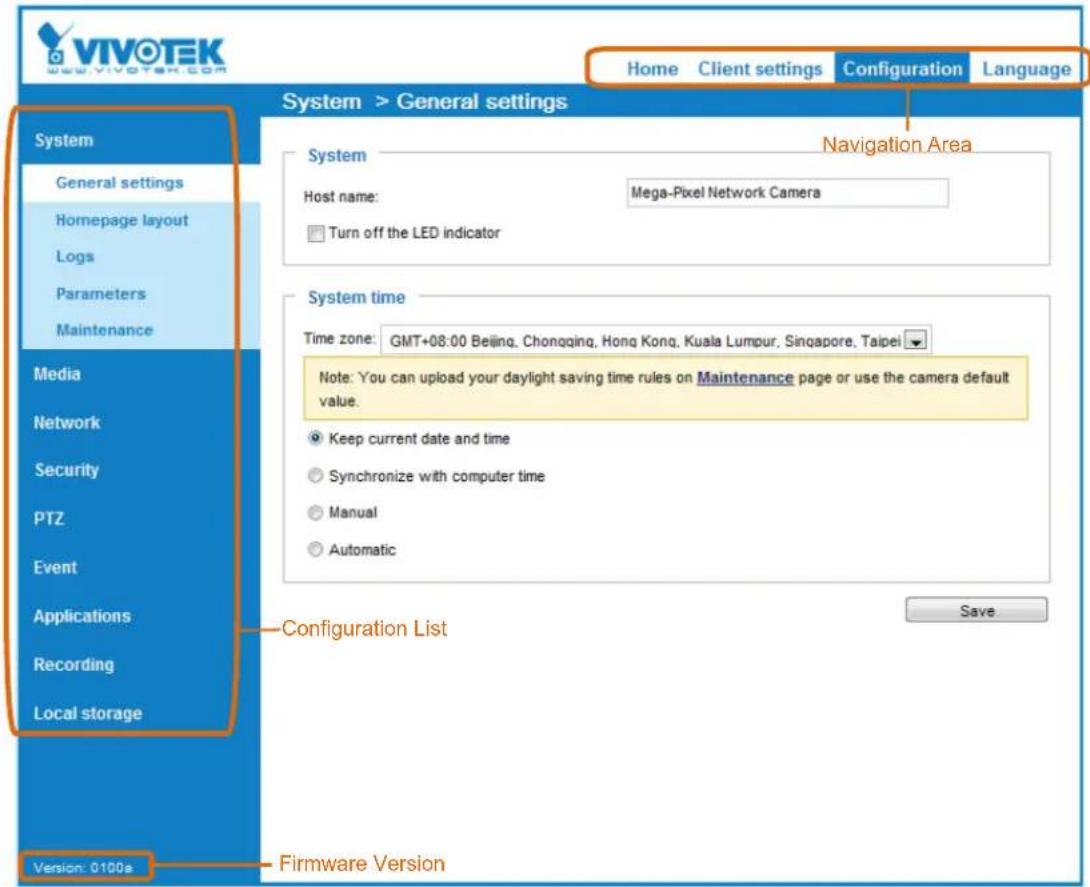

Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page.

VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item. When you click on the first sub-item, the detailed information for the first sub-item will be displayed; when you click on the second sub-item, the detailed information for the second sub-item will be displayed and that of the first sub-item will be hidden.

The following is the interface of the main page:

VIVOTEK 6.0 VIVOTEK.com Home Client settings Configuration Language System > General settings System General settings Homepage layout Logs Parameters Maintenance Media Network Security PTZ Event Applications Recording Local storage System Host name: Mega-Pixel Network Camera Turn off the LED indicator Navigation Area System time Time zone: GMT+08:00 Beijing, Chongqing, Hong Kong, Kuala Lumpur, Singapore, Taipei Note: You can upload your daylight saving time rules on Maintenance page or use the camera default value. Keep current date and time Synchronize with computer time Manual Automatic Configuration List Save Version: 0100s Firmware Version

Each function on the configuration list will be explained in the following sections.

The Navigation Area provides access to all different views from the Home page (for live viewing), Configuration page, and multi-language selection.

System > General settings

This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.

System

System Host name: Mega-Pixel Network Camera Turn off the LED indicator

Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page, and also on the view cells of the ST7501 and VAST management software.

Turn off the LED indicators: If you do not want others to notice the network camera is in operation, you can select this option to turn off the LED indicators.

System time

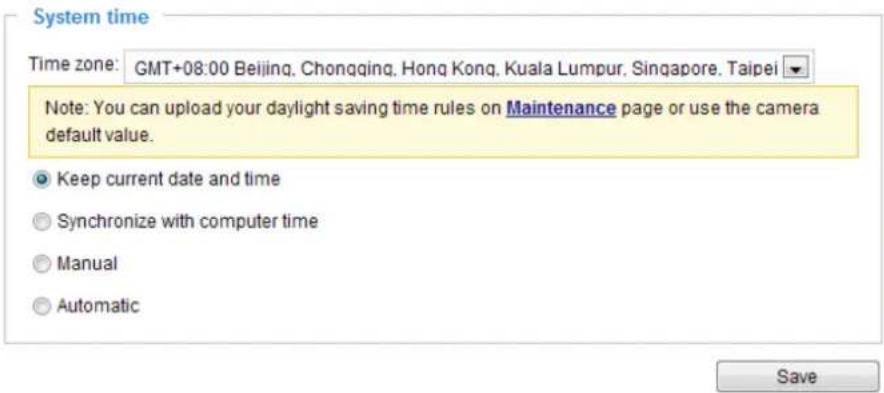

System time Time zone: GMT+08:00 Beijing, Chongqing, Hong Kong, Kuala Lumpur, Singapore, Taipei Note: You can upload your daylight saving time rules on Maintenance page or use the camera default value. Keep current date and time Synchronize with computer time Manual Automatic Save

Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera's internal real-time clock maintains the date and time even when the power of the system is turned off.

Synchronize with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.

Manual: The administrator can enter the date and time manually. Note that the date and time format are [yyyy/mm/dd] and [hh:mm:ss].

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server.

NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time servers. The precondition is that the camera must have the access to the Internet.

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis.

Time zone : Select the appropriate time zone from the list. If you want to upload Daylight Savings Time rules, please refer to System > Maintenance > Import/ Export files on page 49 for details.

This section explains how to set up your own customized homepage layout.

General settings

This column shows the settings of your homage layout. You can manually select the background and font colors in Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings:

General settings Theme options VIVOTEK www.vivotek.com Video stream 1 Manual triggers: Digital output: On Off Powered by VIVOTEK Mega-Pixel Network Hide Powered by VIVOTEK

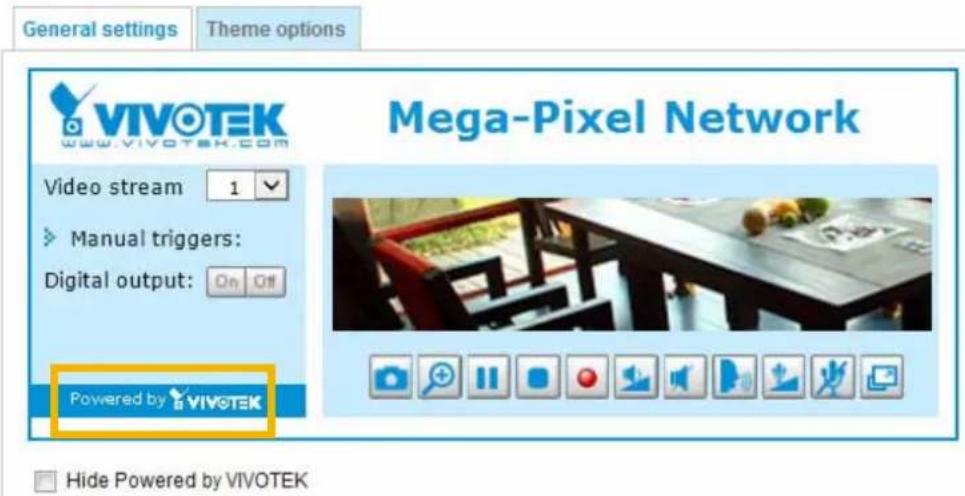

■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.

Logo graph

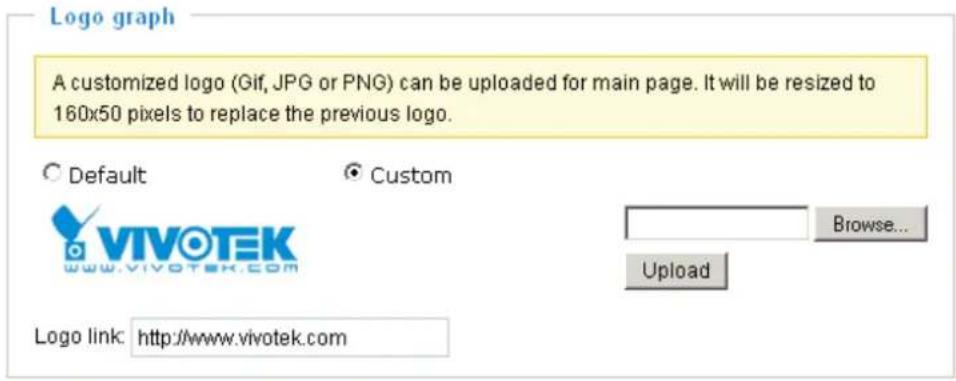

Here you can change the logo that is placed at the top of your homepage.

Logo graph A customized logo (Gif, JPG or PNG) can be uploaded for main page. It will be resized to 160x50 pixels to replace the previous logo. Default Custom VIVOTEK www.vivotek.com Browse... Upload Logo link: http://www.vivotek.com

Follow the steps below to upload a new logo:

1. Click Custom and the Browse field will appear.
2. Select a logo from your files.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.

Customized button

If you want to hide manual trigger buttons on the homepage, please uncheck this item. This item is checked by default.

Customized button ✓ Show manual trigger button

Theme Options

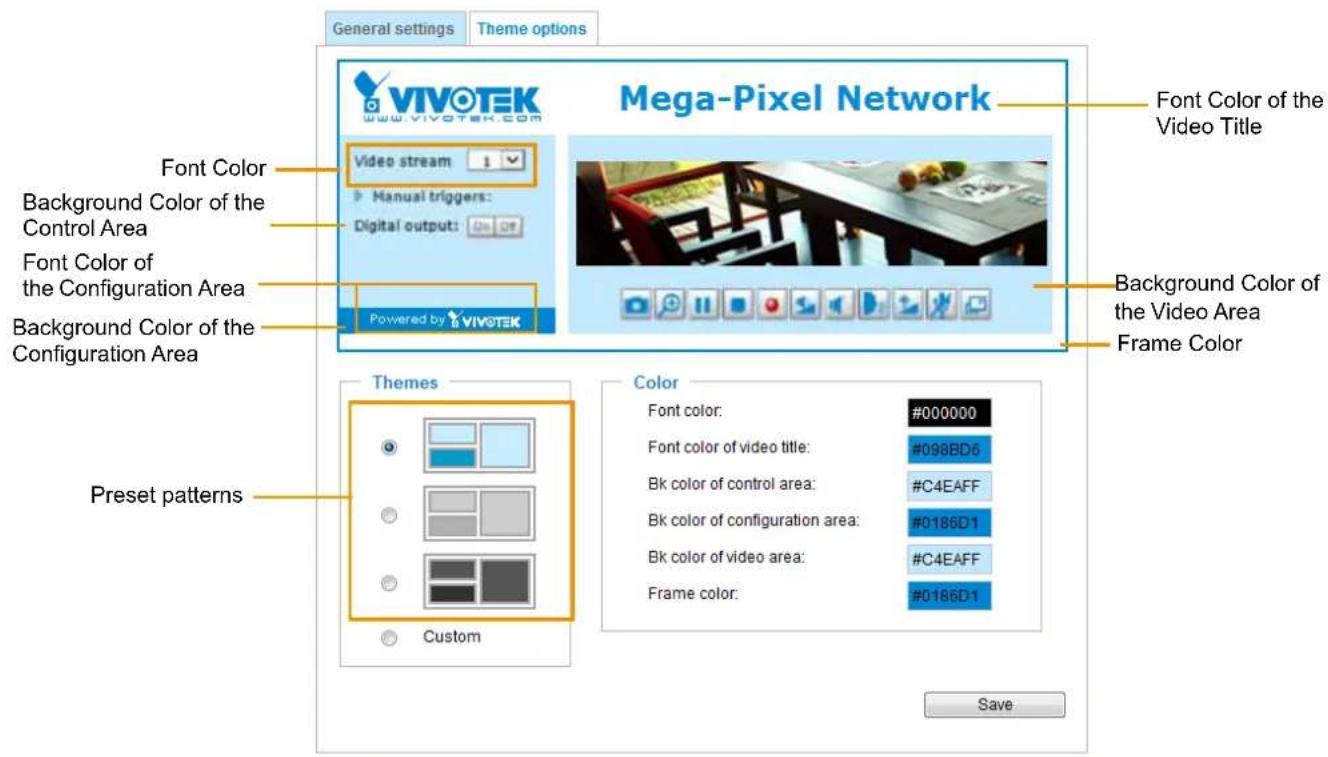

Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.

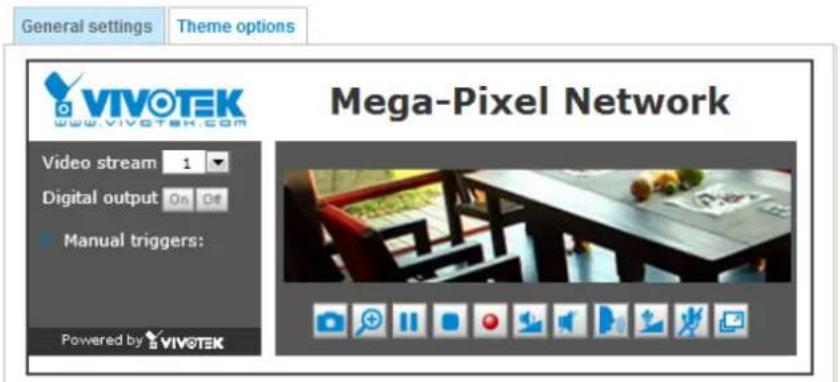

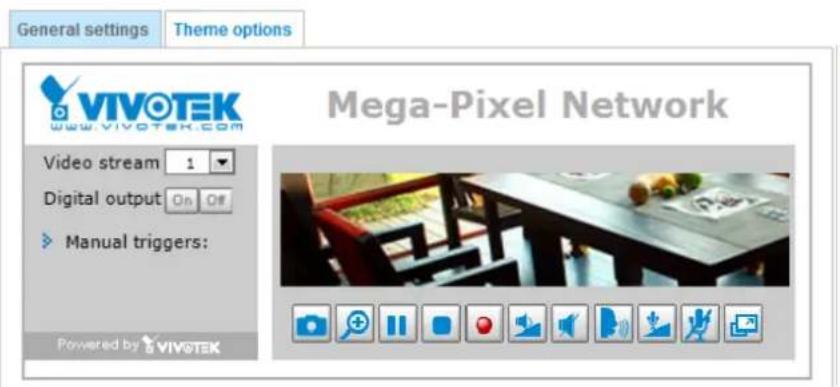

General settings Theme options VIVOTEK www.vivotek.com Mega-Pixel Network Font Color of the Video Title Video stream Manual triggers: Digital output: Font Color of the Configuration Area Background Color of the Configuration Area Powered by VIVOTEK Background Color of the Video Area Frame Color Preset patterns Themes Custom Color Font color: #000000 Font color of video title: #098BD6 Bk color of control area: #C4EAFF Bk color of configuration area: #0186D1 Bk color of video area: #C4EAFF Frame color: #0186D1 Save

General settings Theme options VIVOTEK www.vivotek.com Video stream 1 Digital output On Off Manual triggers: Powered by VIVOTEK Mega-Pixel Network

General settings Theme options VIVOTEK www.vivotek.com Video stream 1 Digital output On Off Manual triggers: Powered by VIVOTEK Mega-Pixel Network

■ Follow the steps below to set up the customed homepage:

1. Click Custom on the left column.
2. Click the field where you want to change the color on the right column.

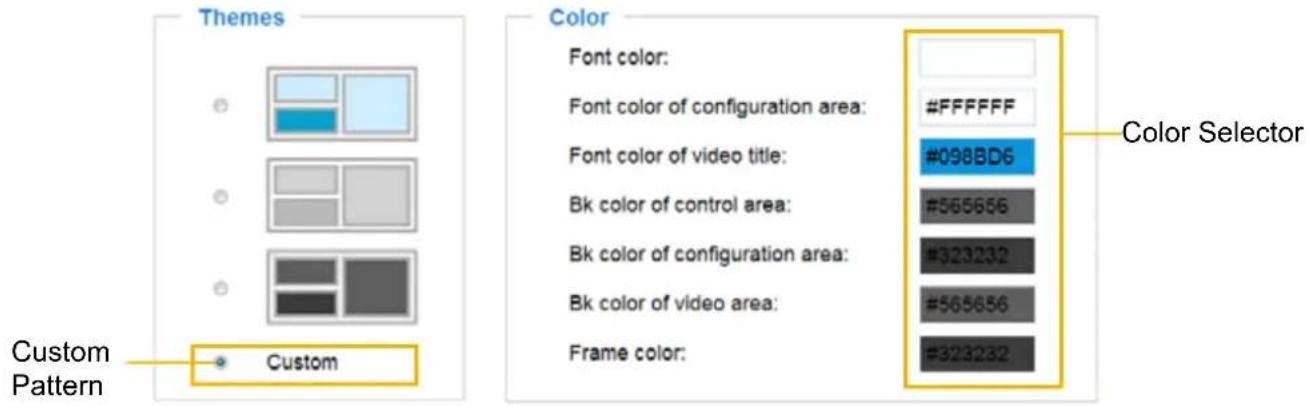

Themes Custom Pattern Custom Color Font color: Font color of configuration area: #FFFFFFF Font color of video title: #098BD6 Bk color of control area: #565656 Bk color of configuration area: #323232 Bk color of video area: #565656 Frame color: #323232 Color Selector

1. The palette window will pop up as shown below.

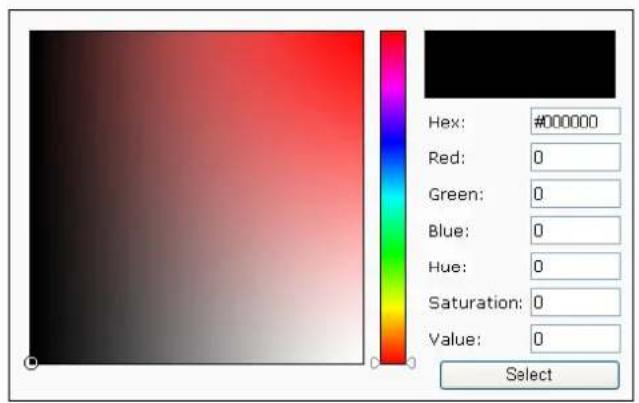

Hex: #000000 Red: 0 Green: 0 Blue: 0 Hue: 0 Saturation: 0 Value: 0 Select

Hex: #23538A Red: 35 Green: 83 Blue: 138 Hue: 212 Saturation: 74.6 Value: 54.1 4 Select

1. Drag the slider bar and click on the left square to select a desired color.
2. The selected color will be displayed in the corresponding fields and in the Preview column.
3. Click Save to enable the settings.

System > Logs

This section explains how to configure the Network Camera to send the system log to a remote server as backup.

Log server settings

Log server settings Enable remote log IP address: port: 514 Save

Follow the steps below to set up the remote log:

1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
3. In the port text box, enter the port number of the remote server.
4. When completed, click Save to enable the setting.

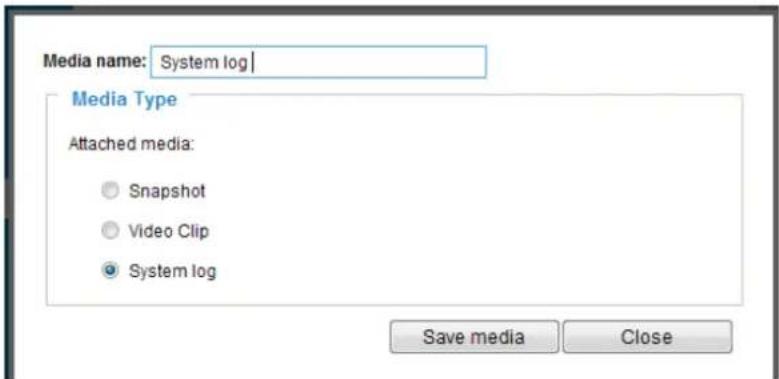

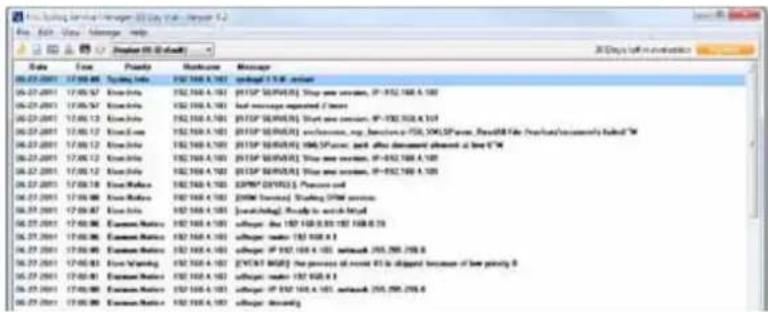

You can configure the Network Camera to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit http://www.kiwisyslog.com/kiwi-syslog-daemon-overview/.

File Edit View Guide Help Date Date Document 01 (Default) Message 05.27.2001 17:00:46 Tools, Info 152 344 A-182 152 344 A-182 05.27.2001 17:00:57 Extra Tech 152 344 A-182 (P15P SEVRS) Shop new services, IP: 152 344 A-182 05.27.2001 17:00:57 Extra Tech 152 344 A-182 last message repeated / latest 05.27.2001 17:00:12 Extra Tech 152 344 A-182 (P15P SEVRS) Start new services, IP: 152 344 A-182 05.27.2001 17:00:12 Extra Tech 152 344 A-182 (P15P SEVRS) Exchange, map, functions as 'FIS, SARS' space, PassDB far from/without community built"M 05.27.2001 17:00:12 Extra Tech 152 344 A-182 (P15P SEVRS) 196 SP Ocean, and after document elements at line "M" 05.27.2001 17:00:12 Extra Tech 152 344 A-182 (P15P SEVRS) Shop new services, IP: 152 344 A-182 05.27.2001 17:00:12 Extra Tech 152 344 A-182 (P15P SEVRS) Shop new services, IP: 152 344 A-182 05.27.2001 17:00:18 Extra Tech 152 344 A-182 (SPW PVRS) Pearson card 05.27.2001 17:00:46 Extra Tech 152 344 A-182 (SPW PVRS) Trading ATM services 05.27.2001 17:00:47 Extra Tech 152 344 A-182 [switching] Ready to switch off all 05.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the ISO 152 344 B-33 ISO 344 B-33 05.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 B-33 05.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 B-33 05.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 A-33 05.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 B-33 05.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 B-33 06.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 B-33 06.27.2001 17:00:46 Express Metrics 152 344 A-182 ### the info ISO 344 B-33 06.27.2O6.INSR# The process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The Process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The Process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The Process of record #3 is assigned location of low priority #B 06.27.2O6.INSR# The Process of record #3 is assigned location of low priority #B 06. ###

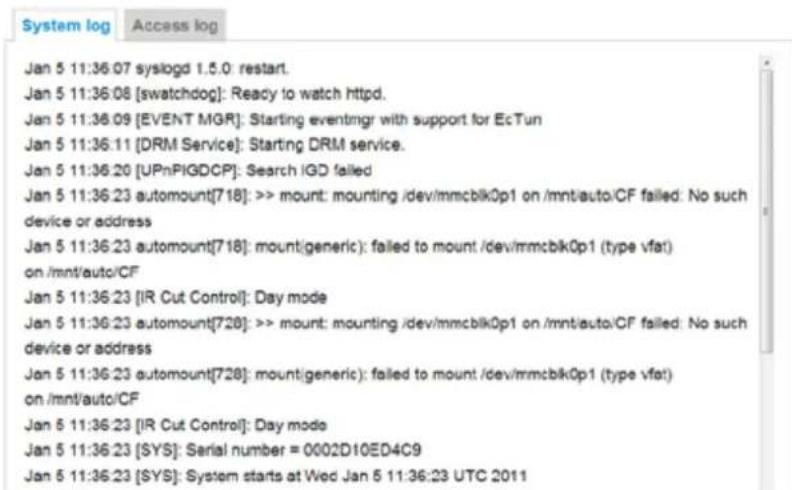

System log

Jan 5 11:36.07 syslogd 1.5.0: restart. Jan 5 11:36.08 [swatchdog]: Ready to watch httpd. Jan 5 11:36.09 [EVENT MGR]: Starting eventmgr with support for EcTun Jan 5 11:36.11 [DRM Service]: Starting DRM service. Jan 5 11:36.20 [UPnPIGDCP]: Search IGD failed Jan 5 11:36.23 automount[718]: >> mount: mounting /dev/mmcblk0p1 on /mnt/auto/CF failed: No such device or address Jan 5 11:36.23 automount[718]: mount(generic): failed to mount /dev/mmcblk0p1 (type vfat) on /mnt/auto/CF Jan 5 11:36.23 [IR Cut Control]: Day mode Jan 5 11:36.23 automount[728]: >> mount: mounting /dev/mmcblk0p1 on /mnt/auto/CF failed: No such device or address Jan 5 11:36.23 automount[728]: mount(generic): failed to mount /dev/mmcblk0p1 (type vfat) on /mnt/auto/CF Jan 5 11:36.23 [IR Cut Control]: Day mode Jan 5 11:36.23 [SYS]: Serial number = 0002D10ED4C9 Jan 5 11:36.23 [SYS]: System starts at Wed Jan 5 11:36:23 UTC 2011

This column displays the system log in a chronological order. The system log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

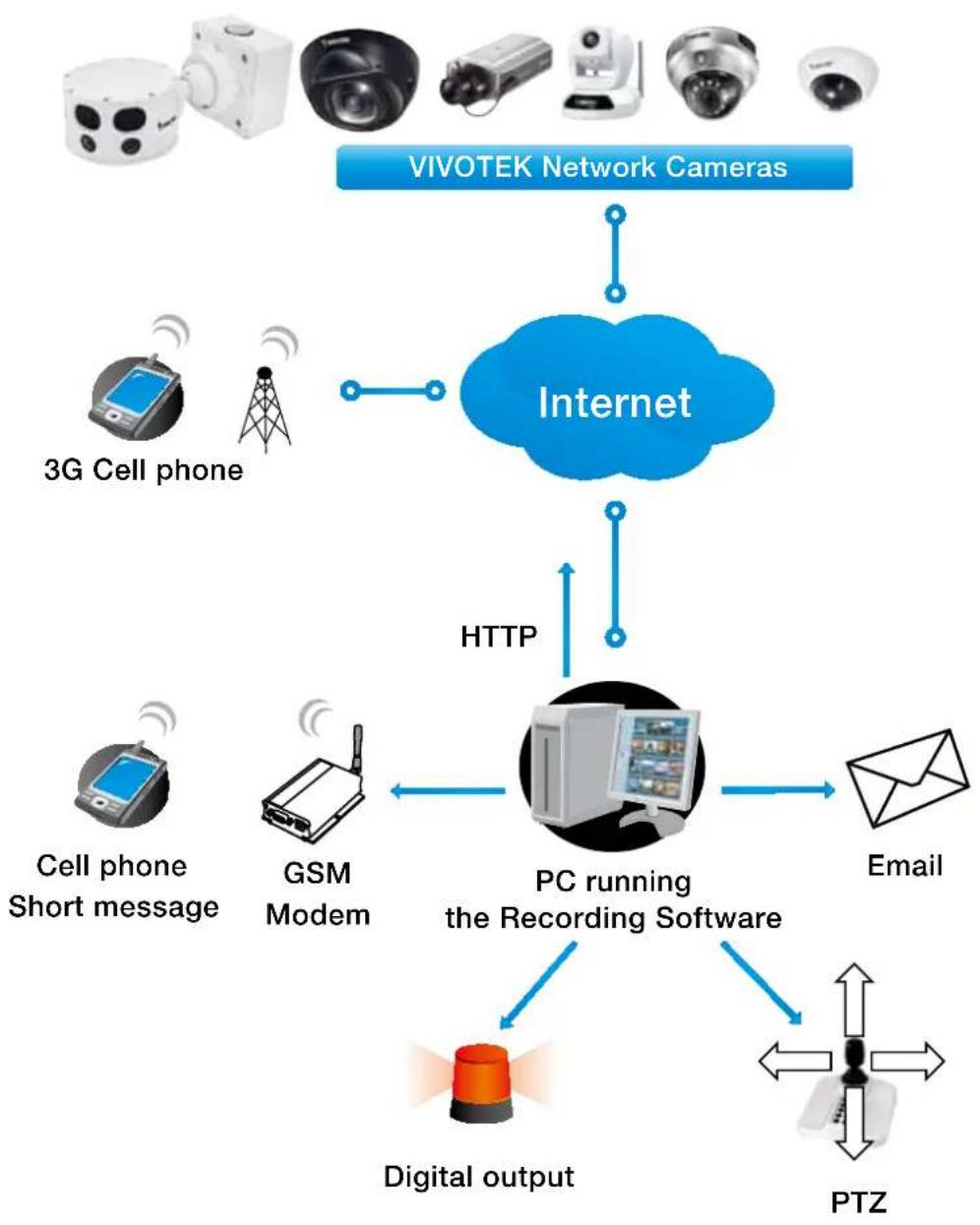

You can install the included VAST recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the VAST User Manual.

Access log

System log Access log

Jan 5 11:36:28 [RTSP SERVER]: Start one session, IP=172.16.2.52
Jan 5 11:49:15 [RTSP SERVER]: Start one session, IP=192.168.4.105
Jan 5 13:11:20 [RTSP SERVER]: Start one session, IP=192.168.4.105

Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

System > Parameters

The View Parameters page lists the entire system's parameters. If you need technical assistance, please provide the information listed on this page.

Parameters

system_hostname='MS8391-EV'
system_ledoff='0'
system_lowlight='1'
system_date='2016/01/08'
system_time='13:30:03'
system_datetime�'
system_ntp�'
system_timezoneindex='320'
system_daylight_enable='0'
system_daylight_dstactualmode='1'
system_daylight_auto_begintime='NONE'
system_daylight_auto_endtime='NONE'
system_daylight_timezones=',-360,-320,-280,-240,-241,-200,-201,-160,-14
system_updateinterval='0'
system_info_modelname='MS8391-EV'
system_info_extendedmodelname='MS8391-EV'
system_info_serialnumber='00028391C319'
system_info_firmwareversion='MS8391-VVTK-0100e1'
system_info_language_count='9'
system_info_language_i0='English'
system_info_language_i1='Deutsch'
system_info_language_i2='Español'
system_info_language_i3='Français'
system_info_language_i4='Italiano'
system_info_language_i5='日本語'
system_info_language_i6='Português'
system_info_language_i7='简体中文'
system_info_language_i8='繁體中文'

System > Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc.

General settings > Upgrade firmware

Upgrade firmware

Select firmware file:

Browse.

Upgrade

This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to complete the process.

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the firmware:

1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format.
2. Click Browse... and locate the firmware file.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade completes.

If the upgrade is successful, you will see "Reboot system now!! This connection will close". After that, re-access the Network Camera.

The following message is displayed when the upgrade has succeeded.

Reboot system now!!

This connection will close.

The following message is displayed when you have selected an incorrect firmware file.

Starting firmware upgrade...

Do not power down the server during the upgrade.

The server will restart automatically after the upgrade is

completed.

This will take about 1 - 5 minutes.

Wrong PKG file format

Unpack fail

General settings > Reboot

Reboot

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/

If the connection fails, please manually enter the above IP address in your browser.

[Non-Text]

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the address field to resume the connection.

General settings > Restore

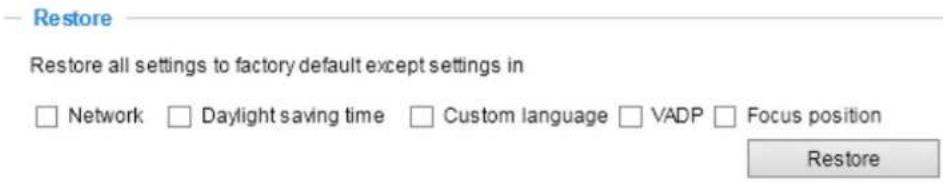

Restore Restore all settings to factory default except settings in □ Network □ Daylight saving time □ Custom language □ VADP □ Focus position Restore

This feature allows you to restore the Network Camera to factory default settings.

Network: Select this option to retain the Network Type settings (please refer to Network Type on page 72).

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).

Custom Language: Select this option to retain the Custom Language settings.

VADP: Retain the VADP modules (3rd-party software stored on the SD card) and related settings.

Focus position: Retain the lens focus position using the previously saved position parameters.

If none of the options is selected, all settings will be restored to factory default. The following message is displayed during the restoring process.

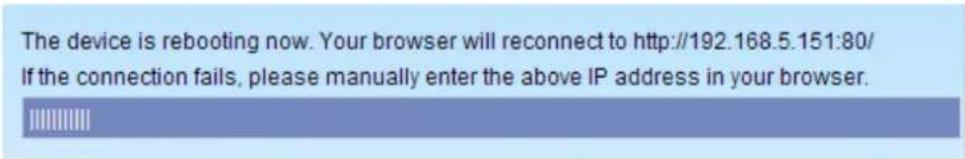

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

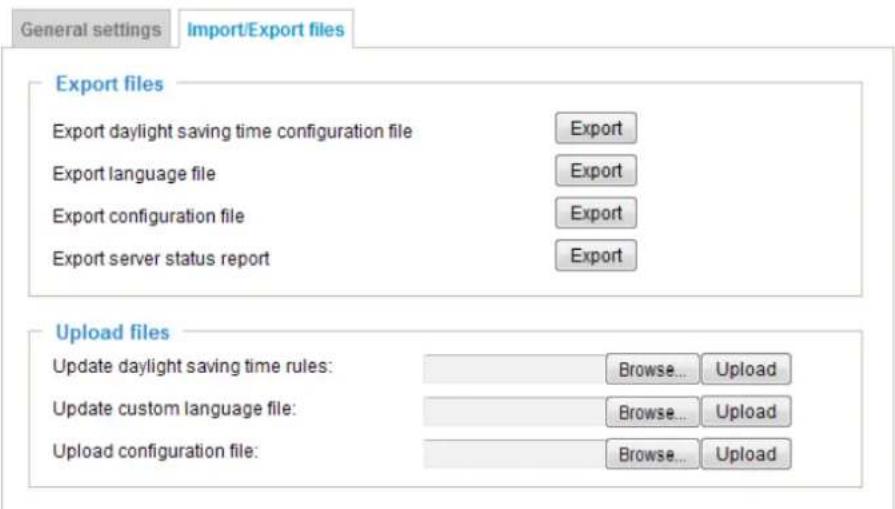

Import/Export files

This feature allows you to Export / Update daylight saving time rules, custom language file, configuration file, and server status report.

General settings Import/Export files Export files Export daylight saving time configuration file Export Export language file Export Export configuration file Export Export server status report Export Upload files Update daylight saving time rules: Browse... Upload Update custom language file: Browse... Upload Upload configuration file: Browse... Upload

Export daylight saving time configuration file: Click to set the start and end time of DST (Daylight Saving).

Follow the steps below to export:

1. In the Export files column, click Export to export the daylight saving time configuration file from the Network Camera.

2. A file download dialog will pop up as shown below. Click Open to review the XML file or click Save to store the file for editing.

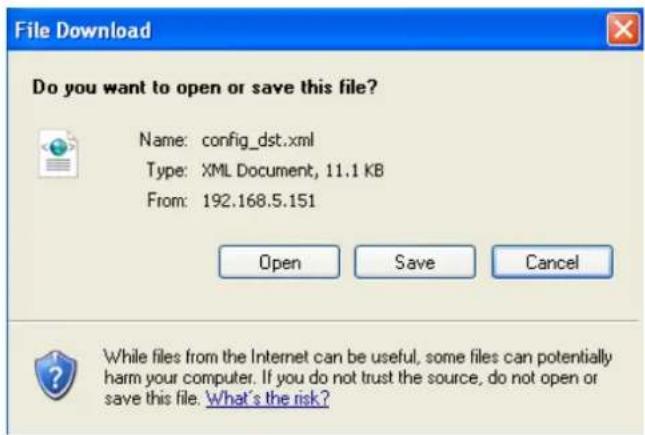

File Download Do you want to open or save this file? Name: config_dst.xml Type: XML Document, 11.1 KB From: 192.168.5.151 Open Save Cancel While files from the Internet can be useful, some files can potentially harm your computer. If you do not trust the source, do not open or save this file. What's the risk?

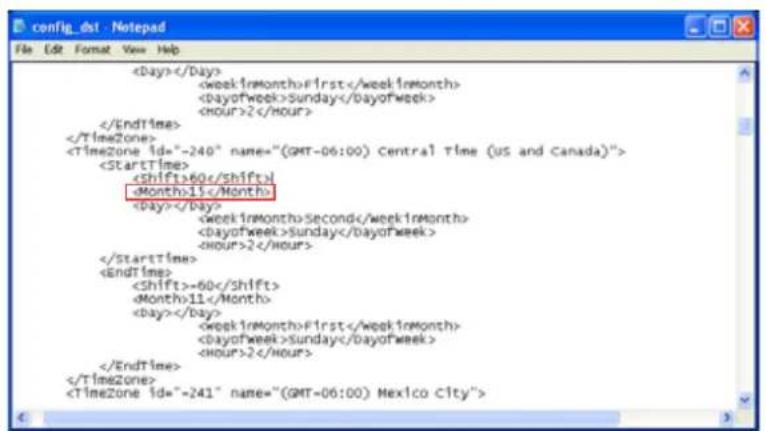

1. Open the file with Microsoft ^ Notepad and locate your time zone; set the start and end time of DST. When completed, save the file.

In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November.

First Sunday 2 60 3 Second Sunday 2 -60 11 First Sunday 2

Update daylight saving time rules: Click Browse... and specify the XML file to update.

If the incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera.

First Sunday 2 60 13 Second Sunday 2 -60 11 First Sunday 2

Invalid value in TimeZone id: -240 . . .

The following message is displayed when attempting to upload an incorrect file format.

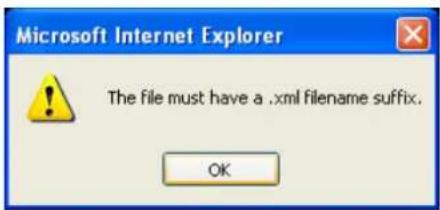

Microsoft Internet Explorer The file must have a .xml filename suffix. OK

Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日木語, Português, 簡体中文, and 繁體。

Update custom language file: Click Browse... and specify your own custom language file to upload.

Export configuration file: Click to export all parameters for the device and user-defined scripts.

Update configuration file: Click Browse... to update a configuration file. Please note that the model and firmware version of the device should be the same as the configuration file. If you have set up a fixed IP or other special settings for your device, it is not suggested to update a configuration file.

Export server staus report: Click to export the current server status report, such as time, logs, parameters, process status, memory status, file system status, network status, kernel message ... and so on.

Tips:

If a firmware upgrade is accidentally disrupted, say, by a power outage, you still have a last resort method to restore normal operation. See the following for how to bring the camera back to work:

Applicable scenario:

(a) Power disconnected during firmware upgrade.
(b) Unknown reason causing abnormal LED status, and a Restore cannot recover normal working condition.

You can use the following methods to activate the camera with its backup firmware:

(a) Press and hold down the reset button for at least one minute.
(b) Power on the camera until the Red LED blinks rapidly.
(c) After boot up, the firmware should return to the previous version before the camera hanged. (The procedure should take 5 to 10 minutes, longer than the normal boot-up process). When this process is completed, the LED status should return to normal.

Media > Image

This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Picture settings, Exposure, Focus, and Privacy mask. The Focus window is available only for models that come with motorized lens.

General settings

General settings Image settings Exposure Privacy mask

Video settings

Video title

□ Show timestamp and video title in video and snapshots:

Position of timestamp and video title on image:

Timestamp and video title font-size:

Color:

Power line frequency:

Video orientation:

Video alignment

Top

Small

○ B/W ● Color

○ 50 Hz ● 60 Hz

□ Flip □ Mirror

Video title

Show_timestamp_and_video_title_in_video_and_snapshots: Enter a name that will be displayed on the title bar of the live video as the picture shown below. A zoom indicator will be displayed on the Home page when you zoom in/out on the live viewing window as shown below. You may zoom in/out on the image by scrolling the mouse wheel inside the live viewing window, and the maximum zoom in will be up to 4 times.

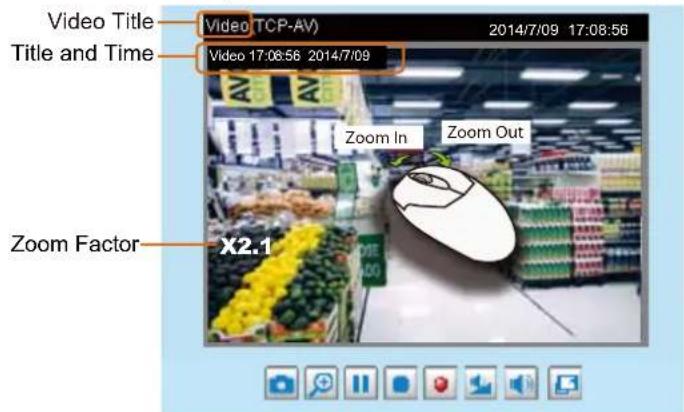

Video Title Title and Time Video TCP-AV) 2014/7/09 17:08:56 Video 17:08:56 2014/7/09 Zoom In Zoom Out Zoom Factor X2.1

Position of timestamp and video title on image: Select to display time stamp and video title on the top or at the bottom of the video stream.

Timestamp and video title font size: Select the font size for the time stamp and title.

Video font (.ttf): You can select a True Type font file for the display of textual messages on video.

Color: Select to display color or black/white video streams.

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect.

Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will be cleared after flip/mirror setting.

Video alignment-

Use the Video alignment tool to line up and fine-tune the positions of images captured by the camera's 4 sensors. Align these images to form a congruent panoramic view. You can have an overlap of 3 to 5% of the images to ensure no details is left unnoticed. Select individual images using the check circles in the middle and use the arrow marks to change the relative positions of images to match its counterparts.

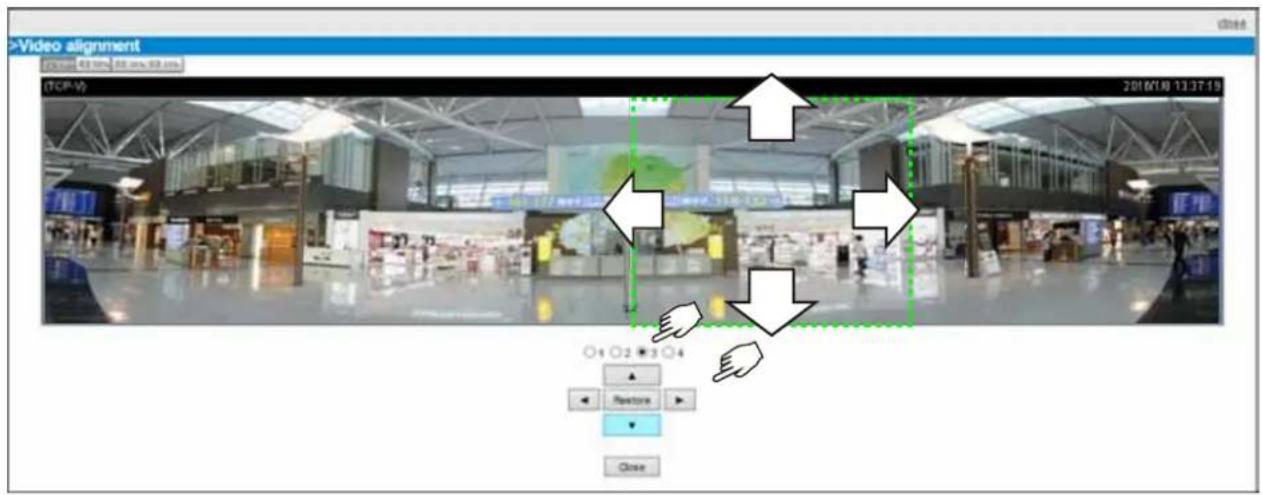

>Video alignment TCP-V 2016/1.8 13:37:19 ○ 1 ○ 2 ● 3 ○ 4 ▲ ← Restore ► ▼ Close

Day/Night Settings

Day/Night settings

Switch to B/W in night mode
Turn on external IR illuminator in night mode
Turn on built-in IR illuminator in night mode
Smart IR

IR cut filter:

Switch to B/W in night mode

Select this to enable the Network Camera to automatically switch to Black/White during night mode.

Turn on built-in IR illuminator in night mode

Select this to turn on the camera's onboard IR illuminator when the camera detects low light condition and enters the night mode.

Smart IR

When enabled, the camera automatically adjusts the IR projection to adjacent objects in order to avoid over-exposure in the night mode.

The Smart IR function is more beneficial when the spot of intrusions or an object of your interest is close to the lens and the IR lights. For example, if an intruder has a chance of getting near the range of 3 meters, Smart IR can effectively reduce the over-exposure. For a surveillance area at a greater distance, e.g., 5 meters or farther away, the Smart IR function may not bring as significant benefits as in close range.

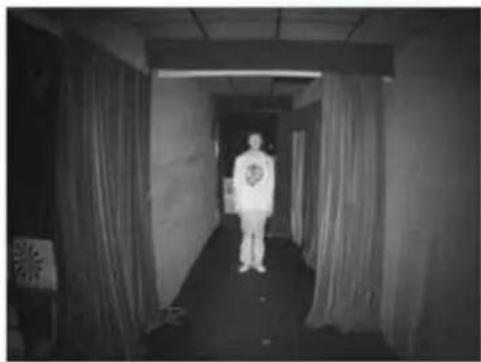

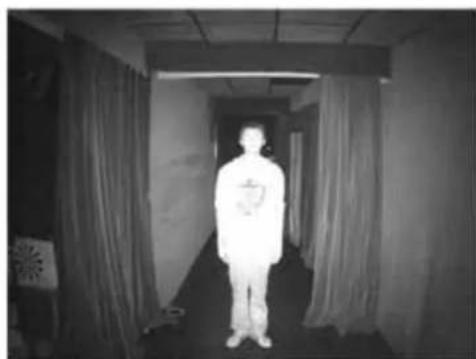

Smart IR disabled; distance: 5M

Black-and-white photo of a person standing in a hallway with curtains and curtains, no visible text or symbols

Smart IR disabled; distance: 3M

Smart IR enabled; distance: 5M

Black-and-white photo of a person standing in a dimly lit corridor with curtains and curtains (no visible text or symbols)

Smart IR enabled; distance: 3M

Black-and-white photo of a person standing in a hallway with curtains, no visible text or symbols

NOTE:

Person standing in a dimly lit corridor, wearing a white top with a circular emblem (no visible text or symbols)

The light intensity of each IR light can be turn up or down using the URL commands in case of different lighting demands at the installation site. Please contact technical support if you should need to tune the IR lights.

Tips:

If there is an object in close proximity, the IR lights reflected back from it can mislead the Smart IR's calculation of light level. To solve this problem, you can place an "Exposure Exclude" window on an unavoidable object in the Exposure setting window. See page 60 for how to do it.

You can also configure the "Exposure Exclude" window in a night mode "Profile" setting so that your day time setting is not affected.

Profile of exposure settings

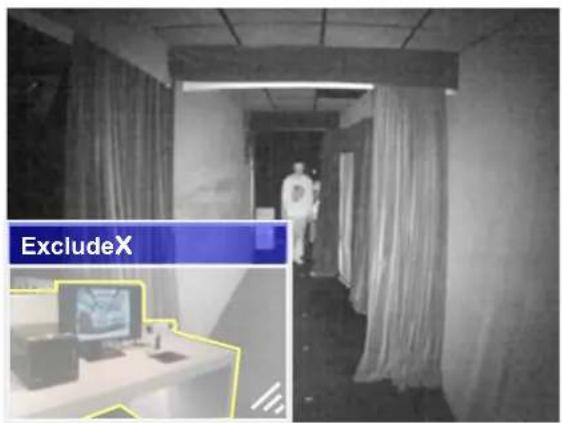

FD8363(TCP-V) 2013/2/14 10:46:00 ExcludeX

Add inclusive window Add exclusive window
√ Enable and apply this profile to
Day mode Night mode Schedule mode
Full view Custom BLC

Activated period

Interior hallway with personnel in protective suits walking, featuring a monitor and desk (no visible text or symbols)

ExcludeX

IR cut filter

With a removable IR-cut filter, this Network Camera can automatically remove the filter to let IR light enter the light sensor during low light conditions.

■ Auto mode

The Network Camera automatically removes the filter by judging the level of ambient light.

■ Day mode

In day mode, the Network Camera switches on the IR cut filter at all times to block infrared light from reaching the sensor so that the colors will not be distorted.

■ Night mode

In night mode, the Network Camera switches off the IR cut filter at all times for the sensor to accept infrared light, thus helping to improve low light sensitivity.

■ Synchronize with digital input

The Network Camera automatically removes the IR cut filter when a Digital Input is triggered. For example, an external IR light may come with its own detection circuits.

■ Schedule mode

The Network Camera switches between day mode and night mode based on a specified schedule. Enter the start and end time for the day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.

Light sensor sensitivity

Tune the responsiveness of the IR filter to lighting conditions as Low, Normal, or High.

When completed with the settings on this page, click Save to enable the settings.

Image settings

On this page, you can tune the White balance and Image adjustment.

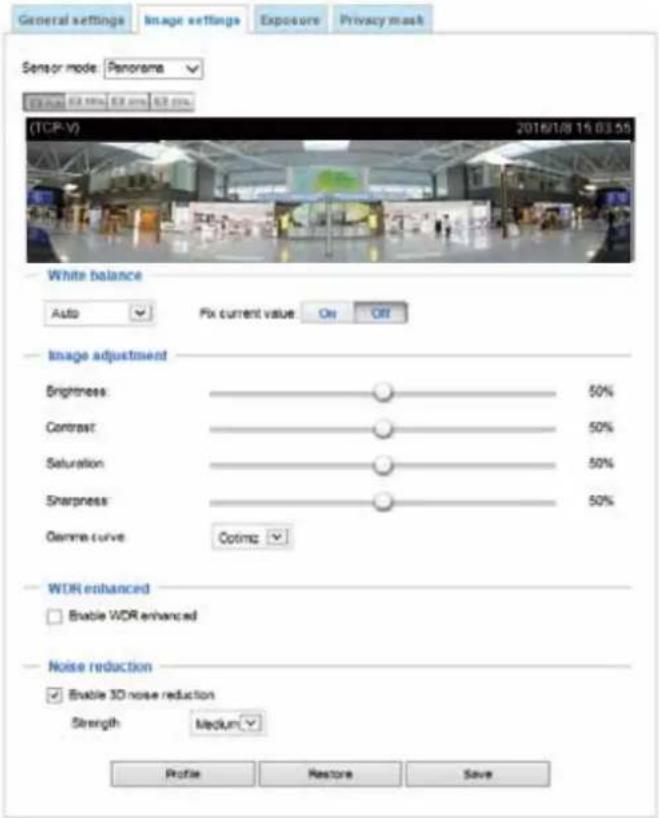

General settings Image settings Exposure Privacy mask Sensor mode: Panorama TCE: 03.19% 03.20% 03.21% (TCP-V) 2016/1/8 15:03:55 White balance Auto Fix current value On Off Image adjustment Brightness: 50% Contrast: 50% Saturation: 50% Sharpness: 50% Gamma curve Optimz WDR enhanced Enable WDR enhanced Noise reduction Enable 3D noise reduction Strength: Medium Profile Restore Save

Sensor mode: By default, the firmware adopts the Panorama mode and tries its best to stitch the imaging results to form a coherent 180° panoramic view. If you select the Regional mode, the firmware will ignore the incoherence among images and display 4 regional views according to their separate lighting conditions.

White balance: Adjust the value for the best color temperature.

■ You may follow the steps below to adjust the white balance to the best color temperature.

1. Place a sheet of paper of white or cooler-color temperature color, such as blue, in front of the lens, then allow the Network Camera to automatically adjust the color temperature.

2. Click the On button to Fix current value and confirm the setting while the white balance is being measured.

■ You may also manually tune the color temperature by pulling the RGain and BGain slide bars.

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from 0% to 100%.

■ Contrast: Adjust the image contrast level, which ranges from 0% to 100%.

■ Saturation: Adjust the image saturation level, which ranges from 0% to 100%.

■ Sharpness: Adjust the image sharpness level, which ranges from 0% to 100%.

■ Gamma curve: Adjust the image sharpness level, which ranges from 0 to 0.45. You may let firmware Optimize your display or select a value to change the preferred level of Gamma correction towards higher contrast or towards the higher luminance for detailed expression for both the dark and lighted areas of an image.

WDR enhanced

This refers to the Wide Dynamic Range function that enables the camera to capture details in a high contrast environment. Use the checkbox to enable the function, and select the strength of the WDR functionality, depending on the lighting condition at the installation site. You can select a higher effect when the contrast is high (between the shaded area and the light behind the objects).

Noise reduction

■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.

3D Noise Reduction is mostly applied in low-light conditions. When enabled in a low-light condition with fast moving objects, trails of after-images may occur. You may then select a lower strength level or disable the function.

Note that the Preview button has been cancelled, all changes made to image settings is directly shown on screen. You can click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the setting. You can also click on Profile mode to adjust all settings above in a tabbed window for special lighting conditions.

Profile

Restore

Save

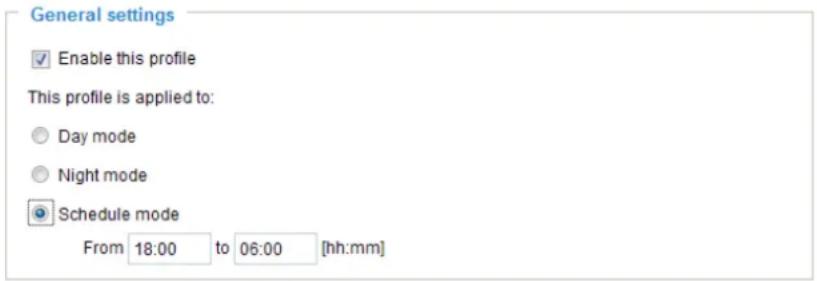

Enable to apply these settings at: Select the mode this profile to apply to: Day mode, Night mode, or Schedule mode. Please manually enter a range of time if you choose Schedule mode. Then check Save to take effect.

Exposure

On this page, you can configure the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/schedule mode.

General settings Image settings Exposure Privacy mask Sensor mode Panorama 2016/1/8 15:25:37 (TCP-V) 2016/1/8 15:25:37 Measurement window Full view Custom BLC PanoramaRegional Exposure control Exposure level 0 Pickerless Exposure time 1/32000 - 1/30 Gain control 0 - 100 % Profile Restore Save Profile Restore Save General settings Image settings Exposure Privacy mask Sensor mode Region Exposure BLC (89.0%) BLC (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89.0%) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (89,000) (84, 22) Exposure control Region 1 2 3 4 Exposure level 0 Pickerless Exposure time 1/32000 - 1/30 Gain control 0 - 100 % Profile Restore Save

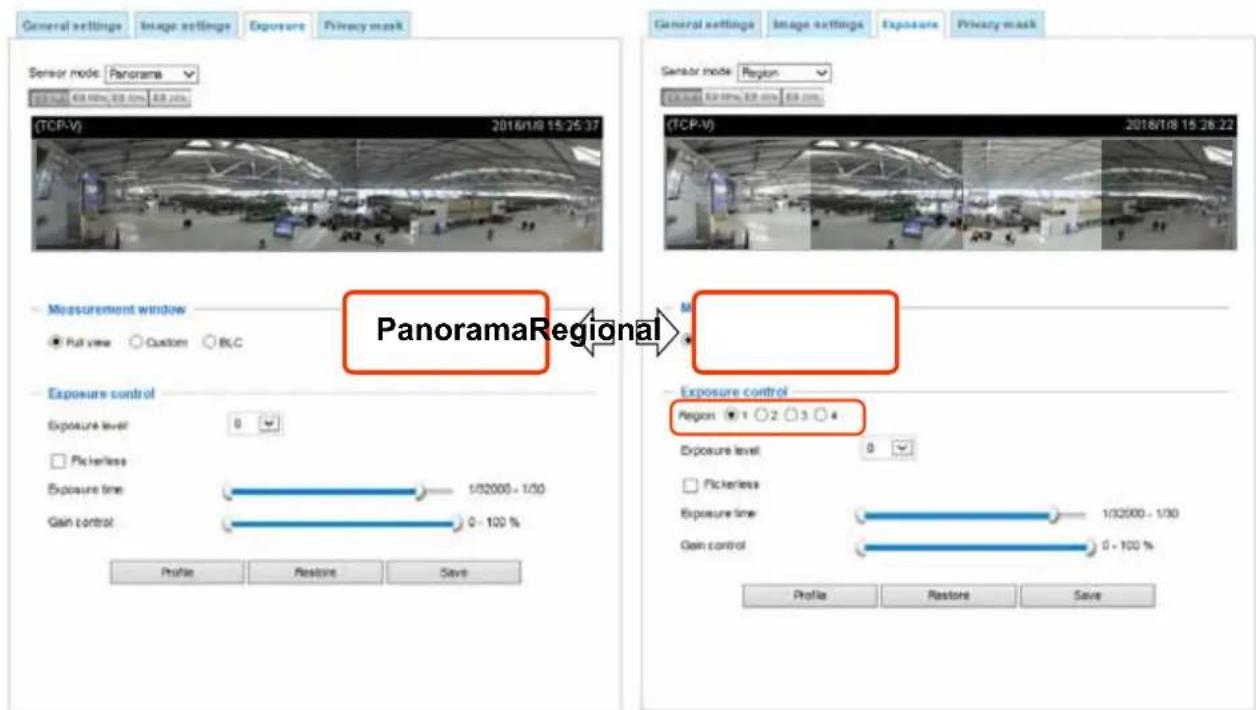

Sensor mode:

▶ Panorama: By default, the firmware adopts the Panorama mode and tries its best to stitch the imaging results from different sensors to form a coherent 180^ panoramic view.
▶ Region: If you select the Region mode, the firmware will ignore the incoherence among images and display 4 regional views according to their individual lighting conditions. You can select each image sensor #1 to #4 using their specific check circle to configure the exposure configuration individually.

Measurement Window: This function allows users to configure measurement window(s) for low light compensation. For example, where low-light objects are posed against an extremely bright background. You may want to exclude the bright sunlight shining through a building's corridor.

■ Full view: System calculates the full range of view and provides appropriate light compensation.
■ Custom: This option allows you to manually add customized windows as inclusive or exclusive regions. A total of 10 windows can be configured. Please refer to the next page for detailed illustration.

The inclusive window refers to the “weighed window”; the exclusive window refers to “ignored window”. It adopts the weighed averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window. An exposure value will then be calculated out of the remaining of the inclusive window.

Fisheye(TCP-V) 2012/7/2 09:57:04 Include Exclude Include Exclude Weighted region Ignored region Add inclusive window Add exclusive window Measurement window Full view Custom BLC

■ BLC (Back Light Compensation): This option will automatically add a “weighted region” in the middle of the window and give the necessary light compensation.

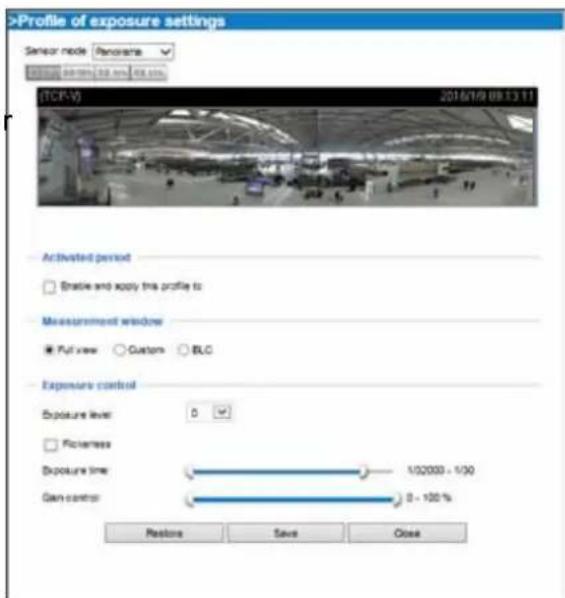

Exposure control:

■ Exposure level: You can manually configure the Exposure level, which ranges from -2.0 to +2.0 (dark to bright). You can click and drag the semi-circular pointers on the Exposure time and Gain control slide bars to specify a range of shutter time and Gain control values within which the camera can automatically tune to an optimal imaging result. You may prefer a shorter shutter time to better capture moving objects, while a faster shutter reduces light and needs to be compensated by electrical brightness gains.

You can click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the settings.

If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.

Activated period: Select the mode this profile to apply to: Day mode, Night mode, or Schedule mode. Please manually enter a range of time if you choose Schedule mode. Then check Save to take effect.

Please follow the steps below to set up a profile:

1. Select the Profile mode tab.
2. Select the applicable mode: Night mode or Schedule mode. Please manually enter a range of time if you choose the Schedule mode.
3. Configure Exposure control settings in the following columns. Please refer to previous discussions for detailed information.
4. Click Save to enable the setting and click Close to exit the page.

Profile of exposure settings Sensor node: Renovara TCP-V) 2016/1/9 08:13:11 Activated period Enable and apply this profile to Measurement windows Full view Custom BLC Exposure control Exposure level: D Ficeness Exposure time: 1/32000 - 1/30 Gain control: 0 - 100 % Restore Save Close

Privacy mask

Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns.

Media > Image

General settings Image settings Exposure Privacy mask Enable privacy mask (TCP-V) 2016/1/9 09:18:15 Window name: X: 23 Width: 115 Y: 80 Height: 51 New Save

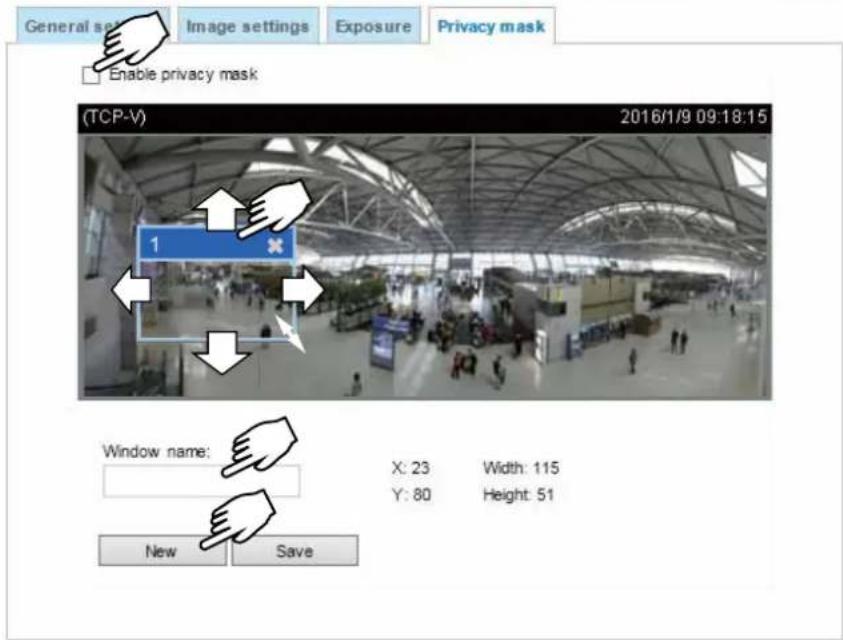

■ To configure privacy mask windows,

1. Click New to add a new window.
2. Click on the title bar and drag the window to your preferred location on screen. You can change the size of window using the arrow mark that appear when you mouse over the lower right corner of the window.
3. Enter a Window Name and click Save to enable the setting.
4. Click on the Enable privacy mask checkbox to enable this function.

NOTE:

▶ Up to 5 privacy mask windows can be configured on the same screen.
▶ If you want to delete the privacy mask window, please click the 'x' mark on the side of window name.

Media > Video

Stream settings

Stream

Video settings for stream 1

Viewing Window

Video settings for stream 2

Viewing Window

Video settings for stream 3

Viewing Window

Video settings for stream 4

This Network Camera supports multiple streams with frame sizes ranging from 768 x 144 to 7552 x 1416 pixels.

■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Size" (size of the live view window).
■ Stream 2: The default frame size for Stream 2 is set to the 3200 x 600.
■ Stream 3: The default frame size for Stream 3 is set to the 768 x 144
■ Stream 4: The default frame size is 7552 x 1416, and the Viewing Window function is not available for stream 4.

Click Viewing Window to open the viewing region settings page. On this page, you can configure the Region of Interest and the Output Frame Size for a video stream. For example, you can crop only a portion of the image that is of your interest, and thus save the bandwidth needed to transmit the video stream. As the picture shown below, the area of your interest in a parking lot should be the vehicles. The blue sky is of little value for the surveillance purpose.

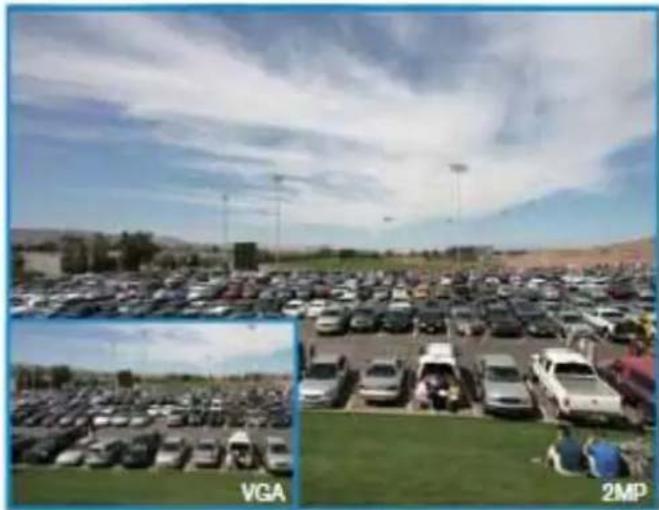

Outdoor parking lot with rows of parked cars under a cloudy sky, inset shows a close-up of a large pile (no visible text or symbols)

Media > Video

Stream Viewing Window

Video stream: Stream 1

Street view of a multi-lane highway with vehicles and buildings in the background (no visible text or signage)

Full view: 7552x1416

Region of interest :

(0.0) 7552x1416 custom

Save

Close

Please follow the steps below to set up those settings for a stream:

1. Select a stream for which you want to set up the viewing region.
2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Gloabl View window on the home page, will resize accordingly. If you want to set up a customized viewing region, you can also resize and drag the floating frame to a desired position with your mouse.
3. Choose a proper Output Frame Size from the drop-down list according to the size of your monitoring device.

NOTE:

▶ All the items in the "Region of Interest" should not be larger than the "Output Frame Size" (current maximum resolution).

When completed with the settings in the Viewing Window, click Save to enable the settings and click Close to exit the window. The selected Output Frame Size will immediately be applied to the Frame size of each video stream. Then you can go back to the home page to test the e-PTZ function. For more information about the e-PTZ function, please refer to page 102.

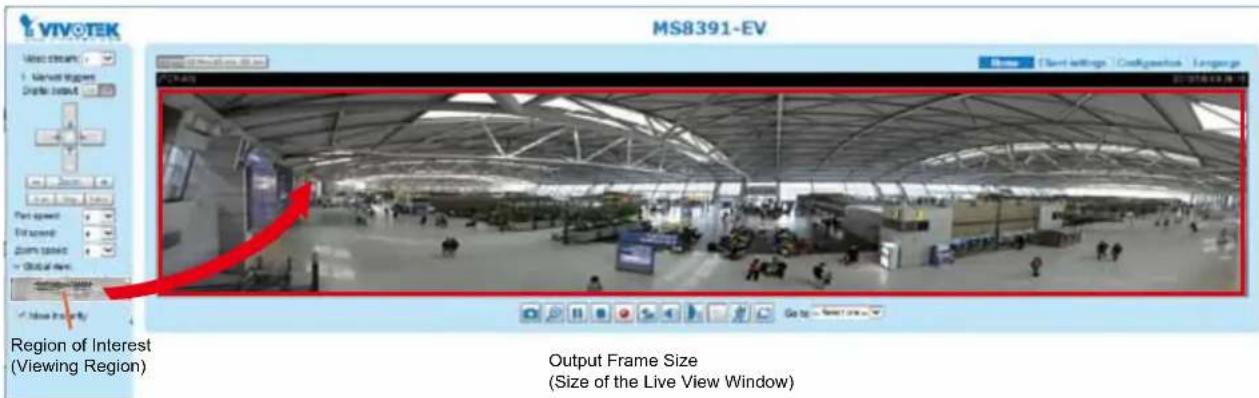

MS8391-EV Region of Interest (Viewing Region) Output Frame Size (Size of the Live View Window)

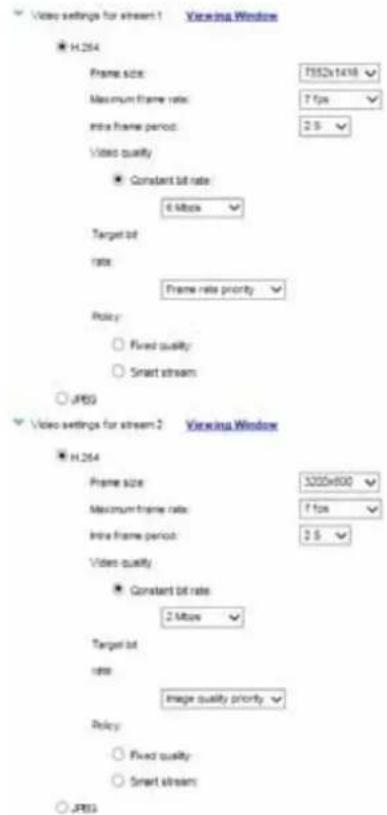

Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections.

Video settings for stream 1 Viewing Window H.264 Frame size: 7552x1418 Maximum frame rate: 7 fps Intra frame period: 2.5 Video quality Constant bit rate: 6 Mbps Target bit rate Frame rate priority Policy: Fixed quality: Smart stream: JPEG Video settings for stream 2 Viewing Window H.264 Frame size: 3200x600 Maximum frame rate: 7 fps Intra frame period: 2.5 Video quality Constant bit rate: 2 Mbps Target bit rate Image quality priority Policy: Fixed quality: Smart stream: JPEG

This Network Camera offers real-time H.264 and MJPEG compression standards (Triple Codec) for real-time viewing. If the H.264 mode is selected, the video is streamed via RTSP protocol. There are several parameters through which you can adjust the video performance:

HJ84 Frame size: 7552x1416 Maximum frame rate: 7 fps Intra frame period: 2.5 Video quality: Constant bit rate: 6 Mbps Target bit rate: Frame rate priority Policy: Fixed quality: Smart stream: JPEG

■ Frame size

You can set up different video resolutions for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers, or recording the stream to an NVR. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality and for recognizing moving objects in the field of view.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps to 7fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps to 7fps. You can also select Customize and manually enter a value.

■ Intra frame period

Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.

■ Video quality

Constant bit rate:

- Constant bit rate: A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. The bandwidth utilization is configurable to match a selected level, resulting in mutable video quality performance. The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, 8Mbps, 10Mbps, 12Mbps, 14Mbps, \~ to 16Mbps. You can also select Customize and manually enter a value up to 40Mbps.

- Target bit rate: select a bit rate from the pull-down menu. The bit rate ranges from 20kbps to a maximum of 16Mbps. The bit rate then becomes the Average or Upper bound bit rate number. The Network Camera will strive to deliver video streams around or within the bit rate limitation you impose.

- Policy: If Frame Rate Priority is selected, the Network Camera will try to maintain the frame rate per second performance, while the image quality will be compromised. If Image quality priority is selected, the Network Camera may drop some video frames in order to maintain image quality.

- Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

Maximum bit rate: With the guaranteed image quality, you might still want to place a bit rate limitation to control the size of video streams for bandwidth and storage concerns. The configurable bit rate starts from 1Mbps to 40Mbps.

You may also manually enter a bit rate number by selecting the Customized option.

- Smart stream: Smart stream effectively reduces the quality of the whole or the non-interested areas on a screen and therefore reduces the bandwidth consumed.

You can manually specify the video quality for the foreground and the background areas.

Smart stream:

Foreground quality:

Background quality:

Maximum bit rate:

Mode:

Good

Medium

40 Mbps

Hybrid

Manual window setting

Select an operation mode if Smart stream is preferred.

• Auto tracking: The Auto mode configures the whole screen into the background area. The video quality of part of the screen returns to normal when one or more objects move in that area. The remainder of the screen where there are no moving objects (no pixel changes) will still be transmitted in low-quality format.
• Manual: The Manual mode allows you to configure 3 ROI windows (Region of Interest, the Foreground areas) on the screen. Areas not included in any ROI windows will be considered as the Background areas. The details in the ROI areas will always be transmitted in a higher-quality video format.

As illustrated below, the upper screen may contain little details of your interest, while the sidewalk on the lower screen is included in an ROI window.

(TCP-V) 2013/6/3 11:31:24 background ROI_0 Foreground

As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.

Background: lower-quality Foreground: higher-quality

- Hybrid: The major difference between the "Manual" mode and the "Hybrid" mode is that:

In the "Hybrid" mode, any objects entering the background area will restore the video quality of the moving objects and the area around them. The video quality of the associated background area is immediately restored to normal to cover the moving objects.

In the “Manual” mode, the background area is always transmitted using a low-quality format regardless of the activities inside.

You should also select the Maximum bit rate from the pull-down menu as the threshold to contain the bandwidth consumption for both the high- and low-quality video sections in a smart stream.

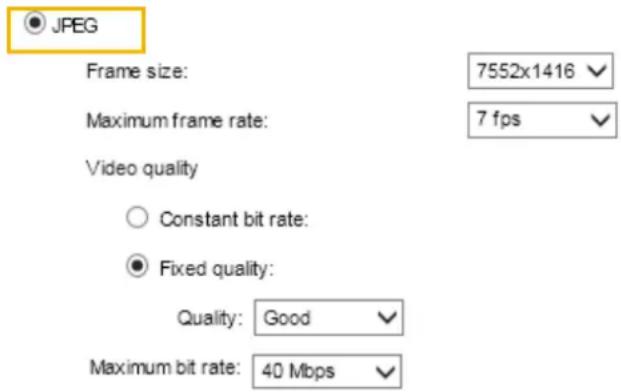

If the JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client. There are three parameters provided in MJPEG mode to control the video performance:

JPEG Frame size: 7552x1416 Maximum frame rate: 7 fps Video quality ○ Constant bit rate: ● Fixed quality: Quality: Good Maximum bit rate: 40 Mbps

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality.

If the power line frequency is set to 50Hz (at the 5MP resolution), the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, and 15fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, and 15fps. You can also select Customize and manually enter a value. The frame rate will decrease if you select a higher resolution.

■ Video quality

Refer to the previous page setting an average or upper bound threshold for controlling the bandwidth consumed for transmitting motion jpegs. The configuration method is identical to that for H.264.

For Constant Bit Rate and other settings, refer to the previous page for details.

NOTE:

▶ Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality.
▶ Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene. In the event of occurrence, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video.

Media > Audio

Audio Settings

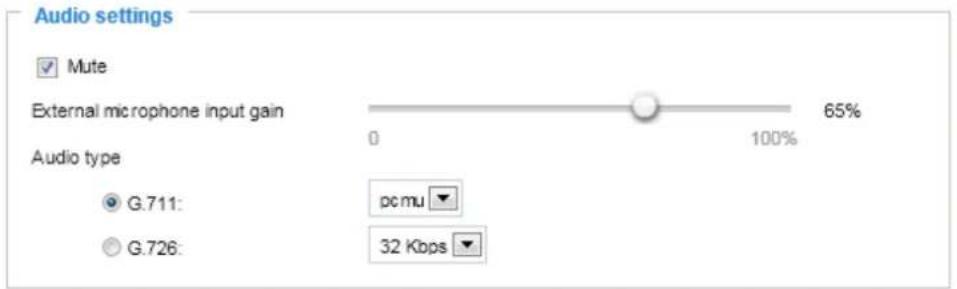

Audio settings ✓ Mute External microphone input gain 65% 0 100% Audio type G.711: pc mu G.726: 32 Kbps

Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page. In that case, the following message is displayed:

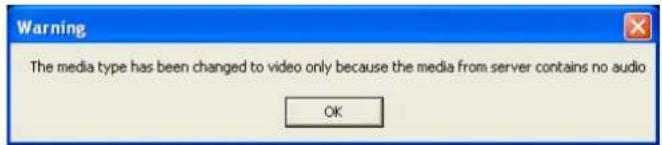

Warning The media type has been changed to video only because the media from server contains no audio OK

External microphone input: Select the gain of the external audio input according to ambient conditions. Adjust the gain from +21 db (most sensitive) or -33 db (least sensitive).

Audio type: Select audio codec and the sampling bit rate.

■ G.711 also provides good sound quality and requires about 64Kbps. Select pcmu (μ-Law) or pcma (A-Law) mode.
■ G.726 is a speech codec standard covering voice transmission at rates of 16, 24, 32, and 40kbit/s.

When completed with the settings on this page, click Save to enable the settings.

Network > General settings

This section explains how to configure a wired network connection for the Network Camera.

Network Type

Network type Port LAN Get IP address automatically Use fixed IP address Enable UPnP presentation Enable UPnP port forwarding PPPoE Enable IPv6 Save

LAN

Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Please remember to click on the Save button when you complete the Network setting.

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.

Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera.

Network type Port LAN Get IP address automatically Use fixed IP address IP address: 172.16.168.10 Subnet mask: 255.255.0.0 Default router: 172.16.0.1 Primary DNS: 192.168.0.21 Secondary DNS: 192.168.0.22 Primary WINS server: 192.168.0.21 Secondary WINS server: 192.168.0.22 Enable UPnP presentation Enable UPnP port forwarding PPPoE Enable IPv6 Save

1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 21 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP or network administrator.

Subnet mask: This is used to determine if the destination is in the same subnet. The default value is "255.255.255.0".

Default router: This is the gateway used to forward frames to destinations in a different subnet. Invalid router setting will disable the transmission to destinations across different subnets.

Primary DNS: The primary domain name server that translates hostnames into IP addresses.

Secondary DNS: Secondary domain name server that backups the Primary DNS.

Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.

Secondary WINS server: The secondary WINS server that maintains the database of computer names and IP addresses.

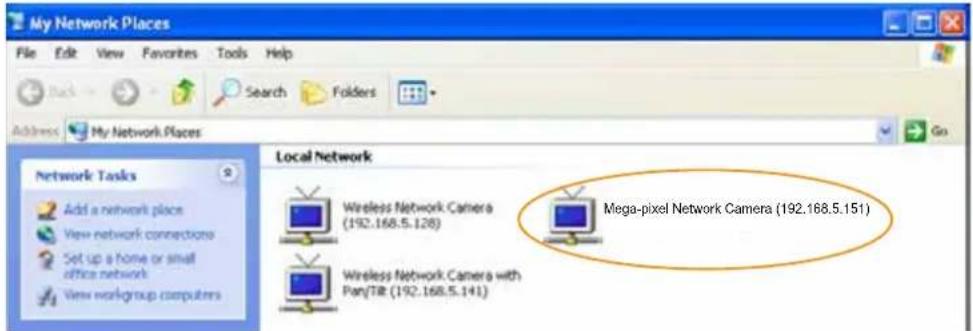

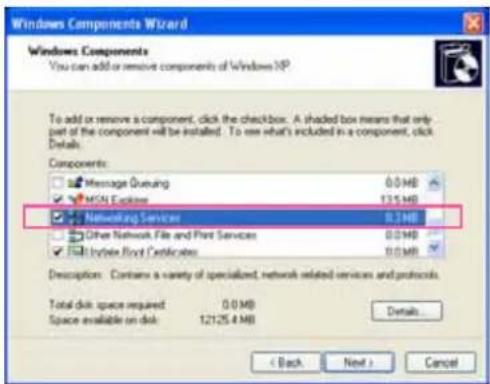

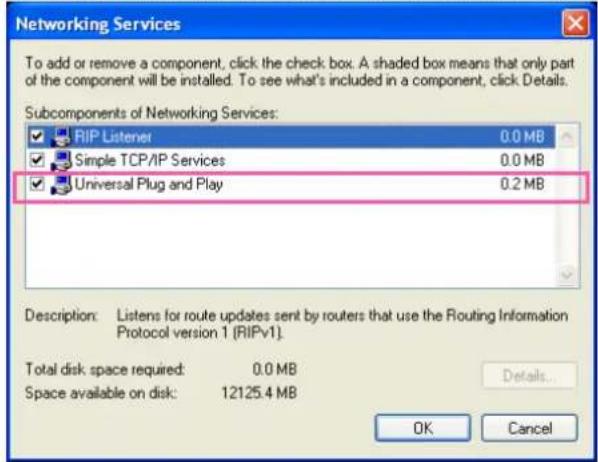

Enable UPnP presentation: Select this option to enable UPnP ^TM presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, the shortcuts to connected Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently, UPnP ^TM is supported by Windows XP or later. Note that to utilize this feature, please make sure the UPnP ^TM component is installed on your computer.

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Go Network Tasks Add a network place View network connections Set up a home or small office network View worldgroup computers Local Network Wireless Network Camera (192.168.5.128) Mega-pixel Network Camera (192.168.5.151) Wireless Network Camera with Pan/78t (192.168.5.141)

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports automatically on the router so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP ^™ and it is activated.

PPPoE (Point-to-point over Ethernet)

Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP.

Follow the steps below to acquire your Network Camera's public IP address.

1. Set up the Network Camera on the LAN.

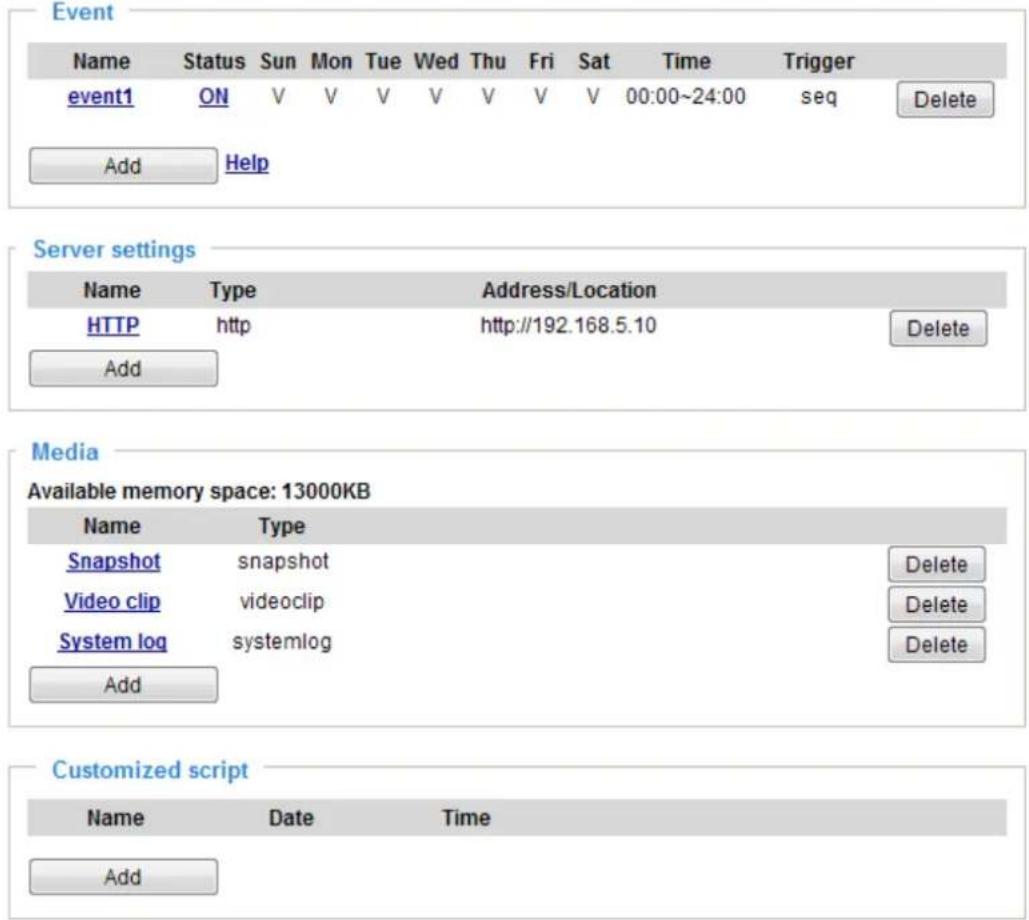

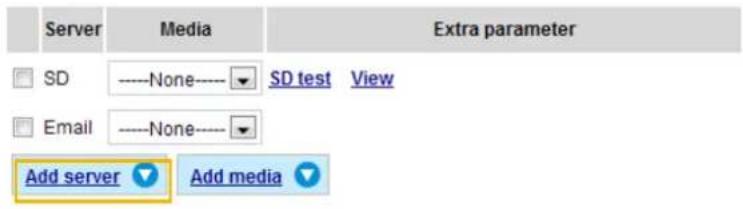

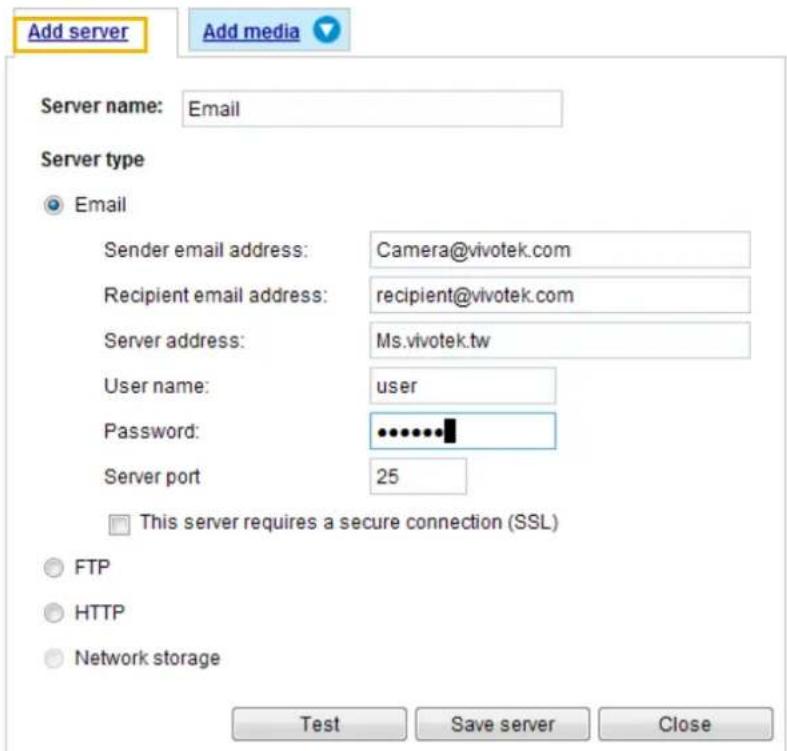

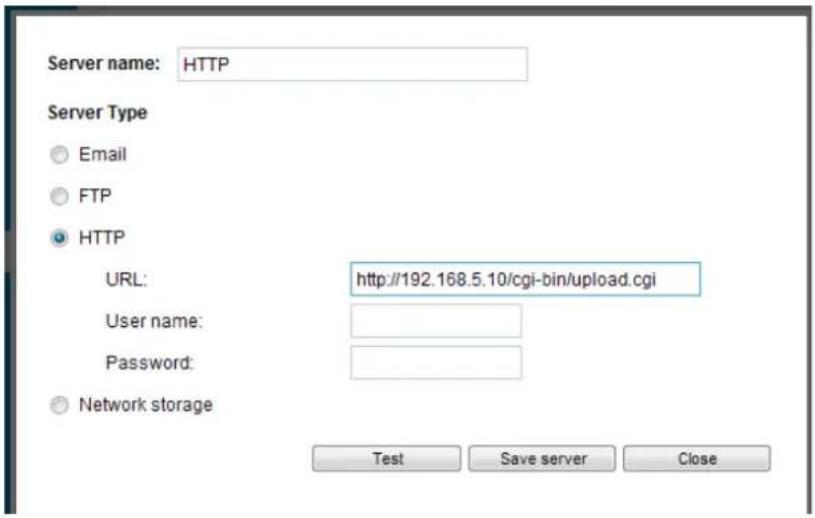

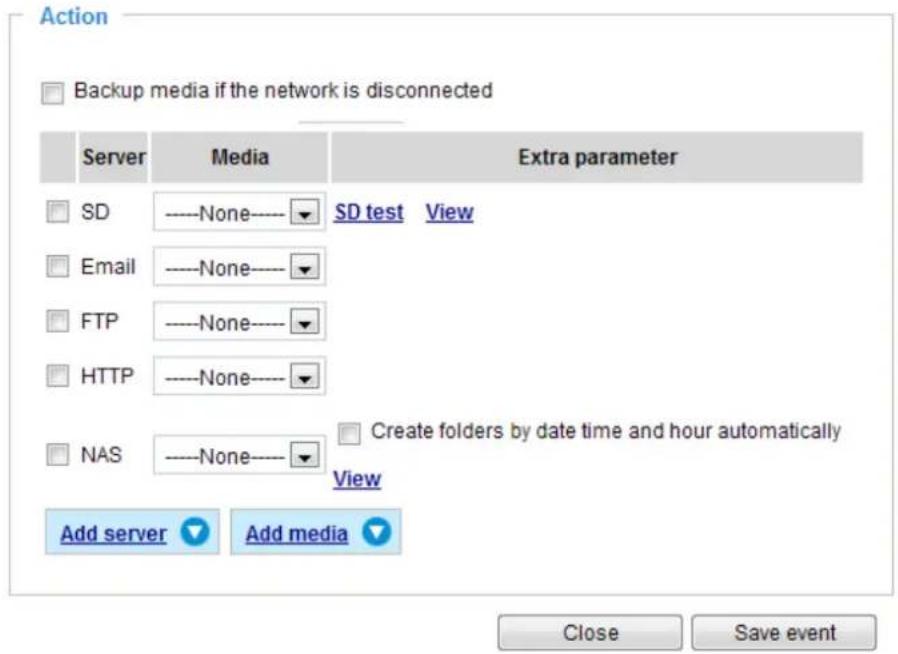

2. Go to Configuration > Event > Event settings > Add server (please refer to Add server on page 110) to add a new email or FTP server.

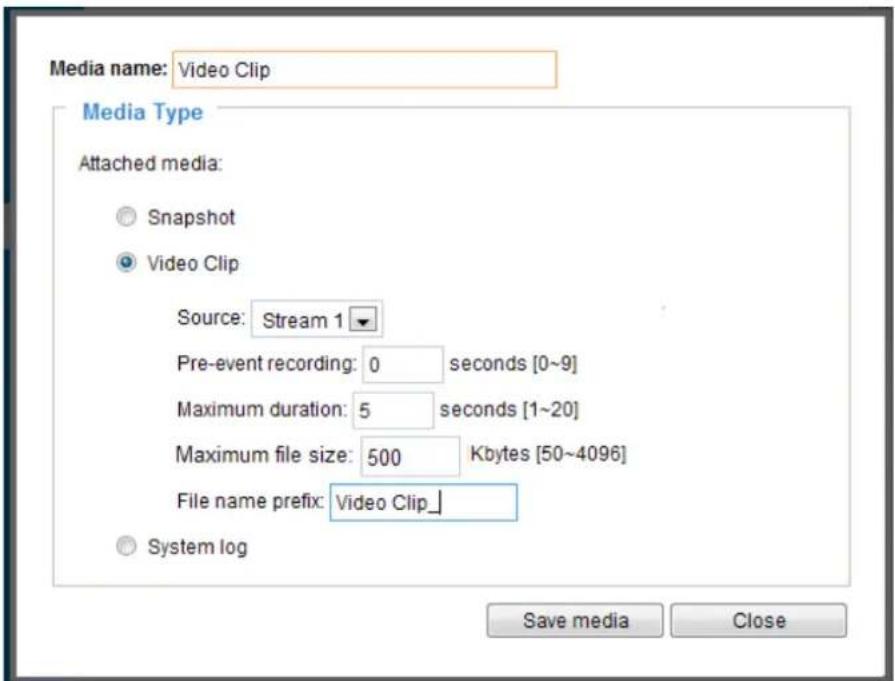

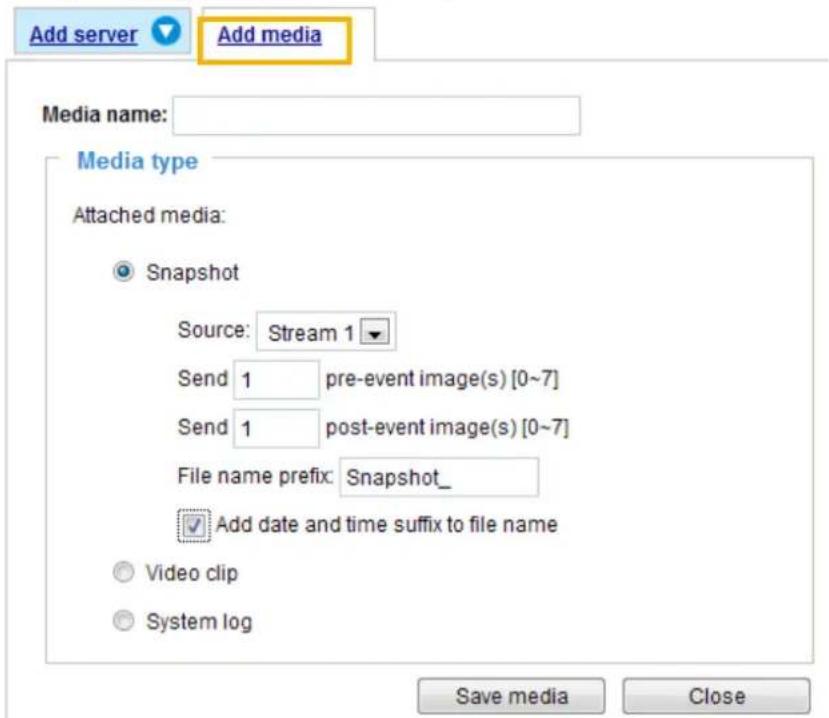

3. Go to Configuration > Event > Event settings > Add media (please refer to Add media on page 115).

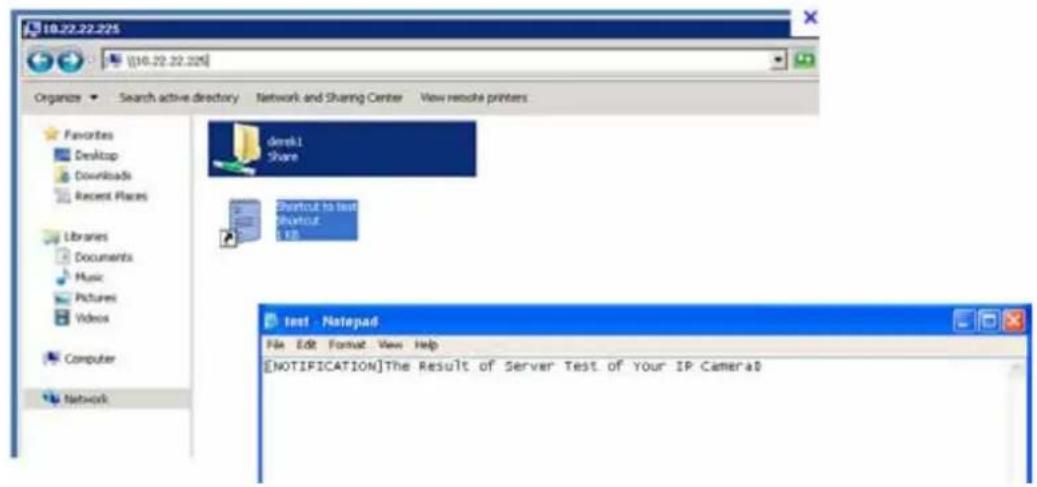

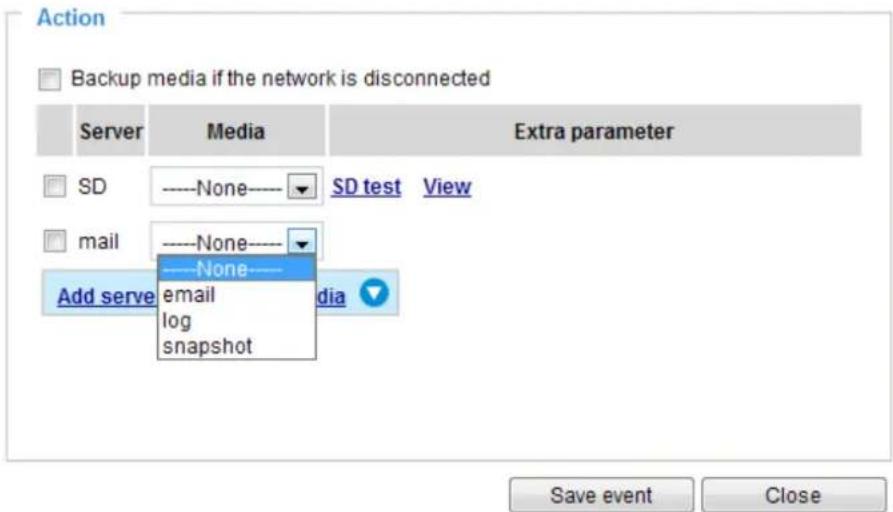

   Select System log so that you will receive the system log in TXT file format which contains the Network Camera's public IP address in your email or on the FTP server.
4. Go to Configuration > Network > General settings > Network type. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the setting.

Network type LAN PPPoE User name: Password: Confirm password: Enable IPv6 Save

1. The Network Camera will reboot.
2. Disconnect the power to the Network Camera; remove it from the LAN environment.

NOTE:

▶ If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera.
If UPnP ^TM is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
▶ Steps to enable the UPnP ^TM user interface on your computer: Note that you must log on to the computer as a system administrator to install the UPnP ^TM components.

1. Go to Start, click Control Panel, then click Add or Remove Programs.

Control Panel Pick a category Advanced Software and Networks Networks and Networks Connections Add or Remove Programs Internet Networks and Networks Smart Networks and Platform Services Windows and Linux New Frameworks New Products & Accessories and Advanced Systems Microsoft Internet Services

1. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.

Add or Remove Programs Currently installed programs: Sort by: Name Apple Software Update Click here for support information. Size 2.10MB Used 72732047 Last Used On Change Remove Add new Programs Add new Windows Components Installation Wizard Microsoft Office Professional Edition 2003 Mozilla Firefox (2.0-0.6) PostgreSQL 8.2 QuickTime Virtual Machine Additions Wvtek Installation Wizard 2 VSPOTEK ST7501 Windows Genuine Advantage Validation Tool (KB892130) Windows XP Hofix - KB82359 Windows XP Hofix - KB828741 Windows XP Hofix - KB833407 Windows XP Hofix - KB835732 Close

1. In the Windows Components Wizard dialog box, select Networking Services and click Details.

Windows Components Wizard Windows Components You can add or remove components of Windows XP To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queueing 0.0 MB MSN Explorer 135 MB Networking Services 0.34 MB Other Network File and Print Services 0.0 MB Institute Front Certificates 0.0 MB Description: Contains a variety of specialized, network related services and protocols. Total disk space required 0.0 MB Space available on disk 12125.4 MB Details... < Back Next > Cancel

1. In the Networking Services dialog box, select Universal Plug and Play and click OK.

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: RIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB Universal Plug and Play 0.2 MB Description: Listens for route updates sent by routers that use the Routing Information Protocol version 1 (RIPv1). Total disk space required: 0.0 MB Space available on disk: 12125.4 MB Details... OK Cancel

1. Click Next in the following window.

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details Components: Message Queueing 0.0 MB MSN Explorer 13.5 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Update Float Certificates 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required 0.0 MB Space available on disk 12125.4 MB Details... < Back Next > Cancel

1. Click Finish. UPnP ^TM is enabled.

▶ How does UPnP ^TM work?

UPnP ^™ networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without the need for cumbersome network configuration. In the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.

▶ Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network Camera's public address in order to access the Network Camera from the Internet. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

From the Internet In LAN
http://203.67.124.123:8080 http://192.168.4.160 or http://192.168.4.160:8080

▶ If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the Network Camera to factory default; please refer to Restore on page 49 for details. After the Network Camera is reset to factory default, it will be accessible on the LAN.

Enable IPv6

Select this option and click Save to enable IPv6 settings.

Please note that this only works if your network environment and hardware equipment support IPv6. The browser should be Microsoft® Internet Explorer 6.5, Mozilla Firefox 3.0 or above.

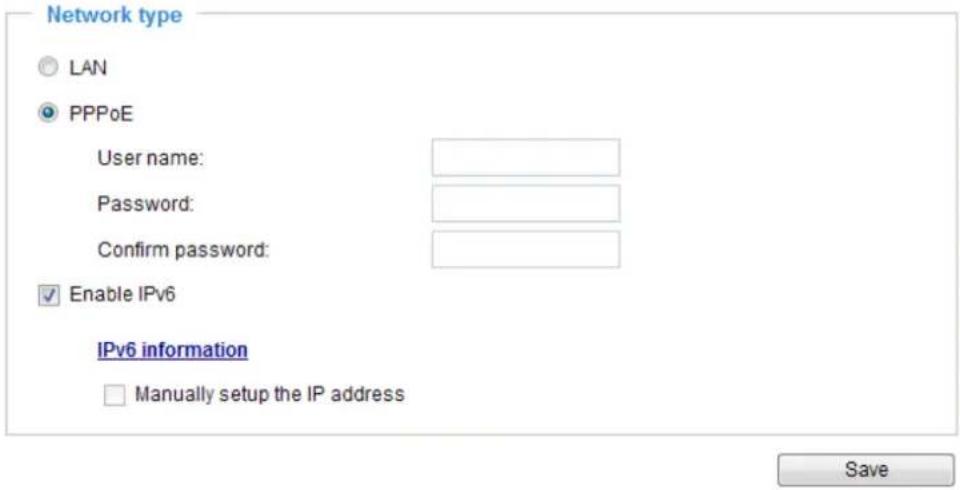

Network type LAN PPPoE User name: Password: Confirm password: Enable IPv6 IPv6 information Manually setup the IP address Save

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly.

IPv6 Information: Click this button to obtain the IPv6 information as shown below.

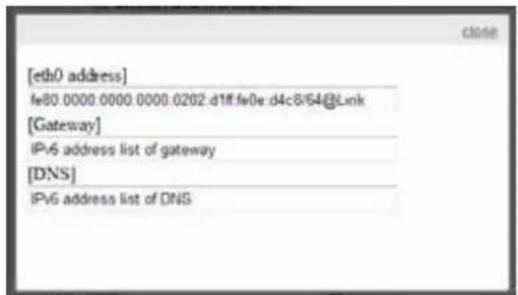

[eth0 address] fe80.0000.0000.0000.0202.d1ff.fe0e.d4c8/64@Link [Gateway] IPv6 address list of gateway [DNS] IPv6 address list of DNS

If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6 address will be displayed as follows:

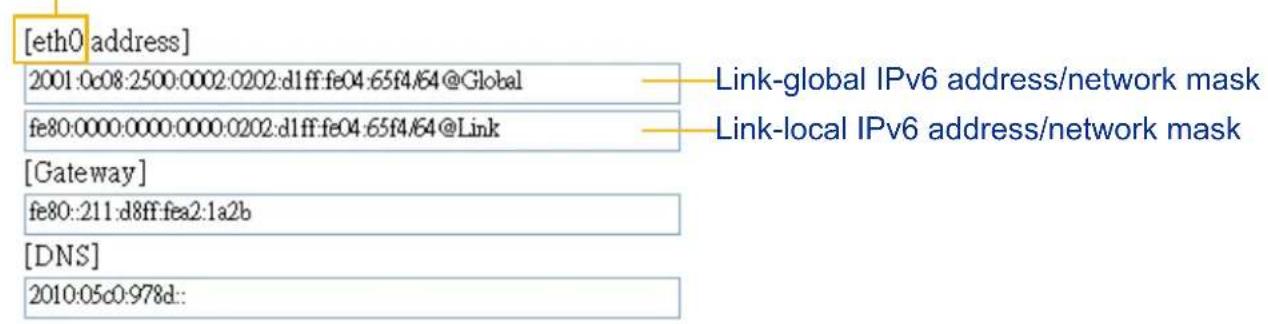

Refers to Ethernet

[eth0 address] 2001:0c08:2500:0002:0202:d1ff:fe04:65f4/64@Global fe80:0000:0000:0000:0202:d1ff:fe04:65f4/64@Link [Gateway] fe80::211:d8ff:fea2:1a2b [DNS] 2010:05c0:978d::

Please follow the steps below to link to an IPv6 address:

1. Open your web browser.

2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.

3. The format should be:

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address

1. Press Enter on the keyboard or click Refresh button to refresh the webpage. For example:

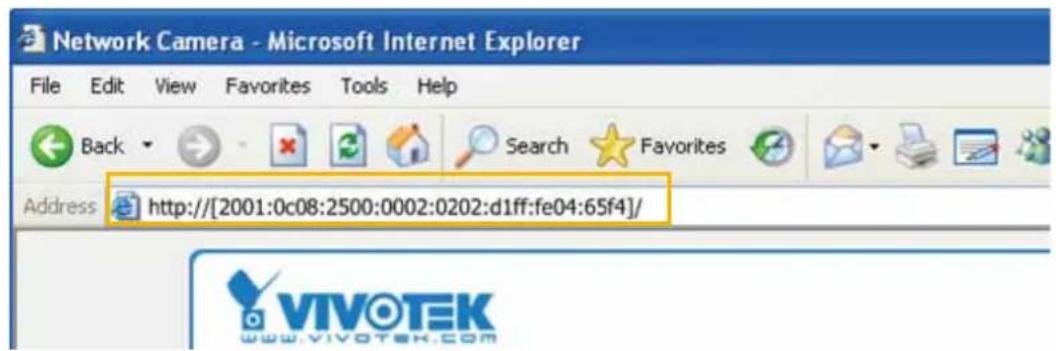

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ VIVOTEK www.vivotek.com

NOTE:

▶ If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage using the following address format: (Please refer to HTTP streaming on page 79 for detailed information.)

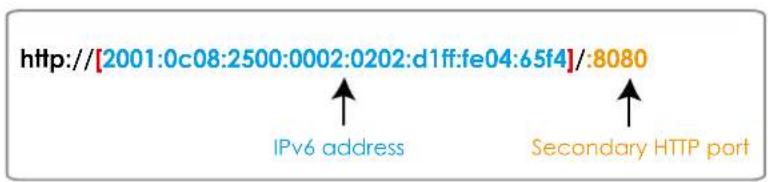

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080 IPv6 address Secondary HTTP port

▶ If you choose PPPoE as the Network Type, the [PPP0 address] will be displayed in the IPv6 information column as shown below.

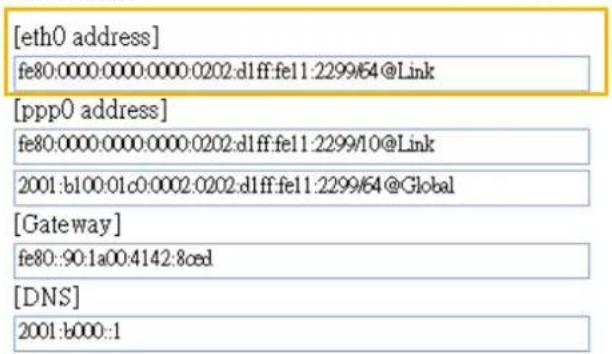

[eth0 address] fe80:0000:0000:0000:0202:dlff:fe11:2299/64@Link [ppp0 address] fe80:0000:0000:0000:0202:dlff:fe11:2299/10@Link 2001:b100:01c0:0002:0202:dlff:fe11:2299/64@Global [Gateway] fe80::90:1a00:4142.8ced [DNS] 2001:b000::1

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network environment does not have DHCPv6 server and router advertisements-enabled routers. If you check this item, the following blanks will be displayed for you to enter the corresponding information:

√ Enable IPv6

IPv6 information

√ Manually setup the IP address

Optional IP address / Prefix length

Optional default router

Optional primary DNS

/ 64

Port

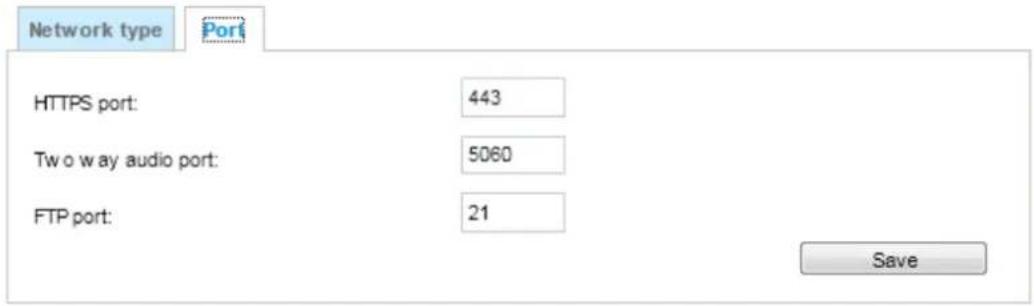

Network type HTTPS port: 443 Two way audio port: 5060 FTP port: 21 Save

HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535.

Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.

The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously. By using the Network Camera's built-in or external microphone and an external speaker, you can communicate with people around the Network Camera.

Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio function, make sure the video mode is set to "H.264" on the Media > Video > Stream settings page and the media option is set to "Media > Video > Stream settings" on the Client Settings page. Please refer to Client Settings on page 34 and Stream settings on page 65.

Audio is being transmitted to the Network Camera Video (TCP-AV) TALK BUTTON Mic Volume Go to - Sided one - Mute

Click to enable audio transmission to the Network Camera; click to adjust the volume of microphone; click to turn off the audio. To stop talking, click again.

FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

Network > Streaming protocols

HTTP streaming

To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 89 for details.

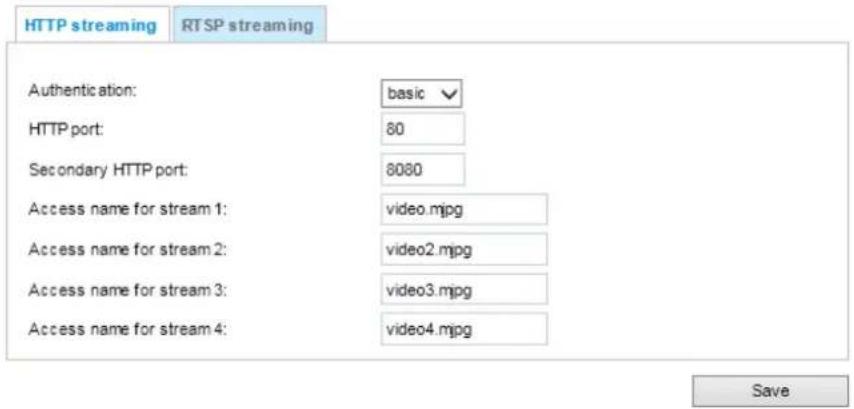

HTTP streaming RTSP streaming Authentication: basic HTTP port: 80 Secondary HTTP port: 8080 Access name for stream 1: video.mjpg Access name for stream 2: video2.mjpg Access name for stream 3: video3.mjpg Access name for stream 4: video4.mjpg Save

Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.

If basic authentication is selected, the password is sent in plain text format and there can be potential risks of being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are incorrectly assigned, the following warning messages will be displayed:

Microsoft Internet Explorer HTTP port must be 80 or from 1025 to 65535 OK

Microsoft Internet Explorer Secondary HTTP port must be from 1025 to 65535 OK

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

On the LAN

http://192.168.4.160 or http://192.168.4.160:8080

Access name for stream 1 \~ 4: This Network camera supports multiple streams simultaneously. The access name is used to identify different video streams. Users can click Media > Video > Stream settings to set up the video quality of linked streams. For more information about how to set up the video quality, please refer to Stream settings on page 63.

When using Mozilla Firefox to access the Network Camera and the video mode is set to JPEG, users will receive video comprised of continuous JPEG images. This technology, known as “server push”, allows the Network Camera to feed live pictures to Mozilla Firefox.

URL command -- http://:/ For example, when the Access name for stream 2 is set to video2.mjpg:

1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.

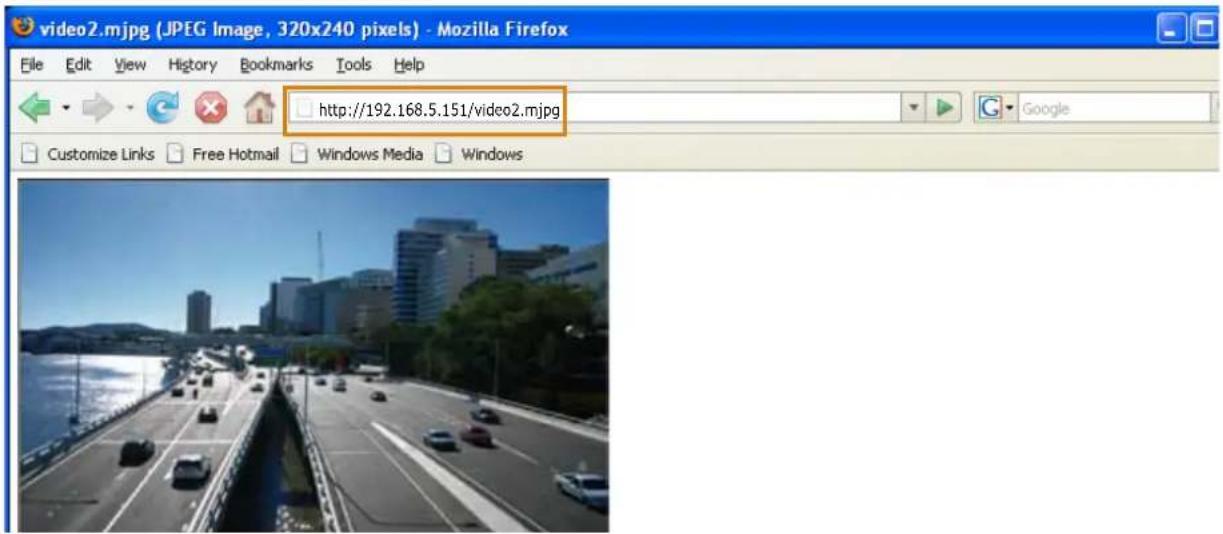

video2.mjpg (JPEG Image, 320x240 pixels) - Mozilla Firefox File Edit View History Bookmarks Tools Help http://192.168.5.151/video2.mjpg Customize Links Free Hotmail Windows Media Windows

NOTE:

▶ Microsoft® Internet Explorer does not support server push technology; therefore, you will not be able to access a video stream using http://:/.

RTSP Streaming

To utilize RTSP streaming authentication, make sure that you have set a password for controlling the access to video stream first. Please refer to Security > User account on page 89 for details.

HTTP streaming RT SP streaming Authentication: disable Access name for stream 1: live.sdp Access name for stream 2: live2.sdp Access name for stream 3: live3.sdp Access name for stream 4: live4.sdp RTSP port: 554 RTP port for video: 5556 RTCP port for video: 5557 RTP port for audio: 5558 RTCP port for audio: 5559 Multicast settings for stream 1 Multicast settings for stream 2 Multicast settings for stream 3 Multicast settings for stream 4 Save

Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access. The availability of the RTSP streaming for the three authentication modes is listed below:

	Quick Time player VLC
Disable O O
Basic O O
Digest O X

Access name for stream 1 \~ 4: This Network camera supports multiple streams simultaneously. The access name is used to differentiate the streaming source. If you want to use an RTSP player to access the Network Camera, you have to set the video mode to H.264 and use the following RTSP URL command to request transmission of the streaming data. rtsp://:/

For example, when the access name for stream 1 is set to live.sdp:

1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.

3. Type the above URL command in the text box.

4. The live video will be displayed in your player as shown below.

River scene with multiple lanes of traffic, modern buildings in background under clear blue sky (no visible text or symbols)

Open URI Enter an Internet URL to open rtsp://192.168.5.151b54/live.sdp OK Cancel

RTSP port /RTP port for video, audio/ RTCP port for video, audio

■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by monitoring the Internet traffic volume. By default, the RTCP port for video is set to 5557.

The ports can be changed to values between 1025 and 65535. The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always an odd number. When the RTP port changes, the RTCP port will change accordingly.

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

Microsoft Internet Explorer Invalid port number. RTP video port must be an even number. OK

Multicast settings for streams: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for video streams.

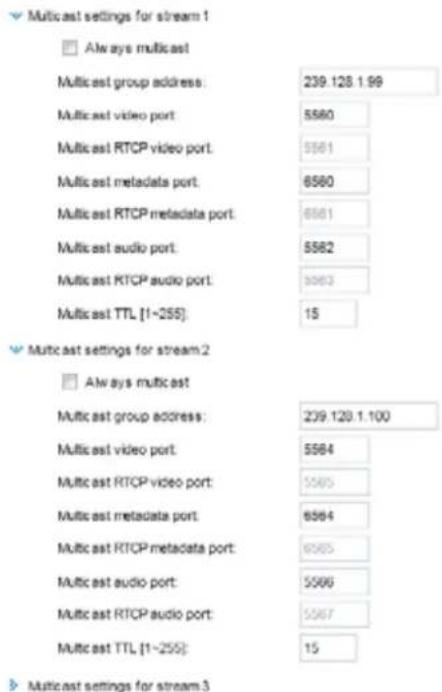

Multicast settings for stream 1 □ Always multicast Multicast group address: 239.128.1.99 Multicast video port: 5560 Multicast RTCP video port: 5561 Multicast metadata port: 6560 Multicast RTCP metadata port: 6561 Multicast audio port: 5562 Multicast RTCP audio port: 5563 Multicast TTL [1~255]: 15 ✓ Multicast settings for stream 2 □ Always multicast Multicast group address: 239.128.1.100 Multicast video port: 5564 Multicast RTCP video port: 5565 Multicast metadata port: 6564 Multicast RTCP metadata port: 6565 Multicast audio port: 5566 Multicast RTCP audio port: 5567 Multicast TTL [1~255]: 15 ▶ Multicast settings for stream 3

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. Therefore, enabling multicast can effectively save Internet bandwidth.

The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.

If the multicast RTP video ports are incorrectly assigned, the following warning message will be displayed:

Microsoft Internet Explorer Inwald post number, Multicast streams 1 video port must be an even number. OK

Multicast TTL [1\~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded.

Initial TTL Scope
0 Restricted to the same host
1 Restricted to the same subnetwork
32 Restricted to the same site
64 Restricted to the same region
128 Restricted to the same continent
255 Unrestricted in scope

IMPORTANT:

The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results, PTZ stream, textual data, and event messages between the camera and the client side running and observing the video analysis. If your client side computer is located outside the local network, you may need to open the associated TCP port on routers and firewall.

Network > DDNS

This section explains how to configure the dynamic domain name service for the Network Camera. DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.

Express link

Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will examine if the host name is valid and automatically open a port on your router. If using DDNS, the user has to manually configure UPnP port forwarding. Express Link is more convenient and easier to set up.

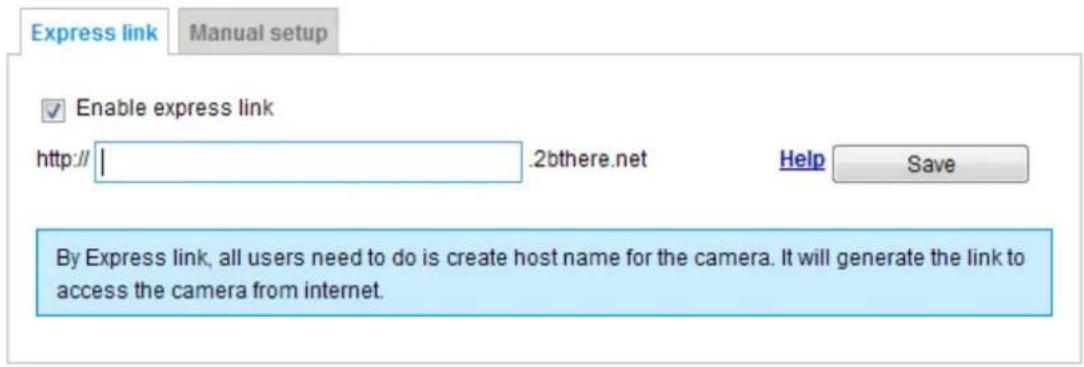

Express link Manual setup Enable express link http:// | .2bthere.net Help Save By Express link, all users need to do is create host name for the camera. It will generate the link to access the camera from internet.

Please follow the steps below to enable Express Link:

1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by another device, a warning message will show up. If the host name is valid, it will display a message as shown below.

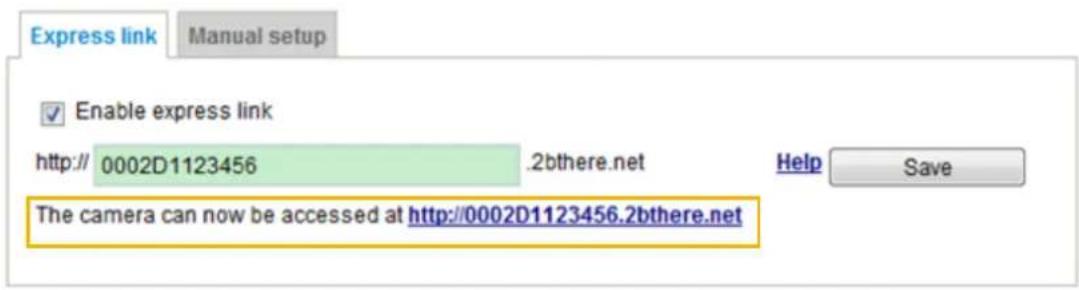

Express link Manual setup Enable express link http:// 0002D1123456 .2bthere.net The camera can now be accessed at http://0002D1123456.2bthere.net Help Save

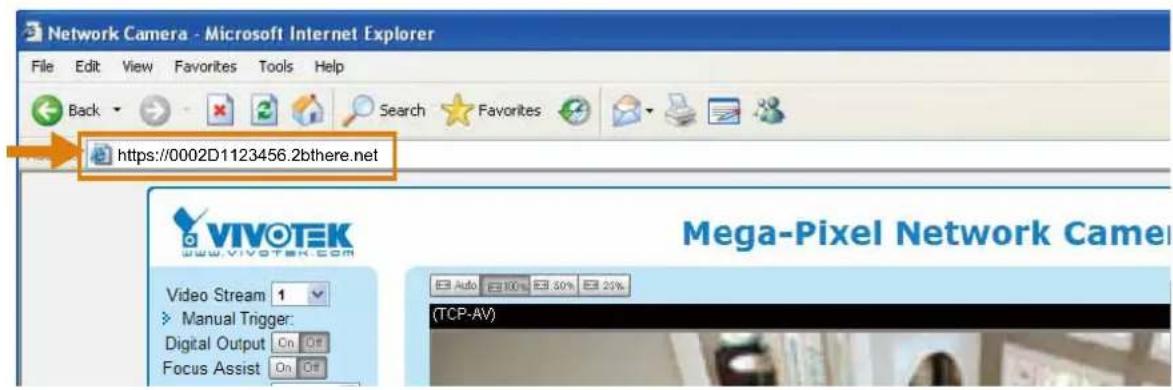

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites https://0002D1123456.2bthere.net VIVOTEK www.vivotek.com Video Stream 1 Manual Trigger: Digital Output On Off Focus Assist On Off Mega-Pixel Network Camel Auto 100% 30% 25% (TCP-AV)

Manual setup

DDNS: Dynamic domain name service

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

User name:

Password:

Dyndns.org(Dynamic)

Enable DDNS: Select this option to enable the DDNS setting.

Provider: Select a DDNS provider from the provider drop-down list.

VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK's Network Cameras from the Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.com, DHS.org, CustomSafe100, dyn-interfree.it.

Note that before utilizing this function, please apply for a dynamic domain account first.

■ Safe100.net

1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the terms of the Service Agreement.
2. In the Register column, fill in the Host name (xxxx.safe100.net), Email, Key, and Confirm Key, and click Register. After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column.

Register Host name: WTK:safe100.net Email: [e-mail] Key: ••••• Forget key Confirm key: ••••• To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register". Register DDNS Registration Result: [Register] Successfully Your account information has been mailed to registered e-mail address Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Click Copy and all the registered information will automatically be uploaded to the corresponding fields in the DDNS column at the top of the page as seen in the picture.

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

Email:

Key:

Safe100.net

WTK.safe100.net

[e-mail]

●●●●

[*.safe100.net]

Save

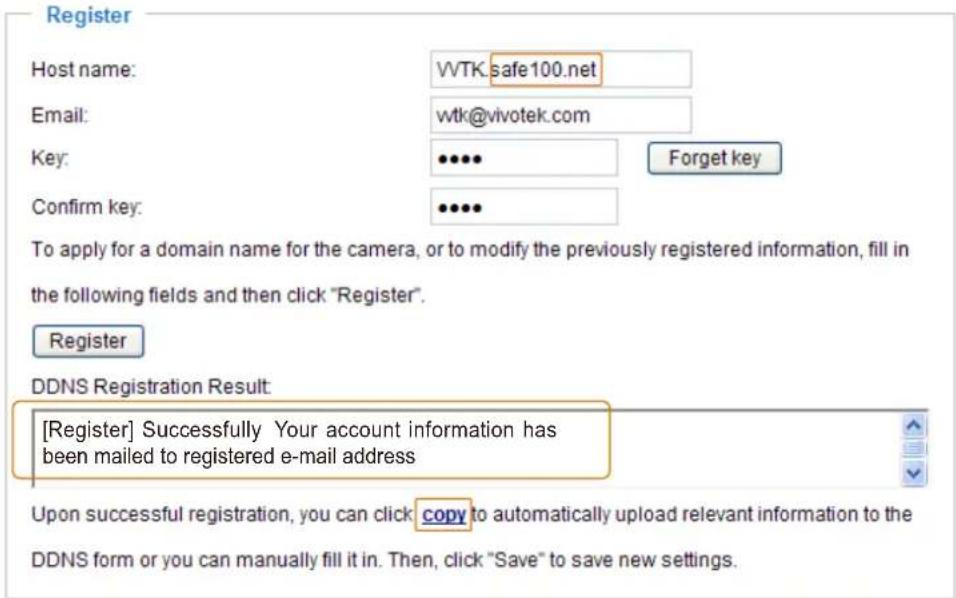

Register

Host name:

Email:

Key:

Confirm key:

WTK.safe100.net

[e-mail]

●●●●

...

Forget key

To apply for a domain name for the camera, or to modify the previously registered information, fill in

the following fields and then click "Register".

Register

DDNS Registration Result:

[Register] Successfully Your account information has been mailed to registered e-mail address

Upon successful registration, you can click copy to automatically upload relevant information to the

DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Select Enable DDNS and click Save to enable the setting.

■ CustomSafe100

VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, fill in the Host name, Email, Key, and Confirm Key; then click Register. After a host name has been successfully created, you will see a success message in the DDNS Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding fields in the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.

Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your account information will be sent to your email address.

Refer to the following links to apply for a dynamic domain account when selecting other DDNS providers:

■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/

Network > QoS (Quality of Service)

Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.

The following are the main benefits of a QoS-aware network:

■ The ability to prioritize traffic and guarantee a certain level of performance to the data flow.
■ The ability to control the amount of bandwidth each application may use, and thus provide higher reliability and stability on the network.

Requirements for QoS

To utilize QoS in a network environment, the following requirements must be met:

■ All network switches and routers in the network must include support for QoS.

■ The network video devices used in the network must be QoS-enabled.

QoS models

CoS (the VLAN 802.1p model)

IEEE802.1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0 (lowest) to 7 (highest). The priority is set up on the network switches, which then use different queuing disciplines to forward the packets.

Below is the setting column for CoS. Enter the VLAN ID of your switch (0\~4095) and choose the priority for each application (0\~7).

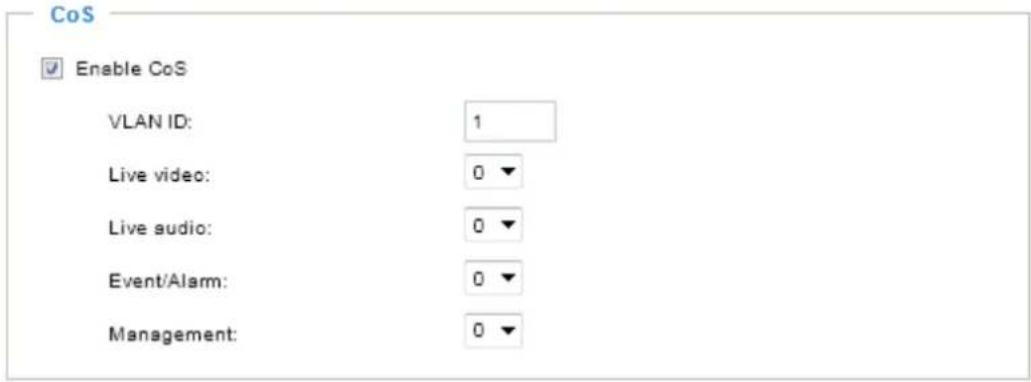

CoS Enable CoS VLAN ID: 1 Live video: 0 ▼ Live audio: 0 ▼ Event/Alarm: 0 ▼ Management: 0 ▼

If you assign Video the highest level, the switch will handle video packets first.

NOTE:

▶ A VLAN Switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.

The Class of Service technologies do not guarantee a level of service in terms of bandwidth and delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" traffic control and QoS as "finely-grained" traffic control.

▶ Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol.

QoS/DSCP (the DiffServ model)

DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs. It gives an indication of how a given packet is to be forwarded, known as the Per Hop Behavior (PHB). The PHB describes a particular service level in terms of bandwidth, queueing theory, and dropping (discarding the packet) decisions. Routers at each network node classify packets according to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth to reserve for it.

Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each application (0\~63).

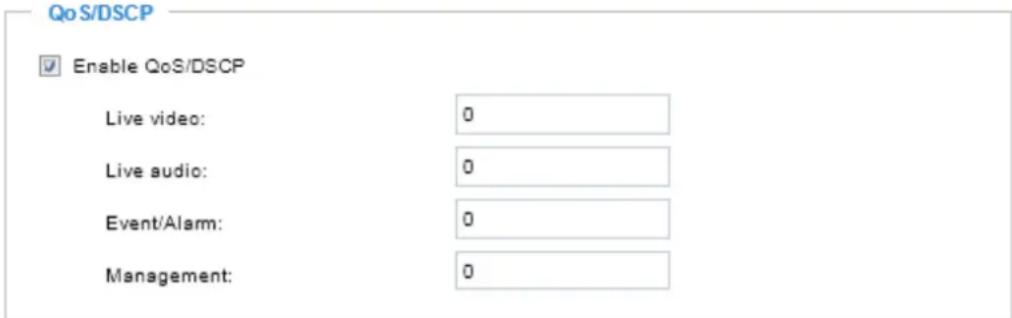

QoS/DSCP Enable QoS/DSCP Live video: 0 Live audio: 0 Event/Alarm: 0 Management: 0

Save

Network > SNMP (Simple Network Management Protocol)

This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

■ The SNMP consists of the following three key components:

1. Manager: Network-management station (NMS), a server which executes applications that monitor and control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status of managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches, bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and database.

Before configuring SNMP settings on the this page, please enable your NMS first.

SNMP Configuration

Enable SNMPv1, SNMPv2c

Select this option and enter the names of Read/Write community and Read Only community according to your NMS settings.

Enable SNMPv1, SNMPv2c

SNMPv1, SNMPv2c Settings

Read/Write community:

Private

Read only community:

Public

Enable SNMPv3

This option contains cryptographic security, a higher security level, which allows you to set the Authentication password and the Encryption password.

■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).

Enable SNMPv3

SNMPv3 Settings

Read/Write Security name:

Private

Authentication Type:

MD5

Authentication Password:

-

Encryption Password:

Public

Read only Security name:

MD5

Authentication Type:

广力云

Authentication Password:

-

Security > User accounts

This section explains how to enable password protection and create multiple accounts.

Root Password

Root password Root password: Confirm root password: Save

The administrator account name is "root", which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the "root" account first.

1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user's name and password in their respective fields to access the Network Camera.

Privilege Management

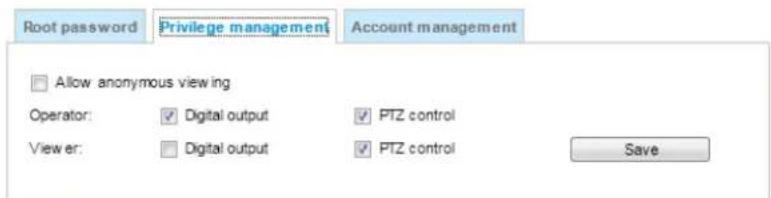

Root password Privilege management Account management Allow anonymous viewing Operator: ✓ Digital output ✓ PTZ control Viewer: ✓ Digital output ✓ PTZ control Save

PTZ control: You can modify the management privilege for operators or viewers. Select or deselect the checkboxes, then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page. (Please refer to Configuration on page 39).

Allow anonymous viewing: If you check this item, any client can access the live stream without entering a User ID and Password.

Account Management

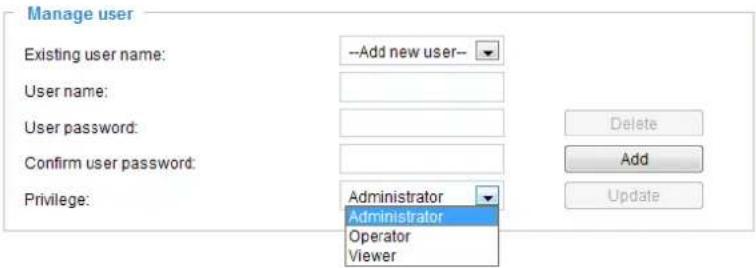

Manage user Existing user name: --Add new user-- User name: User password: Confirm user password: Privilege: Administrator Administrator Operator Viewer Delete Add Update

Administrators can create up to 20 user accounts.

1. Input the new user's name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.

Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators can access the Configuration page. Although operators cannot access the Configuration page, they can use the URL Commands to get and set the value of parameters. For more information, please refer to URL Commands of the Network Camera on page 139. Viewers can only access the main page for live viewing.

Here you also can change a user's access rights or delete user accounts.

1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.

Security > HTTPS (Hypertext Transfer Protocol over SSL)

This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level.

Create and Install Certificate Method

Before using HTTPS for communication with the Network Camera, a Certificate must be created first. There are three ways to create and install a certificate:

Create self-signed certificate

1. Select this option from a pull-down menu.
2. In the first column, select Enable HTTPS secure connection, then select a connection option: "HTTP & HTTPS" or "HTTPS only".
3. Click Create certificate to generate a certificate.

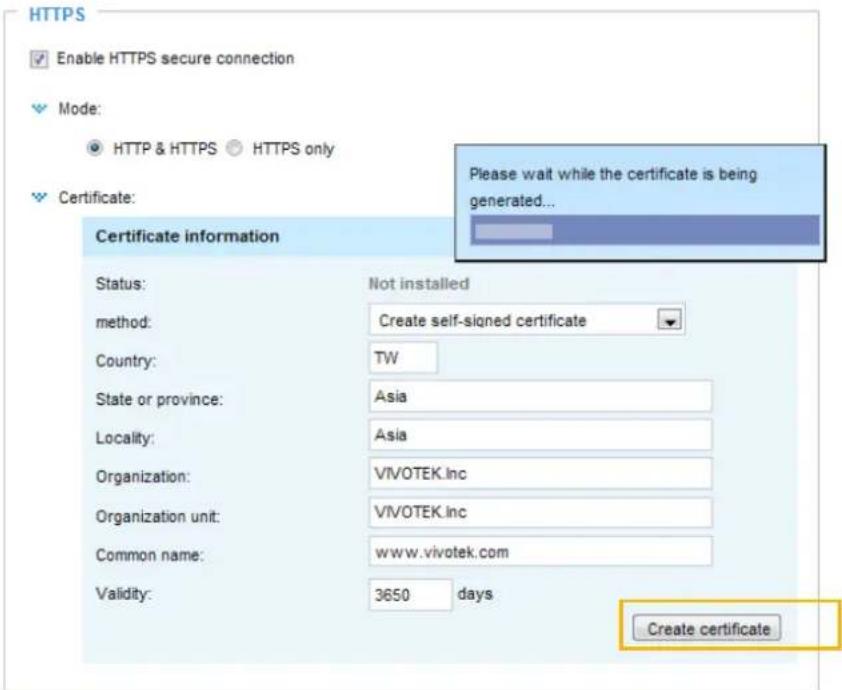

HTTPS Enable HTTPS secure connection Mode: HTTP & HTTPS HTTPS only Please wait while the certificate is being generated... Certificate: Certificate information Status: Not installed method: Create self-signed certificate Country: TW State or province: Asia Locality: Asia Organization: VIVOTEK.inc Organization unit: VIVOTEK.inc Common name: www.vivotek.com Validity: 3650 days Create certificate

1. The Certificate Information will automatically be displayed as shown below. You can click Certificate properties to view detailed information about the certificate.

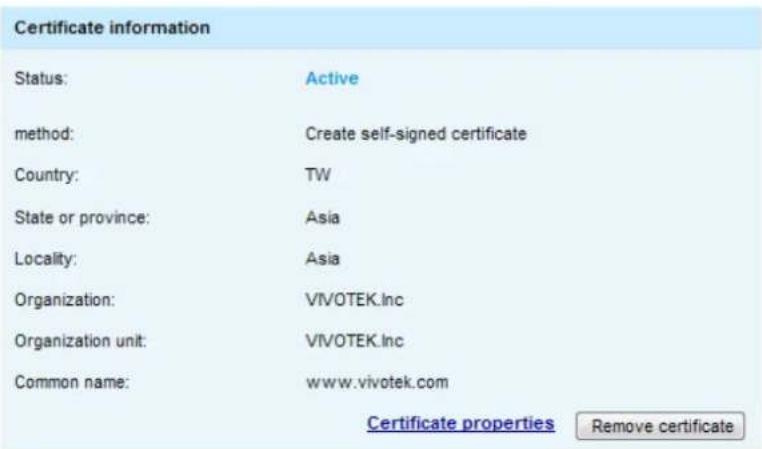

Certificate information Status: Active method: Create self-signed certificate Country: TW State or province: Asia Locality: Asia Organization: VIVOTEK.lnc Organization unit: VIVOTEK.lnc Common name: www.vivotek.com Certificate properties Remove certificate

1. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection.
2. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from "http://" to "https://" in the address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

https://

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address https://192.168.5.151/index.html VIVOTEK Video stream: 1 Manual triggers: Digital output: On Go Focus assist: On Go PTZ control: Digital Pan speed: 0 Tilt speed: 0 Zoom speed: 0 Global view: Mega-Pixel Network Camera Home Client settings Configura (TCP-AV) Security Alert You are about to view pages over a secure connection. Any information you exchange with this site cannot be viewed by anyone else on the Web. In the future, do not show this warning OK More Info Security Alert Information you exchange with this site cannot be viewed or changed by others. However, there is a problem with the site's security certificate. The security certificate was issued by a company you have not chosen to trust. View the certificate to determine whether you want to trust the certifying authority. The security certificate date is valid. The name on the security certificate is invalid or does not match the name of the site Do you want to proceed? Yes No View Certificate Security Information This page contains both secure and nonsecure items. Do you want to display the nonsecure items? Yes No More Info

Create certificate request and install

1. Select the option from the Method pull-down menu.
2. Click Create certificate to proceed.
3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.

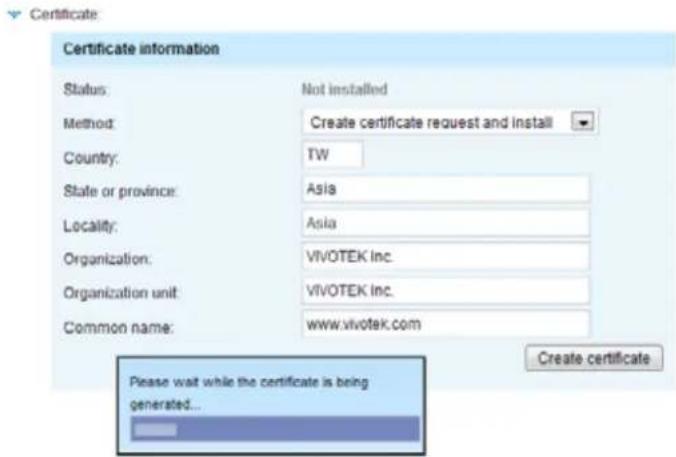

Certificate information Status: Not installed Method: Create certificate request and install Country: TW State or province: Asia Locality: Asia Organization: VIVOTEK Inc. Organization unit: VIVOTEK Inc. Common name: www.vivotek.com Please wait while the certificate is being generated... Create certificate

1. The Certificate request window will prompt.

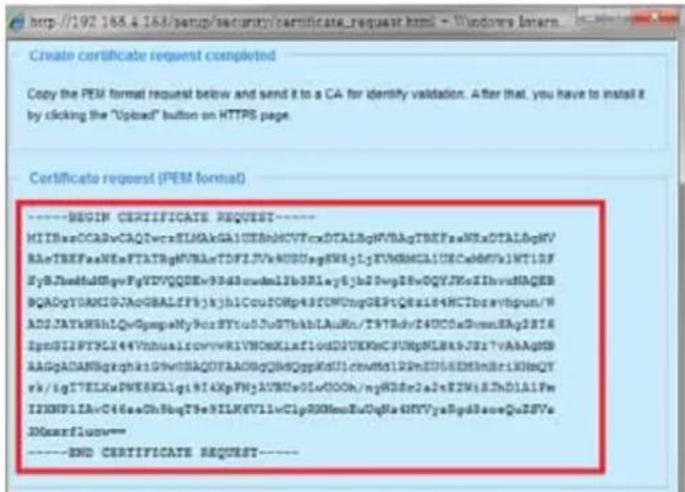

http://192.168.4.168/setup/security/certificate_request.html - Windows Intern Create certificate request completed Copy the PEM format request below and send it to a CA for identify validation. After that, you have to install it by clicking the "Upload" button on HTTPS page. Certificate request (PEM format) ----BEGIN CERTIFICATE REQUEST---- MIIBasOCADvCAQIwcaEIMAGkGAIESEhCVVTCxDTALBgHVBAgTBEFpsaMKxDTALBgMVRAeTBEFpsaNEmFTATBgMVBAuTDFJIVvKNDugEKWjLyEVNBMCAIECwA007v1NT1DFSyBJaedHdtGpvFyDVVQQDEv93d3nudel1bS8lay6jbD2wvpDSvDQYJXoIHvuNAQEBBQADgYDAKMIGJIAoGBALIFpJkjhlCouOMp43FUMUngGEPtQ8a184HCTbravthpun/HAOJAYkMHkLQvQgmpcMyNorSYto0JuSTbkblAluRn/T9TRdv24UC0aShownEAg2E16IpmGIPYFN144VnhualscovvwRVNOsXiaflodDJUKKnC3UNpNL8akJS17VAABAgNBAAgPADAMSqxqkh1G9VHSHQDPTAA08gQhdQppKdUlcWmSt12RhEUSEEMtnBr1KHoQYrk/ygTELEkDWKEKLIgI9I4XpFNjAVMDv0LiJoOOh/ngKD8nJaJeEINsILZhDIA1FmIJKMP1IAvC46eaOhSbqT9e9ILK4V11wClpRXNmnEuUqRa4HYVyaRydSaeQuISVeIDMaxrflum-- ----END CERTIFICATE REQUEST----

If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups.

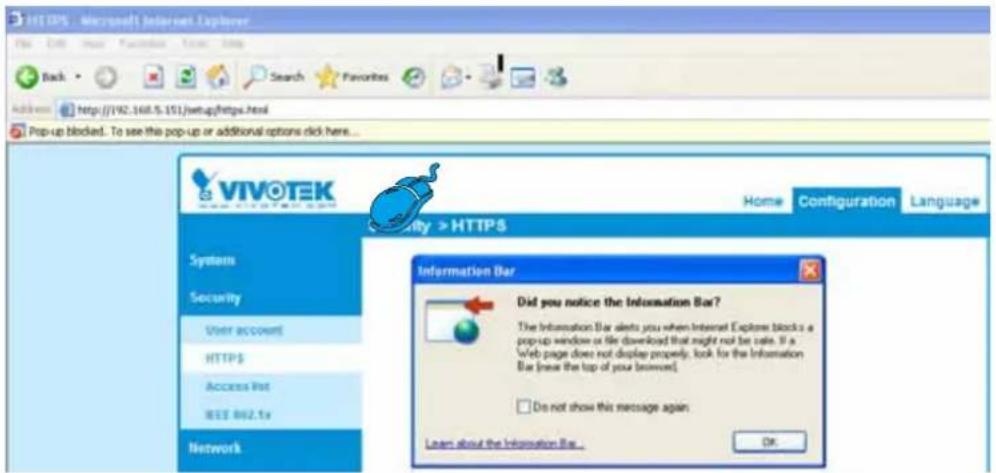

HTTPS - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://192.168.5-151 (...wup/https.html Pop-up blocked. To see the pop-up or additional options click here... VIVOTEK VIVOTEK System Security User account HTTP$ Access Net WEB 062.1x Network Home Configuration Language VIVOTEK VIVOTEK VIVOTEK > HTTPS Information Bar Did you notice the Information Bar? The Information Bar alerts you when Internet Explorer blocks a pop-up window or file download that might not be safe. If a Web page does not display properly, look for the Information Bar [new the top of your [answer]] Do not show this message again. Learn about the Information Bar... OK

1. Look for a trusted certificate authority, such as Symantec's VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA's signing request window. Proceed with the rest of the process as CA's instructions on their webpage.

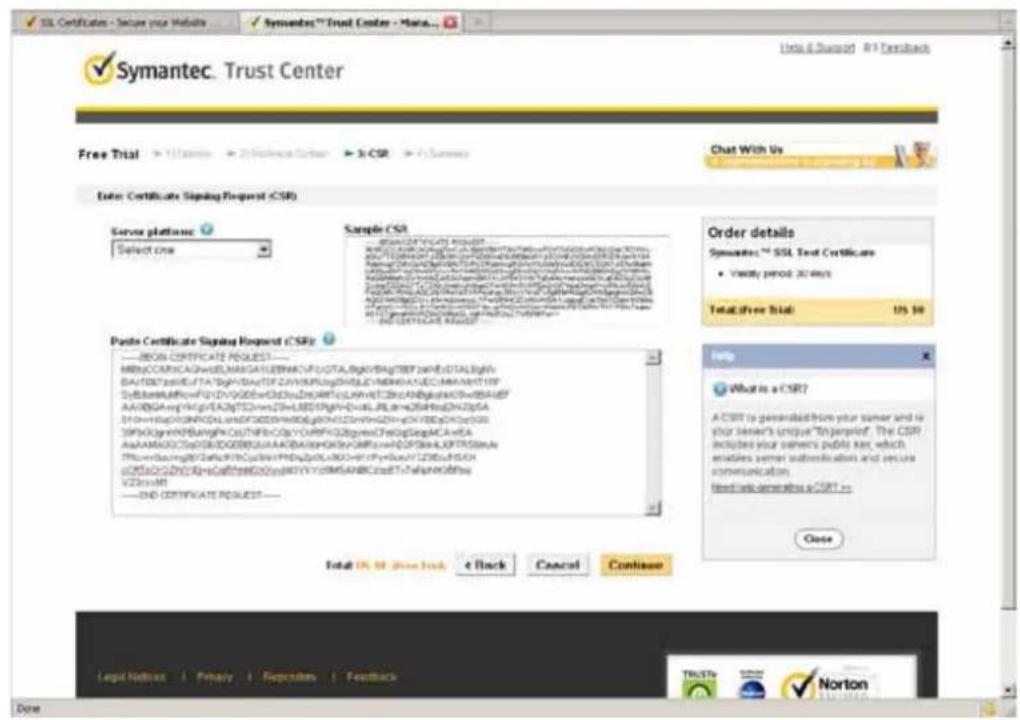

Symantec. Trust Center Free Trial 1) Select 2) Reference Center 3) CSR 4) Summary Chat With Us Date: Certificate Signing Request (CSR) Server platform: Select one Sample CSR ##ON CERTIFICATE REQUEST ##C:\Program Files\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Service\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL System\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Version\Sina 2017-2018 ##ON CERTIFICATE REQUEST ##C:\Program Files\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL Server\Microsoft SQL System\Sina 2017-2018 ##C:\Program Files\Sina 2017-2018 ##C:\Program Files\Sina 2017-2018 ##C:\Program Files\Sina 2017-2018 ##C:\Program Files\Sina 2017-2018 ##C:\Program Files\Sina 2017-2018 ##C:\Program Files\Sina 2017-2

1. Once completed, your SSL certificate should be delivered to you via an email or other means. Copy the contents of the certificate in the email and paste it in a text/HTML/hex editor/converter, such as IDM Computer Solutions' UltraEdit.

immediately, please dial 866.893.6565 or 650.426.5112 option 3 or send an email to [e-mail]

Thank you for your interest in Symantec!

----BEGIN CERTIFICATE----

M1FRECCCA+pydAldQIFcAcaHs#eBbIaHQDQIAaRhgPheAldWgORAQYADCH ysdLMgAldUDBNCTVvMgAtpfVgGnAldTlclIIaMolChLaeNtEwCtAaLyDyVQVQ EyDdRlGpFVdCBQdX/wBnIlycyRthmXylAgTndgYKhnDkTnmbNlcy4qGzBAgNtV BxTAoIVImlsIgMlnYdSbBnCDbOttAccovL63dy522KpcJlnhsl5yh2dVT3Ba LiPlc3RySTAcOyvGTEnChAaUDeAaKvlVyaVsp2gApBrpYwWgGYdTKdYHfIH cnllct1QQSA#TEcYdNKDTEpYdCwctAwNAWNTcKDTEpYdGwYtIsNHkTLoVgway4x CtZjBgFbAYTALRQHvQcVYDVQIE6bCtIhMQoCwYdQYHFABqC11bdW0dEwyD VgQfHaAaWtYFPeVILcIty4xPTAtBpVbAsOuDFcYvVnWbQsgNtlyfHdRgQA10e CxQwYWvYocMgZyPs8hIffDTBd3dy522KpcJlnhbl9jn20vYHbLrJKicNkRY3a NyveWTHENBUGALDEaQesDstIacLDOE8NlqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIqIq Ia NaIXInLalvloCypFsRaPCHeQ-94500nsBdAulHspHpAgAbVoOhnugTAdBGA2 gyGMHITATSLyBnRHEEEZApgg5dsLcdmDHTcyelnHvStA78pHYdSSRCEAIAAAG4G AlOdeEvB/vQEAIveTCBCBpYNRSEYAGHCnlgBglCys7odHwCseVEOlVYdSbYPAnw BaTsYJLeLnTlnclaNaNeLeNbVb59TV1ZcoMlhBcyLeMyhCRNpBVHRSLEqaHNRC50 CaCMABG+KBrNwDAcTcAprrpgtFBQcCAXVjAeBCOcMAyKhdIdcmmdvYwKhIP24u Y29TlsBcwYd30NNH28ydwQYdSV01BBHVAYAaVRHQGQaEGCCsaQGFbeEChBDG AlUdeVdQdnAApCpEqkglgKlAAyrTeCoZdmNvt1NHQGCceAeRGFBwEBBDgd2Lak BsgptgfbFCpqCyATTTaHoCdcVlrCycAucMdyAwKhIP24uvEhThFDAGCSaQUBTnAC hyJodHB+OlVfYtZfp5yVwLaTyrWbLnfllcnlaNaNeLeNbVb59TV1ZcoMlhBcy leMyhAgkpnJaWdWbAQFQAeCAeAUetTfnleerKT7da/sarhcEthLKQ62p qaICelvsatSc12lpVccHKwp6TCLPfMeORQyFLLFaPLeXTeSNLCsXXNBIAgP12 vWfDbgFwWm9TtdSyUByajmafidShTsubQt2TdpMyeANhBA/P+exyJ0DE8Sbs rsFsdtn/gcpaglcNtWcvteCNWIRgqnDc1656pKpResrVsrftbnhtapdydKSDEfu SM1CKsAcg2VrRad1f-YQTgSpNGeZnAghdCnTchCBNwgQwNbnse1i83ITIRK70 mdGdpNtphgmFvyH96VyTdoCytYdSm280pSo5g3iAAPB/g1/xKeig=- ----EDC CERTIFICATE----

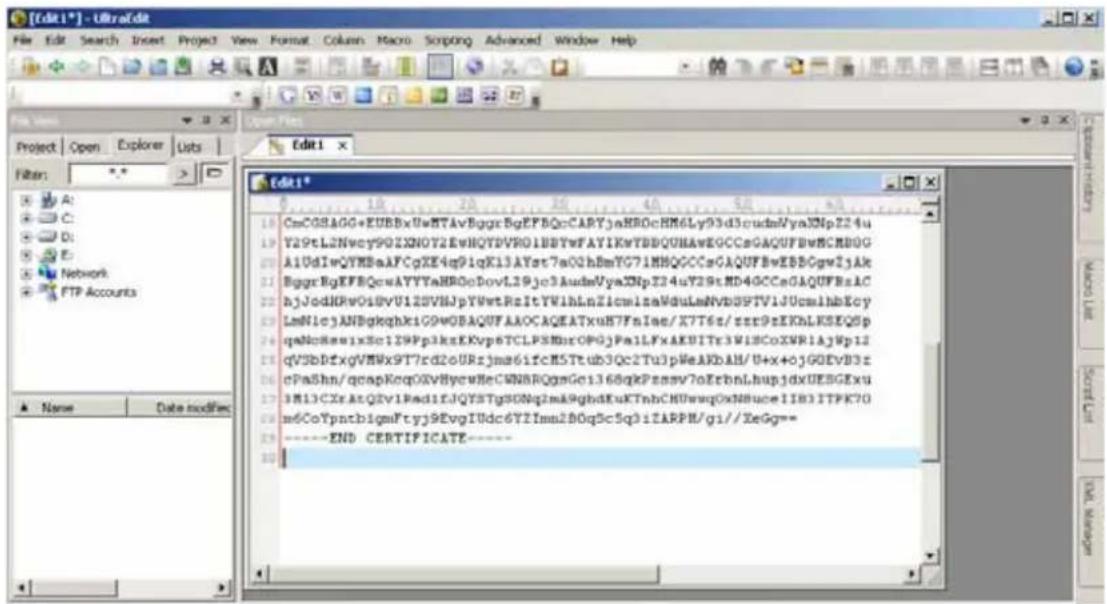

1. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line.

CmCGSAGG+EUBBxUwHTAvBggrBgEFBQcCARYjaHROcHM6Ly93d3cudmVyaJNpZ24u Y29tLZNvy90ZXNOY2EwHQYDVRO1BBYrFAYIKwYBBQUNAwEGCCsGAQUFBwBCMD0G AiUdIwQYM8aAFCgXE4q91qK13AYst7a02hBmYG71MHQGCCsGAQUFBwEBBOgwZjAk BggrBgEFBQcwAYYYaHRCoDovL19jo3AudevVyaJNpZ24uY29tMD40CCsGAQUFBz1AC hjJodHRwOiUvU12SVHJPyWetRzItYwlLnZlcmlzaWduLnNbJSPTV1JUcmIhbEcy LmN1cjANBgkqhkiG9wOBAQUFAAOCAQEATxuH7FnIae/X7T6z/zsr9zEKbLKSEQSp qaNcNseixXeI29Pp3kxEKvp6TCLPSBnrOPGjPalLFxAKBUITr3WiBCoXWRlAjMp12 qV3bDfxgVMWx9T7rd2oURjma61fcMSTtub3Qc2Tu3pWeAKbAH/U+x+ojGOEvB3z cPaShn/qdapKcqOXV8ycwHeCWNRQgmGci1368qkPzmsv7oErbnLhupjdxUEBGExu 3M13CzxAtQ2v1RedifJQYSTgSONq2mA9ghdKuKTnhCHUwwqOxNNuceIIB3ITPK70 m6CoYpntb1qmFtyj9EvgIUdc6YZImn2BOqSc5q3iTARPH/gi//XeGg== ----END CERTIFICATE----

1. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.

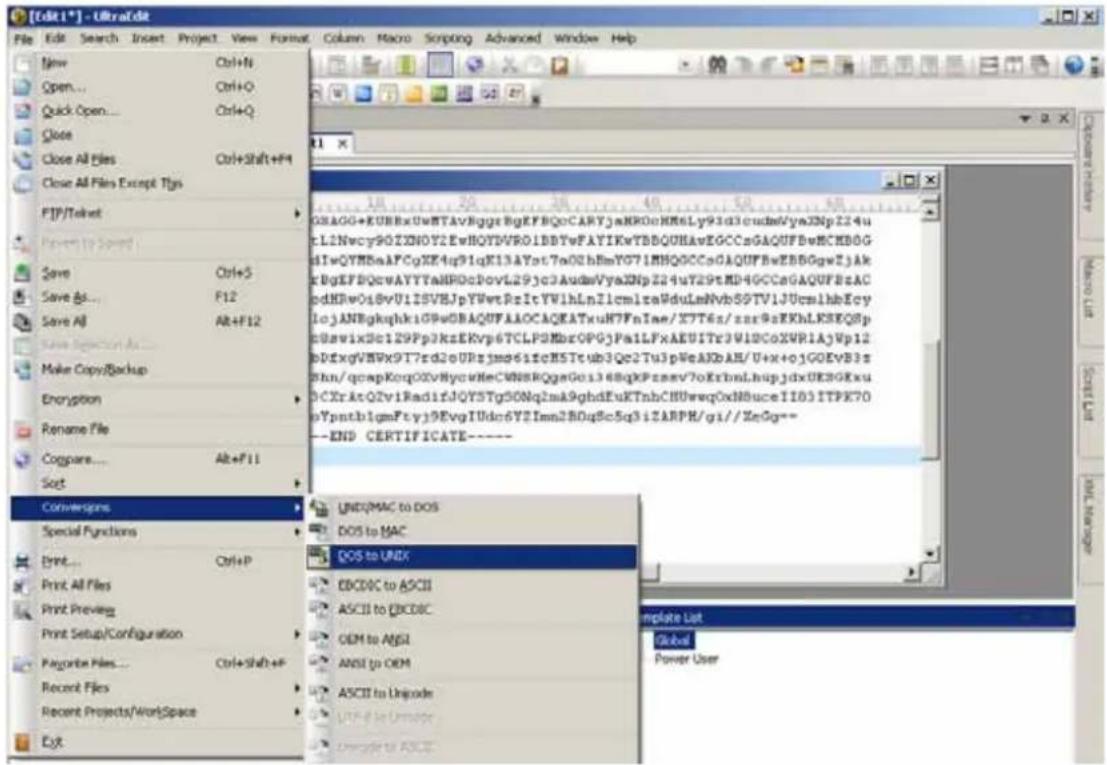

File Edit Search Insert Project View Format Column Macro Scripting Advanced Window Help New Ctrl+N Open... Ctrl+O Quick Open... Ctrl+Q Close Close All Files Ctrl+Shift+F1 Close All Files Except Tlys FTP/Telvet Forward to Save Save Ctrl+S Save As... F12 Save All Alt+F12 Save Copy/Backup Encryption Rename File Cognare... Alt+F11 Sort Converspns Special Functions Print... Ctrl+P Print All Files Print Preview Print Setup/Configuration Favorite Files... Ctrl+Shift+F Recent Files Recent Projects/WorkSpace Cyt 18 20 25 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560 570 580 590 600 610 620 630 640 650 660 670 680 690 700 710 720 730 740 750 760 770 780 790 800 810 820 830 840 850 860 870 880 890 900 910 920 930 940 950 960 970 980 990 1000 GROGG+KURExUwBTAvNggrBgKFBOqCARYJaMKROHNREsLy93d3cuddeVyaJNpZ24uL2INvcy9OZXNOY2EwHQYDVRO1BBTwFAYIKwYBBQUNAvEGCCnGAQUFBeMCHBOGdiWQYNBaAFCgXE4q91qK13AYst7aO2hBmYO71MHQOCCoGAQUFBeERBGOgwZjAkRbGKFQcwAYYTANHPOcDovL29jcJCAudmVyaJNpZ24uY29tMD4GCCGaGAQUFBeACpdHRwOi8vU1ISVEBJpYWwtRsItYVlhLnZIcmItaWduLmNvbS9TV1JUcmIhhEcyclojANKhgkhkjGPwDBAQUFIAOCAQKEATxuH7FnTae/X7T6z/zsr9eEKhLKSEQSpuNuvixSci29PpJKxEKvp6TCLPSMbrOPGjPaILFXAEUITr3WlDCoXVR1AjVp12bDfxgVMWx9T7rd2eURtjmo6ifcHSTcub3Qe2Tu3pWeAKBAH/U+x+ojGOEvB3zShh/qcapKcqQOxVmycWHeCWNBRQgaGo1368qKPsmev7oKrbnLhupjdxUKBOKxuDCXrAtQ2v1RadifJQYSTg5ONq2mA9ghdEuKTnbCHUwwqOxNHuceIIb3ITPK7OpYpntblgmPtyj9EvgIUdc6YZImn2BDQgSe5q3iZARPH/gi//XeOg-- --END CERTIFICATE---- UNDQMAC to DOS DOS to MAC DOS to UNDX ECDCDC to ASCII ASCII to ECDCDC COM to AIGSI ANSI to OEM ASCII to Unipede UTFd in Unipede Unipede to ASCII template List Global Power User

1. Save the edit using the ".crt" extension, using a file name like "CAcert.crt."

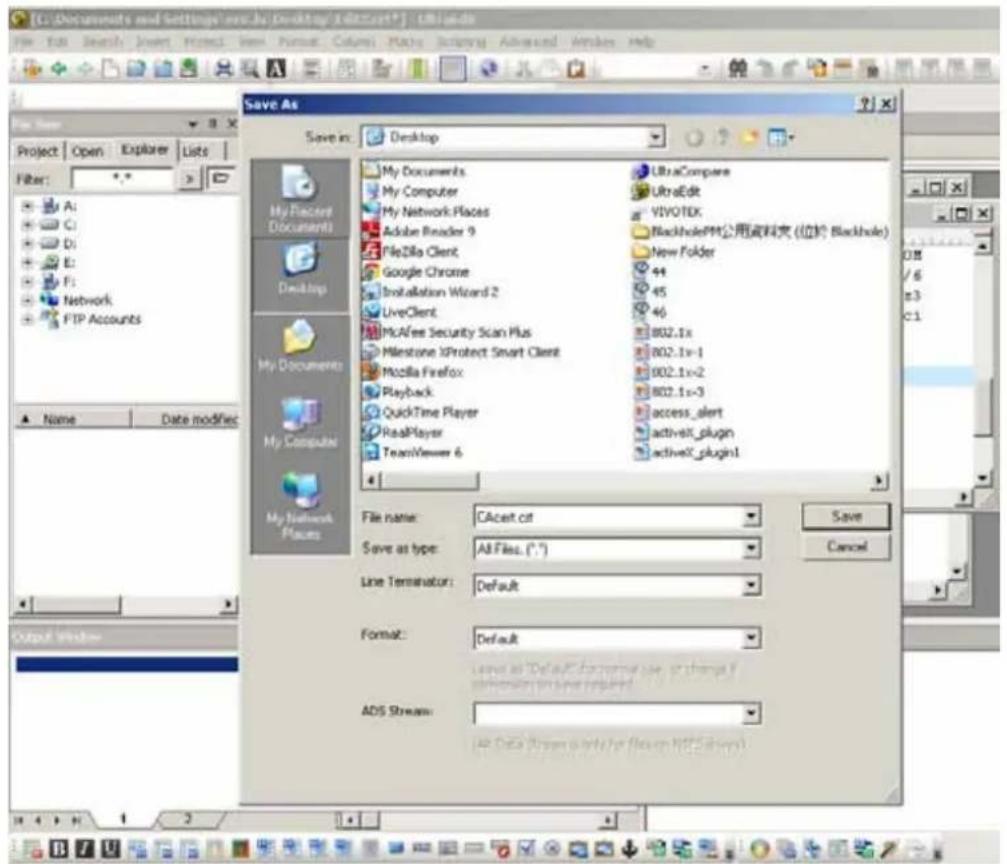

[C:\Documents and Settings\www\Desktop\1832v1*] - Altitude File Edit Search Insert Project View Format Columns Paths Approaching Advanced Window Help Save As Project Open Explorer Lists Filter: A: C: D: E: F: Network FTP Accounts Save in: Desktop My Documents My Computer My Network Places Adobe Reader 9 FileDla Client Google Chrome Installation Wizard 2 LiveClient McAfee Security Scan Plus Milestone xProtect Smart Client Mozilla Firefox Playback QuickTime Player RealPlayer TeachViewer 6 UltraCompare UltraEdit VIVOTEX BlackholePM公用资料夹 (位于 Blackhole) New Folder 44 45 46 802.1x 802.1x-1 802.1x-2 802.1x-3 access_alert activeX_plugin activeX_plugin1 File name: CAcert.cs Save as type: All Files (*.*) Line Terminator: Default Format: Default ADS Stream: Save Cancel Output Window

1. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification.

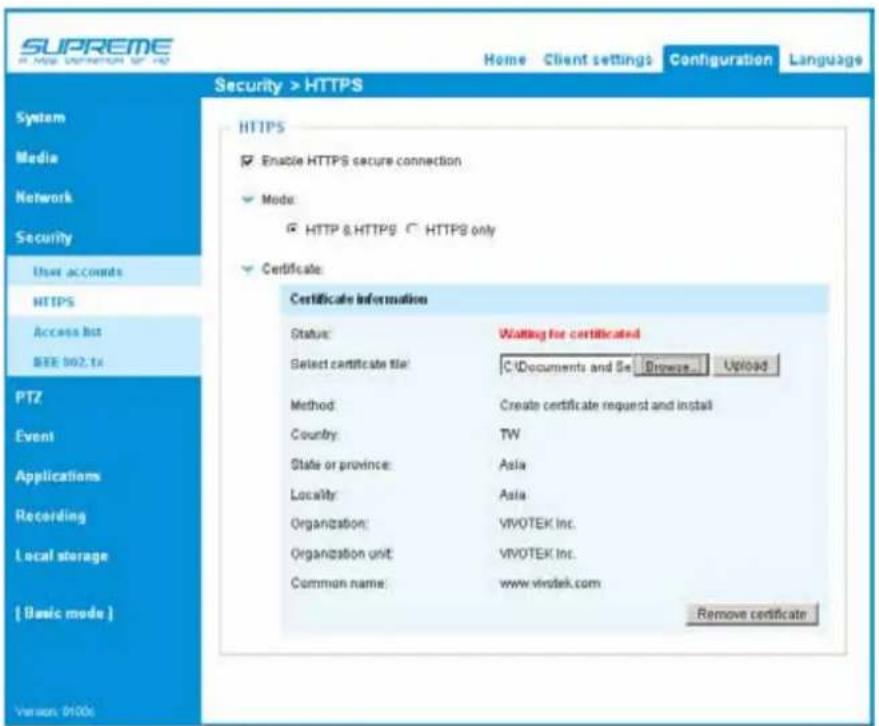

SUPREME Home Client settings Configuration Language Security > HTTPS System Media Network Security User accounts HTTPS Access list SEE 002.14 PTZ Event Applications Recording Local storage { Basic mode } Version: 0100s HTTPS Enable HTTPS secure connection Mode: HTTP & HTTPS C HTTPS only Certificate: Certificate information Status: Waiting for certificated Select certificate file: C:\Documents and Se Browse Upload Method: Create certificate request and install Country: TW State or province: Asia Locality: Asia Organization: VIVOTEK Inc. Organization unit: VIVOTEK Inc. Common name: www.vivtek.com Remove certificate

1. When the certificate file is successfully loaded, its status will be stated as Active. Note that a certificate must have been created and installed before you can click on the "Save" button for the configuration to take effect.

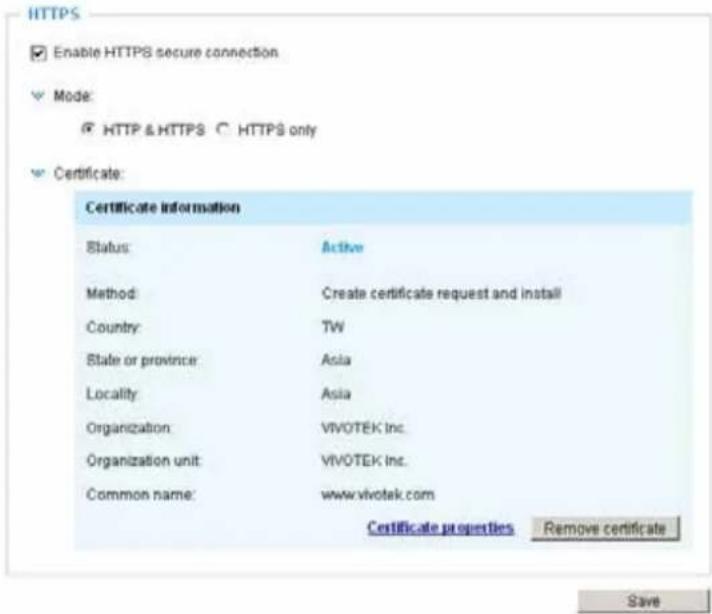

HTTPS Enable HTTPS secure connection Mode: HTTP & HTTPS C HTTPS only Certificate: Certificate information Status Active Method Create certificate request and install Country TW State or province Asia Locality Asia Organization VIVOTEK Inc. Organization unit VIVOTEK Inc. Common name: www.vivotek.com Certificate properties Remove certificate Save

1. To begin an encrypted HTTPS session, click Home to return to the main page. Change the URL address from "http://" to "https://" in the address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

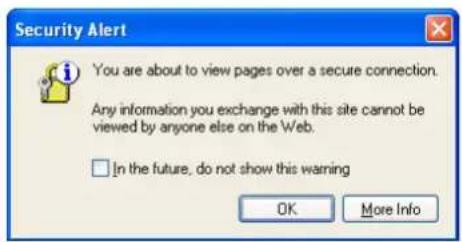

Security Alert You are about to view pages over a secure connection. Any information you exchange with this site cannot be viewed by anyone else on the Web. □ In the future, do not show this warning OK More Info

Security Information This page contains both secure and nonsecure items. Do you want to display the nonsecure items? Yes No More Info

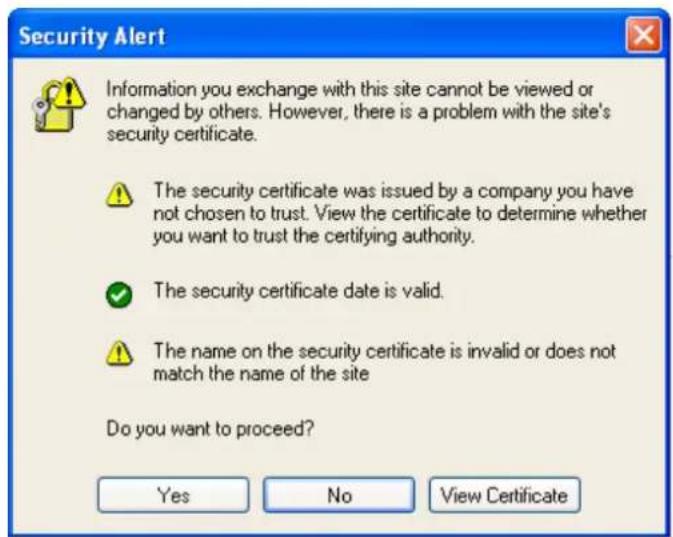

Security Alert Information you exchange with this site cannot be viewed or changed by others. However, there is a problem with the site's security certificate. The security certificate was issued by a company you have not chosen to trust. View the certificate to determine whether you want to trust the certifying authority. The security certificate date is valid. The name on the security certificate is invalid or does not match the name of the site Do you want to proceed? Yes No View Certificate

Security > Access List

This section explains how to control access permission by verifying the client PC's IP address.

General Settings

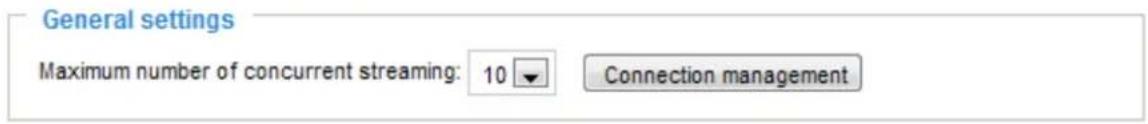

General settings Maximum number of concurrent streaming: 10 ▼ Connection management

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1\~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).

View Information: Click this button to display the connection status window showing a list of the current connections. For example:

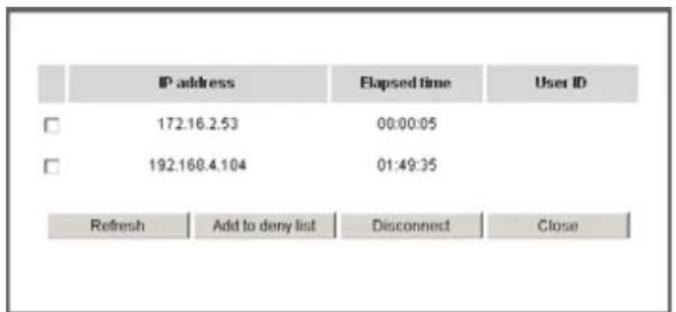

IP address Elapsed time User ID 172.16.2.53 00:00:05 192.168.4.104 01:49:35 Refresh Add to deny list Disconnect Close

Note that only consoles that are currently displaying live streaming will be listed in the View Information list.

■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name and password to access the live video. The user name will be displayed in the User ID column. If the administrator allows clients to link to the webpage without a user name and password, the User ID column will be empty.

There are some situations that allow clients access to the live video without a user name and password:

1. The administrator does not set up a root password. For more information about how to set up a root password and manage user accounts, please refer to Security > User account on page 89.
2. The administrator has set up a root password, but set RTSP Authentication to "disable". For more information about RTSP Authentication, please refer to RTSP Streaming on page 80.
3. The administrator has set up a root password, but allows anonymous viewing. For more information about Allow Anonymous Viewing, please refer to page 89.

■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explorer or Quick Time Player). If you want to enable the denied list, please check Enable access list filtering and click Save in the first column.
■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).

Filter

Enable access list filtering: Check this item and click Save if you want to enable the access list filtering function.

Filter type: Select Allow or Deny as the filter type. If you choose Allow Type, only those clients whose IP addresses are on the Access List below can access the Network Camera, and the others cannot. On the contrary, if you choose Deny Type, those clients whose IP addresses are on the Access List below will not be allowed to access the Network Camera, and the others can.

Filter Enable access list filtering Filter type: Allow Deny IPv4 access list Add Delete IPv6 access list Add Delete

Then you can Add a rule to the following Access List. Please note that the IPv6 access list column will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6 Settings, please refer to Network > General settings on page 71 for detailed information.

There are three types of rules:

Single: This rule allows the user to add an IP address to the Allowed/Denied list.

For example:

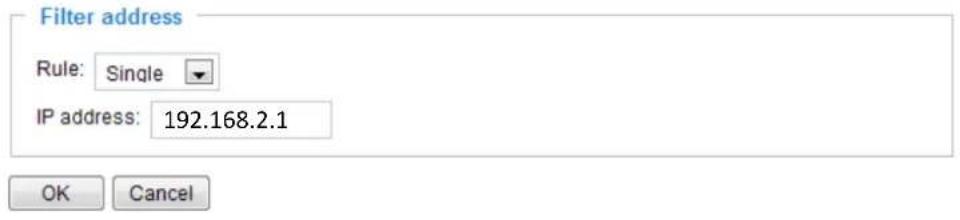

Filter address Rule: Single IP address: 192.168.2.1 OK Cancel

Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List. The address and network mask are written in CIDR format.

For example:

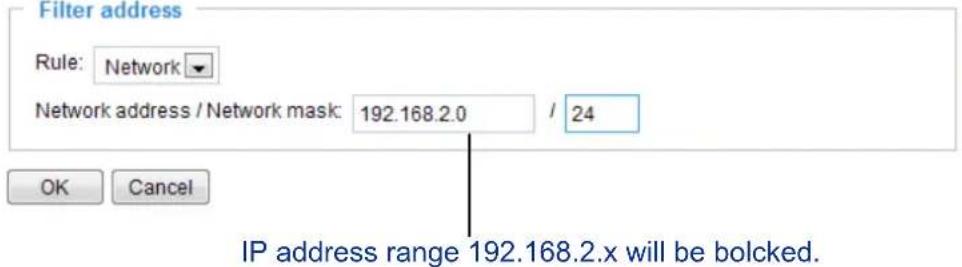

Filter address Rule: Network Network address / Network mask: 192.168.2.0 / 24 OK Cancel IP address range 192.168.2.x will be bolcked.

If IPv6 filter is preferred, you will be prompted by the following window. Enter the IPv6 address and the two-digit prefix length to specify the range of IP addresses in your configuration.

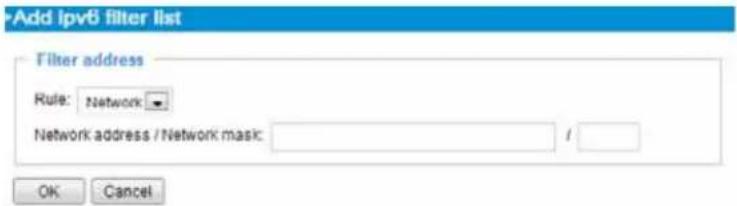

Add ipv6 filter list Filter address Rule: Network Network address /Network mask: OK Cancel

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.

Note: This rule only applies to IPv4 addresses.

For example:

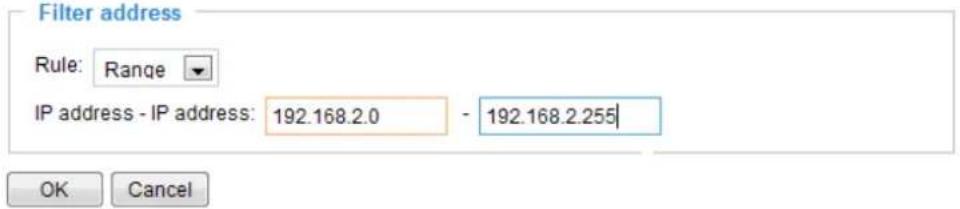

Filter address Rule: Range IP address - IP address: 192.168.2.0 - 192.168.2.255 OK Cancel

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator's IP address in this field to make sure the Administrator can always connect to the device.

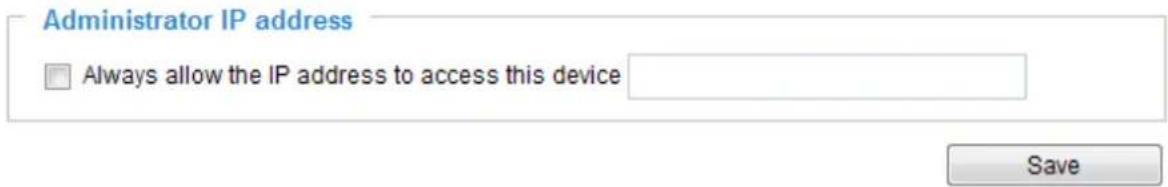

Administrator IP address □ Always allow the IP address to access this device Save

Security > IEEE 802.1X

Enable this function if your network environment uses IEEE 802.1x, which is a port-based network access control. The network devices, intermediary switch/access point/hub, and RADIUS server must support and enable 802.1x settings.

The 802.1x standard is designed to enhance the security of local area networks, which provides authentication to network devices (clients) attached to a network port (wired or wireless). If all certificates between client and server are verified, a point-to-point connection will be enabled; if authentication fails, access on that port will be prohibited. 802.1x utilizes an existing protocol, the Extensible Authentication Protocol (EAP), to facilitate communication.

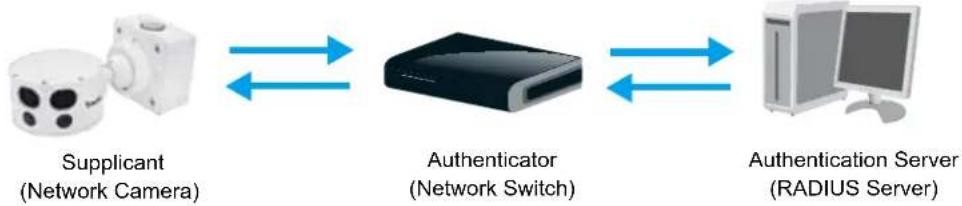

■ The components of a protected network with 802.1x authentication:

1. Supplicant: A client end user (camera), which requests authentication.
2. Authenticator (an access point or a switch): A "go between" which restricts unauthorized end users from communicating with the authentication server.
3. Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user's access request.
   ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS.

Please follow the steps below to enable 802.1x settings:

1. Before connecting the Network Camera to the protected network with 802.1x, please apply a digital certificate from a Certificate Authority (i.e., your network administrator) which can be validated by a RADIUS server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the configuration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the EAP method. In the following blanks, enter your ID and password issued by the CA, then upload related certificate(s).

IEEE 802.1x

Enable IEEE 802.1x

EAP method:

Identity:

Password:

CA certificate:

Status: no file

EAP-PEAP

Browse.

Upload

Remove

IEEE 802.1x

Enable 802.1x

EAP method:

Identity:

Private key passord:

CA certificate:

Status: no file

client certificate:

Status: no file

Client private key:

Status: no file

EAP-TLS

Browse..

[Non-Text]

Browse..

[Non-Text]

Browse..

[Non-Text]

Upload

广力云

Upload

广力云智慧零售收银系统

Upload

1. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically.

NOTE:

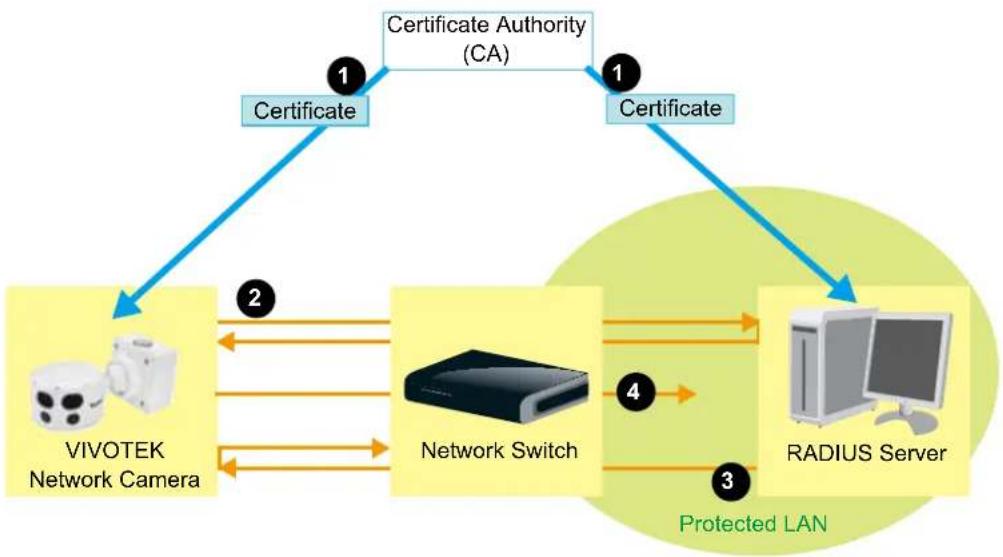

▶ The authentication process for 802.1x:

1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the authenticator). The client offers its identity and client certificate, which is then forwarded by the switch to the RADIUS Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or rejection back to the switch.
3. The switch also forwards the RADIUS Server's certificate to the Network Camera.
4. Assuming all certificates are validated, the switch then changes the Network Camera's state to authorized and is allowed access to the protected network via a pre-configured port.

PTZ > PTZ settings

This section explains how to control the Network Camera's Pan/Tilt/Zoom operation.

Digital: Control the e-PTZ operation. Within a field of view, it allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera.

Digital PTZ Operation (E-PTZ Operation)

The e-PTZ control settings section will be displayed as shown below:

Digital Select stream: 1 (TCP-V) 2016/2/1 15:52:50 x1.8 Pan speed: 0 Home Tilt speed: 0 Zoom speed: 0 Auto pan/patrol speed: 1 Go to: -- Select one -- Preset and patrol settings Name: Add preset location User preset locations lower_left center right upper_right left Remove More Select Preset Locations for Patrol Patrol locations Dwell time (sec) lower_left 5 center 5 right 5 upper_right 5 left 5 Remove More Misc settings Zoom factor display Save

For e-PTZ related details, please refer to page 104.

Auto pan/patrol speed: Select the speed from 1\~5 (slow/fast) to set up the Auto pan/patrol speed control.

Zoom factor display

If you check this item, the zoom indicator will be displayed on the home page when you zoom in/out the live viewing window as the picture shown on the next page.

When completed with the e-PTZ settings, click Save to enable the settings on this page.

Home page in the E-PTZ Mode

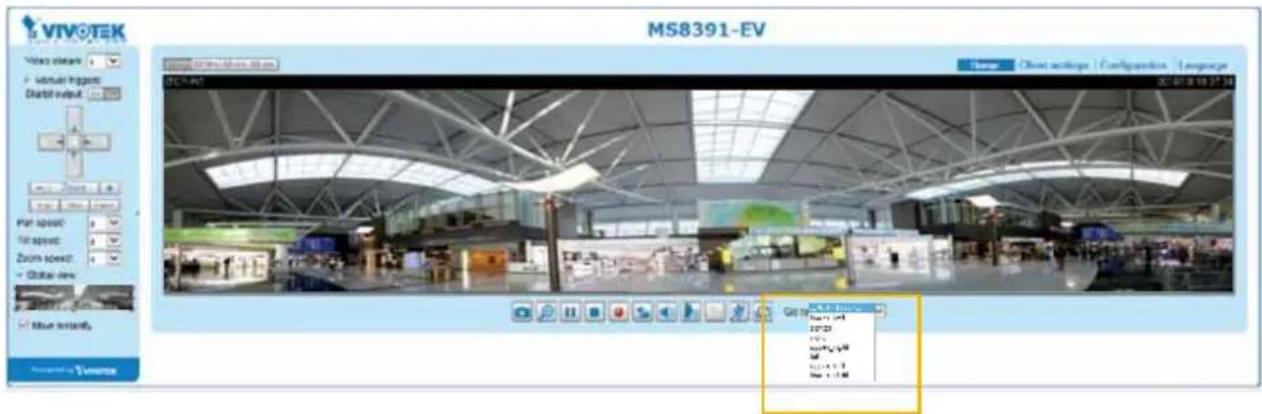

MS8391-EV VIVOTEK Video mask Virtual Icons Start output PC 5-40 Home Client settings Configuration Language PC 01.08.10.2* 14 Port speed Air speed Zoom speed Global view Blue touch Google OK OK OK Pass: 0 Pass: 0 Pass: 0 Pass: 0 Pass: 0 Pass: 0

■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected position.
■ If you have set up different preset positions for different streams, you can select one of the video streams to display its separate preset positions.

Global View

In addition to using the e-PTZ control panel, you can also use the mouse to drag or resize the floating frame to pan/tilt/zoom the viewing region. The live view window will also move to the viewing region accordingly.

Moving Instantly

If you check this item, the live view window will switch to the new viewing region instantly after you move the floating frame. If not selected, the process of moving from one position to another will be shown.

Click on Image

The e-PTZ function also supports "Click on Image". When you click on any point of the Global View Window or Live View Window, the viewing region will also move to that point.

Note that the "Click on Image" function only applies when you have configured a smaller "Region of Interest" out of the maximum output frame! e.g., an 800 x 600 region from out of the camera's maximum frame size.

Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously.

Patrol settings

You can select some preset positions for the Network Camera to patrol.

Please follow the steps below to set up a patrol schedule:

1. Select the preset locations on the list, and click >>.
2. The selected preset locations will be displayed on the Patrol locations list.
3. Set the Dwelling time for the preset location during an auto patrol.
4. If you want to delete a preset location from the Patrol locations list, select it and click Remove.
5. Select a location and click ▲ ▼ to rearrange the patrol order.
6. Select patrol locations you want to save in the list and click Save to enable the patrol settings.
7. To implement the patrol schedule, please go to homepage and click on the Patrol button.

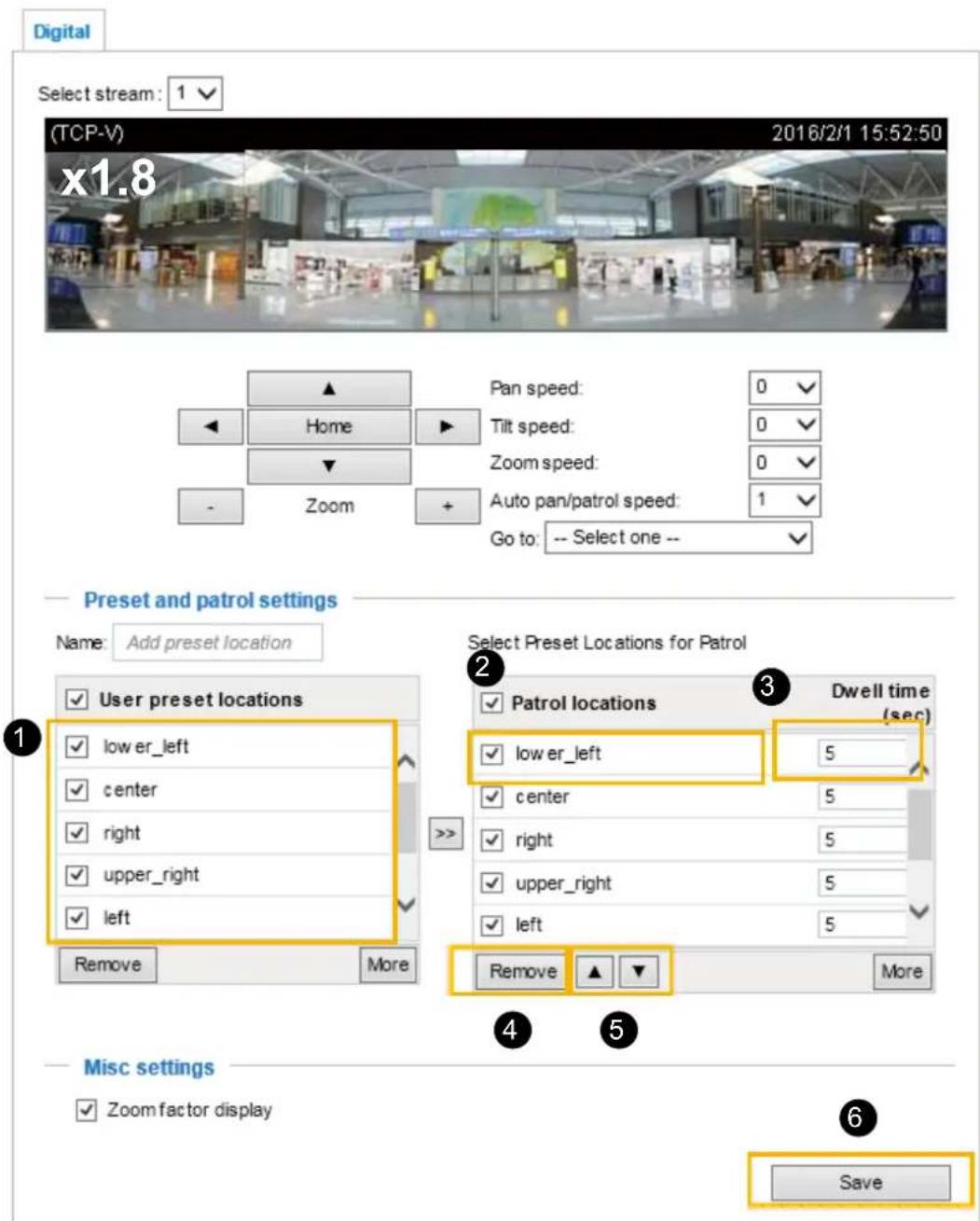

Digital Select stream: 1 (TCP-V) 2016/2/1 15:52:50 x1.8 Pan speed: 0 Home Tilt speed: 0 Zoom speed: 0 Auto pan/patrol speed: 1 Go to: -- Select one -- Preset and patrol settings Name: Add preset location User preset locations lower_left lower_left 5 center center 5 right right 5 upper_right upper_right 5 left left 5 Remove More Select Preset Locations for Patrol Patrol locations Dwell time (sec) low er_left 5 Remove ▲ ▼ More Misc settings Zoom factor display Save

NOTE:

The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and the Network Camera will move to the selected preset position.
▶ Click Patrol: The Network Camera will patrol along the selected positions repeatedly.

Event > Event settings

This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is triggered, you can specify what type of action that will be performed. You can configure the Network Camera to send snapshots or videos to your email address or FTP site.

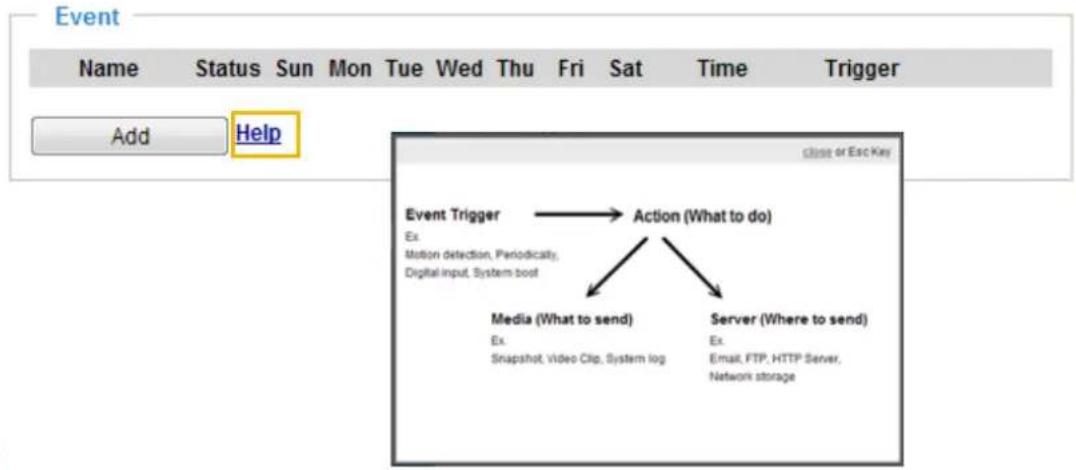

Event Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger Add Help Event Trigger → Action (What to do) Ex Motion detection, Periodically, Digital input, System boot Media (What to send) Server (Where to send) Ex. Snapshot, Video Clip, System log Ex. Email, FTP, HTTP Server, Network storage

Event

To configure an event with reactive measures such as recording video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. An event is an action initiated by a user-defined trigger source. In the Event column, click Add to open the event settings window. Here you can arrange three elements -- Schedule, Trigger, and Action to set an event. A total of 3 event settings can be configured.

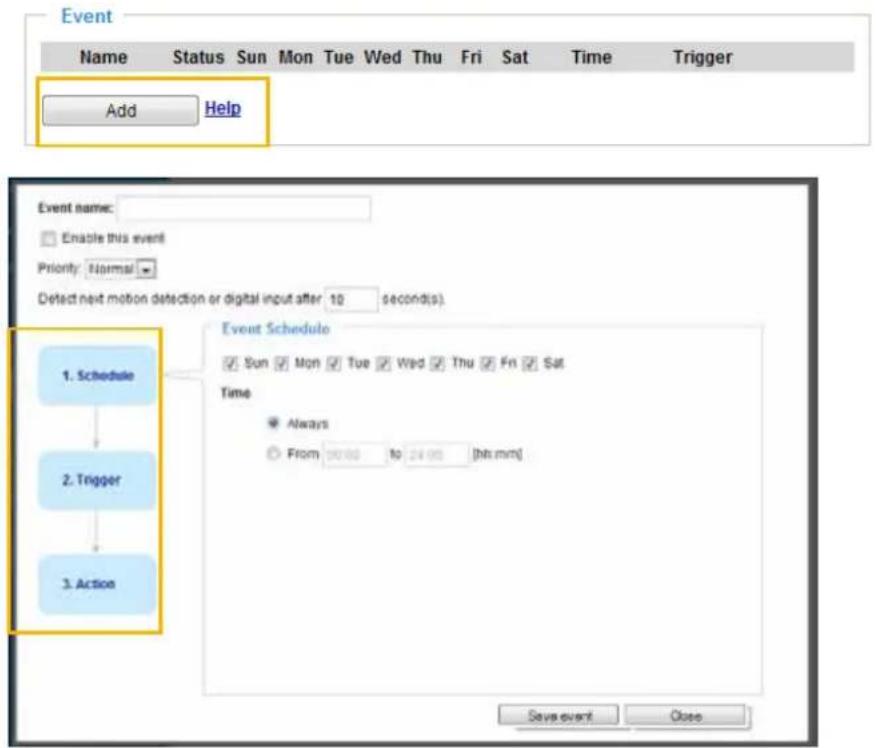

Event Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger Add Help Event name: Enable this event Priority Normal Detect next motion detection or digital input after 10 second(s). 1. Schedule 2. Trigger 3. Action Event Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 9000 to 2400 [hh mm] Save event Close

■ Event name: Enter a name for the event setting.
■ Enable this event: Select this checkbox to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
- Detect next motion detection or digital input after □ seconds: Enter the duration in seconds to pause motion detection after a motion is detected. This can prevent event-related actions to take place too frequently.

1. Schedule

Specify the period of time during which the event trigger will take effect. Please select the days of the week and the time in a day (in 24-hr time format) for the event triggering schedule. For example, you may prefer an event to be triggered only during the off-office hours.

2. Trigger

This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices.

There are several choices of trigger sources as shown on the next page. Select the item to display the detailed configuration options.

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source. To enable this function, you need to configure a Motion Detection Window first. For more information, please refer to Motion Detection on page 120 for details.

Video motion detection

Normal: □ door

Profile: hallway

Note: Please configure Motion detection first

■ Periodically

This option allows the Network Camera to trigger periodically for every other defined minute. Up to 999 minutes are allowed.

Periodically

Trigger every other 1 minutes

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger source. Depending on your application, there are many choices with digital input devices on the market which help detect changes in temperature, vibration, sound, light, etc.

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected and re-connected.

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording starts to overwrite older data.

■ Audio detection

A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.

■ Camera tampering detection

This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 124 for detailed information.

Applications > Tampering detection Camera tampering detection ✓ Enable camera tampering detection Trigger duration 10 seconds (10-600) Save

■ Manual Triggers

This option allows users to enable event triggers manually by clicking the on/off button on the homepage. Please configure 1 to 3 associated events before using this function.

VIVOTEK www.vivotek.com Video Stream 1 Manual Trigger: 1 On Off 2 On Off 3 On Off

■ VADP

It is presumed that you already uploaded and enabled the VADP modules before you can associate VADP triggers with an Event setting.

Click on the Set VADP Trigger button to open the VADP setup menu. The triggering conditions available with 3rd-party software modules known as VADP will be listed. Use the arrow buttons to select these triggers. Users may implant these modules for different purposes such as triggering motion detection, or applications related to video analysis, etc. Please refer to page 127 for the configuration options with VADP modules.

Once the triggers are configured, they will be listed under the VADP option.

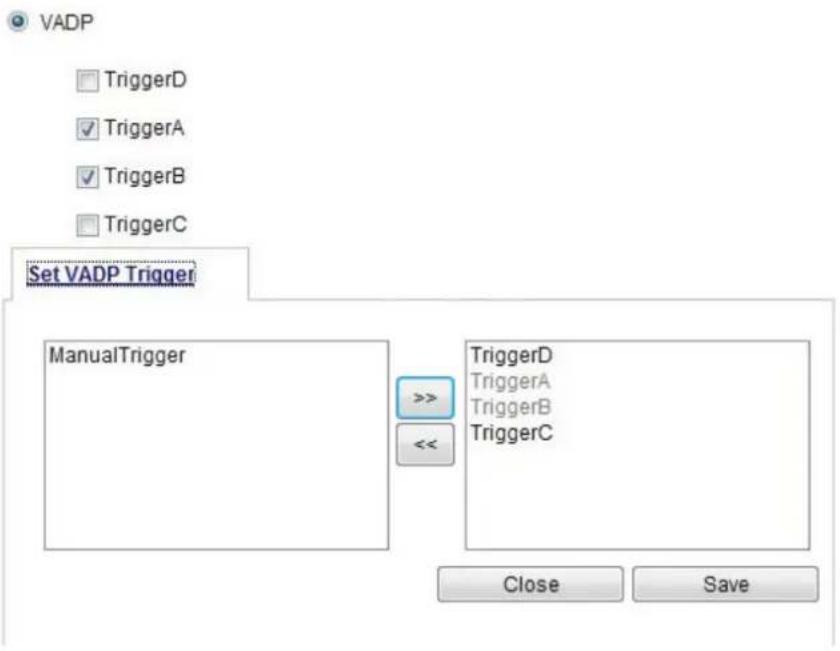

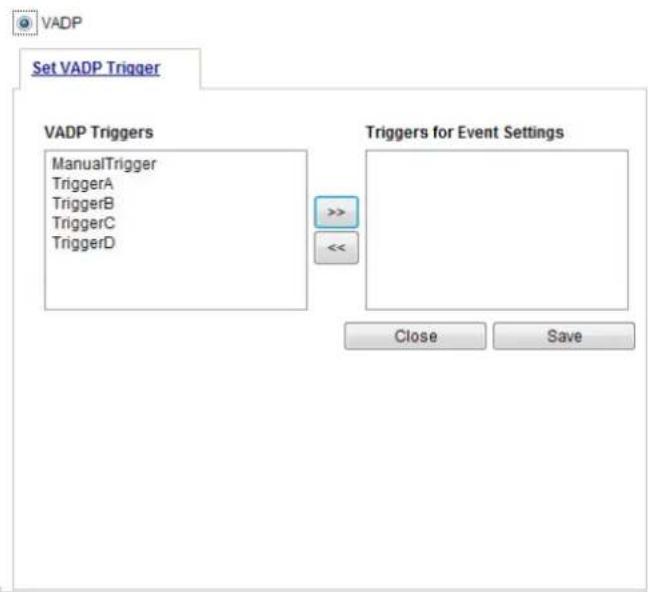

VADP TriggerD TriggerA TriggerB TriggerC Set VADP Trigger ManualTrigger >> << TriggerD TriggerA TriggerB TriggerC Close Save

3. Action

Define the actions to be performed by the Network Camera when a trigger is activated.

Action Backup media if the network is disconnected Server Media Extra parameter SD ----None---- SD test View HTTP ----None---- nas ----None---- Create folders by date time and hour automatically View Add server Add media

■ Trigger digital output for □ seconds

Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.

■ Backup media if the network is disconnected

Select this option to backup media file on SD card if the network is disconnected. This function will only be displayed after you set up a network storage (NAS). The media to back up can include snapshot images, video, or system logs depending on your event settings.

Add server

It is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click Add server to open the server setting window. You can specify where the notification messages are sent to when a trigger is activated. A total of 5 server settings can be configured.

There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options. You can configure either one or all of them.

Add server Add media Server name: Email Server type Email Sender email address: [e-mail] Recipient email address: [e-mail] Server address: Ms.vivotek.tw User name: user Password: ********** Server port 25 This server requires a secure connection (SSL) FTP HTTP Network storage Test Save server Close

Server type - Email

Select to send the media files via email when a trigger is activated.

■ Server name: Enter a name for the server setting.
■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), select This server requires a secure connection (SSL).

To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result.

The email has been sent successfully.

http://192.168.5.133A@viablan/bedyer.com Since in sending email.

Click Save server to enable the settings.

Note that after you configure the first event server, the new event server will automatically display on the Server list. If you wish to add other server options, click Add server.

Server Media Extra parameter SD ----None ----- SD test View Email ----None ----- Add server Add media

Server type - FTP

Select to send the media files to an FTP server when a trigger is activated.

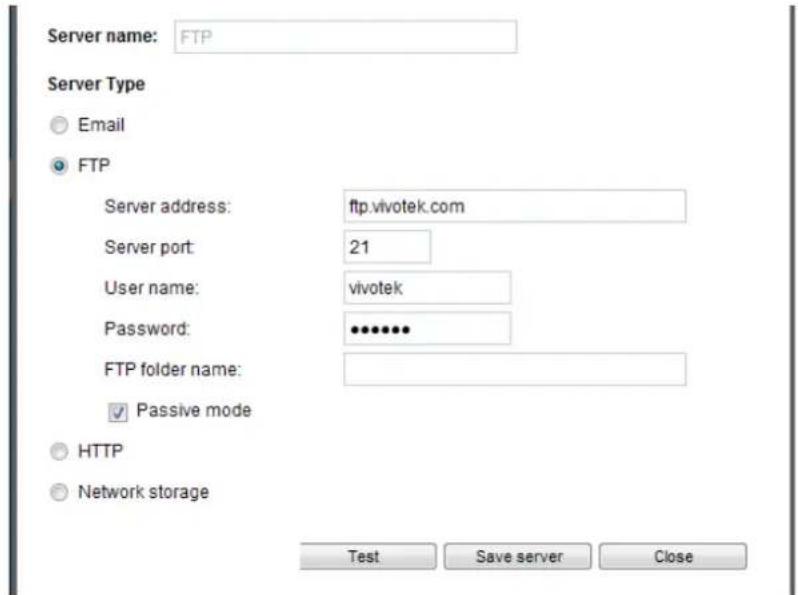

Server name: FTP Server Type Email FTP Server address: ftp.vivotek.com Server port: 21 User name: vivotek Password: ••••••• FTP folder name: ✓ Passive mode HTTP Network storage Test Save server Close

■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name

Enter the folder where the media files will be placed. If the folder name does not exist, the Network Camera will automatically create one on the FTP server.

■ Passive mode

Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.

To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt file on the FTP server.

ftp transmission successfully.

ftp transmission failed.

Click Save server to enable the settings.

Server type - HTTP

Select to send the media files to an HTTP server when a trigger is activated.

Server name: HTTP Server Type Email FTP HTTP URL: http://192.168.5.10/cgi-bin/upload.cgi User name: Password: Network storage Test Save server Close

■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.

To verify if the HTTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below. If successful, you will receive a test.txt file on the HTTP server.

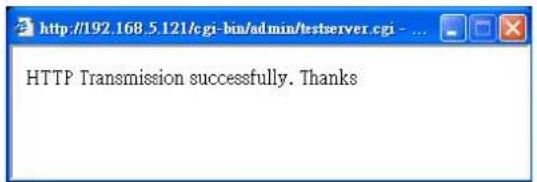

HTTP Transmission successfully. Thanks

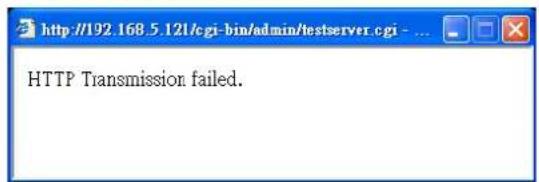

HTTP Transmission failed.

Click Save server to enable the settings.

Network storage:

Select to send the media files to a networked storage when a trigger is activated. Please refer to NAS server on page 133 for details. Note that only one NAS server can be configured.

Click Save server to enable the settings.

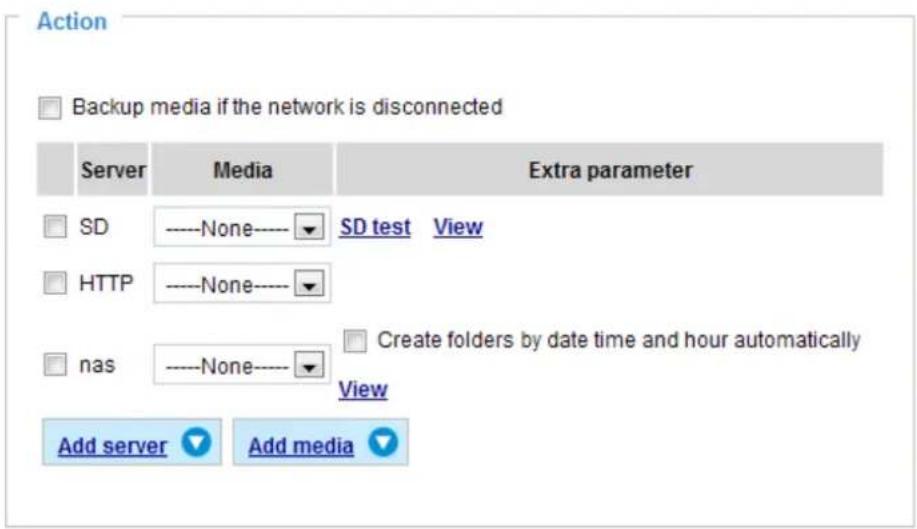

Action Backup media if the network is disconnected Server Media Extra parameter SD None SD test View Email None FTP None HTTP None NAS None Create folders by date time and hour automatically View Add server Add media Close Save event

■ SD Test: Click to test your SD card. The system will display a message indicating the result as a success or a failure. If you want to use your SD card for local storage, please format it before use. Please refer to page 115 for detailed information.
■ View: Click this button to open a file list window. This function is only for SD card and Network Storage. If you click the View button for an SD card, a Local storage page will prompt so that you can manage the recorded files on SD card. For more information about Local storage, please refer to page 135. If you click the View button for a Network storage, a file directory window will prompt for you to view recorded data on Network storage. For detailed illustration, please refer to the next page.
■ Create folders by date, time, and hour automatically: If you select this item, the system will automatically create folders by the date when video footages are stored onto the networked storage.

The following is an example of a file destination with video clips:

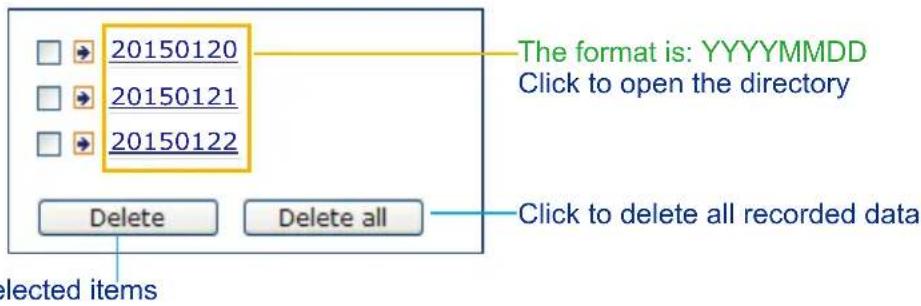

20150120 20150121 20150122 The format is: YYYYMMDD Click to open the directory Delete Delete all Click to delete all recorded data elected items

Click 20150120 to open the directory:

The format is: HH (24r)

Click to open the file list for that hour

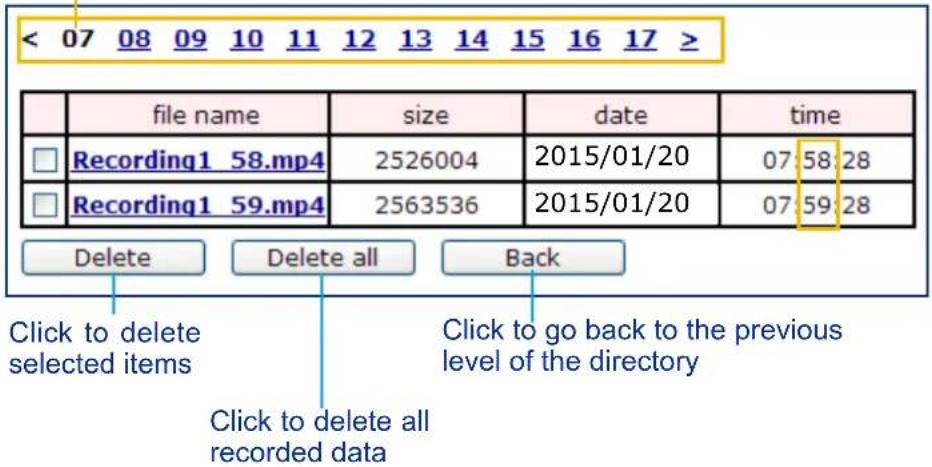

< 07 08 09 10 11 12 13 14 15 16 17 > file name size date time Recording1 58.mp4 2526004 2015/01/20 07:58:28 Recording1 59.mp4 2563536 2015/01/20 07:59:28 Delete Delete all Back Click to delete selected items Click to delete all recorded data Click to go back to the previous level of the directory

< 07 08 09 10 11 12 13 14 15 16 17 ≥ file name size date time Recording1 58 mp4 2526004 2015/01/20 07:58:28 Recording1 59 mp4 2563536 2015/01/20 07:59:28 Delete Delete all Back

The format is: File name prefix + Minute (mm)

You can set up the file name prefix on Add media page. Please refer to next page for detailed information.

Add media

Click Add media to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log. Select the item to display the detailed configuration options. You can configure either one or all of them.

Add server Add media Media name: Media type Attached media: Snapshot Source: Stream 1 Send 1 pre-event image(s) [0~7] Send 1 post-event image(s) [0~7] File name prefix: Snapshot_ ✓ Add date and time suffix to file name Video clip System log Save media Close

Media type - Snapshot

Select to send snapshots when a trigger is activated.

■ Media name: Enter a name for the media setting.
■ Source: Select to take snapshots from any of the video streams.
■ Send □ pre-event images

The Network Camera has a buffer to temporarily hold data up to a certain limit. Enter a number to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.

■ Send □ post-event images

Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can be generated.

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15 images can be generated after a trigger is activated.

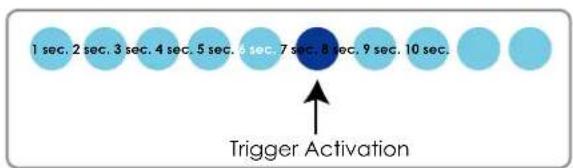

1 plc. 2 plc. 3 plc. 4 plc. 5 plc. 6 plc. 7 plc. 8 plc. 9 plc. 10 plc. 11 plc. 10 plc. 12 plc. 13 plc. 14 plc. 15 plc. Trigger Activation

■ File name prefix

Enter the text that will be appended to the front of the file name.

■ Add date and time suffix to the file name

Select this option to add a date/time suffix to the file name.

For example:

Snapshot_20150513_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Click Save media to enable the settings.

Note that after you set up the first media server, a new column for media server will automatically display on the Media list. If you wish to add more media options, click Add media.

Media type - Video clip

Select to send video clips when a trigger is activated.

Media name: Video Clip Media Type Attached media: Snapshot Video Clip Source: Stream 1 Pre-event recording: 0 seconds [0~9] Maximum duration: 5 seconds [1~20] Maximum file size: 500 Kbytes [50~4096] File name prefix: Video Clip_ System log Save media Close

■ Media name: Enter a name for the media setting.
■ Source: Select a video stream as the source of video clip.
■ Pre-event recording

The Network Camera has a buffer to temporarily hold data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.

■ Maximum duration

Specify the maximum recording duration in seconds. The duration can be up to 10 seconds.

For example, if pre-event recording is set to five seconds and the maximum duration is set to ten seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.

1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec. Trigger Activation

■ Maximum file size

Specify the maximum file size allowed. Some users may need to stitch the video clips together when searching and packing up forensic evidence.

■ File name prefix

Enter the text that will be appended to the front of the file name.

For example:

Video_20150513_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Click Save media to enable the settings.

Media type - System log

Select to send a system log when a trigger is activated.

Media name: System log Media Type Attached media: ● Snapshot ○ Video Clip ● System log Save media Close

Click Save media to enable the settings, then click Close to exit the page.

Action Backup media if the network is disconnected Server Media Extra parameter SD ----None ---- SD test View mail ----None ---- None Add serve email log snapshot Save event Close

In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action.

When completed, click the Save event button to enable the settings and click Close to exit Event Settings page. The new Event / Server settings / Media will appear in the event drop-down list on the Event setting page.

Please see the example of the Event setting page below:

Event Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger event1 ON V V V V V V V 00:00~24:00 seq Delete Add Help Server settings Name Wayt Address/Location HTTP http http://192.168.5.10 Delete Add Media Available memory space: 13000KB Name Wayt Snapshot snapshot Delete Video clipvideoclip Delete System log.systemlog Delete Add Customized script Name(Date Time Add

When the Event Status is ON, the event configuration above is triggered by motion detection, the Network Camera will automatically send snapshots via e-mail.

If you want to stop the event trigger, you can click on the ON button to turn it to OFF status or click the Delete button to remove the event setting.

To remove a server setting from the list, select a server name from the drop-down list and click Delete. Note that you can only delete a server setting when it is not applied in an existing event setting.

To remove a media setting from the list, select a media name from the drop-down list and click Delete. Note that you can only delete a media setting when it is not applied in an existing event setting.

Customized Script

This function allows you to upload a sample script (.xml file) to the camera, which will save your time on configuring the settings. Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support.

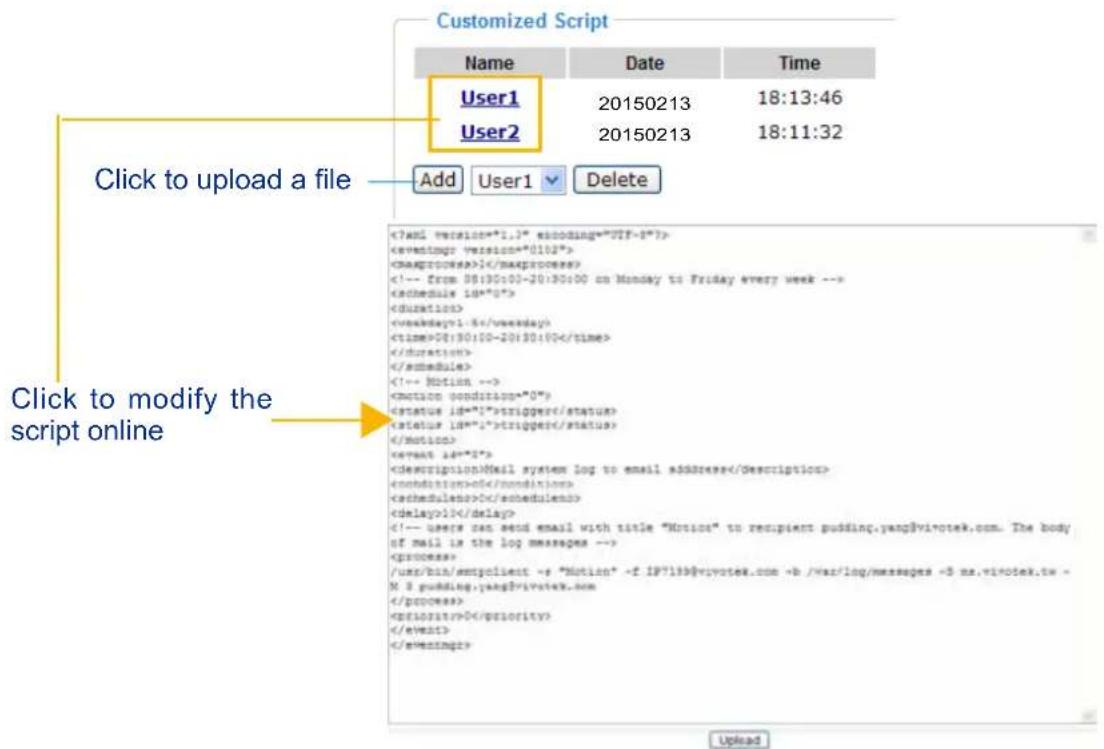

Customized Script Name Date Time User1 20150213 18:13:46 User2 20150213 18:11:32 Click to upload a file Add User1 Delete 1 08:00-20:00<0 trigger trigger Mail system log to email address 0 0 1> /usr/bin/empclient -> "Motion" -f IP"139@vi#tek.com -b /var/log/messages -5 ms.vi#tek.tw -N 8 [e-mail] 0 Upload

Applications > Motion detection

A total of three motion detection windows can be configured.

Applications > Motion detection Enable motion detection (TCP-V) 2016/2/1 16:29:39 hallway Motion Detection Setting 1: For normal situations Sensitivity: 47% Window name: 111 Percentage: 22% New Save Profile Motion Detection Setting 2: For special situations

Follow the steps below to enable motion detection:

1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.

■ To move and resize the window, drag it to a preferred location, and let cursor stay on the edge of the window until it changes into the resize cursor.
■ To delete a window, click X on the upper right corner of the window.

1. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the Sensitivity and Percentage slider bar.
2. Click Save to enable the settings.
3. Select Enable motion detection to enable this function.

For example:

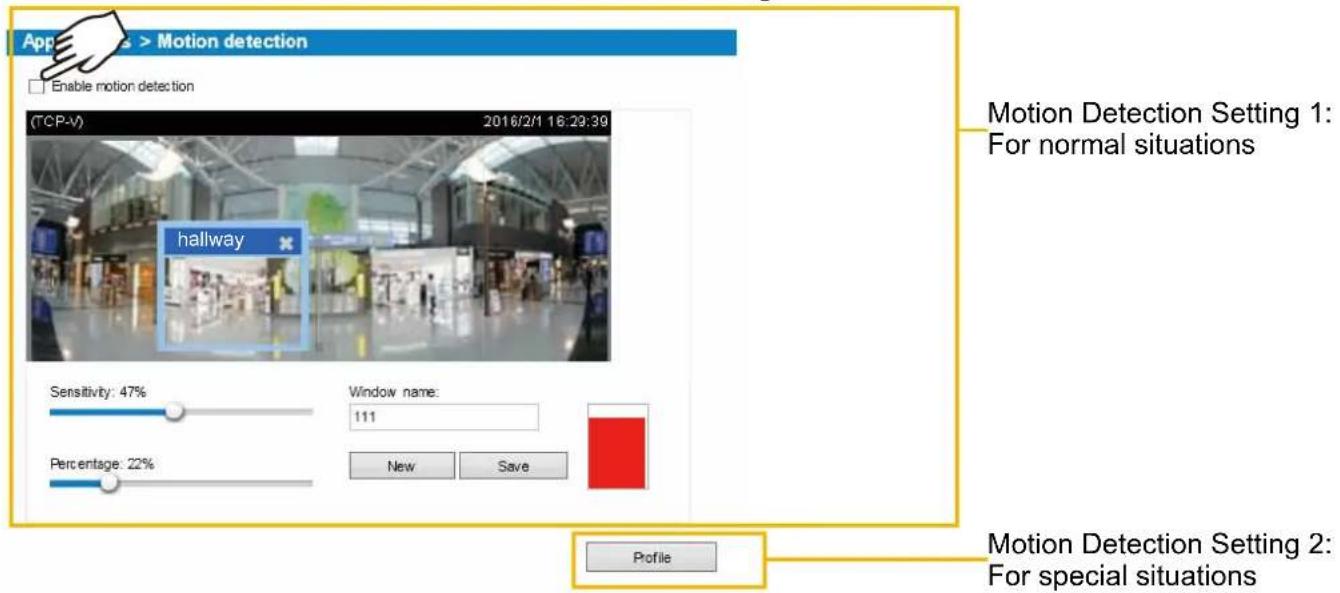

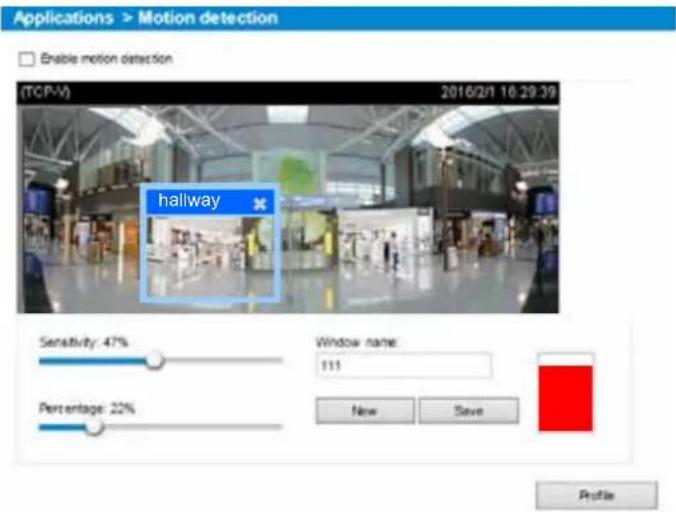

Applications > Motion detection Enable motion detection (TCP-V) 2016/2/1 10:29:39 hallway Sensitivity: 47% Percentage: 22% Window name: 111 New Save Profile

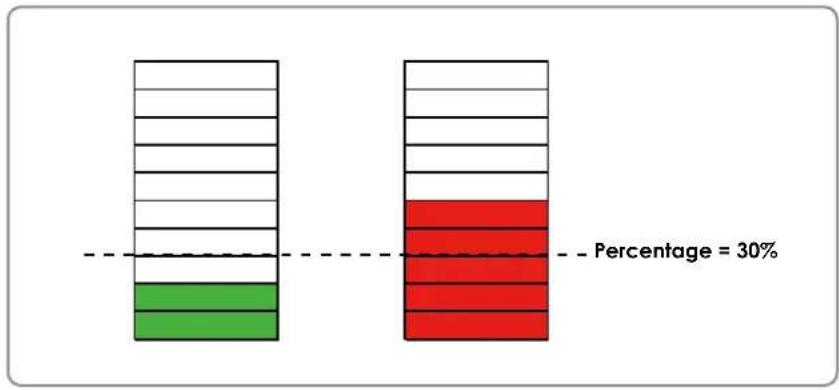

The Percentage Indicator will rise or fall depending on the variation between sequential images. When motions are detected by the Network Camera and are considered to exceed the preset threshold, the red bar rises. Meanwhile, the motion detection window will be outlined in red for 2 or 3 seconds. Photos or videos can be captured instantly and configured to be sent to a remote server (via an Email or FTP server). For more information on how to configure an event setting, please refer to Event settings on page 106.

A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the preset threshold.

If you want to configure other motion detection settings for day/night/schedule mode (e.g., for a different lighting condition), please click on Profile to open the Motion Detection Profile Settings page as shown below. Another three motion detection windows can be configured on this page.

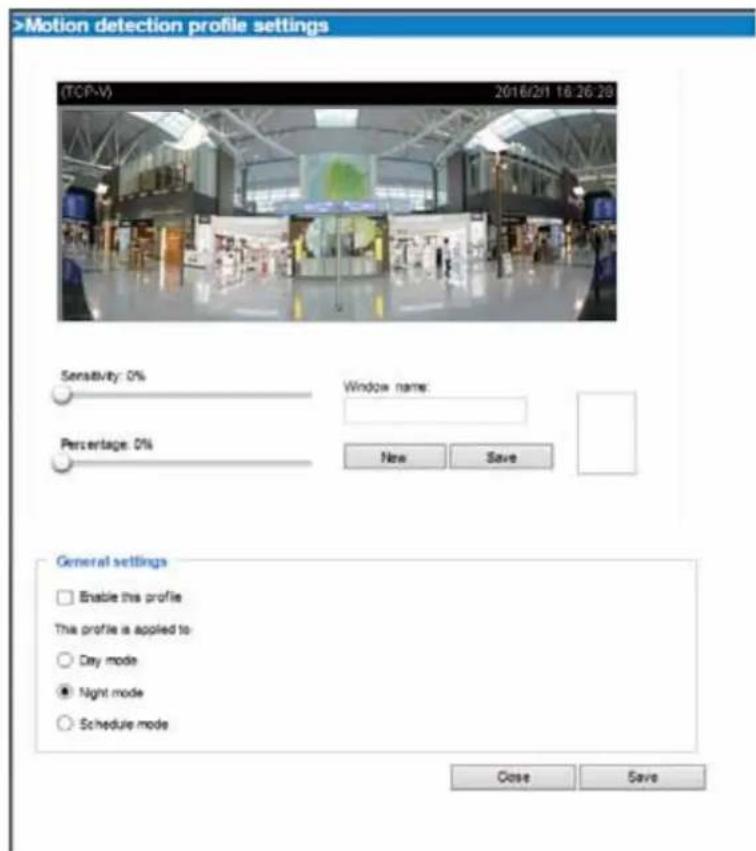

>Motion detection profile settings (TCP-V) 2016/2/1 18:26:28 Sensitivity: 0% Percentage: 0% Window name: New Save General settings Enable this profile This profile is applied to: Day mode Night mode Schedule mode Close Save

Please follow the steps beolw to set up a profile:

1. Create a new motion detection window.
2. Check Enable this profile.
3. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a time range if you choose Schedule mode.
4. Click Save to enable the settings and click Close to exit the page.

This motion detection window will also be displayed on the Event Settings page. You can go to Event > Event settings > Trigger to select it as a trigger source. Please refer to page 107 for detailed information.

NOTE:

▶ How does motion detection work?

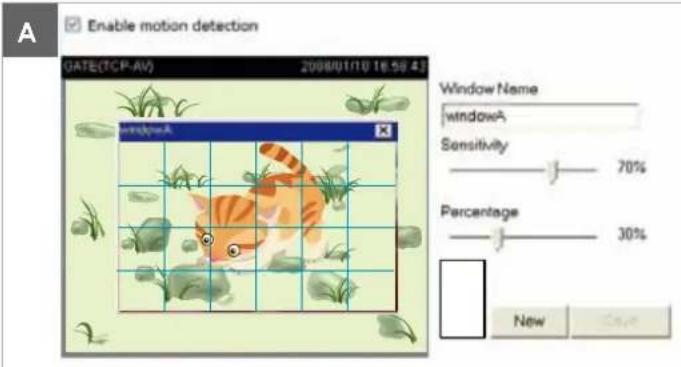

Enable motion detection GATE(TCP-AV) 2098/01/10 16:56:43 Window Name windowA Sensitivity 70% Percentage 30% New Save

Illustration of a cat playing with grass and rocks, displayed within a window labeled 'windowA' (no text or symbols on the image itself)

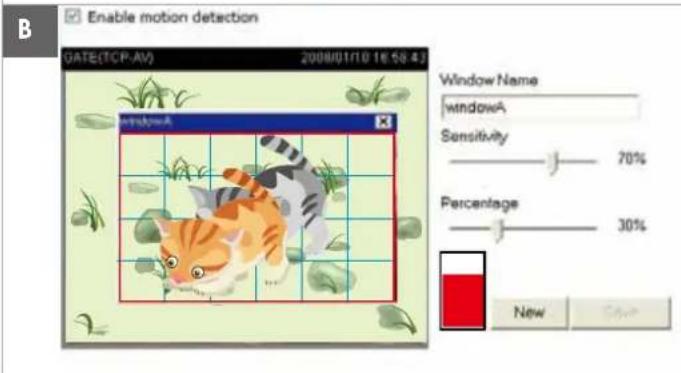

B Enable motion detection DATE(TCP:AV) 2008/01/10 16:58:43 WindowName windowA Sensitivity 70% Percentage 30% New Save

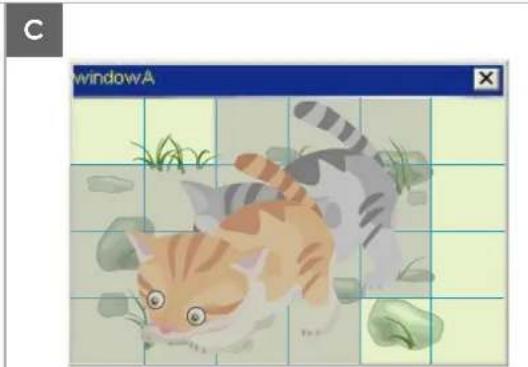

Illustration of a fish and aquatic plants in a grid layout (no text or symbols)

There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion detection window. In this case, 50% of pixels are identified as “alerted pixels”. When the percentage is set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will be outlined in red.

For applications that require a high level of security management, it is suggested to use higher sensitivity settings and smaller percentage values.

Applications > DI and DO

Digital input

Normal status:

High Low

Current status:

High

Digital output

Normal status:

Open Grounded

Current status:

Open

Save

Digital input: Select High or Low as the Normal status for the digital input connection. Connect the digital input pin of the Network Camera to an external device to detect the current connection status.

Digital output: Select Grounded or Open to define the normal status for the digital output. Connect the digital output pin of the Network Camera to an external device to determine the current status.

Set up the event source as DI on Event > Event settings > Trigger. Please refer to page 107 for detailed information.

Applications > Tampering detection

This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint.

Applications > Tampering detection

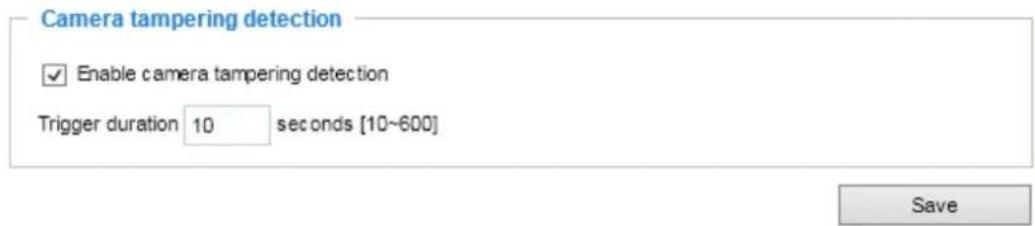

Camera tampering detection ✓ Enable camera tampering detection Trigger duration 10 seconds [10~600] Save

Please follow the steps below to set up the camera tamper detection function:

1. Check Enable camera tampering detection.
2. Enter the tamper trigger duration. (10 sec. \~ 10 min.) The tamper alarm will be triggered only when the tampering factor (the difference between current frame and pre-saved background) exceeds the trigger threshold.
3. Set up the event source as Camera Tampering Detection on Event > Event settings > Trigger. Please refer to page 107 for detailed information.

Applications > Audio detection

Audio detection, along with video motion detection, is applicable in the following scenarios:

1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window.
2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
3. A PTZ camera can be directed to turn to a preset point by the occurrence of audio events.
4. Dark environments where video motion detection may not function well.

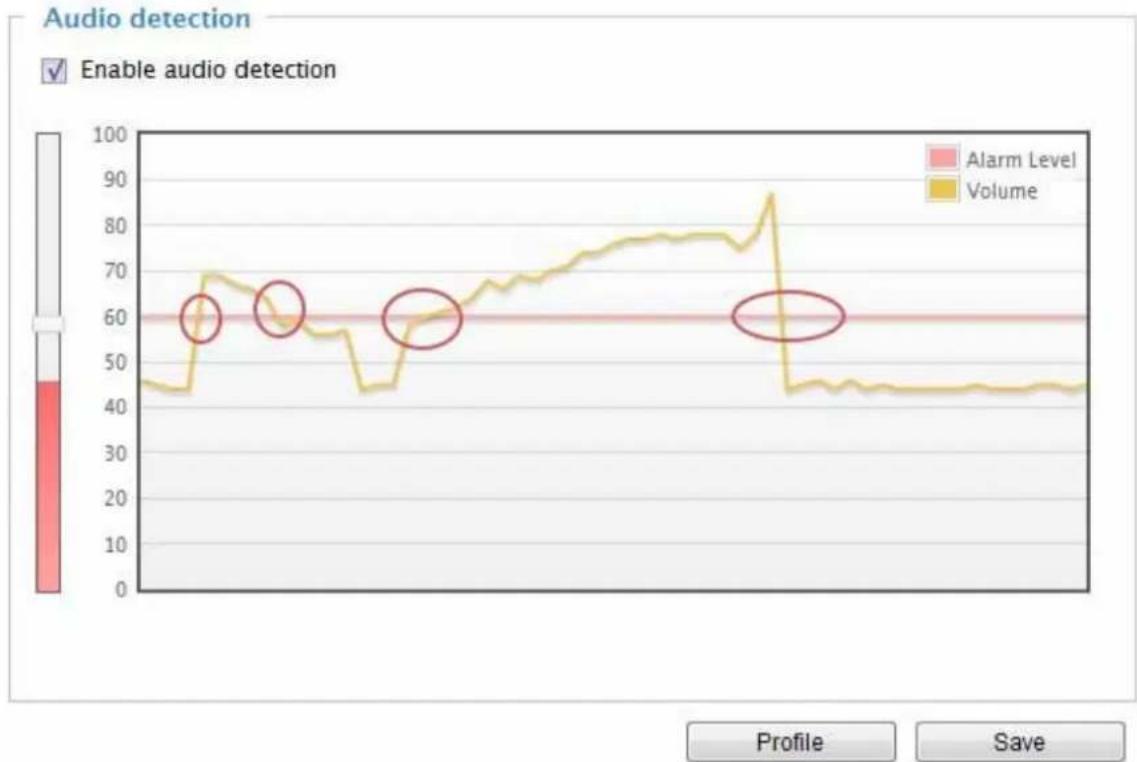

The red circles indicate where the audio alarms can be triggered when breaching or falling below the preset threshold.

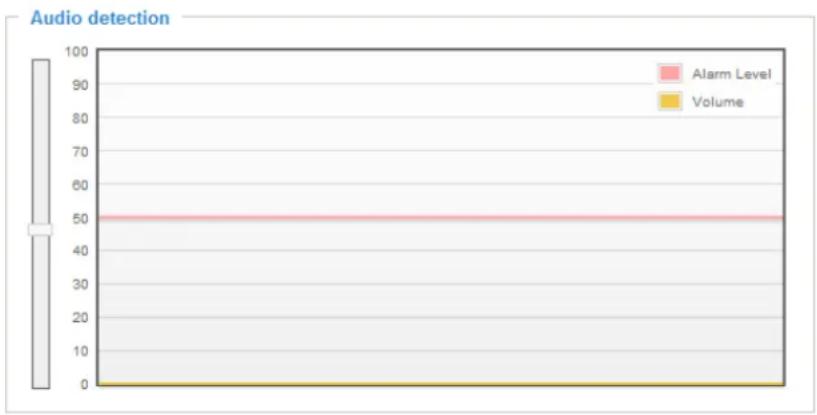

How to configure Audio detection:

1. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the "Enable audio detection" checkbox and click Save to enable the feature.

NOTE:

1. Note that the volume numbers (0\~100) on the side of wave diagram does not represent decibel (dB). Sound intensity level has already been mapped to preset values. You can, however, use the real-world inputs at your installation site that are shown on the wave diagram to configure an alarm level.
2. To configure this feature, you must not mute the audio in Configuration > Media > Audio. The default of the camera can be muted due to the lack of an internal microphone. An external microphone is provided by users.

You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night.

1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the Day, Night, or Schedule mode check circles. You may also manually configure a period of time during which this profile will take effect.
4. Click Save and then click Close to complete your configuration.

>Audio detection profile settings

General settings ✓ Enable this profile This profile is applied to: ○ Day mode ○ Night mode ● Schedule mode From 18:00 to 06:00 [hh:mm]

IMPORTANT:

• If the Alarm level and the received volume are set within a range of 20% on the wave diagram, frequent alarms will be triggered. It is recommended to set the Alarm level farther apart from the detected sound level.
• To configure and enable this feature, you must not configure video stream #1 into Motion JPEG. If an external microphone input is connected and recording of audio stream is preferred, audio stream is transmitted between camera and viewer/recording station along with stream #1.
• Refer to page 70 for Audio settings, and page 65 for video streaming settings.

Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform)

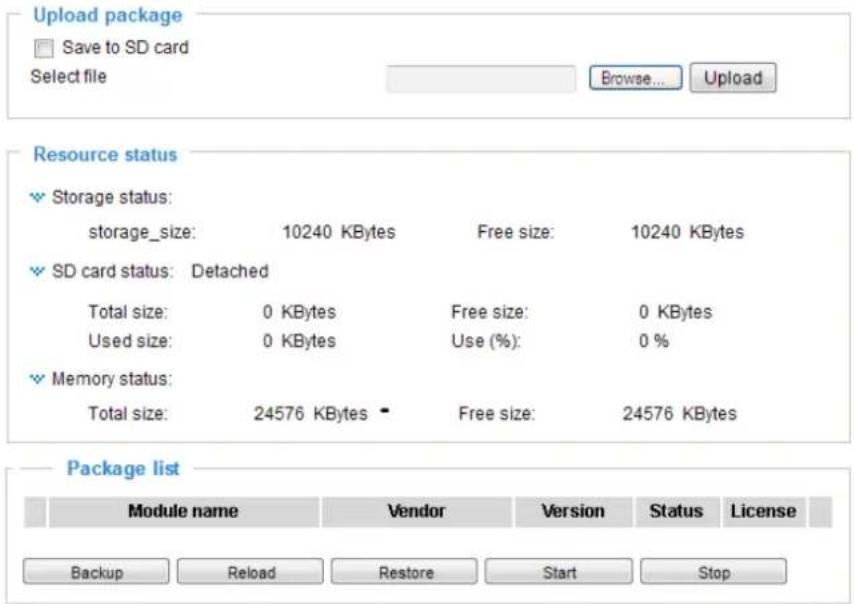

Upload package Save to SD card Select file Browse... Upload Resource status Storage status: storage_size: 10240 KBytes Free size: 10240 KBytes SD card status: Detached Total size: 0 KBytes Free size: 0 KBytes Used size: 0 KBytes Use (%): 0 % Memory status: Total size: 24576 KBytes • Free size: 24576 KBytes Package list Module name Vendor Version Status License Backup Reload Restore Start Stop

Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's flash memory or SD card. These software modules can apply in video analysis for intelligent video applications such as license plate recognition, object counting, or as an agent for edge recording, etc.

• Once the software package is successfully uploaded, the module configuration (vadp.xml) information is displayed. When uploading a module, the camera will examine whether the module fits the predefined VADP requirements. Please contact our technical support or the vendor of your 3rd-party module for the parameters contained within.
• Users can also run VIVOTEK's VADP packages as a means to access updated functionality instead of replacing the entire firmware.
• Note that for some cameras the flash is too small to hold VADP packages. These cameras will have its "Save to SD card" checkbox selected and grayed-out for all time.
• The file system of SD card (FAT32) does not support soft (symbolic) link. It will return failure if your module tries to create soft links on SD card.

To utilize a software module, acquire the software package and click Browse and Upload buttons. The screen message for a successful upload is shown below:

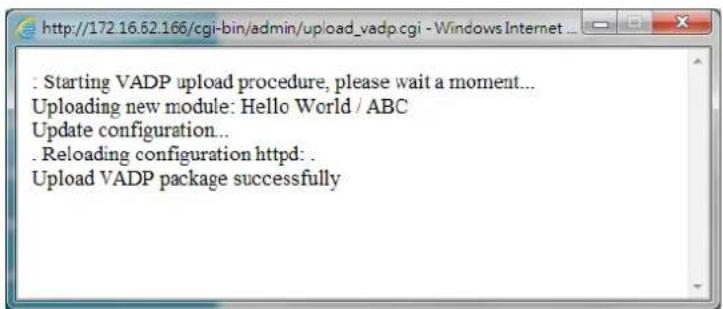

: Starting VADP upload procedure, please wait a moment... Uploading new module: Hello World / ABC Update configuration... . Reloading configuration httpd: . Upload VADP package successfully

To start a module, select the checkcircle in front, and click the Start button.

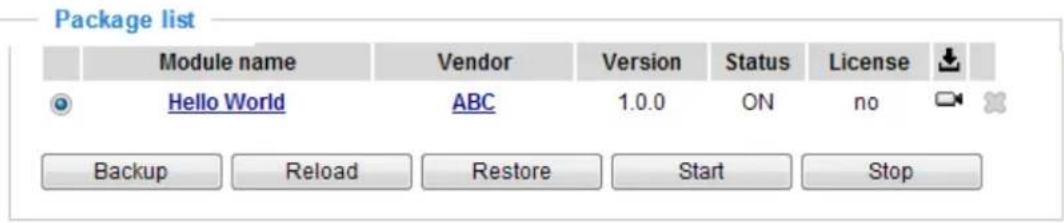

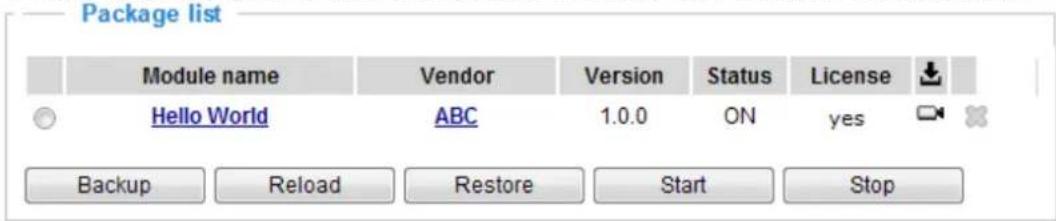

Package list Module name Vendor Version Status(License Hello World ABC 1.0.0 ON=yes Backup Reload Restore Start Stop

If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row. Click on the X button to remove an existing module.

Package list Module name Vendor Version Status License Hello World ABC 1.0.0 ON no Backup Reload Restore Start Stop

When prompted by a confirm message, Click Yes to proceed.

Do you want to delete the VADP module? Yes No

Note that the actual memory consumed while operating the module will be indicated on the Memory status field. This helps determine whether a running module has consumed too much of system resources.

On the License page, use the Manual or Automatic to register and activate the license for using VIVOTEK's VADP modules. The Automatic method requires an Internet connection. Without Internet connection, you should acquire the license key elsewhere, and manually upload to the network camera.

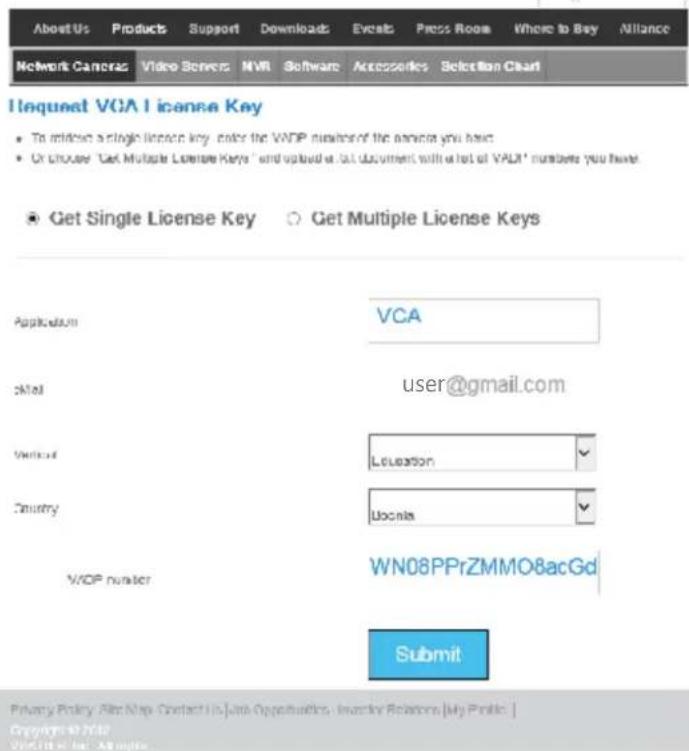

Follow the onscreen instruction on VIVOTEK's website for the registration procedure.

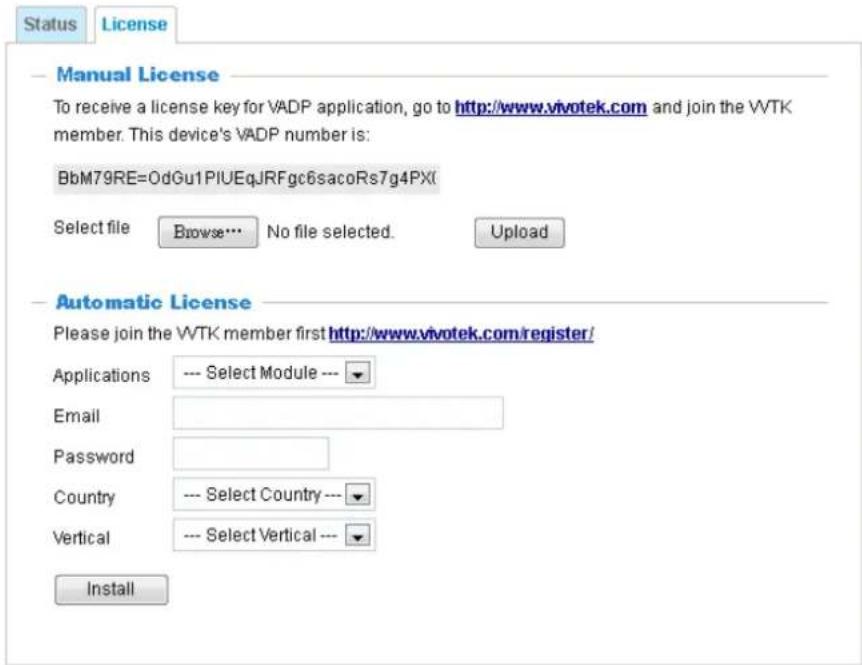

Status License Manual License To receive a license key for VADP application, go to http://www.vivotek.com and join the VVTK member. This device's VADP number is: BbM79RE=OdGu1PIUEqJRFgc6sacoRs7g4PX( Select file Browse... No file selected. Upload Automatic License Please join the VTK member first http://www.vivotek.com/register/ Applications --- Select Module --- Email Password Country --- Select Country --- Vertical --- Select Vertical --- Install

You can proceed with the following link to download a license key: http://www.vivotek.com/vadp_requestactivation.aspx?application=VCA

When the license key is downloaded to your computer, upload the key to the camera.

About Us Products Support Downloads Events Press Room Where to Buy Alliance Network Cameras Video Servers NVR Software Accessories Selection Chart Request VCA License Key To submit a single license key, enter the VACP number of the name you have. Or choose "Get Multiple License Keys" and upload a list document with a list of VAD1* numbers you have. Get Single License Key Get Multiple License Keys Application VCA Mail [e-mail] Website Location Country UcDNA VOP number WN08PPrZMMO8acGd Submit Privacy Policy File Now Contact In Joint Opportunities Investor Solutions [My Public] Copyright © 2016 Copyright Email: Allscripts

Recording > Recording settings

This section explains how to configure the recording settings for the Network Camera.

Recording Settings

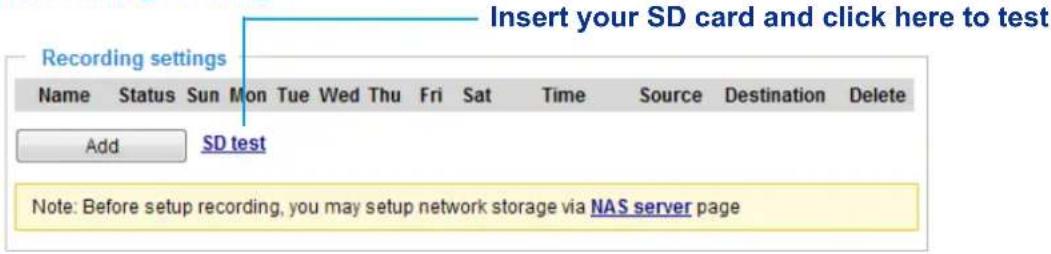

Insert your SD card and click here to test Recording settings Name Status Sun Mon Tue Wed Thu Fri Sat Time Source Destination Delete Add SD test Note: Before setup recording, you may setup network storage via NAS server page

NOTE:

▶ Please remember to format your SD card via the camera's web console (in the Local storage . SD card management page) when using it for the first time. Please refer to page 135 for detailed information.

Recording Settings

Click Add to open the recording setting window. On this page, you can define the adaptive recording, recording source, recording schedule, and recording capacity. A total of 2 recording settings can be configured.

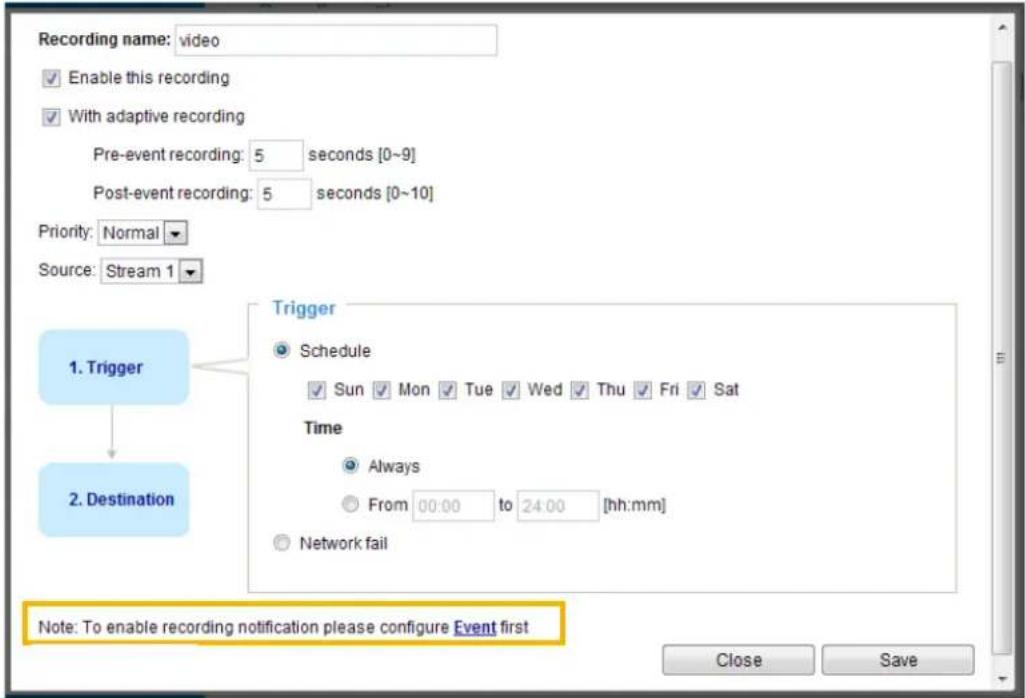

Recording name: video Enable this recording With adaptive recording Pre-event recording: 5 seconds [0~9] Post-event recording: 5 seconds [0~10] Priority: Normal Source: Stream 1 1. Trigger 2. Destination Trigger Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm] Network fail Note: To enable recording notification please configure Event first Close Save

■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:

Select this option will activate the frame rate control according to alarm trigger.

The frame control means that when there is a triggered alarm, the frame rate will raise up to the value you've configured on the Video quality page. Please refer to page 66 for more information.

If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively saves bandwidths and storage space.

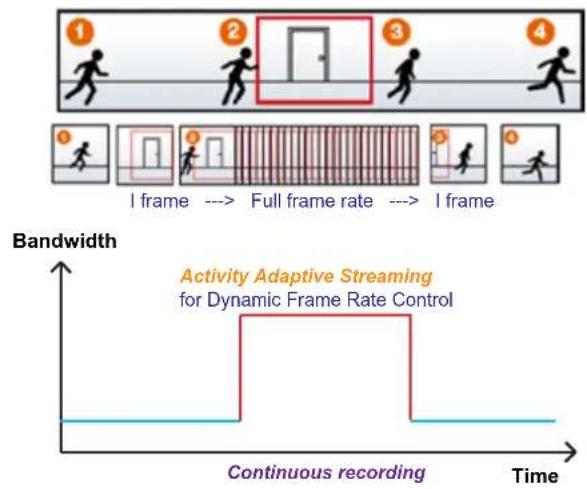

    note right of B "Activity Adaptive Streaming for Dynamic Frame Rate Control"
    note right of B "Bandwidth"
    subgraph Bandwidth
        direction TB
        A --> B --> C --> D
        B --> C --> D
        D --> E["Continuous recording"]
    end

NOTE:

▶ To enable adaptive recording, please make sure you've set up the trigger source such as Motion Detection, DI Device, or Manual Trigger.

▶ When there is no alarm trigger: - JPEG mode: record 1 frame per second. - H.264 mode: record the I frame only.

▶ When the I frame period is >1s on Video settings page, firmware will force decrease the I frame period to 1s when adaptive recording is enabled.

The alarm trigger includes: motion detection and DI detection. Please refer to Event Settings on page 106.

■ Pre-event recording and post-event recording
The Network Camera has a buffer that temporarily holds data for a period of time. Therefore, when an event occurs, the camera can restrieve image frames taken several seconds ago. Enter a number to define the duration of recording before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher priority setting will be executed first.
■ Source: Select a video stream as the recording source.

NOTE:

▶ To enable recording notification please configure Event settings first. Please refer to page 106.

Please follow the steps below to set up the recording.

1. Trigger

Select a trigger source.

Trigger Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm] Network fail

■ Schedule: The server will start to record files on the local storage or network storage (NAS).
■ Network fail: Since network fail, the server will start to record files on the local storage (SD card).

2. Destination

You can select the SD card or network storage (NAS) for the recorded video files. If you have not configured a NAS server, see details in the following.

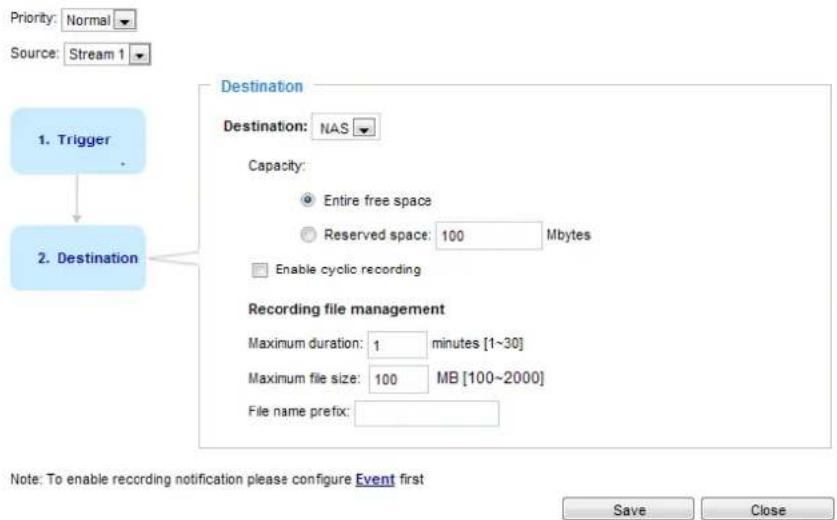

Priority: Normal Source: Stream 1 1. Trigger 2. Destination Destination Destination: NAS Capacity: Entire free space Reserved space: 100 Mbytes Enable cyclic recording Recording file management Maximum duration: 1 minutes [1~30] Maximum file size: 100 MB [100~2000] File name prefix: Note: To enable recording notification please configure Event first Save Close

NAS server

Click Add NAS server to open the server setting window and follow the steps below to set up:

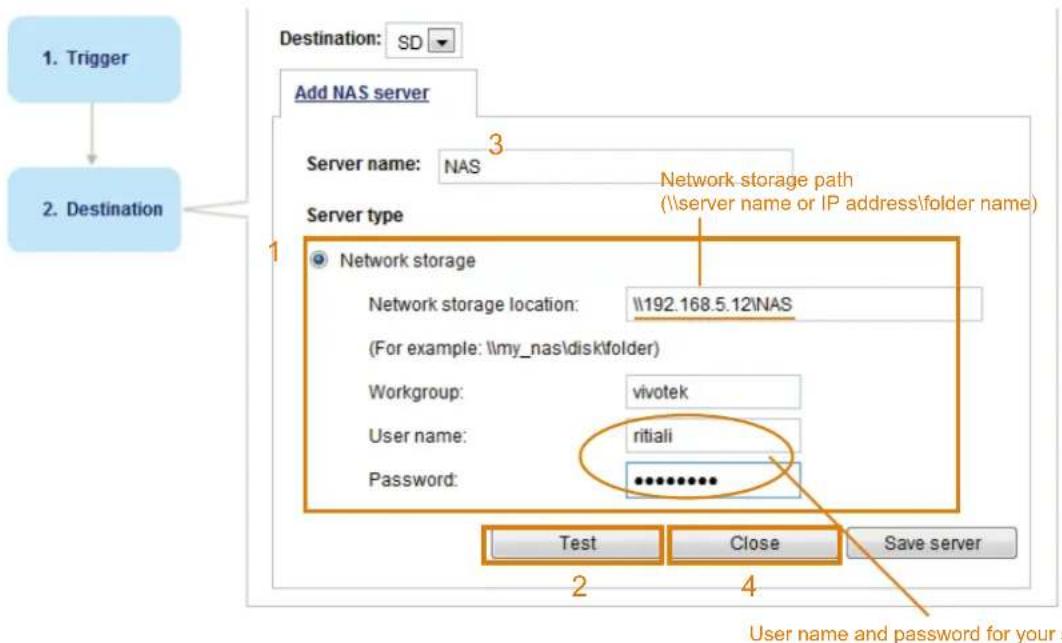

1. Fill in the information for your server.

For example:

1. Click Test to check the setting. The result will be shown in the pop-up window.

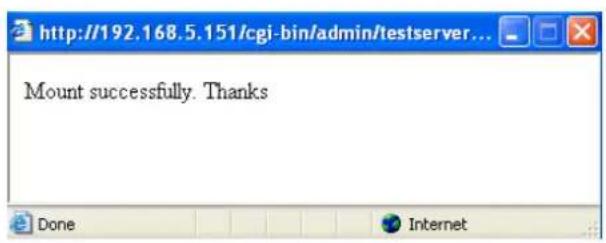

http://192.168.5.151/cgi-bin/admin/testserver... Mount successfully. Thanks Done Internet

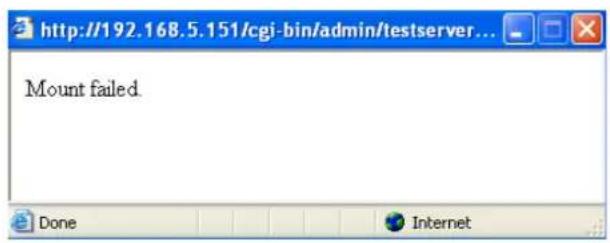

http://192.168.5.151/cgi-bin/admin/testserver... Mount failed. Done Internet

If successful, you will receive a test.txt file on the network storage server.

[10.22.22.225] Organize Search active directory Network and Sharing Center View remote printers Favorites Desktop Downloads Recent Places Libraries Documents Music Pictures Videos Computer Network desk1 Share Shortcut to test Shortcut USB test - Netepad File Edit Format View Help [NOTIFICATION]The Result of Server Test of Your IP Camera3D

1. Enter a server name.
2. Click Save to complete the settings and click Close to exit the page.

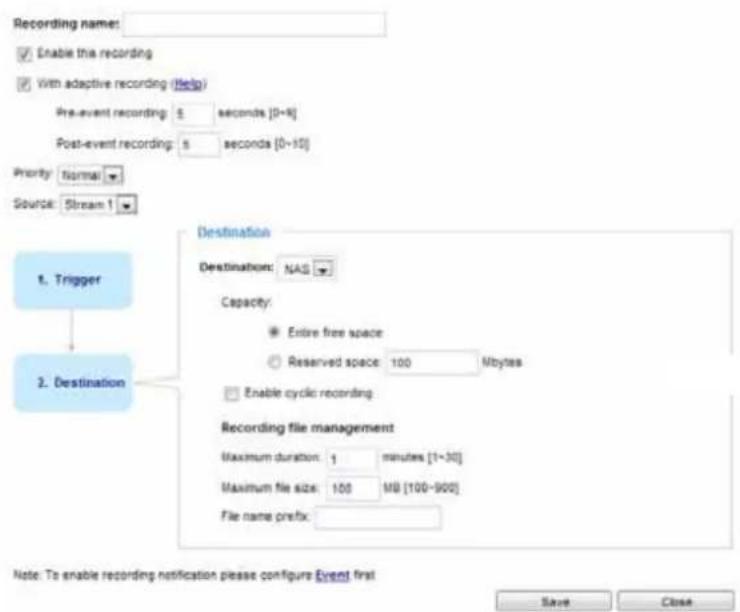

Recording name: Enable this recording With adaptive recording (Help) Pre-event recording: 5 seconds [0-10] Post-event recording: 5 seconds [0-10] Priority: Normal Source: Stream 1 1. Trigger Destination Destination: NAS Capacity: Entire free space Reserved space: 100 Mbytes Enable cyclic recording 2. Destination Recording file management Maximum duration: 1 minutes [1-30] Maximum file size: 100 MB [100-900] File name prefix: Note: To enable recording notification please configure Event first Save Close

■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest file will be overwritten by the latest one. The reserved amount is reserved for the transaction stage when the storage space is about to be full and new data arrives. The minimum for the Reserved space must be larger than 15 MegaBytes.
■ Recording file management: You can manually assign the Maximum duration and the Maximum file size for each recording footage. You may need to stitch individual files together under some circumstances. You may also designate a file name prefix by filling in the responsive text field.
■ File name prefix: Enter the text that will be appended to the front of the file name.

f you want to enable recording notification, please click Event to configure event triggering settings. Please refer to Event > Event settings on page 106 for more details.

When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page. When the system begins recording, it will send the recorded files to the network storage. The new recording name will appear in the drop-down list on the recording page as shown below.

To remove a recording setting from the list, select a recording name from the drop-down list and click Delete.

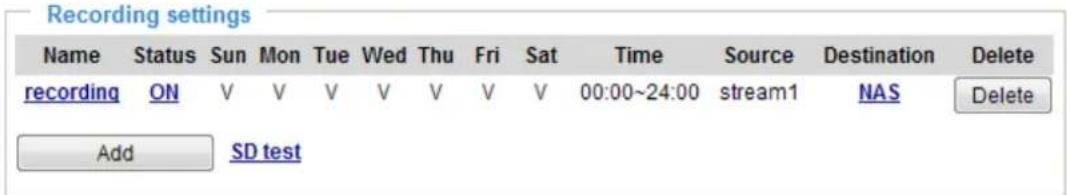

Recording settings Name Status Sun Mon Tue Wed Thu Fri Sat Time Source Destination Delete recording ON V V V V V V V 00:00~24:00 sream1 NAS Delete Add SD test

■ Click recording (Name): Opens the Recording Settings page to modify.
■ Click ON (Status): The Status will become OFF and stop recording.
- Click NAS (Destination): Opens the file list of recordings as shown below. For more information about folder naming rules, please refer to page 113 for details.

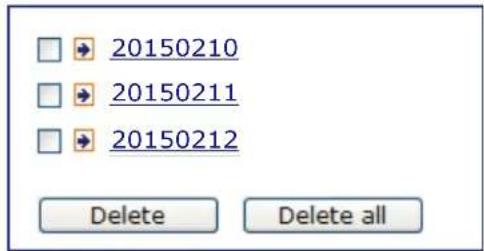

20150210 20150211 20150212 Delete Delete all

Local storage > SD card management

NOTE:

• It is recommended to turn OFF the recording activity before you remove an SD card from the camera.
• The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary.
• Camera filesystem takes up several megabytes of memory space. The storage space cannot be used for recording.
• Using an SD card that already contains data recorded by another device should not be used in this camera.
• Please do not modify or change the folder names in the SD card. That may result in camera malfunctions.

This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control.

SD card staus

This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.

SD card status SD card status: Detached — no SD card Total size: 0 KBytesFree size:0 KBytes Used size:0 KBytesUse (%): 0 % Format

SD card status SD card status: Ready File system: FAT32 Total size: 15323496 KBytes Free size: 15087976 KBytes Used size: 235520 KBytes Use (%): 1.537 %

SD card format

The Linux kernel EXT4 file system format applies to SD card larger than 32GB. However, if EXT4 is applied, the computers running Windows will not be able to access the contents on the SD card.

SD card format Ext4 Ext4 FAT32 Format

SD card control

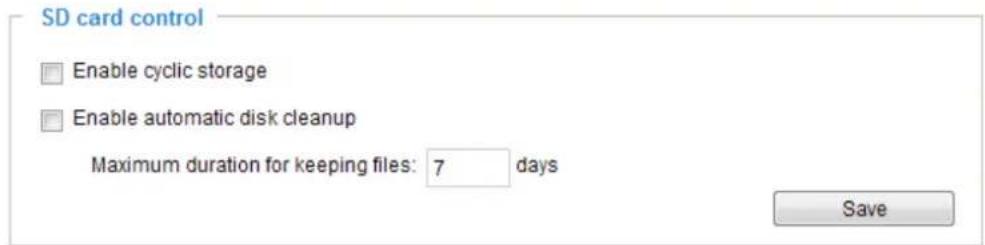

SD card control Enable cyclic storage Enable automatic disk cleanup Maximum duration for keeping files: 7 days Save

■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest file will be overwritten by the latest one.
■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file. For example, if you enter "7 days", the recorded files will be stored on the SD card for 7 days.

Click Save to enable your settings.

Local storage > Content management

This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results.

Searching and Viewing the Records

This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.

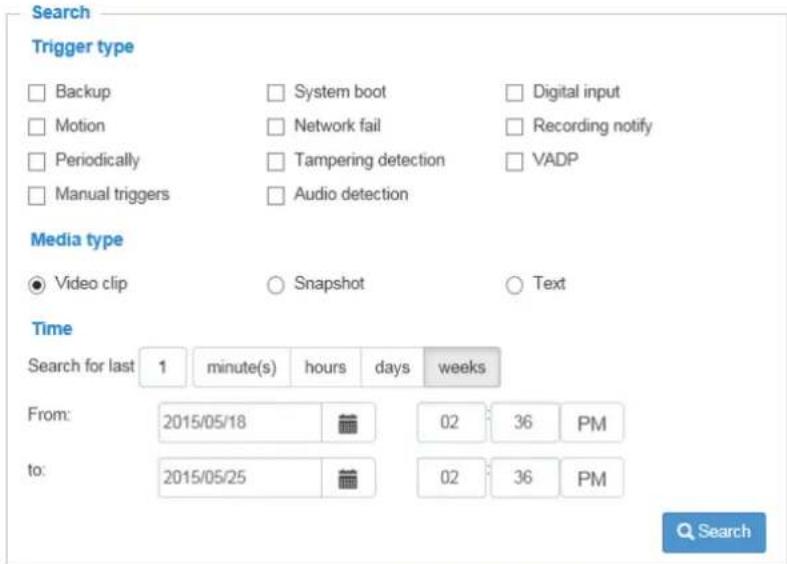

Search Trigger type Backup System boot Digital input Motion Network fail Recording notify Periodically Tampering detection VADP Manual triggers Audio detection Media type Video clip Snapshot Text Time Search for last 1 minute(s) hours days weeks From: 2015/05/18 02 36 PM to: 2015/05/25 02 36 PM Search

■ File attributes: Select one or more items as your search criteria.
■ Trigger time: Manually enter the time range you want to search for contents created at a specific point in time.

Click Search and the recorded data corresponding to the search criteria will be listed in Search Results window.

Search Results

The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction.

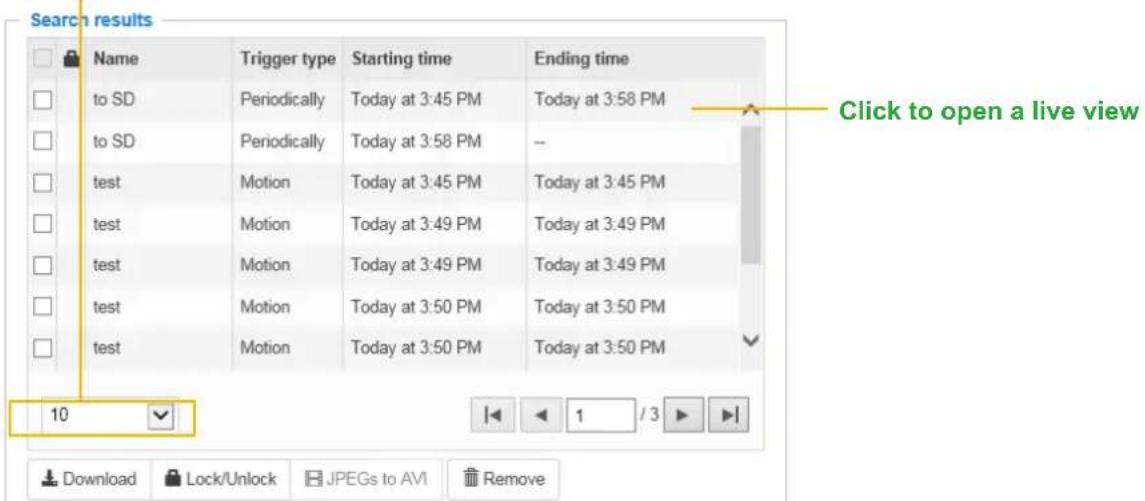

Numbers of entries displayed on one page

Search results Name Trigger type Starting time Ending time to SD Periodically Today at 3:45 PM Today at 3:58 PM to SD Periodically Today at 3:58 PM test Motion Today at 3:45 PM Today at 3:45 PM test Motion Today at 3:49 PM Today at 3:49 PM test Motion Today at 3:49 PM Today at 3:49 PM test Motion Today at 3:50 PM Today at 3:50 PM test Motion Today at 3:50 PM Today at 3:50 PM 10 Download Lock/Unlock JPEGs to AVI Remove Click to open a live view

■ Play: Click on a search result which will highlight the selected item. A Play window will appear on top for immediate review of the selected file.

For example:

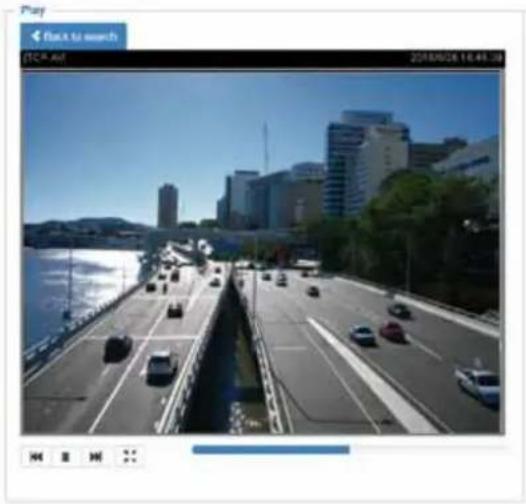

River scene with multiple vehicles and modern buildings in the background under a clear blue sky (no visible text or symbols)

■ Download: Click on a search result to highlight the selected item in purple as shown above. Then click the Download button and a file download window will pop up for you to save the file.
■ JPEGs to AVI: This functions only applies to "JPEG" format files such as snapshots. You can select several snapshots from the list, then click this button. Those snapshots will be converted into an AVI file.

■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections.

For example:

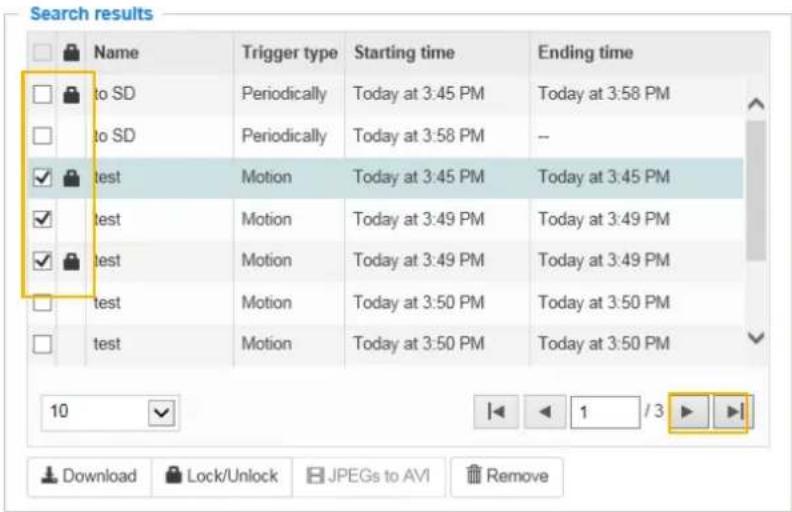

Search results Name Trigger type Starting time Ending time to SD Periodically Today at 3:45 PM Today at 3:58 PM to SD Periodically Today at 3:58 PM test Motion Today at 3:45 PM Today at 3:45 PM test Motion Today at 3:49 PM Today at 3:49 PM test Motion Today at 3:49 PM Today at 3:49 PM test Motion Today at 3:50 PM Today at 3:50 PM test Motion Today at 3:50 PM Today at 3:50 PM 10 ✓ 1 /3 ▶ ▶ Download Lock/Unlock JPEGs to AVI Remove

Click to switch pages

■ Remove: Select the desired search results, then click this button to delete the files.

Appendix

URL Commands for the Network Camera

1. Overview

For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface. The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set internal parameter values. The image and CGI-requests are handled by the built-in Web server.

2. Style Convention

In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets should also be replaced. An example of this is the description of the name for the server, denoted with in the URL syntax description below, that is replaced with the string myserver in the URL syntax example further down in the page.

URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced syntax as shown below. For example, name of the server is written as and is intended to be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.

Syntax:

http:///cgi-bin/viewer/video.jpg

Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \n.

Return:

HTTP/1.0 \r\n

URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example.

Example: request a single snapshot image

http://mywebserver/cgi-bin/viewer/video.jpg

3. General CGI URL Syntax and Parameters

When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.

Syntax:

http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>[?<parameter><value>[&<parameter><value>...]]

Example: Set digital output #1 to active

http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1

4. Security Level

SECURITY LEVEL	SUB-DIRECTORY DESCRIPTION
0 anonymous	Unprotected.
1 [view] anonymous, viewer, dido, camctrl	1. Can view, listen, and talk to camera.2. Can control DI/DO and PTZ of the camera.
4 [operator] anonymous, viewer, dido, camctrl, operator	Operator access rights can modify most of the camera's parameters except some privileges and network options.
6 [admin] anonymous, viewer, dido, camctrl, operator, admin	Administrator access rights can fully control the camera's operations.
7 N/A Internal parameters. Unable to be changed by any external interfaces.

5. Get Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>...]

Where the should be [_<name)]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only , the parameters of the related group will be returned.

When querying parameter values, the current parameter values are returned.

A successful control request returns parameter pairs as follows:

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: \r\n

\r\n

where is

=\r\n

[]

is the actual length of content.

Example: Request IP address and its response

Request:

http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: 33\r\n

\r\n

network_ipaddress=192.168.0.123\r\n

6. Set Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>...][&return=<return page>]

http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>...][&return=<return page>]

http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>...][&return=<return page>]

http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>[&<parameter>=<value>...][&return=<return page>]

PARAMETER VALUE DESCRIPTION

	value to assigned	Assignto the parameter.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.(Note: The return page can be a general HTML file (.htm, .html). It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]

Only the parameters that you set and are readable will be returned.

Example: Set the IP address of server to 192.168.0.123:

Request:

http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/html\r\n

Context-Length: 33\r\n

\r\n

network_ipaddress=192.168.0.123\r\n

7. Available parameters on the server

This chapter defines all the parameters which can be configured or retrieved from VIVOTEK network camera or video server. The general format of description is listed in the table below

Valid values:

VALID VALUES DESCRIPTION
string[]	Text strings shorter than ‘n’ characters. The characters ‘,’, <,>,& are invalid.
string[n~m]	Text strings longer than ‘n’ characters and shorter than ‘m’ characters. The characters ‘,’, <,>,& are invalid.
password[]	The same as string but displays ‘*’ instead.
integer Any number between (-231-1) and (231-1).
positive integer Any number between 0 and (232-1).
	Any number between ‘m’ and ‘n’.
domain name[]	A string limited to a domain name shorter than ‘n’ characters (eg. www.ibm.com).
email address []	A string limited to an email address shorter than ‘n’ characters (eg. [e-mail]).
ip address A string limited to an IP address (eg. 192.168.1.1).
mac address	A string limited to contain a MAC address without hyphens or colons.
boolean	A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or Disable].
	Enumeration. Only given values are valid.
blank	A blank string.
everything inside <>	A description
integer primary key	SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server.
text	SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
coordinate	x, y coordinate (eg. 0,0)
window size	window width and height (eg. 800x600)

NOTE: The camera should not be restarted when parameters are changed.

7.1 system

Group: system

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
hostname string[64]	MS8391-EV 1/6 Host	name of server.
ledoff		0	6/6	Turn on (0) or turn off (1) all led indicators.
date			6/6 Current date of system. Set to ‘keep’ to keep date unchanged. Set to ‘auto’ to use NTP to synchronize date.
time			6/6 Current time of the system. Set to ‘keep’ to keep time unchanged. Set to ‘auto’ to use NTP to synchronize time.
datetime			6/6 Another current time format of the system.
ntp			6/6 NTP server.
timezoneindex	-489 ~ 529	320	6/6	Indicate timezone and area.-480: GMT-12:00 Eniwetok, Kwajalein-440: GMT-11:00 Midway Island, Samoa-400: GMT-10:00 Hawaii-360: GMT-09:00 Alaska-320: GMT-08:00 Las Vegas, San_Francisco, Vancouver-280: GMT-07:00 Mountain Time, Denver-281: GMT-07:00 Arizona-240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan-200: GMT-05:00 Eastern
				Time, New York, Toronto-201: GMT-05:00 Bogota,Lima, Quito, Indiana-180: GMT-04:30 Caracas-160: GMT-04:00 Atlantic Time, Canada, La Paz,Santiago-140: GMT-03:30Newfoundland-120: GMT-03:00 Brasilia,Buenos Aires,Georgetown, Greenland-80: GMT-02:00 Mid-Atlantic-40: GMT-01:00 Azores,Cape_Verde_IS.0: GMT Casablanca,Greenwich Mean Time:Dublin,Edinburgh, Lisbon, London40: GMT 01:00 Amsterdam,Berlin, Rome, Stockholm,Vienna, Madrid, Paris41: GMT 01:00 Warsaw,Budapest, Bern80: GMT 02:00 Athens,Helsinki, Istanbul, Riga81: GMT 02:00 Cairo82: GMT 02:00 Lebanon,Minsk83: GMT 02:00 Israel120: GMT 03:00 Baghdad,Kuwait, Riyadh, Moscow, St.Petersburg, Nairobi121: GMT 03:00 Iraq140: GMT 03:30 Tehran160: GMT 04:00 Abu Dhabi,Muscat, Baku,Tbilisi, Yerevan180: GMT 04:30 Kabul200: GMT 05:00Ekaterinburg, Islamabad,Karachi, Tashkent220: GMT 05:30 Calcutta,Chennai, Mumbai, New Delhi230: GMT 05:45 Kathmandu240: GMT 06:00 Almaty,Novosibirsk, Astana, Dhaka,Sri Jayawardenepura260: GMT 06:30 Rangoon280: GMT 07:00 Bangkok,Hanoi, Jakarta, Krasnoyarsk320: GMT 08:00 Beijing,Chongging, Hong Kong,Kuala Lumpur, Singapore,Taipei360: GMT 09:00 Osaka,Sapporo, Tokyo, Seoul,Yakutsk380: GMT 09:30 Adelaide,Darwin400: GMT 10:00 Brisbane,Canberra, Melbourne, Sydney, Guam, Vladivostok440: GMT 11:00 Magadan,Solomon Is., New Caledonia480: GMT 12:00 Auckland,Wellington, Fiji, Kamchatka,Marshall Is.520: GMT 13:00 Nuku'Alofa
daylight_enable	boolean> 0 6/6 Enable automatic daylight			saving time in time zone.
daylight_auto_begintime	string[19] NONE 6/7		Display the current daylight	saving start time.
daylight_auto_endtime	string[19] NONE 6/7		Display the current daylight	saving end time.
daylight_timezones	string 0 6/6 List time zone index which			support daylight saving time.

updateinterval 0,	3600,86400,604800,2592000	0 6/6 0 to Disable automatic time	adjustment, otherwise, it indicates the seconds between NTP automatic update intervals.
restore 0,		N/A 7/6 Restore the system parameters to default values afterseconds.
reset 0,		N/A 7/6 Restart the server after	seconds ifis non-negative.
restoreexceptnet 0,		N/A 7/6 Restore the system parameters to default values except (ipaddress, subnet, router, dns1, dns2, pppoe). This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.
restoreexceptdst 0,restoreexceptlang 0,		N/A 7/6 Restore the system parameters to default values except all daylight saving time settings. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results.N/A 7/6 Restore the system parameters
restoreexceptvadp 0,		N/A 99/6 Restore the system parameters

7.1.1 system.info

Subgroup of system: info (The fields in this group are unchangeable.)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
modelname	string[40]	MS8391-EV	0/7	Internal model name of the server
extendedmodelname	string[40] MS8391-EV	0/7 ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”
serialnumber		mac address>	0/7 12 characters MAC address (without hyphens).
firmwareversion string[40]		dependent>	0/7 Firmware version, including model, company, and version number in the format:
language_count		9	0/7	Number of webpage languages available on the server.
language_i<0~(count -1)>	string[16] English	Deutsch Español Français Italiano日本語 Português简体中文繁體中文	0/7 Available language lists.
customlanguage_maxcount		1	0/6 Maximum number of custom languages supported on the server.
customlanguage_count		0	0/6 Number of custom languages which have been uploaded to the server.
customlanguage_i<0~(maxcount-1)>	string N/A	0/6 Custom language name.

7.2 status

Group: status

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
di_i<0~(ndi-1)>	0 1/7 0 => Inactive, normal			1 => Active, triggered
do_i<0~(ndo-1)>	0 1/7 0 => Inactive, normal			1 => Active, triggered
daynight day, night 0	7/7 Current status of day, night.
onlinenum_rtsp	integer	0	6/7	Current number of RTSP connections.
onlinenum_httppush	integer	0 6/7 Current	number of HTTP push server connections.
eth_i0			1/7	Get network information from mii-tool.
vi_i<0~(nvi-1)>	0 1/7 Virtual input			0 => Inactive1 => Active

7.3 digital input behavior define

Group: di_i<0\~(ndi-1)>

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
normalstate	high, low	high	1/1	Indicates open circuit or closed circuit (inactive status)

7.4 digital output behavior define

Group: do_i<0\~(ndo-1)>

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
Normalstate	open, grounded	open	1/1	Indicate open circuit or closed circuit (inactive status)

7.5 security

Group: security

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
privilege_do view, operator, admin	operator, admin	operator 1/6	Indicate which	privileges and above can control digital output (capability.ndo >0)
privilege_camctrl view, operator, admin	operator, admin	view 1/6 Indicate which privileges and above can control ePTZ
user_i0_name string[64] root 6/7 User name of root
user_i<1~20>_name	string[64]		6/7	User name
user_i0_pass password[64]	6/6 Root password
user_i<1~20>_pass	password[64]		7/6	User password
user_i0_privilege	admin	admin	6/7	Root privilege
user_i<1~20>_privilege	view, operator, admin		6/6	User privilege

7.6 network

Group: network

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
preprocess	positive integer>	NULL 6/6	An 32-bit integer,	each bit can be set separately as follows:Bit 0 => HTTP service;Bit 1 => HTTPS service;Bit 2 => FTP service;Bit 3 => Two way audio and RTSP Streaming service;To stop service before changing its port settings. It'srecommendedto set this parameter when change a service port to the port occupied by another service currently. Otherwise, the service may fail.Stopped service will auto-start after changing port settings.Ex:Change HTTP port from 80 to 5556, and change RTP port for video from 5556 to 20480.Then, set preprocess=9 to stop both service first."/cgi-bin/admin/setparam.cgi?network_preprocess=9&network_http_port=5556& network_rtp_videoport=20480"
type lan,	pppoc	lan 6/6	Network connection type.
resetip		1	6/6	1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot.0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.
ipaddress			6/6 IP address	of server.
subnet			6/6	Subnet mask.

router		6/6 Default gateway.
dns1		6/6 Primary DNS server.
dns2		6/6 Secondary DNS server.
wins1		6/6 Primary WINS server.
wins2		6/6 Secondary WINS server.

7.6.1 802.1x

Subgroup of network: ieee8021x

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0	6/6	Enable	c/disable IEEE	802.1x
eapmethod	eap-peap, eap-tls	eap-peap	6/6	Selected EAP method
identity_peap	String[64]		6/6	PEAP identity
identity_tls	String[64]		6/6	TLS identity
password	String[200]		6/6	Password for TLS
privatekeypassword	String[200]		6/6	Password for PEAP
ca_exist		0	6/6	CA installed flag
ca_time		0	6/7	CA installed time. Represented in EPOCH
ca_size		0	6/7	CA file size (in bytes)
certificate_exist		0	6/6	Certificate installed flag (for TLS)
certificate_time		0	6/7	Certificate installed time. Represented in EPOCH
certificate_size		0	6/7	Certificate file size (in bytes)
privatekey_exist		0	6/6	Private key installed flag (for TLS)
privatekey_time		0	6/7	Private key installed time. Represented in EPOCH
privatekey_size		0	6/7	Private key file size (in bytes)

7.6.2 QOS

Subgroup of network: qos_cos

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0 6/6 Enable/disable CoS (IEEE 802.1p)
vlanid 1~4095 1 6/6	VLAN ID
video	0~7	0	6/6	Video channel for CoS
audio	0~7	0 6/6 Audio channel for CoS
eventalarm	0~7	0 6/6 Event/alarm channel for CoS
management	0~7	0 6/6 Management channel for CoS
eventtunnel 0~7	0 6/6 Event/Control channel for CoS

Subgroup of network: qos_dscp

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0 6/6 Enable/disable DSCP
video	0~63	0 6/6 Video channel for DSCP
audio	0~63	0 6/6 Audio channel for DSCP
eventalarm	0~63	0 6/6 Event/alarm channel for DSCP
management	0~63	0 6/6 Management channel for DSCP
eventtunnel 0~63	0 6/6	Event/Control channel for DSCP

7.6.3 IPV6

Subgroup of network: ipv6

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	6/6	Enable IPv6.
addonipaddress			6/6	IPv6 IP address.
addonprefixlen	0~128	64	6/6	IPv6 prefix length.
addonrouter			6/6	IPv6 router address.
addondns			6/6	IPv6 DNS address.
allowoptional		0	6/6	Allow manually setup of IP address setting.

7.6.4 FTP

Subgroup of network: ftp

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
port 21,	1025~65535	21 6/6 Local ftp server port.

7.6.5 HTTP

Subgroup of network: http

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
port	80, 1025 ~ 65535	80 1/6 HTTP	port.
alternateport 1025~65	535 8080	6/6 Alternate	HTTP port.
authmode	basic,digest	basic	1/6 HTTP authentication mode.
s0_accessname	string[32]	video.mjpg	1/6	HTTP server push access name for stream 1.
s1_accessname	string[32]	video2.mjpg	1/6	HTTP server push access name for stream 2.
s2_accessname	string[32]	video3.mjpg	1/6	Http server push access name for stream 3
s3_accessname	string[32]	video4.mjpg	1/6	Http server push access name for stream 4
anonymousviewing		0	1/6	Enable anonymous streaming viewing.

7.6.6 HTTPS port

Subgroup of network: https

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
port	443, 1025 ~ 65535	443	1/6	HTTPS port.

7.6.7 RTSP

Subgroup of network: rtsp

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
port 554, 1025~	65535	554 1/6 RTSP	port.
anonymousviewing <boolean> 0 1/6 Enable anonymous streaming viewing.
authmode	disable, basic, digest	basic	1/6 RTSP authentication mode.
s0_accessname	string[32]	live.sdp	1/6	RTSP access name for stream1.
s1_accessname	string[32]	live2.sdp	1/6	RTSP access name for stream2.
s2_accessname	string[32]	live3.sdp	1/6	RTSP access name for stream3
s3_accessname	string[32]	live4.sdp	1/6	RTSP access name for stream4

7.6.7.1 RTSP multicast

Subgroup of network_rtsp_s<0\~(n-1)>: multicast, n is stream count

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
alwaysmulticast		0	4/4	Enable always multicast.
ipaddress		For n=0,239.128.1.99For n=1,239.128.1.100,and so on.	4/4 Multicast	IP address.
videoport 1025 ~ 65535 5560+n*2		4/4 Multicast video port.
audioport 1025 ~ 65535 5562+n*2		4/4 Multicast audio port.
metadaport	1026~65534	6560+n*2	4/4	Multicast metadata port.
ttl	1 ~ 255	15	4/4	Mutlicast time to live value.

7.6.8 RTP port

Subgroup of network: rtp

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
videoport 1025 ~ 65535 5556 6/6 Video channel port for RTP.
audioport 1025 ~ 65535 5558 6/6 Audio channel port for RTP.
metadaport 1025 ~ 65535 6556 6/6 Metadata channel port for RTP.

7.6.9 PPPoE

Subgroup of network: pppoe

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
user	string[128]		6/6	PPPoE account user name.
pass	password[64]		6/6	PPPoE account password.

7.7 IP Filter

7.7.1 ipfilter for ONVIF

Group: ipfilter

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0	6/6 Enable access list filtering.
admin_enable	0 6/6 Enable administrator IP		or IP	address.
admin_ip	String[39]		6/6	Administrator IP address.
maxconnection	0~10	10	6/6	Maximum number of concurrent streaming connection(s).
type	0, 1	1	6/6	Ipfilter policy :0 => allow1 => deny
ipv4list_i<0~9>	Single address:Network address:Range address:<start ip address - end ip address>		6/6	IPv4 address list.
ipv6list_i<0~9>	String[43]		6/6	IPv6 address list.

7.8 video input

Group: videooin

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
cmosfreq 50, 60 60	4/4 CMOS frequency.
color 0, 1 1 4/4 0 =>monochrome				1 => color
flip		0	4/4	Flip the image.
mirror		0	4/4	Mirror the image.
ptzstatus		2	1/7	A 32-bit integer, each bit can be set separately as follows:Bit 0 => Support camera control function; 0(not support), 1(support)Bit 1 =>Built-in or external camera; 0 (external), 1(built-in)Bit 2 => Support pan operation; 0(not support), 1(support)Bit 3 => Support tilt operation; 0(not support), 1(support)Bit 4 => Support zoom operation; 0(not support), 1(support)Bit 5 => Support focus operation; 0(not support), 1(support)
text	string[64]		1/4	Enclose caption.
imprinttimestamp		0	4/4	Overlay time stamp on video.

7.8.1 video input setting per channel

Group: videoin_c<0\~(n-1)> for n channel products, and m is stream number

NAME	VALUE	DEFAULT	SECURITY (gct/set)	DESCRIPTION
whitebalance auto, manual, rbgain		auto 4/4 “auto” indicates auto		white balance. “manual” indicates keep current value. “rbgain” indicates using rgain and gbain.
rgain 0~100 16	4/4 Manual set rgain value of gain			control setting.
bgain	0~100	21	4/4	Manual set bgain value of gain control setting.
exposurelevel	0~12	6	4/4	Exposure level
minexposure	5~32000	32000	4/4	Minimum exposure time.
maxexposure	5~32000	30	4/4	Maximum exposure time.
maxgain	0~100	100	4/4	Manual set maximum gain value.
mingain	0~100	0	4/4	Manual set minimum gain value.
wdrc_mode	0~1	0	4/4	WDR enhanced. 0: off 1: auto
wdrc_strength	0~2	1	4/4	WDR enhanced. 0: low 1: medium 2: high
cmosfreq	50, 60	60	4/4	CMOS frequency.
color 0, 1	1	4/4 0 =>monochrome		1 => color
flip		0	4/4	Flip the image.
mirror 0	4/4 Mirror the image.
mode	0 ~ "capability_videoi n_c_nmode"-1	0	4/99	Indicate the video mode on use.
ptzstatus		2	1/7	A 32-bit integer, each bit can be set separately as follows:Bit 0 => Support camera control function; 0(not support),1(support)Bit 1 =>Built-in or externalcamera; 0 (external), 1(built-in)Bit 2 =>Support pan operation;0(not support), 1(support)Bit 3 =>Support tilt operation;0(not support), 1(support)Bit 4 =>Support zoomoperation; 0(not support),1(support)Bit 5 =>Support focusoperation; 0(not support),1(support)
text string[64]	1/4 Enclose caption.
imprinttimestamp	0 4/4 Overlay time stamp on video.
textonvideo_position	top, bottom top 4/4 Position of timestamp and			video title on image
textonvideo_size	15,25,30	15	4/4 Timestamp	and video titlefont-size
alignment_position		80,60 4/4 Sensor alignment information
sensormode	panorama,region,	panorama	4/4	“panorama” indicates thatcamera would try to balance theimage effect of every sensor.“region” indicates that theimage effect of every sensor isindependent to each other.Note: Only available whencapability_videoin_c0_nsensor>1.
s<0~(m-1>_codectype	mjpeg, h264	h264	1/4 Video codec type.svc is only supported withstream 0.
s<0~(m-1>_resolution capability_videoin_resolution	Reference	7552x1416	1/4	Video resolution in pixels.
s<0~(m-1)>_h264_intraperiod	250, 500, 1000, 2000, 3000, 4000	4000 4/4 Intra frame period		in milliseconds.
s<0~(m-1)>_h264_prioritypolicy	framerate, imagequality	framerate 4/4	The policy to	apply when the target bit rate is not sufficient to satisfy current encoded conditions.“framerate” indicates frame rate first.“imagequality” indicates image quality first.
s<0~(m-1)>_h264_ratecontrolmode	cbr, vbr,smart cbr 4/4 cbr: constant bitrate			vbr: fix quality smart: smart stream
s<0~(m-1)>_h264_quant	1~5,99, 100 3 4/4 Quality of video when choosing			vbr in “ratecontrolmode”.1 = worst quality, 5 = best quality.100: Use the quality level in "qpercent"99: Use the quality level in "qvalue"
s<0~(m-1)>_h264_qpercent	1~100 50 4/4 Set quality by percentage.			1: Worst quality100: Best quality (s<0~(m-1)>_h264_quant = 100)
s<0~(m-1)>_h264_qvalue	0~51	29 4/4 Manual video quality level		input.(s<0~(m-1)>_h264_quant = 99)
s<0~(m-1)>_h264_bitrate	1000~40000000	6000000	4/4 Set bit rate	in bps when choosing cbr in “ratecontrolmode”.
s<0~(m-1)>_h264_maxframe	1~7	7 1/4 Set maximum frame rate		in fps (for h264).
s<0~(m-1)>_h264_profile	0~2 1 1/4 Indicate H264 profiles			0: baseline1: main profile2: high profile
s<0~(m-1)>_mjpeg_prioritypolicy	framerate,imagequality	framerate 4/4 The policy to		apply when the target bit rate is not sufficient to satisfy current encoded conditions.“framerate” indicates frame rate first.“imagequality” indicates image quality first.
s<0~(m-1)>_mjpeg_ratecontrolmode	cbr, vbr vbr 4/4 cbr, constant bitrate		vbr, fix quality
s<0~(m-1)>_mjpeg_quant	1~5, 99, 100 3 4/4 Quality of JPEG video.		1 = worst quality, 5 = best quality.100: Use the quality level in "qpercent"99: Use the quality level in "qvalue"
s<0~(m-1)>_mjpeg_maxframe	1~7 7 1/4 Set maximum frame rate in fps		(for JPEG).
s<0~(m-1)>_mjpeg_qvalue	10~200 49 4/4 Manual video quality level		input.(s<0~(m-1)>_mjpeg_quant = 0)
s<0~(m-1)>_mjpeg_qpercent	1~100 50 4/4 Set quality by percentage.		1: Worst quality100: Best quality(s<0~(m-1)>_mjpeg_quant = 100)
s<0~(m-1)>_mjpeg_bitrate	1000~40000000	16000000 4/4		Set bit rate in bps when choosing cbr in “ratecontrolmode”.
s<0~(m-1)>_forcei	N/A	N/A		7/6 Force I frame.

7.8.1.1 Alternative video input profiles per channel

In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).

Group: videoin_c<0\~(n-1)>_profile_i<0\~(m-1)>

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable	0 4/4	Enable/disable this profile		setting
policy day,	night,schedule	night 4/4 The mode which the		profile is applied to.
begintime hh:mm 18:00	4/4 Begin time of schedule mode.
endtime	hh:mm 06:00	4/4 End time of schedule mode.
exposurelevel 0~12	6 4/4 Exposure level
minexposure	5~32000	32000	4/4	Minimum exposure time.
maxexposure	5~32000	30	4/4	Maximum exposure time.
maxgain	0~100	100	4/4	Manual set maximum gain value.
mingain	0~100	0	4/4	Manual set minimum gain value.
wdrc_mode	0~1	0	4/4	WDR enhanced.0: off1: auto
wdrc_strength	0~2	1	4/4	WDR enhanced.0: low1: medium2: high
whitebalance	auto,manual,rbgain	auto	4/4	“auto” indicates auto white balance.“manual” indicates keep current value.“rbgain” indicates using rgain and gbain.
rgain	0~100	16	4/4	Manual set rgain value of gain control setting.
bgain 0~100 21 4/4	Manual set bgain	value of		gain control setting.
sensormode panorama,region,	panorama 4/4	“panorama”	indicates thatcamera would try to balancethe image effect of every sensor.“region” indicates that theimage effect of every sensoris independent to each other.Note: Only available whencapability_videoin_c0_nsensor>1.

7.9 IR cut control

Group: ircutcontrol

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
mode auto,	day,night,di,schedule	auto 6/6 Set IR cut control mode
sir		0	6/6	Enable/disable Smart IR
daymodebegintime	00:00~23:59	07:00	6/6	Day mode begin time
daymodeendtime	00:00~23:59	18:00	6/6	Day mod end time
disableirled		0	6/6	Enable/disable built-in IR led
bwmode		1	6/6	Switch to B/W in night mode if enabled
sensitivity	low,normal,high	normal	6/6 Sensitivity	of light sensor

7.10 image setting per channel

Group: image_c<0\~(n-1)> for n channel products

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
brightness	-5~5 0 4/4 Adjust	brightness of		image according to mode settings.
saturation -5~5, 100 100 4/4	Adjust saturation of			image according to mode settings.
saturationpercent 0~100 50	4/4	Adjust saturation		value of percentage when saturation=100
contrast	-5~5 0 4/4 Adjust	contrast of image		according to mode settings.
sharpness	-3~3, 100 100 4/4	Adjust sharpness of		image according to mode settings.
sharpnesspercent	0~100	50	4/4	Adjust sharpness of image by percentage. Softer 0 <-> 100 Sharper
gammacurve	0~100	0	4/4	Gamma curve.
dnr_mode	0~1	1	4/4	3D noise reduction. 0: off 1: on
dnr_strength	1~100	50	4/4	3D noise reduction strength.
profile_i0_enable		0	4/4	Enable/disable this profile setting
profile_i0_policy	day, night, schedule	night	4/4	The mode which the profile is applied to.
profile_i0_begintime	hh:mm	18:00	4/4	Begin time of schedule mode.
profile_i0_endtime	hh:mm	06:00	4/4	End time of schedulemode.
profile_i0_brightness	-5~5 0 4/4 Adjust	brightness of		image according to mode settings.
profile_i0_contrast -5 ~ 5 0	4/4 Adjust contrast of			image according to mode settings.
profile_i0_saturation -5~5,1	100 100 4/4 Adjust	saturation of		image according to mode settings.100 for saturation percentage mode.
profile_i0_saturationpercent	0~100 50 4/4 when			profile_i0_saturation=100, adjust saturation value of percentage according to mode settings.
profile_i0_sharpness -3~3,1	100 100 4/4 Adjust	sharpness of		image according to mode settings.
profile_i0_sharpnesspercent	0~100 50 4/4 Adjust	sharpness		value of percentage when sharpness=100
profile_i0_gammacurve 0~1	100 0 4/4 Gamma curve
profile_i0_dnr_mode	0~1	1	4/4	3D noise reduction.0: off1: on
profile_i0_dnr_strength	1~100	50	4/4	3D noise reduction strength.

7.11 Audio input per channel

Group: audioin_c<0\~(n-1)> for n channel products

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
mute 0, 1 1 1/4 Enable audio mute.
gain 0~100 65 4/4 Gain of input.
s<0~(m-1)>_codetype	g711, g726	g711	4/4	Set audio codec type for input.
s<0~(m-1)>_g711_mode	pcmu, pcma	pcmu	4/4 Set G.711 mode.
s<0~(m-1)>_g726_bitrate	16000, 24000, 32000, 40000	32000	4/4 Set G.726	bitrate in bps.
s<0~(m-1)>_g726_bitstreampackingmode	little, big	little	4/4	Set G.726 bit streaming packing mode
s<0~(m-1)>_g726_vlcmode	0, 1 0 4/4 Enable vlcmode for G.726
alarm_enable	0, 1	0	4/4	Enable audio detection
alarm_level	1~100	50	4/4	Audio detection alarm level
profile_i0_enable		0	4/4	Enable/disable this profile setting
profile_i0_policy	day, night, schedule	night	4/4	The mode which the profile is applied to.
profile_i0_begintime	hh:mm	18:00	4/4	Begin time of schedule mode.
profile_i0_endtime	hh:mm	06:00	4/4	End time of schedule mode.
profile_i0_alarm_level	1~100	50	4/4	Audio detection alarm level

7.12 Time Shift settings

Group: timeshift, c for n channel products, m is stream number

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0 4/4 Enable time shift streaming.
c<0~(n-1)>_s<0~(m-1)>_allow		product dependent>	4/4 Enable time shift streaming for specific stream.

7.13 Motion detection settings

Group: motion_c<0\~(n-1)> for n channel product

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0 4/4 Enable motion detection.
win_i<0~4>_enable0 4/4 Enable motion window 1~5.
win_i<0~4>_name string[14]4/4 Name of motion window 1~5.
win_i<0~4>_left	0 ~ 480	0 4/4 Left coordinate of window position.
win_i<0~4>_top	0 ~ 180	0 4/4 Top coordinate of window position.
win_i<0~4>_width	0 ~ 480	0	4/4	Width of motion detection window.
win_i<0~4>_height	0 ~ 180	0	4/4	Height of motion detection window.
win_i<0~4>_objsize	0 ~ 100	0	4/4	Percent of motion detection window.
win_i<0~4>_sensitivity	0 ~ 100	0	4/4	Sensitivity of motion detection window.

Group: motion_c<0\~(n-1)> profile for m profile and n channel product (capability.nmotionprofile > 0)

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
i<0~(m-1)>_enable		0	4/4	Enable profile 1 ~ (m-1).
i<0~(m-1)>_policy	day, night, schedule	night	4/4 The mode	which the profile is applied to.
i<0~(m-1)>_begintime hh:mm 18:00 4/4 Begin time of schedule mode.				mode.
i<0~(m-1)>_endtime hh:mm 06:00 4/4 End time of schedule mode.
i<0~(m-1)>_win_i<0~4>_enable <boolean> 0 4/4 Enable motion window.
i<0~(m-1)>_win_i<0~4>_name	string[14]		4/4	Name of motion window.
i<0~(m-1)>_win_i<0~4>_left	0 ~ 480	0	4/4	Left coordinate of window position.
i<0~(m-1)>_win_i<0~4>_top	0 ~ 180	0	4/4	Top coordinate of window position.
i<0~(m-1)>_win_i<0~4>_width	0 ~ 480	0	4/4	Width of motion detection window.
i<0~(m-1)>_win_i<0~4>_height	0 ~ 180	0	4/4	Height of motion detection window.
i<0~(m-1)>_win_i<0~4>_objsize	0 ~ 100	0	4/4	Percent of motion detection window.
i<0~(m-1)>_win_i<0~4>_sensitivity	0 ~ 100	0 4/4 Sensitivity of motion	detection window.

7.14 Tampering detection settings

Group: tampering_c<0\~(n-1)> for n channel product

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	4/4	Enable or disable tamper detection.
duration	10 ~ 600	10	4/4	If tampering value exceeds the ‘threshold’ for more than ‘duration’ second(s), then tamper detection is triggered.

7.15 DDNS

Group: ddns

NAME	VALUE	DEFAULT	SECURITY (gct/sct)	DESCRIPTION
enable0 6/6 Enable or disable the dynamic DNS.
provider Safe100, DyndnsDynamic, DyndnsCustom, CustomSafe100, PeanutHull		DyndnsDynamic	6/6 Safe100 => safe100.net DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom => dyndns.org (custom) CustomSafe100 => Custom server using safe100 method PeanutHull => PeanutHull
颁布>h ostname	string[128]	6/6 Your DDNS hostname.
usernameemail	string[64]	6/6 Your user name or email to login to the DDNS service provider
passwordkey	string[64]	6/6 Your password or key to login to the DDNS service provider.
servername	string[128]	6/6 The server name for safe100. (This field only exists if the provider is customsafe100)

7.15.1 Express link

Group:expresslink

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable	0 6/6 Enable or disable express link.
state onlycheck,	onlyoffline, checkonline, badnetwork	badnetwork	6/6	“onlycheck”: You have to input the host name of your camera and press "Register" button to register it.“onlyoffline”: Express link is active, you can now connect to this camera at expresslink_url.“checkonline”: Express link is not active.“badnetwork”: Express Link is not supported under this network environment.
url string[64]	6/6 The URL to connect to this camera by express link.

7.16 UPnP presentation

Group: upnppresentation

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable	1 6/6 Enable or disable the UPnP			presentation service.

7.17 UPnP port forwarding

Group: upnpportforwarding

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable	0 6/6 Enable or disable the UPnP port			forwarding service.
upnpnatstatus	0~3	0	6/7	The status of UPnP port forwarding, used internally.0 = OK, 1 = FAIL, 2 = no IGD router,3 = no need for port forwarding

7.18 System log

Group: syslog

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enableremotelog <boolean> 0 6/6		Enable remote log.
serverip <IP address> <blank> 6/6		Log server IP address.
serverport 514, 1025~65535		514 6/6 Server port used for log.
level 0~7	6 6/6 Levels	used to distinguish the		importance of the information:0: LOG_EMERG1: LOG_ALERT2: LOG_CRIT3: LOG_ERR4: LOG_WARNING5: LOG_NOTICE6: LOG_INFO7: LOG_DEBUG
setparamlevel	0~2	0	6/6	Show log of parameter setting.0: disable1: Show log of parameter setting set from external.2. Show log of parameter setting set from external and internal.

7.19 SNMP

Group: snmp

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
v2 0~1 0 6/6 SN	NMP v2 enabled. 0	for disable, 1 for		enable
v3 0~1 0 6/6 SN	NMP v3 enabled. 0	for disable, 1 for		enable
secnamerw string	[31] Private 6/6	Read/write security name
secnamero string	[31] Public	6/6 Read only security name
authpwrw	string[8~128]		6/6	Read/write authentication password
authpwro	string[8~128]		6/6	Read only authentication password
authtyperw MD5	SHA MD5	6/6	Read/write authentication type
authtypero MD5	SHA MD5	6/6	Read only authentication type
encryptpwrw	string[8~128]		6/6	Read/write passwd
encryptpwro	string[8~128]		6/6	Read only password
encrypttyperw	DES	DES	6/6	Read/write encryption type
encrypttypero	DES	DES	6/6	Read only encryption type
rwcommunity	string[31] Private	6/6 Read/write community
rocommunity	string[31] Public	6/6 Ready only community

7.20 Layout configuration

Group: layout

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
logo_default1 1/6 0 => Custom logo				1 => Default logo
logo_link string[128] http://www.		vivotek.com	1/6 Hyperlink	of the logo
logo_powerbyvvtk_hidden0 1/6 0 => display the power by				vivotek logo1 => hide the power byvivotek logo
theme_option 1~4 1 1/6	1~3: One of the default			themes.4: Custom definition.
theme_color_font	string[7]	#ffffff	1/6	Font color
theme_color_configfont	string[7]	#ffffff	1/6	Font color of configuration area.
theme_color_titlefont	string[7]	#098bd6	1/6	Font color of video title.
theme_color_controlbackground	string[7]	#565656	1/6	Background color of control area.
theme_color_configbackground	string[7]	#323232	1/6	Background color of configuration area.
theme_color_videobackground	string[7]	#565656	1/6	Background color of video area.
theme_color_case	string[7]	#323232	1/6	Frame color
custombutton_manualtrigger_show	1	1/6 Show or	hide manual	trigger (VI) button in homepage0 -> Hidden1 -> Visible

7.21 Privacy mask

Group: privacymask_c<0\~(n-1)> for n channel product

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable0 4/4 Enable privacy mask.
win_i<0~4>_enable		0	4/4	Enable privacy mask window.
win_i<0~4>_name	string[14]		4/4	Name of the privacy mask window.
win_i<0~4>_left	0 ~ 480	0	4/4	Left coordinate of window position.
win_i<0~4>_top	0 ~ 180	0	4/4	Top coordinate of window position.
win_i<0~4>_width	0 ~ 480	0	4/4	Width of privacy mask window.
win_i<0~4>_height	0 ~ 180	0	4/4	Height of privacy mask window.

7.22 Capability

Group: capability

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
api_httpversion		0300a	0/99	The HTTP API version.
bootuptime		70	0/99	Server bootup time.
nir	0,	1	0/99	Number of IR interfaces. (Recommend to use ir for built-in IR and extir for external IR)
npir	0,	0	0/99	Number of PIRs.
ndi	0,	1	0/99	Number of digital inputs.
nvindo 0,	0,	31	0/990/99	Number of virtual inputs (manual trigger)Number of digital outputs.
naudioin 0,		1	0/99	Number of audio inputs.
naudioout 0,		1	0/99	Number of audio outputs.
nvideoin	1		0/99	Number of video inputs.
nvideoout 0,	Integer>	0	0/99	Number of video out interface.
nvideoinprofile	1		0/99	Number of video input profiles.
nmediastream	4		0/99	Number of media stream per channels.
naudiosetting	1		0/99	Number of audio settings per channel.
nuart 0,		0	0/99	Number of UART interfaces.
nmotion 0,	integer>	5	0/99	Number of motion window.
nmotionprofile 0,	integer>	1	0/99	Number of motion profiles.
ptzenabled 0,	integer>	0	0/99	An 32-bit integer, each bit can be set separately as follows:Bit 0 => Support camera control function;0(not support),1(support)Bit 1 => Built-in or external video source;0(external), 1(built-in)Bit 2 => Support pan operation, 0(not support), 1(support)Bit 3 => Support tilt operation; 0(not support), 1(support)Bit 4 => Support zoom operation;0(not support),1(support)Bit 5 => Support focus operation;0(not support),1(support)Bit 6 => Support iris operation;0(not support),1(support)Bit 7 => External or built-in PT; 0(built-in),1(external)Bit 8 => Invalidate bit 1 ~ 7;0(bit 1 ~ 7 are valid),1(bit 1 ~ 7 are invalid)Bit 9 => Reserved bit;Invalidate lens_pan,Lens_tilt, lens_zoon,lens_focus, len_iris.0(fields are valid),1(fields are invalid)Examples:PT8133: 0b1111SD8362: 0b111111VS8102: 0b10111101
windowless <boolean> 1			0/99	Indicate whether to support windowless plug-in.
eptz 0,<positive>remotefocus0	integer>	7	0/990/99	A 32-bit integer, each bit can be set separately as follows:Bit 0 => stream 1supports ePTZ or not.Bit 1 => stream 2supports ePTZ or not.The rest may be deduced by analogyIndicate whether to support remote focus function.
npreset 0,integer>	20	0/99	Number of preset locations.
protocol_https1	0/99	0/99	Indicate whether to support HTTP over SSL.
protocol_rtsp1	0/99	0/99	Indicate whether to support RTSP.
protocol_sip1	0/99	0/99	Indicate whether to support SIP.
protocol_maxconnection10	0/99The maximum allowed simultaneous connections.	0/99	The maximum allowed simultaneous connections.
protocol_maxgenconnection10	0/99The maximum general streaming connections.	0/99	The maximum general streaming connections.
protocol_maxmegaconnection10	0/99The maximum megapixel streaming connections.	0/99	The maximum megapixel streaming connections.
protocol_rtp_multicast_scalable1	0/99Indicate whether to support scalable multicast.	0/99	Indicate whether to support scalable multicast.
protocol_rtp_multicast_backchannel1	0/99Indicate whether to support backchannel multicast.	0/99	Indicate whether to support backchannel multicast.
protocol_rtp_tcp1	0/99Indicate whether to support RTP over TCP.	0/99	Indicate whether to support RTP over TCP.
protocol_rtp_http1	0/99Indicate whether to support RTP over HTTP.	0/99	Indicate whether to support server push MJPEG.
protocol_spush_mjpeg1	0/99Indicate whether to support server push MJPEG.	0/99	Indicate whether to support SNMP.
protocol_snmp1	0/99Indicate whether to support SNMP.	0/99	Indicate whether to support IPv6.
protocol_ipv61	0/99Indicate whether to support IPv6.	0/99	Indicate whether to support PPPoE.
protocol_pppoc1	0/99Indicate whether to support PPPoE.	0/99	Indicate whether to support PPPoE.
protocol_ieee8021x1			0/99	Indicate whether to support IEEE802.1x.
protocol_qos_cos1			0/99	Indicate whether to support CoS.
protocol_qos_dscp1			0/99	Indicate whether to support QoS/DSCP.
protocol_ddns1			0/99	Indicate whether to support DDNS.
videoin_type 0, 1, 2 2 0/99 0 => Interlaced CCD				1 => Progressive CCD2 => CMOS
videoin_flexiblebitrate	0, 1	1	0/99	Support flexible bit rate control or not.
videoin_codec		mjpeg, h264	0/99	Available codec of a device.The sequence is not limited.
videoin_c0_nsensor		4	0/99	Number of sensors.
videoin_c0_alignment_default			0/99	Deault alignment information generated in factory.There are totally 2n integers (n is equal to capability_c0_nsensor.), the n and (n+1) integers are the default value of videoin_c<0~(n-1>_alignment_position.
videoin_c0_alignment_range	< a list of positive integer >	0,0,160,120	0/99	The range of videoin_c<0~(n-1>_alignment_position.Take <0,0,160,120> for example, the range is between (0,0) and (160,120).
videoin_c0_streamcode		6,6,6,6	0/99	This equals "capability_videoin_c0_streamcodec".
videoin_c0_resolution	list of available resolution separated by commas>	768x144, 1280x240, 2560x480, 3200x600, 5120x960, 6400x1200, 7552x1416	0/99 Available resolutions list.
videoin_c0_nresolution	number of available resolution list>	7 0/99 How many resolution		options (listed in "resolution") in current video mode.
videoin_c0_maxframerate	list of available maximum frame rate separated by commas>	7, 7, 7, 7, 7, 7, 7, 7	0/99 Available maximum frame list.
videoin_c0_mjpeg_max framerate	list of available maximum codec frame rate separated by commas>	7, 7, 7, 7, 7, 7, 7, 7	0/99 Available maximum codec frame list.
videoin_c0_h264_maxframerate	list of available maximum codec frame rate separated by commas>	7, 7, 7, 7, 7, 7, 7, 7	0/99 Available maximum codec frame list.
timeshift	1		0/99	Indicate whether to support time shift caching stream.
audio_aec	0		0/99	Indicate whether to support acoustic echo cancellation.
audio_mic1			0/99	Indicate whether to support built-in microphone input.
audio_extmic1			0/99	Indicate whether to support external microphone input.
audio_intmic0			0/99	Indicate whether to support internal microphone input.
audio_linein1			0/99	Indicate whether to support external line input.(It will be replaced by audio_mic and audio_extmic.)
audio_lineout	1		0/99	Indicate whether to support line output.
audio_headphoneout0			0/99	Indicate whether to support headphone output.
audioin_codec	g711, g726		0/99	Available codec list for audio input.
audioout_codec			0/99	Available codec list for SIP.
uart_httptunnel0			0/99	Indicate whether to support HTTP tunnel for UART transfer.
camctrl_httptunnel0			0/99	The attribute indicates whether sending camera control commands through HTTP tunnel is supported.0: Not supported1: Supported
camctrl_privilege	1		0/99	Indicate whether to support “Manage Privilege” of PTZ control in the Security page.1: support both/cgi-bin/camctrl/camctrl.cgi and/cgi-bin/viewer/camctrl.cgi0: support only/cgi-bin/viewer/camctrl.cgi
transmission_mode	Tx,Rx,Both	Tx	0/99	Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR.
network_wire	1		0/99	Indicate whether to support Ethernet.
network_wireless	0		0/99	Indicate whether to support wireless.
derivative_brand	1		0/99	Indicate whether to support the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX.(TCVV<->TCXX is excepted)
evctrlchannel	1		0/99	Indicate whether to support HTTP tunnel for event/control transfer.
joystick	1		0/99	Indicate whether to support joystick control.
storage_dbenabled	1		0/99	Media files are indexed in database.
nanystream 0,	integer>	0	0/99	number of any media stream per channel
iva	0		0/99	Indicate whether to support Intelligent Video analysis
ir1			0/99	Indicate whether to support built-in IR led.
extir0			0/99	Indicate whether to support external IR led.
whitelight0			0/99	Indicate whether to support white light led.
iris0			0/99	Indicate whether to support iris control.
tampering1			0/99	Indicate whether to support tampering detection.
temperature0			0/99	Indicate whether to support temperature detection.
version_onvifdaemon1.12.0.0			0/99	Indicate ONVIF daemon version
version_onvifevent1.12.0.0			0/99	Indicate ONVIF event version
media Totalspaceinteger>60000			0/99	Available memory space (KB) for media.
media_snapshot_sizepersecond768			0/99	Maximum size (KB) of one snapshot image.
media_snapshot_maxpree vent7			0/99	Maximum snapshot number before event occurred.
media_snapshot_maxpost event7			0/99	Maximum snapshot number after event occurred.
media_videoclip_maxsize10240			0/99	Maximum size (KB) of a videoclip.
media_videoclip_maxlength20			0/99	Maximum length (second) of a videoclip.
media_videoclip_maxpree vent9			0/99	Maximum duration (second) after event occurred in a videoclip.
localstorage_manageable		1	0/99	Indicate whether manageable local storage is supported.
localstorage_seamless		1	0/99	Indicate whether seamless recording is supported.
localstorage_modnum 0,		4 0/99 The maximum MOD connection numbers.
localstorage_modversion	1.0.4.7 0/99 Indicate MOD daemon version
localstorage_slconnum 0,		1 0/99 The maximum		seamless connection number.
adaptiverecording		1	0/99	Indicate whether to support adaptive recording.
adaptivestreaming		1	0/99	Indicate whether to support adaptive streaming.
remotecamctrl_master 0,		0	0/99 Indicate whether to support remote auxiliary camera (master side), this value means supporting max number of auxiliary camera.
remotecamctrl_slave		0	0/99 Indicate whether to support remote camera control (slave side).
fisheye		0	0/99 Indicate where fisheye camera
vadp		167	0/99	An 32-bit integer, each bit can be set separately as follows: Bit 0 => VADP interface Bit 1 => Capture video raw data Bit 2 => Support encode jpeg Bit 3 => AudioBit 4 => Event
smartstream_support <boolean> 1 0/99 Indicate whether smart				stream is supported.
smartstream_nstream		4 0/99 Number of stream that support smart stream
smartstream_mode_autotracking	<boolean> 1 0/99	Indicate whether		autotracking smart stream is supported
smartstream_mode_manual	<boolean> 1 0/99	Indicate whether		manual smart stream is supported
smartstream_mode_hybrid	<boolean> 1 0/99	Indicate whether		hybrid(autotracking+ manual) smart stream is supported
smartstream_nwindow_autotracking		8 0/99 Maximum number of		tracking window of autotracking
smartstream_nwindow_manual		3 0/99 Maximum number of		tracking window of manual
smartstream_nwindow_hybrid_autotracking		5 0/99 Maximum number of		tracking window of autotracking in hybrid mode
smartstream_nwindow_hybrid_manual		3 0/99 Maximum number of		tracking window of manual in hybrid mode
smartstream_supportquality		excellent, detailed, good, standard, medium, low	0/99 Available quality of smart stream
smartstream_supportmaxbitrate		1Mbps, 2Mbps, 4Mbps, 6Mbps, 8Mbps,	0/99 Available maxbitrate of smart stream
		10Mbps,20Mbps,30Mbps,40Mbps

Group: capability_image_c, where n = channel index from 0 \~ "capability_nvideoin"-1

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
wdrc 0, 1 1			0/99	0: Non-support WDR Enhanced1: Support WDR Enhanced
wdr 0, 1 0			0/99	0: Non-support WDR Pro1: Support WDR Pro
dnr 0, 1 1			0/99	0: Non-support 3D noise reduction1: Support 3D noise reduction
iristype piris, dciris, - -			0/99	Indicate iris type."piris": P-Iris"dciris": DC-Iris"-": No Iris control support* Note: For some cameras, this value may be varied depending on mounted lens.
focusassist	0, 1 0		0/99	0: Non-support focus assistance1: Support focus assistance
remotefocus 0, 1 0			0/99	0: Non-support remote focus1: Support remote focus

7.23 WebAPI: Information for a channel

Group: capability_videoin_c, n = channel index from 0 to "capability_nvideoin"-1

PARAMETER VALUE DEFAULT SECURITY (get/set)				DESCRIPTION
nmodeInteger>		1 0/99 Indicate how many video modes supported by this channel.
maxsize		7552x1416	0/99	The maximum resolution of all modes in this channel, the unit is pixel.
mode		0 0/99 Indicate current video mode.
nresolution		7 0/99 How many resolution options (listed in "resolution") in current video mode.
resolution	A list of	768x144, 1280x240, 2560x480, 3200x600, 5120x960, 6400x1200, 7552x1416	0/99 Resolution options in current video mode. These options are the possible options for "videoin_c_s Mali resolution". The last one is the maximum resolution in current mode.
maxframerate	A list of	7, 7, 7, 7, 7, 7, 7	0/99 Indicate how many frame rate image sensor outputs in current video mode. One to one mapping to the resolution in "resolution".
mjpeg_maxframerate	A list ofand "-"	7, 7, 7, 7, 7, 7, 7, 7	0/99 Maximum fps that the device can encoded with MJPEG on resolutions in current video mode. "-" means not support.
mjpeg_maxbitrate	<Positive Integer>, -	40000000 0/99	Maximum bitrates of MJPEG. The unit is bps."-" means MJPEG does not support bit rate control.
h264_maxframerate	A list ofand "-"	7,7,7,7,7,7,7	0/99 Maximum fps that the device can encoded with H.264 on resolutions in current video mode."-" means not support.
h264_maxbitrate		40000000 0/99	Maximum bitrates of H.264. The unit is bps.
streamcodec	<Positive Integer>	6,6,6,6 0/99	Represent supported codec types of each stream.This contains a list of positive integers, split by comma. Each one stands for a stream, and the definition is as following:Bit 0: Support MPEG4.Bit 1: Support MJPEGBit 2: Support H.264

7.24 WebAPI: Information for a mode

Group: capability_videoin_c_mode, n = channel index from 0 to "capability_nvideoin"-1, m = mode index from 0 to "capability_videoin_c_nmode"-1

PARAMETER VALUE DEFAULT SECURITY (get/set)				DESCRIPTION
effectivepixel		7552x1416	0/99	The visible area of full scene in this video mode.The unit is pixel in source.
outputsize		7552x1416	0/99	The output size of source, equal to the captured size by device, in this video mode. The unit is pixel.This value is used as a basic coordinate system for many features, like ePTZ, privacy mask, motion, etc.
binning	0, 1, 3	0	0/99 Indicate	binning is used or not in this video mode.0: No binning1: 2x2 binning3: 3x3 binning
nresolution		7	0/99 How many resolution options in this video mode.
resolution	A list of	768x144, 1280x240, 2560x480, 3200x600, 5120x960, 6400x1200, 7552x1416	0/99 Resolution	options in this video mode.The last one is the maximum resolution in this video mode.
maxframerate	A list of	7, 7, 7, 7, 7, 7, 7	0/99 Indicate	how many frame rate image sensor outputs in this video mode.

maxfps_mjpeg A list ofand "-"	7,7,7,7,7,7,7	0/99 Maximum fps which the device can encoded with MJPEG on resolutions in this video mode."-" means not support.
maxfps_h264 A list ofand "-"	7,7,7,7,7,7,7	0/99 Maximum fps which the device can encoded with H.264 on resolutions in this video mode."-" means not support.* One to one mapping to the resolution in "resolution".* The element number is defined as "nresolution" in this group.* This parameter records the frame rate when"videoin_ccmosfreq"=60 or"videoin_cmodulation"=ntsc* Only available when 'h264' is listed in "capability_videoin_codec".
description>	na	0/99 Description about this mode.

7.25 Customized event script

Group: event_customtaskfile_i<0\~2>

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name string[40] NULL	6/6 Custom script identification		of this	entry.
date string[4-20] NULL	6/6 Date of custom script.
time	string[4-20]	NULL	6/6	Time of custom script.

7.26 Event setting

Group: event_i<0\~2>

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name	string[40]	NULL	6/6	Identification of this entry.
enable 0, 1 0 6/6 Enable	or disable this	event.
priority	0, 1, 2	1	6/6	Indicate the priority of this event: “0” = low priority“1” = normal priority“2” = high priority
delay 1~999 10	6/6	Delay in seconds before detecting the next event.
trigger	boot,di,pir,motion,seq,recnotify,tampering,vi,volalarm,vadp	boot 6/6 Indicate the trigger condition: “boot” = System boot “di” = Digital input “pir” = PIR detection “motion” = Video motion detection “seq” = Periodic condition “recnotify” = Recording notification. “tampering” = Tamper detection. “vi” = Virtual input (Manual trigger) “volalarm” = Audio detection. “vadp” = VADP trigger
triggerstatus	String[40]	trigger	6/6	The status for event trigger
di	0, 1	1	6/6	Indicate the source id of di trigger. This field is required when trigger condition is “di”. One bit represents one digital input. The LSB indicates DI 0.
vi	0~7 0 6/6 Indicate the source id of vi trigger. This field is required when trigger condition is “vi”. One bit represents one digital input. The LSB indicates VI 0.
mdwin 0~31 0 6/6 Indicate the source window id of				motion detection.This field is required when trigger condition is “md”.One bit represents one window.The LSB indicates the 1^st window.For example, to detect the 1^st and 3^rd windows, set mdwin as 5.
mdwin0 0~31 0 6/6				Similar to mdwin. The parameter takes effect when profile 1 of motion detection is enabled.
inter 1~999 1 6/6 Interval of snapshots in minutes.				This field is used when trigger condition is “seq”.
weekday 0~127 127 6/6	Indicate which	weekday is scheduled.		One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events onFriday and Sunday, set weekday as 66.
begintime hh:mm 00:00	6/6 Begin time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.				(00:00 ~ 24:00 sets schedule as always on)
action_do_i<0~(ndo-1) >_enable	0, 1	0	6/6	Enable or disable trigger digital output.
action_do_i<0~(ndo-1) >_duration	1~999	1	6/6	Duration of the digital output trigger in seconds.
action_cf_enable	0.1	0 6/6 Enable media write on		CF or otherlocal storage media
action_cf_folder	string[128]	NULL	6/6	Path to store media.
action_cf_media NULL, 0~4 NULL 6/6 Index of the attached media.
action_cf_datefolder <boolean> 1 6/6 Enable this to create folders by date, time, and hour automatically.
action_cf_backup <boolean> 0 6/6 Enable the capability of backing up recorded files to the SD card when network is lost. 0: Disabled 1: Enabled
action_server_i<0~4>_enable	0, 1 0 6/6 Enable or disable this server action.
action_server_i<0~4>_media	0~4, 101 NULL 6/6 Index of the attached media.
action_server_i<0~4>_datefolder	0 6/6 Enable this to create folders by date, time, and hour automatically.
vadp <integer> 0 6/6 Indicate the source id of vadp event notification. Each bit corresponds to one vadp source, and the LSB indicates source id 0. For example, to detect event from any one of source id 0, 1 and 3, set vadp to 11.

7.27 Server setting for event action

Group: server_i<0\~4>

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name string[40] NULL 6/6 Identification of this entry
type email,	ftp, http, ns	email 6/6 Indicate the server		type: "email" = email server "ftp" = FTP server "http" = HTTP server "ns" = network storage
http_url	string[128]	http://	6/6	URL of the HTTP server to upload.
http_username	string[64]	NULL	6/6	Username to log in to the server.
http_passwd	string[64]	NULL	6/6	Password of the user.
ftp_address	string[128] NULL 6/6 FTP server address.
ftp_username	string[64]	NULL	6/6	Username to log in to the server.
ftp_passwd	string[64]	NULL	6/6	Password of the user.
ftp_port	0~65535	21	6/6	Port to connect to the server.
ftp_location	string[128]	NULL	6/6	Location to upload or store the media.
ftp_passive	0, 1	1	6/6	Enable or disable passive mode. 0 = disable passive mode 1 = enable passive mode
email_address	string[128]	NULL	6/6	Email server address.
email_sslmode 0, 1	0	6/6 Enable support SSL.
email_port	0~65535	25	6/6	Port to connect to the server.
email_username string[64] NULL 6/6 Username to log in to the server.
email_passwd	string[64]	NULL	6/6	Password of the user.
email_senderemail	string[128]	NULL	6/6	Email address of the sender.
email_recipientemail	string[640]	NULL	6/6	Email address of the recipient.
ns_location	string[128]	NULL	6/6	Location to upload or store the media.
ns_username	string[64]	NULL	6/6	Username to log in to the server.
ns_passwd	string[64]	NULL	6/6	Password of the user.
ns_workgroup	string[64]	NULL	6/6	Workgroup for network storage.

7.28 Media setting for event action

Group: media_i<0\~4> (media_freespace is used internally.)

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name string[40] NULL	6/6 Identification of this entry
type snapshot,	systemlog, videoclip, recordmsg	snapshot 6/6	Media type to send to the server or store on the server.
snapshot_source	0 ~ 3	0	6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream.2 means the third stream.3 means the fourth stream.
snapshot_prefix	string[16] <blank> 6/6 Indicate the prefix of the filename.
snapshot_datesuffix	0, 1	0	6/6	Add date and time suffix to filename:1 = Add date and time suffix.0 = Do not add.
snapshot_preevent	0 ~ 7	1	6/6	Indicates the number of pre-event images.
snapshot_postevent	0 ~ 7	1	6/6	The number of post-event images
videoclip_source	0 ~ 3	0	6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream.2 means the third stream.3 means the fourth stream.
videoclip_prefix string[16] <blank> 6/6 Indicate the prefix of the filename.
videoclip_preevent	0 ~ 9	0	6/6	Indicates the time for pre-event recording in seconds.
videoclip_maxduration	1 ~ 20	5	6/6	Maximum duration of one video clip in seconds.
videoclip_maxsize	50 ~ 10240	500	6/6	Maximum size of one video clip file in Kbytes.

7.29 Recording

Group: recording_i<0\~1>

PARAMETER	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
name string[40] NULL	6/6 Identification of this entry.
enable 0, 1 0 6/6 Enable	or disable this recording.
priority	0, 1, 2	1	6/6	Indicate the priority of this recording: “0” indicates low priority.“1” indicates normal priority.“2” indicates high priority.
source 0 ~ 3 0	6/6 Indicate the source of media stream.			0 means the first stream.1 means the second stream and so on.
limitsize	0,1	0	6/6	0: Entire free space mechanism1: Limit recording size mechanism
cyclic	0,1	0	6/6	0: Disable cyclic recording1: Enable cyclic recording
notify	0,1	1 6/6 0: Disable recording notification		1: Enable recording notification
notifyserverweekday 0~127 127 6/6	0~31Indicate which	0weekday is scheduled.	6/6	Indicate which notification server is scheduled.One bit represents one application server (server_i0~i4).bit0 (LSB) = server_i0.bit1 = server_i1.bit2 = server_i2.bit3 = server_i3.bit4 = server_i4.For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events onFriday and Sunday, set weekday as 66.
begintime hh:mm 00:00	6/6 Start time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.				(00:00~24:00 indicates schedulealways on)
prefix string[16] <blank>	6/6 Indicate the prefix of the filename.
cyclesize	100~	100	6/6	The maximum size for cycle recordingin Kbytes when choosing to limitrecording size.
reserveamount	0~15000000	100	6/6	The reserved amount in Mbytes whenchoosing cyclic recording mechanism.
dest	cf,0~4	cf	6/6	The destination to store the recordeddata.“cf” means local storage (SD card).“0~4” means the index of the networkstorage.
cffolder	string[128]	NULL	6/6	Folder name.
trigger	schedule,networkfail	schedule	6/6 The event	trigger typeschedule: The event is triggered byschedulenetworkfail: The event is triggered bythe failure of network connection.
adaptive_enable	0,1	0	6/6	Indicate whether the adaptivercording is enabled
adaptive_preeventadaptive_postevent 0~10	0~95 6/6 I	5	6/6	Indicate when is the adaptive recordingstarted before the event trigger point(seconds)ndicate when is the adaptive recording stopped after the event trigger point (seconds)
maxsize 100~2000 100	6/6			Unit: Mega bytes.When this condition is reached, recording file is truncated.
maxduration 60~3600 60	6/6			Uuit: SecondWhen this condition is reached, recording file is truncated.

7.30 HTTPS

Group: https

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
enable		0	6/6	To enable or disable secure HTTP.
policy		0	6/6	If the value is 1, it will force HTTP connection redirect to HTTPS connection
method	auto, manual, install	Auto 6/6	auto =>	Create self-signed certificate automatically. manual => Create self-signed certificate manually. install => Create certificate request and install.
status	-3 ~ 1	0	6/6	Specify the https status. -3 = Certificate not installed -2 = Invalid public key -1 = Waiting for certificate 0 = Not installed 1 = Active
countryname	string[2]	TW	6/6	Country name in the certificate information.
statcorprovincename	string[128]	Asia	6/6	State or province name in the certificate information.
localityname	string[128]	Asia	6/6	The locality name in the certificate information.
organizationname	string[64]	VIVOTEKInc. certificate	6/6information.	Organization name in the
unit string[64] VIVOTEK		Inc.	6/6 Organizational unit name in the certificate information.
commonname string[64] www.vivotek		.com	6/6 Common name in the certificate information.
validdays	0 ~ 3650	3650	6/6	Valid period for the certification.

7.31 Storage management setting

Currently it's for local storage (SD card)

Group: disk_i<0\~(n-1)> n is the total number of storage devices.

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
cyclic_enabled		0	6/6	Enable cyclic storage method.
autocleanup_enabled		0	6/6	Enable automatic clean up method.Expired and not locked media files will be deleted.
autocleanup_maxage	1~	7	6/6	To specify the expired days for automatic clean up.

7.32 Region of interest

Group: roi_c<0\~(n-1)> for n channel product, and m is the number of streams which support ROI.

PARAMETER	VALUE	Default	SECURITY (get/set)	DESCRIPTION
s<0~(m-1)>_home		0,0	1/6	ROI left-top corner coordinate.
s<0~(m-1)>_size		7552x1416	1/6	ROI width and height. The width value must be multiples of 16 and the height value must be multiples of 8

7.33 ePTZ setting

Group: eptz_c<0\~(n-1)> for n channel product.

PARAMETER VALUE	Default SECURITY	(get/set)	DESCRIPTION
osdzoom1 1/4 Indicates multiple of zoom in is“on-screen display” or not	Indicates multiple of zoom in is
smooth1 1/4 Enable the ePTZ "move smoothly"feature	Enable the ePTZ "move smoothly"
tiltspeed -5 ~ 5 0 1/7 Tilt speed			(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)
panspeed -5 ~ 5 0 1/7 Pan speed			(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)
zoomspeed -5 ~ 5 0 1/7 Zoom speed			(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)
autospeed	1 ~ 5	1 1/7 Auto pan/patrol speed	(It should be set by eCamCtrl.cgi rather than by setparam.cgi.)

Group: eptz_c<0\~(n-1)>_s<0\~(m-1)> for n channel product and m is the number of streams which support ePTZ.

PARAMETER VALUE	Default SECURITY		(get/set)	DESCRIPTION
patrolseq	string[120]		1/4	The patrol sequence of ePTZ. All the patrol position indexes will be separated by ","
patroldwelling	string[160]		1/4	The dwelling time (unit: second) of each patrol point, separated by “,”.
preset_i<0~19>_name	string[40]		1/7	Name of ePTZ preset.(It should be set by ePreset.cgi rather than by setparam.cgi.)
preset_i<0~19>_pos			1/7	Left-top corner coordinate of the preset.(It should be set by ePreset.cgi rather than by setparam.cgi.)

preset_i<0~19>_size

1/7 Width

and height of

the preset.(It should be set by ePreset.cgi rather than by setparam.cgi.)

7.34 Exposure window setting per channel

Group: exposurewin_c<0\~(n-1)> for n channel products

NAME VALUE DEFAULT	ULT SECURITY		(get/set)	DESCRIPTION
mode auto, custom,	blc	auto 4/4 The mode indicates		how to decide the exposure.auto: Use full view as the only one exposure window.custom: Use inclusive and exclusive window.blc: Use BLC.
win_i<0~9>_enable		0	4/4	Enable or disable the window.
win_i<0~9>_policy	0~1	0	4/4	0: Indicate exclusive.1: Indicate inclusive.
win_i<0~9>_home		110,90	4/4	Left-top corner coordinate of the window.
win_i<0~9>_size		100x75	4/4	Width and height of the window.

Group: exposurewin_c<0\~(n-1)>_profile for m profile and n channel product

NAME	VALUE	DEFAULT	SECURITY (get/set)	DESCRIPTION
i<0~(m-1)>_mode	auto, custom, blc	auto	4/4	The mode indicates how to decide the exposure.auto: Use full view as the only oneexposure window.custom: Use inclusive and exclusive window.blc: Use BLC.
i<0~(m-1)>_win_i<0~9>_enable		0 4/4	Enable or disable the	window.
i<0~(m-1)>_win_i<0~9>_policy	0~1 0 4/4 0: Indicate exclusive.			1: Indicate inclusive.
i<0~(m-1)>_win_i<0~9>_home	110,90 4/4 Left-top corner			coordinate of the window.
i<0~(m-1)>_win_i<0~9>_size	100x75 4/4 Width and height of			the window.

7.35 Seamless recording setting

Group: seamlessrecording

PARAMETER VALUE	Default		SECURITY (get/set)	DESCRIPTION
diskmode	seamless, manageable	seamless	1/6	“seamless” indicates enable seamless recording.“manageable” indicates disable seamless recording.
maxconnection	3	3	1/6	Maximum number of connected seamless streaming.
stream	1~4	1	1/6	(Internal used, read only)
output	0~2	2	1/6	(Internal used, read only)
enable		0	1/6	Indicate whether seamless recording is recording to local storage or not at present.(Read only)
guid<0~2>_id	string[127]		1/6	The connected seamless streaming ID.(Read only)
guid<0~2>_number	0~3	0	1/6	Number of connected seamless streaming with guid<0~2>_id.(Read only)

7.36 VIVOTEK Application Development Platform setting

Group: vadp

NAME VALUE DEFAULT SECURITY			(get/set)	DESCRIPTION
version1.3.1.06/7 Indicate the VADPversion.				version.
resource_total_memory			6/7 Indicate total available memory size for VADP modules.
resource_total_storage			6/7 Indicate total size of the internal storage space for storing VADP modules.
resource_free_memory			6/7 Indicate free memory size for VADP modules.
resource_free_storage			6/7 Indicate current free storage size for uploading VADP modules.
module_number		0	6/7	Record the total module number that already stored in the system.
module_order	string[40]		6/6 The execution order of the enabled modules.
module_save2sd		1	6/6	Indicate if the module should be saved to SD card when user want to upload it.If the value is false, save module to the internal storagespace and it will occupy storage size.

Group: vadp_module_i<0\~(n-1)>

NAME VALUE DEFAULT		LT SECURITY	(get/set)	DESCRIPTION
enable0 6/6		Indicate if the module is		enabled or not.If yes, also add the index of this module to the module_order.
name	string[40]	<blank> 6/6 Module name
url	string[120]	<blank> 6/6 Define the URL	Define the URL	stringafter the IP address if the module provides it own web page.
vendor	string[40]	<blank> 6/6 The provider of the module.	The provider of the module.	the module.
vendorurl	string[120]	<blank> 6/6 URL of the vendor.	URL of the vendor.	dor.
version	string[40]	<blank> 6/6 Version of the module.	Version of the module.	module.
license	string[40]	<blank> 6/6 Indicate the license status of the module.	Indicate the license	status of the module.
path	string[40]	<blank> 6/6 Record the storage path of the module.	Record the storage path of the module.	page path of the module.
initscr	string[40]	<blank> 6/6 The script that will	The script that will	handle operation commands from the system.
status	string[40]	off 6/6 Indicate the running	the running	status of the module.

8. Useful Functions

8.1 Drive the Digital Output

Note: This request requires Viewer privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>][&do3=<state>][&do4=<state>]

Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.

PARAMETER VALUE DESCRIPTION
do<num> 0, 1 0	- Inactive, normal state
	1 - Active, triggered state

Example: Drive the digital output 1 to triggered state and redirect to an empty page.

http://myserver/cgi-bin/dido/setdo.cgi?do1=1

8.2 Query Status of the Digital Input

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]

If no parameter is specified, all of the digital input statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: \r\n

\r\n

[di0 = ] r n

[di1=] \r\n

[di2=] \r\n

[di3=] |r|n

where can be 0 or 1.

Example: Query the status of digital input 1.

Request:

http://myserver/cgi-bin/dido/getdi.cgi?di1

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: 7\r\n

\r\n

di1=1\r\n

8.3 Query Status of the Digital Output

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]

If no parameter is specified, all the digital output statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: \r\n

\r\n

[do0=]\r\n

[do1=]\r\n

[do2=]\r\n

[do3=]\r\n

where can be 0 or 1.

Example: Query the status of digital output 1.

Request:

http://myserver/cgi-bin/dido/getdo.cgi?do1

Response:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: 7\r\n

\r\n

do1=1\r\n

8.4 Capture Single Snapshot

Note: This request requires Normal User privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>][&quality=<value>][&streamid=<value>]

If the user requests a size larger than all stream settings on the server, this request will fail.

PARAMETER	VALUE DEFAULT DESCRIPTION
channel 0~(n-1)	0 The channel	number of the	video source.
resolution	available resolution>	0 The resolution	of the image.
quality 1~5 3	The quality of the image.
streamid 0~(m-1)	dependent>		The stream number.

The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>

8.5 Account Management

Note: This request requires Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>][&privilege=<value>][...][&return=<return page>]

PARAMETER VALUE DESCRIPTION

method Add Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified.
Delete Remove an account from the server. When using this method, the “username” field is necessary, and others are ignored.
edit Modify the account password and privilege. When using this method, the “username” field is necessary, and other fields are optional. If not specified, it will keep the original settings.
usernameThe name of the user to add, delete, or edit.
userpassThe password of the new user to add or that of the old user to modify. The default value is an empty string.
Privilege
	viewer
	operator
	admin
Return

8.6 System Logs

Note: This request require Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/syslog.cgi

Server will return the most up-to-date system log.

Return:

HTTP/1.0 200 OK\r\n

Content-Type: text/plain\r\n

Content-Length: \r\n

\r\n

<system log information>\r\n

8.7 Upgrade Firmware

Note: This request requires Administrator privileges.

Method: POST

Syntax:

http://<servername>/cgi-bin/admin/upgrade.cgi

Post data:

fimage=[&return=]\r\n

\r\n

<multipart encoded form data>

Server will accept the file named to upgrade the firmware and return with if indicated.

8.8 ePTZ Camera Control

Note: This request requires camctrl privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] - Move home, up, down, left, right
[&auto=<value>] - Auto pan, patrol
[&zoom=<value>] - Zoom in, out
[&zooming=<value>&zs=<value>] - Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] - Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] - Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] - Set speeds
[&return=<return page>]

Example:

http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&videosize=640x480&resolution=640x480&stretch=0

PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home ROI.
auto	pan	Auto pan.
	patrol	Auto patrol.
	stop	Stop auto pan/patrol.
zoom wide Zoom	larger view with current speed.
	tele Zoom further with current speed.
zooming wide or	tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
zs	0~6	Set the speed of zooming, “0” means stop.
vxThe direction of movement, used for joystick control.
vy
vs 0~7 Set the speed of movement, “0” means stop.
xx-coordinate clicked by user.It will be the x-coordinate of center after movement.
yy-coordinate clicked by user.It will be the y-coordinate of center after movement.
videosizeThe size of plug-in (ActiveX) window in web page
resolutionThe resolution of streaming.
stretch	boolean>	0 indicates that it usesresolution(streaming size) as the range of the coordinate system.1 indicates that it usesvideosize(plug-in size) as the range of the coordinate system.
speedpan	-5~5	Set the pan speed.
speedtilt	-5~5	Set the tilt speed.
speedzoom	-5~5	Set the zoom speed.
speedapp	1~5 Set the auto pan/patrol speed.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path.

8.9 ePTZ Recall

Note: This request requires camctrl privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&recall=<value>[&return=<return page>]

PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
recall Text string	less than40 characters	One of the present positions to recall.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path.

8.10 ePTZ Preset Locations

Note: This request requires Operator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value>[&addpos=<value>][&delpos=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
addpos		Add one preset location to the preset list.
delpos		Delete preset location from the preset list.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path orrelative path according to the current path.
8.11 IP FilteringNote: This request requires Administrator access privileges.Method: GET/POSTSyntax:http://cgi-bin/admin/ipfilter.cgi?method=&[start=&end=&index=&return=]
PARAMETER VALUE DESCRIPTION
method addallow	Add allowed IP address	ss range to the server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from the index position.
	adddeny Add denied IP address range to the server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from the index position.
	deletcallow Remove allowed IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address. If index is specified, it will try to remove the address from given index position. [start, end] parameters have higher priority then the [index] parameter.
	deletedeny Remove denied IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address. If index is specified, it will try to remove the address from given index position. [start, end] parameters have higher priority then the [index] parameter.
startThe starting IP address to add or to delete.
end		The ending IP address to add or to delete.
index		The start position to add or to delete.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.11.1 IP Filtering for ONVIF

Syntax:

http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&return=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]

PARAMETER	VALUE DESCRIPTION
type NULL Get	IP filter type
	allow, deny Set IP filter type
method addv4	Add IPv4 address into access list.
	addv6 Add IPv6 address into access list.
	delv4	Delete IPv4 address from access list.
	delv6	Delete IPv6 address from access list.
ip		Single address:Network address:Range address:
index		The start position to add or to delete.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.12 Event/Control HTTP Tunnel Channel

Note: This request requires Administrator privileges.

Method: GET and POST

Syntax:

http:///cgi-bin/admin/ctrlevent.cgi

GET /cgi-bin/admin/ctrlevent.cgi

x-sessioncookie: string[22]

accept: application/x-vvtk-tunnelled

pragma: no-cache

cache-control: no-cache

POST /cgi-bin/admin/ ctrlevent.cgi

x-sessioncookie: string[22]

content-type: application/x-vvtk-tunnelled

pragma : no-cache

cache-control : no-cache

content-length: 32767

expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through the proxy server.

This channel will help perform real-time event subscription and notification as well as camera control more efficiently. The event and control formats are described in another document.

See Event/control tunnel spec for detail information

8.13 Get SDP of Streams

Note: This request requires Viewer access privileges.

Method: GET

Syntax:

http://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

“network_accessname_<0\~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.

You can get the SDP by HTTP GET.

When using scalable multicast, Get SDP file which contains the multicast information via HTTP.

8.14 Open the Network Stream

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<0~m-1>_accessname>

For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.

|rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

For details on streaming protocol, please refer to the “control signaling” and “data format” documents.

8.15 Storage managements

Note: This request requires administrator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>...]

The commands usage and their input arguments are as follows.

PARAMETER VALUE DESCRIPTION
cmd_type	Required.	Command to be executed, including search, insert, delete, update, and queryStatus.

Command: search

PARAMETER VALUE DESCRIPTION
label	Optional.	The integer primary key column will automatically be assigned a unique integer.
triggerType	Optional.	Indicate the event trigger type.Please embrace your input value with single quotes.Ex. mediaType='motion'Support trigger types are product dependent.
mediaType	Optional.	Indicate the file media type.Please embrace your input value with single quotes.Ex. mediaType='videoclip'Support trigger types are product dependent.
destPath	Optional.	Indicate the file location in camera.Please embrace your input value with single quotes.Ex. destPath='/mnt/auto/CF/NCMF/abc.mp4'
resolution	Optional.	Indicate the media file resolution.Please embrace your input value with single quotes.Ex. resolution='800x600'
isLocked	Optional.	Indicate if the file is locked or not.0: file is not locked.1: file is locked.A locked file would not be removed from UI or cyclic storage.
triggerTime	Optional.	Indicate the event trigger time. (not the file created time)Format is “YYYY-MM-DD HH:MM:SS”Please embrace your input value with single quotes.Ex. triggerTime=’2008-01-01 00:00:00’If you want to search for a time period, please apply “TO” operation.Ex. triggerTime=’2008-01-01 00:00:00’+TO+’2008-01-01 23:59:59’ is to search for records from the start of Jan 1 ^st 2008 to the end of Jan 1 ^st 2008.
limit	Optional.	Limit the maximum number of returned search records.
offset	Optional.	Specifies how many rows to skip at the beginning of the matched records.Note that the offset keyword is used after limit keyword.

To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search operations. Moreover, to search for a specific time period, you can use “TO” connector.

Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and 2008-01-01 23:59:59.

http:///cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType='motion'+OR+'di'+OR+'seq' &triggerTime='2008-01-01 00:00:00'+TO+'2008-01-01 23:59:59'

Command: delete

PARAMETER VALUE	DESCRIPTION
label

Ex. Delete records whose key numbers are 1, 4, and 8.

http:///cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8

Command: update

PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.		Identify the designated record.Ex. label=1
isLocked <boolean> Required.		Indicate if the file is locked or not.

Ex. Update records whose key numbers are 1 and 5 to be locked status.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5

Ex. Update records whose key numbers are 2 and 3 to be unlocked status.

http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3

8.15.1 Return Message

The returned results are always in XML format, except for storage status related elements that can be returned in javascript format. (i.e. status, totalSize,_freeSize, and usefulness.)

The elements are listed as follows.

Group: stormgr

Element name Type Description
countsInteger> Total number of matched records.
limit		Limit the maximum number of returned search records.Could be empty if not specified.
offset		Specifies how many rows to skip at the beginning of the matched records.Could be empty if not specified.
statusCode		The reply status (see table below)
		Value of return-code	Description
		200	OK
		400	Unrecognized Message Type/Content
		500	Server executes command error.
		501	Parse Input Message Failed.
		502	Error Occurs When Searching Database.
		503	Storage is Not Ready.
statusString	string	Return string describing the reason that status code is not OK.

Subgroup of stormgr: i<0\~(n-1)>: n is the total number of displayed records.

Element name Type Description
label	A unique integer.
triggerType	Indicate the event trigger type.
mediaType	Indicate the file media type.
destPath	Indicate the file location in camera.
resolution		Indicate the media file resolution.
isLocked		Indicate if the file is locked or not.
triggerTime		Indicate the event trigger time.Format is “YYYY-MM-DD HH:MM:SS”
backup		Indicate if the file is generated when network loss.

Subgroup of stormgr_disk: i<0\~(n-1)>: n is the total number of storage devices.

Element name	Type Description
name	string	Description of specified storage device.
status	ready, detached, error, and readonly	The storage device status.ready: storage is ready for access.detached: storage is not mounted.error: failed to open storage device.readonly: storage is write protected.
totalSize		The overall storage size in kilobytes.
freeSize		The available storage size in kilobytes.
usedSize		The used storage size in kilobytes.
path	string	Location of database of storage sink

Ex. Returned results of search command

<?xml version="1.0" encoding="ISO-8859-1"?>
<stormgr version="0.0.0.1">
    <counts>5</counts>
    <limit>2</limit>
    <offset>0</offset>
    <i0>
    <label>1</label>
    <triggerType>motion</triggerType>
    <mediaType>videoclip</mediaType>
    <destPath>/mnt/auto/NCMF/abc/abc.jpg</destPath>
    <resolution>800x600</resolution>
    <isLocked>0</isLocked>
    </count>
</stormgr>

<triggerTime>2009-01-24 12:00:00</triggerTime>
<backup>0</backup>
</i0>
<i1>
<label>2</label>
<triggerType>di</triggerType>
<mediaType>snapshot</mediaType>
<destPath>/mnt/auto/NCMF/123/123.jpg</destPath>
<resolution>800x600</resolution>
<isLocked>0</isLocked>
<triggerTime>2009-01-24 12:01:00</triggerTime>
<backup>0</backup>
</i1>
</stormgr>

Ex. Local storage status in XML format.

<?xml version="1.0" encoding="ISO-8859-1" ?>
<stormgr version="0.0.0.1">
    <disk>
    <i0>
    <name>SDcard</name>
    <status>ready</status>
    <totalSize>7824444</totalSize>
    <freeSize>7824388</freeSize>
    <usedSize>56</usedSize>
    </i0>
    </disk>
</stormgr>

Ex. Local storage status in javascript format.

disk_i0_name='SDcard'
disk_i0_status='ready'
disk_i0_totalSize='7824444'
disk_i0_freeSize='7824388'
disk_i0_usedSize='56'
disk_i0_path=i0/NCMF/.db/.localStorage.db

Command: queryStatus

PARAMETER VALUE DESCRIPTION
retType xml or javascript Optional.		Ex. retype=javascriptThe default return message is in XML format.

Ex. Query local storage status and call for javascript format return message.

http:///cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript

There are two cgi commands for download and composing jpegs to avi format.

For download single selected file, you can use "/cgi-bin/admin/downloadMedias.cgi". Just assign the request file path to this cgi.

Syntax:

http:///cgi-bin/admin/downloadMedias.cgi?

The is in querystus return message.

Ex.

http:///cgi-bin/admin/downloadMedias.cgi?/mnt/auto/CF/NCMF/20090310/07/02.mp4

For creating an AVI file by giving a list of JPEG files, you can use "/cgi-bin/admin/jpegtoavi.cgi".

Syntax:

http:///cgi-bin/admin/jpegtoavi.cgi?=x&= &=

PARAMETER VALUE DESCRIPTION
resolution	xResolution
fps	Frame rate
list	The JPEG file	list.The file path should be embraced by single quotation marks

Ex.

http:// <servername>/cgi-bin/admin/
jpegtoavi.cgi?resolution=800x600&fps=1&list='/mnt/auto/CF/NCMF/video1650.jpg', '/mnt/auto/C F/NCMF/video1651.jpg', '/mnt/auto/CF/NCMF/video1652.jpg',

8.16 Virtual input

Note: Change virtual input (manual trigger) status.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>][&return=<return page>]

PARAMETER	VALUE	DESCRIPTION
vi<num> state[(duration)nstate]	Where "state" is 0, 1. “0” means inactive or normal state while “1” means active or triggered state.Where "nstate" is next state after duration.	Ex: vi0=1Setting virtual input 0 to trigger state
		Ex: vi0=0(200)1Setting virtual input 0 to normal state, waiting 200 milliseconds, setting it to trigger state.Note that when the virtual input is waiting for next state, it cannot accept new requests.
return		Redirect to the pageafter the request is completely assigned. Thecan be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.

Return Code Description
200 The request is successfully executed.
400 The request cannot be assigned, ex. incorrect parameters.Examples:1. setvi.cgi?vi0=0(10000)1(15000)0(20000)1No multiple duration.2. setvi.cgi?vi3=0
	VI index is out of range.3. setvi.cgi?vi=1No VI index is specified.
503 The resource	is unavailable, ex. Virtual input is waiting for next state.Examples:1. setvi.cgi?vi0=0(15000)12. setvi.cgi?vi0=1Request 2 will not be accepted during the execution time(15 seconds).

8.17 Open Timeshift Stream (timeshift\_enable=1,

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<value>&forcechk&minsft=<value>]

For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<value>&forcechk&minsft=<value>]

“n” is the channel index.

“m” is the timeshift stream index.

For details on timeshift stream, please refer to the “TimeshiftCaching” documents.

PARAMETER	VALUE DEFAULT DESCRIPTION
maxsft	0 Request cached stream at most how many seconds ago.
tsmode normal,adaptive	normal Streaming mode:normal => Full FPS all the time.adaptive => Default send only I-frame for MP4 and H.264, and send 1 FPS for MJPEG. If DI or motion window are triggered, the streaming is changed to send full FPS for 10 seconds.(*Note: this parameter also works on non-timeshift streams.)

reftime mm:ss	The time	camera receives the request.	Reference time for maxsft and minsft.(This provides more precise time control to eliminate the inaccuracy due to network latency.)Ex: Request the streaming from 12:20rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
forcechk N/A	N/A Check if the requested stream enables timeshift, feature and if minsft is achievable.If false, return “415 Unsupported Media Type”.
minsft	integer>	0 How many seconds of cached stream client can accept at least.(Used by forcechk)

Return Code Description
400 Bad Request Request is rejected because some parameter values are illegal.
415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.

8.18 Export Files

Note: This request requires Administrator privileges.

Method: GET

Syntax:

For daylight saving time configuration file:

http:///cgi-bin/admin/exportDst.cgi

For language file:

http:///cgi-bin/admin/export_language.cgi?currentlanguage=

PARAMETER VALUE	DESCRIPTION
currentlanguage 0~20	Available language lists.Please refer to:system_info_language_i0 ~ system_info_language_i19.

For setting backup file:

http:///cgi-bin/admin/export_backup.cgi?backup

8.19 Upload Files

Note: This request requires Administrator privileges.

Method: POST

Syntax:

For daylight saving time configuration file:

http://<servername>/cgi-bin/admin/upload_dst.cgi

Post data:

filename = <file name> \r\n
\r\n
<multipart encoded form data>

For language file:

http://<servername>/cgi-bin/admin/upload_lan.cgi

Post data:

filename = <file name> \r\n
\r\n
<multipart encoded form data>

For setting backup file:

http://<servername>/cgi-bin/admin/upload_backup.cgi

Post data:

filename = <file name> \r\n
\r\n
<multipart encoded form data>

Server will accept the file named to upload this one to camera.

8.20 Media on demand

Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.

Note: This request requires Viewer access privileges.

Syntax:

rtsp://<servername>/mod.sdp?[&stime=<value>][&etime=<value>][&length=<value>][&loctime=<value>][&file=<value>][&tsmode=<value>]

PARAMETER	VALUE DEFAULT DESCRIPTION
stime	MMDD_HHMMSS.MMM>		N/A Start time.
etime	MMDD_HHMMSS.MMM>		N/A End time.
length	N/A The length of media of interest.		The unit is second.
loctime	0 Specify if start/end time is local		time format.1 for local time, 0 for UTC+0
file			N/A The media file to be played.
tsmode	N/A Timeshift mode, the unit is second.

Ex.

stime	etime	length	file	Description
V	V	X	X	Play recordings between stime and etimer tsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&etime=2011_0312_040510.000
V X	V	X		Play recordings for length seconds which start from stimer tsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&length=120
X V	V	X		Play recordings for length seconds which ends at etimer tsp://10.10.1.2/mod.sdp?etime=20110312_040400.000&length=120
X X	X	V		Play file filer tsp://10.10.1.2/mod.sdp?filename=/mnt/link0/

Technical Specifications

Technical Specifications

Model MS8391-E V
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 1GB
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 7552x1416
Lens Type Fixed focal
Focal Length	f = 6 mm
Aperture	F1.6
Field of View	180° (Horizontal)34° (Vertical)
Shutter Time	1/5 sec. to 1/32000 sec.
WDR Technology	WDR Enhanced
Day/Night	Removable IR cut filter for day & night function
Minimum Illumination	0.23 Lux @ F1.6 (Color)0.01 Lux @ F1.6 (B/W)
Preset Locations	20 preset locations
Pan/Tilt/ZoomFunctionalities	ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators	Built-in IR illuminators, effective up to 30 meters with Smart IRIR LED*4
On-board Storage	Slot type: MircoSD/SDHC/SDXC card slotSeamless Recording

Video

Compression H.264 & MJPEG
Maximum Frame Rate	7 fps @ 7552x1416
Maximum Streams	4 simultaneous streams
S/N Ratio	63 dB
Dynamic Range	60 dB
Video Streaming	Adjustable resolution, quality and bitrateConfigurable video cropping for bandwidth saving
Image Settings	Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control,gain, backlight compensation, privacy masks, Smart Stream

Audio

Audio Capability	Audio input/output (full duplex)
Compression G.711, G.726
Interface	External microphone inputExternal line output

Network

Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS
Interface	10 Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

Intelligent Video

Video Motion Detection	Five-window video motion detection
Alarm and Event
Alarm Triggers	Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events	Event notification using HTTP, SMTP, FTP and NAS server, SD CardFile upload via HTTP, SMTP, FTP, NAS server and SD card
General
Connectors	RJ-45 cable connector for Network/PoE connectionAudio inputAudio outputAC 24V power inputDigital input ^1 Digital output ^2 1
LED Indicator	System power and status indicator
Power Input	AC 24VIEEE 802.3at PoE Class 4
Power Consumption	AC 24V:Max. 43.5W/15.6W (Heater on/off)IEEE 802.3at PoE:Max. 23.5W/15.6W (Heater on/off)
Weight	2.8kg
Casing	Weather-proof IP66 rated, Vandal-proof IK10 rated
Safety Certifications	CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature	AC 24V:Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)PoE:Starting Temperature: -20°C ~ 60°C (-4°F ~ 140°F)Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity	90%
Warranty	36 months
System Requirements
Operating System	Microsoft Windows 8/7/Vista/XP/2000
Web Browser	Mozilla Firefox 7~43 (Streaming only)Internet Explorer 7/8/9/10/11
Other Players	VLC: 1,1,11 or aboveQuicktime: 7 or above
Included Accessories
CD	User's manual, quick installation guide, Installation Wizard 2, VAST
Others	Quick installation guide, warranty card, software CD, desiccant bag, alignment sticker, wall mount kit, screws

Dimensions

275 mm Ø130 mm

Technology License Notice

AMR-NB Standard

THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS' PATENTS MAY APPLY:

TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621; CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621; GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621; SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT. 9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR'S WEBSITE AT HTTP://WWW.VOICEAGE.COM.

H.264

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partial installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

Shielded interface cables must be used in order to comply with emission limits.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

VCCI Warning

VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
