Product Type	Area-Imaging Vertical Slot Scanner
Model	7980G-2KBWC-0
Brand	Honeywell
Dimensions (H × W × D)	5.83 × 5.98 × 3.34 in (148 × 152 × 85 mm)
Weight	19 oz (539 g)
Image Sensor	1280 × 960 pixels
Illumination LED	Warm white, 2700K CCT
Skew / Pitch Angle	±75° / ±65°
Motion Tolerance (Presentation)	Up to 118 in/s (3.0 m/s) for 13 mil UPC
Symbol Contrast	≥25%
Voltage Requirement	5.2 VDC ±5%
Current Draw	Operation: 400 mA, Idle: 270 mA, Sleep: 210 mA
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	5% to 95% non-condensing
Drop Survival	30 drops from 5 ft (1.5 m) to concrete at 23°C
Side Impact	5.8 J energy after 18 hits
Vibration Resistance	10G peak, 10–500 Hz
IP Rating	IP5X
ESD Tolerance	Up to 15 kV direct air, 8 kV indirect
Interfaces Supported	USB (keyboard, serial, HID, SurePos), Keyboard Wedge, RS232, RS485, EAS (Checkpoint, Sensormatic), Auxiliary Scanner
Symbologies Decoded	All major 1D and 2D symbologies including Code 39, Code 128, UPC/EAN, PDF417, Data Matrix, QR, Aztec, and postal codes
Programming Method	Scanning menu bar codes or serial commands; custom defaults
Field-Replaceable Cables	Interface and EAS cables
Cleaning Approved Agents	Sani-Cloth HB/Plus, isopropyl alcohol (70%), CaviWipes, mild dish soap and water
Warranty	Refer to www.honeywellaidc.com/warranty_information

Frequently Asked Questions - 7980G-2KBWC-0 HONEYWELL

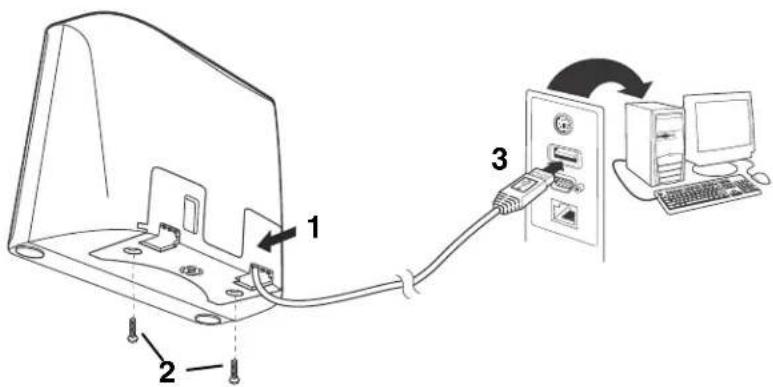

How do I connect the scanner via USB?

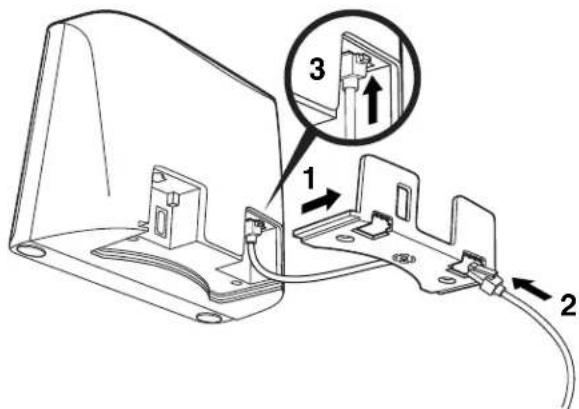

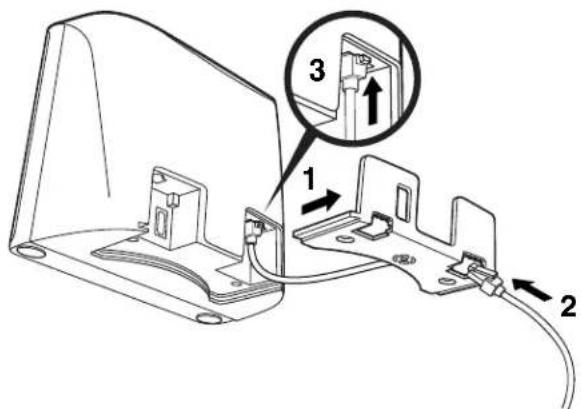

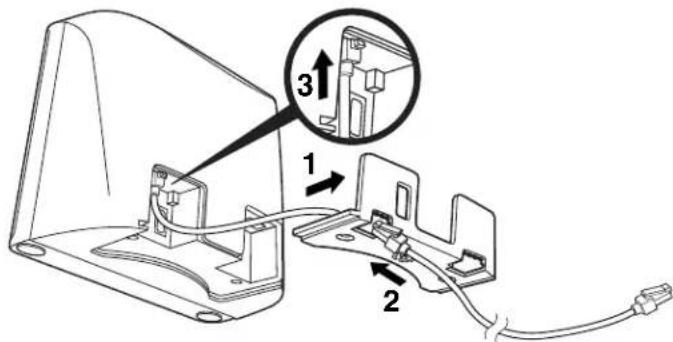

Remove the back cover, feed the interface cable through, and screw the back cover on. Connect the USB cable to your computer. The scanner beeps and defaults to USB PC Keyboard mode. For other USB modes (e.g., serial, HID), scan the appropriate Plug and Play bar code from the manual.

How do I clean the scanner window?

Use a soft cloth or tissue dampened with water or a mild detergent-water solution. For disinfection, use approved wipes like Sani-Cloth HB, CaviWipes, or 70% isopropyl alcohol wipes. Never use abrasive wipes or solvents such as acetone.

What should I do if the scanner does not read a bar code?

First, check that the bar code is not damaged or smeared. Verify that the symbology is enabled (scan All Symbologies On). If using a corded scanner, inspect the cable connection. Reset to factory defaults by scanning Activate Defaults (code DEFALT) if needed.

Can I use the scanner to read bar codes from a mobile phone screen?

Yes. Enable Mobile Phone Read Mode by scanning the Presentation - Mobile Phone bar code (code PAPPSC). This optimizes decoding for LED displays, though printed code speed may slightly decrease.

How do I change the interface from USB to RS232?

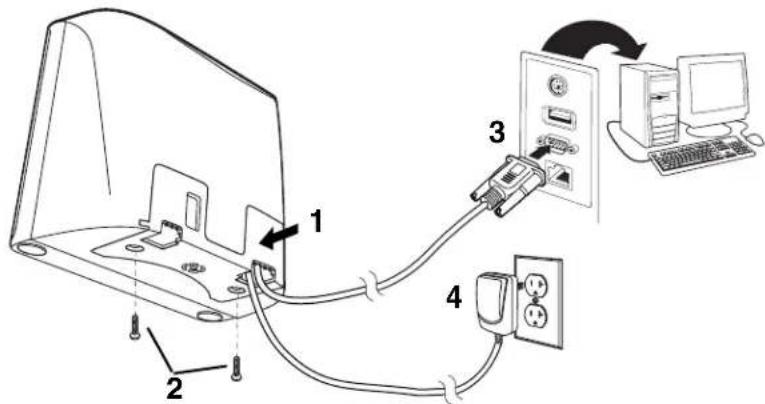

Disconnect the USB cable. Connect the appropriate RS232 cable (power supply may be required). Then scan the RS232 Interface Plug and Play bar code (code PAP232), which sets baud rate to 115200, 8 data bits, no parity, 1 stop bit, and adds CR+LF suffix.

What is the default baud rate for RS232?

The factory default for RS232 is 115,200 bps with 8 data bits, no parity, and 1 stop bit. You can change it by scanning the baud rate bar codes (e.g., 300, 600, etc.) from the manual.

How do I restore the scanner to factory default settings?

Scan the Activate Defaults bar code (code DEFALT) to reset to factory defaults. If you have set custom defaults, scan Activate Custom Defaults (code DEFAULT) first, then DEFALT to remove custom defaults.

Can I add a prefix or suffix to the scanned data?

Yes. Use the Add Prefix or Add Suffix bar codes (codes PREBK2, SUFBK2). Then select the symbology (or scan 99 for all), enter the desired hex value from the ASCII Conversion Chart, and save. For example, to add a CR suffix to all symbologies, scan Add CR Suffix All Symbologies (code VSUFCR).

How do I program the scanner for a specific terminal (e.g., IBM SurePos)?

Scan the appropriate Plug and Play bar code for your terminal. For IBM SurePos USB, scan USB IBM SurePos (Handheld) or (Tabletop) (codes PAPSPH, PAPSPT). After scanning, power cycle the cash register to activate the interface.

What maintenance does the scanner require?

Minimal. Periodically inspect cables and connectors for wear. Clean the window with approved solutions when performance degrades. Do not submerge in water. For repairs, contact an authorized Honeywell service center. Field-replaceable interface and EAS cables are available.

USER MANUAL 7980G-2KBWC-0 HONEYWELL

Area-Imaging Vertical Slot Scanner

User's Guide

Disclaimer

Honeywell International Inc. ("HII") reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of software and/or hardware to achieve intended results.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

Copyright © 2015-2016 Honeywell International Inc. All rights reserved.

Web Address: www.honeywellaidc.com

Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies and are the property of their respective owners.

Microsoft® Windows® and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

Checkpoint® is a registered trademark of Checkpoint Systems, Inc.

Sensormatic® is a registered trademark of Tyco Retail Solutions.

Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies and are the property of their respective owners.

For patent information, refer to www.hsmpats.com.

Table of Contents

Customer Support

Technical Assistance ix

Product Service and Repair ix

Limited Warranty ix

Send Feedback ix

Chapter 1 - Getting Started

About This Manual....1-1

Unpacking Your Device 1-1

Connecting the Device....1-1

Connecting with USB 1-1

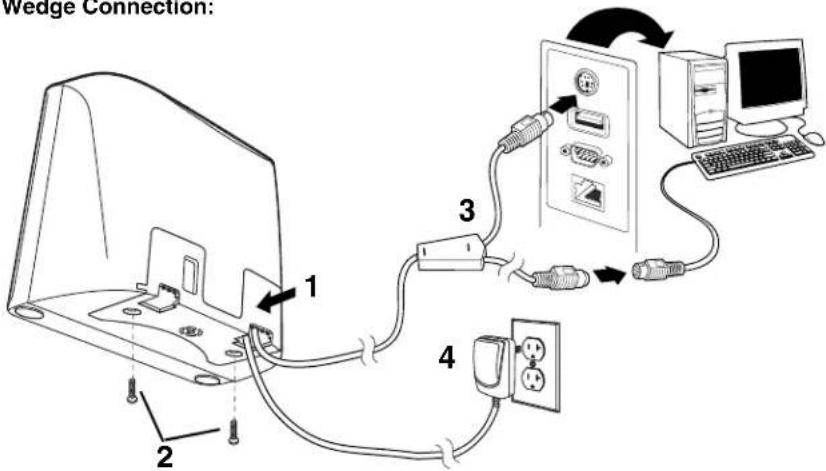

Connecting with Keyboard Wedge....1-2

Connecting with RS232 Serial Port....1-3

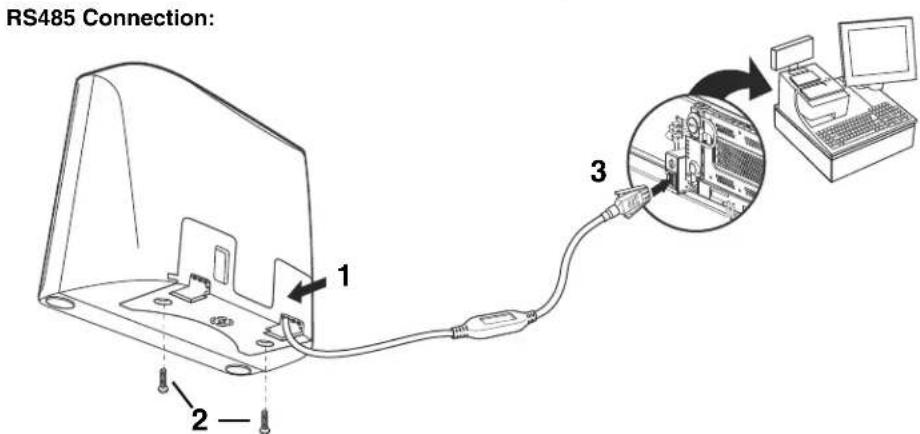

Connecting with RS485....1-5

Connecting EAS....1-6

Checkpoint®....1-6

Sensormatic®....1-6

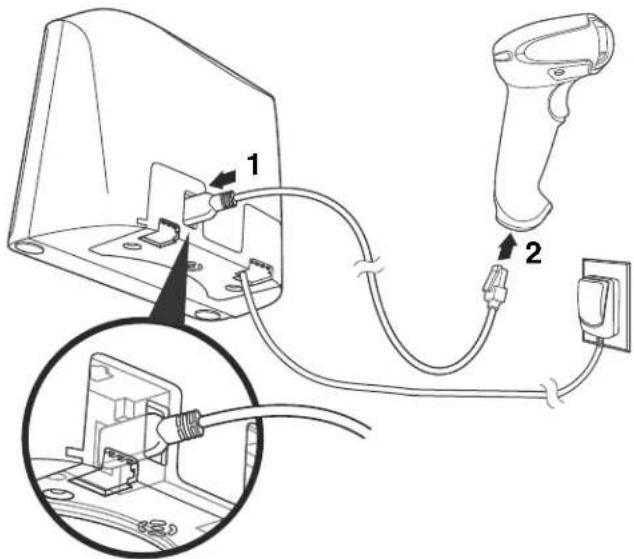

Connecting Auxiliary Scanner....1-6

Button Functionality 1-8

Beeper Pitch....1-8

Beeper Volume 1-8

Reading Techniques 1-8

Menu Bar Code Security Settings....1-8

Setting Custom Defaults 1-8

Resetting the Custom Defaults 1-9

Chapter 2 - Programming the Interface

Introduction 2-1

Programming the Interface - Plug and Play 2-1

Keyboard Wedge 2-1

Laptop Direct Connect 2-1

RS232 Serial Port 2-1

RS485 2-2

RS485 Packet Mode 2-2

USB IBM SurePos 2-3

USB PC or Macintosh Keyboard....2-3

USB HID 2-4

USB Serial 2-4

CTS/RTS Emulation....2-4

ACK/NAK Mode 2-4

Remote MasterMind™ for USB 2-4

Verifone® Ruby Terminal Default Settings....2-5

Gilbarco® Terminal Default Settings 2-5

Wincor Nixdorf Terminal Default Settings 2-5

Wincor Nixdorf Beetle™ Terminal Default Settings 2-6

Wincor Nixdorf RS232 Mode A 2-6

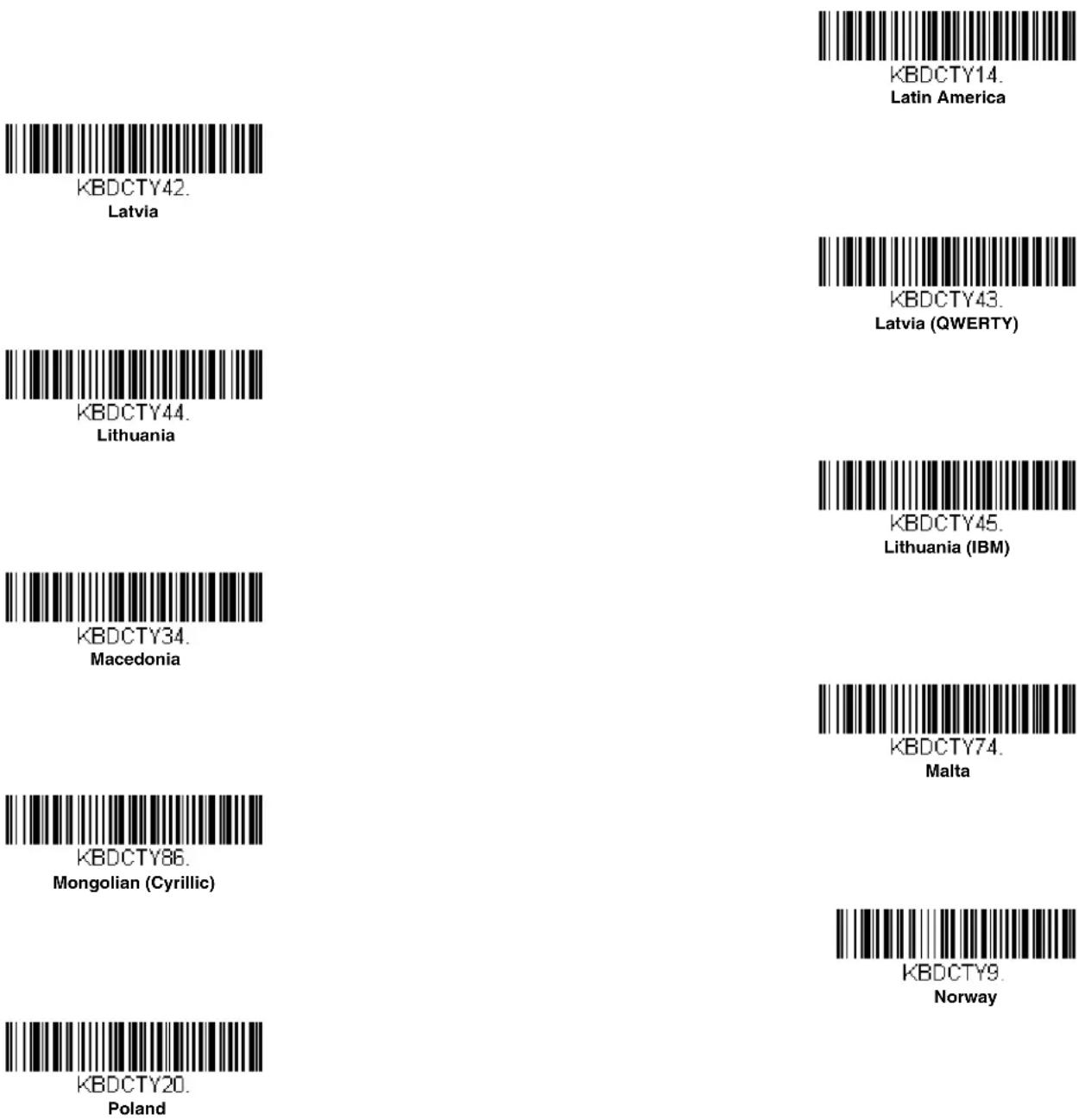

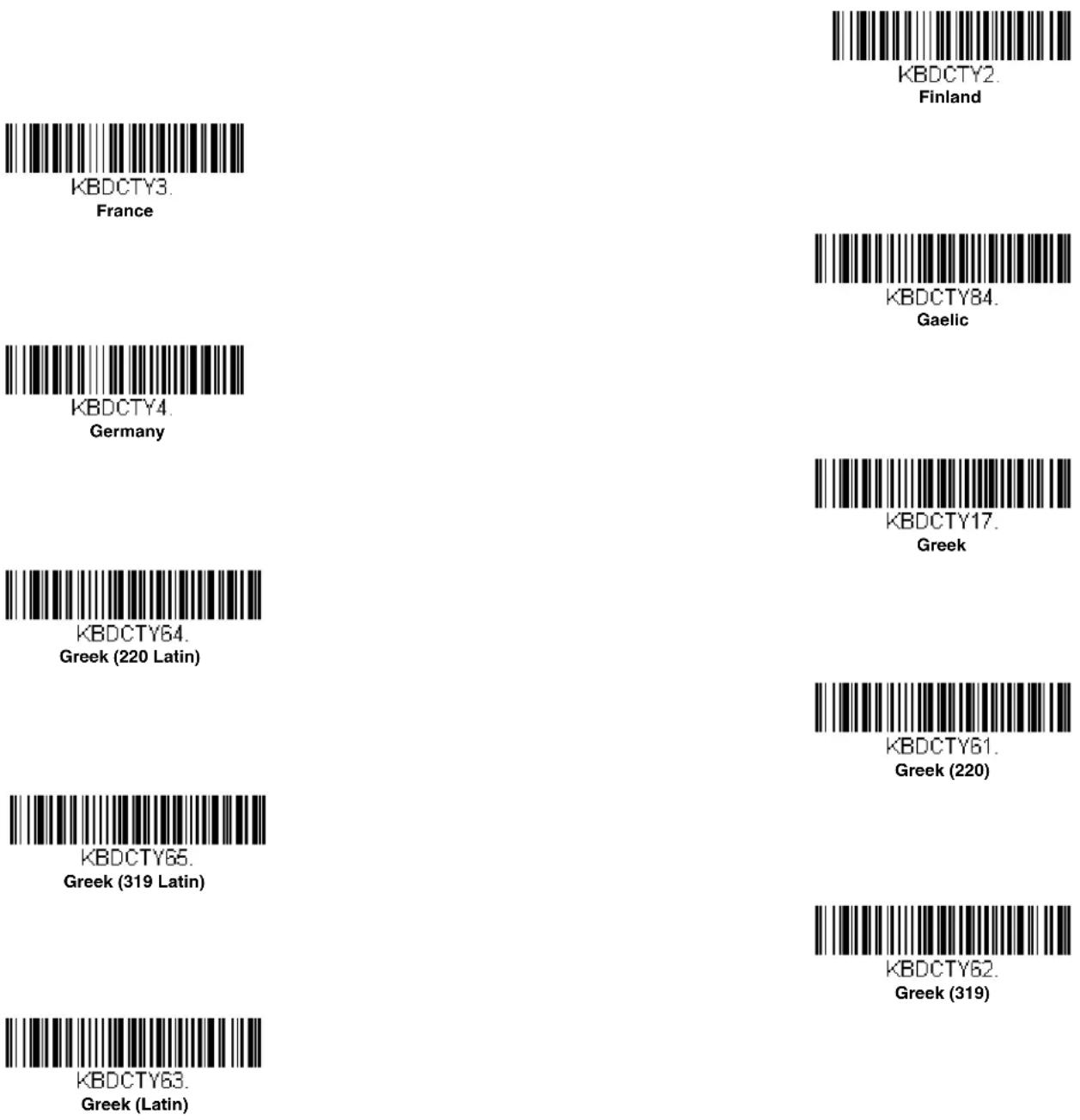

Keyboard Country Layout....2-6

Keyboard Style 2-14

Keyboard Conversion....2-15

Control Character Output 2-16

Keyboard Modifiers....2-16

RS232 Modifiers 2-17

RS232 Baud Rate....2-17

RS232 Word Length: Data Bits, Stop Bits, and Parity 2-18

RS232 Receiver Time-Out....2-19

RS232 Handshaking....2-20

RS232 Timeout....2-20

XON/XOFF 2-20

ACK/NAK 2-21

Chapter 3 - Input/Output Settings

Power Up Beeper 3-1

Beep on BEL Character....3-1

Good Read and Error Indicators....3-1

Beeper – Good Read....3-1

Beeper Volume – Good Read....3-2

Beeper Pitch – Good Read....3-2

Beeper Pitch – Error 3-2

Beeper Duration – Good Read 3-3

LED – Good Read .... 3-3

Number of Beeps – Good Read ....3-3

Number of Beeps - Error....3-4

Good Read Delay 3-4

User-Specified Good Read Delay....3-4

Serial Trigger Mode 3-4

Read Time-Out 3-5

Presentation Mode 3-5

Presentation Idle Mode....3-5

Presentation Sleep Mode 3-6

LED Illumination - Presentation Mode 3-6

Presentation LED Behavior after Decode.... 3-7

Presentation Sensitivity 3-7

Presentation Centering....3-7

Streaming Presentation™ Mode 3-9

Mobile Phone Read Mode 3-9

Poor Quality PDF Codes 3-9

Poor Quality Code Enhanced Mode....3-10

Reread Delay....3-10

User-Specified Reread Delay 3-10

Illumination Lights....3-11

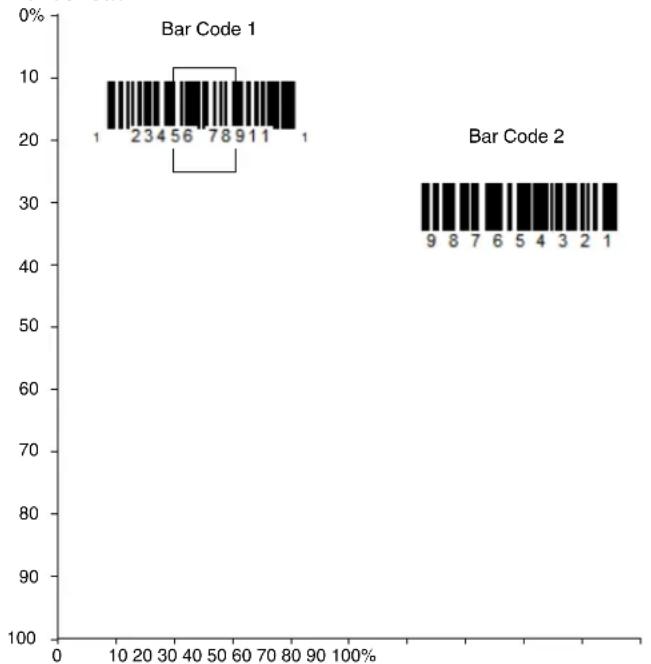

Centering 3-11

Preferred Symbology 3-12

High Priority Symbology 3-13

Low Priority Symbology 3-13

Preferred Symbology Time-out....3-13

Preferred Symbology Default....3-13

Character Activation Mode 3-14

Activation Character 3-14

End Character Activation After Good Read....3-14

Character Activation Laser Timeout 3-15

Character Deactivation Mode 3-15

Deactivation Character 3-15

Output Sequence Overview....3-15

Require Output Sequence 3-15

Output Sequence Editor 3-16

To Add an Output Sequence 3-16

Other Programming Selections.... 3-16

Output Sequence Editor 3-17

Partial Sequence 3-17

Require Output Sequence 3-18

No Read 3-18

Video Reverse 3-19

Working Orientation....3-19

Chapter 4 - Data Editing

Prefix/Suffix Overview 4-1

To Add a Prefix or Suffix: 4-1

To Clear One or All Prefixes or Suffixes....4-2

To Add a Carriage Return Suffix to All Symbologies 4-2

Prefix Selections 4-2

Suffix Selections 4-2

Function Code Transmit 4-3

Intercharacter, Interfunction, and Intermessage Delays 4-3

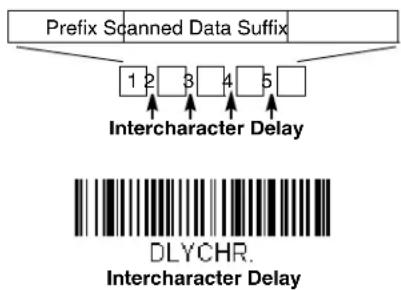

Intercharacter Delay 4-3

User Specified Intercharacter Delay....4-3

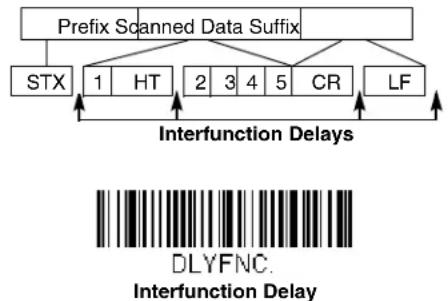

Interfunction Delay 4-4

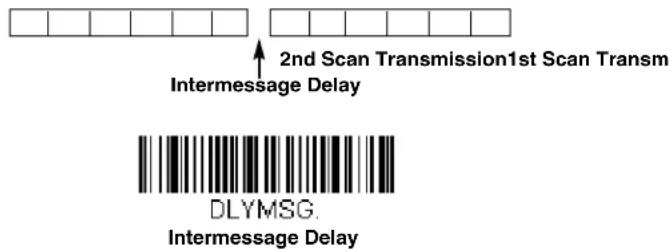

Intermessage Delay 4-4

Chapter 5 - Data Formatting

Data Format Editor Introduction 5-1

Add a Data Format 5-1

Other Programming Selections.... 5-2

Terminal ID Table 5-3

Data Format Editor Commands....5-3

Move Commands....5-6

Search Commands....5-7

Miscellaneous Commands....5-9

Data Formatter 5-11

Data Format Non-Match Error Tone....5-12

Primary/Alternate Data Formats 5-12

Single Scan Data Format Change....5-13

Chapter 6 - Symbologies

All Symbologies....6-1

Message Length Description....6-1

Codabar 6-2

Codabar Concatenation....6-3

Code 39....6-4

Code 32 Pharmaceutical (PARAF)....6-6

Full ASCII....6-6

Code 39 Code Page 6-7

Interleaved 2 of 5....6-7

NEC 2 of 5....6-9

Code 93....6-10

Code 93 Code Page 6-11

Straight 2 of 5 Industrial (three-bar start/stop)....6-11

Straight 2 of 5 IATA (two-bar start/stop)....6-12

Matrix 2 of 5....6-13

Code 11 6-14

Code 128....6-15

UPC-A/EAN-13 with Extended Coupon Code....6-21

Coupon GS1 DataBar Output....6-21

UPC-E0 6-22

UPC-E1 6-24

EAN/JAN-13 6-24

Convert UPC-A to EAN-13 6-24

ISBN Translate 6-26

EAN/JAN-8 6-27

MSI 6-29

GS1 DataBar Omnidirectional 6-31

GS1 DataBar Limited....6-31

GS1 DataBar Expanded 6-32

Trioptic Code 6-32

Codablock A 6-33

Codablock F 6-34

Label Code 6-34

PDF417 6-35

MacroPDF417 6-35

MicroPDF417 6-36

GS1 Composite Codes....6-36

UPC/EAN Version....6-37

GS1 Emulation 6-37

TCIF Linked Code 39 (TLC39) 6-38

QR Code....6-38

QR Code Page 6-39

Data Matrix 6-40

Data Matrix Code Page 6-40

MaxiCode 6-41

Aztec Code 6-42

Aztec Code Page 6-42

Chinese Sensible (Han Xin) Code 6-43

Postal Codes - 2D 6-44

Single 2D Postal Codes: 6-44

Combination 2D Postal Codes:....6-45

Postal Codes - Linear 6-48

China Post (Hong Kong 2 of 5)....6-48

Korea Post 6-49

Chapter 7 - EAS Settings

EAS Considerations 7-1

EAS Deactivation....7-1

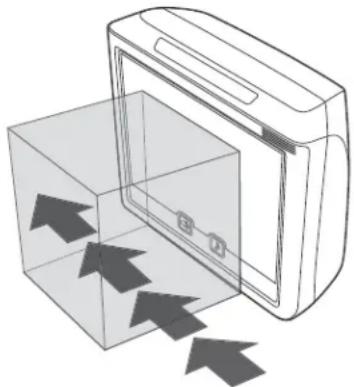

EAS Deactivation Range 7-1

Sensormatic....7-1

Checkpoint....7-2

EAS Controller Settings 7-2

EAS Controller....7-2

EAS Mode of Operation....7-2

EAS Interlocked Duration Timeout 7-3

Chapter 8 - Programming an Auxiliary Scanner

Introduction....8-1

Connecting by USB Serial 8-1

No extra configuration (e.g., baud rate) is necessary....8-1

Connecting by USB Keyboard 8-1

Chapter 9 - Imaging Commands

Single-Use Basis 9-1

Command Syntax 9-1

Image Snap - IMGSNP 9-1

IMGSNP Modifiers 9-1

Image Ship - IMGSHP 9-3

IMGSHP Modifiers 9-4

Intelligent Signature Capture - IMGBOX 9-10

Signature Capture Optimize 9-10

IMGBOX Modifiers....9-11

Chapter 10 - Interface Keys

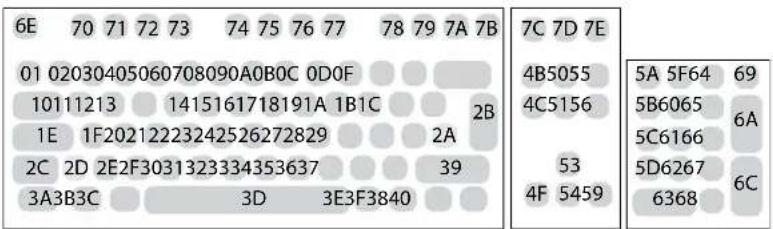

Keyboard Function Relationships....10-1

Supported Interface Keys 10-2

Chapter 11 - Utilities

To Add a Test Code I.D. Prefix to All Symbologies.... 11-1

Show Decoder Revision 11-1

Show Scan Driver Revision 11-1

Show Software Revision....11-1

Show Data Format....11-1

Test Menu....11-2

TotalFreedom 11-2

Application Plug-Ins (Apps) 11-2

EZConfig-Scanning Introduction.... 11-3

Installing EZConfig-Scanning from the Web....11-3

Resetting the Factory Defaults 11-4

Chapter 12 - Serial Programming Commands

Conventions....12-1

Menu Command Syntax 12-1

Query Commands 12-1

Responses....12-2

Trigger Commands....12-3

Resetting the Custom Defaults....12-3

Menu Commands 12-3

Chapter 13 - Product Specifications

Solaris 7980g Scanner Product Specifications....13-1

Depth of Field Charts....13-2

Typical Performance....13-2

Guaranteed Performance 13-2

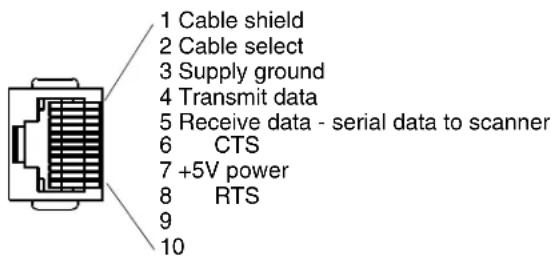

Standard Connector Pinouts 13-3

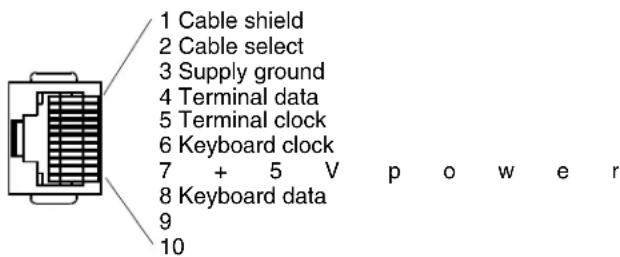

Keyboard Wedge 13-3

Serial Output....13-3

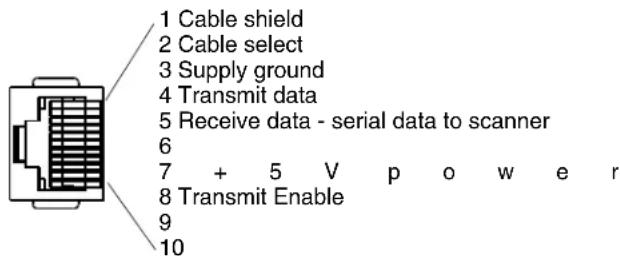

RS485 Output 13-3

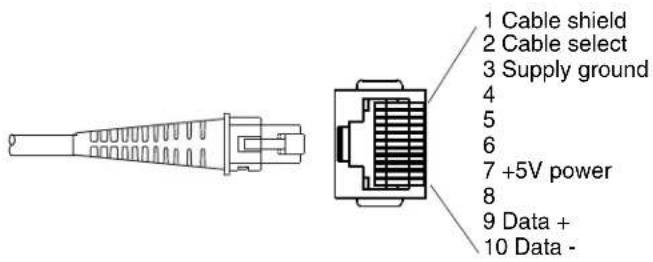

USB 13-4

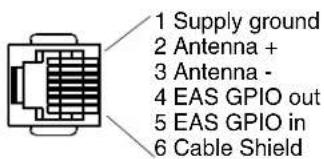

EAS....13-4

USB Auxiliary Scanner - Solaris end 13-4

Chapter 14 - Maintenance and Troubleshooting

Repairs 14-1

Maintenance 14-1

Cleaning the Scanner 14-1

Cleaning the Window....14-1

Inspecting Cords and Connectors 14-1

Replacing Cables in Corded Scanners.... 14-1

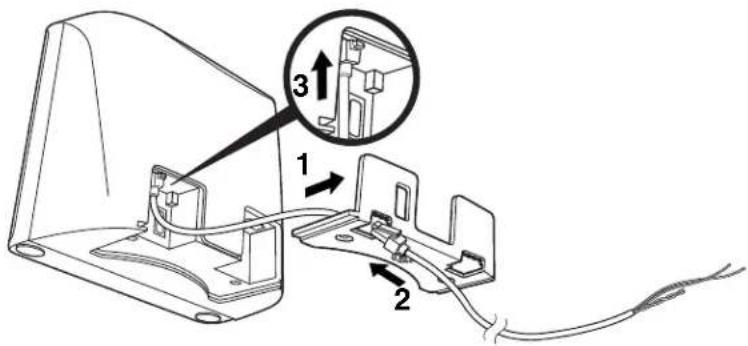

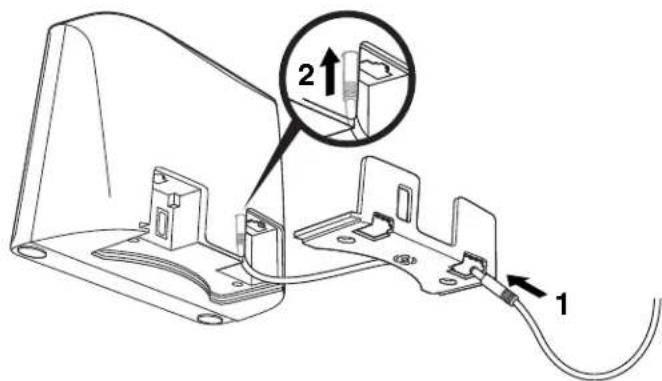

Replacing an Interface Cable 14-2

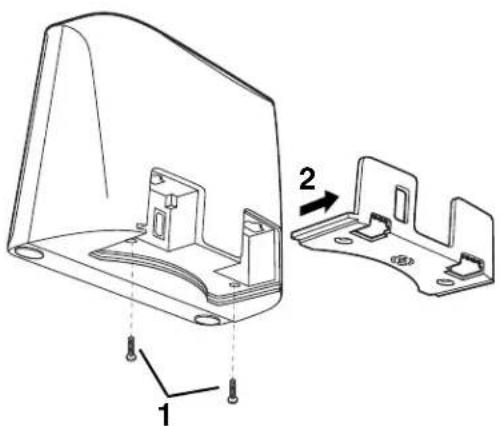

Replacing an EAS Cable 14-2

Troubleshooting a Corded Scanner.... 14-2

Appendix A - Reference Charts

Symbology Charts ......A-1

Linear Symbologies....A-1

2D Symbologies....A-2

Postal Symbologies....A-2

ASCII Conversion Chart (Code Page 1252)......A-3

Lower ASCII Reference Table....A-4

ISO 2022/ISO 646 Character Replacements ......A-7

Keyboard Key References....A-10

Customer Support

Technical Assistance

If you need assistance installing or troubleshooting your device, please contact us by using one of the methods below:

Knowledge Base: www.hsmknowledgebase.com

Our Knowledge Base provides thousands of immediate solutions. If the Knowledge Base cannot help, our Technical Support Portal (see below) provides an easy way to report your problem or ask your question.

Technical Support Portal: www.hsmsupportportal.com

The Technical Support Portal not only allows you to report your problem, but it also provides immediate solutions to your technical issues by searching our Knowledge Base. With the Portal, you can submit and track your questions online and send and receive attachments.

Web form: www.hsmcontactsupport.com

You can contact our technical support team directly by filling out our online support form. Enter your contact details and the description of the question/problem.

Telephone: www.honeywellaidc.com/locations

For our latest contact information, please check our website at the link above.

Product Service and Repair

Honeywell International Inc. provides service for all of its products through service centers throughout the world. To obtain warranty or non-warranty service, please visit www.honeywellaidc.com and select Support > Contact Service and Repair to see your region's instructions on how to obtain a Return Material Authorization number (RMA #). You should do this prior to returning the product.

Limited Warranty

Refer to www.honeywellaidc.com/warranty_information for your product's warranty information.

Send Feedback

Your feedback is crucial to the continual improvement of our documentation. To provide feedback about this manual, contact the Honeywell Technical Communications department at [e-mail].

Getting Started

About This Manual

This User's Guide provides installation and programming instructions for the Solaris 7980g area-imaging vertical slot scanners. Product specifications, dimensions, warranty, and customer support information are also included.

Honeywell bar code scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

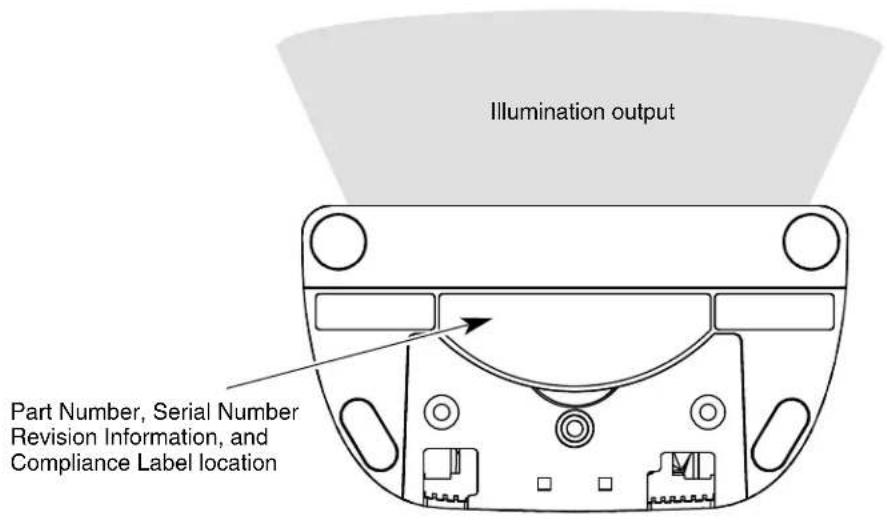

Unpacking Your Device

After you open the shipping carton containing the product, take the following steps:

• Check for damage during shipment. Report damage immediately to the carrier who delivered the carton.
• Make sure the items in the carton match your order.
• Save the shipping container for later storage or shipping.

Connecting the Device

Connecting with USB

The scanner can be connected to the USB port of a computer.

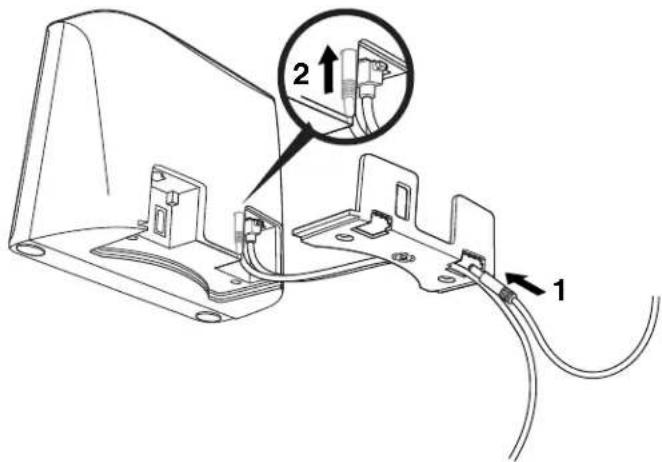

1. Remove the back cover and feed the interface cable through to the device.

1. Slide the back cover on and screw the back cover to the device, and then connect the interface cable to the computer. USB Connection:

1. The scanner beeps.
2. Verify the scanner operation by scanning a bar code from the Sample Symbols in the back of this manual.

The unit defaults to a USB PC Keyboard. Refer to page 2-3 for other USB terminal settings.

For additional USB programming and technical information, refer to "USB Application Note," available at the Knowledge Base www.hsm.force.com/publickb.

Connecting with Keyboard Wedge

The scanner can be connected between the keyboard and PC as a "keyboard wedge," where the scanner provides data output that is similar to keyboard entries. The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cable from the back of the terminal/computer.
2. Remove the back cover and feed the interface cable through to the device.

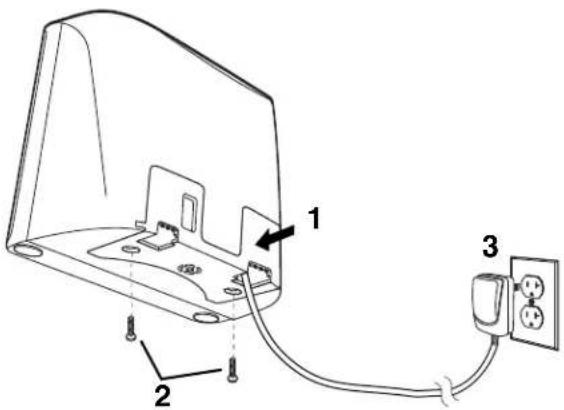

1. Feed the power supply cable through the back cover to the device. Make sure the power cable is completely inserted into the device.

Note: The power supply must be ordered separately.

1. Slide the back cover on and screw the back cover to the device. Connect the interface cable to the computer, and then plug the power supply into the outlet.

Keyboard Wedge Connection:

1. Turn the terminal/computer power back on. The scanner beeps.
2. Verify the scanner operation by scanning a bar code from the Sample Symbols in the back of this manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard. A carriage return (CR) suffix is added to bar code data.

Connecting with RS232 Serial Port

1. Turn off power to the terminal/computer.
2. Remove the back cover and feed the interface cable through to the device.

Note: For the scanner to work properly, you must have the correct cable for your type of terminal/computer.

1. Feed the power supply cable through the back cover to the device. Make sure the power cable is completely inserted into the device.

Note: The power supply must be ordered separately.

1. Slide the back cover on and screw the back cover to the device. Connect the interface cable to the computer and tighten the two screws to secure the connector to the port. Plug the power supply into the outlet.

RS232 Serial Port Connection:

1. Once the scanner has been fully connected, power up the computer.

This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

Connecting with RS485

The scanner can be connected for an IBM POS terminal interface.

1. Remove the back cover and feed the interface cable through to the device.

1. Slide the back cover on and screw the back cover to the device, and then connect the interface cable to the computer.

1. Turn the terminal/computer power back on. The scanner beeps.
2. Verify the scanner operation by scanning a bar code from the Sample Symbols in the back of this manual. The scanner beeps once.

For further RS485 settings, refer to RS485, page 2-2.

Connecting EAS

Checkpoint®

When connecting to a Checkpoint EAS system, connect the Checkpoint EAS cable to the EAS port on the left side of the scanner. Refer to EAS Settings beginning on page 7-1 for configuration codes and further EAS programming information.

Sensormatic®

When connecting to a Sensormatic EAS system, connect the Sensormatic EAS cable to the EAS port on the left side of the scanner. Contact Tyco for further information about Sensormatic installation and configuration. Refer to EAS Settings beginning on page 7-1 for configuration codes and further EAS programming information.

Connecting Auxiliary Scanner

1. Connect the interface cable. See "Connecting the Device" on page 1-1 for further information.

2. Remove the back cover and feed the power supply cable through to the device. Make sure the power cable is completely inserted into the device.

1. Slide the back cover on and screw the back cover to the device. Plug the power supply into the outlet

1. Connect the USB cable to the USB port on the left side of the scanner, and then connect the interface cable to the auxiliary scanner.

Button Functionality

There is two buttons on the front of the device. The following is a brief description of the settings for the buttons.

Beeper Volume

Beeper Pitch

Beeper Pitch

Press repeatedly to scroll through the beeper pitch (frequency): low (870Hz), medium (1140Hz), and high (1800Hz).

Beeper Volume

Press repeatedly to scroll through the beeper volumes: high, medium, low, and off.

Reading Techniques

Present the bar code to the scanner. The LEDs turn up to read the code. If the light level in the room is not high enough, the code may not be read.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by sending serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Bar Code Security settings. Please contact the nearest technical support office (see Technical Assistance on page ix) for further information.

Setting Custom Defaults

You have the ability to create a set of menu commands as your own, custom defaults. To do so, scan the Set Custom Defaults bar code below before scanning the menu commands for your custom defaults. If a menu command requires scanning numeric codes from the back cover, then a Save code, that entire sequence will be saved to your custom defaults. When you have entered all the commands you want to save for your custom defaults, scan the Save Custom Defaults bar code.

MNUCDP.
Set Custom Defaults

MNUCDS.
Save Custom Defaults

You may have a series of custom settings and want to correct a single setting. To do so, just scan the new setting to overwrite the old one. For example, if you had previously saved the setting for Beeper Volume at Low to your custom defaults, and decide you want the beeper volume set to High, just scan the Set Custom Defaults bar code, then scan the Beeper Volume High menu code, and then Save Custom Defaults. The rest of the custom defaults will remain, but the beeper volume setting will be updated.

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This is the recommended default bar code for most users. It resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings.

DEFAULT.

Activate Custom Defaults

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard, scan the bar code below. Keyboard wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

IBM PC AT and Compatibles with CR suffix

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows operation of the scanner in parallel with the integral keyboard. The following Laptop Direct Connect bar code also programs a carriage return (CR) suffix and turns on Emulate External Keyboard (page 2-15).

Laptop Direct Connect with CR suffix

RS232 Serial Port

The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Interface bar code also programs a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated below. It also changes the trigger mode to manual.

Option Setting

Baud Rate 115,200 bps

Data Format 8 data bits, no parity bit, 1 stop bit

PAP232.
RS232 Interface

RS485

Scan one of the following "Plug and Play" codes to program the scanner for an IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash register.

PAPP5B.
IBM Port 5B Interface

PAP9B1
IBM Port 9B
HHBCR-1 Interface

PAPP17
IBM Port 17 Interface

PAP9B2
IBM Port 9B
HHBCR-2 Interface

Each bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix
EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 * 00 0A 0B
UPC E 0A Code 128 ** 00 18 0B
	Aztec	00 34 0B
	PDF417	00 2E 0B
	Data Matrix 00 32 0B
	QR	00 33 0B

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B HHBCR-1, and IBM 4683 Port 17 Interfaces **Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

RS485 Packet Mode

The following selection allows you to break up large bar code data into smaller packets on an IBM POS terminal. To break up large bar codes into small packets, scan the Packet Mode On bar code below. Scan the Packet Mode Off bar code if you want large bar code data to be sent to the host in a single chunk. Default = Packet Mode Off.

RTLPDFO.
* Packet Mode Off

If you are using Packet mode, you can specify the size of the data "packet" that is sent to the host. Scan the Packet Length bar code, then the packet size (from 20 - 256) from the Programming Chart inside the back cover of this manual, then Save. Default = 40.

RTLMPS.

Packet Length

USB IBM SurePos

Scan one of the following "Plug and Play" codes to program the scanner for an IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop scanner) interface.

Note: After scanning one of these codes, you must power cycle the cash register.

PAPSPH

USB IBM SurePos

(USB Handheld Scanner)

Interface

PAPSPT.

USB IBM SurePos

(USB Tabletop Scanner)

Interface

Each bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 00 18 0B

UPC E 0A Code 39 00 0A 0B

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard or USB Macintosh Keyboard. Scanning these codes also adds a CR suffix.

PAP124.

USB Keyboard (PC)

PAP125

USB Keyboard (Mac)

TRMUSB134

USB Japanese Keyboard (PC)

USB HID

Scan the following code to program the scanner for USB HID bar code scanners.

USB HID Bar Code Scanner

USB Serial

Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use the next available COM Port number. Apple® Macintosh computers recognize the scanner as a USB CDC class device and automatically use a class driver.

TRMUSB130.
USB Serial

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

USBCTS1
CTS/RTS Emulation On

USBCTSO
* CTS/RTS Emulation Off

ACK/NAK Mode

USBACK1.
ACK/NAK Mode On

USBACKD
* ACK/NAK Mode Off

Remote MasterMind™ for USB

When using a USB interface, you may wish to configure your scanner to communicate with Remote MasterMind Scanner Management Software (ReM). Scan the ReM On bar code to communicate with ReM. To disable this capability, scan ReM Off. Default = ReM On.

REMIFCO.
ReM Off

Verifone® Ruby Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Verifone Ruby terminal. This bar code sets the baud rate to 1200 bps and the data format to 8 data bits, no parity bit, 1 stop bit. It also adds a line feed (LF) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A

UPC-E A

EAN-8 FF

EAN-13 F

PAPRBY.
Verifone Ruby Settings

Gilbarco ^® Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Gilbarco terminal. This bar code sets the baud rate to 2400 bps and the data format to 7 data bits, even parity, 2 stop bits. It adds a carriage return (CR) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A

UPC-E E0

EAN-8 FF

EAN-13 F

PAPGLB.
Gilbarco Settings

Wincor Nixdorf Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf terminal. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

PAPWNX
Wincor Nixdorf Terminal Settings

Wincor Nixdorf Beetle™ Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. The following prefixes are programmed for each symbology:

Symbology Prefix Symbology Prefix
Code 128 K EAN-13 A
Code 93 L GS1-128 P
Codabar N Interleaved 2 of 5 l
UPC-A A0 Plessey O
UPC-E C Straight 2 of 5 IATA H
EAN-8 B All other bar codes M

PAPBTL

Wincor Nixdorf Beetle Settings

Wincor Nixdorf RS232 Mode A

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf RS232 Mode A terminal. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, odd parity, 1 stop bit. The following prefixes are programmed for each symbology:

Symbology Prefix Symbology Prefix
Code 128 K EAN-13 A
Code 93 L GS1-128 K
Codabar N Interleaved 2 of 5 l
UPC-A A0 Plessey O
UPC-E C Straight 2 of 5 IATA H
EAN-8	B GS1 Data	Bar E
All other bar codes M

PAPWMA.

Wincor Nixdorf RS232 Mode A Settings

Keyboard Country Layout

Scan the appropriate country code below to program the keyboard layout for your country or language. By default, national character replacements are used for the following characters: #@[]^'!~

Keyboard Countries

KBDCTYO

* United States

Keyboard Countries (Continued)

KBDCTY54
Canada (French legacy)

Keyboard Countries (Continued)

KBDCTY18
Canada (French)

KBDCTY55
Canada (Multilingual)

KBDCTY32.
Croatia

KBDCTY15.
Czech

KBDCTY40
Czech (Programmers)

KBDCTY39.
Czech (QWERTY)

KBDCTY38.
Czech (QWERTZ)

KBDCTY8.
Denmark

KBDCTY11
Dutch (Netherlands)

KBDCTY41.
Estonia

KBDCTY83.
Faroese

Keyboard Countries (Continued)

KBDCTY66.
Greek (MS)

Keyboard Countries (Continued)

KBDCTY60. Greek (Polytonic)

KBDCTY12. Hebrew

KBDCTY50. Hungarian (101 key)

KBDCTY19. Hungary

KBDCTY75. Iceland

KBDCTY73. Irish

KBDCTY56 Italian (142)

KBDCTY5. Italy

KBDCTY28 Japan ASCII

KBDCTY78. Kazakh

KBDCTY79. Kyrgyz (Cyrillic)

Keyboard Countries (Continued)

KBDCTY57.
Polish (214)

Keyboard Countries (Continued)

KBDCTY58
Polish (Programmers)

KBDCTY13.
Portugal

KBDCTY25.
Romania

KBDCTY26.
Russia

KBDCTY67
Russian (MS)

KBDCTY68.
Russian (Typewriter)

KBDCTY21.
SCS

KBDCTY37.
Serbia (Cyrillic)

KBDCTY36.
Serbia (Latin)

KBDCTY22.
Slovakia

KBDCTY49
Slovakia (QWERTY)

Keyboard Countries (Continued)

KBDCTY76.
Ukrainian

Keyboard Countries (Continued)

KBDCTY7

United Kingdom

KBDCTY87

United States (Dvorak)

KBDCTY88

United States (Dvorak left)

KBDCTY89

United Stated (Dvorak right)

KBDCTY30

United States (International)

KBDCTY77.

Uzbek (Cyrillic)

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used Keyboard Conversion settings, they will override any of the following Keyboard Style settings. Default = Regular.

Regular is used when you normally have the Caps Lock key off.

KBDSTYO

* Regular

Caps Lock is used when you normally have the Caps Lock key on.

KBDSTY1

Caps Lock

Shift Lock is used when you normally have the Shift Lock key on (not common to U.S. keyboards).

KBDSTY2

Shift Lock

Automatic Caps Lock is used if you change the Caps Lock key on and off. The software tracks and reflects if you have Caps Lock on or off. This selection can only be used with systems that have an LED that notes the Caps Lock status (AT keyboards).

KBDSTY6

Automatic Caps Lock

Autocaps via NumLock bar code should be scanned in countries (e.g., Germany, France) where the Caps Lock key cannot be used to toggle Caps Lock. The NumLock option works similarly to the regular Autocaps, but uses the NumLock key to retrieve the current state of the Caps Lock.

KBDSTY7

Autocaps via NumLock

Emulate External Keyboard should be scanned if you do not have an external keyboard (IBM AT or equivalent).

KBDSTY5

Emulate External Keyboard

Note: After scanning the Emulate External Keyboard bar code, you must power cycle your computer.

Keyboard Conversion

Alphabetic keyboard characters can be forced to be all upper case or all lowercase. So if you have the following bar code: "abc569GK," you can make the output "ABC569GK" by scanning Convert All Characters to Upper Case, or to "abc569gk" by scanning Convert All Characters to Lower Case.

These settings override Keyboard Style selections.

Note: If your interface is a keyboard wedge, first scan the menu code for Automatic Caps Lock (page 2-15). Otherwise, your output may not be as expected.

Default = Keyboard Conversion Off.

KBDCNVO.

* Keyboard Conversion Off

KBDCNV1.

Convert All Characters to Upper Case

KBDCNV2.

Convert All Characters to Lower Case

Control Character Output

This selection sends a text string instead of a control character. For example, when the control character for a carriage return is expected, the output would display [CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart (Code Page 1252) on page A-3. Only codes 00 through 1F are converted (the first column of the chart).

Note: Control + X (Control + ASCII) Mode overrides this mode.

Default = Off.

KBDNPE1.

Control Character Output On

KBDNPEO.

* Control Character Output Off

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo Mode.

Control + X (Control + ASCII) Mode On: The scanner sends key combinations for ASCII control characters for values 00-1F. Windows is the preferred mode. All keyboard country codes are supported. DOS mode is a legacy mode, and it does not support all keyboard country codes. New users should use the Windows mode. Refer to Keyboard Function Relationships, page 10-1 for CTRL+ X Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for ASCII control characters for values 00-1F, but it does not translate prefix or suffix information.

Default = Control + X Mode Off.

KBDCAS2.

Windows Mode Control + X Mode On

KBDCASO.

* Control + X Mode Off

KBDCAS1.

DOS Mode Control + X Mode On

KBDCAS3

Windows Mode Prefix/Suffix Off

Turbo Mode: The scanner sends characters to a terminal faster. If the terminal drops characters, do not use Turbo Mode. Default = Off.

KBDTMD1. Turbo Mode On

KBDTMDO. * Turbo Mode Off

Numeric Keypad Mode: Sends numeric characters as if entered from a numeric keypad. Default = Off.

KBDNPS1. Numeric Keypad Mode On

KBDNPSO. * Numeric Keypad Mode Off

Automatic Direct Connect Mode: This selection can be used if you have an IBM AT style terminal and the system is dropping characters. Default = Off.

KBDADC1. Automatic Direct Connect Mode On

KBDADCO. * Automatic Direct Connect Mode Off

RS232 Modifiers

RS232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the same baud rate as the scanner. Default = 115,200.

232BAD0
300

232BAD1 600

RS232 Word Length: Data Bits, Stop Bits, and Parity

Data Bits sets the word length at 7 or 8 bits of data per character. If an application requires only ASCII Hex characters 0 through 7F decimal (text, digits, and punctuation), select 7 data bits. For applications that require use of the full ASCII set, select 8 data bits per character. Default = 8.

Stop Bits sets the stop bits at 1 or 2. Default = 1.

Parity provides a means of checking character bit patterns for validity.

Default = None.

7 Data, 1 Stop, Parity Even

232WRD6
7 Data, 1 Stop, Parity Odd

232WRD1
7 Data, 2 Stop Parity None

232WRD5
8 Data, 1 Stop, Parity Even

232WRD8
8 Data, 1 Stop, Parity Odd

232WRDO
7 Data, 1 Stop, Parity None

232WRD4
7 Data, 2 Stop, Parity Even

232WRD7
7 Data, 2 Stop, Parity Odd

232WRD2
* 8 Data, 1 Stop, Parity None

232WRD14
8 Data, 1 Stop, Parity Mark

RS232 Receiver Time-Out

The unit stays awake to receive data until the RS232 Receiver Time-Out expires. A manual or serial trigger resets the time-out. When an RS232 receiver is sleeping, a character may be sent to wake up the receiver and reset the time-out. A transaction on the CTS line will also wake up the receiver. The receiver takes 300 milliseconds to completely come up. Change the RS232 receiver time-out by scanning the bar code below, then scanning digits from the inside back cover of this manual, then scanning Save. The range is 0 to 300 seconds. Default = 0 seconds (no time-out - always on).

232LPT.
RS232 Receiver Time-Out

RS232 Handshaking

RS232 Handshaking allows control of data transmission from the scanner using software commands from the host device. When RTS/CTS is turned Off, no data flow control is used.

Flow Control, No Timeout: The scanner asserts RTS when it has data to send, and will wait indefinitely for CTS to be asserted by the host.

Two-Direction Flow Control: The scanner asserts RTS when it is OK for the host to transmit. The host asserts CTS when it is OK for the device to transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data to send and waits for a delay (see RS232 Timeout on page 2-20) for CTS to be asserted by the host. If the delay time expires and CTS is not asserted, the device transmit buffer is cleared and scanning may resume.

Default = RTS/CTS Off.

232CTS1
Flow Control, No Timeout

232CTS2
Two-Direction Flow Control

232CTS3
Flow Control with Timeout

232CTSD
* RTS/CTS Off

RS232 Timeout

When using Flow Control with Timeout, you must program the length of the delay you want to wait for CTS from the host. Set the length (in milliseconds) for a timeout by scanning the bar code below, then setting the timeout (from 1-5100 milliseconds) by scanning digits from the inside back cover, then scanning Save.

232DEL
RS232 Timeout

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start sending data (XON/XOFF On) or to stop sending data (XON/XOFF Off). When the host sends the XOFF character (DC3, hex 13) to the scanner, data transmission stops. To resume transmission, the host sends the XON character (DC1, hex 11). Data transmission continues where it left off when XOFF was sent. Default = XON/XOFF Off.

232XON1
XON/XOFF On

232XONO

* XON/XOFF Off

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or a NAK character (hex 15) response from the host. If ACK is received, the communications cycle is completed and the scanner looks for more bar codes. If NAK is received, the last set of bar code data is retransmitted and the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by scanning the ACK/NAK On bar code below. To turn off the protocol, scan ACK/NAK Off. Default = ACK/NAK Off.

232ACK1

ACK/NAK On

232ACKD

* ACK/NAK Off

Power Up Beeper

The scanner can be programmed to beep when it's powered up. Scan the Off bar code(s) if you don't want a power up beep. Default = Power Up Beeper On.

BEPPWRO.
Power Up Beeper Off

BEPPWR1
* Power Up Beeper On

Beep on BEL Character

You may wish to force the scanner to beep upon a command sent from the host. If you scan the Beep on BEL On bar code below, the scanner will beep every time a BEL character is received from the host. Default = Beep on BEL Off.

BELBEPO
*Beep on BEL Off

BELBEP1
Beep on BEL On

Good Read and Error Indicators

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read. Turning this option off only turns off the beeper response to a good read indication. All error and menu beeps are still audible. Default = Beeper - Good Read On.

BEPBEPO
Beeper - Good Read Off

BEPBEP1.
* Beeper - Good Read On

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner emits on a good read. Default = High.

BEPLVL1
Low

BEPLVL2
Medium

BEPLVL3.
* High

BEPLVLO
Off

Beeper Pitch – Good Read

The beeper pitch codes modify the pitch (frequency) of the beep the scanner emits on a good read. Default = Low.

BEPFQ1870.
* Low (870 Hz)

BEPFQ11140.
Medium (1140 Hz)

BEPRQ11800.
High (1800 Hz)

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scanner emits when there is a bad read or error. Default = Razz.

BEPFQ2250
* Razz (250 Hz)

BEPFQ23250.

Medium (3250 Hz)

BEPFQ24200

High (4200 Hz)

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits on a good read. Default = Normal.

BEPBIPO

* Normal Beep

BEPBIP1

Short BeepShort Beep

LED - Good Read

The LED indicator can be programmed On or Off in response to a good read. Default = On.

BEPLED1

* LED - Good Read On

BEPLEDO

LED - Good Read Off

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The same number of beeps will be applied to the beeper and LED in response to a good read. For example, if you program this option to have five beeps, there will be five beeps and five LED flashes in response to a good read. The beeps and LED flashes are in sync with one another. To change the number of beeps, scan the bar code below and then scan a digit (1-9) bar code and the Save bar code on the Programming Chart inside the back cover of this manual. Default = 1.

BEPRPT.

Number of Good Read Beeps/LED Flashes

Number of Beeps - Error

The number of beeps and LED flashes emitted by the scanner for a bad read or error can be programmed from 1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response to an error. To change the number of error beeps, scan the bar code below and then scan a digit (1-9) bar code and the Save bar code on the Programming Chart inside the back cover of this manual. Default = 5.

BEPERR
Number of Error Beeps/LED Flashes

Good Read Delay

This sets the minimum amount of time before the scanner can read another bar code. Default = 0 ms (No Delay).

DLYGRDO.
* No Delay

DLYGRD500.
Short Delay (500 ms)

DLYGRD1000.
Medium Delay (1,000 ms)

DLYGRD1500.
Long Delay (1,500 ms)

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar code below, then set the delay (from 0 - 30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save.

DLYGRD.
User-Specified Good Read Delay

Serial Trigger Mode

You can activate the scanner by using a serial trigger command (see Trigger Commands on page 12-3). When in serial mode, the scanner scans until a bar code has been read or until the deactivate command is sent. The scanner can also be set to turn itself off after a specified time has elapsed (see Read Time-Out, which follows).

Read Time-Out

Use this selection to set a time-out (in milliseconds) of the scanner's trigger when using serial commands to trigger the scanner. Once the scanner has timed out, you can activate the scanner either by pressing the trigger or using a serial trigger command. After scanning the Read Time-Out bar code, set the time-out duration (from 0-300,000 milliseconds) by scanning digits on the Programming Chart inside the back cover, then scanning Save. Default = 30,000 ms.

TRGSTO
Read Time-Out

Presentation Mode

Presentation Mode uses ambient light and scanner illumination to detect bar codes. When in Presentation Mode, the LEDs remain dim until a bar code is presented to the scanner, then the LEDs turn up to read the code.

Scan the following bar code to program your device for Presentation Mode. Default = Presentation Mode.

TRGMOD3
* Presentation Mode

Presentation Idle Mode

When Presentation Idle Mode is selected, the scanner goes into idle mode (illumination dims) after the time interval set, during which there is no activity. Change the Presentation Idle mode by scanning the bar code below, and then scanning digits from the Programming Chart inside the back cover of this manual, then scanning Save. The range is 0 to 3000000. The scanner will wake when an object is presented to the window or the pitch or volume button is pressed. Default = 10000 (10s).

When Off is selected, no power saving is used and the scanner remains powered on.

Note: In some conditions the scanner will switch between Presentation Idle Mode and Presentation Sleep Mode according to ambient light level. This allows the scanner to wake up in very dark conditions.

Note: This selection is unavailable when the Illumination Lights or LED Illumination - Presentation Mode are set to off.

Presentation Idle Mode

TRGPMT0.
Off

Presentation Sleep Mode

When Presentation Sleep Mode On is selected, the scanner goes into sleep mode (illumination is off and the LED will slowly blink on and off) after the time interval set using Presentation Sleep Mode Timeout, during which there is not activity. The scanner will wake when an object is presented to the window or the pitch or volume button is pressed. Default = Presentation Sleep Mode On.

Note: In some conditions the scanner will switch between Presentation Idle Mode and Presentation Sleep Mode according to ambient light level. This allows the scanner to wake up in very dark conditions.

Note: This selection is unavailable when the Illumination Lights or LED Illumination - Presentation Mode are set to off.

Presentation Sleep Mode Timeout

Use this selection to set a timeout (in seconds) for the scanner when using Presentation Sleep Mode. When this time has elapses with no activity, the scanner will enter the Presentation Sleep Mode timeout selected. After scanning the Presentation Sleep Mode Timeout bar code, set the timeout duration (from 0-3600000) by scanning digits on the Programming Chartt inside the back cover, then scanning Save. Default = 300000 (300s).

LED Illumination - Presentation Mode

If you wish to set the illumination LED brightness, scan one of the bar codes below. This sets the LED illumination for the scanner when it is in Presentation Mode. (If the scanner is triggered manually, the LED illumination will switch to the setting for a manual trigger. See "Serial Trigger Mode" on page 3-4.) Default = High.

Note: The LEDs are like a flash on a camera. The lower the ambient light in the room, the brighter the LEDs need to be so the scanner can "see" the bar codes.

Note: The LEDs may turn off for a short time when the scanner detects low power.

Presentation LED Behavior after Decode

If you wish to dim the LEDs immediately after a bar code is decoded, scan the LEDs Off bar code, below. Default = LEDs On.

Presentation Sensitivity

Presentation Sensitivity is a numeric range that increases or decreases the scanner's reaction time to bar code presentation. To set the sensitivity, scan the Sensitivity bar code, then scan the degree of sensitivity (from 0-20) from the inside back cover, and Save. 0 is the most sensitive setting, and 20 is the least sensitive. Default = 1.

Presentation Centering

Use Presentation Centering to narrow the scanner's field of view when it is in Presentation Mode to make sure the scanner reads only those bar codes intended by the user. For instance, if multiple codes are placed closely together, Presentation Centering will insure that only the desired codes are read.

If a bar code is not touched by a predefined window, it will not be decoded or output by the scanner. If Presentation Centering is turned on by scanning Presentation Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of Presentation Centering Window, Bottom of Presentation Centering Window, Left, and Right of Presentation Centering Window bar codes.

In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to be read. It does not need to pass completely through the centering window.

Scan Presentation Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of this manual. Scan Save. Default Presentation Centering = 40% for Top and Left, 60% for Bottom and Right.

PDCWIN1
Presentation Centering On

PDCWIND
* Presentation Centering Off

PDCTOP
Top of Presentation Centering Window

PDCBOT
Bottom of Presentation Centering Window

PDCLFT.

Left of

Presentation Centering

Window

PDCRGT

Right of Presentation Centering Window

Streaming Presentation™ Mode

When in Streaming Presentation mode, the scan illumination remains on all the time to continuously search for bar codes. Two modes are available, Normal and Enhanced. Normal mode offers good scan speed and the longest working ranges (depth of field). Enhanced mode will give you the highest possible scan speed but slightly less range than Normal mode. Enhanced mode is best used when you require a very fast scan speed and don't require a long working range.

PAPSPN.

Streaming Presentation Mode

- Normal

PAPSPE

Streaming Presentation Mode

- Enhanced

When using Preferred Symbology (page 3-12), a lower priority symbol must be centered on the aiming pattern to be read in Streaming Presentation Mode.

Mobile Phone Read Mode

When this mode is selected, your scanner is optimized to read bar codes from mobile phone or other LED displays. However, the speed of scanning printed bar codes may be slightly lower when this mode is enabled.

PAPPSC

Presentation - Mobile Phone

Poor Quality PDF Codes

This setting improves the scanner's ability to read damaged or badly printed PDF codes by combining information from multiple images. When Poor Quality PDF On is scanned, poor quality PDF code reading is improved, but the scanner's snappiness is decreased, making it less aggressive when reading good quality bar codes. This setting does not affect 1D bar code reading.

Default = Poor Quality PDF Reading Off.

PDFXPR1

Poor Quality PDF Reading On

* Poor Quality PDF Reading Off

Poor Quality Code Enhanced Mode

If you are having a difficulty reading poor quality bar codes, you may wish to scan the Poor Quality Code Enhanced Mode bar code below to improve the read rate.

Poor Quality Code Enhanced Mode

Reread Delay

This sets the time period before the scanner can read the same bar code a second time. Setting a reread delay protects against accidental rereads of the same bar code. Longer delays are effective in minimizing accidental rereads. Use shorter delays in applications where repetitive bar code scanning is required. Reread Delay only works when in a Presentation Mode (see page 3-5). Default = Short.

User-Specified Reread Delay

If you want to set your own length for the reread delay, scan the bar code below, then set the delay (from 0-30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save.

Illumination Lights

If you want the illumination lights on while reading a bar code, scan the Lights On bar code, below. However, if you want to turn just the lights off, scan the Lights Off bar code. Default = Lights On.

Centering

Use Centering to narrow the scanner's field of view to make sure that when the scanner is hand-held, it reads only those bar codes intended by the user. For instance, if multiple codes are placed closely together, centering will insure that only the desired codes are read. (Centering can be used in conjunction with Centering, page 3-11, for the most error-free operation in applications where multiple codes are spaced closely together.)

Note: To adjust centering when the scanner is in Presentation Mode, see Presentation Centering (page 3-7).

If a bar code is not touched by a predefined window, it will not be decoded or output by the scanner. If centering is turned on by scanning Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of Centering Window, Bottom of Centering Window, Left, and Right of Centering Window bar codes.

In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to be read. It does not need to pass completely through the centering window.

Scan Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of this manual. Scan Save. Default Centering = 40% for Top and Left, 60% for Bottom and Right.

Preferred Symbology

The scanner can be programmed to specify one symbology as a higher priority over other symbologies in situations where both bar code symbologies appear on the same label, but the lower priority symbology cannot be disabled.

For example, you may be using the scanner in a retail setting to read U.P.C. symbols, but have occasional need to read a code on a drivers license. Since some licenses have a Code 39 symbol as well as the PDF417 symbol, you can use Preferred Symbolology to specify that the PDF417 symbol be read instead of the Code 39.

Preferred Symbology classifies each symbology as high priority, low priority, or as an unspecified type. When a low priority symbology is presented, the scanner ignores it for a set period of time (see Preferred Symbology Time-out on page 3-13) while it searches for the high priority symbology. If a high priority symbology is located during this period, then that data is read immediately.

If the time-out period expires before a high priority symbology is read, the scanner will read any bar code in its view (low priority or unspecified). If there is no bar code in the scanner's view after the time-out period expires, then no data is reported.

Note: A low priority symbol must be centered on the aiming pattern to be read.

Scan a bar code below to enable or disable Preferred Symbology. Default = Preferred Symbology Off.

High Priority Symbology

To specify the high priority symbology, scan the High Priority Symbology bar code below. On the Symbology Charts on page A-1, find the symbology you want to set as high priority. Locate the Hex value for that symbology and scan the 2 digit hex value from the Programming Chart (inside back cover). Scan Save to save your selection. Default = None

PRFCOD
High Priority Symbology

Low Priority Symbology

To specify the low priority symbology, scan the Low Priority Symbology bar code below. On the Symbology Charts on page A-1, find the symbology you want to set as low priority. Locate the Hex value for that symbology and scan the 2 digit hex value from the Programming Chart (inside back cover).

If you want to set additional low priority symbologies, scan FF, then scan the 2 digit hex value from the Programming Chart for the next symbology. You can program up to 5 low priority symbologies. Scan Save to save your selection. Default = None

PRFBLK
Low Priority Symbology

Preferred Symbology Time-out

Once you have enabled Preferred Symbology and entered the high and low priority symbologies, you must set the time-out period. This is the period of time the scanner will search for a high priority bar code after a low priority bar code has been encountered. Scan the bar code below, then set the delay (from 1-3,000 milliseconds) by scanning digits from the inside back cover, then scanning Save. Default = 500 ms.

PRFPTO.
Preferred Symbology Time-out

Preferred Symbology Default

Scan the bar code below to set all Preferred Symbology entries to their default values.

PRFDFT
Preferred Symbology Default

Character Activation Mode

You may use a character sent from the host to trigger the scanner to begin scanning. When the activation character is received, the scanner continues scanning until either the Character Activation Laser Timeout (page 3-15), the deactivation character is received (see Deactivation Character on page 3-15), or a bar code is transmitted. Scan the following On bar code to use character activation, then use Activation Character (following) to select the character you will send from the host to start scanning. Default = Off.

HSTCENO
* Off

HSTCEN1.
On

Activation Character

This sets the character used to trigger scanning when using Character Activation Mode. On the ASCII Conversion Chart (Code Page 1252), page A-3, find the hex value that represents the character you want to use to trigger scanning. Scan the following bar code, then use the Programming Chart to read the alphanumeric combination that represents that ASCII character. Scan Save to finish.

HSTACH
Activation Character

End Character Activation After Good Read

After a bar code is successfully detected and read from the scanner, the laser can be programmed either to remain on and scanning, or to turn off. When End Character Activation After Good Read is enabled, the laser turns off and stops scanning after a good read. If you scan Do Not End Character Activation After Good Read, the laser remains on after a good read. Default = End Character Activation After Good Read.

HSTCGDO
Do Not End Character Activation
After Good Read

HSTCGD1
* End Character Activation After
Good Read

Character Activation Laser Timeout

You can set a timeout for the length of time the laser remains on and attempting to decode bar codes when using Character Activation Mode. Set the length (in milliseconds) for a timeout by scanning the following bar code, then setting the timeout (from 1-65535 milliseconds) by scanning digits from the Programming Chart inside the back cover of this manual, then scanning Save. Default = 5000 ms.

Character Activation Laser Timeout

Character Deactivation Mode

If you have sent a character from the host to trigger the scanner to begin scanning, you can also send a deactivation character to stop scanning. Scan the following On bar code to use character deactivation, then use Deactivation Character (following) to select the character you will send from the host to terminate scanning. Default = Off.

Deactivation Character

This sets the character used to terminate scanning when using Character Deactivation Mode. On the ASCII Conversion Chart (Code Page 1252), page A-3, find the hex value that represents the character you want to use to terminate scanning. Scan the following bar code, then use the Programming Chart inside the back cover of this manual to read the alphanumeric combination that represents that ASCII character. Scan Save to finish.

Output Sequence Overview

Require Output Sequence

When turned off, the bar code data will be output to the host as the scanner decodes it. When turned on, all output data must conform to an edited sequence or the scanner will not transmit the output data to the host device.

Note: This selection is unavailable when the Multiple Symbols Selection is turned on.

Output Sequence Editor

This programming selection allows you to program the scanner to output data (when scanning more than one symbol) in whatever order your application requires, regardless of the order in which the bar codes are scanned. Reading the Default Sequence symbol programs the scanner to the Universal values, shown below. These are the defaults. Be certain you want to delete or clear all formats before you read the Default Sequence symbol.

Note: To make Output Sequence Editor selections, you'll need to know the code I.D., code length, and character match(es) your application requires. Use the Alphanumeric symbols (inside back cover) to read these options.

To Add an Output Sequence

1. Scan the Enter Sequence symbol (see Require Output Sequence, page 3-18).
2. Code I.D.

On the Symbology Charts on page A-1, find the symbology to which you want to apply the output sequence format. Locate the Hex value for that symbology and scan the 2 digit hex value from the Programming Chart (inside back cover).

1. Length

Specify what length (up to 9999 characters) of data output will be acceptable for this symbology. Scan the four digit data length from the Programming Chart. (Note: 50 characters is entered as 0050. 9999 is a universal number, indicating all lengths.) When calculating the length, you must count any programmed prefixes, suffixes, or formatted characters as part of the length (unless using 9999).

1. Character Match Sequences

On the ASCII Conversion Chart (Code Page 1252), page A-3, find the Hex value that represents the character(s) you want to match. Use the Programming Chart to read the alphanumeric combination that represents the ASCII characters. (99 is the Universal number, indicating all characters.)

1. End Output Sequence Editor

Scan F F to enter an Output Sequence for an additional symbology, or Save to save your entries.

Other Programming Selections

- Discard

This exits without saving any Output Sequence changes.

Output Sequence Example

In this example, you are scanning Code 93, Code 128, and Code 39 bar codes, but you want the scanner to output Code 39 1st, Code 128 2nd, and Code 93 3rd, as shown below.

Note: Code 93 must be enabled to use this example.

You would set up the sequence editor with the following command line:

SEQBLK62999941FF6A999942FF69999943FF

The breakdown of the command line is shown below:

SEQBLKsequence editor start command

62 code identifier for Code 39

9999 code length that must match for Code 39, 9999 = all lengths

41 start character match for Code 39, 41h = "A"

FF termination string for first code

6A code identifier for Code 128

9999 code length that must match for Code 128, 9999 = all lengths

42 start character match for Code 128, 42h = "B"

FF termination string for second code

69 code identifier for Code 93

9999 code length that must match for Code 93, 9999 = all lengths

43 start character match for Code 93, 43h = "C"

FF termination string for third code

To program the previous example using specific lengths, you would have to count any programmed prefixes, suffixes, or formatted characters as part of the length. If you use the example on page 3-16, but assume a suffix and specific code lengths, you would use the following command line:

SEQBLK62001241FF6A001342FF69001243FF

The breakdown of the command line is shown below:

SEQBLKsequence editor start command

62 code identifier for Code 39

0012 A - Code 39 sample length (11) plus CR suffix (1) = 12

41 start character match for Code 39, 41h = "A"

FF termination string for first code

6A code identifier for Code 128

0013 B - Code 128 sample length (12) plus CR suffix (1) = 13

42 start character match for Code 128, 42h = "B"

FF termination string for second code

69 code identifier for Code 93

0012 C - Code 93 sample length (11) plus CR suffix (1) = 12

43 start character match for Code 93, 43h = "C"

FF termination string for third code

Output Sequence Editor

SEQBLK.

Enter Sequence

SEQDFT

Default Sequence

Partial Sequence

If an output sequence operation is terminated before all your output sequence criteria are met, the bar code data acquired to that point is a “partial sequence.”

Scan Discard Partial Sequence to discard partial sequences when the output sequence operation is terminated before completion. Scan Transmit Partial Sequence to transmit partial sequences. (Any fields in the sequence where no data match occurred will be skipped in the output.)

SEQTTS1

Transmit Partial Sequence

SEQTTSD

* Discard Partial Sequence

Require Output Sequence

When an output sequence is Required, all output data must conform to an edited sequence or the scanner will not transmit the output data to the host device. When it's On/Not Required, the scanner will attempt to get the output data to conform to an edited sequence but, if it cannot, the scanner transmits all output data to the host device as is.

When the output sequence is Off, the bar code data is output to the host as the scanner decodes it. Default = Off.

Note: This selection is unavailable when the Multiple Symbols Selection is turned on.

SEQ EN2.
Required

SEQ_EN1
On/Not Required

SEQ ENO.
*Off

No Read

With No Read turned On, the scanner notifies you if a code cannot be read. If using an EZConfig-Scanning Tool Scan Data Window (see page 11-3), an "NR" appears when a code cannot be read. If No Read is turned Off, the "NR" will not appear. Default = Off.

SHWNRD1.
On

SHWNRDO.
* Off

If you want a different notation than "NR," for example, "Error," or "Bad Code," you can edit the output message (see Data Formatting beginning on page 5-1). The hex code for the No Read symbol is 9C.

Video Reverse

Video Reverse is used to allow the scanner to read bar codes that are inverted. The Video Reverse Off bar code below is an example of this type of bar code. Scan Video Reverse Only to read only inverted bar codes. Scan Video Reverse and Standard Bar Codes to read both types of codes.

Note: After scanning Video Reverse Only, menu bar codes cannot be read. You must scan Video Reverse Off or Video Reverse and Standard Bar Codes in order to read menu bar codes.

Note: Images downloaded from the unit are not reversed. This is a setting for decoding only.

VIDREV1.

Video Reverse Only

VIDREV2

Video Reverse and Standard Bar Codes

* Video Reverse Off

Working Orientation

Some bar codes are direction-sensitive. For example, KIX codes and OCR can misread when scanned sideways or upside down. Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner. Default = Upright.

Upright:

1. 1. 1. 1. 1. 1. 1. 1. 1.

Upside Down:

Vertical, Top to Bottom: (Rotate CW 90°)

Vertical, Bottom to Top: (Rotate CCW 90°)

1.1111111111111111

[Figure]

ROTATNO.

* Upright

ROTATN2

Upside Down

ROTATN1

Vertical, Bottom to Top

ROTATN3

Vertical, Top to Bottom

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer along with the bar code data. This group of bar code data and additional, user-defined data is called a "message string." The selections in this section are used to build the user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and after scanned data. You can specify if they should be sent with all symbologies, or only with specific symbologies. The following illustration shows the breakdown of a message string:

variable length1-11

alpha numeric &

control characters

1-11

alpha numeric &

control characters

Points to Keep In Mind

• It is not necessary to build a message string. The selections in this chapter are only used if you wish to alter the default settings. Default prefix = None. Default suffix = None.
• A prefix or suffix may be added or cleared from one symbology or all symbologies.
• You can add any prefix or suffix from the ASCII Conversion Chart (Code Page 1252), beginning on page A-3, plus Code I.D. and AIM I.D.
• You can string together several entries for several symbologies at one time.
• Enter prefixes and suffixes in the order in which you want them to appear on the output.
• When setting up for specific symbologies (as opposed to all symbologies), the specific symbology ID value counts as an added prefix or suffix character.
• The maximum size of a prefix or suffix configuration is 200 characters, which includes header information.

To Add a Prefix or Suffix:

Step 1. Scan the Add Prefix or Add Suffix symbol (page 4-2).

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in the Symbology Charts, beginning on page A-1) for the symbology to which you want to apply the prefix or suffix. For example, for Code 128, Code ID is "j" and Hex ID is "6A".

Step 3. Scan the 2 hex digits from the Programming Chart inside the back cover of this manual or scan 9, 9 for all symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code Page 1252), beginning on page A-3, for the prefix or suffix you wish to enter.

Note: To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1.

To add a backslash (), scan 5, C, 5, C.

To add a backslash (i) as in Step 7, you must scan 5C twice – once to create the leading backslash and then to create the backslash itself.

Step 5. Scan the 2 digit hex value from the Programming Chart inside the back cover of this manual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.

Step 7. Scan Save to exit and save, or scan Discard to exit without saving.

Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Example: Add a Tab Suffix to All Symbologies

Step 1. Scan Add Suffix.

Step 2. Scan 9, 9 from the Programming Chart inside the back cover of this manual to apply this suffix to all symbologies.
Step 3. Scan 0, 9 from the Programming Chart inside the back cover of this manual. This corresponds with the hex value for a horizontal tab, shown in the ASCII Conversion Chart (Code Page 1252), beginning on page A-3.
Step 4. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a symbology. If you have been entering prefixes and suffixes for single symbologies, you can use Clear One Prefix (Suffix) to delete a specific character from a symbology. When you Clear All Prefixes (Suffixes), all the prefixes or suffixes for a symbology are deleted.

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.
Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in the Symbology Charts, beginning on page A-1) for the symbology from which you want to clear the prefix or suffix.
Step 3. Scan the 2 digit hex value from the Programming Chart inside the back cover of this manual or scan 9, 9 for all symbologies.

Your change is automatically saved.

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all symbologies at once. This action first clears all current suffixes, then programs a carriage return suffix for all symbologies.

VSUFCR.

Add CR Suffix All Symbologies

Prefix Selections

PREBK2.

Add Prefix

PRECL2

Clear One Prefix

PRECA2.

Clear All Prefixes

Suffix Selections

SUFBK2

Add Suffix

SUFCA2

Clear All Suffixes

SUFCL2.

Clear One Suffix

Function Code Transmit

When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in Supported Interface Keys starting on page 10-2. When the scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted. Default = Enable.

RMVFNCO

* Enable

RMVFNC1

Disable

Intercharacter, Interfunction, and Intermessage Delays

Some terminals drop information (characters) if data comes through too quickly. Intercharacter, interfunction, and intermessage delays slow the transmission of data, increasing data integrity.

Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each character of scanned data. Scan the Intercharacter Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual.

Note: Intercharacter delays are not supported in USB serial emulation.

User Specified Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed after the transmission of a particular character of scanned data. Scan the Delay Length bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex value for a printable character to trigger the delay (see Lower ASCII Reference Table beginning on page A-4).

To remove this delay, scan the Delay Length bar code, and set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual.

Interfunction Delay

An interfunction delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each control character in the message string. Scan the Interfunction Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Interfunction Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual.

Intermessage Delay

An intermessage delay of up to 5000 milliseconds (in 5ms increments) may be placed between each scan transmission. Scan the Intermessage Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intermessage Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual.

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner's output. For example, you can use the Data Format Editor to insert characters at certain points in bar code data as it is scanned. The selections in the following pages are used only if you wish to alter the output. Default Data Format setting = None.

Normally, when you scan a bar code, it is output automatically. However, when you create a format, you must use a "send" command (see Send Commands on page 5-3) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the order in which they are entered. However, the following list presents the order in which formats are applied:

1. Specific Terminal ID, Actual Code ID, Actual Length
2. Specific Terminal ID, Actual Code ID, Universal Length
3. Specific Terminal ID, Universal Code ID, Actual Length
4. Specific Terminal ID, Universal Code ID, Universal Length
5. Universal Terminal ID, Actual Code ID, Actual Length
6. Universal Terminal ID, Actual Code ID, Universal Length
7. Universal Terminal ID, Universal Code ID, Actual Length
8. Universal Terminal ID, Universal Code ID, Universal Length

The maximum size of a data format configuration is 2000 bytes, which includes header information.

If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data Format code below.

DFMDF3.

* Default Data Format

Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 5-2).

Step 2. Select Primary/Alternate Format

Determine if this will be your primary data format, or one of 3 alternate formats. This allows you to save a total of 4 different data formats. To program your primary format, scan 0 using the Programming Chart inside the back cover of this manual. If you are programming an alternate format, scan 1, 2, or 3, depending on which alternate format you are programming. (See "Primary/Alternate Data Formats" on page 5-12 for further information.)

Step 3. Terminal Type

Refer to Terminal ID Table (page 5-3) and locate the Terminal ID number for your PC. Scan three numeric bar codes on the inside back cover to program the scanner for your terminal ID (you must enter 3 digits). For example, scan 0 0 3 for an AT wedge.

Note: 099 indicates all terminal types.

Step 4. Code I.D.

In the Symbology Charts, beginning on page A-1, find the symbology to which you want to apply the data format. Locate the Hex value for that symbology and scan the 2 digit hex value from the Programming Chart inside the back cover of this manual.

If you wish to create a data format for all symbologies, with the exception of some specific symbologies, refer to B8 (page 5-11).

If you are creating a data format for Batch Mode Quantity, use 35 for the Code I.D.

Note: 99 indicates all symbologies.

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable for this symbology. Scan the four digit data length from the Programming Chart inside the back cover of this manual. For example, 50 characters is entered as 0050. Note: 9999 indicates all lengths.

Step 6. Editor Commands

Refer to Data Format Editor Commands (page 5-3). Scan the symbols that represent the command you want to enter.

Step 7. Scan Save to save your data format, or Discard to exit without saving your changes.

DFMBK3.
Enter Data Format

MNUSAV.
Save

MNUABT
Discard

Other Programming Selections

Clear One Data Format

This deletes one data format for one symbology. If you are clearing the primary format, scan 0 from the Programming Chart inside the back cover of this manual. If you are clearing an alternate format, scan 1, 2, or 3, depending on the format you are clearing. Scan the Terminal Type and Code I.D. (see Symbology Charts on page A-1), and the bar code data length for the specific data format that you want to delete. All other formats remain unaffected.

Clear all Data Formats

This clears all data formats.

Save to exit and save your data format changes.

Discard to exit without saving any data format changes.

DFMCL3
Clear One Data Format

DFMCA3
Clear All Data Formats

MNUSAV.
Save

MNUABT
Discard

Terminal ID Table

Terminal Model(s) Terminal ID
USB PC keyboard (HID)	124
Mac Keyboard	125
PC Keyboard (Japanese)	134
Serial (COM driver required)	130
HID POS	131
USB SurePOS Handheld	128
USB SurePOS Tabletop	129
Serial RS232 TTL	000
RS232 True	000
RS485 (IBM-HHBCR 1+2, 46xx)	051
Keyboard PS2 compatibles	003

Data Format Editor Commands

When working with the Data Format Editor, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For examples that use the Data Format Editor commands, refer to Data Formatter on page 5-11.

Send Commands

Send all characters

F1 Include in the output message all of the characters from the input message, starting from current cursor position, followed by an insert character. Syntax = F1xx where xx stands for the insert character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Send a number of characters

F2 Include in the output message a number of characters followed by an insert character. Start from the current cursor position and continue for "nn" characters or through the last character in the input message, followed by character "xx." Syntax = F2nnxx where nn stands for the numeric value (00-99) for the number of characters, and xx stands for the insert character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

F2 Example: Send a number of characters

Send the first 10 characters from the bar code above, followed by a carriage return. Command string: F2100D

F2 is the "Send a number of characters" command

10 is the number of characters to send

0D is the hex value for a CR

The data is output as: 1234567890

F2 and F1 Example: Split characters into 2 lines

Send the first 10 characters from the bar code above, followed by a carriage return, followed by the rest of the characters.

Command string: F2100DF10D

F2 is the "Send a number of characters" command

10 is the number of characters to send for the first line

0D is the hex value for a CR

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 1234567890

ABCDEFGHIJKLMNOPQRSTUVWXYZ

Send all characters up to a particular character

F3 Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the search character "ss," followed by an insert character. The cursor is moved forward to the "ss" character. Syntax = F3ssxx where ss stands for the search character's hex value for its ASCII code, and xx stands for the insert character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

F3 Example: Send all characters up to a particular character

1234056780ABC

Using the bar code above, send all characters up to but not including "D," followed by a carriage return.

Command string: F3440D

F3 is the "Send all characters up to a particular character" command

44 is the hex value for a 'D"

0D is the hex value for a CR

The data is output as: 1234567890ABC

Send all characters up to a string

B9 Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the search string "s...s." The cursor is moved forward to the beginning of the "s...s" string. Syntax = B9nnnns...s where nnnn stands for the length of the string, and s...s stands for the string to be matched. The string is made up of hex values for the characters in the string. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

B9 Example: Send all characters up to a defined string

1234567890ABCDEFGHIJ

Using the bar code above, send all characters up to but not including "AB."

Command string: B900024142

B9 is the "Send all characters up to a string" command

0002 is the length of the string (2 characters)

41 is the hex value for A

42 is the hex value for B

The data is output as: 1234567890

Send all but the last characters

E9 Include in the output message all but the last "nn" characters, starting from the current cursor position. The cursor is moved forward to one position past the last input message character included. Syntax = E9nn where nn stands for the numeric value (00-99) for the number of characters that will not be sent at the end of the message.

Insert a character multiple times

F4 Send "xx" character "nn" times in the output message, leaving the cursor in the current position. Syntax = F4xxnn where xx stands for the insert character's hex value for its ASCII code, and nn is the numeric value (00-99) for the number of times it should be sent. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

E9 and F4 Example: Send all but the last characters, followed by 2 tabs

1234567890ABCDEFGHIJ

Send all characters except for the last 8 from the bar code above, followed by 2 tabs.

Command string: E908F40902

E9 is the "Send all but the last characters" command

08 is the number of characters at the end to ignore

F4 is the "Insert a character multiple times" command

09 is the hex value for a horizontal tab

02 is the number of times the tab character is sent

The data is output as: 1234567890AB

Insert a string

BA Send "ss" string of "nn" length in the output message, leaving the cursor in the current position. Syntax = BAnnnns...s where nnnn stands for the length of the string, and s...s stands for the string. The string is made up of hex values for the characters in the string. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

B9 and BA Example: Look for the string "AB" and insert 2 asterisks (**)

1234567890ABCDEFGHIJ

Using the bar code above, send all characters up to but not including "AB." Insert 2 asterisks at that point, and send the rest of the data with a carriage return after.

Command string: B900024142BA00022A2AF10D

B9 is the "Send all characters up to a string" command

0002 is the length of the string (2 characters)

41 is the hex value for A

42 is the hex value for B

BA is the "Insert a string" command

0002 is the length of the string to be added (2 characters)

2A is the hex value for an asterisk (*)

2A is the hex value for an asterisk (*)

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 1234567890**ABCDEFGHIJ

Insert symbology name

B3 Insert the name of the bar code's symbology in the output message, without moving the cursor. Only symbologies with a Honeywell ID are included (see Symbology Charts on page A-1). Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Insert bar code length

B4 Insert the bar code's length in the output message, without moving the cursor. The length is expressed as a numeric string and does not include leading zeroes.

B3 and B4 Example: Insert the symbology name and length

1234567890ABCDEFGHIJ

Send the symbology name and length before the bar code data from the bar code above. Break up these insertions with spaces. End with a carriage return.

Command string: B3F42001B4F42001F10D

B3 is the "Insert symbology name" command

F4 is the "Insert a character multiple times" command

20 is the hex value for a space

01 is the number of times the space character is sent

B4 is the "Insert bar code length" command

F4 is the "Insert a character multiple times" command

20 is the hex value for a space

01 is the number of times the space character is sent

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: Code128 20 1234567890ABCDEFGHIJ

Insert key strokes

B5 Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see Keyboard Key References on page A-10). Any key can be inserted, including arrows and functions. Syntax = B5xxssnn where xx is the number of keys pressed (without key modifiers), ss is the key modifier from the table below, and nn is the key number from the Keyboard Key References, page A-10.

Key Modifiers
No Key Modifier 00
Shift Left 01
Shift Right 02
Alt Left 04
Alt Right 08
Control Left 10
Control Right 20

For example, B501021F inserts an "A" on a 104 key, U.S. style keyboard. B5 = the command, 01 = number of keys pressed (without the key modifier), 02 is the key modifier for Shift Right, and 1F is the "a" key. If a lower case "a" were to be inserted, B501001F would be entered.

If there are three keystrokes, the syntax would change from B5xxssnn for one keystroke to B5xxssnnssnnssnn. An example that would insert "abc" is as follows: B503001F00320030F833.

Note: Key modifiers can be added together when needed. Example: Control Left+Shift Left = 11.

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead "nn" characters from current cursor position.

Syntax = F5nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved ahead.

F5 Example: Move the cursor forward and send the data

1234567890ABCDEFGHIJ

Move the cursor forward 3 characters, then send the rest of the bar code data from the bar code above. End with a carriage return.

Command string: F503F10D

F5 is the "Move the cursor forward a number of characters" command

03 is the number of characters to move the cursor

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 4567890ABCDEFGHIJ

Move the cursor backward a number of characters

F6 Move the cursor back "nn" characters from current cursor position.

Syntax = F6nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved back.

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message. Syntax = F7.

FE and F7 Example: Manipulate bar codes that begin with a 1

Search for bar codes that begin with a 1. If a bar code matches, move the cursor back to the beginning of the data and send 6 characters followed by a carriage return. Using the bar code above:

Command string: FE31F7F2060D

FE is the "Compare characters" command

31 is the hex value for 1

F7 is the "Move the cursor to the beginning" command

F2 is the "Send a number of characters" command

06 is the number of characters to send

0D is the hex value for a CR

The data is output as: 123456

Move the cursor to the end

EA Move the cursor to the last character in the input message. Syntax = EA.

Search Commands

Search forward for a character

F8 Search the input message forward for "xx" character from the current cursor position, leaving the cursor pointing to the "xx" character. Syntax = F8xx where xx stands for the search character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

F8 Example: Send bar code data that starts after a particular character

Search for the letter "D" in bar codes and send all the data that follows, including the "D." Using the bar code above:

Command string: F844F10D

F8 is the "Search forward for a character" command

44 is the hex value for "D"

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: DEFGHIJ

Search backward for a character

F9 Search the input message backward for "xx" character from the current cursor position, leaving the cursor pointing to the "xx" character. Syntax = F9xx where xx stands for the search character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Search forward for a string

B0 Search forward for "s" string from the current cursor position, leaving cursor pointing to "s" string. Syntax = B0nnnnS where nnnn is the string length (up to 9999), and S consists of the ASCII hex value of each character in the match string. For example, B0000454657374 will search forward for the first occurrence of the 4 character string "Test." Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

B0 Example: Send bar code data that starts after a string of characters

Search for the letters "FGH" in bar codes and send all the data that follows, including "FGH." Using the bar code above:

Command string: B00003464748F10D

B0 is the "Search forward for a string" command

0003 is the string length (3 characters)

46 is the hex value for "F"

47 is the hex value for "G"

48 is the hex value for "H"

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: FGHIJ

Search backward for a string

B1 Search backward for "s" string from the current cursor position, leaving cursor pointing to "s" string. Syntax = B1nnnnS where nnnn is the string length (up to 9999), and S consists of the ASCII hex value of each character in the match string. For example, B1000454657374 will search backward for the first occurrence of the 4 character string "Test." Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character. Syntax = E6xx where xx stands for the search character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

E6 Example: Remove zeroes at the beginning of bar code data

This example shows a bar code that has been zero filled. You may want to ignore the zeroes and send all the data that follows. E6 searches forward for the first character that is not zero, then sends all the data after, followed by a carriage return. Using the bar code above:

Command string: E630F10D

E6 is the "Search forward for a non-matching character" command

30 is the hex value for 0

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 37692

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character. Syntax = E7xx where xx stands for the search character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands. When the FC command is encountered, the suppress function is terminated. The cursor is not moved by the FB command.

Syntax = FBnnxxyy ..zz where nn is a count of the number of suppressed characters in the list, and xxyy .. zz is the list of characters to be suppressed.

FB Example: Remove spaces in bar code data

This example shows a bar code that has spaces in the data. You may want to remove the spaces before sending the data. Using the bar code above:

Command string: FB0120F10D

FB is the "Suppress characters" command

01 is the number of character types to be suppressed

20 is the hex value for a space

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 34567890

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters. Syntax = FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving the cursor. Replacement continues until the E5 command is encountered. Syntax = E4nnxx 1 xx 2 yy 1 yy 2 ...zz 1 zz 2 where nn is the total count of the number of characters in the list (characters to be replaced plus replacement characters); xx 1 defines characters to be replaced and xx 2 defines replacement characters, continuing through zz 1 and zz 2 .

E4 Example: Replace zeroes with CRs in bar code data

If the bar code has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeroes in the bar code above with carriage returns.

Command string: E402300DF10D

E4 is the "Replace characters" command

02 is the total count of characters to be replaced, plus the replacement characters (0 is replaced by CR, so total characters = 2)

30 is the hex value for 0

0D is the hex value for a CR (the character that will replace the 0)

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 1234

5678

ABC

Stop replacing characters

E5 Terminates character replacement. Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character "xx." If characters are equal, move the cursor forward one position. Syntax = FExx where xx stands for the comparison character's hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Compare string

B2 Compare the string in the input message to the string "s." If the strings are equal, move the cursor forward past the end of the string. Syntax = B2nnnnS where nnnn is the string length (up to 9999), and S consists of the ASCII hex value of each character in the match string. For example, B2000454657374 will compare the string at the current cursor position with the 4 character string "Test."

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Check for a number

EC Check to make sure there is an ASCII number at the current cursor position. The format is aborted if the character is not numeric.

EC Example: Only output the data if the bar code begins with a number

If you will only accept data from bar codes that begin with a number, you can use EC to check for the number.

Command string: ECF10D

EC is the "Check for a number" command

F1 is the "Send all characters" command

0D is the hex value for a CR

If this bar code is read,

If this bar code is read:

the data is output as: 1234AB

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the current cursor position. The format is aborted if the character is numeric.

ED Example: Only output the data if the bar code begins with a letter

If you will only accept data from bar codes that begin with a letter, you can use ED to check for the number.

Command string: EDF10D

ED is the "Check for a non-numeric character" command

F1 is the "Send all characters" command

0D is the hex value for a CR

If this bar code is read,

If this bar code is read:

Insert a delay

EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. Syntax = EFnnnn where nnnn stands for the delay in 5ms increments, up to 9999. This command can only be used with keyboard emulation.

Discard Data

B8 Discards types of data. For example, you may want to discard Code 128 bar codes that begin with the letter A. In step 4 (page 5-1), select 6A (for Code 128), and in step 5, select 9999 (for all lengths). Enter FE41B8 to compare and discard Code 128 bar codes that begin with the letter A. Syntax = B8.

Note: The B8 command must be entered after all other commands.

The Data Format must be Required (see page 5-11) in order for the B8 command to work. If Data Format is On, but Not Required (page 5-12), bar code data that meets the B8 format is scanned and output as usual. Other data format settings impact the B8 command. If Data Format Non-Match Error Tone is On (page 5-12), the scanner emits an error tone. If Data format Non-Match Error Tone is Off, the code is disabled for reading and no tone is sounded.

Data Formatter

When Data Formatter is turned Off, the bar code data is output to the host as read, including prefixes and suffixes.

You may wish to require the data to conform to a data format you have created and saved. The following settings can be applied to your data format:

Data Formatter On, Not Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and suffixes are transmitted.

Data Formatter On, Not Required, Drop Prefix/Suffix

Scanned data is modified according to your data format. If a data format is found for a particular symbol, those prefixes and suffixes are not transmitted. If a data format is not found for that symbol, the prefixes and suffixes are transmitted.

Data Format Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and suffixes are transmitted. Any data that does not match your data format requirements generates an error tone and the data in that bar code is not transmitted. If you wish to process this type of bar code without generating an error tone, see Data Format Non-Match Error Tone.

Data Format Required, Drop Prefix/Suffix

Scanned data is modified according to your data format. If a data format is found for a particular symbol, those prefixes and suffixes are not transmitted. Any data that does not match your data format requirements generates an error tone. If you wish to process this type of bar code without generating an error tone, see Data Format Non-Match Error Tone.

Choose one of the following options. Default = Data Formatter On, Not Required, Keep Prefix/Suffix.

DFM_EN2.

Data Format Required, Keep Prefix/Suffix

DFM_EN3.

Data Formatter On, Not Required, Drop Prefix/Suffix

DFM_EN4.

Data Format Required, Drop Prefix/Suffix

Data Format Non-Match Error Tone

When a bar code is encountered that doesn't match your required data format, the scanner normally generates an error tone. However, you may want to continue scanning bar codes without hearing the error tone. If you scan the Data Format Non-Match Error Tone Off bar code, data that doesn't conform to your data format is not transmitted, and no error tone will sound. If you wish to hear the error tone when a non-matching bar code is found, scan the Data Format Non-Match Error Tone On bar code. Default = Data Format Non-Match Error Tone On.

DFMDECO

* Data Format Non-Match Error Tone On

DFMDEC1

Data Format Non-Match Error Tone Off

Primary/Alternate Data Formats

You can save up to four data formats, and switch between these formats. Your primary data format is saved under 0. Your other three formats are saved under 1, 2, and 3. To set your device to use one of these formats, scan one of the bar codes below.

ALTFNMO

Primary Data Format

ALTFNM1

Data Format 1

ALTFNM2

Data Format 2

ALTFNM3.

Data Format 3

Single Scan Data Format Change

You can also switch between data formats for a single scan. The next bar code is scanned using an alternate data format, then reverts to the format you have selected above (either Primary, 1, 2, or 3).

For example, you may have set your device to the data format you saved as Data Format 3. You can switch to Data Format 1 for a single read by scanning the Single Scan-Data Format 1 bar code below. The next bar code that is scanned uses Data Format 1, then reverts back to Data Format 3.

VSAF_0

Single Scan-Primary

Data Format

VSAF 1.

Single Scan-Data Format 1

VSAF 2

Single Scan-Data Format 2

VSAF 3

Single Scan-Data Format 3

Symbologies

This programming section contains the following menu selections. Refer to Chapter 12 for settings and defaults.

• All Symbologies • Interleaved 2 of 5
- Aztec Code • Korea Post
• China Post (Hong Kong 2 of 5) • Matrix 2 of 5
- Chinese Sensible (Han Xin) Code • MaxiCode
• Codabar • MicroPDF417
• Codablock A • MSI
• Codablock F • NEC 2 of 5
• Code 11 • Postal Codes - 2D
• Code 128 • Postal Codes - Linear
- Code 39 Redundancy - Label Code
• Code 39 • GS1 DataBar Omnidirectional
- Code 93 • QR Code
- Data Matrix - Straight 2 of 5 IATA (two-bar start/stop)
• EAN/JAN-13 • Straight 2 of 5 Industrial (three-bar start/stop)
• EAN/JAN-8 • TCIF Linked Code 39 (TLC39)
• GS1 Composite Codes
• GS1 DataBar Expanded
• GS1 DataBar Limited
• GS1 DataBar Omnidirectional
- GS1 Emulation
GS1-128
• TCIF Linked Code 39 (TLC39)
- Telepen
- Trioptic Code
- UPC-A
- UPC-A/EAN-13 with Extended Coupon Code
- UPC-E0
- UPC-E1

All Symbologies

If you want to decode all the symbologies allowable for your scanner, scan the All Symbologies On code. If on the other hand, you want to decode only a particular symbology, scan All Symbologies Off followed by the On symbol for that particular symbology.

ALLENA1
All Symbologies On

ALLENAD
All Symbologies Off

Note: Scanner performance may reduce by scanning All Symbologies On. Only scan All Symbologies On when needed.

Note: When All Symbologies On is scanned, 2D Postal Codes are not enabled. 2D Postal Codes must be enabled separately.

Message Length Description

You are able to set the valid reading length of some of the bar code symbologies. You may wish to set the same value for minimum and maximum length to force the scanner to read fixed length bar code data. This helps reduce the chances of a misread.

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

Min. length = 09Max. length = 20

EXAMPLE: Decode only those bar codes with a count of 15 characters.

Min. length = 15Max. length = 15

For a value other than the minimum and maximum message length defaults, scan the bar codes included in the explanation of the symbology, then scan the digit value of the message length and Save bar codes on the Programming Chart inside the back cover of this manual. The minimum and maximum lengths and the defaults are included with the respective symbologies.

Codabar

CBRDFT.

Codabar On/Off

CBRENA1.
* On

CBRENAO.
Off

Codabar Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/Stop characters. Default = Don't Transmit.

CBRSSX1
Transmit

CBRSSXD
* Don't Transmit

Codabar Check Character

Codabar check characters are created using different "modulos." You can program the scanner to read only Codabar bar codes with Modulo 16 check characters. Default = No Check Character.

No Check Character indicates that the scanner reads and transmits bar code data with or without a check character.

When Check Character is set to Validate and Transmit, the scanner will only read Codabar bar codes printed with a check character, and will transmit this character at the end of the scanned data.

When Check Character is set to Validate, but Don't Transmit, the unit will only read Codabar bar codes printed with a check character, but will not transmit the check character with the scanned data.

CBRCK20
* No Check Character

CBRCK21

Validate Modulo 16, but Don't Transmit

CBRCK22. Validate Modulo 16 and Transmit

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatenation, the scanner looks for a Codabar symbol having a "D" start character, adjacent to a symbol having a "D" stop character. In this case the two messages are concatenated into one with the "D" characters omitted.

Select Require to prevent the scanner from decoding a single "D" Codabar symbol without its companion. This selection has no effect on Codabar symbols without Stop/Start D characters.

Codabar Redundancy

If you are encountering errors when reading Codabar bar codes, you may want to adjust the redundancy count. Redundancy adjusts the number of times a bar code is decoded before transmission, which may reduce the number of errors. Note that the higher the redundancy count, the longer it will take to decode the bar code. To adjust the redundancy, scan the following Codabar Redundancy bar code, then scan a redundancy count between 0 and 10 on the Programming Chart inside the back cover of this manual. Then scan the Save bar code. Default = 0.

CBRVOT. Codabar Redundancy

Codabar Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 2-60. Minimum Default = 4, Maximum Default = 60.

CBRMIN
Minimum Message Length

CBRMAX.
Maximum Message Length

Code 39

< Default All Code 39 Settings >

C39DFT.

Code 39 On/Off

C39ENA1.
* On

C39ENAD.
Off

Code 39 Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/Stop characters. Default = Don't Transmit.

C39SSX1
Transmit

C39SSXD
* Don't Transmit

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar code data with or without a check character.

When Check Character is set to Validate, but Don't Transmit, the unit only reads Code 39 bar codes printed with a check character, but will not transmit the check character with the scanned data.

When Check Character is set to Validate and Transmit, the scanner only reads Code 39 bar codes printed with a check character, and will transmit this character at the end of the scanned data. Default = No Check Character.

C39CK20
* No Check Character

C39CK21
Validate, but Don't Transmit

C39CK22
Validate and Transmit

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 0-48. Minimum Default = 0, Maximum Default = 48.

C39MIN
Minimum Message Length

C39MAX
Maximum Message Length

Code 39 Append

This function allows the scanner to append the data from several Code 39 bar codes together before transmitting them to the host computer. When the scanner encounters a Code 39 bar code with the append trigger character(s), it buffers Code 39 bar codes until it reads a Code 39 bar code that does not have the append trigger. The data is then transmitted in the order in which the bar codes were read (FIFO). Default = Off.

C39APP1
On

C39APP0.
* Off

Code 39 Redundancy

If you are encountering errors when reading Code 39 bar codes, you may want to adjust the redundancy count. Redundancy adjusts the number of times a bar code is decoded before transmission, which may reduce the number of errors. Note that the higher the redundancy count, the longer it will take to decode the bar code. To adjust the redundancy, scan the Code 39 Redundancy bar code below, then scan a redundancy count between 0 and 10 on the Programming Chart inside the back cover of this manual, then scanning Save. Default = 0.

C93VOT.
Code 39 Redundancy

Code 32 Pharmaceutical (PARAF)

Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian pharmacies. This symbology is also known as PARAF.

Note: Trioptic Code (page 6-32) must be turned off while scanning Code 32 Pharmaceutical codes.

C39B321
On

C39B320
* Off

Full ASCII

If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar code symbol will be interpreted as a single character. For example: \$V will be decoded as the ASCII character SYN, and /C will be decoded as the ASCII character #. Default = Off.

NUL %U DLE P

SP SPACE

0

0

@

%

V

P

P

‘

%

W

p

+

P

SOH SA

DC1Q

!

/A

1

1

A

A

Q

Q

a

+A

q

+Q

STX B

DC2R

“

/B

2

2

B

B

R

R

b

+B

r

+R

ETX C

DC3S

#

/C

3

3

C

C

S

S

c

+C

s

+S

EOT D

DC4T

/D

4

4

D

D

T

T

d

+D

t

+T

ENQ SE

NAKU

%

/E

5

5

E

E

U

U

e

+E

u

+U

ACK F

SYNV

&

/F

6

6

F

F

V

V

f

+F

v

+V

BEL G

ETBW

‘

/G

7

7

G

G

W

W

g

+G

w

+W

BS H

CANX

(

/H

8

8

H

H

X

X

h

+H

x

+X

HT I

EMY

)

/I

9

9

I

I

Y

Y

i

+I

y

+Y

LF J

SUBZ

*

/J

:

/Z

J

J

Z

Z

j

+J

z

+Z

VT K

ESC %A

+

/K

;

%F

K

K

[

%K

k

+K

%P

FFL

FS %B

,

/L

<

%G

L

L

\

%L

l

+L

|

%Q

CR M

GS %C

-

-

=

%H

M

M

]

%M

m

+M

%R

SON

RS %D

.

.

>

%I

N

N

^

%N

n

+N

-

%S

SI $O

US %E

/

/O

?

%J

O

O

_

%O

o

+O

DEL

%T

Character pairs /M and /N decode as a minus sign and period respectively.

Character pairs /P through /Y decode as 0 through 9.

C39ASC1
Full ASCII On

C39ASCO
* Full ASCII Off

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

C39DCP
Code 39 Code Page

Interleaved 2 of 5

< Default All Interleaved 2 of 5 Settings >

125DFT.

Interleaved 2 of 5 On/Off

125ENA1.
* On

125ENAD
Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit.

When Check Digit is set to Validate, but Don't Transmit, the unit only reads Interleaved 2 of 5 bar codes printed with a check digit, but will not transmit the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit.

125CK20
* No Check Digit

125CK21
Validate, but Don't Transmit

125CK22
Validate and Transmit

Interleaved 2 of 5 Redundancy

If you are encountering errors when reading Interleaved 2 of 5 bar codes, you may want to adjust the redundancy count. Redundancy adjusts the number of times a bar code is decoded before transmission, which may reduce the number of errors. Note that the higher the redundancy count, the longer it will take to decode the bar code. To adjust the redundancy, scan the Interleaved 2 of 5 Redundancy bar code below, then scan a redundancy count between 0 and 10 on the Programming Chart inside the back cover of this manual, then scanning Save. Default = 0.

125VOT
Interleaved 2 of 5 Redundancy

Interleaved 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

125MIN
Minimum Message Length

125MAX
Maximum Message Length

NEC 2 of 5

< Default All NEC 2 of 5 Settings >

NEC 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit.

When Check Digit is set to Validate, but Don't Transmit, the unit only reads NEC 2 of 5 bar codes printed with a check digit, but will not transmit the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads NEC 2 of 5 bar codes printed with a check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit.

NEC 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

N25MAX
Maximum Message Length

Code 93

< Default All Code 93 Settings >

C93DFT.

Code 93 On/Off

C93ENA1
* On

C93ENAD
Off

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

C93MIN
Minimum Message Length

C93MAX
Maximum Message Length

Code 93 Append

This function allows the scanner to append the data from several Code 93 bar codes together before transmitting them to the host computer. When this function is enabled, the scanner stores those Code 93 bar codes that start with a space (excluding the start and stop symbols), and does not immediately transmit the data. The scanner stores the data in the order in which the bar codes are read, deleting the first space from each. The scanner transmits the appended data when it reads a Code 93 bar code that starts with a character other than a space. Default = Off.

C93APP1
On

Code 93 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

Straight 2 of 5 Industrial (three-bar start/stop)

Straight 2 of 5 Industrial On/Off

Straight 2 of 5 Industrial Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

Straight 2 of 5 IATA (two-bar start/stop)

Straight 2 of 5 IATA On/Off

Straight 2 of 5 IATA Redundancy

If you are encountering errors when reading Straight 2 of 5 IATA bar codes, you may want to adjust the redundancy count. Redundancy adjusts the number of times a bar code is decoded before transmission, which may reduce the number of errors. Note that the higher the redundancy count, the longer it will take to decode the bar code. To adjust the redundancy, scan the Straight 2 of 5 IATA Redundancy bar code below, then scan a redundancy count between 0 and 10 on the Programming Chart inside the back cover of this manual. Then scan the Save bar code. Default = 0.

Straight 2 of 5 IATA Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

Matrix 2 of 5

Matrix 2 of 5 On/Off

Matrix 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

Code 11

Code 11 On/Off

Check Digits Required

This option sets whether 1 or 2 check digits are required with Code 11 bar codes. Default = Two Check Digits.

Code 11 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

Code 128

Code 128 On/Off

* On

ISBT 128 Concatenation

In 1994 the International Society of Blood Transfusion (ISBT) ratified a standard for communicating critical blood information in a uniform manner. The use of ISBT formats requires a paid license. The ISBT 128 Application Specification describes 1) the critical data elements for labeling blood products, 2) the current recommendation to use Code 128 due to its high degree of security and its space-efficient design, 3) a variation of Code 128 that supports concatenation of neighboring symbols, and 4) the standard layout for bar codes on a blood product label. Use the bar codes below to turn concatenation on or off. Default = Off.

Code 128 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Minimum Message Length

Code 128 Append

This function allows the scanner to append the data from several Code 128 bar codes together before transmitting them to the host computer. When the scanner encounters a Code 128 bar code with the append trigger character(s), it buffers Code 128 bar codes until it reads a Code 128 bar code that does not have the append trigger. The data is then transmitted in the order in which the bar codes were read (FIFO). Default = On.

Code 128 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

GS1-128

GS1-128 On/Off

GS1-128 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 1, Maximum Default = 80.

Telepen

Telepen On/Off

On

TELENAD
* Off

Telepen Output

Using AIM Telepen Output, the scanner reads symbols with start/stop pattern 1 and decodes them as standard full ASCII (start/stop pattern 1). When Original Telepen Output is selected, the scanner reads symbols with start/stop pattern 1 and decodes them as compressed numeric with optional full ASCII (start/stop pattern 2). Default = AIM Telepen Output.

TELOLDO
* AIM Telepen Output

TELOLD1
Original Telepen Output

Telepen Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-60. Minimum Default = 1, Maximum Default = 60.

TELMIN
Minimum Message Length

TELMAX
Maximum Message Length

UPC-A

UPC-A On/Off

Note: To convert UPC-A bar codes to EAN-13, see Convert UPC-A to EAN-13 on page 6-24.

UPC-A Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On.

UPC-A Number System

The numeric system digit of a U.P.C. symbol is normally transmitted at the beginning of the scanned data, but the unit can be programmed so it will not transmit it. Default = On.

UPC-A Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC-A data.

Default = Off for both 2 Digit and 5 Digit Addenda.

UPAAD21
2 Digit Addenda On

UPAAD20
* 2 Digit Addenda Off

UPAAD51
5 Digit Addenda On

UPAAD50
* 5 Digit Addenda Off

UPC-A Addenda Required

When Required is scanned, the scanner will only read UPC-A bar codes that have addenda. You must then turn on a 2 or 5 digit addenda listed on page 6-20. Default = Not Required.

UPAARQ1
Required

UPAARQO
* Not Required

UPC-A Addenda Separator

When this feature is on, there is a space between the data from the bar code and the data from the addenda. When turned off, there is no space. Default = On.

UPAADS1
* On

UPAADSO.
Off

UPC-A/EAN-13 with Extended Coupon Code

Use the following codes to enable or disable UPC-A and EAN-13 with Extended Coupon Code. When left on the default setting (Off), the scanner treats Coupon Codes and Extended Coupon Codes as single bar codes.

If you scan the Allow Concatenation code, when the scanner sees the coupon code and the extended coupon code in a single scan, it transmits both as one symbology. Otherwise, it transmits the first coupon code it reads.

If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code in a single read to transmit the data. No data is output unless both codes are read. Default = Off.

Coupon GS1 DataBar Output

If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to scan and output only the data from the GS1 DataBar code. Scan the GS1 Output On code below to scan and output only the GS1 DataBar code data. Default = GS1 Output Off.

UPC-E0

UPC-E0 On/Off

Most U.P.C. bar codes lead with the 0 number system. To read these codes, use the UPC-E0 On selection. If you need to read codes that lead with the 1 number system, use UPC-E1 (page 6-24). Default = On.

UPC-E0 Expand

UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format. Default = Off.

UPC-E0 Addenda Required

When Required is scanned, the scanner will only read UPC-E bar codes that have addenda. Default = Not Required.

UPC-E0 Addenda Separator

When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned Off, there is no space. Default = On.

UPC-E0 Check Digit

Check Digit specifies whether the check digit should be transmitted at the end of the scanned data or not. Default = On.

UPC-E0 Leading Zero

This feature allows the transmission of a leading zero (0) at the beginning of scanned data. To prevent transmission, scan Off. Default = On.

UPC-E0 Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC-E data. Default = Off for both 2 Digit and 5 Digit Addenda.

UPEAD51

5 Digit Addenda On

UPEAD50

* 5 Digit Addenda Off

UPC-E1

Most U.P.C. bar codes lead with the 0 number system. For these codes, use UPC-E0 (page 6-22). If you need to read codes that lead with the 1 number system, use the UPC-E1 On selection. Default = Off.

UPEEN11

UPC-E1 On

UPEEN10

* UPC-E1 Off

EAN/JAN-13

E13DFT.

EAN/JAN-13 On/Off

E13ENA1.

* On

E13ENAD

Off

Convert UPC-A to EAN-13

When UPC-A Converted to EAN-13 is selected, UPC-A bar codes are converted to 13 digit EAN-13 codes by adding a zero to the front. When Do not Convert UPC-A is selected, UPC-A codes are read as UPC-A.

UPAENAD

UPC-A Converted to EAN-13

UPAENA1.

* Do not Convert UPC-A

EAN/JAN-13 Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On.

E13CKX1.

* On

E13CKXD

Off

EAN/JAN-13 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-13 data. Default = Off for both 2 Digit and 5 Digit Addenda.

E13AD21

2 Digit Addenda On

E13AD20

* 2 Digit Addenda Off

E13AD51

5 Digit Addenda On

E13AD50

* 5 Digit Addenda Off

EAN/JAN-13 Addenda Required

When Required is scanned, the scanner will only read EAN/JAN-13 bar codes that have addenda. Default = Not Required.

E13ARQ1

Required

E13ARQ0

* Not Required

EAN/JAN-13 Addenda Separator

When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned Off, there is no space. Default = On.

E13ADS1.

* On

E13ADSO.

Off

Note: If you want to enable or disable EAN13 with Extended Coupon Code, refer to UPC-A/EAN-13 with Extended Coupon Code (page 6-21).

ISBN Translate

When On is scanned, EAN-13 Bookland symbols are translated into their equivalent ISBN number format. Default = Off.

E13ISB1

On

E13|SBO

* Off

EAN/JAN-8

EAN/JAN-8 On/Off

EAN/JAN-8 Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On.

EAN/JAN-8 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data. Default = Off for both 2 Digit and 5 Digit Addenda.

EA8AD50.

* 5 Digit Addenda Off

EAN/JAN-8 Addenda Required

When Required is scanned, the scanner will only read EAN/JAN-8 bar codes that have addenda. Default = Not Required.

EASARQ1.

Required

EASARQO.

* Not Required

EAN/JAN-8 Addenda Separator

When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned Off, there is no space. Default = On.

EA8ADS1

* On

EABADSO

Off

MSI

MSI On/Off

On

* Off

MSI Check Character

Different types of check characters are used with MSI bar codes. You can program the scanner to read MSI bar codes with Type 10 check characters. Default = Validate Type 10, but Don't Transmit.

When Check Character is set to Validate Type 10/11 and Transmit, the scanner will only read MSI bar codes printed with the specified type check character(s), and will transmit the character(s) at the end of the scanned data.

When Check Character is set to Validate Type 10/11, but Don't Transmit, the unit will only read MSI bar codes printed with the specified type check character(s), but will not transmit the check character(s) with the scanned data.

* Validate Type 10, but Don't Transmit

Validate Type 10 and Transmit

Validate 2 Type 10 Characters, but Don't Transmit

Validate 2 Type 10 Characters and Transmit

Validate Type 11 then Type 10 Character, but Don't Transmit

MSICHK5.

Validate Type 11 then

Type 10 Character and Transmit

MSICHK6

Disable MSI Check Characters

MSI Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 4-48. Minimum Default = 4, Maximum Default = 48.

MSIMIN

Minimum Message Length

MSIMAX

Maximum Message Length

GS1 DataBar Omnidirectional

< Default All GS1 DataBar Omnidirectional Settings >

GS1 DataBar Omnidirectional On/Off

GS1 DataBar Limited

< Default All GS1 DataBar Limited Settings >

GS1 DataBar Limited On/Off

GS1 DataBar Expanded

< Default All GS1 DataBar Expanded Settings >

GS1 DataBar Expanded On/Off

GS1 DataBar Expanded Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 4-74. Minimum Default = 4, Maximum Default = 74.

Trioptic Code

Note: If you are going to scan Code 32 Pharmaceutical codes (page 6-6), Trioptic Code must be off.

Trioptic Code is used for labeling magnetic storage media.

Codablock A

Codablock A On/Off

Codablock A Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-600. Minimum Default = 1, Maximum Default = 600.

Codablock F

Codablock F On/Off

Codablock F Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048.

Label Code

The standard Label Code is used in libraries. Default = Off.

PDF417

< Default All PDF417 Settings >

PDF417 On/Off

PDF417 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750.

MacroPDF417

MacroPDF417 is an implementation of PDF417 capable of encoding very large amounts of data into multiple PDF417 bar codes. When this selection is enabled, these multiple bar codes are assembled into a single data string. Default = On.

MicroPDF417

< Default All MicroPDF417 Settings >

MicroPDF417 On/Off

MicroPDF417 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-366. Minimum Default = 1, Maximum Default = 366.

GS1 Composite Codes

Linear codes are combined with a unique 2D composite component to form a new class called GS1 Composite symbology. GS1 Composite symbologies allow for the co-existence of symbologies already in use. Default = Off.

UPC/EAN Version

Scan the UPC/EAN Version On bar code to decode GS1 Composite symbols that have a U.P.C. or an EAN linear component. (This does not affect GS1 Composite symbols with a GS1-128 or GS1 linear component.) Default = UPC/EAN Version Off.

Note: If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to scan and output only the data from the GS1 DataBar code. See Coupon GS1 DataBar Output (page 6-21) for further information.

GS1 Composite Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-2435. Minimum Default = 1, Maximum Default = 2435.

GS1 Emulation

The scanner can automatically format the output from any GS1 data carrier to emulate what would be encoded in an equivalent GS1-128 or GS1 DataBar symbol. GS1 data carriers include UPC-A and UPC-E, EAN-13 and EAN-8, ITF-14, GS1-128, and GS1-128 DataBar and GS1 Composites. (Any application that accepts GS1 data can be simplified since it only needs to recognize one data carrier type.)

If GS1-128 Emulation is scanned, all retail codes (U.P.C., UPC-E, EAN8, EAN13) are expanded out to 16 digits. If the AIM ID is enabled, the value will be the GS1-128 AIM ID, ]C1 (see Symbology Charts on page A-1).

If GS1 DataBar Emulation is scanned, all retail codes (U.P.C., UPC-E, EAN8, EAN13) are expanded out to 16 digits. If the AIM ID is enabled, the value will be the GS1-DataBar AIM ID, ]em (see Symbology Charts on page A-1).

If GS1 Code Expansion Off is scanned, retail code expansion is disabled, and UPC-E expansion is controlled by the UPC-E0 Expand (page 6-22) setting. If the AIM ID is enabled, the value will be the GS1-128 AIM ID, ]C1 (see Symbology Charts on page A-1).

If EAN8 to EAN13 Conversion is scanned, all EAN8 bar codes are converted to EAN13 format.

Default = GS1 Emulation Off.

TCIF Linked Code 39 (TLC39)

This code is a composite code since it has a Code 39 linear component and a MicroPDF417 stacked code component. All bar code readers are capable of reading the Code 39 linear component. The MicroPDF417 component can only be decoded if TLC39 On is selected. The linear component may be decoded as Code 39 even if TLC39 is off. Default = Off.

QR Code

< Default All QR Code Settings >

QR Code On/Off

This selection applies to both QR Code and Micro QR Code.

QR Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-7089. Minimum Default = 1, Maximum Default = 7089.

QR Code Append

This function allows the scanner to append the data from several QR Code bar codes together before transmitting them to the host computer. When the scanner encounters an QR Code bar code with the append trigger character(s), it buffers the number of QR Code bar codes determined by information encoded in those bar codes. Once the proper number of codes is reached, the data is output in the order specified in the bar codes. Default = On.

QR Code Page

QR Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

Data Matrix

< Default All Data Matrix Settings >

Data Matrix On/Off

Data Matrix Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-3116. Minimum Default = 1, Maximum Default = 3116.

Data Matrix Append

This function allows the scanner to append the data from several Data Matrix bar codes together before transmitting them to the host computer. When the scanner encounters an Data Matrix bar code with the append trigger character(s), it buffers the number of Data Matrix bar codes determined by information encoded in those bar codes. Once the proper number of codes is reached, the data is output in the order specified in the bar codes. Default = On.

Data Matrix Code Page

Data Matrix Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar

codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

IDMDCP

Data Matrix Code Page

MaxiCode

< Default All MaxiCode Settings >

MAXDFT

MaxiCode On/Off

MAXENA1.

On

MAXENAD.

* Off

MaxiCode Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-150. Minimum Default = 1, Maximum Default = 150.

MAXMIN

Minimum Message Length

MAXMAX

Maximum Message Length

Aztec Code

< Default All Aztec Code Settings >

Aztec Code On/Off

Aztec Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-3832. Minimum Default = 1, Maximum Default = 3832.

Aztec Append

This function allows the scanner to append the data from several Aztec bar codes together before transmitting them to the host computer. When the scanner encounters an Aztec bar code with the append trigger character(s), it buffers the number of Aztec bar codes determined by information encoded in those bar codes. Once the proper number of codes is reached, the data is output in the order specified in the bar codes. Default = On.

Aztec Code Page

Aztec Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar

codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

AZTDCP
Aztec Code Page

Chinese Sensible (Han Xin) Code

< Default All Han Xin Settings >

HX_DFT.

Han Xin Code On/Off

HX_ENA1. _On

HX_ENAD.
* Off

Han Xin Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833.

HX_MIN.
Minimum Message Length

HX_MAX
Maximum Message Length

Postal Codes - 2D

The following lists the possible 2D postal codes, and 2D postal code combinations that are allowed. Only one 2D postal code selection can be active at a time. If you scan a second 2D postal code selection, the first selection is overwritten. Default = 2D Postal Codes Off.

POSTALO
* 2D Postal Codes Off

Single 2D Postal Codes:

POSTAL1
Australian Post On

POSTAL7
British Post On

POSTAL30
Canadian Post On

POSTAL10
Intelligent Mail Bar Code On

POSTAL3
Japanese Post On

POSTAL4
KIX Post On

POSTALS
Planet Code On
Also see Planet Code
Check Digit, page 6-47.

POSTAL9
Postal-4i On

POSTAL6

Postnet On

Also see Postnet Check

Digit, page 6-47.

POSTAL11

Postnet with B and B' Fields On

POSTAL2

InfoMail On

Combination 2D Postal Codes:

POSTAL8

InfoMail and British

Post On

POSTAL20

Intelligent Mail Bar Code and Postnet with B and B' Fields On

POSTAL14

Postnet and

Postal-4i On

POSTAL16

Postnet and

Intelligent Mail Bar Code On

POSTAL17

Postal-4i and

Intelligent Mail Bar Code On

POSTAL19

Postal-4i and

Postnet with B and B' Fields On

POSTAL12

Planet Code and

Postnet On

POSTAL13

Planet Code and

Postal-4i On

POSTAL21

Planet Code,

Postnet, and

Postal-4i On

POSTAL23

Planet Code,

Postal-4i, and

Intelligent Mail Bar Code On

POSTAL25

Planet Code.

Postal-4i, and

Postnet with B and B' Fields On

POSTAL27

Postal-4i.

Intelligent Mail Bar Code, and

Postnet with B and B' Fields On

POSTAL18

Planet Code and

Postnet with B and B' Fields On

POSTAL15

Planet Code and

Intelligent Mail Bar Code On

POSTAL22

Planet Code,

Postnet, and

Intelligent Mail Bar Code On

POSTAL24

Postnet,

Postal-4i, and

Intelligent Mail Bar Code On

POSTAL26

Planet Code,

Intelligent Mail Bar Code, and

Postnet with B and B' Fields On

POSTAL28

Planet Code,

Postal-4i,

Intelligent Mail Bar Code, and

Postnet On

POSTAL29

Planet Code,

Postal-4i,

Intelligent Mail Bar Code, and

Postnet with B and B' Fields On

Planet Code Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of Planet Code data. Default = Don't Transmit.

PLNCKX1

Transmit Check Digit

PLNCKXD.

* Don't Transmit Check Digit

Postnet Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of Postnet data. Default = Don't Transmit.

NETCKX1

Transmit Check Digit

NETCKXD

* Don't Transmit Check Digit

Australian Post Interpretation

This option controls what interpretation is applied to customer fields in Australian 4-State symbols.

Bar Output lists the bar patterns in "0123" format.

Numeric N Table causes that field to be interpreted as numeric data using the N Table.

Alphanumeric C Table causes the field to be interpreted as alphanumeric data using the C Table. Refer to the Australian Post Specification Tables.

Combination C and N Tables causes the field to be interpreted using either the C or N Tables.

AUSINTO
* Bar Output

AUSINT1.
Numeric N Table

AUSINT2
Alphanumeric C Table

AUSINT3.
Combination C and N Tables

Postal Codes - Linear

The following lists linear postal codes. Any combination of linear postal code selections can be active at a time.

China Post (Hong Kong 2 of 5)

China Post (Hong Kong 2 of 5) On/Off

CPCENA1.
On

CPCENAD.
* Off

China Post (Hong Kong 2 of 5) Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

CPCMIN
Minimum Message Length

CPCMAX

Maximum Message Length

Korea Post

KPCDFT.

Korea Post

KPCENA1.

On

KPCENAO.

* Off

Korea Post Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 6-1) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 48.

KPCMIN

Minimum Message Length

KPCMAX

Maximum Message Length

Korea Post Check Digit

This selection allows you to specify whether the check digit should be transmitted. Default = Don't Transmit.

KPCCHK1

Transmit Check Digit

KPCCHKO.

* Don't Transmit Check Digit

EAS Considerations

Do not install any large iron fixtures, such as steel support poles, near the Solaris 7980g. Doing so may re-shape the EAS tag deactivation field.

EAS Deactivation

The Solaris 7980g supports deactivation of Checkpoint and Sensormatic/Tyco EAS tags. The following illustration shows the location of the EAS deactivation area. It is important to pass the entire tag through this area to deactivate the security tag.

Note: Do not store tags within 18.0 in (45.7cm) of the Solaris 7980g. Tags stored closer than 18.0 in (45.7cm) may be unintentionally deactivated. This area also includes storage areas located under the Solaris 7980g.

EAS Deactivation Zone

The entire tag must pass through the EAS deactivation area.

Diagram of a device with arrows inside a transparent cube, no text or symbols present

EAS Deactivation Range

Scan the bar code below to set the 1D bar code depth of field within the EAS Deactivation range.

Note: The minimum element width changes to 6.8 mil when in EAS Deactivation Range mode.

EAS Deactivation Range

Sensormatic

Contact Tyco for further information about Sensormatic installation and configuration.

Checkpoint

EAS Controller Settings

The following switch settings for a Checkpoint Counterpoint IX controller can be used as a starting point, however, these settings should be tuned according to your particular installation.

EAS Controller

Scan one of the following bar codes to select the EAS system that is attached to the scanner. Default = Off.

EAS Mode of Operation

Scan one of the following bar codes to select the EAS mode you wish to use.

When Interlocked is selected, EAS tag deactivation is interlocked with bar code scanning and transmission. When using Interlocked, you must set the timeout (see below).

When Continuous on Enable is selected, EAS tag deactivation is on all the time.

Default = Interlocked.

EAS Interlocked Duration Timeout

When using the Interlocked EAS Mode of Operation, you must set the lag time between when a bar code is read and when the EAS tag is deactivated. Use this selection to set this timeout (in milliseconds). After scanning the EAS Interlocked Duration Timeout bar code, set the timeout duration (from 1-5000 milliseconds) by scanning digits on the Programming Chart inside the back cover, then scanning Save. Default = 100 ms, which is 0.1 second.

EASTIM

EAS Interlocked Duration

Timeout

Programming an Auxiliary Scanner

Introduction

This chapter describes how to program auxiliary scanners that will be connected to the Solaris scanner.

Connecting by USB Serial

The Solaris 7980g auxiliary port supports Honeywell hand-held scanners with a menu system. Scan the following code to configure the Honeywell hand-held scanner for the auxiliary port:

No extra configuration (e.g., baud rate) is necessary.

Note: Once the auxiliary scanner is configured for USB Serial, do not scan any configuration codes with the auxiliary scanner.

Connecting by USB Keyboard

The Solaris 7980g auxiliary port supports Honeywell or third party hand-held scanners that supports USB Keyboard interface. Follow the steps below to configure the auxiliary scanner. Contact the nearest technical support office (See Technical Assistance on page ix) for further information.

Note: We recommend using Honeywell hand-held scanners. Non-Honeywell, or third party, scanners may not work with the Solaris 7980g.

Step 1. Configure the scanner to USB Keyboard interface.

Step 2. Configure the scanner to output AIM I.D.

Step 3. Configure the scanner to output CR Suffix.

Step 4. Set the Keyboard Country Layout to U.S.A.

Note: Once the auxiliary scanner is configured for USB Keyboard, do not scan any configuration codes with the auxiliary scanner.

The scanner is like a digital camera in the way it captures, manipulates, and transfers images. The following commands allow you to alter the way the scanner performs these functions.

Note: You must set the scanner a Serial Trigger Mode (page 3-4) in order to take images.

Single-Use Basis

Imaging Commands with their modifiers send instructions to the scanner on a single-use basis, and take effect for a single image capture. Once that capture is complete, the scanner reverts to its imaging default settings. If you want to permanently change a setting, you must use the serial default commands (see Chapter 12). When the serial default command is used, that selection becomes the new, permanent setting for the scanner.

Command Syntax

Multiple modifiers and commands can be issued within one sequence. If additional modifiers are to be applied to the same command, just add the modifiers to that command. For example, to add a modifier to the Image Snap command, such as setting the Imaging Style to 1P, you would enter IMGSNP1P.

Note: After processing an image capture command (IMGSNP or IMGBOX), you must follow it with an IMGSHP command if you want to see it on your terminal.

To add a command to a sequence, each new command is separated with a semicolon. For example, to add the Image Ship command to the above sequence, you would enter IMGSNP1P;IMGSHP.

The imaging commands are:

Image Snap - IMGSNP (page 9-1)

Image Ship - IMGSHP (page 9-3)

Intelligent Signature Capture - IMGBOX (page 9-10)

The modifiers for each of these commands follow the command description.

Note: The images included with each command description are examples only. The results you achieve may be different from those included in this manual. The quality of the output you receive will vary depending on lighting, quality of the initial image/object being captured, and distance of the scanner from the image/object. To achieve a high quality image, it is recommended that you position your scanner 4-6" (10.2-15.2 cm) away from the image/object you are capturing.

Step 1 - Take a Picture Using IMGSNP

Image Snap - IMGSNP

An image is taken whenever the Image Snap (IMGSNP) command is processed.

The image snap command has many different modifiers that can be used to change the look of the image in memory. Any number of modifiers may be appended to the IMGSNP command. For example, you can use the following command to snap an image, increase the gain, and have the beeper sound once the snap is complete: IMGSNP2G1B

IMGSNP Modifiers

P - Imaging Style

This sets the Image Snap style.

0P Decoding Style. This processing allows a few frames to be taken until the exposure parameters are met. The last frame is then available for further use.
1P Photo Style (default). This mimics a simple digital camera, and results in a visually optimized image.
2P Manual Style. This is an advanced style that should only be used by an experienced user. It allows you the most freedom to set up the scanner, and has no auto-exposure.

B - Beeper

Causes a beep to sound after an image is snapped.

0B No beep (default)

1B Sounds a beep when the image is captured.

L - LED State

Determines if the LEDs should be on or off, and when. Ambient illumination (0L) is preferred for taking pictures of color documents, such as ID cards. LED illumination (1L) is preferred when the scanner is handheld. LED State is not available when using Decoding Style (0P).

0L LEDs off (default)

1L LEDs on

E - Exposure

Exposure is used in Manual Style only (2P), and allows you to set the exposure time. This is similar to setting a shutter speed on a camera. The exposure time determines how long the scanner takes to record an image. On a bright day, exposure times can be very short because plenty of light is available to help record an image. At nighttime, exposure time can increase dramatically due to the near absence of light. Units are 127 microseconds. (Default = 7874)

nE Range: 1 - 7874

Example of Exposure at 7874E with fluorescent lighting:

Abstract illustration of a human face with floating computer screens and arrows, symbolizing data or communication (no text or symbols present)

Example of Exposure at 100E with fluorescent lighting:

Silhouette of a human face with abstract digital interface elements floating around (no text or symbols)

G - Gain

Gain is used in Manual Style only (2P). Like a volume control, the gain modifier boosts the signal and multiplies the pixel value. As you increase the gain, the noise in an image is also amplified.

1G No gain (default)
2G Medium gain
4G Heavy gain
8G Maximum gain

Example of Gain at 1G:

Example of Gain at 4G:

Example of Gain at 8G:

W - Target White Value

Sets the target for the median grayscale value in the captured image. For capturing close-up images of high contrast documents, a lower setting, such as 75, is recommended. Higher settings result in longer exposure times and brighter images, but if the setting is too high, the image may be overexposed. Target White Value is only available when using Photo Style (1P). (Default = 125)

nW Range: 0 - 255

Example of White Value at 75W:

Example of White Value at 125W:

Example of White Value at 200W:

Close-up of multiple metallic vials with caps, arranged in a row (no visible text or symbols)

Close-up of multiple small mechanical components or parts arranged in a row (no visible text or symbols)

D - Delta for Acceptance

This sets the allowable range for the white value setting (see W - Target White Value). Delta is only available when using Photo Style (1P). (Default = 25)

nD Range: 0 - 255

U - Update Tries

This sets the maximum number of frames the scanner should take to reach the D - Delta for Acceptance. Update Tries is only available when using Photo Style (1P). (Default = 6)

nU Range: 0 - 10

% - Target Set Point Percentage

Sets the target point for the light and dark values in the captured image. A setting of 75% means 75% of the pixels are at or below the target white value, and 25% of the pixels are above the target white value. Altering this setting from the default is not recommended under normal circumstances. To alter grayscale values, W - Target White Value should be used. (Default = 50)

n% Range: 1 - 99

Example of Target Set Point Percentage at 97%:

Example of Target Set Point Percentage at 50%:

Example of Target Set Point Percentage at 40%:

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur massa. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec interdum volutpat arcu. Proin sed turpis. Donec

Step 2 - Ship a Picture Using IMGSHP

Image Ship - IMGSHP

An image is taken whenever the Image Snap (IMGSNP) command is processed. The last image is always stored in memory. You can "ship" the image by using the IMGSHP command.

The image ship commands have many different modifiers that can be used to change the look of the image output. Modifiers affect the image that is transmitted, but do not affect the image in memory. Any number of modifiers may be appended to the IMGSHP command. For example, you can use the following command to snap and ship a bitmap image with gamma correction and document image filtering: IMGSNP;IMGSHP8F75K26U

IMGSHP Modifiers

A - Infinity Filter

Enhances pictures taken from very long distances (greater than 10 feet or 3m). The Infinity Filter should not be used with IMGSNP Modifiers (page 9-1).

0A Infinity filter off (default)

1A Infinity filter on

Example of Infinity Filter off (0A) from approximately 12 feet (3.66m) away:

Simple black arrow pointing upward on a white background (no text or symbols)

Example of Infinity Filter on (1A) from approximately 12 feet (3.66m) away:

Simple line drawing of a rising arrow from bottom-left to top-right corner, no text or symbols present

C - Compensation

Flattens the image to account for variations in illumination across the image.

0C Compensation disabled (default)

1C Compensation enabled

Example of Compensation at 0C: Example of Compensation at 1C:

Ornamental symmetrical decorative pattern with swirling motifs on a textured dark background (no text or symbols)

Symmetrical ornamental design with swirling floral patterns on a textured dark background (no text or symbols)

D - Pixel Depth

Indicates the number of bits per pixel in the transmitted image (KIM or BMP format only).

8D 8 bits per pixel, grayscale image (default)

1D 1 bit per pixel, black and white image

E - Edge Sharpen

An edge sharpen filter cleans up the edges of an image, making it look cleaner and sharper. While edge sharpening does make the image look cleaner, it also removes some fine detail from the original image. The strength of the edge sharpen filter can be entered from 1 to 24. Entering a 23E gives the sharpest edges, but also increases noise in the image.

OE Don't sharpen image (default)

14E Apply edge sharpen for typical image

ne Apply edge sharpen using strength n (n = 1-24)

Example of Edge Sharpen at 0E: Example of Edge Sharpen at 24E:

Abstract black-and-white sketch of interlocking mechanical parts (no text or symbols)

Abstract black-and-white sketch of intersecting lines and shapes (no text or symbols)

F - File Format

Indicates the desired format for the image.

OF KIM format

1F TIFF binary

2F TIFF binary group 4, compressed

3F TIFF grayscale

4F Uncompressed binary (upper left to lower right, 1 pixel/bit, 0 padded end of line)

5F Uncompressed grayscale (upper left to lower right, bitmap format)

6F JPEG image (default)

8F BMP format (lower right to upper left, uncompressed)

H - Histogram Stretch

Increases the contrast of the transmitted image. Not available with some image formats.

0H No stretch (default)

1H Histogram stretch

Example of Histogram Stretch at 0H: Example of Histogram Stretch at 1H:

Close-up of a metallic bead bracelet with evenly spaced beads (no text or symbols visible)

Close-up of a metallic bead bracelet with a curved chain (no text or symbols visible)

I - Invert Image

Invert image is used to rotate the image around the X or Y axis.

1ix Invert around the X axis (flips picture upside down)

1iy Invert around the Y axis (flips picture left to right)

Example of image not inverted:

Example of image with Invert Image set to 1ix:

Example of image with Invert Image set to 1iy:

Black-and-white photograph of the Statue of Liberty, featuring its iconic sculpture with a spiky top and raised arms (no visible text or symbols)

Black-and-white photo of the Statue of Liberty with a decorative column and flag (no text or symbols visible)

Black-and-white photograph of the Statue of Liberty, featuring its iconic torch and pedestal (no visible text or symbols)

IF- Noise Reduction

Used to reduce the salt and pepper noise in an image.

0if No salt and pepper noise reduction (default)

1if Salt and pepper noise reduction

Example of Noise Reduction On (1if):E

Black-and-white sketch of four playing cards (J, Q, K) with hearts and a small illustration below (no readable text or symbols)

Close-up of multiple playing cards (J, Q, K) with visible suits and heart patterns, no text or symbols present.

IR - Image Rotate

Oir Image as snapped (rightside up) (default)

1ir Rotate image 90 degrees to the right

2ir Rotate image 180 degrees (upside down)

3ir Rotate image 90 degrees to the left

Example of Image Rotate set to 0ir:

Example of Image Rotate set to 2ir:

Example of Image Rotate set to 1ir: Example of Image Rotate set to 3ir:

Close-up of two metal pliers with engraved markings (no visible text or symbols)

J - JPEG Image Quality

Sets the desired quality when the JPEG image format is selected. Higher numbers result in higher quality, but larger files. Smaller numbers result in greater amounts of lossy compression, faster transmission times, lower quality, but smaller files. (Default = 50)

nJ Image is compressed as much as possible while preserving quality factor of n (n = 0 - 100)

0J worst quality (smallest file)

100Jbest quality (largest file)

K - Gamma Correction

Gamma measures the brightness of midtone values produced by the image. You can brighten or darken an image using gamma correction. A higher gamma correction yields an overall brighter image. The lower the setting, the darker the image. The optimal setting for text images is 50K.

0K Gamma correction off (default)

50K Apply gamma correction for brightening typical document image

nK Apply gamma correction factor n (n = 0-1,000)

Example of Gamma Correction set to 0K:

Example of Gamma Correction set to 50K:

Example of Gamma Correction set to 255K:

L, R, T, B, M - Image Cropping

Ships a window of the image by specifying the left, right, top, and bottom pixel coordinates. Device columns are numbered 0 through 1279, and device rows are numbered 0 through 959.

nL The left edge of the shipped image corresponds to column n of the image in memory. Range: 000 - 843. (Default = 0)

nR The right edge of the shipped image corresponds to column n - 1 of the image in memory. Range: 000 - 843. (Default = all columns)

nT The top edge of the shipped image corresponds to row n of the image in memory. Range: 000 - 639. (Default = 0)

nB The bottom edge of the shipped image corresponds to row n - 1 of the image in memory. Range: 000 - 639. (Default = all rows)

Uncropped Image:

Close-up of a vintage pocket watch with Roman numerals and decorative patterns (no readable text or symbols)

Example of Image Crop set to 300R:

Example of Image Crop set to 300L:

Example of Image Crop set to 200T:I

Alternately, specify the number of pixels to cut from the outside margin of the image; thus only the center pixels are transmitted.

nM Margin: cut n columns from the left, n + 1 columns from the right, n rows from the top, and n + 1 rows from the bottom of the image. Ship the remaining center pixels. Range: 0 - 238. (Default = 0, or full image)

Example of Image Crop set to 238M:

P - Protocol

Used for shipping an image. Protocol covers two features of the image data being sent to the host. It addresses the protocol used to send the data (Hmodem, which is an Xmodem 1K variant that has additional header information), and the format of the image data that is sent.

OP None (raw data)

2P None (default for USB)

3P Hmodem compressed (default for RS232)

4P Hmodem

S - Pixel Ship

Pixel Ship sizes an image in proportion to its original size. It decimates the image by shipping only certain, regularly spaced pixels. For example, 4S would transmit every fourth pixel from every fourth line. The smaller number of pixels shipped, the smaller the image, however, after a certain point the image becomes unusable.

1S ship every pixel (default)

2S ship every 2nd pixel, both horizontally and vertically

3S ship every 3rd pixel, both horizontally and vertically

Example of Pixel Ship set to 1S:

Example of Pixel Ship set to 2S:

Example of Pixel Ship set to 3S:

U - Document Image Filter

Allows you to input parameters to sharpen the edges and smooth the area between the edges of text in an image. This filter should be used with gamma correction (see page 9-7) and the image captured using the command:

IMGSNP1P0L168W90%32D

This filter typically provides better JPEG compression than the standard E - Edge Sharpen command (see page 9-9). This filter also works well when shipping pure black and white images (1 bit per pixel). The optimal setting is 26U.

0U Document image filter off (default)

26U Apply document image filter for typical document image

nU Apply document image filter using grayscale threshold n. Use lower numbers when the image contrast is lower. 1U will have a similar effect to setting E - Edge Sharpen (page 9-5) to 22e. Range: 0-255.

Example of Document Image Filter set to 0U:

Example of Document Image Filter set to 26U:

V - Blur Image

Smooths transitions by averaging the pixels next to the hard edges of defined lines and shaded areas in an image.

0V Don't blur (default)

1V Blur

Example of Blur Image Off (0V): Example of Blur Image On (1V):

W - Histogram Ship

A histogram gives a quick picture of the tonal range of an image, or key type. A low-key image has detail concentrated in the shadows; a high-key image has detail concentrated in the highlights; and an average-key image has detail concentrated in the midtones. This modifier ships the histogram for an image.

0W Don't ship histogram (default)

1W Ship histogram

Image used for histogram: Histogram of image at left:

Close-up of multiple screws with metallic fasteners (no visible text or markings)

Completely black image with a faint white line at the bottom left (no text or symbols)

Image Size Compatibility

If you have applications that expect an image ship to return exactly 640x480 pixels, scan the Force VGA Resolution bar code. Default = Native Resolution.

IMGVGA1

Force VGA Resolution

IMGVGA0

* Native Resolution

Intelligent Signature Capture - IMGBOX

IMGBOX allows you to configure the size and location of a signature capture area relative to its proximity to a bar code. This allows you to tailor a signature capture area to a specific form. In order to use IMGBOX, you need a set form where the signature box location is in a known location relative to a bar code. You can input the overall size of the signature area, as well as specify how far the signature area is from the bar code, vertically and horizontally. You can also set the resolution and file format for the final output of the signature capture image.

Note: IMGBOX commands can only be triggered by one of the following types of bar codes: PDF417, Code 39, Code 128, Aztec, Codabar, and Interleaved 2 of 5. Once one of these symbologies has been read, the image is retained for a possible IMGBOX command.

Signature Capture Optimize

If you will be using your scanner to capture signatures frequently, you should optimize it for this purpose. However, the speed of scanning bar codes may be slowed when this mode is enabled. Default = Off.

DECBND1

Optimize On

DECBNDO.

* Optimize Off

Below is an example of a signature capture application. In this example, the signature capture area is centered in the center of the Solaris 7980g window. A single beep is emitted, indicating that the scanner has read a Code 128 bar code and the data has been transferred to the host. An IMGBOX command may now be sent from the host to specify the coordinates of the signature capture area below that code, and indicating that only that area containing the signature should be transferred as an image to the host.

To see this example, align the signature area (not with the bar code) to the center of the window

Signature Capture Area

Send the following IMGBOX command string after the good read:

Example: IMGBOX245w37h55y.

Note: Case is not important in the command string. It is used here only for clarity.

The following image is captured:

Signature Capture Area

The IMGBOX commands have many different modifiers that can be used to change the size and appearance of the signature image output by the scanner. Modifiers affect the image that is transmitted, but do not affect the image in memory. Any number of modifiers may be appended to the IMGBOX command.

Note: The IMGBOX command will return a NAK unless a window size (width and height) are specified. See H - Height of Signature Capture Area (page 9-12) and W - Width of Signature Capture Area (page 9-13).

IMGBOX Modifiers

A - Output Image Width

This option is used to size the image horizontally. If using this option, set the resolution (R) to zero.

Example of Image Width set to 200A:

Example of Image Width set to 600A:

B - Output Image Height

This option is used to size the image vertically. If using this option, set the resolution (R) to zero.

Example of Image Height set to 50B:

Signature Capture Area

Example of Image Height set to 100B:

Signature Capture Area

D - Pixel Depth

This indicates the number of bits per pixel in the transmitted image, which defines whether it will be grayscale or black and white.

8D 8 bits per pixel, grayscale image (default)

1D 1 bit per pixel, black and white image

F - File Format

This option indicates the type of file format in which to save the image.

OF KIM format

1F TIFF binary

2F TIFF binary group 4, compressed

3F TIFF grayscale

4F Uncompressed Binary

5F Uncompressed grayscale

6F JPEG image (default)

7F Outlined image

8F BMP format

H - Height of Signature Capture Area

The height of the signature capture area must be measured in inches divided by .01. In the example, the height of the area to be captured is 3/8 inch, resulting in a value of H = .375 / 0.01 = 37.5 .

Example: IMGBOX245w37h55y.

K - Gamma Correction

Gamma measures the brightness of midtone values produced by the image. You can brighten or darken an image using gamma correction. A higher gamma correction yields an overall brighter image. The lower the setting, the darker the image. The optimal setting for text images is 50K.

0K Gamma correction off (default)

50K Apply gamma correction for brightening typical document image

nK Apply gamma correction factor n (n = 1-255)

Example of Gamma Correction set to 0K:

Example of Gamma Correction set to 50K:

Example of Gamma Correction set to 255K:

R - Resolution of Signature Capture Area

The resolution is the number of pixels that the scanner outputs per each minimum bar width. The higher the value for R, the higher the quality of the image, but also the larger the file size. Values begin at 1000. The scanner automatically inserts a decimal point between the first and second digit. For example, use 2500 to specify a resolution of 2.5. Set to zero when using the A and B modifiers (see A - Output Image Width and B - Output Image Height on page 9-12).

Example of Resolution set to 0R:

Example of Resolution set to 1000R:

Example of Resolution set to 2000R:

S - Bar Code Aspect Ratio

All dimensions used in IMGBOX are measured as multiples of the minimum element size of the bar code. The bar code aspect ratio allows you to set the ratio of the bar code height to the narrow element width. In the example, the narrow element width is .010 inches and the bar code height is 0.400 inches, resulting in a value of S = 0.4/0.01 = 40.

W - Width of Signature Capture Area

The width of the signature capture area must be measured in inches divided by .01. In the example, the width of the area to be captured is 2.4 inches, resulting in a value of W = 2.4/0.01 = 240. (A value of 245 was used in the example to accommodate a slightly wider image area.)

Example: IMGBOX245w37h55y.

X - Horizontal Bar Code Offset

The horizontal bar code offset allows you to offset the horizontal center of the signature capture area. Positive values move the horizontal center to the right and negative values to the left. Measurements are in multiples of the minimum bar width.

Example of Horizontal Offset set to 75X:

Example of Horizontal Offset set to -75X:

Y - Vertical Bar Code Offset

The vertical bar code offset allows you to offset the vertical center of the signature capture area. Negative numbers indicate that the signature capture is above the bar code, and positive numbers indicate that the area is below the bar code. Measurements are in multiples of the minimum bar width.

Example of Vertical Offset set to -7Y:

Example of Vertical Offset set to 65Y:

Keyboard Function Relationships

The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII "CTRL"+ relationships apply to all terminals that can be used with the scanner. Refer to page 2-16 enable Control + X (Control + ASCII) Mode.

Function Code HEX/ASCII Value Full ASCII (CTRL + X Mode)

NUL 00 @
SOH 01 A
STX 02 B
ETX 03 C
EOT 04 D
ENQ 05 E
ACK 06 F
BEL 07 G
BS 08 H
HT 09 I
LF 0A J
VT 0B K
FF 0C	L
CR	0D	M
SO	0E N
SI	0F	O
DLE 10 P
DC1 11 Q
DC2 12 R
DC3 13 S
DC4 14 T
NAK	15 U
SYN	16 V
ETB 17 W
CAN	18 X
EM	19 Y
SUB	1A Z
ESC	1B [
FS 1C	\
GS	1D	]
RS	1E^
US	1F	-

The last five characters in the Full ASCII "CTRL"+ column ([ \ ] 6 - ), apply to US only. The following chart indicates the equivalents of these five characters for different countries.

Country			Codes
United States	[	\	]	6	-
Belgium	[	<	]	6	-
Scandinavia	8	<	9	6	-
France	^	8		6	=
Germany		\tilde{A}$	+	6	-
Italy		\	+	6	-
Switzerland		<	..	6	-
United Kingdom	[	¢	]	6	-

Country
Codes
Denmark 8 \96 -
Norway 8 \96 -
Spain [ \ ] 6 -
Supported Interface Keys

ASCII HEX

IBM PC/AT and Compatibles, USB PC Keyboard

Apple Mac/iMac Supported Keys

NUL 00 Reserved Reserved

SOH 01 Enter (KP) Enter/Numpad Enter

STX 02 Cap Lock CAPS

ETX 03 ALT make ALT make

EOT 04 ALT break ALT break

ENQ 05 CTRL make CNTRL make

ACK 06 CTRL break CNTRL break

BEL 07 CR/Enter RETURN

BS 08 Reserved APPLE make

HT 09 Tab TAB

LF 0A Reserved APPLE break

VT 0B Tab TAB

FF 0C Delete Del

CR 0D CR/Enter RETURN

SO 0E Insert Ins Help

SI OF Escape ESC

DLE 10 F11 F11

DC1 11 Home Home

DC2 12 Print Prnt Scrn

DC3 13 Back Space BACKSPACE

DC4 14 Back Tab LSHIFT TAB

NAK 15 F12 F12

SYN 16 F1 F1

ETB 17 F2 F2

CAN 18 F3 F3

EM 19 F4 F4

SUB 1A F5 F5

ESC 1B F6 F6

FS 1C F7 F7

GS 1D F8 F8

RS 1E F9 F9

US 1F F10 F10

DEL 7F BACKSPACE

To Add a Test Code I.D. Prefix to All Symbologies

This selection allows you to turn on transmission of a Code I.D. before the decoded symbology. (See the Symbology Charts, beginning on page A-1) for the single character code that identifies each symbology.) This action first clears all current prefixes, then programs a Code I.D. prefix for all symbologies. This is a temporary setting that will be removed when the unit is power cycled.

PRECA2.BK2995C80!

Add Code I.D. Prefix to

All Symbologies (Temporary)

Show Decoder Revision

Scan the bar code below to output the decoder revision.

REV DR.

Show Decoder Revision

Show Scan Driver Revision

Scan the bar code below to output the scan driver revision. The scan driver controls image capture.

REV SD.

Show Scan Driver Revision

Show Software Revision

Scan the bar code below to output the current software revision, unit serial number, and other product information for both the scanner.

REVINF

Show Revision

Show Data Format

Scan the bar code below to show current data format settings.

DFMBK3?

Data Format Settings

Test Menu

When you scan the Test Menu On code, then scan a programming code in this manual, the scanner displays the content of a programming code. The programming function will still occur, but in addition, the content of that programming code is output to the terminal.

Note: This feature should not be used during normal scanner operation.

TotalFreedom

TotalFreedom is an open system architecture that makes it possible for you create applications that reside on your scanner. Decoding apps and Data Formatting apps can be created using TotalFreedom. For further information about TotalFreedom, go to our website at www.honeywellaidc.com.

Application Plug-Ins (Apps)

Any apps that you are using can be turned off or on by scanning the following bar codes. Apps are stored in groups: Decoding, and Formatting. You can enable and disable these groups of apps by scanning that group's On or Off bar code below. You can also scan the List Apps bar code to output a list of all your apps.

Note: You must reset your device in order for the apps setting to take effect.

EZConfig-Scanning Introduction

EZConfig-Scanning provides a wide range of PC-based programming functions that can be performed on a scanner connected to your PC. EZConfig-Scanning allows you to download upgrades to the scanner's firmware, change programmed parameters, and create and print programming bar codes. Using EZConfig-Scanning, you can even save/open the programming parameters for a scanner. This saved file can be e-mailed or, if required, you can create a single bar code that contains all the customized programming parameters and mail or fax that bar code to any location. Users in other locations can scan the bar code to load in the customized programming.

EZConfig-Scanning Operations

The EZConfig-Scanning software performs the following operations:

Scan Data

Scan Data allows you to scan bar codes and display the bar code data in a window. Scan Data lets you send serial commands to the scanner and receive scanner response that can be seen in the Scan Data window. The data displayed in the Scan Data window can either be saved in a file or printed.

Configure

Configure displays the programming and configuration data of the scanner. The scanner's programming and configuration data is grouped into different categories. Each category is displayed as a tree item under the "Configure" tree node in the application explorer. When one of these tree nodes is clicked, the right-hand side is loaded with the parameters' form belonging to that particular category. The "Configure" tree option has all the programming and configuration parameters specified for a scanner. You can set or modify these parameters as required. You can later write the modified settings to the scanner, or save them to a dcf file.

Imaging

Imaging provides all the image-related functions that a 2D Scanner can perform. You can capture an image using the current settings, and the image will be displayed in an image window. Images captured from the scanner can be saved to files in different image formats. You can modify the image settings and save the image settings to an INI file, which can be loaded later to capture new images. Imaging also lets you preview the images continuously captured by the scanner.

Installing EZConfig-Scanning from the Web

Note: EZConfig-Scanning requires .NET software. If .NET is not installed on your PC, you will be prompted to install during the EZConfig-Scanning installation.

1. Access the Honeywell web site at www.honeywellaidc.com
2. Click on the Products tab. Under Software, select Device Management.
3. Click on EZConfig-Device Configuration Software.
4. Click on the Software tab. Select EZConfig Cloud for Scanning (online version, must register for access) or EZConfig for Scanning (to install on your PC, follow the next steps.
5. To install on your PC, when prompted, select Save File, and save the files to the c:\windows\temp directory.
6. Once you have finished downloading the file, exit the web site.
7. Using Explorer, go to the c:\windows\temp file.
8. Double click on the Setup.exe file. Follow the screen prompts to install the EZConfig-Scanning program.
9. If you've selected the defaults during installation, you can click on Start Menu-All Programs-Honeywell-EZConfig-Scanning and select EZConfig for your browser.

Resetting the Factory Defaults

This selection erases all your settings and resets the scanner to the original factory defaults. It also disables all plugins.

If you aren't sure what programming options are in your scanner, or you've changed some options and want to restore the scanner to factory default settings, first scan the Remove Custom Defaults bar code, then scan Activate Defaults. This resets the scanner to the factory default settings.

Remove Custom Defaults

DEFAULT.

Activate Defaults

The Menu Commands, beginning on page 12-3 list the factory default settings for each of the commands (indicated by an asterisk (*) on the programming pages).

Serial Programming Commands

The serial programming commands can be used in place of the programming bar codes. Both the serial commands and the programming bar codes will program the scanner. For complete descriptions and examples of each serial programming command, refer to the corresponding programming bar code in this manual.

The device must be set to an RS232 interface (see page 2-1). The following commands can be sent via a PC COM port using terminal emulation software.

Conventions

The following conventions are used for menu and query command descriptions:

parameterA label representing the actual value you should send as part of a command.

[option] An optional part of a command.

{Data} Alternatives in a command.

bold Names of menus, menu commands, buttons, dialog boxes, and windows that appear on the screen.

Menu Command Syntax

Menu commands have the following syntax (spaces have been used for clarity only):

Prefix[:Name:] Tag SubTag {Data} [, SubTag {Data}] [; Tag SubTag {Data}] [...] Storage

Prefix Three ASCII characters: SYN M CR (ASCII 22,77,13).

:Name: To send information to the scanner, use :Solaris: The default factory setting for a Solaris scanner is Solaris scanner. This setting is changed by using the BT_NAM command, which accepts alphanumeric values. If the name is not known, a wildcard (*) can be used :*:.

Tag A 3 character case-insensitive field that identifies the desired menu command group. For example, all RS232 configuration settings are identified with a Tag of 232.

SubTag A 3 character case-insensitive field that identifies the desired menu command within the tag group. For example, the SubTag for the RS232 baud rate is BAD.

Data The new value for a menu setting, identified by the Tag and SubTag.

Storage A single character that specifies the storage table to which the command is applied. An exclamation point (!) performs the command's operation on the device's volatile menu configuration table. A period (.) performs the command's operation on the device's non-volatile menu configuration table. Use the non-volatile table only for semi-permanent changes you want saved through a power cycle.

Query Commands

Several special characters can be used to query the device about its settings.

^ What is the default value for the setting(s).

? What is the device's current value for the setting(s).

* What is the range of possible values for the setting(s). (The device's response uses a dash (-) to indicate a continuous range of values. A pipe (I) separates items in a list of non-continuous values.)

:Name: Field Usage (Optional)

This command returns the query information from the scanner.

Tag Field Usage

When a query is used in place of a Tag field, the query applies to the entire set of commands available for the particular storage table indicated by the Storage field of the command. In this case, the SubTag and Data fields should not be used because they are ignored by the device.

SubTag Field Usage

When a query is used in place of a SubTag field, the query applies only to the subset of commands available that match the Tag field. In this case, the Data field should not be used because it is ignored by the device.

Data Field Usage

When a query is used in place of the Data field, the query applies only to the specific command identified by the Tag and SubTag fields.

Concatenation of Multiple Commands

Multiple commands can be issued within one Prefix/Storage sequence. Only the Tag, SubTag, and Data fields must be repeated for each command in the sequence. If additional commands are to be applied to the same Tag, then the new command sequence is separated with a comma (,) and only the SubTag and Data fields of the additional command are issued. If the additional command requires a different Tag field, the command is separated from previous commands by a semicolon (;).

Responses

The device responds to serial commands with one of three responses:

ACK Indicates a good command which has been processed.

ENQ Indicates an invalid Tag or SubTag command.

NAK Indicates the command was good, but the Data field entry was out of the allowable range for this Tag and SubTag combination, e.g., an entry for a minimum message length of 100 when the field will only accept 2 characters.

When responding, the device echoes back the command sequence with the status character inserted directly before each of the punctuation marks (the period, exclamation point, comma, or semicolon) in the command.

Examples of Query Commands

In the following examples, a bracketed notation [ ] depicts a non-displayable response.

Example: What is the range of possible values for Codabar Coding Enable?

Enter: cbrena*.

Response: CBRENA0-1[ACK]

This response indicates that Codabar Coding Enable (CBRENA) has a range of values from 0 to 1 (off and on).

Example: What is the default value for Codabar Coding Enable?

Enter: cbrena^.

Response: CBRENA1[ACK]

This response indicates that the default setting for Codabar Coding Enable (CBRENA) is 1, or on.

Example: What is the device's current setting for Codabar Coding Enable?

Enter: cbrena?.

Response: CBRENA1[ACK]

This response indicates that the device's Codabar Coding Enable (CBRENA) is set to 1, or on.

Example: What are the device's settings for all Codabar selections?

Enter: cbr?.

Response: CBRENA1[ACK],

SSX0[ACK],

CK20[ACK],

CCT1[ACK],

MIN2[ACK],

MAX60[ACK],

DFT[ACK].

This response indicates that the device's Codabar Coding Enable (CBRENA) is set to 1, or on;

the Start/Stop Character (SSX) is set to 0, or Don't Transmit;

the Check Character (CK2) is set to 0, or Not Required;

concatenation (CCT) is set to 1, or Enabled;

the Minimum Message Length (MIN) is set to 2 characters;

the Maximum Message Length (MAX) is set to 60 characters;

and the Default setting (DFT) has no value.

Trigger Commands

You can activate and deactivate the scanner with serial trigger commands. First, the scanner must be put in Manual Trigger Mode by scanning a Manual Trigger Mode bar code (page 3-4), or by sending a serial menu command for triggering (page 3-4). Once the scanner is in serial trigger mode, the trigger is activated and deactivated by sending the following commands:

Activate: SYN T CR

Deactivate: SYN U CR

The scanner scans until a bar code has been read, until the deactivate command is sent, or until the serial time-out has been reached (see "Read Time-Out" on page 3-5 for a description, and the serial command on page 12-8).

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings.

DEFAULT
Activate Custom Defaults

The charts on the following pages list the factory default settings for each of the commands (indicated by an asterisk (*) on the programming pages).

Menu Commands

Selection	Setting* Indicates default	Serial Command# Indicates a numeric entry	Page
Product Default Settings
Setting Custom Defaults Set Custom D	defaults MNUCDP 1-8
	Save Custom Defaults MNUCDS 1-8
Resetting the Custom Defaults Activate	Custom Defaults DEFALT 1-9
Programming the Interface
Plug and Play Codes Keyboard Wedge:	IBM PC AT and Compatibles with CR suffix	PAP_AT 2-1
	Laptop Direct Connect with CR suffix PAPLTD	2-1
	RS232 Serial Port	PAP232	2-1
Plug and Play Codes:RS485	IBM Port 5B Interface	PAPP5B	2-2
	IBM Port 9B HHBCR-1 Interface	PAP9B1 2-2
	IBM Port 17 Interface	PAPP17 2-2
	IBM Port 9B HHBCR-2 Interface	PAP9B2 2-2
	RS485 Packet Mode On	RTLPDF1 2-2
	RS485 Packet Mode Off	RTLPDF0 2-2
	RS485 Packet Length (20-256)	RTLMPS	2-3
Plug and Play Codes: IBM SurePos	USB IBM SurePos Handheld	PAPSPH	2-3
	USB IBM SurePos Tabletop	PAPSPT	2-3
Plug and Play Codes: USB USB Keyboard (PC) PAP124 2-3
		USB Keyboard (Mac) PAP125 2-3
		USB Japanese Keyboard (PC) TRMUSB134 2-3
		USB HID PAP131 2-4
		USB Serial TRMUSB130 2-4
		CTS/RTS Emulation On USBCTS1 2-4
		CTS/RTS Emulation Off* USBCTS0 2-4
		ACK/NAK Mode On USBACK1 2-4
		ACK/NAK Mode Off* USBACK0 2-4
Remote MasterMind for USB	ReM Off	REMIFC0	2-4
	*ReM On	REMIFC1	2-4
Plug and Play Codes	Verifone Ruby Terminal	PAPRBY	2-5
	Gilbarco Terminal	PAPGLB	2-5
	Wincor Nixdorf Terminal	PAPWNX	2-5
	Wincor Nixdorf Beetle	PAPBTL 2-6
	Wincor Nixdorf RS232 Mode A	PAPWMA
Program Keyboard Country	*U.S.A.	KBDCTY0 2-6
	Albania	KBDCTY35	2-7
	Azeri (Cyrillic)	KBDCTY81	2-7
	Azeri (Latin)	KBDCTY80	2-7
	Belarus	KBDCTY82	2-7
	Belgium	KBDCTY1 2-7
	Bosnia	KBDCTY33	2-7
	Brazil	KBDCTY16	2-7
	Brazil (MS)	KBDCTY59	2-7
	Bulgaria (Cyrillic)	KBDCTY52	2-7
	Bulgaria (Latin)	KBDCTY53	2-7
	Canada (French legacy)	KBDCTY54	2-7
	Canada (French)	KBDCTY18	2-8
	Canada (Multilingual)	KBDCTY55	2-8
	Croatia	KBDCTY32	2-8
	Czech	KBDCTY15	2-8
	Czech (Programmers)	KBDCTY40	2-8
	Czech (QWERTY)	KBDCTY39	2-8
	Czech (QWERTZ)	KBDCTY38	2-8
	Denmark KBDCTY8 2-8
	Dutch (Netherlands)	KBDCTY11	2-8
	Estonia	KBDCTY41	2-8
	Faroese	KBDCTY83	2-8
	Finland	KBDCTY2 2-9
	France	KBDCTY3 2-9
	Gaelic	KBDCTY84	2-9

Selection	Setting* Indicates default	Serial Command# Indicates a numeric entry	Page
	Spain KBDCTY10 2-13
	Spanish variation KBDCTY51 2-13
	Sweden KBDCTY23 2-13
	Switzerland (French) KBDCTY29 2-13
	Switzerland (German) KBDCTY6 2-13
	Tatar KBDCTY85 2-13
	Turkey F KBDCTY27 2-13
	Turkey Q KBDCTY24 2-13
	Ukrainian KBDCTY76 2-13
	United Kingdom KBDCTY7 2-14
	United Stated (Dvorak right) KBDCTY89 2-14
	United States (Dvorak left)	KBDCTY88 2-14
	United States (Dvorak)	KBDCTY87 2-14
	United States (International)	KBDCTY30	2-14
	Uzbek (Cyrillic)	KBDCTY77 2-14
Keyboard Conversion	*Keyboard Conversion Off	KBDCNV0	2-15
	Convert all Characters to Upper Case	KBDCNV1	2-15
	Convert all Characters to Lower Case	KBDCNV2	2-15
Keyboard Style	*Regular	KBDSTY0	2-14
	Caps Lock	KBDSTY1	2-14
	Shift Lock	KBDSTY2	2-14
	Automatic Caps Lock	KBDSTY6	2-15
	Emulate External Keyboard	KBDSTY5	2-15
Control Character Output	*Control Character Output Off	KBDNPE0	2-16
	*Control Character Output On	KBDNPE1	2-16
Keyboard Modifiers	*Control + X Off	KBDCAS0	2-16
	DOS Mode Control + X	KBDCAS1	2-16
	Windows Mode Control + X	KBDCAS2	2-16
	Windows Mode Prefix/Suffix Off	KBDCAS3	2-16
	*Turbo Mode Off	KBDTMD0	2-17
	Turbo Mode On	KBDTMD1	2-17
	*Numeric Keypad Off	KBDNPS0	2-17
	Numeric Keypad On	KBDNPS1	2-17
	*Auto Direct Connect Off	KBDADC0	2-17
	Auto Direct Connect On	KBDADC1	2-17
Baud Rate	300 BPS	232BAD0	2-17
	600 BPS	232BAD1	2-17
	1200 BPS	232BAD2	2-18
	2400 BPS	232BAD3	2-18
	4800 BPS	232BAD4	2-18
	9600 BPS	232BAD5	2-18
	19200 BPS	232BAD6	2-18
	38400 BPS	232BAD7	2-18
Word Length: Data Bits, Stop Bits,and Parity	7 Data, 1 Stop, Parity Even	232WRD3	2-18
	7 Data, 1 Stop, Parity None 232WRD0 2-19
	7 Data, 1 Stop, Parity Odd 232WRD6 2-19
	7 Data, 2 Stop, Parity Even 232WRD4 2-19
	7 Data, 2 Stop, Parity None 232WRD1 2-19
	7 Data, 2 Stop, Parity Odd 232WRD7 2-19
	8 Data, 1 Stop, Parity Even 232WRD5 2-19
	*8 Data, 1 Stop, Parity None 232WRD2 2-19
	8 Data, 1 Stop, Parity Odd 232WRD8 2-19
	8 Data, 1 Stop, Parity Mark 232WRD14 2-19
RS232 Receiver Time-out Range 0 - 300 seconds 232LPT### 2-19
RS232 Handshaking *RTS/CTS Off 232CTS0 2-20
		Flow Control, No Timeout	232CTS1
		Two-Direction Flow Control	232CTS2
		Flow Control with Timeout	232CTS3
		RS232 Timeout	232DEL###
		*XON/XOFF Off	232XON0
		XON/XOFF On	232XON1
		*ACK/NAK Off	232ACK0 2-21
		ACK/NAK On 232ACK1 2-21
Input/Output Selections
Power Up Beeper	Power Up Beeper Off - Scanner	BEPPWR0	3-1
	*Power Up Beeper On - Scanner	BEPPWR1	3-1
Beep on BEL Character	Beep on BEL On	BELBEP1	3-1
	*Beep on BEL Off	BELBEP0	3-1
Beeper - Good Read	Off	BEPBEP0	3-1
	*On	BEPBEP1	3-1
Beeper Volume - Good Read	Off	BEPLVL0	3-1
	Low	BEPLVL1	3-2
	Medium	BEPLVL2	3-2
	*High	BEPLVL3	3-2
Beeper Pitch - Good Read(Frequency)	*Low (870) (min 400Hz)	BEPFQ1870	3-2
	Medium (1140 Hz)	BEPFQ11140	3-2
	High (1800) (max 9000Hz)	BEPFQ11800	3-2
Beeper Pitch - Error (Frequency)	*Razz (250) (min 200Hz)	BEPFQ2800	3-2
	Medium (3250)	BEPFQ23250	3-3
	High (4200) (max 9000Hz)	BEPFQ24200	3-3
Beeper Duration - Good Read	*Normal Beep	BEPBIP0	3-3
	Short Beep BEPBIP1 3-3
LED - Good Read Off BEPLED0 3-3
	*On BEPLED1 3-3
Number of Beeps - Error *5 BEPERR$ 3-4
		Range 1 - 9 BEPERR# 3-4
Number of Beeps - Good Read *1 BEPRPT1 3-3
		Range 1 - 9 BEPRPT# 3-3
Beeper Volume Max Beeper Volume Max PAPBLM 3-4
Good Read Delay	*No Delay	DLYGRD0	3-4
	Short Delay (500 ms)	DLYGRD500	3-4
	Medium Delay (1000 ms)	DLYGRD1000	3-4
	Long Delay (1500 ms)	DLYGRD1500	3-4
User-Specified Good Read Delay	Range 0 - 30,000 ms	DLYGRD#######	3-4
Serial Trigger Mode Read Time-Out	(0 - 300,000 ms) *30,000	TRGSTO#####	3-5
Presentation Mode	*Presentation Mode	TRGMOD3	3-5
Presentation Idle Mode	Presentation Idle Mode (0-3,000,000)*10,000 (10s)	TRGPMT###	3-5
	Off TRGPMT0 3-5
Presentation Sleep Mode *On TRGTS1 3-6
		Off TRGTSI0 3-6
		Timeout (0-3,600,000) *300,000 (300s)	TRGTST	3-6
LED Illumination - Presentation Mode	Off PWRLDC0 3-6
	Low	PWRLDC100	3-6
	*High	PWRLDC150	3-6
Presentation LED Behavior After Decode	*LEDs On	TRGPCK1	3-7
	LEDs Off	TRGPCK0	3-7
Presentation Sensitivity	Range 0-20 (*1)	TRGPMS##	3-7
Presentation Centering Window	Presentation Centering On	PDCWIN1	3-8
	*Presentation Centering Off	PDCWIN0 3-8
	Left of Presentation Centering Window(*40%)	PDCLFT###	3-9
	Right of Presentation Centering Window(*60%)	PDCRGT###	3-9
	Top of Presentation Centering Window(*40%)	PDCTOP###	3-8
	Bottom of Presentation Centering Window(*60%)	PDCBOT###	3-8
Streaming Presentation	Streaming Presentation Mode - Normal	PAPSPN	3-9
	Streaming Presentation Mode - Enhanced	PAPSPE	3-9
Mobile Phone Read Mode	Presentation - Mobile Phone	PAPPSC	3-9
Poor Quality PDF Codes	Poor Quality PDF Reading On	PDFXPR1	3-9
	*Poor Quality PDF Reading Off	PDFXPR0	3-10
Poor Quality Code Enhanced Mode	Poor Quality Code Enhanced Mode	PAPPSP	3-10
Reread Delay *Short (500 ms) DLYRRD500 3-10
		Medium (750 ms) DLYRRD750 3-10
		Long (1000 ms) DLYRRD1000 3-10
		Extra Long (2000 ms) DLYRRD2000 3-10
User-Specified Range 0 - 30,000 ms DLYRRD####### 3-10
Illumination Lights *Lights On SCNLED1 3-11
		Lights Off SCNLED0 3-11
Centering Window	Centering On	DECWIN1	3-12
	*Centering Off	DECWIN0 3-12
	Left of Centering Window (*40%)	DECLFT###	3-12
	Right of Centering Window (*60%)	DECRGT###	3-12
	Top of Centering Window (*40%)	DECTOP###	3-12
	Bottom of Centering Window (*60%)	DECBOT###	3-12
Preferred Symbology	On	PRFENA1 3-12
	*Off	PRFENA0 3-13
	High Priority Symbology	PRFCOD##	3-13
	Low Priority Symbology	PRFBLK##	3-13
	Preferred Symbology Timeout(*500) Range 100-3000	PRFPTO#####	3-13
	Preferred Symbology Default	PRFDFT	3-13
Character Activation Mode	*Off	HSTCEN0	3-14
	On	HSTCEN1	3-14
	Activation Character	HSTACH##	3-14
	Do Not End Character Activation After Good Read	HSTCGD0	3-14
	*End Character Activation After Good Read	HSTCGD1	3-14
	Character Activation Laser Timeout (Range 1 - 65535) *5000 ms	HSTCDT#####	3-15
Character Deactivation Mode	*Off	HSTDEN0	3-15
	On	HSTDEN1	3-15
	Deactivation Character	HSTDCH##	3-15
Output Sequence Editor	Enter Sequence	SEQBLK	3-17
	Default Sequence	SEQDFT	3-17
Partial Sequence	Transmit Partial Sequence	SEQTTS1	3-18
	*Discard Partial Sequence	SEQTTS0	3-18
Require Output Sequence	Required	SEQ_EN2	3-18
	On/Not Required	SEQ_EN1 3-18
	*Off	SEQ_EN0	3-18
No Read	On	SHWNRD1	3-18
	*Off	SHWNRD0	3-18
Video Reverse	Video Reverse Only	VIDREV1	3-19
	Video Reverse and Standard Bar Codes	VIDREV2	3-19
	*Video Reverse Off	VIDREV0	3-19
Working Orientation *Upright ROTATN0 3-20
		Vertical, Bottom to Top (Rotate CCW 90°) ROTATN1 3-20
		Upside Down ROTATN2 3-20
		Vertical, Top to Bottom (Rotate CW 90°) ROTATN3 3-20
Prefix/Suffix Selections
Add CR Suffix to All Symbologies VSUFCR 4-2
Prefix Add Prefix PREBK2##	4-2
	Clear One Prefix	PRECL2	4-2
	Clear All Prefixes	PRECA2	4-2
Suffix	Add Suffix	SUFBK2##	4-2
	Clear One Suffix	SUFCL2	4-2
	Clear All Suffixes	SUFCA2	4-2
Function Code Transmit	*Enable	RMVFNC0	4-3
	Disable	RMVFNC1 4-3
Intercharacter Delay	Range 0 - 1000 (5ms increments)	DLYCHR##	4-3
User Specified Intercharacter Delay	Delay Length0 - 1000 (5ms increments)	DLYCRX##	4-4
	Character to Trigger Delay DLY_XX## 4-4
Interfunction Delay	Range 0 - 1000 (5ms increments)	DLYFNC##	4-4
Intermessage Delay	Range 0 - 1000 (5ms increments)	DLYMSG##	4-4
Data Formatter Selections
Data Format Editor	*Default Data Format (None)	DFMDF3	5-1
	Enter Data Format	DFMBK3##	5-2
	Clear One Data Format	DFMCL3	5-2
	Clear All Data Formats	DFMCA3 5-2
Data Formatter	Data Formatter Off	DFM_EN0	5-11
	*Data Formatter On, Not Required, Keep Prefix/Suffix	DFM_EN1	5-11
	Data Format Required, Keep Prefix/Suffix	DFM_EN2	5-12
	Data Formatter On, Not Required, Drop Prefix/Suffix	DFM_EN3	5-12
	Data Format Required, Drop Prefix/Suffix	DFM_EN4	5-12
Data Format Non-Match Error Tone	*Data Format Non-Match Error Tone On	DFMDEC0	5-12
	Data Format Non-Match Error Tone Off	DFMDEC1	5-12
Primary/Alternate Data Formats	Primary Data Format	ALTFNM0	5-12
	Data Format 1	ALTFNM1	5-12
	Data Format 2	ALTFNM2	5-12
	Data Format 3	ALTFNM3	5-13
Single Scan Data Format Change	Single Scan-Primary Data Format	VSAF_0	5-13
Symbologies
All Symbologies All Symbologies Off ALLENA0 6-1
Codabar Default All Codabar	Settings	CBRDFT 6-2
	Off CBRENA0 6-2
	*On CBRENA1 6-2
Codabar Start/Stop Char.	*Don't Transmit	CBRSSX0	6-2
	Transmit	CBRSSX1 6-2
Codabar Check Char.	*No Check Char.	CBRCK20	6-2
	Validate, But Don't Transmit	CBRCK21	6-3
	Validate, and Transmit	CBRCK22	6-3
Codabar Concatenation	*Off CBRCCT0 6-3
	On CBRCCT1 6-3
	Require	CBRCCT2 6-3
Codabar Redundancy	Range (0 - 10) *0	CBRVOT##	6-3
Codabar Message Length	Minimum (2 - 60) *4	CBRMIN##	6-4
	Maximum (2 - 60) *60	CBRMAX##	6-4
Code 39	Default All Code 39 Settings	C39DFT	6-4
	Off C39ENA0 6-4
	*On C39ENA1 6-4
Code 39 Start/Stop Char.	*Don't Transmit	C39SSX0	6-4
	Transmit	C39SSX1 6-4
Code 39 Check Char.	*No Check Char.	C39CK20	6-5
	Validate, But Don't Transmit	C39CK21	6-5
	Validate, and Transmit	C39CK22	6-5
Code 39 Redundancy	Range (0 - 10) *0	C39VOT##	6-6
Code 39 Message Length	Minimum (0 - 48) *0	C39MIN##	6-5
	Maximum (0 - 48) *48	C39MAX##	6-5
Code 39 Append	*Off C39APP0 6-5
	On C39APP1 6-5
Code 32 Pharmaceutical (PARAF)	*Off	C39B320	6-6
	On C39B321 6-6
Code 39 Full ASCII	*Off	C39ASCO	6-7
	On C39ASC1 6-7
	Code 39 Code Page	C39DCP	6-7
Interleaved 2 of 5 Default All Interleaved	2 of 5 Settings	I25DFT 6-7
	Off I25ENA0 6-7
	*On I25ENA1 6-7
Interleaved 2 of 5 Check Digit	*No Check Char.	I25CK20	6-8
	Validate, But Don't Transmit	I25CK21 6-8
	Validate, and Transmit I25CK22 6-8
Interleaved 2 of 5 Redundancy Range	(0 - 10) *0 I25VOT## 6-8
Interleaved 2 of 5 Message Length	Minimum (2 - 80) *4	I25MIN##	6-8
	Maximum (2 - 80) *80	I25MAX##	6-8
NEC 2 of 5	Default All NEC2 of 5 Settings	N25DFT	6-9
	Off N25ENA0 6-9
	*On N25ENA1 6-9
NEC 2 of 5 Check Digit	*No Check Char.	N25CK20	6-9
	Validate, But Don't Transmit	N25CK21	6-9
	Validate, and Transmit N25CK22	6-9
NEC 2 of 5 Message Length	Minimum (2 - 80) *4	N25MIN##	6-9
	Maximum (2 - 80) *80	N25MAX##	6-10
Code 93	Default All Code 93 Settings	C93DFT	6-10
	Off C93ENA0 6-10
	*On C93ENA1 6-11
Code 93 Message Length	Minimum (0 - 80) *0	C93MIN##	6-10
	Maximum (0 - 80) *80	C93MAX##	6-10
Code 93 Append	On C93APP1 6-10
	*Off C93APP0 6-11
Code 93 Code Page	Code 93 Code Page	C93DCP	6-11
Straight 2 of 5 Industrial	Default All Straight 2 of 5 Industrial Settings	R25DFT	6-11
	*Off R25ENA0 6-11
	On R25ENA1 6-11
Straight 2 of 5 Industrial Message Length	Minimum (1 - 48) *4	R25MIN##	6-11
	Maximum (1 - 48) *48	R25MAX##	6-11
Straight 2 of 5 IATA Default All Straight	2 of 5 IATA Settings	A25DFT	6-12
Straight 2 of 5 IATA *Off A25ENA0	6-12
	On A25ENA1 6-12
Straight 2 of 5 IATA Redundancy	Range (0 - 10) *0	A25VOT##	6-12
Straight 2 of 5 IATA Message Length	Minimum (1 - 48) *4	A25MIN##	6-12
	Maximum (1 - 48) *48	A25MAX##	6-12
Matrix 2 of 5 Default All Matrix 2 of 5	Settings	X25DFT 6-13
	*Off X25ENA0 6-13
	On X25ENA1 6-13
Matrix 2 of 5 Message Length Minimum	(1 - 80) *4 X25MIN## 6-13
	Maximum (1 - 80) *80 X25MAX## 6-13
Code 11 Default All Code 11	Settings	C11DFT 6-14
	*Off C11ENA0 6-14
	On C11ENA1 6-14
Code 11 Check Digits Required	1 Check Digit	C11CK20	6-14
	*2 Check Digits	C11CK21	6-14
Code 11 Message Length	Minimum (1 - 80) *4	C11MIN##	6-14
	Maximum (1 - 80) *80 C11MAX##	6-14
Code 128	Default All Code 128 Settings	128DFT	6-15
	Off 128ENA0 6-15
	*On 128ENA1 6-15
ISBT Concatenation	*Off	ISBENA0	6-15
	On ISBENA1 6-15
Code 128 Message Length	Minimum (0 - 80) *0	128MIN##	6-15
	Maximum (0 - 80) *80 128MAX##	6-15
Code 128 Append	*On 128APP1 6-15
	Off 128APP0 6-16
Code 128 Code Page	Code 128 Code Page (*2)	128DCP##	6-16
GS1-128	Default All GS1-128 Settings	GS1DFT	6-17
	*On GS1ENA1 6-17
	Off GS1ENA0 6-17
GS1-128 Message Length	Minimum (1 - 80) *1	GS1MIN##	6-17
	Maximum (0 - 80) *80 GS1MAX##	6-17
Telepen	Default All Telepen Settings	TELDFT 6-18
	*Off TELENA0 6-18
	On TELENA1 6-18
Telepen Output	*AIM Telepen Output	TELOLD0	6-18
	Original Telepen Output	TELOLD1	6-18
Telepen Message Length	Minimum (1 - 60) *1	TELMIN##	6-18
	Maximum (1 - 60) *60 TELMAX##	6-18
UPC-A	Default All UPC-A Settings	UPADFT	6-19
	Off UPBENA0 6-19
	*On UPBENA1 6-19
UPC-A Check Digit	Off	UPACKX0	6-19
	*On UPACKX1 6-19
UPC-A Number System Off UPANSX0	6-19
	*On UPANSX1 6-19
UPC-A 2 Digit Addenda *Off UPAAD20	6-20
	On UPAAD21 6-20
UPC-A 5 Digit Addenda *Off UPAAD50	6-20
	On UPAAD51 6-20
UPC-A Addenda Required *Not Required	uparqo 6-20
	Required UPAARQ1 6-20
UPC-A Addenda Separator	Off UPAADS0 6-20
	*On UPAADS1 6-20
UPC-A/EAN-13 with Extended Coupon Code	*Off CPENNA0 6-21
	Allow Concatenation CPNENA1 6-21
	Require Concatenation CPNENA2 6-21
Coupon GS1 DataBar Output	GS1 Output Off	CPNGS10	6-21
	GS1 Output On	CPNGS11 6-21
UPC-E0	Default All UPC-E Settings	UPEDFT	6-22
	Off UPEEN00 6-22
	*On UPEEN01 6-22
UPC-E0 Expand	*Off UPEEXP0 6-22
	On UPEEXP1 6-22
UPC-E0 Addenda Required	Required	UPEARQ1	6-22
	*Not Required UPEARQ0	6-22
UPC-E0 Addenda Separator	*On UPEADS1 6-23
	Off UPEADS0 6-23
UPC-E0 Check Digit	Off UPECKX0 6-23
	*On UPECKX1 6-23
UPC-E0 Leading Zero	Off UPENSX0 6-23
	*On UPENSX1 6-23
UPC-E0 Addenda	2 Digit Addenda On	UPEAD21	6-23
	*2 Digit Addenda Off UPEAD20 6-23
	5 Digit Addenda On	UPEAD51 6-24
	*5 Digit Addenda Off UPEAD50 6-24
UPC-E1	*Off UPEEN10 6-24
	On UPEEN11 6-24
EAN/JAN-13	Default All EAN/JAN Settings	E13DFT	6-24
	Off E13ENA0 6-24
	*On E13ENA1 6-24
Convert UPC-A to EAN-13	UPC-A Converted to EAN-13	UPAENA0	6-24
	Do not Convert UPC-A	UPAENA1 6-24
EAN/JAN-13 Check Digit	Off	E13CKX0	6-25
	*On E13CKX1 6-24
EAN/JAN-13 2 Digit Addenda 2 Digit Addenda On E13AD21 6-25
		*2 Digit Addenda Off E13AD20 6-25
		5 Digit Addenda On E13AD51 6-25
		*5 Digit Addenda Off E13AD50 6-25
EAN/JAN-13 Addenda Required *Not Required E13ARQ0 6-26
		Required E13ARQ1 6-25
EAN/JAN-13 Addenda Separator	Off E13ADS0 6-26
	*On E13ADS1 6-26
ISBN Translate *Off E13ISB0 6-26
	On E13ISB1 6-26
EAN/JAN-8	Default All EAN/JAN 8 Settings	EA8DFT	6-27
	Off EA8ENA0 6-27
	*On EA8ENA1 6-27
EAN/JAN-8 Check Digit	Off	EA8CKX0	6-27
	*On EA8CKX1 6-27
EAN/JAN-8 Addenda	*2 Digit Addenda Off EA8AD20 6-27
	2 Digit Addenda On EA8AD21 6-27
	*5 Digit Addenda Off EA8AD50 6-28
	5 Digit Addenda On EA8AD51 6-27
EAN/JAN-8 Addenda Required	*Not Required	EA8ARQ0	6-28
	Required EA8ARQ1 6-28
EAN/JAN-8 Addenda Separator	Off EA8ADS0 6-28
	*On EA8ADS1 6-28
MSI	Default All MSI Settings	MSIDFT	6-29
	*Off MSIENA0 6-29
	On MSIENA1 6-29
MSI Check Character	*Validate Type 10, but Don't Transmit	MSICHK0	6-29
	Validate Type 10 and Transmit	MSICHK1	6-29
	Validate 2 Type 10 Chars, but Don't Transmit	MSICHK2	6-29
	Validate 2 Type 10 Chars and Transmit	MSICHK3	6-29
	Validate Type 11 then Type 10 Char, but Don't Transmit	MSICHK4	6-29
	Validate Type 11 then Type 10 Char and Transmit	MSICHK5	6-30
	Disable MSI Check Characters	MSICHK6	6-30
MSI Message Length	Minimum (4 - 48) *4	MSIMIN##	6-30
	Maximum (4 - 48) *48	MSIMAX##	6-30
GS1 DataBar Omnidirectional	Default All GS1 DataBar Omnidirectional Settings	RSSDFT	6-31
	Off RSSENA0 6-31
	*On RSSENA1 6-31
GS1 DataBar Limited Default All GS1	DataBar Limited Settings RSLDFT 6-31
	Off RSLENA0 6-31
	*On RSLENA1 6-31
GS1 DataBar Expanded Default All GS1	DataBar Expanded Settings RSEDFT 6-32
	Off RSEENA0 6-32
	*On RSEENA1 6-32
GS1 DataBar Expanded Msg. Length	Minimum (4 - 74) *4 RSEMIN## 6-32
	Maximum (4 - 74) *74 RSEMAX## 6-32
Trioptic Code	*Off TRIENA0 6-32
	On TRIENA1 6-32
Codablock A	Default All Codablock A Settings	CBADFT	6-33
	*Off CBAENA0 6-33
	On CBAENA1 6-33
Codablock A Msg. Length	Minimum (1 - 600) *1	CBAMIN###	6-33
	Maximum (1 - 600) *600	CBAMAX###	6-33
Codablock F	Default All Codablock F Settings	CBFDFT	6-32
	*Off CBFENA0 6-34
	On CBFENA1 6-34
Codablock F Msg. Length	Minimum (1 - 2048) *1	CBFMIN####	6-34
	Maximum (1 - 2048) *2048 CBFMAX####	6-34
Label Code	On LBLENA1 6-34
	* Off	LBLENA0	6-34
PDF417	Default All PDF417 Settings	PDFDFT	6-34
	*On PDFENA1 6-35
	Off PDFENA0 6-35
PDF417 Msg. Length	Minimum (1-2750) *1	PDFMIN####	6-35
	Maximum (1-2750) *2750	PDFMAX####	6-35
MacroPDF417	*On PDFMAC1 6-35
	Off PDFMAC0 6-35
MicroPDF417	Default All Micro PDF417 Settings	MPDDFT	6-36
	On MPDENA1 6-36
	*Off MPDENA0 6-36
MicroPDF417 Msg. Length	Minimum (1-366) *1	MPDMIN###	6-36
	Maximum (1-366) *366	MPDMAX###	6-36
GS1 Composite Codes	On	COMENA1	6-36
	*Off COMENA0 6-36
UPC/EAN Version	On COMUPC1 6-37
	*Off COMUPC0 6-37
GS1 Composite Codes Msg. Length	Minimum (1-2435) *1	COMMIN####	6-37
	Maximum (1-2435) *2435 COMMAX#### 6-37
GS1 Emulation GS1-128 Emulation EANEMU1 6-37
		GS1 DataBar Emulation EANEMU2 6-38
		GS1 Code Expansion Off EANEMU3 6-38
		EAN8 to EAN13 Conversion EANEMU4 6-38
		*GS1 Emulation Off EANEMU0 6-38
TCIF Linked Code 39 On T39ENA1 6-38
		*Off T39ENA0 6-38
QR Code Default All QR Code Settings	QRCDFT 6-43
	*On QRCENA1 6-38
	Off QRCENA0 6-38
QR Code Msg. Length	Minimum (1-7089) *1	QRCMIN#####	6-39
	Maximum (1-7089) *7089	QRCMAX#####	6-39
QR Code Append	*On QRCAPP1 6-39
	Off QRCAPP0 6-39
QR Code Page	QR Code Page (*3)	QRCDCP##	6-39
Data Matrix	Default All Data Matrix Settings	IDMDFT	6-40
	*On IDMENA1 6-40
	Off IDMENA0 6-40
Data Matrix Msg. Length	Minimum (1-3116) *1	IDMMIN#####	6-40
	Maximum (1-3116) *3116	IDMMAX#####	6-40
Data Matrix Append *On IDMAPP1	6-40
	Off IDMAPP0 6-40
Data Matrix Code Page	Data Matrix Code Page (*51)	IDMDCP##	6-41
MaxiCode	Default All MaxiCode Settings	MAXDFT	6-41
	On MAXENA1 6-41
	*Off MAXENA0 6-41
MaxiCode Msg. Length	Minimum (1-150) *1	MAXMIN#####	6-41
	Maximum (1-150) *150	MAXMAX#####	6-41
Aztec Code	Default All Aztec Code Settings	AZTDFT	6-42
	*On AZTENA1 6-42
	Off AZTENA0 6-42
Aztec Code Msg. Length	Minimum (1-3832) *1	AZTMIN#####	6-42
	Maximum (1-3832) *3832	AZTMAX#####	6-42
Aztec Append	*On AZTAPP1 6-42
	Off AZTAPP0 6-42
Aztec Code Page	Aztec Code Page (*51)	AZTDCP##	6-43
Chinese Sensible (Han Xin) Code	Default All Han Xin Code Settings	HX_DFT	6-43
	On HX_ENA1 6-43
	*Off HX_ENA0 6-43
Chinese Sensible (Han Xin) Code Msg. Length	Minimum (1-7833) *1	HX_MIN#####	6-43
	Maximum (1-7833) *7833	HX_MAX#####	6-43
Postal Codes - 2D
2D Postal Codes	*Off	POSTAL0	6-44
Single 2D Postal Codes Australian Post	On POSTAL1 6-44
	British Post On POSTAL7 6-44
	Canadian Post On POSTAL30 6-44
	Intelligent Mail Bar Code On POSTAL10 6-44
	Japanese Post On POSTAL3 6-44
	KIX Post On POSTAL4 6-44
	Planet Code On POSTAL5 6-44
	Postal-4i On POSTAL9 6-44
	Postnet On POSTAL6 6-45
	Postnet with B and B' Fields On POSTAL11 6-45
	InfoMail On POSTAL2 6-45
Combination 2D Postal Codes	InfoMail and British Post On	POSTAL8	6-45
	Intelligent Mail Bar Code and Postnet with B and B' Fields On	POSTAL20 6-45
	Postnet and Postal-4i On	POSTAL14 6-45
	Postnet and Intelligent Mail Bar Code On	POSTAL16 6-45
	Postal-4i and Intelligent Mail Bar Code On	POSTAL17 6-45
	Postal-4i and Postnet with B and B' Fields On	POSTAL19 6-45
	Planet and Postnet On	POSTAL12 6-45
	Planet and Postnet with B and B' Fields On	POSTAL18 6-46
	Planet and Postal-4i On	POSTAL13 6-46
	Planet and Intelligent Mail Bar Code On	POSTAL15 6-46
	Planet, Postnet, and Postal-4i On	POSTAL21 6-46
	Planet, Postnet, and Intelligent Mail Bar Code On	POSTAL22 6-46
	Planet, Postal-4i, and Intelligent Mail Bar Code On	POSTAL23 6-46
	Postnet, Postal-4i, and Intelligent Mail Bar Code On	POSTAL24 6-46
	Planet, Postal-4i, and Postnet with B and B' Fields On	POSTAL25 6-46
	Planet, Intelligent Mail Bar Code, and Postnet with B and B' Fields On	POSTAL26 6-46
	Postal-4i, Intelligent Mail Bar Code, and Postnet with B and B' Fields On	POSTAL27 6-46
	Planet, Postal-4i, Intelligent Mail Bar Code, and Postnet On	POSTAL28 6-47
	Planet, Postal-4i, Intelligent Mail Bar Code, and Postnet with B and B' Fields On	POSTAL29 6-46
Planet Code Check Digit	Transmit	PLNCKX1	6-47
	*Don't Transmit	PLNCKX0	6-47
Postnet Check Digit	Transmit	NETCKX1	6-47
	*Don't Transmit	NETCKX0	6-47
Australian Post Interpretation Bar Output	AUSINT0 6-48
	Numeric N Table AUSINT1 6-48
	Alphanumeric C Table AUSINT2 6-48
	Combination N and C Tables AUSINT3 6-48
Postal Codes - Linear
China Post (Hong Kong 2 of 5) Default	All China Post (Hong Kong 2 of 5) Settings	CPCDFT 6-48
	*Off CPCENA0 6-48
	On CPCENA1 6-48
China Post (Hong Kong 2 of 5) Msg. Length	Minimum (2 - 80) *4 CPCMIN## 6-48
	Maximum (2 - 80) *80	CPCMAX## 6-49
Korea Post	Default All Korea Post Settings	KPCDFT	6-49
	*Off KPCENA0 6-49
	On KPCENA1 6-49
Korea Post Msg. Length	Minimum (2 - 80) *4	KPCMIN##	6-49
	Maximum (2 - 80) *48	KPCMAX##	6-49
Korea Post Check Digit	Transmit Check Digit	KPCCHK1	6-49
	*Don't Transmit Check Digit	KPCCHK0 6-49
EAS Settings
EAS Deactivation Range	On	PDCPP123	7-1
EAS Controller	*Off EASTYP0 7-2
	On EASTYP1 7-2
EAS Mode of Operation	*Interlocked	EASMOD0	7-2
	Continuous on Enable	EASMOD1	7-3
EAS Interlocked Duration Timeout	EASTIM (1-5000) *100ms	EASTIM#####	7-3
Imaging Default Commands
Image Snap	Default all Imaging Commands	IMGDFT	9-1
	Imaging Style - Decoding	SNPSTY0	9-1
	*Imaging Style - Photo	SNPSTY1	9-1
	Imaging Style - Manual	SNPSTY2	9-1
	Beeper On SNPBEP1 9-1
	*Beeper Off	SNPBEP0	9-1
	*LED State - Off	SNPLED0	9-2
	LED State - On	SNPLED1	9-2
	Exposure (1-7874 microseconds)	SNPEXP 9-2
	*Gain - None	SNPGAN1	9-2
	Gain - Medium	SNPGAN2	9-2
	Gain - Heavy	SNPGAN4	9-2
	Gain - Maximum	SNPGAN8	9-2
	Target White Value (0-255) *125	SNPWHT###	9-3
	Delta for Acceptance (0-255) *25	SNPDEL###	9-3
	Update Tries (0-10) *6	SNPTRY##	9-3
Image Ship *Infinity Filter - Off IMGINF0 9-4
Image Size Compatibility Force VGA R	resolution IMGVGA1 9-10
	*Native Resolution IMGVGA0 9-10
Intelligent Signature Capture Optimize	On DECBND1 9-10
	*Optimize Off DECBND0 9-10
Utilities
Add Code I.D. Prefix to All Symbologies (Temporary)		PRECA2,BK2995C80!	11-1
Show Decoder Revision		REV_DR	11-1
Show Scan Driver Revision		REV_SD	11-1
Show Software Revision		REVINF	11-1
Show Data Format		DFMBK3?	11-1
Test Menu	On	TSTMNU1	11-2
	*Off	TSTMNU0	11-2
Application Plug-Ins (Apps)	*Decoding Apps On	PLGDCE1	11-2
	Decoding Apps Off	PLGDCE0	11-2
	*Formatting Apps On	PLGFOE1	11-2
	Formatting Apps Off	PLGFOE0	11-2
	List Apps	PLGINF	11-2
Resetting the Factory Defaults	Remove Custom Defaults	DEFOVR	11-4
	Activate Defaults	DEFALT	11-4

Solaris 7980g Scanner Product Specifications

Parameter Specification
Dimensions (Typical):
Height	5.83 inches (148mm)
Width	5.98 inches (152mm)
Depth	3.34 inches (85mm)
Weight	19 ounces (539g)
Illumination LED:
Peak Wavelength	2700K CCT (warm white LED)
Image Size 1280 x 960 pixels
Skew Angle +75°	-
Pitch Angle +65°	-
Motion Tolerance: Presentation Mode up to 118 inches per second (3.0 m/s) for 13 mil UPC
Symbol Contrast Grade 1.0 (25% or greater)
Voltage Requirements 5.2 + 5% VDC at input connector	-
Current Draw:
Operation	400mA
Idle	270mA
Sleep	210mA
Power Supply Noise Rejection Maximum 100mV peak to peak, 10 to 100 kHz
Temperature Ranges:
Operating	+32°F to +104°F (0°C to 40°C)
Storage	-4°F to +140°F (-20°C to 60°C)
Humidity 5 to 95% non-condensing
Mechanical Drop	Operational after 30 drops from 5 feet (1.5m) to concrete at 23°C
Side Impact 5.8J energy after 18 hits
Vibration Withstands 10G peak from 10 to 500Hz
IP Rating IP 5X
ESD Tolerance	Up to 15kV direct air Up to 8 kV indirect

Depth of Field Charts

Typical Performance

Focus Standard Range (SR)
Symbology Near Distance Far Distance
5 mil Code 39	in. 0.4 5.5
	mm 10 140
6.7 mil PDF417	in. 0.8 5.5
	mm 20 140
13 mil UPC-A	in. 0.0 10.6
	mm 0.0 270
20 mil Code 39	in. 0.0 11.8
	mm 0.0 300
20 mil Data Matrix	in. 0.6 7.5
	mm 15 190
20 mil QR	in. 0 7.5
	mm 0 190
Resolution (1D Code 39) 3 mil (.076mm)
Resolution (2D Data Matrix) 8.3 mil (211mm)

Guaranteed Performance

Focus Standard Range (SR)
Symbology Near Distance Far Distance
5 mil Code 39	in. 0.6 4.7
	mm 15 120
6.7 mil PDF417	in. 1.5 5.1
	mm 38 130
13 mil UPC-A	in.	0.0 9.6
	mm	0.0 245
20 mil Code 39	in.	0.0 10.2
	mm	0.0 260
20 mil Data Matrix	in. 1.1 6.3
	mm 27 160
20 mil QR	in.	0.4 6.7
	mm 10 170
Resolution (1D Code 39) 3 mil (.076mm)
Resolution (2D Data Matrix) 8.3 mil (211mm)

Standard Connector Pinouts

Note: The following pin assignments are not compatible with Honeywell legacy products. Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage not covered by your warranty.

Keyboard Wedge

10 Pin RJ41 Modular Plug

Serial Output

10 Pin RJ41 Modular Plug

RS485 Output

10 Pin RJ41 Modular Plug

Note: RS485 signal conversion is performed in the cable.

USB

10 Pin Modular Plug

EAS

6 Pin Modular Plug

USB Auxiliary Scanner - Solaris end

USB Type A Plug

Required Safety Labels

Maintenance and Troubleshooting

Repairs

Repairs and/or upgrades are not to be performed on this product. These services are to be performed only by an authorized service center (see Technical Assistance on page ix).

Maintenance

Your device provides reliable and efficient operation with a minimum of care. Although specific maintenance is not required, the following periodic checks ensure dependable operation:

Cleaning the Scanner

The scanner's housing may be cleaned with a soft cloth or tissue dampened with water (or a mild detergent-water solution.) If a detergent solution is used, rinse with a clean tissue dampened with water only.

Caution:

Do not submerge the scanner in water. The scanner's housing is not watertight.

Do not use abrasive wipes or tissues on the scanner's window – abrasive wipes may scratch the window. Never use solvents (e.g., acetone) on the housing or window – solvents may damage the finish or the window.

Cleaning the Window

Reading performance may degrade if the scanner's window is not clean. If the window is visibly dirty, or if the scanner isn't operating well, clean the window with one of the cleaning solutions listed below.

• Sani-Cloth ^ HB wipes
• Sani-Cloth ^® Plus wipes
• Super Sani-Cloth ^ wipes
  • Isopropyl Alcohol wipes (70%)
  • CaviWipes ^TM
  • V i ^® r256 x
  • 409 ^® Glass and Surface Cleaner
• Windex ^ Blue
  • C I 8 Bleach ×10%
  • Gentle dish soap and water

Inspecting Cords and Connectors

Inspect the interface cable and connector for wear or other signs of damage. A badly worn cable or damaged connector may interfere with scanner operation. Contact your distributor for information about cable replacement. Cable replacement instructions are on page 14-1.

Replacing Cables in Corded Scanners

The standard interface cable is attached to the scanner with an 10-pin modular connector. When properly seated, the connector is held in the scanner by a flexible retention tab. The interface cable is designed to be field replaceable.

• Order replacement cables from Honeywell or from an authorized distributor.
• When ordering a replacement cable, specify the cable part number of the original interface cable.

Replacing an Interface Cable

1. Turn the power to the host system OFF.
2. Disconnect the scanner's cable from the terminal or computer.
3. Remove the back cover.

Technical line drawing of a mechanical housing component with labeled parts (1 and 2), showing internal components and mounting features.

1. Pinch the interface cable jack and gently pull cable from the port. Pull the cable through the back cover.
2. Replace with the new cable.

Replacing an EAS Cable

1. Turn the power to the host system OFF.
2. Disconnect the scanner's cable from the terminal or computer.
3. Remove the back cover.

Technical line drawing of a mechanical housing component with labeled parts (1 and 2), showing internal structure and mounting features (no text or symbols beyond labels)

1. Pinch the EAS cable jack and gently pull cable from the port. Pull the cable through the back cover.
2. Follow the steps from Replacing an Interface Cable (see page 14-2) to remove the interface cable.
3. Replace with the new EAS cable. Insert the connector into the opening and it will click into place.

Troubleshooting a Corded Scanner

The scanner automatically performs self-tests whenever you turn it on. If your scanner is not functioning properly, review the following Troubleshooting Guide to try to isolate the problem.

Is the power on?

If the LED isn't illuminated, check that:

• The cable is connected properly.
• The host system power is on (if external power isn't used).

Is the scanner having trouble reading your symbols?

If the scanner isn't reading symbols well, check that the symbols:

• Aren't smeared, rough, scratched, or exhibiting voids.
• Aren't coated with frost or water droplets on the surface.
• Are enabled in the scanner or in the decoder to which the scanner connects.

Is the bar code displayed but not entered?

The bar code is displayed on the host device correctly, but you still have to press a key to enter it (the Enter/Return key or the Tab key, for example).

- You need to program a suffix. Programming a suffix enables the scanner to output the bar code data plus the key you need (such as "CR") to enter the data into your application. Refer to Prefix/Suffix Overview on page 4-1 for further information.

Does the scanner read the bar code incorrectly?

If the scanner reads a bar code, but the data is not displayed correctly on the host screen:

- The scanner may not be programmed for the appropriate terminal interface. For example, you scan "12345" and the host displays "@es%."

Reprogram the scanner with the correct Plug and Play bar code. See Programming the Interface beginning on page 2-1.

- The scanner may not be programmed to output your bar code data properly. For example, you scan "12345" and the host displays "A12345B."

Reprogram the scanner with the proper symbology selections. See Chapter 6.

The scanner won't read your bar code at all.

1. Scan the sample bar codes in the back of this manual. If the scanner reads the sample bar codes, check that your bar code is readable. Verify that your bar code symbology is enabled (see Chapter 6).

2. If the scanner still can't read the sample bar codes, scan All Symbologies On, page 6-1.

If you aren't sure what programming options have been set in the scanner, or if you want the factory default settings restored, refer to Resetting the Factory Defaults on page 11-4.

Symbology Charts

Note: "m" represents the AIM modifier character. Refer to International Technical Specification, Symbology Identifiers, for AIM modifier character details.

Prefix/Suffix entries for specific symbologies override the universal (All Symbologies, 99) entry.

Refer to Data Editing beginning on page 4-1 and Data Formatting beginning on page 5-1 for information about using Code ID and AIM ID.

Linear Symbologies

	AIM Honeywell
Symbology ID		Possible modifiers (m)	ID Hex
All Symbologies 99
Codabar ]Fm 0-1 a 61
Code 11 ]H3 h 68
Code 128	]Cm	0, 1, 2, 4	j	6A
Code 32 Pharmaceutical (PARAF)	]X0		<	3C
Code 39 (supports Full ASCII mode)	]Am	0, 1, 3, 4, 5, 7	b	62
TCIF Linked Code 39 (TLC39)	]L2		T	54
Code 93 and 93i	]Gm	0-9, A-Z, a-m	i	69
EAN	]Em	0, 1, 3, 4	d	64
EAN-13 (including Bookland EAN)	]E0		d 64
EAN-13 with Add-On	]E3		d 64
EAN-13 with Extended Coupon Code	]E3		d 64
EAN-8	]E4		D	44
EAN-8 with Add-On	]E3		D	44
GS1
GS1 DataBar	]em	0	y	79
GS1 DataBar Limited	]em		{	7B
GS1 DataBar Expanded	]em		}	7D
GS1-128	]C1		I	49
2 of 5
China Post (Hong Kong 2 of 5)	]X0		Q	51
Interleaved 2 of 5	]Im	0, 1, 3	e	65
Matrix 2 of 5	]X0		m	6D
NEC 2 of 5	]X0		Y	59
Straight 2 of 5 IATA	]Rm	0, 1, 3	f	66
Straight 2 of 5 Industrial	]S0		f	66
MSI	]Mm	0, 1	g	67
Telepen	]Bm		t	74
UPC		0, 1, 2, 3, 8, 9, A, B, C
Symbology ID		Possible modifiers (m)	ID	Hex
UPC-A ]E0 c 63
UPC-A with Add-On ]E3 c 63
UPC-A with Extended Coupon Code ]E3 c 63
UPC-E ]E0 E 45
UPC-E with Add-On ]E3 E 45
UPC-E1 ]X0 E 45
Add Honeywell Code ID 5C80
Add AIM Code ID 5C81
Add Backslash 5C5C
Batch mode quantity 5 3	5

2D Symbologies

Symbology ID	AIM Honeywell
		Possible modifiers (m)	ID	Hex
All Symbologies				99
Aztec Code	]zm	0-9, A-C	z	7A
Chinese Sensible Code (Han Xin Code)	]X0 H	48
Codablock A	]O6	0, 1, 4, 5, 6	V 56
Codablock F	]Om	0, 1, 4, 5, 6	q	71
Code 49	]Tm	0, 1, 2, 4	I	6C
Data Matrix	]dm	0-6	w	77
GS1	]em	0-3	y	79
GS1 Composite	]em	0-3	y	79
GS1 DataBar Omnidirectional	]em	0-3	y	79
MaxiCode	]Um	0-3	x	78
PDF417	]Lm	0-2	r	72
MicroPDF417	]Lm	0-5	R	52
QR Code	]Qm	0-6	s	73
Micro QR Code	]Qm		s	73

Postal Symbologies

Symbology ID	AIM Honeywell
		Possible modifiers (m)	ID	Hex
All Symbologies				99
Australian Post	]X0 A 41
Symbology	AIM		Honeywell
	ID	Possible modifiers (m)	ID	Hex
British Post ]X0 B 42
Canadian Post ]X0 C 43
China Post ]X0 Q 51
InfoMail ]X0 , 2c
Intelligent Mail Bar Code ]X0 M 4D
Japanese Post ]X0 J 4A
KIX (Netherlands) Post ]X0 K 4B
Korea Post ]X0 ? 3F
Planet Code	]X0 L	4C
Postal-4i	]X0 N 4E
Postnet	]X0 P 50

ASCII Conversion Chart (Code Page 1252)

In keyboard applications, ASCII Control Characters can be represented in 3 different ways, as shown below. The CTRL+X function is OS and application dependent. The following table lists some commonly used Microsoft functionality. This table applies to U.S. style keyboards. Certain characters may differ depending on your Country Code/PC regional settings.

Non-printable ASCII control characters			Keyboard Control + ASCII (CTRL+X) Mode
			Control + X Mode Off (KBDCAS0)	Windows Mode Control + X Mode On (KBDCAS2)
DEC	HEX	Char		CTRL + X	CTRL + X function
0	00	NUL	Reserved	CTRL+ @
1	01	SOH	NP Enter	CTRL+ A	Select all
2	02	STX	Caps Lock	CTRL+ B	Bold
3	03	ETX	ALT Make	CTRL+ C	Copy
4	04	EOT	ALT Break	CTRL+ D	Bookmark
5	05	ENQ	CTRL Make	CTRL+ E	Center
6	06	ACK	CTRL Break	CTRL+ F	Find
7	07	BEL	Enter / Ret	CTRL+ G
8	08	BS	(Apple Make)	CTRL+ H	History
9	09	HT	Tab	CTRL+ I	Italic
10	0A	LF	(Apple Break)	CTRL+ J	Justify
11	0B	VT	Tab	CTRL+ K	hyperlink
12	0C	FF	Delete	CTRL+ L	list,left align
13	0D	CR	Enter / Ret	CTRL+ M
14	0E	SO	Insert	CTRL+ N	New
15	0F	SI	ESC	CTRL+ O	Open
16	10	DLE	F11	CTRL+ P	Print
17	11	DC1	Home	CTRL+ Q	Quit
18	12	DC2	PrtScn	CTRL+ R
19	13	DC3	Backspace	CTRL+ S	Save
20	14	DC4	Back Tab	CTRL+ T
21	15	NAK	F12	CTRL+ U
22	16	SYN	F1	CTRL+ V	Paste
23 17 ETB	F2 CTRL+ W
24 18 CAN	F3 CTRL+ X
25 19 EM F	F4 CTRL+ Y
26 1A SUB	F5 CTRL+ Z
27 1B ESC	F6 CTRL+ [
28 1C FS F	F7 CTRL+ \
29 1D GS		F8 CTRL+ ]
30 1E RS		F9 CTRL+ ^
31	1F	US	F10	CTRL+ -
127	7F		NP Enter

Lower ASCII Reference Table

Note: Windows Code page 1252 and lower ASCII use the same characters.

Printable Characters
DEC	HEX	Character	DEC	HEX	Character	DEC	HEX	Character
32	20		64	40	@	96	60
33	21	!	65	41	A	97	61	a
34	22	"	66	42	B	98	62	b
35	23	#	67	43	C	99	63	c
36	24		68	44	D	100	64	d
37	25	%	69	45	E	101	65	e
38	26	&	70	46	F	102	66	f
39	27	'	71	47	G	103	67	g
40	28	(	72	48	H	104	68	h
41	29	)	73	49	I	105	69	i
42	2A	*	74	4A	J	106	6A	j
43	2B	+	75	4B	K	107	6B	k
44	2C		76	4C	L	108	6C	l
45	2D	-	77	4D	M	109	6D	m
46	2E		78	4E	N	110	6E	n
47	2F	/	79	4F	O	111	6F	o
48	30	0	80	50	P	112	70	p
49	31	1	81	51	Q	113	71	q
50	32	2	82	52	R	114	72	r
51	33	3	83	53	S	115	73	s
52	34	4	84	54	T	116	74	t
53	35	5	85	55	U	117	75	u
54	36	6	86	56	V	118	76	v
55	37	7	87	57	W	119	77	w
56	38	8	88	58	X	120	78	x
57	39	9	89	59	Y	121	79	y
58	3A		90	5A	Z	122	7A	z
59	3B		91	5B	[	123	7B
60	3C	<	92	5C	\	124	7C	|
61	3D	=	93	5D	]	125	7D
62	3E	>	94	5E	^	126	7E	~
Printable Characters (Continued)
DEC	HEX	Character	DEC	HEX	Character	DEC	HEX	Character
63	3F	?	95	5F		127	7F	\triangle$

Extended ASCII Characters
DEC	HEX	CP 1252	ASCII	Alternate Extended	PS2 Scan Code
128 80 €		Ç		up arrow ↑	0x48
129 81 ü				down arrow ↓	0x50
130 82 ,		é		right arrow →	0x4B
131 83 f		å		left arrow ←	0x4D
132 84 ,,		ä	I	n s	e
133	85	...	à	Delete	0x53
134	86	†	à	Home	0x47
135	87	‡	ç	End	0x4F
136	88	^	ê	Page Up	0x49
137	89	‰	ë	Page Down	0x51
138	8A	Š	è	Right ALT	0x38
139	8B	<	ï	Right CTRL	0x1D
140	8C	CE	î	Reserved	n/a
141	8D		i	Reserved	n/a
142	8E	Ž	Ä	Numeric Keypad Enter	0x1C
143	8F		Ä	Numeric Keypad /	0x35
144 90 É		F1		0 x 3	B
145	91	'	æ	F2	0x3C
146	92	'	Æ	F3	0x3D
147 93 "		ô	F	4	0
148 94 "		ö	F	5	0
149	95	•	ò	F6	0x40
150	96	-	û	F7	0x41
151 97 -		ù	F8		0
152 98 ~		ÿ	F	9	0
153	99	TM	Ö	F10	0x44
154	9A	š	Ü	F11	0x57
155 9B	>	¢		F 1 2
156	9C	œ	£	Numeric Keypad +	0x4E
157	9D		¥	Numeric Keypad -	0x4A
158	9E	ž	Pts	Numeric Keypad *	0x37
159	9F	Ÿ	f	Caps Lock	0x3A
160	A0		á	Num Lock	0x45
161	A1	i	í	Left Alt	0x38
162	A2	¢	ó	Left Ctrl	0x1D
163	A3	£	ú	Left Shift	0x2A
164	A4	¤	ñ	Right Shift	0x36
165	A5	¥	Ñ	Print Screen	n/a
166	A6	¡	a	Tab	0x0F
167	A7	§	°	Shift Tab	0x8F
168	A8	"	¿	Enter	0x1C
169	A9	©	¬	Esc	0x01
170	AA	a	¬	Alt Make	0x36
171	AB	«	1⁄2	Alt Break	0xB6
172	AC	¬	1⁄4	Control Make	0x1D
173	AD		i	Control Break	0x9D
174	AE	®	«	Alt Sequence with 1 Character	0x36
Extended ASCII Characters (Continued)
DEC	HEX	CP 1252	ASCII	Alternate Extended	PS2 Scan Code
175	AF		»	Ctrl Sequence with 1 Character	0x1D
176 B0°
177 B1 ±
178 B2°
179 B3°
180 B4'
181 B5 μ
182 B6 †
183 B7'
184 B8, †
185 B9'
186 BA°
187 BB » †
188 BC 1⁄2 ‡
189 BD 1⁄2 ‡
190 BE 3⁄4 ‡
191 BF ‡
192 C0 A ‡
193 C1 A ‡
194 C2 A ‡
195 C3 A ‡
196 C4 A -
197 C5 A		í
198 C6 A ‡
199 C7 C ‡
200 C8 E ‡
201 C9 E ‡
202 CA E ‡
203 CB E ‡
204 CC I		‖
205 CD I		=
206 CE I		‖
207 CF I		⊥
208 D0 E ‡
209 D1 N ‡
210 D2 O		‖
211	D3	Ó	L
212 D4 O		E
213 D5 O		F
214 D6 O		‖
215 D7 × ‡
216 D8 O		≠
217 D9 U ‡
218 DA U ‡
219 DB U ‡
220 DC U ‡
221 DD Y ‡
222 DE P ‡
223 DF β ‡
224 E0 à α
225 E1 à		ß
226 E2 à ‡
227 E3 â π
228 E4 ä Σ
229 E5 â σ
230 E6 æ		μ
231 E7 ç T
232 E8 è Φ
233 E9 é Θ
234 EA ë Ω
235 EB ë ð
236 EC i ∞
237 ED í φ
238 EE î ε
239 EF i ∩
240 F0 õ ≡
241 F1 ñ		±
242 F2 ò ≥
243 F3 ò ≤
244 F4 Ó∫
245 F5 õ∫
246 F6 õ		÷
247 F7 ÷ ≈
248 F8 ø		°
249 F9 ù
250 FA ù		.
251 FB û √
252 FC û n
253 FD ÿ		2
254 FE p ■
255 FF ÿ

ISO 2022/ISO 646 Character Replacements

Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, select the code page with which the bar codes were created. The data characters should then appear properly.

Code Page Selection Method/Country	Standard	Keyboard Country	Honeywell Code Page Option
United States(standard ASCII)	ISO/IEC 646-IRV n/a	1
Automatic National Character Replacement	ISO/IEC 2022	n/a	2 (default)
Binary Code page	n/a	n/a	3
Default “Automatic National Character replacement” will select the below Honeywell Code Page options for Code128, Code 39 and Code 93.
United States	ISO/IEC 646-06	0	1
Canada	ISO /IEC 646-121	54	95
Canada	ISO /IEC 646-122	18	96
Japan	ISO/IEC 646-14	28	98
China ISO/IEC 646-57 92 99
Great Britain (UK) ISO /IEC 646-04 7 87
France ISO /IEC 646-69 3 83
Germany ISO/IEC646-21 4 84
Switzerland ISO /IEC 646-CH 6 86
Sweden / Finland (extended Annex C) ISO/IEC 646-11 2 82
Ireland ISO /IEC 646-207 73 97
Denmark ISO/IEC 646-08 8 88
Norway ISO/IEC 646-60 9 94
Italy ISO/IEC 646-15 5 85
Portugal	ISO/IEC 646-16 13 92
Spain	ISO/IEC 646-17 10 90
Spain	ISO/IEC 646-85 51 91

Dec

3536649192939496123124125126

Hex

2324405B5C5D5E607B7C7D7E

US

0

1

#

@

[

\

]

^

`

|

~

CA

54

95

#aáçêiõé

ù

è

û

CA

18

96

#aáçêÉõé

ù

è

û

JP

28

98

#

@[¥]^{}

}

-

CN

92

99

#

¥

@

[

\

]

^

`

{

|

}

-

GB

787

£

@

[

\

]

^

`

|

~

FR

383

£à°

ç§^μé

ù

è

DE

4

84

#

§

Ä

Ö

Ü

^

`

ä

ö

ü

ß

CH

686

ù

à

é

ç

ê

î

ô

ä

ö

ü

û

SE/FI282

#

¤

É

Ä

Ö

Å

Ü

é

ä

ö

å

ü

DK

8

88

#

@

Æ

∅

Å

^

`

æ

ø

å

~

NO

994

#

@

Æ

∅

Å

^

`

æ

ø

å

-

IE

73

97

£Ó

É

ÍÚÁóéíú

á

IT

585

£

§

°

ç

é

^

ù

à

ò

è

ì

PT13

92

#

§

Ä

Ç

Ö

^

`

ä

ç

õ

°

ES10

90

#

§

i

Ñ

¿

^

`

°

ñ

ç

~

ES51

91

#

$

·

i

Ñ

Ç

¿

`

`

ñ

ç

..

COUNTRY

Country Keyboard

Honeywell CodePage

ISO / IEC 646 National Character Replacements

Keyboard Key References

104 Key U.S. Style Keyboard

105 Key European Style Keyboard

Sample Symbols

UPC-A

0 123456 7890

Interleaved 2 of 5

1234567890

EAN-13

9 780330 290951

Code 128

Code 128

Code 39

BC321

Codabar

A13579B

Code 93

123456-9\$

Code 2 of 5

123456

Matrix 2 of 5

6543210

RSS-14

(01)00123456789012

Sample Symbols

PDF417

Car Registration

Code 49

1234567890

Postnet

[Non-Text]

Zip Code

Data Matrix

Test Symbol

QR Code

Numbers

Aztec

Package Label

MaxiCode

Test Message

Micro PDF417

Test Message

Programming Chart

Programming Chart

Note: If you make an error while scanning the letters or digits (before scanning Save), scan Discard, scan the correct letters or digits, and Save again.

Honeywell Scanning & Mobility

9680 Old Bailes Road

Fort Mill, SC 29707

www.honeywellaidc.com
