USER MANUAL GPS 810EU HARMAN KARDON

Portable Touchscreen Navigation System and A/V Media Player

Quick-Start Guide

Contents

English Instructions 3

HARMAN KARDON GPS 810EU - English Instructions 3 - 1

The Harman Kardon® GPS-810 uses a lithium-polymer battery. Under normal operating conditions, the battery will provide superior service with a lifespan that is superior to those of other battery types. Please observe the following guidelines to protect the performance of your GPS-810 and its battery:

Do not operate the unit in ambient temperatures outside the following range: -10°C ( 14°F ) to 55°C ( 131°F ). Do not store the unit even for short periods in ambient temperatures outside the following range: -20°C ( -4°F ) to 60°C ( 140°F ).

Do not store the unit for long periods in ambient temperatures outside the following range: 0°C (32°F) to 25°C (77°F).

The GPS-810 will not charge the battery at temperatures above 50°C (122°F).

Fold-Flat Mounting Bracket

Plastic Adhesive Disc for Dash-Mount

Wireless Remote Control w/Battery

Mounting Disc for Wireless Remote

Alcohol Cleaning Pads for Mounting Surfaces

HARMAN KARDON GPS 810EU - English Instructions 3 - 2

Navigation Music Maps Phone Settings Map Videos

Before You Begin

1

HARMAN KARDON GPS 810EU - Before You Begin - 1

HARMAN KARDON GPS 810EU - Before You Begin - 2

Charge Battery at Least 6 Hours

2

Exterior view of a silver rectangular electronic device with ventilation slots and a circular badge labeled '2' (no text or symbols on the device itself)

HARMAN KARDON GPS 810EU - Before You Begin - 4

Unlock Switch

3

Go Outdoors to Obtain GPS Signal Reception

Illustration of hands holding a smartphone with a dotted line marking on the surface, against a building background (no text or symbols)

Power On

4

Power On 4

To put the unit in stand by mode, PRESS the power button momentarily.

To turn unit completely off, PRESS and HOLD the power button for 2 seconds.

HARMAN KARDON GPS 810EU - Before You Begin - 7

WARNING: Operation of any feature of this device while driving is dangerous. Do not operate this device while driving. Do not view or operate audio or video modes while driving.

For safety reasons, this device will cease navigation functions when the video mode is enabled. Do not attempt to disable any safety function incorporated in this device. Any alteration of this device may cause serious injury and shall void the warranty.

guide + play

GPS-810

Setup Wizard

HARMAN KARDON GPS 810EU - Setup Wizard - 2

The geographic information provided by this device serves as a navigational aid only and does not include information pertaining to construction, road closures, speed restrictions, road or traffic conditions, or other circumstances relevant to public safety. The driver must always be aware of the actual road conditions and surroundings, and decide whether or not to follow the information provided by this device. Obey all traffic laws and observe safe driving practices. The manufacturer does not accept responsibility for any inaccurate or incomplete information provided by this device.

guide + play GPS-810

Plan a Trip

HARMAN KARDON GPS 810EU - Plan a Trip - 1

guide + play GPS-810

Connecting a Bluetooth Phone*

* A Bluetooth® enabled phone is required operation with GPS-810 calling features. Please read the instructions with your particular phone to determine how to place it into "pairing" or "discovery" mode to set up the connection with GPS-810.

HARMAN KARDON GPS 810EU - Connecting a Bluetooth Phone* - 1

Place your Bluetooth® enabled phone in the "pairing" or "discovery" mode.

From GPS-810 Menu Select "Phone"

New Playing Navigation Phone Music Settings Photos Videos Back Source

The first time you select "Phone" with no previous devices in the memory, the "Cell Phone Setup" screen automatically appears

Cell Phone Setup Search for a Bluetooth phone? Be sure the phone's Bluetooth antenna is on and in pairing mode. Search Source

Searching 1 Bluetooth device Found. Cancel Searching Retrieving Device names Cancel Source

GPS-810 will search and retrieve names on all Bluetooth® devices in range

4) Select Phone

Please select phone W610i Cancel Source

Connecting Connecting to W610. If necessary, enter password 7760. Cancel Cell Phone Setup Importing Phone Book and Call History Please wait. Cancel Source

GPS-810 will connect to the selected device and then import the Phone Book and Call History

5 Finished!

Now you are ready to place and receive calls!

W610i Phone Book Voice Dial Call History Manage Connection Dial Pad Redial 18008881111 Source

guide + play GPS-810

Placing and Receiving Calls

You can place and receive calls directly from the screen of GPS-810 once a phone is paired and an external hands-free microphone has been connected (microphone not included).

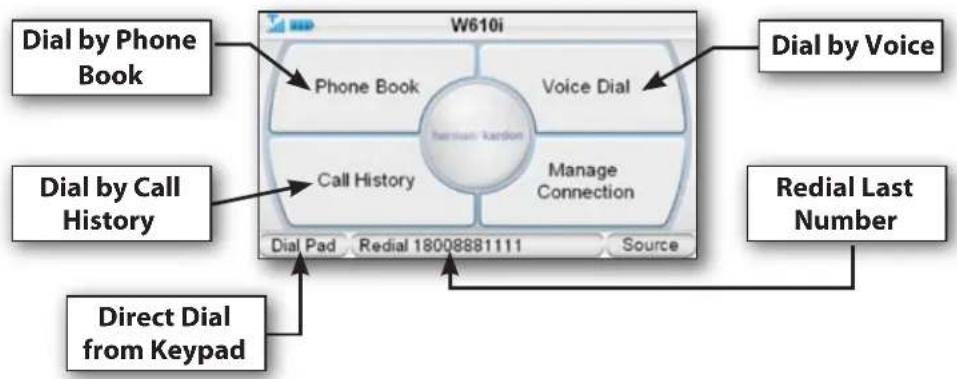

There are several ways in which to place calls


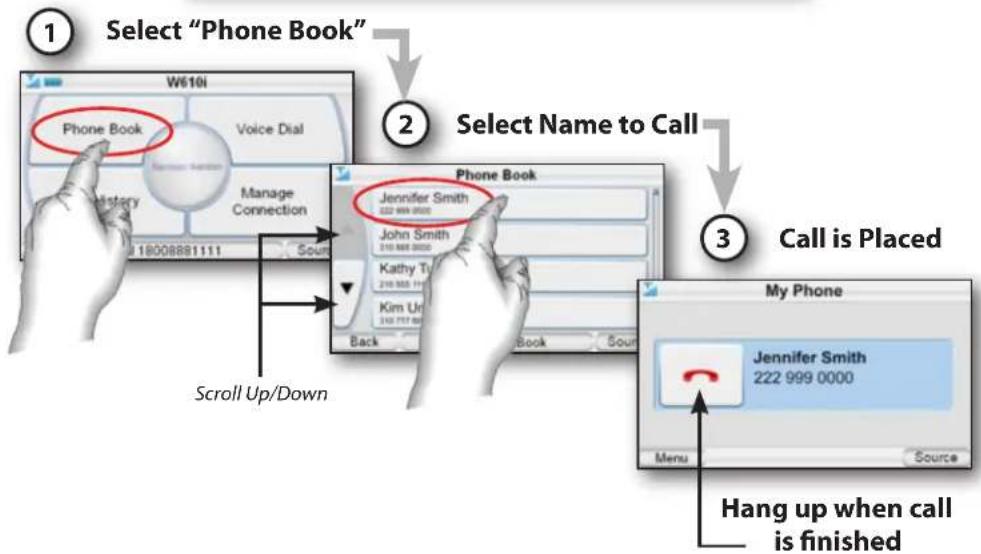

Example: Placing a call from the Phone Book

Example: Receiving an incoming call
When a call is incoming, choose "Accept" Call is answered. Begin speaking. Joe Smith (310) 555-5555 Accept Ignore My Phone Joe Smith (310) 555-5555 Menu Source Hang up when call is finished guide + play™ GPS-810

Loading Media Files*

* An SD Memory Card is required for storage of audio and video files. This is not included with the unit and must be purchased separately.

GPS-810 is compatible with the following A/V formats:

Audio

• MP3 VBR/CBR (8 - 448 kbps), 8 - 48 kHz, ID3 tags (v1 and v2.1 to v2.3) with album art supported.

• WMA 32 kbps up to 160 kbps (VBR) and 32 kbps up to 256 kbps (CBR), WMA Lossless, WMA Pro, playback up to 48 kHz, DRM 10, ASF tag with album art supported.

• M4A VBR/CBR (8 \~ 320 kbps), 8 \~ 96 kHz sample rate, M4A, MP4 extensions only. M4A tag with album art supported.

Video

- MPEG-4 Max 640x480 with 20 fps with 1 Mbps data rate. ASP profile compatible. AVI extension only. 'DIV3' not supported.

- WMV WMV codecs 7, 8, and 9, and Advanced Profile, DRM 10.

• H.264 Baseline profile only, Max 640x480 with 15 fps with 1 Mbps data rate. M4V, MP4, 3GP extensions only.

Using the Multimedia Player

Source Menu Switcher Now Playing Navigation Phone Music harman kardon Settings Photos Videos Audio Menu (Red Icon) Back 12:50AM Source Video Menu (Green Icon)

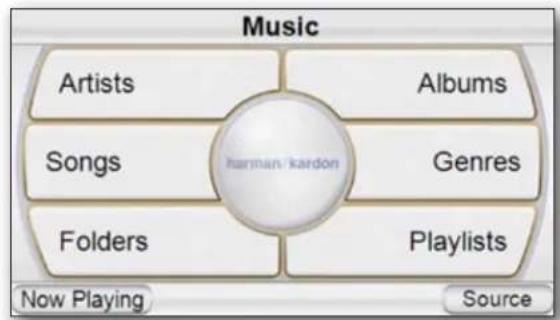

Main Music Menu Example

Choosing "Music" from the source menu brings up the Main Music Menu screen. You can select music by Artist, Album, Genre, Playlist or Song, using the appropriate button. Then, navigate through the list to choose your song.

HARMAN KARDON GPS 810EU - Using the Multimedia Player - 3

For safety reasons, this device will cease navigation functions when the video mode is enabled. Do not attempt to disable any safety function incorporated in this device. Any alteration of this device may cause serious injury and shall void the warranty.

Video Menu Example
Video Video File 1 File Name Video File 2 Scroll Up/Down Video File 3 Video File 4 Source

Choosing "Video" from the source menu brings up the "Video" screen. You can view all the video files stored on the SD card and select one to view by pressing that file name.

guide + play GPS-810

In-Vehicle Installation

HARMAN KARDON GPS 810EU - In-Vehicle Installation - 1

Do not install this device in any manner that impairs the safe operation of the vehicle. Do not install this device on any airbag panels or in the deployment field of any airbags. Do not place the device on the vehicle's dashboard unsecured. Failure to observe the installation or usage instructions may result in traffic accidents or personal injury.

HARMAN KARDON GPS 810EU - In-Vehicle Installation - 2

The installation of this device on the windshield, between the driver and the windshield, or otherwise in any manner that obstructs the driver's clear view of the road or traffic conditions is dangerous and may be prohibited by law. State laws in California and Minnesota (and possibly other states) prohibit the mounting of this device on the windshield, in which case other mounting methods should be used. Check your state and local laws before mounting.

Mounting the Unit

guide + play GPS-810

Mounting the Control Knob


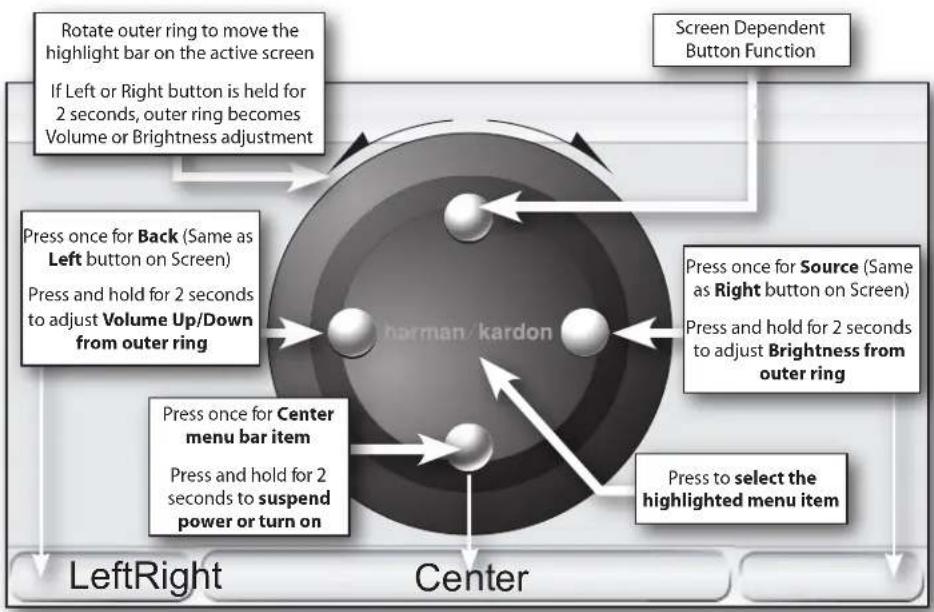

Control Knob Button Operation

guide + play GPS-810

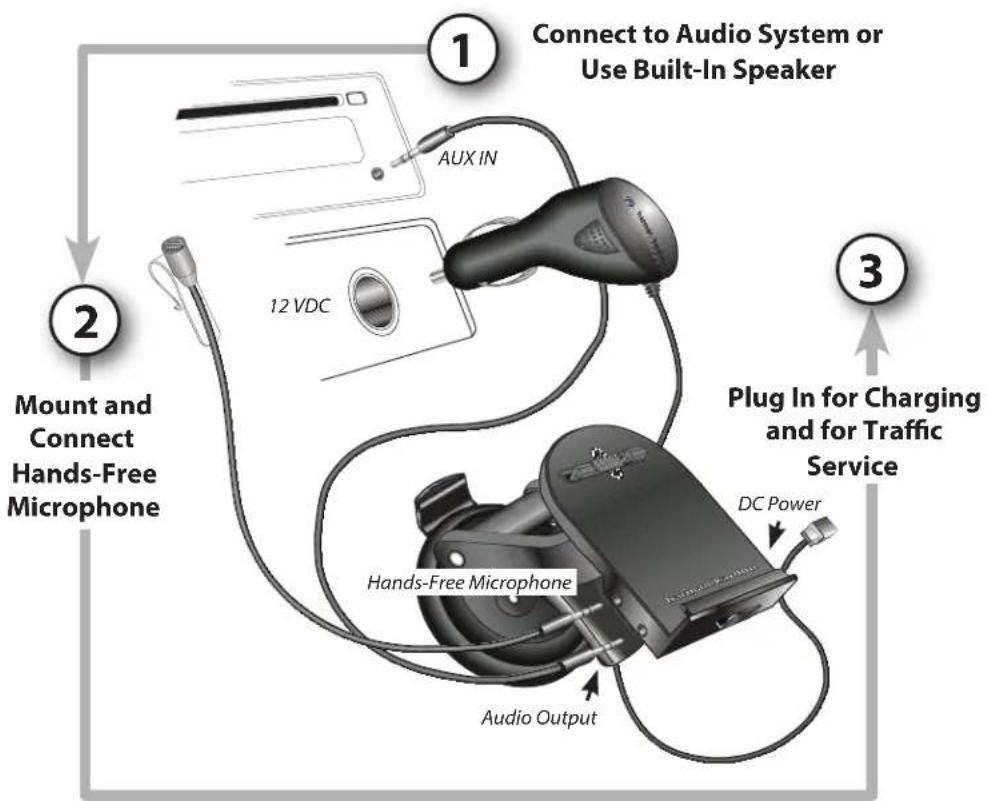

Car Connections

Portable Audio

HARMAN KARDON GPS 810EU - Mounting the Unit - 6

The installation and use suggestions provided by the manufacturer may be subject to restrictions or limitations by federal, state or local laws. The user should determine whether the installation and use of this device is governed by any law prior to installation or use. For more information, please consult the user's manual online at http://www.guideandplay.com.

guide + play GPS-810

Activate Traffic Service

3

Your GPS 810 will generate a unique ID number

Note: Once the ID number has been generated, it won't change. You can complete this procedure now or later, but the subscription to traffic service begins when the number is generated.

Do NOT Press "Activate" at this time

Activate Traffic Subscription To purchase 1 year subscription go to http://traffic.guideandplay.com and enter. ID:# 1F92F1CF48AB66609 DO NOT PRESS Activate DO NOT PRESS Back Source

4

Take your GPS 810 to a location where you have internet access and go to:

http://traffic.guideandplay.com

Follow the on-screen instructions to enter the required information and your GPS 810's unique ID number into the form on the website.

On the internet, go to: http://traffic.guideandplay.com

Enter ID: (Example) 1F92F1CF48AB66609

5

and enter: ID:# 1F92F1CF48A Activate Jack Press "Activate" on GPS-810

Note: If you've signed up for the 90-day trial subscription, please return to the website to purchase a full subscription when the trial has expired.

6

Enter TMC subscription code from web page, then press "Done"

Enter TMC subscription code CADC941172CAEFEDAFFF- A B C E F G H I J L M N O P Q T U V W X Y Y Z Y Z B a b Number Done Source Your subscription is valid, thank you! OK Source Finished!

guide + play GPS-810

Text to Speech Feature

GPS-810 has a feature called "Text to Speech" in which navigation prompts that appear on the screen as text can be configured to be spoken in one of several voices (male or female). You can choose to have only directions announced or both directions and street names. For example, the voice would say: "In 500 feet, turn left on Lincoln Blvd."

Troubleshooting

Problem/Symptom Possible Solution
Unit does not turn on at all Charge battery, check UNLOCK switch
Unit does not have a good GPS signal Make sure unit has a clear and unobstructed view of the sky
Unit does not have songs/movies Requires loading to SD card
Computer sees unit as “MTP Device” Change preference in “Settings” menu
Screen is too bright or too dim Adjust in “Settings” menu or press rotary wheel on the right side
Volume is too low for navigation promptsAdjust volume using rotary wheel on the right side or adjust volume of navigation prompts in Volume Mixer (Settings Menu)
Output level is low or distorted when listening to headphones or when using the line outputIncrease media player volume in Volume Mixer (Settings Menu)
Suction cup mount is loose Reposition with moderate force
Screen is loose on mount Make sure it is securely “clicked” into place on both the bottom and back
Unit is unresponsive, won’t power off Using a paper clip, press the reset button on the right side of the bottom panel
Unit does not show traffic informationCheck antenna connection. Activate service.
Unit does not find the Bluetooth® phone or deviceEnsure the device is enabled for “discovery” or “pairing”.
Remote control knob is unresponsive Try pressing the top, center and right buttons simultaneously for 2 seconds, then turn the outer ring until the highlight bar moves. If the control knob is still unresponsive, try a fresh CR2032 type battery.

This Class B digital apparatus complies with Canadian ICES-003.

For customer and technical support, call

516.255.4545 (USA only).

Download the complete GPS-810 User's Manual at

www.guideandplay.com.

harman/kardon®

guide + play™

250 Crossways Park Drive, Woodbury, New York 11797

www.harmankardon.com

©2007 Harman International Industries, Incorporated. All rights reserved.

Harman Kardon is a trademark of Harman International Industries, Incorporated, registered in the United States

and/or other countries. Guide + Play is a trademark of Harman International Industries, Incorporated.

Part No. 950-0223-001

H A Harman International Company

HARMAN KARDON GPS 810EU - Text to Speech Feature - 2
Please Recycle

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HARMAN KARDON

Model : GPS 810EU

Category : Gps
