Product Type	Portable Bluetooth Speaker
Model	EverPlay BT3900P
Dimensions (W x H x D)	166 x 22 x 86 mm
Weight	0.22 kg
Power Supply	Built-in rechargeable Li-polymer battery (3.7 V, 780 mAh)
Charging Time	Approx. 3 hours
Play Time	Approx. 8 hours
Bluetooth Version	V2.1+EDR
Bluetooth Profiles	HFP V1.6, A2DP V1.2, AVRCP V1.4
Speaker Driver	1 x 2" full range, 4 Ω
Bass Enhancement	1 x 2.25" passive radiator
Rated Output Power	4W RMS (≤1% THD)
Frequency Response	95 - 20000 Hz
Waterproof Rating	IP57 (with USB/AUDIO IN cover closed)
Audio Input	3.5 mm AUX
USB Charging	Micro-USB, 5V 0.5A
Controls	Power, Volume +/-, Play/Pause, Bluetooth, Call control
Indicators	Battery level LEDs, Bluetooth LED
Included Accessories	USB lanyard cable, Quick Start Guide, printed materials
Operating Temperature	-10°C to 40°C
Charging Temperature	0°C to 40°C
Compliance	CE, Directive 2014/53/EU

Frequently Asked Questions - EverPlay BT3900P PHILIPS

How do I pair my Bluetooth device with the speaker?

Press and hold the Bluetooth button (✝) for 2 seconds to enter pairing mode. The Bluetooth LED will flash blue quickly. On your device, enable Bluetooth and select Philips BT3900. If asked, enter password 0000.

How long does it take to fully charge the battery?

It takes approximately 3 hours to fully charge the built-in battery using a micro-USB cable and a 5V 0.5A adaptor (not supplied).

Is the speaker waterproof?

Yes, it is IP57 rated. This means it can withstand immersion in water up to 1 meter for 30 minutes, but only when the USB/AUDIO IN socket cover is closed securely.

Can I use the speaker while it is charging?

Yes, you can use the speaker while charging, but there will be no charging indication. The speaker will beep once when plugged in while on.

How do I check the battery level?

Briefly press the power button. The four LEDs will indicate the battery level: 4 LEDs solid = >80%, 3 LEDs solid = 50-80%, 2 LEDs solid = 20-50%, 1 LED flashing red = low (<20%).

How do I reset the speaker if it stops responding?

If the speaker is on and unresponsive, press and hold both the - and + buttons simultaneously for 7 seconds. The speaker will turn off and reset, then turn on automatically.

Can I connect two speakers together?

No, this model does not support multi-speaker pairing. It is a single Bluetooth speaker.

How do I attach the lanyard?

Thread the USB lanyard cable through the slot on the speaker and secure it as illustrated in the manual. It serves both as a lanyard and a charging cable.

What should I do if the speaker gets wet?

If the speaker gets wet, wipe it with a soft dry cloth and let it dry completely in a well-ventilated place before using it again. Ensure the USB/AUDIO IN cover is closed.

How do I clear the Bluetooth pairing list?

Press and hold the Bluetooth button (✝) for 10 seconds until you hear a beep. The pairing information will be cleared, and the speaker will enter pairing mode.

USER MANUAL EverPlay BT3900P PHILIPS

User manual

Contents

1 Important 1

Safety 1

Notice 1

2 Your Bluetooth speaker 3

Introduction 3

What's in the box 3

Overview of the speaker 3

3 Get started 4

Turn on/off 4

Check the battery level 4

Charge the built-in battery 4

4 Play from Bluetooth devices 6

Connect a Bluetooth device 6

Play from a connected

Bluetooth device 6

Disconnect a device 7

Reconnect a device 7

Clear pairing information 7

Control your phone call 7

5 Other features

Listen to an external device 8

Adjust volume 8

Attach the lanyard cable 8

6 Specifications

Troubleshooting

General 9

About Bluetooth device 10

1 Important

Safety

Warning

• Never remove the casing of this speaker.
• Never place this speaker on other electrical equipment.

• Keep this speaker away from direct sunlight, naked flames or heat.

• Only use attachments or accessories specified by the manufacturer.

• The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not place any sources of danger on the speaker (e.g. lighted candles).
• The speaker can meet IP57 waterproof standard only when the USB/AUDIO IN socket cover is covered seamlessly.
• The operation temperature of the product is from -10°C to 40°C .
• For safety reasons, the battery will not be charged if the battery temperature is below 0 °C or above 40 °C.
• If your speaker gets wet, clean with a soft dry cloth and then let it dry completely in a well-ventilated place before use next time.

Note

- The type plate is located on the back of the speaker.

Notice

Any changes or modifications made to this device that are not expressly approved by Gibson Innovations may void the user's authority to operate the equipment.

Compliance

Hereby, Gibson Innovations declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on www.philips.com/support.

Care of the environment

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips

service centre to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Caution

- Removal of the built-in battery invalidates the warranty and may destroy the product.

Always bring your product to a professional to remove the built-in battery.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Trademark notice

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson Innovations Limited is under license. Other trademarks and trade names are those of their respective owners.

2 Your Bluetooth speaker

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this speaker, you can enjoy audio from Bluetooth-enabled devices or other external audio devices through a 3.5mm audio-in cable.

What's in the box

Check and identify the contents of your package:

• Speaker
• USB lanyard cable
• Printed materials

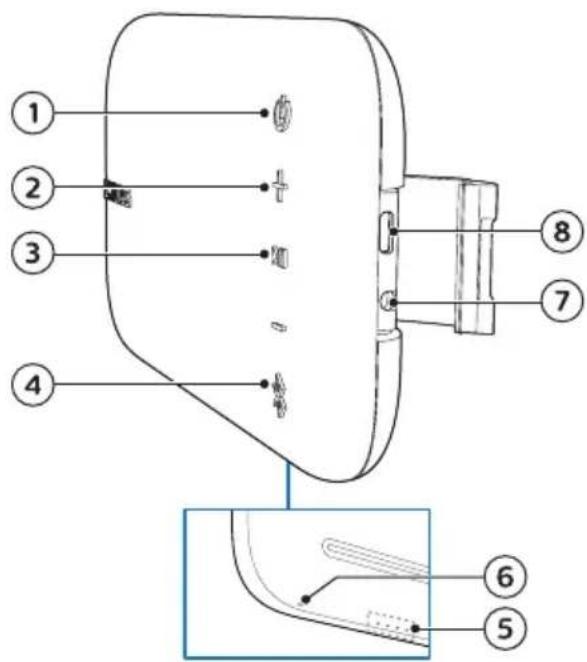

Overview of the speaker

①
- Turn the speaker on or off.
- Check the battery level.

② -/+

- Adjust volume.

③ ▶ II

- In Bluetooth mode, press to pause or resume play.

• In Bluetooth mode, press twice to play the next track.

- Respond to an incoming call through Bluetooth connection.

④

• Enter Bluetooth pairing mode.
• Clear Bluetooth pairing information.

⑤ Battery level indicators

• Show the charging progress.

• Show the battery level.

⑥ Bluetooth indicator

• Show the Bluetooth status.

⑦ AUDIO IN

- Connect an external audio device.

⑧

- Charge the built-in battery.

3 Get started

Always follow the instructions in this chapter in sequence.

Turn on/off

• To turn the speaker on, press and hold ⏻ for over two seconds.

→ The Bluetooth indicator starts flashing.

→ The battery level indicators light up briefly.

→ The speaker beeps.

• To turn the speaker off, press and hold ⏻ for two seconds again.

Note

- When there is no Bluetooth connection for 15 minutes or the battery is at low level, the speaker turns off automatically to save power.

Check the battery level

The speaker is powered by the built-in rechargeable battery. After power-on, the speaker shows the battery level immediately, and the battery indication disappears in five seconds.

- To manually check the battery level, briefly press on either power-on or power-off mode.

→ The different behavior of the four LEDs indicates different battery levels.

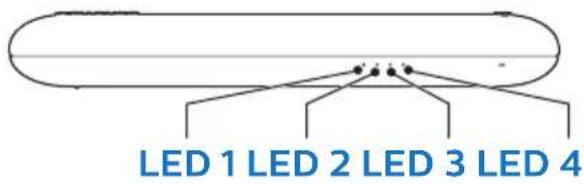

LED indication:

Battery power	LED 1	LED 2	LED 3	LED 4
Full Solid white
>80% Solid white				Off
50% - 80%	Solid white			Off
20% - 50%	Solid white	Off
Low battery (<20%)	Flash red	Off

Charge the built-in battery

Note

• It takes you approximately three hours to fully charge the battery.
  • The micro USB socket is for charging only.
• Rechargeable battery has a limited number of charge cycles. Battery life and number of charge cycles vary by use and settings.

When the battery level is low, LED 1 flashes red as illustrated.

To charge the built-in battery:

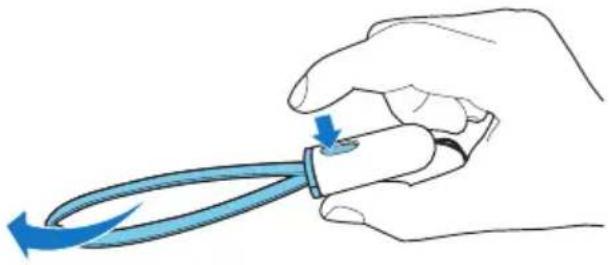

- Pull out the USB cable from the USB lanyard cable as illustrated.

- Connect the speaker to AC power by using a power adaptor (not supplied; 5V 0.5A adaptor recommended).

System status	Battery status	System behavior
On During charging		Beep once, without charging indication.
Off During charging		Shows the charging indication
Off Fully charged		All LEDs are on, then turn off after three minutes.

Check the charging progress

During charging, you can press to check the charging progress.

Battery level	LED 1	LED 2	LED 3	LED 4
<20% charged	Flash white	Off
20% - 50% charged	Solid white	Flash white	Off
50% - 80% charged	Solid white Flash		sh white	Off
>80% charged	Solid white Flash			white
Fully charged	Solid white (turn off in 3 minutes)

4 Play from Bluetooth devices

With this speaker, you can listen to audio from Bluetooth-enabled devices and control the incoming call through Bluetooth.

Connect a Bluetooth device

Note

•Make sure that Bluetooth function is enabled on your device, and your device is set as visible to all other Bluetooth devices.
- Any obstacle between this speaker and a Bluetooth device can reduce the operational range.
- Keep away from any other electronic device that may cause interference.
• The operational range between this speaker and a Bluetooth device is approximately 30 meters.

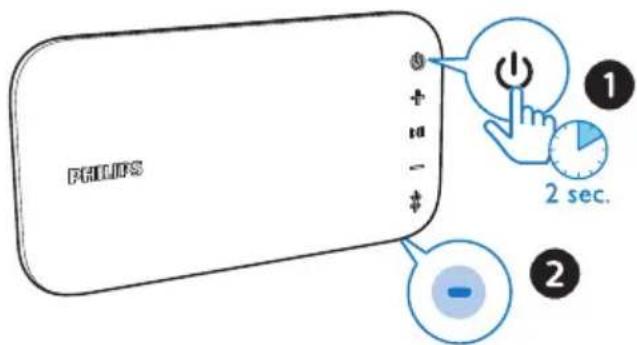

1 Make sure that the speaker is in Bluetooth pairing mode.

→ The Bluetooth LED flashes blue quickly.

→ If the LED flashes blue slowly, press and hold ✝ for two seconds to enter pairing mode.

2 On your Bluetooth device, enable Bluetooth and search for Bluetooth devices that can be paired (see the user manual of the device).
3 Select [Philips BT3900] displayed on your device for pairing. If necessary, input "0000" as the pairing password.

→ After successful connection, the speaker beeps twice, and the LED turns solid blue.

LED behavior Description

Flashing blue quickly	Ready for pairing
Flashing blue slowly	Reconnecting the last connected device;Waiting for connection from the paired device

Solid blue Connected

Play from a connected Bluetooth device

Note

•Music play pauses when there is an incoming call, and resumes when your phone call ends.

After successful Bluetooth connection, play audio on the connected device.

→ Audio streams from your Bluetooth device to the speaker.
- To pause or resume play, press ▶II.
- To play the next track, press twice.

Tip

- You can also use your Bluetooth device to control play.

Disconnect a device

• Press and hold for two seconds;
• Turn off the speaker;
• Disable Bluetooth on your device; or
• Move the device beyond the communication range.

Reconnect a device

• When you turn on the speaker, it tries to reconnect the last connected device automatically;
• If not successful, select [Philips BT3900] on your Bluetooth menu to start reconnection.

Clear pairing information

- Press and hold for 10 seconds.

Control your phone call

After Bluetooth connection, you can control an incoming call with this speaker.

Button Function
▶II	Press to answer an incoming call.
	Press and hold for two seconds to reject an incoming call.
	During a call, press to end the current call.
	During a call, press and hold for two seconds to transfer the call to your mobile device.

5 Other features

Listen to an external device

With this speaker, you can also listen to an external audio device such as an MP3 player.

Note

• Make sure that music playback through Bluetooth is stopped.

1 Connect an audio input cable (not supplied) with a 3.5 mm connector on both ends to

- the AUDIO IN socket on this speaker, and

• the headphone socket on the external device.

2 Play audio on the external device (refer to its user manual).

Tip

- When you start music streaming from a connected Bluetooth device, the speaker switches to the Bluetooth source automatically.

Adjust volume

During music playback, press -/+ to increase or decrease volume.

Tip

• You can press and hold - / + to increase or decrease volume continuously.
• When the volume reaches the maximum, the speaker beeps twice.

Attach the lanyard cable

For easy carrying, attach the supplied USB lanyard cable to this speaker as illustrated.

6 Specifications

Note

- Product information is subject to change without prior notice.

Rated output power (Amplifier)	4W RMS ≤ 1% THD
Acoustic frequency response	95-20000 Hz
Speaker driver 1 x 2" full range, 4 Ω
Bass enhancement	1 x 2.25" passive radiator
Bluetooth version	V2.1+EDR
Bluetooth supported profiles	HFP V1.6, A2DP V1.2, AVRCP V1.4
Bluetooth frequency band / Output power	2.400GHz ~ 2.483GHz ISM Band / ≤ 4dBm (Class 2)
AUX input level 500mV±100mV
Durability IP57
Built-in battery Li-polymer battery (3.7 V, 780 mAh)
Play time in battery mode	Approx. 8 hours
Charging time Approx. 3 hours
USB charging 5V, 0.5A / Micro-USB socket
Dimensions - Main unit (W x H x D)	166 x 22 x 86 mm
Weight - Main unit 0.22 kg

7 Trouble-shooting

Warning

- Never remove the casing of this device.

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available.

General

No power

•Recharge the speaker.

No sound

• Adjust volume on this product.
• Adjust volume on the connected device.
  • In AUDIO IN mode, make sure that music playback through Bluetooth is stopped.
• Make sure that your Bluetooth device is within the effective operational range.

No response from the speaker when pressing any key.

- The speaker is in demo mode. To exit this mode: press and hold ✝ for 20 seconds.

- If the issue remains, when the speaker is switched on, hold both the - and + keys at the same time for 7 seconds until the speaker is off. Then wait for the speaker to reset and switch on again automatically.

About Bluetooth device

The audio quality is poor after connection with a Bluetooth-enabled device.

•The Bluetooth reception is poor. Move the device closer to this product or remove any obstacle between them.

Fail to find [Philips BT3900] on your device for pairing.

- Press and hold ✝ for two seconds to enter pairing mode, and then try again.

Cannot connect with the device.

- The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.

- This product is already connected with another Bluetooth-enabled device. Disconnect that device and then try again.

The paired device connects and disconnects constantly.

•The Bluetooth reception is poor. Move the device closer to this product or remove any obstacle between them.

- For some devices, Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of this product.

Copyright © 2017 Gibson Innovations Limited.

This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product.

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
