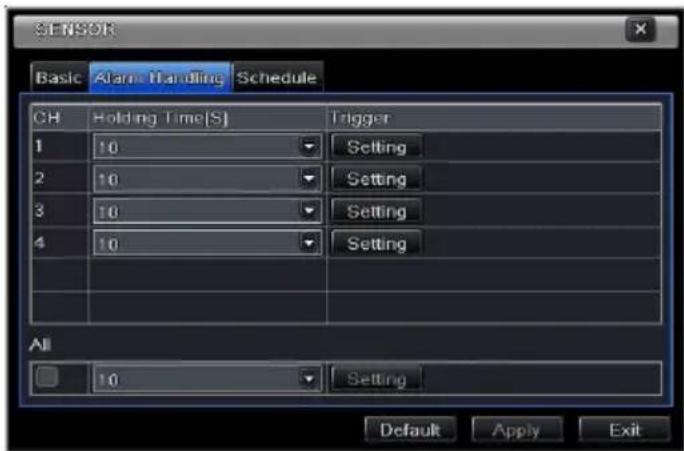

5.5.1 Sensor Alarm....29
5.5.2 Motion Alarm 31

5.5.3 Other Alarm 32
5.5.4 Alarm Out....32
5.6 Network Configuration 33
5.6.1 Network 33

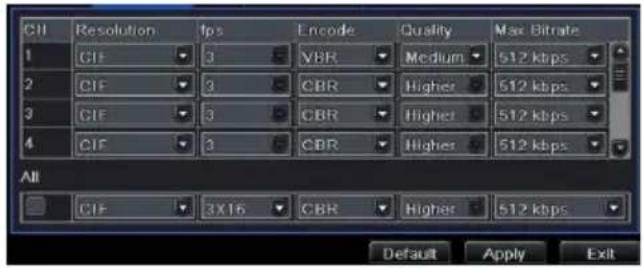

5.6.2 Sub-stream.... 34
5.6.3 Email 34

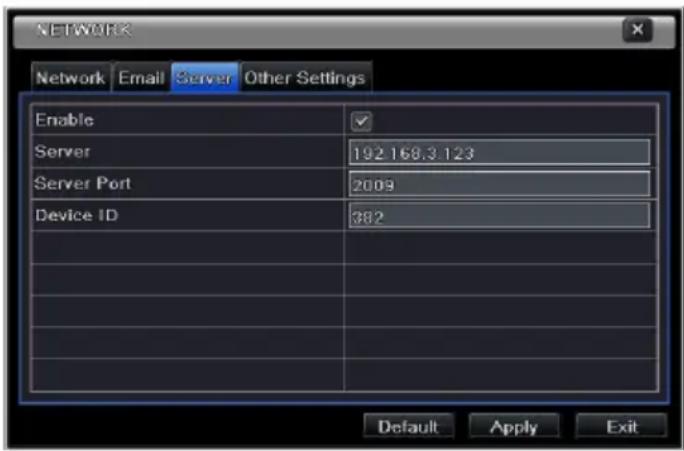

5.6.4 Server 35
5.6.5 NAT 35
5.6.6 Other Settings 36

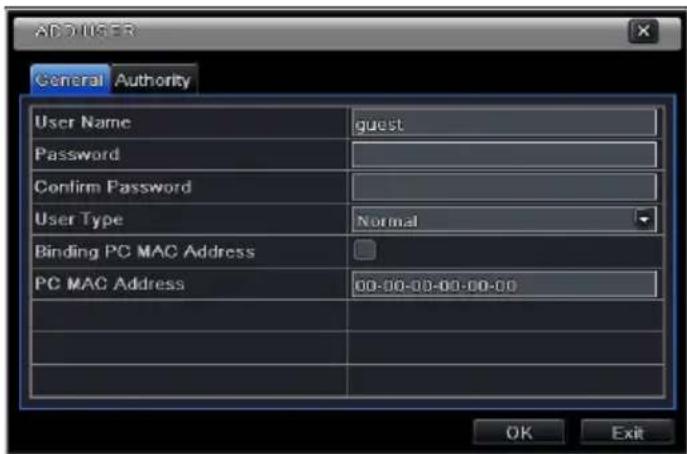

5.7 User Management Configuration 39
5.8 Advanced....40
5.8.1 Reset 40
5.8.2 Import/Export 40
5.8.3 Block/Allow List 40
6 Search, Playback & Backup....42
6.1 Time Search 42
6.2 Event Search 42
6.3 File Management....43
6.4 Search by Image 43
6.5 Backup....44
7 Manage NVR....46
7.1 Check System Information 46
7.1.1 System Information 46
7.1.2 Event Information.... 46
7.1.3 Log Information....46
7.1.4 Network Information.... 46
7.1.5 Online Information 46
7.1.6 Record Information 46
7.1.7 QRCODE 47
7.2 Manual Alarm 47
7.3 Disk Management....47
7.4 Upgrade....47
7.5 Logoff 47
8 Remote Surveillance 48
8.1 IE Remote Surveillance by NAT 48
8.1.1 NAT Settings 48
8.1.2 NAT Access 48
8.2 IE Remote Surveillance 49
8.2.1 On LAN 49
8.2.2 On WAN 49

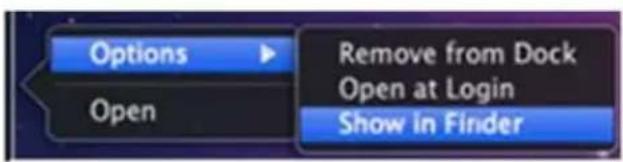

8.3 Remote Surveillance through Apple PC 50
8.3.1 On LAN 50
8.3.2 On WAN 52

8.4 Remote Preview....52

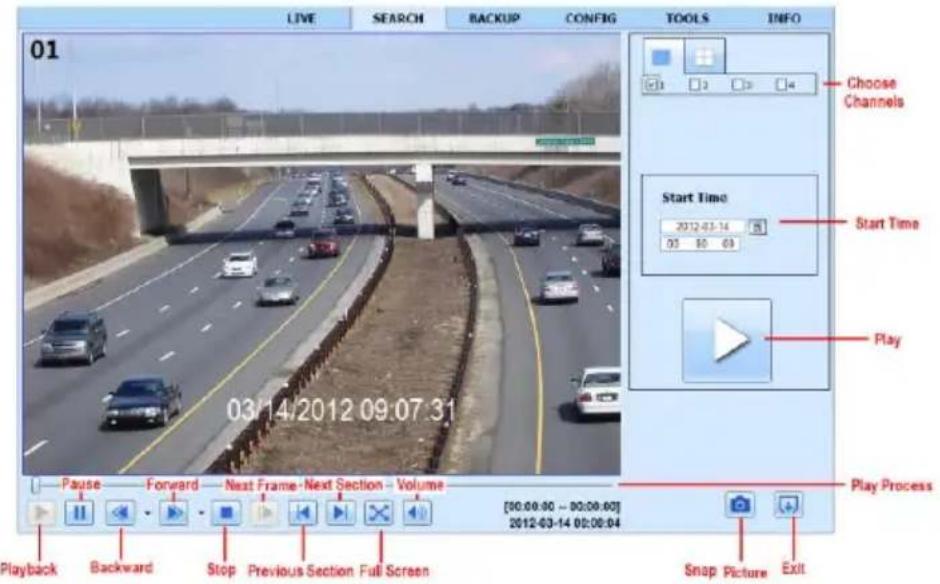

8.5 Remote Playback & Backup .... 54

8.5.1 Remote Playback 54

8.5.2 Remote Backup 57

8.6 Remote System Configuration 57
8.7 Tools 58
8.8 Remote Information 58
8.9 By Devices with iOS 59
8.10 By Devices with Android OS 65

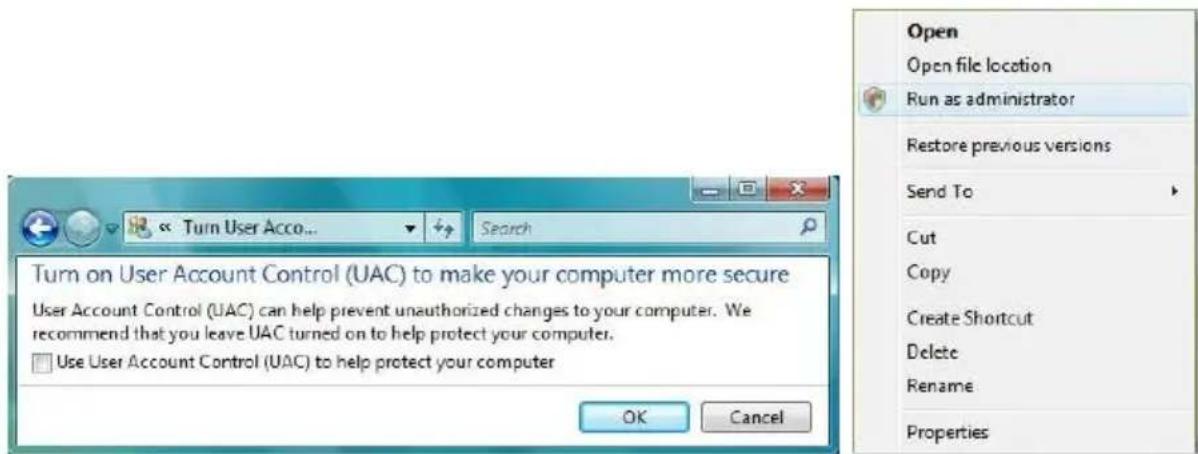

Appendix A: FAQ 68

Appendix B: Calculate Recording Capacity 72

Appendix C: Compatible Devices 72

Notes: 73

1 Introduction

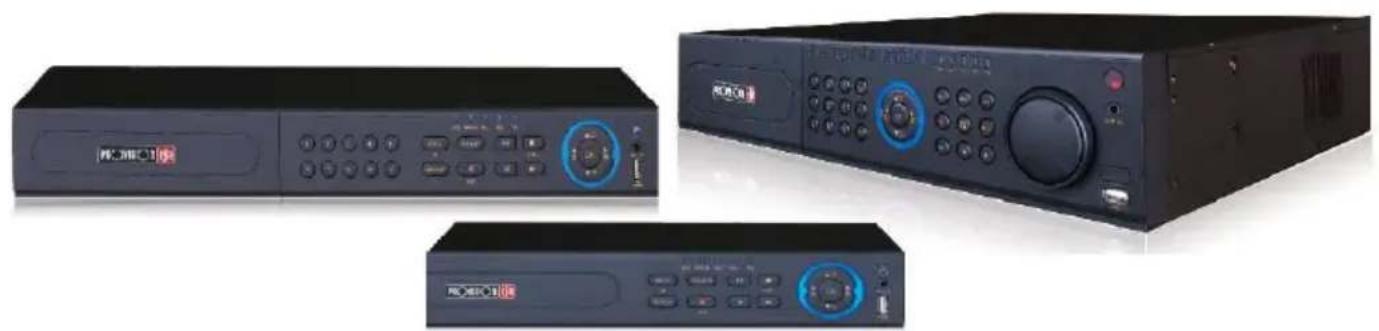

1.1 NVR Introduction

This is a standard real-time 3MP/1080P/720P (Depends on model) high resolution PoE NVR, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. All of these features allow a range of security requirements for home, financial, commerce, enterprise, transportation and government usage.

1.2 Main Features

COMPRESSION FORMAT

- Standard H.264 compression with low bit rate and better image quality

LIVE SURVEILLANCE

● Support HDMI/VGA output (Some models also supports CVBS)
● Support channel security by hiding live display
• Display the local record state and basic information
- Support USB mouse to make full control

RECORD MEDIA

● Support one SATA HDD to record for a longer time without any limitation

BACKUP

● Support USB 2.0 devices to backup (All NVR3 Series supports 1 USB 3.0 Port)
● Support saving recorded files with AVI standard format to a remote computer through internet

RECORD & PLAYBACK

• Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
  • Support recycle after HDD full
  ● Support 3MP/1080P/960P/720P recording (Depends on model of NVR and Camera)
• Resolution, frame rate and picture quality are adjustable
  ● Support deleting and locking the recorded files one by one
  ● Support remote playback in Network Client through LAN or internet

ALARM

● Support schedule for motion detection and sensor alarm
- Support pre-recording and post recording
● Support linked channels recording once motion or alarm triggered on certain channel

SECURITY

• Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live view, manual record, and playback.
  ● Support 1 administrator and 63 user designated usernames and passwords.
• Support event log recording and checking, events unlimited

NETWORK

● Support TCP/IP, DHCP, PPPoE, DDNS protocol
● Support all common browsers (IE, Chrome, Safari, Firefox) for remote view
● Support setup client connection amount
- Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
● Support picture snap and color adjustment in remote live
● Support remote time and event search, and channel playback
● Support remote full menu setup, changing all the NVR parameters remotely
● Support mobile surveillance by phones with iOS & Android OS
● Support CMS to manage multi devices on internet

2 Hardware Installation

Check the unit and the accessories after getting the device. Please don't power up the unit until the physical installation is complete.

2.1 Hard Drive Installation

Notice: 1. This series supports one SATA hard drive. Please use the hard drive the manufacturers recommend specially for security and safe field.
2. Please calculate HDD capacity according to the recording setting. Please refer to "Appendix B Calculate Recording Capacity".

Step 1: Loosen the screws to open the top cover.
Step 2: Connect the power and data cables and then place the HDD onto the bottom case as Fig 2-1.
Step 3: Secure the HDD with the screws as Fig 2-2.

Fig 2-1 Connect HDD

Fig 2-2 Screw HDD

Note: For convenience installation, please connect the power and data cables first and then fix the HDD by tightening the screws.

2.2 Front Panel Descriptions

Notice: The front panel descriptions are only for reference; please make the object as the standard.

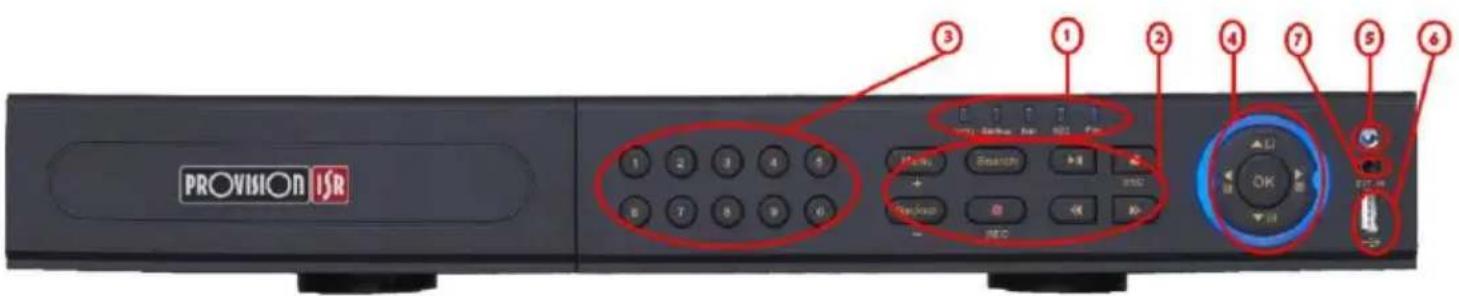

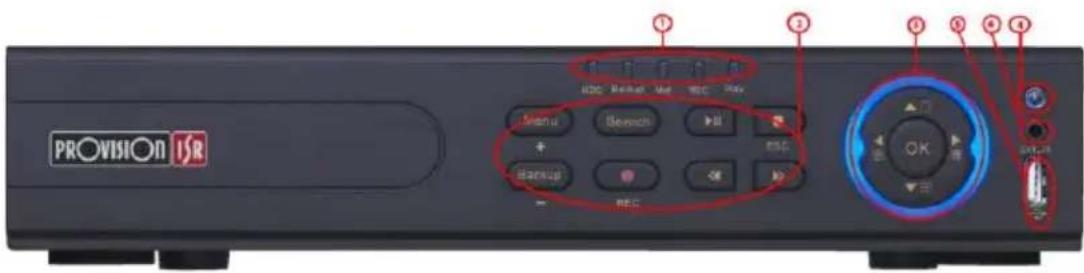

PROVISION ISI HDC Review Net REC Help Search Search Hansup OK REC

Small 1U Case

Front panel description:

Item	Type	Name	Description
1	Work state indicator	Power	Power indicator, when connection , the light is blue
		HDD	When HDD is writing and reading , the light is blue
		Net	When access to network , the light is blue
		Backup	When backup files and data, the light is blue
		Play	When playing video, the light is blue
		REC	When recording, the light is blue
2	Compound button	MENU/+	1. Enter menu in live2. Increase the value in setup
		BACKUP/-	1. Decrease the value in setup2. Enter backup mode in live
		RECORD/FOCUS	1. Record manually2. FOCUS function enables at PTZ mode.
		REW/SPEED	1. Rewind key 2. SPEED function enables at PTZ mode
		SEARCH/ZOOM	1. Enter search mode2.ZOOM function enables at PTZ mode.
		PLAY /IRIS	1. Enter play interface2. IRIS function enables at PTZ mode
		FF/ P.T.Z.	1. Fast forward2. Enter PTZ mode in live
		STOP/ESC	1. Quit play mode2. Exit the current interface or status
3	Input button	Direction button	Change direction to select items
		Multi-screen	Change screen display mode like1/4/9 channel
		Enter button	Confirm selection
4	IR receiver	IR	For remote controller
5	USB	USB port	external USB devices (USB flash, USB HDD for backup, update firmware, USB mouse)
6	External IR	EXT_IR	Extension for the IR receiver

PROVISION ISR 1 2 3 4 5 6 7 8 9 0 ③ ① ② ④ ⑦ ⑤ ⑥

1U Case

Item	Type	Name	Description
1	Work state indicator	Power	Power indicator, when connection , the light is blue
		HDD	When HDD is writing and reading , the light is blue
		Net	When access to network , the light is blue
		Backup	When backup files and data, the light is blue
		Play	When playing video, the light is blue
		REC	When recording, the light is blue
2	Compound button	MENU/+	1. Enter menu in live2. Increase the value in setup
		BACKUP/-	1. Decrease the value in setup2. Enter backup mode in live
		RECORD/FOCUS	1. Record manually2. FOCUS function enables at PTZ mode.
		REW/SPEED	1. Rewind key 2. SPEED function enables at PTZ mode
		SEARCH/ZOOM	1. Enter search mode2.ZOOM function enables at PTZ mode.
		PLAY /IRIS	1. Enter play interface2. IRIS function enables at PTZ mode
		FF/ P.T.Z.	1. Fast forward2. Enter PTZ mode in live
		STOP/ESC	1. Quit play mode2. Exit the current interface or status
3	Digital Input	1-10	1. Input number 1-9 or choose camera / Input number0, 10 and the above number together with other digital keys
4	Input button	Direction button	Change direction to select items
		Multi-screen	Change screen display mode like1/4/9 channel
		Enter button	Confirm selection
5	IR receiver	IR	For remote controller
6	USB	USB port	external USB devices (USB flash, USB HDD for backup, update firmware, USB mouse)
7	External IR	EXT_IR	Extension for the IR receiver

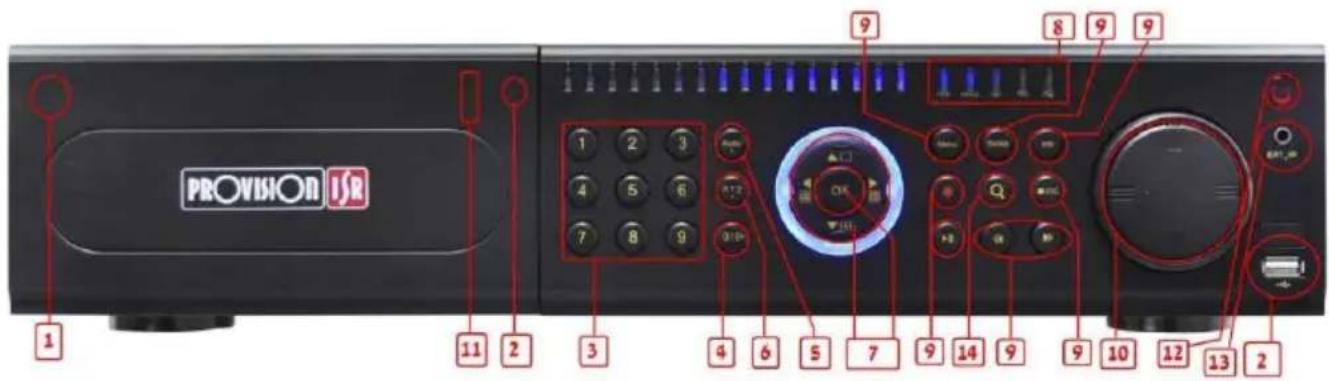

PROVISION ISI R 1 2 3 4 5 6 7 8 9 10 11 12 13 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

2U Case

Item	Nam	F
1	Power Button	Soft switch off to stop firmware running. Do it before power off.
2	DVD button	Press this button, user can place the DVD to do backup.
3	Keys 0-9	Input number 1-9 or choose camera
4	(0/—)	1. Represents channel number. 2. Indicates digital number 0
5	Audio/+	1. Control voice 2. Increase the value in setup
6	P.T.Z./f	1. Enter PTZ mode in live 2. Decrease the value in setup
7	Input button	Direction button	Change direction to select items
		Multi-screen	Change screen display mode like1/4/9/16 channel
		Enter button	Confirm selection
8	Work state indicator	REC	When recording, the light is blue
		HDD	When HDD is writing and reading, the light is blue
		Backup	When backup files and data, the light is blue
		Net	When access to network, the light is blue
		Play	When playing video, the light is blue
		Power	Power indicator, when connection, the light is blue
9	Function button	MENU	Enter menu in live
		INFO	Check data, same as: Main menu=>Information

		BACKUP	Enter backup mode in live
		SEARCH	Enter search mode
		REW	Rewind
		FF	Fast forward
		REC	Record manually
		PLAY	Play/Pause
		STOP	Stop/Esc
10	Jog	Control rewind/fast forward/frame when playing the image.
11	USB	external USB devices (USB flash, USB HDD for backup, update firmware, USB mouse)
12	IR receiver	IR	Remote controller receiver
13	External IR	EXT_IR	Extension for the IR receiver

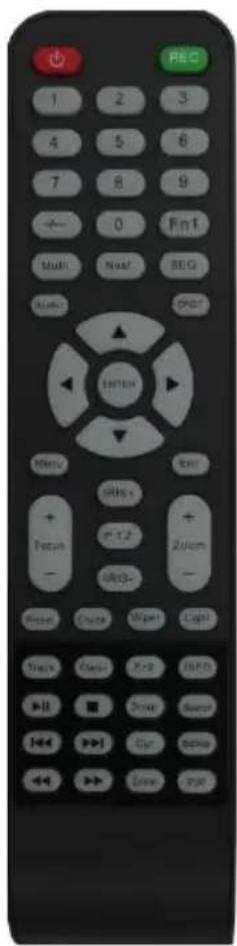

2.3 Remote Controller

It uses two AAA size batteries.

• Open the battery cover of the Remote Controller.
• Place batteries. Please take care of the polarity (+ and -).
• Replace the battery cover.

REC 1 2 3 4 5 6 7 8 9 ← 0 Fn1 Multi Next SBC Audio Spot Mn1 Mn2 + P+2- Focus - Mio- Reset Ctrl Stop Light Track Ctrl Fr2 Init ▶▶ ■ Print Secret ▶▶ ▶ Cut Show ◀◀ ▶ Save True

Fig 2-6 Remote Controller

Button	Function
REC	Manually start/stop record (manual mode).
Search	Open the search menu.
MEUN	Open the main menu.
Exit	Exits the current interface without saving.
ENTER	Save/confirms the current setup on the current menu.
Direction	Moves the menu.
ZOOM	Activates zoom mode.
PIP	Activates picture in picture mode
	During playback mode: play / Pause / Stop / Previous Section / Next Section / Rewind / FF
Multi	To choose multi-screen display mode.
Next	To switch between single picture and picture group
SEQ	Activate sequence (auto dwell) mode
INFO	Go to NVR information menu (from main view)

Key points to check in case the remote doesn't work.

1. Check batteries polarity and the remaining charge in the batteries.
2. Check IR controller sensor for any masking.
3. Check the ID of the remote with respect to the NVR.

If it still doesn't work, please try using a good known remote, or contact your dealer.

2.4 Control with Mouse

2.4.1 Connect Mouse

It supports USB mouse through the ports on the rear panel.

If mouse is not detected or doesn't work, check below steps:

1. Make sure the mouse is plugged in the USB mouse port.
2. Try with a good know mouse.

2.4.2 Use Mouse

During live:

Double-click on any camera window to see the full screen. Double-click again to return to the previous screen.

Right click to reveal the control menu on the screen. Right click again to hide the menu.

In Configuration:

Click to enter a particular option. Right click to cancel the option or to return to the previous menu.

In order to input a value in a particular screen, move cursor to the input box and click. An input window will appear as Fig 2-5. It supports digits, alphabets and symbols input. Click Shift button to input Capital letters and symbols; click Shift button again to return.

It supports mouse drag. Take setting up motion detection area for example: Click customized, hold down the left button and drag to set motion detection area.

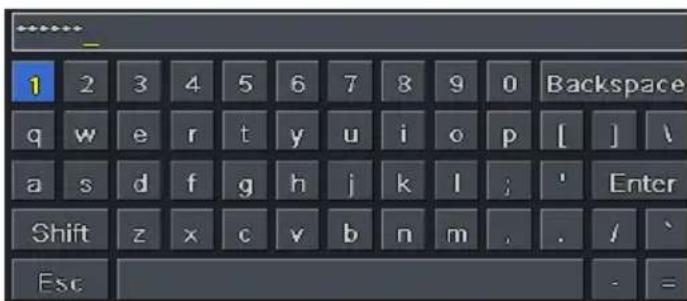

1 2 3 4 5 6 7 8 9 0 Backspace q w e r t y u i o p [ ] \ a s d f g h j k l ; ' Enter Shift z x c v b n m . . / / Esc - =

Fig 2-5 Digital Numbers and Letters Input Window

In Playback:

Click to choose the options. Right click to return to live mode.

In Backup:

Click to choose the options. Right click to return to previous picture.

In PTZ Control:

Click left button to choose the buttons to control the PTZ. Click right button to return to live.

3 Basic Function Instruction

3.1 Startup and Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expanding the life of your NVR.

3.1.1 Startup

Step 1: Connect with the source power.

Step 2: The device will boot and the power LED would turn blue.

Step 3: A "WIZZARD" window will pop up and show some information about time zone, time setup, network configuration, record configuration and disk management. You can set up here and refer to the concrete setup steps from the corresponding chapters. If you don't want to set up Wizard, please click Exit button to exit.

Note: The default output is HDMI output. Hold and press Fn/Esc key to switch the output among CVBS, VGA & HDMI.

3.1.2 Shutdown

You can shut down the device by using IR remote controller and mouse.

By IR remote controller:

Step 1: Press Power button. This will bring up a shutdown window. The unit will shut down by clicking "OK" button.

Step 2: Disconnect the power.

By mouse:

Step 1: Enter into ☐ Menu and select "Shut Down" icon. This will take you to a shutdown window.

Step 2: Click OK. Then the unit will power off after a while.

Step 3: Disconnect the power.

3.2 Login

You can login or log off the NVR system. Once logged off you cannot do any other operation except changing the multi-screen display.

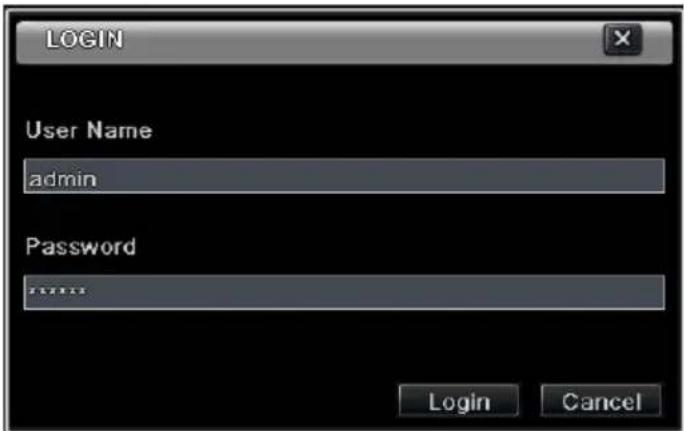

LOGIN User Name admin Password ****** Login Cancel

Fig 3-1 Login

Notice: The default user name and password is "admin" and 123456".

For complete operational steps for changing password, adding or deleting user please refer to section 5.7 User management Configuration.

3.3 Live Preview

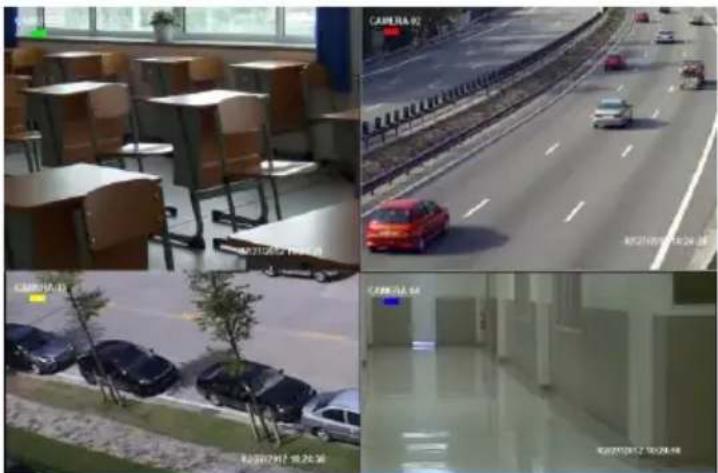

Composite image showing warehouse inspection with boxes, highway traffic, and parking lot scenes, each with Chinese text overlays.

Fig 3-2 Live Preview Interface

Symbol	Meaning
Green	Manual record
Yellow	Motion detection record
Red	Sensor Alarm record
Blue	Schedule record

3.4 Live Playback

Click Play button to playback the record. Refer to Figure 3-3. You can do complete operation by clicking the buttons on screen.

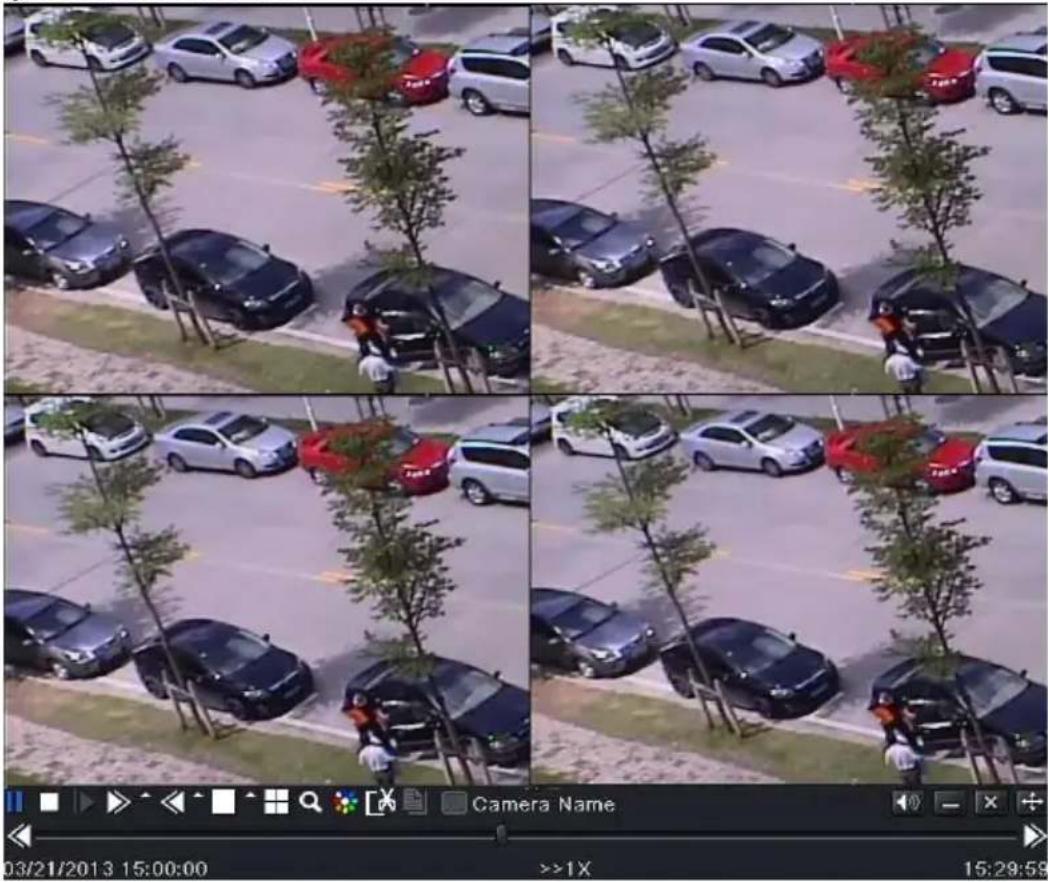

Four-panel surveillance photo showing a person in uniform standing near parked cars and trees, with no visible text or symbols.

Fig 3-3 Live Playback

4 Adding IP Cameras

This chapter mainly introduces how to connect multiple IP cameras through NVR. Once you finish adding IP cameras, you can see the live images through the monitor of the NVR. For the PoE Channels, you just need to directly connect the IP cameras to the device through PoE network ports. The live images will display shortly after a successful connection is made. Of course, if there are free channels, you can connect the IPC via WAN/LAN network. For Mixed channels NVRs (Network channels + PoE Channels), you may connect the designated IP Cameras directly to the NVR through the PoE network ports and then add the IP cameras for the remaining channels into the NVR via WAN/LAN.

Note: Always connect the PoE Channels prior to thee WAN/LAN IP Camera connection. If a IP Camera will be configured to a PoE channel, that channel will become occupied and will not display an IP camera connected to it later.

Here we will introduce how to add cameras through WAN/LAN.

To add IP cameras via LAN:

Step 1: Please enter Menu→IP Camera tab. Refer to Fig 4-1. Click "Search" button to search the devices in the same network.

DEVICE MANAGEMENT CH Device NetAddress Manufacturer Product Model Status 1 192.168.1.2 Disconnected 2 192.168.1.3 Disconnected 3 192.168.1.4 Disconnected 4 192.168.1.5 Disconnected 5 192.168.1.6 Disconnected 6 192.168.1.7 Disconnected 7 192.168.1.8 Disconnected 8 192.168.1.9 Disconnected 0/0 Add Setup Delete Search Apply Exit

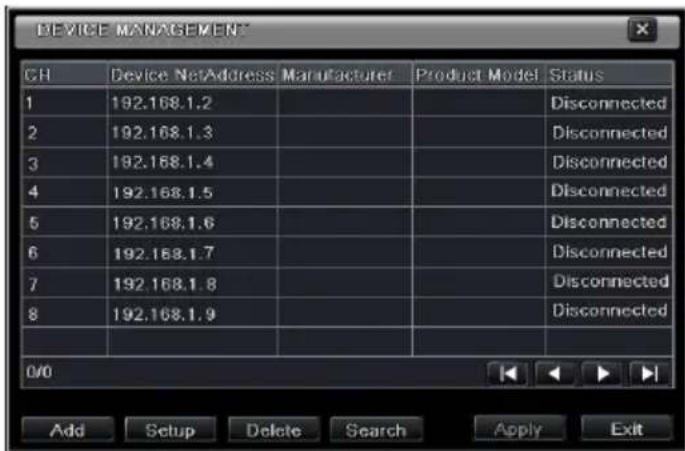

Fig 4-1 Device Management

Step 2: Enter into the search tab. Click "Refresh" to refresh the searched devices. You can modify the IP address of the searched device by checking the device and clicking "Setup" button.

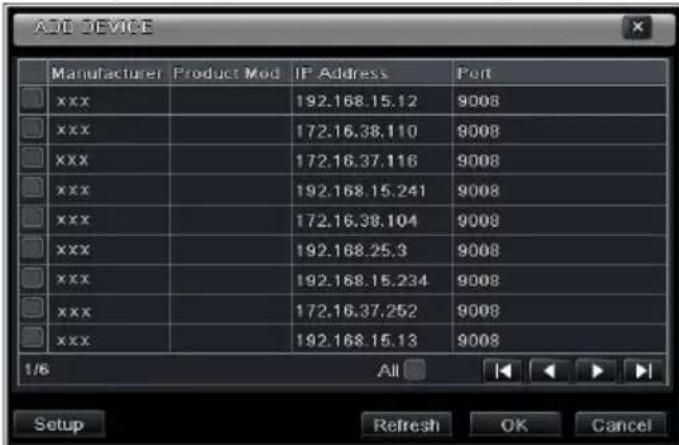

AIC DEVICE Manufacturer Product Mod IP Address Port XXX 192.168.15.12 9008 XXX 172.16.38.110 9008 XXX 172.16.37.116 9008 XXX 192.168.15.241 9008 XXX 172.16.38.104 9008 XXX 192.168.25.3 9008 XXX 192.168.15.234 9008 XXX 172.16.37.252 9008 XXX 192.168.15.13 9008 1/6 All Setup Refresh OK Cancel

Fig 4-2 Search Devices

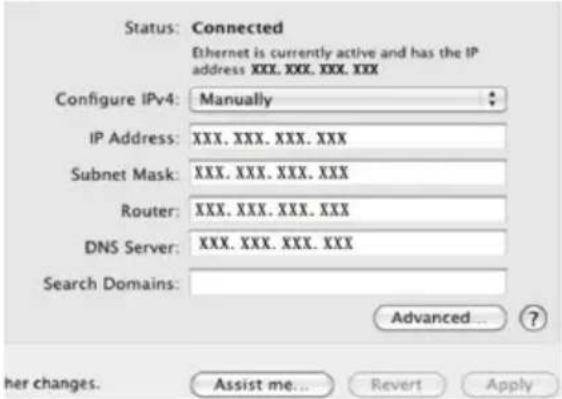

Note: If the network of IP cameras and NVR are in LAN, their IP address must be in the same network segment. For example: If the IP address of NVR is 192.168.013.057, the IP address of IP camera must be 192.168.013.XXX.

Step 3: Choose the searched devices and click "OK" button to add these devices. The added cameras will be listed in the device management interface.

Step 4: Choose the camera device and click "Setup" button to enable the camera. Refer to Fig 4-3. Check the "enable" checkbox, select channel and input the username and password of this device. Then click "OK" to save settings.

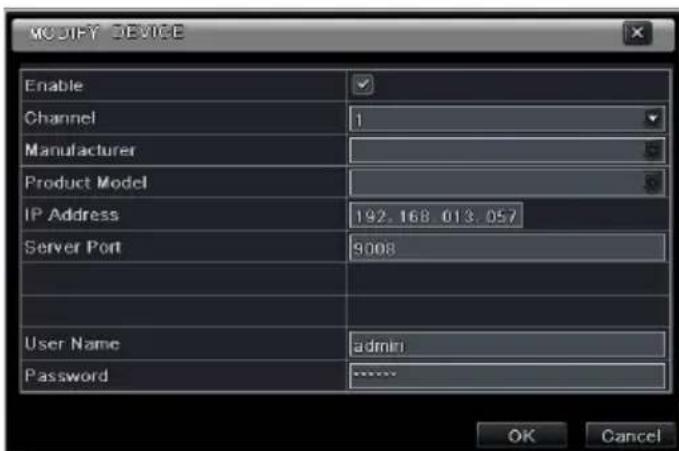

MODIFY DEVICE Enable Channel 1 Manufacturer Product Model IP Address 192.168.013.057 Server Port 9008 User Name admin Password **** OK Cancel

Fig 4-3 Add Device

To add IP cameras via WAN:

Step 1: Please enter Menu→IP Camera tab. Refer to Fig 4-1.

Step 2: Click "Add" button to pop up a window similar to Fig 4-3. You need to check "Enable" box, select channel, manufacturer and product model and manually input IP address, server port, username and password of this device.

Note: If the NVR and the IP cameras you want to add are both in WAN, the IP address of the IP camera input here must be WAN IP. You should forward the LAN IP address and port of the IP camera in the router and use its WAN IP address, provided that the IP camera is in local area network, otherwise, the NVR cannot connect this IP camera.

5 Main Menu Setup Guide

Click right mouse or press Exit/Fn button on the front panel to display the main menu toolbar on the bottom of the screen. Refer to Fig 5-1:

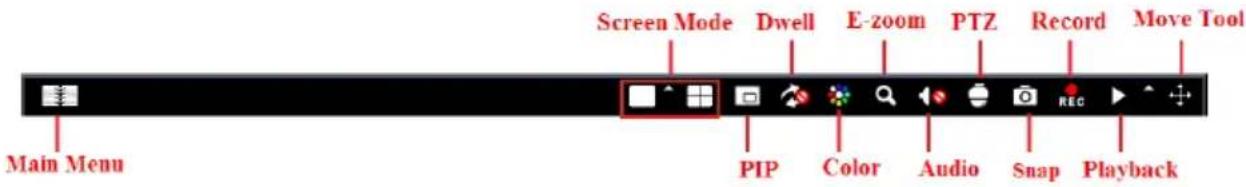

Screen Mode Dwell E-zoom PTZ Record Move Tool Main Menu PIP Color Audio Snap Playback

Fig 5-1 Main Menu Toolbar

Click the 📷 on beside the screen mode to display a channel select dialog.

Screen Mode: You can choose a screen display mode to show the live images.

PIP: Click this button to set PIP. Click this button to choose the bigger picture and then click the little PIP button beside the word "None" to set the smaller picture. After that, you can see a picture in picture.

Dwell: Dwell means to display live images from different cameras in a sequence. The images may be displayed as a single channel or in a grid fashion from different cameras. Dwell mode is enabled only when the chosen display mode is not able to display all the available cameras.

Color: If this button is enabled, you can adjust the color of live images.

E-Zoom: Single channel large screen electronic amplification.

Audio: Enable sound.

PTZ: Click the PTZ button to control rotation position, speed and auto scan of the PTZ connected to the IP camera.

Record: Click this button to start/stop recording.

Playback: Click this button to playback the recorded files.

You can click Move Tool button and drag it anywhere with the left mouse to move the main menu bar anywhere.

Click Main Menu button to pop up a window as Fig 5-2; you can also press MENU button on the front panel or operate with remote controller to display the main menu. Clicking Setup icon will pop up the configuration menu:

MAIN MEN Setup Search Backup Information Manual Alarm Disk Management Upgrade IP Camera Logoff Shut Down PROVISION ISR Now you can see!

Fig 5-2 Main Menu

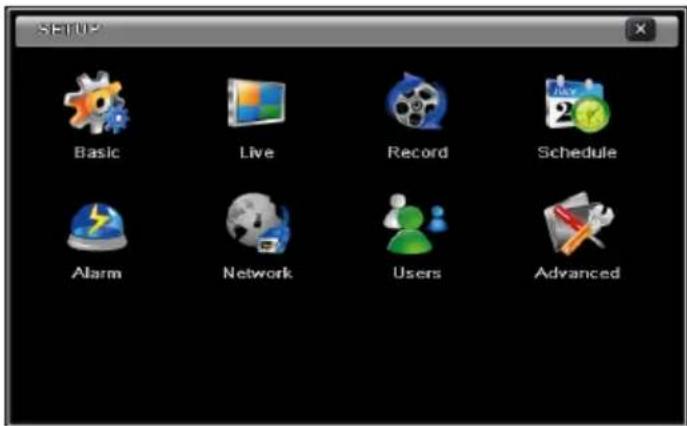

SETUP Basic Live Record Schedule Alarm Network Users Advanced

System Setup

5.1 Basic configuration

Basic configuration includes three sub menus: system, date & time and DST.

5.1.1 System

Step 1: Enter into Menu→Setup→Basic→System. Refer to Fig 5-3:

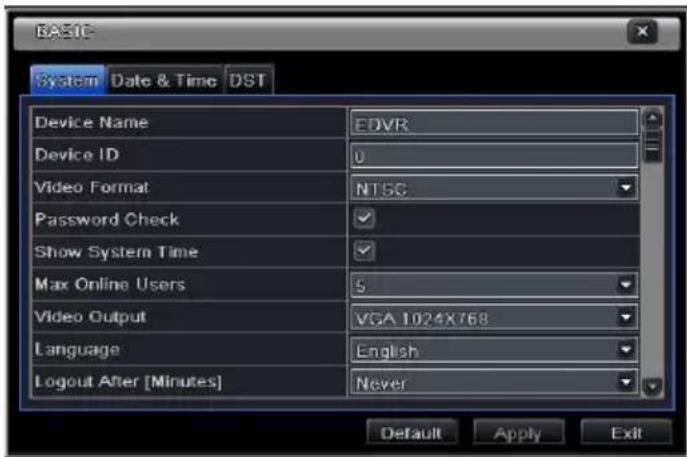

BASIC System Date & Time DST Device Name EDVR Device ID 0 Video Format NTSG Password Check ✓ Show System Time ✓ Max Online Users 5 Video Output VGA 1024X768 Language English Logout After [Minutes] Never Default Apply Exit

Fig 5-3 Basic Configuration-Basic

Step 2: In this interface you can set up the device name, device ID, video format, max network user, VGA resolution and language. The definitions for every parameters display as below:

Device Name: The name of the device as it may display on the client end or on CMS, this would help the user to recognize the device remotely.

Device ID: This ID is used to map the NVR with IR remote controller and speed dome cameras.

Video Format: Two modes: PAL and NTSC. User can select the video format according to the cameras being used.

Password Check: If enabled the user would need to input the user name and the password for performing corresponding operations.

Show System Time: If selected, displays the current time during live monitoring.

Max Online Users: To set the maximum number of concurrent user logins in the NVR.

Show wizard: If selected, the GUI would launch the startup wizard on every boot, allowing user to do basic setup.

Video Output: Resolution of live display interface.

Language: To set up the menu language.

Note: After changing the language and video output, the device needs to login again.

Logout After (Minutes): You can set up the screen interval time (30s, 60s, 180s, 300s). If there is no any operation within the setting period, the device will auto logout and return to the login interface.

No Image When Logout: If selected, there will be no image showing when logout.

5.1.2 Date & Time

Step 1: Enter into Menu→Setup→Basic→Date & Time tab. Refer to Fig 5-4:

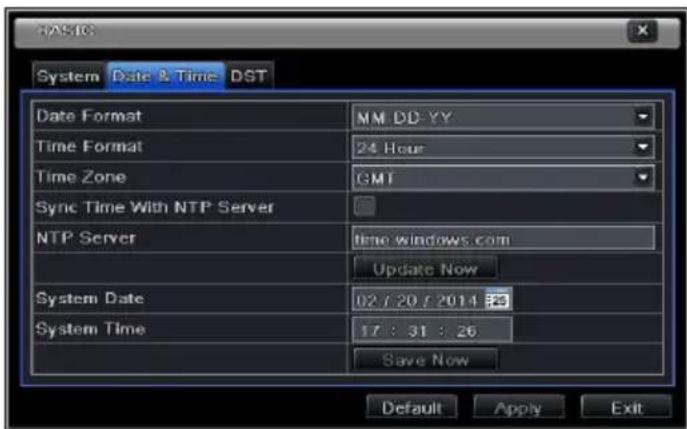

BASIC System Date & Time DST Date Format MM DD YY Time Format 24 Hour Time Zone GMT Sync Time With NTP Server NTP Server time windows.com Update Now System Date 02 / 20 / 2014 23 System Time 17 : 31 : 26 Save Now Default Apply Exit

Fig 5-4 Basic Configuration-Date & Time

Step 2: Set the date format, time format, time zone in this interface; checkmark "sync time with NTP server" to refresh NTP server date. You can adjust system date manually

Step 3: Click "Apply" button to save the settings.

5.1.3 DST

Step 1: Enter into Menu→Setup→Basic→DST interface. Refer to Fig 5-5:

RASTO System Date & Time DST Daylight Saving Time Time Offset [Hours] 1 Mode Week Date From January The 1st Sunday 00 : 00 : 00 Until January The 1st Default Apply Exit

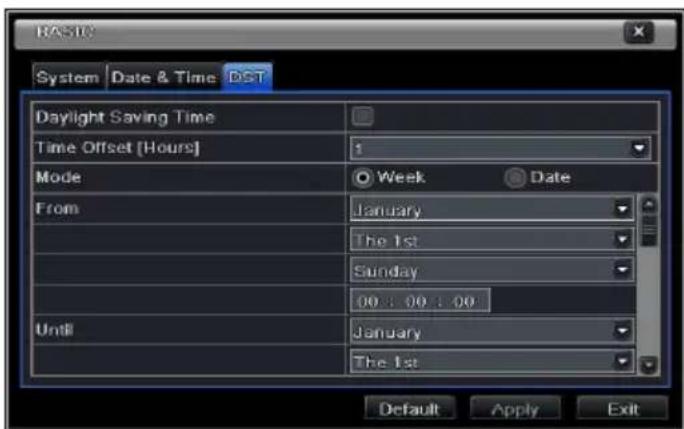

Fig 5-5 Basic Configuration-DST

Step 2: In this interface, enable daylight saving time, time offset, mode, start & end month/week/date, etc.

Step 3: Click "Apply" button to save the setting.

5.2 Live Configuration

Live configuration includes three submenus: live, main monitor and mask.

5.2.1 Live

In this interface, you can set up camera name.

To set up camera name:

Step 1: Enter into Menu→Setup→Live. Refer to Fig 5-6:

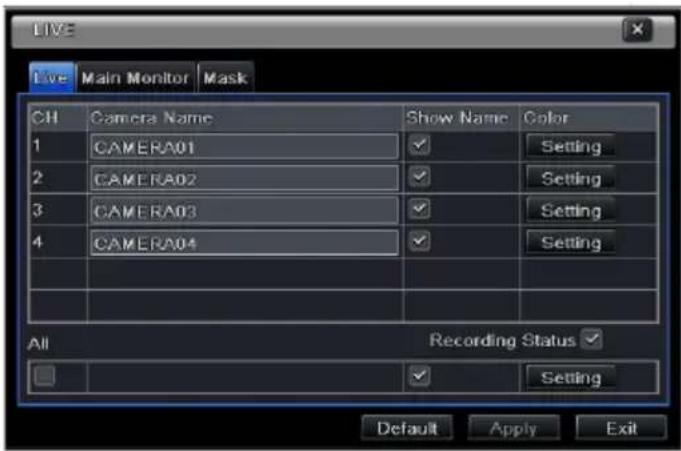

LIVE Live Main Monitor Mask CH Camera Name Show Name Color 1 CAMERA01 ✓ Setting 2 CAMERA02 ✓ Setting 3 CAMERA03 ✓ Setting 4 CAMERA04 ✓ Setting All Recording Status ✓ Setting Default Apply Exit

Fig 5-6 Live Configuration→Live

Step 2: A software keyboard will pop up by clicking camera name area. Click the letters and (or) digital numbers on the keyboard to input the name you want to display in live image.

Step 3: Checkmark the camera name in the show name area.

All channels will show the camera name by checking "All" checkbox.

To set up color:

Step 1: Click "Setting" button for a particular camera/channel to see a window as below:

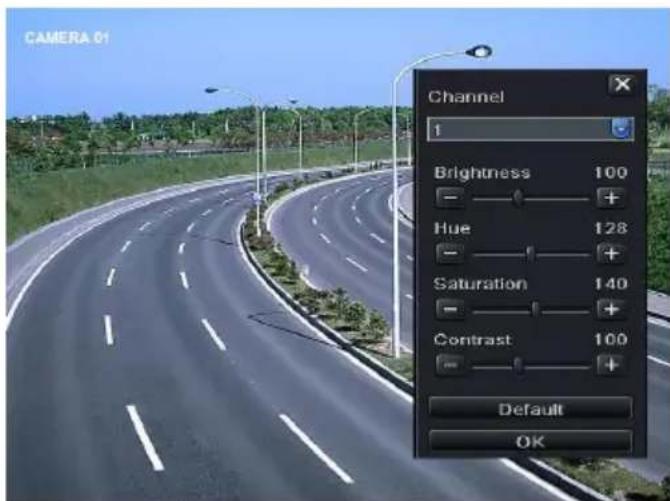

CAMERA 01 Channel 1 Brightness 100 Hue 128 Saturation 140 Contrast 100 Default OK

Step 2: In this interface, you can adjust brightness, hue, saturation and contrast in live. Click "OK" button to save the setting.

5.2.2 Main Monitor

The main monitor settings allow you to set camera sequence in live display mode.

Operate the following steps to set main monitor:

Step 1: Enter into Menu→Setup→Live→Main Monitor interface. Refer to Fig 5-7:

Step 2: Select display mode and channel.

Step 3: Select dwell time. Click button to set up the dwell time of the previous channel groups. Click button to set the dwell time of the latter channel groups.

Step 4: Click "Apply" to save the setting.

Live Main Monitor Mask Display Mode 2x2 1/1 Channel 1 Channel 2 Channel 3 Channel 4 Dwell Time[S] 5 Default Apply Exit

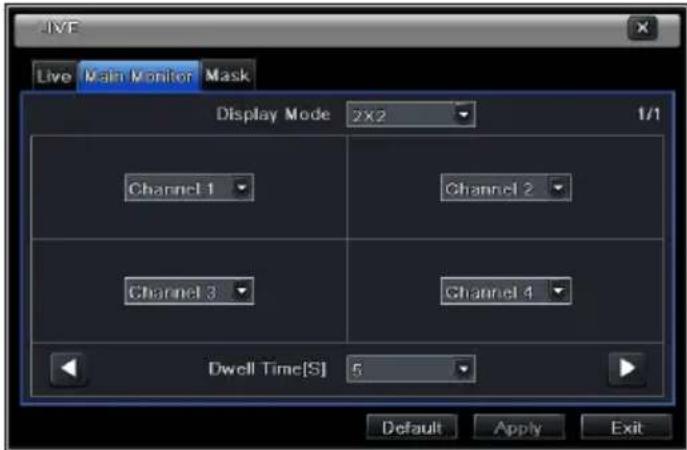

Fig 5-7 Live Configuration-Main Monitor

5.2.3 Mask

If there is something you don't want to display in the live image. You can set mask. For a given channel a maximum of three areas can be masked. If the mask function is not available in the added IP camera, the mask function here will not take effect.

To set up mask area:

Step 1: Enter into Menu→Setup→Live→Mask interface.

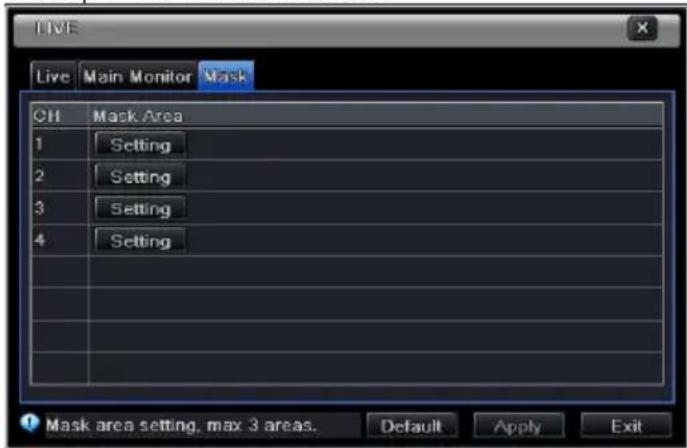

Live Main Monitor Mask CH Mask Area 1 Setting 2 Setting 3 Setting 4 Setting Mask area setting, max 3 areas. Default Apply Exit

Fig 5-8 Live Configuration-Mask

Step 2: Click Setting button to go into live image.

Step 3: Press and drag the left mouse button to set mask area as shown below.

Step 4: Right click to exit the mask setting interface.

Step 5: Click Apply button to save the setting.

To delete mask area

Step 1: Click Setting button in the mask interface.

Step 2: Select a certain masked area and double click to delete that masked area.

Step 3: Then click Apply button to save the setting.

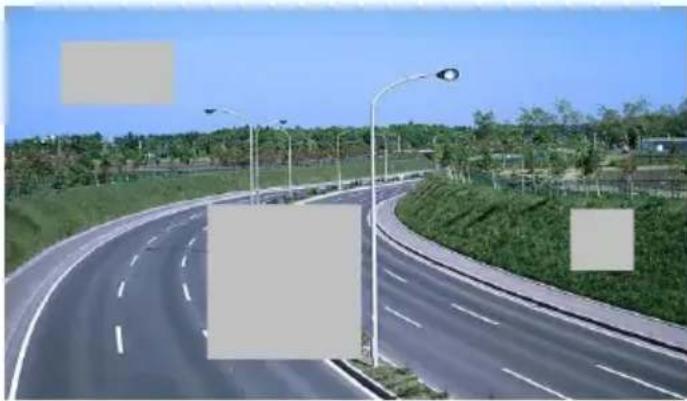

Highway with curved road and streetlights, greenery, and a clear blue sky (no visible text or symbols)

Fig 5-9 Setting Mask Area

5.3 Record Configuration

Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap. Before Configuration, please make sure your NVR has been installed with HDD and has completed its initialization.

5.3.1 Enable

Step 1: Enter into Menu→Setup→Record→Enable tab. Refer to Fig 5-10:

Step 2: Checkmark record and audio.

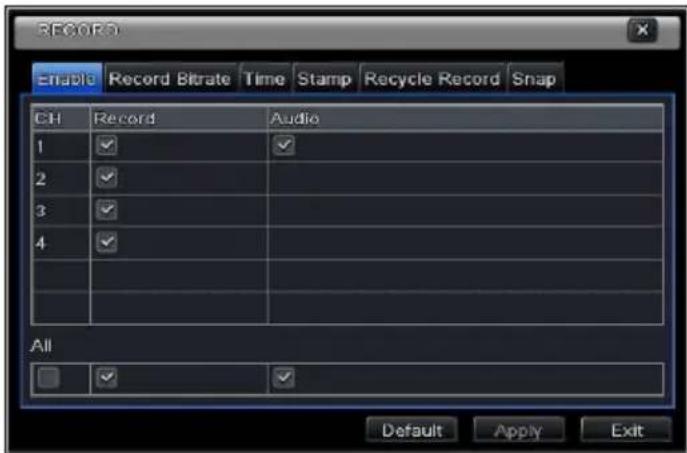

RECORD Enable Record Bitrate Time Stamp Recycle Record Snap CH Record Audio 1 ✓ ✓ 2 ✓ 3 ✓ 4 ✓ All ✓ ✓ Default Apply Exit

Fig 5-10 Record Configuration-Record

Parameter	Meaning
Record	To enable/disable recording for the channel
Audio	To enable/disable audio recording for the channel

Step 3: Select All to set up the same settings for all channels.

5.3.2 Record Bitrate

Step 1: Enter into Menu→Setup→Record→Record Bitrate. Refer to Fig 5-11:

Step 2: Set up rate, resolution, quality, encode and max bit stream.

Step 3: Select "All" to set the same settings for all channels.

Step 4: Click "Apply" button to save the setting.

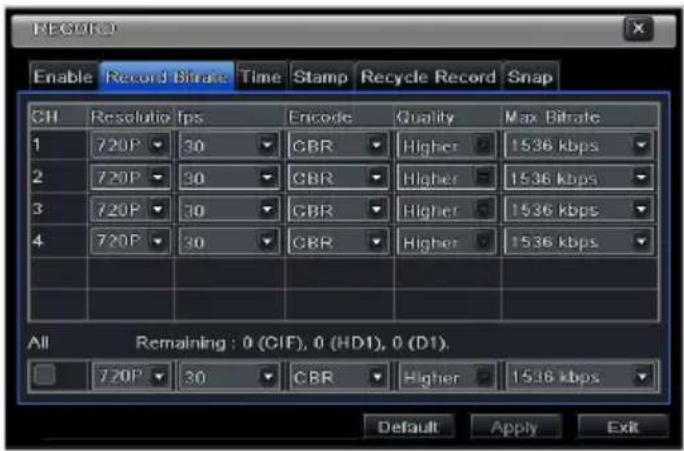

RECORD Enable Record Bitrate Time Stamp Recycle Record Snap CH Resolution fps Encode Quality Max Bitrate 1 720P 30 CBR Higher 1536 kbps 2 720P 30 CBR Higher 1536 kbps 3 720P 30 CBR Higher 1536 kbps 4 720P 30 CBR Higher 1536 kbps All Remaining : 0 (CIF), 0 (HD1), 0 (D1). 720P 30 CBR Higher 1536 kbps Default Apply Exit

Fig 5-11 Record Configuration-Record Bitrate

Parameter	Meaning
Rate	Range from: 1-30 (NTSC) 1-25(PAL)
Resolution	Supports1080P, 720P, VGA
Quality	The higher the value is, the clearer the recorded image is. Six options: lowest, lower, low, medium, higher and highest.
Encode	VBR and CBR
Max bit stream	Range from: 256~12288kbps

If the value of the parameter is set to exceed the maximum resources of the system, the system will automatically adjust it.

5.3.3 Time

Step 1: Enter into Menu→Setup→Record→Time interface to set recording time. Refer to Fig 5-12:

Step 2: Set Pre-alarm record time and post-alarm record time. Select "All" to set the same settings for all channels.

Step 3: Click "Apply" to save the setting.

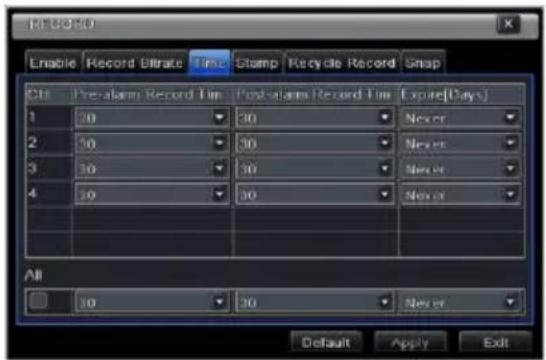

RE0350 Enable Record Eltrate Time Stamp Recycle Record Snap Ctrl Pre-alarm Record Lim Post-alarm Record Lim Expre(Days) 1 20 30 Never 2 30 30 Never 3 30 30 Never 4 20 30 Never All 30 20 Never Default Apply Exit

Fig 5-12 Record Configuration-Time

Pre-alarm Record Time: Set the time in seconds to pre-record before the actual recording begins.

Post-alarm Record Time: Set the time in seconds to post-record after the actual recording has finished, five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s.

Expire Time: Set the expiration time for recorded video. If the set date is overdue, the recorded files will be deleted automatically.

5.3.4 Stamp

This provides an option to enable or disable the Camera Name and the Time stamp on the video. The user can also choose a position for the stamp on the screen.

To set up stamp as follows:

Step 1: Enter into Menu→ Setup→ Record→ Stamp interface. Refer to Fig 5-13:

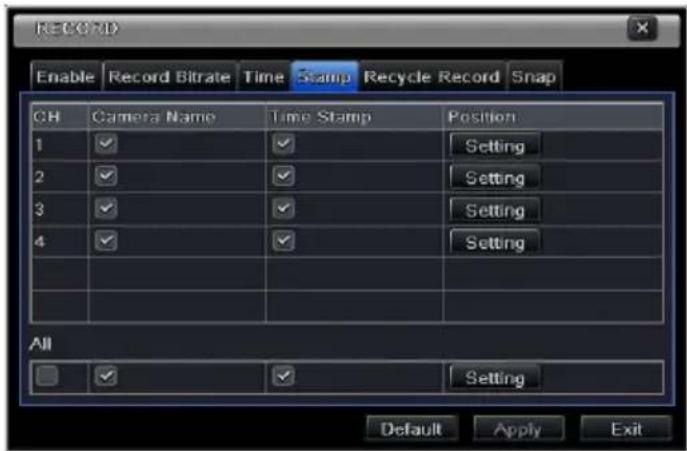

RECORD Enable Record Bitrate Time Stamp Recycle Record Snap CH Camera Name Time Stamp Position 1 ✓ ✓ Setting 2 ✓ ✓ Setting 3 ✓ ✓ Setting 4 ✓ ✓ Setting All ✓ ✓ Setting Default Apply Exit

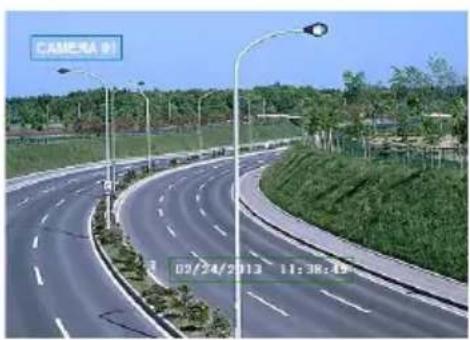

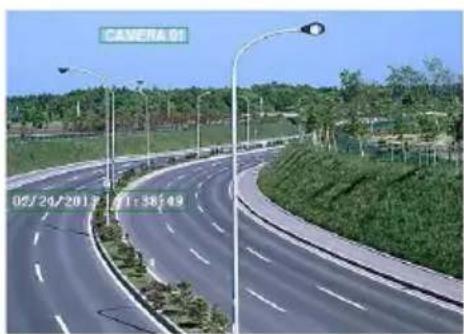

Fig 5-13 Record Configuration-Stamp

Step 2: Checkmark camera name and time stamp. Click Setting button to set up the position of the stamp. You can drag the camera name and time stamp at random positions as shown below.

Step 3: Select "All" to set up all channels with the same parameters.

CAMERA 9 02/24/2013 11:38:19

Before drag

CAMERA 01 02/24/2013 01:38:49

After drag

5.3.5 Recycle Record

This option is used to recycle the HDD space once it is full. If enabled, the system will automatically delete the old records and recycle the space if it is completely utilized. The setting steps are as follows:

Step 1: Enter into Menu→Setup→Record→Recycle Record interface;

Step 2: Checkmark recycle record to activate auto recycling. If the option is disabled or not selected, the NVR would stop recording once HDD is full.

Step 3: Click "Apply" button to save the setting.

5.3.6 Snap

In this interface, user can set up resolution, quality, snap interval, snap number.

5.4 Schedule Configuration

Schedule configuration includes three sub menus: schedule, motion and sensor.

5.4.1 Schedule

This tab allows defining schedule for normal recording for seven days of a week, 24 hours of a day. Every row denotes an hourly timeline for a day. Click the grid to do relevant setup. A highlighted area denotes selected timeline. Operate the following steps to set schedule:

Step 1: Enter into Menu→Setup→Schedule interface. Refer to Fig 5-14:

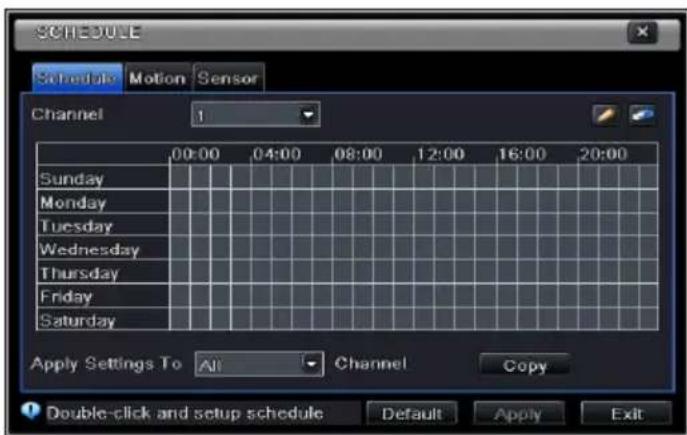

SCHEDULE Schedule Motion Sensor Channel 1 00:00 04:00 08:00 12:00 16:00 20:00 Sunday Monday Tuesday Wednesday Thursday Friday Saturday Apply Settings To All Channel Copy Double-click and setup schedule Default Apply Exit

Fig 5-14 Schedule Configuration-Schedule

Step 2: Select channel and click “☐” button to add a certain day schedule. Click “☐” button to delete the selected schedule.

If you want to apply the schedule setting of a certain channel to other or all channels, you need to select channel and click "Copy" button.

You can also set week schedule by double-clicking in the grinding area. This will take you to see a dialog box as Fig 5-15.

Step 1: Select a day and click "Add" button to schedule start time and end time. Then click √ to save.

Step 2: Select other days and add schedule or copy settings from one schedule to the others under the Apply Settings To item.

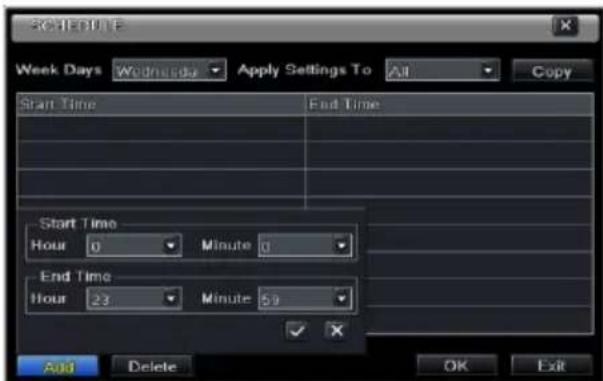

SCHEDULE Week Days Wednesday Apply Settings To All Copy Start Time End Time Start Time Hour 0 Minute 9 End Time Hour 23 Minute 59 Add Delete OK Exit

Fig 5-15 Schedule-Week Schedule

5.4.2 Motion Schedule

This tab allows setting schedule for motion based recording. The setting steps are as follows:

Step 1: Enter into Menu→Setup→Schedule→Motion tab.

Step 2: The setup steps for schedule for motion based recording are similar to normal schedule setup. You can refer to 5.4.1 Schedule for details.

Note: The default schedule of motion based recording is 24 x7. If you want to activate motion based recording, you must enable motion alarm and set up schedule for motion alarm (see Chapter 5.5.2 Motion Alarm for more details).

5.4.3 Sensor Schedule

This tab allows setting schedule for sensor based recording. The setting steps are as follows:

Step 1: Enter into Menu→Setup→Schedule→Sensor interface.

Step 2: The setup steps for schedule for sensor based recording are similar to normal schedule setup (see Chapter 5.4.1 Schedule for details).

Note: The default schedule of sensor based recording is 24x7. If you want to activate sensor based recording, you must enable sensor alarm and set up schedule for sensor alarm (see Chapter 5.5.1 Sensor Alarm for more details).

5.5 Alarm Configuration

Alarm configuration includes four sub menus: sensor, motion, other alarm and alarm out.

5.5.1 Sensor Alarm

Sensor includes three sub menus: basic, alarm handling and schedule.

Operate the following steps to configure sensor alarm:

Step 1: Enter into Menu→Setup→Alarm→Sensor→Basic tab. Refer to Fig 5-16:

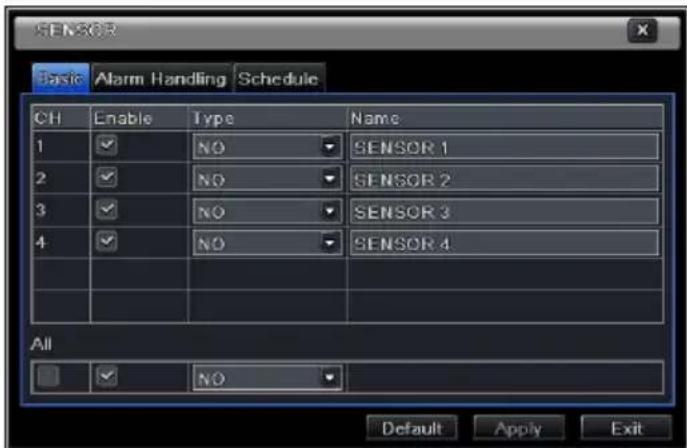

SENSOR Basic Alarm Handling Schedule CH Enable Type Name 1 ✓ NO ▼ SENSOR 1 2 ✓ NO ▼ SENSOR 2 3 ✓ NO ▼ SENSOR 3 4 ✓ NO ▼ SENSOR 4 All ✓ NO Default Apply Exit

Fig 5-16 Alarm Configuration-Sensor-Sensor

Step 2: Enable channels by checking the checkboxes beside the desired channels.

Step 3: Set the alarm type according to triggered alarm type. Two option: NO and NC.

Step 4: Click "Apply" button to save the setting.

Step 5: Enter into Alarm Handling tab. Refer to Fig 5-17. Select hold time and then click "Setting" button to pop up a dialog box as shown in Fig 5-18.

SENSOR Basic Alarm Handling Schedule CH Holding Time[S] Trigger 1 10 Setting 2 10 Setting 3 10 Setting 4 10 Setting All 10 Setting Default Apply Exit

Fig 5-17 Alarm Configuration-Sensor-Alarm Handling

Step 6: Enter into alarm tab to select the options to handle alarm.

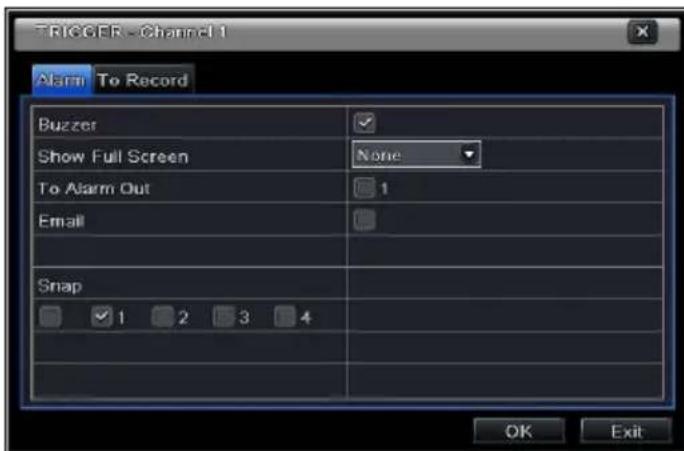

TRIGGER - Channel 1 Alarm To Record Buzzer Show Full Screen None To Alarm Out 1 Email Snap 1 2 3 4 OK Exit

Fig 5-18 Alarm Handling-Trigger

Buzzer: If selected, the local buzzer would be activated on an alarm.

Show Full Screen: If selected, there will pop up the chosen channel on the monitor on an alarm trigger.

To Alarm Out: If selected, this would trigger external relay output on an alarm.

Email: If selected, the NVR will send an email alert to the preconfigured email address in case of a sensor based alarm from the particular input.

Snap: If selected, the system will snap images of the checked channels on an alarm and save them in the HDD automatically.

Step 7: Enter into To Record tab. Select recording channels. It would be recorded in case of an alarm. Click OK button to save the setting.

Step 8: Enter into Schedule tab. The setting steps for schedule for sensor based alarm are similar to normal schedule setup. You can refer to 5.4.1 Schedule for details. This step is very important for sensor alarm. Even if you have enabled the sensor alarm for all channels and set up the trigger, you will not see the result of sensor alarm if no schedule is added.

If you have set schedule for sensor based recording in the same timeline, recordings can also be triggered.

5.5.2 Motion Alarm

Motion includes two sub menus: motion and schedule. The steps to set motion alarm are as follows:

Step 1: Enter into Menu→Setup→Alarm→Motion→Motion tab. Refer to Fig 5-19:

Step 2: Enable motion alarm, set alarm hold time which refers to the time till which the system will wait for further detection of motion. e.g. If the holding time is set to 10 seconds, once the system detects a motion, it will go into alarm but would not detect any other motion alarm (specific to channel) until 10 seconds. If there is other motion detected during this period it is considered it as continuous movement, otherwise it will be considered as a single motion.

MOTION Motion Schedule CH Enable Holding Time[S] Trigger Area 1 ✓ 10 Setting Setting 2 ✓ 10 Setting Setting 3 ✓ 10 Setting Setting 4 ✓ 10 Setting Setting All 10 Default Apply Exit

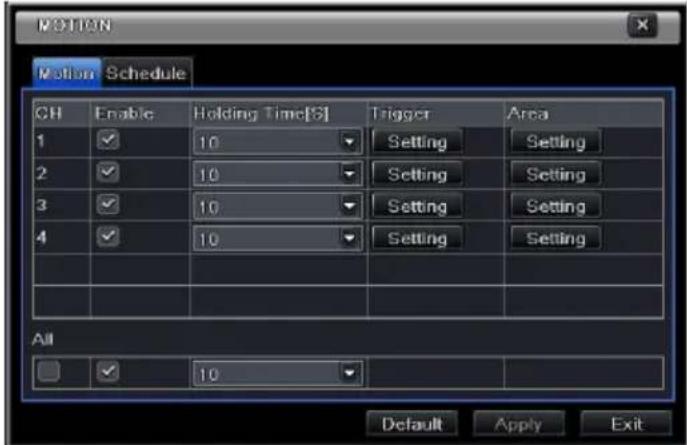

Fig 5-19 Alarm Configuration-Motion

Step 3: The setup steps of motion trigger are similar to "Alarm Handling" (See Chapter 5.5.1 Sensor → Alarm Handling setting for more details).

Step 4: After clicking Area button, a dialog box will pop up as Fig 5-20:

03/21/2012:18:55:20 Sensitivity 6

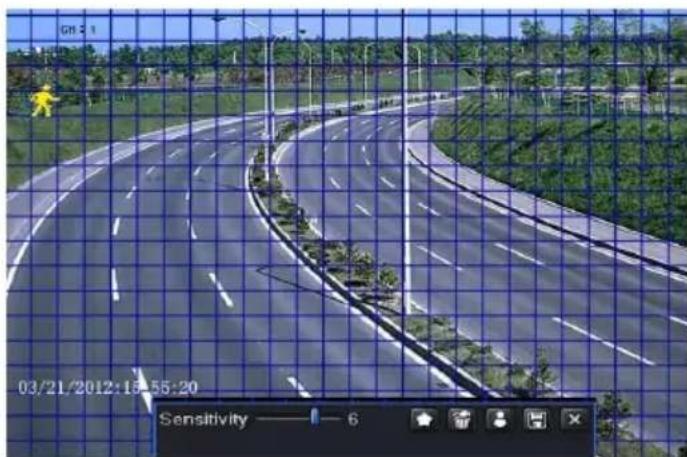

Fig 5-20 Motion-Area

Step 5: In the Area interface, you can drag slide bar to set the sensitivity value (1-8). The higher the value is the more sensitive it is to motion. Since the sensitivity is influenced by color and time (day or night), you can adjust its value according to the practical conditions. Left click the grid and drag to delete area. Click

icon to set the whole area as detection area. Click icon to clear the set detection area. Click icon to test the sensitivity as per the local conditions. Once motion is sensed, it displays a figure icon. Icon, to save the setting. Click icon to exit the current interface.

Note: Prior to setting motion detection field it is recommended that you click the existing field and set afresh.

icon to clear

Step 6: Select "All" to set the same settings for all channels.

Step 7: Click "Apply" button to save the setting.

Step 8: Enter into Schedule tab. The setting steps for schedule for motion based alarm are similar to normal schedule setup (see Chapter 5.4.1 for more details).

5.5.3 Other Alarm

This tab gives a choice to configure alarm for Disk Full, IP Conflict, the Disconnect event, etc.

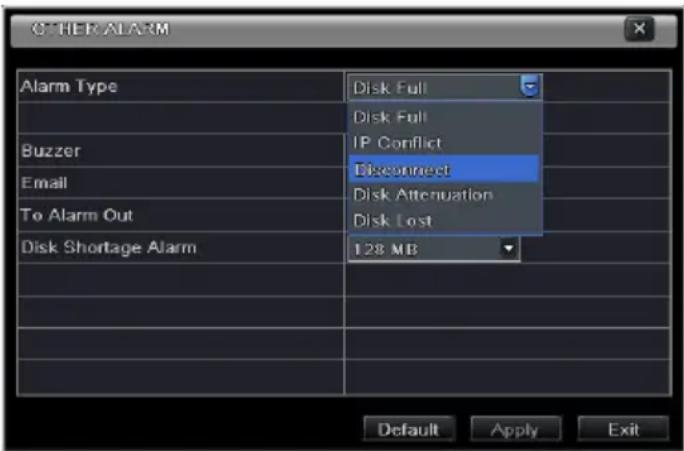

Step 1: Enter into Menu → Setup → Other Alarm. Refer to Fig 5-21:

OTHER ALARM Alarm Type Disk Full Disk Full IP Conflict Disconnect Disk Attenuation Disk Lost Buzzer Email To Alarm Out Disk Shortage Alarm 128 MB Default Apply Exit

Fig 5-21 Other Alarm

Step 2: Use the dropdown menu and select the event or the alarm.

Step 3: Check the required trigger options.

If the selected event is “Disk Full”, then use the drop down box for “Disk Shortage Alarm” to choose a threshold value for remaining HDD space. If the threshold value is reached, the system will trigger the Disk Full Alarm.

Step 4: Click "Apply" to save the setting.

5.5.4 Alarm Out

Alarm out includes three sub menus: alarm out, schedule and buzzer.

To set up alarm out:

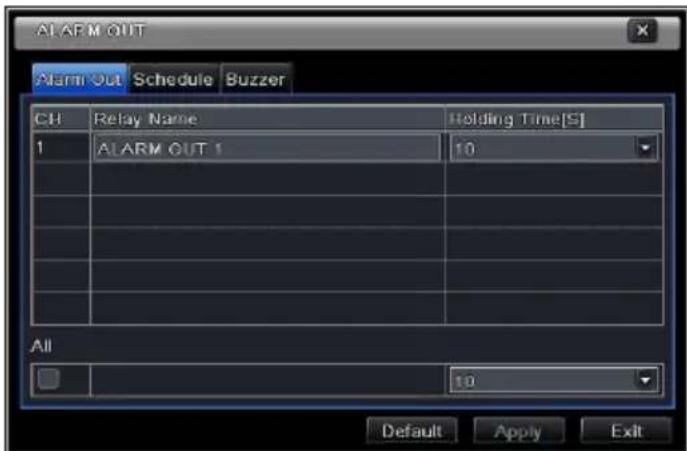

Step 1: Enter into Menu→Setup→Alarm Out. Refer to Fig 5-22:

ALARM OUT Alarm Out Schedule Buzzer CH Relay Name Holding Time[S] 1 ALARM OUT 1 10 All Default Apply Exit

Fig 5-22 System Configuration-Alarm Out

Step 2: Input relay name and select hold time.

Step 3: Enter into Schedule tab. This will go into schedule setup interface. The setting steps for schedule for alarm out are similar to normal schedule setup (see Chapter 5.4.1 for details).

This step is very important for alarm out. Even if you have enabled alarm out in the motion based alarm or sensor based alarm, you will not see the result of alarm out if no schedule is added here.

To set up buzzer:

Step 1: Enter into Menu→Setup→Alarm Out→Buzzer.

Step 2: Checkmark Buzzer and set buzzer alarm hold time. This would trigger the buzzer when the system is on an alarm.

5.6 Network Configuration

Network configuration includes four submenus: network, Email, server and other settings. Network settings must be configured if NVR is used for monitoring over network.

5.6.1 Network

To set up network:

Step 1: Enter into Menu→Setup→Network→Network tab. Refer to Fig 5-23:

NETWORK Network Email Server Other Settings HTTP Port 80 Server Port 6035 Obtain an IP address automatically ✓ IP Address 192.168.011.061 Subnet Mask 000.000.000.000 Gateway 192.168.011.001 Preferred DNS Server 192.168.011.001 Alternate DNS Server 000.000.000.000 Default Apply Exit

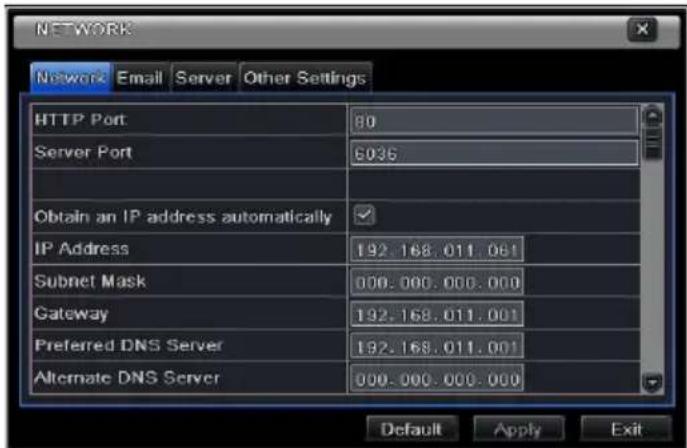

Fig 5-23 Network Configuration-Network

Step 2: Set HTTP port. The default HTTP port is 80. If the value is changed, you shall add the port number when typing IP address in IE address blank. e.g. If HTTP port is set to 82 and IP address is http://192.168.0.25, you should input the following IP address: http://192.168.0.25:82 into IE browser.

Step 3: Set server port. The default server port is 6036.

Step 4: Connect internet. There are three ways to connect internet.

If you have a DHCP server running and would like your NVR to automatically obtain an IP address and other network settings, check the checkbox beside "Obtain an IP address automatically". Then the device will distribute IP address, subnet mask, and gateway IP and DNS server.

If you want to configure your own settings, disable "Obtain an IP address automatically" item and input the IP address, subnet mask, gateway IP and DNS server.

If you connect internet through PPPoE, disable "Obtain an IP address automatically" item and check PPPoE checkbox and then enter username and password. Once the setup is completed, your NVR will automatically dial up into your network.

Step 5: Test the effectiveness of the network by clicking "Test" button after you set up the network.

Step 6: If the network is well connected, please click "Apply" button to save the setting.

5.6.2 Sub-stream

System configuration → network configuration → sub stream; refer to Fig 4-30

Select fps, resolution, quality, encode and max bit rate

To setup all channels with the same parameters choose "all" and then apply to save relevant setup to all channels.

Reset to default setting; click the "default" button and then "apply" button to save the setting.

CHI Resolution fps Encode Quality Max Bitrate 1 GIF 3 VBR Medium 512 kbps 2 CIF 3 CBR Higher 512 kbps 3 GIF 3 CBR Higher 512 kbps 4 CIF 3 CBR Higher 512 kbps All CIF 3X16 CBR Higher 512 kbps Default Apply Exit

5.6.3 Email

To set up Email:

Step 1: Enter into Menu→Setup→Network→Email tab. Refer to Fig 5-24:

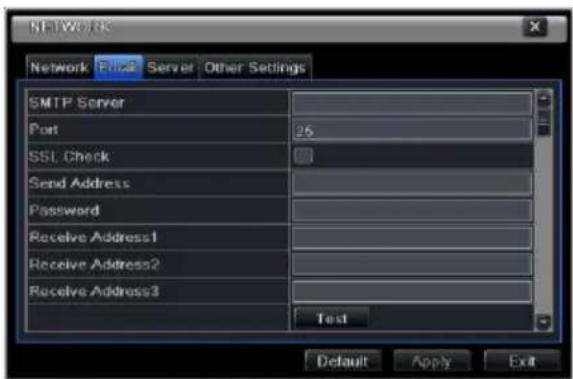

Net1W08K Network Price Server Other Settings SMTP Server Port 25 SSL Check Send Address Password Receive Address1 Receive Address2 Receive Address3 Test Default Apply Exit

Fig 5-24 Network Configuration-Email

Step 2: Set SMTP Server and port.

SMTP Server/Port: The name and port number of SMTP server. You can set up SSL check (such as Gmail) according to actual needs.

Step 3: Set sender's address and password.

Step 4: Set receiver's email address and click "Test" button to test the validity of the mailbox.

5.6.4 Server

This function is mainly used for connecting ECMS/NVMS. The setting steps are as follows:

Step 1: In the server interface, select "Enable" as shown in the Fig 5-25.

Step 2: Check the IP address and port of the transfer media server in the ECMS/NVMS. The default server port for auto report is 2009. If it is modified, please enter into the transfer media interface to check.

Step 3: Enable the auto report in the ECMS/NVMS when adding a new device. Then self-define device ID and input the remaining information of the device in the ECMS/NVMS.

Step 4: Input the above-mentioned server IP, server port and device ID in the server interface. Then click "Apply" button to save the setting. Now, the ECMS/NVMS system will automatically connect this device.

NETWORK Network Email Server Other Settings Enable ✓ Server 192.168.3.123 Server Port 2009 Device ID 382 Default Apply Exit

Fig 5-25 Network Configuration-Server

5.6.5 NAT

① Go to Main Menu→Setup→Network→NAT interface. Refer to Fig 5-26.
② Enable NAT and input the NAT Server (The default NAT Server is www.provisionisr-nat.com).
③ Click “Apply” to save the settings.

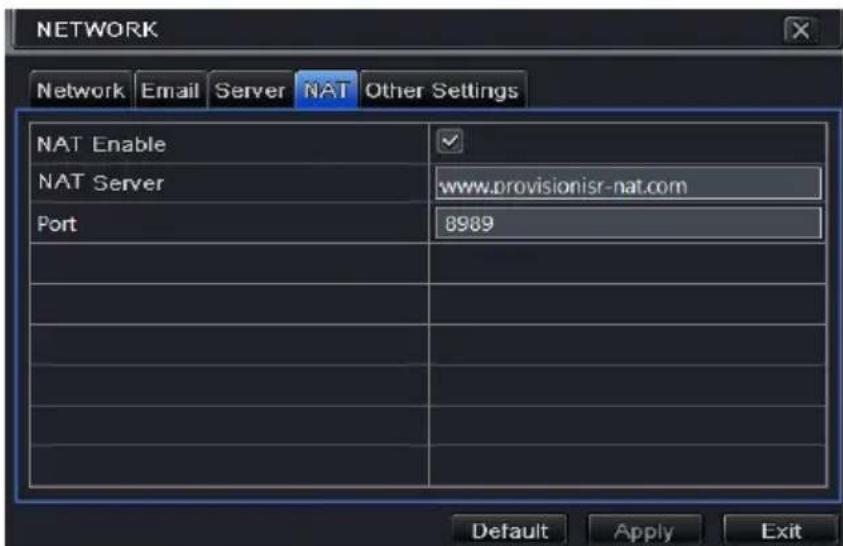

NETWORK Network Email Server NAT Other Settings NAT Enable NAT Server www.provisionisr-nat.com Port 8989 Default Apply Exit

Fig 5-26 Network Configuration-NAT

5.6.6 Other Settings

If your NVR is set to use PPPoE as its default network connection, you may set up DDNS to be used in connection. The setting steps are as follows:

Step 1: Enable DDNS server.

Step 2: Select DDNS server.

Step 3: Enter user name, password and host domain name of the registered website.

Step 4: Click "Test" button to test the effectiveness of the relevant information.

Step 5: Click "Apply" button to save the setting.

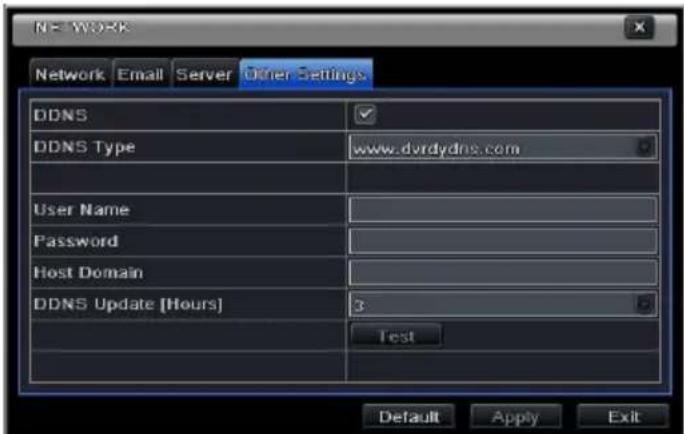

N- WORK Network Email Server Other Settings DDNS DDNS Type www.dvrdydns.com User Name Password Host Domain DDNS Update [Hours] 3 Test Default Apply Exit

Fig 5-26 Network Configuration-Other Settings

Note: The domain name selected by user is a banding domain name of NVR. User should logon the website provided by the server supplier to register a user name and password and then apply for a domain name online. After the successful application, user can access the device from the IE client by inputting that domain name.

1. Domain name Registration (http://provision-ISR-dns.com)

Note: DDNS is used to register for a hostname with DDNS username and password.

Provision ISR now allows you to use our mint DDNS server in order to create a virtualaddress for your DVR on the internet. Each account can create up to 35 different

addresses using your preferred domain name address instead of using IP addresses. Follow the steps below to register your DVR's name and to configure your DVR to use Provision ISR's Mint DDNS server.

(a) To register a domain with Provision-ISR DDNS server follow these steps:

1) Visit our website: http://provision-isl-rds.com and register for a domain name by clicking "Registration"

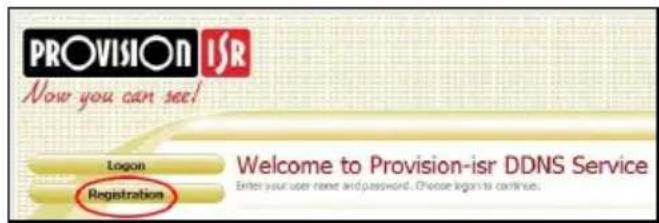

PROVISION ISR Now you can see! Login Registration Welcome to Provision-ISR DDNS Service Enter your user name and password. Choose login to continue.

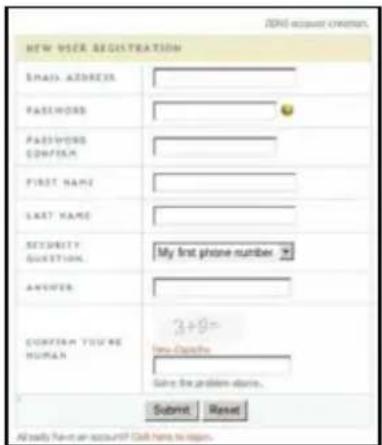

2) Fill in the registration form, then click "Submit"

NEW USER REGISTRATION EMAIL ADDRESS PASSWORDS PASSWORD CONFIRM FIRST NAME LAST NAME SECURITY QUESTION My first phone number ANSWER CUSTOM YUS'RE HUMAN 2+9= New Password Save the problem address. Submit Reset Already have an account? Call here to issue.

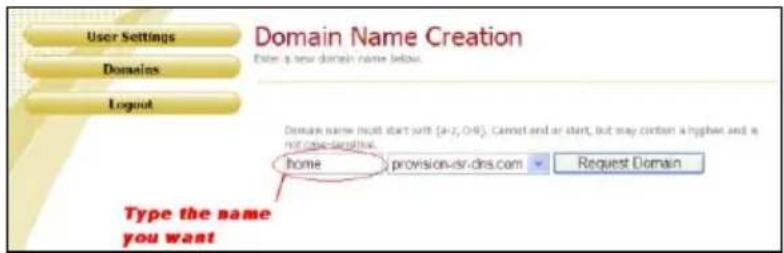

3) Fill in the host name you want to apply for and press "Request Domain" (for example "home")

User Settings Domains Logout Domain Name Creation Enter a new domain name below. Domain name insert start soft (a+2, 0-6). Cannot end or start, but may contain a higher and is not necessary. Home provision:sr.dns.com Request Domain Type the name you want

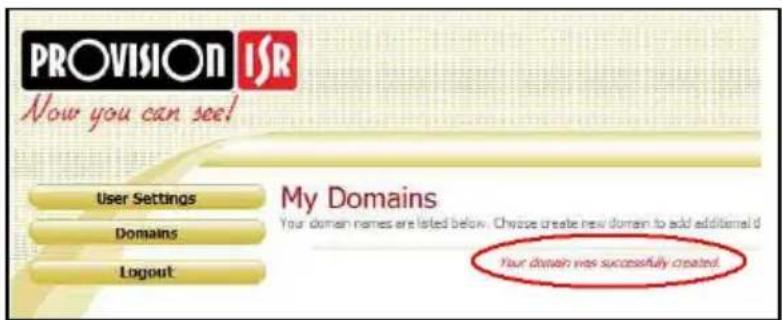

4) If there is no problem with the domain registration you will see the following message: "Your domain was successfully created."

If you do not see this message, the domain name you requested is already in use and you will be requested to provide an alternate domain name (please note: domain name is sometimes called host name).

You can create up to 35 domain records under a single account

PROVISION ISR Now you can see! User Settings Domains Logout My Domains Your domain names are listed below. Choose create new domain to add additional d Your domain was successfully created.

5) The domain name is added at the beginning of your DVR's address, for example the domain "home" will appear as home.provision-ISR-dns.com.

(b) Setting up your DVR to work with the DDNS server

1) The DDNS server will work only if the three steps are completed; (1) domain registration, (2) correct network configuration with correct preferred/alternate DNS servers, and (3) correct port forwarding configurations are set on the local network (your router).

Alarm Network Network Sub-stream Email Server P.T.Z Users Advanced Preferred DNS Server D10 . 000 . 000 . 138 Alternate DNS Server 006 . 008 . 008 . 008 PPPoE □ User Name Password DONS ☑ DONS Type mintdns DONS Server provision-isi-dns.com User Name [e-mail] Password ***** Host Domain home.provision-isi-dns.com DONS Update [Hours] 3 Test UPnP □ Apply Default

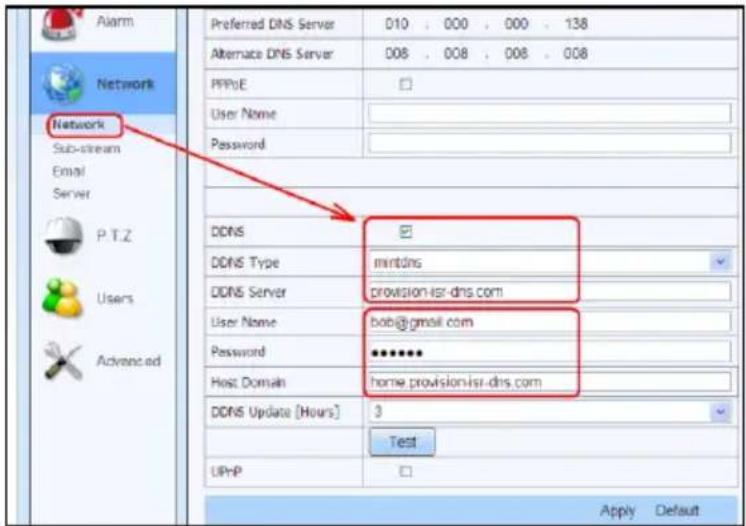

2) On the DVR Under Main menu => Settings => "Config" => "Network" set the correct DNS servers;

For example take a look at the correct settings on the figure below; the router's IP address is 10.0.0.138, the e-mail account registered is [e-mail], and the host domain registered is "home.provision-ISR-dns.com".

3) As shown on figure above: Check the "DDNS" check box, select "mintdns" for DDNS type, and fill in all the other fields. 4) Make sure you have the preferred & alternate DNS servers filled in (under the "Network" settings section): the preferred server should be the Internet gateway and the alternate server should be a different DNS server—for example one of Google's DNS servers (IP 8.8.8.8 or 8.8.4.4)
5) Click the "Test" button

a. If the test succeeds click the "Apply" button
b. If the test fails check all fields again or call the support helpline

6) Now you can access the DVR using the DDNS (http://home.provision-ISR-dns.com)

5.7 User Management Configuration

This tab allows you to add normal or advanced users. To add user and set up user authority:

Step 1: Enter into Menu→Setup→Users. Refer to Fig 5-27:

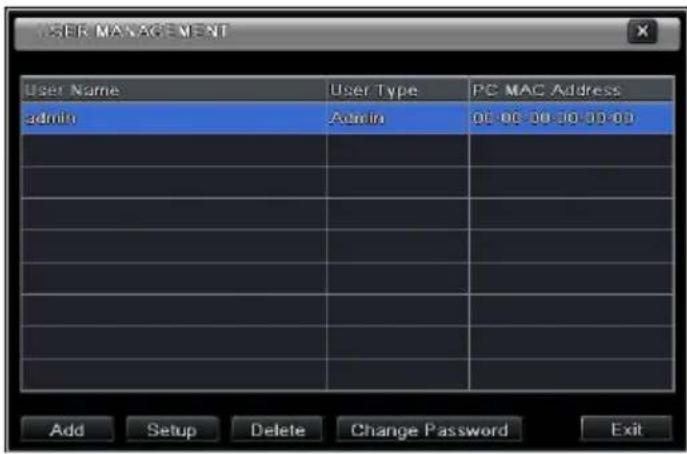

USER MANAGEMENT User Name User Type PC MAC Address admin Admin 00:00:00:00:00:00 Add Setup Delete Change Password Exit

Fig 5-27 User Management Configuration

Step 2: Click Add button to display a dialog box as Fig 5-28:

ADDRUSER General Authority User Name guest Password Confirm Password User Type Normal Binding PC MAC Address PC MAC Address 00-00-00-00-00-00 OK Exit

Fig 5-28 Add-General

Step 3: In General tab, input username, password and select user type. You can also check "Binding PC MAC Address" and input this address.

Step 4: Click "OK" to save the setting.

Note: When the default value of binding PC MAC Address is 0, the user is not bound with the specified computer. If the bind option is used, the user would be able to log into the NVR only through the specific computer (carrying the MAC address).

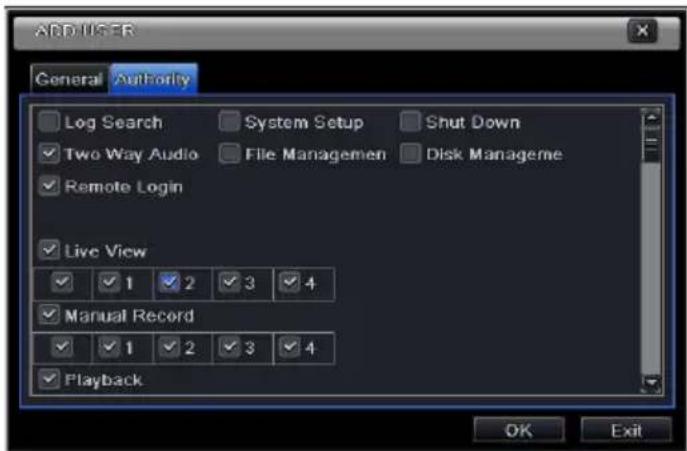

Step 5: Select Authority tab and then assign the operation rights for particular user. Refer to Fig 5-29.

Step 6: Click OK to save the setting.

ADD USER General Authority Log Search System Setup Shut Down Two Way Audio File Managemen Disk Manageme Remote Login Live View 1 2 3 4 Manual Record 1 2 3 4 Playback OK Exit

Fig 5-29 Add User-Authority

To delete user:

Step 1: Enter into Menu→Setup→Users interface.

Step 2: Select the added user you want to delete and then click "Delete" button.

To modify user:

Step 1: Enter into Menu→Setup→Users interface.

Step 2: Select the added user you want to modify and then click "Modify" button to do the relevant operation.

To change user password

Step 1: Enter into Menu→Setup→Users interface.

Step 2: Select the added user you want to change its password and then click "Change Password" button.

5.8 Advanced

Advanced configuration includes three submenus: reset, import/export and Block/Allow list.

5.8.1 Reset

Reset all settings the device will reboot.

5.8.2 Import/Export

User can export the data files into mobile storage devices as backup function, and then import specified data files from mobile storage device to NVR.

5.8.3 Block/Allow List

BLOCK TO LOW LIST Block List Allow List ID IP From To 1 000.000.000.000 000.000.000.000 2 000.000.000.000 000.000.000.000 3 000.000.000.000 000.000.000.000 4 000.000.000.000 000.000.000.000 5 000.000.000.000 000.000.000.000 6 000.000.000.000 000.000.000.000 7 000.000.000.000 000.000.000.000 8 000.000.000.000 000.000.000.000 9 000.000.000.000 000.000.000.00 Default Apply Exit

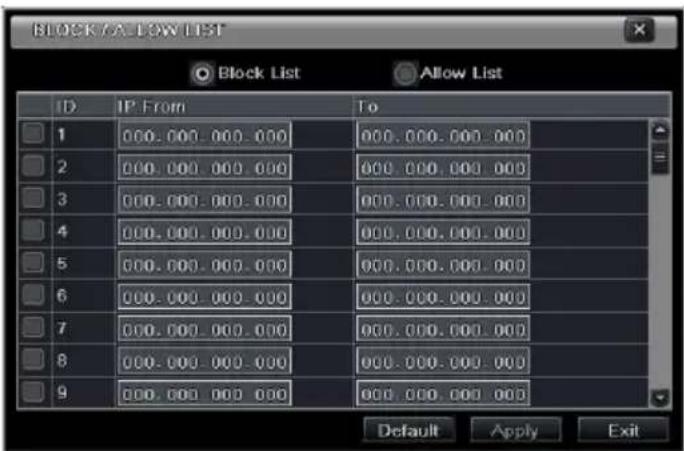

Fig 5-30 Block/Allow List

Here authorized user can prohibit computer users within a certain IP address range from accessing to NVR or allow computer users within a certain IP address range to access NVR. E.g. if an admin user doesn't want computer users within IP address range from 192.168.000.002 to 192.168.000.004 to access the NVR, he can check Block list option, and then input such IP address range.

6 Search, Playback & Backup

Search configuration includes four submenus: time search, event search, file management and image.

6.1 Time Search

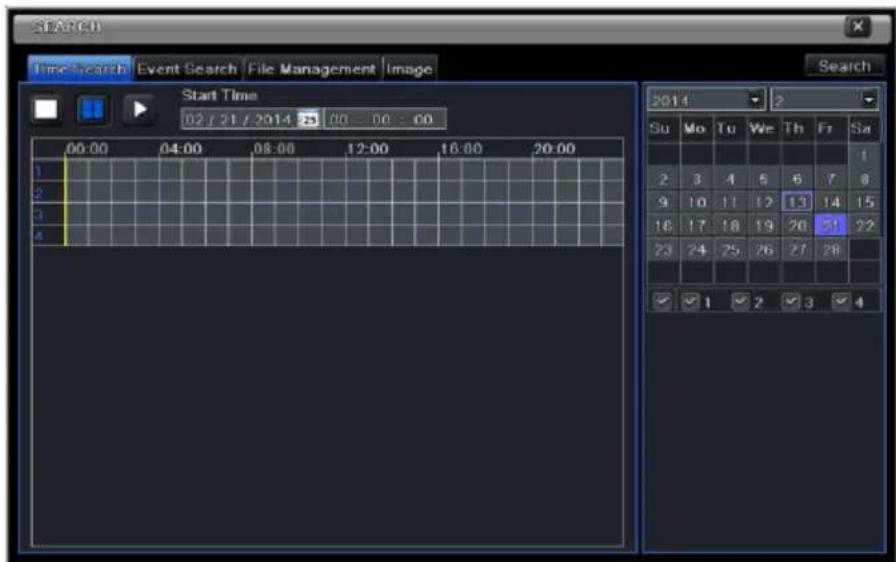

Step 1: Enter into Menu→Search→Time Search. Refer to Fig 6-1:

SEARCH Time Search Event Search File Management Image Start Time 02 / 21 / 2014 25 00 00 : 00 00:00 04:00 08:00 12:00 16:00 20:00 Su Mo Tu We Th Fr Sa 1 2 3 4 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 ✓ 1 ✓ 2 ✓ 3 ✓ 4

Fig 6-1 Search Configuration-Time Search

Step 2: Select date and channels on the right hand side and press the 'Search' button. A date with highlighted borderline indicates presence of data.

Step 3: Set the start time by clicking a particular grid or by entering the specific value in the start time field.

Step 4: Select the channel display mode and click Play button to play record. Use the playback toolbar to control the playback.

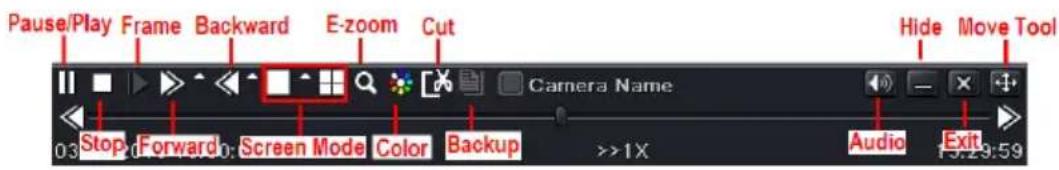

Pause/Play Frame Backward E-zoom Cut Hide Move Tool Camera Name Stop Forward Screen Mode Color Backup Audio Exit >>1X 19:59

6.2 Event Search

Step 1: Enter into Menu→Search→Event Search button. Refer to Fig 6-2:

Step 2: Select date and channels on the right hand side. A data with highlighted borderline indicates presence of data.

Step 3: Checkmark Motion, Sensor or All accordingly.

Step 4: Click Search button to display the searched event information in the event list box.

Step 5: Double check a certain record file to playback.

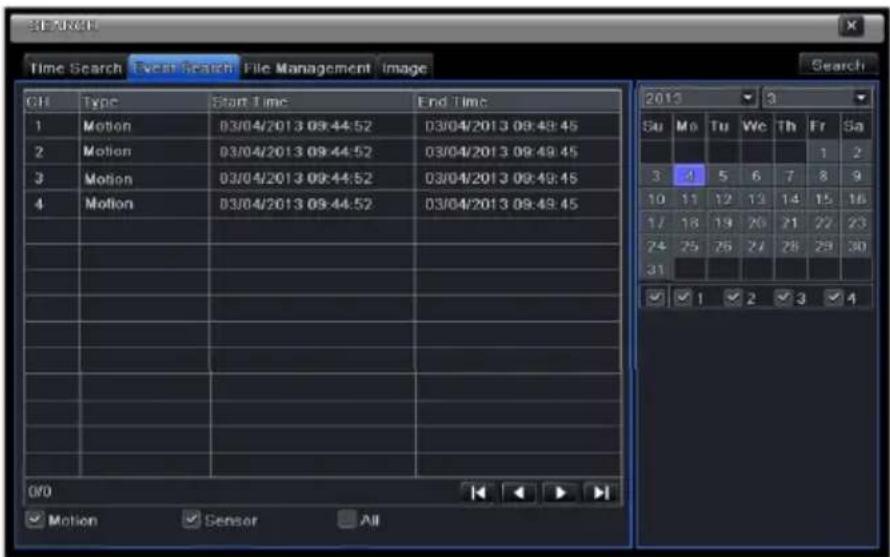

SEARCH Time Search Event Search File Management Image CH Type Start Time End Time 1 Motion 03/04/2013 09:44:52 03/04/2013 09:48:45 2 Motion 03/04/2013 09:44:52 03/04/2013 09:49:45 3 Motion 03/04/2013 09:44:52 03/04/2013 09:49:45 4 Motion 03/04/2013 09:44:52 03/04/2013 09:49:45 Su Mo Tu We Th Fr Sa 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 ✓ ✓ 1 ✓ 2 ✓ 3 ✓ 4 ✓ Motion ✓ Sensor All

Fig 6-2 Search Configuration-Event Search

6.3 File Management

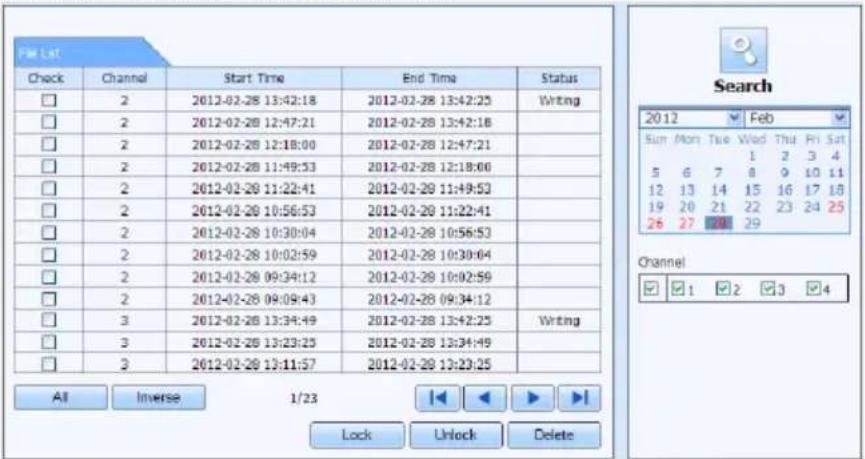

Step 1: Enter into Menu→Search→File Management interface. Refer to Fig 6-3:

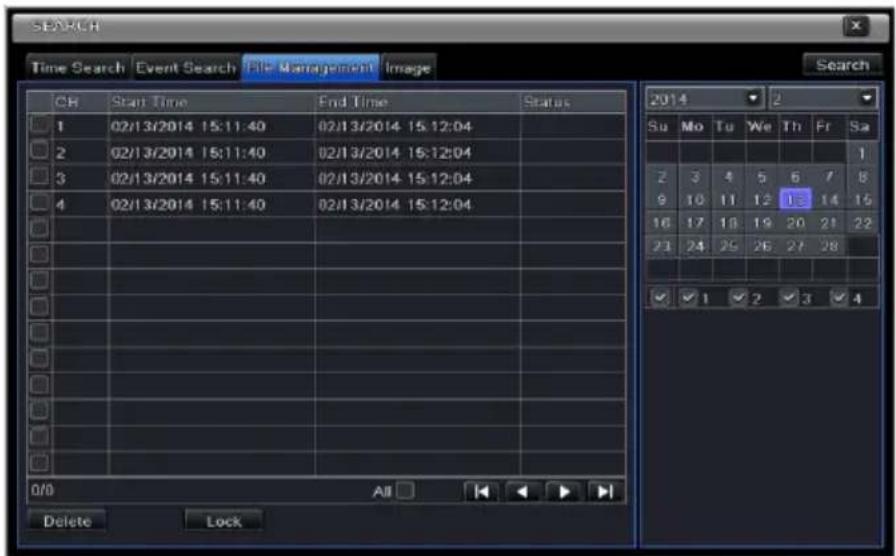

SEARCH Time Search Event Search File Management Image Search CH Start Time End Time Status 1 02/13/2014 15:11:40 02/13/2014 15:12:04 2 02/13/2014 15:11:40 02/13/2014 15:12:04 3 02/13/2014 15:11:40 02/13/2014 15:12:04 4 02/13/2014 15:11:40 02/13/2014 15:12:04 Su Mo Tu We Th Fr Sa Z 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 ✓ 1 ✓ 2 ✓ 3 ✓ 4 O/O All □ ▼ ▶ ▶ ▶ ▶ Delete Lock

Fig 6-3 Search Configuration-File Management

Step 2: Select date and channels. The date with highlighted borderline indicates presence of data.

Step 3: Click Search button to display the searched files in the file list box.

Step 4: Use "All" button to lock/unlock or delete all files in the file management column.

Step 5: Double click an unlocked item to play.

Lock: Select a file and click Lock button to lock this file, after that, that file will not be deleted or covered.

Unlock: Select a locked file and click "Lock" button to unlock this file

Delete: Select an unlocked file and click "Delete" button to delete this file.

6.4 Search by Image

Step 1: Enter into Menu → Search → Image tab.

Step 2: Select data and channels on the right hand side.

Step 3: Press "Search" button to search for a recorded image.

Step 4: Once an alarm image has been identified, the user can double click the image to play recording.

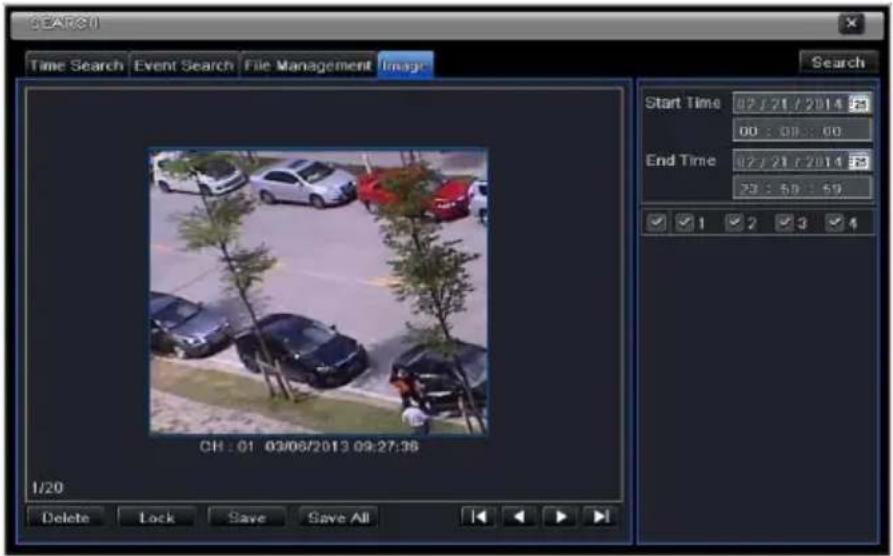

SEARCH Time Search Event Search File Management Image Search Start Time 02/21/2014 00:00:00 End Time 02/21/2014 23:59:59 1 2 3 4 CH : 01 09/08/2013 09:27:38 I/20 Delete Lock Save Save All

Fig 6-4 Search Configuration-Image

6.5 Backup

This unit supports backup by built-in SATA DVD Writer with USB Flash. You can also make backup by IE browser via internet (see section 8.3.2 Remote backup).

Step 1: Enter into backup configuration. Refer to Fig 6-5:

Step 2: Set the start & end time, select channels and click Search button to display the searched data in the data backup list box.

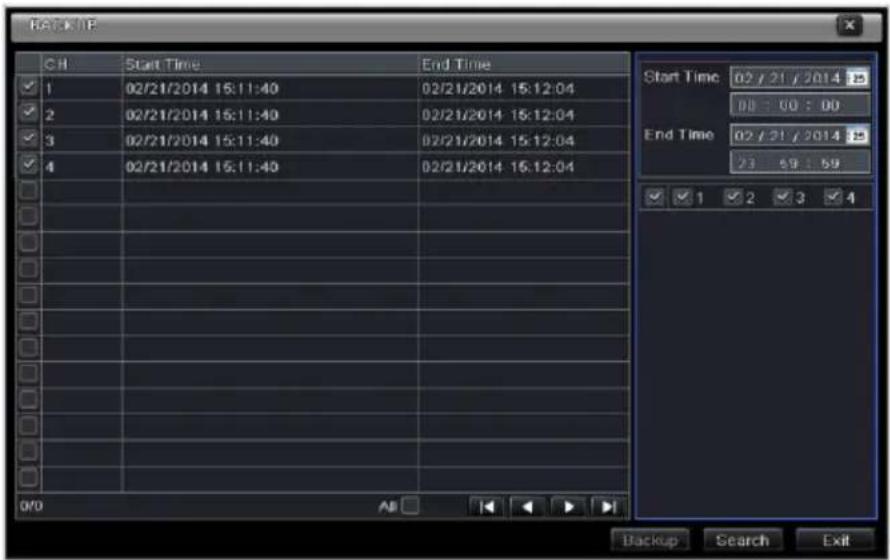

BACKUP CH Start Time End Time ✓ 1 02/21/2014 15:11:40 02/21/2014 15:12:04 ✓ 2 02/21/2014 15:11:40 02/21/2014 15:12:04 ✓ 3 02/21/2014 15:11:40 02/21/2014 15:12:04 ✓ 4 02/21/2014 15:11:40 02/21/2014 15:12:04 0/0 All Backup Search Exit Start Time 02 / 21 / 2014 End Time 08 : 00 : 00 02 / 21 / 2014 23 59 : 59 ✓ 1 ✓ 2 ✓ 3 ✓ 4

Fig 6-5 Backup Configuration

Step 3: Select a required file or checkmark "All" to select all data files. Click Backup button to display Backup information window.

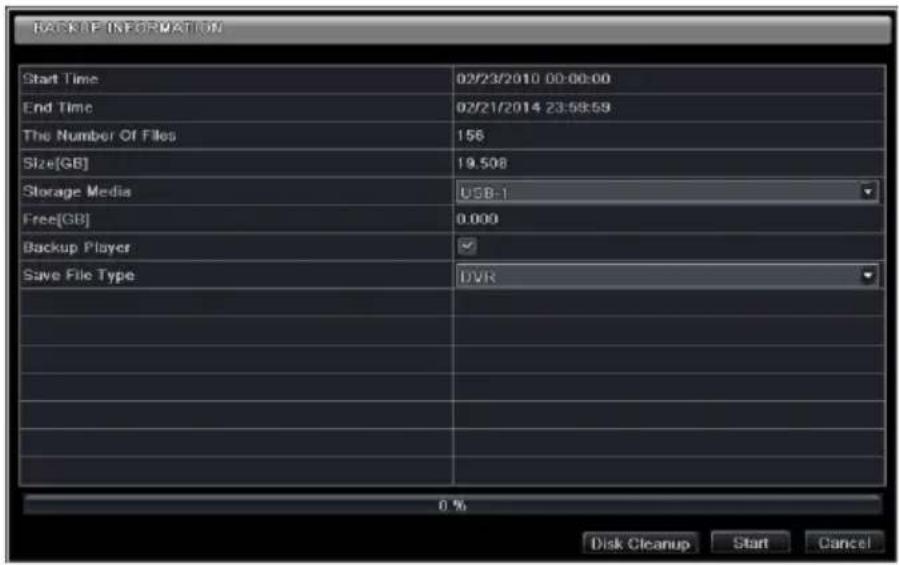

BACKUP INFORMATION Start Time 02/23/2010 00:00:00 End Time 02/21/2014 23:58:59 The Number Of Files 156 Size[GB] 19.508 Storage Media USB-1 Free[GB] 0.000 Backup Player Save File Type DVR Disk Cleanup Start Cancel

Step 4: In the backup information interface, you can check the relevant information of backup files, storage type, save file type, etc. Then click Start button to start backup.

Note: If the backup files are saved in DVR format, please check backup player. Only this player can play these files in DVR format. If the backup files are saved in AVI format, you can play these files with common media player.

7 Manage NVR

7.1 Check System Information

Check system information includes five submenus: system, event, log, network and online user.

7.1.1 System Information

In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc.

7.1.2 Event Information

In this tab, you can search for events like motion, sensor and video loss. The utility provides an interface to have a date based and a channel based search. This report can further be saved on a USB flash drive as an html file using the export button.

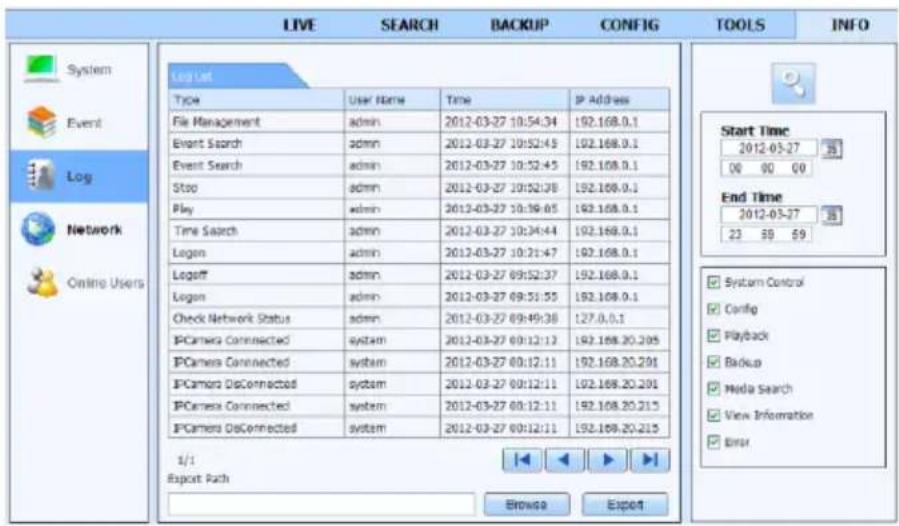

7.1.3 Log Information

In this tab, you can search for relevant logs as per the set date and event which includes operation, setup, playback, backup, search, check information and error. This report can further be saved on a USB flash drive as an html file using the export button.

7.1.4 Network Information

In this interface, you can check relevant parameters of network.

7.1.5 Online Information

In this tab, you can check the details of the connected online users.

Refresh: refresh the current interface.

Disconnect: Disconnect the online users to access NVR. If this function is used by the admin, the particular PC will not be able to access the device for five minutes.

7.1.6 Record Information

In this interface, you can check the resolution, ftp and record status including sensor alarm recording, motion recording, manual recording or schedule recording.

7.1.7 QRCODE

User can quickly access the mobile client by scanning QRCODE. Go to Main menu→Information→QRCODE tab. In this interface, you can scan the QRCODE through the mobile phone. Refer to Fig 6-2:

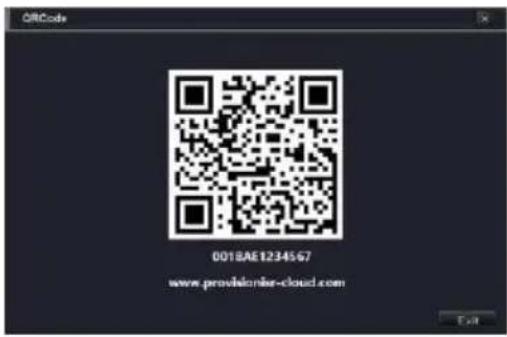

QRCode 0018AE 1234567 www.provisionair-cloud.com Exit

Fig 6-2 Information Configuration-QRCODE

7.2 Manual Alarm

In this interface, user can trigger a manual alarm.

7.3 Disk Management

1. Format the disk

Step1: Enter into disk management tab.

Note: please format the hard disk before recording. If not formatted, it will show the status of the disk-free space, and total space at the bottom of screen.

Step2: Click Refresh button to refresh the disk information in the list box.

Step3: Select a hard disk and click Format button to start format.

Note: All recorded files in the hard disk will be lost once it is formatted.

2. Advanced

User may check model, S/N, firmware, health status of the disk in this interface. User also can monitor the temperature, internal circuit, dielectric material of the disk, analysis the potential problems of the disk and warn so as to protect its data.

7.4 Upgrade

The NVR can be upgraded by using USB flash drive. Get the upgrading software from your vendor when there is a new software version.

Upgrade Steps:

Step 1: Copy the upgrade software which gets from vendor into the USB storage device.

Step 2: Connect the USB flash drive to the USB port.

Step 3: Enter Menu→Upgrade tab. Then the upgrade software name would be displayed in the upgrade list box.

Step 4: Select that software and then click upgrade button. It will upgrade automatically.

Note: Please wait for a while when the system reboots. Never cut off power during upgrading. The original configuration will be reserved after upgrade.

7.5 Logoff

Enter into Menu → Logoff tab. A log off dialogue box will pop up. The device will log off by clicking "OK" button. If you want to log in again, click Menu icon to enter into user name and password to re-login.

8 Remote Surveillance

8.1 IE Remote Surveillance by NAT

8.1.1 NAT Settings

① The DVR shall be powered on and connected to the network.
② Go to Main Menu→Setup→Network→Network. You can obtain the IP address, Subnet Mask and Gateway automatically. You can also manually input them according to the actual network situation. And the IP address shall be in the same network segment as the network which is used.
③ Set the preferred or alternative DNS Server (Please refer to 4.6.1 Network for details).
④ Go to Main Menu→Setup→Network→NAT tab.
⑤ Enable NAT and input the NAT Server (The default NAT Server is www.provisionisr-nat.com).
⑥ Click "Apply" to save the parameters (Please refer to 4.6.5 NAT for details).

8.1.2 NAT Access

After finishing the NAT settings, you can enter the NAT Server on the PC (Input http://www.provisionisr-cloud.com to go to the IE client). If you are the first time to access the NAT, the network will download the ActiveX automatically.

Note: If you cannot download and install ActiveX, please refer to FAQ Q7.

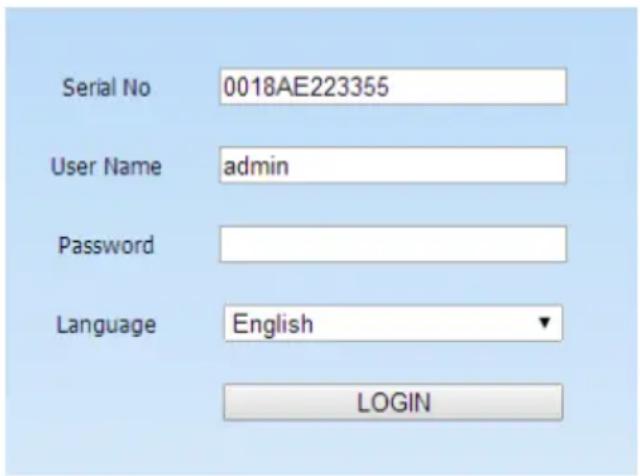

After installing ActiveX successfully, it will pop up the login box:

Serial No 0018AE223355 User Name admin Password Language English LOGIN

Serial No: The MAC address of the DVR (Go to Main Menu→Information→QRCODE to check the number below the QR code).

User Name: The login username of DVR. The default username is admin.

Password: The login password of DVR. The default password is 123456.

8.2 IE Remote Surveillance

In order to view the NVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done accordingly. Please refer to 5.6 Network Setup. This NVR supports IE browser, on Windows XP and Vista platform.

8.2.1 On LAN

Step 1: Enter into the NVR's Main Menu→Setup→Network tab to input IP address, Subnet Mask, etc. If using DHCP, please enable DHCP in both the NVR and the router.

Step 2: Enter Record Setup to set network video parameters like resolution, frame rate etc.

Step 3: Open IE on a computer on the same network. Input the IP address of the NVR in IE address bar and press enter.

Step 4: IE will download ActiveX component automatically. Enter the username and password in the subsequent window.

Notice: If HTTP port is not 80, other number instead, need add the port number after IP address. For example, set HTTP port as 82, need input IP address like 192.168.0.25:82.

User name and password here are the same with that used on the NVR. The default is admin and 123456.

8.2.2 On WAN

There are two ways for the NVR to connect to internet.

1. Connect the NVR to internet through router or virtual server

Step 1: Enter into the NVR's Main Menu→Setup→Network interface to input IP address, Subnet Mask, etc. If using DHCP, please enable DHCP in both the NVR and router.

Step 2: Forward IP address and port number in Virtual Server setup of the router or virtual server. Configure the firewall to allow accessing the NVR.

Note: Port forwarding settings may be different in different routers and server. Please refer to the router's manual for details.

Step 3: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after IP address or domain name.

Step 4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view.

Note: If you cannot download and install ActiveX, please refer to FAQ Q8.

1. Connect the NVR to internet through PPPoE directly.

Step 1: Enter into the NVR's Main Menu→Setup→Network interface to enable PPPoE and then input user name and password received from your ISP. Next, click 'Apply'. The NVR will connect to the server and would give a confirmation message.

Step 2: When accessing the remote interface of NVR, user can input WAN IP to access directly (user can enter into Main menu→Information→Network interface to check IP address).

Step 3: If users want to utilize dynamic domain name, please apply for a domain name in a DNS server supported by the NVR or router. Then add to the NVR.

Step 4: The following setting steps are as the same as Step3 and Step 4 in Point 1.

8.3 Remote Surveillance through Apple PC

Note: Because the current plug-in version of client end just only supports 32-bit mode, so the safari browser shall start 32-bit mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped.

The Setting steps are as follows:

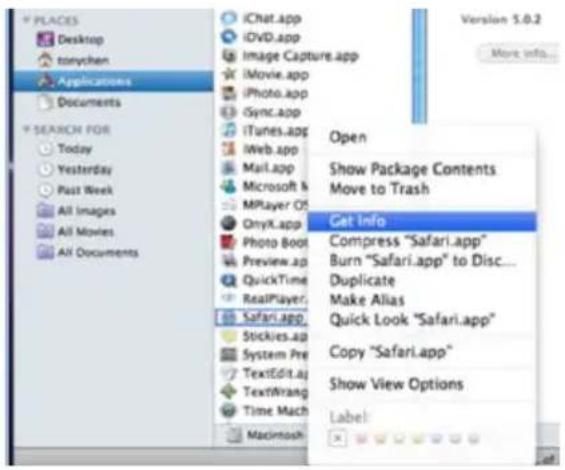

First: Right click safari icon and select "Show in Finder".

Options Open Remove from Dock Open at Login Show in Finder

Second: Select Applications→Right click "Safari. App"→Select "Get Info".

PLACES Desktop torychen Applications Documents SEARCH FOR Today Yesterday Past Week All Images All Movies All Documents iChat.app iDVD.app Image Capture.app iMovie.app iPhoto.app iSync.app iTunes.app Web.app Mail.app Microsoft K MPlayer OS Onyx.app Photo Boot Preview.app QuickTime RealPlayer Safari.app. Stickies.app System Pre TextEdit.app TextWrang Time Mach Macintosh Open Show Package Contents Move to Trash Get Info Compress "Safari.app" Burn "Safari.app" to Disc... Duplicate Make Alias Quick Look "Safari.app" Copy "Safari.app" Show View Options Label

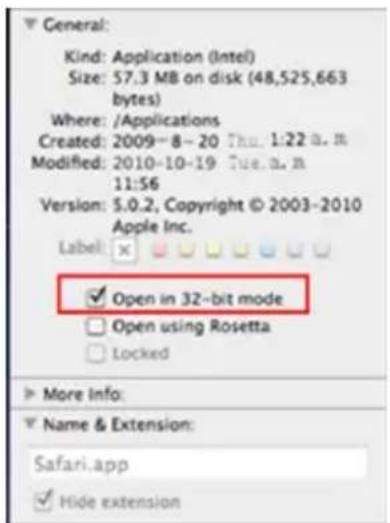

Third: Select "open in 32-bit mode".

General: Kind: Application (Intel) Size: 57.3 MB on disk (48,525,663 bytes) Where: /Applications Created: 2009-8-20 Thu. 1:22 a. m Modified: 2010-10-19 Tue. a. n 11:56 Version: 5.0.2, Copyright © 2003-2010 Apple Inc. Label: Open in 32-bit mode Open using Rosetta Locked More Info: Name & Extension: Safari.app Hide extension

8.3.1 On LAN

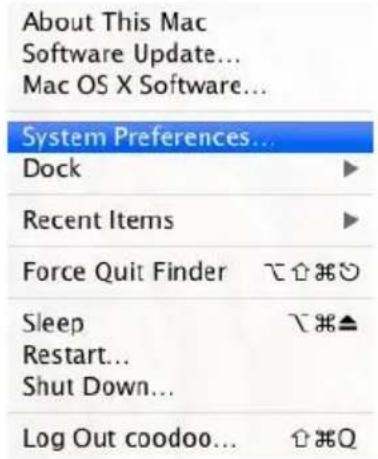

Step 1: After starting Apple computer, click Apple icon. The following window will pop up. Please select "System Preferences"→"Internet & Wireless"→click "Network".

About This Mac Software Update... Mac OS X Software... System Preferences... Dock Recent Items Force Quit Finder Sleep Restart... Shut Down... Log Out coodoo...

Step 2: Enter into Network interface and then click "Ethernet Connected" to check the internet connection of Apple PC.

Status: Connected Ethernet is currently active and has the IP address XXX. XXX. XXX. XXX Configure IPv4: Manually IP Address: XXX. XXX. XXX. XXX Subnet Mask: XXX. XXX. XXX. XXX Router: XXX. XXX. XXX. XXX DNS Server: XXX. XXX. XXX. XXX Search Domains: Advanced... Other changes. Assist me... Revert Apply

Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the NVR's Main Menu→Setup→Network interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC. The network segment should be the same as the PC. If using DHCP, please enable DHCP in the NVR and router.

Step 4: After finishing the above information, users can enter LAN IP and http port in the Safari browser. For example: input http://192.168.1.100:81(here 192.168.1.100 is LAN IP of NVR, 81 is the http port of NVR). Click "button, the browser will download Active X control as shown below:

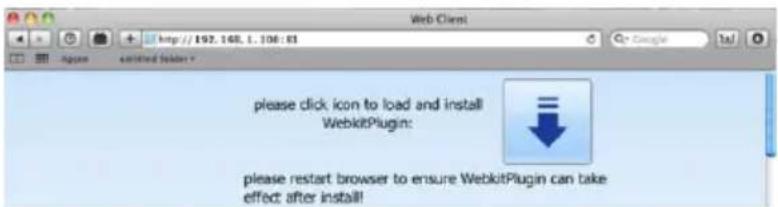

please click icon to load and install WebkitPlugin: please restart browser to ensure WebkitPlugin can take effect: after install!

Step 5: Click icon and then select the Active X control, the welcome interface will be shown. Click "Continue"→ "Install" button, the following window will pop up :

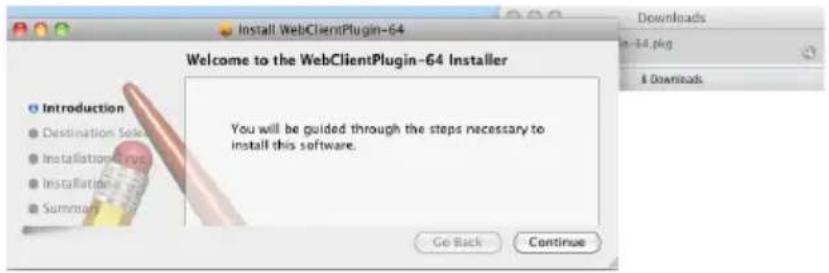

Install WebClientPlugin-64 Welcome to the WebClientPlugin-64 Installer Introduction Destination Selection Installation Tools Installation Tools Summary Tools You will be guided through the steps necessary to install this software. Go Back Continue

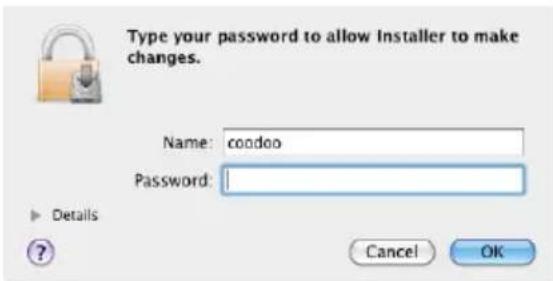

Type your password to allow installer to make changes. Name: coodoo Password: Details Cancel OK

Input the name and password of Apple PC and then click "OK" to install this Active X control.

Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click Safari icon on the desktop and select "Quit" button to quit the browser. Then restart Safari browser. Input the IP address and http port to enter the login interface of NVR.

8.3.2 On WAN

There are also two ways for NVR to connect to Internet.

1. Connect the NVR to internet through router or virtual server.

Step 1: The network setups are the same as step one to step four of point 1 on WAN of IE remote surveillance.

Step 2: Enter WAN IP and http port in the Safari browser to install the Active control. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view.

1. Connect the NVR to internet directly.

Step 1: The network setups are the same as step one of point 2 on WAN of IE remote surveillance.

Step 2: Enter WAN IP and http port or domain name in the Safari browser to install the Active control. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view.

8.4 Remote Preview

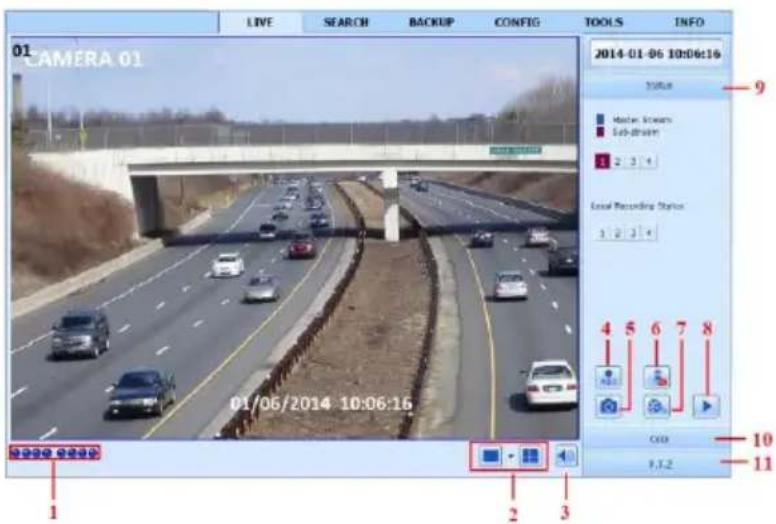

01 CAMERA 01 01/06/2014 10:06:16 LIVE SEARCH BACKUP CONFIG TOOLS INFO 2014-01-06 10:06:16 Status Master Streams Sub-drawn Local Recording Status 1 2 3 4 4 5 6 7 8 10 11 1 2 3

Fig 8-1 Remote Live Preview

Symbol and function Definitions:

1	Channel indicator	2	Screen display mode	3	Volume
4	Start IE record	5	Snap	6	Start talking
7	Start recording	8	Playback	9	Master/sub stream status
10	Color	11	P.T.Z control

Note: Click REC button to record manual and the record file will be saved in user's PC.

Screen display mode:

Snap pictures

The system will automatically capture pictures and save those pictures in the computer by clicking "Snap"

icon,

User should set up the path for those pictures in the Configuration→Local configuration.

Color adjustment:

Drag the slide bar to adjust Brightness, Contrast, Hue, and Saturation. Click Default to reset them to original value.

Buttons		Description
		Drag the scroll bar to adjust the brightness of channel
		Drag the scroll bar to adjust the contrast of channel
		Drag the scroll bar to adjust the saturation of channel
		Drag the scroll bar to adjust the hue of channel
		Click this button to recover the default value of brightness, contrast, saturation and hue.
		Save the adjustment

PTZ control

Please connect speed dome to the device via RS485 firstly, make sure the protocol of the speed dome is supported by the device and set the relative parameters manually. User can control the dome up, down, right, left or stop rotating on Control Center, adjust rotation speed, Iris and zoom, focus on the dome, and set the presets, etc.

Buttons definition:

Buttons	Description
	to rotate the dome upwards. to rotate the dome diagonally up-left.to rotate the dome diagonally up-right to rotate the dome downwards.to rotate the dome diagonally down-right to rotate the dome diagonally down-left to rotate the dome towards left. to rotate the dome towards right to stop rotating the dome.
	Drag the scroll bar to adjust rotating speed of the dome.
	'Iris' button. Click button near 'Iris' button to increase light of the dome.Click button near 'Iris' button to decrease light of the dome.
	'Zoom' button. Click button near 'Zoom' button to zoom in the locale picture of this camera. Click button near 'Zoom' button to zoom out the locale picture of this camera.
	'Focus' button. Click button near 'Focus' button to have long focus. Click button near 'Focus' button to have short focus.
	Go to the Preset
	Select and do auto cruise
	Track
	Auto scan
	Wiper button
	Light button

Right-Key Menu

Click the right mouse on the live interface to display a pull-down menu as below.

Stream: The NVR supports master stream and sub stream. Master stream has higher frame rate, max 25fps (PAL)/30fps (NTSC) for every channel, but it needs higher network bandwidth; second stream has low frame rate, max 6fps (PAL)/7fps (NTSC) for every channel, but it requires low network bandwidth as compared to the master stream. Therefore, users can select the stream according to their bandwidth.

Master Stream ● Sub-stream All to Sub-stream Enable Audio Full Screen zoom in

Fig 8-2 Right Key Sub Menu

All to sub stream: Set all channel to master stream or sub stream.

Enable audio: Enable or disenable audio.

Full screen: The live preview picture will display in full screen and the tool bar will be hidden; double click left or click right mouse to return.

Zoom in: Single channel large screen electronic amplification. Click the channel which needs to be zoomed. Right click to select zoom in button to zoom in the image. Double click or right click to exit.

8.5 Remote Playback & Backup

8.5.1 Remote Playback

Click button to enter into record playback interface. Refer to Fig 8-3:

Select the record date and channels and double-click the file name in the record file list box. Then user can play that file and preview the picture.

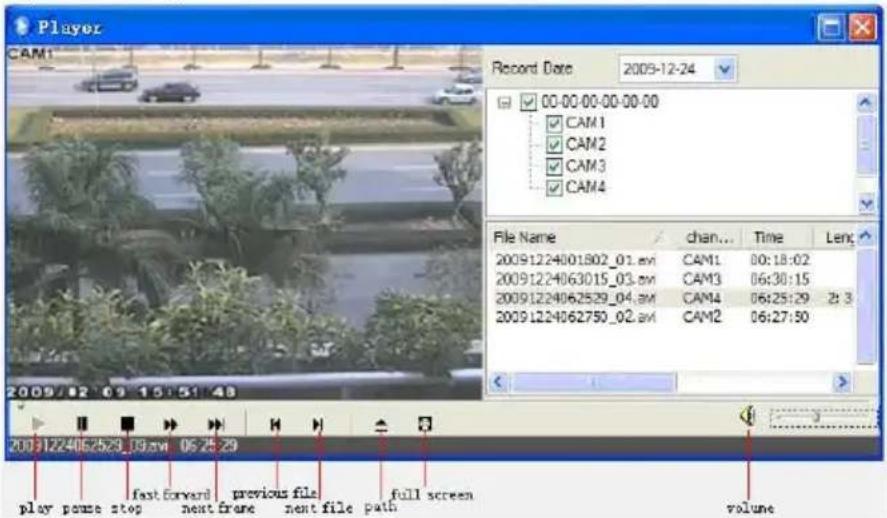

Player CAM1 Record Date 2003-12-24 00:00:00:00:00:00 CAM1 CAM2 CAM3 CAM4 File Name chan... Time Leng 20091224001802_01.avi CAM1 00:18:02 20091224063015_03.avi CAM3 06:30:15 20091224062529_04.avi CAM4 06:25:29 2:3 20091224062750_02.avi CAM2 06:27:50 20091224062529_09.avi 05:25:29 play pause stop fastForward previous file full screen volume

Fig 8-3 Record File Interface

This NVR supports remote time search, event search and file management.

By Time Search:

Step1: Enter into Search→Time search. Refer to Fig 8-4:

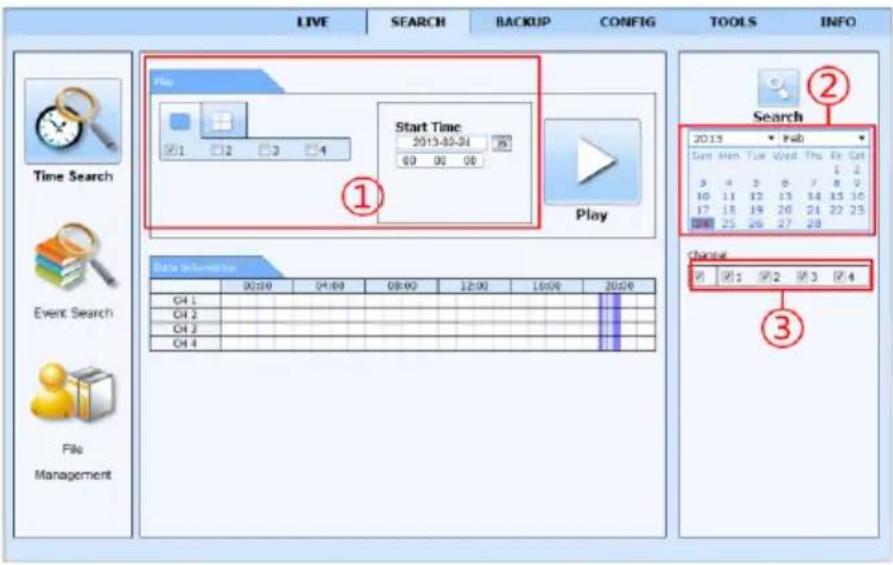

LIVE SEARCH BACKUP CONFIG TOOLS INFO Time Search Event Search File Management Play Start Time 2013-02-24 25 60 00 08 Play Search 2013 Fab Sam Mon Tue Wed Thu Fri Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 28 chancel 0 1 2 3 4 04 1 04 2 04 3 04 4

Fig 8-4 Time Search Interface

Step2: The highlight date in the area② indicates recorded data. Select the date in the area ② and record channels in area③.

Step3: Click "Search" button. The record data will be displayed in the data information list box.

Step 4: Set the Start time and display mode in the area① as required.

Step 5: Click "play" button to playback.

Step 6: Click the relevant buttons in the interface for operation, like FF, pause, change channel mode, research, etc. Please refer to Fig 8-5:

01 LIVE SEARCH BACKUP CONFIG TOOLS INFO Choose Channels Start Time 2012-03-14 03 00 03 Start Time Play Play Process Pause Forward Next Frame-Next Section - Volume [90:00:00 -- 90:00:00] 2012-03-14 00:00:04 Playback Backward Stop Previous Section Full Screen Snap Picture Exit

Fig 8-5 Time Search Playback

By Event Search:

Step1: Enter into Search→Event Search. Refer to Fig 8-6:

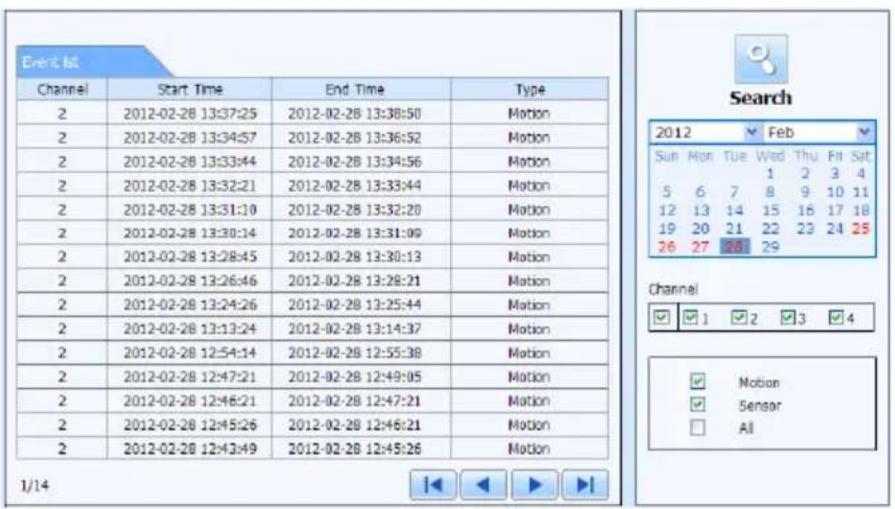

Event list Channel Start Time End Time Type 2 2012-02-28 13:37:25 2012-02-28 13:38:50 Motion 2 2012-02-28 13:34:57 2012-02-28 13:36:52 Motion 2 2012-02-28 13:33:44 2012-02-28 13:34:56 Motion 2 2012-02-28 13:32:21 2012-02-28 13:33:44 Motion 2 2012-02-28 13:31:19 2012-02-28 13:32:20 Motion 2 2012-02-28 13:30:14 2012-02-28 13:31:09 Motion 2 2012-02-28 13:28:45 2012-02-28 13:30:13 Motion 2 2012-02-28 13:26:46 2012-02-28 13:28:21 Motion 2 2012-02-28 13:24:26 2012-02-28 13:25:44 Motion 2 2012-02-28 13:13:24 2012-02-28 13:14:37 Motion 2 2012-02-28 12:54:14 2012-02-28 12:55:38 Motion 2 2012-02-28 12:47:21 Motion 2 2012-02-28 12:49:05 Motion 2 2012-02-28 12:47:21 Motion 2 2012-02-28 12:45:26 Motion 2 2012-02-28 12:46:21 Motion In 1/14

Fig 8-6 Event Search Interface

Step 2: Click the highlight date and select record channels.

Step 3: Checkmark the event type: motion and sensor.

Step 4: The events will be displayed in the event list box by clicking Search button.

Step 5: Double-click certain item to playback.

File Management

Step 1: Enter into Search→File management. Refer to Fig 8-7:

Step 2: Select highlighted date and channels.

Step 3: Click "Search" button to search the recorded files.

File List Check Channel Start Time End Time Status 2 2012-02-28 13:42:18 2012-02-28 13:42:25 Writing 2 2012-02-28 12:47:21 2012-02-28 13:42:18 2 2012-02-28 12:18:00 2012-02-28 12:47:21 2 2012-02-28 11:49:33 2012-02-28 12:18:00 2 2012-02-28 11:22:41 2012-02-28 11:49:53 2 2012-02-28 10:56:53 2012-02-28 11:22:41 2 2012-02-28 10:30:04 2012-02-28 10:56:53 2 2012-02-28 10:02:59 2012-02-28 10:30:04 2 2012-02-28 09:34:12 2012-02-28 10:02:59 2 2012-02-28 09:09:43 2012-02-28 09:34:12 3 2012-02-28 13:34:49 2012-02-28 13:42:25 Writing 3 2012-02-28 13:23:25 2012-02-28 13:34:49 3 2012-02-28 13:11:57 2012-02-28 13:23:25 All Inverse 1/23 Lock Unlock Delete Search Sun Mon Tue Wed Thu Fri Sat 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 Channel ✓ ☑ 1 ✓ ☑ 2 ✓ ☑ 3 ✓ ☑ Lock Unlock Delete

Fig 8-7 File Management Interface

Lock: Select certain file item in the file list box and then click "Lock" button to lock this file that can not be deleted or overlaid.

Unlock: Select a locked file and then click "Unlock" button to unlock this file.

Delete: Select an unlock file and then click "Delete" button to delete this file from file list.

Click Backup button to enter into backup interface. Refer to Fig 8-8:

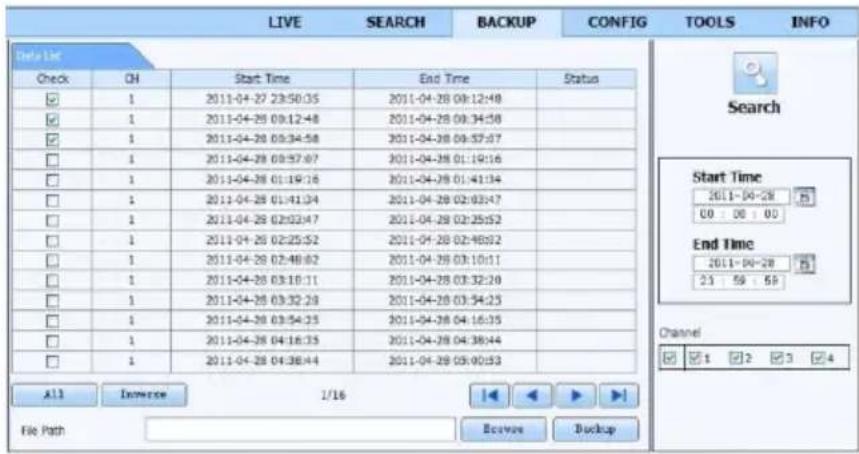

LIVE SEARCH BACKUP CONFIG TOOLS INFO Data List Check CH Start Time End Time Status ✓ 1 2011-04-27 23:50:35 2011-04-28 09:12:48 ✓ 1 2011-04-28 09:12:48 2011-04-28 09:34:58 ✓ 1 2011-04-28 09:34:58 2011-04-28 09:57:67 □ 1 2011-04-28 09:57:67 2011-04-28 01:19:16 □ 1 2011-04-28 01:19:16 2011-04-28 01:41:34 □ 1 2011-04-28 01:41:34 2011-04-28 02:03:47 □ 1 2011-04-28 02:03:47 2011-04-28 02:25:52 □ 1 2011-04-28 02:25:52 2011-04-28 02:46:52 □ 1 2011-04-28 02:46:52 2011-04-28 03:10:11 □ 1 2011-04-28 03:10:11 2011-04-28 03:32:26 □ 1 2011-04-28 03:32:26 2011-04-28 03:54:25 □ 1 2011-04-28 03:54:25 2011-04-28 04:16:35 □ 1 2011-04-28 04:16:35 2011-04-28 04:38:44 □ 1 2011-04-28 04:38:44 2011-04-28 05:00:53 All Inverse I/16 File Path Browse Backup Search Start Time 2011-04-28 00 : 06 : 00 End Time 2011-04-28 23 : 59 : 59 Channel ✓ 1 ✓ 2 ✓ 3 ✓ 4

Fig 8-8 Remote Backup Interface

Step 1: Select channels, set the start and end time and then click "Search" button to display the file information in the file list box
Step 2: Select backup files and click "Browse" button to set the path. Then click "Backup" button to start backup. The backup files will be saved on user's PC.

8.6 Remote System Configuration

You can do remote setup of the device which includes functions like basic configuration, live configuration, record configuration, schedule configuration, alarm configuration, network configuration and user configuration. You should select an option from the menu list on the left and then set up the relative parameters. Only one user can do configuration setup at a given point of time. Click Config tab to enter into the below interface as Fig 8-9:

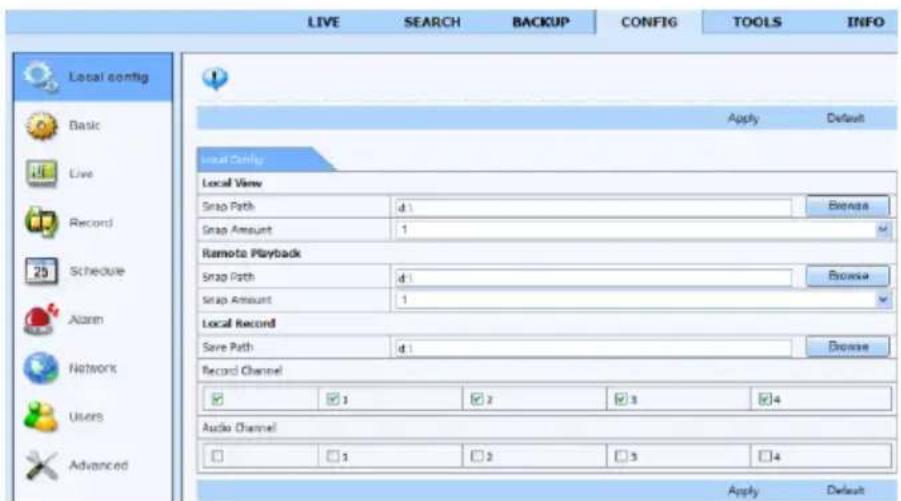

LIVE SEARCH BACKUP CONFIG TOOLS INFO Local config Basic Live Record Schedule Alstren Networks Users Advanced Apply Default Local View Snap Path d: Snap Amount 1 Remote Playback Snap Path d: Snap Amount 1 Local Record Save Path d: Record Channel ✓ 1 ✓ 2 ✓ 3 ✓ 4 Audio Channel ☐ 1 ☐ 2 ☐ 3 ☐ 4 Apply Default

Fig 8-9 Remote System Configuration

The sub menu list and the options in every menu are similar to that of the NVR. Please refer to Main Menu Setup Guide for more details.

8.7 Tools

Click on tool's tab to access DVR management tool. You can trigger alarms manually (If the device supports this feature), view the status of the HDD, change/view the read/write properties, format the HDD remotely and update the NVR remotely using TAR update files.

8.8 Remote Information

The Info tab provides a web based interface to access the general information pertaining to the NVR's settings. It includes five submenus: System, Event, Log, Network and Online users. The sub menu list and the options in every menu are similar to that of the NVR. Please refer to system information for more details.

LIVE SEARCH BACKUP CONFIG TOOLS INFO System Event Log Network Online Users Log List Type User Name Time IP Address File Management admin 2012-03-27 10:54:34 192.168.0.1 Event Search admin 2012-03-27 10:52:45 192.168.0.1 Event Search admin 2012-03-27 10:52:45 192.168.0.1 Stop admin 2012-03-27 10:52:38 192.168.0.1 Play admin 2012-03-27 10:39:05 192.168.0.1 Time Search admin 2012-03-27 10:34:44 192.168.0.1 Logan admin 2012-03-27 10:21:47 192.168.0.1 Logoff admin 2012-03-27 09:52:37 192.168.0.1 Logan admin 2012-03-27 09:51:55 192.168.0.1 Check Network Status admin 2012-03-27 09:49:38 127.0.0.1 IPCamera Connected system 2012-03-27 09:12:12 192.168.20.295 IPCamera Connected system 2012-03-27 09:12:11 192.168.20.291 IPCamera DisConnected system 2012-03-27 09:12:11 192.168.20.291 IPCamera Connected system 2012-03-27 09:12:11 192.168.20.215 IPCamera DisConnected system 2012-03-27 09:12:11 192.168.20.215 1/1 Export Path Browse Export Start Time 2012-03-27 B End Time 2012-03-27 B System Control Config Playback Backup Media Search View Information Error

Fig 8-10 Remote Information Search

Note: There may be slight differences with respect to functions of remote surveillance between through IE and through Apple PC. Here we only take IE remote access for example.

8.9 By Devices with iOS

• Install through iPhone.

Step 1: Open App Store software as shown in the figure on the left.

Step2: Search "Provision Cam" and click "Get" button as shown in the figure on the right.

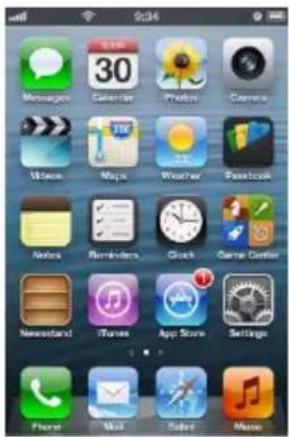

30 Message Calendar Photo Camera Video Maps Weather Passbook Mabs Reminders Clock Game Directs Newsstand iTunes App Store Settings Phone Mail Sable Music

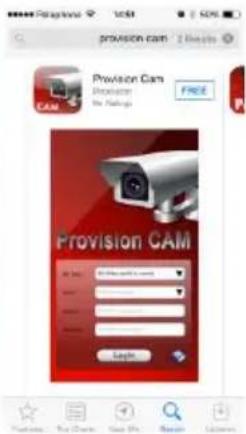

Provision Cam CAM Provision Cam Provision Cam No. Settings FREE Provision CAM No. No. No. No. No. No. Login

Step 3: Click "Install App" button as shown in the figure on the left.

Step 4: Input iTunes Store password and then click "OK". The software will be installed automatically.

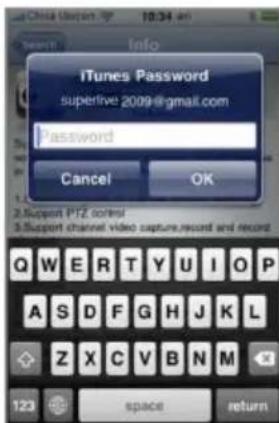

iTunes Password superlive [e-mail] Password Cancel OK 2 Support PIZ control 3 Support channel video capture, record and record Q W E R T Y Y J O P A S D F G H J K L Z X C V B N M 123 space return

Screenshot of a mobile app interface showing status bar, notification icons, and status bar with time and number.

• Install Software through PC

Step 1: Install iTunes store in PC and then login.

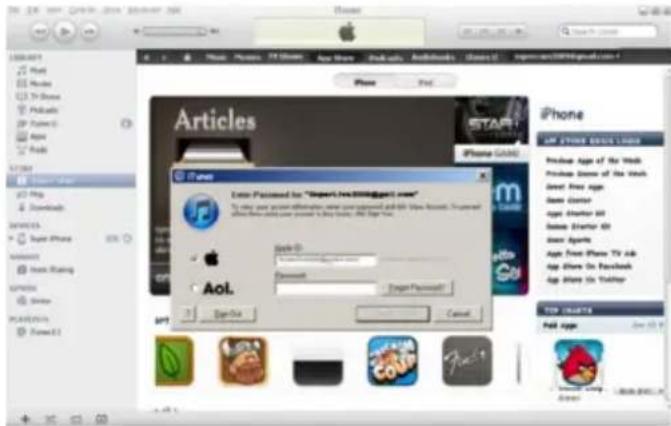

Articles Extra Password for "Super1.2x1000000000000000" To play your personal information, you can password add to 80% (see Section 3). You must please then call your account to a copy file, then press any other. Aol. Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password Google Password GPT Download Cancel TDP CONTENTS Full Image

Step 2: Connect iPhone and PC.

Step 3: Search "Provision Cam" and select it.

Step 4: Click "Download" button.

Step 5: Input username and password.

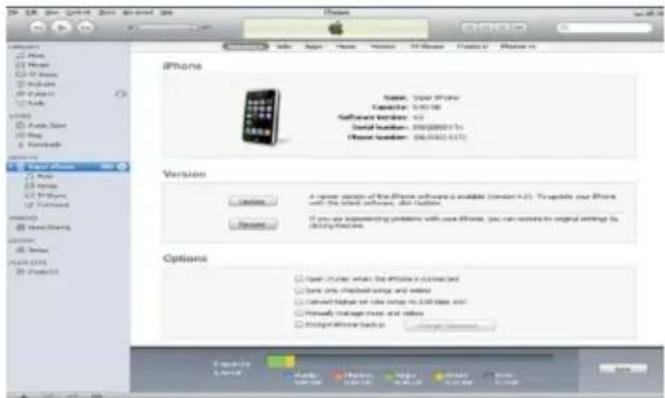

Step 6: Synchronously apply "Provision Cam" software to iPhone/iPad.

iPhone Name: Your iPhone Version: A new version of the iPhone software is available (version 4.2). To update your iPhone with the brand software, did not. If you are experiencing problems with your iPhone, you can write in original settings to any other device. Options Open button when the iPhone is connected Bone into checked songs and slides Cased higher set circle using No.10000 files Automated mode and video Design/Model buttons

- "Provision Cam" Instruction

1. Login

Step 1: Choose network type. There are two network connection ways: 3G/3G +WIFI, well video quality. This network supports main stream and sub stream. The real-time image will be displayed by using sub stream. 3G-, poor video quality contrast to the above mentioned network.

Step 2: Input server, account and password.

Server: Option 1 (available only if NAT P2P server is enabled, please refer to section 5.6.4): Click on the small QR code icon in the bottom of the login

screen then snap the QR code from the sticker on the DVR or from the DVR interface (Menu → Information → QRCODE).

Server, Option 2: WAN IP address (or domain name) plus HTTP port of the device. For example: 210.21.183:89 or 123.dvrdydns.com:89. Note: The default http port of the device is 80. If this port is modified, please use the modified port.

Account and Password: The login account and password of the device. The default account is admin and the default password is 123456.

Step 3: Click 【Login】 button to access the device.

2. Main Interface

There are many buttons in the main interface, such as, screen mode, favorite channel, snap, record, open/close audio, talk, PTZ., etc.

: Image view button. The pictures snapped in the live will beed by clicking this button.

: Playback button. Click this button to enter into playback

interface.

: Settings button. Click this button to set local configuration (Some so support remote configuration).

Information button. Click this button to check lots of informationing local information, device information, network information, etc

: Server list button. Click this button to add server list.

: Help button. Help you know about the use of this software quickly.

: CMS button. Make you preview the live image of multi-devices.

: Log off button. Click this button to return to the login interface.

:Screen mode button. You can choose 1,4,6,8,9,13 or 16 screen

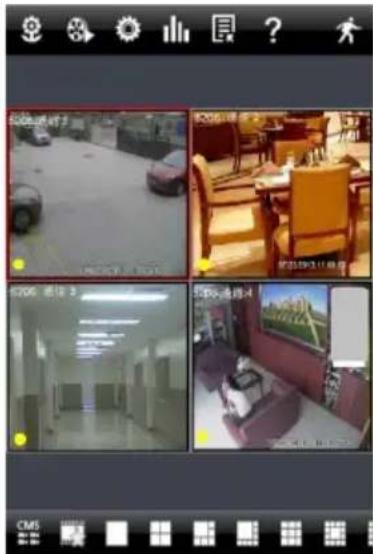

Provision CAM Net Type: 3G/3G+/WPI/Video quality is better ID: (File Management) Account: admin Resource: ***** Login

Screenshot of a surveillance camera interface displaying four surveillance feeds with Chinese labels and UI elements.

display mode.

: Favorite channel display button. If you save your favorite channel in the favorite server list, clicking this button will directly play all favorite channels you have saved.

: Open/Close audio. Choose the channel and click this button to open/close the audio of this channel.

: Open/Close talk. Click this button to pop up the servers which support talk function. Select the device to start talking.

: Set video parameter button. Select the channel and click this button to set the video parameters including brightness, hue, saturation and contrast.

: PTZ button. Click this button to pop up PTZ control panel.

: Choose bitrate priority or quality priority according to your network

Channel indicator instruction:

: Video loss

: Schedule recording

: Others

: Sensor alarm

: Motion alarm

: Motion /sensor alarm based recording or manual recording

3. Server list

Click 📄 on to pop up the following picture.

➢ Add device: Click "Add" button in the top right corner to pop up a dialog box as shown in the following left picture. Input the relative information of the device and click "Save" button.

➢ Delete device: Click ✗ button behind the device name to delete this device.

Edit device: Click button behind

the device name to edit the information of this device.

Backup & restore: It is recommended to click "Backup" button to reserve the information of all devices. Then you can click "Restore" button to restore all device information after you re-install the client or reset the device.

indicates the device has been connected;

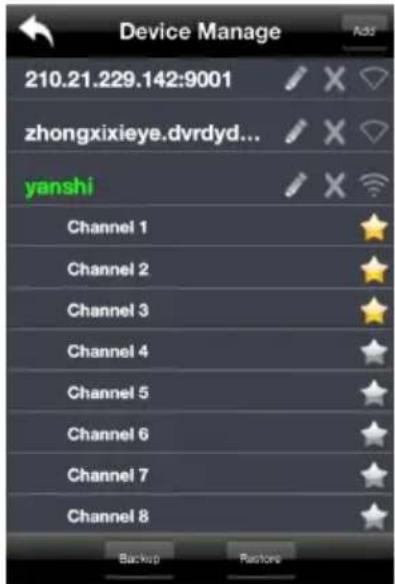

Device Manage 210.21.229.142:9001 zhongxixieye.dvrdyd... yanshi Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Backup Restore

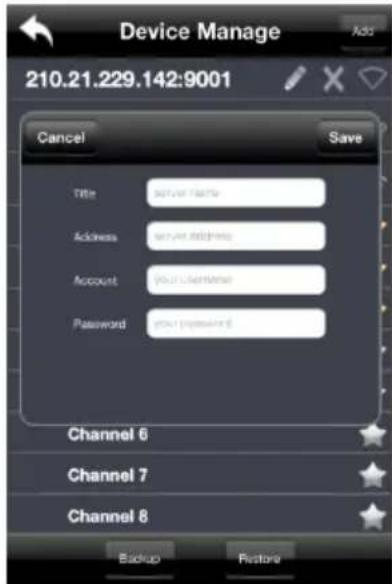

Device Manage 210.21.229.142:9001 Cancel Save Title server Name Address server address Account your ClientName Password gyour password Channel 6 Channel 7 Channel 8 Backup Restore

indicates the device is connecting; indicates the device is not connected.

1. Live Preview

Once you access the device, the system will automatically display the screen mode in accordance with the channel number of the device

Note: The maximum number of channels which can be connected are nine after login.

1. Click "Screen mode" button to select channel as shown in Fig 1.
2. When there is video playing in a screen, you can switch the channel by long pressing the screen as shown in Fig 2.
3. When no video is playing in a screen, click this screen to choose channel as shown in Fig3.
4. When the single channel is playing, you can zoom in/out the image by swiping you finger up and down as shown in Fig 4.
5. When the single channel is playing, the channel can be switched by swiping your finger left or right as shown in Fig 5.
6. When multi channels are playing, drag one channel screen to the other channel screen. This will make these two channels change the position of each other.

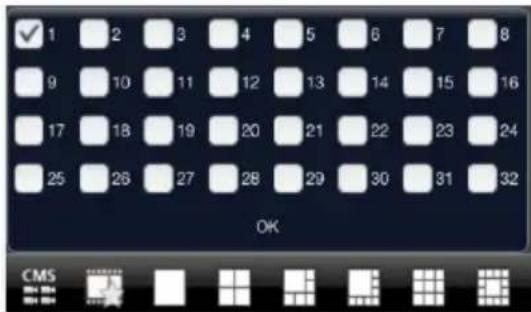

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 OK CMS

Fig 1

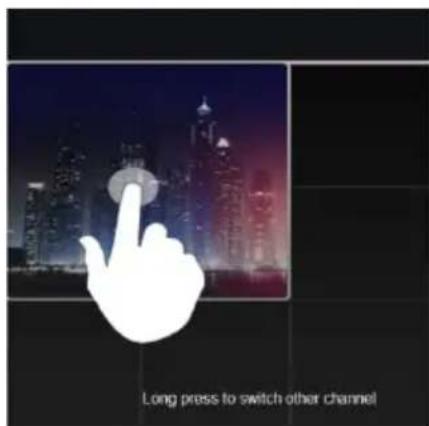

Long press to switch other channel

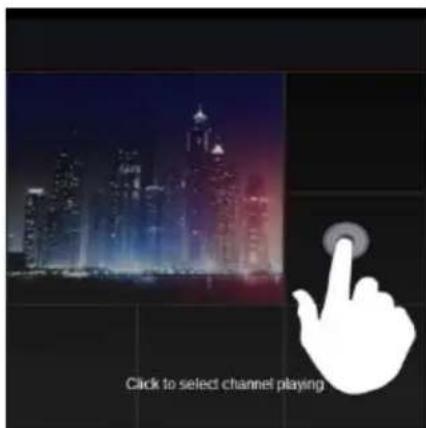

Click to select channel playing

Fig 2

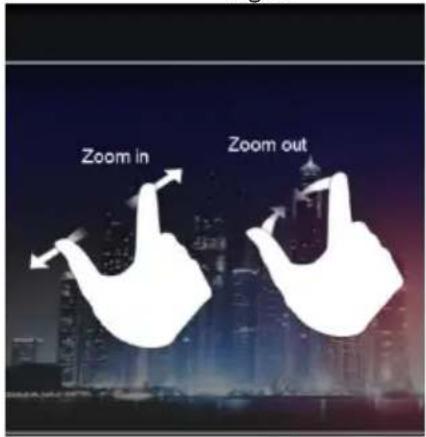

Zoom in Zoom out

Fig 4

Fig 3

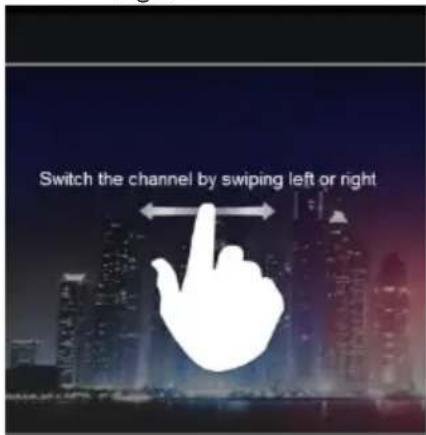

Switch the channel by swiping left or right

Fig 5

5. CMS Function

This function makes multi-device managements and preview come true.

Step 1: Click

able CMS

function. When this icon turns green, it means this function is enabled.

Step 2: Click

ose channel

as shown in the right picture. After you choose the channel, click "ok", the system will display the related image automatically.

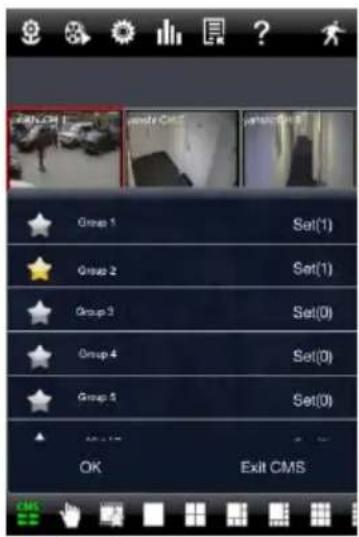

Group 1 Group 2 Group 3 Group 4 Group 5 OK Set(1) Set(1) Set(0) Set(0) Set(0) Exit CMS

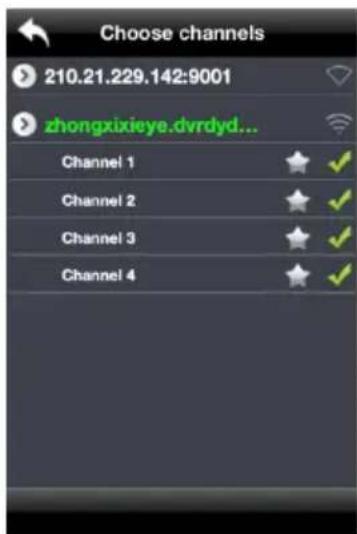

Choose channels 210.21.229.142:9001 zhongxixieye.dvrdyd... Channel 1 Channel 2 Channel 3 Channel 4

• If channels have been added into the group, you can see the images by clicking the group name.
• On viewing the group channel images, click 📋 button and select channels to check other channel images.
• Click "Exit CMS" to exit CMS mode and return to the main interface of the device.

6. Favorite Channel/Group

There are two kinds of favorite channels: favorite channels of the device and favorite group of CMS.

● Favorite channels of the device

Step 1: Click ☐ to enter into device management list. Click the device name to extend channel. Enlighten the channels to save favorite channels as shown in the following picture on the left.

Step 2: Return to the main interface and click button to play the favorite channels.

● Favorite groups of CMS

Enable CMS function and enlighten the group to save the favorite groups as shown in the following picture on the right.

Then click button to play. Only one favorite group can be collected.

: Color means the channel or group has been collected. Grey means the channel or group isn't

collected.

1. Playback Interface

Click "Playback" button to enter the playback interface. Then click "Search" button to search the file. To play the record by click this file name.

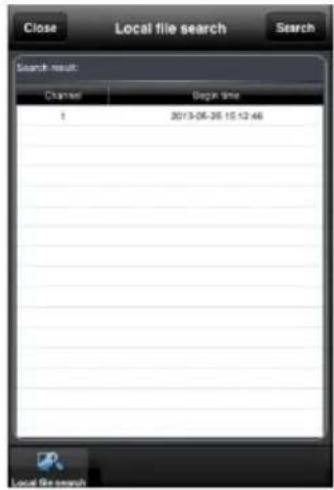

Close Local file search Search Search result: Channel Begin time 1 2013-06-25 15:12:46 Local file search

1. Image View

Click a button to view the captured pictures.

Interior view of a vehicle with large windows and a person visible inside (no text or symbols)

1. Settings Interface

In this interface, you can configure the local settings.

Close Settings Local

1. Information Interface

In this interface, you can view system information.

Close System Device name: TD0322 Device ID: 0 Launch Date: 20120209

8.10 By Devices with Android OS

Software Installation

Step 1: Run "Play Store" (or Google market) program.

Step 2: Search "Provision Cam".

Step 3: Press "Install" button.

Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically

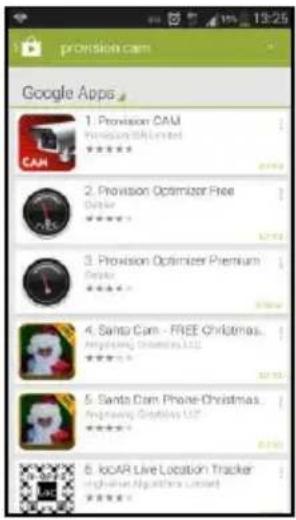

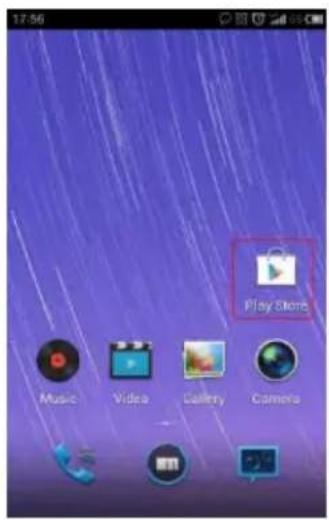

17:56 Play Store Music Video Gallery Camera

provision.cam Google Apps 1. Provision CAM Provision Cam Limited CAM 2. Provision Optimizer Free Online 3. Provision Optimizer Premium Online 4. Santa Cam - FREE Christmas. Angloering Christmas LLC 5. Santa Cam Phone Christmas. Angloering Christmas LLC 6. locAR Live Location Tracker Highland Algorithms Limited

Login Menu

Step 1: Choose network type. There are two network connection ways: 3G/3G +WIFI, well video quality. This network supports main stream and substream. The real-time image will be displayed by using sub stream.

3G-, poor video quality contrast to the above mentioned network.

Step 2: Input server, account and password.

Server: Option 1 (available only if NAT P2P server is enabled, please refer to section 5.6.4): Click on the small QR code icon in the bottom of the login screen then Snap the QR code from the sticker on the DVR or from the DVR interface (Menu → Information → QRCODE).

Server, Option 2: WAN IP address (or domain name) plus HTTP port of the device. For example: 210.21.183:89 or 123.dvrdydns.com:89. Note: The default http port of the device is 80. If this port is modified, please use the modified port.

Account and Password: The login account and password of the device. The default account is admin and the default password is 123456.

Step 3: Click 【Login】 button to access the device.

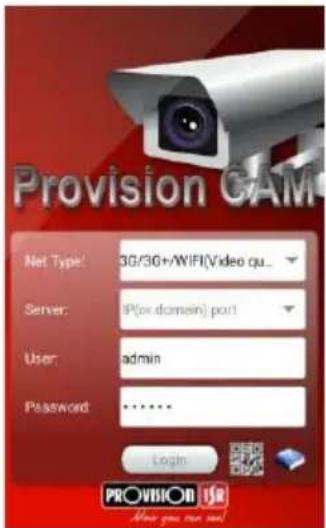

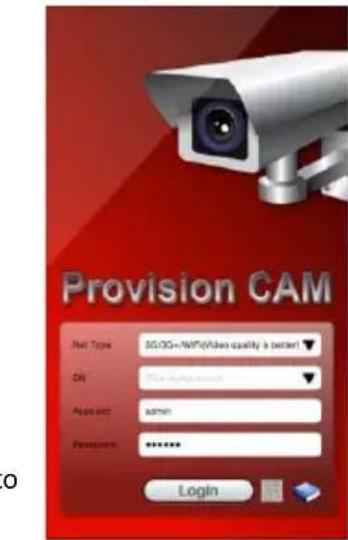

Provision CAM Net Type: 3G/3G+/WIFI/video qu... Server: iP(ex domain): port User: admin Password: ***** Login PROVISION More you run all

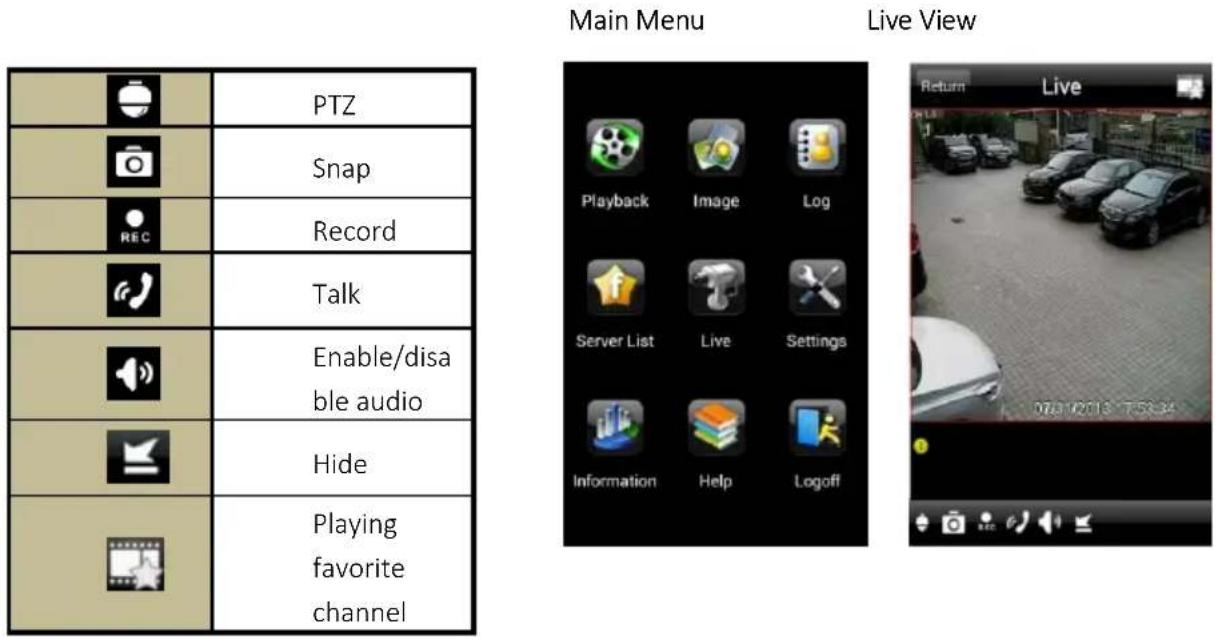

Main Menu Live View PTZ Snap Record Talk Enable/disable audio Hide Playing favorite channel

Record Playback:

Return Server List Server Default Address:210.21.229.142-9001 Server20130731175932 Address:[e-mail].93

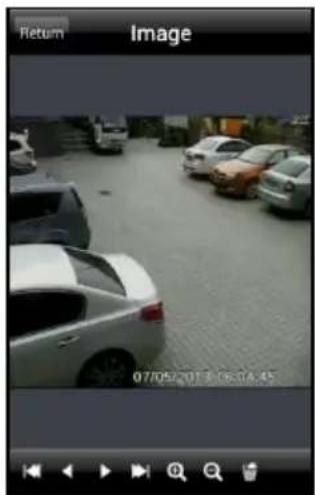

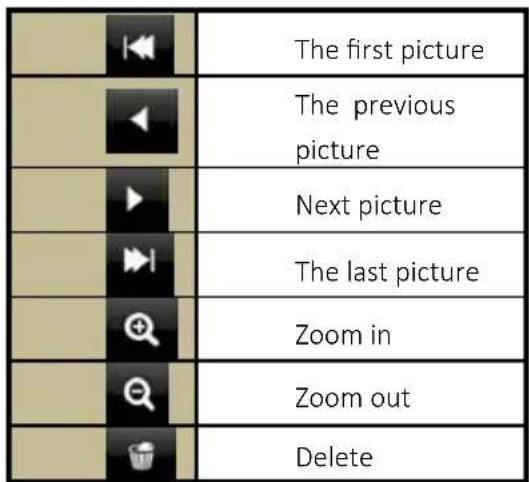

The first picture The previous picture Next picture The last picture Zoom in Zoom out Delete

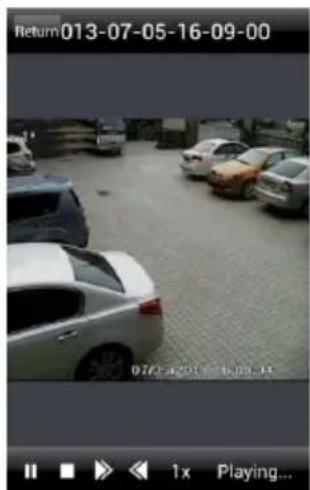

Return:013-07-05-16-09-00 07/24/2018 1x Playing...

Click "Playback" in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play.

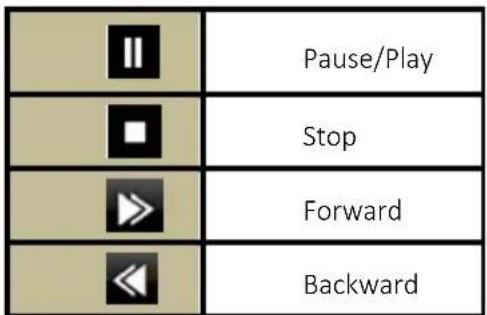

II Pause/Play ■ Stop ▶ Forward ◀ Backward

Street scene with parked cars and vehicles, no visible text or symbols

Server List:

In the main menu interface, click "Server list" to see the above picture on the left hand.

Add Server: Click Button to pop up a window as shown in the above picture on the right hand. Enter the name, server, user and password of the device you want to add. Then click "Save" button to save the server. When you log in next time, you can choose and quickly access this server by clicking the little triangle button in the server column.

Modify Server: Click Button to modify the server information. Delete Server: Click Button to delete the server information.

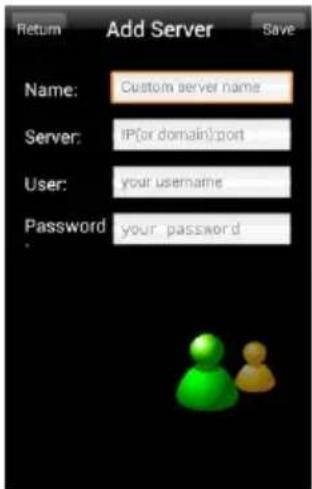

Return Add Server Save Name: Custom server name Server: IP(or domain):post User: your username Password: your password

Settings:

In the main menu interface, click "Settings" to enter the settings interface where you can configure local settings. Click "Local" to enter local settings interface. In this interface, you can set favorite channel and storage.

Favorite Channel:

Check the favorite channels and click "Save" button to save these channels.

Then go into live interface and click button to play these favorite channels.

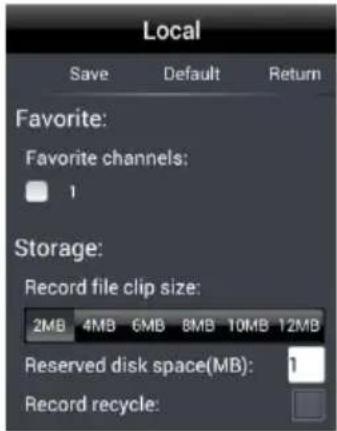

Local Save Default Return Favorite: Favorite channels: 1 Storage: Record file clip size: 2MB 4MB 6MB 8MB 10MB 12MB Reserved disk space(MB): 1 Record recycle:

Storage: Setup the relevant parameters of mobile video.

Information View: view the DVR/NVR basic information as shown in the picture on the right.

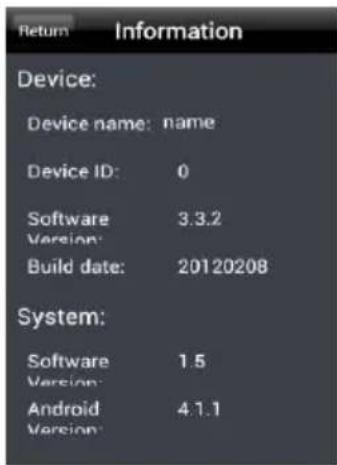

Return Information Device: Device name: name Device ID: 0 Software 3.3.2 Version: Build date: 20120208 System: Software 1.5 Version: Android 4.1.1 Version:

Appendix A: FAQ

Q1. The NVR fails to turn on even after connecting to the power, why?

a. The power adapter could have gone bad. Please change a new power adapter.
b. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.
c. It could be a hardware problem. Please contact technical support.

Q2. There is no menu displayed and only has live image display, why?

a. Check whether the monitor is connected to the main video out. The monitor might be connected to VGA /HDMI port whereas the NVR may be set for output through BNC or vice versa. Hold and press ESC/Fn key to toggle the output modes.

Q3. The NVR LED turns on, however there is no output. Why?

a. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.

b. It could be a wiring issue. Please check the connection for the same.

c. Check the monitor settings.

Q4. Why are no images displayed on few or all the channels of the NVR?

a. It could be a wiring issue. Please check the cable and the ports of the cameras.

b. The problem can also be related to cameras. Please check the same.

c. Please make sure that you have added and enabled the cameras.

Q5. Why can't I find the HDD?

a. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.

b. It could be a wiring issue. Please check the power and data cables of the HDD.

c. The HDD could have gone bad. Change a new one.

Q6. The system cannot record, why?

a. Make sure the HDD was formatted prior to use.

b. Maybe the user hasn't enabled the record function or has done incorrect setup. Please refer to Record Configuration for more details.

c. Maybe HDD is full and thus the NVR is not able to record. Check HDD information from Disk management and if required, please enable the recycle function.

d. Check the attributes of the HDD. It might be set to read only mode.

e. The HDD could have gone bad. Please change another one.

Q7. Mouse does not work. How can I do?

a. The mouse should be connected to the USB port at the rear side.

b. After connecting the mouse, allow the NVR to detect the mouse for seconds. If not detected, try restarting the NVR.

c. The mouse may be incompatible or faulty. Please change a mouse.

Q8. ActiveX control cannot be downloaded. How can I do?

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click Tools----Internet Options....

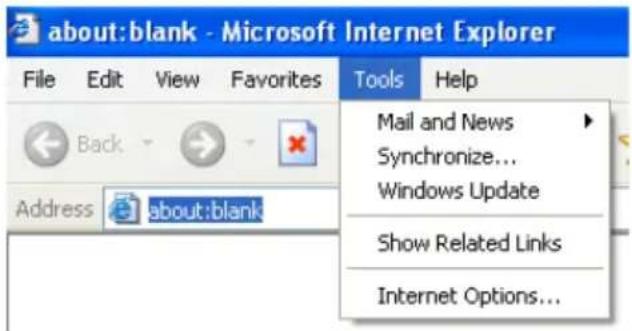

about:blank - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Address about:blank Mail and News Synchronize... Windows Update Show Related Links Internet Options...

② select Security----Custom Level....Refer to Fig 8-1.
③ Enable all the sub options under "ActiveX controls and plug-ins". Refer to Fig 8-2.
④ Then click Ok to finish setup.

b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

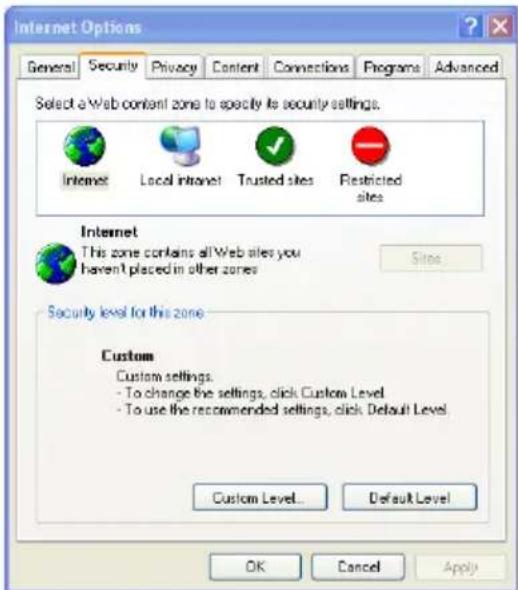

Internet Options General Security Privacy Content Connections Programs Advanced Select a Web content zone to specify its security settings. Internet Local Intranet Trusted sites Restricted sites Internet This zone contains all Web sites you haven't placed in other zones Security level for this zone Custom Custom settings: - To change the settings, click Custom Level - To use the recommended settings, click Default Level Custom Level... Default Level OK Cancel Apply

Fig 8-1

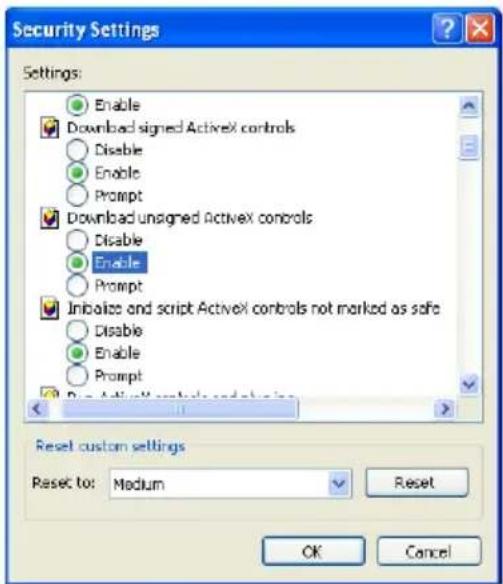

Security Settings Settings: Enable Download signed ActiveX controls Disable Enable Prompt Download unsigned ActiveX controls Disable Enable Prompt Initialize and script ActiveX controls not marked as safe Disable Enable Prompt Reset custom settings Reset to: Medium Reset OK Cancel

Fig 8-2

Q9: NVR displays "please wait..." all the time. Why and How can I do?

a.HDD power cable and data cable may not be well connected. Please check the connections for HDD. b. It is also possible that the NVR was forced to stop because HDD has a bad sector and it may have caused the system to halt. Check with a good known HDD or try formatting the existing HDD.

Q10: How to input password and numbers in the interface?

Click the password or the input box to pop up a small keyboard. Please select characters to be input (the initial password is 123456), or you can use the digital keys on the front panel, or the digital keys on the remote controller.

Q11: A hard disk is being identified as a new device however it was being used with another NVR of same model. Should it be formatted prior to use?

It is possible to migrate an HDD from one NVR to another provided that the NVRs are of the same model and that the HDD being migrated would be used as the sole disk in the new NVR. However in cases where the new NVR already contains a HDD, the migrated disk being installed would have to be formatted. In general migrating disks from one NVR to another is not recommended.

Q12: What is the minimum configuration required for remote monitoring?

PC Module	Parameters
CPU	Intel Celeron 2.4G
Motherboard	Intel 845
HDD	80G
RAM	512M
VGA	NVIDIA GeForce MX440/FX5200ATIRADEON 7500/X300
OS	Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA
DirectX	9.0

Q13: How to handle the situation that the codec Control is blocked when downloading in the VISTA or Win7 system?

This problem can be fixed in two ways:

a. Enter Control Panel User Account and Family Safety User Account Control (refer to Fig 13-1); click Turn User Account on or off. Cancel Use User Account Control (UAC) to help protect your computer.

b. Right click IE browser (refer to Fig 13-2), select Run as administrator to run browser.

Turn on User Account Control (UAC) to make your computer more secure User Account Control (UAC) can help prevent unauthorized changes to your computer. We recommend that you leave UAC turned on to help protect your computer. Use User Account Control (UAC) to help protect your computer OK Cancel Open Open file location Run as administrator Restore previous versions Send To Cut Copy Create Shortcut Delete Rename Properties

Fig 13-1
Fig 13-2

Q14. How to play the backup file?

a. Insert your USB device where the backup files are saved in the USB port of PC. If your files are saved in DVR format, you must have already downloaded the backup player box before doing backup. Then double click to open your USB disk to find your backup files and backup player. Double click

SuperPlay

Windows Inc

B72 KB

“

icon to install backup player.

b. After you install it, open this player and click "Open Path" button to open your backup file. Next, click

play button to play the backup file. Double click the image and then right click to enable audio.

If you save your backup files in AVI format, you can directly open your file by using the media player which supports this format.

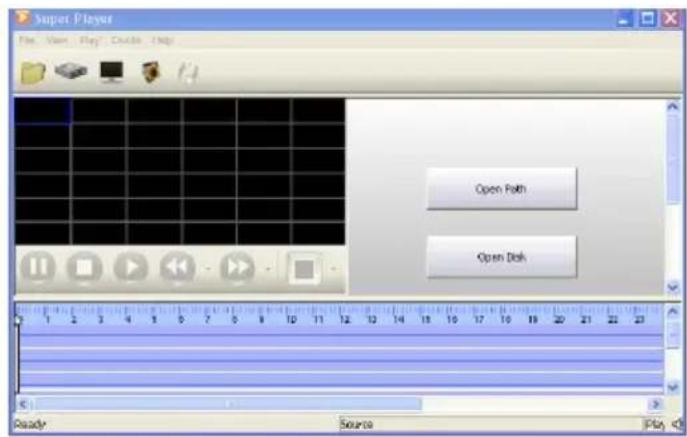

Super Player File View Play Change Help Open Path Open Disk Ready Source Play

Super Player File View Play Divide Help Search Setting Event List Select Date March 2012 Sun Mon Tue Wed Thu Fri Sat 20 27 28 29 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 28 29 30 31 Search Ready G:\2010024155764 201

Appendix B: Calculate Recording Capacity

You can calculate the size of hard disk according to the storage time and NVR recording settings. The formula is as follows in full frame rate condition. Used space per hour (MB/h) = Bitrate(kbps) ÷ 8 × 3600 ÷ 1024. The below are the details at different settings.

Resolution	Frame Rate	Bit Rate (kbps)	Used Space(MB/h)
3MP1080P	30fps (NTSC)	12M	5400
		8M	3600
		7M	3150
		5M	2250
		4M	1800
720P1080P3MP	30fps (NTSC)15fps (NTSC)15fps (NTSC)	6M	2700
		4M	1800
		2M	900
		1M	450
		256	113

The calculation format is: Total Recording capacity = Used space per hour (MB/h) (coverage rate of hard disk) × recording time (hour) × channel numbers

For instance, one customer sets resolution to 1080P, frame rate to 15fps, bitrate to 4M and enables total 4 channels. He wants the unit to record continuously in a month. Below is the calculation:

Total Recoding capacity =900 (mb/h) X 24(hours/day) X30(days) X4 (channels)= 2592000 (MB)=2531.25(GB) Therefore, customers just install one SATA HDDs with 3TB, it can almost record for one month.

1. Compatible USB drive after test.

Brand	Capacity
SSK	512MB, 1G, 2GB
Netac	4GB
Kingston	2GB
Aigo	2GB
Smatter vider	1GB
SanDisk	4GB

1. Compatible HDD list

Brand	Capacity
Tested Capacities	80G / 160G / 250G / 320G / 1.5T / 2TB / 3TB / 4TB(From version 3.4.3 and higher)

PROVISION ISR

Now you can see!
