Product Type	Network Video Recorder (NVR)
Model	NVR2-8200 (MM)
Brand	Provision-ISR
Dimensions (W x D x H)	440 x 330 x 44 mm
Weight	Approximately 5 kg
Power Supply	100-240V AC, 50-60 Hz
Video Compression	H.265, H.264
Max Camera Channels	Up to 8 channels
Recording Resolution	Up to 8MP (4K)
Display Output	HDMI, VGA
Audio	1-channel audio input/output
Hard Drive Support	1 SATA HDD (up to 10TB)
Network Interface	1x RJ45 10/100/1000 Mbps
Remote Access	Web browser, CMS, mobile app
Motion Detection	Supported
Recording Modes	Manual, schedule, alarm, motion
Playback	Forward/backward, pause, slow motion
Operating Temperature	-10°C to 55°C
Humidity	10% to 90% non-condensing
Maintenance	Clean with dry soft cloth; avoid liquids
Safety Features	Built-in surge protection, voltage lockout
Spare Parts	Hard drive, power adapter, rack-mount ears
Repairability	Modular components for easy service

Frequently Asked Questions - NVR2-8200 (MM) Provision-ISR

How do I connect the NVR2-8200 to my network?

Connect an Ethernet cable from the NVR's LAN port to your router or switch. Then configure the IP address via the on-screen menu.

Can I access the NVR remotely from my smartphone?

Yes, download the Provision-ISR app (or CMS) and add the NVR using its public IP or DDNS. Ensure port forwarding is set up on your router.

What is the maximum hard drive capacity supported?

The NVR supports a single SATA HDD up to 10TB. For best performance, use a surveillance-grade drive.

How do I reset the NVR to factory defaults?

Go to Menu > Settings > System > Default and confirm. Alternatively, press and hold the reset button on the rear panel for 10 seconds.

What video compression formats are supported?

The recorder supports H.265 and H.264 compression, which saves bandwidth and storage space.

Can I record audio along with video?

Yes, the NVR has 1-channel audio input and output. Connect a microphone to the audio input to record sound.

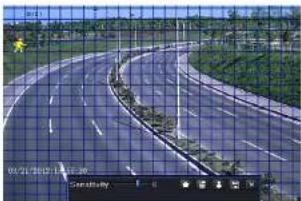

How do I set up motion detection?

Go to Menu > Event > Motion. Enable motion detection, draw detection zones, and configure alarm actions like recording or email notification.

What should I do if the NVR does not detect cameras?

Ensure cameras are powered and connected to the same network. In the NVR menu, go to Camera Management and click Search. If still not found, try adding cameras manually by IP.

How do I update the NVR firmware?

Download the latest firmware from the Provision-ISR support site. Go to Menu > System > Upgrade, select the file, and start the update. Do not power off during the process.

What is the warranty period for the NVR2-8200?

Provision-ISR offers a standard 2-year warranty from the date of purchase. Extendable with authorized resellers.

USER MANUAL NVR2-8200 (MM) Provision-ISR

Three black electronic devices with control panels and buttons, no visible text or symbols

ID Service

PROVISION-ISR

Conventional NVR

User Manual

CAUTION

• Read this user manual carefully and use the device correctly and safely.
• NVR warranty requires an intact serial number located on the bottom of the NVR and a valid invoice or receipt with the date of purchase.
  We do not warrant all the current is correct.
  ● The contents of this manual may be out-dated.
• If you are not certain of something, you should contact technical support before making any change, or installing the NVR.
• This device should be operated only from the type of power supply indicated on the marking label. The voltage of the power must be verified before using.
• If you plan not to use the NVR for a long time, shut it down and plug the power cable.
• Don't install this device close to a heat sources (e.g. radiators, heat registers, stoves, etc.).
• Do not install this device near water.
• Clean only with a dry cloth.
• Do not block the ventilation openings.
• Place the device in a ventilated place.
• Do not unplug the NVR when the device is working: the correct method to shut down NVR is to perform software shutdown by pressing the "shut down" button from the main menu.
  ● PROVISION ISR NVR is intended for indoor use only.
• Do not expose the NVR to rain or moist conditions.
• If any solid or liquid gets inside the NVR, shut down the NVR and unplug the power supply as soon as possible, and get it checked by a qualified technician.
• Refer all servicing to qualified service personnel.
• Do not try to repair the device by yourself without technical aid or approval.
  This manual is suitable for conventional NVRs (Network video recorder) - Non-FcF

Contents

1 Introduction....7

1.1 NVR Introduction....7

1.2 Main Features....7

2 Hardware Installation....9

2.1 Hard Drive Installation 9

2.2 Front Panel Descriptions....10

2.3 Remote Controller 13

2.4 Control with Mouse....14

2.4.1 Connect Mouse....14

2.4.2 Use Mouse 14

3 Basic Function Instruction....15

3.1 Startup and Shutdown 15

3.1.1 Startup 15

3.1.2 Shutdown.... 15

3.2 Login 16

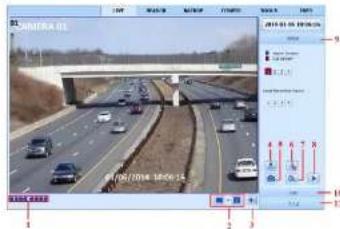

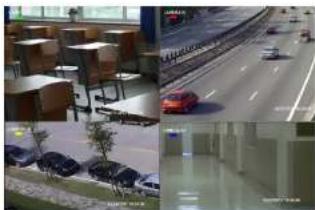

3.3 Live Preview 16

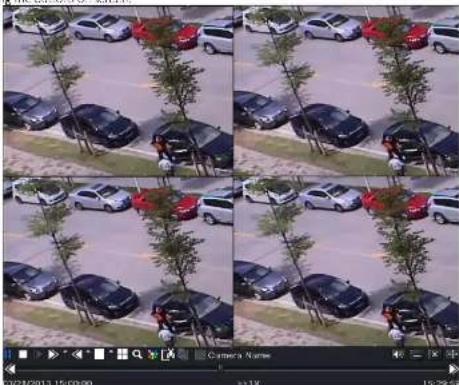

3.4 Live Playback....17

4 Adding IP Cameras....18

5 Main Menu Setup Guide 20

5.1 Basic configuration 21

5.1.1 System 21

5.1.2 Date & Time 22

5.1.3 DST 22

5.2 Live Configuration.... 23

5.2.1 Live 23

5.2.2 Main Monitor 24

5.2.3 Mask 24

5.3 Record Configuration 25

5.3.1 Enable 25

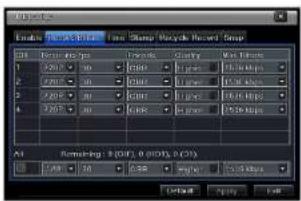

5.3.2 Record Bitrate 26

5.3.3 Time 26

5.3.4 Slamp 27

5.3.5 Recycle Record 27

5.3.6 Snap 28

5.4 Schedule Configuration 28

5.4.1 Schedule 28

5.5.3 Other Alarm 32

5.5.4 Alarm Out 32

5.6 Network Configuration 33

5.5.1 Network 33

5.6.2 Sub-stream 34

5.5.3 Email 34

5.6.4 Server 35

5.6.5 NAT 35

5.6.6 Other Settings 36

5.7 User Management Configuration 38

5.8 Advanced....40

5.8.1 Reset 40

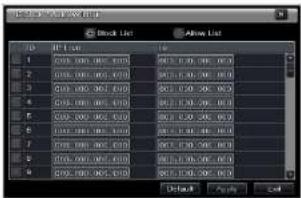

5.8.3 Block/Allow List 40

6 Search, Playback & Backup....41

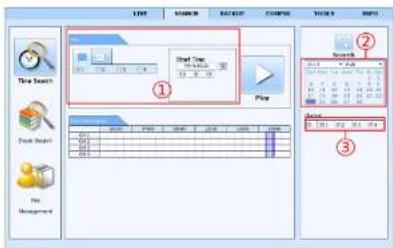

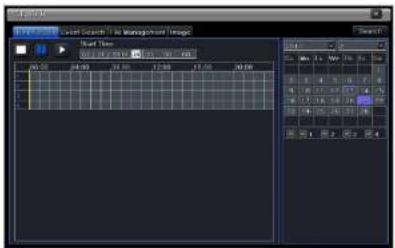

6.1 Time Search....41

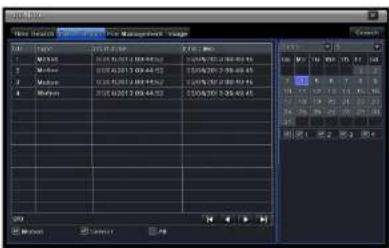

6.2 Event Search 41

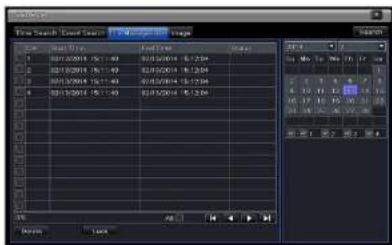

6.3 File Management....42

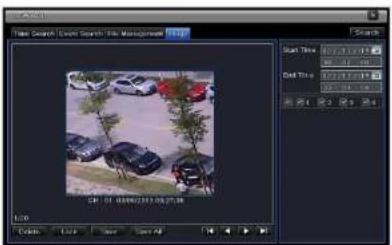

6.4 Search by Image 43

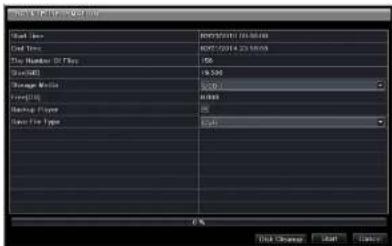

6.5 Backup 43

7 Manage NVR....45

7.1 Check System Information 45

7.1.1 System Information 45

7.1.2 Event Information....45

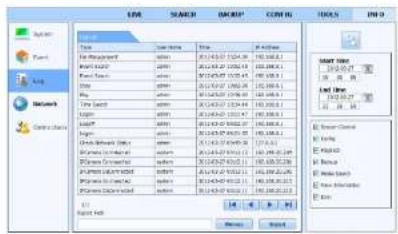

7.1.3 Log Information....45

7.1.4 Network Information 45

7.1.5 Online Information 45

7.2.6 Record Information 45

7.1.7 ORCODE 46

7.2 Manual Alarm 46

7.3 Disk Management....46

7.4 Upgrade....46

7.5 Logoff 46

8 Remote Surveillance 47

8.1 IE Remote Surveillance by NAT 47

8.1.1 NAT Settings 47

8.1.2 NAT Access 47

8.2 IE Remote Surveillance 48

8.4 Remote Preview....51

8.5 Remote Playback & Backup .... 53

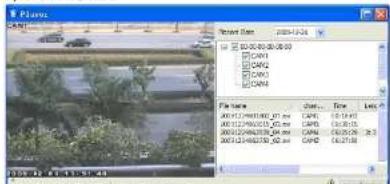

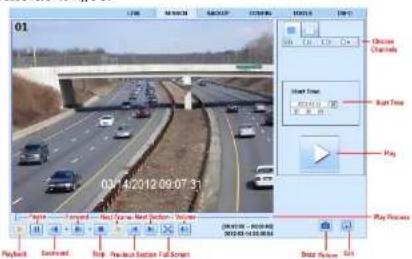

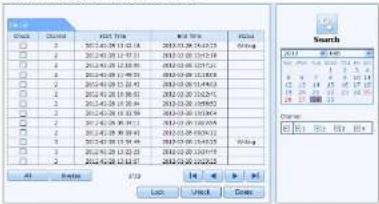

8.5.1 Remote Playback 53

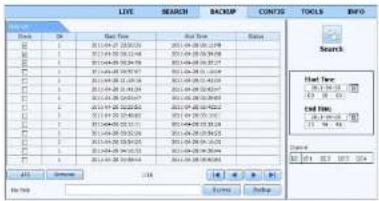

8.5.2 Remote Backup 56

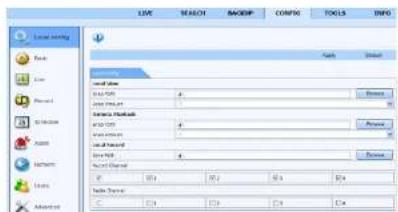

8.6 Remote System Configuration 56

8.7 Tools 57

8.8 Remote Information 57

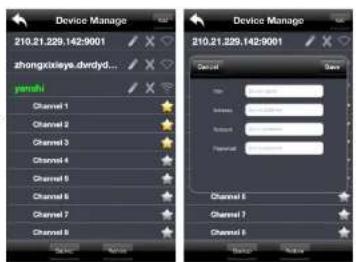

8.9 By Devices with iOS 58

8.10 By Devices with Android OS....64

Appendix A: FAQ 67

Appendix B: Calculate Recording Capacity....71

Appendix C: Compatible Devices....71

Notes: 72

1 Introduction

1.1 NVR Introduction

This is a standard real-time 3MP/1080P//20IP (Depends on mode) high resolution NVIP, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. All of these features allow a range of security requirements for home, financial, commerce, enterprise, transportation and government usage.

1.2 Main Features

COMPRESSION FORMAT

• Standard H.254 compression with low bit rate and better image quality
LIVE SURVEILLANCE
• Support HDMI/NGA output (Some models also supports CVRS)
• Support channel security by hiding live display
• Display the local record state and basic information
• Support USB mouse to make full control

RECORD MEDIA

• Support one SIA HDD to record for a longer time without any limitation
BACKUP
• Support USD 2.0 devices to backup (All NVR3 Series supports 1 USD 3.0 Port)
• Support saving recorded files with AVI standard format to a remote computer through internet

RECORD & PLAYBACK

• Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
  • Support recycle after HDD full
  • Support 3MP/1080P/9GOP/720P recording (Depends on model of NVR and Camera)
• Resolution, frame rate and picture quality are adjustable
• Support deleting and locking the recorded files one by one
  • Support remote playback in Network Client through LAN or internet

ALARM

• Support schedule for motion detection and sensor alarm
• Support pre-recording and post recording
• Support linked channels recording once motion or alarm triggered on certain channel

SECURITY

• Support TCP/IP, DHCP, PPPoE, DDNS protocol
• Support all common browsers (IE, Chrome, Safari, Firefox) for remote view
• Support setup client connection amount
- Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
- Support picture snap and color adjustment in remote live
• Support remote time and event search, and channel playback
● Support remote full menu setup, changing all the NVR parameters remotely
• Support mobile surveillance by phones with iOS & Android OS
• Support CMS to manage multi devices on internet

2 Hardware Installation

Check the unit and the accessories after getting the device. Please don't power up the unit until the physical installation is complete.

2.1 Hard Drive Installation

Notice: 1. This series supports one SATA hard drive. Please use the hard drive the manufacturers recommend specially for security and safe field.

1. Please calculate NDD capacity according to the recording setting. Please refer to "Appendix B Calculate Recording Capacity".

Step 1: loosen the screws to open the top cover.

Step 2: Connect the power and data cables and then place the HDD onto the bottom case as Fig. 2-1.

Step 3: Secure the HDD with the screws as Fig 2.2

Fig 2-1 Connect HDO

Fig 2-2 Screw CO

Note: For convenience installation, please connect the power and data cables first and then for the HDD by tightening the screws.

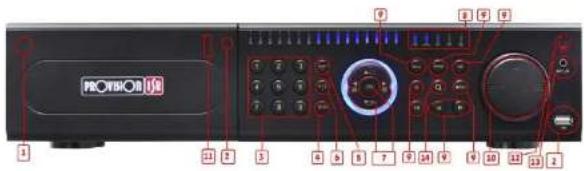

2.2 Front Panel Descriptions

Notice: The front panel descriptions are only for reference; please make the object as the standard.

Small 10 Case

Front panel description:

Item	Type	Name	Description
1	Work state indicator	Power	Power indicator, when connection, the light is blue
		HDD	When FDS is starting and reading, the light is blue
		Net	When success to network, the light is blue
		Backup	When backup files are open, the light is blue
		Pay	When playing video, the light is blue
		BLC	When receiving, the light is blue
2	Compound button	MNDJY	1. Inter menu in line 2. Increase the vote in setup
		BAC CHIP	1. Decrease the value in setup 2. Enter book or mode in line
		BLCOBUYOCUS	1. Screen manually 2. FACS function switches at F72 mode
		BLWSPULD	1. Seated key 2. SPLD function grab or at F72 mode
		SPARHYCOM	1. Inter search mouse 2. 2000M function crable or F72 mode
		PLAYBOX	1. Inter play interface 2. RIS function switches at F72 mode
		IIP F1Z	1. Select forward 2. Inter F72 mode in line
		SHOPLSC	1. Select play mode 2. Select other, when use or status
3	Input button	Direction action	Change direction to select them
		ALIB screen	Change screen double mode (RS2/49 channel)
		Fruit menu	Confirm select on
4	IR controller	IR	For remote controller
5	USB	USB port	external USB devices (USB Push, USB HDD for backup, update firmers, USB mode)
6	Remote IT	EXT. IR	Extends on for the IR controller

JU Case

Item	Type	Name	Description
1	Wave state indicator	Power	Power indicators, when connection, the light is blue
		HDD	When I DC is writing and reading, the light is blue
		Xel	When access to network, the light is blue
		Backup	When audio files and cars, the light is blue
		Play	When playing video, the light is blue
		IHC	When recording, the light is blue
2	Compound button	MLN/A	1. Enter menu in top2. Cross the role in setup
		BACKUP	1. Enter user in video 1. In top2. Enter basic mode in line
		APPRO/PROIE	1. Enter manually2. 10CLS function enables at F12 mode.
		MLW/PLWD	1. Select key 2 SPL D function enables a F12 mode
		STARCHROOM	1. Enter search mode2. 200M function enables at F12 mode.
		PLAY/ABS	1. Enter play interface2. USB function enables at F12 mode
		FF/FT7	1. Test screen3. Enter F12 mode in live
		ETOP/FSC	1. 2x4 play mode2. call the curve, inter-rate of status
3	Digital input	LED	1. Input number 1 or cheese corner (about number), 10 and the above number outputs with other data keys
4	Input button	Display button	Change the line in selected items
		SQL Server	Change seconds display mode more than 24/49 channels
		Enter touch	Confirm select on
5	IR controller	IR	For remote controller
6	LSS	USB port.	external USB devices [USB/Flash, USB/100] for backup, update frames, USB mode
7	External R	EXT IR	Extens on for the IR controller

20 Case

Item	Name	I
1	Power Button	Soft switch off to stop firmware running, do not before power off.
2	DVD Button	Press the button, user one place the UNC in the backup.
3	Key PS	Input number 3-0 on choose color.
4	P(=)	1. The next channel letter is: 2. Includes light of number 3.
5	Audio	1. Cancel video 2. Include the value in setup.
6	P1.2	1. Enter P1.2 mode in live 2. Disconnect the value in setup.
7	Input Button	Direct, on action Change sheet on to select them.
		Direct, on input Change screen via down line (AVS) or panel.
		Filter button Confirm selection.
8	Work state Indicator	REC When closing the light is blue. HCP When I/O is working and reading, the light is blue. Backup When backup lines and data, the light is blue. Net When access to network, the light is blue. Play When staying video, the light is blue. Power Power indicators when connection, the light is blue.
9	Lunch on Button	M/PU Under menu line DVD Check day, same. Make menu confirmation.

		BACKUP	Enter backup mode in live
		SEARCH	Enter search mode
		RIV	Rowing
		FF	Fast forward
		REC	Record manualy
		PLAY	PlayPause
		STOP	Stop/Fix
10	Jog	Control rewind/fix forecast/frame when paying the image.
11	USR	accepts USA devices [USA flash, USB HDD for backup, upscale firmware, USB mouse].
12	IR monitor	IR	Remote controller monitor
13	External IR	EXT. IR	Extens on for the IR receiver

2.3 Remote Controller

It uses two AAA size batteries.
- Open the battery cover of the Remote Controller.
- Place batteries. Please take care of the polarity (+ and -)
- Replace the battery cover.

Black remote control with gray buttons and a red scroll (no visible text or symbols)

Fig 2.5 Remote Controller

Button	Function
HLC	Manually start (step record (manual mode))
Search	Oper the search menu.
MEUV	Oper the main menu.
Fail	Fails, the current mode be without saving.
ENTER	Some will inform the current setup on the current menu.
Direction	Moves the menu.
OCUM	Activities zoom mode.
PIP	Activities picture in picture mode
▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶
Muto	Includes outside screen display mode.
Next	To switch between single picture and picture group.
SFO	Activities sequence (auto dwell) mode.
INFO	Go to AVR in a time room menu (from main view).

Key points to check in case the remote doesn't work.

1. Check batteries polarity and the remaining charge in the batteries.
2. Check IR controller sensor for any masking.
3. Check the ID of the remote with respect to the MVR.

2.4 Control with Mouse

2.4.1 Connect Mouse

It supports USB mouse through the ports on the rear panel.

If mouse is not detected or doesn't work, check below steps:

1. Make sure the mouse is plugged in the USB mouse port.

2. Try with a good know mouse.

2.4.2 Use Mouse

During live:

Double-click on any camera window to see the full screen. Double-click again to return to the previous

screen.

Right click to reveal the control menu on the screen. Right click again to hide the menu.

In Configuration:

Click to enter a particular option. Right click to cancel the option or to return to the previous menu.

In order to input a value in a particular screen, move cursor to the input box and click. An input window

will appear as Fig 2-5. It supports digits, alphabets and symbols input. Click Shift button to Input Capital

letters and symbols; click Shift button again to return.

It supports mouse drag. Take setting up motion detection area for example: Click customized, hold down

the left button and drag to set motion detection area.

Fig 2-5 Digital Numbers and Letters Input Window

In Playback:

Click to choose the options. Right click to return to live mode.

In Backup:

Click to choose the options. Right click to return to previous picture.

- 07 A-

3 Basic Function Instruction

3.1 Startup and Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expanding the life of your NVH.

3.1.1 Startup

Step 1: Connect with the source power.

Step 2: The device will boot and the power LED would turn blue.

Step 3: A "WIZZARD" window will pop up and show some information about time zone, time setup,

network configuration, record configuration and disk management. You can set up here and refer to the concrete setup steps from the corresponding chapters. If you don't want to set up Wizard, please click Exit button to exit.

Note: The default output is HDMI output. Hold and press Fn/Esc key to switch the output among CVBS, VGA & HDMI.

3.1.2 Shutdown

You can shut down the device by using IR remote controller and mouse.

By IR remote controller:

Step 1: Press Power button. This will bring up a shutdown window. The until will shut down by clicking "OK" button.

Step 2: Disconnect the power.

By mouse:

Step 1: Enter into ☐ Menu and select "Shut Down" icon. This will take you to a shutdown window Step 2: Click OK. Then the unit will power off after a while.

Step 3: Disconnect the power.

3.2 Login

You can login or log off the NVR system. Once logged off you cannot do any other operation except changing the multi-screen display.

Fig 3-1 Login

Notice: The default user name and password is "admin" and 123456".

For complete operational steps for changing password, adding or deleting user please refer to section 5.7 user management Configuration.

3.3 Live Preview

Composite image showing a warehouse with boxes and parking lot, and a multi-lane highway with cars and vehicles (no visible text or symbols)

Fig 3.2 Live Preview Interface

Symbol	Meaning
Green	Manual record

3.4 Live Playback

Click Play button to playback the record. Refer to Figure 3-3. You can do complete operation by

clicking the buttons on screen.

Aerial view of a parking lot with multiple cars and trees, no visible text or signage.

Fig 3-3 Live Playback

4 Adding IP Cameras

This chapter mainly introduces how to connect multiple IP cameras through NVR. Once you finish adding IP cameras, you can see the live images through the monitor of the NVR.

To add IP cameras via LAN:

Step 1: Please enter Menu→IP Camera tabs. Refer to Fig 4-1. Click "Search" button to search the devices in the same network.

Fig 4.1 Device Management

Step 2: Enter into the search lab. Click "Refresh" to refresh the searched devices. You can modify the IP address of the searched device by checking the device and clicking "Setup" button.

Fig 4-2 Search Devices

Note: If the network of IP cameras and NVR are in LAN, their IP address must be in the same network segment. For example, if the IP address of NVR is 192.168.013.057, the IP address of IP camera must be 192.168.012.000.

Step 3: Choose the searched devices and click "OK" button to add these devices. The added cameras will be listed in the device management interface.

Fig 4-3 Ann Device

To add IP cameras via WAN:

Step 1: Please enter Menu→IP Camera tab. Refer to Fig 4-1.

Step 2: Click "Add" button to pop up a window similar to Fig 4.3. You need to check "Enable" box, select channel, manufacturer and product model and manually input IP address, server port, username and password of this device.

Note: If the IVR and the IP camera you want to add are both in WAN, the IP address of the IP camera input here must be WAN IP. You should forward the LAN IP address and port of the IP camera in the router and use its WAN IP address, provided that the IP camera is in local area network, otherwise, the IVR cannot connect this IP camera.

5 Main Menu Setup Guide

Click right mouse or press Exit/Fn button on the front panel to display the main menu toolbar on the bottom of the screen. Refer to Fig 5.1:

Click the 📄 on beside the screen mode to display a channel select dialog.

Screen Mode: You can choose a screen display mode to show the live images.

PIP: Click this button to set PIP. Click this button to choose the bigger picture and then click the little PIP button beside the word "None" to set the smaller picture. After that, you can see a picture in picture.

Dwell: Dwell means to display live images from different cameras in a sequence. The images may be displayed as a single channel or in a good fashion from different cameras. Dwell mode is enabled only when the chosen display mode is not able to display all the available cameras.

Color: if this button is enabled, you can adjust the color of live images.

E-Zoom: Single channel large screen electronic amplification.

Audio: Enable sound.

PTZ: Click the PTZ button to control rotation position, speed and auto scan of the PTZ connected to the IP camera.

Record: Click this button to start/stop recording.

Playback: Click this button to playback the recorded files.

You can click Move Tool button and drag it anywhere with the left mouse to move the main menu bar anywhere.

Click Main Menu button to pop up a window as Fig 5.2; you can also press MENU button on the front panel or operate with remote controller to display the main menu. Clicking Setup icon will pop up the configuration menu:

System Setup

5.1 Basic configuration

Basic configuration includes three sub menus: system, date & time and DST.

5.1.1 System

Step 1: Enter into Menu → Setup → Basic → System; Refer to Fig. 5.3:

Fig 5-3 Basic Configuration Basic

Step 2: In this interface you can set up the device name, device ID, video format, max network user, VGA resolution and language. The definitions for every parameters display as below.

Device Name: The name of the device as it may display on the client end or on CMS, this would help the user to recognize the device remotely.

Device ID: This ID is used to map the NVR with IR remote controller and speed dome cameras.

Video Format: Two modes: PAL and NTSC. User can select the video format according to the cameras being used.

Password Check: If enabled the user would need to input the user name and the password for performing

Language: To set up the menu language.

Note: After changing the language and video output, the device needs to login again.

Logout After (Minutes): You can set up the screen interval time (30s, 60s, 180s, 300s). If there is no any operation within the setting period, the device will auto logout and return to the login interface. No Image When Logout: If selected, there will be no image showing when logout.

5.1.2 Date & Time

Step 1: Enter into Menu→Setup→Basic→Date & Time tab. Refer to Fig 5-4:

Fig 5-4 Basic Configuration-Date & Time

Step 2: Set the date format, time format, time zone in this interface; checkmark "sync time with NTP server" to refresh NTP server date. You can adjust system date manually Step 3: Click "Apply" button to save the settings.

5.1.3 DST

Step 1: Enter into Menu→Setup→Basic→UST interface. Refer to Fig 5-5

5.2 Live Configuration

Live configuration includes three submenus: live, main monitor and mask

5.2.1 Live

In this interface, you can set up camera name.

To set up camera name:

Step 1: Enter into Menu → Setup → Live. Refer to Fig 5-6

Fig 5-6 Live Configuration→Live

Step 2: A software keyboard will pop up by clicking camera name area. Click the letters and (or) digital

numbers on the keyboard to input the name you want to display in live image.

Step 3: Checkmark the camera name in the show name area.

All channels will show the camera name by checking "All" checkbox.

To set up color.

Step 1: Click "Seating" button for a particular camera/channel to see a window as below:

5.2.2 Main Monitor

The main monitor settings allow you to set camera sequence in live display mode. Operate the following steps to set main monitor:

Step 1: Enter into Menu → Setup → Live → Main Monitor interface. Refer to Fig 5.7:

Step 2: Select display mode and channel.

Step 3: Select dwell time. Click button to set up the dwell time of the previous channel groups. Click

button to set the dwell time of the latter channel groups.

Step 4: Click "Apply" to save the setting.

Fig 5-7 Live Configuration-Main Monitor

5.2.3 Mask

If there is something you don't want to display in the live image. You can set mask. For a given channel a maximum of three areas can be masked. If the mask function is not available in the added IP camera, the mask function here will not take effect.

To set up mask area:

Step 1: Enter into Menu → Setup → Live → Mask Interface.

Step 5: Click Apply button to save the setting.

To delete mask area

Step 1: Click Setting button in the mask interface.

Step 2: Select a certain masked area and double click to delete that masked area.

Step 3: Then click Apply button to save the setting.

Highway with curved road and streetlights, surrounded by greenery under a clear blue sky (no visible text or symbols)

Fig 5-9 Setting Mask Area

5.3 Record Configuration

Record configuration includes six sub menu enable, record bit rate, time, recycle record, stamp and snap. Before Configuration, please make sure your NVR has been installed with HDD and has completed its initialization.

5.3.1 Enable

Step 1: Enter into Menu→Setup→Record→Enable tab. Refer to Fig 5-10; Step 2: Checkmark record and audio.

Fig 5-10 Record Configuration-Record

5.3.2 Record Bitrate

Step 1: Enter into Menu → Setup → Record → Record Bitrate. Refer to Fig 5-11:

Step 2: Set up rate, resolution, quality, encode and max bit stream.

Step 3: Select "All" to set the same settings for all channels.

Step 4: Click "Apply" button to save the setting.

Fig 5.11 Record Configuration Record Bitrate

Parameter	Meaning
Rate	Range from: 1.50 (NTSC) 1.25(PAL)
Resolution	5000~11330P, 730F, VGA
Quality	The higher the source is, the cleaner, the seconded image is. Six options: lowest, lower, low, medium, higher and Highest.
Encode	vBL and CBL
Max bit stream	Range from: 256~12288bps

If the value of the parameter is set to exceed the maximum resources of the system, the system will automatically adjust it.

5.3.3 Time

Step 1: Enter into Menu → Setup → Record → Time interface to set recording time. Refer to Fig 5-12:

Step 2: Set Pre-alarm record time and post-alarm record time. Select "All" to set the same settings for all

channels.

Step 3: Click "Apply" to save the setting.

Pre-alarm Record Time: Set the time in seconds to pre-record before the actual recording begins.

Post-alarm Record Time: Set the time in seconds to post-record after the actual recording has finished, five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s.

Expire Time: Sel the expiration time for recorded video. If the sel date is overdue, the recorded files will be deleted automatically.

5.3.4 Stamp

This provides an option to enable or disable the Camera Name and the Time stamp on the video. The user can also choose a position for the stamp on the screen.

To set up stamp as follows:

Step 1: Enter into Menu→ Setup→ Record→ Stamp interface. Refer to Fig 5-13:

Fig 5-13 Record Configuration-Slamp

Step 2: Checkmark camera name and time stamp. Click Setting button to set up the position of the stamp.

You can drag the camera name and time stamp at random positions as shown below.

Step 3: Select "All" to set up all channels with the same parameters.

Before drag

After drag

5.3.5 Recycle Record

This number is required to validate the U.S. enterprise data in full II account, but contains mill-unit consolidated data.

5.3.6 Snap

In this interlace, user can set up resolution, quality, snap interval, snap number.

5.4 Schedule Configuration

Schedule configuration includes three sub menus: schedule, motion and sensor.

5.4.1 Schedule

This tab allows defining schedule for normal recording for seven days of a week, 24 hours of a day. Every row denotes an hourly timeline for a day. Click the grid to do relevant setup. A highlighted area denotes selected timeline. Operate the following steps to set schedule:

Step 1: Enter into Menu → Setup → Schedule interface. Refer to Fig 5-14;

Fig 5-14 Schedule Configuration-Schedule

Step 2: Select channel and click "button" button to add a certain day schedule. Click "button" button to delete the selected schedule.

If you want to apply the schedule setting of a certain channel to other or all channels, you need to select channel and click "Copy" button.

You can also set week schedule by double-clicking in the grinding area. This will take you to see a dialog box as Fig 5-15.

Step 1: Select a day and click "Add" button to schedule start time and end time. Then click √ to save. Step 2: Select other days and add schedule or copy settings from one schedule to the others under the Apply Settings To item.

5.4.2 Motion Schedule

This tab allows setting schedule for motion based recording. The setting steps are as follows:

Step 1: Enter into Menu → Setup → Schedule → Motion tab.

Step 2: The setup steps for schedule for motion based recording are similar to normal schedule setup. You

can refer to 5.4.1 Schedule for details.

Note: The default schedule of motion based recording is 24 x 7. If you want to activate motion

based recording, you must enable motion alarm and set up schedule for motion alarm (see

Chapter 5.5.2 Motion Alarm for more details).

5.4.3 Sensor Schedule

This tab allows setting schedule for sensor based recording. The setting steps are as follows:

Step 1: Enter into Menu → Setup → Schedule → Sensor interface.

Step 2: The setup steps for schedule for sensor based recording are similar to normal schedule setup (see

Chapter 5.4.1 Schedule for details).

Note: The default schedule of sensor based recording is 24x7. If you want to activate sensor based recording, you must enable sensor alarm and set up schedule for sensor alarm (see Chapter 5.5.1 Sensor Alarm for more details).

5.5 Alarm Configuration

Alarm configuration includes four sub menus: sensor, motion, other alarm and alarm out.

5.5.1 Sensor Alarm

Sensor includes three sub menus, basic, alarm handling and schedule.

Operate the following steps to configure sensor alarm:

Step 1: Enter into Menu → Setup → Alarm → Sensor → Basic tab. Refer to Fig 5-16:

Step 5: Enter into Alarm Handling tab. Refer to Fig 5-17. Select hold time and then click "Setting" button to pop up a dialog box as shown in Fig 5-18.

Fig 5-17 Alserin Configuration-Sensor-Nature Handling

Step 6: Enter into alarm tab to select the options to handle alarm.

Fig 5-18 Alarm Handling-Trigger

Buzzer: If selected, the local buzzer would be activated on an alarm.

Show Full Screen: If selected, there will pop up the chosen channel on the monitor on an alarm trigger.

To Alarm Out: If selected, this would trigger external relay output on an alarm.

Email: If selected, the NVR will send an email alert to the preconfigured email address in case of a sensor

based alarm from the particular input.

Snap: If selected, the system will snap images of the checked channels on an alarm and save them in the

HDD automatically.

Step 7: Enter into To Record tab. Select recording channels. It would be recorded in case of an alarm. Click OK button to save the setting.

5.5.2 Motion Alarm

Motion includes two sub menus: motion and schedule. The steps to set motion alarm are as follows: Step 1: Enter into Menu → Setup → Alarm → Motion → Motion tab. Refer to Fig 5-19:

Step 2: Enable motion alarm, set alarm hold time which refers to the time till which the system will wait for further detection of motion. e.g. if the holding time is set to 10 seconds, once the system detects a motion it will go into alarm but would not detect any other motion alarm (specific to channel) until 10 seconds. If there is other motion detected during this period it is considered it as continuous movement, otherwise it will be considered as a single motion.

Fig 5-10 Alarm Configuration-Motion

Step 3: The setup steps of motion trigger are similar to "Alarm Handling" (See Chapter 5.5.1 Sensor → Alarm Handling setting for more details).

Step 4: After clicking Area button, a dialog box will pop up as Fig 5-20:

Exterior view of a curved highway with lane markings and greenery (no signage or text)

Fig 5-20 Molium-Srea

Step 5: In the Area interface, you can drag slide bar to set the sensitivity value (1-8). The higher the value is

Note: Prior to setting motion detection field it is recommended that you click icon to clear the existing field and set afresh.

Step 6: Select "All" to set the same settings for all channels.

Step 7: Click "Apply" button to save the setting.

Step 8. Enter into Schedule tab. The setting steps for schedule for motion based alarm are similar to

normal schedule setup (see Chapter 5.4.1 for more details).

5.5.3 Other Alarm

This tab gives a choice to configure alarm for Disk Full, IP Conflict, the Disconnect event, etc.

Step 1: Enter into Menu → Setup → Other Alarm. Refer to Fig 5-21:

Fig 5 21 Other Alarm

Step 2: Use the dropdown menu and select the event or the alarm.

Step 3: Check the required trigger options.

If the selected event is "Disk Full", then use the drop down box for "Disk Shortage Alarm" to choose a

threshold value for remaining HDD space. If the threshold value is reached, the system will trigger the Disk

Full Alarm.

Step 4: Click "Apply" to save the setting.

5.5.4 Alarm Out

Alarm out includes three sub menus: alarm out, schedule and buzzer.

To set up alarm out:

Step 1: Enter into Menu → Setup → Alarm Out, Refer to Fig 5-22:

Fig 5 22 System Configuration Alarm Out

Step 2: Input relay name and select hold time.
Step 3: Enter into Schedule tab. This will go into schedule setup interface. The setting steps for schedule for a arm out are similar to normal schedule setup (see Chapter 5.4.2 for details).
This step is very important for alarm out. Even if you have enabled alarm out in the motion based alarm or sensor based alarm, you will not see the result of alarm out if no schedule is added here.

To set up buzzer:

Step 1: Enter into Menu → Setup → Alarm Out → Buzzer
Step 2: Checkmark Buzzer and set buzzer alarm hold time. This would trigger the buzzer when the system

5.6 Network Configuration

Network configuration includes four submenus: network, Email, server and other settings. Network settings must be configured if NVR is used for monitoring over network.

5.6.1 Network

To set up network:

Step 1: Enter into Menu→Setup→Network→Network lab. Refer to Fig 5.23:

http://192.168.0.25, you should input the following IP address: http://192.168.0.25.82 into E browser.

Step 3: Sel server port. The default server port is 6036.

Step 4: Connect internet. There are three ways to connect internet.

If you have a DHCP server running and would like your NVR to automatically obtain an IP address and other network settings, check the checkbox beside "Obtain an IP address automatically". Then the device will distribute IP address, subnet mask, and gateway IP and DNS server.
If you want to configure your own settings, disable "Obtain an IP address automatically" item and input the IP address, subnet mask, gateway IP and DNS server.
If you connect internet, through PPPoE, disable "Obtain an IP address automatically" item and check PPPoE checkbox and then enter username and password. Once the setup is completed, your NVR will automatically dial up into your network.

Step 5: Test the effectiveness of the network by clicking "Test" button after you set up the network.

Step 6: If the network is well connected, please click "Apply" button to save the setting.

5.6.2 Sub-stream

System configuration → network configuration → sub stream; refer to Fig 4-30

Select fps, resolution, quality, encode and max bit rate

To setup all channels with the same parameters choose "all" and then apply to save relevant setup to all channels.

Reset to default setting; click the "default" button and then "apply" button to save the setting.

5.6.3 Email

To set up Email:

Step 1: Enter into Menu→Setup→Network→Email tab. Refer to Fig 5-24.

Step 2: Set SMTP Server and port.

SMTP Server/Port: The name and good number of SMTP server. You can set up SSL check (such as Gmail) according to actual needs.

Step 3: Sel sender's address and password.

Step 4. Set receiver's email address and click "Test" button to test the validity of the mailbox.

5.6.4 Server

This function is mainly used for connecting FCM5/NVMS. The setting steps are as follows:

Step 1: In the server interface, select "Enable" as shown in the Fig 5-25.

Step 2: Check the IP address and port of the transfer media server in the ECMS/NVMS. The default server port for auto report is 2009. If it is modified, please enter into the transfer media interface to check.

Step 3: Enable the auto report in the ECMS/NVMS when adding a new device. Then self-deline device ID

and input the remaining information of the device in the ECMS/NVMS.

Step 4: Input the above-mentioned server IP, server port and device ID in the server interface. Then click

"Apply" button to save the setting. Now, the ECMS/NVMS system will automatically connect this device.

Fig. 5-25 Network Configuration Server

5.6.5 NAT

① Go to Main Menu→Setup→Network→NAT interface. Refer to Fig 5-26.
② Enable NAT and input the NAT Server (The default NAT Server is www.provisionisr-nal.com).
② Click "Apply" to save the settings.

5.6.6 Other Settings

If your NV3 is set to use PPPoF as its default network connection, you may set up DONS to be used in connection. The setting stores are as follows:

Step 1: Enable DDNS server.

Step 2: Select DONS server.

Step 3: Enter user name, password and host domain name of the registered website.

Step 4: Click "test" button to test the effectiveness of the relevant information.

Step 5: Click "Apply" button to save the setting.

Fig 5 20 Network Configuration Other Settings

Note: The domain name selected by user is a bonding domain name of NVR. User should logon the website provided by the server supplier to register a user name and password and then apply for a domain name online. After the successful application, user can access the device from the IT client by inputting that domain name.

1. Domain name Registration (http://provision.isr.dns.com)

Note: DDNS is used to register for a hostname with DDNS username and password.

Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your DVR on the Internet. Each account can create up to 35 different addresses using your preferred domain name address instead of using IP addresses. Follow the steps below to register your DVR's name and to configure your DVR to use Provision ISR's Mint DDNS server.

(a) To register a domain with Provision-ISR DDNS server follow these steps.

11 Visit our website: http://provision-ist-dns.com

2) Fill in the registration form, then click "Submit"

3) Fill in the host name you want to apply for and press "Request Domain" (for example "home")

4) If there is no problem with the domain registration you will see the following message: "Your domain was successfully created."

If you do not see this message, the domain name you requested is already in use and you will be requested to provide an alternate domain name (please note: domain name is sometimes called host name).

You can create up to 35 domain records under a single account

5) The domain name is added at the beginning of your DVR's address, for example the domain "home" will appear as home-provision-bri-dns.com.

(b) Setting up your DVR to work with the DDNS server

1) The DONS server will work only if the three steps are completed; (1) domain registration, (2) correct network configuration with correct

2) On the DVR Under Main menu => Settings => "Config" => "Network" set the correct DNS servers;

For example take a look at the correct settings on the figure below; the router's IP address is 10.0.0.138, the e-mail account registered is [e-mail], and the host domain registered is "home.provision-ir-sr-dns.com".

3) As shown on figure above: Check the "DDNS" check box, select "minutes" for DDNS type, and fill in all the other fields.
4) Make sure you have the preferred & alternate DNS servers filled in (under the "Network" settings section): the preferred server should be the Internet gateway and the alternate server should be a different DNS server—for example one of Google's DNS servers (IP 8.8.8.8 or 8.8.4.4)
5) Click the "Test" button

a. If the test succeeds click the "Apply" button

b. If the test fails check all fields again or call the support helpline

6) Now you can access the DVR using the DDNS (http://home.provision-isi-dns.com)

5.7 User Management Configuration

This tab allows you to add normal or advanced users. To add user and set up user authority: Step 1: Enter into Menu→Setup→Users. Refer to Fig 5-27:

Fig 5-27 User Management Configuration

Case 2: Click Add Button to Display Dolorator as Fig. 5-20

Fig 5-28 And-General

Step 3: In General tab, input username, password and select user type. You can also check "Binding PC MAC Address" and input this address.

Step 4: Click "OK" to save the selling.

Note: When the default value of binding PC MAC Address is 0, the user is not bound with the specified computer. If the bind option is used, the user would be able to log into the NVR only through the specific computer (carrying the MAC address).

Step 5: Select Authority tab and then assign the operation rights for particular users. Refer to Fig 5-29. Step 6: Click OK to save the setting.

Fig 5-29 Add User-Authority

To delete user

Step 1: Enter into Menu → Setup → Users interface.

Step 2: Select the added user you went to delete and then click "Delete" button.

To change user password

Step 1: Enter into Menu → Setup → Users interface.

Step 2: Select the added user you want to change its password and then click "Change Password" button.

5.8 Advanced

Advanced configuration includes three submenus, reset, import/export and Block/Allow list.

5.8.1 Reset

Reset all settings the device will reboot.

5.8.2 Import/Export

User can export the data files into mobile storage devices as backup function, and then import specified data files from mobile storage device to NVR.

5.8.3 Block/Allow List

Fig 5-30 Block/Allow List

Here authorized user can prohibit computer users within a certain IP address range from accessing to NVR, or a low computer users within a certain IP address range to access NVR. E.g. if an admin user doesn't want computer users within IP address range from 192.168.000.002 to 192.168.000.004 to access the NVR, he can check Block list option, and then input such IP address range.

6 Search, Playback & Backup

Search configuration includes four submenus: time search, event search, file management and image.

6.1 Time Search

Step 1: Enter into Menu → Search → Time Search. Refer to Fig 6-1:

Fig 5-1 Search Configuration Time Search

Step 2: Select date and channels on the right hand side and press the 'Search' button. A date with highlighted borderline indicates presence of data.

Step 3: Set the start time by clicking a particular grid or by entering the specific value in the start time field.

Step 4: Select the channel display mode and click Play button to play record. Use the playback toolbar to control the playback.

6.2 Event Search

Step 1: Enter into Menu → Search → Event Search button. Refer to Fig 6-2:

Class 3: Calast data and echymale on the eight-band side. A data with blackfield boundary indicators

Fig 6.2 Search Configuration Event Search

6.3 File Management

Step 1: Enter into Menu → Search → File Management interface. Refer to Fig. 5.3:

Fig 6-3 Search Configuration-File Management

Step 2: Select date and channels. The date with highlighted borderline indicates presence of data.

Step 3: Click Search button to display the searched files in the file list box.

Step 4: Use "All" button to lock/unlock or delete all files in the file management column.

Step 5: Double click an unlocked item to play.

Lock: Select a file and click Lock button to lock this file, after that, that file will not be deleted or covered.

The fact that the fact is a fact that this is

6.4 Search by Image

Step 1: Enter into Menu → Search → Image tab.

Step 2: Select data and channels on the right hand side.

Step 3: Press "Search" button to search for a recorded image.

Step 4: Once an alarm image has been identified, the user can double click the image to play recording.

Fig 6-4 Search Configuration Image

6.5 Backup

This unit supports backup by built-in SATA DVD Writer with USB Flash. You can also make backup by IE browser via internet (see section 8.3.2 Remote backup).

Step 1: Enter into backup configuration. Refer to Fig 6-5:

Step 2: Set the start & end time, select channels and click search button to display the searched data in the data backup list box.

Step 4: In the backup information interface, you can check the relevant information of backup files, storage type, save file type, etc. Then click Start button to start backup.

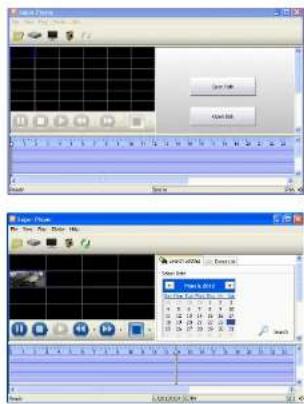

Note: If the backup files are saved in DVR format, please check backup player. Only this player can play these files in DVR format. If the backup files are saved in AVI format, you can play these files with common media players.

7 Manage NVR

7.1 Check System Information

Check system information includes five submenus: system, event, log, network and online user.

7.1.1 System Information

In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc.

7.1.2 Event Information

In this tab, you can search for events like motion, sensor and video loss. The utility provides an interface to have a date based and a channel based search. This report can further be saved on a USB flash drive as an html file using the export button.

7.1.3 Log Information

In this tab, you can search for relevant logs as per the set date and event which includes operation, setup, playback, backup, search, check information and error. This report can further be saved on a USB flash drive as an html file using the export button.

7.1.4 Network Information

In this interface, you can check relevant parameters of network.

7.1.5 Online Information

In this tab, you can check the details of the connected online users.

Refresh: refresh the current interface.

Disconnect: Disconnect the online users to access NVR. If this function is used by the admin, the particular

PC will not be able to access the device for five minutes.

7.1.6 Record Information

In this interface, you can check the resolution, ftp and record status including sensor alarm recording, motion recording, manual recording or schedule recording.

7.1.7 QRCODE

User can quickly access the mobile client by scanning QRCODE. Go to Main menu→Information→QRCODE tab. In this interface, you can scan the QRCODE through the mobile phone. Refer to Fig 6.2:

Fig 6-2 Information Configuration-QRCODE

7.2 Manual Alarm

In this interface, user can trigger a manual alarm.

7.3 Disk Management

1. Format the disk

Step1: Enter into disk management tab.

Note: please format the hard disk before recording. If not formatted, it will show the status of the disk free space, and total space at the bottom of screen.

Step2: Click Refresh button to refresh the disk information in the list box.

Step3: Select a hard disk and click Format button to start format.

Note: All recorded files in the hard disk will be lost once it is formatted.

1. Advanced

User may check model, S/N, firmware, health status of the disk in this interface. User also can monitor the temperature, internal circuit, dielectric material of the disk, analysis the potential problems of the disk and warm so as to protect its data.

7.4 Upgrade

The NVR can be upgraded by using USB flash drive. Get the upgrading software from your vendor when there is a new software version.

Upgrade Steps:

Step 1: Copy the upgrade software which gets from vendor into the USB storage device.

Step 2: Connect the USB flash drive to the USB port.

Step 3: Enter Menu→Upgrade tab. Then the upgrade software name would be displayed in the upgrade list box.

Step 4: Select that software and then click upgrade button. It will upgrade automatically.

8 Remote Surveillance

8.1 IE Remote Surveillance by NAT

8.1.1 NAT Settings

① The DVR shall be powered on and connected to the network.
② Go to Main Menu→Setup→Network→Network. You can obtain the IP address, Subnet Mask and Gateway automatically. You can also manually input them according to the actual network situation. And the IP address shall be in the same network segment as the network which is used.
② Set the preferred or alternative DNS Server (Please refer to 4.6.1 Network for details).
① Go to Main Menu → Setup → Network → NAT tab.
⑤ Enable NAT and input the NAT Server (The default NAT Server is www.provisionisr-nat.com).
⑥ Click "Apply" to save the parameters (Please refer to 4.6.5 NAT for details).

8.1.2 NAT Access

After finishing the NAT settings, you can enter the NAT Server on the PC (Input http://www.provisionisr-cloud.com to go to the IE client). If you are the first time to access the NAT, the network will download the ActiveX automatically.

Note: If you cannot download and install ActiveX, please refer to FAQ Q7.

After installing ActiveX successfully, it will pop up the login box:

Serial No: The MAC address of the DVR (Go to Main Menu→Information→QRCODE to check

8.2 IE Remote Surveillance

In order to view the NVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done accordingly. Please refer to 5.5 Network Setup. This NVR supports IE browser, on Windows XP and Vista platform.

8.2.1 On LAN

Step 1: Enter into the NVR's Main Menu→Setup→Network tab to input IP address, Subnet Mask, etc. If using DHCP, please enable DHCP in both the NVR and the router.
Step 2: Enter Record Setup to set network video parameters like resolution, frame rate etc.
Step 3: Open IF on a computer on the same network. Input the IP address of the NVR in IF address bar and press enter.
Step 4: IF will download ActiveX component automatically. Enter the username and password in the subsequent window.
Notice: If HTTP port is not 80, other number instead, need add the port number after IP address. For example, set HTTP port as 82, need input IP address like 192.168.0.25-82.
User name and password here are the same with that used on the NVR. The default is admin and 123456.

8.2.2 On WAN

There are two ways for the NVR to connect to internet.

1. Connect the NVR to internet through router or virtual server

Step 1: Enter into the NVR's Main Menu→Setup→Network Interface to input IP address, Subnet Mask, etc. If using DHCP, please enable DHCP in both the NVR and router.

Step 2: Forward IP address and port number in Virtual Server setup of the router or virtual server. Configure the firewall to allow accessing the NVR.

Note: Port forwarding settings may be different; in different routers and servers. Please refer to the router's manual for details.

Step 3. Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after IP address or domain name.

Step 4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view.

Note: If you cannot download and install ActiveX, please refer to FAQ 08.

1. Connect the NVR to internet through PPPoE directly.

Step 1: Enter into the NVR's Main Menu→Setup→Network interface to enable PPPoE and then input user name and password received from your ISP. Next, click 'Apply'. The NVR will connect to the server and would give a confirmation message.

Shen 2: When accessing the remote interface of NVR, nor can input WAM19 to access directly toror can

8.3 Remote Surveillance through Apple PC

Note: Because the current plug-in version of client and just only supports 32-bit mode, so the Safari browser shall start 32-bit mode if the browser is the earlier MACOS version, the default setting is 32 bit mode and the setting can be skipped.

The Setting steps are as follows:

First. Right click safar icon and select "Show in Finder".

Second: Select Applications→Right click "Salar, App"→Select "Get Info".

Third: Select "open in 32-bit mode".

8.3.1 On LAN

Step 2: Enter into Network interface and then click "Ethernet Connected" to check the internet connection of Apple PC.

Step 3: After acquiring the IP address, Submit Mask and so on, please enter into the NVR's Main Menu→Setup→Network interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC. The network segment should be the same as the PC. If using DHCP, please enable DHCP in the NVR and router.

Step 4: After finishing the above information, users can enter LAN IP and http port in the Safari browser. For example: input http://192.168.1.100.81/norc 192.168.1.100 is LAN IP of NVR, 81 is the http port of NVR). Click * Button, the browser will download Active X control as shown below:

Step 5: Click icon and then select the Active X control, the welcome interlace will be shown. Click "Continue" → "Install" button, the following window will pop up :

Input the name and password of Apple PC and then click "OK" to install this Active X control.

Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click Safari icon on the desktop and select "Quiz" button to quit the browser. Then restart Safari browser, Input the IP address and http port to enter the login interface of KVR.

8.3.2 On WAN

There are also two ways for NVR to connect to Internet.

1. Connect the NVR to internet through router or virtual server.

Step 1: The network setups are the same as step one to step four of point 1 on WAN of IE remote surveillance.

Step 2: Enter WAN IP and help port in the Safari browser to install the Active control. Then a window pops up and asks for user name and password, input name and password correctly, and enter to view.

1. Connect the NVR to internet directly.

Step 1: The network setups are the same as step one of point 2 on WAN of IF remote surveillance.

Step 2. Enter WAN IP and http port or domain name in the Safari browser to install the Active control. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view.

8.4 Remote Preview

Fig 8.1 Remote Live Preview

Symbol and function Definitions:

1	Channel Indicator	2	Screen display mode	3	Volume
4	Start & record	5	Snap	6	Start talking

Screen display mode:

Snap pictures

The system will automatically capture pictures and save those pictures in the computer by clicking "Snap"

icon.

User should set up the path for these pictures in the Configuration→Local configuration.

Color adjustment:

Drag the slide bar to adjust brightness, Contrast, Hue, and Saturation. Click Default to reset them to original value

Buttons	Description
	Drag the scroll bar to adjust the brightness of channel
	Drag the scroll bar to adjust the contrast of channel
	Drag the scroll bar to adjust the saturation of channel
	Drag the scroll bar to adjust the mass of channel
	Click this button to recover the default value of brightness, contrast, saturation and line
	Save the adjustment

PTZ control

Please connect speed dome to the device via RS485 firstly, make sure the protocol of the speed dome is supported by the device and set the relative parameters manually. User can control the dome up, down, right, left or stop rotating on Control Center, adjust rotation speed, Iris and zoom, focus on the dome, and set the presets, etc.

Buttons definition

Buttons	Description
	▲to rotate the dome upwards. ▼ to rotate the dome diagonally up left. ▲to rotate the dome diagonally up right. ▼ rotate the dome downwards. ▲to rotate the dome diagonally above-right. ▼ rotate the dome diagonally down left. ▼ rotate the dome towards left. ▼ rotate the dome towards right. ▼ stop rotating the dome.
—	Drag the scroll bar to adjust rotating speed of the dome.
	'left' button. Click button near 'left' button to increase light at the dome. Click button near 'left' button to decrease light of the dome.
	'Soon' button. Click button near 'Zoom' button to occur in the locale. Click button near 'Zoom' button to occur in the dome.
	Select and go auto cruise
	Trace
	Auto screen
	Writer button
	Light whisk

Right-Key Menu

Click the right mouse on the live interface to display a pull-down menu as below.

Stream. The NVR supports master stream and sub stream. Master stream has higher frame rate, max 25fps (PAL)/30fps (NTSC) for every channel, but it needs

higher network bandwidth, second stream has low frame rate, max 6fps

(PAL)/7fps (NTSC) for every channel, but it requires low network bandwidth as compared to the master stream. Therefore, users can select the stream

according to their bandwidth.

Fig 8.2 Right Key Sub Menu

All to sub stream: Set all channel to master stream or sub stream

Enable audio: Enable or disenable audio.

Full screen; The live preview picture will display in full screen and the tool bar will be hidden; double click

left or click right mouse to return.

Zoom in: Single channel large screen electronic amplification. Click the channel which needs to be zoomed.

Right click to select zoom in button to zoom in the image. Double click or right click to exit.

Master Stream

Sub-stream

All to Sub-stream

Enable Audio

Full Screen

2000 in

8.5 Remote Playback & Backup

8.5.1 Remote Playback

Click button to enter into record playback interface. Refer to Fig 8-3:

Select the record date and channels and double click the file name in the record file list box. Then user can play that file and preview the picture.

By Time Search:

Step1: Enter into Search → Time search. Refer to Fig 8-4.

Fig 8.4 Time Search Interface

Step2: The highlight date in the area② indicates recorded data. Select the date in the area ② and record channels in area(3).

Step3: Click "Search" button. The record data will be displayed in the data information list box. Step 4: Set the Start time and display mode in the area(1) as required.

Step 5: Click "play" button to playback.

Step 6: Click the relevant buttons in the interface for operation, like FF, pause, change channel mode, research, etc. Please refer to Fig 8-5:

By Event Search:

Step1: Enter into Search→Event Search. Refer to Fig 8-6:

Fig 8-6 Event Search Interface

Step 2: Click the highlight date and select record channels.

Step 3: Checkmark the event type, motion and sensor.

Step 4: The events will be displayed in the event list box by clicking Search button.

Step 5: Double-click certain item to playback.

File Management

Step 1: Enter into Search→File management. Refer to Fig 8.7:

Step 2: Select highlighted date and channels.

Step 3: Click "Search" button to search the recorded files.

Fig 8-7 File Management Interface

Lock: Select certain file item in the file list box and then click "Lock" button to lock this file that can not be

8.5.2 Remote Backup

Click Backup button to enter into backup interface. Refer to Fig 8-8:

Fig 9-8 Remote Backup Interface

Step 1: Select channels, set the start and end time and then click "Search" button to display the file information in the file list box

Step 2: Select backup files and click "Browse" button to set the path. Then click "Backup" button to start backup. The backup files will be saved on user's PC.

8.6 Remote System Configuration

You can do remote setup of the device which includes functions like basic configuration, live configuration, record configuration, schedule configuration, alarm configuration, network configuration and user configuration. You should select an option from the menu list on the left and then set up the relative parameters. Only one user can do configuration setup at a given point of time. Click Config tab to enter into the below interface as Fig 8.9.

8.7 Tools

Click on tool's tab to access NVR management tool. You can trigger alarms manually [If the device supports this feature], view the status of the IIDD, change/view the read/write properties, format the IIDD remotely and update the NVR remotely using TAR update files.

8.8 Remote Information

The info tap provides a web based interface to access the general information pertaining to the NVR's settings. It includes live submenus: System, Event, Log Network and Online users. The sub menu list and the options in every menu are similar to that of the NVR. Please refer to system information for more details.

Fig. 8-10 Remote information Search

Note: There may be slight differences with respect to functions of remote surveillance between through IE and through Apple PC. Here we only take IE remote access for example.

8.9 By Devices with iOS

•Install through iPhone

Step 1: Open App Store software as shown in the figure on the left.

Step2: Search "Provision Cam" and click "Get" button as shown in the figure on the right.

Step 3: Click "Install App" button as shown in the figure on the left.

Step 4: Input iTunes Store password and then click "OK". The software will be installed automatically.

• Install Software through PC

Step 1: Install iTunes store in PC and then login.

Step 2: Connect iPhone and PC.

Step 3: Search "Provision Cam" and select it.

- "Provision Cam" Instruction

1. Login

Step 1: Choose network type. There are two network connection ways: 3G/3G +WIT, well video quality. This network supports main stream and sub stream. The real-time image will be displayed by using sub stream. 3G-, poor video quality contrast to the above mentioned network.

Step 2: Input server, account and password.

Server: Option 1 (available only if NAT P2P server is enabled, please refer to section 5.6.4): Click on the small QR code icon in the bottom of the login

screen then snap the QR code from the sticker on the DVR or from the DVR interface (Menu → Information → ORCODE).

Server, Option 2 WAN IP address (or domain name) plus HTTP port of the device. For example: 210.21.183:89 or 123.dvrdydns.com:89. Note: The default http port of the device is 80. If this port is modified, please use the modified port.

Account and Password: The login account and password of the device. The default account is admin and the default password is 123456.

Step 3: Click 【Login】 button to access the device.

1. Main Interface

There are many buttons in the main interface, such as, screen mode, favor te channel, snap, record, open/close audio, talk, PTZ, etc.

: Image view button. The pictures snapped in the live will be ed by clicking this button.

: Playback button. Click this button to enter into playback

: Settings button. Click this button to set local configuration (Some to support remote configuration).

Information button. Click this button to check lots of information, using local information, device information, network information, etc.

: Server list button. Click this button to add server list.

Help button. Help you know about the use of this software quickly.

Four-panel photo collage showing indoor scenes with furniture and fixtures, no visible text or symbols

: Favorite channel display button. If you save your favorite channel in the favorite server list, clicking this button will directly play all favorite channels you have saved.

: Snap button. Choose the channel and click this button to capture the channel image.

: Local record button. Choose the channel and click this button to start recording.

: Open/Close audio. Choose the channel and click this button to open/close the audio of this

STRAWB

: Open/Close talk. Click this button to pop up the servers which support talk function. Select the device to start talking.

Set video parameter button. Select the channel and click this button to set the video parameters including brightness, hue, saturation and contrast.

: PTZ button. Click this button to pop up PTZ control panel.

Obate priority Quality priority : Choose bitrate priority or quality priority according to your network

condition.

Channel indicator instruction:

: Video loss

: Sensor alarm

: Motion /sensor alarm based recording or manual recording

3. Server list

Click in to pop up the following picture.

Add device: Click "Add" button in the top right corner to pop up a dialog box as shown in the following left picture. Input the relative information of the device and click "Save" button.

➢ Delete device: Click ✗ button behind the device name to delete this device.

➢ Edit device: Click button behind

Indicates the device is connecting;
indicates the device is not connected.
4. Live Preview

Once you access the device, the system will automatically display the screen mode in accordance with the channel number of the device

Note: The maximum number of channels which can be connected are nine after login.

1. Click "Screen mode" button to select channel as shown in Fig 1.
2. When there is video playing in a screen, you can switch the channel by long pressing the screen as shown in Fig 2.
3. When no video is playing in a screen, click this screen to choose channel as shown in Fig3.
4. When the single channel is playing, you can zoom in/out the image by swiping you finger up and down as shown in Fig 4.
5. When the single channel is playing, the channel can be switched by swiping your finger left or right as shown in Fig 5.
6. When multi channels are playing, drag one channel screen to the other channel screen. This will make these two channels change the position of each other.

Fig 1

Fig.4

Fig 5

5. CMS Function

This function makes multi-device managements and preview come true.

Step 1: Click CMS function. When this icon turns green, it means this function is enabled. Step 2: Click Set(0) use channel as shown in the right picture. After you choose the channel, click "ok", the system will display the related image automatically.

• If channels have been added into the group, you can see the images by clicking the group name.
• On viewing the group channel images, click button and select channels to check other channel images.
• Click "Exit CMS" to exit CMS mode and return to the main interface of the device.

6. Favorite Channel/Group

There are two kinds of favorite channels: favorite channels of the device and favorite group of CMS.

● Favorite channels of the device

Step 1. Click to enter into device management list. Click the device name to extend channel. Enlighten the channels to save favorite channels as shown in the following picture on the left.

- Favorite groups of CMS

Enable CMS function and enlighten the group to save the favorite groups as shown in the following picture on the right.

Then click a button to play. Only one favorite group can be collected.

: Color means the channel or group has been collected. Grey means the channel or group isn't

collected.

1. Playback Interface

Click "Playback" button to enter the playback interface. Then click "Search" button to search the file. To play the record by click this file name.

1. Image View

Click an to view the captured pictures.

1. Settings Interface

In this interface, you can configure the local settings.

8.10 By Devices with Android OS

Software installation

Step 1: Run "Play Store" (or Google market) program.

Step 2: Search "Provision Cam".

Step 3: Press "instal" button.

Step 4. Install the software subject to the notes. Once the downloading is done, the software will install automatically

Login Menu

Step 1: Choose network type. There are two network connection ways: 3G/3G +WH, well video quality. This network supports main stream and substream. The real-time image will be displayed by using substream. 3G-, poor video quality contrast to the above mentioned network.

Step 2: Input server, account and password.

Server: Option 1 (available only if NAT P2P server is enabled, please refer to section 5.6.4): Click on the small QR code icon in the bottom of the login screen then Snap the QR code from the sticker on the DVR or from the DVR Interface (Menu → Information → QRCODE).

Server, Option 2: WAN IP address (or domain name) plus HTP port of the device. For example: 210.71.183:89 or 123.cvrdyctns.com:89. Note: The default http port of the device is 80. If this port is modified, please use the modified port

Account and Password: The login account and password of the device. The default account is admin and the default password is 123456.

Step 3: Click [Login] button to access the device.

	PTZ
	Snap
	Record
	Talk
	Enable/disable audio
	Hide
	Playing, favorite channel

Main Menu
Live View

Record Playback

	The first picture
	The previous picture
	Next picture
	The last picture
	Zoom in
	Zoom out
	Delete

Click "Playback" in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play.

Server List:

In the main menu interface, click "Server list" to see the above picture on the left hand.

Add server click "button" to pop up a window as shown in the above picture on the right hand. Enter the name, server, user and password of the device you want to add. Then click "Save" button to save the server. When you log in next time, you can choose and quickly access this server by clicking the little triangle button in the server column.

Modify Server: Click Button to modify the server information. Delete Server. Click Button to delete the server information.

Settings:

In the main menu interface, click "Settings" to enter the settings interface where you can configure local settings. Click "Local" to enter local settings interface. In this interface, you can set favorite channel and storage.

Favorite Channel:

Check the favorite channels and click "Save" button to save these channels. Then go into live interface and click "button" to play these favorite channels.

Storage: Setup the relevant parameters of mobile video.

Information View: view the DVR/NVR basic information as shown in the picture on the right.

Appendix A: FAQ

Q1. The NVR fails to turn on even after connecting to the power, why?
a. The power adapter could have gone bad. Please change a new power adapter.
b. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.
c. It could be a hardware problem. Please contact technical support.

Q2. There is no menu displayed and only has live image display, why?

a. Check whether the monitor is connected to the main video out. The monitor might be connected to VGA /HDMI port whereas the NVR may be set for output through BNC or vice versa. Hold and press ESC/in key to toggle the output modes.

Q3. The NVR LED turns on, however there is no output. Why?

a. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.
b. It could be a wiring issue. Please check the connection for the same.
c. Check the monitor settings.

Q4. Why are no images displayed on few or all the channels of the NVR?

a. It could be a wiring issue. Please check the cable and the ports of the cameras.
b. The problem can also be related to cameras. Please check the same.
c. Please make sure that you have added and enabled the cameras.

Q5. Why can't I find the HDD?

a. The power from the adapter may be not enough for operating the NVR. Please use the power adaptor supplied along with the NVR.
b. It could be a wiring issue. Please check the power and data cables of the HDD.
c. The HDD could have gone bad. Change a new one.

Q6. The system cannot record, why?

a. Make sure the HDD was formatted prior to use.

b. Maybe the user hasn't enabled the record function or has done incorrect setup. Please refer to Record Configuration for more details.

Q7. Mouse does not work. How can I do?
a. The mouse should be connected to the USB port at the rear side.
b. After connecting the mouse, allow the NVR to detect the mouse for seconds. If not detected, try restarting the NVR.
c. The mouse may be incompatible or faulty. Please change a mouse.
Q8. ActiveX control cannot be downloaded. How can I do?
a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.
① Open IE browser. Click Tools. — Internet Options...

② select Security — Custom Level... Refer to Fig 8-1.
② Enable all the sub options under "ActiveX controls and plug-ins". Refer to Fig 8-2.
④ Then click Ok to finish setup
6. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings

上证8-1

Fig 8-2

Q9: NVR displays "please wait..." all the time. Why and How can I do?

- UON reasonable and better, more and less connected. Dispers share the connection for UON

initial password is 123456), or you can use the digital keys on the front panel, or the digital keys on the remote controller.

Q11: A hard disk is being identified as a new device however it was being used with another NVR of same model. Should it be formatted prior to use?

It is possible to migrate an HDD from one NVR to another provided that the NVRs are of the same model and that the HDD being migrated would be used as the sole disk in the new NVR. However in cases where the new NVR already contains a HDD, the migrated disk being installed would have to be formatted. In general migrating disks from one NVR to another is not recommended.

Q12: What is the minimum configuration required for remote monitoring?

PC Module	Parameters
CPU	Intel Colorer 2.4G
Max frame rate	Intel 875
HDD	80S
RAM	312V
VGA	NVGA GeForce MX/100% X/S200ATRACRON 7532/6300
OS	Windows 20000% above/Winexon X/S200 above/WinEx
DioCTX	9.0

Q13: How to handle the situation that the codec Control is blocked when downloading in the VISTA or Win? system?

This problem can be fixed in two ways:

a. Enter Control Panel→User Account and Family Safety →User Account Control (refer to Fig 13-1); click Turn User Account on or off. Cancel Use User Account Control (UAC) to help protect your computer.

b. Right click IE browser (refer to Fig 13-2), select Run as administrator to run browser.

Q14. How to play the backup file?

a. Insert your USB device where the backup files are saved in the USB port of PC. If your files are saved in DVR format, you must have already downloaded the backup player box before doing backup. Then double click to open your USB disk to find your backup files and backup player. Double click

b. Alter you install it, open this player and click "Open Path" button to open your backup file. Next, click play button to play the backup file. Double click the image and then right click to enable audio. If you save your backup files in AVI format, you can directly open your file by using the media player which supports this format.

Appendix B: Calculate Recording Capacity

You can calculate the size of hard disk according to the storage time and NVR recording settings. The formula is as follows in full frame rate condition. Used space per hour (M3/h) = 0 trate(kbps) ÷ 8 × 3600 ÷ 1024. The below are the details at different settings.

Resolution	Frame Rate	Bit Rate (kHz)	Used Space(MPa)
5MP2000P	30fps (INTC)	17M	5400
		8M	2000
		7M	3150
		5M	2250
		4M	2600
700P2000P5MP	30fps (INTC)	6M	2700
	10fps (INTC)	4M	1600
	15fps (INTC)	2M	900
		3M	450
		15G	118

The calculation format is: Total Recording capacity = Used space per hour (MB/h) (coverage rate of hard disk) × recording time (hour) × channel numbers

For instance, one customer sets resolution to 1080P, frame rate to 15fps, hit rate to 4M and enables total 4 channels. He wants the unit to record continuously in a month. Below is the calculation:

Total Recoding capacity =900 (mb/h) X 24(hours/day) X30(days) X4 (channels) = 2592000 (MB) = 2531.25(GB). Therefore, customers just install one SATA HDDs with 310, it can almost record for one month.

1. Compatible USB drive after test.

Brand	Capacity
SAC	512bit, 16, 26P
Vorac	4GB
Vangilon	2GB
Alon	24P
Smelter vitor	1GB
Sandisk	4GB

1. Compatible HDD list

Brand	Capacity
Testes Capacities	80G / 160G / 250G / 320G / 1.5T / 27R / 37R / 47R (from version 3.4.2 and higher)

PROVISION ISR

Now you can see!
