USER MANUAL LCD-C3207 FUNAI

DECLARATION OF CONFORMITY 2

PRECAUTIONS....3

OPERATING CONTROLS AND FUNCTIONS 4

PREPARATION FOR USE 6

SET UP FOR USE 8

OPERATIONS 11

MAINTENANCE....14

TROUBLESHOOTING GUIDE ....15

SPECIFICATIONS....16

Features

• Stereo Sound System
• On-Screen Display
• Sleep Timer
• Teletext
• Screen Mode Selection
• Auto Power Off Function- If there is no signal input from the antenna terminal and no user operation for 15 minutes, the TV will turn itself off automatically.
  • HDMI Input
• COMPONENT Input
  • S-VIDEO Input

Supplied Accessories

• Remote control
• Two R6 (AA) batteries
• Owner's Manual

Model/Serial Number

To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV.

Model number:

Serial number:

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Contact your council for details.

HDMI ^TM HIGH DEFINITION MULTIMENA INTERFACE

1EMN21993C

L5820EA/L5920EA/L5821BB/L5921BB/L5823RD/L5923RD/L5824FE/L5924FE/L5926EG/L5827RH/L5927RH/L5850EA/

L5851BB/L5852FC/L5853RD/L5854FE/L5857RH/L5950EA/L5951BB/L5953RD/L5954FE/L5956EG/L5957RH*

EN

Printed in EU

DECLARATION OF CONFORMITY

This product complies with the requirement of the directives

EMC-Directive: 89 / 336 / EEC

Low Voltage Directive: 73 / 23 / EEC

CE Marking: 93 / 68 / EEC

EN55013: 2001 + A1: 2003

EN55020: 2002 + A1: 2003

EN61000-3-2: 2000, EN61000-3-3: 1995 + A1: 2001

EN60065: 2002

EN60825-1: 1994 + A1: 1996 + A2: 2001

We declare that the following product:

LCD COLOUR TV, Model LCD-A2706, LCD-A2726,

LCD-A3206, LCD-A3207, LCD-B2706, LCD-B2726,

LCD-B3206, LCD-C2706, LCD-C2707, LCD-C2717,

LCD-C2726, LCD-C3206, LCD-C3207, LCD-D2706,

LCD-D2707, LCD-D2717, LCD-D2726, LCD-D3206,

LCD-D3207

Trade Name: Funai

is in compliance with following Regulations.

Help Phone Number in the UK (only for LCD-B2706 / LCD-B3206): 0870 383 3010

PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

POWER SUPPLY

The main power supply is engaged when the main plug is plugged in a 220-240 V, 50 Hz AC outlet. To operate the unit, press STANDBY-ON to turn on the unit.

WARNING: LIVE PARTS INSIDE.

DO NOT REMOVE ANY SCREWS.

CAUTION

1) Do not attempt to open the cabinet. There are no parts you can service inside. Refer all servicing to qualified service personnel.
2) Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.
3) Keep the unit away from radiators and other heat sources.
4) Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
5) To prevent fire or shock hazard, do not expose this apparatus to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the apparatus.
6) Use this unit in a horizontal (flat) subsoil only.
7) Do not place any combustible objects on the device (candles, etc.).
8) The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

9) Disconnect the mains plug to shut off when find troubles or not in use.
10) The mains plug shall remain readily operable.
11) Read both manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.
12) Keep the distances 20 cm around apparatus of ventilation openings.

Connection to Power (Only for U.K.)

Before Switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

Mains Cord

This appliance may be fitted with a non-rewireable plug. If it is necessary to change the fuse in a non-rewireable plug the fuse cover must be refitted. If the fuse cover is lost or damaged, the plug must not be used until a replacement available from the appliance manufacturer is obtained. It is important that the colour of the replacement fuse cover corresponds with the rating marking on the base of the plug. If the plug has to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug removed must be disposed of safely as insertion into a 13A socket is likely to cause an electrical hazard. For your own safety read the following instructions carefully before attempting to connect this unit to mains. The wires in this mains lead are coloured in accordance with the following code:

BLUE=NEUTRAL, BROWN=LIVE

Important

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. No connection is to be made to the earth terminal of the plug. If a 13 Amp (BS 1363) Plug is used, a 5 Amp Fuse must be fitted, or if any other type of Plug is used a 5 Amp Fuse must be fitted, either in the Plug or Adaptor, or on the Distribution Board.

Mains Supply: 220 - 240 V \~50 Hz - AC only

Do not make any connection to the larger pin marked with the letter "E" or by the symbol ± or coloured green or green and yellow.

FUSE BROWN (Live) BLUE (Neutral) CORD GRIP OUTER SHEATH OF THE WIRE

OPERATING CONTROLS AND FUNCTIONS

This manual describes the LCD-A2706, LCD-A2726, LCD-A3206, LCD-A3207, LCD-B2706, LCD-B2726, LCD-B3206, LCD-C2706, LCD-C2707, LCD-C2717, LCD-C2726, LCD-C3206, LCD-C3207, LCD-D2706, LCD-D2707, LCD-D2717, LCD-D2726, LCD-D3206 and LCD-D3207. These models are different in size and shape, but operate identically. The LCD-A3206 / LCD-A3207 / LCD-B3206 / LCD-C3206 / LCD-C3207 / LCD-D3206 / LCD-D3207 is illustrated.

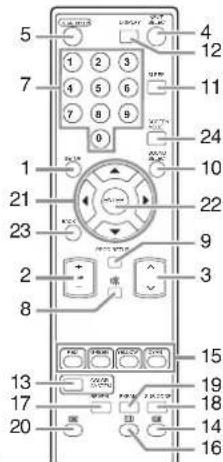

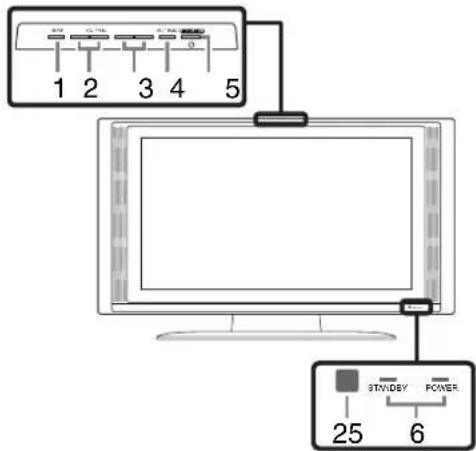

CONTROL PANEL REMOTE CONTROL

1 2 3 4 5 STW/DBY POWER 25 6

1. SETUP

Press to display the menu on the TV screen.

2.VOL. +/ - (control panel) / +/- (vol.) (remote control)

Press to control the volume level.

VOL. + (control panel)

Same function as ENTER (remote control).

VOL. - (control panel)

Same function as BACK (remote control).

3.PROG.+/-(control panel)

Press to select item you want to adjust in the picture control mode.

Press to select the setting mode from the menu on the TV screen.

Press to go to the next page or the previous page of Teletext.

PROG. +/- (control panel) /

^ / √(prog.) (remote control)

Press to select memorised channel.

1. INPUT SELECT

Press to select TV or external input mode.

5.STANDBY-ON

Press to turn the TV ON or OFF (standby).

6.STANDBY/POWER indicator

Lights up in green when power is on.

Lights up in red when power is in standby mode.

7.0-9 number buttons

Press two digits to directly access the desired channel. Remember to press "0" before a single digit channel.

1. (mute)

Press to mute the sound portion of the TV programme (Volume level display turns LIGHT RED from LIGHT WHITE). Press this button again or press VOL. +/- on the control panel or +/- (vol.) on the remote control to restore sound.

9.PROG RETURN

Press to go back to the previously viewed channel. For example, pressing this button once will change channel display from P03 (present channel) to P10 (previously viewed channel) and pressing it a second time will return from P10 to P03.

10.SOUND SELECT

Press to change sound modes.

11.SLEEP

Press to set the Sleep Timer.

Installing the Batteries

1) Open the battery compartment cover.

2) Insert "R6" penlight batteries into battery compartment in the direction as indicated by the polarity (+/-) markings. Batteries installed with incorrect polarity may damage the remote unit.

3) Close the cover.

5 7 1 2 3 4 12 11 8 9 0 24 10 21 22 23 9 2 - 3 8 15 19 18 17 16 20

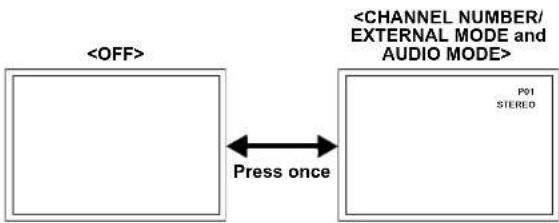

12.DISPLAY

Press to display the channel number or input source on the screen. If you press it again, the display will disappear.

13.COLOR SYSTEM

Press to select the input signal from the tuner or external devices.

1. (hold)

Press to hold the current page of Teletext.

15.RED/GREEN/YELLOW/CYAN

Press to directly select the page numbers of Teletext shown at the bottom of the TV screen.

1. (index)

Press to go back to the start page of Teletext.

17.REVEAL

Press to call up the hidden information of Teletext.

18.SUB CODE

Press to select subpages of Teletext.

19.EXPAND

Press to enlarge fonts of Teletext.

1. (text)

Press to switch Teletext on or off, or transparent mode.

1. Cursor ▲ / ▼ / ◀ / ▶ buttons

Press to select the setting mode from the menu on the TV screen.
Press to select item you want to adjust in the picture control mode.
Press to go to the next page or the previous page of Teletext.

22.ENTER

Press to determine the setting mode from the menu on the TV screen. Press to select or adjust from a particular menu (for example: Language Selection, Channel Presetting, or Picture Adjustment).

23.BACK

Press to return to the previously displayed menu.

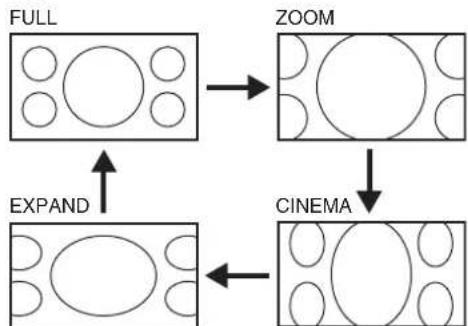

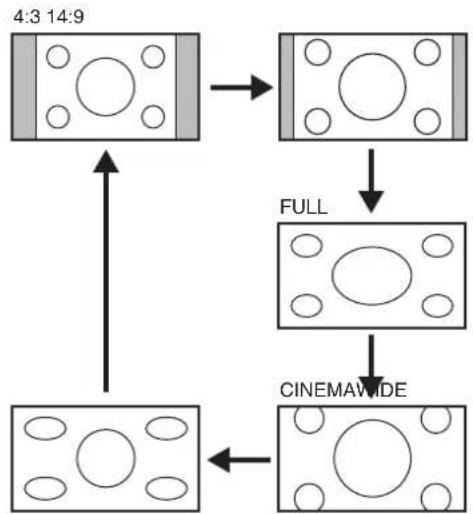

24.SCREEN MODE

Press to select aspect ratios available for the screen.

25.Infrared sensor window

Receives the infrared rays transmitted from the remote control.

4) Push the cover on its top side until it clicks in order to fit the cover completely to the compartment.


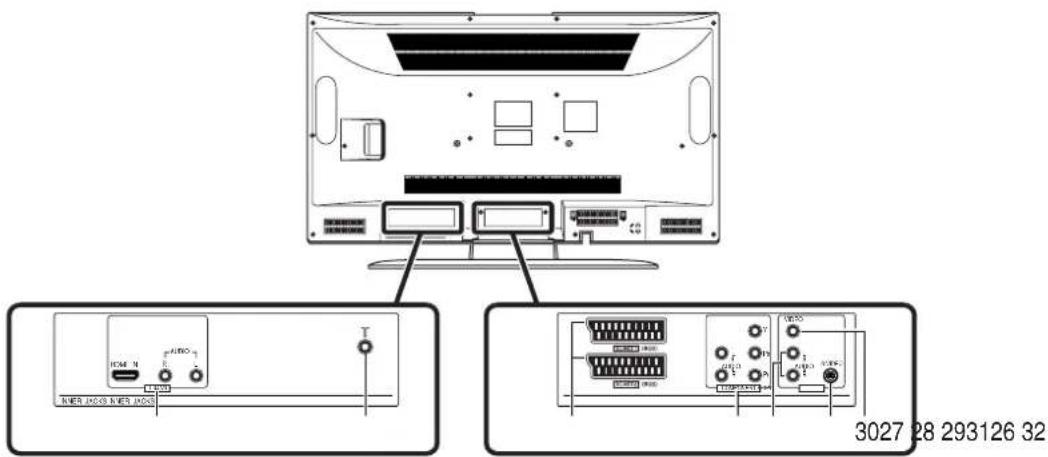

REAR PANEL

3027 28 293126 32

26.HDMI input jacks

HDMI: Connect to the HDMI and audio output jacks of external devices.

27.SCART jacks

SCART1, SCART2: Connect to the scart jack of external devices.

28.COMPONENT input jacks

COMPONENT: Connect to the component and audio output jacks of external devices.

29.S-VIDEO input jack

VIDEO: Connect to the S-video output jack of external devices.

30.VIDEO input jack

VIDEO: Connect to the video output jack of external devices.

31. AUDIO L/R input jacks

VIDEO: Connect to the left/right audio output jacks of external devices.

Note: The AUDIO L (input) jack is for mono input. The sound is heard from both speakers. Use this jack for monaural audio equipment to be hooked up.

32. Aerial input jack

Connect to an antenna or cable system.

PREPARATION FOR USE

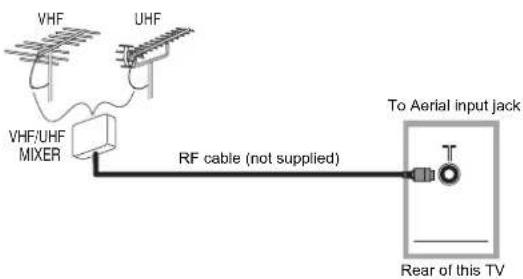

Antenna Connection

VHF UHF VHF/UHF MIXER RF cable (not supplied) To Aerial input jack Rear of this TV

1) Insert the RF cable plug into the T Aerial input jack at the back of this unit.

2) Plug this unit into an AC outlet.

3) The STANDBY/POWER indicator on the front panel lights red, then press STANDBY-ON on the control panel or the remote control to turn the unit on.

- PROG. (+/ - or ∧ / ∨) can also be used to turn the unit on.

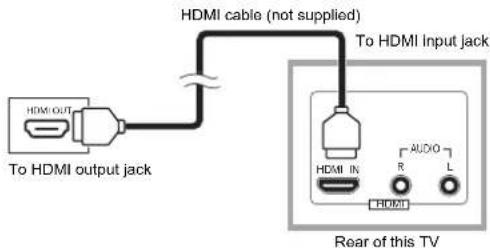

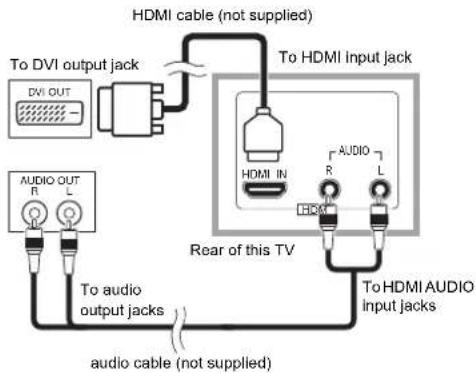

External Connection [HDMI CONNECTION]

This is the best method to connect this TV to video devices with the HDMI output jack, such as DVD player with HDMI output jack, etc. It can minimize the deterioration of image quality. Use the HDMI cable (commercially available) for connection. Connect the HDMI output jack of your video device to the HDMI input jack of this unit.

HDMI output jack To HDMI output jack HDMI cable (not supplied) To HDMI Input jack HDMI IN R L HDMI R AUDO HDMI Rear of this TV

Note: This TV accepts 480i / 480p / 576i / 576p / 720p (50 Hz) / 720p (60 Hz) / 1080i (50 Hz) / 1080i (60 Hz) video signals, and 32 kHz / 44.1 kHz / 48 kHz audio signals. This TV accepts only 2 channel audio signals (LPCM). You need to select "PCM" for the digital audio output of the device you connect or the HDMI audio setting. Audio sometimes makes no sound if you select "Bitstream", etc.

1) Connect the DVI output jack of your video device to the HDMI input jack of this unit. Use the HDMI cable (commercially available).

2) Connect the audio output jacks of your video device to the HDMI AUDIO input jacks of the unit.

Note: • This TV accepts 480i / 480p / 576i / 576p / 720p (50 Hz) / 720p (60 Hz) / 1080i (50 Hz) / 1080i (60 Hz) video signals.

- Audio signals are converted to an analogue signal from the digital if you make a connection above.

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

The "HD ready" Logo is a trademark of EICTA.

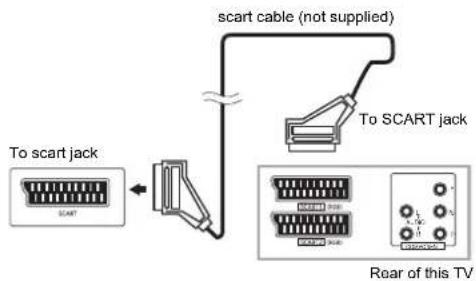

[SCART CONNECTION]

This is a better method to connect this TV to video devices with the scart output jack, such as DVD player, etc.

Connect the scart output jack of your video device to the SCART jack of this unit. Use the scart cable (commercially available).

scart cable (not supplied) To scart jack SCART To SCART jack Rear of this TV

• SCART1: Outputs the RF input signal converted as CVBS signal.
• SCART1, SCART2: RGB input signal, CVBS input/output signal, Audio (L/R) input/output signal.

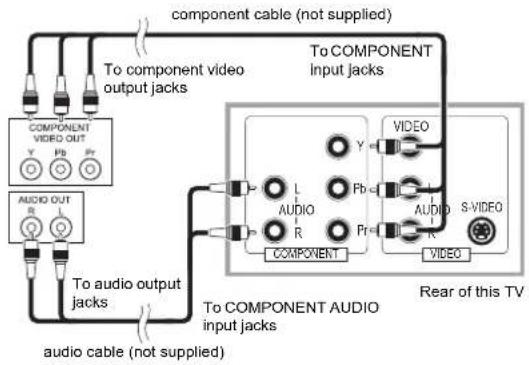

[COMPONENT CONNECTION]

This is a better method to connect this TV to video devices with the Component output jacks, such as DVD player, etc.

1) Connect the video output jacks (Y, Pb, Pr) of your video device to the COMPONENT input jacks (Y, Pb, Pr) of this unit. Use the component cable (commercially available).
2) Connect the audio output jacks of your device to the COMPONENT AUDIO input jacks of the unit.

Note: • This TV accepts 480i / 480p / 576i / 576p / 720p (50 Hz) / 720p (60 Hz) / 1080i (50 Hz) / 1080i (60 Hz) video signals.

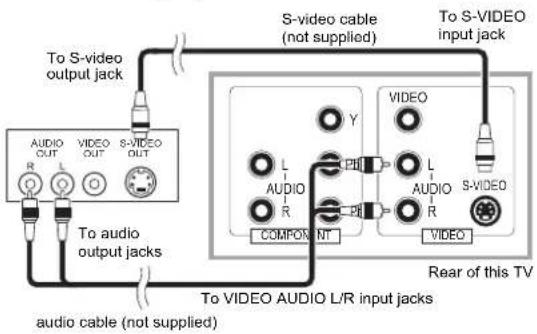

[S-VIDEO CONNECTION]

This is a good method to connect this TV to the video devices with the S-video output jack. You can expect better picture quality than the normal video cable connection.

1) Connect the S-video output jack of your video device to the S-VIDEO input jack of this unit. Use the S-video cable (commercially available).
2) Connect the audio output jacks of your device to the VIDEO AUDIO L/R input jacks of the unit.

To S-video output jack AUDIO OUT VIDEO OUT S-VIDEO OUT To audio output jacks Audio cable (not supplied) S-video cable (not supplied) To S-VIDEO input jack VIDEO L AUDIO R COMPON NT L AUDIO R S-VIDEO VIDEO Rear of this TV To VIDEO AUDIO L/R input jacks

Note: • If you connect to the S-VIDEO jack and the VIDEO jack at the same time, S-video connection will have priority.

[ANALOGUE AUDIO/VIDEO CONNECTION]

This is the general method to connect this TV to video devices with the video and audio output jacks, such as VCR, Camcorder, Video Game, etc.

1) Connect the video output of your video device to the VIDEO input jack of this unit.
2) Connect the audio output jacks of your video device to the VIDEO AUDIO L/R input jacks of the unit.

To video output jack video cable (not supplied) To audio output jacks To VIDEO input jack VIDEO L AUDIO R COMPON NT VIDEO L AUDIO R S-VIDEO VIDEO Audio cable (not supplied) To VIDEO AUDIO L/R input jacks Rear of this TV

SET UP FOR USE

• Unless stated, all operations described are based on a remote control use. Some operations can be carried out using the buttons on the control panel.
• On-screen menu will disappear from the TV screen automatically after about 60 seconds if you do not press any buttons during the setting operation.

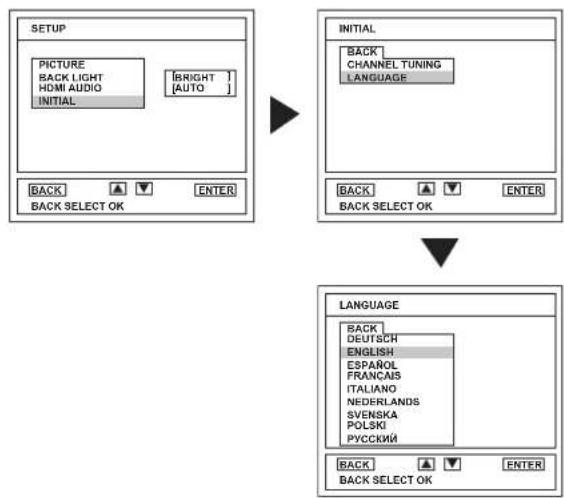

Language Selection

If you want to change the language of the on-screen menu, follow the procedure below.

1) Connect the power cord to a standard AC outlet.
Note: • If some digits appear in the corner of the screen, press STANDBY-ON without unplugging the power cord.

2) Press STANDBY-ON to turn on the TV.

3) Press SETUP so that the menu display appears on the TV screen.

4) Press Cursor ▲ / ▼ to point to "INITIAL", then press ENTER.

5) Press Cursor ▲ / ▼ to point to "LANGUAGE", then press ENTER.

6) Press Cursor ▲ / ▼ repeatedly to select your desired language, then press ENTER.

7) Press SETUP to exit.

Note: • If you select "BACK" in the screen menu and press ENTER, the display will return to previous one.

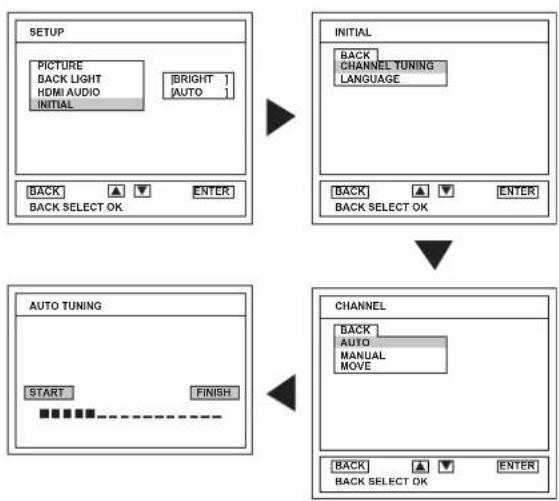

Automatic Channel Presetting

You can programme the tuner to scan only the channels that you can receive in your area.

1) Press STANDBY-ON to turn on the TV.
2) Press SETUP so that the menu display appears on the TV screen.
3) Press Cursor ▲ / ▼ to point to "INITIAL", then press ENTER.
4) Press Cursor ▲ / ▼ to point to "CHANNEL TUNING", then press ENTER.
5) Press Cursor ▲ / ▼ to point to "AUTO", then press ENTER.
- The tuner scans and memorises all the active channels in your area. When "AUTO TUNING" is completed, the lowest memorised channel reappears on the screen, and you can use PROG. +/- on the control panel or ↗ (prog.) on the remote control for the memorised channels.
- If you SETUP during the scanning, this operation will stop and the lowest memorised channel will appear on the TV screen.

(Only for LCD-B2706 / LCD-B3206 / LCD-B2726)

Sorting of TV channels from P01 to P05 will be performed automatically as follows.

P01:BBC1 P04:CH4

P02:BBC2 P05:CH5

P03: ITV


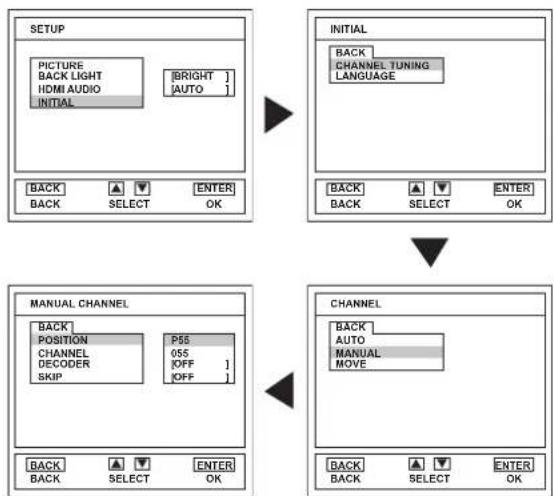

Manual Channel Presetting

You can preset a channel manually and individually.

1) Follow the steps 1) to 4) in the "Automatic Channel Presetting".

2) Press Cursor ▲ / ▼ to point to "MANUAL", then press ENTER.

3)(Only for LCD-C2706 / LCD-C2707 / LCD-C2717 / LCD-C2726 / LCD-C3206 / LCD-C3207) Press Cursor ▲ / ▼ to point to "SYSTEM", then press ENTER.

Press Cursor ▲ / ▼ to select the desired system, then press ENTER.

4) Press Cursor ▲ / ▼ to point to "POSITION", then press ENTER.

5) Press the Number buttons or Cursor ▲ / ▼ to select your desired position number, then press ENTER.

•You can select position number 01-99.

- If you want to remove scrambled signals, press

Cursor ▲ / ▼ repeatedly to point to "DECODER". Then, press ENTER. Press Cursor ▲ / ▼ to select "ON", then press ENTER.

6) Press Cursor ▲ / ▼ to point to "CHANNEL", then press ENTER.

7) Press Cursor ▲ / ▼ to start scanning.

- The tuner will begin to search up or down automatically. When a channel is found, the unit will stop searching and the picture will appear on the 'TV screen.

- You can select desired channel number by using the Number buttons. You must refer to the following Channel Plan table and press three digits to select the channel number.

(To select channel 24, press "0" button first and then press "2" and "4".)

- If this is the channel you want, press ENTER.

Channel Plan
	TV Channel
CH Indication	PAL I PAL	B/G SECAM	D/K SECAM L
01-10	IRA-IRJ,GAP	--	F1-F10
02-12	-	E2-E12		-
13-20	-	A-H(only ITALY)	-	-
21-69	E21-E69
74-78	X, Y, Z, Z+1, Z+2			-
80-99, 100	S1-S20, GAP			-
71-86	---	B-Q
90-106	---	S4-S20
121-141	S21-S41
142-153	--	R1-R12	-

This unit can receive Hyper and Oscar frequency bands.

8) Press SETUP to exit.

Note: • To confirm that a channel has been added, press ^/ (prog.).

- If you insert the RF cable plug into the Aerial input jack after manual channel presetting, a picture will be distorted. In this case, press ∧ I √prog.) to select the same channel again.

Decoder Allocation

Some TV channels transmit encoded TV signals which can only be viewed with a purchased or hired decoder. You can connect such a decoder to SCART1 jack of this unit. The following function will automatically activate the connected decoder for the desired TV channel.

1) Press STANDBY-ON to turn on the TV.

2) Press ∧ / ∨ (prog.) or the Number buttons to select the TV channel which you would like to allocate the decoder to.

3) Press SETUP so that the menu display appears on the TV screen.

4) Press Cursor ▲ / ▼ to point to "INITIAL", then press ENTER.

5) Press Cursor ▲ / ▼ to point to "CHANNEL TUNING", then press ENTER.

6) Press Cursor ▲ / ▼ to point to "MANUAL", then press ENTER.

7) Press Cursor ▲ / ▼ to point to "DECODER", then press ENTER.

8) Press Cursor ▲ / ▼ to select "ON" (decoder switched on), then press ENTER.

- To switch off the decoder, press Cursor ▲ / ▼ to select "OFF".

9) Press SETUP to exit.

•The decoder has now been allocated to this 'TV channel.

SETUP PICTURE BACK LIGHT HDMI AUDIO INITIAL [BRIGHT] [AUTO] BACK SELECT ENTER OK

▶

INITIAL BACK CHANNEL TUNING LANGUAGE BACK SELECT ENTER OK

▼

MANUAL CHANNEL BACK POSITION CHANNEL DECODER SKIP PSS 0SS ON OFF BACK SELECT ENTER OK

◀

CHANNEL BACK AUTO MANUAL MOVE BACK BACK SELECT ENTER OK

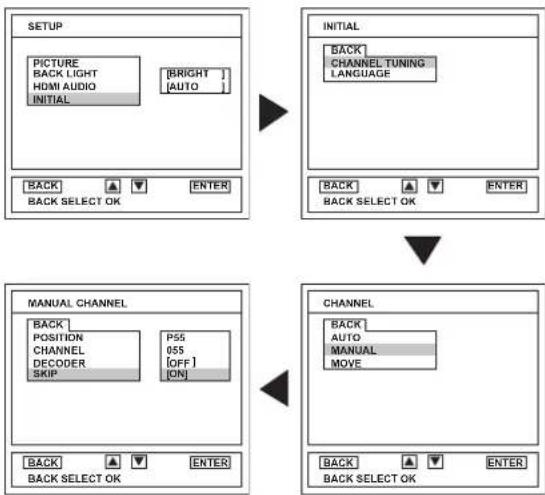

To Skip a Preset Channel

The channels you can no longer receive or seldom watch can be set to be skipped when you access channels by pressing ^ / √prog.).

1) Follow the steps 1) to 4) in the "Automatic Channel Presetting".
2) Press Cursor ▲ / ▼ to point to "MANUAL", then press ENTER.
3) Press Cursor ▲ / ▼ to point to "POSITION", then press ENTER.
4) Press the Number buttons or Cursor ▲ / ▼ to select relevant position number, then press ENTER.
5) Press Cursor ▲ / ▼ to point to "SKIP", then press ENTER to select "ON".
- To memorise the channel again, press ENTER. Press Cursor ▲ / ▼ to change "ON" into "OFF", then press ENTER.

6) Press SETUP to exit.

Note: • To confirm that a channel has been deleted, press ^ / √prog.).

    subgraph Setup
        A1["PICTURE BACK LIGHT HDMI AUDIO INITIAL"] --> A2["BRIGHT AUTO"]
        A3["BACK"] --> A4["BACK SELECT OK"]
        A5["ENTER"] --> A6["ENTER"]
    end

    subgraph Channel
        C1["BACK POSITION CHANNEL DECODER SKIP"] --> C2["P55 055 [OFF"] [ON]]
        C3["BACK"] --> C4["BACK SELECT OK"]
        C5["ENTER"] --> C6["ENTER"]
    end

    subgraph Select
        D1["BACK"] --> D2["BACK SELECT OK"]
        D3["ENTER"] --> D4["ENTER"]
    end

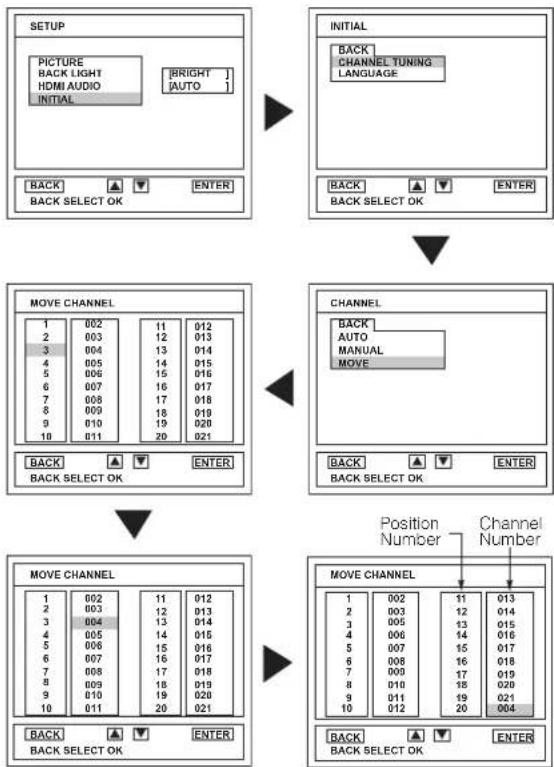

Channel Reprogramming

You can move a channel allocated to a position to another while keeping the total number of the positions the same. When you move a channel, all the other channels in the positions will be affected.

1) Follow the steps 1) to 4) in the "Automatic Channel Presetting".
2) Press Cursor ▲ / ▼ repeatedly to point to "MOVE", then press ENTER.
3) Press Cursor ▲ / ▼ repeatedly to select the position number you want to change the channel, then press ENTER.
- You cannot select a position number where “” (blank) appears next to the number. This is because “SKIP” is set to “ON” for this position number.
4) Press Cursor ▲ /▼ repeatedly to move the selected channel to the programme number you want to assign, then press ENTER.
5) Press SETUP to exit.

    subgraph Setup
        A1["PICTURE BACK LIGHT HDMI AUDIO INITIAL"] --> A2["BRIGHT AUTO"]
    end

    subgraph Channel
        B1["BACK CHANNEL TUNING LANGUAGE"] --> B2["BACK CHANNEL TUNING LANGUAGE"]
    end

    subgraph MoveChannel
        C1["1 002 11 012 2 003 12 013 3 004 13 014 4 005 14 015 5 006 15 016 6 007 16 017 7 008 17 018 8 009 18 019 9 010 19 020 10 011 20 021"]
        C2["BACK SELECT OK"] --> C3["BACK SELECT OK"] --> C4["BACK SELECT OK"] --> C5["BACK SELECT OK"] --> C6["BACK SELECT OK"] --> C7["BACK SELECT OK"] --> C8["BACK SELECT OK"] --> C9["BACK SELECT OK"] --> C10["BACK SELECT OK"] --> C11["BACK SELECT OK"] --> C12["BACK SELECT OK"] --> C13["BACK SELECT OK"] --> C14["BACK SELECT OK"] --> C15["BACK SELECT OK"] --> C16["BACK SELECT OK"] --> C17["BACK SELECT OK"] --> C18["BACK SELECT OK"] --> C19["BACK SELECT OK"] --> C20["BACK SELECT OK"] --> C21["BACK SELECT OK"] --> C22["BACK SELECT OK"] --> C23["BACK SELECT OK"] --> C24["BACK SELECT OK"] --> C25["BACK SELECT OK"] --> C26["BACK SELECT OK"] --> C27["BACK SELECT OK"] --> C28["BACK SELECT OK"] --> C29["BACK SELECT OK"] --> C30["BACK SELECT OK"] --> C31["BACK SELECT OK"] --> C32["BACK SELECT OK"] --> C33["BACK SELECT OK"] --> C34["BACK SELECT OK"] --> C35["BACK SELECT OK"] --> C36["BACK SELECT OK"] --> C37["BACK SELECT OK"] --> C38["BACK SELECT OK"] --> C39["BACK SELECT OK"] --> C40["BACK SELECT OK"] --> C41["BACK SELECT OK"] --> C42["BACK SELECT OK"] --> C43["BACK SELECT OK"] --> C44["BACK SELECT OK"] --> C45["BACK SELECT OK"] --> C46["BACK SELECT OK"] --> C47["BACK SELECT OK"] --> C48["BACK SELECT OK"] --> C49["BACK SELECT OK"] --> C50["BACK SELECT OK"] --> C51["BACK SELECT OK"] --> C52["BACK SELECT OK"] --> C53["BACK SELECT OK"] --> C54["BACK SELECT OK"] --> C55["BACK SELECT OK"] --> C56["BACK SELECT OK"] --> C57["BACK SELECT OK"] --> C58["BACK SELECT OK"] --> C59["BACK SELECT OK"] --> C60["BACK SELECT OK"] --> C61["BACK SELECT OK"] --> C62["BACK SELECT OK"] --> C63["BACK SELECT OK"] --> C64["BACK SELECT OK"] --> C65["BACK SELECT OK"] --> C66["BACK SELECT OK"] --> C67["BACK SELECT OK"] --> C68["BACK SELECT OK"] --> C69["BACK SELECT OK"] --> C70["BACK SELECT OK"] --> C71["BACK SELECT OK"] --> C72["BACK SELECT OK"] --> C73["BACK SELECT OK"] --> C74["BACK SELECT OK"] --> C75["BACK SELECT OK"] --> C76["BACK SELECT OK"] --> C77["BACK SELECT OK"] --> C78["BACK SELECT OK"] --> C79["BACK SELECT OK"] --> C80["BACK SELECT OK"] --> C81["BACK SELECT OK"] --> C82["BACK SELECT OK"] --> C83["BACK SELECT OK"] --> C84["BACK SELECT OK"] --> C85["BACK SELECT OK"] --> C86["BACK SELECT OK"] --> C87["BACK SELECT OK"] --> C88["BACK SELECT OK"] --> C89["BACK SELECT OK"] --> C90["BACK SELECT OK"] --> C91["BACK SELECT OK"] --> C92["BACK SELECT OK"] --> C93["BACK SELECT OK"] --> C94["BACK SELECT OK"] --> C95["BACK SELECT OK"] --> C96["BACK SELECT OK"] --> C97["BACK SELECT OK"] --> C98["BACK SELECT OK"] --> C99["BACK SELECT OK"]
    end

Stereo Sound System

This TV will receive stereo and bilingual broadcasts.

Selecting the Sound Mode

You can select each mode by pressing SOUND SELECT on the remote control. Each mode is indicated on the TV screen as following.

• During reception of stereo broadcasts

Mode Audio output		Display on the TV screen
Stereo Stereo STEREO
L L audio from the both speakers		LEFT
R	R audio from the both speakers	RIGHT
Normal	Monaural	- None -

• During reception of bilingual broadcasts

Mode Audio output		Display on the TV screen
Main	Main audio from the both speakers	MAIN
Sub	Sub audio from the both speakers	SUB
Main / Sub	• Main audio from the left speaker• Sub audio from the right speaker	MAIN + SUB

OPERATIONS

Watching a TV Programme

1) Press STANDBY-ON to turn on the TV.
2) Select the desired channel with ∧ I ∨ (prog.) or the Number buttons.
- Enter a channel number as two digits within 2.5 seconds for the quickest results. For example, to select channel 6, press 0 and 6. If you only press 6, channel 6 will be selected after 2.5 seconds.
- You can only select channels 1–99.

3) Adjust the volume to the desired listening level using VOL. +/- on the control panel or +/- (vol.) on the remote control.

- If you want to mute the sound temporarily (e.g. during a telephone call), press ☑ (mute) on the remote control. When you press ☑ (mute) again, the sound will return at its original volume level.

4) Adjust picture controls for a natural looking image. (See "Picture Adjustment".)

External Input Mode

When you connect external devices including DVD player, DVD recorder and home audio system, you can easily switch the input mode by using INPUT SELECT.

Each time you Press INPUT SELECT, TV screen will change as below.

• To use the HDMI input jack on the TV, select "HDMI".
• To use the SCART1 input jack on the TV, select "SCART1".
- To use the SCART2 input jack on the TV, select "SCART2".
- To use the COMPONENT input jack on the TV, select "YPbPr".
- To use the VIDEO or S-VIDEO input jack on the TV, select "VIDEO".

Note: • When you use the S-VIDEO connection, S-VIDEO input jack is given priority over the VIDEO input jack.

TV Colour System Change

Different countries use different television colour systems. You can change the system by pressing COLOR SYSTEM. When you select "AUTO" by pressing COLOR SYSTEM, this unit will distinguish the system automatically according to the input signal from the tuner or external devices. If the picture on the TV screen is black and white, select the system manually by using COLOR SYSTEM. Each time you press COLOR SYSTEM, TV screen will change as follows.

(LCD-A2706 / LCD-A3206 / LCD-A3207 / LCD-B2706 / LCD-B3206 / LCD-D2706 / LCD-D2707 / LCD-D2717 / LCD-D3206 / LCD-D3207 / LCD-A2726 / LCD-B2726 / LCD-D2726)

for tuner input (TV): AUTO or PAL

for external input (SCART, S-VIDEO, VIDEO): AUTO, PAL, NTSC3.58 or NTSC4.43

(LCD-C2706 / LCD-C2707 / LCD-C2717 / LCD-C2726 / LCD-C3206 / LCD-C3207)

for tuner input (TV): AUTO, SECAM or PAL

for external input (SCART, S-VIDEO, VIDEO): AUTO, SECAM, PAL, NTSC3.58 or NTSC4.43

Teletext Reception

Many TV channels transmit Teletext information along with their TV channels. With this unit, you can retrieve and display it on the screen using the built-in 'Teletext decoder.

1) Press ☐ (text) to switch the Teletext decoder on. Your unit now shows Teletext for the TV channel you have selected. Press ☐ (text) again to show Teletext in transparent mode.

2) If you want to select another page, press the Number buttons or Cursor ▲ / ▼.

Note: • To enlarge fonts, press EXPAND.

• To select Teletext subpages, press SUB CODE.
• To directly select the page numbers shown at the bottom of the TV screen, use RED/GREEN/YELLOW/CYAN.
• To call up the hidden information, press REVEAL.
• To hold the current page, press ☑ (hold).
• To go back to the start page, press 📄 (index).

3) Press ☐ (text) to switch the Teletext decoder off.

Setting the Sleep Timer

The sleep timer function allows you to have the power automatically turn off after a set time period.

1) Press STANDBY-ON to turn on the TV and press SLEEP on the remote control.
2) You may change the sleep time by pressing SLEEP on the remote control repeatedly. The timer can be set up to 90 minutes. Each time SLEEP is pressed the time increases by 30 minutes. (The timer display counts up and sleep timer will be displayed on the screen when you press SLEEP on the remote control.)

Note: • When you disconnect the unit from the AC outlet or when you have a power failure, the sleep time will be lost.

To Cancel the Sleep Timer

Press SLEEP repeatedly until "0" is displayed.

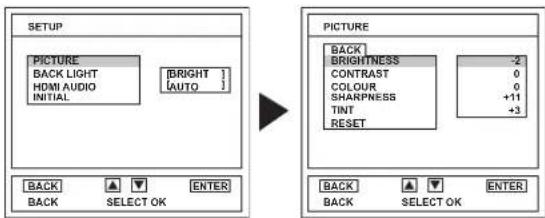

Picture Adjustment

The picture can be adjusted according to your personal preferences. These settings are automatically stored after exiting the picture menu.

1) Press SETUP so that the menu display appears on the TV screen.
2) Press Cursor ▲ / ▼ to point to "PICTURE", then press ENTER.
3) Press Cursor ▲ / ▼ to select an item you want to adjust, then press ENTER.

Note: • If you want to initialise the picture adjustment settings, select "RESET" and press ENTER.

4) Press Cursor ▲ / ▼ to adjust the level, then press ENTER.

SETUP PICTURE BACK LIGHT BRIGHT 1 HDMI AUDIO INITIAL AUTO BACK SELECT OK ENTER PICTURE BACK BRIGHTNESS -2 CONTRAST 0 COLOUR 0 SHARPNESS +11 TINT +3 RESET BACK SELECT OK ENTER

5) Press SETUP to exit.

	Cursor ▼	Cursor ▲
BRIGHTNESS	to decrease brightness	to increase brightness
CONTRAST to decrease contrast to increase contrast
COLOUR to pale to brilliant
SHARPNESS to soft to clear
TINT	to purple to green

"TINT" appears only when receiving NTSC signals from an additional device connected by either SCART jack, VIDEO input jack or S-VIDEO input jack.

Back Light Selection

1) Press SETUP so that the menu display appears on the TV screen.
2) Press Cursor ▲ / ▼ to point to "BACK LIGHT", then press ENTER.
3) Press Cursor ▲ / ▼ to select the desired mode ("BRIGHT"/ "NORMAL"/"DARK"), then press ENTER.
4) When done, press SETUP to exit.

SETUP PICTURE BACK LIGHT HDMI AUDIO INITIAL BRIGHT NORMAL DARK BACK BACK SELECT OK ENTER

Status Display

To check the Channel number & Audio mode, press DISPLAY. Each time you press DISPLAY, 'TV screen will change as illustrated:

When you select the channel using the Number buttons, select the desired channel (position number).

HDMI AUDIO Selection

Set the method of sound input for HDMI input jacks.

1) Press SETUP so that the menu display appears on the TV screen.
2) Press Cursor ▲ / ▼ to point to "HDMI AUDIO", then press ENTER.
3) Press Cursor ▲ / ▼ to select the desired HDMI Audio, then press ENTER.

• Select "AUTO" if you want to select digital audio input signal or analogue audio input signal automatically. Digital audio input signal is given priority if both audio signals are input to this unit at the same time.
• Select "DIGITAL" if you connected to digital device with HDMI jack for digital audio input signal.
• Select "ANALOGUE" if you connected to analogue devices with analogue jacks for analogue audio input signal.

SETUP PICTURE BACK LIGHT HDMI AUDIO INITIAL AUTO ANALOGUE DIGITAL BACK SELECT OK ENTER

Changing the Screen Display Mode

You can select your favourite screen size by using

SCREEN MODE in both 4:3 and 16:9 TV aspect ratios.

Each time you press SCREEN MODE, the screen mode will change repeatedly.

Note: • You may not switch the display mode depending on the program.

• "4:3" will display a picture at its standard 4:3 size. Sidebar will be displayed on the right and left edges of the screen.
• "14:9" will display a 4:3 picture at a 14:9 size. A little bit of the top and bottom edges of the screen will be cut off and sidebar will be displayed on the right and left edge of the screen.
• "FULL" will display a 4:3 picture at a 16:9 size, with horizontal elongation necessary to fill the screen.
• "CINEMA" will display a 4:3 picture without changing its horizontal to vertical ratio to fill the screen. A little bit of the top and bottom edges of the image will be cut off.
• "WIDE" will expand a 4:3 picture to entire screen with non-linearity.

• "FULL" will display a picture at 16:9 size as it is.
• "ZOOM" will expand a 16:9 picture without changing its horizontal to vertical ratio at its maximum size. Some around image will be cut off.
• "CINEMA" will display a 16:9 picture with vertical elongation. A little bit of the top and bottom edges of the image will be cut off.
• "EXPAND" will display a 16:9 picture with horizontal elongation. Some of the right and left edges of the image will be cut off.

MAINTENANCE

Picture Screen Cleaning

- If the LCD panel should require cleaning, wipe it with a cotton or soft cloth. Before cleaning the picture screen, disconnect the power cord.

Service

- Should your LCD colour TV become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit off, unplug the power cord, and take the unit to a Service Centre for servicing.

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the TV with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the TV. Such chemicals may cause damage and discoloration to the exposed surfaces.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save your time and money.

QUICK SERVICE CHECK LIST

PROBLEM

Remote Control Doesn't Work

Bars On Screen

Picture Distorted

Picture Rolls Vertically

No Colour

Poor Reception on Some Channels

Weak Picture

Lines or Streaks in Picture

Ghosts in picture

Picture Blurred

Sound OK, Picture Poor

Picture OK, Sound Poor

No Picture or Sound

Different colour marks on screen

Black or Luminous point on Screen

POSSIBLE REMEDY

Try a new channel , if OK

,

t

h

e

n

p

o

s

s

i

b

l

e

s

t

a

Is TV plugged in?Power at outlet?

×

×

Is TV's STANDBY-ON on? ×

Is antenna connected to terminal on the back of the set? × × × × ×

If out side a n ten n a i s b e

i

n

g

u

s

e

d

,

c

h

e

c

κ

f

o

r

Check for local interference. × × × × × × ×

Turn off with STANDBY-ON and then turn it on after about a minute.

×

Adjust COLOUR control.

×

Adjust CONTRAST & BRIGHTNESS control.

×

×

Check batteries in Remote Control.

×

Move the TV away from the nearby appliances which have Magnetism.Turn off using STANDBY-ON, then turn it on again 30 minutes or so later.

×

Temperature around is too low.

×

×

×

Life of the Back Light is approximately 50,000 hours. Ask the Service Center to replace.

×

×

It is quality of the LCD Panel.

×

SPECIFICATIONS

General Specifications

Television system:

LCD-A2706 / LCD-A3206 /

LCD-A3207 / LCD-A2726: PAL B/G TV standard

LCD-B2706 / LCD-B3206 /

LCD-B2726: PAL I TV standard

LCD-C2706 / LCD-C2707 /

LCD-C3206 / LCD-C3207 /

LCD-C2717 / LCD-C2726: SECAM L/L' TV standard, PAL B/G TV standard

LCD-D2706 / LCD-D2707 /

LCD-D3206 / LCD-D3207 /

LCD-D2717 / LCD-D2726: PAL B/G TV standard, PAL D/K TV standard, SECAM B/G TV standard, SECAM D/K TV standard

Channel coverage

Channel Plan
	TV Channel
CHIndication	PAL I PAL	B/G SECAM	D/K SECAM L
01-10 IRA	-IRJ,GAP--F	1-F10
02-12-		E2-E12	-
13-20-		A-H(only ITALY)	-	-
21-69	E21-E69
74-78	X, Y, Z, Z+1, Z+2			-
80-99, 100	S1-S20, GAP			-
71-86-	--	B-Q
90-106	-	-- S4-S20
121-141	S21-S41
142-153	-	-	R1-R12	-

Terminals

S-Video input:

Video input:

Audio input:

AUDIO/VIDEO:

Component Audio/

Video input:

HDMI/Audio input:

Mini DIN 4-pin jack

RCA connector x 1

RCA connector x 2

21 pin scart jack with RGB Input x 2

pinjack (Y)/1Vpp x 1

pinjack (Pb/Pr)/700 mVpp x 2

RCA connector x 2

HDMI jack x 1

RCA connector x 2

Stereo Sound System

2 speakers

Sound output:

5 W, 8 ohm x 2

Other Specifications

Remote control:	Digital encoded infrared light system
Power requirements:	AC220-240 V, 50 Hz

LCD-A2706 / LCD-A2726 / LCD-B2706 / LCD-B2726 /

LCD-C2706 / LCD-C2707 / LCD-C2717 / LCD-C2726 /

LCD-D2706 / LCD-D2707 / LCD-D2717 / LCD-D2726

Power consumption: 130 W

LCD: 27"

Dimensions (H x W x D): 507.5 mm x 810 mm x 275 mm

(including the table stand)

Weight: 13 kg

(including the table stand)

LCD-A3206 / LCD-A3207 / LCD-B3206 / LCD-C3206 / LCD-C3207 / LCD-D3206 / LCD-D3207

Power consumption: 135 W

LCD: 32"

Dimensions (H x W x D): 589 mm x 956 mm x 325 mm

(including the table stand)

Weight: 16 kg

(including the table stand)

- Designs and specifications are subject to change without notice and without our legal obligation.
