USER MANUAL LDD-D2006 FUNAI

Operating Controls and Functions 4

Setting up....6

TV OPERATION

Set up for Use....8

Operations 10

DVD OPERATION

About the Discs....13

Playing a Disc....14

DVD Setup....23

Language Code 26

Troubleshooting Guide 27

Maintenance 29

Specifications....30

Pin Connection ....31

Declaration of Conformity ....Back cover

Supplied Accessories

• Remote control
  • Two R6 (AA) batteries
• Owner's Manual
• Quick Setup Guide (Only for LDD-B2006)

Model/Serial Number

This appliance has a serial number located on the rear panel.

Please note down the serial number and retain the information for your records.

Model number: ____

Serial number: ____

Help Phone Number in the UK (only for LDD-B2006): 0870 383 3010

Printed in EU

EN

Precautions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

POWER SUPPLY

The main power supply is engaged when the main plug is plugged in a 220-240V, 50Hz AC outlet. To operate the unit, press STANDBY-ON to turn on the unit.

WARNING: LIVE PARTS INSIDE.

DO NOT REMOVE ANY SCREWS.

Laser Safety

This player employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION:

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

KLASS 1 LASER APPARAT

CLASSE 1 PRODUIT LASER

Dew Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the unit at least for 2 hours until its inside is dry.

Caution

1) Do not attempt to open the cabinet. There are no parts you can service inside. Refer all servicing to qualified service personnel.

2) Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.

3) Keep the unit away from radiators and other heat sources.

4) Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.

5) To prevent fire or shock hazard, do not expose this apparatus to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the apparatus.

6) Use this unit in a horizontal (flat) subsoil only.

7) Do not place any combustible objects on the device (candles, etc.).

8) The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks. The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

9) Disconnect the mains plug to shut off when find troubles or not in use.

10) The mains plug shall remain readily operable.

11) Read both manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.

12) Keep the distances 20 cm around apparatus of ventilation openings.

About Copyright

Unauthorised copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

Connection to Power (Only for U.K.)

Before Switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

Mains Cord

This appliance may be fitted with a non-rewireable plug. If it is necessary to change the fuse in a non-rewireable plug the fuse cover must be refitted. If the fuse cover is lost or damaged, the plug must not be used until a replacement available from the appliance manufacturer is obtained.

It is important that the colour of the replacement fuse cover corresponds with the rating marking on the base of the plug. If the plug has to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug removed must be disposed of safely as insertion into a 13A socket is likely to cause an electrical hazard. For your own safety read the following instructions carefully before attempting to connect this unit to mains. The wires in this mains lead are coloured in accordance with the following code:

BLUE=NEUTRAL, BROWN=LIVE

Important

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. No connection is to be made to the earth terminal of the plug. If a 13 Amp (BS 1363) Plug is used, a 5 Amp Fuse must be fitted, or if any other type of Plug is used a 5 Amp Fuse must be fitted, either in the Plug or Adaptor, or on the Distribution Board.

Mains Supply: 220 - 240 V \~50 Hz - AC only

Do not make any connection to the larger pin marked with the letter "E" or by the symbol or coloured green or green and yellow.

FUSE BROWN (Live) BLUE (Neutral) CORD GRIP OUTER SHEATH OF THE WIRE

Features

< LCD TV >

- Stereo Sound System - On-Screen Display

- Sleep Timer - Teletext

- S-VIDEO Input- allows you to get better picture detail and clarity for the playback of S-VHS VCR tapes, Video Discs, Satellite System, Video Game or Video Cameras.

< DVD >

- Dolby Digital Sound This unit can handle Dolby Digital surround sound having Multi-channels when connected to a Dolby Digital decoder. - Still/Fast/Slow/Step Playback

• x1.3 and x0.8 Rapid Play with Voice

Playback in slightly faster/ slower speed while keeping the sound quality as in the normal playback. This function is available only on discs recorded in the Dolby Digital format.

- Programmed Playback for Audio CD, MP3 and JPEG

• Random Playback for Audio CD, MP3 and JPEG

• DVD Menus in a Desired Language

- Screen Saver

The screen saver programme starts when there is no input from the DVD player for 5 minutes in the Stop mode.

- Subtitles in a Desired Language

- Selecting a Camera Angle

- Choices for Audio Language and Sound Mode - Parental Lock

• Automatic Detection of Discs

This unit automatically detects if a loaded disc is DVD, Audio CD, Video CD, MP3, JPEG or DivX ^® on disc.

- Playing MP3/JPEG/DivX ^® Files

- Direct Search

- On-Screen Display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as programme playback), on the TV screen using the remote control.

- Search

Chapter search / Title search / Track search / Time search

- Repeat

Chapter / Title / Track / Group / All / A-B

- Zoom

- Marker

An electronic references point designated by user can be called back.

- Resume Play

- Virtual Surround

- S c a r t

- Bit Rate Indication

• DRC (Dynamic Range Control)

- Displaying a JPEG Picture

- Adjustment of Picture Size

Symbols Used in This Manual

The following symbols appear below in some headings and notes in this manual, with the following meanings:

DVD-V

: Description refers to playback of DVD-Video discs.

CD

: Description refers to playback of Audio CDs.

MP3

: Description refers to playback of CD-R/RW discs with MP3 files.

JPEG

: Description refers to viewing of CD-R/RW discs with JPEG files.

VCD

: Description refers to playback of Video CDs.

DivX®

: Description refers to playback formatted with DivX ^® .

Operating Controls and Functions

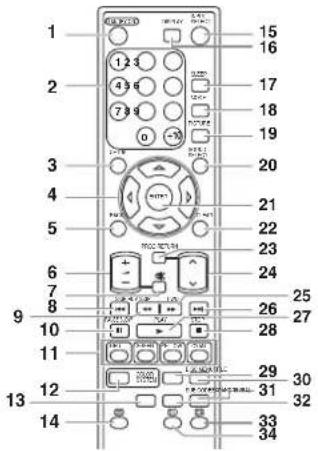

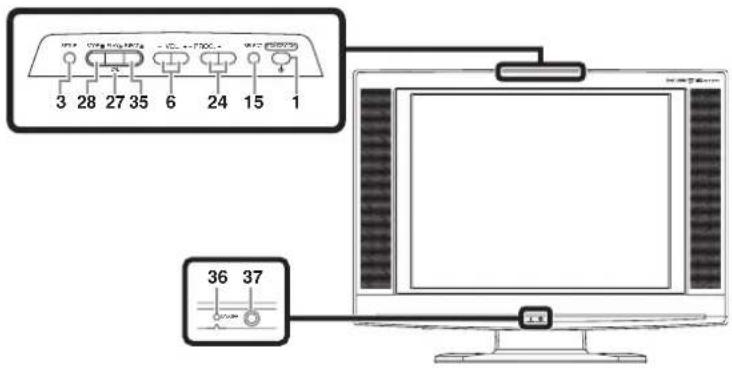

REMOTE CONTROL CONTROL PANEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

3 28 27 35 6 24 15 1 36 37

1. STANDBY-ON

Press to turn the unit ON or OFF (standby).

2. 0-9 Number buttons

Press two digits to directly access the desired channel. Remember to press "0" before a single digit channel.

To select numbered items on the menu screen. To select chapters, titles or tracks directly. +10

To enter 10 and over.

3. SETUP

Press to display the menu on the TV screen.

4. Cursor ▲ / ▼ / ◀ / ▶ buttons

Press to select the setting mode from the menu on the TV screen.

5.BACK

Press to return to the previously displayed menu. Press to exit the setting menus.

6. +/- (vol.) (remote control) / VOL. +/- (control panel) Press to control the volume level.

VOL. + (control panel)

Same function as ENTER (remote control). See 21. ENTER.

7. (mute)

Press to mute the sound portion of the TV programme (Volume level display turns LIGHT RED from LIGHT BLUE). Press this button again or press VOL. +/- on the control panel or +/- (vol.) on the remote control to restore sound.

8. SKIP

To skip chapters or tracks.

9. REV

To search backward through the disc.

10. PAUSE-SLOWII

To pause playback.

To advance playback one frame at a time.

11.RED/GREEN/YELLOW/CYAN

Press to directly select the page numbers of Teletext shown at the bottom of the TV screen.

12.COLOR SYSTEM

Press to select the input signal from the tuner or external devices.

13.REVEAL

Press to call up the hidden information of Teletext.

14. Ⓞ (text)

Press to switch Teletext on or off, or transparent mode.

15. INPUT SELECT (remote control)

SELECT (control panel)

Press to select TV or video input (AV1 or AV2) mode.

16. DISPLAY

Press to display the channel number, input source or current playback mode on the screen. If you press it again, the display will disappear.

17. SLEEP

Press to set the Sleep Timer.

18.MODE

Press to switch the setting menus.

19. PICTURE

Press to adjust the picture.

20. SOUND SELECT

Press to change sound modes.

21. ENTER

Press to determine the setting mode from the menu on the TV screen. Press to select or adjust from a particular menu (for example: Language Selection, Channel Presetting, or Picture Adjustment).

22. CLEAR

To clear the markers.

To clear the incorrect input (DVD).

23. PROG RETURN

Press to go back to the previously viewed channel. For example, pressing this button once will change channel display from P03 (present channel) to P10 (previously viewed channel) and pressing it a second time will return from P10 to P03.

24. ∧ / √(prog.) (remote control)

PROG. +/- (control panel)

Press to select memorised channel.

Press to select the setting mode from the menu on the TV screen (Only PROG. +/- (control panel)).

^ / ∨ (page) (remote control)

Press to go to the next page or the previous page of Teletext.

25.FWD▶▶

To search forward through the disc.

26. SKIP▶▶

To skip chapters or tracks.

27. PLAY

To begin playback.

28. STOP

To stop playback.

29. TITLE

To call up the title menu on a DVD.

30. DISC MENU

To call up the menu on a DVD.

To call up the FILE LIST.

31. SUB CODE

Press to select subpages of Teletext.

32. EXPAND

Press to enlarge fonts of Teletext.

33. (hold)

Press to hold the current page of Teletext.

34. ① (index)

Press to go back to the start page of Teletext.

35. EJECT ▲

Press to remove a disc from the unit.

36. ON/OFF (standby) indicator

Lights up when power is on.

37. Infrared sensor window

Receives the infrared rays transmitted from the remote control.

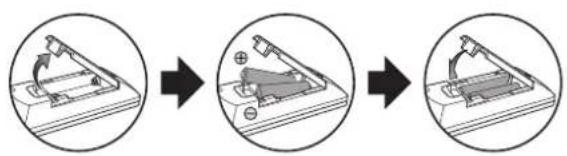

Installing the Batteries

1) Open the battery compartment cover.
2) Insert "R6" penlight batteries into battery compartment in the direction as indicated by the polarity (+/-) markings. Batteries installed with incorrect polarity may damage the remote unit.
3) Close the cover.
4) Push the cover on its top side until it clicks in order to fit the cover completely to the compartment.

Switching TV / DVD Mode

• To switch TV mode to DVD mode, press PLAY▶, insert a disc or press EJECT ▲ on the unit.
• To switch DVD mode to TV mode, press INPUT SELECT or ↗ (prog.).

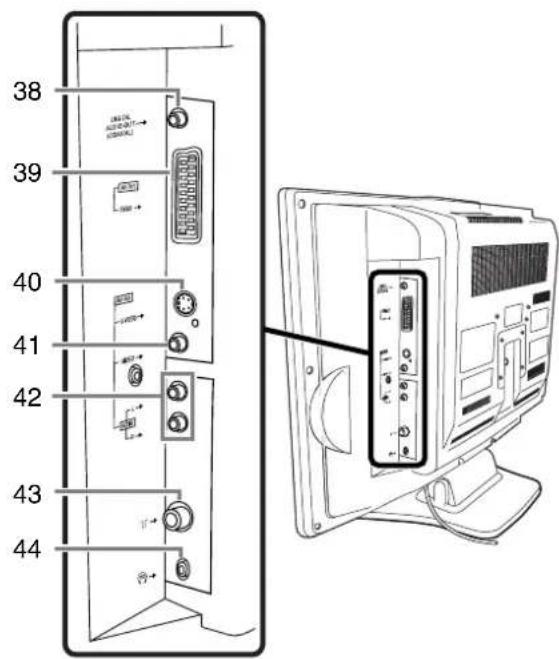

REAR PANEL

38 39 40 41 42 43 44

1. DIGITAL AUDIO OUT (COAXIAL) jack (DVD only) Connect to an amplifier with digital input jacks such as Dolby Digital decoder, etc. Use a commercially available coaxial cable.

2. RGB scart jack

AV-IN1: Connect to the scart jack of an external devices or set top box.

40.S-VIDEO input jack

AV-IN2: Connect to the S-video output jack of a video camera or VCR using the S-video cable (not supplied). Note: The S-VIDEO jack is given priority over the VIDEO jack.

1. VIDEO input jack

AV-IN2: Connect to the video output jack of a video camera, VCR or video game.

1. AUDIO L/R input jacks

AV-IN2: Connect to the left/right audio output jacks of a video camera, VCR or video game.

Note: The AUDIO L (input) jack is for mono input. The sound is heard from both speakers. Use this jack for monaural audio equipment to be hooked up.

1. Aerial input jack

Connect to an antenna, cable system or satellite system.

1. 📄 Headphone jack

Connect headphone (not supplied) for personal listening.

Note: Do not connect earphones that have an L-shaped plug. The plug may interfere with the cabinet.

Table Stand

Adjust the stand to change the angle of the unit (-5^-10^) .

Setting up

Unpacking

The stand of this unit is folded when you purchased. Place this unit face-down on a flat surface covered with the soft cloth. Bend the stand slowly to forward until it clicks.

Do not bend from this side.

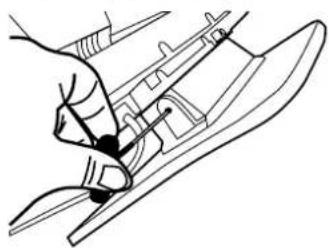

If you want to fold the stand again, insert a thin rod into the hole in the right side of the stand as illustrated, bend the stand backward while you keep pushing the hole.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Before Connecting

- Please refer to the instruction books of this unit, Stereo System or other devices as necessary to make the best connections.

The following guideline is an option for the best sound quality available on this unit.

- Digital audio connections provide the clearest sound. Connect the unit's DIGITAL AUDIO OUT (COAXIAL) to your amplifier or receiver (for DVD features only).

WARNING!

- Never make or change connections with the power switched on.

Note on a scart cable (Output):

- When you use the scarct cable to connect this unit to an additional device, both video and audio signals of TV can be delivered. (The video and audio signals of DVD and external devices cannot be delivered.)

Connecting

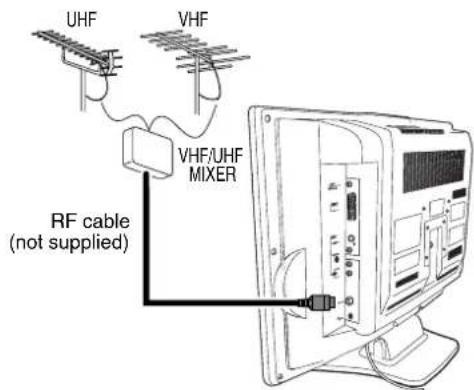

Connecting the Cable

UHF VHF VHF/UHF MIXER RF cable (not supplied)

1) Insert the RF cable plug into the Aerial input jack at the back of this unit.

2) Plug this unit into an AC outlet.

3) The ON/OFF (standby) indicator on the front panel lights on, then press STANDBY-ON on the control panel or the remote control to turn the unit on.

- PROG. (+/- or ∧/ ∨) can also be used to turn the unit on.

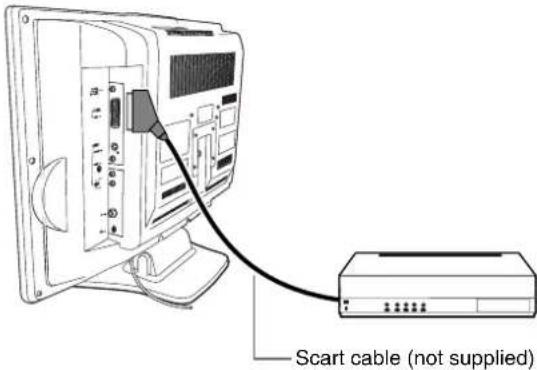

Connecting Additional Devices

You can connect an additional device such as decoder, satellite receiver, camcorder, etc. to the AV-IN1 scart jack.

The scart jack to be connected is usually marked "AV" or "TV" on the decoder or satellite receiver.

Scart cable (not supplied)

You can also use the AUDIO/VIDEO input jacks.

Note: • To receive the signals from an external source, select an input mode "AV1" or "AV2" on this unit by pressing SELECT on the control panel or INPUT SELECT on the remote control.

- If you are using the AV-IN1 scart jack, select "AV1". If you are using the AUDIO/VIDEO input jacks, select "AV2".

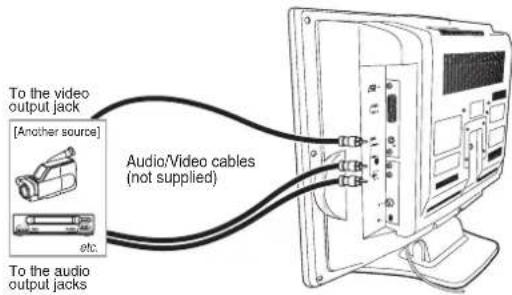

Connecting AV terminals

When you watch a programme recorded on an another source, use the AUDIO/VIDEO input jacks on the back of the unit. When you connect a VCR (another source) to this unit, connect the audio and video output jacks of the VCR (another source) to the AUDIO L/R and VIDEO input jacks of this unit.

To the video output jack [Another source] Audio/Video cables (not supplied) etc. To the audio output jacks

Note: • The S-VIDEO input jack is also available. The S-VIDEO jack is given priority over the VIDEO jack.

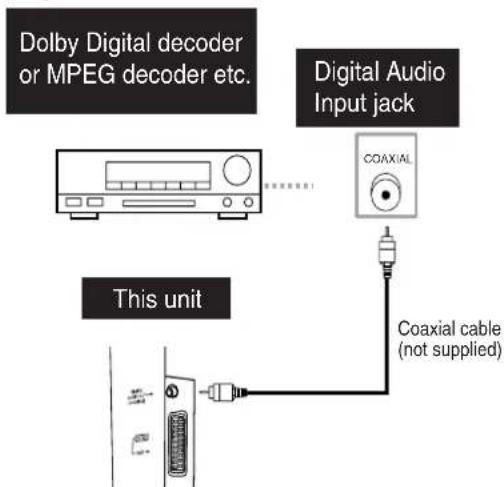

For Better Sound (for DVD Features)

This connection is optional for better sound.

For clear digital sound quality, use the DIGITAL AUDIO OUT (COAXIAL) jack for the connection to your digital audio system.

- If the audio format of the digital output does not match the capabilities of your receiver, the receiver may produce a strong, distorted sound or no sound at all.

Dolby Digital decoder or MPEG decoder etc. Digital Audio Input jack COAXIAL This unit Coaxial cable (not supplied)

Hints for connecting to a Dolby Digital decoder or MPEG decoder

• By connecting this unit to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Multi-channel Dolby Digital surround sound as heard in the movie theatres.
• A digital component with a built-in MPEG 2 or Dolby Digital™ allows you to enjoy the surround sound while producing the effect of being in a movie theatre or a concert hall.
• If output is Dolby Digital encoded audio, connect to a Dolby Digital decoder, and set "DOLBY DIGITAL" to "BITSTREAM" in the AUDIO menu. (Refer to page 24.)

- If output is MPEG encoded audio, connect to a MPEG decoder, and set "MPEG" to "BITSTREAM" in the AUDIO menu. (Refer to page 24.)

Hints for connecting to an MD deck or DAT deck

• The audio source on a disc in a Dolby Digital Multi-channel surround format cannot be recorded as digital sound by an MD or DAT deck.
• Unless connected to a Dolby Digital decoder, set "DOLBY DIGITAL" to "PCM" in the AUDIO menu. Playing a DVD using incorrect settings may generate noise distortion, and damage the speakers. (Refer to page 24.)
• Set "DOLBY DIGITAL" and "MPEG" to "PCM" in the AUDIO menu for connecting to an MD deck or DAT deck. (Refer to page 24.)

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

TV OPERATION

Set up for Use

- Unless stated, all operations described are based on remote control use. Some operations can be carried out using the buttons on the control panel.

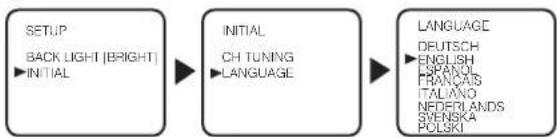

Language Selection

If you want to change the language of the on-screen menu, follow the procedure below.

1) Connect the power cord to a standard AC outlet.
Note: • If some digits appear in the corner of the screen, press STANDBY-ON without unplugging the power cord.
2) Press STANDBY-ON to turn on the TV.
3) Press SETUP so that the menu display appears on the TV screen.
4) Press Cursor ▲ / ▼ to point to "INITIAL", then press ENTER.
5) Press Cursor ▲ / ▼ to point to "LANGUAGE", then press ENTER.
6) Press Cursor ▲ / ▼ repeatedly to select your desired language, then press ENTER.
• The selected language will be indicated by yellow.
7) Press SETUP to exit.


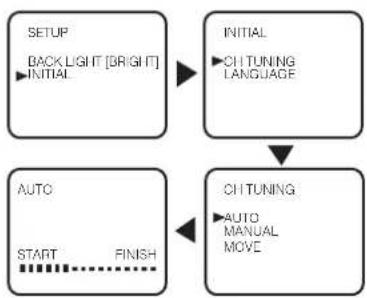

Automatic Channel Presetting

You can programme the tuner to scan only the channels that you can receive in your area.

1) Press STANDBY-ON to turn on the TV.
2) Press SETUP so that the menu display appears on the TV screen.
3) Press Cursor ▲ / ▼ to point to "INITIAL", then press ENTER.
4) Press Cursor ▲ / ▼ to point to "CH TUNING", then press ENTER.

- On DVD mode, this function is not available.

5) Press Cursor ▲ / ▼ to point to "AUTO", then press ENTER.

• The tuner scans and memorises all the active channels in your area. When "AUTO" is completed, the lowest memorised channel reappears on the screen, and you can use PROG. +/- on the control panel or ^ / √prog.) on the remote control for the memorised channels.
• If you press SETUP during the scanning, this operation will stop and the lowest memorised channel will appear on the TV screen.

(Only for LDD-B2006)

Sorting of TV channels from P01 to P05 will be performed automatically as follows.

P01:BBC1 P04:CH4

P02:BBC2 P05:CH5

P03: ITV


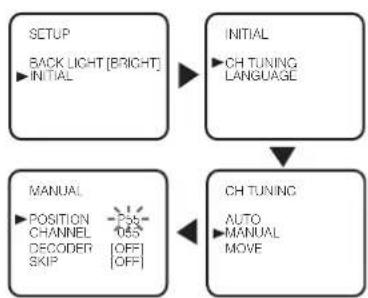

Manual Channel Presetting

You can preset a channel manually and individually.

1) Follow the steps 1) to 4) in the "Automatic Channel Presetting".
2) Press Cursor ▲ / ▼ to point to "MANUAL", then press ENTER.
3)(Only for LDD-C2006)

Press Cursor ▲ / ▼ to point to "SYSTEM", then press ENTER to display the desired system.

4) Press Cursor ▲ / ▼ to point to "POSITION", then press ENTER.
5) Press the Number buttons or Cursor ▲ / ▼ to select your desired position number, then press ENTER.

- You can select position number 01-99.

• If "ON" appears on the right side of "SKIP", press Cursor ▲ / ▼ to point to "SKIP". Then, press ENTER to select "OFF".
• If you want to remove scrambled signals, press Cursor ▲ / ▼ repeatedly to point to "DECODER". Then, press ENTER to select "ON".

6) Press Cursor ▲ / ▼ to point to "CHANNEL", then press ENTER.

7) Press Cursor ▲ / ▼ to start scanning.

• The tuner will begin to search up or down automatically. When a channel is found, the unit will stop searching and the picture will appear on the TV screen.
• You can select desired channel number by using the Number buttons. You must refer to the following Channel Plan table and press three digits to select the channel number.

(To select channel 24, press "0" button first and then press "2" and "4".)

- If this is the channel you want, press ENTER.

Channel Plan
	TV Channel
CH Indication	PAL IPAL	B/G SECAM	D/K SECAM	L
01-10	IRA-IRJ,GAP	-	-	F1-F10
02-12	-	E2-E12		-
13-20	-	A-H(only ITALY)	-	-
21-69	E21-E69
74-78	X, Y, Z, Z+1, Z+2			-
80-99, 100	S1-S20, GAP			-
71-86	-	-	-	B-Q
90-106	-	-	-	S4-S20
121-141	S21-S41
142-153	-	-	R1-R12	-

This unit can receive Hyper and Oscar frequency bands.

8) Press SETUP to exit.

Note: • To confirm that a channel has been added, press ∧ / √(prog.).

- If you insert the R ^1 cable plug into the 7 Aerial input jack after manual channel presetting, a picture will be distorted. In this case, press ∧ / √prog.) to select the same channel again.


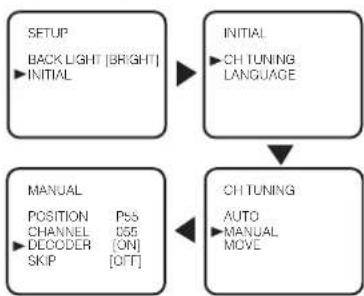

Decoder Allocation

Some TV channels transmit encoded TV signals which can only be viewed with a purchased or hired decoder. You can connect such a decoder to this unit. The following function will automatically activate the connected decoder for the desired TV channel.

1) Press STANDBY-ON to turn on the TV.
2) Press ∧ / ∨ (prog.) or the Number buttons to select the TV channel which you would like to allocate the decoder to.
3) Press SETUP so that the menu display appears on the TV screen.
4) Press Cursor ▲ / ▼ to point to "INITIAL", then press ENTER.
5) Press Cursor ▲ / ▼ to point to "CH TUNING", then press ENTER.
6) Press Cursor ▲ / ▼ to point to "MANUAL", then press ENTER.
7) Press Cursor ▲ / ▼ to point to "DECODER".
8) Press ENTER to select "ON" (decoder switched on). • To switch off the decoder, pressENTER to select "OFF".
9) Press SETUP to exit.
• The decoder has now been allocated to this TV channel.


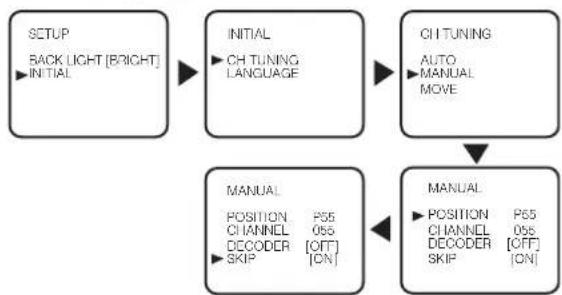

To Skip a Preset Channel

The channels you can no longer receive or seldom watch can be set to be skipped when you access channels by pressing ∧ / √prog.).

1) Follow the steps 1) to 4) in the "Automatic Channel Presetting".
2) Press Cursor ▲ / ▼ to point to "MANUAL", then press ENTER.
3) Press Cursor ▲ / ▼ to point to "POSITION", then press ENTER.
4) Press the Number buttons or Cursor ▲ / ▼ to select relevant position number, then press ENTER.
5) Press Cursor ▲ / ▼ to point to "SKIP", then press ENTER to select "ON".
- 'To memorise the channel again, pressENTER. "ON" will change to "OFF".
6) Press SETUP to exit.

Note: • To confirm that a channel has been deleted, press ∧ / √prog.).


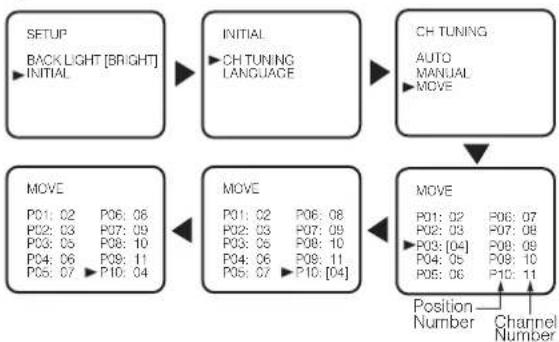

Channel Reprogramming

You can move a channel allocated to a position to another while keeping the total number of the positions the same. When you move a channel, all the other channels in the positions will be affected.

1) Follow the steps 1) to 4) in the "Automatic Channel Presetting".
2) Press Cursor ▲ / ▼ repeatedly to point to "MOVE", then press ENTER.
3) Press Cursor ▲ / ▼ repeatedly to select the position number you want to change the channel, then press ENTER.
- You cannot select a position number where “---” appears next to the number. This is because “SKIP” is set to “ON” for this position number.
4) Press Cursor ▲ / ▼ repeatedly to move the selected channel to the programme number you want to assign, then press ENTER.
5) Press SETUP to exit.
    A["SETUP<br>BACK LIGHT [BRIGHT"]
INITIAL] --> B["INITIAL<br>CH TUNING LANGUAGE"]
    B --> C["CH TUNING<br>AUTO MANUAL<br>MOVE"]
    C --> D["MOVE<br>P01: 02 P06: 08<br>P02: 03 P07: 09<br>P03: 05 P08: 10<br>P04: 06 P09: 11<br>P05: 07 P10: 04"]
    D --> E["Move<br>P01: 02 P06: 08<br>P02: 03 P07: 09<br>P03: 05 P08: 10<br>P04: 06 P09: 11<br>P05: 07 P10: [04"]]
    E --> F["Position Number"]
    E --> G["Channel Number"]

Stereo Sound System

This TV will receive stereo and bilingual broadcasts.

Selecting the Sound Mode

You can select each mode by pressing SOUND SELECT on the remote control. Each mode is indicated on the TV screen as following.

• During reception of stereo broadcasts

Mode Audio output	Display on the TV screen
Stereo Stereo STEREO
L L audio from the both speakers LEFT
R R audio from the both speakers RIGHT
Normal Monaural	- None -

• During reception of bilingual broadcasts

Mode Audio output		Display on the TV screen
Main	Main audio from the both speakers	MAIN
Sub	Sub audio from the both speakers $UB
Main / Sub	• Main audio from the left speaker• Sub audio from the right speaker	MAIN + SUB

Operations

Watching a TV Programme

1) Press STANDBY-ON to turn on the unit.

2) Select the desired channel with ∧ / √(prog.) or the Number buttons.

- Enter a channel number as two digits within 2.5 seconds for the quickest results. For example, to select channel 6, press 0 and 6. If you only press 6, channel 6 will be selected after 2.5 seconds.

- You can only select channels 1–99.

3) Adjust the volume to the desired listening level using VOL. +/- on the control panel or +/- (vol.) on the remote control.

- If you want to mute the sound temporarily (e.g. during a telephone call), press ☑ (mute) on the remote control. When you press ☑ (mute) again, the sound will return at its original volume level.

4) Adjust picture controls for a natural looking image. (See "Picture Adjustment".)

Note: • If you press ∧ / ∨ (prog.) in the DVD mode, you can change the TV channels. Even if you turn off the unit in the DVD mode, when you turn it on again, it will go into the TV mode.

- If a disc is inside the unit, "DISC INSIDE" message is displayed on the screen for 10 seconds.

External Input Mode

- To use the RGB scart jack for connecting a device, select "AV1".

- To use the AUDIO/VIDEO input jacks, select "AV2".

Using INPUT SELECT

Press INPUT SELECT to select "AV1" or "AV2" mode.

Using the Number buttons

Press 0, 0, 1 with the Number buttons, so that "AV1" appears on the TV screen.

Press 0, 0, 2 with the Number buttons, so that "AV2" appears on the TV screen.

Note: • When you use the S-VIDEO connection, S-VIDEO jack is given priority over the VIDEO jack.

TV Colour System Change

Different countries use different television colour systems. You can change the system by pressing COLOR SYSTEM.

When you select "AUTO" by pressing COLOR SYSTEM, this unit will distinguish the system automatically according to the input signal from the tuner or external devices.

If the picture on the TV screen is black and white, select the system manually by using COLOR SYSTEM. Each time you press COLOR SYSTEM, TV screen will change as follows. (LDD-A2006/LDD-B2006/LDD-D2006)

Many TV channels transmit Teletext information along with their TV channels. With this unit, you can retrieve and display it on the screen using the built-in Teletext decoder.

1) Press ☐ (text) to switch the Teletext decoder on. Your unit now shows Teletext for the TV channel you have selected. Press ☐ (text) again to show Teletext in transparent mode.

2) If you want to select another page, type in the number of the page with the Number buttons.

Note: • To enlarge fonts, press EXPAND.

• To select Teletext subpages, press SUB CODE.
• To directly select the page numbers shown at the bottom of the TV screen, use RED/GREEN/YELLOW/CYAN.
• To call up the hidden information, press REVEAL.
• To hold the current page, press ☐ (hold).
• To go back to the start page, press 📄 (index).

3) Press ☐ (text) to switch the Teletext decoder off.

Setting the Sleep Timer

The sleep timer function allows you to have the power automatically turn off after a set time period.

1) Press STANDBY-ON to turn on the TV and press SLEEP on the remote control.

2) You may change the sleep time by pressing SLEEP on the remote control repeatedly. The timer can be set up to 90 minutes. Each time SLEEP is pressed the time increases by 30 minutes. (The timer display counts up and sleep timer will be displayed on the screen when you press SLEEP on the remote control.)

Note: • When you disconnect the unit from the AC outlet or when you have a power failure, the sleep time will be lost.

To Cancel the Sleep Timer

Press SLEEP repeatedly until "0" is displayed.

Picture Adjustment

The picture can be adjusted according to your personal preferences. These settings are automatically stored after exiting the picture menu.

1) Press PICTURE, then press Cursor ▲ / ▼ to select the desired control "BRIGHTNESS", "CONTRAST", "COLOUR", "SHARPNESS" or "TINT".
2) Press Cursor ◀/▶ to adjust to your desired level within 5 seconds.
3) When done, press PICTURE to exit.

BRIGHTNESS	+
CONTRAST	+
COLOUR	+
SHARPNESS	+
TINT	+

	Cursor◀	Cursor▶
BRIGHTNESS	to decrease brightness	to increase brightness
CONTRAST to decrease contrast to increase contrast
COLOUR to pale to brilliant
SHARPNESS to soft to clear
TINT to purple to green

"TINT" appears only when receiving NTSC signals from an additional device connected by either RGB scart jack or AUDIO/VIDEO input jacks.

Note: • In the above steps, the picture adjustment display will disappear from the TV screen automatically after about 60 seconds if you do not press any buttons.

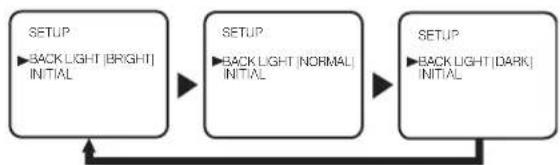

Back Light Selection

1) Press SETUP so that the menu display appears on the TV screen.
2) Press Cursor ▲ / ▼ to point to "BACK LIGHT".
3) Press ENTER to select the mode you wish.
4) When done, press SETUP to exit.

Status Display

To check the Channel number and Audio mode, press DISPLAY. Each time you press DISPLAY, 'TV screen will change as illustrated:

When you select the channel using the Number buttons, select the desired channel (position number).

L4670EA(EN).fm Page 12 Tuesday, May 15, 2007 5:36 PM

12 EN

DVD OPERATION

About the Discs

playable Discs

The following discs can be played back on this unit.

• DVD-Video with region code 2 or ALL (*1, 2, 3, 5, 7, 9)

• DVD+R/RW (*1, 4, 5, 6, 7, 8, 9)

• DVD-R/RW including DivX® files (*1, 5, 6, 7, 8, 9)

- Audio CD (*5, 7, 9)

- CD-R/RW including MP3, JPEG and DivX® filcs (*5, 6, 7, 8, 9)

• Picture CD (*5, 7, 9)

• Video CD (*1, 5, 7, 9)

DVD is a trademark of DVD Format/Logo Licensing Corporation.

"Kodak Picture CD COMPATIBLE" is trademark of Eastman Kodak Company.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Note:

*1: This unit conforms to the PAL colour system. Also you can play discs recorded with the NTSC system via a PAL system TV set. *2: The region code 2 or ALL are marked on DVDs as follows.

*3: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers. *4: Only the discs recorded in the video format and finalised can be played back. Discs unfinalised cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).

*5: Scratched or stained discs may not be played back.

*6: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*7: You can play back discs which bear marks above. If you use nonstandardised discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

*8: If the disc's recording space is small (Disc size is shorter than 55 mm across), it may not be played back.

*9: Do not glue paper or put stickers onto the disc. These may be damage the disc, and the unit may not read it correctly.

Unplayable Discs

- NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM

CD-i

Photo CD

DTS-CD

DVD with region codes other than 2 or ALL

DVD-ROM for personal computers

CD-ROM for personal computers

- On the following discs, the sound MAY NOT be heard.

Super Audio CD

DVD-Audio

Note: • Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density Super Audio CD layer cannot be delivered.

- Any other discs without compatibility indications.

Disc Types

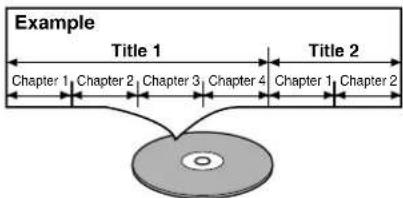

[DVD]

Example Title 1 Chapter 1 Chapter 2 Chapter 3 Chapter 4 Title 2 Chapter 1 Chapter 2 Chapter 1 Chapter 2

[Audio CD and Video CD]

[MP3, JPEG and DivX® files]

Example Group 1 Track 1 Track 2 Track 3 Track 4 Group 2 Track 5 Track 6

Playing a Disc

Basic Playback

DVD-V CD MP3

JPEG

VCD

DivX

Getting started

• Turn on the power of the TV, amplifier and any other components which are connected to the TV.
• Make sure the TV and audio receiver (commercially available) are set to the correct channel.

1) Press STANDBY-ON. • ON/OFF (standby) indicator lights up.

2) Open the disc door manually.

Line drawing of a hand pressing down on a computer monitor (no text or symbols visible)

3) Insert a disc with the label facing back of the unit to start playing it. By simply placing the disc gently into the slot, it will be loaded automatically.

加速度计

• Playback will start from the first chapter/track of the disc.
• If the playback does not start automatically, press PLAY ▶.
• When you play back a DVD with a title menu recorded, it may appear on the screen. In this case, refer to "Title Menu".

4) Press STOP ■ to stop playback.

5) Press EJECT ▲ on the control panel to remove the disc from the unit.

Note: • A “prohibited icon” may appear at the top-right on the TV screen during operation, warning that a prohibited operation has been encountered by this unit or the disc.

• When the DVD mode has been switched to the TV mode, the DVD mode shuts down first and then the TV picture and sound appears in about 4 seconds. Similarly, when STANDBY-ON is pressed to turn off in the DVD mode, this mode shuts down first and then the unit is turned off.
• Some DVDs may be played from title 2 or 3 due to specific programmes.
• During the playback of two layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

• DVDs recorded with the NTSC system can be viewed with this unit.

• It may take a time to deliver the picture or the sound. This is not a malfunction.

• Press PLAY ▶ or EJECT ▲ on the control panel or insert a disc to switch TV mode to DVD mode.
• Press ∧ / ∨ (prog.) or INPUT SELECT to switch DVD mode to TV mode.
• Depending on the TV, when playing back a NTSC DVD on a PAL TV, the picture may roll up or down, shrink vertically, and black bars may appear at the both top and bottom of the screen.

General Features

DVD-V

DVDs may contain menus to navigate the disc and access special features. Enter the appropriate Number buttons or press Cursor ▲/▼/◄/► to highlight your selection in the DVD menu and press ENTER to confirm.

Note: • Unless stated, all operations described are based on remote control use. Some operations can be carried out with the buttons on the control panel.

Disc Menu

DVD-V

1) Press DISC MENU.

•The DVD menu will appear.

2) If the feature is not available, symbol may appear on the TV screen.
3) If disc menu is available on the disc, audio languages, subtitle options, chapters for the title and other options will appear for selection.
4) Press Cursor ▲/▼/◄/► to select an item, and ENTER to confirm selection.

Title Menu

DVD-V

1) Press TITLE.

•The title menu will appear.

2) If the feature is not available, symbol may appear on the TV screen.
3) Press Cursor ▲/▼/◄/► to select an item, and ENTER to confirm selection.
- Playback will begin at the selected title.

1) Insert a Video CD.

•The title menu will appear.

2) Press the Number buttons to select an item.
- Playback will begin at the selected title.

Calling up a Menu Screen during Playback

DVD-V

• P r DISG MENU to call up the DVD menu.
  • P r TITLE to call up the title menu.
  Note: • Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

About the PBC Function of Video CD

VCD

PBC stands for Play Back Control, you can play interactive software using a menu screens.

Refer to instructions of Video CD.

- This unit conforms to ver.1.1 and ver.2.0 of Video CD standard, with PBC function. Ver.1.1 (without PBC function): You can enjoy playback picture as well as Music CD. Ver.2.0 (with PBC function): PressDISPLAY, and "PBC" appears on the TV screen when a Video CD with PBC function is loaded.

- Video CD with PBC function has its original menu. Menu operation may vary depending on the disc. Refer to the manual included in the disc for details.

Cancelling and Calling Back PBC Function

When playing Video CDs with PBC function, some operations (e.g. select and repeat tracks, resume) cannot be performed unless the PBC function is cancelled temporarily.

1) Insert a Video CD.

•Title menu will appear on the TV screen.

2) Press STOP ■.

3) Press the Number buttons to enter the desired track number. •PBC function is now cancelled and the playback of the Video CD will start.

4) To call back PBC function, press STOP ■ twice, and then press PLAY ▶.

MP3 / JPEG / DivX® Playback

MP3 JPEG DivX

⑤

Insert an MP3/JPEG/DivX®-format disc, then press DISC MENU. The FILE LIST will appear on the TV screen.

1) Press Cursor ▲/▼ to select the desired group or track.

FILE UST DISC NAME #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 #19 #20 #21 #22 #23 #24 #25 #26 #27 #28 #29 #30 #31 #32 #33 #34 #35 #36 #37 #38 #39 #40 #41 #42 #43 #44 #45 #46 #47 #48 #49 #50 #51 #52 #53 #54 #55 #56 #57 #58 #59 #60 #61 #62 #63 #64 #65 #66 #67 #68 #69 #70 #71 #72 #73 #74 #75 #76 #77 #78 #79 #80 #81 #82 #83 #84 #85 #86 #87 #88 #89 #90 #91 #92 #93 #94 #95 #96 #97 #98 #99 1/2

Example: MP3/JPEG

FILE LIST FOLDER DISC NAME 1x3 Solder name 1 1x2 V SCK50 SCK7 Solder name 1

Example: DivX®

- If a group is selected, press Cursor ▶ or ENTER to go on to the track selection screen. Press Cursor ▲ / ▼ to choose a track, then press PLAY ▶ or ENTER.

- If a track is selected, press PLAY ▶ or ENTER to start playing tracks. Playback will start from the selected track and will play one after another.

- Press Cursor ▶ to go back to the previous hierarchy (except for the top hierarchy).

- PressTITLE to return to the first item.

2) Press STOP ■ to stop playback.

Note: • Folders are known as Groups, and files are known as Tracks.

- Folders are accompanied by icon.

• MP3 files are accompanied by 📄on.

- JPEG files are accompanied by icon.

- DivX ^® files are accompanied by ☐con.

• A maximum of 255 folders can be recognised.

• A maximum of 999 files can be recognised.

- Up to 8 hierarchies can be recognised.

- The name of group and track can be displayed in up to 25 characters. Unrecognizable characters will be replaced with asterisks. The ninth and deeper hierarchies cannot be displayed.

- Unplayable groups and tracks may be displayed depending on the recording conditions.

- For MP3 file recorded in Variable Bit Rate(VBR), the unit may not display the actual elapsed time.

- Progressive JPEGs (JPEG files saved in the progressive format) can not be played back on this unit.

- High resolution JPEG files take longer to be displayed.

- When playing back the files recorded in high bit rates, the images can be interrupted in some occasions.

- Although DivX® logo has been obtained for this player, it may not be able to play back some data, depending on the disc characteristics, bit rates, or audio format settings, etc.

- Use the software recognised by DivX ^ , Inc. when you make DivX ^ files.

- When using tools or utilities to make up DivX ^ files, read their instruction manual beforehand.

- A DivX® file whose file size exceeds 2GB cannot be played back.

- If a large-sized DivX® file is selected, it may take a while to start the playback (over 20 seconds sometimes).

- If DivX ^ files wrote on CD discs cannot be played back, rewrite them on a DVD disc and try to play back.

- For more information for DivX®, please visit http://www.divx.com.

- Constant bitrate of image between 500 kbps and 1,500 kbps is recommended if you make DivX® files on a CD-R/RW.

- If you insert a CD-R/RW with DivX® files that are mixed with MP3 or JPEG files, the Playback Media Selection screen will be displayed. Please select "Video" and proceed to step 1).

Please select the media to stay book. Video Audio & Picture

- Press TITLE to call up the Playback Media Selection screen in Stop mode.

- If you select "Audio & Picture", instead of "Video" on the Playback Media Selection screen, this unit can play back MP3/JPEG files.

DivX® Subtitle

The subtitle created by the user can be displayed during DivX® playback.

1) After select the DivX ^ file, the SUBTITLE LIST will appear when the "DivX SUBTITLE" setting is except "OFF". (Refer to page 23.)

SANTILL DR FILE: [No name] [OUT] [SIN] [SMT] [SUB] FILE LIST: MENU

2) Press Cursor ▲/▼ to select the desired extension you want to display, then press ENTER. DivX® with the subtitle starts playback. The subtitle cannot be displayed when the setting is "OFF".

- If there is more than one extension, the extension selection appears in the SUBTITLE LIST.

Note: • DivX ^ subtitle can only be displayed according to the same name with an extension of the DivX ^ file name.

- Files whose extension is other than ".SMI", ".smi", ".SRT", ".srt", ".SUB" and ".sub" will not be listed in the SUBTITLE LIST.

- This unit cannot be recognised if the DivX ^® file and its subtitle file are not in the one folder.

- The subtitle may not be displayed if the file size is too large.

- To change the subtitle, refer to "Subtitle Language" on page 18 if multiple subtitles are available.

- The subtitle cannot display if the on-screen information is displayed.

- If "DivX SUBTITLE" is set to "OFF" in LANGUAGE menu, the SUBTITLE LIST will not be displayed even if you select a DivX® file with created subtitle. (Refer to "DivX® SUBTITLE" on page 23.)

- Unrecognisable characters will be replaced with asterisks.

This unit recommends the files recorded under the following circumstances:

[MP3]

• Sampling frequency : 44.1 kHz or 48 kHz

- Constant Bit Rate : 32 kbps - 320 kbps [JPEG] Size of picture

• Upper limit : 6,300 x 5,100 dots

- Lower limit : 32 x 32 dots [DivX®]

• Official DivX Certified ™ product

- P l a y s ^® D0, DivX ^® 5, DivX ^® 4, DivX ^® 3 and DivX ^® VOD video content (in compliance with DivX Certified ^TM technical requirements)

- Playable Codec of AVI files : DivX ^® 3.1.1, DivX ^® 4.x, DivX ^® 5.2.1, DivX ^® 6.0

• Maximum size of image

: 720 x 480 @30 fps 720 x 576 @25 fps

• Sampling frequency of audio : 8 kHz - 48 kHz

- Audio type

: MPEG1 audio layer 3 (MP3), MPEG1 audio layer 2, Dolby Digital

Kodak Picture CD

The unit can also run JPEG files stored on Kodak Picture CDs. The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. You can enjoy picture images on the TV set by playing back the Picture CDs. For details of Kodak Picture CD, contact a shop that deals with developing service of Kodak Inc.

1) Insert a Kodak Picture CD, press STOP ■ twice, then Kodak Picture CD menu will appear.

Picture1 Picture2 Picture3 Picture4 Picture5 Picture6 1/32

Current track number / the number of total tracks

- If all menu items cannot be displayed in the screen scope, “▶▶1” appears at the right bottom of the screen, indicating that you can view remaining items on the next page. “◀◀” appears at the left bottom of the screen, indicating that you can view other items on the previous page. The track number of the currently highlighted item and the total tracks are shown at the centre bottom of the screen.

- If "▶▶" is shown at the right bottom, use SKIP ▶▶ to view the next page. If "◀◀" is shown at the left bottom, use SKIP ◀◀ to view the previous page.

- It may take some time until all menu items are displayed on the menu screen.

2) Press Cursor ▲/▼/◄/► to select a desired track to be played, then press PLAY► or ENTER.

- If a Kodak Picture CD file is selected, an image will be played back from the selected track and go to the next one in turn.

3) Press STOP ■ to stop playback.

Notes on JPEG and Kodak Picture CD

- A track is displayed for 5 seconds or 10 seconds and then the next track is displayed. (Refer to page 25.)

- During JPEG or Kodak Picture CD playback, press Cursor ▲/▼ to rotate a picture 90 degrees.

Slide Show Mode

JPEG

You can switch to the slide show mode during playback.

1) During playback, press MODE repeatedly until Slide Show menu appears.

- The slide show mode cannot be switched when playback is stopped, or from the FILE LIST or the Picture CD menu screen.

2)Press Cursor ▲/▼.

•The slide show mode will change. CUT IN/OUT : The entire image appears at a time. FADE IN/OUT : The image appears gradually and then disappears.

3) Press BACK to exit the menu.

Adjustment of Picture Size

JPEG

The overall picture cannot be displayed and the edge of the picture can be cut out. In this case, you can adjust the size of the JPEG playback image on screen.

1) During playback, press MODE repeatedly until SHRINK menu appears.

- The setting screen will not be displayed while in the Stop mode or from the FILE LIST.

2) Press ENTER.

NORMAL : to display the image at 100% of the picture size.

SMALL : to display the image at 95% of the picture size.

•The default setting is "NORMAL".

- This feature may have no effect on some files (e.g. Files with a small picture size).

3) Press BACK to exit the menu.

Resume

DVD-V CD MP3 JPEG VCD DivX

©

1) During playback, press STOP ■.

-Resume message will appear on the TV screen.

2) Press PLAY ▶.

- Playback will resume from the point at which playback was stopped.

• To cancel resume, press STOP ■ twice. For MP3, JPEG and DivX® files, the top hierarchy of FILE LIST will automatically appear on the TV screen.

Note: • For MP3 and JPEG files, playback will resume from the beginning of the current track.

- The resume information stays on even when the power is turned off.

- Some Video CDs with the PBC function resume playback from the beginning of the disc.

Pause

DVD-V CD MP3 JPEG VCD DivX

②

1) During playback, press PAUSE-SLOWII.

- Playback will be paused and sound will be muted.

2) To continue playback, press PLAY▶.

Note: • On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if pictures in the pause mode are blurred. (Refer to page 23.)

Step by Step Playback

DVD-V VCD DivX®

1) During playback, press PAUSE-SLOW II.

- Playback will be paused and sound will be muted.

2) The disc advances by one frame each time PAUSE-SLOW II is pressed.

3) To exit step by step playback, press PLAY ▶.

Note: • On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if pictures during step by step playback are blurred. (Refer to page 23.)

x1.3 and x0.8 Rapid Play with Voice

DVD-V

Available only on discs recorded in the Dolby Digital format, x1.3 and x0.8 Rapid Play with Voice plays back in slightly faster/slower speed while keeping the sound quality as in the normal playback.

1) During playback, press MODE repeatedly until SPEECH RATE menu appears.

•The current setting appears.

2) Press Cursor ▲ /▼ to switch among “” (x1.3), “” (x0.8) and “OFF”.

♪ : Plays back approximately at 0.8 times of normal playback.

♪ : Plays back approximately at 1.3 times of normal playback.

3) To return to normal playback, press PLAY ▶.

Note: • Audio language setting cannot be made during x1.3 and x0.8 Rapid Play with Voice.

• Virtual Surround setting cannot be changed while using this mode.

• Virtual Surround does not function while using this mode.

• This feature may not work at some point in a disc.

- When using digital audio connection, the PCM sound will be output.

Fast Forward / Reverse Search

DVD-V CD MP3

VCD DivX

⑧

1) During playback, press FWD ▶▶ or REV ◀◀ repeatedly to select the required forward or reverse speed.

- For DVDs, Video CDs, Audio CDs, MP3 and DivX®, fast forward or reverse search speed is different depending on the disc.

- For DVDs, approximate speed is 1(x2), 2(x8), 3(x20), 4(x50) and 5(x100).

- For Audio CDs, MP3, Video CDs and DivX®, approximate speed is 1(x2), 2(x8) and 3(x30).

2) To return to normal playback, press PLAY ▶

Note: • On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if pictures during fast forward and reverse search are blurred. (Refer to page 23.)

- Picture quality of DivX ^® files in fast reverse is lower than that in fast forward.

- For some DivX® files, Fast Forward/Reverse Search may not function.

Slow Forward / Reverse Search

DVD-V

VCD DivX

回

1) During playback, press PAUSE-SLOW II.

2) Press FWD ▶▶ or REV ◀◀.

- Slow motion playback will begin and sound will be muted.

3) Press FWD ▶▶ or REV ◀◀ repeatedly to select the required speed.

- Slow forward or reverse speed varies with the disc. Approximate speed is 1(1/16), 2(1/8) and 3(1/2).

4) To return to normal playback, press PLAY ▶.

Note: • Slow Reverse is not available on Video CDs and discs with DivX ^® files.

- On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if pictures in the slow motion playback mode are blurred. (Refer to page 23.)

Zoom

DVD-V JPEG VCD DivX

©

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1) During playback, press MODE repeatedly until ZOOM menu appears.

-Playback will continue.

2) Press ENTER repeatedly to select the required zoom factor: "OFF", "ZOOM1" (x1.3), "ZOOM2" (x2.0) or "ZOOM3" (x4.0).

3) Press Cursor ▲/▼/◄/► to slide the zoomed picture across the screen.

- During zoomed playback, the position guide box appears at the bottom-right on the TV screen. The position of the blue box inside the grey box indicates the position of the zoomed image within the overall picture.

4) Press BACK to exit the menu.

Note: • To cancel the Zoom function, repeat steps 1) to 2) and press ENTER repeatedly until "OFF" appears.

- Zooming function does not work while the disc menu is shown.

- x4 zoom is not available on some discs.

- Only x2 zoom is available on JPEG files. x4 zoom is not available on Video CDs and discs with DivX® files.

- You cannot slide the zoomed picture on some JPEG files.

- Position guide is not available for JPEG playback.

Audio Language

DVD-V DivX

This unit allows you to change audio languages during playback of DVD discs and discs with DivX® files (if multi language available).

1) During playback, press MODE repeatedly until Audio Language menu appears.

2)Press Cursor ▲/▼ to select your desired language.

3) Press BACK to exit the menu.

Note: • The sound mode cannot be changed during playback of discs not recorded in double sound.

- Audio language setting cannot be made during x1.3 and x0.8 Rapid Play with Voice.

- If your language is not shown after pressing Cursor ▲/▼ several times, the disc may not have that language. However, some discs allow you to change audio language setting in the disc menu. (Operation varies with the disc, so refer to the manual included in the disc.)

- If you choose a language that has a 3-letter language code, the code will be displayed every time you change the audio language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 26.)

- For discs with DivX ^ files, the screen displays MP3, MP2 or Dolby D audio.

Subtitle Language

DVD-V DivX ^®

This unit allows you to change languages for subtitle during playback of DVD discs and discs with DivX® files (if available).

1) During playback, press MODE repeatedly until SUBTITLE menu appears.

2) Press Cursor ▲ /▼ to select your desired subtitle language.

•The selected language will be displayed on the display bar at the top of the screen.

3) To turn off subtitles, press Cursor ▲/▼ repeatedly until "OFF" appears.

4)Press BACK to exit the menu.

Note: • If your language is not shown after pressing Cursor ▲/▼ several times, the disc may not have that language. However, some discs allow you to change subtitle language setting in the disc menu. (Operation varies with the disc, so refer to the manual included in the disc.)

- When "NOT AVAILABLE" appears on the TV

screen, it means no subtitle is recorded on the scene.

- If you choose a language that has a 3-letter language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 26.)

- For discs with DivX ^ files, the screen only displays the number of subtitle languages.

Camera Angle

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the ( ) icon appears on the screen.

1) During playback, press MODE repeatedly until ANGLE menu appears.

•The selected angle will be displayed on the display bar at the top of the screen.

2) Press Cursor ▲ /▼ to select your desired angle.

3) Press BACK to exit the menu.

Note: • If the "ANGLE ICON" setting is "OFF" in the OTHERS menu, the () icon will not appear.

Stereo Sound Mode

CD VCD

1) During playback, press MODE repeatedly until AUDIO menu appears.

2) Press Cursor ▲ /▼ to select "STEREO", "L-ch" or "R-ch".

STEREO : Both right and left channels are active (stereo).

L-ch : Only left channel is active.

R-ch : Only right channel is active.

3)Press BACK to exit the menu.

Virtual Surround

DVD-V CD MP3 VCD

You can enjoy stereophonic virtual surround effects on your existing stereo system.

1) During playback, press MODE repeatedly until V.S.S. menu appears.

OFF (V.S.S.)

2) Press Cursor ▲/▼ to change a value to "1" (natural effect), "2" (emphasised effect) or "OFF" (original sound).

3) Press BACK to exit the menu.

Note: • Virtual Surround will not be effective if the sound mode is set to something other than "STEREO" (for Audio CDs and Video CDs only). (Refer to "Stereo Sound Mode".)

- Turn down the level or turn it "OFF" if the sound is distorted.

- The setting will be saved even if this unit is turned off.

- This function cannot be used during x1.3 and x0.8 Rapid Play with Voice. (Refer to page 17.)

Track Search

CD MP3 JPEG VCD DivX

There are three ways to begin the playback of a specific track on a disc.

Using the Number buttons

1) Press the Number buttons to enter the desired track number.

-Playback will start at the selected track.

- For any discs, to play a single-digit track, press the number directly (e.g. for track 3, press 3).

- For the disc with less than 100 tracks, to play a double-digit track, press +10, then the number (e.g. for track 26, press +10, 2, 6).

- For the disc with more than 100 tracks, to play a double-digit track, press +10, 0, then the number of the track (e.g. for track 26, press +10, 0, 2, 6). To play a triple-digit track, press +10, then the number of the track (e.g. for track 126, press +10, 1, 2, 6).

Using MODE

1) During playback, press MODE repeatedly until SEARCH menu appears.

•The Track Search display appears.

2) Within 60 seconds, select a desired track number using the Number buttons.

- For the disc with more than 10 but less than 100 tracks, to play a single-digit track, press 0 first, then the number of the track (e.g. for track 3, press 0, 3).

- For the disc with more than 100 tracks, to play a single or a double-digit track, press 0 first, then the number of the track (e.g. for track 3, press 0, 0, 3 and for track 26, press 0, 2, 6).

• In any other cases, just press the number of the track.

-Playback will start at the selected track.

3) Press BACK to exit the menu.

Using SKIP |◀◀▶▶|

During playback, press SKIP ▶▶I to move to the next track. Press it repeatedly to skip subsequent tracks.

Press SKIP I◀◀ to go back to the beginning of the current track. Press it repeatedly to go back to the previous tracks.

- If SKIP |◀◀▶▶| are pressed while the playback is paused, the playback will be paused again after skipping to the next track.

•To skip JPEG files, use Cursor ◀/▶.

Note: • SKIP |◀◀▶▶| are not available when playback is stopped.

Chapter / Title Search

DVD-V

Using MODE

1) During playback, press MODE repeatedly until SEARCH menu appears.

2) Press Cursor ▲/▼ to select Chapter Search menu or Title Search menu.

3) Enter the desired chapter/title number using the Number buttons.

4) Press BACK to exit the menu.

Using the Number buttons

1) During playback, press the Number buttons to enter the desired chapter number.

-Playback will start at the selected chapter.

- For single digit chapters (1-9), press a single number (e.g. to play chapter 3, press 3).

• To play chapter 26, press +10, 2, 6.

Note: • Depending on the disc being played, using the Number buttons cannot be performed.

Using SKIP ◀◀▶▶

During playback, press SKIP ▶▶▶ to go to the next chapter. Press it repeatedly to skip subsequent chapters.

Press SKIP ◀◀◀ to go back to the beginning of the current chapter. Press it repeatedly to go back to the previous chapter.

Time Search

DVD-V CD VCD DivX

1) During playback, press MODE repeatedly until SEARCH menu appears.
2) Press Cursor ▲ /▼ to select Time Search menu.

3) Within 60 seconds, enter a desired disc time using the Number buttons.

-Playback will start at the specified time.
•For DVDs, enter a desired time of the current title.
- For Audio CDs, Video CDs and discs with DivX® files, enter a desired time of the current track.
- Press CLEAR to erase the incorrect input.

4) Press BACK to exit the menu.

Note: “0” appears automatically when there is no need to enter a number. For example, “0:0_:_ _” appears in the Time Search display if the total time of the disc or track is less than 10 minutes.

• Time Search is not available on some discs.

Marker Search

DVD-V CD VCD

Use markers to memorise your favourite places on a disc.

1) During playback, press MODE repeatedly until SEARCH menu appears.
2) Press Cursor ▲/▼ to select Marker Search menu.

3) Press Cursor ◀/▶ to select 1, 2, 3, 4, 5, 6, 7, 8, 9 or 10 and ensure that “____:____” appears in the display.
4) When the disc reaches the desired point, press ENTER. • The Title or Track and elapsed time will appear on the TV screen.
5) To return to the marker later, press MODE repeatedly until the Marker Search screen appears and Cursor ◀/▶ to choose the desired marker, then press ENTER.
6) Press BACK to exit the menu.

Note: • Removing the disc, turning off the power or selecting "AC" at step 2) and press ENTER will erase all markers.

• To clear a marker, use Cursor ◀/▶ and select the marker number to be cleared, then press CLEAR.
• You can mark up to 10 points.

Repeat

REPEAT CHAPTER / TITLE

1) During playback, press MODE repeatedly until REPEAT menu appears.
2) Press Cursor ▲/▼ to select your desired repeat mode. • The Repeat mode changes as described below every time you press the button.

OFF CHAPTER (repeat off) (current chapter repeat) TWLE → (current title repeat)

3) Press BACK to exit the menu.

Note: • Repeat Chapter / Title is not available with some scenes.

• Repeat playback does not function during A-B Repeat playback.
  • The Repeat Chapter / Title setting will be cleared when moving to other chapter or title.

REPEAT TRACK / GROUP / ALL

CD VCD

1) During playback, press MODE repeatedly until REPEAT menu appears.
2) Press Cursor ▲ /▼ to select your desired repeat mode. • The Repeat mode changes as described below every time you press the button.

3) Press BACK to exit the menu.

Note: • Repeat playback does not function during A-B Repeat playback.

• The Repeat Track setting will be cleared when moving to other track.
• Repeat playback is not available when playing the Video CD with PBC function.

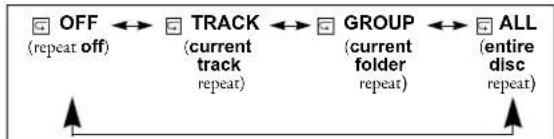

MP3 JPEG DivX

Note: • The Repeat Track / Group setting will be cleared when moving to other Track or Group.

A-B REPEAT

DVD-V CD VCD DivX

1) During playback, press MODE repeatedly until A-B REPEAT menu appears.
2) Press ENTER at your chosen starting point (A).

- A- appears briefly on the TV screen.

3) Press ENTER again at your chosen end point (B).

- A-B appears briefly on the TV screen, and the repeat sequence begins.

4) Press BACK to exit the menu.

Note: • The A-B Repeat section can only be set within the current title (for DVDs), or the current track (for Audio CDs, Video CDs and discs with DivX® files).

• A-B Repeat is not available with some scenes in DVD.
• To cancel the point A which was set, press CLEAR.
• A-B Repeat playback does not function during chapter, title, track, group or all repeat playback.
- For some DivX ^ files, A-B Repeat playback may not function.

Programmed Playback

CD MP3 JPEG

You may determine the order in which tracks will be played.

1) In Stop mode, press MODE repeatedly until PROGRAM screen appears.

PROGRAM D2-DA TOTAL 1:03.30 1 3.30 2 4.30 3 5.60 4 8.10 5 9.10 6 12.30 7 15.60 8 20.10 9 25.30 10 30.10 11 35.30 12 40.10 13 45.30 14 15:30 20:30

2) Press Cursor ▲ / ▼ to select a track, then press ENTER.

•Up to 99 tracks can be stored.
- Press CLEAR to erase the most recently entered track.
• To erase all tracks in the programme at once, select "ALL CLEAR" at the bottom of the list and press ENTER.

- When selecting an MP3/JPEG file or folder, press Cursor ◀ / ▶ as follows:

Press Cursor ▶ to go to the next hierarchy. Press Cursor ◀ to go back to the previous hierarchy (except for the top hierarchy).

- When more than 8 tracks or files are programmed, press SKIP |◀◀▶▶| to see all the pages.

3) Press PLAY ▶ to start Programmed Playback.

Note: • While a programme is being played back, STOP ■ works as follows:

Press STOP ■, and then PLAY ▶ next, so that the programmed playback restarts.

(CD playback restarts from the current position. MP3 playback restarts from the beginning of the current track.)

Press STOP ■ twice and PLAY ▶ next, so that playback restarts from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programme will be stored unless either the disc is removed or the unit is turned off.)

- During Programmed Playback, ☐RACK and ☐ALL repeat functions are available. (Refer to "Repeat".)

Random Playback

CD MP3 JPEG

This function shuffles the playing order of tracks instead of playback in the original sequence.

1) In Stop mode, press MODE repeatedly until RANDOM screen appears.

RANDOM CD 5A TOTAL 0.45cc RANDOM PROGRAM --PC NUMBER-

Example: Audio CD

RANDOM User name RANDOM PROGRAM --NO PROGRAM- BLOG

Example: MP3/JPEG

2) Press PLAY▶ to start Random Playback.

Note: • You cannot go back to the previous track during Random Playback.

- During Random Playback, ☐TRACK and ☐ALL repeat functions are available. (Refer to "Repeat".)

On-Screen Information

You can check the information about the current playback by pressing DISPLAY.

DVD-V

1) During playback, press DISPLAY.

- Current chapter number/ total chapters, elapsed time and remaining time of the current chapter, and current playback status will be displayed.

2) Press DISPLAY again.

- Current title number/ total titles, elapsed time and remaining time of the current title, and current playback status will be displayed.

3) Press DISPLAY the third time.

- The Bit Rate (the amount of audio and video data currently being read) and current playback status will be displayed.

- Current repeat setting appears only when the repeat setting is active.

( €: Chapter repeat/ T:Title repeat/ A B: A-B repeat)

- If you are playing a 2-layered disc, the layer number will also be displayed.

(L0: Layer 0 is playing, L1: Layer 1 is playing)

4) Press DISPLAY repeatedly until on-screen information disappears.

CD VCD

1) During playback, press DISPLAY.

- Current track number/ total tracks, elapsed time and remaining time of the current track, and current playback status will be displayed.

- Current repeat setting appears only when the Repeat setting is active.

( F: Track repeat/ A All Tracks repeat/ A B: A-B repeat)

2) Press DISPLAY again.

- Current track number/ total tracks, elapsed time and remaining time of the current disc, and current playback status will be displayed.

- For Audio CDs, when you are playing a disc in PROGRAM or RANDOM mode, PROGRAM (or RANDOM) will be displayed.

- Current repeat setting appears only when the Repeat setting is active.

3) Press DISPLAY repeatedly until on-screen information disappears.

MP3 JPEG DivX

1) During playback, press DISPLAY.

•The name of the file currently in play and current playback status will be displayed.

2) Press DISPLAY again.

- For MP3, current track number/ total tracks, elapsed time of the current track, and current playback status will be displayed.

- For JPEG, current track number/ total track will be displayed.

- For discs with DivX® files, current track number/ total tracks, elapsed time and remaining time of the current track, and current playback status will be displayed.

- Current repeat setting appears only when the Repeat setting is active.

( T: Track repeat/ G: Group repeat/ A: Disc repeat)

3) Press DISPLAY repeatedly until on-screen information disappears.

Note: • When you are playing a disc in PROGRAM or RANDOM mode, press DISPLAY twice at step 2) to display PROGRAM (or RANDOM).

DVD Setup

In Setup menu, QUICK mode, CUSTOM mode and INITIALIZE mode (refer to pages 23-25) are available. QUICK mode consists of the setting menus often needed, and you can make all settings required in CUSTOM mode. You can make the settings of the items with nQUICKQUICK mode.

Language Setting

Language setting can be varied with some DVDs or DivX® Subtitles recorded in CD-R/RW.

1) In Stop mode, press SETUP twice.
2) Press Cursor ▶ / ▶ to select "CUSTOM", then press ENTER. • CUSTOM mode screen will appear.

3) Press Cursor ◀ / ▶ to select "LANGUAGE", then press ENTER to confirm.

LANGUAGE AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH DHX SUBTITLE OFF

4) Press Cursor ▲ / ▼ to select the below items, then press ENTER.

5) Press Cursor ▲ / ▼ to select an option, then press ENTER. 6) Press SETUP to exit.

AUDIO (\*1, 2, 3):

• Sets the audio language.
• The default setting is "ORIGINAL" (original audio language of the disc).

SUBTITLE (\*1, 2, 3):

- Sets the subtitle language. - The default setting is "OFF".

DISC MENU (\*1, 2):

• Sets the language for DVD menu.
  • The default setting is "ENGLISH".

DivX® SUBTITLE (\*4):

- Sets the DivX ^ subtitle language. - The default setting is "OFF".

Note:

*1: If "OTHER" is selected in the "AUDIO", "SUBTITLE" or "DISC MENU" screen, press 4-digit number to enter the code for a language you choose. (Refer to "Language Code" on page 26.)
*2 : Only the languages supported by the disc can be selected.
*3: Even if DVDs contain multiple audio or subtitle languages, "LANGUAGE" setting screen for "AUDIO" or "SUBTITLE" may not be available with some discs. Then, use MODE. (Refer to page 18.)
*4: If you want to display the Russian subtitle, you can select either "RUSSIAN1" or "RUSSIAN2" which depends on type of the subtitle files.

Display Setting

You can change the display functions.

1) In Stop mode, press SÊTUP twice.

2) Press Cursor ◀/▶ to select "CUSTOM", then press ENTER. • CUSTOM mode screen will appear.

3) Press Cursor ◀ / ▶ to select "DISPLAY", then press ENTER to confirm.

DISPLAY TV MODE 4:3 LETTER BOX STILL MODE AUTO

4) Press Cursor ▲ / ▼ to select the below items, then press ENTER. Select options following instructions below.

5) Press SETUP to exit.

TV MODE: QUICK

4:3 LETTER BOX : When viewing a 16:9 picture on a 4:3 aspect TV screen, black bars appear on the top and bottom of the screen.

4:3 PAN & SCAN : When viewing a 16:9 on a 4:3 aspect TV screen, a full height picture with both sides trimmed is presented.

- P r Cursor ▲ / ▼ to select a setting, then press ENTER.

- The default setting is "4:3 LETTER BOX".

STILL MODE:

AUTO: Automatically select the best resolution setting ("FRAME" or "FIELD") based on the data characteristics of the pictures.
FIELD : Select "FIELD" when the pictures are still unstable even if "AUTO" is selected. "FIELD" stabilises the pictures, although the picture quality may become coarse due to the limited amount of data.
FRAME: Select "FRAME" to display relatively motionless pictures in higher resolution. "FRAME" improves the picture quality, although it may unstabilise the pictures due to simultaneous output of two FIELD data.
Note: An individual picture on TV screen is called as FRAME, which consists of two separate images called as FIELD. Some pictures may be blurred at the "AUTO" setting in Still mode due to their data characteristics.
- P r Cursor ▲ / ▼ to select an option, then press ENTER.
- This adjusts the resolution of pictures while in the Still mode.
• The default setting is "AUTO".

Audio Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVDs.

1) In Stop mode, press SETUP twice.
2) Press Cursor ◀ / ▶ to select "CUSTOM", then press ENTER.
STOM mode screen will appear.
3) Press Cursor ◀ / ▶ to select "AUDIO", then press ENTER to confirm.

AUDIO DRY ON DOWN SAMPUNG ON DLY BY DIGITAL BITSTREAM MPEG PCM

4) Press Cursor ▲ / ▼ to select the below items.

5) Press ENTER repeatedly to select "ON" or "OFF".

6) Press SETUP to exit.

DRC (Dynamic Range Control):

ON : to compress the sound range.

OFF : to output an original sound range.

- This function is only available on DVDs recorded in the Dolby Digital format.

- The default setting is "ON".

DOWN SAMPLING:

ON : to convert 96 kHz format into 48 kHz.

OFF : to output the original sound.

- This function is only available when this unit is connected to another source using the DIGITAL AUDIO OUT (COAXIAL) jack.

- When playing a disc with copyright protection, the sound will be down sampled at 48 kHz, even if you set to "OFF".

• The default setting is "ON".

DOLBY DIGITAL: QUICK

BITSTREAM : to output Dolby Digital signals.

PCM : to convert Dolby Digital signals to PCM (2 channel) signals.

- Set to "BITSTREAM" when this unit is connected to a Dolby Digital decoder.

- The default setting is "BITSTREAM".

MPEG: QUICK

BITSTREAM : to output MPEG formatted sound.

PCM : to convert MPEG signals to PCM signals.

- Set to "BITSTREAM" when this unit is connected to a MPEG decoder.

- The default setting is "PCM".

Parental Control

Parental Control prevents viewing of DVDs that exceed your rating limit. The password is required to change the "PARENTAL LEVEL".

This feature prevents your children from viewing inappropriate materials.

1) In Stop mode, press SETUP twice.

2) Press Cursor ◀ / ▶ to select "CUSTOM", then press ENTER.

•CUSTOM mode screen will appear.

3) Press Cursor ◀ / ▶ to select "PARENTAL", then press ENTER.

PARENTAL PARENTAL LEVEL ALL PASSWORD CHANGE

4) Press the Number buttons to enter your 4-digit password.

- When doing this for the first time, enter any 4-digit number by pressing the Number buttons (except for 4737), then press ENTER. That number will be used as the password from the second time onward. Record your password in case you forget it.

- If you forget the password, press 4, 7, 3, 7. The original password will be cleared and parental levels will be set to "ALL". Enter a new 4-digit password, then press ENTER.

5) Press Cursor ▲ / ▼ to select "PARENTAL LEVEL", then press ENTER.

6) Press Cursor ▲ / ▼ to select the desired level, then press ENTER. For details, see below.

7) Press SETUP to exit.

PARENTAL LEVEL:

ALL: All parental locks are cancelled.

8 : DVD softwares of any grades (adult/general/children) can be played back.

7 to 2 : Only DVD softwares intended for general use and children can be played back.

1 : Only DVD softwares intended for children can be played back.

Note: • This function may not work on some DVDs. Make sure if the parental lock function operates in the way you have set.

To Change the Password

1) Follow the steps 1) to 4) above.

2) Press Cursor ▲ / ▼ to select "PASSWORD CHANGE", then press ENTER.

3) Enter a new 4-digit password, then press ENTER.

4) Press SETUP to exit.

Others Setting

You can change the other functions.

1) In Stop mode, press SETUP twice.
2) Press Cursor ◀ / ▶ to select "CUSTOM", then press ENTER.
•CUSTOM mode screen will appear.
3) Press Cursor ◀ / ▶ to select "OTHERS", then press ENTER to confirm.

ON AXLE ICON ON SCREEN SAVER OFF SLIDE SHOW 5sec DRAW YOU

4) Press Cursor ▲ / ▼ to select the below items, then press ENTER.

Select options following instructions below.

5) Press SETUP to exit.

ANGLE ICON:

ON : to show the angle icon when multiple camera angles are available during DVD playback.

OFF : to hide the angle icon.

- P r ENTER repeatedly to select "ON" or "OFF".

- The default setting is "ON".

SCREEN SAVER:

ON : to start the screen saver programme when there is no input from the unit for 5 minutes in Stop mode.

OFF: not to start the screen saver programme.

- The default setting is "OFF".

SLIDE SHOW:

5sec : to display each image for 5 seconds.

10sec : to display each image for 10 seconds.

- P r Cursor ▲ / ▼ to select an option, then press ENTER.

• The default setting is "5sec".

DivX(R) VOD:

- This unit allows you to use the DivX ^® Video-On-Demand (VOD) services. You can play back the files purchased or rental from the VOD services. You need to have a registration code to purchase or rental VOD files. Please visit www.divx.com/vod for more details.

SIMES VOD Your registration code ac: 12 345678 16 KOSFIDOC VOD www.dixc.comVOD

Note: • You cannot play back the DivX® VOD files obtained with different registration codes on this unit.

- You cannot play back the DivX® VOD files, of which rental period has been expired. In such case, press DISC MENU and select other files that can be played back.

- Some DivX® VOD files are restricted with the limited playable times (you cannot play them back beyond the limit). If your DivX® VOD file has such limit, the playback confirmation screen will appear.

Press Cursor ◀/▶ to select "YES" if you want to play back the file, or to select "NO" if you do not wish to play it back. Then, press ENTER to confirm the selection.

- Please send your inquiries regarding the VOD files to DivX®, Inc.

To Reset All the Settings of the Setup Screen

This function allows you to return all selections of Setup (except for "PARENTAL") to their default settings.

1) In Stop mode, press SETUP twice.
2) Press Cursor ◀/▶ to select "INITIALIZE", then press ENTER.

INITIALZE initive2 KEY YES

3) Press Cursor ▲ / ▼ to select "YES", then press ENTER twice. All the settings (except for "PARENTAL") will be cleared.
• To cancel the initialization, select "NO".

4) Press SETUP to exit.

Language Code

Language	Code	Language	Code	Language	Code	Language	Code
A-B		Frisian	5271	Malay	5965	Somali	6561
Abkhazian 4748		Galician	5358	Malayalam	5958	Spanish [SPA]	5165
Afar 4747		Georgian 5747		Maltese 5966		Sundanese 6567
Afrikaans 4752		German [GER]	5051	Maori	5955	Swahili	6569
Albanian 6563		Greek [GRE]	5158	Marathi 5964		Swedish [SWE]	6568
Amharic 4759		Greenlandic	5758	Moldavian	5961	T
Arabic 4764		Guarani	5360	Mongolian 5960		Tagalog	6658
Armenian 5471		Gujarati	5367	Nauru 6047		Tajik	6653
Assamese 4765		Hausa	5447	Nepali	6051	Tamil	6647
Aymara 4771		Hebrew 5569		Norwcgian [NOR]	6061	Tatar	6666
Azerbaijani 4772		Hindi	5455	O-R		Telugu 6651
Bashkir 4847		Hungarian [HUN]	5467	Occitan	6149	Thai	6654
Basque 5167		I-K		Oriya	6164	Tibetan	4861
Bengali;Bangla 4860		Icelandic [ICE]	5565	Oromo(Afan)	6159	Tigrinya	6655
Bhutani 5072		Indonesian	5560	Panjabi	6247	Tonga 6661
Bihari	4854	Interlingua	5547	Pashto;Pushto	6265	Tsonga	6665
Bislama	4855	Interlingue	5551	Persian	5247	Turkish [TUR]	6664
Breton	4864	Inupiak	5557	Polish [POL]	6258	Turkmen	6657
Bulgarian	4853	Irish [IRI]	5347	Portuguese [POR]	6266	Twi	6669
Burmese	5971	Italian [ITA]	5566	Quechua	6367	U-Z
Byclorussian	4851	Japanese [JPN]	5647	Rhacto-Romance	6459	Ukrainian	6757
C-E		Javanese	5669	Romanian [RUM]	6461	Urdu	6764
Cambodian	5759	Kannada	5760	Russian [RUS] 6467		Uzbek	6772
Catalan 4947		Kashmiri 5765		S		Vietnamese	6855
Chinese [CHI]	7254	Kazakh	5757	Samoan	6559	Volapuk 6861
Corsican	4961	Kinyarwanda	6469	Sangho	6553	Welsh	4971
Croatian	5464	Kirghiz	5771	Sanskrit 6547		Wolof	6961
Czech [CZE]	4965	Kirundi	6460	Scots Gaelic	5350	Xhosa	7054
Danish [DAN]	5047	Korean [KOR]	5761	Serbian 6564		Yiddish 5655
Dutch [DUT]	6058	Kurdish 5767		Serbo-Croatian	6554	Yoruba	7161
English [ENG]	5160	L-N		Sesotho 6566		Zulu	7267
Esperanto 5161		Laothian 5861		Setswana	6660
Estonian	5166	Latin	5847	Shona	6560
F-H		Latvian;Lettish	5868	Sindhi 6550
Faroeese	5261	Lingala	5860	Singhalese	6555
Fiji	5256	Lithuanian	5866	Siswat	6565
Finnish [FIN]	5255	Macedonian	5957	Slovak 6557
French [FRE]	5264	Malagasy 5953		Slovenian	6558

If you choose a language that has a 3-letter abbreviation, the abbreviation will be displayed every time you change the Audio or Subtitle Language setting on page 18. If you choose any other languages, “---” will be displayed instead. (3-letter abbreviations are written in brackets.)

Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this Owner's Manual, check the unit, consulting the following checklist.

WARNING: Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair.

Problem Solution
No power • Check if the AC power cord is properly connected.
This unit does not respond to the remote control.		• Check if the AC power cord is properly connected.• Aim the remote control directly at the sensor on the front panel.• Reduce the distance to this unit.• Replace the batteries in the remote control.• Re-insert the batteries with their polarities (+/ - signs) as indicated.
LCD	Bars on screen	• If outside antenna is being used, check for broken wire.• Check for local interference.
	Picture distorted	• Try a new channel, if OK, then possible station trouble.• If outside antenna is being used, check for broken wire.• Temperature around is too low.
	Picture rolls vertically	• Try a new channel, if OK, then possible station trouble.• If outside antenna is being used, check for broken wire.• Check for local interference.
	No colour	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Adjust COLOUR control.
	Poor reception on some channels	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Check for local interference.
	Weak picture	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Adjust CONTRAST & BRIGHTNESS control.• Temperature around is too low.• Life of the Back Light is approximately 50,000 hours. Ask the Service Centre to replace.
	Lines or streaks in picture	• Try a new channel, if OK, then possible station trouble.• If outside antenna is being used, check for broken wire.• Check for local interference.
	Ghosts in picture	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Check for local interference.
	Picture blurred	• Try a new channel, if OK, then possible station trouble.• If outside antenna is being used, check for broken wire.
	Sound OK, picture poor	• Try a new channel, if OK, then possible station trouble.• Is antenna connected to terminal on the back of the set?• If outside antenna is being used, check for broken wire.• Check for local interference.• Adjust CONTRAST & BRIGHTNESS control.• Temperature around is too low.• Life of the Back Light is approximately 50,000 hours. Ask the Service Centre to replace.
	Picture OK, sound poor	• Try a new channel, if OK, then possible station trouble.• Check for local interference.
LCD	No picture or sound	Try a new channel, if OK, then possible station trouble.Check if the AC power cord is properly connected.I s TV 's STANDBY-ON on?Is antenna connected to terminal on the back of the set?If outside antenna is being used, check for broken wire.Turn off using STANDBY-ON, then turn it on again 30 minutes or so later.
	Different colour marks on screen	Try a new channel, if OK, then possible station trouble.Move the TV away from the nearby appliances which have Magnetism.Turn off using STANDBY-ON, then turn it on again 30 minutes or so later.
	Black or luminous point on screen • It is quality of the LCD Panel.
DVD	Completely distorted picture or black/white picture with DVD	Make sure the disc is compatible with this unit.
	No audio at digital output	Check the digital connections. (Refer to page 7.)Check if the audio format of the selected audio language matches your receiver capabilities.
	No DTS audio output	This unit does not support DTS audio. This is not a malfunction.
	Picture freezes momentarily during playback.	Check the disc for fingerprints/ scratches and clean with a soft cloth wiping from centre to edge.
	Disc cannot be played.	Ensure the disc label is facing up.Check if the disc is defective by trying another disc.Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.
	No return to start-up screen when disc is removed.	Reset the unit by turning it off and on again.
	This unit does not respond to some operating commands during playback.	Operations may not be permitted by the disc.Refer to the instructions of the disc.
	This unit cannot read CDs/DVDs.	Use a commonly available cleaning CD/DVD to clean the lens before sending this unit for repair.
	Disc cannot be taken out.	Press and hold EJECT ▲ on the unit for more than 5 seconds.

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner's Manual for details on correct operations.
• Playback from a desired track and Random Playback are not available during Programmed Playback.
  • Some functions are prohibited on some discs.
  If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

Maintenance

Servicing

• Please refer to relevant topics on the "Troubleshooting Guide" on page 27 before returning the product.
• Should your unit become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and take the unit to Service Centre for servicing.

Cleaning the Cabinet

- Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

Cleaning the Disc Lens

- If the player still does not perform properly when it is operated while referring to the relevant sections and to "Troubleshooting Guide" in this Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorised Service Centre for inspection and cleaning of the laser optical pickup unit.

Disc Handling

• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.
  • Always store the disc in its protective case when it is not used.

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Contact your council for details.

Specifications

General Specifications

Television system:

LDD-A2006: PAL B/G TV standard

LDD-B2006: PAL I TV standard

LDD-C2006: SECAM L/L' TV standard, PAL B/G TV standard

LDD-D2006: PAL B/G TV standard, PAL. D/K TV standard, SECAM B/G TV standard, SECAM D/K TV standard

Other Specifications

Remote control:	Digital encoded infrared light system
Power requirements:	AC220-240 V, 50 Hz
Power consumption (Maximum):	60 W
LCD:	20"
Dimensions (H x W x D):(including the table stand)	466 mm x 594 mm x 231 mm
Weight :(including the table stand)	6.7 kg

- Designs and specifications are subject to change without notice and without our legal obligation.

Channel coverage

Channel Plan
	TV Channel
CHIndication	PAL I PAL	B/G SECAM	D/K SECAM L
01-10 IRA	-IRJ,GAP -- F	1-F10
02-12 -		E2-E12	-
13-20 -		A-H(only ITALY)	-	-
21-69	E21-E69
74-78	X, Y, Z, Z+1, Z+2			-
80-99, 100	S1-S20, GAP			-
71-86 -	--	B-Q
90-106	-	-- S4-S20
121-141	S21-S41
142-153	-	-	R1-R12	-

Terminals

Coaxial digital audio output: One pin jack, 500 mVpp (75 ohm)

S-Video input: Mini DIN 4-pin jack

Video input: RCA connector x 1

Audio L/R input: RCA connector x 2

AUDIO/VIDEO: 21 pin scart jack with RGB Input

Headphone: 1/8" stereo (3.5 mm)

Stereo Sound System

2 ways Audio input (SCART & RCA)

Sound output: 1 W, 8 ohm x 2

Pin Connection

Contacts, signal levels and impedances

Contact Connection Contact Connection
1 Audio Output (Right): 2.0 Vrms/1 kΩ 13 RGB, Ground (Red)
3 Audio Output (Left): 2.0 Vrms/1 kΩ 14 RGB Switching Control, Ground
4 Audio, Ground 15 RGB Input (Red): 0.7 Vp-p/75 Ω
5 RGB, Ground (Blue) 16			RGB Switching ControlH: 1~3 V DC RGB ModeL: 0~0.4 V CVBS Mode
7	RGB Input (Blue): 0.7 Vp-p/75 Ω	17	Video Output Signal, Ground
8	Function Select Switching ControlL: 0.0~2.0 V DC Power Off (TV Mode)M: 4.5~7.0 V DC Wide-Screen Mode(16:9)H: 9.5~12.0 V DC Normal Mode (4:3)	18	Video Input Signal, Ground
		19	Video Output (CVBS): 1.0 Vp-p/75 Ω
9	RGB, Ground (Green)	20	Video Input (CVBS): 1.0 Vp-p/75 Ω
11	RGB Input (Green): 0.7 Vp-p/75 Ω	21	Common Ground (shielding)

Declaration of Conformity

This product complies with the requirement of the directives.

EMC-Directive: 89 / 336 / EEC

Low Voltage Directive: 73 / 23 / EEC

CE Marking: 93 / 68 / EEC

We declare that the following product:

LCD TV/DVD, Model

LDD-A2006, LDD-B2006, LDD-C2006, LDD-D2006

Trade Name: Funai

is in compliance with following Regulations.

EN 55013: 2001 + A1: 2003, EN 55020: 2002 + A1: 2003,

EN 61000-3-2: 2000

EN 61000-3-3: 1995 + A1: 2001

EN 60065: 2002

EN 60825-1 Ed. 1.2: 2001

EN 60825-1: 1994 + A1: 1996 + A2: 2001

CE
