USER MANUAL LT840-M32 FUNAI

Clear Pix TECHNOLOGY

To aid reporting in case of loss or theft, please record the unit's model and serial numbers in the space provided. The numbers are located at the rear of the unit.

Model number:

Serial number:

PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the apparatus's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

CAUTION

1. Do not attempt to open the cabinet. There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
2. Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.
3. Keep the unit away from radiators and other heat sources.
4. Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
5. To prevent fire or shock hazard, do not expose this unit to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the unit.
6. Use the unit on a horizontal (flat) surface only.

7. Do not place any combustible objects on the unit (candles, etc.).

8. The LCD panel used in this unit is made of glass. Therefore, it can break when the unit is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks. The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the TV screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your unit.

9. Disconnect the mains plug to switch off when the unit becomes faulty or not in use.
10. The mains plug shall remain readily operable.
11. Read the manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.
12. Keep a distance of 20 cm around the ventilation openings of the unit.
13. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not place the unit on the furniture that is capable of being tilted by a child or an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

POWER SUPPLY

The main power supply is engaged when the main plug is plugged in a 220-240 V\~, 50 Hz AC outlet. To operate the unit, press ⏻(power) to turn on the unit.

WARNING: LIVE PARTS INSIDE. DO NOT REMOVE ANY SCREWS.

WHEN CARRYING THIS UNIT

• At least 2 people are required when carrying this unit.
• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times

Contents

PRECAUTIONS 2

INTRODUCTION

Features......4

Supplied Accessories 4

Trademark Information ....4

Symbols Used in this Manual 4

Attaching the Base 5

Tilt Stand....5

Installing the Batteries....5

Fixing the Unit on Your Furniture....5

Control Panel....6

Remote Control....6

Rear Panel....7

PREPARATION FOR USE

Antenna Connection....8

External Connection....8

SETUP FOR USE

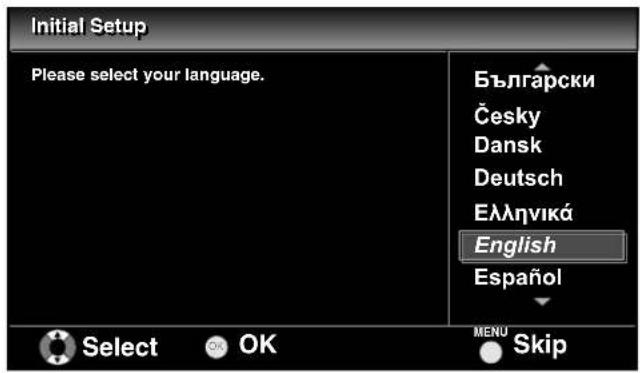

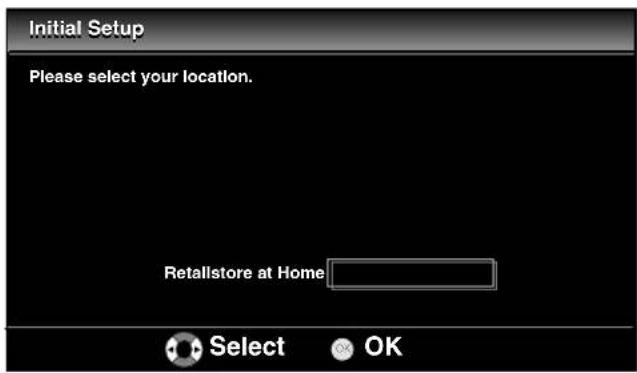

Initial Setup.... 11

OPERATIONS

Watching a TV Programme.... 12

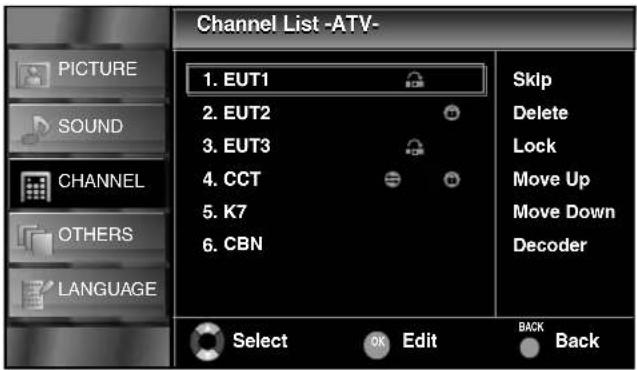

Channel List 12

Sleep Timer.... 12

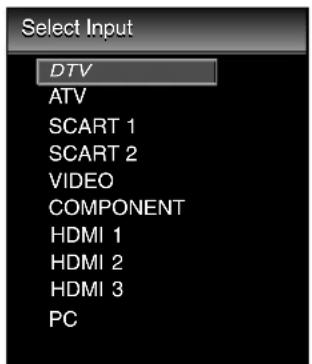

Switching the Input Mode.... 12

Colour System.... 12

ECO Mode....13

Sound Select.... 13

TV Screen Information 13

EPG (Electronic Programme Guide) 14

Changing the TV Screen Display Mode ..... 14

OTHER SETTINGS

Picture Adjustment....16

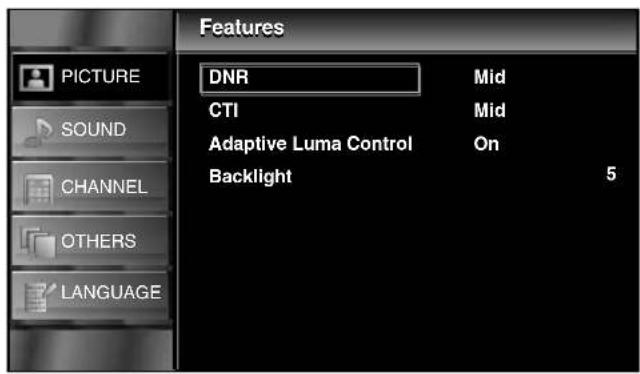

Advanced Picture Adjustment....17

Sound Adjustment....18

Channel Settings ....19

Auto Scan 20

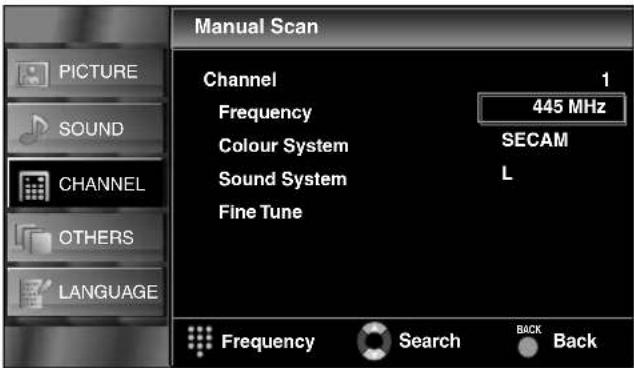

Manual Scan....20

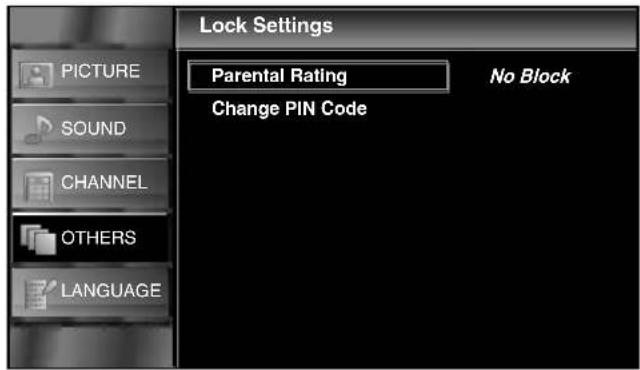

Lock Settings 21

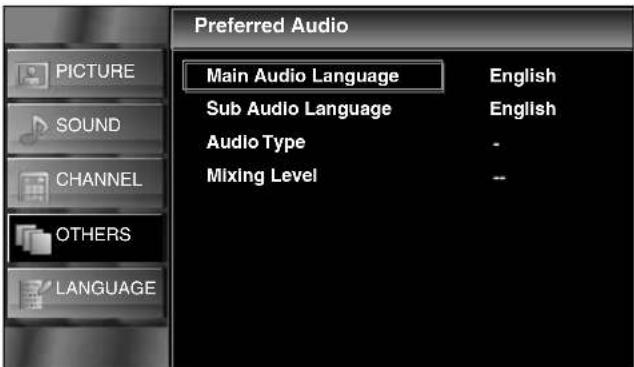

Audio Settings 21

Subtitle Settings 22

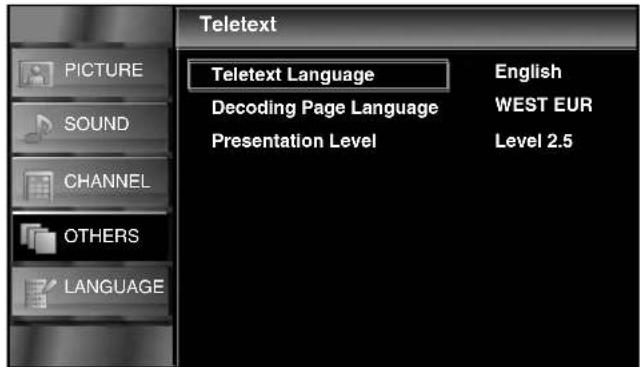

Teletext....23

C.I. (Common Interface)....24

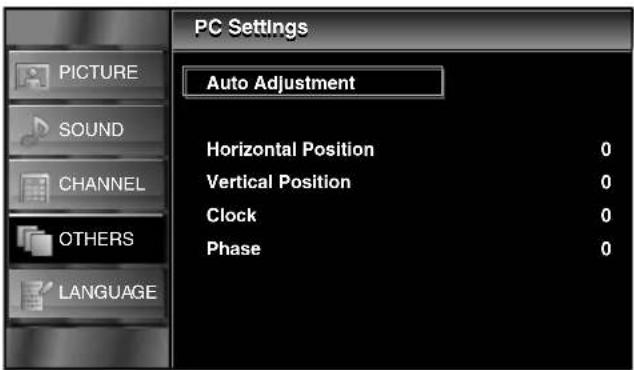

PC Settings....24

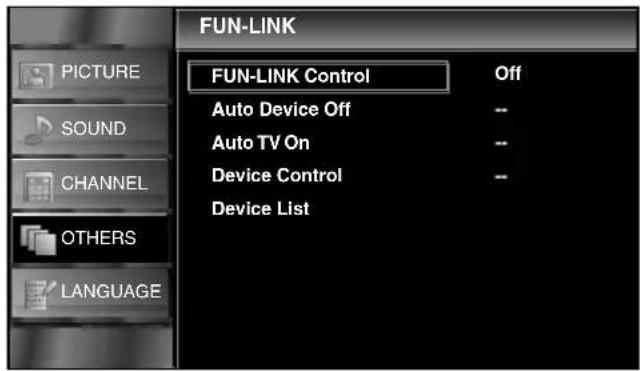

FUN-LINK....25

Country Setting 26

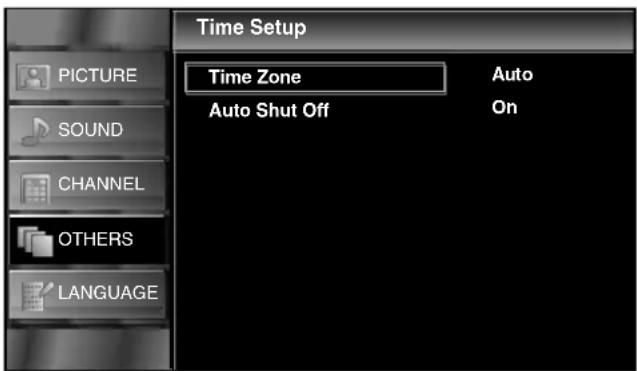

Time Setup....26

Software Download....26

Factory Reset......27

Menu Language Selection....27

MAINTENANCE

Panel Cleaning....27

Servicing....27

Cabinet Cleaning 27

TROUBLESHOOTING GUIDE ......28

SPECIFICATIONS....29

DECLARATION OF CONFORMITY .....29

INTRODUCTION

A Note about Recycling

This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Following information is only valid EU-member States: Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Features

• Integrated Digital Terrestrial Tuner (DVB-T)
  • EPG (Electronic Programme Guide)
  • Stereo Sound System
• On-Screen Display
• Sleep Timer
• Teletext
  • TV Screen Mode Selection
• Auto Shut Off
• Parental Lock
• HDMI Input x 3
• Scart x 2
• Component Input
• S-Video Input
• PC Input
  • ECO Mode

Supplied Accessories

• Remote control
  • Battery (R03/AAA 1.5V) × 2
• Owner's manual
  • Phillips pan screw for attaching the base x 4

Trademark Information

• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• DVB is a registered trademark of the DVB Project.
- The "HD ready" Logo is a trademark of DIGITALEUROPE.

Symbols Used in this Manual

The followings are the description for the symbols used in this manual.

DTV
Digital TV operation
ATV
Analogue TV operation

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction.

1 Spread a thick and soft cloth over a table as shown. Place the main unit face down onto it. Make sure not to damage the screen.

Illustration of a hand holding a flatboard with a handle, no text or symbols present

2 Align the 2 base hooks with the hooks under the bottom of the main unit (shown by arrow ①), then slide the base in the direction as shown by arrow ② until it stops and the 4 mounting holes are aligned. Make sure not to put the AC power cord between the base and the unit.

Diagram showing two labeled parts (① and ②) of a device or folder, with arrows indicating direction of movement.

3 Drive Phillips pan screws into the 4 threaded holes at the bottom of the base until they are tight.

Diagram of a layered structure with three small components inserted, no text or symbols present

To remove the base from this unit

Unscrew the Phillips pan screws on step 3. After the screws are removed, pull the base up toward the rear of the unit. Be careful not to drop the base when you remove it.

Note: • When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.
- Make sure to use the table which can support the weight of this unit and is larger than this unit.
• Make sure the table is in a stable location.

Tilt Stand

For 26" only

You can adjust the stand to change the angle of the unit (-2° to 10°).

-2° 10°

Installing the Batteries

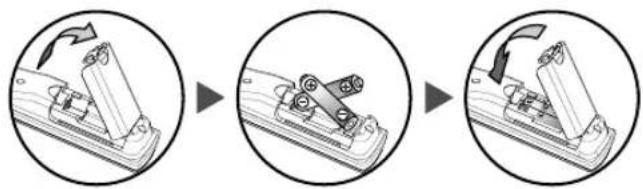

1 Open the battery compartment cover.
2 Insert R03/AAA 1.5V penlight batteries into battery compartment in the direction as indicated by the polarity (+/-) markings. Batteries installed with incorrect polarity may damage the remote unit.
3 Close the cover.
4 Push the cover on its top side until it clicks in order to fit the cover completely to the compartment.

Three-step diagram showing mechanical assembly steps: rotation, press release, and final assembly (no text or symbols)

Fixing the Unit on Your Furniture

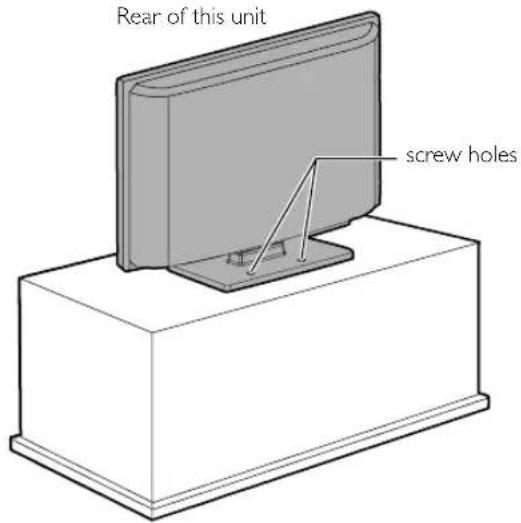

Screw this unit on your furniture tightly using wood screws (not supplied) in the 2 holes at the back of the base as shown.

Recommended screw dimension : 5.1 × 20 mm

Note: When you remove this unit make sure to unscrew the wood screws from your Wood Stand, Furniture and other wood item.

Rear of this unit screw holes

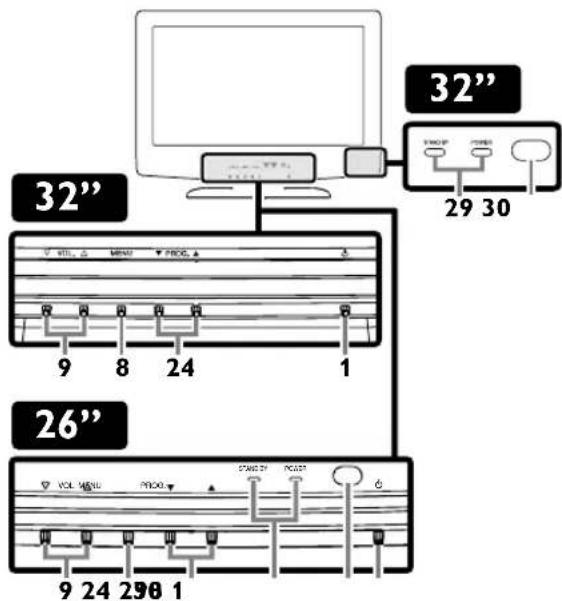

Control Panel

32" 32" 29 30 26" 9 8 24 1 VOL MENU PROC STANDING PROCESSED 9 24 296 1

Remote Control

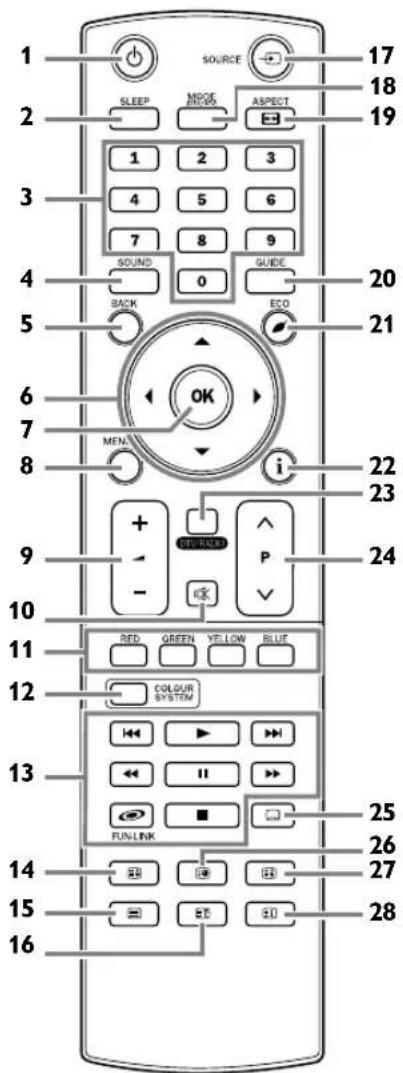

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 SOURCE SLEEP MPOE MODES ASPECT 1 2 3 4 5 6 7 8 9 SOUND 0 GUIDE BACK ECO 20 21 22 23 24 OK MEN i + - - + P - RED GREEN YELLOW BLUE COLGUR SYSTEM FUN-LINK 25 26 27 28

1. ⏻(power) (p. 8) Press to turn on or off (standby) the unit.

2. SLEEP (p. 12) Press to set the sleep timer. Press to hide the teletext.

3. Number buttons (p. 12) Press to select the desired channel in TV mode. Press to enter the password in the password input field.

4. SOUND (p. 13 / p. 18) Press to change the sound modes.

5. BACK (p. 11) Press to return to the previous display.

6. ▲ / ▼ / ◀ / ▶ (cursor) (p. 11) Press to select the setting on the menu. Press to select item you want to adjust in the picture control mode. Press to go to the next page or the previous page of teletext.

7. OK Press to determine the setting on the menu. Press to select or adjust from a particular menu. Press to display the channel list while watching a programme.

8. MENU (p. 16) Press to display the menu. MENU (control panel) Same function as OK (remote control) on the menu.

9. VOL. ∧ / ▽ (control panel) / ▶ +/- (remote control) (p. 12) Press to control the volume level. VOL. ∧ (control panel) Same function as ▶ (cursor) (remote control) on the menu. VOL. ▽ (control panel) Same function as ◀ (cursor) (remote control) on the menu.

10. (mute) (p. 12) Press to mute the sound.

11. RED/GREEN/YELLOW/BLUE (p. 23) Press to directly select the page numbers of teletext.

12. COLOUR SYSTEM(p. 12) Press to select the colour input signal from external devices.

13. FUN-LINK (p. 25) ▶ / ■ / ◀◀ ◀ / ▶◀ ◀ / ◀ ◀ / ▶◀ / ▶▶ (play / stop / skip backward / skip forward / pause / reverse / forward): You can operate your connected FUN-LINK device. ● FUN-LINK: Press to call up various menu from your FUN-LINK device connected through an HDMI cable.

14. (expand) (p. 23) Press to enlarge fonts of teletext.

15. (text) (p. 23) Press to display the teletext information.

16. (reveal) (p. 23) Press to call up the hidden information of teletext.

17. SOURCE (p-12) Press to switch TV or external input mode.

18. MODE (DTV/ATV) Press to select digital or analogue mode.

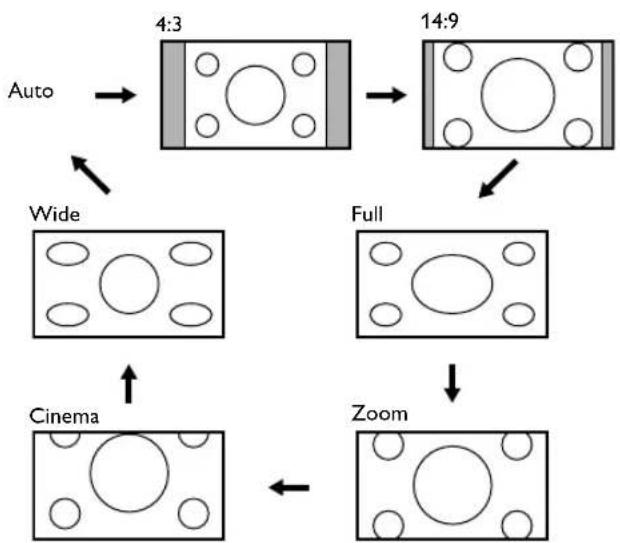

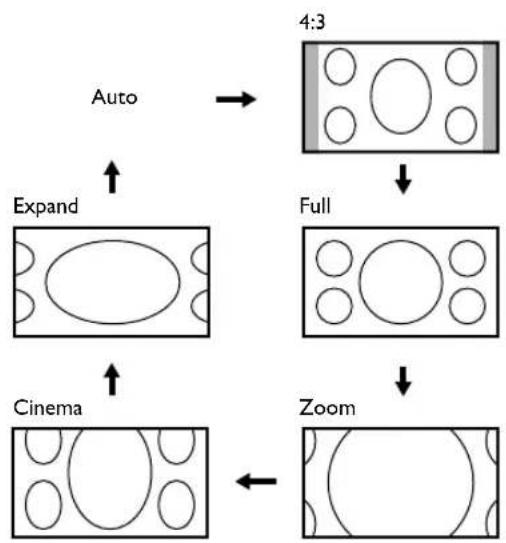

19. ASPECT (4) Press to switch the aspect ratio available for the TV screen.

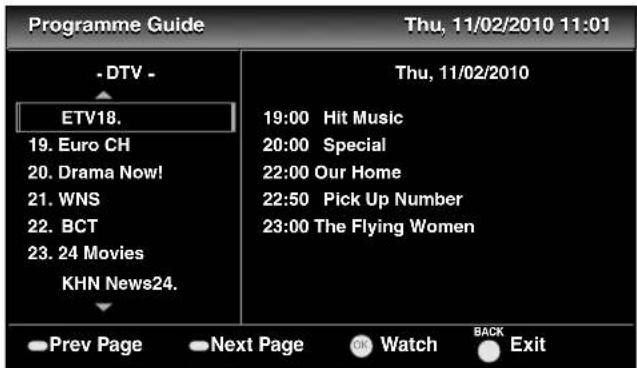

20. GUIDE (p. 14) Press to display EPG (Electronic Programme Guide) in digital mode.

21. ECO (p13)

Press to set the picture brightness for power saving.

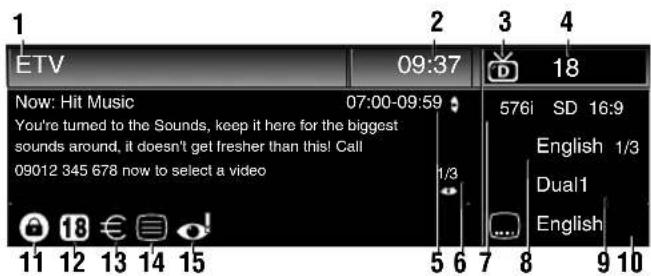

1. i (information) (p. 13)

Press to display the TV screen information.

1. DTV / RADIO

Press to select DTV or radio mode.

1. PROG. ▲ / ▼ (control panel) /

P ∧ / (remote control)

Press to select memorised channel or other modes.

PROG. ▲ / ▼ (control panel) (p. 12)

Same function as ▲ / ▼ (cursor) (remote control) on the menu.

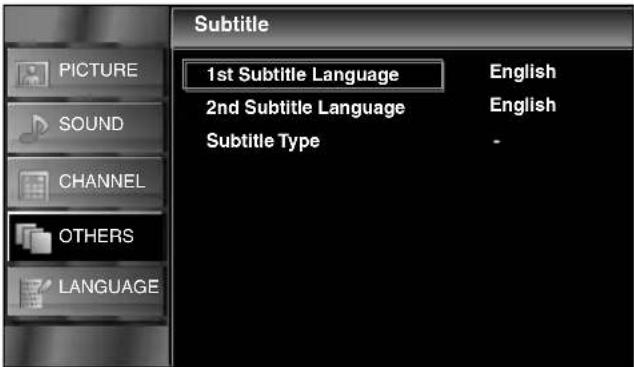

1. (subtitle) (p. 22)

Press to change the available subtitle languages.

1. (subpage) (p. 23)

Press to select subpages of teletext.

1. (hold) (p. 23)

Press to hold the current page of teletext.

1. (index) (p. 23)

Press to go back to the start page of teletext.

1. STAND BY / POWER indicator

Lights up green when power is on.

Lights up red when power is off (standby).

1. Infrared sensor window

Receives the infrared rays transmitted from the remote control.

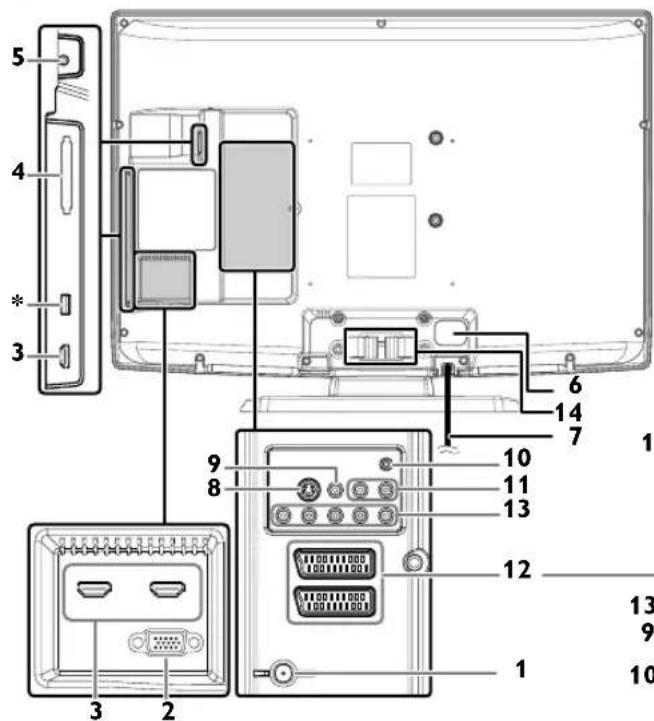

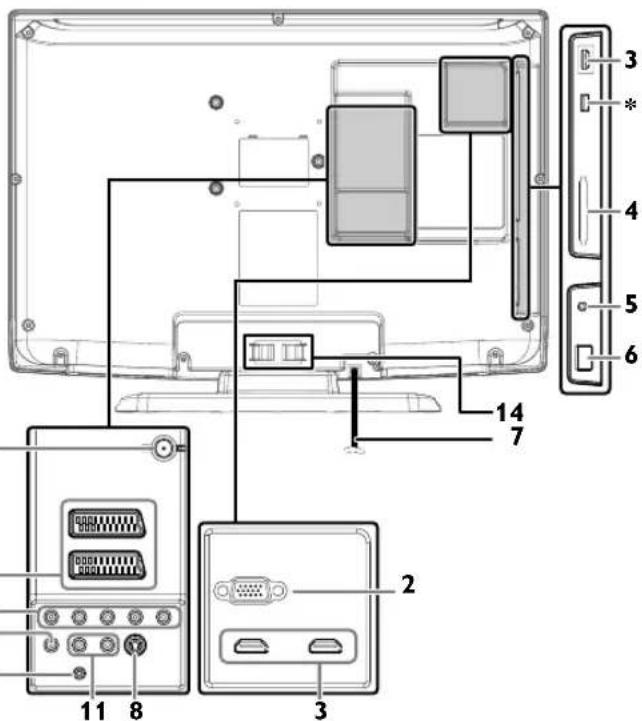

Rear Panel

32"

Labeled diagram of a computer monitor showing internal components and connectors

26"

Diagram of a computer monitor rear panel with labeled ports and connectors

1. (aenip) Input jack (p. 8)

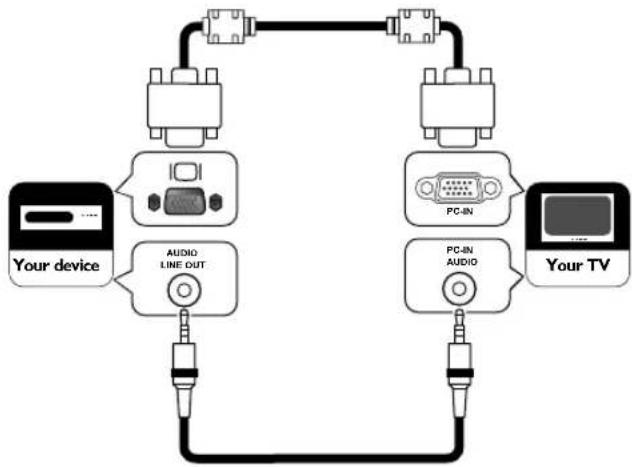

2. PC Input jack (p. 10)

3. HDMI (HDMI 1 / HDMI 2 / HDMI 3) Input jack (p. 8)

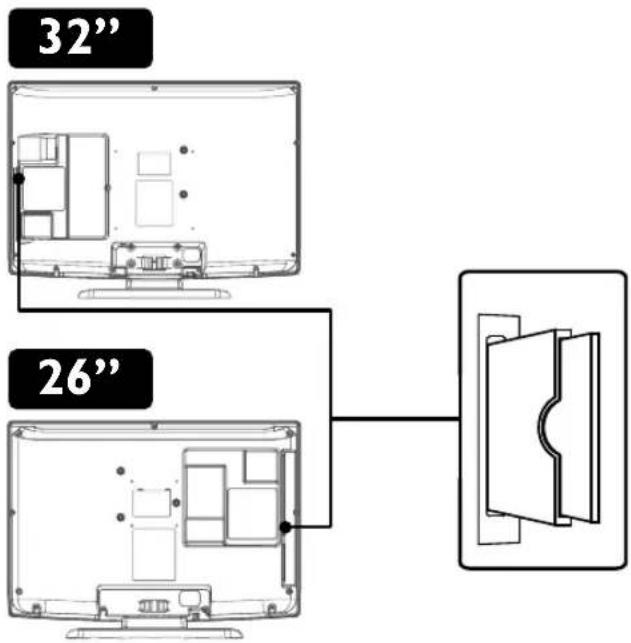

4. C.I. (Common Interface) slot (p. 24)

5. Headphone jack

Connect a headphone.

1. Main power switch

Turns this unit's main power on and off.

1. AC power cord

Connect to a standard AC outlet to supply power to this unit.

1. S-Video Input jack (p. 9)

2. Composite video Input jack (p. 9)

3. Audio Input jack for PC connection (p. 10)

4. Audio (L/R) Input jacks (p. 9)

Note: The Audio (L) jack is for monaural input. The sound is heard from both speakers. Use this jack for a monaural audio device.

1. Scart (Scart 1 / Scart 2) jack (p. 8)

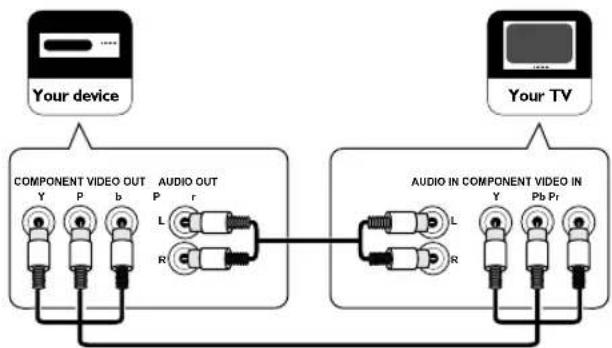

2. Component video and Audio (L/R) Input jacks (p. 9)

3. Cable management

Use this holder to bundle the cables.

Note: * service terminal (service use only)

• Use this terminal only when a software update is necessary.
• User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work).
• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software update themselves.

PREPARATION FOR USE

No supplied cables are used with these connections:

Please purchase the necessary cables at your local store.

High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Before you connect...

Be sure your antenna or other device is connected properly before plugging in the AC power cord.

Antenna Connection

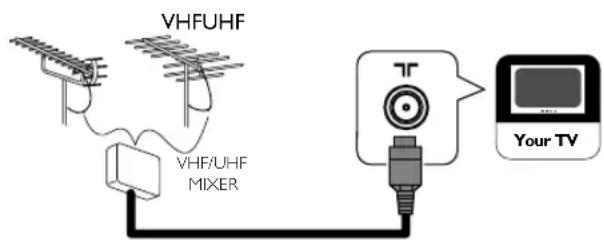

VHFUHF VHF/UHF MIXER Your TV

1 Connect an RF cable to (aerial) Input jack at the rear of this unit.
2 Plug this unit into an AC outlet.
3 Turns on the main power switch.
4 When the STAND BY / POWER indicator on the front panel lights red, then press ⏻ to turn on the unit.

Note: If you like to connect an active DVB-T antenna, the antenna must have its own power supply.

It is not possible to power the antenna from the TV.

External Connection

HDMI connection

HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable.

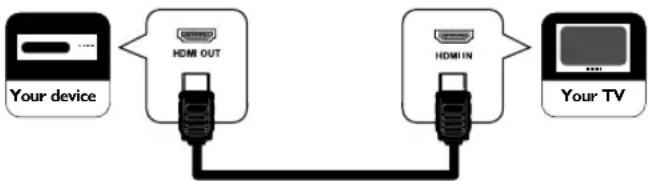

Connect the HDMI output jack of your video device and the HDMI (HDMI 1 / HDMI 2 / HDMI 3) Input jack of this unit. Use an HDMI cable.

Dear Customer,

By connecting an HDMI cable to your Funai LCD TV, you have to use only a certified HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation. A certified HDMI cable can be identified by the HDMI logo on the cable or the cable package.

HIGH-DEFINITION MULTIMEDIA INTERFACE

Note: This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i / 1080p video signals and 32 kHz / 44.1 kHz / 48 kHz audio signals for HDMI connection.
• This unit accepts only 2 channel audio signals (LPCM).
- You need to select "PCM" for the digital audio output of the device you connect. Make sure the device outputs the digital audio. Audio sometimes makes no sound if you select "Bitstream", etc.

Scart connection

Scart connection offers better picture quality.

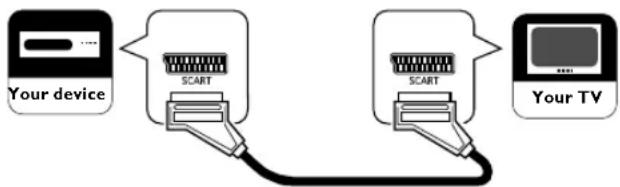

Connect the scart jack of your video device and the Scart (Scart 1 / Scart 2) jack of this unit. Use a scart cable.

Connector	INPUT OUTPUT
	S-Video	Audio (L/R)	CVBS	RGB	Video and Audio (L/R)
Scart 1 Yes	Yes Yes	Yes			only ATV or DTV output is available.
Scart 2 Yes	Yes Yes	No			output you can choose

No supplied cables are used with these connections:

Please purchase the necessary cables at your local store.

Component connection

Component video connection offers better picture quality.

1 Connect the component video output jacks of your video device and the Component video Input jacks of this unit. Use component video cables.
2 Connect the audio output jacks of your device and the Audio (L/R) Input jacks of this unit. Use audio cables.

Note: This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i video signals for component connection.

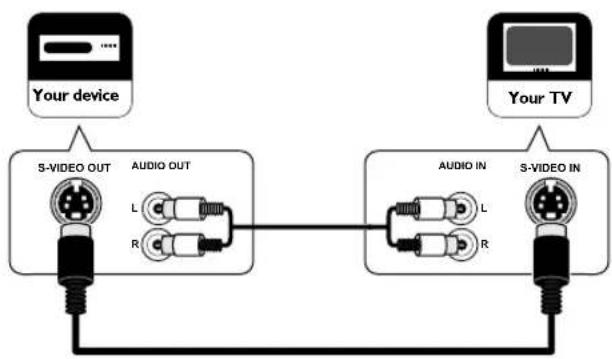

S-Video connection

S-Video connection offers good picture quality.

1 Connect the S-Video output jack of your video device and the S-Video Input jack of this unit. Use an S-Video cable.
2 Connect the audio output jacks of your device and the Audio (L/R) Input jacks of this unit. Use audio cables.


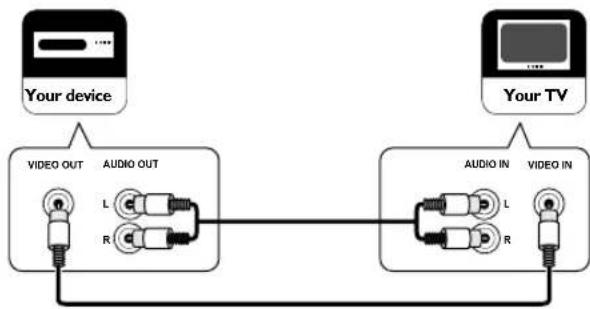

Composite video connection

Composite video connection offers standard picture quality.

1 Connect the composite video output jack of your video device and the Composite video Input jack of this unit. Use composite video cable.
2 Connect the audio output jacks of your video device and the Audio (L/R) Input jacks of this unit. Use audio cables.

Note: If you connect to the S-Video jack and the Composite video jack at the same time, S-Video connection will have priority.

No supplied cables are used with these connections:

Please purchase the necessary cables at your local store.

PC connection

If you connect this unit and your PC, you can use this unit as a computer monitor.

Precautions for the connection to other devices: Please use the VGA cable that has a ferrite core.

1 Connect the monitor jack of your PC and the PC Input jack of this unit. Use a VGA cable with ferrite core.
2 Connect the audio line out jack of your PC and the Audio Input jack for PC of this unit. Use a mini-plug audio cable.

The following signals can be displayed:

Format Resolution Refresh rate
VGA 640 x 180		60 Hz
SVGA 800 x 600
XGA 1,024 x 768
WXGA	1,280 x 768
	1,360 x 768

Note: Other formats or non-standard signals will not be displayed correctly.

SETUP FOR USE

Initial Setup

DTV AT

You need to set the followings to use the unit appropriately for the first time you turn on the unit.

1 Press ⏻ to turn on the unit.
2 Press ▲ / ▼ repeatedly to select the menu language you want, then press OK.

Initial Setup Please select your language. Български Česky Dansk Deutsch Еллнвика English Español Select OK OK MENU Skip

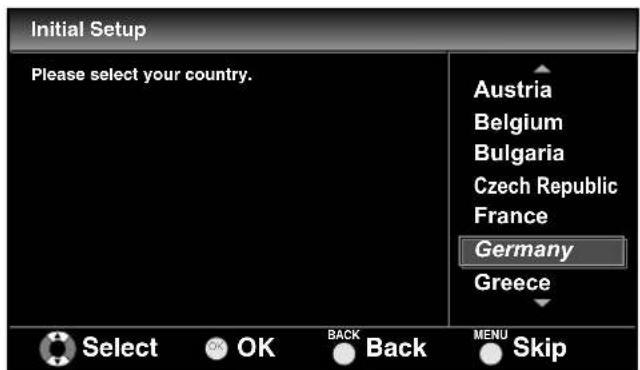

3 Press ▲ / ▼ to select the country you want, then press OK.

Initial Setup Please select your country. Austria Belgium Bulgaria Czech Republic France Germany Greece Select OK BACK Back MENU Skip

Note: If you select the country except [Spain], you can skip Step 4.

4 Press ▲ / ▼ to select the region you want, then press OK.

- Scan confirmation menu will appear.

5 Press OK to start scanning.

Note: • If you press MENU, you can skip to step 6.

• If you press MENU during DTV channel scanning, this operation will be stopped and ATV channel scanning will start automatically.
• If you press MENU during ATV channel scanning, this operation will be stopped and the lowest memorised channel will be displayed.
• When no channel is registered, retry confirmation menu will appear.

6 Press ◀/▶ to select the location, then press OK.

Note: Selecting [at Home] reduces the backlight brightness for power saving. When "Initial Setup" is completed, you cannot change the location setting unless you restore this unit to "Factory Reset" (p. 27) and that restarts all over again such as channel scanning.

- If you select [Retailstore], the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit.

Initial Setup Please select your location. Retailstore at Home Select OK

OPERATIONS

Watching a TV Programme

DTV AT

To select a channel

Press PROG. ▲ / ▼ (control panel) or P ∧/∨ (remote control) repeatedly to select your desired channel.

or

Press the Number buttons to enter a channel number then OK for quicker access.

(e.g.) If you want to select the channel 24 without pressing OK, press 2 first, then press 4 within 3 seconds.

To adjust the volume

Press VOL. △ / ▽ (control panel) or ▶ +/− (remote control) to adjust the audio volume.

Press ☐ to turn on or off the sound right away.

Note: You can recover the original volume by pressing ☐ again or ▶ +/- (remote control).

Channel List

DTV AT

You can easily find a channel you want.

1 Press OK while watching a programme.

2 Press ▲ / ▼ to select the channel you want to watch, then press OK.

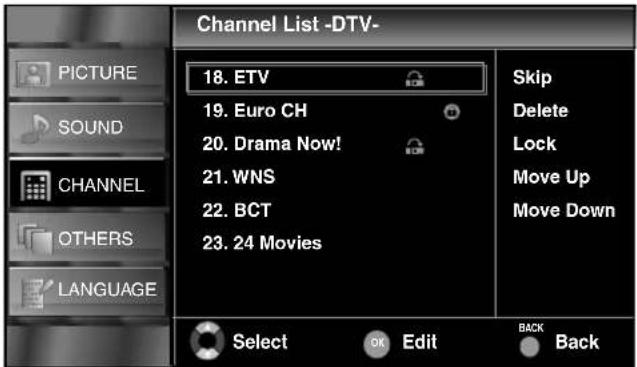

Channel List -DTV- 18. ETV 19. Euro CH 20. Drama Now! 21. WNS 22. BCT 23. 24 Movies

Channel List -ATV- 1. EUT1 2. EUT2 3. EUT3 4. CCT 5. K7 6. CBN

Channel List -Radio- 1. EUT1 Radio 710. Hot music 711. Kids station 713. WA World 715. ASA1 716. KAR weather

	Locked Channel
	Decoded Channel

Note: Press ◀/▶ to move to the previous or next page.

3 Press BACK to exit.

Note: You can edit the channel list at "Channel Settings" (p. 19).

Sleep Timer

DTV AT

You can set the unit to be turned off automatically after a set time period.

1 Press SLEEP.

2 Press SLEEP repeatedly to change the sleep time period.

• Each time you press SLEEP, the timer increases by 30 minutes up to 120 minutes.

Sleep

120min.

Note: • Press SLEEP repeatedly until [Off] appears to cancel the sleep timer.

- If you disconnect the unit from the AC outlet or if a power failure occurs, the sleep timer will be cancelled.

Switching the Input Mode

DTV AT

You can switch the input mode to TV mode or external input mode.

1 Press SOURCE.

2 Press ▲ / ▼ to select the input mode you want, then press OK.

Select Input DTV ATV SCART 1 SCART 2 VIDEO COMPONENT HDMI 1 HDMI 2 HDMI 3 PC

Colour System

You can change the TV colour system in video or scart mode.

Press COLOUR SYSTEM repeatedly to select the colour system you want, then press OK.

([Auto], [PAL], [PAL 60], [SECAM], [NTSC], or [NTSC 4.43])

Note: When you select [Auto] by pressing COLOUR SYSTEM, this unit will distinguish the system automatically according to the input signal from the external devices.

ECO Mode

When you set [ECO Mode] to [On], backlight brightness will be reduced automatically which may save on power consumption.

Press ECO ▼ repeatedly to select [On] or [Off], then press OK.

On : The backlight is the lowest level.

Off : You can adjust the back light level at "Advance Picture Adjustment" (p. 17).

Sound Select

DTV

1 Press SOUND to display the currently selected audio language and the number of available languages.
2 Press SOUND repeatedly to cycle through the available audio languages.

ATV

1 Press SOUND to display the currently selected audio mode.
2 Press SOUND repeatedly to cycle through the available audio mode.

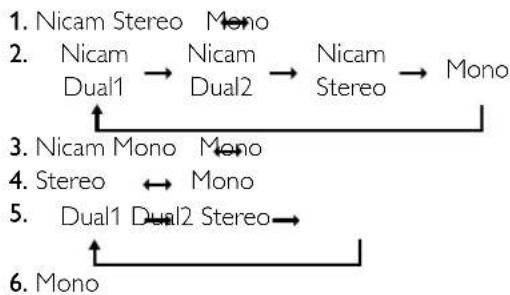


TV Screen Information

DTV

ATV

You can see the broadcasting information.

1 Press i.

- Fewer information menu will appear.

2 Press i again to display more informations.

ETV 09:37 18 Now: Hit Music 07:00-09:59 You're turned to the Sounds, keep it here for the biggest sounds around, it doesn't get fresher than this! Call 09012 345 678 now to select a video 1/3 576i SD 16:9 English 1/3 Dual1 English 11 12 13 14 15 5 6 7 8 9 10

1. Channel name
2. Current time
3. ATV broadcast

• 🎨 displayed when it receives analogue TV broadcast.
DTV broadcast
• is displayed when it receives digital TV broadcast.
Radio service
• displayed when it receives digital audio broadcast.

1. Channel number

2. Present programme name / time

Note: Press ◀/▶ to switch the present and next programme. (if available)

1. Programme information

Note: When the programme information consists of more than 3 lines, press ▲ / ▼ to scroll.

1. Resolution / Format / TV aspect ratio
2. Audio language (DTV) / Audio Mode(ATV)
3. Audio mode (DTV)
4. Subtitle (p. 22)

- ...is displayed if the subtitle of the TV programme is available.

1. Lock status (p. 19 / p. 21)

• is displayed when you are watching the TV programme which you set the parental lock or channel lock.

1. Parental rating (p. 21)

• 18 displayed if the parental rating of TV programme is available.
* The icon may differ depending on the ratings.

1. Pay TV

• is displayed, when you are watching the pay TV.

1. Teletext (p. 23)

- displayed if the teletext of TV programme is available.

1. Audio Description (p. 22)

- id displayed when the TV programme provides additional audio description for visually impaired.

3 Press BACK to exit.

• TV Screen information menu will automatically disappear in a few seconds.

EPG (Electronic Programme Guide)

DTV

You can easily find a channel or see the detailed channel information. EPG gives you scheduled information of the TV programmes.

1 Press GUIDE.

2 Press ▲ / ▼ to select a channel, then press ▶ (cursor).

Programme Guide Thu, 11/02/2010 11:01 - DTV - ETV18. 19. Euro CH 20. Drama Now! 21. WNS 22. BCT 23. 24 Movies KHN News24. Thu, 11/02/2010 19:00 Hit Music 20:00 Special 22:00 Our Home 22:50 Pick Up Number 23:00 The Flying Women Prev Page Next Page OK Watch BACK Exit

Note: Press RED or GREEN to move the channel list to the previous or next page. Press OK to watch the selected channel.

3 Press ▲ / ▼ to select a programme.

Note: Press RED or GREEN to move the programme list to the previous or next day. Press OK to watch the selected programme if it is currently available.

4 Press i to display more detailed programme information.

Note: When the programme information consists of more than 2 pages, press ▲ / ▼ to move to the previous or next page.

5 Press GUIDE to exit.

Changing the TV Screen Display Mode

DTV AT

You can select your favourite TV screen size.

Press ASPECT repeatedly to switch the TV screen display mode.

For 16:9 video signal

Auto

Selects the TV screen display mode automatically. This is the default.

4:3

Displays a16:9 picture at a 4:3 size; the picture is reduced horizontally to fill the TV screen. Sidebars appear on both edge of the TV screen.

Full

Displays a 16:9 picture at its original size.

Zoom

Displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Cinema

Displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture.

Expand

Displays a horizontally stretched picture. This crops out the left and right sides of the picture.

Auto

Selects the TV screen display mode automatically. This is the default.

4:3

Displays a 4:3 picture at its original size. Sidebars appear on both edge of the TV screen.

14:9

Displays a 4:3 picture at a 14:9 size. Sidebars will be displayed on both edge of the TV screen. This crops out the top and bottom of the picture.

Full

Displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the TV screen.

Zoom

Displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture.

Cinema

Displays a 4:3 picture at a 16:9 size; the picture is stretched more vertically at the top of the TV screen. This crops out the top of the picture.

Wide

Displays the picture with its centre at the original size and the edges stretched horizontally to fill the screen.

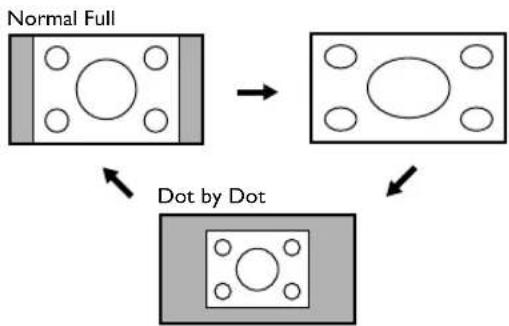


Normal

Displays a proportionally stretched picture. Mainly sidebars appear on both edges of the TV screen.

Full

Displays a picture that is stretched out of proportion horizontally to fill the TV screen.

Dot by Dot

Displays a picture at its original size.

OTHER SETTINGS

Picture Adjustment

DTV AT

You can adjust the picture settings according to your personal preference. These settings are automatically stored after exiting the picture menu.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [PICTURE], then press OK.

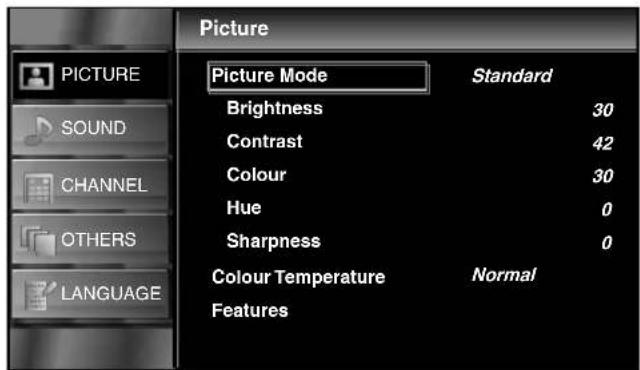

Picture Picture Mode Standard Brightness 30 Contrast 42 Colour 30 Hue 0 Sharpness 0 Colour Temperature Normal Features

Picture Mode

3 Press ▲ / ▼ to select [Picture Mode], then press OK.
4 Press ▲ / ▼ to select the setting you want, then press OK. ([Standard], [Dynamic], [Movie], [News], or [Personal])
5 Press MENU to exit.

Brightness / Contrast / Colour / Hue / Sharpness

3 Press ▲ / ▼ to select the item you want, then press OK.

Note: Press ▲ / ▼ to change the items.

4 Press ◀/▶ to adjust, then press OK.

Note: If you adjust the settings in other than [Personal] mode, [Picture Mode] will be changed to [Personal].

	◀(cursor) ▶	(cursor)
Brightness	decrease brightness	increase brightness
Contrast	decrease contrast	increase contrast
Colour	decrease colour	increase colour
Hue	add red add green
Sharpness	make soft make clear

5 Press MENU to exit.

Colour Temperature

3 Press ▲ / ▼ to select [Colour Temperature], then press OK.
4 Press ▲ / ▼ to select the setting you want, then press OK. ([Warm], [Normal], or [Cool])
5 Press MENU to exit.

Advanced Picture Adjustment

DTV AT

You can adjust the detailed picture settings according to your personal preference.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [PICTURE], then press OK.
3 Press ▲ / ▼ to select [Features], then press OK.

Features DNR Mid CTI Mid Adaptive Luma Control On Backlight 5 PICTURE SOUND CHANNEL OTHERS LANGUAGE

DNR (Digital Noise Reduction)

You can adjust to reduce the appearance of digitizing error caused by the compression.

4 Press ▲ / ▼ to select [DNR], then press OK.
5 Press ▲ / ▼ to select the setting you want, then press OK. ([High], [Mid], or [Low])
6 Press MENU to exit.

CTI (Colour Transient Intensity)

You can adjust the picture for colour errors.

4 Press ▲ / ▼ to select [CTI], then press OK.
5 Press ▲ / ▼ to select the setting you want, then press OK. ([High], [Mid], or [Low])
6 Press MENU to exit.

Adaptive Luma Control

You can adjust changes in the luminance of the picture.

4 Press ▲ / ▼ to select [Adaptive Luma Control].
5 Press ▲ / ▼ to select the setting you want, then press OK. ([On] or [Off])
6 Press MENU to exit.

Backlight

You can adjust backlight brightness.

4 Press ▲ / ▼ to select [Backlight], then press OK.
5 Press ◀/▶ to adjust, then press OK.

	◀(cursor) ▶(cursor)
	dim brighten

Note: If you adjust the brightness except 1, [ECO Mode] will be set to [Off].

6 Press MENU to exit.

Sound Adjustment

DTV AT

You can adjust the sound settings according to your personal preferences.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [SOUND], then press OK.

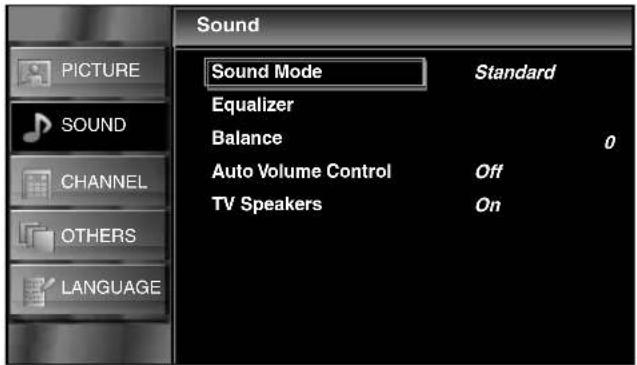

Sound Sound Mode Standard Equalizer Balance 0 Auto Volume Control Off TV Speakers On

Sound Mode

3 Press ▲ / ▼ to select [Sound Mode], then press OK.
4 Press ▲ / ▼ to select the setting you want, then press OK. ([Standard], [Movie], [Music], [News], or [Personal])
5 Press MENU to exit.

Equalizer

You can adjust tonal quality for each frequencies.

3 Press ▲ / ▼ to select [Equalizer], then press OK.
4 Press ◀/▶ to select the specific frequencies you want.
5 Press ▲ / ▼ to adjust the Level, then press OK.

Note: If you adjust the setting in other than [Personal] mode, [Sound Mode] will be changed to [Personal].

6 Press MENU to exit.

Balance

You can set the balance of the left and right speakers.

3 Press ▲ / ▼ to select [Balance], then press OK.
4 Press ◀/▶ to adjust, then press OK.

	◀(cursor) ▶(cursor)
	decrease right speaker volume level	decrease left speaker volume level

5 Press MENU to exit.

Auto Volume Control

You can set to keep a constant loudness differential between the TV commercials and the programmes.

3 Press ▲ / ▼ to select [Auto Volume Control], then press OK.
4 Press ▲ / ▼ to select the setting you want, then press OK. ([On] or [Off])
5 Press MENU to exit.

TV Speakers

If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit's remote control.

3 Press ▲ / ▼ to select [TV Speakers], then press OK.
4 Press ▲ / ▼ to select the setting you want, then press OK. ([On], [Off], or [Ext. Amp])

On : The sound will be output from the unit's speakers.
Off : The sound will not be output from the unit's speakers.
Ext. Amp : You can control audio output from your connected HDMI link devices by using this unit's remote control.
5 Press MENU to exit.

Channel Settings

DTV AT

You can edit the channels.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [CHANNEL], then press OK.
3 Press ▲ / ▼ to select [Channel List], then press OK.
4 Press ▲ / ▼ to select the channel you want to edit, then press OK.

DTV

Channel List -DTV- 18. ETV 19. Euro CH 20. Drama Now! 21. WNS 22. BCT 23. 24 Movies Skip Delete Lock Move Up Move Down SELECT OK Edit BACK Back

ATV

Channel List -ATV- 1. EUT1 2. EUT2 3. EUT3 4. CCT 5. K7 6. CBN Skip Delete Lock Move Up Move Down Decoder Select OK Edit BACK Back

Channel Skip

When using P, the channel you selected will be skipped.

5 Press ▲ / ▼ to select [Skip], then press OK. • Will appear on the right of the channel.

Note: Press OK again to cancel, and will disappear.

6 Press MENU to exit.

Channel Delete

The channel you selected will be deleted from the channel list.

5 Press ▲ / ▼ to select [Delete], then press OK. • Delete Confirmation message will appear.

6 Press ▲ / ▼ to select [Delete], then press OK.

7 Press MENU to exit.

Channel Lock

You can set particular channels to be invisible.

5 Press ▲ / ▼ to select [Lock], then press OK.

6 Press the Number buttons to enter the 4-digit PIN Code you set. • Will appear on the right of the channel.

7 Press MENU to exit.

Note: When you select the locked channel, you need to enter the password to watch.

If you want to unlock

5 Press ▲ / ▼ to select the channel you want to unlock, then press OK.
6 Press ▲ / ▼ to select [Lock], then press OK. • will disappear.
7 Press MENU to exit.

Channel Move Up / Move Down

You can change the channel order.

5 Press ▲ / ▼ to select [Move Up] or [Move Down], then press OK.

Note: When you selected DTV channel and set to [France] or [Italy] at "Country Setting" (p. 26), the channel order will be changed. If ATV channels or any other countries, the channel number will be switched.

6 Press MENU to exit.

Channel Decode

ATV

Some TV stations transmit encoded TV signals which can only be viewed with a purchased or hired decoder. You can connect such a decoder to SCART jack of the unit. This function will automatically activate the connected decoder for the channel.

5 Press ▲ / ▼ to select [Decoder], then press OK. • will appear on the right of the channel.

Note: Press OK again to cancel, and will disappear.

6 Press MENU to exit.

Auto Scan

DTV AT

You can scan the channels receivable in your area automatically.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [CHANNEL], then press OK.
3 Press ▲ / ▼ to select [Auto Scan], then press OK.
• Auto Scan Confirmation message will appear.
4 Press ▲ / ▼ to select [Start], then press OK.
• Channel scanning will start.

Note: • Digital or analogue channels will be scanned depending on the TV mode (ATV mode or DTV mode) you selected.
- When the scanning is completed, the lowest memorised digital or analogue channel will be displayed.
- If you press MENU during the scanning, this operation will be stopped and the lowest memorised digital channel will be displayed.
- Please note that after tuning, the analogue channels will be stored in the order that they are broadcast by your local transmitter. This may not be in the same order in which you would like them to be stored. If this is the case, you can change the order according to your preference at "Channel Settings" (p. 19).

Manual Scan

DTV AT

You can search and store channels manually.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [CHANNEL], then press OK.
3 Press ▲ / ▼ to select [Manual Scan], then press OK.

Note: Digital or analogue channels will be scanned depending on the TV mode (ATV mode or DTV mode) you selected.

DTV

4 Press ▲ / ▼ or the Number buttons to select the channel number you want to scan, then press OK. • Channel scanning will start.

ATV

4 Press ▲ / ▼ to select [Channel], then press OK.
5 Press ▲ / ▼ or the Number buttons to select the channel number you want, then press OK.
6 Press ▲ / ▼ to [Frequency], then press OK.
7 Press the Number buttons to select the 3-digit frequency, then press ▲ / ▼ to start scanning.
8 After channel scanning is completed, press OK to select the following settings. ([Colour System], [Sound System], and [Fine Tune])

Manual Scan Channel 1 Frequency 445 MHz Colour System SECAM Sound System L Fine Tune CHANNEL OTHERS LANGUAGE Frequency Search BACK Back

Colour System / Sound System

9 Follow Steps 1 to 8. Press ▲ / ▼ to select [Colour System] or [Sound System], then press OK.

10 Press ▲ / ▼ to select the settings you want, then press OK.

11 Press MENU to exit.

Fine Tune

9 Follow Steps 1 to 8. Press ▲ / ▼ to select [Fine Tune], then press OK.
10 Press ◀ / ▶ to select the settings you want, then press OK.

Fine Tune Adjust OK OK

11 Press MENU to exit.

Lock Settings

DTV AT

You can set the parental rating and change the PIN code.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [Lock Settings], then press OK.
4 Press the Number buttons to enter the 4-digit PIN Code you set.

Note: If you have not set up your PIN code, enter 0000.

Lock Settings PICTURE SOUND CHANNEL OTHERS LANGUAGE Parental Rating Change PIN Code No Block

Parental Rating

You can set the parental rating to avoid watching an inappropriate programme for your children.

5 Press ▲ / ▼ to select [Parental Rating], then press OK.
6 Press ▲ / ▼ to select the age restriction, then press OK.
7 Press MENU to exit.

Change PIN Code

You can set your own PIN code.

5 Press ▲ / ▼ to select [Change PIN Code], then press OK.
6 Press the Number buttons to enter the new 4-digit number.
7 Press the Number buttons to enter the same 4-digit number again.

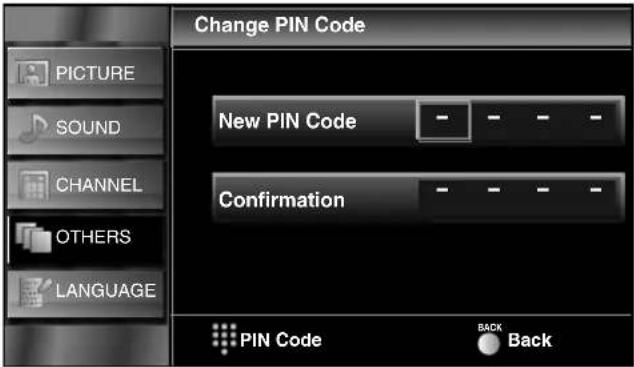

Change PIN Code PICTURE SOUND CHANNEL OTHERS LANGUAGE New PIN Code Confirmation PIN Code BACK Back

8 Press MENU to exit.

Audio Settings

DTV

You can change the audio settings used for TV programmes. Before you begin: You must select [DTV] at "Switching the Input Mode" (p. 12).

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [DTV Settings], then press OK.
4 Press ▲ / ▼ to select [Preferred Audio], then press OK.

Preferred Audio Main Audio Language English Sub Audio Language English Audio Type - Mixing Level --

Main Audio Language / Sub Audio Language

You can select the main or sub audio language.

5 Press ▲ / ▼ to select the item you want, then press OK.

6 Press ▲ / ▼ to select the language you want.

7 Press MENU to exit.

Note: While watching a programme, you can change the audio language easily using SOUND when it is available.

Audio Type

You can adjust the audio type.

5 Press ▲ / ▼ to select [Audio Type], then press OK.

6 Press ▲ / ▼ to select the setting you want, then press OK. ([-], [Hearing Impaired], or [Visually Impaired])

Hearing Impaired : Provides audio service for hearing impaired.

Visually Impaired : Provides additional audio description for visually impaired.

7 Press MENU to exit.

Mixing Level

You can adjust the audio volume for [Visually Impaired]. Make sure [Audio Type] is set to [Visually Impaired] at "Audio Settings" (p. 21).

5 Press ▲ / ▼ to select [Mixing Level] then press OK.

6 Press ◀/▶ to adjust, then press OK.

Mixing Level 20 Adjust OK OK

7 Press MENU to exit.

Subtitle Settings

DTV

You can change the subtitle settings used for TV programmes. Before you begin: You must select [DTV] at "Switching the Input Mode" (p. 12).

1 Press MENU to display the menu.

2 Press ▲ / ▼ to select [OTHERS], then press OK.

3 Press ▲ / ▼ to select [DTV Settings], then press OK.

4 Press ▲ / ▼ to select [Subtitle], then press OK.

Subtitle 1st Subtitle Language English 2nd Subtitle Language English Subtitle Type -

1st Subtitle Language / 2nd Subtitle Language

You can set 1st and 2nd subtitle language.

5 Press ▲ / ▼ to select [1st Subtitle Language] or [2nd Subtitle Language], then press OK.

6 Press ▲ / ▼ to select the language you want, then press OK.

Note: While watching a programme, you can change the subtitle language easily using ☐ when it is available.

7 Press MENU to exit.

Subtitle Type

5 Press ▲ / ▼ to select [Subtitle Type], then press OK.

6 Press ◀/▶ to select the setting you want, then press OK. ([-] or [Hearing Impaired])

Hearing Impaired : Provides subtitle commentary for hearing impaired.

7 Press MENU to exit.

Teletext

DTV

You can change the teletext settings.

Before you begin: You must select [DTV] at "Switching the Input Mode" (p. 12).

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [DTV Settings], then press OK.
4 Press ▲ / ▼ to select [Teletext], then press OK.

Teletext Teletext Language English Decoding Page Language WEST EUR Presentation Level Level 2.5 PICTURE SOUND CHANNEL OTHERS LANGUAGE

Teletext Language

5 Press ▲ / ▼ to select [Teletext Language], then press OK.
6 Press ▲ / ▼ to select the language you want, then press OK.
7 Press MENU to exit.

Decoding Page Language

You can adjust the decoding paging language.

Note: You must select [RUSSIA] if you select the countries that use the Cyrillic alphabet at "Country Setting" (p. 26).

5 Press ▲ / ▼ to select [Decoding Page Language], then press OK.
6 Press ▲ / ▼ to select the language you want, then press OK.
7 Press MENU to exit.

Presentation Level

You can adjust the teletext presentation level. Level 2.5 offers more colours and better graphics than Level 1.5.

5 Press ▲ / ▼ to select [Presentation Level], then press OK.
6 Press ▲ / ▼ to select the setting you want, then press OK. ([Level 1.5] or [Level 2.5])
7 Press MENU to exit.

To show the teletext

1 Press to turn on the teletext decoder. • [Teletext] information will appear.
2 Press 📄 repeatedly to show the teletext in transparent mode or picture and teletext mode.

Note: • If you want to select other pages, press the Number buttons or ▲ / ▼.

• To enlarge fonts, press
• To select the teletext subpages, press
- To directly select the page numbers shown at the bottom of the TV screen, use RED/GREEN/YELLOW/BLUE.
• To call up the hidden information, press ☐?
• To hold the current page, press
• To go back to the start page, press ☑1
• To hide the teletext, press SLEEP.

3 Press BACK to turn off the teletext decoder.

C.I. (Common Interface)

DTV

This unit is equipped with a C.I. slot. You can enjoy additional services with this function, for example Pay TV. The access restrictions menu will appear on the TV screen when a CI module is installed.

1 Turn off the unit and unplug from an AC outlet.
2 Insert the CI module straight to the C.I. slot of this unit.
- Some CI modules may be a two-piece design consisting of a card reader with the viewing card. When using this kind of card, insert the card reader firmly into the C.I. slot on the unit first. Then, insert the viewing card into the reader.

32" 26"

3 Plug this unit into an AC outlet and press ⏻ to turn on the unit.
4 Press MENU to display the menu.
5 Press ▲ / ▼ to select [OTHERS], then press OK.
6 Press ▲ / ▼ to select [DTV Settings], then press OK.
7 Press ▲ / ▼ to select [Common Interface], then press OK.
8 Follow the instructions on the TV screen.

Note: • In case of failure, you need to call your CI service provider.

- Menu operations may vary depending on the viewing card. Refer to the manual accompanying the viewing card.

PC Settings

You can adjust the PC screen position, clock and phase.

Before you begin: You must connect your PC to this unit and select [PC] at "Switching the Input Mode" (p. 12).

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [PC Settings], then press OK.

PC Settings Auto Adjustment Horizontal Position 0 Vertical Position 0 Clock 0 Phase 0

Auto Adjustment

4 Press ▲ / ▼ to select [Auto Adjustment], then press OK.

- Auto Adjust Confirmation message will appear.

5 Press ▲ / ▼ to select [Adjust], then press OK.

• Each setting will be adjusted automatically.

6 Press MENU to exit.

Horizontal Position / Vertical Position / Clock / Phase

4 Press ▲ / ▼ to select the item you want, then press OK.

Note: Press ▲ / ▼ to change the items.

5 Press ◀/▶ to adjust, then press OK.

	◀(cursor) ▶	(cursor)
Horizontal Position	move PC screen left	move PC screen right
Vertical Position	move PC screen down	move PC screen up
Clock	decrease setting value	increase setting value
Phase

6 Press MENU to exit.

FUN-LINK

This function allows you to operate the linked functions between our brand devices with a FUN-LINK feature and this unit connecting through an HDMI cable.

Note: The set with FUN-LINK will interoperate without any problems with other FUNAI devices which comply with FUN-LINK.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [FUN-LINK], then press OK.

FUN-LINK FUN-LINK Control Off Auto Device Off -- Auto TV On -- Device Control -- Device List

FUN-LINK Control

You can set the FUN-LINK function On or Off.

4 Press ▲ / ▼ to select [FUN-LINK Control], then press OK.
5 Press ▲ / ▼ to select [On] or [Off], then press OK.

On : Selects if you have connected an external device that is compatible with the FUN-LINK function.

Off : Disables all FUN-LINK functions.

Note: The following additional settings will be in grey when you set to [Off].

6 Press MENU to exit.

Auto Device Off

You can set your device to turn off by interlocking from this unit's power.
4 Press ▲ / ▼ to select [Auto Device Off], then press OK.
5 Press ▲ / ▼ to select [On] or [Off], then press OK.

On : Your connected FUN-LINK device turns off automatically when you turn off the unit.

Off : Your connected FUN-LINK device stays on even if you turn off the unit.

6 Press MENU to exit.

Auto TV On

This unit will turn on detected when the power on signal is sent from your connected FUN-LINK device.

4 Press ▲ / ▼ to select [Auto TV On], then press OK.
5 Press ▲ / ▼ to select [On] or [Off], then press OK.

On : This unit turns on automatically when you turn on your connected FUN-LINK device.

Off : This unit stays off even if you turn on your connected FUN-LINK device.

6 Press MENU to exit.

Device Control

You can operate some functions such as disc playback or call up the menu of the connected devices, by using this unit's remote control.

4 Press ▲ / ▼ to select [Device Control], then press OK.
5 Press ▲ / ▼ to select to [On] or [Off], then press OK.

On : ▶ / ■ / ◀◀ / ▶▶ / □ / ◀◀ / ▶▶ / ● FUN-LINK / ▲ / ▼ / ◀◀ / ▶ / OK / BACK / the Number buttons / RED / GREEN / YELLOW / BLUE can be used to control your connected FUN-LINK devices by this unit's remote control.

Off : Disables the device control.

6 Press MENU to exit.

Device List

This function lets you see the product model number or name of connected devices.

4 Press ▲ / ▼ to select [Device List], then press OK.
5 Press ▲ / ▼ to select the FUN-LINK device you want, then press OK.

To show the menu of connected your devices Make sure [FUN-LINK Control] and [Device Control] is set to [On].

1 Press ● FUN-LINK to display the menu.
2 Press ▲ / ▼ to select the item you want, then press OK.

Device - Menu : This function allows you to control the menu of your connected FUN-LINK device.

Device - Contents : This function allows you to control the top menu of your DVD or Blu-ray discs.

Device - Favourite : This function allows you to control the pop-up menu of your Blu-ray discs.

Note: Some of FUN-LINK functions may not be available depending on your FUN-LINK devices or discs.

3 Use ▲ / ▼ / ◀ / ▶ / OK on this unit's remote control to operate the desired functions for your devices or discs.

Country Setting

DTV AT

You can select the channels according to the country you select.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [Country], then press OK.
4 Press ▲ / ▼ to select the country you want, then press OK.
5 Press MENU to exit.

Time Setup

DTV AT

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [Time Setup], then press OK.

Time Setup PICTURE SOUND CHANNEL OTHERS LANGUAGE Time Zone Auto Auto Shut Off On

Time Zone

You can set the time zone according to the resident area.

4 Press ▲ / ▼ to select [Time Zone], then press OK.

5 Press ▲ / ▼ to select the time difference you want, then press OK.

Auto : Automatically selects the time zone of your area to ensure the proper performance of the time.

Note: • Although you select [Auto], the correct time may not be displayed on the "TV Screen Information" (p. 13) depending on DTV broadcasting.
- Clock function in this unit is not available.

6 Press MENU to exit.

Auto Shut Off

You can set the unit to be shut down automatically if no activity is detected after the power is turned on for 4 hours. In spite of this setting, the unit is turned off automatically if there is no signal input from the antenna terminal and no user operation for 15 minutes.

4 Press ▲ / ▼ to select [Auto Shut Off].
5 Press ▲ / ▼ to select [On] or [Off], then press OK.
6 Press MENU to exit.

Software Download

DTV AT

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [Software], then press OK.

Auto Update Search

When you set to [On], this unit in stand-by mode detects and update a new version of software automatically.

4 Press ▲ / ▼ to select [Auto Update Search], then press OK.
5 Press ▲ / ▼ to select [On] or [Off], then press OK.

Search for new software

You can search for new version of software.

4 Press ▲ / ▼ to select [Search for new software], then press OK.

- When this unit found a new version of software, software update confirmation menu will appear.

5 Press ▲ / ▼ to select [Start] to update the software.

- Software updating will start.

Note: This process may take up to 60 minutes.

6 After the software update is completed, press ⏻ to restart this unit.

Factory Reset

You can restore this unit to factory settings.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [OTHERS], then press OK.
3 Press ▲ / ▼ to select [Factory Reset], then press OK.
4 Press ▲ / ▼ to select [Reset], then press OK.
- All the settings are restored to the default even memorized channels, picture settings, and sound settings.

Menu Language Selection

DTV AT

You can select the menu language.

1 Press MENU to display the menu.
2 Press ▲ / ▼ to select [LANGUAGE], then press OK.
3 Press ▲ / ▼ to select the language you want, then press OK.
4 Press MENU to exit.

MAINTENANCE

Panel Cleaning

- If the LCD panel should require cleaning, wipe it with a cotton or soft cloth. Before cleaning the panel, disconnect the power cord.

Servicing

- Should your unit become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit off, unplug the power cord, and take the unit to a Service Centre for servicing.

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save you time and money.

Problem Possible Remedy
Remote Control Doesn't Work	• Is unit plugged in?• Power at outlet?• Check batteries in remote control.
Bars On TV Screen	• If outside antenna is being used, check for broken wire.• Check for local interference.
Picture Distorted	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.• Surrounding temperature is too low.
Picture Rolls Vertically	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.• Check for local interference.
No Colour	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Adjust [Colour] control.
Poor Reception on Some Channels	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Check for local interference.
Weak Picture	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Adjust [Contrast] and [Brightness] control.• Surrounding temperature is too low.
Lines or Streaks in Picture	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.• Check for local interference.
Ghosts in picture	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Check for local interference.
Picture Blurred	• Try a new channel, if OK, then possibly due to poor channel reception.• If outside antenna is being used, check for broken wire.
Sound OK, Picture Poor	• Try a new channel, if OK, then possibly due to poor channel reception.• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Check for local interference.• Adjust [Contrast] and [Brightness] control.
Picture OK, Sound Poor	• Try a new channel, if OK, then possibly due to poor channel reception.• Check for local interference.
No Picture or Sound	• Try a new channel, if OK, then possibly due to poor channel reception.• Is unit plugged in?• Power at outlet?• Is unit's power on?• Is antenna connected to terminal on the back of the unit?• If outside antenna is being used, check for broken wire.• Turn off with Ⓧ and then turn it on after about a minute.
Different colour marks on TV screen	• Try a new channel, if OK, then possibly due to poor channel reception.
Black or Luminous point on TV screen	• It is quality of the LCD Panel.
Forget the password • Enter the default	password (4737).

SPECIFICATIONS

Model LT840-M3		2 LT850-M32 LT850-M26
LCD		31.5		inches
Television system DVB-T, PAL-B/G,D/K, SECAM-B/G,D/K,L
Terminals Antenna	UHF/VHF 75 ohm
	Audio Input RCA jack (L/R) x 4
	Composite video Input	RCA jack x 1
	S-Video Input Mini DIN 4pin jack x 1
	Component video Input	RCA jack x 3
	HDMI Input HDMI 19pin x 3
	PC Input D-Sub 15pin x 1 (RGB) / Mini jack ∅3.5 mm x 1 (AUDIO)
	Scart Scart x 2
	Headphone Mini jack ∅3.5 mm x 1
	Speaker 5 W, 16 ohm x 2
	USB input service use only
Remote control		Digital encoded infrared light system
Power requirements		AC 220-240 V~, 50 Hz
Power consumption		108 W(Standby: less than 1W)	108 W(Standby: less than 1W)	75 W(Standby: less than 1W)
Dimensions:H x W x D (mm)	without base	519.3 x 760.0 x 107.0	519.3 x 760.0 x 113.5	449.5 x 656.0 x 111.4
	with base	563.0 x 760.0 x 238.0	563.0 x 760.0 x 238.0	490.0 x 656.0 x 283.0
Weight	without base	9.1 kg	9.1 kg	6.8 kg
	with base	9.6 kg	9.6 kg	7.6 kg

DECLARATION OF CONFORMITY

This product complies with the requirement of the related directives.

We: Funai Electric Europe Sp. z o.o.

declare that the following product:

LCD Television

Model LT840-M32

Model LT850-M32

Model LT850-M26

Trade Name: Funai

is in compliance with the related regulations.

CE
