Product Type	Gaming Headset
Brand	Turtle Beach
Model	Call of Duty Ghosts Spectre
Connectivity	Wired 3.5mm combo audio jack
Driver Size	50mm Neodymium
Frequency Response	20Hz - 20kHz
Impedance	32 Ohms
Microphone	Detachable boom mic, unidirectional
Compatibility	PC, Xbox 360, Xbox One, PS3, PS4, Wii U, Mobile
Controls	In-line mute switch and volume wheel
Dimensions (L x W x H)	8.3 x 7.5 x 3.9 inches
Weight	10.6 oz (300 g)
Cable Length	4 ft (1.2 m)
Ear Cushions	Over-ear, leatherette padding
Special Features	Amplified audio, ear-cup swivel for comfort
Cleaning Instructions	Wipe with a soft, damp cloth; avoid liquids inside
Safety Information	Listen at moderate volume to prevent hearing damage
Spare Parts	Replacement ear pads and cables available

Frequently Asked Questions - Call of Duty Ghosts Spectre TURTLE BEACH

Is the Turtle Beach Call of Duty Ghosts Spectre headset compatible with my PC?

Yes, it works with PCs that have a combined 3.5mm audio jack (headphone + mic) or you can use a splitter cable (not included).

How do I mute the microphone?

Flip the microphone boom upward to mute, or use the in-line mute switch on the cable.

Can I use this headset with my Xbox One?

Yes, it is compatible with Xbox One via the controller's 3.5mm jack or via the Xbox One Stereo Headset Adapter (sold separately).

Does this headset have surround sound?

The headset itself is stereo, but it can work with Windows Sonic or Dolby Atmos for surround sound on PC and Xbox.

How do I adjust the volume?

Use the volume wheel on the in-line control. You can also adjust volume from your console/PC settings.

Is the microphone detachable?

Yes, the boom microphone can be removed from the left ear cup for a cleaner look when not gaming.

What is the warranty period?

Turtle Beach offers a 1-year limited warranty from date of purchase. Check the manual for details.

Can I replace the ear pads?

Yes, replacement ear pads are available separately. They are held in place by clips and can be popped off.

Does this headset require batteries?

No, it is fully wired and draws power from the connected device, so no batteries are needed.

How should I clean the headset?

Wipe the ear pads and headband with a soft, damp cloth. Do not use harsh chemicals or submerge in water.

USER MANUAL Call of Duty Ghosts Spectre TURTLE BEACH

Black and white Call-Duty Ghosts headphones with a black headband and skull design, resting on a blue surface (no text or symbols visible on the devices themselves)

Congratulations on your purchase of the Call of Duty © Ghosts Ear Force® Spectre Headset from Turtle Beach. Compatible with PS3™, Xbox 360®, PC and Mac® computers, tablets, PS Vita™, and mobile devices. The Spectre, delivers superior, clear sound over PlayStation Network (PSN), Xbox LIVE or online PC/Mac gaming. For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support

Table of Contents

Package Contents P4

Features P5

Amplifier Features P6

Basic Hardware Setup P7

PS3 Setup HDMI P8

PS3 Setup RCA P9

PS3 System Settings Configuration P10

Xbox 360 Setup - All Models P11

Xbox 360 Setup (HDMI) P12

Xbox 360 Setup (RCA) P13

Xbox 360 E Setup (HDMI) P14

Xbox 360 System Settings Configuration P15

PC/Mac Setup P16

PC System Settings Configuration P17

Mac System Settings Configuration P18

Mobile Device Setup with the Inline Amplifier P19

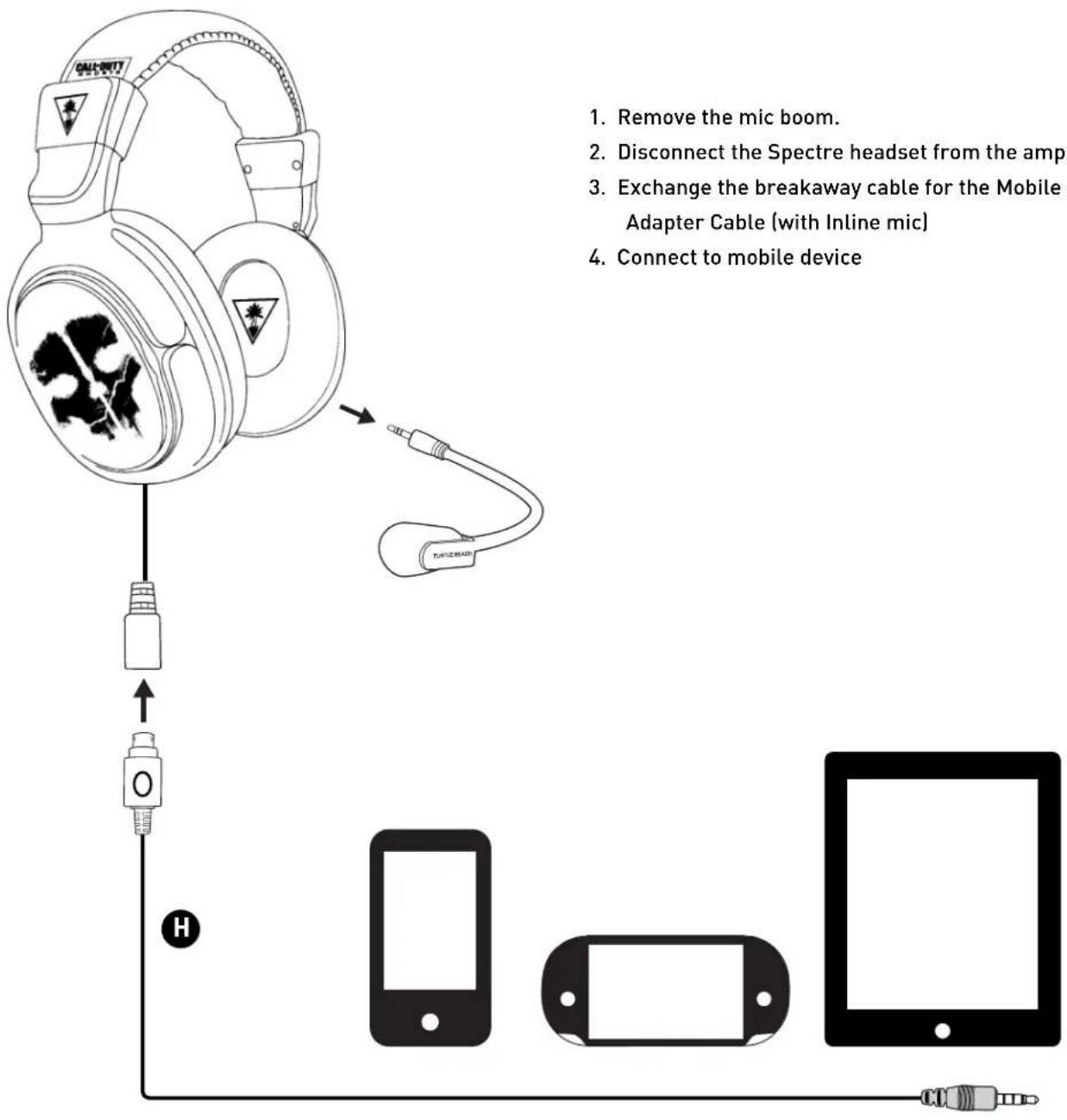

Mobile Device Setup without the Inline Amplifier P21

Speaker plates / Troubleshooting P22

Specifications P23

Compliance / Conformity P24

Warranty P27

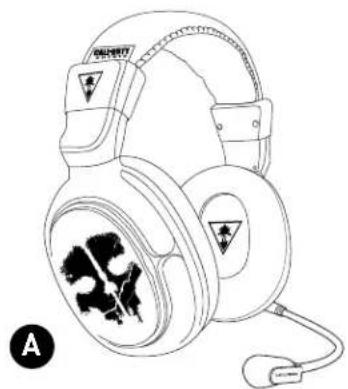

Package Contents

Line drawing of a multi-head headphones with warning symbols and a labeled head (A), no text or labels present.

Ear Force® Spectre Headset

CALL-DUTY GHOSTS B

Inline Amplifier

Line drawing of a turtle reach connector with microphone and ear (no text or symbols)

Detachable Boom Mic

Diagram of two types of audio jack cables (no text or symbols present)

Xbox 360 Talkback Cable

Diagram of two identical audio/video connectors with no text or symbols

3.5mm, 4-Pole Auxiliary Cable

Three identical electronic connectors with black and gray body, no text or symbols visible

RCA Splitter Cable

Diagram of two types of audio jack connectors (no text or symbols present)

Headset Breakaway Cable

Diagram of two types of audio jack connectors (no text or symbols present)

Mobile Adapter Cable Turtle Beach StickersSPECTRE Quick Start Guide

TURTLE BEACH EARNFORCE CALL-OUTY CO2E EARNFORCE® SPECTRE Quick Start Guide For the "TURTLE CO2E" 10.00 gm, it is a quick start guide to the call-out system. ■ VOLUME: 35 kg CO2e per unit (100 gm) ■ PRICE: $1.00 per unit (100 gm) ■ MARGIN: $1.00 per unit (100 gm)

TURTLE BEACH

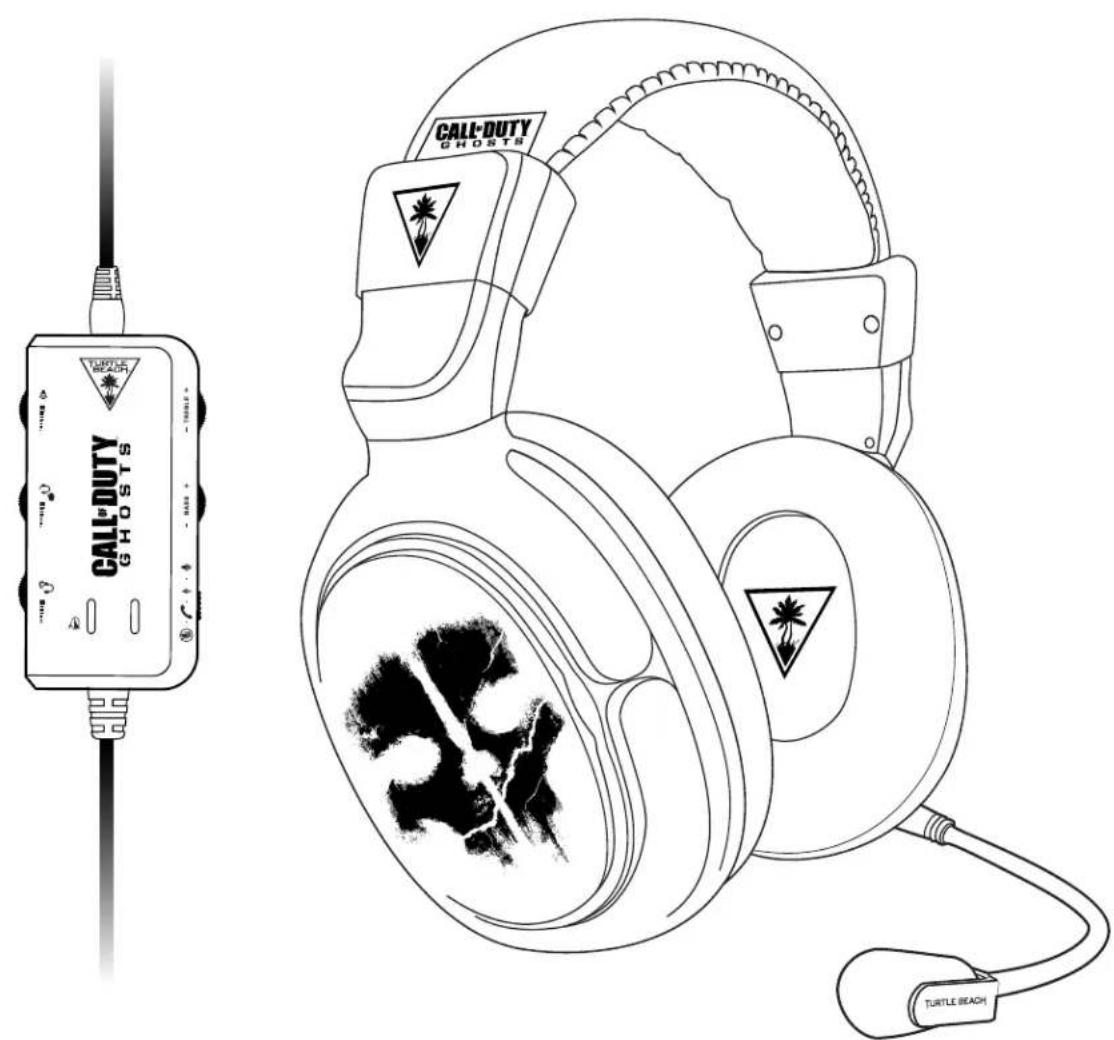

Features

• Independent Game and Chat: Separate volume controls for your Game and Chat audio.
  · Powerful Inline Amp: Mix in Game, Chat, Mic, Music and answer a phone call all through the Inline Amp.
  · Bass and Treble Levels: Tune bass and treble levels to add depth and realism
• Superb Sound: Get better sound from online music, video and communications services.
  · Dynamic Chat Boost™: Automatically raises the volume of chat during intense, explosive game situations.
  · Variable Mic Monitor: Hear your own voice in the headset to avoid shouting.
• Removable Boom Mic: Use the Mobile Adapter Cable with inline mic as an alternative when on the go.
• Mobile Phone Integration: Connect to the Inline Amp to mix music or take phone calls while playing.
• USB Powered: No AC adapters or batteries required.

CALL-DUTY GHOSTER TURTLE BEACH

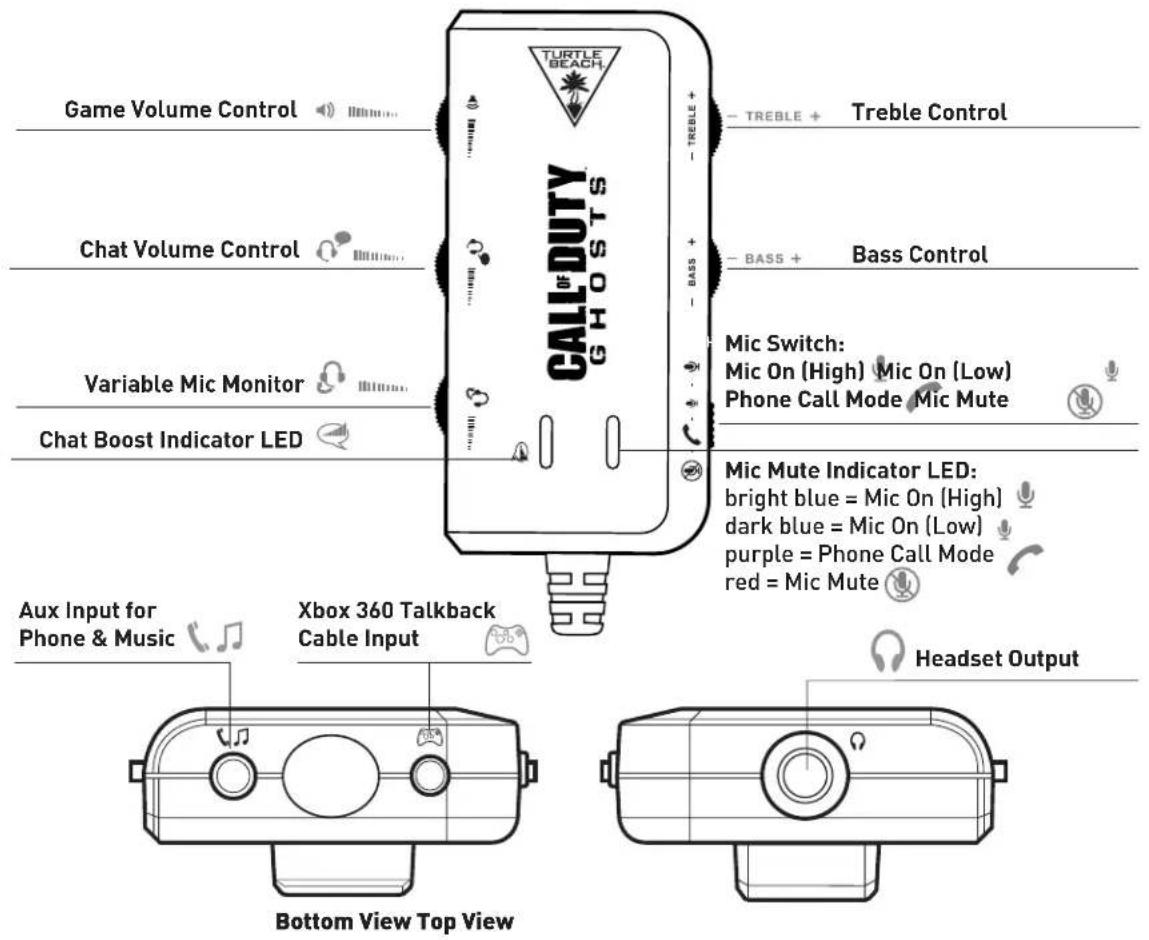

Amplifier Features

TURTLE BEACH. CALL DUTY GHOSTS Game Volume Control Chat Volume Control Variable Mic Monitor Chat Boost Indicator LED Aux Input for Phone & Music Xbox 360 Talkback Cable Input Treble Control Bass Control Mic Switch: Mic On (High) Mic On (Low) Phone Call Mode Mic Mute Mic Mute Indicator LED: bright blue = Mic On (High) dark blue = Mic On (Low) purple = Phone Call Mode red = Mic Mute Headset Output Bottom View Top View

• Game Volume Control: Adjusts the incoming sound level from the 3.5mm connection.
• Treble/Bass Controls: Adjusts treble and bass levels of incoming sound from the 3.5mm connection.
• Chat Control: Adjusts volume of incoming chat through USB or Xbox 360 chat input
• Variable Mic Monitor: Adjusts the sound level of your voice in the headset

• Mic Switch & Mic Mute Indicator LED:

• Mic on (High) (Bright Blue): Your voice is louder to other people.

• Mic on (Low) (Dim Blue): Your voice is lower to other people.
• Phone Mode (Purple): Routes mic to phone*.

• Mute (Red): Mutes your voice to all parties

• Chat Boost Indicator: When game volume increases; chat volume increases automatically. The Blue LED indicates the Chat Boost activating. (Brighter when louder, dimmer when softer)

• Aux Input for Phone & Music: Connect your mobile device while gaming using the Auxiliary Cable.
• Xbox Chat Input: Connect your Xbox 360 Controller for chat using the Xbox 360 Talkback Cable
• Headset Jack: Connect your Spectre headset using the Headset Breakaway Cable or the Mobile Adapter Cable.
  *Note: Phone mode must be switched on in order to talk on the phone while gaming.

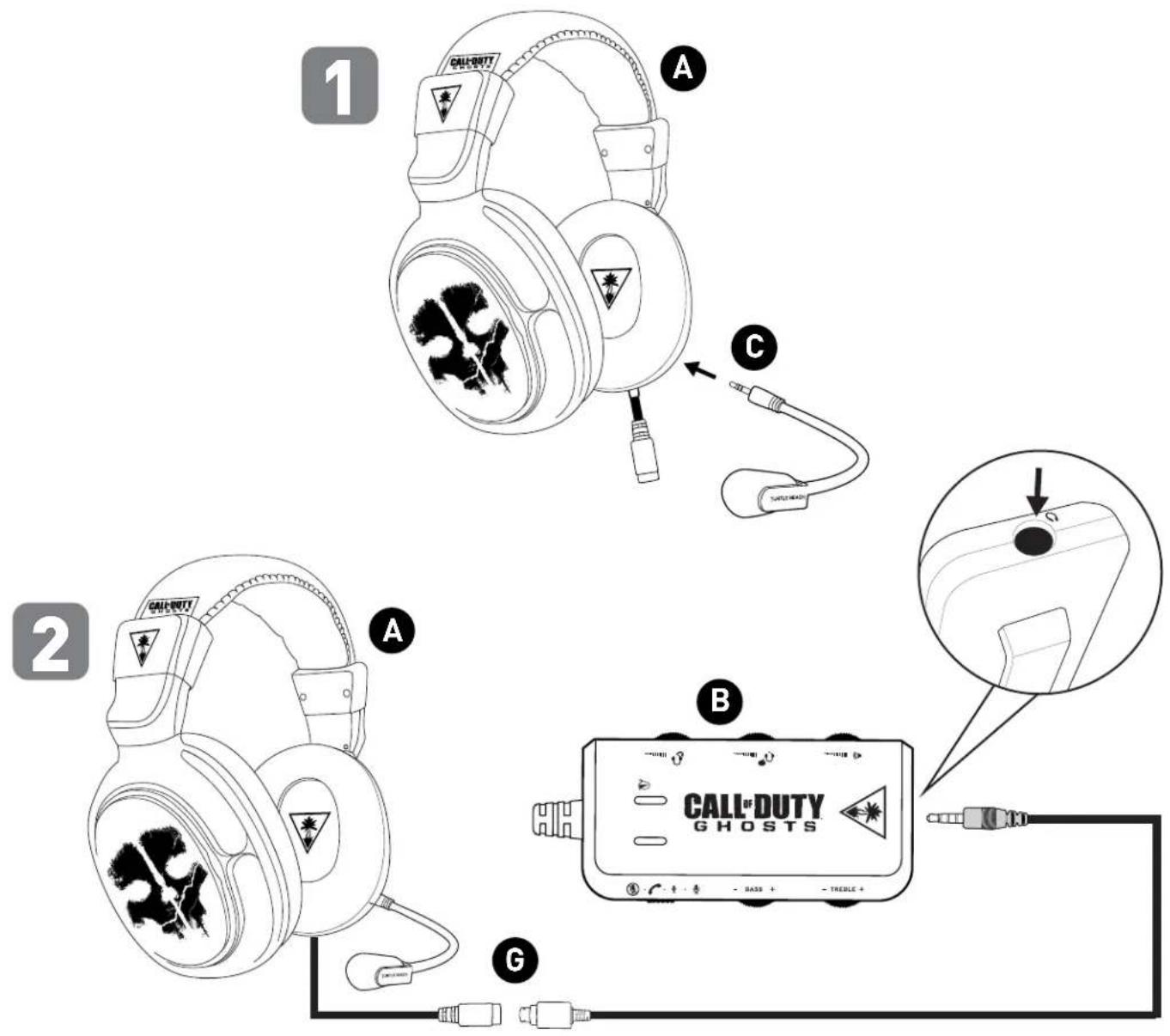

Basic Hardware Setup

1 2 C A B CALL® DUTY GHOSTS G

Note: When connecting the boom mic, please line up to connect correctly and securely so it is oriented properly for use. Do not force input when not in line with the keying.

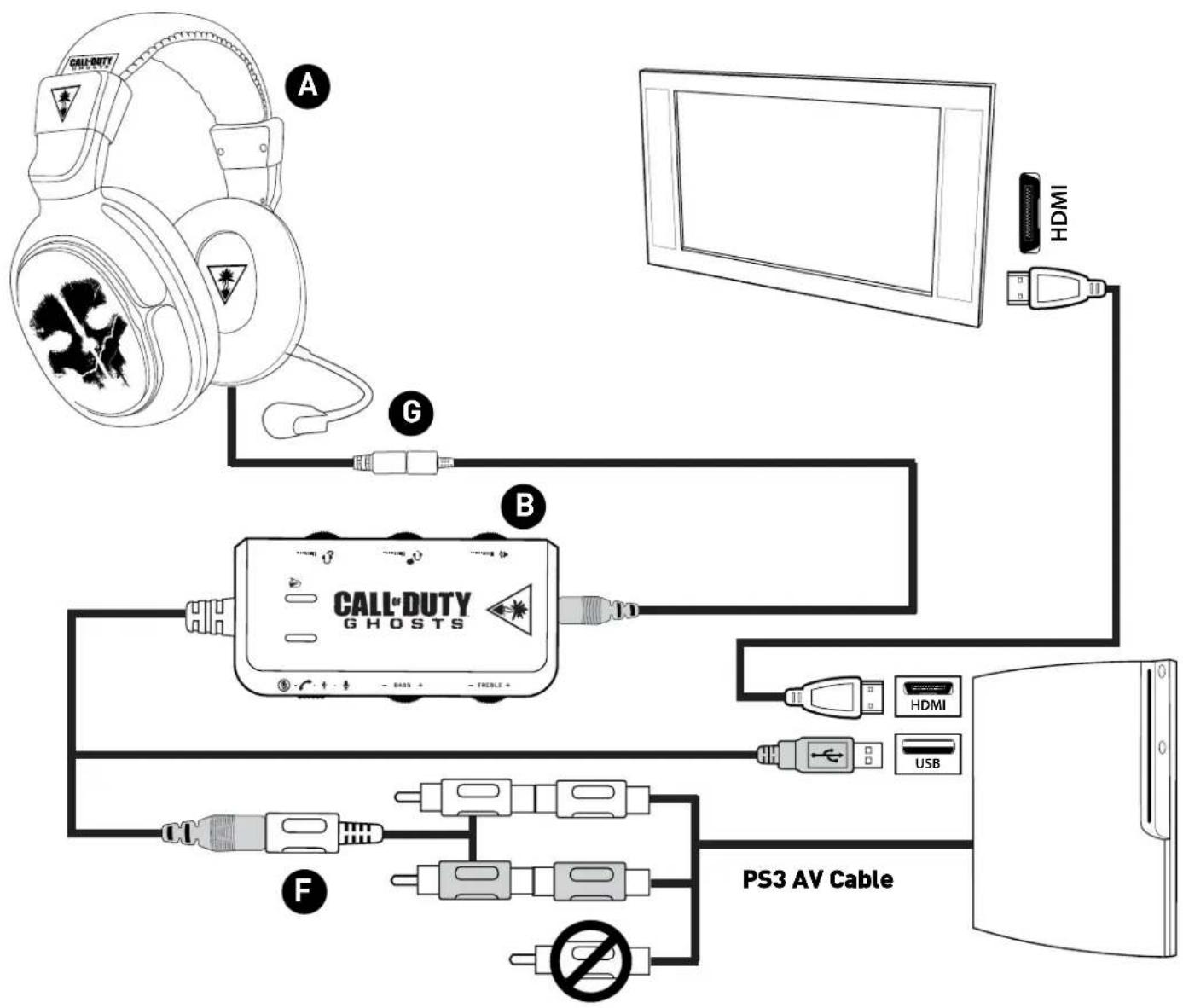

PS3 Setup HDMI

The PS3 AV Cable is included with your console.

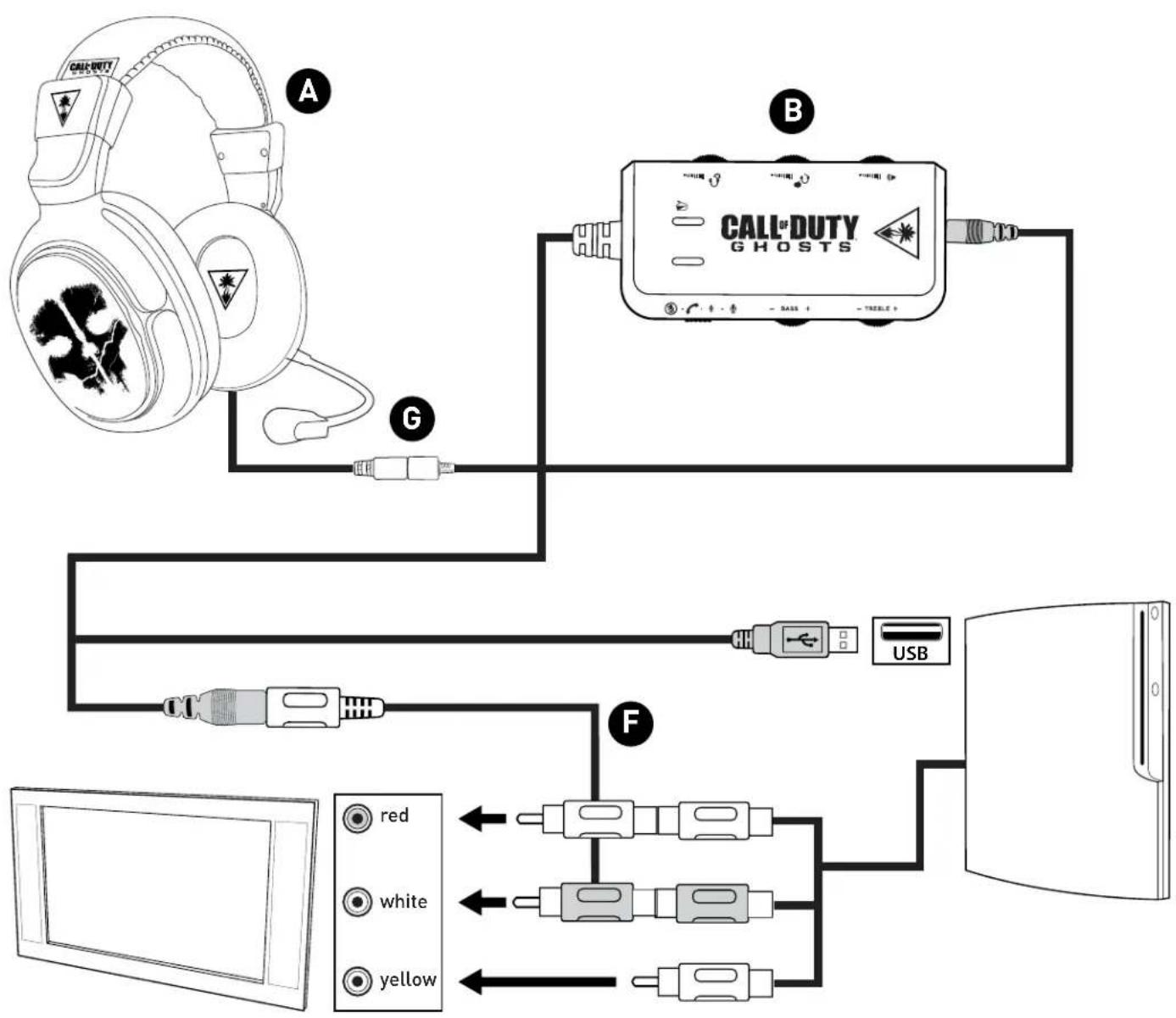

PS3 Setup RCA

The PS3 AV Cable is included with your console.

PS3 System Settings Configuration

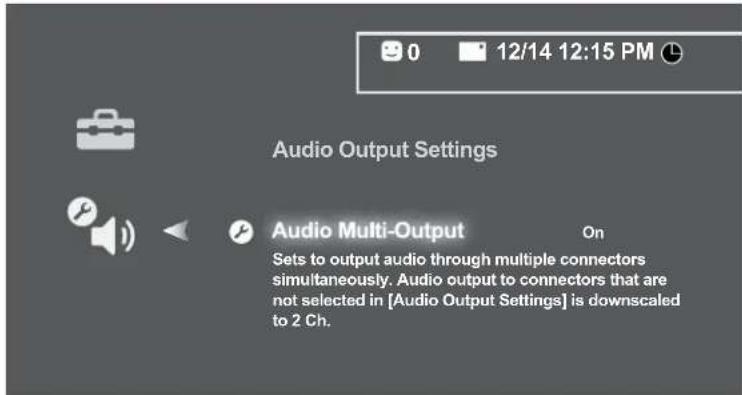

PS3 Audio Output Setup

0 12/14 12:15 PM Audio Output Settings Audio Multi-Output On Sets to output audio through multiple connectors simultaneously. Audio output to connectors that are not selected in [Audio Output Settings] is downscaled to 2 Ch.

In the PS3 menu, select Settings → Sound Settings → Audio Multi-output.

PS3 Chat Setup

Audio Device Settings Microphone Level 3 Input Device TURTLE BEACH SPECTRE Output Device TURTLE BEACH SPECTRE OK X Enter Back

1. In the PS3 menu, select Settings → Accessory Settings → Audio Device Settings → Input Device → Turtle Beach SPECTRE.
2. In the PS3 menu, select Settings → Accessory Settings → Audio Device Settings → Output Device → Turtle Beach SPECTRE.

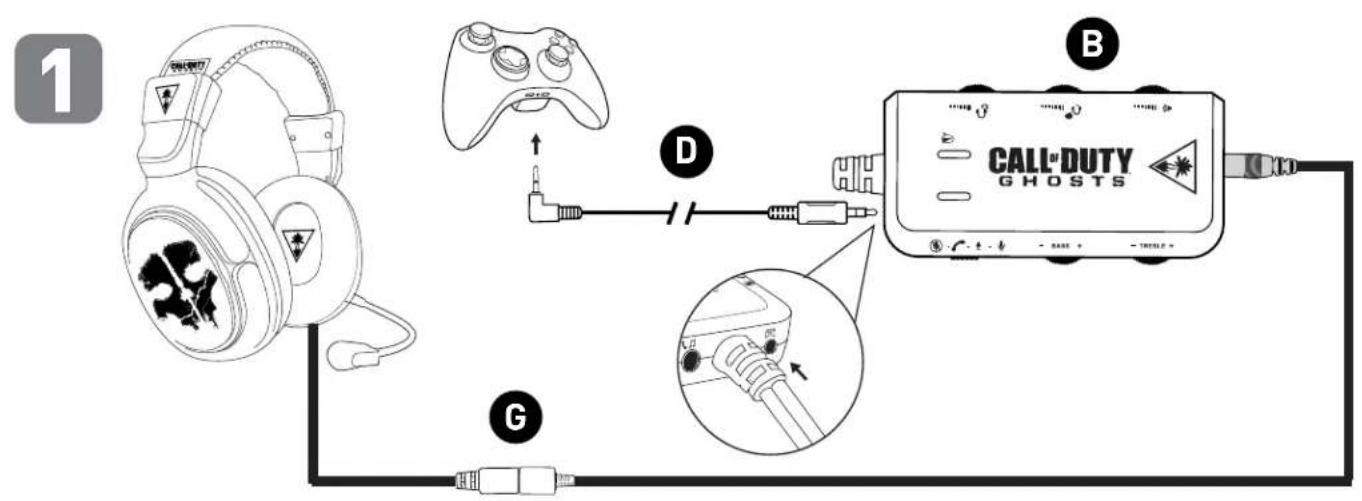

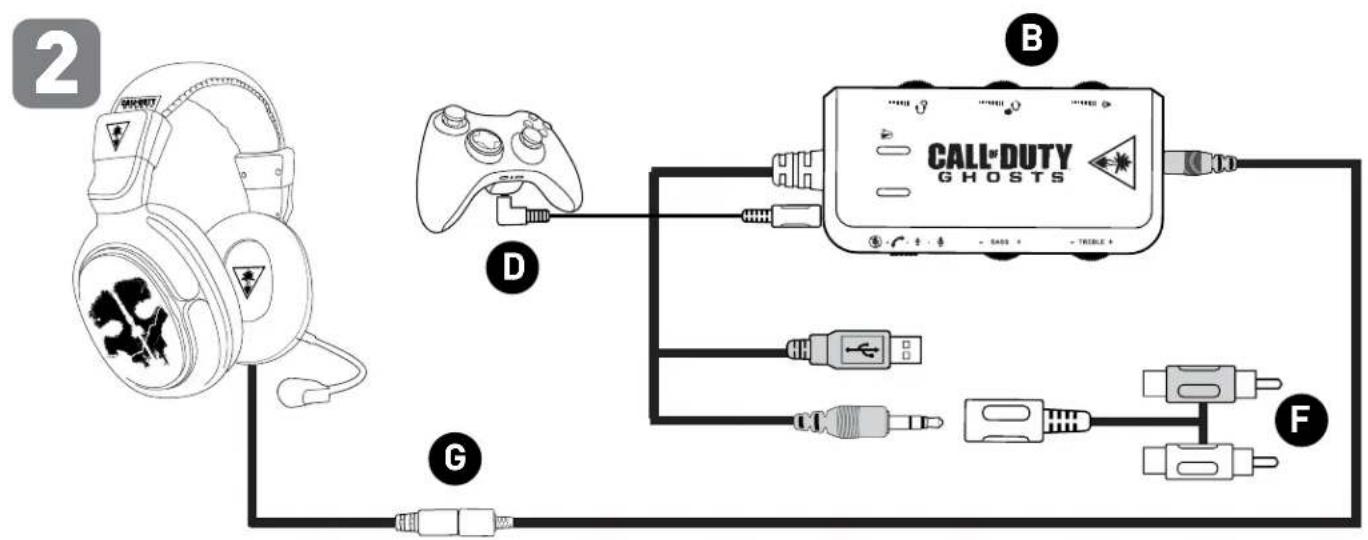

Xbox 360 Setup - All Models

1 B D CALL-DUTY GHOSTS G


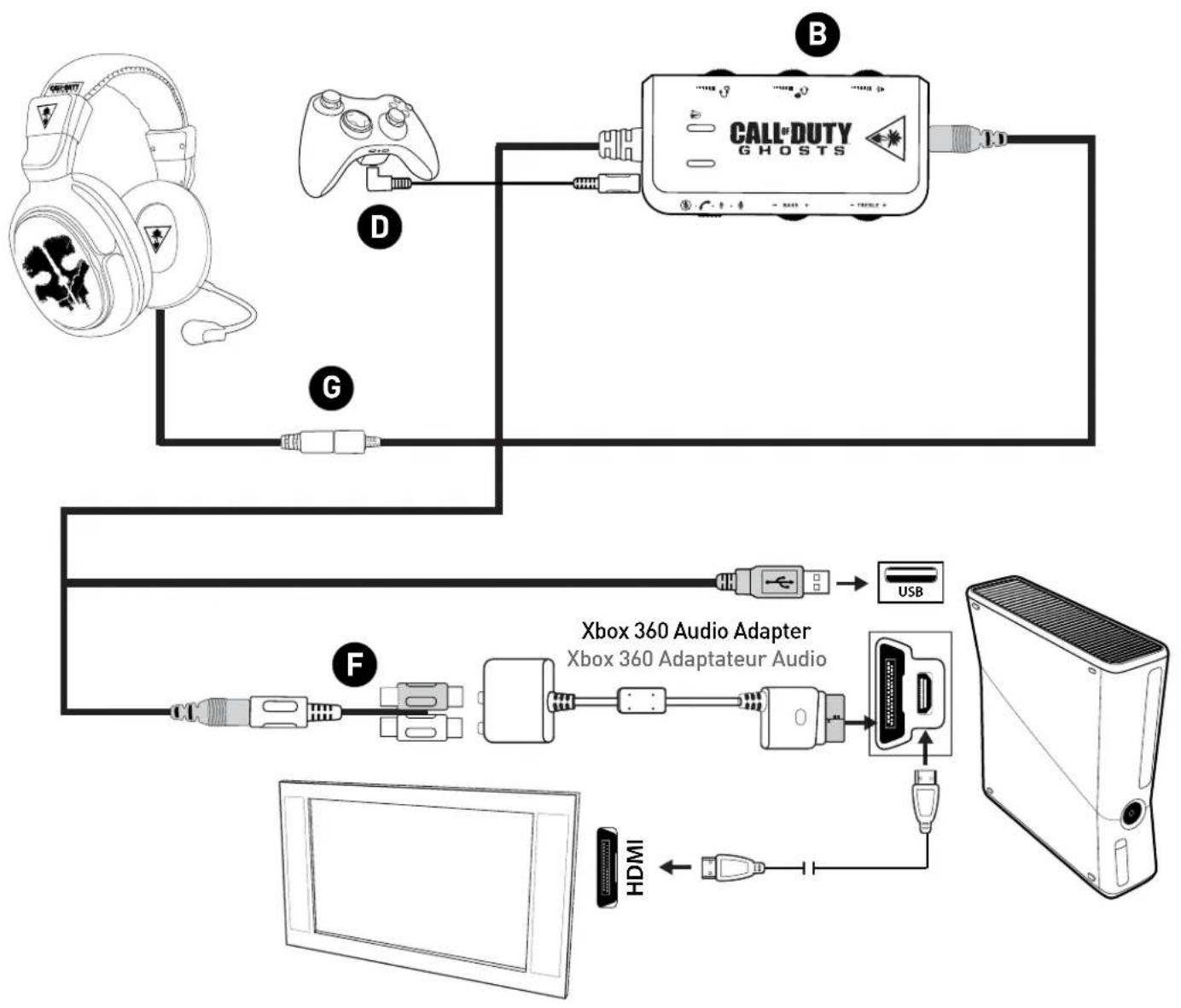

Xbox 360 Setup (HDMI)

*For best performance, use with official Microsoft Xbox 360 products. **Some Xbox 360 models require an Xbox 360 Audio Adapter Cable for audio output when used with an HDMI connection (available from turtlebeach.com). Note: Note: If your HDMI TV has red/white AUDIO OUT RCA jacks, you can use them to feed the sound from your TV to your Spectre headset. (AUDIO IN jacks will not send sound to your headset. AUDIO OUT is required.

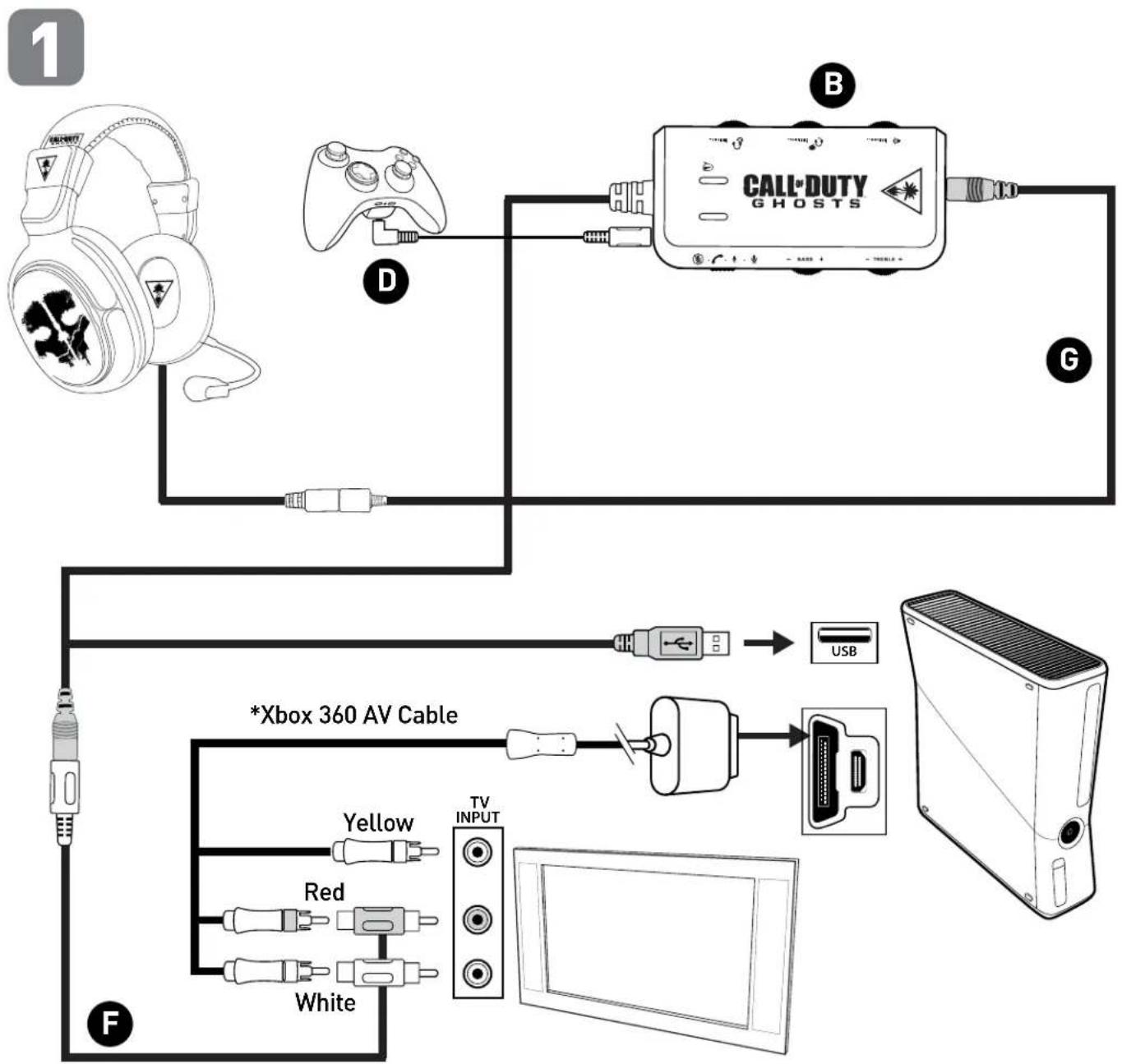

Xbox 360 Setup (RCA)

*The Xbox 360 AV Cable is included with your console.

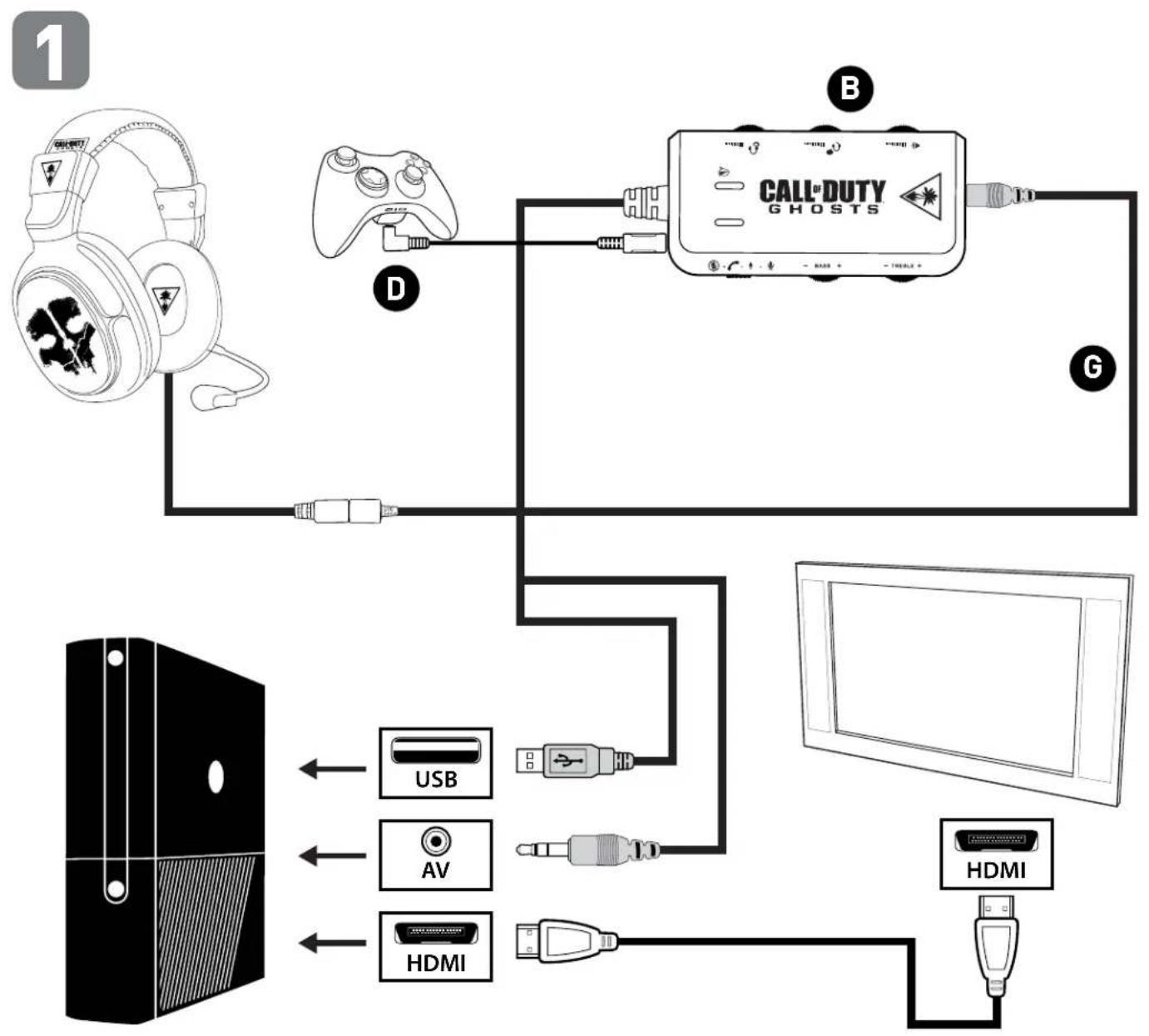

Xbox 360 E Setup (HDMI)

Xbox 360 System Settings Configuration

Xbox 360 Configuration

Voice

Voice Volume

10

Game Volume

10

□ Mute Kinect

Voice Output

● Play Through Headset

Play Through Speakers

Play Through Both

1. Press Xbox Guide button on your controller, select Settings → Preferences → Voice.
2. Voice Volume = 10.
3. Game Volume = 10.
4. Voice Output = Play through headset.

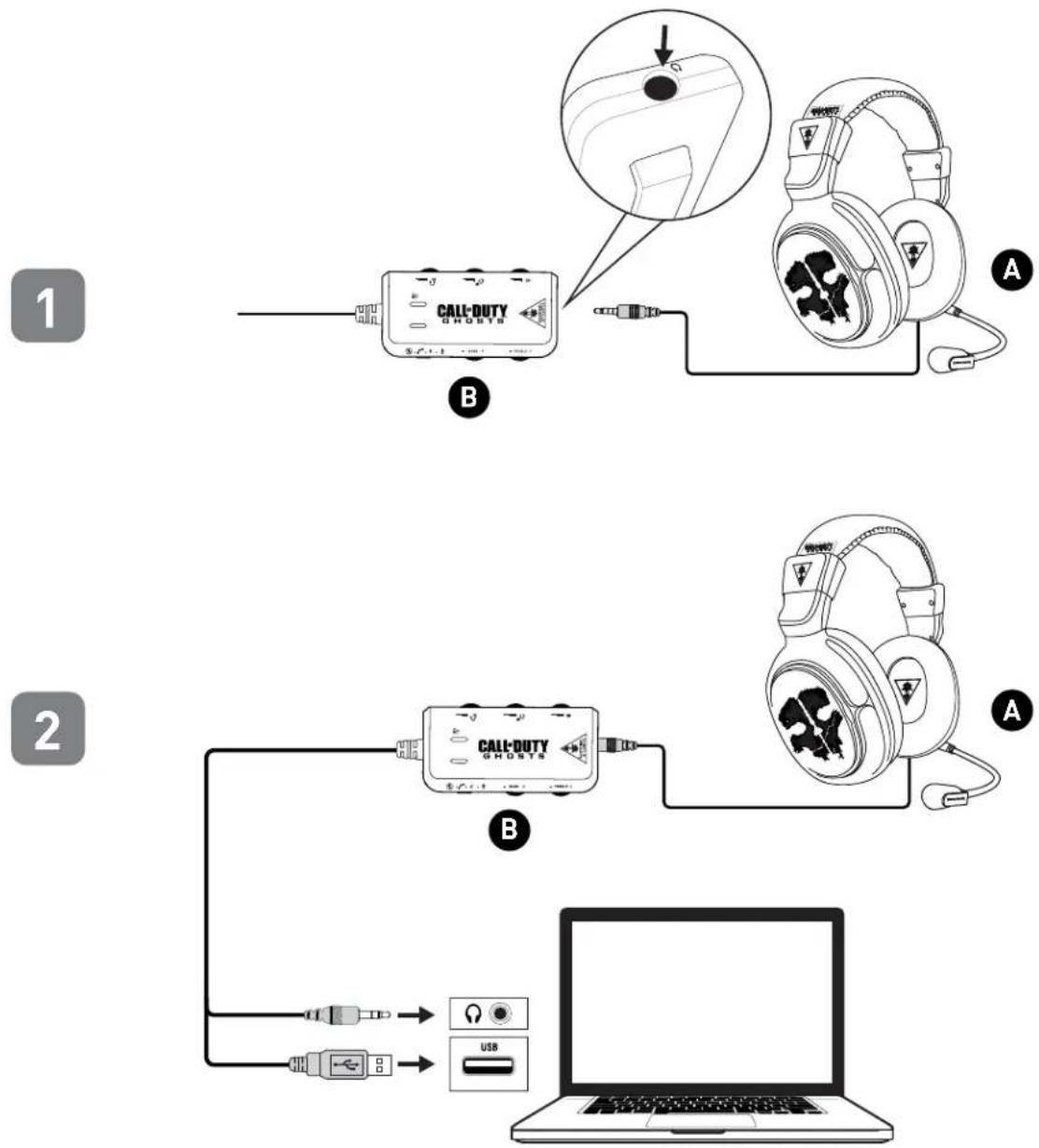

PC/Mac Setup

When used as a PC/Mac gaming headset, the Spectre functions as both a USB Stereo Headset and an Amplified Stereo Headset.

The Inline Amplifier's black 3.5mm plug is used for sending the stereo game signal from the computer sound card to the Spectre amplifier, allowing game audio, music and other sounds to be heard from the computer.

Use the USB Turtle Beach Spectre Chat path for chat platforms like Skype, Ventrilo, TeamSpeak, Yahoo! Messenger, etc.

Note: Both the USB and 3.5mm should always be connected. Set system volume to maximum and then adjust volume using the Inline Amp.

*The first time the Spectre is connected some drivers will be automatically installed. Wait for these drivers to install before moving onto the system settings configuration.

PC System Settings Configuration

PLEASE NOTE: Depending on your OS Version, the screens may differ but the steps will remain the same.

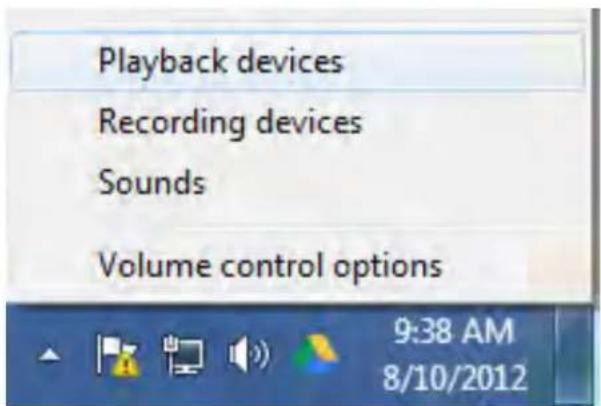

1. Right-click the speaker icon in your task bar and select "Playback Devices"

Playback devices Recording devices Sounds Volume control options 9:38 AM 8/10/2012

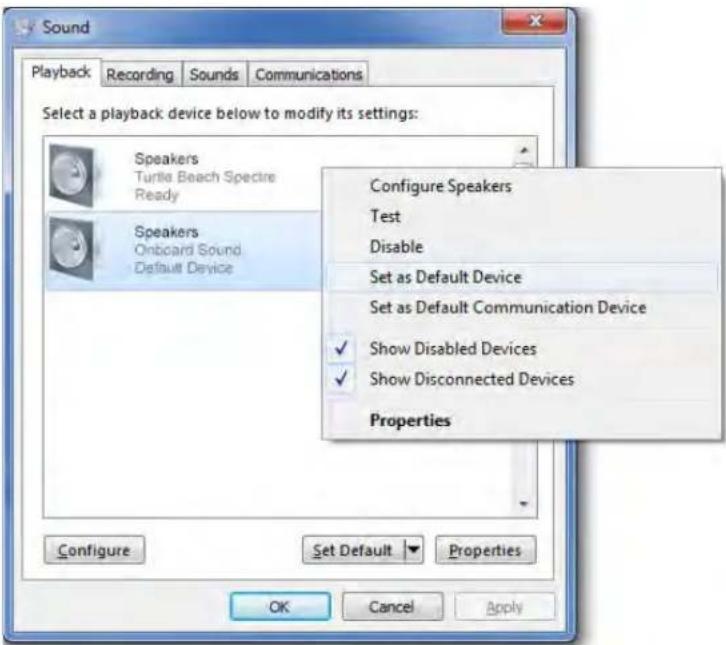

1. Right-click on "Speakers" and select "Set as Default Device". Next, right-click on "TURTLE BEACH SPECTRE" and select "Set as Default Communication Device".

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers Turtle Beach Spectre Ready Speakers Onboard Sound Default Device Configure Speakers Test Disable Set as Default Device Set as Default Communication Device ✓ Show Disabled Devices ✓ Show Disconnected Devices Properties Configure Set Default Properties OK Cancel Apply

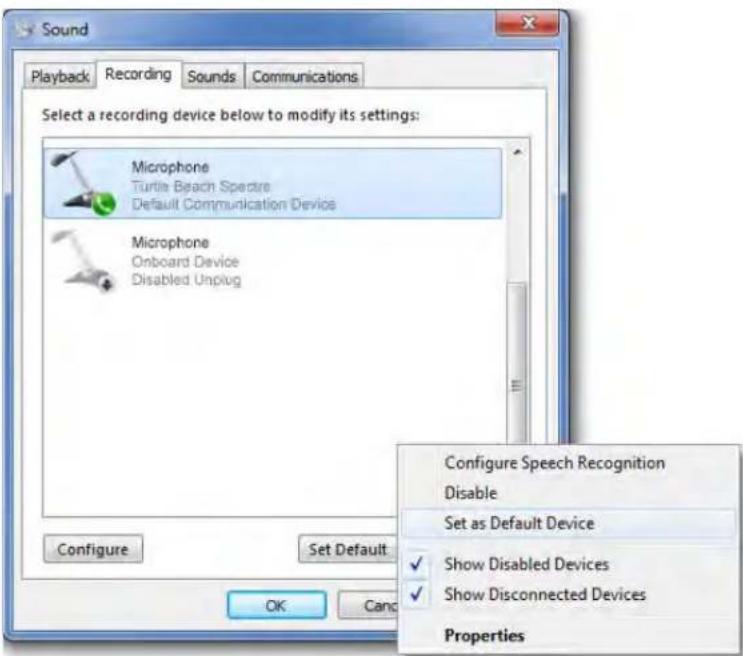

1. Click on the "Recording Tab", then right-click "TURTLE BEACH SPECTRE" and select "Set as Default Device". If you speak into the mic you should see green bars on the right move.

2. Click on the "OK" button at the bottom of the window to exit.

Note: In order to maintain independent volume controls for chat and game, please make sure to set "TURTLE BEACH SPECTRE" as both the recording and playback device in the audio setting for your voice chat application.

Sound Playback Recording Sounds Communications Select a recording device below to modify its settings: Microphone Turtle Beach Spectre Default Communication Device Microphone Onboard Device Disabled Unplug Configure Set Default... OK Cancel Configure Speech Recognition Disable Set as Default Device ✓ Show Disabled Devices ✓ Show Disconnected Devices Properties

Mac System Settings Configuration

PLEASE NOTE: Depending on your OS Version, the screens may differ but the steps will remain the same.

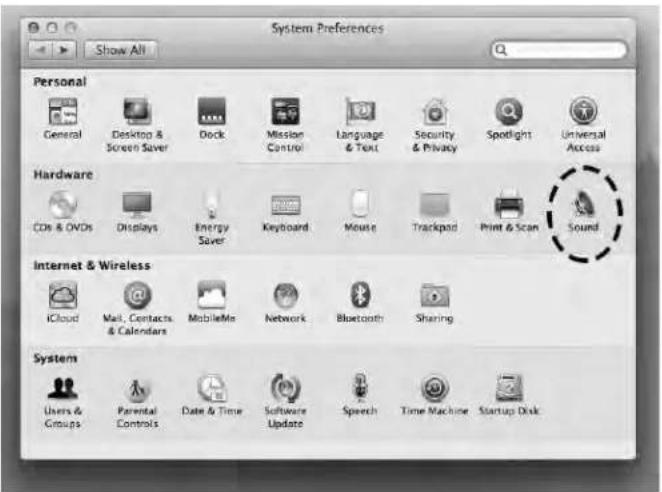

1. Click on the Apple Menu and select System Preferences » Sound.

System Preferences Show All Personal General Desktop & Screen Saver Dock Mission Control Language & Text Security & Privacy Spotlight Universal Access Hardware CDs & DVDs Displays Energy Saver Keyboard Mouse Trackpad Print & Scan Sound Internet & Wireless iCloud Mail Contacts & Calendars MobileMe Network Bluetooth Sharing System Users & Groups Parental Controls Date & Time Software Update Speech Time Machine Startup Disk

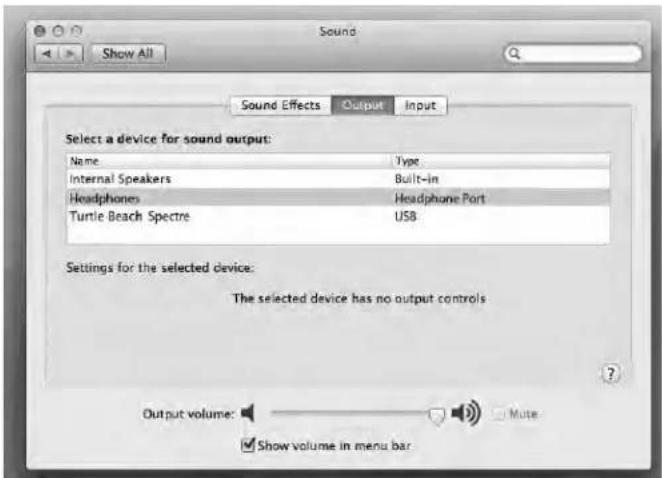

1. On the Output tab. select "Headphones".

Sound Show All Sound Effects Output.Input Select a device for sound output: Name Way Internal Speakers Built-in Headphones Headphone Port Turtle Beach Spectre USB Settings for the selected device: The selected device has no output controls Output volume: Mute Show volume in menu bar

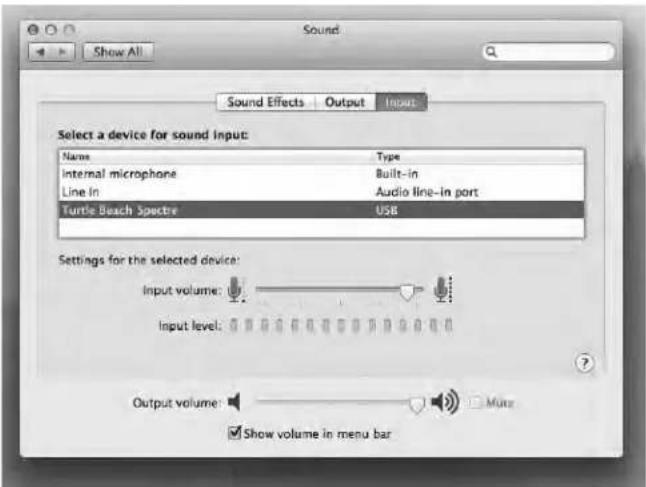

1. On the input tab, select "TURTLE BEACH SPECTRE".

Sound Show All Sound Effects | Output | Input: Select a device for sound input: Name Type Internal microphone Built-in Line in Audio line-in port Turtle Beach Spectre USB Settings for the selected device: Input volume: Input level: Output volume: Show volume in menu bar

NOTE: In order to maintain independent volume controls for chat and game, please make sure to set "TURTLE BEACH SPECTRE" as both the recording and playback device in the audio setting for your voice chat application.

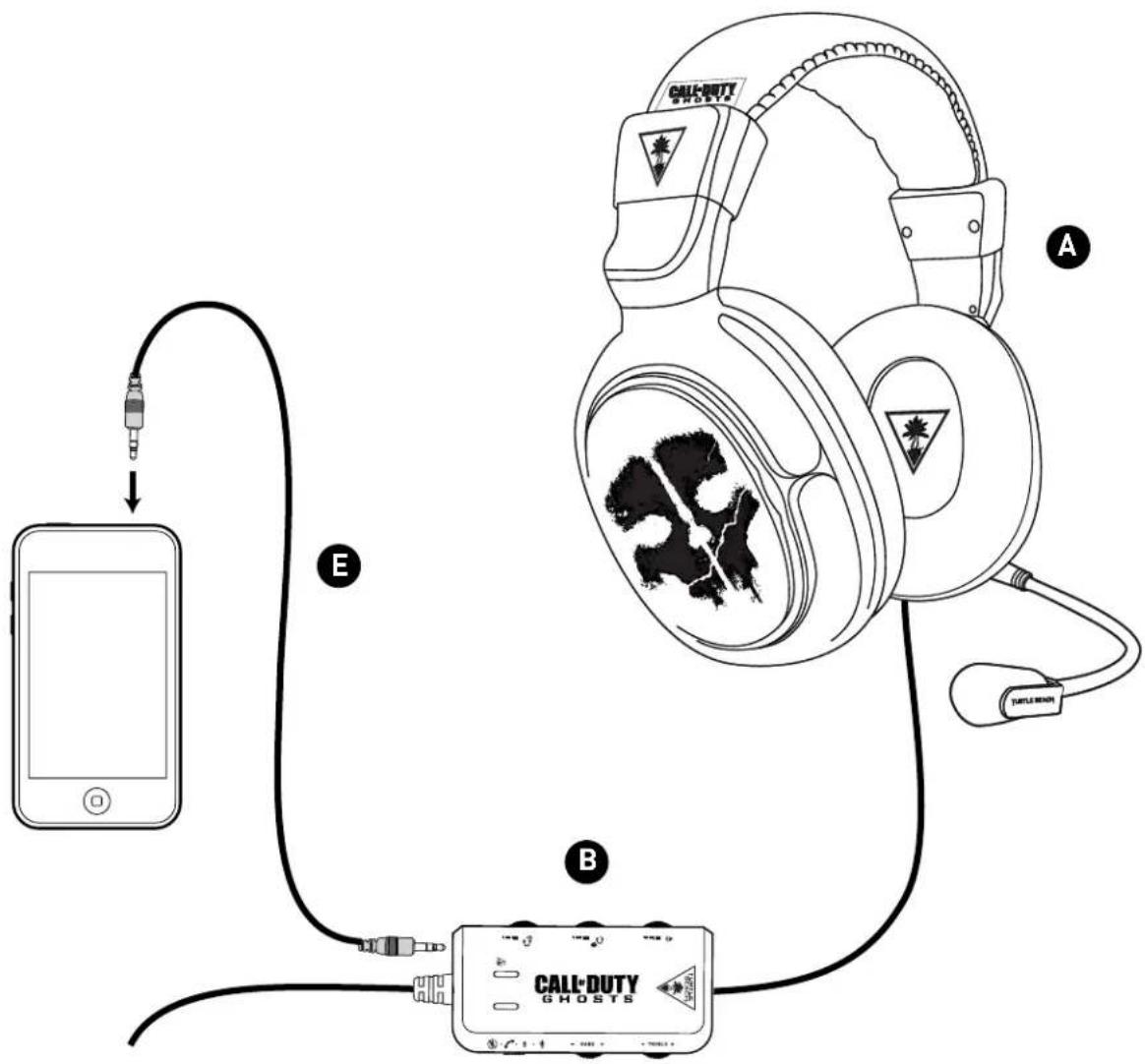

Mobile Device Setup with the Inline Amplifier

Once your Spectre headset is set up and ready to use with your game console, you are ready to utilize the functions of the Inline amplifier to full effect. You can use the Auxiliary cable to play music and answer calls from your mobile device while gaming.

PLEASE NOTE: The Inline Amp must be in phone call mode or your voice will be routed over your PC/Console's chat channel. You will hear the caller and other players no matter where the switch is set but if not in the phone call mode, your caller will not hear you.

Mobile Device Setup with the Inline Amplifier

CALL-DUTY GHOSTS A B CATT-DUTY GHOSTS Turtle Beach

Mic Settings

[C850]	Mic on High	Bright Blue LED
[14-20]	Mic on Low	Dim Blue LED
[XA4C]	Mic routes to Aux Path	Purple LED
	Mic Muted	Red LED

Mobile Device Setup without the Inline Amplifier

1. Remove the mic boom.
2. Disconnect the Spectre headset from the amp
3. Exchange the breakaway cable for the Mobile Adapter Cable (with Inline mic)
4. Connect to mobile device

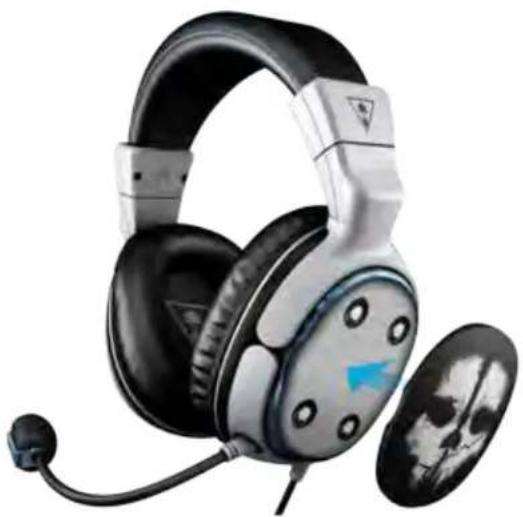

Speaker plates

Your Spectre headset speaker plates may be removed and replaced with other speaker plates according to your preference. To purchase additional speaker plates, visit: www.turtlebeach.com/speaker-plates. Limited edition themed speaker plates may also be available from time to time.

Product photo of a retro-style headboard with black and silver models, showing earbuds and microphone (no text or symbols visible)

Troubleshooting

Microphone not working.

• Make sure the headset is plugged securely and completely into the inline amplifier until it clicks (see page 7).
• Disconnect the microphone boom, then reconnect it as described in "Initial Setup". If the mic boom is loose, this can cause intermittent mic connection, or cause others to hear unwanted crackling sounds.

On Windows PC or Mac, the Game, Bass, and Treble controls appear inactive.

- Make sure both the USB and 3.5 mm plugs are connected to your computer, and your audio settings are configured correctly (see PC setup instructions on page 17, and Mac setup instructions on page18).

One speaker not working.

• Make sure the headset is plugged securely and completely into the Inline amplifier until it clicks (see page 7). A loose connection can cause either or both of the speakers to stop playing audio.
• Test the headset by disconnecting it from the Inline amplifier, and instead connect it to a portable music player and play a track. If you still hear problems in audio playback, then contact our support team at the web address below.

To submit a Technical Support request, please visit: http://www.turtlebeach.com/contact-support

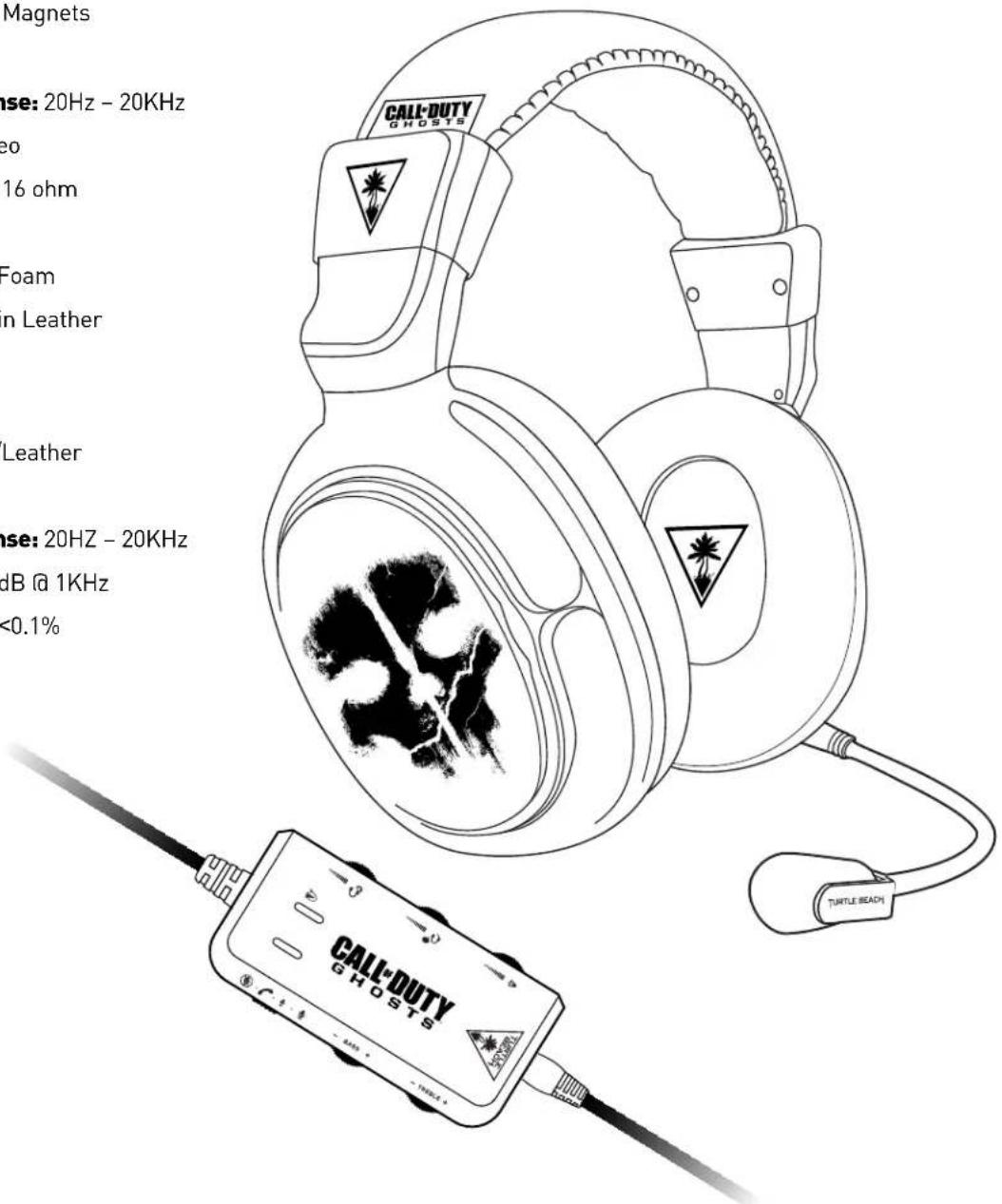

Specifications

• Speaker Dimensions: 50mm
• Speaker Core: Neodymium Magnets
• Speaker Impedance: 32Ω
• Speaker Frequency Response: 20Hz - 20KHz
• Headphone Amplifier: Stereo
• Output Power: 27mW/Ch @ 16 ohm
• Earcup Style: Around Ear
• Cushion Material: Memory Foam
  • Earcushion Material: Protein Leather
• Headband Design: Metal
• Headband Cushion: Foam
• Headband Material: Fabric/Leather
• Acoustic Design: Closed
• Acoustic Frequency Response: 20HZ - 20KHz
  • Sound Pressure Level: 120dB @ 1KHz
  • Total Harmonic Distortion: <0.1%

Magnets ase: 20Hz - 20KHz eo 16 ohm Foam n Leather Leather ase: 20HZ - 20KHz dB @ 1KHz <0.1% CALL-DUTY GHOSTS TURTLE BEACH

Regulatory Compliance Statements for the EAR FORCE SPECTRE Models

Federal Communications Commission (FCC) Compliance Notices

Class B Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES Statements

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio-noise emissions from a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003.

European Union and European Fair Trade Association (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member countries of the European Union and the European Fair Trade Association. These countries, listed below, are referred to as The European Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, ICELAND, IRELAND, ITALY, LATVIA, LICHTENSTEIN, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, NORWAY, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, SWITZERLAND, UNITED KINGDOM

Declaration of Conformity

Marking by this symbol:

indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards:

Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 (T-Mark License)

Also Licensed for Standards:

IEC 60950-1: 2005 (2nd Edition) + Am 1: 2009 (CB Scheme Report/Certificate),

UL 60950-1: 2007 R12.11 (NRTL License),

CAN/CSA-C22.2 No. 60950-1-07 + A1: 2011 (SCC License)

EN 50332-1: 2000, EN 50332-2: 2003

Additional licenses issued for specific countries available on request

Emissions: EN 55022: 2010, CISPR: 2008

Also Licensed for Standards: FCC Part 15 Subpart B: 2010, ICES-003: 2004,

CNS 13438: 2006, VCCI V-3/2011.04

Immunity: EN 55024: 2010, EN 55024: 2010,

EN61000-4-2: (2008-12), EN61000-4-3: (2010-04), EN61000-4-4: (2011-03),

EN 61000-4-6: (2005), EN 61000-4-8: (2009-09)

The products are licensed, as required, for additional country specific standards for the International Marketplace. Additional issued licenses available upon request.

Environmental: Low Voltage Directive 2006/95/EC,

RoHS 2011/65/EU,

REACH 2006/1907/EC, WEEE 2002/96/EC,

Packaging 94/62/EC

Warning!

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.

Achtung!

Japan Compliance Statement

This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Korean Compliance Statement

B급 기기 (가정용 방송통신기자재)

(Broadcasting Communication Equipment for Home Use)

As an electromagnetic wave equipment for home use (Class B), this equipment is intended to use mainly for home use and may be used in all areas.

HARDING ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS:

Voyetra Turtle Beach, Inc. ("VTB") warrants to the original end-user purchaser ("Purchaser") that the retail Turtle Beach hardware product herein ("Product") will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser ("Warranty Period"). Any Extended Warranty or Service Plans purchased through a Retail store are not honored by VTB. The Warranty refers to the repair/replacement of a defective product during this period and not a refund.

This limited warranty is extended only to the original Purchaser of a new product, which was not sold "AS IS". It is not transferable or assignable to any subsequent purchaser. This limited warranty is applicable only in the country or territory where the Product was purchased from an authorized VTB retailer and does not apply to a Product that has been purchased as used or refurbished or was included as part of a non-VTB product.

WARRANTY SERVICE:

In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local International Distributors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor's policy.

VTB does not warrant uninterrupted or error-free operation of the Product and is under no obligation to support the Product for all computer operating systems or future versions of such operating systems.

If a defect should occur during the Warranty Period, Purchaser must contact VTB to obtain a Return Merchandise Authorization ("RMA") number on the basis of the dated purchase receipt. Purchaser will be responsible for shipping costs incurred in returning the defective Product to an authorized VTB service center, or to the repair facility located at VTB's corporate headquarters. VTB will not be responsible for other products or accessories included with the defective Product sent to VTB. The RMA number must be clearly indicated on the outside of the package. Packages without an RMA number will be refused by VTB or its representatives and returned to sender at the sender's expense.

In the event of a defect, Purchaser's sole and exclusive remedy, and VTB's sole liability, is expressly limited to the correction of the defect by adjustment, repair, or replacement of the Product at VTB's sole option and expense. VTB owns all Products it has replaced and all parts removed from repaired Products. VTB uses new and reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If VTB repairs or replaces a product, the original Warranty Period is not extended, however, VTB warrants that repaired or replacement parts will be free from defects in material and workmanship for a period of thirty (30) days from the date of repair or replacement, or for the remainder of the Warranty Period, whichever is greater.

This warranty does not apply to any Product that has had its serial number altered, removed or defaced, or any Product damage caused by shipping, improper storage, accident, problems with electrical power, abuse, misuse, neglect, ordinary wear, acts of God (e.g. flood), failure to follow directions, improper maintenance, use not in accordance with product instructions, unauthorized modification or service of the Product or damage resulting from the use of the Product with hardware, software or other products not provided by or specifically recommended by VTB.

NOTES:

• Replacement Parts and accessories that are subject to "wear and tear" such as earpads, mic foam covers, talkback cables, etc. have a three (3) month Warranty.
• Replacement Parts for Discontinued Products are sold on an AS IS basis, they are not supported and come with a 30 day Warranty.

THIS LIMITED WARRANTY IS PURCHASER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. TO THE EXTENT PERMITTED BY APPLICABLE LAW, VTB HEREBY DISCLAIMS THE APPLICABILITY OF ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE FOR THE PRODUCT. IF SUCH A DISCLAIMER IS PROHIBITED BY APPLICABLE LAW, THE IMPLIED WARRANTY IS LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.

IN NO EVENT SHALL VTB BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, OR DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOST PROFITS, DATA, OR LOSS OF USE, ANY THIRD PARTY CLAIMS, AND ANY INJURY TO PROPERTY OR BODILY INJURY (INCLUDING DEATH) TO ANY PERSON, ARISING FROM OR RELATING TO THE USE OF THIS PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR STRICT LIABILITY, EVEN IF VTB HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

This warranty supersedes all prior agreements or understandings, oral or written, relating to the Product, and no representation, promise or condition not contained herein will modify these terms. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. Any action or lawsuit for breach of warranty must be commenced within eighteen (18) months following the purchase of the Product.

EXCLUSIonS FRoM LIMITED WARReAnTY:

This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product:

• is used for commercial purposes such as "LAN, Call Centers" (including rental or lease);
• is modified or tampered with;
• is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or workmanship;
• serial number is defaced, altered or removed;
• is not used in accordance with the documentation and use instructions; or
• is repaired, modified or altered by other than authorized repair centers.
• Product is no longer available because it was discarded.

Watch Turtle Beach product training videos at: youtube.com/TurtleBeachVideos

Product support and warranty information: TurtleBeach.com/support

Copyright © 2013 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. Turtle Beach, the Turtle Beach Logo, Voyetra, and Ear Force are either trademarks or registered trademarks of VTB, Inc. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. Playstation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment, Inc. Mac is a registered trademark of Apple, Inc. Spotify, Deezer, and Skype are trademarks owned by their respective companies. These services may not be available in some countries where this product is sold. All other trademarks are properties of their respective companies and are hereby acknowledged. Actual product appearance may differ from package imagery.

© 2013 Activision Publishing, Inc. ACTIVISION, CALL OF DUTY, and CALL OF DUTY GHOSTS are trademarks of Activision Publishing, Inc. All other trademarks and trade names are the properties of their respective owners.

This product is compliant with the Consumer Product Safety Improvement Act of 2008, Public Law 110-314 (CPSIA)
