USER MANUAL PI8023 Smev

Built-in Hotplate, Ovens, Stoves, Minigrills,

Hotplate-Sink Combos for Recreational Vehicles and Marine.

Models: CU311 - CU31IM - CU333 - CU333M - CU335 -

CU335M - CU40I - CU40IPE - CU402 - CU402PE

- CU403 - CU403PE - FO311 - MO8103 - MO8123

PI09I3 - PI09I3A - PI8002 - PI8022 - PI8003 - PI8023

- PI8403 - PI8403GL - PI8423 - PI8423GL - PI8443 -

PI8463 - PI862IA - PI862IS - PI862IR - VN555

Installation, use and service manual

CONTENTS

I GENERAL INFORMATION......3

I.1 Symbols used in this manual....3
1.2 Using and keeping the manual ....3

2. WARNINGS .... 4

3. USE....5

3.1 Precautions....5
3.2 Control panel....5
3.3 Hotplate....6
3.3.1 Selecting the burner 6
3.3.2 Electronic ignition hotplate (depending on model)....7
3.3.3 Manual ignition hotplate....7
3.3.4 Hotplate flame regulation 7
3.4 Oven 7
3.4.1 Electronic ignition oven....8
3.4.2 Manual ignition oven....8
3.4.3 Oven flame regulation with thermostat 8
3.5 Grill 8
3.5.1 Electronic ignition grill 9
3.5.2 Manual ignition grill....9
3.5.3 Flame regulation grill....9
3.6 Electric hotplate (depending on model)....10
3.7 Spit (depending on model)....10
3.8 Turntable (depending on model)....10
3.9 Cleaning 10
3.10 Abnormal Operation....II

4. INSTALLATION......12

4.1 Dimensions of the appliance....12
4.2 Fitting cavity 12
4.3 Gas connection 12
4.4 Electric connection....14
4.5 Fixture 15
4.6 Testing (before leaving)....15
4.6.1 Test point.... 16
4.7 Duplicate data plate....16

5 SERVICING....17

FIGURES AND TECHNICAL DRAWINGS.... 19-32

WHO TO CONTACT 36

I GENERAL INFORMATION

I.1 Symbols used in this manual

Below are shown the various symbols used in the manual to highlight particularly important information. The safety symbols draw attention to potential hazards for personal safety.

Absolutely respect all safety messages by following these symbols.

WARNING

Risk of injury or death.

WARNING

CAUTION

To avoid possible injuries and/or malfunctions.

CAUTION

I.2 Using and keeping the manual

WARNING

Always read the instructions provided in full before installing and using this appliance.

WARNING

The aim of this manual is to supply all the information necessary to ensure that, as well as being used correctly, the appliance can be managed in the safest and most autonomous way possible.

Keep this manual and all the attached documentation in good condition, legible and complete in all its parts; it is forbidden to remove, rewrite or modify the pages of the manual and their content in any way.

Keep the documentation near the appliance, in an accessible place known to all users.

The manual must always accompany the appliance even in the event of sale and must therefore be handed over to the new user.

2. WARNINGS

Do not use or store flammable materials in the appliance storage drawer or near this appliance.

Do not spray aerosols in the vicinity of this appliance while it is in operation.

Do not modify this appliance.

Where this appliance is installed in marine craft or in caravans, it shall NOT be used as a space heater.

This appliance shall be installed only by authorised persons and in accordance with the manufacturer's installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, AS 5601-2004 - Gas Installations and any other statutory regulations.

This appliance must be used only in a well ventilated environment. Do not obstruct the flow of combustion and ventilation air.

This appliance is designed and manufactured for cooking food only. Any other use is considered improper and incorrect creating hazardous conditions. The manufacturer declines all responsibility for damage to things or injuries to persons caused by incorrect installation and / or incorrect and improper use.

If the appliance is to be left unused for any length of time, it is recommended that the gas supply be turned off at the cylinder or main supply valve feeding the appliance.

3. USE

3.1 Precautions

CAUTION

CAUTION

The appliance must only be used by responsible adults. During use and immediately after use the burner and other accessible parts may be hot; do not touch these parts and always keep children at a safe distance. After using the appliance ensure the knob/knobs are off.

After use always shut off the gas supply at the main gas tap.

WARNING

WARNING

This appliance must not be used by persons (including children) who suffer from psychical and motor related disorders or who are not familiar with or who have no experience with the appliance unless under supervision or are being instructed on how to use the appliance by the person responsible for their safety. Children must always be supervised to prevent them from playing with the appliance.

WARNING

WARNING

WARNING

of gas appliances generates heat and moisture in the immediate area. Always ensure a good ventilation in the cooking area: keep all air vents open for natural ventilation or install an extractor fan (cookerhood).

WARNING

An intense and prolonged use of the appliance may require additional ventilation, for example opening a window, or increasing the power of any mechanical extraction system.

CAUTION

CAUTION

Before cooking with the oven and grill for the first time turn on the oven or grill at high flame and leave the oven on for at least 30 minutes and the grill for 15-20 minutes.

Before opening the glass cover of the hotplate, remove any liquids that may have spilled.

WARNING

The warning is affixed in a visible location on the hotplate glass lid. Glass hotplate lids may shatter when heated. Always raise the lid before igniting a burner/s (hotplate, oven and grill) and turn off all burners (hotplate, oven and grill) and let them cool down before lowering the hotplate glass lid.

3.2 Control panel

The following symbols identify which knob corresponds to which burner.

NOTE: Different models could have similar knobs and symbols.

This symbol is positioned near the burner knobs on the hotplate.

the black dot indicates the position of the burner on the hotplate.

This symbol is positioned near the oven burner knob.

This symbol is positioned near the grill burner knob.

The following symbols are for burner flame regulation and correspond to the position of the knob.

NOTE: Different models could have similar knobs and symbols.

Gas off

High flame

Low flame

0 Electric hotplate off

1 - 2 - 3 - 4 - 5 - 6 Oven and/or electric hotplate temperature

Grill

OTHER SYMBOLS

Electronic ignition pushbutton

CAUTION

This symbol is affixed in a clearly visible position near the oven control knob for all models fitted with electronic ignition which is activated by maintaining the control knob pressed.

Light switch

Spit switch

Turntable switch

In CU4... models it is also present as a turntable and light.

3.3 Hotplate

3.3.1 Selecting the burner

WARNING

The flame must never extend beyond the edge of the pan. Centre the pan over the burner ensuring stability on the pan support.

WARNING

Burner	Pan diameter
	Min Max
Auxiliary 47 mm	6 cm 16 cm
Semi-rapid 62 mm	16 cm 22 cm
Rapid 77 mm	16 cm 22 cm

3.3.2 Electronic ignition hotplate (depending on model)

WARNING

Make sure there are no pans or any other objects on the burners when igniting.

WARNING

To ignite the burner, gently push in and turn the control knob to position HIGH FLAME and, keeping the knob pushed in, at the same time press the electronic ignition pushbutton. Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.

CAUTION

If the burner does not ignite immediately repeat ignition after having followed each step below:

CAUTION

• Turn the knob to "Low flame"

• Proceed with manual ignition
- Check there is sufficient gas in the gas bottle.

If the appliance still does not ignite shut off the gas supply at the main gas tap and contact your local dealer.

3.3.3 Manual ignition hotplate

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

WARNING

Make sure there are no pans or any other objects on the burners when igniting.

WARNING

To ignite the burner, gently push in and turn the control knob to position HIGH FLAME and, keeping the knob pushed in, at the same time light the burner with a match or gas lighter. Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.

CAUTION

If the burner does not ignite immediately, check there is sufficient gas in the gas bottle.

CAUTION If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact your local dealer.

3.3.4 Hotplate flame regulation

To regulate the flame turn the knob to the desired cooking flame.

3.4 Oven

CAUTION

The oven burner must be ignited only with the oven door fully open.

CAUTION

WARNING

The wire shelf, drip tray and oven dish when in the oven must be positioned so as to avoid coming into contact with the flames.

WARNING If the burner flame goes out accidentally, turn off the gas knob and wait one minute before re-igniting.

3.4.1 Electronic ignition oven

To ignite the burner, push in and turn the control knob to a position from 1 to 6 and, keeping the knob pushed in, at the same time press the electronic ignition pushbutton (for models that have affixed to the oven door the electronic ignition button is not visible and is activated by pressing the gas knob down). Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.

CAUTION

If the burner does not ignite immediately, repeat ignition after having followed each step below:

CAUTION • proceed with manual ignition

- check there is sufficient gas in the gas bottle.

If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact your local dealer.

3.4.2 Manual ignition oven

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

To ignite the burner, gently push in and turn the control knob to a position from 1 to 6 and, keeping the knob pushed in, at the same time light the burner with a match or gas lighter. Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.

CAUTION

If the burner does not ignite immediately, check there is sufficient gas in the gas bottle.

If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact your local dealer.

3.4.3 Oven flame regulation with thermostat

Positions I	2	3	4	5	6
Temperature I3	0^ 160^	180^ 200^	220^ 240^

When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven reaches the set temperature the flame automatically goes down to low flame.

3.5 Grill

CAUTION

The grill burner must be ignited only with the door fully open.

CAUTION

WARNING

WARNING As accessible parts may be very hot when using the grill, keep children at a safe distance from grill.

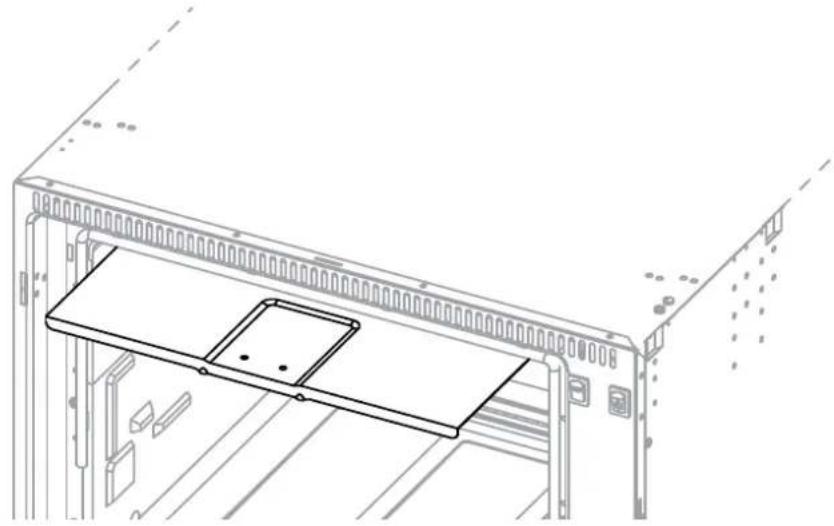

When using the grill the door must be kept open and with the heat guard fully extracted (FIG. I - PG. 19).

Never use the grill for more than 25 minutes. The grill cannot be used as an oven. If the burner flame goes out accidentally, turn off the gas knob and wait one minute before re-igniting.

3.5.1 Electronic ignition grill

WARNING

Do not ignite the grill burner with the door closed.

WARNING

To ignite the burner, gently push in and turn the control knob to position GRILL or HIGH FLAME and, keeping the knob pushed in, at the same time press the electronic ignition button (for models with the ★ symbol affixed to the door, the ignition button is not visible and is activated by pressing the knob down). Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.

CAUTION

If the burner does not ignite immediately, repeat ignition after having followed each step below:

CAUTION

• proceed with manual ignition

- check there is sufficient gas in the gas bottle.

If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact your local dealer.

3.5.2 Manual ignition grill

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

To ignite the burner, gently push in and turn the control knob to position GRILL or HIGH FLAME and, keeping the knob pushed in, at the same time light the burner with a match or gas lighter. Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.

CAUTION

If the burner does not ignite immediately, check there is sufficient gas in the gas bottle.

CAUTION If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact your local dealer.

3.5.3 Flame regulation grill

For models CU311 - CU31IM - CU333 - CU333M - CU335 - CU335M - FO311:

the grill is to be used only at its maximum capacity.

For all other models:

to regulate flame, turn the knob to the desired cooking flame.

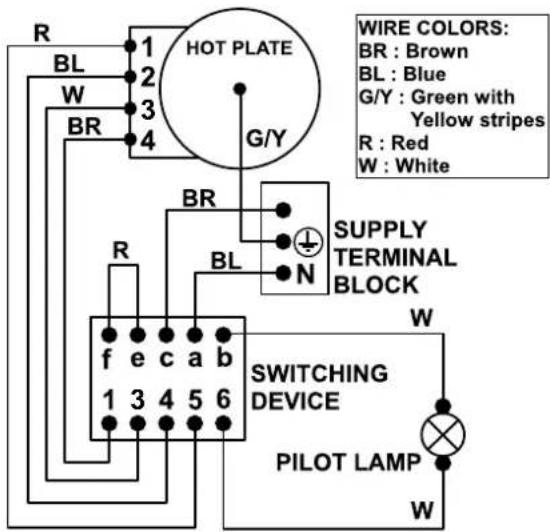

3.6 Electric hotplate (depending on model)

CAUTION

CAUTION

erning on the electric hotplate (or if the hotplate has remained unused for a long time) it is necessary to eliminate any moisture by turning on the hotplate and leaving it on for 30 minutes with the corresponding knob in position I.

Use pans with flat bottoms and with diameters no less than the diameter of the hotplate.

Dry the bottom of the pan before placing it on top of the hotplate.

When using the hotplate do not leave the appliance unattended and make sure children are nowhere near the appliance.

The electric hotplate is controlled by a 7-position knob: position off is 0 (zero) whereas positions 1 to 6 are for regulating the hotplate. Positions 1 to 6 correspond to an increase in temperature of the hotplate. There is a red LED positioned next to the knob which lights up when the hotplate is on.

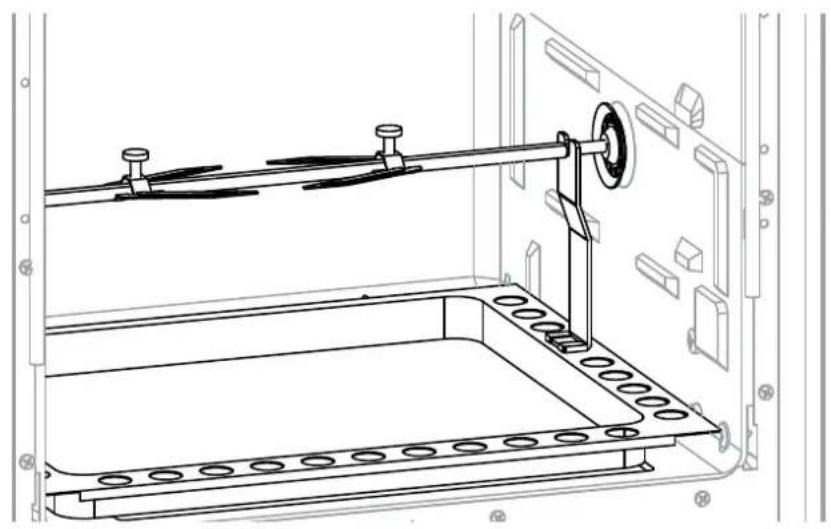

3.7 Spit (depending on model)

Ignite the oven as described in the chapter 3.4 Oven. Turn the gas knob to the required position. Insert the drip tray with the spit already installed as illustrated in FIG. 2 - PG. 19. Press the spit button to turn on the spit motor.

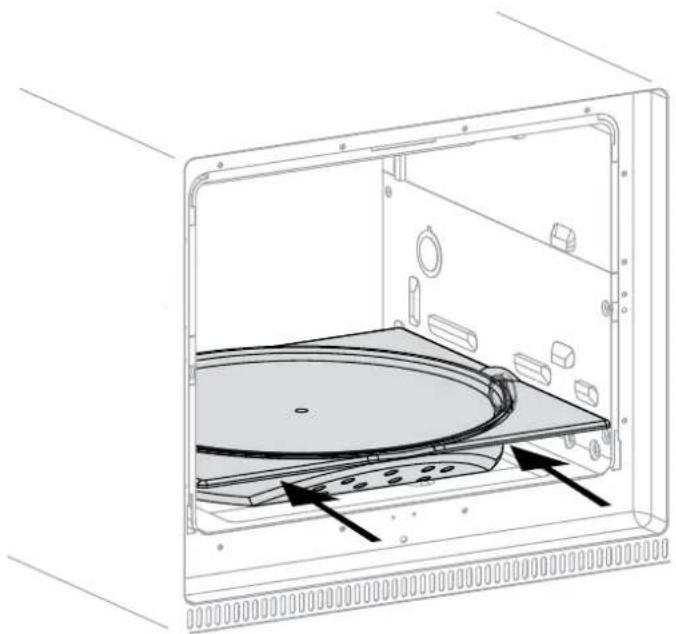

3.8 Turntable (depending on model)

Ignite the oven burner as indicated in chapter 3.4 Oven. Insert the turntable as indicated in FIG. 3 - PG. 19 Press the switch to operate the turntable motor.

3.9 Cleaning

No regular maintenance is required except cleaning.

WARNING

WARNING

king operations generate a considerable amount of grease. This, combined with spillage, can become a hazard if allowed to accumulate on the appliance through lack of cleaning.

CAUTION

CAUTION

appliance clean and in good working condition. To clean below the hotplate

burners, remove the burner cap screws using a suitable screwdriver. Once the screws are removed, the burner cap and burner head can be removed to provide access below the burner. Once cleaned, ensure the burner head and burner cap are refitted. It is recommended to have it serviced annually by authorized personnel.

WARNING

WARNING

leaning the appliance always turn it off and disconnect from power supply and wait until it has cooled down.

CAUTION

CAUTION

Hou surfaces may be damaged on contact with cold water or with a wet cloth. Do not use abrasive, corrosive or chlorine-based products, pot scourers or steel wool. Do not leave acid or alkaline substances (vinegar, salt, lemon juice, etc.) on the surfaces of the appliance. Stainless steel surfaces and enamelled parts must be washed with water and neutral soap or detergent, rinsed and dried. Use clean sponges and cloths.

WARNING

WARNING

Never use abrasive and / or coarse cleaning materials or metal brushes to clean the glass oven door as these materials scratch the glass surface with the risk of shattering the glass.

WARNING

WARNING

CAUTION

e steam cleaners to clean the appliance.

CAUTION

CAUTION

The trivet (pan support) can be removed by carefully pulling the extended pins evenly out of the plastic locaters in the hotplate. When replacing the trivet, ensure that the plastic guides are not damaged.

3.10 Abnormal Operation

Gas valves, which are difficult to turn are considered to be abnormal operation and may require servicing. In case the appliance fails to operate correctly, contact the authorised service provider in your area.

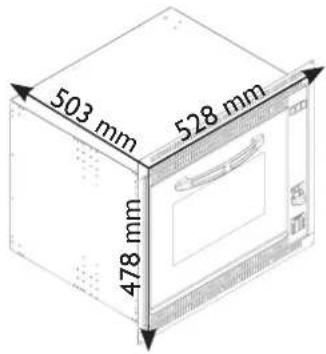

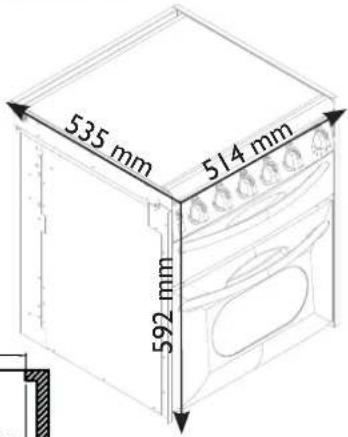

4.1 Dimensions of the appliance

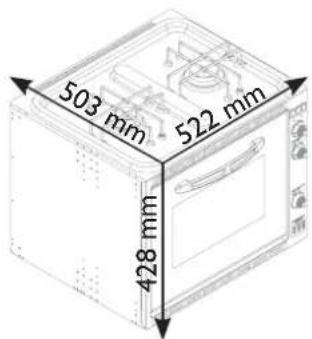

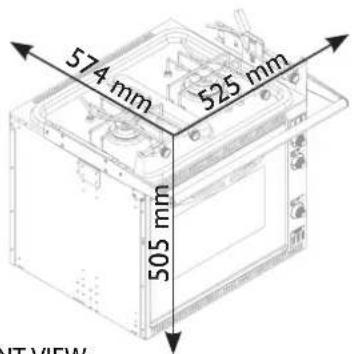

The overall dimensions are illustrated in FIG. 5 - PG. 21 with the cavity diagrams.

The overall dimensions include the trivet (pan support), control knobs, handles and gas connection.

4.2 Fitting cavity

WARNING

The appliance must fitted at an appropriate and safe distance from flammable materials.

WARNING

CU..., FO... and VN555 models, the cavity that the appliance is built into must be completely sealed off. It is important that the inside panels of the cavity are completely sealed and do not communicate with adjoining cavities or the outside. The openings in the cavity that allow access to the gas and electric connections should be sealed with rubber or foam.

The gas connection (I/4 BSPT female) is located at the rear for models CU..., FO... and for model VN555, whereas it is on the bottom for models PI... and MO...

The electric connection is located at the rear for models CU..., FO... and for model VN555, whereas it is on the bottom for models PI... and MO... (consult chapter 4.4 Electric connection to see whether the appliance needs this connection).

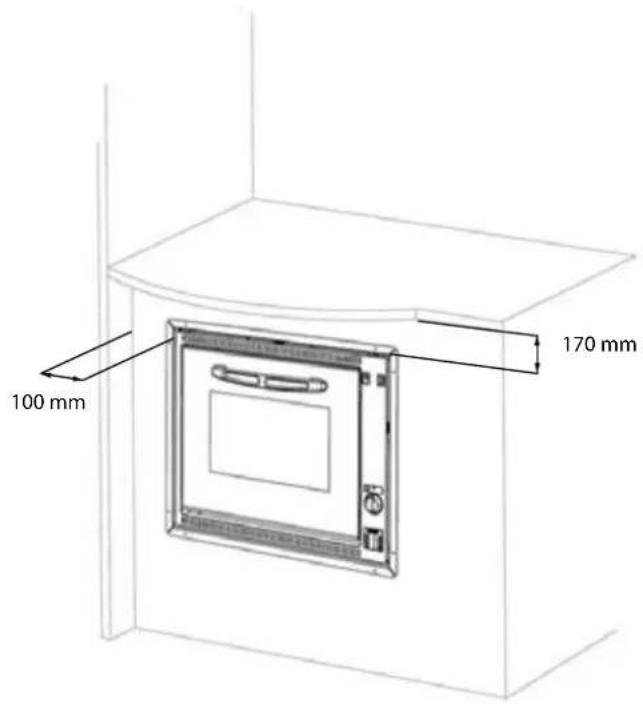

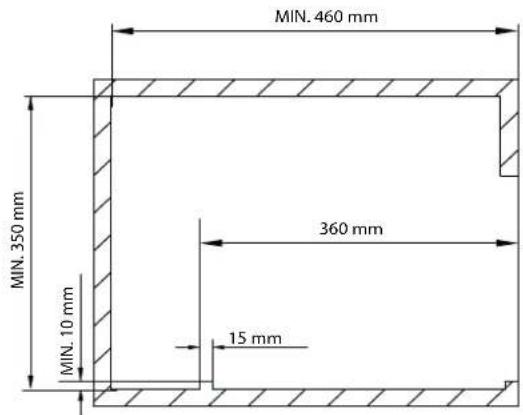

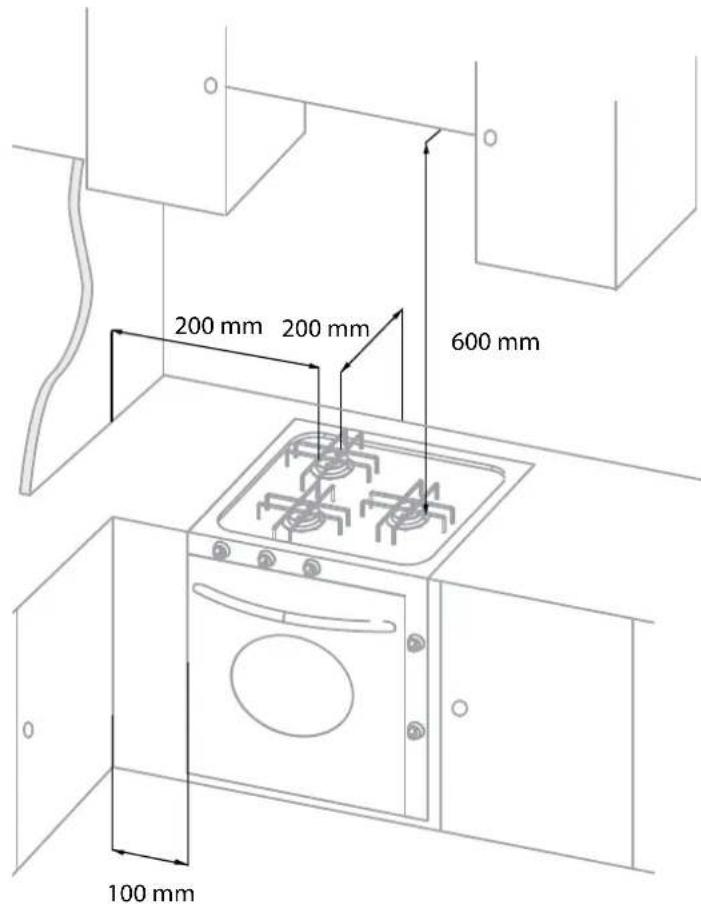

Minimum allowable distances from walls (FIG. 4 - PG. 20)

200 mm From	the external edge of the burner head nearest to a side and / or back wall.
600 mm Between	en the top part of the burners and cabinets and / or shelves fitted above the hotplate.
100 mm From	the sides of the appliance and vertical walls.
170 mm From	the top side to the cabinets and / or shelves fitted above the appliance.

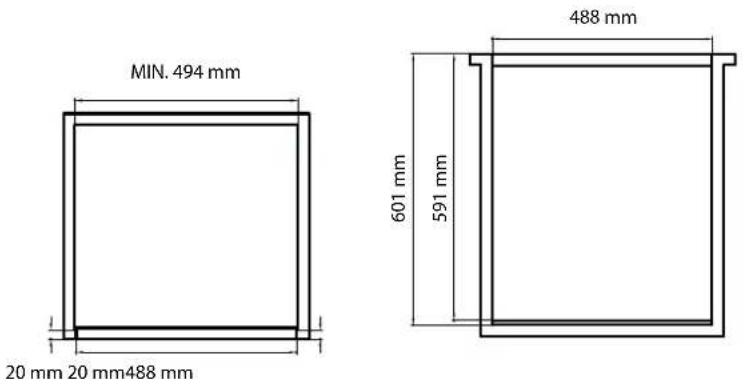

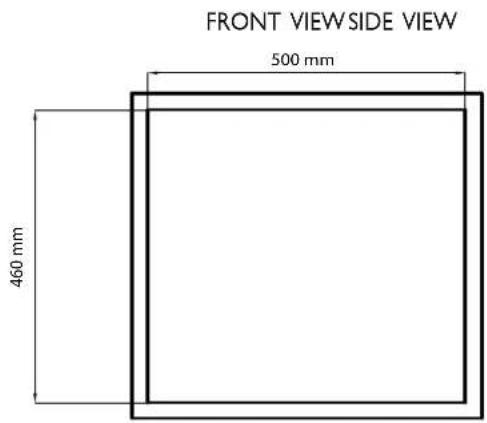

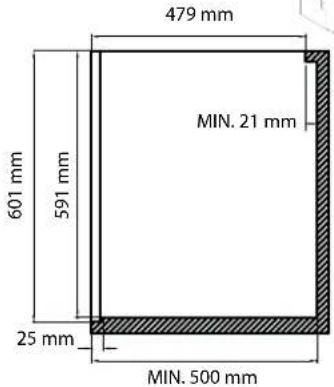

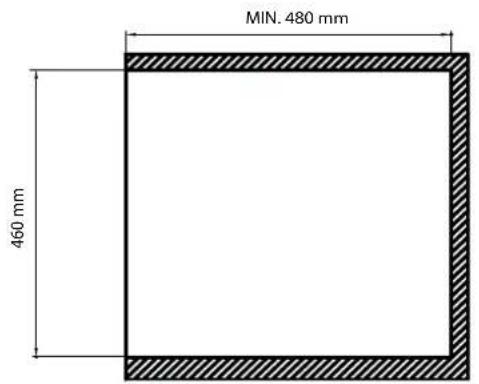

Dimensions of fitting cavity

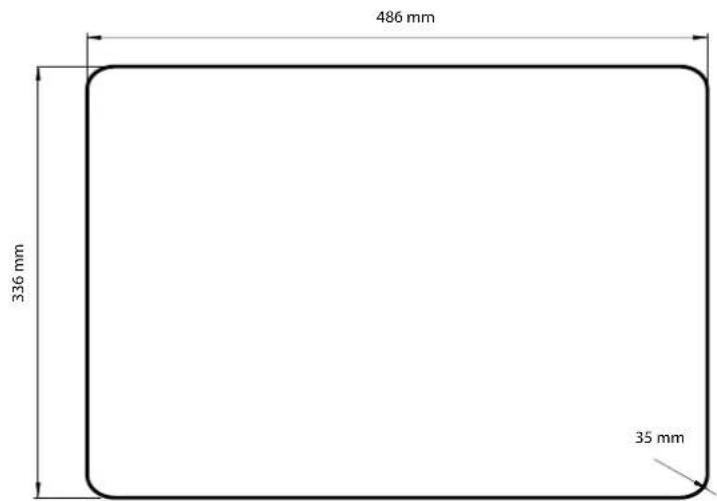

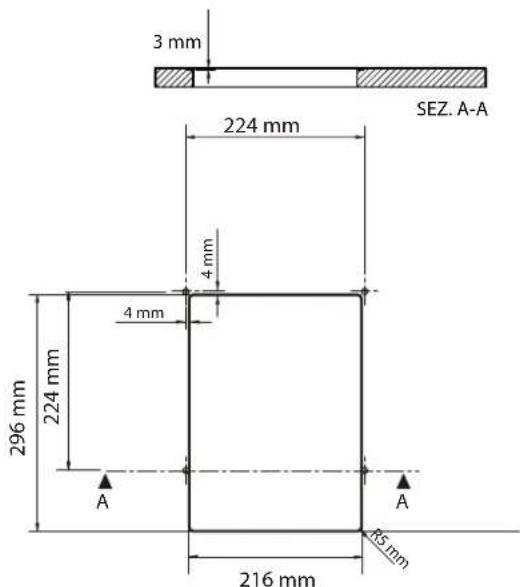

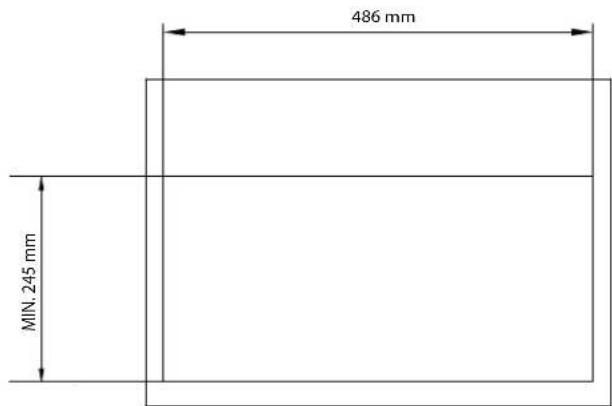

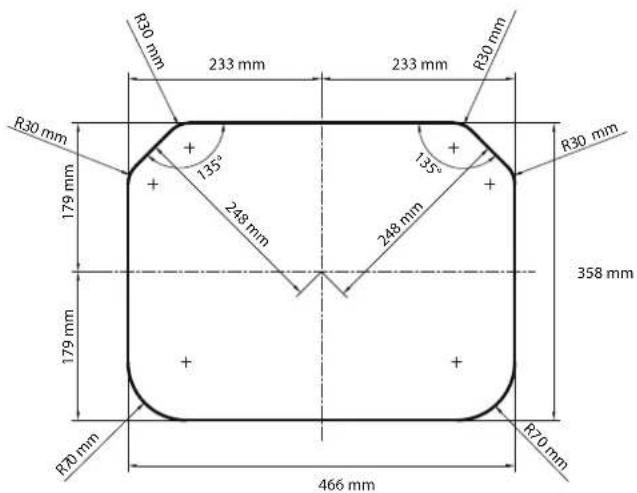

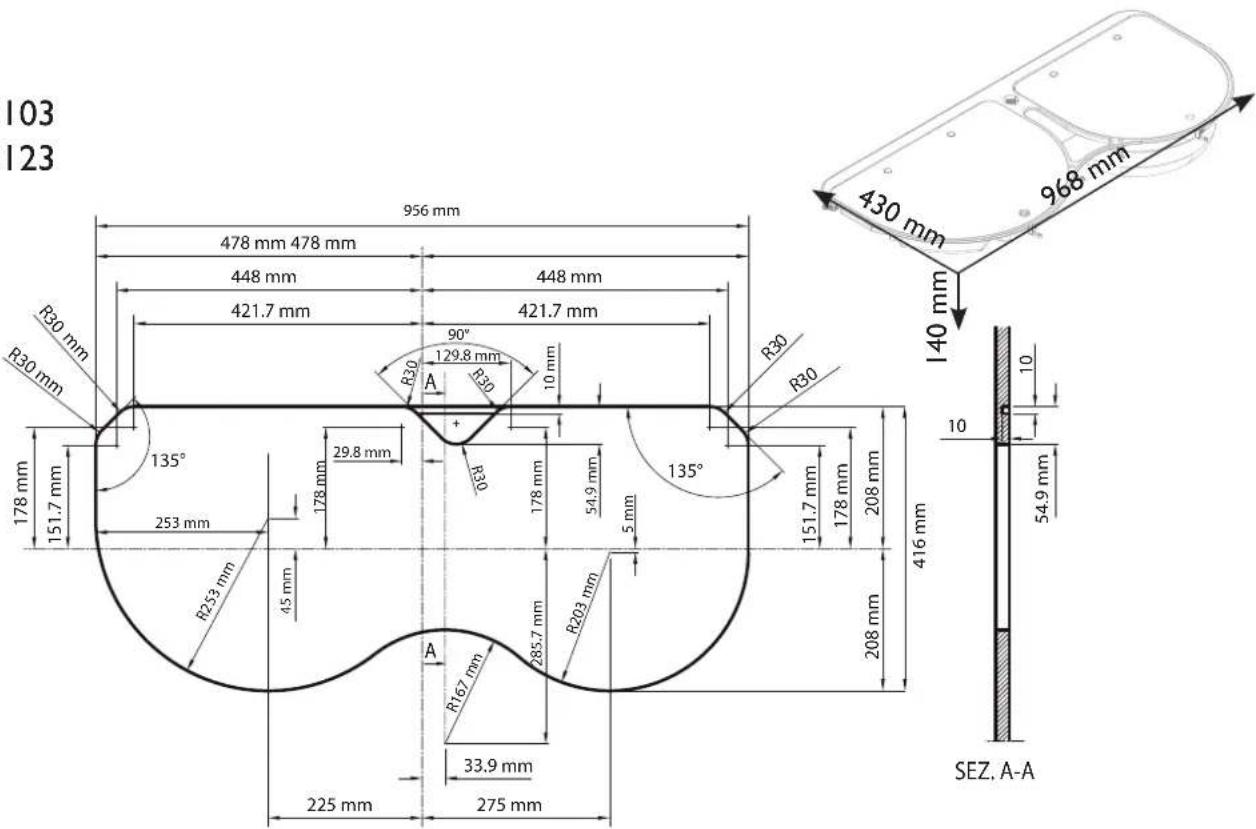

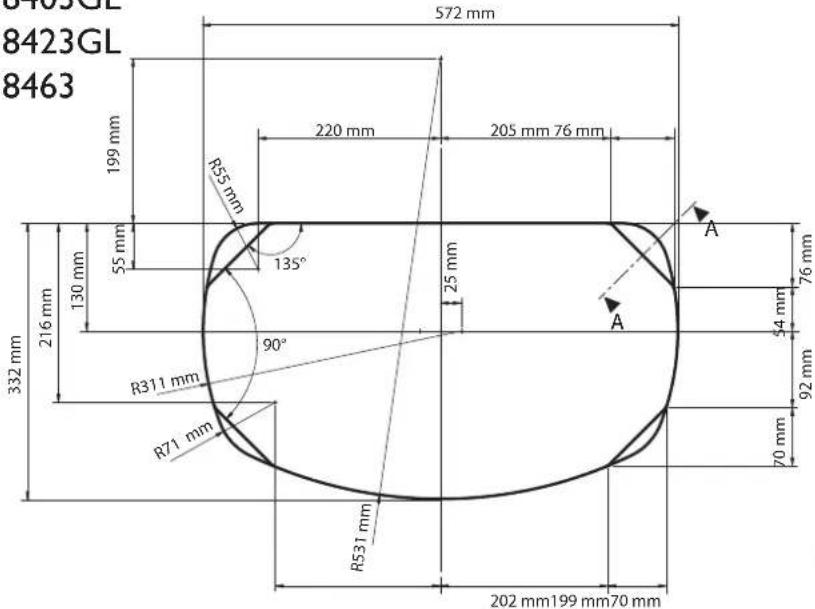

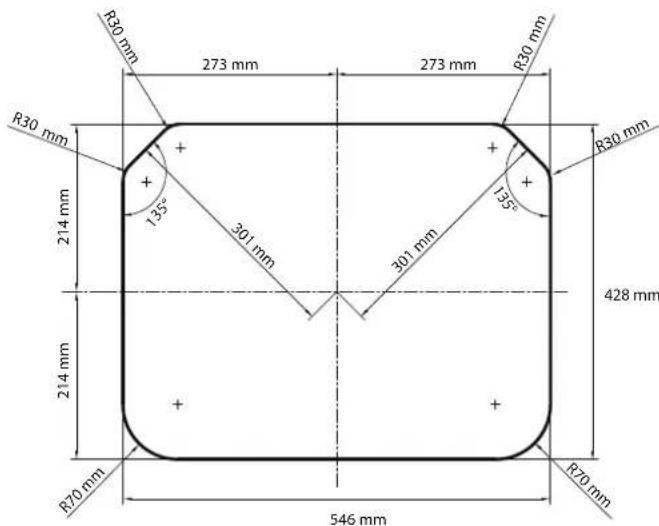

Cut out a hole in the cabinet as illustrated in FIG. 5 - PG. 21 size will depend on appliance model.

The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit.

The cabinet aperture must be perfectly squared and aligned. If there are apertures for cabinet ventilation, prevent flammable materials from entering these.

4.3 Gas connection

WARNING

This appliance shall be installed only by authorised persons and in accordance with

the manufacturer's installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, AS 5601-2004 - Gas Installations and any other statutory regulations.

WARNING

ance is not connected to a flue terminal which discharges the product of

combustion to the outside. Any enclosed space in which the appliance is installed must therefore be provided with permanent ventilation in accordance with relevant federal and state regulations in force, and the requirements of gas installations with particular attention being paid to the matter of room ventilation.

WARNING

WARNING

WARNING

liance is not suitable for connection with a hose assembly.

Below are the gas characteristics for which the appliance is set (given also on the appliance data plate). A pressure reducer suitable for the type of gas used must be connected between the gas cylinder and the appliance:

GAS PRESSURE OUTPUT OF THE REGULATOR
UNIVERSAL LPG	2,75 kPa 2,5kg/h

The connection of the gas pipe to the appliance (1/4 BSPT female) must be made with a rigid metal pipe. The pipe work and fittings shall be free from defects and of an approved type.

Once installed, the installation must be checked for leaks by means of an approved testing method.

Do not use a solution of soap and water.

WARNING

WARNING

Never use a naked flame to check for gas leaks.

4.4 Electric connection

Low voltage 12V ---

This chapter concerns only models marked 12V --- on the appliance data plate.

CAUTION

CAUTION

This appliance must be connected to a 12V --- source. The circuit must be protected by a fuse of no more than 3 Ampere.

Ensure that the polarity of the connection is correct!

WARNING

WARNING

Absolutely do not connect the appliance to the mains voltage (230 V\~), this would destroy the components and cause a hazard for the user.

To connect the appliance use a 1.5 mm ^2 double red and black wire and wire to the terminal junction box located at the rear of the appliance with the wording "+12 V---". The red terminal is the positive pole and the black terminal is the negative pole.

High voltage 230-240 V\~

This chapter refers only to the models listed in the table below.

Model Nominal voltage	Nominal power
CU401PE - CU402PE - CU403PE	230-240V~800W

In these models there is an electric plate in the hotplate.

WARNING

WARNING

connecting direct to the mains supply, it is necessary to install a circuit breaker which allows for disconnecting and isolating the appliance from the mains in the event of overvoltage III conforming to installation regulations.

The supply cord must be positioned in such a way that it never reaches a temperature of 75^ C above ambient in any point.

The plug must be easy to access after installation.

Always disconnect electrical power before working on or servicing the appliance.

For connecting to the mains power supply use a socket.

If the supply cord (H05RR-F 3x0,75mm ^2 ) is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

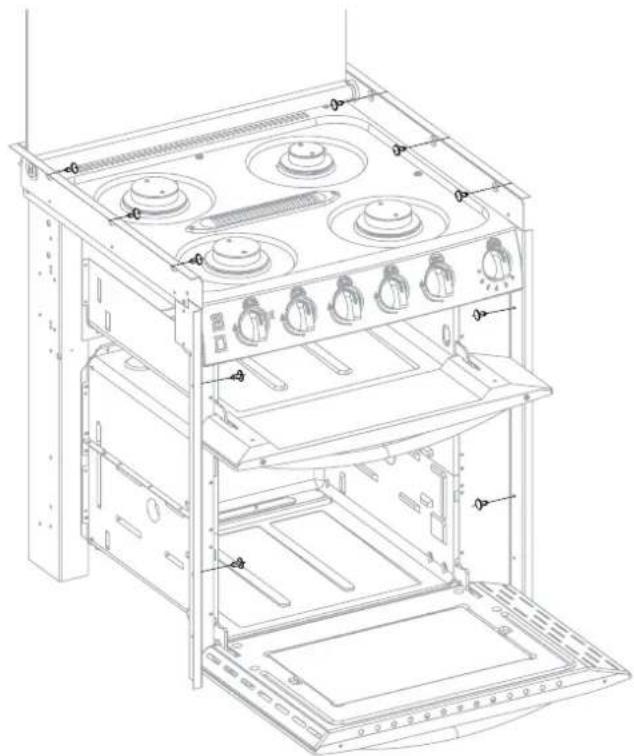

4.5 Fixture

CAUTION

CAUTION

oppliance is to be fixed and secured to the cabinet as described in FIG. 6 – PG. 26.

4.6 Testing (before leaving)

Ignite all burners both individually and concurrently to ensure correct operation of gas valves, burners and ignition. Turn gas taps to low flame position and observe stability of the flame for each burner individually and concurrently. Ensure correct operation of the flame failure protection.

Depending on the type of gas used, the appearance of the flame is as follows:

Propane: flame with blue centre and well-defined contour.

Butane: flame with light yellow tips when igniting the burner, gradually intensifying as the burner heats.

CAUTION

CAUTION

The appliance fails to operate correctly after all checks have been carried out, shut off the gas supply at the main gas tap and refer to the authorized service provider in your area.

When satisfied with the appliance, please instruct the user on the correct method of operation.

4.6.1 Test point

For models PI... MO... CU...

The test point is supplied loose with the appliance (see picture in FIG. 7 - PG. 31). Remove one burner head, the injector and screw in test point fitting. The pressure is measured with the relevant burner gas valve on high flame and with an inlet pressure of 2.75 kPa.

For models FO...

The test point is fitted on the main gas pipe. Remove the front plastic plaque (see picture in FIG. 8 - PG. 31) and remove the screw. The pressure is measured with an inlet pressure of 2.75 kPa.

For models VN555

The test point is fitted on the main gas pipe. Remove the screw. The pressure is measured with an inlet pressure of 2.75 kPa.

4.7 Duplicate data plate

After installation, the data plate may be consulted by opening the door of the oven or of the grill compartments, or on the back of the instructions manual.

The date of manufacture can be deduced from the serial number: the 2nd and the 3rd figure indicate the year, the 4th and the 5th figure the week. See the example below.

0104200993 year week

5 SERVICING

WARNING

WARNING

- vicing shall be carried out only by authorized personnel.

WARNING

WARNING

modify this appliance.

WARNING

any servicing intervention shut off gas supply, disconnect all the electrical power supplies and remove the appliance.

WARNING

Hotplate: burners, injectors, thermocouples and ceramic igniters

I. Remove trivet (pan support) by pulling up from hotplate.
2. Remove screws from appropriate burner head disk. Remove head disk.
3. Remove burner by lifting straight up, taking care not to damage the thermocouple and ceramic igniter.
4. Using a 7mm spanner, unscrew the injector. When removing and fitting the injector, the injector holder must be held in place with the aid of a tool (FIG. 9 - PG. 32)
5. Remove retaining washer from thermocouple head.
6. Disconnect appropriate thermocouple lead from gas cock.
7. Remove the thermocouple.
8. Remove retaining spring from ceramic igniter head.
9. Disconnect appropriate ceramic igniter lead from electronic igniter unit.
10. Remove the ceramic igniter.
II. Replace/ refit in reverse procedure.

Oven: injector, burner, thermocouple and ceramic igniter

I. From right hand side of appliance, remove spring from the oven burner inlet.
2. Using a 7mm spanner, unscrew the injector. When removing and fitting the injector, the injector holder must be held in place with the aid of tool (FIG. 9 - PG. 32).
3. Remove lower heat shield at rear and tilt appliance forward.
4. Unscrew the oven burner mounts and lower burner.
5. Remove retaining nut from thermocouple head.
6. Disconnect the oven thermocouple lead from the gas cock.
7. Remove the thermocouple.
8. Remove retaining screw from ceramic igniter support.
9. Disconnect ceramic igniter lead from appropriate electronic igniter unit.
10. Remove the ceramic igniter.
II. Replace/ refit in reverse procedure.

Grill: injector, thermocouple, ceramic igniter and burner

1. From right hand side of appliance, remove spring from the grill burner inlet.
2. Using a 7mm spanner, unscrew the injector. When removing and fitting the injector, the injector holder must be held in place with the aid of tool (FIG. 9 - PG. 32)
3. Remove the protection disk (not present in the CU4... models)
4. Remove retaining nut from thermocouple head.
5. Disconnect the grill thermocouple lead from the gas cock
6. Remove the thermocouple.
7. Remove retaining screw from ceramic igniter support.

8. Disconnect ceramic igniter lead from appropriate electronic igniter unit.

9. Remove the ceramic igniter.

10. Remove the grill burner mounting screws (2) from top.

II. Remove the grill burner mounting spacers (only for CU4... models) and lower burner.

Gas cocks

I. Remove the control knob by pulling.

1. Unscrew gas cock retaining nut.

2. From the underside of the appliance, remove the thermocouple lead and the gas pipe from the gas cock.

3. Remove the appropriate gas cock clamp by unscrewing the screws.

4. Remove the gas cock from the manifold.

5. Replace/ refit in reverse procedure.

Oven thermostat

I. Remove the appropriate control knob by pulling.

1. Unscrew gas cock retaining nut.

2. From the underside of the appliance, remove the thermocouple lead and the gas pipe from the thermostat.

3. Remove the thermostat clamp by unscrewing the screws.

4. Remove the thermostat from the manifold.

5. Open oven door and remove the capillary bulb/ phial from its mount.

6. Remove capillary bulb/ phial though access hole.

7. Replace/ refit in reverse procedure.

Igniter unit/s

1. From the rear right-hand side of appliance, remove electrical connectors from igniter unit/s (noting connection locations).

2. Remove the retaining rivets from appropriate igniter unit.

3. Remove the igniter unit.

4. Replace / refit in reverse procedure.

Oven door

I. Open oven door fully.

1. Remove the door hinge screws (2 each) at either side of the bottom of oven compartment.

2. Remove door from appliance.

3. Replace/ refit in reverse procedure.

230-240V\~WIRING DIAGRAM

Shown below is the wiring diagram for the 230-240 V\~ connection for a stove with electric element on the hotplate.

R BL W BR 1 2 3 4 HOT PLATE G/Y R : Red W : White BR SUPPLY TERMINAL BLOCK BL N f e c a b 1 3 4 5 6 SWITCHING DEVICE PILOT LAMP W WIRE COLORS: BR : Brown BL : Blue G/Y : Green with Yellow stripes R : Red W : White

FIGURES AND TECHNICAL DRAWINGS

Figure I

Technical line drawing of a server rack with ventilation grilles and a front panel (no text or symbols)

Figure 2

Technical line drawing of a mechanical assembly with mounting brackets and a central rotating component (no text or symbols)

Figure 3

Technical line drawing of a microwave oven with internal components and mounting holes (no text or symbols)

Figure 4

200 mm 200 mm 600 mm 100 mm

CU311 - CU311M - CU333 - CU333M

- CU335 - CU335M - CU401 -

CU401PE - CU402 - CU402PE

- CU403 - CU403PE - MO8103 -

MO8123 - PI0913 - PI0913A - PI8002

- PI8022 - PI8003 - PI8023 - PI8403 -

PI8403GL - PI8423 - PI8423GL - PI8443

- PI8463 - PI862IA - PI862IS - PI862IR

100 mm 170 mm

FO311 - VN555

Figure 5

CU311 CU333 CU335

503 mm 522 mm 428 mm

SIDE VIEWFRONT VIEW

500 mm 393 mm

415 mm MIN. 45 mm 393 mm MIN. 460 mm

CU31IM CU333M CU335M

574 mm 525 mm 505 mm BIT VIEW

SIDE VIEWFRONT VIEW

524 mm 500 mm 505 mm

505 mm

CU40I CU40IPE

535 mm 514 mm 592 mm

TOP VIEW SIDE VIEWFRONT VIEW

479 mm MIN. 21 mm 601 mm 591 mm 25 mm MIN. 500 mm

CU402 CU402PE

535 mm 514 mm 292 mm

TOP VIEW MIN. 494 mm 20 mm 20 mm 488 mm

488 mm 281 mm

SIDE VIEWFRONT 479 mm MIN. 21 mm 281 mm MIN. 500 mm

CU403 CU403PE

510 mm 514 mm 143 mm

TO P VIEW MIN. 494 mm 20 mm 20 mm488 mm

488 mm 132 mm

SIDE VIEWFRONT 479 mm MIN. 21 mm 132 mm MIN. 500 mm

FO311

503 mm 528 mm 478 mm

FRONT VIEWSIDE VIEW 500 mm 460 mm

MIN. 480 mm 460 mm

PI0913 PI0913A

486 mm 336 mm 35 mm

370 mm 520 mm 88 mm

PI8002 PI8022

R30 mm 233 mm 233 mm R30 mm 179 mm + 135° 248 mm 135° 248 mm R30 mm 358 mm 179 mm + + R70 mm 466 mm R70 mm

370 mm 480 mm 80 mm

PI8003

PI8023

R30 mm 273 mm 273 mm R30 mm R30 mm 214 mm + 135° 301 mm 301 mm 135° R30 mm 428 mm 214 mm + R70 mm 546 mm R70 mm

440 mm 560 mm 80 mm

PI8403 - PI8403GL

PI8423 - PI8423GL

PI8443 - PI8463

8103GL 8423GL 8463 572 mm 199 mm 220 mm 205 mm 76 mm R55 mm 135° 55 mm 216 mm 130 mm 332 mm 90° 25 mm A 76 mm 54 mm 92 mm 70 mm R311 mm R71 mm R531 mm 202 mm 199 mm 70 mm

350 mm 590 mm 140 mm

PI8621A

PI8621R

PI8621S

3 mm 224 mm SEZ. A-A 4 mm 4 mm 296 mm 224 mm A A 216 mm R5 mm

240 mm 320 mm 145 mm

MO8103

MO8123

103 123 956 mm 478 mm 478 mm 448 mm 421.7 mm 448 mm 421.7 mm 90° 129.8 mm 10 mm R30 R30 R30 R30 R30 178 mm 151.7 mm 135° 253 mm 178 mm 29.8 mm 45 mm A R33 mm 45 mm 285.7 mm R203 mm 5 mm 178 mm 54.9 mm 135° 151.7 mm 178 mm 208 mm 416 mm 208 mm A R167 mm 33.9 mm 225 mm 275 mm 968 mm 430 mm 140 mm 10 10 54.9 mm SEZ, A-A

VN555

475 mm 484 mm 240 mm

FRONT VIEWSIDE VIEW

486 mm MIN. 245 mm

MIN. 460 mm MIN. 350 mm MIN. 10 mm 360 mm 15 mm

Figure 6

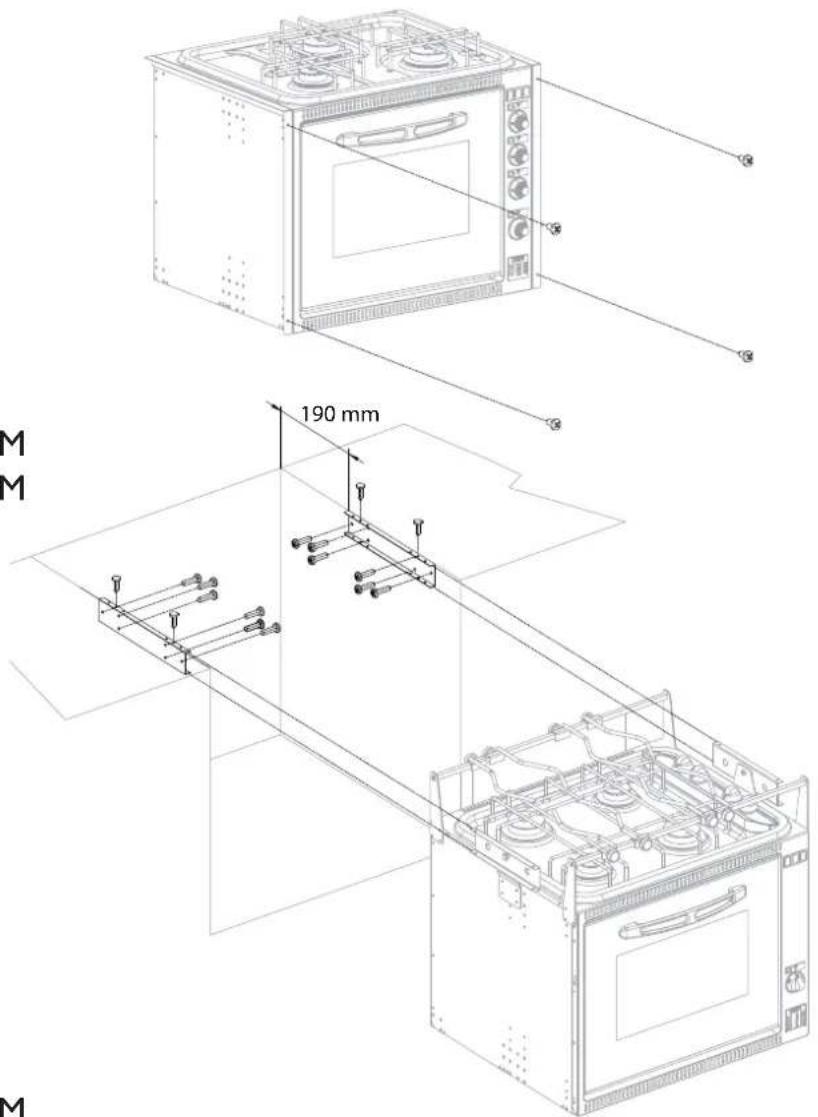

CU311 CU333 CU335

190 mm M M

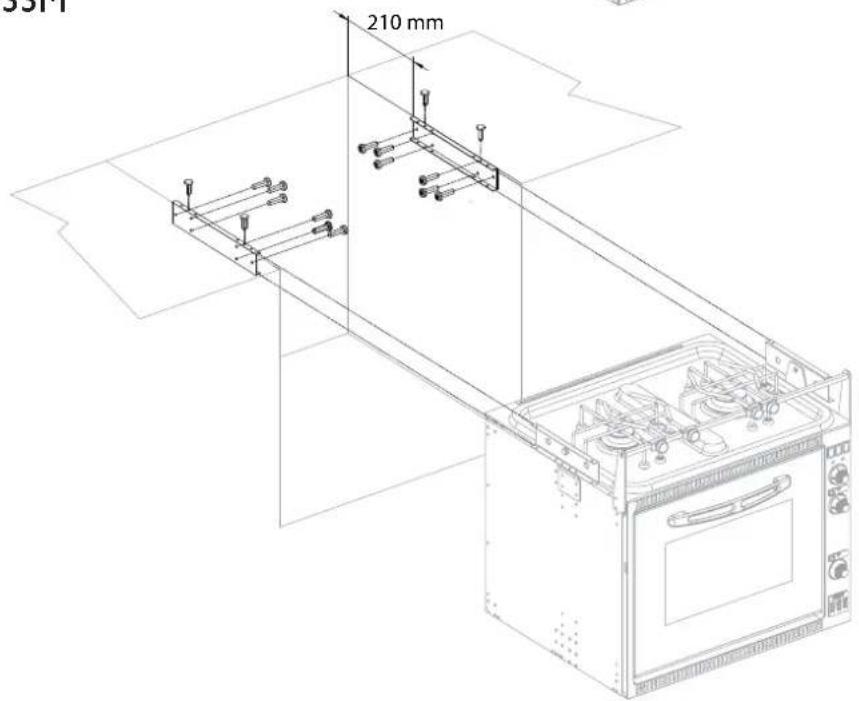

CU311M CU335M
CU333M

210 mm

CU40I CU40IPE

Technical line drawing of an oven with multiple fans and control knobs (no text or labels)

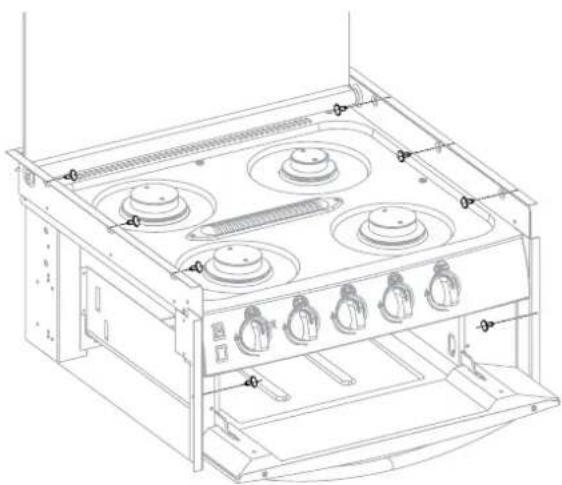

CU402 CU402PE

Technical line drawing of a portable stove or oven with four fans and control knobs (no text or labels)

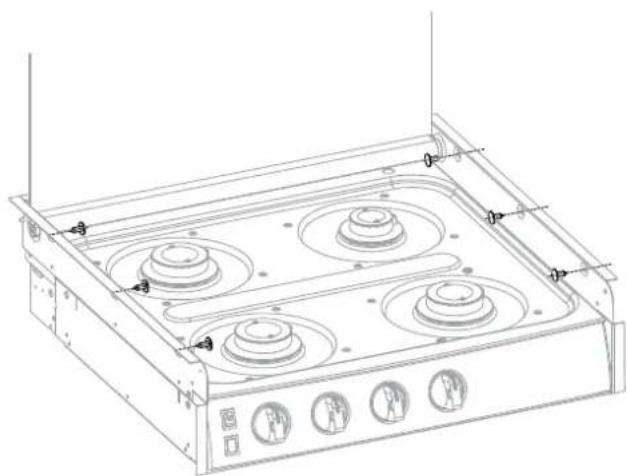

CU403 CU403PE

Technical diagram of a portable electrical heating unit with labeled components and dimensions

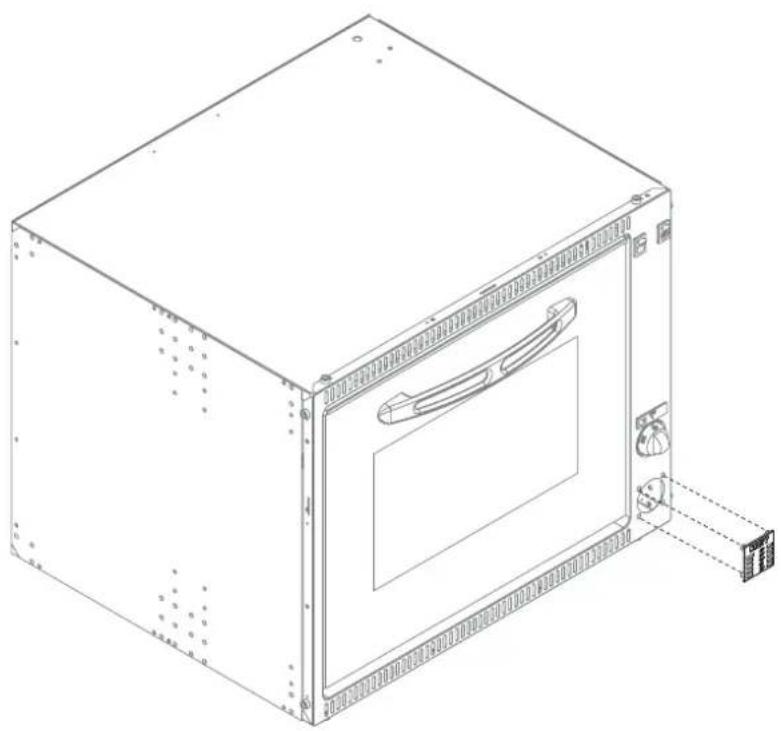

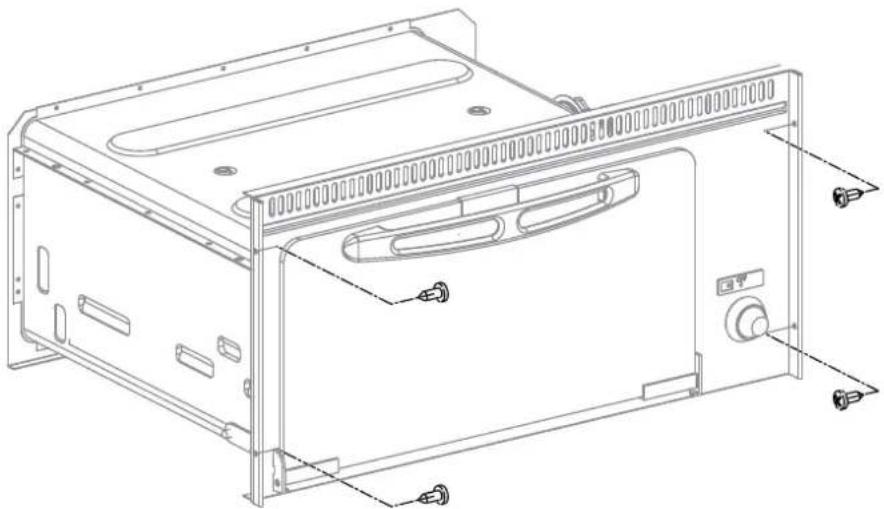

FO311

Technical line drawing of a microwave oven with internal components and mounting brackets (no text or labels)

PI0913

PI0913A

PI8621A

PI8621R

PI8621S

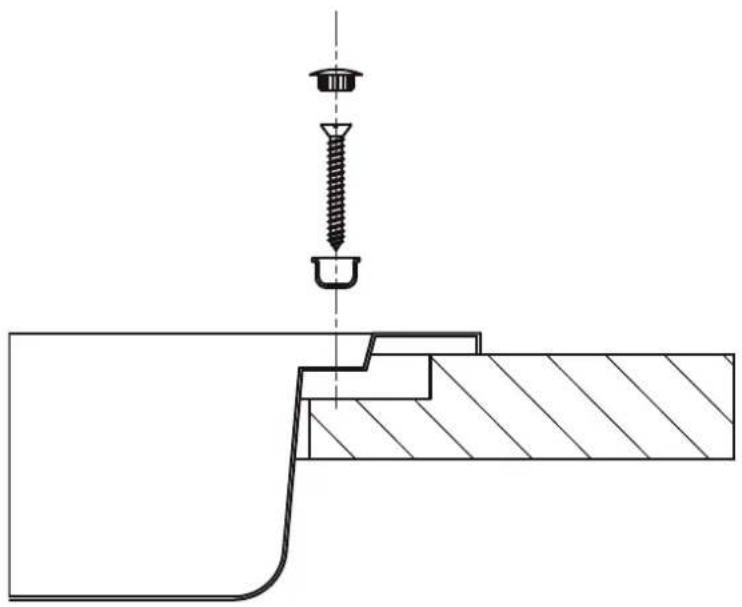

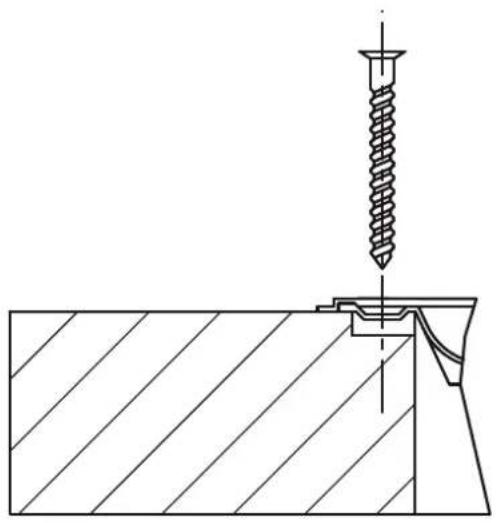

Technical line drawing of a screw fastening process with no text or symbols

PI8002

PI8022

PI8003

PI8023

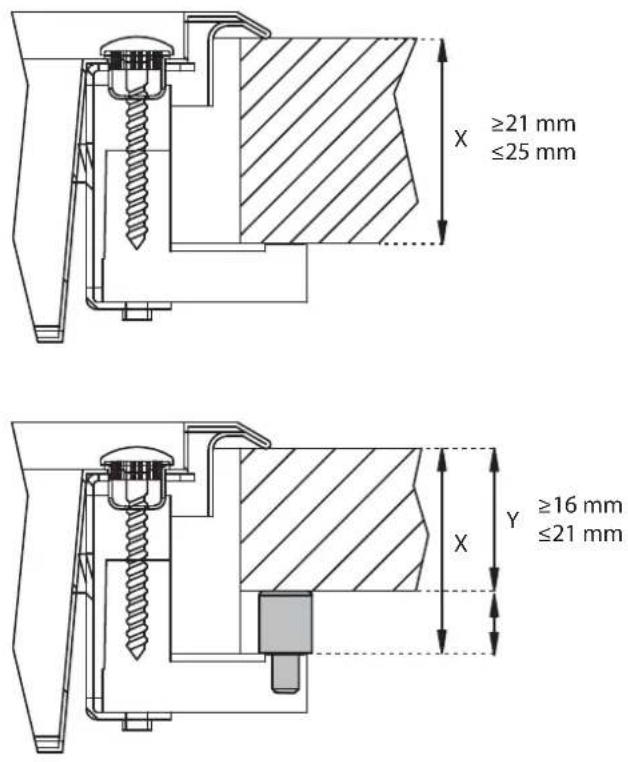

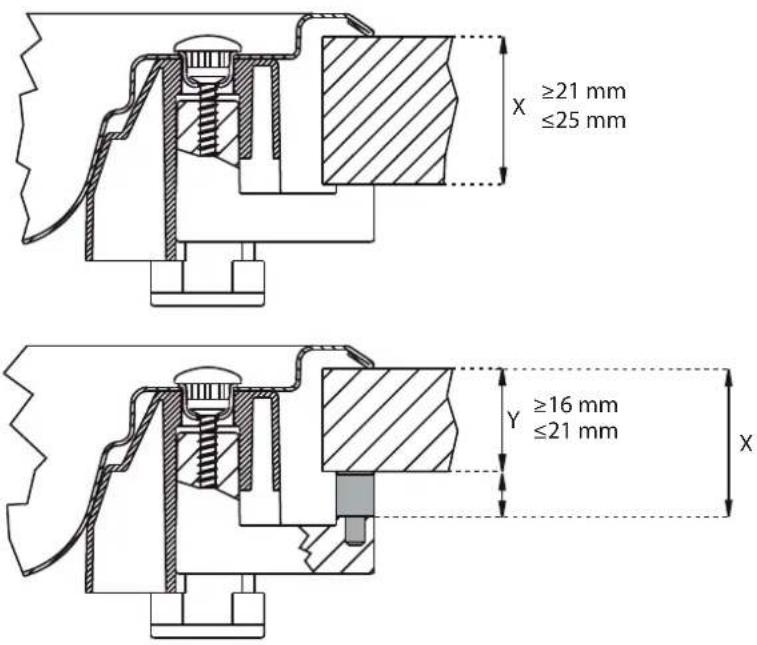

≥21 mm ≤25 mm ≥16 mm ≤21 mm X Y X

PI8403 - PI8403GL

PI8423 - PI8423GL

PI8443 - PI8463

Technical drawing of a mechanical assembly with a screw and pin, showing cross-section and hatching (no text or symbols)

MO8103 MO8123

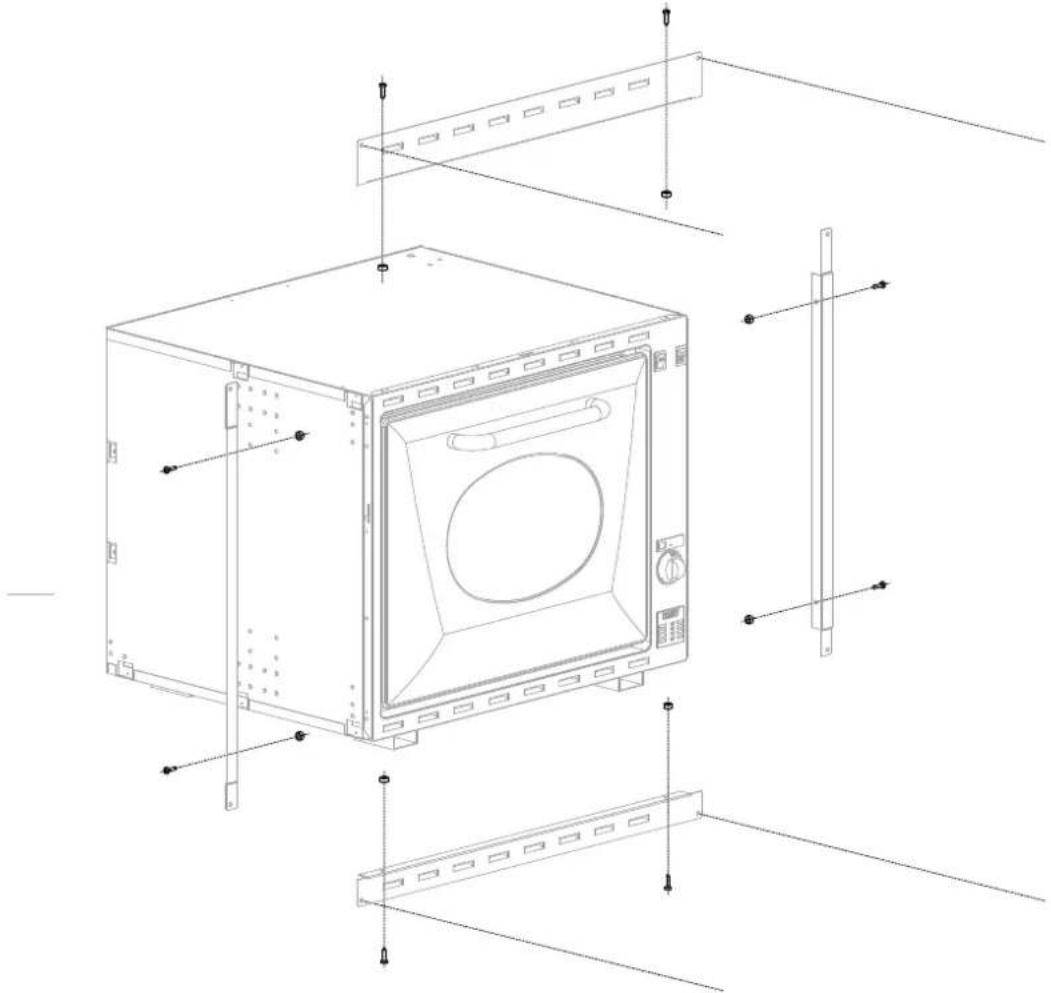

VN555

Technical line drawing of a computer tower case with mounting brackets and ventilation slots (no text or symbols)

Figure 7

Metal mechanical component with threaded end and hexagonal top (no visible text or symbols)

Figure 8

Technical line drawing of a rectangular electronic device with internal components and mounting bracket (no text or symbols)

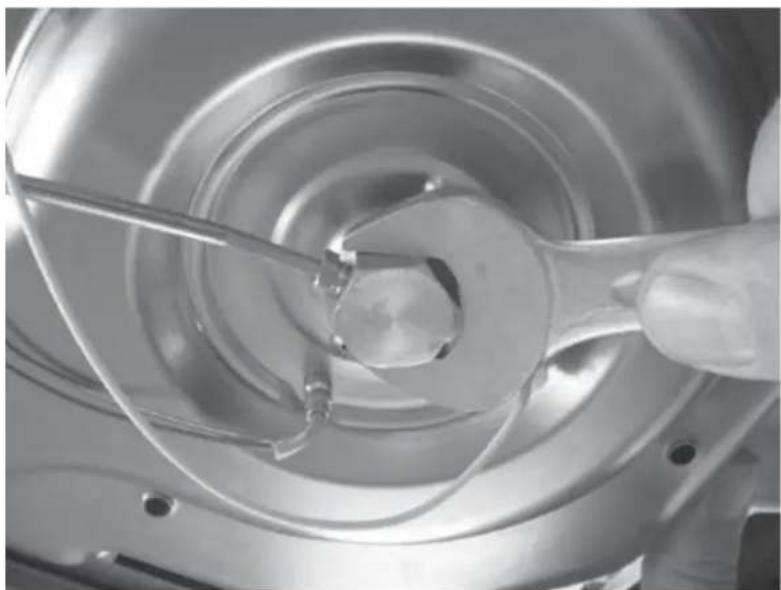

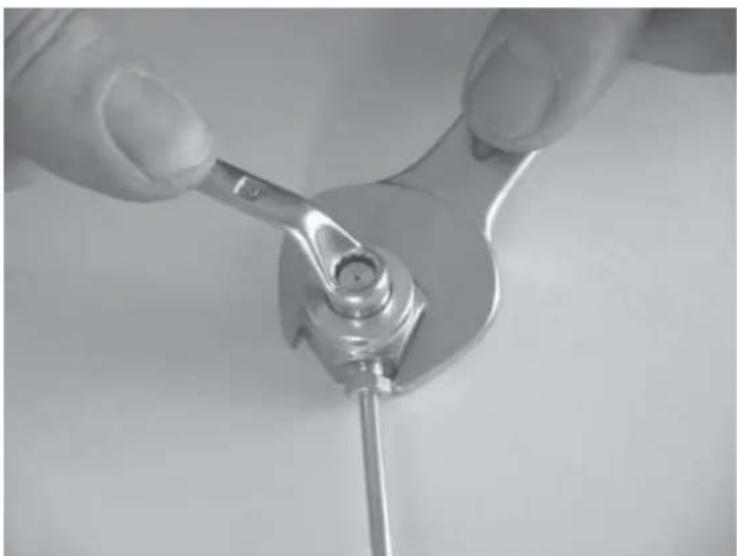

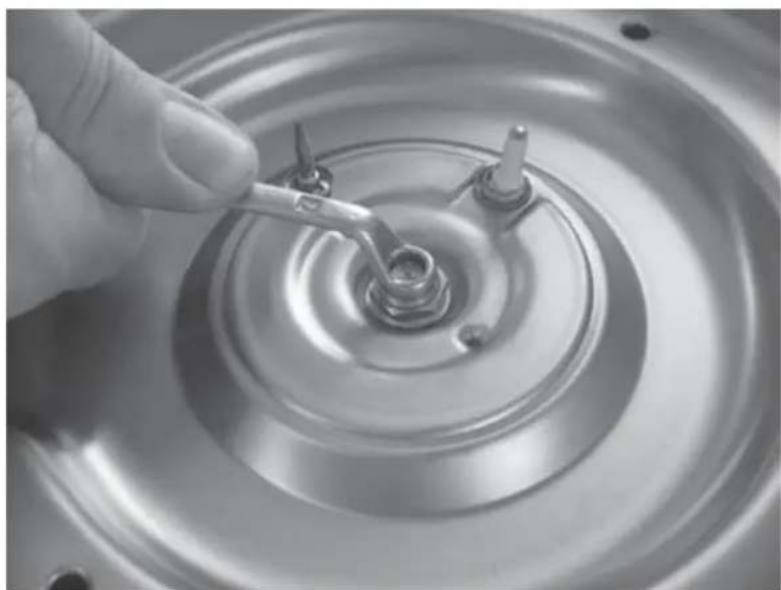

Figure 9

Close-up of a hand holding a wrench inside a metallic mechanical component (no visible text or symbols)

Close-up of a hand holding a wrench over a circular mechanical component (no visible text or symbols)

Close-up of hands using a wrench to adjust a mechanical component (no text or symbols visible)

Notes

WHO TO CONTACT

For service of your appliance, firstly contact your selling agent.

Australia

Dometic Australia, Queensland I

I John Duncan Court

Varsity Lakes QLD 4227

phone: [phone]

fax: [phone]

e-mail: [e-mail]

web: www.dometic-waeco.com.au

Dometic Australia, Victoria

Bldg 3B, Clayton Business Park

1508 Centre Rd, Clayton VIC 3168

phone: [phone]

fax: [phone]

e-mail: [e-mail]

web: www.dometic-waeco.com.au

Dometic Australia, Queensland 2

2/129 South Pine Road

Brendale QLD 4500

phone: [phone]

fax: [phone]

e-mail: [e-mail]

web: www.dometic-waeco.com.au

Dometic Australia, Western Australia

12 Prosperity Ave,

Wangara WA 6065

phone: [phone]

fax: [phone]

e-mail: [e-mail]

web: www.dometic-waeco.com.au

New Zealand

Dometic New Zealand Limited, Auckland

Unit 15, 180 Montgomerie Road

Airport Oaks, Auckland 1701

phone: [phone]

fax: [phone]

e-mail: [e-mail]

web: www.dometic.co.nz

Dometic New Zealand Limited, Wellington

26 Cashew Street

Grenada North, Wellington 6440

phone: [phone]

fax: [phone]

e-mail: [e-mail]

web: www.dometic.co.nz
