Product Type	Label Printer
Model	Brother P-Touch 1760
Dimensions (W x D x H)	176 x 201.5 x 52 mm (6.9 x 7.9 x 2.0 inches)
Weight	650 g (1.4 lbs) without tape cassette and batteries
Power Supply	6 AA batteries (AA/SUM-3/AM3/R6/LR6) or AC adapter (model AD-30)
Auto Power Off	After 5 minutes of inactivity
Print Head	64 dot / 180 dpi
Supported Tape Widths	1/4" (6 mm), 3/8" (9 mm), 1/2" (12 mm), 3/4" (18 mm)
Maximum Text Length	60 characters per line
Maximum Number of Lines	2 lines (on 9 mm and wider tapes)
Memory Capacity	Up to 9 files / ~300 characters total
Character Sizes	6 sizes: AUTO, SIZE1 to SIZE5, plus BIG (on 18 mm tape)

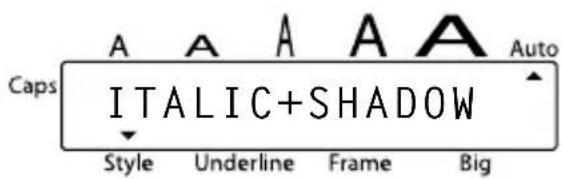

Character Styles	Normal, Outline, Bold, Shadow, Italic (and combinations), Vertical
Special Functions	Frame (5 styles), Underline, Mirror Printing, Numbering, Repeat Printing, Memory Store/Recall/Delete, Tape Margin (Full, None, Narrow, Half)
LCD Display	7 x 5 dots, 15 characters x 1 line with 11 indicators
Keyboard	49 keys including cursor keys, Code, Shift, Accent, Symbol keys
Print Tape Type	Pressure-sensitive, adhesive-based Brother TZ tapes (26.2 ft / 8 m long)
Cleaning	Print head and rollers: dry cotton swab; if needed, isopropyl alcohol. Optional cleaning cassette (TZ-CL4).
Safety	Use only Brother TZ tapes; do not pull tape while feeding; avoid dust, sunlight, high humidity; use only AD-30 adapter; do not touch cutter edge.
Accessories (Optional)	AC adapter AD-30, print head cleaning cassette TZ-CL4, various tape cassettes (laminated, fabric iron-on, extra strength, etc.)
Patent Numbers	USP4839742, USP4983058, USP5120147, USP4927278, USP5009530, USP4976558, USP5069557
FCC Compliance	Class B digital device

Frequently Asked Questions - P-Touch 1760 BROTHER

How do I change the tape cassette?

Open the tape compartment cover, remove the old cassette by pulling straight up. If the ink ribbon is loose, wind the toothed wheel in the direction of the arrow until tight. Insert the new cassette firmly until the back touches the bottom of the compartment. Close the cover, then hold down Code and press Feed Space to advance the tape. Push the cutter lever to cut.

How do I clean the print head?

Turn off the machine and open the tape compartment. Remove the tape cassette. Use a dry cotton swab to gently wipe the print head up and down. For the rollers, rotate them while wiping. If dust remains, use a cotton swab dipped in isopropyl alcohol. Alternatively, use the optional cleaning cassette (TZ-CL4).

What batteries does the PT-1760 use?

It requires six AA batteries (AA/SUM-3/AM3/R6/LR6). Replace all six at the same time. Insert new batteries within five minutes of removing old ones to avoid losing text in memory (unless using AC adapter).

Can I use any AC adapter?

No, only use the AD-30 adapter designed exclusively for this machine. Using other adapters voids the warranty. Unplugging the adapter from the outlet before unplugging from the machine may erase stored text even if batteries are installed.

How do I print multiple copies automatically?

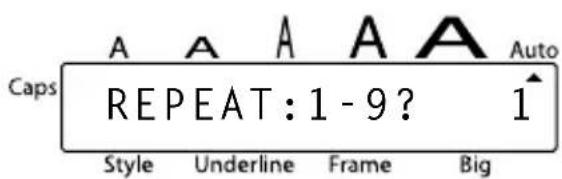

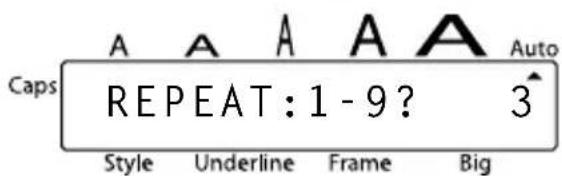

Use the Repeat Printing function: hold down Code and press Repeat S. The display shows 'REPEAT:1–9?'. Press a number key (1–9) for the number of copies, then press Print (or ←) to start printing. Cut the tape after each chain of labels.

How do I print sequentially numbered labels?

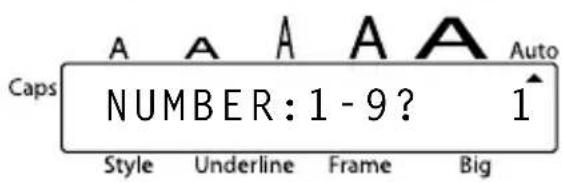

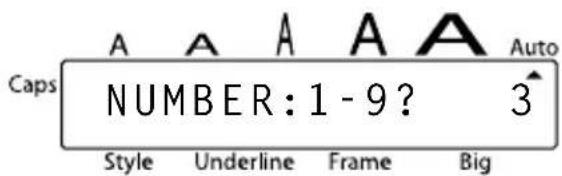

Use the Numbering function. Enter your text with a number, position the cursor below the number to increment. Hold down Code and press Number A. Enter the last number to print (e.g., 3 to print 1,2,3). Press Print or ← to start. The number increases by 1 on each label.

Why is there a blank horizontal line on my label?

A blank streak indicates a dirty print head. Clean the print head as described using a dry cotton swab or one dipped in isopropyl alcohol. If the problem persists, contact service.

How do I store and recall text?

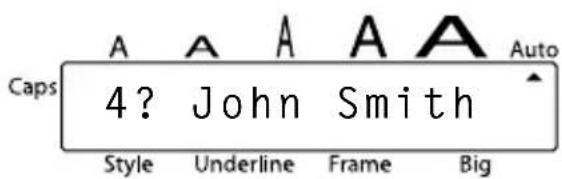

To store: hold Code and press Store *8, then press a number key (1–9) for the file. To recall: hold Code and press Recall 9, then the file number, then ←. To delete: hold Code and press M.Del 0, then the file number, then ←. Maximum 9 files or 300 characters total.

The display is blank after power on. What should I do?

Check that the AC adapter is connected correctly or batteries are inserted with correct polarity. If using batteries, replace them with new ones. If the machine has 'locked up', turn it off, then hold down Code and R while pressing On Off to reset. Note: This erases all text and stored files.

How do I attach labels?

Use the enclosed stick (stored in the tape compartment cover). For laminated tape: pass the tape through the long hole in the stick, turn it three-quarters toward you, and pull to peel off the backing. For fabric tape: iron the label onto garment using a medium-high temperature (320–356°F / 160–180°C) for 10–15 seconds.

USER MANUAL P-Touch 1760 BROTHER

Line drawing of a classic digital telephone with keypad and front panel (no text or symbols)

Thank you for purchasing the PT-1760!

Your new labeler will allow you to create labels for any need. Its versatility enables you to design custom labels by choosing from a variety of frame designs and from many characters sizes and styles. In addition, the four tape widths (1/4" (6 mm), 3/8" (9 mm), 1/2" (12 mm), and 3/4" (18 mm)) and variety of tape colors allow you to print personalized labels, useful for color-coded filing.

You no longer have to worry about urgent tasks that require professional printing. In the office, the factory, the lab and the home, the quality and performance of the PT-1760 makes it an extremely versatile and practical machine.

Finally, as you may want to refer to this User's Guide occasionally, we suggest you keep this manual in a convenient place.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/television technician for help.
-Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's authority to operate the equipment.

Patent numbers and patent publication numbers which are related to this product are as below:

USP4839742 USP4983058 USP5120147

USP4927278 USP5009530

USP4976558 USP5069557

CONTENTS

Getting Started

GENERAL DESCRIPTION 2

GENERAL PRECAUTIONS....3

BATTERIES 4

AC ADAPTER 5

TAPE CASSETTE 5

ATTACHING LABELS 6

PRINT HEAD & ROLLERS....8

For Your Information

POWER KEY 9

CURSOR KEYS 9

CODE & SHIFT KEYS....10

SPACE KEY 11

RETURN KEY 12

BS KEY 13

CLEAR FUNCTION 13

ACCENT FUNCTION 14

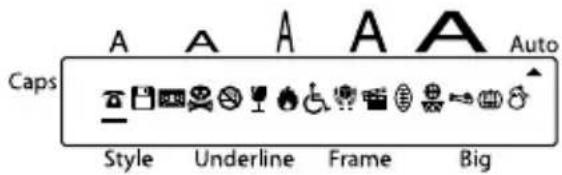

SYMBOL FUNCTION....15

SIZE FUNCTION 17

STYLE FUNCTION 18

UNDERLINE FUNCTION 19

FRAME FUNCTION....20

BIG SIZE FUNCTION 21

TAPE MARGIN FUNCTION 23

MIRROR PRINTING FUNCTION....24

PRINT KEY & FEED FUNCTION.... 25

NUMBERING FUNCTION 25

REPEAT PRINTING FUNCTION 27

MEMORY FUNCTIONS....28

TROUBLESHOOTING....31

ERROR MESSAGE LIST.... 32

SPECIFICATIONS 34

ACCESSORIES (For USA Only) 35

PT-1760 CONTACT INFORMATION (For USA Only) 37

Getting Started

GENERAL DESCRIPTION

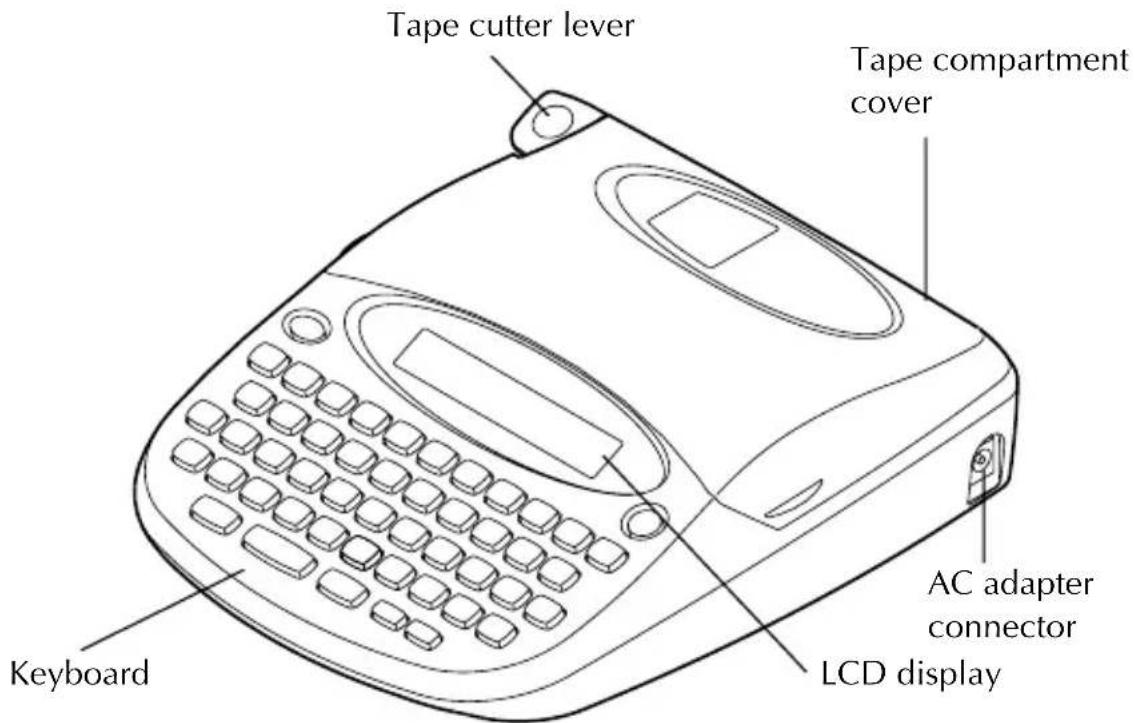

TOP VIEW

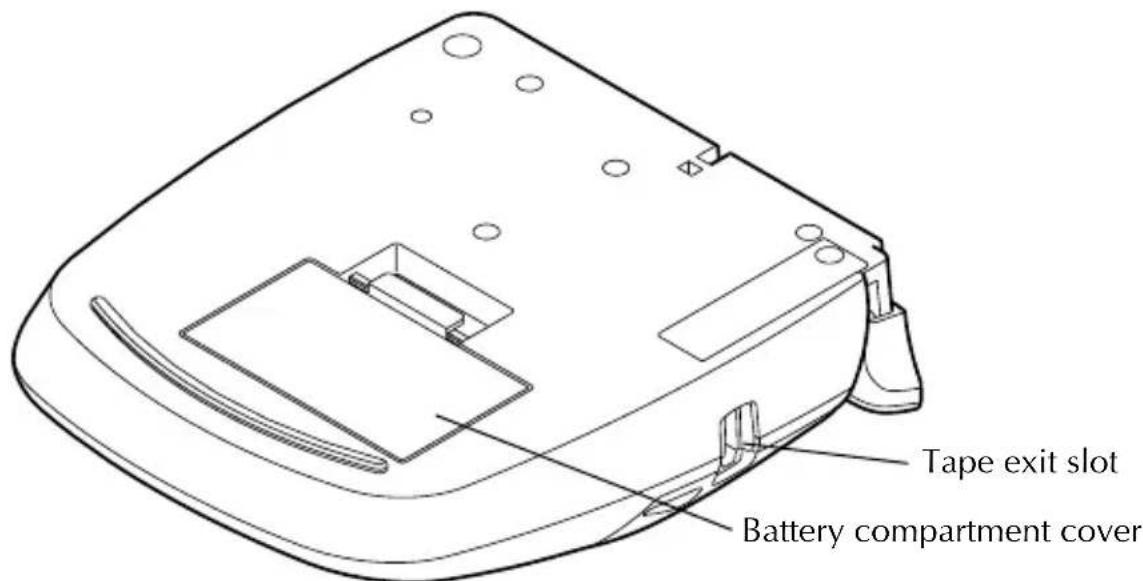

BOTTOM VIEW

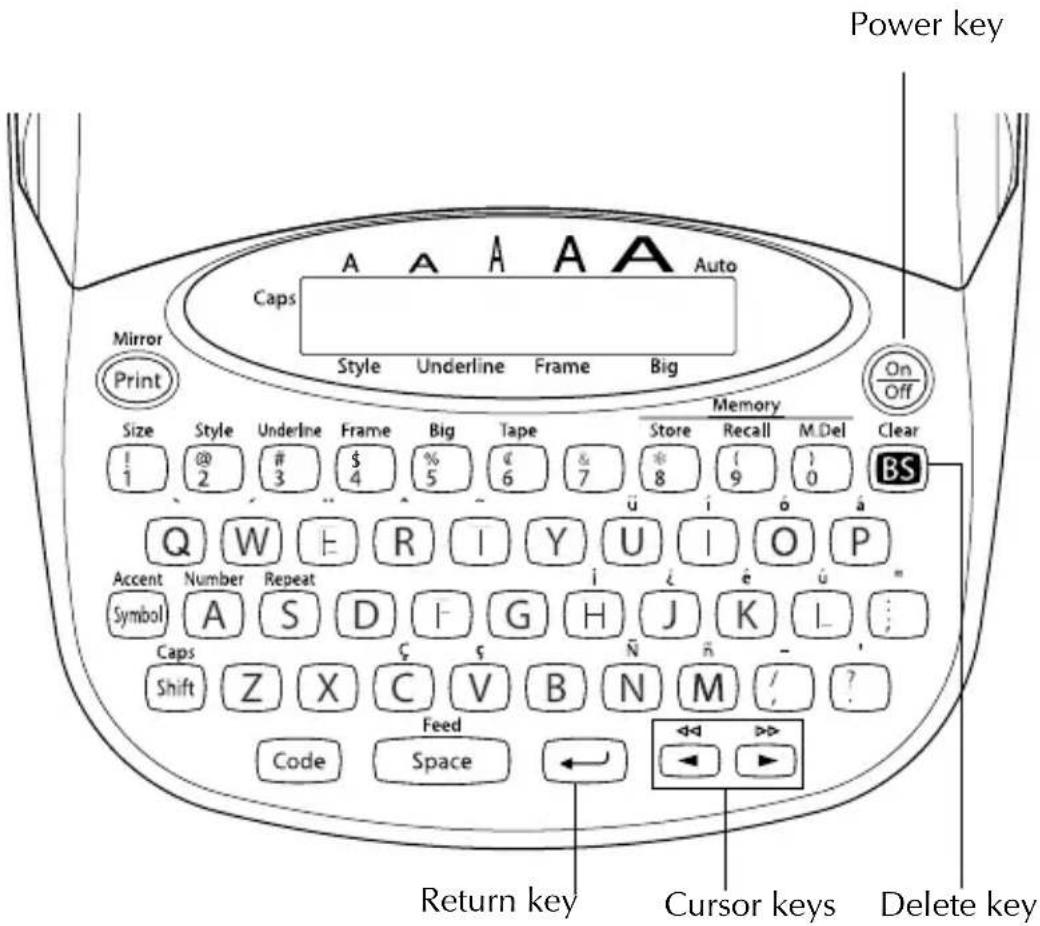

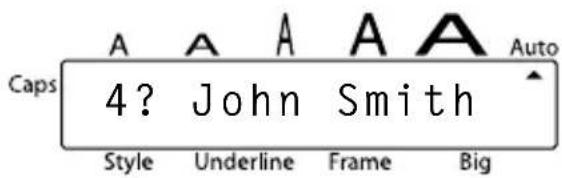

KEYBOARD & LCD DISPLAY

GENERAL PRECAUTIONS

- Use only Brother TZ tapes with this machine. Do not use tapes that do not have the mark.

- Do not pull on the tape being fed from the labeler. This may damage the tape cassette.

- Do not use the machine in dusty places, and keep it out of both direct sunlight and rain.

- Do not expose the machine to high temperatures or high humidity. Never leave it on the dashboard or in the back of your car.

- Do not leave any rubber or vinyl on the machine for an extended period of time. Doing so may cause staining.

- Do not clean the machine with alcohol or other organic solvents. Use a soft, dry cloth only.

- Do not put any foreign objects into or anything on the machine.

• T o avoid injuries, do not touch the cutter's edge.

- Use only the AC adapter (model AD-30) designed exclusively for this machine. Use of any other adapter will void the warranty.

- Do not try to disassemble the AC adapter.

- When the machine is not being used for a long period of time and it is not necessary to keep the text files stored in the memory, disconnect the AC adapter, and remove the batteries to prevent them from leaking and damaging the machine.

- When the AC adapter is connected, unplugging the adapter from the electrical outlet before unplugging it from the machine can delete all text files in the memory, even if batteries are installed.

- Use six AA batteries in this machine.

- T o prevent damage during shipment, a clear protective sheet is placed over the LCD panel. Remove this clear protective sheet before beginning use.

BATTERIES

This lightweight and portable machine can be used anywhere by installing six (6) AA batteries. When you change the batteries, always replace all six at the same time.

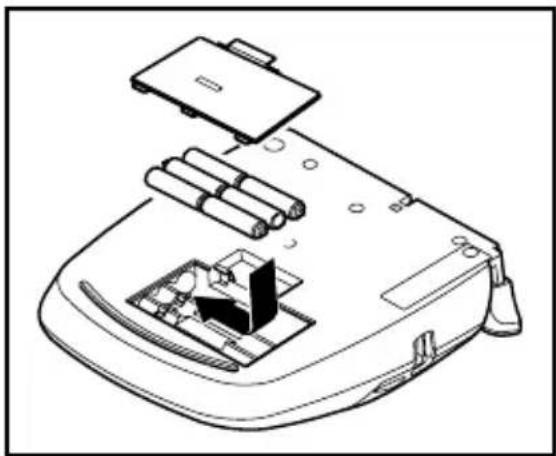

To change the batteries:

① Remove the battery compartment cover on the back of the machine.

② If batteries are already installed, remove them.

③ Insert six new AA batteries, making sure that they face the correct direction.

4 Attach the battery compartment cover.

Technical line drawing of a device with internal components and mounting holes (no text or symbols)

Be sure to insert the new batteries

within five minutes of removing the old ones, otherwise the text shown in the display and any text files stored in the memory will be lost (unless the machine is plugged into an AC outlet with the AC adapter).

AC ADAPTER

The AC adapter (model AD-30) allows you to use this machine wherever there is an electrical outlet.

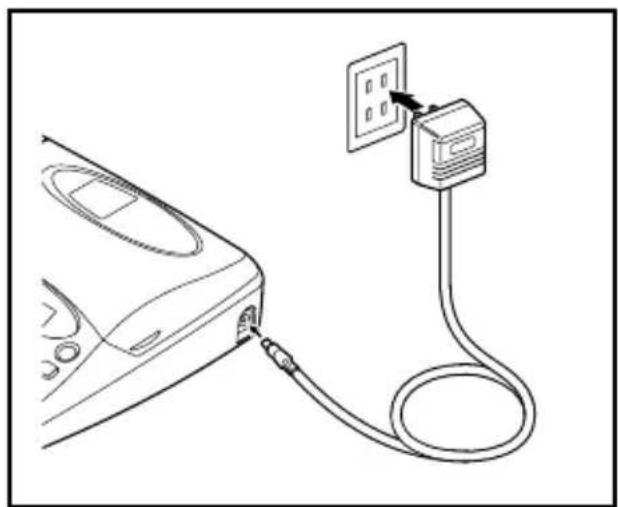

To connect the AC adapter:

1 Insert the plug on the adapter cord into the connector marked DC IN 7.0V on the right side of the machine.

② Insert the plug on the adapter into the nearest standard electrical outlet.

Only use the AC adapter designed exclusively for this machine.

Remove the batteries and disconnect the AC adapter if you do not intend to use this machine for an extended period of time. When the power is disconnected, all text shown in the display and stored in the memory will be lost.

It is recommended that you use the AC adapter when printing large fonts on 3/4" (18-mm)-wide tape since this operation can quickly drain the batteries.

Line drawing of a device connected to a wall-mounted electrical outlet (no text or symbols)

TAPE CASSETTE

Two TZ tape cassettes are supplied with this unit. However, since TZ tape cassettes are available for this machine in a wide variety of colors and sizes, it is possible to make distinctive color-coded and stylized labels.

In addition, this machine has been designed to allow you to change the tape cassettes quickly and easily.

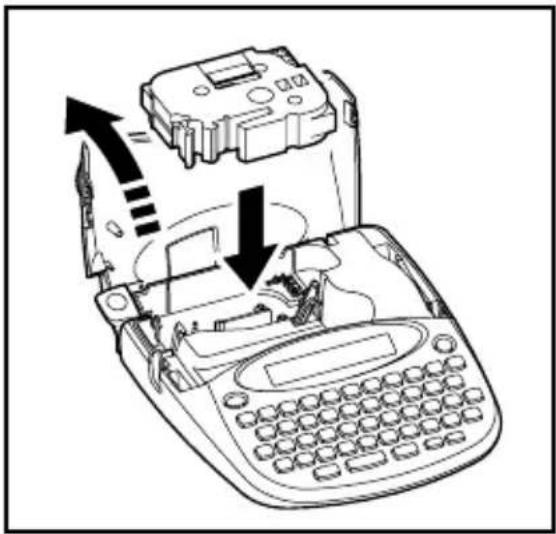

To change the tape cassette:

1 Lift open the tape compartment cover. The installed cassette is also released.

② If a tape cassette is already installed, remove it by pulling it straight up.

3 If the ink ribbon in the other tape cassette is loose, use your finger to wind the toothed wheel in the direction of the arrow on the cassette until there is no slack in the ribbon. Also, make sure that the end of the tape feeds under the tape guides.

If you are using a new tape cassette provided with a stopper, be sure to remove the stopper.

4 Insert the tape cassette firmly into the tape compartment, making sure that the entire back of the cassette touches the bottom of the compartment.

When inserting the tape cassette, make sure that the inner ribbon does not catch on the corner of the metal guide.

5 Close the compartment cover, then turn on the machine if it is off.

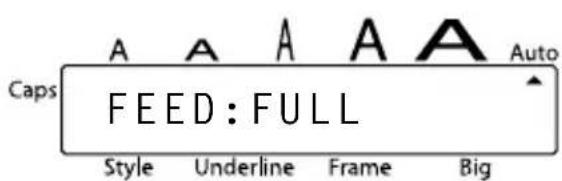

6 Hold down Code and press Feed Space once to advance the tape and remove any slack.

7 Push down on the tape cutter lever to cut off any excess tape.

Line drawing of a vintage typewriter with open circuit board and internal components, showing no text or symbols

ATTACHING LABELS

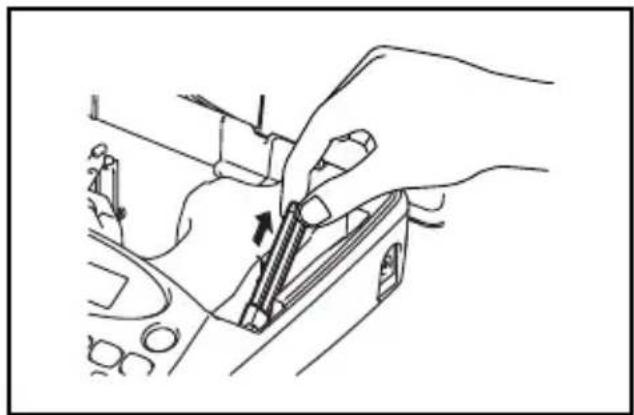

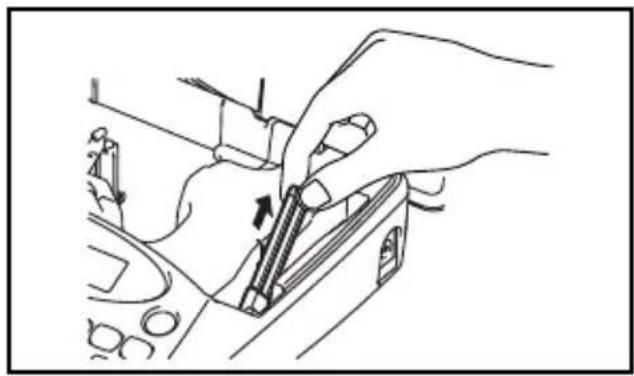

STICK

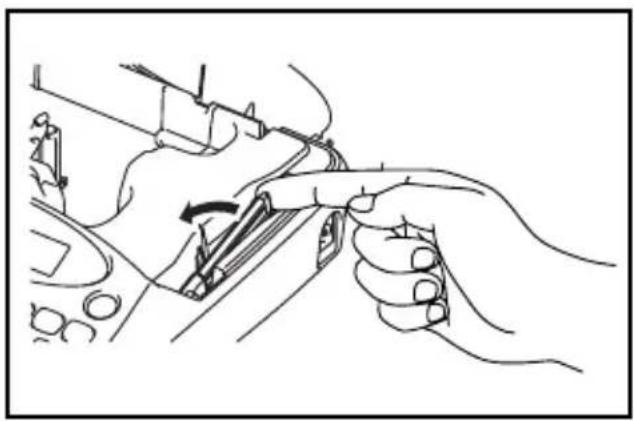

A stick is enclosed in the right side of the tape compartment cover of the labeler. Use this stick when pasting laminated tape to an object.

1 Open the tape compartment cover.

② Pull the tip of the stick towards you with your finger.

③ Hold the tip of the stick and pull up to remove it.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

LAMINATED TAPE

The enclosed stick enables you to easily remove the backing from labels printed on laminated tapes.

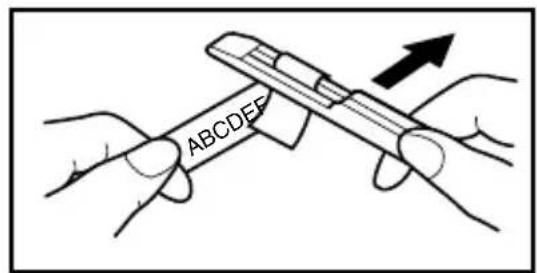

① Hold the tape in your left hand, with the printed surface facing up, and hold the stick in your right hand.
② Pass the tape halfway through the long narrow hole in the stick.

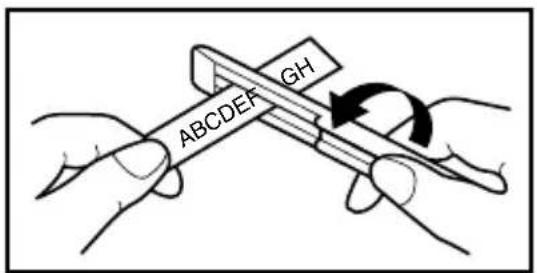

③ Turn the stick three-quarters of a turn towards you and pull the stick away from you as shown below.
4 Peel off the label backing.

FABRIC TAPE

Fabric tape is used to attach a piece of fabric printed with your text onto garments using an iron. After printing the text onto fabric tape and cutting off the label using scissors, place the label on an ironed garment at the location where you wish to attach it in such a way that the printed text can be read correctly. Cover the label with another piece of cloth and use an iron set to a medium-high temperature (320 to 356 °F (160 to 180 °C)) to press down firmly for 10 to 15 seconds. For more details, refer to the instructions included with the fabric tape cassette.

Occasionally, specks of dust or dirt become attached to the machine's print head and rollers. This is particularly likely when you are using the unit outdoors or in a very dusty environment. If a section of the print head is covered with dust, a blank horizontal streak may appear through the label text. Therefore, as with a tape recorder, the machine's head may need to be cleaned from time to time.

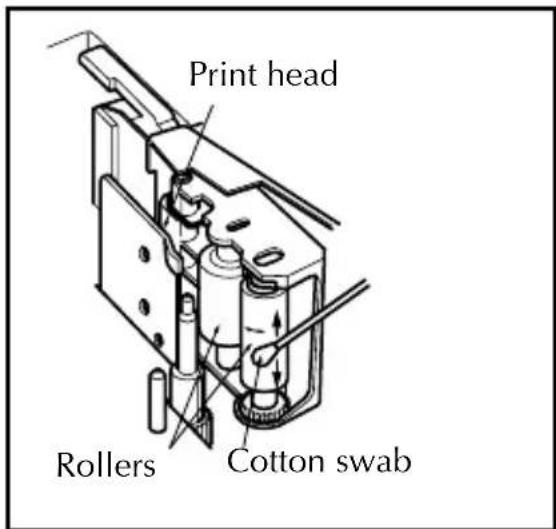

To clean the print head and rollers:

① Turn off the machine.
② Open the tape compartment cover, then remove the tape cassette if one is installed. The print head and rollers are located in the tape compartment.

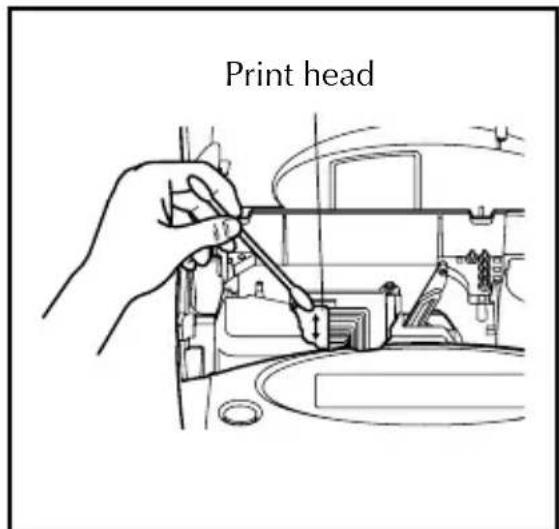

3 Print head: Use a dry cotton swab to gently wipe the print head with an up-and-down motion.

Rollers: Use a dry cotton swab to wipe each roller with an up-and-down motion while rotating them with your finger.

4 Install a tape cassette, close the tape compartment cover, and then try printing again.

⑤ If dust still remains, repeat steps ③ and ④ using a cotton swab dipped in isopropyl (rubbing) alcohol.

If none of the above works, contact your service representative.

Cleaning can also be done by using the optional print head cleaning cassette (TZ-CL4).

For Your Information

POWER KEY

The power key (On Off) is located in the top right-hand corner of the keyboard. If batteries have been installed or the machine has been plugged in using the AC adapter, the previous session's information is displayed when the machine is turned on. This feature allows you to stop work on a label, turn off the machine, and return to it later without having to re-enter the text.

If you press any key during the opening message, you can skip the message.

The machine will automatically turn off if no key is pressed within 5 minutes. The machine's internal memory stores the current session's information and displays it when you turn on the machine again.

To turn on the machine:

- Press On Off. The previous session's information appears in the LCD display.

To turn off the machine:

- Press On Off. The current session's information is stored in the internal memory.

CURSOR KEYS

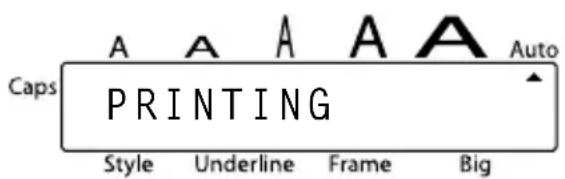

The machine's LCD display shows one row of 15 characters; however, the text that you create can be up to 60 characters long. You can review and edit your text by using the cursor keys to move the cursor so that different parts are shown in the display.

LEFT CURSOR KEY

To move the cursor one character to the left:

- Press ▶ once.

To move the cursor several characters to the left:

● Hold down ▶ until the cursor moves to the desired position.

To move the cursor to the beginning of the text line:

● Hold down Code and press

RIGHT CURSOR KEY

To move the cursor one character to the right:

- Press ▶ once.

To move the cursor several characters to the right:

● Hold down ▶ until the cursor moves to the desired position.

To move the cursor to the end of the text line:

● Hold down Code and press ▶.

CODE & SHIFT KEYS

Most characters can be entered simply by pressing their keys. However, to use special functions or to enter capital letters, accented characters and some symbols, the following special keys are necessary.

CODE KEY

To use a function printed above a key:

● Hold down Code and press the key immediately below the desired function.

EXAMPLE

To start the Feed function:

● Hold down Code and press Feed Space once.

SHIFT KEY

To type in a capital letter or a symbol printed in the top left-hand corner of a key:

● Hold down Shift and press the key of the desired letter or symbol.

EXAMPLE

To type in “%”:

● Hold down Caps Shift and press Big 5.

The Caps mode is similar to holding down Shift. It allows you to type capital letters continuously.

To type in many capital letters:

① Hold down Code and press Shift. The Caps indicator on the left side of the display lights up.

② Press the keys of the desired letters or symbols.
3 To exit Caps mode, hold down Code and press Caps Shift. The Caps indicator goes off.

SPACE KEY

The Space key (Feed Space) lets you add blank spaces between characters in your text. It is different from the right cursor key (▶), which just moves the cursor without adding blank spaces.

To add a space:

- Press Space.

EXAMPLE

To add a space:

- Press Space.

RETURN KEY

Like on a typewriter or word processor, this machine's return key (←) is used to end a line of text and start another one. When you have finished entering one line, press the return key to make a new line and move the cursor to it.

[Non-Text]

A label can only contain a maximum of two text lines. If you press when the cursor is located in the second line, the error message "2 LINE LIMIT!" will appear.

Maximum number of lines that can be printed	Tape widths
1 1/4" (6 mm)
2 3/8" (9 mm), 1/2' (12 mm), 3/4" (18 mm)

The return key can also be used to select an item from a list (e.g., add a symbol or accented character to the text) or to apply a selected setting.

Some questions asking you to confirm a command may appear on the LCD display, especially when the function that you have chosen will delete or affect files. In these cases, pressing ← is like answering "yes".

[Non-Text]

To answer "no", press BS. Refer to "BS KEY" on page 13.

To add a new line:

- Press ←. The return mark ( ↓ ) appears to indicate the end of the line.

To select an item from a list:

- Press ←.

To answer "yes":

- Press ←.

BS KEY

The delete key (Clear BS) allows you to remove characters to the left of the cursor's current position. It differs from the left cursor key (◀), which only moves the cursor without deleting any characters.

The delete key can also be used to quit most functions and return to the previous display without changing the text.

Some questions asking you to confirm a command may appear on the LCD display, especially when the function that you have chosen will delete or affect files. In these cases, pressing Clear BS is like answering "no".

To answer "yes", press ←. Refer to "RETURN KEY" on page 12.

To delete one character:

1 Press ▶ or ▶ to position the cursor below the character immediately to the right of the character that you wish to delete.

2 Press Clear BS once.

To quit a function without changing your text:

● Press Clear BS to return to your text.

To answer "no":

● Press Clear BS.

CLEAR FUNCTION

When clearing the display before entering new text, the Clear function can be used to choose whether all of the text is erased.

The Clear function only deletes the text. The format functions (Size, Style, Underline, Frame, Big size, Tape margin, and Mirror printing) do not return to the default settings, but stay as they are.

To delete all of the text:

1 Hold down Code and press BS.

2 All of the text will be deleted.

©

To type in an accented character:

1 Hold down Code and press Symbol. The message "A – U?" appears on the display.
2 Press the key of the letter in the desired accented character.

To type a capital letter, hold down Caps Shift (or hold down Code and press Caps Shift to turn on Caps mode) before pressing the letter key.

3 Press ◀ or ▶ until the cursor is under desired accented character.
4 Press ←. The accented letter is added to the text.

EXAMPLE

To add the accented character "É":

1 Hold down Code and press Accent Symbol.
2 Hold down Caps Shift and press E.
3 Press ▶ until the cursor is under É.
4 Press ←.

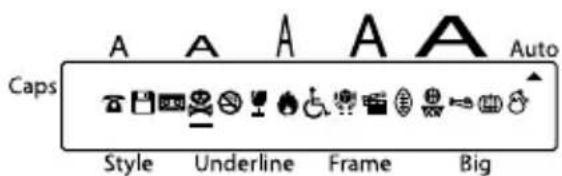

In addition to the letters, symbols and numerals on the key tops, there are 48 additional marks available with the Symbol function.

The following symbols are available:

Group Symbol
1						°	+		×	÷	=	TM	~
2	§	2	3	2	3	4	↑	↓	→	←
3
4

To type in a symbol:

① Press Accent Symbol. The message "1-4?" appears on the display.
2 Press a key 1 to 4 to choose the set that contains the desired symbol.
3 Press ◀ or ▶ until the cursor is under the desired symbol.
4 Press ←. The symbol appears in the text.

EXAMPLE

To add the symbol “然

1 Press Accent Symbol.
2 Press Underline

3.

3 Press ▶ until the cursor is under.
4 Press ←.

SIZE FUNCTION

The character size can be adjusted using the Size function. The following table shows the character sizes.

Size Character
SIZE 1 Standard Size
SIZE 2 Double Width
SIZE 3 Double Height
SIZE 4 Double Width & Double Height
SIZE 5 4 × Width & Double Height
AUTO	1/4" (6 mm) tape: SIZE 13/8" to 3/4" (9 mm to 18 mm) tape: SIZE 4

The default size setting is AUTO. The currently selected size setting is always shown by the indicator above the display.

	SIZE 1 SIZE 2 SIZE 3 SIZE 4 SIZE 5
Sample	A	A	A	A	A

When 6 mm tape is installed and SIZE 3, 4 and 5 is set for horizontal printing or SIZE 2, 4 and 5 is set for vertical printing, the "CHR_SIZE:AUTO?" message will display. Press ← to print in the AUTO size.

To change the size setting:

① While holding down Code, press once, and keep Code held down to display the current size setting.
2 While still holding down Code, continue pressing ! until the desired size setting is displayed and is shown by the size indicator.

The current character size setting is also shown by the size indicator above the display.

3 Release Code to apply the selected size setting to the entire text.

EXAMPLE

To select SIZE3:

1 While holding down Code, press once, and keep Code held down.

2 While still holding down Code, continue pressing i until SIZE3 is displayed.

③ Release Code.

STYLE FUNCTION

You can choose from nine different character styles to apply to your text.

Characters printed using the smaller sizes may be difficult to read if certain style settings (e.g., ITALIC+SHADOW) are selected.

The following style settings are available:

NORMAL, OUTLINE, BOLD, SHADOW, ITALIC,

ITALIC+OUTLINE, ITALIC+BOLD, ITALIC+SHADOW, VERTICAL

The default style setting is NORMAL. The style indicator at the bottom left of the display shows the current style setting when any setting other than NORMAL is selected.

Refer to Reference at the end of this section for samples of the available settings.

To change the style setting:

1 While holding down Code, press @2 once, and keep Code held down to display the current style setting.

2 While still holding down Code, continue pressing @ 2 until the desired style setting is displayed.

3 Release Code to apply the selected style setting to the entire text.

If there are two lines of text, they are printed in the NORMAL style, regardless of the selected style setting.

EXAMPLE

To select the ITALIC+SHADOW style setting:

① While holding down Code, press @ 2 once, and keep Code held down.

2 While still holding down Code, continue pressing @ 2 until ITALIC+SHADOW is displayed.

REFERENCE

Style Sample Style Sample
NORMAL	abc	ITALIC + OUTLINE	abc
OUTLINE	abc	ITALIC + BOLD	abc
BOLD	abc	ITALIC + SHADOW	abc
SHADOW VERTICAL	abc		###
ITALIC	abc

UNDERLINE FUNCTION

You can emphasize your text by underlining it.

The default underline setting is OFF. In this case, "TEXT" will show on the display. When the Underline function is set to UNDERLINE, the Underline indicator on the bottom of the display lights up.

The underline and frame settings can not be made at the same time.

ABC

To turn on or off the Underline function:

1 While holding down Code, press #3 once, and keep Code held down to display the current underline setting.
2 While still holding down Code, continue pressing #3 until the desired underline setting is displayed.

The Underline indicator lights up when the UNDERLINE setting is selected.

3 Release Code to apply the selected underline setting to the entire text.

EXAMPLE

To select the UNDERLINE setting:

1 While holding down Code, press #3 once, and keep Code held down.

2 While still holding down Code, continue pressing #3 until UNDERLINE is displayed.

③ Release Code.

FRAME FUNCTION

With the Frame function, you can choose from various frames and highlights to design a more decorative or emphasized label.

The following Frame settings are available:

TEXT, ROUND, WOODEN, POINTING, CANDY

The default frame setting is TEXT; however, other settings are also available. When any setting other than TEXT is selected, the Frame indicator on the bottom of the display lights up.

The underline and frame settings can not be made at the same time.

Refer to Reference at the end of this section for samples of the available settings.

To change the frame setting:

1 While holding down Code, press \$4 once, and keep Code held down to display the current frame setting.

2 While still holding down Code, continue pressing Frame \$4 until the desired frame setting is displayed.

The Frame indicator lights up when any setting other than TEXT is selected.

3 Release Code to apply the selected frame setting to the entire text.

EXAMPLE

To select the CANDY frame setting:

① While holding down Code, press once, and keep Code held down.

2 While still holding down Code, continue pressing \$4 until CANDY is displayed.

③ Release Code.

REFERENCE

Frame setting	Frame sample	Frame setting	Frame sample
TEXT		POINT-ING
ROUND CANDY
WOODEN

BIG SIZE FUNCTION

The Big Size function can be used when 3/4" (18 mm) tape is inserted and one row of text is entered. When printing with the Big Size function turned on, letters entered in lowercase will be printed as uppercase letters.

OFF ON
ABC	ABC

The default setting is OFF. When you turn the Big Size function ON, the Big indicator will light up in the bottom right of the display.

If you change any of the Size, Style, Underline, or Frame settings after making the Big Size setting, the Big Size font will automatically return to the default value and Size, Style, Underline, or Frame settings will take precedence.

If the Big Size setting is made when tape other than 3/4" (18 mm) is inserted, the message "CHR_SIZE:AUTO?" will display. Press ← to print in the AUTO size.

To change the Big Size setting:

1 Insert the 3/4" (18 mm) tape cassette and enter one row of text.
2 While holding down Code, press % once, and keep Code held down to display the current setting.
③ While still holding down Code, press 5 to make the ON setting.

The Big indicator lights up when the ON setting is made.

4 Release Code to apply the selected setting to the entered text.

EXAMPLE

To select the Big Size ON setting:

1 While holding down Code, press 5 once, and keep Code held down.

2 While still holding down Code, continue pressing 5% until ON is displayed.

3 Release Code.

TAPE MARGIN FUNCTION

The Tape margin function allows you to adjust the size of the margins on the left and right sides of your text.

The default tape margin setting is FULL; however, three other settings are also available.

FULL

(1" (25 mm margins))

NONE

(1/12" (2 mm margins))

NARROW

(1/6" (4 mm margins))

HALF

(1/2" (12 mm margins))

ABC

ABC

ABC

ABC

After printing using the NARROW and HALF tape margin settings, push down on the tape cutter lever to cut off the label, then use scissors to cut along the printed dots (:) to center the text within the label.

To change the tape margin setting:

① While holding down Code, press 6 once, and keep Code held down to display the current tape margin setting.
2 While still holding down Code, continue pressing Tape until the desired tape margin setting is displayed.
3 Release Code to apply the selected tape margin setting to the entire text.

EXAMPLE

To select the HALF tape margin setting:

1 While holding down Code, press once, and keep Code held down.
2 While still holding down Code, continue pressing 6 until HALF is displayed.
③ Release Code.

MIRROR PRINTING FUNCTION

With this function, you can print your text so that the characters can be read from the tape side of the tape. If mirror-printed labels are attached to glass or some other clear material, they can be read correctly from the opposite side.

When using the Mirror printing function, the text should be printed on clear tape. The default mirror printing setting is OFF.

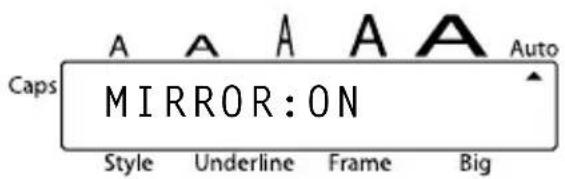

MIRROR : ON

ABC

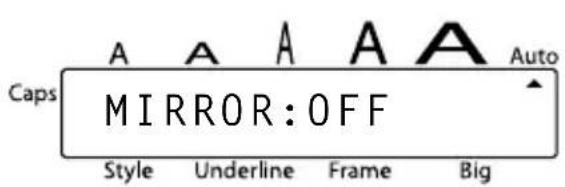

To turn on or off the mirror printing setting:

1 While holding down Code, press Print once, and keep Code held down to display the current mirror printing setting.
2 While still holding down Code, continue pressing Print until the desired mirror printing setting is displayed.
3 Release Code to apply the selected mirror printing setting to the entire text.

EXAMPLE

To select the ON mirror printing setting:

1 While holding down Code, press once, and keep Code held down.

2 While still holding down Code, continue pressing Mirror Print until ON is displayed.

③ Release Code.

PRINT KEY & FEED FUNCTION

After you have entered your text and chosen the desired format settings, you are ready to print.

To print a label:

- Press Print once. The message "PRINTING" is displayed.

To feed the tape:

● Hold down Code and press Space once. 1" (25 mm) of tape is fed out.

To cut the tape:

● Push down on the tape cutter lever.

In order to prevent damaging the tape, do not try to cut it while printing or feeding. Pushing down on the tape cutter lever too far may break it.

EXAMPLE

To make a label using the NONE tape margin setting:

1 Press Mirror Print once.

2 Hold down Code and press Feed Space once.

③ Push down on the tape cutter lever.

NUMBERING FUNCTION

This function can be used to print many copies of the same text while increasing a certain number in the text by 1 after each label is printed.

To use the Numbering function:

① Press ▶ or ▶ to position the cursor below the number that you wish to increase.
2 Hold down Code and press A. The message "NUMBER:1-9?" appears in the display.
3 Press the number key ( to 9 ) of the last number that is to be printed.
To cancel the Numbering, hold down Code and press Number A (or press just BS).
4 Press Mirror (or ←) to begin printing the labels.

5 Press down on the tape cutter lever to cut the tape, and then use scissors to cut along the printed dots to separate the labels.

EXAMPLE

To print three labels with numbers 1, 2 and 3:

1 Position the cursor below "1".

② Hold down Code and press Number A.

3 Press Underline # 3.

4 Press Mirror (or ←).

⑤ Press in the tape cutter lever to cut the tape, then use scissors to cut along the cutting guide to separate the labels.

REPEAT PRINTING FUNCTION

This function allows you to print up to 9 copies of the same text.

To use the Repeat printing function:

1 Hold down Code and press S. The message "REPEAT:1-9?" appears in the display.
2 Press the number key ( Size to Recall ) of the number of labels that you want.

To cancel the Repeat printing, hold down Code and press S (or press just BS).

3 Press (or ←) to begin printing the labels.
4 Press down on the tape cutter lever to cut the tape, and then use scissors to cut along the printed dots to separate the labels.

EXAMPLE

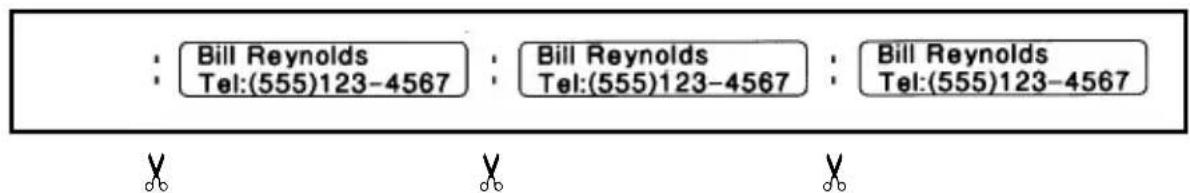

To print three copies of a label:

1 Hold down Code and press Repeat S.

2 Press Underline

3.

3 Press Mirror (or ←).

4 Press in the tape cutter lever to cut the tape, then use scissors to cut along the cutting guide to separate the labels.

MEMORY FUNCTIONS

You can use the memory to store your most frequently used text files. The text remains in the memory, even after all characters are removed from the display using the Clear function (holding down Code and pressing BS).

When each file is stored, it is given a number to make recalling it easier. Up to 9 text files or about 300 characters can be stored in the memory. Each stored text file can have a maximum of 60 characters.

Since a copy of the stored text file is recalled when the Recall function is used, the text can be edited or printed without changing the originally stored file. When a file is no longer needed or more space is necessary, the Memory delete function can be used to delete it.

When inserting new batteries, be sure to insert the new ones within five minutes of removing the old ones, otherwise any text files stored in the memory will be lost (unless the machine is plugged into an electrical outlet with the AC adapter).

STORING TEXT

To store a text file:

① Hold down Code and press Store *8. The message "STORE:1–9?" appears on the display.

If 300 characters have already been stored, the error message "MEMORY FULL!" appears in the display. If this occurs, an existing text file must be deleted before the new one can be stored.

2 Press the key ( Size to Recall ) of the file number where you wish to store the text. The text is stored under the selected file number and the text previously shown in the display reappears.

If a file is already stored under the selected file number, the message "OVERWRITE?" appears in the display and you must decide whether or not to overwrite it (delete it from the memory and store the new one).

To quit the Store function without storing the text, hold down Code and press *8 (or press just BS).

To overwrite the stored file with the new one:

- Press ← to delete the previously stored file and store the new one under the selected number.

To go back and choose another file number without overwriting the text file, press Clear BS, and then press the key of a different file number.

RECALLING TEXT

To recall a text file:

1 Hold down Code and press 9 . The message “RECALL:1–9?” appears on the display.

2 Press the key ( Size to Recall ) of the file number containing the text that you wish to recall. The text stored under the selected file number is shown.

To quit the Recall function without recalling text, hold down Code and press (or press just BS).

3 Press ←. Any text previously entered in the display is erased and the text stored under the selected file number is recalled into the display.

DELETING A FILE

To delete a text file:

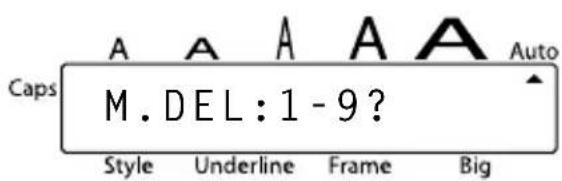

1 Hold down Code and press 0. The message "M.DEL:1-9?" appears on the display.
2 Press the key (☐ to ☐) of the file number containing the text that you wish to delete. The text stored under the selected file number is shown.

To cancel the Memory delete function without deleting the text file, hold down Code and press Recall (or press just Clear BS).

3 Press ← to delete the text file that was selected.

EXAMPLE

To store text under file number 4:

① Hold down Code and press Store *8.

2 Press Frame 4 .

③ Press ←.

To recall the text from file number 4:

① Hold down Code and press Recall 9.

② Press Frame 4 .

③ Press ←.

To delete the text stored under file number 4:

① Hold down Code and press M.Del 0.

② Press Frame 4 .

③ Press ←.

TROUBLESHOOTING

Problem Remedy
1. The display stays blank after you have turned on the machine.	Check that the AC adapter is connected correctly.If you are using batteries, check that they are correctly inserted.If the batteries are low, replace them with new ones.
2. The machine does not print or the printed characters are blurred.	Check that the tape cassette has been inserted properly.If the tape cassette is empty, replace it with a new one.Make sure that the tape compartment cover has been closed.
3. The text files that you stored in the memory are no longer there.	If the batteries are low, replace them with new ones.
4. The printed characters are not formed properly.	If you are using batteries, they may be low.Try using the AC adapter or replace the batteries with new ones.
5. A blank horizontal line appears through the printed label.	Clean the print head as explained on page 8.
6. Striped tape appears. You have reached the end of the tape.Replace the tape cassette with a new one.
7. The machine has “locked up” (i.e., nothing happens when a key is pressed, even though the machine is on.)	Turn off the machine, and then while holding down Code and R, press On Off to turn the machine back on.Finally, release Code and R.The text and formats in the display and all text files stored in the memory are erased.

ERROR MESSAGE LIST

Error Message Cause Remedy
2 LINE LIMIT! This message appears if two lines already exist when you press ←.		Limit the number of lines to two.
BATTERY WEAK! This message appears when the installed batteries become weak.		Replace the batteries or use the AC adapter.
BUFFER EMPTY! • This message appears if you try to print, but no text has been entered. • This message appears if you hold down Code and press Number A, but no text has been entered in the display. • This message appears if you hold down Code and press Repeat S, but no text has been entered in the display. • This message appears if you hold down Code and press Store *8, but no text has been entered in the display.		• Enter text before printing. • Enter some text before starting the function. • Enter some text before starting the function. • Enter some text before starting the function.
BUFFER FULL!	This message appears if you try to enter a character, symbol, accent, return or space after 60 characters have already been entered.	Delete some existing text so that more text can be entered.
CHANGE ADAPTER	This message appears if a high-voltage adapter is being used.	Remove the high-voltage adapter and connect the adapter designed exclusively for this machine.
CUTTER ERROR! This	message appears if the tape cutter lever is pressed down while a label is being printed.	Release the tape cutter lever.
INVAL. CHRS! This message	message appears if the cursor is not below a number when you hold down Code and press Number A.	Move the cursor below a number before holding down Code and press Number A.
LINE LIMIT! This message	appears if the number of lines in the text is greater than the maximum number of lines possible for the installed tape.	Reduce the number of lines or install a tape of greater width.
MEMORY FULL! This message	appears if you try to store a text file after 300 characters have already been stored in the memory.	Delete an unwanted file to make room for the new one.
NO FILES! This message	appears if you try to recall or delete a text file from the memory when none are stored.	Store a text file first.
NO TAPE! This message	appears if you try to print a label or feed the tape when no tape cassette is installed.	Install a tape cassette and try again.
TOO SMALL! This message	appears if the number that is set to be printed using the Numbering function is less than the number above the cursor.	Press the key of a number that is greater than the number in the text.

SPECIFICATIONS

HARDWARE

Input Device: Keyboard - 49 keys

LCD: 7 × 5 dots

15 characters × 1 line 11 indicators

Print Tape: Pressure-sensitive, Adhesive-based

26' 3" (8 m) long Four widths available 1/4" (6 mm) 3/8" (9 mm) 1/2" (12 mm) 3/4" (18 mm)

Power Supply: Six AA batteries (AA/SUM-3/AM3/R6/LR6) or AC adapter

Auto power-off if no key is pressed for 5 minutes

Print Head: 64 dot / 180 dpi

Dimensions: 6 9/10" (W) × 7 9/10" (D) × 2" (H)

(176×201.5×52mm)

Weight: 1.4 lbs (650 g) (without a tape cassette and batteries installed)

SOFTWARE

Buffer Size: Maximum 60 characters

Maximum two lines

Memory Size: 300 characters

Character Size: Six sizes (AUTO, SIZE1, SIZE2, SIZE3, SIZE4, SIZE5)

+ Big (only when 3/4" (18 mm) tape installed)

Print Styles: Normal, Outline, Bold, Shadow

(each can be combined with Italic), and Vertical

ACCESSORIES (For USA Only)

● Supplies

Obtain tape cassettes from your nearest authorized dealer.

Use only Brother TZ tapes with this machine. Brother cannot be held responsible for trouble caused by the use of unauthorized supplies. Do not use tapes that do not have the TZ mark.

*all tapes are 26.2' long unless otherwise noted

Stock No.	Description	QTY/PACKAGE	PRICE
Extra Strength Adhesive Tapes: Super Adhesive Strength: laminated tapes with twice the adhesive strength Ideal for textured surfaces and harsh environments
TZ-S111	1/4" (6 mm) strong adhesive black characters on clear adhesive	1 15.9	9
TZ-S121	3/8" (9 mm) strong adhesive black characters on clear adhesive	117.9	9
TZ-S131	1/2" (12 mm) strong adhesive black characters on clear adhesive	1 18.9	9
TZ-S135	1/2" (12 mm) strong adhesive white characters on clear adhesive	118.9	9
TZ-S141	3/4" (18 mm) strong adhesive black characters on clear adhesive	1 21.9	9
TZ-S145	3/4" (18 mm) strong adhesive white characters on clear adhesive	121.9	9
TZ-S211	1/4" (6 mm) strong adhesive black characters on white adhesive	1 15.9	9
TZ-S221	3/8" (9 mm) strong adhesive black characters on white adhesive	117.9	9
TZ-S231	1/2" (12 mm) strong adhesive black characters on white adhesive	1 18.9	9
TZ-S241	3/4" (18 mm) strong adhesive black characters on white adhesive	121.9	9
TZ-S611	1/4" (6 mm) strong adhesive black characters on yellow adhesive	1 15.9	9
TZ-S621	3/8" (9 mm) strong adhesive black characters on yellow adhesive	117.9	9
TZ-S631	1/2" (12 mm) strong adhesive black characters on yellow adhesive	1 18.9	9
TZ-S641	3/4" (18 mm) strong adhesive black characters on yellow adhesive	121.9	9
TZ-S941	3/4" (18 mm) strong adhesive black characters on silver (matte) adhesive	1 25.9	9
Flexible ID Tapes: Special Adhesive for Bending, Wrapping & Flagging
TZ-FX231	1/2" (12 mm) flexible ID tape (black characters on white adhesive)	118.9	9
TZ-FX241	3/4" (18 mm) flexible ID tape (black characters on white adhesive)	1 21.9	9
Tamper Evident Tapes: Security Pattern Appears If Removed
TZ-SE4	Black characters on 3/4" (18 mm) security adhesive	129.9	9
Fabric Iron-On Tapes:
TZ-FA3	Blue characters on 1/2" (12 mm) white fabric adhesive 9.8' tape length	1 24.9	9
Print Head Cleaning Cassette:
TZ-CL4	Print Head Cleaning Cassette approx. 100uses 120.9	9

Standard Laminated Tapes:

Stock No.	Description	QTY/PACKAGE	PRICE
3/4" (18mm)-wide laminated tapes
TZ-141 Black characters on clear adhesive 1 18.99
TZ-145 White characters on clear adhesive 120.99
TZ-241 Black characters on white adhesive 1 20.99
TZ-242 Red characters on white adhesive 120.99
TZ-243 Blue characters on white adhesive 1 20.99
TZ-344 Gold characters on black adhesive 123.99
TZ-345 White characters on black adhesive 1 23.99
TZ-441 Black characters on red adhesive 120.99
TZ-541 Black characters on blue adhesive 1 20.99
TZ-545 White characters on blue adhesive 123.99
TZ-641 Black characters on yellow adhesive 1 20.99
TZ-741 Black characters on green adhesive 120.99
TZ-B41 Black characters on fluorescent orange adhesive 16.4' tape length		1 24.99
TZ-M41 Black characters on clear (matte) adhesive 120.99
TZ-WB41 Black characters on Bugs Bunny adhesive		1 23.99
TZ-WT41 Black characters on Taz adhesive		123.99
TZ-WS41 Black characters on Tweety & Sylvester adhesive		1	23.99
1/2" (12mm)-wide laminated tapes
TZ-131 Black characters on clear adhesive 116.99
TZ-135 White characters on clear adhesive 1 17.99
TZ-231 Black characters on white adhesive 117.99
TZ-232 Red characters on white adhesive 1 17.99
TZ-334 Gold characters on black adhesive 120.99
TZ-335 White characters on black adhesive 1 20.99
TZ-631 Black characters on yellow adhesive 117.99
3/8" (9mm)-wide laminated tapes
TZ-121 Black characters on clear adhesive 1 14.99
TZ-221 Black characters on white adhesive 116.99
TZ-325 White characters on black adhesive 1 18.99
TZ-421 Black characters on red adhesive 116.99
1/4" (6mm)-wide laminated tapes
TZ-111 Black characters on clear adhesive 1 12.99
TZ-211 Black characters on white adhesive 114.99
TZ-315 White characters on black adhesive 1 $17.99

Options

Stock No.	Description	QTY/PACKAGE	PRICE
AD-30	AC adapter	1 $24.99

PT-1760 CONTACT INFORMATION (For USA Only)

Service Center Locations

If you need a local service center, please call 1-800-284-HELP (4357)

to locate the authorized service center closest to you.

Note: Be sure to call the Service Center before your visit.

Service centers do not provide operational assistance. See "Operational Assistance".

Operational Assistance

For technical and operational assistance you may call Brother Customer Service at:

Voice 1-877-4-PTouch, or Fax [phone]

Assistance on the Internet

For product information and downloading the latest drivers: http://www.brother.com

For purchasing accessories and certain Brother products: http://www.brothermall.com

Accessories and Supplies

To order Brother accessories or supplies by Visa, MasterCard, Discover or American Express, you may call toll tree 1-888-879-3232, or complete the order form in your user's guide and fax both sides of the form to 1-800-947-1445.

For purchasing accessories on the Internet: http://www.brothermall.com

To order by mail or pay by check, please complete the accessory order form and mail it along with payment to:

Brother International Corporation

Attn: Consumer Accessory Division

P.O. Box 341332

Bartlett, TN 38133-1332

Fax-Back System

Brother Customer Service has installed an easy-to-use Fax-Back System so you can get instant answers to common technical questions and product information for all Brother products.

This system is available 24 hours a day, 7 days a week. You can use the system to send the information to any fax machine, not just the one you are calling from.

Please call 1-800-521-2846 and follow the voice prompts to receive faxed instructions on how to use the system and an index of Fax-Back subjects.

Save Time - Register On-Line!

Don't stand in line at the post office or worry about lost mail. Visit us on-line at

www.registermybrother.com

Your product will immediately be registered in our database and you can be on your way!

Also, while you're there, look for contests and other exciting information!

ACCESSORY ORDER FORM (For USA Only)

Dear Customer:

This order form is provided for your convenience should your retailer not stock the item(s) needed. To order by mail, send this completed form along with proper payment to the address below OR credit card holders: call toll-free 1-888-879-3232, fax completed order form to 1-800-947-1445, or visit our web site at http://www.brothermall.com. Please refer to the Accessories listing in your User's Guide for stock no. and price.

Stock #	Description Quantity Price

To complete the Order Form:

1. Review the reverse side of this form and select the desired items.
2. Complete the form above, indicating the quantity of each item.
3. Total the columns and enter the total on the "Supply/Accessory Subtotal" line.
4. Add the appropriate Sales Tax and Shipping/Handling Charge.
5. Clearly print your name and address in the space below.
6. Place your order

a. Call toll free anytime 1-888-879-3232
b. Order on line at www.brothermall.com
c. Fax completed form to 1-800-947-1445
d. Mail completed form along with proper payment to

BROTHER INTERNATIONAL CORP.

Attn: Consumer Accessory Div.

P.O.Box 341332

Bartlett, TN 38184-1332

Supply / Accessory Subtotal: \$

AZ, CA, CO, CT, FL, GA, IL, LA,

MA, MD, MI, MN, MO, NC, NJ, NV,

NY, OH, PA, TN, TX, VA, WA, WI

residents add applicable sales tax: \$

Shipping and Handling Options \$

Please choose one:

• Standard Freight:
  • Continental U.S. (\$5.75)

Alaska and Hawaii (\$8.75)

GU, PR, VI (\$15.75)

• 2nd Day Air Freight
(Continental U.S. only): \$8.75
• Overnight Delivery
(Continental U.S. only): \$14.75

TOTAL DUE \$

No C.O.D. orders

Name:

Address:

City:

State:

Zip:

Daytime Phone #:

Daytime Fax #:

Email:

Your Model Number:

Prices subject to change without notice. All prices quoted in US Dollars.

Method of Payment (check one)

( ) Visa ( ) Master Card ( ) Discover
( ) Check/Money Order ( ) American Express

Account Number

Expiration Date

Signature

Billing Address (if different from shipping address at left)

ACCESSORY ORDER FORM (For USA Only)

Dear Customer:

This order form is provided for your convenience should your retailer not stock the item(s) needed. To order by mail, send this completed form along with proper payment to the address below OR credit card holders: call toll-free 1-888-879-3232, fax completed order form to 1-800-947-1445, or visit our web site at http://www.brothermall.com. Please refer to the Accessories listing in your User's Guide for stock no. and price.

Stock #	Description Quantity Price

To complete the Order Form:

1. Review the reverse side of this form and select the desired items.
2. Complete the form above, indicating the quantity of each item.
3. Total the columns and enter the total on the "Supply/Accessory Subtotal" line.
4. Add the appropriate Sales Tax and Shipping/Handling Charge.
5. Clearly print your name and address in the space below.
6. Place your order

a. Call toll free anytime 1-888-879-3232
b. Order on line at www.brothermall.com
c. Fax completed form to 1-800-947-1445
d. Mail completed form along with proper payment to

BROTHER INTERNATIONAL CORP.

Attn: Consumer Accessory Div.

P.O.Box 341332

Bartlett, TN 38184-1332

Supply / Accessory Subtotal: \$

AZ, CA, CO, CT, FL, GA, IL, LA,

MA, MD, MI, MN, MO, NC, NJ, NV,

NY, OH, PA, TN, TX, VA, WA, WI

residents add applicable sales tax: \$

Shipping and Handling Options \$

Please choose one:

• Standard Freight:
  • Continental U.S. (\$5.75)

Alaska and Hawaii (\$8.75)

GU, PR, VI (\$15.75)

• 2nd Day Air Freight
(Continental U.S. only): \$8.75
• Overnight Delivery
(Continental U.S. only): \$14.75

TOTAL DUE \$

No C.O.D. orders

Name:

Address:

City:

State:

Zip:

Daytime Phone #:

Daytime Fax #:

Email:

Your Model Number:

Prices subject to change without notice. All prices quoted in US Dollars.

Method of Payment (check one)

( ) Visa ( ) Master Card ( ) Discover
( ) Check/Money Order ( ) American Express

Account Number

Expiration Date

Signature

Billing Address (if different from shipping address at left)

INTRODUCCIÓN

TECLA DEL CURSOR ....7

TECLAS CODE Y SHIFT 7

TECLA DE RETORNO 8

Technical line drawing of a device with internal components and housing (no text or symbols)

Line drawing of a device with a cable and a wall-mounted power outlet (no text or symbols)

Line drawing of a digital typewriter with open circuit board and internal components, showing no text or symbols

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

CINTA LAMINADA

Brother International Corporation

Attn: Consumer Accessory Division

P.O. Box 341332

Bartlett, TN 38133-1332

www.registermybrother.com

Attn: Consumer Accessory Div.

P.O.Box 341332

Bartlett, TN 38184-1332

( ) Visa ( ) Master Card ( ) Discover
( ) Cheque/Girro postal ( ) American Express

Attn: Consumer Accessory Div.

P.O.Box 341332

Bartlett, TN 38184-1332

( ) Visa ( ) Master Card ( ) Discover
( ) Cheque/Girro postal ( ) American Express
