USER MANUAL E2262VWH AOC

LCD Monitor User Manual

E2262Vw/E2262VWH

E2462Vw/E2462Vwh

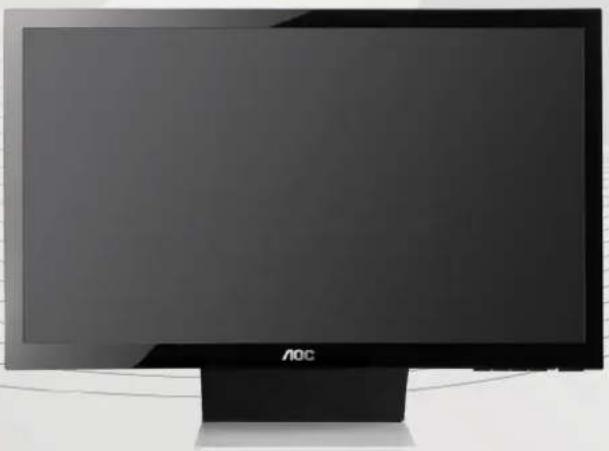

Black-and-white photo of a flat-screen monitor with 'AOC' branding on the front panel (no additional text or symbols visible)

Safety....4

National Conventions....4

Power 5

Installation....6

Cleaning....7

Other 8

Setup 9

Contents in Box 9

Setup Base & Stand Cover....10

Remove Base & Stand Cover....11

Adjusting Viewing Angle....12

Connecting the Monitor....13

Adjusting 14

Setting Optimal Resolution ...... 14

Windows Vista....14

Windows XP 16

Windows ME/2000....17

Hotkeys....18

OSD Setting....20

Luminance 21

Image Setup 22

Color Setup....23

Picture Boost 24

OSD Setup 25

Extra....26

Exit....27

LED Indicator 28

Driver 29

Monitor Driver 29

Windows 7....29

Windows Vista....33

Windows XP 35

Windows 2000....38

Windows ME....38

i-Menu 39

e-Saver 40

Screen+ 41

Troubleshoot 42

Specification....44

General Specification (21.5") 44

General Specification(23.6") 45

Preset Display Modes....46

Pin Assignments 47

Plug and Play....49

Regulation....50

FCC Notice 50

WEEE Declaration 51

WEEE Declaration for India....51

VCCI-B....51

EPA Energy Star 52

TCO DOCUMENT 53

Service....54

Warranty Statement for North & South America (excluding Brazil) 56

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V \~, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have CE,UL,CSA listed license (Only for monitors with power adapter).

Manufacturers:

1) TPV ELECTRONICS(FUJIAN) CO., LTD model : ADPC1236
2) TPV Display Technology(Wuhan) Co., Ltd : ADPC1236

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

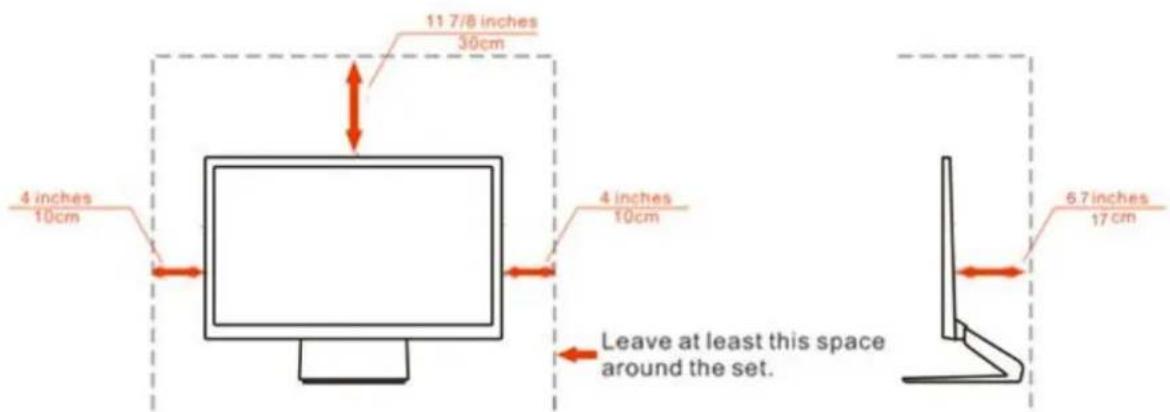

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the stand:

Installed with stand

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 6.7 inches 17 cm

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.

H₂O

Simple line drawing of a computer monitor with a cable and a switch, no text or symbols present

Line drawing of a hand interacting with a computer monitor displaying a curved line, with directional arrows indicating motion (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.

Setup

Contents in Box

Line drawing of a flat-screen computer monitor with 'AOC' branding on the front panel (no additional text or symbols)

Monitor

CD Manual

Power Cable

Stand

Base Cover

Analog Cable

DVI

HDMI

* Not all signal cables (Analog, DVI cables and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Base & Stand Cover

Setup:

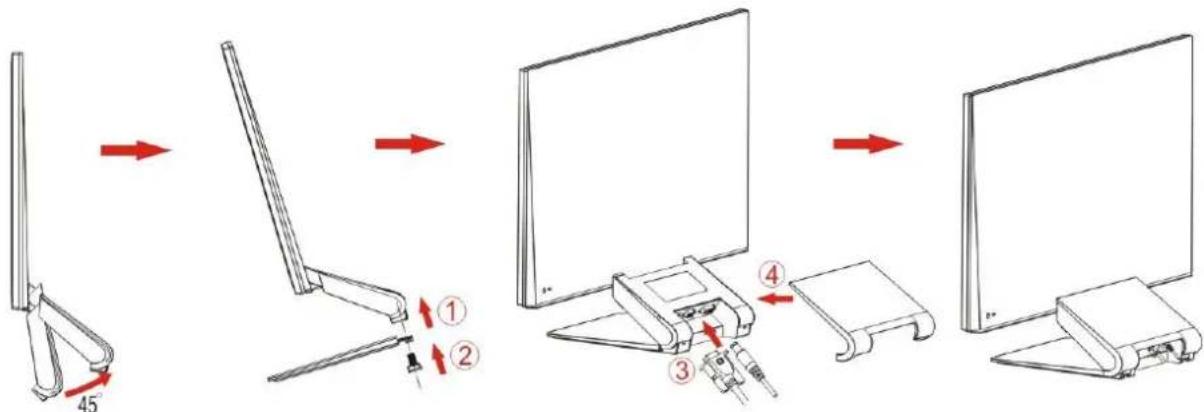

Please setup the base following the steps as below.

Diagram illustrating the step-by-step installation of a laptop stand, showing component positioning and assembly.

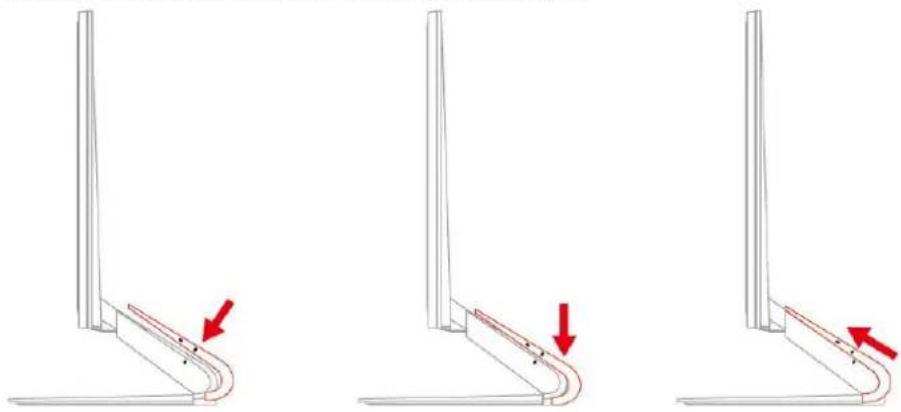

Please setup the stand cover following the steps below.

Three identical diagrams showing a curved mechanical component with red arrows indicating force or movement, no text or symbols present.

1. Align the arrowheads on the stand and the stand cover.
2. Inset the stand cover.
3. Push the stand cover upward till the locking mechanism locked into place.

Remove Base & Stand Cover

Remove

Please remove the stand cover following the steps as below.

Three identical diagrams showing a curved mechanical component with red arrows indicating motion or force direction (no text or symbols)

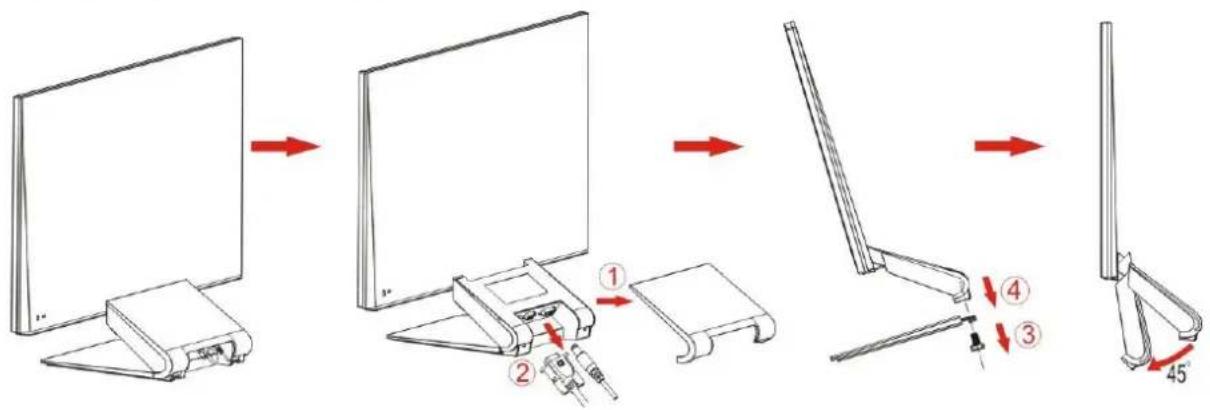

Please Remove the base following the steps as below.

Diagram illustrating the step-by-step assembly of a monitor with labeled parts and directional arrows indicating motion.

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

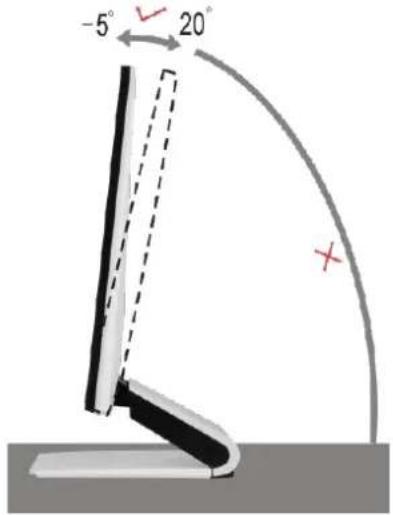

You are able to adjust the monitor's angle from -5^ to 20^ .

-5° 20°

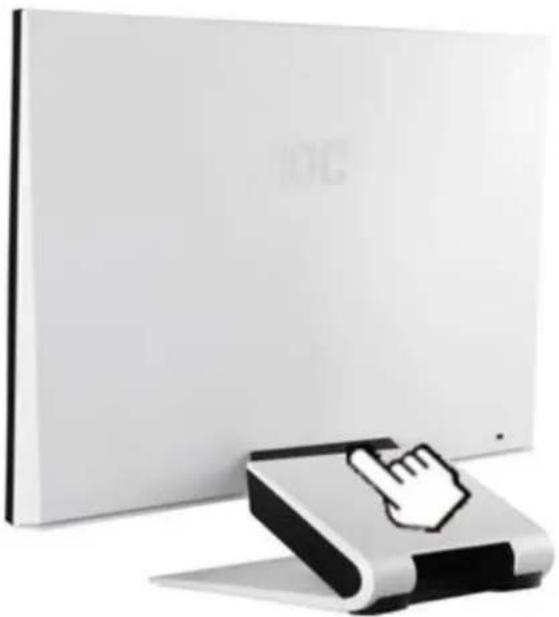

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Do not adjust the viewing angle over 20 degrees in order to avoid damage.

Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the viewing angle.

White electronic device with a hand cursor icon on its side, no visible text or symbols

Connecting the Monitor

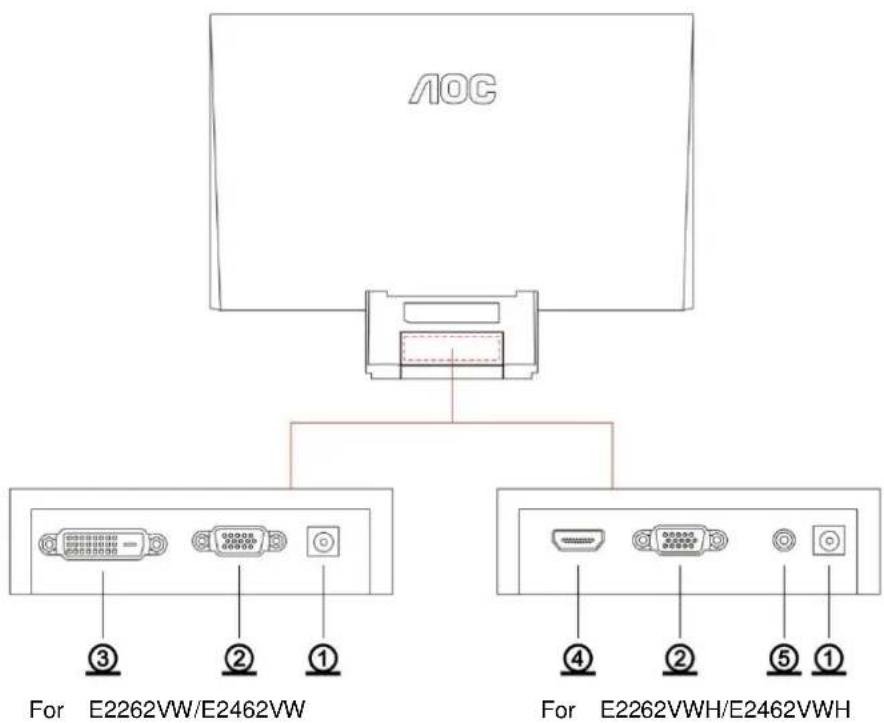

Cable Connections In Back of Monitor and Computer:

AOC For E2262VW/E2462VW ③ ② ① For E2262VWH/E2462VWH ④ ② ⑤ ①

1. DC port
2. Analog (DB-15 VGA cable)
3. DVI (E2262Vw/E2462Vw)
4. HDMI(E2262VWH/E2462VWH)
5. Audio(E2262VWH/E2462VWH)

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the DC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3. Optional –( Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer's DVI port.
4. Optional –(Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's HDMI port.
5. When connect with HDMI cable, the Audio output connector could work to connect with earphone or loudspeaker box.
6. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Adjusting

Setting Optimal Resolution

Windows Vista

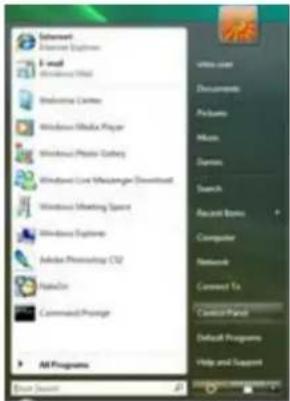

For Windows Vista:

1 Click START.
2 Click CONTROL PANEL.

Insergent Internet Explorer 1-mail Windows Outlook Database Links Windows Office Player Windows Physics Game Windows List Microsofts Download Windows Screening Space Windows Explorer Adobe Photoshop CS2 SnapOn Command Projector All Programs View out Documents Pictures Music Domains Search Recent Items Computer Network Connect To Control Panel Default Programs Help and Support

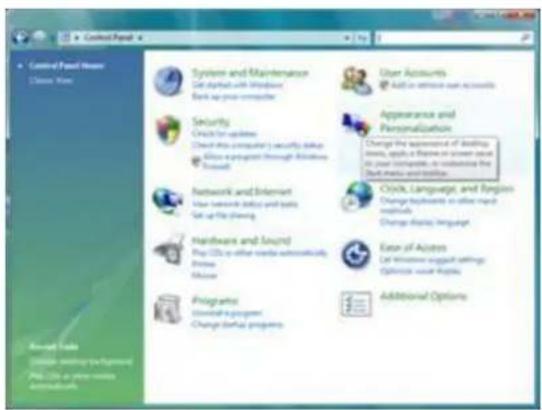

3 Click Appearance and Personalization.

Control Panel Options Change View System and Maintenance Get markets with Windows Back up your computer Security Check the rights Check this computer (e.g., utility) files Allow a program through wireless Showout Network and Internet View network (logs and tools) Set up the sharing Hardware and Sound Play CDs in other media automatically Windows Mouse Progractic Show all programs Change findings programs User Accounts Add to remote user accounts Appearance and Personalization Change the appointment of adding items, apply a theme or server needs to your computer. It is substantially the next menu and better. Chuck Language and Region Change highlights or other key methods Change charts language Ease of Access Let download a package pathage Optimize cloud display Additional Options Second Code (https://www.blogbook.org/) PDL: On or via the website aomark.com

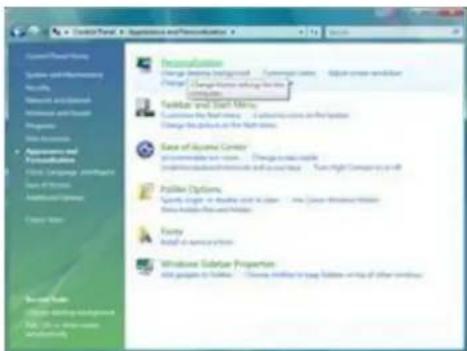

4 Click Personalization

Transaction Change in currency exchange - Customized currency - Quick order randomization Change in currency exchange to the first currency Translation and Credit Money Customizes the first time - Customized currency on the first Change in public as the first time Search of Income Currency and commercial currency - Change in market capital Information exchange and credit, and any time - Can't have Company or it off Profile Options Specific categories in which you can use - New Current Online Internet Show available free and access. Currency Add to services prices Windows Subinar Proportion Add people to customers - Choose additional to pay following up if any other currency

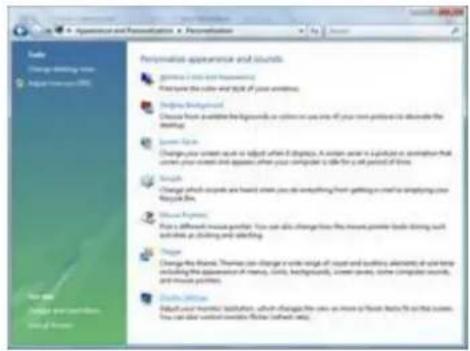

5 Click Display Settings.

Appearance and Personalization Personal appearance and soundsline glasses in the new environment First frame the audio and image of your ownings. Digital background Close from available backgrounds or images on your own image to illustrate the soundline. Sound system Change your screen area to subject what it displays. A small screen is displayed as a description that close your screen area appears, when your computer is able to read a short period of time. Smooth Change which sounds are heard about you to be something from getting in mind to designing your Risikay file. Visual perception Paste a different music portion. You can also change how the music portion adds driving and activity as driving and shifting. Change Change the theme. Thomas can change a wide range of audio and sounds, although at any time including the appearance of memory, cliffs, background, screen power, some computer windows, and wireless graphics. Audio effects Default using music/TV soundlines, which change the use as more to find necessary for us that uses. You can also understand how these tools help.

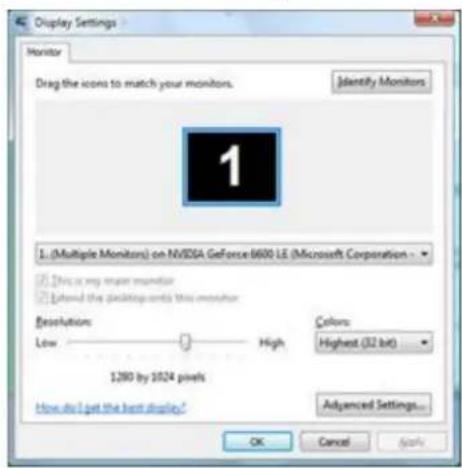

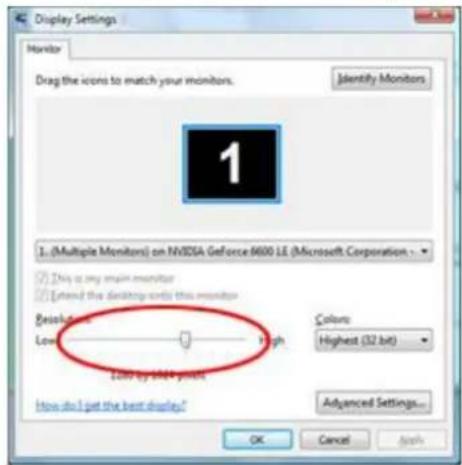

6 Set the resolution SLIDE-BAR to Optimal preset resolution

Display Settings Monitor Drag the icons to match your monitors. Identity Monitors 1 (Multiple Monitors) on NVIDIA GeForce 6000 LE (Microsoft Corporation) ✓ Dry is my main monitor ✓ Extend the desktop-only this monitor Resolution Low High Color: Highest (32 bit) Low by 544 points How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

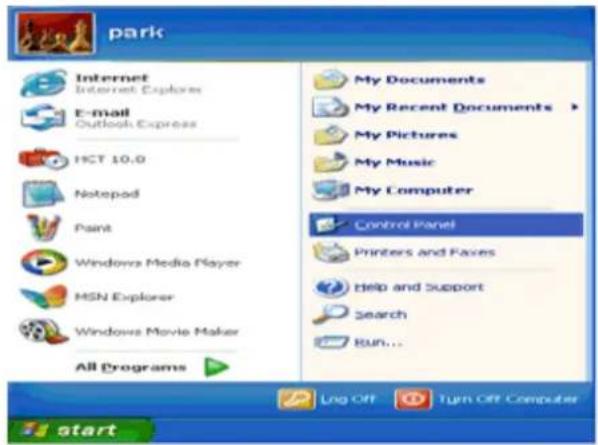

For Windows XP:

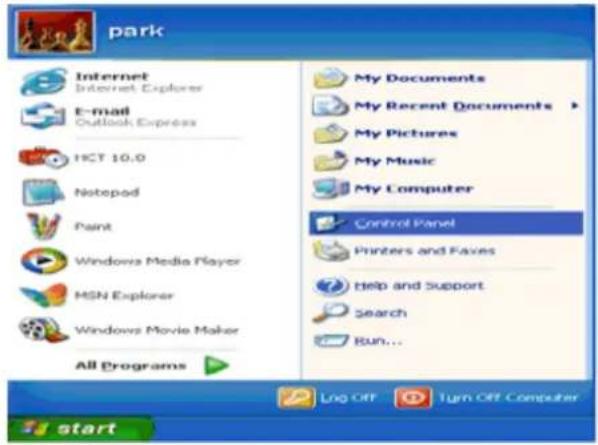

1 Click START.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.
3 Click CONTROL PANEL.

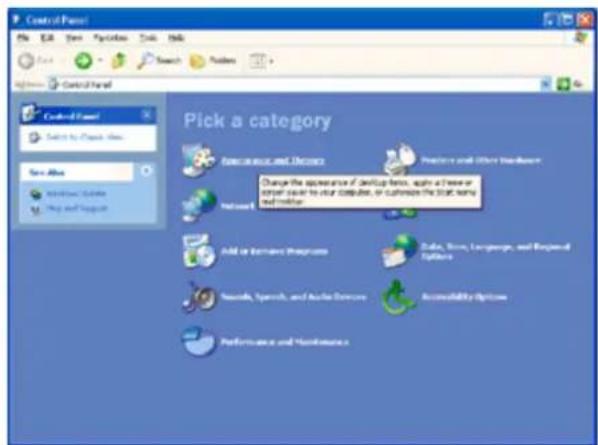

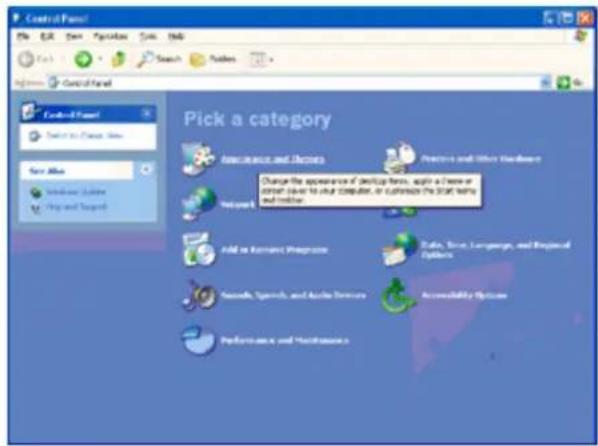

4 Click Appearance and Themes.

Control Panel File Edit View Options Tools Help Control Panel Control Panel Select to Create New... Save Asks Internet Options Img and Support Pick a category Search or your and library Practice and Other Handlower Choose the appearance of startup items, which is true or other user to your computer, or customize the first being and matter. Network Add or Remove Programs Delete, Save, Language, and Recycled Options Smooth, Speech, and Audio Exercises Accessible Options Performance and Maintenance

5 Double click DISPLAY.

Approve and Timers OK Apply Save Express Draw Help Back Search New Update Print Approve and Timers Save All Tools Mouse Patterns Auto Connection User Accounts Protocol Search & Settings Display Search Approve and Timers Pick a task... Change the computer's Infoor Change the desktop Background Change a software session Change the user modification or pick a Control Panel icon Browse Modify Options Change the appearance of your profile, such as the background, screen view, zoom, file size, and screen dimensions.

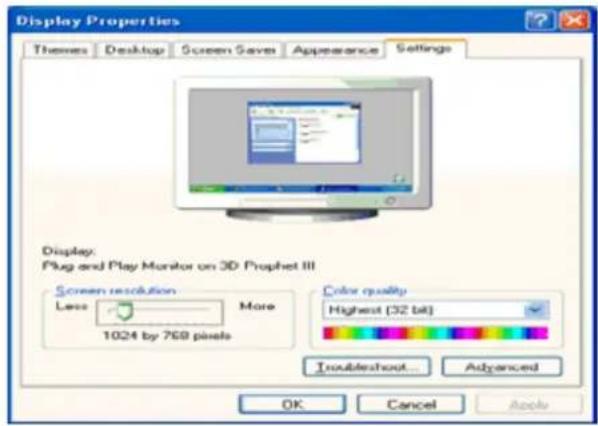

6 Click SETTINGS.

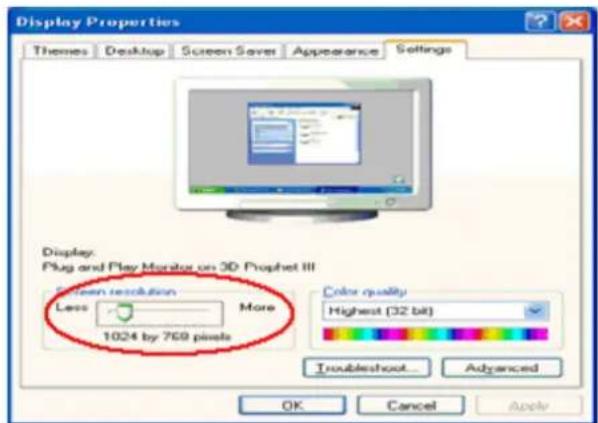

7 Set the resolution SLIDE-BAR to Optimal preset resolution

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot... Advanced OK Cancel Apply

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.

6 Set the resolution SLIDE-BAR to Optimal preset resolution

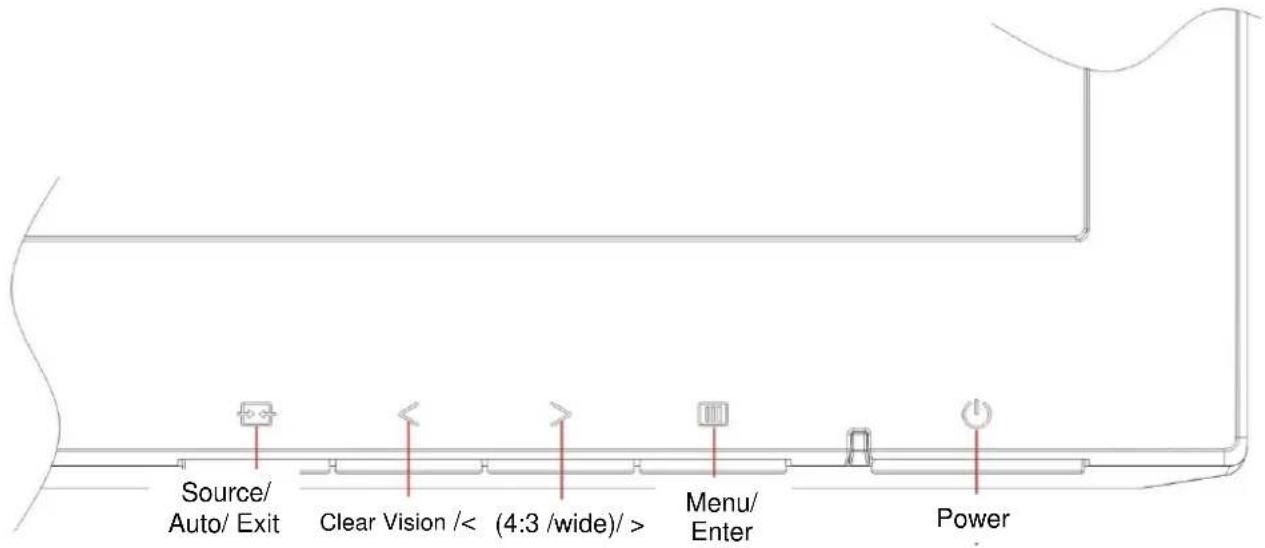

Hotkeys

For E2262Vw /E2462Vw

Source/ Auto/ Exit Clear Vision /< (4:3 /wide)/ > Menu/ Enter Power

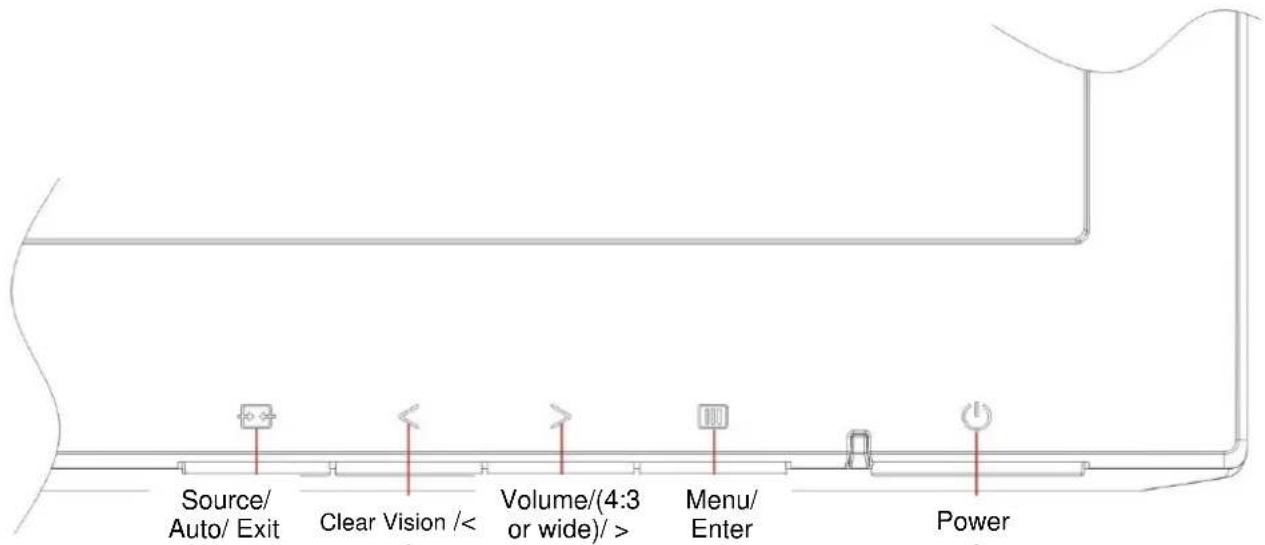

For E2262VWH /E2462VWH

Source/ Auto/ Exit Clear Vision / Volume/(4:3 or wide)/ > Menu/ Enter Power

Power

Press the Power button to turn on/off the monitor.

4:3 or Wide / > (For E2262Vw / E2462Vw)

When there is no OSD, press > continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust.)

Volume/(4:3 or Wide) / > (For E2262V WH /E2462V WH )

When there is no OSD and the monitor connect with HDMI cable, press Volume button to active volume adjustment bar and press < or > to adjust volume

When there is no OSD and the monitor connect with D-Sub cable, press > continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust.)

Auto / Exit

When there is no OSD, press Auto / Exit button continuously about 3 second to do auto configure.

Source hot key

When the OSD is closed, press Source will be Source hot key function. Press Source button continuously to select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

Clear Vision

1. When there is no OSD, Press the "<" button to activate Clear Vision.
2. Use the "<" or "> " buttons to select between weak, medium, strong, or off settings. Default setting is always "off".

Clear Vision ← Off ►

1. Press and hold "<" button for 5 seconds to activate the Clear Vision Demo, and a message of "Clear Vision Demo: on" will be displayed on the screen for a duration of 5 seconds. Press Menu or Exit button, the message will disappear. Press and hold "<" button for 5 seconds again, Clear Vision Demo will be off.

Clear Vision Demo: On

Clear Vision function provides the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

OSD Setting

Basic and simple instruction on the control keys.

Image Setup Color Setup Picture Boost OSD Setup Extra Exit Contrast 50 Gamma Gamma 1 Brightness 50 DCR Off Eco mode Standard

1. Press the MENU-button to activate the OSD window.
2. Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press < or > to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate.
3. Press < or > to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then press power-button to turn the monitor on. To un-lock the OSD, press and hold the MENU-button while the monitor is off and then press power-button to turn the monitor on.

Notes:

1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are turned off accordingly.

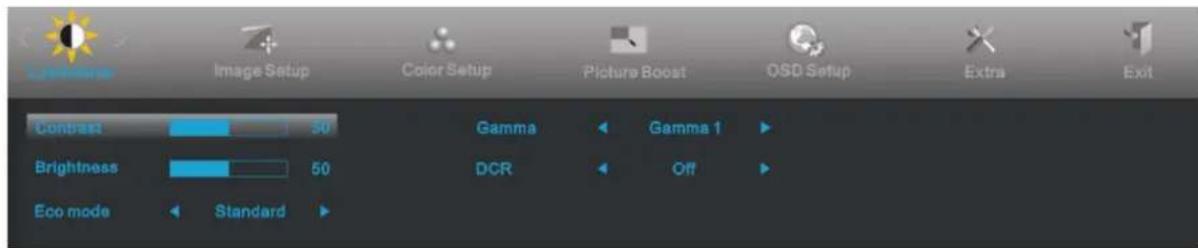

Luminance

Light drives Image Setup Color Setup Picture Boost OSD Setup Extra Exit Contrast 50 Gamma Gamma 1 Brightness 50 DCR Off Eco mode Standard Overdrive Medium

1 Press MENU to display menu.

2 Press < or > to select (minance), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	Brightness	0-100			Backlight Adjustment.
	Contrast	0-100			Contrast from Digital-register.
	Eco mode	Standard			Standard Mode.
		Text			Text Mode.
		Internet			Internet Mode.
		Game			Game Mode.
		Movie			Movie Mode.
		Sports			Sports Mode.
	Gamma	Gamma1			Adjust to Gamma 1.
		Gamma2			Adjust to Gamma 2.
		Gamma3			Adjust to Gamma 3.
	DCR	Off			Disable dynamic contrast ratio.
		On			Enable dynamic contrast ratio.
	Overdrive	Weak			Adjust the response time(only for E2262VWH/E2462VWH)
		Medium
		Strong
		Off

Image Setup

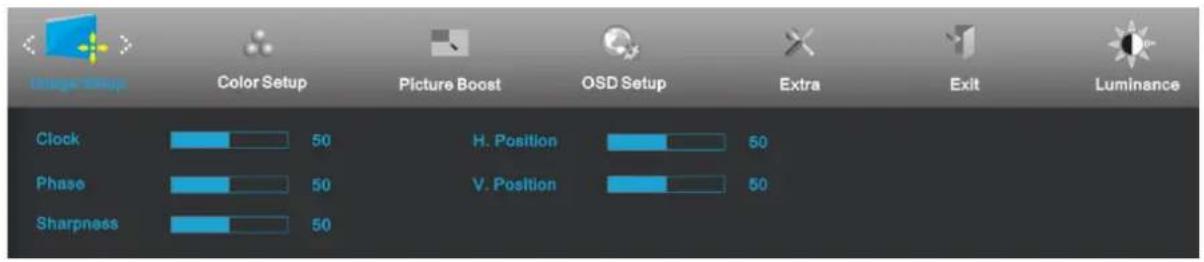

Image Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Clock 50 H. Position 50 Phase 50 V. Position 50 Sharpness 50

1 Press (Menu) to display menu.

2 Press < or > to select (Image Setup), and press to enter!
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	Clock	0-100	Adjust picture Clock to reduce Vertical-Line noise.
	Phase	0-100	Adjust Picture Phase to reduce Horizontal-Line noise.
	Sharpness	0-100	Adjust picture sharpness.
	H.Position	0-100	Adjust the horizontal position of the picture.
	V.Position	0-100	Adjust the vertical position of the picture.

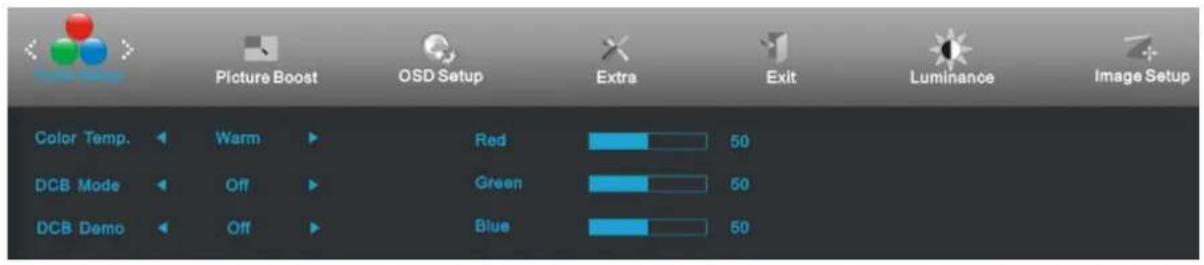

Color Setup

Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Temp. Warm Red 50 DCB Mode Off Green 50 DCB Demo Off Blue 50

1 Press (Menu) to display menu.

2 Press < or > to select (Color Setup), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	Color setup.	Warm		Recall Warm Color Temperature from EEPROM.
		Normal		Recall Normal Color Temperature from EEPROM.
		Cool		Recall Cool Color Temperature from EEPROM.
		sRGB		Recall SRGB Color Temperature from EEPROM.
		User	Red	Red Gain from Digital-register.
			Green	Green Gain Digital-register.
			Blue	Blue Gain from Digital-register.
	DCB Mode	Full Enhance	on or off	Disable or Enable Full Enhance Mode.
		Nature Skin	on or off	Disable or Enable Nature Skin Mode.
		Green Field	on or off	Disable or Enable Green Field Mode.
		Sky-blue	on or off	Disable or Enable Sky-blue Mode.
		AutoDetect	on or off	Disable or Enable AutoDetect Mode.
	DCB Demo		on or off	Disable or Enable Demo.

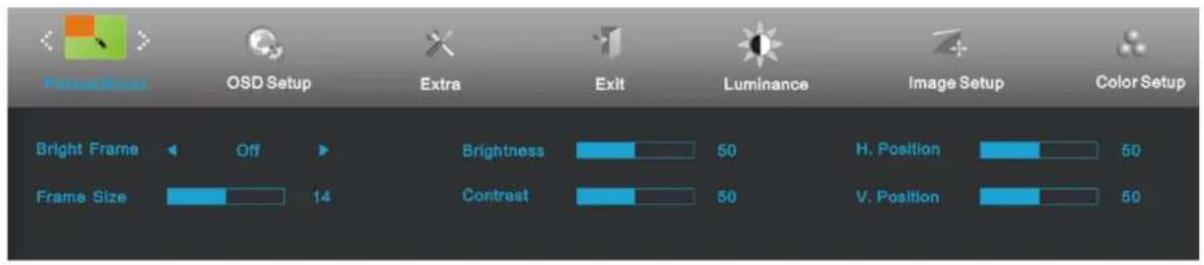

Picture Boost

Pixel Setup OSD Setup Extra Exit Luminance Image Setup Color Setup Bright Frame Off Brightness 50 H. Position 50 Frame Size 14 Contrast 50 V. Position 50

1 Press (Menu) to display menu.
2 Press < or > to select (Picture Boost), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	Frame Size	14-100	Adjust Frame Size.
	Brightness	0-100	Adjust Frame Brightness.
	Contrast	0-100	Adjust Frame Contrast.
	H. position	0-100	Adjust Frame horizontal position.
	V. position	0-100	Adjust Frame vertical position.
	Bright Frame	on or off	Disable or Enable Bright Frame.

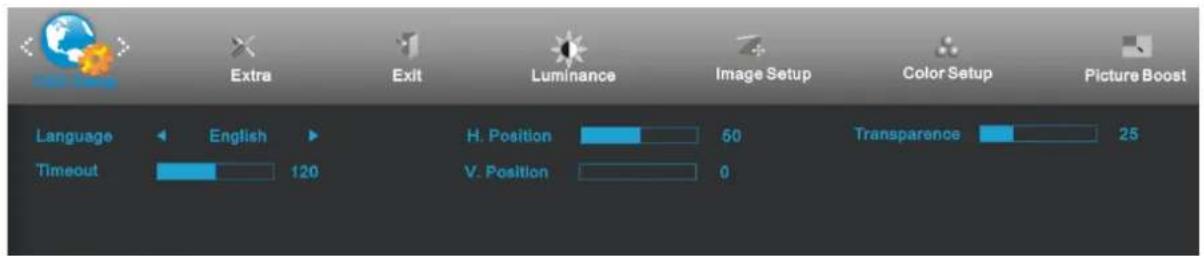

OSD Setup

Language English Timeout 120 H. Position 50 V. Position 0 Transparence 25 Picture Boost Extra Exit Luminance Image Setup Color Setup

1 Press (Menu) to display menu.

2 Press < or > to select (OSD Setup), and press to enter.
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press to exit.

	H. Position	0-100	Adjust the horizontal position of OSD.
	V. Position	0-100	Adjust the vertical position of OSD.
	Timeout	5-120	Adjust the OSD Timeout.
	Transparence	0-100	Adjust the transparence of OSD.
	Language		Select the OSD language.

Extra

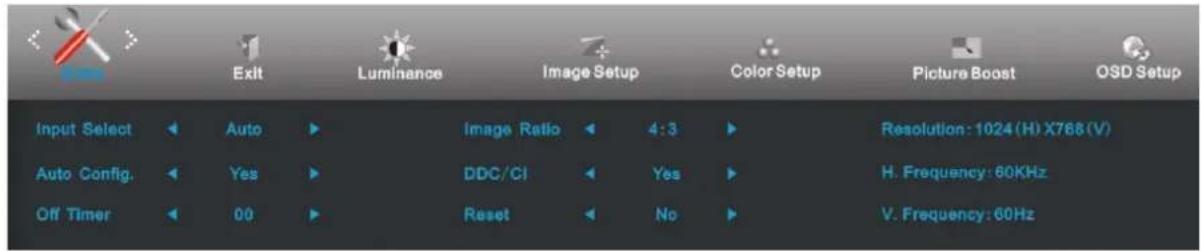

Input Select Auto Image Ratio 4:3 Resolution: 1024 (H) X768 (V) Auto Config. Yes DDC/CI Yes H. Frequency: 60KHz Off Timer 00 Reset No V. Frequency: 60Hz

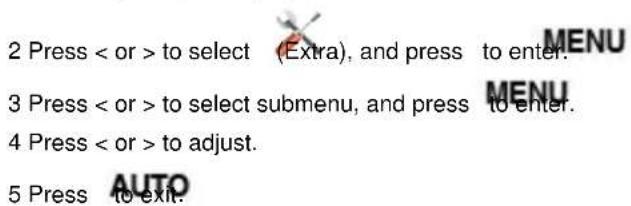

1 Press MENU to display menu.

2 Press < or > to select (Extra), and press to enter. 3 Press < or > to select submenu, and press to enter. 4 Press < or > to adjust. 5 Press AUTO

	Input Select	Auto / Analog / DVI	Select input signal source. (For E2262Vw & E2462Vw)
	Input Select	Auto / Analog / HDMI	Select input signal source. ( For E2262VWH & E2462VWH)
	Auto Config	yes or no	Auto adjust the picture to default.
	Off timer	0-24hrs	Select DC off time.
	Image Ratio	wide or 4:3	Select wide or 4:3 format for display.
	DDC-CI	yes or no	Turn ON/OFF DDC-CI Support.
	Reset	yes or no	Reset the menu to default.
	Information		Show the information of the main image and sub-image source.

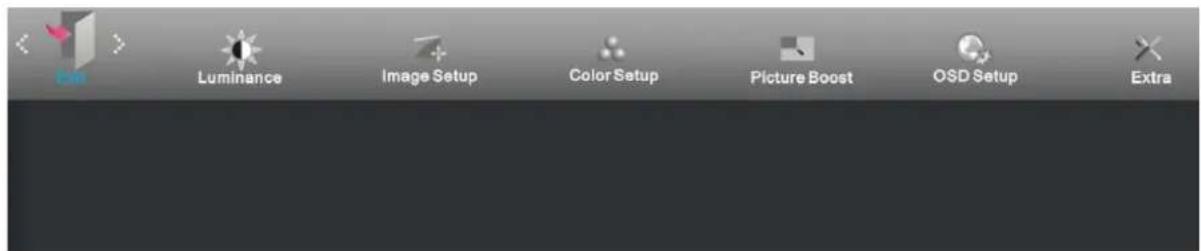

Exit

Luminance Image Setup Color Setup Picture Boost OSD Setup Extra

1 Press (Menu) to display menu.

2 Press < or > to select (Exit), and press to enter.

Exit

Exit the main OSD.

LED Indicator

Status	LED Color
Full Power Mode	Blue / Green
Active-off Mode	Orange / Red

Driver

Monitor Driver

Windows 7

1. Start Windows® 7

2. Click on the 'Start' button and then click on 'Control Panel'.

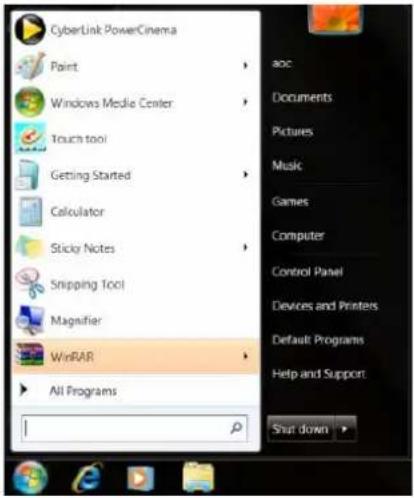

CyberLink PowerCinema Paint Windows Media Center Touch tool Getting Started Calculator Sticky Notes Snipping Tool Magnifier WinRAR All Programs aoc Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

1. Click on the 'Display' icon.

Adjust your computer's settings View by: Small size * Action Center Caver Management Disorder Budgets Use of Active Center HomeGroup Location and Other Services WISDA Control Panel Performance Information and Tools Programs and Features Knowledge and Design Connections System User Accounts Windows Network Administrative Tools Credential Manager Device Manager FPGA Options Indexing Options Mouse WISDA Packtl Personalization Basic HD Audio Manager Source Tabled PC Settings Windows Anytime Upgrade Windows Update AutoPlay Data and Tree Devices and Printers Forms Internet Options Networks and Sharing Center Parental Controls Phone and Modem Accessory Speech Recognition Textile and Start Menu Windows Card Space Backpack and Alerter Default Programs Display Getting Started Keyboard Notification Area Box Push and Touch Power Options Region and Language Sync Center Threadforming Windows Defense

1. Click on the "Change display settings" button.

Import to create a new file in the main source. File selection is selected by the following: File name: Image size: 250 MB Image count: 100 MB

1. Click the "Advanced Settings" button.

Change the app at the start of your session Customize Browse Save As/Down Cancel Cancel

1. Click the "Monitor" tab and then click the "Properties" button.

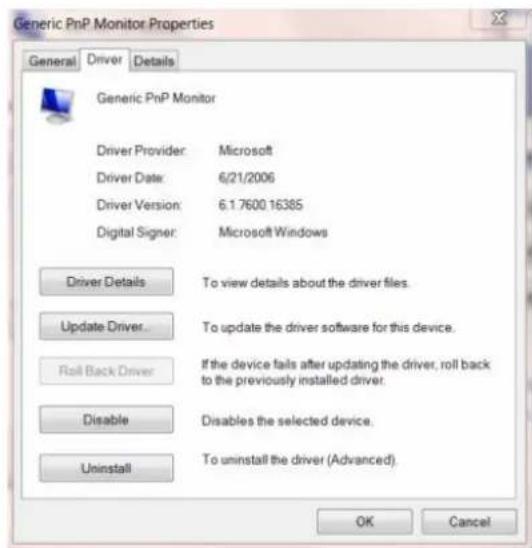

7. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver: To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... " and then click the "Browse my computer for driver software" button.

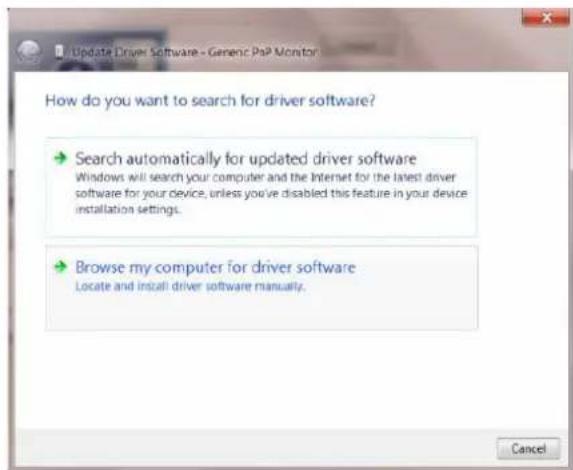

Update Driver Software - Generic PaP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

1. Select "Let me pick from a list of device drivers on my computer".

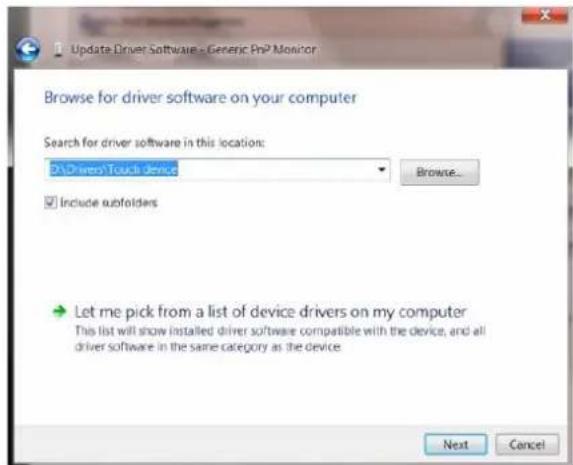

Update Driver Software - Generic PnP Monitor Browse for driver software on your computer Search for driver software in this location: D:\Drivers\Touch device Browse... Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device Next Cancel

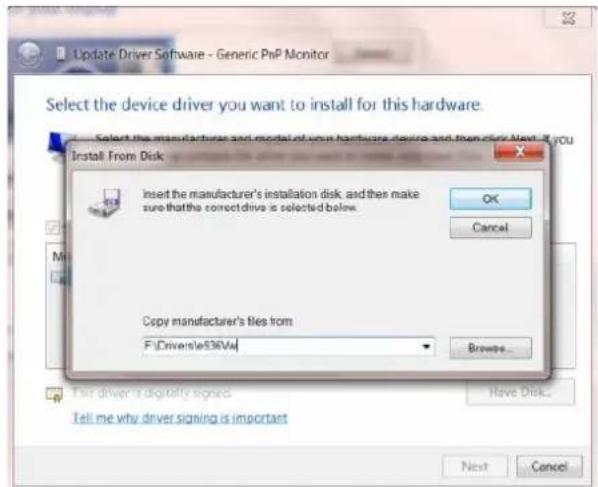

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from F:\Driver\e536Va\ Browse... Your driver is digitally signed Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Microsoft Internet Explorer E-mail Windows Fiji Windows Centre Windows Media Player Windows Photo Gallery Windows Live Myanmar Download Windows Wheeling Space Windows Explorer Adobe Photoshop CS2 HuluCin Command Prompt All Programs Start Search Edit the main Documents Pictures Music Journals Search About Tools Computer Network Connect Ex Control Panel Default Programs Help and Support

Control Panel Options System and Maintenance Get started with Windows Get up your computer. Security Create for updates Create this computer's security dash Close up the program through Windows Network and Internet Use network delay and bits Set up the sharing. Hardware and Sound Pay CDs to other media automatically Show Show Programs Show a program Change herbal programs. User Accounts Add an additional user accounts. Appearance and Personalization Change the session of banking times, apply a flame or screen mask in your contacts, as enhancing the Debit music and video. Crack, Language, and Foreign Change technicians or other key methods Change dynamic language. Ease of Access Let Windows attack settings Options user inputs. Additional Options

1. Click "Personalization" and then "Display Settings".

Custal Description Change binding background Currency code Mutual word description Change/ Change information writing for the Computation Custal/ Custal Memory Understanding the key words Custom words and the variables Change using the key words for the key words. Case of Access Center Decominate the name Change content Settlements and Applications and access tool A pair high contrast up as off Possible Options Specific single or exclusive with a space Use Course to determine website Use Computer Tools and Webinars Forms Build of resources files Windows Solution Properties With language in Custal Choose internal to help Software or log all other functions

Apprentise and Recommendation - A Recommendation Details Change viewing time Google's 2007 Personalization appearance and structure glasses: One short version Find how the color and style of your environment. Attending background Close from available backgrounds or colors on you are all your own profile to describe the meeting. Power Tech Change your image size or adjust what it displays. In most cases it provides a format for configuration that allows your image and appears when your computer is able to find a key point of time. Engage Change which sounds and hearing what you can everything from getting in mind to employing, and Recycle file. Visual Properties Make a different visual picture. You can also change from the image picture files drawing such images as clicking and clicking. Theme Change the story. Perhaps we change a wide range of visual and audio elements as looking into the appearance of text, icons, background, screen views, other computer sounds, and video graphics. Creative Writing Adjust your more information, which changes the view as more in their words for the content. You can also create a new graphic (such text).

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 (Multiple Monitors) on NVIDIA GeForce 6600 LE (Microsoft Corporation) This is my most monitor Labeled the desktop-enti this monitor Resolution: Low High 1280 by 1024 pixels Colors: Highest (32 bit) Advanced Settings... How do I get the best display? OK Cancel Apply

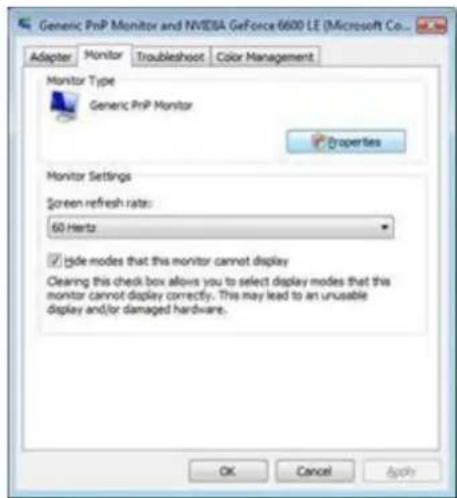

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrIP Monitor and NVIDIA GeForce 6600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrIP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

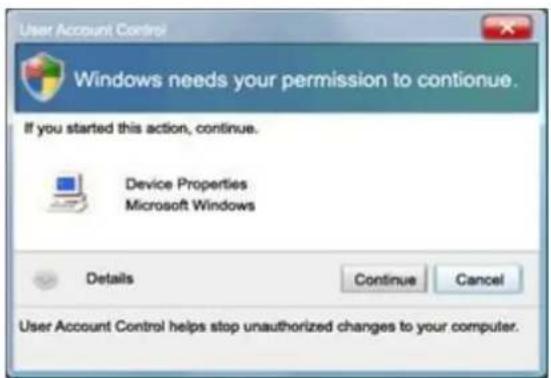

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

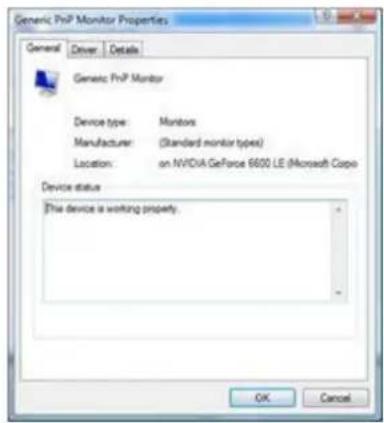

1. Click "Update Driver..." in the "Driver" tab.

Generic PhIP Monitor Properties General Driver Details Generic PhIP Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:,on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic FnP Monitor Properties General Driver Details Generic FnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0.6000 16386 Digital Signer: microsoft windows Driver Details To view details about the driver files Update Driver To update the driver software for this device Full Exact Driver If the device fails after updating the driver, roll back to the previously installed driver Disable Disables the selected device Uninstall To uninstall the driver (Advanced) OK Cancel

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

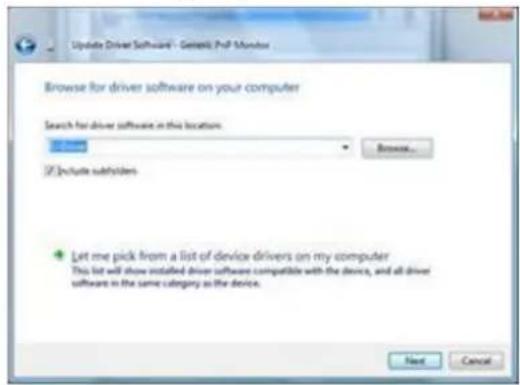

Update Driver Software - General Prof Monitor Browse for driver software on your computer Search for driver software in this location Browse... ✓ Include subholders Let me pick from a list of device drivers on my computer. This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel File Edit View Favorites Tools Help Search Updates Settings Control Panel Control Panel Select to Change Files Save As Remove Settings Prop and Target Pick a category Appearance and Diagnostics Preferences and Other Documents Change the appearance of desktop tools, upgrade a time or duration, save to your computer, or refresh the Start Time and Window Networks Add to Network Programs Sales, Store, Languages, and Regional Options Smooth, Speech, and Audio Timers Accessibility Options Preferences and Maintenance

1. Click on the 'Display' Item.

Approve and Trainers Start Menu Approve and Trainers Save All Tools Mouse Properties Web Server Data Accounts Params Load Indicators Preview Update Approve and Trainers Pick a task... Change the computer's Remote Change the desktop Background Change the server issues Change the user recommendations or pick a Control Panel icon Enable Index Options Change the appearance of your items, such as the system, screen size, sizes, font size, and screen dimensions.

1. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Insubleshoot Advanced OK Cancel Apply

1. Select 'Monitor' tab

2. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

3. If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

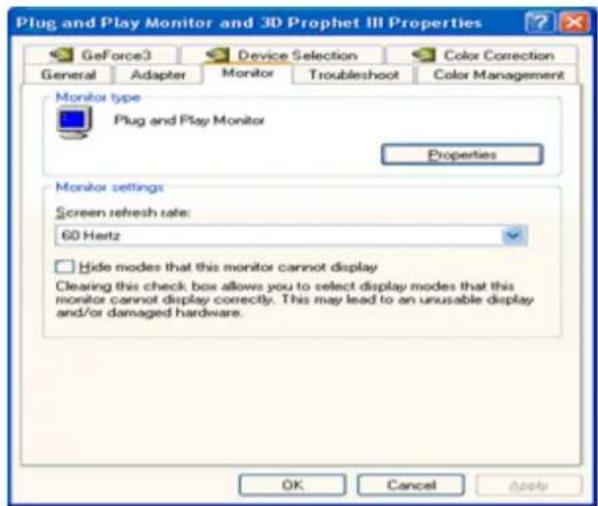

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.

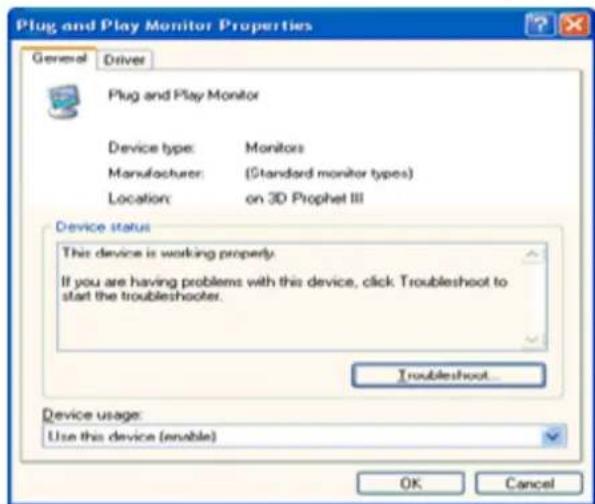

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signer: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

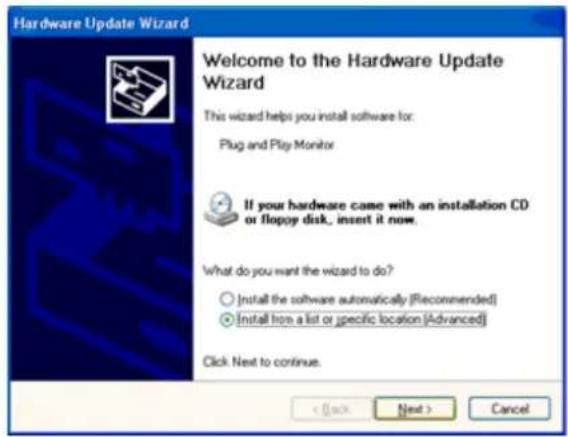

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

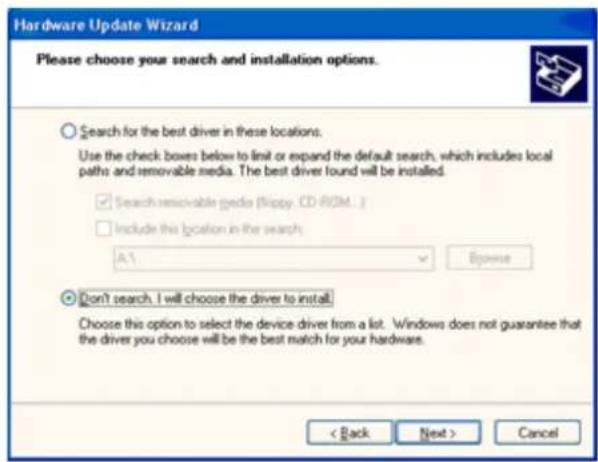

Hardware Update Wizard Please choose your search and installation options. ○ Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Happy, CD-ROM...) ☐ Include this location in the search A:\ Browse ○ Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.

1. Click on the 'Finish' button then the 'Close' button.
2. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

1. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
2. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
3. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
4. Click on the 'Open' button, then click on the 'OK' button.
5. Select your monitor model and click on the 'Next' button.
6. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

i-Menu

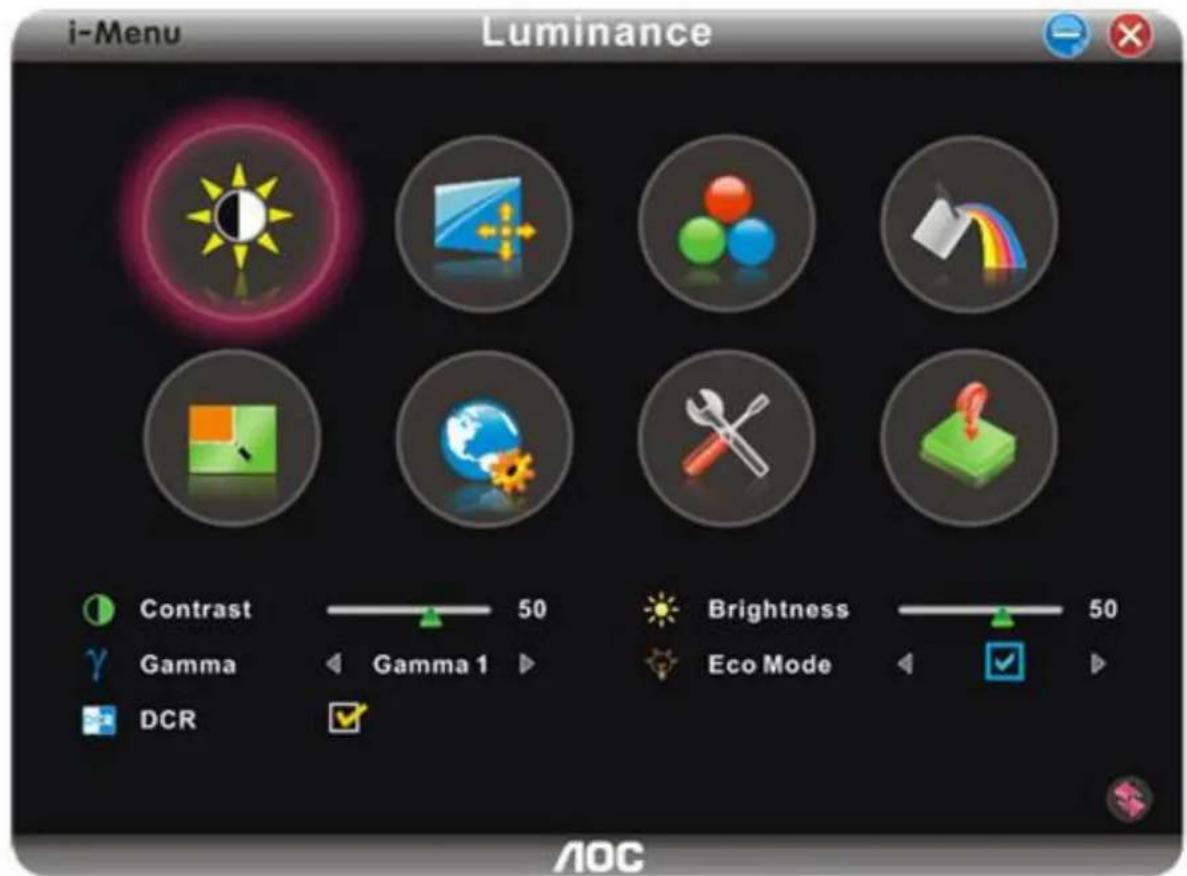

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR AOC

e-Saver

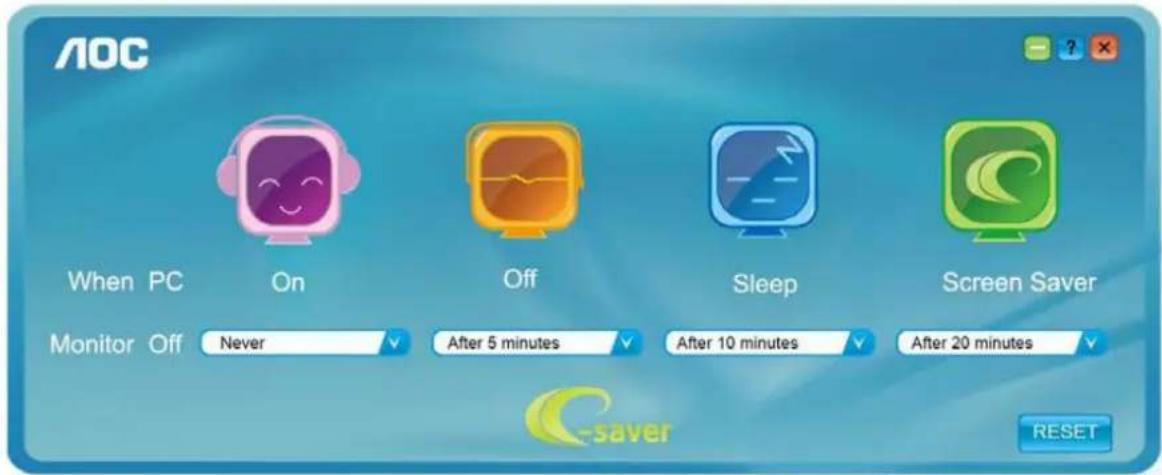

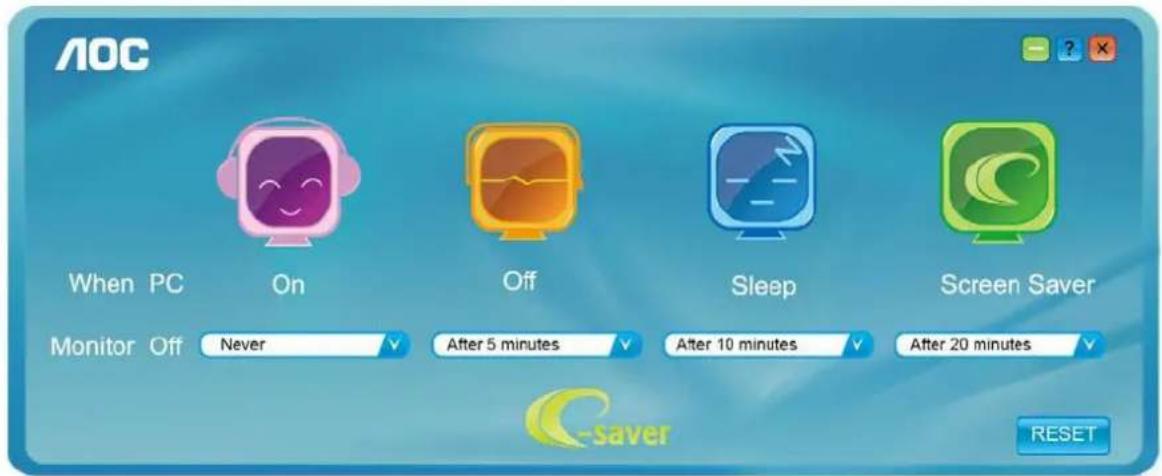

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes)you're your monitor to automatically shutdown. The example above illustrated:

1. The monitor will never shutdown when the PC is powered on.
2. The monitor will automatically shutdown 5 minutes after the PC is powered off.

3. The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.

4. The monitor will automatically shutdown 20 minutes after the screen saver appears.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

You can click "RESET" to set the e-Saver to its default settings like below.

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

Screen+

Welcome to "Screen+" software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

□日巳巳巳□目

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	• Is the power cord connected properly?Check the power cord connection and power supply.• Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.(Connected using the DVI cable)Check the DVI cable connection.* DVI input is not available on every model.(Connected using the HDMI cable)Check the HDMI cable connection.* HDMI input is not available on every model.• If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.• Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.• Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & HasGhosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press for auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution you are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification (21.5")

Panel	Model name	E2262Vw/E2262Vwh
	Driving system	TFT Color LCD
	Viewable Image Size	54.7cm diagonal
	Pixel pitch	0.2482(H)mm x 0.2482(V)mm
	Video (For E2262Vw)	R, G, B Analog Interface & Digital Interface
	Video (For E2262Vwh)	R, G, B Analog Interface & HDMI Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	148.5MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	476.64mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	268.11mm
	Optimal preset resolution	1920× 1080@60Hz
	Plug & Play	VESA DDC2B/CI
	Input Connector (for E2262Vw)	VGA/DVI
	Input Connector (for E2262Vwh)	VGA/HDMI
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	12Vdc,3.0A
	Power Consumption	Active 18 W (typical)
		Standby < 0.5 W
	Off timer	0-24 hrs
	Speaker	NA
Physical Characteristics	Connector Type (for E2262Vw)	VGA/DVI
	Connector Type (for E2262Vwh)	VGA/HDMI
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating	0° to 40°
	Non-Operating	-25° to 55°
	Humidity:
	Operating	10% to 85% (non-condensing)
	Non-Operating	5% to 93% (non-condensing)
	Altitude:
	Operating	0~ 3658m (0~ 12000 ft )
	Non-Operating	0~ 12192m (0~ 40000 ft )

General Specification(23.6")

Panel	Model name	E2462Vw/E2462Vwh
	Driving system	TFT Color LCD
	Viewable Image Size	59.8 cm diagonal
	Pixel pitch	0.2715mm(H) x 0.2715mm(V)
	Video (For E2462Vw)	R, G, B Analog Interface & Digital Interface
	Video (For E2462Vwh)	R, G, B Analog Interface & HDMI Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	148.5 MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	521.28mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	293.22mm
	Optimal preset resolution	1920 x 1080@60Hz
	Plug & Play	VESA DDC2B/CI
	Input Connector (for E2462Vw)	VGA/DVI
	Input Connector (for E2462Vwh)	VGA/HDMI
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	12Vdc,3.0A
	Power Consumption	Active 24W (typical)
		Standby < 0.5 W
	Off timer	0-24 hrs
Physical Characteristics	Connector Type (for E2462Vw)	VGA/DVI
	Connector Type (for E2462Vwh)	VGA/HDMI
	Signal Cable Type	Detachable
Environmental	Temperature:
	Operating	0° to 40°
	Non-Operating	-25° to 55°
	Humidity:
	Operating	10% to 85% (non-condensing)
	Non-Operating	5% to 93% (non-condensing)
	Altitude:
	Operating	0~3658m (0~12000 ft)
	Non-Operating	0~12192m (0~40000 ft)

Preset Display Modes

For E2262Vw/E2262Vwh /E2462Vw/E2462Vwh

STANDARD	RESOLUTION	HORIZONTAL FREQUENCY(kHZ)	VERTICAL FREQUENCY(Hz)
VGA	640×480@60Hz	31.469	59.940
VGA	640×480@72Hz	37.861	72.809
VGA	640×480@75Hz	37.500	75.000
SVGA	800×600@56Hz	35.156	56.250
SVGA	800×600@60Hz	37.879	60.317
SVGA	800×600@72Hz	48.077	72.188
SVGA	800×600@75Hz	46.875	75.000
XGA	1024×768@60Hz	48.363	60.004
XGA	1024×768@75Hz	60.023	75.029
SXGA	1280×1024@60Hz	63.981	60.020
SXGA	1280×1024@75Hz	79.976	75.025
WXGA	1440×900@60Hz	55.935	59.876
WSXGA	1680×1050@60Hz	65.290	59.950
WSXGA	1920×1080@60Hz	67.500	60.000
IBM-MODE DOS	720×400@70Hz	31.469	70.087
MAC MODE VGA	640×480@67Hz	35.000	66.667
MAC MODE SVGA	832×624@75Hz	49.725	74.551

Pin Assignments

Pin Number	15-Pin Side of the Signal Cable	Pin Number	15-Pin Side of the Signal Cable
1	Video-Red	9	+5V
2	Video-Green	10	Ground
3	Video-Blue	11	N.C.
4	N.C.	12	DDC-Serial data
5	Detect Cable	13	H-sync
6	GND-R	14	V-sync
7	GND-G	15	DDC-Serial clock
8	GND-B

1 9 17 8 16 24

Pin Number	24-Pin Color Display Signal Cable	Pin Number	24-Pin Color Display Signal Cable
1	TMDS data 2—	13	TMDS data 3+
2	TMDS data 2+	14	+5V Power
3	TMDS data 2/4 Shield	15	Ground (for+5V)
4	TMDS data 4—	16	Hot Plug Detect
5	TMDS data 4+	17	TMDS data 0—
6	DDC Clock	18	TMDS data 0+
7	DDC Data	19	TMDS data 0/5 Shield
8	N.C.	20	TMDS data 5—
9	TMDS data 1—	21	TMDS data 5+
10	TMDS data 1+	22	TMDS Clock Shield
11	TMDS data 1/3 Shield	23	TMDS Clock +
12	TMDS data 3—	24	TMDS Clock —

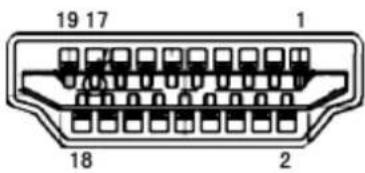

19 17 1 18 2

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	TMDS Data 2+	9	TMDS Data 0	17	DDC/CEC Ground
2	TMDS Data 2 Shield	10	TMDS Clock +	18	+5V Power
3	TMDS Data 2	11	TMDS Clock Shield	19	Hot Plug Detect
4	TMDS Data 1+	12	TMDS Clock
5	TMDS Data 1Shield	13	CEC
6	TMDS Data 1	14	Reserved (N.C. on device
7	TMDS Data 0+	15	SCL
8	TMDS Data 0 Shield	16	SDA

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WEEE Declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.

www.aocindia.com/ewaste.php.

VCCI-B

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

TCO DOCUMENT

Congratulations!

This display is designed for both you and the planet!

TCO CERTIFIED

The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on the climate and our natural environment.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide.

Some of the Usability features of the TCO Certified for displays:

• Visual ergonomics for good image quality is tested to ensure top performance and reduce sight and strain problems. Important parameters are luminance, contrast, resolution, black level, gamma curve, colour and luminance uniformity and colour rendering
  • Products are tested according to rigorous safety standards at impartial laboratories
  • Electric and magnetic fields emissions as low as normal household background levels
  • Low acoustic noise emissions (when applicable)

Some of the Environmental features of the TCO Certified for displays:

• The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO 14001)
  • Very low energy consumption both in on- and standby mode minimize climate impact
• Restrictions on chlorinated and brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury and lead (RoHS compliance)
  • Both product and product packaging is prepared for recycling
  • The brand owner offers take-back options

The requirements can be downloaded from our web site. The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. About 50% of all displays worldwide are TCO certified.

For more information, please visit www.tcodevelopment.com

TCOF1058 TCO Document, Ver. 2.1

Technology for you and the planet

For display with glossy bezel the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Service

EU WARRANTY FOR AOC MONITORS

LIMITED THREE-YEAR WARRANTY\*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc.com/eu for warranty instructions. Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

AOC International (Europe) B.V. is not responsible for any damaged during transport due to improper packing. AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Improper installation or maintenance
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
• Improper environments like humidity and dusts
  • Damaged by violence
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1pixel policy standards.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statement.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
  • Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center
• Improper environment
  • Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/warranty

ARGENTINA: http://ar.aoc.com/support/warranty

BOLIVIA: http://bo.aoc.com/support/warranty

CHILE: http://cl.aoc.com/support/warranty

COLOMBIA: http://co.aoc.com/warranty

COSTA RICA: http://cr.aoc.com/support/warranty

DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty

ECUADOR: http://ec.aoc.com/support/warranty

EL SALVADOR: http://sv.aoc.com/support/warranty

GUATEMALA: http://gt.aoc.com/support/warranty

HONDURAS: http://hn.aoc.com/support/warranty

NICARAGUA: http://ni.aoc.com/support/warranty

PANAMA: http://pa.aoc.com/support/warranty

PARAGUAY: http://py.aoc.com/support/warranty

PERU: http://pe.aoc.com/support/warranty

URUGUAY: http://pe.aoc.com/warranty

VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty
