USER MANUAL 29UC97C LG

Owner's Manual IPS LED MONITOR (LED MONITOR\*)

* Disclaimer: LG LED Monitor applies LCD screen with LED backlights.

Please read the safety information carefully before using the product.

29UC97

29UC97C

TABLE OF CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPARING

4 Product Composition
5 Product and Button Description
5 - How to Use the Joystick Button
6 - Input Connector
7 Moving and Lifting the Monitor
8 Installing the Monitor
8 - Assembling the Stand
9 - Installing on a Table
10 - Tidying up Cables
10 - Adjusting the Angle
11 - Using the Kensington Lock
11 - Installing on the Wall
13 - Installing the Wall Mount Bracket

14 USING THE MONITOR

14 Connecting to a PC
14 - HDMI Connection
15 - DisplayPort Connection
15 - Thunderbolt ( ) Connection
16 Connecting AV Devices
16 - HDMI Connection
16 Connecting Peripherals
16 - USB Cable connection - PC
18 - Connecting Headphones

19 USER SETTINGS

19 Activating the Main Menu
19 - Main Menu Features
20 User Settings
20 - Menu Settings

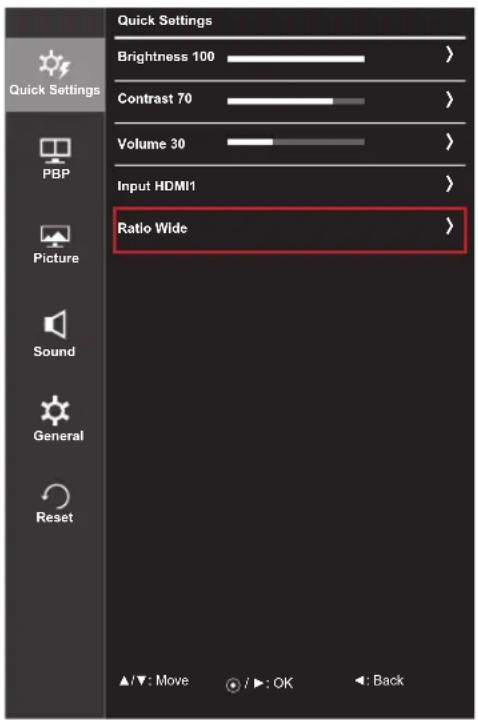

21 - Ratio
22 - PBP

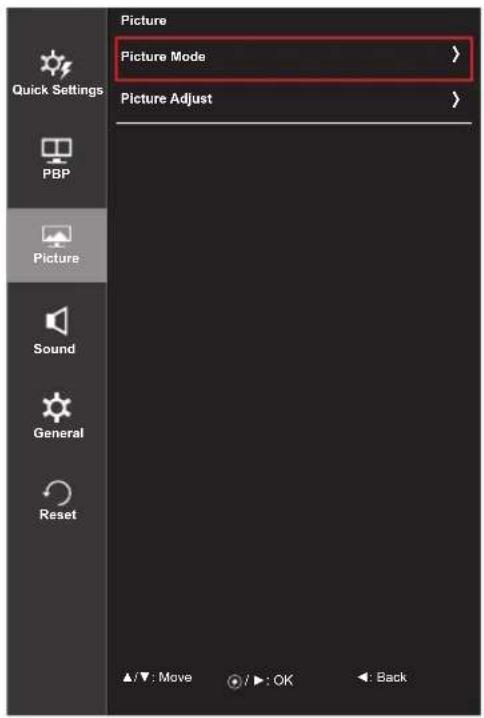

24 - Picture Mode
25 - Picture Adjust
27 - Sound

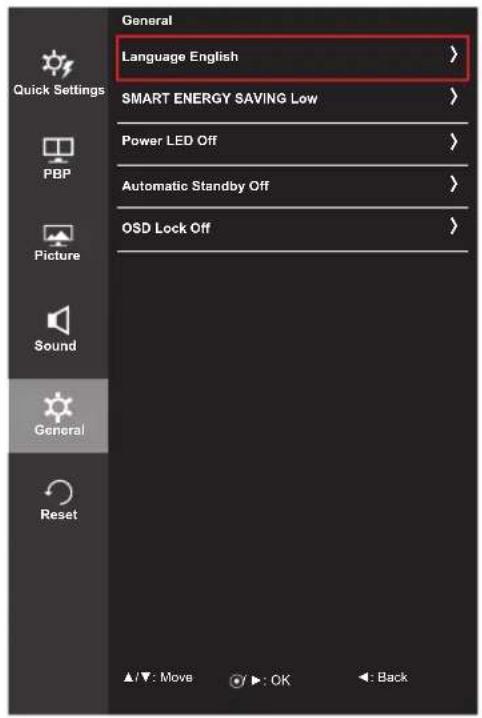

28 - General

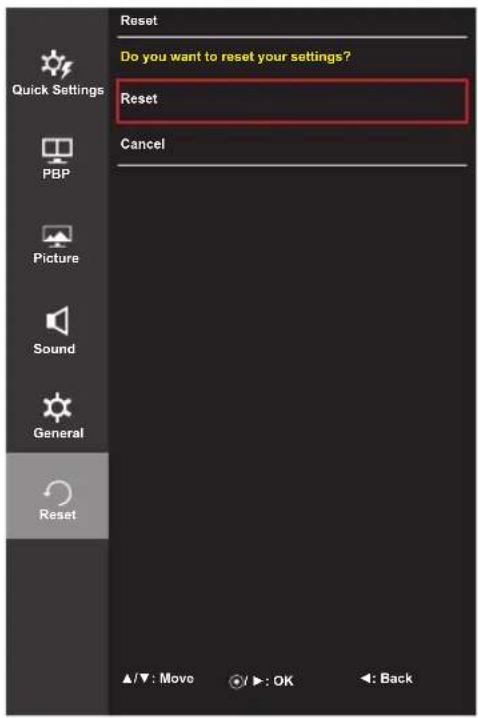

29 - Reset

30 TROUBLESHOOTING

32 PRODUCT SPECIFICATION

34 Factory Support Mode
34 HDMI Timing (Video)
34 Power LED

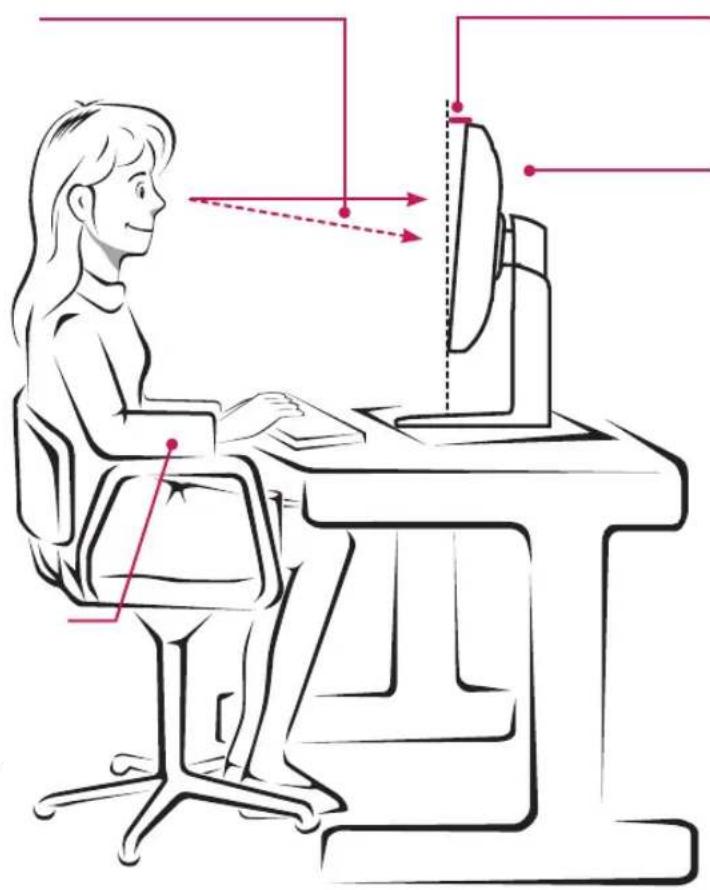

35 PROPER POSTURE

35 Proper Posture for Using the Monitor

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for dual-mode source devices are all registered trademarks of the Video Electronics Standards Association.

MAXX AUDIO®

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trademarks of Waves Audio Ltd.

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product. Note that the product and related components may look different from those shown here.

Illustration of a CD or DVD disc and its corresponding physical case (no text or symbols present)

CD (Owner's Manual / Software / Guides) / Cards

Line drawing of a cable and plug device connected to a rectangular base (no text or symbols)

Line drawing of a flexible network cable with two connectors (no text or symbols)

Power Cord AC/DC Adapter HDMI Cable

4 Screws (M4 x L10)

Cable Tie Stand Body Stand Base

Screw Cover

Wall Mount Bracket (Varies depending upon your country or model.)

CAUTION

• Always use genuine LG components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of unauthorized components.
- It is recommend that you use the supplied components.
- If you use generic cables not certified by LG, the screen may not display or there may be image noise.

NOTE

• The components may look different from those illustrated here.
- Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
- To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
• The power cord provided may differ depending upon the region.

Input Connector

29UC97 HDMI IN 1 HDMI IN 2 DP-IN USB UP USB IN 1 5V= 1.1A H/P Ω DC-IN (19 V==) ON USB IN 2 5V= 1.1A 电源输入 DC switch 29UC97C HDMI IN 1 HDMI IN 2 DP-IN USB UP USB IN 1 5V= 0.9A H/P Ω DC-IN (19 V==) USB IN 2 5V= 0.9A 电源输入

Moving and Lifting the Monitor

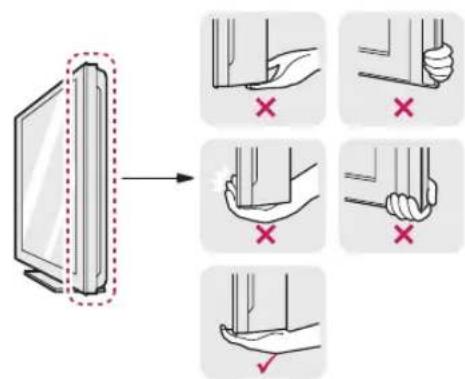

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.

Diagram illustrating hand positioning and movement of a screen, with red X marks indicating correct and incorrect positions.

Prohibition sign with silhouette of person holding a device and crossed-out box, enclosed in red circle

• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face toward you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.

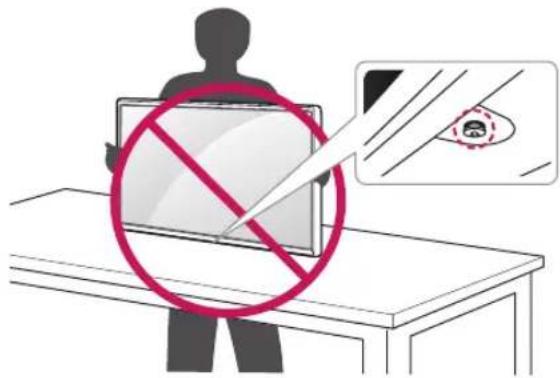

• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

CAUTION

- Avoid touching the monitor screen as much as possible.

- This may result in damage to the screen or some of the pixels used to create images.

Prohibition sign with red prohibition symbol and explosion effect on computer monitor

- If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

Illustration showing a person using a computer with a prohibition symbol, alongside a magnified view of a device with a face.

Installing the Monitor

Assembling the Stand

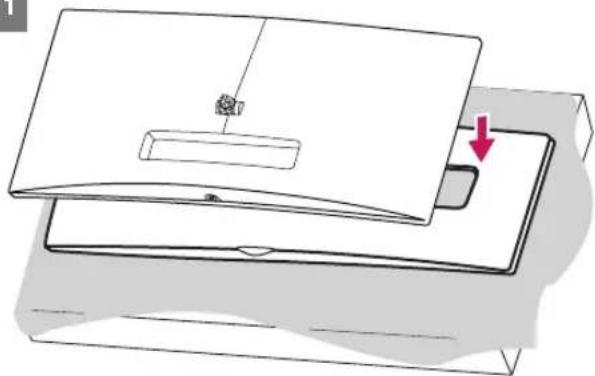

1

Diagram of a device with a handle and arrow indicating a process or operation (no text or symbols present)

CAUTION

- To protect the screen, place the screen face down on the screen pad which is inside the box.

Simple line drawing of a box with an open lid and a red arrow pointing to the lid (no text or symbols)

2

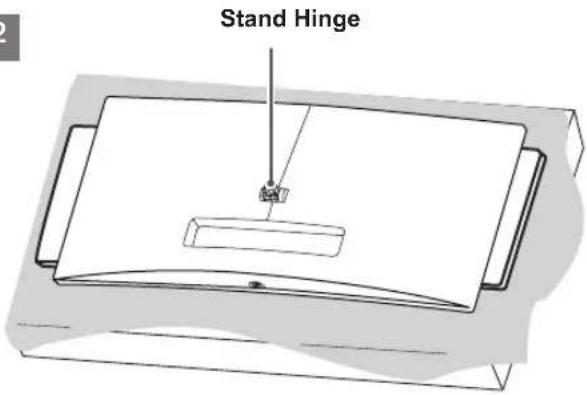

Stand Hinge

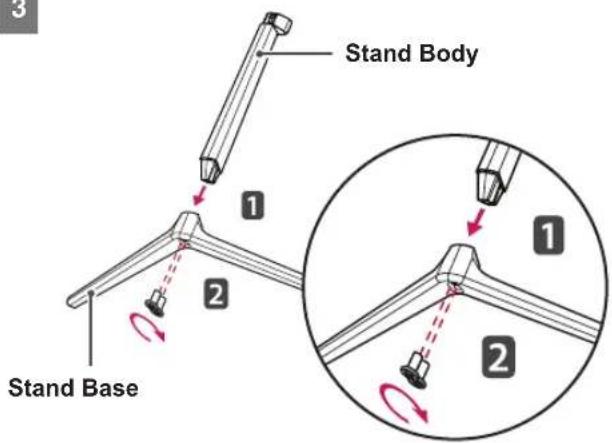

3

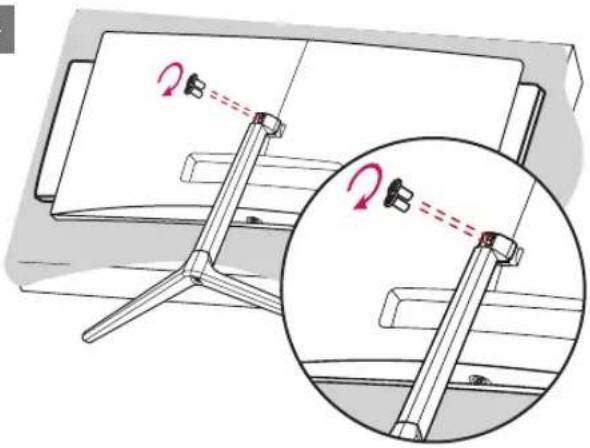

Stand Body 1 2 Stand Base 1 2

4

Diagram showing a mechanical assembly with a magnified inset illustrating the motion of a shaft (no text or symbols present)

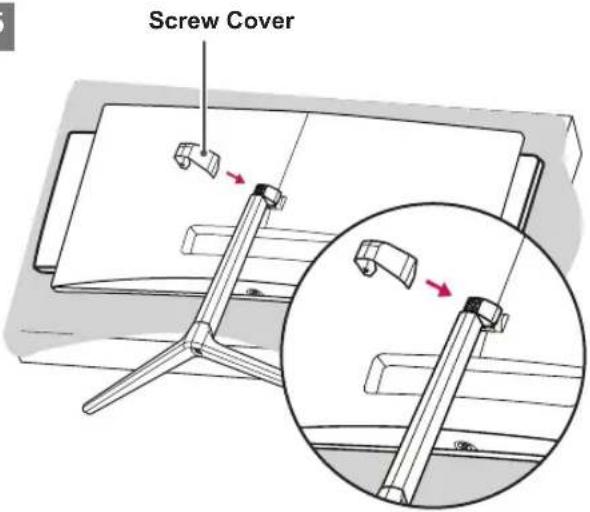

5

Screw Cover

CAUTION

• Illustrations in this document represent typical procedures, so they may look different from the actual product.
- Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
- Be careful not to hurt your hand on the edges of the screw covers.
- Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
- When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

NOTE

- You can disassemble the stand in the reverse order of the assembly.

Installing on a Table

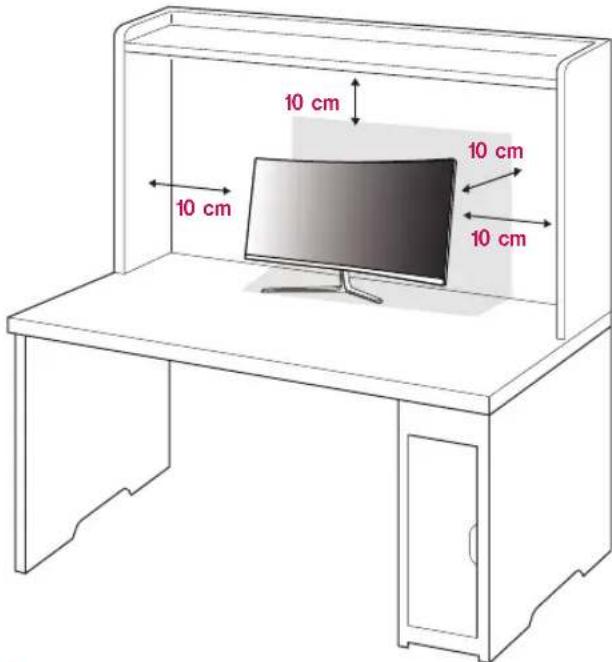

1 Lift the monitor and place it on the table in an upright position. Place the monitor at least 10 cm away from the wall to ensure sufficient ventilation.

10 cm 10 cm 10 cm 10 cm

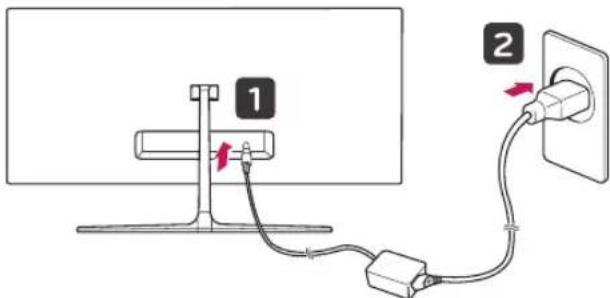

2 Connect the power adapter to the monitor and then plug the power cord into the wall outlet.

Diagram showing cable connection between a monitor and a power outlet, labeled with numbered instructions.

3 Press the joystick button on the bottom of the monitor to turn on the monitor.

CAUTION

- Unplug the power cord before moving or installing the monitor. There is risk of electric shock.

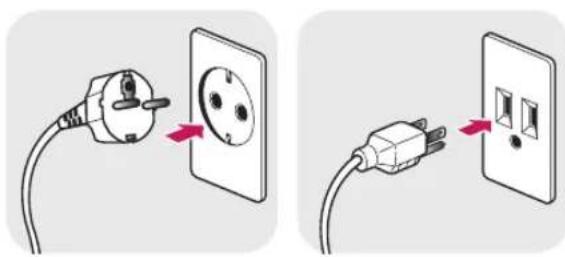

Cautions When Connecting Power Cord

Two-step diagram showing a power outlet connected to a wall socket, with one outlet being inserted and the other exiting (no text or symbols present)

100-240 V \~

• Be sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

Tidying up Cables

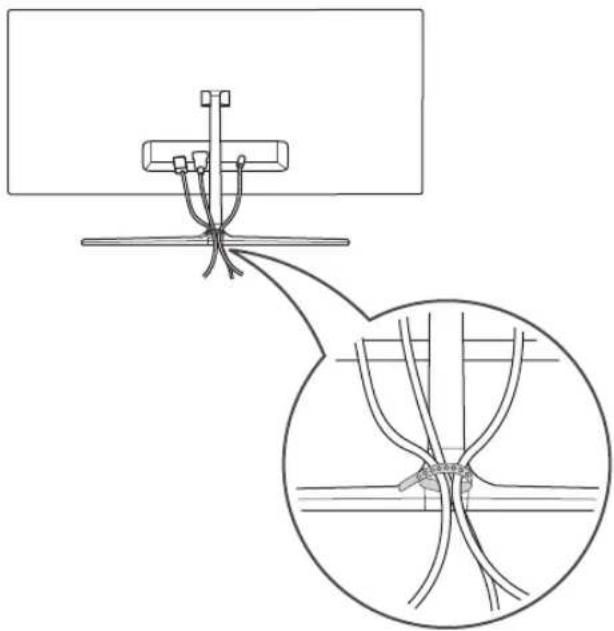

Arrange the cables using the cable tie as shown in the illustration.

Diagram showing a mechanical or electrical component with wires and connectors, connected to a horizontal bar (no text or symbols present)

Adjusting the Angle

1 Place the monitor mounted on the stand base in an upright position.

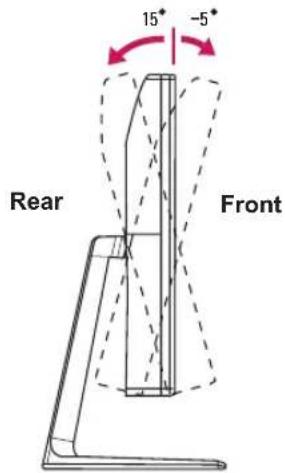

2 Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5^ to 15^ for a comfortable viewing experience.

15° -5° Rear Front

WARNING

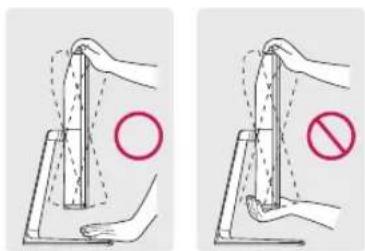

- To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.

Two illustrations showing a hand holding a cylindrical object with a red circle and a prohibition symbol (no text or labels)

- Be careful not to touch or press the screen area when adjusting the angle of the monitor.

Illustration showing two hands holding a blank screen with a red prohibition symbol above them.

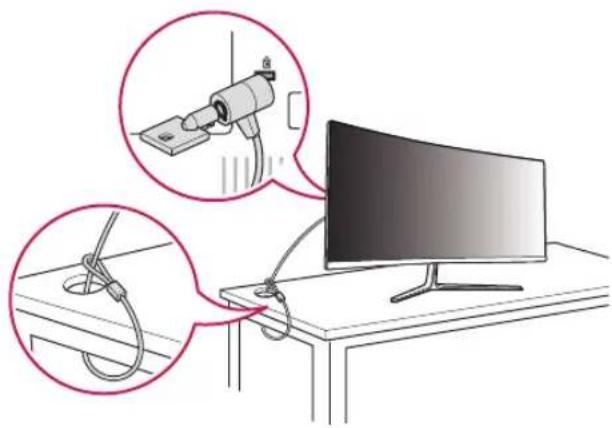

Using the Kensington Lock

The Kensington security system connector is located at the back of the monitor.

For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.

Connect the monitor to a table using the Kensington security system cable.

Illustration of a cable clamp installation on a monitor, showing rope routing and cable attachment (no text or symbols)

NOTE

- The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

Installing on the Wall

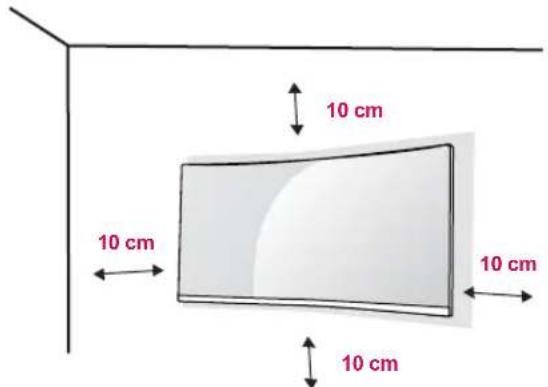

Install the monitor at least 10 cm away from the wall and leave about 10 cm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

10 cm 10 cm 10 cm 10 cm

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

1 If you use screws longer than the standard length, it may damage the inside of the product.
2 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.

Wall Mount (A x B) 100 x	100
Stand Screw M4 x L10
Required Screws 4
Wall Mount Plate(Optional)	RW120

- Wall Mount (A x B)

Isometric diagram of a square electronic component with labeled points A and B, showing internal structure and mounting feet (no text or symbols beyond labels)

NOTE

• Use the screws specified by VESA standards.
- The wall mount kit includes the installation guide and all necessary parts.
- The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
- The length of the screw may differ for each wall mounting bracket. Be sure to use the proper length.
- For more information, please refer to the user manual for the wall mounting bracket.

CAUTION

• Unplug the power cord before moving or installing the monitor to avoid electric shock.
  • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.

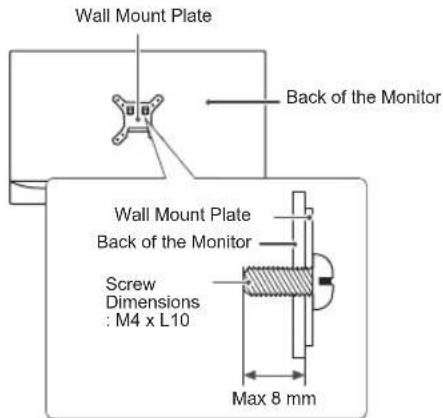

• When measured from the back of the monitor, the length of each installed screw must be 8 mm or less.

Wall Mount Plate Back of the Monitor Wall Mount Plate Back of the Monitor Screw Dimensions : M4 x L10 Max 8 mm

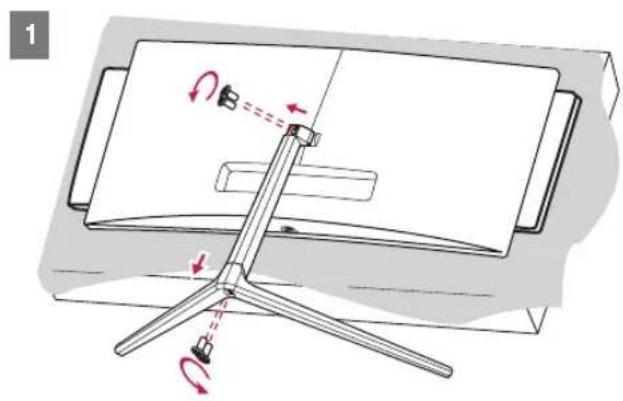

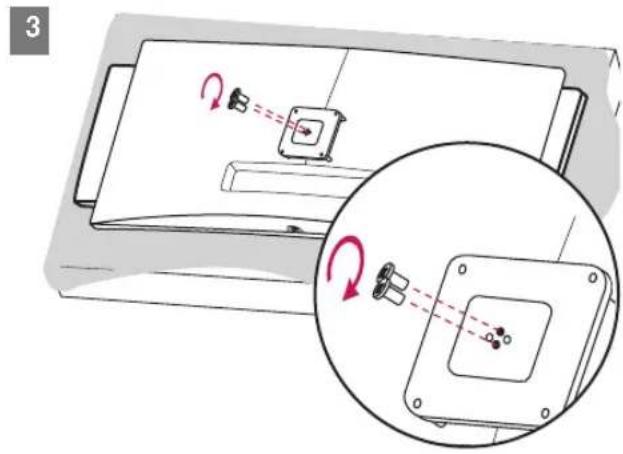

Installing the Wall Mount Bracket

Diagram of a mechanical device with rotating components and directional arrows, no text or symbols present

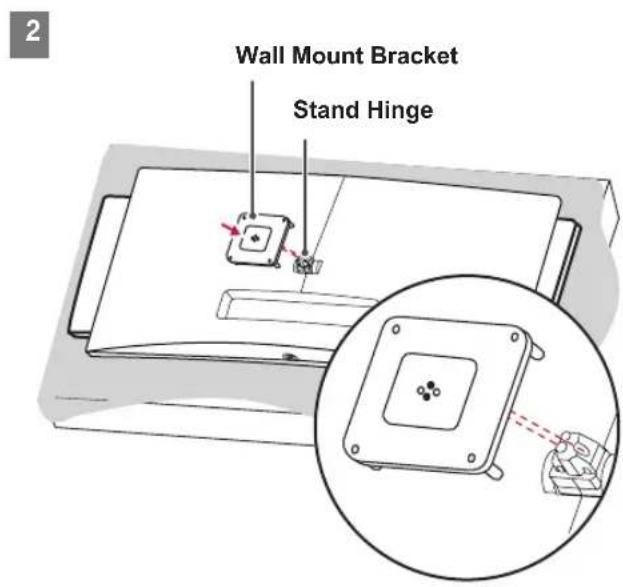

2 Wall Mount Bracket Stand Hinge

3

NOTE

• Be careful not to apply too much force while mounting the wall mount bracket as it may cause damage to the screen.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

USING THE MONITOR

- The following instructions are based on the 29UC97 model. Illustrations in this manual may differ from the actual product.

Press the joystick button, go to Menu → Quick Settings → Input, and then select the input option.

CAUTION

• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a screensaver if possible.

NOTE

• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.

Connecting to a PC

• This monitor supports the *Plug and Play feature.
  * Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any drivers.

HDMI Connection

Transmits digital video and audio signals from your PC to the monitor. Connect your PC to the monitor using the HDMI cable as shown in the illustration below.

HDMI IN 1 HDMI IN 2 HDMI OUT PC

CAUTION

• Make sure to use the supplied HDMI cable of the product. Otherwise, this may cause the device to malfunction.
• Connecting your PC to the monitor using the HDMI cable may cause device compatibility issues.
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
• High-Speed HDMI ^® / ^TM cable
• High-Speed HDMI ^® / ^TM cable with Ethernet

DisplayPort Connection

Transmits digital video and audio signals from your PC to the monitor. Connect the monitor to your PC using the display port cable as shown in the illustration below.

DP-IN (sold separately) DP OUT PC

NOTE

- There may be no video or audio output depending upon the DP (DisplayPort) version of the PC.

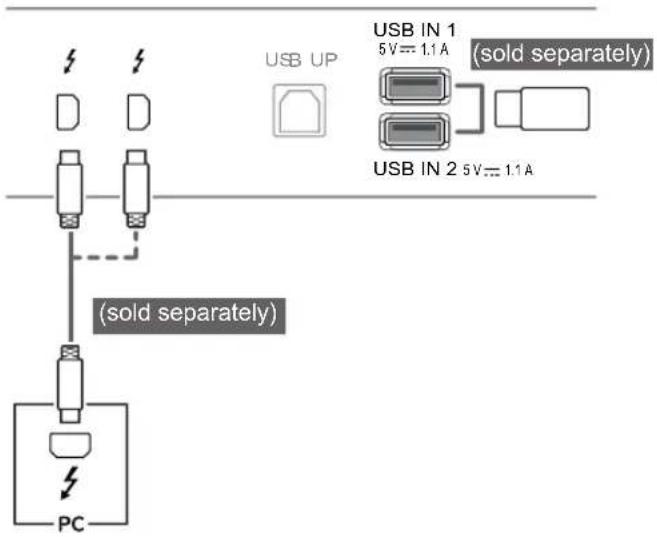

Thunderbolt (A) Connection

29UC97

You can connect your high-resolution display or high-performance data device to the monitor via a Thunderbolt port. Connect your external device to the monitor using the Thunderbolt cable as illustrated below.

(sold separately) PC

NOTE

• The maximum data transmission rate of each port is 20 Gb/s.
• Make sure to use a Thunderbolt (§) certified cable. Otherwise, this may cause the device to malfunction.
• Thunderbolt (ζ) is supported in such environments as Windows 7, Windows 8.1, and Mac product.
• Mac products may not support the recommended resolution or the some features. For more information, refer to the support information card which is provided separately.
• The ability to set up dual monitors using the Thunderbolt ( ) and daisy-chaining technology depends on the performance of your graphics card.

Connecting AV Devices

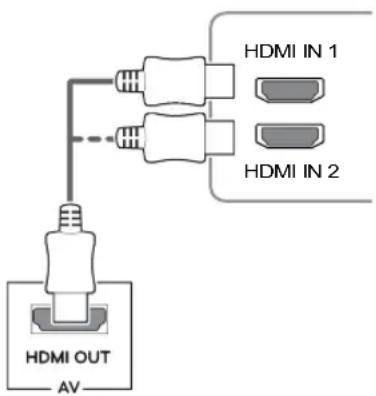

HDMI Connection

HDMI transmits digital video and audio signals from your AV device to the monitor. Connect your AV device to the monitor using the HDMI cable as shown in the illustration below.

HDMI OUT AV HDMI IN 1 HDMI IN 2

NOTE

• Make sure to use the supplied HDMI cable of the product. Otherwise, this may cause the device to malfunction.
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
• High-Speed HDMI ^® / ^TM cable
• High-Speed HDMI ^® / ^TM cable with Ethernet

Connecting Peripherals

USB Cable connection - PC

The USB port on the product functions as a USB hub.

NOTE

• Make sure to install the most recent Windows OS service pack before using the product.
  • Peripheral devices are sold separately.
• A keyboard, mouse, or USB device can be connected to the USB port.

CAUTION

Cautions When Using a USB Device

• A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized.
• Some USB devices may not be supported or may not work properly.
• It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not adequate, the USB device may not be recognized properly.)

HDMI/DP (DisplayPort) connection

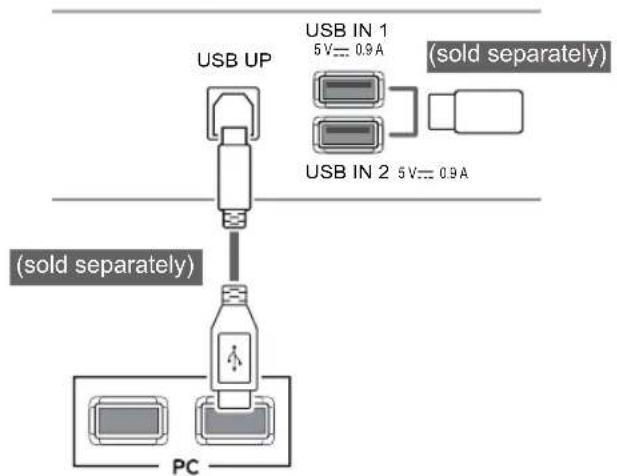

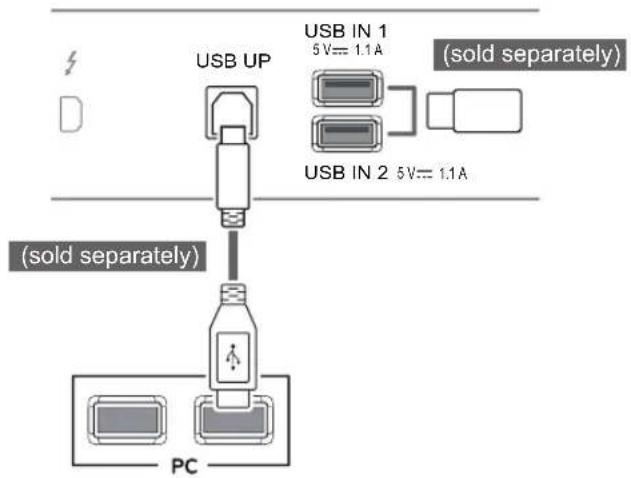

To use USB 3.0, connect the A-B type USB 3.0 cable of the product to the PC.

Peripheral devices connected to the USB IN port can be controlled from the PC.

29UC97

USB UP USB IN 1 5V= 1.1A (sold separately) USB IN 2 5V= 1.1A (sold separately) PC

29UC97C

USB UP USB IN 1 5V== 0.9A (sold separately) USB IN 2 5V== 0.9A (sold separately) PC

Thunderbolt (§) connection

29UC97

Peripheral devices connected to the USB IN port can be controlled from the PC.

If you change the input on the menu while a device is in connection via the Thunderbolt port, then the device in connection via the USB port may not work properly.

USB UP USB IN 1 5V=1.1A (sold separately) USB IN 2 5V=1.1A (sold separately) PC

Connecting Headphones

Connect peripherals to the monitor via the headphones port. Connect as illustrated.

H/PΩ (sold separately)

NOTE

• Peripheral devices are sold separately.
- If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

Angled Straight

- Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

USER SETTINGS

Activating the Main Menu

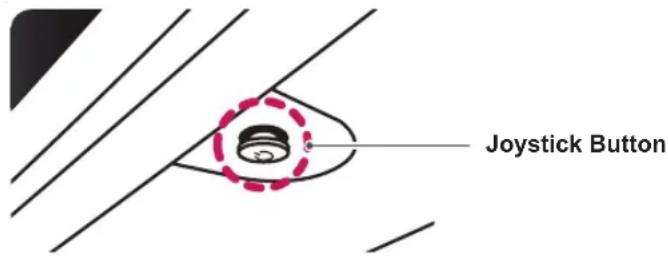

1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◀/▶) to set the options.
3 Press the joystick button once more to exit the main menu.

Joystick Button

Button Menu	Status Description
	Main menu disabled Enables the main menu.
	Main menu enabled		Exits the main menu.(Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
	◀	Main menu disabled Adjusts the monitor volume level.
		Main menu enabled Enters the menu features.
	▶	Main menu disabled Adjusts the monitor volume level.
		Main menu enabled Enters the PBP feature.
	▲	Main menu disabled Enables the main menu.
		Main menu enabled Enters the MaxxAudio feature.
	▼	Main menu disabled Enables the main menu.
		Main menu enabled Turns off the monitor.

Main Menu Features

Long press: Monitor off

Main Menu Description

Menu Configures the screen settings.

MaxxAudio Sets the sound quality.

PBP Displays the screens of two input modes on one monitor.

Monitor off Turns off the monitor.

Exit Exits the main menu.

User Settings

Menu Settings

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Configure the options by moving the joystick up/down/left/right.
3 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (◎ / OK) it.
4 If you want to exit the OSD menu, move the joystick to ◀ until you exit.
- When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.

Quick Settings PBP Picture Sound General Reset

Each option is described below.

Menu Description
Quick Settings	Brightness	Adjusts the color contrast and brightness of the screen.
	Contrast
	Volume Adjusts	NOTEYou can adjust Mute/Unmute by moving the joystick button to ▼ in the Volume menu.
	Input Selects	the input mode.
	Ratio Adjusts	the aspect ratio of the screen.
PBP Displays the screens of two input modes on one monitor.
Picture Picture	Mode	Optimizes the screen for picture mode.
	Picture Adjust	Adjusts Sharpness, Black Level, Response Time, Gamma, Color Temp, and Six Color of the screen.
Sound Adjusts the MaxxAudio, MaxxAudio Settings, and Midnight Mode.
General Adjusts Language, SMART ENERGY SAVING, Power LED, Automatic Standby, and OSD Lock.
Reset Restores the default settings.
◀	Exit	Exits the OSD menu.

CAUTION

- Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.

Ratio

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Quick Settings > Ratio by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (◎ OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Quick Settings Brightness 100 > Contrast 70 > Volume 30 > Input HDMI1 > Ratio Wide > ▲/▼: Move / ▶: OK ◀: Back

Each option is described below.

Menu > Quick Settings > Ratio Description
Wide Displays the video in widescreen	regardless of the video signal input.
Original Displays video according to	the aspect ratio of the video signal input.
Cinema 1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the bottom for subtitles. (at 1080p)
1:1 The aspect ratio is not adjusted from the original.

NOTE

• The display may look the same for Wide, Original, and 1:1 options at the recommended resolution (2560 x 1080).
• The ratio is disabled in the interlaced signal.

PBP

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to PBP by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

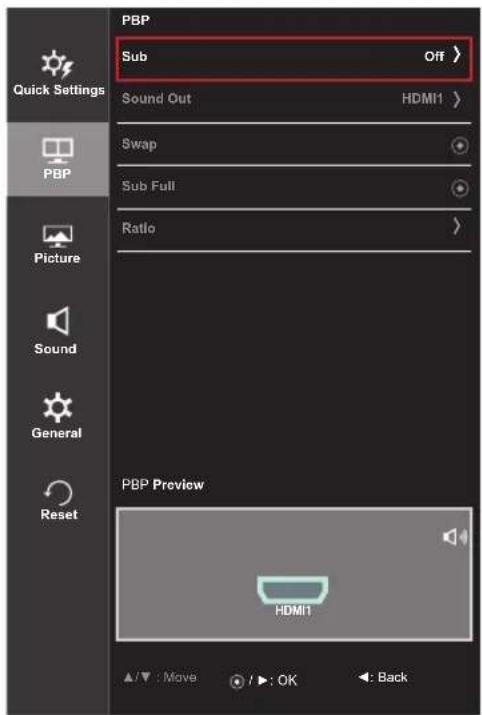

PBP Sub Off > Sound Out HDMI1 Swap Sub Full Ratio PBP Preview HDMI1 ✓ : Move ✓ : OK Back

Each option is described below.

Menu > PBP Description
Sub Displays the screens of two input modes on one monitor.
	PBP Connection		Sub Screen (Right)
			HDMI 1 HDMI 2 Display Port		Thunderbolt (A)(29UC97 model only)
	Main Screen(Left)	HDMI 1 - O O	O
		HDMI 2 O - O	O
		DisplayPort O	O -	X
		Thunderbolt (A)(29UC97 model only)	O O	X	-
Sound Out Changes the audio output in PBP mode.
Swap	Toggles between the main screen and sub screen in PBP mode.
Sub Full	Converts the sub screen in PBP mode to wide screen.

Menu > PBP Description
Ratio Adjusts the aspect ratio of the main screen or sub screen.
	Main Wide Displays the video to fit the PBP screen, regardless of the video signal input.
	Sub Wide Displays the video to fit the PBP screen, regardless of the video signal input.

NOTE

• When the Sub mode is Off, Sound Out, Swap, Sub Full, and Ratio menus become disabled. The Main/Sub options for Ratio become disabled if there is no signal.
• The optimal resolution for PBP mode is set automatically when PBP mode is set. (29UC97C model only)

Picture Mode

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Picture > Picture Mode by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Picture Picture Mode > Picture Adjust > ▲/▼: Move ▼: OK ←: Back

Each option is described below.

Menu > Picture >Picture Mode	Description
Picture Mode	Custom	Allows the user to adjust settings. You can adjust the color mode of the main menu.
	Photo Optimizes the screen for photos.
	Cinema Optimizes the screen for videos.
	Game Optimizes the screen for games.
	Reader 1 Optimizes the screen for browsing newspapers. You can brighten the screen in the OSD menu.
	Reader 2 Optimizes the screen for looking at cartoons. You can brighten the screen in the OSD menu.

NOTE

- If Picture Mode is non-Custom, SMART ENERGY SAVING will automatically be Off.

Picture Adjust

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Picture > Picture Adjust by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (◎ OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

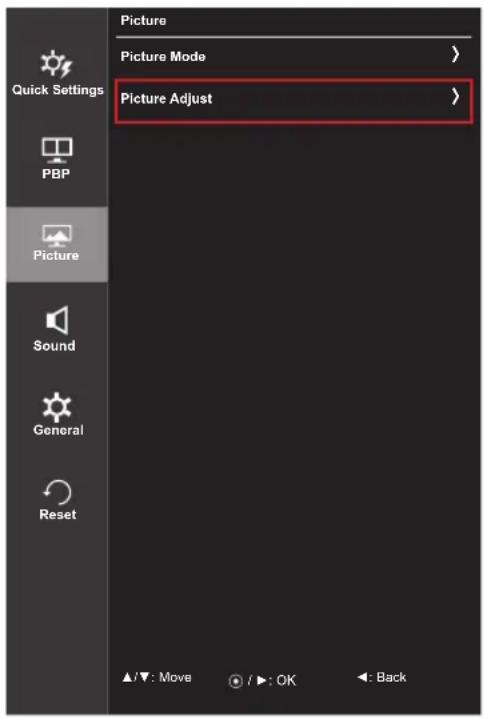

Picture Picture Mode > Picture Adjust >

Each option is described below.

Menu > Picture >Picture Adjust	Description
Sharpness Adjusts the shar	pness of the screen.
Black Level Sets the offset	level (for HDMI only).Offset as a reference for a video signal, this is the darkest color the monitor can display.
	High The picture of the screen gets brighter.
	Low The picture of the screen gets darker.
Response Time Sets a res	ponse time for displayed pictures based on the speed of the screen.For a normal environment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that you use high.Setting to High may cause image sticking.
	High Sets the response time to High.
	Middle Sets the response time to Middle.
	Low Sets the response time to Low.
	Off Does not use the response time improvement feature.
Gamma Custom gamma settings: When using the gamma 0, gamma 1, and gamma 2 monitor settings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Custom The user can adjust it to red, green, or blue by customization.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color	Meets the user requirements for colors by adjusting the hue and saturation of the six colors(red, green, blue, cyan, magenta, and yellow) and then saving the settings.
	Hue Adjusts	the tone of the screen colors.
	Saturation	Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher the value, the more saturated and darker the colors become.
Reset Returns color to the default settings.

Sound

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Sound by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to until you exit.

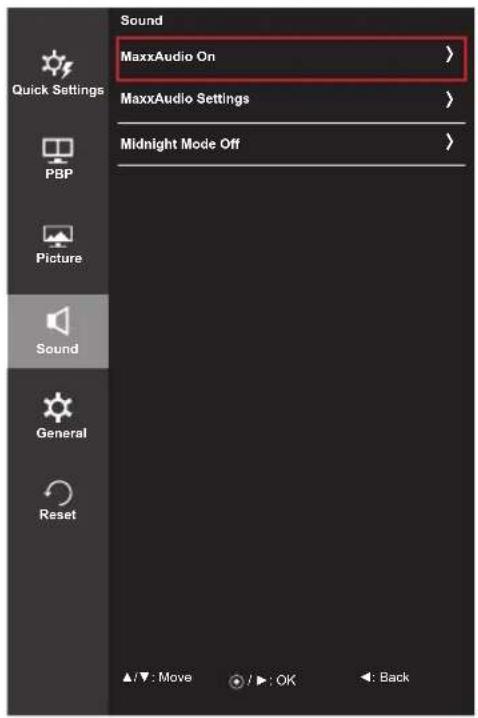

Sound MaxxAudio On > MaxxAudio Settings > Midnight Mode Off > Sound General Reset ▲/▼: Move / ▶: OK ◀: Back

Each option is described below.

Menu > Sound Description
MaxxAudio(Move the joystick to▲ in the main menu to enter the function directly.)	MaxxAudio On MaxxAudio		® by Waves, recipient of a Technical GRAMMY Award® is a suite of studio-quality sound tools for a superior listening experience.
			Off Disables the MaxxAudio function.
	MaxxAudio Settings	The user can set the sound quality manually.
		MaxxBass Bass Enhancement.
		MaxxTreble Treble Enhancement.
		MaxxDialog Dialog Enhancement.
		Maxx3D Enhances the three dimensional effect of the sound.
		Reset Returns the sound quality to the default settings.
	Midnight Mode Lets you enjoy rich and full sound at a low volume.

General

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to General by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

General Language English > SMART ENERGY SAVING Low > Power LED Off > Automatic Standby Off > OSD Lock Off > ▲/▼: Move ▶: OK ◀: Back

Each option is described below.

Menu > General Description
Language Sets the	menu screen to the desired language.
SMART ENERGY SAVING	High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
	Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
	Off Disables the SMART ENERGY SAVING feature.
Power LED Turns the power LED on the front of the monitor on or off.
Automatic Standby	Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
OSD Lock Prevents	incorrect key input.
	On Disables key input
	Off Enables key input
	[BYX8]NOTEAll features are disabled except Brightness, Contrast, Volume, Input in Quick Settings, OSD Lock in General, and the Exit button.

NOTE

- If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom.

Reset

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Reset by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Reset Do you want to reset your settings? Reset Cancel ▲/▼: Move ○/ ▶: OK ◀: Back

Each option is described below.

Menu > Reset Description

Do you want to reset your settings?

Reset Restores the default settings.

Cancel Cancel the reset.

TROUBLESHOOTING

Nothing is displayed on the screen.
Is the monitor's power cord plugged in?	Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?	Check the power cable connection and press the power button.
Is the power on and the power LED displaying white?	Check that the connected input is enabled (Menu > Quick Settings > Input).
Is the power LED blinking?	If the monitor is in sleep mode, move the mouse, or press any key on the keyboard, to switch the display on.Check if the computer is turned on.
Is the OUT OF RANGE message being displayed?	This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product Specification section of this manual to set the appropriate frequency.
Is the No Signal message being displayed?	This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
The screen may not be dis-played properly when configuring DisplayPort 1.2 in a Mac product.	DisplayPort 1.2 may not be supported depending upon the Mac product. Please contact the manufacturer.

Cannot control some functions of OSD.
Are some functions not available when you press the Menu button?	• The OSD is locked. Go to Menu > General and set OSD Lock to Off.

The screen retains an image.
Does image sticking occur even when the monitor is turned off?	Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.To extend the lifetime of the monitor, use a screensaver.

Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?	• If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.

NOTE

• Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate, and is represented by Hz.
• Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal frequency and is represented by kHz.

NOTE

• Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution in Control Panel > Display > Settings.
• Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
• Some graphics cards may not support 2560 x 1080 resolution. If the resolution cannot be displayed, contact the manufacturer of your graphics card.

The display color is abnormal.
Does the display appear discolored (16 colors)?	Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Settings > Color Quality.
Does the display color appear unstable or monochrome?	Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
Are there spots on the screen?	When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.

No sound from the headphone port.
Are images displayed using DP (DisplayPort) or HDMI input without sound?	Make sure that the headphone port connections are made properly.Try increasing the volume with the joystick.Set the audio output of the PC to the monitor you are using. On Microsoft Windows, go to Control Panel > Hardware and Sound >Sound > set the monitor as default device.

PRODUCT SPECIFICATION

29UC97

LCD Screen Type TFT (Thin Film Transistor)
Resolution Max Resolution 2560 x 1080 @		60 Hz
		Recommended Resolution	2560 x 1080 @ 60 Hz
Video Signal Horizontal Frequency 30 kHz		to 90 kHz
		Vertical Frequency 56 Hz to 75 Hz
		Synchronization Separate Sync.
Input Connector	H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, Thunderbolt ( ), USB UP, USB IN 1, 2
Power Sources Power Rating		19 V --- 4.5 A
		Power Consumption (Typical)	Operating Mode: 50 W (Typical, USB excluded) (Outgoing Condition)Sleep Mode ≤ 1.2 WOff Mode ≤ 0.5 WOff Mode ≤ 0.3 W (DC switch is off.)
AC/DC Adapter	ADS-110CL-19-3 190110G type, manufactured by HonorOutput: 19 V --- 5.79 A
Stand Angle	Forward/Backward: -5° to 15° (Head)
Environmental Conditions	Operating Conditions	Temperature	0 °C to 40 °C
		Humidity	Less than 80 %
	Storing Conditions Temperature	-20	°C to 60 °C
		Humidity	Less than 85 %
Audio Output	7 W + 7 W
Supported Operating System	Win 7, Win 8.1, Mac OS*

Dimensions	Monitor Size (Width x Height x Depth)
	With Stand	700.9 mm x 420.9 mm x 225.6 mm
	Without Stand	700.9 mm x 316.5 mm x 99.0 mm
Weight (Without Packaging)	With Stand	6.2 kg
	Without Stand	5.5 kg

Specifications are subject to change without notice.
* Mac products may not support the recommended resolution or some features.

(For more information, refer to the support information card of Mac which is provided separately.)

29UC97C

LCD Screen Type TFT (Thin Film Transistor)
		LCD (Liquid Crystal Display) Screen
	Color Depth 8-bit color	is supported.
	Pixel Pitch 0.2628 mm	x 0.2628 mm
Resolution Max Resolution	2560 x 1080 @	60 Hz
	Recommended Resolution	2560 x 1080 @ 60 Hz
Video Signal Horizontal Frequency 30 kHz		to 90 kHz
		Vertical Frequency	56 Hz to 75 Hz
		Synchronization Separate Sync.
Input Connector H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, USB UP, USB IN 1, 2
Power Sources Power Rating		19 V --- 3.0 A
		Power Consumption (Typical)	Operating Mode: 40 W (Typical, USB excluded) (Outgoing Condition)Sleep Mode ≤ 1.2 WOff Mode ≤ 0.3 W
AC/DC Adapter DA-65G19 type, manufactured by APDOutput: 19 V --- 3.42 A
Stand Angle	Forward/Backward: -5° to 15° (Head)
Environmental Conditions	Operating Conditions	Temperature	0 °C to 40 °C
		Humidity	Less than 80 %
	Storing Conditions Temperature	-20 °C to 60 °C
		Humidity	Less than 85 %
Audio Output	7 W + 7 W
Supported Operating System	Win 7, Win 8.1, Mac OS

Dimensions	Monitor Size (Width x Height x Depth)
	With Stand 700.9 mm x 420.9 mm x 225.6 mm
	Without Stand 700.9 mm x 316.5 mm x 99.0 mm
Weight (Without Packaging)	With Stand 6.0 kg
	Without Stand 5.3 kg

Specifications are subject to change without notice.

Factory Support Mode

29UC97	(Preset Mode, HDMI/DisplayPort/Thunderbolt PC)
29UC97C	(Preset Mode, HDMI/DisplayPort PC)

Preset Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Polarity (H/V)	Remarks
640 x 480 31.469 59.94	-/-
640 x 480 37.5 75 -/-
720 x 400 31.468 70.08	-/+
800 x 600 37.879 60.317	+/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.02	9 +/+
1152 x 864 67.5 75 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.0	2 +/+
1280 x 1024 79.976 75.0	25 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.29 59.95	4 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+

HDMI Timing (Video)

Preset Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remarks
480p 31.5 60
720p 37.5 50
720p 45 60
1080p 56.25 50
1080p 67.5 60

Power LED

Mode LED Color
On Mode White
Sleep Mode Flashing White
Off Mode Off

PROPER POSTURE

Proper Posture for Using the Monitor

Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye level.

• Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged usage.
- Adjust the stand angle from -5^ to 15^ to obtain the best view of the screen.

You should be looking slightly down at the screen.

Line drawing of a person sitting at a desk using a computer, with no text or symbols present.

Stand Angle -5^ to 15^

Adjust the position of the screen to minimize reflections.

Place your hands gently on the keyboard, keeping your arms bent at the elbows and extended horizontally in front of you.

LG Life's Good

This device meets the EMC requirements for home appliances (Class B) and is intended for home usage. This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand. Please note that the label attached to the product provides information for technical support.

Model

Serial No.

ENERGY STAR ^® is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency (EPA).

As an ENERGY STAR® Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Refer to ENERGY STAR.gov for more information on the ENERGY STAR® program.
