USER MANUAL 27MP77HM LG

Owner's Manual IPS LED MONITOR (LED MONITOR\*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

Please read this manual carefully before operating your set and retain it for future reference.

IPS LED MONITOR MODEL

24MP77HM	27MP77HM
24MP77SM	27MP77SM

CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPARING

4 Unpacking
6 Parts and buttons
7 - How to Use the Joystick Button
8 Moving and Lifting the Monitor
9 Setting up the Monitor set
9 - Attaching the Stand Base
10 - Detaching the Stand Base
11 - Mounting on a table
11 - Using the cable holder
13 - Mounting on a wall

14 USING THE MONITOR SET

14 Connecting to a PC
14 - D-SUB connection
14 - HDMI connection
15 Connecting to AV Devices
15 - HDMI connection
16 Connecting to External Devices
16 - Peripheral device connection

17 INSTALLING THE LG MONITOR SOFTWARE

17 Installing The Screen Split

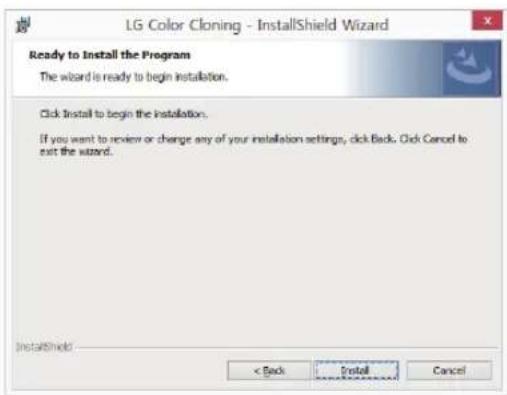

19 Installing The LG Color Cloning

21 CUSTOMIZING SETTINGS

22 Customizing settings
22 - Menu Settings

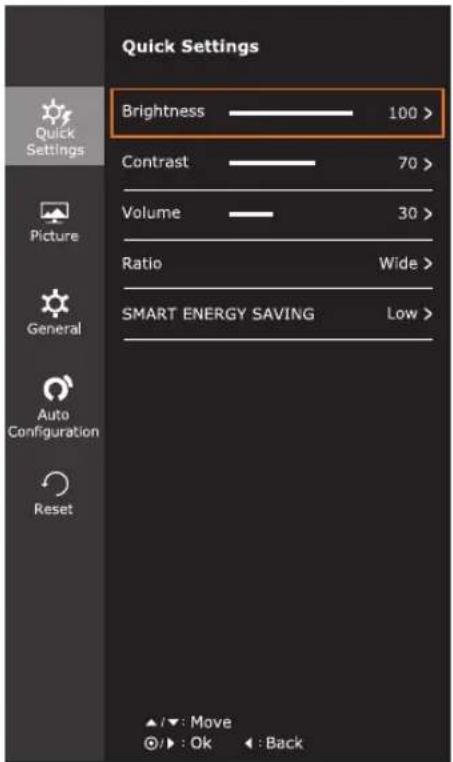

22 - -Quick Settings

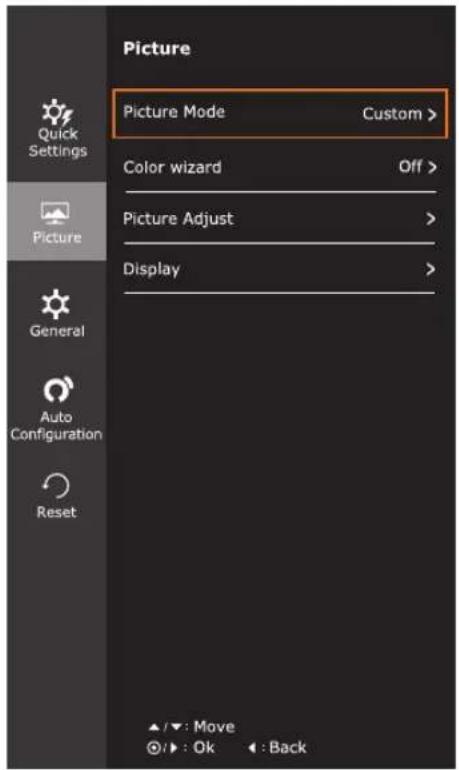

24 - -Picture

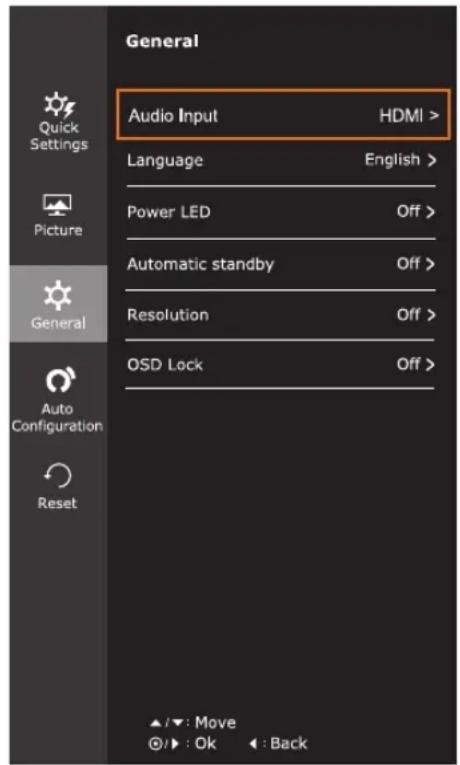

26 - -General
27 - -Auto Configuration

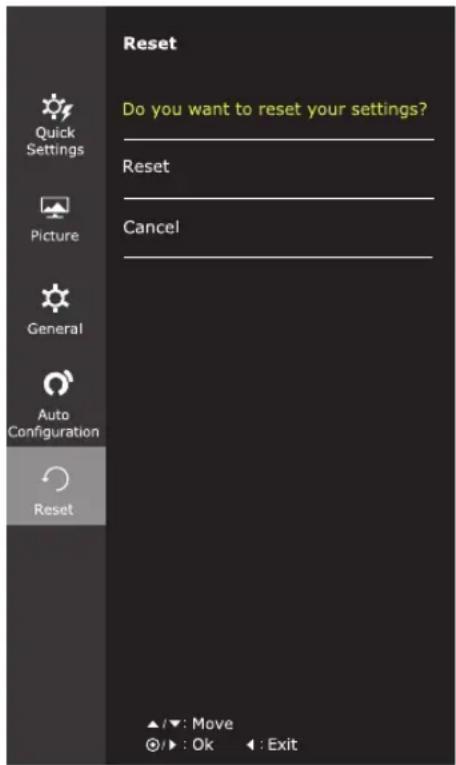

28 - -Reset

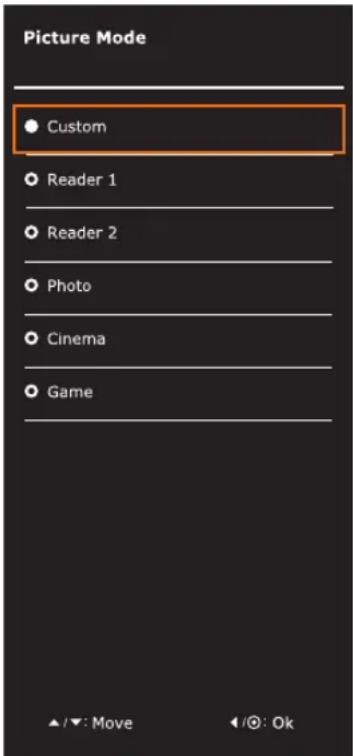

29 - -Picture mode

30 TROUBLESHOOTING

32 SPECIFICATIONS

36 Preset Modes (Resolution)
36 Indicator

37 PROPER POSTURE

37 Proper posture for using the Monitor set.

38 CUD ( COLOR UNIVERSAL DESIGN) CERTIFICATION

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
* To make this setting be disabled, change the option to 'Off' in OSD menu of "Automatic Standby".

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

Illustration of a CD or DVD disc and its corresponding physical case (no text or symbols)

CD(Owner's Manual) / Card

D-SUB Cable
( This cable is not included in all countries. )

HDMI Cable
( This cable is not included in all countries. )

Power Cord

Simple black rectangular device with a coiled cable and terminal connector (no text or symbols visible)

AC-DC Adapter
( Depending on the country )

or

Electric plug with three leads and a cable, no visible text or symbols

AC-DC Adapter
( Depending on the country )

Stand Body

Stand Base

Cable Holder Screws

CAUTION

• Do not use any unapproved accessories to ensure the safety and product life span.
• Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

• The accessories supplied with your product may vary depending on the model.
- Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

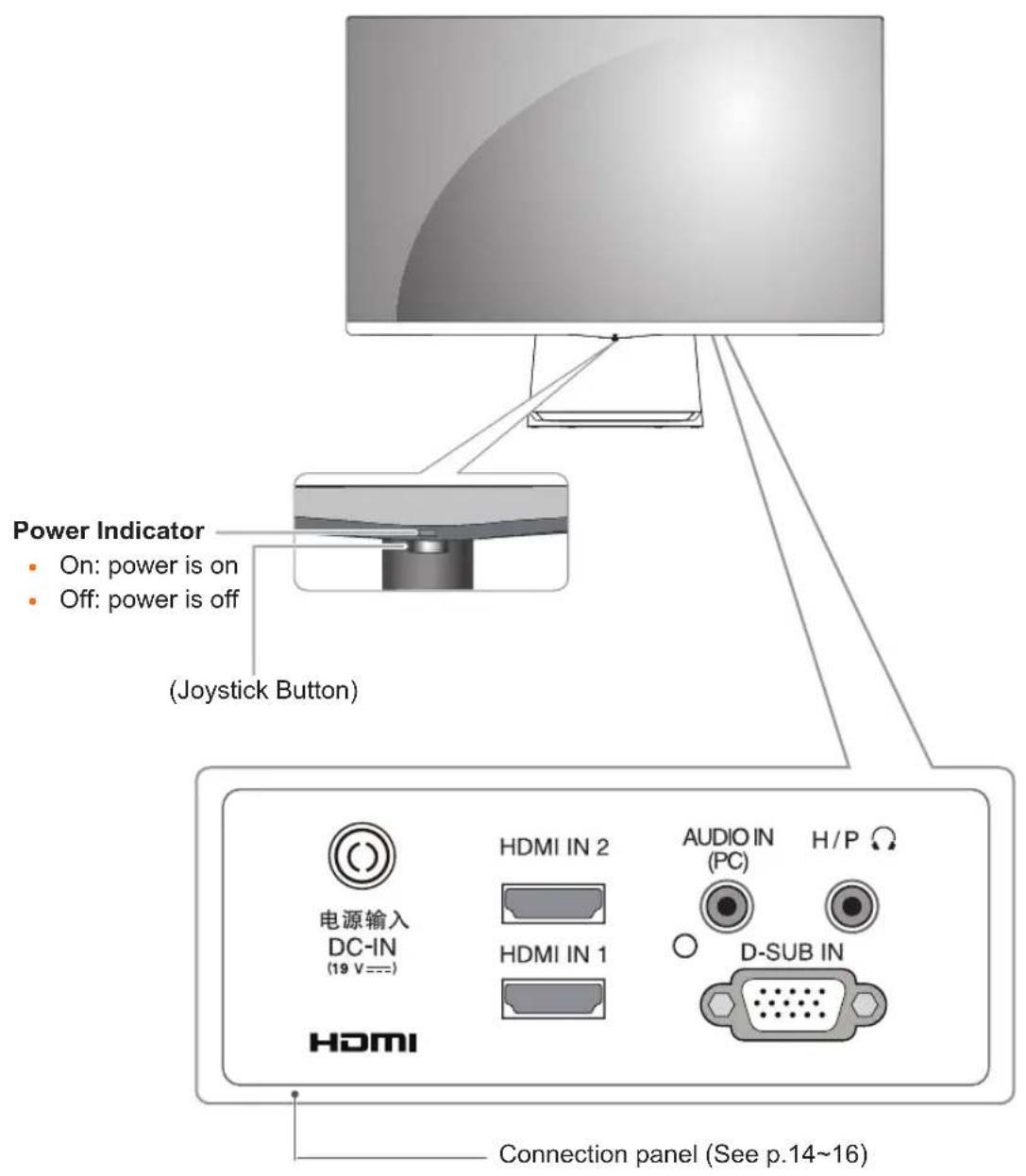

Parts and buttons

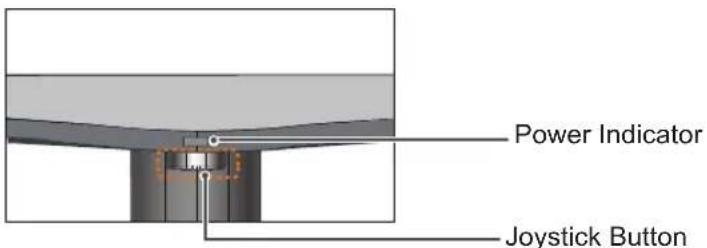

Power Indicator • On: power is on • Off: power is off (Joystick Button) 电源输入 DC-IN (19 V==) HDMI HDMI IN 2 HDMI IN 1 AUDIO IN (PC) H/P D-SUB IN Connection panel (See p.14~16)

NOTE

• The joystick button is located at the bottom of the monitor.

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

Basic Functions

		Power on	Press the joystick button once with your finger to turn on the monitor.
		Power off	Press and hold the joystick button once with your finger to turn off the monitor.
	◀/▶	Volume Control	You can control the volume by moving the joystick button left/right.

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.

• It is advisable to place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all cables.

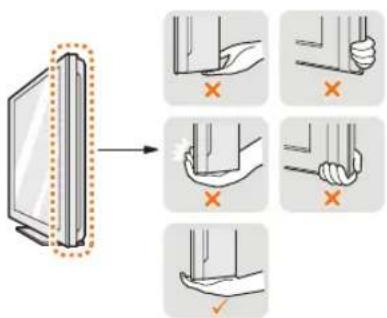

• Hold the top and bottom of the monitor frame firmly. Do not hold the panel itself.

Diagram illustrating hand positioning and adjustment of a screen, with labeled cross marks indicating specific positions.

- When holding the monitor, the screen should face away from you to prevent it being scratched.

• When moving the monitor, avoid any strong shock or vibrations to the product.
• When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.

CAUTION

- As far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.

Illustration of a hand holding a prohibition symbol above a computer monitor (no text or symbols present)

Setting up the Monitor set

Attaching the Stand Base

1 Place the screen face down.

CAUTION

• To protect the screen from scratches, cover the surface with a soft cloth.

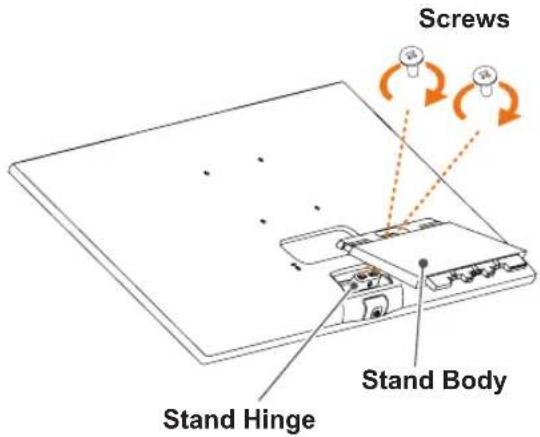

2 Check the direction of the stand body (front, back) and then mount the stand body onto the stand hinge.

Tighten two screws into the back of the stand body.

Screws Stand Body Stand Hinge

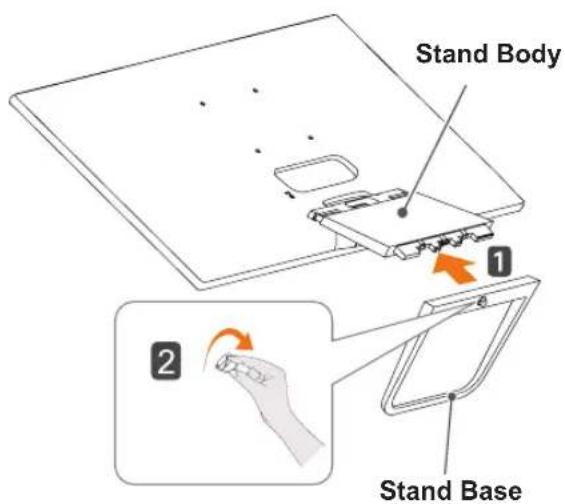

3 Insert the stand base into the hook of the stand body.

2 Tighten the screw to the right.

Stand Body 1 2 Stand Base

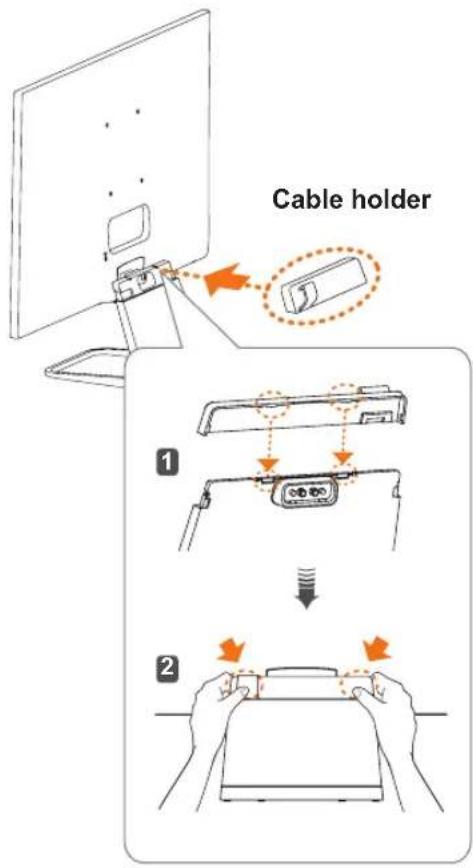

4 Attach the Cable holder.

1 Insert the cable holder into the hook of the stand body.
2 Press down the cable holder as shown in illustration.

Cable holder 1 2

CAUTION

Applying excessive force when tightening the screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

CAUTION

It may hurt your foot off the stand, so be careful.

Detaching the Stand Base

1 Place the screen face down.

CAUTION

• To protect the screen from scratches, cover the surface with a soft cloth.

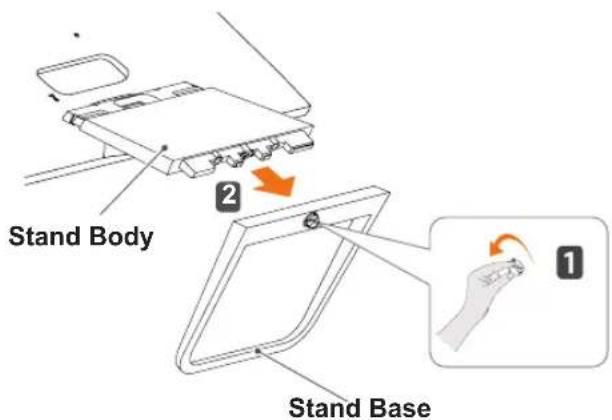

2 1 Turn the screw to the left.

2 Pull out the Stand Base.

Stand Body 2 Stand Base 1

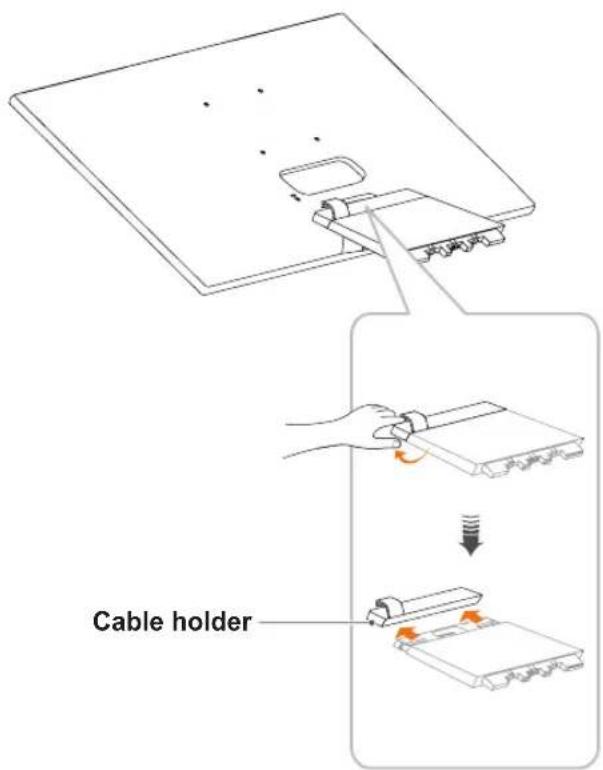

3 As shown in the illustration, put your hand on the right groove of cable holder, pull cable holder out to separate it from the set.

Cable holder

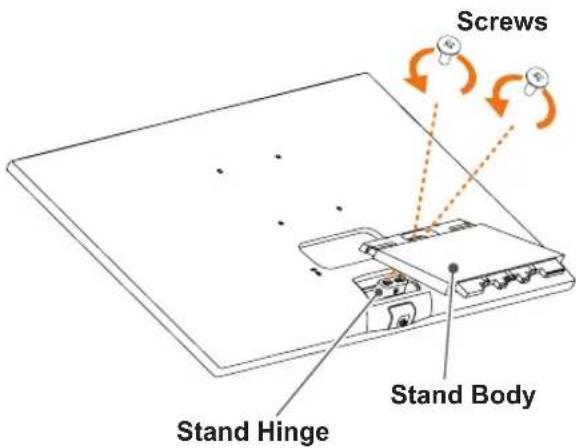

4 Remove the two screws on the back of stand body.

As shown in the illustration, disconnect the stand body from the stand hinge.

Screws Stand Body Stand Hinge

CAUTION

• Illustrations in this document represent typical procedures, so they may look different from the actual product.
- Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.
- When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
- If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

Mounting on a table

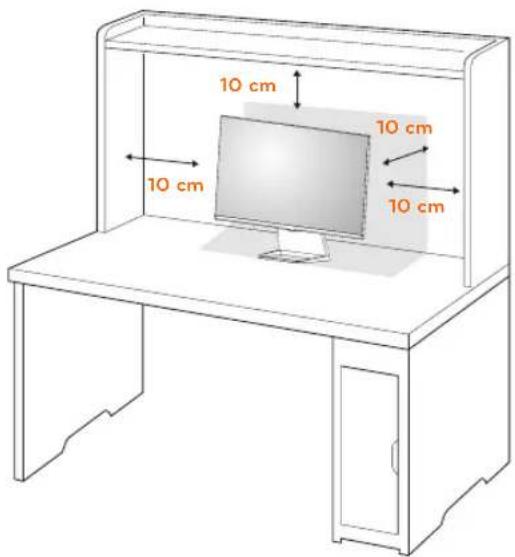

1 Lift and tilt the Monitor set into its upright position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

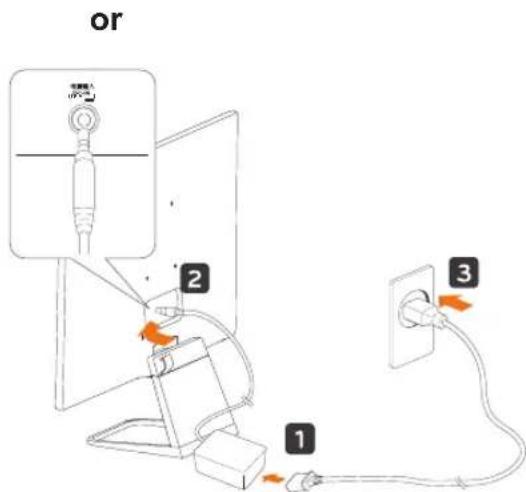

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

Diagram showing a device connected to a power outlet via cable, with labeled components and directional arrows.

or 2 1 3

3 Press the joystick button on the bottom of the monitor to turn on the monitor.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

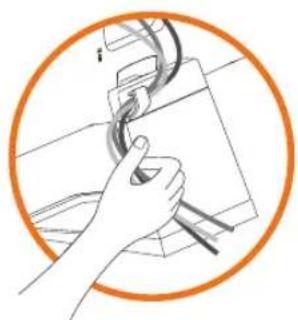

Using the cable holder

Cable holder

Illustration of a hand holding a tool with a coiled cable, enclosed in an orange circle (no text or symbols)

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Illustration of a hand using a ruler to measure a circular object, with no text or symbols present.

Diagram showing a hand holding a ruler with an orange prohibition symbol and a warning sign, indicating no liability or caution.

Do not touch or press the screen when adjusting the angle of the monitor.

Hand-drawn illustration showing two hands holding a blank whiteboard with an orange prohibition symbol above them.

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Simple line drawing of hands holding a rectangular object with an orange prohibition symbol (no text or labels)

NOTE

Tilt from +20 to -3 degrees up or down to adjust the angle of the Monitor set to suit your view.

-3° 20° Front Rear

Using the Kensington security system

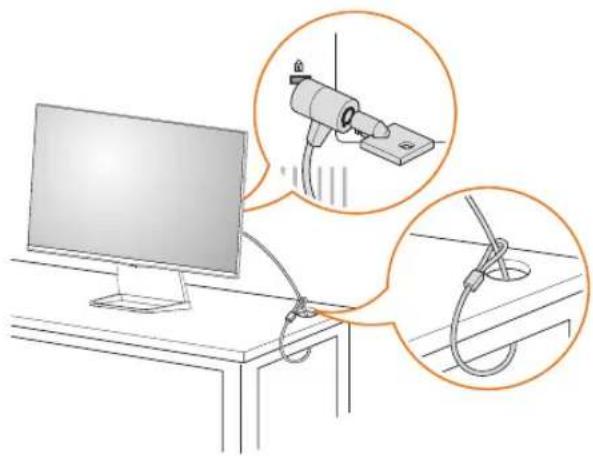

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing cable installation details (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

Mounting on a wall

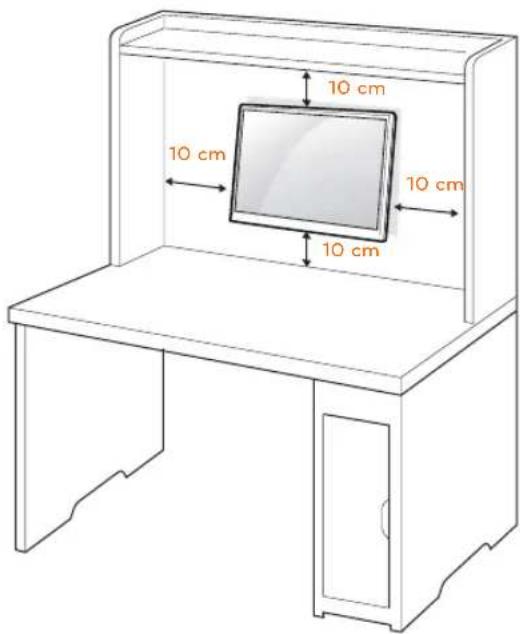

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm 10 cm 10 cm 10 cm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1 If you use screw longer than standard, the monitor might be damaged internally.
2 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

Model	24MP77HM24MP77SM	27MP77HM27MP77SM
Wall Mount (A x B)	75 x 75 100 x 100
Standard screw	M4 x L10
Number of screws	4
Wall Mount Plate (Optional)	RW120

- Wall Mount (A x B)

CAUTION

• Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.
• If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.
• Use only an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
• Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

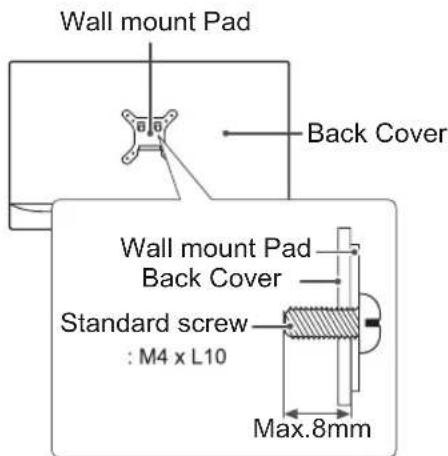

• Screw length from outer surface of back cover should be under 8mm.

Wall mount Pad Back Cover Wall mount Pad Back Cover Standard screw : M4 x L10 Max.8mm

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit will include an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Be sure to use the proper length.
• For more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET

Connecting to a PC

- Your Monitor set supports Plug & Play*. *Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

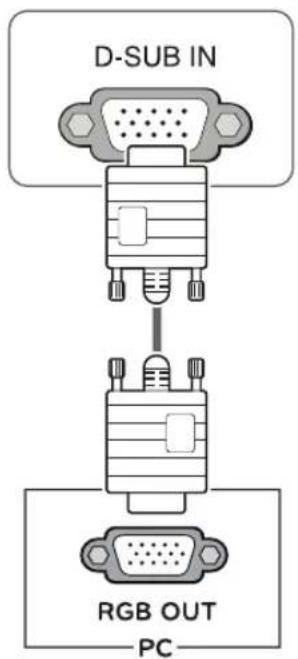

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

D-SUB IN RGB OUT PC

NOTE

- When using a D-Sub signal input cable connector for Macintosh

Technical line drawing of two mechanical components with mounting holes and internal slots (no text or symbols)

- Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

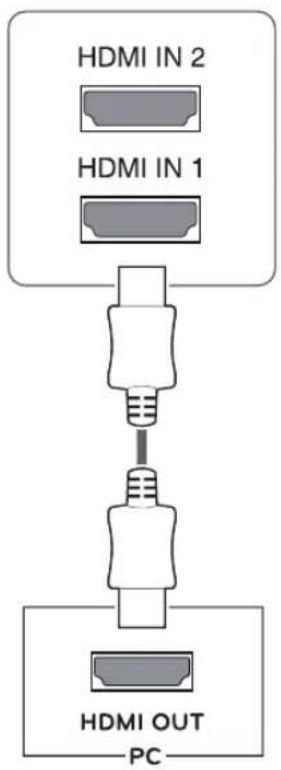

HDMI connection

Transmits the digital video and audio signals from your PC to the Monitor set. Connect the PC and the Monitor set with the HDMI cable as shown in the following illustrations.

HDMI IN 2 HDMI IN 1 HDMI OUT PC

NOTE-

• If you use HDMI PC, it can cause compatibility problem.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
  • Recommended HDMI cable types

• High-Speed HDMI®/TM Cable

• High-Speed HDMI ^® / ^TM Cable with Ethernet

CAUTION

• Connect the signal input cable and tighten it by turning the screws clockwise.
• Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.
• Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

NOTE

• When you want to use two PC in our Monitor, please connect the signal cable(D-SUB/HDMI) respectively in Monitor set.
• If you turn the Monitor set on while it is cold, the screen may flicker. This is normal.
• Some red, green, or blue spots may appear on the screen. This is normal.

Connecting to AV Devices

HDMI connection

Transmits the digital video and audio signals from your AV devices to the monitor. Connect your AV device to the monitor with the HDMI cable as illustrated below.

HDMI IN 2 HDMI IN 1 HDMI OUT A/V

NOTE

• If you use HDMI PC, it can cause compatibility problem.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
  • Recommended HDMI cable types

• High-Speed HDMI ^® /TM Cable

• High-Speed HDMI®/TM Cable with Ethernet

Connecting to External Devices

Peripheral device connection

Connect peripheral devices to the monitor.

AUDIO IN (PC) H/P Ω PC

NOTE

• Peripheral devices are sold separately.
- Cables with angled plugs may have clearance issues, use straight plugs when possible.

Angle Type Straight Type

NOTE

• Headphones or speakers may not work normally, depending on the server PC settings.

INSTALLING THE LG MONITOR SOFTWARE

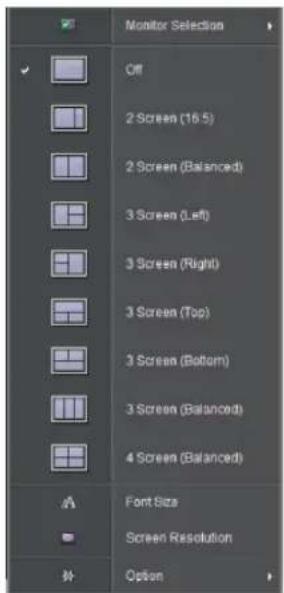

Installing The Screen Split

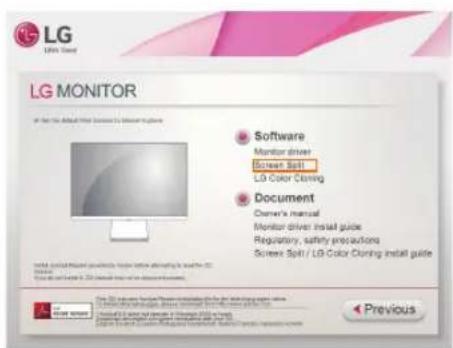

Insert the the owner's manual CD included in the product package into your PC's CD driver and install the Screen Split.

1 Set the default Web browser to Internet Explorer.

LG Monitor Software Monitor driver Screen Split LG Color Cloning Document Channel's manual Monitor driver install guide: Regulatory, safety executions Screen Split / LG Color Cloning install guide Previous

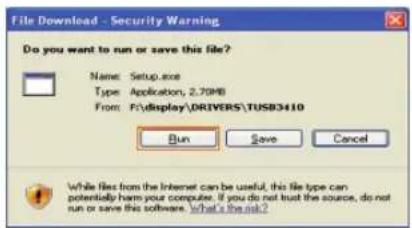

2 Click the "Screen Split" on the CD's main screen. When the file download window appears, click the Run button. (The file download window may vary depending on the operating system and the Internet Explorer version, but the installation procedures are same.)

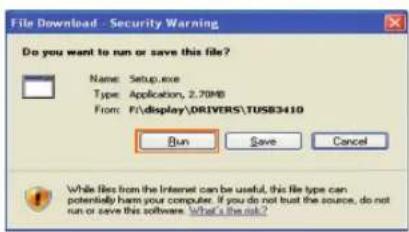

File Download - Security Warning Do you want to run or save this file? Name: Setup.exe Type: Application, 2.70MB From: F:\display\DRIVERS\TUSB3410 Run Save Cancel While files from the Internet can be useful, this file type can potentially harm your computer. If you do not trust the source, do not run or save this software. What's the risk?

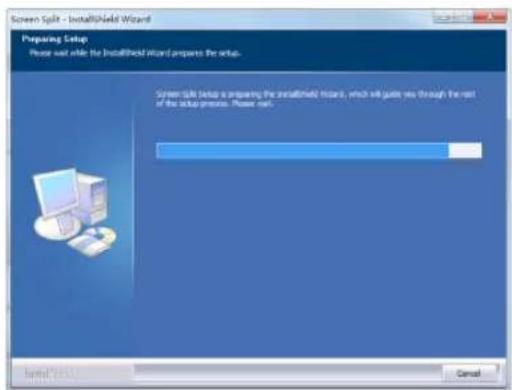

3 Follow the instructions to proceed with the installation.

Screen Split - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepare the setup. Screen Split Setup is preparing the installShield Wizard, which will quite way through the next of the setup previous. Please next.

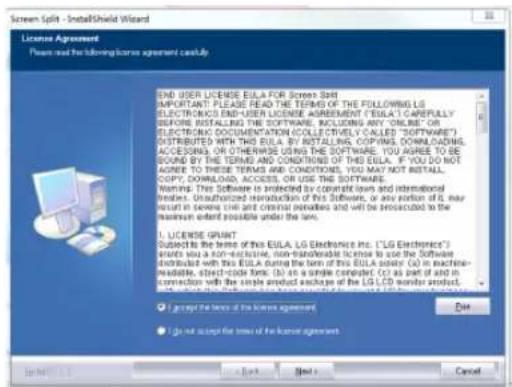

4 Check "I accept the terms of the agreement" on the License Agreement screen and then click the [Next] button.

Screen Split - InstallShield Wizard License Agreement Please read the following license agreement carefully. END USER LICENSEE ELLA FOR Screen Shift IMPORTANT: PLEASE READ THE TERMS OF THE FOLLOWING LEG ELECTRONICS AND END-USER LICENSE AGREEMENT (ELLA) CAREFULLY BEFORE INSTALLING THE SOFTWARE, INCLUDING ANY ONLINE" OR ELECTRONIC DOCUMENTATION (COLLECTIVELY CALLED "SOFTWARE") DISTRIBUTED WITH THIS ELLA BY INSTALLING, COPYING, DOWNLOADING, ACCESSORIES, OR OTHERWISE USING THE SOFTWARE. YOU ARE TO BE BEFORE SHALL BE SURED BY THE TERMS AND CONDITIONS OF THIS ELLA. IF YOU DO NOT AGREE TO THESE TERMS AND CONDITIONS, YOU MAY NOT INSTALL. COPY, DOWNLOAD, ACCESS, OR USE THE SOFTWARE. Warning: This Software is protected by copyright laws and international friends. Unauthorized introduction of this Software, or any portion of it may result in severe reliance on critical penalties and will be introduced to the maximum extent possible under the law. I. LICENSEE GRANT Subject to the terms of this ELLA, LG Electronics Inc. ("LG Electronics") starts you a soft-existicate, non-transferable license to use the Software distributed with this ELLA during the form of this ELLA seller (a) in exchange- readable, direct-code font: (b) on a simple computer (c) as part of and in connection with the simple product package of the LG LCD monitor product. • Get your license at the license agreement • Do not accept the laws of the license agreement. OK Next Help Cancel

CAUTION

• Service Pack 1 or higher is required for Windows 7 & Windows 8.

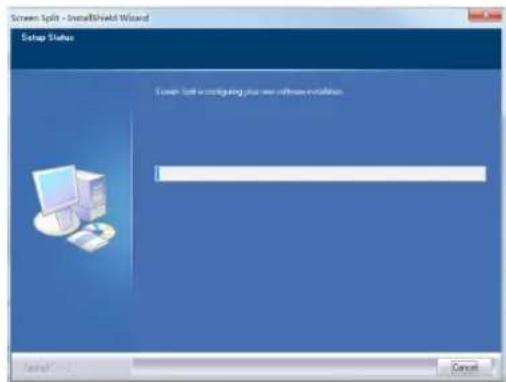

5 The Screen Split installation starts as shown below.

Screen Split - InstallShield Wizard Setup Status Install Shift is continuing your new software installation. Control... Cancel

NOTE

- Screen Split: This program automatically splits the program window as desired. ※ Monitor Selection only supported in extend display. ※ This program supported Windows 7 & Windows 8.

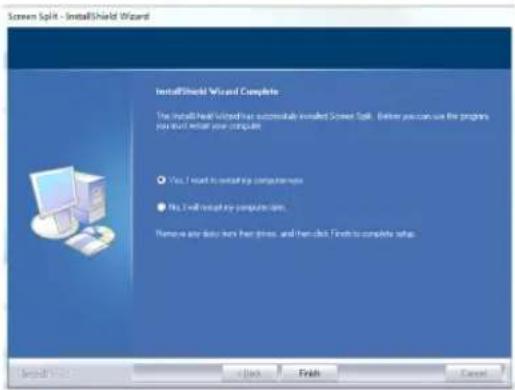

6 When the installation is complete, restart your system.

InstallShield Wizard Complete The InstallShield Wizard has successfully installed Screen Split. Either you can use the program you must install your computer. Yes, I want to install any computer name. No, I will install any computer name. Remove any data from their times, and then click Finish to complete steps.

NOTE

If you run Screen Split, the Screen Split icon [ ] appears in the system tray at the right bottom of the PC screen.

Right-click the Screen Split icon and select a layout you want.

Monitor Selection Off 2 Screen (16.5) 2 Screen (Balanced) 3 Screen (Left) 3 Screen (Right) 3 Screen (Top) 3 Screen (Bottom) 3 Screen (Balanced) 4 Screen (Balanced) Font Size Screen Resolution Option

Installing The LG Color Cloning

Insert the the owner's manual CD included in the product package into your PC's CD driver and install the LG Color Cloning.

The installation screen images are for reference only. The actual installation screen images may vary depending on the model.

1 Set the default Web browser to Internet Explorer.

LG LOG Monitor Software Monitor driver Screen Split LG Color Clearing Document Cramer's manual Monitor driver install guide Regulatory, safety precautions Screen Split / LG Color Clearing Install guide Previous

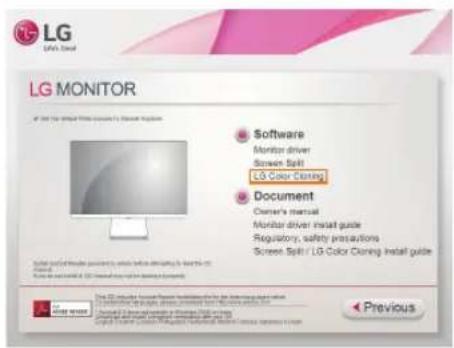

2 Click the "LG Color Cloning" on the CD's main screen. When the file download window appears, click the Run button. (The file download window may vary depending on the operating system and the Internet Explorer version, but the installation procedures are same.)

File Download - Security Warning Do you want to run or save this file? Name: Setup.exe Type: Application, 2.70MB From: F:\display\DRIVERS\TUSB3410 Run Save Cancel While files from the Internet can be useful, this file type can potentially harm your computer. If you do not trust the source, do not run or save this software. What's the risk?

CAUTION

• Service Pack 1 or higher is required for Windows 7 & Windows 8.

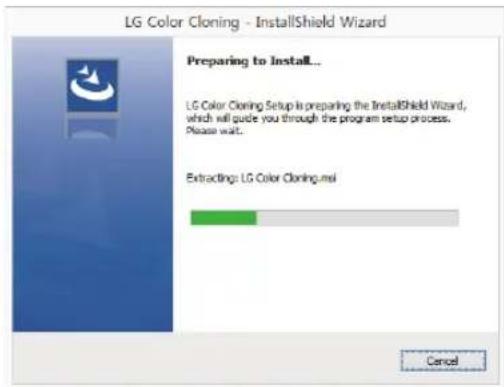

3 Follow the instructions to proceed with the installation.

LG Color Cloning - InstallShield Wizard Preparing to Install... LG Color Cloning Setup is preparing the InstallShield Wizard, which will guide you through the program setup process. Please wait. Extracting: LG Color Cloning.msi Cancel

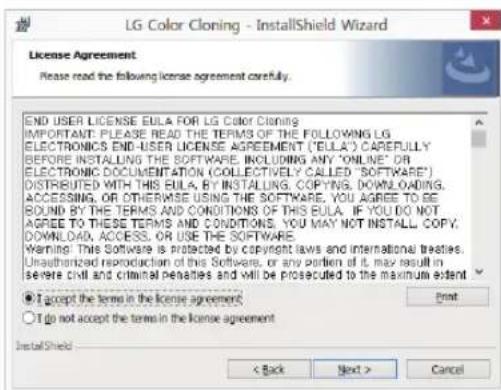

4 Check the I accept the terms of the agreement checkbox on the License Agreement screen and then click the Next button.

LG Color Cloning - InstallShield Wizard License Agreement Please read the following license agreement carefully. END USER LICENSE EULA FOR LG Color Cloning IMPORTANT: PLEASE READ THE TERMS OF THE FOLLOWING LG ELECTRONICS END-USER LICENSE AGREEMENT ("EULA") CAREFULLY BEFORE INSTALLING THE SOFTWARE, INCLUDING ANY "ONLINE" OR ELECTRONIC DOCUMENTATION (COLLECTIVELY CALLED "SOFTWARE") DISTRIBUTED WITH THIS EULA, BY INSTALLING, COPYING, DOWNLOADING, ACCESSING, OR OTHERWISE USING THE SOFTWARE, YOU AGREE TO BE SOUND BY THE TERMS AND CONDITIONS OF THIS EULA. IF YOU DO NOT AGREE TO THESE TERMS AND CONDITIONS, YOU MAY NOT INSTALL COPY, DOWNLOAD, ACCESS, OR USE THE SOFTWARE. Warning: This Software is protected by copyright laws and international treaties. Unauthorized reproduction of this Software, or any portion of it may result in severe civil and criminal penalties and will be prosecuted to the maximum extent. ● I accept the terms in the license agreement ○ I do not accept the terms in the license agreement InstallShield < Back Next > Cancel

5 Click the install button.

LG Color Cloning - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

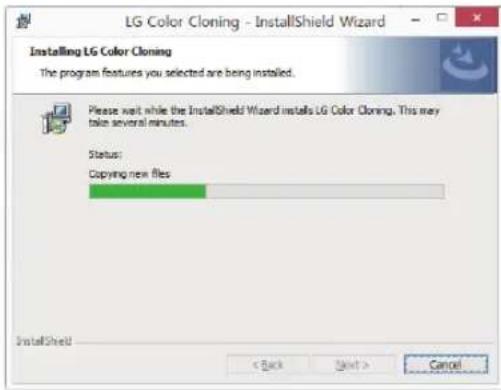

6 The LG Color Cloning starts the installation as shown below.

LG Color Cloning - InstallShield Wizard Installing LG Color Cloning The program features you selected are being installed. Please wait while the InstallShield Wizard installs LG Color Cloning. This may take several minutes. Status: Copying new files InstallShield < Back Next > Cancel

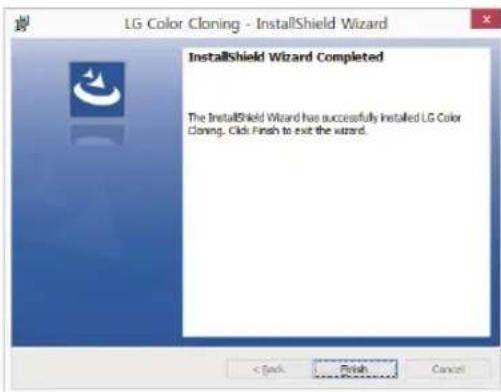

7 Click the complete button.

LG Color Cloning - InstallShield Wizard InstallShield Wizard Completed The InstallShield Wizard has successfully installed LG Color Cloning. Click Finish to exit the wizard.

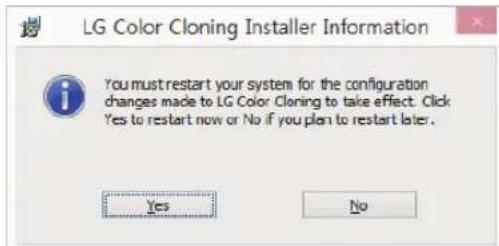

8 When the installation is complete, restart your system.

LG Color Cloning Installer Information You must restart your system for the configuration changes made to LG Color Cloning to take effect. Click Yes to restart now or No if you plan to restart later. Yes No

NOTE

• LG Color Cloning: This program matches the color quality and brightness of two monitors using your Smartphone.

NOTE

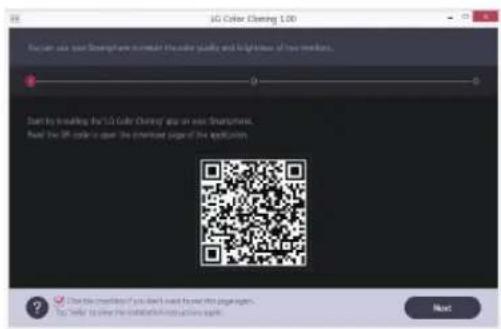

- Double-click the LG Color Cloning icon on des-ktop to run LG Color Cloning Application.

JG Color Closing 1.00 Start by installing the 'JG Color Closing' app on your Smartphone. Read the QR code to cover the previous page of the application.

- To use the LG Color Cloning function, you must execute both the "LG Color Cloning" Windows application and the "LG Color Cloning" android application at the same time.

- For details on supported Smartphones and graphic cards, see the LG Color Cloning help manual.

INSTALLING THE LG COLOR CLONING APPLICATION (ANDROID)

1. Open the playstore on your android phone.
2. Search "LG Color Cloning" on the playstore.

- If you read the QR code on the first page of the on "LG Color Cloning" Windows Application, you can open the download page of the "LG Color Cloning" android application.

- For details, see the LG Color Cloning help manual ?

1. Click "install" button.

When the installation of "LG Color Cloning" Android Application is complete, the LG Color Cloning icon appears on your "Application".

CUSTOMIZING SETTINGS

Activating the Main Menu

1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3 Press the joystick button once more to exit the main menu.

Power Indicator Joystick Button

Button Menu	Status Description
	Main menu disabled		Enables the main menu.
	Main menu enabled		Exits the main menu.(Holding down the button to turn off the monitor: You can turn off the monitor this way at any time, including when the OSD is on.)
	◀	Main menu disabled	Adjusts the monitor volume level.
		Main menu enabled	Enters the menu features.
	▶	Main menu disabled	Adjusts the monitor volume level.
		Main menu enabled	Operates the Input change.
	▲	Main menu disabled	Enables the main menu.
		Main menu enabled	Enters the picture mode feature.
	▼	Main menu disabled	Enables the main menu.
		Main menu enabled	Turns off the monitor.

Main Menu Features

Long press:
Monitor off

Main Menu Description
Menu	Configures the screen settings.
Picture Mode	Select picture mode to achieve the best display effect.
Input	You can choose the input signal.When two input signals are connected, you can select the input signal (D-SUB/HDMI) you want.When only one signal is connected, it is automatically detected.The default setting is D-SUB.
Monitor off	Turns off the monitor.
Exit	Exits the main menu.

Customizing settings

Menu Settings

-Quick Settings

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Quick Settings > Brightness by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Quick Settings Brightness 100 > Contrast 70 > Volume 30 > Ratio Wide > SMART ENERGY SAVING Low > ▲/▼: Move ◎/▶: Ok ← Back

Each option is described below.

Menu > Quick Set- tings	Description
Brightness	Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
	NOTEJog joystick button down ( [255]) in the Volume menu will enable/disable the Mute function.
Ratio Adjusts the screen ratio.
Original Displays a video according to the input video signal aspect ratio.
SMART ENERGY SAVING	High	Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
	Low	Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.
	Off Disables SMART ENERGY SAVING .

* SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.

NOTE

• The display may look the same for Wide, Original options at the recommended resolution (1920 x 1080).
  • The ratio is disabled in the interlaced signal.

NOTE

• Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor. If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source.
• If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom and Color Wizard will automatically be Off.

-Picture

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Picture by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Picture Picture Mode Custom > Color wizard Off > Picture Adjust > Display > ▲/▼: Move ◎/▶: Ok ←: Back

Each option is described below.

Menu > Picture Description
Picture Mode	Custom	Allows the user to adjust each element. The color mode of the main menu can be adjusted.
	Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD.
	Reader 2	It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.
	Photo Optimizes the screen to view photos.
	Cinema Optimizes the screen to improve the visual effects of a video.
	Game Optimizes the screen for gameplay.
Color wizard Red	weakness	It is a mode for user who has inability to see red color. It make color weakness user can easily distinguish red colors.
	Green weakness	It is a mode for user who has inability to see green color. It make color weakness user can easily distinguish green colors.
	Off It is a mode that Color Wizard mode is off.

NOTE

• "Color wizard" feature is not within the scope of CUD certification.
- This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.
- This function can't distinguish some colors in some images.
- If option of Color Wizard is not Off, SMART ENERGY SAVING will be Off and Picture Mode will automatically be Custom.

Picture SUP-Adjust	PER RESOLU-TION+	High Optimized picture quality is displayed when a user wants crystal clear images. It is effective forhigh quality video or game.
		Middle The optimized picture quality is displayed when a user wants images between low and highmodes for comfortable viewing. It is effective for UCC or SD video.
		Low The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slow-moving pictures or still images.
		Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
	Sharpness Adjusts the sharpness of the screen.
	Black Level Sets the offset level (for HDMI only).Offset: as a reference for a video signal, this is the darkest color the monitor can display.
	Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Normal. For a fast-moving picture, it is recommended that you use High. Setting to High may cause image sticking.
	Over Scan	To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend overscan function to turn on when connect AV equipment.
	Color	Gamma	Set your own gamma value.: Gamma 0, Gamma 1, Gamma 2, Off on the monitor, high gamma values display whitish images and low gamma values display blackish images.If user don't want adjusted gamma, user can select Gamma off.
		Color Temp Selects the factory default picture color.Warm: Sets the screen color to a reddish tone.Medium: Sets the screen color between a red and blue tone.Cool: Sets the screen color to a bluish tone.
	Six Color	Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and saving the settings.
		*Hue: Adjusts tone of the screen.*Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated and bright the colors become. The higher the value, the more saturated and dark the colors become.
	Reset	Returns the color settings to the default settings.
Display	Horizontal	To move image left and right.
	Vertical	To move image up and down.
	Clock	To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.
	Phase	To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

-General

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to General by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

General Audio Input HDMI > Language English > Power LED Off > Automatic standby Off > Resolution Off > OSD Lock Off > ▲: ▼: Move ◎: ▶: Ok ←: Back

Each option is described below.

Menu > General Description
Audio Input To select the input of audio.HDMI : Set the input of audio to HDMI input sourceAudio-In : Set the input of audio to PC line-inAuto : Automatically set the input of audio to HDMI or Audio-in
Language To choose the language in which the control names are displayed.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby	The monitor will automatically switch to standby mode after a certain period.
Resolution	User can set the desired resolution.This option is enabled only when the screen resolution on your computer is set to the following (D-SUB only).
	[5860]NOTEThe function is enabled only when the screen resolution on your computer is set to the following, except that the PC output wrong resolution.
	24MP77HM	1024x768, 1280x768, 1360x768, 1366x768,Off
	27MP77HM	1280x960, 1600x900,Off
	24MP77SM	1440x900, 1600x900,Off
	27MP77SM
OSD Lock Prevents incorrect key input.

-Auto Configuration

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Auto Configuration by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

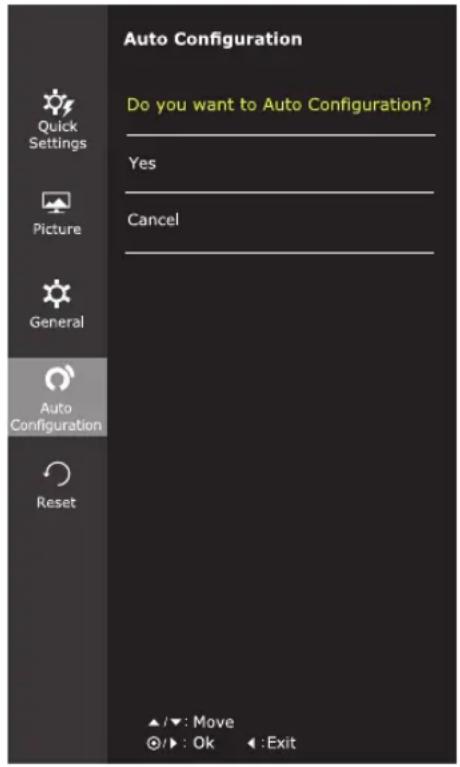

Auto Configuration Do you want to Auto Configuration? Yes Cancel Quick Settings Picture General Auto Configuration Reset ▲/▼: Move ◎/▶: Ok ←: Exit

Each option is described below.

Menu > Auto Configuration Description
Do you want to Auto configuration?
Yes Operate the Auto configuration for optimal display in D-SUB.
Cancel Cancel the select.

NOTE

- This function will be enable only in analog input.

-Reset

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Reset by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Reset Do you want to reset your settings? Reset Cancel Quick Settings Picture General Auto Configuration Reset ▲/▼: Move ◎/▶: Ok ◀: Exit

Each option is described below.

Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.

-Picture mode

1 Press the joystick button on the bottom of the monitor.
2 Go to Picture mode by moving the joystick button to ▲.
3 Configure the options following the instructions that appear in the bottom.

Picture Mode Custom Reader 1 Reader 2 Photo Cinema Game

Each option is described below.

Joystick Button > Picture Mode	Description
Picture Mode	Custom	Allows the user to adjust each element. The color mode of the main menu can be adjusted.
	Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD.
	Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.
	Photo Optimizes the screen to view photos.
	Cinema Optimizes the screen to improve the visual effects of a video.
	Game Optimizes the screen for gameplay.

NOTE

- If option of Picture Mode is non-Custom, SMART ENERGY SAVING and Color Wizard will automatically be Off.

TROUBLESHOOTING

Check the following before calling for service.

No image appears
Is the power cord of the display connected?	Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?	Press the Power button.
Is the power indicator flickering?	If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.Try to turn on the PC.
Do you see an "OUT OF RANGE" message on the screen?	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen?	When the monitor is on "No-Signal" in 5 minutes, the monitor goes to DPM mode.

Can 't you control some functions in OSD?
Do you see “OSD LOCKED” when you push MENU button? Can't you select some menu in OSD?	You can secure the current control settings, so that they cannot be inadvertently changed.You can unlock the OSD controls at any time by entering the OSD lock menu and changing items to off.

Display image is incorrect
Display Position is incorrect.	• Enter the Auto Configuration function and select the "Yes" item to automatically adjust your display image to the ideal setting.
On the screen background, vertical bars or stripes are visible.	• Enter the Auto Configuration function and select the "Yes" item to automatically adjust your display image to the ideal setting.
Any horizontal noise appearing in any image or characters are not clearly portrayed.	• Enter the Auto Configuration function and select the "Yes" item to automatically adjust your display image to the ideal setting.• Check Control Panel ▶ Display ▶ Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

CAUTION

• Check Control Panel ▶ Display ▶ Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) atControl Panel▶ Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?	Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com.Make sure to check if the video card supports Plug&Play function.

The screen is flickering.
Did you select the recommended resolution?	• If the selected resolution is HDMI 1080i 60/50 Hz, the screen may be flickering. Change the resolution to the recommended resolution 1080P.

SPECIFICATIONS

24MP77HM 24MP77SM

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.2745 mm x	0.2745 mm (Pixel Pitch)
Resolution Max 1920	0 x 1080 @ 60 Hz
	Recommend VESA 1920	x 1080 @ 60 Hz
Power Consumption	On Mode: 21 W (ENERGY STAR® standard)* Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W
Power Input 19 V	--- 1.6 A
AC-DC Adapter	Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
	OUTPUT: 19 V = 1.7 A
Speaker Wattage 5 W + 5 W
Dimensions (Width x Height x Depth)	With Stand 54.2 cm x 42	.8 cm x 18.2 cm
	Without Stand 54.2 cm x	32.8 cm x 5.2 cm
Weight 3.5 kg
Tilt Range -3° to 20°
Environmental conditions	Operating Temperature Operating Humidity	10°C to 35 °C 10 % to 80 %
	Storage Temperature Storage Humidity	-20°C to 60 °C 5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.

			24MP77HM24MP77SM
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)			●
Vertical Frequency 56 Hz to 75 Hz (D-SUB)			●
			56 Hz to 61 Hz (HDMI)
Input Form Separate Sync.			●
		Digital	●
Video Input Signal Input 15 pin D-SUB Connector			●
			HDMI Connector	●
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)			●
			Digital	●
Plug & Play DDC 2B(Analog)			●
DDC 2B(HDMI)			●

SPECIFICATIONS

27MP77HM 27MP77SM

Display Screen Type	Flat Panel Active matrix-	TFT LCDAnti-Glare coating
	Pixel Pitch 0.3114 mm x	0.3114 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Power Consumption	On Mode: 25 W (ENERGY STAR® standard)*Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
Power Input 19 V	--- 1.6 A
AC-DC Adapter	Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONICor Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONICor Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISEor Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
	OUTPUT: 19 V = 1.7 A
Speaker Wattage 5 W + 5 W
Dimensions (Width x Height x Depth)	With Stand 61.4 cm x 46	9 cm x 18.2 cm
	Without Stand 61.4 cm x	36.9 cm x 5.2 cm
Weight 4.8 kg
Tilt Range -3° to 20°
Environmental conditions	Operating Temperature Operating Humidity	10°C to 35 °C10 % to 80 %
	Storage Temperature Storage Humidity	-20°C to 60 °C5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.

			27MP77HM27MP77SM
Sync Input Horizontal Frequency 30 kHz to 83	kHz (Automatic)		●
Vertical Frequency 56 Hz to	75 Hz (D-SUB)		●
	56 Hz to 61 Hz (HDMI)		●
Input Form Separate Sync.			●
	Digital		●
Video Input Signal Input 15 pin D-SUB Connector			●
			HDMI Connector
Input Form RGB Analog (0.7	Vp-p/ 75 ohm)		●
	Digital		●
Plug & Play DDC 2B(Analog)			●
DDC 2B(HDMI)			●

Preset Modes (Resolution)

D-SUB Timing

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode

HDMI Timing

Factory support mode (Preset Mode)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60			ORecommend Mode

Indicator

Mode LED Color
On Mode White (Only 15 seconds)
Sleep Mode Blinking White
Off Mode Off

PROPER POSTURE

Proper posture for using the Monitor set.

Adjust the Monitor set and your posture to allow you to view images at the optimal viewing angle. Place your hands gently on the keyboard, keeping your arms bent at the elbows and orizontally outright. Adjust the location of the Monitor set to avoid it reflecting light.

Place your hands gently on the keyboard, keeping your arms bent at the elbows and horizontally outright.

CUD ( COLOR UNIVERSAL DESIGN) CERTIFICATION

Color Universal Design is a user-oriented optimum design of coloring patterns or character shapes, to allow information to be accurately conveyed to all the people.

The colors of OSD Menu and User's Manual have been designed in consideration of the colorblind people for convenient operation.

As to OSD Menu and User's Manual, LG Electronics has passed the certification of the non-profit Color Universal Design Organization (CUDO).

What's CUD mark?

The Color Universal Design mark is received from the non-profit Color Universal Design Organization (CUDO) when the Monitor is certified to be able to convey information to the colorblind people by giving consideration of coloring patterns or character shapes.

CUDO Official Website: http://www.cudo.jp/summary/cudo_e

CUD COLOR UNIVERSAL DESIGN

LG Life's Good

Declaration of Conformity

Trade Name: LG

Model : 24MP77HM, 27MP77HM, 24MP77SM, 27MP77SM

Responsible Party: LG Electronics Inc.

Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A

TEL: [phone]

*above information is only for USA FCC Regulatory

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the SET is located on the back and one side of the SET.

Record it below should you ever need service.

MODEL

SERIAL

ENERGY STAR is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency(EPA).

As an ENERGY STAR Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Refer to ENERGY STAR.gov for more information on the ENERGY STAR program.
