USER MANUAL 34UC97C LG

* LG LED Monitor applies LCD screen with LED backlights.

Please read the safety information carefully before using the product.

34UC97

34UC97C

TABLE OF CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPARING

4 Product Composition
5 Product and Button Description
5 - How to Use the Joystick Button
6 - Input Connector
7 Moving and Lifting the Monitor
8 Installing the Monitor
8 - Assembling the Stand
9 - Installing on a Table
10 - Tidying up Cables
10 - Adjusting the Angle
11 - Using the Kensington Lock
11 - Installing on the Wall
13 - Installing the Wall Mount Bracket

14 USING THE MONITOR

14 Connecting to a PC
14 - HDMI Connection
15 - DisplayPort Connection
15 - Thunderbolt ( ) Connection
16 Connecting AV Devices
16 - HDMI Connection
16 Connecting Peripherals

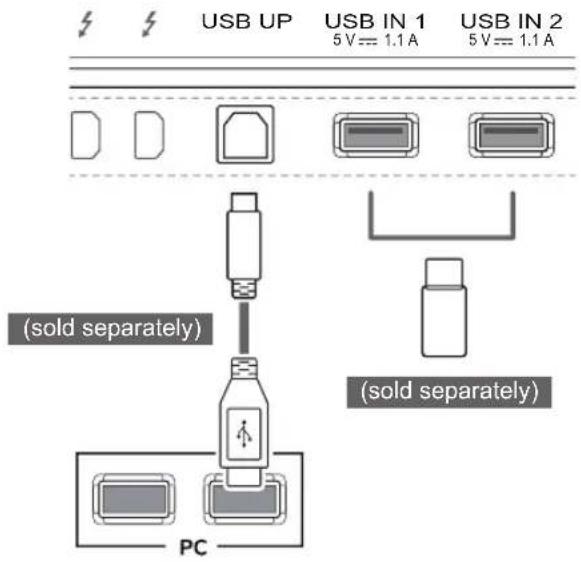

16 - USB Cable connection - PC
17 - Connecting Headphones

18 USER SETTINGS

18 Activating the Main Menu

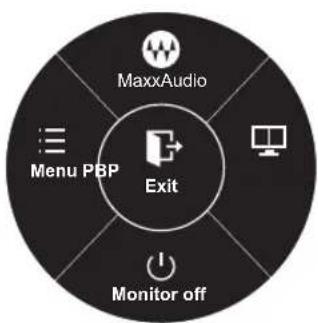

18 - Main Menu Features
19 User Settings
19 - Menu Settings

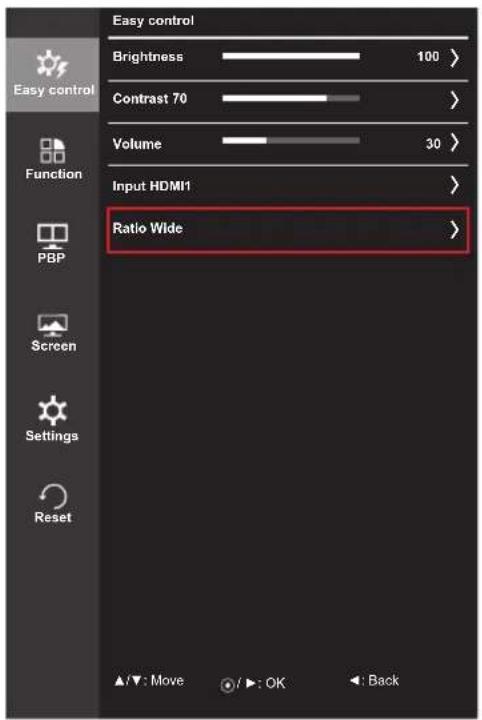

20 - Ratio

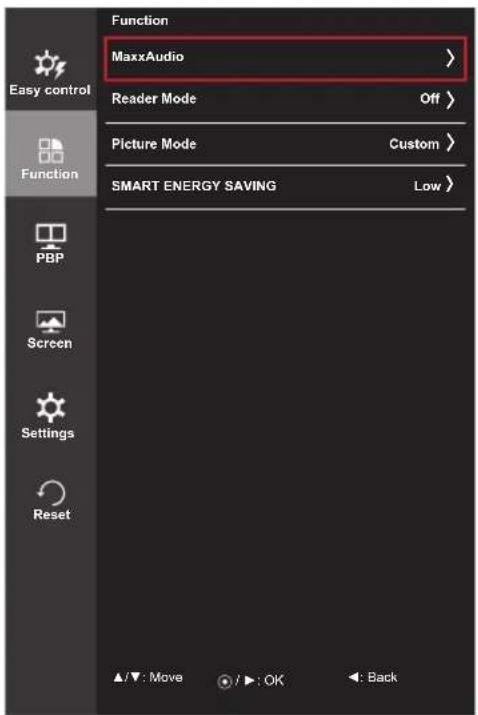

21 - Function

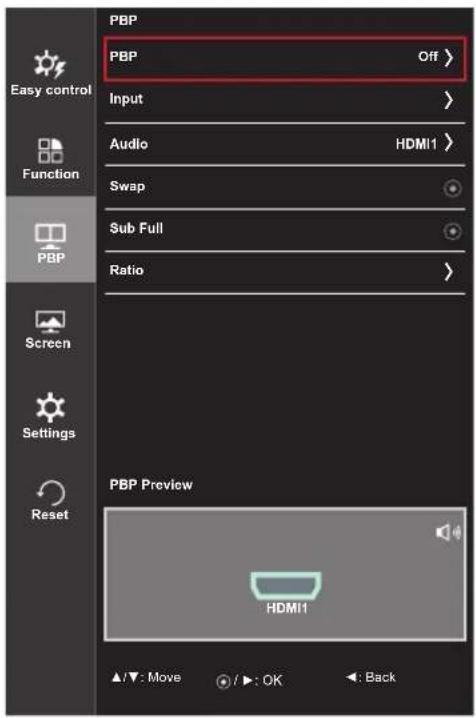

22 - PBP

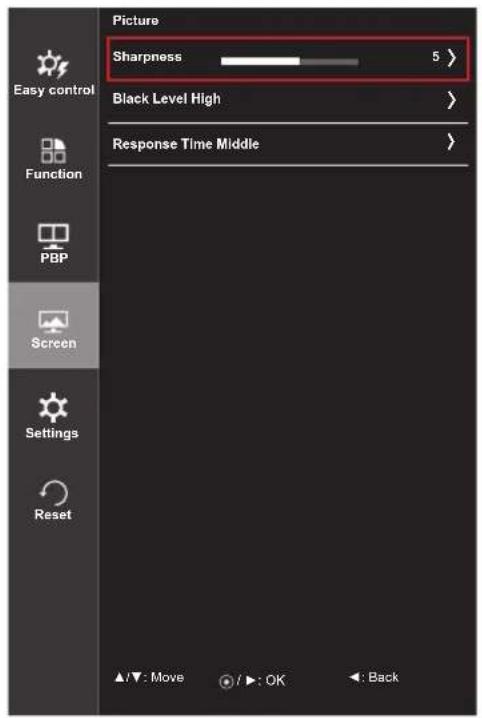

24 - Picture
25 - Color

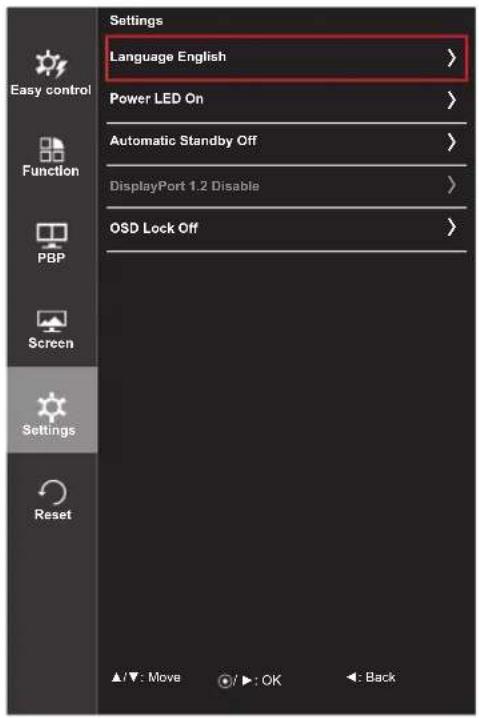

26 - Settings

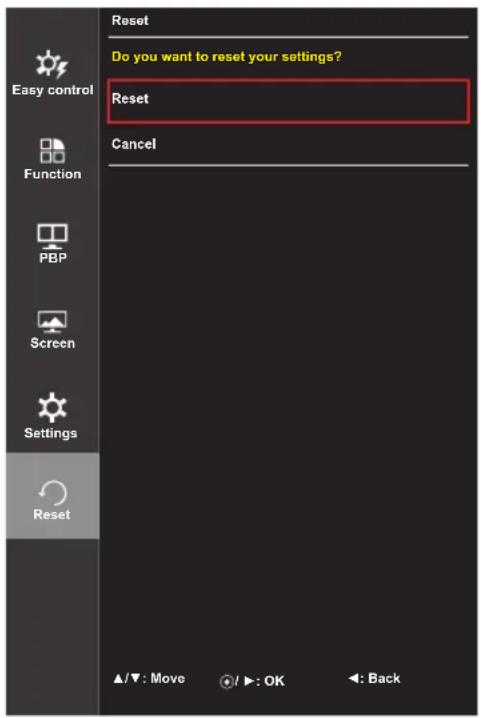

27 - Reset

28 TROUBLESHOOTING

30 PRODUCT SPECIFICATION

32 Factory Support Mode
32 HDMI Timing (Video)
32 Power LED

33 PROPER POSTURE

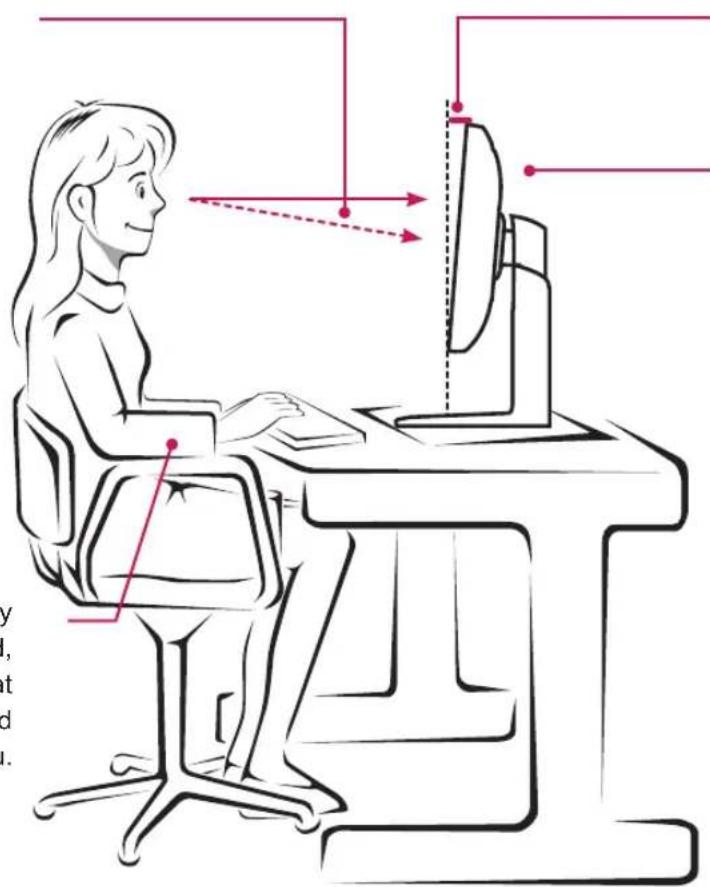

33 Proper Posture for Using the Monitor

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for dual-mode source devices are all registered trademarks of the Video Electronics Standards Association.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trademarks of Waves Audio Ltd.

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product. Note that the product and related components may look different from those shown here.

Illustration of a CD or DVD disc and its corresponding physical object (no text or symbols)

CD (Owner's Manual / Software/ Guides) / Cards

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

Power cord AC/DC Adapter HDMI cable

DisplayPort Cable Stand Body Stand Base

4 Screws (M4 x L10)

Screw Cover Input connector cover

Wall mount bracket (Varies depending upon your country or model.)

CAUTION

• Always use genuine LG components to ensure safety and product performance.
- The product warranty will not cover damage or injury caused by the use of unauthorized components.
- It is recommend that use the supplied components.
- If you use generic cables not certified by LG, the screen may not display or there may be image noises.

NOTE

• The components may look different from those illustrated here.
- Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
- To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
- The power cord provided may differ depending upon the region.

Product and Button Description

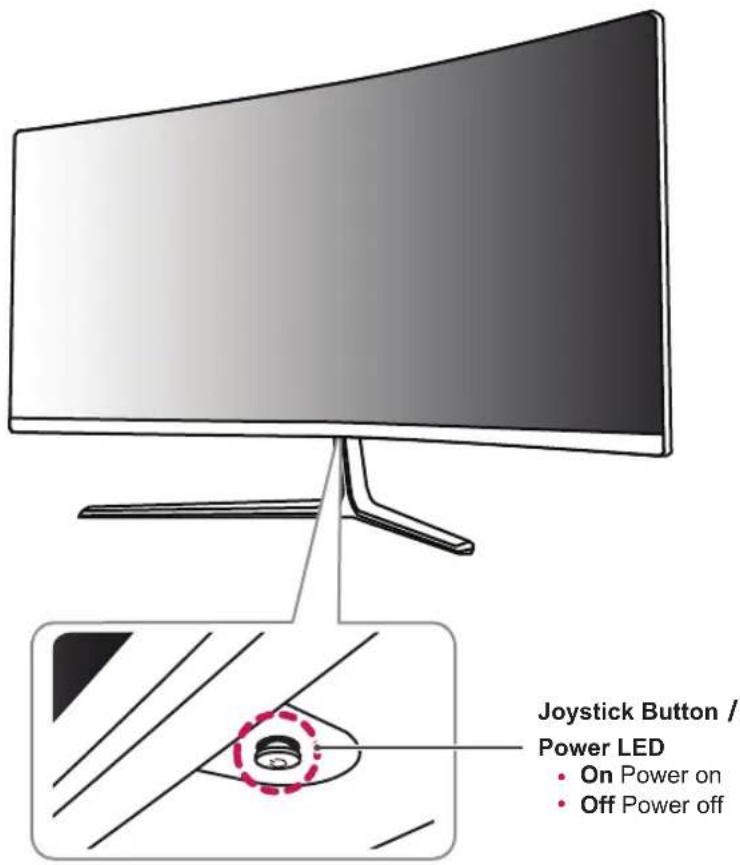

Joystick Button / Power LED • On Power on • Off Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

Basic Functions

		Power on	Press the joystick button once with your finger to turn on the monitor.
		Power off	Press and hold the joystick button once with your finger to turn off the monitor.
	◀/▶	Volume Control	You can control the volume by moving the joystick button left/right.

NOTE

• The joystick button is located at the bottom of the monitor.
- Before turning on the monitor, please make sure that the DC switch on the rear side of product is On.

Input Connector

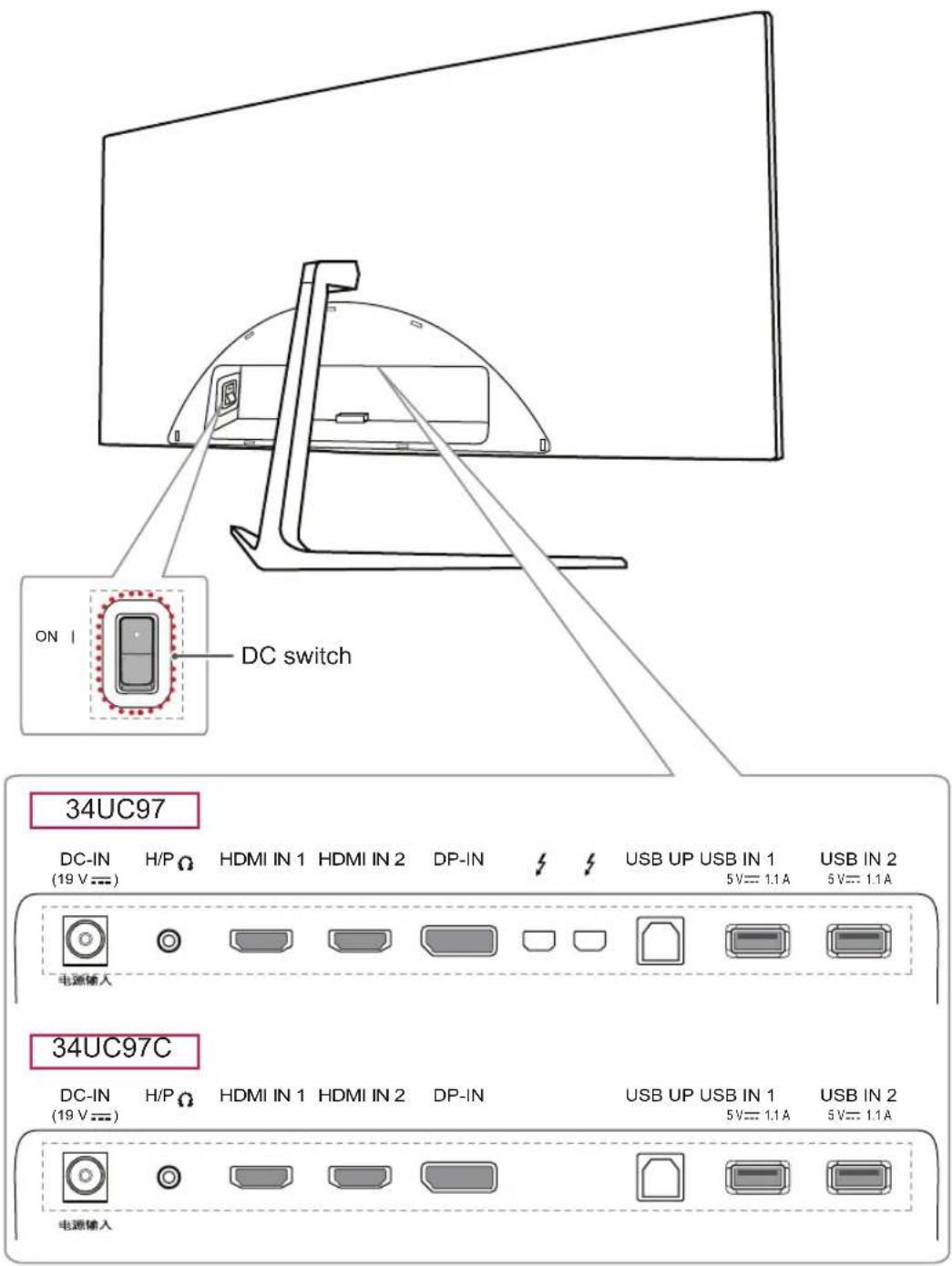

ON I DC switch 34UC97 DC-IN H/PΩ HDMI IN 1 HDMI IN 2 DP-IN USB UP USB IN 1 USB IN 2 (19 V==) 5V== 1.1A 5V== 1.1A 电源输入 34UC97C DC-IN H/PΩ HDMI IN 1 HDMI IN 2 DP-IN USB UP USB IN 1 USB IN 2 (19 V==) 5V== 1.1A 5V== 1.1A 电源输入

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

y Place the monitor in the original box or packing material before attempting to move it.
y Before moving or lifting the monitor, disconnect the power cord and all other cables.

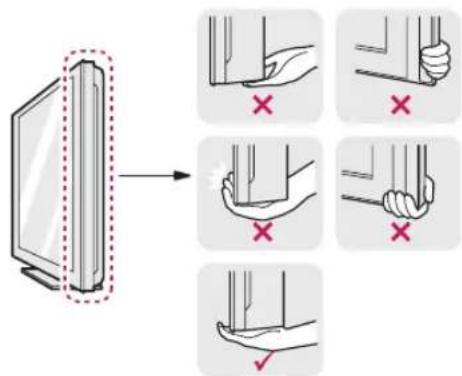

y Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.

Diagram illustrating hand positioning and movement of a device, showing correct and incorrect states with red X marks.

Prohibition sign with silhouette of person holding a device and crossed-out box, enclosed in a circle

y When holding the monitor, the screen should face toward you to prevent it from being scratched.
y When transporting the monitor, do not expose the monitor to shock or excessive vibration.
y When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

CAUTION

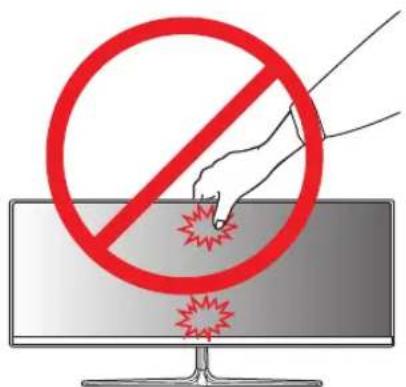

y Avoid touching the monitor screen as much as possible.

- This may result in damage to the screen or some of the pixels used to create images.

Safety warning symbol showing a hand holding a prohibition sign over a computer monitor, with text indicating no protection or hazard.

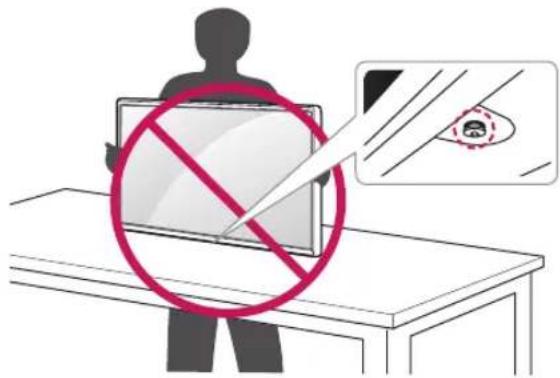

y If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

Illustration showing a person using a computer with a prohibition symbol, alongside a magnified view of a device with a circular icon.

Installing the Monitor

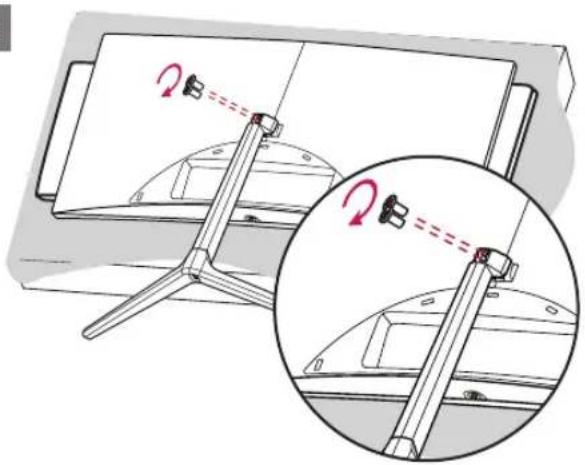

Assembling the Stand

1

Diagram of a device with a lid and arrow indicating direction (no text or symbols)

CAUTION

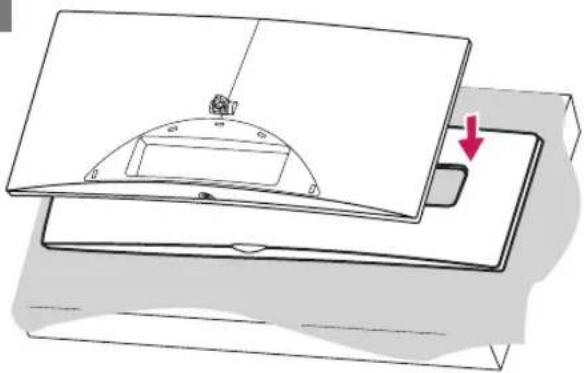

- To protect the screen, place the screen face down on the screen pad which is inside the box.

Simple line drawing of a box with an open lid and a red arrow pointing to the lid (no text or symbols)

2

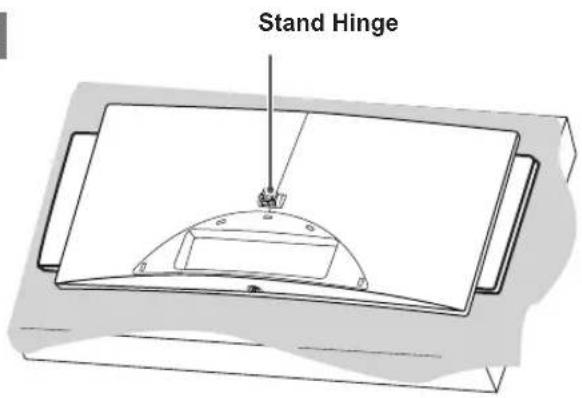

Stand Hinge

3

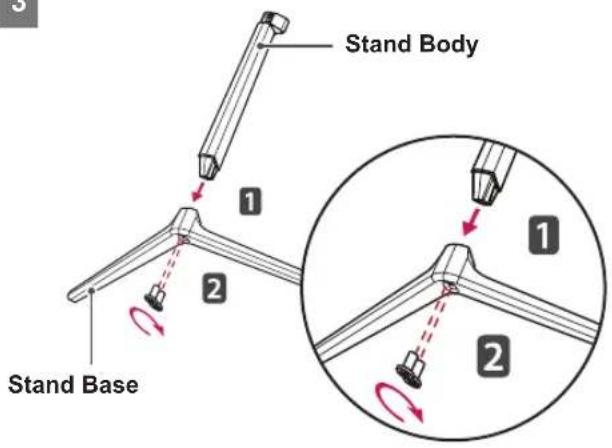

Stand Body 1 2 Stand Base 1 2

4

Diagram showing a monitor with a cable and a magnified view of the cable being adjusted, no text or symbols present.

5

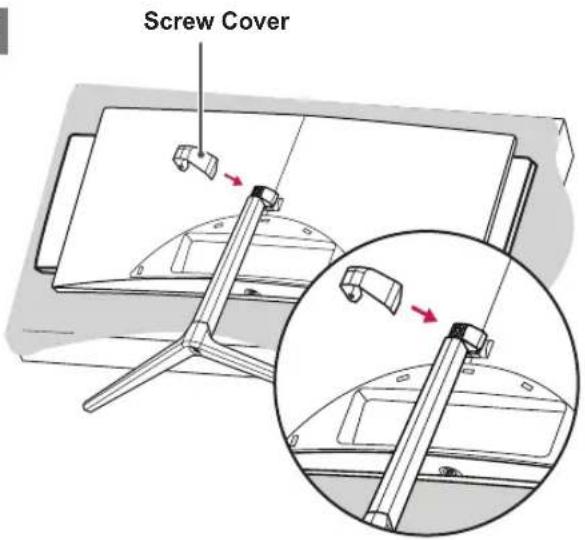

Screw Cover

6

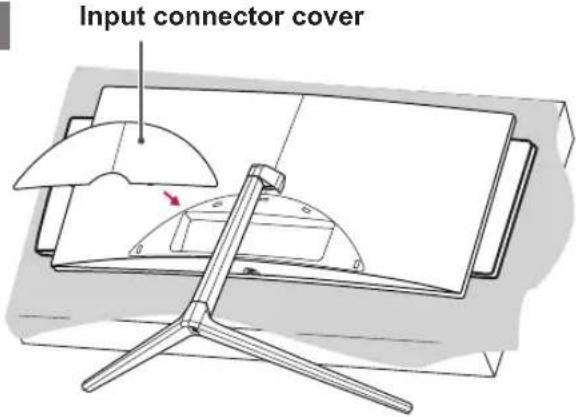

Input connector cover

CAUTION

• Illustrations in this document represent typical procedures, so they may look different from the actual product.
- Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
- Be careful not to hurt your hand on the edges of the screw covers.
- Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
- When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

NOTE

- You can disassemble the stand in the reverse order of the assembly.

Installing on a Table

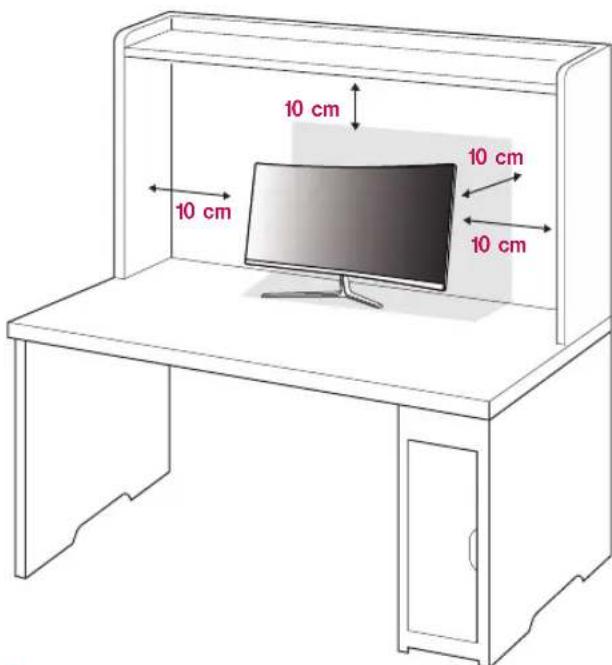

1 Lift the monitor and place it on the table in an upright position. Place the monitor at least 10 cm away from the wall to ensure sufficient ventilation.

10 cm 10 cm 10 cm 10 cm

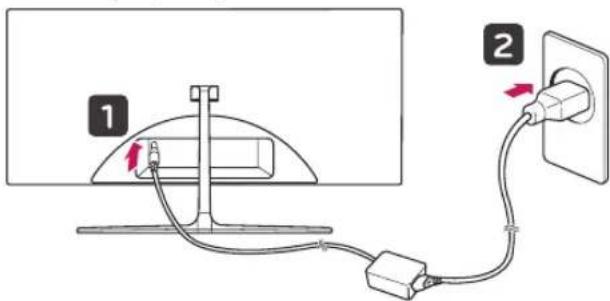

2 Connect the power adapter to the monitor and then plug the power cord into the wall outlet.

Diagram showing cable installation connection with labeled components and directional arrows

3 Press the joystick button on the bottom of the monitor to turn on the monitor.

CAUTION

- Unplug the power cord before moving or installing the monitor. There is risk of electric shock.

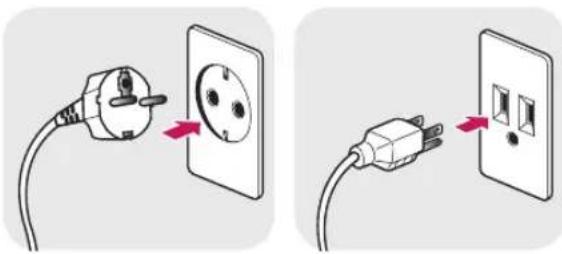

Cautions When Connecting Power Cord

Two-step diagram showing a power plug connecting to a wall socket, with no text or symbols present.

100-240 V \~

• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

Tidying up Cables

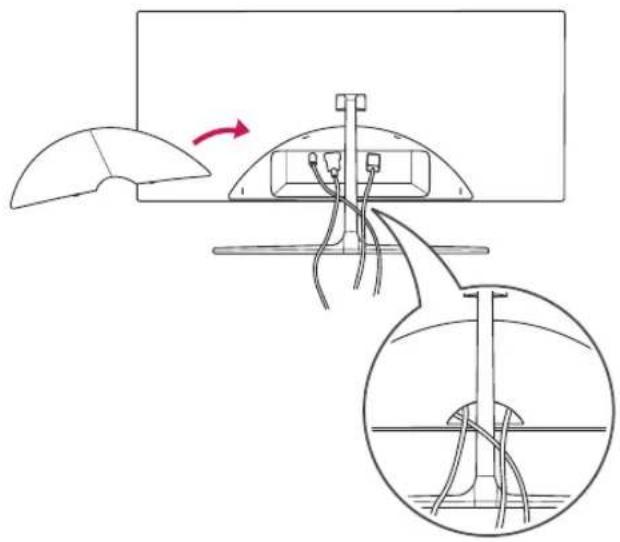

Arrange the cables using the input connector cover as shown in the illustration.

Diagram of a mechanical device with a curved base and internal components, showing a red arrow indicating direction (no text or symbols present)

Adjusting the Angle

1 Place the monitor mounted on the stand base in an upright position.

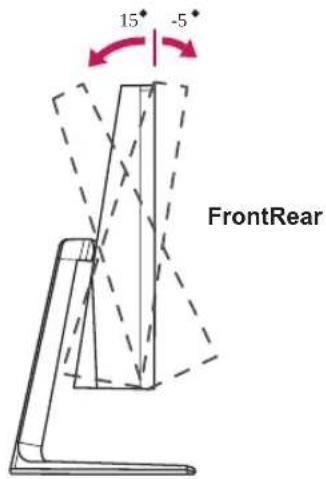

2 Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5^ to 15^ for a comfortable viewing experience.

15° -5° FrontRear

WARNING

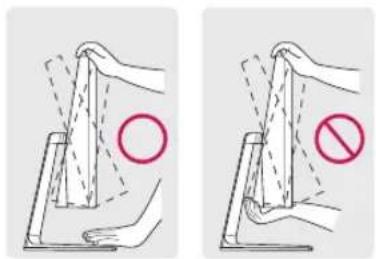

- To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.

Two illustrations showing hand positioning with a circular object and a prohibition symbol (no text or labels)

- Be careful not to touch or press the screen area when adjusting the angle of the monitor.

Illustration showing two hands holding a blank screen with a prohibition symbol above them.

Using the Kensington Lock

The connector for the Kensington security system is located at the bottom of the monitor.

For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.

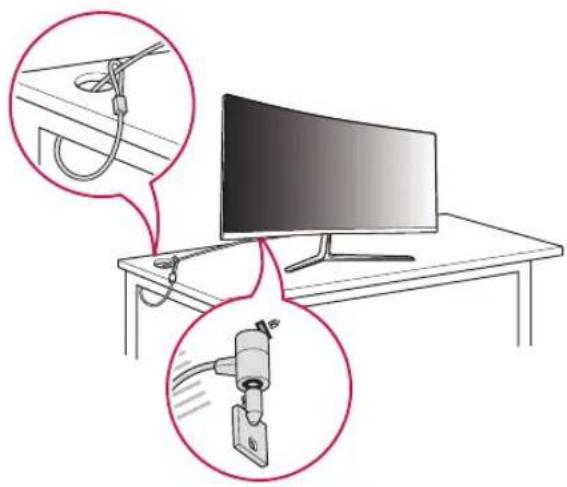

Connect the monitor to a table using the Kensington security system cable.

Diagram showing cable harness installation on a monitor with magnified views of the cable being attached to its side panel.

NOTE

- The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

Installing on the Wall

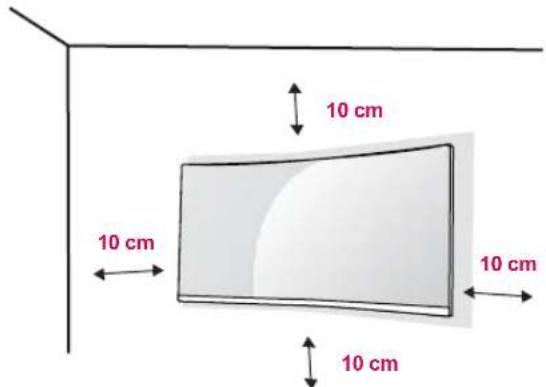

Install the monitor at least 10 cm away from the wall and leave about 10 cm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

10 cm 10 cm 10 cm 10 cm

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

1 If you use screws longer than the standard length, it may damage the inside of the product.
2 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.

Wall Mount (A x B) 100 x 100
Stand Screw M4 x L10
Required Screws 4
Wall Mount Plate(Optional)	RW120

USING THE MONITOR

- The following instructions are based on the 34UC97 model. Illustrations in this manual may differ from the actual product.

Press the joystick button, go to Menu → Easy control → Input, and then select the input option.

CAUTION

• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a screensaver if possible.

NOTE

• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.

Connecting to a PC

• This monitor supports the *Plug and Play feature.
  * Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

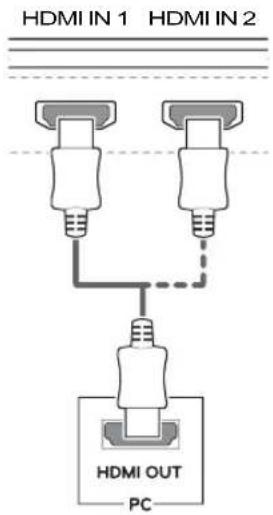

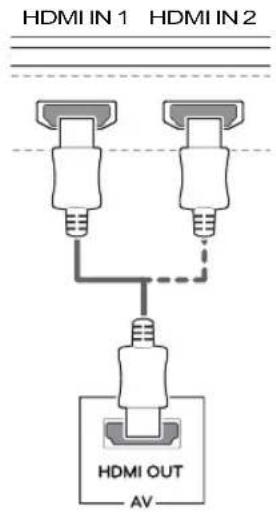

HDMI Connection

Transmits digital video and audio signals from your PC to the monitor. Connect your PC to the monitor using the HDMI cable as shown in the illustration below.

HDMI IN 1 HDMI IN 2 HDMI OUT PC

CAUTION

• Make sure to use the supplied HDMI cable of the product. Otherwise, this may cause the device to malfunction.
• Connecting your PC to the monitor using the HDMI cable may cause device compatibility issues.
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
• High-Speed HDMI ^® / ^TM cable
• High-Speed HDMI ^® / ^TM cable with Ethernet

DisplayPort Connection

Transmits digital video and audio signals from your PC to the monitor. Connect the monitor to your PC using the display port cable as shown in the illustration below:

DP-IN DP OUT PC

NOTE

• There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
• Make sure to use the supplied DisplayPort cable of the product. Otherwise, this may cause the device to malfunction.
• For using Mini DP to DP (Mini DisplayPort to DisplayPort) cable, it is recommended that you use DisplayPort 1.2 cable.

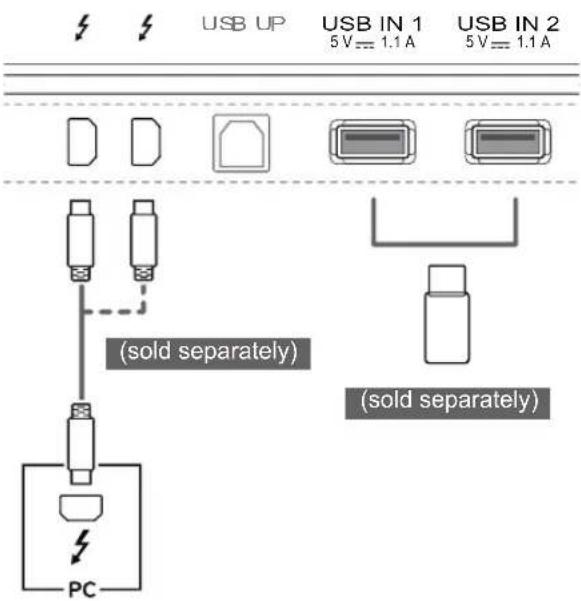

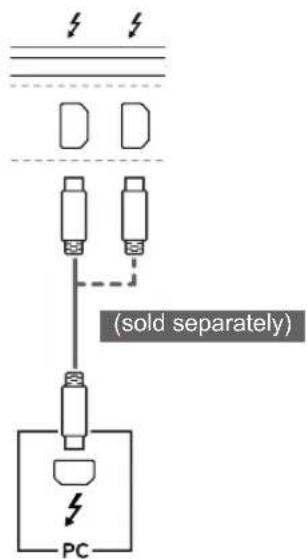

Thunderbolt (A) Connection

You can connect your high-resolution display or high-performance data device to the monitor via a Thunderbolt port. Connect your external device to the monitor using the Thunderbolt cable as illustrated below.

34UC97

(sold separately) PC

NOTE

• The maximum data transmission rate of each port is 20 Gb/s.
• Make sure to use a Thunderbolt (s) certified cable. Otherwise, this may cause the device to malfunction.
• Thunderbolt (s) is supported in such environments as Windows 7, Windows 8.1, and Mac product.
• In accordance with Mac products may not support the recommended resolution or the some features. For more information, refer to the support information card of Mac which is provided separately.
• The ability to set up dual monitors using the Thunderbolt (§) and daisy-chaining technology depends on the performance of your video card.

Connecting AV Devices

HDMI Connection

HDMI transmits digital video and audio signals from your AV device to the monitor. Connect your AV device to the monitor using the HDMI cable as shown in the illustration below.

HDMI IN 1 HDMI IN 2 HDMI OUT AV

NOTE

• Make sure to use the supplied HDMI cable of the product. Otherwise, this may cause the device to malfunction.
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

• Recommended HDMI cable types

• High-Speed HDMI®/TM cable
• High-Speed HDMI®/TM cable with Ethernet

Connecting Peripherals

USB Cable connection - PC

The USB port on the product functions as a USB hub.

NOTE

• Make sure to install the most recent Windows OS service pack before using the product.
• Peripheral devices are sold separately.
- A keyboard, mouse, or USB device can be connected to the USB port.

CAUTION

Cautions When Using a USB Device

• A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized.
• Some USB devices may not be supported or may not work properly.
• It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not adequate, the USB device may not be recognized properly.)

HDMI/DP (DisplayPort) connection

To use USB 3.0, connect the A-B type USB 3.0 cable of the product to the PC.

Peripheral devices connected to the USB IN port can be controlled from the PC.

USB UP USB IN 1 5V=1.1A USB IN 2 5V=1.1A (sold separately) PC (sold separately)

Thunderbolt (4) connection

Peripheral devices connected to the USB IN port can be controlled from the PC.

If you change the input on the menu while a device is in connection via the Thunderbolt port, then the device in connection via the USB port may not work properly.

34UC97

USB UP USB IN 1 5V=1.1A USB IN 2 5V=1.1A (sold separately) PC (sold separately)

Connecting Headphones

Connect peripherals to the monitor via the headphones port. Connect as illustrated.

H/P (sold separately)

NOTE

• Peripheral devices are sold separately.
- If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

Angled Straight

- Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

USER SETTINGS

Activating the Main Menu

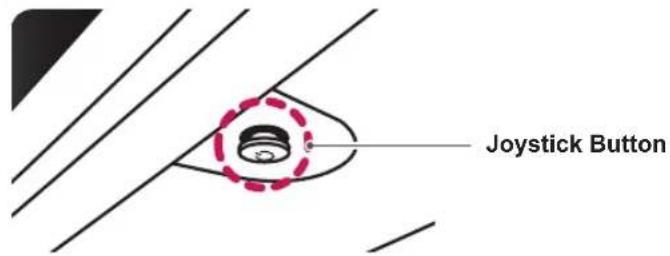

1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◀/▶) to set the options.
3 Press the joystick button once more to exit the main menu.

Joystick Button

Button Menu Status Description
	Main menu disabled Enables the main menu.
	Main menu enabled		Exits the main menu.(Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
	◀	Main menu disabled Adjusts the monitor volume level.
		Main menu enabled Enters the menu features.
	▶	Main menu disabled Adjusts the monitor volume level.
		Main menu enabled Enters the PBP feature.
	▲	Main menu disabled Enables the main menu.
		Main menu enabled Enters the MaxxAudio feature.
	▼	Main menu disabled Enables the main menu.
		Main menu enabled Turns off the monitor.

Main Menu Features

Long press: Monitor off

Main Menu Description

Menu Configures the screen settings.

MaxxAudio Sets the sound quality.

PBP Displays the screens of two input modes on one monitor.

Monitor off Turns off the monitor.

Exit Exits the main menu.

User Settings

Menu Settings

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Configure the options by moving the joystick up/down/left/right.
3 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (◎ / OK) it.
4 If you want to exit the OSD menu, move the joystick to ◀ until you exit.
- When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.

Easy control Function PBP Screen Settings Reset

Each option is described below.

Menu Description
Easy control Brightness		Adjusts the color contrast and brightness of the screen.
Input Selects the input mode.
Ratio Adjusts the aspect ratio of the screen.
Function Adjusts MaxxAudio, Reader Mode, Picture Mode, and SMART ENERGY SAVING.
PBP PBP	Displays the screens of two input modes on one monitor.
Screen	Picture	Adjusts the Sharpness, Black level, and Response Time of the screen.
	Color	Adjusts Gamma, Color Temperature, Red, Green, Blue, and Six Color.
Settings		Adjusts Language, Power LED, Automatic Standby, DisplayPort 1.2, and OSD Lock.
Reset		Restores the default settings.
◀	Exit	Exits the OSD menu.

CAUTION

- Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.

Ratio

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Easy control > Ratio by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Easy control Brightness 100 > Contrast 70 > Volume 30 > Input HDMI1 > Ratio Wide > ▲/▼: Move ○/▼: OK ▲: Back

Each option is described below.

Menu > Easy control > Ratio Description

Wide Displays the video in widescreen, regardless of the video signal input.

Original Displays video according to the aspect ratio of the video signal input.

Cinema 1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)

Cinema 2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the bottom for subtitles. (at 1080p)

1:1 The aspect ratio is not adjusted from the original.

NOTE

• The display may look the same for Wide, Original, and 1:1 options at the recommended resolution (3440 x 1440).
  • The ratio is disabled in the interlaced signal.

Function

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Function by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Function MaxxAudio > Reader Mode Off > Picture Mode Custom > SMART ENERGY SAVING Low > PBP Screen Settings Reset ▲/▼: Move ●/►: OK ◄: Back

Each option is described below.

Menu > Function Description
MaxxAudio(Move the joystick to▲ in the main menu to enter the function directly.)	MaxxAudio On	MaxxAudio® by	Waves, recipient of a Technical GRAMMYAward® is a suite of studio-quality sound tools for a superior listening experience.
		Off Disables	the MaxxAudio function.
	MaxxAudio Settings	The user can set the sound quality manually.
		MaxxBass Bass Enhancement.
		MaxxTreble Treble Enhancement.
		MaxxDialog Dialog Enhancement.
		Maxx3D Enhances the three dimensional effect of the sound.
		Reset Returns the sound quality to the default settings.
	Midnight Mode	Lets you enjoy rich and full sound at a low volume.
Reader Mode Reader	1 Optimizes the screen for browsing newspapers. You can brighten the screen in the OSD menu.
	Reader 2 Optimizes the screen for looking at cartoons. You can brighten the screen in the OSD menu.
	Reader Off Reader Mode is off.
Picture Mode	Custom	Allows the user to adjust settings. You can adjust the color mode of the main menu.
	Photo Optimizes the screen for photos.
	Cinema Optimizes the screen for videos.
	Game	Optimizes the screen for games.
SMART ENERGY SAVING	High	Saves energy using the high-efficiency SMART ENERGY SAVING feature.
	Low	Saves energy using the low-efficiency SMART ENERGY SAVING feature.
	Off	Disables the SMART ENERGY SAVING feature.

PBP

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to PBP by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

PBP PBP Off > Input > Audio HDMI1 > Swap Sub Full Ratio > PBP Preview HDMI1 ▲/▼: Move ○/▼: OK ←: Back Easy control Function PBP Screen Settings Reset

Each option is described below.

Menu > PBP Description
PBP Displays the screens of two input modes on one monitor.
PBP Connection		Sub Screen (Right)
		HDMI 1 HDMI 2 DisplayPort			Thunderbolt (A)(only 34UC97 model)
Main Screen(Left)	HDMI 1	- O X X
	HDMI 2	O	-	X	X
	DisplayPort	O O - X
	Thunderbolt (A)(only 34UC97 model)	O O X -
Input Main Selects the video signal input of the main screen.
Sub	Selects the video signal input of the sub screen.
Audio	Changes the audio output in PBP mode.
Swap	Toggles between the main screen and sub screen in PBP mode.
Sub Full	Converts the sub screen in PBP mode to wide screen.

Menu > PBP Description
Ratio Adjusts the aspect ratio of the main screen or sub screen.
	Main Wide Displays the video to fit the PBP screen, regardless of the video signal input.
	Sub Wide Displays the video to fit the PBP screen, regardless of the video signal input.

NOTE

• When the PBP mode is Off, Input, Audio, Swap, Sub Full, and Ratio menus become disabled. The Main/Sub options for Ratio become disabled if there is no signal.
• The optimal resolution for PBP mode is set automatically when PBP mode is set. (only 34UC97C model)


1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Screen > Picture by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Picture Sharpness 5 > Black Level High > Response Time Middle > ▲/▼: Move ○/▶: OK ← Back

Each option is described below.

Menu > Screen > Picture Description

Sharpness Adjusts the sharpness of the screen.

Black Level Sets the offset level (for HDMI only).Offset: as a reference for a video signal, this is the darkest color the monitor can display.

High The picture of the screen gets brighter.

Low The picture of the screen gets darker.

Response Time Sets a response time for displayed pictures based on the speed of the screen.For a normal environment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that you use high.Setting to High may cause image sticking.

High Sets the response time to High.

Middle Sets the response time to Middle.

Low Sets the response time to Low.

Off Does not use the response time improvement feature.

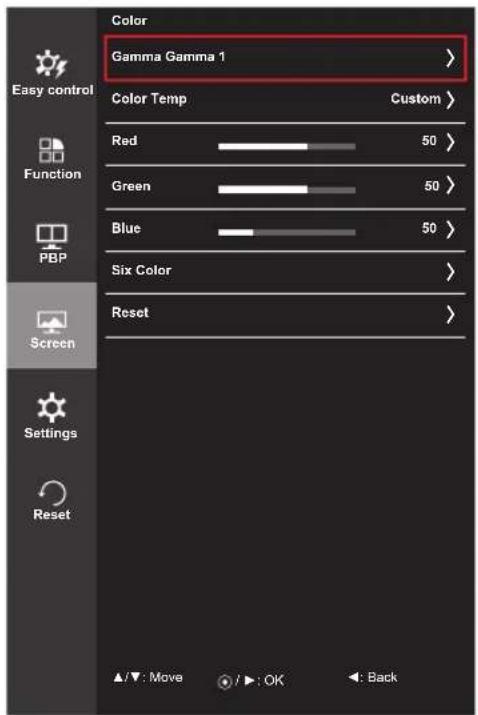

Color

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Screen > Color by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to until you exit.

Color Gamma Gamma 1 > Color Temp Custom > Red 50 > Green 50 > Blue 50 > Six Color > Reset > ▲/▼: Move / ▶: OK ←: Back Easy control Function PBP Screen Settings Reset

Each option is described below.

Menu > Screen > Color	Description
Gamma Custom gamma	settings: When using the gamma 0, gamma 1, and gamma 2 monitor settings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Custom The	user can adjust it to red, green, or blue by customization.
	Warm Sets the screen color to a reddish tone.
	Medium Sets the screen color to between a red and blue tone.
	Cool Sets the screen color to a bluish tone.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color	Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue, cyan, magenta, and yellow) and then saving the settings.
	Hue Adjusts the tone of the screen colors.
	Saturation Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher the value, the more saturated and darker the colors become.
Reset Returns color to the default settings.

Settings

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Settings by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (OK) it.
5 If you want to exit the OSD menu, move the joystick to until you exit.

Settings Language English > Power LED On > Automatic Standby Off > DisplayPort 1.2 Disable > OSD Lock Off > ▲/▼: Move ●/ ▶: OK ◀: Back

Each option is described below.

Menu > Settings Description
Language Sets the	menu screen to the desired language.
Power LED Turns the	power LED on the front of the monitor on or off.
	On The power LED turns on automatically.
	Off The power LED turns off.
Automatic Standby	Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
DisplayPort 1.2 Enables or disables DisplayPort 1.2.
	NOTEBe sure to configure this option according to the DisplayPort version supported by your graphics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
OSD Lock Prevents	incorrect key input.
	On Disables key input
	Off Enables key input
	NOTEfeatures are disabled except Brightness, Contrast, Volume, Input, OSD Lock in Settings, I the Exit button.

Reset

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Reset by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (◎ OK) it.
5 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

Reset Do you want to reset your settings? Reset Cancel ▲/▼: Move ○/ ▶: OK ◀: Back

Each option is described below.

Menu > Reset Description

Do you want to reset your settings?

Reset Restores the default settings.

Cancel Cancel the reset.

TROUBLESHOOTING

Nothing is displayed on the screen.
Is the monitor's power cord plugged in?	Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?	Check the power cable connection and press the power button.
Is the power on and the power LED displaying white?	Check that the connected input is enabled (Menu - Input).
Is the power LED blinking?	If the monitor is in sleep mode, move the mouse, or press any key on the keyboard, to switch the display on.Check if the computer is turned on.
Is the OUT OF RANGE message being displayed?	This occurs when signals transferred from the PC (video card) are out of the horizontal or vertical frequency range of the monitor.Please see the Product Specification section of this manual to set the appropriate frequency.
Is the No Signal message being displayed?	This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
The screen may not be displayed properly when configuring DisplayPort 1.2 in a Mac product.	DisplayPort 1.2 may not be supported depending upon the Mac product. Please contact the manufacturer.

The OSD Lock message is being displayed.
Are some functions not available when you press the Menu button?	• The OSD is locked. Go to Menu > Settings and set OSD Lock to Off.

The screen retains an image.
Does image sticking occur even when the monitor is turned off?	Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.To extend the lifetime of the monitor, use a screensaver.

Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?	• If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.

NOTE

• Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate, and is represented by Hz.
• Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal frequency and is represented by kHz.

NOTE

• Check if the video card's resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution in Control Panel > Display > Settings.
• Not setting the video card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the video card. If this is the case, contact the manufacturer of the computer or video card for assistance.
• Some video cards may not support 3440 x 1440 resolution. If the resolution cannot be displayed, contact the manufacturer of your video card.

The display color is abnormal.
Does the display appear discolored (16 colors)?	Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Settings > Color Quality.
Does the display color appear unstable or monochrome?	Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's video card.
Are there spots on the screen?	When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.

No sound from the headphone port.
Are images displayed using DP (DisplayPort) or HDMI input without sound?	Make sure that the headphone port connections are made properly.Try increasing the volume with the joystick.Set the audio output of the PC to the monitor you are using. On Microsoft Windows, go to Control Panel > Hardware and Sound >Sound > set the monitor as default device.

PRODUCT SPECIFICATION

34UC97

LCD Screen Type TFT (Thin Film Transistor)
Resolution HDMI Max Resolution 3440 x 1440 @ 50 Hz
			Recommended Resolution 3440 x 1440 @ 50 Hz
			Max Resolution 3440 x 1440 @ 60 Hz
			Recommended Resolution 3440 x 1440 @ 60 Hz
Video Signal Horizontal Frequency 30 kHz to 90 kHz
Input Connector	H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, Thunderbolt ( ), USB UP, USB IN 1, 2
Power Sources	Power Rating	19 V --- 6.0 A
	Power Consumption (Typical)	Operating Mode: 80 W (Typical, USB excluded) (Outgoing condition)Sleep Mode ≤ 1.2 WOff Mode ≤ 0.5 WOff Mode ≤ 0.3 W (DC switch is off.)
AC/DC Adapter	LCAP31 type, manufactured by LienchangOutput: 19 V --- 7.37 A
Stand Angle	Forward/Backward: -5° to 15° (Head)
Environmental Conditions	Operating Conditions	Temperature 0°C to 40°CHumidity Less than 80%
	Storing Conditions	Temperature -20°C to 60°CHumidity Less than 85%
Audio Output	7 W + 7 W
Supported Operating System	Win 7, Win 8.1, Mac OS*

Dimensions	Monitor Size (Width x Height x Depth)
	With Stand 830.5 mm x 472	9 mm x 225.6 mm
	Without Stand	830.5 mm x 370.3 mm x 99 mm
Weight (Without Packaging)	With Stand 9.0 kg
	Without Stand	8.25 kg

Specifications are subject to change without notice.
* In accordance with Mac products may not support the recommended resolution or the some features.
(For more information, refer to the support information card of Mac which is provided separately.)

34UC97C

LCD Screen Type TFT (Thin Film Transistor)
Resolution HDMI Max Resolution 3440 x 1440 @ 50 Hz
Video Signal Horizontal Frequency 30 kHz to 90 kHz
Input Connector	H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, USB UP, USB IN 1, 2
Power Sources	Power Rating	19 V --- 4.0 A
	Power Consumption (Typical)	Operating Mode: 70 W (Typical, USB excluded) (Outgoing condition)Sleep Mode ≤ 1.2 WOff Mode ≤ 0.5 WOff Mode ≤ 0.3 W (DC switch is off.)
AC/DC Adapter	ADS-110CL-19-3-190110G type, manufactured by HonorOutput: 19 V --- 5.79 A
Stand Angle	Forward/Backward: -5° to 15° (Head)
Environmental Conditions	Operating Conditions	Temperature 0°C to 40°CHumidity Less than 80%
	Storing Conditions	Temperature -20°C to 60°CHumidity Less than 85%
Audio Output	7 W + 7 W
Supported Operating System	Win 7, Win 8.1, Mac OS

Dimensions	Monitor Size (Width x Height x Depth)
	With Stand 830.5 mm x 472.9 mm x 225.6 mm
	Without Stand	830.5 mm x 370.3 mm x 99 mm
Weight (Without Packaging)	With Stand 9.0 kg
	Without Stand	8.25 kg

Specifications are subject to change without notice.

Factory Support Mode

34UC97

(Preset Mode, HDMI/ DisplayPort/ Thunderbolt PC)

34UC97C

(Preset Mode, HDMI/ DisplayPort PC)

Preset Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Polarity (H/V)	Remarks
640 x 480 31.469 59.94	-/-
800 x 600 37.879 60.317	+/+
1024 x 768 48.363 60	-/-
1152 x 864 54.347 60.05	+/+
1280 x 720 45 60	+/+
1280 x 1024 63.981 60.02	+/+
1600 x 900 60 60	+/+
1680 x 1050 65.29 59.95	-/+
1920 x 1080 67.5 60	+/-
2560 x 1080 66.7 60	-/+
3440 x 1440 43.82 29.99	+/+
3440 x 1440 73.68 49.99	+/+
3440 x 1440 88.82 59.97	+/+ HDMI is not supported.

HDMI Timing (Video)

Preset Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Remarks
480p 31.5 60
720p 45 60
1080p 67.5 60

Power LED

Mode LED Color
On Mode White
Sleep Mode Flashing White
Off Mode Off

PROPER POSTURE

Proper Posture for Using the Monitor

Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye level.

• Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged usage.
- Adjust the stand angle from -5^ to 15^ to obtain the best view of the screen.

You should be looking slightly down at the screen.

Illustration of a person using a computer with annotated arrows indicating measurement or navigation points.

Stand Angle

-5° to 15°

Adjust the position of the screen to minimize reflections.

Place your hands gently on the keyboard, keeping your arms bent at the elbows and extended horizontally in front of you.

LG Life's Good

This device meets the EMC requirements for home appliances (Class B) and is intended for home usage. This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand. Please note that the label attached to the product provides information for technical support.

Model

Serial No.

ENERGY STAR is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency (EPA).

As an ENERGY STAR Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Refer to ENERGY STAR.gov for more information on the ENERGY STAR program.
